User Manual



DT590B/ DT592B/DT594B

BASIC OPERATION GUIDE

ENGLISH

INTRODUCTION

Thank you for acquiring DT Research’s medical cart computer medical cart computer. With a 19-inch,

22-inch or 24-inch TFT display and powered by the Intel Core™ i7 processor, the medical cart computer

offers optimal combinations of performance and power savings. With fully-integrated point-of-care modules

within an elegant, space-saving design, the medical cart computer is the optimum solution to enhance

workflow and service.

Please take a few moments to review the contents of this document to ensure that the setup and startup

proceed smoothly. The medical cart computer medical cart computer is ready for use, out of the box, in its

default configuration when powered by the power source provided. The following discussion offers guidance

on the hardware elements and features of the computer. Please refer to your device provider for information

pertaining to the software operating system or software applications.

Package Contents

One DT590B, DT592B or DT594B

Three DR202 Li-ion batteries (optional)

AC-DC power adapter with power cord

Basic operation guide



DT590B/ DT592B/ DT594B



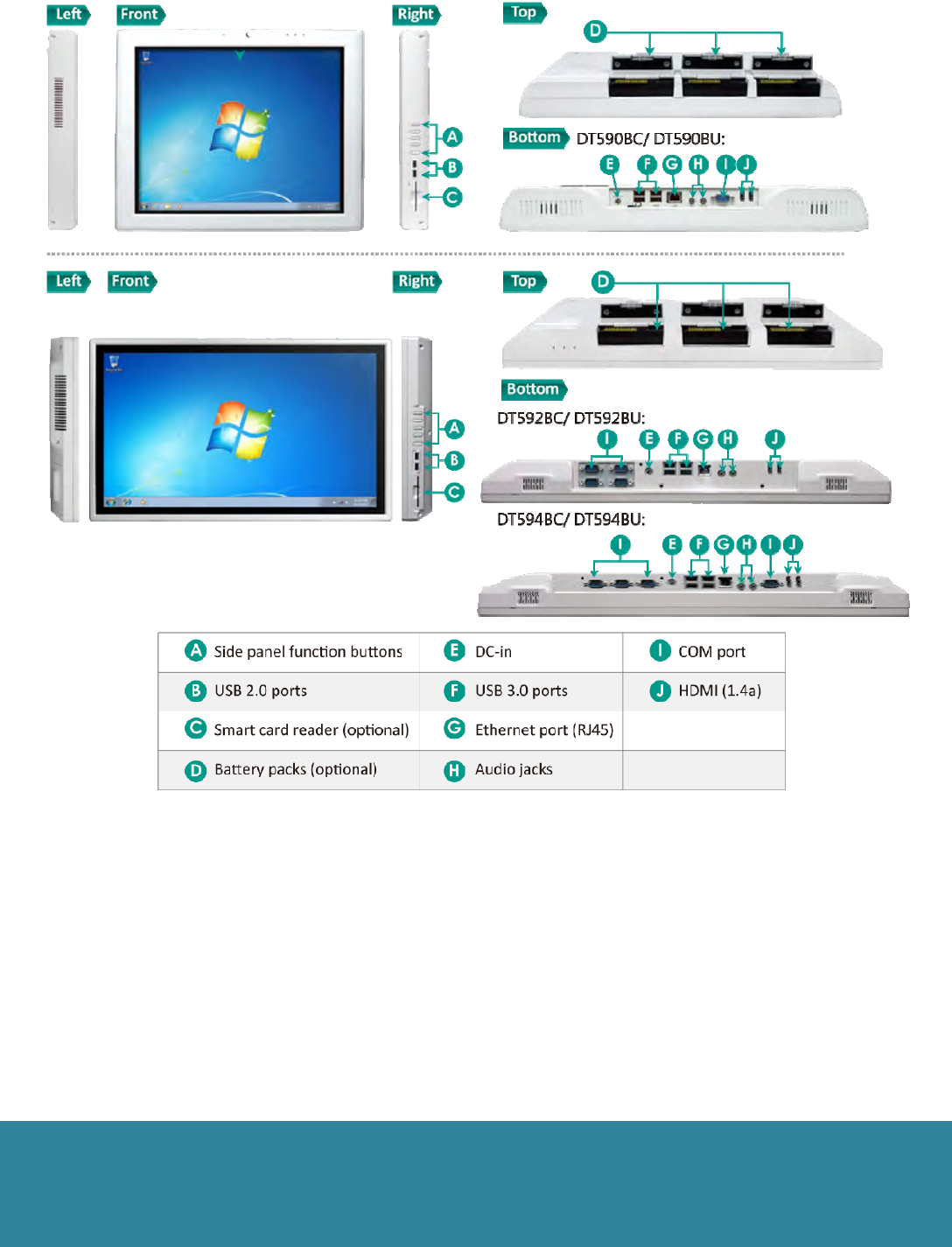

I/O Ports:

The medical cart computer has a comprehensive set of I/O ports. The following ports are located along the lower rear

edge of the display unit.

Cleaning the Screen:

• A screen cleaning solution that is non-alcohol and non-abrasive can be used to clean the touch screen.

• We suggest cleaning with a micro-fiber cloth.

• Please spread the solution on to the cloth and then clean the touch screen.



Cleaning the Anti-microbial Enclosure:

•Useasoft/non‐abrasiveclothmoistenedwithwatertocleantheenclosure.

•Ifusingacleaner,analcohol‐freeandoxide‐freecleaningliquidisrecommended.

•Topreventscratchingtheanti‐microbialcoating,pleasewipegently.



ENGLISH 2

DT590B/ DT592B/ DT594B



Precautions:

Always exercise care when operating • and handling the medical cart computer.

• Never disassemble any portion of the enclosure, as this will void any product warranty on the medical cart computer.

• Do not use any AC/DC adapter other than the one provided with the device or a replacement acquired from the

manufacturer.

• In the unlikely event that smoke, abnormal noise or strange odor is present, immediately power down the medical

cart computer and disconnect all power sources. Please report the problem to your device provider immediately.

Basic Features

The medical cart computer integrates a bright 19”, 22” or 24” display with optional capicitive touch, USB ports, and is

complemented by a smart card reader option for comprehensive point-of-care applications.

Powering ON and OFF

If your medical cart computer comes with the battery packs, please open the battery slot caps and then put in the battery

packs one by one. If not, please use the AC-DC adapter with the medical cart computer for the power supply. To activate

the medical cart computer, push and quickly release the Power Button and the display will come on in a few seconds. To

put in Standby mode, push and quickly release the Power Button. To turn off for extended storage, power off the device

safely using any software function that “shuts down computer” provided in the software operating system.

NOTE:

The battery packs shipped with your device may be low in power—please use the AC-DC adapter with

the medical cart computer when setting up the device for the first time to fully charge the internal battery

packs.

NOTE:

When the battery pack(s) is (are) charging, the blue-colored Battery LED should blink slowly. If plugging

in the AC-DC adapter does not trigger this blinking activity and the LED stays dark, the battery pack(s)

may have been drained substantially. Try unplugging/ replugging the AC-DC adapter to the medical cart

computer a few times to activate the charging process.

NOTE:

To conserve power, use (push and quick release) the Power Button to put the device in “Standby”mode

while not in use. Pushing briefly on the same button will wake up the system within seconds.

NOTE:

Avoid using the Power Button (“hold 4+ seconds” feature) to turn off the device—this form of hardware

shutdown is intended to be a means of recovery from device lockups, and not as normal operation.

ENGLISH 3

DT590B/ DT592B/ DT594B



Power/Battery LED Status

• Blue indicates the battery is 25% to 100% charged

• Blinking blue indicates the battery is charging

• Orange indicates that the battery is between 11% to 25%

• Blinking Orange indicates that the battery is below 10%

Wireless Networking

Wireless LAN

The medical cart computer is often delivered with an embedded (user-inaccessible) 802.11ac WLAN adapter equipped

with a hidden custom antenna.

• Through the support of typical WLAN adapters, the medical cart computer should be able to detect all 802.11

access points in the vicinity for you to select the access point of your choice for connection.

• The SSID and WEP/WPA/WPA2 (if enabled) parameters on the medical cart computer and the access points have

to match. The SSID is case-sensitive and it is recommended that you enable WEP/WPA/WPA2 encryption (or

advanced alternatives) for secure access.

• When WEP/WPA/WPA2 is enabled, you may need to consult your network administrator or your networking

equipment literature to properly configure associated settings such as Authentication mode, etc.

• Refer to the access point operating manuals for setting up the 802.11 access points.

Bluetooth

The medical cart computer features a built-in Bluetooth adapter that operates on the Microsoft Windows Bluetooth

protocol. The Bluetooth configuration application is invoked from the System Tray or from the Control Panel. Follow the

instructions and options provided within the application to configure and invoke Bluetooth connectivity with the

corresponding peripherals.

NOTE:

Bluetooth devices or accessories that are not compatible with the Microsoft Windows Bluetooth protocol

may not work with the medical cart computer.

ENGLISH 4

DT590B/ DT592B/ DT594B



SPECIFICATIONS:

Iten DT590B DT592B DT594B

CPU Intel® Core™ i7, 2.4GHz

Intel® Core™ i7, 2.4GHz

RAM 4GB to 16GB 4GB to 16GB 4GB to 16GB

Storage 64GB to 256GB Flash 64GB to 256GB Flash 64GB to 256GB Flash

Operating

System Microsoft® Windows® 7 Professional 或Windows® 8.1 Pro Industry

Display 19" TFT-LCD 21.5" TFT-LCD 23.6" TFT-LCD

Display

Resolution 1280 X 1024 1920 X 1080 1920 X 1080

Touch Screen Optional capacitive touch Optional capacitive touch Optional capacitive touch

Network

Interface Ethernet 10/ 100/ 1000 MB Base-T LAN; Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band;

Bluetooth Bluetooth 4.0 LE Bluetooth 4.0 LE Bluetooth 4.0 LE

Control Buttons 5 side buttons: 1 power and 4 functional

buttons

5 side buttons: 1 power and 4 functional

buttons

5 side buttons: 1 power and 4 functional

buttons

Speaker Built-in speaker Built-in speaker Built-in speaker

I/O Ports

USB Port 2 (USB 2.0)，4 (USB 3.0) 2 (USB 2.0)，4 (USB 3.0) 2 (USB 2.0)，4 (USB 3.0)

COM Port 1 4 4

HDMI (1.4a) 2 2 2

Microphone-in 1 1 1

Audio-out 1 1 1

Ethernet RJ45 connector for Ethernet x 1 RJ45 connector for Ethernet x 1 RJ45 connector for Ethernet x 1

DC-in 1 1 1

Mechanical and Environmental

Battery Pack DR202 Li-ion battery; 10.9V, 7800mA x 3

(optional)

DR202 Li-ion battery; 10.9V, 7800mA x 3

(optional)

DR202 Li-ion battery; 10.9V, 7800mA x 3

(optional)

AC/DC Adapter Input: 100 – 240V AC;

Output: 19V DC, 6.31A

Input: 100 – 240V AC;

Output: 19V DC, 6.31A

Input: 100 – 240V AC;

Output: 19V DC, 6.31A

Enclosure ABS + PC plastics, anti-microbial plastics ABS + PC plastics, anti-microbial plastics ABS + PC plastics, anti-microbial plastics

Dimensions

(H x W x D) 14.9 x 17.7 x 2.2 in/ 380 x 450 x 65mm 12.5 x 20.8 x 2.3 in/ 318 x 529 x 58 mm 14.2 x 22.9 x 2.3 in/ 361 x 582 x 57 mm

Weight 15.4 lbs/ 7kg 14.3 lbs/ 6.5 kg 20.5 lbs/ 9.3 kg

Temperature Operation: 0°C – 40°C; Storage: -20°C – 60°C

Humidity 0% – 90% non-condensing

DT Research, Inc.

2000 Concourse Drive, San Jose, CA 95131

http://www.dtresearch.cn

ENGLISH 5

BOG08241559XEN



FCCRegulations:



Thisdevicecomplieswithpart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)

Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesiredoperation.



ThisdevicehasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttoPart

15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmfulinterferencein

aresidentialinstallation.Thisequipmentgenerates,usesandcanradiatedradiofrequencyenergyand,ifnot

installedandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallationIf

thisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedby

turningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreof

thefollowingmeasures:



‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser‘s

authoritytooperatetheequipment.







RFExposureWarning



Thisequipmentmustbeinstalledandoperatedinaccordancewithprovidedinstructionsandtheantenna(s)

usedforthistransmittermustbeinstalledtoprovideaseparationdistanceofatleast20cmfromallpersons

andmustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaortransmitter.End‐usersand

installersmustbeprovidewithantennainstallationinstructionsandtransmitteroperatingconditionsfor

satisfyingRFexposurecompliance.


