DTE Automation IS-TR-241 IS-TR-241 User Manual IS TR 241 Ver2 2
DTE Automation GmbH IS-TR-241 IS TR 241 Ver2 2
manual
DTE Automation GmbH
DTE Automation GmbH http://www.dte.de Phone: +49-5221-1012200
Heidestr. 38 Fax: +49-5221-1012201
32051 Herford info@dte.de
Germany
IS-TR-241
User Manual Version 2.2
FCC ID: PMF-IS-TR-241
DTE Automation GmbH
Version 2.2 Page 2
Table of Contents
I Introduction.............................................................................................................................3
II Function................................................................................................................................4
III Reader Configuration..............................................................................................................5
IV Configuration Bytes...............................................................................................................6
CFG0...........................................................................................................................6
CFG1...........................................................................................................................8
CFG2...........................................................................................................................8
CFG3...........................................................................................................................8
CFG4...........................................................................................................................9
CFG5...........................................................................................................................9
CFG6...........................................................................................................................9
CFG7...........................................................................................................................9
V Protocol................................................................................................................................10
VI Protocol Syntax....................................................................................................................11
VII Commands Overview ............................................................................................................12
VIII Technical Data....................................................................................................................15
Dimension / Weight.......................................................................................................15
Hardware......................................................................................................................15
Connector assignment...................................................................................................16
DTE Automation GmbH
Version 2.2 Page 3
Introduction
I Introduction
This manual covers the function and the configuration information of the IS-TR-241 reader.
FCC Note
FCC ID: PMF-IS-TR-241
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and,
2. This device must accept any interference received including interference that may cause undesired
operation.
NOTE: "Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment."
"We, DTE Automation GmbH, Heidestr. 38, 32051 Herford, Germany, declare that the IS-TR-241 will be
marketed with the ferrites:
- DC power cable with ferrite 18 coils, Ferrite type 7427015 (Würth Elektronik)
- RS232 cable with ferrite 5 coils, Ferrite type 7427014 (Würth Elektronik)
- Control cable with ferrite 5 coils, Ferrite type 7427014 (Würth Elektronik)
fitted to the supplied cables as indicated in the test report for this product. The product must be fitted at
installation to ensure compliance with the CFR 47, Part 15, Subpart C for FCC ID: PMF-IS-TR-241.
Please note that the unit does not comply with Part 15, Subpart C without these ferrites installed as
indicated."
Warnings
Under no circumstances try to open the IS-TR-241. Electrical safety cannot be guaranteed if the device
is opened by a non-expert. Your health and life are endangered due to high voltage in the electronics.
In case of damage do not continue to use the devices. Send back the device to your local distributor or -
along with a copy of the invoice - to DTE Automation GmbH in Herford, Germany for service support.
Do not dip the device into water. Since it is only protected against water splash and rain, serious
damages may occur when using or storing this device under water.
Only use original cables and spare parts with this device.
Copyright
Copyright © 2002 by DTE Automation GmbH. All rights reserved. This manual is copyrighted works of
DTE Automation GmbH.
IBM PC is registered trademark of International Business Machines Corp. TIRIS is a trademark of Texas
Instruments Inc. DTE GmbH acknowledges that some other names referred to are registered
trademarks.
DTE Automation GmbH
Version 2.2 Page 4
Function
II Function
Basically, the reader works in a continuous read mode. In this mode the green LED is always on.
At power up or after restart (use the restart button) the reader can read a configuration transponder to
get new settings. After reading the new configuration, the reader goes into normal operation mode.
Whenever a transponder appears, the reader reads its level and wedge information out of the
transponder. If the level and wedge number is the same as stored in its configuration block the drop
(relay 1) will be switched on and the red LED turns on, otherwise the no drop (relay 2) will be switched
on and the yellow LED turns on.

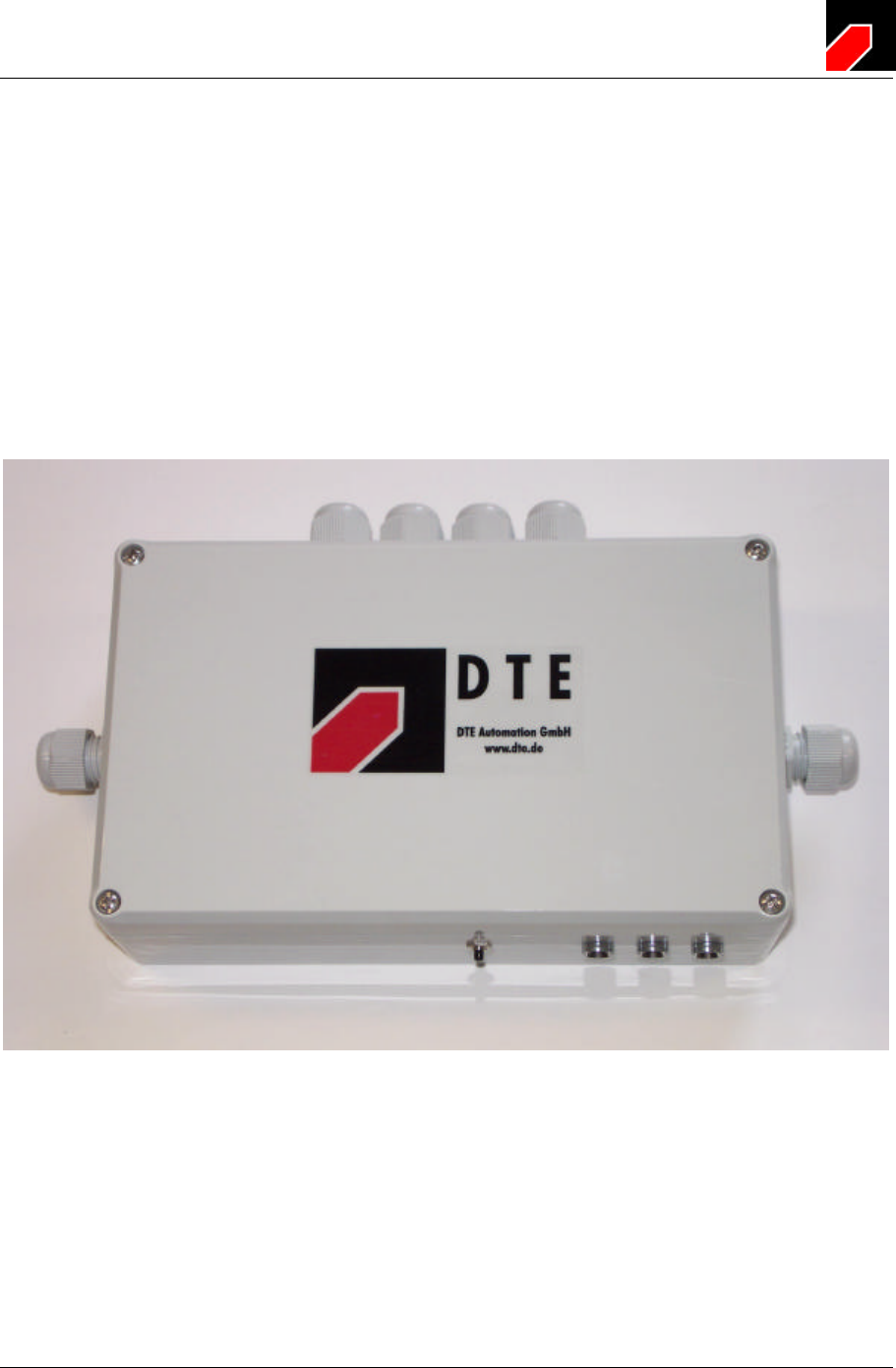

IMPORTANT: The antenna is integrated in the center of the upper shell of the housing. The
best read range is achieved, when the glass transponder points to antenna.
DTE Automation GmbH
Version 2.2 Page 5
Reader Configuration
III Reader Configuration
At power up or after reset the reader tries to read for a fixed duration of 5 seconds the configuration page
of the transponder. If there is a valid block (checksum ok), the reader stores the configuration in its non
volatile memory.
There are 8 configuration bytes.
Table:
CFG0 operating mode
CFG1 lane full trigger time or read trigger time (depends on operating mode)
CFG2 lane free trigger time or read error time (depends on operating mode)
CFG3 relay 1/2 delay time
CFG4 relay 1/2 on time
CFG5 level number
CFG6 wedge number
CFG7 checksum
DTE Automation GmbH
Version 2.2 Page 6
Configuration Bytes
IV Configuration Bytes
CFG0
OPERATING_MODE
Description:
This byte specifies the operating mode of the reader:
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Stand
Alone Front
Key reserved Lane Beep Error Trigger
Bit 0
Trigger Function
0 ignore trigger sensor (continuous read)
1 enable read trigger sensor (input 1)
Bit 2 Bit 1
Error Function
0 0 no error handling
0 1 set error output (beep) and error (relay 4 ) for
ERR_TIME
1 0 set error output (beep) and error (relay 4), must be
externally accepted by sensor (input 2) or with a
short press at the front button
Bit 3
Beep Function
0 no beep
1 beep if wedge information is valid
Bit 4
Beep Function
0 enable lane full sensor (input 3)
1 ignore lane full sensor
Bit 6
Beep Function
0 enable front key for read configuration transponder
1 disable front key
DTE Automation GmbH
Version 2.2 Page 7
Bit 7
Beep Function
0 enable stand alone wedge mode
1 disable stand alone mode
Bit 5
reserved Function
0 reserved, do not use
The default settings are in bold characters.
DTE Automation GmbH
Version 2.2 Page 8
CFG1
LANE_FULL_TRIGGER_TIME (if lane full sensor enabled, bit 4 operating mode = 0)
Description:
This byte specifies the valid trigger time for the lane full sensor (input 3). If the senor is active for a
LANE_FULL_TRIGGER_TIME period, the lane full (relay 3) will be turned on. If so, each
transponder, valid or not, activates the no drop (relay 2) function. Valid values are 0 to 255. That
means the lane full trigger time can range between 0 and 25.5 seconds.
TRIGGER_TIME (if trigger selected , bit 0 operating mode = 1)
Description:
This byte specifies the valid trigger time. If the trigger mode is enabled and an external trigger
signal occurs (input 1) the trigger timer starts. Within the TRIGGER_TIME a wedge transponder
(valid or not valid) must be read, otherwise the error output will be set as specified in the
OPERATING_MODE. Valid values are 0 to 255. That means the trigger time can range between 0
and 25.5 seconds.
In trigger mode the green LED flashes if the reader starts the read cycle.
CFG2
LANE_FREE_TIME (if lane full sensor enabled, bit 4 operating mode = 0)
Description:
This byte specifies the valid trigger time where the lane full sensor must be inactive, to turn off the
lane full (relay 3) function. After this, a valid transponder activates the drop (relay 1) function.
Valid values are 0 to 255. That means the err time can range between 0 and 25.5 seconds.
ERR_TIME (if trigger and err time selected)
Description:
This byte specifies the err time x 100 milliseconds for the error output signal (internal buzzer and
relay 4). The output will be set if an error occurs.
Valid values are 0 to 255. That means the err time can range between 0 and 25.5 seconds.
CFG3
RELAY_DELAY_TIME
Description:
This byte specifies the relay delay time x 100 milliseconds for a wedge number.
Valid values are 0 to 255. That means the delay time can range between 0 and 25.5 seconds.
The delay time will be used for the drop (relay 1) and no drop (relay 2) function.
NOTE:
If the relay delay timer is running, no new wedge transponder will be read!
DTE Automation GmbH
Version 2.2 Page 9
CFG4
RELAY_ON_TIME
Description:
This byte specifies the relay on time x 100 milliseconds for a wedge number after the delay time
has reached. Valid values are 0 to 255. That means the relay on time can range between 0 and
25.5 seconds. If the relay on time is equal 0, the relay on function is disabled.
The relay on time will be used for the drop (relay 1) and no drop (relay 2) function.
CFG5
LEVEL_NUMBER
Description:
This byte specifies the level number of the reader. The level value can range from 0 to 128.
Level 0 means the wedge function is disabled.
CFG6
WEDGE_NUMBER
Description:
This byte specifies the wedge number of the reader. The Wedge value can range from 0 to 255.
Wedge 0 means the wedge function is disabled.
CFG7
CHECKSUM
Description:
This byte is the checksum for the above configuration bytes. It must be valid, otherwise the reader
ignores the new configuration information. The checksum is calculated as follows:
CFG7 = NEG (CFG0 XOR CFG1 XOR CFG2 XOR CFG3 XOR CFG4 XOR CFG5 XOR CFG6)
DTE Automation GmbH
Version 2.2 Page 10
Protocol
V Protocol
Basically, the protocol in the Reader works in a polling mode.
It is necessary to give a level and a wedge number to each Wedge Reader.
Level number: 1.....128
Wedge number: 1…255
This lets the PC manage more than one Wedge Reader at one serial port. The PC 'polls', which means
the PC sends messages to all the readers that are connected to the serial port, one after another.
It is also possible to start a GENERAL POLL. Level number 0 and Wedge number 0 are dedicated to
this feature. If, for example, the PC polls for the Level 0 / Wedge 0, every reader answers this call.
Several readers answering at the same time will cause a data collision on the BUS. The PC will
recognise this, and by special polling, be able to identify a specific Wedge Reader.
The serial port of the PC is used for transmitting data to the Wedge Reader unit. Usually this would be
COM1.
Parameters for the transmission are fixed to:
Baud Rate: 9600
Start Bit: 1
Data Bits: 8
Parity Bit: none
Stop Bits: 1
Interface to reader unit
The integrated signal converter can generate serial RS232 or RS422 level.
It can be changed with two jumpers. For more information contact our technical support.
Features
The number of net data bytes per second, compared with the protocol overhead, depends on the data
size of the command.
The typical reader reply time for a polling call is about 1 msec.
Only if the stand alone mode is disabled and no tag read or write command will be used.
Typ. Reply Time: 1 msec
Type Of Protocol: POLLING
Transmission Security Per Byte: none
Transmission Security Per Block: BCC (EXOR)
Block check character
Block length check
DTE Automation GmbH
Version 2.2 Page 11
Protocol Syntax
VI Protocol Syntax
The basic principle for communication is that the PC is always the MASTER, the Wedge Reader is
always the SLAVE. Every action is initiated by the PC. This is required by the polling mode.
There are COMMANDS from the PC to the reader and there are REPLIES from the reader to the PC.
COMMANDS and REPLIES consist of HEADER, DATA and END part. The HEADER is always the
same for all COMMANDS and REPLIES. The length of the transmitted DATA is coded in the HEADER.
If, in the following description, some parameters are not named, the parameter will not be evaluated by
the reader.
HEADER
STX, LEVEL-NUMBER, WEDGE-NUMBER, LENGTH,
Type Meaning Length in bytes
STX Start of Text, 02 Hex 1
LEVEL-NUMBER Level Number of the reader 1
WEDGE-NUMBER Wedge Number of the reader 1
LENGTH Length of DATA 1
DATA
COMMAND,[data,]
Type Meaning Length in bytes
COMMAND Command 1
[data] Depends on type of command variable
END
BCC
Type Meaning Length in bytes
BCC Block check character
XOR linking of the characters
after STX to BCC-1
1
DTE Automation GmbH
Version 2.2 Page 12
Commands Overview
VII Commands Overview
Command General
functions
0x21 get software version
0x22 enable stand alone mode (default)
0x23 disable stand alone mode
0x24 enable key for stand alone mode (default)
0x25 disable key for stand alone mode
0x26 read operating mode CFG0
0x26
+ 0bxxxxxxxx write operating mode and generate CFG7
CFG0
0x27 read configuration data CFG0 .. CFG7
0x27
+ 7 x data write configuration data and generate CFG7
CFG0 .. CFG6
Command Relay
functions
0x30 get relay states
0x30
+ 0b0000xxxx turn on/off relays directly
0x31 turn relay 1 on
0x32 turn relay 2 on
0x33 turn relay 3 on
0x34 turn relay 4 on
0x35 turn relay 1 off
0x36 turn relay 2 off
0x37 turn relay 3 off
0x38 turn relay 4 off
Command Led and buzzer
functions
0x40 get led status
0x40
+ 0b0000xxx turn on/off led directly
0x41 turn led 1 (green) on
0x42 turn led 2 (yellow) on
0x43 turn led 3 (red) on
0x44 turn led 1 (green) off
0x45 turn led 2 (yellow) off
0x46 turn led 3 (red) off
0x47 turn buzzer on
0x48 turn buzzer off
DTE Automation GmbH
Version 2.2 Page 13
DTE Automation GmbH
Version 2.2 Page 14
Command Optical isolated input
functions
0x50 get isolated input directly
0x51 get isolated input 1 with debounce
0x52 get isolated input 2 with debounce
0x53 get isolated input 3 with debounce
0x54 get isolated input 4 with debounce
Command internal key input
functions
0x56 get key input directly
0x57 get key input 1 with debounce
0x58 get key input 2 with debounce
0x59 get key input 3 with debounce
Command special
functions
0x61
+0bxxxxxxxx turn relay 2 on for x X 0.1 seconds
0x62
+0bxxxxxxxx turn buzzer on for x X 0.1 seconds
0x63
+0bxxxxxxxx turn relay 1 and red led on for x X 0.1 seconds
0x64
+0bxxxxxxxx turn relay 4 on for x X 0.1 seconds
Command Transponder read
functions
0x71
+ 0b000xxxxx read
page (1..17)
Command Transponder write
functions
0x72
+ 0b000xxxxx
+ 8 x data
write
+ page (1..17)
+ data
DTE Automation GmbH
Version 2.2 Page 15
Technical Data
VIII Technical Data
Dimension / Weight
200 mm x 120 mm x 60 mm (7.9” x 4.7” x 2.4”)
App. 810 g (28.3 oz.)
Hardware
Power supply 24 V DC
Powerful two RISC processor system
Internal watchdog
3 high power LED
Internal buzzer
1 key input (upper right)
4 relay output, 60V/2A DC, 125V/2A AC
4 optical isolated input
1 error acknowledge input
DTE Automation GmbH
Version 2.2 Page 16
Connector assignment
Power-Supply
1 + 24 V DC power input
2 + 24 V DC power input
3 GND power input
4 GND power input
5 connect with pin 6 (only if + 24 V DC power input)
6 connect with pin 5 (only if + 24 V DC power input)
7 + 12 V DC power input
8 + 12 V DC power input
9 GND power input
10 GND power input
INTERFACE
1 + 5 V DC
2 Txd + RS422
3 Txd - RS422
4 Rxd - RS422
5 Rxd + RS422
6 TXD RS232
7 RTS RS232 (set, when data send)
8 RXD RS232
9 CTS RS232 (not used)
10 GND
DTE Automation GmbH
Version 2.2 Page 17
INPUT
1 Optical isolated Input 1 +
2 Input 1 GND
3 Optical isolated Input 2 +
4 Input 2 GND
5 Optical isolated Input 3 +
6 Input 3 GND
7 Optical isolated Input 4 +
8 Input 4 GND
RELAY
1 Relay 1 break contact
2 Relay 1 turnkey contact
3 Relay 1 base contact
4 Relay 2 break contact
5 Relay 2 turnkey contact
6 Relay 2 base contact
7 Relay 3 break contact
8 Relay 3 turnkey contact
9 Relay 3 base contact
10 Relay 4 break contact
11 Relay 4 turnkey contact
12 Relay 4 base contact
