DXY Technology 021 DXY BLE MODULE User Manual DXYBT021 v1 1

DXY Technology Co.,Ltd. DXY BLE MODULE DXYBT021 v1 1

User Manual

DXYBT021OEM/INTEGRATORSINSTALLATIONS MANUAL
www.dxytech.com Tel:400-9900-108 1/7VERSION HISTORYVersionCommentV1.0First draftV1.1Add new pin out and modify some description

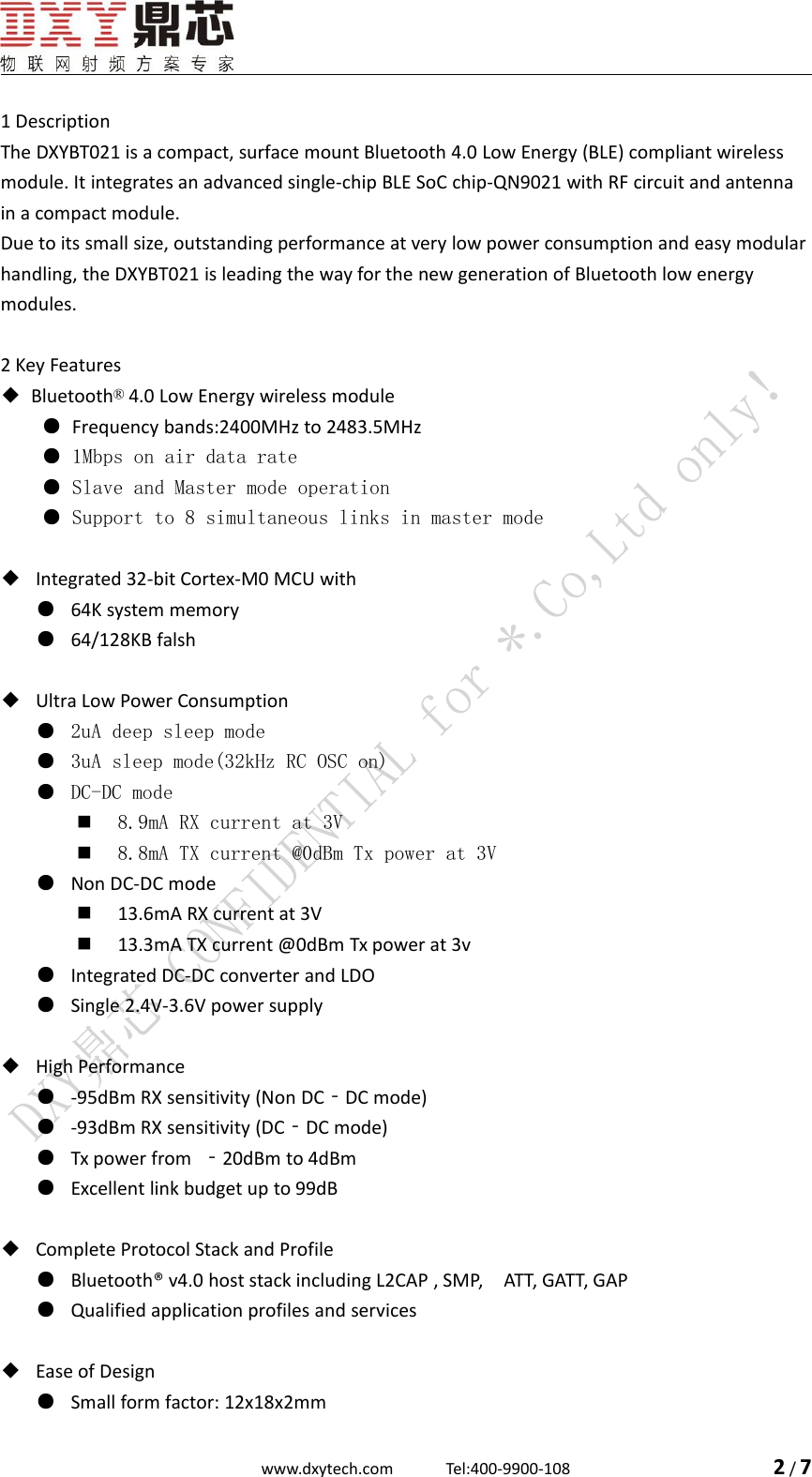

www.dxytech.com Tel:400-9900-108 2/71 DescriptionThe DXYBT021 is a compact, surface mount Bluetooth 4.0 Low Energy (BLE) compliant wirelessmodule. It integrates an advanced single-chip BLE SoC chip-QN9021 with RF circuit and antennain a compact module.Due to its small size, outstanding performance at very low power consumption and easy modularhandling, the DXYBT021 is leading the way for the new generation of Bluetooth low energymodules.2 Key Features◆Bluetooth®4.0 Low Energy wireless module●Frequency bands:2400MHz to 2483.5MHz● 1Mbps on air data rate● Slave and Master mode operation● Support to 8 simultaneous links in master mode◆Integrated 32-bit Cortex-M0 MCU with●64K system memory●64/128KB falsh◆Ultra Low Power Consumption● 2uA deep sleep mode● 3uA sleep mode(32kHz RC OSC on)● DC-DC mode8.9mA RX current at 3V8.8mA TX current @0dBm Tx power at 3V●Non DC-DC mode13.6mA RX current at 3V13.3mA TX current @0dBm Tx power at 3v●Integrated DC-DC converter and LDO●Single 2.4V-3.6V power supply◆High Performance●-95dBm RX sensitivity (Non DC‐DC mode)●-93dBm RX sensitivity (DC‐DC mode)●Tx power from ‐20dBm to 4dBm●Excellent link budget up to 99dB◆Complete Protocol Stack and Profile●Bluetooth® v4.0 host stack including L2CAP , SMP, ATT, GATT, GAP●Qualified application profiles and services◆Ease of Design●Small form factor: 12x18x2mm

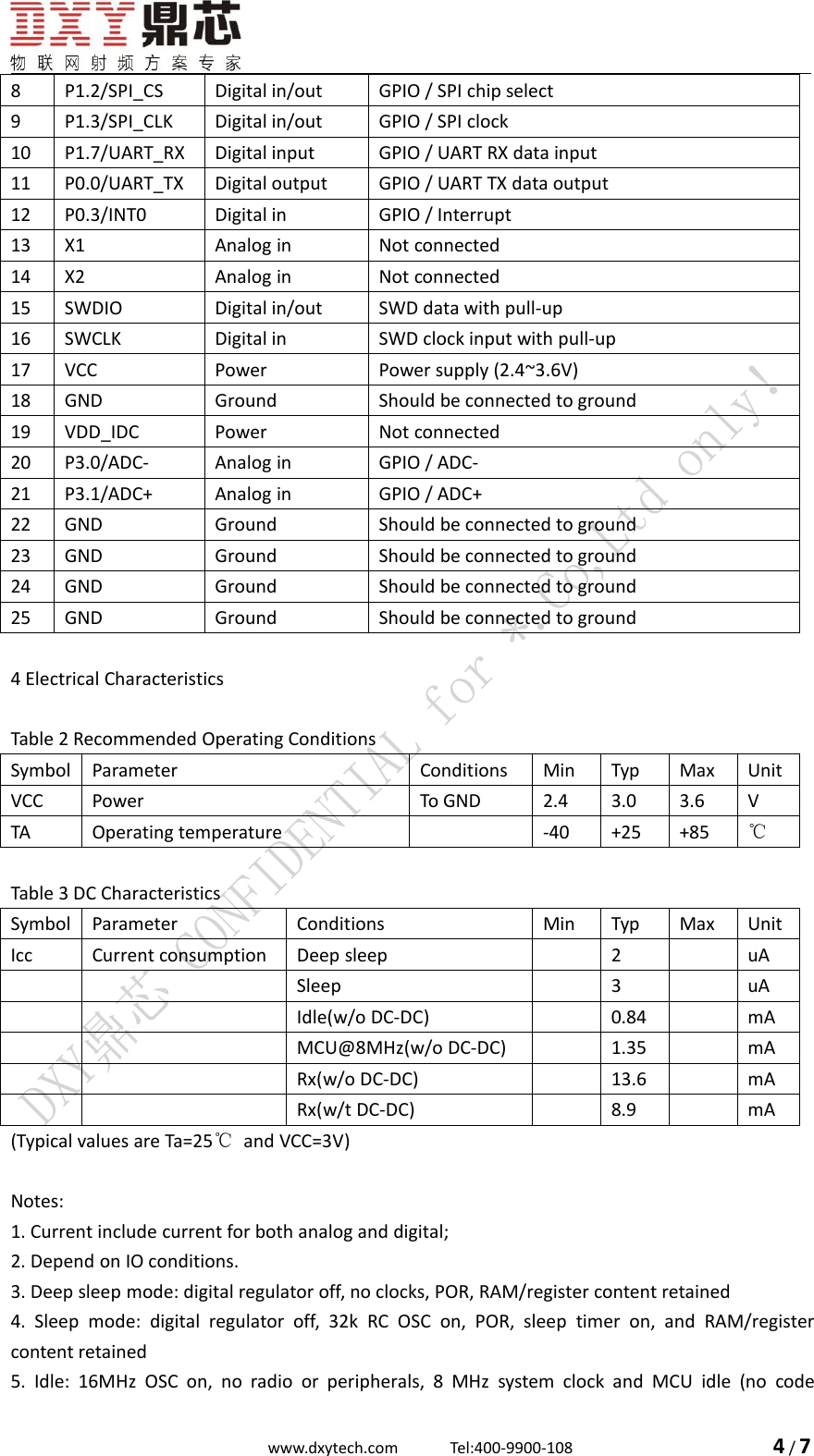

www.dxytech.com Tel:400-9900-108 3/7●Easy to use command set over UART/SPI to communicate with App MCU◆Application●Sports & Fitness●Healthcare & Wellness●Remote Control●PC Peripherals (mouse, keyboard)●Mobile Phone Accessories●Home/building Automation●Industrial automation●Wireless Sensor Networks3 Pin outTable 1 Pin out descriptionPinNameFunctionDescription1P2.4/I2C_SCLDigital in/outGPIO / I2C clock2/RSTNDigital in/outHardware reset, active low.3P2.3/I2C_SDADigital in/outGPIO / I2C data with pull-up4P2.6Digital in/outGPIO5P1.0/SPI_MISODigital in/outGPIO / SPI data master in/slave out6P2.7Digital in/outGPIO7P1.1/SPI_MOSIDigital in/outGPIO / SPI data master out/slave in
www.dxytech.com Tel:400-9900-108 4/78P1.2/SPI_CSDigital in/outGPIO / SPI chip select9P1.3/SPI_CLKDigital in/outGPIO / SPI clock10P1.7/UART_RXDigital inputGPIO / UART RX data input11P0.0/UART_TXDigital outputGPIO / UART TX data output12P0.3/INT0Digital inGPIO / Interrupt13X1Analog inNot connected14X2Analog inNot connected15SWDIODigital in/outSWD data with pull-up16SWCLKDigital inSWD clock input with pull-up17VCCPowerPower supply (2.4~3.6V)18GNDGroundShould be connected to ground19VDD_IDCPowerNot connected20P3.0/ADC-Analog inGPIO / ADC-21P3.1/ADC+Analog inGPIO / ADC+22GNDGroundShould be connected to ground23GNDGroundShould be connected to ground24GNDGroundShould be connected to ground25GNDGroundShould be connected to ground4 Electrical CharacteristicsTable 2 Recommended Operating ConditionsSymbolParameterConditionsMinTypMaxUnitVCCPowerTo GND2.43.03.6VTAOperating temperature-40+25+85℃Table 3 DC CharacteristicsSymbolParameterConditionsMinTypMaxUnitIccCurrent consumptionDeep sleep2uASleep3uAIdle(w/o DC-DC)0.84mAMCU@8MHz(w/o DC-DC)1.35mARx(w/o DC-DC)13.6mARx(w/t DC-DC)8.9mA(Typical values are Ta=25℃and VCC=3V)Notes:1. Current include current for both analog and digital;2. Depend on IO conditions.3. Deep sleep mode: digital regulator off, no clocks, POR, RAM/register content retained4. Sleep mode: digital regulator off, 32k RC OSC on, POR, sleep timer on, and RAM/registercontent retained5. Idle: 16MHz OSC on, no radio or peripherals, 8 MHz system clock and MCU idle (no code

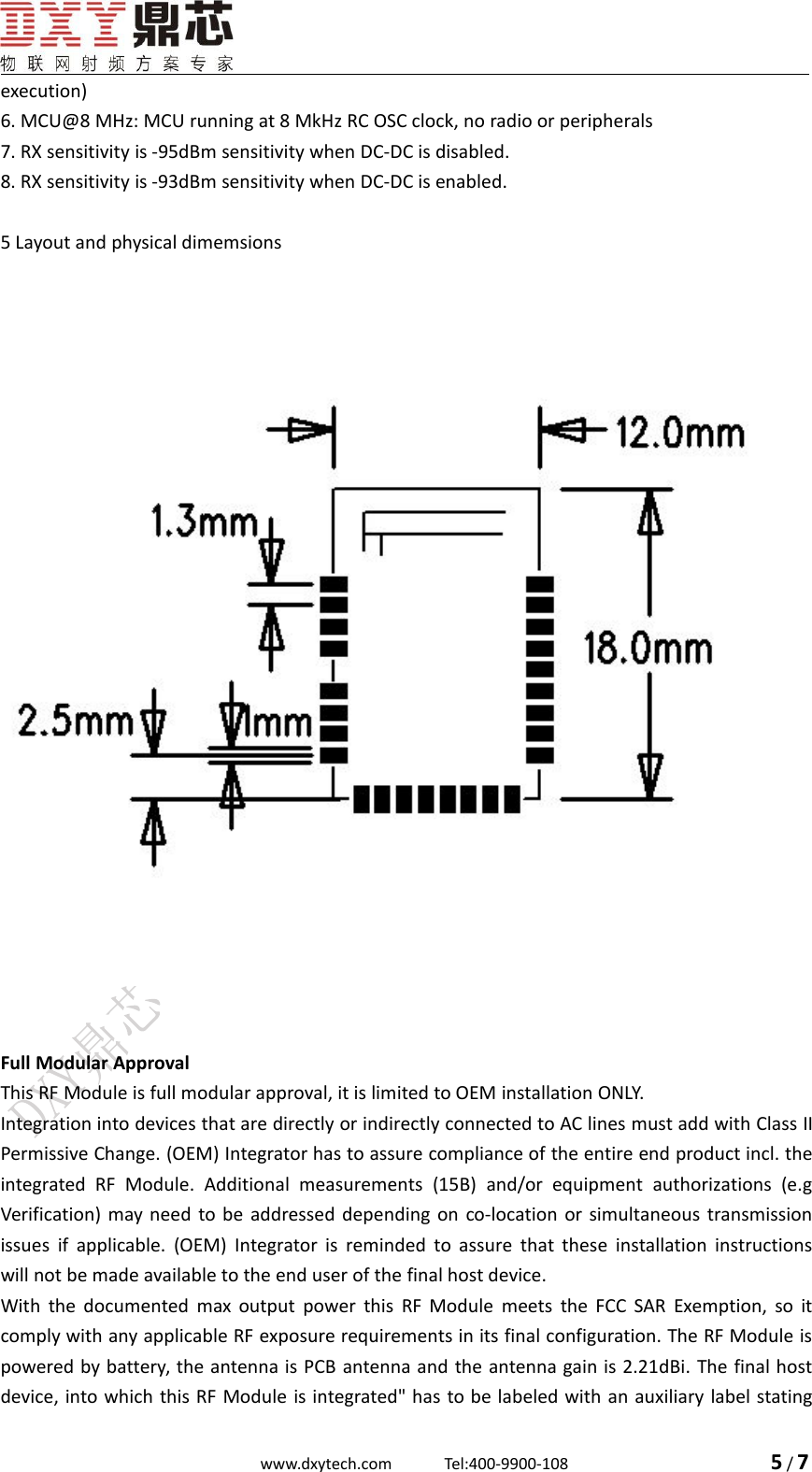

www.dxytech.com Tel:400-9900-108 5/7execution)6. MCU@8 MHz: MCU running at 8 MkHz RC OSC clock, no radio or peripherals7. RX sensitivity is -95dBm sensitivity when DC-DC is disabled.8. RX sensitivity is -93dBm sensitivity when DC-DC is enabled.5 Layout and physical dimemsionsFull Modular ApprovalThis RF Module is full modular approval, it is limited to OEM installation ONLY.Integration into devices that are directly or indirectly connected to AC lines must add with Class IIPermissive Change. (OEM) Integrator has to assure compliance of the entire end product incl. theintegrated RF Module. Additional measurements (15B) and/or equipment authorizations (e.gVerification) may need to be addressed depending on co-location or simultaneous transmissionissues if applicable. (OEM) Integrator is reminded to assure that these installation instructionswill not be made available to the end user of the final host device.With the documented max output power this RF Module meets the FCC SAR Exemption, so itcomply with any applicable RF exposure requirements in its final configuration. The RF Module ispowered by battery, the antenna is PCB antenna and the antenna gain is 2.21dBi. The final hostdevice, into which this RF Module is integrated" has to be labeled with an auxiliary label stating

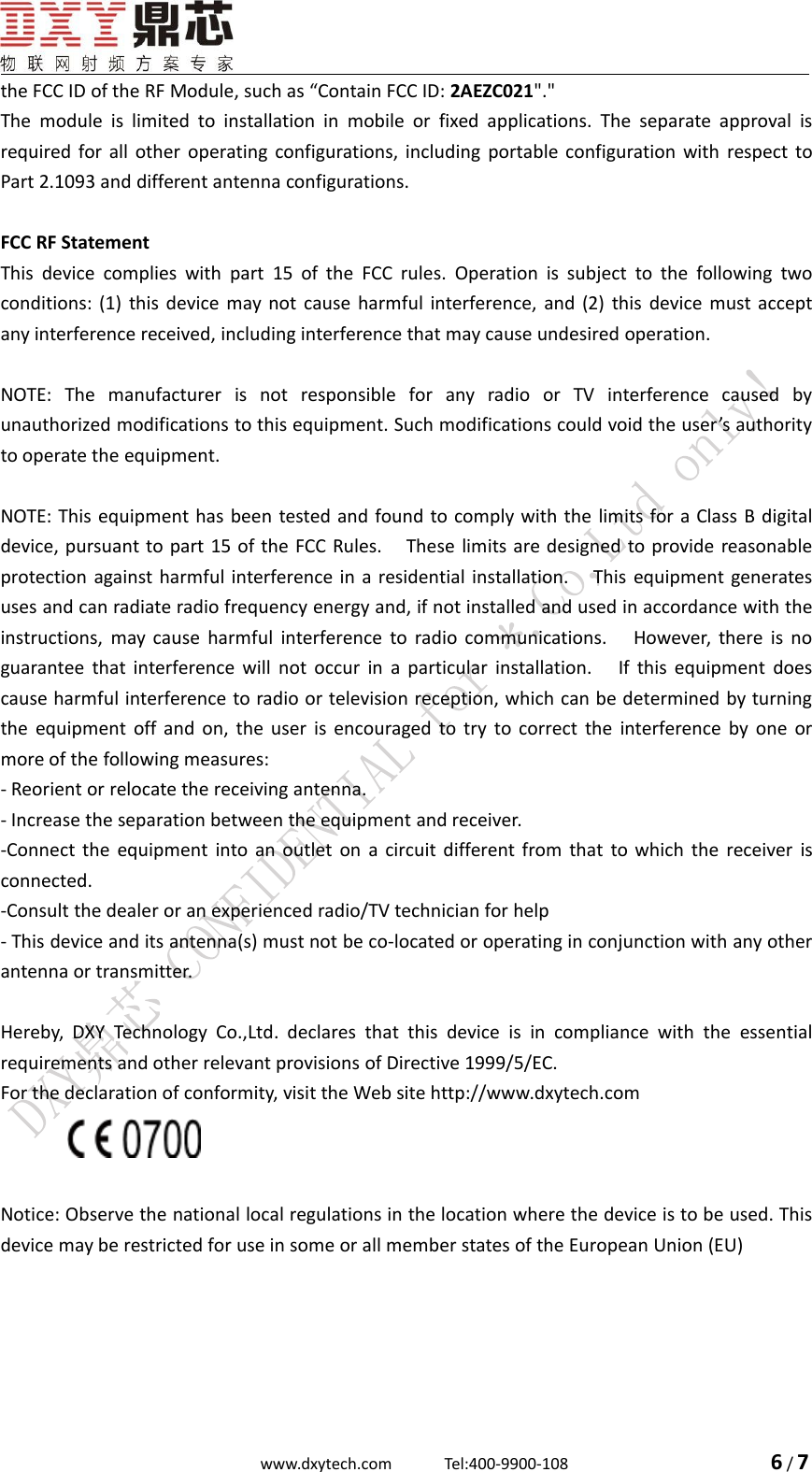

www.dxytech.com Tel:400-9900-108 6/7the FCC ID of the RF Module, such as “Contain FCC ID: 2AEZC021"."The module is limited to installation in mobile or fixed applications. The separate approval isrequired for all other operating configurations, including portable configuration with respect toPart 2.1093 and different antenna configurations.FCC RF StatementThis device complies with part 15 of the FCC rules. Operation is subject to the following twoconditions: (1) this device may not cause harmful interference, and (2) this device must acceptany interference received, including interference that may cause undesired operation.NOTE: The manufacturer is not responsible for any radio or TV interference caused byunauthorized modifications to this equipment. Such modifications could void the user’s authorityto operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonableprotection against harmful interference in a residential installation. This equipment generatesuses and can radiate radio frequency energy and, if not installed and used in accordance with theinstructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment doescause harmful interference to radio or television reception, which can be determined by turningthe equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.-Consult the dealer or an experienced radio/TV technician for help- This device and its antenna(s) must not be co-located or operating in conjunction with any otherantenna or transmitter.Hereby, DXY Technology Co.,Ltd. declares that this device is in compliance with the essentialrequirements and other relevant provisions of Directive 1999/5/EC.For the declaration of conformity, visit the Web site http://www.dxytech.comNotice: Observe the national local regulations in the location where the device is to be used. Thisdevice may be restricted for use in some or all member states of the European Union (EU)
