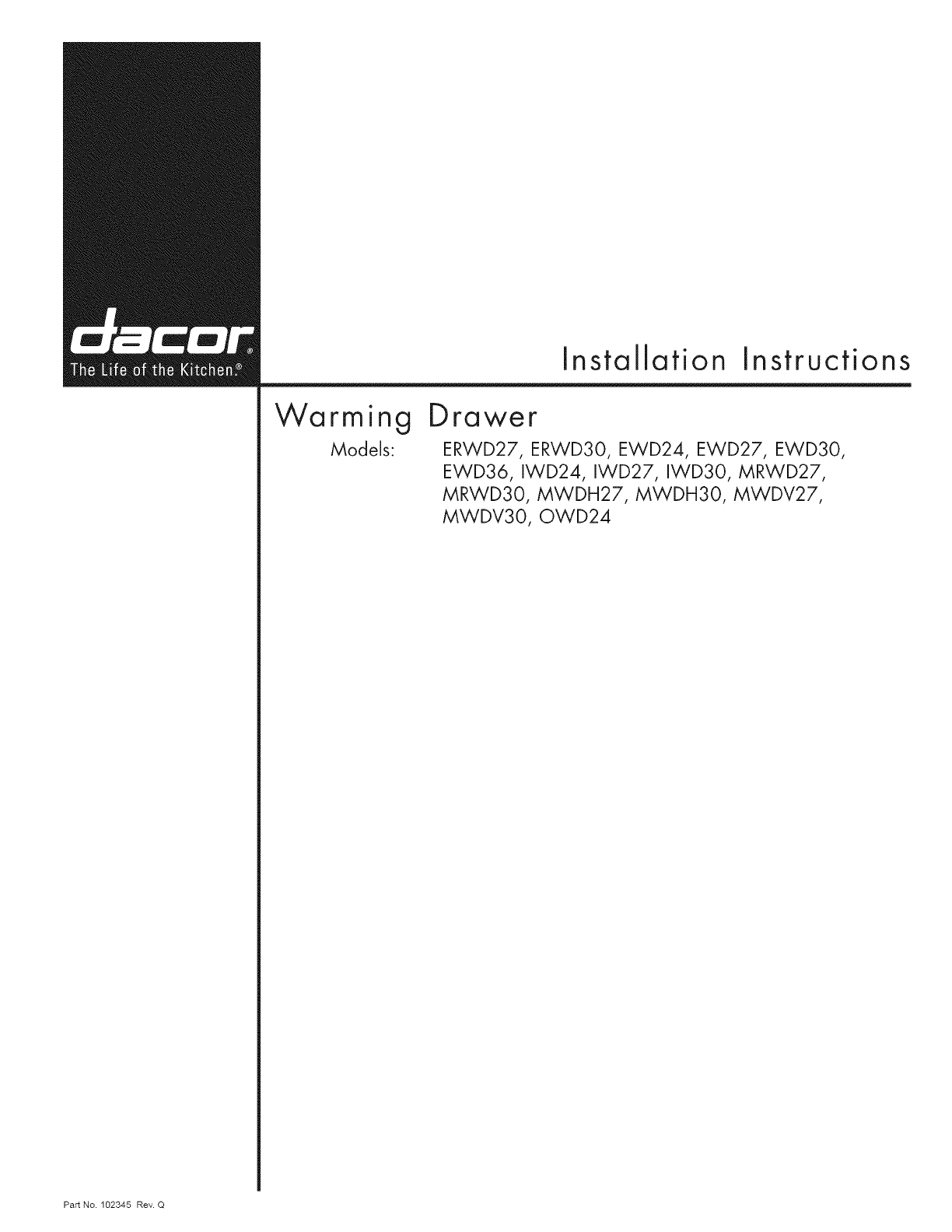

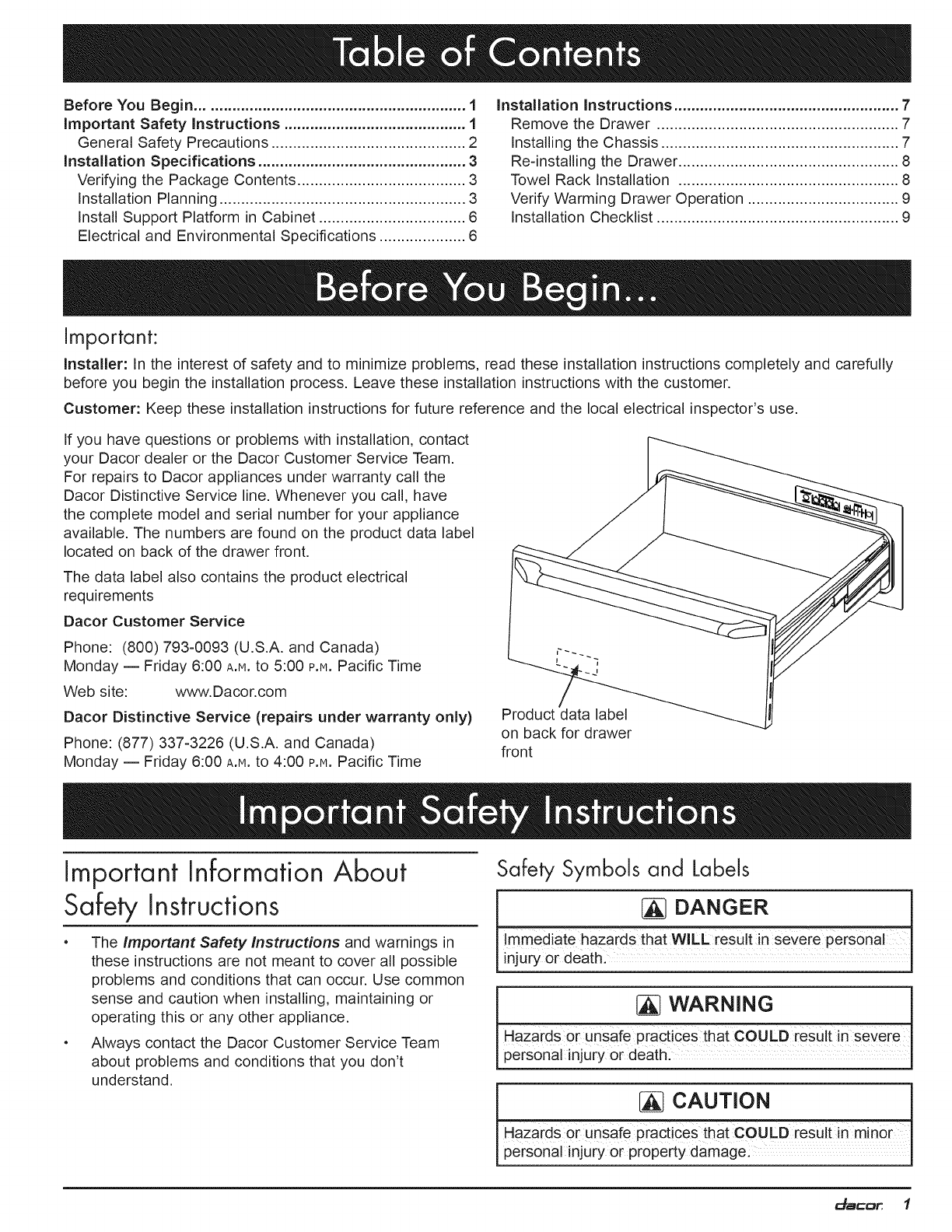

Installation Instructions

Warming

Models:

Drawer

ERWD27, ERWD30, EWD24, EWD27, EWD30,

EWD36, IWD24, IWD27, IWD30, MRWD27,

MRWD30, MWDH27, MWDH30, MWDV27,

MWDV30, OWD24

Pa_ No. 102345 Rev. Q

All specifications are subject to change without notice. Dacor ®assumes no liability for changes to specifications.

Before You Begin .............................................................. 1

Important Safety Instructions .......................................... 1

General Safety Precautions ............................................. 2

Installation Specifications ................................................ 3

Verifying the Package Contents ....................................... 3

Installation Planning ......................................................... 3

Install Support Platform in Cabinet .................................. 6

Electrical and Environmental Specifications .................... 6

Installation instructions .................................................... 7

Remove the Drawer ........................................................ 7

Installing the Chassis ....................................................... 7

Re-installing the Drawer ................................................... 8

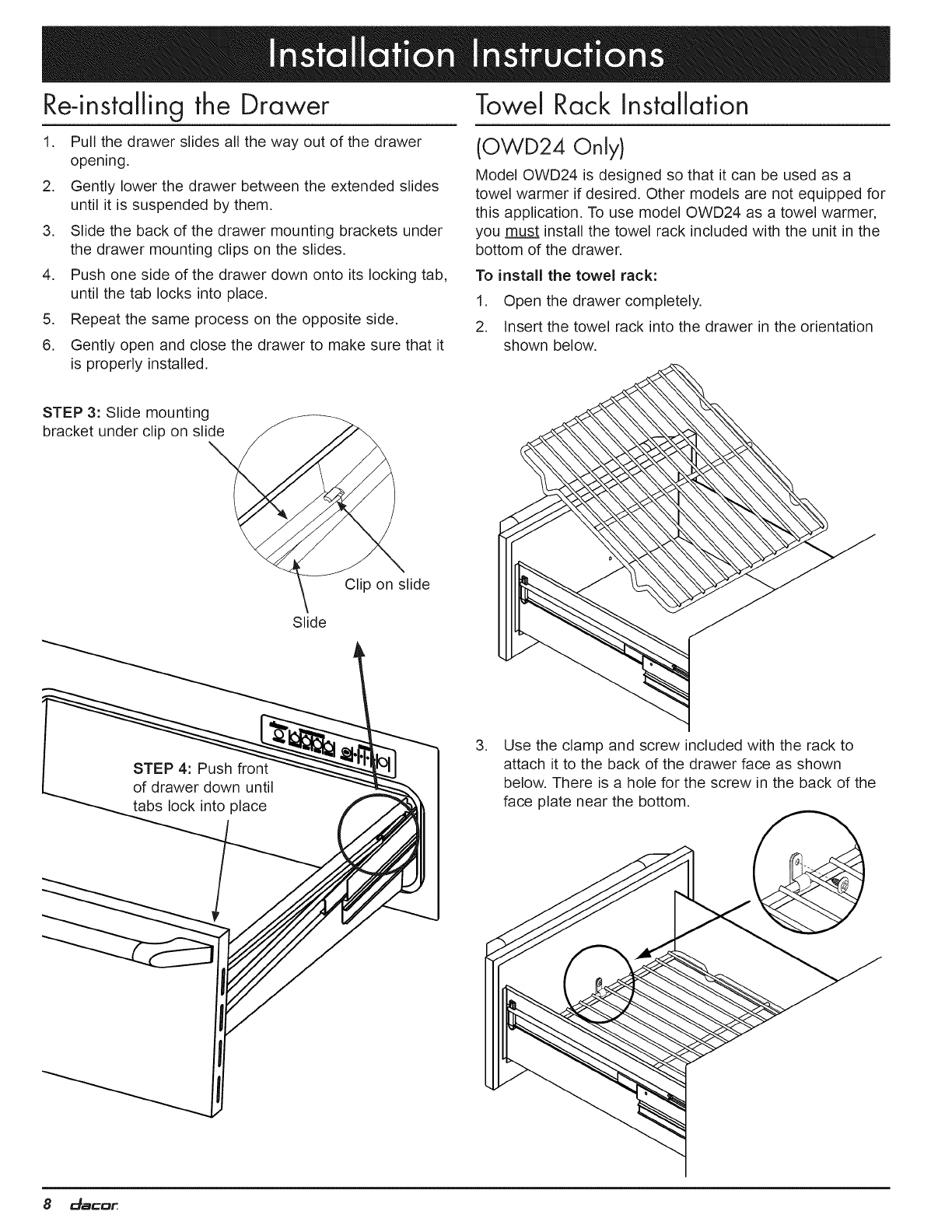

Towel Rack Installation ................................................... 8

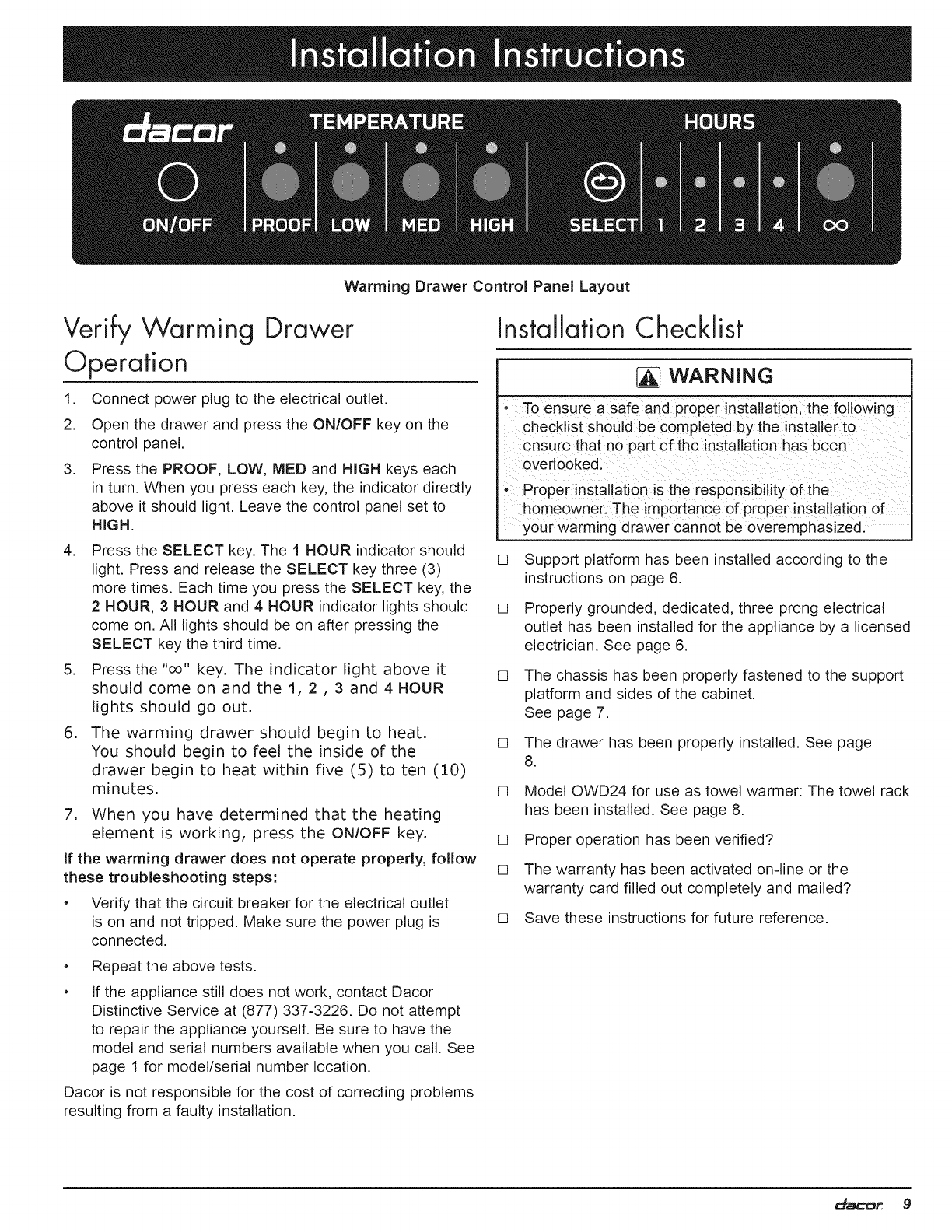

Verify Warming Drawer Operation ................................... 9

Installation Checklist ........................................................ 9

Important:

InstalJer: In the interest of safety and to minimize problems, read these installation instructions completely and carefully

before you begin the installation process. Leave these installation instructions with the customer.

Customer: Keep these installation instructions for future reference and the local electrical inspector's use.

If you have questions or problems with installation, contact

your Dacor dealer or the Dacor Customer Service Team,

For repairs to Dacor appliances under warranty call the

Dacor Distinctive Service line, Whenever you call, have

the complete model and serial number for your appliance

available, The numbers are found on the product data label

located on back of the drawer front,

The data label also contains the product electrical

requirements

Dacor Customer Service

Phone: (800) 793-0093 (U.S.A. and Canada)

Monday -- Friday 6:00 A.H. to 5:00 P.M.Pacific Time

Web site: www.Dacor.com

Dacor Distinctive Service (repairs under warranty only)

Phone: (877) 337-3226 (U.S.A. and Canada)

Monday -- Friday 6:00 A.H. to 4:00 p.m. Pacific Time

Product data label

on back for drawer

front

Important Information About

Safety Instructions

The important Safety instructions and warnings in

these instructions are not meant to cover all possible

problems and conditions that can occur. Use common

sense and caution when installing, maintaining or

operating this or any other appliance.

• Always contact the Dacor Customer Service Team

about problems and conditions that you don't

understand,

Safety Symbols and Labels

DANGER

Immediate hazards that WILL result in severe PerSonal

njury 0r death:

WARNING

HaZards 0i unsafe practices that COULD result in Severe

personal injury or death.

CAUTION j

HaZards 0i uasafe practices that COULD res u t nor

personal injury or property damage_ J

_a_D_ f

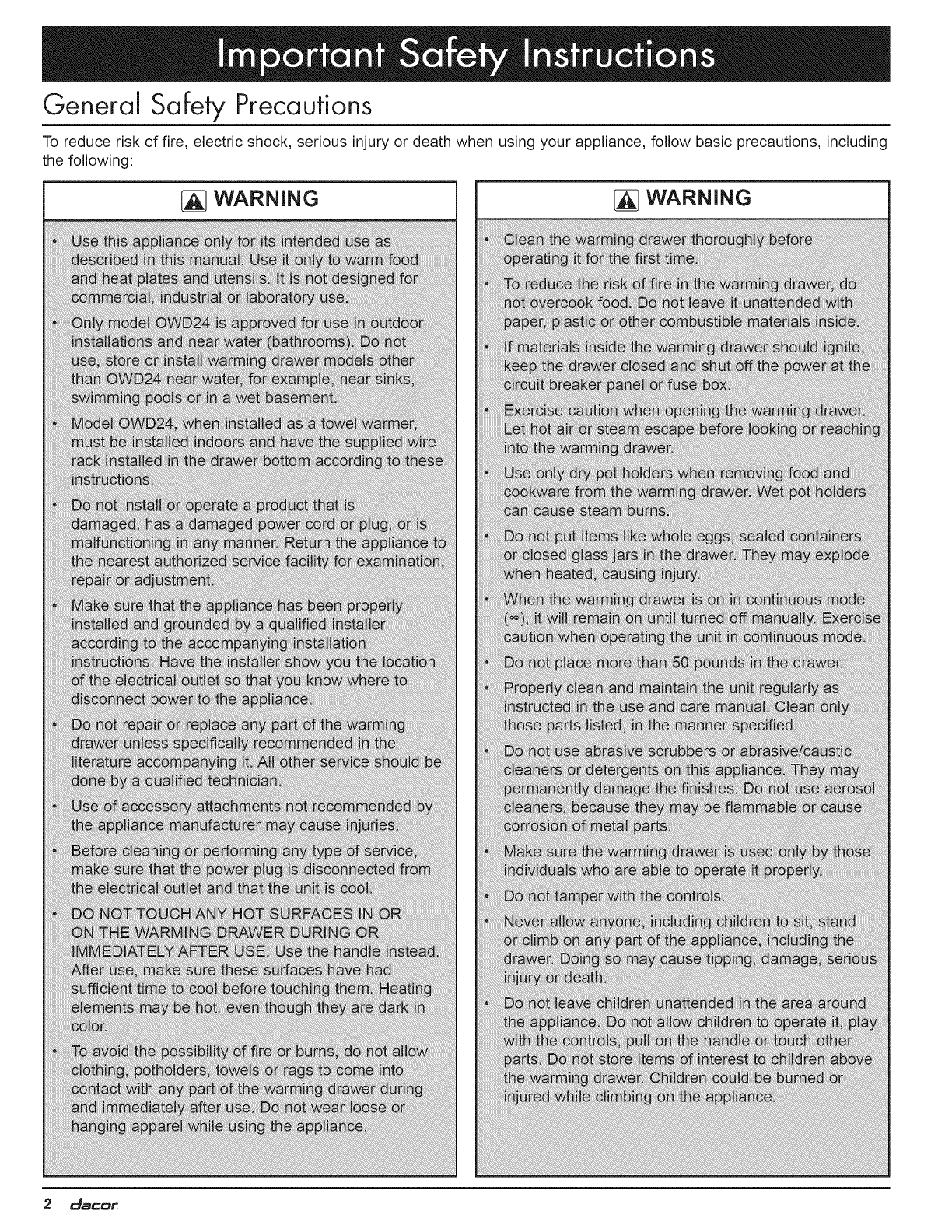

General Safety Precautions

To reduce rJsk of fire, electrJc shock, serJous Jnjury or death when usJng your applJance, follow basJc precautions, JncludJng

the followJng:

_] WARNING WARNING

2_SCD_

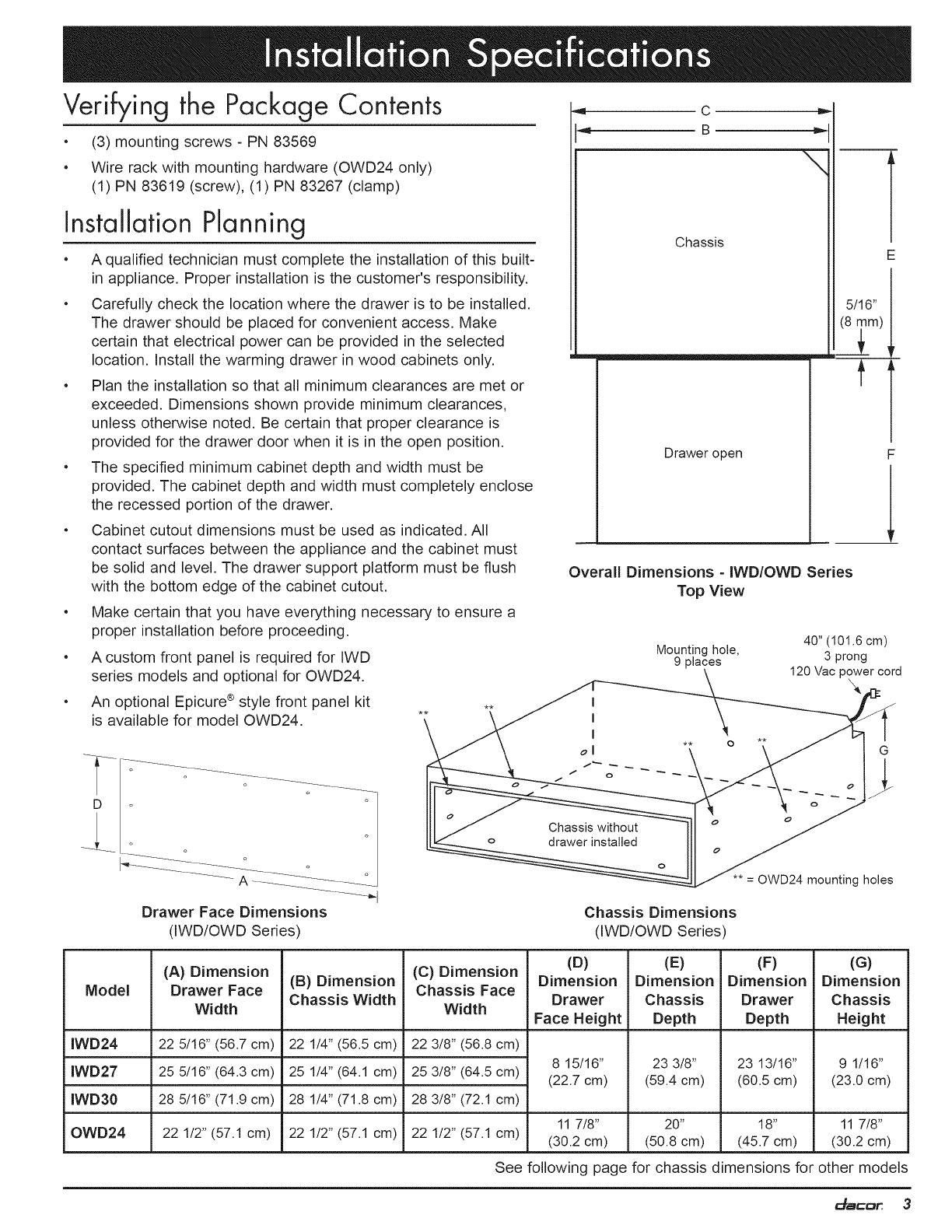

Verifying the Package Contents c

• (3) mounting screws - PN 83569

• Wire rack with mounting hardware (OWD24 only)

(1) PN 83619 (screw), (1) PN 83267 (clamp)

Installation Planning

• A qualified technician must complete the installation of this built-

in appliance. Proper installation is the customer's responsibility.

Carefully check the location where the drawer is to be installed.

The drawer should be placed for convenient access. Make

certain that electrical power can be provided in the selected

location. Install the warming drawer in wood cabinets only.

• Plan the installation so that all minimum clearances are met or

exceeded. Dimensions shown provide minimum clearances,

unless otherwise noted. Be certain that proper clearance is

provided for the drawer door when it is in the open position.

• The specified minimum cabinet depth and width must be

provided. The cabinet depth and width must completely enclose

the recessed portion of the drawer.

Cabinet cutout dimensions must be used as indicated. All

contact surfaces between the appliance and the cabinet must

be solid and level. The drawer support platform must be flush

with the bottom edge of the cabinet cutout.

• Make certain that you have everything necessary to ensure a

proper installation before proceeding.

• A custom front panel is required for IWD

series models and optional for OWD24.

• An optional Epicure ®style front panel kit

is available for model OWD24.

Drawer Face Dimensions

(IWD/OWD Series)

Chassis

Drawer open

5/16"

(8 ram)

Overall Dimensions - IWD/OWD Series

Top View

40" (101.6 cm)

Mounting hole,

9 places 3 prong

120 Vac power cord

Chassis without

drawer installed

** = OWD24 mounting holes

Chassis Dimensions

(IWD/OWD Series)

Model

IWD24

IWD27

IWD30

OWD24

(A) Dimension

Drawer Face

Width

22 5/16" (56.7 cm)

25 5/16" (64.3 cm)

28 5/16" (71.9 cm)

22 1/2" (57.1 cm)

(B) Dimension

Chassis Width

22 1/4" (56.5 cm)

25 1/4" (64.1 cm)

28 1/4" (71.8 cm)

22 1/2" (57.1 cm)

Chassis Face

Width

22 3/8" (56.8 cm)

25 3/8" (64.5 cm)

28 3/8" (72.1 cm)

22 1/2" (57.1 cm)

(D)

Dimension

Drawer

Face Height

8 15/16"

(22.7 cm)

(E)

Dimension

Chassis

Depth

23 3/8"

(59.4 cm)

(F)

Dimension

Drawer

Depth

23 13/16"

(60.5 cm)

(G)

Dimension

Chassis

Height

9 1/16"

(23.0 cm)

11 7/8" 20" 18" 11 7/8"

(30.2 cm) (50.8 cm) (45.7 cm) (30.2 cm)

See following page for chassis dimensions for other models

da=Dr, 3

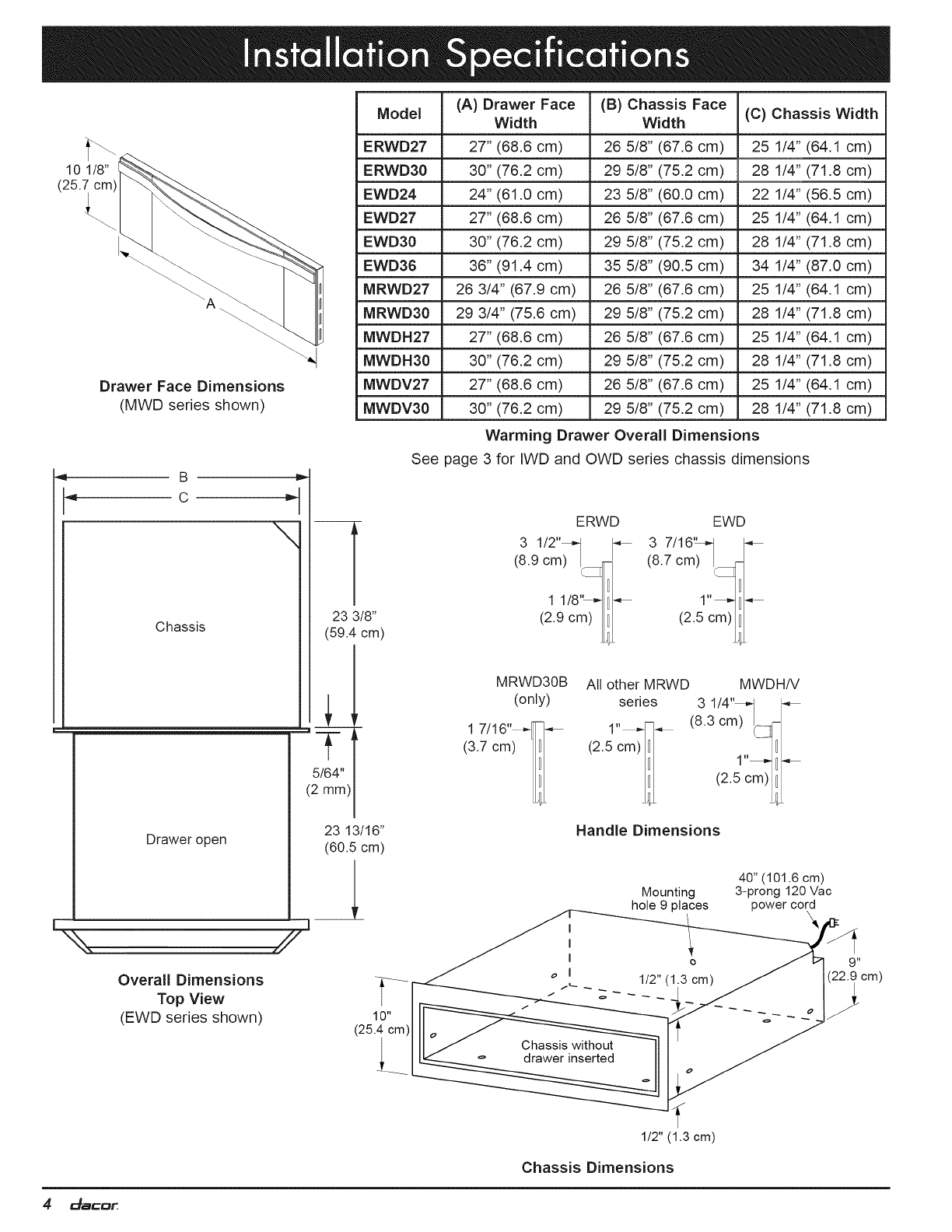

Drawer Face Dimensions

(MWD series shown)

B =,-

"q C =_

Chassis

Drawer open

Overall Dimensions

Top View

(EWD series shown)

Model

ERWD27

ERWD30

EWD24

EWD27

EWD30

EWD36

MRWD27

MRWD30

MWDH27

MWDH30

MWDV27

MWDV30

23 3/8"

(59.4 cm)

5/64"

_)mm)

23 13/16"

(60.5 cm)

10"

(25.4 cm)

(A) Drawer Face

Width

27" (68.6 cm)

30" (76.2 cm)

24" (61.0 cm)

27" (68,6 cm)

30" (76,2 cm)

36" (91.4 cm)

26 3/4" (67,9 cm)

29 3/4" (75,6 cm)

27" (68,6 cm)

30" (76,2 cm)

27" (68,6 cm)

30" (76.2 cm)

(B) Chassis Face

Width

26 5/8" (67.6 cm)

29 5/8" (75.2 cm)

23 5/8" (60.0 cm)

26 5/8" (67.6 cm)

29 5/8" (75.2 cm)

35 5/8" (90.5 cm)

26 5/8" (67.6 cm)

29 5/8" (75.2 cm)

26 5/8" (67.6 cm)

29 5/8" (75.2 cm)

26 5/8" (67.6 cm)

29 5/8" (75.2 cm)

25 1/4" (64.1 cm)

28 1/4" (71.8 cm)

22 1/4" (56.5 cm)

25 1/4" (64.1 cm)

28 1/4" (71.8 cm)

34 1/4" (87.0 cm)

25 1/4" (64.1 cm)

28 1/4" (71.8 cm)

25 1/4" (64.1 cm)

28 1/4" (71.8 cm)

25 1/4" (64.1 cm)

28 1/4" (71.8 cm)

Warming Drawer Overall Dimensions

See page 3 for IWD and OWD series chassis dimensions

ERWD EWD

3 1/2" 1 I-- 3 7/16' 1

(,9 cm) (87cm),,

1 1/8'_D_ 1 _10 _"

(2.9 cm) //I...... (2.5 cm) l I

MRWD30B

(only) All other MRWD MWDH/V

series (31/4"m_ I

cm) i iv -_,

Handle Dimensions

40" (101.6 cm)

Mounting 3-prong 120 Vac

hole 9 places power cord

1/2" (1.3 cm)

Chassis Dimensions

4_SCD_

36" typ.

(91.4 cm)

36" typ.

(91 "l cm)

®® • Warming

drawer

Warming

drawer

I o®

120 Vac

electrical

outlet

1 1/2" (3.8 cm)

Cooktop..._ f Typical countertop

Warming

drawer

_- 3/4" min.*

C (1.9 cm)

. cm)

120 Vac

electrical

outlet

l27"/30"/36" Dacor 1

single wall oven

iWarming 120 Vac_

drawer elect. !1_

iWarming 120 Vac_

drawer elect. I_ j

Toe kick

A_1

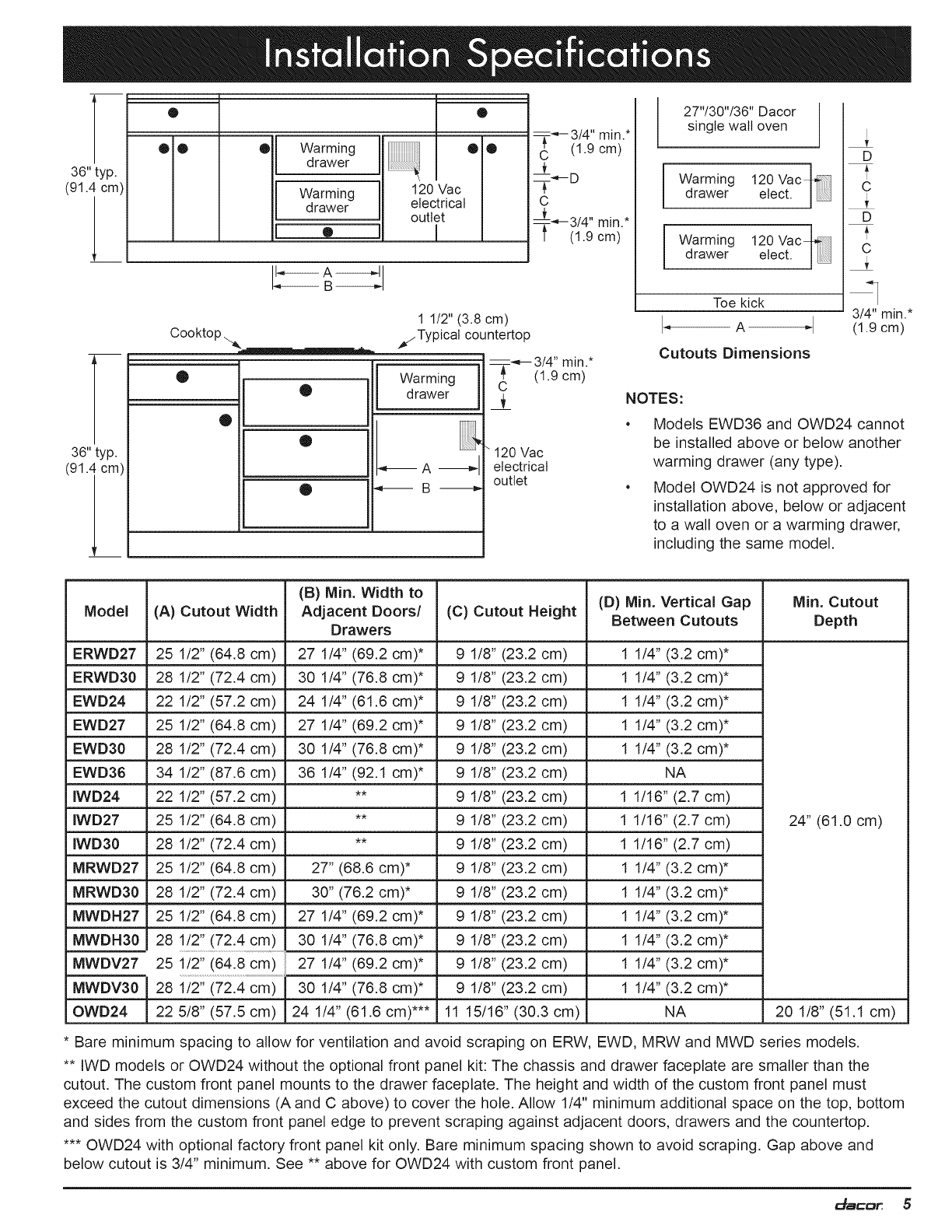

Cutouts Dimensions

NOTES:

3/4" min.*

(1.9 cm)

Models EWD36 and OWD24 cannot

be installed above or below another

warming drawer (any type).

Model OWD24 is not approved for

installation above, below or adjacent

to a wall oven or a warming drawer,

including the same model.

Model

ERWD27

ERWD30

EWD24

EWD27

EWD30

EWD36

IWD24

IWD27

IWD30

MRWD27

MRWD30

MWDH27

MWDH30

MWDV27

MWDV30

OWD24

(A) Cutout Width

25 1/2" (64.8 cm)

28 1/2" (72.4 cm)

22 1/2" (57.2 cm)

25 1/2" (64.8 cm)

28 1/2" (72.4 cm)

34 1/2" (87.6 cm)

22 1/2" (57.2 cm)

25 1/2" (64.8 cm)

28 1/2" (72.4 cm)

25 1/2" (64.8 cm)

28 1/2" (72.4 cm)

25 1/2" (64.8 cm)

28 1/2" (72.4 cm)

25 1/2" (64.8 cm)

(B) Min. Width to

Adjacent Doors/

Drawers

27 1/4" (69.2 cm)*

30 1/4" (76.8 cm)*

24 1/4" (61.6 cm)*

27 1/4" (69.2 cm)*

30 1/4" (76.8 cm)*

36 1/4" (92.1 cm)*

27" (68.6 cm)*

30" (76.2 cm)*

27 1/4" (69.2 cm)* 9

30 1/4" (76.8 cm)* 9

27 1/4" (69.2 cm)* 9

9 1/8" (23.2 cm)

1/8" (23.2 cm)

(D) Min. Vertical Gap

Between Cutouts

1 1/4" (3.2 cm)*

1 1/16" (2.7 cm)

1 1/4" (3.2 cm)*

1/2" (72.4 cm) 30 1/4" (76.8 cm)* 9 1/8" (23.2 cm) 1 1/4" (3.2 cm)*

5/8" (57.5 cm) 24 1/4" (61.6 cm)*** 11 15/16" (30.3 cm) NA

Min. Cutout

Depth

24" (61.0 cm)

20 1/8" (51.1 cm)

* Bare minimum spacing to allow for ventilation and avoid scraping on ERW, EWD, MRW and MWD series models.

** IWD models or OWD24 without the optional front panel kit: The chassis and drawer faceplate are smaller than the

cutout. The custom front panel mounts to the drawer faceplate. The height and width of the custom front panel must

exceed the cutout dimensions (A and C above) to cover the hole. Allow 1/4" minimum additional space on the top, bottom

and sides from the custom front panel edge to prevent scraping against adjacent doors, drawers and the countertop.

*** OWD24 with optional factory front panel kit only. Bare minimum spacing shown to avoid scraping. Gap above and

below cutout is 3/4" minimum. See ** above for OWD24 with custom front panel.

_a_D_ 5

Install Support Platform in

Cabinet

Provide a platform (100 lb. load capacity) within the cabinet

upon which the warming drawer will be supported. The

platform must be installed level and straight. The top edge

of the platform must be flush with the cutout at the front of

the cabinet. There are no provisions to level the warming

drawer after it has been installed. 3/4" (1.9 cm) thick

plywood is recommended.

NOTE: If the drawer is not installed in a level fashion, the

drawer may slide open on its own or may not seal tightly,

allowing heat to escape and resulting in poor warming

drawer performance.

__ R__

face

Electrical and

Specifications

Environmental

WARNING

IMPORTANT: This appliance is equipped with a three

prong grounding electric plug for protection against

possible electric shock hazards. It must be plugged into

a dedicated, grounded, electrical outlet. If only a two

prong electrical outlet is available, it is the responsibility

of the customer to have it replaced with a dedicated,

properly grounded three prong electrical outlet. To

avoid an electric shock hazard, do not under any

circumstances:

o Cut or remove the third (ground) prong from the power

cord.

• Use an adapter plug.

o Use a power cord that is frayed or damaged.

• Immerse the power cord or plug in water or other

liquid.

o Connect the appliance to an extension cord.

NOTE: Use of a ground fault interrupter (GFt) is not

recommended.

Three prong plug Three prong

grounded outlet

Minimum ambient operating temperature: 32°F (0°C).

The correct voltage, frequency and amperage must be

supplied to the electrical outlet from a grounded, single

phase circuit that is protected by a properly sized circuit

breaker or time-delay fuse.

The required voltage, frequency and amperage ratings

are listed on the product data label. See page 1 for

location.

Nominal Electrical Supply Requirements

120 Vac, 60 Hz, 15 Amp., dedicated circuit

The warming drawer is supplied with a 40" (101.6 cm)

power cord with a three prong grounded plug.

Total Connected Load 0.5 kW (4 Amp.)

The power supply requirements shown above are for

reference only. If they do not agree with those listed

on the product data label, use the requirements on the

product data label.

It is the owner's responsibility to ensure that the

electrical outlet is installed by a qualified electrician.

The electrical installation must comply with the latest

revision of the National Electric Code ANSI/NFPA 70

and local codes and ordinances.

• If the electrical service provided does not meet the

product specification, or does not conform to the NEC

or local standards, do not proceed with the installation.

Call a licensed electrician to correct the electrical

service before proceeding.

• Be certain to locate the electrical outlet in an

accessible location, so that the warming drawer may

be easily unplugged in the event that service becomes

necessary.

Keep the electrical cord away from hot surfaces.

6 _aCD_

WARNING

To avoid personal injury caused by the appliance

falling forward when the drawer _sopened, secure

the chassis to the cabinet and support platform as

instructed.

Be certain that the power plug is disconnected from

the electrical outlet before installation.

• Verify that the electrical supply matches the ratings

found on the appliance data plate and the installation

specifications before proceeding.

Remove the Drawer

Remove the drawer from the appliance to allow access

to the mounting holes during installation, and to reduce

weight:

1. Pull the drawer out to the fully open position.

2. Push in on the locking tab on one side as you pull the

drawer up.

3. When the drawer comes loose from the slide, repeat

the same process on the opposite side.

4. Grip the drawer on both sides and pull it free.

5. For safety, push both drawer slides into the drawer

opening.

STEP 2: Push

locking tab

Installing the Chassis

1. Grasp the warming drawer chassis on opposite

sides and slide it partially into the cabinet opening.

Temporarily support the chassis in place so that it will

not tilt or fall.

From an adjoining cabinet, reach in behind the drawer

and pull the power cord until the plug is next to the

electrical outlet. Do not plug in the power cord at this

time.

After positioning the power cord and plug, slide the

chassis completely into the cabinet until the front frame

is positioned flush against the cabinet face.

Use the screws provided to secure the warming drawer

chassis to the cabinet and support platform, insert them

into the mounting holes and tighten into place. You may

want to drill pilot holes prior to installing the mounting

screws.

Mounting hole, 9 places

Mounting Hole Locations = ERW, EWD, IWD, MRW and

MWD Series Models

(IWD series models do not have a flange around

the edge of the faceplate)

Mounting hole, 4 places

STEP 3: Pull up on

front of drawer

Mounting Hole Locations -

OWD24

Continued...

Style varies, EWD27 shown

_a_D_ 7

Re-installing the Drawer Towel Rack Installation

Pull the drawer slides all the way out of the drawer

opening.

Gently lower the drawer between the extended slides

until it is suspended by them.

3. Slide the back of the drawer mounting brackets under

the drawer mounting clips on the slides.

4. Push one side of the drawer down onto its locking tab,

until the tab locks into place.

Repeat the same process on the opposite side.

Gently open and close the drawer to make sure that it

is properly installed.

(OWD24 Only)

Model OWD24 is designed so that it can be used as a

towel warmer if desired. Other models are not equipped for

this application. To use model OWD24 as a towel warmer,

you must install the towel rack included with the unit in the

bottom of the drawer.

To install the towel rack:

1. Open the drawer completely.

2. Insert the towel rack into the drawer in the orientation

shown below,

STEP 3: Slide mounting

bracket under clip on slide

STEP 4: Push front

of drawer down until

tabs lock into place

Slide

Clip on slide

.Use the clamp and screw included with the rack to

attach it to the back of the drawer face as shown

below. There is a hole for the screw in the back of the

face plate near the bottom.

8 _SCD_

Warming Drawer Control Panel Layout

Verify Warming

Operation

Drawer

1. Connect power plug to the electrical outlet.

2. Open the drawer and press the ON/OFF key on the

control panel,

,Press the PROOF, LOW, MED and HIGH keys each

in turn. When you press each key, the indicator directly

above it should light. Leave the control panel set to

HIGH.

Installation Checklist

WARNING

- To ensure a safe and proper installation, the following

checklist should be completed by the installer to

ensure that no part of the installation has been

overlooked.

- Proper installation is the responsibility of the

homeowner. The importance of proper installation of

your warming drawer cannot be overemphasized.

4. Press the SELECT key. The 1 HOUR indicator should []

light. Press and release the SELECT key three (3)

more times. Each time you press the SELECT key, the

2 HOUR, 3 HOUR and 4 HOUR indicator lights should []

come on. All lights should be on after pressing the

SELECT key the third time.

5. Press the "oo" key. The indicator light above it []

should come on and the 1, 2, 3 and 4 HOUR

lights should go out.

6. The warming drawer should begin to heat.

You should begin to feel the inside of the []

drawer begin to heat within five (5) to ten (10)

minutes.

7. When you have determined that the heating

element is working, press the ON/OFF key.

If the warming drawer does not operate properly, follow

these troubleshooting steps:

• Verify that the circuit breaker for the electrical outlet

is on and not tripped. Make sure the power plug is

connected.

Support platform has been installed according to the

instructions on page 6.

Properly grounded, dedicated, three prong electrical

outlet has been installed for the appliance by a licensed

electrician. See page 6.

The chassis has been properly fastened to the support

platform and sides of the cabinet.

See page 7.

The drawer has been properly installed. See page

[] Model OWD24 for use as towel warmer: The towel rack

has been installed. See page 8.

[] Proper operation has been verified?

[] The warranty has been activated on-line or the

warranty card filled out completely and mailed?

[] Save these instructions for future reference.

• Repeat the above tests.

• If the appliance still does not work, contact Dacor

Distinctive Service at (877) 337-3226. Do not attempt

to repair the appliance yourself. Be sure to have the

model and serial numbers available when you call. See

page 1 for model/serial number location.

Dacor is not responsible for the cost of correcting problems

resulting from a faulty installation.

_a_D_ 9

® . Family Owned

American Maae

Dacor •600 Anton Blvd. Suite 1000 Costa Mesa, CA 92626 •Phone: (800) 793-0093 •Fax: (626)403-3130 •www.Dacor.com

The Life of the Kitchen?

Dacor EWD24SCH User Manual WARMING DRAWER Manuals And Guides L1002500

DACOR Warming Drawer Manual L1002500 DACOR Warming Drawer Owner's Manual, DACOR Warming Drawer installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
