DareGlobal Technologies DSL-500 ADSL MODEM User Manual

Shanghai DareGlobal Technologies Co., Ltd. ADSL MODEM

Users Manual

ADSL MODEM USER MANUAL

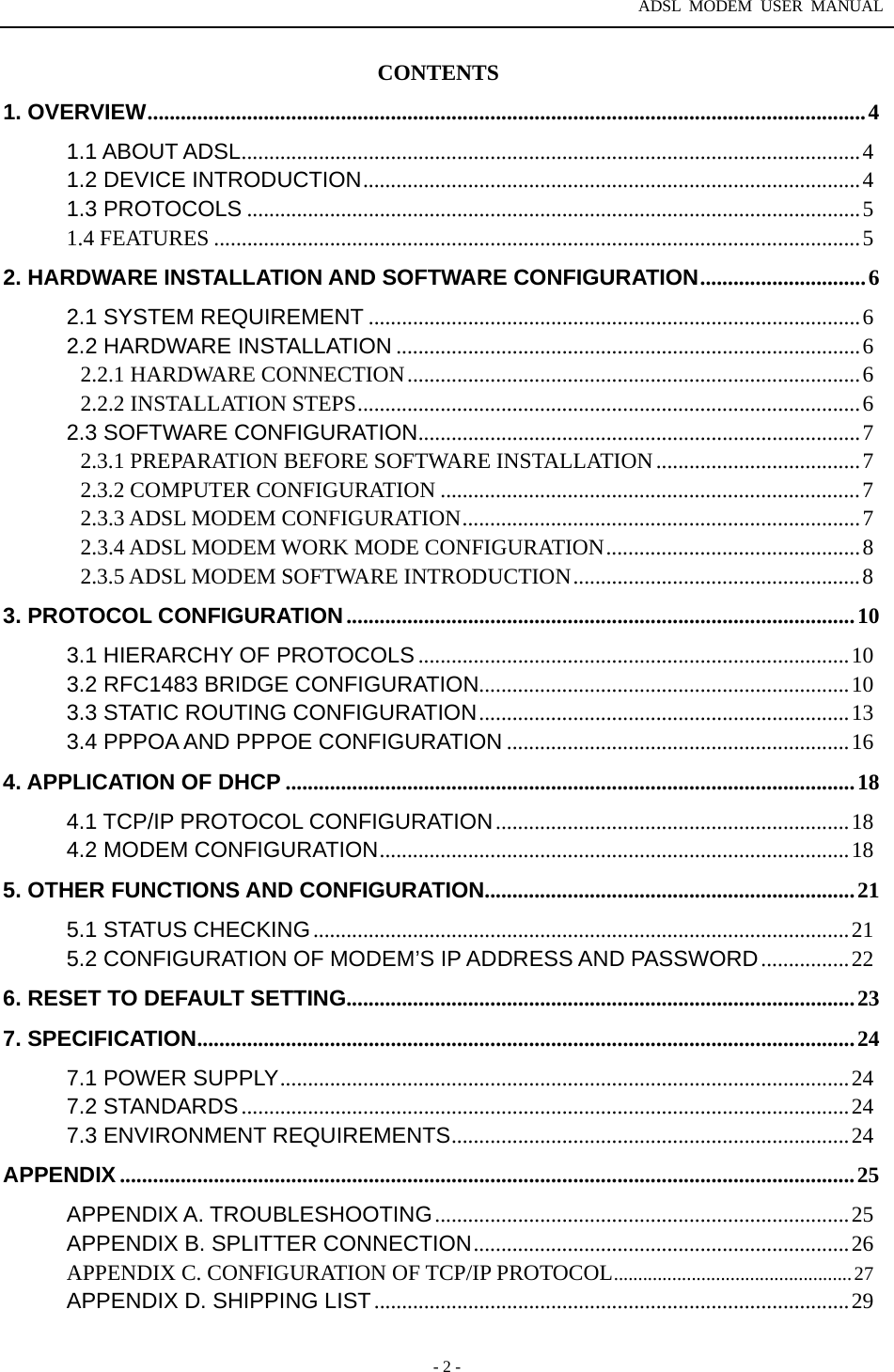

ADSL MODEM USER MANUAL - 2 - CONTENTS 1. OVERVIEW..................................................................................................................................4 1.1 ABOUT ADSL................................................................................................................4 1.2 DEVICE INTRODUCTION..........................................................................................4 1.3 PROTOCOLS ...............................................................................................................5 1.4 FEATURES .....................................................................................................................5 2. HARDWARE INSTALLATION AND SOFTWARE CONFIGURATION..............................6 2.1 SYSTEM REQUIREMENT .........................................................................................6 2.2 HARDWARE INSTALLATION ....................................................................................6 2.2.1 HARDWARE CONNECTION..................................................................................6 2.2.2 INSTALLATION STEPS...........................................................................................6 2.3 SOFTWARE CONFIGURATION................................................................................7 2.3.1 PREPARATION BEFORE SOFTWARE INSTALLATION .....................................7 2.3.2 COMPUTER CONFIGURATION ............................................................................7 2.3.3 ADSL MODEM CONFIGURATION........................................................................7 2.3.4 ADSL MODEM WORK MODE CONFIGURATION..............................................8 2.3.5 ADSL MODEM SOFTWARE INTRODUCTION....................................................8 3. PROTOCOL CONFIGURATION............................................................................................10 3.1 HIERARCHY OF PROTOCOLS ..............................................................................10 3.2 RFC1483 BRIDGE CONFIGURATION...................................................................10 3.3 STATIC ROUTING CONFIGURATION...................................................................13 3.4 PPPOA AND PPPOE CONFIGURATION ..............................................................16 4. APPLICATION OF DHCP .......................................................................................................18 4.1 TCP/IP PROTOCOL CONFIGURATION................................................................18 4.2 MODEM CONFIGURATION.....................................................................................18 5. OTHER FUNCTIONS AND CONFIGURATION...................................................................21 5.1 STATUS CHECKING.................................................................................................21 5.2 CONFIGURATION OF MODEM’S IP ADDRESS AND PASSWORD................22 6. RESET TO DEFAULT SETTING............................................................................................23 7. SPECIFICATION.......................................................................................................................24 7.1 POWER SUPPLY.......................................................................................................24 7.2 STANDARDS..............................................................................................................24 7.3 ENVIRONMENT REQUIREMENTS........................................................................24 APPENDIX .....................................................................................................................................25 APPENDIX A. TROUBLESHOOTING...........................................................................25 APPENDIX B. SPLITTER CONNECTION....................................................................26 APPENDIX C. CONFIGURATION OF TCP/IP PROTOCOL.................................................27 APPENDIX D. SHIPPING LIST......................................................................................29

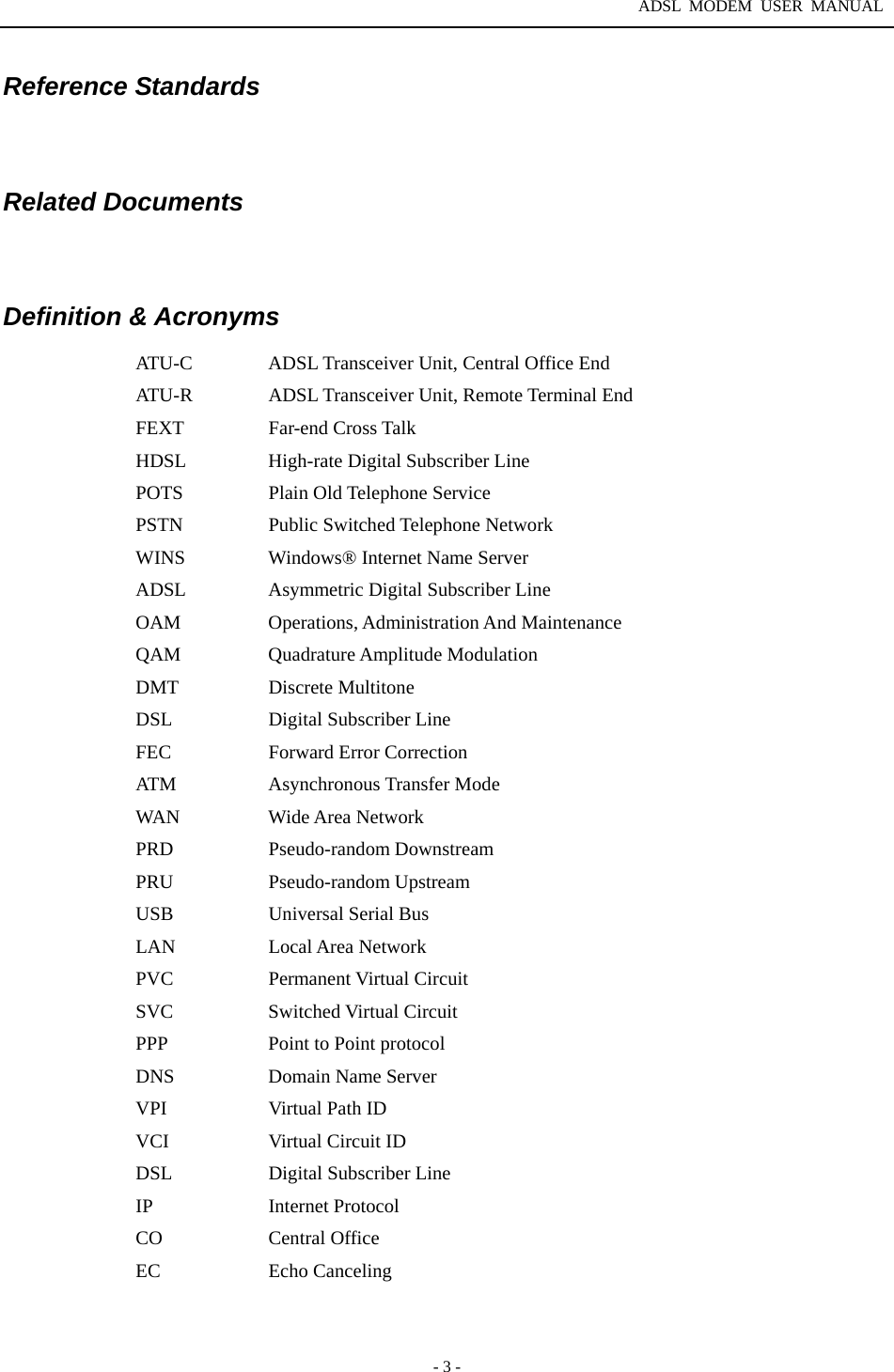

ADSL MODEM USER MANUAL - 3 - Reference Standards Related Documents Definition & Acronyms ATU-C ADSL Transceiver Unit, Central Office End ATU-R ADSL Transceiver Unit, Remote Terminal End FEXT Far-end Cross Talk HDSL High-rate Digital Subscriber Line POTS Plain Old Telephone Service PSTN Public Switched Telephone Network WINS Windows® Internet Name Server ADSL Asymmetric Digital Subscriber Line OAM Operations, Administration And Maintenance QAM Quadrature Amplitude Modulation DMT Discrete Multitone DSL Digital Subscriber Line FEC Forward Error Correction ATM Asynchronous Transfer Mode WAN Wide Area Network PRD Pseudo-random Downstream PRU Pseudo-random Upstream USB Universal Serial Bus LAN Local Area Network PVC Permanent Virtual Circuit SVC Switched Virtual Circuit PPP Point to Point protocol DNS Domain Name Server VPI Virtual Path ID VCI Virtual Circuit ID DSL Digital Subscriber Line IP Internet Protocol CO Central Office EC Echo Canceling

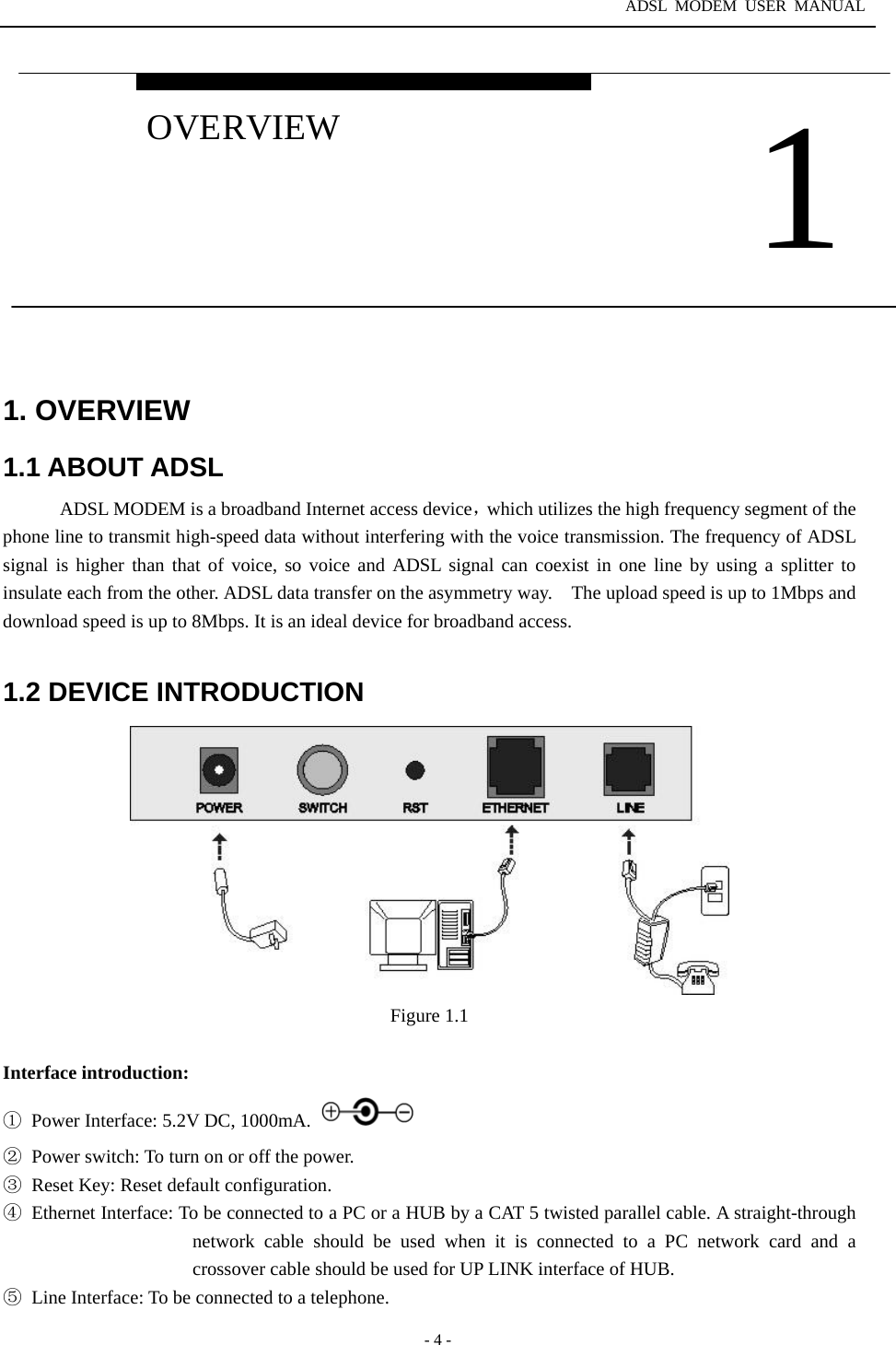

ADSL MODEM USER MANUAL - 4 - 1. OVERVIEW 1.1 ABOUT ADSL ADSL MODEM is a broadband Internet access device，which utilizes the high frequency segment of the phone line to transmit high-speed data without interfering with the voice transmission. The frequency of ADSL signal is higher than that of voice, so voice and ADSL signal can coexist in one line by using a splitter to insulate each from the other. ADSL data transfer on the asymmetry way. The upload speed is up to 1Mbps and download speed is up to 8Mbps. It is an ideal device for broadband access. 1.2 DEVICE INTRODUCTION Figure 1.1 Interface introduction: ① Power Interface: 5.2V DC, 1000mA. ② Power switch: To turn on or off the power. ③ Reset Key: Reset default configuration. ④ Ethernet Interface: To be connected to a PC or a HUB by a CAT 5 twisted parallel cable. A straight-through network cable should be used when it is connected to a PC network card and a crossover cable should be used for UP LINK interface of HUB. ⑤ Line Interface: To be connected to a telephone. 1 OVERVIEW

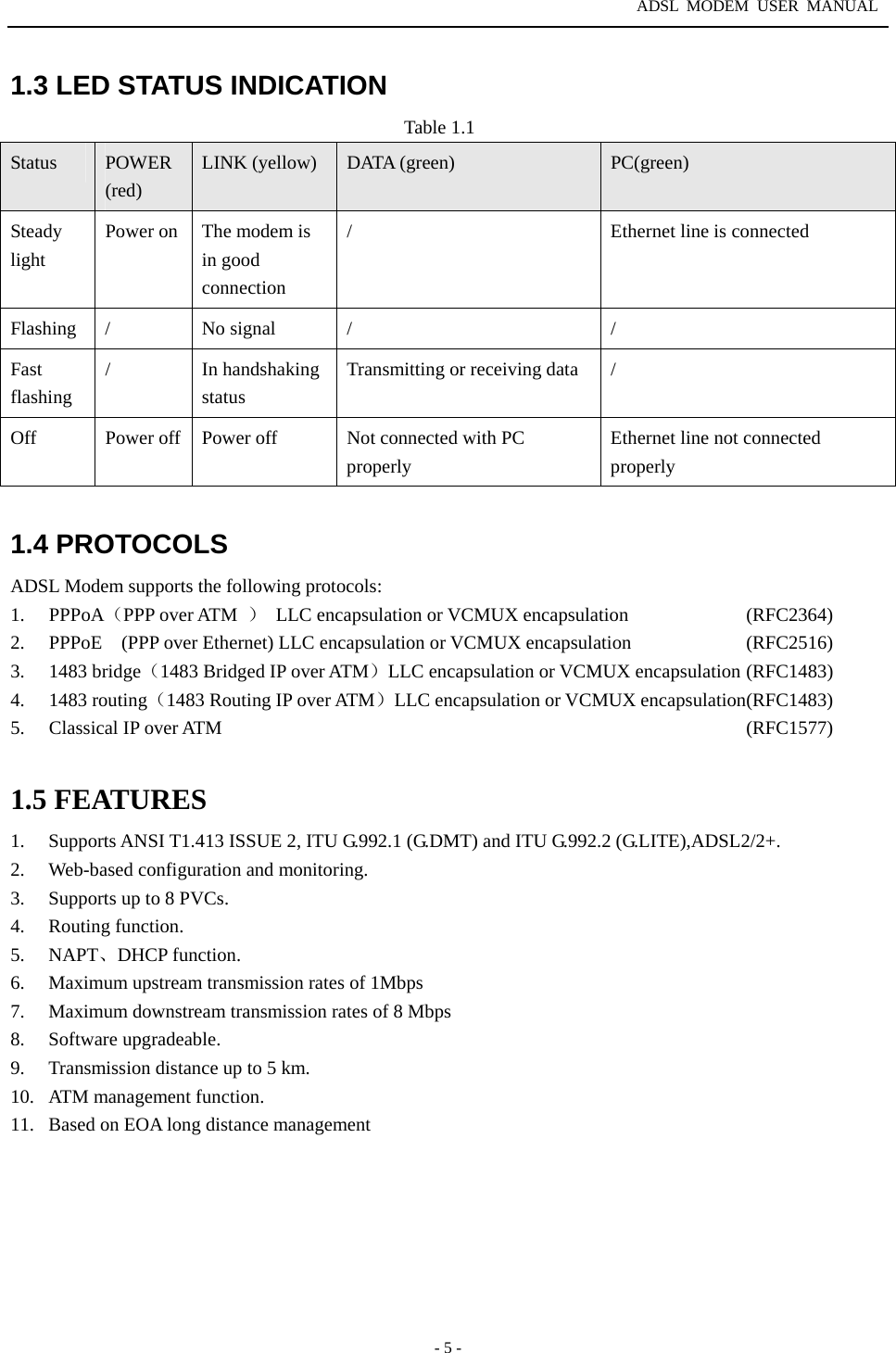

ADSL MODEM USER MANUAL - 5 - 1.3 LED STATUS INDICATION Table 1.1 Status POWER (red) LINK (yellow) DATA (green) PC(green) Steady light Power on The modem is in good connection / Ethernet line is connected Flashing / No signal / / Fast flashing / In handshaking status Transmitting or receiving data / Off Power off Power off Not connected with PC properly Ethernet line not connected properly 1.4 PROTOCOLS ADSL Modem supports the following protocols: 1. PPPoA（PPP over ATM ） LLC encapsulation or VCMUX encapsulation (RFC2364) 2. PPPoE (PPP over Ethernet) LLC encapsulation or VCMUX encapsulation (RFC2516) 3. 1483 bridge（1483 Bridged IP over ATM）LLC encapsulation or VCMUX encapsulation (RFC1483) 4. 1483 routing（1483 Routing IP over ATM）LLC encapsulation or VCMUX encapsulation(RFC1483) 5. Classical IP over ATM (RFC1577) 1.5 FEATURES 1. Supports ANSI T1.413 ISSUE 2, ITU G.992.1 (G.DMT) and ITU G.992.2 (G.LITE),ADSL2/2+. 2. Web-based configuration and monitoring. 3. Supports up to 8 PVCs. 4. Routing function. 5. NAPT、DHCP function. 6. Maximum upstream transmission rates of 1Mbps 7. Maximum downstream transmission rates of 8 Mbps 8. Software upgradeable. 9. Transmission distance up to 5 km. 10. ATM management function. 11. Based on EOA long distance management

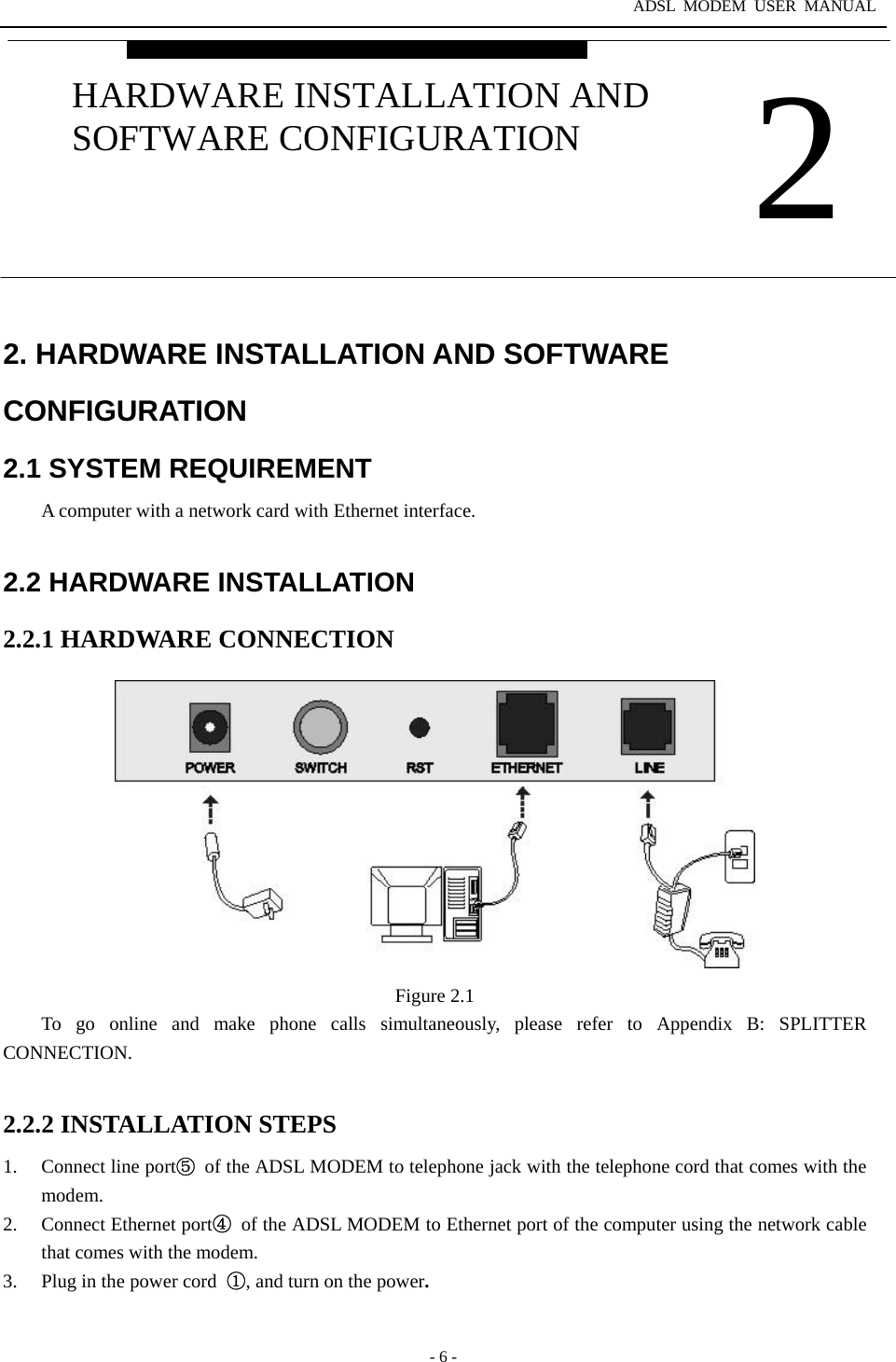

ADSL MODEM USER MANUAL - 6 - 2. HARDWARE INSTALLATION AND SOFTWARE CONFIGURATION 2.1 SYSTEM REQUIREMENT A computer with a network card with Ethernet interface. 2.2 HARDWARE INSTALLATION 2.2.1 HARDWARE CONNECTION Figure 2.1 To go online and make phone calls simultaneously, please refer to Appendix B: SPLITTER CONNECTION. 2.2.2 INSTALLATION STEPS 1. Connect line port⑤ of the ADSL MODEM to telephone jack with the telephone cord that comes with the modem. 2. Connect Ethernet port④ of the ADSL MODEM to Ethernet port of the computer using the network cable that comes with the modem. 3. Plug in the power cord ①, and turn on the power. 2 HARDWARE INSTALLATION AND SOFTWARE CONFIGURATION

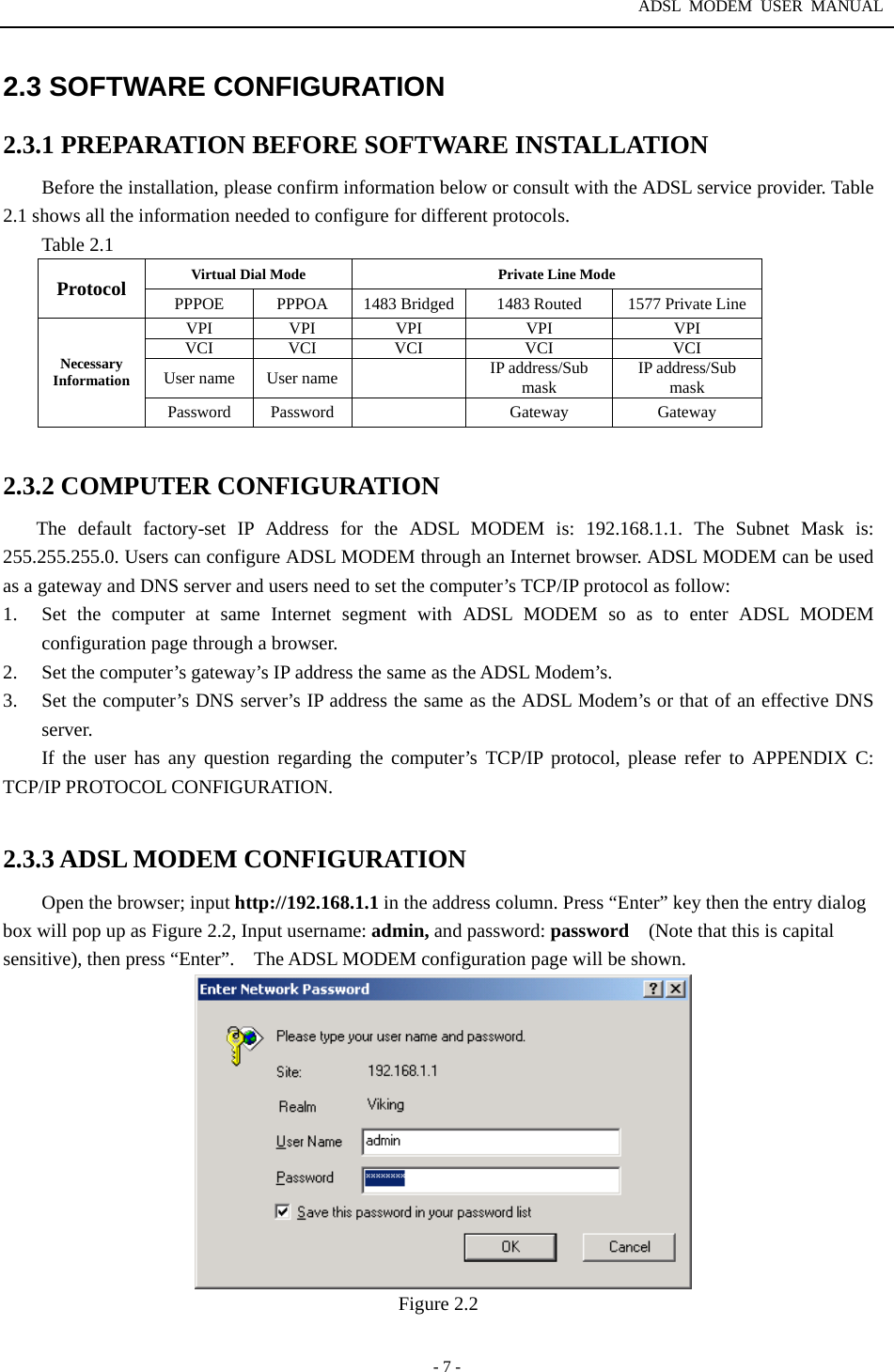

ADSL MODEM USER MANUAL - 7 - 2.3 SOFTWARE CONFIGURATION 2.3.1 PREPARATION BEFORE SOFTWARE INSTALLATION Before the installation, please confirm information below or consult with the ADSL service provider. Table 2.1 shows all the information needed to configure for different protocols. Table 2.1 Virtual Dial Mode Private Line Mode Protocol PPPOE PPPOA 1483 Bridged 1483 Routed 1577 Private Line VPI VPI VPI VPI VPI VCI VCI VCI VCI VCI User name User name IP address/Sub mask IP address/Sub mask Necessary Information Password Password Gateway Gateway 2.3.2 COMPUTER CONFIGURATION The default factory-set IP Address for the ADSL MODEM is: 192.168.1.1. The Subnet Mask is: 255.255.255.0. Users can configure ADSL MODEM through an Internet browser. ADSL MODEM can be used as a gateway and DNS server and users need to set the computer’s TCP/IP protocol as follow: 1. Set the computer at same Internet segment with ADSL MODEM so as to enter ADSL MODEM configuration page through a browser. 2. Set the computer’s gateway’s IP address the same as the ADSL Modem’s. 3. Set the computer’s DNS server’s IP address the same as the ADSL Modem’s or that of an effective DNS server. If the user has any question regarding the computer’s TCP/IP protocol, please refer to APPENDIX C: TCP/IP PROTOCOL CONFIGURATION. 2.3.3 ADSL MODEM CONFIGURATION Open the browser; input http://192.168.1.1 in the address column. Press “Enter” key then the entry dialog box will pop up as Figure 2.2, Input username: admin, and password: password (Note that this is capital sensitive), then press “Enter”. The ADSL MODEM configuration page will be shown. Figure 2.2

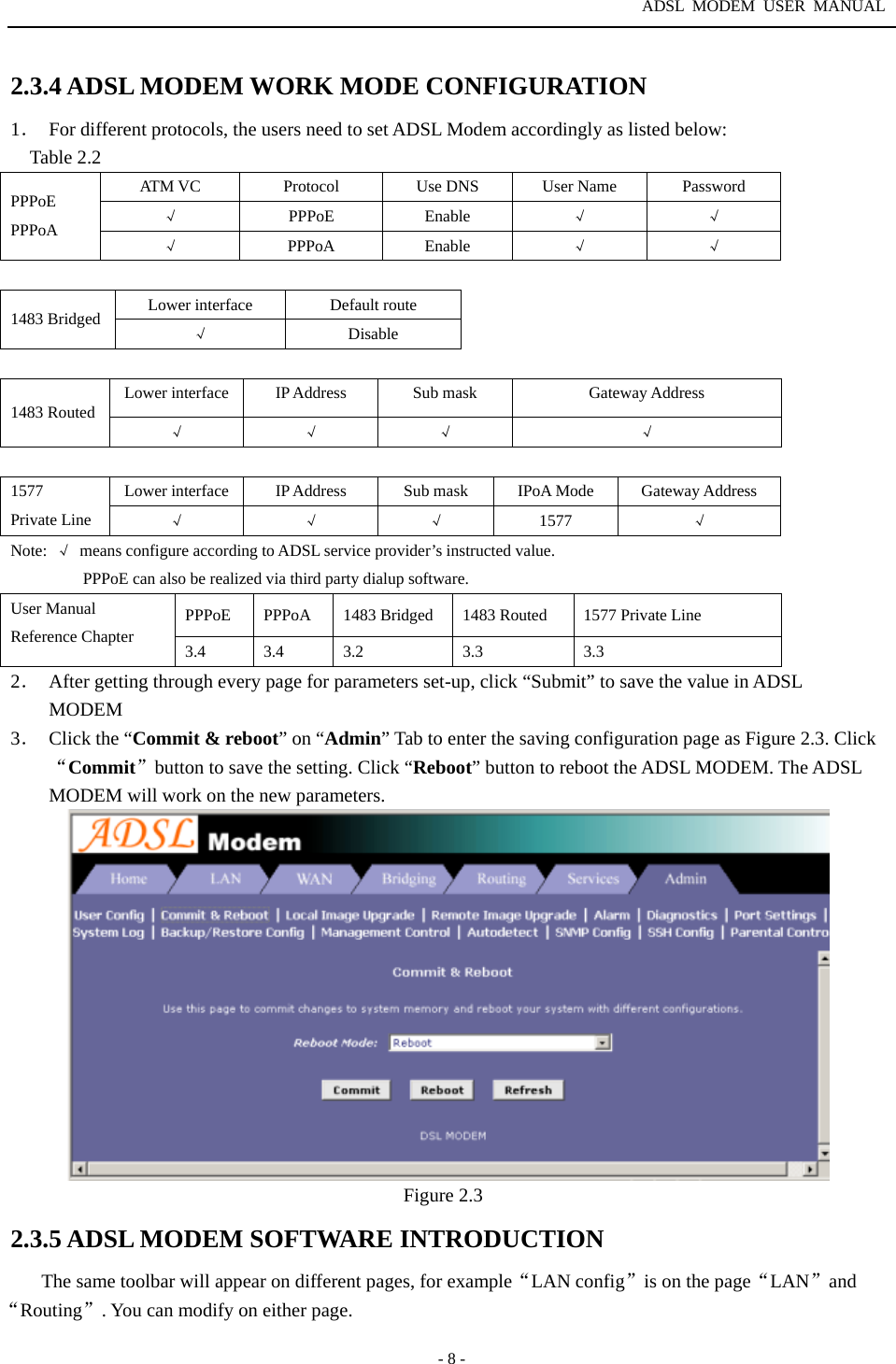

ADSL MODEM USER MANUAL - 8 - 2.3.4 ADSL MODEM WORK MODE CONFIGURATION 1． For different protocols, the users need to set ADSL Modem accordingly as listed below: Table 2.2 ATM VC Protocol Use DNS User Name Password √ PPPoE Enable √ √ PPPoE PPPoA √ PPPoA Enable √ √ Lower interface Default route 1483 Bridged √ Disable Lower interface IP Address Sub mask Gateway Address 1483 Routed √ √ √ √ Lower interface IP Address Sub mask IPoA Mode Gateway Address 1577 Private Line √ √ √ 1577 √ Note: √ means configure according to ADSL service provider’s instructed value. PPPoE can also be realized via third party dialup software. PPPoE PPPoA 1483 Bridged 1483 Routed 1577 Private Line User Manual Reference Chapter 3.4 3.4 3.2 3.3 3.3 2． After getting through every page for parameters set-up, click “Submit” to save the value in ADSL MODEM 3． Click the “Commit & reboot” on “Admin” Tab to enter the saving configuration page as Figure 2.3. Click“Commit”button to save the setting. Click “Reboot” button to reboot the ADSL MODEM. The ADSL MODEM will work on the new parameters. Figure 2.3 2.3.5 ADSL MODEM SOFTWARE INTRODUCTION The same toolbar will appear on different pages, for example“LAN config”is on the page“LAN”and“Routing”. You can modify on either page.

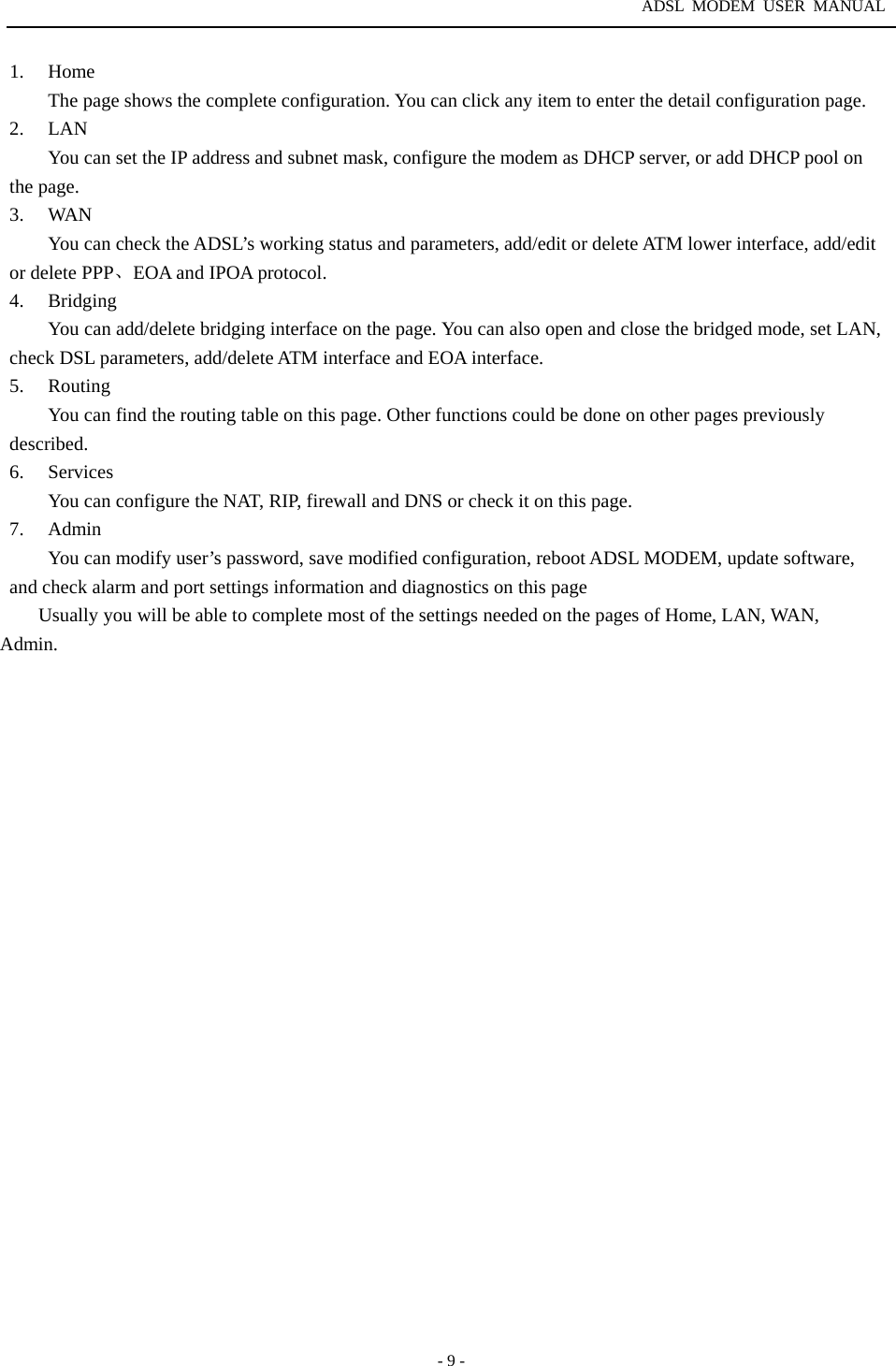

ADSL MODEM USER MANUAL - 9 - 1. Home The page shows the complete configuration. You can click any item to enter the detail configuration page. 2. LAN You can set the IP address and subnet mask, configure the modem as DHCP server, or add DHCP pool on the page. 3. WAN You can check the ADSL’s working status and parameters, add/edit or delete ATM lower interface, add/edit or delete PPP、EOA and IPOA protocol. 4. Bridging You can add/delete bridging interface on the page. You can also open and close the bridged mode, set LAN, check DSL parameters, add/delete ATM interface and EOA interface. 5. Routing You can find the routing table on this page. Other functions could be done on other pages previously described. 6. Services You can configure the NAT, RIP, firewall and DNS or check it on this page. 7. Admin You can modify user’s password, save modified configuration, reboot ADSL MODEM, update software, and check alarm and port settings information and diagnostics on this page Usually you will be able to complete most of the settings needed on the pages of Home, LAN, WAN, Admin.

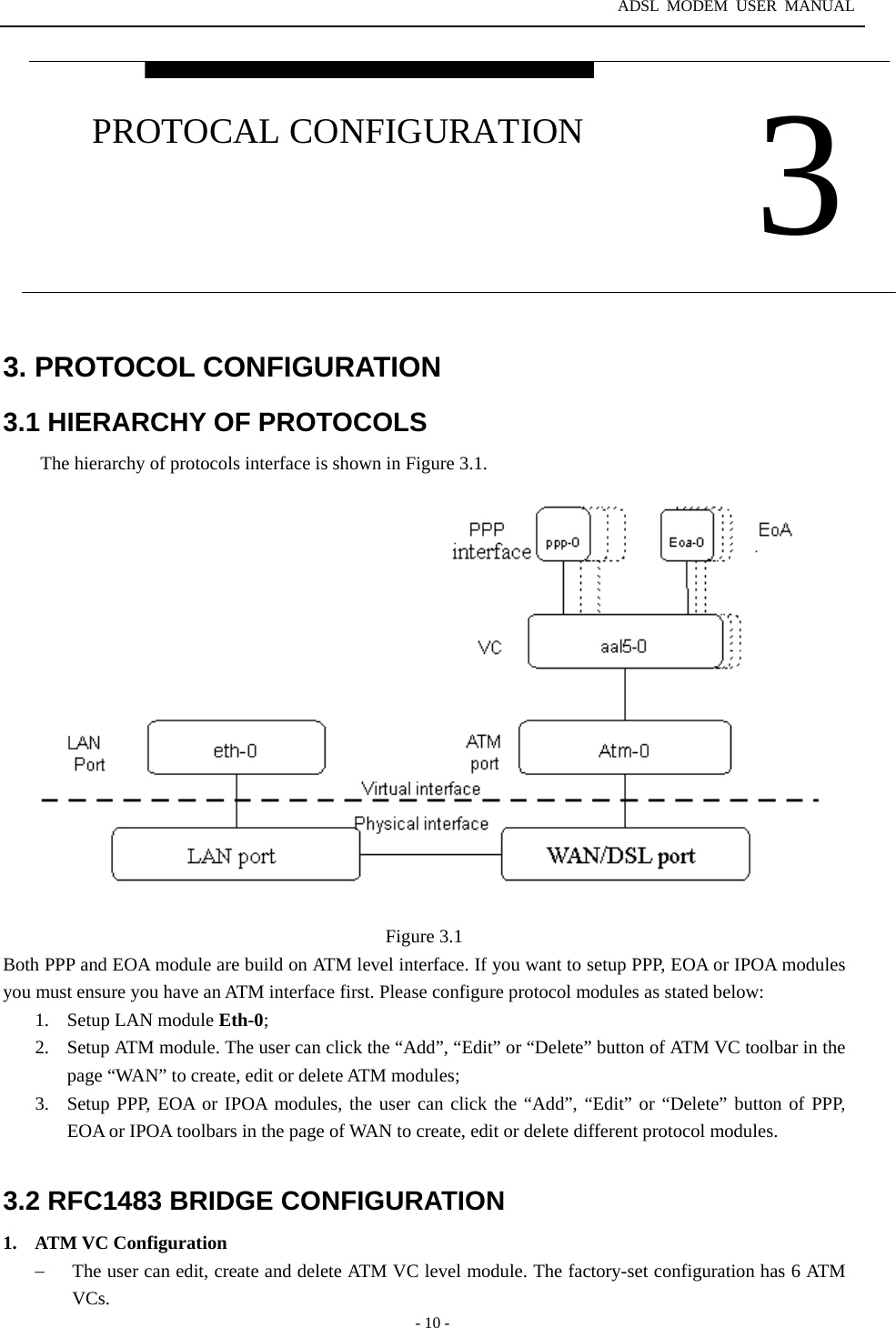

ADSL MODEM USER MANUAL - 10 - 3. PROTOCOL CONFIGURATION 3.1 HIERARCHY OF PROTOCOLS The hierarchy of protocols interface is shown in Figure 3.1. Figure 3.1 Both PPP and EOA module are build on ATM level interface. If you want to setup PPP, EOA or IPOA modules you must ensure you have an ATM interface first. Please configure protocol modules as stated below: 1. Setup LAN module Eth-0; 2. Setup ATM module. The user can click the “Add”, “Edit” or “Delete” button of ATM VC toolbar in the page “WAN” to create, edit or delete ATM modules; 3. Setup PPP, EOA or IPOA modules, the user can click the “Add”, “Edit” or “Delete” button of PPP, EOA or IPOA toolbars in the page of WAN to create, edit or delete different protocol modules. 3.2 RFC1483 BRIDGE CONFIGURATION 1. ATM VC Configuration − The user can edit, create and delete ATM VC level module. The factory-set configuration has 6 ATM VCs. 3 PROTOCAL CONFIGURATION

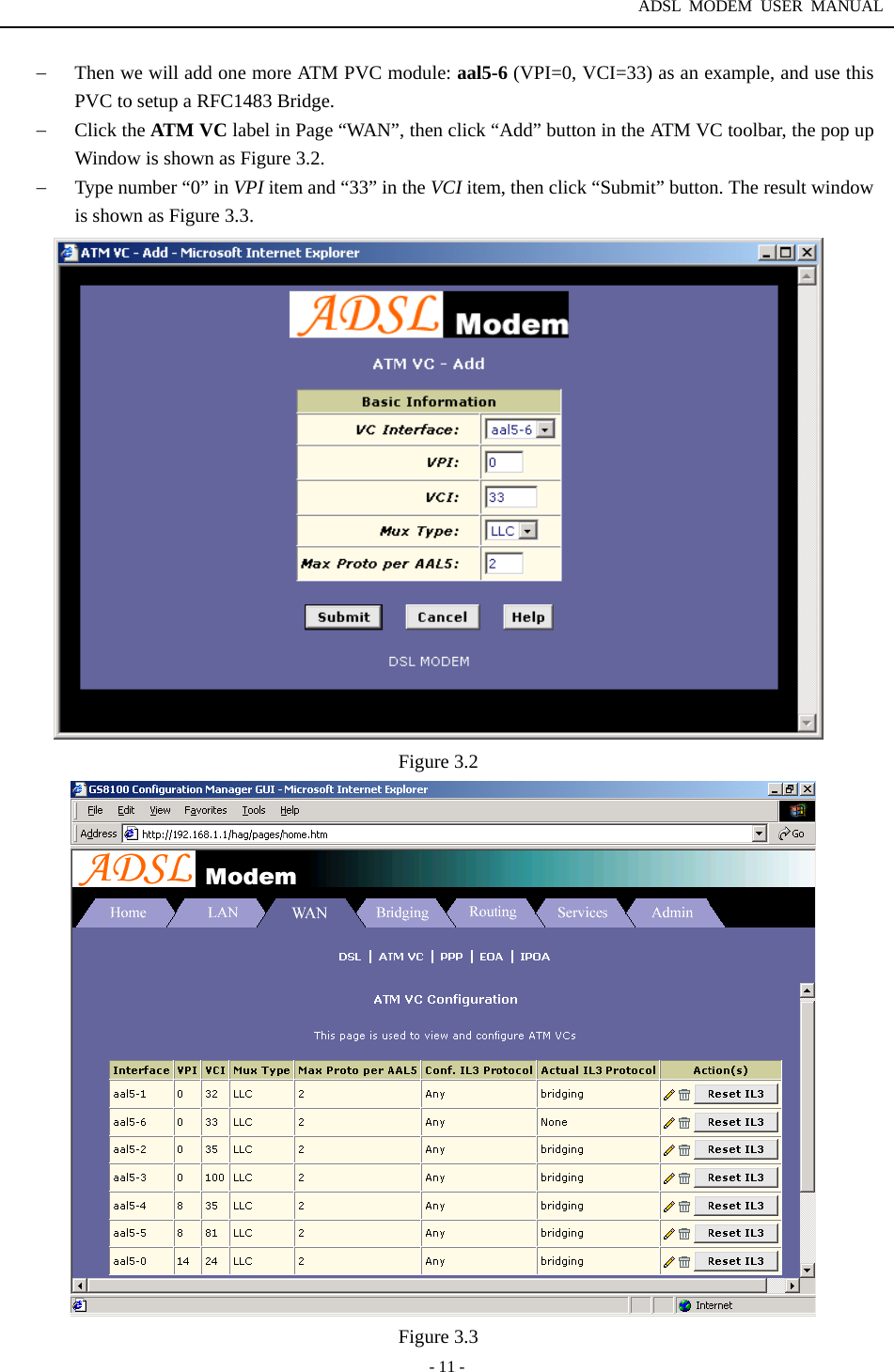

ADSL MODEM USER MANUAL - 11 - − Then we will add one more ATM PVC module: aal5-6 (VPI=0, VCI=33) as an example, and use this PVC to setup a RFC1483 Bridge. − Click the ATM VC label in Page “WAN”, then click “Add” button in the ATM VC toolbar, the pop up Window is shown as Figure 3.2. − Type number “0” in VPI item and “33” in the VCI item, then click “Submit” button. The result window is shown as Figure 3.3. Figure 3.2 Figure 3.3

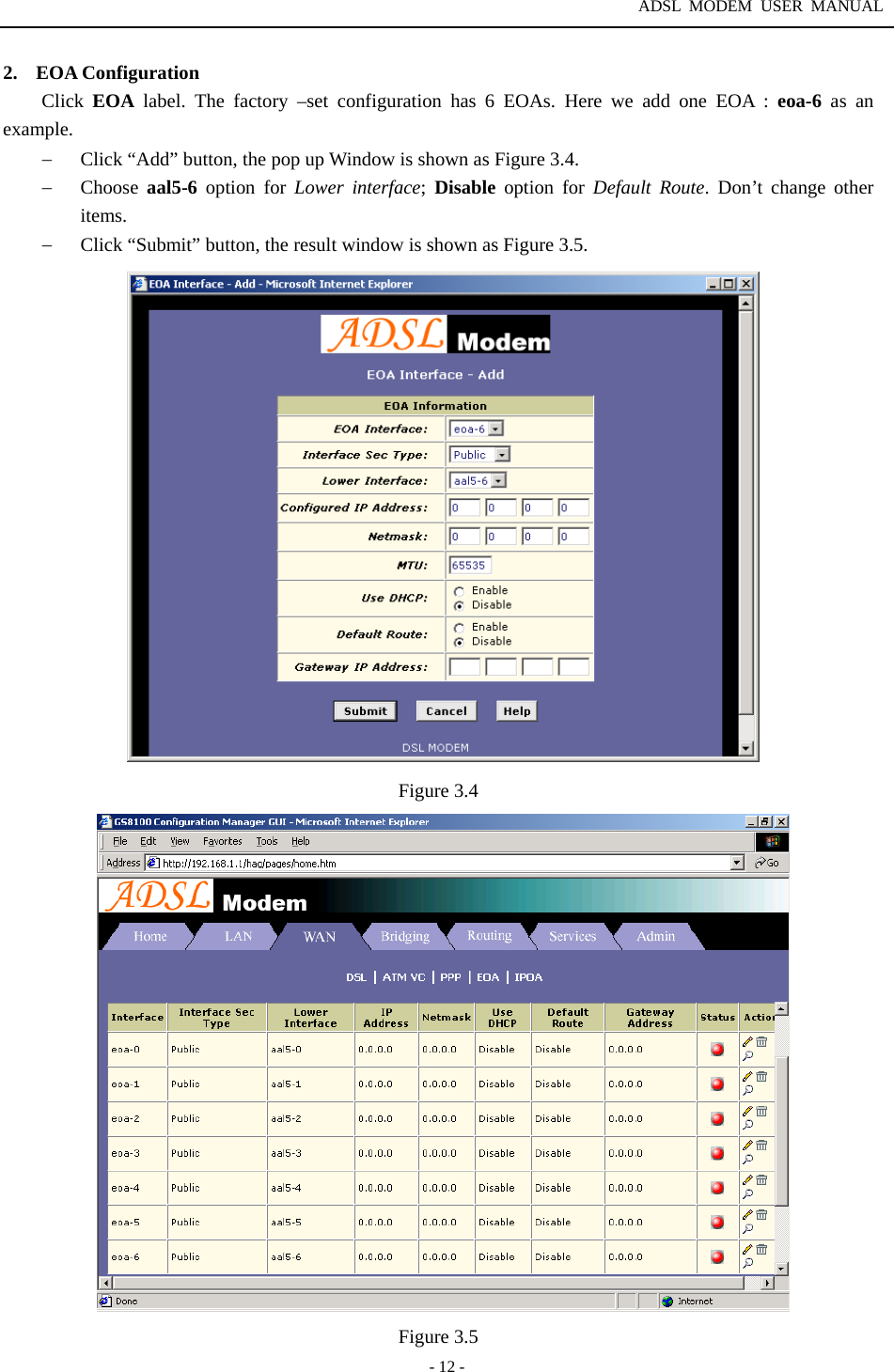

ADSL MODEM USER MANUAL - 12 - 2. EOA Configuration Click EOA label. The factory –set configuration has 6 EOAs. Here we add one EOA : eoa-6 as an example. − Click “Add” button, the pop up Window is shown as Figure 3.4. − Choose aal5-6 option for Lower interface; Disable option for Default Route. Don’t change other items. − Click “Submit” button, the result window is shown as Figure 3.5. Figure 3.4 Figure 3.5

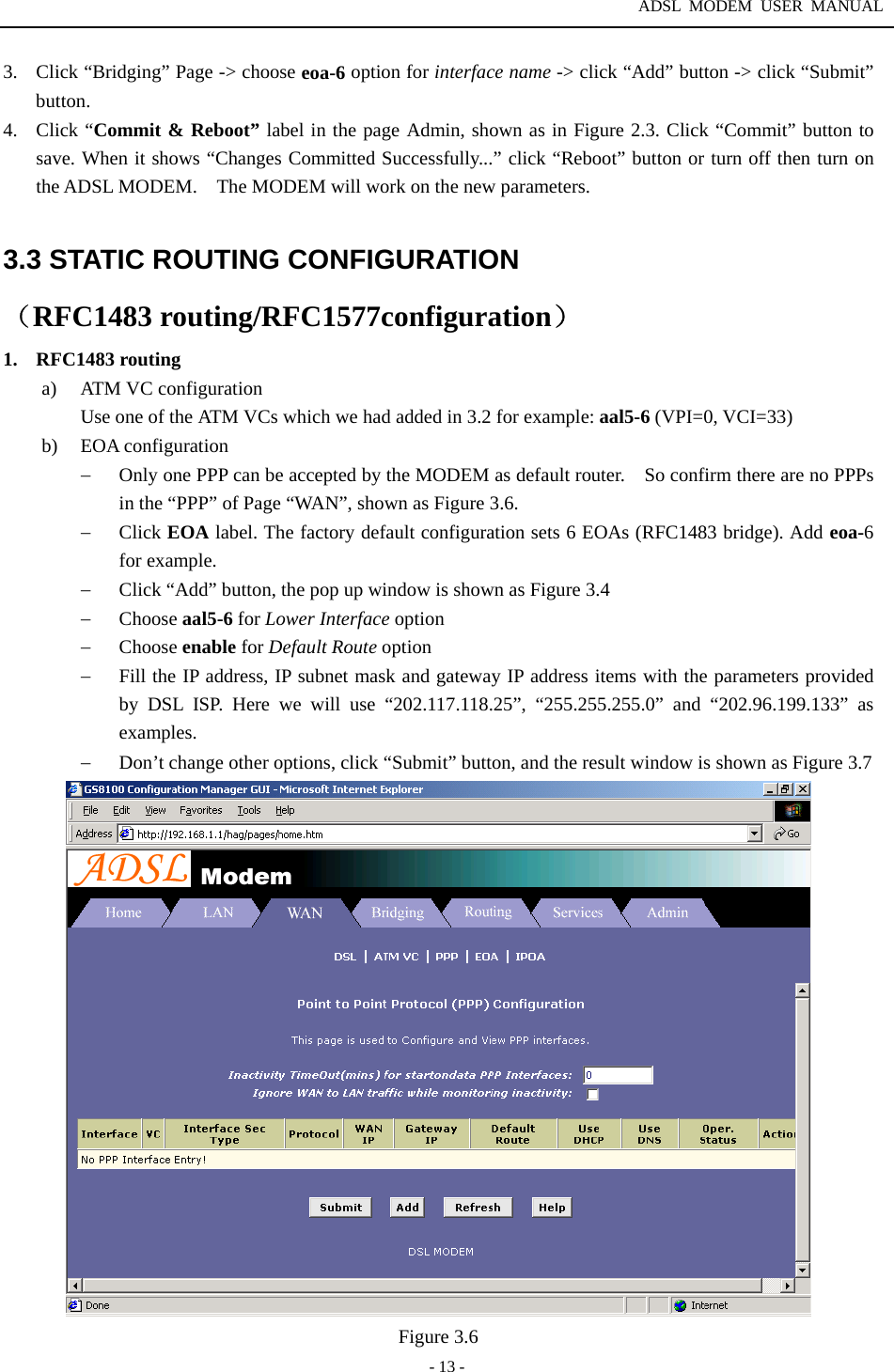

ADSL MODEM USER MANUAL - 13 - 3. Click “Bridging” Page -> choose eoa-6 option for interface name -> click “Add” button -> click “Submit” button. 4. Click “Commit & Reboot” label in the page Admin, shown as in Figure 2.3. Click “Commit” button to save. When it shows “Changes Committed Successfully...” click “Reboot” button or turn off then turn on the ADSL MODEM. The MODEM will work on the new parameters. 3.3 STATIC ROUTING CONFIGURATION （RFC1483 routing/RFC1577configuration） 1. RFC1483 routing a) ATM VC configuration Use one of the ATM VCs which we had added in 3.2 for example: aal5-6 (VPI=0, VCI=33) b) EOA configuration − Only one PPP can be accepted by the MODEM as default router. So confirm there are no PPPs in the “PPP” of Page “WAN”, shown as Figure 3.6. − Click EOA label. The factory default configuration sets 6 EOAs (RFC1483 bridge). Add eoa-6 for example. − Click “Add” button, the pop up window is shown as Figure 3.4 − Choose aal5-6 for Lower Interface option − Choose enable for Default Route option − Fill the IP address, IP subnet mask and gateway IP address items with the parameters provided by DSL ISP. Here we will use “202.117.118.25”, “255.255.255.0” and “202.96.199.133” as examples. − Don’t change other options, click “Submit” button, and the result window is shown as Figure 3.7 Figure 3.6

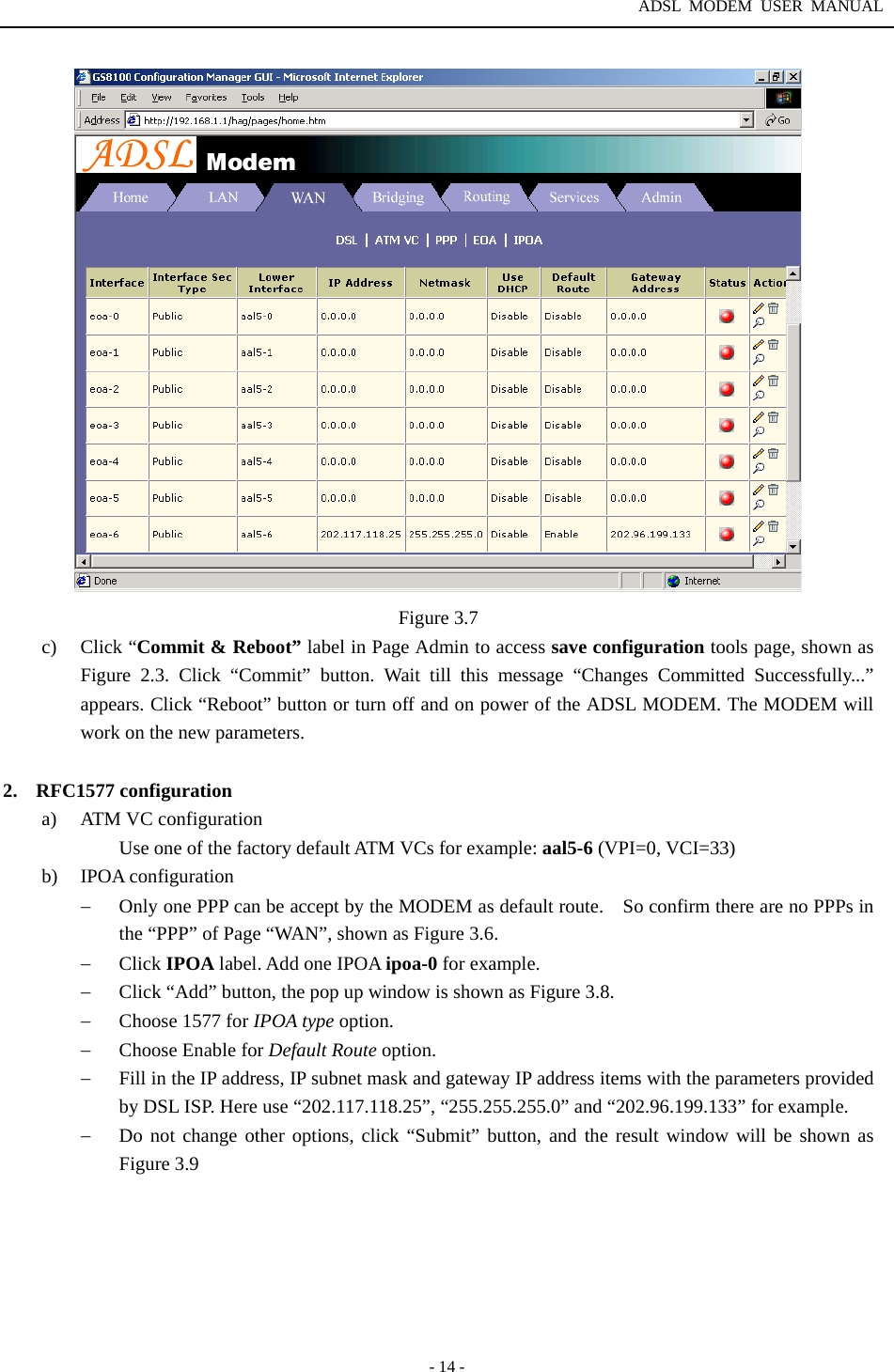

ADSL MODEM USER MANUAL - 14 - Figure 3.7 c) Click “Commit & Reboot” label in Page Admin to access save configuration tools page, shown as Figure 2.3. Click “Commit” button. Wait till this message “Changes Committed Successfully...” appears. Click “Reboot” button or turn off and on power of the ADSL MODEM. The MODEM will work on the new parameters. 2. RFC1577 configuration a) ATM VC configuration Use one of the factory default ATM VCs for example: aal5-6 (VPI=0, VCI=33) b) IPOA configuration − Only one PPP can be accept by the MODEM as default route. So confirm there are no PPPs in the “PPP” of Page “WAN”, shown as Figure 3.6. − Click IPOA label. Add one IPOA ipoa-0 for example. − Click “Add” button, the pop up window is shown as Figure 3.8. − Choose 1577 for IPOA type option. − Choose Enable for Default Route option. − Fill in the IP address, IP subnet mask and gateway IP address items with the parameters provided by DSL ISP. Here use “202.117.118.25”, “255.255.255.0” and “202.96.199.133” for example. − Do not change other options, click “Submit” button, and the result window will be shown as Figure 3.9

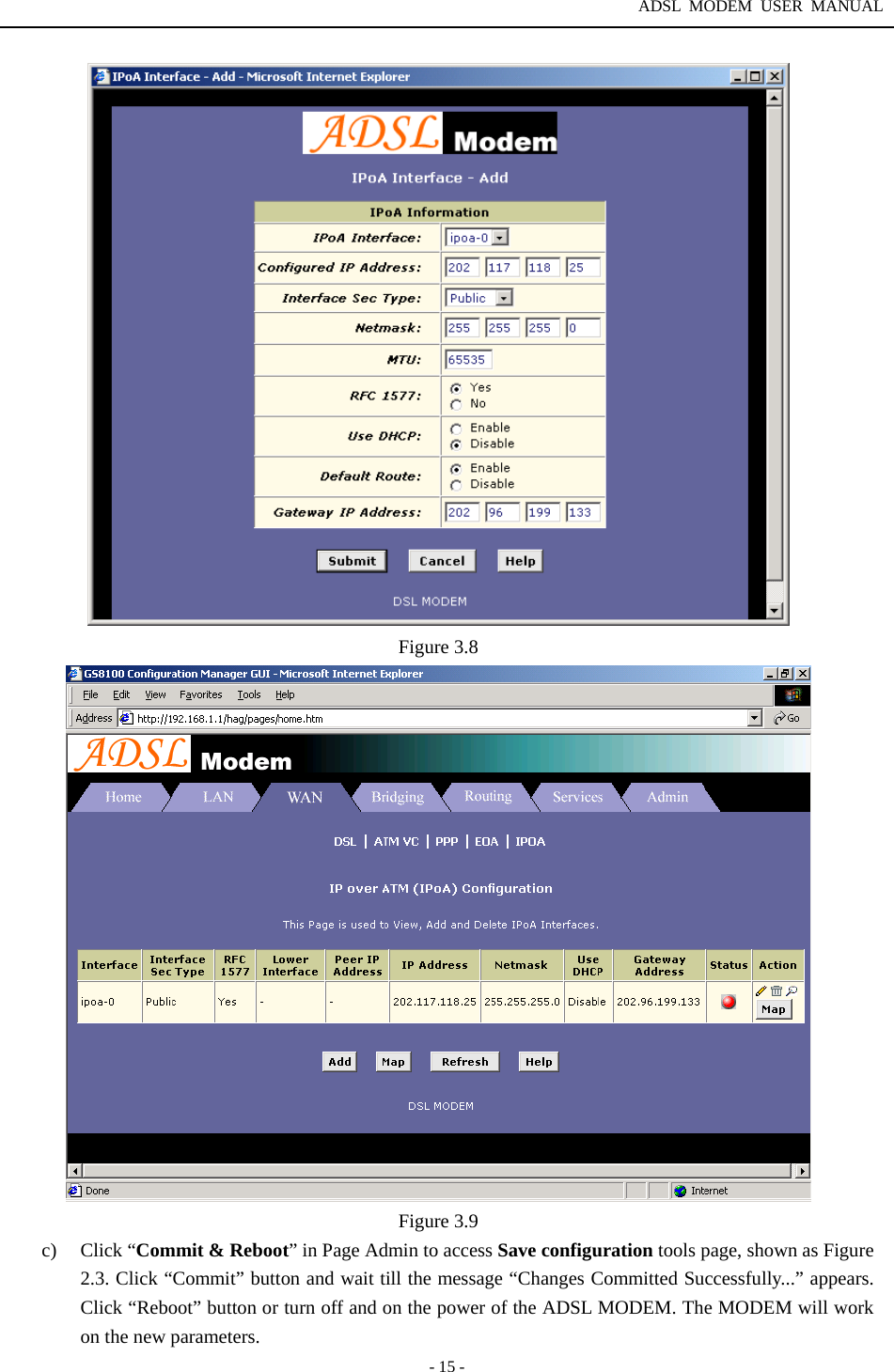

ADSL MODEM USER MANUAL - 15 - Figure 3.8 Figure 3.9 c) Click “Commit & Reboot” in Page Admin to access Save configuration tools page, shown as Figure 2.3. Click “Commit” button and wait till the message “Changes Committed Successfully...” appears. Click “Reboot” button or turn off and on the power of the ADSL MODEM. The MODEM will work on the new parameters.

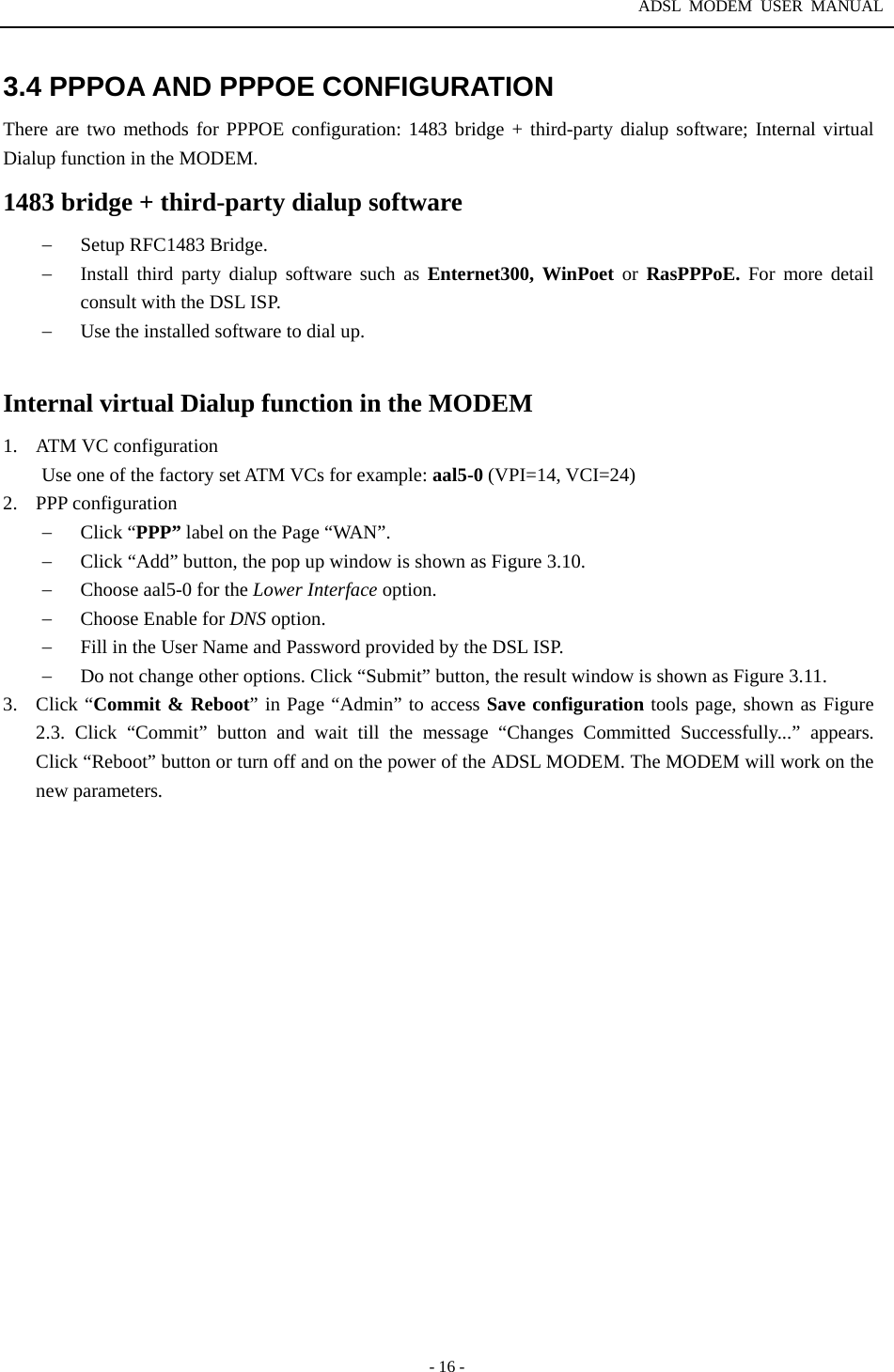

ADSL MODEM USER MANUAL - 16 - 3.4 PPPOA AND PPPOE CONFIGURATION There are two methods for PPPOE configuration: 1483 bridge + third-party dialup software; Internal virtual Dialup function in the MODEM. 1483 bridge + third-party dialup software − Setup RFC1483 Bridge. − Install third party dialup software such as Enternet300, WinPoet or RasPPPoE. For more detail consult with the DSL ISP. − Use the installed software to dial up. Internal virtual Dialup function in the MODEM 1. ATM VC configuration Use one of the factory set ATM VCs for example: aal5-0 (VPI=14, VCI=24) 2. PPP configuration − Click “PPP” label on the Page “WAN”. − Click “Add” button, the pop up window is shown as Figure 3.10. − Choose aal5-0 for the Lower Interface option. − Choose Enable for DNS option. − Fill in the User Name and Password provided by the DSL ISP. − Do not change other options. Click “Submit” button, the result window is shown as Figure 3.11. 3. Click “Commit & Reboot” in Page “Admin” to access Save configuration tools page, shown as Figure 2.3. Click “Commit” button and wait till the message “Changes Committed Successfully...” appears. Click “Reboot” button or turn off and on the power of the ADSL MODEM. The MODEM will work on the new parameters.

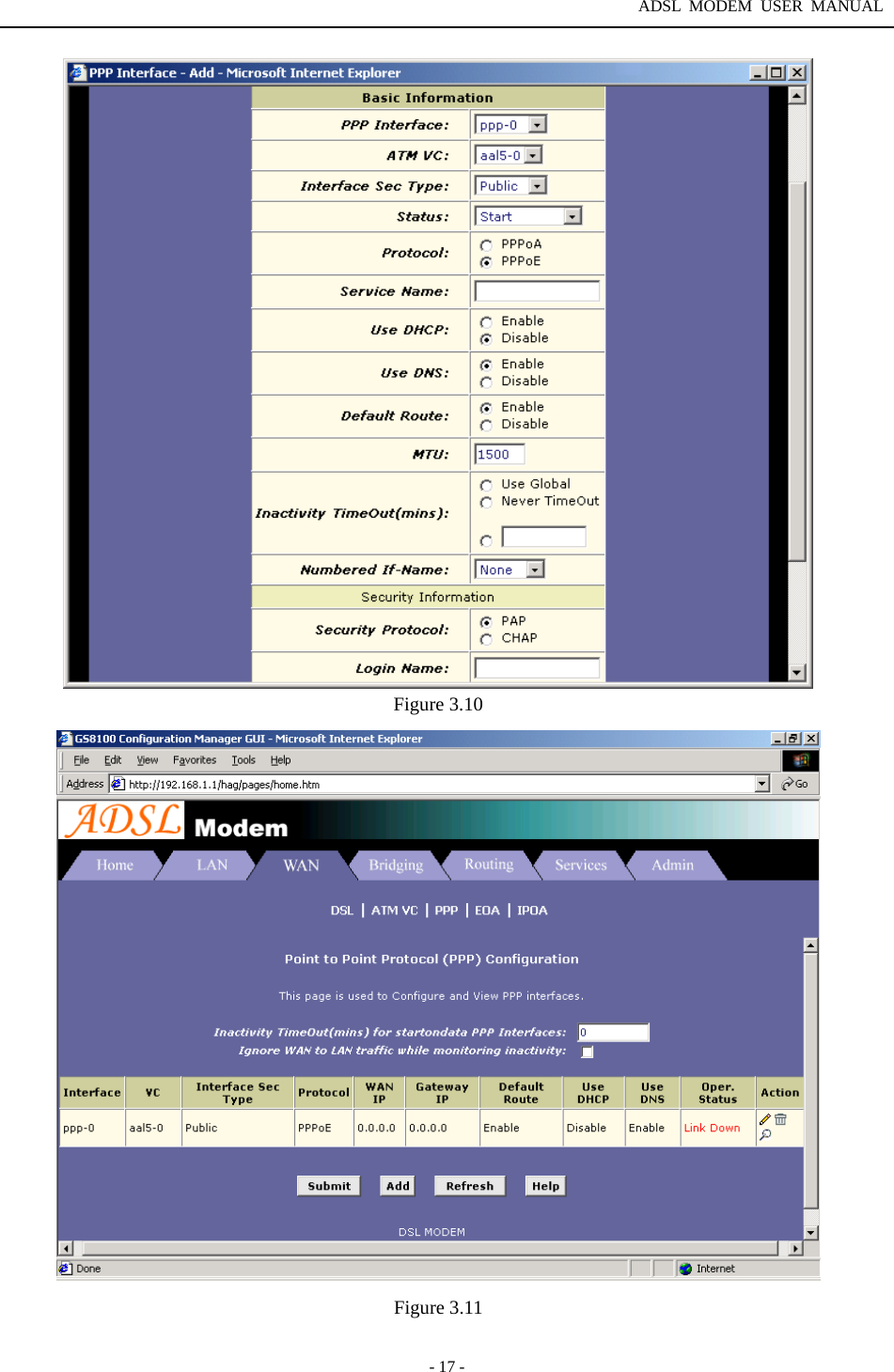

ADSL MODEM USER MANUAL - 17 - Figure 3.10 Figure 3.11

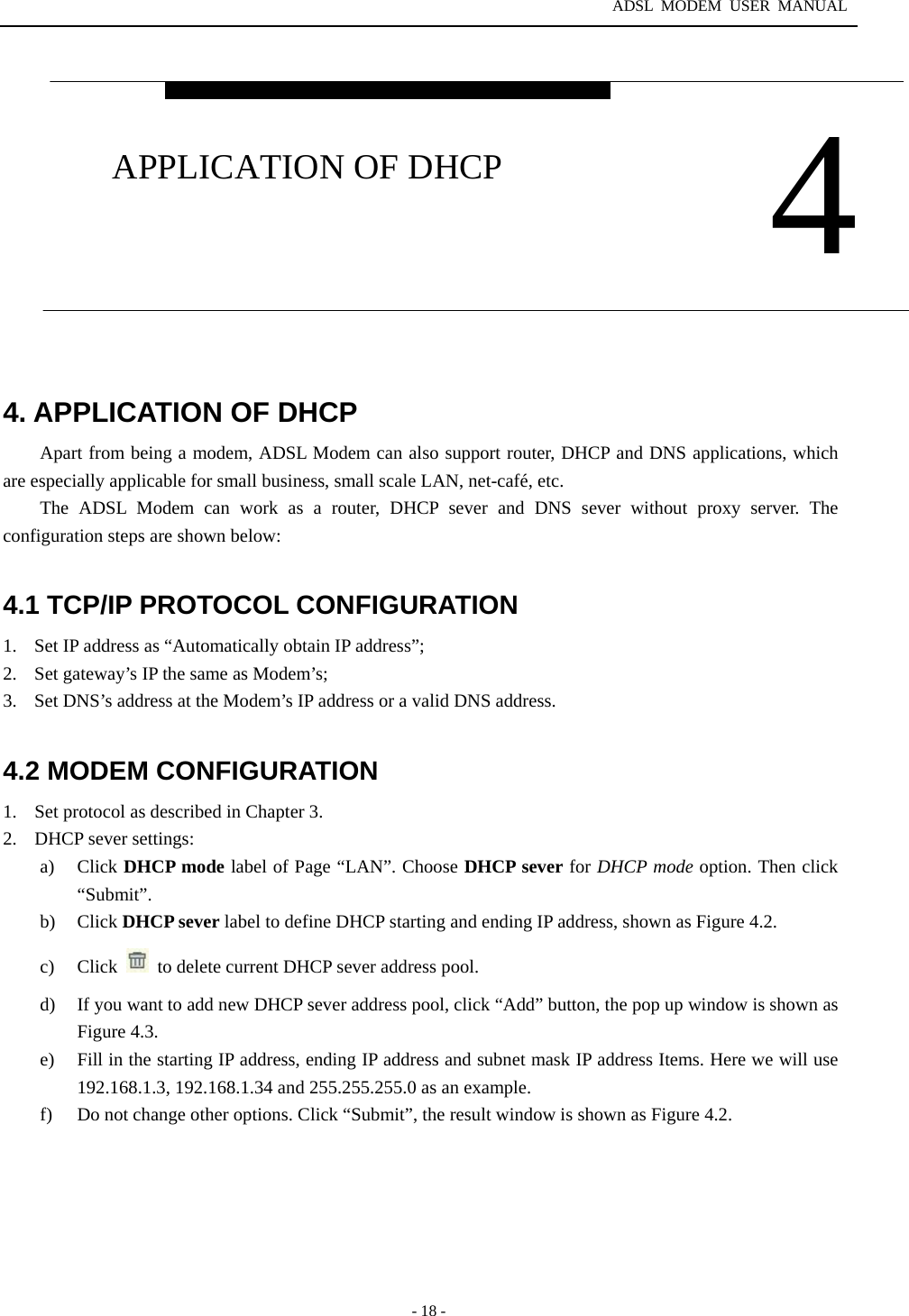

ADSL MODEM USER MANUAL - 18 - 4. APPLICATION OF DHCP Apart from being a modem, ADSL Modem can also support router, DHCP and DNS applications, which are especially applicable for small business, small scale LAN, net-café, etc. The ADSL Modem can work as a router, DHCP sever and DNS sever without proxy server. The configuration steps are shown below: 4.1 TCP/IP PROTOCOL CONFIGURATION 1. Set IP address as “Automatically obtain IP address”; 2. Set gateway’s IP the same as Modem’s; 3. Set DNS’s address at the Modem’s IP address or a valid DNS address. 4.2 MODEM CONFIGURATION 1. Set protocol as described in Chapter 3. 2. DHCP sever settings: a) Click DHCP mode label of Page “LAN”. Choose DHCP sever for DHCP mode option. Then click “Submit”. b) Click DHCP sever label to define DHCP starting and ending IP address, shown as Figure 4.2. c) Click to delete current DHCP sever address pool. d) If you want to add new DHCP sever address pool, click “Add” button, the pop up window is shown as Figure 4.3. e) Fill in the starting IP address, ending IP address and subnet mask IP address Items. Here we will use 192.168.1.3, 192.168.1.34 and 255.255.255.0 as an example. f) Do not change other options. Click “Submit”, the result window is shown as Figure 4.2. 4 APPLICATION OF DHCP

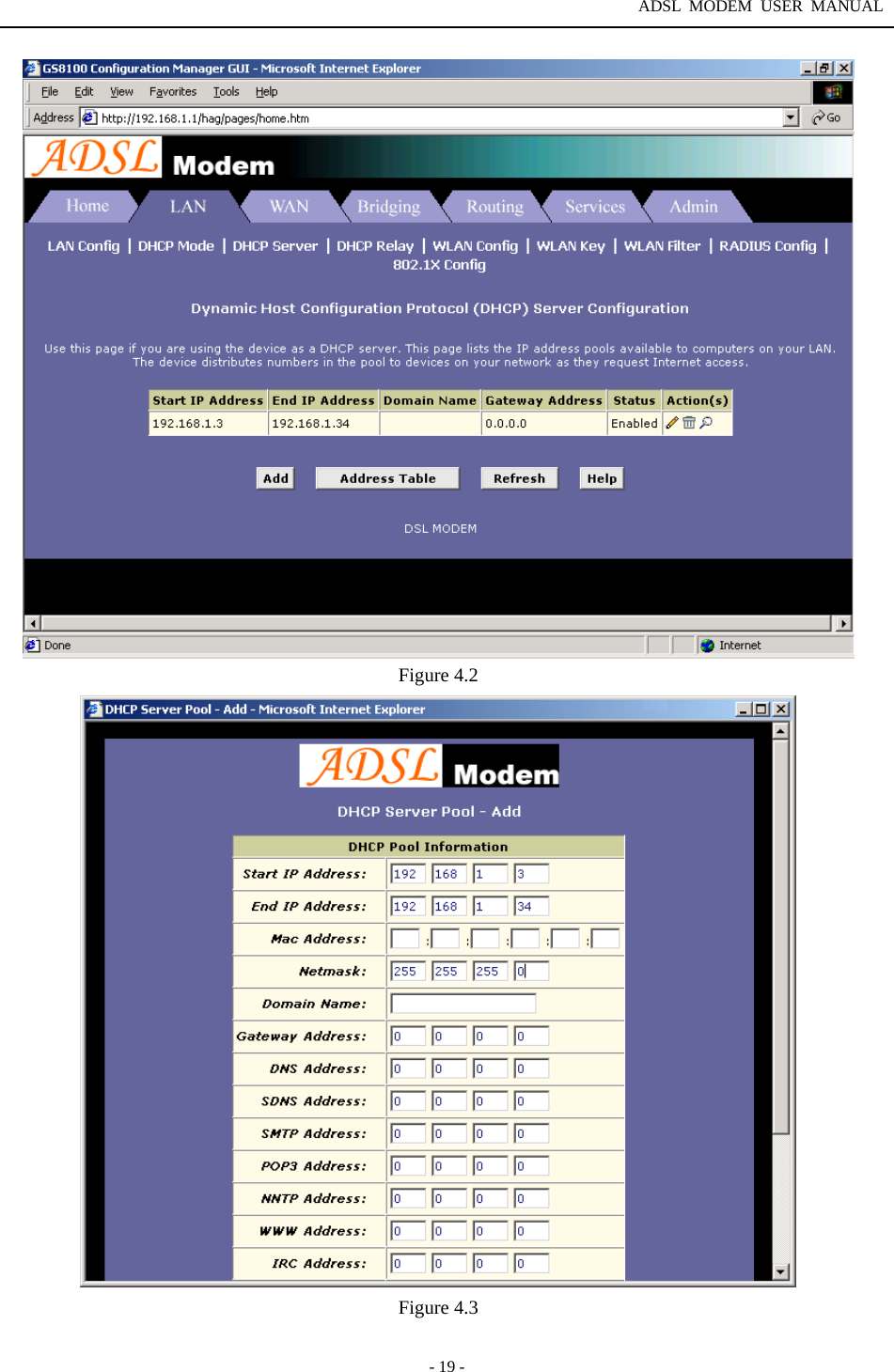

ADSL MODEM USER MANUAL - 19 - Figure 4.2 Figure 4.3

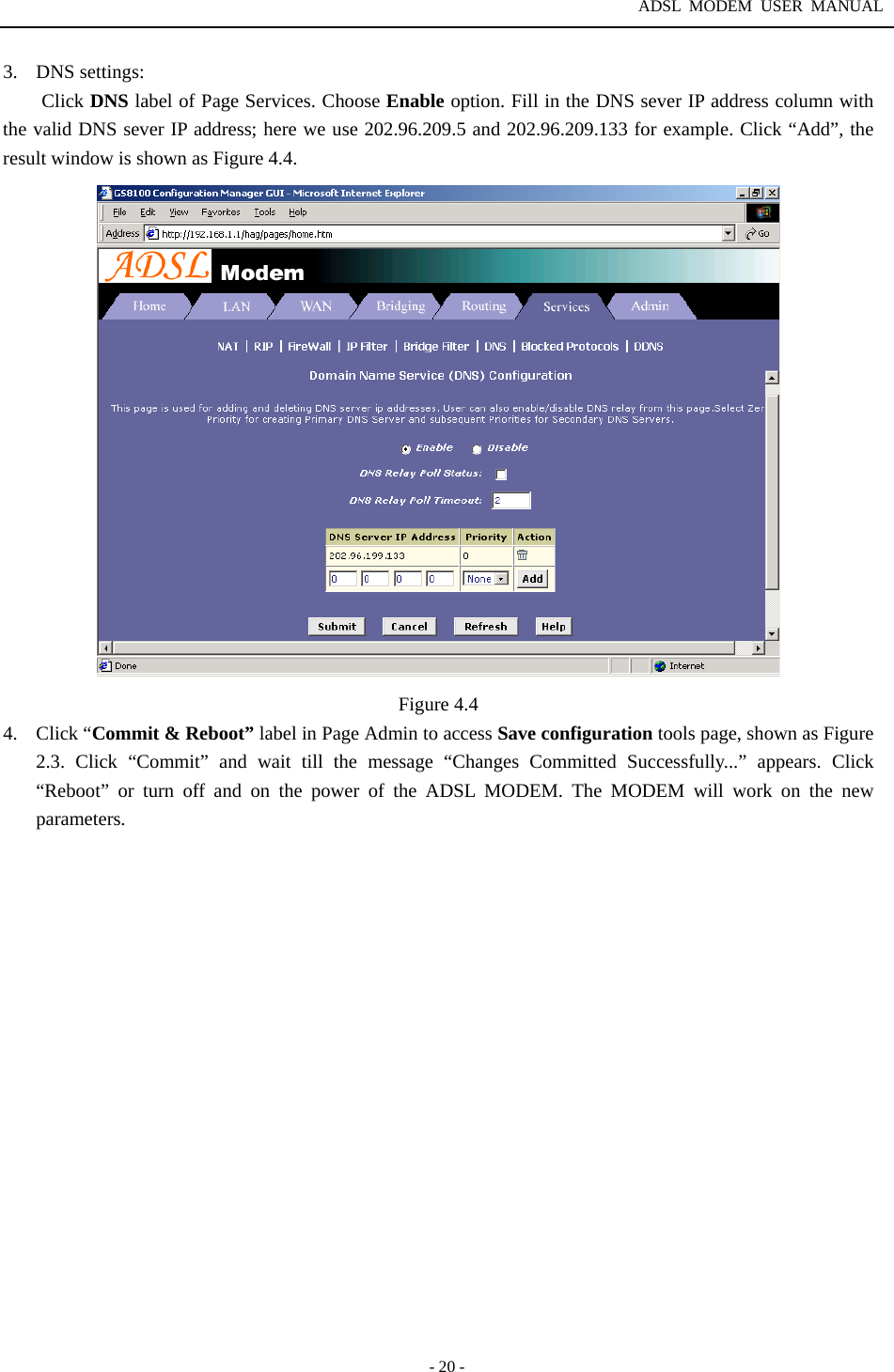

ADSL MODEM USER MANUAL - 20 - 3. DNS settings: Click DNS label of Page Services. Choose Enable option. Fill in the DNS sever IP address column with the valid DNS sever IP address; here we use 202.96.209.5 and 202.96.209.133 for example. Click “Add”, the result window is shown as Figure 4.4. Figure 4.4 4. Click “Commit & Reboot” label in Page Admin to access Save configuration tools page, shown as Figure 2.3. Click “Commit” and wait till the message “Changes Committed Successfully...” appears. Click “Reboot” or turn off and on the power of the ADSL MODEM. The MODEM will work on the new parameters.

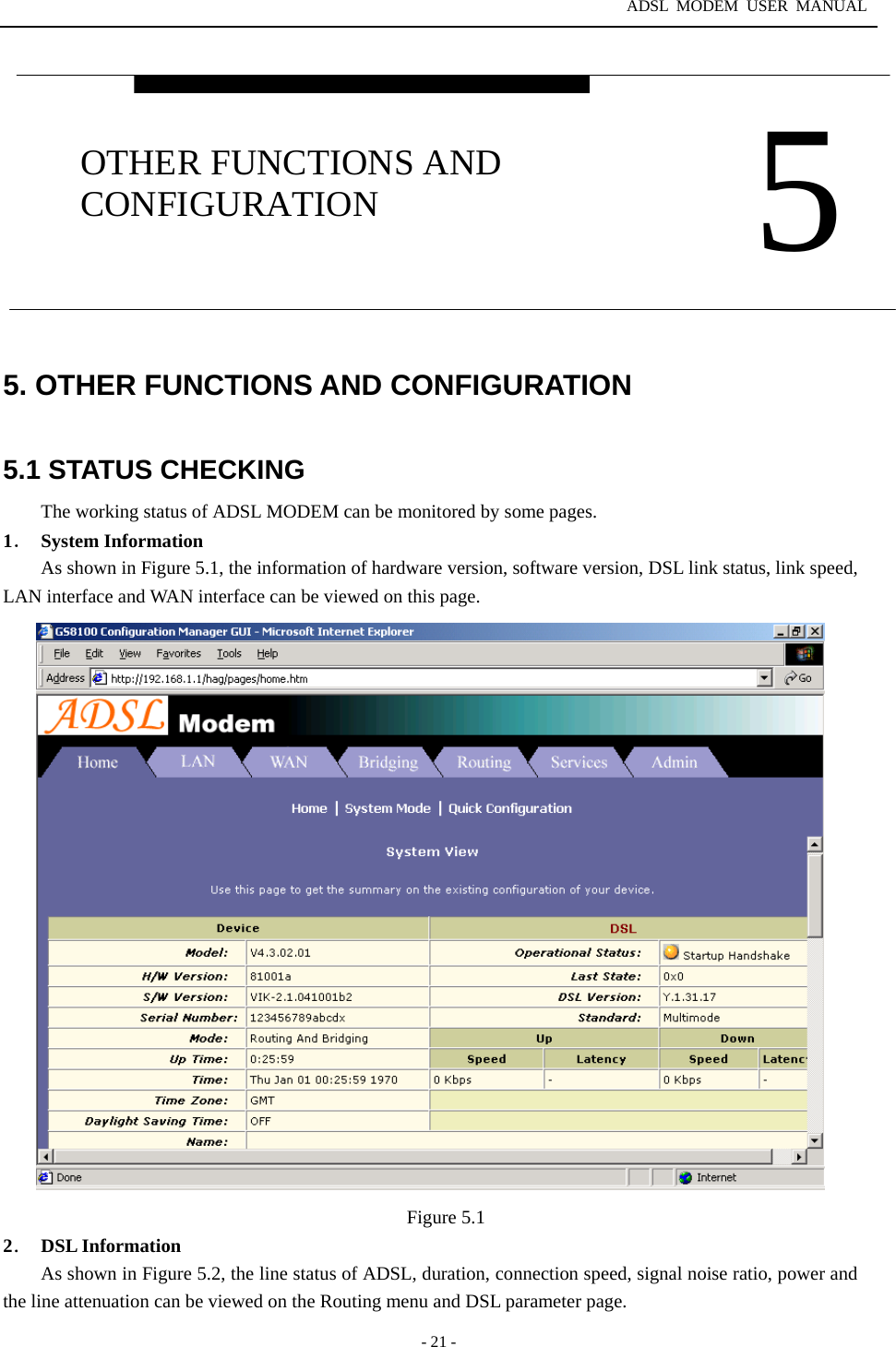

ADSL MODEM USER MANUAL - 21 - 5. OTHER FUNCTIONS AND CONFIGURATION 5.1 STATUS CHECKING The working status of ADSL MODEM can be monitored by some pages. 1． System Information As shown in Figure 5.1, the information of hardware version, software version, DSL link status, link speed, LAN interface and WAN interface can be viewed on this page. Figure 5.1 2． DSL Information As shown in Figure 5.2, the line status of ADSL, duration, connection speed, signal noise ratio, power and the line attenuation can be viewed on the Routing menu and DSL parameter page. 5 OTHER FUNCTIONS AND CONFIGURATION

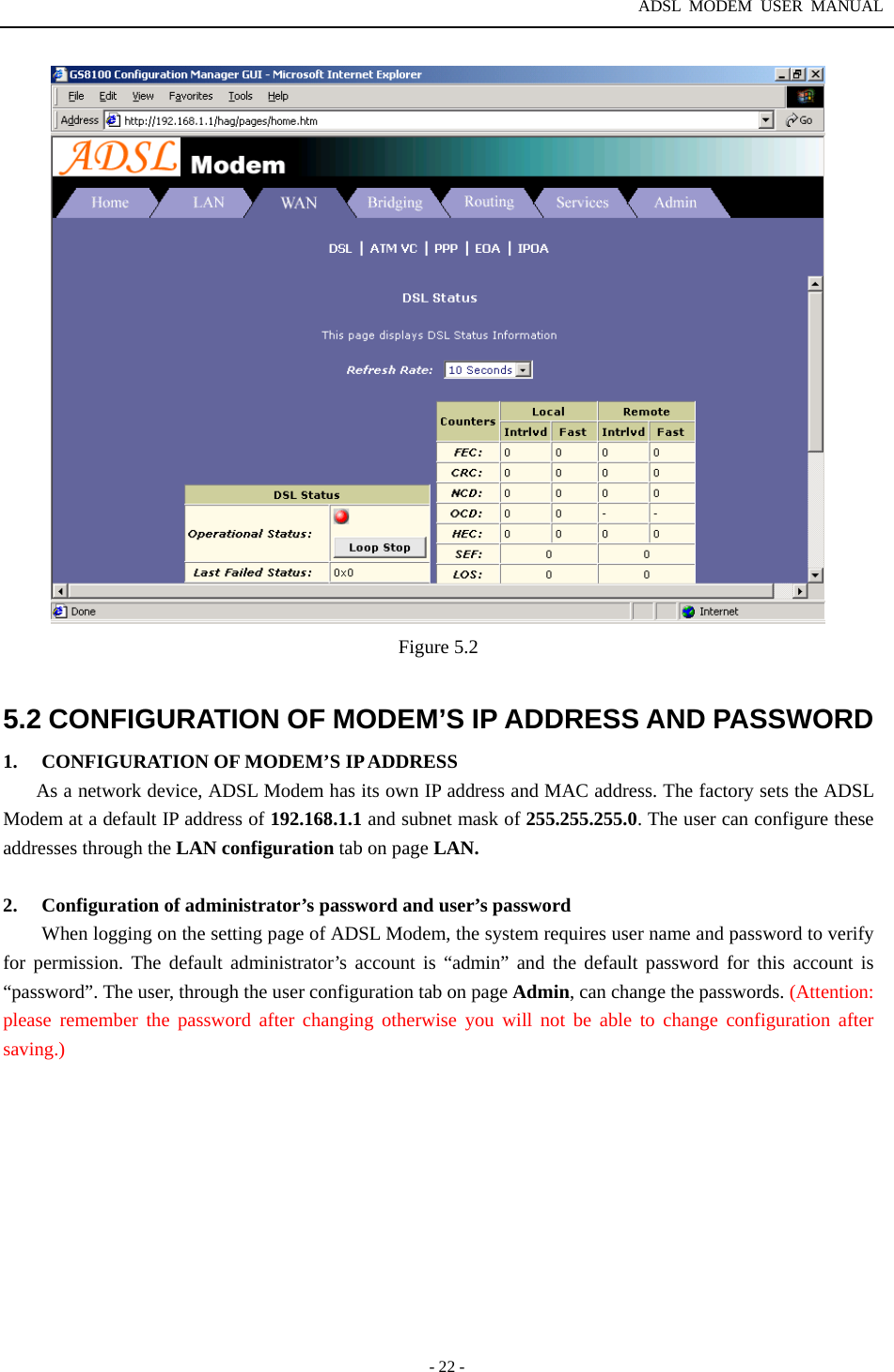

ADSL MODEM USER MANUAL - 22 - Figure 5.2 5.2 CONFIGURATION OF MODEM’S IP ADDRESS AND PASSWORD 1. CONFIGURATION OF MODEM’S IP ADDRESS As a network device, ADSL Modem has its own IP address and MAC address. The factory sets the ADSL Modem at a default IP address of 192.168.1.1 and subnet mask of 255.255.255.0. The user can configure these addresses through the LAN configuration tab on page LAN. 2. Configuration of administrator’s password and user’s password When logging on the setting page of ADSL Modem, the system requires user name and password to verify for permission. The default administrator’s account is “admin” and the default password for this account is “password”. The user, through the user configuration tab on page Admin, can change the passwords. (Attention: please remember the password after changing otherwise you will not be able to change configuration after saving.)

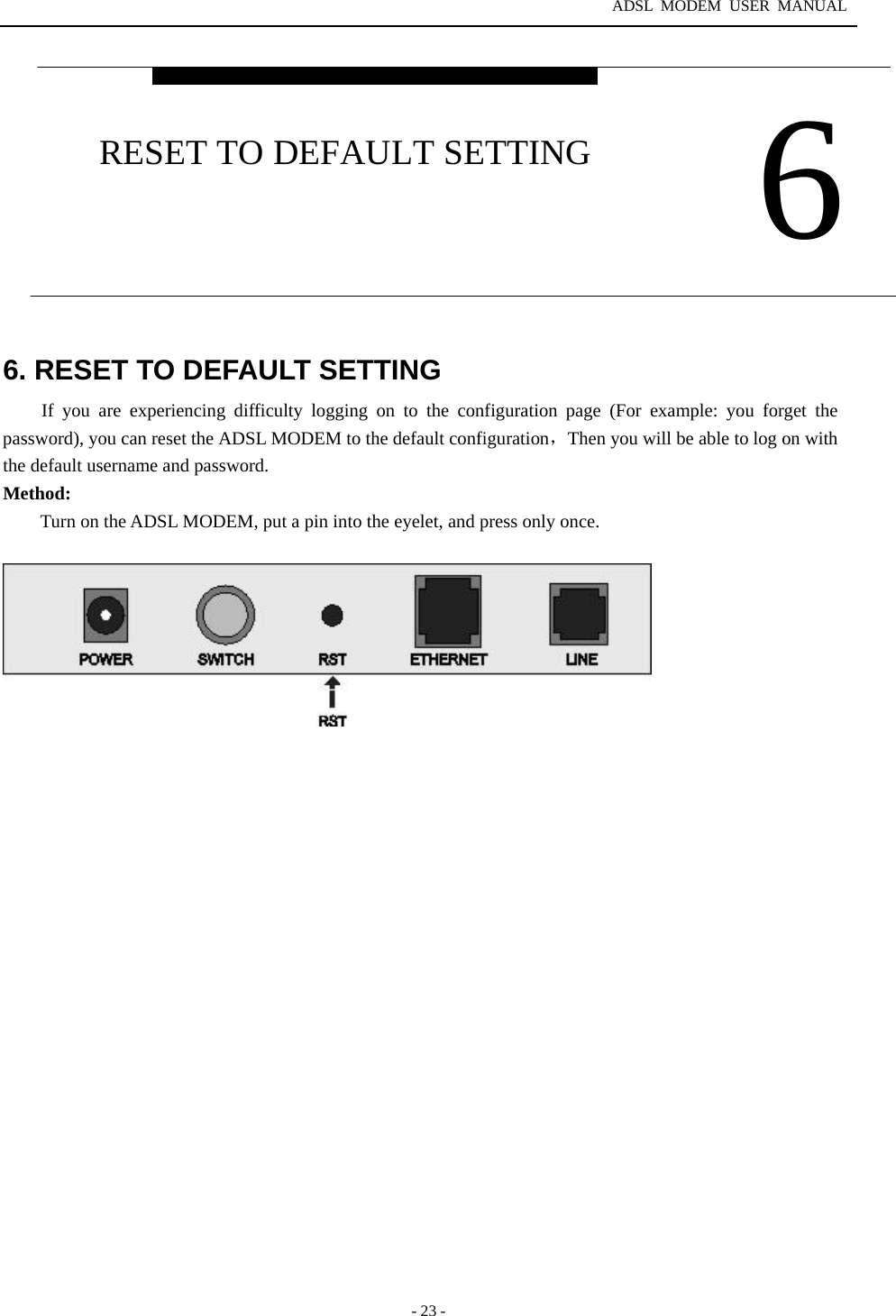

ADSL MODEM USER MANUAL - 23 - 6. RESET TO DEFAULT SETTING If you are experiencing difficulty logging on to the configuration page (For example: you forget the password), you can reset the ADSL MODEM to the default configuration，Then you will be able to log on with the default username and password. Method: Turn on the ADSL MODEM, put a pin into the eyelet, and press only once. 6 RESET TO DEFAULT SETTING

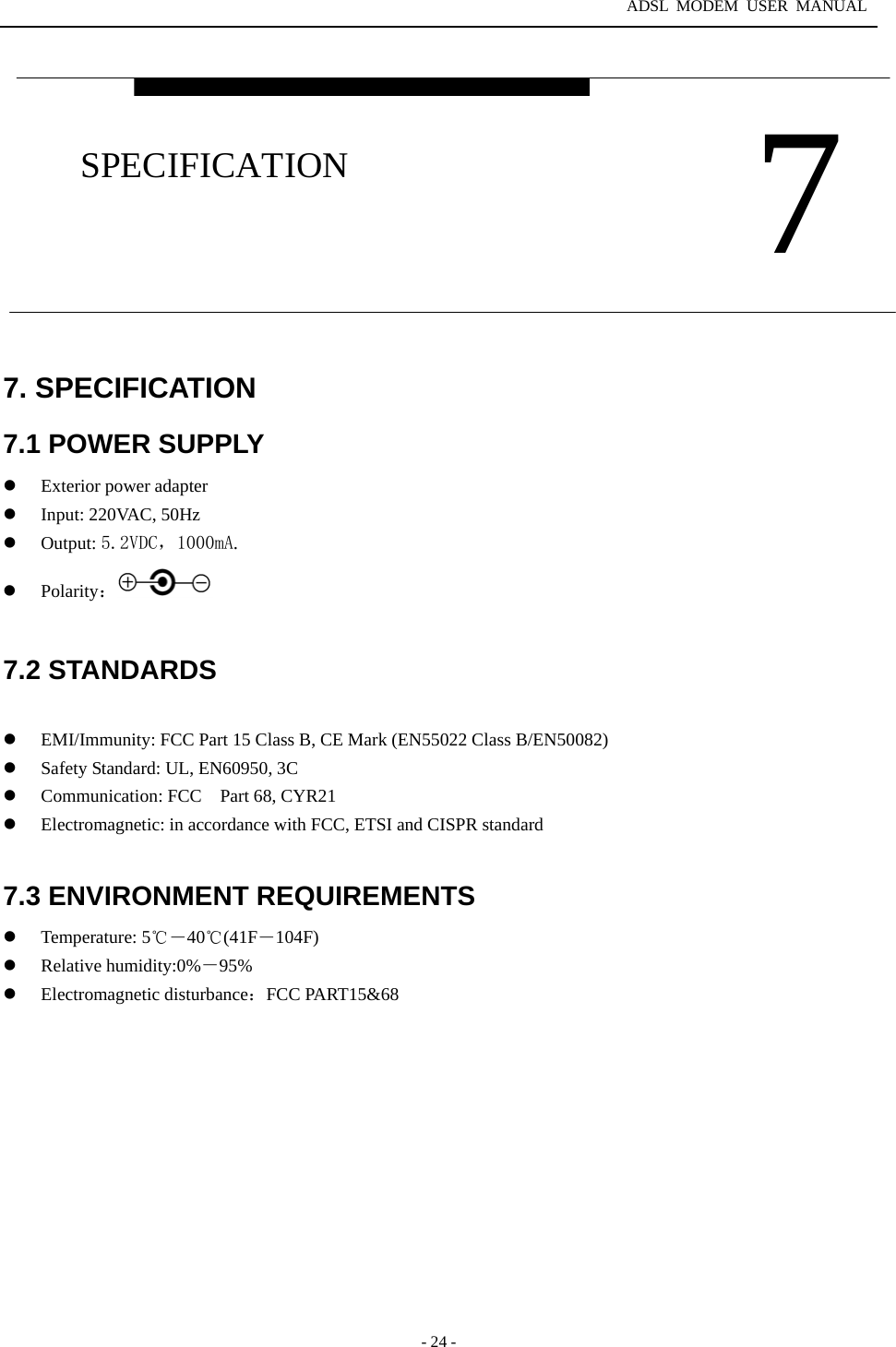

ADSL MODEM USER MANUAL - 24 - 7. SPECIFICATION 7.1 POWER SUPPLY  Exterior power adapter  Input: 220VAC, 50Hz  Output: 5.2VDC，1000mA.  Polarity： 7.2 STANDARDS  EMI/Immunity: FCC Part 15 Class B, CE Mark (EN55022 Class B/EN50082)  Safety Standard: UL, EN60950, 3C  Communication: FCC Part 68, CYR21  Electromagnetic: in accordance with FCC, ETSI and CISPR standard 7.3 ENVIRONMENT REQUIREMENTS  Temperature: 5℃－40℃(41F－104F)  Relative humidity:0%－95%  Electromagnetic disturbance：FCC PART15&68 7 SPECIFICATION

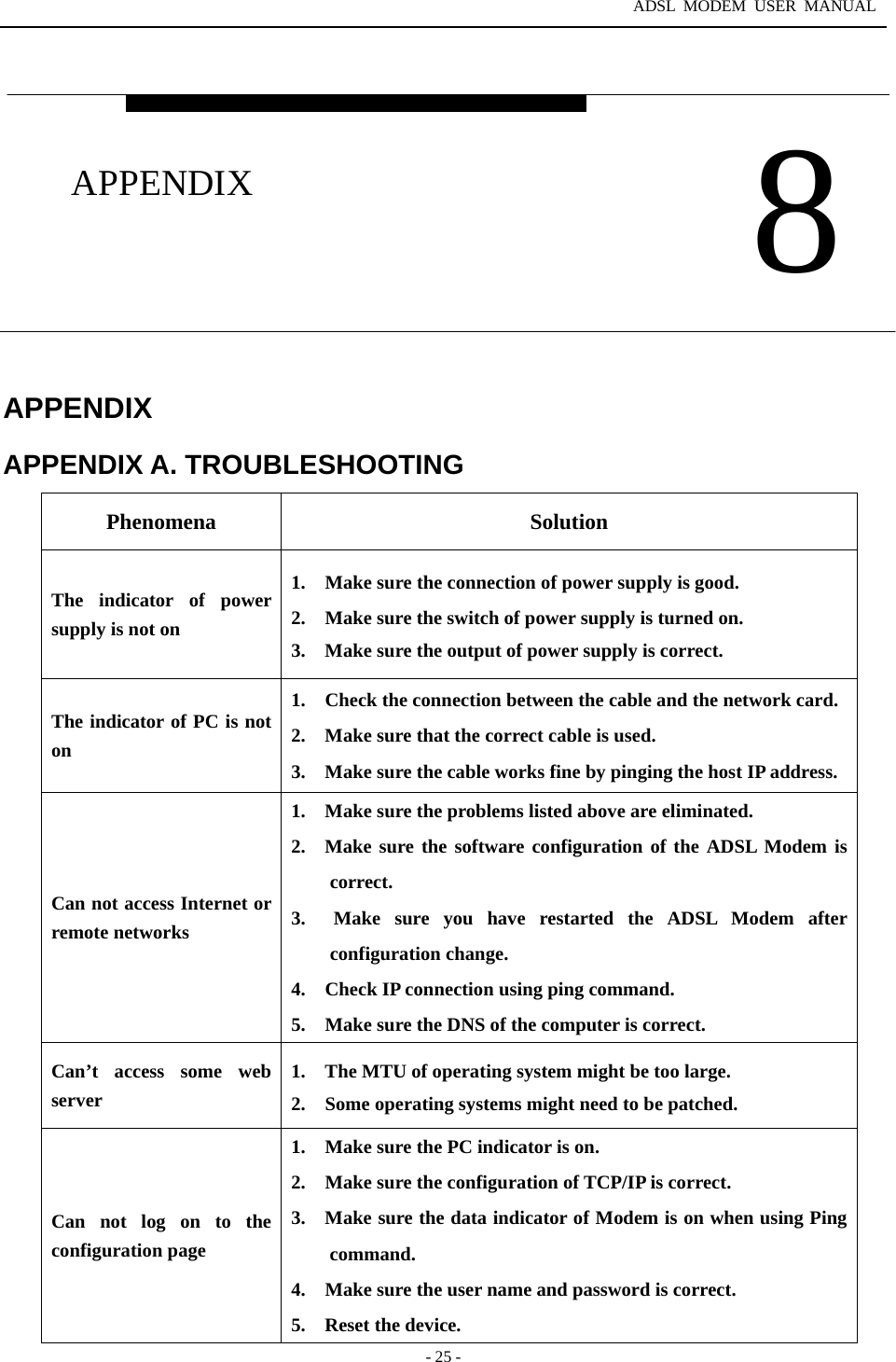

ADSL MODEM USER MANUAL - 25 - APPENDIX APPENDIX A. TROUBLESHOOTING Phenomena Solution The indicator of power supply is not on 1. Make sure the connection of power supply is good. 2. Make sure the switch of power supply is turned on. 3. Make sure the output of power supply is correct. The indicator of PC is not on 1. Check the connection between the cable and the network card. 2. Make sure that the correct cable is used. 3. Make sure the cable works fine by pinging the host IP address. Can not access Internet or remote networks 1. Make sure the problems listed above are eliminated. 2. Make sure the software configuration of the ADSL Modem is correct. 3. Make sure you have restarted the ADSL Modem after configuration change. 4. Check IP connection using ping command. 5. Make sure the DNS of the computer is correct. Can’t access some web server 1. The MTU of operating system might be too large. 2. Some operating systems might need to be patched. Can not log on to the configuration page 1. Make sure the PC indicator is on. 2. Make sure the configuration of TCP/IP is correct. 3. Make sure the data indicator of Modem is on when using Ping command. 4. Make sure the user name and password is correct. 5. Reset the device. 8 APPENDIX

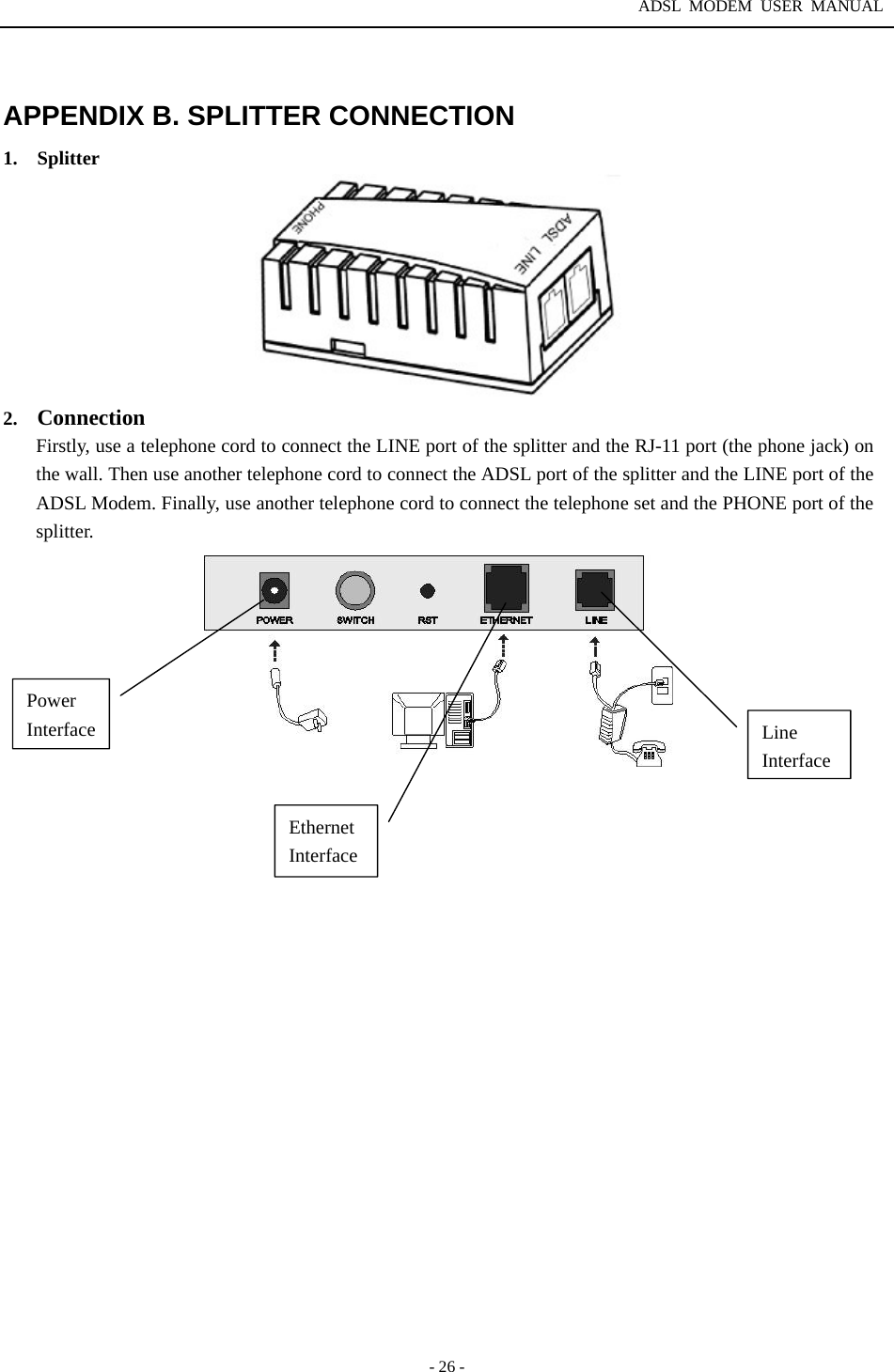

ADSL MODEM USER MANUAL - 26 - APPENDIX B. SPLITTER CONNECTION 1. Splitter 2. Connection Firstly, use a telephone cord to connect the LINE port of the splitter and the RJ-11 port (the phone jack) on the wall. Then use another telephone cord to connect the ADSL port of the splitter and the LINE port of the ADSL Modem. Finally, use another telephone cord to connect the telephone set and the PHONE port of the splitter. Power Interface Line InterfaceEthernet Interface

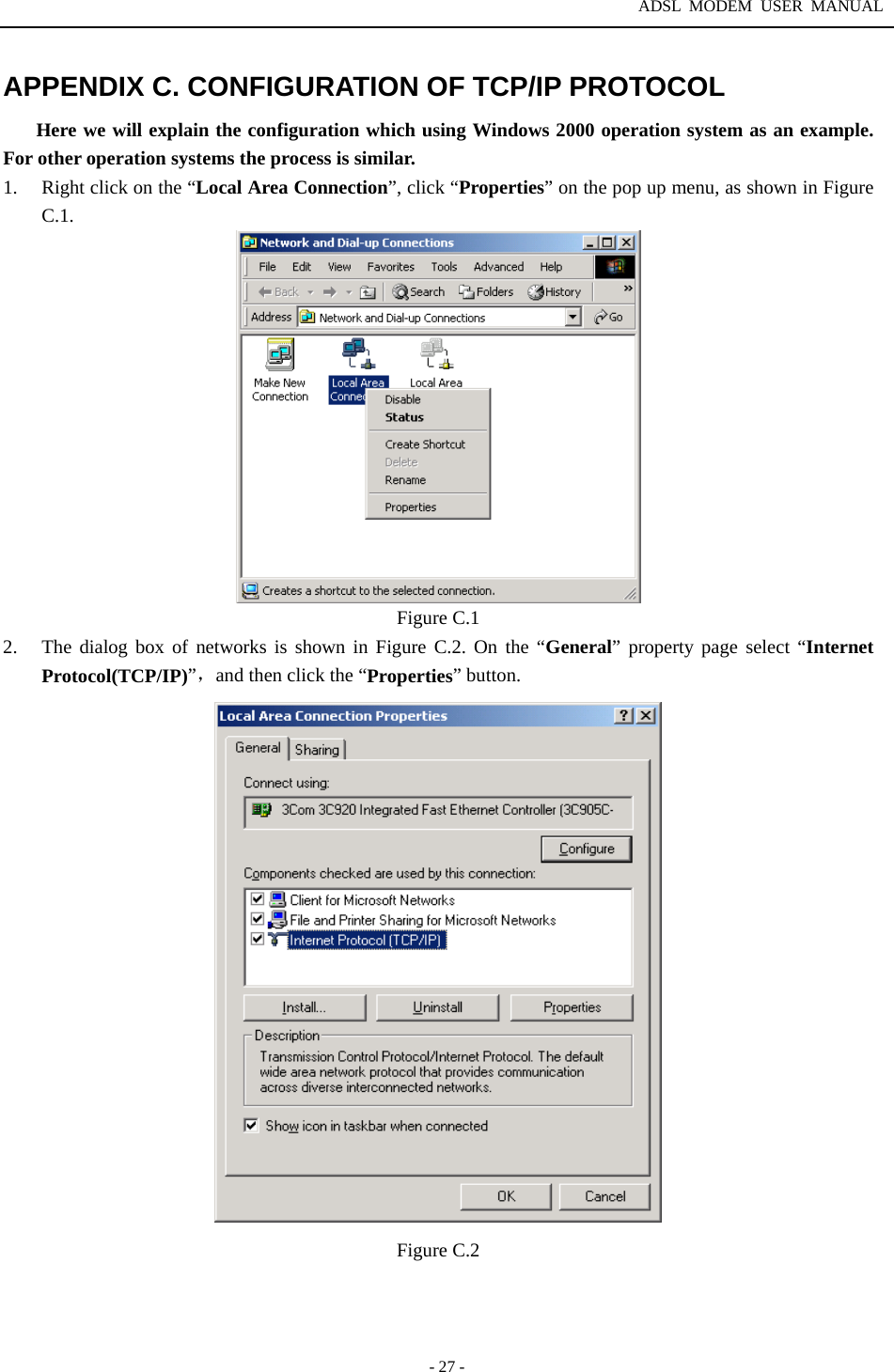

ADSL MODEM USER MANUAL - 27 - APPENDIX C. CONFIGURATION OF TCP/IP PROTOCOL Here we will explain the configuration which using Windows 2000 operation system as an example. For other operation systems the process is similar. 1. Right click on the “Local Area Connection”, click “Properties” on the pop up menu, as shown in Figure C.1. Figure C.1 2. The dialog box of networks is shown in Figure C.2. On the “General” property page select “Internet Protocol(TCP/IP)”，and then click the “Properties” button. Figure C.2

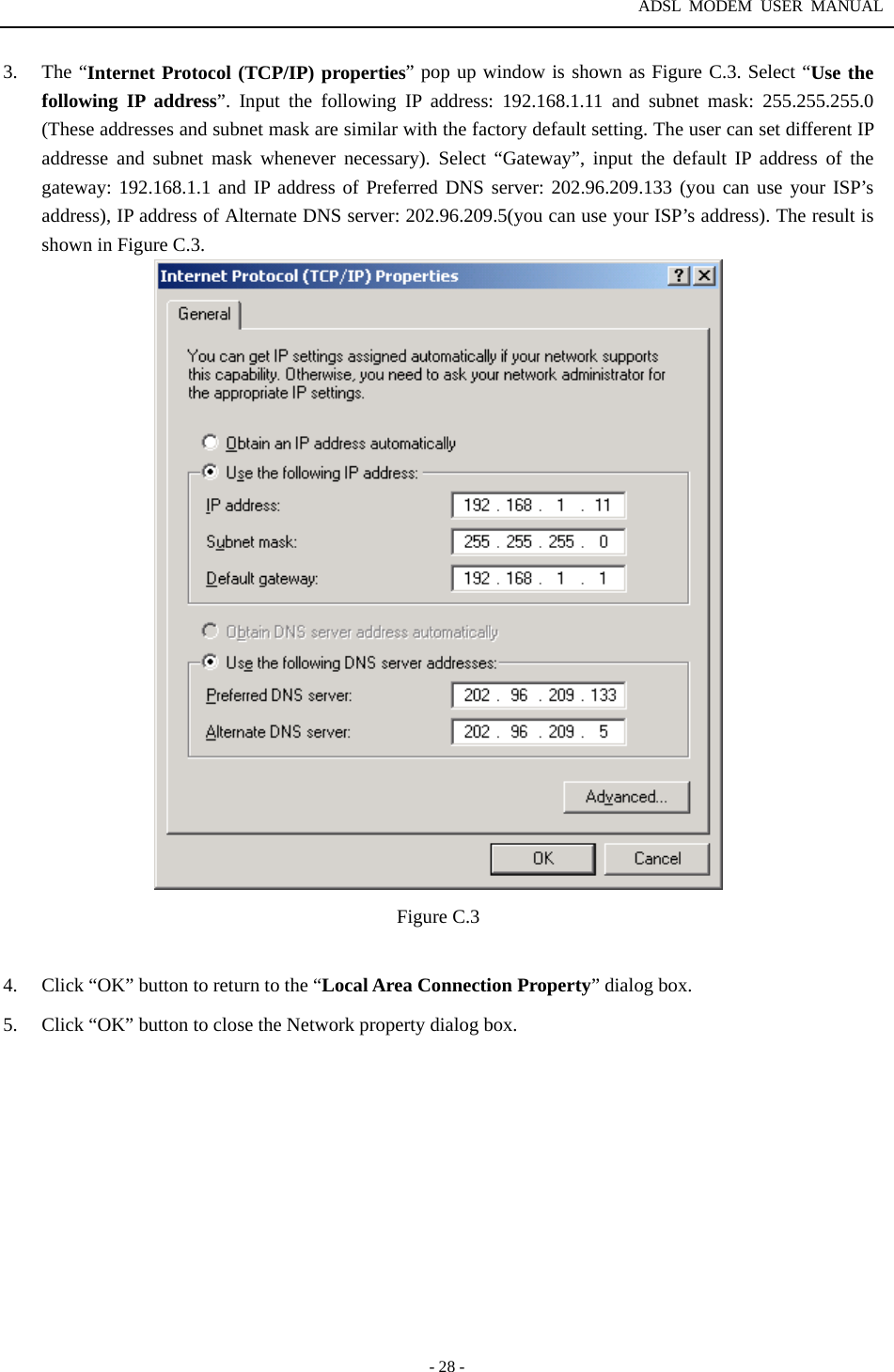

ADSL MODEM USER MANUAL - 28 - 3. The “Internet Protocol (TCP/IP) properties” pop up window is shown as Figure C.3. Select “Use the following IP address”. Input the following IP address: 192.168.1.11 and subnet mask: 255.255.255.0 (These addresses and subnet mask are similar with the factory default setting. The user can set different IP addresse and subnet mask whenever necessary). Select “Gateway”, input the default IP address of the gateway: 192.168.1.1 and IP address of Preferred DNS server: 202.96.209.133 (you can use your ISP’s address), IP address of Alternate DNS server: 202.96.209.5(you can use your ISP’s address). The result is shown in Figure C.3. Figure C.3 4. Click “OK” button to return to the “Local Area Connection Property” dialog box. 5. Click “OK” button to close the Network property dialog box.

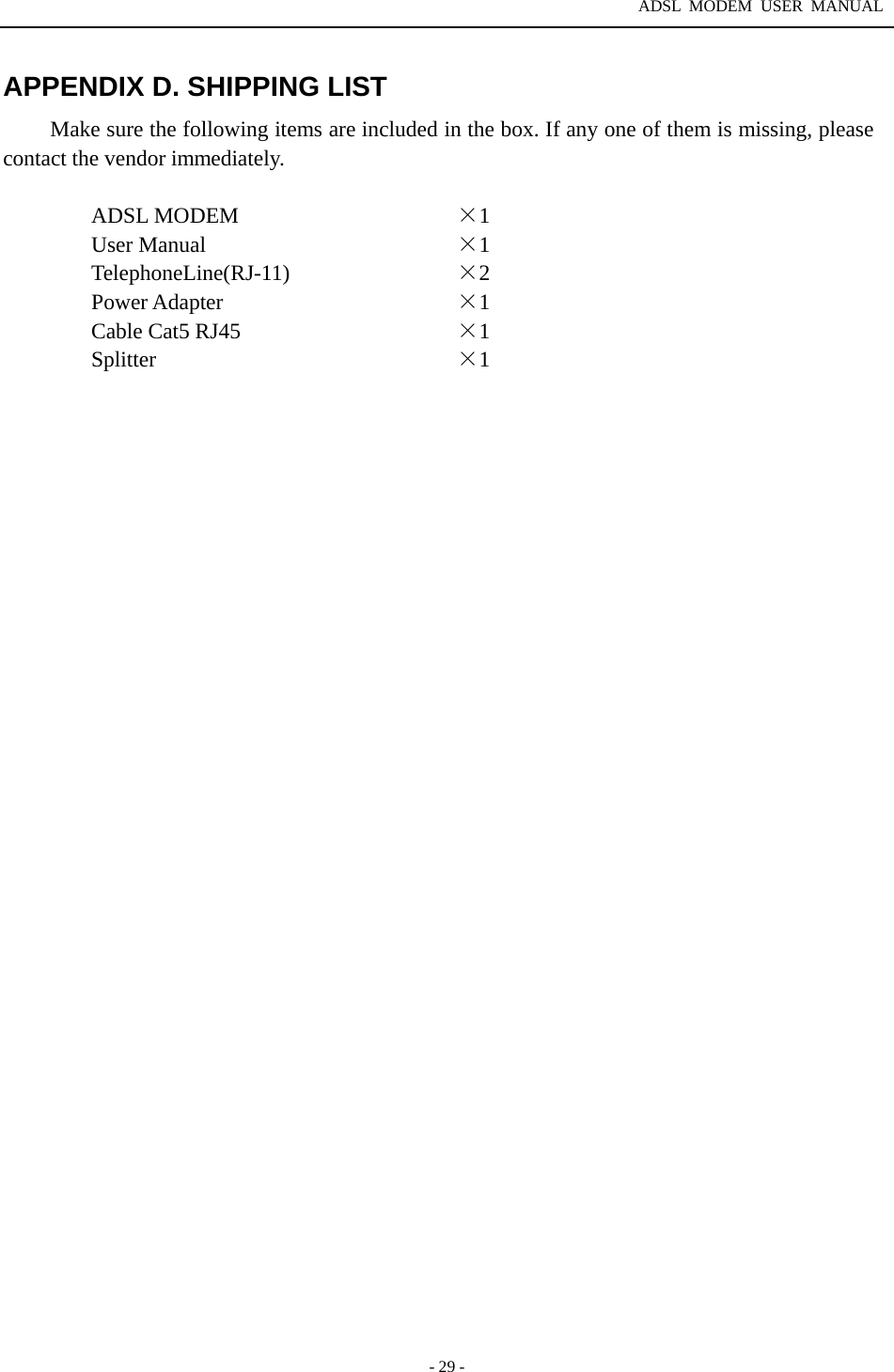

ADSL MODEM USER MANUAL - 29 - APPENDIX D. SHIPPING LIST Make sure the following items are included in the box. If any one of them is missing, please contact the vendor immediately. ADSL MODEM ×1 User Manual ×1 TelephoneLine(RJ-11) ×2 Power Adapter ×1 Cable Cat5 RJ45 ×1 Splitter ×1

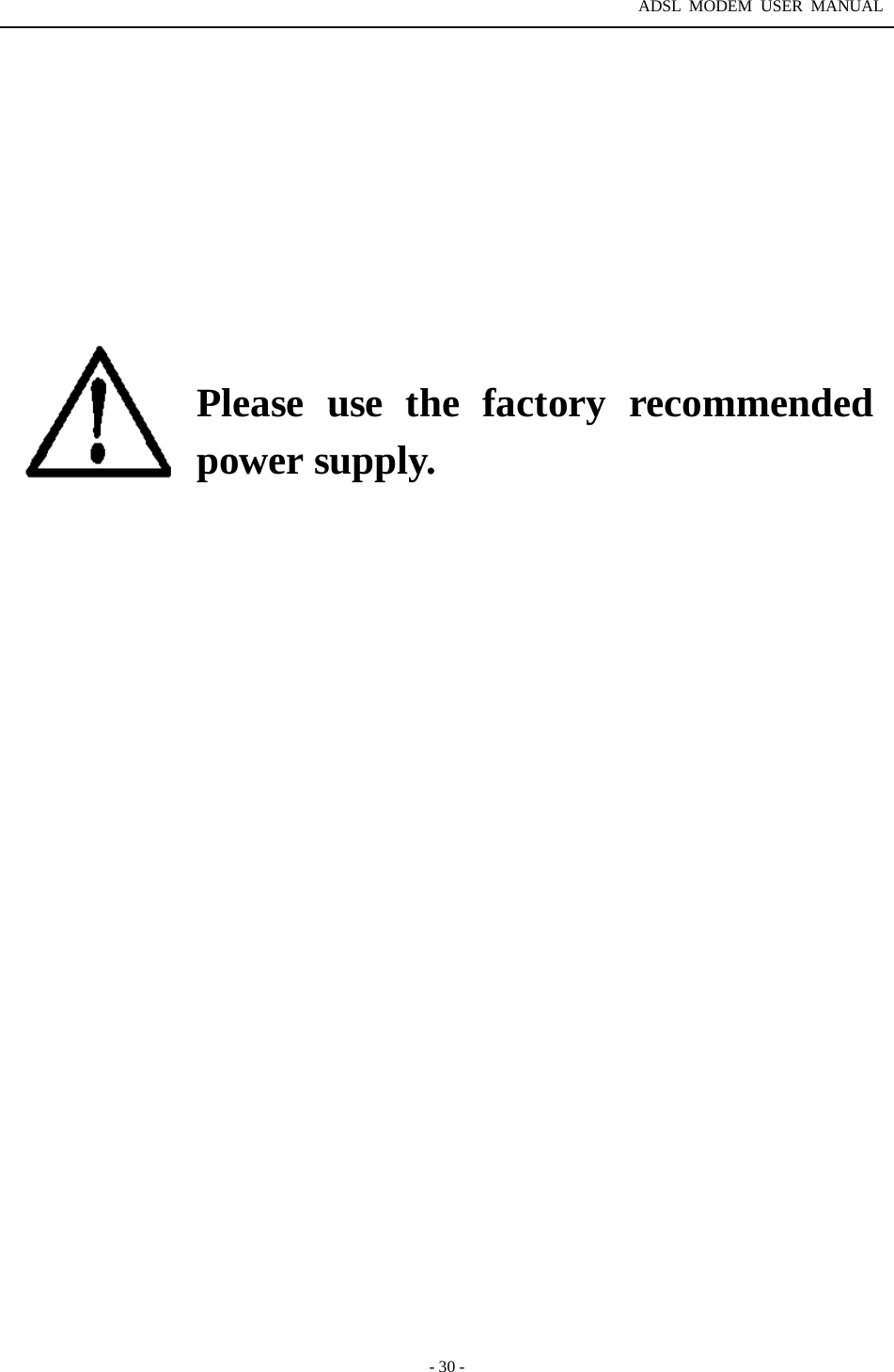

ADSL MODEM USER MANUAL - 30 - Please use the factory recommended power supply.

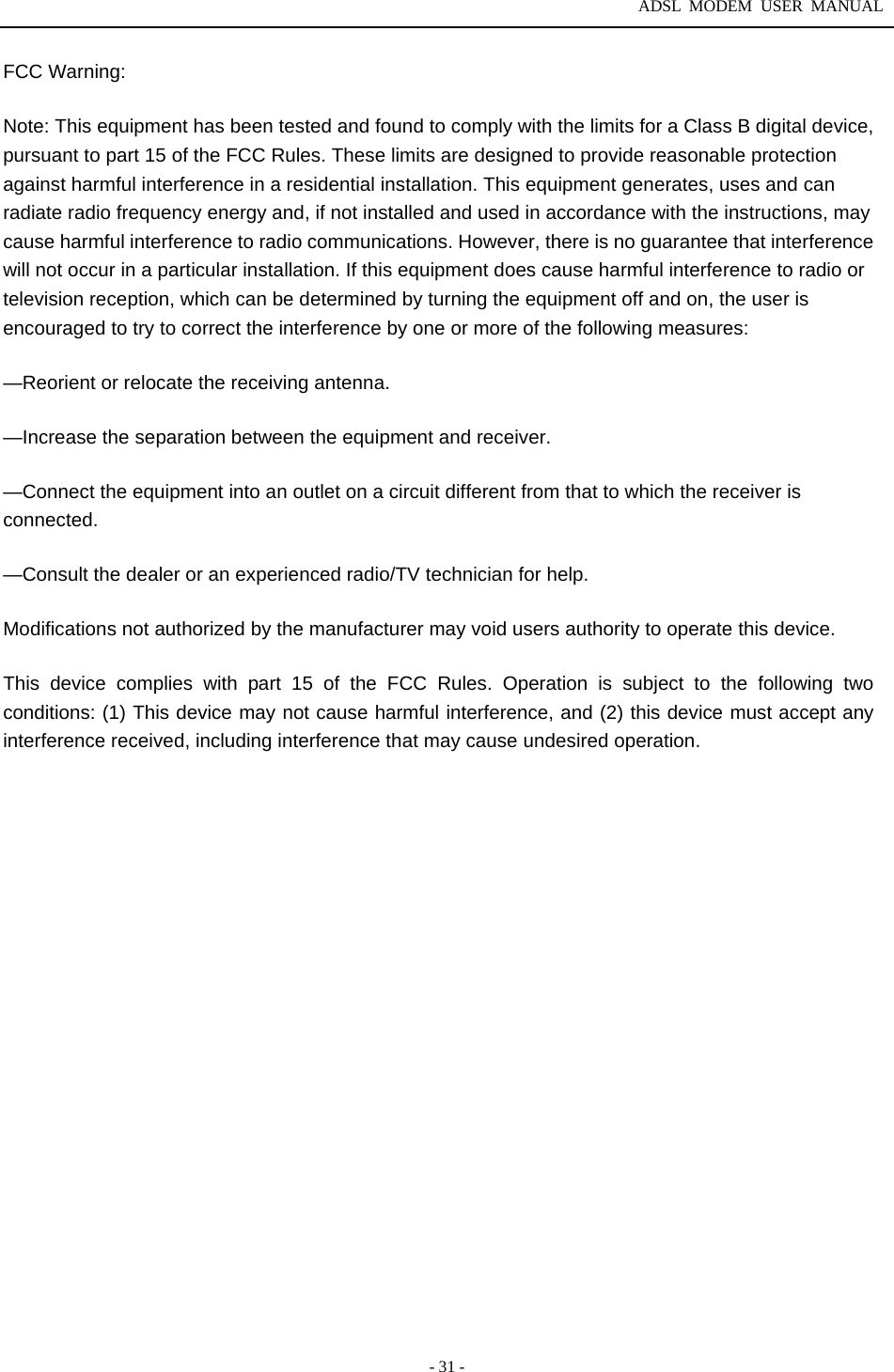

ADSL MODEM USER MANUAL - 31 - FCC Warning: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufacturer may void users authority to operate this device. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
