Darfon Electronics HSAD002M Mouse User Manual

Darfon Electronics Corp Mouse Users Manual

Users Manual

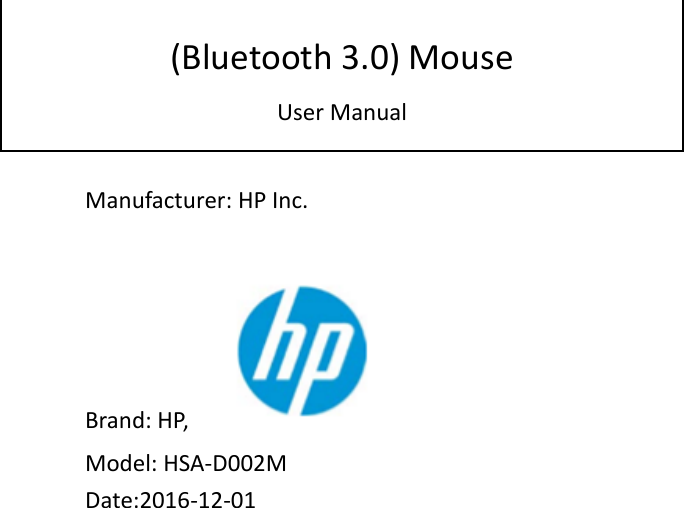

Manufacturer: HP Inc. Brand: HP, Model: HSA-D002M Date:2016-12-01 (Bluetooth 3.0) Mouse User Manual

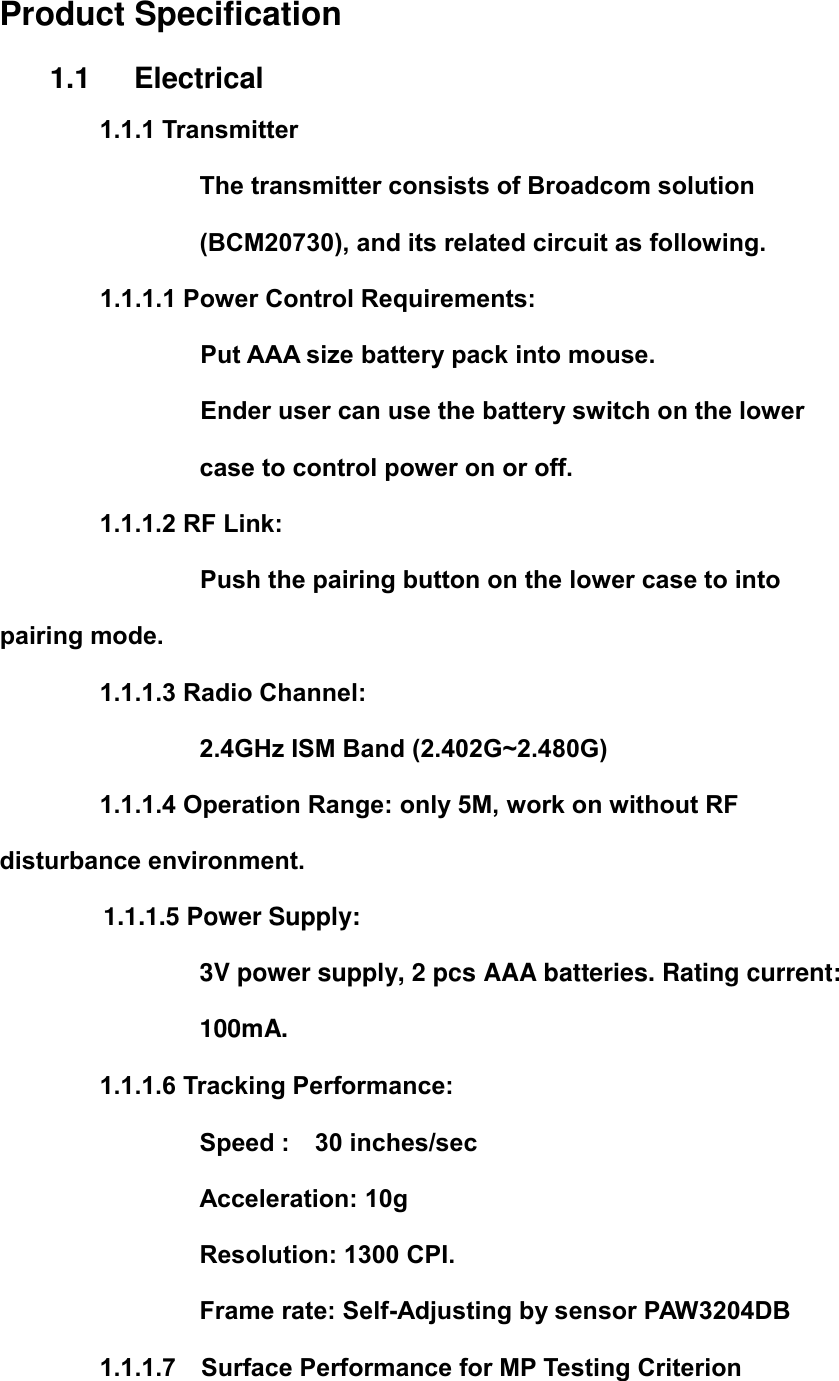

Product Specification 1.1 Electrical 1.1.1 Transmitter The transmitter consists of Broadcom solution (BCM20730), and its related circuit as following. 1.1.1.1 Power Control Requirements: Put AAA size battery pack into mouse. Ender user can use the battery switch on the lower case to control power on or off. 1.1.1.2 RF Link: Push the pairing button on the lower case to into pairing mode. 1.1.1.3 Radio Channel: 2.4GHz ISM Band (2.402G~2.480G) 1.1.1.4 Operation Range: only 5M, work on without RF disturbance environment. 1.1.1.5 Power Supply: 3V power supply, 2 pcs AAA batteries. Rating current: 100mA. 1.1.1.6 Tracking Performance: Speed : 30 inches/sec Acceleration: 10g Resolution: 1300 CPI. Frame rate: Self-Adjusting by sensor PAW3204DB 1.1.1.7 Surface Performance for MP Testing Criterion
a. White paper of DFS b. Formica 0909 (black color board) 1.1.1.8 Cut off Voltage Cut off Voltage: 2.0V 1.1.1.9 Power consumption: (V bat =3V,on white paper) Status Moving Rest 1 Rest 2 Switch Off Disconnect Power consumption <8 (mA) <1.2 (mA) <0.8 (mA) <0.1(mA) <0.8mA 1.1.1.11 RF IC (BCM20730) 1.Supply voltage (Vcc): +1.4V ~ +3.6VDC 2.Operation Temperature Range: 0°C to +70°C 3.Storage Temperature Range: -40°C to +125°C Electrical Characteristics: # Item TX/ RF Parts 1 Operation Frequency ISM Band 2.402GHz ~ 2.480GHz 2 Supply Voltage 3.3 Vdc 3 Current consumption 19mA TX at 0 dBm output power 4 Modulation technique GFSK (not be moved) 0.3 sec (not be moved) 20 sec Working -> Rest 1 Rest 1->Rest 2

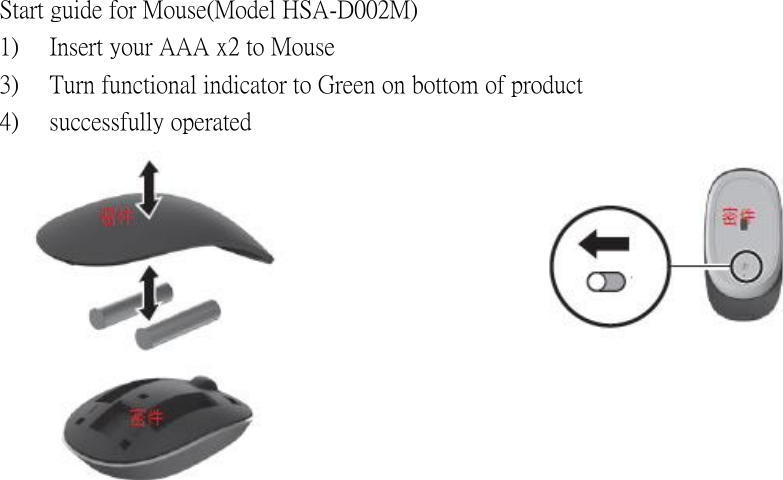

Start guide for Mouse(Model HSA-D002M) 1) Insert your AAA x2 to Mouse 3) Turn functional indicator to Green on bottom of product 4) successfully operated

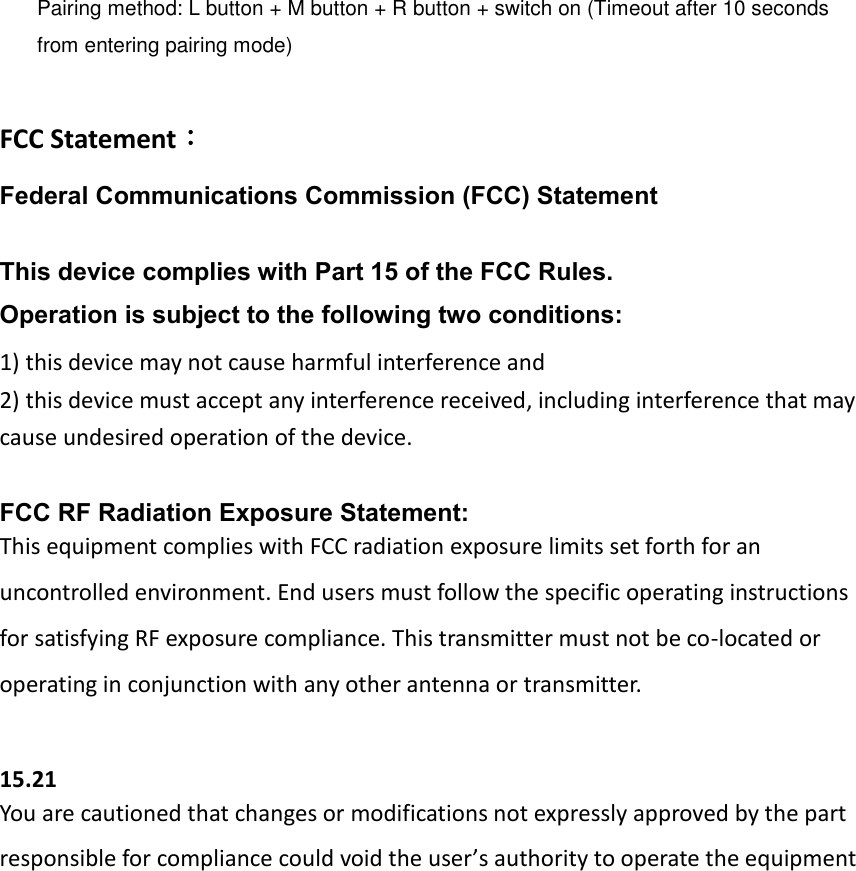

Pairing method: L button + M button + R button + switch on (Timeout after 10 seconds from entering pairing mode) FCC Statement： Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation of the device. FCC RF Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment

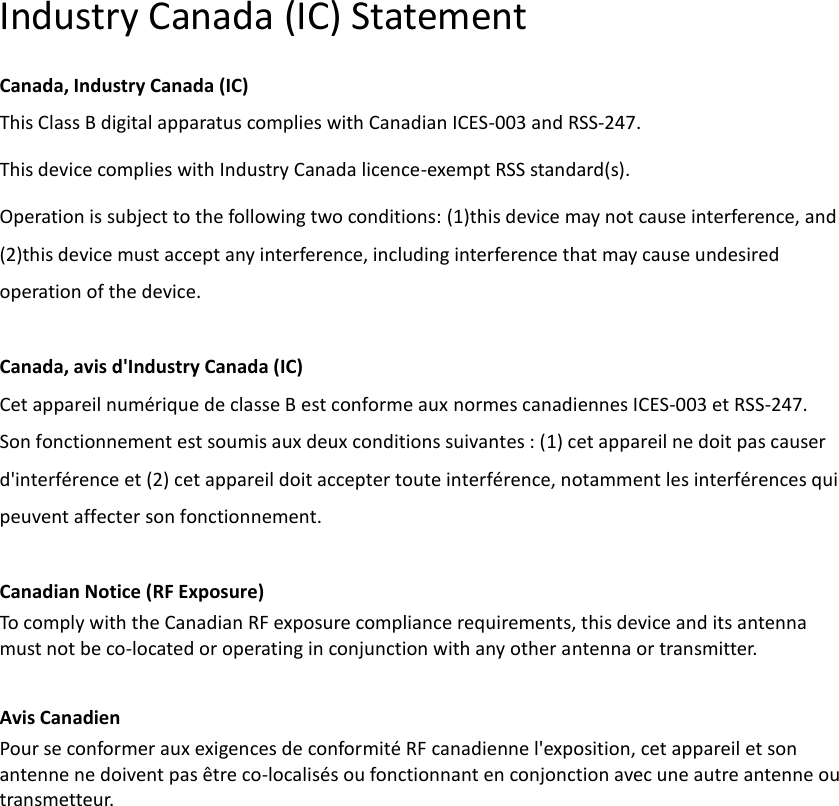

Industry Canada (IC) Statement Canada, Industry Canada (IC) This Class B digital apparatus complies with Canadian ICES-003 and RSS-247. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1)this device may not cause interference, and (2)this device must accept any interference, including interference that may cause undesired operation of the device. Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-247. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement. Canadian Notice (RF Exposure) To comply with the Canadian RF exposure compliance requirements, this device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. Avis Canadien Pour se conformer aux exigences de conformité RF canadienne l'exposition, cet appareil et son antenne ne doivent pas être co-localisés ou fonctionnant en conjonction avec une autre antenne ou transmetteur.

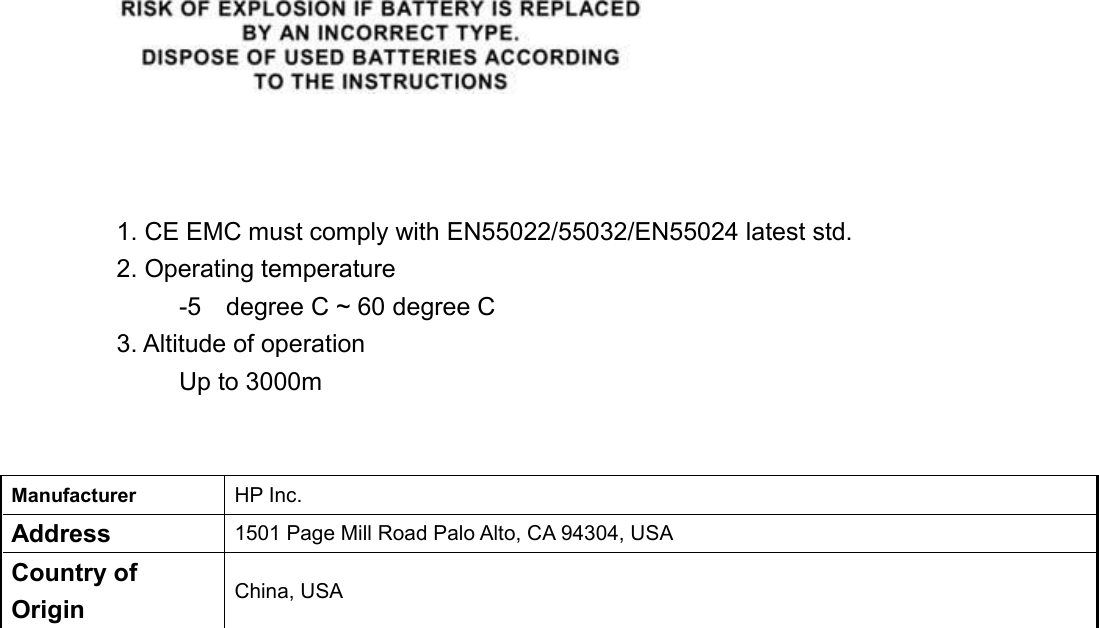

1. CE EMC must comply with EN55022/55032/EN55024 latest std. 2. Operating temperature -5 degree C ~ 60 degree C 3. Altitude of operation Up to 3000m Manufacturer HP Inc. Address 1501 Page Mill Road Palo Alto, CA 94304, USA Country of Origin China, USA
