Darfon Electronics MT1BF BT Laser Mouse User Manual

Darfon Electronics Corp BT Laser Mouse

User Manual

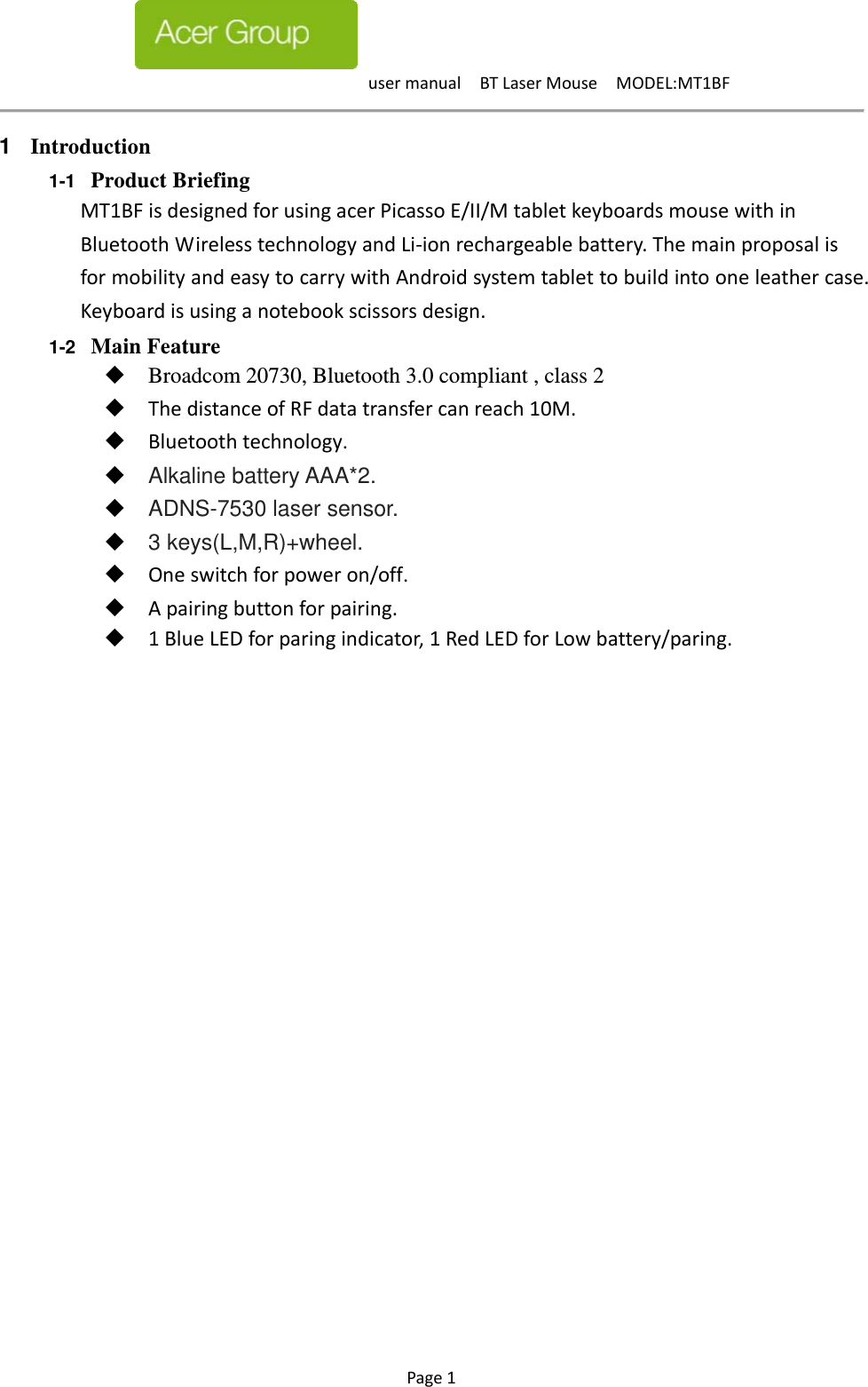

usermanualBTLaserMouseMODEL:MT1BF Page1 1 Introduction 1-1 Product Briefing MT1BFisdesignedforusingacerPicassoE/II/MtabletkeyboardsmousewithinBluetoothWirelesstechnologyandLi‐ionrechargeablebattery.ThemainproposalisformobilityandeasytocarrywithAndroidsystemtablettobuildintooneleathercase.Keyboardisusinganotebookscissorsdesign.1-2 Main Feature Broadcom 20730, Bluetooth 3.0 compliant , class 2 ThedistanceofRFdatatransfercanreach10M. Bluetoothtechnology. Alkaline battery AAA*2. ADNS-7530 laser sensor. 3 keys(L,M,R)+wheel. Oneswitchforpoweron/off. Apairingbuttonforpairing. 1BlueLEDforparingindicator,1RedLEDforLowbattery/paring.

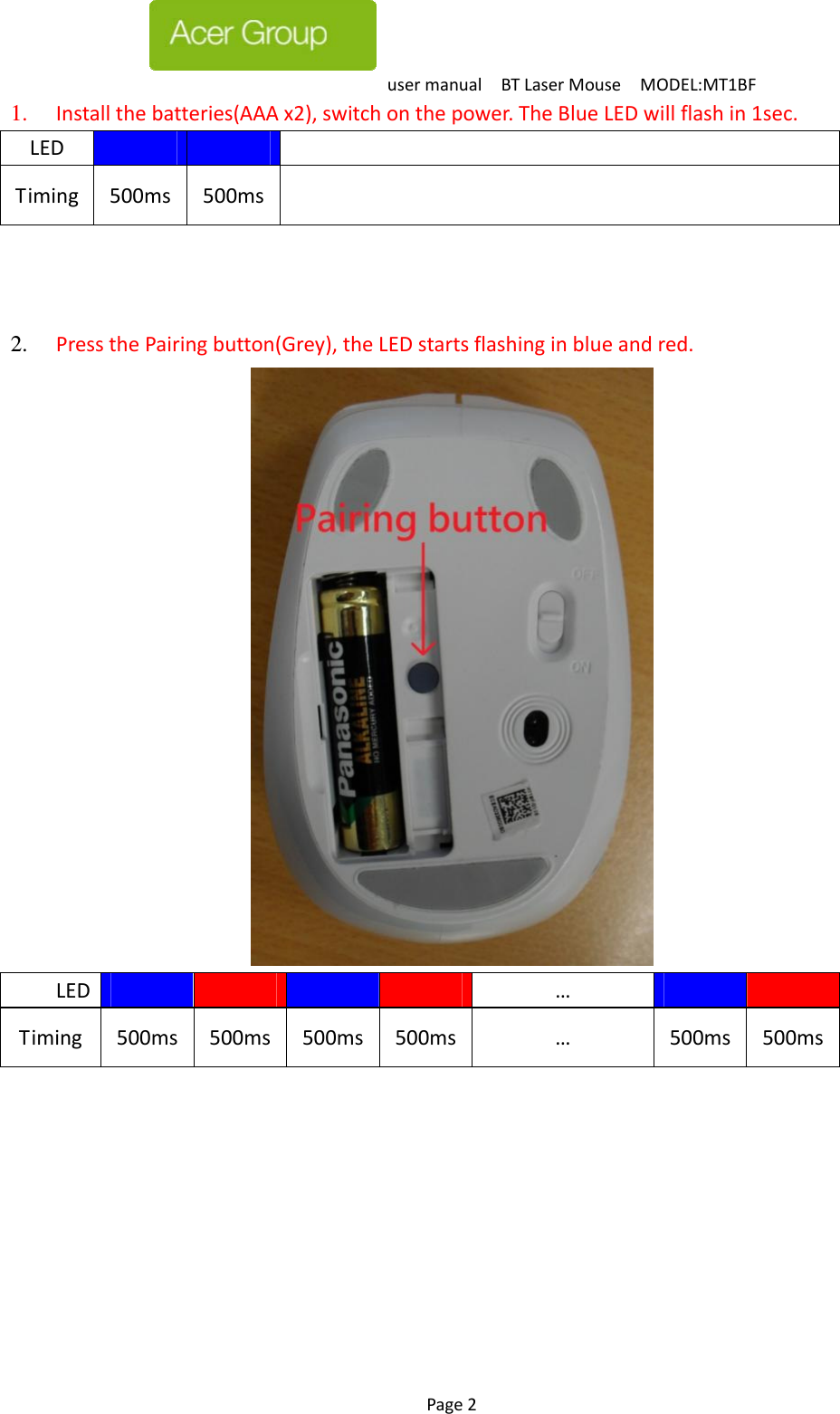

usermanualBTLaserMouseMODEL:MT1BF Page2 1. Installthebatteries(AAAx2),switchonthepower.TheBlueLEDwillflashin1sec. LEDTiming500ms500ms 2. PressthePairingbutton(Grey),theLEDstartsflashinginblueandred. LED    …  Timing500ms500ms500ms 500ms …500ms500ms

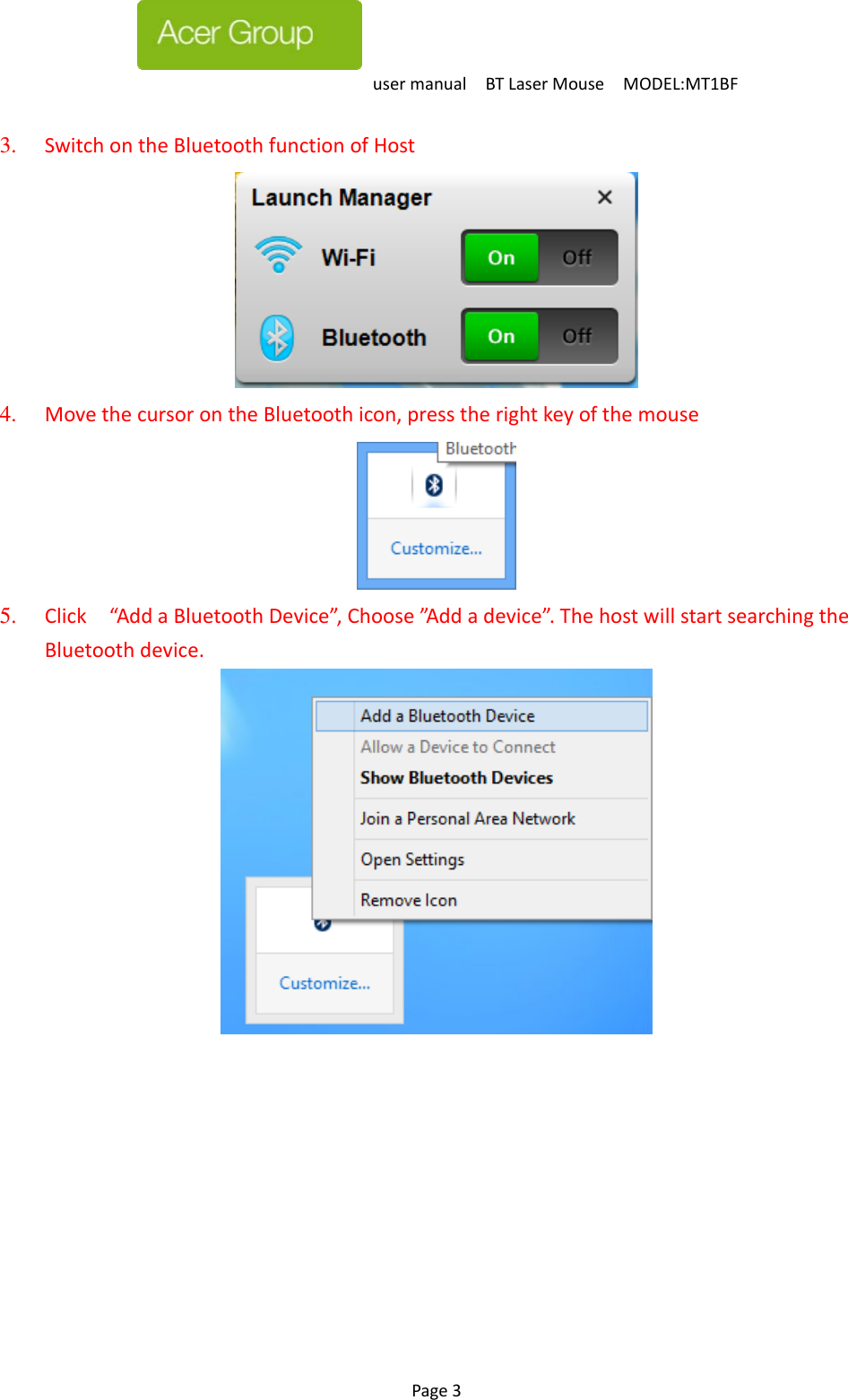

usermanualBTLaserMouseMODEL:MT1BF Page3 3. SwitchontheBluetoothfunctionofHost 4. MovethecursorontheBluetoothicon,presstherightkeyofthemouse 5. Click“AddaBluetoothDevice”,Choose”A d d adevice”.ThehostwillstartsearchingtheBluetoothdevice.

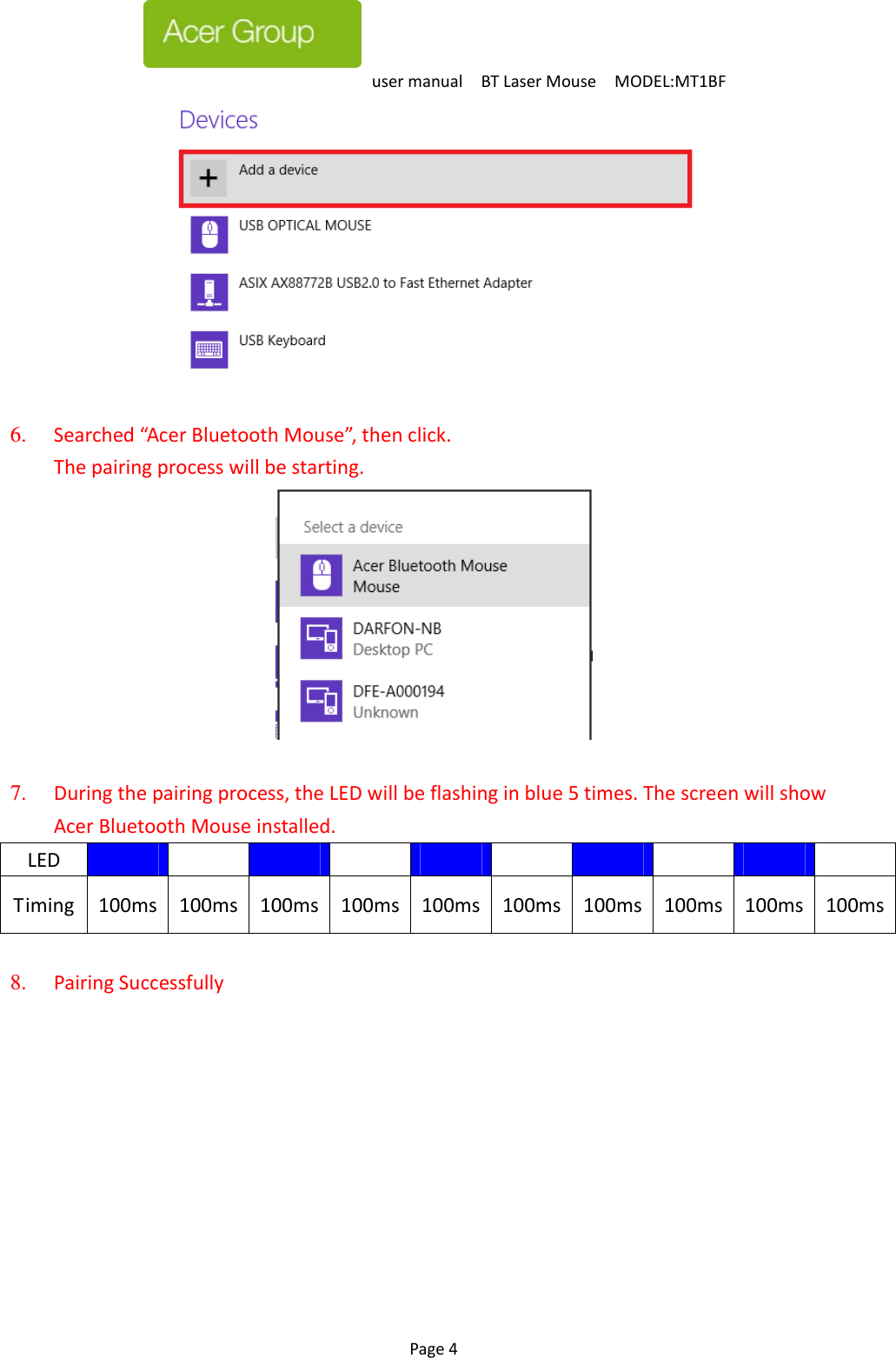

usermanualBTLaserMouseMODEL:MT1BF Page4 6. Searched“AcerBluetoothMouse”,thenclick. Thepairingprocesswillbestarting. 7. Duringthepairingprocess,theLEDwillbeflashinginblue5times.ThescreenwillshowAcerBluetoothMouseinstalled. LEDTiming100ms100ms100ms100ms 100ms 100ms 100ms 100ms100ms 100ms 8. PairingSuccessfully

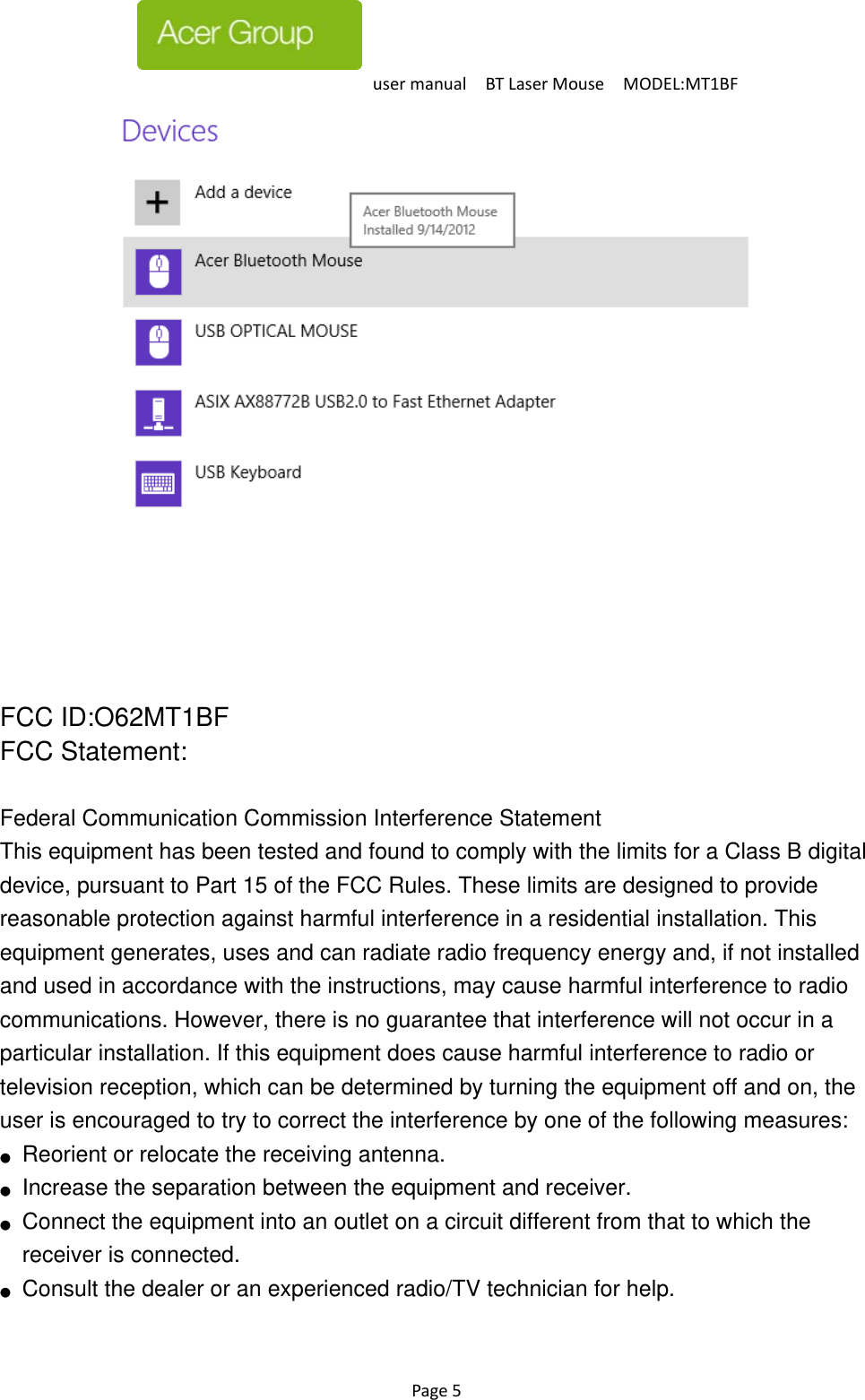

usermanualBTLaserMouseMODEL:MT1BF Page5 FCC ID:O62MT1BF FCC Statement: Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help.

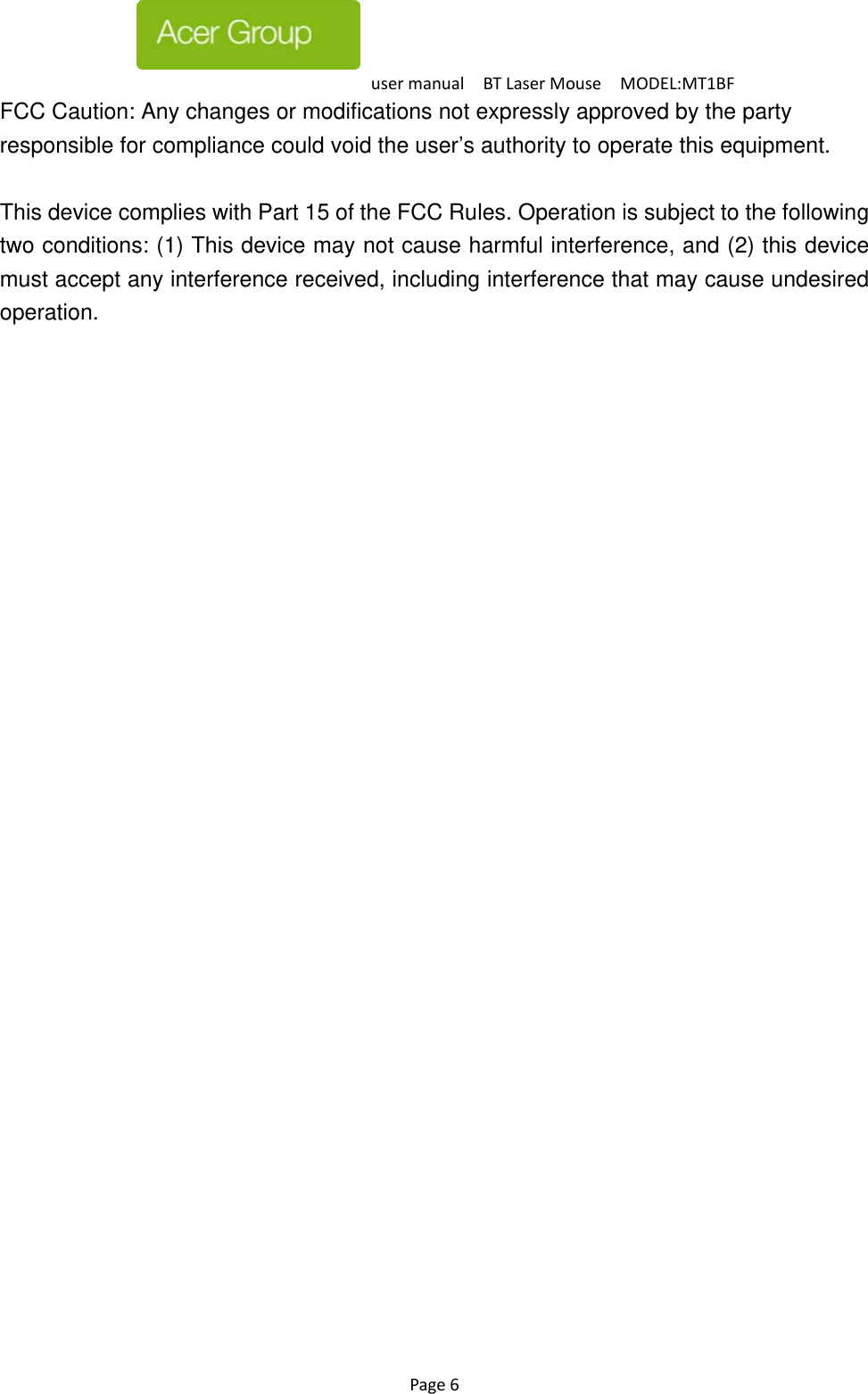

usermanualBTLaserMouseMODEL:MT1BF Page6 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
usermanualBTLaserMouseMODEL:MT1BF Page7 IC:4356A-MT1BF IC Statement: This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.
