User Manual

usermanualBTLaserMouseMODEL:MT1BF

Page1

1 Introduction

1-1 Product Briefing

MT1BFisdesignedforusingacerPicassoE/II/Mtabletkeyboardsmousewithin

BluetoothWirelesstechnologyandLi‐ionrechargeablebattery.Themainproposalis

formobilityandeasytocarrywithAndroidsystemtablettobuildintooneleathercase.

Keyboardisusinganotebookscissorsdesign.

1-2 Main Feature

Broadcom 20730, Bluetooth 3.0 compliant , class 2

ThedistanceofRFdatatransfercanreach10M.

Bluetoothtechnology.

Alkaline battery AAA*2.

ADNS-7530 laser sensor.

3 keys(L,M,R)+wheel.

Oneswitchforpoweron/off.

Apairingbuttonforpairing.

1BlueLEDforparingindicator,1RedLEDforLowbattery/paring.

usermanualBTLaserMouseMODEL:MT1BF

Page2

1. Installthebatteries(AAAx2),switchonthepower.TheBlueLEDwillflashin1sec.

LED

Timing500ms500ms

2. PressthePairingbutton(Grey),theLEDstartsflashinginblueandred.

LED    …  

Timing500ms500ms500ms 500ms …500ms500ms

usermanualBTLaserMouseMODEL:MT1BF

Page3

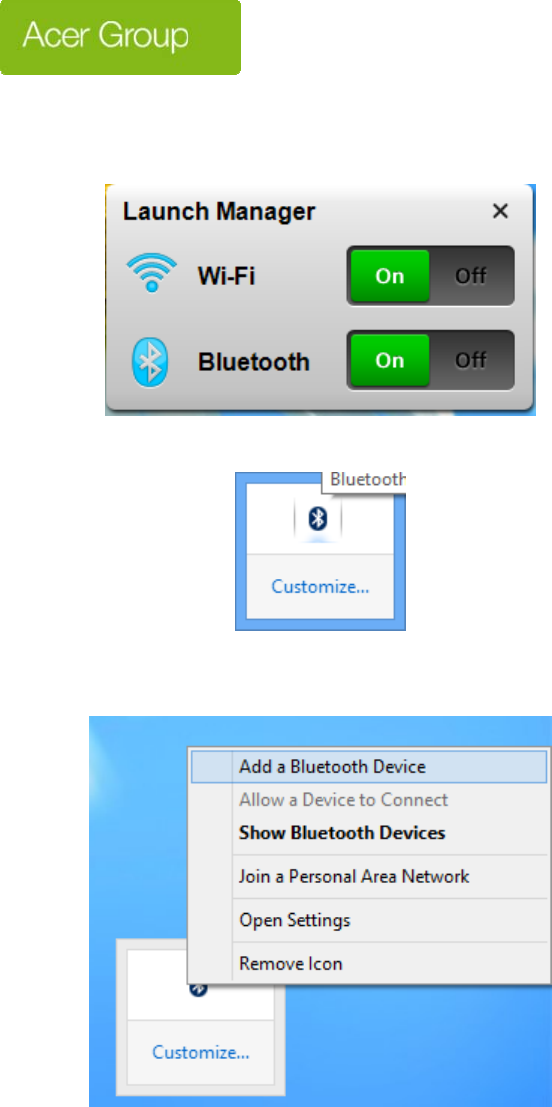

3. SwitchontheBluetoothfunctionofHost

4. MovethecursorontheBluetoothicon,presstherightkeyofthemouse

5. Click“AddaBluetoothDevice”,Choose”A d d adevice”.Thehostwillstartsearchingthe

Bluetoothdevice.

usermanualBTLaserMouseMODEL:MT1BF

Page4

6. Searched“AcerBluetoothMouse”,thenclick.

Thepairingprocesswillbestarting.

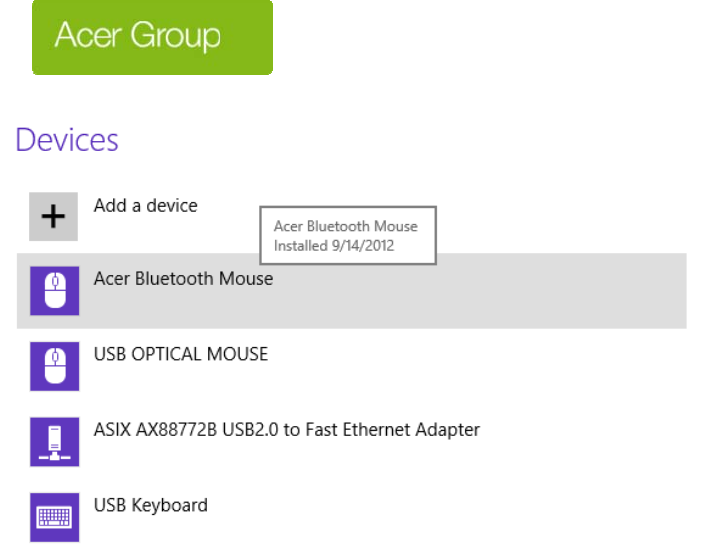

7. Duringthepairingprocess,theLEDwillbeflashinginblue5times.Thescreenwillshow

AcerBluetoothMouseinstalled.

LED

Timing100ms100ms100ms100ms 100ms 100ms 100ms 100ms100ms 100ms

8. PairingSuccessfully

usermanualBTLaserMouseMODEL:MT1BF

Page5

FCC ID:O62MT1BF

FCC Statement:

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.

● Increase the separation between the equipment and receiver.

● Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

● Consult the dealer or an experienced radio/TV technician for help.

usermanualBTLaserMouseMODEL:MT1BF

Page6

FCC Caution: Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

usermanualBTLaserMouseMODEL:MT1BF

Page7

IC:4356A-MT1BF

IC Statement:

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B conforme á la norme NMB-003 du Canada.

This device complies with Industry Canada license-exempt RSS standard(s). Operation

is subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause

undesired operation of the device.

LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsde

licence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduirede

brouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesile

brouillageestsusceptibled'encompromettrelefonctionnement.
