Darfon Electronics PM104-K Wireless Keyboard User Manual PM104 English

Darfon Electronics Corp Wireless Keyboard PM104 English

Users Manual Revised

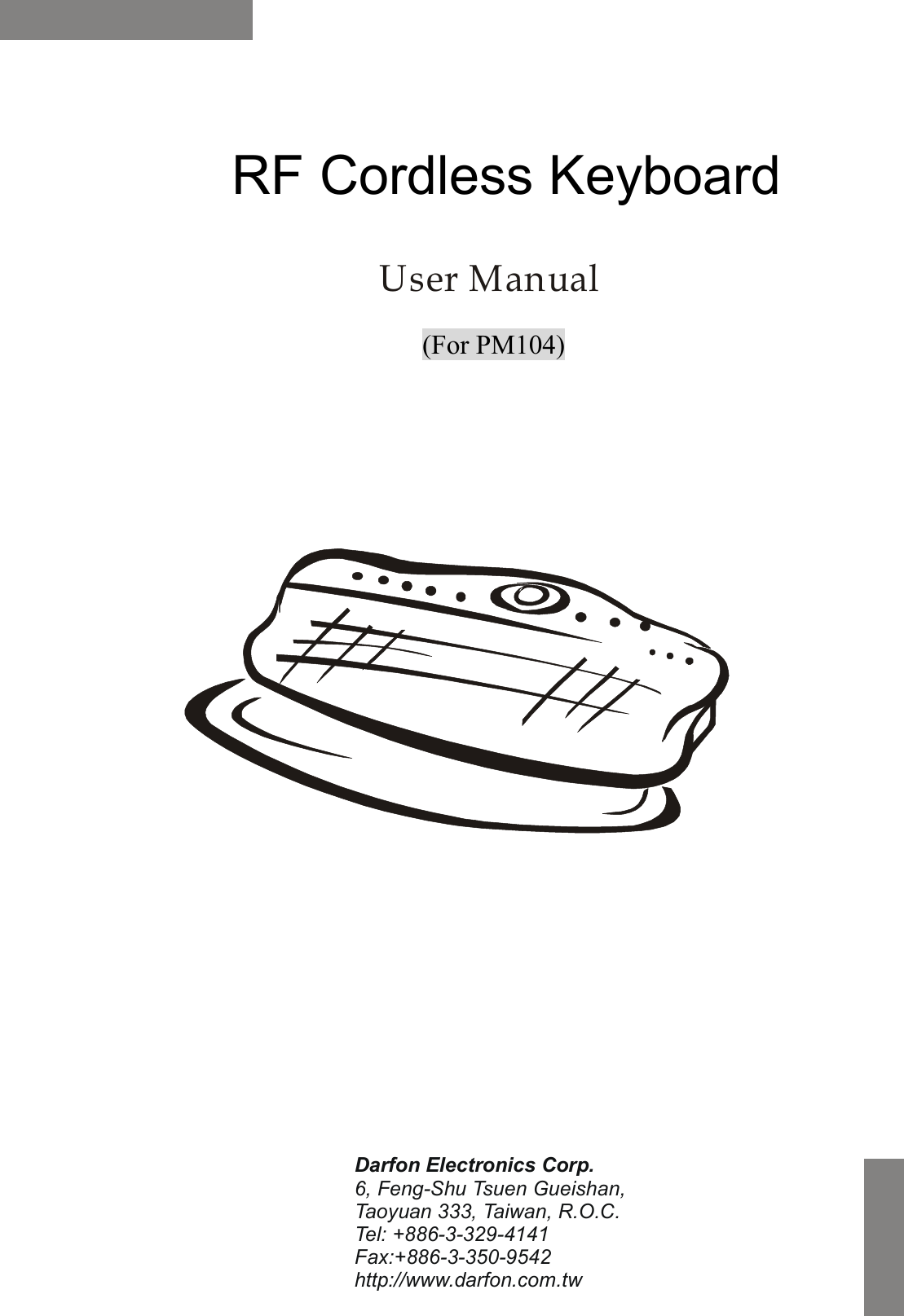

Multimedia KeyboardUser ManualDarfon Electronics Corp. 6, Feng-Shu Tsuen Gueishan,Taoyuan 333, Taiwan, R.O.C.Tel: +886-3-329-4141Fax:+886-3-350-9542http://www.darfon.com.twRF Cordless Keyboard(For PM104)

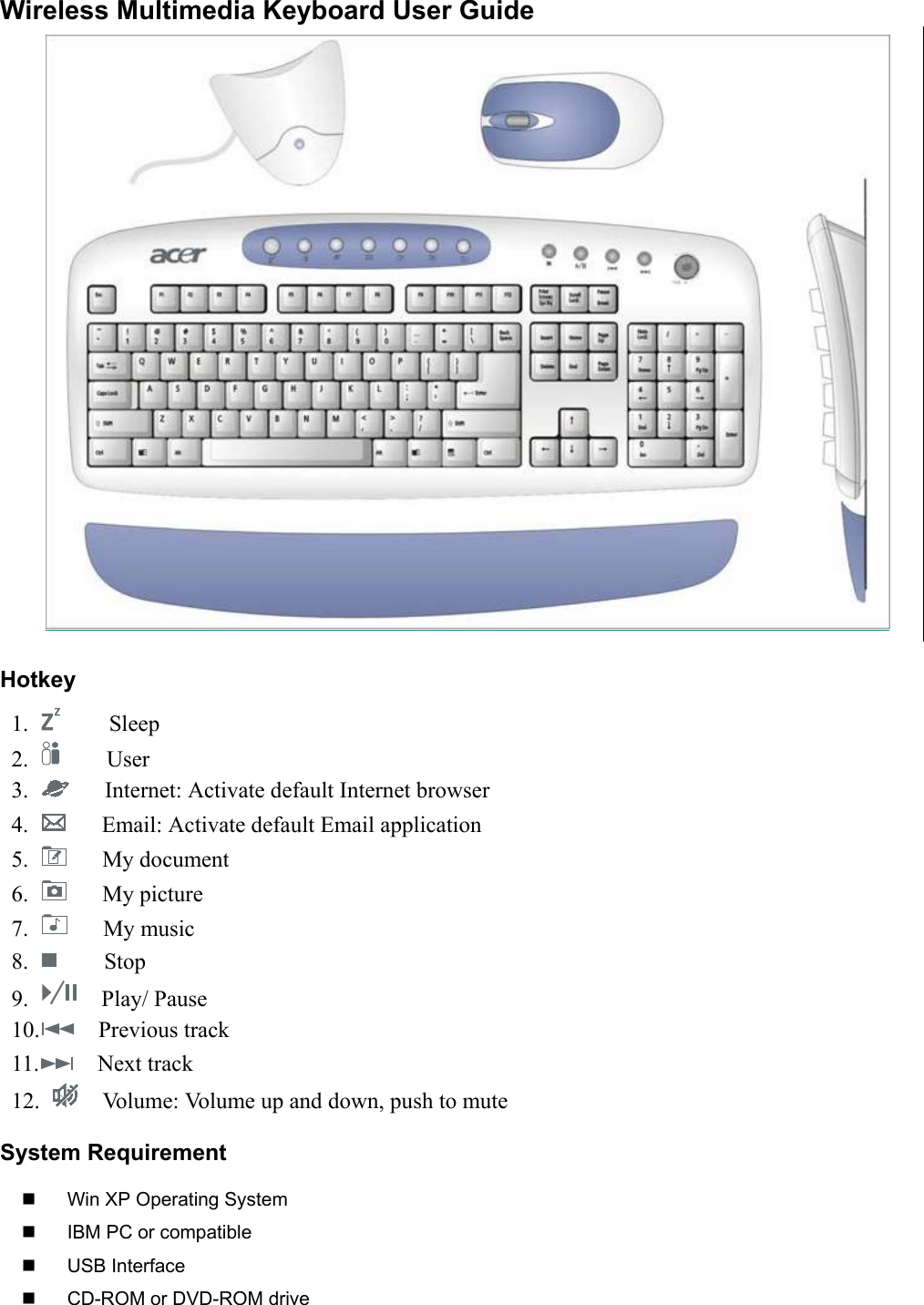

Wireless Multimedia Keyboard User GuideHotkey 1. Sleep 2. User 3. Internet: Activate default Internet browser 4. Email: Activate default Email application 5. My document 6. My picture 7. My music 8. Stop 9. Play/ Pause 10. Previous track 11. Next track 12. Volume: Volume up and down, push to muteSystem Requirement Win XP Operating System IBM PC or compatible USB Interface CD-ROM or DVD-ROM drive

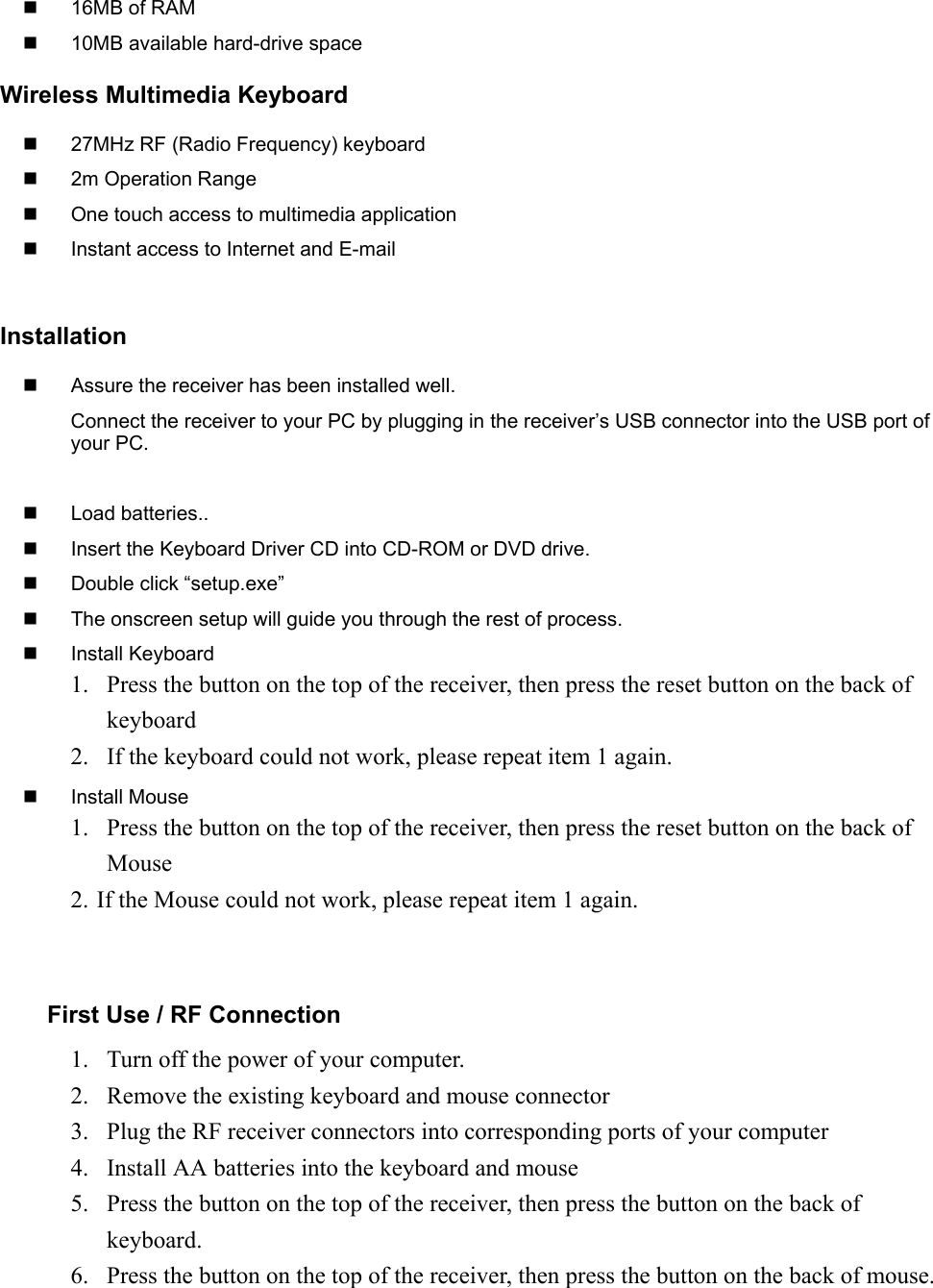

 16MB of RAM 10MB available hard-drive spaceWireless Multimedia Keyboard 27MHz RF (Radio Frequency) keyboard 2m Operation Range One touch access to multimedia application Instant access to Internet and E-mailInstallation Assure the receiver has been installed well.Connect the receiver to your PC by plugging in the receiver’s USB connector into the USB port ofyour PC. Load batteries.. Insert the Keyboard Driver CD into CD-ROM or DVD drive. Double click “setup.exe” The onscreen setup will guide you through the rest of process. Install Keyboard1. Press the button on the top of the receiver, then press the reset button on the back ofkeyboard2. If the keyboard could not work, please repeat item 1 again. Install Mouse1. Press the button on the top of the receiver, then press the reset button on the back ofMouse2. If the Mouse could not work, please repeat item 1 again.First Use / RF Connection1. Turn off the power of your computer.2. Remove the existing keyboard and mouse connector3. Plug the RF receiver connectors into corresponding ports of your computer4. Install AA batteries into the keyboard and mouse5. Press the button on the top of the receiver, then press the button on the back ofkeyboard.6. Press the button on the top of the receiver, then press the button on the back of mouse.

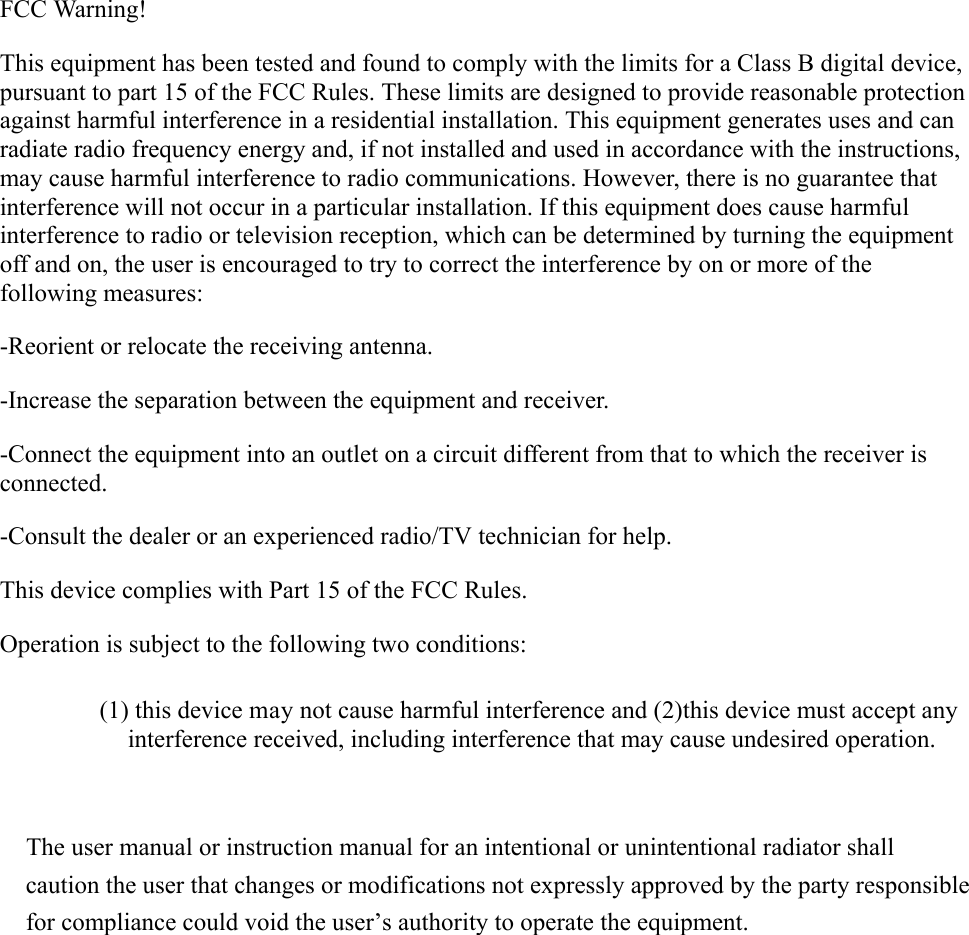

FCC Warning!This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation. This equipment generates uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by on or more of thefollowing measures:-Reorient or relocate the receiving antenna.-Increase the separation between the equipment and receiver.-Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected.-Consult the dealer or an experienced radio/TV technician for help.This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference and (2)this device must accept anyinterference received, including interference that may cause undesired operation.The user manual or instruction manual for an intentional or unintentional radiator shallcaution the user that changes or modifications not expressly approved by the party responsiblefor compliance could void the user’s authority to operate the equipment.
