Datalogic ADC S.r.l. Mobile Computer R3Integration Guide
Integration Guide
R3Integration Guide.doc
Revision: 1.0 3/25/2008 Signature: page 1 of 5
DATALOGIC PROPRIETARY INFORMATIONS
Rfid Engine R3 Integration Guide
Rfid Engine R3 Test
R3Integration Guide.doc page 2 of 5
DATALOGIC PROPRIETARY INFORMATIONS
Introduction .................................................................................................................................................................... 3
Block Diagram ................................................................................................................................................................ 3
Comunication Interfaces ................................................................................................................................................ 4
Flex Cable Length........................................................................................................................................................... 4
Mechanical installation .................................................................................................................................................. 4
Regulatory ....................................................................................................................................................................... 5
Caution.......................................................................................................................................................................... 5
Labeling requirements for the End Product .................................................................................................................. 5
Technical Features.......................................................................................................................................................... 5
Rfid Engine R3 Test
R3Integration Guide.doc page 3 of 5
DATALOGIC PROPRIETARY INFORMATIONS
Introduction
The RF-3 RFID Engine is a dual technology module combining an undecoded laser scan engine
with a multi-standard high frequency RFID engine (requiring an ANSI C library for decoding).
Thus, it provides a single product allowing reading standard barcode symbologies and 13.56 MHz
tags and smart labels.
The Module is physically and electrically compatible with the Motorola SE1200 laser module thus
guaranteeing an easy integration within many Hand-Held barcode readers (Host). In addition,
it integrates an internal small antenna.
The RFID supports the following standards:
• ISO14443A
• ISO14443B
• ISO15693
• Philips I-Code 1
There are 4 versions available:
• Rfid only
• Rfid only + SE950 barcode reader
• Rfid only – With plastic frame for mounting on Datalogic DLBJET
• Rfid only + SE950 barcode reader – With plastic frame for mounting on Datalogic DLBJET

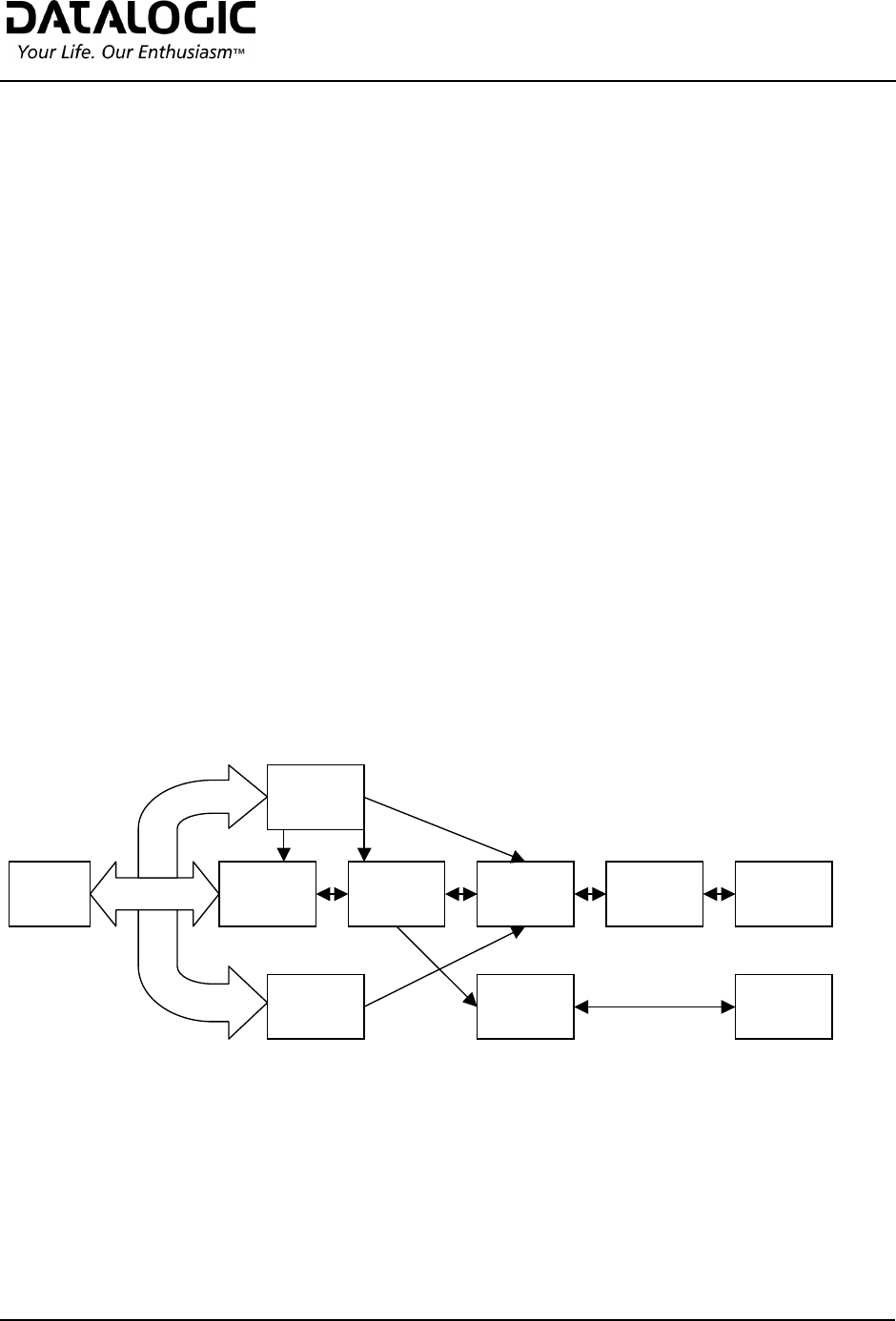

Block Diagram
• Flat cab.: 10 poles flex cable.
• Antenna: Integral 4 turns loop antenna
• Scan engine: Optional SE950 Module from Motorola.
HOST
Level
shifters
ARM7
uP
RF
modem
RF front
end
Antenna
3,3V
LDO
5,2V
Step Up
Flat cab.
Scan
engine
Level
shifters
Rfid Engine R3 Test
R3Integration Guide.doc page 4 of 5
DATALOGIC PROPRIETARY INFORMATIONS
Comunication Interfaces
The module can be connected to an host trough a 10 wires flex cable.
The pins are used in different ways based on the fact the host is using the module to read a barcode or an
RFID tag.
In both modes the SCAN_EN signal (pin 5) can be forced low to place the module in sleep state (low-power
mode) and to switch the interface to Barcode Mode.
The module can be switched from barcode mode to RFID mode simply sending a packet on the SPI
interface.
Pins 1 and 10 are used for test and configuration at the factory and should be left unconnected.
Pin # RFID Mode Barcode Mode
1 UART RX UART RX
2 VCC VCC
3 MOSI AIM
4 Clock LASER_EN
5 SCAN_EN SCAN_EN
6 / DBP
7 MISO SOS
8 CS GND
9 GND GND
10 UART TX UART TX
Please refer to the SE950 Module integration Guide for further details about the Barcode Interface.
Please use the Datalogic RF-3 communication library software to interface to the Module when in RFID
mode.
Flex Cable Length
The maximum allowed/tested flex cable length is 75 mm.
Mechanical installation
There are two types of contrains to take into account when installing the module. The first types relate to the
Barcode reader function: to perform according to the specifications the integrated SE950 scan engine
requires a laser beam window with specific size, orientation and materials. Please refer to the SE950
intergration guide for details on this matter.
The second type of requirement is about metal parts located near the RFID antenna. Such parts could modify
the antenna resonance frequency and lead to reduced antenna effectiveness. Please keep metallic parts as
far as possible from the antenna to prevent malfunctioning.
Rfid Engine R3 Test
R3Integration Guide.doc page 5 of 5
DATALOGIC PROPRIETARY INFORMATIONS
Regulatory
FCC Statement
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device my not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Caution
Modifications or changes to this equipment without the expressed written approval of Datalogic Scanning
Group S.r.l. would void the authority to use the equipment.
Labeling requirements for the End Product
Any device incorporating this module must be labeled with the following informations:
Contains FCC ID: U4F0018
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device my not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Technical Features
Electical Features
Power Supply From 3,13 Vdc to 5,25 Vdc
Max. Input Current 600mA
Max. Stand-by current 500uA
Radio Features
RF Frequency 13.56 Mhz
Max. SPI Clock Frequency 100 Kbit/s
RFID reading distance Up to 10 cm depending on tag.
Environmental Features
Operating Temperature -20 a +60’C
Storage Temperature -40 a +70 ’C
Shock resistance 2000 g
Physical Features
Mechanical dimensions 39.5 x 20 x 28 mm
Weight 19g (with SE950)
