Datalogic Mobile S.r.l.

Via S. Vitalino 13

40012 - Lippo di Calderara di Reno

Bologna - Italy

Skorpio™ X3 with Windows CE 6.0 - User's Manual

Software Version: 1.72

Ed.: 05/2012

international laws. • Copying, or altering of this document is prohibited without express written consent from

Datalogic Mobile S.r.l.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including

the U.S.A. and the E.U.

Skorpio and the Skorpio logo are trademarks of Datalogic Mobile S.r.l.

All other brand and product names mentioned herein are for identification purposes only and may be

trademarks or registered trademarks of their respective owners.

iii

CONTENTS

REFERENCES ............................................................................................ vi

Conventions..................................................................................................vi

Reference Documentation ............................................................................vi

Services and Support....................................................................................vi

GENERAL VIEW ........................................................................................ vii

1 INTRODUCTION .......................................................................................... 1

1.1 Skorpio X3 Description ................................................................................. 1

1.2 Available Models........................................................................................... 2

1.3 Package Contents......................................................................................... 4

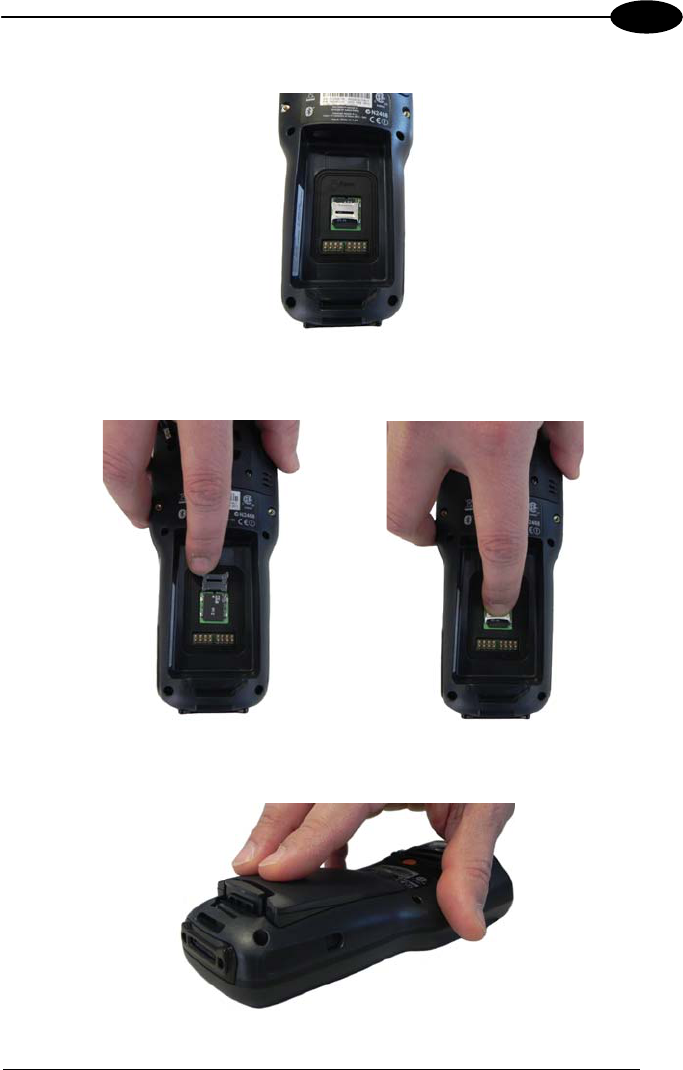

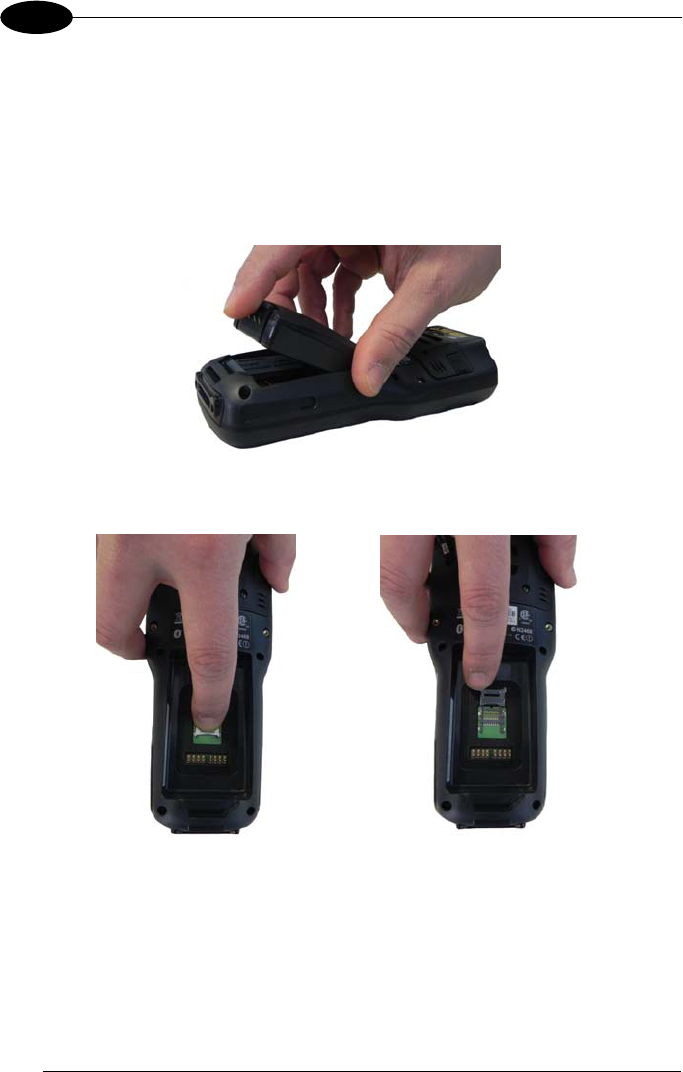

1.4 Inserting microSD card ................................................................................. 6

1.4.1 Removing the MicroSD Card ........................................................................ 8

1.5 Accessories................................................................................................... 9

2 BATTERIES AND MAINTENANCE ........................................................... 11

2.1 Charging the Battery Pack .......................................................................... 11

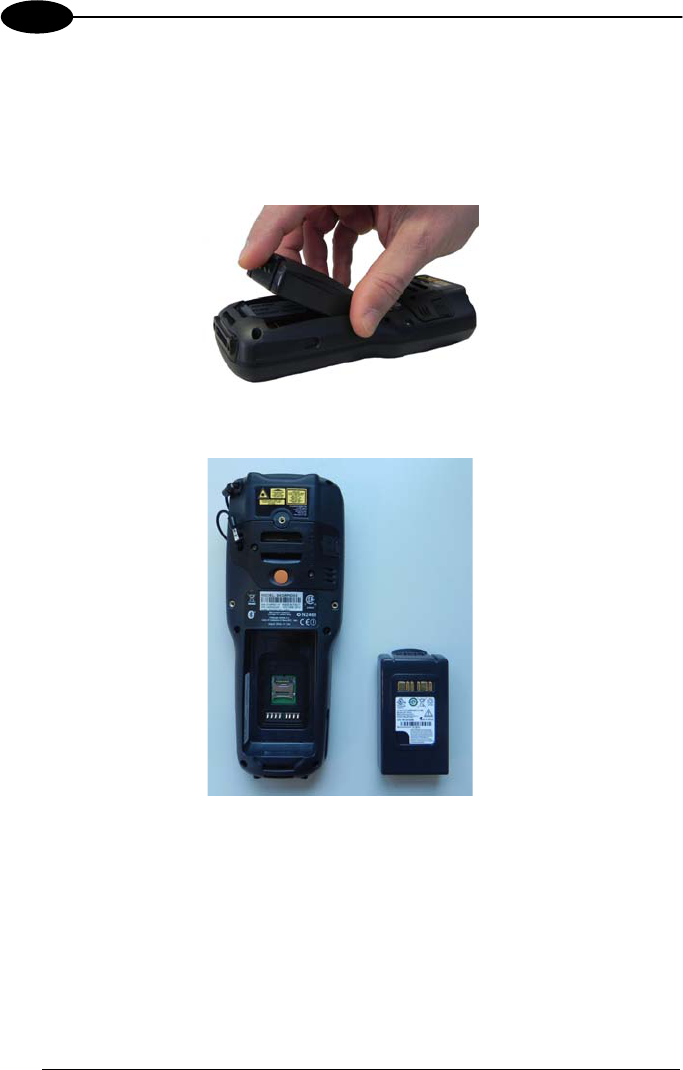

2.2 Replacing the Battery Pack......................................................................... 14

2.3 Cleaning the mobile computer .................................................................... 18

3 CONNECTIONS ......................................................................................... 19

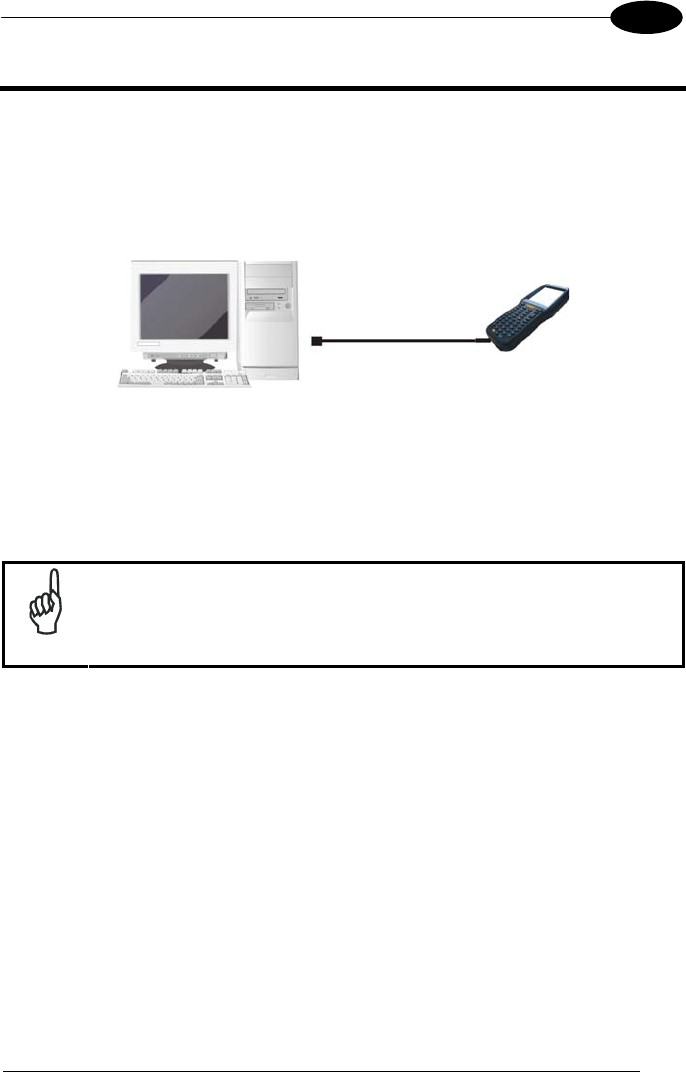

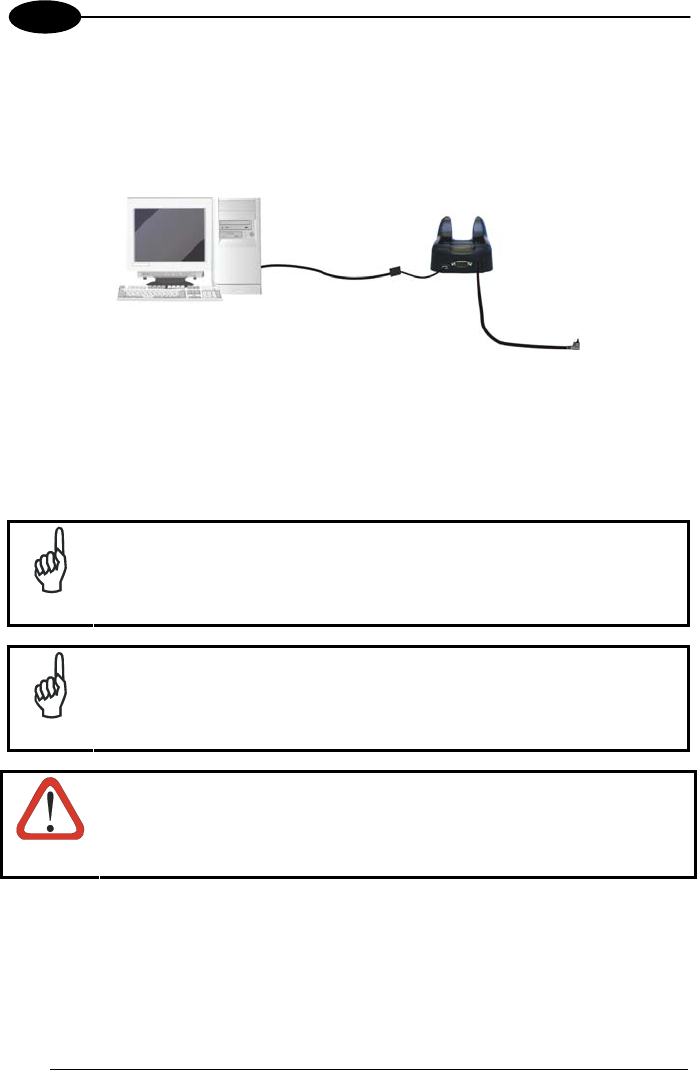

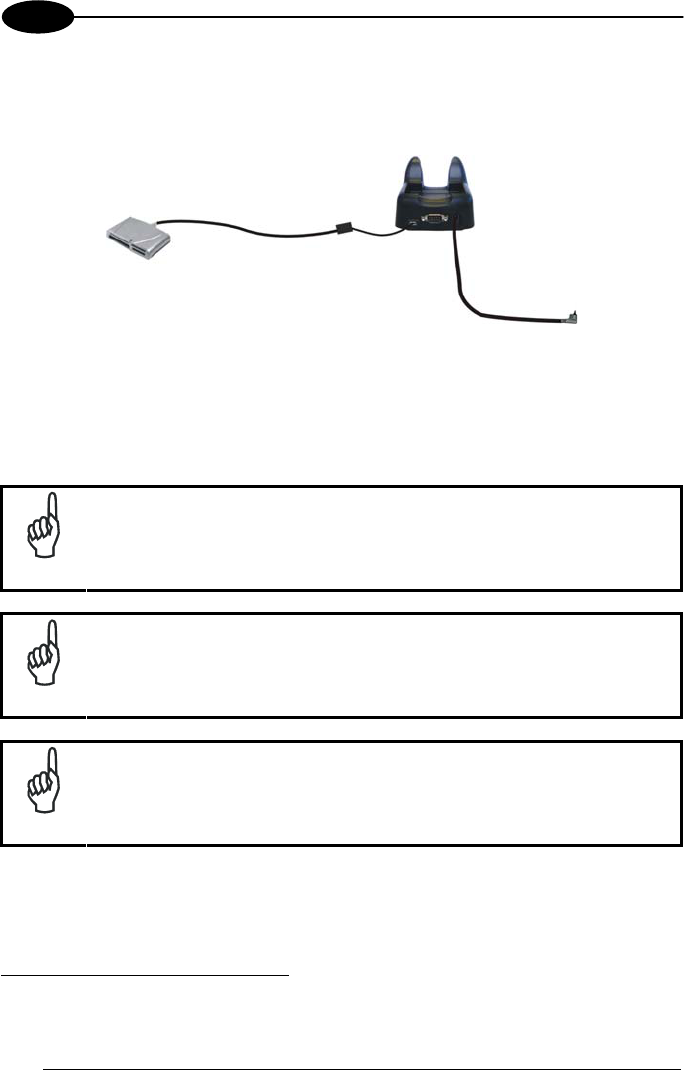

3.1 USB Connection ......................................................................................... 19

3.2 Connection to USB peripherals................................................................... 21

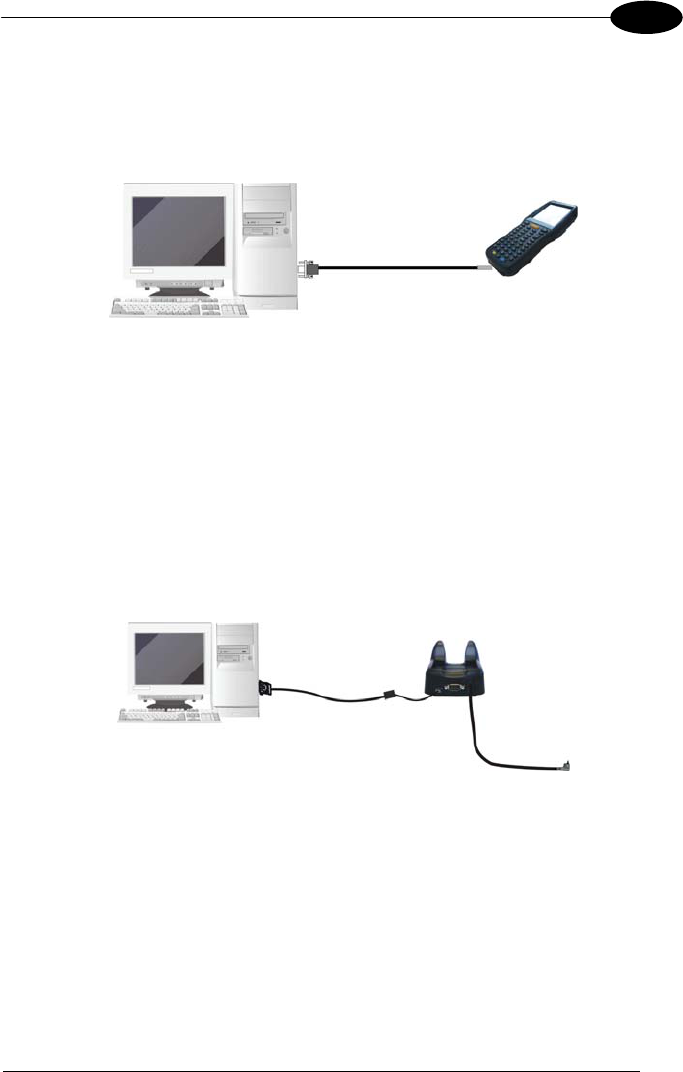

3.3 RS232 Connection...................................................................................... 23

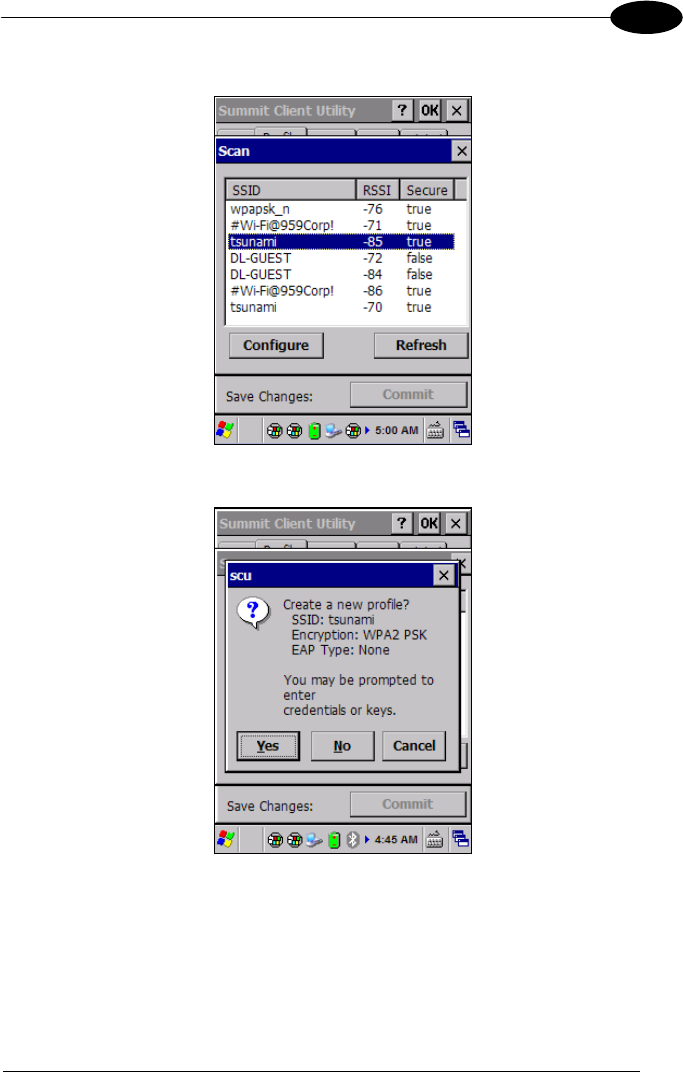

3.4 WLAN Connection ...................................................................................... 24

3.5 WPAN Connections .................................................................................... 26

3.6 Wireless and Radio Frequencies Warnings ................................................ 27

4 USE AND FUNCTIONING.......................................................................... 29

4.1 Startup ........................................................................................................ 29

4.1.1 Using the Stylus.......................................................................................... 30

4.1.2 Touch Gestures .......................................................................................... 31

4.2 Windows CE Touch Screen Calibration ...................................................... 32

4.3 Data Capture............................................................................................... 33

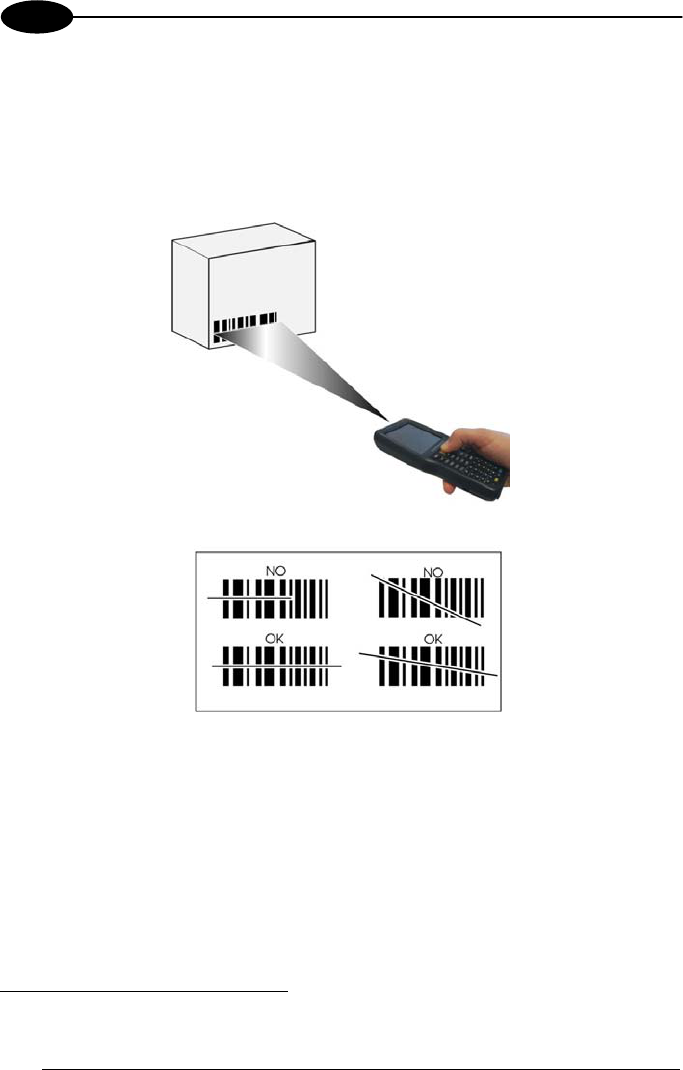

4.3.1 Laser Data Capture..................................................................................... 34

4.3.2 Imager Data Capture .................................................................................. 35

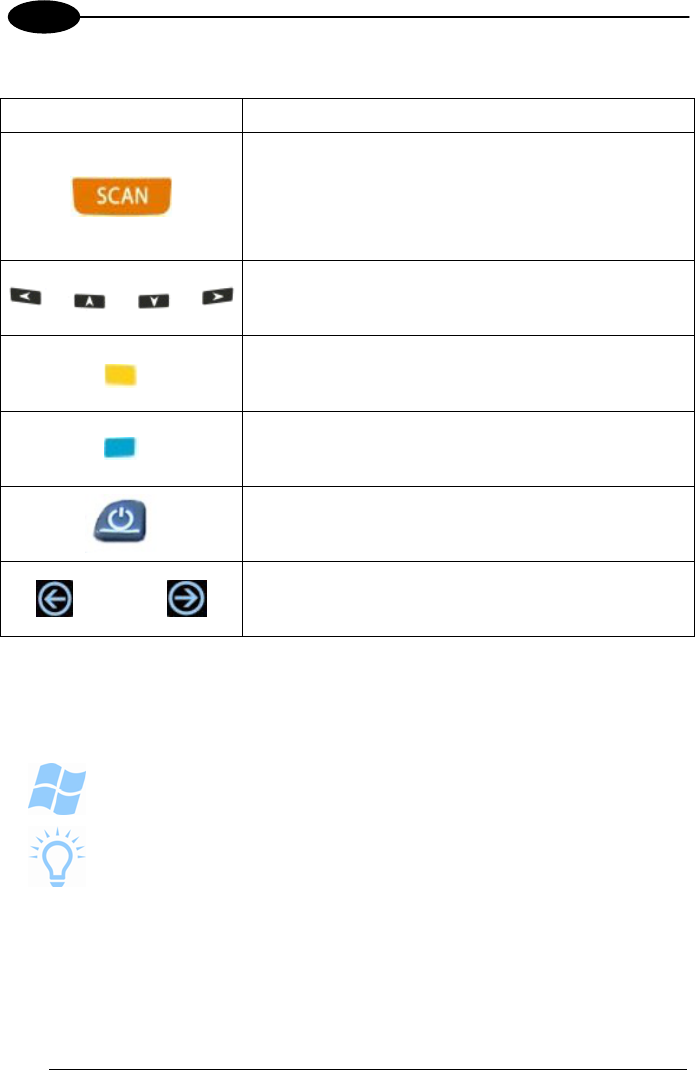

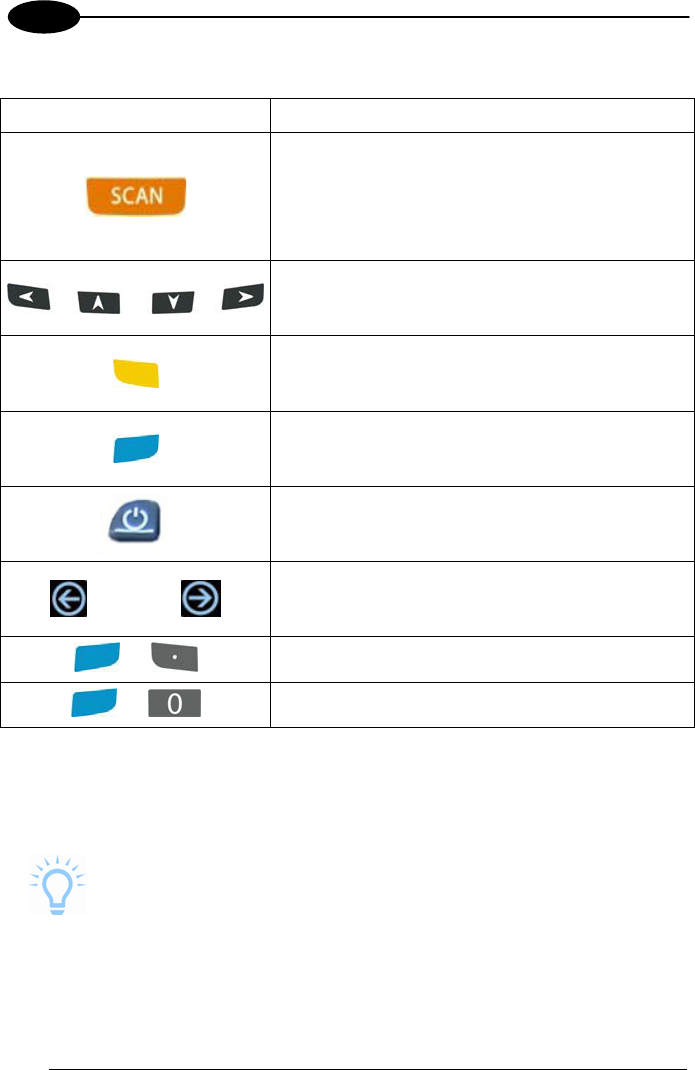

4.4 Description of the Keyboards ...................................................................... 37

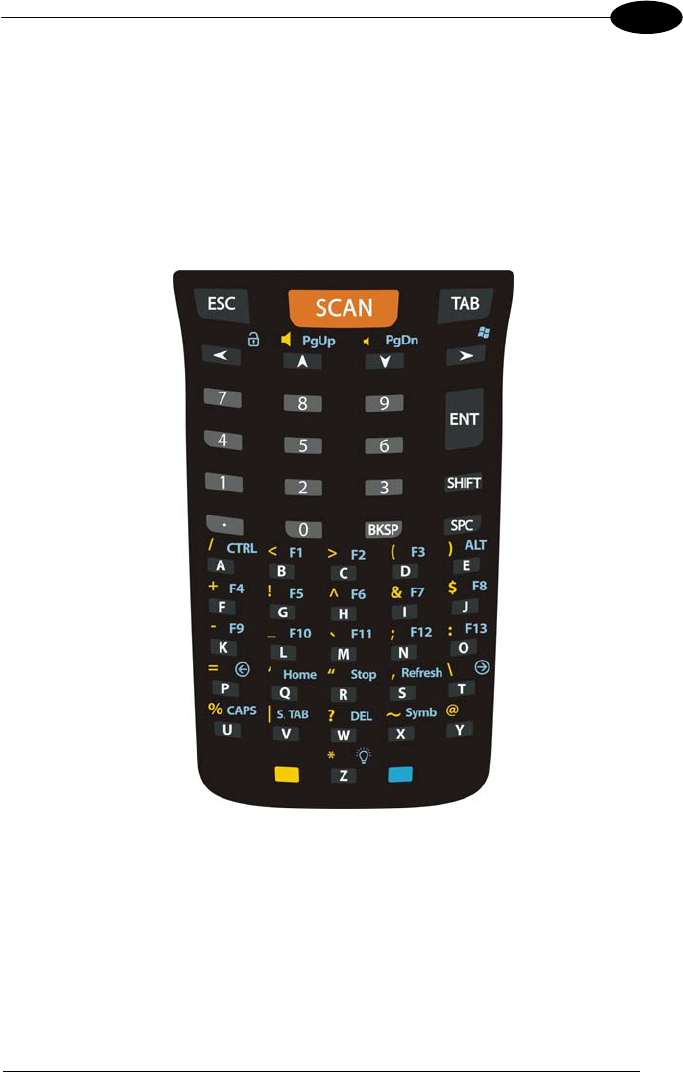

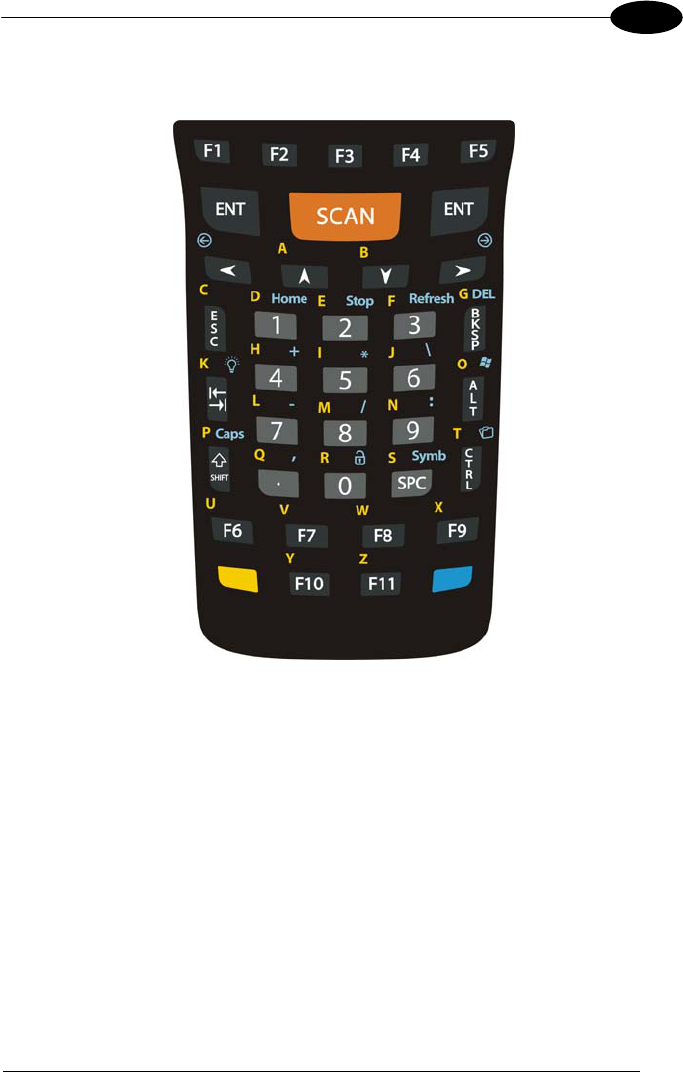

4.4.1 Full-alphanumeric Keyboard (50 Keys)....................................................... 37

4.4.2 Alphanumeric Keyboard (38 Keys) ............................................................. 39

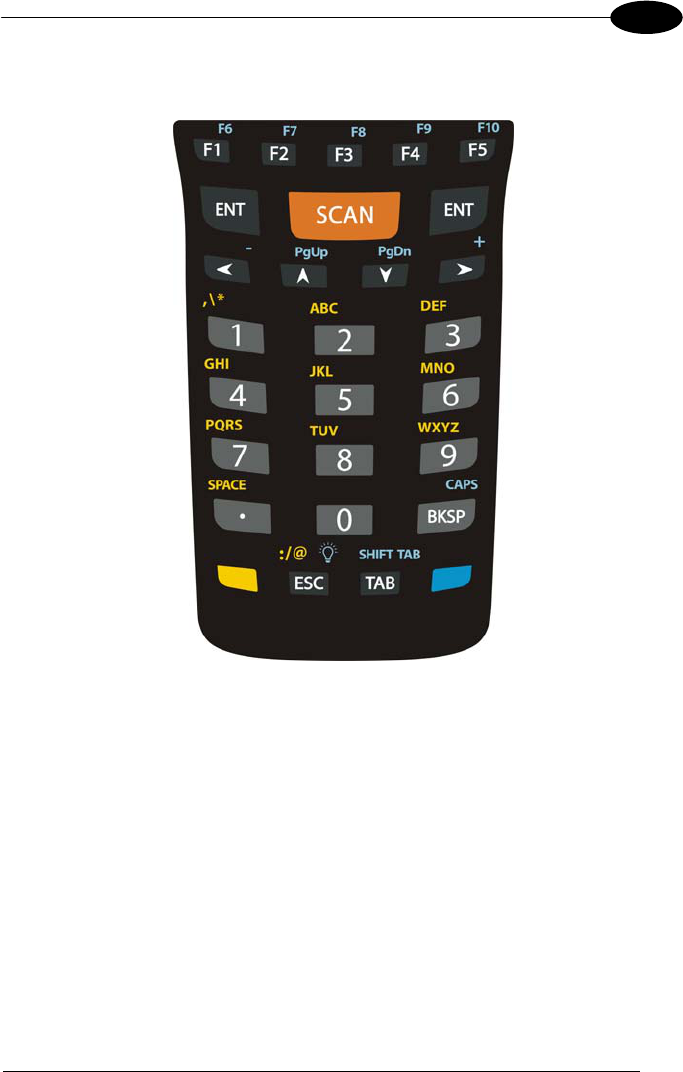

4.4.3 Numeric Keyboard (28 Keys)...................................................................... 41

4.4.4 Resetting the Skorpio X3 ............................................................................ 44

4.5 Status Indicators ......................................................................................... 46

4.5.1 LED Status.................................................................................................. 46

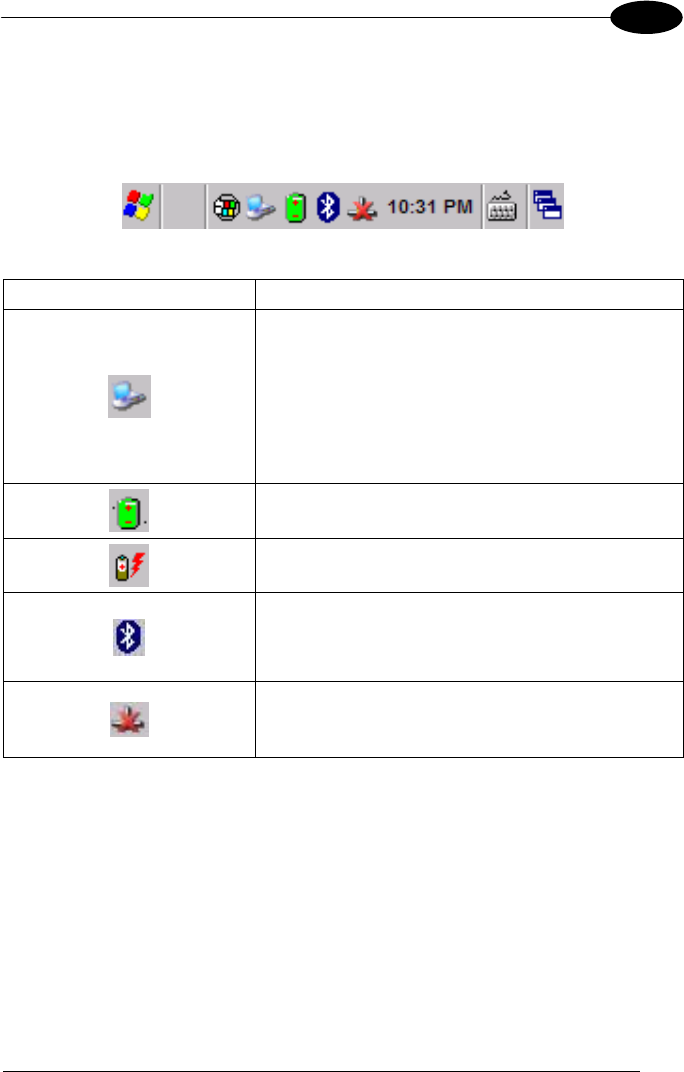

4.5.2 Taskbar....................................................................................................... 47

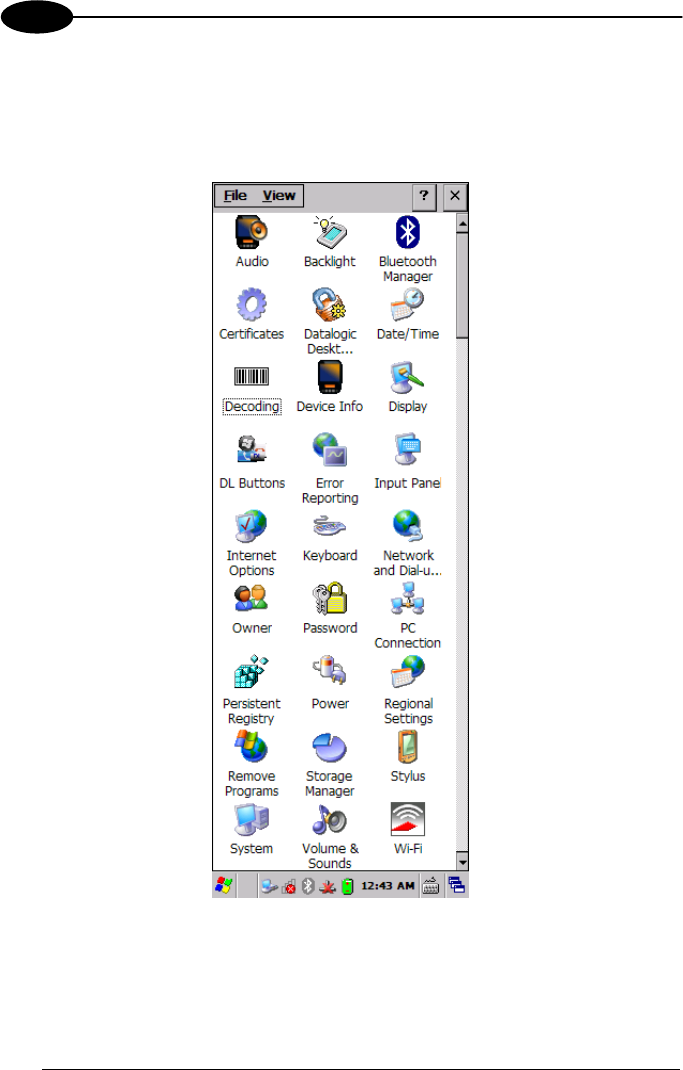

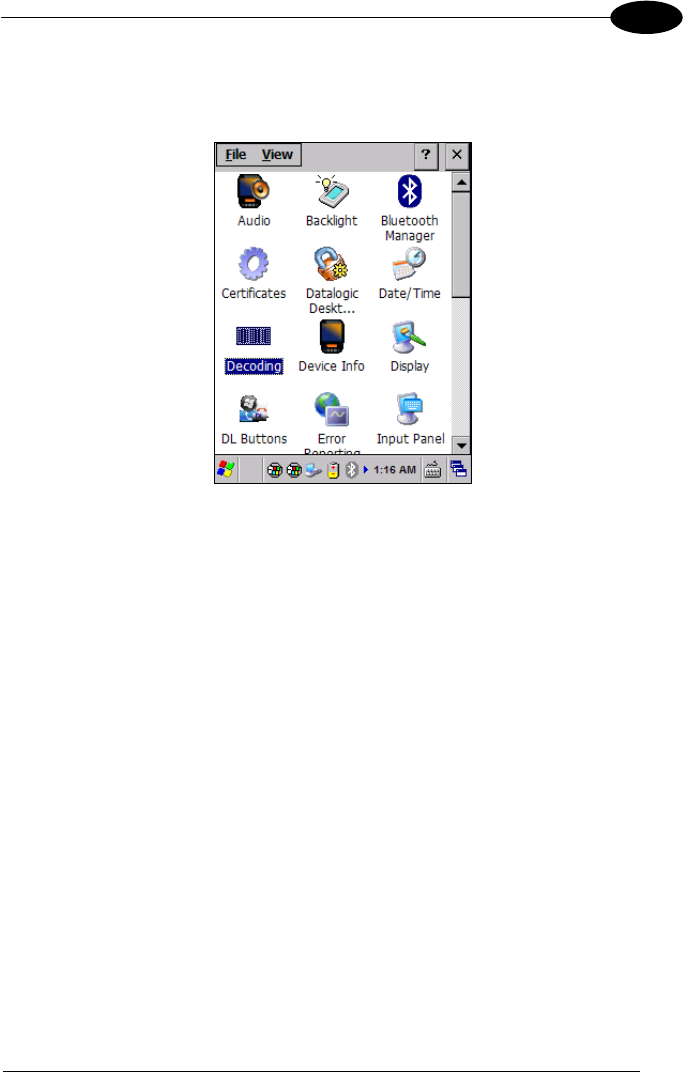

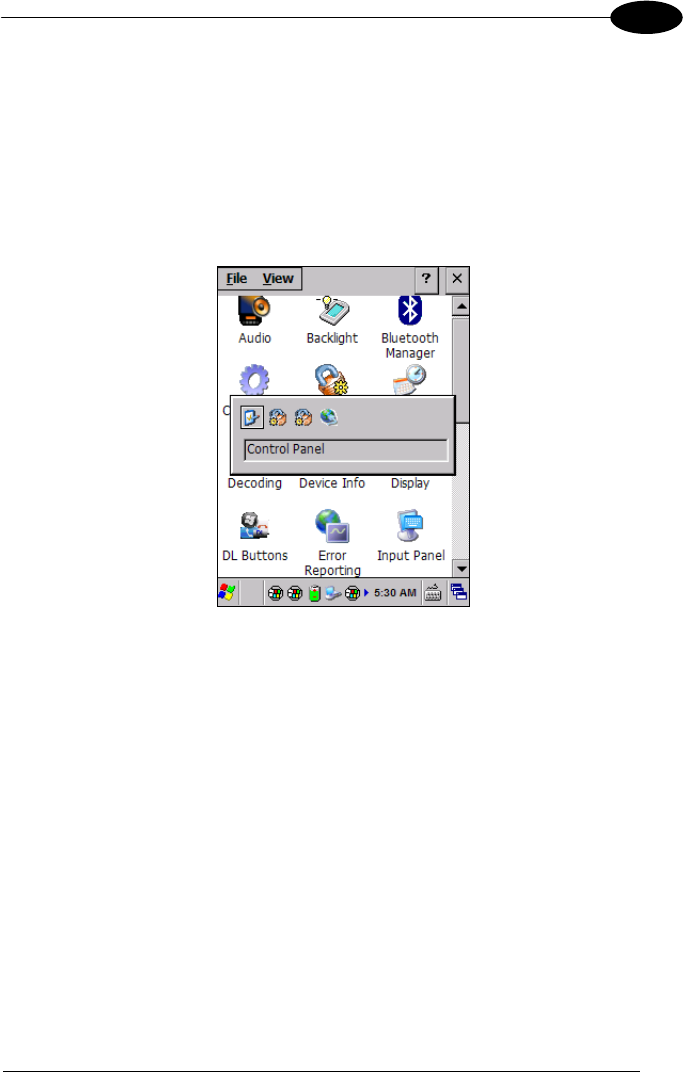

4.6 Control Panel .............................................................................................. 48

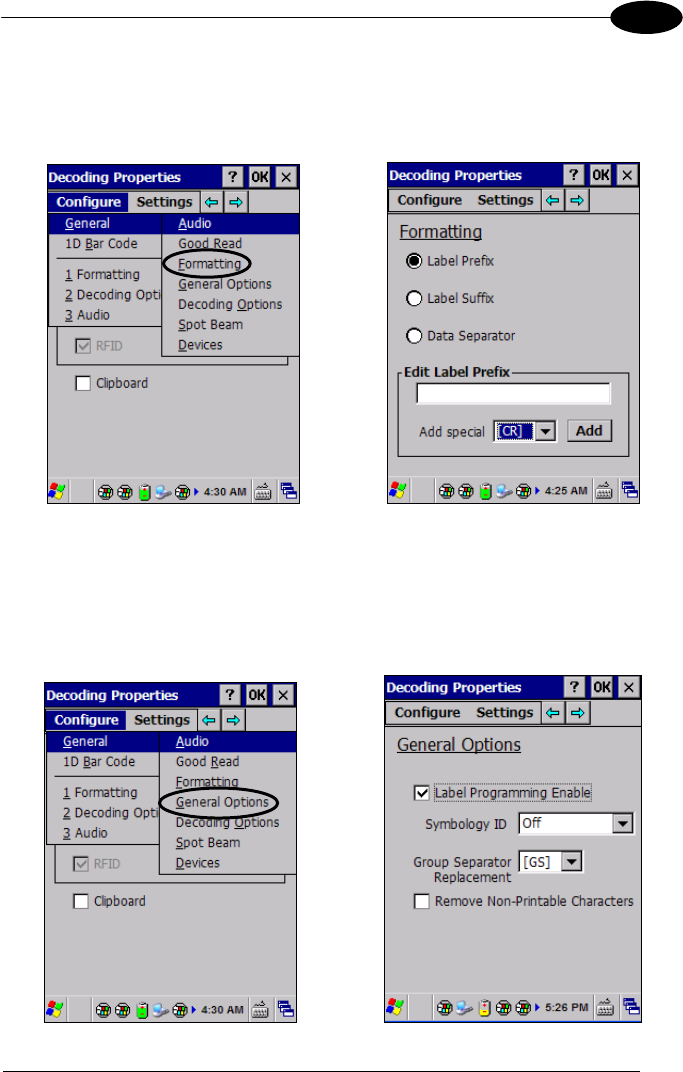

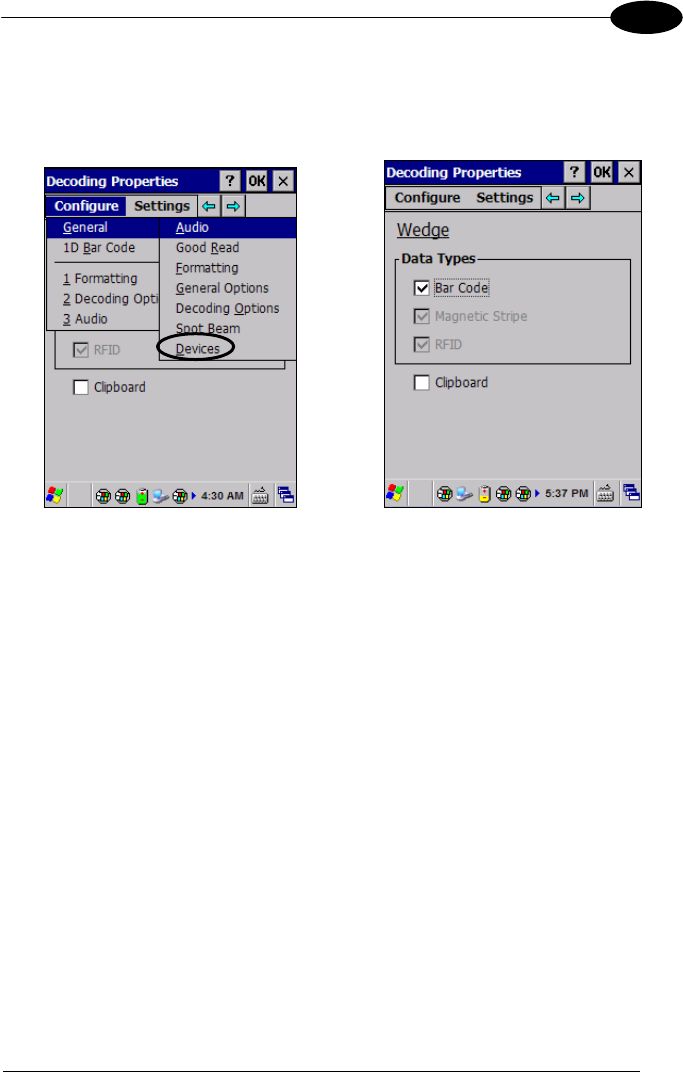

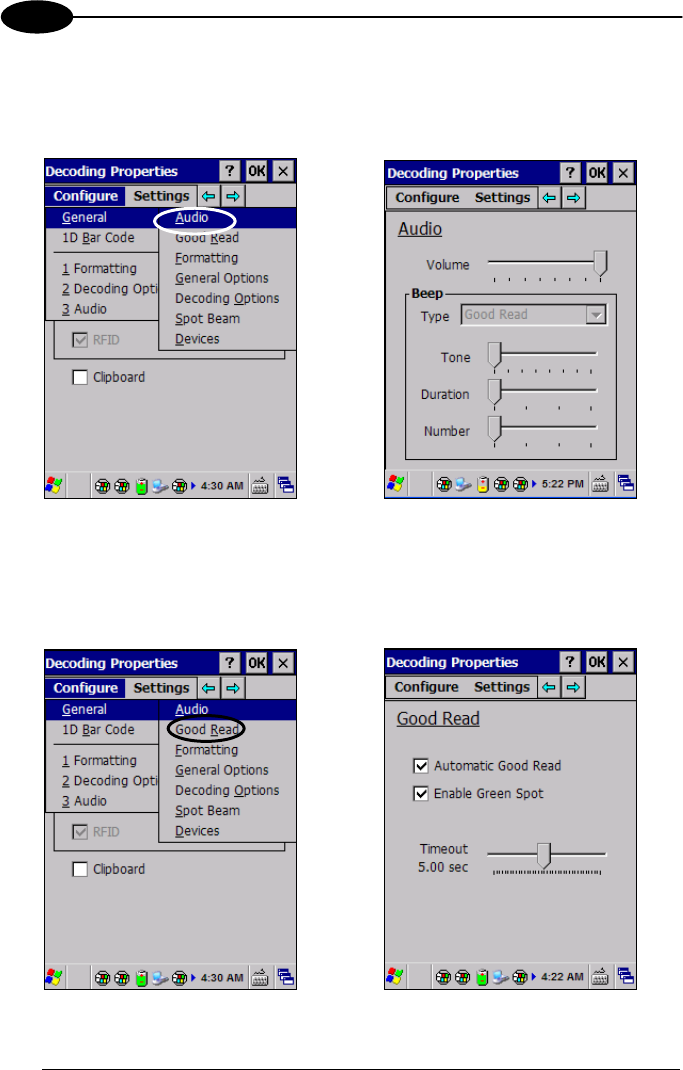

4.6.1 Data Capture Configuration ........................................................................ 49

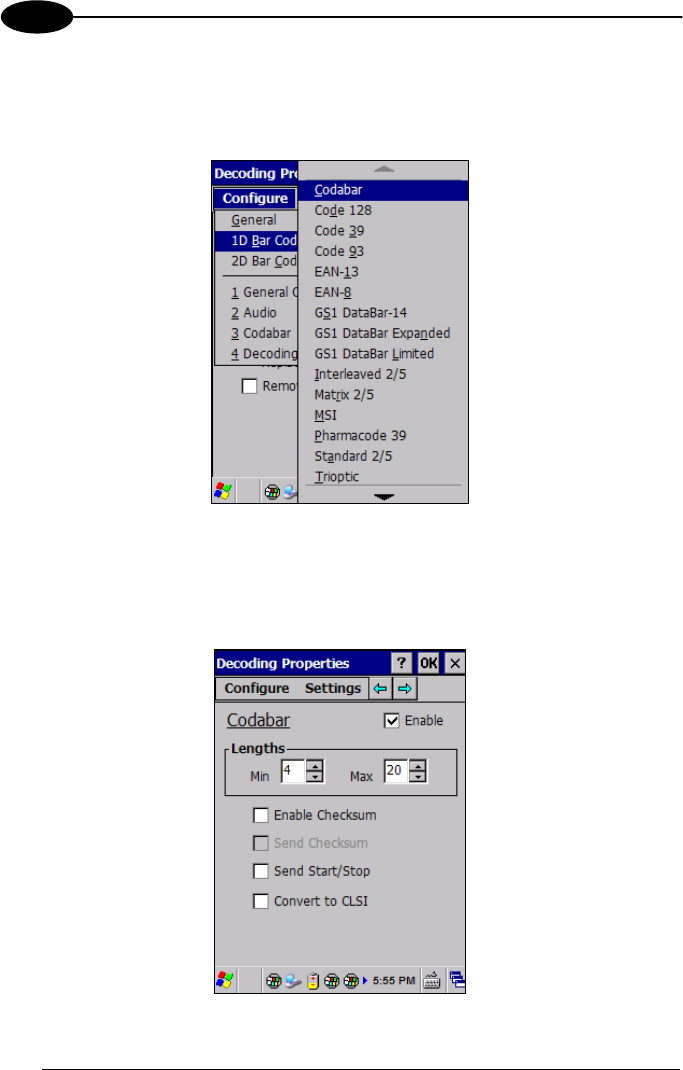

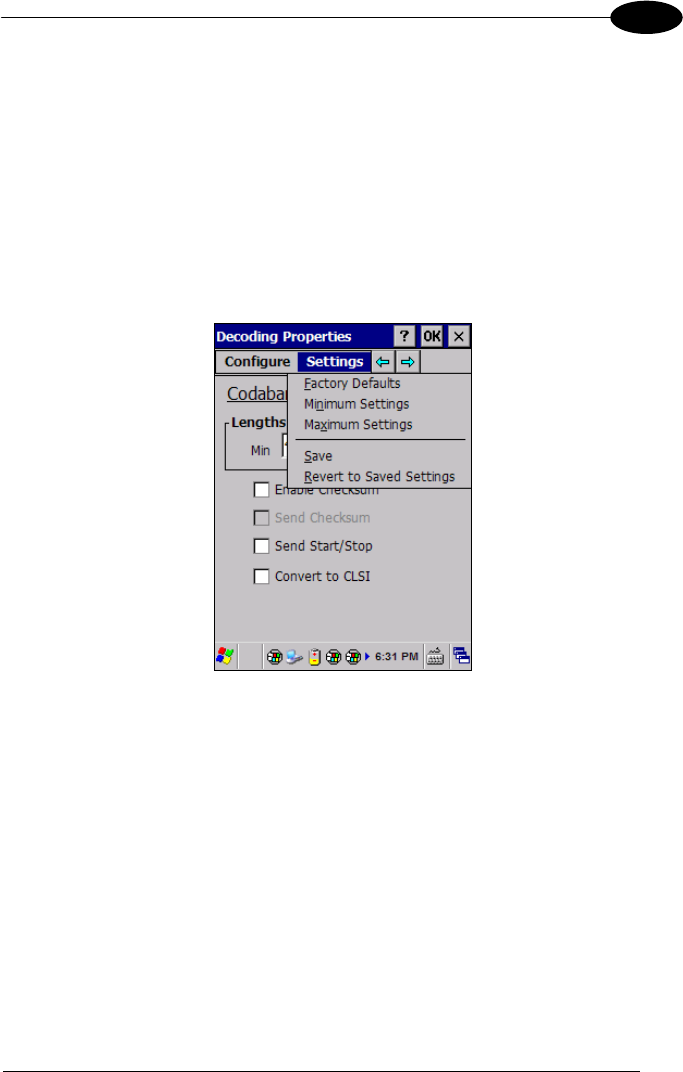

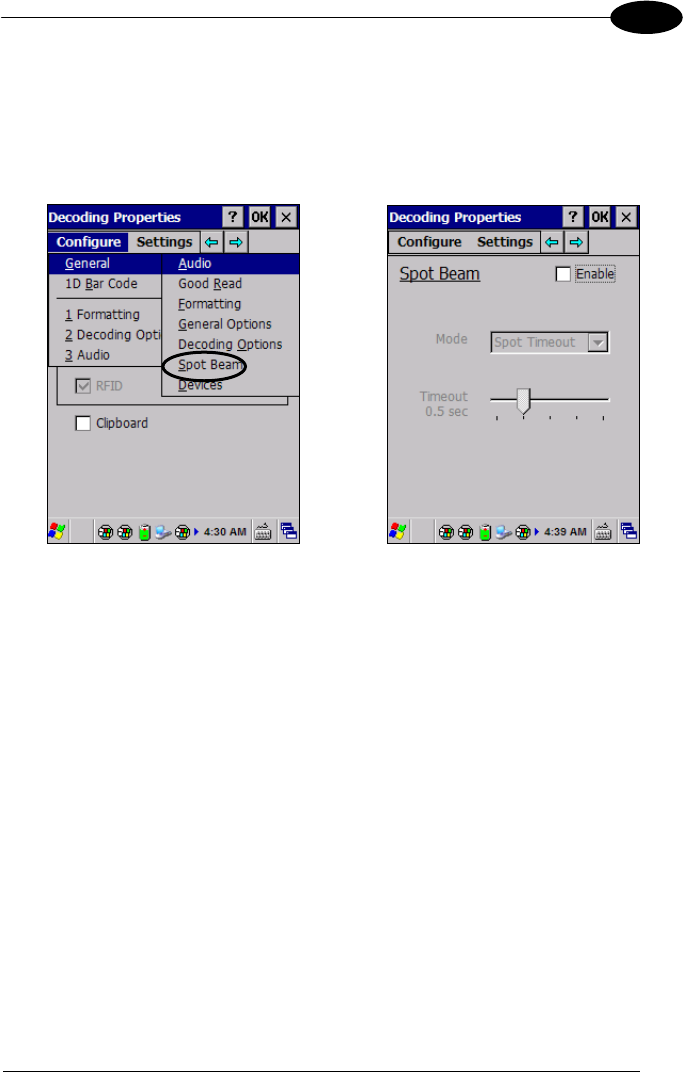

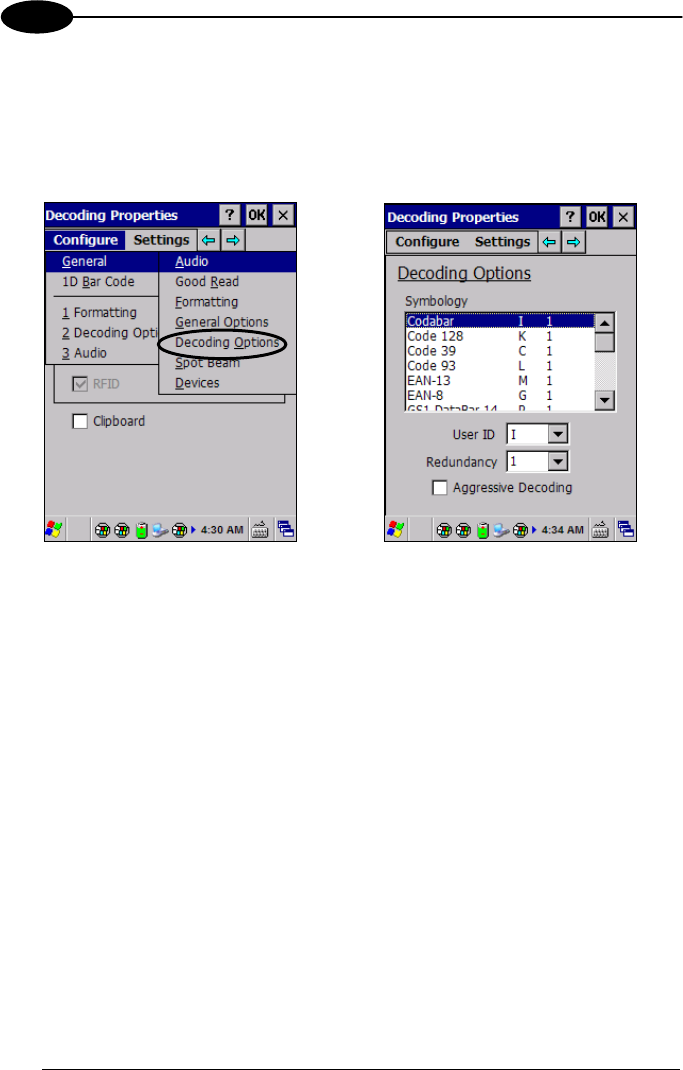

Decoding configuration pages..................................................................... 49

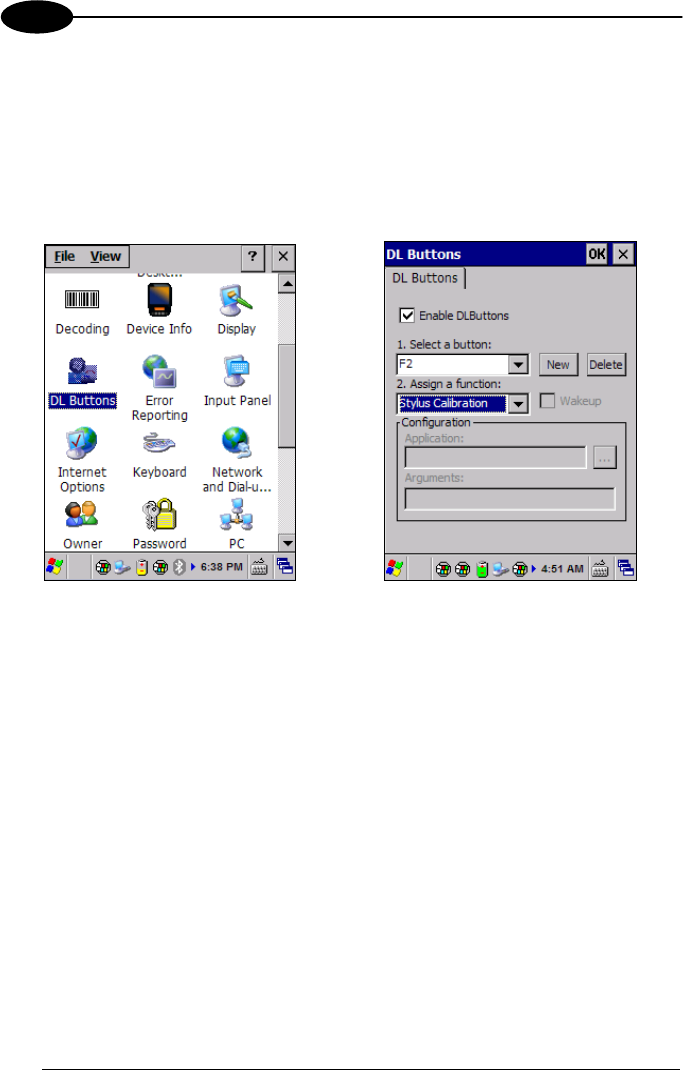

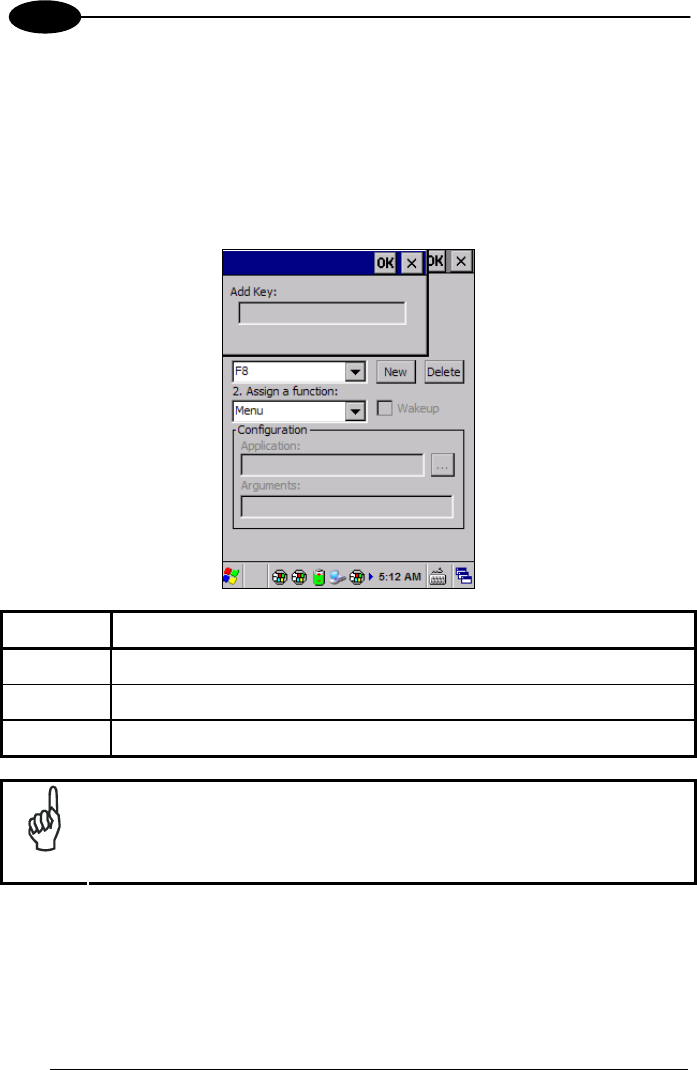

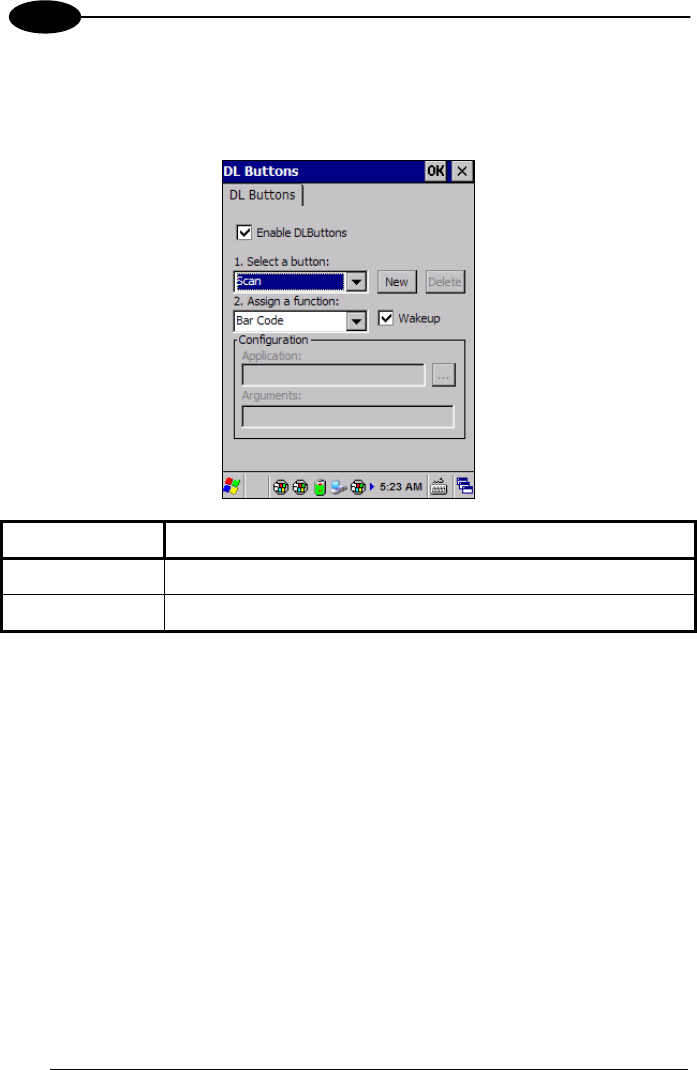

4.6.2 DL Buttons .................................................................................................. 58

4.6.3 Triggers....................................................................................................... 62

4.6.4 Application Switcher.................................................................................... 63

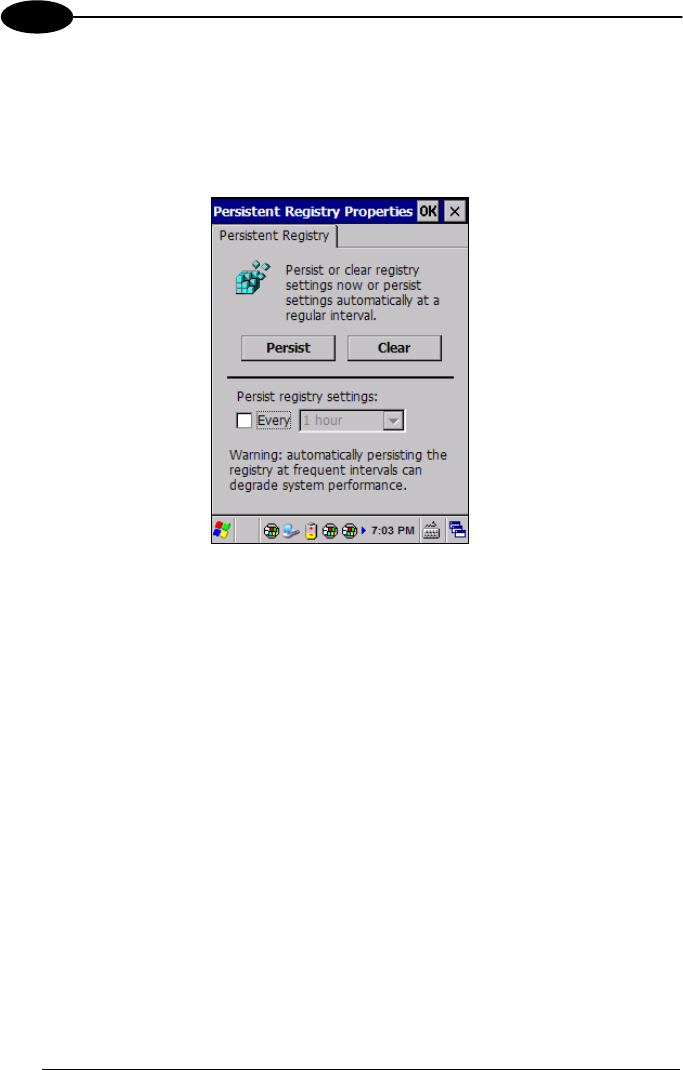

4.6.5 Persistent Registry...................................................................................... 64

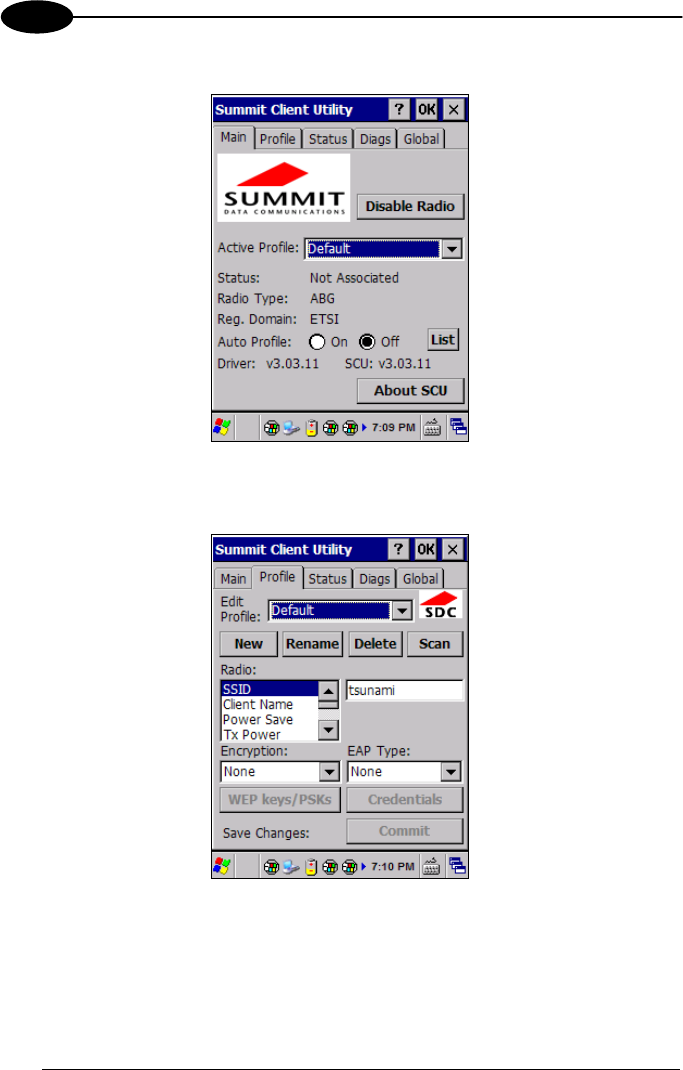

4.6.6 Wireless Communications........................................................................... 67

4.6.7 Stylus Calibration ........................................................................................ 72

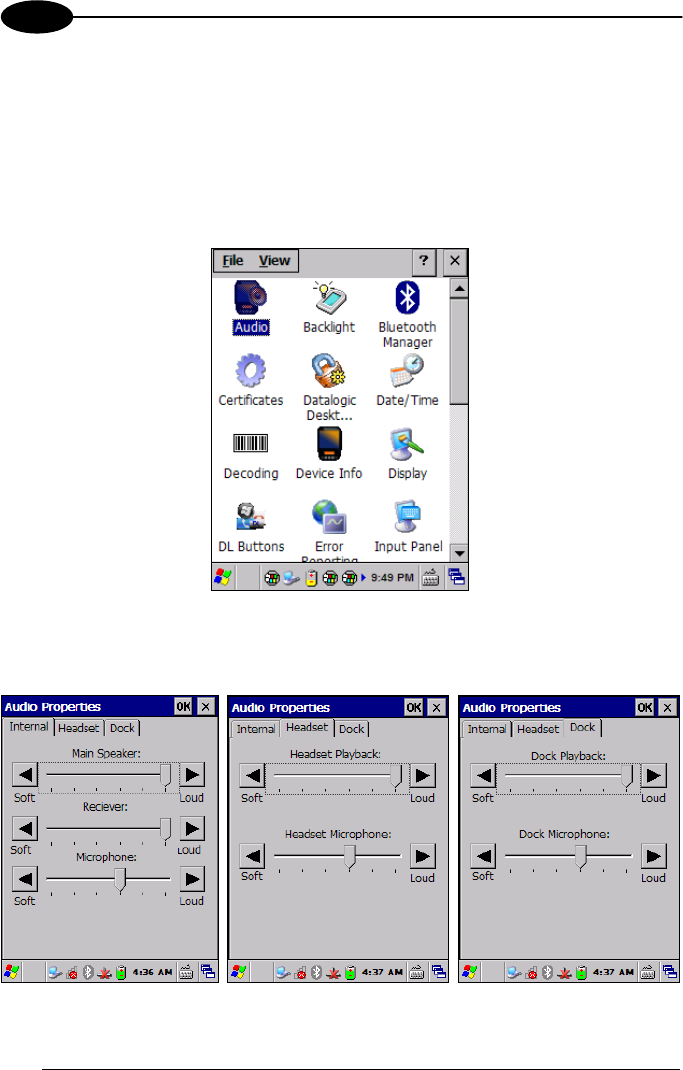

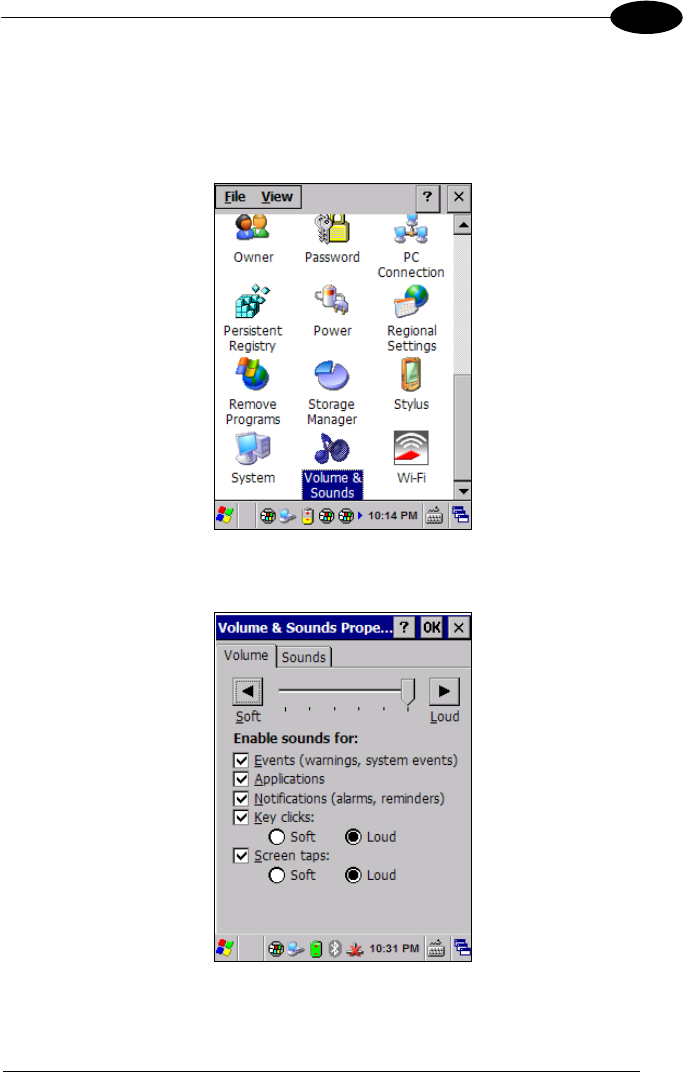

4.6.8 Audio Settings............................................................................................. 74

4.7 Windows Connections ................................................................................ 76

4.7.1 Windows Mobile® Device Center................................................................ 76

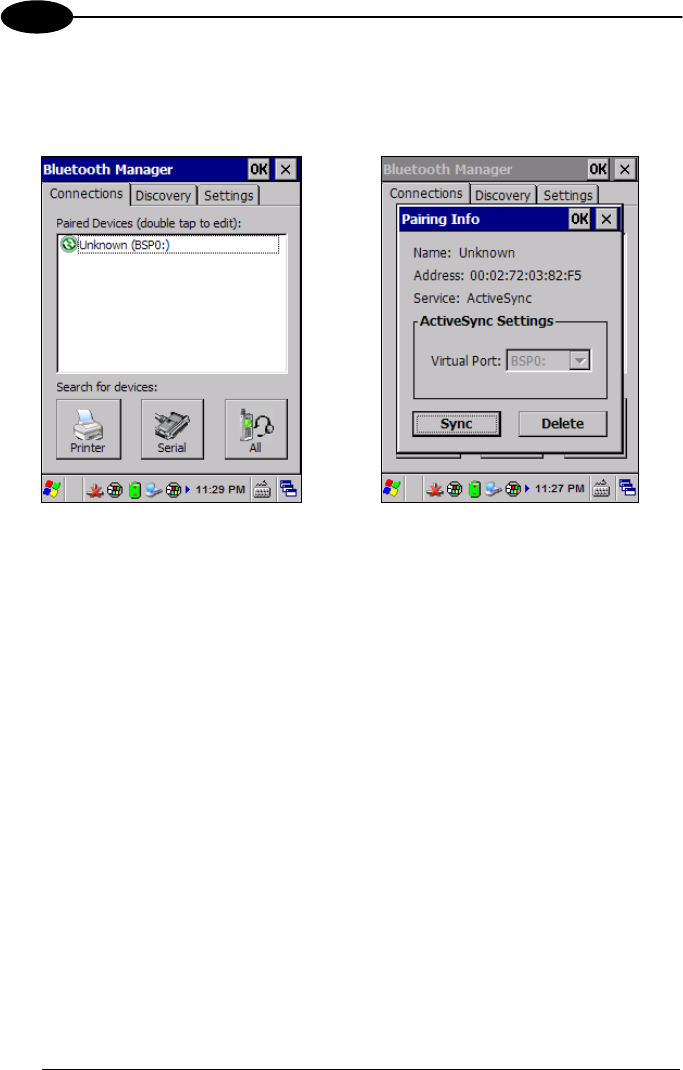

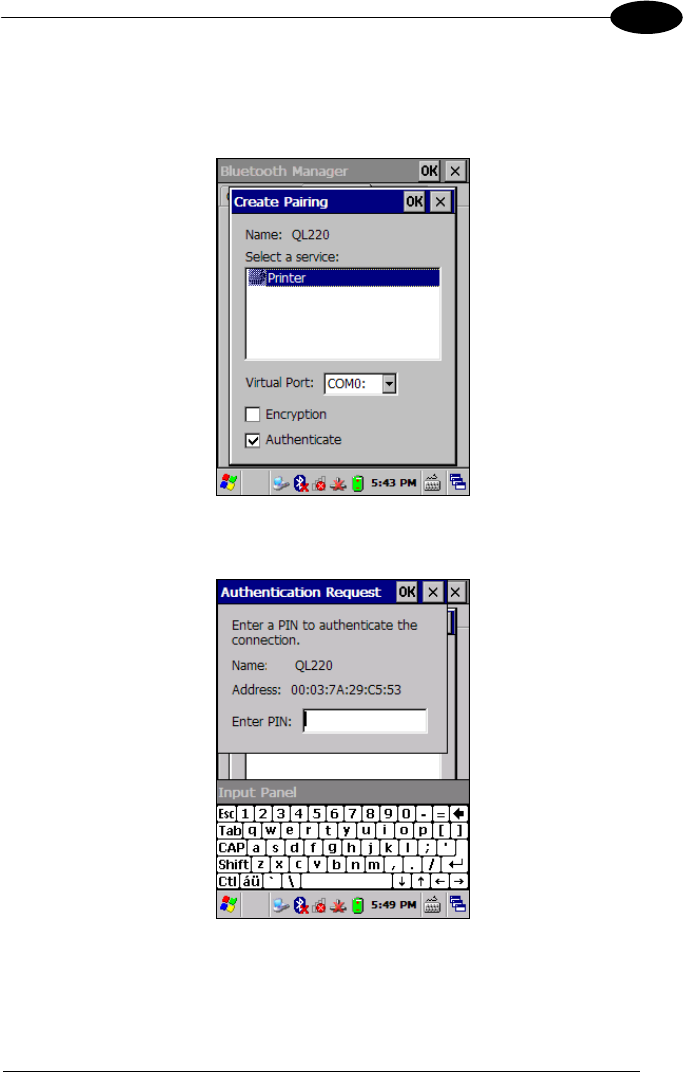

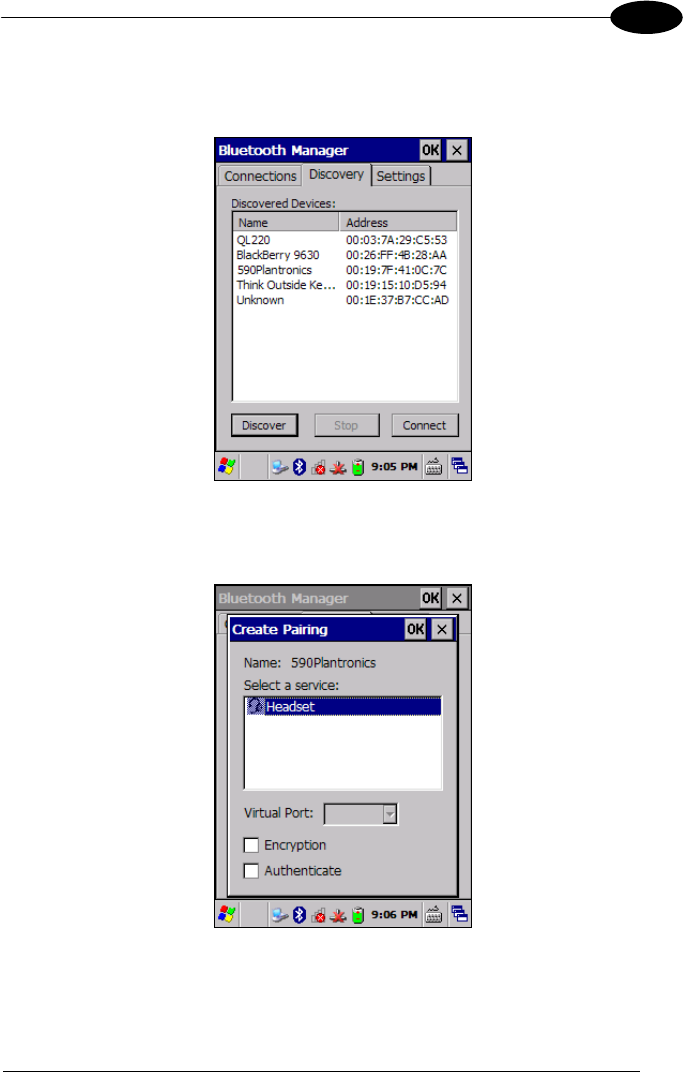

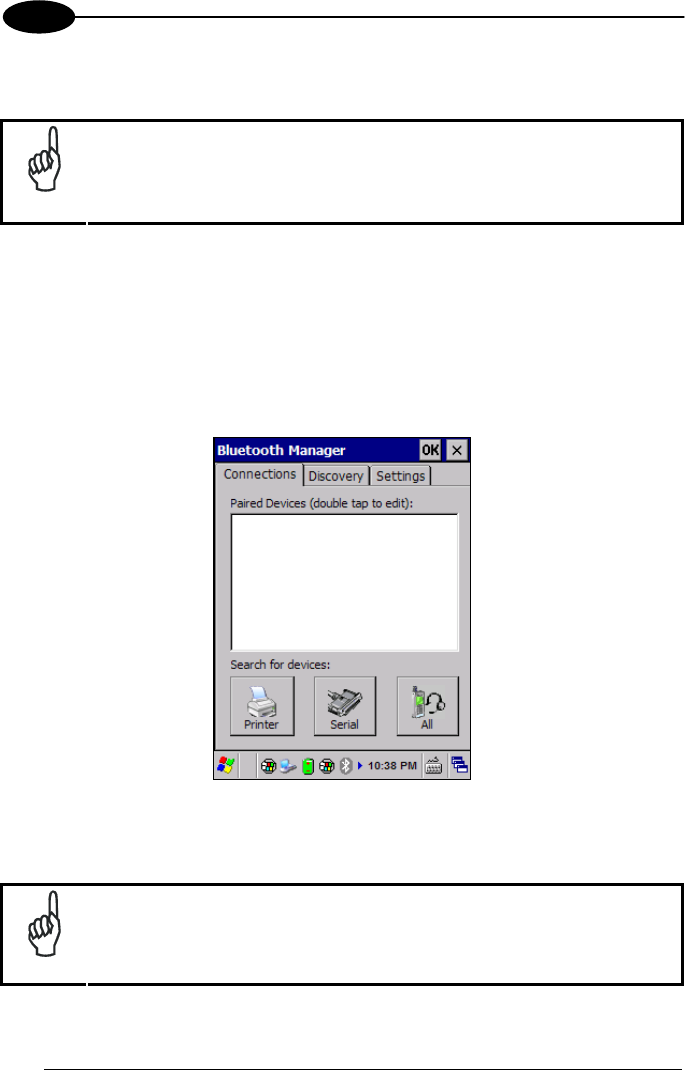

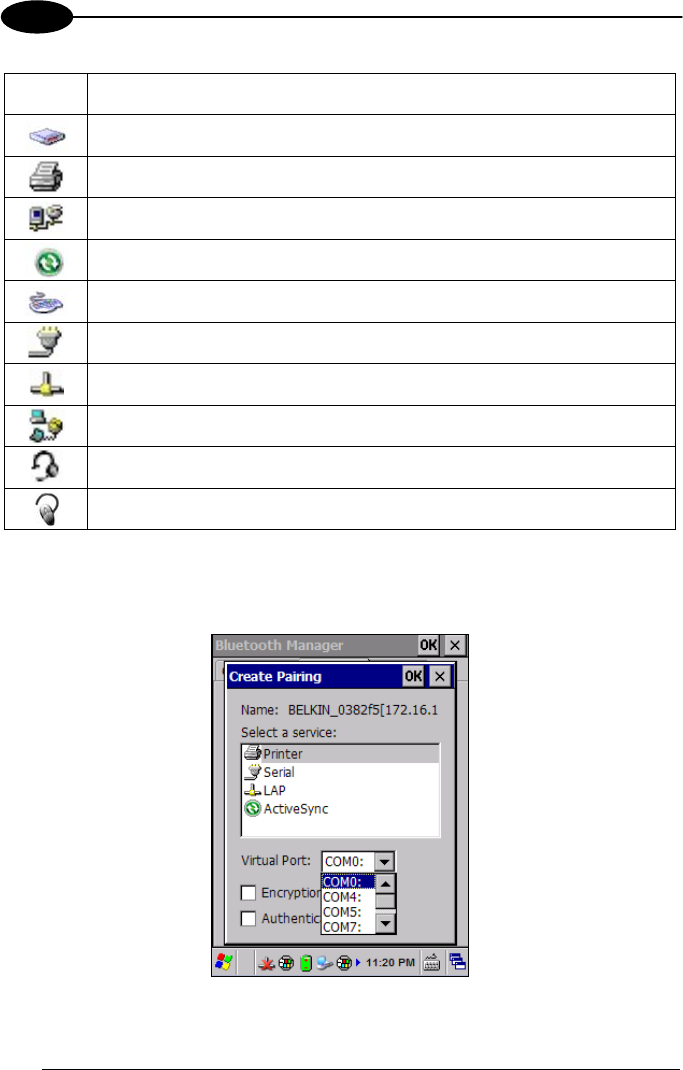

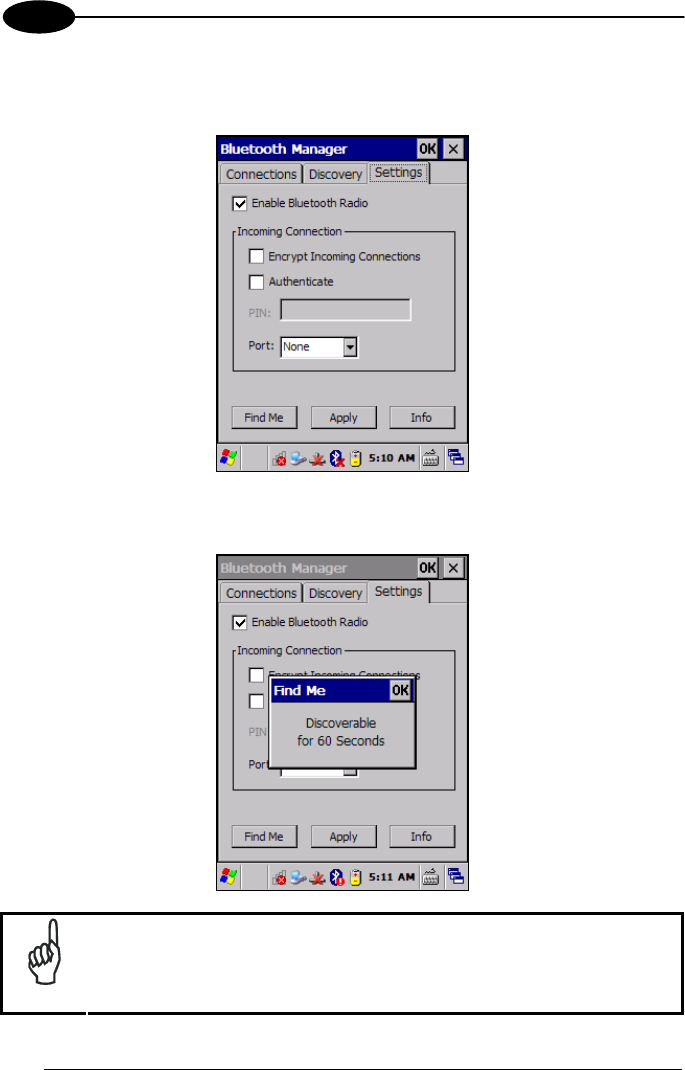

4.7.2 Bluetooth Manager Device Setup ............................................................... 78

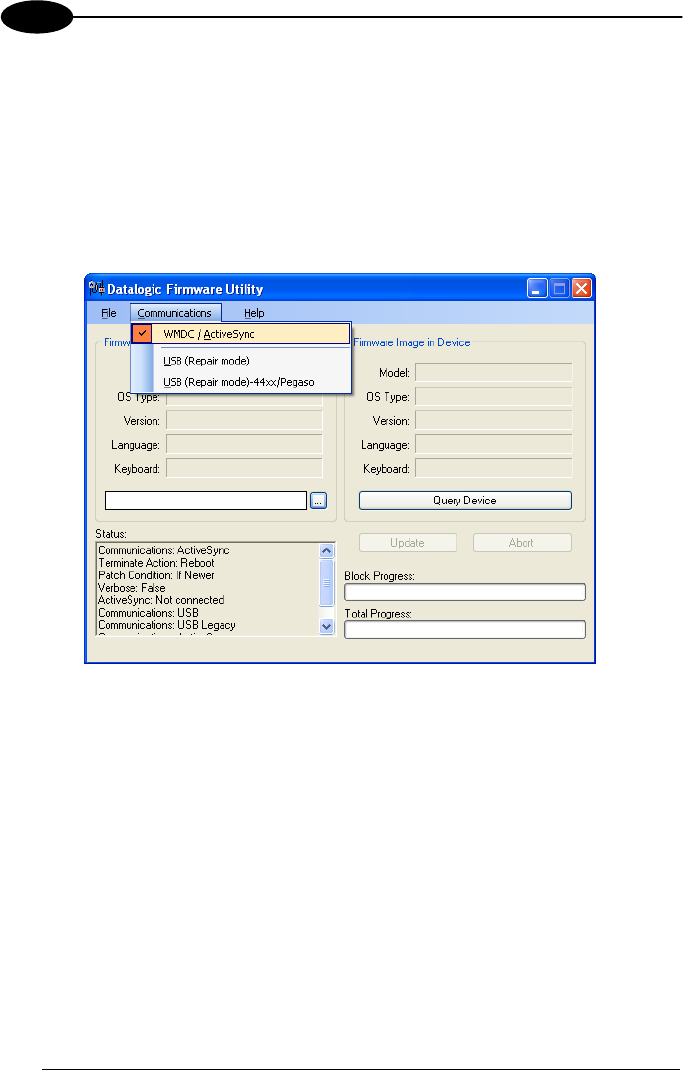

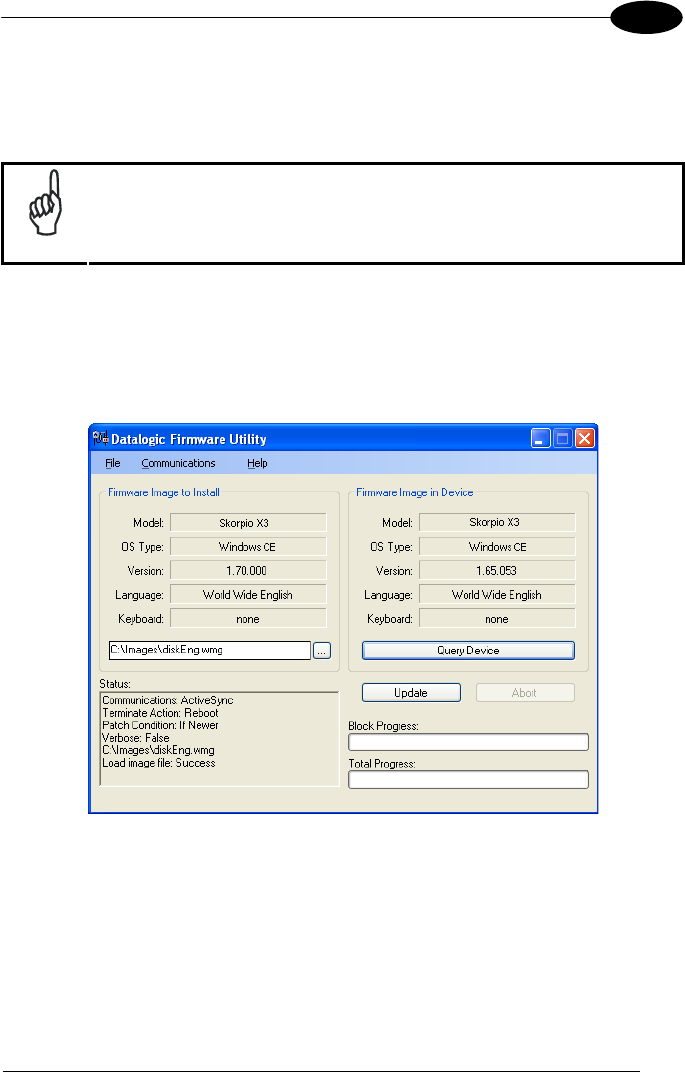

4.8 Datalogic Firmware Utility ........................................................................... 85

4.8.1 Retrieving a Firmware Image Update ......................................................... 85

4.8.2 Installing DFU on the Host PC .................................................................... 86

4.8.3 Updating the Firmware................................................................................ 87

4.8.4 Repair Mode ............................................................................................... 88

4.9 Datalogic Configuration Utility..................................................................... 90

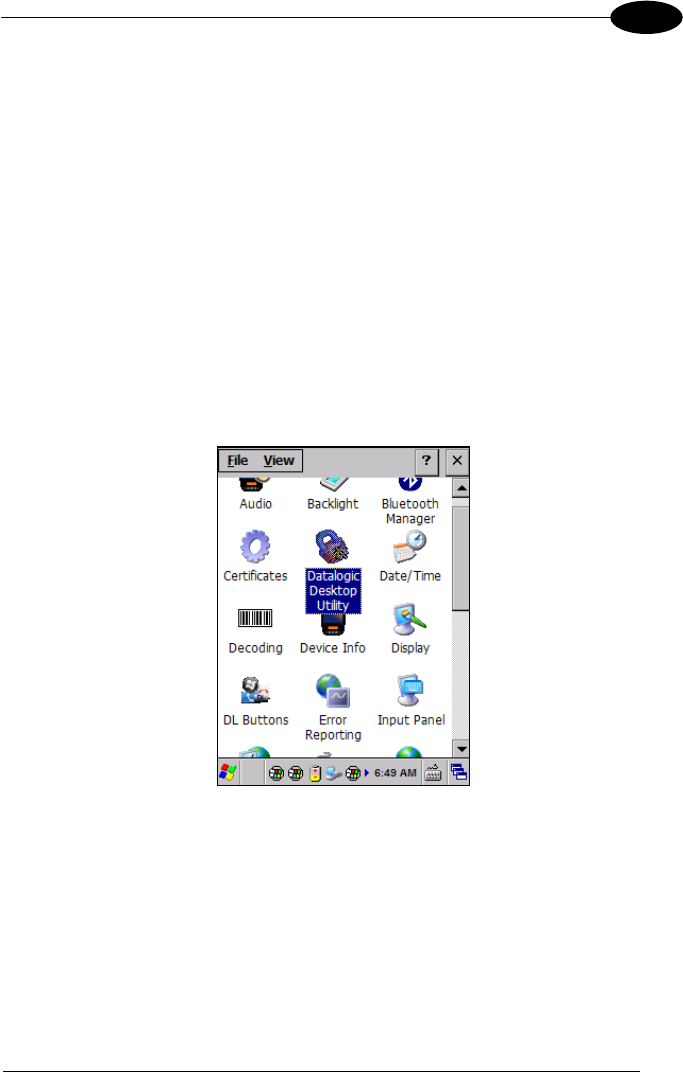

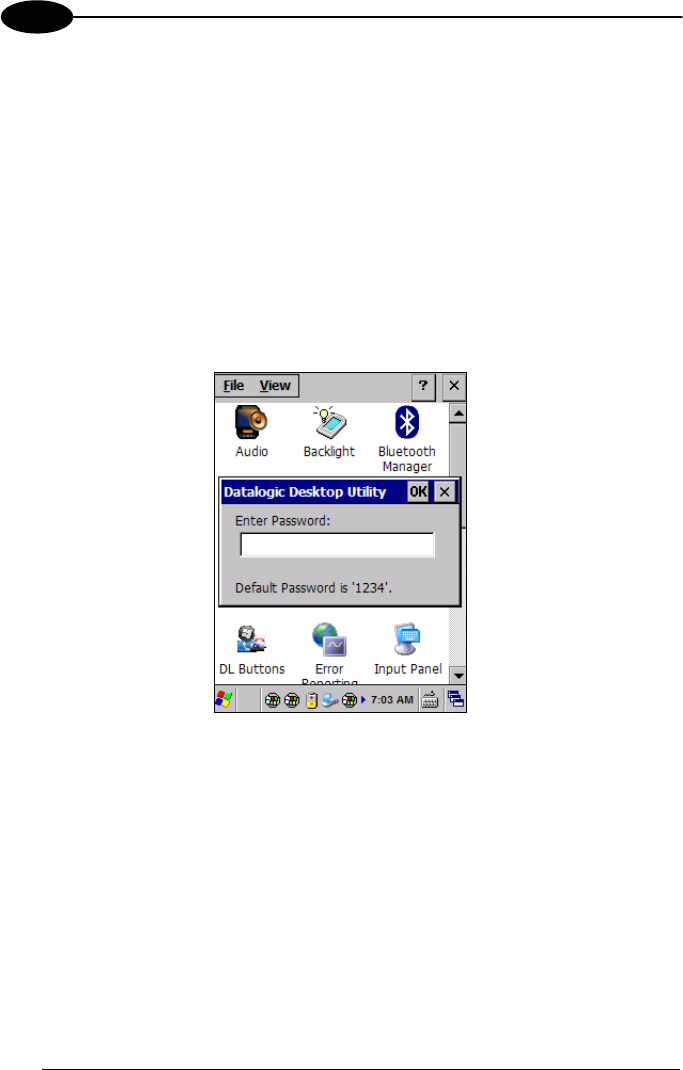

4.10 Datalogic Desktop Utility ............................................................................. 91

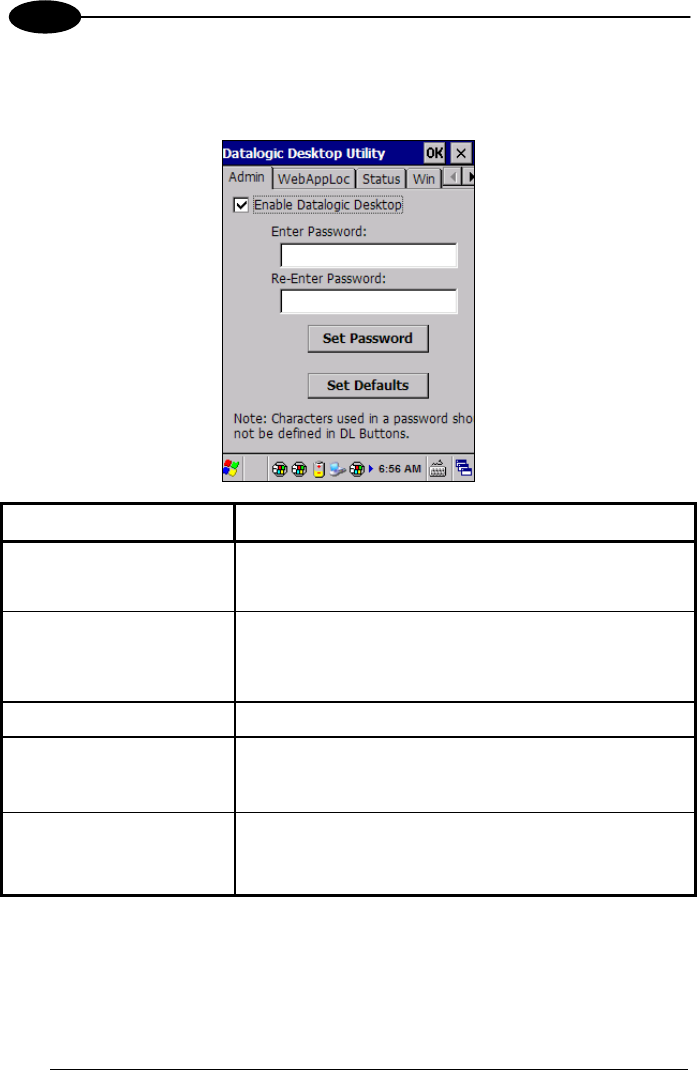

4.10.1 Administrative Options (Admin tab)............................................................. 92

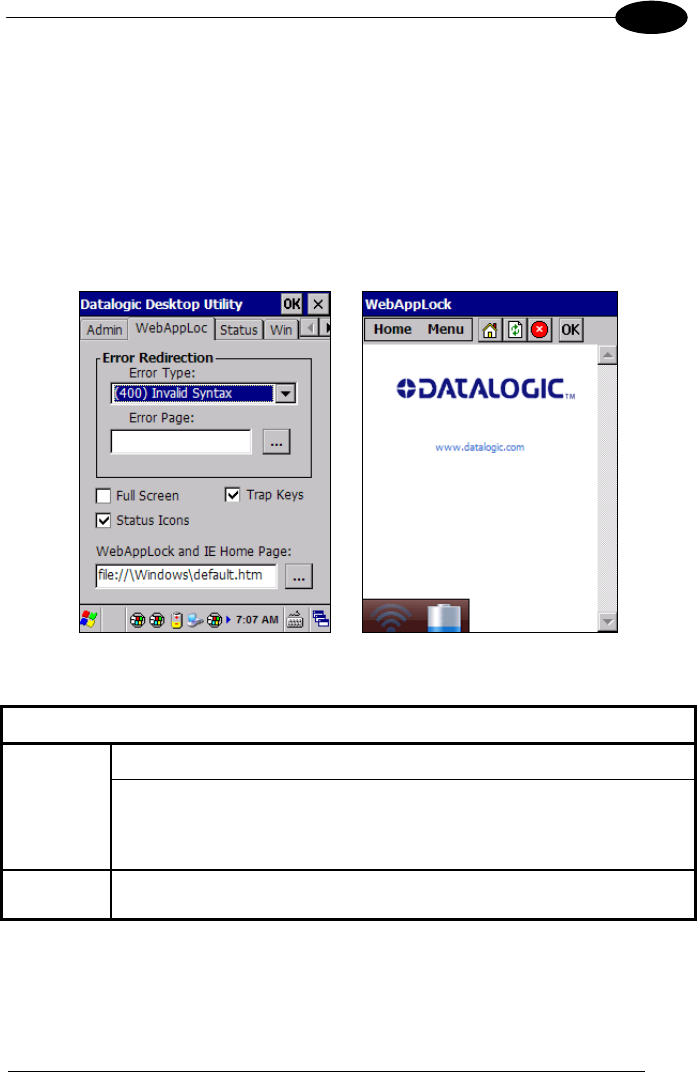

4.10.2 WebAppLock Options (WebAppLoc tab) .................................................... 95

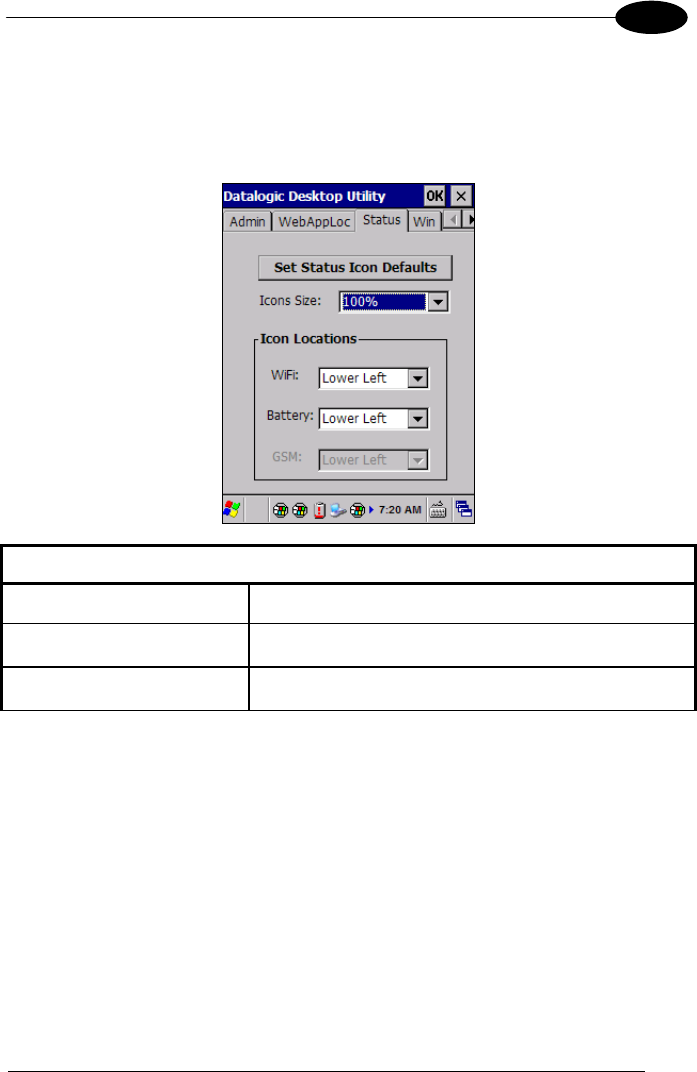

4.10.3 Status Icons Options (Status Tab) .............................................................. 97

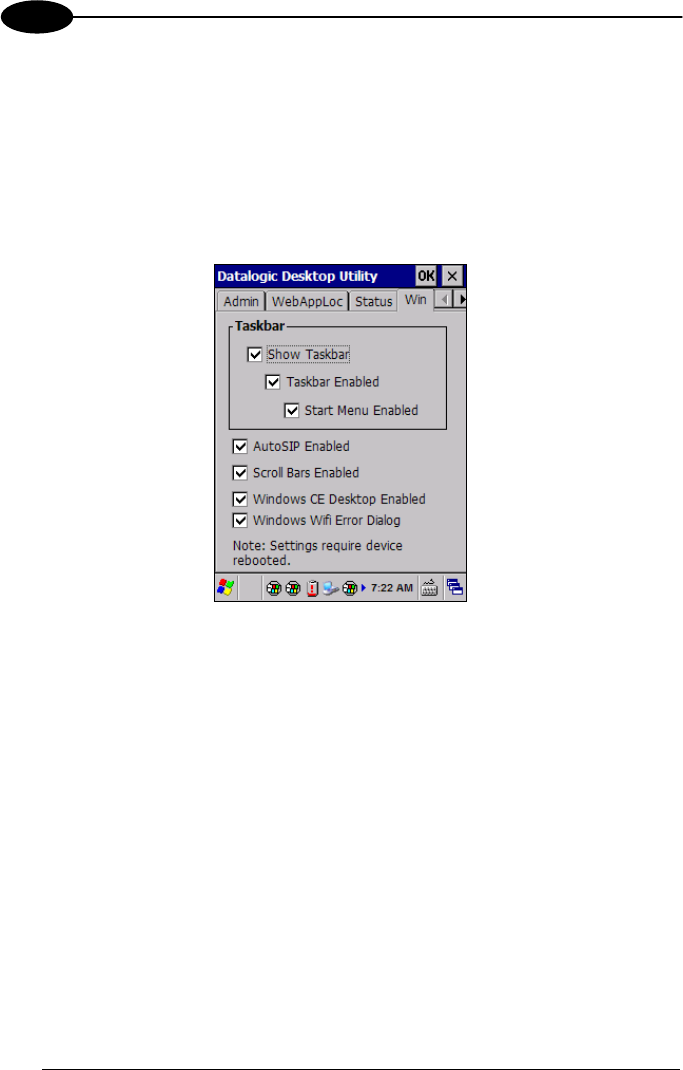

4.10.4 Windows Controls ....................................................................................... 98

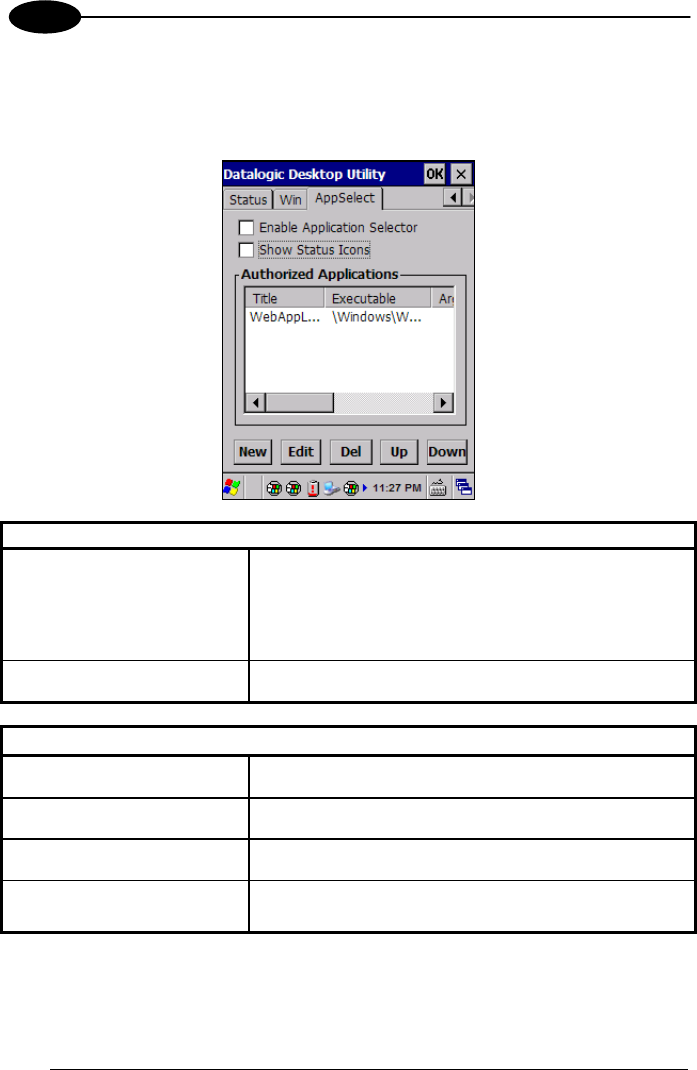

4.10.5 AppSelector Options (AppSelect tab) ....................................................... 100

4.11 AppSelector (Application Selector) ........................................................... 103

4.12 WebApplock (Locked Web Browser) ........................................................ 104

4.12.1 WebApplock Special Meta-tags ................................................................ 106

4.13 Autostart.................................................................................................... 111

4.13.1 Installing CAB files .................................................................................... 111

4.13.2 How AutoStart Uses Wceload................................................................... 112

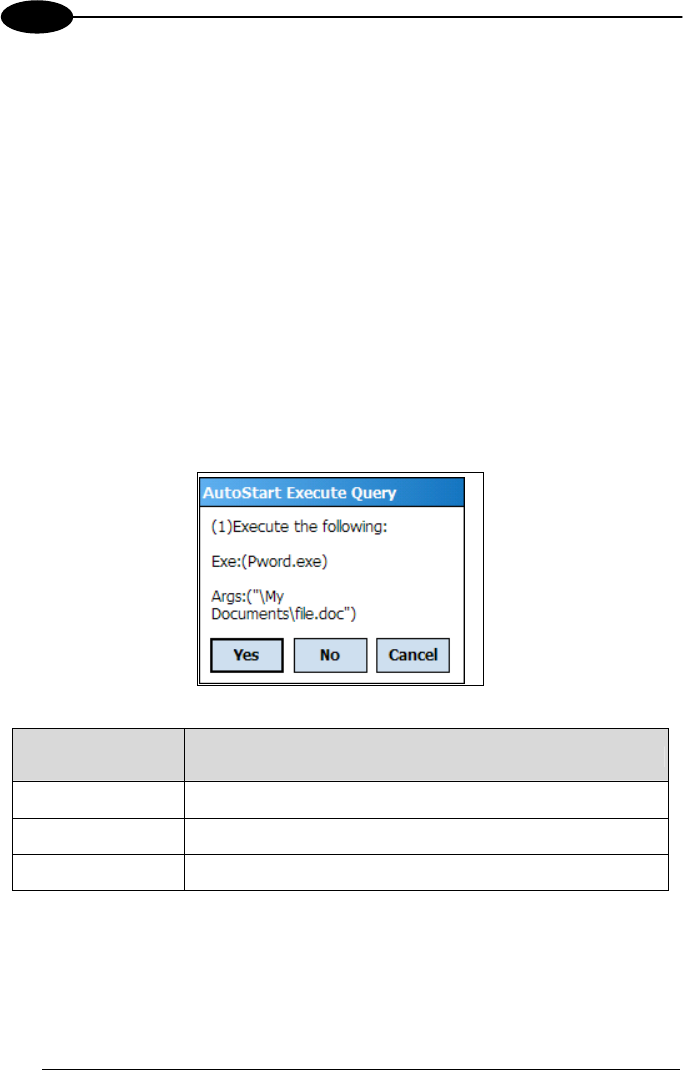

4.13.3 Interactive CAB Install............................................................................... 113

4.13.4 Autostart.ini............................................................................................... 113

5 TECHNICAL FEATURES......................................................................... 119

5.1 Technical Data .......................................................................................... 119

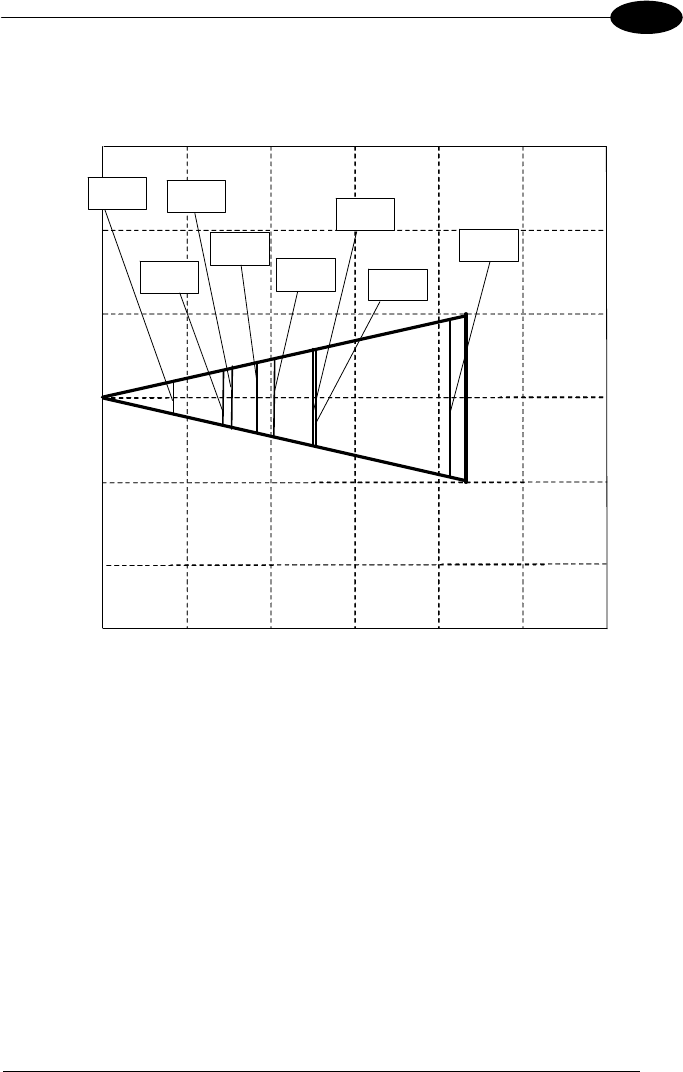

5.2 Reading Diagrams .................................................................................... 122

6 TEST CODES........................................................................................... 124

DECODING PARAMETERS..................................................................... 128

Programming Codes Without parameters................................................. 129

Bar Code Parameters ............................................................................... 130

Programmable 2D Symbologies ............................................................... 150

Postal Codes............................................................................................. 157

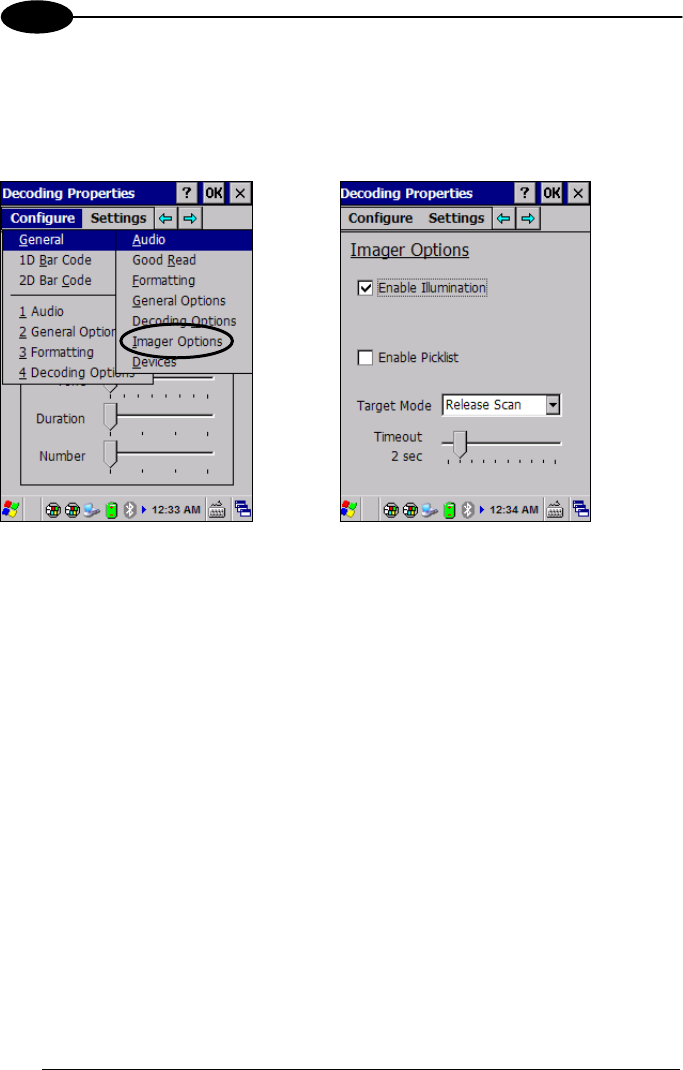

Imaging Controls....................................................................................... 158

Other Controls........................................................................................... 159

Datalogic Mobile Label IDs ....................................................................... 162

SAFETY REGULATIONS......................................................................... 163

General Safety Rules................................................................................ 163

Power Supply............................................................................................ 163

Laser Safety.............................................................................................. 164

LED Class................................................................................................. 170

Radio Compliance..................................................................................... 171

FCC Compliance....................................................................................... 173

RF Exposure Information (SAR) ............................................................... 174

Industry Canada Compliance.................................................................... 175

SAR Compliance....................................................................................... 175

Patents...................................................................................................... 176

WEEE Compliance ................................................................................... 177

GLOSSARY.............................................................................................. 179

INDEX....................................................................................................... 183

REFERENCES

CONVENTIONS

This manual uses the following conventions:

“User” refers to anyone using a Skorpio X3 mobile computer.

“mobile computer” and "Skorpio X3" refer to Skorpio X3 mobile computer.

“You” refers to the System Administrator or Technical Support person using this

manual to install, configure, operate, maintain or troubleshoot a Skorpio X3 mobile

computer.

“Single Dock” refers to the Skorpio X3 Single Slot Dock.

REFERENCE DOCUMENTATION

For further information regarding Skorpio X3 refer to the SDK Help on-Line.

SERVICES AND SUPPORT

Datalogic provides several services as well as technical support through its website.

Log on to www.adc.datalogic.com and click on the links indicated for further

information including:

- PRODUCTS

Search through the links to arrive at your product page where you can download

specific Manuals and Software & Utilities

- SERVICES

- Datalogic Services Warranty Extensions and Maintenance Agreements

- Authorised Repair Centres

- CONTACT US

E-mail form and listing of Datalogic Subsidiaries

vii

GENERAL VIEW

A) Color Display*

B) ON/OFF Power Key

C) LEDs

D) Receiver speaker

E) Front Scan Key

F) Keyboard

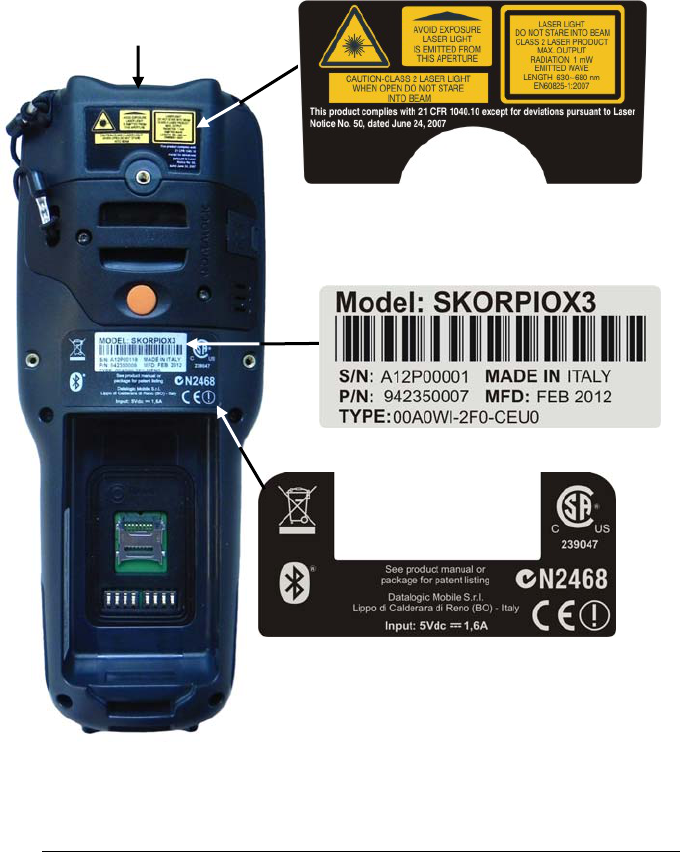

G) Laser Safety Label

H) Loudspeaker

I) Micro USB Charging Port (Power

Only)

J) Product Label

K) Reset Key (under battery)

L) MicroSD Card Slot (under battery)

M) Trigger button (for use with the

optional pistol trigger)

 Remove protective film cover before use

B C

viii

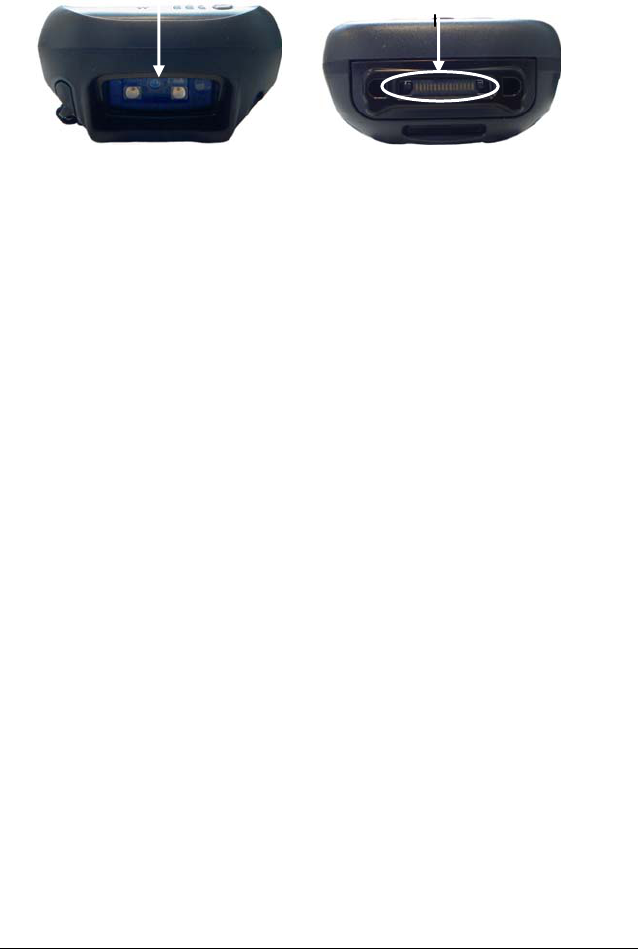

N) Data Capture/Laser Output Window O) HandyLink™ Connector

(host/device)

N O

INTRODUCTION

1 INTRODUCTION

1.1 SKORPIO X3 DESCRIPTION

The Skorpio X3 rugged mobile computer is particularly suitable for mobile commerce

solutions in the retail environment both on store shelves and in the stock room.

Thanks to one of the best ergonomic designs ever seen on the market, it reduces

operator fatigue with no compromise in terms of reliability and robustness, resisting

harsh environments, multiple drops, strong shocks and repetitive tumbles.

The Skorpio X3 pistol grip version takes advantage of the best handle and trigger in

the warehouse industry. Compact size and light weight combine to offer excellent

balance, and superior handling.

Skorpio X3’s powerful processing efficiency derives from a dual processor

architecture composed of microprocessor XScale PXA310 @ 624 MHz and a Cortex-

M3, 32 bit @ 72 MHz. coprocessor Processing power combined with 256 MB RAM &

and 512 MB Flash running Windows Embedded CE 6 r3 make for the best

performance and flexibility in this market.

Skorpio X3™ offers the unique feature of integrated data capture technology

combined with “green spot” feedback (Datalogic patent), providing a ”good read”

green dot directly on the code, where the operator usually tends to be looking. Many

features work together to facilitate easier and faster reading, such as 1D laser and

2D imager bar code readers with Green Spot. An inclined scan engine to allows the

display to be seen while scanning bar codes, with no need to turn the wrist

awkwardly while scanning.

Skorpio X3 display is a TFT / Transflective color LCD, QVGA, with LED backlight and

integrated touch screen, 81 mm (3.2 in) diagonal which means it is the largest

standard resolution display (and the only one for the market today) in this class of

products.

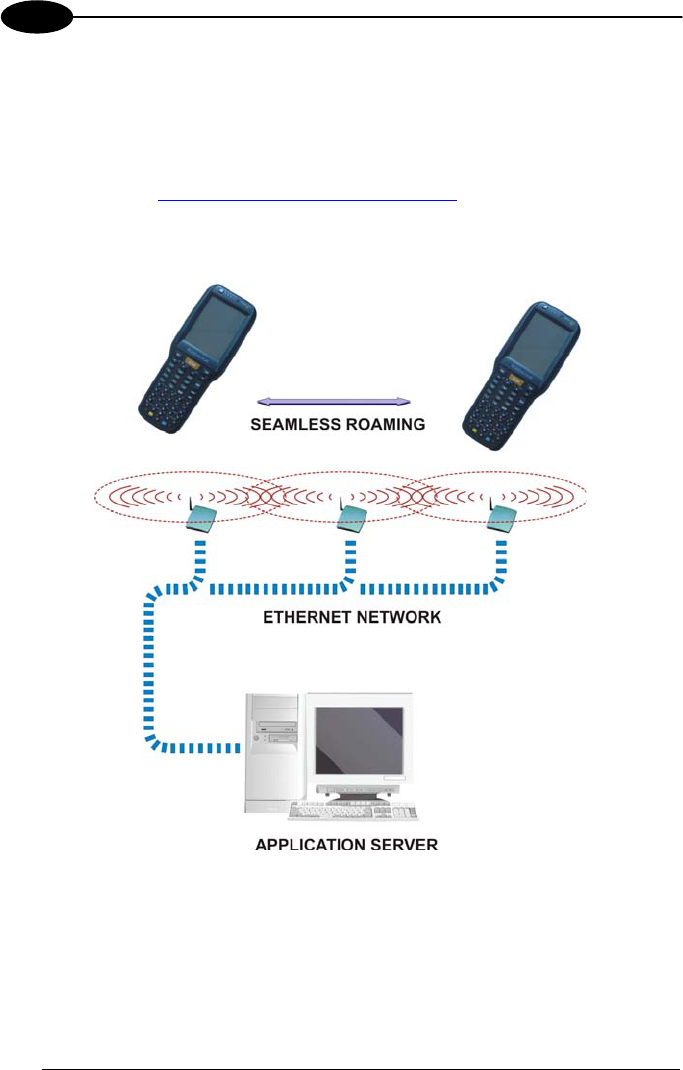

Skorpio X3 wireless communication capabilities (Bluetooth®, IEEE 802.11a/b/g)

enable fast transactions and complete interaction with information systems including

the newest RF security protocols such as WPA™ and WPA2™. Moreover, Cisco

Compatible Extensions CCX V4 certification permits all the advantages offered by

the Cisco WLAN infrastructure to be exploited.

Datalogic’s software tools and strategic software alliances fit Skorpio X3 to business

practice. Datalogic Desktop and Configuration utilities offer full and secure control

over the device experience. Wavelink Avalanche enables rapid deployment and

central management of Skorpio X3 installations. Finally, Datalogic’s comprehensive

service programs protect the Skorpio X3 investment.

1 SKORPIO™ X3

1.2 AVAILABLE MODELS

The brand new Skorpio X3 is available in different models depending on the options

it is equipped with. All options are listed below:

 communication options: 802.11 a/b/g radio, Bluetooth®

 data capture options: laser, 2D imager

 keyboard options: full-alphanumeric, alphanumeric, numeric.

For further details about the Skorpio X3 models refer to the web site:

www.adc.datalogic.com.

For further information regarding Windows CE refer to the website:

http://www.microsoft.com/windowsembedded.

The currently available models are:

 942350001 SKORPIOX3 00A0LS-2N0-CEU0

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Hand Held, Std Laser w/

Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 28-Key Numeric

 942350002 SKORPIOX3 0000LS-2N0-CEU0

Skorpio X3 Batch, Hand Held, Std Laser w/ Green Spot, Windows CE 6.0,

256MB RAM/512MB Flash, 28-Key Numeric

 942350003 SKORPIOX3 00A0LS-2F0-CEU0

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Hand Held, Std Laser w/

Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 50-Key Full-

alphanumeric

 942350006 SKORPIOX3 00A0WI-2N0-CEU0

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Hand Held, Std 2D

Imager w/ Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 28-Key

Numeric

 942350007 SKORPIOX3 00A0WI-2F0-CEU0

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Hand Held, Std 2D

Imager w/ Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 50-Key

Full-alphanumeric

 942350010 SKORPIOX3 0000LS-2S0-CEU0

Skorpio X3 Batch v2.0, Hand Held, Std Laser w/ Green Spot, Windows CE

6.0, 256MB RAM/512MB Flash, 38-Key Alphanumeric

INTRODUCTION

 942350011 SKORPIOX3 00A0LS-2S0-CEU0

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Hand Held, Std Laser w/

Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 38-Key Alphanumeric

 942400001 SKORPIOX3 00A0LS-3N0-CEU1

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Pistol Grip, Std Laser w/

Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 28-Key Numeric,

Terminal Emulation

 942400002 SKORPIOX3 00A0LS-3F0-CEU1

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Pistol Grip, Std Laser w/

Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 50-Key Full-

alphanumeric, Terminal Emulation

 942400003 SKORPIOX3 00A0LS-3S0-CEU1

Skorpio X3 with Bluetooth v2.0, 802.11 a/b/g CCX V4, Pistol Grip, Std Laser w/

Green Spot, Windows CE 6.0, 256MB RAM/512MB Flash, 38-Key

Alphanumeric, Terminal Emulation

1 SKORPIO™ X3

1.3 PACKAGE CONTENTS

The Skorpio X3 package contains:

 1 Skorpio X3 mobile computer

 1 Skorpio X3 Quick Start Guide

 1 CD-ROM Getting Started Disk

 1 rechargeable standard battery pack

 1 Windows CE End User License Agreement

 1 Wavelink Avalanche Insert

 1 belt clip

 1 belt clip pivot

The Skorpio X3 GUN package contains:

 1 Skorpio X3 mobile computer

 1 Skorpio X3 Quick Start Guide

 1 CD-ROM Getting Started Disk

 1 rechargeable standard battery pack

 1 Windows CE End User License Agreement

 1 Wavelink Avalanche Insert

Any other packages will contain the accessories necessary for the Skorpio X3

connection to the host computer and to the network: the cradle, one or more

connection cables.

Remove all the components from their packaging; check their integrity and congruity

with the packing documents.

CAUTION

Keep the original packaging for use when sending products to the

technical assistance center. Damage caused by improper

packaging is not covered under the warranty.

INTRODUCTION

NOTE

Rechargeable battery packs are not initially charged. Therefore the

first operation to perform is to charge them. See section 2.1.

1 SKORPIO™ X3

1.4 INSERTING MICROSD CARD

The Skorpio X3 supports microSD memory cards. To access the microSD card slot

and insert the card, proceed as follows:

1. Turn off the Skorpio X3.

2. Pull the battery latch down and remove the battery pack:

3. Shift the cardholder upwards and then pull it up:

INTRODUCTION

4. Insert the microSD card with the written part upward:

5. Lock the card into place by pushing the cardholder down and then shifting it

downwards:

6. Insert the battery's alignment lugs into the recesses, then press firmly until the

battery latch clicks twice.

1 SKORPIO™ X3

1.4.1 Removing the MicroSD Card

To remove the microSD card, follow the steps above to access the microSD card

cage under the battery, and remove it from microSD slot.

CAUTION

Follow proper ESD precautions to avoid damaging the

microprocessors in the Skorpio X3 or the microSD card itself.

Proper ESD precautions include, but are not limited to, working on

an ESD mat and ensuring that the operator is properly grounded.

Do not force the card. If you feel resistance, remove the card, check

the orientation, and reinsert it.

Do not use the microSD card slot for any other accessories.

It is highly recommended that users latch the card cage's bale even

when the card is not present.

INTRODUCTION

1.5 ACCESSORIES

 Cradles

94A150031 Dock, Single Slot, Skorpio X3

94A150032 Charger, 4 Slot Dock, Skorpio X3

94A150033 Dock, Ethernet 4 Slot, Skorpio X3

94A150034 Charger, 4 Slot Battery, Skorpio X3

94A150041 Vehicle Holder, Skorpio X3

 Batteries

94ACC0046 Battery, High Capacity, Skorpio X3

94ACC0048 Battery, Standard Capacity, Skorpio X3

 Power Supply

94ACC1380 Power Supply, Micro USB

94ACC1381 Power Supply, Dock, PWR Plug 2.1mm

 Cables

94A051020 Cable for dock-PC (RS232) communication

94A051968 Cable, Micro USB, Client

94A051969 Cable, Micro USB, Host

94A051970 Cable, USB HandyLink, Client

94A051971 Cable, USB HandyLink, Host

94A051972 Cable, RS232 HandyLink, Client

 Various

94ACC1230 Swivel for Functional Case (10pcs)

94ACC0044 Stylus Pen with Tether

94ACC1371 Module, Ethernet, Single Slot Dock

94ACC1372 Module, Modem, Single Slot Dock

94ACC0043 Handle Kit, Skorpio X3

94ACC0049 Handstrap, Skorpio X3

94ACC0050 Belt Holster, Skorpio X3

94ACC0051 Softcase, Skorpio X3

94ACC0052 Rubber Shell, Skorpio X3

1 SKORPIO™ X3

NOTE

Use only a Datalogic Mobile-approved power supply and cables. Use

of an alternative power supply will invalidate any approval given to

this device and may be dangerous.

BATTERIES AND MAINTENANCE

2 BATTERIES AND MAINTENANCE

NOTE

Rechargeable backup batteries and battery packs are not initially

charged. Therefore the initial operation to perform is to charge them.

See below.

CAUTION

By default, the battery pack is disconnected at the factory to avoid

damage due to excessive draining.

Annual replacement of rechargeable battery pack avoids possible

risks or abnormalities and ensures maximum performance.

2.1 CHARGING THE BATTERY PACK

NOTE

The battery pack autonomy varies according to many factors, such

as the frequency of barcode scanning, RF usage, battery life,

storage, environmental conditions, etc.

The battery icon on the Taskbar indicates when the battery pack is low.

You may recharge your battery pack by connecting a standard Micro-USB wall

charger directly to the Skorpio X3 Micro-USB charging port.

The Micro-USB port can also be used to charge the Skorpio X3 battery pack from

any self-powered USB hub or USB port on a computer, but only when the Skorpio is

suspended.

Alternatively, it is also possible to recharge the battery pack by inserting the Skorpio

X3 into the single slot dock or the Ethernet four slot dock.

CAUTION

Don’t insert the wall charger into the micro-USB port when the

Skorpio X3 is inserted into the dock.

1 SKORPIO™ X3

The charging LED glows red when the main battery is recharging. It will glow green

when the battery reaches full charge. The charging LED will flash red when a

charging error is detected (see par. 4.5.1).

The stand alone battery pack may be recharged outside a Skorpio X3 using the

spare battery charging slot on the back of a single slot dock, an Ethernet four slot

dock, or a four slot battery charger.

NOTE

It’s recommended to charge batteries before first use.

CAUTION

Risk of explosion if battery is replaced by an incorrective type.

Dispose of used batteries according to the instructions.

CAUTION

Il y a risque d’explosion si la batterie est remplacée par une batterie

de type incorrect.

Mettre au rebut les batteris usagées confor mément aux instructions.

CAUTION

Avoid storing batteries for long periods in a state of full charge or very

low charge.

We recommend charging the battery pack every two to three months

to keep its charge at a moderate level to maximize battery life.

BATTERIES AND MAINTENANCE

NOTE

Even if the storage temperature range is wider, In order to achieve

the longest battery life, store the terminal and the spare batteries

between 20 to 30º C (68 to 86º F).

Skorpio X3 (including spare battery) should be charged at an

ambient temperature between 0 - 35º C to achieve the maximum

charging rate. Never charge the main device or spare batteries in a

closed space (cabinet) where excessive heat can build up.

NOTE

The battery level may display incorrectly for several minutes after the

Skorpio X3 is disconnected from its charger if the charging cycle is

not completed.

NOTE

The Skorpio X3 may get warm during charging, this is normal and

does not mean a malfunction.

1 SKORPIO™ X3

2.2 REPLACING THE BATTERY PACK

To correctly replace the battery pack, proceed as follows.

1. Turn off the Skorpio X3.

2. Pull the battery latch down as indicated in the figure below:

3. Remove the battery pack.

BATTERIES AND MAINTENANCE

4. Insert the battery's alignment lugs into the recesses, then press firmly until the

battery latch clicks twice:

WARNING

Installing, charging and/or any other action should be done by

authorized personnel and following this manual.

The battery pack may get hot, explode, ignite, and/or cause serious

injury if exposed to abusive conditions.

If the battery pack is replaced with an improper type, there is risk of

explosion.

Do not place the battery pack in or near a fire or heat; do not place

the battery pack in direct sunlight, or use or store the battery pack

inside unventilated areas in hot weather; do not place the battery

pack in microwave ovens, driers, high pressure containers, on

induction cooking surfaces, or any similar heat producing device.

Doing so may cause the battery pack to generate heat, explode or

ignite. Using the battery pack in this manner may also result in a loss

of performance and a shortened life expectancy.

Use only a Datalogic Mobile approved power supply. The use of an

alternative power supply will void the product warranty, may cause

product damage and may cause heat, explode or ignite.

The area in which the units are charged should be clear of debris

and combustible materials or chemicals.

Do not use the battery pack of this terminal to power devices other

than this mobile computer.

1 SKORPIO™ X3

WARNING

Immediately discontinue use of the battery pack if, while using,

charging or storing the battery pack, the battery pack emits an

unusual smell, feels hot, changes color or shape, or appears

abnormal in any other way.

Do not short-circuit the battery pack contacts connecting the positive

terminal and negative terminal. This might happen, for example,

when you carry a spare battery pack in your pocket or purse;

accidental short–circuiting can occur when a metallic object such as

a coin, clip, or pen causes direct connection of the contacts of the

battery pack (these look like metal strips on the battery pack). Short–

circuiting the terminals may damage the battery pack or the

connecting object.

Do not apply voltages to the battery pack contacts.

Do not pierce the battery pack with nails, strike it with a hammer,

step on it or otherwise subject it to strong impacts or shocks.

Do not disassemble or modify (i.e. bend, crush or deform) the battery

pack. The battery pack contains safety and protection devices,

which, if damaged, may cause the battery pack to generate heat,

explode or ignite.

In case of leakage of liquid from the battery, avoid contact with skin

or eyes. If contact occurs, immediately flush the affected area with

water and contact a doctor.

Do not solder directly onto the battery pack.

Do not expose the battery pack to liquids.

Avoid any knocks or excessive vibrations. If the device or the battery

is dropped, especially on a hard surface, you should take it to the

nearest Authorised Repair Centre for inspection before continuing to

use it.

Do not replace the battery pack when the device is turned on.

Do not remove or damage the battery pack’s label.

Do not use the battery pack if it is damaged in any part.

Battery pack usage by children should be supervised.

Collect and recycle waste batteries separately from the device in

compliance with European Directive 2006/66/EC, 2002/95/EC,

2002/96/EC and subsequent modifications, US and China regulatory

and others laws and environmental regulations.

BATTERIES AND MAINTENANCE

NOTE

In order to maximize operating autonomy, the Skorpio X3 checks

its battery level at all times. If the battery is not sufficiently

charged, the Skorpio X3 will not turn on when the ON/OFF Power

button is pressed.

In this case, either substitute a sufficiently charged battery, insert

the Skorpio X3 into a powered cradle, or plug it into a wall

charger.

NOTE

To maximize battery life, turn off radios when they are not

needed.

1 SKORPIO™ X3

2.3 CLEANING THE MOBILE COMPUTER

Periodically clean the Skorpio X3 with a slightly dampened cloth.

Do not use alcohol, corrosive products or solvents.

CONNECTIONS

3 CONNECTIONS

3.1 USB CONNECTION

You can use the Datalogic HandyLink cable 94A051970 to directly connect the

Skorpio X3 to a host computer to transfer data through the USB interface.

Key:

A Host computer C Skorpio X3

B 94A051970 HandyLink USB Client

Cable

NOTE

The HandyLink cable complies to the USB 1.1 standard.

1 SKORPIO™ X3

The Single Dock can be connected to the Host by means of the Micro-B USB cord

94A051968.

Once the host has been turned on, insert the Skorpio X3 mobile computer into the

cradle.

Key:

A Host computer C Skorpio X3 Single Slot Dock

B 94A051968 Micro USB Client

Cable

D 94ACC1381 Power Adapter

NOTE

Connection through the cradle is complies to 1.1 USB standard.

NOTE

The actual data transfer speed can be appreciably lower than the

maximum theoretical speed.

CAUTION

Don’t insert the wall charger into the Micro-USB port when the

Skorpio X3 is inserted into the dock.

CONNECTIONS

3.2 CONNECTION TO USB PERIPHERALS

You connect the Skorpio X3 to a standard 101-key USB keyboard or to a standard

USB flash memory device. connect the terminal to the Datalogic 94A051971

HandyLink Micro-USB host cable. For all these devices maximum current withdrawal

must be below 100mA.

Key:

A Keyboard with USB interface C 94A051971 HandyLink Micro-USB Host

Cable

B Skorpio X3

Key:

A USB hard drive/ external

memory source

C 94A051971 HandyLink Micro USB Host

Cable

B Skorpio X3 D Standard A to Micro A USB Cable

 A standard USB cable is needed only if the USB hard driver or flash memory device does not

include its own cable with a "A" plug on it

1 SKORPIO™ X3

Connect the Single Slot Dock to the peripheral by means of a Micro-A USB cord, or

use a Micro-A to Std-A receptacle USB adapter such as Datalogic 94A051969

(together with a standard USB cable if needed).

A USB Peripheral (memory) D Standard A to Micro A USB Cable

B Skorpio X3 Single Slot Dock E 94ACC1381 Power Adapter

C 94A051969 Micro-USB Host

Cable

NOTE

Skorpio X3 works with most of mentioned USB peripherals. Datalogic

can not guarantee the operations of Skorpio X3 with all devices on

the market.

NOTE

Connection is compliant to 1.1 USB standard.

NOTE

The actual data transfer speed can be appreciably lower than the

maximum theoretical speed.

 A standard USB cable is needed only if the USB hard driver or flash memory device does not

include its own cable with a "A" plug on it

CONNECTIONS

3.3 RS232 CONNECTION

You can use the Datalogic 94A051972 cable to directly connect the Skorpio X3 to a

host computer to transfer data through the RS232 interface

Key:

A Host computer C Skorpio X3

B 94A051972 HandyLink

Micro RS232 Client Cable

The Single Slot Dock can be connected to the Host by means of a standard null

modem cable such as Datalogic 94A051020 CAB-427 for 9-pin connections.

Once the Host has been turned on, insert the Skorpio X3 mobile computer into the

cradle.

Key:

A Host Computer C Skorpio X3 Single Slot Dock

B 94A051020 CAB-427

RS232 Null Modem Cable

D 94ACC1381 Power Adapter

1 SKORPIO™ X3

3.4 WLAN CONNECTION

Skorpio X3 802.11 a/b/g radio models can communicate with the host using the on-

board radio and an Access Point connected to a network.

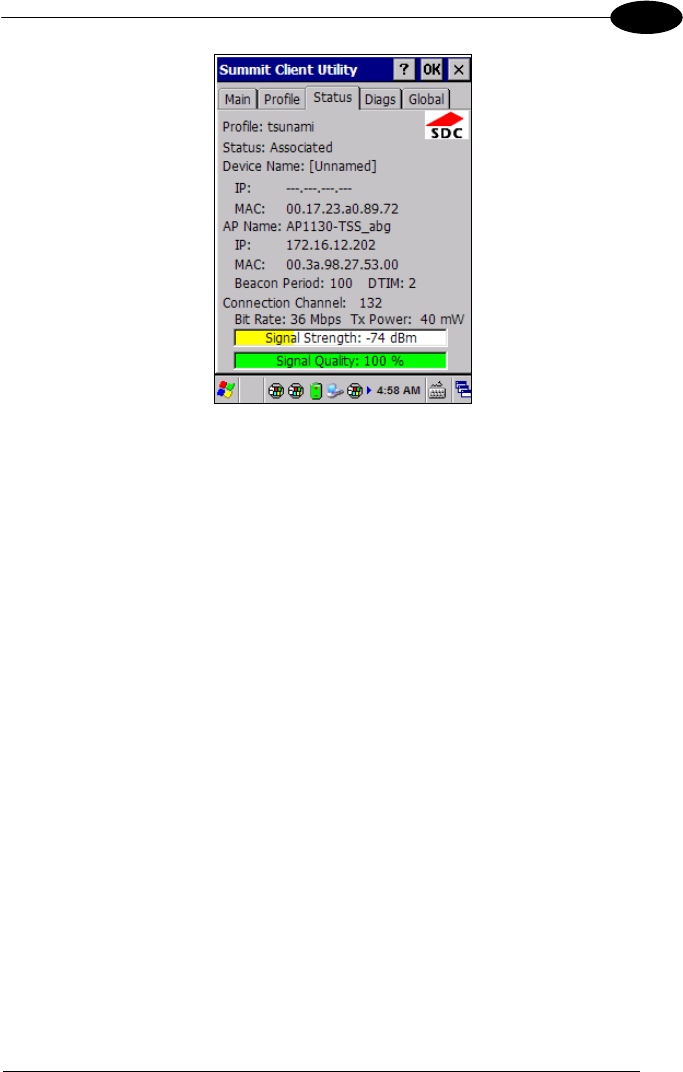

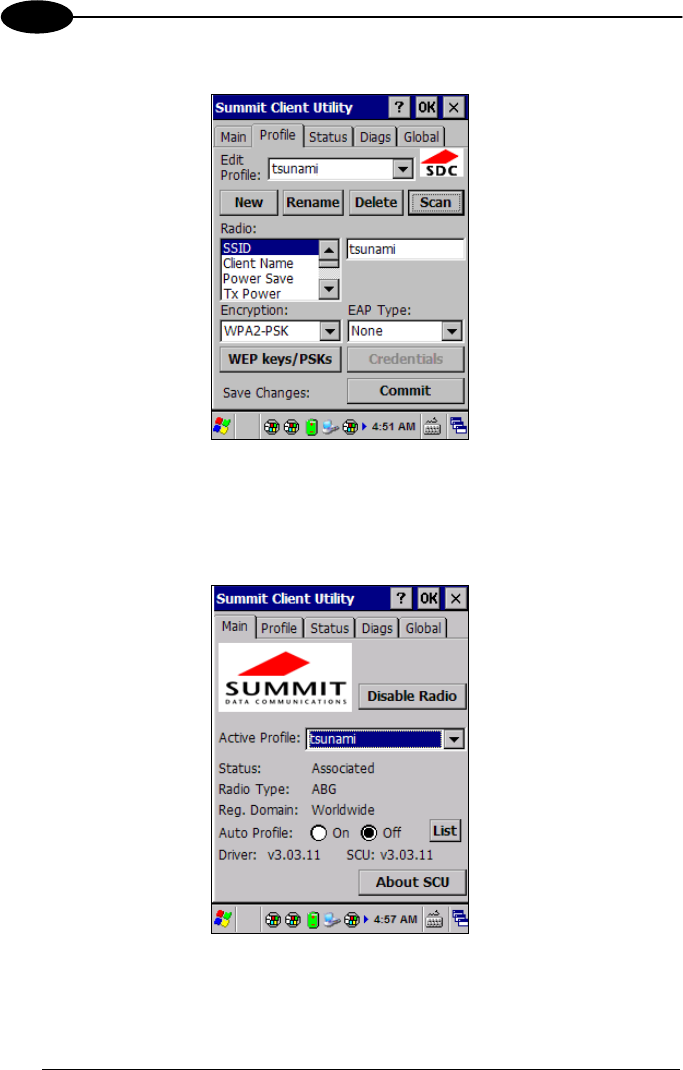

For models using the 802.11 a/b/g radio, you can find information about the applet for

radio configuration: http://www.summitdata.com/SCU.htm.

To launch this utility you can tap the specific icon if it's visible on the taskbar or you

can select the menu item: Start->Programs->Summit and tap the “SCU” icon.

Key:

A) Skorpio X3

B) Access point

C) Host – Application Server

CONNECTIONS

NOTE

802.11 a/b/g radio module is on by default. In order to avoid wasting

energy, you can switch it off using the SCU.

NOTE

Suspending the terminal powers off the 802.11 a/b/g radio and drops

the radio connection. When the terminal resumes, depending on the

radio power mode and security protocol selected, it may take up to

30 seconds for the 802.11 a/b/g radio driver to re-associate the radio

to the network.

NOTE

Area coverage and radio performance may vary, due to

environmental conditions, access points types or interference caused

by other devices (microwave ovens, radio transmitters, etc.).

NOTE

In case of heavy usage the Skorpio X3 could get warm. This is

normal and does not mean a malfunction.

1 SKORPIO™ X3

3.5 WPAN CONNECTIONS

Datalogic Skorpio X3 Bluetooth® models can communicate with a Bluetooth® device,

such as a printer, within a range of 10 m, using the on-board Bluetooth® module.

Key:

A) Skorpio X3

B) Bluetooth® printer

NOTE

In order to extend battery life, the Bluetooth® module is off by

default. If you need to have Bluetooth® working, the module must be

powered on using the SCU (see par. 4.6.6), and perform the

Discovery procedure (see par. 4.7.2).

NOTE

Suspending the terminal powers off the Bluetooth® radio and drops

the piconet (Bluetooth® connection). When the terminal resumes, it

takes approximately 10 seconds for the Bluetooth® radio driver to re-

initialize the radio.

NOTE

Area coverage and Bluetooth® radio performance may vary, due to

environmental conditions or interference caused by other devices

(microwave ovens, radio transmitters, etc.).

CONNECTIONS

3.6 WIRELESS AND RADIO FREQUENCIES WARNINGS

WARNING

Use only the supplied or an approved replacement antenna.

Unauthorized antennas, modifications or attachments could

damage the product and may violate laws and regulations.

WARNING

Most modern electronic equipment is shielded from RF signals.

However, certain electronic equipment may not be shielded against

the RF signals generated by Skorpio X3.

WARNING

Datalogic recommends persons with pacemakers or other medical

devices to follow the same recommendations provided by Health

Industry Manufacturers Associations for mobile phones.

Persons with pacemakers:

 Should ALWAYS keep this device more than twenty five (25) cm

from their pacemaker and/or any other medical device;

 Should not carry this device in a breast pocket;

 Should keep the device at the opposite side of the pacemaker

and/or any other medical device;

 Should turn this device OFF or move it immediately AWAY if

there is any reason to suspect that interference is taking place.

 Should ALWAYS read pacemaker or any other medical device

guides or should consult the manufacturer of the medical device

to determine if it is adequately shielded from external RF energy.

In case of doubt concerning the use of wireless devices with an

implanted medical device, contact your doctor.

WARNING

Turn this device OFF in health care facilities when any regulations

posted in these areas instruct you to do so. Hospitals or health care

facilities may use equipment that could be sensitive to external RF

energy.

1 SKORPIO™ X3

WARNING

RF signals may affect improperly installed or inadequately shielded

electronic systems in motor vehicles. Check with the manufacturer

or its representative regarding your vehicle. You should also

consult the manufacturer of any equipment that has been added to

your vehicle.

WARNING

An air bag inflates with great force. DO NOT place objects,

including either installed or portable wireless equipment, in the area

over the air bag or in the air bag deployment area. If vehicle’s

wireless equipment is improperly installed and the air bag inflates,

serious injury could result.

WARNING

Turn off the device when in any area with a potentially explosive

atmosphere. Observe restrictions and follow closely any laws,

regulations, warnings and best practices on the use of radio

equipment near fuel storage areas or distribution fuel areas,

chemical plants or where some operation involves use of explosive

materials.

Do not store or carry flammable liquids, explosive gases or

materials with the device or its parts or accessories.

Areas with a potentially explosive atmosphere are often, but not

always, clearly marked or showed.

Sparks in such areas could cause an explosion or fire, resulting in

injury or even death.

USE AND FUNCTIONING

4 USE AND FUNCTIONING

The use of the Skorpio X3 depends on the application software loaded. However

there are several parameters that can be set and utilities that can be used to perform

some basic functions such as data capture, communications, file management, etc

4.1 STARTUP

The Skorpio X3 turns on when the battery pack or the external supply is inserted and

the ON/OFF Power button is pressed.

After the battery pack is installed, use the [ON/OFF] key to turn the mobile computer

on and off.

As soon as the mobile computer is on, the Windows CE 6.0 desktop will appear on

the screen. Wait a few seconds before starting any activity so that the mobile

computer completes its startup procedure.

Desktop Control Panel

Use the stylus (par. 4.1.1) as suggested to select icons and options.

The mobile computer goes into power-off (low power with display and keyboard

backlight off), when it is not used for more than a programmable timeout, which is

defined in the POWER applet of the Control Panel. In this mode it can be awakened

(resuming operation) by the [ON/OFF] key.

1 SKORPIO™ X3

NOTE

The mobile computer can also be awakened or suspended

programmatically.

4.1.1 Using the Stylus

The stylus selects items and enters information. The stylus functions like a mouse.

Double Tap: Double tap the screen with the stylus to open items and select

options.

Drag: Hold the stylus on the screen and drag across the screen to

select text and images. Drag in a list to select multiple items.

Tap-and-hold:

Tap and hold the stylus on an item to see a list of actions

available for that item. On the pop-up menu that appears, tap the

action you want to perform.

To recalibrate the touch screen use the Stylus applet (see par. 4.6.7).

CAUTION

Use only original Datalogic styluses supplied with the product itself.

In harsh applications, use of screen protectors should be taken into

consideration, in order to extend the touch screen operating life.

To prevent damage to the screen, do not use sharp devices or any

device other than the Datalogic Mobile-provided stylus.

Do not apply too much pressure when touching the screen.

For applications where an intensive use of the touch screen is

foreseen, please consider that touch screen components are subject

to progressive wear.

USE AND FUNCTIONING

4.1.2 Touch Gestures

Touch gestures describe gestures in which you use a finger or stylus to make a

short, directional movement over a control or object on the screen. Most gestures are

a single stroke. Windows CE supports five kinds of gestures.

Tap: A tap represents the left click of a mouse.

Double Tap: A double tap represents the left double click of a mouse.

Hold: The user can press and hold on the screen to represent the right

click of a mouse.

Flick: The user can move a finger across the screen to initiate per-pixel

scrolling, and if this movement is fast enough, scrolling will

continue after the finger is lifted.

Pan: The user can press and hold on the screen and then drag the

finger in any direction to represent a mouse move event.

1 SKORPIO™ X3

4.2 WINDOWS CE TOUCH SCREEN CALIBRATION

In Windows CE, at the very first Skorpio X3 startup, following a clean boot to restore

the Registry to default values, the mobile computer startup (see par. 4.1) is preceded

by the touch screen calibration screen.

The user must calibrate the touch screen (see par. 4.6.7)

Touch Screen Calibration Screen

USE AND FUNCTIONING

4.3 DATA CAPTURE

To capture data tap Start > Settings > Control Panel > double tap Decoding:

To configure and enable data capture parameters refer to par. 4.6.1.

1 SKORPIO™ X3

4.3.1 Laser Data Capture

To scan barcodes, point the Skorpio X3 laser model onto the code from a distance

within the reading range while pressing the SCAN key or the pistol trigger.

The lighted band emitted by the laser must completely cross the barcode as shown in

the figure below.

If the scan has taken place correctly:

 the Good Read LED glows green as long as the user holds the trigger;

 the Good Read Beep emits an acoustic signal;

 the Green Spot* projects a green spot onto the bar code image.

 It is enabled by default, but can be silenced

USE AND FUNCTIONING

4.3.2 Imager Data Capture

The Skorpio X3 Imager captures a picture of the entire bar code. The omni-

directional scanning does not require that the operator orient the bar code to align

with the scan pattern.

To read a 1D or 2D code, simply point the Skorpio X3 Imager model onto the code

and press the SCAN Key or the pistol trigger.

The Skorpio X3 Imager uses an intelligent aiming system pattern, similar to those on

cameras, indicating the field of view, which should be positioned over the code:

Aiming System

If the aiming system pattern is centered over the entire symbology as shown in the

following figure, either wait for the timeout or release the Scan key or the trigger to

capture the image.

A red beam illuminates the code, which is captured and decoded. You will get a good

read.

1 SKORPIO™ X3

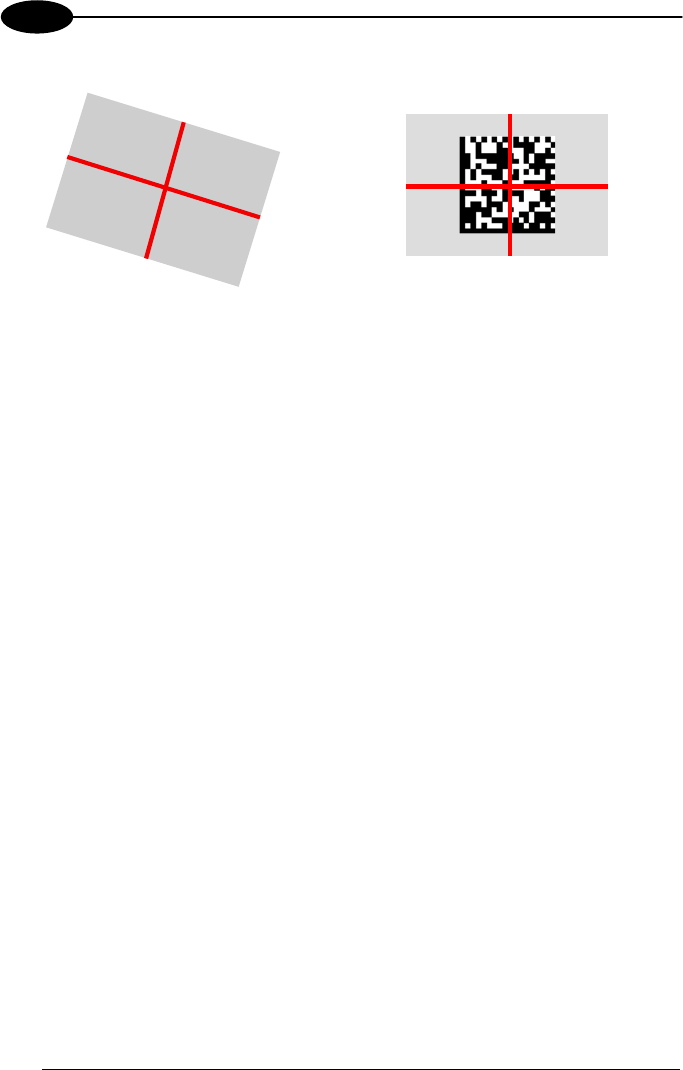

Linear barcode 2D Matrix symbol

ÌBX3ÉÎ

Relative Size and Location of Aiming System Pattern

The field of view changes its size as you move the reader closer or farther away from

the code. The field of view indicated by the aiming system pattern will be smaller

when the Skorpio X3 Imager is closer to the code and larger when it is farther from

the code.

Symbologies with smaller bars or elements (mil size) should be read closer to the

unit. Symbologies with larger bars or elements (mil size) should be read farther from

the unit. (See par. 5.1 for further details).

If the scan has taken place correctly:

 the Good Read LED glows green until the user releases the trigger;

 if enabled, the GoodReadSound emits an acoustic signal.

USE AND FUNCTIONING

4.4 DESCRIPTION OF THE KEYBOARDS

The Skorpio X3 comes with three different keyboards: a full-alphanumeric keyboard,

having 50 keys, an alphanumeric keyboard, having 38 keys and a numeric keyboard,

having 28 keys.

4.4.1 Full-alphanumeric Keyboard (50 Keys)

1 SKORPIO™ X3

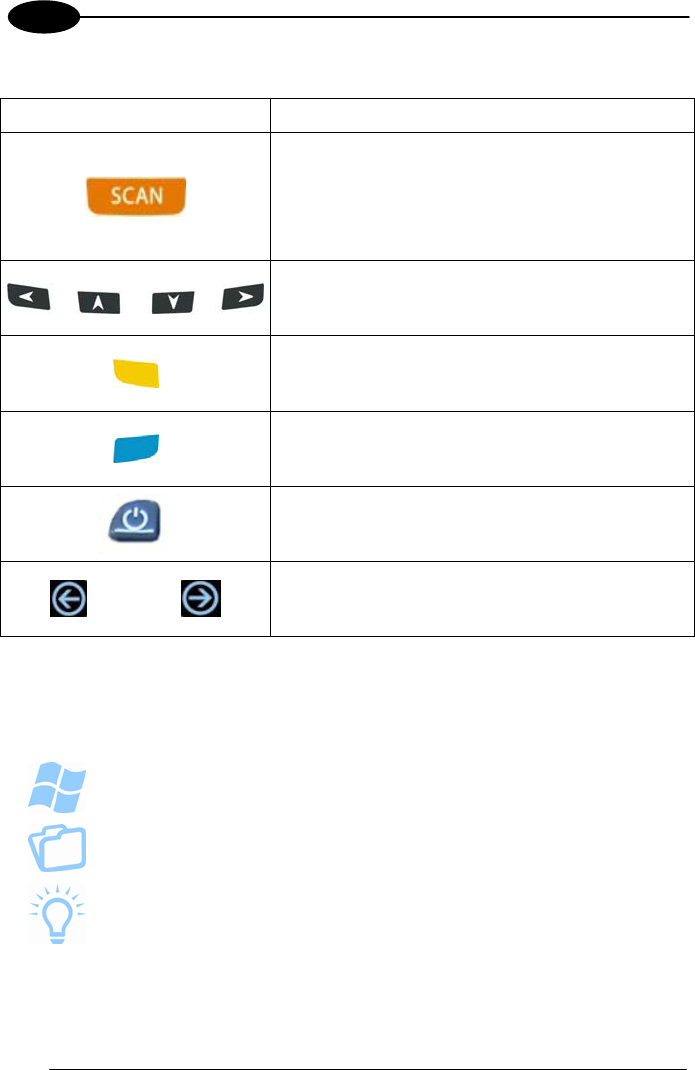

Main Keys Function

KEY FUNCTION

The SCAN key starts data capture. If enabled, it also

wakes up the mobile computer from low-power (see

par. 4.6.2).

For pistol grip models only, the trigger performs the

same function as the SCAN key.

Arrow keys let you move forwards, backwards,

upwards or downwards within text fields, scroll through

a Menu list or browse among folder files.

Yellow modifier (toggle key): when pressed before a

standard key, it enables the character or function

printed in yellow above the key.

Blue modifier (one shot key): when pressed before a

standard key, it enables the character or function

printed in blue above the key

The ON/OFF Power button powers the Skorpio X3 ON

or OFF. It is placed on the upper left side of the

terminal.

After a Blue modifier key press, the blue arrows allow

moving forwards or backwards within the Internet

Explorer browser pages.

Special Function Icons

ICON FUNCTION

After a Blue modifier key press, the Start menu key opens the Start

menu.

After a Blue modifier key press, the Backlight key turns the backlight

on and off.

USE AND FUNCTIONING

4.4.2 Alphanumeric Keyboard (38 Keys)

1 SKORPIO™ X3

Main Keys Function

KEY FUNCTION

The SCAN key starts data capture. If enabled, it

also wakes up the mobile computer from low-

power (see par. 4.6.2).

For pistol grip models only, the trigger performs the

same function as the SCAN key.

Arrow keys let you move forwards, backwards,

upwards or downwards within text fields, scroll

through a Menu list or browse among folder files.

Yellow modifier (toggle key): when pressed before

a standard key, it enables the character or function

printed in yellow above the key.

Blue modifier (one shot key): when pressed before

a standard key, it enables the character or function

printed in blue above the key

The ON/OFF Power button powers the Skorpio X3

ON or OFF. It is placed on the upper left side of the

terminal.

After a Blue modifier key press, the blue arrows

allow moving forwards or backwards within the

Internet Explorer browser pages.

Special Function Icons

ICON FUNCTION

After a Blue modifier key press, the Start menu key opens the Start

menu.

After a Blue modifier key press, the File Manager key opens the file

manager.

After a Blue modifier key press, the Backlight key turns the backlight

on and off.

USE AND FUNCTIONING

4.4.3 Numeric Keyboard (28 Keys)

1 SKORPIO™ X3

Main Keys Function

KEY FUNCTION

The SCAN key starts data capture. If enabled, it

also wakes up the mobile computer from low-

power (see par. 4.6.2).

For pistol grip models only, the trigger performs the

same function as the SCAN key.

Arrow keys let you move forwards, backwards,

upwards or downwards within text fields, scroll

through a Menu list or browse among folder files.

Yellow modifier (toggle key): when pressed before

a standard key, it enables the character or function

printed in yellow above the key.

Blue modifier (one shot key): when pressed before

a standard key, it enables the character or function

printed in blue above the key

The ON/OFF Power button powers the Skorpio X3

ON or OFF. It is placed on the upper left side of the

terminal.

After a Blue modifier key press, the blue arrows

allow moving forwards or backwards within the

Internet Explorer browser pages.

+ CTRL

+ ALT

Special Function Icons

ICON FUNCTION

After a Blue modifier key press, the Backlight key turns the backlight

on and off.

USE AND FUNCTIONING

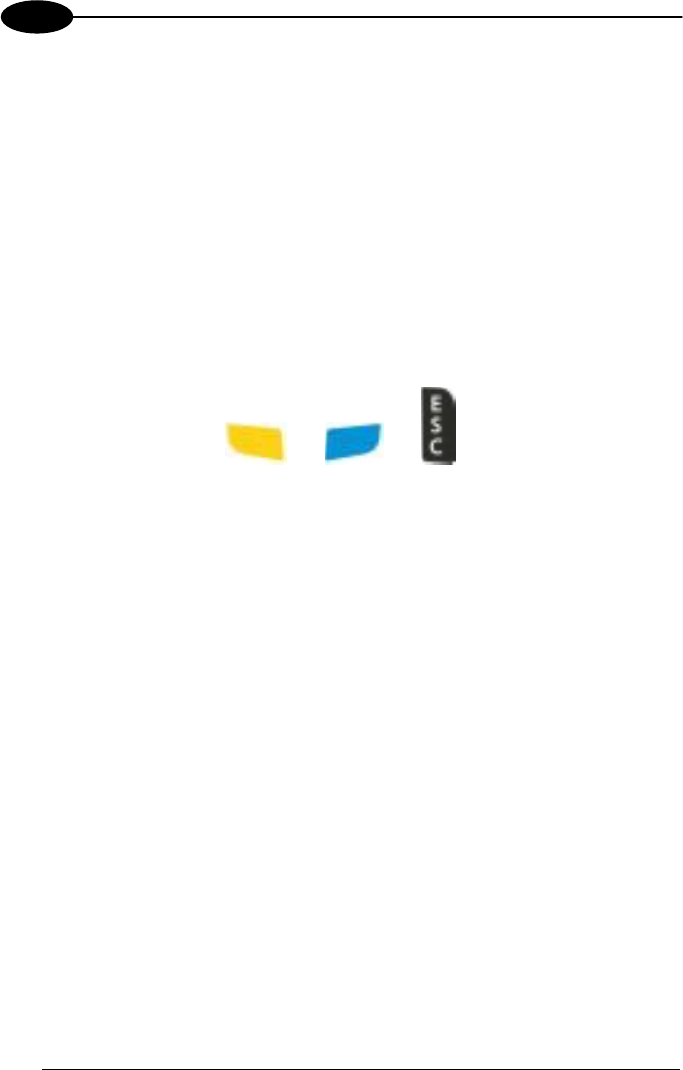

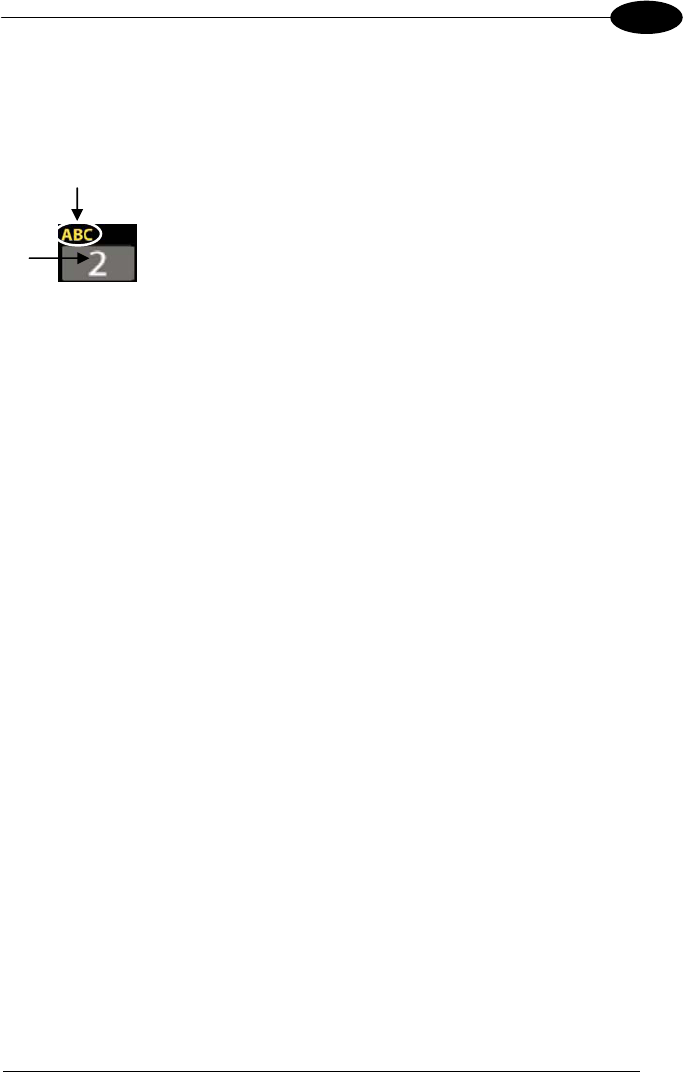

Multitap Function

In the numeric keypad the number keys (key 0 excluded) and the ESC key share the

following behavior scheme:

A. Function of the key when directly pressed.

B. Modified by the Yellow key, repeated presses cycle

through the letters shown on the keyboard overlay for

each key. The letter is entered if you wait for a short

timeout.

1 SKORPIO™ X3

4.4.4 Resetting the Skorpio X3

There are several reset methods for the Skorpio X3.

A warm boot terminates an unresponsive application and clears the working RAM,

but preserves the file system. The Registry is restored from persistent memory if

available or returned to factory default.

A cold boot forces all applications to close reinitializing completely the system. It

clears the working RAM, but the file system is preserved. The Registry is restored

from persistent memory.

A clean boot restores the Skorpio X3 to a clean configuration: both the Registry and

the file system returns to a clean status that conforms to factory default.

Warm Boot

To perform a warm boot, press and hold the following keys simultaneously:

+ +

Cold Boot

To perform a cold boot, do the following steps:

1. Turn off the Skorpio X3 by pressing the ON/OFF Power button.

2. Pull the battery latch down and remove the battery pack.

3. Simultaneously press the SCAN key and the Reset button in the battery

compartment.

4. Insert the battery pack.

5. Turn on the Skorpio X3 by pressing the ON/OFF Power button.

USE AND FUNCTIONING

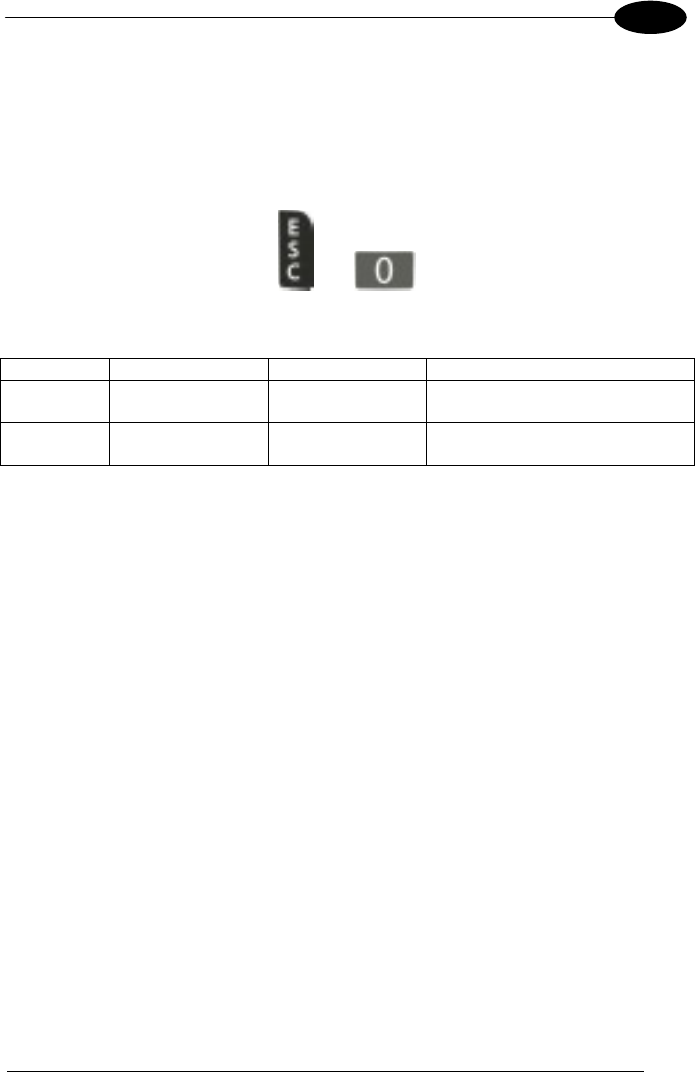

Clean Boot

To perform a clean boot, do the following steps:

1. Perform a Cold Boot (see Cold Boot)

2. Press and hold down the ‘Esc’ + ‘0’ keys simultaneously, prompty after resetting:

A dialog box will appear asking for confirmation. Press the Enter Key.

Warm Boot Cold Boot Clean Boot

Registry Restored from

flash

Restored from

flash

Clean configuration (no user

config)

File

System Preserved Preserved Clean Installation (no user files)

1 SKORPIO™ X3

4.5 STATUS INDICATORS

4.5.1 LED Status

The Skorpio X3 provides three different LEDs signaling the mobile computer status.

LED STATUS

Good Read

(right side) Red

Scanning LED is ON from the time the

user hits the scan button (Trigger) until

the bar code is decoded (laser models)

Time-out (imager models).

Green

Scanning LED is ON, showing a good

decode.

Charging Status

(left side) Green It is solid once the charging process has

been completed (full charge).

Red It is solid while charging.

Blinking Red It blinks in case of charge fault.

Blinking Amber It blinks when the device raises a

notification to the user.

Keyboard Status

(center) Off Keyboard in primary.

Solid Yellow Yellow alternate key mode.

Solid Blue Blue alternate key mode

Pink CapsLock enabled.

The Good Read LED has also a "Suspend LED" feature. The decode LED will glow red when

the device begins to suspend, and will turn off when the suspend completes successfully

USE AND FUNCTIONING

4.5.2 Taskbar

The Taskbar provides quick view and links to the Wi-Fi, Bluetooth, and Clock

settings. It also makes available the keyboard SIP and window selection.

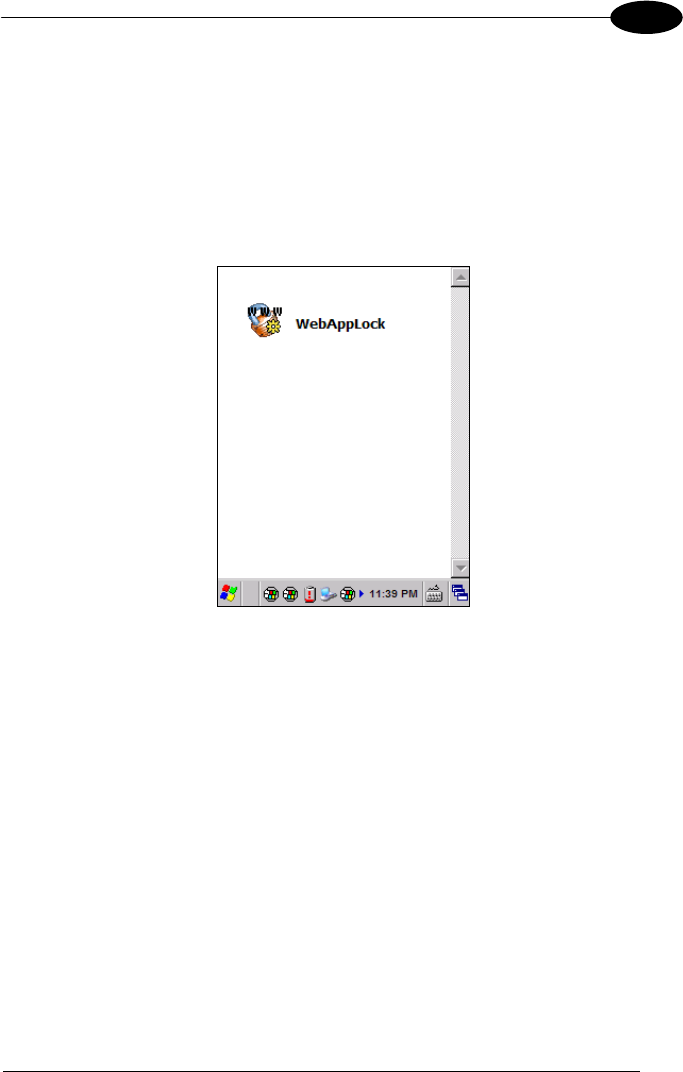

Windows CE Taskbar

ICONS DESCRIPTION

ActiveSync connection icon is displayed when

connected to ActiveSync or Windows Mobile Device

Center either by USB, RS232, or Bluetooth.

Double-tap it to open a status dialog that will let you

disconnect the ActiveSync session without

physically disconnecting the device from the PC. It

is the only way to disconnect a Bluetooth

ActiveSync connection.

Battery icon displays the system battery status.

It indicates that the battery is charging.

Bluetooth Manager icon displays whether Bluetooth

is enabled, paired, or turned off. Double-tap this

icon to open the Bluetooth Manager control panel

applet.

Network connectoid icon displays whether you are

connected or not to Ethernet, Wi-Fi, or Bluetooth

Personal Area Network.

1 SKORPIO™ X3

4.6 CONTROL PANEL

From the Start menu, tap Settings then Control Panel. Below is an expanded view of

the Control Panel showing all of the applets.

Windows CE Control Panel

USE AND FUNCTIONING

4.6.1 Data Capture Configuration

From the Windows CE control panel main window, double tap the Decoding icon:

There are two sections in the Decoding control panel, each containing additional

pages. There are seven General Configuration pages and multiple Barcode

symbology pages.

DECODING CONFIGURATION PAGES

Select the desired configuration from the options shown in the figure below, and the

other Decoding Properties figures on the following pages.

Select General,1D Bar Code or 2D Bar Code, then use the menu or tap the left and

right arrow keys to navigate the different pages of the Decoding utility. The menu

options will change to reflect the items most recently selected.

1 SKORPIO™ X3

Audio

From the Decoding Properties page, tap Configure > General > Audio. Use it to set

volume, tone, duration, and number of various types of beeps.

Good Read

From the Decoding Properties page, tap Configure > General > Good Read. Use it to

enable Good Read indications, the use of Green Spot and a to set the decoding

timeout for decoding labels.

USE AND FUNCTIONING

Formatting

From the Decoding Properties page, tap Configure > General > Formatting. Use it to

configure prefix, suffix and data separator character strings.

General Options

From the Decoding Properties page, tap Configure > General > General Options.

Select from Label Programming Enable, Symbology IDs and Group Separator

Replacement.

1 SKORPIO™ X3

Decoding Options

From the Decoding Properties page, tap Configure > General > Decoding Options.

Use it to configure the User ID for symbologies, Redundancy and Aggressive

Decoding (if supported by the decoding module). Select a symbology to view or

change the available properties settings.

USE AND FUNCTIONING

Spot Beam

From the Decoding Properties page, tap Configure > General > Spot Beam. It allows

enabling and configuration of Spot Beam and triggering modes.

It is only available on devices equipped with laser and advanced long range laser

decoding modules that support the Spot Beam Feature.

1 SKORPIO™ X3

Imager Options

From the Decoding Properties page, tap Configure > General > Imager Options. It

configures illumination, target beam and Pick List mode, and triggering modes.

It is only available on devices equipped with 2D decoding engines.

USE AND FUNCTIONING

Devices

From the Decoding Properties page, tap Configure > General > Devices. Use it to

enable or disable the keyboard wedge for Barcode scanner.

1 SKORPIO™ X3

1D Barcode Symbology Pages

Use the drop-down menus from Configure > 1D Barcode, or tap the left and right

arrow keys to navigate the different pages of the barcode symbology pages.

Select Configure > 1D Bar Code from the menu to view other configuration options.

Each barcode symbology opens to its own page, as shown in the figure below. Refer

to the sample symbology control panels for examples of the types of fields and

options you can modify.

USE AND FUNCTIONING

Decoding Settings

Select from the Decoding Properties Settings menu to restore previous

configurations and/or other available default settings. Choose from:

 Factory Defaults

 Minimum Settings

 Maximum Settings

 Save (New Settings)

 Revert to Saved Settings

The settings are saved when you tap ‘Yes’. To permanently save these settings you

need to save the Registry using the Persistent Registry applet in the Control Panel.

When open, Decoding Properties acts as a simple barcode test tool that provides the

Data decoded and the Data Type of the barcode scanned.

1 SKORPIO™ X3

4.6.2 DL Buttons

You can use DL Buttons Tab to associate specific keys, such as <F1>-<F10>, with

specific applications.

From the control panel main window, double tap the DL Buttons icon.

On the DL Buttons tab, customize the program hardware buttons to launch your most

used applications. Under ‘Select a button’, select the button you want to assign a

function to, and then select a program from ‘Assign a function’.

USE AND FUNCTIONING

COMMAND DESCRIPTION

Select a Button This pull-down list displays the available function keys

to define. Select the desired one from the list.

New Select/tap to specify a new Button, not on the “Select a

Button”list.

Delete Tap to delete the selected Button. You can only delete

the Buttons you have added. You cannot delete the

following buttons: “Alt + 6”, “Left Button”, “Pistol

Trigger”, “Right Button”, “Scan”

Assign a function This pull-down list displays the available functions.

Application Displays path to the selected application.

Browse Select/tap to browse for application files. You can

associate an executable program with the specified

Button

Arguments Type the command-line arguments that are needed for

the specified application. This option is only available

when “Launch Application” is selected in the “Assign a

function” pull-down list.

1 SKORPIO™ X3

Adding a new Button

When you select “New” on the “DL Buttons” tab, this opens the “Add Key” dialog box.

To define a new Button, complete the following steps:

1. Enter the key combination in the “Add Key” textbox.

COMMAND DESCRIPTION

Enter Key Enter the desired key combination in this text box to define a Button.

OK Select/tap OK to add the specified Button.

X Select/tap X to cancel the specified Button.

NOTE

Make sure you do not attempt to add a Button that is already defined.

2. Select/tap OK to save the new Button. If you select/tap “X”, the key will not be

saved.

USE AND FUNCTIONING

CAUTION

It is possible for the keyboard wedge to activate assigned Buttons

using alphanumeric characters. Barcodes containing characters

associated with assigned Buttons will trigger the action or

application assigned to that Button.

1 SKORPIO™ X3

4.6.3 Triggers

Triggers are special customizable buttons that are mapped by default by DL Mobile.

Also, they can be set as wakeup buttons:

TRIGGER APPLICATION

Scan Bar Code

Pistol Trigger Bar Code

USE AND FUNCTIONING

4.6.4 Application Switcher

The application switcher provides the same functionality as the standard Windows®

Alt+Tab function. This allows the user to switch between the various open

applications.

The application switcher is activated via an assigned shortcut key specified in the DL

Buttons tab (see par. 4.6.2.) When the assigned button is pressed, the dialog shown

below will be displayed:

Press the assigned button to cycle through the running applications when the dialog

is open. Press <Enter> to switch to the selected application or <Esc> to close the

application switcher.

1 SKORPIO™ X3

4.6.5 Persistent Registry

The Registry stores information that are necessary to configure the system for

applications and hardware devices. The Registry also contains information that the

operating system continually references to during operation.

To persist the Registry settings between boots, do the following steps:

1. Select Start > Settings > Control Panel.

2. Double-tap the “Persistent Registry” icon.

3. Tap the “Persist” button.

4. Tap OK to exit.

USE AND FUNCTIONING

To change Persistent Registry timing, do the following steps:

1. Select Start > Settings > Control Panel.

2. Double-tap the “Persistent Registry” icon.

3. Select a time interval from the menu.

4. Tap OK to save and exit.

1 SKORPIO™ X3

To deselect Persistent Registry timing, do the following steps:

1. Select Start > Settings > Control Panel.

2. Double-tap the ‘Persistent Registry’ icon.

3. Deselect the ‘Persist Registry settings’ box.

4. Tap OK to save and exit.

USE AND FUNCTIONING

4.6.6 Wireless Communications

Wireless networking has a customized control, Summit Client Utility (SCU), specific

to the radio. There are two methods to access the SCU.

Start > Programs > Summit > SCU:

From the Control Panel main window, double tap Wi-Fi to open the Summit Client

Utility:

1 SKORPIO™ X3

The SCU will open to the “Main” tab:

Summit Client Utility

1. To create a new profile, tap the "Profile" tab:

Information about the wireless network can be entered directly in the profile tab or by

pressing “Scan” when the desired network ESSID is in range.

USE AND FUNCTIONING

2. At the "Scan" screen, select the desired SSID:

3. Click the "Configure" button

4. Follow the on-screen instructions to setup security parameters for your network.

For more detailed settings specific to your installation please contact your

wireless network administrator.

1 SKORPIO™ X3

5. When finished, click “Commit” to save your settings.

Return to the “Main” tab, if you have not previously selected “Commit” you will be

prompted to save your changes.

At the “Main” tab select the profile you just created. If you used the “scan” button the

desired profile will have the same name as the ESSID.

Use the “Status” tab to check connectivity to the network.

USE AND FUNCTIONING

More detailed information about the applet for radio configuration can be found at

http://www.summitdata.com/SCU.htm.

1 SKORPIO™ X3

4.6.7 Stylus Calibration

You might need to recalibrate the touch screen (i.e. when you attempt to select one

item with the stylus, another item is erroneously selected).

To recalibrate the touch screen, complete the following steps:

1. From the Control Panel main window, double tap Stylus to open the “Stylus

Properties” applet window:

2. Tap ‘Calibration’ to open the Calibration screen. Tap ‘Recalibrate’:

USE AND FUNCTIONING

3. Carefully press and briefly hold stylus on the center of the target. Repeat as the

target moves around the screen.

4. By completing the calibration procedure you implicitly accept the new calibration

settings.

5. New calibration settings are persistently saved in the Registry.

Startup Stylus Calibration

When starting the terminal, a Welcome Wizard (with Stylus Calibration) comes up if

valid calibration settings are not available. This happens in the following

circumstances:

1. At the first startup of the terminal.

2. After any cold boot if the user skipped stylus calibration earlier.

3. After a Clean Boot.

1 SKORPIO™ X3

4.6.8 Audio Settings

There are two applets that control volume: Audio and Volume & Sounds.

Audio

From the control panel main window, select the Audio applet by double tapping the

‘Audio’ icon:

The audio control panel can be used to independently set the playback or recording

volume for different types of audio inputs and outputs, such as a headset, powered

mobile dock, or the internal speakers and microphone.

Audio Windows

USE AND FUNCTIONING

Volume & Sounds

From the control panel main window, select the Volume & Sounds applet by double

tapping the Volume & Sounds icon:

The Volume & Sounds applet configures audio features of all speakers and

headphones and appears as follows:

Volume & Sounds Window

1 SKORPIO™ X3

4.7 WINDOWS CONNECTIONS

There is more than one way to connect the Skorpio X3 to a host PC running

Windows. Each requires specific connections in order to function properly.

4.7.1 Windows Mobile® Device Center

The desktop application Windows Mobile® Device Center gives you the ability to

synchronize information between a desktop computer and your Skorpio X3.

Synchronization compares the data on the Skorpio X3 with that on the desktop

computer and updates both with the most recent information.

Windows Mobile Device Center is only compatible with Windows Vista and Windows

7; if you run Windows XP or earlier, you have to download Microsoft ActiveSync.

You can establish a connection to your Skorpio X3 through the following interfaces:

 USB either directly or through the Single Dock

 RS232 either directly or through the Single Dock

 Bluetooth® (see par. 4.7.2)

To establish a partnership between the Skorpio X3 and a host PC, start Windows

Mobile® Device Center and follow the steps below:

1. Connect the Skorpio X3 to the host PC. Windows Mobile® Device Center

configures itself and then opens.

2. On the license agreement screen, click Accept.

3. On the Windows Mobile Device Center’s Home screen, click Set up your

device.

4. Select the information types that you want to synchronize, then click Next.

5. Enter a device name and click Set Up.

When you finish the setup wizard, Windows Mobile Device Center synchronizes the

mobile computer automatically.

USE AND FUNCTIONING

NOTE

Visit the following Microsoft Web site for the latest in updates and

technical information:

http://www.microsoft.com/windowsphone/en-

us/howto/wp6/sync/prepare-to-sync-windows-phone-6-5-with-my-

computer.aspx

NOTE

The Skorpio X3 running Windows CE does not come equipped with

Microsoft Office Outlook or any other application that allows users to

view contact, calendar, e-mail, or task data. Users can view files

copied to the Skorpio X3 by WMDC's file synchronization feature.

NOTE

When a microSD card is inserted, Skorpio X3 allows a mass storage

data connection to a host PC. This functionality can be enabled

through the Control Panel. When doing so, the microSD card is not

available to the Skorpio X3. An ActiveSync connection is not possible

when this feature is enabled.

1 SKORPIO™ X3

4.7.2 Bluetooth Manager Device Setup

NOTE

The Bluetooth® Manager icon will only be visible if Bluetooth®

hardware has been installed on the unit.

Using the Skorpio X3 to connect to another device

To create a Bluetooth® pairing between your device and another device that has

Bluetooth® capabilities, ensure that the two devices are turned on, discoverable, and

within close range.

1. From the Bluetooth Manager control panel tap ‘Connections’.

2. Search for available Bluetooth® devices by tapping the button for the type of

device you want (Printer, Serial or All) or tap Discovery > Discover to skip this

step. The Skorpio X3 will search for Bluetooth® devices within range.

NOTE

If you attempt to set up a connection when the Bluetooth® radio is

disabled, you will receive a message reminding you that the radio is

turned off, and asking if you want to turn it on. Tap Yes if you need to

enable the Bluetooth® radio.

USE AND FUNCTIONING

3. Once searching is complete, Bluetooth® device Profiles will be displayed in the

Discovery tab. You can set up a connection to a device in the list by selecting

the device and then tapping the 'Connect' button:

To create a pairing:

1. Select a service:

2. Configure any encryption, authentication, or virtual port options required by the

service selected.

1 SKORPIO™ X3

Icon Service

Dialup Networking

Printer

Object Push (OPP) Object Exchange (OBEX)

ActiveSync

Human Interface Device (HID) - Keyboard

Serial

Personal Area Network (PAN)

Modem

Headset

Handsfree

Virtual Port allows you to specify the incoming port, which is used to communicate

serially with an incoming device just as if it were a physical COM port. This option is

available only if you have selected a Printer or Serial service.

USE AND FUNCTIONING

You can also select Encrypt or Authenticate from the Bluetooth® control panel to

apply or modify those settings.

1. To require Authentication, check the checkbox, then tap OK.

2. If required, the Authentication Request dialog will then open, requesting that you

enter a PIN. Use the Input Panel or the keyboard to type the PIN.

3. Tap OK to complete.

The dialog will also appear when an Authentication request is received from another

device.

1 SKORPIO™ X3

Once you have set up a pairing, you can view the settings by double-tapping its

name from the Connections tab. Tap the arrow to change the Virtual Port, or Delete

to remove the device pairing. Tap Sync to initiate a Sync (available only if the service

is an ActiveSync connection).

USE AND FUNCTIONING

Using your device to connect to the Skorpio X3

Before turning on Bluetooth®, ensure that the two devices are within close range and

that both Bluetooth-enabled devices are discoverable.

1. From the control panel main window, double tap the Bluetooth Manager icon to

open the Bluetooth Manager control panel.

2. Tap Settings. The Settings tab allows you to enable or disable the Bluetooth®

radio and specify settings for Incoming Connections.

1 SKORPIO™ X3

3. Select or clear the “Enable Bluetooth Radio” check box.

If you’re going to be attaching a serial device (i.e. a scanner) to the Skorpio

X3, use the Port control to select a virtual COM port to use for the connection.

5. Tap ‘Find Me’ if you want to make the Skorpio X3 discoverable to other

Bluetooth® devices for 60 seconds, allowing them to set up a connection.

NOTE

By default, Bluetooth® is turned off. If you turn it on, and then turn off

your device, Bluetooth® also turns off. When you turn on your device

again, Bluetooth® turns on automatically.

USE AND FUNCTIONING

4.8 DATALOGIC FIRMWARE UTILITY

Datalogic devices are equipped with a field upgradeable firmware mechanism.

Firmware updates are available on the Datalogic Mobile website

(http://www.adc.datalogic.com/). After you have downloaded the desired update,

there are several ways you can update the firmware on your device.

 Use Wavelink Avalanche™ if you have multiple Datalogic mobile devices to

update. Refer to the Product CD included with your device for more

information.

 If Wavelink Avalanche™ is not available or you have only a few Datalogic

Mobile devices to update, use the Datalogic Firmware Utility (DFU), described

below, to install or update the firmware using an ActiveSync connection.

DFU can also be used to restore the firmware onto a device that has become

corrupted (see par. 4.8.4).

The following sections provide procedures for the retrieval and installation of the

most current firmware image onto a Datalogic device.

4.8.1 Retrieving a Firmware Image Update

The following instructions use Internet Explorer to retrieve the most current firmware

image.

1. Launch Internet Explorer on your PC and navigate to the Datalogic Mobile

website.

2. Navigate to the Downloads section of the website.

3. Select the file you want to download, then click Save to begin copying the files

to your local machine (or local network location).

1 SKORPIO™ X3

4.8.2 Installing DFU on the Host PC

Datalogic Firmware Utility (DFU) provides administrators with a field upgrade

mechanism. You must have Microsoft® ActiveSync (for Windows XP devices) or

Windows Mobile® Device Center (for Windows 7 and Vista devices) already loaded

and running on the host PC to use DFU. Refer to par. 4.7.1 for more information

about Windows Mobile® Device Center.

NOTE

Prior to installing, you must remove any previous versions of DFU

installed on the host PC.

To install the Datalogic Firmware Utility, complete the following steps on the PC:

1. Insert the CD ROM shipped with your device into the PC and click on the link

to install Datalogic Firmware Utility.

Go to the Datalogic Mobile website and download the most current version of

the Datalogic Firmware Utility. Unzip the file, then double-click to run

DFU_Setup.exe.

Click OK to continue once you have removed previous versions of DFU.

2. The Welcome to DFU Setup Program screen opens.

 Please exit all Windows applications before running this installer.

 Click Next to continue the Setup.

3. Follow the onscreen instructions to complete the installation.

USE AND FUNCTIONING

4.8.3 Updating the Firmware

After copying the firmware image to the host PC (see par. 4.10.1) and installing DFU

(see par. 4.8.2), you can upgrade the firmware on your Datalogic device.

NOTE

The following steps require that you have already established an

ActiveSync or Windows Mobile Device Center connection between

the host computer and the Datalogic device.

1. Go to Start > Programs > DFU > Datalogic Firmware Utility.

2. Verify that ActiveSync is selected by clicking Communications > ActiveSync.

3. Click browse (...) and navigate to the location where you saved the firmware

file for your terminal.

4. Select the current *.img file and click Open.

5. Click Update.

6. DFU will compare the selected firmware image with the firmware already

loaded on the device; if the images are different, DFU will proceed to update

the firmware image on your device.

7. After the firmware of your device has been updated, DFU will automatically

perform a warm reset of the device.

1 SKORPIO™ X3

4.8.4 Repair Mode

If the firmware image on your device becomes corrupted, the device will beep twice

and show a blank screen when powered on.

To reinstall the firmware, complete the following steps:

1. On the PC, click Start > Programs > DFU > Datalogic Firmware Utility.

2. From the Communications menu, select WMDC ActiveSync.

3. Click browse (...) and navigate to the file location.

4. Select the current *.img file and click Open.

5. Verify that the device is turned on. Insert the device into a powered dock

connected to the host computer.

6. Click Update.

7. DFU will restore the firmware on your device.

USE AND FUNCTIONING

NOTE

Please be patient and do not remove the device from the Dock

during this procedure. The firmware image of the device can take as

long as:

 12 minutes to download using a USB connection.

 22 minutes to download using a serial connection with 115K

baud rate.

 130 minutes to download using a serial connection with 19.2K

baud rate.

8. After the firmware has been restored, your device will automatically reset.

1 SKORPIO™ X3

4.9 DATALOGIC CONFIGURATION UTILITY

Datalogic Configuration Utility (DCU) is a Datalogic Windows-based utility tool

allowing the uploading, modifying and downloading of a Datalogic brand Windows

CE device. Configuration settings include Scanner, Control Panel, and Datalogic

Desktop Utility (DDU). The DCU installer is available on the product CD which came

with your device or from the Datalogic Mobile web page:

(http://www.adc.datalogic.com/).

DCU functions in both direct (with an ActiveSync connection) and indirect (with

Wavelink Avalanche™) modes.

In direct mode, connect a device through ActiveSync and then click on the Get from

Device icon to receive the device’s current configuration.

Once loaded, the Terminal Configuration tree (on the left side of the window) is used

to navigate the device’s configuration. The right side of the window is a work area

where the values of different parameters may be set for each branch of the

configuration tree. Click on the parameter group branch to open it and visualize the

parameters you wish to modify.

After altering the device’s configuration, the new configuration can be sent to the

terminal by clicking on the Send to Device icon.

Refer to the Wavelink Avalanche™ documentation on your Datalogic CD for a

description of indirect mode for DCU, which will allow you to update the configuration

of multiple devices simultaneously over Wi-Fi.

USE AND FUNCTIONING

4.10 DATALOGIC DESKTOP UTILITY

Datalogic® Desktop Utility (DDU) allows Datalogic Windows® administrators to

configure Windows® CE and Mobile devices to control individual user access. This

includes:

• Prevent users from changing your device OS settings.

• Use Application Selector to replace desktop with a selection of authorized

applications.

• Internet Explorer access restriction, configuration and customized error recovery

mechanisms.

• Create quick access hot keys and configure trigger actions.

To open the DDU for the first time, tap Start > Settings > Control Panel > or Start >

Programs > Device tools > and then double tap the “Datalogic Desktop Utility icon”.

You can also get into DDU by pressing “Alt + 6”.

You can use DL Buttons to associate specific keys, such as <F1>-<F10>, with

specific applications (see par. 4.6.2).

The “Alt + 6” is the button initially assigned to Datalogic Desktop Utility.

If you wish to assign this key to a different function, you must first select an

unassigned Button and assign it to the function – “Datalogic Desktop Utility”. You can

then go back and reassign the Button to something else.

1 SKORPIO™ X3

4.10.1 Administrative Options (Admin tab)

When you open the DDU control panel, the “Admin” tab appears.

COMMAND DESCRIPTION

Enable Datalogic Desktop Select/tap this checkbox to activate the DDU functions

such as Windows Access Restrictions and Application

Selector.

Enter Password Enter a password in the text box. This allows the user to

specify a password when this utility is launched. By

default the password is “1234”. A password can consist

of all standard keyboard characters.

Re-Enter Password Carefully re-enter the password in the second text box.

Set Password Select/tap “Set Password” to enable the password.

To change or remove the password, enter a new value,

re-enter the new value, and select/tap “Set Password”.

Set Defaults Select/tap “Set Defaults” to reset the default values of

all the functions on all the tabs. After you select this

option, you will receive a prompt to verify this selection.

USE AND FUNCTIONING

Setting a Password

To set a password:

1. Enter a password in the field. This allows the user to specify a password when

this utility is launched. By default the password is “1234”.

NOTE

Be sure to record the Password for future reference.

2. Re-enter the password in the second field.

3. Select/tap “Set Password” to enable the password.

4. Select/tap “OK” to close the “Set Password Confirmation” dialog.

NOTE

You must select/tap “Set Password” prior to exiting DDU in order to

store and activate your new password. It is not necessary to select

“Enable Datalogic Desktop”.

CAUTION

If you select/tap “Set Defaults” it will remove all custom settings and

restore all the factory default settings, except a previously set

password.

Changing a Password

To change to a new password:

1. Enter a new value in the “Enter Password field”.

2. Re-enter the new value in the “Re-enter Password” field.

3. Select/tap “Set Password”.

1 SKORPIO™ X3

Removing a Password

To remove a password:

1. Enter blanks in both “Password” fields.

2. Select/tap “Set Password”.

Password Request Dialog Box

Once the password is set, the next time you open the “Datalogic Desktop Utility”, the

DDU Password dialog box opens.

This dialog box will only open if a password was defined.

1. Type in your password using either the keypad on the unit, or using the stylus on

the soft input panel (SIP).

If you enter an incorrect password, the system will prompt you to input the cor-

rect one.

2. Select/tap “OK” to verify the password. Or tap “X” to cancel.

USE AND FUNCTIONING

4.10.2 WebAppLock Options (WebAppLoc tab)

Tap the WebAppLoc tab to access the WebAppLock Configuration options.

Error Page Redirection

Use the Error Redirection option to provide customized recovery from common

errors. When an error occurs, the browser can redirect access to a specified error

page with instructions on how to recover from the problem.

WebAppLock Configuration Tab WebAppLock Window Features

Error Redirection options

The “Error Type” pull-down list displays available Error Types: Error Type

(400) Invalid Syntax, (403) Request Forbidden, (404) Object Not

Found, (406) No Response Format, (410) Page Doesn't Exist, (500)

Internal Server Error, (501) Server Can't Do That, Generic Error,

Network Disconnected

Error Page Edit this textbox to associate a website or html file with the specified

error.

1 SKORPIO™ X3

Other options

Full Screen Set the web browser in full screen mode.

Status Icon Enable or disable the status icons view (see par. 4.10.3).

Trap Keys When checked, all key presses will be trapped by WebAppLock to

prevent the user from accessing other parts of the system. DL

Buttons keys will not work in WebAppLock when this box is

checked. When unchecked, all system key presses, including DL

Buttons keys, will work.

USE AND FUNCTIONING

4.10.3 Status Icons Options (Status Tab)

Tap the “Status” tab to access the Status Icons option. You can configure the view of

some status icons that are used in “WebAppLock” and in “Application Selector” to

display the status of: wi-fi radio, battery and GSM.

Status Icons Options

Set Status Icon Defaults Restores the status icons’ factory settings.

Icon Size Sets the status icons’ size.

Icon Location Selects the preferred location for each status icon.

1 SKORPIO™ X3

4.10.4 Windows Controls

Select/tap the “Win” (Windows Controls) tab to access the Windows Controls option.

Use Windows controls to allow or restrict access to Windows system functions.

You can disable normal Windows functions such as the taskbar, leaving nothing but

a blank workspace. This allows applications to be run on the full screen and prevents

users from accidental or unauthorized use of the taskbar, Internet Explorer, and any

other resident applications.

USE AND FUNCTIONING

WINDOWS CONTROLS

Show Taskbar Select/tap “Show Taskbar” to specify whether the

Taskbar is displayed or not

Taskbar Enabled Select/tap “Taskbar Enabled” to specify whether the

taskbar is accessible. This option is only available

when the “Show Taskbar” is checked.

Start Menu Enabled Select/tap “Start Menu Enabled” to specify whether

the Start Menu is displayed or not. This option works

only when “Task Bar Enabled” is checked.

AutoSIP Enabled Enables the AutoSIP Windows feature.

Scroll Bars Enabled This control only take effects in WebAppLock.

When checked, displays horizontal and vertical scroll

bars to help view large web pages which do not fit the

screen. When unckecked, those scrolls will not be

present.

Windows CE Desktop

Enabled

Windows CE Desktop Enabled to specify whether the

desktop icons are accessible or not

Windows Wifi Error Dialog This control only takes effects in WebAppLock and

Internet Explorer.

When checked, the device will display a warning

dialog when the WiFi connected device moves out of

range of an access point and the user attempts to

navigate to a web page. This dialog box allows the

user to reconfigure the wifi on the device.

When unchecked, that dialog box will not appear and

the “Network Disconnected” error page redirection is

used to prevent users from reconfiguring the wifi on

the device. Tap the “WebAppLock Configuration Tab”

to configure the “Network Disconnected” error page

redirection (see par 4.10.2).

NOTE

Settings require device rebooted

1 SKORPIO™ X3

100

4.10.5 AppSelector Options (AppSelect tab)

Tap the Application Selector (“AppSelect” Tab) to edit, add, or delete applications for

the application selector.

Application Selector Options

Enable Application Selector Select/tap “Enable Application Selector” to

enable/disable the application selector. When this is

enabled, the Application Selector replaces the

desktop and allows only authorized use of

applications.

Authorized Applications This is a list of applications that the user may access.

Application Selector Commands

New Select/tap “New” to create a new application entry.

Edit Select/tap “Edit” to edit the selected entry.

Del Select/tap “Del” to delete the selected entry.

Up/Down Select/tap “Up/Down” to move an entry up or down in

the ListView

USE AND FUNCTIONING

101

Add Applications

The “Add Application” dialog opens when you tap either “New” or “Edit”. From the

“Add Application” dialog the administrator can configure and/or add/change an a new

application entry in the list.

Applications with the “Run Application at Startup” option enabled will start

automatically when the Application Selector starts up.

COMMAND DESCRIPTION

Application Title Type the name of the application in this textbox in the

way you wish it to appear for the user.

Executable Displays the path for the executable file which you want

to run.

Browse Select/tap to browse for the desired executable file.

The results of this search are placed in the “Executable”

textbox.

Arguments Type any command line arguments to be used when an

application is executed.

Icon File Displays the path/link to the desired icon file.

Browse Select/tap to browse for the desired icon file. The

results of this search are placed in the “Icon File”

textbox.

1 SKORPIO™ X3

102

COMMAND DESCRIPTION

Run Application at Startup

Select/tap this box to force this application to auto start

when the Application Selector starts up. Applications

will be started in the order listed in the authorized

application list.

Delay

Enter a delay duration in seconds in the combo box.

This option delays auto start of application(s) to allow

drivers to load prior to starting applications.

OK Select/tap “OK” to add/save changes.

X Select/tap “X” to cancel the creation of this entry.

USE AND FUNCTIONING

103

4.11 APPSELECTOR (APPLICATION SELECTOR)

The Application Selector is an application that allows a device to run in kiosk mode.

The administrator can choose for the user to have access to the desktop or not. The

Application Selector can replace the desktop and limit the user to the specified list of

applications.

By default, the Application Selector comes with the WebAppLock preset.

Figure 9 - Application Selector

The administrator can customize this list as shown in chapter 4.10.5.

To run an application, tap on its name.

To exit from Application Selector, press ALT + 6, uncheck the ‘Enable Application

Selector’ check box on the AppSelect Tab and press OK to exit DDU.

1 SKORPIO™ X3

104

4.12 WEBAPPLOCK (LOCKED WEB BROWSER)

WebAppLock is a web browser that creates a restricted internet usage environment.

It prevents the user from exiting the web application/ website set by the administrator.

NOTE

Zoom In and Zoom Out will only affect screen text and not bitmaps.

If the taskbar has been disabled, the Settings menu is not displayed. However, the

user can still navigate within the web application by using the following keyboard

shortcuts:

Home Ctrl + 7

Refresh Ctrl + 8

Cancel Ctrl + 9

Exit Ctrl + 0

USE AND FUNCTIONING

105

For firmware versions 1.60 and greater, the following command line arguments are

supported:

- /E optional parameter which allows for Exit without entering a password

- @URL optional parameter which specifies a URL to use as a home page.

- /C optional parameter which disables the ctrl keys (including the one to exit).

- /W optional parameter which allows for a performance boost. When present, only

WIFI error redirection will function.

- /T0 optional parameter which sets the initial text size to 0 on a scale of 0 to 4.

(Default when not set is 1). The value can later be adjusted when not in full

screen mode using the “Font Size +” and “Font Size –“ menu options.

- /T1 optional parameter which sets the initial text size to 1 on a scale of 0 to 4.

(Currently does nothing) The value can later be adjusted when not in full screen

mode using the “Font Size +” and “Font Size –“ menu options.

- /T2 optional parameter which sets the initial text size to 2 on a scale of 0 to 4.

(Default when not set is 1). The value can later be adjusted when not in full

screen mode using the “Font Size +” and “Font Size –“ menu options.

- /T3 optional parameter which sets the initial text size to 3 on a scale of 0 to 4.

(Default when not set is 1). The value can later be adjusted when not in full

screen mode using the “Font Size +” and “Font Size –“ menu options.

- /T4 optional parameter which sets the initial text size to 4 on a scale of 0 to 4.

(Default when not set is 1). The value can later be adjusted when not in full

screen mode using the “Font Size +” and “Font Size –“ menu options.

1 SKORPIO™ X3

106

4.12.1 WebApplock Special Meta-tags

General Meta-Tag Comments

A meta-tag is a special HTML tag that is used to store information about a Web page

but is not displayed in a Web browser. For example, meta tags provide information

such as what program was used to create the page, a description of the page, and

keywords that are relevant to the page.

As per the HTML specification, all meta-tags must be contained within a <head> …

</head> tag set.

Also, the head tag set must be complete within the first 15K of the web page.

The Datalogic WebAppLock defines some special meta-tags that allows the web

application to interact with the device:

In particular, the special meta-tags allow to:

- enable/disable the scan engine triggers

- enable/disable specific codes groups in the scan engine

- easily handle the keys pressing

The trigger, decoding and DL_Keys meta tags stay in scope beyond the page they

are defined in until a later page changes them.

Trigger Meta-tag

DL_Triggers – “Enable” or “Disable” all triggers

If the page contains this tag, the triggers are enable or disable depending on the

“content=” value.

Example:

USE AND FUNCTIONING

107

CGI Error Meta-tag

DL_CGIError – Overrides DDU error page redirection and replaces it with a reference

to a CGI script which is passed the error number as an argument.

Content – A CGI URL with variable name argument in place. The name of both the

CGI function and the error number variable is completely configurable by the user.

Do not put an ‘=’ at end of the URL.

HTTP header error numbers are returned if they are greater than or equal to 300. For

example, ‘404’ is returned if object is not found on the server. In addition the following

WebAppLock specific error numbers are returned:

Error Number Error Condition

1000 WiFi is disconnected

2000 Failed to open internet connection with WiFi

3000 Failed to connect to server

4000 Failed to open page on server

5000 Failed to send query to page on server

6000 Failed to receive query from page on server

7000 Failed to find file on device

Warning: Error redirection from the WebAppLock tab in DDU will be ignored if a page

has this meta-tag defined.

Example:

bin/errorpage.plx?errornum">

In the event of a 404 error (object not found on the server), WebAppLock will

navigate to the following URL:

http://www.SOMEWHERE.org/cgi-bin/errorpage.plx?errornum=404

1 SKORPIO™ X3

108

GetSerialNumber Meta-tag

DL_GetSerialNumber – Obtains the device serial number and sends it as an

argument to a customer’s javascript function.

Content – name of function to pass serial number to.

Example:

When this page is loaded the specified javascript function with the device serial

number as the only argument (such as CustomerFunction(‘D10P00031’).

OnPowerResume Meta-tag

DL_OnPowerResume – Invokes the specified javascript function upon power

resumption on the device.

Content – The URL to the JavaScript function to be called upon resume.

Example:

Reboot – Warm boot device Meta-tag

DL_Reboot – Warm boot device.

Content – “OnPageLoad” – Warm boot immediately upon page load. In future might

have more content options.

Example:

Exit Meta-tag

DL_Exit – Exit WebAppLock.

Content – “OnPageLoad” – Exit immediately upon page load. In future might have

more content options.

Example:

USE AND FUNCTIONING

109

Decoding meta-tags:

Each decoding meta-tag has a possible content of “Enable” or “Disable”.

The settings are valid for the entire page (enable/disable each symbology).

DL_Code_39

DL_Code_128

DL_Code_I25

DL_Code_S25

DL_Code_M25

DL_Code_CODABAR

DL_Code_93

DL_Code_UPCA

DL_Code_UPCE

DL_Code_EAN13

DL_Code_EAN8

DL_Code_MSI

DL_Code_MSR

DL_Code_GS1_14

DL_Code_GS1_LIMIT

DL_Code_GS1_EXP

DL_Code_16K

DL_Code_49

DL_Code_PDF417

DL_Code_DATAMATRIX

DL_Code_MAXICODE

DL_Code_TRIOPTIC

DL_Code_PHARMA39

DL_Code_RFID

DL_Code_MICROPDF417

DL_Code_COMPOSITE

DL_Code_QRCODE

DL_Code_AZTEC

DL_Code_POSTAL

Some examples:

1 SKORPIO™ X3

110

Key press Metatags

The key press meta-tags can be used to call JavaScript functions. They have the

name structure: “DL_Key_xxx” where xxx is the VKey code.

Example:

If one of this tag is present, the pressure of this key is handled at level of page,

independently from the currently focused item.

Refer to the Microsoft website to find the list of all the possible Vkey codes:

http://msdn.microsoft.com/en-us/library/bb431750.aspx

http://msdn.microsoft.com/en-us/library/aa243025(VS.60).aspx

NOTE

The DL_Keys meta tag can exist past the page they are defined in,

hence the existence of the DL_Clear meta-tag, that allows to clear all

the settings and statuses.

Scanning Metatags

DL_Scan – Captures scan results and sends barcode/tag value to a javascript

function on the web page.

If the “content=” value is a javascript function the device will be taken out of keyboard

wedge mode and start listening for scan events. A scanned barcode/tag result will be

used as an argument to that javascript function which is then invoked.

If the “content=” value is “Wedge” then the device will stop listening for scanned

event and enter keyboard wedge mode.

If the “content=” value is “Disable” then the device will stop listening for scanned

events but not enter keyboard wedge mode.

Example:

USE AND FUNCTIONING

111

4.13 AUTOSTART

The AutoStart program provides three functions:

- Allows you to create a list of applications (with optional command line

arguments) to run automatically prior to loading CAB files.

- Automatically reinstalls specified CAB files when the Skorpio X3 10 is cold

booted.

- Allows you to create a list of applications (with optional command line

arguments) to run automatically after loading CAB files.

AutoStart launches each time the Skorpio X3 is rebooted executing each line with the

specified command line arguments. It will take into account any AutoStart options at

the beginning of the line.

Upon a Cold Boot, AutoStart installs all the CAB files located in the \FlashDisk\CAB

folder. If the CAB folder does not exist, no CAB files will be installed.

AutoStart will then run the Autostart.ini from the \FlashDisk directory,

executing each line with the specified command line arguments. It will take into

account any AutoStart options at the beginning of the line.

4.13.1 Installing CAB files

Copy any CAB files you want to install into the \FlashDisk\CAB folder. These CAB

files will then be automatically in-stalled in alphabetical order the next time you start

the device.

1 SKORPIO™ X3

112

4.13.2 How AutoStart Uses Wceload

NOTE

If you intend to create highly interactive installers, you should either

install the CABs manually or review the section on “Interactive CAB

Install” in this chapter..

CAUTION

In certain environments, CAB files will be deleted after execution.

To prevent the CAB file from being deleted, write protect the file

before copying the file onto the device.

CAB files are installed by AutoStart using the Wceload.exe application. The

following table shows available command line option:

- Optio

n - Description

/noui

Specifies that you will not be prompted for any input during the

installation. If the CAB file is signed, any responses will automatically

be answered ‘Yes.’ If the CAB is unsigned, then any responses will

be answered ‘No.’

/silent Suppresses dialog boxes during the installation.

Please refer to the Microsoft documentation on your device for further details on

Wceload.exe.

Sample:

\Windows\Wceload.exe /delete 1 /noui /silent

“\FlashDisk\CAB\<cab file>”

USE AND FUNCTIONING

113

4.13.3 Interactive CAB Install

 If the CAB installer requires user interaction that must be performed

during the AutoStart CAB installation process, you can specify a special

file name to disable the silent mode installation. If this mode is specified,

the CAB file will be installed with Wceload without any command line

arguments specified.

An example of what AutoStart would execute is:

\Windows\Wceload.exe <cab file>

To force this mode of installation via AutoStart, rename the CAB file to include a ‘_’

character before the “.cab” extension of the file.

Example:

“File.cab” should be renamed “File_.cab” to force AutoStart to not

install the CAB in silent mode. This specially-named CAB file should be placed in the

AutoStart folder with other CAB files intended for installation on the next reboot.

4.13.4 Autostart.ini

NOTE

A file named ‘PreAuto.ini’ can also be created in addition to or

instead of Autostart.ini. PreAuto.ini is executed before CAB files in

the \FlashDisk\Cab folder are installed. Autostart.ini is executed after

CAB files in the \FlashDisk\Cab folder are installed. The format for

the PreAuto.ini is identical to that of Autostart.ini..”

Autostart.ini is a text file that AutoStart will run upon startup of the Skorpio X3, and

after any CAB files are installed. This file should be placed in the \FlashDisk folder.

AutoStart will run the Autostart.ini file on each reboot of the device.

Line Formatting

Each line of the Autostart.ini can consist of Autostart options, an

executable, and any command line arguments.

< Autostart option(s)> <full path to executable>

Sample:

- \windows\pword.exe \file.doc

1 SKORPIO™ X3

114

The following table breaks down the sample Autostart.ini line:

Autostart option(s) Full path to executable Command line arguments

- \windows\pword.exe \file.doc

Spaces must be placed between each component of the line in the Autostart.ini.

If the executable path is in a folder that contains spaces in the name, quotes are

required to distinguish what the actual executable name is. The following is an

example of this:

“\Program Files\ScannerApp.exe” /run

(valid)

\Program Files\ScannerApp.exe /run

(invalid)

The second line is an invalid line because there is no way to distinguish the

executable from the argument.

USE AND FUNCTIONING

115

AutoStart Options

The table below shows options you can use when writing a line in the Autostart.ini

file.

Description Character Comments

Comment: This line will not be

executed. ‘#’ OR ‘ ‘ (space)

This may only be used as the

first character of the line. If the

comment option is specified in

the options elsewhere, it is

ignored.

Do not wait on line completion:

This will cause the line to

execute and immediately move

onto the next line.

‘-’

Query: Request user

confirmation when running the

executable.

‘?’

This will halt parsing the

Autostart.ini until the

confirmation is answered. This

is intended for debugging the

Autostart.ini file.

Execute only on Cold Reset ‘!’

Execute only after a warm boot %

Cold Reset Only: This will cause the line to execute only after a Cold Reset.

NOTE

An empty line will be treated as a comment line.

1 SKORPIO™ X3

116

Combining Options

Autostart options can be combined together as shown in the following sample:

?- \Windows\Pword.exe

This line would:

 Request confirmation before executing the line. The next line would not be

processed before the confirmation is answered.

 Run the next line without waiting on the current line to complete execution.

Query Option

The query option is intended for use when debugging the autostart.ini. When a line

with this option is executed, the following dialog will appear with the specified

executable and command line arguments. The populated fields shown in the

AutoStart Execute Query are described the next table:

Field Description

Line Number This is the line number in the script being executed.

Exe The executable as parsed by AutoStart.

Args The argument as parsed by AutoStart.

USE AND FUNCTIONING

117

NOTE

The fields may be broken up into multiple lines (as shown in the

example) due to limited space in the dialog.

AutoStart Query Options

Parentheses are used to surround the given field and make it very clear what the

value of the field is.

The following table describes the results of each choice:

Button Action

Yes The current line will execute.

No The current line will not execute. AutoStart will continue

parsing the Autostart.ini.

Cancel The current line will not execute and AutoStart will

discontinue parsing the Autostart.ini.

1 SKORPIO™ X3

118

Autostart.ini Samples

The next table is a collection of sample Autostart.ini lines:

Line Description

? \windows\wceload.exe “\My

Documents\Sample.cab”

This will confirm the execution of

\Windows\wceload.exe with specified argument

“\My Documents\Sample.cab”

\Program Files\App.exe (invalid) This will execute \Program with the

argument Files\App.exe.

\Program Files\App.exe /run (invalid) This will execute \Program with the

argument Files\App.exe /run.

“\Program Files\App.exe” /run This will execute the program \Program

Files\App.exe with the argument /run.

?- \Windows\Pword.exe

This will confirm the execution of

\Windows\Pword.exe. If the execution is confirmed,

AutoStart will immediately process the next line.

!”\Program Files\App.exe” /run

This will execute the program \Program

Files\App.exe with the argument /run ONLY after a

Cold Reset.

TECHNICAL FEATURES

119

5 TECHNICAL FEATURES

5.1 TECHNICAL DATA

PHYSICAL CHARACTERISTICS

DIMENSIONS (LxWxH)

Handheld: 193 x 76 x 42 mm, 61 x 35 at

keyboard / 7.6 x 3 x 1.6 in, 2.4 x 1.4 in

Pistol Grip: 193 x 76 x 156 mm / 7.6 x 3 x 6.2 in

WEIGHT

Handheld: 392 g / 13.8 oz., including standard

battery

Pistol Grip: 482 g / 17 oz., including standard

battery

AUDIO

Headset (not provided; it requires a HandyLink

adapter)

Main (rear) speaker

Receiver (front) Speaker

LEDS Three LEDs Decoding Status/ Keyboard Status/

Charging Status

DISPLAY

Reflective TFT daylight readable colour display,

320 x 240 pixels (3.2” diagonal), 65K colours,

backlit, touch screen

KEYBOARD numeric 28keys, full-alphanumeric 50keys,

alpha-numeric 38keys; Dimmable backlight

OPERATING TEMPERATURE* -10º +50ºC (14º to 122ºF)

STORAGE TEMPERATURE -20º +70ºC (-4º to 158ºF)

HUMIDITY** 95% non condensing for temperatures < 40 °C

DROP RESISTANCE*** Withstands drops from 1.5 m (5 ft) onto concrete

ENVIROMENTAL SEALING IP64 standard for water and dust resistance

ESD PROTECTION 4 KV contact discharge, 8 KV air discharge

* Skorpio X3 (including spare battery) should be charged at an ambient temperature between

0 - 35º C to achieve the maximum charging rate. Never charge the main device or spare

batteries in a closed space (cabinet) where excessive heat can build up.

Close to the limits of the working temperature, some display and/or battery performance

degradation may occur.

** Multiple rapid humidity and/or temperature variations may cause condensing.

*** Multiple drops can permanently damage the device.

1 SKORPIO™ X3

120

SYSTEM

OPERATING SYSTEM Microsoft Windows CE 6.0

MICROPROCESSOR XScale™ PXA310 @ 624 MHz

SYSTEM RAM MEMORY 512 MB

SYSTEM FLASH MEMORY 256 MB

POWER SUPPLY*

Removable battery pack with rechargeable Li-ion

batteries; 3.7 V 3000/5200 mAh (11.10/19.24

Watt hours); micro USB power adapter for direct

charge and power supply

COMMUNICATIONS

INTERFACES HandyLink connector: Integrated RS232 up to

115.2 Kbps, USB 1.1 Client, USB 1.1 Host

LOCAL AREA NETWORK (LAN)

Summit IEEE 802.11a/b/g

Frequency range: Country dependent, typically

2.4 and 5.2 GHz

CCX v4 Security

PERSONAL AREA NETWORK

(PAN)

Bluetooth® Wireless Technology IEEE 802.15

Class 2 with EDR

* Use only DL approved battery packspower adapters.

TECHNICAL FEATURES

121

READING OPTIONS

LASER CHARACTERISTICS

SCANNING RATE 104 ± 12 scan/sec

OPTICAL RESOLUTION 0.10 mm / 4 mils

DEPTH OF FIELD See reading diagrams (5.2)

SKEW ANGLE ± 50°

PITCH ANGLE ± 65°

LASER READER VLD, wavelength 630~670 nm

BAR CODES

GS1 DataBar family, EAN/UPC, Code 39, 2/5

Codes, MSI, Codabar, Code 128, GS1-128, Code

93, Code 11, Pharmacode 39, Trioptic

LASER CLASSIFICATION

VLD - Class 2 IEC/EN 60825-1.

Compliant with 21 CFR 1040-10 except for

deviations pursuant to laser notice n. 50, dated

June 24, 2007

IMAGER CHARACTERISTICS

SCANNING RATE 60 frames/sec maximum

OPTICAL RESOLUTION Linear codes 4 mils; 2D codes 5 mils

AIMING LASER VLD, wavelength 640~660 nm

BAR CODES

UPC/EAN, 2 of 5 family, Code 39, Codabar, Code

128, GS1-128, Code 93, MSI, PDF417,

MicroPDF417, Data Matrix, QR Code, GS1

DataBar family, Aztec Code, MaxiCode,

Pharmacode 39, Trioptic, Composite, US

POSTNET, US PLANET, USPS Intelligent Mail,

Royal Mail RM4SCC, UPU FICS, Australian Post,

KIX Code, Japanese Post

LASER CLASSIFICATION

VLD - Class 2 IEC/EN 60825-1.

Compliant with 21 CFR 1040-10 except for

deviations pursuant to laser notice n. 50, dated

June 24, 2007

LED CLASSIFICATION Exempt risk group IEC/EN 62471

ILLUMINATION SYSTEM LEDs 600~630 nm

1 SKORPIO™ X3

122

5.2 READING DIAGRAMS

Skorpio X3 SE950-DL

Guaranteed Reading Diagram – measured from the device nose (10° skew angle)

100

200

300

400

200

100

300

400

0,13 mm

(5 mils)

0,19 mm

(7,5 mils)

1,4 mm

(55 mils)

0,25 mm

(10 mils)

0,33 mm

(13 mils)

0,50 mm

(20 mils)

1,00 mm

(40 mils)

0 100 300 200 400 500 600 700 800 900 mm

0,38 mm

(15 mils)

TECHNICAL FEATURES

123

Skorpio X3 SE4500-DL

Guaranteed Reading Diagram

–

Measured from the device nose (10° skew angle)

100

150

200

100

150

200

050 150100 200 250 300 350 400 450

00 mm

5.0 mil

PDF417

6.67 mil

PDF417 7.5 mil

Code 39

10 mil

PDF417

13 mil

UPC-A

15 mil

PDF417

.0 mil

ode 39

20 mil

Code 39

1 SKORPIO™ X3

124

6 TEST CODES

High Density Codes

0.25 mm (10 mils)

Code 39

!17162H!

17162

2/5 Interleaved

Ë"8NduÌ

0123456784

Code 128

ÌtestwÎ

test

80%

EAN 13 x(0B2DE5*KKKKLM(

80%

EAN 8 (6450*TRMN(

TEST CODES

125

Medium Density Codes

0.38 mm (15 mils)

Code 39

!17162H!

17162

Interleaved 2/5

Ë"8NduÌ

0123456784

Code 128

ÌtestwÎ

test

100%

EAN 13 x(0B2DE5*KKKKLM(

100%

EAN 8 (6450*TRMN(

1 SKORPIO™ X3

126

Low Density Codes

0.50 mm (20 mils)

Code 39

!17162H!

17162

Interleaved 2/5

Ë"8NduÌ

0123456784

Code 128

ÌtestwÎ

test

120%

EAN 13 x(0B2DE5*KKKKLM(

120%

EAN 8 (6450*TRMN(

TEST CODES

127

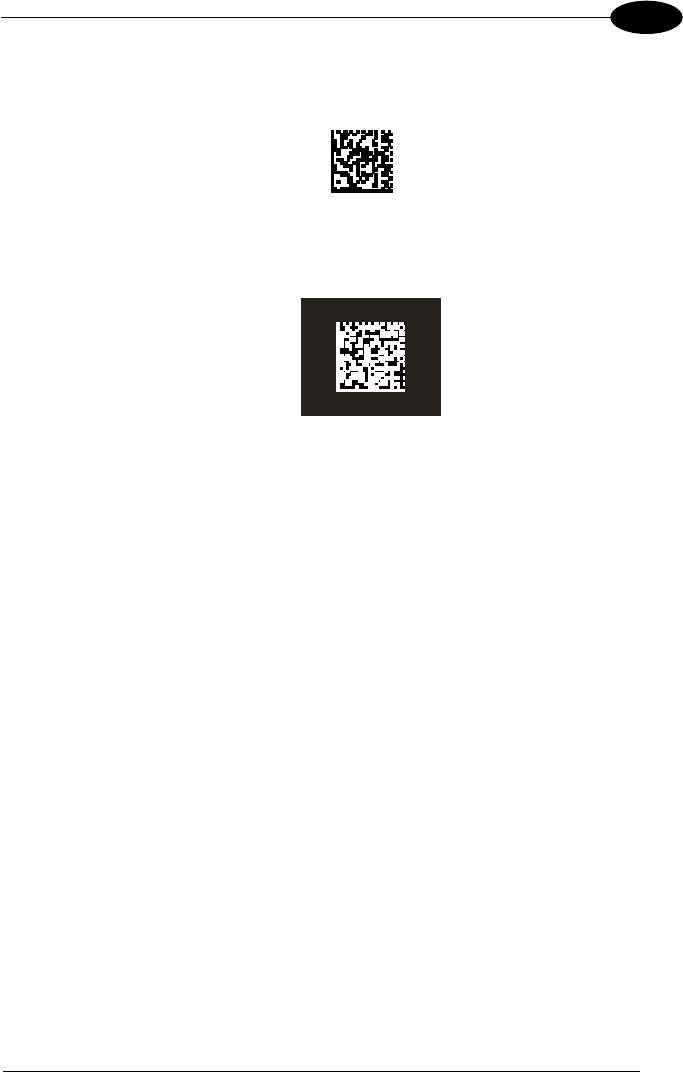

2D Codes

Datamatrix ECC200

Example

Inverse

Datamatrix ECC200

Example

128

DECODING PARAMETERS

This section contains information about programmable settings for the Skorpio X3™.

Use the Skorpio X3™ Management Utility (FMU), the Scanner Control Panel applet,

the Imaging Control Panel applets to program the Skorpio X3™.

It provides the following information:

 Code Parameter is the “human” name for the programming option.

 I.D. # is the “decoder” name for the programming option. For example, to set a

Code 39 minimum label length, use I.D. 0120. Programming I.D. numbers given

in this appendix can be used with all programming methods. Note that the

Programming I.D. numbers are provided in hexadecimal notation.

 Type tells what kind of setting to use for each code parameter.

 On/Off is a toggle. 1 turns the parameter on, and 0 turns it off.

 Acceptable Input gives the settings or range of settings for each code

parameter.

 Defaults indicates how the parameter is set when the predefined default FF39,

FF3A, or FF3B is selected.

 Minimum (FF39) turns every on/off parameter off and sets all minimum and

Maximum Label Lengths to the lowest values.

 Maximum (FF3A) turns every on/off parameter on, sets all Minimum Label

Lengths to the lowest values, and sets all Maximum Label Lengths to the highest

values. Use this default for troubleshooting; it provides the best settings for

reading an unknown code symbology and can identify the symbology of scanned

bar codes.

 Factory (FF3B) is the factory setting installed on the Skorpio X3™. This default

set will work for most applications. To reset the Skorpio X3™ the original

defaults, scan the Factory bar code

 Scanner Type shows, with a checkmark, which modules support the

specified parameter.

129

PROGRAMMING CODES WITHOUT PARAMETERS

The following table describes the functions of special bar codes that take no

parameters:

Code

Parameter I.D. # Function

Defaults

Minimum FF39 Turns every On/Off parameter off and sets all minimum and

Maximum Label Lengths to the lowest values.

Defaults

Maximum FF3A

Turns every On/Off parameter on and sets all minimum and

Maximum Label Lengths to the highest values. This default set is

normally used only for troubleshooting. It gives the best chance of

reading an unknown bar code symbology and also identifies the

symbology of each bar code scanned.

Defaults

Factory FF3B This is the default parameter settings that was installed at the

factory. This default set will work for most applications.

Defaults

Registry FF3C

This restores all parameter settings to the values that exist in the

Registry. This is useful for restoring parameters to a known working

set of values which have been saved using code parameter FF3F.

Exit and

Restore FF3D Stops a label programming sequence and restores all parameter

settings to the values that exist in the Registry.

Exit and

Save FF3E Stops a label programming sequence. The last valid parameter

settings are left intact.

Exit and

Commit FF3F

Stops a label programming sequence and writes all parameter

settings into the Registry. This can be used to save a customized

set of parameter settings for restoring later via parameter FF3C.

130

BAR CODE PARAMETERS

The following table lists the standard customer programmable settings for the

Skorpio X3™:

Codabar

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the

Codabar symbology. 0300 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0301 On or Off Off On Off √

Enable

Checksum

Requires the use of

checksum characters to

verify a bar code.

0302 On or Off Off Off Off √ √

Send

Checksum

Instructs the terminal to

include the checksum in

the label transmission.

0303 On or Off Off Off Off √ √

Send Start/

Stop

Instructs the decoder to

transmit the decoded start

and stop characters of

Codabar labels. The start

and stop characters will

both be translated as A, B,

C, or D.

0305 On or Off Off On Off √ √

Convert to

CLSI

Restricts the Codabar

decoder to only read labels

that conforms to CLSI

specifications. Label length

must be 14, and the data is

split into fields of 1, 4, 5,

and 4 characters separated

by spaces.

0306 On or Off Off Off Off √ √

Allow Wide

Intercharacter

Gaps

Allows wide gaps to appear

between characters in a

label. 0307 On or Off Off On On √ √

Minimum

Label

Length

Set the minimum label

length to be less than or

equal to maximum label

length.

0320 01 - 50 01 01 04 √ √

131

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Maximum

Label

Length

This feature specifies the

maximum allowable length

of a Codabar label.

The length includes check

and data characters.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0321 01 - 50 01 50 20 √ √

Read

Verification

Sets the number of times a

label must be read before it

is transmitted.

0322 01 - 04 01 02 01 √ √

User ID

Specifies the symbology

identifier (if any) that is sent

when parameter Send

Code ID (Index 0025) is set

to 3. ASCII code zero (null)

is used to indicate that an

identifier is not to be sent

for the symbology.

0323

Any

single

ASCII

character

(00 = Off)

‘I’ ‘I’ ‘I’ √ √

132

Code 39

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the Code

39 symbology. 0100 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0101 On or Off Off On Off √

Enable

Checksum

Requires the use of

checksum characters to

verify a bar code.

0102 On or Off Off Off Off √ √

Send

Checksum

Instructs the terminal to

include the checksum in the

label transmission.

0103 On or Off Off Off Off √ √

Full ASCII

Mode

Supports the entire ASCII

character set by replacing

various encoded ASCII

characters with their

corresponding.

0105 On or Off Off On On √ √

Minimum

Label

Length

Set the minimum label

length to be less than or

equal to maximum label

length.

0120 01 - 50 01 01 01 √ √

Maximum

Label

Length

This feature specifies the

maximum allowable length

of a Code 39 label. The

length includes check and

data characters. Maximum

Label Length should be

greater than or equal to

Minimum Label Length.

0121 01 - 50 01 50 20 √ √

Read

Verification

Sets the number of times a

label must be read before it

is transmitted.

0122 01 - 04 01 02 01 √ √

User ID

Specifies the symbology

identifier (if any) that is sent

when parameter Send Code

ID (Index 0025) is set to 3.

ASCII code zero (null) is

used to indicate that an

identifier is not to be sent for

the symbology.

0123

Any

single

ASCII

character

(00 = Off)

‘C’ ‘C’ ‘C’ √ √

133

Pharmacode 39 (Code 32)

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept. Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/ disables the

Pharmacode 39 (Code 32)

symbology.

0110 On or Off Off On Off √ √

Send

Checksum

Instructs the terminal to

include the checksum in

the label transmission.

0112 On or Off Off Off Off √ √

Send Start/

Stop

Instructs terminals to prefix

a Pharmacode 39 label

with an “A” prior to

transmission.

0113 On or Off Off On Off √ √

User ID

Specifies the symbology

identifier (if any) that is sent

by the decoder when

parameter Send Code ID

(Index 0025) is set to 3.

ASCII code zero (null) is

used to indicate that an

identifier is not to be sent

for the symbology.

0127

Any

single

ASCII

character

(00 = Off)

‘Y’ ‘Y’ ‘Y’ √ √

134

Trioptic

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the

Trioptic symbology. 0108 On or Off Off On Off √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0109 On or Off Off On Off √

Read

Verification

Sets the number of times

a label must be read

before it is transmitted.

0124 01 - 04 01 02 01 √ √

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter

Send Code ID (Index

0025) is set to 3. ASCII

code zero (null) is used to

indicate that an identifier is

not to be sent for the

symbology.

0125

Any

single

ASCII

character

(00 = Off)

‘X’ ‘X’ ‘X’ √ √

135

Code 93

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the Code

93 symbology. 0400 On or Off Off On Off √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0401 On or Off Off On Off √

Minimum

Label

Length

Set the minimum label

length to be less than or

equal to maximum label

length.

0420 01 - 50 01 01 02 √ √

Maximum

Label

Length

This feature specifies the

maximum allowable length

of a Code 93 label.

The length includes check

and data characters.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0421 01 - 50 01 50 20 √ √

Read

Verification

Sets the number of times a

label must be read before it

is transmitted.

0422 01 - 04 01 02 01 √ √

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0423

Any

single

ASCII

character

(00 = Off)

‘L’ ‘L’ ‘L’ √ √

136

Code 128

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the Code 128

symbology. 0408 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive decoding

algorithms to be used in order to

scan hard to read labels.

0409 On or Off Off On Off √

GS1-128

Enable Enable GS1-128 variant of Code

128 (independent of Code 128). 040C On or Off Off On Off √ √

Code 128

Extended

ASCII Enable

Enable Extended ASCII character

conversion. This enables the ability

of Code 128 labels to use the FNC4

character to encode Extended ASCII

characters, as defined by the latest

Code 128 symbology specification.

040F On or Off Off On On √

Minimum

Label

Length

Set the minimum label length to be

less than or equal to maximum label

length.

0424 01 - 80 01 01 02 √ √

Maximum

Label

Length

This feature specifies the maximum

allowable length of a Code 128

label. The length includes check and

data characters. Maximum Label

Length should be greater than or

equal to Minimum Label Length.

0425 01 - 80 01 80 40 √ √

Read

Verification

Sets the number of times a label

must be read before it is transmitted. 0426 01 - 04 01 02 01 √ √

User ID

Specifies the symbology identifier (if

any) that is sent when parameter

Send Code ID (Index 0025) is set to

3. ASCII code zero (null) is used to

indicate that an identifier is not to be

sent for the symbology.

0427

Any

single

ASCII

character

(00 = Off)

‘K’ ‘K’ ‘K’ √ √

137

European Article Numbering-13 (EAN-13)

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the EAN-

13 symbology. 0510 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0511 On or Off Off On Off √ √

Send

Check Digit

Includes a check digit in

the label which is

transmitted.

0512 On or Off Off On Off √ √

Send System

Digit

This instructs the decoder

to include the system digit

in the label transmission.

For UPC-E, the system

digit is zero.

0513 On or Off Off On On √ √

Convert EAN-

13 to ISBN

This instructs the decoder

to identify ISBN labels and

append the check digit (per

ISBN guidelines) to the

end of the label.

0514 On or Off Off Off Off √ √

Convert EAN-

13 to ISSN

This instructs the decoder

to identify ISSN labels and

append the check digit (per

ISSN guidelines) to the

end of the label.

0515 On or Off Off Off Off √ √

Enable EAN 4-

Digit Price/

Weight Check

Digit

Requires the use of a 4-

digit price/ weight check

digit to verify a bar code.

0516 On or Off Off Off Off √

Enable EAN 5-

Digit Price/

Weight Check

Digit

Requires the use of a 5-

digit price/ weight check

digit to verify a bar code.

0517 On or Off Off Off Off √

Read

Verification

Sets the number of times a

label must be read before

it is transmitted.

0524 01 - 04 01 02 01 √

User ID

Specifies the symbology

identifier (if any) that is

sent by the decoder when

parameter Send Code ID

(Index 0025) is set to 3.

ASCII code zero (null) is

used to indicate that an

identifier is not to be sent

for the symbology.

0525

Any

single

ASCII

character

(00 = Off)

‘M’ ‘M’ ‘M’ √ √

138

European Article Numbering-8 (EAN-8)

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the EAN-

8 symbology. 0518 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0519 On or Off Off On Off √ √

Send

Check Digit

Instructs the terminal to

include the check digit in

the label transmission.

051A On or Off Off On Off √ √

Convert EAN-8

to EAN-13

Instructs the decoder to

expand EAN-8 labels to

their EAN-13 equivalents.

Any EAN-13 parameters

will then apply to the

result.

051B On or Off Off On Off √ √

Read

Verification

Sets the number of times

a label must be read

before it is transmitted.

0526 01 - 04 01 02 01 √

User ID

Specifies the symbology

identifier (if any) that is

sent by the decoder when

parameter Send Code ID

(Index 0025) is set to 3.

ASCII code zero (null) is

used to indicate that an

identifier is not to be sent

for the symbology.

0527

Any

single

ASCII

character

(00 = Off)

‘G’ ‘G’ ‘G’ √ √

139

Universal Product Code-A (UPC-A)

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept. Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the

UPC-A symbology. 0500 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0501 On or Off Off On Off √ √

Send

Check Digit

Includes check digit in the

label which is transmitted. 0502 On or Off Off On Off √ √

Send System

Digit

Includes the system digit

in the label transmission.

For UPC-A, the system

digit is always zero.

0503 On or Off Off On On √ √

Convert

UPC-A to

EAN-13

Instructs the decoder to

expand UPC-A labels to

their EAN-13 equivalents.

Any EAN-13 parameters

will then apply to the

result.

0504 On or Off Off On Off √ √

Read

Verification

Sets the number of times

a label must be read

before it is transmitted.

0520 01 - 04 01 02 01 √

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter

Send Code ID (Index

0025) is set to 3. ASCII

code zero (null) is used to

indicate that an identifier is

not to be sent for the

symbology.

0521

Any

single

ASCII

character

(00 = Off)

‘A’ ‘A’ ‘A’ √ √

140

Universal Product Code-E (UPC-E)

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable System

Digit 0

Enables/ disables UPC-E

labels with a system digit

of zero.

0508 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0509 On or Off Off On Off √ √

Send

Check Digit

Includes the check digit in

the label which is

transmitted.

050A On or Off Off On Off √ √

Send System

Digit

This instructs the decoder

to include the system digit

in the label transmission.

For UPC-E, the system

digit is zero.

050B On or Off Off On Off √ √

Convert

UPC-E to

UPC-A

Instructs the decoder to

expand UPC-E labels to

their UPC-A equivalents.

Any UPC-A parameters

will then apply to the

result.

050C On or Off Off On Off √ √

Read

Verification

Sets the number of times a

label must be read before

it is transmitted.

0522 01 - 04 01 02 01 √

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0523

Any

single

ASCII

character

(00 = Off)

‘E’ ‘E’ ‘E’ √ √

141

UPC / EAN Extensions

Defaults Scanner

Type

Code Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable 2-

Digit

Extensions

Requires a 2 digit extension

(supplemental label) to be

verified for a successful

decode of a label.

051C On or Off Off On On √ √

Enable 5-

Digit

Extensions

Requires a 5 digit extension

(supplemental label) to be

verified for a successful

decode of a label.

051D On or Off Off On Off √ √

Require

Extensions

Instructs the decoder to

require any enabled

UPC/EAN extensions

(supplemental labels) to be

with a label in order for a

scan to be successful.

051F On or Off Off On Off √ √

Read

Verification

Sets the number of times an

extension (supplemental

label) must be read before it

is included in the

transmission of the base

UPC/EAN label.

0528 01 - 04 01 02 01 √ √

142

Interleaved 2 of 5

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/ disables the

Interleaved 2 of 5

symbology. 0210 On or Off Off On On √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0211 On or Off Off On Off √

Enable

Checksum

Requires the use of

checksum characters to

verify a bar code.

0212 On or Off Off Off Off √ √

Send

Checksum

Instructs the terminal to

include the checksum in

the label transmission.

0213 On or Off Off Off Off √ √

Enable Case

Code

Restricts Interleaved 2 of 5

label lengths to only 6 and

14 data characters.

Enabling this parameter

overrides the minimum and

maximum length values.

0214 On or Off Off Off Off √ √

Minimum

Label

Length

Set the minimum label

length to be less than or

equal to maximum label

length.

0228 02 - 50 02 02 06 √ √

Maximum

Label

Length

This feature specifies the

maximum allowable length

of an Interleaved 2 of 5

label.

The length includes check

and data characters.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0229 02 - 50 02 50 10 √ √

Read

Verification

Sets the number of times a

label must be read before it

is transmitted.

022A 01 - 04 01 02 01 √ √

143

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

User ID

Specifies the symbology

identifier (if any) that is

sent by the decoder when

parameter Send Code ID

(Index 0025) is set to 3.

ASCII code zero (null) is

used to indicate that an

identifier is not to be sent

for the symbology.

022B

Any

single

ASCII

character

(00 = Off)

‘B’ ‘B’ ‘B’ √ √

144

Standard 2 of 5

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the

Standard 2 of 5 symbology. 0200 On or Off Off On Off √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0201 On or Off Off On Off √

Enable

Checksum

Requires the use of

checksum characters to

verify a bar code.

0202 On or Off Off Off Off √

Send

Checksum

Instructs the terminal to

include the checksum in

the label transmission.

0203 On or Off Off Off Off √

Use 2-bar

Start/Stop

Allows the terminal to

recognize labels that are

printed using only two bars

for start/stop characters.

0204 On or Off Off Off Off √

Minimum

Label

Length

Set the minimum label

length to be less than or

equal to maximum label

length.

0220 01 - 50 01 01 06 √ √

Maximum

Label

Length

This feature specifies the

maximum allowable length

of a Standard 2 of 5 label.

The length includes check

and data characters.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0221 01 - 50 01 50 10 √ √

Read

Verification

Sets the number of times a

label must be read before it

is transmitted.

0222 01 - 04 01 02 01 √ √

User ID

Specifies the symbology

identifier (if any) that is sent

when parameter Send

Code ID (Index 0025) is set

to 3. ASCII code zero (null)

is used to indicate that an

identifier is not to be sent

for the symbology.

0223

Any

single

ASCII

character

(00 = Off)

‘F’ ‘F’ ‘F’ √ √

145

Matrix 2 of 5

Defaults Scanner

Type

Code Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/ disables the Matrix

2 of 5 symbology. 0208 On or Off Off On Off √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard to

read labels.

0209 On or Off Off On Off √

Enable

Checksum

Requires the use of

checksum characters to

verify a bar code.

020A On or Off Off Off Off √ √

Send Checksum Instructs the terminal to

include the checksum in the

label transmission.

020B On or Off Off Off Off √ √

Minimum

Label

Length

Set the minimum label length

to be less than or equal to

maximum label length.

0224 01 - 50 01 01 06 √ √

Maximum

Label

Length

This feature specifies the

maximum allowable length of

a Matrix 2 of 5 label. The

length includes check and

data characters. Maximum

Label Length should be

greater than or equal to

Minimum Label Length.

0225 01 - 50 01 50 10 √ √

Read

Verification

Sets the number of times a

label must be read before it

is transmitted.

0226 01 - 04 01 02 01 √ √

User ID

Specifies the symbology

identifier (if any) that is sent

by the decoder when

parameter Send Code ID

(Index 0025) is set to 3.

ASCII code zero (null) is

used to indicate that an

identifier is not to be sent for

the symbology.

0227

Any

single

ASCII

character

(00 = Off)

‘D’ ‘D’ ‘D’ √ √

146

MSI

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept. Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/ disables the MSI

symbology. 0608 On or Off Off On Off √ √

Enable

Aggressive

Decoding

Enables more aggressive

decoding algorithms to be

used in order to scan hard

to read labels.

0609 On or Off Off On Off √

Require 2

Check Digits

An MSI label must contain 2

check digits. 060A On or Off Off Off Off √ √

Send Check

Digits

This instructs the decoder

to include any enabled

check digit(s) in the label

which is transmitted.

060B On or Off Off On Off √ √

2nd Check Digit

Mod 11

Instructs the decoder to

interpret any second MSI

check digit as modulo 11

instead of modulo 10

060C On or Off Off Off Off √ √

Minimum

Label

Length

Set the minimum label

length to be less than or

equal to maximum label

length.

0624 01 - 15 01 01 04 √ √

Maximum

Label

Length

This feature specifies the

maximum allowable length

of an MSI label. The length

includes check and data

characters. Maximum Label

Length should be greater

than or equal to Minimum

Label Length.

0625 01 - 15 01 15 10 √ √

Read

Verification

Sets the number of times a

label must be read before it

is transmitted.

0626 01 - 04 01 02 01 √ √

User ID

Specifies the symbology

identifier (if any) that is sent

by the decoder when

parameter Send Code ID

(Index 0025) is set to 3.

ASCII code zero (null) is

used to indicate that an

identifier is not to be sent

for the symbology.

0627

Any

single

ASCII

character

(00 = Off)

‘H’ ‘H’ ‘H’ √ √

147

GS1 DataBar-14

Defaults Scanner

Type

Code Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/ disables the GS1

DataBar -14 symbology. 0800 On or Off Off On On √ √

Convert to

GS1-128

Instructs the decoder to

transmit the label data as

one or more GS1-128

labels.

0804 On or Off Off On Off √ √

NOTE

If GS1 DataBar-14, GS1 DataBar Expanded, GS1 DataBar Limited, or GS1 DataBar

Composite symbologies are enabled for GS1-128, then that setting is also enabled for all

other GS1 DataBar symbologies.

For the 2D Imager, GS1 DataBar Expanded’s User ID is used for GS1 DataBar-14.

148

GS1 DataBar Limited

Defaults Scanner

Type

Code Parameter Description I.D.# Accept.

Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the GS1

DataBar Limited symbology. 0808 On or Off Off On On √ √

Convert to

GS1-128

Instructs the decoder to

transmit the label data as

one or more GS1-128

labels. The transmission will

use the UCC-128 AIM

identifier.

080C On or Off Off On Off √ √

NOTE

If GS1 DataBar-14, GS1 DataBar Expanded, GS1 DataBar Limited, or GS1 DataBar

Composite symbologies are enabled for GS1-128, then that setting is also enabled for

all other GS1 DataBar symbologies.

For the 2D Imager, GS1 DataBar Expanded’s User ID is used for GS1 DataBar-14.

149

GS1 DataBar Expanded

Defaults Scanne

r Type

Code

Parameter Description I.D.# Accept. Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Enables/disables the GS1

DataBar Expanded

symbology.

0810 On or Off Off On On √ √

Convert to

GS1-128

Instructs the decoder to

transmit the label data as

one or more GS1-128

labels.

0814 On or Off Off On Off √ √

Minimum

Sets the minimum bar code

label length to be less than

or equal to maximum label

length.

0824 1 - 74 01 01 01 √ √

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0825 1 - 74 01 74 74 √ √

User Code ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is set

to 3. ASCII code zero (null)

is used to indicate that an

identifier is not to be sent

for the symbology.

0827

Any

single

ASCII

character

(00 = Off)

‘R’ ‘R’ ‘R’ √ √

150

PROGRAMMABLE 2D SYMBOLOGIES

Aztec Code

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

Aztec

Code

Enable

Enables/disables the Aztec

symbology. 0B18 On or Off Off On On √

Aztec

Code Minimum

Set the minimum bar code

label length to be less than

or equal to maximum label

length.

0B2C 1-3750 1 1 1 √

Aztec

Code

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0B2D 1-3750 1 3750 3750 √

Aztec

Code User

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0B2F

Any

single

ASCII

character

(00 = Off)

‘d’ ‘d’ ‘d’ √

151

Data Matrix

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

Data Matrix

Enable

Enables/ disables the Data

Matrix symbology. 0B00 On or Off Off On On √

Data Matrix

Minimum

Set the minimum bar code

label length to be less than

or equal to maximum label

length.

0B20 1-1500 1 1 1 √

Data Matrix

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0B21 1-1500 1 1500 1500 √

Data Matrix

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0B23

Any

single

ASCII

character

(00 = Off)

‘V’ ‘V’ ‘V’ √

152

Composite

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

Composite

Enable

Enables/disables the

Composite symbology. 0A10 On or Off Off On Off √

Composite to

GS1-128

Instructs the decoder to

transmit the label data as

one or more GS1-128

labels.

0A14 On or Off Off Off Off √

Composite

Minimum

Set the minimum bar code

label length to be less than

or equal to maximum label

length.

0A28 1-2435 1 1 1 √

Composite

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0A29 1-2435 1 2435 2435 √

Composite

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0A2B

Any

single

ASCII

character

(00 = Off)

‘b’ ‘b’ ‘b’ √

NOTE: For the 2D Imager, GS1 DataBar Expanded’s User ID is used for Composite when User

ID is selected as the symbology ID.

153

MaxiCode

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

MaxiCode

Enable

Enables/ disables the

MaxiCode symbology. 0B08 On or Off Off On On √

Minimum

Label Length

Set the minimum bar code

label length to be less than

or equal to maximum label

length.

0B24 1-138 1 1 1 √

MaxiCode

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0B25 1-138 1 138 138 √

MaxiCode

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0B27

Any

single

ASCII

character

(00 = Off)

‘W ‘W’ ‘W’ √

154

PDF417

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

PDF417

Enable

Enables/disables the

PDF417 symbology. 0A00 On or Off Off On On √

PDF417

Minimum

Set the minimum bar code

label length to be less than

or equal to maximum label

length.

0A20 1 - 2710 1 1 1 √

PDF417

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0A21 1 - 2710 1 2710 2710 √

PDF417

User Code ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0A23

Any

single

ASCII

character

(00 = Off)

‘S’ ‘S’ ‘S’ √

155

MicroPDF417

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

MicroPDF417

Enable

Enables/disables the

MicroPDF417 symbology. 0A08 On or Off Off On Off √

MicroPDF417

Minimum

Set the minimum bar code

label length to be less than

or equal to maximum label

length.

0A24 1 - 366 1 1 1 √

MicroPDF417

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0A25 1 - 366 1 366 366 √

MicroPDF417

User

Code ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0A27

Any

single

ASCII

character

(00 = Off)

‘a’ ‘a’ ‘a’ √

156

QR Code

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

QR Code

Enable

Enables/disables QR Code

symbology. 0B10 On or Off Off On Off √

QR Code

Minimum

Set the minimum bar code

label length to be less than

or equal to maximum label

length.

0B28 1 - 3500 1 1 1 √

QR Code

Maximum

This feature specifies the

maximum allowable length

of a label. The length

includes check and data

characters, if applicable.

Maximum Label Length

should be greater than or

equal to Minimum Label

Length.

0B29 1 - 3500 1 3500 3500 √

QR Code

User ID

Specifies the symbology

identifier (if any) that is

sent when parameter Send

Code ID (Index 0025) is

set to 3. ASCII code zero

(null) is used to indicate

that an identifier is not to

be sent for the symbology.

0B2B

Any

single

ASCII

character

(00 = Off)

‘c’ ‘c’ ‘c’ √

Micro QR Code

Enable Enables/disables Micro QR

Code symbology. 0B14 On or Off Off On Off √

157

POSTAL CODES

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

US POSTNET

Enable Enables/ disables

POSTNET symbology. 0910 On or Off Off On On √

US PLANET

Enable Enables/ disables PLANET

symbology. 0911 On or Off Off On On √

US Postal Send

Chk Transmit US Postal Code

check digit. 0912 On or Off Off On On √

USPS

Intelligent Mail

Enable

Enables/ disables USPS

Intelligent Mail symbology. 0913 On or Off Off On On √

UPU FICS

Enable Enables/ disables UPU

FICS symbology. 0914 On or Off Off On Off √

Royal Mail

Enable Enables/ disables Royal

Mail symbology. 0915 On or Off Off On On √

Royal Mail

Send Chk Transmit Royal Mail

symbology check digits. 0916 On or Off Off On Off √

Australian

Postal Enable

Enables/ disables

Australian Postal

symbology.

0917 On or Off Off On Off √

KIX Enable Enables/ disables KIX

symbology. 0918 01 - 04 01 02 01 √

Postal Code

Redundancy

Required number of

matching reads (more than

differing reads).

0928 01 - 04 01 02 01 √

Postal Code

User ID User defined symbology ID

for Postal Codes. 0929

Any

single

ASCII

character

(00 = Off)

‘f’ ‘f’ ‘f’ √

158

IMAGING CONTROLS

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept.

Input

Min

Max

Factory

2D Imager

Enter 1 for On and 0 for Off

Imager

Illuminate

Enable

Instructs the PDT to

illuminate the scanning

area (independent of any

targeting beam) when using

an imager.

0008 On or Off On On On √

Imager Aim

Mode

Toggles between two

different operating modes

for the targeting beam:

Concurrent (Off): The

targeting beam is turned on

at the same time as an

enabled illumination beam.

"Release Scan" (On) turns

off the targeting pattern

after trigger release..

0009 On or Off On On On √

Enable Aiming

Beam

Enable the use of a target

beam and enables Pick List

Mode, which decodes only

the bar code label

immediately under the

targeting cross.

000A On or Off On On On √

159

OTHER CONTROLS

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept. Input

Min

Max

Factory

Laser

2D Imager

Enter 1 for On and 0 for Off

Enable Label

Programming

Enables/disables

the ability to

perform label

programming.

FF00 On or Off On On On √ √

Send

Symbology

Identifiers

Specifies the

symbology

identifier (if any)

that is sent by the

decoder when

parameter Send

Code ID (Index

0025) is set to 3.

ASCII code zero

(null) used to

indicate an

identifier not to be

sent for the

symbology.

0025

Select symbology

identifier to transmit

immediately preceding

scanned data:

0=None

1=DLM identifier before

label: <ID> " " <data>

2=AIM identifier before

label: "]" <ID>

3=User defined identifier

before label: <ID>

<data>

4=DLM identifier after

label: <data> " " <ID>

5=AIM identifier after

label: <data> "]" <ID>

6=User defined identifier

after label: <data> <ID>

00 01 00 √ √

Label Prefix

Character string

sent immediately

prior to

symbology

identifier

(0=None).

0026 A string of Unicode

characters. NUL NUL NUL √ √

Label Suffix*

Character string

sent immediately

after final

character in data

(0=None).

0027 A string of Unicode

characters. CR+LF CR+LF CR+LF √ √

Label

Separator

Character string

sent after each

string in a sample

where multiple

strings exist.

0028 Any single ASCII

character (00 = Off). CR CR CR √ √

Only a single character can be programmed with a programming label; strings can only be programmed in the

Decoding control panel applet.

160

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept. Input

Min

Max

Factory

Laser

2D Imager

Automatic

Good Read

Enable automatic

Good Read on a

successful read.

0010 On or Off On On On √ √

Enable Green

Spot

Enable Green

Spot with Good

Read.

0011 On or Off On On On √ √

Enable Good

Read LED Enable LED with

Good Read. 0013 On or Off Off On On √ √

Enable Good

Read Vibrate

Enable

Enable Vibration

with Good Read. 0012 On or Off Off On On √ √

Remove Non-

Printables

Removes all

characters in the

range 0x00 - 0x31

or 0x7F - 0x9F

from the label

data. The

min/max length

checks made for

each symbology

are made before

any characters

are removed.

Characters in the

code ID, prefix,

suffix, or

separator will not

be removed.

0018 On or Off Off Off Off √ √

Group

Separator

Substitution

Each occurrence

of the GS

character (ASCII

code 0x1D) in the

label data will be

substituted for the

character defined

by this

parameter. The

value 0 (NUL) is

considered a valid

replacement

character and

cannot be used to

remove GS

characters.

002C

The maximum number

of data characters is

127. All defined Unicode

characters are valid.

GS GS GS √ √

Only a single character can be programmed with a programming label; strings can only be programmed in the

Decoding control panel applet.

161

Defaults Scanner

Type

Code

Parameter Description I.D.# Accept. Input

Min

Max

Factory

Laser

2D Imager

Decode

Timeout

Defines the

maximum time

the scanner will

remain on without

reading a

barcode. This

value does not

include time spent

with a spot beam

(1D scanner) or

target pattern (2D

scanner)

002D

2 to 40 (step=1)

2 = 500 ms

40 = 10000 ms

20 20 20 √ √

Beeper Volume Defines the

volume of

decoding sounds.

FF20

0 to 7 = Soft to Loud

8 = lowers the volume

by 1

9 = raises the volume

by 1

7 7 7 √ √

Long Range

Spot Enable

Enable the use of

a spot beam, if

detected.

0001 On or Off Off Off Off √

Long Range

Release Time

Maximum time

laser is on after

trigger release

using Release

Scan spot beam

mode.

0024 1-5 2 2 2 √

Target Release

Time

Maximum time (in

seconds) imager

is on after trigger

release using

Release Scan

target beam

mode.

002A 1-5 2 2 2 √

162

DATALOGIC MOBILE LABEL IDS

Datalogic Mobile Label IDs

UPC-A = A Matrix 2 of 5 = D Data Matrix = v

UPC-E = E Code 93 = L Composite = s

EAN-8 = G MSI = H MaxiCode = w

EAN 13 = M Trioptic = X PDF417 = s

Code 39 = C Pharmacode 39 = Y MicroPDF417 = a

Codabar = I GS1 DataBar-14 = P QR Code = c

Code 128 = K GS1 DataBar Limited = Q Postal Codes = f

Interleaved 2 of 5 = B GS1 DataBar Expanded = R

Standard 2 of 5 = F Aztec Code = d

163

SAFETY REGULATIONS

NOTE

Read this manual carefully before performing any type of connection

to the Skorpio X3 mobile computer.

The user is responsible for any damage caused by incorrect use of

the equipment or by inobservance of the indication supplied in this

manual.

GENERAL SAFETY RULES

 Use only the components supplied by the manufacturer for the specific

Skorpio X3 being used.

 Do not attempt to disassemble the Skorpio X3 mobile computer, as it does not

contain parts that can be repaired by the user. Any tampering will invalidate the

warranty.

 When replacing the battery pack or at the end of the operative life of the

Skorpio X3 mobile computer, disposal must be performed in compliance with the

laws in force.

 Before using the devices and the battery packs, read chap. 2.

 Do not submerge the Skorpio X3 in liquid products.

 For further information, refer to this manual and to the Datalogic Mobile web site:

http://www.adc.datalogic.com/.

POWER SUPPLY

This device is intended to be supplied by a self-contained rechargeable lithium-ion

battery pack (SELV, LPS) and/or by UL Listed/CSA Certified Power Unit marked

“Class 2” or LPS power source which supplies power directly to the unit via the power

connector of the cable.

164

LASER SAFETY

The laser light is visible to the human eye and is emitted from the window indicated in

the figure.

This information applies to both the Skorpio X3 models with laser and Imager Aiming

System.

Laser out

ut windo

165

I D F E

La luce laser è visibile

all'occhio umano e viene

emessa dalla finestra

indicata nella figura.

Die Laserstrahlung ist für

das menschliche Auge

sichtbar und wird am

Strahlaustrittsfenster

ausgesendet (siehe Bild).

Le rayon laser est visible

à l'oeil nu et il est émis

par la fenêtre désignée

sur l'illustration dans la

figure.

La luz láser es visible al

ojo humano y es emitida

por la ventana indicada

en la figura.

LUCE LASER

NON FISSARE IL FASCIO

APPARECCHIO LASER DI

CLASSE 2

MASSIMA POTENZA DI

USCITA: 1 mW

LUNGHEZZA D'ONDA

EMESSA: 630~680 nm

CONFORME A EN 60825-1

(2007)

LASERSTRAHLUNG

NICHT IN DER STRAHL

BLINKEN

PRODUKT DER

LASERKLASSE 2

MAXIMALE

AUSGANGLEISTUNG: 1 mW

WELLENLÄNGE:

630~680 nm

ENTSPR. EN 60825-1

(2007)

RAYON LASER

EVITER DE REGARDER

LE RAYON

APPAREIL LASER DE

CLASSE 2

MAXIMUM PUISSANCE DE

SORTIE: 1 mW

LONGUER D'ONDE EMISE:

630~680 nm

CONFORME A EN 60825-1

(2007)

RAYO LÁSER

NO MIRAR FIJO EL RAYO

APARATO LÁSER DE

CLASE 2

MÁXIMA POTENCIA DE

SALIDA: 1 mW

LONGITUD DE ONDA

EMITIDA: 630~680 nm

CONFORME A EN 60825-1

(2007)

166

ENGLISH

The following information is provided to comply with the rules imposed by

international authorities and refers to the correct use of your mobile computer.

STANDARD LASER SAFETY REGULATIONS

This product conforms to the applicable requirements of both CDRH 21 CFR 1040

Subchapter J and EN 60825-1:2007 at the date of manufacture.

For installation, use and maintenance, it is not necessary to open the device.

CAUTION

Do not attempt to open or otherwise service any components in the

optics cavity. Opening or servicing any part of the optics cavity by

unauthorized personnel may violate laser safety regulations. The

optics system is a factory only repair item.

CAUTION

Use of controls or adjustments or performance of procedures other

than those specified herein may result in exposure to hazardous

visible laser light.

The product utilizes a low-power laser diode. Although staring directly at the laser

beam momentarily causes no known biological damage, avoid staring at the beam as

one would with any very strong light source, such as the sun. Avoid shining laser light

into any person's eye, even through reflective surfaces such as mirrors, etc.

CAUTION

Use of optical systems with the scanner will increase eye hazard.

Optical instruments include binoculars, microscopes, eye glasses and

magnifying glasses.

ITALIANO

Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e

si riferiscono all’uso corretto del terminale.

NORMATIVE STANDARD PER LA SICUREZZA LASER

Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data

di produzione: CDRH 21 CFR 1040 sezione J e EN 60825-1:2007.

Non si rende mai necessario aprire l’apparecchio per motivi di installazione, utilizzo o

manutenzione.

167

ATTENZIONE

Non tentare di accedere allo scomparto contenete i componenti

ottici o di farne la manutenzione.

L’apertura dello scomparto, o la manutenzione di qualsiasi parte

ottica da parte di personale non autorizzato, potrebbe violare le

norme della sicurezza. Il sistema ottico può essere riparato

solamente alla fabbrica.

ATTENZIONE

L'utilizzo di procedure o regolazioni differenti da quelle descritte

nella documentazione può provocare un'esposizione pericolosa a

luce laser visibile.

Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non siano noti danni

riportati dall’occhio umano in seguito ad una esposizione di breve durata, evitare di

fissare il raggio laser così come si eviterebbe qualsiasi altra sorgente di luminosità

intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un

osservatore, anche attraverso superfici riflettenti come gli specchi.

ATTENZIONE

L’uso di strumenti ottici assieme allo scanner può aumentare il

pericolo di danno agli occhi. Tali strumenti ottici includono

cannocchiali, microscopi, occhiali e lenti di ingrandimento.

DEUTSCH

Die folgenden Informationen stimmen mit den Sicherheitshinweisen überein, die von

internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten

Gebrauch vom Terminal.

NORM FÜR DIE LASERSICHERHEIT

Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1:2007 und

CDRH 21 CFR 1040 Subchapter J Normen für die Lasersicherheit.

Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-, und Wartungs-

Arbeiten zu öffnen.

168

ACHTUNG

Unter keinen Umständen darf versucht werden, die Komponenten

im Optikhohlraum zu öffnen oder auf irgendwelche andere Weise zu

warten. Das Öffnen bzw. Warten der Komponenten im

Optikhohlraum durch unbefugtes Personal verstößt gegen die

Laser-Sicherheitsbestimmungen. Das Optiksystem darf nur

werkseitig repariert werden.

ACHTUNG

Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht in

dieser Betriebsanleitung beschrieben werden, können ein

gefährliches Laserlicht verursachen.

Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von

kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere Zeit in den

Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne).

Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines Beobachters, noch

gegen reflektierende Oberflächen zu richten.

ACHTUNG

Die Verwendung von Optiksystemen mit diesem Scanner erhöht die

Gefahr einer Augenbeschädigung. Zu optischen Instrumenten

gehören unter anderem Ferngläser, Mikroskope, Brillen und

Vergrößerungsgläser.

FRANÇAIS

Les informations suivantes sont fournies selon les règles fixées par les autorités

internationales et se réfèrent à une correcte utilisation du terminal.

NORMES DE SECURITE LASER

Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de

fabrication: CDRH 21 CFR 1040 sous-chapitre J et EN 60825-1:2007.

Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou

l’entretien.

ATTENTION

Ne pas essayer d’ouvrir ou de réparer les composants de la cavité

optique. L’ouverture de la cavité optique ou la réparation de ses

composants par une personne non qualifiée peut entraîner le

nonrespect des règles de sécurité relatives au laser. Le système

optique ne peut être réparé qu’en usine.

169

ATTENTION

L'utilisation de procédures ou réglages différents de ceux donnés ici

peut entraîner une dangereuse exposition à lumière laser visible.

Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été

constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le

rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter aussi

de diriger le rayon vers les yeux d’un observateur, même à travers des surfaces

réfléchissantes (miroirs, par exemple).

ATTENTION

L’utilisation d’instruments optiques avec le scanneur augmente le

danger pour les yeux. Les instruments optiques comprennent les

jumelles, les microscopes, les lunettes et les verres grossissants.

ESPAÑOL

Las informaciones siguientes son presentadas en conformidad con las disposiciones

de las autoridades internacionales y se refieren al uso correcto del terminal.

NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER

Este aparato resulta conforme a las normativas vigentes de seguridad láser a la

fecha de producción: CDRH 21 CFR 1040 Sección J y EN 60825-1:2007.

No es necesario abrir el aparato para la instalación, la utilización o la manutención.

ATENCIÓN

No intente abrir o de ninguna manera dar servicio a ninguno de los

componentes del receptáculo óptico. Abrir o dar servicio a las

piezas del receptáculo óptico por parte del personal no autorizado

podría ser una violación a los reglamentos de seguridad. El sistema

óptico se puede reparar en la fábrica solamente.

ATENCIÓN

La utilización de procedimientos o regulaciones diferentes de

aquellas describidas en la documentación puede causar una

exposición peligrosa a la luz láser visible.

170

El aparato utiliza un diodo láser a baja potencia. No son notorios daños a los ojos

humanos a consecuencia de una exposición de corta duración. Eviten de mirar fijo el

rayo láser así como evitarían cualquiera otra fuente de luminosidad intensa, por

ejemplo el sol. Además, eviten de dirigir el rayo láser hacia los ojos de un

observador, también a través de superficies reflectantes como los espejos.

ATENCIÓN

El uso de sistemas ópticos con el escáner aumentará el riesgo de

daños oculares. Los instrumentos ópticos incluyen binoculares,

microscopios, lentes y lupas.

LED CLASS

LED illuminator integrated in the Skorpio X3 models with SE-4500 imager engine are

compliant with exempt risk group requirements according to EN62471:2008 and

IEC62471:2006.

171

RADIO COMPLIANCE

In radio systems configured with mobile computers and access points, the

frequencies to be used must be allowed by the spectrum authorities of the specific

country in which the installation takes place. Be absolutely sure that the system

frequencies are correctly set to be compliant with the spectrum requirements of the

country.

The Radio modules used in this product automatically adapt to the frequencies set by

the system and do not require any parameter settings.

172

Information for the User

ENGLISH

Contact the competent authority responsible for the management of radio frequency

devices of your country to verify any possible restrictions or licenses required. Refer

to the web site http://ec.europa.eu./ for further information.

ITALIANO

Contatta l'autorità competente per la gestione degli apparati a radio frequenza del tuo

paese, per verificare eventuali restrizioni o licenze. Ulteriori informazioni sono

disponibili sul sito:

http://ec.europa.eu./.

FRANÇAIS

Contactez l'autorité compétente en la gestion des appareils à radio fréquence de

votre pays pour vérifier d'éventuelles restrictions ou licences. Pour tout

renseignement vous pouvez vous adresser au site web:

http://ec.europa.eu./ DEUTSCH

Wenden Sie sich an die für Radiofrequenzgeräte zuständige Behörde Ihres Landes,

um zu prüfen ob es Einschränkungen gibt, oder eine Lizenz erforderlich ist. Weitere

Informationen finden Sie auf der Web Seite:

http://ec.europa.eu./.

ESPAÑOL

Contacta la autoridad competente para la gestión de los dispositivos de radio

frecuencia de tu país, para verificar cualesquiera restricciones o licencias posibles

requerida. Además se puede encontrar mas información en el sitio web:

http://ec.europa.eu./.

173

FCC COMPLIANCE

FCC Regulations

 This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

 This device has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiated radio frequency

energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation If this

equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for

compliance could void the user‘s authority to operate the equipment.

 The antenna(s) used for this transmitter must not be co-located or operating in

conjunction with any other antenna or transmitter.

174

RF EXPOSURE INFORMATION (SAR)

This model device meets the government’s requirements for exposure to radio

waves. This device is designed and manufactured not to exceed the emission limits

for exposure to radio frequency (RF) energy set by the Federal Communications

Commission of the U.S. Government.

The exposure standard for wireless devices employs a unit of measurement

known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC

is 1.6W/kg. *Tests for SAR are conducted using standard operating positions

accepted by the FCC with the device transmitting at its highest certified power

level in all tested frequency bands. Although the SAR is determined at the

highest certified power level, the actual SAR level of the device while operating

can be well below the maximum value. This is because the device is designed

to operate at multiple power levels so as to use only the poser required to reach

the network. In general, the closer you are to a wireless base station antenna,

the lower the power output.

While there may be differences between the SAR levels of various devices and

at various positions, they all meet the government requirement.

The FCC has granted an Equipment Authorization for this model device with all

reported SAR levels evaluated as in compliance with the FCC RF exposure

guidelines. SAR information on this model device is on file with the FCC and

can be found under the Display Grant section of http://www.fcc.gov/oet/fccid

after searching on the below FCC IDs:

FCC ID: U4G0060.

This device is compliant with SAR for general population /uncontrolled exposure

limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the

measurement methods and procedures specified in OET Bulletin 65

Supplement C.

175

INDUSTRY CANADA COMPLIANCE

This device complies with Industry Canada license-exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, including

interference that may cause undesired operation of the device.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

This device and its antenna(s) must not be co-located or operating in

conjunction with any other antenna or transmitter.

The County Code Selection feature is disabled for products marketed in the

US/Canada.

This EUT is compliant with SAR for general population/uncontrolled exposure limits

in IC RSS-102 and had been tested in accordance with the measurement methods

and procedures specified in IEEE 1528. This equipment should be installed and

operated with minimum distance 1,5cm between the radiator & your body.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux

appareils radio exempts de licence. L'exploitation est autorisée aux deux

conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2)

l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même

si le brouillage est susceptible d'en compromettre le fonctionnement.

SAR COMPLIANCE

This product has been tested and found to comply with the following standards:

- For the used worst case positions, the portable device Skorpio X3 from

Datalogic (FCC ID: U4G0060; contains FCC ID: U4G004W) is in compliance

with the IC RSS 102 Issue 4 [RSS 102] and Federal Communications

Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. SAR

assessment in body worn was conducted with a distance of 15 mm between

the housing of the handheld and the flat phantom.

- EN 62311:2008: assessment of electronic and electrical equipment related to

human exposure restrictions for electromagnetic fields (0 Hz – 300 GHz).

176

PATENTS

This product is covered by one or more of the following patents:

Design Pat.: EP 1,942,723.

U.S. Pat.: 5,311,000; 5,440,110; 5,481,098; 5,493,108; 5,686,716; 5,992,740;

6,412,698 B2; 6,415,978 B1; 6,454,168 B1; 6,478,224 B1; 6,513,714 B1; 6,561,427

B2; 6,585,157 B2; 6,808,114 B1; 6,997,385 B2;7,108,170 B2; 7,387,246 B2.

European Pat.: 681,257 B1; 789,315 B1; 1,128,315 B1; 1,396,811 B1; 1,413,971 B1

Additional patents pending.

177

WEEE COMPLIANCE

Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC

L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della

sua vita utile, separatamente dai rifiuti urbani.

Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:

 evitare possibili conseguenze negative per l’ambiente e per la salute umana che

potrebbero invece essere causati dall’errato smaltimento dello stesso;

 recuperare materiali di cui è composto al fine di ottenere un importante risparmio di

energia e di risorse.

Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata

acquistata l’apparecchiatura o consultare la sezione dedicata sul sito

http://www.adc.datalogic.com/.

Information for the user in accordance with the European Commission Directive

2002/96/EC

At the end of its useful life, the product marked with the crossed out wheeled wastebin must be

disposed of separately from urban waste.

Disposing of the product according to this Directive:

 avoids potentially negative consequences to the environment and human health

which otherwise could be caused by incorrect disposal

 enables the recovery of materials to obtain a significant savings of energy and

resources.

For more detailed information about disposal, contact the supplier that provided you with the

product in question or consult the dedicated section at the website

http://www.adc.datalogic.com/.

178

Information aux utilisateurs concernant la Directive Européenne 2002/96/EC

Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas

être éliminé avec les déchets urbains.

Éliminer ce produit selon cette Directive permet de:

 éviter les retombées négatives pour l'environnement et la santé dérivant d'une

élimination incorrecte

 récupérer les matériaux dans le but d'une économie importante en termes d'énergie

et de ressources

Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le

fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site

Web http://www.adc.datalogic.com/.

Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE

Al final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil

tachado no debe eliminarse junto a los desechos urbanos.

Eliminar este producto de accuerdo con la Directiva permite de:

 evitar posibles consecuencias negativas para el medio ambiente y la salud derivadas

de una eliminación inadecuada

 recuperar los materiales obteniendo así un ahorro importante de energía y recursos

Para obtener una información más detallada sobre la eliminación, por favor, póngase en

contacto con el proveedor donde lo compró o consultar la sección dedicada en el Web site

http://www.adc.datalogic.com/.

Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission

Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll

entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich.

Beseitigung des Produkts entsprechend der Richtlinie:

 verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen

 ermöglicht die Wiederverwendung der Materialien und spart somit Energie und

Resourcen

Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das

Produkt erworben haben, oder besuchen sie unsere Hompage unter

http://www.adc.datalogic.com/.

179

GLOSSARY

Access Point

A device that provides transparent access between Ethernet wired networks and

IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile

computers, PDAs or other devices equipped with radio cards, communicate with

wired networks using Access Points (AP). The mobile unit (mobile computer) may

roam among the APs in the same subnet while maintaining a continuous, seamless

connection to the wired network.

Applet

Diminutive form of app (application), it refers to simple, single-function programs that

often ship with a larger product. Programs such as Windows' Calculator, File

Manager, Control Panel and Notepad are examples of applets.

Bar Code

A pattern of variable-width bars and spaces which represents numeric or

alphanumeric data in binary form. The general format of a barcode symbol consists

of a leading margin, start character, data or message character, check character (if

any), stop character, and trailing margin. Within this framework, each recognizable

symbology uses its own unique format.

Baud Rate

A measure for data transmission speed.

Bit

Binary digit. One bit is the basic unit of binary information. Generally, eight

consecutive bits compose one byte of data. The pattern of 0 and 1 values within the

byte determines its meaning.

Bluetooth®

A standard radio technology using a proprietary protocol. The onboard Bluetooth

module in the device is compatible with the 1.1 protocol.

Byte

On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a

pattern to represent a specific character or numeric value. Bits are numbered from

the right, 0 through 7, with bit 0 the low-order bit. One byte in memory can be used to

store one ASCII character.

Decode

To recognize a bar code symbology (e.g., Codabar, Code 128, Code 39, UPC/EAN,

etc.) and analyze the content of the bar code scanned.

180

Depth of Field (DOF)

The portion of a scene that appears acceptably sharp in the image. Although a lens

can precisely focus at only one distance, the decrease in sharpness is gradual on

each side of the focused distance, so that within the DOF, the unsharpness is

imperceptible under normal viewing conditions.

EDGE

Enhanced Data rates for GSM Evolution (EDGE) is a backward-compatible digital

mobile phone technology that allows improved data transmission rates, as an

extension on top of standard GSM. EDGE is considered a 3G radio technology and is

part of ITU's 3G definition.

EEPROM

Electrically Erasable Programmable Read-Only memory. An on-board non-volatile

memory chip.

Ethernet

The standard local area network (LAN) access method. A reference to "LAN," "LAN

connection" or "network card" automatically implies Ethernet. Defined by the IEEE as

the 802.3 standard, Ethernet is used to connect computers in a company or home

network as well as to connect a single computer to a cable modem or DSL modem

for Internet access.

Firmware

Firmware is a software program or set of instructions programmed on a hardware

device. It provides the necessary instructions for how the device communicates with

the other computer hardware. Firmware is typically stored in the flash ROM of a

hardware device. While ROM is "read-only memory," flash ROM can be erased and

rewritten because it is actually a type of flash memory.

Flash Disk

Non-volatile memory for storing application and configuration files.

Host

A computer that serves other mobile computers in a network, providing services such

as network control, database access, special programs, supervisory programs, or

programming languages.

IEEE 802.11

A set of standards carrying out wireless local area network (WLAN) computer

communication in the 2.4, 3.6 and 5 GHz frequency bands. They are created and

maintained by the IEEE LAN/MAN Standards Committee.

181

Light Emitting Diode (LED)

A low power electronic light source commonly used as an indicator light. It uses less

power than an incandescent light bulb but more than a Liquid Crystal Display (LCD).

Liquid Crystal Display (LCD)

A display that uses liquid crystal sealed between two glass plates. The crystals are

excited by precise electrical charges, causing them to reflect light outside according

to their bias. They use little electricity and react relatively quickly. They require

external light to reflect their information to the user.

Null modem cable

RS-232 serial cable where the transmit and receive lines are crosslinked. In some

cables there are also handshake lines crosslinked. In many situations a straight

through serial cable is used, together with a null modem adapter. The adapter

contains the necessary crosslinks between the signals.

One shot key

Pressing a one shot key actives the state. The state remains active until any other

key is pressed. If you hold down a one shot state key and you press another key the

state will remain active until you release the one-shot key.

Pairing

A Bluetooth® pairing occurs when two Bluetooth® devices agree to communicate

with each other and establish a connection.

Piconet

A piconet is a Bluetooth® PAN that links up to eight devices. Each piconet is

controlled by one master device, and up to seven slave devices at any one time. Any

device may be a member of more than one piconet, changing its membership as a

user moves from one area to another.

RAM

Random Access Memory. Data in RAM can be accessed in random order, and

quickly written and read.

Radio Frequency.

RTC

Real Time Clock.

182

TDMA

Time division multiple access (TDMA) is digital transmission technology that allows a

number of users to access a single radio-frequency (RF) channel without interference

by allocating unique time slots to each user within each channel. The TDMA digital

transmission scheme multiplexes three signals over a single channel. The current

TDMA standard for cellular divides a single channel into six time slots, with each

signal using two slots, providing a 3 to 1 gain in capacity over advanced mobile-

phone service (AMPS). Each caller is assigned a specific time slot for transmission.

Toggle key

Pressing a toggle key activates the state. The state remains active until the toggle

key is pressed again.

USB

Universal Serial Bus. Type of serial bus that allows peripheral devices (disks,

modems, printers, digitizers, data gloves, etc.) to be easily connected to a computer.

A “plug-and-play” interface, it allows a device to be added without an adapter card

and without rebooting the computer (the latter is known as hot-plugging). The USB

standard, developed by several major computer and telecommunications companies,

supports data-transfer speeds up to 12 megabits per second, multiple data streams,

and up to 127 peripherals.

WLAN

A Wireless Local Area Network links devices via a wireless distribution method

(typically spread-spectrum or OFDM radio), and usually provides a connection

through an access point to the wider internet. This gives users the mobility to move

around within a local coverage area and still be connected to the network.

WPAN

A Wireless Personal Area Network is a personal area network - a network for

interconnecting devices centered around an individual person's workspace - in which

the connections are wireless. Typically, a wireless personal area network uses some

technology that permits communication within about 10 meters - in other words, a

very short range.

WWAN

Stands for "Wide Area Network." It is similar to a Local Area Network (LAN), but it is

not limited to a single location and it uses Mobile telecommunication cellular network

technologies such as UMTS, GPRS, CDMA2000, GSM, CDPD, Mobitex, HSDPA or

3G to transfer data. WWAN connectivity allows a user with a laptop and a WWAN

card to surf the web, check email, or connect to a Virtual Private Network (VPN) from

anywhere within the regional boundaries of cellular service.

183

INDEX

Accessories; 9

Audio Settings; 74

Autostart; 111

Available Models; 2

Batteries and Maintenance; 11

Bluetooth Manager Device Setup; 78

Charging the Batteries; 11

Cleaning the mobile computer; 18

Connections; 19

Connection to USB peripherals; 21

RS232 Connection; 23

USB Connection; 19

WLAN Connection; 24

WPAN Connections; 26

Control Panel; 48

Data Capture; 33

Imager Data Capture; 35

Laser Data Capture; 34

Data Capture Configuration; 49

Datalogic Configuration Utility; 90

Datalogic Desktop Utility; 91

Datalogic Firmware Utility; 85

Decoding Parameters; 128

Description of the Keyboards; 37

DL Buttons; 58

FCC Compliance; 173

General View; vii

Glossary; 179

Industry Canada Compliance; 175

Laser Safety; 164

LED Class; 170

LED Status; 46

microSD Card Insertion; 6

Package Contents; 4

Patents; 176

Persistent Registry; 64

Power Supply; 163

Radio Compliance; 171

Reading Diagrams; 122

References; vi

Replacing the Batteries; 14

Resetting the Skorpio X3; 44

RF Exposure Information (SAR); 174

Safety Regulations; 163

SAR Compliance; 175

Services and Support; vi

Skorpio X3 Description; 1

Startup; 29

Status Indicators; 46

Stylus Calibration; 72

Taskbar; 47

184

Technical Data; 119

Technical Features; 119

Test Codes; 124

Touch Gestures; 31

Using the Stylus; 30

WEEE Compliance; 177

Windows CE Touch Screen

Calibration; 32

Windows Connections; 76

Windows Mobile® Device Center; 76

Wireless and Radio Frequencies

Warnings; 27

Wireless Communications; 67

Datalogic Mobile S.r.l.

Via S. Vitalino 13

40012 - Lippo di Calderara

Bologna - Italy

dichiara che

declares that the

déclare que le

bescheinigt ,daß das Gerät

declare que el

SKORPIO X3 modelli con funzionalità radio 802.11a/b/g+BT

models with 802.11a/b/g+BT radio feature

modèles avec 802.11a/b/g+BT radio intégrés

modelle mit 802.11a/b/g+BT radio-funktionalität

modelos con funcionalidad radio 802.11a/b/g+BT

sono conformi alle Direttive del Consiglio Europeo sottoelencate:

are in conformity with the requirements of the European Council Directives listed below

sont conformes aux spécifications des Directives de l’Union Européenne ci-dessous:

der nachstehend angeführten Direktiven des Europäischen Rats:

cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:

1999/5/EEC R&TTE

Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:

This declaration is based upon compliance of the products to the following standards:

Cette déclaration repose sur la conformité des produits aux normes suivantes:

Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:

Esta declaración se basa en el cumplimiento de los productos con la siguientes normas:

EN 55022: 2006 (CLASS B ITE) , SEPTEMBER

2006

AMENDMENT A1:2007

INFORMATION TECHNOLOGY EQUIPMENT

RADIO DISTURBANCE CHARACTERISTICS

LIMITS AND METHODS OF MEASUREMENTS

EN 55024: 1998

AMENDMENT A1:2001

AMENDMENT A2:2003

INFORMATION TECHNOLOGY EQUIPMENT

IMMUNITY CHARACTERISTICS

LIMITS AND METHODS OF MEASUREMENT

ETSI EN 301 489-1 V1.8.1, APRIL 2008: ELECTROMAGNETIC COMPATIBILITY AND RADIO

SPECTRUM MATTERS (ERM); ELECTROMAGNETI

COMPATIBILITY (EMC) STANDARD FOR RADIO EQUIPMEN

AND SERVICES; PART1: COMMON TECHNICAL

REQUIREMENTS

ETSI EN 301 489-17 V2.1.1 MAY 2009: ELECTROMAGNETIC COMPATIBILITY AND RADIO

SPECTRUM MATTERS (ERM); ELECTROMAGNETI

COMPATIBILITY (EMC) STANDARD FOR RADIO

EQUIPMENT; PART 17: SPECIFIC CONDITIONS FOR 2,4 GH

WIDEBAND TRANSMISSION SYSTEMS, 5 GHZ HIG

PERFORMANCE RLAN EQUIPMENT AND 5,8 GH

BROADBAND DATA TRANSMITTING SYSTEMS

ETSI EN 300 328 V1.7.1, OCTOBER 2006: ELECTROMAGNETIC COMPATIBILITY AND RADIO

SPECTRUM MATTERS (ERM); WIDEBAND TRANSMISSIO

SYSTEMS; DATA TRANSMISSION EQUIPMENT OPERATING

IN THE 2,4GHZ ISM BAND AND USING WIDE BAND

MODULATION TECHNIQUES; HARMONIZED EN COVERING

ESSENTIAL REQUIREMENTS UNDER ARTICLE 3.2 OF TH

R&TTE DIRECTIVE

ETSI EN 301 893 V1.5.1, DECEMBER 2008 BROADBAND RADIO ACCESS NETWORKS (BRAN);5 GH

HIGH PERFORMANCE RLAN;HARMONIZED EN COVERING

THE ESSENTIAL REQUIREMENTS OF ARTICLE 3.2 OF TH

R&TTE DIRECTIVE

EN 60950-1:2006

AMENDMENT A1:2010 INFORMATION TECHNOLOGY EQUIPMENT - SAFETY -

PART 1 : GENERAL REQUIREMENTS

EN 62311:2008 ASSESSMENT OF ELECTRONIC AND ELECTRICAL

EQUIPMENT RELATED TO HUMAN EXPOSUR

RESTRICTIONS FOR ELECTROMAGNETIC FIELDS (0 HZ -

300 GHZ)

Lippo di Calderara, May 25th 2012

Ruggero Cacioppo

Quality & Reliability MGR- Europe

Datalogic S r l 004W 802.11ag Mini Compact Flash Module User Manual SkorpioX3 CE

Datalogic ADC S.r.l. 802.11ag Mini Compact Flash Module SkorpioX3 CE

Contents

user manual

Navigation menu

Namespaces

Views

Navigation
