Datalogic JoyaTM R2U “Ready to Use” User’s manual

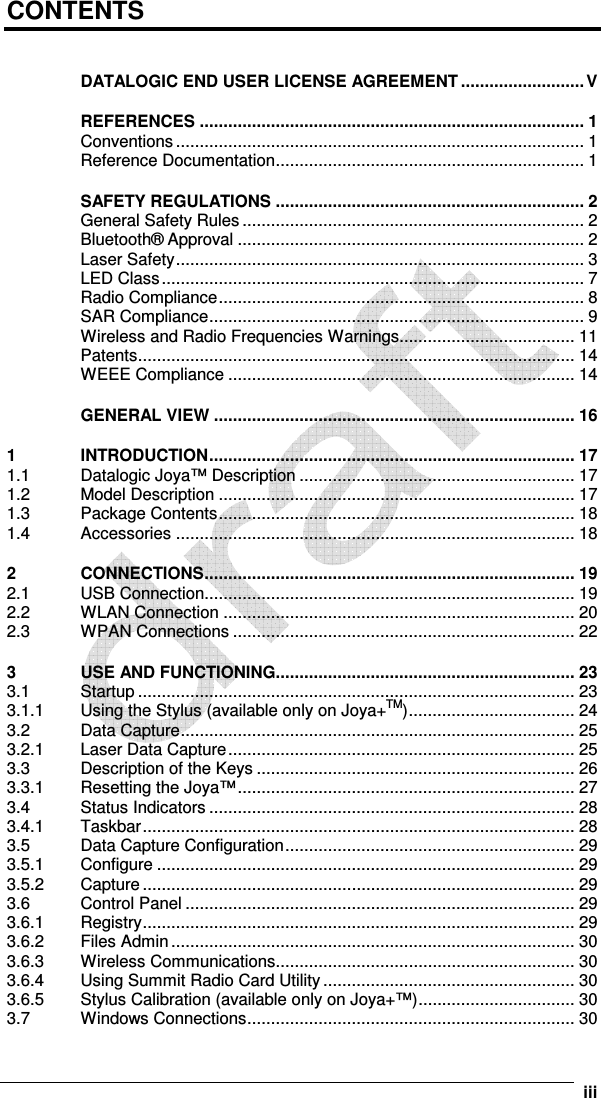

iii CONTENTS DATALOGIC END USER LICENSE AGREEMENT .......................... V REFERENCES ................................................................................. 1 Conventions ...................................................................................... 1 Reference Documentation................................................................. 1 SAFETY REGULATIONS ................................................................. 2 General Safety Rules........................................................................ 2 Bluetooth® Approval ......................................................................... 2 Laser Safety...................................................................................... 3 LED Class......................................................................................... 7 Radio Compliance............................................................................. 8 SAR Compliance............................................................................... 9 Wireless and Radio Frequencies Warnings..................................... 11 Patents............................................................................................ 14 WEEE Compliance ......................................................................... 14 GENERAL VIEW ............................................................................ 16 1 INTRODUCTION............................................................................. 17 1.1 Datalogic Joya™ Description .......................................................... 17 1.2 Model Description ........................................................................... 17 1.3 Package Contents........................................................................... 18 1.4 Accessories .................................................................................... 18 2 CONNECTIONS.............................................................................. 19 2.1 USB Connection.............................................................................. 19 2.2 WLAN Connection .......................................................................... 20 2.3 WPAN Connections ........................................................................ 22 3 USE AND FUNCTIONING............................................................... 23 3.1 Startup ............................................................................................ 23 3.1.1 Using the Stylus (available only on Joya+TM)................................... 24 3.2 Data Capture................................................................................... 25 3.2.1 Laser Data Capture......................................................................... 25 3.3 Description of the Keys ................................................................... 26 3.3.1 Resetting the Joya™....................................................................... 27 3.4 Status Indicators ............................................................................. 28 3.4.1 Taskbar........................................................................................... 28 3.5 Data Capture Configuration............................................................. 29 3.5.1 Configure ........................................................................................ 29 3.5.2 Capture ........................................................................................... 29 3.6 Control Panel .................................................................................. 29 3.6.1 Registry........................................................................................... 29 3.6.2 Files Admin..................................................................................... 30 3.6.3 Wireless Communications............................................................... 30 3.6.4 Using Summit Radio Card Utility..................................................... 30 3.6.5 Stylus Calibration (available only on Joya+™)................................. 30 3.7 Windows Connections..................................................................... 30

iv 3.7.1 Microsoft® ActiveSync®.................................................................. 30 3.7.2 Bluetooth® Manager Device Setup ................................................. 33 3.7.3 FTP Server Setup ........................................................................... 36 3.8 Backup Directory File Management................................................. 36 3.9 Firmware Update............................................................................. 37 4 MAINTENANCE.............................................................................. 38 4.1 Charging the Battery Pack .............................................................. 38 4.2 Replacing the Battery Pack............................................................. 39 4.3 Cleaning the Mobile Computer........................................................ 42 5 JOYATM CRADLE DISPENSER...................................................... 43 5.1 Introduction ..................................................................................... 43 5.2 Accessories .................................................................................... 43 5.3 Installation requirements................................................................. 44 5.3.1 Base Unit Construction Details........................................................ 44 5.3.2 JoyaTM Cradle Dispenser Supports ................................................. 44 5.3.3 Internal Cabinet Space and Openings............................................. 44 5.3.4 Anchoring and Maintenance Issues................................................. 44 5.3.5 Power Supply Positioning and Cooling............................................ 44 5.3.6 AC Power Cabling........................................................................... 44 5.3.7 Wiring ............................................................................................. 44 5.3.8 Cable to Power Supply Connection................................................. 44 5.3.9 Affixing Cables to Cabinet............................................................... 44 5.3.10 Safety Precautions.......................................................................... 44 5.3.11 Connection to AC Line Voltage ....................................................... 45 5.4 JoyaTM cradle dispenser firmware ................................................... 46 5.4.1 APC installation............................................................................... 46 5.4.2 Starting program ............................................................................. 46 5.4.3 Reading firmware version................................................................ 47 5.4.4 Firmware update procedure ............................................................ 48 5.5 JoyaTM – JoyaTM cradle dispenser connection................................. 48 5.6 Configuration................................................................................... 49 5.7 Use and functioning ........................................................................ 49 6 JOYATM/JOYA+TM TECHNICAL FEATURES................................. 50 6.1 Technical Data................................................................................ 50 7 TEST CODES ................................................................................. 51 GLOSSARY.................................................................................... 53 INDEX............................................................................................. 55

v DATALOGIC END USER LICENSE AGREEMENT BY DOWNLOADING OR INSTALLING THE SOFTWARE, OR BY USING DATALOGIC EQUIPMENT THAT INCLUDES THIS SOFTWARE, YOU ARE CONSENTING TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE TO ALL OF THE TERMS OF THIS AGREEMENT, THEN DO NOT DOWNLOAD, INSTALL, USE THE SOFTWARE NOR DATALOGIC EQUIPMENT. The following terms and conditions govern your use of the Software except to the extent that a particular program (a) is the subject of a separate written agreement with Datalogic or (b) includes a separate “click-on” license agreement as part of the installation and/or download process. Should a conflict arise between the provisions of the foregoing documents, the order of precedence shall be (1) the written agreement, (2) the click-on agreement, and (3) this agreement (“Agreement”). 1. License. Subject to the terms and conditions of and except as otherwise provided in this Agreement, Datalogic Mobile S.r.l. (“Datalogic”) and its suppliers grant to Customer (“Customer”) a nonexclusive and nontransferable license to use the specific program modules, feature set(s) or feature(s) in object code form only as well as associated media, printed materials and “online” or electronic documentation (the “Software”) for which Customer has paid, if required, the license fees. The Software is licensed not sold. The license shall be subject to each of the following limitations: • Unless otherwise expressly provided in the documentation, Customer shall use the Software solely as embedded in, for execution on, or (where the applicable documentation permits installation on non-Datalogic equipment) for communication with Datalogic equipment owned or leased by Customer; • Customer’s use of the Software shall be limited to use on a single hardware chassis, on a single central processing unit, as applicable, or use on such greater number of chassis or central processing units as Customer may have paid Datalogic the required license fee; and • Customer’s use of the Software shall also be limited, as applicable and set forth in Customer’s purchase order or in Datalogic’s product catalog, user documentation, or web site, to a maximum number of (a) seats (i.e. users with access to the installed Software), (b) concurrent users, sessions, ports, and/or issued and outstanding IP addresses, and/or (c) central processing unit cycles or instructions per second. Customer’s use of the Software shall also be limited by any other restrictions set forth in Customer’s purchase order or in Datalogic’s product catalog, user documentation or web site for the Software. 2. General Limitations. Except as otherwise expressly provided under this Agreement, Customer shall have no right, and Customer specifically agrees not to (i) transfer, assign or sublicense its license rights to any other person, or use the Software on unauthorized or secondhand Datalogic equipment, and any such attempted transfer, assignment or sublicense shall be void; (ii) correct errors to or otherwise modify or adapt the Software or create derivative works based upon the Software, or to permit third parties to do the same; or (iii) decompile, decrypt, reverse engineer, disassemble or otherwise reduce the Software to human-readable form to gain access to trade secrets or confidential information in the Software. To the extent required by law, at Customer's request, Datalogic shall provide Customer with the interface information needed to achieve interoperability between the Software and another independently created program, upon payment of Datalogic's applicable fee. Customer shall observe strict obligations of confidentiality with respect to such information. 3. Upgrades and Additional Copies. For purposes of this Agreement, “Software” shall include (and the terms and conditions of this Agreement shall apply to) any upgrades, updates, bug fixes or modified versions (collectively, “Upgrades”) or backup copies of the Software licensed or provided to Customer by Datalogic or an authorized distributor for which Customer has paid the applicable license fees. Notwithstanding any other provision of this Agreement: (1) customer has no license or right to use any such additional copies or upgrades unless customer, at the time of acquiring such copy or upgrade, already holds a valid license to the original Software and has paid the applicable fee for the upgrade, if required; (2) use of upgrades is limited to Datalogic equipment for which customer is the original end user, purchaser or lessee or who otherwise holds a valid license to use the Software which is being upgraded; and (3) use of additional copies is limited to backup purposes only. 4. Proprietary Notices. Customer agrees to maintain and reproduce all copyright and other proprietary notices on all copies, in any form, of the Software in the same form and manner that such copyright and other proprietary notices are included on the Software. Except as expressly authorized in this Agreement, Customer shall not make any copies or duplicates or any Software without the prior written permission of Datalogic. Customer may make such backup copies of the Software as may be necessary for Customer’s lawful use, provided Customer affixes to such copies all copyright, confidentiality, and proprietary notices that appear on the original.

vi 5. Protection of Information. Customer agrees that aspects of the Software and associated documentation, including the specific design and structure of individual programs, constitute trade secrets and/or copyrighted material of Datalogic. Customer shall not disclose, provide, or otherwise make available such trade secrets or copyrighted material in any form to any third party without the prior written consent of Datalogic. Customer shall implement reasonable security measures to protect such trade secrets and copyrighted material. Software and documentation shall remain solely property of Datalogic. 6. Limited Warranty. If Customer obtained the Software directly from Datalogic, then Datalogic warrants that during the Warranty Period (as defined below): (i) the media on which the Software is furnished will be free of defects in materials and workmanship under normal use; and (ii) the Software will substantially conform to its published specifications. The “Warranty Period” means a period beginning on the date of Customer’s receipt of the Software and ending on the later of (a) ninety (90) days from the date of initial shipment of the Software by Datalogic, or (b) the end of the minimum period required by the law of the applicable jurisdiction. The limited warranties extend only to Customer as the original licensee. Customer's sole and exclusive remedy and the entire liability of Datalogic and its suppliers under these limited warranties will be, at Datalogic’s sole option, repair or replacement of the Software if reported (or, upon request, returned) to Datalogic. Except as expressly granted in this Agreement, the Software is provided AS IS and with all faults. Datalogic does not warrant that the Software is error free or that Customer will be able to operate the Software without problems or interruptions. In addition, due to the continual development of new techniques for intruding upon and attacking networks, Datalogic does not warrant that the Software or any equipment, system or network on which the Software is used will be free of vulnerability to intrusion or attack. This warranty does not apply if the Software (a) is licensed for beta, evaluation, testing or demonstration purposes for which Datalogic does not receive a license fee, (b) has been altered, except by Datalogic, (c) has not been installed, operated, repaired, or maintained in accordance with instructions supplied by Datalogic, (d) has been subjected to abnormal physical or electrical stress, misuse, negligence, or accident, or (e) is used in ultra hazardous activities. If Customer obtained the Software from a Datalogic reseller, the terms of any warranty shall be as provided by such distributor, and Datalogic provides Customer no warranty with respect to such Software. The Software may contain support for programs written in Java. Java technology is not fault tolerant and is not designed, manufactured, or intended for use or resale as online control equipment in hazardous environments requiring fail-safe performance, such as in the operation of nuclear facilities, aircraft navigation or communication systems, air traffic control, direct life support machines, or weapons systems, in which the failure of Java technology could lead directly to death, personal injury, or severe physical or environmental damage. Microsoft Inc. has contractually obligated Datalogic to make this disclaimer. 7. Disclaimer of Warranties. Except as specified in this warranty, all expressed or implied conditions, representations, and warranties including, without limitation, any implied warranty or condition of merchantability, fitness for a particular purpose, non-infringement, satisfactory quality or arising from a course of dealing, usage, or trade practice, are hereby excluded to the extent allowed by applicable law. To the extent that an implied warranty cannot be excluded, such warranty is limited in duration to the warranty period. 8. Disclaimer of Liabilities. In no event will Datalogic or its suppliers be liable for any lost revenue, profit, or data, or for special, indirect, consequential, incidental, or punitive damages however caused and arising out of the use of or inability to use the Software even if Datalogic has been advised of the possibility of such damages. In no event shall Datalogic or its suppliers' liability to customer, whether in contract, tort (including negligence), or otherwise, exceed the price paid by customer. The foregoing limitations shall apply even if the above-stated warranty fails of its essential purpose. 9. Term and Termination. This Agreement is effective until terminated. Customer may terminate this Agreement at any time by destroying all copies of Software including any documentation. Customer’s license rights under this Agreement will terminate immediately without notice from Datalogic if Customer fails to comply with any provision of this Agreement. Upon termination, Customer must destroy all copies of Software in its possession or control. 10. Customer Records. Customer grants to Datalogic and its independent accountants the right to examine Customer’s books, records and accounts during Customer’s normal business hours to verify compliance with this Agreement. In the event such audit discloses non-compliance with this Agreement, Customer shall promptly pay to Datalogic the appropriate license fees. 11. General Provisions. This Agreement shall be governed by and construed in accordance with the laws of Italy. All disputes arising out of or in connection with this Agreement will be subject to the exclusive jurisdiction of the competent Court of the place where Datalogic has its registered office. If any portion hereof is found to be void or unenforceable, the remaining provisions of this Agreement shall remain in full force and effect. Except as expressly provided herein, this Agreement constitutes the entire agreement between the parties with respect to the license of the Software and supercedes any conflicting or additional terms contained in the purchase order.

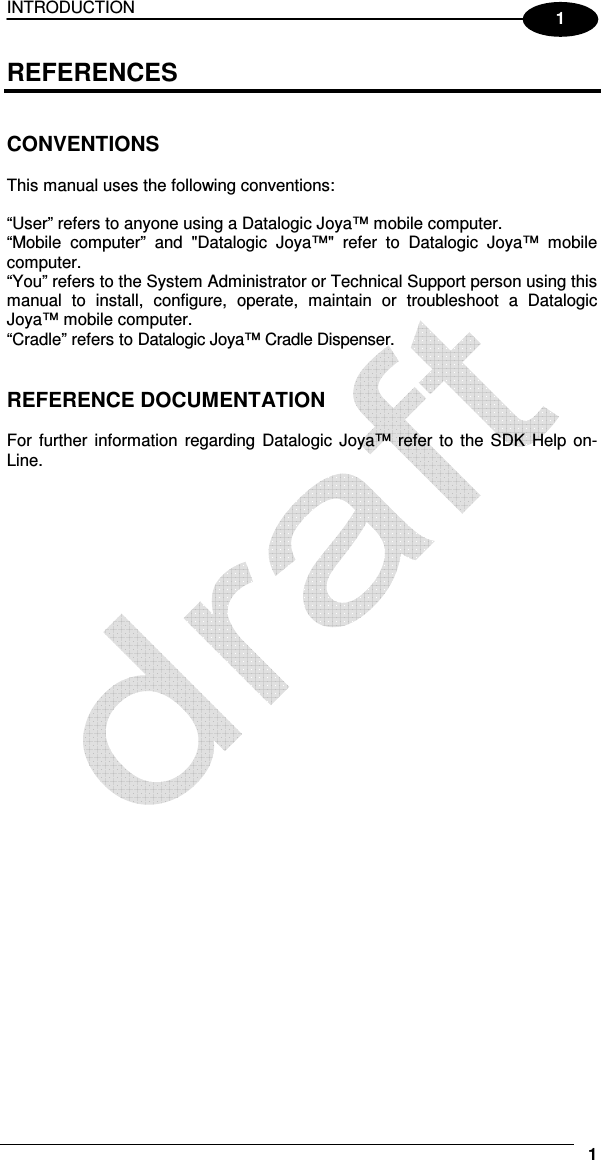

INTRODUCTION 1 1 REFERENCES CONVENTIONS This manual uses the following conventions: “User” refers to anyone using a Datalogic Joya™ mobile computer. “Mobile computer” and "Datalogic Joya™" refer to Datalogic Joya™ mobile computer. “You” refers to the System Administrator or Technical Support person using this manual to install, configure, operate, maintain or troubleshoot a Datalogic Joya™ mobile computer. “Cradle” refers to Datalogic Joya™ Cradle Dispenser. REFERENCE DOCUMENTATION For further information regarding Datalogic Joya™ refer to the SDK Help on-Line.

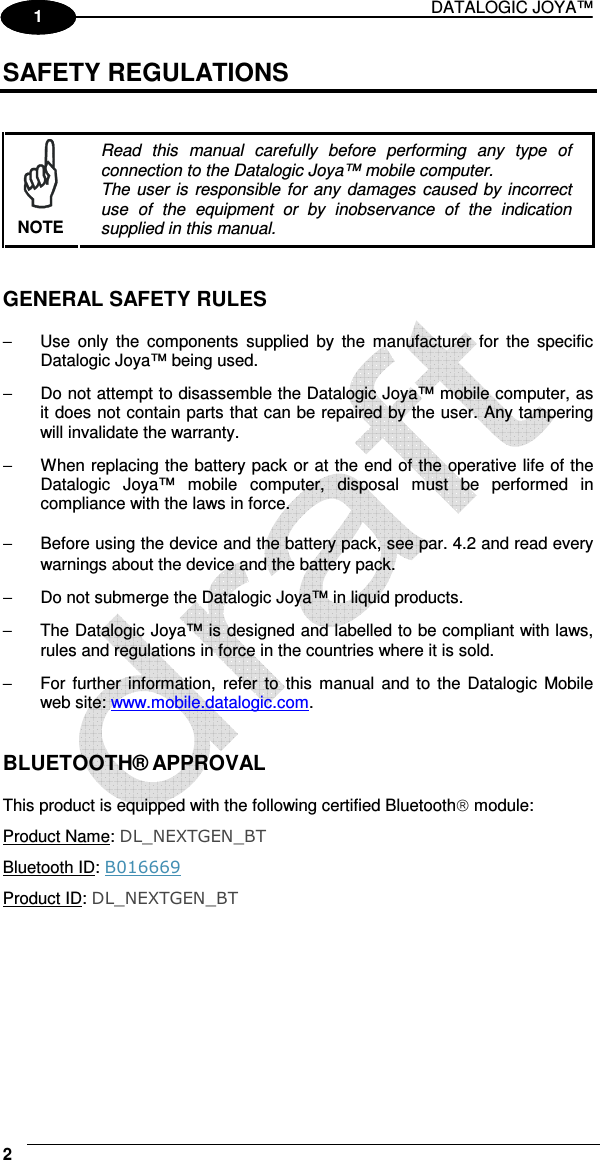

DATALOGIC JOYA™ 2 1 1 SAFETY REGULATIONS NOTE Read this manual carefully before performing any type of connection to the Datalogic Joya™ mobile computer. The user is responsible for any damages caused by incorrect use of the equipment or by inobservance of the indication supplied in this manual. GENERAL SAFETY RULES − Use only the components supplied by the manufacturer for the specific Datalogic Joya™ being used. − Do not attempt to disassemble the Datalogic Joya™ mobile computer, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty. − When replacing the battery pack or at the end of the operative life of the Datalogic Joya™ mobile computer, disposal must be performed in compliance with the laws in force. − Before using the device and the battery pack, see par. 4.2 and read every warnings about the device and the battery pack. − Do not submerge the Datalogic Joya™ in liquid products. − The Datalogic Joya™ is designed and labelled to be compliant with laws, rules and regulations in force in the countries where it is sold. − For further information, refer to this manual and to the Datalogic Mobile web site: www.mobile.datalogic.com. BLUETOOTH® APPROVAL This product is equipped with the following certified Bluetooth module: Product Name: DL_NEXTGEN_BT Bluetooth ID: B016669 Product ID: DL_NEXTGEN_BT

INTRODUCTION 3 1 LASER SAFETY The laser light is visible to the human eye and is emitted from the window indicated in the figure. I D F E La luce laser è visibile all'occhio umano e viene emessa dalla finestra indicata nella figura. Die Laserstrahlung ist für das menschliche Auge sichtbar und wird am Strahlaustrittsfenster ausgesendet (siehe Bild). Le rayon laser est visible à l'oeil nu et il est émis par la fenêtre désignée sur l'illustration dans la figure. La luz láser es visible al ojo humano y es emitida por la ventana indicada en la figura. I D F E LUCE LASER NON FISSARE IL FASCIO APPARECCHIO LASER DI CLASSE 2 MASSIMA POTENZA DI USCITA: 2mW LUNGHEZZA D'ONDA EMESSA: 650nm CONFORME A EN 60825-1 (2001) LASERSTRAHLUNG NICHT IN DER STRAHL BLINKEN PRODUKT DER LASERKLASSE 2 MAXIMALE AUSGANGLEISTUNG: 2mW WELLENLÄNGE: 650nm ENTSPR. EN 60825-1 (2001) RAYON LASER EVITER DE REGARDER LE RAYON APPAREIL LASER DE CLASSE 2 PUISSANCE DE SORTIE: 2mW LONGUER D'ONDE EMISE: 650nm CONFORME A EN 60825-1 (2001) RAYO LÁSER NO MIRAR FIJO EL RAYO APARATO LÁSER DE CLASE 2 MÁXIMA POTENCIA DE SALIDA: 2mW LONGITUD DE ONDA EMITIDA: 650nm CONFORME A EN 60825-1 (2001)

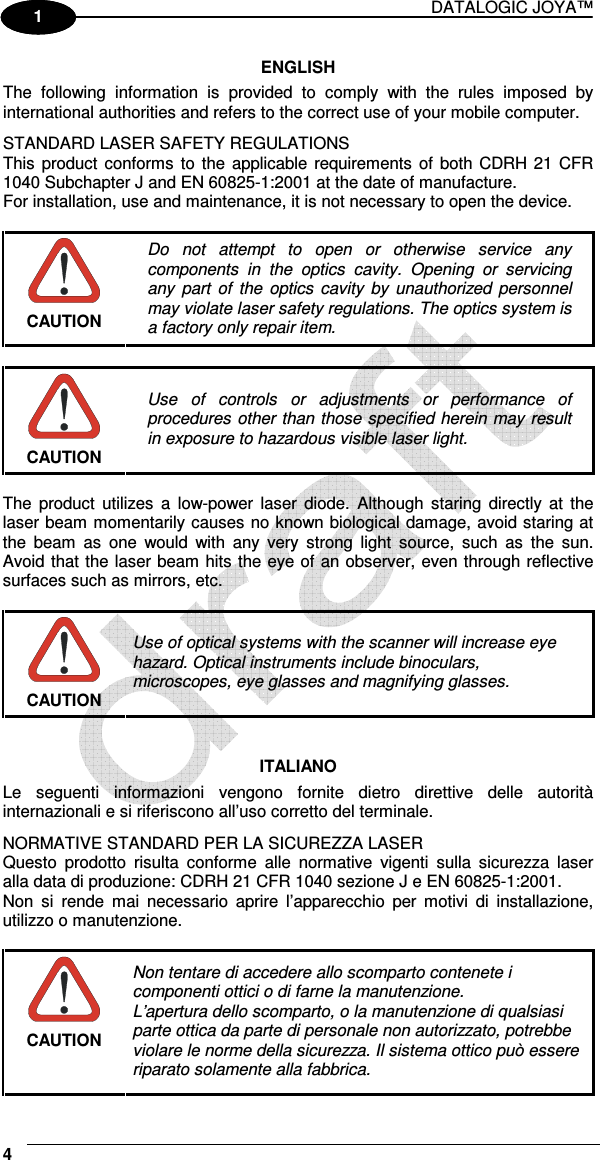

DATALOGIC JOYA™ 4 1 1 ENGLISH The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of your mobile computer. STANDARD LASER SAFETY REGULATIONS This product conforms to the applicable requirements of both CDRH 21 CFR 1040 Subchapter J and EN 60825-1:2001 at the date of manufacture. For installation, use and maintenance, it is not necessary to open the device. CAUTION Do not attempt to open or otherwise service any components in the optics cavity. Opening or servicing any part of the optics cavity by unauthorized personnel may violate laser safety regulations. The optics system is a factory only repair item. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in exposure to hazardous visible laser light. The product utilizes a low-power laser diode. Although staring directly at the laser beam momentarily causes no known biological damage, avoid staring at the beam as one would with any very strong light source, such as the sun. Avoid that the laser beam hits the eye of an observer, even through reflective surfaces such as mirrors, etc. CAUTION Use of optical systems with the scanner will increase eye hazard. Optical instruments include binoculars, microscopes, eye glasses and magnifying glasses. ITALIANO Le seguenti informazioni vengono fornite dietro direttive delle autorità internazionali e si riferiscono all’uso corretto del terminale. NORMATIVE STANDARD PER LA SICUREZZA LASER Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser alla data di produzione: CDRH 21 CFR 1040 sezione J e EN 60825-1:2001. Non si rende mai necessario aprire l’apparecchio per motivi di installazione, utilizzo o manutenzione. CAUTION Non tentare di accedere allo scomparto contenete i componenti ottici o di farne la manutenzione. L’apertura dello scomparto, o la manutenzione di qualsiasi parte ottica da parte di personale non autorizzato, potrebbe violare le norme della sicurezza. Il sistema ottico può essere riparato solamente alla fabbrica.

INTRODUCTION 5 1 ATTENZIONE L'utilizzo di procedure o regolazioni differenti da quelle descritte nella documentazione può provocare un'esposizione pericolosa a luce laser visibile. Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non siano noti danni riportati dall’occhio umano in seguito ad una esposizione di breve durata, evitare di fissare il raggio laser così come si eviterebbe qualsiasi altra sorgente di luminosità intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser negli occhi di un osservatore, anche attraverso superfici riflettenti come gli specchi. CAUTION L’uso di strumenti ottici assieme allo scanner può aumentare il pericolo di danno agli occhi. Tali strumenti ottici includono cannocchiali, microscopi, occhiali e lenti di ingrandimento. DEUTSCH Die folgenden Informationen stimmen mit den Sicherheitshinweisen überein, die von internationalen Behörden auferlegt wurden, und sie beziehen sich auf den korrekten Gebrauch vom Terminal. NORM FÜR DIE LASERSICHERHEIT Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1:2001 und CDRH 21 CFR 1040 Subchapter J Normen für die Lasersicherheit. Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-, und Wartungs-Arbeiten zu öffnen. CAUTION Unter keinen Umständen darf versucht werden, die Komponenten im Optikhohlraum zu öffnen oder auf irgendwelche andere Weise zu warten. Das Öffnen bzw. Warten der Komponenten im Optikhohlraum durch unbefugtes Personal verstößt gegen die Laser-Sicherheitsbestimmungen. Das Optiksystem darf nur werkseitig repariert werden. ACHTUNG Jegliche Änderungen am Gerät sowie Vorgehensweisen, die nicht in dieser Betriebsanleitung beschrieben werden, können ein gefährliches Laserlicht verursachen. Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden von kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere

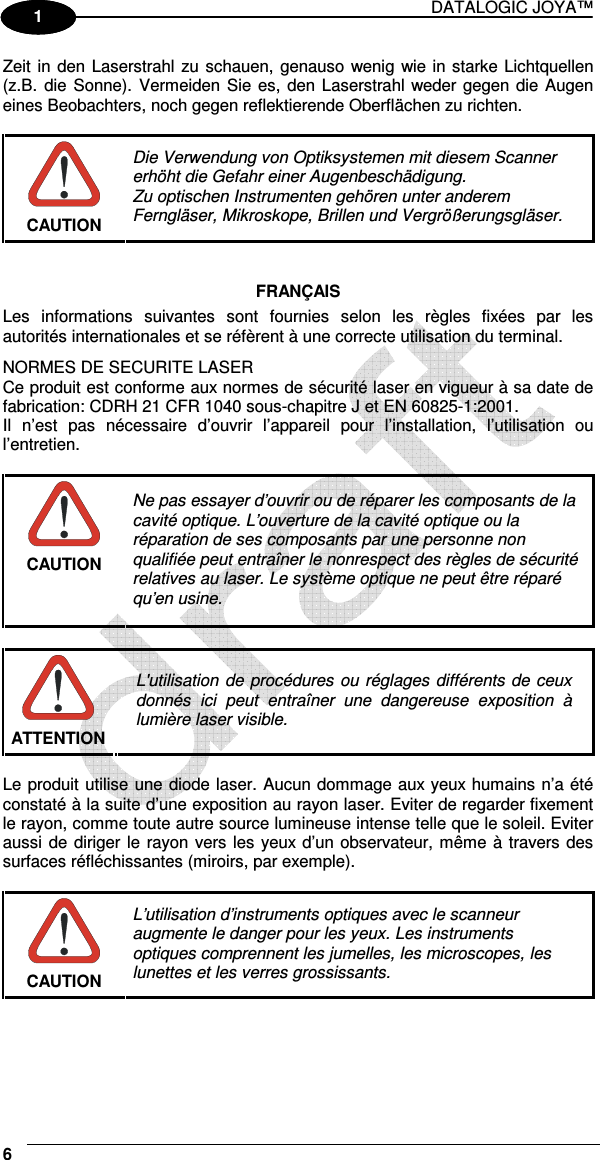

DATALOGIC JOYA™ 6 1 1 Zeit in den Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen (z.B. die Sonne). Vermeiden Sie es, den Laserstrahl weder gegen die Augen eines Beobachters, noch gegen reflektierende Oberflächen zu richten. CAUTION Die Verwendung von Optiksystemen mit diesem Scanner erhöht die Gefahr einer Augenbeschädigung. Zu optischen Instrumenten gehören unter anderem Ferngläser, Mikroskope, Brillen und Vergrößerungsgläser. FRANÇAIS Les informations suivantes sont fournies selon les règles fixées par les autorités internationales et se réfèrent à une correcte utilisation du terminal. NORMES DE SECURITE LASER Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de fabrication: CDRH 21 CFR 1040 sous-chapitre J et EN 60825-1:2001. Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou l’entretien. CAUTION Ne pas essayer d’ouvrir ou de réparer les composants de la cavité optique. L’ouverture de la cavité optique ou la réparation de ses composants par une personne non qualifiée peut entraîner le nonrespect des règles de sécurité relatives au laser. Le système optique ne peut être réparé qu’en usine. ATTENTION L'utilisation de procédures ou réglages différents de ceux donnés ici peut entraîner une dangereuse exposition à lumière laser visible. Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement le rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter aussi de diriger le rayon vers les yeux d’un observateur, même à travers des surfaces réfléchissantes (miroirs, par exemple). CAUTION L’utilisation d’instruments optiques avec le scanneur augmente le danger pour les yeux. Les instruments optiques comprennent les jumelles, les microscopes, les lunettes et les verres grossissants.

INTRODUCTION 7 1 ESPAÑOL Las informaciones siguientes son presentadas en conformidad con las disposiciones de las autoridades internacionales y se refieren al uso correcto del terminal. NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER Este aparato resulta conforme a las normativas vigentes de seguridad láser a la fecha de producción: CDRH 21 CFR 1040 Sección y EN 60825-1:2001. No es necesario abrir el aparato para la instalación, la utilización o la manutención. CAUTION No intente abrir o de ninguna manera dar servicio a ninguno de los componentes del receptáculo óptico. Abrir o dar servicio a las piezas del receptáculo óptico por parte del personal no autorizado podría ser una violación a los reglamentos de seguridad. El sistema óptico se puede reparar en la fábrica solamente. ATENCIÓN La utilización de procedimientos o regulaciones diferentes de aquellas describidas en la documentación puede causar una exposición peligrosa a la luz láser visible. El aparato utiliza un diodo láser a baja potencia. No son notorios daños a los ojos humanos a consecuencia de una exposición de corta duración. Eviten de mirar fijo el rayo láser así como evitarían cualquiera otra fuente de luminosidad intensa, por ejemplo el sol. Además, eviten de dirigir el rayo láser hacia los ojos de un observador, también a través de superficies reflectantes como los espejos. CAUTION El uso de sistemas ópticos con el escáner aumentará el riesgo de daños oculares. Los instrumentos ópticos incluyen binoculares, microscopios, lentes y lupas. LED CLASS According to EN 60825-1:2001, the Datalogic Joya™ models which use the good read spot LED are also CLASS 1 LED PRODUCTS. APPARECCHIO LED CLASSE 1 PRODUIT LED DE CLASSE 1 PRODUKT LED KLASSE 1 PRODUCTO LED DE CLASE 1

DATALOGIC JOYA™ 8 1 1 RADIO COMPLIANCE In radio systems configured with mobile computers and access points, the frequencies to be used must be allowed by the spectrum authorities of the specific country in which the installation takes place. Be absolutely sure that the system frequencies are correctly set to be compliant with the spectrum requirements of the country. Information for the User ENGLISH Contact the competent authority responsible for the management of radio frequency devices of your country to verify any possible restrictions or licenses required. Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for further information. ITALIANO Prendi contatto con l'autorità competente per la gestione degli apparati a radio frequenza del tuo paese, per verificare eventuali restrizioni o licenze. Ulteriori informazioni sono disponibili sul sito: http://europa.eu.int/comm/enterprise/rtte/spectr.htm. FRANÇAIS Contactez l'autorité compétente en la gestion des appareils à radio fréquence de votre pays pour vérifier d'éventuelles restrictions ou licences. Pour tout renseignement vous pouvez vous adresser au site web: http://europa.eu.int/comm/enterprise/rtte/spectr.htm. DEUTSCH Wenden Sie sich an die für Radiofrequenzgeräte zuständige Behörde Ihres Landes, um zu prüfen ob es Einschränkungen gibt, oder eine Lizenz erforderlich ist. Weitere Informationen finden Sie auf der Web Seite: http://europa.eu.int/comm/enterprise/rtte/spectr.htm. ESPAÑOL Contacta la autoridad competente para la gestión de los dispositivos de radio frecuencia de tu país, para verificar cualesquiera restricciones o licencias posibles requerida. Además se puede encontrar mas información en el sitio Web: http://europa.eu.int/comm/enterprise/rtte/spectr.htm.

INTRODUCTION 9 1 FCC COMPLIANCE FCC Regulations: • This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. • This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. • The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. INDUSTRY CANADA COMPLIANCE Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. The County Code Selection feature is disabled for products marketed in the US/Canada. This EUT is compliant with SAR for general population/uncontrolled exposure limits in IC RSS-102 and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528. This equipment should be

DATALOGIC JOYA™ 10 1 1 installed and operated with minimum distance 1,5cm between the radiator & your body. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RF EXPOSURE INFORMATION (SAR) This model device meets the government’s requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government. The exposure standard for wireless devices employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. *Tests for SAR are conducted using standard operating positions accepted by the FCC with the device transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the device while operating can be well below the maximum value. This is because the device is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. While there may be differences between the SAR levels of various devices and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model device is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on the below FCC IDs: FCC ID: U4G-A056 (for JOYA + A with BT and WLAN) Contains FCC ID: U4G-004W (for JOYA A and JOYA + A with WLAN only) This device is compliant with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C. SAR COMPLIANCE This product has been tested and found to comply with the following standards: • The portable device Joya + A from Datalogic (FCC ID: U4GA056) is in compliance with the IC RSS 102 Issue 4 [RSS 102] and Federal

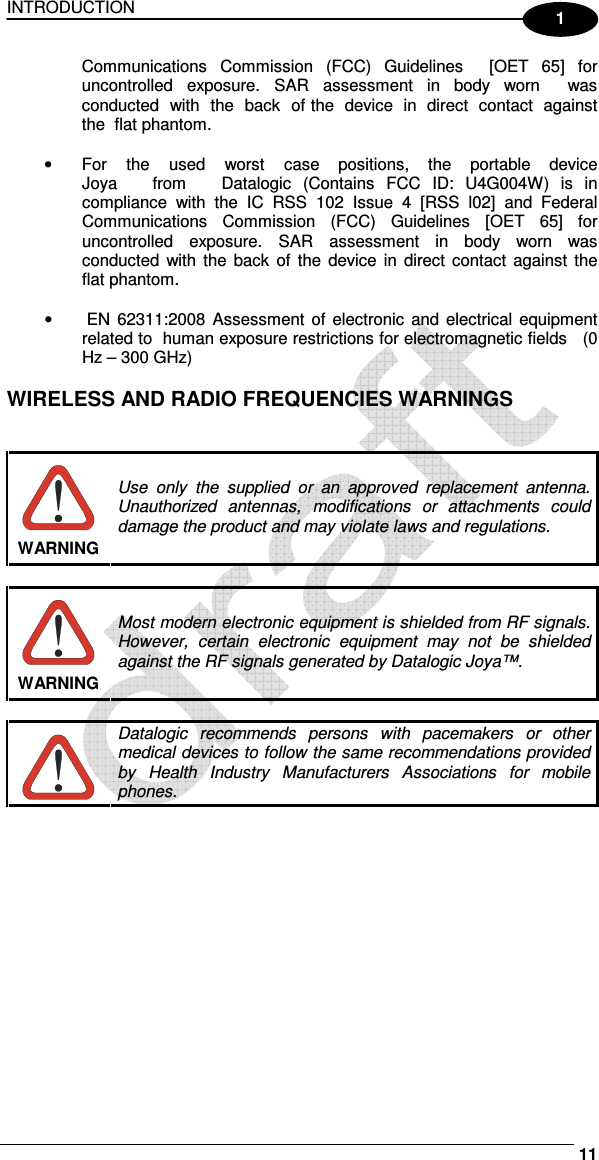

INTRODUCTION 11 1 Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. SAR assessment in body worn was conducted with the back of the device in direct contact against the flat phantom. • For the used worst case positions, the portable device Joya from Datalogic (Contains FCC ID: U4G004W) is in compliance with the IC RSS 102 Issue 4 [RSS l02] and Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. SAR assessment in body worn was conducted with the back of the device in direct contact against the flat phantom. • EN 62311:2008 Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz – 300 GHz) WIRELESS AND RADIO FREQUENCIES WARNINGS WARNING Use only the supplied or an approved replacement antenna. Unauthorized antennas, modifications or attachments could damage the product and may violate laws and regulations. WARNING Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals generated by Datalogic Joya™. Datalogic recommends persons with pacemakers or other medical devices to follow the same recommendations provided by Health Industry Manufacturers Associations for mobile phones.

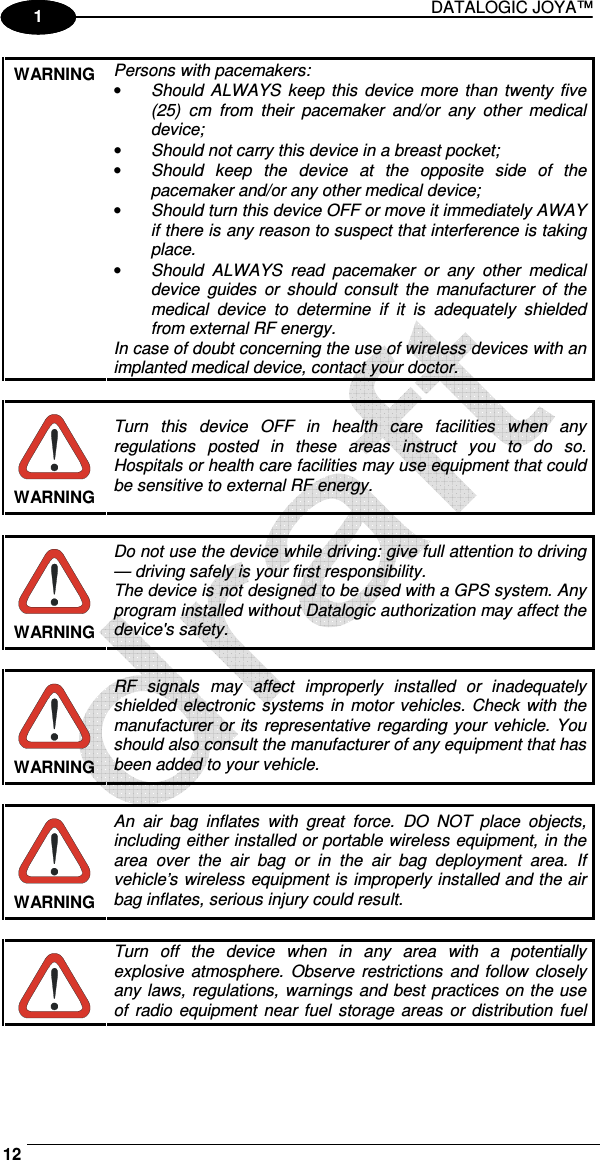

DATALOGIC JOYA™ 12 1 1 WARNING Persons with pacemakers: • Should ALWAYS keep this device more than twenty five (25) cm from their pacemaker and/or any other medical device; • Should not carry this device in a breast pocket; • Should keep the device at the opposite side of the pacemaker and/or any other medical device; • Should turn this device OFF or move it immediately AWAY if there is any reason to suspect that interference is taking place. • Should ALWAYS read pacemaker or any other medical device guides or should consult the manufacturer of the medical device to determine if it is adequately shielded from external RF energy. In case of doubt concerning the use of wireless devices with an implanted medical device, contact your doctor. WARNING Turn this device OFF in health care facilities when any regulations posted in these areas instruct you to do so. Hospitals or health care facilities may use equipment that could be sensitive to external RF energy. WARNING Do not use the device while driving: give full attention to driving — driving safely is your first responsibility. The device is not designed to be used with a GPS system. Any program installed without Datalogic authorization may affect the device's safety. WARNING RF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. You should also consult the manufacturer of any equipment that has been added to your vehicle. WARNING An air bag inflates with great force. DO NOT place objects, including either installed or portable wireless equipment, in the area over the air bag or in the air bag deployment area. If vehicle’s wireless equipment is improperly installed and the air bag inflates, serious injury could result. Turn off the device when in any area with a potentially explosive atmosphere. Observe restrictions and follow closely any laws, regulations, warnings and best practices on the use of radio equipment near fuel storage areas or distribution fuel

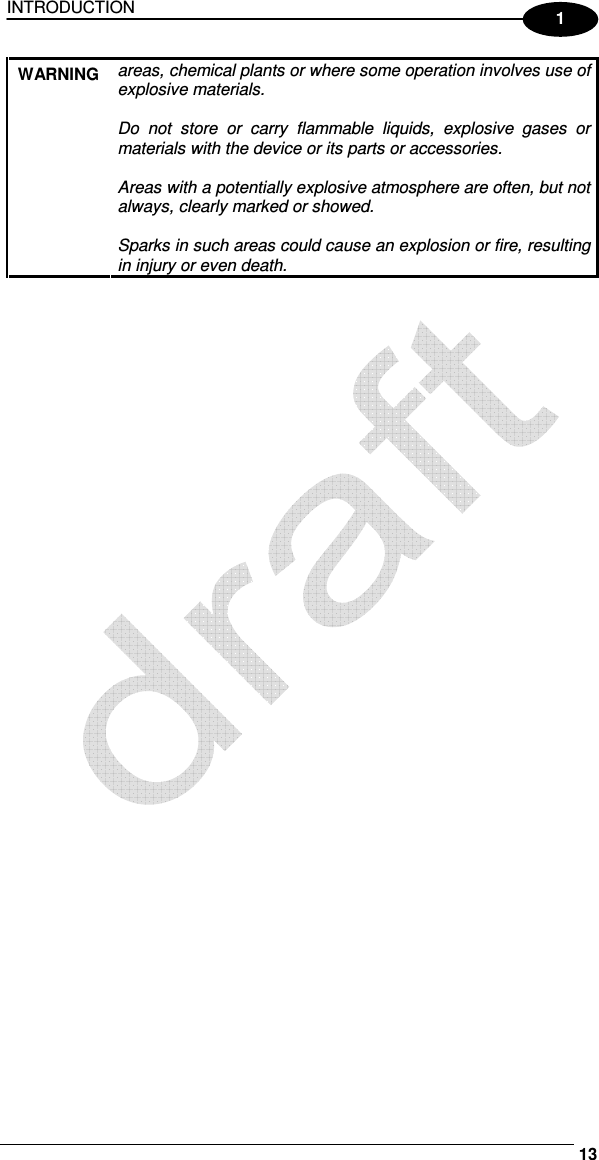

INTRODUCTION 13 1 WARNING areas, chemical plants or where some operation involves use of explosive materials. Do not store or carry flammable liquids, explosive gases or materials with the device or its parts or accessories. Areas with a potentially explosive atmosphere are often, but not always, clearly marked or showed. Sparks in such areas could cause an explosion or fire, resulting in injury or even death.

DATALOGIC JOYA™ 14 1 1 PATENTS This product is covered by one or more of the following patents. Design Pat.: EP 891,544; AU 323,628; US D 613,289 S; ZL 200830146270.9. U.S. Pat. Nos: 5,992,740; 6,808,114 B1; 6,997,385 B2; 7,387,246 B2; 7,620,475 B2. European Pat. Nos: 789,315 B1; 1,128,315 B1; 1,396,811 B1; 1,413,971 B1. Additional patents pending. WEEE COMPLIANCE Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC L’apparecchiatura che riporta il simbolo del bidone barrato deve essere smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani. Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:  evitare possibili conseguenze negative per l’ambiente e per la salute umana che potrebbero invece essere causati dall’errato smaltimento dello stesso;  recuperare materiali di cui è composto al fine di ottenere un importante risparmio di energia e di risorse. Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal quale è stata acquistata l’apparecchiatura o consultare la sezione dedicata sul sito www.mobile.datalogic.com. Information for the user in accordance with the European Commission Directive 2002/96/EC At the end of its useful life, the product marked with the crossed out wheeled wastebin must be disposed of separately from urban waste. Disposing of the product according to this Directive:  avoids potentially negative consequences to the environment and human health which otherwise could be caused by incorrect disposal  enables the recovery of materials to obtain a significant savings of energy and resources. For more detailed information about disposal, contact the supplier that provided you with the product in question or consult the dedicated section at the website www.mobile.datalogic.com.

INTRODUCTION 15 1 Information aux utilisateurs concernant la Directive Européenne 2002/96/EC Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures barré ne doit pas être éliminé avec les déchets urbains. Éliminer ce produit selon cette Directive permet de:  éviter les retombées négatives pour l'environnement et la santé dérivant d'une élimination incorrecte  récupérer les matériaux dans le but d'une économie importante en termes d'énergie et de ressources Pour obtenir des informations complémentaires concernant l'élimination, veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou consulter la section consacrée au site Web www.mobile.datalogic.com. Información para el usuario de accuerdo con la Directiva Europea 2002/96/CE Al final de su vida útil, el producto marcado con un simbolo de contenedor de bassura móvil tachado no debe eliminarse junto a los desechos urbanos. Eliminar este producto de accuerdo con la Directiva permite de:  evitar posibles consecuencias negativas para el medio ambiente y la salud derivadas de una eliminación inadecuada  recuperar los materiales obteniendo así un ahorro importante de energía y recursos Para obtener una información más detallada sobre la eliminación, por favor, póngase en contacto con el proveedor donde lo compró o consultar la sección dedicada en el Web site www.mobile.datalogic.com. Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen Kommission Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen Hausmüll entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich. Beseitigung des Produkts entsprechend der Richtlinie:  verhindert negative Auswirkungen für die Umwelt und die Gesundheit der Menschen  ermöglicht die Wiederverwendung der Materialien und spart somit Energie und Resourcen Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage unter www.mobile.datalogic.com.

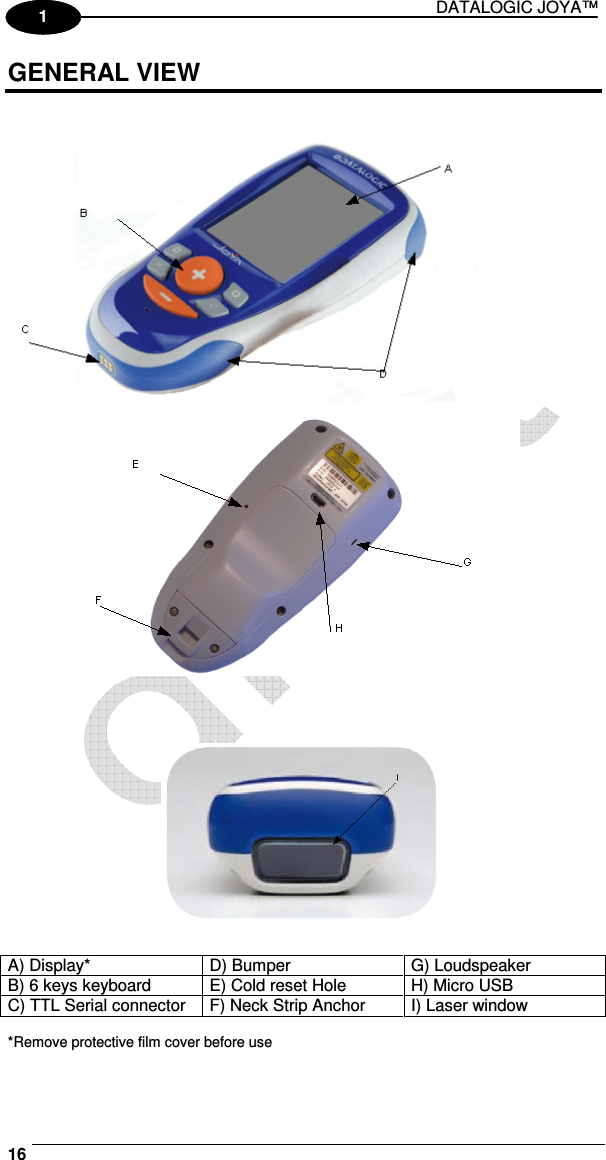

DATALOGIC JOYA™ 16 1 1 GENERAL VIEW A) Display* D) Bumper G) Loudspeaker B) 6 keys keyboard E) Cold reset Hole H) Micro USB C) TTL Serial connector F) Neck Strip Anchor I) Laser window *Remove protective film cover before use

INTRODUCTION 17 1 1 INTRODUCTION 1.1 DATALOGIC JOYA ™ DESCRIPTION The Datalogic Joya ™ is a pocket-sized Windows powered mobile computer. This extremely compact, lightweight, and versatile device, combines fully integrated automatic data capture (1D bar code) and wireless communication capabilities, supporting nearly any application. The Datalogic Joya™ system architecture is based on the blend of Intel X-Scale series processors coupled with the Windows CE operating system and it was developed to meet the most demanding customer needs. A huge quantity of on-board memory is available. it enables the user to adapt the terminal for any specific need. Thanks to its great ergonomics and the state of the art architecture, the Datalogic Joya™ is the right answer to enhance your business opportunities. 1.2 MODEL DESCRIPTION For further details about the Datalogic Joya™ models refer to the web site: http://www.joya.datalogic.com.

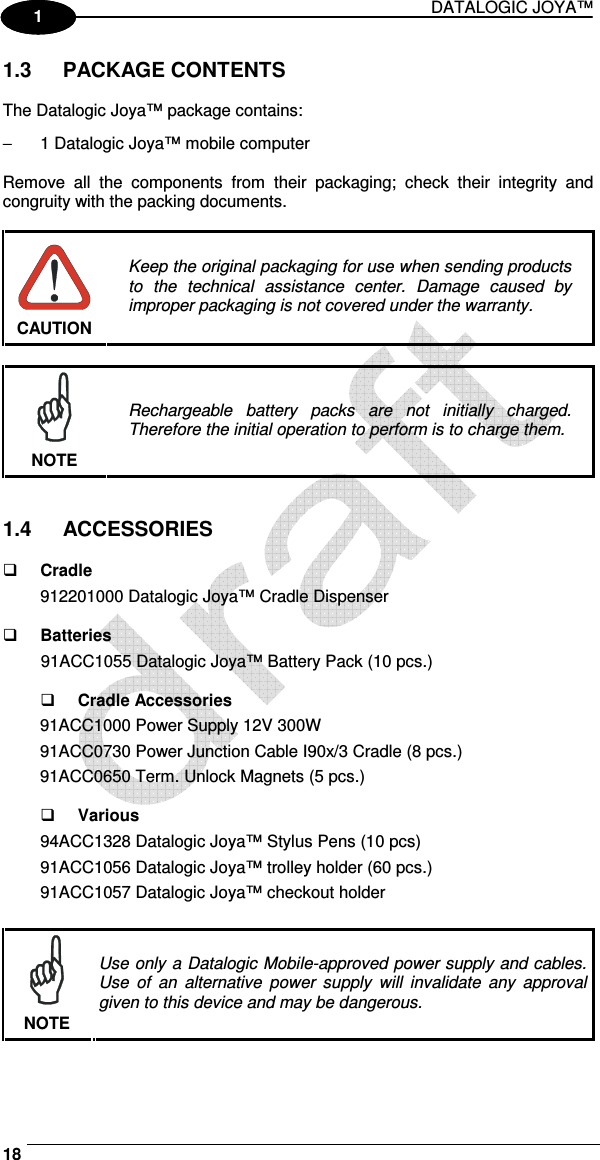

DATALOGIC JOYA™ 18 1 1 1.3 PACKAGE CONTENTS The Datalogic Joya™ package contains: − 1 Datalogic Joya™ mobile computer Remove all the components from their packaging; check their integrity and congruity with the packing documents. CAUTION Keep the original packaging for use when sending products to the technical assistance center. Damage caused by improper packaging is not covered under the warranty. NOTE Rechargeable battery packs are not initially charged. Therefore the initial operation to perform is to charge them. 1.4 ACCESSORIES  Cradle 912201000 Datalogic Joya™ Cradle Dispenser  Batteries 91ACC1055 Datalogic Joya™ Battery Pack (10 pcs.)  Cradle Accessories 91ACC1000 Power Supply 12V 300W 91ACC0730 Power Junction Cable I90x/3 Cradle (8 pcs.) 91ACC0650 Term. Unlock Magnets (5 pcs.)  Various 94ACC1328 Datalogic Joya™ Stylus Pens (10 pcs) 91ACC1056 Datalogic Joya™ trolley holder (60 pcs.) 91ACC1057 Datalogic Joya™ checkout holder NOTE Use only a Datalogic Mobile-approved power supply and cables. Use of an alternative power supply will invalidate any approval given to this device and may be dangerous.

CONNECTIONS 19 2 2 CONNECTIONS 2.1 USB CONNECTION You can use any standard micro USB cable (with length less than 3m) to directly connect the Datalogic Joya™ to a host computer to transfer data through the USB interface. Key: A) Host Computer C) Datalogic Joya™ B) Standard Micro USB cable type USB A – micro USB B

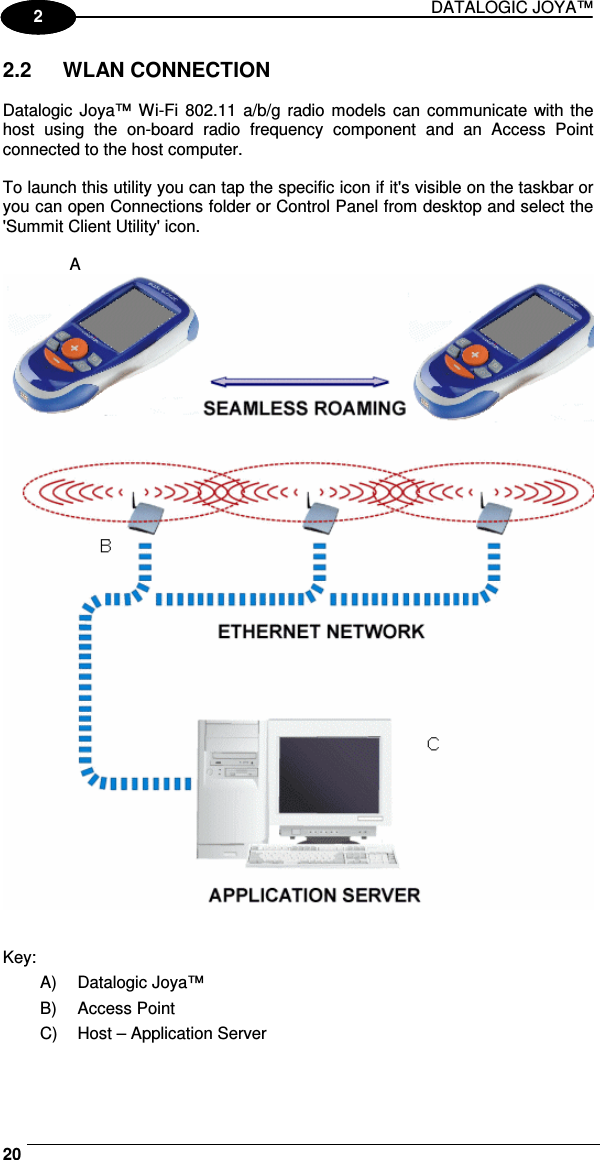

DATALOGIC JOYA™ 20 1 2 2.2 WLAN CONNECTION Datalogic Joya™ Wi-Fi 802.11 a/b/g radio models can communicate with the host using the on-board radio frequency component and an Access Point connected to the host computer. To launch this utility you can tap the specific icon if it's visible on the taskbar or you can open Connections folder or Control Panel from desktop and select the 'Summit Client Utility' icon. A Key: A) Datalogic Joya™ B) Access Point C) Host – Application Server

CONNECTIONS 21 2 NOTE Wi-Fi module is on by default, in order to avoid wasting energy, you can switch it off using the Wireless Communications applet. NOTE Suspending the terminal powers off the 802.11b/g radio and drops the radio connection. When the terminal resumes, depending on the radio power mode and security protocol selected, it may take up to 30 seconds for the 802.11b/g radio driver to re-associate the radio to the network. NOTE Area coverage and radio performance may vary, due to environmental conditions, access points types or interference caused by other devices (microwave ovens, radio transmitters, etc.)

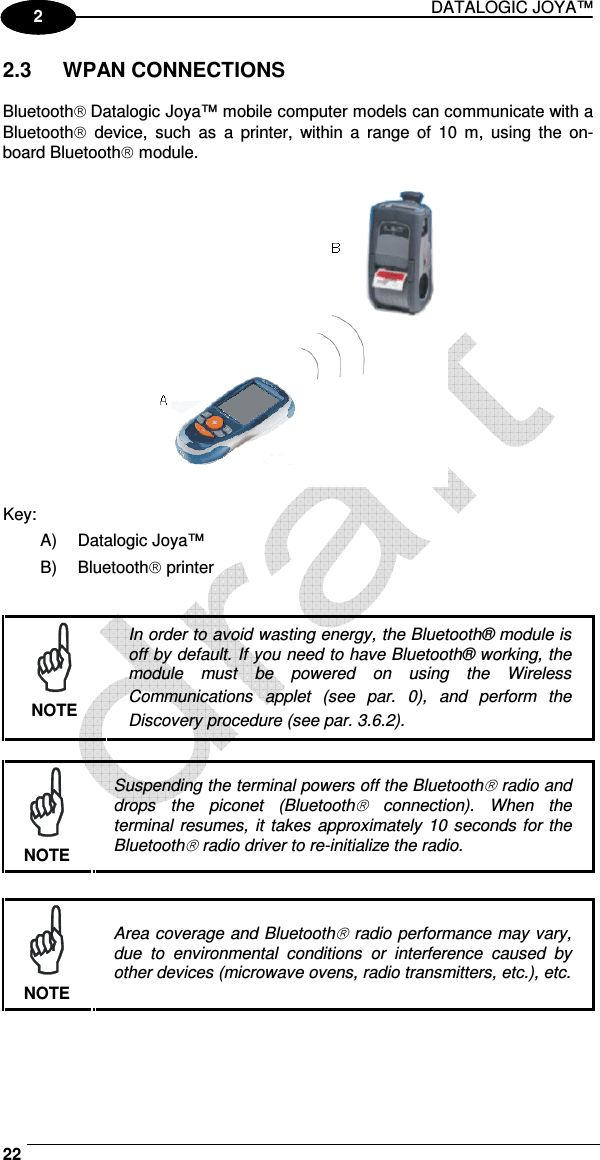

DATALOGIC JOYA™ 22 1 2 2.3 WPAN CONNECTIONS Bluetooth Datalogic Joya™ mobile computer models can communicate with a Bluetooth device, such as a printer, within a range of 10 m, using the on-board Bluetooth module. Key: A) Datalogic Joya™ B) Bluetooth printer NOTE In order to avoid wasting energy, the Bluetooth® module is off by default. If you need to have Bluetooth® working, the module must be powered on using the Wireless Communications applet (see par. 0), and perform the Discovery procedure (see par. 3.6.2). NOTE Suspending the terminal powers off the Bluetooth radio and drops the piconet (Bluetooth connection). When the terminal resumes, it takes approximately 10 seconds for the Bluetooth radio driver to re-initialize the radio. NOTE Area coverage and Bluetooth radio performance may vary, due to environmental conditions or interference caused by other devices (microwave ovens, radio transmitters, etc.), etc.

USE AND FUNCTIONING 23 3 3 USE AND FUNCTIONING The use of the Datalogic Joya™ depends on the application software loaded. However there are several parameters that can be set and utilities that can be used to perform some basic functions such as data capture, communications, file management, etc. 3.1 STARTUP The Datalogic Joya™ turns on when a charged battery pack is inserted. As soon as the mobile computer is on, the Windows desktop configuration will appear on the screen. Wait a few seconds before starting any activity so that the mobile computer completes its startup procedure. The mobile computer goes into power-off (low power with display and keyboard backlight off), when it is no longer used for more than a programmable timeout, which is defined in the POWER applet of the Control Panel. In this mode it can be awakened (resuming operation) pressing the “Up” Key. NOTE The mobile computer can also be awakened or turned off by the application program.

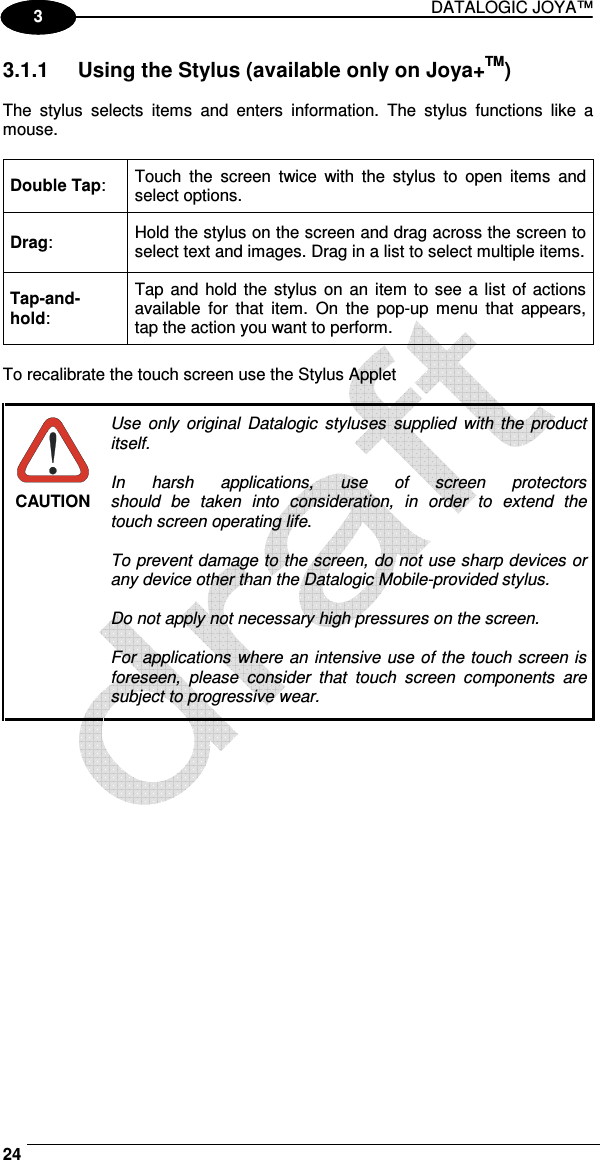

DATALOGIC JOYA™ 24 1 3 3.1.1 Using the Stylus (available only on Joya+TM) The stylus selects items and enters information. The stylus functions like a mouse. Double Tap: Touch the screen twice with the stylus to open items and select options. Drag: Hold the stylus on the screen and drag across the screen to select text and images. Drag in a list to select multiple items. Tap-and-hold: Tap and hold the stylus on an item to see a list of actions available for that item. On the pop-up menu that appears, tap the action you want to perform. To recalibrate the touch screen use the Stylus Applet CAUTION Use only original Datalogic styluses supplied with the product itself. In harsh applications, use of screen protectors should be taken into consideration, in order to extend the touch screen operating life. To prevent damage to the screen, do not use sharp devices or any device other than the Datalogic Mobile-provided stylus. Do not apply not necessary high pressures on the screen. For applications where an intensive use of the touch screen is foreseen, please consider that touch screen components are subject to progressive wear.

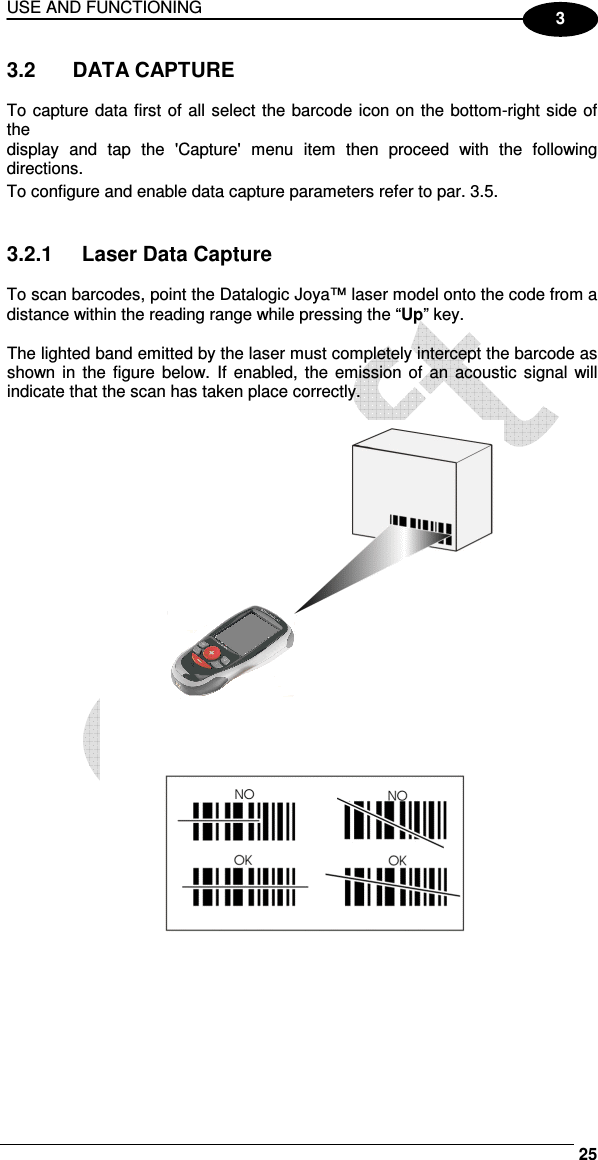

USE AND FUNCTIONING 25 3 3.2 DATA CAPTURE To capture data first of all select the barcode icon on the bottom-right side of the display and tap the 'Capture' menu item then proceed with the following directions. To configure and enable data capture parameters refer to par. 3.5. 3.2.1 Laser Data Capture To scan barcodes, point the Datalogic Joya™ laser model onto the code from a distance within the reading range while pressing the “Up” key. The lighted band emitted by the laser must completely intercept the barcode as shown in the figure below. If enabled, the emission of an acoustic signal will indicate that the scan has taken place correctly.

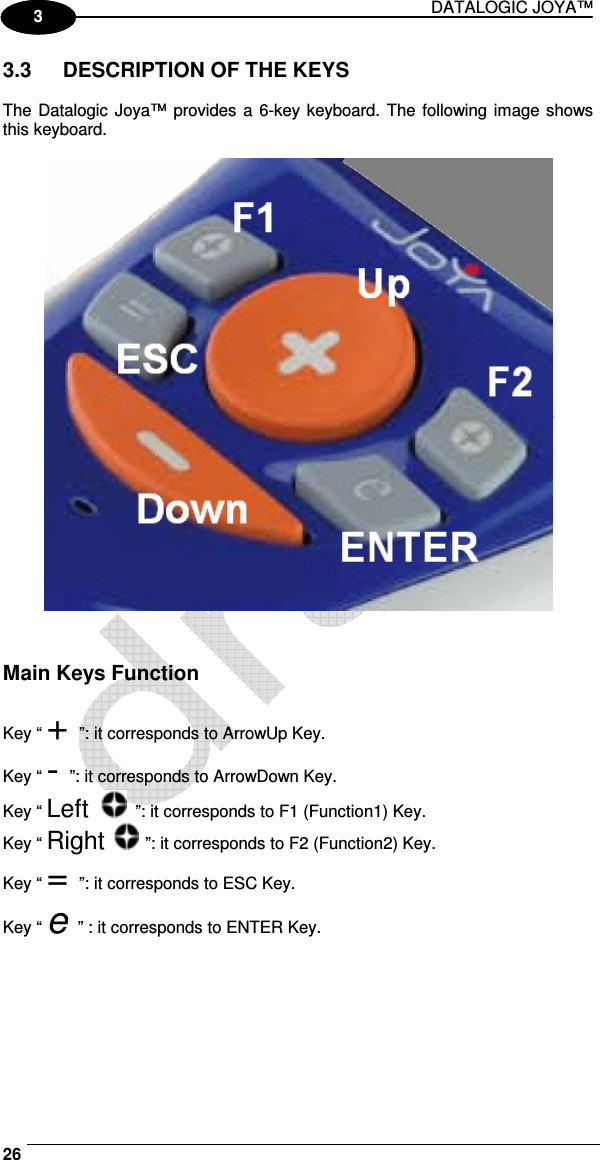

DATALOGIC JOYA™ 26 1 3 3.3 DESCRIPTION OF THE KEYS The Datalogic Joya™ provides a 6-key keyboard. The following image shows this keyboard. Main Keys Function Key “ + ”: it corresponds to ArrowUp Key. Key “ - ”: it corresponds to ArrowDown Key. Key “ Left ”: it corresponds to F1 (Function1) Key. Key “ Right ”: it corresponds to F2 (Function2) Key. Key “ = ”: it corresponds to ESC Key. Key “ e ” : it corresponds to ENTER Key.

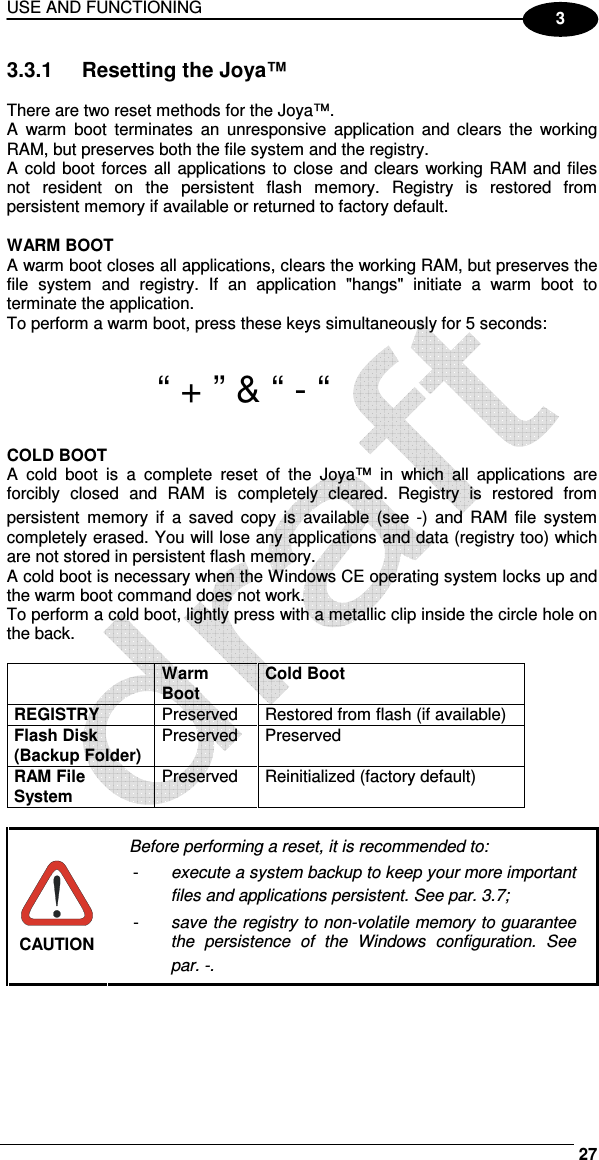

USE AND FUNCTIONING 27 3 3.3.1 Resetting the Joya™ There are two reset methods for the Joya™. A warm boot terminates an unresponsive application and clears the working RAM, but preserves both the file system and the registry. A cold boot forces all applications to close and clears working RAM and files not resident on the persistent flash memory. Registry is restored from persistent memory if available or returned to factory default. WARM BOOT A warm boot closes all applications, clears the working RAM, but preserves the file system and registry. If an application "hangs" initiate a warm boot to terminate the application. To perform a warm boot, press these keys simultaneously for 5 seconds: “ + ” & “ - “ COLD BOOT A cold boot is a complete reset of the Joya™ in which all applications are forcibly closed and RAM is completely cleared. Registry is restored from persistent memory if a saved copy is available (see -) and RAM file system completely erased. You will lose any applications and data (registry too) which are not stored in persistent flash memory. A cold boot is necessary when the Windows CE operating system locks up and the warm boot command does not work. To perform a cold boot, lightly press with a metallic clip inside the circle hole on the back. Warm Boot Cold Boot REGISTRY Preserved Restored from flash (if available) Flash Disk (Backup Folder) Preserved Preserved RAM File System Preserved Reinitialized (factory default) CAUTION Before performing a reset, it is recommended to: - execute a system backup to keep your more important files and applications persistent. See par. 3.7; - save the registry to non-volatile memory to guarantee the persistence of the Windows configuration. See par. -.

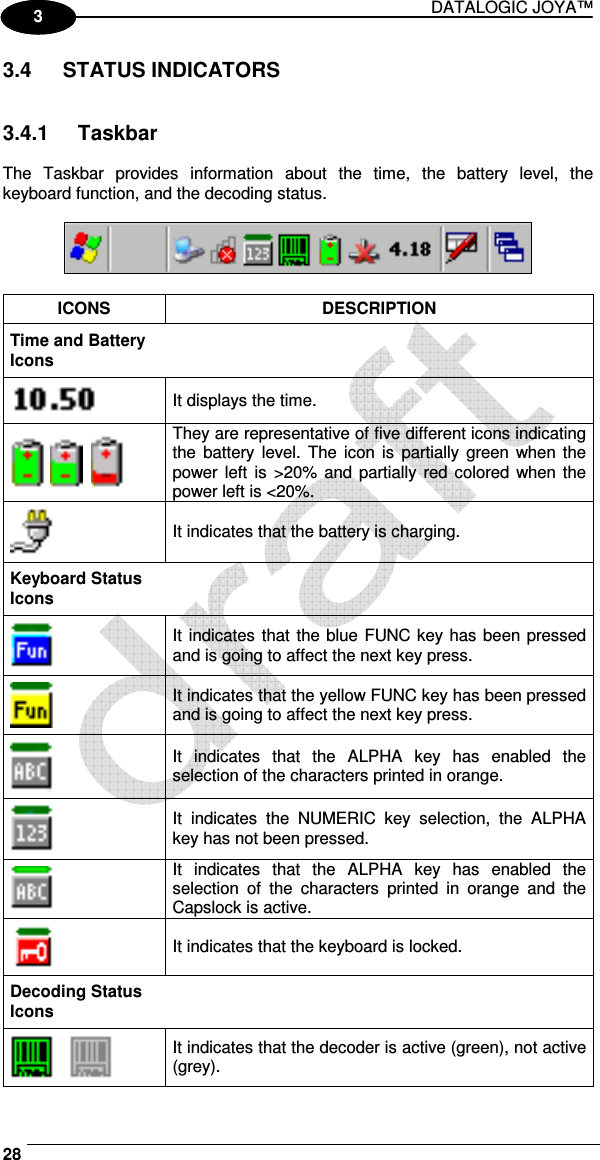

DATALOGIC JOYA™ 28 1 3 3.4 STATUS INDICATORS 3.4.1 Taskbar The Taskbar provides information about the time, the battery level, the keyboard function, and the decoding status. ICONS DESCRIPTION Time and Battery Icons It displays the time. They are representative of five different icons indicating the battery level. The icon is partially green when the power left is >20% and partially red colored when the power left is <20%. It indicates that the battery is charging. Keyboard Status Icons It indicates that the blue FUNC key has been pressed and is going to affect the next key press. It indicates that the yellow FUNC key has been pressed and is going to affect the next key press. It indicates that the ALPHA key has enabled the selection of the characters printed in orange. It indicates the NUMERIC key selection, the ALPHA key has not been pressed. It indicates that the ALPHA key has enabled the selection of the characters printed in orange and the Capslock is active. It indicates that the keyboard is locked. Decoding Status Icons It indicates that the decoder is active (green), not active (grey).

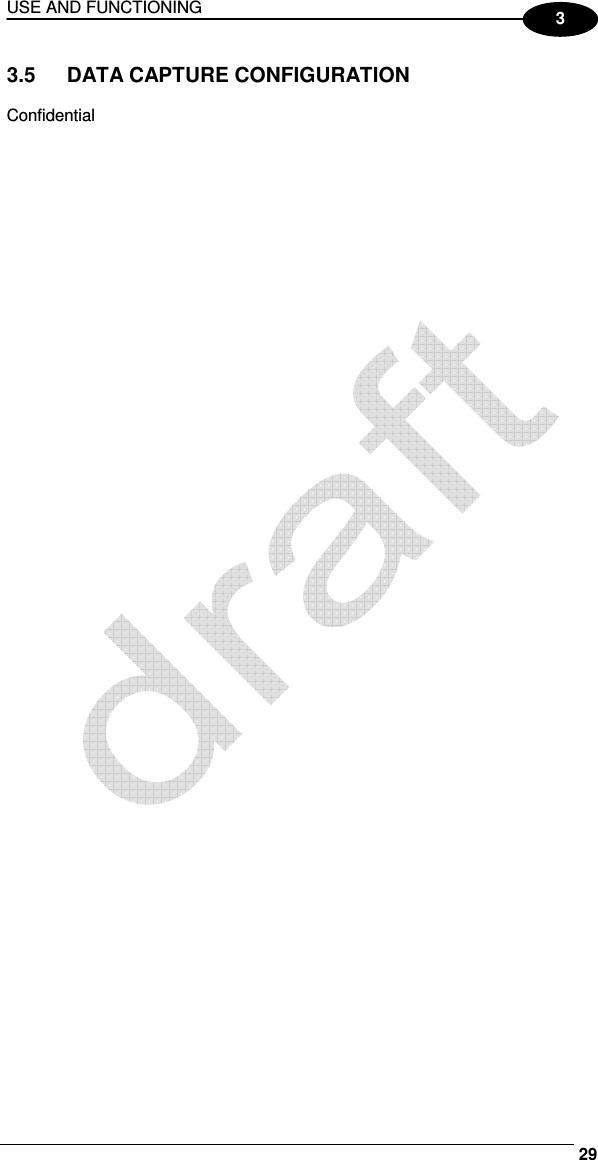

USE AND FUNCTIONING 29 3 3.5 DATA CAPTURE CONFIGURATION Confidential

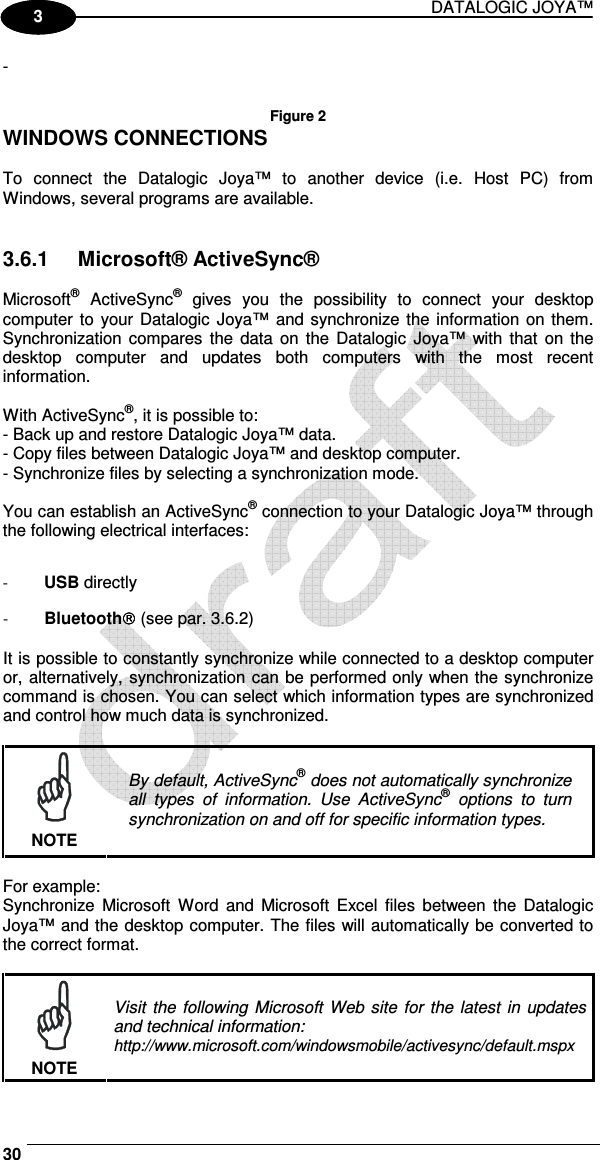

DATALOGIC JOYA™ 30 1 3 - Figure 2 WINDOWS CONNECTIONS To connect the Datalogic Joya™ to another device (i.e. Host PC) from Windows, several programs are available. 3.6.1 Microsoft® ActiveSync® Microsoft® ActiveSync® gives you the possibility to connect your desktop computer to your Datalogic Joya™ and synchronize the information on them. Synchronization compares the data on the Datalogic Joya™ with that on the desktop computer and updates both computers with the most recent information. With ActiveSync®, it is possible to: - Back up and restore Datalogic Joya™ data. - Copy files between Datalogic Joya™ and desktop computer. - Synchronize files by selecting a synchronization mode. You can establish an ActiveSync® connection to your Datalogic Joya™ through the following electrical interfaces: - USB directly - Bluetooth (see par. 3.6.2) It is possible to constantly synchronize while connected to a desktop computer or, alternatively, synchronization can be performed only when the synchronize command is chosen. You can select which information types are synchronized and control how much data is synchronized. NOTE By default, ActiveSync® does not automatically synchronize all types of information. Use ActiveSync® options to turn synchronization on and off for specific information types. For example: Synchronize Microsoft Word and Microsoft Excel files between the Datalogic Joya™ and the desktop computer. The files will automatically be converted to the correct format. NOTE Visit the following Microsoft Web site for the latest in updates and technical information: http://www.microsoft.com/windowsmobile/activesync/default.mspx

USE AND FUNCTIONING 31 3

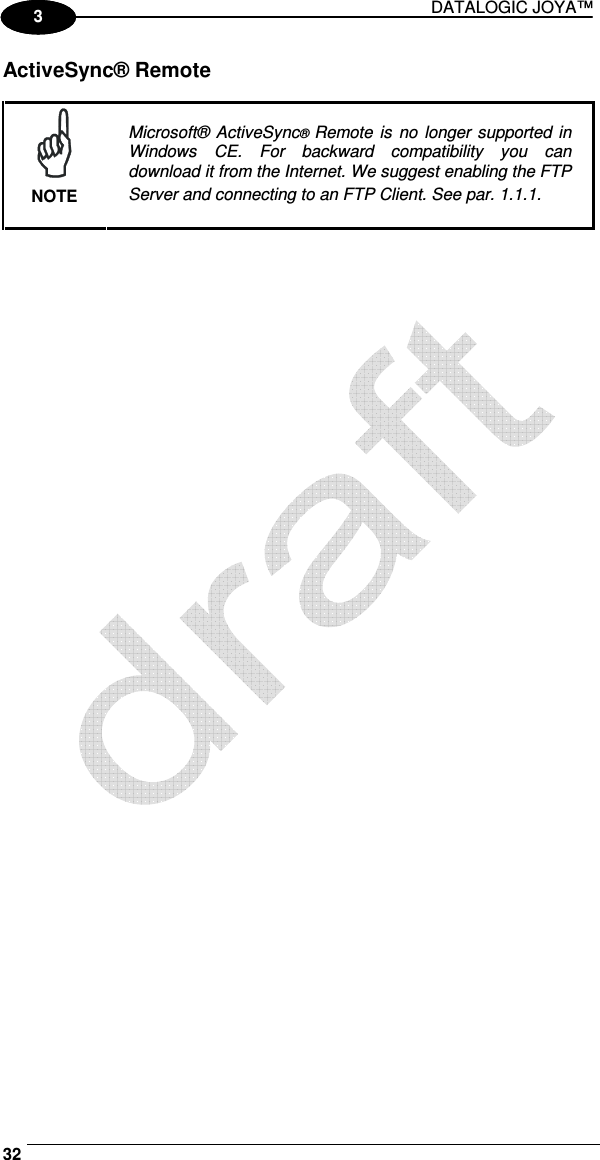

DATALOGIC JOYA™ 32 1 3 ActiveSync® Remote NOTE Microsoft® ActiveSync® Remote is no longer supported in Windows CE. For backward compatibility you can download it from the Internet. We suggest enabling the FTP Server and connecting to an FTP Client. See par. 1.1.1.

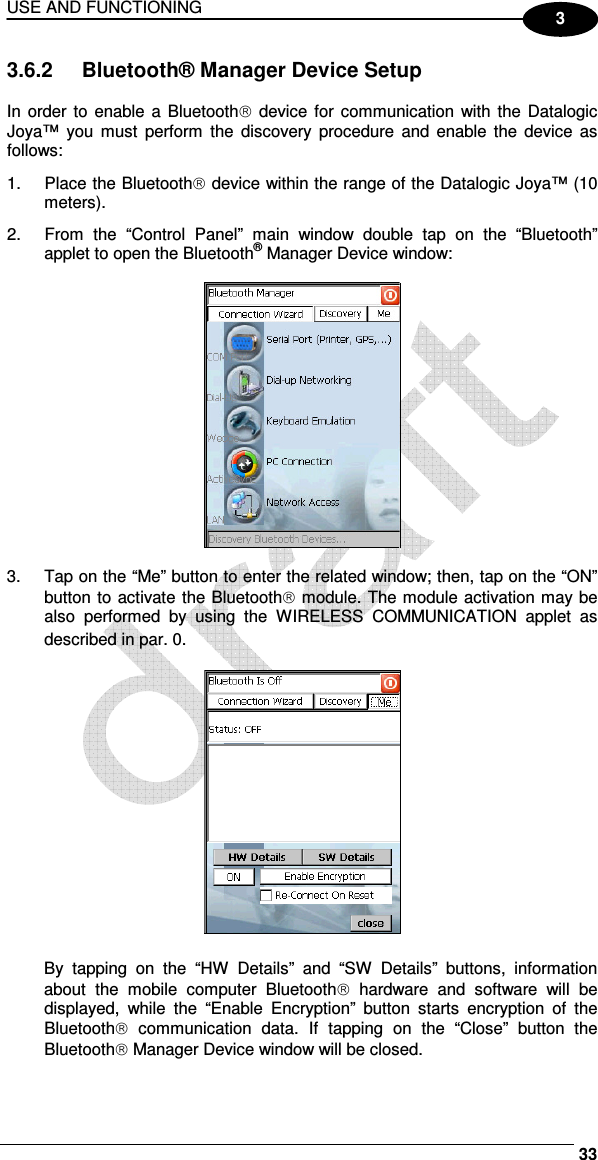

USE AND FUNCTIONING 33 3 3.6.2 Bluetooth® Manager Device Setup In order to enable a Bluetooth device for communication with the Datalogic Joya™ you must perform the discovery procedure and enable the device as follows: 1. Place the Bluetooth device within the range of the Datalogic Joya™ (10 meters). 2. From the “Control Panel” main window double tap on the “Bluetooth” applet to open the Bluetooth® Manager Device window: 3. Tap on the “Me” button to enter the related window; then, tap on the “ON” button to activate the Bluetooth module. The module activation may be also performed by using the WIRELESS COMMUNICATION applet as described in par. 0. By tapping on the “HW Details” and “SW Details” buttons, information about the mobile computer Bluetooth hardware and software will be displayed, while the “Enable Encryption” button starts encryption of the Bluetooth communication data. If tapping on the “Close” button the Bluetooth Manager Device window will be closed.

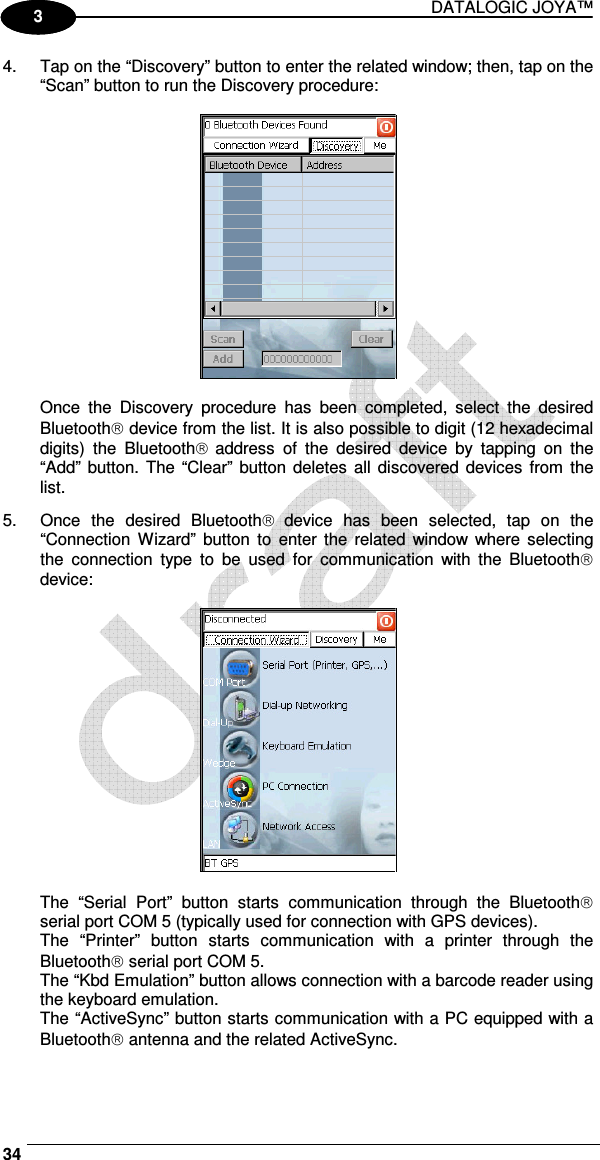

DATALOGIC JOYA™ 34 1 3 4. Tap on the “Discovery” button to enter the related window; then, tap on the “Scan” button to run the Discovery procedure: Once the Discovery procedure has been completed, select the desired Bluetooth device from the list. It is also possible to digit (12 hexadecimal digits) the Bluetooth address of the desired device by tapping on the “Add” button. The “Clear” button deletes all discovered devices from the list. 5. Once the desired Bluetooth device has been selected, tap on the “Connection Wizard” button to enter the related window where selecting the connection type to be used for communication with the Bluetooth device: The “Serial Port” button starts communication through the Bluetooth serial port COM 5 (typically used for connection with GPS devices). The “Printer” button starts communication with a printer through the Bluetooth serial port COM 5. The “Kbd Emulation” button allows connection with a barcode reader using the keyboard emulation. The “ActiveSync” button starts communication with a PC equipped with a Bluetooth antenna and the related ActiveSync.

USE AND FUNCTIONING 35 3 6. Hide the Bluetooth Manager Device window by tapping on the icon available on each window or close it through the “Close” button available in the “Me” window (see step 3 of this procedure).

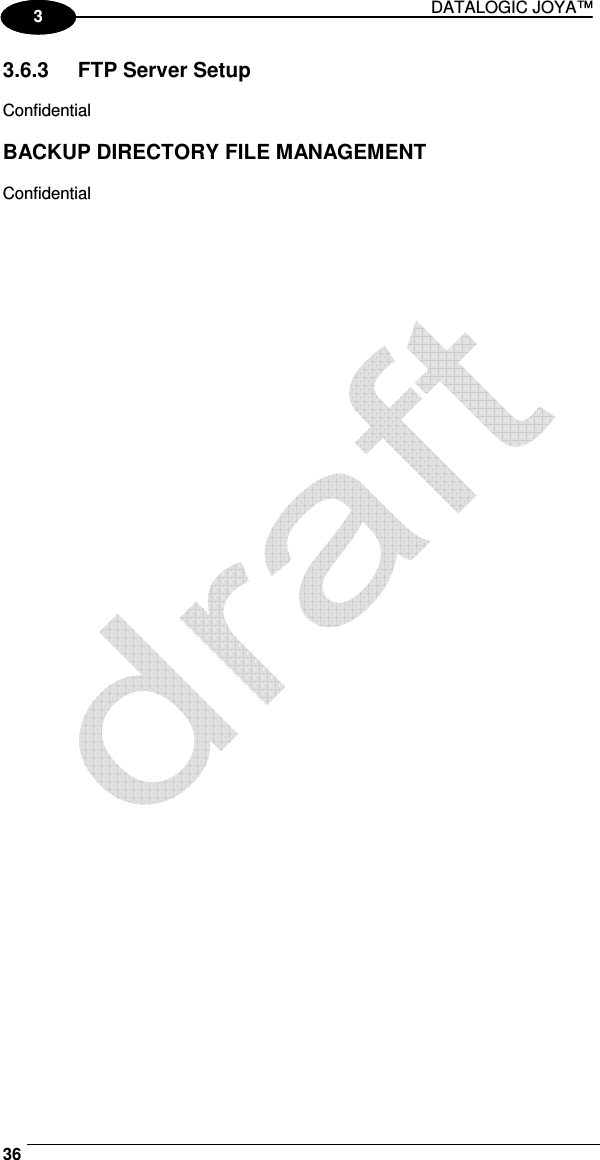

DATALOGIC JOYA™ 36 1 3 3.6.3 FTP Server Setup Confidential BACKUP DIRECTORY FILE MANAGEMENT Confidential

USE AND FUNCTIONING 37 3 3.8 FIRMWARE UPDATE Confidential

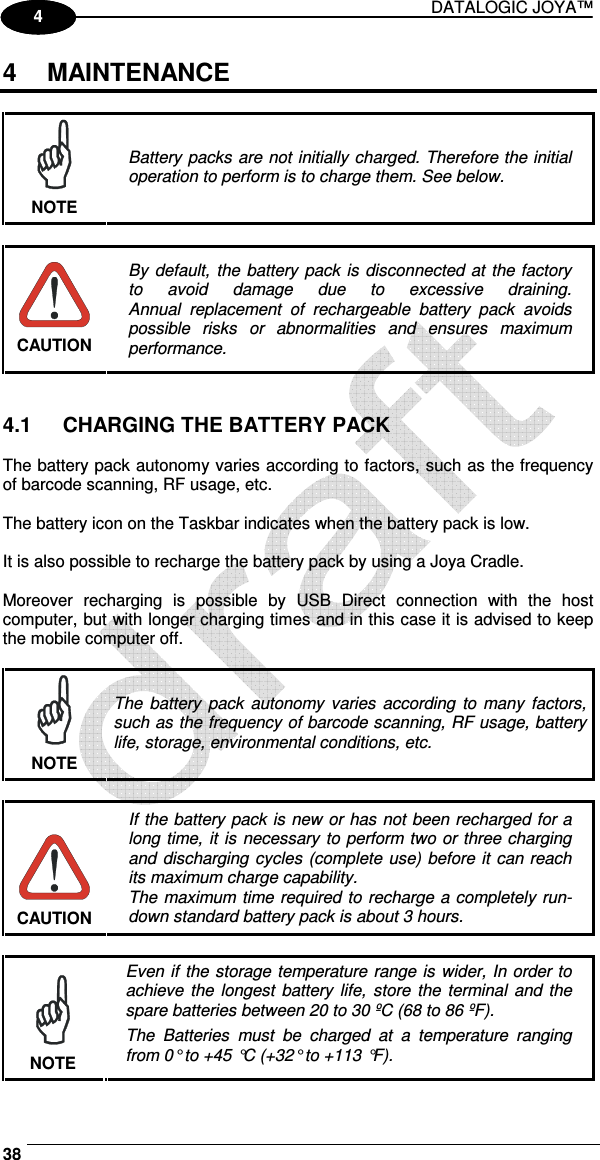

DATALOGIC JOYA™ 38 1 4 4 MAINTENANCE NOTE Battery packs are not initially charged. Therefore the initial operation to perform is to charge them. See below. CAUTION By default, the battery pack is disconnected at the factory to avoid damage due to excessive draining. Annual replacement of rechargeable battery pack avoids possible risks or abnormalities and ensures maximum performance. 4.1 CHARGING THE BATTERY PACK The battery pack autonomy varies according to factors, such as the frequency of barcode scanning, RF usage, etc. The battery icon on the Taskbar indicates when the battery pack is low. It is also possible to recharge the battery pack by using a Joya Cradle. Moreover recharging is possible by USB Direct connection with the host computer, but with longer charging times and in this case it is advised to keep the mobile computer off. NOTE The battery pack autonomy varies according to many factors, such as the frequency of barcode scanning, RF usage, battery life, storage, environmental conditions, etc. CAUTION If the battery pack is new or has not been recharged for a long time, it is necessary to perform two or three charging and discharging cycles (complete use) before it can reach its maximum charge capability. The maximum time required to recharge a completely run-down standard battery pack is about 3 hours. NOTE Even if the storage temperature range is wider, In order to achieve the longest battery life, store the terminal and the spare batteries between 20 to 30 ºC (68 to 86 ºF). The Batteries must be charged at a temperature ranging from 0° to +45 °C (+32° to +113 °F).

MAINTENANCE 39 4 4.2 REPLACING THE BATTERY PACK To correctly replace the battery pack, proceed as follows. 1. Unscrew the two screws placed on the back bottom. The battery pack cover is now released.

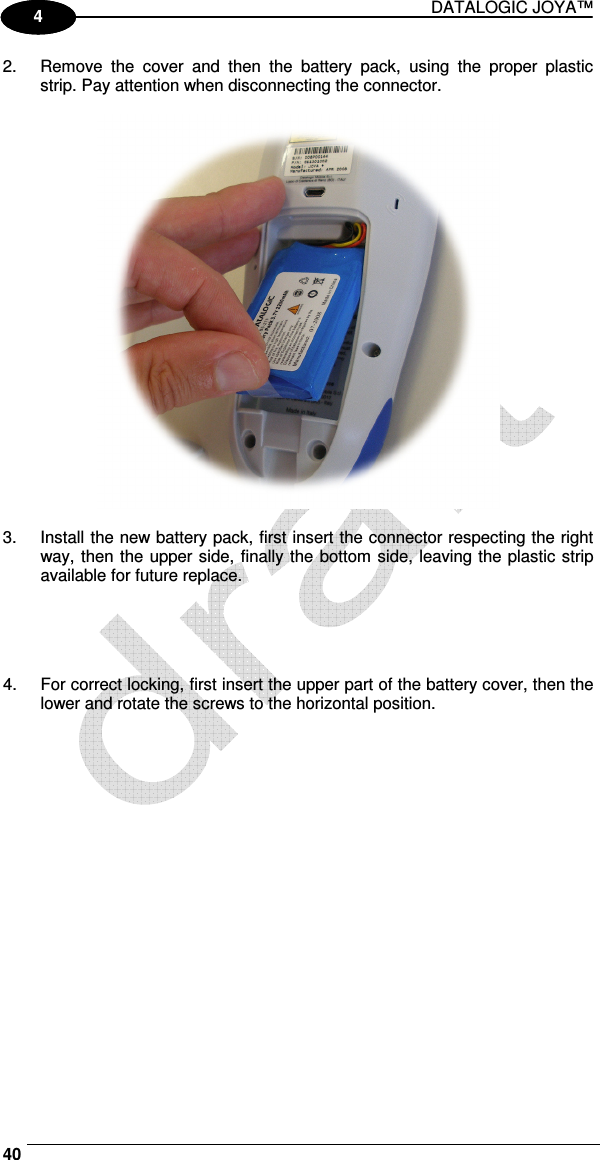

DATALOGIC JOYA™ 40 1 4 2. Remove the cover and then the battery pack, using the proper plastic strip. Pay attention when disconnecting the connector. 3. Install the new battery pack, first insert the connector respecting the right way, then the upper side, finally the bottom side, leaving the plastic strip available for future replace. 4. For correct locking, first insert the upper part of the battery cover, then the lower and rotate the screws to the horizontal position.

MAINTENANCE 41 4 WARNING To install, charge and/or do any other action on the battery, follow this manual. The battery pack may get hot, explode, ignite, and/or cause serious injury if exposed to abusive conditions. If the battery pack is replaced with an improper type, there is risk of explosion. Do not place the battery pack in or near a fire or heat; do not place the battery pack in direct sunlight, or use or store the battery pack inside unventilated areas in hot weather; do not place the battery pack in microwave ovens, dryer, high pressure containers, on induction cookware or similar device. Doing so may cause the battery pack to generate heat, explode or ignite. Using the battery pack in this manner may also result in a loss of performance and a shortened life expectancy. Use only a Datalogic Mobile approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, explode or ignite. The area in which the units are charged should be clear of debris and combustible materials or chemicals. Do not use the battery pack of this terminal for power devices different from this mobile computer. Immediately discontinue use of the battery pack if, while using, charging or storing the battery pack, the battery pack emits an unusual smell, feels hot, changes colour or shape, or appears abnormal in any other way. Do not short-circuit the battery pack contacts connecting the positive terminal and negative terminal. This might happen, for example, when you carry a spare battery pack in your pocket or purse; accidental short–circuiting can occur when a metallic object such as a coin, clip, or pen causes direct connection of the contacts of the battery pack (these look like metal strips on the battery pack). Short–circuiting the terminals may damage the battery pack or the connecting object. Do not apply voltages to the battery pack contacts. Do not pierce the battery pack with nails, strike it with a hammer, step on it or otherwise subject it to strong impacts or shocks. Do not disassemble or modify (i.e. bend, crush or deform) the battery pack. The battery pack contains safety and protection devices, which, if damaged, may cause the battery pack to generate heat, explode or ignite.

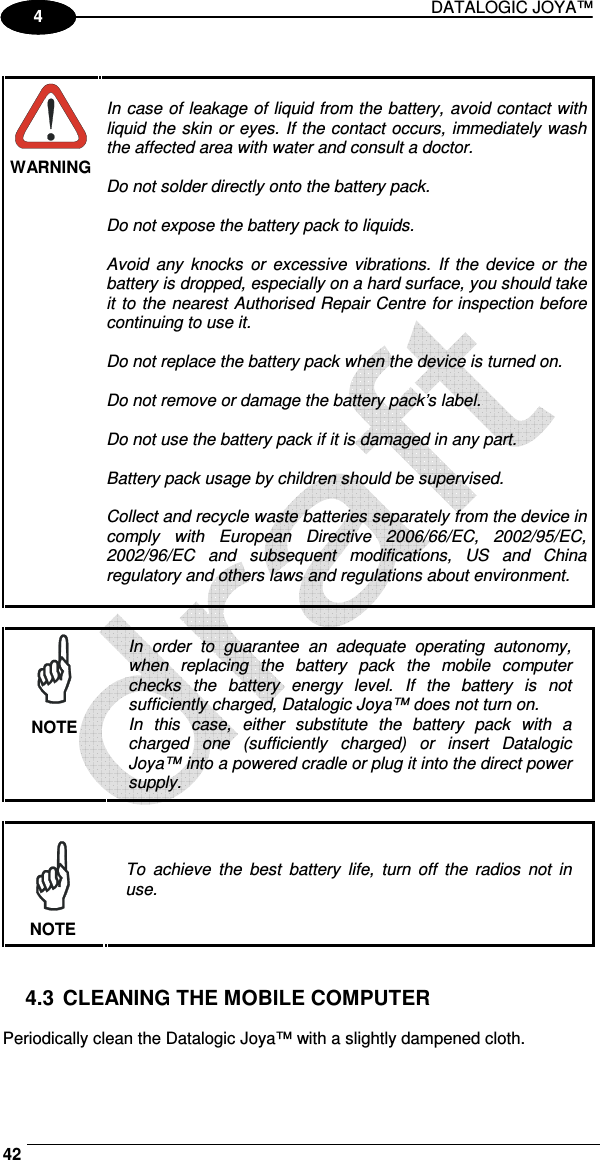

DATALOGIC JOYA™ 42 1 4 WARNING In case of leakage of liquid from the battery, avoid contact with liquid the skin or eyes. If the contact occurs, immediately wash the affected area with water and consult a doctor. Do not solder directly onto the battery pack. Do not expose the battery pack to liquids. Avoid any knocks or excessive vibrations. If the device or the battery is dropped, especially on a hard surface, you should take it to the nearest Authorised Repair Centre for inspection before continuing to use it. Do not replace the battery pack when the device is turned on. Do not remove or damage the battery pack’s label. Do not use the battery pack if it is damaged in any part. Battery pack usage by children should be supervised. Collect and recycle waste batteries separately from the device in comply with European Directive 2006/66/EC, 2002/95/EC, 2002/96/EC and subsequent modifications, US and China regulatory and others laws and regulations about environment. NOTE In order to guarantee an adequate operating autonomy, when replacing the battery pack the mobile computer checks the battery energy level. If the battery is not sufficiently charged, Datalogic Joya™ does not turn on. In this case, either substitute the battery pack with a charged one (sufficiently charged) or insert Datalogic Joya™ into a powered cradle or plug it into the direct power supply. NOTE To achieve the best battery life, turn off the radios not in use. 4.3 CLEANING THE MOBILE COMPUTER Periodically clean the Datalogic Joya™ with a slightly dampened cloth.

JOYA CRADLE DISPENSER 43 5 5 JOYATM CRADLE DISPENSER 5.1 INTRODUCTION JoyaTM Cradle Dispenser has the following responsibilities:  to recognize the insertion and extraction of the Joya  to control the blocking device  to signal status using the LEDs  to supply power to the Joya for battery recharging Joya Cradle Dispenser has three Joya slots, each equipped with its own control unit, an electromechanical system for blocking/releasing the terminal, notification light, battery power and recharging circuits. Its special structure makes it possible to design any type of dispenser (wall-mounted or island) easily, allowing twice the number of terminals to be installed per vertical square meter with respect to the competing systems. 5.2 ACCESSORIES  91ACC1000 Power Supply 12V 300W  91ACC0730 Power Junction Cable I90x/3 Cradle (8 pcs.)  91ACC0650 Term. Unlock Magnets (5 pcs.)

DATALOGIC JOYA™ 44 1 5 5.3 INSTALLATION REQUIREMENTS Confidential 5.4 BASE UNIT CONSTRUCTION DETAILS Confidential 5.4.1 JoyaTM Cradle Dispenser Supports Confidential 5.4.3 Internal Cabinet Space and Openings Confidential. 5.4.4 Anchoring and Maintenance Issues Confidential 5.4.5 Power Supply Positioning and Cooling Confidential 5.4.6 AC Power Cabling Confidential 5.4.7 Cable to Power Supply Connection Confidential 5.4.8 Safety Precautions Joya Cradle Dispenser Cabinet, the relative electrical wiring and connection to the AC power line must be made according to the Safety Normatives currently in force. The following paragraphs contain some particularly important considerations to keep in mind. • Cradle Dispenser Operating Temperature Joya Cradle Dispensers are designed and built to operate within the following environmental conditions: Operating Temperature Range: 10 to 30 °C

JOYA CRADLE DISPENSER 45 5 Storage Temperature Range: -20 to 60 °C Humidity: 90% non condensing • Cabinet The cabinet must not have any exposed sharp edges, which could represent a danger to customers. The requirements for air passages to cool both the JoyaCradle Dispensers and the power supplies must be adhered to in order to avoid overheating problems for the components inside the cabinet. All components having dangerous voltage levels must be protected from unauthorized access. Only qualified personnel should be authorized access for maintenance purposes. In particular, the opening at the top of the cabinet must be closed with a grill or mesh that prevents access from the outside to the power supplies below. In addition, the plastic protection covers must be mounted over the power supply terminals to avoid accidental contact by maintenance personnel when the cabinet is open. • Wiring The wires used for cabling must have flame retardant insulation. The cables must be affixed to the cabinet avoiding types of cable clamps that use screws or have moving parts that press directly upon the cable itself. Cable clamps must also be applied close to the wires coming from the power supplies so that they won't be accidentally pulled out of the power supply terminals to which they are connected. Avoid running cables with sharp bends or that rest on sharp edges which can damage them over time and in the long run pose a danger inside the cabinet. After making all the wiring connections, if some connections have wire exposed without insulation, they must be insulated. 5.4.9 Connection to AC Line Voltage If connection to the AC power line is made with a plug at the end of the cable, The outlet to which it is inserted must be close by and easily accessible. The outlet must also be rated for the maximum power consumption, which can be considered equal to the nominal power of the connected power supplies. If the Terminal Distributor is connected in a fixed electrical plant, a circuit breaker must be provided in order to completely disconnect the AC line voltage form the Cradle Dispenser cabinet. This circuit breaker must be positioned close to the cabinet and be easily accessible. It must also be rated for the maximum power consumption and must meet the Safety Normatives currently in force.

DATALOGIC JOYA™ 46 1 5 5.5 JOYATM CRADLE DISPENSER FIRMWARE Joya Cradle Dispenser is provided with a full operational Firmware, therefore it doesn’t require any kind of software devoloping activitiy Instead, the behaviour of the Joya Cradle Dispenser could be controlled at high level using the Joya. In SDK Tools is furnished APC.exe program, to upgrade Joya Cradle Dispenser firmware release. 5.5.1 APC installation confidential 5.5.2 Starting program confidential

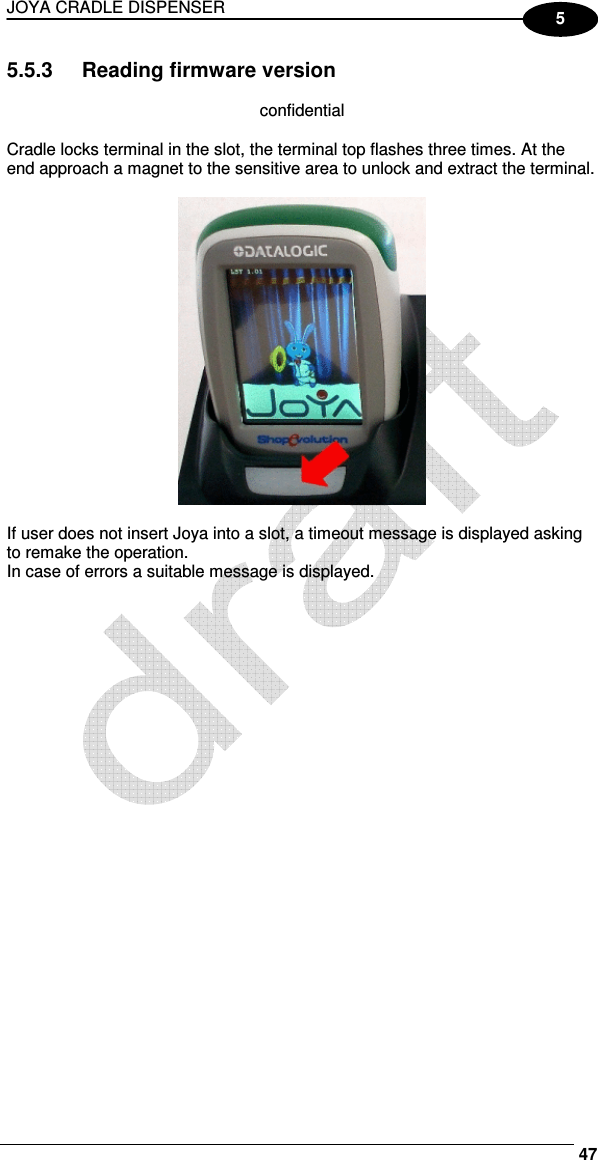

JOYA CRADLE DISPENSER 47 5 5.5.3 Reading firmware version confidential Cradle locks terminal in the slot, the terminal top flashes three times. At the end approach a magnet to the sensitive area to unlock and extract the terminal. If user does not insert Joya into a slot, a timeout message is displayed asking to remake the operation. In case of errors a suitable message is displayed.

DATALOGIC JOYA™ 48 1 5 5.5.4 Firmware update procedure Confidential 5.6 JOYA TM – JOYA TM CRADLE DISPENSER CONNECTION Joya Cradle Dispenser is equipped with an electrical-serial connection, used to exhange command and response with Joya. The communications between the terminal inserted into the slot and the slot itself, are performed by means of a special “RPC like commad-response” protocol.

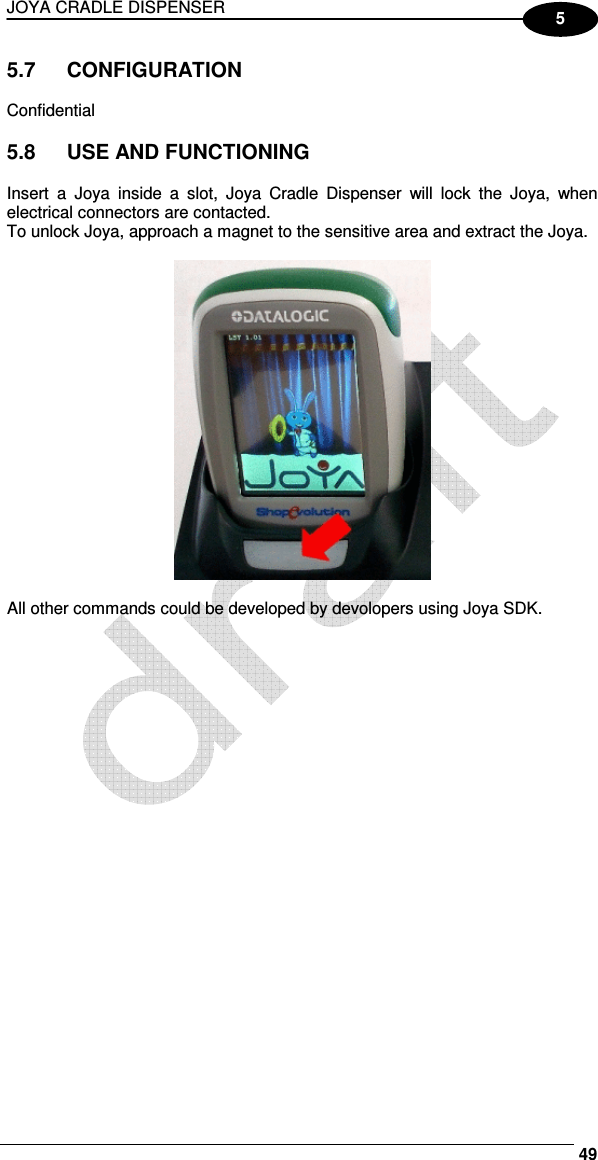

JOYA CRADLE DISPENSER 49 5 5.7 CONFIGURATION Confidential 5.8 USE AND FUNCTIONING Insert a Joya inside a slot, Joya Cradle Dispenser will lock the Joya, when electrical connectors are contacted. To unlock Joya, approach a magnet to the sensitive area and extract the Joya. All other commands could be developed by devolopers using Joya SDK.

DATALOGIC JOYA™ 50 1 7 6 JOYA ATM/JOYA+ ATM TECHNICAL FEATURES 6.1 TECHNICAL DATA Datalogic Joya ATM/Joya+ A Common Features Confidential

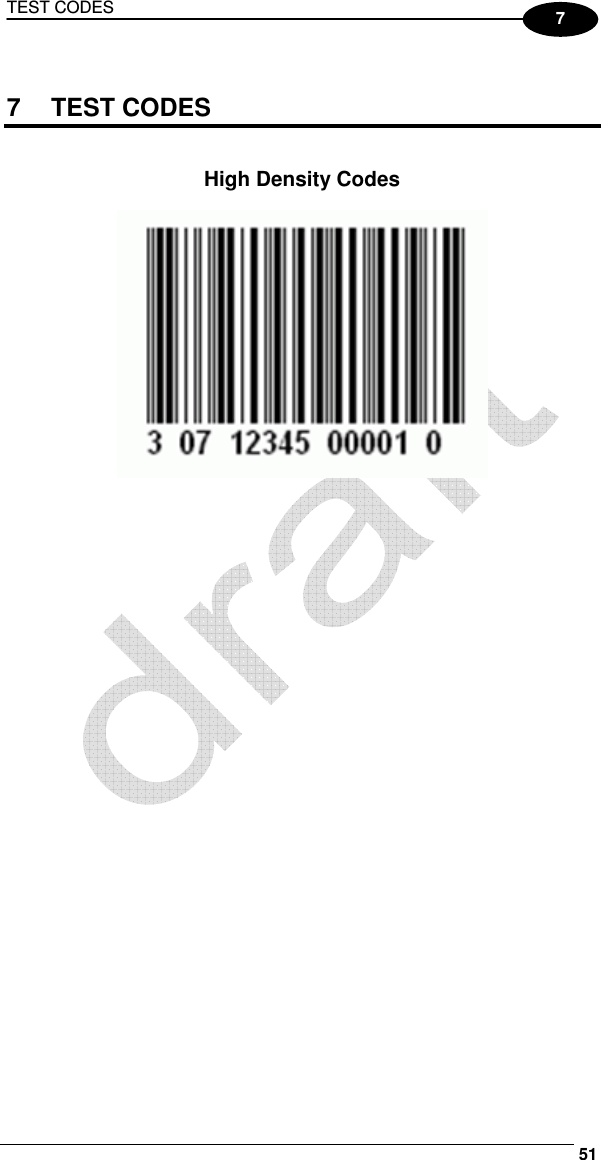

TEST CODES 51 7 7 TEST CODES High Density Codes

DATALOGIC JOYA™ 52 1 7 Medium Density Codes Low Density Codes

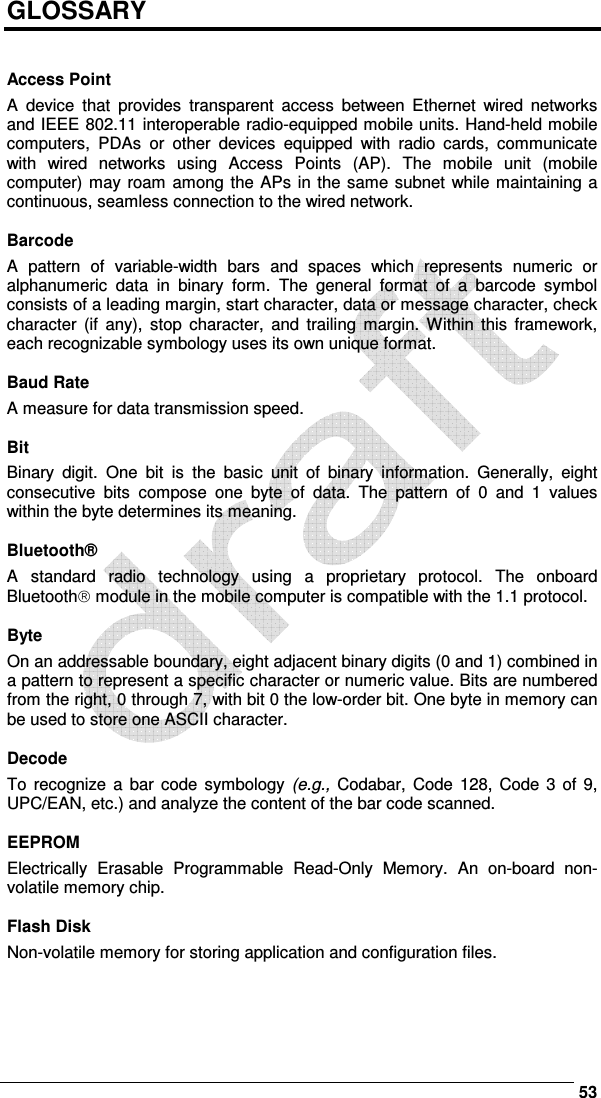

53 GLOSSARY Access Point A device that provides transparent access between Ethernet wired networks and IEEE 802.11 interoperable radio-equipped mobile units. Hand-held mobile computers, PDAs or other devices equipped with radio cards, communicate with wired networks using Access Points (AP). The mobile unit (mobile computer) may roam among the APs in the same subnet while maintaining a continuous, seamless connection to the wired network. Barcode A pattern of variable-width bars and spaces which represents numeric or alphanumeric data in binary form. The general format of a barcode symbol consists of a leading margin, start character, data or message character, check character (if any), stop character, and trailing margin. Within this framework, each recognizable symbology uses its own unique format. Baud Rate A measure for data transmission speed. Bit Binary digit. One bit is the basic unit of binary information. Generally, eight consecutive bits compose one byte of data. The pattern of 0 and 1 values within the byte determines its meaning. Bluetooth® A standard radio technology using a proprietary protocol. The onboard Bluetooth module in the mobile computer is compatible with the 1.1 protocol. Byte On an addressable boundary, eight adjacent binary digits (0 and 1) combined in a pattern to represent a specific character or numeric value. Bits are numbered from the right, 0 through 7, with bit 0 the low-order bit. One byte in memory can be used to store one ASCII character. Decode To recognize a bar code symbology (e.g., Codabar, Code 128, Code 3 of 9, UPC/EAN, etc.) and analyze the content of the bar code scanned. EEPROM Electrically Erasable Programmable Read-Only Memory. An on-board non-volatile memory chip. Flash Disk Non-volatile memory for storing application and configuration files.

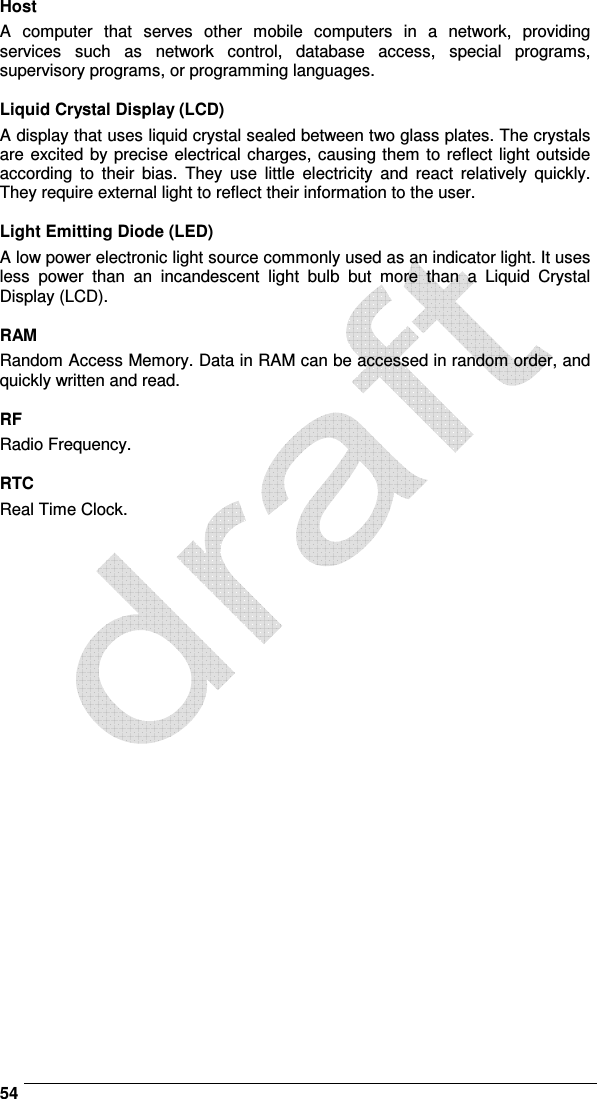

54 Host A computer that serves other mobile computers in a network, providing services such as network control, database access, special programs, supervisory programs, or programming languages. Liquid Crystal Display (LCD) A display that uses liquid crystal sealed between two glass plates. The crystals are excited by precise electrical charges, causing them to reflect light outside according to their bias. They use little electricity and react relatively quickly. They require external light to reflect their information to the user. Light Emitting Diode (LED) A low power electronic light source commonly used as an indicator light. It uses less power than an incandescent light bulb but more than a Liquid Crystal Display (LCD). RAM Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read. RF Radio Frequency. RTC Real Time Clock.

55 INDEX A Accessories; 2 ActiveSync® Remote; 31 B Backup Directory File Management; 36 Bluetooth® Manager Device Setup; 32 C Charging the Batteries; 40 Cleaning the Mobile Computer; 44 Connections; 3 Control Panel; 18 Conventions; vii D Data Capture; 9 Laser Data Capture; 9 Data Capture Configuration; 13 Datalogic Joyar™ Description; 1 Default Settings; 16 Description of the Keys; 10 E End User License Agreement; v F Files Admin; 20 Firmware Update; 37 FTP Server Setup; 35 G General View; xix Glossary; 64 J JoyaTM cradle dispenser; 45 L Laser Safety; ix M Maintenance; 40 Microsoft® ActiveSync®; 30 Model Description; 1 P Package Contents; 2 Patents; xvii R Radio Compliance; xiv Reader Parameters; 15 Reference Documentation; vii References; vii Registry; 18 Replacing the Batteries; 41 Resetting the Joya™; 11 S Safe Setup; 20 Safety Regulations; viii Save Session; 20 Scan Parameters; 15 Startup; 7 Status Indicators; 12 Stylus Calibration; 28 Summit Radio Card; 23 T Taskbar; 12 Technical Features; 59 Test Codes; 61 U USB Connection; 3 Using the Stylus; 8 W WEEE Compliance; xvii Windows Connections; 30 Wireless Communications; 22 WLAN Connection; 4 WPAN Connections; 6

Declarations They will be added in the final releases
