Multi-Purpose Device for Retail
Quick Start Guide
822002101 (Rev. A) Sept. 2016
Out of the Box
The JOYA TOUCH package contains:
•JOYA TOUCH (device)
• Rechargeable battery
•Quick Start Guide
•Safety & Regulatory Addendum
Remove all the components from their packaging; check their integrity
and compare them with all the packing documents.

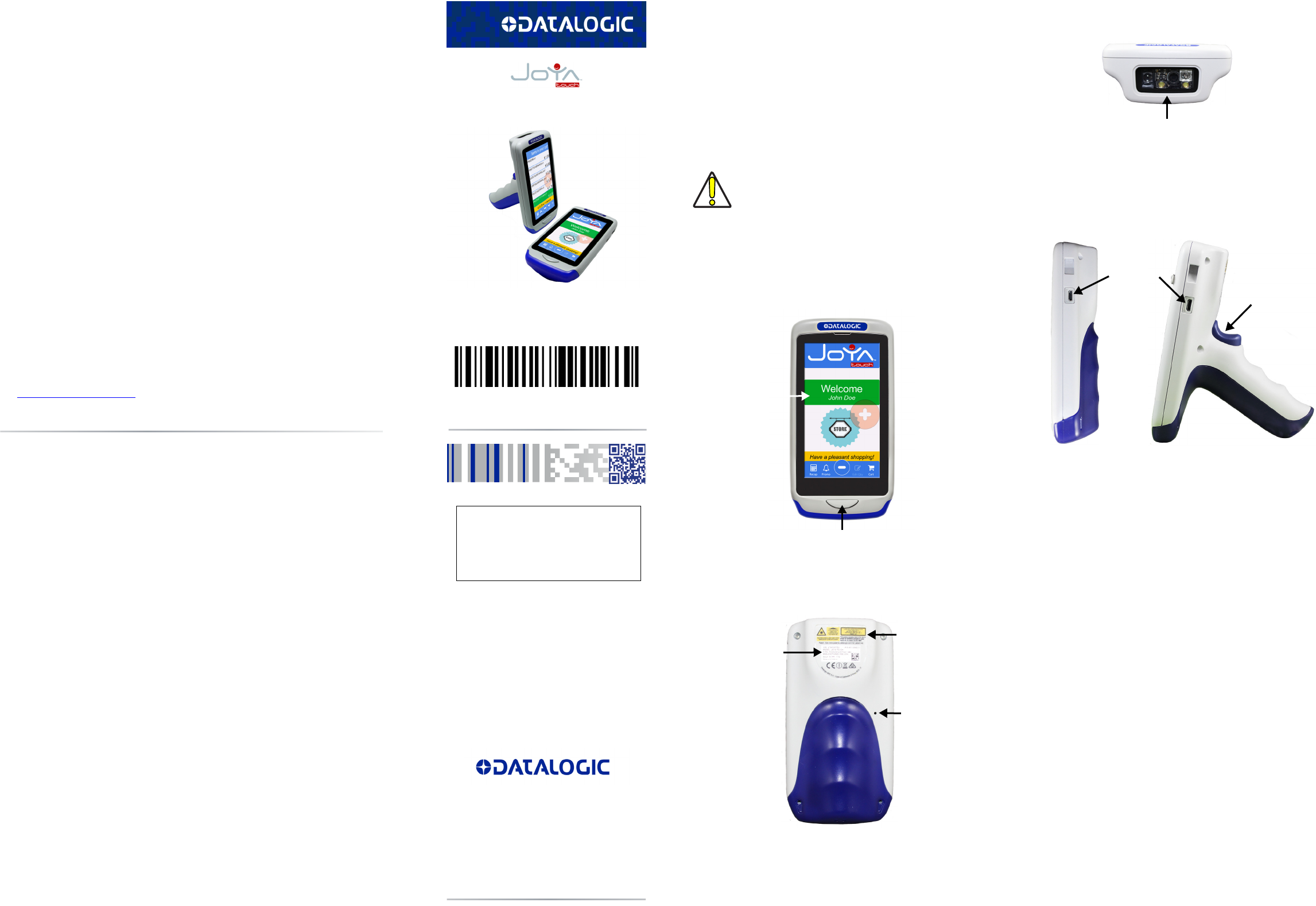

General View
Front View
Back View
CAUTION
Keep the original packaging for use when sending products to
the technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
Touch Panel Display
Scan Key
Laser Safety
Label
Product
Label
Cold Boot
Button
Top View
Side View
Resetting the JOYA TOUCH
Warm Boot
A “warm boot” terminates an unresponsive application and clears the
working RAM, but preserves both the file system and the registry.
To perform a warm boot, tap Start > Programs > Warm Boot.
Cold Boot
A cold boot is a complete reset of the JOYA TOUCH in which all
applications are forcibly closed and RAM is completely cleared. You will
lose any applications and data which are not stored in persistent flash
memory.
To perform a cold boot, lightly press with a metallic clip inside the circle
hole on the back for 10 seconds.
Clean Boot
A clean boot is a complete restore to factory default and backup folder
content erase of the JOYA TOUCH. You will loose any applications and
data.
To perform a clean boot:
1. Execute a cold boot while keeping pressed the Scan key.
2. A pop-up will ask you to confirm, confirm by pressing and releasing
the Scan key for three times, or wait for 3 seconds to cancel.
Data Capture Window
Pistol Models
Handheld Models
Micro USB Port
Pistol Trigger
See the Regulatory Addendum
included with your product for
additional regulatory, safety and
legal information..
©2016 Datalogic ADC S.r.l. • All rights
reserved.
Datalogic and the Datalogic logo are
registered trademarks of Datalogic S.p.A.
in many countries, including the U.S.A.
and the E.U. JOYA TOUCH is a trademark
of Datalogic ADC S.r.l. and the JOYA logo
is a registered trademark of Datalogic
ADC S.r.l. in the U.S.A. and the E.U.
www.datalogic.com

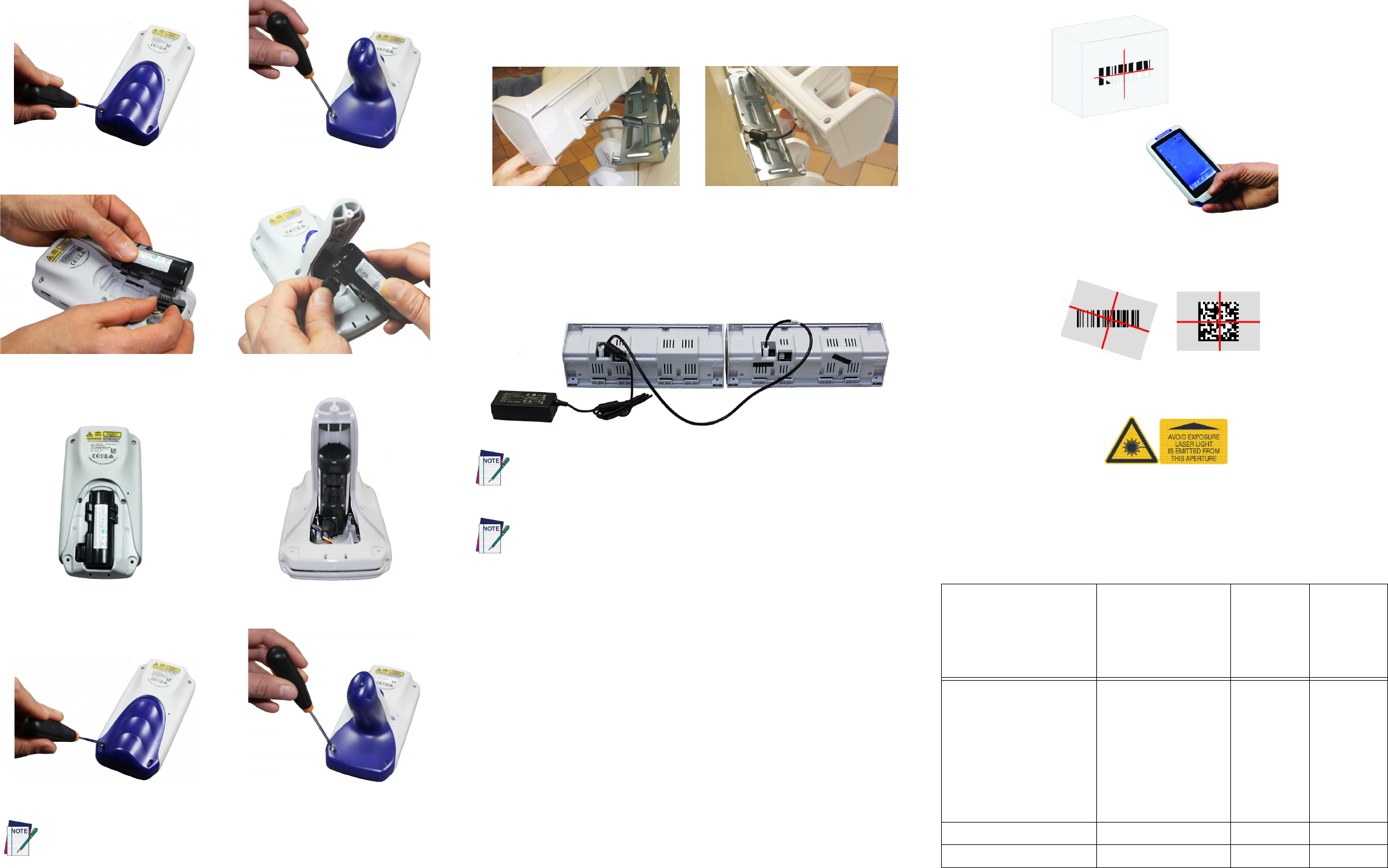

Battery Installation
To install the battery pack, follow the steps below:
1.
2.
3.
4.
NOTE
Required torque of the screws is 35 cNm.
Handheld Models Gun Models
Handheld Models Gun Models
Handheld Models Gun Models
Handheld Models Gun Models
Charging Instructions
The battery pack is not initially fully charged. After installing the battery, charge it with the 3-slot
cradle.
There are two options to connect the cradle to the power supply: fast charge and standard charge.
Fast Charge
The fast charge connection allows to power one cradle with one power supply.
Plug the power supply cable into the power connector on the back of the cradle as shown in the figure
below:
Standard Charge
The standard charge connection allows to power two cradles with one power supply.
To connect a second cradle use the JOYA TOUCH Cradle Power Jumper, available as optional accessory
(P/N 91ACC0049).
1. Connect the first cradle to the second cradle using the power jumper.
2. Connect the power supply to the first cradle.
Synchronize Your Device with the PC
Set up Synchronization using Windows Mobile® Device Center
Windows Mobile® Device Center can be downloaded from Microsoft website www.microsoft.com. It is
only compatible with Windows Vista and Windows 7; if you run Windows XP or earlier, you have to
download Microsoft ActiveSync.
You can establish a connection to your JOYA TOUCH through the USB.
To establish a partnership between the JOYA TOUCH and a host PC, start Windows Mobile® Device
Center and follow the steps below:
1. Select the "ENABLE DIRECT CONNECTION TO THE DESKTOP COMPUTER" from the JOYA TOUCH PC
connection menu.
2. Connect the JOYA TOUCH to the host PC. Windows Mobile® Device Center configures itself and
then opens.
3. On the license agreement screen, click Accept.
4. On the Windows Mobile Device Center’s Home screen, click Set up your device.
5. Select the information types that you want to synchronize, then click Next.
6. Enter a device name and click Set Up.
When you finish the setup wizard, Windows Mobile Device Center synchronizes the device
automatically.
NOTE
Charge the battery for a minumum of 4 hours.
NOTE
For further information on the JOYA TOUCH 3-Slot Cradle, refer to the JOYA TOUCH 3-Slot
Cradle Quick Start Guide, included in the cradle’s box, and to the JOYA TOUCH 3-Slot Cradle
Installation Guide, downloadable from our website www.datalogic.com.
Scanning and Imaging
Imager Data Capture
Relative Size and Location of Aiming System Pattern
Radio Technologies and Frequency Bands
JOYA TOUCH incorporates the following radio technologies and supports the corresponding
frequencies, as specified below for Plus and Basic Variants:
LINEAR BARCODE 2D MATRIX SYMBOL
Radio Technology Frequency Bands
Plus Variants
FCC ID:
U4GJNGWB
IC: 3862E-
JNGWB
Basic
Variants
FCC ID:
U4GJNGW
IC: 3862E-
JNGW
WLAN IEEE 802.11a/b/g/n,
20MHz channels bandwidth
(HT-20)
2.4GHz Frequency Bands:
2.412 – 2.472 MHz (EU /
Japan) 2.412 – 2.462 MHz
(USA)
5GHz Frequency Bands:
5.180 – 5.240 MHz
5.260 – 5.320 MHz
5.500 – 5.700 MHz
5.735 – 5.825 MHz (USA)
XX
Bluetooth® V4.0 – Dual-Mode 2402-2480Mhz X
Wireless Charging (Receiver) 130kHz X X
