Datalogic S r l JTAWB Multi-purpose device with barcode reader User Manual 822002540
Datalogic S.r.l. Multi-purpose device with barcode reader 822002540
Contents
User manual
Datalogic S.r.l.
Via San Vitalino 13
40012 Calderara di Reno (BO)
Italy
Tel. +39 051 3147011
Fax +39 051 3147205
2017 Datalogic S.p.A. and/or its affiliates
All rights reserved. Without limiting the rights under copyright, no part of this documen-
tation may be reproduced, stored in or introduced into a retrieval system, or transmitted in
any form or by any means, or for any purpose, without the express written permission of
Datalogic S.p.A. and/or its affiliates. Owners of Datalogic products are hereby granted a
non-exclusive, revocable license to reproduce and transmit this documentation for the pur-
chaser's own internal business purposes. Purchaser shall not remove or alter any propri-
etary notices, including copyright notices, contained in this documentation and shall ensure
that all notices appear on any reproductions of the documentation. Should future revisions
of this manual be published, you can acquire printed versions by contacting your Datalogic
representative. Electronic versions may either be downloadable from the Datalogic website
(www.datalogic.com) or provided on appropriate media. If you visit our website and would
like to make comments or suggestions about this or other Datalogic publications, please let
us know via the "Contact Datalogic" page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this manual that is
complete and accurate, however, Datalogic reserves the right to change any specification at
any time without prior notice.
Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many
countries, including the U.S.A. and the E.U. The Joya logo is a trademark of Datalogic S.p.A.
and/or its affiliates, registered in the U.S. and the E.U. All other trademarks and brands are
property of their respective owners.
Patents
See www.patents.datalogic.com for patent list.
Reference Documentation
For further information regarding JOYA TOUCH A6 refer to the SDK Help on-line and to the
JOYA TOUCH A6 User’s Manual, downloadable from our website www.datalogic.com.
Support Through the Website
Datalogic provides several services as well as technical support through its website.
Log on to www.datalogic.com and click on the SUPPORT > STORE AUTOMATION category
link. From this page you can select your product model from the dropdown list which gives
you access to:
Downloads including Data Sheets, Manuals, Software & Utilities, and Drawings;
Repair Program for On-Line Return Material Authorizations (RMAs) plus Repair Center
contact information;
Service Program containing details about Maintenance Agreements;
Technical Support through email or phone.
Warranty Terms and Conditions
The warranty period is 1 year for the device and 90 days for consumables (e.g. battery,
power supply, cable etc.) from date of purchase at our company.
Multi-Purpose Device for Retail
Quick Start Guide
822002540 (Rev. A) June 2017
Out of the Box
The JOYA TOUCH A6 package contains:
• JOYA TOUCH A6 (device)
• Rechargeable battery
•Safety Recommendations
Remove all the components from their packaging; check their integrity
and compare them with all the packing documents.

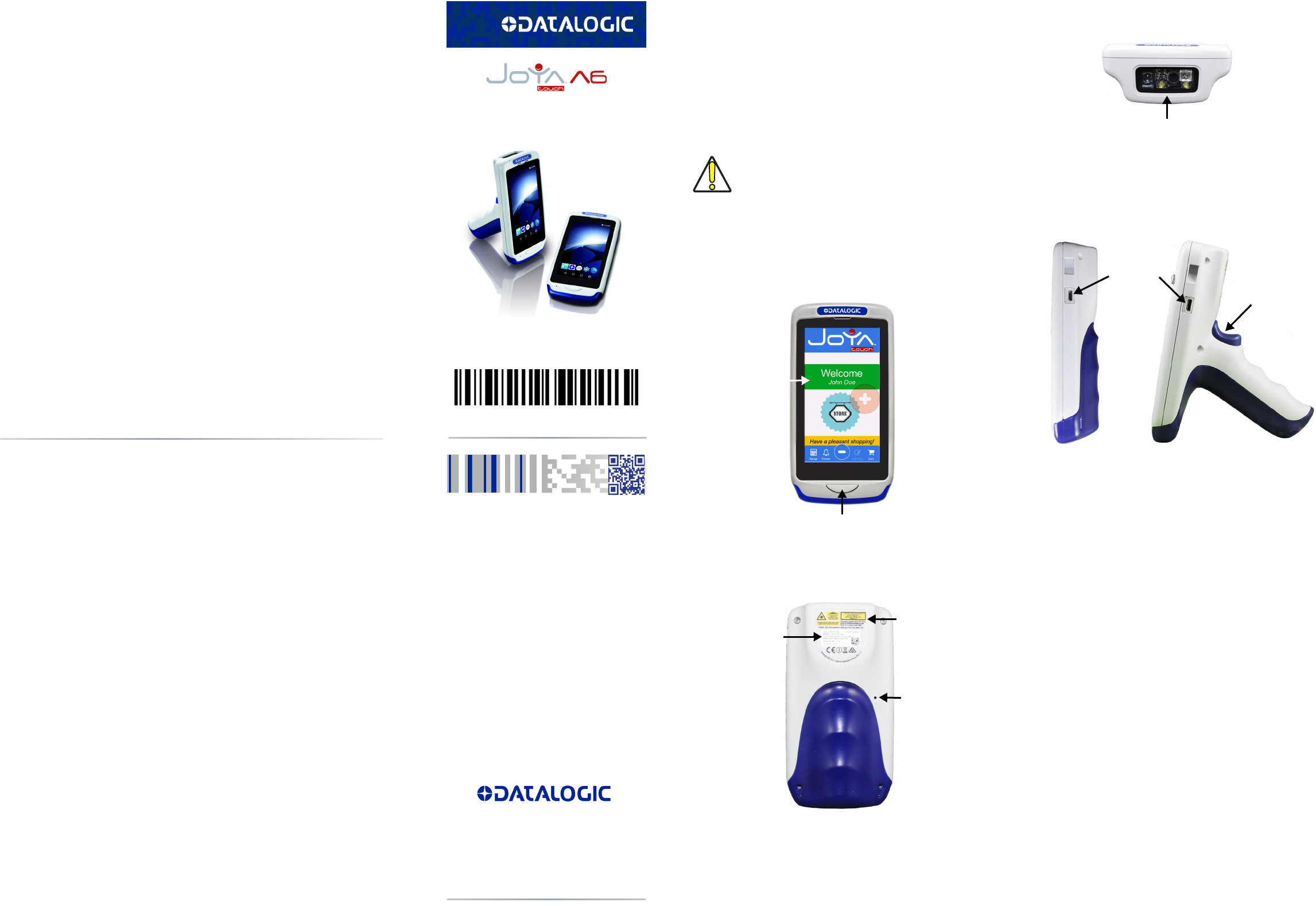

General View
Front View
Back View
CAUTION
Keep the original packaging for use when sending products to
the technical assistance center. Damage caused by improper
packaging is not covered under the warranty.
Touch Panel Display
Home Key
Laser Safety
Label
Product
Label
Cold Boot
Button
Top View
Side View
Data Capture Window
Pistol Grip Models
Handheld Models
Micro USB Port
Scan Trigger
©2017 Datalogic S.p.A. and/or its affili-
ates. All rights reserved. Datalogic and
the Datalogic logo are registered trade-
marks of Datalogic S.p.A. in many coun-
tries, including the U.S. and the E.U.
www.datalogic.com

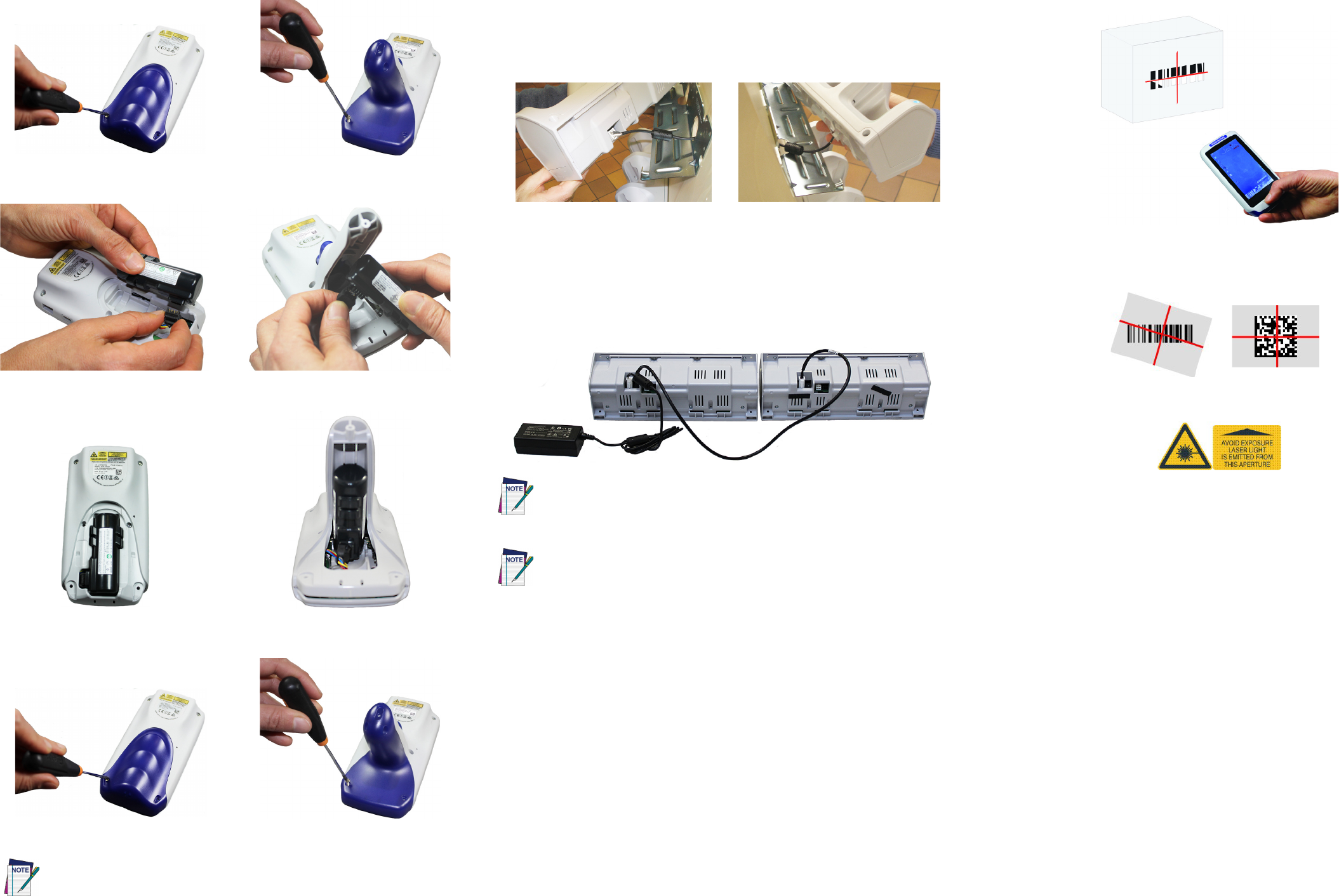

Battery Installation
To install the battery pack, follow the steps below:
1.
2.
3.
4.
NOTE
Required torque of the screws is 35 cNm.
Handheld Models Pistol Grip Models
Handheld Models Pistol Grip Models
Handheld Models Pistol Grip Models
Handheld Models Pistol Grip Models
Charging Instructions
The battery pack is not initially fully charged. After installing the battery, charge it with the 3-slot
cradle. The device needs to be inserted head down into the cradle.
There are two options to connect the cradle to the power supply: fast charge and standard charge.
Fast Charge
The fast charge connection allows to power one cradle with one power supply.
Plug the power supply cable into the power connector on the back of the cradle, then plug the power
supply into the AC/DC plug using a Datalogic power cable. Please see below an example of how to
insert the power supply cable through the wall mounting metal bracket:
Standard Charge
The standard charge connection allows to power two cradles with one power supply.
To connect a second cradle use the JOYA TOUCH Cradle Power Jumper, available as optional accessory
(P/N 91ACC0049).
1. Connect the first cradle to the second cradle using the power jumper.
2. Connect the power supply to the first cradle.
3. Plug the power supply into the AC/DC plug using a Datalogic power cable.
NOTE
Charge the battery for a minimum of 7 hours in standard charge and 3 hours in fast charge.
NOTE
For further information on the JOYA TOUCH 3-Slot Cradle, refer to the JOYA TOUCH 3-Slot
Cradle Quick Start Guide, included in the cradle’s box, and to the JOYA TOUCH 3-Slot Cradle
Installation Guide, downloadable from our website www.datalogic.com.
High Visibility High Density
Scanning and Imaging
Imager Data Capture
Relative Size and Location of Aiming System Pattern
LINEAR BARCODE 2D MATRIX SYMBOL
