Datalogic S r l N030 Mobile Computer User Manual 115x210

Datalogic ADC S.r.l. Mobile Computer 115x210

Contents

Users Manual (Statement).pdf

Datalogic ADC, S.r.l.
Via S. Vitalino, 13
40012 Lippo di Calderara di Reno
Bologna - Italy
Telephone: (+39) 051-3147011
Fax: (+39) 051-3147205
©2013-2014 Datalogic ADC, S.r.l.
An Unpublished Work - All rights reserved. No part of the contents of this
documentation or the procedures described therein may be reproduced or
transmitted in any form or by any means without prior written permission of
Datalogic ADC, Inc. or its subsidiaries or affiliates ("Datalogic" or “Datalogic
ADC”). Owners of Datalogic products are hereby granted a non-exclusive,
revocable license to reproduce and transmit this documentation for the
purchaser's own internal business purposes. Purchaser shall not remove or
alter any proprietary notices, including copyright notices, contained in this
documentation and shall ensure that all notices appear on any reproductions
of the documentation. Should future revisions of this manual be published,
you can acquire printed versions by contacting your Datalogic representative.
Electronic versions may either be downloadable from the Datalogic website
(www.datalogic.com) or provided on appropriate media. If you visit our
website and would like to make comments or suggestions about this or
other Datalogic publications, please let us know via the "Contact Datalogic"
page.
Disclaimer
Datalogic has taken reasonable measures to provide information in this
manual that is complete and accurate, however, Datalogic reserves the right
to change any specification at any time without prior notice. Datalogic and
the Datalogic logo are registered trademarks of Datalogic S.p.A. in many
countries, including the U.S.A. and the E.U.
Memor and the Memor logo are trademarks of Datalogic ADC S.r.l.
All other brand and product names may be trademarks of their respective
owners.
Patents
This product is covered by one or more of the following patents.
Design patents: AU310182, EP0469143, EP1582024, EP2247700,
HK0601962.6, JP1325117, KR30/0466667, TWD118829, USD574830,
USD643034, USD658174, ZL200630124857.0
Utility patents: EP0681257B1, EP0789315B1, EP1128315B1, EP1396811B1,
EP1413971B1, US5992740, US6808114, US6997385, US7387246.
iii
CONTENTS
1 BATTERIES AND MAINTENANCE ................................................... 1
1.1 Charging the Battery Pack ................................................................ 1
1.2 Replacing the Battery Pack ............................................................... 4
1.3 Cleaning the Mobile Computer .......................................................... 7
2 WIRELESS AND RADIO FREQUENCIES WARNINGS ................... 8
3 REGULATORY INFORMATION...................................................... 10
3.1 General Safety Rules ...................................................................... 10
3.2 Power Supply .................................................................................. 10
3.3 Laser Safety .................................................................................... 11
3.4 LED Class ....................................................................................... 17
3.5 Radio Compliance ........................................................................... 17
3.5.1 Europe – EU Declaration of Conformity ........................................... 17
3.5.2 Information for the User .................................................................. 20
3.6 FCC Compliance ............................................................................. 21
3.7 Industry Canada Compliance .......................................................... 23
3.8 SAR Compliance ............................................................................. 24
3.9 WEEE Compliance ......................................................................... 25
This page intentionally left
blank
BATTERIES AND MAINTENANCE
1
1
1 BATTERIES AND MAINTENANCE
Rechargeable backup batteries and battery packs are not
initially fully charged. Therefore the initial operation to
perform is to charge them. See below.
NOTE
By default, the main battery pack is disconnected at the
factory to avoid damage due to excessive draining.
NOTE
Annual replacement of rechargeable battery pack avoids
possible risks or abnormalities and ensures maximum
performance.
CAUTION
1.1 CHARGING THE BATTERY PACK
The battery pack autonomy varies according to many factors,
such as the frequency of barcode scanning, RF usage, battery
life, storage, environmental conditions, etc.
NOTE
The battery icon on the Taskbar indicates when the battery pack is low.
It is possible to recharge the battery pack by connecting the power supply
directly to the Memor X3.
Alternatively, it is also possible to recharge the battery pack by inserting the
Memor X3 into the single slot dock or the multi battery charger.
Moreover recharging is possible by USB Direct connection with the host
computer, but with longer charging times and only if the mobile computer off.
During the charging process the LED positioned at the right side of the display
is red constant. Once the charging process has been completed this LED is
green constant.
The stand alone battery pack may be recharged outside a Memor X3 using the
spare battery charging slot on the back of the single slot dock or the multi
battery charger.
MEMOR™ X3 REGULATORY AND SAFETY
2
Do not use the Memor X3 until batteries are charged for
minimum 4 hours.
CAUTION
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
CAUTION
Il y a risque d’explosion si la batterie est remplacée par une
batterie de type incorrect.
Mettre au rebut les batteris usagées confor mément aux
instructions.
CAUTION
Avoid storing batteries for long periods in a state of full
charge or very low charge.
We recommend charging the battery pack every two to three
months to keep its charge at a moderate level to maximize
battery life.
CAUTION
Even if the storage temperature range is wider, In order to
achieve the longest battery life, store the terminal and the
spare batteries between 20 to 30 ºC (68 to 86 ºF).
Memor X3 (including spare battery) should be charged at an
ambient temperature between 0° to +40 °C (+32° to +104 °F)
to achieve the maximum charging rate. Never charge the
main device or spare batteries in a closed space where
excessive heat can build up.
NOTE
The battery level may display incorrectly for several minutes
after the Memor X3 is disconnected from its charger if the
charging cycle is not completed.
NOTE
BATTERIES AND MAINTENANCE
3
1
The Memor X3 may get warm during charging; this is normal
and does not mean a malfunction.
NOTE
Use only a USB-IF compliant USB port as a charging source.
NOTE
MEMOR™ X3 REGULATORY AND SAFETY
4

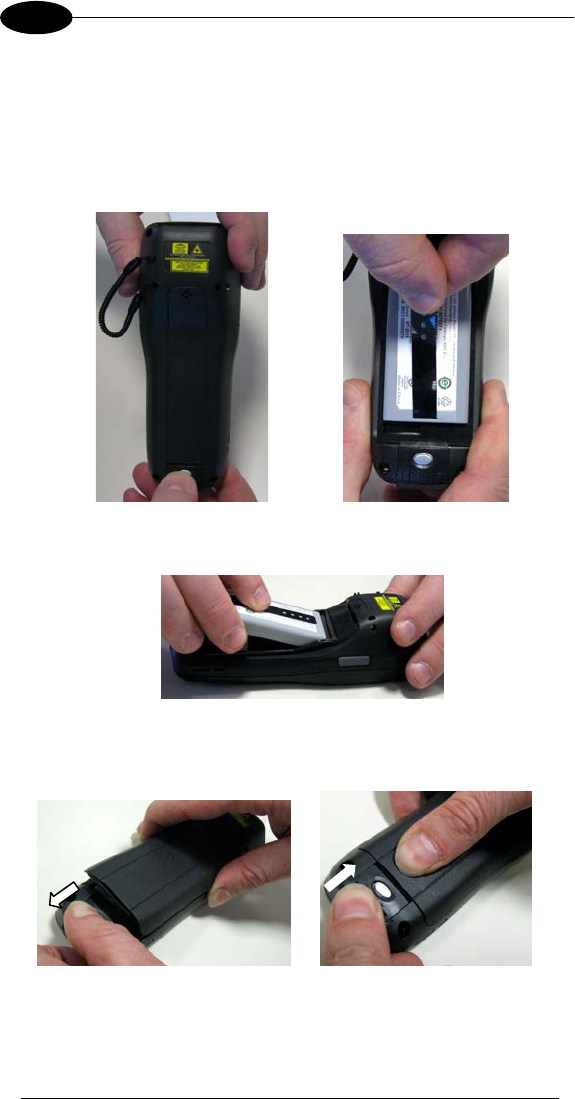

1.2 REPLACING THE BATTERY PACK
To correctly replace the battery pack, proceed as follows.
1. Turn off the Memor X3 .
2. Press the latch release button and pull the latch down; then remove the
battery cover:
3. Install the new battery pack, first insert the upper side (contacts), then the
bottom side of the battery pack into the slot:
4. Reinsert the cover. First insert first the upper side and then press the latch
release button and pull the latch down to insert the bottom. Push the
knurled section of the latch upward to close the cover:
BATTERIES AND MAINTENANCE
5
1
WARNING
Installing, charging and/or any other action should be done
by authorized personnel and following this manual.
The battery pack may get hot, explode, ignite, and/or cause
serious injury if exposed to abusive conditions.
If the battery pack is replaced with an improper type, there is
risk of explosion.
Do not place the battery pack in or near a fire or other heat
source; do not place the battery pack in direct sunlight, or
use or store the battery pack inside unventilated areas in hot
weather; do not place the battery pack in microwave ovens,
in clothes dryers, in high pressure containers, on induction
cook surfaces or similar devices. Doing so may cause the
battery pack to generate heat, explode or ignite. Using the
battery pack in this manner may also result in a loss of
performance and a shortened life expectancy.
Use only a Datalogic approved power supply. The use of an
alternative power supply will void the product warranty, may
cause product damage and may cause heat, an explosion,
or fire.
The area in which the units are charged should be clear of
debris and combustible materials or chemicals.
Do not use the battery pack of this terminal to power devices
other than this mobile computer.
Immediately discontinue use of the battery pack if, while
using, charging or storing the battery pack, the battery pack
emits an unusual smell, feels hot, changes colour or shape,
or appears abnormal in any other way.
Do not short-circuit the battery pack contacts connecting the
positive terminal and negative terminal. This might happen,
for example, when you carry a spare battery pack in your
pocket or purse; accidental short–circuiting can occur when
a metallic object such as a coin, clip, or pen causes direct
connection of the contacts of the battery pack (these look
like metal strips on the battery pack). Short–circuiting the
terminals may damage the battery pack or the connecting
object.
Do not apply voltages to the battery pack contacts.
Do not pierce the battery pack with nails, strike it with a
hammer, step on it or otherwise subject it to strong impacts,
pressures, or shocks.
MEMOR™ X3 REGULATORY AND SAFETY
6
WARNING
Do not disassemble or modify (i.e. bend, crush or deform)
the battery pack. The battery pack contains safety and
protection devices, which, if damaged, may cause the
battery pack to generate heat, explode or ignite.
In case of leakage of liquid from the battery, avoid contact
with liquid the skin or eyes. If the contact occurs,
immediately wash the affected area with water and consult
a doctor.
Do not solder directly onto the battery pack.
Do not expose the battery pack to liquids.
Avoid any knocks or excessive vibrations. If the device or
the battery is dropped, especially on a hard surface, you
should take it to the nearest Authorised Repair Centre for
inspection before continuing to use it.
Do not replace the battery pack when the device is turned
on.
Do not remove or damage the battery pack’s label.
Do not use the battery pack if it is damaged in any part.
Battery pack usage by children should be supervised.
Collect and recycle waste batteries separately from the
device in compliance with European Directive 2006/66/EC,
2011/65, 2002/96/EC and subsequent modifications, with
US and China regulatory laws and regulations about the
environment.
In order to maximize operating autonomy, the Memor X3
checks its battery level at all times. If the battery is not
sufficiently charged, the Memor X3 will not turn on when
the ON/OFF Power button is pressed.
In this case, either substitute a sufficiently charged battery,
insert the Memor X3 into a powered cradle, or plug it into a
wall charger.
NOTE
To maximize battery life, turn off radios when they are not
needed.
NOTE
BATTERIES AND MAINTENANCE
7
1
1.3 CLEANING THE MOBILE COMPUTER
Periodically clean the Memor X3 with a slightly dampened cloth.
Do not use alcohol, corrosive products or solvents.
MEMOR™ X3 REGULATORY AND SAFETY
8
2 WIRELESS AND RADIO FREQUENCIES
WARNINGS
Use only the supplied or an approved replacement antenna.
Unauthorized antennas, modifications or attachments could
damage the product and may violate laws and regulations.
WARNING
Most modern electronic equipment is shielded from RF
signals. However, certain electronic equipment may not be
shielded against the RF signals generated by Memor X3.
WARNING
Datalogic recommends persons with pacemakers or other
medical devices to follow the same recommendations
provided by Health Industry Manufacturers Associations for
mobile phones.
Persons with pacemakers:
• Should ALWAYS keep this device more than twenty five
(25) cm from their pacemaker and/or any other medical
device;
• Should not carry this device in a breast pocket;
• Should keep the device at the opposite side of the
pacemaker and/or any other medical device;
• Should turn this device OFF or move it immediately
AWAY if there is any reason to suspect that interference
is taking place.
• Should ALWAYS read pacemaker or any other medical
device guides or should consult the manufacturer of the
medical device to determine if it is adequately shielded
from external RF energy.
In case of doubt concerning the use of wireless devices with
an implanted medical device, contact your doctor.
WARNING
WIRELESS AND RADIO FREQUENCIES WARNINGS
9
2
Turn this device OFF in health care facilities when any
regulations posted in these areas instruct you to do so.
Hospitals or health care facilities may use equipment that
could be sensitive to external RF energy.
WARNING
RF signals may affect improperly installed or inadequately
shielded electronic systems in motor vehicles. Check with
the manufacturer or its representative regarding your
vehicle. You should also consult the manufacturer of any
equipment that has been added to your vehicle.
WARNING
An air bag inflates with great force. DO NOT place objects,
including either installed or portable wireless equipment, in
the area over the air bag or in the air bag deployment area.
If a vehicle’s wireless equipment is improperly installed and
the air bag inflates, serious injury could result.
WARNING
Turn off the device when in any area with a potentially
explosive atmosphere. Observe restrictions and follow
closely any laws, regulations, warnings and best practices
on the use of radio equipment near fuel storage areas or fuel
distribution areas, chemical plants or where any operation
involves use of explosive materials.
Do not store or carry flammable liquids, explosive gases or
materials with the device or its parts or accessories.
Areas with a potentially explosive atmosphere are often, but
not always, clearly marked or shown.
Sparks in such areas could cause an explosion or fire,
resulting in injury or even death.
WARNING
MEMOR™ X3 REGULATORY AND SAFETY
10
3 REGULATORY INFORMATION
Read this manual carefully before performing any type of
connection to the Memor X3 mobile computer.
The user is responsible for any damage caused by incorrect
use of the equipment or by inobservance of the indication
supplied in this manual.
NOTE
3.1 GENERAL SAFETY RULES
− Use only the components supplied by the manufacturer for the specific
Memor X3 being used.
− Do not attempt to disassemble the Memor X3 mobile computer, as it does
not contain parts that can be repaired by the user. Any tampering will
invalidate the warranty.
− When replacing the battery pack or at the end of the operative life of the
Memor X3 mobile computer, disposal must be performed in compliance
with the laws in force in your jurisdiction.
− Before using the devices and the battery packs, read chap. 1.
− Do not submerge the Memor X3 in liquid products.
− For further information, refer to this manual and to the Datalogic web site:
www.datalogic.com.
3.2 POWER SUPPLY
This device is intended to be connected to a UL Listed/CSA Certified computer
which supplies power directly to the Memor X3 or else be supplied by a UL
Listed/CSA Certified Power Unit marked “Class 2” or LPS power source rated 5
V, 3.0 A, which supplies power directly to the Memor X3 via the power
connector of the cable.
The package includes three international plug adapters. The adapters must be
plugged in the power supply before the power supply itself is plugged on the
wall outlet.
REGULATORY INFORMATION
11
3

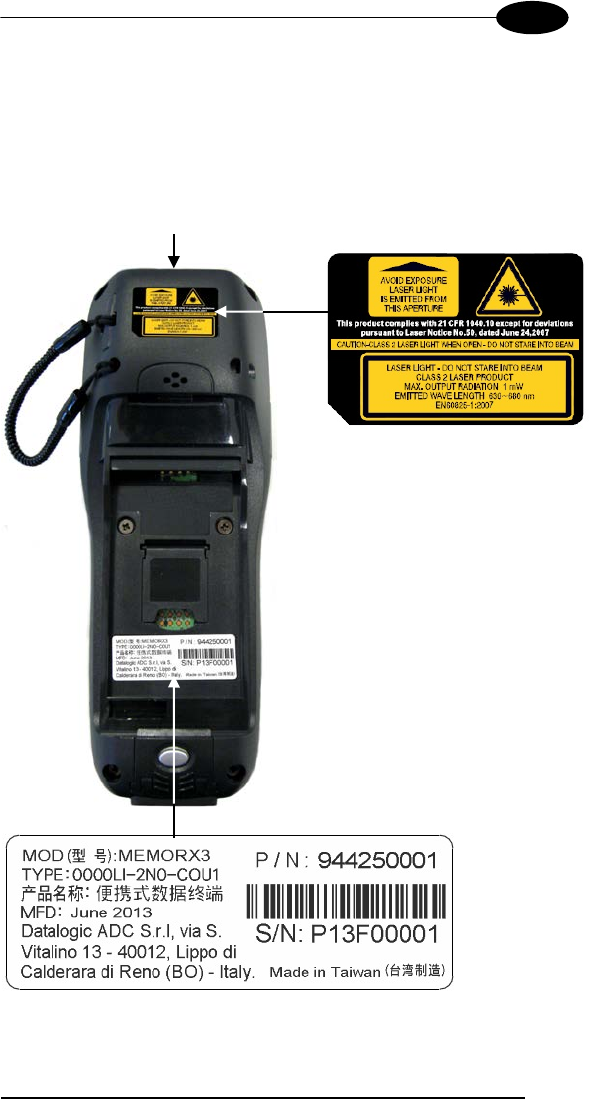

3.3 LASER SAFETY
The laser light is visible to the human eye and is emitted from the window
indicated in the figure.
This information applies to both laser models and the Memor X3 Imager Aiming
System.
Laser output window
MEMOR™ X3 REGULATORY AND SAFETY
12
I D F E
La luce laser è
visibile all'occhio
umano e viene
emessa dalla
finestra indicata
nella figura.
Die Laserstrahlung ist
für das menschliche
Auge sichtbar und
wird am
Strahlaustrittsfenster
ausgesendet (siehe
Bild).
Le rayon laser est
visible à l'oeil nu et il
est émis par la
fenêtre désignée sur
l'illustration dans la
figure.
La luz láser es
v
isible al ojo
humano y es emitida
por la ventana
indicada en la figura.
LUCE LASER
NON FISSARE IL
FASCIO
APPARECCHIO
LASER DI CLASSE 2
MASSIMA POTENZA
DI USCITA: 1 mW
LUNGHEZZA D'ONDA
EMESSA: 630~680 nm
CONFORME A EN
60825-1 (2007)
LASERSTRAHLUNG
NICHT
IN DER STRAHL
BLINKEN
PRODUKT DER
LASERKLASSE 2
MAXIMALE
AUSGANGLEISTUNG:
1 mW
WELLENLÄNGE:
630~680 nm
ENTSPR. EN 60825-1
(2007)
RAYON LASER
EVITER DE REGARDER
LE RAYON
APPAREIL LASER DE
CLASSE 2
MAXIMUM PUISSANCE
DE SORTIE: 1 mW
LONGUER D'ONDE
EMISE: 630~680 nm
CONFORME A EN
60825-1 (2007)
RAYO LÁSER
NO MIRAR FIJO EL
RAYO
APARATO LÁSER DE
CLASE 2
MÁXIMA POTENCIA
DE SALIDA: 1 mW
LONGITUD DE ONDA
EMITIDA: 630~680 nm
CONFORME A EN
60825-1 (2007)
REGULATORY INFORMATION
13
3
ENGLISH
The following information is provided to comply with the rules imposed by
international authorities and refers to the correct use of your mobile computer.
STANDARD LASER SAFETY REGULATIONS
This product conforms to the applicable requirements of both CDRH 21 CFR
1040 and EN 60825-1 at the date of manufacture.
For installation, use and maintenance, it is not necessary to open the device.
Do not attempt to open or otherwise service any
components in the optics cavity. Opening or servicing
any part of the optics cavity by unauthorized personnel
may violate laser safety regulations. The optics system is
a factory only repair item.
CAUTION
Use of controls or adjustments or performance of
procedures other than those specified herein may result
in exposure to hazardous visible laser light.
CAUTION
The product utilizes a low-power laser diode. Although staring directly at the
laser beam momentarily causes no known biological damage, avoid staring at
the beam as one would with any very strong light source, such as the sun.
Avoid that the laser beam hits the eye of an observer, even through reflective
surfaces such as mirrors, etc.
Use of optical systems with the scanner will increase eye
hazard. Optical instruments include binoculars,
microscopes, eye glasses and magnifying glasses.
CAUTION
ITALIANO
Le seguenti informazioni vengono fornite dietro direttive delle autorità
internazionali e si riferiscono all’uso corretto del terminale.
NORMATIVE STANDARD PER LA SICUREZZA LASER
Questo prodotto risulta conforme alle normative vigenti sulla sicurezza laser
alla data di produzione: CDRH 21 CFR 1040 e EN 60825-1.
Non si rende mai necessario aprire l’apparecchio per motivi di installazione,
utilizzo o manutenzione.
MEMOR™ X3 REGULATORY AND SAFETY
14
Non tentare di accedere allo scomparto contenete i
componenti ottici o di farne la manutenzione.
L’apertura dello scomparto, o la manutenzione di
qualsiasi parte ottica da parte di personale non
autorizzato, potrebbe violare le norme della sicurezza. Il
sistema ottico può essere riparato solamente alla
fabbrica.
ATTENZIONE
L'utilizzo di procedure o regolazioni differenti da quelle
descritte nella documentazione può provocare
un'esposizione pericolosa a luce laser visibile.
ATTENZIONE
Il prodotto utilizza un diodo laser a bassa potenza. Sebbene non siano noti
danni riportati dall’occhio umano in seguito ad una esposizione di breve durata,
evitare di fissare il raggio laser così come si eviterebbe qualsiasi altra sorgente
di luminosità intensa, ad esempio il sole. Evitare inoltre di dirigere il raggio laser
negli occhi di un osservatore, anche attraverso superfici riflettenti come gli
specchi.
L’uso di strumenti ottici assieme allo scanner può
aumentare il pericolo di danno agli occhi. Tali strumenti
ottici includono cannocchiali, microscopi, occhiali e lenti
di ingrandimento.
ATTENZIONE
DEUTSCH
Die folgenden Informationen stimmen mit den Sicherheitshinweisen überein,
die von internationalen Behörden auferlegt wurden, und sie beziehen sich auf
den korrekten Gebrauch vom Terminal.
NORM FÜR DIE LASERSICHERHEIT
Dies Produkt entspricht am Tag der Herstellung den gültigen EN 60825-1 und
CDRH 21 CFR 1040 Normen für die Lasersicherheit.
Es ist nicht notwendig, das Gerät wegen Betrieb oder Installations-, und
Wartungs-Arbeiten zu öffnen.
Unter keinen Umständen darf versucht werden, die
Komponenten im Optikhohlraum zu öffnen oder auf
irgendwelche andere Weise zu warten. Das Öffnen bzw.
Warten der Komponenten im Optikhohlraum durch
unbefugtes Personal verstößt gegen die Laser-
Sicherheitsbestimmungen. Das Optiksystem darf nur
werkseitig repariert werden.
ACHTUNG
REGULATORY INFORMATION
15
3
Jegliche Änderungen am Gerät sowie Vorgehensweisen,
die nicht in dieser Betriebsanleitung beschrieben werden,
können ein gefährliches Laserlicht verursachen.
ACHTUNG
Der Produkt benutzt eine Laserdiode. Obwohl zur Zeit keine Augenschäden
von kurzen Einstrahlungen bekannt sind, sollten Sie es vermeiden für längere
Zeit in den Laserstrahl zu schauen, genauso wenig wie in starke Lichtquellen
(z.B. die Sonne). Vermeiden Sie es, den Laserstrahl weder gegen die Augen
eines Beobachters, noch gegen reflektierende Oberflächen zu richten.
Die Verwendung von Optiksystemen mit diesem Scanner
erhöht die Gefahr einer Augenbeschädigung. Zu optischen
Instrumenten gehören unter anderem Ferngläser,
Mikroskope, Brillen und Vergrößerungsgläser.
ACHTUNG
FRANÇAIS
Les informations suivantes sont fournies selon les règles fixées par les
autorités internationales et se réfèrent à une correcte utilisation du terminal.
NORMES DE SECURITE LASER
Ce produit est conforme aux normes de sécurité laser en vigueur à sa date de
fabrication: CDRH 21 CFR 1040 et EN 60825-1.
Il n’est pas nécessaire d’ouvrir l’appareil pour l’installation, l’utilisation ou
l’entretien.
Ne pas essayer d’ouvrir ou de réparer les composants de
la cavité optique. L’ouverture de la cavité optique ou la
réparation de ses composants par une personne non
qualifiée peut entraîner le nonrespect des règles de
sécurité relatives au laser. Le système optique ne peut
être réparé qu’en usine.
ATTENTION
L'utilisation de procédures ou réglages différents de ceux
donnés ici peut entraîner une dangereuse exposition à
lumière laser visible.
ATTENTION
Le produit utilise une diode laser. Aucun dommage aux yeux humains n’a été
constaté à la suite d’une exposition au rayon laser. Eviter de regarder fixement
le rayon, comme toute autre source lumineuse intense telle que le soleil. Eviter
aussi de diriger le rayon vers les yeux d’un observateur, même à travers des
surfaces réfléchissantes (miroirs, par exemple).
MEMOR™ X3 REGULATORY AND SAFETY
16
L’utilisation d’instruments optiques avec le scanneur
augmente le danger pour les yeux. Les instruments
optiques comprennent les jumelles, les microscopes, les
lunettes et les verres grossissants.
ATTENTION
ESPAÑOL
Las informaciones siguientes son presentadas en conformidad con las
disposiciones de las autoridades internacionales y se refieren al uso correcto
del terminal.
NORMATIVAS ESTÁNDAR PARA LA SEGURIDAD LÁSER
Este aparato resulta conforme a las normativas vigentes de seguridad láser a
la fecha de producción: CDRH 21 CFR 1040 y EN 60825-1.
No es necesario abrir el aparato para la instalación, la utilización o la
manutención.
No intente abrir o de ninguna manera dar servicio a
ninguno de los componentes del receptáculo óptico. Abrir o
dar servicio a las piezas del receptáculo óptico por parte
del personal no autorizado podría ser una violación a los
reglamentos de seguridad. El sistema óptico se puede
reparar en la fábrica solamente.
ATENCIÓN
La utilización de procedimientos o regulaciones diferentes
de aquellas describidas en la documentación puede causar
una exposición peligrosa a la luz láser visible.
ATENCIÓN
El aparato utiliza un diodo láser a baja potencia. No son notorios daños a los
ojos humanos a consecuencia de una exposición de corta duración. Eviten de
mirar fijo el rayo láser así como evitarían cualquiera otra fuente de luminosidad
intensa, por ejemplo el sol. Además, eviten de dirigir el rayo láser hacia los
ojos de un observador, también a través de superficies reflectantes como los
espejos.
El uso de sistemas ópticos con el escáner aumentará el
riesgo de daños oculares. Los instrumentos ópticos
incluyen binoculares, microscopios, lentes y lupas.
ATENCIÓN
REGULATORY INFORMATION
17
3
3.4 LED CLASS
LED illuminator integrated in the Memor X3 models with SE-4500 imager
engine are compliant with exempt risk group requirements according to
EN62471:2008 and IEC62471:2006.
3.5 RADIO COMPLIANCE
In radio systems configured with mobile computers and access points, the
frequencies to be used must be allowed by the spectrum authorities of the
specific country in which the installation takes place. Be absolutely sure that the
system frequencies are correctly set to be compliant with the spectrum
requirements of the country.
The Radio modules used in this product automatically adapt to the frequencies
set by the system and do not require any parameter settings.
3.5.1 Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE
Directive 1999/5/EC:
− EN 60950-1:2006/A1: 2010
Safety of Information Technology Equipment.
− EN 62311: 2008 / Article 3(1)(a) and Article 2 2006/95/EC)
Assessment of electronic and electrical equipment related to human
exposure restrictions for electromagnetic fields (0 Hz-300 GHz) (IEC
62311:2007 (Modified)).
− EN 300 328 V1.8.1: 2012
Electromagnetic compatibility and Radio spectrum Matters (ERM);
Wideband Transmission systems; Data transmission equipment operating
in the 2,4 GHz ISM band and using spread spectrum modulation
techniques; Harmonized EN covering essential requirements under article
3.2 of the R&TTE Directive.
− EN 301 893 V1.7.1: 2012
Broadband Radio Access Networks (BRAN); 5 GHz high performance
RLAN; Harmonized EN covering essential requirements of article 3.2 of
the R&TTE Directive.
− EN 301 489-1 V1.9.2: 2011
Electromagnetic compatibility and Radio Spectrum Matters (ERM);
Electroagnetic Compatibility (EMC) standard for radio equipment and
services; Part 1: Common technical requirements.
MEMOR™ X3 REGULATORY AND SAFETY
18
− EN 301 489-17 V2.2.1: 2012
Electromagnetic compatibility and Radio spectrum Matters (ERM);
ElectroMagnetic Compatibility (EMC) standard for radio equipment and
services; Part 17: Specific conditions for 2,4 GHz wideband transmission
systems and 5 GHz high performance RLAN equipment.
− EN 62479:2010
Assessment of the compliance of low power electronic and electrical
equipment with the basic restrictions related to human exposure to
electromagnetic fields (10 MHz to 300 GHz).
0560
Česky
[Czech]
Datalogic ADC S.r.l. tímto prohlašuje, že tento MEMORX3 je ve
shodě se základními požadavky a dalšími příslušnými
ustanoveními směrnice 1999/5/ES.
Dansk
[Danish]
Undertegnede Datalogic ADC S.r.l. erklærer herved, at
følgende udstyr MEMORX3 overholder de væsentlige krav og
øvrige relevante krav i direktiv 1999/5/EF.
Deutsch
[German]
Hiermit erklärt Datalogic ADC S.r.l., dass sich das Gerät
MEMORX3
in Übereinstimmung mit den grundlegenden
Anforderungen und den übrigen einschlägigen Bestimmungen
der Richtlinie 1999/5/EG befindet.
Eesti
[Estonian]
Käesolevaga kinnitab Datalogic ADC S.r.l. seadme MEMORX3
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud
direktiivist tulenevatele teistele asjakohastele sätetele.
English
Hereby, Datalogic ADC S.r.l., declares that this MEMORX3 is in
compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Español
[Spanish]
Por medio de la presente Datalogic ADC S.r.l. declara que el
MEMORX3 cumple con los requisitos esenciales y cualesquiera
otras disposiciones aplicables o exigibles de la Directiva
1999/5/CE.
Ελληνική
[Greek]
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Datalogic ADC S.r.l. ΔΗΛΩΝΕΙ ΟΤΙ
MEMORX3 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ
ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
[French]
Par la présente Datalogic ADC S.r.l. déclare que l'appareil
MEMORX3
est conforme aux exigences essentielles et aux
autres dispositions pertinentes de la directive 1999/5/CE.
Italiano
[Italian]
Con la presente Datalogic ADC S.r.l. dichiara che questo
MEMORX3
è conforme ai requisiti essenziali ed alle altre
disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
REGULATORY INFORMATION
19
3
Latviski
[Latvian]
Ar šo Datalogic ADC S.r.l. deklarē, ka MEMORX3 atbilst
Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to
saistītajiem noteikumiem.
Lietuvių
[Lithuanian]
Šiuo Datalogic ADC S.r.l. deklaruoja, kad šis MEMORX3
atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
[Dutch]
Hierbij verklaart Datalogic ADC S.r.l. dat het toestel MEMORX3
in overeenstemming is met de essentiële eisen en de andere
relevante bepalingen van richtlijn 1999/5/EG.
Malti
[Maltese]
Hawnhekk, Datalogic ADC S.r.l., jiddikjara li dan MEMORX3
jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn
relevanti li hemm fid-Dirrettiva 1999/5/EC.
Magyar
[Hungarian]
Alulírott, Datalogic ADC S.r.l. nyilatkozom, hogy a MEMORX3
megfelel a vonatkozó alapvetõ követelményeknek és az
1999/5/EC irányelv egyéb elõírásainak.
Polski
[Polish]
Niniejszym Datalogic ADC S.r.l. oświadcza, że MEMORX3 jest
zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/EC.
Português
[Portuguese
]
Datalogic ADC S.r.l. declara que este MEMORX3 está
conforme com os requisitos essenciais e outras disposições da
Directiva 1999/5/CE.
Slovensko
[Slovenian]
Datalogic ADC S.r.l. izjavlja, da je ta MEMORX3 v skladu z
bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky
[Slovak]
Datalogic ADC S.r.l. týmto vyhlasuje, že MEMORX3 spĺňa
základné požiadavky a všetky príslušné ustanovenia Smernice
1999/5/ES.
Suomi
[Finnish]
Datalogic ADC S.r.l. vakuuttaa täten että MEMORX3 tyyppinen
laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä
koskevien direktiivin muiden ehtojen mukainen.
Svenska
[Swedish]
Härmed intygar Datalogic ADC S.r.l. att denna MEMORX3 står I
överensstämmelse med de väsentliga egenskapskrav och
övriga relevanta bestämmelser som framgår av direktiv
1999/5/EG.
MEMOR™ X3 REGULATORY AND SAFETY
20
3.5.2 Information for the User
ENGLISH
Contact the competent authority responsible for the management of radio
frequency devices of your country to verify any possible restrictions or licenses
required.
For further information, refer to the web site:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/
ITALIANO
Prendi contatto con l'autorità competente per la gestione degli apparati a radio
frequenza del tuo paese, per verificare eventuali restrizioni o licenze. Ulteriori
informazioni sono disponibili sul sito:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
FRANÇAIS
Contactez l'autorité compétente en la gestion des appareils à radio fréquence
de votre pays pour vérifier d'éventuelles restrictions ou licences. Pour tout
renseignement vous pouvez vous adresser au site web:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
DEUTSCH
Wenden Sie sich an die für Radiofrequenzgeräte zuständige Behörde Ihres
Landes, um zu prüfen ob es Einschränkungen gibt, oder eine Lizenz
erforderlich ist. Weitere Informationen finden Sie auf der Web Seite:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
ESPAÑOL
Contacta la autoridad competente para la gestión de los dispositivos de radio
frecuencia de tu país, para verificar cualesquiera restricciones o licencias
posibles requerida. Además se puede encontrar mas información en el sitio
web:
http://ec.europa.eu/enterprise/sectors/rtte/documents/contacts-points/spectr/.
REGULATORY INFORMATION
21
3
3.6 FCC COMPLIANCE
FCC Interference Statement:
• This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
• This device has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can
radiated radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user‘s authority to operate the equipment.
• The antenna(s) used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
• This device is restricted to indoor use when operated in the 5.15 to 5.25
GHz frequency range.
MEMOR™ X3 REGULATORY AND SAFETY
22
IMPORTANT NOTE:
FCC Radiation Exposure Statement
This model device meets the government’s requirements for exposure to radio
waves. This device is designed and manufactured not to exceed the emission
limits for exposure to radio frequency (RF) energy set by the Federal
Communications Commission of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement
known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC
is 1.6W/kg. *Tests for SAR are conducted using standard operating positions
accepted by the FCC with the device transmitting at its highest certified power
level in all tested frequency bands. Although the SAR is determined at the
highest certified power level, the actual SAR level of the device while operating
can be well below the maximum value. This is because the device is designed
to operate at multiple power levels so as to use only the poser required to reach
the network. In general, the closer you are to a wireless base station antenna,
the lower the power output.
While there may be differences between the SAR levels of various devices and
at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this model device with all
reported SAR levels evaluated as in compliance with the FCC RF exposure
guidelines. SAR information on this model device is on file with the FCC and
can be found under the Display Grant section of http://www.fcc.gov/oet/fccid
after searching on the below FCC ID:
U4GN030.
This device is compliant with SAR for general population /uncontrolled
exposure limits in ANSI/IEEE C95.1-1999 and had been tested in accordance
with the measurement methods and procedures specified in OET Bulletin 65
Supplement C.
For body worn operation, this device has been tested and meets the FCC RF
exposure guidelines for use with an accessory that contains no metal and the
positions the handset a minimum of 1.5 cm from the body. Use of other
enhancements may not ensure compliance with FCC RF exposure guidelines.
If you do not use a body-worn accessory and are not holding the device at the
ear, position the handset a minimum of 1.5 cm from your body when the device
is switched on.
REGULATORY INFORMATION
23
3
3.7 INDUSTRY CANADA COMPLIANCE
IC Interference Statement:
This device complies with RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable
aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux
conditions suivantes: (1) le dispositif ne doit pas produire de brouillage
préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un
brouillage susceptible de provoquer un fonctionnement indésirable.
Caution:
(i) the device for operation in the band 5150-5250 MHz is only for indoor use to
reduce the potential for harmful interference to co-channel mobile satellite
systems;
(ii) high-power radars are allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause
interference and/or damage to LE-LAN devices.
Avertissement:
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés
uniquement pour une utilisation à l’intérieur afin de réduire les risques de
brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes
canaux;
(ii) (ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs
de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d.,
qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et
que ces radars pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
IMPORTANT NOTE:
IC Radiation Exposure Statement
This EUT is compliant with SAR for general population/uncontrolled exposure
limits in IC RSS-102 and had been tested in accordance with the measurement
methods and procedures specified in IEEE 1528. This equipment should be
installed and operated with minimum distance 1,5cm between the radiator &
your body.
MEMOR™ X3 REGULATORY AND SAFETY
24
3.8 SAR COMPLIANCE
This product has been tested and found to comply with the following standards:
- OET BULLETIN 65 SUPPLEMENT C: evaluating compliance with FCC
guidelines for human exposure to radio frequency electromagnetic fields.
- EN 62311:2008: assessment of electronic and electrical equipment related
to human exposure restrictions for electromagnetic fields (0 Hz – 300
GHz).
- EN 62479:2010: Assessment of the compliance of lower power electronic
and electrical equipment with the basic restrictions related to human
exposure to electromagnetic fields (10 MHz to 300 GHz)
- IC RSS 102 Issue 4: Radio Frequency (RF) Exposure Compliance of
Radiocommunication Apparatus (All Frequency Bands).
REGULATORY INFORMATION
25
3
3.9 WEEE COMPLIANCE
Informazione degli utenti ai sensi della Direttiva Europea 2002/96/EC
L’apparecchiatura che riporta il simbolo del bidone barrato deve essere
smaltita, alla fine della sua vita utile, separatamente dai rifiuti urbani.
Smaltire l’apparecchiatura in conformità alla presente Direttiva consente di:
evitare possibili conseguenze negative per l’ambiente e per la salute
umana che potrebbero invece essere causati dall’errato smaltimento
dello stesso;
recuperare materiali di cui è composto al fine di ottenere un
importante risparmio di energia e di risorse.
Per maggiori dettagli sulle modalità di smaltimento, contattare il Fornitore dal
quale è stata acquistata l’apparecchiatura o consultare la sezione dedicata sul
sito http://www.datalogic.com.
Information for the user in accordance with the European Commission
Directive 2002/96/EC
At the end of its useful life, the product marked with the crossed out wheeled
wastebin must be disposed of separately from urban waste.
Disposing of the product according to this Directive:
avoids potentially negative consequences to the environment and
human health which otherwise could be caused by incorrect disposal
enables the recovery of materials to obtain a significant savings of
energy and resources.
For more detailed information about disposal, contact the supplier that provided
you with the product in question or consult the dedicated section at the website
http://www.datalogic.com.
Information aux utilisateurs concernant la Directive Européenne
2002/96/EC
Au terme de sa vie utile, le produit qui porte le symbole d'un caisson à ordures
barré ne doit pas être éliminé avec les déchets urbains.
Éliminer ce produit selon cette Directive permet de:
MEMOR™ X3 REGULATORY AND SAFETY
26
éviter les retombées négatives pour l'environnement et la santé
dérivant d'une élimination incorrecte
récupérer les matériaux dans le but d'une économie importante en
termes d'énergie et de ressources
Pour obtenir des informations complémentaires concernant l'élimination,
veuillez contacter le fournisseur auprès duquel vous avez acheté le produit ou
consulter la section consacrée au site web http://www.datalogic.com.
Información para el usuario de accuerdo con la Directiva Europea
2002/96/CE
Al final de su vida útil, el producto marcado con un simbolo de contenedor de
bassura móvil tachado no debe eliminarse junto a los desechos urbanos.
Eliminar este producto de accuerdo con la Directiva permite de:
evitar posibles consecuencias negativas para el medio ambiente y la
salud derivadas de una eliminación inadecuada
recuperar los materiales obteniendo así un ahorro importante de
energía y recursos
Para obtener una información más detallada sobre la eliminación, por favor,
póngase en contacto con el proveedor donde lo compró o consultar la sección
dedicada en el Web site http://www.datalogic.com.
Benutzerinformation bezüglich Richtlinie 2002/96/EC der europäischen
Kommission
Am Ende des Gerätelebenszyklus darf das Produkt nicht über den städtischen
Hausmüll entsorgt werden. Eine entsprechende Mülltrennung ist erforderlich.
Beseitigung des Produkts entsprechend der Richtlinie:
verhindert negative Auswirkungen für die Umwelt und die Gesundheit
der Menschen
ermöglicht die Wiederverwendung der Materialien und spart somit
Energie und Resourcen
Weitere Informationen zu dieser Richtlinie erhalten sie von ihrem Lieferanten
über den sie das Produkt erworben haben, oder besuchen sie unsere Hompage
unter http://www.datalogic.com.

Navigation menu
