Memor™ X3 Mobile Computer
Quick Start Guide
THE PACKAGE
The Memor X3 package includes the following items:
1 Memor X3 mobile computer
1 AC/DC power supply
1 plug kit
1 standard Micro USB cable (laser and 2D Imager
models only)
1 hand strap with stylus holder (laser and 2D Imager
models only)
1 extensible stylus (laser and 2D Imager models only)
1 guitar pick + cord
1 Quick Start Guide
1 Safety and Regulatory Addendum
1 Wavelink Avalanche Insert
1 End User License Agreement (EULA) Sheet
1 Offices Address Addendum
THE TERMINAL
A
) QVGA 64K color display
B) ON/OFF power key
C) Speaker
D) LEDs
E) Scan key
F) Keyboard
G) Microphone
H) Guitar pick stylus
I) Laser safety label
J) Rear speaker
K) Product label (under
battery)
L) Battery cover
M) Programmable side key
(on both sides of the
mobile computer)
822001431
Remove protective film cover before use
N) Data capture window*
O) DC charger connector
P) Communication/charger
connector (through cradle)
Q) MicroUSB communication
connector (through cable)
Remove protective film cover before use
KEYPADS
1. Cursor Keys
2. Scan Key
3. Yellow Modifier
4. Blue Modifier
Special Function Icons
ICON FUNCTION
After a blue modifier key press, it opens the Start
menu.
After a blue modifier key press, it opens the file
manager.
After a blue modifier key press, it switches
ON/OFF the display backlight.
After a blue modifier key press, it switches
ON/OFF the keyboard backlight.
After a blue modifier key press, it locks and
unlocks the keyboard.
After a blue modifier key press, it disables the
touchscreen and allows the user to control the
device through a joystick-driven cursor, with
Memor X3 side keys acting as left and right
buttons
GETTING STARTED
Insert the Battery
1. Press the latch release button and pull the latch down; then
remove the battery cover. First insert the upper side
(contacts), then the bottom side of the battery pack into the
slot:
2. Reinsert the cover. First insert first the upper side and then
press the latch release button and pull the latch down to
insert the bottom. Push the knurled section of the latch
upwards to close the cover:
Charge the Battery
With Power Supply
With Single Cradle
Do not use the Memor X3 until batteries are
charged for minimum 4 hours.
CAUTION
SYNCHRONISE YOUR DEVICE WITH THE PC
Set up Synchronisation using Windows Mobile®
Device Center
Windows Mobile Device Center is only compatible with
Windows Vista and Windows 7; if you run Windows XP or
earlier, you have to download Microsoft ActiveSync.
You can establish a connection to your Memor X3 through
the following interfaces:
USB either directly or through the Single Dock
RS232 either directly or through the Single Dock
Bluetooth®
To establish a partnership between the Memor X3 and a host
PC, start Windows Mobile® Device Center and follow the
steps below:
1. Connect the Memor X3 to the host PC. Windows
Mobile® Device Center configures itself and then
opens.
2. On the license agreement screen, click Accept.
3. On the Windows Mobile Device Center’s Home screen,
click Set up your device.
4. Select the information types that you want to
synchronize, then click Next.
5. Enter a device name and click Set Up.
When you finish the setup wizard, Windows Mobile Device
Center synchronizes the mobile computer automatically.
Microsoft® Office Outlook® emails and other information will
appear on your device after synchronization.
Communicate with Host
N
2
1
4
3
L
I
J
K
M
PQ
O
F
B C
A
E
D
G H

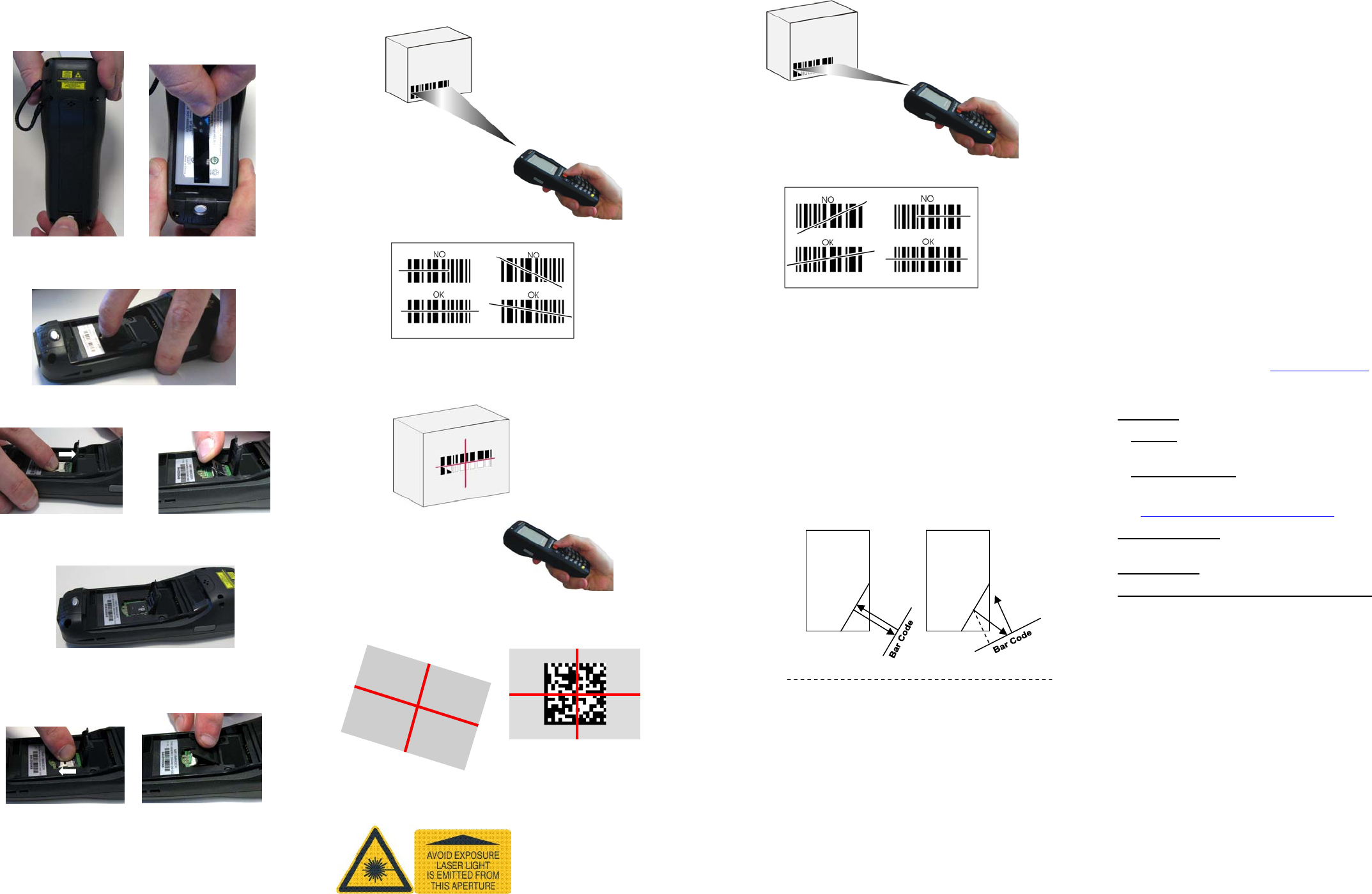

INSTALLING A MICROSD CARD
1. Turn off the Memor X3.
2. Press the latch release button and pull the latch
down; then remove the cover and the battery pack:
3. Open the microSD card slot by lifting up the locking
plate:
4. Shift the cardholder upwards and then pull it up:
5. Insert the microSD card with the written part
upward:
6. Lock the card into place by pushing the cardholder
down and then shifting it downwards; push the
locking plate down:
7. Reinsert the battery cover (see section GETTING
STARTED)
SCANNING AND IMAGING
Laser Data Capture
2D Imager Data Capture
Linear barcode 2D Matrix symbol
ÌBX3ÉÎ
Relative Size and Location of Aiming System Pattern
Linear Imager Data Capture
Scanning with a Memor X3 Linear Imager
When beams reflect directly back into the scanner from the bar
code, they can “blind” the scanner and make decoding difficult.
To avoid this, don’t keep the terminal perpendicular to the
barcode: moving it of a small angle of ±2° is usually enough to
enable proper reading. But don’t scan at too oblique an angle
either: keep the scanner within an angle of ±30° from the
perpendicular to the barcode in order to guarantee effective
scanning.
Side Views
REFERENCE DOCUMENTATION
For further information regarding Memor X3 refer to the SDK
Help on-line and to the Memor X3 User’s Manual.
For information regarding safety and regulatory refer to the
Safety and Regulatory Addendum or to the dedicated section of
the Memor X3 User’s Manual.
PATENTS
This product may be covered by one or more of the following
patents:
Design patents: AU310182, EP0469143, EP1582024,
EP2247700, HK0601962.6, JP1325117, KR30/0466667,
TWD118829, USD574830, USD643034, USD658174,
ZL200630124857.0
Utility patents: EP0681257B1, EP0789315B1, EP1128315B1,
EP1396811B1, EP1413971B1, IT1396943, US5992740,
US6808114, US6997385, US7387246.
SERVICE AND SUPPORT
Datalogic provides several services as well as technical
support through its website.
Please check our website at www.datalogic.com under
“Support & Services”, then “Automatic Data Capture”, and
click on the links indicated for further information including:
- Downloads
- Manuals for the latest versions of user manuals and
product guides.
- Software & Utilities for the latest firmware release for
your product. You can also click on the following link
for direct access to this section:
www.datalogic.com/products_updates.
- Service Program for warranty extensions and
maintenance agreements.
- Repair Centers for a list of authorised repair centers.
- Technical Support Automatic Data Capture email
form to contact our technical support
WARRANTY TERMS AND CONDITIONS
The warranty period is 1 year for the device and 90 days for
consumables (e.g. battery, power supply, cable etc.) from
date of purchase at our company.
©2013 Datalogic ADC S.r.l. • ALL RIGHTS RESERVED. • Protected
to the fullest extent under U.S. and international laws. • Copying, or
altering of this document is prohibited without express written
consent from Datalogic ADC S.r.l.
Datalogic and the Datalogic logo are registered trademarks of
Datalogic S.p.A. in many countries, including the U.S.A. and the E.U.
Memor and the Memor logo are trademarks of Datalogic ADC S.r.l.
All other brand and product names mentioned herein are for
identification purposes only and may be trademarks or registered
trademarks of their respective owners.
Specular reflection.
Reflected beam
is within specular
dead zone and
prevents decode.
No specular
reflection.
Decode can
occur.
Tilt Bar Code At Slight Angle (Up to 30°)
Light
Source
Light
Source
