Datalogic 0003 OM-GRYPHON Series Radio Cradle User Manual a OMGryphon Master

Datalogic SpA OM-GRYPHON Series Radio Cradle a OMGryphon Master

manual

OM-GRYPHON SERIES
RADIO CRADLE
Quick Reference
Installazione Rapida
Manuel d'Installation Rapide
Schnellinstallation
Manual De Instalación Rápida
DATALOGIC S.p.A.,
Via Candini, 2
40012 - Lippo di Calderara
Bologna - Italy
dichiara che
declares that the
déclare que le
bescheinigt, daß das Gerät
declare que el
OM-GRYPHON, Base Charger
e tutti i suoi modelli
and all its models
et tous ses modèles
und seine modelle
y todos sus modelos
sono conformi alle Direttive del Consiglio Europeo sottoelencate:
are in conformity with the requirements of the European Council Directives listed below:
sont conformes aux spécifications des Directives de l'Union Européenne ci-dessous:
den nachstehenden angeführten Direktiven des Europäischen Rats entsprechen:
cumple con los requisitos de las Directivas del Consejo Europeo, según la lista siguiente:
1999/5/EEC R&TTE
Questa dichiarazione è basata sulla conformità dei prodotti alle norme seguenti:
This declaration is based upon compliance of the products to the following standards:
Cette déclaration repose sur la conformité des produits aux normes suivantes:
Diese Erklärung basiert darauf, daß das Produkt den folgenden Normen entspricht:
Esta declaración se basa en el cumplimiento de los productos con las siguientes normas:
EN 60950, October 1996:S
AFETY OF INFORMATION TECHNOLOGY EQUIPMENT, INCLUDING
ELECTRICAL BUSINESS EQUIPMENT
ETS 300 683, June 1997:R
ADIO EQUIPMENT AND SYSTEMS (RES); ELECTROMAGNETIC
COMPATIBILITY (EMC) STANDARD FOR SHORT RANGE DEVICES
(SRD) OPERATING ON FREQUENCIES BETWEEN 9 KHZ AND 25
GHZ
ETS 300 220-1, November 1997:E
LECTROMAGNETIC COMPATIBILITY AND RADIO SPECTRUM
MATTERS (ERM); SHORT RANGE DEVICES; TECHNICAL
CHARACTERISTICS AND TEST METHODS FOR RADIO EQUIPMENT TO
BE USED IN THE 25 MHZ TO 1000 MHZ FREQUENCY RANGE WITH
POWER LEVELS RANGING UP TO 500 MW; PART 1: PARAMETERS
INTENDED FOR REGULATORY PURPOSES
Lippo di Calderara, 13.03.2001
Ruggero Cacioppo
Quality Assurance Supervisor
Datalogic reserves the right to make modifications and improvements without prior notification.
Product names mentioned herein are for identification purposes only and may be trademarks and or
registered trademarks of their respective companies.
© - 2001 Datalogic S.p.A.
PRELIMINARY
iii
CONTENTS
Services Available at Our Website .................................................................2
Using OM-GRYPHON Radio Cradle...............................................................3
System Connections ......................................................................................4
Connecting / Disconnecting the OM-GRYPHON Interface Cable.............................4
RS232 Connection .................................................................................5
Pen Connection......................................................................................5
Wedge Connection.................................................................................6
OM-GRYPHON Configuration ........................................................................7
Wedge Keyboard Nationality........................................................................11
Operating Test .............................................................................................12
OM-GRYPHON Default Configuration ..........................................................13
Information to the Users ...............................................................................13
Warranty ......................................................................................................14
Technical Features.......................................................................................14
INDICE
Disponibili nel Nostro Sito Web ....................................................................16
Base Radio OM-GRYPHON – Descrizione e Uso ........................................17
Sistema Radio - Collegamenti ......................................................................18
Cavo Interfaccia – Collegamento e Scollegamento...............................................18
RS232 ..................................................................................................19
Pen ......................................................................................................19
Wedge..................................................................................................20
Configurazione dell’OM-GRYPHON .............................................................21
Nazionalità della Tastiera .............................................................................25
Test di Funzionamento.................................................................................26
OM-GRYPHON - Configurazione Di Default.................................................27
Avvertenze ...................................................................................................27
Garanzia ......................................................................................................28
Caratteristiche Tecniche...............................................................................28
SOMMAIRE
Disponibles dans Notre Site Web .................................................................30
Utilisation de la Base Radio OM-GRYPHON ................................................31
Connexion Systeme .....................................................................................32
Connexion / Deconnexion du Cable d'Interface pour OM-GRYPHON...........32
Connexion RS232 ................................................................................33
Emulation Crayon.................................................................................33
Connexion Interclavier..........................................................................34
Configuration OM-GRYPHON ......................................................................35
Nationalite du Clavier ...................................................................................39
Test de Foctionnement.................................................................................40
OM-GRYPHON - Configuration par Defaut...................................................41
Precautions ..................................................................................................41
Garantie .......................................................................................................42
Caracteristiques Techniques ........................................................................42
iv
INHALTSVERZEICHNIS
Verfügbar auf Unserem Web Site.................................................................44
Funktion der OM-GRYPHON Funk - Und Ladestation ..................................45
Systemanschluß...........................................................................................46
Ein- und Ausstecken der Anschlußkabel ......................................................46
RS232 - Schnittstelle............................................................................47
Lesestiftschnittstelle .............................................................................47
Tastaturschnittstelle .............................................................................48
OM-GRYPHON Konfiguration ......................................................................49
Tastaturnationalität.......................................................................................53
Codes für Testzwecke..................................................................................54
OM-GRYPHON Grundeinstellung ................................................................55
Hinweise ......................................................................................................55
Gewährleistung ............................................................................................56
Technische Daten ........................................................................................56
INDICE
Servicios Disponibles en Nuestras Web Site................................................58
Utilización de la Base Radio OM-GRYPHON ...............................................59
Conexión del Sistema ..................................................................................60
Conexión / Desconexión del Cable de Interfaz
para OM-GRYPHON ....................................................................................60
Conexión RS232 ..................................................................................61
Emulación Lápiz...................................................................................61
Emulación Teclado...............................................................................62
Configuración OM-GRYPHON .....................................................................63
Nacionalidad del Teclado .............................................................................67
Test Operativo..............................................................................................68
OM-GRYPHON - Configuración Predefinida ................................................69
Advertencias ................................................................................................69
Garantia .......................................................................................................70
Características Técnicas ..............................................................................70
OM-GRYPHON
RADIO CRADLE
Quick Reference
English
2
SERVICES AVAILABLE AT OUR WEB SITE:
By completing the electronic form at our website,
www.datalogic.com/hhd/gryphon_utilities.htm, you have free access to
download the following items:
• WinSetPlus™
WinSetPlus™ is a Windows-based utility program which allows device
configuration using a PC. It provides RS232 interface configuration as
well as configuration barcode printing.
• Loader:
The Loader utility program is necessary to load the application software
(upgrades) onto your reader.
• Software Upgrades:
Future software upgrades allow your reader to be updated with the
latest improvements.
These items are also available from your local Datalogic distributor.
English
3

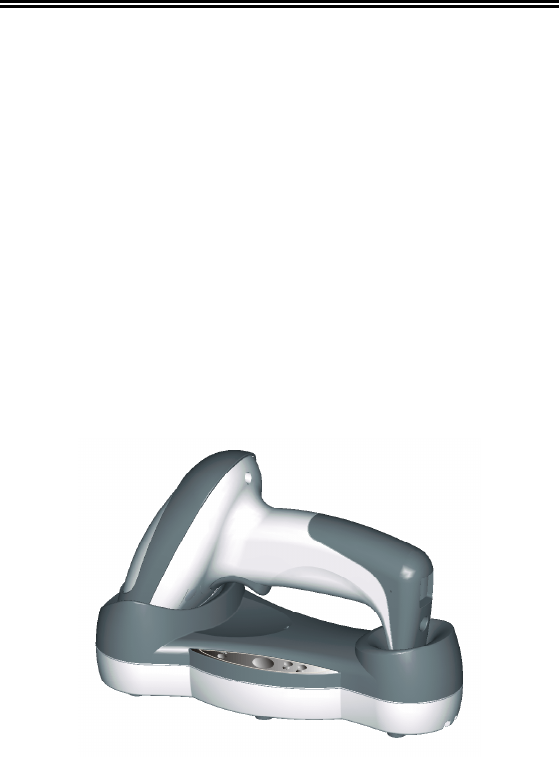

USING OM-GRYPHON RADIO CRADLE
The OM-GRYPHON cradle, paired with one Gryphon™ series reader, builds
a Cordless Reading System for the collection, decoding and transmission of
barcoded data.
It can be connected to a Host PC through an RS232, Wedge or Pen
emulation cable and is suited for a single-cradle layout.

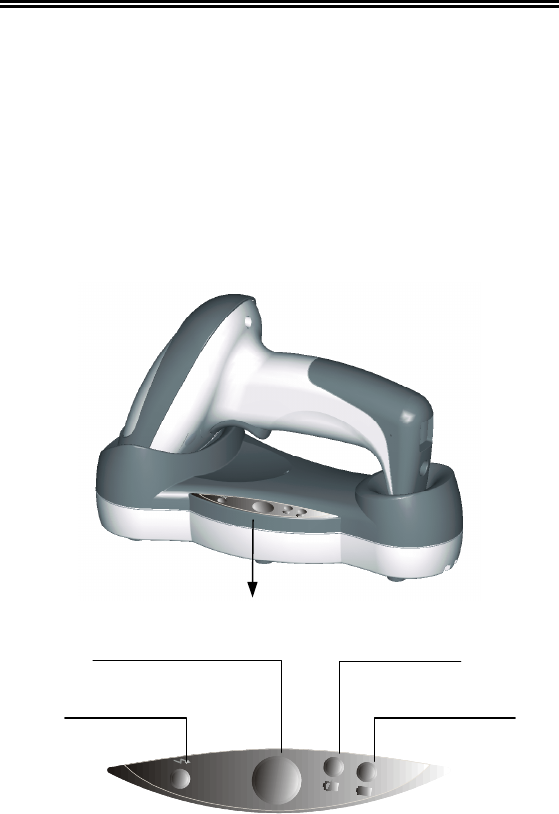

Once it is powered, the yellow LED goes on. It will blink, only when the cradle
receives data from the gun. The red LED indicates the battery is charging.
Once the battery is charged, the green LED on the cradle goes on.
To setup your OM-GRYPHON cradle you must:
1. Make all system connections.
2. Configure the OM-GRYPHON cradle.
Power on / Data
(yellow LED)
Reconditioning battery
button
Charging
(red LED)
Charge completed
(green LED)
English
4
SYSTEM CONNECTIONS
CAUTION
Connections should always be made with power OFF!
You can connect the OM-GRYPHON cradle to the Host through the dedicated
connector, using the cable corresponding to the desired interface type.
CONNECTING / DISCONNECTING THE OM-GRYPHON
INTERFACE CABLE
The OM-GRYPHON can be connected to a Host by means of an RS232,
Wedge or Pen emulation cable which must be simply plugged into the Host
connector, placed on the base of the cradle. In addition the cradle must be
connected to an external power supply, see the figure below.

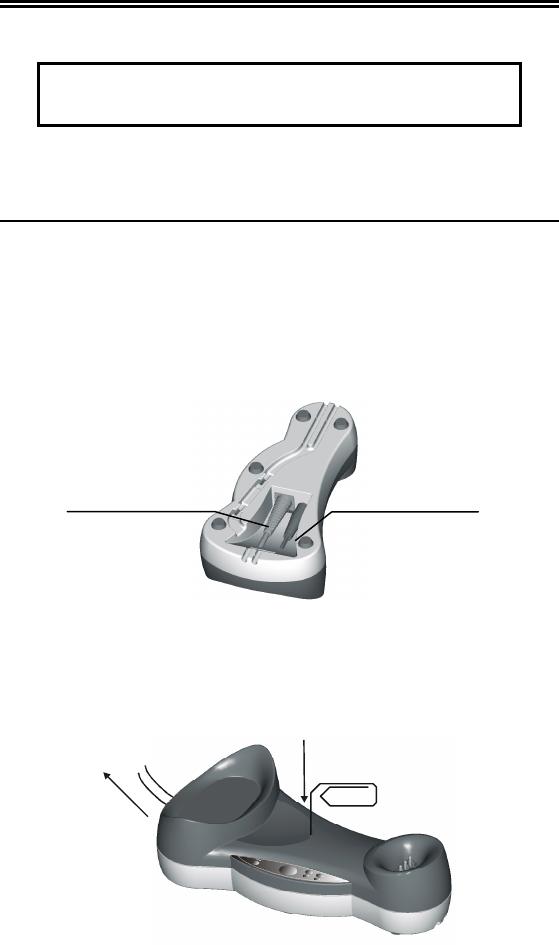

Figure 1 – OM-GRYPHON - Bottom view
To disconnect the cable, insert a paper clip or other similar object into the hole
corresponding to the Host connector on the body of the cradle. Push down on
the clip while unplugging the cable. Refer to the following figure:
Figure 2 – OM-GRYPHON - Disconnecting the cable.
Power Supply
Host Interface
Cable
English
5

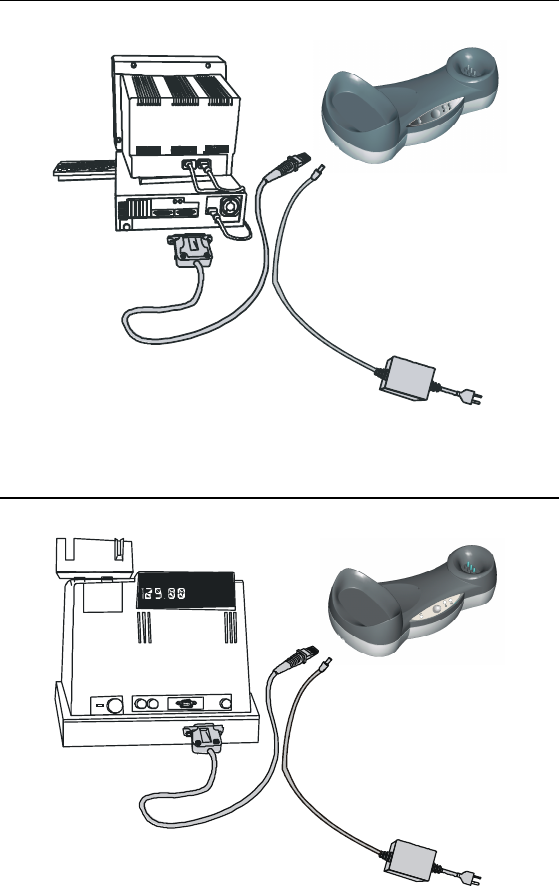

RS232 CONNECTION
PEN CONNECTION
English
6

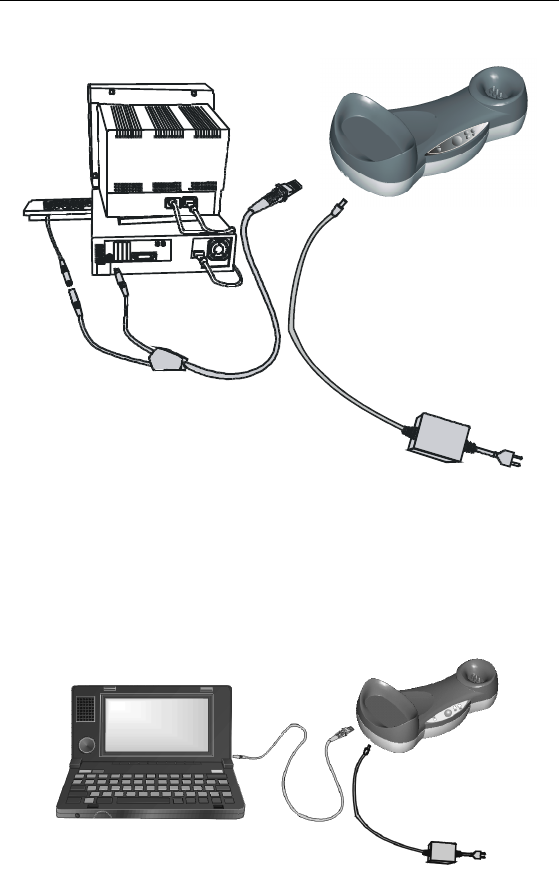

WEDGE CONNECTION
English
7
OM-GRYPHON CONFIGURATION
The OM-GRYPHON configuration can be performed in two ways: either by
reading configuration barcodes with the Gryphon™ reader or by sending
configuration strings from the Host via the RS232 interface.
Once you have performed system connection and Gryphon™ reader
configuration, you can configure the OM-GRYPHON cradle. Apply power to
the OM-GRYPHON.
For the Gryphon™ configuration refer to the “Gryphon™ Quick Reference”.
To configure the OM-GRYPHON using the Gryphon™ reader (the one paired to
the cradle with the Bind command), follow the given sequence and the
instructions.
Read the OM-GRYPHON restore default code:
1.
Restore OM-GRYPHON default
i39Rk
i39Rk
i39Rk
Among the following interface selection codes, read only the code
that suits your application:
2.
RS232 Interface
i$1k
i$1k
i$1k
PEN Interface
i$1#k
i$1#k
i$1#k
English
8
WEDGE Interface
IBM AT or PS/2 PCs
i$1Bk
i$1Bk
i$1Bk
IBM XT
i$1Wk
i$1Wk
i$1Wk
PC Notebook
i$1ek
i$1ek
i$1ek
IBM SURE1
i$1k
i$1k
i$1k
IBM Terminal 3153
i$1^k
i$1^k
i$1^k
English
9
WEDGE Interface (continued)
IBM Terminals
IBM Terminals 31xx, 32xx, 34xx, 37xx:
read the correct Key Transmission code:
make-only keyboard
i$1Pk
i$1Pk
i$1Pk
make-break keyboard
i$1Ik
i$1Ik
i$1Ik
read the Keyboard Type code, if necessary:
advanced keyboard
i',fk
i',fk
i',fk
typewriter keyboard
i',ak
i',ak
i',ak
The following interface selection allows barcodes sent to the PC to be
interpreted correctly independently from the Keyboard Nationality used.
You do not need to make a Keyboard Nationality selection.
(default = Num Lock Unchanged)
Make sure the Num Lock key on your keyboard is ON.
IBM AT - ALT mode
i$1k
i$1k
i$1k
PC Notebook - ALT mode
i$1k
i$1k
i$1k
English
10
WEDGE Interface (continued)
Wyse Terminals
ANSI Keyboard
i$1k
i$1k
i$1k
PC Keyboard
i$1Hk
i$1Hk
i$1Hk
ASCII Keyboard
i$1Ok
i$1Ok
i$1Ok
VT220 style Keyboard
i$1dk
i$1dk
i$1dk
Digital Terminals
VT2xx/VT3xx/VT4xx
i$1Vk
i$1Vk
i$1Vk
APPLE
APPLE ADB Bus
i$1]k
i$1]k
i$1]k
English
11
WEDGE KEYBOARD NATIONALITY
If you selected the Wedge interface, you should also read among the
following codes the one that matches your Keyboard Nationality:
English
i'+k
i'+k
i'+k
Deutsch
i'+k
i'+k
i'+k
Svenskt
i'+k
i'+k
i'+k
Français
i'+gk
i'+gk
i'+gk
Italiano
i'+bk
i'+bk
i'+bk
USA
i'+]k
i'+]k
i'+]k
Español
i'+k
i'+k
i'+k
Belge
i'+k
i'+k
i'+k
English
12
OPERATING TEST
Read the TEST codes below
EAN-8
1234 5670
EAN-13
1 234567 000992
Code 39 (Normal)
17162
Code 128
test
Interleaved 2 of 5
0123456784
PDF417
DATALOGIC PDF417 Test Code
YOUR SYSTEM IS NOW READY TO READ BARCODES ACCORDING TO
THE DEFAULT CONFIGURATION AND TO SEND THE DATA TO THE
HOST.
English
13
OM-GRYPHON DEFAULT CONFIGURATION
RS232 DEFAULT SETTINGS
9600 baud, parity disabled, 8 data bits, 1 stop bit, handshaking disabled,
delay disabled, 5 sec. rx timeout
PEN DEFAULT SETTINGS
output level normal, idle level normal, minimum output pulse 600µs, overflow
medium
WEDGE DEFAULT SETTINGS
USA keyboard, caps lock off, num lock off, delays disabled
CRADLE OPERATING PARAMETERS
No header, terminator: RS232 = CR-LF; WEDGE = CR
INFORMATION TO THE USERS
DC supply voltage in the range 9 to 28 V DC, intended to be powered by a
Class 2 power unit with a cable length <3 m.
This device must be opened by qualified personnel only.
Modifications or changes to this equipment without the expressed written
approval of Datalogic could void the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference which may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Contact the competent authority responsible for the management of radio
frequency devices of your country to verify the eventual necessity of a user
license.
Refer to the web site http://europa.eu.int/comm/enterprise/rtte/spectr.htm for
further information.
English
14
WARRANTY
Datalogic warranties this product against defects in workmanship and
materials, for a period of 24 months from the date of shipment, provided that
the product is operated under normal and proper conditions.
Datalogic has the faculty to repair or replace the product, these provisions do
not prolong the original warranty term.
The warranty does not apply to any product that has been subject to misuse,
accidental damage, unauthorized repair or tampering.
TECHNICAL FEATURES
OM-GRYPHON
Electrical Features
Supply voltage 9..28 Vdc
Power consumption max. 8 W (charging) *
Indicators Battery charging (red)
Charge completed (green)
Power / Data (yellow)
Time of recharge NiMh / NiCd batteries: 3 hours max
Radio Features European Models USA MODELS
Working Frequency 433.92 Mhz 910 Mhz
Bit rate 19200 baud 36800 baud
Effective Radiated Power <10 mW <1 mW
Range (in open air) 30 m. 15 m.
RF Modulation FSK
Max number of devices in the same
reading area 2000
Environmental Features
Working temperature 0 to +40 °C
Storage temperature -20 to +70 °C
Humidity 90 % non condensing
Protection class IP30
Mechanical Features
Weight about 250 g.
Dimensions 208 x 107 x 55.5 mm
Material ABS
* Having a switching regulator inside, the OM-GRYPHON draws the same
power, regardless of the supply voltage, i.e. as the input voltage increases
the current drawn decreases.

Navigation menu
