OPEN MESH

Wireless-N / AC

Long Range Ceiling Mount Dual Concurrent

MR1750

Wireless-N / AC

Long Range Ceiling Mount Dual Concurrent Access Point

V1.0

Long Range Ceiling Mount Dual Concurrent

Access P

oint

Long Range Ceiling Mount Dual Concurrent Access Point

oint

Table of Contents

1 Introduction ....................................................................................................................................................................... 5

1.1 Features and Benefits ..................................................................................................................................................................................... 6

1.2 Package Contents ............................................................................................................................................................................................ 7

1.3 System Requirements ..................................................................................................................................................................................... 7

1.4 Applications ....................................................................................................................................................................................................... 7

2 Before you Begin ............................................................................................................................................................... 9

2.1 Considerations for Wireless Installation .................................................................................................................................................. 9

2.2 Computer Settings (in Windows XP/Windows 7) .............................................................................................................................. 10

2.3 Computer Settings in Apple Mac OS X ................................................................................................................................................. 13

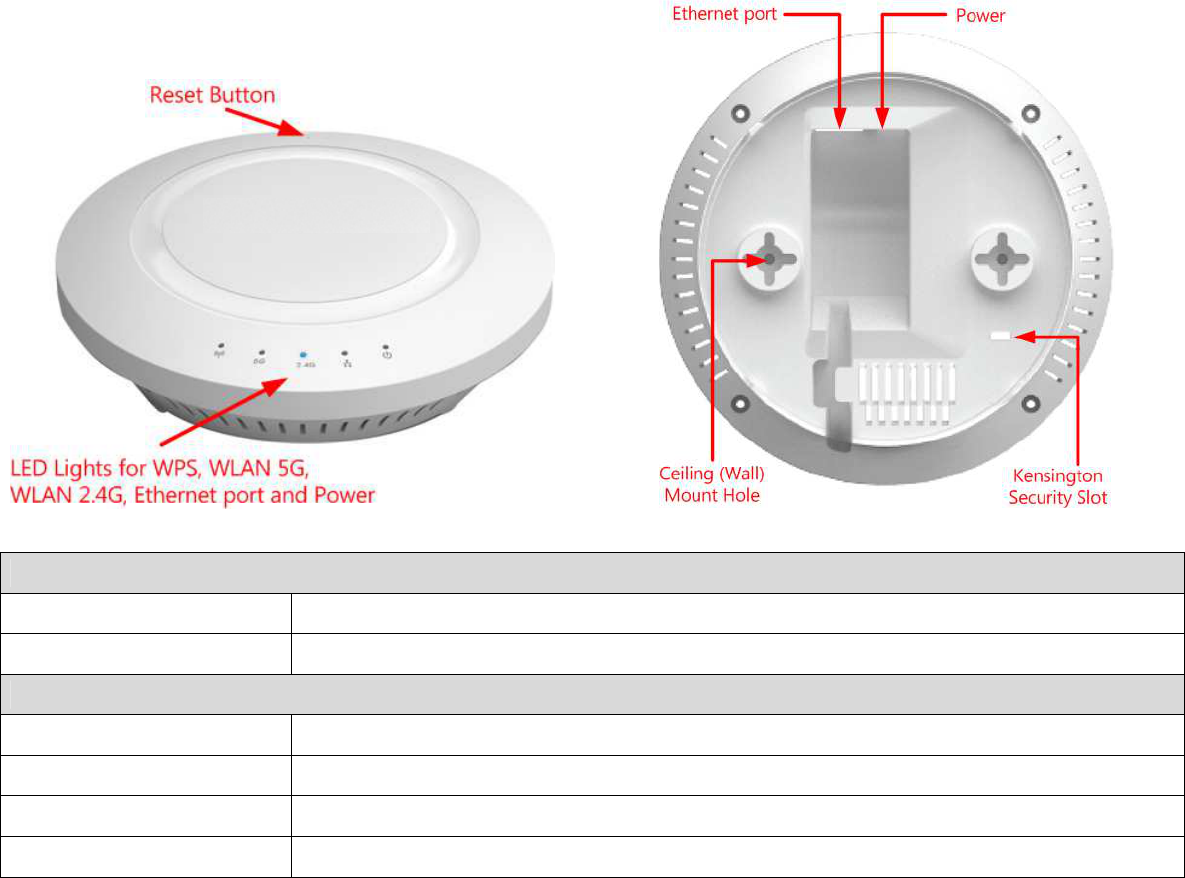

2.4 Hardware Installation ................................................................................................................................................................................... 14

3 Configuring Your Access Point ...................................................................................................................................... 19

3.1 Default Settings ............................................................................................................................................................................................. 19

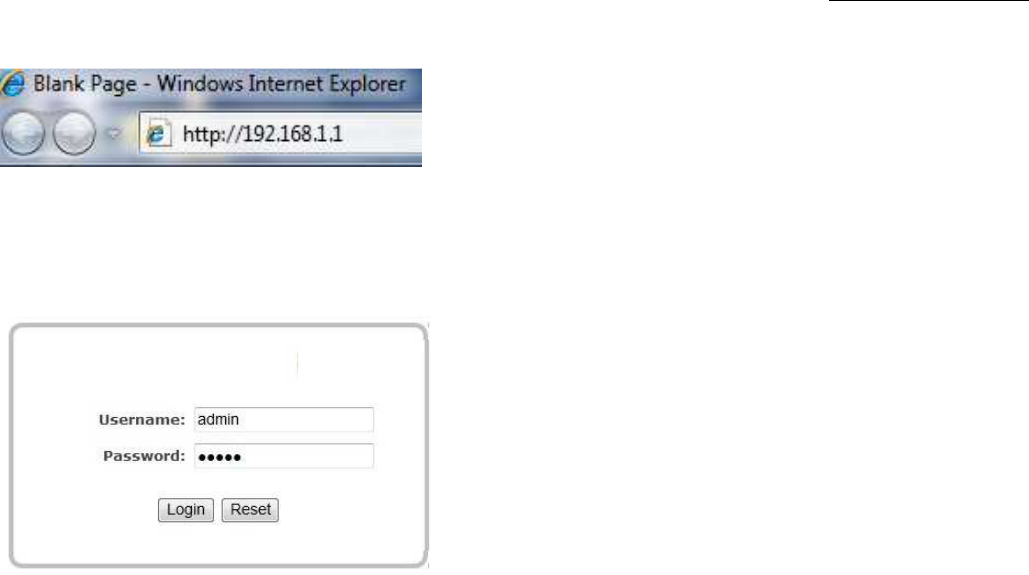

3.2 Web Configuration ....................................................................................................................................................................................... 20

4 Building a Wireless Network .......................................................................................................................................... 22

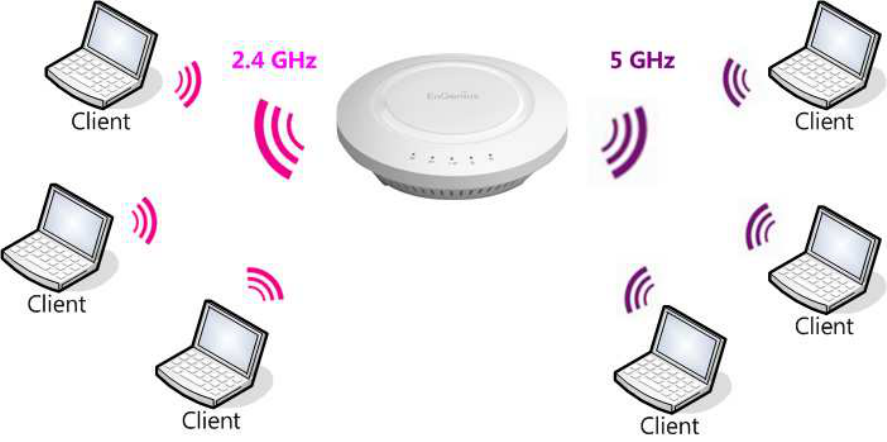

4.1 Access Point Mode ....................................................................................................................................................................................... 22

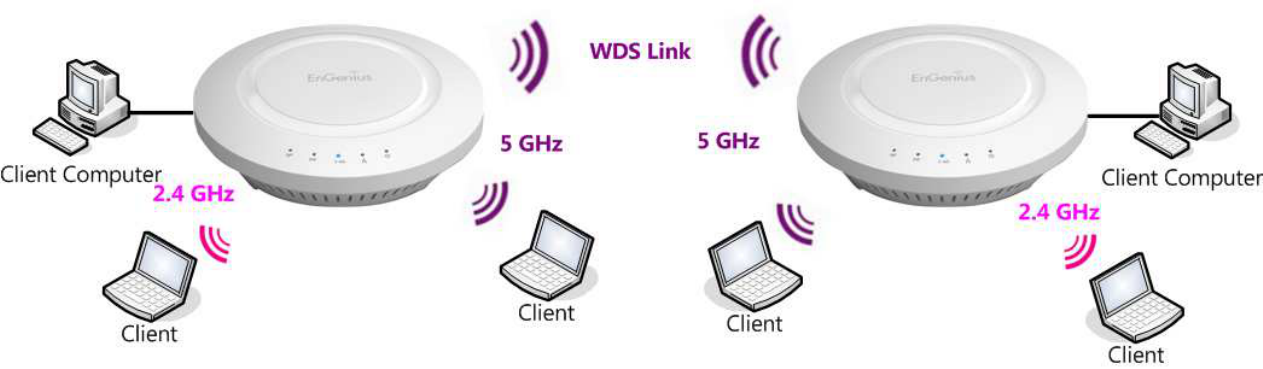

4.2 WDS AP Mode ............................................................................................................................................................................................... 23

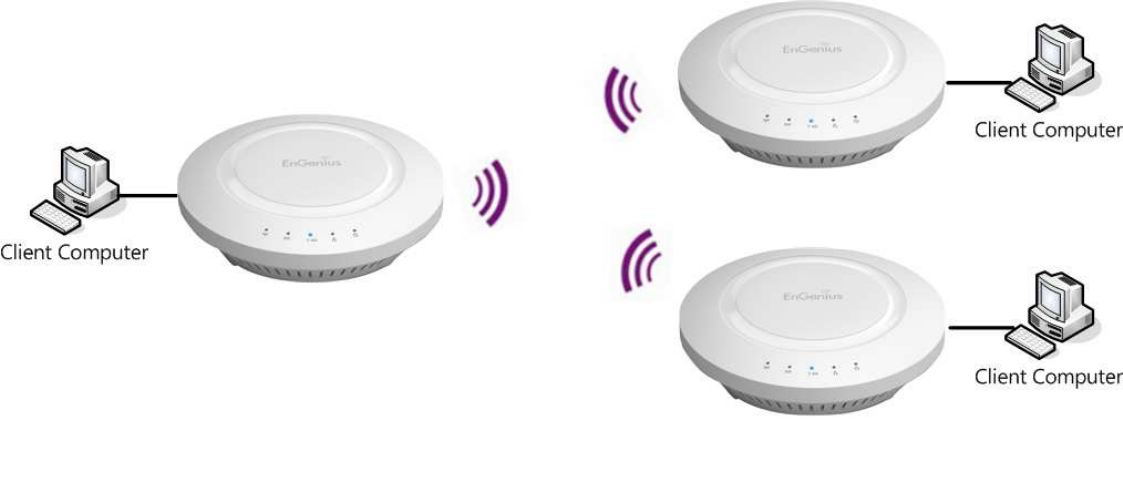

4.3 WDS Bridge Mode ........................................................................................................................................................................................ 24

4.4 Repeater mode .............................................................................................................................................................................................. 25

5 Status ................................................................................................................................................................................ 26

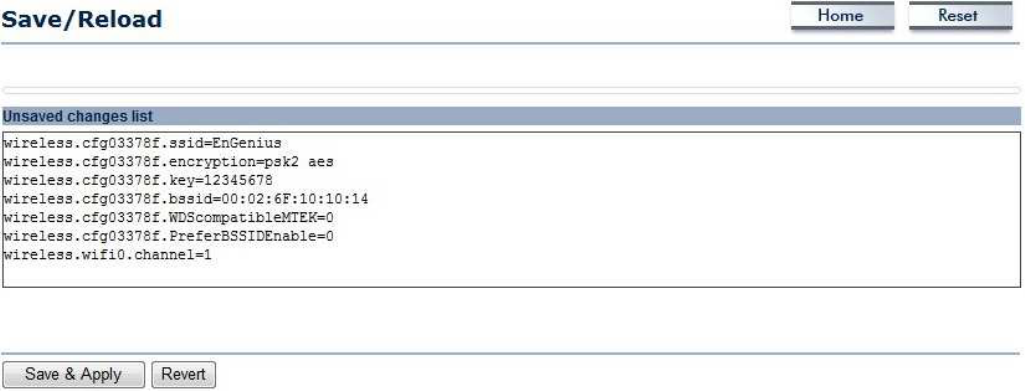

5.1 Save/Reload .................................................................................................................................................................................................... 26

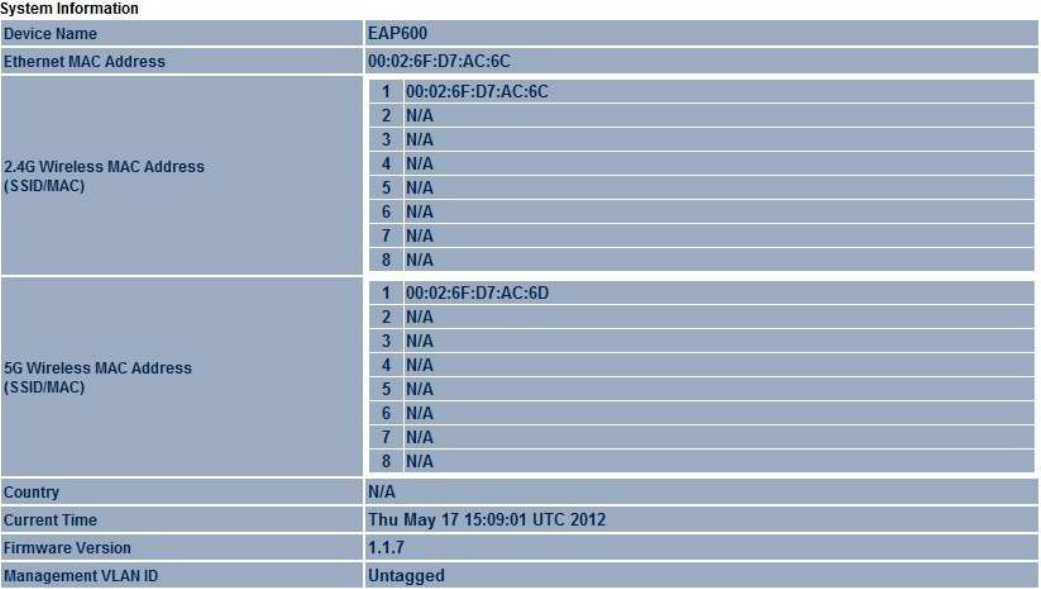

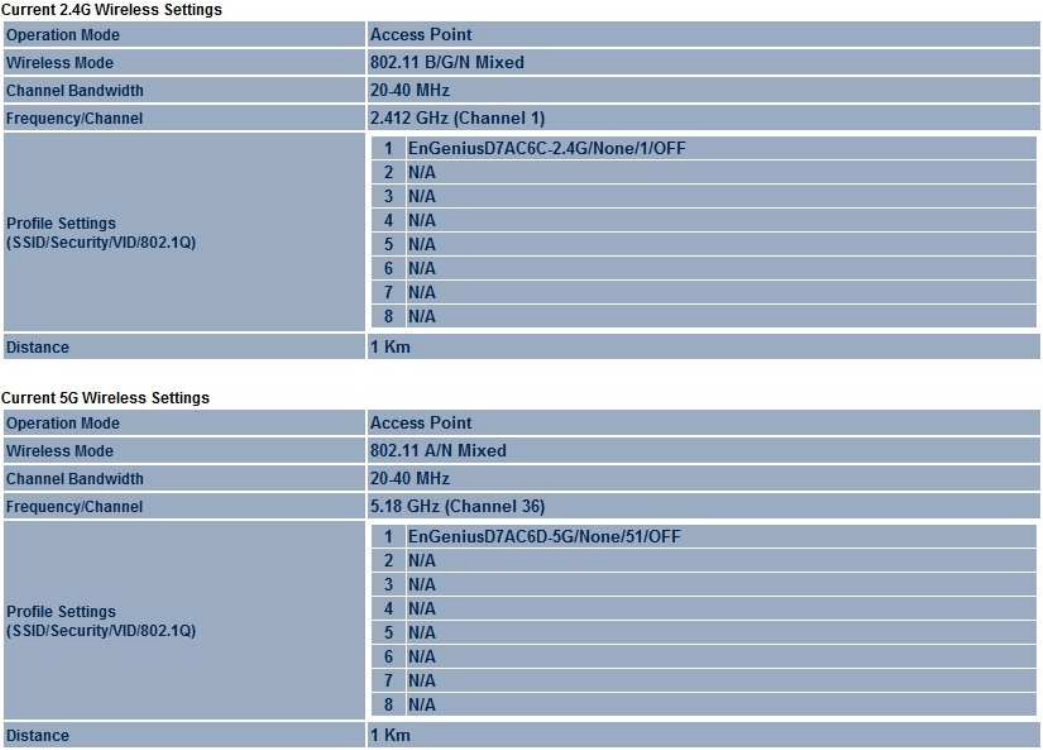

5.2 Main ................................................................................................................................................................................................................... 27

5.3 2.4G/5G Wireless Client List ...................................................................................................................................................................... 30

5.4 2.4G/5G Connection Status ....................................................................................................................................................................... 31

5.5 2.4G/5G WDS Link List ................................................................................................................................................................................ 32

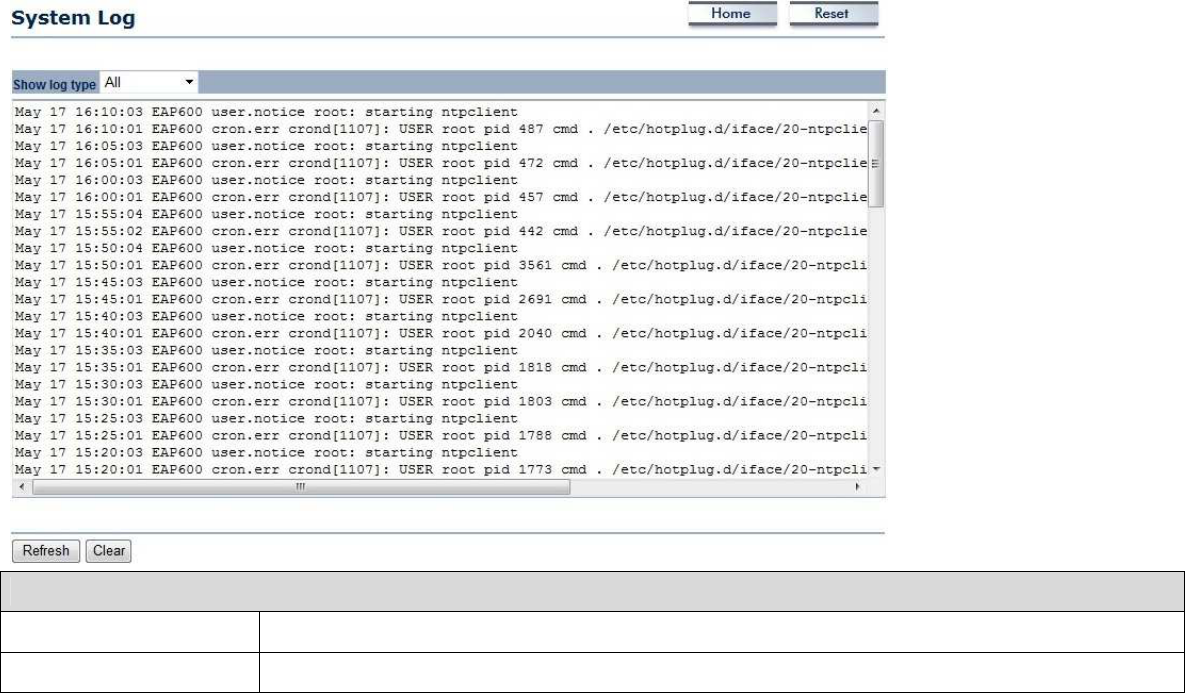

5.6 System Log ...................................................................................................................................................................................................... 33

6 System .............................................................................................................................................................................. 34

6.1 Operation Mode ............................................................................................................................................................................................ 34

6.2 IP Settings ........................................................................................................................................................................................................ 35

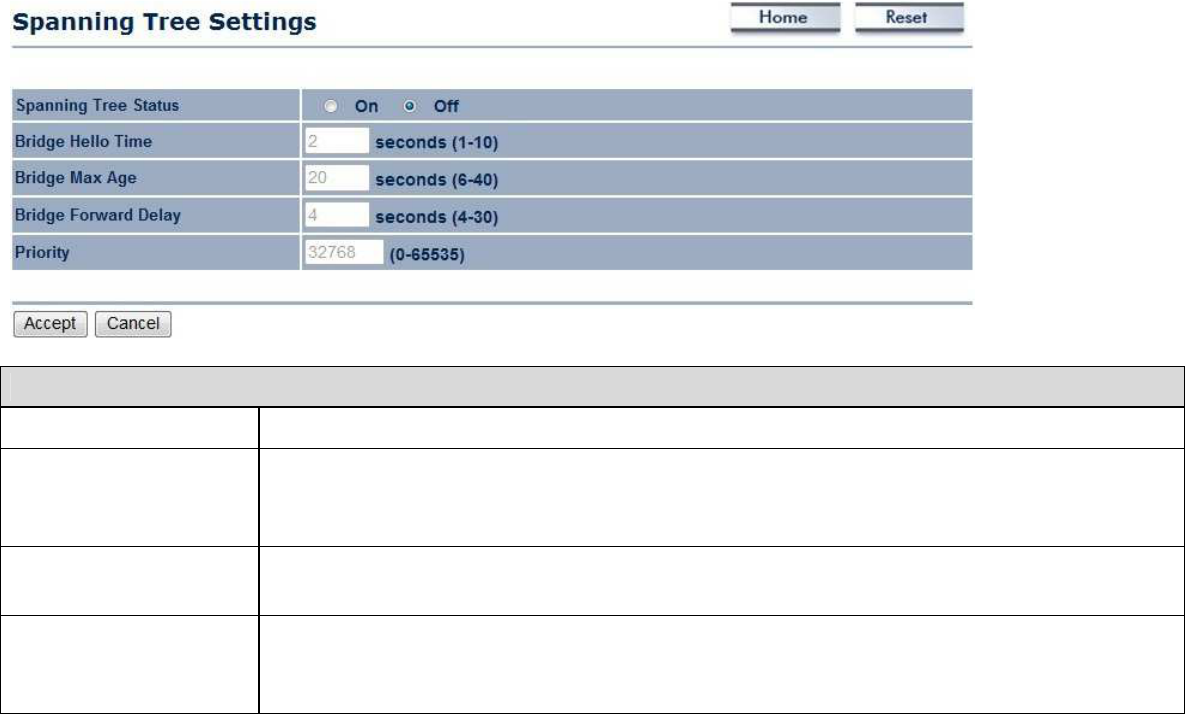

6.3 Spanning Tree Setting ................................................................................................................................................................................. 36

7 2.4G/5G Wireless ............................................................................................................................................................. 38

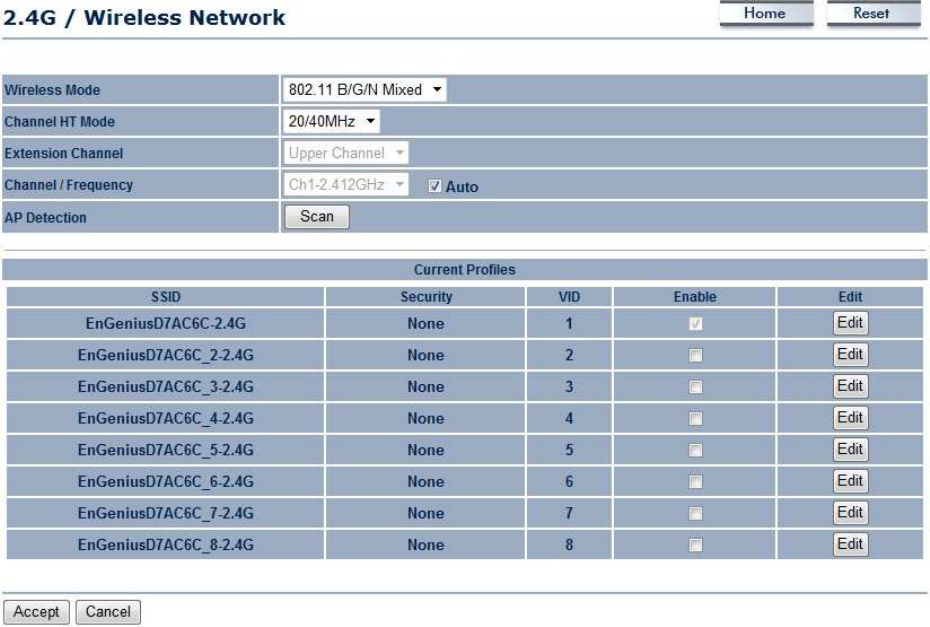

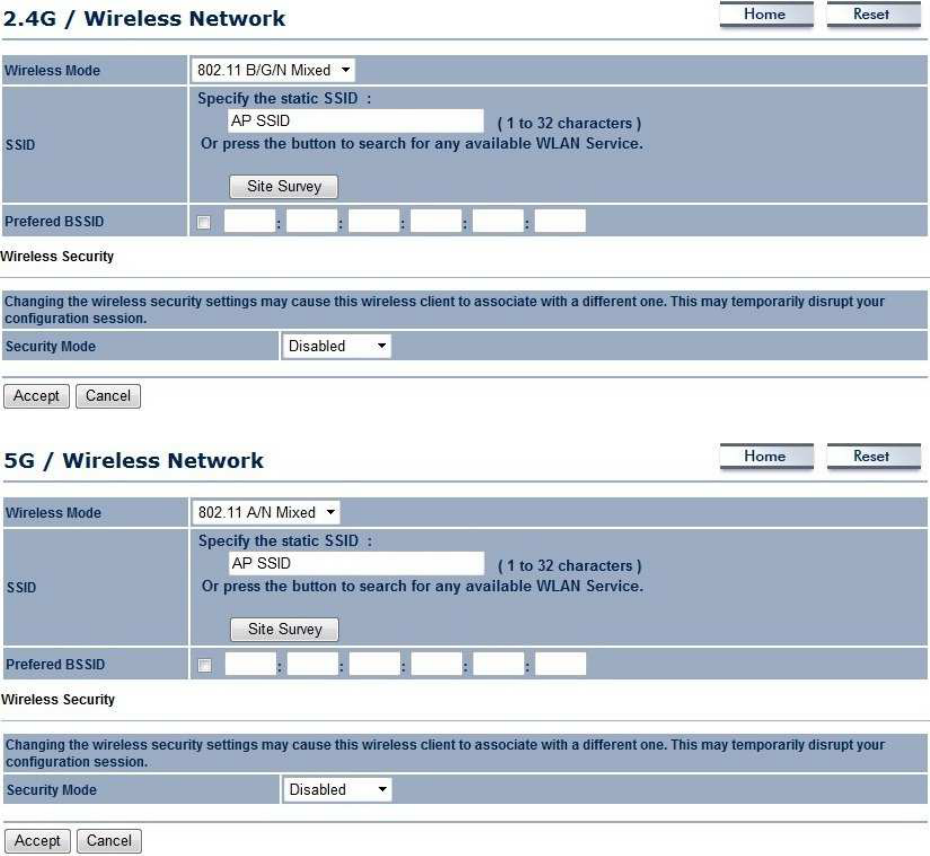

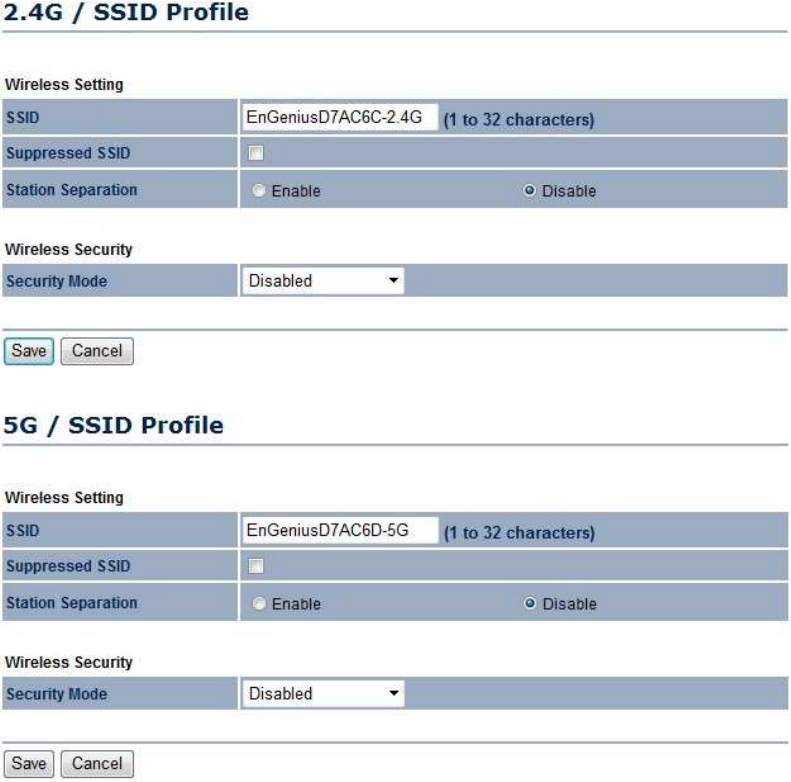

7.1 Wireless Network .......................................................................................................................................................................................... 38

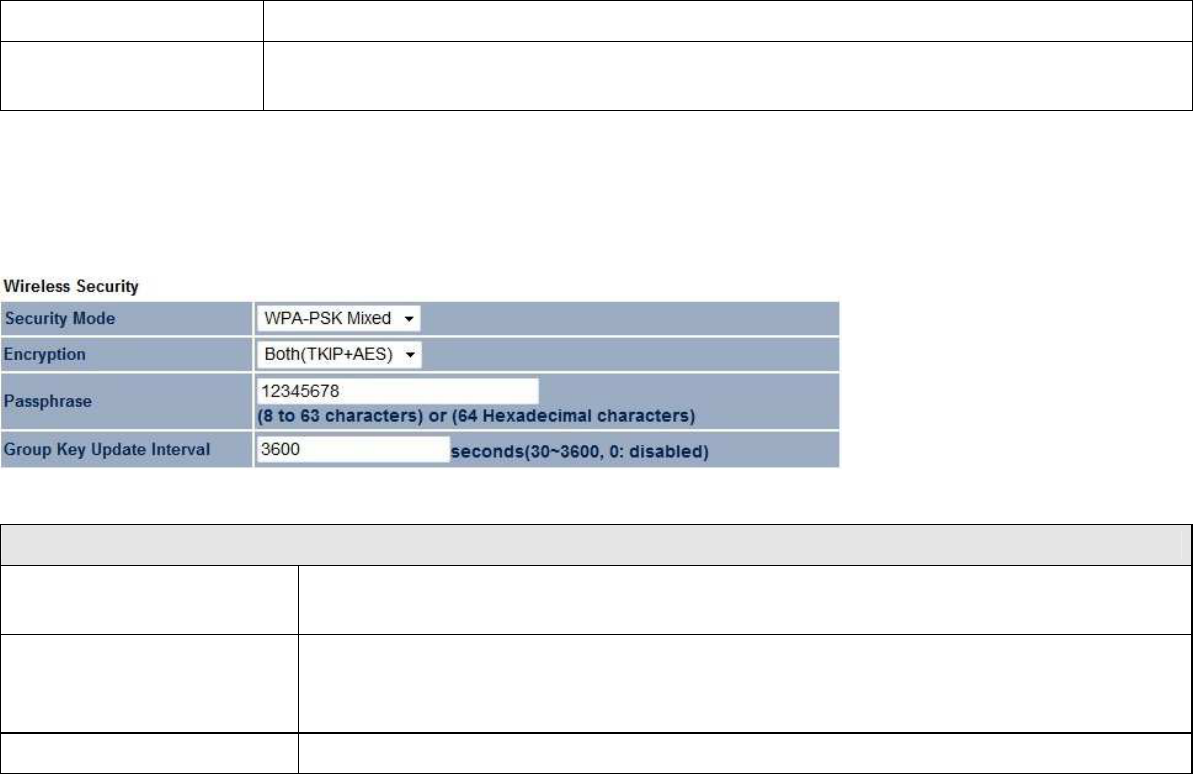

7.2 Wireless Security ........................................................................................................................................................................................... 45

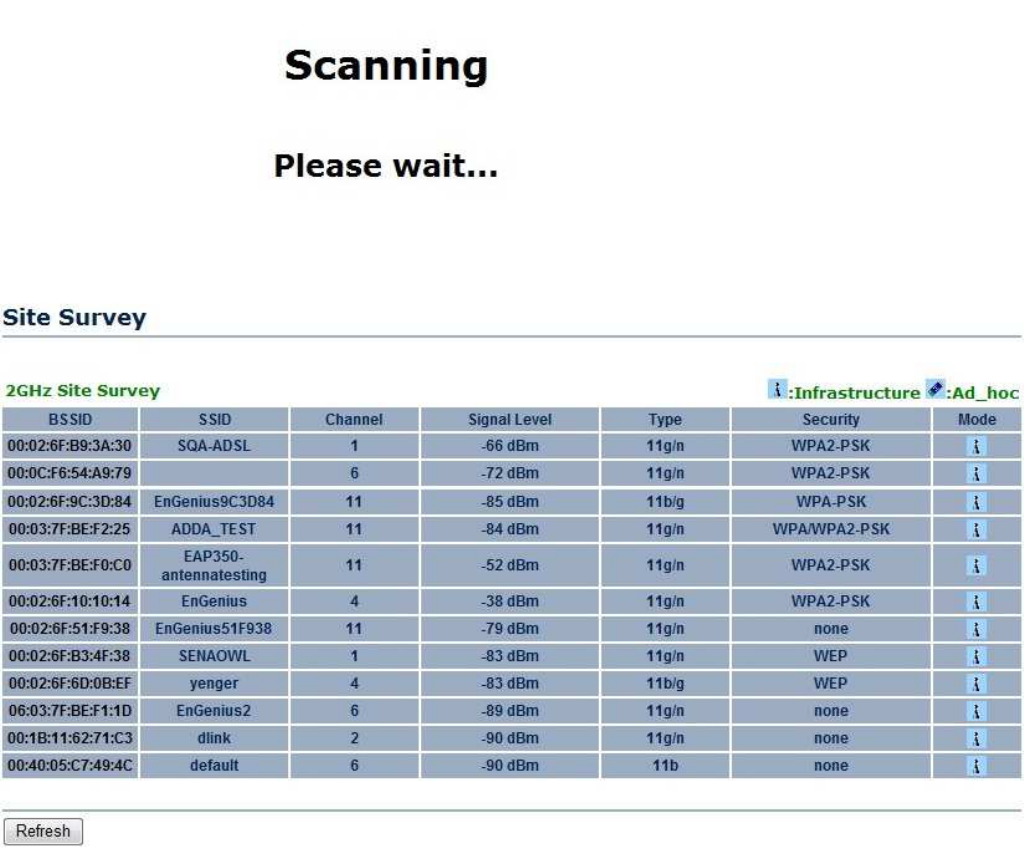

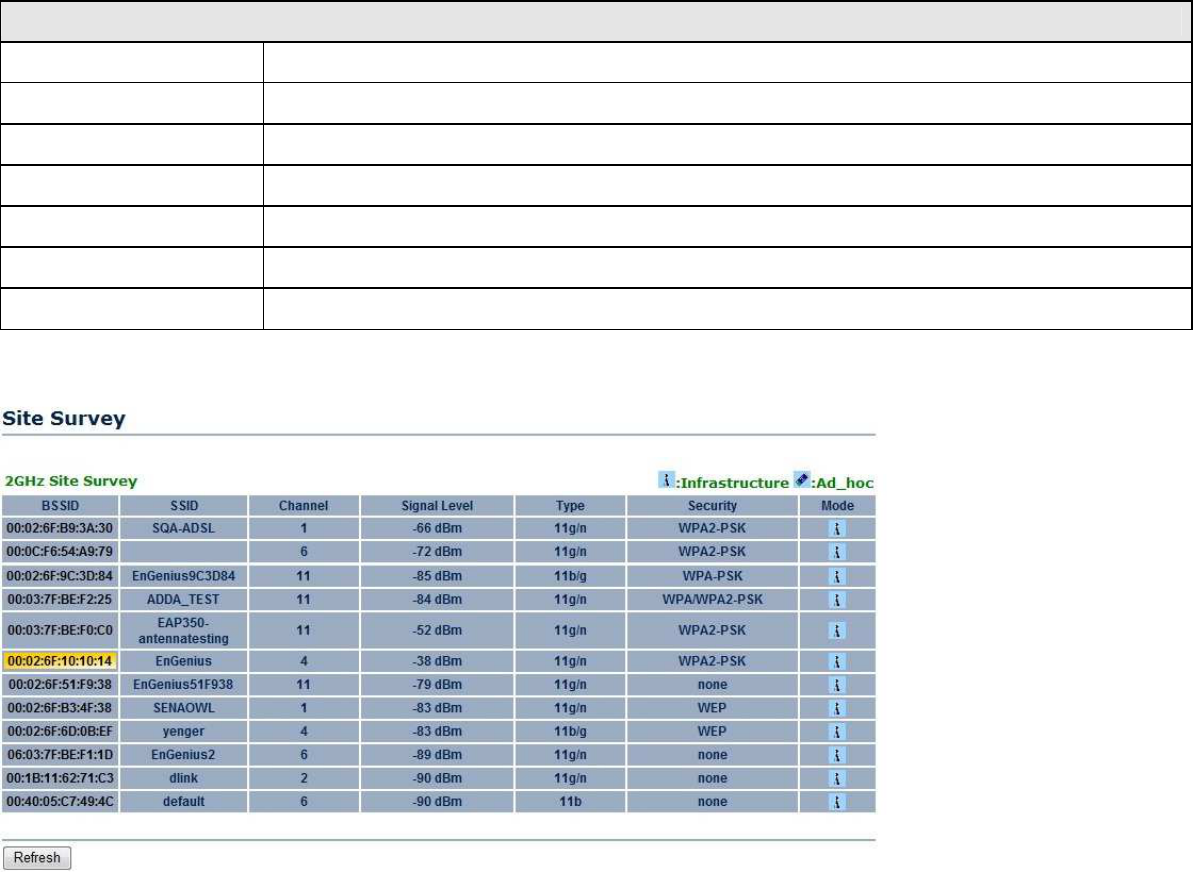

7.3 Site Survey ....................................................................................................................................................................................................... 49

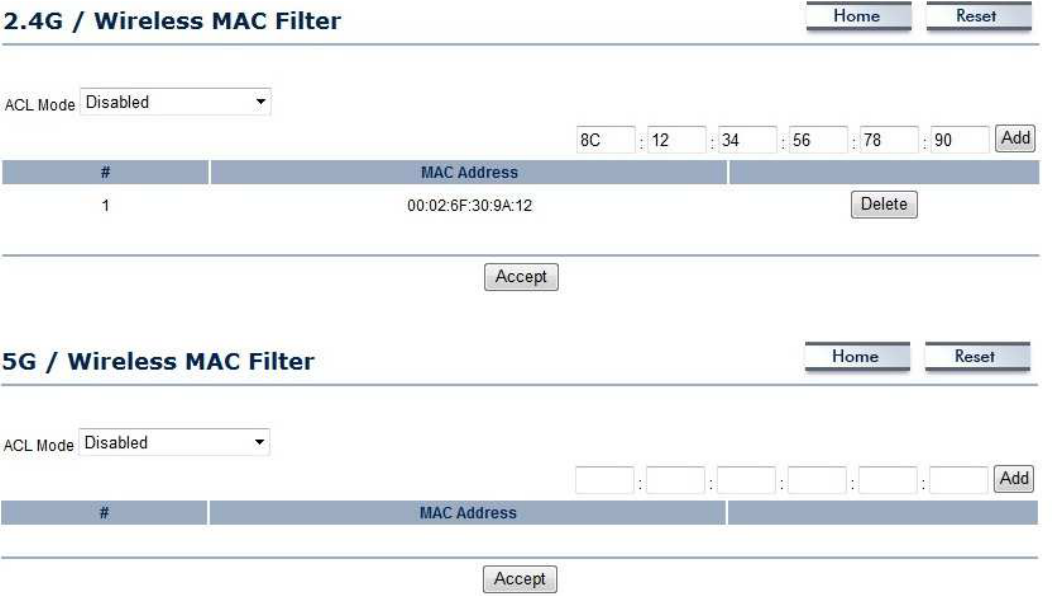

7.4 Wireless MAC Filtering ................................................................................................................................................................................ 53

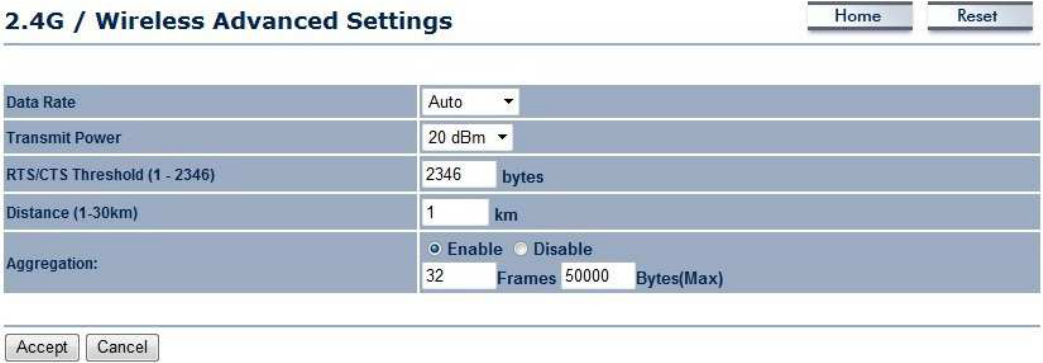

7.5 Wireless Advanced ....................................................................................................................................................................................... 55

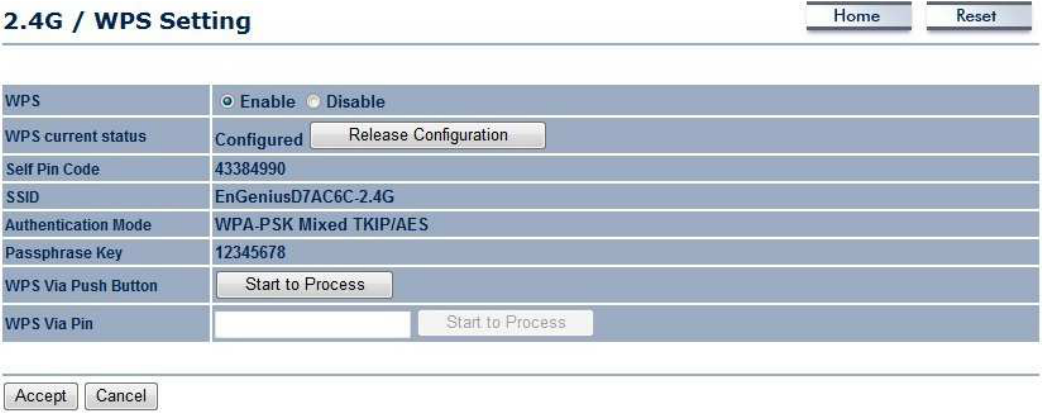

7.6 WPS (Wi-Fi Protected Setup) .................................................................................................................................................................... 57

7.7 WDS Link Settings ......................................................................................................................................................................................... 60

8 Management .................................................................................................................................................................... 63

8.1 Administration ................................................................................................................................................................................................ 63

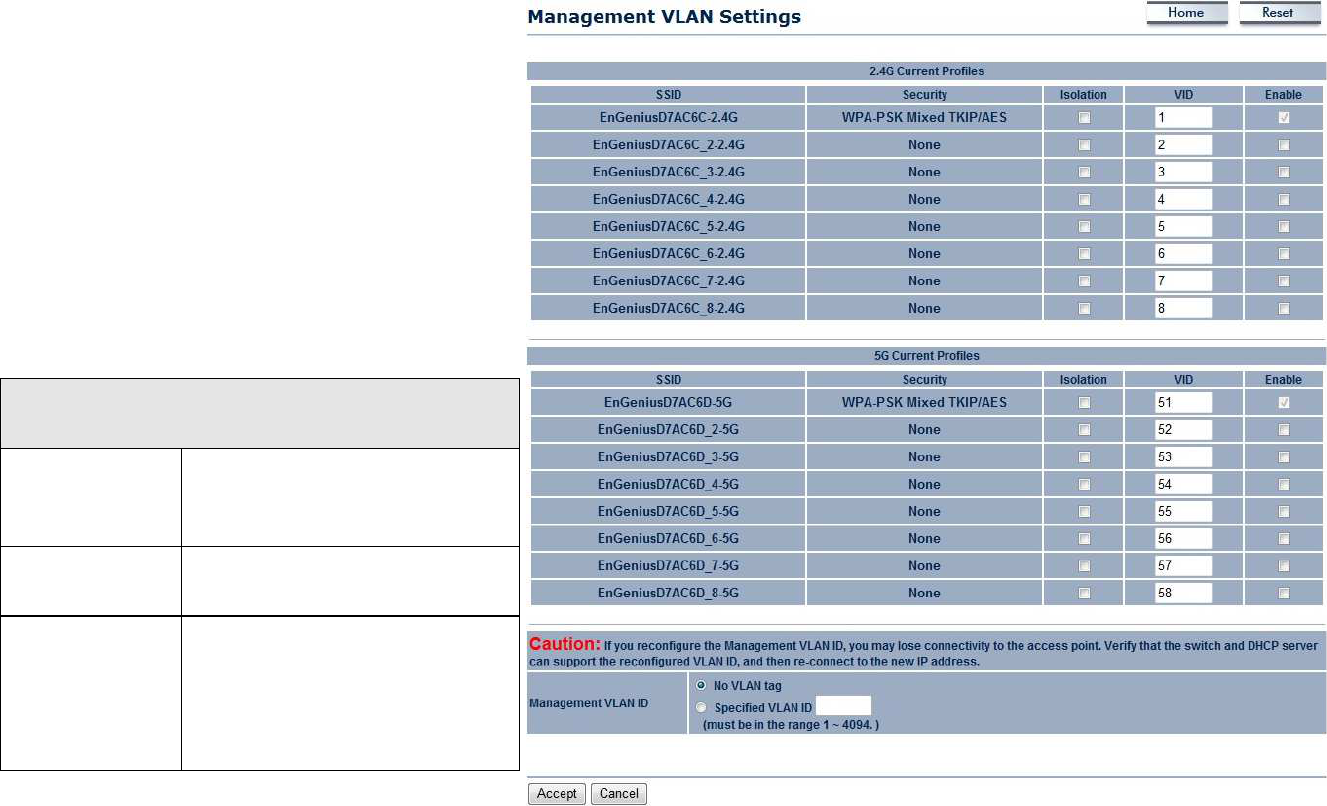

8.2 Management VLAN Settings .................................................................................................................................................................... 64

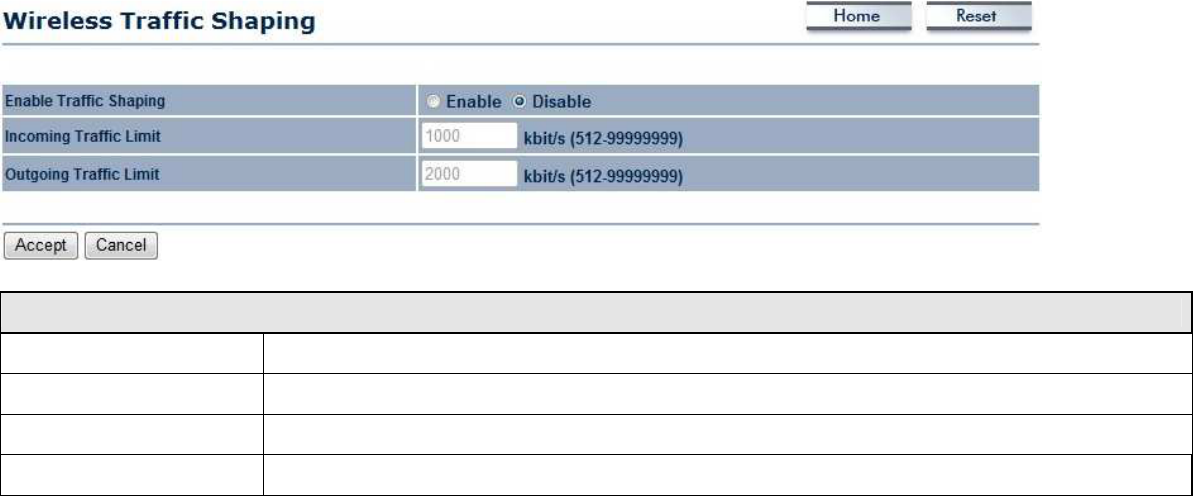

8.3 Wireless Traffic Shaping ............................................................................................................................................................................. 66

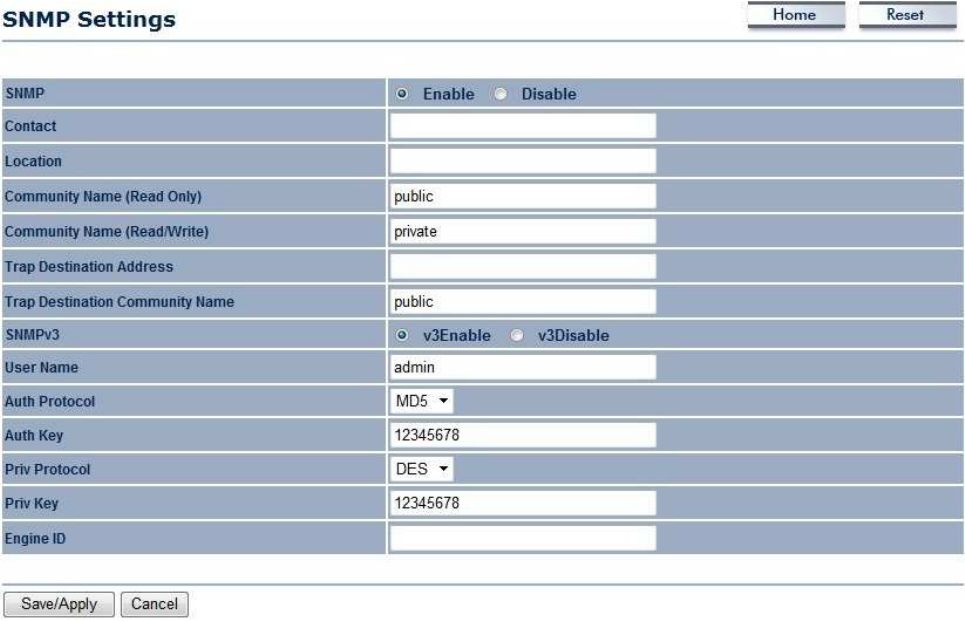

8.4 SNMP Settings ............................................................................................................................................................................................... 67

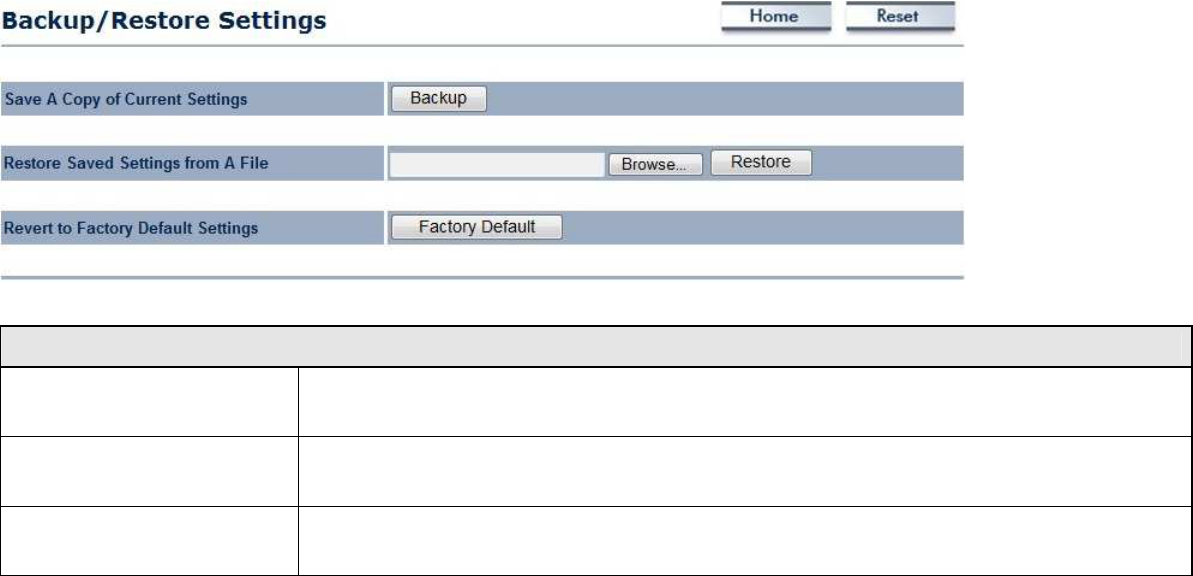

8.5 Backup/Restore .............................................................................................................................................................................................. 69

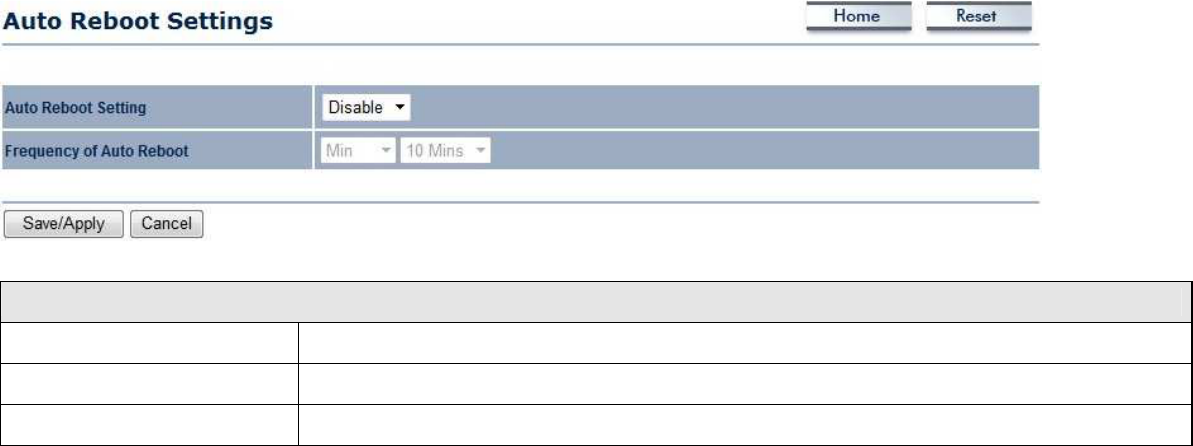

8.6 Auto Reboot Settings .................................................................................................................................................................................. 70

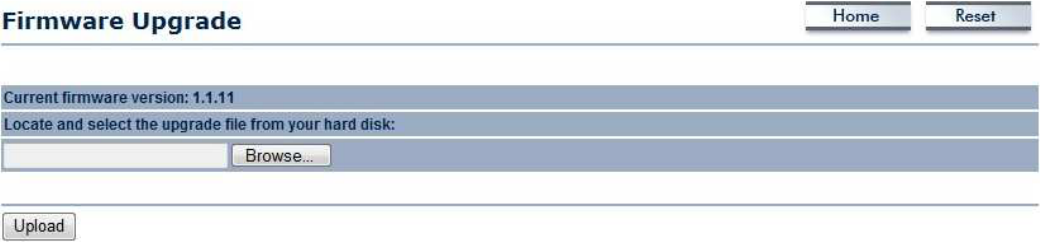

8.7 Firmware Upgrade ........................................................................................................................................................................................ 71

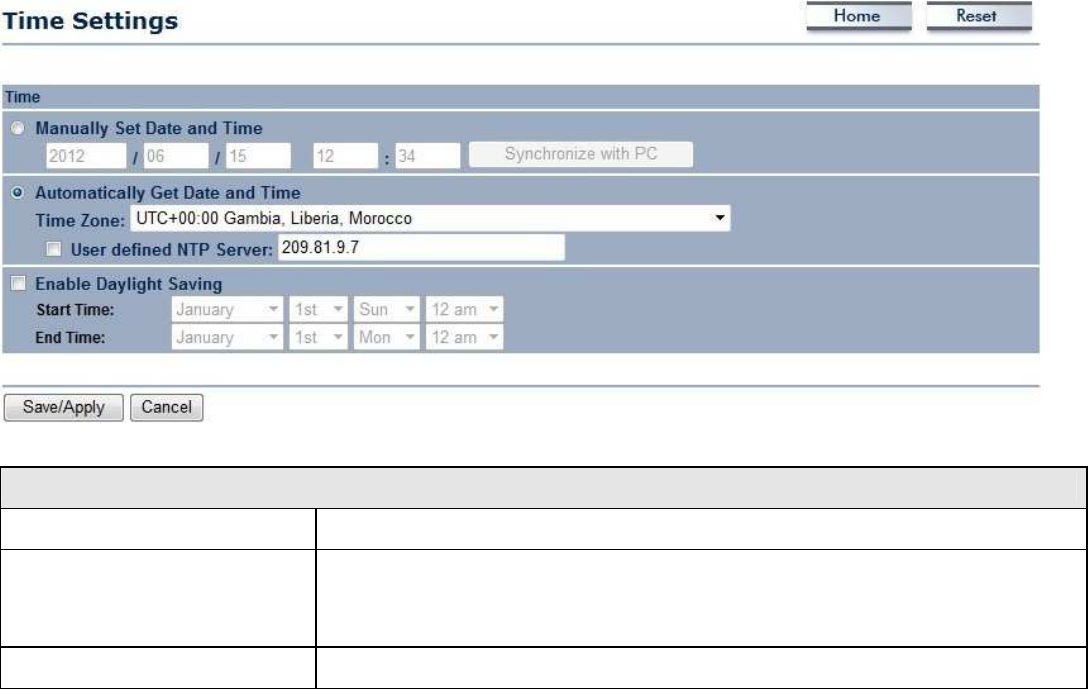

8.8 Time Setting .................................................................................................................................................................................................... 72

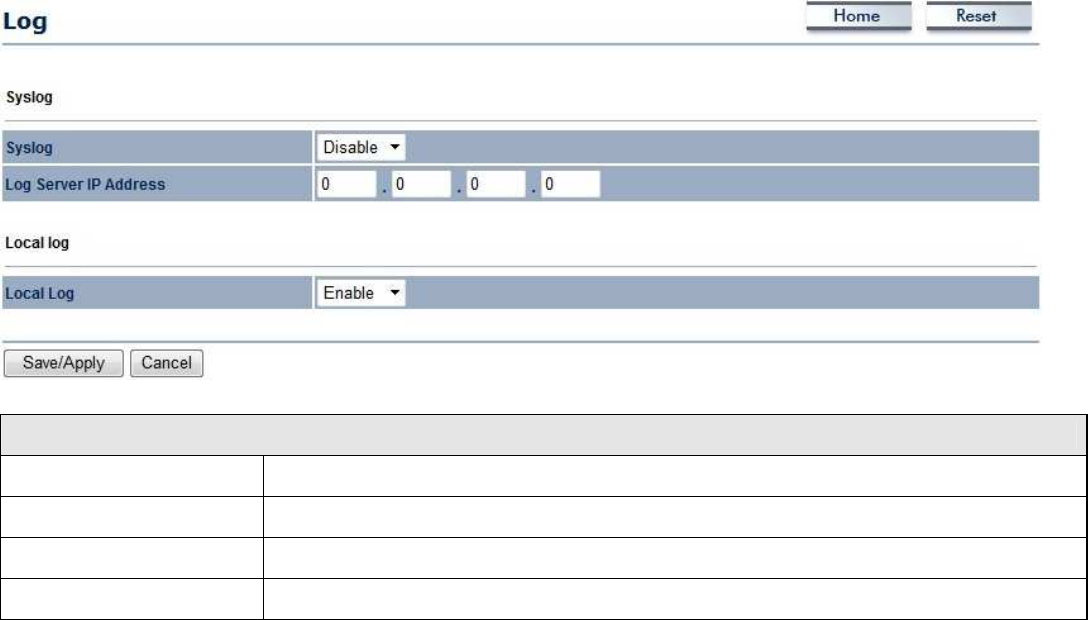

8.9 Log ...................................................................................................................................................................................................................... 73

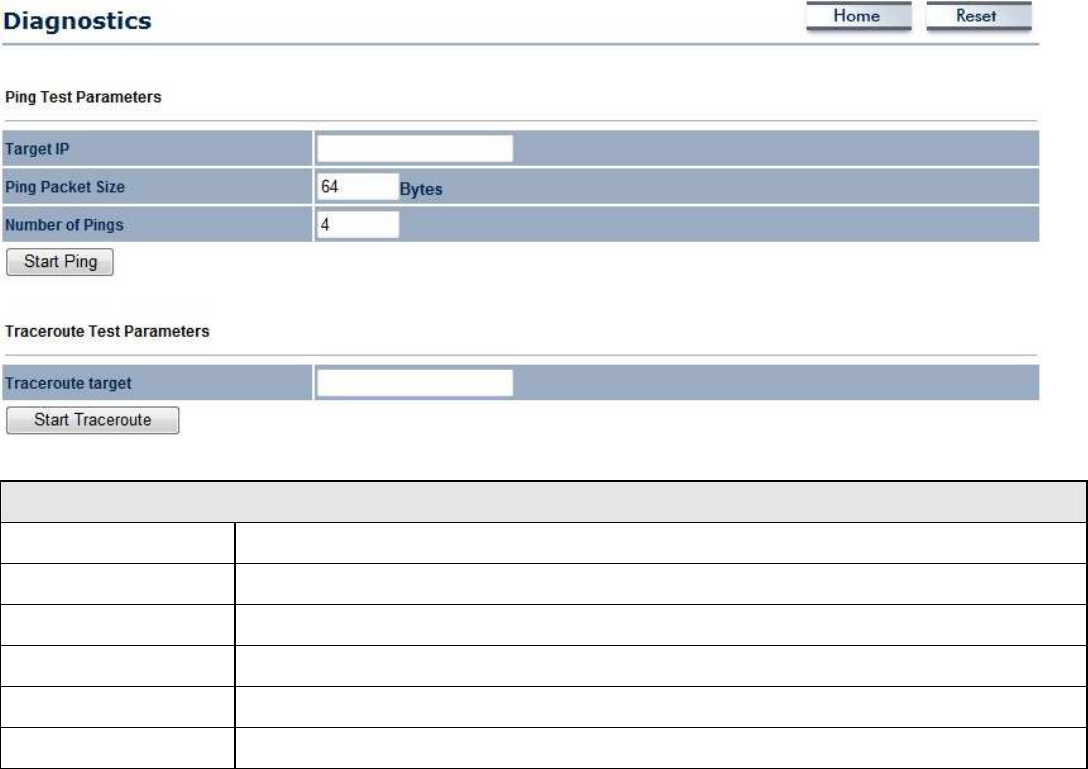

8.10 Diagnostics ...................................................................................................................................................................................................... 74

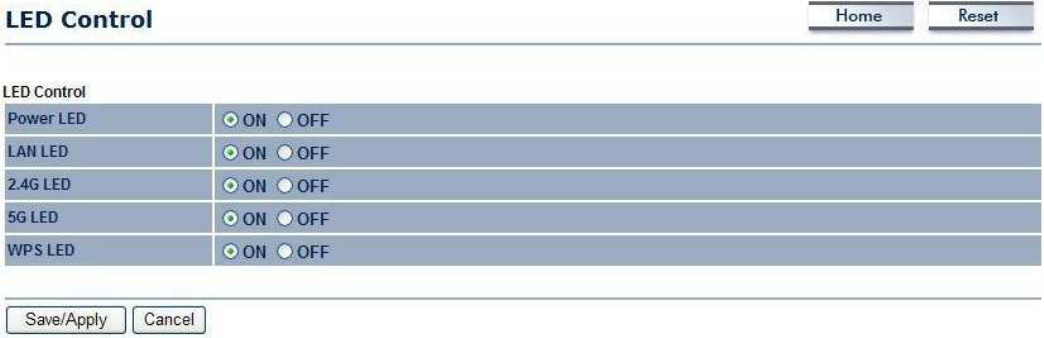

8.11 LED Control ..................................................................................................................................................................................................... 75

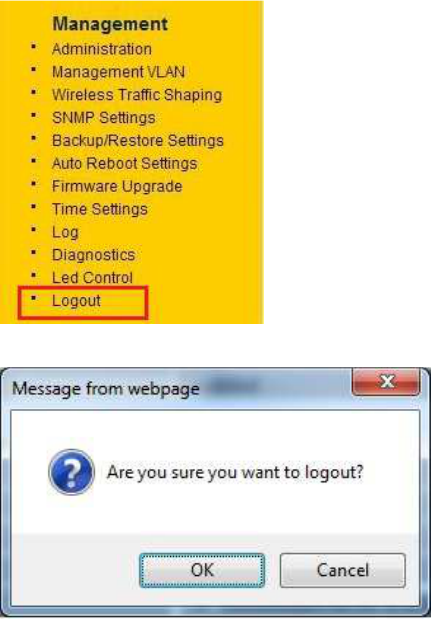

8.12 Logout ............................................................................................................................................................................................................... 76

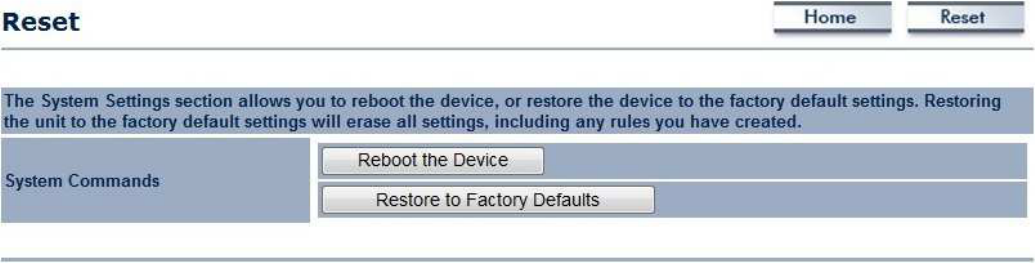

8.13 Reset .................................................................................................................................................................................................................. 77

Appendix A – FCC Interference Statement .......................................................................................................................... 78

Appendix B – IC Interference Statement ............................................................................................................................. 78

Appendix C – CE Interference Statement ............................................................................................................................. 79

Revision History

Version

Date

Notes

1.0

201

First Release

1 Introduction

The

MR1750

is a high-powered, long-range dual-band concurrent wireless 802.11a/b/g/n/ac access point with four

major functional modes. The MR1750 is designed to operate in numerous environments from large homes, small and

medium-sized businesses, multiple-floor offices, hotels and other venues to larger enterprise deployments. Its high-

powered, long-range characteristics make it a cost-effective alternative to ordinary access points that don’t have the range

and reach to connect to a growing number of wireless users who wish to connect to a large home or business network.

The MR1750 supports the 2.4GHz frequency band under 802.11 b/g/n mode while at the same time providing 5GHz band

for communicating or transferring files in a less congested network frequency band.

The MR1750 delivers up to 6x faster wireless speeds and 7x extended coverage than legacy 802.11a/b/g wireless devices.

Even though the MR1750 has been designed and engineered for traffic heavy and demanding business environments it is

also quite at home in larger house scenarios because it efficiently extends the wireless range of an existing home router,

especially in very architecturally-challenging structures to provide whole home connectivity.

To protect sensitive data during wireless transmissions, the MR1750 offers different encryption settings for wireless

transmissions including industry-standard WPA and WPA2 encryption. The MR1750 also includes MAC address filtering to

allow network administrators to offer network access only to known computers and other devices based on their MAC

addresses.

1.1 Features and Benefits

Features Benefits

High Speed Data Rate Up to 300 Mbps for

each band (2.4GHz / 5GHz)

Capable of handling heavy data payloads such as HD multimedia

streaming.

10/100/1000 Gigabit Ethernet Support up to 1000Mbps wired networking speed.

IEEE 802.11n Compliant and Backwards

Compatible with 802.11 a/b/g devices

Fully compatible with IEEE 802.11 a/b/g/n devices.

Multi-Function Allowing users to select any one of the following modes: Access

Point, WDS AP, WDS Bridge, and Repeater depending on their

specific networking deployment need.

Support Multiple SSID in AP mode (up to 8

in each frequency band)

Allow clients to access different networks through a single access

point and assign different policies and functions for each SSID

through the built in software.

WPA/WPA2/IEEE 802.1x Support Powerful data security.

MAC Address Filtering in AP Mode For more secure network connections with known users and devices.

User Isolation Support (AP mode) Offers an additional layer of protection within the network by

isolating specific client users.

Power-over-Ethernet (IEEE802.3at/af) Allows installers to deploy the access point in locations via a PoE

connection (Ethernet cable) where a power outlet may not be

available.

Save User Settings Enables network administrators to save their device settings so

firmware upgrades do not permanently delete previous device

settings.

SNMP Remote Configuration Management Allows remote connection to configure or manage the MR1750 easily.

QoS (WMM) support Prioritizes bandwidth-intensive and sensitive data traffic.

1.2 Package Contents

The MR1750 package contains the following items (all items must be in package to issue a refund):

 MR1750 Access Point

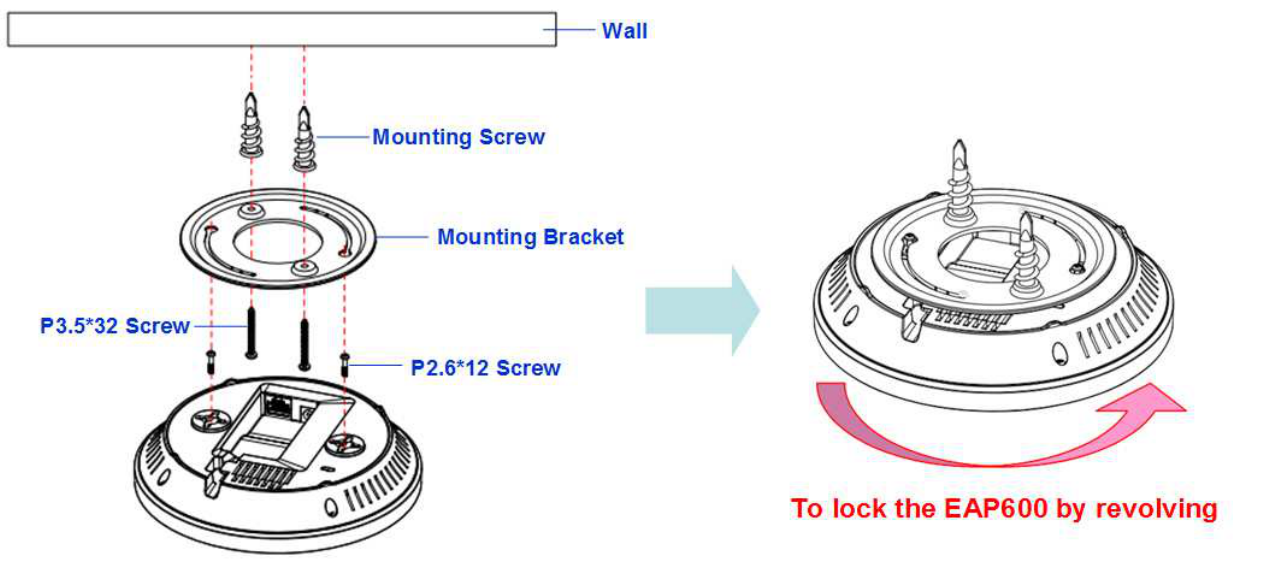

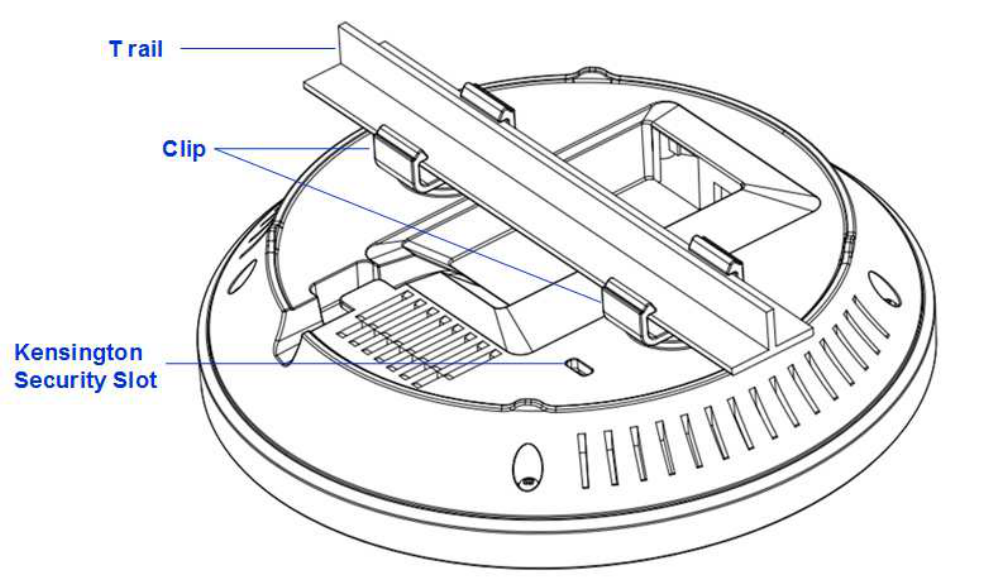

 Wall Mount Kit: Mounting Bracket, Wall/Ceiling Mounting Hardware Kit, T-Rail Mounting Hardware Kit

1.3 System Requirements

The following are the Minimum System Requirements in order configure the device.

 Computer with an Ethernet interface or wireless network capability

 Windows OS (XP, Vista, 7), Mac OS, or Linux-based operating systems

 Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or another similar browser application)

1.4 Applications

Wireless LAN (WLAN) products are easy to install and highly efficient. The following list describes some of the many

applications made possible through the power and flexibility of WLANs:

a) Difficult-to-Wire Environments

There are many situations where wires cannot be installed or deployed easily or cannot be hidden from view. Older

buildings, sites with multiple buildings, and/or areas make the installation of a Ethernet-based LAN impossible,

impractical or expensive.

b) Temporary Workgroups

Create temporary workgroups/networks in more open areas within a building – auditoriums, amphitheater

classrooms, ballrooms, arenas, exhibition centers, temporary offices where one wants either a permanent or

temporary Wireless LAN established.

c) The Ability to Access Real-Time Information

Doctors/Nurses, Point-of-Sale Employees, and/or Warehouse Workers can access real-time information while dealing

with patients, serving customers, and/or processing information.

d) Frequently Changing Environments

Set up networks in environments that change frequently (i.e.: Show Rooms, Exhibits, etc.).

e) Small Office and Home Office (SOHO) Networks

SOHO users need a cost-effective, easy and quick installation of a small network.

f) Wireless Extensions to Existing Ethernet-based Networks

Devices like the MR1750 enable network administrators, installers and end-users to extend the range and reach of an

existing Ethernet-based network.

g) Training/Educational Facilities

Training sites at corporations or students at universities use wireless connectivity to ease access to information,

information exchanges, and learning.

2 Before you Begin

This section will guide you through the installation process. Placement of the OPEN MESH MR1750 is essential to

maximize the access point’s performance. Avoid placing the MR1750 in an enclosed space such as a closet, cabinet, or

stairwell.

2.1 Considerations for Wireless Installation

The operating distance of all wireless devices cannot be pre-determined due to a number of unknown obstacles in the

environment that the device is deployed in. These could be the number, thickness, and location of walls, ceilings, or other

objects that the MR1750’s wireless signals must pass through. Here are some key guidelines to allow the MR1750 to have

optimal wireless range.

 Keep the number of walls and/or ceilings between the MR1750 and other network devices to a minimum. Each wall

and/or ceiling can reduce the signal strength, resulting in lower signal strength.

 Building materials makes a difference. A solid metal door and/or aluminum stubs may have a significant negative

effect on the signal strength of the MR1750. Locate your wireless devices carefully so the signal can pass through a

drywall and/or open doorways. Materials such as glass, steel, metal, concrete, water (example: fish tanks), mirrors, file

cabinets and/or brick can also diminish wireless signal strength.

 Interference from your other electrical devices and/or appliances that generate RF noise can also diminish the

MR1750’s signal strength. The most common types of devices are microwaves or cordless phones.

2.2 Computer Settings (in Windows XP/Windows 7)

In order to use the MR1750, you must first configure the TCP/IPv4 connection of your Windows OS computer system.

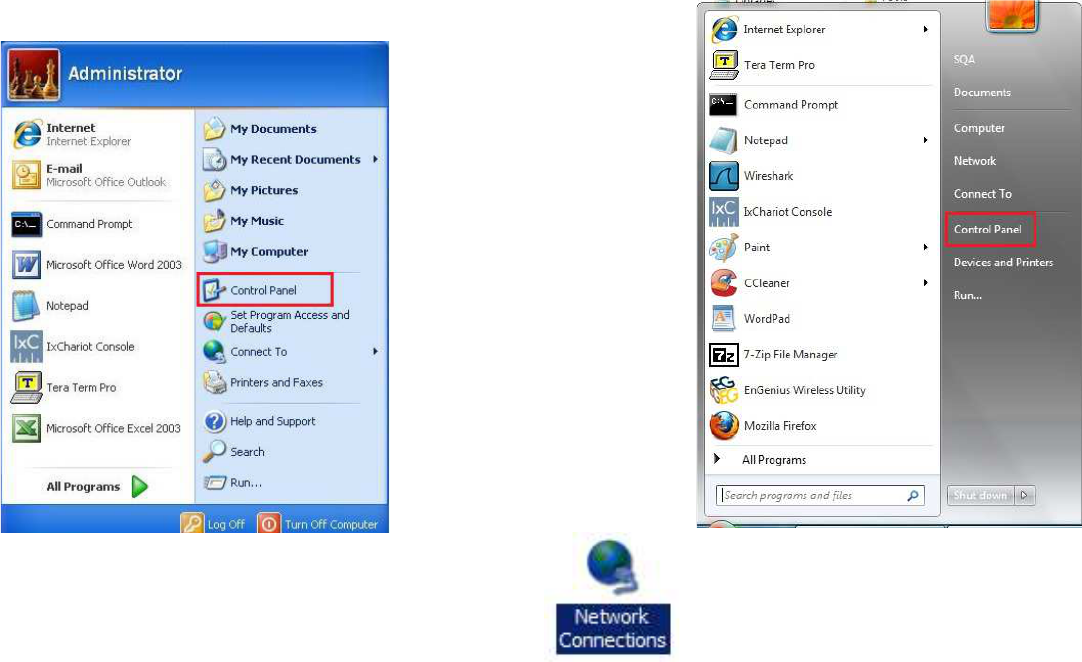

 Click Start button and open Control Panel.

Windows XP Windows 7

 In Windows XP, click Network Connections

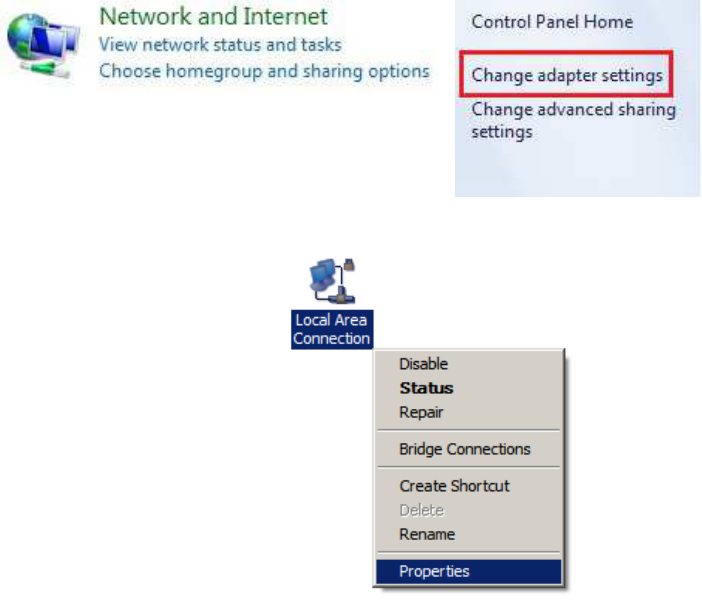

 In Windows 7, click View Network Status and Tasks in the Network and Internet section, then select Change

adapter settings

 Right click on Local Area Connection and select Properties

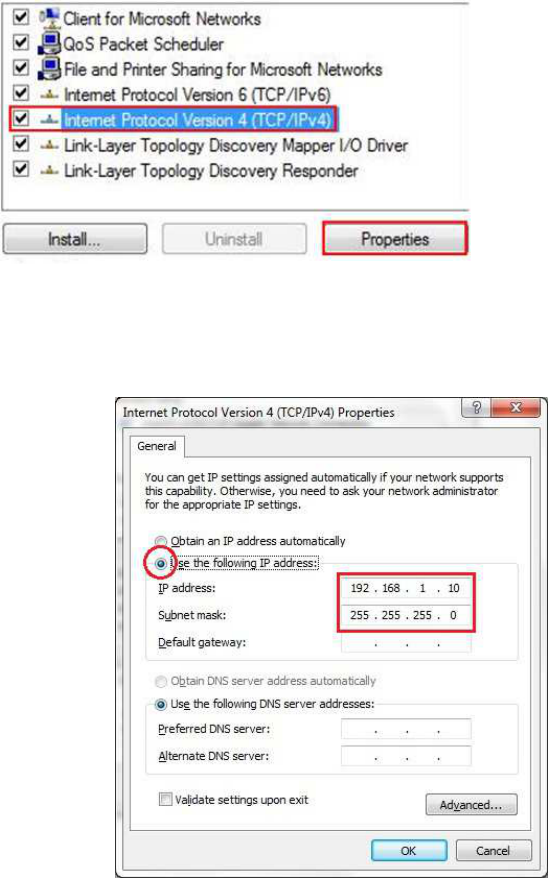

 Select “Internet Protocol Version 4 (TCP/IPv4)” and then select

Properties

 Select Use the following IP address and enter an IP address that is

different from the MR1750 and subnet mask then click OK.

Note: Ensure that the IP address and subnet mask are on the same subnet as

the device.

For example: MR1750 IP address: 192.168.1.1

PC IP address: 192.168.1.2 – 192.168.1.255

PC subnet mask: 255.255.255.0

2.3

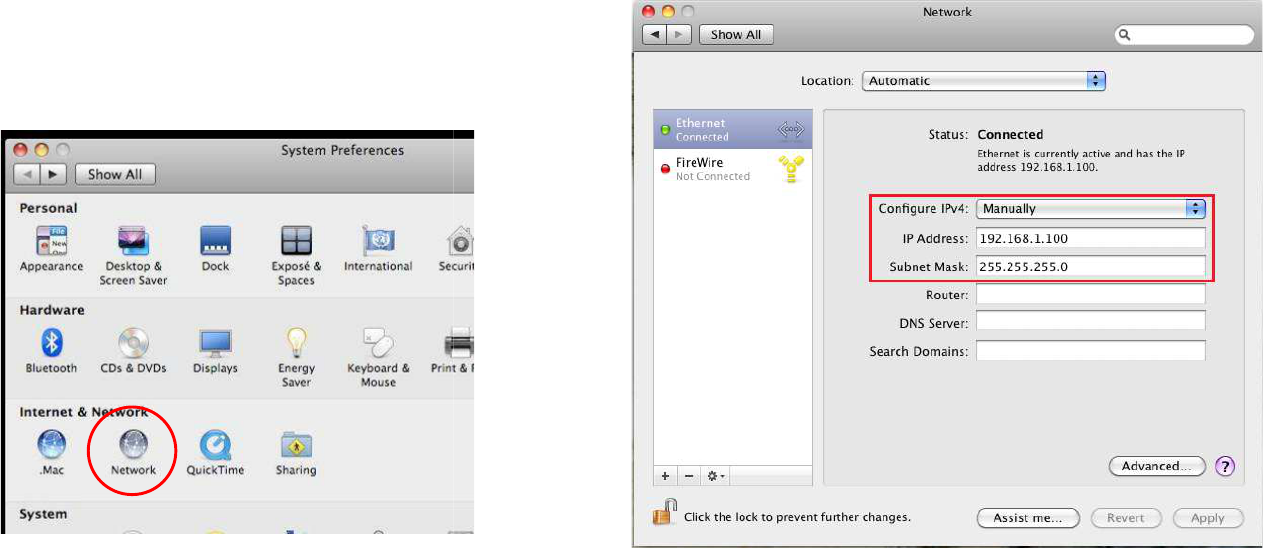

Computer Settings in Apple Mac OS X



Go to System Preferences (

can be opened in the



Select Network in the

Internet & Network



Highlight Ethernet



In Configure IPv4, select Manually



Enter an IP address

that is different from the

Note:

Ensure that the IP address and subnet mask are on the same subnet as the device.

For example: MR1750

IP address: 192.168.1.1

PC IP address: 192.168.1.2 –

192.168.1.25

PC subnet mask: 255.255.255.0



Click Apply when done.

Computer Settings in Apple Mac OS X

can be opened in the

Applications folder

or selecting it in the Apple

Internet & Network

section

that is different from the

MR1750 and subnet mask then press OK

Ensure that the IP address and subnet mask are on the same subnet as the device.

IP address: 192.168.1.1

192.168.1.25

PC subnet mask: 255.255.255.0

or selecting it in the Apple

Menu)

2.4

Hardware Installation

Ensure that the computer in use has an Ethernet Controller (RJ-45 Ethernet Port). For more information, verify with your

computer’s user manual.

Connect one end of the Category 5e Ethernet cable into the RJ-45 port of the MR1750 and the other end to the RJ-45

port of the computer. Ensure that the cable is securely connected to both the MR1750 and the computer.

Connect the Power Adapter DC connector to the DC-IN port of the MR1750 and the Power Adapter to an available

electrical outlet. Once both connections are secure, verify the following:

Ensure that the

POWER

light is on (it will be orange).

Ensure that the

2.4GHz/5GHz WLAN

light is on (it will be green for 5G, blue for 2.4G).

Ensure that the

LAN (Computer/MR1750 Connection)

light is on (it will be blue).

Once all three lights are on, proceed to set up the access point using the computer.

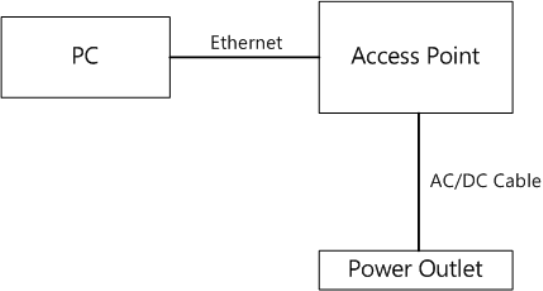

This diagram depicts the hardware configuration.

Mounting the MR1750

Using the provided hardware, the MR1750 can be attached to a ceiling or wall.

To attach the MR1750 to a ceiling or wall using the mounting bracket:

Attach the mounting bracket to the wall or ceiling using the provided wall/ceiling mounting hardware kit.

Insert the provided short screws into the bottom cover of the MR1750.

Leave enough of the screws exposed to ensure that the unit can be attached to the mounting bracket.

If extra space is required, use the provided spacers and long screws from the T-Rail mounting hardware kit to increase the

space between the unit and the mounting bracket.

Mount the MR1750 on the mounting bracket by rotating the unit clockwise about 90 degrees to secure it in place.

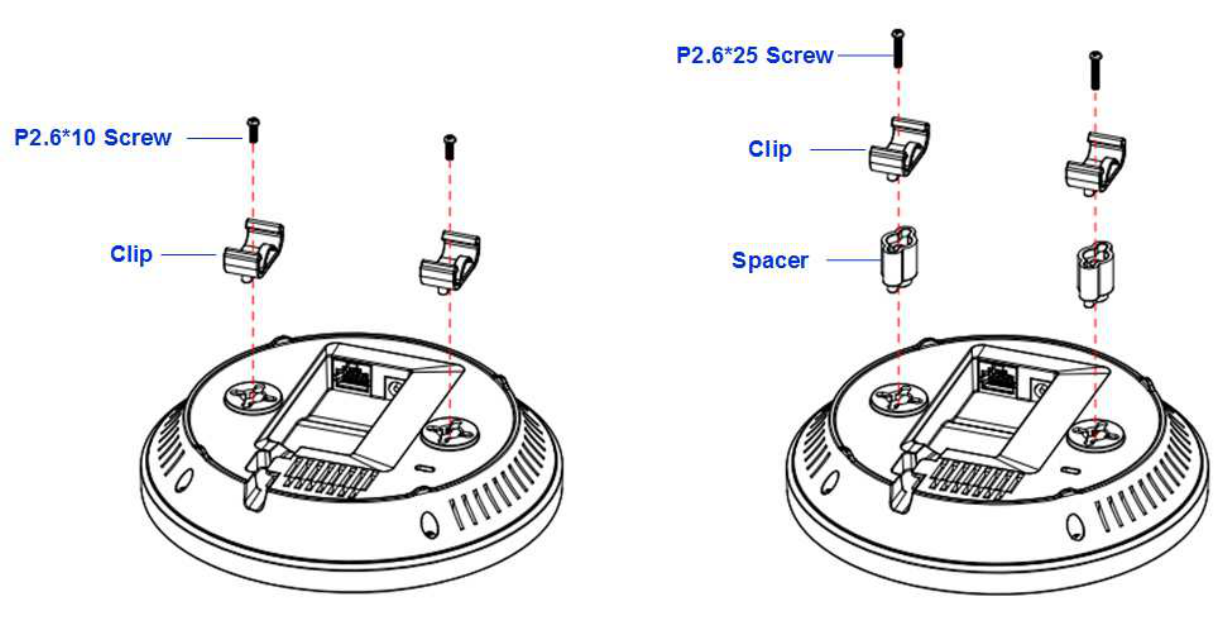

To attach the MR1750 to a ceiling using the provided T-rail connectors:

Attach the T-rail connectors to the bottom cover of the MR1750 using the provided short screws.

Two sizes of T-rail connectors are included in the mounting hardware kit: 15/16in (2.38cm) and 9/16in (1.43cm).

If extra space is required to accommodate drop ceiling tiles, use the provided spacers and long screws.

Line up the connected T-rail connectors with an appropriately sized rail and press the unit onto the rail until it snaps

into place.

Note

: To protect your MR1750, use the Kensington security slot to attach a cable lock (cable lock is not included).

Front Panel Rear Panel

Front Panel

Reset Button

One click for reset the device. Press over 10 seconds for reset to factory default.

LED Lights

LED lights for

WPS, WLAN 5

, WLAN

2.4

G, Ethernet port

and Power.

Rear Panel

Power

DC IN for Power.

Ethernet Port

Ethernet port for RJ

45 cable.

Ceiling (Wall) Mount Hole

Using the provided hardware, the

MR1750

can be attached to a ceiling or wall.

Kensington Security Slot

To protect your

MR1750

, use the

Kensington security slot to attach a cable lock

3 Configuring Your Access Point

This section will show you how to configure the device using the web-based configuration interface.

3.1

Default Settings

Please use your Ethernet port or wireless network adapter to connect the Access Point.

Default Settings

IP Address

192.168.

Username / Password

admin / admin

Operation

Mode

AP / AP

3.2

Web Configuration



Open a web browser (Internet Explorer/Firefox/Safari) and enter the IP Address

http://192.168.1.1

Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address.



The default username and password are

admin

. Once you have entered the correct username and password, click the

button to open the web-base configuration page.



If successful, you will be logging in and see the MR1750 User Menu.

4 Building a Wireless Network

The MR1750 has the ability to operate in various modes. This chapter describes the operating modes of the MR1750.

4.1 Access Point Mode

In Access Point Mode, MR1750 behaves likes a central connection for stations or clients that support IEEE

802.11a/b/g/n/ac networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and

security password to associate with the MR1750. The MR1750 supports up to eight SSIDs at the same time for secure

access.

4.2 WDS AP Mode

The MR1750 also supports WDS AP mode. This operating mode allows wireless connections to the MR1750 using WDS

technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling

WDS Link settings. WDS supports four AP MAC addresses.

4.3 WDS Bridge Mode

In WDS Bridge Mode, the MR1750 can wirelessly connect different LANs by configuring the MAC address and security

settings of each MR1750 device. Use this mode when two wired LANs located a small distance apart want to communicate

with each other. The best solution is to use the MR1750 to wirelessly connect two wired LANs, as shown in the following

figure.

WDS Bridge Mode can establish four WDS links, creating a star-like network.

Note: WDS Bridge Mode does not act as an Access Point. Access Points linked by WDS are using the same frequency channel. More Access

Points connected together may lower throughput. This configuration can be susceptible to generate endless network loops in your network,

so it is recommended to enable the Spanning Tree function to prevent this from happening.

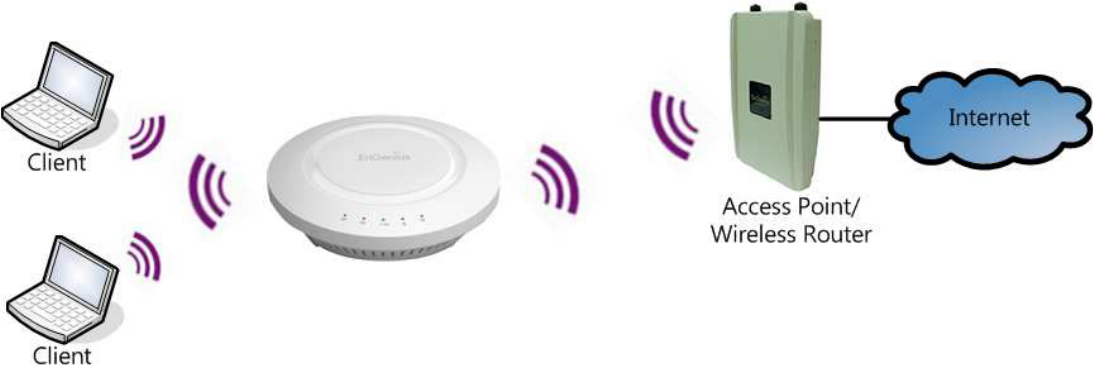

4.4 Repeater mode

The Repeater mode is used to regenerate or replicate signals from a wireless router or other access point/station that is

unable to reach certain areas in a building. When this mode is activated in the MR1750, the MR1750 receives the wireless

signal from an existing router or AP and relays it to other devices within its range so they can join the network.

5 Status

The Status section contains the following options: Main, 2.4G/5G Wireless Client List, 2.4G/5G Connection Status,

2.4G/5G WDS Link List and System Log.

The following sections describe these options.

5.1 Save/Reload

This page lets you save and apply the settings shown under Unsaved changes list, or cancel the unsaved changes and

revert them to the previous settings that were in effect.

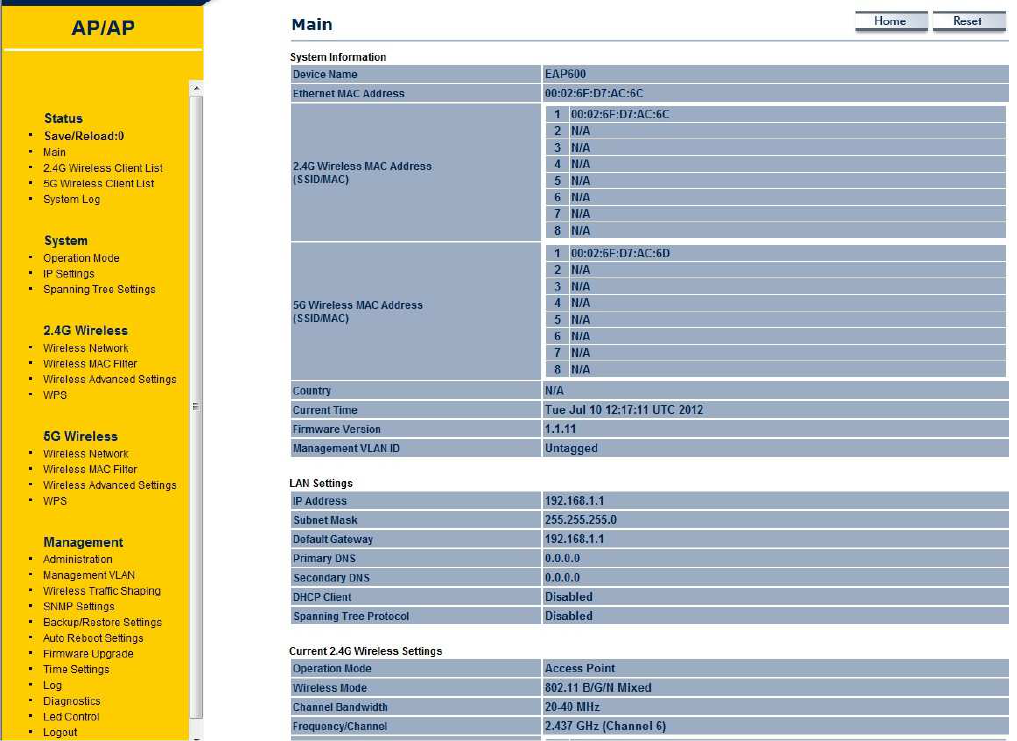

5.2 Main

Clicking the Main link under the Status menu or clicking Home at the top-right of the MR1750 Page shows the status

information about the current operating mode.

- The System Information section shows general system information such as Device Name, MAC Address, Current Time,

Firmware Version, and Management VLAN ID (Note: VLAN ID is only applicable in Access Point or WDS AP mode).

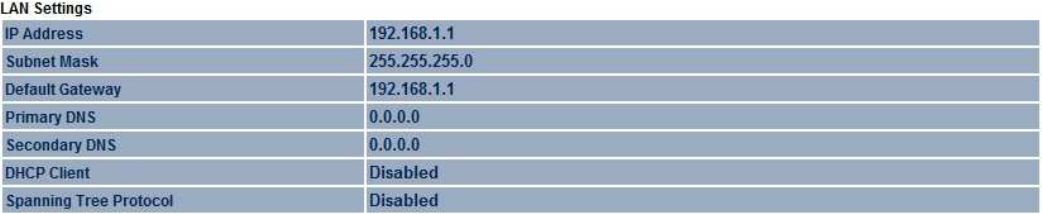

- The LAN Settings section shows the Local Area Network settings such as the LAN IP Address, Subnet Mask, and DNS

Address.

- The Current 2.4G/5G Wireless Settings section shows wireless information such as Operating Mode, Frequency, and

Channel. Since the MR1750 supports multiple-SSIDs, information about each SSID, the ESSID and security settings, are

displayed (Note: Profile Settings is only applicable in Access Point, WDS AP).

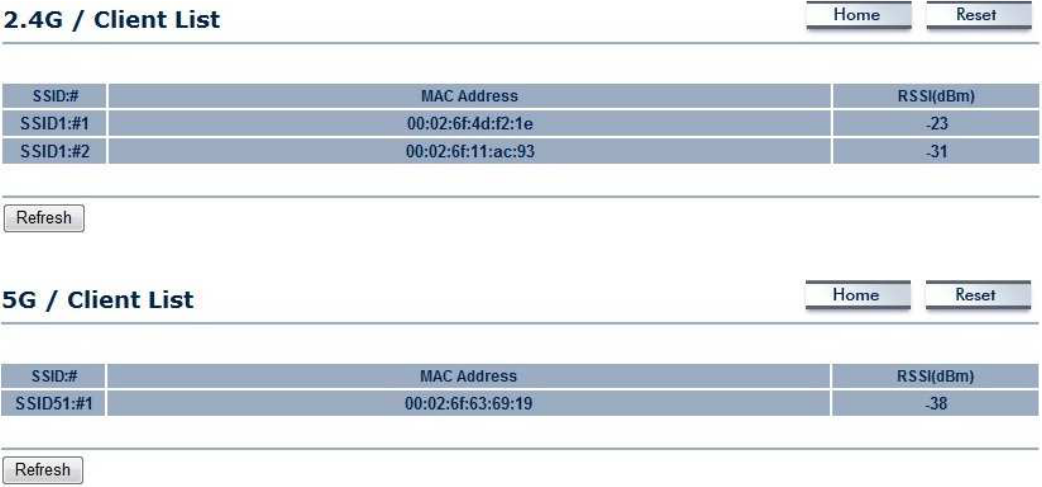

5.3 2.4G/5G Wireless Client List

Clicking the 2.4G/5G Wireless Client List link under the Status menu displays the list of clients associated to the

MR1750’s 2.4GHz/5GHz, along with the MAC addresses and signal strength for each client. Clicking Refresh updates the

client list.

Note: Only applicable in Access Point, WDS AP, and Repeater mode.

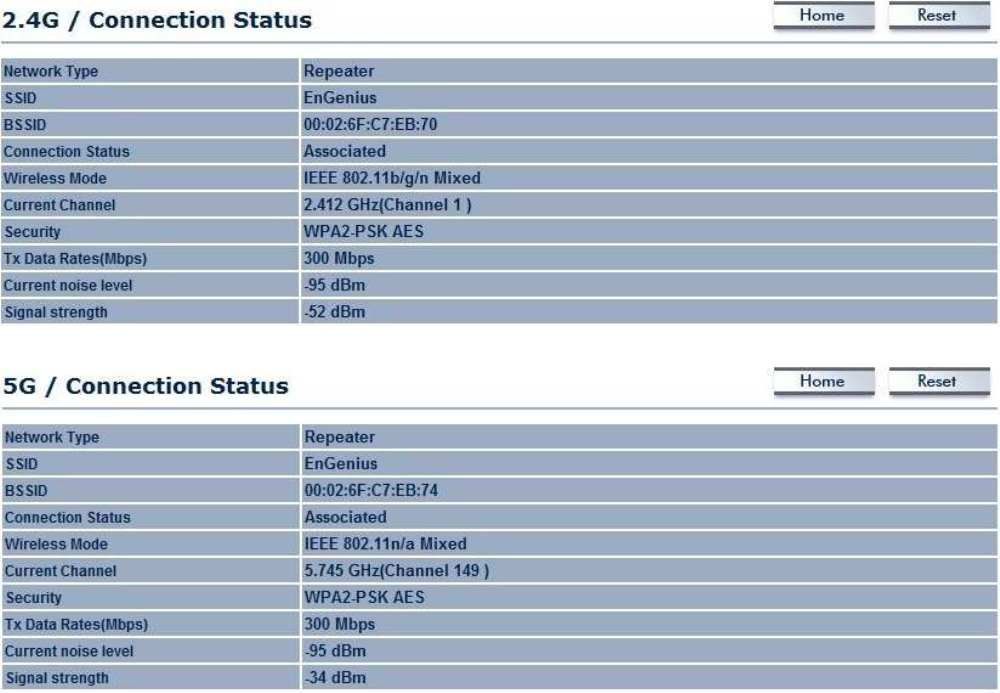

5.4 2.4G/5G Connection Status

Click on the 2.4G/5G Connection Status link under the Status menu. This page displays the current status of the Network,

including Network Type, SSID, BSSID, Connection Status, Wireless Mode, Current Channel, Security, Data Rate, Noise Level,

and Signal Strength.

Note: Only applicable in Repeater mode.

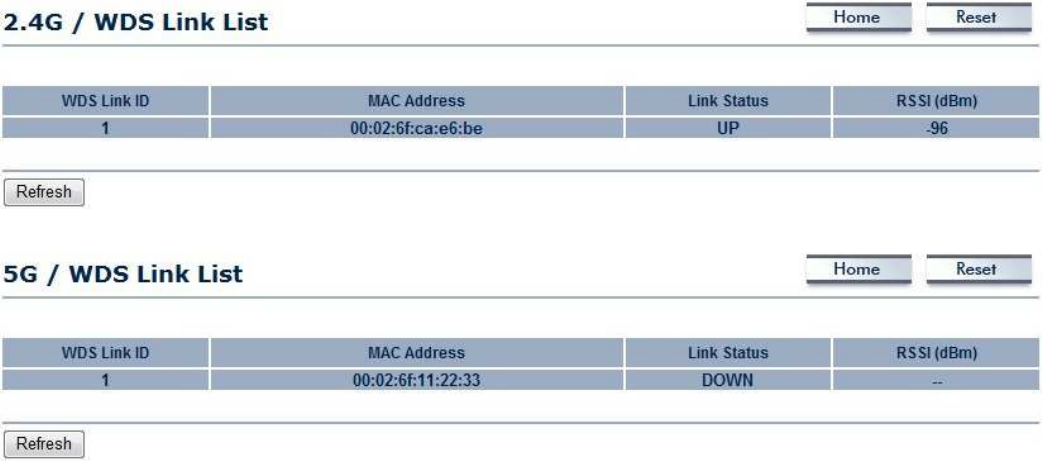

5.5 2.4G/5G WDS Link List

Click on the 2.4G/5G WDS Link List link under the Status menu. This page displays the current status of the WDS link,

including WDS Link ID, MAC Address, Link Status and RSSI.

Note: Only applicable in WDS AP and WDS Bridge mode.

5.6 System Log

The MR1750 automatically logs (records) events of possible interest in its internal memory. To view the logged information,

click the System Log link under the Status menu. If there is not enough internal memory to log all events, older events are

deleted from the log. When powered down or rebooted, the log will be cleared.

System

Log

Refresh

Update the log.

Clear

Clear the log.

6 System

6.1 Operation Mode

The MR1750 supports four operating modes: Access Point, WDS AP, WDS Bridge, and Repeater.

System Properties

Device Name

Enter a name for the device. The name you type appears in SNMP management. This name is

not the SSID and is not broadcast to other devices.

Operation Mode

Use the radio button to select an operating mode.

Save & Apply

/ Cancel

Click

Save & Apply

to confirm the changes or

Cancel

to cancel and return previous settings.

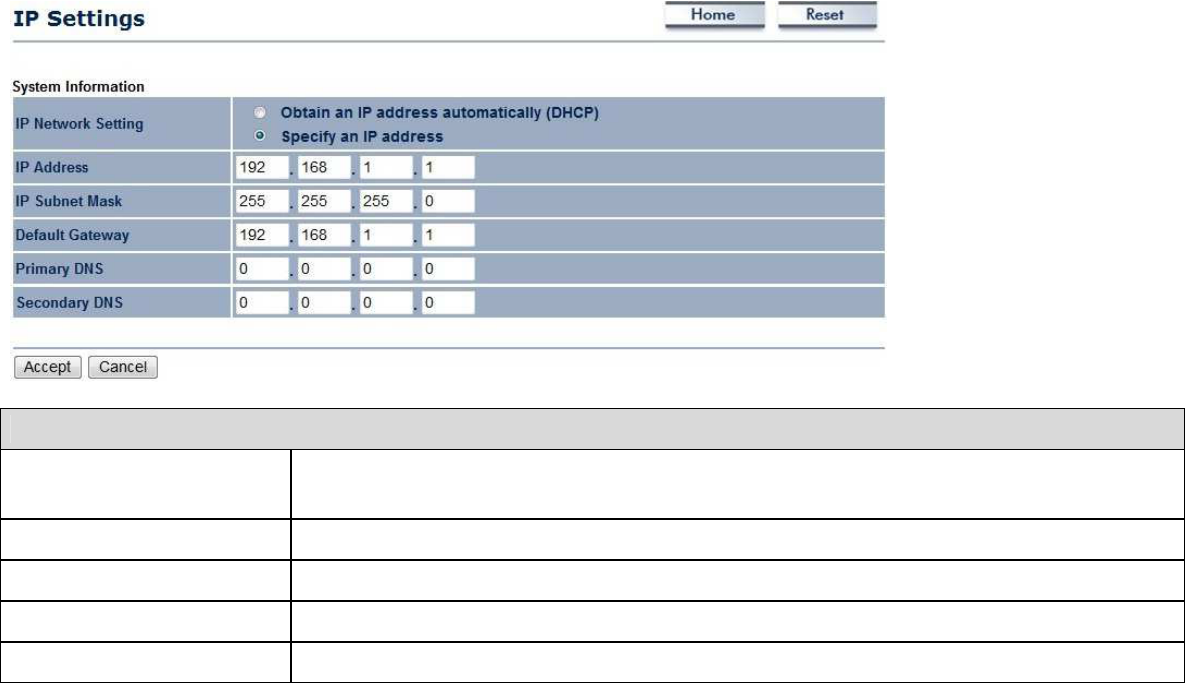

6.2 IP Settings

This page allows you to modify the device's IP settings.

Settings

IP Network Setting

Select whether the

device

IP address will use the static IP address specified in the IP Address

field or be obtained automatically when the

device

connects to a

DHCP server

ddress

The

IP Address of this device.

IP Subnet Mask

The

Subnet Mask of this device.

Default Gateway

The Default Gateway of this device. Leave it blank if you are unsure of this setting.

Primary / Secondary DNS

The

primary

/ second

ary

DNS address

for this

device

6.3 Spanning Tree Setting

This page allows you to modify the Spanning Tree settings. Enabling Spanning Tree protocol will prevent network loops in

your LAN network.

Spanning Tree

Spanning Tree Status

Enable or disable the Spanning Tree function.

Bridge Hello Time

Specify

Bridge Hello Time, in seconds. This value determine

how

often the

device

sends

handshake packets to communicate information about the topology throughout the entire

Bridged Local Area Network.

Bridge Max Age

Specify Bridge Max Age, in seconds. If another

bridge in the spanning tree does not send a

hello packet for a long period of time, it is assumed to be dead.

Bridge Forward Delay

Specify Bridge Forward Delay, in seconds. Forwarding delay tim

is the time spent in each of

the Listening and Learning states before the Forwarding state is entered. This delay is provided

so that when a new bridge comes onto a busy network, it analyzes data traffic before

participating.

Priority

Specify the Priority N

umber.

A s

maller number has greater priority.

Accept / C

ancel

Click

to confirm the changes or

Cancel

to cancel and return previous settings.

7 2.4G/5G Wireless

7.1 Wireless Network

This page displays the current status of the Wireless settings of the MR1750.

Access Point / WDS AP mode:

2.4G/5G

Wireless Network

(Access Point

WDS AP

mode)

Wireless Mode

Wireless mode supports 802.11b/g

/n mixed mode

in 2.4G and 802.11a/n mixed

mode

in 5G

Channel HT Mode

The default channel bandwidth is

20/

40MHz. The larger the channel, the better

the transmission

quality and speed.

Extension Channel

Select upper or lower channel. Your selection may affect the Auto

channel function.

Channel / Frequency

Select the channel and frequency appropriate for your country’s regulation

Auto

Check this

option to enable auto

channel selection.

AP Detection

AP Detection can select the best channel to use by scanning nearby areas for Access Points.

Current Profile

Configure up to

eight

different SSIDs

(four in WDS AP mode).

If many client devices will be

accessing the network, you can arrange the devices into SSID groups. Click

Edit

to configure the

profile and check whether you want to enable extra SSID.

Accept / Cancel

Click

to confirm the changes or

Cancel

to cance

l and return previous settings.

2.4G/5G SSID Profile

2.4G/5G

SSID Profile

SSID

Specify the SSID for the current profile.

Suppressed SSID

Check this option to hide the SSID from clients. If checked, the SSID will not appear

in the site

survey.

Station Separation

Click the appropriate radio button to allow or prevent communication between client devices.

Wireless Security

See the Wireless Security section.

Save / Cancel

Click

Save

to accept the changes or

Cancel

to cancel

and return previous settings.

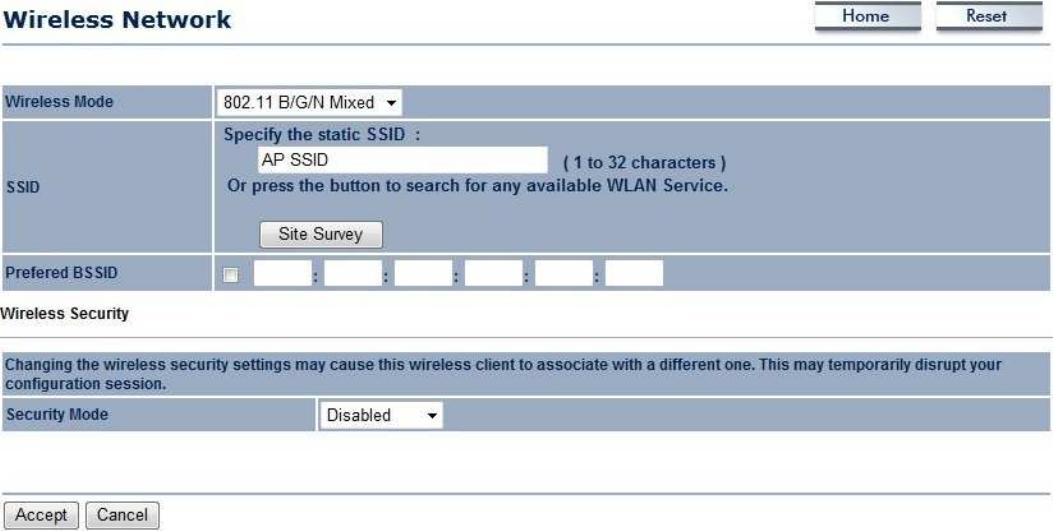

Repeater mode:

2.4G/5G

Wireless Network (Repete

r mode)

Wireless Mode

Wireless mode supports 802.11b/g

/n mixed mode

in 2.4G and 802.11a/n mixed mode in 5G

SSID

The SSID is a unique named shared amongst all the points of the wireless network. The SSID

must be identical on all points of the wireless network and cannot exceed 32 characters. You

may specify an SSID or select one from the

Site Survey

Cli

ck on

Site Survey

to search the existing Access Points

Preferred

BSSID

Specify the BSSID (Access Point

’

s MAC

ddress).

Wireless Security

The encryption is using. It must the same as Access Point

’

s encryption.

Accept / Cancel

Click

to confirm the changes or

Cancel

to cancel and return previous settings.

7.2 Wireless Security

The Wireless Security section lets you configure the MR1750's security modes: WEP, WPA-PSK, WPA2-PSK, WPA-PSK Mixed,

WPA, WPA2, and WPA Mixed. It is strongly recommend to use WPA2-PSK.

WEP Encryption:

WEP Encryption

Auth

Type

Select

Open System

Shared

Key

Input

type

ASCII

: Regular T

ext (recommended)

HEX

: Hexadecimal Numbers (For advanced users)

Key Length

Select the desired option

and ensure the wireless clients use the same setting.

Choices are 64, 128, 152-bit password lengths.

Default Key

lect the key you wish to be

default. Transmitted data is ALWAYS encrypted using the Default

Key; the other Keys are for decryption only.

You must enter a

Key Value

for the

Default Key

Encryption Key #

Enter the key value or values you wish to use. Only the Key selected as Default

is required. The

others are optional.

WPA-PSK (WPA Pre-Shared Key) Encryption:

WPA

PSK (

WPA Pre

Shared Key

)

Encryption

Select the WPA encryption

type

you would like.

Please ensure that your wireless clients use the same settings.

assphrase

Wireless clients must use the same key to associate the device.

If using ASCII format, the Key must be from 8 to 63 characters in length. If using HEXformat,

the Key must be 64 HEX characters in length.

Group Key Update

nterval

Specify how ofte

n, in seconds, the group key changes.

WPA Encryption: Only in Access Point / WDS AP mode

WPA

Encryption

Select the WPA encryption

type

you would like.

Please ensure that your wireless clients use the same settings.

adius

Server

Enter

the IP address of the R

adius

erver

adius

Port

Enter the port number used for connections to the R

adius

server.

adius

Secret

Enter the

secret

required to connect to the R

adius

server.

Group Key Update

nterval

Specify how often, in seconds, the group

key changes.

Radius Accounting

Enable or disable accounting feature.

Radius Accounting Server

Enter the IP address of the R

adius

ccounting

erver

Radius Accounting Port

Enter the port number used for connections to the R

adius

accounting

server.

adius

Accounting Secret

Enter the

secret

required to connect to the R

adius

accounting

server.

Interim Accounting

nterval

Specify how often, i

n seconds,

the accounting data sends

Note: 802.11n does not allow WEP/WPA-PSK TKIP/WPA2-PSK TKIP security mode. The connection mode will automatically change from

802.11n to 802.11g.

7.3 Site Survey

Use this feature to scan nearby Access Points.

Note: Only applicable in Repeater mode.

1. Click Site Survey.

2. Scanning the nearby Access Points

3. The MR1750 will list the available access points after site survey.

Site Survey (Repeater mode)

BSSID

Access Point's wireless MAC address.

SSID

SSID that the Access Point is broadcasting.

Channel

Channel that the Access

Point is using.

Signal Level (dBm)

Signal strength from the Access Point to your station.

Type

The band that the Access Point is using.

Security

Encryption method that the Access Point is using to secure data over the WLAN.

Refresh

Click

Refresh

to res

can nearby Access Point.

4. Select an Access Point and click that Access Point’s BSSID.

5. Enter the correct security setting.

7.4 Wireless MAC Filtering

Wireless MAC Filtering is used to allow or deny network access to wireless clients (computers, tablet PCs, NAS,

smartphones, etc.) according to their MAC addresses. You can manually add a MAC address to restrict the permission to

access MR1750. The default setting is Disable Wireless MAC Filter.

Note: Only applicable in Access Point and WDS AP mode.

Wireless

MAC

Filter

(Access Point /

WDS AP

mode

)

ACL Mode

Determines whether network access is granted or denied to clients whose MAC addresses

appear in the MAC Address table on this page. Choices are:

Disabled

Deny MAC in the list

, or

Allow MAC in the list

MAC Address

Enter the MAC address of

the wireless client

Add

Click

Add

to add the MAC address to the

MAC Address

table.

Delete

Delete the

selected entries.

Apply

Click Apply to apply the changes.

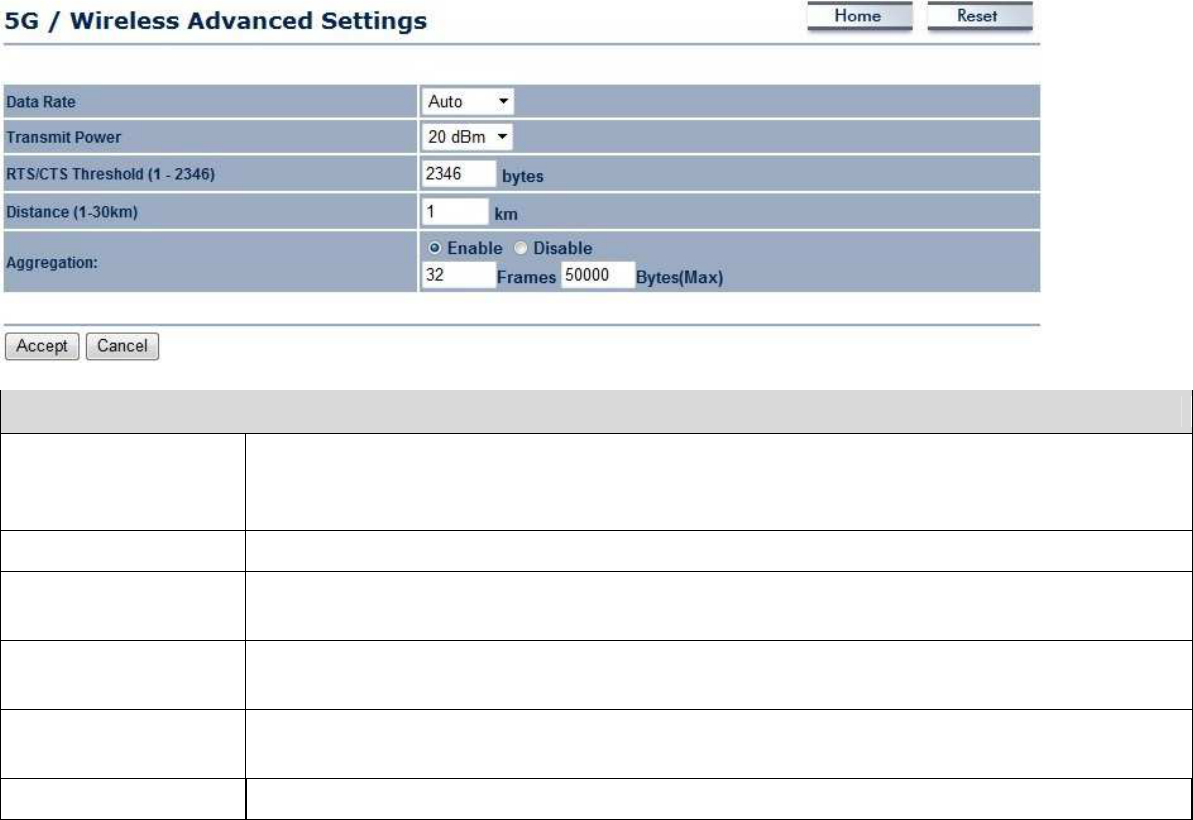

7.5 Wireless Advanced

This page allows you to configure wireless advance settings. It is recommended that the default settings are used unless

the user has experience with more advanced networking features.

2.4G/5G

Wireless Advanced

Data Rate

Select a data rate from the drop

down list. The data rate affects throughput

of data in the

MR1750. The lower the data rate, the throughput will be lower, but so will the transmission

distance.

Transmit Power

Set the power output of the wireless signal.

RTS

/CTS

Threshold

Specify the threshold package size for RTC/CTS. A small number causes RTS/CTS packets to be

sent more often and consumes more bandwidth.

Distance

Specify the distance between Access Points and clients. Longer distances may drop high

speed

connections.

Aggregation

Merges data packets into one packet. This option reduces the number of packets, but increases

packet sizes.

Accept / Cancel

Click

to confirm the changes or

Cancel

to cancel and return previous settings.

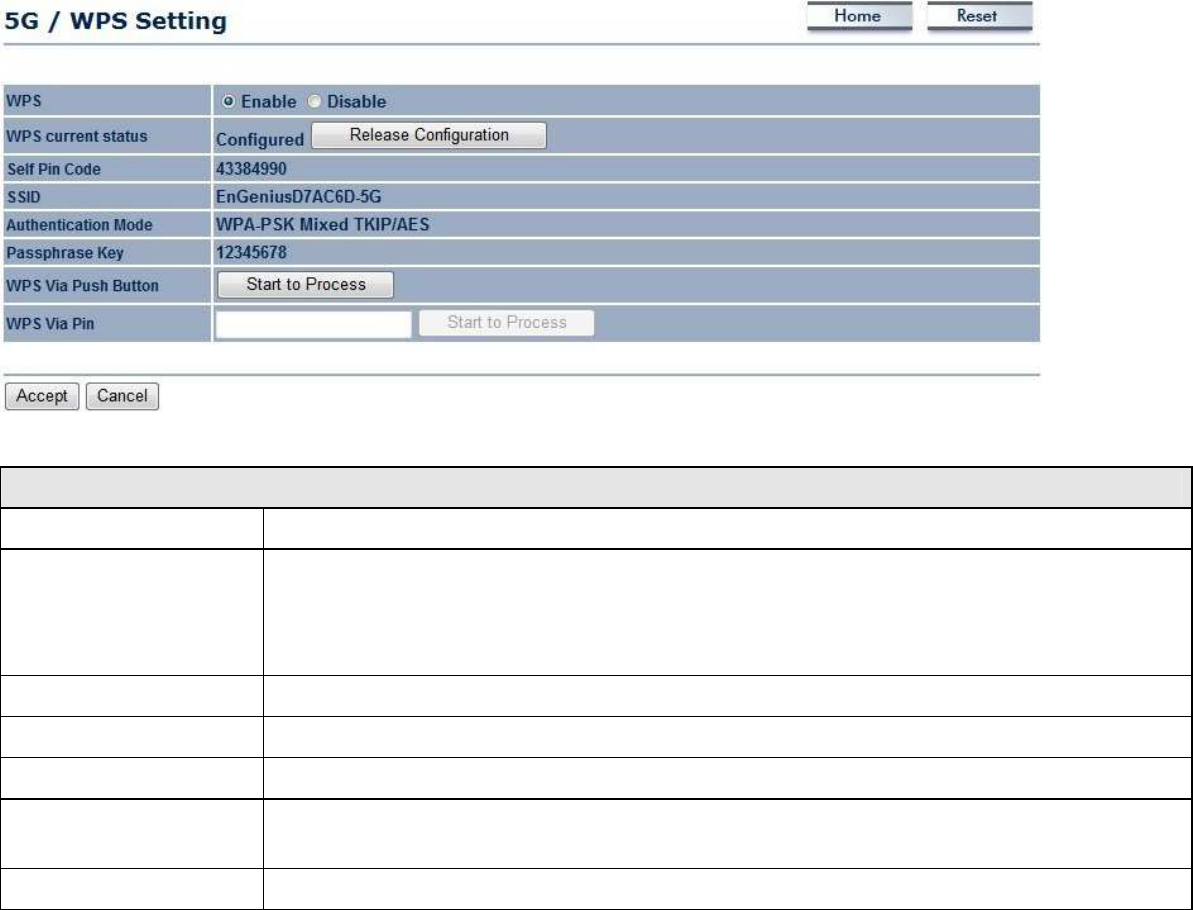

7.6 WPS (Wi-Fi Protected Setup)

Wi-Fi Protected Setup (WPS) feature complies with the Wi-Fi Alliance WPS standard and makes it easier to quickly add

client devices to an established, security-enabled Wi-Fi network.

WPS reduces the user steps required to configure a network and supports two methods that are familiar to most

consumers to configure a network and enable security.

Note: Only applicable in Access Point and WDS AP mode.

WPS

(

Fi Protected Setup

)

WPS

Select

Enable

Disable

the WPS feature.

WPS Current Status

Shows whether the WPS function is

Configured

onfigured

When it is Configured, the WPS has been used to authorize connection between the device and

wireless clients.

Self Pin Code

The PIN code of this device.

SSID

The SSID (wireless network name)

used when connecting using WPS.

Authentication Mode

Shows the encryption method used by the WPS process.

Passphrase Key

This is the passphrase key that is randomly generated during the WPS process. It is required if

wireless clients that do not support WPS attempts to connect to the wireless network.

WPS v

ia Push Button

Click this button to initialize WPS feature using the push button method.

WPS v

Enter

the PIN code of the wireless device and

lick this button to initialize WPS feature using the

PIN method.

7.7 WDS Link Settings

Using WDS (Wireless Distribution System) will allow a network administrator or installer to connect to Access Points

wirelessly. Doing so will extend the wired infrastructure to locations where cabling is not possible or inefficient to

implement.

Note: Compatibility between different brands and models of access points is not guaranteed. It is recommended that the

WDS network be created using the same models for maximum compatibility.

Also note: All Access Points in the WDS network needs to use the same Channel and Security settings.

To create a WDS network, please enter the MAC addresses of the Access Points that you want included in the WDS. There can

be a maximum of four access points.

Note: Only applicable in WDS AP and WDS Bridge mode.

2.4G/5G

WDS Link Settings

Security

Select

None

AES

from drop

down list.

AES Passphrase

Enter the key

values you wish to use.

Other AP(s) must use the same key to establish WDS link.

MAC Address

Enter

the Access Point’s MAC address to which you want to extend the wireless area.

Mode

Select

Disable

Enable

from the drop

down list.

Accept / Cancel

Click

to confirm the changes or

Cancel

to cancel and return previous settings.

8 Management

8.1 Administration

This page allows you to change the MR1750 username and password. By default, the username is admin and the

password is: admin. The password can contain 0 to 12 alphanumeric characters and is case sensitive.

New

Name

Enter a new username for lo

gging in to the New Name entry box

Old Password

Enter

the old

password for lo

gging in to the

Old

Password entry box

New

Password

Enter

the

new password for lo

gging in to the

New

Password entry box

Confirm

Password

enter the new

password in the Confirm Password entry box

for confirmation.

Save/Apply / Cancel

Click

Save/Apply

to apply the changes or

Cancel

to return previous settings.

8.2 Management VLAN Settings

This page allows you to assign a VLAN tag to the

packets. A VLAN is a group of computers on a

network whose software has been configured so

that they behave as if they were on a separate

Local Area Network (LAN). Computers on VLAN

do not have to be physically located next to one

another on the LAN.

Note: Only applicable in Access Point and WDS AP mode.

Management VLAN (Only

applicable

in Access

Point mode)

Profile Isolation

Restricted

lient to communicate

with different VID by selecting

the radio button.

VLAN ID

Spec

ify the VLAN tag for

each

profile.

Management

VLAN ID

If your network includes VLANs,

you can specify a VLAN ID for

packets pass through the Access

Point with a tag. Otherwise,

select

No VLAN tag

Accept / Cancel

Click

to confirm the

changes or

Cancel

to cancel and

return previous settings.

Note:

1. If you reconfigure the Management VLAN ID, you may lose your connection to the MR1750. Verify that the DHCP server supports the

reconfigured VLAN ID and then reconnect to the MR1750 using the new IP address.

2. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see section 5.1).

8.3 Wireless Traffic Shaping

Traffic shaping regulates the flow of packets leaving an interface to deliver improved Quality of Service.

Wireless Traffic Shaping

Enable

Traffic Shaping

Check this option to enable wireless traffic

shaping.

Incoming Traffic Limit

Specify the wireless transmission speed used for downloading.

Outgoing Traffic Limit

Specify the wireless transmission speed used for uploading.

Accept / Cancel

Click

to confirm the changes or

Cancel

to cancel and return previous settings.

8.4 SNMP Settings

This page allows you to assign the Contact Details, Location, Community Name, and Trap Settings for Simple Network

Management Protocol (SNMP). This is a networking management protocol used to monitor network attached devices.

SNMP allows messages (called protocol data units) to be sent to various parts of the network. Upon receiving these

messages, SNMP compatible devices (called agents) return the data stored in their Management Information Bases.

SNMP

SNMP Enable/Disable

Enable or

isable SNMP feature.

Contact

Specify the contact details of the device

Location

Specify the location of the device.

Community

Name (Read Only)

Specify the password for

the

SNMP community for read only access.

Community Name

(Read/Write)

Specify the password for

the SNMP community with read/write access.

Trap

Trap Destination

Address

Specify the IP address of the computer that will receive the SNMP traps.

Trap Destination

Community

Name

Specify the password for the SNMP trap community.

SNMPv3

SNMPv3 Enable/Disable

Enable or

isable SNMPv3 feature.

User Name

Specify the username for

SNMPv3.

Auth Protocol

Select the

authentication protocol

type

MDS

SHA

Auth Key

Specify the

authentication key

for

authentication

Priv Protocol

Select the privacy

protocol

type:

DES

Priv Key

Specify the

privacy key

for

privacy

Engine ID

Specify the engine ID for SNMPv3.

Save/Apply / Cancel

Click

Save/Apply

to apply the changes or

Cancel

to return previous settings.

8.5 Backup/Restore

This page allows you to save the current device configurations. When you save the configurations, you also can reload the

saved configurations into the device through the

Restore Saved Settings from A File

section. If extreme problems occur, or

if you have set the MR1750 wrongly, you can use the Factory Default button in the

Revert to Factory Default Settings

section to restore all the configurations of the MR1750 to the original default settings.

Backup/Restore

Save A Copy of Current

Settings

Click

Backup

to save the current configured settings.

Restore Saved Settings

from A File

To restore settings that have been previously backed up, click

Browse

, select the file, and

click

Restore

Revert to Factory Default

Settings

Click

Factory Default

button to restore the

MR1750

to its factory default settings.

8.6 Auto Reboot Settings

You can specify how long to reboot the MR1750 periodically.

Auto Reboot Settings

Auto Reboot Setting

Enable or disable the

auto reboot

function.

Frequency of Auto Reboot

o specify the time

to reboot the

MR1750

Min,

Hour, Day or

Week.

Save/Apply / Cancel

Click

Save/Apply

to apply the changes or

Cancel

to return previous settings.

8.7 Firmware Upgrade

This page allows you to upgrade the firmware of the MR1750.

To perform the Firmware Upgrade:

Click the Browse button and navigate the OS File System to the location of the upgrade file.

Select the upgrade file. The name of the file will appear in the

Upgrade File

field.

Click the Upload button to commence the firmware upgrade.

Note: The device is unavailable during the upgrade process and must restart when the upgrade is completed. Any connections to or through the

device will be lost.

8.8 Time Setting

This page allows you to set the internal clock of the MR1750.

Time

Manually Set Date and Time

Manually specify the date and time

Automatically Get Date and

Time

Select a time zone from the drop

down list and check whether you want to

enter the IP address of an NTP server or use the default NTP server to get have

the internal clock set automatically

Enable Daylight Saving

Check whether daylight savings applies to your area.

8.9 Log

This page allows you to setup Syslog and local log functions of the MR1750.

Log

Syslog

Enable or disable the

syslog function.

Log Server IP Address

Enter the IP address of the log server.

Local Log

Enable or disable the local log service.

Save/Apply / Cancel

Click

Save/Apply

to apply the changes or

Cancel

to return previous settings.

8.10 Diagnostics

This page allows you to analyze the connection quality of the MR1750 and trace the routing table to a target in the

network.

Diagnosis

Target IP

Enter the IP address you would like to search.

Ping

Packet Size

Enter the packet size of each ping.

Number of Pings

Enter the number of times you want to ping.

Start Ping

Click

Start Ping

to begin pinging

target device (via IP)

Traceroute Target

Enter an IP address or domain name you want to trace.

Start Traceroute

Click

Start Traceroute

to begin the trace route operation.

8.11 LED Control

This page allows you to control LED on/off for Power, LAN interface, 2.4G/5G WLAN interface and WPS.

8.12 Logout

Click [Logout] in Management menu to logout.

8.13 Reset

In some circumstances, it may be required to force the device to reboot. Click on Reboot the Device to reboot the

MR1750.

Appendix A – FCC Interference Statement

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Operations in the 5.15-5.25GHz band are restricted to indoor usage only.

IMPORTANT NOTE:

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be

installed and operated with minimum distance 30cm between the radiator & your body.

Appendix B – IC Interference Statement

Industry Canada statement:

This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son

fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce

dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

Caution :

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-

channel mobile satellite systems;

(ii) high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that

these radars could cause interference and/or damage to LE-LAN devices.

Avertissement:

(i)

les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire

les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

(ii) De plus, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs

principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du

brouillage et/ou des dommages aux dispositifs LAN-EL.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be

installed and operated with minimum distance 30cm between the radiator & your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet

équipement doit être installé et utilisé avec un minimum de 30cm de distance entre la source de rayonnement et votre corps.

Appendix C – CE Interference Statement

1.1. Europe – EU Declaration of Conformity

This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to

prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC:

- EN60950-1

- Safety of Information Technology Equipment

- EN50385

- Generic standard to demonstrate the compliance of electronic and electrical apparatus with the basic restrictions related to human exposure to

electromagnetic fields (0 Hz - 300 GHz)

- EN 300 328

- Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; Data transmission equipment operating

in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Harmonized EN covering essential requirements under article

3.2 of the R&TTE Directive

EN 301 893

Broadband Radio Access Networks (BRAN); 5 GHz high performance RLAN; Harmonized EN covering essential requirements of article 3.2 of

the R&TTE Directive

EN 301 489-1

Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and

services; Part 1: Common technical requirements

- EN 301 489-17

- Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and

services; Part 17: Specific conditions for 2,4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in

France and Italy where restrictive use applies.

In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up

outdoor radio links and/or for supplying public access to telecommunications and/or network services.

This device may not be used for setting up outdoor radio links in France and in some areas the RF output p

the frequency range of 2454 –

2483.5 MHz. For detailed information the end

0560

Česky

[Czech]

[Jméno výrobce]

tímto prohlašuje, že tento

dalšími příslušnými ustanoveními sm

Dansk

[Danish]

Undertegnede

[fabrikantens navn]

typebetegnelse]

overholder de væsentlige krav og øvrige relevante kra

Deutsch

[German]

Hiermit erklärt

[Name des Herstellers]

den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie

1999/5/EG befindet.

Eesti

[Estonian]

Käesolevaga kinnitab

equipment]

vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele

teistele asjakohastele sätetele.

English Hereby,

[name of man

essential requirements and other relevant provisions of Directive 1999/5/EC.

Español

[Spanish]

Por medio de la presente

los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la

Directiva 1999/5/CE.

Ελληνική

[Greek]

ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ

∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ

Français

[French]

Par la présente

[nom du fabricant]

exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/C

Italiano

[Italian]

Con la presente

[nome del costruttore]

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

Latviski

[Latvian]

Ar šo

[name of manufacturer

iekārtas tips]

atbilst Direkt

noteikumiem.

Lietuvių

[Lithuanian]

Šiuo

[manufacturer name]

kitas 1999/5/EB Direktyvos nuostatas.

Nederlands

[Dutch]

Hierbij verklaart

[naam van de fabrikant]

met de essentiële eisen en de andere relevant

Malti

Hawnhekk, [i

sem tal

This device may not be used for setting up outdoor radio links in France and in some areas the RF output p

ower may be limited to 10 mW EIRP in

2483.5 MHz. For detailed information the end

user should contact the national spectrum authority in France.

tímto prohlašuje, že tento

[typ zařízení] j

e ve shodě se základními požadavky a

íslušnými ustanoveními směrnice 1999/5/ES.

[fabrikantens navn]

erklærer herved, at følgende udstyr [udstyrets

overholder de væsentlige krav og øvrige relevante kra

v i direktiv 1999/5/EF.

[Name des Herstellers]

, dass sich das Gerät [Gerätetyp]

in Übereinstimmung mit

den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie

1999/5/EG befindet.

Käesolevaga kinnitab

[tootja nimi = name of manufacturer] seadme

[seadme tüüp = type of

vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele

teistele asjakohastele sätetele.

[name of man

ufacturer], declares that this [type of equipment]

is in compliance with the

essential requirements and other relevant provisions of Directive 1999/5/EC.

Por medio de la presente

[nombre del fabricante] declara que el [clase de equipo]

cumple con

los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la

Directiva 1999/5/CE.

ΠΑΡΟΥΣΑ

[name of manufacturer] ∆ΗΛΩΝΕΙ ΟΤΙ [type of equipment]

ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ

ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ

∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ.

[nom du fabricant]

déclare que l'appareil [type d'appareil]

est conforme aux

exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/C

[nome del costruttore]

dichiara che questo [tipo di apparecchio]

è conforme ai

requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.

[name of manufacturer

/ izgatavotāja nosaukums] deklarē, ka

[type of equipment /

atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem

[manufacturer name]

deklaruoja, kad šis [equipment type]

atitinka esminius reikalavimus ir

kitas 1999/5/EB Direktyvos nuostatas.

[naam van de fabrikant]

dat het toestel [type van toestel]

in overeenstemming is

met de essentiële eisen en de andere relevant

e bepalingen van richtlijn 1999/5/EG.

sem tal

-manifattur], jiddikjara li dan [il-mudel tal-prodott] jikkonforma mal-

ħtiġ

ower may be limited to 10 mW EIRP in

user should contact the national spectrum authority in France.

se základními požadavky a

v i direktiv 1999/5/EF.

in Übereinstimmung mit

den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie

[seadme tüüp = type of

vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist tulenevatele

is in compliance with the

cumple con

los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la

est conforme aux

è conforme ai

[type of equipment /

ītajiem

atitinka esminius reikalavimus ir

in overeenstemming is

ħtiġijiet

[Maltese]

essenzjali u ma provvedimenti o

Magyar

[Hungarian]

Alulírott, [

gyártó neve

követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak

Polski

[Polish]

Niniejszym

[nazwa producenta]

wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

Português

[Portuguese]

[Nome do fabricante]

essenciais e outras disposições da Di

Slovensko

[Slovenian]

[Ime proizvajalca]

izjavlja, da je ta

relevantnimi določili direktive 1999/5/ES.

Slovensky

[Slovak]

[Meno výrobcu]

týmto vyhlasuje, že

príslušné ustanovenia Smernice 1999/5/ES.

Suomi

[Finnish]

[Valmistaja =

manufacturer]

tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten j

muiden ehtojen mukainen.

Svenska

[Swedish]

Härmed intygar

[företag]

egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

essenzjali u ma provvedimenti oħrajn relevanti li hemm fid

-Dirrettiva 1999/5/EC.

gyártó neve

] nyilatkozom, hogy a [... típus] megfelel a vonatkozó alapvetõ

követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak

[nazwa producenta]

oświadcza, że [nazwa wyrobu]

jest zgodny z zasadniczymi

wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 1999/5/EC.

[Nome do fabricante]

declara que este [tipo de equipamento]

está conforme com os requisitos

essenciais e outras disposições da Di

rectiva 1999/5/CE.

izjavlja, da je ta

[tip opreme]

v skladu z bistvenimi zahtevami in ostalimi

čili direktive 1999/5/ES.

týmto vyhlasuje, že

[typ zariadenia]

spĺňa základné požiadavky a všetky

príslušné ustanovenia Smernice 1999/5/ES.

manufacturer]

vakuuttaa täten että

[type of equipment = laitteen tyyppimerkintä]

tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten j

a sitä koskevien direktiivin

muiden ehtojen mukainen.

[företag]

att denna [utrustningstyp]

står I överensstämmelse med de väsentliga

egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.

jest zgodny z zasadniczymi

está conforme com os requisitos

v skladu z bistvenimi zahtevami in ostalimi

a základné požiadavky a všetky

[type of equipment = laitteen tyyppimerkintä]

a sitä koskevien direktiivin

står I överensstämmelse med de väsentliga

Datto MR1750 Wireless a/b/g/n/AC Access Point User Manual UM MR1750 140126

Open Mesh, Inc. Wireless a/b/g/n/AC Access Point UM MR1750 140126

User Manual.pdf

Navigation menu

Namespaces

Views

Navigation
