User Manual

Wireless

802.11b/g/n

Mesh



Router



Model:

OM2P-LC

OM2P-HS



User

Manual



Version :

1.0

Table of C



CHAPTER 1 PRODUCT

OVERVIEW

.............................................................................................................................



1.1 FEATURE

.......................................................................................................................................................................

7

1.2

ENEFITS

.......................................................................................................................................................................

8

1.3 PACKAGE

ONTENTS

......................................................................................................................................................

9

1.3 SYSTEM REQUIREMENT

..................................................................................................................................................

9



CHAPTER 2

HARDWARE

OVERVIEW

........................................................................................................................



CHAPTER 3

INSTALLATION

.......................................................................................................................................



CHAPTER 4 CONFIGURING YOUR COMPUTER FOR TCP/IP

.................................................................................



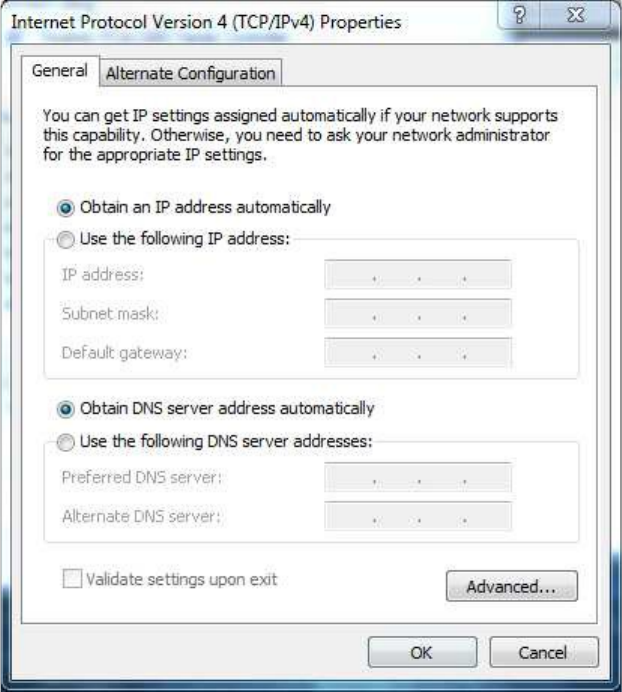

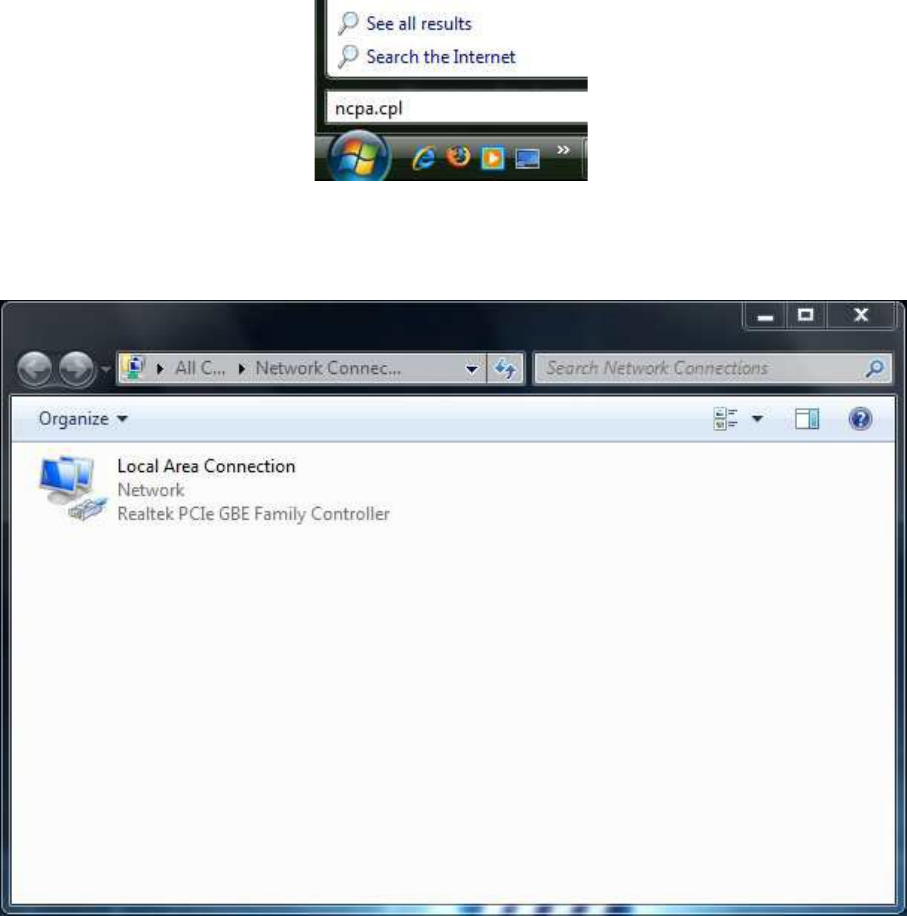

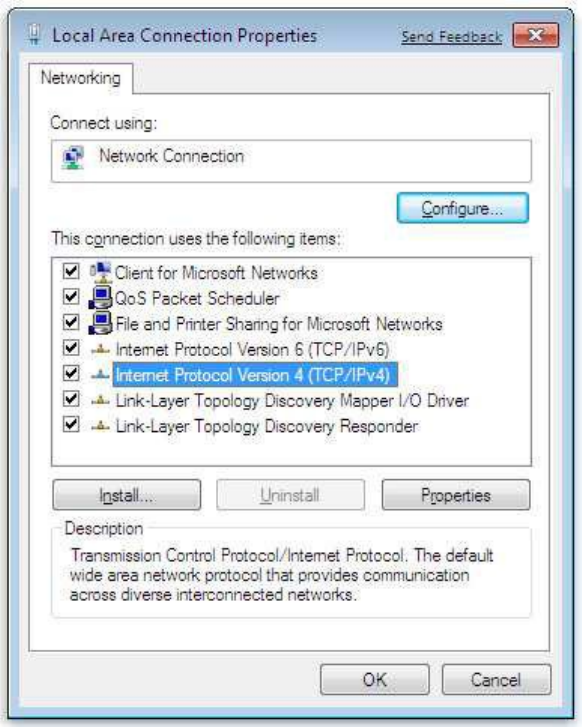

4.1CONFIGURINGMICROSOFTWINDOWS7

............................................................................................................................

15



4.2CONFIGURINGMICROSOFTWINDOWS

ISTA

.......................................................................................................................

17



4.3CONFIGURINGMICROSOFTWINDOWSXP

..........................................................................................................................

19



4.4CONFIGURINGMICROSOFTWINDOWS2000

......................................................................................................................

20



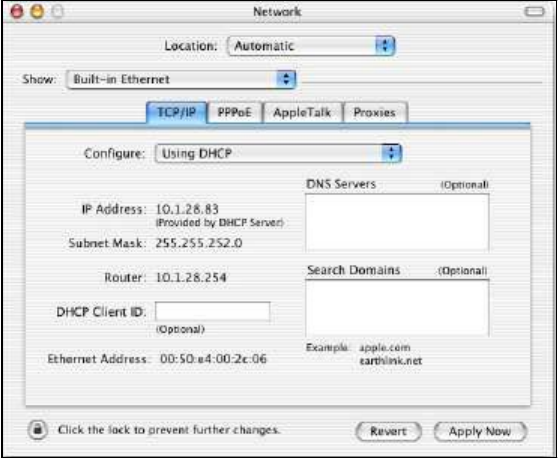

4.5CONFIGURINGANAPPLEMACINTOSH

OMPUTER

................................................................................................................

22



CHAPTER5INTRODUCINGTHEWEBCONFIGURATOR

.....................................................................................................



5.1LOGGINGINTOTHEWEB

ONFIGURATOR

...........................................................................................................................

23



CHAPTER 6 STATUS

....................................................................................................................................................



6.1

AVE

OAD

.................................................................................................................................................................

25

6.2 MAIN

.........................................................................................................................................................................

26

6.3 WIRELESS CLIENT LIST

.................................................................................................................................................

27

6.4 SYSTEM LOG

...............................................................................................................................................................

28

6.5 CONNECTION

TATUS

..................................................................................................................................................

29

6.6 DHCP CLIENT

ABLE

...................................................................................................................................................

30



CHAPTER 7

....................................................................................................................................................



7.1 CHANGING OPERATING

ODES

...................................................................................................................................

31



CHAPTER 8 WIRELESS

CONFIGURATION

................................................................................................................



8.1 WIRELESS

ETTINGS

.....................................................................................................................................................

32

8.1.1

Access

Point

Mode

........................................................................................................................................

32

8.1.2 Client

Bridge Mode

.......................................................................................................................................

36

8.1.3 WDS

Bridge Mode

.........................................................................................................................................

38

8.1.4 Client

Router

Mod

.......................................................................................................................................

40

8.2 WIRELESS SECURITY

ETTINGS

......................................................................................................................................

42

8.2.1

................................................................................................................................................................

42

8.2.2 WPA-PSK

.......................................................................................................................................................

43

8.2.3

WPA2-PSK

.....................................................................................................................................................

44

8.2.4 WPA-PSK

............................................................................................................................................

45

8.2.5

WPA

................................................................................................................................................................

46

8.2.6 WPA2

.............................................................................................................................................................

47

8.2.7 WPA

Mixed

....................................................................................................................................................

48

8.4 WIRELESS ADVANCED

ETTINGS

...................................................................................................................................

49

8.5 WIRELESS MAC

ILTER

................................................................................................................................................

51

8.6 WDS LINK

ETTINGS

...................................................................................................................................................

52



CHAPTER 9 LAN SETUP

..............................................................................................................................................



9.1 IP

ETTINGS

................................................................................................................................................................

53

9.2 SPANNING TREE SETTINGS

...........................................................................................................................................

54



CHAPTER 10 ROUTER SETTINGS

..............................................................................................................................



10.1 WAN

ETTINGS

........................................................................................................................................................

55

10.1.1 Static

........................................................................................................................................................

55

10.1.2 DHCP (Dynamic

)

....................................................................................................................................

58

10.1.3 PPPoE

(Point-to-Point Protocol

over

)

........................................................................................

60

10.1.4 PPTP

(Point-to-Point Tunneling

)

................................................................................................

62

10.2 LAN SETTINGS (ROUTER MODE)

...............................................................................................................................

64

10.3 VPN PASS

HROUGH

................................................................................................................................................

65

10.4 PORT FORWARDING

..................................................................................................................................................

66

10.5 DMZ

.......................................................................................................................................................................

68



CHAPTER 11

MANAGEMENT S

..................................................................................................................



11.1

DMINISTRATION

......................................................................................................................................................

69

11.2 MANAGEMENT

VLAN

...............................................................................................................................................

71

11.3 SNMP SETTINGS

......................................................................................................................................................

72

11.4 BACKUP/RESTORE SETTINGS

......................................................................................................................................

73

11.5 FIRMWARE

PGRADE

.................................................................................................................................................

74

11.6 TIME

ETTINGS

..........................................................................................................................................................

75

11.7

..........................................................................................................................................................................

76

11.8

IAGNOSTICS

............................................................................................................................................................

77



CHAPTER 12 NETWORK

CONFIGURATION

.........................................................................................



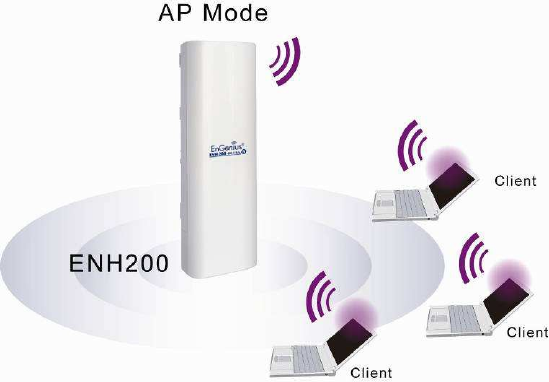

12.1 ACCESS POINT

..........................................................................................................................................................

78

12.2 CLIENT BRIDGE

ODE

...............................................................................................................................................

79

12.3 WDS BRIDGE

ODE

.................................................................................................................................................

80

12.4 CLIENT

OUTER

.........................................................................................................................................................

81



CHAPTER 13 BUILDING A WIRELESS NETWORK

...................................................................................................



13.1 ACCESS POINT

ODE

................................................................................................................................................

82

13.2 ACCESS POINT MODE WITH WDS

UNCTION

.............................................................................................................

82

13.3 CLIENT BRIDGE

ODE

...............................................................................................................................................

83

13.4 WDS BRIDGE

ODE

.................................................................................................................................................

83

13.5 CLIENT ROUTER

ODE

..............................................................................................................................................

84

13.6 RADIUS CONNECTIONS

...........................................................................................................................................

84



APPENDIXA–TROUBLESHOOTING

.................................................................................................................................



A.1PROBLEM

OLVING

.........................................................................................................................................................

85



A.2CONTACTINGTECHNICAL

UPPORT

....................................................................................................................................

86



APPENDIXB–SPECIFICATIONS

.......................................................................................................................................



APPENDIXC–GLOSSARY

................................................................................................................................................



APPENDIXD–FCCINTERFERENCESTATEMENT

...............................................................................................................



About



This document is written for networking professionals responsible for installing and managing

the EnGenius ENH Series Outdoor Access Point/Bridge. To use this guide, you should have

knowledge about TCP/IP and IEEE 802.11 standards, and be familiar with the concepts and

terminology associated with wireless local-area networks (WLANs).



This document provides the information you need to install and configure your Access

Point/bridge.



This publication uses these conventions/symbols to convey instructions and information

and highlight special message.



Caution: This symbol represents the important message on incorrect device

operation that might damage the device



Note: This symbol represents the important message for the settings.

Tip: This symbol represents the alternative choice that can save time or

resources.

Icons



Figuresinthisdocumentmayusethefollowinggenericicons.



EHN device 

WLAN signal



Client computer laptop



Internet



Client computer desktop



PoE injector



Power adapter



Chapter 1 Product O



ThankyouforchoosingOM2P‐LC/OM2P‐HS.TheOM2P‐LC/OM2P‐HSisalongrange,high‐performanceIEEE

802.11b/g/nnetworksolutionthatprovidesAccessPoint,ClientBridge,WDS,andClientRouterfunctionsinasingle

device.



Inadditiontoprovidingthelatestwirelesstechnology,theOM2P‐LC/OM2P‐HSsupportsPoweroverEthernetand

PowerbyAdaptercapabilities,whichallowthedevicetobeinstalledeasilyinnearlyanyindoororoutdoorlocation.

Advancedfeaturesincludepowerlevelcontrol,narrowbandwidthselection,trafficshaping,andReal‐timeRSSI

indication.



Avarietyofsecurityfeatureshelptoprotectyourdataandprivacywhileyouareonline.SecurityfeaturesincludeWi‐Fi



ProtectedAccess(WPA‐PSK/WPA2‐PSK),64/128/152‐bitWEPEncryption,andIEEE802.1xwithRADIUS.



1.1



The following list summarizes the key features of the OM2P-LC/OM2P-HS:



- High-speed data rates up to 150 Mbps make the OM2P-LC/OM2P-HS ideally suited for handling heavy

data payloads such as MPEG video streaming

- Fully Interoperable with IEEE 802.11b/IEEE 802.11g/IEEE 802.11n-compliant devices



- Multi-function capabilities enable users to use different modes in various environments



- Point-to-point and point-to-multipoint wireless connectivity enable data transfers between two or more

buildings

- Channel bandwidth selection allows the appropriate bandwidth to be used to reach various distances



- RSSI indicator makes it easy to select the best signal for Access Point connections



- Power-over-Ethernet capabilities allow for flexible installation locations and cost savings



- Four SSIDs let clients access different networks through a single Access Point, and assign different policies

and functions for each SSID

- WPA2/WPA/ WEP/ IEEE 802.1x support and MAC address filtering ensure secure network connections



- PPPoE/PPTP function support make it easy to access the Internet via Internet Service Provider (ISP) service

authentication

- SNMP Remote Configuration Management helps administrators remotely configure or manage the Access

Point



- QoS (WMM) support enhances performance and user experiences

1.2



TheOM2P‐LC/OM2P‐HSistheidealproductaroundwhichyoucanbuildyourWLAN.Thefollowinglist

summarizesafewkeyadvantagesthatWLANshaveoverwirednetworks:

Idealforhard‐to‐wire



Therearemanyscenarioswherecablescannotbeusedtoconnectnetworkingdevices.

Historicandolderbuildings,openareas,andbusystreets,forexample,makewiredLAN

installationsdifficult,expensive,orimpossible.

Temporary



WLANsmakeiteasytoprovideconnectivitytotemporaryworkgroupsthatwilllaterbe

removed.Examplesincludeparks,athleticarenas,exhibitioncenters,disaster‐recovery

shelters,temporaryoffices,andconstructionsites.

Abilitytoaccessreal‐time

orm



WithaWLAN,workerswhorelyonaccesstoreal‐timeinformation,suchasdoctorsand

nurses,point‐of‐saleemployees,mobileworkers,andwarehousepersonnel,canaccess

thedatatheyneedandincreaseproductivity,withouthavingtolookforaplacetoplug

intothenetwork.



Frequentlychanged



WLANsarewellsuitedforshowrooms,meetingrooms,retailstores,andmanufacturing

siteswhereworkplacesarerearrangedfrequently.



WirelessextensionstoEthernet



WLANsenablenetworkmanagersindynamicenvironmentstominimizeoverheadcaused

bymoves,extensionstonetworks,andotherchanges.



WiredLAN



NetworkmanagerscanimplementWLANstoprovidebackupformission‐critical

applicationsrunningonwirednetworks.



Mobilitywithintraining/educational

ili



Trainingsitesatcorporationsandstudentsatuniversitiesareafewexampleswhere

wirelessconnectivitycanbeusedtofacilitateaccesstoinformation,information

exchanges,andlearning.

1.3 Package



Openthepackagecarefullyandmakesureitcontainsalloftheitemslistedbelow.

‐ OneEnGeniusWirelessAccessPoint/ClientBridge(OM2P‐LC/OM2P‐HS)



Ifanyitemismissingordamaged,contactyourplaceofpurchaseimmediately.



KeepallpackingmaterialsincaseyouneedtoreturntheOM2P‐LC/OM2P‐HS.TheOM2P‐LC/OM2P‐

HSmustbereturnedwithitsoriginalpackingmaterials.



UseonlythepoweradaptersuppliedwithyourOM2P‐LC/OM2P‐HS.Usingadifferent

poweradaptercandamagetheOM2P‐LC/OM2P‐HS.



1.3 System



ToinstalltheOM2P‐LC/OM2P‐HS,youneedanEthernetcableandacomputerequippedwith:

‐ AnEthernetinterface

‐ Oneofthefollowingoperatingsystems:MicrosoftWindowsXP,Vista,or7;orLinux

‐ AnInternetbrowserthatsupportsHTTPandJavaScript

Chapter 2 Hardware O



ThefollowingfiguresshowthekeycomponentsontheOM2P‐LC/OM2P‐HS.



2.1BottomView



ThebottompaneloftheOM2P‐LC/OM2P‐HScontainstwoRJ‐45ports,aPoEinterface,andaReset

button.A

removablecovercoversthesecomponents.

‐ TheRJ‐45portconnectstoanEthernetadapterinacomputeryouusetoconfiguretheOM2P‐

LC/OM2P‐HS.Formoreinformation,seeChapter4.

‐ ThePoEinterfaceallowstheOM2P‐LC/OM2P‐HStobepoweredusingthesuppliedPoEinjector.

‐ TheResetbuttoncanbeusedtoreboottheOM2P‐LC/OM2P‐HSandreturnthedevicetoits

defaultfactoryconfiguration,erasinganyoverridesyoumayhavemadetothedevice’sdefault

settings.TheResetbuttonisrecessedtopreventaccidentalresets.ToreboottheOM2P‐

LC/OM2P‐HS,useaflatobjectsuchasapenciltopresstheResetbuttonforapproximately10

secondsandthenstoppressingtheResetbutton.



2.2BackPanel



ThebackpaneloftheOM2P‐LC/OM2P‐HScontainstheLEDindicatorsthatshowthelinkqualityand

statusofthe

OM2P‐LC/OM2P‐HS.

Chapter 3



ThischapterdescribeshowtoinstalltheOM2P‐LC/OM2P‐HS.ItalsodescribestheOM2P‐LC/OM2P‐

HSLEDs.



Onlyexperiencedinstallationprofessionalswhoarefamiliarwithlocalbuildingandsafety

codesand,whereverapplicable,arelicensedbytheappropriategovernmentregulatoryauthorities

shouldinstalltheOM2P‐LC/OM2P‐HS.



3.1Pre‐installationGuidelines



Selecttheoptimallocationsfortheequipmentusingthefollowingguidelines:

- TheOM2P‐LC/OM2P‐HSshouldbemountedona1"‐4"pole.Itslocationshouldenableeasy

accesstotheunitanditsconnectorsforinstallationandtesting.

- Thehighertheplacementoftheantenna,thebettertheachievablelinkquality.

- Theantennashouldbeinstalledtoprovideadirect,ornearlineofsightwiththeBaseStation

antenna.TheantennashouldbealignedtofacethegeneraldirectionoftheBaseStation.



3.2InstallingtheOM2P‐LC/OM2P‐HS

ToinstalltheOM2P‐LC/OM2P‐HS,usethefollowingproceduretomountthedeviceonapole

andrefertothefigurebelow.



1.ThebottomoftheOM2P‐LC/OM2P‐HSisamovablecover.Grabthecoverandpullit

backhardtoremovethecover.



2.InsertastandardEthernetcableintotheRJ‐45portlabeledMAINL

.



3.SlidethecoverbacktosealthebottomoftheOM2P‐LC/OM2P‐HS.



4.RemovethepowercordandPoEinjectorfromtheboxandplugthepowercordintothe

DCportofthePoEinjector.



OnlyusethepoweradaptersuppliedwiththeOM2P‐LC/OM2P‐HS.Usingadifferent

poweradaptermightdamagetheOM2P‐LC/OM2P‐HS.

5.PlugtheothersideoftheEthernetcableinstep3intothePoEportofthePoEinjector.

Whenyoufinishstep5,theinstallationwillresemblethefollowingpicture.



6.TurnovertheOM2P‐LC/OM2P‐HS.Theninsertthemaststrapthroughthemiddleholeof

theOM2P‐LC/OM2P‐HS.

Useascrewdrivertounlockthepole‐mountingringputtingitthroughtheOM2P‐

LC/OM2P‐HS.



7.MounttheEOA200securelytothepolebylockingthestraptightly.

Thiscompletestheinstallationprocedure.



3.2UnderstandingtheOM2P‐LC/OM2P‐HSLEDs



TherearoftheOM2P‐LC/OM2P‐HShastwogroupsofLEDs.Onegroup,labeledINDICATORS,shows

thestatusofthedevice.Thesecondgroup,LINKQUALITY,showsthestrengthofthelinkbetween

theOM2P‐LC/OM2P‐HSandthenetwork.ThefollowingtabledescribestheOM2P‐LC/OM2P‐HSLEDs.



LEDColorModeStatus

PowerGreenOFF=OM2P‐LC/OM2P‐HSisnotreceivingpower.

ON=OM2P‐LC/OM2P‐HSisreceivingpower.

LANGreenOFF=OM2P‐LC/OM2P‐HSisnotconnectedtothenetwork.

ON=OM2P‐LC/OM2P‐HSisconnectedtothenetwork,but

notsendingorreceivingdata.

Blink=OM2P‐LC/OM2P‐HSissendingorreceivingdata.

WLANGreenAccessPoint

orClient

BridgeMode

OFF=OM2P‐LC/OM2P‐HSradioisoffandthedevice

isnotsendingorreceivingdataoverthewirelessLAN.

ON=OM2P‐LC/OM2P‐HSradioison,andthedevice

isnotsendingorreceivingdataoverthewireless

LAN.

Blink=OM2P‐LC/OM2P‐HSradioison,andthedevice

LinkQualitySeeStatus

column

AccessPoint

orClient

BridgeMode

ShowsthestrengthofthelinkbetweentheOM2P‐

LC/OM2P‐HS

andthenetwork.

G=goodquality(green).

Y=mediumquality(yellow).



Chapter

Configuring

Vour

Computer

for

TCP/IP



configure the

OM2P-LC/OM2P-HS

，

use

a computer that is configured for

TCP/IP.

This chapter

describes how

configure the

TCP/IP

settings on a computer that will be used to configure the

OM2P-LC/OM2P-HS.



4.1ConfiguringMicrosoftWindows7



UsethefollowingproceduretoconfigureacomputerrunningMicrosoftWindows7.



1.IntheStartmenusearchbox,type:



2.WhentheNetworkConnectionsListappears,right‐clicktheLocalAreaConnectionicon

andclick

.



3.IntheNetworkingtab,clickeitherInternetProtocolVersion4(TCP/IPv4)orInternet

ProtocolVersion6(TCP/IPv6),andthenclickProperties.



4.Inthepropertiesdialogbox,clickObtainanIPaddressautomaticallytoconfigureyour

computerforDHCP.



5.ClicktheOKbuttontosaveyourchangesandclosethedialogbox.



6.ClicktheOKbuttonagaintosaveyourchanges.



4.2ConfiguringMicrosoftWindows



UsethefollowingproceduretoconfigureacomputerrunningMicrosoftWindowsVistawiththe

defaultinterface.IfyouusetheClassicinterface,wheretheiconsandmenusresembleprevious

Windowsversions,performtheprocedureinsection4.4.



1.OntheWindowstaskbar,clickStart,clickControlPanel,andthenselectthe

k

andInterneticon.



2.ClickViewNetworksStatusandtasksandthenclickManagement



.



3.Right‐clicktheLocalAreaConnectioniconandclick

.



4.ClickContinue.TheLocalAreaConnectionPropertiesdialogboxappears.



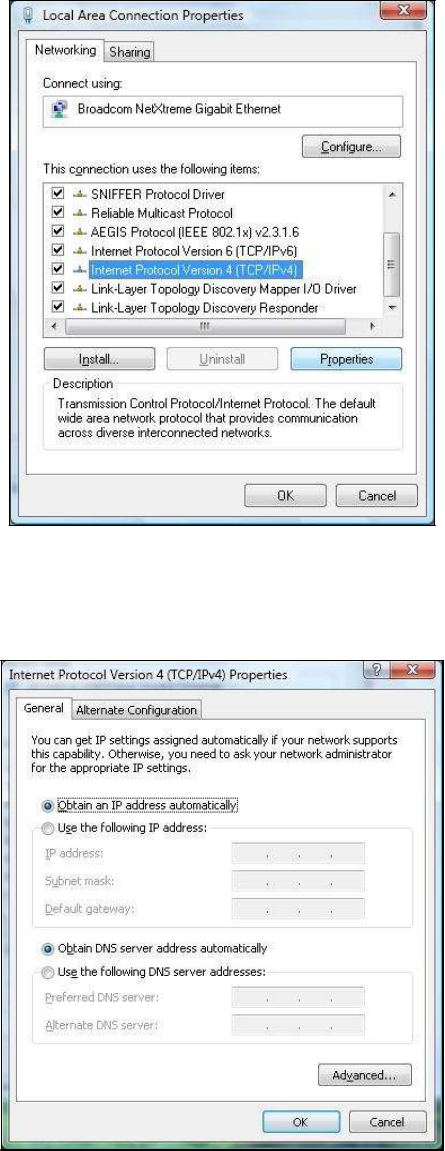

5.IntheLocalAreaConnectionPropertiesdialogbox,verifythatInternet

l

(TCP/IPv4)ischecked.ThenselectInternetProtocol(TCP/IPv4)andclickthe

es

button.TheInternetProtocolVersion4Propertiesdialogboxappears.



6.IntheInternetProtocolVersion4Propertiesdialogbox,clickObtainanIP

add

ress



automaticallytoconfigureyourcomputerforDHCP.



7.ClicktheOKbuttontosaveyourchangesandclosethedialogbox.



8.ClicktheOKbuttonagaintosaveyourchanges.



4.3ConfiguringMicrosoftWindows



UsethefollowingproceduretoconfigureacomputerrunningMicrosoftWindowsXPwiththedefault

interface.IfyouusetheClassicinterface,wheretheiconsandmenusresemblepreviousWindows

versions,performtheprocedureinsection4.4.



1.OntheWindowstaskbar,clickStart,clickControlPanel,andthenclickNetwork

and



Internet

.



2.ClicktheNetworkConnectionsicon.



3.ClickLocalAreaConnectionfortheEthernetadapterconnectedtotheOM2P‐LC/OM2P‐HS.

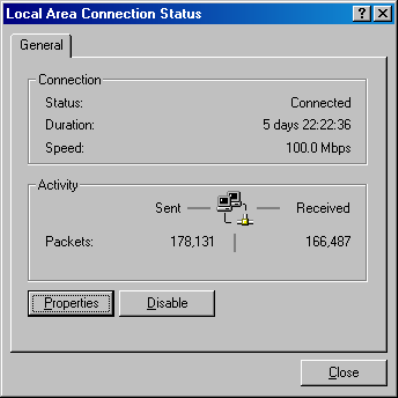

TheLocal

AreaConnectionStatusdialogboxappears.



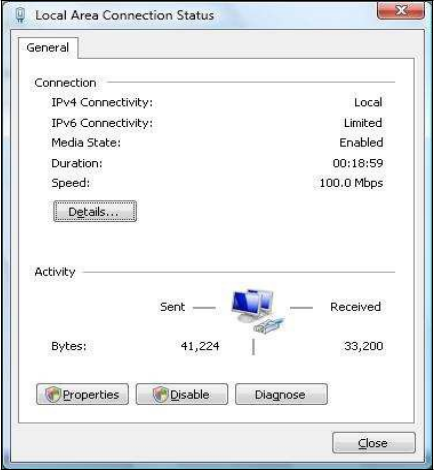

4.IntheLocalAreaConnectionStatusdialogbox,clickthePropertiesbutton.TheLocal

AreaConnectionPropertiesdialogboxappears.



5.IntheLocalAreaConnectionPropertiesdialogbox,verifythatInternetProtocol

(

P)

ischecked.ThenselectInternetProtocol(TCP/IP)andclickthePropertiesbutton.The

InternetProtocol(TCP/IP)Propertiesdialogboxappears.



6.IntheInternetProtocol(TCP/IP)Propertiesdialogbox,clickObtainanIP

add

ress

automaticallytoconfigureyourcomputerforDHCP.ClicktheOKbuttontosavethis

changeandclosetheInternetProtocol(TCP/IP)Propertiesdialogbox.



7.ClicktheOKbuttonagaintosaveyourchanges.



8.Restartyourcomputer.



4.4ConfiguringMicrosoftWindows2000



UsethefollowingproceduretoconfigureyourcomputerifyourcomputerhasMicrosoftWindows

2000installed.



1.OntheWindowstaskbar,clickStart,pointtoSettings,andthenclickControl

Pan

.



2.IntheControlPanelwindow,double‐clicktheNetworkandDial‐upConnectionsicon.If

theEthernetadapterinyourcomputerisinstalledcorrectly,theLocalAreaConnection

iconappears.



3.Double‐clicktheLocalAreaConnectioniconfortheEthernetadapterconnectedtothe

OM2P‐LC/OM2P‐HS.TheLocalAreaConnectionStatusdialogboxappears.



4.IntheLocalAreaConnectionStatusdialogbox,clickthePropertiesbutton.TheLocal

AreaConnectionPropertiesdialogboxappears.



5.IntheLocalAreaConnectionPropertiesdialogbox,verifythatInternetProtocol

(



ischecked.ThenselectInternetProtocol(TCP/IP)andclickthePropertiesbutton.



6.ClickObtainanIPaddressautomaticallytoconfigureyourcomputerforDHCP.



7.ClicktheOKbuttontosavethischangeandclosetheLocalAreaConnectionProperties

dialogbox.



8.ClickOKbuttonagaintosavethesenewchanges.



9.Restartyourcomputer.

4.5Con

iguringanAppleMacintosh

ompu



ThefollowingproceduredescribeshowtoconfigureTCP/IPonanAppleMacintoshrunningMacOS

10.2.IfyourAppleMacintoshisrunningMacOS7.xorlater,thestepsyouperformandthescreens

youseemaydifferslightlyfromthefollowing.However,youshouldstillbeabletousethisprocedure

asaguidetoconfiguringyourAppleMacintoshforTCP/IP.



1.PulldowntheAppleMenu,clickSystemPreferences,andselect

.



2.VerifythattheNICconnectedtotheOM2P‐LC/OM2P‐HSisselectedintheShowfield.



3.IntheConfigurefieldontheTCP/IPtab,selectUsing

.



4.ClickApplyNowtoapplyyoursettingsandclosetheTCP/IPdialogbox.

Chapter5Introducing theWeb



TheOM2P‐LC/OM2P‐HShasabuilt‐inWebConfiguratorthatletsyoumanagetheunitfromany

locationusinga

WebbrowserthatsupportsHTTPandhasJavaScriptinstalled.



5.1LoggingintotheWeb



AfterconfiguringthecomputerforTCP/IPusingtheprocedureappropriateforyouroperatingsystem,

usethatcomputer’sWebbrowsertologintotheOM2P‐LC/OM2P‐HSWebConfigurator.



1.LaunchyourWebbrowser.



2.Inthebrowseraddressbar,type192.168.1.1andpresstheEnterkey.



IfyouchangedtheOM2P‐LC/OM2P‐HSLANIPaddress,enterthecorrectIPaddress.



3.WhentheWindowsSecuritywindowappears,typeadminastheusernameinthetopfieldand

typeadminasthepasswordinthebottomfield.



4.Click



YouarenowreadytousetheinstructionsinthefollowingchapterstoconfiguretheOM2P‐LC/OM2P‐

HS.

5.2BestPractices



PerformthefollowingproceduresregularlytomaketheOM2P‐LC/OM2P‐HSmoresecureandmanage

theOM2P‐LC/OM2P‐HS

moreeffectively.

‐ Changethedefaultpassword.Useapasswordthatisnoteasytoguessandthatcontains

differentcharacters,suchasnumbersandletters.TheOM2P‐LC/OM2P‐HSusernamecannotbe

changed.Formoreinformation,seepage69.

‐ Backuptheconfigurationandbesureyouknowhowtorestoreit.Restoringanearlierworking

configurationcanbeusefuliftheOM2P‐LC/OM2P‐HSbecomesunstableorcrashes.Ifyouforget

yourpassword,youwillhavetoresettheOM2P‐LC/OM2P‐HStoitsfactorydefaultsettingsand

loseanycustomizedoverridesettingsyouconfigured.However,ifyoubackupanearlier

configuration,youwillnothavetocompletelyreconfiguretheOM2P‐LC/OM2P‐HS.Youcansimply

restoreyourlastconfiguration.Formoreinformation,seepage73.

Chapter 6



TheStatussectiononthenavigationdrop‐downmenucontainsthefollowingoptions:

- Main

- WirelessClientList

- SystemLog

- ConnectionStatus



The following sections describe these options.



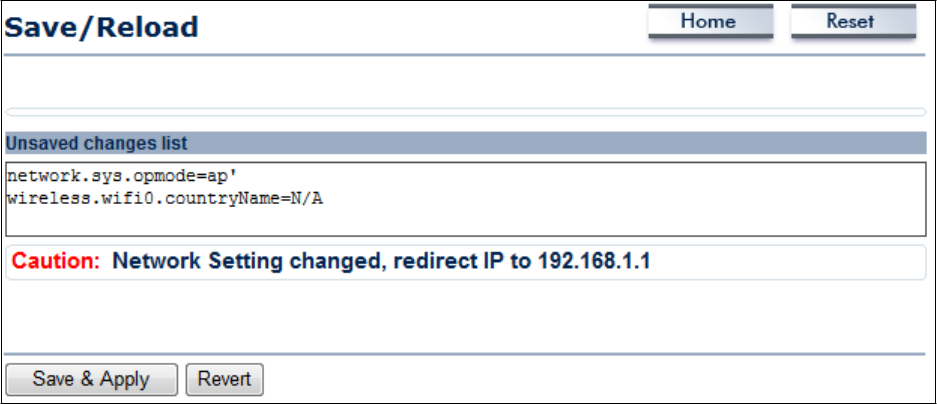

6.1



This page lets you save and apply the settings shown under Unsaved changes list, or cancel

the unsaved changes and revert to the previous settings that were in effect.

6.2



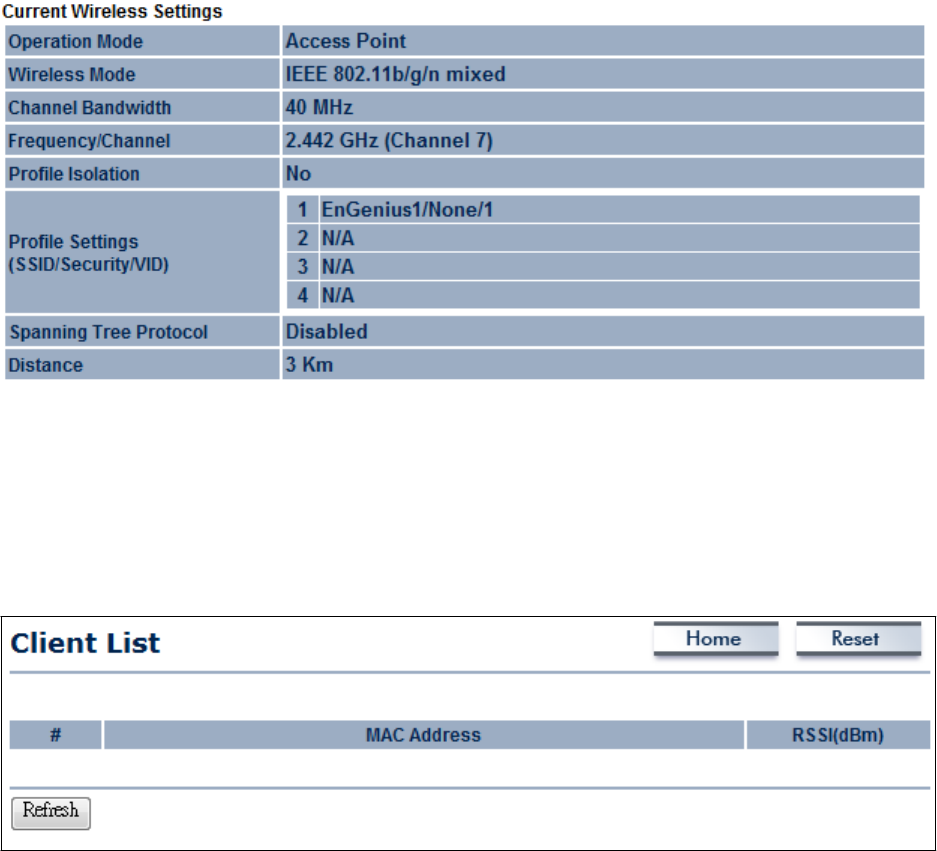

Clicking the Main link under the Status drop-down menu or clicking Home at the top-right

of the Web Configurator shows status information about the current operating mode.



- The System

Information

section shows general system information such as operating

mode, system up time, firmware version, serial number, kernel version, and application

version.



- The LAN Settings section shows Local Area Network setting such as the LAN IP address,

subnet mask, and MAC address.



- The Current Wireless Settings section shows wireless information such as frequency and

channel. Since the OM2P-LC/OM2P-HS supports multiple-SSIDs, information about each

SSID, such

s i

s ESSID and security settings, are displayed.



6.3 Wireless Client



Clicking the Wireless Client List link under the Status drop-down menu displays the list of

clients associated to the OM2P-LC/OM2P-HS, along with the MAC addresses and signal

strength for each client. Clicking the Refresh button updates (refreshes) the client list.

6.4 System Lo



The OM2P-LC/OM2P-HS automatically logs (records) events of possible interest in its internal

memory.

view the

ged information，click the

System

Log link

und

er the

Statu

rop-

down

there is not

enough

internal memory to log all

event

，

older events are deleted from the

log.



System log

Home

Rese



盟國



Oct 19

(

泣

)

kernel: jffs2 build filesyscem():

。

(

)

kernel: mïni fo: u

scorage

dir

ory

Oct 19

(

泣

)

kernel: mïni fo: using

base

direccory:

Oct 19 10:16:34

(

泣

)

kernel: jffs2 scan eraseblock():

End of f

Oct 19 10:16:34

(

泣

)

kernel: jffs2 build filesyscem():

loc

。

19 10:16:33

(

)

kernel:

ar54

，

switch co

Oct 19 10:16:33

(

泣

)

emo

dnsmasq[823): using

local addresses

Oct 19 10:16:33

(

泣

)

emo

dnsmasq[823): using

local addresses

Oct 19 10:16:33

(

)

emo

dnsmasq[823):

，

2.52 cac

Oct 19 10:16:33

(

)

emo

dnsmasq[823):

adi

口

睡

esol

Oct 19 10:16:33

(

泣

)

emo

dnsmasq[823):

/etc/hosts - 1

addre

Oct 19 10:16:33

(

泣

)

emo

mð

[

)

compile time

options:

。

(

)

kernel: device

athO

entered promïscuous m

。

(

)

kernel: br-lan:

topoloqy

chanqe

ete

，

Oct 19

(

泣

)

kernel: br-lan:

port

3(athO) enterinq

Oct 19

(

泣

)

kernel: br-lan:

port

3(athO) enterinq

f。主

。

(

)

kernel: osif

vap

init

: wait for

Oct 19

(

泣

)

kernel: device

athO left

promïscuous

mod

Oct 19

(

泣

)

kernel: br-lan:

port

3(athO) enterinq

。

(

)

kernel:

start

Oct 19

(

泣

)

kernel:

set

，

arac

，

司

Oct 19

(

泣

)

kernel: osif

vap

init

't1

akeup from

't1

( I

111

恥



Rerresh

ear

6.5 Connection

Status



Clicking

the Connection

Statuslink

under the Status drop-down menu

displays

the

current

status of the network. The information shown includes network

type

，

SSID

，

BSSI

，

connection

statu

，

wireless

mode，cu rrent

anne

，

l security，data

rat

，

noise leve，l and

nal

strength.

ess



Netwo

耐

Type

lient

Router

IIEnGenius

BSS

Connection

個仙

悟

Mode

Current

Channe

配

urity

Da 個 Ra 剖

Mbps)

Current

剖

悟

旬

strength



Refl

:es

6.6

DHCP Client

Table



Clicking

the DHCP Client

link under the

Status

drop-down

menu displays the clients

that

are associated

the OM2P-LC/OM2P-HS through DHCP.The

MAC

addresses and signal

strength for

each

client are also shown.

Clicking

the Refresh button

updates

(refreshes) the

client list.



DHCP Client

Home Resel





MAC

ddr

res



Refl

:es



Chapter 7



ThischapterdescribeshowtochangetheOM2P‐LC/OM2P‐HSoperatingmodes.



7.1 Changing Operating



The OM2P-LC/OM2P-HS supports four operating modes:

- Access Point

- Client Bridge

- WDS Bridge

- Client Router



To select an operating mode, click System

Properties

under System Section. Then

go to System > Operation

.Device Name: Enter a name for the device. The name you type appears in SNMP

management. This name is not the SSID and is not broadcast to other devices.

Operation Mode: Use the radio button to select an operating mode. To use Access Point

mode with WDS, select Access Point here and then enable the WDS function in the Wireless

Network section (see section 8.6).



Click Accept to confirm the changes.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

Chapter 8 Wireless



This chapter describes the OM2P-LC/OM2P-HS’s wireless settings. Please read the

information in this

chapter carefully. If you configure a setting improperly, it can impact performance and affect

the network adversely. Before you continue, be sure you selected the appropriate operating

mode (see Chapter 7).



8.1 Wireless



This section describes basic wireless settings. For more information, see Chapter 12.



8.1.1 Access Point



The OM2P-LC/OM2P-HS supports Access Point Mode. In this mode, users with a wireless

client device within range can connect to the OM2P-LC/OM2P-HS to access the WLAN. The

following figure shows an example of an OM2P-LC/OM2P-HS operating in Access Point

Mode.



The sections that follow the figure below describe how to configure your OM2P-LC/OM2P-HS

for Access

Point Mode.



Wireless Mode Wireless mode supports 802.11b/g/n mixed modes.

Channel HT Mode The default channel bandwidth is 40 MHz. The larger the channel,

the better the transmission quality and speed.

Extension Channel Select upper or lower channel. Your selection may affect the Auto

channel function.

Channel / Frequency Select the channel and frequency appropriate for your country’s

regulation.

Auto Check this option to enable auto-channel selection.

AP Detection AP Detection can select the best channel to use by scanning

nearby areas for Access Points.

Current Profile Configure up to four different SSIDs. If many client devices will be

accessing the network, you can arrange the devices into SSID

groups. Click Edit to configure the profile and check whether you

want to enable extra SSID.



Profile Isolation Restricted Client to communicate with different VID by Selecting

the radio button.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



SSID Specify the SSID for the current profile.

VLAN ID Specify the VLAN tag for the current profile.

Suppressed SSID Check this option to hide the SSID from clients. If checked, the

SSID will not appear in the site survey.

Station Separation Click the appropriate radio button to allow or prevent

communication between client devices.

Wireless Security See the Wireless Security section.

Save / Cancel Click Save to accept the changes or Cancel to cancel and return

previous settings.



8.1.2 Client Bridge



Client Bridge Mode lets you connect two LAN segments via a wireless link as though they are

on the same physical network. Since the computers are on the same subnet, broadcasts will

reach all machines. As a result, DHCP information generated by the server will reach all client

computers as though the clients resided on one physical network.



The following figure shows an example of an OM2P-LC/OM2P-HS communicating with an

Access

Point/Wireless Router, such as the EnGenius EOA7530, operating in Client Bridge Mode.



The sections that follow the figure below describe how to configure your OM2P-LC/OM2P-HS

for Client

Bridge Mode.



Wireless Mode Wireless mode supports 802.11b/g/n mixed modes.

SSID Specify the SSID if known. This field is completed automatically if

you select an Access Point in the Site Survey.

Site Survey Scans nearby locations for Access Points. You can select a



discovered Access Point to establish a connection.

Prefer BSSID Enter the MAC address if known. If you select an Access Point in

the Site Survey, this field is completed automatically.

WDS Client Click the appropriate radio button to enable or disable WDS

Client.

Wireless Security See section 8.2 for information.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



Profile If you used the Site Survey, the Web Configurator shows nearby

Access Points. To connect to an Access Point, click the Access

Point’s BSSID.

Wireless Security See the Wireless Security section.

Refresh Click Refresh to scan again.



If the Access Point has been configured to suppress its SSID, the SSID section will be blank

and must be completed manually.



8.1.3 WDS Bridge



Unlike traditional bridging. WDS Bridge Mode allows you to create large wireless networks by

linking several wireless access points with WDS links. WDS is normally used in large, open

areas, where pulling wires is cost prohibitive, restricted or physically impossible.



The following figure shows an example of three OM2P-LC/OM2P-HS configured for WDS

Bridge Mode communicating with each other. In this configuration, the OM2P-LC/OM2P-HS

device on the left side of the figure behaves as a standard bridge that forwards traffic

between the WDS links (links that connect to other OM2P-LC/OM2P-HS WDS bridges).



The sections that follow the figure below describe how to configure your OM2P-

LC/OM2P-HS for WDS Bridge Mode.



Wireless Mode Wireless mode supports 802.11b/g/n mixed modes.

Channel HT Mode The default channel bandwidth is 40 MHz. The larger the channel,

the better the transmission quality and speed.

Extension Channel Select upper or lower channel. Your selection may affect the Auto

channel function.

Channel / Frequency Select the channel and frequency appropriate for your country’s

regulation.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous s

ett



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see



section 4.1).



MAC Address Enter the MAC address of the Access Point to which you want to

extend wireless connectivity.

Mode Select Disable or Enable to disable or enable WDS.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



1. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

2. The Access Point to which you want to extend wireless connectivity must enter the OM2P-

LC/OM2P-HS’s MAC address into its configuration. For more information, refer to the

documentation for the Access Point. Not all Access Point supports this feature.



8.1.4 Client Router



In Client Router Mode, you can access the Internet wirelessly with the support of a WISP. In AP

Router Mode, the OM2P-LC/OM2P-HS can access the Internet via a cable or DSL modem. In

this mode, the OM2P-LC/OM2P-HS can be configured to turn off the wireless network name

(SSID) broadcast, so that only stations that have the SSID can be connected. The OM2P-

LC/OM2P-HS also provides wireless LAN

64/128/152-bit WEP encryption security, WPA/WPA2, and WPA-PSK/WPA2-PSK authenti

cat

on,

as well as TKIP/AES encryption security. It also supports VPN pass-through for sensitive data

secure transmission.



The following figure shows an example of an OM2P-LC/OM2P-HS communicating with a

Wireless ISP (WISP) Access Point in Client Router Mode. The sections that follow the figure

below describe how to configure your OM2P-LC/OM2P-HS for Client Router Mode.



Wireless Mode Wireless mode supports 802.11b/g/n mixed modes.

SSID Specify the SSID if known. This field is completed automatically if

you select an Access Point in the Site Survey.

Site Survey Scans nearby locations for Access Points. You can select a

discovered Access Point to establish a connection.



Prefer BSSID Enter the MAC address if known. If you select an Access Point in

the Site Survey, this field is completed automatically.

Wireless Security See section 10.2.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



Profile If you used the Site Survey, the Web Configurator shows nearby

Access Points. To connect to an Access Point, click the Access

Point’s BSSID.

Wireless Security See the Wireless Security section.

Refresh Click Refresh to scan again.



If the Access Point has been configured to suppress its SSID, the SSID section must be

completed manually.



8.2 Wireless Security



The Wireless Security Settings section lets you configure the EOH200’s security modes: WEP,

WPA-PSK, WPA2-PSK, WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. We strongly

recommend you use WPA2-PSK.



8.2.1



Security Mode Select WEP from the drop-down list to begin the configuration.

Auth Type Select Open System or

Input Type Select an input type of Hex or

Key Length Level of WEP encryption applied to all WEP keys. Choices are

Select a 64/128/152-bit password lengths.

Default Key Specify which of the four WEP keys the OM2P-LC/OM2P-HS uses

as its default.

Key1 Specify a password for security key index No.1. For security, each

typed character is masked by a dot

(

●

Key2 Specify a password for security key index No.2. For security, each

typed character is masked by a dot

(

●

Key3 Specify a password for security key index No.3. For security, each

typed character is masked by a dot

(

●

Key4 Specify a password for security key index No.4. For security, each

typed character is masked by a dot

(

●



802.11n does not allow

WEP/WPA-PSK/WPA-PSK

TKIP security mode. The connection mode

will drop from 802.11n to 802.11g.



8.2.2



Security Mode Select WPA-PSK from the drop-down list to begin the

configuration.

Encryption

Select Both, TKIP, or AES as the encryption type.

• Both = uses TKIP and AES.

• TKIP = automatic encryption with WPA-PSK; requires

passphrase.

• AES = automatic encryption with WPA2-PSK; requires

passphrase.

Passphrase Specify the security password. For security, each typed character

is masked by a dot

(

●

Group Key

Upda



Specify how often, in seconds, the group key changes.



802.11n does not allow

WEP/WPA-PSK/WPA-PSK

TKIP security mode. The connection mode

will drops from 802.11n to 802.11g.

8.2.3



Security Mode Select

WPA2-PSK

from the drop-down list to begin the

configuration.

Encryption

Select Both, TKIP, or AES as the encryption type.

• Both = uses TKIP and AES.

• TKIP = automatic encryption with WPA-PSK; requires

passphrase.

• AES = automatic encryption with WPA2-PSK; requires

passphrase.

Passphrase Specify the security password. For security, each typed character

is masked by a dot

(

●

Group Key

Upda



Specify how often, in seconds, the group key changes.



802.11n does not allow

WEP/WPA-PSK/WPA-PSK

TKIP security mode. The connection mode

will change from 802.11n to 802.11g.

8.2.4 W

A-PSK



Security Mode Select WPA-PSK Mixed from the drop-down list to begin the

configuration.

Encryption

Select Both, TKIP, or AES as the encryption type.

• Both = uses TKIP and AES.

• TKIP = automatic encryption with WPA-PSK; requires

passphrase.

• AES = automatic encryption with WPA2-PSK; requires

passphrase.

Passphrase Specify the security password. For security, each typed character

is masked by a dot

(

●

Group Key

Upda



Specify how often, in seconds, the group key changes.



WPA-PSK Mixed can allow multiple security modes at the same time.

802.11n does not allow

WEP/WPA-PSK/WPA-PSK

TKIP security mode. The connection mode

will change from 802.11n to 802.11g.

8.2.5



Security Mode Select WPA from the drop-down list to begin the configuration.

Encryption

Select Both, TKIP, or AES as the encryption type.

• Both = uses TKIP and AES.

• TKIP = automatic encryption with WPA-PSK.

• AES = automatic encryption with WPA2-PSK.

Radius Server Specify the IP address of the RADIUS server.

Radius Port Specify the port number that your RADIUS server uses for

authentication. Default port is 1812.

Radius Secret Specify RADIUS secret furnished by the RADIUS server.

Group Key

Upda



Specify how often, in seconds, the group key changes.



802.11n does not allow

WEP/WPA-PSK/WPA-PSK

TKIP security mode. The connection mode

will drops from 802.11n to 802.11g.

8.2.6



Security Mode Select WPA2 from the drop-down list to begin the configuration.

Encryption

Select Both, TKIP, or AES as the encryption type.

• Both = uses TKIP and AES.

• TKIP = automatic encryption with WPA-PSK.

• AES = automatic encryption with WPA2-PSK.

Radius Server Specify the IP address of the RADIUS server.

Radius Port Specify the port number that your RADIUS server uses for

authentication. Default port is 1812.

Radius Secret Specify RADIUS secret furnished by the RADIUS server.

Group Key

Upda



Specify how often, in seconds, the group key changes.



802.11n does not allow

WEP/WPA-PSK/WPA-PSK

TKIP security mode. The date rate will drop

from 802.11n to 802.11g.

8.2.7 W



Security Mode Select WPA Mixed from the drop-down list to begin the

configuration.

Encryption

Select Both, TKIP, or AES as the encryption type.

• Both = uses TKIP and AES.

• TKIP = automatic encryption with WPA-PSK.

• AES = automatic encryption with WPA2-PSK.

Radius Server Specify the IP address of the RADIUS server.

Radius Port Specify the port number that your RADIUS server uses for

authentication. Default port is 1812.

Radius Secret Specify RADIUS secret furnished by the RADIUS server.

Group Key

Upda



Specify how often, in seconds, the group key changes.



802.11n does not allow

WEP/WPA-PSK/WPA-PSK

TKIP security mode. The connection mode

will change from 802.11n to 802.11g.

8.4 Wireless Advanced



Data Rate Select a data rate from the drop-down list. The data rate affects

throughput. If you select a low data rate value, for example, the

throughput is reduced but the transmission distance increases.



RTS/CTS Threshold Specify the threshold package size for RTC/CTS. A small number

causes RTS/CTS packets to be sent more often and consumes

more bandwidth.

Distance Specify the distance between Access Points and clients. Longer

distances may drop high-speed connections.

Antenna Selection Specify the internal antenna type.

Short GI Sets the time that the receiver waits for RF reflections to settle out

before sampling data. Using a short (400ns) guard interval can

increase throughput, but can also increase error rate in some

installations due to increased sensitivity to radio-frequency

reflections. Select the option that works best for your installation.

Aggregation

Merges data packets into one packet. This option reduces the



Wireless

number of packets, but increases packet sizes.

Check this option to enable wireless traffic shaping. Traffic

shaping regulates the flow of packets leaving an interface to

deliver improved Quality of Service.

Incoming Traffic Limit Specify the wireless transmission speed used for downloading.

Outgoing Traffic Limit Specify the wireless transmission speed used for uploading.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



1. Changing Wireless Advanced Settings may adversely affect wireless performance. Please

accept all default settings, unless you are familiar with the wireless options.

2. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

8.5 Wireless M



Wireless MAC Filters are used to allow or deny network access to wireless clients according to

their MAC addresses. You can manually add a MAC address to restrict the permission to

access OM2P-LC/OM2P-HS. The default setting is Disable Wireless MAC Filters.



ACL Mode Determines whether network access is granted or denied to

clients whose MAC addresses appear in the MAC Address table

on this page. Choices are Disable, Deny MAC in the list, or

Allow MAC in the

MAC Address Filter Enter the MAC address of the device.

Add Click Add to add the MAC address to the MAC Address table.

Apply Click Apply to apply the changes.

8.6 WDS Link



Using WDS Link Settings, you can create a wireless backbone link between multiple access

points that are part of the same wireless network. This allows a wireless network to be

expanded using multiple Access Points without the need for a wired backbone to link them, as

is traditionally required.



MAC Address Enter the Access Point’s MAC address to which you want to

extend the wireless

area.

Mode Select Disable or Enable from the drop-down list.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



The Access Point to which you want to extend wireless connectivity must enter the OM2P-

LC/OM2P-HS’s

MAC address into its configuration. For more information, refer to the documentation for the

Access Point. Not all Access Point supports this feature.

Chapter 9 LAN



This chapter describes the OM2P-LC/OM2P-HS Local Area Network (LAN) settings.



9.1 IP



This section is only available for Non-Router Mode. IP settings lets you configure the OM2P-

LC/OM2P-HS LAN port IP address.



IP Network Setting Select whether the OM2P-LC/OM2P-HS IP address will use the

static IP address

specified in the IP Address field or be obtained automatically

when the OM2P-LC/OM2P-HS connects to a device that has a

DHCP server .

IP Address Enter the IP address of the OM2P-

LC/OM2P-HS. IP Suet Mask Enter the OM2P-LC/OM2P-

HS subnet mask. Default Gateway Enter the OM2P-

LC/OM2P-HS default gateway. Primary DNS Enter the

OM2P-LC/OM2P-HS primary DNS. Secondary DNS Enter

the OM2P-LC/OM2P-HS secondary DNS.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



If you change the LAN IP address, you will be directed to the new IP address after you click

9.2 Spanning Tree



Spanning Tree Status Enable or disable the OM2P-LC/OM2P-HS Spanning Tree function.

Bridge Hello Time Specify Bridge Hello Time, in seconds. This value determine how

often the OM2P-LC/OM2P-HS sends hello packets to

communicate information about the topology throughout the

entire Bridged Local Area Network

Bridge Max Age Specify Bridge Max Age, in seconds. If another bridge in the

spanning tree does not send a hello packet for a long period of

time, it is assumed to be dead.

Bridge Forward Delay Specify Bridge Forward Delay, in seconds. Forwarding delay time

is the time spent in each of the Listening and Learning states

before the Forwarding state is entered. This delay is provided so

that when a new bridge comes onto a busy network, it looks at

some traffic before participating.

Priority

Specify the Priority number. Smaller number has greater priority.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



Chapter 10 Router



This section is only available for AP Router Mode and Client Router



10.1 WAN



This chapter describes the OM2P-LC/OM2P-HS WAN settings. There are four types of WAN

connections:

- Static IP

- DHCP

- PPPoE

- PPTP

Please contact your ISP to find out which settings you should choose..



10.1.1 Static



Select Static IP for your WAN connection if your ISP provided information about which IP

address, subnet mask, default gateway, primary DNS, and secondary DNS to use.



Internet C



Select Static IP to begin configuration of the Static IP connection.

Account Name Enter the account name provided by your ISP.

Domain Name Enter the domain name provided by your ISP.

MTU Specify the Maximum Transmit Unit size. It is recommended you

accept the default setting of Auto. Otherwise, packets will be

fragmented downstream if the MTU is set too high or too low,

which impacts network performance. In extreme cases, an MTU

setting that is too low can prevent the OM2P-LC/OM2P-HS from

establishing some connections.

IP Address Enter the WAN port IP address.

Subnet Mask Enter the WAN IP subnet mask.

Gateway IP Address Enter the WAN gateway IP address.

Primary DNS Enter the primary DNS IP address.

Secondary DNS Enter the secondary DNS IP address.

Discard Ping on WAN Check to Enable to recognize pings on the OM2P-LC/OM2P-HS

WAN interface

or Disable to block pings on the OM2P-LC/OM2P-HS WAN

interface. Note:



Pinging IP addresses is a common method used by hackers to

test whether the IP address is valid. Blocking pings provides some

extra security from hackers.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



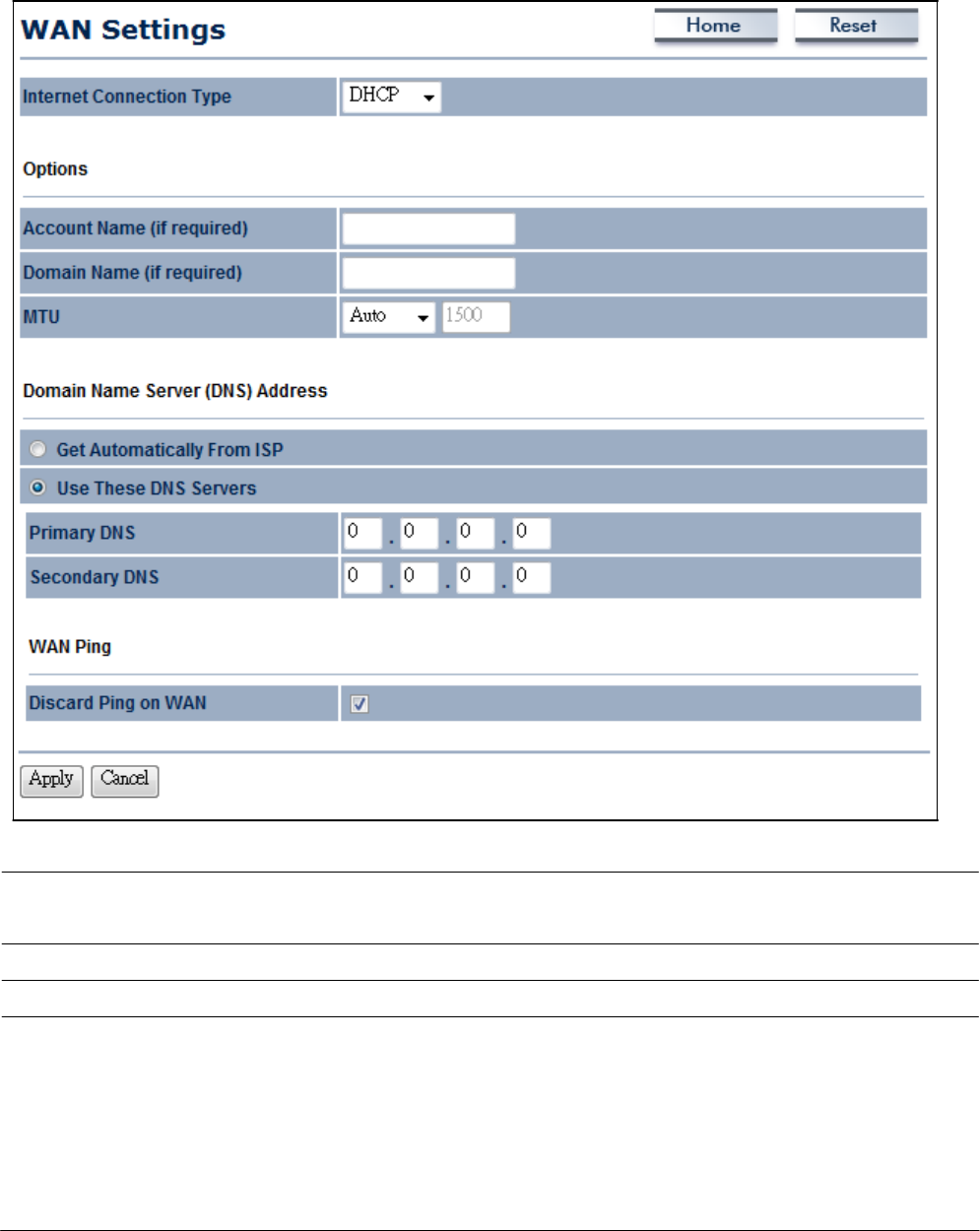

10.1.2 DHCP

(Dynamic

)



Select DHCP as your WAN connection type to obtain an IP address automatically. You will

need to enter account name as your hostname and, optionally, DNS information.



Internet C



Select DHCP to begin configuration of the DHCP connection.

Account Name Enter the account name provided by your ISP.

Domain Name Enter the domain name provided by your ISP.

MTU Specify the Maximum Transmit Unit size. It is recommended you

accept the default setting of Auto. Otherwise, packets will be

fragmented downstream if the MTU is set too high or too low,

which impacts network performance. In extreme cases, an MTU

setting that is too low can prevent the OM2P-LC/OM2P-HS from

establishing some connections.



Get

From

Click this radio button to obtain the DNS automatically from the

DHCP server.

Use These DNS Servers Click the radio button to set up the Primary DNS and Secondary

DNS servers manually.

Discard Ping on WAN Check to Enable to recognize pings on the OM2P-LC/OM2P-HS

WAN interface or Disable to block pings on the OM2P-

LC/OM2P-HS WAN interface. Note: Pinging IP addresses is a

common method used by hackers to

test whether the IP address is valid. Blocking pings provides some

extra security from hackers.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



10.1.3 PPPoE

(Point-to-Point

Protocol over

)



Select Point to Point Protocol over Ethernet (PPPoE) if

your ISP uses a PPPoE connection.

Your ISP will provide you with a username and password. This selection is typically used for

DSL services. Remove your PPPoE software from your computer, as it is not needed and will

not work with your

OM2P-LC/OM2P-HS.



Internet C



Select PPPoE to begin configuration of the PPPoE connection.

MTU Specify the Maximum Transmit Unit size. It is recommended you

accept the default setting of Auto. Otherwise, packets will be

fragmented downstream if the MTU is set too high or too low,

which impacts network performance. In extreme cases, an MTU



setting that is too low can prevent the OM2P-LC/OM2P-HS

from establishing some connections.

Password Enter the Password provided by your ISP.

Service Name Enter the Service Name provided by your ISP.

Connect on Demand Select the radio button to specify the maximum idle time.

Internet connection will disconnect when it reach the maximum

idle time, but it will automatically connect when user tries to

access the network.

Keep Alive Select whether to keep the Internet connection always on, or

enter a redial period once the internet lose connection.

Get

From

Select whether to obtain the DNS automatically from the DHCP

server.

Use These DNS Servers Click the radio button to set up the Primary DNS and Secondary

DNS servers manually.

Discard Ping on WAN Check to Enable to recognize pings on the OM2P-LC/OM2P-HS

WAN interface or Disable to block pings on the OM2P-

LC/OM2P-HS WAN interface. Note: Pinging IP addresses is a

common method used by hackers to

test whether the IP address is valid. Blocking pings provides some

extra security from hackers.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



10.1.4

PPTP

(

Point-to

int Tunneling

叫“。"



Select

PPTP

as your

WAN

connection type

your ISP uses a Point-to-Point-Tunneling

Protocol

(PPTP)

connection

You

will need to provide the IP add

，

subnet mask

，defau

ateway

(optional

，

)

(optional

，

)

server

p，

sername

，

and

password

provi

ed by you

ISP.



WAN

Settings

Home

Resel



DNS

|團

』團』團』



ngonWAN



Apply

巴



Internet Connection

Type



Select PPTP to begin configuration

ofthe

PPTP

connection.



MTU Specify the Maximum Transmit Unit size. It is recommended you

accept the default setting of Auto. Otherwise, packets will be

fragmented downstream if the MTU is set too high or too low,

which impacts network performance. In extreme cases, an MTU

setting that is too low can prevent the OM2P-LC/OM2P-HS from

establishing some connections.

IP Address Enter the WAN port IP address.

Subnet Mask Enter the WAN IP subnet mask.

Gateway

IP Address Enter the WAN gateway IP address.

PPTP Server Enter the IP address of the PPTP server.

Username Enter the username provided by your ISP.

Password Enter the password provided by your ISP.

Connect on Demand If you want the OM2P-LC/OM2P-HS to end the Internet

connection after it has been inactive for a period of time, select

this option and enter the number of minutes you want that period

of inactivity to last.

Keep Alive If you want the OM2P-LC/OM2P-HS to periodically check your

Internet connection, select this option. Then specify how often

you want the OM2P-LC/OM2P-HS to check the Internet

connection. If the connection is

down, the OM2P-LC/OM2P-HS automatically re-establishes your

connection

Get

From

Obtains the DNS automatically from DHCP server.

Use These DNS Servers Click the radio button to set up the Primary DNS and Secondary

DNS servers manually.

Discard Ping on WAN Check to Enable to recognize pings on the OM2P-LC/OM2P-HS

WAN interface or Disable to block pings on the OM2P-

LC/OM2P-HS WAN interface. Note: Pinging IP addresses is a

common method used by hackers to

test whether the IP address is valid. Blocking pings provides some

extra security from hackers.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

10.2 LAN Settings (

outer

)



IP Address Enter the LAN port IP address.

IP Subnet Mask Enter the LAN IP subnet mask.

WINS Server IP Enter the WINS Server IP.

Use Router As



Check this option to enable the OM2P-LC/OM2P-HS internal

DHCP server.

Starting IP Address Specify the starting IP address range for the pool of allocated for

private IP addresses. The starting IP address must be on the same

subnet as the ending IP address; that is the first three octets

specified here must be the same as the first three octets in

ess

Ending IP Address Specify the ending IP address range for the pool of allocated for

private IP addresses. The ending IP address must be on the same

subnet as the starting IP address; that is the first three octets

specified here must be the same as the first three octets in

ess

WINS Server IP Enter the IP address of the WINS s

erver.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

10.3 VPN Pass



VPN Passthrough allows a secure virtual private network (VPN) connection between two

computers. Enabling the options on this page opens a VPN port and enables connections to

pass through the OM2P-LC/OM2P-HS without interruption.



PPTP Pass Through Check this option to enable PPTP pass-through mode.

L2TP Pass Through Check this option to enable L2TP pass-through mode.

Pass Through Check this option to enable IPSec pass-through

mode.

cce

/ Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

10.4 Port



Port forwarding can be used to open a port or range of ports to a device on your network

Using port forwarding, you can set up public services on your network. When users from the

Internet make certain requests on your network, the OM2P-LC/OM2P-HS can forward those

requests to computers equipped to handle the requests. If, for example, you set the port

number 80 (HTTP) to be forwarded to IP address 192.168.1.2, all HTTP requests from outside

users are forwarded to 192.168.1.2.



Add Entry Click Add Entry to add port forwarding rules.

Accept Click Accept to confirm the changes.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).



Service Name Enter a name for the port forwarding rule.

Protocol Select a protocol for the application: Choices are Both, TCP, and

Starting Port Enter a starting port number.

Ending Port Enter an ending port number. All ports numbers between the

starting and ending ports will forward users to the IP address

specified in the IP Address field.

IP Address Enter the IP address of the server computer on the LAN network

where users will be redirected.

Save / Cancel Click Save to apply the changes or Cancel to return previous

settings.

10.5



If you have a computer that cannot run Internet applications properly from behind the OM2P-

LC/OM2P-HS,

you can allow the computer to have unrestricted Internet access. Enter the IP address of that

computer as a Demilitarized Zone (DMZ) host with unrestricted Internet access. Adding

a c

ent

to the DMZ may expose that computer to a variety of security risks, so use this option as a last

resort.



DMZ Hosting Enables or disables the OM2P-LC/OM2P-HS DMZ function.

DMZ Address Enter an IP address of the computer that will have unlimited

Internet access.

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

Chapter 11

Management S



The

Management

section lets you configure administration, management VLAN, SNMP

settings, backup/restore settings, firmware upgrade, time settings, and log settings. This

chapter describes these settings.



11.1



Click the

Administration

link under the

Management

menu to change the user name and

password used to log on to the OM2P-LC/OM2P-HS Web Configurator . The default user

name is

and

the default password is admin. Changing these settings protects the

OM2P-LC/OM2P-HS configuration settings from being accessed by unauthorized users.



Name Enter a new username for logging in to the Web Configurator.

Password Enter a new password for logging in to the Web Configurator

Confirm Password Re-enter the new password for confirmation.

Remote

Management

Enable or disable remote management.

Remote Upgrade Specify whether the OM2P-LC/OM2P-HS firmware can be upgraded

remotely.

Remote

If remote management is enabled, enter the port number to be

used for remote management. For example: If you specify the

port number 8080, enter

http://<IP address>:8080

to access



the OM2P-LC/OM2P-HS Web Configurator.

Save/Apply

/ Cancel Click

Save/Apply

to apply the changes or Cancel to return

previous settings.



Clicking

Save/Apply

changes the settings immediately. You cannot undo the action.

11.2

Management



Click the

Management

VLAN link under the

Management

menu to assign a VLAN tag to the

packets. A VLAN is a group of computers on a network whose software has been configured

so that they behave as if they were on a separate Local Area Network (LAN). Computers on

VLAN do not have to be physically located next to one another on the LAN



Management

VLAN ID If your network includes VLANs and if tagged packets need to

pass through the Access Point, enter the VLAN ID. Otherwise,

click No VLAN tag .

Accept / Cancel Click Accept to confirm the changes or Cancel to cancel and

return previous settings.



1. If you reconfigure the Management VLAN ID, you may lose your connection to the OM2P-

LC/OM2P-HS.

Verify that the DHCP server supports the reconfigured VLAN ID and then reconnect to the

OM2P-LC/OM2P-HS using the new IP address.

2. Clicking Accept does not apply the changes. To apply them, use Status > Save/Load (see

section 4.1).

11.3 SNMP



Click the SNMP Settings link under the

Management

menu to monitor network-attached

devices using the Simple Network Management Protocol (SNMP). SNMP allows messages

(called “protocol data unit’s) to be sent to various parts of a network. Upon receiving these

messages, SNMP-compatible devices (called agents) return data stored in their Management

Information Bases.



SNMP

Enable/Disable

Enable or disable the OM2P-LC/OM2P-HS SNMP function.

Contact Enter the contact details of the device.

Location Enter the location of the device.

Community

Name Enter the password for accessing the SNMP community for

read-only access.

Community

Name Enter the password for accessing the SNMP community for read

and write

acce

Trap

Destination

ess

Trap

Community

Enter the IP address where SNMP traps are to be sent.



Enter the password of the SNMP trap community.

Save/Apply

/ Cancel Click

Save/Apply

to apply the changes or Cancel to return

previous settings.



Clicking

Save/Apply

change the setting immediately. You cannot undo the action.

11.4

Backup

Restore



Click the

Backup/Restore

Setting link under the

Management

menu to save the OM2P-

LC/OM2P-HS’s

current settings in a file on your local disk or load settings onto the device from a local disk.

This feature is particularly convenient administrators who have several OM2P-LC/OM2P-HS

devices that need to be configured with the same settings.



This page also lets you return the OM2P-LC/OM2P-HS to its factory default settings. If you

perform this procedure, any changes made to the OM2P-LC/OM2P-HS default settings

will be lost.



Save A Copy

Current

Restore Saved

from a

Revert to

Default

Click Backup to save the current configured settings.



To restore settings that have been previously backed up, click

Browse, select the file, and click

Click this button to restore the OM2P-LC/OM2P-HS to its

factory default settings.

11.5

Firmware

Upg



Click the

Firmware

Upgrade link under the

Management

menu to upgrade the firmware of

the device. To perform this procedure, downloaded the appropriate firmware from your

vendor.



Thefirmwareupgradeprocedurecantakefewminutes.DonotpowerofftheOM2P‐LC/OM2P‐

HSduringthefirmwareupgrade,asitcancausethedevicetocrashorbecomeunusable.The

OM2P‐LC/OM2P‐HSrestartsautomaticallyaftertheupgradecompletes.

11.6 Time



Click the Time Settings link under the

Management

menu to configure the OM2P-

LC/OM2P-HS system

time. You can enter the time manually or, to ensure accuracy, synchronize the OM2P-

LC/OM2P-HS with

Network Time Protocol (NTP) server.



Manually Set Date

Automatically

Date and



Manually specify the date and time.



Select a time zone from the drop-down list and check whether

you want to enter the IP address of an NTP server or use the

default NTP server.

Save/Apply

/ Cancel Click

Save/Apply

to apply the changes or Cancel to return

previous settings.



Clicking

Save/Apply

changes the setting immediately. You cannot undo the action.

11.7



Click the Log link under the

Management

menu to display a list of events that are triggered

on the OM2P-LC/OM2P-HS Ethernet and wireless interfaces. You can consult this log if an

unknown error occurs on the system or when a report needs to be sent to the technical

support department for debugging purposes.



Syslog Enable or disable the OM2Psyslog function.

Log Server IP Address Enter the IP address of the log server.

Local Log Enable or disable the local log service.

Save/Apply

/ Cancel Click

Save/Apply

to apply the changes or Cancel to return

previous settings.



Clicking

Save/Apply

changes the settings immediately. You cannot undo the action.

11.8



Click the Diagnostics link under the

Management

menu to ascertain connection quality and

trace the routing table to the target.



Target IP Enter the IP address you would like to search.

Ping Packet Size Enter the packet size of each ping.

Number of Pings Enter the number of times you want to ping.

Start Ping Click Start Ping to begin pinging.

Traceroute

Target Enter an IP address or domain name you want to trace.

Start

Traceroute

Click Start

Traceroute

to begin the trace route operation.

Chapter 12 Network

Con

iguration



This chapter provides step-by-step descriptions for using the OM2P-LC/OM2P-HS’s operating

modes. The

Access Point Mode’s default configuration allows the OM2P-LC/OM2P-HS to act as a central

unit of a WLAN or as a root device of a wired environment. Repeater mode and Mesh network

mode are reserved for future configuration.



12.1 Access



Access

Step1 Log in to the Web Configurator with your browser by entering

the default IP address 192.168.1.1



Step2 Use site survey to scan channels available in nearby areas.

Step3 Select channel with less interferences.

Specify the SSID for your broadcast SSID and you can also

Step4 

configure multiple SSID at the same time.

Step5 Verify the VLAN identifier to separate services among clients

Step6 Set the authentication settings.

Step7 Click Apply to save all changes.

For more advanced settings, refer to the previous chapters.



Wireless

Step1 Select the wireless mode with which you want to associate.

Use site survey to scan nearby Access Point and either select the

Step2 Access Point to which you want to connect, or enter the SSID

manually.

Step3 Configure the VLAN ID in your wireless device if available.

Step4 Select the appropriate authentication type and password.



Access Point Mode does not provide DHCP server, so the Wireless Client IP address



must be configured manually using the same Local Area Network subnet.



12.2 Client Bridge



Client Bridge Mode functions like a wireless dongle. It must connect to an Access Point/AP

Router to join the network.



Refer to Chapter 13 to check the Access Point’s configuration.



Client

Step1 Log in to the Web Configurator with the default IP address

192.168.1.1



Step2 For Operation Mode, select Client Bridge from

Properties.

Use site survey to scan Access Points that are available in nearby

Step3 

areas.

Step4 Select the Access Point with which you want to associate.

Set up the authentication settings that match the Access Point’s

Step5 

settings.

Step6 Click Apply to save all changes.



The Client Bridge IP settings must match the Access Point’s subnet.

12.3 WDS Bridge



Use this feature to link multiple Access Points in a network. All clients associated with any

Access Points can communicate with each other in an ad-hoc manner.



WDS

Step1 Log in to the Web Configurator with the default IP address

192.168.1.1



Step2 For Operation Mode, select WDS Bridge from

Properties.

Step3 Select the channel you want to use.

Step4 Set up the authentication settings

Step5 Set up WDS Link Settings.

Step6 Specify the MAC address of the Access Point with which you want

to connect.

Step7 Click Apply to save all changes.



Each WDS bridge device must use the same Subnet, Wireless Mode,

ess



Channel, and Security

12.4 Client



In Client Router Mode, the OM2P-LC/OM2P-HS’s internal DHCP server allows LANs to

automatically

generate an IP address to share the same Internet. Connect an Access Point/WISP wirelessly

and connect to LANs using a wired connection.



Refer to Chapter 13 to check the Access Point’s configuration.

Client

Step1 Log in to the Web Configurator with the default IP address

192.168.1.1



Step2 For Operation Mode, select Client Router from

Properties.

Step3 Change your Local Area Network setting to Obtain an

Address

Use site survey to scan Access Points that are available in nearby

Step4 

areas.

Step5 Select the Access Point with you want to associate.

Set up authentication settings that match the Access Point’s

Step6 

settings.

Step7 Set your WAN connection type using the WAN settings provided

by your ISP.

Step8 Click Apply to save all changes.



Client Router’s IP setting must match to the Access Point’s subnet.



Chapter 13

Building

a Wireless



With its ability to operate in various operating modes, your OM2P-LC/OM2P-HS is the ideal

device around which you can build your WLAN. This appendix describes how to build a

WLAN around your OM2P-LC/OM2P-HS using he device’s operating modes.

13.1 Access Point



In Access Point Mode, OM2P-LC/OM2P-HS behaves likes a central connection for stations or

clients that

support IEEE 802.11b/g/n networks. Stations and client must be configured to use the same

SSID and security password to associate with the OM2P-LC/OM2P-HS. The OM2P-LC/OM2P-

HS supports four SSIDs at the same time for secure guest access.



13.2 Access Point Mode with WDS



The OM2P-LC/OM2P-HS Access Point Mode also supports WDS functionality. This operating

mode allows wireless connections to the OM2P-LC/OM2P-HS using WDS technology. In this

mode, configure the MAC addresses in both Access Points to enlarge the wireless area by

enabling WDS Link settings. WDS supports eight AP MAC addresses.



Not every Access Point device supports WDS in Access Point Mode. As a result, to use WDS,

we recommend you use the OM2P-LC/OM2P-HS.

13.3 Client Bridge



In Client Bridge Mode, the OM2P-LC/OM2P-HS behaves like a wireless client that connects to

an Access

Point wirelessly and allows users to surf the Internet whenever they want. In this mode, use

the OM2P-LC/OM2P-HS Site Survey to scan for Access Points within range. Then configure

the OM2P-LC/OM2P-HS SSID and security password accordingly to associate with the Access

Point. In this configuration, the station has a wired Ethernet connection to the OM2P-

LC/OM2P-HS LAN port.



13.4 WDS Bridge



In WDS Bridge Mode, the OM2P-LC/OM2P-HS can wirelessly connect different LANs by

configuring

the MAC

address and security settings of each OM2P-LC/OM2P-HS device. Use

this mode when two wired LANs located a small distance apart want to communicate with

each other. The best solution is to use the OM2P-LC/OM2P-HS to wirelessly connect two wired

LANs, as shown in the following figure. WDS Bridge Mode can establish 16 WDS links, creating

a star-like network.



WDS Bridge Mode is unlike Access Point. Access Points linked by WDS are using the same

frequency channel, more Access Points connected together may lower throughput. Please be

aware to avoid loop in your wireless connection, otherwise enable Spanning Tree Function.

13.5 Client

outer



In Client Router Mode, the OM2P-LC/OM2P-HS’s internal DHCP server allows a number of

LANs to

automatically generate IP addresses to share the same Internet. In this mode, connect an

AP/WISP wirelessly and connect to LANs via a wired connection.



13.6 RADIUS



Remote Authentication Dial In User Service (RADIUS) authentication is available when

configuring the OM2P-LC/OM2P-HS wireless advanced settings (see Chapter 8). Use this

feature if you

have a

RADIUS server. WPA(TKIP), WPA2(AES), and WPA2 Mixed encryption types

are also supported.



The following figure shows an example of a RADIUS configuration, where two OM2P-

LC/OM2P-HS devices installed at different locations communicate with each other wirelessly.

In this configuration, one OM2P-LC/OM2P-HS is configured for Access Point Mode and

connected to a RADIUS server via

tch,

while the other OM2P-LC/OM2P-HS is configured

for Client Bridge Mode. The RADIUS server uses an authentication scheme such as PAP or

CHAP to verify a user's identification, along with, optionally, other information related to the

request, such as the user's network address or phone number, account status and specific

network service access privileges. The RADIUS server then returns one of three responses to

the OM2P-LC/OM2P-HS : Access Reject (user is denied access to all requested network

resources), Access Challenge (requests additional information from the user such as a

secondary password), PIN, token or card), or Access Accept (user is granted access).



AppendixA–

Tro

g



Thisappendixprovidesproblem‐solvinginformationyoumayfindusefulincaseyouneed

o

troubleshootyourOM2P‐LC/OM2P‐HS.Italsoincludesinformationaboutcontacting

technical

upp



A.1Problem

g



HowdoIresettheOM2P‐LC/OM2P‐HS?TherearetwowaystoresettheOM2P‐

LC/OM2P‐HS,ahardwaremethodanda

softwaremethod.Bothmethodsreturnthe

OM2P‐LC/OM2P‐HStoitsfactorydefault

configuration.

Tousethehardwaremethod,openthecover

onthebottompaneloftheOM2P‐LC/OM2P‐

HSandfindtheResetbutton(seesection2.1).

Usingaflatobjectsuchasapencil,pressthe

Resetbuttonforapproximately10secondsand

thenstoppressing.

Tousethesoftwaremethod,clickRestore



WhydoInotseetrafficpassafterIconnectthe

OM2P‐LC/OM2P‐HStoaPoEswitch?

TheOM2P‐LC/OM2P‐HSusesaproprietaryPoE

injectorandwillnotworkwithstandard

802.3af‐compliant

WhatisthedefaultIPaddressoftheOM2P‐ThedefaultIPaddressis192.168.1.1

IpluggedthePoEtothesecondEthernetport

onthebackofOM2P‐LC/OM2P‐HSbutthe

unitisnoton,howcome?

YouneedtoplugtheEthernetcableconnectto

PoEinjectortothemainLANport.The

secondaryEthernetportisjustanadditional

LANportforregularEthernetconnectionsuch

asIPcamera

WhenIinstallthePoEconnectiontotheOM2P‐

LC/OM2P‐HS,whatkindofPoEshouldIuse?

TheOM2P‐LC/OM2P‐HSusesaproprietaryPoE

injectorandwillnotworkwithstandard

802.3af‐compliant

Iwanttousehighergainantennasonthe

OM2P‐LC/OM2P‐HS,butIdon’tknowwhat

Usetheantennaappropriateforthefrequency.

(2.4GHz)

Iwanttobuyahigh‐gainantennaforthe

OM2P‐LC/OM2P‐HS,butIdon’tknowwhat

typeofantennaandRFconnectortobuy.

UseanantennawithaSMAconnectorto

connecttotheOM2P‐LC/OM2P‐HS.



A.2ContactingTechnical

uppor



If you encounter issues that cannot be resolved using this manual, please contact your vendor where you

purchase the device. If you cannot contact your vendor, you may also contact EnGenius Customer Service

department in the region where you purchased the device.

Before you contact your local EnGenius office, please prepare the following information:



Product model name and serial number



The place where you purchased the product



Warranty information



The date when you received the product



A brief description about the issue and the attempts you tried to resolve it



To contact EnGenius Customer Service office in the United States, please use either of the following methods:



Email: Support@EnGeniustech.com



Telephone: 1-888-735-7888



AppendixC–G

oss



Access



A base station in a WLAN that act as a central transmitter and receiver of WLAN radio signals.

AdHoc



A short-term WLAN framework created between two or more WLAN adapters, without going

through an Access Point. An ad hoc network lets computers send data directly to and from one

another. For an ad hoc network to work, each computer on the network needs a WLAN card

installed configured for Ad Hoc mode.

nna



A device that sends and receives radio-frequency (RF) signals. Often camouflaged on existing

buildings, trees, water towers or other tall structures, the size and shape of antennas are generally

determined by the frequency of the signal they manage.



A process that verifies the identity of a wireless device or end-user. A common form of

authentication is to verify identities by checking a user name and password to allow network

access.



Ahigh‐speedlineorseriesofconnectionsthatformamajorpathwaywithinanetwork.

Band



Thepartofthefrequencyspectrumrequiredtotransmitdesiredinformation.Eachradiochannel

hasacenterfrequencyandadditionalfrequenciesaboveandbelowthiscarrierfrequencythat

carrythetransmittedinformation.Therangeoffrequenciesfromthelowesttothehighestu

di



calledthebandwidth.



A wireless device that connects multiple networks that are physically separate or use different

media, but which use similar standards.

Bridge



AnAccessPointyinbridgemodecanoperateasaWLANbridgethatconnectstwowirednetwork

segments.Thepeerdevicealsomustbeinbridgemode.Thiswirelessbridgeconnectionis

equivalenttoaWirelessDistributionSystem(WDS).



ChallengeHandshakeAuthenticationProtocol.Analternativeprotocolthatusesa

challenge/responsetechniqueinsteadofsendingpasswordsoverthewire.

lli



Interference resulting from two network devices sending data at the same time. The network



detects the collision of the two transmitted packets and discards both of them.



The region within which a paging receiver can reliably receive the transmission of paging signals.

Coverage



The geographical area that can be served by a mobile communications network or system.

Coverage



An area within the radio coverage footprint of a wireless system where the RF signal level is

below the design threshold. Physical obstructions such as buildings, foliage, hills, tunnels, and

indoor parking garages are usually the cause of coverage holes.

CyclicRedundancyCheck

(

)



Acommontechniquefordetectingdatatransmissionerrors.

DynamicHostConfigurationProtocol

(



A protocol that assigns temporary IP addresses automatically to client stations logging onto an IP

network, so the IP addresses do not have to be assigned manually. The OM2P-LC/OM2P-HS

contains an internal DHCP server that automatically allocates IP address using a user-defined

range of IP addresses. Dead



An area within the coverage area of a WLAN where there is no coverage or transmission falling

off. Electronic interference or physical barriers such as hills, tunnels, and indoor parking garages

are usually the cause of dead spots. See also coverage area.

802.11

A category of WLAN standards defined by the Institute of Electrical and Electronics Engineers

(IEEE).

802.11a

An IEEE standard for WLANs that operate at 5 GHz, with data rates up to 54 Mbps.

802.11b

An IEEE standard for WLANs that operate at 2.4 GHz, with data rates up to 11 Mbps.

802.11g

AnIEEEstandardforWLANsthatoperatesat2.4GHz,withdatarateof300Mbps.Thenew

standardalsoraisestheencryptionbartoWPA2.The40HToptioncanbeaddedtoincreasethe

datarate.



Translates data into a secret code to achieve data security. To read an encrypted file, you must

have a secret key or password for decryption. Unencrypted data is referred to as plain text;

encrypted data is referred to as cipher text

ESS



TheuniqueidentifierforanESS.AllAccessPointsandtheirassociatedwirelessstationsinthe

samegroupmusthavethesameESSID.



Geographicalareaswhereanentityislicensedtobroadcastitssignal.



Acomputersystemorotherdevicethatactsasatranslatorbetweentwosystemsthatuse



differentcommunicationprotocols,dataformattingstructures,languages,and/orarchitecture.



HT mode



Inthe802.11nsystem,twonewformats,calledHighThroughput(HT),aredefinedforthe

PhysicalLayer,MixedMode,andGreenField.Ifasystemruns40HT,twoadjacent20MHz

channelsareused.Thelarger40MHzbandwidthcanprovidebettertransmitqualityandspeed.



Likepasswords,keysopen(decrypt)andclose(encrypt)messages.Whilemanyencryption

algorithmsarecommonlyknownandpublic,thekeymustbekeptsecret.

Local‐AreaNetwork

(

)



Asmalldatanetworkcoveringalimitedarea,suchasabuildingorgroupofbuildings.MostLANs

connectworkstationsorpersonalcomputers.LANsletmanyuserssharedevicessuchasprinters

aswellasdata.LANsalsofacilitatecommunicationthroughe‐mailorchatsessions.

MediaAccessControl(MAC)

ress



Addressassociatedwitheveryhardwaredeviceonthenetwork.Every802.11wirelessdevicehas

itsownspecificMACaddress.Thisuniqueidentifierishard‐codedintothedeviceandcanbe

usedtoprovidesecurityforWLANs.WhenanetworkusesaMACtable,onlythe802.11radios

thathavetheirMACaddressesaddedtothatnetwork'sMACtablecanaccessthenetwork.

NetworkAddressTranslation

(

)



AnInternetstandardthatletsaLANuseonesetofIPaddressesforinternaltrafficandasecond

setofaddressesforexternaltraffic.

NetworkTimeProtocol

(



Aprotocolthatletsdevicessynchronizetheirtimewithatimeserver.NTPusesTCPorUDPport

123bydefault.



AtextstringthatautomaticallygeneratesWEPkeysonwirelessclientadapters.

PowerOverEthernet

)



APoEprovidespowertoPoE‐enableddevicesusingan8‐pinCAT5Ethernetcable,eliminatingthe

needforapowersource.



SynchronizestransmissionsinaWLAN.ThepreambletypedefinesthelengthoftheCyclic

RedundancyCheckblockforcommunicationbetweenadeviceandroamingwirelessstations.

ProtectedExtensibleAuthenticationProtocol



AuthenticationprotocolofIEEE802.1xusedtosendauthenticationdataandpasswordsover

802.11WLANs.

QualityofService

(



Anetwork’sabilitytodeliverdatawithminimumdelay.QoSalsoreferstothenetworking

methodsusedtoprovidebandwidthforreal‐timemultimediaapplications.

RemoteAuthenticationDial‐InUserService

(



Networkingprotocolthatprovidescentralizedauthentication,authorization,andaccounting



managementforcomputerstoconnectanduseanetworkservice.Becauseofitsbroadsupport

andubiquitousnature,theRADIUSprotocolisoftenusedbyISPsandenterprisestomanage

accesstotheInternetorinternalnetworks,WLANs,andintegratede‐mailservices.

ServiceSetIdentifier

(SS



NameofaWLAN.AllwirelessdevicesonaWLANmustusethesameSSIDtocommunicatewith

eachother.

SimpleNetworkManagementProtocol

MP)



AnInternet‐standardprotocolformanagingdevicesonIPnetworks.

g

Passivelywatchinganetworkfordata,suchaspasswords,thatcanbeusedtobenefitahacker.

TemporalKeyIntegrityProtocol

(



Anencryptionprotocolthatuses128‐bitkeys.Keysaredynamicallygeneratedanddistributedby

theauthenticationserver.TKIPregularlychangesandrotatesencryptionkeys,withanencryption

keyneverbeingusedtwice.

TransmissionControlProtocol/InternetProtocol

(



Aprotocolthatallowscommunicationsoverandbetweennetworks.TCP/IPisthebasisfor

Internetcommunications.

WeightedFairQueuing

(

)



WFQservicesqueuesarebasedonpriorityandqueueweight.Queueswithlargerweightsget

moreservicethanqueueswithsmallerweights.Thishighlyefficientqueuingmechanismdivides

availablebandwidthacrossdifferenttrafficqueues.

WiredEquivalentPrivacy

(



SecurityprotocolthatprovidesaWLANwithalevelofsecurityandprivacycomparabletothatof

awiredLAN.WEPencryptsdatasentbetweenwiredandWLANstokeeptransmissionsprivate.

WirelessLocal‐AreaNetwork

(

)



WLANsuseRFtechnologytosendandreceivedatawirelesslyinacertainarea.Thisletsusersina

smallzonesenddataandshareresourcessuchasprinterswithoutusingcablestophysically

connecteachcomputer.

Wi‐FiProtectedAccess(WPA

)



AsubsetoftheIEEE802.11istandard.WPAappliesIEEE802.1xandExtensibleAuthentication

Protocol(EAP)toauthenticatewirelessclientsusinganexternalRADIUSdatabase.WPAuses

TemporalKeyIntegrityProtocol(TKIP),MessageIntegrityCheck(MIC),andIEEE802.1xtoencrypt

data.SeealsoWPA‐PSK(WPA‐Pre‐SharedKey).

Wi‐FiMultiMedia

(

MM)



PartoftheIEEE802.11eQoSenhancementtotheWi‐Fistandardthatensuresqualityofservice

formultimediaapplicationsinWLANs.

WirelessClient

Supp



Softwarethatrunsonanoperatingsystem,instructingthewirelessclienthowtouseWPA.

WPA‐Pre‐SharedKey

(

‐

)



WPA‐PSKrequiresasingle(identical)passwordenteredintoeachAccessPoint,wirelessgateway,

andwirelessclient.AclientisgrantedaccesstoaWLANifthepasswordsmatch.



Awirelesssecuritystandardthatdefinesstrongerencryption,authentication,andkey

managementthanWPA.Itincludestwodataencryptionalgorithms,TemporalKeyIntegrity

Protocol(TKIP)andAdvancedEncryptionStandard(AES),intheCountermodewithCipherblock

chainingMessageauthenticationCodeProtocol(CCMP).

WirelessDistributionSystem

(

DS)



AtechnologythatletsAccessPointscommunicatewithoneanothertoextendtherangeofa

WLAN.



AppendixD–FCCInterference

eme



FederalCommunicationCommissionInterference

eme



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotection

againstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcan

radiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,

maycauseharmfulinterferencetoradiocommunications.However,thereisnoguaranteethat

interferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmful

interferencetoradioortelevisionreception,whichcanbedeterminedbyturningtheequipment

offandon,theuserisencouragedtotrytocorrecttheinterferencebyoneofthefollowing

measures:



‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthat

towhichthereceiverisconnected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.



FCCCaution:Anychangesormodificationsnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser'sauthoritytooperatethisequipment.



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwo

conditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustaccept

anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.



IMPORTANT



FCCRadiationExposure

eme



ThisequipmentcomplieswithFCCradiationexposurelimitssetforthforanuncontrolled

environment.Thisequipmentshouldbeinstalledandoperatedwithminimumdistance20cm

betweentheradiator&yourbody.



Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyotherantennaor

transmitter.



Datto OM2PLC Wireless 802.11b/g/n Mesh Router User Manual OM2P UM for FCC apply

Open Mesh, Inc. Wireless 802.11b/g/n Mesh Router OM2P UM for FCC apply

User Manual

Navigation menu

Namespaces

Views

Navigation
