David Clark DCHBTXX Aviation Headset 2.4 GHz Bluetooth Interface User Manual

David Clark Company Inc. Aviation Headset 2.4 GHz Bluetooth Interface

User Manual

Industrial-CLASS BT HEADSETSUser Manual230-31600 Aurora User Manual 5-8.indd 1 5/11/15 8:00 PM
Congratulations on your purchase of the Aurora BT headset. As with all of our products, Aurora Class headsets are backed by extraordinary customer service and support.David Clark Company assumes full responsibility for the quality and performance of our products. We are committed to a policy of service whereby we will respond in a prompt and positive manner to any question or issue regarding one of our products.David Clark Company products have set the standards of performance and excellence for customers throughout the world. Your new Aurora Class BT headset continues this legacy. We have earned a reputation for excellence; we intend to keep it by continuing to deserve your confidence. Robert A. Vincent, PresidentThank you for purchasing the Aurora BT headsetTHANK YOU... 2 WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM 3Industrial-CLASS BT HEADSETSCAUTIONS & WARNINGS READ AND SAVE THESE INSTRUCTIONS. Follow the instructions in this manual. These instructions must be followed to avoid damage to this product and associated equipment. Product operation and reliability depends on proper usage.DO NOT USE OR INSTALL ANY DAVID CLARK COMPANY PRODUCT THAT APPEARS DAMAGED. Upon unpacking your David Clark product, inspect the contents for shipping damage. If damage is apparent, immediately file a claim with the carrier and notify your David Clark product supplier.ELECTRICAL HAZARD. All repairs should be performed by a representative or authorized agent of David Clark Company. Electrical power must be discon-nected when making any internal adjustments or repairs. LI-POLYMER. This product is used with Li-Polymer batteries. Do not incinerate, disassemble, short circuit, or expose battery to high temperatures. Battery must be disposed of properly in accordance with local regulations.IMPORTANT: First UseThe DC Bluetooth Headset must be enabled by a slide switch inside the non-mic side ear dome prior to first use (see Figure 1 opposite). You must remove the filter to see the slide switch. The slide switch will need to be in the UP position. This will be the only time it is necessary to operate this switch.Figure 1 - Move Slide Switch to UP position230-31600 Aurora User Manual 5-8.indd 2-3 5/11/15 8:00 PM
HEADSET FEATURES 4 WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM 5B L U E T O O T H ® TECHNOLOGY What is Bluetooth® Wireless Technology?*Bluetooth is a wireless communication system standard that allows connectivity and collaboration between disparate products and industries. It allows the headset to work with mobile phones, leak detector equipment and a wide variety of other Bluetooth compatible devices. How does Bluetooth technology differ from other radio technologies? Mobile phones, FM radio and television all use radio waves to send information wirelessly. And while Bluetooth technology also uses radio waves, it transmits them over a shorter distance. Bluetooth technology sends information within your Personal Area Network or “PAN” (aka your own personal space) at distances up to 100 meters (328 feet) depending upon device implementation. Bluetooth technology operates in the unlicensed industrial, scientific and medical (ISM) band at 2.4 to 2.485 GHz, using a spread spectrum, frequency hopping, full-duplex signal at a nominal rate of 1600 hops/sec.Is Bluetooth technology hardware or software? It’s a combination of both. Bluetooth includes a small computer chip containing the Bluetooth radio. But it also needs software to connect, via Bluetooth wireless technology, to other products. This is accomplished through adaptive frequency hopping (AFH) capability. AFH was designed to reduce interference between wireless technologies sharing the 2.4 GHz spectrum. AFH works within the spectrum to take advantage of the available frequency. This is done by the technology detecting other devices in the spectrum and avoiding the frequencies they are using. This adaptive hopping among 79 frequencies at 1 MHz intervals gives a high degree of interference immunity and also allows for more efficient transmission within the spectrum. For users of Bluetooth technology this hopping provides greater performance even when other technologies are being used along with Bluetooth technology. *The above excerpts are taken from Bluetooth.com. Please visit Bluetooth.com if you’d like to learn more about Bluetooth. Soft foam head pad with 4-chamber design provides greater comfort and is weather resistantFully adjustable, locknut stirrup assemblyBlack, non-reflective hardwareControl switch located conveniently on ear domeFlex/wire boom for ‘one touch’ microphone placementElectret, noise-cancelling microphone for clear voice transmissionComfort-Gel ear seals with undercut design leave more room for the ear and provide snug, comfortable fit230-31600 Aurora User Manual 5-8.indd 4-5 5/11/15 8:00 PM

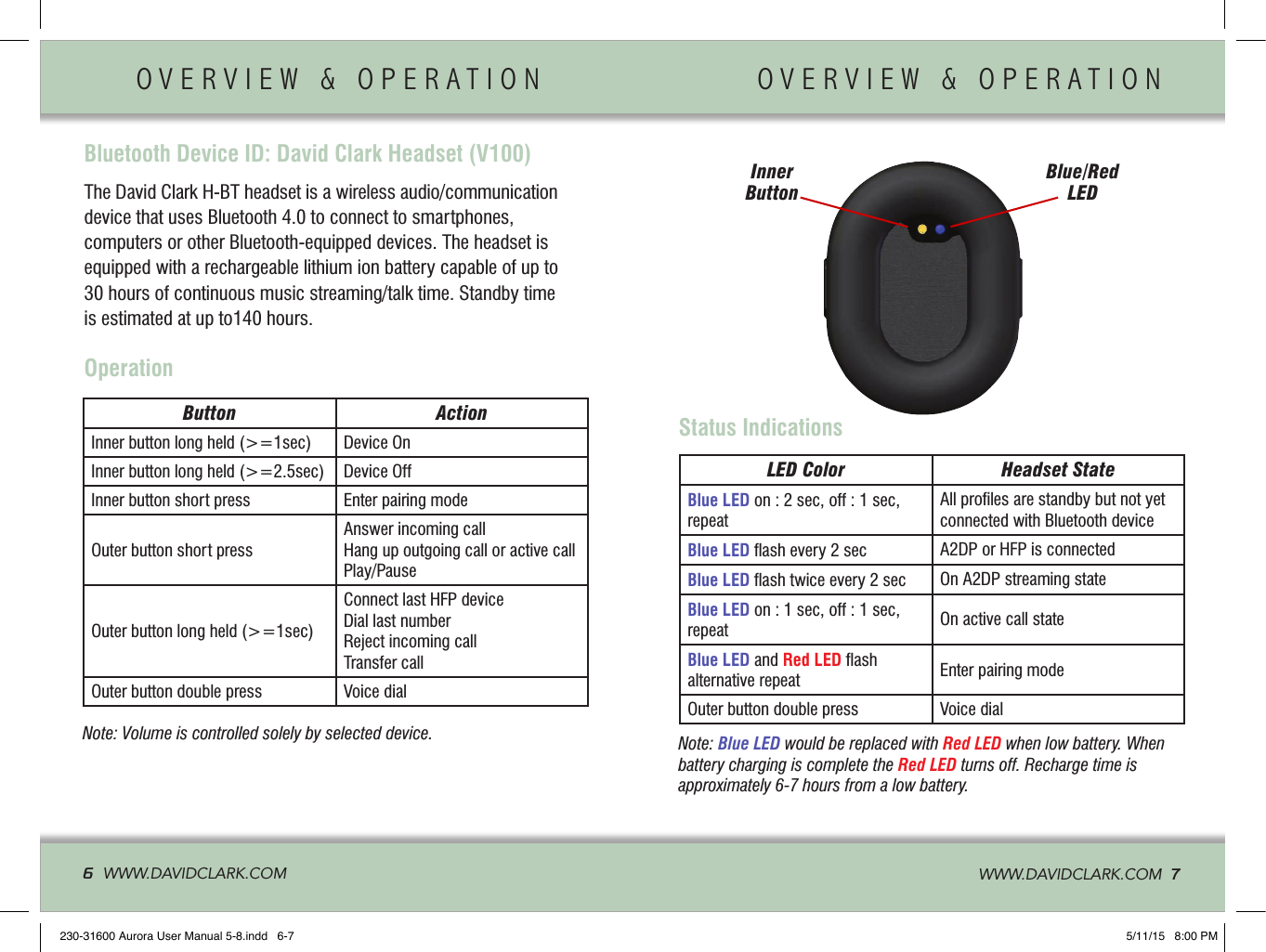

Bluetooth Device ID: David Clark Headset (V100)OVERVIEW & OPERATION OVERVIEW & OPERATION 6 WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM 7The David Clark H-BT headset is a wireless audio/communication device that uses Bluetooth 4.0 to connect to smartphones, computers or other Bluetooth-equipped devices. The headset is equipped with a rechargeable lithium ion battery capable of up to 30 hours of continuous music streaming/talk time. Standby time is estimated at up to140 hours.OperationButton ActionInner button long held (>=1sec) Device OnInner button long held (>=2.5sec) Device OffInner button short press Enter pairing modeOuter button short pressAnswer incoming callHang up outgoing call or active callPlay/PauseOuter button long held (>=1sec)Connect last HFP deviceDial last numberReject incoming callTransfer callOuter button double press Voice dialNote: Volume is controlled solely by selected device.Status IndicationsInner Button Blue/Red LEDLED Color Headset StateBlue LED on : 2 sec, off : 1 sec, repeatAll profiles are standby but not yet connected with Bluetooth deviceBlue LED flash every 2 sec A2DP or HFP is connectedBlue LED flash twice every 2 sec On A2DP streaming stateBlue LED on : 1 sec, off : 1 sec, repeat On active call stateBlue LED and Red LED flash alternative repeat Enter pairing modeOuter button double press Voice dialNote: Blue LED would be replaced with Red LED when low battery. When battery charging is complete the Red LED turns off. Recharge time is approximately 6-7 hours from a low battery.230-31600 Aurora User Manual 5-8.indd 6-7 5/11/15 8:00 PM

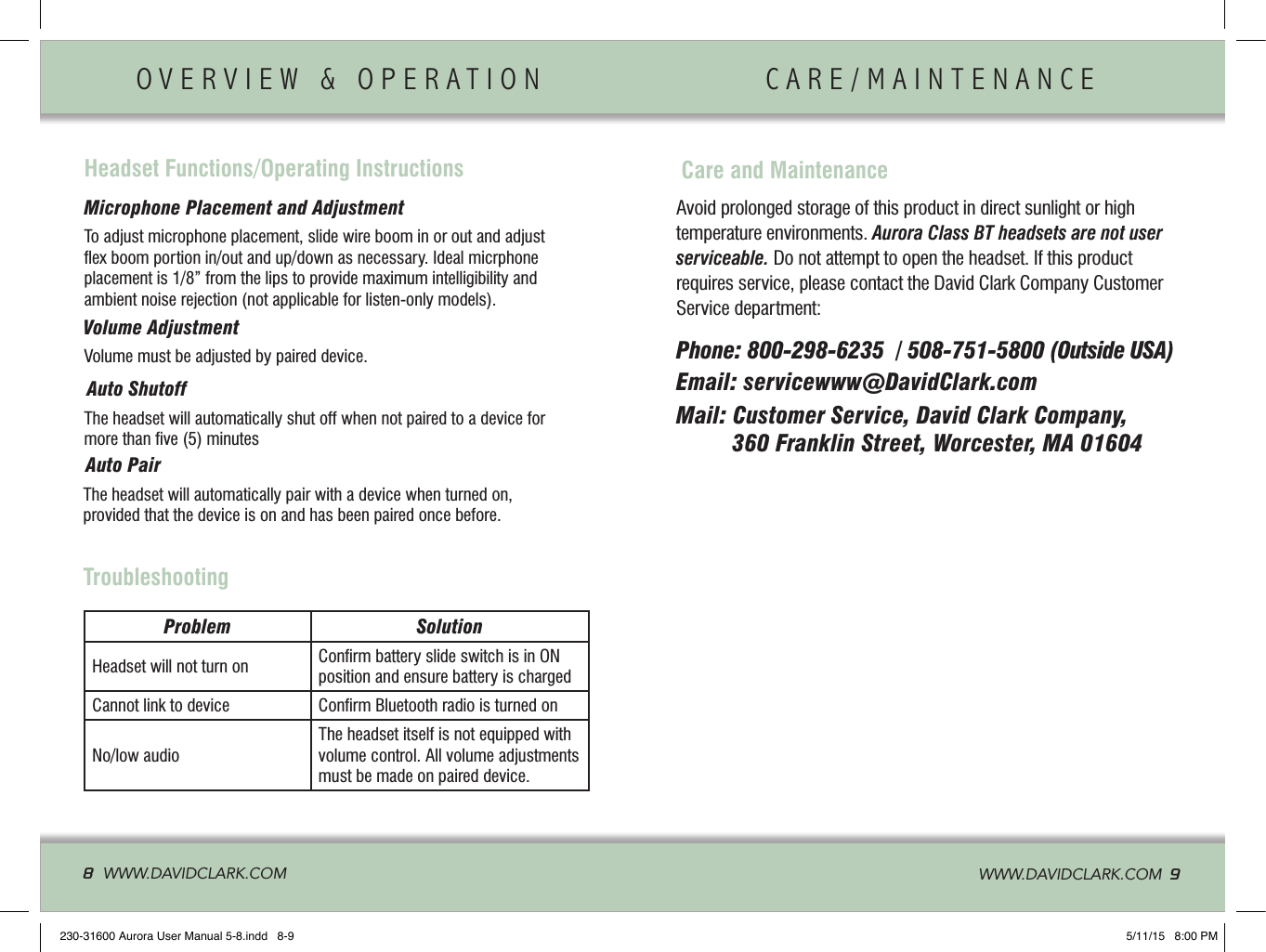

OVERVIEW & OPERATION CARE/MAINTENANCE 8 WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM 9TroubleshootingProblem SolutionHeadset will not turn on Confirm battery slide switch is in ON position and ensure battery is chargedCannot link to device Confirm Bluetooth radio is turned onNo/low audioThe headset itself is not equipped with volume control. All volume adjustments must be made on paired device.Care and MaintenanceAvoid prolonged storage of this product in direct sunlight or high temperature environments. Aurora Class BT headsets are not user serviceable. Do not attempt to open the headset. If this product requires service, please contact the David Clark Company Customer Service department: Phone: 800-298-6235 / 508-751-5800 (Outside USA)Email: servicewww@DavidClark.com Mail: Customer Service, David Clark Company, 360 Franklin Street, Worcester, MA 01604Headset Functions/Operating InstructionsMicrophone Placement and AdjustmentTo adjust microphone placement, slide wire boom in or out and adjust flex boom portion in/out and up/down as necessary. Ideal micrphone placement is 1/8” from the lips to provide maximum intelligibility and ambient noise rejection (not applicable for listen-only models).Volume AdjustmentVolume must be adjusted by paired device.Auto ShutoffThe headset will automatically shut off when not paired to a device for more than five (5) minutesAuto PairThe headset will automatically pair with a device when turned on, provided that the device is on and has been paired once before.230-31600 Aurora User Manual 5-8.indd 8-9 5/11/15 8:00 PM

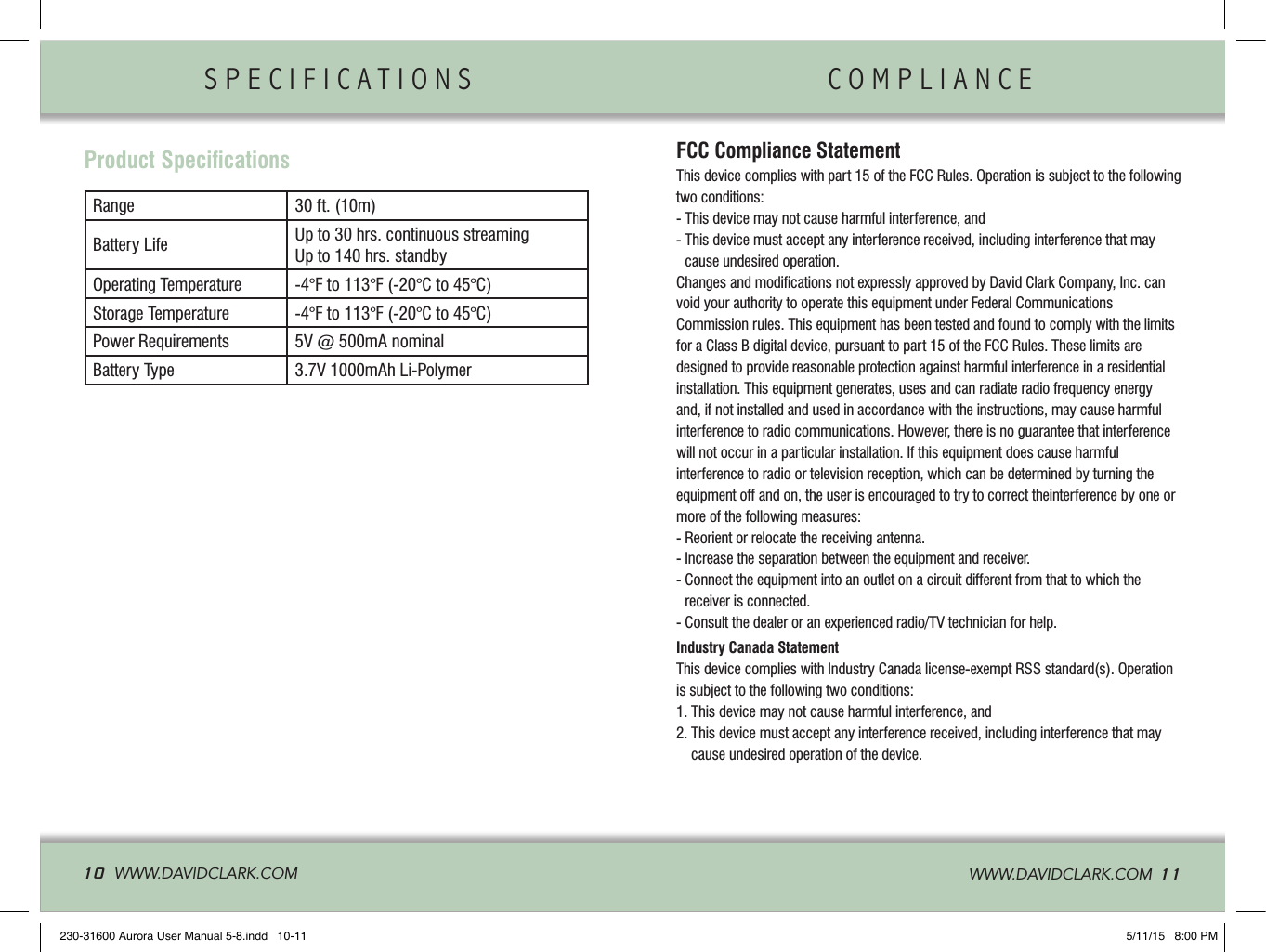

SPECIFICATIONS COMPLIANCE 10 WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM 11FCC Compliance StatementThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:- This device may not cause harmful interference, and- This device must accept any interference received, including interference that may cause undesired operation.Changes and modifications not expressly approved by David Clark Company, Inc. can void your authority to operate this equipment under Federal Communications Commission rules. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.- Consult the dealer or an experienced radio/TV technician for help.Industry Canada StatementThis device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:1. This device may not cause harmful interference, and2. This device must accept any interference received, including interference that may cause undesired operation of the device.Product SpecificationsRange 30 ft. (10m)Battery Life Up to 30 hrs. continuous streamingUp to 140 hrs. standbyOperating Temperature -4°F to 113°F (-20°C to 45°C)Storage Temperature -4°F to 113°F (-20°C to 45°C)Power Requirements 5V @ 500mA nominalBattery Type 3.7V 1000mAh Li-Polymer230-31600 Aurora User Manual 5-8.indd 10-11 5/11/15 8:00 PM

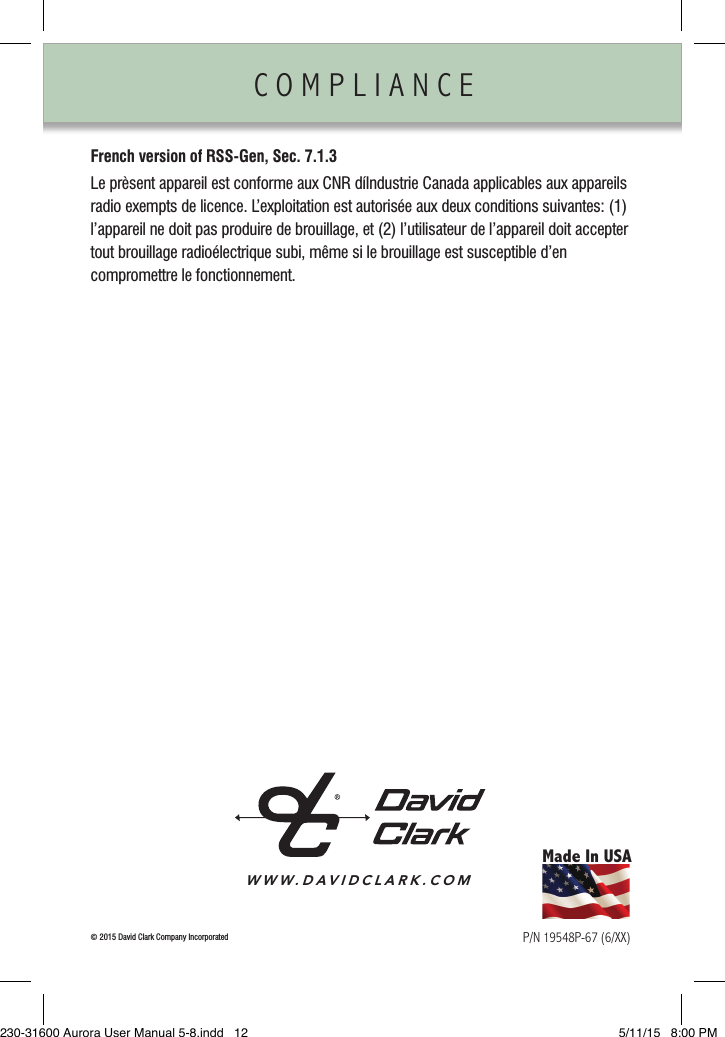

COMPLIANCE French version of RSS-Gen, Sec. 7.1.3Le prèsent appareil est conforme aux CNR díIndustrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.Made In USAP/N 19548P-67 (6/XX)© 2015 David Clark Company IncorporatedWWW.DAVIDCLARK.COM230-31600 Aurora User Manual 5-8.indd 12 5/11/15 8:00 PM
