David Clark Company Inc. Aviation Headset 2.4 GHz Bluetooth Interface
User Manual
Industrial-CLASS BT HEADSETS
User Manual
230-31600 Aurora User Manual 5-8.indd 1 5/11/15 8:00 PM
Congratulations on your purchase of the
Aurora BT headset. As with all of our
products, Aurora Class headsets are
backed by extraordinary customer service
and support.
David Clark Company assumes full
responsibility for the quality and performance
of our products. We are committed to a
policy of service whereby we will respond
in a prompt and positive manner to any
question or issue regarding one of our
products.
David Clark Company products have set
the standards of performance and excellence
for customers throughout the world. Your
new Aurora Class BT headset continues
this legacy. We have earned a reputation
for excellence; we intend to keep it by
continuing to deserve your confidence.
Robert A. Vincent, President
Thank you for purchasing the Aurora BT headset
THANK YOU...
2
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
3
Industrial-CLASS BT HEADSETS
CAUTIONS & WARNINGS
READ AND SAVE THESE INSTRUCTIONS. Follow the instructions in this manual.
These instructions must be followed to avoid damage to this product and associated
equipment. Product operation and reliability depends on proper usage.
DO NOT USE OR INSTALL ANY DAVID CLARK COMPANY
PRODUCT THAT APPEARS DAMAGED.
Upon unpacking your David Clark product, inspect the contents for
shipping damage. If damage is apparent, immediately file a claim
with the carrier and notify your David Clark product supplier.
ELECTRICAL HAZARD.
All repairs should be performed by a representative or authorized
agent of David Clark Company. Electrical power must be discon-
nected when making any internal adjustments or repairs.
LI-POLYMER.
This product is used with Li-Polymer batteries. Do not incinerate,
disassemble, short circuit, or expose battery to high temperatures.
Battery must be disposed of properly in accordance with local
regulations.

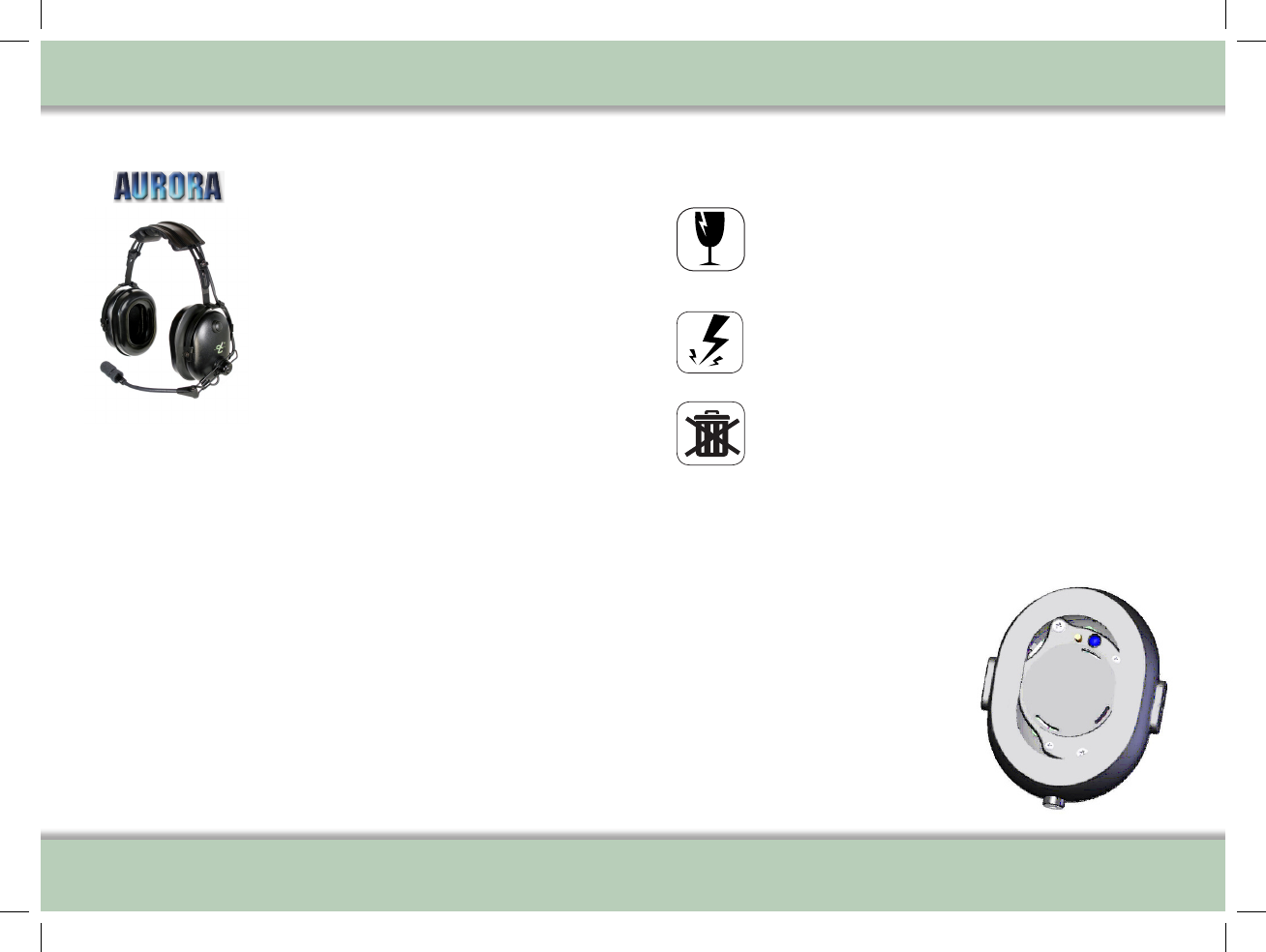

IMPORTANT: First Use
The DC Bluetooth Headset must be
enabled by a slide switch inside the
non-mic side ear dome prior to first
use (see Figure 1 opposite). You must
remove the filter to see the slide switch.
The slide switch will need to be in the
UP position. This will be the only time it
is necessary to operate this switch.
Figure 1 - Move Slide Switch
to UP position
230-31600 Aurora User Manual 5-8.indd 2-3 5/11/15 8:00 PM
HEADSET FEATURES
4
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
5
B L U E T O O T H ® TECHNOLOGY
What is Bluetooth® Wireless Technology?*
Bluetooth is a wireless communication system standard that
allows connectivity and collaboration between disparate products
and industries. It allows the headset to work with mobile phones,
leak detector equipment and a wide variety of other Bluetooth
compatible devices.
How does Bluetooth technology differ from other radio technologies?
Mobile phones, FM radio and television all use radio waves to send
information wirelessly. And while Bluetooth technology also uses radio
waves, it transmits them over a shorter distance. Bluetooth technology sends
information within your Personal Area Network or “PAN” (aka your own
personal space) at distances up to 100 meters (328 feet) depending upon
device implementation. Bluetooth technology operates in the unlicensed
industrial, scientific and medical (ISM) band at 2.4 to 2.485 GHz, using a
spread spectrum, frequency hopping, full-duplex signal at a nominal rate of
1600 hops/sec.
Is Bluetooth technology hardware or software?
It’s a combination of both. Bluetooth includes a small computer chip
containing the Bluetooth radio. But it also needs software to connect, via
Bluetooth wireless technology, to other products. This is accomplished
through adaptive frequency hopping (AFH) capability. AFH was designed
to reduce interference between wireless technologies sharing the 2.4 GHz
spectrum. AFH works within the spectrum to take advantage of the
available frequency. This is done by the technology detecting other devices
in the spectrum and avoiding the frequencies they are using. This adaptive
hopping among 79 frequencies at 1 MHz intervals gives a high degree of
interference immunity and also allows for more efficient transmission within
the spectrum. For users of Bluetooth technology this hopping provides
greater performance even when other technologies are being used along
with Bluetooth technology.
*The above excerpts are taken from Bluetooth.com. Please visit Bluetooth.com if you’d like to
learn more about Bluetooth.

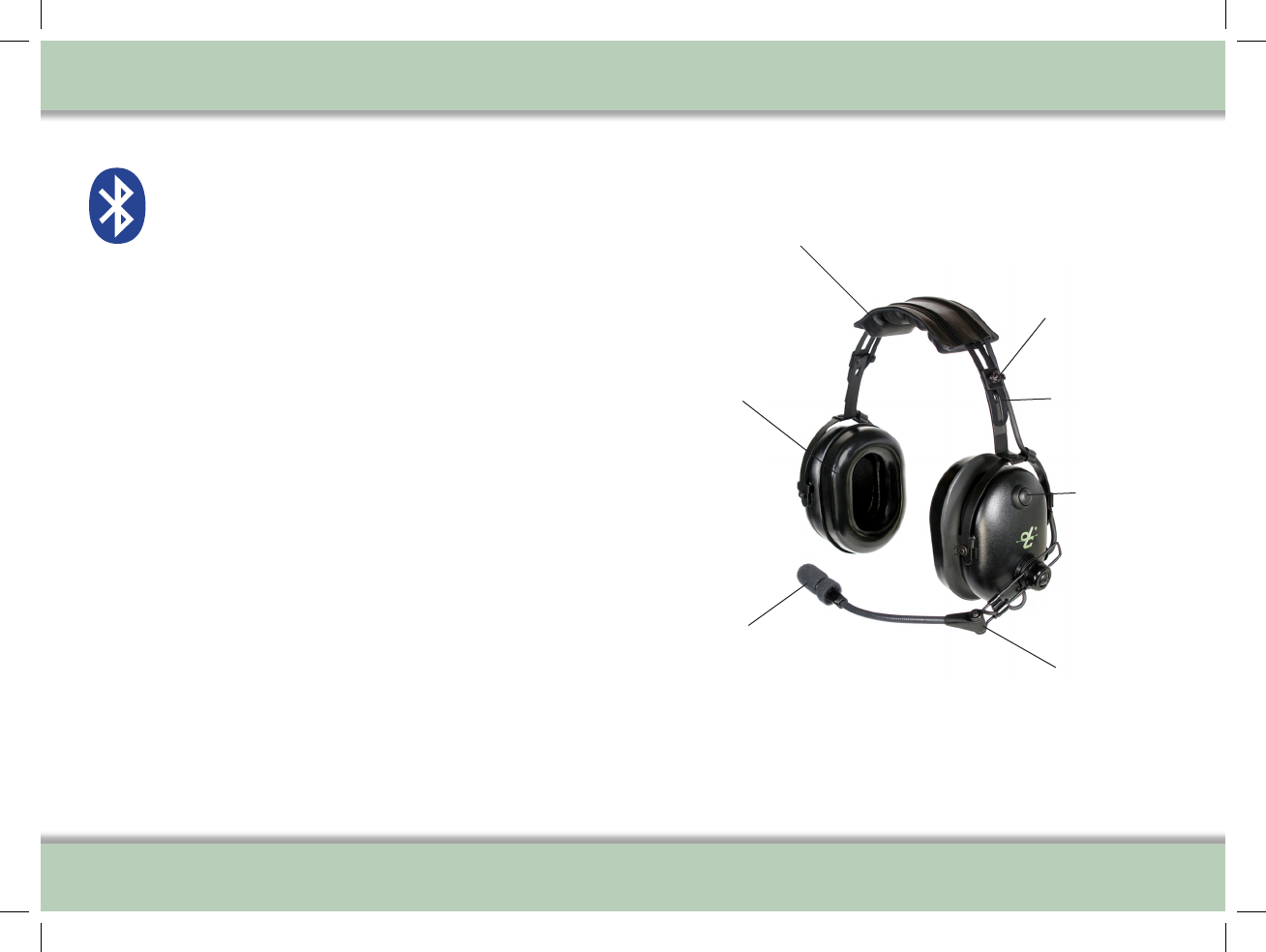

Soft foam head pad with 4-chamber
design provides greater comfort and is
weather resistant
Fully adjustable, locknut
stirrup assembly
Black, non-reflective
hardware
Control switch
located
conveniently
on ear dome
Flex/wire boom
for ‘one touch’
microphone
placement
Electret, noise-cancelling
microphone for clear voice
transmission
Comfort-Gel ear seals
with undercut design
leave more room for the
ear and provide snug,
comfortable fit
230-31600 Aurora User Manual 5-8.indd 4-5 5/11/15 8:00 PM
Bluetooth Device ID: David Clark Headset (V100)
OVERVIEW & OPERATION OVERVIEW & OPERATION
6
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
7
The David Clark H-BT headset is a wireless audio/communication
device that uses Bluetooth 4.0 to connect to smartphones,
computers or other Bluetooth-equipped devices. The headset is
equipped with a rechargeable lithium ion battery capable of up to
30 hours of continuous music streaming/talk time. Standby time
is estimated at up to140 hours.

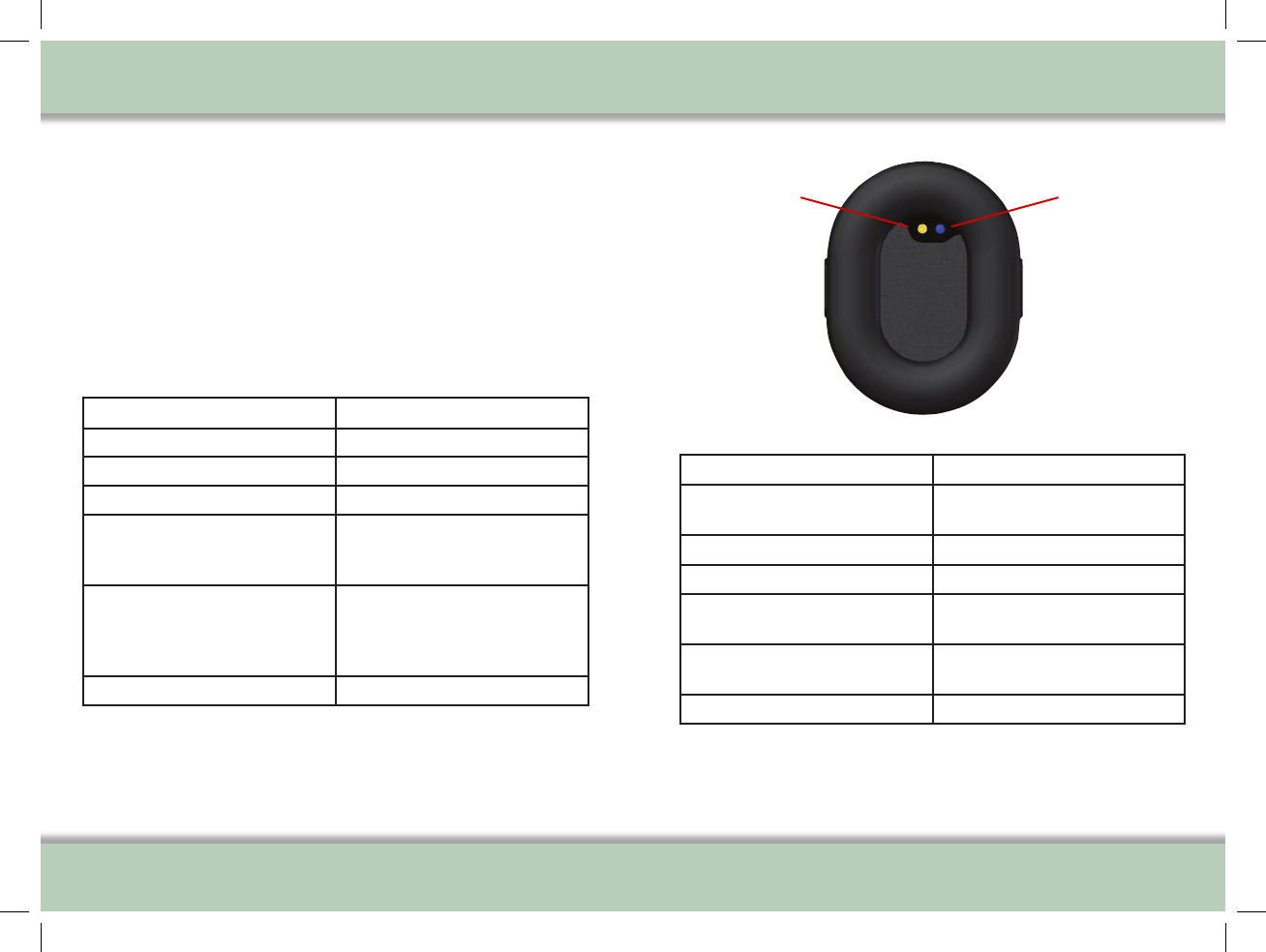

Operation
Button Action
Inner button long held (>=1sec) Device On
Inner button long held (>=2.5sec) Device Off
Inner button short press Enter pairing mode
Outer button short press
Answer incoming call
Hang up outgoing call or active call
Play/Pause
Outer button long held (>=1sec)
Connect last HFP device
Dial last number
Reject incoming call
Transfer call
Outer button double press Voice dial
Note: Volume is controlled solely by selected device.
Status Indications
Inner
Button
Blue/Red
LED
LED Color Headset State
Blue LED on : 2 sec, off : 1 sec,
repeat
All profiles are standby but not yet
connected with Bluetooth device
Blue LED flash every 2 sec A2DP or HFP is connected
Blue LED flash twice every 2 sec On A2DP streaming state
Blue LED on : 1 sec, off : 1 sec,
repeat On active call state
Blue LED and Red LED flash
alternative repeat Enter pairing mode
Outer button double press Voice dial
Note: Blue LED would be replaced with Red LED when low battery. When
battery charging is complete the Red LED turns off. Recharge time is
approximately 6-7 hours from a low battery.
230-31600 Aurora User Manual 5-8.indd 6-7 5/11/15 8:00 PM
OVERVIEW & OPERATION CARE/MAINTENANCE
8
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
9
Troubleshooting
Problem Solution
Headset will not turn on Confirm battery slide switch is in ON
position and ensure battery is charged
Cannot link to device Confirm Bluetooth radio is turned on
No/low audio
The headset itself is not equipped with
volume control. All volume adjustments
must be made on paired device.
Care and Maintenance
Avoid prolonged storage of this product in direct sunlight or high
temperature environments. Aurora Class BT headsets are not user
serviceable. Do not attempt to open the headset. If this product
requires service, please contact the David Clark Company Customer
Service department:
Phone: 800-298-6235 / 508-751-5800 (Outside USA)
Email: servicewww@DavidClark.com
Mail: Customer Service, David Clark Company,
360 Franklin Street, Worcester, MA 01604
Headset Functions/Operating Instructions
Microphone Placement and Adjustment
To adjust microphone placement, slide wire boom in or out and adjust
flex boom portion in/out and up/down as necessary. Ideal micrphone
placement is 1/8” from the lips to provide maximum intelligibility and
ambient noise rejection (not applicable for listen-only models).
Volume Adjustment
Volume must be adjusted by paired device.
Auto Shutoff
The headset will automatically shut off when not paired to a device for
more than five (5) minutes
Auto Pair
The headset will automatically pair with a device when turned on,
provided that the device is on and has been paired once before.
230-31600 Aurora User Manual 5-8.indd 8-9 5/11/15 8:00 PM
SPECIFICATIONS COMPLIANCE
10
WWW.DAVIDCLARK.COM WWW.DAVIDCLARK.COM
11
FCC Compliance Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may
cause undesired operation.
Changes and modifications not expressly approved by David Clark Company, Inc. can
void your authority to operate this equipment under Federal Communications
Commission rules. This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct theinterference by one or
more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation
is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation of the device.
Product Specifications
Range 30 ft. (10m)
Battery Life Up to 30 hrs. continuous streaming
Up to 140 hrs. standby
Operating Temperature -4°F to 113°F (-20°C to 45°C)
Storage Temperature -4°F to 113°F (-20°C to 45°C)
Power Requirements 5V @ 500mA nominal
Battery Type 3.7V 1000mAh Li-Polymer
230-31600 Aurora User Manual 5-8.indd 10-11 5/11/15 8:00 PM
COMPLIANCE
French version of RSS-Gen, Sec. 7.1.3
Le prèsent appareil est conforme aux CNR díIndustrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1)
l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en
compromettre le fonctionnement.
Made In USA
P/N 19548P-67 (6/XX)
