Remote control functions:

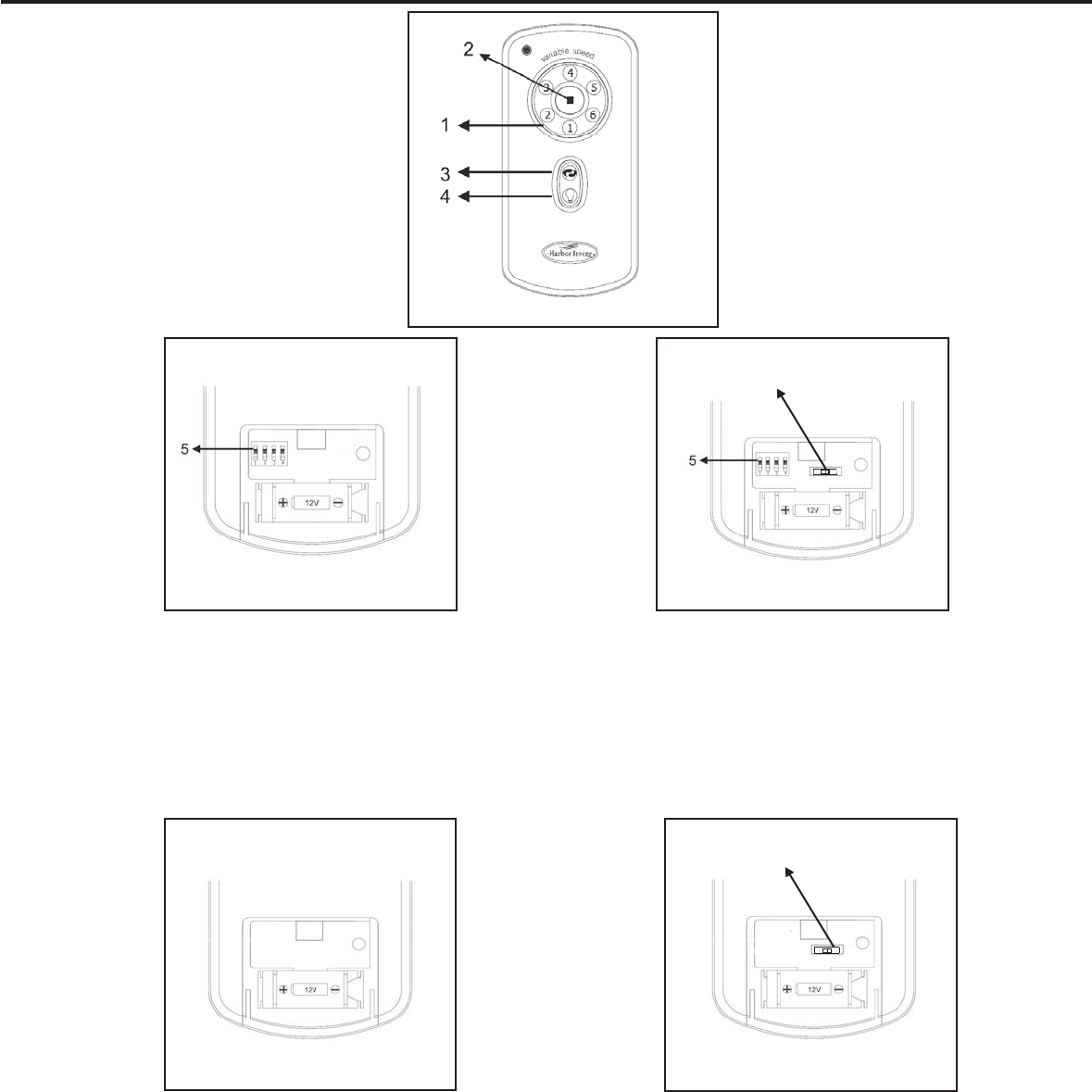

1.Fan speed control button To control the ceiling
fan speed 1 6
2.Fan off button To turn the fan off
3.Reverse function button To control fan direction
4.Light control button To control light on and off.
5.CODE setting button With fan power off arrange
code switch to desired code setting.Turn fan power on.
:
-
：.
:.
:
:,
Remote control functions:
1.Fan speed control button To control the ceiling
fan speed 1 6
2.Fan off button To turn the fan off
3.Reverse function button To control fan direction
4.Light control button To control light on and off.
5.CODE setting button With fan power off arrange
code switch to desired code setting.Turn fan power on.
6.Extended Function Button.
:
-
：.
:.
:
:,
Remote control functions:
1.Fan speed control button To control the ceiling
fan speed 1 6.
2.Fan off button To turn the fan off
3.Reverse function button To control fan direction
4.Light control button To control light on and off.
:
-
：.
:.
:
Remote control functions:
1.Fan speed control button To control the ceiling
fan speed 1 6.
2.Fan off button To turn the fan off
3.Reverse function button To control fan direction
4.Light control button To control light on and off.
5.Extended Function Button.
:
-
：.
:.
:
●
.
Learning Code Pairing: Within 30 seconds after
power on, press and hold Button2&5atthesame
time for 5 seconds. The light will signify pairing is
done Light will on when it was off, vice versa.
●
.
Learning Code Pairing: Within 30 seconds after
power on, press and hold Button2&5atthesame
time for 5 seconds. The light will signify pairing is
done Light will on when it was off, vice versa.
Note:Install the 12-volt battery(not included) to the remote control.
TX003 TX003-R
TX003-E TX003-ER
OPERATION INSTRUCTION
Note: The receiver(inside the motor)provides the function of multiplicative protection.
1.Lock position: The DC motor has a built-in safety feature against obstruction during
operation. If this occurs, the motor will discontinue operation within 3 seconds of
interruption. To reset, simply disable power supply to the fan motor and re-start.
2.Over 80W protection: When the receiver detects power consumption is greater the 80W,
the receiver power will immediately discontinue. To reset, simply disable power supply
to the fan motor and re-start.
3.Blade setup of motor is arrange according to loading condition; please only install
approved blades from a certified dealer or this may avoid the factory warranty.
