Dayton BKM5AB Bike Speed/Cadence Sensor with ANT+/BLE User Manual
Dayton Industrial Co., Ltd. Bike Speed/Cadence Sensor with ANT+/BLE
Dayton >
User Manual
INSTRUCTION MANUAL
PAIRING AND SENSOR ACTIVATION
Pairing: Consult your Ant + or Bluetooth Smart device’s instructions for pairing. Sensor will
need to be activated directly before pairing process.
Sensor Activation: To verify proper position install as below, spin wheel or turn crank more
than two revolutions. Initial sensor activation will be indicated by the LEDs flashing up to 10
times.
Please Note: The sensor will stay active for at least 20 minutes although the LEDs no longer
flash.
Bluetooth Smart Connection: Install and activate sensor. Turn on your phone’s (or other
compatible device) Bluetooth Smart capability. Open the desired cycling app and follow
instructions for Bluetooth Smart sensor connection.
Please note, Bluetooth Smart devices do not always appear in your phone’s listing, even
when connected.
All apps collect, share, and display speed and cadence information differently.
INSTALLATION

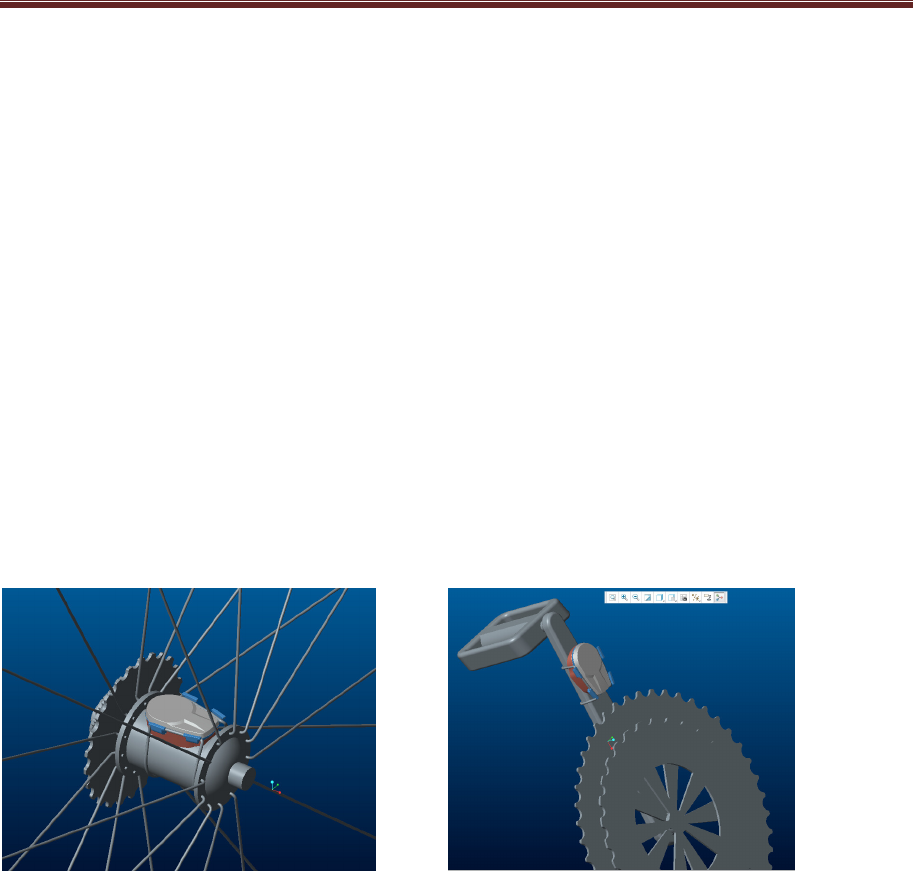

INSTALLATION FOR SPEED SENSOR INSTALLATION FOR CADENCE SENSOR
SPECIFICATION
1 Electrical:
1.1 Supply power: 3.0Vdc (CR2032)
1.2 Battery Life: 1 years
1.3 Communication protocol: ANT+ / Bluetooth Smart
2 Mechanical:
2.1 Water resistance: IPX7
2.2 Dimension: 42mm x 36mm x 16.5mm (main body)
3 Environmental:
3.1 Operating temperature: 0℃
~ +60℃
3.2 Storage temperature: -20℃
~ +70℃
4 Function:
4.1 Range: 0.1km/h ~ 99.9km/h(SPEED), 30rpm ~ 240rpm (CADENCE)
4.2 Indication light: White (SPEED), Green (CADENCE)
4.3 Accuracy: +/-0.1Km/h or 1% whichever is larger
4.4 Transmission range: 3 meter (min.)
4.5 Auto power down: 20 minutes
