Quick Start Guide
KINETIC inRIDE WATT METER
AND HEART RATE MONITOR
GROMMET
MAGNET
HEART
RATE
STRAP
SENSOR
Press in rubber grommet until seated against lip
2
Insert rubber grommet into roller hole
1
2
Thank you for
purchasing the
Kinetic inRide
Watt Meter
and Heart
Rate Monitor. If
you have any
questions, please
email us:
inride@kurt.com
Thank You!
Scan QR for App conguration and installation instructions and heart rate monitor usage
directions or go online to: www.kurtkinetic.com/inride/instructions
APP USE INSTRUCTIONS
Works with: iPhone 4S
& 5, iPad3 & iPad mini
INSTALL THE GROMMET

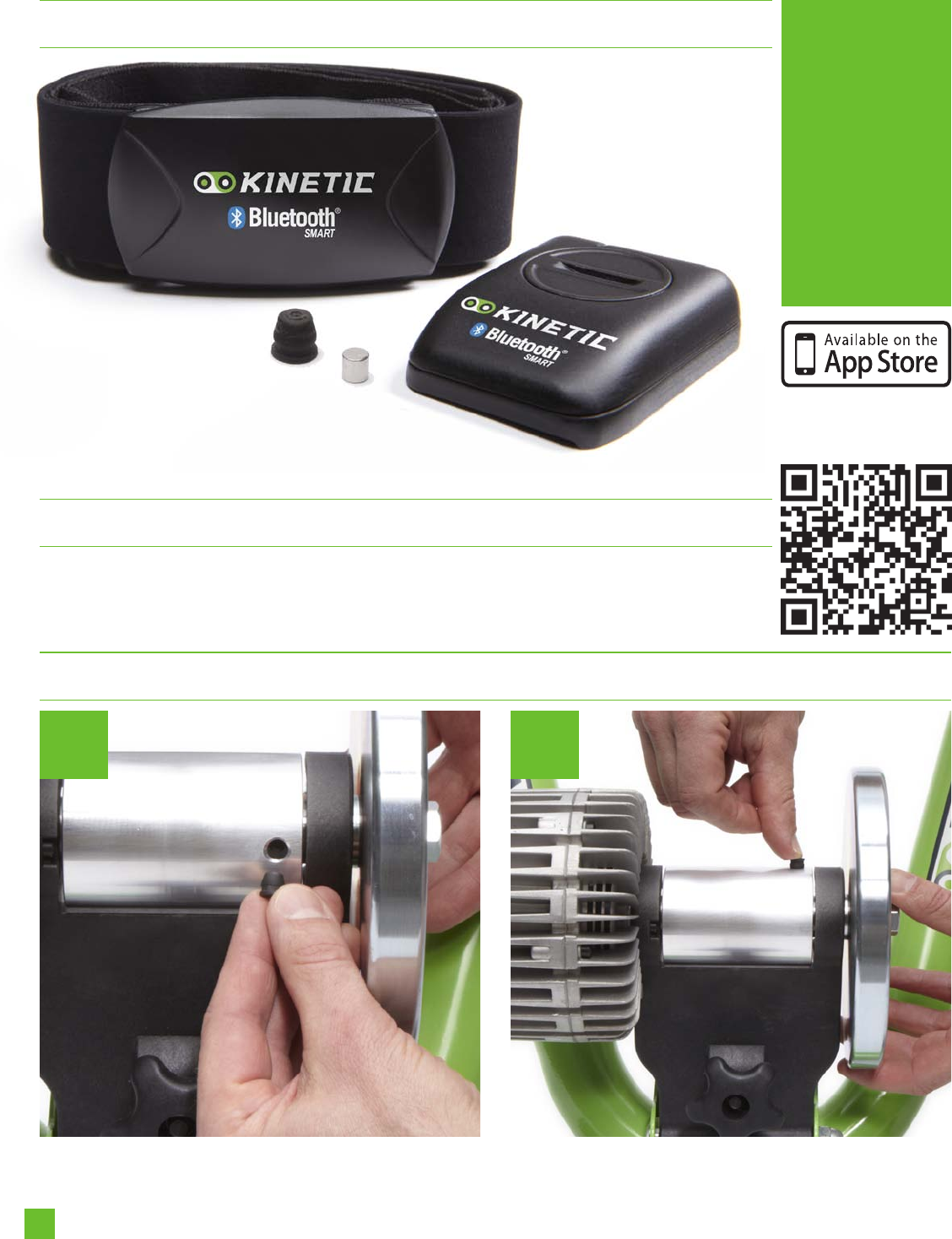

WHAT’S IN THE BOX?
iPhone and iPad are registered trademarks of Apple, Inc
INSTALL THE MAGNET
3
Snap magnet to standard screwdriver to rmly hold
3
Using screwdriver, press magnet into grommet
4
Magnet should be ush with top of grommet
6
Press magnet ush with grommet using screwdriver
5

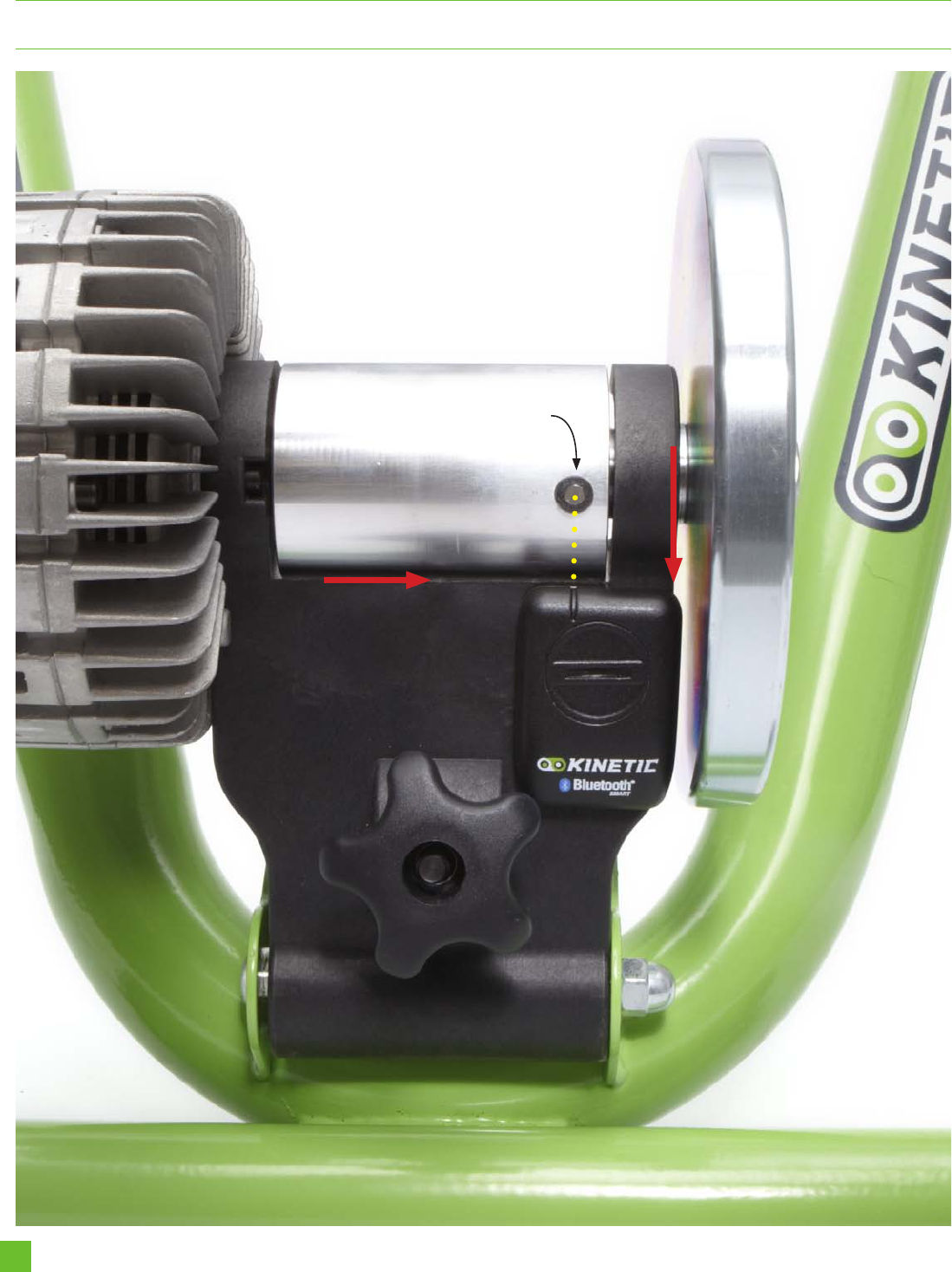

SENSOR INSTALLATION GUIDELINES
Roller magnet
must pass over
notch in sensor
TRAINER YOKE
BRACKET
Sensor edges
must align to
edges indicated
with red arrows
4

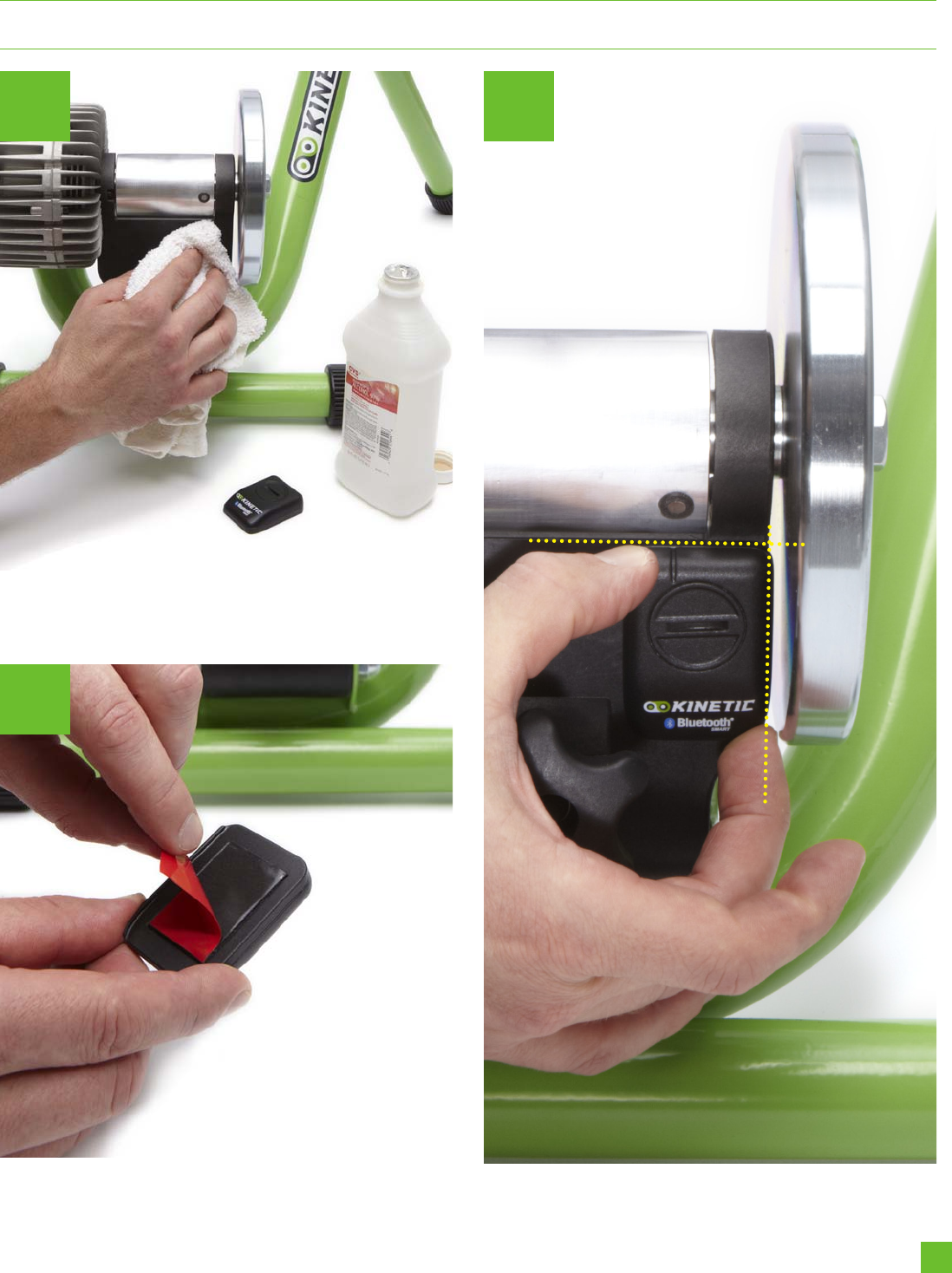

INSTALL THE SENSOR
Carefully position and place sensor on trainer yoke bracket
and press into place. NOTE: alignment is critical. Edges of
sensor must match edges of trainer yoke bracket.
9
Clean plastic surface with isopropyl alcohol
Peal backing from adhesive patch on sensor
7
8
5
