Dayton TITAN Bluetooth (BLE Watch) User Manual

Dayton Industrial Co., Ltd. Bluetooth (BLE Watch)

User Manual

Engineered by HP
2
CONTENTS
English . . . . . . . . . . 4
French . . . . . . . . . 15
Regulatory Notices . . . 27
ENGLISH
54
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
A B

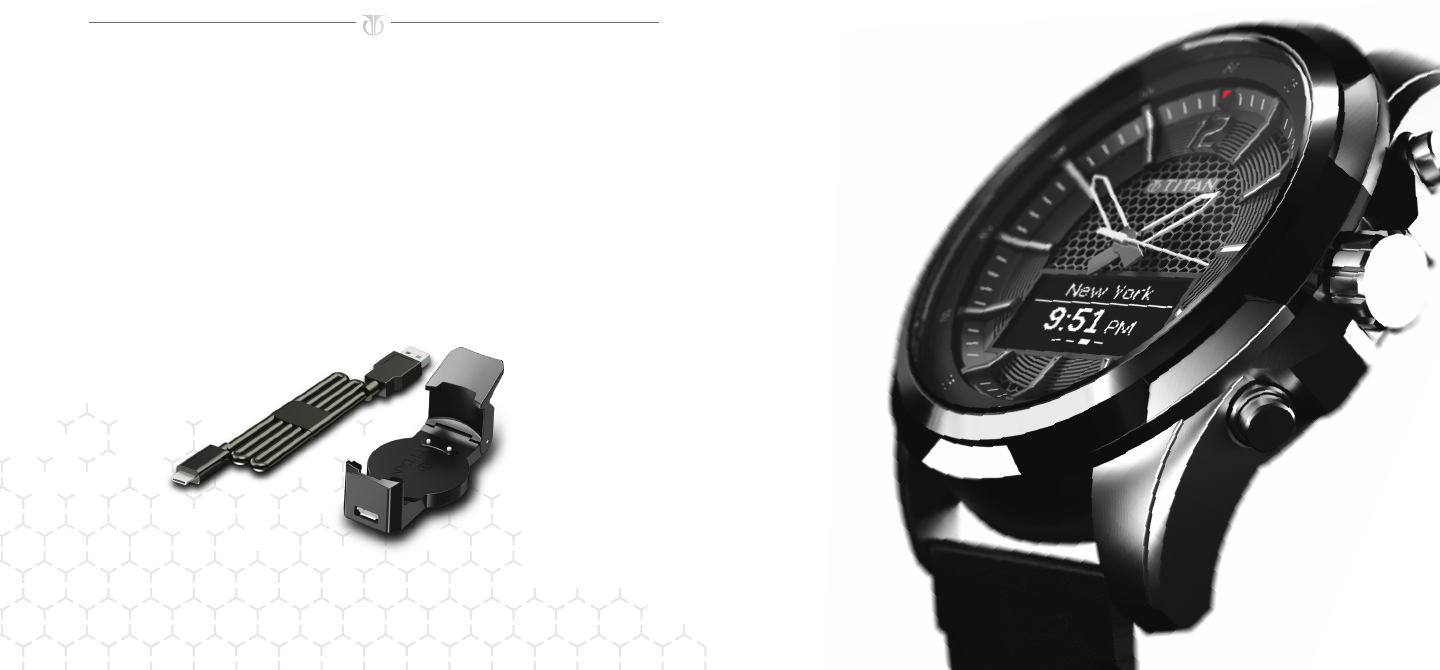

CHARGING & TURNING ON THE WATCHSETTING THE TIME
1. Gently pull crown out to its
outermost position B.
2. Rotate the crown to the
correct time.
3. Press the crown to return it to
its normal position A.
NOTE: If you are storing the
watch, make sure to pull the
crown out to its outermost
position B.
2
1
3
Before you set up the watch, you
must charge the watch fully and
then turn it on.
1. Charge the watch for at least
two hours 1, 2, 3.
WARNING: Do not attempt to
change the battery yourself.
Opening the watch case will void
your warranty. Using an incorrect
battery may cause the watch to
overheat or catch fire.
NOTE: The first time you charge
the watch, the display might be
blank. After you set up the watch,
the charging icon is displayed
while the watch charges.
2. To turn on the watch, press and hold the top
watch button until the setup screen displays.
76
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
1. Install the Titan Smartwatch
app. On your phone, go to
watches.hp.com or search for
Titan smartwatch in your
app store.
NOTE: Your phone must
have either iOS 8 or higher or
Android 4.4 operating system
or higher.
2. Make sure that your phone’s
Bluetooth® is turned on. See
your phone documentation
for instructions.
3. Open the Titan Smartwatch
app on your phone, and
then follow the on-screen
instructions to set up
your account.
SETTING UP YOUR PHONE APP AND WATCH FOR THE FIRST TIME
4. The phone app automatically searches for nearby watches. Press the top
watch button 1 so that the setup screen is displayed and the app can find
your watch.
5. In the phone app, select your watch. If prompted, press the top watch button
1 and enter the PIN displayed on your watch.
6. In the phone app, enable notification permissions. You can choose to push any
notifications from a third-party app, such as Facebook or Twitter, to the watch.
See your phone documentation for instructions for enabling notifications.
7. To configure the watch, in the phone app, select Activity Tracker, World
Clock, Notifications, or Preferences. Notifications also controls vibration
notification settings. See Vibration Notifications on page 12 for more
information.
1
98
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
DISPLAYING THE WATCH STATUS
To display the watch status,
press and hold button 2 for three
seconds. The status dismisses
automatically after five seconds.
Bluetooth status icon:
Appears when Bluetooth is
disconnected.
Charging status icon:
Appears when the watch is
connected to power.
Battery status icon: Displays
remaining battery charge.
RESTARTING THE WATCH
To restart the watch, press
and hold both buttons for three
seconds. Press button 2
to confirm.
1
2
NAVIGATING THE WATCH
TURNING BLUETOOTH ON OR OFF
To turn Bluetooth on or off, press and hold button 2 for three seconds.
NAVIGATING BETWEEN APPS
To navigate between apps (such as World Clock and Activity Tracker), press button
1. To scroll the screen to read a text message or view the next page of an app (such
as yesterday’s steps in the Activity Tracker app), press button 2.
DISMISSING NOTIFICATIONS
To dismiss notifications or to decline a call, press button 1. Press and hold button 1
to dismiss all notifications.
TURNING AIRPLANE MODE ON OR OFF
To turn airplane mode on or off, press both buttons.
RESETTING TO FACTORY SETTINGS
To reset to factory settings, press and hold button 2 while pressing button 1 three
times. Press button 2 to confirm.
1110
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
WATCH FUNCTIONS
TEXT MESSAGE
When you receive
a text message,
the sender’s name
and message are
displayed. Press button 2 to scroll and
press button 1 to dismiss the text.
ACTIVITY TRACKER
The activity
tracker keeps
track of your daily
steps and your
progress to your daily goal. You can check
today and yesterday’s steps on the watch.
A notification is displayed when you reach
your daily goal. Use the app to check your
progress over the week or the month.
INCOMING CALL
1
2
When you have an incoming call,
the caller’s name is displayed. If
the caller is not in your contacts,
their phone number is displayed
instead. Press button 1 to
decline the call.
WORLD CLOCK
The world clock syncs automatically with your phone.
In the app, you can select other time zones to be
displayed. Press button 2 to scroll through your
selected cities.
CALENDAR REMINDERS
The watch syncs with the calendar on your phone to
notify you of upcoming appointments. Press button 2
to scroll for more information, such as meeting time and
location. Press button 1 to dismiss the notification.
BAT TERY STATUS
When the watch battery has less than a 20% charge,
there is a notification. There is also a notification when
the watch battery has less than a 10% charge.
1312
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
VIBRATION NOTIFICATIONS
In addition to on-screen messages, your watch vibrates to notify you of events. The
following table describes the default vibration patterns for notifications.
NOTIFICATION VIBRATION PATTERN DEFAULT
Incoming call On
Text message On
Activity goal reached On
Calendar reminder On
Email Off
KEY = Short pulse = Long pulse
Vibration notifications are either high or low urgency. High-urgency notifications use a
stronger vibration than low-urgency notifications.
To enable, disable, or change the urgency level of vibration notifications:
1. In the app, select Notifications.
2. Click the slider next to the notification to enable or disable that notification.
Click Edit to change the vibration urgency level to high or low.
NOTE: You can enable a vibrations notification for any third-party app. All vibration
notifications not enabled by default are set automatically to low urgency.
14
ADDITIONAL INFORMATION
RECONNECTING THE WATCH WITH YOUR PHONE
If the phone and watch are disconnected, the watch displays the Bluetooth icon .
To reconnect:
1. Make sure that your phone’s Bluetooth is turned on. See your phone
documentation for instructions.
2. Press the top watch button until the Setup screen displays.
3. Open the Titan Smartwatch app on your phone, and then follow the on-screen
instructions to reconnect the watch to your phone.
WARRANTY AND SUPPORT
For warranty and support information, go to watches.hp.com. This site contains
detailed online documentation as well as accessories and spare parts information.
For regulatory and safety notices, refer to the Product Notices included with
your product.
FRENCH
FR
1716
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
A B
CHARGING & TURNING ON THE WATCHSETTING THE TIME
1. Gently pull crown out to its
outermost position B.
2. Rotate the crown to the
correct time.
3. Press the crown to return it to
its normal position A.
NOTE: If you are storing the
watch, make sure to pull the
crown out to its outermost
position B.
2
1
3
Before you set up the watch, you
must charge the watch fully and
then turn it on.
1. Charge the watch for at least
two hours 1, 2, 3.
WARNING: Do not attempt to
change the battery yourself.
Opening the watch case will void
your warranty. Using an incorrect
battery may cause the watch to
overheat or catch fire.
NOTE: The first time you charge
the watch, the display might be
blank. After you set up the watch,
the charging icon is displayed
while the watch charges.
2. To turn on the watch, press and hold the top
watch button until the setup screen displays.
1918
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
1. Install the Titan Smartwatch
app. On your phone, go to
watches.hp.com or search for
Titan smartwatch in your
app store.
NOTE: Your phone must
have either iOS 8 or higher or
Android 4.4 operating system
or higher.
2. Make sure that your phone’s
Bluetooth® is turned on. See
your phone documentation
for instructions.
3. Open the Titan Smartwatch
app on your phone, and
then follow the on-screen
instructions to set up
your account.
SETTING UP YOUR PHONE APP AND WATCH FOR THE FIRST TIME
4. The phone app automatically searches for nearby watches. Press the top
watch button 1 so that the setup screen is displayed and the app can find
your watch.
5. In the phone app, select your watch. If prompted, press the top watch button
1 and enter the PIN displayed on your watch.
6. In the phone app, enable notification permissions. You can choose to push any
notifications from a third-party app, such as Facebook or Twitter, to the watch.
See your phone documentation for instructions for enabling notifications.
7. To configure the watch, in the phone app, select Activity Tracker, World
Clock, Notifications, or Preferences. Notifications also controls vibration
notification settings. See Vibration Notifications on page 12 for more
information.
1
2120
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
DISPLAYING THE WATCH STATUS
To display the watch status,
press and hold button 2 for three
seconds. The status dismisses
automatically after five seconds.
Bluetooth status icon:
Appears when Bluetooth is
disconnected.
Charging status icon:
Appears when the watch is
connected to power.
Battery status icon: Displays
remaining battery charge.
RESTARTING THE WATCH
To restart the watch, press
and hold both buttons for three
seconds. Press button 2
to confirm.
1
2
NAVIGATING THE WATCH
TURNING BLUETOOTH ON OR OFF
To turn Bluetooth on or off, press and hold button 2 for three seconds.
NAVIGATING BETWEEN APPS
To navigate between apps (such as World Clock and Activity Tracker), press button
1. To scroll the screen to read a text message or view the next page of an app (such
as yesterday’s steps in the Activity Tracker app), press button 2.
DISMISSING NOTIFICATIONS
To dismiss notifications or to decline a call, press button 1. Press and hold button 1
to dismiss all notifications.
TURNING AIRPLANE MODE ON OR OFF
To turn airplane mode on or off, press both buttons.
RESETTING TO FACTORY SETTINGS
To reset to factory settings, press and hold button 2 while pressing button 1 three
times. Press button 2 to confirm.
2322
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
WATCH FUNCTIONS
TEXT MESSAGE
When you receive
a text message,
the sender’s name
and message are
displayed. Press button 2 to scroll and
press button 1 to dismiss the text.
ACTIVITY TRACKER
The activity
tracker keeps
track of your daily
steps and your
progress to your daily goal. You can check
today and yesterday’s steps on the watch.
A notification is displayed when you reach
your daily goal. Use the app to check your
progress over the week or the month.
INCOMING CALL
1
2
When you have an incoming call,
the caller’s name is displayed. If
the caller is not in your contacts,
their phone number is displayed
instead. Press button 1 to
decline the call.
WORLD CLOCK
The world clock syncs automatically with your phone.
In the app, you can select other time zones to be
displayed. Press button 2 to scroll through your
selected cities.
CALENDAR REMINDERS
The watch syncs with the calendar on your phone to
notify you of upcoming appointments. Press button 2
to scroll for more information, such as meeting time and
location. Press button 1 to dismiss the notification.
BAT TERY STATUS
When the watch battery has less than a 20% charge,
there is a notification. There is also a notification when
the watch battery has less than a 10% charge.
2524
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
VIBRATION NOTIFICATIONS
In addition to on-screen messages, your watch vibrates to notify you of events. The
following table describes the default vibration patterns for notifications.
NOTIFICATION VIBRATION PATTERN DEFAULT
Incoming call On
Text message On
Activity goal reached On
Calendar reminder On
Email Off
KEY = Short pulse = Long pulse
Vibration notifications are either high or low urgency. High-urgency notifications use a
stronger vibration than low-urgency notifications.
To enable, disable, or change the urgency level of vibration notifications:
1. In the app, select Notifications.
2. Click the slider next to the notification to enable or disable that notification.
Click Edit to change the vibration urgency level to high or low.
NOTE: You can enable a vibrations notification for any third-party app. All vibration
notifications not enabled by default are set automatically to low urgency.
2726
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
ADDITIONAL INFORMATION
RECONNECTING THE WATCH WITH YOUR PHONE
If the phone and watch are disconnected, the watch displays the Bluetooth icon .
To reconnect:
1. Make sure that your phone’s Bluetooth is turned on. See your phone
documentation for instructions.
2. Press the top watch button until the Setup screen displays.
3. Open the Titan Smartwatch app on your phone, and then follow the on-screen
instructions to reconnect the watch to your phone.
WARRANTY AND SUPPORT
For warranty and support information, go to watches.hp.com. This site contains
detailed online documentation as well as accessories and spare parts information.
For regulatory and safety notices, refer to the Product Notices included with
your product.
REGULATORY NOTICES
FEDERAL COMMUNICATIONS COMMISSION NOTICE
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment to an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio or television
technician for help.
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
If you have questions about the product that are not related to
this declaration, write to: HP Inc., 1501 Page Mill Road, Palo
Alto, CA 94304 or call HP at 650-857-1501.
For questions regarding this FCC declaration, write to: HP
Inc., 1501 Page Mill Road, Palo Alto, CA 94304 or call HP at
650-857-1501.
To identify your product, refer to the part, series, or model
number located on the product.
MODIFICATIONS
The FCC requires the user to be notified that any changes
or modifications made to this device that are not expressly
approved by HP may void the user’s authority to operate the
equipment.
CABLES
To maintain compliance with FCC Rules and Regulations,
connections to this device must be made with shielded cables
having metallic RFI/EMI connector hoods.
CANADA NOTICES
This Class B digital apparatus meets all requirements of the
Canadian Interference-Causing Equipment Regulations CAN
ICES-3(B)/NMB-3(B). If this device has WLAN or Bluetooth
capability, the device complies with Industry Canada license-
exempt RSS standard(s). Operation is subject to the following
two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
AVIS CANADIEN
Ce dispositif numérique de Classe B répond aux exigences
de la réglementation du Canada relative aux équipements
causant des interférences CAN ICES-3(B)/NMB-3(B). Si ce
dispositif est doté de fonctionnalités de réseau sans fil ou
Bluetooth, il est conforme aux normes d’exemption de licence
RSS d’Industrie Canada. Son fonctionnement est assujetti
aux deux conditions suivantes : 1) Ce dispositif ne doit causer
aucune interférence dangereuse, et 2) ce dispositif doit
accepter toute interférence reçue, y compris les interférences
pouvant provoquer un fonctionnement indésirable.
CHEMICAL SUBSTANCES
HP is committed to providing our customers with information
about the chemical substances in our products as needed to
comply with legal requirements such as REACH (Regulation
2928
Color Cover:
CMYK + COOL GREY 9 +
PMS 293; full bleed one side
Flat size:
10 x 5 in.
Fold 1:
saddle-stitched
booklet;
Color Inside pages:
CMYK + COOL GREY 9 +PMS 293
Finished size:
5 x 5 in.
EC No1907/2006 of the European Parliament and the Council).
A chemical information report for this product can be found at
www.hp.com/go/reach.
SUSTANCIAS QUÍMICAS
HP se compromete con la tarea de brindar a nuestros clientes
información acerca de los productos químicos incluidos en
nuestros productos necesaria para cumplir con requisitos
legales como REACH (Regulación EC N.º 1907/2006 del
Parlamento Europeo y del Consejo). Podrá encontrar un
informe con los datos químicos relacionados con este
producto en www.hp.com/go/reach.
SUBSTANCES CHIMIQUES
HP s’engage à fournir à ses clients des informations
concernant les substances chimiques contenues dans
ses produits, conformément aux dispositions légales telles
que REACH (Règlement CE n° 1907/2006 du Parlement
Européen et du Conseil de l’Union Européenne). Un rapport
d’informations sur les substances chimiques de ce produit est
disponible à l’adresse www.hp.com/go/reach.
EUROPEAN UNION REGULATORY NOTICES
DECLARATION OF CONFORMITY
Hereby, HP declares that this equipment:
Titan is in compliance with the essential
requirements and other relevant provisions of
Directive 1999/5/EC. The full Declaration of
Conformity can be found at the following web
site: URL. For regulatory matters the manufacturer, HP Inc.,
can be contacted at: 650-857-1501.
For regulatory matters the importer, HP Inc., can be contacted
at: HP, HQ-TRE, 71025 Boeblingen, Germany.
BATTERY NOTICES
The battery(ies) in this product cannot be easily replaced by
users themselves. Removing or replacing the battery could
affect your warranty coverage. If a battery is no longer holding
a charge, contact support.
When a battery has reached the end of its useful life, do not
dispose of the battery in general household waste. Follow the
local laws and regulations in your area for battery disposal.
ELECTRONIC HARDWARE AND BATTERY RECYCLING
HP encourage customers to recycle used electronic hardware
and rechargeable batteries. For more information about
recycling programs, see the HP Web site at www.hp.com/
recycle.
DISPOSAL OF WASTE EQUIPMENT BY USERS
This symbol means do not dispose of your
product with your other household waste.
Instead, you should protect human health and
the environment by handing over your waste
equipment to a designated collection point for
the recycling of waste electrical and electronic equipment.
For more information, please contact your household waste
disposal service or go to www.hp.com/recycle.
RMN: HSTNW-D02W
Copyright © 2015 HP Development Company, L.P.
Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license.
The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein.
To order a printed copy of your warranty, go to http://www.hp.com/go/orderdocuments. Select your country
or language, and then select Order. Enter your information in the form provided.
First Edition: August 2015
830139-001
The device meets the exemption from the routine evaluation limits
in section 2.5 of RSS 102 and compliance with RSS-102 RF exposure,
users can obtain Canadian information on RF exposure and compliance.
Le dispositif rencontre l'exemption des limites courantes d'évaluation
dans la section 2.5 de RSS 102 et la conformité à l'exposition de
RSS-102 rf, utilisateurs peut obtenir l'information canadienne
et la conformité de rf.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter. This equipment should be
millimeters between the radiator and your body.
installed and operated with a minimum distance of less than 5
Cet émetteur ne doit pas être Co-placé ou ne fonctionnant en même
temps qu'aucune autre antenne ou émetteur. Cet équipement
devrait être installé et actionné avec une distance minimum moins
de 5 millimètres entre le radiateur et votre corps.
FCC ID: O4GTITAN
IC: 7666A-TITAN
Model: HSTNW-D02W

Navigation menu
