M24W Manual.doc Model 24 W ISO-15693 Keyboard Wedge
Page 1 of 3
Introduction

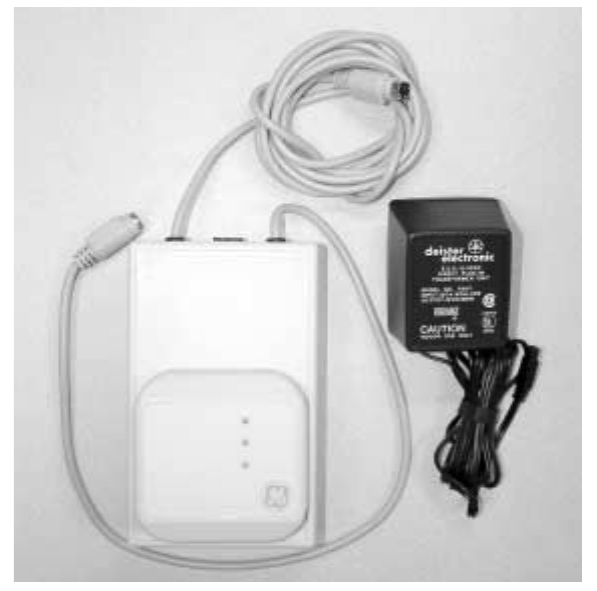

The Model 24W
Keyboard
Wedge is a read-
only device that
rapidly and
accurately
captures a
badge
identification
(BID) number
from either an
ISO14443A or
ISO15693
physical security
credential.
The captured BID is sent to one of four GE-Interlogix software products:
Secure Perfect, Secure Perfect Imaging, Picture Perfect or Access Vision
Imaging, doing so as if the BID had been entered from a keyboard.
The M24W Keyboard Wedge is a data entry convenience device. It is not an
access control reader. The M24W does not communicate with microcontrollers,
or contribute to the determination of access privileges.
M24W versions
There are four version of the Model 24W Keyboard Wedge available;
o 430185001 for M24W, 110VAC, 16-digit output
o 430186001 for M24W, 230VAC, 16-digit output
o 430189001 for M24W, 110VAC, 12-digit output
o 430190001 for M24W, 230VAC, 12-digit output
Currently Secure Perfect can only support 12-digit BID numbers. ISO15693
BID’s are 16-digits long. The 12-digit output versions of the M24W Keyboard
Wedge will truncate the high-order 4 digits of an ISO15693 BID credential,
making the resulting BID compatible with Secure Perfect.
M24W Manual.doc Model 24 W ISO-15693 Keyboard Wedge
Page 2 of 3
Connections
The keyboard and system PC connections are made through PS/2-style 6-pin
mini-DIN connectors, keyed for correct installation. The M24W 12VDC power
plug is keyed so as to require proper ± conductor orientation. The power cable
is permanently terminated at the AC power supply.
User Interface
LED Control
The red LED blinks on briefly to indicate a BID has been read and sent to the PC.
The green LED is not active.
The yellow LED indicates the M24W is powered, and that the attached PC is
powered on. The yellow LED blinks off briefly to indicate a valid badge read.
Beeper Control
The beeper sounds briefly to indicate that a badge has been read.
Operating Environment
Temperature: -20°C to +70°C (-4°F to 158°F)
Humidity: 0% to 95% humidity, non-condensing
The M24W Keyboard Wedge is a desktop unit, intended for use in-doors only.
M24W Use
Power on the M24W configured personal computer. Place the cursor in BID field
of the software application. Place the credential (typically a badge) on the M24W
reader. The M24W Keyboard Wedge will read the credential and format the
credential badge identification number as text, properly format the BID and send
the resulting character string to the cursor designated data entry field.
Proceed in the customary manner with creation of the badge holder record.
M24W Manual.doc Model 24 W ISO-15693 Keyboard Wedge
Page 3 of 3
Regulatory Notices
FCC
Changes or modifications not expressly approved by GE- Interlogix for
compliance could void the user’s authority to operate the equipment.
Agency Approvals
The M24W has been agency tested to FCC part 15c, CE EN301489, EN300330
and EN50130-4.
