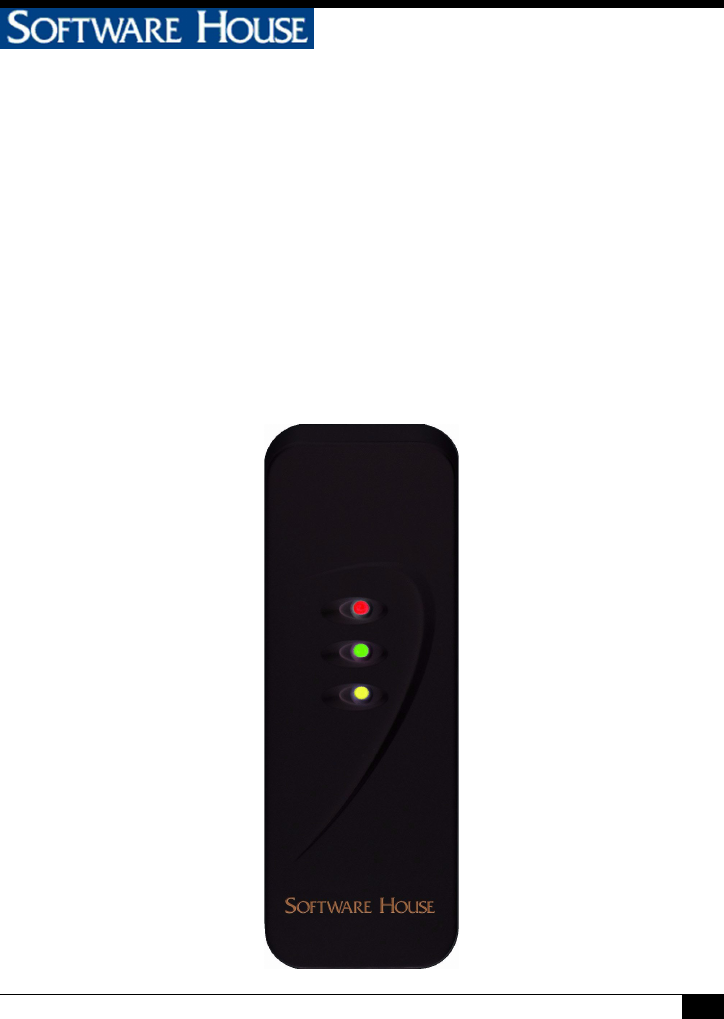

Model SWH-5000
Proximity 125 KHz Credential
Reader Installation Guide
Version A0
Part Number UM-099
September 2005
![](/img.php?id=607319&img=bg2.png)
2
CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Model SWH-5000 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . 10
FCC Digital Device Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Canadian Radio Emissions Requirements . . . . . . . . . . . . . . . . . . . . . . . . 13
UL Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
![](/img.php?id=607319&img=bg3.png)
3
INTRODUCTION
The SWH-5000 Proximity mullion reader will read a variety of prox cards
at a frequency of 125 kHz. Compatible standards include HID and deister
Prox SmartFrame®. Refer to Table 1 for a complete list of compatible
standards and data.
FEATURES
Universal compatibility with most 125 kHz Prox (including all HID®
Prox formats)
Electrical protection (reverse polarity diode protection on power lines)
Data lines: high-speed transient voltage suppressor diodes
IP65-rated sealed electronics for deployment in both interior and
exterior environments
TABLE 1. Compatible Credential Formats - Model SWH-5000
HID® 26 Bit Other HID pass through formats
HID® Corporate 1000 deister Prox SmartFrame®
HID® 36 Bit Wiegand CASI-RUSCO® Prox Lite
HID® 37 Bit Wiegand Others - Future Expansion
![](/img.php?id=607319&img=bg4.png)
4
MOUNTING
Mount the reader module directly to a metal door frame, wall, or single-
gang box, and snap the front cover in place as indicated in Figure 1.

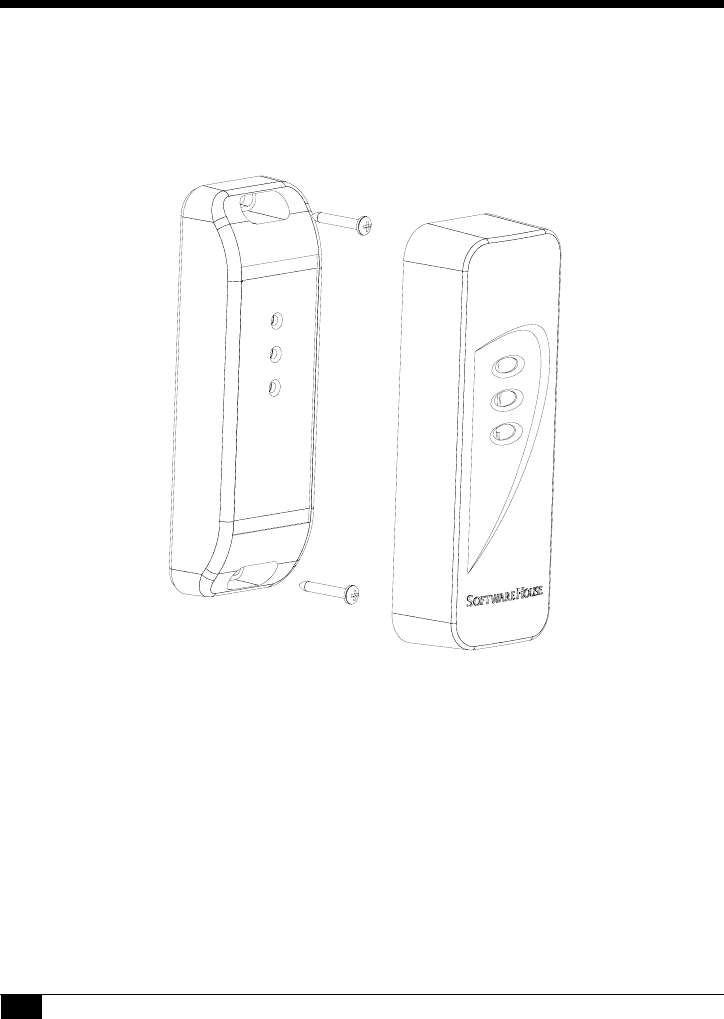

FIGURE 1. Mounting Assembly
![](/img.php?id=607319&img=bg5.png)
5
Installation of two SWH-5000 readers side-by-side
and back-to-back
Read range is not affected if the center-to-center distance between two
readers is greater than or equal to four (4) inches (101.6 mm). If the
distance between the two readers is less than four inches, field interference
between the two readers may result in a double-badge read. Two readers
can simultaneously read the same badge or tag if the distance between the
two readers is less than 4 inches, center-to-center.
NOTE
If two readers are being placed back-to-back on a wall less
than 4 inches thick, maximum performance can be achieved
by using a metal separation plate and then using isolation
spacers as necessary.
![](/img.php?id=607319&img=bg6.png)
6
WIRING
The SWH-5000 model has ten terminals as noted in Table 2. When
attaching wires to the connector, strip off only the minimum insulation
required (approx. 1/8'') and push the wire into the connector until the
insulation is flush or inside the connector body. This is particularly critical
for outdoor readers. While the reader itself is designed and protected to
IP65 standards, the cable wires can potentially corrode and short together if
not carefully mounted and tightly fastened in the connector body.
Table 3 indicates maximum wiring distances per Wiegand standard with
the three most common gauges of cable.
TABLE 2. Connector Pins for Model SWH-5000
Pin Description Pin
1 External Beeper Control 6 Reserved for Future Use
2 Ground 7 External Green LED Control
3 Power (8 to 16 VDC) 8 External Red LED Control
4 D1 Wiegand 9 No connection
5 D0 Wiegand 10 No connection
TABLE 3. Maximum cable distance for 18, 20, or 22 AWG wire
Wire Gauge 18 AWG 20AWG 22 AWG
Cable
Distance
500 feet
(152 meters)
300 feet
(91 meters)
200 feet
(61 meters)
![](/img.php?id=607319&img=bg7.png)
7
Beeper Wiring
Figure 2 shows how to wire the beeper so that it beeps when a valid card is
presented to the reader.

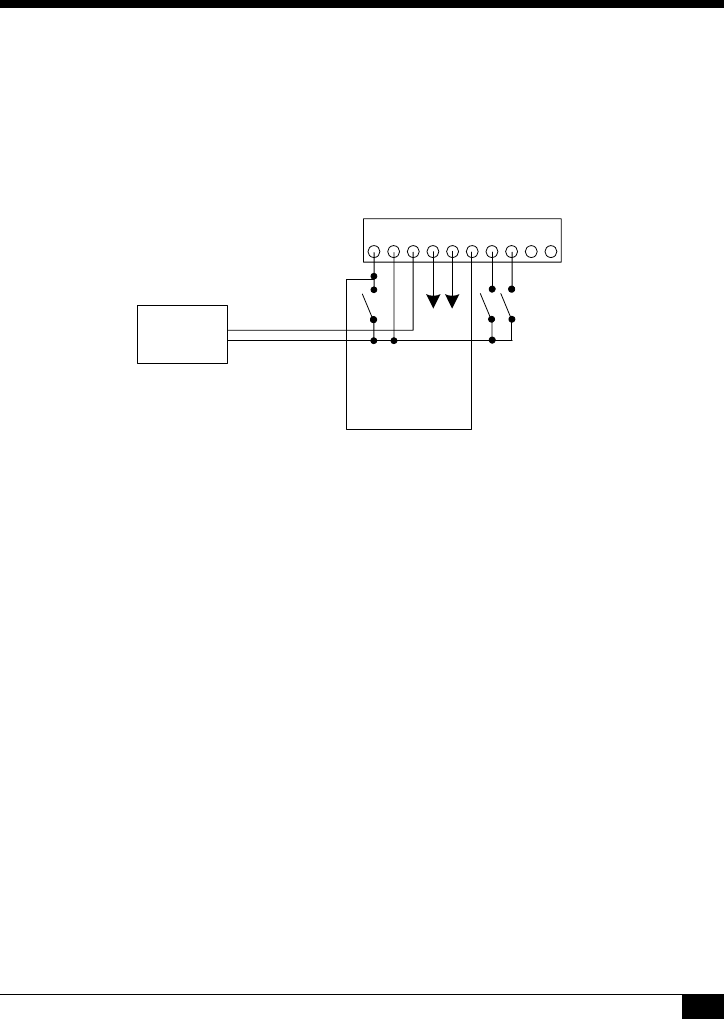

FIGURE 2. Beeper Wiring
Terminal Block
110
AC or
DC
Red LED
Green LED
+12V
GND
Beeper
D1
D0
For internal beep,
connect Pin 6 to
Pin 1 as shown
![](/img.php?id=607319&img=bg8.png)
8
INSTALLATION NOTES
Unless otherwise specified in this manual, please follow these guidelines:
1. Shielded cable is recommended in electrically noisy environments.
2. You can use a local power supply for the reader. If so, don’t connect the
power supply from the controller to the reader. The ground line of the
local power supply must be connected to the power supply of the
controller.
3. The unit needs to be operated with a power source with limited power
consumption according to EN 60950-1 (2001) paragraph 2.5.
Das Gerät ist mit einer Stromquelle mit begrenzter Leistung nach EN
60950-1 (2001) Absatz 2.5 zu betreiben. Des Weiteren gilt die EN
60950-1 (2001) nur in Europa und nicht in den USA!
4. Use of a pull-up resistor may be required by some controllers. Consult
your controller manual.
![](/img.php?id=607319&img=bg9.png)
9
TROUBLESHOOTING
If the operation of a component is in doubt, substitute a known good
component and retry the system. Always verify wiring against the provided
wiring information before powering up the reader.
TABLE 4. Error Conditions and Possible Solutions
Condition Possible Solutions
None of the LEDs
are on.
Check the following:
Power connections to the reader.
Reader supply voltage at connector pin 3 and
that the ground connection pin 2 is secure and
well connected.
The door does not
open and the green
LED does not light
when a qualified
credential is
presented.
Verify that the door strike and the green LED are
wired correctly. Verify that the access credential
has been entered and that the reader has been
properly configured in the host system.
The green LED
does not light but
the door strike
unlocks the door
when a valid
credential is
presented.
Verify that the door strike is wired correctly. Refer
to the appropriate wiring diagram in your
controller manual. Disconnect the wire from pin 7
(green LED) and connect pin 7 to pin 2 (ground). If
the green LED is now on, the reader is good and
the connection to the reader is defective. If the
green LED does not light, replace the reader.
![](/img.php?id=607319&img=bga.png)
10
MODEL SWH-5000 TECHNICAL
SPECIFICATIONS
Cable Recommendations: 4 core (minimum), shielded, 22 AWG
(minimum) cable
Connectors: 10 position, 3.5 mm Screw Terminals -
Plug-In
Certifications: FCC Part 15, CE and UL 294 (pending)
Other Standards
Compliance:
deister SmartFrame® in 125 kHz
implementations
HID® Prox at 125 kHz (All Formats)
Standard Color: Black (other colors available; contact your
Software House representative)
Dimensions
(height/width/depth):
4.92" × 1.77" × 0.98"
(125 × 45 × 25 mm)
Power Supply: Rated Voltage: 9.4-16 VDC 125 mA
maximum current
Note: Unit has been tested and is reliable
operating to 8 VDC on long lines.
Environments: Meets UL 294 standards for Outdoor Use
Humidity: 5 to 90% (non-condensing)
Operating Temperature: -31º F to 151º F (-35º C to 67º C)
![](/img.php?id=607319&img=bgb.png)
11
Index of Protection: IP 65 (IEC 529)
Read Range: 1 to 3 inches depending on credential
technology and environment.
Note: Read range for credentials of
identical technologies may vary greatly
depending on the tuning and antenna
structure of each individual credential.
Standard Wiegand Output
including:
ID Pass-Through Option
Fixed Wiegand bit stream option
![](/img.php?id=607319&img=bgc.png)
12
FCC DIGITAL DEVICE LIMITATIONS
Radio and Television Interference
This equipment has been tested and found to comply with the limits
for a digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
In order to maintain compliance with FCC regulations, shielded cables
must be used with this equipment. Operation with non-approved
equipment or unshielded cables is likely to result in interference to
radio and television reception.
§ 15.21 Information to the user:
CAUTION: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate this
equipment.
![](/img.php?id=607319&img=bgd.png)
13
CANADIAN RADIO EMISSIONS
REQUIREMENTS
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference, and
2) this device must accept any interference received, including interference
that may cause undesired operation.
Le present appareil numerique n'emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la class A
prescrites dans le Reglement sur le brouillage radioelectrique edicte par le
ministere des Communications du Canada.
UL STANDARDS COMPLIANCE
This reader has been tested by Underwriters Laboratories, Inc. for standard
UL 294, Access Control System Units, but has not been tested for
compliance with any particular model of controller.
![](/img.php?id=607319&img=bge.png)
14
CE MARKING
Hereby, Software House declares that this equipment, if used according to
the instructions, is in compliance with the essential requirements and other
relevant provisions of the RTTE Directive 1999/5/EC. For use in all
countries of the EU.
A Declaration of Conformity exists for the following Software House
Multi-technology readers:
To obtain a copy, contact Software House and request the “Declaration of
Conformity” document for Multi-technology readers.
Software House
70 Westview Street
Lexington, MA 02421 U.S.A.
In case of alteration of the product, not agreed to by us, this declaration will
lose its validity.
SWH-4100 SWH-2100 SWH-1100 SWH-2000
SWH-5100 SWH-4200 SWH-3100 SWH-4000
SWH-1000 SWH-3000 SWH-5000
This symbol indicates proof of conformity to
applicable European Economic Community
Council directives and harmonized standards
published in the official journal of the European
Communities.
![](/img.php?id=607319&img=bgf.png)
15
![](/img.php?id=607319&img=bg10.png)
Software House
70 Westview Street
Lexington, MA 02421
http://www.swhouse.com
Fax: 781-466-9550 Phone: 781-466-6660
#896027
16
Copyrights and Trademarks
This document contains proprietary information of Tyco International, Inc. and is furnished to its
customer solely to assist in the installation, testing, operation and maintenance of the equipment
described. This document may not be reproduced in whole or in part without the written approval of
Tyco International.
Copyright 2005 Tyco International
All rights reserved.
Printed in Germany.
Software House is a trademark of Sensormatic Electronics Corporation.
HID, SmartFrame, and CASI-RUSCO are registered trademarks of other companies not affiliated
with Sensormatic.
