Delﬁ eld ColdPro Reach Ins

Service, Installation and Care Manual

Please read this manual completely before attempting to install or operate this equipment! Notify carrier of

damage! Inspect all components immediately. See page 2.

Refrigerators and Freezers

Effective Date July 2005

IMPORTANT INFORMATION

READ BEFORE USE

PLEASE SAVE THESE INSTRUCTIONS!

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

RECEIVING & INSPECTING EQUIPMENT

.................................

RECEIVING & INSPECTING EQUIPMENT .................................RECEIVING & INSPECTING EQUIPMENT

SPECIFICATIONS

........................................................................

INSTALLATION

..........................................................................

OPERATION

................................................................................

MAINTENANCE

.......................................................................

6-7

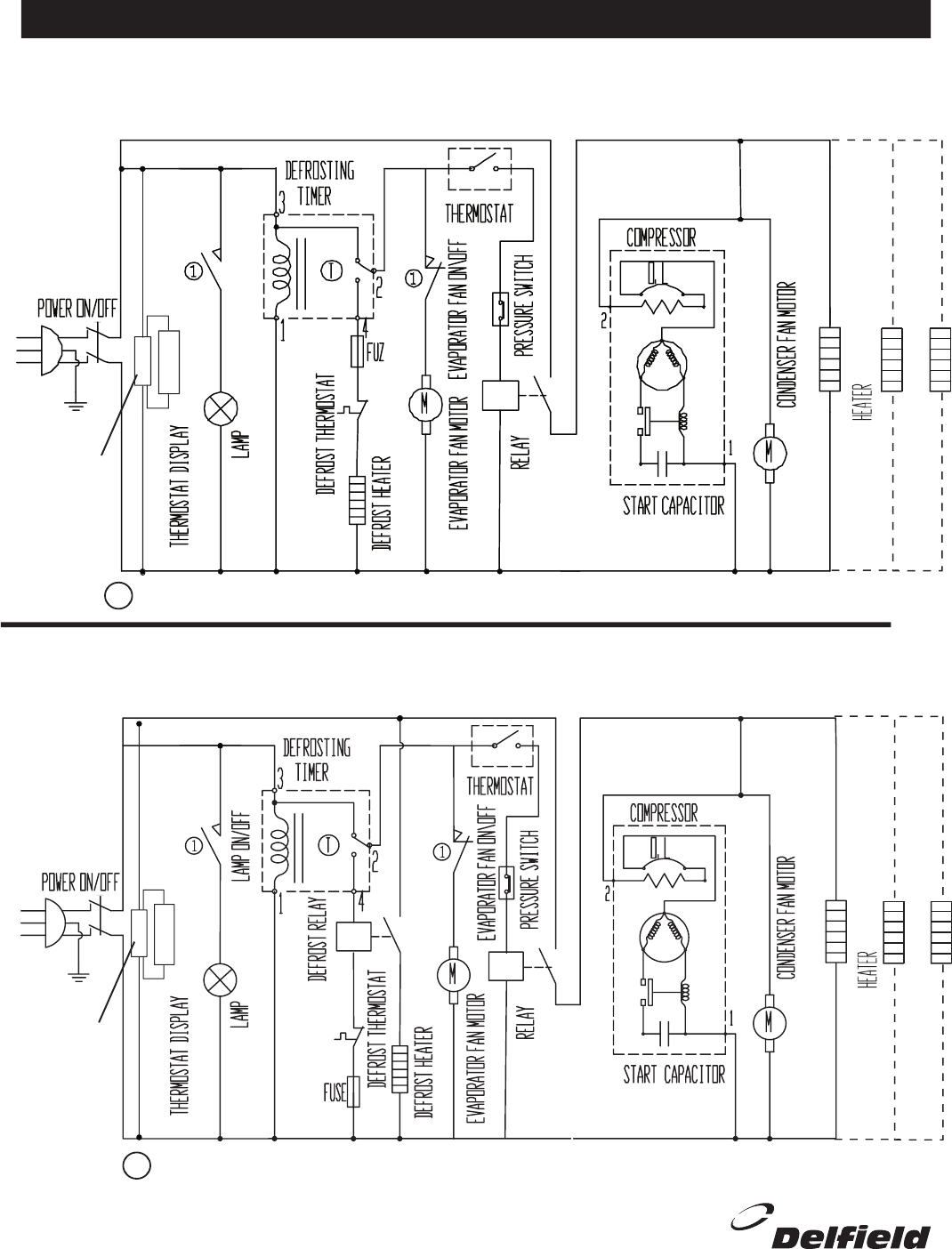

WIRING DIAGRAMS

...............................................................

8-9

PARTS LISTING

.................................................................

10-13

STANDARD LABOR GUIDELINES

............................................

WARRANTIES

....................................................................

15-16

The serial number of all self-contained refrigerators and

freezers is located inside the unit on the left hand side near

the top on the wall.

Always have the serial number of your unit available when

calling for parts or service. Please record your model and

serial number on the back cover of this manual for easy

reference.

This manual covers standard units only. If you have a custom

unit, consult the customer service department at the number

listed below.

written permission is prohibited. “Delﬁ eld” is a registered trademark of The

Delﬁ eld Company.

CONTENTS

SERIAL NUMBER INFORMATION

Even though most equipment is shipped crated, care should

be taken during unloading so the equipment is not damaged

while being moved into the building.

1. Visually inspect the exterior of the package and skid or

container. Any damage should be noted and reported to

the delivering carrier immediately.

2. If damaged, open and inspect the contents with the

carrier.

3. In the event that the exterior is not damaged, yet upon

opening, there is concealed damage to the equipment

notify the carrier. Notification should be made verbally

as well as in written form.

4. Request an inspection by the shipping company of the

damaged equipment. This should be done within 10

days from receipt of the equipment.

5. Be certain to check the compressor compartment

housing and visually inspect the refrigeration package.

Be sure lines are secure and base is still intact.

6. Freight carriers can supply the necessary damage forms

upon request.

7. Retain all crating material until an inspection has been

made or waived.

RECEIVING AND INSPECTING THE EQUIPMENT

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

SPECIFICATIONS

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

CAPACITY FT

H.P. BTU CHARGE WEIGHT PLUG TYPE

R1FR

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

R1FL

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

R1HR

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

R1HL

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

R2FH

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

R2HH

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

R3FH

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

CAPACITY FT

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

COLDPRO SOLID DOOR REFRIGERATORS

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

CAPACITY FT

H.P. BTU CHARGE WEIGHT PLUG TYPE

F1FR

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

F1FL

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

F1HR

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

F1HL

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

F2FH

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

F2HH

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

F3FH

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

MODEL # VOLTAGE AMPS CAPACITY FT

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

CAPACITY FT

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

COLDPRO SOLID DOOR FREEZERS

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 5 18.7 14.04 1/4 3200 21.2 oz. 332 LBS 5-15P 134A

115/60/1 9 40.25 28.08 1/2 5800 30.0 oz. 498 LBS 5-15P 134A

115/60/1 11 61.8 42.12 1/2+ 7625 37.0 oz. 649 LBS 5-15P 134A

STORAGE SHELF SHIP NEMA REFRIG.

H.P. BTU CHARGE WEIGHT PLUG TYPE

115/60/1 9 18.7 14.04 1/2 2325 19.4 oz. 334 LBS 5-15P 404A

115/60/1 10 40.25 28.08 3/4 3650 20.5 oz. 558 LBS 5-15P 404A

115/60/1 16 61.8 42.12 1+ 4500 28.2 oz. 766 LBS 5-20P 404A

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

Unit repairs will not be subject to standard

unit warranties due to improper installation

procedures.

Electrical connection

Refer to the amperage data on page 3, the serial tag, your

local code or the National Electrical Code to be sure the unit is

connected to the proper power source. A protected circuit of

the correct voltage and amperage must be run for con nec tion

of the line cord, or permanent connection to the unit.

The on/off switch must be turned to OFF and

the unit disconnected from the power source

whenever performing service, maintenance

functions or cleaning the refrigerated area.

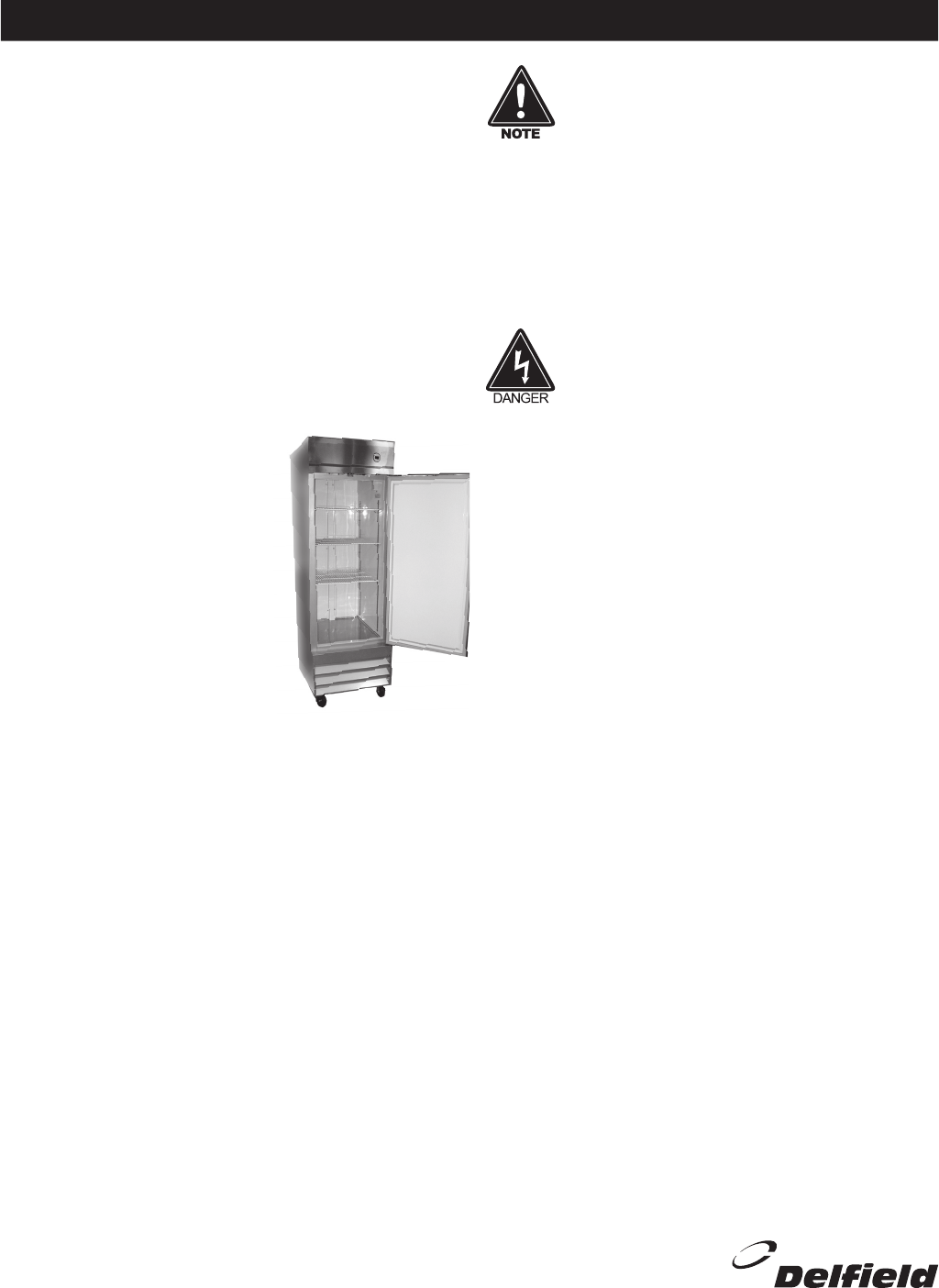

INSTALLATION

Location

Units represented in this manual are intended for indoor use

only.

Be sure the location chosen has a floor strong enough

to support the total weight of the cabinet and contents. A fully

loaded unit can weigh as much as 4,000 pounds. Reinforce

the floor as necessary to provide for maximum loading. For

the most efficient refrigeration, be sure to provide good air

circulation inside and out.

Inside cabinet:

Do not pack refrigerator so full that air

cannot circulate. The refrigerated air is discharged at the top

rear of the unit. It is important to allow for proper air flow

from the top rear to the bottom of the unit. Obstructions

to this air flow can cause evaporator coil freeze ups, loss of

temperature or overflow of water from the evaporator drain

pan. However, bags and other items can still be located to

the far rear of the cabinet. Air is

brought into the evaporator coil with

fans mounted to the front of the coil.

Prevent obstruction by locating large

boxes and tall stacks of product to

the bottom of the cabinet.

Outside cabinet:

Be sure that

the unit has access to ample air.

Avoid hot corners and locations

near stoves and ovens. It is

recommended that the unit be

installed no closer than 2” from any

wall.

Leveling

A level cabinet will not be subject to undue stress and perform

better when the doors line up with the frames properly. Use

a level to make sure the unit is level from front to back and

side to side. When the unit is supplied with casters, no

adjustments are available, but if unit comes with legs, they

have adjustable bullet feet. Ensure the floor where the unit is

to be located is level.

Stabilizing

Models are supplied on casters for your convenience, ease

of cleaning underneath and for mobility. It is very important,

however, that the cabinet be installed in a stable condition

with the front wheels locked while in use.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

OPERATION

Do not throw items into the storage area.

Failure to follow these recommendations could

result in damage to the interior of the cabinet.

Temperature control instruction

Refrigerators:

A thermostat located on the evaporator coil in

the interior of the unit, controls the temperature in the box.

The unit should maintain 38˚F(3˚C), with the factory control

setting at 5 or 6. Set toward “1” for warmer temperatures

and toward “7” for colder temperatures.

Freezers:

A thermostat located on the evaporator coil in the

interior of the unit, controls the temperature in the box. The

unit should maintain -3˚F(-18˚C), with the factory control

setting at 6. Set toward “1” for warmer temperatures and

toward “7” for colder temperatures.

Refrigeration cycle

Refrigerators:

The evaporator fans will run continuously

unless a door is open. The door switch will activate the

lights when opened and turn power off to the evaporator fan

motors.

1. The temperature control allows for the evaporator coil to

clear after each off cycle and before the compressor runs

again.

2. Anti-sweat heaters around each door opening operate

continually.

Freezers:

The defrost timer supplies power to the temperature

control (for power to the condensing unit) and evaporator fan

motors. The door switch will activate the lights when opened

and turn power off to the evaporator fan motors.

1. Defrost Cycle, 20 minutes every 4 hours.

2. Anti-sweat heaters around each door opening operate

continually.

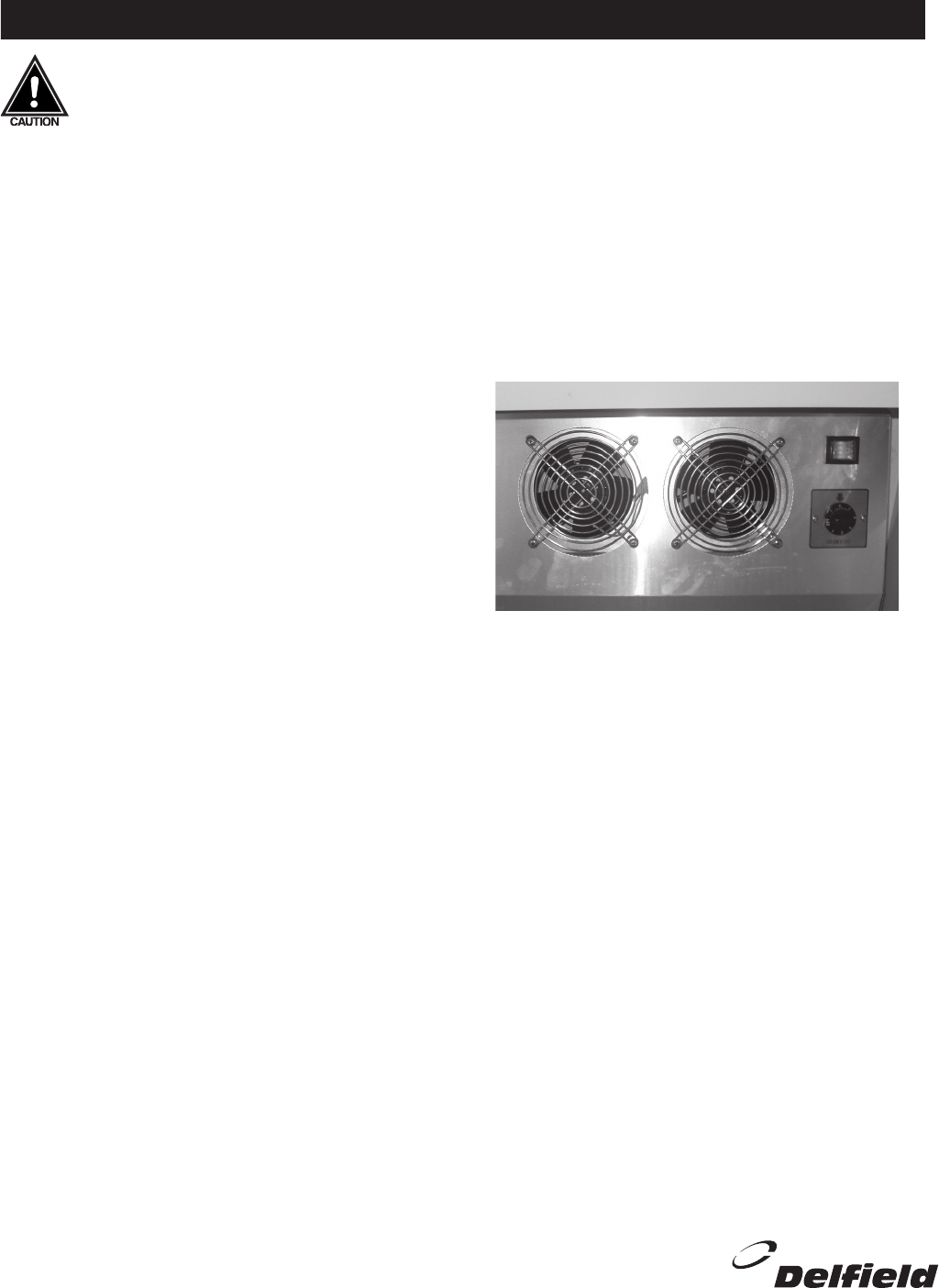

On/Off Switch:

ON/OFF

switch is located on the front of the evaporator coil

housing. When the unit is on, the switch will illuminate.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

MAINTENANCE

The power switch must be turned to OFF and

the unit disconnected from the power source

whenever performing service, maintenance

functions or cleaning the refrigerated area.

Refrigerators and Freezers

The interior and exterior can be cleaned using soap and warm

water. If this isn’t sufﬁ cient, try ammonia and water or a non-

abrasive liquid cleaner. When cleaning the exterior, always

rub with the “grain” of the stainless steel to avoid marring the

ﬁ nish.

Do not use an abrasive cleaner because it will scratch the

stainless steel and can damage the breaker strips and gaskets.

Cleaning the Condenser Coil

The condenser coil requires regular cleaning, recommended

is every 90 days. In some instances though you may ﬁ nd

that there is a large amount of debris and dust or grease

accumulated prior to the 90 day time frame. In these cases the

condenser coil should be cleaned every 30 days.

If the build up on the coil consists of only light dust and debris

the condenser coil can be cleaned with a simple brush, heavier

dust build up may require a vacuum or even compressed air to

blow through the condenser coil.

If heavy grease is present there are de-greasing agents

available for refrigeration use and speciﬁ cally for the condenser

coils. The condenser coil may require a spray with the de-

greasing agent and then blown through with compressed air.

Failure to maintain a clean condenser coil can initially cause

high temperatures and excessive run times, continuous

operation with dirty or clogged condenser coils can result in

compressor failures. Neglecting the condenser coil cleaning

procedures will void any warranties associated with the

compressor or cost to replace the compressor.

Never use a high pressure water wash for this

cleaning procedure as water can damage the

electrical components located near or at the

condenser coil.

In order to maintain proper refrigeration performance, the

condenser ﬁ ns must be cleaned of dust, dirt and grease

regularly. It is recommended that this be done at least every

three months. If conditions are such that the condenser is

totally blocked in three months, the frequency of cleaning

should be increased. Clean the condenser with a vacuum

cleaner or stiff brush. If extremely dirty, a commercially

available condenser cleaner may be required.

Stainless Steel Care and Cleaning

To prevent discoloration of rust on stainless steel several

important steps need to be taken. First, we need to understand

the properties of stainless steel. Stainless steel contains 70-

80% iron which will rust. It also contains 12-30% chromium

which forms an invisible passive ﬁ lm over the steels surface

which acts as a shield against corrosion. As long as the

protective layer is intact, the metal is still stainless. If the ﬁ lm

is broken or contaminated, outside elements can begin to

breakdown the steel and begin to form rust of discoloration.

Proper cleaning of stainless steel requires soft cloths or plastic

scouring pads.

NEVER USE STEEL PADS, WIRE BRUSHES OR

SCRAPERS!

Cleaning solutions need to be alkaline based or non-chloride

cleaners. Any cleaner containing chlorides will damage

the protective ﬁ lm of the stainless steel. Chlorides are also

commonly found in hard water, salts, and household and

industrial cleaners. If cleaners containing chlorides are

used be sure to rinse repeatedly and dry thoroughly upon

completion.

Routine cleaning of stainless steel can be done with soap and

water. Extreme stains or grease should be cleaned with a

non-abrasive cleaner and plastic scrub pad. It is always good

to rub with the grain of the steel. There are also stainless steel

cleaners available which can restore and preserve the ﬁ nish of

the steels protective layer.

Early signs of stainless steel breakdown can consist of small

pits and cracks. If this has begun, clean thoroughly and start

to apply stainless steel cleaners in attempt to restore the

passivity of the steel.

Never use an acid based cleaning solution!

Many food products have an acidic content

which can deteriorate the ﬁ nish. Be sure to

clean the stainless steel surfaces of ALL food

products. Common items include, tomatoes,

peppers and other vegetables.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

MAINTENANCE CONTINUED

If your freezer seems to vibrate excessively when

the compressor is running, loosen (but do not

remove) the bolts on the compressor.

MAINTENANCE

Gasket Maintenance

Gaskets require regular cleaning to prevent mold and mildew

build up and also to keep the elasticity of the gasket. Gasket

cleaning can be done with the use of warm soapy water. Avoid

full strength cleaning products on gaskets as this can cause

them to become brittle and prevent proper seals. Also, never

use sharp tools or knives to scrape or clean the gasket which

could possibly tear the gasket and rip the bellows.

Gaskets can easily be replaced and do not require the use of

tools or authorized service persons. The gaskets are “Dart”

style and can be pulled out of the grove in the door and new

gaskets can be “pressed” back into place.

Doors/Hinges

Over time and with heavy use doors the hinges may become

loose. If it is noticed that the door is beginning to sag, it may

become necessary to tighten the screws that mount the hinge

brackets to the frame of the unit. If the doors are loose or

sagging this can cause the hinge to pull out of the frame which

may damage both the doors and the door hinges. In some

cases this can require qualiﬁ ed service agents or maintenance

personnel.

Drain Maintenance

Each unit has a drain located inside the unit which removes

the condensation from the evaporator coil and evaporates it

at an external condensate evaporator pan. Each drain can

become loose or disconnected from moving or bumping the

drain. If you notice excessive water accumulation on the

inside of the unit be sure the drain tube is connected from

the evaporator housing to the condensate evaporator drain

pan. If water is collected underneath the unit you may want

to check the condensate evaporator drain tube to be sure it

is still located inside the drain pan. The leveling of the unit is

important as the units are designed to drain properly when

on a level surface, if your ﬂ oor is not level this can also cause

drain problems. Be sure all drain lines are free of obstructions,

typically food product is found blocking drain lines causing

water to back up and overﬂ ow the drain pans.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

WIRING DIAGRAMS: REFRIGERATORS

Models: R1FR, R1FL, R1HR, R1HL, R2FH, R2HH, R3FH

115 VOLT 60 CYCLE 1 PHASE



















ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

WIRING DIAGRAMS: FREEZERS













































 



ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

REPLACEMENT PARTS

PART NUMBER DESCRIPTION UNIT TYPE

1 DR REF

2 DR REF

3 DR REF

1 DR FRZ

2 DR FRZ

3 DR FRZ

3547699

CAPILLARY TUBE

3547700

CAPILLARY TUBE

3547701

CAPILLARY TUBE

3547702

CAPILLARY TUBE

3547703

CAPILLARY TUBE

3547704

CAPILLARY TUBE

3237524

CASTER, 4” DIAMETER

126-BXW-0030

CASTER/LEG BOTTOM CHANNEL

126-BXW-0031

CASTER/LEG BOTTOM CHANNEL

126-BXW-0032

CASTER/LEG BOTTOM CHANNEL

3526970

COMPRESSOR

3526971

COMPRESSOR

3526972

COMPRESSOR

3526973

COMPRESSOR

3526974

COMPRESSOR

3526975

COMPRESSOR

000-BXR-0030

CONDENSATE PAN ASSEMBLY (WITH HOT GAS LOOP)

000-BXR-0031

CONDENSATE PAN ASSEMBLY (WITH HOT GAS LOOP)

000-BXR-0032

CONDENSATE PAN ASSEMBLY (WITH HOT GAS LOOP)

127-BXV-0080

CONDENSATE PAN SLIDE

3516345

CONDENSER COIL

3516346

CONDENSER COIL

3516347

CONDENSER COIL

3516348

CONDENSER COIL

3516349

CONDENSER COIL

3516350

CONDENSER COIL

2162708

CONDENSER FAN MOTOR (INCLUDES BLADE & GUARD)

2162709

CONDENSER FAN MOTOR (INCLUDES BLADE & GUARD)

2162710

CONDENSER FAN MOTOR (INCLUDES BLADE & GUARD)

2162711

CONDENSER FAN MOTOR (INCLUDES BLADE & GUARD)

000-BXX-0030

CONDENSING UNIT PLATE & SLIDE ASSY

000-BXX-0031

CONDENSING UNIT PLATE & SLIDE ASSY

000-BXX-0032

CONDENSING UNIT PLATE & SLIDE ASSY

127-BXV-0070

CONDENSING UNIT/CONDENSATE SLIDE STOP BRACKET

2194674

DEFROST HEATER

2194675

DEFROST HEATER

2194676

DEFROST HEATER

2194712

DEFROST RELAY

3516337

DEFROST TIMER

127-BXV-0030

DEFROST TIMER BRACKET

2194677

DOOR LIGHT SWITCH

The installation of generic replacement parts will VOID warranty.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

REPLACEMENT PARTS

PART NUMBER DESCRIPTION UNIT TYPE

1 DR REF

2 DR REF

3 DR REF

1 DR FRZ

2 DR FRZ

3 DR FRZ

3237521

DOOR LOCK

000-BBJ-0031

DOOR, HINGED LEFT, FULL SIZE

000-BBJ-0030

DOOR, HINGED RIGHT, FULL SIZE

000-BBJ-0033

DOOR, HINGED LEFT, HALF SIZE

000-BBJ-0032

DOOR, HINGED RIGHT, HALF SIZE

1702719

DRAIN

2194713

DRAIN HEATER, 5W FLEX

3516339

EVAPORATOR COIL

3516340

EVAPORATOR COIL

3516341

EVAPORATOR COIL

3516342

EVAPORATOR COIL

3516343

EVAPORATOR COIL

3516344

EVAPORATOR COIL

000-BXY-0030

EVAPORATOR COIL ASSY

000-BXY-0031

EVAPORATOR COIL ASSY

000-BXY-0032

EVAPORATOR COIL ASSY

000-BXY-0033

EVAPORATOR COIL ASSY

000-BXY-0034

EVAPORATOR COIL ASSY

000-BXY-0035

EVAPORATOR COIL ASSY

133-BXS-0030

EVAPORATOR COIL BOTTOM PANEL

133-BXS-0031

EVAPORATOR COIL BOTTOM PANEL

133-BXS-0032

EVAPORATOR COIL BOTTOM PANEL

133-BXS-0033

EVAPORATOR COIL BOTTOM PANEL

133-BXS-0034

EVAPORATOR COIL BOTTOM PANEL

133-BXS-0035

EVAPORATOR COIL BOTTOM PANEL

3516361

EVAPORATOR FAN GUARD

2162707

EVAPORATOR FAN MOTOR (INCLUDES BLADE)

133-BXU-0030

EVAPORATOR FAN MOUNTING PANEL

133-BXU-0031

EVAPORATOR FAN MOUNTING PANEL

133-BXU-0033

EVAPORATOR FAN MOUNTING PANEL

133-BXU-0032

EVAPORATOR FAN MOUNTING PANEL

3516354

EVAPORATOR HOUSING

3516355

EVAPORATOR HOUSING

3516356

EVAPORATOR HOUSING

3516357

EVAPORATOR HOUSING

3516358

EVAPORATOR HOUSING

3516359

EVAPORATOR HOUSING

1701338

GASKET, FULL DOOR

1701339

GASKET, HALF DOOR

2194712

HIGH PRESSURE CUTOUT RELAY

2194711

HIGH PRESSURE CUTOUT SWITCH

3237528

HINGE CARTRIDGE, SELF CLOSING

The installation of generic replacement parts will VOID warranty.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

REPLACEMENT PARTS

PART NUMBER DESCRIPTION UNIT TYPE

1 DR REF

2 DR REF

3 DR REF

1 DR FRZ

2 DR FRZ

3 DR FRZ

3237529

HINGE PIN SLEEVE

3237519

HINGE, BOTTOM LEFT

3237526

HINGE, BOTTOM RIGHT

3237518

HINGE, TOP LEFT

3237525

HINGE, TOP RIGHT

3237520

HINGE, MIDDLE LEFT (HALF DOOR ONLY)

3237527

HINGE, MIDDLE RIGHT (HALF DOOR ONLY)

3237523

LEG, 6”

2194686

LIGHT BULB

2194682

LIGHT FIXTURE

3237522

LOCK KEY

3234861

LOCK STRIKE

2194683

ON/OFF SWITCH

2194691

ON/OFF SWITCH

2194684

POWER CORD, 14GA

2194685

POWER CORD, 16GA

129-BEJ-0030

REAR MACHINE COMPARTMENT COVER

129-BEJ-0031

REAR MACHINE COMPARTMENT COVER

129-BEJ-0032

REAR MACHINE COMPARTMENT COVER

3978195

SHELF

3978207

SHELF

3978198

SHELF, LEFT

3978209

SHELF, LEFT

3978206

SHELF, MIDDLE

3978208

SHELF, MIDDLE

3978199

SHELF, RIGHT

3978210

SHELF, RIGHT

3234859

SHELF PILASTER STRIP

9321587

THUMB SCREWS FOR PILASTER STRIP

3234860

SHELF CLIP

3234868

SHROUD HINGE

3234891

SHROUD HINGE

000-BBM-0033

BOTTOM SHROUD HINGED LEFT

000-BBM-0030

BOTTOM SHROUD HINGED RIGHT

000-BBM-0031

BOTTOM SHROUD

000-BBM-0032

BOTTOM SHROUD

000-BBK-0033

TOP SHROUD HINGED LEFT

000-BBK-0030

TOP SHROUD HINGED RIGHT

000-BBK-0031

TOP SHROUD

000-BBK-0032

TOP SHROUD

127-BXV-0050

TOP SHROUD CLOSURE BRACKET

127-BXV-0060

TOP SHROUD MOUNTING BRACKET

The installation of generic replacement parts will VOID warranty.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

REPLACEMENT PARTS

MISC. ITEMS

DESCRIPTION SPEC.

TOP SHROUD COVER HOLD DOWN SCREW

M4, 16MM LONG (NICKEL GALVANIZED)

TOP SHROUD HINGE SCREW & NUTS

M4, 16MM LONG (STAINLESS STEEL), M4 NUT (STAINLESS STEEL)

M4, 10MM LONG (ZINC GALVANIZED)

CABINET HINGE MOUNTING SCREW

M6, 20MM LONG (STAINLESS STEEL)

LOWER SHROUD MOUNTING SCREW

M4, 10MM LONG (ZINC GALVANIZED)

REAR MACHINE COMPARTMENT MOUNTING SCREW

M5, 20MM LONG (ZINC GALVANIZED)

HINGE CARTRIDGE MOUNTING SCREW

M5, 20MM LONG (STAINLESS STEEL)

HINGE CARTRIDGE PIN SCREW

M5, 10MM LONG (STAINLESS STEEL)

EVAPORATOR HOUSING MOUNTING SCREW

M4, 16MM LONG (STAINLESS STEEL)

EVAPORATOR FAN GUARD MOUNTING SCREW

M5, 10MM LONG (STAINLESS STEEL), M5 NUT (STAINLESS STEEL)

EVAPORATOR FAN MOTOR MOUNTING SCREW

M4, 16MM LONG (STAINLESS STEEL), M4 NUT (STAINLESS STEEL)

REFRIGERATOR VINYL DRAIN TUBE

0.625 OD, 0.5O ID

FREEZER VINYL DRAIN TUBE

0.375 OD, 0.25 ID

PART NUMBER DESCRIPTION UNIT TYPE

1 DR REF

2 DR REF

3 DR REF

1 DR FRZ

2 DR FRZ

3 DR FRZ

123-BEI-0030

SUCTION LINE COVER

123-BEI-0031

SUCTION LINE COVER

3516338

THERMOMETER

9321593

THERMOMETER BULB CLIP

127-BXV-0040

THERMOMETER TRANSFORMER BRACKET

2194673

THERMOSTAT

3516336

THERMOSTAT

MODEL 1 DR REF 2 DR REF 3 DR REF 1 DR FRZ 2 DR FRZ 3 DR FRZ

START RELAY MANUFACTURER AND MODEL (OR EQUIVALENT)

ELECTRICA

MTRP 5508

W343

ELECTRICA

MTRP

H0016

-08W343

KLIXON

9660-3027-

19109

Z3L

KLIXON

9660C-041-

191 21 V2L

GENERAL

ELECTRIC

3ARR383F3

GENERAL

ELECTRIC

3ARR3B3S3

START CAPACITOR RATING (uF)

145-174

189-227

145-175

145-174

340-408

START CAPACITOR VOLTAGE RATING (VAC)

165

330

250

165

RUN CAPACITOR RATING (uF)

NONE USED

25 ± 5%

20 ± 5%

The installation of generic replacement parts will VOID warranty.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

STANDARD LABOR GUIDELINES TO REPAIR OR REPLACE PARTS ON DELFIELD EQUIPMENT

Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage.

• A maximum of 1-hour is allowed to

diagnose a defective component

• A maximum of 1-hour is allowed for

retrieval of parts

not in stock.

• A maximum

travel distance

of 100 miles round trip and 2-hours will be reimbursed.

• Overtime, installation/start-up, normal control adjustments, general maintenance, glass breakage, freight damage, and/or

correcting and end-user installation error will not be reimbursed under warranty unless pre-approved with a

Service Work

Authorization

from Delfield. You must submit the number with the service claim.

LABOR OF 1-HOUR IS ALLOWED TO REPLACE:

• Thermostat • Contactor/Relay

• Door Jamb Switch • Evaporator/Condenser Fan Motor and Blade

• Hi-limit/Thermal Protector Switch • Door Hinges, Locks, and Gaskets

• Fan Delay/Defrost Termination Switch • Condensate Element

• Compressor Start Components and Overload Protector • Defrost Timer

• Thermometer

LABOR OF 2 HOURS TO REPLACE:

• Defrost Element

• Pressure Switch

• Locate/Repair Leak

LABOR OF 3 HOURS TO REPLACE:

• Capillary Tube

• Condenser or Evaporator Coil

LABOR OF 4 HOURS TO REPLACE

• Compressor

This includes recovery of refrigerant and leak check.

$35.00 maximum reimbursement for refrigerant recovery (includes recovery machine, pump, torch, oil, flux, minor fittings,

solder, brazing rod, nitrogen, or similar fees.)

REFRIGERANTS

• R134A A maximum of $5.00/lb. or 31¢/oz. will be reimbursed.

• R404A A maximum of $12.00/lb. or 75¢/oz. will be reimbursed.

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

The Delﬁ eld Company (“Delﬁ eld”) warrants to the Original Purchaser

of the Delﬁ eld product (herein called the “Unit”) that such Unit, and all

parts thereof, will be free from defects in material and workmanship

under normal use and service for a period of one (1) year from

the date of shipment of the Unit to the Original Purchaser

or, if the

Original Purchaser returns the warranty card completely ﬁ lled out

including the date of installation within thirty (30) days of receipt

of the Unit, one (1) year from the date of installation.

During this

one year warranty period, Delﬁ eld will repair or replace any defective

part or portion there of returned to Delﬁ eld by the Original Purchaser

which Delﬁ eld determines was defective due to faulty material or

workmanship. The Original purchaser will pay all labor, crating, freight

and related costs incurred in the removal of the Unit of defective

component and shipment to Delﬁ eld, except that during a period of

either ninety (90) days from the date of shipment of the Unit to the

Original Purchaser or, if the Original Purchaser returns the warranty

card completely ﬁ lled out including the date of installation within thirty

(30) days of receipt of the Unit, ninety (90) days from the date of

installation Delﬁ eld will pay all related labor costs. Delﬁ eld will pay the

return costs if the Unit or part thereof was defective.

The term “Original Purchaser” as used herein means that person, ﬁ rm,

association, or corporation for whom the Unit was originally installed.

This warranty does not apply to any Unit or part thereof that has

been subjected to misuse, neglect, alteration, or accident, such as

accidental damage to the exterior ﬁ nish, operated contrary to the

recommendations speciﬁ ed by Delﬁ eld; or repaired or altered by anyone

other than Delﬁ eld in any way so as to, in Delﬁ eld’s sole judgement,

affect its quality or efﬁ ciency. This warranty does not apply to any Unit

that has been moved from the location where it was originally installed.

This warranty also does not cover the refrigerator drier or the light

bulbs used in the Unit.

The warranty is subject to the user’s normal

maintenance and care responsibility as set forth in the Service and

Installation Manual, such as cleaning the condenser coil, and is in

lieu of all other obligations of Delﬁ eld. Delﬁ eld neither assumes, nor

authorizes any other person to assume for Delﬁ eld, any other liability

in connection with Delﬁ eld’s products.

Removal or defacement of the original Serial Number or Model Number

from any Unit shall be deemed to release Delﬁ eld from all obligations

hereunder or any other obligations, express or implied.

Parts furnished by suppliers to Delﬁ eld are guaranteed by Delﬁ eld only

to the extent of the original manufacturer’s express warranty to Delﬁ eld.

Failure of the Original Purchaser to receive such manufacturer’s express

warranty to Delﬁ eld. Failure of the Original Purchaser to receive such

manufacturers warranty shall in no way create any warranty, expressed

or implied, or any other obligation or liability on Delﬁ eld’s part in respect

thereof.

IF THE CUSTOMER IS USING A PART THAT RESULTS IN A VOIDED

WARRANTY AND A DELFIELD AUTHORIZED REPRESENTATIVE

TRAVELS TO THE INSTALLATION ADDRESS TO PERFORM WARRANTY

SERVICE, THE SERVICE REPRESENTATIVE WILL ADVISE CUSTOMER

THE WARRANTY IS VOID. SUCH SERVICE CALLS WILL BE BILLED

TO CUSTOMER AT THE AUTHORIZED SERVICE CENTER’S THEN

APPLICABLE TIME AND MATERIALS RATES. CONSIDER: CUSTOMER

MAY INITIATE A SERVICE AGREEMENT WITHOUT PARTS COVERAGE.

If shipment of a replacement part is requested prior to the arrival in

the Delﬁ eld factory of the part claimed to be defective, the Original

Purchaser must accept delivery of the replacement part of a C.O.D.

basis, with credit being issued after the part has been received and

inspected at Delﬁ eld’s plant and determined by Delﬁ eld to be within this

warranty.

Under no condition does this warranty give the Original Purchaser the

right to replace the defective Unit with a complete Unit of the same

manufacturer or of another make. Unless authorized by Delﬁ eld in

writing, this warranty does not permit the replacement of any part,

including the motor-compressor, to be made with the part of another

make or manufacturer.

No claims can be made under this warranty for spoilage of any products

for any reason, including system failure.

The installation contractor shall be responsible for building access,

entrance and ﬁ eld conditions to insure sufﬁ cient clearance to allow any

hood(s), vent(s), or Unit(s) if necessary, to be brought into the building.

Delﬁ eld will not be responsible for structural changes or damages

incurred during installation of the Unit or any exhaust system.

Delﬁ eld shall not be liable in any manner for any default or delay in

performance hereunder caused by or resulting from any contingency

beyond Delﬁ eld’s control, including, but not limited to, war,

governmental restrictions or restraints, strike, lockouts, injunctions,

ﬁ re, ﬂ ood, acts of nature, short or reduced supply of raw materials, or

discontinuance of the parts by the original part manufacturer.

Except as provided in any Additional Service Labor Contract,

if applicable, the foregoing is exclusive and in lieu of all other

warranties, whether written or oral, express or implied. This

warranty supersedes and excludes any prior oral or written

representations or warranties. Delﬁ eld expressly disclaims any

implied warranties of merchantability, ﬁ tness for a particular purpose

of compliance with any law, treaty, rule or regulation relating to

the discharge of substances into the environment. The sole and

exclusive remedies of any person relating to the Unit, and the

full liability of Delﬁ eld for any breach of this warranty, will be as

provided in this warranty.

Other than this Delﬁ eld Standard One Year Limited Warranty, any

applicable Delﬁ eld Additional Four Year Protection Plan or applicable

Delﬁ eld Service Labor Contract, the Original Purchaser agrees and

acknowledges that no other warranties are offered or provided in

connection with or for the unit or any other part thereof.

In no event will Delﬁ eld be liable for special, incidental or consequential

damages, or for damages in the nature of penalties.

IF DURING THE WARRANTY PERIOD, CUSTOMER USES A PART FOR

THIS DELFIELD EQUIPMENT OTHER THAN AN UNMODIFIED NEW

OR RECYCLED PART PURCHASED DIRECTLY FROM DELFIELD OR

ANY OF ITS AUTHORIZED SERVICE CENTERS AND/OR THE PART

BEING USED IS MODIFIED FROM ITS ORIGINAL CONFIGURATION,

THIS WARRANTY WILL BE VOID. FURTHER, DELFIELD AND ITS

AFFILIATES WILL NOT BE LIABLE FOR ANY CLAIMS DAMAGES OR

EXPENSES INCURRED BY THE CUSTOMER WHICH ARISE DIRECTLY

OR INDIRECTLY, IN WHOLE OR IN PART, DUE TO THE INSTALLATION

OF ANY MODIFIED PART AND/OR PART RECEIVED FROM AN

UNAUTHORIZED SERVICE CENTER. If the warranty becomes void,

Customer may purchase from Delﬁ eld, if available, a Service

Agreement or service at the then current time and materials rate.

For more information on Delﬁ eld warranty’s log on and check out the

service section of our web site at www.delﬁ eld.com.

STANDARD ONE YEAR WARRANTY (ONE YEAR PARTS AND LABOR.)

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

In addition to the Standard One Year Warranty on the Motor-

Compressor contained in the above listed Delﬁ eld product

(the “Unit”), The Delﬁ eld Company (“Delﬁ eld”) also agrees to

repair, or exchange with similar or interchangeable parts in

design and capacity at Delﬁ eld’s option, the defective Motor-

Compressor contained in the Unit (the “Motor-Compressor),

or any part thereof, for the Original Purchaser only, at any

time during the four (4) years following the initial one (1) year

period commencing on the date of installation for the Original

Purchaser.

Failure of the Original Purchaser to register

the registration card containing the Original Purchasers

name, address, date of installation, model number and

serial number of the Unit containing the Motor-Compres-

sor within 30 days from the date of installation shall void

this warranty.

This additional warranty is only available if the

Motor-Compressor is inoperative due to defects in material

or factory workmanship, as determined by Delﬁ eld in its sole

judgement and discretion. The Original Purchaser shall be

responsible for returning the defective Motor-Compressor to

Delﬁ eld prepaid, F.O.B. at the address shown on the back

cover of this manual.

The term “Original Purchaser” as used herein means that

person, ﬁ rm, association, or corporation for whom the Unit was

originally installed.

The term “Motor-Compressor” as used herein does not include

unit base, air or water cooled condenser, receiver, electrical

accessories such as relay, capacitors, refrigerant controls, or

condenser fan/motor assembly. This warranty does not cover

labor charges incidental to the replacement of parts. This

warranty further does not include any equipment to which said

condensing unit is connected, such as cooling coils, tempera-

ture controls or refrigerant metering devices. This warranty

shall be void if the Motor-Compressor, in Delﬁ eld’s sole judge-

ment, has been subjected to misuse, neglect, alteration or

accident, operated contrary to the recommendations speciﬁ ed

by the Unit manufacturer, repaired or altered by anyone other

than Delﬁ eld in any way so as, in Delﬁ eld’s sole judgment, to

affect its quality or efﬁ ciency or if the serial number has been

altered, defaced or removed. This Warranty does not apply

to a Motor-Compressor in any Unit that has been moved from

the location where it was originally installed. The addition of

methyl chloride to the condensing unit or refrigeration system

shall void this warranty.

General Conditions

Delﬁ eld shall not be liable in any manner for any default or

delay in performance hereunder caused by or resulting form

any contingency beyond Delﬁ eld’s control, including, but

not limited to, war, governmental restrictions or restrains,

strike, lockouts, injunctions, ﬁ re, ﬂ ood, acts of nature, short or

reduced supply of raw materials, or discontinuance of any part

or the Motor-Compressor by the unit manufacturer.

Replacement of a defective Motor-Compressor is limited to

one (1) Motor-Compressor by us during the four (4) year

period. Delﬁ eld shall replace the Motor-Compressor at no

charge.

This warranty does not give the Original Purchaser of the

Motor-Compressor the right to purchase a complete replace-

ment Motor-Compressor of the same make or of another

make. It further does not permit the replacement to be made

with a Motor-Compressor of another kind unless authorized by

Delﬁ eld. In the event Delﬁ eld authorizes the Original Pur-

chaser to purchase a replacement Motor-Copmressor locally,

only the wholesale cost of the Motor-Compressor is refund-

able.

Expressly excluded from this warranty are damages resulting

from spoilage of goods.

Except as provided in any applicable Standard One Year

Limited Warranty or applicable Service Labor Contract,

the foregoing is exclusive and in lieu of all other warran-

ties, whether written or oral, express or implied. This

Warranty supersedes and excludes any prior oral or

written representations or warranties. Delﬁ eld expressly

disclaims any implied warranties of merchantability, ﬁ t-

ness for a particular purpose or compliance with any law,

treaty, rule or regulation relating to the Motor-Compres-

sor, and the full liability of Delﬁ eld for any breach of this

warranty, will be as provided in this warranty.

Other than any applicable Delﬁ eld Standard One year Limited

Warranty, this Delﬁ eld Additional Four Year Protection Plan

and any applicable Delﬁ eld Service Labor Contract, the

Original Purchaser agrees and acknowledges that no other

warranties are offered or provided in connection with or for the

Motor-compressor or any part thereof.

In no event will Delﬁ eld be liable for special, incidental or con-

sequential damages, or for damages in the nature of penalties.

ADDITIONAL FOUR YEAR PROTECTION PLAN (FOR MOTOR-COMPRESSORS ONLY)

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

NOTES:

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

NOTES:

ColdPro Service and Installation Manual

For customer service, call (800) 733-8829, (800) 733-8821, Fax (989) 773-3210, www.delﬁ eld.com

NOTES:



 













































































































































































































































 















DMCOLDPRO 07/05

Thank you for choosing Delﬁ eld!

Help is a phone call away. Help our team of professional, courteous customer service

reps by having your model number and serial number available at the time

of your call (800) 733-8829

Model:

___________________

S/N:

_____________________________

Installation Date:

__________________

For a list of Delﬁ eld’s authorized parts depots,

visit our website at

www.delﬁ eld.com

Mt. Pleasant, MI

Covington, TN

Delfield Refrigerators And Freezers Users Manual DMCOLDPRO

Refrigerators and Freezers to the manual 70004921-d922-9d64-256d-8cf36cf54138

Navigation menu

Versions of this User Manual:

Views

Navigation
