www.dell.com | support.dell.com
Dell™ Inspiron™ 640M/ E1405
Owner’s Manual
Model PP19L
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Abbreviations and Acronyms
For a complete list of abbreviations and acronyms, see the "Glossary" on page 171.
If you purchased a Dell™ n Series computer, any references in this document to Microsoft
®
Windows
®
operating systems are not applicable.
____________________
Information in this document is subject to change without notice.
© 2006–2007 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerConnect,
PowerVault, PowerApp, Dell TravelLite, ExpressCharge, Dell Media Experience, and Strike Zone are trademarks of Dell Inc.; Intel and Pentium
are registered trademarks of Intel Corporation; Microsoft, Outlook, and Windows are registered trademarks of Microsoft Corporation; Bluetooth
is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under license; IBM is a registered trademark of International
Business Machines Corporation; EMC is a registered trademark of EMC Corporation; ENERGY STAR is a registered trademark of the U.S.
Environmental Protection Agency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model PP19L
March 2007 P/N YF920 Rev. A02
Contents 3
Contents
Finding Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
1 A Tour of Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . 15

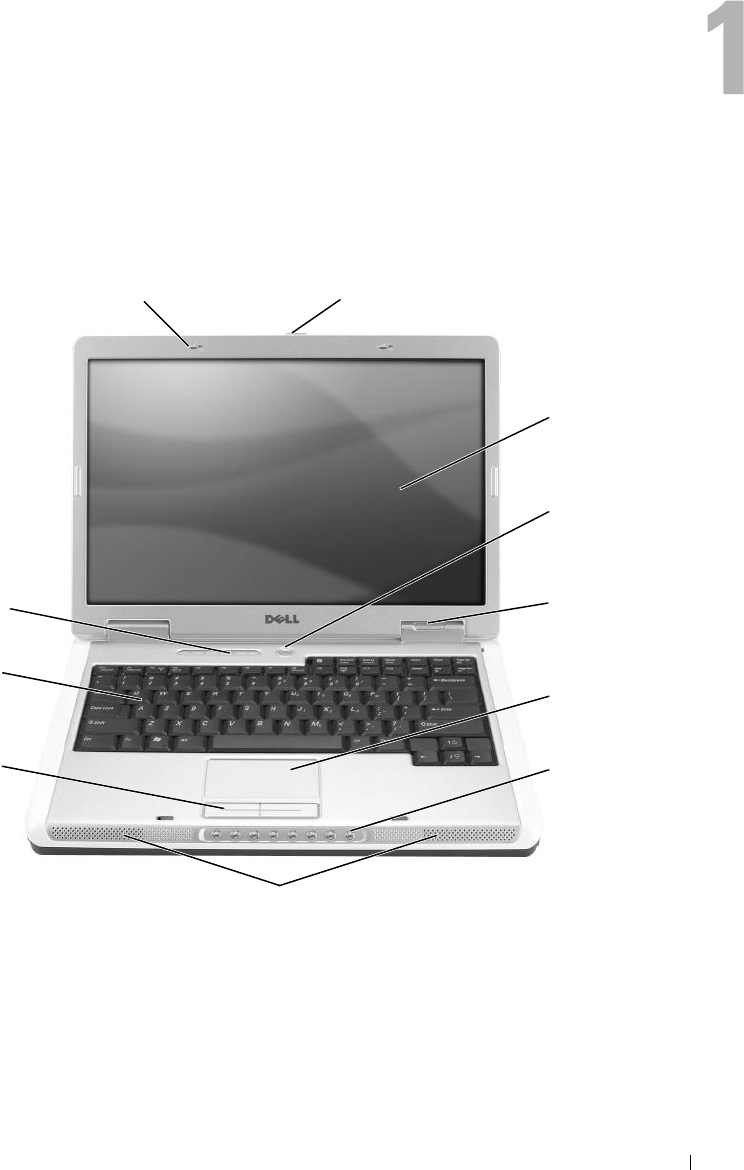

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Left Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Right Side View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2 Setting Up Your Computer. . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting to the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Setting Up Your Internet Connection . . . . . . . . . . . . . . . . . . . . 25
Transferring Information to a New Computer . . . . . . . . . . . . . . . . . . 26
Running the Files and Settings Transfer Wizard With the
Operating System CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Running the Files and Settings Transfer Wizard Without the
Operating System CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Setting Up a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Printer Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Connecting a USB Printer. . . . . . . . . . . . . . . . . . . . . . . . . . 29
Power Protection Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Surge Protectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Line Conditioners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Uninterruptible Power Supplies . . . . . . . . . . . . . . . . . . . . . . 30
4Contents
3 Using the Display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Adjusting Brightness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Switching the Video Image . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Setting Display Resolution and Refresh Rate . . . . . . . . . . . . . . . . . . 31
4 Using the Keyboard and Touch Pad . . . . . . . . . . . . . . . . . 33
Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Key Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
System Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
CD or DVD Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Display Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Radios (Including Wireless Networking and an Internal Card With
Bluetooth®Wireless Technology) . . . . . . . . . . . . . . . . . . . . . 34
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Speaker Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Microsoft® Windows® Logo Key Functions . . . . . . . . . . . . . . . . 35
Touch Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Customizing the Touch Pad . . . . . . . . . . . . . . . . . . . . . . . . . 36
5 Using a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Battery Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Checking the Battery Charge . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Dell™ QuickSet Battery Meter . . . . . . . . . . . . . . . . . . . . . . . 38
Microsoft® Windows® Power Meter . . . . . . . . . . . . . . . . . . . 38
Charge Gauge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Low-Battery Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Conserving Battery Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Power Management Modes . . . . . . . . . . . . . . . . . . . . . . . . 39
Configuring Power Management Settings . . . . . . . . . . . . . . . . . 41
Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Contents 5
Replacing the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Storing a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
6 Using CDs, DVDs, and Other Multimedia . . . . . . . . . . . . . 43
Playing CDs or DVDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Adjusting the Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Adjusting the Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Microsoft® Windows® XP . . . . . . . . . . . . . . . . . . . . . . . . . 45
Using Dell Media Experience™ and Dell MediaDirect™ . . . . . . . . . . . 46
If the computer is on or in standby mode. . . . . . . . . . . . . . . . . . 46
If the computer is off or in hibernate mode. . . . . . . . . . . . . . . . . 46
Dell MediaDirect and Dell Media Experience Help . . . . . . . . . . . . 47
Using the Dell MediaDirect™ Repair Utility CD or the Dell
MediaDirect Reinstallation CD . . . . . . . . . . . . . . . . . . . . . . . 47
Repairing Dell MediaDirect . . . . . . . . . . . . . . . . . . . . . . . . . 48
Reinstalling Dell MediaDirect. . . . . . . . . . . . . . . . . . . . . . . . 48
Connecting Your Computer to a TV or Audio Device . . . . . . . . . . . . . . 49
S-Video and Standard Audio . . . . . . . . . . . . . . . . . . . . . . . . 51
S-Video and S/PDIF Digital Audio. . . . . . . . . . . . . . . . . . . . . . 53
Composite Video and Standard Audio . . . . . . . . . . . . . . . . . . . 55
Composite Video and S/PDIF Digital Audio. . . . . . . . . . . . . . . . . 56
Component Video and Standard Audio . . . . . . . . . . . . . . . . . . . 58
Component Video and S/PDIF Digital Audio . . . . . . . . . . . . . . . . 60
Configuring DVD Playback Using Headphones. . . . . . . . . . . . . . . 62
Enabling the Display Settings for a TV . . . . . . . . . . . . . . . . . . . 63
7 Using ExpressCards. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
ExpressCard Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
ExpressCard Blanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Installing an ExpressCard . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Removing an ExpressCard or Blank . . . . . . . . . . . . . . . . . . . . . . . 66
Media Memory Card Types . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
6Contents
Media Memory Card Blanks . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Installing a Media Memory Card . . . . . . . . . . . . . . . . . . . . . . . . 68
Removing a Media Memory Card or Blank . . . . . . . . . . . . . . . . . . . 69
8 Setting Up a Network. . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Physically Connecting to a Network or Broadband Modem . . . . . . . . . . 71
Network Setup Wizard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Wireless Local Area Network (WLAN) . . . . . . . . . . . . . . . . . . . . . 72
What You Need to Establish a WLAN Connection . . . . . . . . . . . . . 72
Checking Your Wireless Network Card . . . . . . . . . . . . . . . . . . . 72
Setting Up a New WLAN . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Connecting to a Wireless Local Area Network. . . . . . . . . . . . . . . 74
Enabling/Disabling the Wireless Network Card . . . . . . . . . . . . . . 75
Monitoring the Status of Wireless Network Connections Through
Dell™ QuickSet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Mobile Broadband or Wireless Wide Area Network (WWAN). . . . . . . . . 76
What You Need to Establish a Mobile Broadband
Network Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Connecting to a Mobile Broadband Network . . . . . . . . . . . . . . . 76
Bluetooth Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Setting up your Bluetooth Connection . . . . . . . . . . . . . . . . . . . 77
Connecting to a Bluetooth Network . . . . . . . . . . . . . . . . . . . . 77
9 Securing Your Computer. . . . . . . . . . . . . . . . . . . . . . . . . 79
Security Cable Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Computer Tracking Software . . . . . . . . . . . . . . . . . . . . . . . . . . 80
If Your Computer Is Lost or Stolen . . . . . . . . . . . . . . . . . . . . . . . . 80
Contents 7
10 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Dell Technical Update Service . . . . . . . . . . . . . . . . . . . . . . . . . 81
Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
When to Use the Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . 81
Starting the Dell Diagnostics From Your Hard Drive . . . . . . . . . . . . 81
Starting the Dell Diagnostics From the Drivers and Utilities CD . . . . . . 82
Dell Diagnostics Main Menu . . . . . . . . . . . . . . . . . . . . . . . . 83
Dell Support Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Accessing the Dell Support Utility . . . . . . . . . . . . . . . . . . . . . 84
Clicking the Dell Support Icon . . . . . . . . . . . . . . . . . . . . . . . 85
Double-Clicking the Dell Support Icon . . . . . . . . . . . . . . . . . . . 85
Drive Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
CD and DVD drive problems . . . . . . . . . . . . . . . . . . . . . . . . 85
If you cannot eject the CD, CD-RW, DVD, or DVD+RW drive tray . . . . . 86
If you hear an unfamiliar scraping or grinding sound . . . . . . . . . . . 86
Hard drive problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
E-Mail, Modem, and Internet Problems . . . . . . . . . . . . . . . . . . . . . 86
Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
ExpressCard Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
IEEE 1394 Device Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Keyboard Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
External Keyboard problems . . . . . . . . . . . . . . . . . . . . . . . . 92
Unexpected characters. . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Lockups and Software Problems . . . . . . . . . . . . . . . . . . . . . . . . 93
The computer does not start up . . . . . . . . . . . . . . . . . . . . . . 93
The computer stops responding . . . . . . . . . . . . . . . . . . . . . . 93
A program stops responding or crashes repeatedly . . . . . . . . . . . . 93
A program is designed for an earlier Microsoft® Windows®
operating system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
A solid blue screen appears . . . . . . . . . . . . . . . . . . . . . . . . 94
Dell MediaDirect problems . . . . . . . . . . . . . . . . . . . . . . . . . 94
Other software problems . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Memory Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Network Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
8Contents
Power Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Scanner Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Sound and Speaker Problems . . . . . . . . . . . . . . . . . . . . . . . . . . 98
No sound from integrated speakers . . . . . . . . . . . . . . . . . . . . 98
No sound from external speakers . . . . . . . . . . . . . . . . . . . . . 98
No sound from headphones . . . . . . . . . . . . . . . . . . . . . . . . 99
Touch Pad or Mouse Problems . . . . . . . . . . . . . . . . . . . . . . . . . 99
Video and Display Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . 99
If the display is blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
If the display is difficult to read . . . . . . . . . . . . . . . . . . . . . . 100
If only part of the display is readable . . . . . . . . . . . . . . . . . . . 100
Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
What Is a Driver? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Identifying Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Reinstalling Drivers and Utilities . . . . . . . . . . . . . . . . . . . . . 101
Resolving Software and Hardware Incompatibilities . . . . . . . . . . . . 103
Restoring Your Operating System . . . . . . . . . . . . . . . . . . . . . . . 104
Using Microsoft Windows XP System Restore . . . . . . . . . . . . . . 104
Using Dell PC Restore by Symantec . . . . . . . . . . . . . . . . . . . 105
Using the Operating System CD. . . . . . . . . . . . . . . . . . . . . . 107
11 Adding and Replacing Parts . . . . . . . . . . . . . . . . . . . . . 109
Before You Begin. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Recommended Tools . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Turning Off Your Computer . . . . . . . . . . . . . . . . . . . . . . . . 109
Before Working Inside Your Computer . . . . . . . . . . . . . . . . . . 110
Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Returning a Hard Drive to Dell . . . . . . . . . . . . . . . . . . . . . . 113
Optical Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
About the Device Security Screw . . . . . . . . . . . . . . . . . . . . 114
Removing and Installing Optical Drives . . . . . . . . . . . . . . . . . 114
Contents 9
Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Installing a Memory Module in Connector DIMM B . . . . . . . . . . . 116
Installing a Memory Module in Connector DIMM A . . . . . . . . . . . 118
Modem (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Mini-Card. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Hinge Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Removing the Hinge Cover . . . . . . . . . . . . . . . . . . . . . . . . 125
Replacing the Hinge Cover . . . . . . . . . . . . . . . . . . . . . . . . 127
Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . 127
Replacing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . 128
Internal Card With Bluetooth® Wireless Technology. . . . . . . . . . . . . 128
Coin-Cell Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Removing the Coin-Cell Battery . . . . . . . . . . . . . . . . . . . . . 130
Replacing the Coin-Cell Battery . . . . . . . . . . . . . . . . . . . . . 130
12 Dell™ QuickSet Features . . . . . . . . . . . . . . . . . . . . . . . 131
13 Traveling With Your Computer. . . . . . . . . . . . . . . . . . . . 133
Identifying Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Packing the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Travel Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Traveling by Air . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
14 Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
15 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
10 Contents
16 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Using the System Setup Program . . . . . . . . . . . . . . . . . . . . . . . 165
Viewing the System Setup Screen . . . . . . . . . . . . . . . . . . . . 165
System Setup Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Commonly Used Options . . . . . . . . . . . . . . . . . . . . . . . . . 166
Cleaning Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Computer, Keyboard, and Display . . . . . . . . . . . . . . . . . . . . 167
Touch Pad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Floppy Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
CDs and DVDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Dell Technical Support Policy (U.S. Only) . . . . . . . . . . . . . . . . . . . 168
Definition of "Dell-Installed" Software and Peripherals . . . . . . . . . 169
Definition of "Third-Party" Software and Peripherals. . . . . . . . . . . 169
FCC Notice (U.S. Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
FCC Class B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Macrovision Product Notice. . . . . . . . . . . . . . . . . . . . . . . . . . 170
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Finding Information 11
Finding Information
NOTE: Some features or media may be optional and may not ship with your computer. Some features or media may
not be available in certain countries.
NOTE: Additional information may ship with your computer.
What Are You Looking For? Find It Here
• A diagnostic program for my computer
• Drivers for my computer
• My device documentation
• Notebook System Software (NSS)
Drivers and Utilities CD (also known as ResourceCD)
NOTE: The Drivers and Utilities CD may be optional and may
not ship with your computer.
Documentation and drivers are already installed on your
computer. You can use the CD to reinstall drivers (see
"Reinstalling Drivers and Utilities" on page 101) or to run
the Dell Diagnostics (see "Dell Diagnostics" on page 81).
Readme files may be
included on your CD to
provide last-minute
updates about technical
changes to your computer
or advanced technical-
reference material for
technicians or experienced
users.
NOTE: Drivers and documentation updates can be found at
support.dell.com.
• Warranty information
• Terms and Conditions (U.S. only)
• Safety instructions
• Regulatory information
• Ergonomics information
• End User License Agreement
Dell™ Product Information Guide
12 Finding Information
• How to set up my computer
Setup Diagram
• Service Tag and Express Service Code
• Microsoft Windows License Label
Service Tag and Microsoft
®
Windows
®
License
These labels are located on
the bottom of
your computer.
• Use the Service Tag to identify your computer when you
use
support.dell.com
or contact technical support.
• Enter the Express
Service Code to direct
your call when
contacting technical
support.
What Are You Looking For? Find It Here
Finding Information 13
• Solutions — Troubleshooting hints and tips, articles
from technicians, and online courses, frequently asked
questions
• Community — Online discussion with other Dell
customers
• Upgrades — Upgrade information for components, such
as memory, the hard drive, and the operating system
• Customer Care — Contact information, service call and
order status, warranty, and repair information
• Service and support — Service call status and support
history, service contract, online discussions with
technical support
• Reference — Computer documentation, details on my
computer configuration, product specifications, and
white papers
• Downloads — Certified drivers, patches, and software
updates
• Notebook System Software (NSS)— If you reinstall the
operating system for your computer, you should also
reinstall the NSS utility. NSS provides critical updates
for your operating system and support for Dell™
3.5-inch USB floppy drives, Intel
®
Pentium
®
M
processors, optical drives, and USB devices. NSS is
necessary for correct operation of your Dell computer.
The software automatically detects your computer and
operating system and installs the updates appropriate
for your configuration.
Dell Support Website — support.dell.com
NOTE: Select your region to view the appropriate support
site.
NOTE: Corporate, government, and education customers
can also use the customized Dell Premier Support website at
premier.support.dell.com.
To download Notebook System Software:
1
Go to
support.dell.com
and click
Downloads
.
2
Enter your Service Tag or product model.
3
In the
Download Category
drop-down menu, click
All
.
4
Select the operating system and operating system
language for your computer, and click
Submit.
5
Under
Select a Device
, scroll to
System and
Configuration Utilities
, and click
Dell Notebook System
Software
.
• Software upgrades and troubleshooting hints —
Frequently asked questions, hot topics, and general
health of your computing environment
Dell Support Utility
The Dell Support Utility is an automated upgrade and
notification system installed on your computer. This
support provides real-time health scans of your computing
environment, software updates, and relevant self-support
information. Access the Dell Support Utility from the
icon in the taskbar. For more information, see "Dell Support
Utility" on page 84.
• How to use Windows XP
• How to work with programs and files
• How to personalize my desktop
Windows Help and Support Center
1
Click the
Start
button and click
Help and Support
.
2
Type a word or phrase that describes your problem and
click the arrow icon.
3
Click the topic that describes your problem.
4
Follow the instructions on the screen.
What Are You Looking For? Find It Here
14 Finding Information
• Information on network activity, the Power Management
Wizard, hotkeys, and other items controlled by Dell
QuickSet
Dell QuickSet Help
To view
Dell QuickSet Help
,
right-click the icon
in the Microsoft® Windows® taskbar.
For more information on Dell QuickSet, see "Dell™
QuickSet Features" on page 131.
• How to reinstall my operating system
Operating System CD
NOTE: The Operating System CD may be optional and may
not ship with your computer.
The operating system is
already installed on your
computer. To reinstall your
operating system, use the
Operating System CD. See
"Using the Operating
System CD" on page 107.
After you reinstall your
operating system, use the
Drivers and Utilities CD
(ResourceCD) to reinstall
drivers for the devices that came with your computer.
NOTE: The color of your CD varies based on the operating
system you ordered.
What Are You Looking For? Find It Here
A Tour of Your Computer 15
A Tour of Your Computer
Front View
1display latch release 2display 3power button
4device status lights 5touch pad 6media control buttons
7speakers 8touch pad buttons 9keyboard
10 keyboard and wireless
status lights
11 display latches (2)
1
9
2
5
8
3
7
10 4
6
11
16 A Tour of Your Computer
DISPLAY LATCH RELEASE —Slide and hold to release the display latches and open the display.
DISPLAY —For more information about your display, see "" on page 31.
POWER BUTTON —Press the power button to turn on the computer or to enter or exit a power management mode.
NOTICE: To avoid losing data when you turn off your computer, shut down your computer through the Start menu
instead of pressing the power button.
DEVICE STATUS LIGHTS
If the computer is connected to an electrical outlet, the light operates as follows:
• Solid green: The battery is charging.
• Flashing green: The battery is almost fully charged.
If the computer is running on a battery, the light operates as follows:
• Off: The battery is adequately charged (or the computer is turned off).
• Flashing orange: The battery charge is low.
• Solid orange: The battery charge is critically low.
Turns on when you turn on the computer, and blinks when the computer is in a power
management mode.
Turns on when the computer reads or writes data.
NOTICE: To avoid loss of data, never turn off the computer while the light is flashing.
Turns on steadily or blinks to indicate battery charge status.
A Tour of Your Computer 17
TOUCH PAD —Provides the functionality of a mouse.
MEDIA CONTROL BUTTONS —Control CD, DVD, and Media Player playback.
SPEAKERS —To adjust the volume of the integrated speakers, press the media control buttons or speaker-volume
keyboard shortcuts. For more information, see "Speaker Functions" on page 35.
TOUCH PAD BUTTONS —Touch pad buttons provide the functionality of a mouse.
KEYBOARD —The keyboard includes a numeric keypad as well as the Microsoft Windows logo key. For information
on supported keyboard shortcuts, see "Key Combinations" on page 34.
Mute the sound.
Turn the volume down.
Turn the volume up.
Play or pause.
Play the previous track.
Play the next track.
Stop.
Launch Dell MediaDirect or Microsoft® Windows® Media Center Edition. See
"Using Dell Media Experience™ and Dell MediaDirect™" on page 46.
18 A Tour of Your Computer
KEYBOARD AND WIRELESS STATUS LIGHTS
The green lights located above the keyboard indicate the following:
DISPLAY LATCHES —Keep the display closed.
Turns on when the numeric keypad is enabled.
Turns on when the uppercase letter function is enabled.
Turns on when the scroll lock function is enabled.
Turns on when wireless networking is enabled. To enable
or disable wireless networking, press <Fn><F2>.
Turns on when a card with Bluetooth® wireless
technology is enabled.
NOTE: The card with Bluetooth wireless technology is an
optional feature, so the light turns on only if you
ordered the card with your computer. For more information,
see the documentation that came with your card.
To turn off only the Bluetooth wireless technology
functionality, right-click the icon in the notification
area and click Disable Bluetooth Radio.
To quickly enable or disable all wireless devices, press
<Fn><F2>.
9
A
A Tour of Your Computer 19
Left Side View
CAUTION: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your
computer in a low-airflow environment, such as a closed briefcase, while it is running. Restricting the airflow
can damage the computer or cause a fire.
NOTICE: Before you buy an antitheft device, ensure that it will work with the security cable slot.
SECURITY CABLE SLOT —Lets you attach a commercially available antitheft device to the computer. For more
information, see the instructions included with the device.
AIR VENT —The computer uses fans to create airflow through the vents, which prevents the computer from
overheating.
1security cable slot 2air vent 3S-video TV-out connector
4IEEE 1394 connector 5microphone connector 6headphone connector
75-in-1 media memory card
reader
8ExpressCard slot
345267 81
20 A Tour of Your Computer
S-VIDEO TV-OUT CONNECTOR
IEEE 1394 CONNECTOR —Connects devices supporting IEEE 1394 high-speed transfer rates, such as some digital
video cameras.
AUDIO CONNECTORS
5-IN-1 MEDIA MEMORY CARD READER —Provides a fast and convenient way to view and share digital photos,
music, and videos stored on a memory card. The 5-in-1 media memory card reader reads the following digital media
memory cards:
• Secure Digital (SD) card/SDIO
• MultiMediaCard (MMC)
•Memory Stick
• Memory Stick PRO
• xD-Picture Card
EXPRESSCARD SLOT —Supports one ExpressCard. The computer ships with a plastic blank installed in the slot.
For more information, see "Using ExpressCards" on page 65.
NOTE: The ExpressCard slot does NOT support PC cards.
Connects your computer to a TV. Also connects digital audio capable devices
using the TV/digital audio adapter cable.
Attach a microphone to the connector.
Attach headphones or speakers to the connector.
A Tour of Your Computer 21
Right Side View
OPTICAL DRIVE BAY —You can install devices such as a DVD drive or other optical drive in the optical drive bay.
For more information, see "Optical Drives" on page 114.
OPTICAL DRIVE-TRAY EJECT BUTTON —Press this button to eject a CD or DVD from the optical drive.
USB CONNECTORS
MODEM CONNECTOR (RJ-11)
NOTICE: The network connector is slightly larger than the modem connector. To avoid damaging the computer, do
not plug a telephone line into the network connector.
1optical drive bay 2optical drive-tray eject
button
3USB connectors (2)
4modem connector (RJ-11) 5network connector (RJ-45) 6video connector
Connect USB devices, such as a mouse, keyboard, or printer. You can also connect
the optional floppy drive directly to a USB connector using the optional floppy-
drive cable.
To use the internal modem, connect the telephone line to the modem connector.
For additional information on using the modem, see the online modem
documentation supplied with your computer.
345261
22 A Tour of Your Computer
NETWORK CONNECTOR (RJ-45)
VIDEO CONNECTOR
Back View
USB CONNECTORS
AC ADAPTER CONNECTOR —Attaches an AC adapter to the computer. The AC adapter converts AC power to the
DC power required by the computer. You can connect the AC adapter with your computer turned either on or off.
Connects the computer to a network. The green and yellow lights next to the
connector indicate activity for wired network communications.
For information on using the network adapter, see the online network adapter
documentation supplied with your computer.
Connects an external VGA-compatible monitor.
1USB connectors (2) 2AC adapter connector
Connect USB devices, such as a mouse, keyboard, or printer. You can also connect
the optional floppy drive directly to a USB connector using the optional floppy-
drive cable.
21
A Tour of Your Computer 23
CAUTION: The AC adapter works with electrical outlets worldwide. However, power connectors and power
strips vary among countries. Using an incompatible cable or improperly connecting the cable to the power strip
or electrical outlet may cause fire or equipment damage.
NOTICE: When you disconnect the AC adapter cable from the computer, grasp the connector, not the cable itself,
and pull firmly but gently to avoid damaging the cable.
Bottom View
BATTERY —When a battery is installed, you can use the computer without connecting the computer to an
electrical outlet. For more information, see "Using a Battery" on page 37.
MEMORY MODULE COVER —Covers the compartment that contains the memory modules. For more information,
see page 115.
BATTERY-BAY LATCH RELEASE —Releases the battery from the battery bay. See "Replacing the Battery" on
page 41.
FAN —The computer uses a fan to create airflow through the vents, which prevents the computer from
overheating.
1battery 2memory module cover 3battery-bay latch release
4fan vent 5processor and thermal
module cover
6modem/Mini-Card/
wireless cover
7optical-drive locking screw 8hard drive 9battery charge gauge
6
5
7
4
13
2
8
9
24 A Tour of Your Computer
PROCESSOR AND THERMAL MODULE COVER —Covers the processor and thermal module.
MODEM/MINI CARD/WIRELESS COVER —Covers the compartment that contains the modem, Mini Card, and
internal card with Bluetooth wireless technology. For more information, see page 121.
OPTICAL-DRIVE LOCKING SCREW —Secures the optical drive in the optical drive bay. For more information, see
"Optical Drives" on page 114.
HARD DRIVE —Stores software and data. For more information, see "Hard Drive" on page 111 and "Hard drive
problems" on page 86. The size displayed for your hard drive in Windows Explorer is the capacity of the drive before
any operating system or programs are installed.
BATTERY CHARGE GAUGE —Provides information on the battery charge status. See "Checking the Battery Charge"
on page 38.
Setting Up Your Computer 25
Setting Up Your Computer
Connecting to the Internet
NOTE: ISPs and ISP offerings vary by country.
To connect to the Internet, you need a modem or network connection and an Internet service
provider (ISP). Your ISP will offer one or more of the following Internet connection options:
• Dial-up connections that provide Internet access through a telephone line. Dial-up connections
are considerably slower than DSL and cable modem connections.
• DSL connections that provide high-speed Internet access through your existing telephone line.
With a DSL connection, you can access the Internet and use your telephone on the same line
simultaneously.
• Cable modem connections that provide high-speed Internet access through your local cable TV
line.
If you are using a dial-up connection, connect a telephone line to the modem connector on your
computer and to the telephone wall jack before you set up your Internet connection. If you are using
a DSL or cable modem connection, contact your ISP for setup instructions.
Setting Up Your Internet Connection
To set up an Internet connection with a provided ISP desktop shortcut:
1
Save and close any open files, and exit any open programs.
2
Double-click the ISP
icon on the Microsoft
®
Windows
®
desktop.
3
Follow the instructions on the screen to complete the setup.
If you do not have an ISP icon on your desktop or if you want to set up an Internet connection with
a different ISP:
1
Save and close any open files, and exit any open programs.
2
Click the
Start
button and click
Internet Explorer
.
The
New Connection Wizard
appears.
3
Click
Connect to the Internet
.
4
In the next window, click the appropriate option:
• If you do not have an ISP and want to select one, click
Choose from a list of Internet service
providers (ISPs)
.
26 Setting Up Your Computer
• If you have already obtained setup information from your ISP but you did not receive a setup CD,
click
Set up my connection manually
.
• If you have a CD, click
Use the CD I got from an ISP
.
5
Click
Next
.
If you selected
Set up my connection manually
, continue to step 6. Otherwise, follow the instructions
on the screen to complete the setup.
NOTE: If you do not know which type of connection to select, contact your ISP.
6
Click the appropriate option under
How do you want to connect to the Internet?
, and then click
Next
.
7
Use the setup information provided by your ISP to complete the setup.
If you are having problems connecting to the Internet, see "E-Mail, Modem, and Internet Problems" on
page 86. If you cannot connect to the Internet but have successfully connected in the past, the ISP might
have a service outage. Contact your ISP to check the service status, or try connecting again later.
Transferring Information to a New Computer
The Microsoft® Windows® XP operating system provides a Files and Settings Transfer Wizard to move
data from a source computer to a new computer. You can transfer data, such as:
• E-mail messages
• Toolbar settings
• Window sizes
• Internet bookmarks
You can transfer the data to the new computer over a network connection, or you can store it on a
removable medium, such as a writable CD or floppy, for transfer to the new computer.
NOTE: For instructions on setting up a direct cable connection between two computers, see Microsoft Knowledge
Base Article #305621, titled How to Set Up a Direct Cable Connection Between Two Computers in Windows XP. T h i s
information may not be available in some countries.
For transferring information to a new computer, you must run the Files and Settings Transfer Wizard.
You can use the optional Operating System CD for this process or you can create a wizard disk with the
Files and Settings Transfer Wizard utility.
Running the Files and Settings Transfer Wizard With the Operating System CD
NOTE: This procedure requires the Operating System CD. This CD is optional and may not be included with all
computers.
To open the Files and Settings Transfer Wizard:
1
Click the
Start
button, point to
All Programs
→
Accessories
→
System Tools
, and then click
Files and
Settings Transfer Wizard
.
2
When the
Files and Settings Transfer Wizard
welcome screen appears, click
Next
.
Setting Up Your Computer 27
3
On the
Which computer is this?
screen, click
New Computer
and click
Next
.
4
On the
Do you have a Windows XP CD?
screen, click
I will use the wizard from the Windows XP CD
and click
Next
.
5
When the
Now go to your old computer
screen appears, go to your old or source computer. Do
not
click
Next
at this time.
To copy data from the old computer:
1
On the old computer, insert the Windows XP
Operating System
CD.
2
On the
Welcome to Microsoft Windows XP
screen, click
Perform additional tasks
.
3
Under
What do you want to do?
, click
Transfer files and settings
.
4
On the
Files and Settings Transfer Wizard
welcome screen, click
Next
.
5
On the
Which computer is this?
screen, click
Old Computer
and click
Next
.
6
On the
Select a transfer method
screen, click the transfer method you prefer.
7
On the
What do you want to transfer?
screen, select the items you want to transfer and click
Next
.
After the information has been copied, the
Completing the Collection Phase
screen appears.
8
Click
Finish
.
To transfer data to the new computer:
1
On the
Now go to your old computer
screen on the new computer, click
Next
.
2
On the
Where are the files and settings?
screen, select the method you chose for transferring your
settings and files and click
Next
.
The wizard reads the collected files and settings and applies them to your new computer.
When all of the settings and files have been applied, the
Finished
screen appears.
3
Click
Finished
and restart the new computer.
Running the Files and Settings Transfer Wizard Without the Operating System CD
To run the Files and Settings Transfer Wizard without the optional Operating System CD, you must
create a wizard disk that will allow you to create a backup image file to removable media.
To create a wizard disk, use your new computer with Windows XP and perform the following steps:
1
Click the
Start
button, point to
All Programs
→
Accessories
→
System Tools
, and then click
Files and
Settings Transfer Wizard
.
2
When the
Files and Settings Transfer Wizard
welcome screen appears, click
Next
.
3
On the
Which computer is this?
screen, click
New Computer
and click
Next
.
4
On the
Do you have a Windows XP CD?
screen, click
I want to create a Wizard Disk in the following
drive:
and click
Next.
5
Insert the removable media, such as a floppy disk or CD, and click
OK
.
28 Setting Up Your Computer
6
When the disk creation completes and the
Now go to your old computer
message appears,
do not
click
Next
.
7
Go to the old computer.
To copy data from the old computer:
1
On the old computer, insert the wizard disk.
2
Click the
Start
button and click
Run
.
3
In the
Open
field on the
Run
window, browse to the path for
fastwiz
(on the appropriate removable
media) and click
OK
.
4
On the
Files and Settings Transfer Wizard
welcome screen, click
Next
.
5
On the
Which computer is this?
screen, click
Old Computer
and click
Next
.
6
On the
Select a transfer method
screen, click the transfer method you prefer.
7
On the
What do you want to transfer?
screen, select the items you want to transfer and click
Next
.
After the information has been copied, the
Completing the Collection Phase
screen appears.
8
Click
Finish
.
To transfer data to the new computer:
1
On the
Now go to your old computer
screen on the new computer, click
Next
.
2
On the
Where are the files and settings?
screen, select the method you chose for transferring your
settings and files and click
Next
. Follow the instructions on the screen.
The wizard reads the collected files and settings and applies them to your new computer.
When all of the settings and files have been applied, the
Finished
screen appears.
3
Click
Finished
and restart the new computer.
NOTE: For more information about this procedure, search dell.support.com for document #PA1089586 (How Do I
Transfer Files From My Old Computer to My New Dell Computer Using the Microsoft® Windows® XP Operating
System CD?).
NOTE: Access to the Dell Knowledge Base document may not be available in some countries.
Setting Up a Printer
NOTICE: Complete the operating system setup before you connect a printer to the computer.
See the documentation that came with the printer for setup information, including how to:
• Obtain and install updated drivers.
• Connect the printer to the computer.
• Load paper and install the toner or ink cartridge.
For technical assistance, refer to the printer owner's manual or contact the printer manufacturer.
Setting Up Your Computer 29
Printer Cable
Your printer connects to your computer with either a USB cable or a parallel cable. Your printer may not
come with a printer cable, so if you purchase a cable separately, ensure that it is compatible with your
printer and computer. If you purchased a printer cable at the same time you purchased your computer,
the cable may arrive in the box in which your computer was shipped.
Connecting a USB Printer
NOTE: You can connect USB devices while the computer is turned on.
1
Complete the operating system setup if you have not already done so.
2
Attach the USB printer cable to the USB connectors on the computer and the printer. The USB
connectors fit only one way.
3
Turn on the printer and then turn on the computer. If the
Add New Hardware Wizard
window
appears, click
Cancel
.
4
Install the printer driver if necessary. See the documentation that came with your printer.
1USB connector on
computer
2USB printer cable 3connector on printer
2
1
3
30 Setting Up Your Computer
Power Protection Devices
Several devices are available to protect against power fluctuations and failures:
• Surge protectors
• Line conditioners
• Uninterruptible power supplies (UPS)
Surge Protectors
Surge protectors and power strips equipped with surge protection help prevent damage to your computer
from voltage spikes that can occur during electrical storms or after power interruptions. Some surge
protector manufacturers include warranty coverage for certain types of damage. Carefully read the device
warranty when choosing a surge protector. A device with a higher joule rating offers more protection.
Compare joule ratings to determine the relative effectiveness of different devices.
NOTICE: Most surge protectors do not protect against power fluctuations or power interruptions caused by
nearby lightning strikes. When lightning occurs in your area, disconnect the telephone line from the telephone wall
jack and disconnect your computer from the electrical outlet.
Many surge protectors have a telephone jack for modem protection. See the surge protector
documentation for modem connection instructions.
NOTICE: Not all surge protectors offer network adapter protection. Disconnect the network cable from the
network wall jack during electrical storms.
Line Conditioners
NOTICE: Line conditioners do not protect against power interruptions.
Line conditioners are designed to maintain AC voltage at a fairly constant level.
Uninterruptible Power Supplies
NOTICE: Loss of power while data is being saved to the hard drive may result in data loss or file damage.
NOTE: To ensure maximum battery operating time, connect only your computer to a UPS. Connect other devices,
such as a printer, to a separate power strip that provides surge protection.
A UPS protects against power fluctuations and interruptions. UPS devices contain a battery that
provides temporary power to connected devices when AC power is interrupted. The battery charges while
AC power is available. See the UPS manufacturer documentation for information on battery operating
time and to ensure that the device is approved by Underwriters Laboratories (UL).
Using the Display 31
Using the Display
Adjusting Brightness
When a Dell™ computer is running on battery power, you can conserve power by setting the
brightness to the lowest comfortable setting by pressing <Fn> and the up- or down-arrow key on
the keyboard.
NOTE: Brightness key combinations only affect the display on your portable computer, not monitors or
projectors that you attach to your portable computer or docking device. If your computer is connected to an
external monitor and you try to change the brightness level, the Brightness Meter may appear, but the
brightness level on the external device does not change.
You can press the following keys to adjust display brightness:
• Press <Fn> and the up-arrow key to increase brightness on the integrated display only (not on an
external monitor).
• Press <Fn> and the down-arrow key to decrease brightness on the integrated display only (not on
an external monitor).
Switching the Video Image
When you start the computer with an external device (such as an external monitor or projector)
attached and turned on, the image may appear on either the computer display or the external device.
Press <Fn><F8> to switch the video image between the display only, the external device only, or
the display and the external device simultaneously.
Setting Display Resolution and Refresh Rate
To display a program at a specific resolution, both the graphics card and the display must support the
program, and the necessary video drivers must be installed.
Before you change any of the default display settings, make a note of the default settings for future
reference.
If you choose a resolution or color palette that is higher than the display supports, the settings adjust
automatically to the closest supported values.
1
Click the
Start
button and click
Control Panel
.
2
Under
Pick a category
, click
Appearance and Themes
.
32 Using the Display
3
Under
Pick a task...
, click the area you want to change, or under
or pick a Control Panel icon
, click
Display
.
4
Try different settings for
Color quality
and
Screen resolution
.
NOTE: As the resolution increases, icons and text appear smaller on the screen.
Using the Keyboard and Touch Pad 33
Using the Keyboard and Touch Pad
Numeric Keypad
The numeric keypad functions like the numeric keypad on an external keyboard. Each key on the
keypad has multiple functions. The keypad numbers and symbols are marked in blue on the right of
the keypad keys. To type a number or symbol, press <Fn> and the desired key after enabling the
keypad.
• To enable the keypad, press <Num Lk>. The light indicates that the keypad is active.
• To disable the keypad, press <Num Lk> again.
1numeric keypad
1
9
34 Using the Keyboard and Touch Pad
Key Combinations
System Functions
Battery
CD or DVD Tray
Display Functions
Radios (Including Wireless Networking and an Internal Card With
Bluetooth®Wireless Technology)
Power Management
<Ctrl><Shift><Esc> Opens the Task Manager window.
<Fn><F3> Displays the Dell™ QuickSet Battery Meter. This feature
is not supported in Dell MediaDirect. For more
information, see "Dell™ QuickSet Battery Meter" on
page 38.
<Fn><F10> Ejects the tray out of the drive (if Dell QuickSet is
installed). This feature is not supported in Dell
MediaDirect. For more information on QuickSet, see
"Dell™ QuickSet Features" on page 131.
<Fn><F8> Switches the video image to the next display option. The
options include the integrated display, an external
monitor, and both displays simultaneously.
<Fn> and up-arrow key Increases brightness on the integrated display only (not
on an external monitor).
<Fn> and down-arrow
key
Decreases brightness on the integrated display only (not
on an external monitor).
<Fn><F2> Enables and disables radios, including wireless
networking and Bluetooth wireless technology.
<Fn><Esc> Activates a power management mode. You can
reprogram this keyboard shortcut to activate a different
power management mode using the Advanced tab in the
Power Options Properties window. See "Power
Management Modes" on page 39.
Using the Keyboard and Touch Pad 35
Speaker Functions
Microsoft® Windows® Logo Key Functions
To adjust keyboard operation, such as the character repeat rate, open the Control Panel, click Printers
and Other Hardware, and click Keyboard. For information about the Control Panel, see the Windows
Help and Support Center. To access the Help and Support Center, see page 13.
<Fn><Page Up> Increases the volume of the integrated speakers and
external speakers, if attached.
<Fn><Page Dn> Decreases the volume of the integrated speakers and
external speakers, if attached.
<Fn><End> Enables and disables the integrated speakers and external
speakers, if attached.
Windows logo key and
<m>
Minimizes all open windows.
Windows logo key and
<Shift><m>
Maximizes all windows.
Windows logo key and <e> Runs Windows Explorer. This opens the same
window as double-clicking "My Computer" on your
desktop.
Windows logo key and <r> Opens the Run dialog box.
Windows logo key and <f> Opens the Search Results dialog box.
Windows logo key and
<Ctrl><f>
Opens the Search Results-Computer dialog box
(if the computer is connected to a network).
Windows logo key and
<Pause>
Opens the System Properties dialog box.
36 Using the Keyboard and Touch Pad
Touch Pad
The touch pad detects the pressure and movement of your finger to allow you to move the cursor on the
display. Use the touch pad and touch pad buttons as you would use a mouse.
• To move the cursor, lightly slide your finger over the touch pad.
• To select an object, lightly tap once on the surface of the touch pad or use your thumb to press the left
touch-pad button.
• To select and move (or drag) an object, position the cursor on the object and tap twice on the touch
pad. On the second tap, leave your finger on the touch pad and move the selected object by sliding
your finger over the surface.
• To double-click an object, position the cursor on the object and tap twice on the touch pad or use your
thumb to press the left touch-pad button twice.
Customizing the Touch Pad
You can use the Mouse Properties window to disable the touch pad or adjust their settings.
1
Open the Control Panel, click
Printers and Other Hardware
, and then click
Mouse
. For information
about the Control Panel, see the Windows Help and Support Center. To access the Help and Support
Center, see page 13.
2
In the
Mouse Properties
window, click the
Touch Pad
tab to adjust touch pad settings.
3
Click
OK
to save the settings and close the window.
1touch pad
1
Using a Battery 37
Using a Battery
Battery Performance
NOTE: For information about the Dell warranty for your computer, see the Product Information Guide or
separate paper warranty document that shipped with your computer.
For optimal computer performance and to help preserve BIOS settings, operate your Dell™ portable
computer with the battery installed at all times. One battery is supplied as standard equipment in
the battery bay.
NOTE: Because the battery may not be fully charged, use the AC adapter to connect your new computer to an
electrical outlet the first time you use the computer. For best results, operate the computer with the AC
adapter until the battery is fully charged. To view battery charge status, access the Control Panel, click Power
Options, and then click the Power Meter tab.
NOTE: Battery operating time (the time the battery can hold a charge) decreases over time. Depending on
how often the battery is used and the conditions under which it is used, you may need to purchase a new
battery during the life of your computer.
Battery operating time varies depending on operating conditions. Operating time is significantly
reduced when you perform operations including, but not limited to, the following:
• Using optical drives
• Using wireless communications devices, ExpressCards, media memory cards, or USB devices
• Using high-brightness display settings, 3D screen savers, or other power-intensive programs such
as 3D games
• Running the computer in maximum performance mode (See "Configuring Power Management
Settings" on page 41.)
NOTE: It is recommended that you connect your computer to an electrical outlet when writing to a CD or DVD.
You can check the battery charge (see "Checking the Battery Charge" on page 38) before you insert
the battery into the computer. You can also set power management options to alert you when the
battery charge is low. See "Configuring Power Management Settings" on page 41 for information
about accessing QuickSet or the Power Options Properties window.
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery
only with a compatible battery purchased from Dell. The battery is designed to work with your Dell
computer. Do not use a battery from other computers with your computer.
38 Using a Battery
CAUTION: Do not dispose of batteries with household waste. When your battery no longer holds a charge, call
your local waste disposal or environmental agency for advice on disposing of a lithium-ion battery. See "Battery
Disposal" in the Product Information Guide.
CAUTION: Misuse of the battery may increase the risk of fire or chemical burn. Do not puncture, incinerate,
disassemble, or expose the battery to temperatures above 65°C (149°F). Keep the battery away from children.
Handle damaged or leaking batteries with extreme care. Damaged batteries may leak and cause personal injury
or equipment damage.
Checking the Battery Charge
The Dell QuickSet Battery Meter, the Microsoft® Windows® Power Meter window and icon, the
battery charge gauge and health gauge, and the low-battery warning provide information on the battery
charge.
Dell™ QuickSet Battery Meter
If Dell QuickSet is installed, press <Fn><F3> to display the QuickSet Battery Meter. The Battery
Meter displays status, charge level, and charge completion time for the battery in your computer. For
information about QuickSet, right-click the icon in the taskbar, and click Help.
Microsoft® Windows® Power Meter
The Windows Power Meter indicates the remaining battery charge. To check the Power Meter, double-
click the icon on the taskbar. For instructions on accessing more information about the Power Meter,
see "Configuring Power Management Settings" on page 41.
If the computer is connected to an electrical outlet, a icon appears.
Charge Gauge
By either pressing once or pressing and holding the status button on the charge gauge on the battery, you
can check:
• Battery charge (check by pressing and
releasing
the status button)
• Battery health (check by pressing and
holding
the status button)
The battery operating time is largely determined by the number of times it is charged. After hundreds of
charge and discharge cycles, batteries lose some charge capacity—or battery health. That is, a battery can
show a status of "charged" but maintain a reduced charge capacity (health).
Check the Battery Charge
To check the battery charge, press and release the status button on the battery charge gauge to illuminate
the charge-level lights. Each light represents approximately 20 percent of the total battery charge. For
example, if four of the lights are on, the battery has 80 percent of its charge remaining. If no lights
appear, the battery has no charge.
Using a Battery 39
Check the Battery Health
NOTE: You can check battery health in one of two ways: by using the charge gauge on the battery as described
below or by using the Battery Meter in Dell QuickSet. For information about QuickSet, right-click the icon in
the taskbar, and click Help.
To check the battery health using the charge gauge, press and hold the status button on the battery
charge gauge for at least 3 seconds. If no lights appear, the battery is in good condition, and more than
80 percent of its original charge capacity remains. Each light represents incremental degradation. If five
lights appear, less than 60 percent of the charge capacity remains, and you should consider replacing the
battery. See "Specifications" on page 157 for more information about the battery operating time.
Low-Battery Warning
NOTICE: To avoid losing or corrupting data, save your work immediately after a low-battery warning, and then
connect the computer to an electrical outlet. If the battery runs completely out of power, hibernate mode begins
automatically.
By default, a pop-up window warns you when the battery charge is approximately 90 percent depleted.
You can change the settings for the battery alarms. See "Configuring Power Management Settings" on
page 41 for information about accessing QuickSet or the Power Options Properties window.
Conserving Battery Power
Perform the following actions to conserve battery power:
• Connect the computer to an electrical outlet when possible because battery life is largely determined
by the number of times the battery is used and recharged.
• Place the computer in standby mode or hibernate mode when you leave the computer unattended for
long periods of time. See "Power Management Modes" on page 39 for more information about standby
and hibernate modes.
• Use the Power Management Wizard
to select options to optimize your computer’s power usage. These
options can also be set to change when you press the power button, close the display, or press
<Fn><Esc>. See "Configuring Power Management Settings" on page 41 for more information on
using the Power Management Wizard.
NOTE: See "Battery Performance" on page 37 for more information on conserving battery power.
Power Management Modes
Standby Mode
Standby mode conserves power by turning off the display and the hard drive after a predetermined
period of inactivity (a time-out). When the computer exits standby mode, it returns to the same
operating state it was in before entering standby mode.
NOTICE: If your computer loses AC and battery power while in standby mode, it may lose data.
40 Using a Battery
To enter standby mode:
• Click the
Start
button, click
Turn off computer
, and then click
Stand by
.
or
• Depending on how you set the power management options on the
Advanced
tab (see "Configuring
Power Management Settings" on page 41) in the
Power Options Properties
window, use one of the
following methods:
– Press the power button.
– Close the display.
– Press <Fn><Esc>.
To exit standby mode, press the power button or open the display depending on how you set the options
on the Advanced tab. You cannot make the computer exit standby mode by pressing a key or touching
the touch pad.
Hibernate Mode
Hibernate mode conserves power by copying system data to a reserved area on the hard drive and then
completely turning off the computer. When the computer exits hibernate mode, it returns to the same
operating state it was in before entering hibernate mode.
NOTICE: You cannot remove devices or undock your computer while your computer is in hibernate mode.
Your computer enters hibernate mode if the battery charge level becomes critically low.
To manually enter hibernate mode:
•
C
lick the
Start
button, click
Turn off computer
, press and hold <Shift>, and then click
Hibernate
.
or
• Depending on how you set the power management options on the
Advanced
tab in the
Power Options
Properties
window, use one of the following methods to enter hibernate mode:
– Press the power button.
– Close the display.
– Press <Fn><F1>.
NOTE: Some ExpressCards may not operate correctly after the computer exits hibernate mode. Remove and
reinsert the card (see "Removing an ExpressCard or Blank" on page 66), or simply restart (reboot) your computer.
To exit hibernate mode, press the power button. The computer may take a short time to exit hibernate
mode. You cannot make the computer exit hibernate mode by pressing a key or touching the touch pad.
For more information on hibernate mode, see the documentation that came with your operating system.
Using a Battery 41
Configuring Power Management Settings
You can use the QuickSet Power Management Wizard or Windows Power Options Properties to
configure the power management settings on your computer.
• To access the QuickSet Power Management Wizard, double-click the icon in the taskbar. For more
information about QuickSet, click the
Help
button in the Power Management Wizard.
• To access the
Power Options Properties
window, click the
Start
button
→
Control Panel
→
Performance and Maintenance
→
Power Options
. For information on any field in the
Power Options
Properties
window, click the question mark icon on the title bar and then click on the area
corresponding to the information that you need.
Charging the Battery
NOTE: With Dell™ ExpressCharge™, the AC adapter charges a completely discharged battery in approximately
1 hour with the computer turned off. Charge time is longer with the computer turned on. You can leave the battery in
the computer as long as you like. The battery’s internal circuitry prevents the battery from overcharging.
When you connect the computer to an electrical outlet or install a battery while the computer is
connected to an electrical outlet, the computer checks the battery charge and temperature. If necessary,
the AC adapter then charges the battery and maintains the battery charge.
If the battery is hot from being used in your computer or being in a hot environment, the battery may
not charge when you connect the computer to an electrical outlet.
The battery is too hot to start charging if the light flashes alternately green and orange. Disconnect
the computer from the electrical outlet and allow the computer and the battery to cool to room
temperature. Then connect the computer to an electrical outlet to continue charging the battery.
For more information about resolving problems with a battery, see "Power Problems" on page 96.
Replacing the Battery
CAUTION: Before performing these procedures, turn off the computer, disconnect the AC adapter from the
electrical outlet and the computer, disconnect the modem from the wall connector and computer, and remove any
other external cables from the computer.
NOTICE: You must remove all external cables from the computer to avoid possible connector damage.
CAUTION: Using an incompatible battery may increase the risk of fire or explosion. Replace the battery only
with a compatible battery purchased from Dell. The battery is designed to work with your Dell™ computer; do not
use a battery from other computers.
NOTICE: If you choose to replace the battery with the computer in standby mode, you have up to 1 minute to
complete the battery replacement before the computer shuts down and loses any unsaved data.
42 Using a Battery
To remove the battery:
1
If the computer is connected to a docking device (docked), undock it. See the documentation that
came with your docking device for instructions.
2
Ensure that the computer is turned off or suspended in a power management mode.
3
Slide and hold the battery-bay latch release on the bottom of the computer, and then slide the battery
from the bay.
To replace the battery, follow the removal procedure in reverse order.
Storing a Battery
Remove the battery when you store your computer for an extended period of time. A battery discharges
during prolonged storage. After a long storage period, recharge the battery fully (see "Charging the
Battery" on page 41) before you use it.
1battery 2battery-bay latch release
2
1
Using CDs, DVDs, and Other Multimedia 43
Using CDs, DVDs, and Other Multimedia
Playing CDs or DVDs
NOTICE: Do not press down on the CD or DVD tray when you open or close it. Keep the tray closed when you
are not using the drive.
NOTICE: Do not move the computer while playing CDs or DVDs.
1
Press the eject button on the front of the drive.
2
Pull out the tray.
3
Place the disc, label side up, in the center of the tray and snap the disc onto the spindle.
NOTE: If you use a module that shipped with another computer, you need to install the drivers and software
necessary to play DVDs or write data. For more information, see the Drivers and Utilities CD (the Drivers and
Utilities CD is optional and may not be available for your computer or in certain countries).
4
Push the tray back into the drive.
44 Using CDs, DVDs, and Other Multimedia
To format CDs for storing data, to create music CDs, or to copy CDs, see the CD software that came
with your computer.
NOTE: Ensure that you follow all copyright laws when you create CDs.
A CD player includes the following basic buttons:
A DVD player includes the following basic buttons:
For more information on playing CDs or DVDs, click Help on the CD or DVD player (if available).
Play.
Move backward within the current track.
Pause.
Move forward within the current track.
Stop.
Go to the previous track.
Eject.
Go to the next track.
Stop.
Restart the current chapter.
Play.
Fast forward.
Pause.
Fast reverse.
Advance a single frame while in pause mode.
Go to the next title or chapter.
Continuously play the current title or chapter.
Go to the previous title or chapter.
Eject.
Using CDs, DVDs, and Other Multimedia 45
Adjusting the Volume
NOTE: When the speakers are muted, you do not hear the CD or DVD playing.
1
Click the
Start
button, point to
All Programs (
or
Programs)
→
Accessories
→
Entertainment
(or
Multimedia
), and then click
Volume Control
.
2
In the
Volume Control
window, click and drag the bar in the
Volume Control
column and slide it up
or down to increase or decrease the volume.
For more information on volume control options, click Help in the Volume Control window.
The Volume Meter displays the current volume level, including mute, on your computer. Either click the
icon in the taskbar and select or deselect Disable On Screen Volume Meter, or press the volume
control buttons to enable or disable the Volume Meter on the screen.
When the meter is enabled, adjust the volume with the volume control buttons or by pressing the
following keys:
• Press
<Fn> <PageUp> to increase volume.
• Press
<Fn> <PageDn>
to decrease volume.
• Press
<Fn> <End> to mute volume.
For more information about QuickSet, right-click the icon in the taskbar and click Help.
Adjusting the Picture
If an error message notifies you that the current resolution and color depth are using too much memory
and preventing DVD playback, adjust the display properties.
Microsoft® Windows® XP
1
Click the
Start
button and click
Control Panel
.
2
Under
Pick a category
, click
Appearance and Themes
.
1volume icon 2Volume Meter 3mute icon
1
3
2
46 Using CDs, DVDs, and Other Multimedia
3
Under
Pick a task...
, click
Change the screen resolution
.
4
In the
Display Properties
window, click and drag the bar in
Screen resolution
to change the setting to
1024 by 768 pixels
.
5
Click the drop-down menu under
Color quality
, and then click
Medium (16 bit)
.
6
Click
OK
.
Using Dell Media Experience™ and Dell MediaDirect™
NOTE: Dell MediaDirect™ is optional and may not ship with your computer.
NOTE: Dell QuickSet is necessary for Dell MediaDirect to function. Changing or disabling QuickSet’s default
settings can limit Dell MediaDirect’s functionality. For more information about Dell QuickSet, see "Dell™ QuickSet
Features" on page 131.
Press the Dell MediaDirect button, located on the front of the computer, to launch either Dell Media
Experience or Dell MediaDirect.
If the computer is on or in standby mode
If you press the Dell MediaDirect button while the computer is on or in standby mode, either
Windows XP Media Center Manager or Dell Media Experience launches, depending on your system
setup.
If the computer is off or in hibernate mode
When your computer is off or in hibernate mode, you can press the Dell MediaDirect button to start the
computer and automatically launch the Dell MediaDirect application.
NOTICE: You cannot reinstall the Dell Media Experience or Dell MediaDirect feature if you voluntarily reformat the
hard drive. You will need the installation software to reinstall these media applications. Contact Dell for assistance.
See "Contacting Dell" on page 135.
1Dell MediaDirect button
1
Using CDs, DVDs, and Other Multimedia 47
Dell MediaDirect and Dell Media Experience Help
The Dell media application on your computer provides help information. When you launch the media
application, click on the desktop icon for additional help.
Using the Dell MediaDirect™ Repair Utility CD or the Dell MediaDirect Reinstallation CD
Repair Utility CD
NOTE: In some cases, the repair utility is stored on the Drivers and Utilities CD rather than the Repair Utility CD, or
it may be available as a download.
Use the Repair Utility CD to repair Dell MediaDirect if:
• Your computer is still equipped with the original
factory-installed hard drive but:
– Dell MediaDirect is not working properly.
– Dell MediaDirect fails to launch when you press the Dell MediaDirect button.
– You need to reinstall the Microsoft
®
Windows
®
operating system.
• You are receiving this kit with a new computer and you want to change the way your hard drive is
partitioned.
NOTICE: Do not change the way your hard drive is partitioned unless you are confident of what you are doing.
For more information about using the repair utility, see "Repairing Dell MediaDirect."
Reinstallation CD
Use the Reinstallation CD to reinstall Dell MediaDirect if you are receiving this kit in order to replace
your existing hard drive with a new drive. For more information, see "Reinstalling the Dell MediaDirect
Software."
1Dell MediaDirect button
1
48 Using CDs, DVDs, and Other Multimedia
Repairing Dell MediaDirect
NOTE: See "Repair Utility CD" to verify that you need to repair Dell MediaDirect rather than reinstall it. If you use
the Repair Utility CD when you should be reinstalling Dell MediaDirect, the process may not complete properly.
NOTE: In some cases, the repair utility is stored on the Drivers and Utilities CD rather than the Repair Utility CD, or
it may be available as a download.
To repair Dell MediaDirect on your hard drive:
1
Place the
Repair Utility CD
(or the
Drivers and Utilities
CD, if applicable) into the optical drive and
restart your computer.
2
Press the <F12> key as soon as the Dell logo screen appears to enter the boot menu.
3
Press the down-arrow key to highlight the first CD listing.
4
Press <Enter> to boot from the CD.
NOTE: If you are using the Drivers and Utilities CD, type <Q> after you boot from the CD.
5
At the prompt, type
cd \MD2
and press <Enter>.
6
Ty p e
Repair
and press <Enter>.
The Dell MediaDirect repair utility opens. To use the utility to repair Dell MediaDirect:
1
Use the arrow keys to select
OK
and press <Enter>.
2
When the
Done
message appears, remove the CD from the drive and press the power button to turn
off the computer.
You can now use the Dell MediaDirect button on your computer to launch Dell MediaDirect.
Reinstalling Dell MediaDirect
NOTE: See "Reinstallation CD" to verify that you need to reinstall Dell MediaDirect rather than repair it. If you use
the Reinstallation CD when you should be repairing Dell MediaDirect, the process may not complete properly.
Before you can reinstall the actual Dell MediaDirect software, you must prepare your hard drive for the
reinstallation. After replacing the hard drive, follow the instructions in "Preparing the Hard Drive for the
Dell MediaDirect Reinstallation" while you are installing the Windows XP operating system.
Once you have prepared your hard drive, you can reinstall your hardware drivers and software programs
(see the Dell Reinstall Guides at support.dell.com). Then follow the instructions in "Reinstalling the
Dell MediaDirect Software."
Preparing the Hard Drive for the Dell MediaDirect Reinstallation
While you are installing the Windows XP operating system, you must partition the hard drive so that
1308 MB of space is left unpartitioned and reserved for Dell MediaDirect.
NOTE: You can create a maximum of three partitions in addition to the unpartitioned space reserved for Dell
MediaDirect.
Using CDs, DVDs, and Other Multimedia 49
To create a partition on your hard drive:
1
Press the <F8> key to agree to the license agreement
while you are installing Windows XP
2
When the setup partition window appears, use the arrow keys to select the unpartitioned space.
3
Ty p e
C
to create a new partition using unpartitioned space.
NOTE: To create sufficient space for the Dell MediaDirect partition on your hard drive, you need to calculate the
partition size in megabytes (MB) by deducting 1308 from the total available space in MB on the hard drive.
4
Type the size in MB that you want to use for the new partition and press <Enter>.
5
Use the arrow keys to select the partition that you created and press <Enter>.
6
Select
Format the partition by using the NTFS file system (Quick)
and press <Enter>.
7
Return to the Windows XP install guide to complete the installation of Windows XP. When you have
finished all of the steps in the Windows XP install guide and the desktop appears, you can reinstall the
Dell MediaDirect software.
Reinstalling the Dell MediaDirect Software
NOTE: See "Reinstallation CD" to verify that you need to reinstall Dell MediaDirect rather than repair it. If you use
the Reinstallation CD when you should be repairing Dell MediaDirect, the process may not complete properly.
NOTE: You must follow the instructions in "Preparing the Hard Drive for the Dell MediaDirect Reinstallation" prior to
reinstalling the Dell MediaDirect software or you will receive an error message when attempting to reinstall the
software. If you receive an error message, you need to install Windows XP again or purchase a third-party utility
that allows you to partition a single partitioned hard drive with an operating system installed on it.
To reinstall the Dell MediaDirect software:
1
Insert the
Reinstallation CD
into the optical drive.
The
Dell MediaDirect™
window opens.
2
Press <Enter> to reinstall Dell MediaDirect.
A message appears indicating that the reinstallation process is complete.
3
Remove the
Reinstallation CD
from the optical drive and press <Enter> to exit the reinstallation
window.
4
Shut down the computer through the
Start
menu.
5
Use the Dell MediaDirect button on your computer to launch the Dell MediaDirect to complete the
reinstallation process.
Connecting Your Computer to a TV or Audio Device
NOTE: Video and audio cables for connecting your computer to a TV or other audio device are not included with
your computer. Cables and TV/digital audio adapter cables are available for purchase from Dell.
50 Using CDs, DVDs, and Other Multimedia
Your computer has an S-video TV-out connector that, together with a standard S-video cable, a
composite video adapter cable, or a component video adapter cable (available from Dell), enable you to
connect the computer to a TV.
1S-video TV-out connector 2S-video connector
1S-video TV-out connector 2composite video adapter 3S/PDIF digital audio
connector
4composite video-output
connector
5S-video connector
1S-video TV-out connector 2component video adapter 3S/PDIF digital audio
connector
4Pr (red) component video-
output connector
5Pb (blue) component video-
output connector
6Y (green) component video-
output connector
12
5
4
3
2
1
5
4
3
12
6
Using CDs, DVDs, and Other Multimedia 51
Your TV has either an S-video input connector, a composite video-input connector, or a component
video-input connector. Depending on what type of connector is available on your TV, you can use a
commercially available S-video cable, composite video cable, or component video cable to connect your
computer to your TV.
It is recommended that you connect video and audio cables to your computer in one of the following
combinations.
NOTE: See the diagrams at the beginning of each subsection to help you determine which method of connection
you should use.
• S-video and standard audio
• Composite video and standard audio
• Component-out video and standard audio
When you finish connecting the video and audio cables between your computer and your TV, you must
enable your computer to work with the TV. See "Enabling the Display Settings for a TV" on page 63 to
ensure that the computer recognizes and works properly with the TV. Additionally, if you are using
S/PDIF digital audio, see "Enabling S/PDIF Digital Audio" on page 62.
S-Video and Standard Audio
1audio connector 2S-video TV-out connector
1
2
52 Using CDs, DVDs, and Other Multimedia
1
Turn off the computer and the TV and/or audio device that you want to connect.
NOTE: You can connect an S-video cable directly to the S-video TV-out connector on the computer (without the
TV/digital audio adapter cable) if your TV or audio device supports S-video but not S/PDIF digital audio.
2
Plug one end of the S-video cable into the S-video output connector on the computer.
3
Plug the other end of the S-video cable into the S-video input connector on your TV.
4
Plug the single-connector end of the audio cable into the headphone connector on your computer.
5
Plug the two RCA connectors on the other end of the audio cable into the audio input connectors on
your TV or other audio device.
6
Turn on the TV and any audio device that you connected (if applicable), and then turn on the
computer.
7
See "Enabling the Display Settings for a TV" on page 63 to ensure that the computer recognizes and
works properly with the TV.
1standard S-video cable 2standard audio cable
1
2
Using CDs, DVDs, and Other Multimedia 53
S-Video and S/PDIF Digital Audio
1
Turn off the computer and the TV and/or the audio device that you want to connect.
2
Connect the composite video adapter to the S-video TV-out connector on your computer.
1S-video TV-out connector 2composite video adapter
1composite video adapter 2S-video cable 3S/PDIF digital audio cable
1 2
1
2
3
54 Using CDs, DVDs, and Other Multimedia
3
Plug one end of the S-video cable into the S-video output connector on the composite video adapter.
4
Plug the other end of the S-video cable into the S-video input connector on the TV.
5
Plug one end of the S/PDIF digital audio cable into the digital audio connector on the composite video
adapter cable.
6
Plug the other end of the S/PDIF digital audio cable into the audio input connector on your TV or
audio device.
7
Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the
computer.
8
See "Enabling the Display Settings for a TV" on page 63 to ensure that the computer recognizes and
works properly with the TV.
1composite video adapter 2S-video cable
1composite video adapter 2S/PDIF digital audio cable
12
1 2
Using CDs, DVDs, and Other Multimedia 55
Composite Video and Standard Audio
1
Turn off the computer and the TV and/or audio device that you want to connect.
2
Connect the composite video adapter to the S-video TV-out connector on your computer.
3
Plug one end of the composite video cable into the composite video-output connector on the
composite video adapter.
1audio input connector 2S-video TV-out connector 3composite video adapter
1composite video adapter 2composite video cable 3standard audio cable
2
1
3
1
2
3
56 Using CDs, DVDs, and Other Multimedia
4
Plug the other end of the composite video cable into the composite video-input connector on the TV.
5
Plug the single-connector end of the audio cable into the headphone connector on the computer.
6
Plug the two RCA connectors on the other end of the audio cable in to the audio input connectors on
your TV or other audio device.
7
Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the
computer.
8
See "Enabling the Display Settings for a TV" on page 63 to ensure that the computer recognizes and
works properly with the TV.
Composite Video and S/PDIF Digital Audio
1composite video adapter 2composite video cable
1S-video TV-out connector 2composite video adapter
2
1
1 2
Using CDs, DVDs, and Other Multimedia 57
1
Turn off the computer and the TV and/or audio device that you want to connect.
2
Connect the composite video adapter to the S-video TV-out connector on the computer.
3
Plug one end of the composite video cable into the composite video-input connector on the composite
video adapter.
4
Plug the other end of the composite video cable into the composite video-input connector on the TV.
5
Plug one end of the S/PDIF digital audio cable in to the S/PDIF audio connector on the composite
video adapter.
1composite video adapter 2composite video cable 3standard audio cable
1composite video adapter 2composite video cable
1composite video adapter 2S/PDIF digital audio cable
1
2
3
2
1
1 2
58 Using CDs, DVDs, and Other Multimedia
6
Plug the other end of the digital audio cable into the S/PDIF input connector on your TV or other
audio device.
7
Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the
computer.
8
See "Enabling the Display Settings for a TV" on page 63 to ensure that the computer recognizes and
works properly with the TV.
Component Video and Standard Audio
1S-video TV-out connector 2component video adapter
1component video adapter 2component video cable 3standard audio cable
2
1
1
2
3
Using CDs, DVDs, and Other Multimedia 59
1
Turn off the computer and the TV and/or audio device that you want to connect.
2
Connect the component video adapter to the S-video TV-out connector on your computer.
3
Plug all three ends of the component video cable into the component video-output connectors on the
component video adapter. Make sure that the red, green, and blue colors of the cable match the
corresponding adapter ports.
4
Plug all three connectors from the other end of the component video cable into the component video-
input connectors on the TV. Make sure that the red, green, and blue colors of the cable match the
colors of the TV input connectors.
5
Plug the single-connector end of the audio cable into the headphone connector on the computer.
6
Plug the two RCA connectors on the other end of the audio cable into the audio input connectors on
your TV or audio device.
7
Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the
computer.
8
See "Enabling the Display Settings for a TV" on page 63 to ensure that the computer recognizes and
works properly with the TV.
1component video adapter 2component video cable
21
60 Using CDs, DVDs, and Other Multimedia
Component Video and S/PDIF Digital Audio
1S-video TV-out connector 2component video adapter
1component video adapter 2component video cable 3standard audio cable
1 2
1
2
3
Using CDs, DVDs, and Other Multimedia 61
1
Turn off the computer and the TV and/or audio device that you want to connect.
2
Connect the component video adapter to the S-video TV-out connector on the computer.
3
Plug all three ends of the component video cable into the component video-output connectors on the
component video adapter. Make sure that the red, green, and blue colors of the cable match the
corresponding adapter ports.
4
Plug all three connectors from the other end of the component video cable into the component video-
input connectors on the TV. Make sure that the red, green, and blue colors of the cable match the
colors of the TV input connectors.
5
Plug one end of the S/PDIF digital audio cable into the S/PDIF audio connector on the component
video adapter.
6
Plug the other end of the digital audio cable into the S/PDIF input connector on your TV or other
audio device.
7
Turn on the TV, turn on any audio device that you connected (if applicable), and then turn on the
computer.
8
See "Enabling the Display Settings for a TV" on page 63 to ensure that the computer recognizes and
works properly with the TV.
1component video adapter 2component video-output
connectors
3component video cable
1component video adapter 2S/PDIF digital audio cable
31
2
2
1
62 Using CDs, DVDs, and Other Multimedia
Enabling S/PDIF Digital Audio
NOTE: Your DVD software may vary. Please review the setup instructions included with your DVD software.
If your computer has a DVD drive, you can enable digital audio for DVD playback.
1
Click
Start
, point to
All
Programs
, and select the DVD application.
2
Insert a DVD into the DVD drive.
If the DVD begins playing, click the stop button.
3
Click the
Settings
option.
4
Click the
DVD
option.
5
Click the
DVD Audio Setting
icon.
6
Click the arrows beside the
Speaker Configuration
setting to scroll through the options, and select the
SPDIF
option.
7
Click the
Back
button once, and then click the
Back
button again to return to the main menu screen.
Enabling S/PDIF in the Windows Audio Driver
1
Double-click the speaker icon in the Windows notification area.
2
Click the
Options
menu and then click
Advanced Controls
.
3
Click
Advanced
.
4
Click
S/PDIF Interface
.
5
Click
Close
.
6
Click
OK
.
Configuring DVD Playback Using Headphones
If your computer has a DVD drive, you can enable digital audio for DVD playback.
NOTE: Your DVD software may vary. Please review the setup instructions included with your DVD software.
1
Click
Start
, point to
All Programs
, and select the DVD program.
2
Insert a DVD into the DVD drive.
If the DVD begins playing, click the stop button.
3
Click the
Settings
option.
4
Click the
DVD
option.
5
Click the
DVD Audio Setting
icon.
6
Click the arrows beside the
Speaker Configuration
setting to scroll through the options, and select the
Headphones
option.
7
Click the arrows beside the
Audio listening mode
setting to scroll through the options, and select the
CL Headphone
option.
Using CDs, DVDs, and Other Multimedia 63
8
Click the arrows beside the
Dynamic range compression
option to select the most suitable option.
9
Click the
Back
button once, and then click the
Back
button again to return to the main menu screen.
Enabling the Display Settings for a TV
Video Controller
NOTE: To ensure that the display options appear correctly, connect the TV to the computer before you enable the
display settings.
1
Click the
Start
button, point to
Settings
, and then click
Control Panel
.
2
Double-click
Display
and click the
Settings
tab.
3
Click
Advanced
.
4
Click the tab for your video card.
NOTE: To determine the type of video card installed in your computer, see the Windows Help and Support Center.
To access the Help and Support Center, click Start → Help and Support. Under Pick a Task, click Use Tools to view
your computer information and diagnose problems. Then, under My Computer Information, select Hardware.
5
In the display devices section, select the appropriate option for using either a single display or multiple
displays, ensuring that the display settings are correct for your selection.
64 Using CDs, DVDs, and Other Multimedia
Using ExpressCards 65
Using ExpressCards
ExpressCard Types
See "Specifications" on page 157 for information on supported ExpressCards.
NOTE: An ExpressCard is not a bootable device.
ExpressCard Blanks
Your computer shipped with a plastic blank installed in the ExpressCard slot. Blanks protect unused
slots from dust and other particles. Save the blank for use when no ExpressCard is installed in the
slot; blanks from other computers may not fit your computer. To remove the blank, see "Removing
an ExpressCard or Blank" on page 66.
Installing an ExpressCard
You can install an ExpressCard in the computer while the computer is running. The computer
automatically detects the card.
ExpressCards are generally marked with a symbol (such as a triangle or an arrow) or a label to
indicate which end to insert into the slot. The cards are keyed to prevent incorrect insertion. If card
orientation is not clear, see the documentation that came with the card.
NOTE: The ExpressCard slot does NOT support PC cards. See the illustration below to view supported cards.
1 supported card types (Express Cards) 2 unsupported card type (PCMCIA)
21
66 Using ExpressCards
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
To install an ExpressCard:
1
Hold the card with the top side of the card facing up. The latch may need to be in the "in" position
before you insert the card.
2
Slide the card into the slot until the card is completely seated in its connector.
If you encounter too much resistance, do not force the card. Check the card orientation and try again.
The computer recognizes the ExpressCard and automatically loads the appropriate device driver. If the
configuration program tells you to load the manufacturer's drivers, use the floppy disk or CD that came
with the ExpressCard.
Removing an ExpressCard or Blank
NOTICE: Use the ExpressCard configuration utility (click the icon in the taskbar) to select a card and stop it
from functioning before you remove it from the computer. If you do not stop the card in the configuration utility, you
could lose data.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
Press the latch and remove the card or blank. For some latches, you must press the latch twice: once to
pop the latch out, and then a second time to pop the card out.
1ExpressCard
1
Using ExpressCards 67
Save a blank to use when no ExpressCard is installed in a slot. Blanks protect unused slots from dust and
other particles.
Media Memory Card Types
The 5-in-1 media memory card reader provides a fast and convenient way to view and share digital
photos, music, and videos stored on a memory card.
NOTE: A media memory card is not a bootable device.
The 5-in-1 media memory card reader reads the following media memory cards:
• Secure Digital (SD) card/SDIO
• MultiMediaCard (MMC)
• Memory Stick
• Memory Stick PRO
• xD-Picture Card
Media Memory Card Blanks
Your computer shipped with a plastic blank installed in the 5-in-1 media memory card slot. Blanks
protect unused slots from dust and other particles. Save the blank for use when no card is installed in the
slot; blanks from other computers may not fit your computer.
To remove the blank, see "Removing an ExpressCard or Blank" on page 66.
1release button 2ExpressCard
1
2
68 Using ExpressCards
Installing a Media Memory Card
You can install a media memory card in the computer while the computer is running. The computer
automatically detects the card.
Media memory cards are generally marked with a symbol (such as a triangle or an arrow) or a label to
indicate which end to insert into the slot. The cards are keyed to prevent incorrect insertion. If card
orientation is not clear, see the documentation that came with the card.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
To install a media memory card:
1
Hold the card with the top side of the card facing up.
2
Slide the card into the slot until the card is completely seated in its connector.
If you encounter too much resistance, do not force the card. Check the card orientation and try again.
The computer recognizes the media memory card and automatically loads the appropriate device driver.
If the configuration program tells you to load the manufacturer's drivers, use the CD that came with the
media memory card, if applicable.
15-in-1 media memory card
slot
2media memory card
1
2
Using ExpressCards 69
Removing a Media Memory Card or Blank
NOTICE: Use the media memory card configuration utility (click the icon in the taskbar) to select a card and
stop it from functioning before you remove it from the computer. If you do not stop the card in the configuration
utility, you could lose data.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
Press the card in to release and remove the card or blank.
Save the blank to use when no media memory card is installed in the slot. Blanks protect unused slots
from dust and other particles.
70 Using ExpressCards
Setting Up a Network 71
Setting Up a Network
Physically Connecting to a Network or Broadband Modem
Before you connect your computer to a network that is not wireless, the computer must have a
network adapter installed and a network cable connected to it.
To connect a network cable:
1
Connect the network cable to the network adapter connector on the right side of your computer.
NOTE: Insert the cable connector until it clicks into place, and then gently pull the cable to ensure that it is
securely attached.
2
Connect the other end of the network cable to a network connection device or a network wall
connector.
NOTE: Do not use a network cable with a telephone wall connector.
Network Setup Wizard
The Microsoft® Windows® XP operating system provides a Network Setup Wizard to guide you
through the process of sharing files, printers, or an Internet connection between computers in a
home or small office.
1
Click the
Start
button, point to
Programs
→
Accessories
→
Communications
, and then click
Network Setup Wizard
.
2
On the welcome screen, click
Next
.
72 Setting Up a Network
3
Click
Checklist for creating a network
.
NOTE: Selecting the connection method labeled This computer connects directly to the Internet enables the
integrated firewall provided with Windows XP Service Pack 2 (SP2).
4
Complete the checklist.
5
Return to the Network Setup Wizard and follow the instructions on the screen.
Wireless Local Area Network (WLAN)
A WLAN is a series of interconnected computers that communicate with each other over the air waves
rather than through a network cable connected to each computer. In a WLAN, a radio communications
device called an access point or wireless router connects network computers and provides network access.
The access point or wireless router and the wireless network card in the computer communicate by
broadcasting data from their antennas over the air waves.
What You Need to Establish a WLAN Connection
Before you can set up a WLAN, you need:
• High-speed (broadband) Internet access (such as cable or DSL)
• A broadband modem that is connected and working
• A wireless router or access point
• A wireless network card for each computer that you want to connect to your WLAN
• A network cable with the network (RJ-45) connector
Checking Your Wireless Network Card
Depending on what you selected when you purchased your computer, the computer has a variety of
configurations. To confirm that your computer has a wireless network card and to determine the type of
card, use one of the following:
• The
Start
button and the
Connect To
option
• Your order confirmation
Start Button and Connect To Option
1
Click the
Start
button.
2
Point to
Connect To
, and then click
Show all connections
.
If Wireless Network Connection does not appear under LAN or High-Speed Internet, you may not have
a wireless network card.
Setting Up a Network 73
If Wireless Network Connection appears, you have a wireless network card. To view detailed information
about the wireless network card:
1
Right-click
Wireless Network Connection.
2
Click
Properties
. The
Wireless Network Connection Properties
window appears. The wireless network
card’s name and model number are listed on the
General
tab.
NOTE: If your computer is set to the Classic Start menu option, you can view network connections by clicking the
Start button, pointing to Settings, and then pointing to Network Connections. If Wireless Network Connection does
not appear, you may not have a wireless network card.
Order Confirmation
The order confirmation that you received when you ordered your computer lists the hardware and
software that shipped with your computer.
Setting Up a New WLAN
Connecting a Wireless Router and a Broadband Modem
1
Contact your Internet service provider (ISP) to obtain specific information about the connection
requirements for your broadband modem.
2
Ensure that you have wired Internet access through your broadband modem before you attempt to set
up a wireless Internet connection. See "Physically Connecting to a Network or Broadband Modem" on
page 71.
3
Install any software required for your wireless router. Your wireless router may have been shipped with
an installation CD. Such CDs usually contain installation and troubleshooting information. Install the
required software according to the manufacturer's instructions.
4
Shut down your computer and any other wireless-enabled computers in the vicinity through the
Start
menu.
5
Disconnect your broadband modem power cable from the electrical outlet.
6
Disconnect the network cable from the computer and the modem.
NOTE: Wait for a minimum of 5 minutes after disconnecting your broadband modem before you continue with the
network setup.
7
Disconnect the AC adapter cable from your wireless router to ensure that there is no power connected
to the router.
8
Insert a network cable into the network (RJ-45) connector on the unpowered broadband modem.
9
Connect the other end of the network cable into the Internet network (RJ-45) connector on the
unpowered wireless router.
10
Ensure that no network or USB cables, other than the network cable connecting the modem and the
wireless router, are connected to the broadband modem.
NOTE: Restart your wireless equipment in the order described below to prevent a potential connection failure.
74 Setting Up a Network
11
Tu r n o n
only
your broadband modem and wait for at least 2 minutes for the broadband modem to
stabilize. After 2 minutes, proceed to step 12.
12
Turn on your wireless router and wait for at least 2 minutes for the wireless router to stabilize. After
2 minutes, proceed to the step 13.
13
Start your computer and wait until the boot process completes.
14
See the documentation that came with your wireless router to do the following in order to set up the
wireless router:
• Establish communication between your computer and your wireless router.
• Configure your wireless router to communicate with your broadband router.
• Find out your wireless router’s broadcast name. The technical term for the name of your router’s
broadcast name is Service Set Identifier (SSID) or network name.
15
If necessary, configure your wireless network card to connect to the wireless network. See "Connecting
to a Wireless Local Area Network" on page 74.
Connecting to a Wireless Local Area Network
NOTE: Before you connect to a WLAN, ensure that you have followed the instructions in "Wireless Local Area
Network (WLAN)" on page 72.
NOTE: The following networking instructions do not apply to internal cards with Bluetooth® wireless technology
or mobile broadband networks.
This section provides general procedures for connecting to a network via wireless technology. Specific
network names and configuration details vary. See "Wireless Local Area Network (WLAN)" on page 72
for more information about how to prepare for connecting your computer to a WLAN.
Your wireless network card requires specific software and drivers for connecting to a network. The
software is already installed.
NOTE: If the software is removed or corrupted, follow the instructions in the user documentation for your wireless
network card. Verify the type of wireless network card installed in your computer and then search for that name on
the Dell Support website at support.dell.com. For information on the type of wireless network card that is installed
in your computer, see "Checking Your Wireless Network Card" on page 72.
Determining the Wireless Network Device Manager
Depending on the software installed on your computer, different wireless configuration utilities may
manage your network devices:
• Your wireless network card’s configuration utility
• The Windows XP operating system
Setting Up a Network 75
To determine which wireless configuration utility is managing your wireless network card:
1
Click the
Start
button, point to
Settings
, and then click
Control Panel
.
2
Double-click
Network Connections
.
3
Right-click the
Wireless Network Connection
icon, and then click
View Available Wireless Networks
.
If the Choose a wireless network window states Windows cannot configure this connection, the wireless
network card’s configuration utility is managing the wireless network card.
If the Choose a wireless network window states Click an item in the list below to connect to a wireless
network in range or to get more information, the Windows XP operating system is managing the
wireless network card.
For specific information about the wireless configuration utility installed on your computer, see your
wireless network documentation in the Windows Help and Support Center.
To access the Help and Support Center:
1
Click the
Start
button and click
Help and Support
.
2
Under
Pick a Help topic
, click
Dell User and System Guides
.
3
Under
Device Guides
, select the documentation for your wireless network card.
Completing the Connection to the WLAN
When you turn on your computer and a network (for which your computer is not configured) is detected
in the area, a pop-up appears near the wireless communications icon in the notification area (in the
lower-right corner of the Windows desktop).
Follow the instructions provided in any utility prompts that appear on your screen.
Once you have configured your computer for the wireless network that you selected, another pop-up
notifies you that your computer is connected to that network.
Thereafter, whenever you log on to your computer within the range of the wireless network that you
selected, the same pop-up notifies you of the wireless network connection.
NOTE: If you select a secure network, you must enter a WEP or WPA key when prompted. Network security
settings are unique to your network. Dell cannot provide this information.
NOTE: Your computer can take up to 1 minute to connect to the network.
Enabling/Disabling the Wireless Network Card
NOTE: If you are unable to connect to a wireless network, ensure that you have all the components for
establishing a WLAN (see "What You Need to Establish a WLAN Connection" on page 72), and then verify that your
wireless network card is enabled by pressing <Fn><F2>.
You can turn your computer’s wireless networking function on and off by pressing the <Fn><F2> key
combination. If the wireless networking function is turned on, press <Fn><F2> to disable it. If the
wireless networking function is turned off, press <Fn><F2> to enable it.
76 Setting Up a Network
Monitoring the Status of Wireless Network Connections Through Dell™ QuickSet
The wireless activity indicator provides an easy way to monitor the status of your computer’s wireless
devices. Right-click the Dell QuickSet icon in your taskbar to select or deselect Wireless Activity
Indicator Off to turn the wireless activity indicator on or off.
The wireless activity indicator indicates whether your computer’s wireless devices are enabled or
disabled. When you turn the wireless networking function on or off, the wireless activity indicator
changes to display the status.
For more information about the wireless activity indicator, see the Dell QuickSet Help file. For
information about QuickSet and how to access the Dell QuickSet Help file, see "Dell™ QuickSet
Features" on page 131.
Mobile Broadband or Wireless Wide Area Network (WWAN)
Much like a WLAN, a Mobile Broadband network (also known as a WWAN) is a series of interconnected
computers that communicate with each other through wireless technology. However, a Mobile
Broadband network uses cellular technology and therefore provides Internet access in the same varied
locations from which cellular telephone service is available. Your computer can maintain the Mobile
Broadband network connection regardless of its physical location, as long as the computer remains in the
service area of your cellular service provider.
What You Need to Establish a Mobile Broadband Network Connection
NOTE: Depending on your computer, you can use either a Mobile Broadband ExpressCard or Mini-Card, but not
both, to establish a Mobile Broadband network connection.
To set up a Mobile Broadband network connection, you need:
• A Mobile Broadband ExpressCard or Mini-Card (depending on your computer’s configuration)
For instructions on using ExpressCards, see "Using ExpressCards" on page 65.
• The Dell Mobile Broadband Card Utility (already installed on your computer if you purchased the card
when you purchased your computer, or on the CD that accompanied your card if purchased separately
from your computer)
If the utility is corrupted or deleted from your computer, see the Dell Mobile Broadband Card Utility
user’s guide for instructions. The user’s guide is available through the Windows Help and Support
Center (or on the CD that accompanied your card if you purchased it separately from your computer).
To access the Help and Support Center, see "Windows Help and Support Center" on page 13.
Connecting to a Mobile Broadband Network
NOTE: These instructions only apply to Mobile Broadband ExpressCards or Mini-Cards. They do not apply to
internal cards with Bluetooth® wireless technology or WLAN Mini-Cards.
Setting Up a Network 77
NOTE: Before you connect to the Internet, you must activate mobile broadband service through your cellular
service provider. For instructions and for additional information about using the Dell Mobile Broadband Card Utility,
see the user's guide available through the Windows Help and Support Center. To access the Help and Support
Center, see "Windows Help and Support Center" on page 13. The user's guide is also available on the Dell Support
website at support.dell.com and on the CD included with your Mobile Broadband card if you purchased the card
separately from your computer.
Use the Dell Mobile Broadband Card Utility to establish and manage a Mobile Broadband network
connection to the Internet:
1
Click the
Dell Mobile Broadband Card Utility icon,
, in the Windows taskbar, to run the utility.
2
Click
Connect
.
NOTE: The Connect button changes to the Disconnect button.
3
Follow the instructions on the screen to manage the network connection with the utility.
Bluetooth Network
Setting up your Bluetooth Connection
Bluetooth-equipped systems will display the Bluetooth icon in the system tray. If you have Bluetooth,
double-click on the Bluetooth icon. Depending on the Bluetooth software on your computer you may be
required to follow a number of steps that the Bluetooth software will guide you through in order to
complete your Bluetooth setup. This procedure will take approximately 5 minutes or less. Upon
completion your system will be ready to establish and use Bluetooth connections. If after double-clicking
the Bluetooth icon you are not prompted by the Bluetooth software to follow a series of steps, then your
Bluetooth system is already fully configured and ready to use.
Connecting to a Bluetooth Network
Systems that are equipped with a Bluetooth internal card may connect to other Bluetooth devices such
as keyboards and mice, stereo headsets, cameras, PDAs, and printers. This requires a few simple steps to
establish a connection to the device. These steps vary depending on the Bluetooth software on your
computer. For details on establishing Bluetooth connections please open your Bluetooth software by
double-clicking on the Bluetooth icon in the system tray. Select Help on the main menu for a detailed
description of how to use your Bluetooth internal networking card.
78 Setting Up a Network
Securing Your Computer 79
Securing Your Computer
Security Cable Lock
NOTE: Your computer does not ship with a security cable lock.
A security cable lock is a commercially available antitheft device. To use the lock, attach it to the
security cable slot on your Dell™ computer. For more information, see the instructions included
with the device.
NOTICE: Before you buy an antitheft device, ensure that it will work with the security cable slot on your
computer.
Passwords
Passwords prevent unauthorized access to your computer. When you first start your computer, you
must assign a primary password at the prompt. If you do not enter a password within 2 minutes, the
computer returns to its previous operating state.
When using passwords, observe the following guidelines:
• Choose a password that you can remember, but not one that is easy to guess. For example, do not
use the names of family members or pets for passwords.
• It is recommended that you do not write down your password. If you do write it down, however,
ensure that the password is stored in a secure place.
80 Securing Your Computer
• Do not share your password with other people.
• Ensure that people are not watching you when you type your password.
NOTICE: Passwords provide a high level of security for data in your computer or hard drive. However, they are not
foolproof. If you require more security, obtain and use additional forms of protection, such as smart cards, data
encryption programs, or PC Cards (or Mini-Cards) with encryption features.
To add or change passwords, access User Accounts from the Control Panel.
If you forget any of your passwords, contact Dell (see "Contacting Dell" on page 135). For your
protection, Dell technical support staff will ask you for proof of your identity to ensure that only an
authorized person can use the computer.
Computer Tracking Software
Computer tracking software may enable you to locate your computer if it is lost or stolen. The software is
optional and may be purchased when you order your Dell™ computer, or you can contact your Dell sales
representative for information about this security feature.
NOTE: Computer tracking software may not be available in certain countries.
NOTE: If you have computer tracking software and your computer is lost or stolen, you must contact the company
that provides the tracking service to report the missing computer.
If Your Computer Is Lost or Stolen
• Call a law enforcement agency to report the lost or stolen computer. Include the Service Tag in your
description of the computer. Ask that a case number be assigned and write down the number, along
with the name, address, and phone number of the law enforcement agency. If possible, obtain the
name of the investigating officer.
NOTE: If you know where the computer was lost or stolen, call a law enforcement agency in that area. If you do not
know, call a law enforcement agency where you live.
• If the computer belongs to a company, notify the security office of the company.
• Contact Dell customer service to report the missing computer. Provide the computer Service Tag, the
case number, and the name, address, and phone number of the law enforcement agency to which you
reported the missing computer. If possible, give the name of the investigating officer.
The Dell customer service representative will log your report under the computer Service Tag and record
the computer as missing or stolen. If someone calls Dell for technical assistance and gives your Service
Tag, the computer is identified automatically as missing or stolen. The representative will attempt to get
the phone number and address of the caller. Dell will then contact the law enforcement agency to which
you reported the missing computer.
Troubleshooting 81
Troubleshooting
Dell Technical Update Service
The Dell Technical Update service provides proactive e-mail notification of software and hardware
updates for your computer. The service is free and can be customized for content, format, and how
frequently you receive notifications.
To enroll for the Dell Technical Update service, go to support.dell.com/technicalupdate.
Dell Diagnostics
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the
Product Information Guide.
When to Use the Dell Diagnostics
If you experience a problem with your computer, perform the checks in "Lockups and Software
Problems" on page 93 and run the Dell Diagnostics before you contact Dell for technical assistance.
NOTICE: The Dell Diagnostics works only on Dell computers.
NOTE: The Drivers and Utilities CD is optional and may not ship with your computer.
Start the Dell Diagnostics from either your hard drive or from the Drivers and Utilities CD (also
known as the ResourceCD).
Starting the Dell Diagnostics From Your Hard Drive
The Dell Diagnostics is located on a hidden diagnostic utility partition on your hard drive.
NOTE: If your computer cannot display a screen image, contact Dell. See "Contacting Dell" on page 135.
1
Shut down the computer.
2
Connect the computer to an electrical outlet.
82 Troubleshooting
3
Diagnostics can be invoked one of two ways:
a
Turn on the computer. When the DELL™ logo appears, press <F12> immediately. Select
Diagnostics
from the boot menu and press <Enter>.
NOTE: If you wait too long and the operating system logo appears, continue to wait until you see the
Microsoft® Windows® desktop. Then shut down your computer and try again.
b
Press and hold the <Fn> key while powering the system on.
NOTE: If you see a message stating that no diagnostics utility partition has been found, run the Dell
Diagnostics from the Drivers and Utilities CD.
The computer runs the Pre-boot System Assessment, a series of initial tests of your system board,
keyboard, hard drive, and display.
• During the assessment, answer any questions that appear.
• If a failure is detected, the computer stops and beeps. To stop the assessment and restart the
computer, press <n>; to continue to the next test, press <y>; to retest the component that
failed, press <r>.
• If failures are detected during the Pre-boot System Assessment, write down the error code(s) and
contact Dell.
If the Pre-boot System Assessment completes successfully, you receive the message
Booting Dell
Diagnostic Utility Partition. Press any key to continue
.
4
Press any key to start the Dell Diagnostics from the diagnostics utility partition on your hard drive.
Starting the Dell Diagnostics From the Drivers and Utilities CD
1
Insert the
Drivers and Utilities
CD.
2
Shut down and restart the computer.
When the DELL logo appears, press <F12> immediately.
If you wait too long and the Windows logo appears, continue to wait until you see the Windows
desktop. Then shut down your computer and try again.
NOTE: The next steps change the boot sequence for one time only. On the next start-up, the computer boots
according to the devices specified in the system setup program.
3
When the boot device list appears, highlight
CD/DVD/CD-RW Drive
and press <Enter>.
4
Select the
Boot from CD-ROM
option from the menu that appears and press <Enter>.
5
Ty p e
1
to start the
ResourceCD
menu and press <Enter> to proceed.
6
Select
Run the 32 Bit Dell Diagnostics
from the numbered list. If multiple versions are listed, select
the version appropriate for your computer.
7
When the Dell Diagnostics
Main Menu
appears, select the test you want to run.
Troubleshooting 83
Dell Diagnostics Main Menu
1
After the Dell Diagnostics loads and the
Main
Menu
screen appears, click the button for the option
you want.
2
If a problem is encountered during a test, a message appears with an error code and a description of the
problem. Write down the error code and problem description and follow the instructions on the
screen.
If you cannot resolve the error condition, contact Dell.
NOTE: The Service Tag for your computer is located at the top of each test screen. If you contact Dell,
technical support will ask for your Service Tag.
3
If you run a test from the
Custom Test
or
Symptom Tree
option, click the applicable tab described in
the following table for more information.
Option Function
Express Test Performs a quick test of devices. This test typically takes
10 to 20 minutes and requires no interaction on your
part. Run Express Test first to increase the possibility of
tracing the problem quickly.
Extended Test Performs a thorough check of devices. This test typically
takes 1 hour or more and requires you to answer
questions periodically.
Custom Test Tests a specific device. You can customize the tests you
want to run.
Symptom Tree Lists the most common symptoms encountered and
allows you to select a test based on the symptom of the
problem you are having.
Tab Function
Results Displays the results of the test and any error conditions
encountered.
Errors Displays error conditions encountered, error codes, and
the problem description.
Help Describes the test and may indicate requirements for
running the test.
84 Troubleshooting
4
When the tests are completed, if you are running the Dell Diagnostics from the
Drivers and Utilities
CD
,
remove the CD.
5
When the tests are completed, close the test screen to return to the
Main
Menu
screen. To exit the
Dell Diagnostics and restart the computer, close the
Main
Menu
screen.
Dell Support Utility
The Dell Support Utility is installed on your computer and available from the Dell Support icon on the
taskbar or from the Start button. Use this support utility for self-support information, software updates,
and health scans of your computing environment.
Accessing the Dell Support Utility
Access the Dell Support Utility from the Dell Support icon on the taskbar or from the Start menu.
If the Dell Support icon does not appear in your taskbar:
1
Click the
Start
button and point to
All Programs
.
2
Click
Dell Support
and point to
Dell Support Settings
.
3
Ensure that the
Show icon on the taskbar
option is checked.
NOTE: If the Dell Support Utility is not available from the Start menu, go to support.dell.com and download
the software.
The Dell Support Utility is customized for your computing environment.
The Dell Support icon in the taskbar functions differently when you click, double-click, or right-click the
icon.
Configuration Displays your hardware configuration for the selected
device.
The Dell Diagnostics obtains configuration information
for all devices from the system setup program, memory,
and various internal tests, and it displays the information
in the device list in the left pane of the screen. The
device list may not display the names of all the
components installed on your computer or all devices
attached to your computer.
Parameters Allows you to customize the test by changing the test
settings.
Tab Function
Troubleshooting 85
Clicking the Dell Support Icon
Click or right-click the icon to perform the following tasks:
• Check your computing environment
• View the Dell Support Utility settings
• Access the help file for the Dell Support Utility
• View frequently asked questions
• Learn more about the Dell Support Utility
• Turn the Dell Support Utility off
Double-Clicking the Dell Support Icon
Double-click the icon to manually check your computing environment, view frequently asked
questions, access the help file for the Dell Support Utility, and view Dell Support settings.
For more information about the Dell Support Utility, click the question mark (?) at the top of the Dell
Support screen.
Drive Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
ENSURE THAT MICROSOFT® WINDOWS® RECOGNIZES THE DRIVE —Click the Start button and click My
Computer. If the floppy, CD, or DVD drive, is not listed, perform a full scan with your antivirus software
to check for and remove viruses. Viruses can sometimes prevent Windows from recognizing the drive.
TEST THE DRIVE —
• Insert another floppy disk, CD, or DVD to eliminate the possibility that the original one is defective.
• Insert a bootable floppy disk and restart the computer.
CLEAN THE DRIVE OR DISK —See "Cleaning Your Computer" on page 167.
ENSURE THAT THE CD IS SNAPPED ONTO THE SPINDLE
CHECK THE CABLE CONNECTIONS
CHECK FOR HARDWARE INCOMPATIBILITIES —(See "Resolving Software and Hardware Incompatibilities"
on page 103.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 81.
CD and DVD drive problems
NOTE: High-speed CD or DVD drive vibration is normal and may cause noise, which does not indicate a defect in
the drive or the CD or DVD.
NOTE: Because of different regions worldwide and different disc formats, not all DVD titles work in all DVD drives.
86 Troubleshooting
Problems writing to a CD/DVD-RW drive
CLOSE OTHER PROGRAMS —The CD/DVD-RW drive must receive a steady stream of data when writing.
If the stream is interrupted, an error occurs. Try closing all programs before you write to the
CD/DVD-RW.
TURN OFF STANDBY MODE IN WINDOWS BEFORE WRITING TO A CD/DVD-RW DISC —See "Power
Management Modes" on page 39 for information on standby mode.
CHANGE THE WRITE SPEED TO A SLOWER RATE —See the help files for your CD or DVD creation software.
If you cannot eject the CD, CD-RW, DVD, or DVD+RW drive tray
1
Ensure that the computer is shut down.
2
Straighten a paper clip and insert one end into the eject hole at the front of the drive; push firmly until
the tray is partially ejected.
3
Gently pull out the tray until it stops.
If you hear an unfamiliar scraping or grinding sound
• Ensure that the sound is not caused by the program that is running.
• Ensure that the disk or disc is inserted properly.
Hard drive problems
ALLOW THE COMPUTER TO COOL BEFORE TURNING IT ON —A hot hard drive may prevent the operating
system from starting. Try allowing the computer to return to room temperature before turning it on.
RUN CHECK DISK —
1
Click the
Start
button and click
My Computer
.
2
Right-click
Local Disk C:
.
3
Click
Properties
.
4
Click the
Tools
tab.
5
Under
Error-checking
, click
Check Now
.
6
Click
Scan for and attempt recovery of bad sectors
.
7
Click
Start
.
E-Mail, Modem, and Internet Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTE: Connect the modem to an analog telephone jack only. The modem does not operate while it is connected to
a digital telephone network.
Troubleshooting 87
CHECK THE MICROSOFT OUTLOOK® EXPRESS SECURITY SETTINGS —If you cannot open your e-mail
attachments:
1
In Outlook Express, click
Tools
, click
Options
, and then click
Security
.
2
Click
Do not allow attachments
to remove the checkmark.
CHECK THE TELEPHONE LINE CONNECTION
CHECK THE TELEPHONE JACK
CONNECT THE MODEM DIRECTLY TO THE TELEPHONE WALL JACK
USE A DIFFERENT TELEPHONE LINE
• Verify that the telephone line is connected to the jack on the modem. (The jack has either a green label
or a connector-shaped icon next to it.)
• Ensure that you hear a click when you insert the telephone line connector into the modem.
• Disconnect the telephone line from the modem and connect it to a telephone. Listen for a dial tone.
• If you have other telephone devices sharing the line, such as an answering machine, fax machine, surge
protector, or line splitter, then bypass them and connect the modem directly to the telephone wall jack.
If you are using a line that is 3 m (10 ft) or more in length, try a shorter one.
RUN THE MODEM HELPER DIAGNOSTICS —Click the Start button, point to All Programs and then click
Modem Helper. Follow the instructions on the screen to identify and resolve modem problems. (Modem
Helper is not available on certain computers.)
VERIFY THAT THE MODEM IS COMMUNICATING WITH WINDOWS —
1
Click the
Start
button and click
Control Panel
.
2
Click
Printers and Other Hardware
.
3
Click
Phone and Modem Options
.
4
Click the
Modems
tab.
5
Click the COM port for your modem.
6
Click
Properties
, click the
Diagnostics
tab, and then click
Query Modem
to verify that the modem is
communicating with Windows.
If all commands receive responses, the modem is operating properly.
ENSURE THAT YOU ARE CONNECTED TO THE INTERNET —Ensure that you have subscribed to an Internet
provider. With the Outlook Express e-mail program open, click File. If Work Offline has a checkmark
next to it, click the checkmark to remove it and connect to the Internet. For help, contact your Internet
service provider.
SCAN THE COMPUTER FOR SPYWARE —If you are experiencing slow computer performance, you frequently
receive pop-up advertisements, or you are having problems connecting to the Internet, your computer
might be infected with spyware. Use an anti-virus program that includes anti-spyware protection (your
program may require an upgrade) to scan the computer and remove spyware. For more information, go to
support.dell.com and search for the keyword spyware.
88 Troubleshooting
Error Messages
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
If the message is not listed, see the documentation for the operating system or the program that was
running when the message appeared.
AUXILIARY DEVICE FAILURE —The touch pad, track stick, or external mouse may be faulty. For an external
mouse, check the cable connection. Enable the Pointing Device option in the system setup program. If
the problem persists, contact Dell. See "Contacting Dell" on page 135.
BAD COMMAND OR FILE NAME —Ensure that you have spelled the command correctly, put spaces in the
proper place, and used the correct pathname.
CACHE DISABLED DUE TO FAILURE —The primary cache internal to the microprocessor has failed. Contact
Dell. See "Contacting Dell" on page 135.
CD DRIVE CONTROLLER FAILURE —The CD drive does not respond to commands from the computer. See
"Drive Problems" on page 85.
DATA ERROR —The hard drive cannot read the data. See "Drive Problems" on page 85.
DECREASING AVAILABLE MEMORY —One or more memory modules may be faulty or improperly seated.
Reinstall the memory modules and, if necessary, replace them. See "Optical Drives" on page 114.
DISK C: FAILED INITIALIZATION —The hard drive failed initialization. Run the hard drive tests in the Dell
Diagnostics. See "Dell Diagnostics" on page 81.
DRIVE NOT READY —The operation requires a hard drive in the bay before it can continue. Install a hard
drive in the hard drive bay. See "Hard Drive" on page 111.
ERROR READING PCMCIA CARD —The computer cannot identify the ExpressCard. Reinsert the card or
try another card. See "Using ExpressCards" on page 65.
EXTENDED MEMORY SIZE HAS CHANGED —The amount of memory recorded in NVRAM does not match
the memory installed in the computer. Restart the computer. If the error appears again, contact Dell. See
"Contacting Dell" on page 135.
THE FILE BEING COPIED IS TOO LARGE FOR THE DESTINATION DRIVE —The file that you are trying to copy is
too large to fit on the disk, or the disk is too full. Try copying the file to a different disk or use a larger
capacity disk.
A FILENAME CANNOT CONTAIN ANY OF THE FOLLOWING CHARACTERS: \ / : * ? “ < > | — Do not use these
characters in filenames.
GATE A20 FAILURE —A memory module may be loose. Reinstall the memory modules and, if necessary,
replace them. See "Optical Drives" on page 114.
GENERAL FAILURE —The operating system is unable to carry out the command. The message is usually
followed by specific information—for example, Printer out of paper. Take the appropriate
action.
Troubleshooting 89
HARD-DISK DRIVE CONFIGURATION ERROR —The computer cannot identify the drive type. Shut down the
computer, remove the hard drive (see "Hard Drive" on page 111), and boot the computer from a CD.
Then shut down the computer, reinstall the hard drive, and restart the computer. Run the Hard-Disk
Drive tests in the Dell Diagnostics (see "Dell Diagnostics" on page 81).
HARD-DISK DRIVE CONTROLLER FAILURE 0—The hard drive does not respond to commands from the
computer. Shut down the computer, remove the hard drive (see "Hard Drive" on page 111), and boot the
computer from a CD. Then shut down the computer, reinstall the hard drive, and restart the computer. If
the problem persists, try another drive. Run the Hard-Disk Drive tests in the Dell Diagnostics (see "Dell
Diagnostics" on page 81).
HARD-DISK DRIVE FAILURE —The hard drive does not respond to commands from the computer. Shut
down the computer, remove the hard drive (see "Hard Drive" on page 111), and boot the computer from
a CD. Then shut down the computer, reinstall the hard drive, and restart the computer. If the problem
persists, try another drive. Run the Hard-Disk Drive tests in the Dell Diagnostics (see "Dell Diagnostics"
on page 81).
HARD-DISK DRIVE READ FAILURE —The hard drive may be defective. Shut down the computer, remove
the hard drive (see "Hard Drive" on page 111), and boot the computer from a CD. Then shut down the
computer, reinstall the hard drive, and restart the computer. If the problem persists, try another drive.
Run the Hard-Disk Drive tests in the Dell Diagnostics (see "Dell Diagnostics" on page 81).
INSERT BOOTABLE MEDIA —The operating system is trying to boot to a nonbootable CD. Insert a
bootable CD.
INVALID CONFIGURATION INFORMATION-PLEASE RUN SYS T E M SETUP PROGRAM —The system configuration
information does not match the hardware configuration. The message is most likely to occur after a
memory module is installed. Correct the appropriate options in the system setup program (see "Using
the System Setup Program" on page 165).
KEYBOARD CLOCK LINE FAILURE —For external keyboards, check the cable connection. Run the Keyboard
Controller test in the Dell Diagnostics (see "Dell Diagnostics" on page 81).
KEYBOARD CONTROLLER FAILURE —For external keyboards, check the cable connection. Restart the
computer, and avoid touching the keyboard or the mouse during the boot routine. Run the Keyboard
Controller test in the Dell Diagnostics (see "Dell Diagnostics" on page 81).
KEYBOARD DATA LINE FAILURE —For external keyboards, check the cable connection. Run the Keyboard
Controller test in the Dell Diagnostics (see "Dell Diagnostics" on page 81).
KEYBOARD STUCK KEY FAILURE —For external keyboards or keypads, check the cable connection. Restart
the computer, and avoid touching the keyboard or keys during the boot routine. Run the Stuck Key test
in the Dell Diagnostics (see "Dell Diagnostics" on page 81).
LICENSED CONTENT IS NOT ACCESSIBLE IN MEDIADIRECT —Dell MediaDirect cannot verify the Digital
Rights Management (DRM) restrictions on the file, so the file cannot be played. See "Dell MediaDirect
problems" on page 94.
MEMORY ADDRESS LINE FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may be
faulty or improperly seated. Reinstall the memory modules and, if necessary, replace them (see "Optical
Drives" on page 114).
90 Troubleshooting
MEMORY ALLOCATION ERROR —The software you are attempting to run is conflicting with the operating
system, another program, or a utility. Shut down the computer, wait 30 seconds, and then restart it. Try
to run the program again. If the error message still appears, see the software documentation.
MEMORY DATA LINE FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may be
faulty or improperly seated. Reinstall the memory modules and, if necessary, replace them (see "Optical
Drives" on page 114).
MEMORY DOUBLE WORD LOGIC FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module
may be faulty or improperly seated. Reinstall the memory modules and, if necessary, replace them (see
"Optical Drives" on page 114).
MEMORY ODD/EVEN LOGIC FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may
be faulty or improperly seated. Reinstall the memory modules and, if necessary, replace them (see
"Optical Drives" on page 114).
MEMORY WRITE/READ FAILURE AT ADDRESS, READ VALUE EXPECTING VALUE —A memory module may be
faulty or improperly seated. Reinstall the memory modules and, if necessary, replace them (see "Optical
Drives" on page 114).
NO BOOT DEVICE AVAILABLE —The computer cannot find the hard drive. If the hard drive is your boot
device, ensure that the drive is installed, properly seated, and partitioned as a boot device.
NO BOOT SECTOR ON HARD DRIVE —The operating system may be corrupted. Contact Dell. See
"Contacting Dell" on page 135.
NO TIMER TICK INTERRUPT —A chip on the system board may be malfunctioning. Run the System Set
tests in the Dell Diagnostics (see "Dell Diagnostics" on page 81).
NOT ENOUGH MEMORY OR RESOURCES. EXIT SOME PROGRAMS AND TRY AGAIN —You have too many
programs open. Close all windows and open the program that you want to use.
OPERATING SYSTEM NOT FOUND —Reinstall the hard drive (see "Hard Drive" on page 111). If the problem
persists, contact Dell. See "Contacting Dell" on page 135.
OPTIONAL ROM BAD CHECKSUM —The optional ROM apparently failed. Contact Dell. See "Contacting
Dell" on page 135.
A REQUIRED .DLL FILE WAS NOT FOUND —The program that you are trying to open is missing an essential
file. Remove and then reinstall the program.
1
Click the
Start
button and click
Control Panel
.
2
Click
Add or Remove Programs
.
3
Select the program you want to remove.
4
Click
Remove
or
Change/Remove
and follow the prompts on the screen.
5
See the program documentation for installation instructions.
Troubleshooting 91
SECTOR NOT FOUND —The operating system cannot locate a sector on the hard drive. You may have a
defective sector or corrupted FAT on the hard drive. Run the Windows error-checking utility to check the
file structure on the hard drive. See the Windows Help and Support Center for instructions. To access
the Help and Support Center, see "Windows Help and Support Center" on page 13. If a large number of
sectors are defective, back up the data (if possible), and then reformat the hard drive.
SEEK ERROR —The operating system cannot find a specific track on the hard drive.
SHUTDOWN FAILURE —A chip on the system board may be malfunctioning. Run the System Set tests in
the Dell Diagnostics (see page 81).
TIME-OF-DAY CLOCK LOST POWER —System configuration settings are corrupted. Connect your computer
to an electrical outlet to charge the battery. If the problem persists, try to restore the data by entering the
system setup program. Then immediately exit the program. See "Using the System Setup Program" on
page 165. If the message reappears, contact Dell. See "Contacting Dell" on page 135.
TIME-OF-DAY CLOCK STOPPED —The reserve battery that supports the system configuration settings may
require recharging. Connect your computer to an electrical outlet to charge the battery. If the problem
persists, contact Dell. See "Contacting Dell" on page 135.
TIME-OF-DAY NOT SET-PLEASE RUN THE SYS T E M SETUP PROGRAM —The time or date stored in the system
setup program does not match the system clock. Correct the settings for the Date and Time options. See
"Using the System Setup Program" on page 165.
TIMER CHIP COUNTER 2 FAILED —A chip on the system board may be malfunctioning. Run the System
Set tests in the Dell Diagnostics. See "Dell Diagnostics" on page 81.
UNEXPECTED INTERRUPT IN PROTECTED MODE —The keyboard controller may be malfunctioning, or a
memory module may be loose. Run the System Memory tests and the Keyboard Controller test in the
Dell Diagnostics. See "Dell Diagnostics" on page 81.
X:\ IS NOT ACCESSIBLE. THE DEVICE IS NOT READY —Insert a disk into the drive and try again.
WARNING: BATTERY IS CRITICALLY LOW —The battery is running out of charge. Replace the battery, or
connect the computer to an electrical outlet. Otherwise, activate hibernate mode or shut down the
computer.
ExpressCard Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTE: The ExpressCard slot does not support PC cards.
CHECK THE EXPRESSCARD —Ensure that the ExpressCard is properly inserted into the connector.
ENSURE THAT THE CARD IS RECOGNIZED BY WINDOWS —Double-click the Safely Remove Hardware icon
in the Windows taskbar. Ensure that the card is listed.
IF YOU HAVE PROBLEMS WITH A DELL-PROVIDED EXPRESSCARD —Contact Dell. See "Contacting Dell" on
page 135.
92 Troubleshooting
IF YOU HAVE PROBLEMS WITH AN EXPRESSCARD NOT PROVIDED BY DELL —Contact the ExpressCard
manufacturer.
IEEE 1394 Device Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
ENSURE THAT THE IEEE 1394 DEVICE IS RECOGNIZED BY WINDOWS —
1
Click the
Start
button and click
Control Panel
.
2
Click
Printers and Other Hardware
.
If your IEEE 1394 device is listed, Windows recognizes the device.
IF YOU HAVE PROBLEMS WITH A DELL-PROVIDED IEEE 1394 DEVICE —Contact Dell or the IEEE 1394 device
manufacturer. See "Contacting Dell" on page 135.
IF YOU HAVE PROBLEMS WITH AN IEEE 1394 DEVICE NOT PROVIDED BY DELL —Contact Dell or the IEEE 1394
device manufacturer. See "Contacting Dell" on page 135.
ENSURE THAT THE IEEE 1394 DEVICE IS PROPERLY INSERTED INTO THE CONNECTOR
Keyboard Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTE: Use the integrated keyboard when running the Dell Diagnostics or the system setup program. When you
attach an external keyboard, the integrated keyboard remains fully functional.
External Keyboard problems
NOTE: When you attach an external keyboard, the integrated keyboard remains fully functional.
CHECK THE KEYBOARD CABLE —Shut down the computer. Disconnect the keyboard cable and check it for
damage, and firmly reconnect the cable.
If you are using a keyboard extension cable, disconnect it and connect the keyboard directly to the
computer.
CHECK THE EXTERNAL KEYBOARD —
1
Shut down the computer, wait 1 minute, and turn it on again.
2
Verify that the numbers, capitals, and scroll lock lights on the keyboard blink during the boot routine.
3
From the Windows desktop, click the
Start
button, point to
All Programs
→
Accessories
, and then
click
Notepad
.
4
Type some characters on the external keyboard and verify that they appear on the display.
If you cannot verify these steps, you may have a defective external keyboard.
Troubleshooting 93
TO VERIFY THAT THE PROBLEM IS WITH THE EXTERNAL KEYBOARD, CHECK THE INTEGRATED KEYBOARD —
1
Shut down the computer.
2
Disconnect the external keyboard.
3
Turn on the computer.
4
From the Windows desktop, click the
Start
button, point to
All Programs
→
Accessories
, and click
Notepad
.
5
Type some characters on the internal keyboard and verify that they appear on the display.
If the characters appear now but did not with the external keyboard, you may have a defective external
keyboard. Contact Dell.
See "Contacting Dell" on page 135.
RUN THE KEYBOARD DIAGNOSTICS TESTS —Run the PC-AT Compatible Keyboards tests in the Dell
Diagnostics. See "Dell Diagnostics" on page 81. If the tests indicate a defective external keyboard,
contact Dell. See "Contacting Dell" on page 135.
Unexpected characters
DISABLE THE NUMERIC KEYPAD —Press <Num Lk> to disable the numeric keypad if numbers are
displayed instead of letters. Verify that the numbers lock light is not lit.
Lockups and Software Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
The computer does not start up
ENSURE THAT THE AC ADAPTER IS FIRMLY CONNECTED TO THE COMPUTER AND TO THE ELECTRICAL OUTLET
The computer stops responding
NOTICE: You might lose data if you are unable to perform an operating system shutdown.
TURN THE COMPUTER OFF —If you are unable to get a response by pressing a key on your keyboard or
moving your mouse, press and hold the power button for at least 8 to 10 seconds until the computer
turns off. Then restart your computer.
A program stops responding or crashes repeatedly
END THE PROGRAM —
1
Press <Crtl><Shift><Esc> simultaneously.
2
Click the
Applications
tab and select the program that is no longer responding.
3
Click
End Task
.
NOTE: The chkdsk program may run when you restart the computer. Follow the instructions on the screen.
94 Troubleshooting
CHECK THE SOFTWARE DOCUMENTATION —If necessary, uninstall and then reinstall the program. Software
usually includes installation instructions in its documentation or on a floppy disk or CD.
A program is designed for an earlier Microsoft® Windows® operating system
RUN THE PROGRAM COMPATIBILITY WIZARD —The Program Compatibility Wizard configures a program
so it runs in an environment similar to non-Windows XP operating system environments.
1
Click the
Start
button, point to
All Programs
→
Accessories
, and then click
Program Compatibility
Wizard
.
2
In the welcome screen, click
Next
.
3
Follow the instructions on the screen.
A solid blue screen appears
TURN THE COMPUTER OFF —If you are unable to get a response by pressing a key on your keyboard or
moving your mouse, press and hold the power button for at least 8 to 10 seconds until the computer
turns off. Then restart your computer.
Dell MediaDirect problems
CHECK THE DELL MEDIADIRECT HELP FILE FOR INFORMATION —Click the question mark icon at the bottom
of the Dell MediaDirect screen to access Help.
TO PLAY MOVIES WITH DELL MEDIADIRECT, YOU MUST HAVE A DVD DRIVE AND THE DELL DVD PLAYER —If
you purchased a DVD drive with your computer, this software should already be installed.
VIDEO QUALITY PROBLEMS —Turn off the Use Hardware Acceleration option. This feature takes
advantage of the special processing in some graphics cards to reduce processor requirements when
playing DVDs and certain types of video files.
CANNOT PLAY SOME MEDIA FILES —Because Dell MediaDirect provides access to media files outside the
Windows XP operating system environment, access to licensed content is restricted. Licensed content is
digital content that has Digital Rights Management (DRM) applied to it. The Dell MediaDirect
environment cannot verify the DRM restrictions, so the licensed files cannot be played. Licensed music
and video files have a lock icon next to them. You can access licensed files in the Windows XP operating
system environment.
ADJUSTING THE COLOR SETTINGS FOR MOVIES THAT CONTAIN SCENES THAT ARE TOO DARK OR TOO BRIGHT —
Click EagleVision to use a video enhancement technology that detects video content and dynamically
adjusts the brightness/contrast/saturation ratios.
NOTICE: You cannot reinstall the Dell MediaDirect feature if you voluntarily reformat the hard drive. Contact Dell
for assistance. See "Contacting Dell" on page 135.
Troubleshooting 95
Other software problems
CHECK THE SOFTWARE DOCUMENTATION OR CONTACT THE SOFTWARE MANUFACTURER FOR TROUBLESHOOTING
INFORMATION —
• Ensure that the program is compatible with the operating system installed on your computer.
• Ensure that your computer meets the minimum hardware requirements needed to run the software.
See the software documentation for information.
• Ensure that the program is installed and configured properly.
• Verify that the device drivers do not conflict with the program.
• If necessary, uninstall and then reinstall the program.
BACK UP YOUR FILES IMMEDIATELY
USE A VIRUS-SCANNING PROGRAM TO CHECK THE HARD DRIVE, FLOPPY DISKS, OR CDS
SAVE AND CLOSE ANY OPEN FILES OR PROGRAMS AND SHUT DOWN YOUR COMPUTER THROUGH THE Start MENU
SCAN THE COMPUTER FOR SPYWARE —If you are experiencing slow computer performance, you frequently
receive pop-up advertisements, or you are having problems connecting to the Internet, your computer
might be infected with spyware. Use an anti-virus program that includes anti-spyware protection (your
program may require an upgrade) to scan the computer and remove spyware. For more information, go to
support.dell.com and search for the keyword spyware.
RUN THE DELL DIAGNOSTICS —If all tests run successfully, the error condition is related to a software
problem. See "Dell Diagnostics" on page 81.
Memory Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
IF YOU RECEIVE AN INSUFFICIENT MEMORY MESSAGE —
• Save and close any open files and exit any open programs you are not using to see if that resolves the
problem.
• See the software documentation for minimum memory requirements. If necessary, install additional
memory.
See "Optical Drives" on page 114
.
• Reseat the memory modules to ensure that your computer is successfully communicating with the
memory.
See "Optical Drives" on page 114
.
• Run the Dell Diagnostics.
See "Dell Diagnostics" on page 81
.
IF YOU EXPERIENCE OTHER MEMORY PROBLEMS —
• Reseat the memory modules to ensure that your computer is successfully communicating with the
memory
(see "Optical Drives" on page 114)
.
• Ensure that you are following the memory installation guidelines.
See "Optical Drives" on page 114
.
• Run the Dell Diagnostics.
See "Dell Diagnostics" on page 81
.
96 Troubleshooting
Network Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
CHECK THE NETWORK CABLE CONNECTOR —Ensure that the network cable is firmly inserted into both the
network connector on the side of the computer and the network port or device.
CHECK THE NETWORK LIGHTS ON THE NETWORK CONNECTOR —No light indicates that no network
communication exists. Replace the network cable.
RESTART THE COMPUTER AND LOG ON TO THE NETWORK AGAIN
CHECK YOUR NETWORK SETTINGS —Contact your network administrator or the person who set up your
network to verify that your network settings are correct and that the network is functioning.
Power Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
CHECK THE POWER LIGHT —When the power light is lit or blinking, the computer has power. If the power
light is blinking, the computer is in standby mode—press the power button to exit standby mode. If the
light is off, press the power button to turn on the computer.
NOTE: For information on standby mode, see "Power Management Modes" on page 39.
CHARGE THE BATTERY —The battery charge may be depleted.
1
Reinstall the battery.
2
Use the AC adapter to connect the computer to an electrical outlet.
3
Turn on the computer.
NOTE: Battery operating time (the time the battery can hold a charge) decreases over time. Depending on how
often the battery is used and the conditions under which it is used, you may need to purchase a new battery during
the life of your computer.
CHECK THE BATTERY STATUS LIGHT —If the battery status light flashes orange or is a steady orange the
battery charge is low or depleted. Connect the computer to an electrical outlet.
If the battery status light flashes green and orange, the battery is too hot to charge. Shut down the
computer, disconnect the computer from the electrical outlet, and then let the battery and computer
cool to room temperature.
If the battery status light rapidly flashes orange, the battery may be defective. Contact Dell. See
"Contacting Dell" on page 135.
CHECK THE BATTERY TEMPERATURE —If the battery temperature is below 0°C (32°F), the computer will
not start up.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another
device, such as a lamp.
Troubleshooting 97
CHECK THE AC ADAPTER —Check the AC adapter cable connections. If the AC adapter has a light,
ensure that the light is on.
CONNECT THE COMPUTER DIRECTLY TO AN ELECTRICAL OUTLET —Bypass power protection devices, power
strips, and the extension cable to verify that the computer turns on.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights, halogen lamps, or other
appliances.
ADJUST THE POWER PROPERTIES —See "Power Management Modes" on page 39.
RESEAT THE MEMORY MODULES —If the computer power light turns on but the display remains blank,
reinstall the memory modules (see "Optical Drives" on page 114).
Printer Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTE: If you need technical assistance for your printer, contact the printer’s manufacturer.
ENSURE THAT THE PRINTER IS TURNED ON
CHECK THE PRINTER CABLE CONNECTIONS —
• See the printer documentation for cable connection information.
• Ensure that the printer cables are securely connected to the printer and the computer.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another
device, such as a lamp.
VERIFY THAT THE PRINTER IS RECOGNIZED BY WINDOWS —
1
Click the
Start
button, click
Control Panel
, and then click
Printers and Other Hardware
.
2
Click
View installed printers or fax printers
.
If the printer is listed, right-click the printer icon.
3
Click
Properties
and click the
Ports
tab. For a parallel printer, ensure that the
Print to the following
port(s):
setting is
LPT1 (Printer Port)
. For a USB printer, ensure that the
Print to the following
port(s):
setting is
USB
.
REINSTALL THE PRINTER DRIVER —See the printer documentation for instructions
Scanner Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTE: If you need technical assistance for your scanner, contact the scanner’s manufacturer.
CHECK THE PRINTER DOCUMENTATION —See the printer documentation for setup and troubleshooting
information.
98 Troubleshooting
CHECK THE SCANNER DOCUMENTATION —See the scanner documentation for setup and troubleshooting
information.
UNLOCK THE SCANNER —Ensure that your scanner is unlocked if it has a locking tab or button.
RESTART THE COMPUTER AND TRY THE SCANNER AGAIN
CHECK THE CABLE CONNECTIONS —
• See the scanner documentation for cable connection information.
• Ensure that the scanner cables are securely connected to the scanner and the computer.
VERIFY THAT THE SCANNER IS RECOGNIZED BY MICROSOFT WINDOWS —
1
Click the
Start
button, click
Control Panel
, and then click
Printers and Other Hardware
.
2
Click
Scanners and Cameras
.
If your scanner is listed, Windows recognizes the scanner.
REINSTALL THE SCANNER DRIVER —See the scanner documentation for instructions.
Sound and Speaker Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
No sound from integrated speakers
ADJUST THE WINDOWS VOLUME CONTROL —Double-click the speaker icon in the lower-right corner of
your screen. Ensure that the volume is turned up and that the sound is not muted. Adjust the volume,
bass, or treble controls to eliminate distortion.
ADJUST THE VOLUME USING KEYBOARD SHORTCUTS —Press <Fn><End> to disable (mute) or reenable
the integrated speakers.
REINSTALL THE SOUND (AUDIO) DRIVER —See "Reinstalling Drivers and Utilities" on page 101.
No sound from external speakers
ENSURE THAT THE SUBWOOFER AND THE SPEAKERS ARE TURNED ON —See the setup diagram supplied with
the speakers. If your speakers have volume controls, adjust the volume, bass, or treble to eliminate
distortion.
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker icon in the lower-right
corner of your screen. Ensure that the volume is turned up and that the sound is not muted.
DISCONNECT HEADPHONES FROM THE HEADPHONE CONNECTOR —Sound from the speakers is automatically
disabled when headphones are connected to the computer’s front-panel headphone connector.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another
device, such as a lamp.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights, or halogen lamps to check
for interference.
Troubleshooting 99
REINSTALL THE AUDIO DRIVER —See "Reinstalling Drivers and Utilities" on page 101.
RUN THE DELL DIAGNOSTICS —See "Dell Diagnostics" on page 81.
NOTE: The volume control in some MP3 players overrides the Windows volume setting. If you have been listening
to MP3 songs, ensure that you did not turn the player volume down or off.
No sound from headphones
CHECK THE HEADPHONE CABLE CONNECTION —Ensure that the headphone cable is securely inserted into
the headphone connector (see "audio connectors" on page 20).
ADJUST THE WINDOWS VOLUME CONTROL —Click or double-click the speaker icon in the lower-right
corner of your screen. Ensure that the volume is turned up and that the sound is not muted.
Touch Pad or Mouse Problems
CHECK THE TOUCH PAD SETTINGS —
1
Click the
Start
button, click
Control Panel
, and then click
Printers and Other Hardware
.
2
Click
Mouse
.
3
Try adjusting the settings.
CHECK THE MOUSE CABLE —Shut down the computer. Disconnect the mouse cable, check it for damage,
and firmly reconnect the cable.
If you are using a mouse extension cable, disconnect it and connect the mouse directly to the computer.
TO VERIFY THAT THE PROBLEM IS WITH THE MOUSE, CHECK THE TOUCH PAD —
1
Shut down the computer.
2
Disconnect the mouse.
3
Turn on the computer.
4
At the Windows
desktop, use the touch pad to move the cursor around, select an icon, and open it.
If the touch pad operates correctly, the mouse may be defective.
REINSTALL THE TOUCH PAD DRIVER —See "Reinstalling Drivers and Utilities" on page 101.
Video and Display Problems
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
If the display is blank
NOTE: If you are using a program that requires a higher resolution than your computer supports, it is
recommended that you attach an external monitor to your computer.
100 Troubleshooting
CHECK THE BATTERY —If you are using a battery to power your computer, the battery charge may be
depleted. Connect the computer to an electrical outlet using the AC adapter, and turn on the computer.
TEST THE ELECTRICAL OUTLET —Ensure that the electrical outlet is working by testing it with another
device, such as a lamp.
CHECK THE AC ADAPTER —Check the AC adapter cable connections. If the AC adapter has a light,
ensure that the light is on.
CONNECT THE COMPUTER DIRECTLY TO AN ELECTRICAL OUTLET —Bypass power protection devices, power
strips, and the extension cable to verify that the computer turns on.
ADJUST THE POWER PROPERTIES —Search for the keyword standby in the Windows Help and Support
Center. To access the Help and Support Center, see "Windows Help and Support Center" on page 13.
SWITCH THE VIDEO IMAGE —If your computer is attached to an external monitor, press <Fn><F8> to
switch the video image to the display.
If the display is difficult to read
ADJUST THE BRIGHTNESS —Press <Fn> and the up- or down-arrow key
MOVE THE EXTERNAL SUBWOOFER AWAY FROM THE COMPUTER OR MONITOR —If your external speaker
system includes a subwoofer, ensure that the subwoofer is at least 60 cm (2 ft) away from the computer
or external monitor.
ELIMINATE POSSIBLE INTERFERENCE —Turn off nearby fans, fluorescent lights, halogen lamps, or other
appliances.
ROTATE THE COMPUTER TO FACE A DIFFERENT DIRECTION —Eliminate sunlight glare, which can cause poor
picture quality.
ADJUST THE WINDOWS DISPLAY SETTINGS —
1
Click the
Start
button and then click
Control Panel
.
2
Click
Appearance and Themes
.
3
Click the area you want to change or click the
Display
icon.
4
Try different settings for
Color quality
and
Screen resolution
.
SEE "ERROR MESSAGES"—If an error message appears, see "Error Messages" on page 88.
If only part of the display is readable
CONNECT AN EXTERNAL MONITOR —
1
Shut down your computer and connect an external monitor to the computer.
2
Turn on the computer and the monitor and adjust the monitor brightness and contrast controls.
If the external monitor works, the computer display or video controller may be defective. Contact Dell.
See "Contacting Dell" on page 135.
Troubleshooting 101
Drivers
What Is a Driver?
A driver is a program that controls a device such as a printer, mouse, or keyboard. All devices require a
driver program.
A driver acts like a translator between the device and any other programs that use the device. Each device
has its own set of specialized commands that only its driver recognizes.
Dell ships your computer to you with required drivers already installed—no further installation or
configuration is needed.
NOTICE: The Drivers and Utilities CD may contain drivers for operating systems that are not on your computer.
Ensure that you are installing software appropriate for your operating system.
Many drivers, such as the keyboard driver, come with your Microsoft® Windows® operating system. You
may need to install drivers if you:
• Upgrade your operating system.
• Reinstall your operating system.
• Connect or install a new device.
Identifying Drivers
If you experience a problem with any device, identify whether the driver is the source of your problem
and, if necessary, update the driver.
1
Click the
Start
button and click
Control Panel
.
2
Under
Pick a Category
, click
Performance and Maintenance
.
3
Click
System
.
4
In the
System Properties
window, click the
Hardware
tab.
5
Click
Device Manager
.
6
Scroll down the list to see if any device has an exclamation point (a yellow circle with a [
!]
) on the
device icon.
If an exclamation point is next to the device name, you may need to reinstall the driver or install a new
driver. See "Reinstalling Drivers and Utilities" on page 101.
Reinstalling Drivers and Utilities
NOTICE: The Dell Support website at support.dell.com and your Drivers and Utilities CD provide approved drivers
for Dell™ computers. If you install drivers obtained from other sources, your computer might not work correctly.
NOTE: The Drivers and Utilities CD is optional and may not ship with your computer.
102 Troubleshooting
Using Windows XP Device Driver Rollback
If a problem occurs on your computer after you install or update a driver, use Windows XP Device Driver
Rollback to replace the driver with the previously installed version.
1
Click the
Start
button and click
Control Panel
.
2
Under
Pick a Category
, click
Performance and Maintenance
.
3
Click
System
.
4
In the
System Properties
window, click the
Hardware
tab.
5
Click
Device Manager
.
6
Right-click the device for which the new driver was installed and click
Properties
.
7
Click the
Drivers
tab.
8
Click
Roll Back Driver
.
If Device Driver Rollback does not resolve the problem, then use System Restore to return your
computer to the operating state that existed before you installed the new driver.
Using the Drivers and Utilities CD
NOTE: The Drivers and Utilities CD is optional and may not ship with your computer.
If using
Device Driver Rollback
(see "Using Windows XP Device Driver Rollback" on page 102) or System
Restore does not resolve the problem, then reinstall the driver from the Drivers and Utilities CD.
1
Save and close any open files, and exit any open programs.
2
Insert the
Drivers and Utilities
CD.
In most cases, the CD starts running automatically. If it does not, start Windows Explorer, click your
CD drive directory to display the CD contents, and then double-click the
autorcd.exe
file. The first
time that you run the CD, it might prompt you to install setup files. Click
OK
, and follow the
instructions on the screen to continue.
3
From the
Language
drop-down menu in the toolbar, select your preferred language for the driver or
utility (if available). A welcome screen appears.
4
Click
Next
.
The CD automatically scans your hardware to detect drivers and utilities used by your computer.
5
After the CD completes the hardware scan, you can also detect other drivers and utilities. Under
Search Criteria
, select the appropriate categories from the
System Model
,
Operating System
, and
Topic
drop-down menus.
A link or links appear(s) for the specific drivers and utilities used by your computer.
6
Click the link of a specific driver or utility to display information about the driver or utility that you
want to install.
Troubleshooting 103
7
Click the
Install
button (if present) to begin installing the driver or utility. At the welcome screen,
follow the screen prompts to complete the installation.
If no
Install
button is present, automatic installation is not an option. For installation instructions,
either see the appropriate instructions in the following subsections, or click
Extract
, follow the
extracting instructions, and then read the readme file.
If instructed to navigate to the driver files, click the CD directory on the driver information window to
display the files associated with that driver.
Manually Reinstalling Drivers
1
After extracting the driver files to your hard drive as described in the previous section, click the
Start
button and right-click
My Computer
.
2
Click
Properties
.
3
Click the
Hardware
tab and click
Device Manager
.
4
Double-click the type of device for which you are installing the driver (for example,
Modems
or
Infrared devices
).
5
Double-click the name of the device for which you are installing the driver.
6
Click the
Driver
tab and click
Update Driver
.
7
Click
Install from a list or specific location (Advanced)
and click
Next
.
8
Click
Browse
and browse to the location to which you previously copied the driver files.
9
When the name of the appropriate driver appears, click
Next
.
10
Click
Finish
and restart your computer.
Resolving Software and Hardware Incompatibilities
If a device is either not detected during the operating system setup or is detected but incorrectly
configured, you can use the Hardware Troubleshooter to resolve the incompatibility.
To start the Hardware Troubleshooter:
1
Click the
Start
button and click
Help and Support
.
2
Ty p e
hardware troubleshooter
in the
Search
field and click the arrow to start the search.
3
Click
Hardware Troubleshooter
in the
Search Results
list.
4
In the
Hardware Troubleshooter
list, click
I need to resolve a hardware conflict on my computer
, and
click
Next
.
104 Troubleshooting
Restoring Your Operating System
You can restore your operating system in the following ways:
• Microsoft
®
Windows
®
XP System Restore returns your computer to an earlier operating state without
affecting data files. Use System Restore as the first solution for restoring your operating system and
preserving data files.
• Dell PC Restore by Symantec restores your hard drive to the operating state it was in when you
purchased the computer. Dell PC Restore permanently deletes all data on the hard drive and removes
any applications installed after you received the computer. Use PC Restore only if System Restore did
not resolve your operating system problem.
• If you received an
Operating System
CD with your computer, you can use it to restore your operating
system. However, using the
Operating System
CD also deletes all data on the hard drive. Use the CD
only
if System Restore did not resolve your operating system problem.
Using Microsoft Windows XP System Restore
The Microsoft Windows XP operating system provides System Restore to allow you to return your
computer to an earlier operating state (without affecting data files) if changes to the hardware, software,
or other system settings have left the computer in an undesirable operating state. See the Windows Help
and Support Center for information on using System Restore. To access the Help and Support Center,
see "Windows Help and Support Center" on page 13.
NOTICE: Make regular backups of your data files. System Restore does not monitor your data files or recover
them.
NOTE: The procedures in this document were written for the Windows default view, so they may not apply if you
set your Dell™ computer to the Windows Classic view.
Creating a Restore Point
1
Click the
Start
button and click
Help and Support
.
2
Click the task for
System Restore
.
3
Follow the instructions on the screen.
Restoring the Computer to an Earlier Operating State
If problems occur after you install a device driver, use Device Driver Rollback (see "Using Windows XP
Device Driver Rollback" on page 102) to resolve the problem. If that is unsuccessful, then use System
Restore.
NOTICE: Before you restore the computer to an earlier operating state, save and close any open files and exit any
open programs. Do not alter, open, or delete any files or programs until the system restoration is complete.
1
Click the
Start
button, point to
All Programs
→
Accessories
→
System Tools
, and then click
System
Restore
.
2
Ensure that
Restore my computer to an earlier time
is selected and click
Next
.
Troubleshooting 105
3
Click a calendar date to which you want to restore your computer.
The
Select a Restore Point
screen provides a calendar that allows you to see and select restore points.
All calendar dates with available restore points appear in boldface type.
4
Select a restore point and click
Next
.
If a calendar date has only one restore point, then that restore point is automatically selected. If two or
more restore points are available, click the restore point that you prefer.
5
Click
Next
.
The
Restoration Complete
screen appears after System Restore finishes collecting data and then the
computer restarts.
6
After the computer restarts, click
OK
.
To change the restore point, you can either repeat the steps using a different restore point, or you can
undo the restoration.
Undoing the Last System Restore
NOTICE: Before you undo the last system restore, save and close all open files and exit any open programs. Do not
alter, open, or delete any files or programs until the system restoration is complete.
1
Click the
Start
button, point to
All Programs
→
Accessories
→
System Tools
, and then click
System
Restore
.
2
Click
Undo my last restoration
and click
Next
.
Enabling System Restore
If you reinstall Windows XP with less than 200 MB of free hard-disk space available, System Restore is
automatically disabled. To see if System Restore is enabled:
1
Click the
Start
button and click
Control
Panel
.
2
Click
Performance and Maintenance
.
3
Click
System
.
4
Click the
System Restore
tab.
5
Ensure that
Turn off System Restore
is unchecked.
Using Dell PC Restore by Symantec
NOTICE: Using Dell PC Restore permanently deletes all data on the hard drive and removes any applications or
drivers installed after you received your computer. If possible, back up the data before using PC Restore. Use PC
Restore only if System Restore did not resolve your operating system problem.
NOTE: Dell PC Restore by Symantec may not be available in certain countries nor on certain computers.
106 Troubleshooting
Use Dell PC Restore by Symantec only as the last method to restore your operating system. PC Restore
restores your hard drive to the operating state it was in when you purchased the computer. Any programs
or files added since you received your computer—including data files—are permanently deleted from the
hard drive. Data files include documents, spreadsheets, e-mail messages, digital photos, music files, and
so on. If possible, back up all data before using PC Restore.
To use PC Restore:
1
Turn on the computer.
During the boot process, a blue bar with
www.dell.com
appears at the top of the screen.
2
Immediately upon seeing the blue bar, press <Ctrl><F11>.
If you do not press <Ctrl><F11> in time, let the computer finish starting, and then restart the
computer again.
NOTICE: If you do not want to proceed with PC Restore, click Reboot in the following step.
3
On the next screen that appears, click
Restore
.
4
On the next screen, click
Confirm
.
The restore process takes approximately 6–10 minutes to complete.
5
When prompted, click
Finish
to reboot the computer.
NOTE: Do not manually shut down the computer. Click Finish and let the computer completely reboot.
6
When prompted, click
Yes
.
The computer restarts. Because the computer is restored to its original operating state, the screens that
appear, such as the End User License Agreement, are the same ones that appeared the first time the
computer was turned on.
7
Click
Next
.
The
System Restore
screen appears and the computer restarts.
8
After the computer restarts, click
OK
.
Removing Dell PC Restore
NOTICE: Removing Dell PC Restore from the hard drive permanently deletes the PC Restore utility from your
computer. After you have removed Dell PC Restore, you will not be able to use it to restore your computer’s
operating system.
NOTE: Dell PC Restore by Symantec may not be available in certain countries nor on certain computers.
Dell PC Restore enables you to restore your hard drive to the operating state it was in when you
purchased your computer. It is recommended that you do not remove PC Restore from your computer,
even to gain additional hard-drive space. If you remove PC Restore from the hard drive, you cannot ever
recall it, and you will never be able to use PC Restore to return your computer’s operating system to its
original state.
Troubleshooting 107
To remove PC Restore:
1
Log on to the computer as a local administrator.
2
In Windows Explorer, go to
c:\dell\utilities\DSR
.
3
Double-click the filename
DSRIRRemv2.exe
.
NOTE: If you do not log on as a local administrator, a message appears stating that you must log on as
administrator. Click Quit, and then log on as a local administrator.
NOTE: If the partition for PC Restore does not exist on your computer’s hard drive, a message appears stating
that the partition was not found. Click Quit; there is no partition to delete.
4
Click
OK
to remove the PC Restore partition on the hard drive.
5
Click
Yes
when a confirmation message appears.
The PC Restore partition is deleted and the newly available disk space is added to the free space
allocation on the hard drive.
6
Right-click
Local Disk (C)
in Windows Explorer, click
Properties
, and verify that the additional disk
space is available as indicated by the increased value for
Free Space
.
7
Click
Finish
to close the
PC Restore Removal
window.
8
Restart the computer.
Using the Operating System CD
Before You Begin
If you are considering reinstalling the Windows XP operating system to correct a problem with a newly
installed driver, first try using Windows XP Device Driver Rollback (see "Using Windows XP Device
Driver Rollback" on page 102). If Device Driver Rollback does not resolve the problem, then use System
Restore to return your operating system to the operating state it was in before you installed the new
device driver. See "Using Microsoft Windows XP System Restore" on page 104.
To reinstall Windows XP, you need the following items:
•Dell™
Operating System
CD
•Dell
Drivers and Utilities
CD
NOTE: The Drivers and Utilities CD contains drivers that were installed during assembly of the computer. Use the
Drivers and Utilities CD to load any required drivers. Depending on the region from where you ordered your
computer, or whether you requested the CDs, the Drivers and Utilities CD and Operating System CD may not ship
with your system.
108 Troubleshooting
Reinstalling Windows XP
To reinstall Windows XP, perform all the steps in the following sections in the order in which they are
listed.
The reinstallation process can take 1 to 2 hours to complete. After you reinstall the operating system, you
must also reinstall the device drivers, virus protection program, and other software.
NOTICE: The Operating System CD provides options for reinstalling Windows XP. The options can overwrite files
and possibly affect programs installed on your hard drive. Therefore, do not reinstall Windows XP unless a Dell
technical support representative instructs you to do so.
NOTICE: To prevent conflicts with Windows XP, disable any virus protection software installed on your computer
before you reinstall Windows XP. See the documentation that came with the software for instructions.
1
Save and close any open files and exit any open programs.
2
Insert the
Operating System
CD. Click
Exit
if the
Install Windows XP
message appears.
3
Restart the computer.
4
Press <F12> immediately after the DELL™ logo appears.
If the operating system logo appears, wait until you see the Windows desktop, and then shut down the
computer and try again.
5
Press the arrow keys to select
CD-ROM
, and press <Enter>.
6
When the
Press any key to boot from CD
message appears, press any key.
7
When the
Windows XP Setup
screen appears, press <Enter>.
8
Follow the instructions on the screen to complete the reinstallation.
9
When the operating system reinstallation completes, reinstall drivers and applications as necessary. See
"Reinstalling Drivers and Utilities" on page 101.
Adding and Replacing Parts 109
Adding and Replacing Parts
Before You Begin
This chapter provides procedures for removing and installing the components in your computer.
Unless otherwise noted, each procedure assumes that the following conditions exist:
• You have performed the steps in "Turning Off Your Computer" (see this page) and "Before
Working Inside Your Computer" (see page 110).
• You have read the safety information in your Dell™
Product Information Guide.
• A component can be replaced—or if purchased separately—installed by performing the removal
procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
• Small flat-blade screwdriver
• Phillips screwdriver
• Small plastic scribe
• Flash BIOS update (see the Dell Support website at
support.dell.com
)
Turning Off Your Computer
NOTICE: To avoid losing data, save and close any open files and exit any open programs before you turn off
your computer.
1
Shut down the operating system:
a
Save and close any open files, exit any open programs, click the
Start
button, and then click
Turn Off Computer
.
b
In the
Turn off computer
window, click
Turn o ff
.
The computer turns off after the operating system shutdown process finishes.
2
Ensure that the computer and any attached devices are turned off. If your computer and attached
devices did not automatically turn off when you shut down your operating system, press and hold
the power button for 4 seconds.
110 Adding and Replacing Parts
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help
ensure your own personal safety.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a
card by its edges or by its metal mounting bracket. Hold a component such as a processor by its edges, not by its
pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing
that is not authorized by Dell is not covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its strain-relief loop, not on the cable itself.
Some cables have a connector with locking tabs; if you are disconnecting this type of cable, press in on the locking
tabs before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any
connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the
computer.
1
Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.
2
Turn off your computer. See "Turning Off Your Computer" on page 109.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug it from the
network wall jack.
3
Disconnect any telephone or network cables from the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
4
Disconnect your computer and all attached devices from their electrical outlets.
5
Remove the battery.
Slide and hold the battery-bay latch release on the bottom of the computer, and then pull the battery
out of the battery bay.
Adding and Replacing Parts 111
6
Remove the optical drive, if installed, from the optical drive bay. See "Optical Drives" on page 114.
7
Press the power button to ground the system board.
8
Remove any installed ExpressCards from the ExpressCard slot. See "Removing an ExpressCard or
Blank" on page 66.
9
Remove any installed media memory cards from the 5-in-1 media memory card reader. See "Media
Memory Card Blanks" on page 67.
10
Close the display and turn the computer upside down on a flat work surface.
Hard Drive
CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing
of the hard drive.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTICE: To prevent data loss, turn off your computer (see page 109) before removing the hard drive. Do not
remove the hard drive while the computer is on, in standby mode, or in hibernate mode.
NOTICE: Hard drives are extremely fragile; even a slight bump can damage the drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system,
drivers, and utilities on the new hard drive.
1battery 2battery-bay latch release
2
1
112 Adding and Replacing Parts
To replace the hard drive in the hard drive bay:
1
Follow the procedures in "Before You Begin" on page 109.
2
Turn the computer over, and loosen the two captive screws in the hard drive cover.
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging. See "Protecting
Against Electrostatic Discharge" in the Product Information Guide.
3
Lift the cover off the computer and set it aside.
4
Use your finger to slide the hard drive toward the screw holes, and then use the pull-tab to lift the hard
drive straight up to remove it from the computer.
1screws (2)
1
Adding and Replacing Parts 113
5
Remove the new drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the
connector.
6
Seat the new hard drive into the bay, and then slide it into the connector by sliding it away from the
screw holes until it is fully seated.
7
Replace the cover and tighten the screws.
8
Install the operating system for your computer. See "Restoring Your Operating System" on page 104.
9
Install the drivers and utilities for your computer. See "Reinstalling Drivers and Utilities" on page 101.
Returning a Hard Drive to Dell
Return your old hard drive to Dell in its original or comparable foam packaging. Otherwise, the hard
drive may be damaged in transit.
1pull-tab 2hard drive
2
1
114 Adding and Replacing Parts
Optical Drives
About the Device Security Screw
NOTE: You do not need to install the device security screw unless you want to prevent the module from being
easily removed.
Your Dell™ computer ships with an optical drive installed in the module bay and a device security screw,
which may not be installed in the optical drive but packaged separately. When you install a module in
the bay, you can install the device security screw to prevent the module from being easily removed.
Removing and Installing Optical Drives
NOTICE: To prevent damage to drives, store them in a safe, dry place when they are not installed in the computer.
Avoid pressing down on them or placing heavy objects on top of them.
1
While the computer is turned on
, double-click the
Safely Remove Hardware
icon on the taskbar, click
the device that you want to eject, and click
Stop
.
2
Close your display and turn the computer upside-down.
3
Use a Phillips screwdriver to remove the device security screw from the bottom of the computer.
4
Insert a Phillips screwdriver into the screw hole to push the drive out of the module bay.
1foam packaging 2hard drive
2
1
Adding and Replacing Parts 115
5
Pull the drive straight out of the module bay.
6
Push the new drive straight into the module bay until it clicks.
7
Replace the security device screw.
8
Turn the computer right-side up and open the display.
9
The operating system automatically recognizes the drive. If necessary, enter your password to unlock
your computer.
Memory
You can increase your computer memory by installing memory modules on the system board. See
"Specifications" on page 157 for information on the memory supported by your computer. Install only
memory modules that are intended for your computer.
NOTE: This computer supports both 533MHz and 667MHz memory modules. If installing another memory module,
you need to ensure both DIMMs have a speed of 667MHz. If one is 533MHz and the other is 667MHz, the computer
will only run at the lower speed of 533MHz and not the maximum memory speed of 667MHz.
NOTE: Memory modules purchased from Dell are covered under your computer warranty.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
116 Adding and Replacing Parts
The computer has two memory module connectors labeled "DIMM A" and "DIMM B." Connector
DIMM A (located under the keyboard) holds the basic memory module as configured from the factory. If
you did not order additional memory, connector DIMM B (located on the bottom of the computer under
the memory module cover) will be empty. Generally, if you are adding memory, you will install a memory
module in connector DIMM B. If you are upgrading memory, you may need to install memory in both
the DIMM A and B connectors, depending on the extent of the upgrade.
Installing a Memory Module in Connector DIMM B
1
Follow the procedures in "Before You Begin" on page 109.
2
Ground yourself by touching one of the metal connectors on the back of the computer.
NOTE: If you leave the area, ground yourself again when you return to the computer.
3
Turn the computer over, loosen the captive screws on the memory module cover, and then remove the
memory module cover.
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module
securing clips.
4
If you are replacing a memory module, remove the existing module:
a
Use your fingertips to carefully spread apart the securing clips on each end of the memory module
connector until the module pops up.
b
Remove the module from the connector.
1screws (2) 2memory module cover
1
2
Adding and Replacing Parts 117
NOTICE: If you need to install memory modules in two connectors, install a memory module in the connector
labeled “DIMM A” before you install a module in the connector labeled “DIMM B.” Insert memory modules at a
45-degree angle to avoid damaging the connector.
NOTE: If the memory module is not installed properly, the computer may not boot properly. No error message
indicates this failure.
5
Ground yourself and install the new memory module:
a
Align the notch in the module edge connector with the tab in the connector slot.
b
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it
clicks into place. If you do not feel the click, remove the module and reinstall it.
1memory module 2securing clips
(2 per connector)
1
2
118 Adding and Replacing Parts
6
Replace the memory module cover and tighten the screws.
NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may
damage your computer.
7
Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical
outlet.
8
Reinstall the hard drive. See "Hard Drive" on page 111.
9
Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system
configuration information.
To confirm the amount of memory installed in the computer, click the Start button, click Help and
Support, and then click Computer Information.
Installing a Memory Module in Connector DIMM A
The memory module connector labeled "DIMM A" is located under the keyboard.
1
Follow the procedures in "Before You Begin" on page 109.
2
Ground yourself by touching one of the metal connectors on the back of the computer.
NOTE: If you leave the area, ground yourself again when you return to the computer.
1tab in connector slot
1
Adding and Replacing Parts 119
3
Remove the hinge cover. See "Hinge Cover" on page 125.
NOTE: Ensure that you remove the two screws in the battery bay as part of the hinge removal procedure.
4
Remove the keyboard. See "Keyboard" on page 127.
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory-module
securing clips.
5
If you are replacing a memory module, remove the existing module:
a
Use your fingertips to carefully spread apart the securing clips on each end of the memory module
connector until the module pops up.
b
Remove the module from the connector.
NOTICE: If you need to install memory modules in two connectors, install a memory module in the connector
labeled “DIMM A” before you install a module in the connector labeled “DIMM B.” Insert memory modules at a
45-degree angle to avoid damaging the connector.
NOTE: If the memory module is not installed properly, the computer may not boot properly. No error message
indicates this failure.
6
Ground yourself and install the new memory module:
a
Align the notch in the module edge connector with the tab in the connector slot.
b
Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it
clicks into place. If you do not feel the click, remove the module and reinstall it.
1memory module 2securing clips
(2 per connector)
1
2
120 Adding and Replacing Parts
7
Replace the keyboard. See "Keyboard" on page 127.
8
Replace the hinge cover. See "Hinge Cover" on page 125.
NOTE: Ensure that you replace the two screws inside the battery bay as part of the hinge replacement
procedure.
9
Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical
outlet.
10
Reinstall the hard drive. See "Hard Drive" on page 111.
11
Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system
configuration information.
To confirm the amount of memory installed in the computer, click the Start button, click Help and
Support, and then click Computer Information.
1tab in connector slot
1
Adding and Replacing Parts 121
Modem (Optional)
If you ordered the optional modem at the same time that you ordered your computer, the modem is
already installed.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
1
Follow the procedures in "Before You Begin" on page 109.
2
Turn the computer over, loosen the captive screws on the modem/Mini-Card/wireless cover, and then
remove the cover.
3
Remove the existing modem:
a
Remove the screw securing the modem to the system board, and set it aside.
b
Pull straight up on the attached pull-tab to lift the modem out of its connector on the system
board, and disconnect the modem cable.
1
modem/Mini-Card/wireless
cover
1
122 Adding and Replacing Parts
4
Install the replacement modem:
a
Connect the modem cable to the modem.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and
realign the card.
b
Align the modem with the screw holes and press the modem into the connector on the system
board.
c
Replace the screw that secures the modem to the system board.
5
Replace the modem/Mini-Card/wireless cover.
1screw 2modem cable 3modem
4pull-tab 5system board connector
4
5
1
2
3
Adding and Replacing Parts 123
Mini-Card
If you ordered a Mini-Card with your computer, the card is already installed.
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
1
Follow the procedures in "Before You Begin" on page 109.
2
If a Mini-Card is not already installed, go to step . If you are replacing a Mini-Card, remove the existing
card:
a
Disconnect both antenna cables from the Mini-Card.
b
Release the Mini-Card by pushing the metal securing clips toward the back of the computer until
the card pops up slightly.
c
Lift the Mini-Card out of its connector.
1antenna cables (2)
1
124 Adding and Replacing Parts
NOTICE: The connectors are color-keyed to ensure correct insertion. If you feel resistance, check the connectors
and realign the card.
3
Install the replacement Mini-Card:
NOTICE: To avoid damaging the Mini-Card, make sure the antenna cables are not under the card when you click
the card into place.
a
Align the Mini-Card with the connector at a 45-degree angle, and press the Mini-Card into the
connector until it clicks.
NOTICE: To avoid damaging the Mini-Card, never place cables under the card.
b
Connect the antenna cables to the antenna connectors on the Mini-Card by matching the color of
the cable to the color of the triangle above the connector. Connect the main antenna cable (white)
to the antenna connector with the white triangle. Connect the auxiliary antenna cable (black) to
the antenna connector with the black triangle.
NOTE: If your computer has a gray cable, connect it to the connector with the gray triangle, if one is available on
your card.
1metal securing tabs (2) 2Mini-Card
2
1
Adding and Replacing Parts 125
Hinge Cover
Removing the Hinge Cover
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.
NOTICE: The hinge cover is fragile and can be damaged if extreme force is used. Be careful when removing the
hinge cover.
1
Follow the procedures in "Before You Begin" on page 109.
2
Remove the battery (see "Replacing the Battery" on page 41).
3
Remove the two screws inside the battery bay.
1antenna cables (2)
1
126 Adding and Replacing Parts
4
Turn the computer right-side up, and then open the display all the way (180 degrees) so that it rests on
your work surface.
NOTICE: To avoid damaging the hinge cover, do not lift the cover on both sides simultaneously.
5
Insert a scribe into the indent to lift the hinge cover on the right side.
6
Ease the hinge cover up, moving from right to left, and remove it.
1screws (2)
1hinge cover 2indent
1
1
2
Adding and Replacing Parts 127
Replacing the Hinge Cover
1
Insert the left edge of the cover into place.
2
Press from left to right until the cover snaps into place.
3
Close the display and turn the computer upside down.
4
Replace the two screws in the battery bay.
5
Replace the battery (see "Replacing the Battery" on page 41).
Keyboard
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.
Removing the Keyboard
1
Follow the procedures in "Before You Begin" on page 109.
2
Remove the hinge cover. See "Hinge Cover" on page 125.
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful
when removing and handling the keyboard.
3
Lift the keyboard and hold it up and slightly forward to allow access to the keyboard connector.
4
Release the lever on the system board connector to disconnect the keyboard cable from the system
board.
128 Adding and Replacing Parts
Replacing the Keyboard
NOTICE: To avoid scratching the palm rest when replacing the keyboard, hook the six tabs along the front edge of
the keyboard into the palm rest, and then secure the keyboard in place.
1
Connect the keyboard cable to the system board.
2
Fasten the keyboard cable with the lever on the system board connector.
3
Place the six tabs along the front edge of the keyboard into the palm rest.
Internal Card With Bluetooth® Wireless Technology
CAUTION: Before you begin any of the procedures in this section, follow the safety instructions in the Product
Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as a connector on the back of the computer).
1keyboard 2keyboard cable 3lever on system
board connector
4tabs (6)
4
1
3
2
Adding and Replacing Parts 129
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.
If you ordered a card with Bluetooth wireless technology with your computer, the card is already installed.
1
Follow the procedures in "Before You Begin" on page 109.
2
Loosen the captive screws in the modem/Mini-Card/wireless cover, and then remove the cover.
3
Remove the screw securing the card carrier.
4
Pull the carrier out of the compartment so that you can disconnect the card from its cable and remove
the card from the computer.
5
To replace the card, connect the card to the cable.
6
Then carefully insert the card into the carrier and insert the carrier into the compartment.
7
Replace the screw securing the card carrier into place.
1screw 2card carrier 3card
4card connector
1
3
4
2
130 Adding and Replacing Parts
Coin-Cell Battery
Removing the Coin-Cell Battery
CAUTION: Before you perform the following procedures, see the safety instructions in the Product Information
Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically
touching an unpainted metal surface (such as the back panel) on the computer.
NOTICE: To avoid damaging the system board, you must remove the main battery before you begin working inside
the computer.
1
Follow the procedures in "Before You Begin" on page 109.
2
Remove the hinge cover (see page 125).
3
Remove the keyboard (see page 127).
4
Use a plastic scribe to lift the battery upward to remove it from the system board.
Replacing the Coin-Cell Battery
When you replace the battery, insert it into the circular socket with the positive side up, and gently push
it into place.
1coin-cell battery
1
Dell™ QuickSet Features 131
Dell™ QuickSet Features
NOTE: This feature may not be available on your computer.
Dell™ QuickSet provides you with easy access to configure or view the following types of settings:
• Network connectivity
• Power management
•Display
• System information
Depending on what you want to do in Dell™ QuickSet, you can start it by either clicking, double-
clicking, or right-clicking the QuickSet icon, , in the Microsoft® Windows® taskbar. The taskbar
is located in the lower-right corner of your screen.
For more information about QuickSet, right-click the QuickSet icon and select Help.
132 Dell™ QuickSet Features
Traveling With Your Computer 133
Traveling With Your Computer
Identifying Your Computer
• Attach a name tag or business card to the computer.
• Write down your Service Tag and store it in a safe place away from the computer or carrying case
• Use the Service Tag if you need to report a loss or theft to law enforcement officials and to Dell.
• Create a file on the Microsoft
®
Windows
®
desktop called
if_found
. Place information such as
your name, address, and phone number in this file.
• Contact your credit card company and ask if it offers coded identification tags.
Packing the Computer
• Remove any external devices attached to the computer and store them in a safe place. Remove any
cables attached to installed PC Cards, and remove any extended PC Cards ("Using ExpressCards"
on page 65).
• To make the computer as light as possible, replace any devices installed in the module bay with the
Dell TravelLite™ module.
• Fully charge the main battery and any spare batteries that you plan to carry with you.
• Shut down the computer.
• Disconnect the AC adapter.
NOTICE: When the display is closed, extraneous items on the keyboard or palm rest could damage the
display.
• Remove any extraneous items, such as paper clips, pens, and paper, from the keyboard and palm
rest and close the display.
• Use the optional Dell™ carrying case to pack the computer and its accessories together safely.
• Avoid packing the computer with items such as shaving cream, colognes, perfumes, or food.
NOTICE: If the computer has been exposed to extreme temperatures, allow it to acclimate to room
temperature for 1 hour before turning it on.
• Protect the computer, the batteries, and the hard drive from hazards such as extreme temperatures
and overexposure to sunlight, dirt, dust, or liquids.
• Pack the computer so that it does not slide around in the trunk of your car or in an overhead
storage compartment.
134 Traveling With Your Computer
Travel Tips
NOTICE: Do not move the computer while using the optical drive to prevent loss of data.
NOTICE: Do not check the computer as baggage.
• Consider disabling wireless activity on your computer to maximize battery operating time. To disable
wireless activity, press<Fn><F2>.
• Consider changing your power management options (see "Configuring Power Management Settings"
on page 41) to maximize battery operating time.
• If you are traveling internationally, carry proof of ownership—or of your right to use the computer if it
is company-owned—to speed your passage through customs. Investigate the customs regulations of
the countries you plan to visit, and consider acquiring an international carnet (also known as a
merchandise passport
) from your government.
• Find out what type of electrical outlets are used in the countries you will visit, and have appropriate
power adapters.
• Check with your credit card company for information about the kinds of emergency travel assistance it
offers to users of portable computers.
Traveling by Air
NOTICE: Do not walk the computer through a metal detector. Send the computer through an X-ray machine or
have it hand-inspected.
• Ensure that you have a charged battery available in case you are asked to turn on the computer.
• Prior to entering the airplane, verify that using a computer is permitted. Some airlines forbid the use of
electronic devices during flight. All airlines forbid the use of electronic devices during takeoff and
landing.
Contacting Dell 135
