Dell™ Chassis Management Controller Firmware Version 2.10 User Guide
Overview
Installing and Setting Up the CMC
Configuring CMC to Use Command Line Consoles
Using the RACADM Command Line Interface
Using the CMC Web Interface
Using FlexAddress
Using the CMC With Microsoft Active Directory
Power Management
Using the iKVM Module
I/O Fabric Management
Troubleshooting and Recovery
Glossary
Index

Dell™ Chassis Management

Controller Firmware

Version 2.10 User Guide

cmcugtp[2].fm Page 1 Friday, September 25, 2009 1:30 PM

Notes and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is

strictly forbidden.

Trademarks used in this text:

Dell

, the

DELL

logo,

FlexAddress, OpenManage

PowerEdge,

and

PowerConnect

are trademarks of Dell Inc.;

Microsoft

Active Directory, Internet Explorer

Windows

Windows NT

Windows Server,

and

Windows Vista

are either trademark

or registered trademarks of

Microsoft Corporation in the United States and other countries;

Red Hat

and

Red Hat Enterprise Linux

are

registered trademarks of Red Hat, Inc. in the United States and other countries;

Novell

and

SUSE

are

registered trademarks of Novell Corporation in the United States and other countries;

Intel

is a registered

trademark of Intel Corporation;

UNIX

is a registered trademark of The Open Group in the United States

and other countries.

Avocent

is a trademark of Avocent Corporation;

OSCAR

is a registered trademark of

Avocent Corporation or its affiliates.

and binary forms, with or without modification, are permitted only as authorized by the OpenLDAP Public

License. A copy of this license is available in the file LICENSE in the top-level directory of the distribution

or, alternatively, at

http://www.OpenLDAP.org/license.html

. OpenLDAP is a registered trademark of the

OpenLDAP Foundation. Individual files and/or contributed packages may be copyrighted by other parties

and subject to additional restrictions. This work is derived from the University of Michigan LDAP v3.3

distribution. This work also contains materials derived from public sources. Information about OpenLDAP

can be obtained at

http://www.openldap.org/

rights reserved. Redistribution and use in source and binary forms, with or without modification, are

modification, are permitted provided that this notice is preserved. The names of the copyright holders may

not be used to endorse or promote products derived from this software without their specific prior written

permission. This software is provided "as is'' without express or implied warranty. Portions Copyright (c)

binary forms are permitted provided that this notice is preserved and that due credit is given to the University

of Michigan at Ann Arbor. The name of the University may not be used to endorse or promote products

derived from this software without specific prior written permission. This software is provided "as is''

without express or implied warranty.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the

marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade

names other than its own.

August 2009

cmcugtp[2].fm Page 2 Friday, September 25, 2009 1:30 PM

Contents 3

Contents

1Overview . . . . . . . . . . . . . . . . . . . . . . . . . 17

What’s New For This Release . . . . . . . . . . . . . . 17

CMC Management Features . . . . . . . . . . . . . . . 18

Security Features . . . . . . . . . . . . . . . . . . . . 20

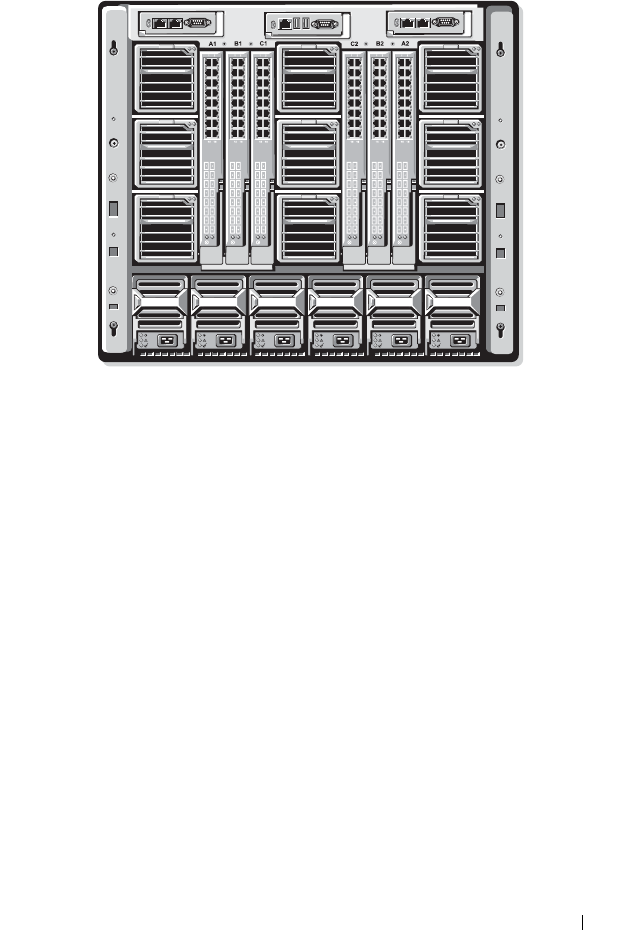

Chassis Overview . . . . . . . . . . . . . . . . . . . . 21

Hardware Specifications . . . . . . . . . . . . . . . . 21

TCP/IP Ports . . . . . . . . . . . . . . . . . . . . 21

Supported Remote Access Connections . . . . . . . . 23

Supported Platforms . . . . . . . . . . . . . . . . . . . 23

Supported Web Browsers . . . . . . . . . . . . . . . . 24

Supported Management Console Applications. . . . . 24

WS-Management Support . . . . . . . . . . . . . . . . 24

Other Documents You May Need . . . . . . . . . . . . 26

2 Installing and Setting Up the CMC . . . . . 29

Before You Begin . . . . . . . . . . . . . . . . . . . . 29

Installing the CMC Hardware . . . . . . . . . . . . . . 29

4Contents

Installing Remote Access Software on

a Management Station . . . . . . . . . . . . . . . . . . 30

Installing RACADM on a

Linux Management Station . . . . . . . . . . . . . 30

Uninstalling RACADM From a

Linux Management Station . . . . . . . . . . . . . 31

Configuring a Web Browser . . . . . . . . . . . . . . . 31

Proxy Server . . . . . . . . . . . . . . . . . . . . 32

Microsoft® Phishing Filter . . . . . . . . . . . . . 33

Certificate Revocation List (CRL) Fetching . . . . . 33

Downloading Files From CMC With

Internet Explorer . . . . . . . . . . . . . . . . . . 33

Allow Animations in Internet Explorer . . . . . . . 34

Setting Up Initial Access to the CMC . . . . . . . . . . 34

Basic CMC Network Connection . . . . . . . . . . 35

Daisy-chain CMC Network Connection . . . . . . 35

Configuring the CMC Network . . . . . . . . . . . 37

Configuring Networking Using the

LCD Configuration Wizard . . . . . . . . . . . . . 38

Accessing the CMC Through a Network . . . . . . . . 44

Installing or Updating the CMC Firmware. . . . . . . . 45

Downloading the CMC Firmware . . . . . . . . . . 45

Updating CMC Firmware Using

the Web Interface. . . . . . . . . . . . . . . . . . 46

Updating the CMC Firmware

Using RACADM . . . . . . . . . . . . . . . . . . . 46

Configuring CMC Properties . . . . . . . . . . . . . . . 47

Configuring Power Budgeting . . . . . . . . . . . 47

Configuring CMC Network Settings . . . . . . . . 47

Adding and Configuring Users . . . . . . . . . . . 47

Adding SNMP and E-mail Alerts . . . . . . . . . . 48

Configuring Remote Syslog . . . . . . . . . . . . . 48

Contents 5

Understanding the Redundant CMC

Environment . . . . . . . . . . . . . . . . . . . . . . . 49

About the Standby CMC . . . . . . . . . . . . . . 49

Primary CMC Election Process . . . . . . . . . . . 50

Obtaining Health Status of

Redundant CMC . . . . . . . . . . . . . . . . . . 50

3 Configuring CMC to Use Command

Line Consoles . . . . . . . . . . . . . . . . . . . . . 51

Command Line Console Features on the CMC . . . . . 51

Using a Serial, Telnet, or SSH Console . . . . . . . . . 52

Using a Telnet Console With the CMC . . . . . . . . . 52

Using SSH With the CMC . . . . . . . . . . . . . . . . 52

Enabling SSH on the CMC . . . . . . . . . . . . . 53

Changing the SSH Port . . . . . . . . . . . . . . . 53

Enabling the Front Panel to

iKVM Connection . . . . . . . . . . . . . . . . . . 54

Configuring Terminal Emulation Software . . . . . . . 54

Configuring Linux Minicom . . . . . . . . . . . . . 55

Connecting to Servers or I/O Modules With

the Connect Command . . . . . . . . . . . . . . . . . . 56

Configuring the managed server BIOS

for serial console redirection. . . . . . . . . . . . 58

Configuring Windows for serial

console redirection . . . . . . . . . . . . . . . . . 59

Configuring Linux for Server Serial

Console Redirection During Boot. . . . . . . . . . 59

Configuring Linux for Server Serial

Console Redirection After Boot . . . . . . . . . . 61

6Contents

4 Using the RACADM Command

Line Interface . . . . . . . . . . . . . . . . . . . . . 65

Using a Serial, Telnet, or SSH Console . . . . . . . . . 65

Logging in to the CMC . . . . . . . . . . . . . . . 66

Starting a Text Console . . . . . . . . . . . . . . . 66

Using RACADM. . . . . . . . . . . . . . . . . . . . . . 66

RACADM Subcommands . . . . . . . . . . . . . . 67

Accessing RACADM Remotely . . . . . . . . . . . 71

Enabling and Disabling the RACADM

Remote Capability. . . . . . . . . . . . . . . . . . 72

Using RACADM Remotely. . . . . . . . . . . . . . 72

RACADM Error Messages . . . . . . . . . . . . . 73

Using RACADM to Configure the CMC. . . . . . . . . . 74

Configuring CMC IPv4 Network Properties . . . . . . . 74

Setting Up Initial Access to the CMC. . . . . . . . 74

Viewing Current Network Settings . . . . . . . . . 75

Configuring the Network LAN Settings . . . . . . . 76

Configuring the Network Security

Settings . . . . . . . . . . . . . . . . . . . . . . . 80

Using RACADM to Configure Users . . . . . . . . . . . 80

Before You Begin . . . . . . . . . . . . . . . . . . 80

Adding a CMC User . . . . . . . . . . . . . . . . . 81

Using RACADM to Configure Public Key

Authentication over SSH. . . . . . . . . . . . . . . . . 83

Before You Begin . . . . . . . . . . . . . . . . . . 83

Generating Public Keys for Windows. . . . . . . . 84

Generating Public Keys for Linux . . . . . . . . . . 84

Viewing the Public Keys . . . . . . . . . . . . . . 85

Adding the Public Keys . . . . . . . . . . . . . . . 85

Deleting the Public Keys . . . . . . . . . . . . . . 85

Contents 7

Logging in Using Public Key

Authentication . . . . . . . . . . . . . . . . . . . 86

Enabling a CMC User With Permissions . . . . . . 86

Disabling a CMC User . . . . . . . . . . . . . . . 87

Configuring SNMP and E-mail Alerting . . . . . . . . . 87

Configuring Multiple CMCs in Multiple Chassis . . . . 87

Creating a CMC Configuration File . . . . . . . . . 89

Parsing Rules . . . . . . . . . . . . . . . . . . . . 90

Modifying the CMC IP Address. . . . . . . . . . . 92

Using RACADM to Configure Properties

on iDRAC . . . . . . . . . . . . . . . . . . . . . . . . . 93

Troubleshooting . . . . . . . . . . . . . . . . . . . . . 95

5 Using the CMC Web Interface. . . . . . . . . 97

Accessing the CMC Web Interface . . . . . . . . . . . 97

Logging In. . . . . . . . . . . . . . . . . . . . . . 98

Logging Out . . . . . . . . . . . . . . . . . . . . . 99

Configuring Basic CMC Settings . . . . . . . . . . . . 99

Setting the Chassis Name . . . . . . . . . . . . . 99

Setting the Date and Time on the CMC. . . . . . . 100

Monitoring System Health Status . . . . . . . . . . . . 100

Viewing Chassis and

Component Summaries . . . . . . . . . . . . . . . 100

Viewing Chassis Graphics and

Component Health Status . . . . . . . . . . . . . 101

Viewing Power Budget Status . . . . . . . . . . . 101

Viewing Server Model Name and

Service Tag . . . . . . . . . . . . . . . . . . . . . 102

Viewing the Health Status of All Servers. . . . . . 102

8Contents

Editing Slot Names . . . . . . . . . . . . . . . . 104

Setting the First Boot Device for

Servers . . . . . . . . . . . . . . . . . . . . . . 106

Viewing the Health Status of an

Individual Server . . . . . . . . . . . . . . . . . 107

Viewing the Health Status of IOMs . . . . . . . . 113

Viewing the Health Status of the Fans . . . . . . 114

Viewing the iKVM Status . . . . . . . . . . . . . 116

Viewing the Health Status of

the PSUs . . . . . . . . . . . . . . . . . . . . . 117

Viewing Status of the Temperature

Sensors . . . . . . . . . . . . . . . . . . . . . . 119

Viewing World Wide Name/Media

Access Control (WWN/MAC) IDs . . . . . . . . . . . 121

Fabric Configuration . . . . . . . . . . . . . . . 121

WWN/MAC Addresses . . . . . . . . . . . . . . 121

Configuring CMC Network Properties. . . . . . . . . 122

Setting Up Initial Access to the CMC. . . . . . . 122

Configuring the Network LAN Settings . . . . . . 122

Configuring CMC Network Security

Settings . . . . . . . . . . . . . . . . . . . . . . 129

Configuring VLAN . . . . . . . . . . . . . . . . . . . 131

Adding and Configuring CMC Users . . . . . . . . . . 132

User Types . . . . . . . . . . . . . . . . . . . . 132

Adding and Managing Users . . . . . . . . . . . 138

Contents 9

Configuring and Managing Microsoft Active

Directory Certificates . . . . . . . . . . . . . . . . . . 141

Configuring Active Directory (Standard

Schema and Extended Schema) . . . . . . . . . . 142

Uploading an Active Directory

Certificate Authority-Signed Certificate . . . . . . 146

Viewing an Active Directory

Certificate Authority-Signed Certificate . . . . . . 146

Securing CMC Communications

Using SSL and Digital Certificates . . . . . . . . . . . 147

Secure Sockets Layer (SSL) . . . . . . . . . . . . 147

Certificate Signing Request (CSR) . . . . . . . . . 148

Accessing the SSL Main Menu . . . . . . . . . . 149

Generating a New Certificate

Signing Request . . . . . . . . . . . . . . . . . . 149

Uploading a Server Certificate . . . . . . . . . . . 152

Viewing a Server Certificate . . . . . . . . . . . . 153

Managing Sessions . . . . . . . . . . . . . . . . . . . 153

Configuring Services . . . . . . . . . . . . . . . . . . 154

Configuring Power Budgeting . . . . . . . . . . . . . . 162

Managing Firmware Updates . . . . . . . . . . . . . . 163

Viewing the Current Firmware Versions . . . . . . 163

Updating Firmware . . . . . . . . . . . . . . . . . 164

Recovering iDRAC Firmware

Using the CMC . . . . . . . . . . . . . . . . . . . 169

Managing iDRAC. . . . . . . . . . . . . . . . . . . . . 170

iDRAC QuickDeploy. . . . . . . . . . . . . . . . . 170

iDRAC Network Settings . . . . . . . . . . . . . . 174

Launching iDRAC using Single Sign-On . . . . . . 176

10 Contents

FlexAddress . . . . . . . . . . . . . . . . . . . . . . 178

Viewing FlexAddress Status . . . . . . . . . . . 178

Configuring FlexAddress . . . . . . . . . . . . . 182

Chassis-Level Fabric and Slot

FlexAddress Configuration . . . . . . . . . . . . 182

Server-Level Slot FlexAddress

Configuration . . . . . . . . . . . . . . . . . . . 183

Remote File Sharing . . . . . . . . . . . . . . . . . . 184

Frequently Asked Questions . . . . . . . . . . . . . . 186

Troubleshooting the CMC . . . . . . . . . . . . . . . 188

6 Using FlexAddress . . . . . . . . . . . . . . . . . 189

Activating FlexAddress . . . . . . . . . . . . . . . . 190

Verifying FlexAddress Activation . . . . . . . . . 191

Deactivating FlexAddress . . . . . . . . . . . . . . . 193

Deactivating FlexAddress. . . . . . . . . . . . . 193

Configuring FlexAddress Using the CLI . . . . . . . . 194

Additional FlexAddress

Configuration for Linux . . . . . . . . . . . . . . 195

Viewing FlexAddress Status Using the CLI . . . . . . 195

Configuring FlexAddress Using the GUI. . . . . . . . 196

Wake-On-LAN with FlexAddress . . . . . . . . . . . 196

Troubleshooting FlexAddress . . . . . . . . . . . . . 196

Command Messages . . . . . . . . . . . . . . . . . . 200

FlexAddress DELL SOFTWARE

LICENSE AGREEMENT . . . . . . . . . . . . . . . . . 202

Contents 11

7 Using the CMC With Microsoft

Active Directory . . . . . . . . . . . . . . . . . . 207

Active Directory Schema Extensions . . . . . . . . . . 207

Extended Schema Versus

Standard Schema. . . . . . . . . . . . . . . . . . 207

Extended Schema Overview. . . . . . . . . . . . . . . 208

Active Directory Schema Extensions . . . . . . . 208

Overview of the RAC Schema Extensions . . . . . 209

Active Directory Object Overview . . . . . . . . . 209

Configuring Extended Schema Active

Directory to Access Your CMC . . . . . . . . . . . 213

Extending the Active Directory Schema . . . . . . 213

Installing the Dell Extension to the Active

Directory Users and Computers Snap-In. . . . . . 219

Adding CMC Users and Privileges

to Active Directory . . . . . . . . . . . . . . . . . 220

Configuring the CMC With Extended

Schema Active Directory and the

Web Interface . . . . . . . . . . . . . . . . . . . 223

Configuring the CMC With Extended

Schema Active Directory and RACADM . . . . . . 226

Standard Schema Active Directory Overview . . . . . 228

Configuring Standard Schema Active

Directory to Access Your CMC . . . . . . . . . . . 230

Configuring the CMC With Standard

Schema Active Directory and

Web Interface . . . . . . . . . . . . . . . . . . . 230

Configuring the CMC With Standard

Schema Active Directory and RACADM . . . . . . 233

Frequently Asked Questions. . . . . . . . . . . . . . . 234

Configuring Single Sign-On . . . . . . . . . . . . . . . 236

System Requirements . . . . . . . . . . . . . . . . . . 237

12 Contents

Configuring Settings . . . . . . . . . . . . . . . . . . 238

Prerequisites . . . . . . . . . . . . . . . . . . . 238

Configuring Active Directory . . . . . . . . . . . 238

Configuring the CMC . . . . . . . . . . . . . . . 239

Uploading the Kerberos Keytab File . . . . . . . 239

Enabling Single Sign-On . . . . . . . . . . . . . 240

Configuring the Browser For

Single Sign-On Login . . . . . . . . . . . . . . . 240

Logging into the CMC Using

Single Sign-On . . . . . . . . . . . . . . . . . . 241

Configuring Smart Card

Two-Factor Authentication . . . . . . . . . . . . . . 242

System Requirements . . . . . . . . . . . . . . . 242

Configuring Settings . . . . . . . . . . . . . . . 242

Configuring Active Directory . . . . . . . . . . . 243

Configuring the CMC . . . . . . . . . . . . . . . 243

Uploading the Kerberos Keytab File . . . . . . . 243

Enabling Smart Card Authentication . . . . . . . 244

Configuring the Browser For

Smart Card Login . . . . . . . . . . . . . . . . . 244

Logging into the CMC Using Smart Card . . . . . 244

Logging in Using Smart Card . . . . . . . . . . . 245

Troubleshooting the Smart Card Login . . . . . . 245

8 Power Management. . . . . . . . . . . . . . . . 247

Overview . . . . . . . . . . . . . . . . . . . . . . . . 247

AC Redundancy Mode . . . . . . . . . . . . . . 247

Power Supply Redundancy Mode . . . . . . . . 250

No Redundancy Mode . . . . . . . . . . . . . . 251

Power Budgeting for Hardware Modules . . . . 252

Server Slot Power Priority Settings. . . . . . . . 255

Dynamic Power Supply Engagement . . . . . . . 256

Contents 13

Redundancy Policies . . . . . . . . . . . . . . . . . . 258

AC Redundancy. . . . . . . . . . . . . . . . . . . 258

Power Supply Redundancy. . . . . . . . . . . . . 258

No Redundancy. . . . . . . . . . . . . . . . . . . 259

Power Conservation and

Power Budget Changes . . . . . . . . . . . . . . 259

Power Supply and Redundancy

Policy Changes in System Event Log . . . . . . . . 262

Redundancy Status and Overall

Power Health . . . . . . . . . . . . . . . . . . . . 263

Configuring and Managing Power . . . . . . . . . . . 263

Viewing the Health Status of the PSUs. . . . . . . 263

Viewing Power Consumption Status . . . . . . . . 266

Viewing Power Budget Status . . . . . . . . . . . 270

Configuring Power Budget and

Redundancy . . . . . . . . . . . . . . . . . . . . 275

Assigning Priority Levels to Servers . . . . . . . . 279

Setting the Power Budget . . . . . . . . . . . . . 280

Server Power Reduction to

Maintain Power Budget . . . . . . . . . . . . . . 282

Executing Power Control Operations

on the Chassis . . . . . . . . . . . . . . . . . . . 282

Executing Power Control Operations

on an IOM. . . . . . . . . . . . . . . . . . . . . . 284

Executing Power Control Operations

on a Server . . . . . . . . . . . . . . . . . . . . . 284

Troubleshooting. . . . . . . . . . . . . . . . . . . 286

9 Using the iKVM Module. . . . . . . . . . . . . 287

Overview . . . . . . . . . . . . . . . . . . . . . . . . . 287

iKVM User Interface . . . . . . . . . . . . . . . . 287

Security . . . . . . . . . . . . . . . . . . . . . . . 287

Scanning . . . . . . . . . . . . . . . . . . . . . . 287

14 Contents

Server Identification . . . . . . . . . . . . . . . 288

Video . . . . . . . . . . . . . . . . . . . . . . . 288

Plug and Play . . . . . . . . . . . . . . . . . . . 288

FLASH Upgradable . . . . . . . . . . . . . . . . 288

Physical Connection Interfaces . . . . . . . . . . . . 288

iKVM Connection Precedences . . . . . . . . . 289

Tiering Through the ACI Connection . . . . . . . 289

Using OSCAR . . . . . . . . . . . . . . . . . . . . . . 290

Navigation Basics. . . . . . . . . . . . . . . . . 290

Configuring OSCAR . . . . . . . . . . . . . . . . 291

Managing Servers With iKVM . . . . . . . . . . . . . 294

Peripherals Compatibility and Support . . . . . . 294

Viewing and Selecting Servers . . . . . . . . . . 295

Setting Console Security . . . . . . . . . . . . . 298

Scanning Your System . . . . . . . . . . . . . . 302

Broadcasting to Servers . . . . . . . . . . . . . 304

Managing iKVM From the CMC . . . . . . . . . . . . 305

Enabling or Disabling the Front Panel . . . . . . 305

Enabling the Dell CMC Console

Through iKVM. . . . . . . . . . . . . . . . . . . 306

Viewing the iKVM Status and Properties . . . . . 306

Updating the iKVM Firmware . . . . . . . . . . . 308

Troubleshooting . . . . . . . . . . . . . . . . . . . . 310

Contents 15

10 I/O Fabric Management. . . . . . . . . . . . . 315

Fabric Management . . . . . . . . . . . . . . . . . . . 316

Invalid Configurations . . . . . . . . . . . . . . . . . . 317

Invalid Mezzanine Card (MC)

Configuration . . . . . . . . . . . . . . . . . . . . 317

Invalid IOM-Mezzanine Card (MC)

Configuration . . . . . . . . . . . . . . . . . . . . 318

Invalid IOM-IOM Configuration. . . . . . . . . . . 318

Fresh Power-up Scenario . . . . . . . . . . . . . . . . 318

Monitoring IOM Health . . . . . . . . . . . . . . . . . 319

Viewing the Health Status of

an Individual IOM . . . . . . . . . . . . . . . . . . 322

Configuring Network Settings for

an Individual IOM . . . . . . . . . . . . . . . . . . 324

Troubleshooting IOM Network Settings . . . . . . 326

11 Troubleshooting and Recovery . . . . . . . 327

Overview . . . . . . . . . . . . . . . . . . . . . . . . . 327

Chassis Monitoring Tools . . . . . . . . . . . . . . . . 327

Configuring LEDs to Identify

Components on the Chassis . . . . . . . . . . . . 327

Configuring SNMP Alerts. . . . . . . . . . . . . . 328

Configuring E-mail Alerts . . . . . . . . . . . . . . 334

First Steps to Troubleshooting

a Remote System. . . . . . . . . . . . . . . . . . . . . 337

Monitoring Power and Executing

Power Control Commands on the Chassis . . . . . . . 337

Viewing Power Budget Status . . . . . . . . . . . 337

Executing a Power Control Operation . . . . . . . 338

16 Contents

Power Supply Troubleshooting . . . . . . . . . . . . 338

Viewing Chassis Summaries . . . . . . . . . . . . . 341

Viewing Chassis and Component

Health Status . . . . . . . . . . . . . . . . . . . . . . 345

Viewing the Event Logs . . . . . . . . . . . . . . . . 346

Viewing the Hardware Log . . . . . . . . . . . . 347

Viewing the CMC Log . . . . . . . . . . . . . . . 349

Firmware Update Error Codes . . . . . . . . . . 350

Using the Diagnostic Console . . . . . . . . . . . . . 352

Resetting Components . . . . . . . . . . . . . . . . . 353

Troubleshooting Network Time

Protocol (NTP) Errors . . . . . . . . . . . . . . . . . 357

Interpreting LED Colors and

Blinking Patterns. . . . . . . . . . . . . . . . . . . . 359

Troubleshooting a Non-responsive CMC . . . . . . . 361

Observing the LEDs to Isolate

the Problem . . . . . . . . . . . . . . . . . . . . 362

Obtain Recovery Information

From the DB-9 Serial Port. . . . . . . . . . . . . 362

Recovering the Firmware Image . . . . . . . . . 363

Troubleshooting Network Problems. . . . . . . . . . 364

Disabling a Forgotten Password. . . . . . . . . . . . 364

Troubleshooting Alerting . . . . . . . . . . . . . . . 366

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 375

Overview 17

Overview

The Dell™ Chassis Management Controller (CMC) is a hot-pluggable

systems management hardware and software solution designed to provide

remote management capabilities and power control functions for Dell

PowerEdge™ M1000e chassis systems.

You can configure the CMC to send e-mail alerts or SNMP trap alerts for

warnings or errors related to temperatures, hardware misconfigurations,

power outages, and fan speeds.

The CMC, which has its own microprocessor and memory, is powered by the

modular chassis into which it is plugged.

To get started with the CMC, see "Installing and Setting Up the CMC."

What’s New For This Release

This release of CMC supports the following features:

• IPv6 — CMC now supports the IPv6 protocol.

The IPv6 Ready Logo Committee's mission is to define the test

specifications for IPv6 conformance and interoperability testing, to

provide access to self-test tools, and to deliver the IPv6 Ready Logo.

CMC and iDRAC are Phase-2 IPv6 Ready Logo certified, and the Logo ID

is 02-C-000378 (Dell PowerEdge M1000e). For information on the IPv6

Ready Logo Program, see

www.ipv6ready.org

• VLAN tagging — The CMC and the iDRACs now support the ability to

assign their network traffic to a virtual LAN (VLAN).

• Single sign-on for active directory accounts — Single sign-on allows users

authenticated using Microsoft

Active Directory

on their local systems

to automatically apply those credentials to the CMC Web user interface.

18 Overview

• Two-Factor Authentication using Smart Card — Provides added

security — a smart card plus a PIN to authenticate a user instead of

just a password.

• Public Key Authentication (PKA) over SSH — Improves SSH scripting

automation by removing the need to embed or prompt for

user ID/password.

• Power management enhancements — Flexible power supply redundant

modes: 1+1, 2+1, and 3+1. Additional fault-tolerant AC redundant

modes: 1+1, 2+2, and 3+3.

• Additional error reporting options — The iDRAC system events log is

displayed on the

Blade Status

page eliminating the need to log into the

iDRAC to view them. Also, CMC events are now also posted to a remote

syslog server.

• Remote Virtual Media File Share option — to map a file from a share drive

on the network to one or more blades through the CMC, to deploy or

update an operating system.

• Ability to read and clear SEL entries for servers from the CMC.

CMC Management Features

The CMC provides the following management features:

• Redundant CMC Environment

• Dynamic Domain Name System (DDNS) registration for IPv4 and IPv6

• Remote system management and monitoring using SNMP, a Web

interface, iKVM, or Telnet or SSH connection

• Support for Microsoft

Active Directory

authentication — Centralizes

CMC user IDs and passwords in Active Directory using the Standard

Schema or an Extended Schema

• Monitoring — Provides access to system information and status of

components

• Access to system event logs — Provides access to the hardware log and

CMC log

Overview 19

• Firmware updates for various components - CMC, servers, iKVM,

and I/O module infrastructure devices

• Dell OpenManage™ software integration — Enables you to launch

the CMC Web interface from Dell OpenManage Server Administrator

or IT Assistant

• CMC alert — Alerts you to potential managed node issues through an

e-mail message or SNMP trap

• Remote power management — Provides remote power management

functions, such as shutdown and reset on any chassis component, from a

management console

•Power usage reporting

• Secure Sockets Layer (SSL) encryption — Provides secure remote system

management through the Web interface

• Password-level security management — Prevents unauthorized access to a

remote system

• Role-based authority — Provides assignable permissions for different

systems management tasks

• Launch point for the Integrated Dell Remote Access Controller (iDRAC)

Web interface

• Support for WS-Management

•

FlexAddress

™

feature - Replaces the factory-assigned World Wide

Name/Media Access Control (WWN/MAC) IDs with chassis-assigned

WWN/MAC IDs for a particular slot; an optional upgrade (for more

information, see "

Using FlexAddress"

)

• Graphical display of chassis component status and health

• Support for single and multi-slot servers

• Update multiple iDRAC management consoles firmware at once

• LCD iDRAC configuration wizard supports iDRAC network configuration

• iDRAC single sign-on

20 Overview

• Network time protocol (NTP) support

• Enhanced server summary, power reporting, and power control pages

• Forced CMC failover, and virtual "reseat" of servers

Security Features

The CMC provides the following security features:

• User authentication through Active Directory (optional),

or hardware-stored user IDs and passwords

• Role-based authority, which enables an administrator to configure specific

privileges for each user

• User ID and password configuration through the Web interface

• Web interface supports 128-bit SSL 3.0 encryption and 40-bit SSL 3.0

encryption (for countries where 128-bit is not acceptable)

NOTE: Telnet does not support SSL encryption.

• Configurable IP ports (where applicable)

• Login failure limits per IP address, with login blocking from the IP address

when the limit is exceeded

• Configurable session auto time out, and number of simultaneous sessions

• Limited IP address range for clients connecting to the CMC

• Secure Shell (SSH), which uses an encrypted layer for higher security

• Single Sign-on, Two-Factor Authentication, and Public Key

Authentication

Overview 21

Chassis Overview

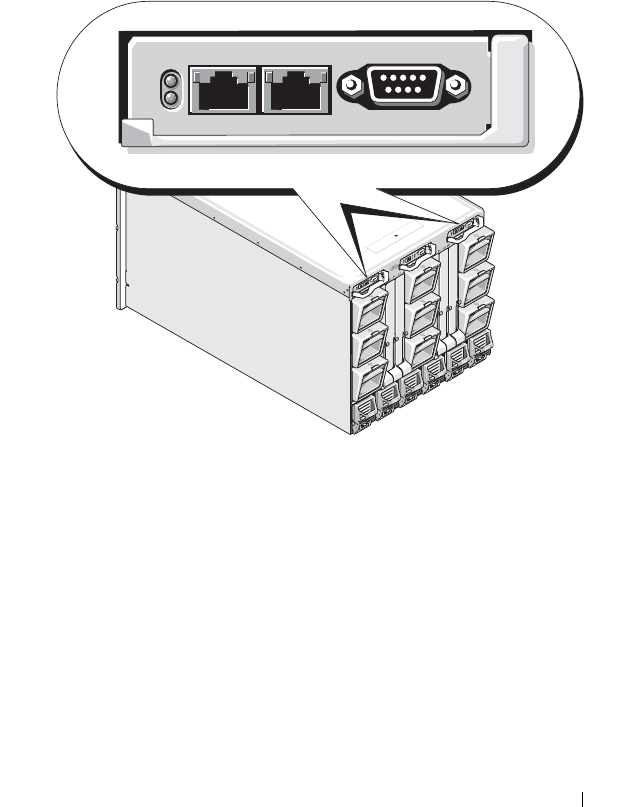

Figure 1-1 shows the facing edge of a CMC (inset) and the locations of the

CMC slots in the chassis.

Figure 1-1. Dell M1000e Chassis and CMC

Hardware Specifications

TCP/IP Ports

You must provide port information when opening firewalls for remote access

to a CMC.

Table 1-1 identifies the ports on which the CMC listens for server

connections. Table 1-2 identifies the ports that the CMC uses as clients.

22 Overview

Table 1-1. CMC Server Listening Ports

Port Number Function

22*

SSH

23*

Telnet

80*

HTTP

161

SNMP Agent

443*

HTTPS

* Configurable port

Table 1-2. CMC Client Port

Port Number Function

SMTP

DNS

DHCP-assigned IP address

TFTP

162

SNMP trap

514*

Remote syslog

636

LDAPS

3269

LDAPS for global catalog (GC)

* Configurable port

Overview 23

Supported Remote Access Connections

Table 1-3 lists the connection features.

Supported Platforms

The CMC supports modular systems designed for the M1000e platform.

For information about compatibility with the CMC, see the documentation

for your device.

For the latest supported platforms, see the Dell PowerEdge Compatibility

Guide located on the Dell Support website at support.dell.com.

Table 1-3. Supported Remote Access Connections

Connection Features

CMC NIC

• 10Mbps/100Mbps/1Gbps Ethernet via CMC GbE port

• DHCP support

• SNMP traps and e-mail event notification

• Dedicated network interface for the CMC Web interface

• Network interface for the iDRAC and I/O Modules (IOMs)

• Support for Telnet/SSH command console and RACADM CLI

commands including system boot, reset, power-on,

and shutdown commands

Serial port

• Support for serial console and RACADM CLI commands

including system boot, reset, power-on, and shutdown commands

• Support for binary interchange for applications specifically

designed to communicate with a binary protocol to a particular

type of IOM

• Serial port can be connected to the serial console of a server,

or I/O module, using the

connect

(or

racadm connect

)

command

Other

connections

• Access to the Dell CMC Console through the Avocent

Integrated KVM Switch Module (iKVM)

24 Overview

Supported Web Browsers

For the latest information on supported Web browsers, see the Dell Systems

Software Support Matrix located on the Dell Support website at

support.dell.com/manuals.

To view localized versions of the CMC Web interface:

Open the Windows

Control Panel

Double-click the

Regional Options

icon.

Select the required locale from the

Your locale (location)

drop-down

menu.

Supported Management Console Applications

The CMC supports integration with Dell OpenManage IT Assistant.

For more information, refer to the IT Assistant documentation set

available on the Dell Support Web site at support.dell.com.

WS-Management Support

Web Services for Management (WS-MAN) is a Simple Object Access

Protocol (SOAP)-based protocol used for systems management. WS-MAN

provides a interoperable protocol for devices to share and exchange data

across networks. CMC uses WS-MAN to convey Distributed Management

Task Force (DMTF) Common Information Model (CIM)-based

management information; the CIM information defines the semantics

and information types that can be manipulated in a managed system.

The Dell-embedded server platform management interfaces are organized

into profiles, where each profile defines the specific interfaces for a particular

management domain or area of functionality. Additionally, Dell has defined a

number of model and profile extensions that provide interfaces for

additional capabilities.

Access to WS-Management requires logging in using local user privileges with

basic authentication over Secured Socket Layer (SSL) protocol at port 443.

For information on setting user accounts, see the cfgSessionManagement

database property section in the Dell Chassis Management Controller

Firmware Administrator Reference Guide.

Overview 25

The data available through WS-Management is a subset of data provided

by the CMC instrumentation interface mapped to the following

DMTF profiles version 1.0.0:

• Allocation Capabilities Profile

• Base Metrics Profile

• Base Server Profile

• Computer System Profile

• Modular System Profile

• Physical Asset Profile

• Dell Power Allocation Profile

• Dell Power Supply Profile

• Dell Power Topology Profile

• Power State Management Profile

• Profile Registration Profile

• Record Log Profile

• Resource Allocation Profile

• Role Based Authorization Profile

•Sensors Profile

• Service Processor Profile

• Simple Identity Management Profile

• Dell Active Directory Client Profile

• Boot Control Profile

• Dell Simple NIC Profile

The CMC WS-MAN implementation uses SSL on port 443 for transport

security, and supports basic authentication. For information on setting user

accounts, see the cfgSessionManagement database property section in the

Dell Chassis Management Controller Firmware Administrator Reference

Guide. Web services interfaces can be utilized by leveraging client

infrastructure, such as Windows® WinRM and Powershell CLI, open source

utilities like WSMANCLI, and application programming environments

like Microsoft® .NET®.

26 Overview

There are additional implementation guides, white papers, profile, and code

samples available in the Dell Tech Center at www.delltechcenter.com.

For more information, also see:

• DTMF Web site: www.dmtf.org/standards/profiles/

• WS-MAN release notes or Read Me file.

•

www.wbemsolutions.com/ws_management.html

• DMTF WS-Management Specifications:

www.dmtf.org/standards/wbem/wsman

Other Documents You May Need

In addition to this User’s Guide, the following documents provide additional

information about the setup and operation of the CMC. All of these

documents may be accessed at support.dell.com:

•The

CMC Online Help

provides information about using the Web

interface.

•The

Chassis Management Controller (CMC) Secure Digital (SD) Card

Technical Specification

provides minimum BIOS and firmware version,

installation and usage information.

•The

Integrated Dell Remote Access Controller 6 (iDRAC6) Enterprise for

Blade Servers User Guide

provides information about installation,

configuration and maintenance of the iDRAC on managed systems.

•The

Dell OpenManage™ IT Assistant User’s Guide

provides information

about IT Assistant.

• Documentation specific to your third-party management

console application.

•The

Dell OpenManage Server Administrator’s User’s Guide

provides

information about installing and using Server Administrator.

•The

Dell Update Packages User's Guide

provides information

about obtaining and using Dell Update Packages as part of your

system update strategy.

Overview 27

The following system documents are also available to provide more

information about the system in which your CMC is installed:

• The safety instructions that came with your system provide important

safety and regulatory information. For additional regulatory information,

see the Regulatory Compliance home page at

www.dell.com/regulatory_compliance

. Warranty information may be

included within this document or as a separate document.

•The

Rack Installation Guide

and

Rack Installation Instructions

included

with your rack solution describe how to install your system into a rack.

•The

Hardware Owner’s Manual

provides information about system

features and describes how to troubleshoot the system and install or

replace system components.

• Systems management software documentation describes the features,

requirements, installation, and basic operation of the software.

• Documentation for any components you purchased separately provides

information to configure and install these options.

• Updates are sometimes included with the system to describe changes to

the system, software, and/or documentation.

NOTE: Always read the updates first because they often supersede

information in other documents.

• Release notes or readme files may be included to provide last-minute

updates to the system or documentation or advanced technical reference

material intended for experienced users or technicians.

• For more information on IOM network settings, refer to the

Dell PowerConnect

™

M6220 Switch Important Information

document

and the

Dell PowerConnect 6220 Series Port Aggregator White Paper

28 Overview

Installing and Setting Up the CMC 29

Installing and Setting Up the CMC

This section provides information about how to install your CMC hardware,

establish access to the CMC, configure your management environment

to use the CMC, and guides you through the next steps for

configuring the CMC:

• Set up initial access to the CMC

• Access the CMC through a network

• Add and configure CMC users

• Update the CMC firmware

Additionally, you can find information about installing and setting

up redundant CMC environments at "

Understanding the Redundant CMC

Environment

Before You Begin

Prior to setting up your CMC environment, download the latest version of

the CMC firmware from the Dell Support website at support.dell.com.

Also, ensure that you have the Dell Systems Management Tools and

Documentation DVD that was included with your system.

Installing the CMC Hardware

Because the CMC is preinstalled on your chassis, no installation is required.

To get started with the CMC that is installed on your system, see "Installing

Remote Access Software on a Management Station."

You can install a second CMC to run as a standby to the primary CMC.

For more information about a standby CMC, see "Understanding the

Redundant CMC Environment."

30 Installing and Setting Up the CMC

Installing Remote Access Software on a

Management Station

You can access the CMC from a management station using remote access

software, such as the Telnet, Secure Shell (SSH), or serial console utilities

provided on your operating system or using the Web interface.

If you want to use remote RACADM from your management station,

you will need to install it using the Dell Systems Management Tools and

Documentation DVD. Your system includes the Dell Systems Management

Tools and Documentation DVD. This DVD includes the following

Dell OpenManage components:

• DVD root - Contains the Dell Systems Build and Update Utility

• SYSMGMT - Contains the systems management software products

including Dell OpenManage Server Administrator

• docs - Contains documentation for systems, systems management

software products, peripherals, and RAID controllers

• SERVICE - Contains the tools you need to configure your system, and

delivers the latest diagnostics and Dell-optimized drivers for your system

For information about installing Dell OpenManage software components,

see the Dell OpenManage Installation and Security User's Guide available on

the DVD or at support.dell.com.

Installing RACADM on a Linux Management Station

Log on as root to the system running a supported Red Hat

Enterprise

Linux

or SUSE

Linux Enterprise Server operating system where you

want to install the managed system components.

Insert the

Dell Systems Management Tools and Documentation

DVD

into

the DVD drive.

If necessary, mount the DVD to a location of your choice using the mount

command or a similar command.

NOTE: On the Red Hat Enterprise Linux 5 operating system, DVDs are

auto-mounted with the -noexec mount option. This option does not allow you

to run any executable from the DVD. You need to manually mount the DVD-ROM and

then run the executables.

Installing and Setting Up the CMC 31

Navigate to the

SYSMGMT/ManagementStation/linux/rac

directory.

To install the RAC software, enter the following command:

rpm -ivh *.rpm

For help with the RACADM command, type

racadm help

after

issuing the previous commands. For more information about RACADM,

see "Using the RACADM Command Line Interface."

NOTE: When using the RACADM remote capability, you must have write

permission on the folders where you are using the RACADM subcommands

involving file operations, for example:

racadm getconfig -f <file name>

Uninstalling RACADM From a Linux Management Station

Log on as root to the system where you want to uninstall the management

station features.

Use the

rpm

query command to determine which version of the DRAC

Tools is installed. Use the

rpm -qa | grep mgmtst-racadm

command.

Verify the package version to be uninstalled and uninstall the feature

by using the

rpm -e `rpm -qa | grep mgmtst-racadm`

command.

Configuring a Web Browser

You can configure and manage the CMC and the servers and modules

installed in the chassis through a Web browser. See the Supported Browsers

section in the Dell Systems Software Support Matrix on the Dell Support

website at support.dell.com/manuals.

Your CMC and the management station where you use your browser must be

on the same network, which is called the management network. Depending

on your security requirements, the management network can be an isolated,

highly secure network.

You must ensure that security measures on the management network,

such as firewalls and proxy servers, do not prevent your Web browser from

accessing the CMC.

32 Installing and Setting Up the CMC

Also, be aware that some browser features can interfere with connectivity or

performance, especially if the management network does not have a route to

the Internet. If your management station is running a Windows operating

system, there are Internet Explorer settings that can interfere with

connectivity even when you are using a command line interface to access the

management network.

Proxy Server

If you have a proxy server for browsing and it does not have access to the

management network, you can add the management network addresses to the

browser’s exception list. This instructs the browser to bypass the proxy server

when accessing the management network.

Internet Explorer

Follow these steps to edit the exception list in Internet Explorer:

Start Internet Explorer.

Click

Tools

→

Internet Options

, then click

Connections

In the

Local Area Network (LAN) settings

section, click

LAN Settings.

In the

Proxy server

section, click

Advanced.

In the

Exceptions

section, add the addresses for CMCs and iDRACs on

the management network to the semicolon-separated list. You can use

DNS names and wildcards in your entries.

Mozilla FireFox

To edit the exception list in Mozilla Firefox version 3.0:

Start Firefox.

Click

Tools

→

Options

(for Windows) or click

Edit

→

Preferences

(for Linux)

Click

Advanced

and then click the

Network

tab.

Click

Settings

Select the

Manual Proxy Configuration

and then in the

No Proxy for

field, add the addresses for CMCs and iDRACs on the management

network to the comma-separated list. You can use DNS names and

wildcards in your entries.

Installing and Setting Up the CMC 33

Microsoft® Phishing Filter

If the Microsoft Phishing Filter is enabled in Internet Explorer 7 on your

management system and your CMC does not have Internet access, you may

experience delays of several seconds when accessing the CMC, whether you

are using the browser or another interface such as remote RACADM.

Follow these steps to disable the phishing filter:

Start Internet Explorer.

Click

Tools

→

Phishing Filter

, and then click

Phishing Filter Settings

Check the

Disable Phishing Filter

check box.

Click

Certificate Revocation List (CRL) Fetching

If your CMC has no route to the Internet, disable the certificate revocation list

(CRL) fetching feature in Internet Explorer. This feature tests whether a server

such as the CMC Web server is using a certificate that is on a list of revoked

certificates retrieved from the Internet. If the Internet is inaccessible,

this feature can cause delays of several seconds when you access the CMC

using the browser or with a command line interface such as remote RACADM.

Follow these steps to disable CRL fetching:

Start Internet Explorer.

Click

Tools

→

Internet Options

, then click

Advanced

Scroll to the Security section and uncheck

Check for publisher’s

certificate revocation

Click

Downloading Files From CMC With Internet Explorer

When you use Internet Explorer to download files from the CMC you may

experience problems when the Do not save encrypted pages to disk option is

not enabled.

Follow these steps to enable the Do not save encrypted pages to disk option:

Start Internet Explorer.

Click

Tools

→

Internet Options

, then click

Advanced

Scroll to the Security section and check

Do not save encrypted pages to disk

34 Installing and Setting Up the CMC

Allow Animations in Internet Explorer

When transferring files to and from the Web interface, a file transfer icon

spins to show transfer activity. For Internet Explorer, this requires that the

browser be configured to play animations, which is the default setting.

Follow these steps to configure Internet Explorer to play animations:

Start Internet Explorer.

Click

Tools

→

Internet Options

, then click

Advanced

Scroll to the Multimedia section and check

Play animations in web pages

Setting Up Initial Access to the CMC

To manage the CMC remotely, connect the CMC to your management

network and then configure the CMC network settings. For information on

how to configure the CMC network settings, see "Configuring the CMC

Network." This initial configuration assigns the TCP/IP networking

parameters that enable access to the CMC.

Once the CMC is connected to the management network, all external access

to the CMC and iDRACs is accomplished through the CMC. Access to the

managed servers, conversely, is accomplished through network connections

to I/O modules (IOMs). This allows the application network to be isolated

from the management network.

NOTE: Dell strongly recommends the best practice of isolating/separating the

management network in the chassis, used by iDRAC and CMC, from your production

network(s). Mixing management and production/application traffic on this

management network could cause congestion/saturation, which will result in CMC

and iDRAC communication delays. The delays may cause unpredictable chassis

behavior, such as CMC displaying iDRAC as offline even when it is up and running,

which in turn causes other unwanted behavior. If physically isolating the management

network is impractical, the other option is to separate CMC and iDRAC traffic to a

separate VLAN. The CMC and individual iDRAC network interfaces can be configured

to use a VLAN with the racadm setniccfg command. For more information,

see the Dell Chassis Management Controller Administrator Reference Guide.

If you have one chassis, connect the CMC, and the standby CMC if present,

to the management network. If you have more than one chassis, you can

choose between the basic connection, where each CMC is connected to the

management network, or a daisy-chained chassis connection, where the

chassis are connected in series and only one is connected to the management

Installing and Setting Up the CMC 35

network. The basic connection type uses more ports on the management

network and provides greater redundancy. The daisy-chain connection type

uses fewer ports on the management network but introduces dependencies

between CMCs, reducing the redundancy of the system.

Basic CMC Network Connection

For the highest degree of redundancy, connect each CMC to your

management network. If a chassis has just one CMC, make one connection

on the management network. If the chassis has a redundant CMC in the

secondary CMC slot, make two connections to the management network.

Each CMC has two RJ-45 Ethernet ports, labeled GB1 (the uplink port) and

STK (the stacking port). With basic cabling, you connect the GB1 port to the

management network and leave the STK port unused.

CAUTION: Connecting the STK port to the management network can have

unpredictable results.

Daisy-chain CMC Network Connection

If you have multiple chassis in a rack, you can reduce the number of

connections to the management network by daisy-chaining up to four chassis

together. If each of four chassis contains a redundant CMC, by daisy-chaining

you reduce the number of management network connections required from

eight to two. If each chassis has only one CMC, you reduce the connections

required from four to one.

When daisy-chaining chassis together, GB1 is the uplink port and STK is the

stacking port. A GB1 port must connect to the management network or to the

STK port of the CMC in a chassis that is closer to network. The STK port must

only receive a connection from a GB1 port further from the chain or network.

Create separate chains for the CMCs in the primary CMC slot and the

second CMC slot.

Figure 2-1 illustrates the arrangement of cables for four daisy-chained chassis,

each with CMCs in the primary and secondary slots.

36 Installing and Setting Up the CMC

Figure 2-1. Daisy-chained CMC Network Connection

1 management network 2 secondary CMC

3 primary CMC

Installing and Setting Up the CMC 37

Follow these steps to daisy-chain up to four chassis:

Connect the GB1 port of the primary CMC in the first chassis to the

management network.

Connect the GB1 port of the primary CMC in the second chassis to the

STK port of the primary CMC in the first chassis.

If you have a third chassis, connect the GB1 port of its primary CMC to

the STK port of the primary CMC in the second chassis.

If you have a fourth chassis, connect the GB1 port of its primary CMC to

the STK port of the third chassis.

If you have redundant CMCs in the chassis, connect them using

the same pattern.

CAUTION: The STK port on any CMC must never be connected to the

management network. It can only be connected to the GB1 port on another

chassis. Connecting a STK port to the management network can disrupt the

network and cause a loss of data.

NOTE: Never connect a primary CMC to a secondary CMC.

NOTE: Resetting a CMC whose STK port is chained to another CMC can disrupt the

network for CMCs later in the chain. The child CMCs may log messages indicating

that the network link has been lost and they may fail over to their redundant CMCs.

Configuring the CMC Network

NOTE: Changing your CMC Network settings may disconnect your current

network connection.

You can perform the initial network configuration of the CMC before or after

the CMC has an IP address. If you configure the CMC’s initial network settings

before you have an IP address, you can use either of the following interfaces:

• The LCD panel on the front of the chassis

• Dell CMC serial console

If you configure initial network settings after the CMC has an IP address,

you can use any of the following interfaces:

• Command line interfaces (CLIs) such as a serial console, Telnet, SSH,

or the Dell CMC Console via iKVM

•Remote RACADM

•The CMC Web interface

38 Installing and Setting Up the CMC

Configuring Networking Using the LCD Configuration Wizard

NOTE: The option to configure the CMC using the LCD Configuration Wizard is

available only until the CMC is deployed or the default password is changed.

If the password is not changed, the LCD can continue to be used to reconfigure

the CMC causing a possible security risk.

The LCD is located on the bottom left corner on the front of the chassis.

Figure 2-2 illustrates the LCD panel.

Figure 2-2. LCD Display

1 LCD screen 2 selection ("check") button

3 scroll buttons (4) 4 status indicator LED

Installing and Setting Up the CMC 39

The LCD screen displays menus, icons, pictures, and messages.

A status indicator LED on the LCD panel provides an indication of the

overall health of the chassis and its components.

• Solid blue indicates good health.

• Blinking amber indicates that at least one component has a fault

condition.

• Blinking blue is an ID signal, used to identify one chassis in a

group of chassis.

Navigating in the LCD Screen

The right side of the LCD panel contains five buttons: four arrow buttons

(up, down, left, and right) and a center button.

•

To move between screens

, use the right (next) and left (previous) arrow

buttons. At any time while using the Configuration Wizard, you can

return to a previous screen.

•

To scroll through options on a screen

, use the down and up arrow buttons.

•

To select and save an item on a screen

and move to the next screen, use the

center button.

For more information about using the LCD panel, see the LCD panel section

in the Dell Chassis Management Controller Administrator Reference Guide.

Using the LCD Configuration Wizard

If you have not already done so, press the chassis power button to turn

it on.

The LCD screen displays a series of initialization screens as it powers up.

When it is ready, the

Language Setup

screen displays.

Select your language using the arrow buttons, and then press the center

button to select the

Accept/Yes

and press the center button again.

The

Enclosure

screen displays with the following question:

Configure

Enclosure?

Press the center button to continue to the

CMC Network Settings

screen. See step 4.

To exit the

Configure Enclosure

menu, select the NO icon and press

the center button. See step 9.

40 Installing and Setting Up the CMC

Press the center button to continue to the

CMC Network Settings

screen.

Select your network speed (10Mbps, 100Mbps, Auto (1 Gbps)) using the

down arrow button.

NOTE: The Network Speed setting must match your network configuration for

effective network throughput. Setting the Network Speed lower than the

speed of your network configuration increases bandwidth consumption and

slows network communication. Determine whether your network supports the

above network speeds and set it accordingly. If your network configuration

does not match any of these values, Dell recommends that you use Auto

Negotiation (the Auto option) or refer to your network equipment

manufacturer.

Press the center button to continue to the next

CMC Network

Settings

screen.

Select the duplex mode (half or full) that matches your network

environment.

NOTE: The network speed and duplex mode settings are not available if Auto

Negotiation is set to On or 1000MB (1Gbps) is selected.

NOTE: If auto negotiation is turned on for one device but not the other, then

the device using auto negotiation can determine the network speed of the

other device, but not the duplex mode; in this case, duplex mode defaults to

the half duplex setting during auto negotiation. Such a duplex mismatch will

result in a slow network connection.

Press the center button to continue to the next

CMC Network

Settings

screen.

Select the Internet Protocol (IPv4, IPv6, or both) that you want to use

for the CMC.

Press the center button to continue to the next

CMC Network

Settings

screen.

Installing and Setting Up the CMC 41

Select the mode in which you want the CMC to obtain the

NIC IP addresses:

NOTE: If the Dynamic Host Configuration Protocol (DHCP) mode is selected

for CMC IP configuration, then DNS registration is also enabled by default.

If you selected

DHCP

in the previous step, go to step 10.

To register your DNS server’s IP address, press the center button to

proceed. If you have no DNS, press the right arrow key. The

screen appears; go to step 10.

Dynamic Host

Configuration

Protocol

(DHCP)

The CMC retrieves IP configuration (IP address, mask,

and gateway) automatically from a DHCP server on your

network. The CMC will be assigned a unique IP address

allotted over your network. If you have selected the

DHCP option, press the center button. The Configure

iDRAC? screen appears; go to step 10.

Static You manually enter the IP address, gateway, and subnet mask

in the screens immediately following.

If you have selected the Static option, press the center

button to continue to the next CMC Network Settings

screen, then:

Set the

Static IP Address

by using the right or left arrow

keys to move between positions, and the up and down

arrow keys to select a number for each position.

When you have finished setting the

Static IP Address

press the center button to continue.

Set the subnet mask, and then press the center button.

Set the gateway, and then press the center button.

The

Network Summary

screen displays.

The

Network Summary

screen lists the

Static IP

Address

Subnet Mask

, and

Gateway

settings you

entered. Review the settings for accuracy. To correct a

setting, navigate to the left arrow button then press the

center key to return to the screen for that setting.

After making a correction, press the center button.

When you have confirmed the accuracy of the settings

you entered, press the center button. The

screen appears.

42 Installing and Setting Up the CMC

Set the

DNS IP Address

using the right or left arrow keys to move between

positions, and the up and down arrow keys to select a number for each

position. When you have finished setting the DNS IP address, press the

center button to continue.

Indicate whether you want to configure iDRAC:

–

No:

Skip to step 13.

–

Yes:

Press the center button to proceed.

Select the Internet Protocol (IPv4, IPv6, or both) that you want to use for

the blades.

Select whether to

Enable

Disable

the IPMI LAN channel. Press the

center button to continue.

On the

iDRAC Configuration

screen, to apply all iDRAC network

settings to the installed servers, highlight the

Accept/Yes

icon and

press the center button. To not apply the iDRAC network settings to

Dynamic Host

Configuration

Protocol

(DHCP)

iDRAC retrieves IP configuration (IP address, mask, and

gateway) automatically from a DHCP server on your

network. The iDRAC will be assigned a unique IP address

allotted over your network.Press the center button.

Static You manually enter the IP address, gateway, and subnet mask

in the screens immediately following.

If you have selected the Static option, press the center

button to continue to the next iDRAC Network Settings

screen, then:

Set the

Static IP Address

by using the right or left arrow

keys to move between positions, and the up and down

arrow keys to select a number for each position.

This address is the static IP of the iDRAC located in

the first slot. The static IP address of each subsequent

iDRAC will be calculated as a slot number increment of

this IP address. When you have finished setting the

Static IP Address

, press the center button to continue.

Set the subnet mask, and then press the center button.

Set the gateway, and then press the center button.

Installing and Setting Up the CMC 43

the installed servers, highlight the

icon and press the center button

and continue to step c.

On the next

iDRAC Configuration

screen, to apply all iDRAC

network settings to newly installed servers, highlight the

Accept/Yes

icon and press the center button; when a new server is inserted into

the chassis, the LCD will prompt the user on whether to automatically

deploy the server using the previously configured network

settings/policies. To not apply the iDRAC network settings to newly

installed servers, highlight the

icon and press the center button;

when a new server is inserted into the chassis, the iDRAC network

settings will not be configured.

On the

Enclosure

screen, to apply all enclosure settings highlight the

Accept/Yes

icon and press the center button. To not apply the enclosure

settings, highlight the

icon and press the center button.

On the

IP Summary

screen, review the IP addresses you provided to make

sure the addresses are accurate. To correct a setting, navigate to the left

arrow button and then press the center key to return to the screen for that

setting. After making a correction, press the center button. If necessary,

navigate to the right arrow button and then press the center key to return

to the

IP Summary

screen.

When you have confirmed that the settings you entered are accurate,

press the center button. The Configuration Wizard closes and returns

you to the

Main Menu

screen.

NOTE: If you selected Yes/Accept, a Wait screen is displayed before the

IP Summary screen is displayed.

The CMC and iDRACs are now available on the network. You can access

the CMC on the assigned IP address using the Web interface or CLIs such

as a serial console, Telnet, and SSH.

NOTE: After you have completed network setup through the LCD Configuration

Wizard, the Wizard is no longer available.

44 Installing and Setting Up the CMC

Accessing the CMC Through a Network

After you have configured the CMC network settings, you can remotely

access the CMC using any of the following interfaces:

•Web interface

•Telnet console

•SSH

• Remote RACADM

Telnet is enabled via one of the other interfaces; telnet is not as secure as the

other interfaces so it is disabled by default.

Table 2-1 describes each CMC network interface.

NOTE: The CMC default user name is root and the default password is calvin.

Table 2-1. CMC Interfaces

Interface Description

Web interface Provides remote access to the CMC using a graphical user

interface. The Web interface is built into the CMC firmware and

is accessed through the NIC interface from a supported Web

browser on the management station.

For a list of supported Web browsers, see the Supported Browsers

section in the Dell System Software Support Matrix on the

Dell Support website at support.dell.com/manuals.

Remote RACADM

command line

interface

Provides remote access to the CMC from a management station

using a command line interface (CLI). Remote RACADM uses

the racadm -r option with the CMC’s IP address to execute

commands on the CMC.

Telnet Provides command line access to the CMC through the network.

The RACADM command line interface and the connect

command, which is used to connect to the serial console of a

server or IO module, are available from the CMC command line.

NOTE: Telnet is an unsecure protocol that transmits all data—

including passwords—in plain text. When transmitting sensitive

information, use the SSH interface.

SSH Provides the same capabilities as Telnet using an encrypted

transport layer for greater security.

Installing and Setting Up the CMC 45

You can access the CMC and iDRAC Web interfaces through the CMC NIC

using a supported Web browser; you can also launch them from the Dell

Server Administrator or Dell OpenManage IT Assistant.

For a list of supported Web browsers, see the Supported Browsers section in

the Dell Systems Software Support Matrix on the Dell Support website at

support.dell.com/manuals. To access the CMC using a supported Web

browser, see "Accessing the CMC Web Interface." For information on Dell

OpenManage IT Assistant, see "Installing Remote Access Software on a

Management Station."

To access the CMC interface using Dell Server Administrator, launch Server

Administrator on your management station. From the system tree on the left

pane of the Server Administrator home page, click System→ Main System

Chassis→ Remote Access Controller. For more information, see your Dell

Server Administrator User’s Guide.

To access the CMC command line using Telnet or SSH, see "Configuring

CMC to Use Command Line Consoles."

For information about using RACADM, see "Using the RACADM Command

Line Interface."

For information about using the connect, or racadm connect, command

to connect to servers and IO modules, see "Connecting to Servers or I/O

Modules With the Connect Command."

Installing or Updating the CMC Firmware

Downloading the CMC Firmware

Before beginning the firmware update, download the latest firmware version

from the Dell Support website at support.dell.com, and save it to your local

system.

The following software components are included with your CMC firmware

package:

• Compiled CMC firmware code and data

• Web interface, JPEG, and other user interface data files

• Default configuration files

46 Installing and Setting Up the CMC

NOTE: During updates of CMC firmware, some or all of the fan units in the chassis

will spin at 100%. This is normal.

NOTE: The firmware update, by default, retains the current CMC settings. During

the update process, you have the option to reset the CMC configuration settings

back to the factory default settings.

NOTE: If you have redundant CMCs installed in the chassis, it is important to

update both to the same firmware version. If the CMCs have different firmware and

a failover occurs, unexpected results may occur.

You can use the RACADM getsysinfo command (see the getsysinfo

command section in the Dell Chassis Management Controller Administrator

Reference Guide) or the Chassis Summary page (see "Viewing the Current

Firmware Versions") to view the current firmware versions for the CMCs

installed in your chassis.

If you have a standby CMC, it is recommended that you update both CMCs

at the same time with a single operation. When the standby CMC has been

updated, swap the CMCs’ roles so that the newly updated CMC becomes the

primary CMC and the CMC with the older firmware becomes the standby.

(See the cmcchangeover command section in the Dell Chassis Management

Controller Firmware Administrator Reference Guide for help swapping roles.)

This allows you to verify that the update succeeded and that the new

firmware is working properly before you update the firmware in the second

CMC. When both CMCs are updated, you can use the cmcchangeover

command to restore the CMCs to their previous roles.

Updating CMC Firmware Using the Web Interface

For instructions on using the Web interface to update CMC firmware, see

"Updating the CMC Firmware."

Updating the CMC Firmware Using RACADM

For instructions on using the RACADM fwupdate subcommand to update

CMC firmware, see the fwupdate command section in the Dell Chassis

Management Controller Administrator Reference Guide.

Installing and Setting Up the CMC 47

Configuring CMC Properties

You can configure CMC properties such as power budgeting, network

settings, users, and SNMP and e-mail alerts using the Web interface

or RACADM.

For more information about using the Web interface, see "Accessing the

CMC Web Interface." For more information about using RACADM,

see "Using the RACADM Command Line Interface."

CAUTION: Using more than one CMC configuration tool at the same time may

generate unexpected results.

Configuring Power Budgeting

The CMC offers a power budgeting service that allows you to configure

power budget, redundancy, and dynamic power for the chassis.

The power management service enables optimization of power consumption

and re-allocation of power to different modules based on demand.

For more information about CMC power management, see "Power

Management."

For instructions on configuring power budgeting and other power settings

using the Web interface, see "Configuring Power Budgeting."

Configuring CMC Network Settings

NOTE: Changing your CMC network settings may disconnect your current

network connection.

You can configure the CMC network settings using one of the following tools:

• RACADM — see "

Configuring Multiple CMCs in Multiple Chassis"

NOTE: If you are deploying the CMC in a Linux environment, see "Installing

RACADM on a Linux Management Station."

• Web interface — see "

Configuring CMC Network Properties"

Adding and Configuring Users

You can add and configure CMC users using either RACADM or the

CMC Web interface. You can also utilize Microsoft® Active Directory®

to manage users.

48 Installing and Setting Up the CMC

For instructions on adding and configuring public key users for the

CMC using RACADM, see "Using RACADM to Configure Public Key

Authentication over SSH." For instructions on adding and configuring

users using the Web interface, see "Adding and Configuring CMC Users."

For instructions on using Active Directory with your CMC, see "Using the

CMC With Microsoft Active Directory."

Adding SNMP and E-mail Alerts

You can configure the CMC to generate SNMP and/or e-mail alerts

when certain chassis events occur. For more information, see "Configuring

SNMP Alerts" and "Configuring E-mail Alerts."

Configuring Remote Syslog

The remote syslog feature is activated/configured through either the

CMC GUI or through the racadm command. Configuration options

include the syslog server name (or IP address) and the UDP port that

CMC uses when forwarding the log entries. You can specify up to 3 distinct

syslog server destinations in the configuration. Remote syslog is an additional

log target for the CMC. After you configure the remote syslog, each new log

entry generated by CMC is forwarded to the destination(s).

NOTE: Since the network transport for the forwarded log entries is UDP, there is no

guaranteed delivery of log entries, nor is there any feedback to the CMC on whether

the log entries were received successfully.

To configure CMC services:

Click the

Network/Security

tab.

Click the

Services

sub-tab. The

Services

page appears.

For more information on configuring the remote syslog, see Table 5-27.

Installing and Setting Up the CMC 49

Understanding the Redundant CMC Environment

You can install a standby CMC that takes over if your primary CMC fails.

Failovers can occur when you:

•Run the RACADM

cmcchangeover

command. (See the

cmcchangeover

command section in the

Dell Chassis Management Controller

Administrator Reference Guide

•Run the RACADM

racreset

command on the active CMC. (See the

racreset

command section in the

Dell Chassis Management Controller

Administrator Reference Guide

• Reset the active CMC from Web interface. (See the

Reset CMC

option

for

Power Control Operations

that is described in "Executing Power

Control Operations on the Chassis.")

• Remove the network cable from the active CMC

• Remove the active CMC from the chassis

• Initiate a CMC firmware flash on the active CMC

• Primary CMC is no longer functional

NOTE: In the event of a CMC failover, all iDRAC connections and all

active CMC sessions will be lost. Users with lost sessions must reconnect to

the new primary CMC.

About the Standby CMC

The standby CMC is identical to and is maintained as a mirror of the active

CMC. The active and standby CMCs must both be installed with the same

firmware revision. If the firmware revisions differ, the system will report as

redundancy degraded.

The standby CMC assumes the same settings and properties of the

primary CMC. You must maintain the same firmware version on both CMCs,

but you do not need to duplicate configuration settings on the standby CMC.

NOTE: For information about installing a standby CMC, see the Hardware Owner’s

Manual. For instructions on installing the CMC firmware on your standby CMC,

follow the instructions in "Installing or Updating the CMC Firmware."

50 Installing and Setting Up the CMC

Primary CMC Election Process

There is no difference between the two CMC slots; that is, slot does

not dictate precedence. Instead, the CMC that is installed or booted first

assumes the role of the active CMC. If AC power is applied with two CMCs

installed, the CMC installed in CMC chassis slot 1 (the left) normally

assumes the active role. The active CMC is indicated by the blue LED.

If two CMCs are inserted into a chassis that is already powered on,

automatic active/standby negotiation can take up to two minutes.

Normal chassis operation resumes when the negotiation is complete.

Obtaining Health Status of Redundant CMC

You can view the health status of the standby CMC in the Web interface. For

more information about accessing CMC health status in the Web interface,

see "Viewing Chassis Graphics and Component Health Status."

Configuring CMC to Use Command Line Consoles 51

Configuring CMC to Use Command

Line Consoles

This section provides information about the CMC command line console

(or serial/Telnet/Secure Shell console) features, and explains how to set up

your system so you can perform systems management actions through the

console. For information on using the RACADM commands in CMC

through the command line console, see "Using the RACADM Command

Line Interface."

Command Line Console Features on the CMC

The CMC supports the following serial, Telnet and SSH console features:

• One serial client connection and up to four simultaneous Telnet client

connections

• Up to four simultaneous Secure Shell (SSH) client connections

• RACADM command support

•Built-in

connect

command connecting to the serial console of servers and

I/O modules; also available as

racadm connect

• Command Line editing and history

• Session timeout control on all console interfaces

52 Configuring CMC to Use Command Line Consoles

Using a Serial, Telnet, or SSH Console

When you connect to the CMC command line, you can enter these commands:

Using a Telnet Console With the CMC

Up to four Telnet client systems and four SSH clients may connect at any

given time.

If your management station is running Windows XP or Windows 2003, you

may experience an issue with the characters in a CMC Telnet session. This

issue may occur as a frozen login where the return key does not respond and

the password prompt does not appear.

To fix this issue, download hotfix 824810 from the Microsoft Support website

at support.microsoft.com. See Microsoft Knowledge Base article 824810 for

more information.

Using SSH With the CMC

SSH is a command line session that includes the same capabilities as a Telnet

session, but with session negotiation and encryption to improve security.

The CMC supports SSH version 2 with password authentication. SSH is

enabled on the CMC by default.

NOTE: The CMC does not support SSH version 1.

Table 3-1. CMC Command Line Commands

Command Description

racadm RACADM commands begin with the keyword racadm and are

followed by a subcommand, such as getconfig, serveraction, or

getsensorinfo. See "Using the RACADM Command Line Interface"

for details on using RACADM.

connect Connects to the serial console of a server or I/O module.

See "Connecting to Servers or I/O Modules With the Connect

Command" for help using the connect command.

NOTE: The racadm connect command can also be used.

exit, logout,

and quit

These commands all perform the same action: they end the current

session and return to a login prompt.

Configuring CMC to Use Command Line Consoles 53

When an error occurs during the login procedure, the SSH client issues an

error message. The message text is dependent on the client and is not

controlled by the CMC. Review the RACLog messages to determine the

cause of the failure.

NOTE: OpenSSH should be run from a VT100 or ANSI terminal emulator on

Windows. Running OpenSSH at the Windows command prompt does not provide

full functionality (that is, some keys do not respond and no graphics are displayed).

For Linux, run SSH Client Services to connect to CMC with any shell.

Four simultaneous SSH sessions are supported at any given time. The session

timeout is controlled by the cfgSsnMgtSshIdleTimeout property

(see the database property chapter of the Dell Chassis Management

Controller Administrator Reference Guide) or from the Services Management

page in the Web interface (see "Configuring Services.")

CMC also supports the Public Key Authentication (PKA) over SSH.

This authentication method improves SSH scripting automation by removing

the need to embed or prompt for user ID/password. For more information,

see "Using RACADM to Configure Public Key Authentication over SSH."

Enabling SSH on the CMC

SSH is enabled by default. If SSH is disabled, then you can enable it using

any other supported interface.

For instructions on enabling SSH connections on the CMC using RACADM,

see the config command section and the cfgSerial database property section

in the Dell Chassis Management Controller Administrator Reference Guide.

For instructions on enabling SSH connections on the CMC using the Web

interface, see "Configuring Services."

Changing the SSH Port

To change the SSH port, use the following command:

racadm config -g cfgRacTuning -o cfgRacTuneSshPort

For more information about cfgSerialSshEnable and

cfgRacTuneSshPort properties, see the database property chapter of the

Dell Chassis Management Controller Administrator Reference Guide.

54 Configuring CMC to Use Command Line Consoles

The CMC SSH implementation supports multiple cryptography schemes,

as shown in Table 3-2.

Enabling the Front Panel to iKVM Connection

For information and instructions on using the iKVM front panel ports, see

"Enabling or Disabling the Front Panel."

Configuring Terminal Emulation Software

Your CMC supports a serial text console from a management station running

one of the following types of terminal emulation software:

• Linux Minicom

• Hilgraeve’s HyperTerminal Private Edition (version 6.3)

Perform the steps in the following subsections to configure your type of

terminal software.

Table 3-2. Cryptography Schemes

Scheme Type Scheme

Asymmetric Cryptography Diffie-Hellman DSA/DSS 512–1024 (random) bits per

NIST specification

Symmetric Cryptography

• AES256-CBC

• RIJNDAEL256-CBC

• AES192-CBC

• RIJNDAEL192-CBC

• AES128-CBC

• RIJNDAEL128-CBC

• BLOWFISH-128-CBC

• 3DES-192-CBC

• ARCFOUR-128

Message Integrity

• HMAC-SHA1-160

•HMAC-SHA1-96

• HMAC-MD5-128

• HMAC-MD5-96

Authentication Password

Configuring CMC to Use Command Line Consoles 55

Configuring Linux Minicom

Minicom is a serial port access utility for Linux. The following steps are

valid for configuring Minicom version 2.0. Other Minicom versions may differ

slightly but require the same basic settings. Use the information in "Required

Minicom Settings" to configure other versions of Minicom.

Configuring Minicom Version 2.0

NOTE: For best results, set the cfgSerialConsoleColumns property to match

the number of columns. Be aware that the prompt consumes two characters.

For example, for an 80-column terminal window, type:

racadm config –g cfgSerial –o

cfgSerialConsoleColumns 80.

If you do not have a Minicom configuration file, go to the next step.

If you have a Minicom configuration file, type

minicom

<Minicom

config file name>

and skip to step 14.

At the Linux command prompt, type

minicom -s

Select

Serial Port Setup

and press <Enter>.

Press <a>, and then select the appropriate serial device (for example,

/dev/ttyS0

Press <e>, and then set the

Bps/Par/Bits

option to

115200 8N1

Press <f>, and then set

Hardware Flow Control

Yes

and set

Software

Flow Control

To exit the

Serial Port Setup

menu, press <Enter>.

Select

Modem and Dialing

and press <Enter>.

In the

Modem Dialing and Parameter Setup

menu, press <Backspace>

to clear the

init

reset

connect

, and

hangup

settings so that they are blank.

Press <Enter> to save each blank value.

When all specified fields are clear, press <Enter> to exit the

Modem

Dialing and Parameter Setup

menu.

56 Configuring CMC to Use Command Line Consoles

Select

Save setup as config_name

and press <Enter>.

Select

Exit From Minicom

and press <Enter>.

At the command shell prompt, type

minicom <Minicom config

file name>

Press <Ctrl+a>, <x>, <Enter> to exit Minicom.

Ensure that the Minicom window displays a login prompt. When the login

prompt appears, your connection is successful. You are now ready to login and

access the CMC command line interface.

Required Minicom Settings

Use Table 3-3 to configure any version of Minicom.

Connecting to Servers or I/O Modules With the

Connect Command

The CMC can establish a connection to redirect the serial console of server or

I/O modules. For servers, serial console redirection can be accomplished in

several ways:

• using the CMC command line and the

connect

, or

racadm connect

command. For more information about

connect

, see the

racadm connect

command in the

Dell Chassis Management Controller Administrator

Reference Guide

• using the iDRAC Web interface serial console redirection feature.

• using the iDRAC Serial Over LAN (SOL) functionality.

Table 3-3. Minicom Settings

Setting Description Required Setting

Bps/Par/Bits 115200 8N1

Hardware flow control Yes

Software flow control No

Terminal emulation ANSI

Modem dialing and

parameter settings

Clear the init, reset, connect, and hangup settings so

that they are blank

Configuring CMC to Use Command Line Consoles 57

While in a serial/Telnet/SSH console, the CMC supports the connect

command to establish a serial connection to server or IOM modules.

The server serial console contains both the BIOS boot and setup screens,

as well as the operating system serial console. For I/O modules, the switch

serial console is available.

CAUTION: When executed from the CMC serial console, the connect -b option

stays connected until the CMC resets. This connection is a potential security risk.

NOTE: The connect command provides the –b (binary) option. The –b option

passes raw binary data, and cfgSerialConsoleQuitKey is not used. Additionally,

when connecting to a server using the CMC serial console, transitions in the

DTR signal (for example, if the serial cable is removed to connect a debugger)

do not cause a logout.

NOTE: If an IOM does not support console redirection, the connect command

will display an empty console. In that case, to return to the CMC console,

type the Escape sequence. The default console escape sequence is <Ctrl>\.

There are up to six IOMs on the managed system. To connect to an IOM, type:

connect switch-

where n is an IOM label a1, a2, b1, b2, c1, and c2.

IOMs are labeled A1, A2, B1, B2, C1, and C2. (See Figure 10-1 for an

illustration of the placement of IOMs in the chassis.) When you reference the

IOMs in the connect command, the IOMs are mapped to switches as shown

in Table 3-4.

NOTE: There can only be one IOM connection per chassis at a time.

NOTE: You cannot connect to pass-throughs from the serial console.

Table 3-4. Mapping I/O Modules to Switches

I/O Module Label Switch

A1 switch-a1

A2 switch-a2

B1 switch-b1

B2 switch-b2

C1 switch-c1

C2 switch-c2

58 Configuring CMC to Use Command Line Consoles

To connect to a managed server serial console, use the command connect

server-n, where -n is the slot number of the server; you can also use the racadm

connect server-n command. When you connect to a server using the -b option,

binary communication is assumed and the escape character is disabled. If the

iDRAC is not available, you will see a No route to host error message.

The connect server-n command enables the user to access the server's serial

port. After this connection is established, the user will be able to see the

server's console redirection through CMC's serial port that includes both the

BIOS serial console and the operating system serial console.

NOTE: To see the BIOS boot screens, serial redirection has to be enabled in the

servers’ BIOS Setup. Also, you must set the terminal emulator window to 80x25.

Otherwise, the screen will be garbled.

NOTE: Not all keys will work in the BIOS setup screens, so you should provide

appropriate escape sequences for CTRL+ALT+DEL, and other escape sequences.

The initial redirection screen displays the necessary escape sequences.

Configuring the Managed Server BIOS for Serial Console Redirection

It is necessary to connect to the managed server using the iKVM

(see “Managing Servers With iKVM”), or establish a VKVM session from

the iDRAC web GUI (see the iDRAC User’s Guide on

support.dell.com/manuals), and perform the following steps:

Serial communication in the BIOS is OFF by default. To redirect host

text console data to Serial over LAN, you must enable console redirection

through COM1. To change the BIOS setting:

Boot the managed server.

Press <F2> to enter the BIOS setup utility during POST.

Scroll down to Serial Communication and press <Enter>. In the pop-up

dialog box, the serial communication list displays these options:

• off

• on without console redirection

• on with console redirection via COM1

Use the arrow keys to navigate between these options.

Ensure that

On with console redirection via COM1

is enabled.

Configuring CMC to Use Command Line Consoles 59

Enable

Redirection After Boot

(default value is

disabled

). This option

enables BIOS console redirection across subsequent reboots.

Save the changes and exit.

The managed server reboots.

Configuring Windows for serial console redirection

There is no configuration necessary for servers running the Microsoft®

Windows Server® versions, starting with Windows Server 2003. Windows will

receive information from the BIOS, and enable the Special Administration

Console (SAC) console one COM1.

Configuring Linux for Server Serial Console Redirection During Boot

The following steps are specific to the Linux GRand Unified Bootloader

(GRUB). Similar changes are necessary for using a different boot loader.

NOTE: When you configure the client VT100 emulation window, set the window or

application that is displaying the redirected console to 25 rows x 80 columns to

ensure proper text display; otherwise, some text screens may be garbled.

Edit the /etc/grub.conf file as follows:

Locate the general setting sections in the file and add the following two

new lines:

serial --unit=1 --speed=57600

terminal --timeout=10 serial

Append two options to the kernel line:

kernel............. console=ttyS1,57600

/etc/grub.conf

contains a

splashimage

directive, comment it out.

The following example shows the changes described in this procedure.

# grub.conf generated by anaconda

# Note that you do not have to rerun grub after making

changes

# to this file

# NOTICE: You do not have a /boot partition. This

means that

# all kernel and initrd paths are relative to

60 Configuring CMC to Use Command Line Consoles

/, e.g.

# root (hd0,0)

# kernel /boot/vmlinuz-version ro root=

/dev/sdal

# initrd /boot/initrd-version.img

#boot=/dev/sda

default=0

timeout=10

#splashimage=(hd0,2)/grub/splash.xpm.gz

serial --unit=1 --speed=57600

terminal --timeout=10 serial

title Red Hat Linux Advanced Server (2.4.9-e.3smp)

root (hd0,0)

kernel /boot/vmlinuz-2.4.9-e.3smp ro root=

/dev/sda1 hda=ide-scsi console=ttyS0 console=

ttyS1,57600

initrd /boot/initrd-2.4.9-e.3smp.img

title Red Hat Linux Advanced Server-up (2.4.9-e.3)

root (hd0,00)

kernel /boot/vmlinuz-2.4.9-e.3 ro root=/dev/sda1 s

initrd /boot/initrd-2.4.9-e.3.im

When you edit the /etc/grub.conf file, use the following guidelines:

• Disable GRUB's graphical interface and use the text-based interface;

otherwise, the GRUB screen will not be displayed in console redirection.

To disable the graphical interface, comment out the line starting with

splashimage

• To start multiple GRUB options to start console sessions through the serial

connection, add the following line to all options:

console=ttyS1,57600

The example

shows

console=ttyS1,57600

added to only

the first option.

Configuring CMC to Use Command Line Consoles 61

Configuring Linux for Server Serial Console Redirection After Boot

Edit the file /etc/inittab, as follows:

• Add a new line to configure

agetty

on the COM2 serial port:

co:2345:respawn:/sbin/agetty -h -L 57600 ttyS1

ansi

The following example shows the file with the new line.

# inittab This file describes how the INIT process

# should set up the system in a certain

# run-level.

# Author: Miquel van Smoorenburg

# Modified for RHS Linux by Marc Ewing and

# Donnie Barnes

# Default runlevel. The runlevels used by RHS are:

# 0 - halt (Do NOT set initdefault to this)

# 1 - Single user mode

# 2 - Multiuser, without NFS (The same as 3, if you

# do not have networking)

# 3 - Full multiuser mode

# 4 - unused

# 5 - X11

# 6 - reboot (Do NOT set initdefault to this)

id:3:initdefault:

# System initialization.

si::sysinit:/etc/rc.d/rc.sysinit

l0:0:wait:/etc/rc.d/rc 0

l1:1:wait:/etc/rc.d/rc 1

l2:2:wait:/etc/rc.d/rc 2

l3:3:wait:/etc/rc.d/rc 3

62 Configuring CMC to Use Command Line Consoles

l4:4:wait:/etc/rc.d/rc 4

l5:5:wait:/etc/rc.d/rc 5

l6:6:wait:/etc/rc.d/rc 6

# Things to run in every runlevel.

ud::once:/sbin/update

# Trap CTRL-ALT-DELETE

ca::ctrlaltdel:/sbin/shutdown -t3 -r now

# When our UPS tells us power has failed, assume we

have a few

# minutes of power left. Schedule a shutdown for 2

minutes from now.

# This does, of course, assume you have power

installed and your

# UPS is connected and working correctly.

pf::powerfail:/sbin/shutdown -f -h +2 "Power Failure;

System Shutting Down"

# If power was restored before the shutdown kicked in,

cancel it.

pr:12345:powerokwait:/sbin/shutdown -c "Power

Restored; Shutdown Cancelled"

# Run gettys in standard runlevels

co:2345:respawn:/sbin/agetty -h -L 57600 ttyS1 ansi

1:2345:respawn:/sbin/mingetty tty1

2:2345:respawn:/sbin/mingetty tty2

3:2345:respawn:/sbin/mingetty tty3

4:2345:respawn:/sbin/mingetty tty4

5:2345:respawn:/sbin/mingetty tty5

6:2345:respawn:/sbin/mingetty tty6

# Run xdm in runlevel 5

# xdm is now a separate service

x:5:respawn:/etc/X11/prefdm -nodaemon

Configuring CMC to Use Command Line Consoles 63

Edit the file /etc/securetty, as follows:

• Add a new line, with the name of the serial tty for COM2:

ttyS1

The following example shows a sample file with the new line.

vc/1

vc/2

vc/3

vc/4

vc/5

vc/6

vc/7

vc/8

vc/9

vc/10

vc/11

tty1

tty2

tty3

tty4

tty5

tty6

tty7

tty8

tty9

tty10

tty11

ttyS1

64 Configuring CMC to Use Command Line Consoles

Using the RACADM Command Line Interface 65

Using the RACADM Command

Line Interface

RACADM provides a set of commands that allow you to configure and

manage the CMC through a text-based interface. RACADM can be accessed

using a Telnet/SSH or serial connection, using the Dell CMC console on the

iKVM, or remotely using the RACADM command line interface installed on

a management station.

The RACADM interface is classified as "local" or "remote," depending on the

location of the racadm executable program you are using:

NOTE: Remote RACADM is included on the Dell Systems Management Tools and

Documentation DVD and is installed on a management station.

• Remote RACADM — you execute RACADM commands on a

management station with the

-r

option and the DNS name or IP address of

the CMC.

• Local RACADM — you log into the CMC using Telnet, SSH, a serial

connection, or the iKVM. With local RACADM, you are executing the

RACADM implementation that is part of the CMC firmware.

You can use remote RACADM commands in scripts to configure multiple

CMCs. The CMC does not have support for scripting, so you cannot execute

scripts directly on the CMC. For more information about configuring

multiple CMCs, see "Configuring Multiple CMCs in Multiple Chassis."

Using a Serial, Telnet, or SSH Console

You can log in to the CMC either through a serial or Telnet/SSH connection,

or through Dell CMC console on iKVM. To configure the CMC for serial or

remote access, see "Configuring CMC to Use Command Line Consoles."

Commonly used subcommand options are listed in Table 4-2. A complete list

of RACADM subcommands is listed in the RACADM Subcommands chapter

of the Dell Chassis Management Controller Administrator Reference Guide.

66 Using the RACADM Command Line Interface

Logging in to the CMC

After you have configured your management station terminal emulator

software and managed node BIOS, perform the following steps to log

into the CMC:

Connect to the CMC using your management station terminal

emulation software.

Type your CMC user name and password, and then press <Enter>.

You are logged into the CMC.

Starting a Text Console

You can log in to the CMC using Telnet or SSH through a network,

serial port, or a Dell CMC console through the iKVM. Open a Telnet or

SSH session, connect and log on to the CMC.

For information about connecting to the CMC through iKVM, see "Using the

iKVM Module."

Using RACADM

RACADM subcommands can be run remotely from the serial, Telnet,

or SSH console command prompt or through a normal command prompt.

Use RACADM subcommands to configure CMC properties and perform

remote management tasks. To display a list of RACADM subcommands, type:

racadm help

When run without options or subcommands, RACADM displays syntax

information and instructions on how to access subcommands and help.

To list syntax and command-line options for individual subcommands, type:

racadm help

Using the RACADM Command Line Interface 67

RACADM Subcommands

Table 4-1 provides a brief list of common subcommands used in RACADM.

For a complete list of RACADM subcommands, including syntax and valid

entries, see the RACADM Subcommands chapter of the Dell Chassis

Management Controller Administrator Reference Guide.

NOTE: The connect command is available as both—RACADM command and

built-in CMC command. The exit, quit, and logout commands are built-in

CMC commands, not RACADM commands. None of these commands can be used

with remote RACADM. See "Connecting to Servers or I/O Modules With the Connect

Command" for information about using these commands.

When entering a RACADM subcommand, prefix the command with

racadm. For example:

racadm help

Table 4-1. RACADM Subcommands

Command Description

help Lists CMC subcommand descriptions.

help <subcommand> Lists usage summary for the specified subcommand.

? Lists CMC subcommand descriptions.

? <subcommand> Lists usage summary for the specified subcommand.

arp Displays the contents of the ARP table. ARP table entries

may not be added or deleted.

chassisaction Executes power-up, power-down, reset, and power-cycle on

the chassis, switch, and KVM.

clrraclog Clears the CMC log and creates a single entry indicating

the user and time that the log was cleared.

clrsel Clears the System Event Log entries.

cmcchangeover Changes the state of the CMC from active to standby, or

vice versa, in redundant CMC environments.

config Configures the CMC.

connect Connects to the serial console of a server or I/O module.

See "Connecting to Servers or I/O Modules With the

Connect Command" for help using the connect

subcommand.

68 Using the RACADM Command Line Interface

deploy Deploys a server by specifying required properties.

feature Displays active features and feature deactivation.

featurecard Displays feature card status information.

fwupdate Performs system component firmware updates, and

displays firmware update status.

getassettag Displays the asset tag for the chassis.

getchassisname Displays the name of the chassis.

getconfig Displays the current CMC configuration properties.

getdcinfo Displays general I/O module and daughter card

misconfiguration information.

getflexaddr Displays the FlexAddress enabled/disabled status on a per

slot/fabric basis. If used with the -i option, the command

displays the WWN and MAC address for a particular slot.

getioinfo Displays general I/O module information.

getkvminfo Displays information about the iKVM.

getled Displays the LED settings on a module.

getmacaddress Displays a server’s MAC address.

getmodinfo Displays module configuration and status information.

getniccfg Displays the current IP configuration for the controller.

getpbinfo Displays power budget status information.

getpminfo Displays power management status information.

getraclog Displays the CMC log.

getractime Displays the CMC time.

getredundancymode Displays the redundancy mode of the CMC.

getsel Displays the system event log (hardware log).

getsensorinfo Displays information about system sensors.

getslotname Displays the name of a slot in the chassis.

getssninfo Displays information about active sessions.

Table 4-1. RACADM Subcommands

(continued)

Command Description

Using the RACADM Command Line Interface 69

getsvctag Displays service tags.

getsysinfo Displays general CMC and system information.

gettracelog Displays the CMCtrace log. If used with the -i option,

the command displays the number of entries in the CMC

trace log.

getversion Displays the current software version, model information,

and whether or not the device can be updated.

ifconfig Displays the current CMC IP configuration.

netstat Displays the routing table and the current connections.

ping Verifies that the destination IPv4 address is reachable from

the CMC with the current routing-table contents.

ping6 Verifies that the destination IPv6 address is reachable from

the CMC with the current routing-table contents.

racdump Displays the comprehensive chassis status and

configuration state information, as well as historic event

logs. Used for post deployment configuration verification

and during debugging sessions.

racreset Resets the CMC.

racresetcfg Resets the CMC to the default configuration.

remoteimage Connects, disconnects, or deploys a media file on a remote

server

serveraction Performs power management operations on the managed

system.

setassettag Sets the asset tag for the chassis.

setchassisname Sets the name of the chassis.

setflexaddr Enables/disables FlexAddress on a particular slot/fabric,

when the FlexAddress feature is activated on the chassis

setled Sets the LED settings on a module.

setniccfg Sets the IP configuration for the controller.

setractime Sets the CMC time.

Table 4-1. RACADM Subcommands

(continued)

Command Description

70 Using the RACADM Command Line Interface

setslotname Sets the name of a slot in the chassis.

setsysinfo Sets the name and location of the chassis.

sshpkauth Enables you to upload up to 6 different SSH public keys,

delete existing keys, and view keys already in the CMC.

sslcertdownload Downloads a certificate authority-signed certificate.

sslcertupload Uploads a certificate authority-signed certificate or server

certificate to the CMC.

sslcertview Views a certificate authority-signed certificate or server

certificate in the CMC.

sslcsrgen Generates and downloads the SSL CSR.

sslresetcfg Regenerates the self-signed certificate used by the CMC

Web GUI.

testemail Forces the CMC to send an e-mail over the CMC NIC.

testfeature Allow you to verify a specific feature's configuration

parameters. For example, it supports testing the Active

Directory configuration using simple authentication (user

name and password) or Active Directory configuration

using Kerberos authentication (Single Sign-on or Smart

Card Login).

testtrap Forces the CMC to send an SNMP over the CMC NIC.

traceroute Prints the route the IPv4 packets take to a network node.

traceroute6 Prints the route the IPv6 packets take to a network node.

Table 4-1. RACADM Subcommands

(continued)

Command Description

Using the RACADM Command Line Interface 71

Accessing RACADM Remotely

Table 4-2 lists the options for the remote RACADM subcommands.

To access RACADM remotely, type the following commands:

racadm -r

-u

-p

racadm -i -r

<CMC IP address> <subcommand> <subcommand

options>

NOTE: The -i option instructs RACADM to interactively prompt for user name and

password. Without the -i option, you must provide the user name and password in

the command using the -u and -p options.

For example:

racadm -r 192.168.0.120 -u root -p calvin getsysinfo

racadm -i -r 192.168.0.120 getsysinfo

Table 4-2. Remote RACADM Subcommand Options

Option Description

-r <

racIpAddr

-r <

racIpAddr

>:<

port

Specifies the controller’s remote

IP address.

Use <port number> if the CMC port

number is not the default port (443)

-i Instructs RACADM to interactively query

the user for user name and password.

-u <

usrName

>Specifies the user name that is used to

authenticate the command transaction.

If the -u option is used, the -p option

must be used, and the -i option

(interactive) is not allowed.

-p <

password

>Specifies the password used to

authenticate the command transaction.

If the -p option is used, the -i option is

not allowed.

72 Using the RACADM Command Line Interface

If the HTTPS port number of the CMC has been changed to a custom port

other than the default port (443), the following syntax must be used:

racadm -r

<CMC IP address>:<port> -u <username> -p

racadm -i -r

Enabling and Disabling the RACADM Remote Capability

NOTE: Dell recommends that you run these commands at the chassis.

The RACADM remote capability on the CMC is enabled by default. In the

following commands, -g specifies the configuration group the object belongs

to, and -o specifies the configuration object to configure.

To disable the RACADM remote capability, type:

racadm config -g cfgRacTuning -o

cfgRacTuneRemoteRacadmEnable 0

To re-enable RACADM remote capability, type:

racadm config -g cfgRacTuning -o

cfgRacTuneRemoteRacadmEnable 1

Using RACADM Remotely

NOTE: Configure the IP address on your CMC before using the RACADM remote

capability. For more information about setting up your CMC, see "Installing and

Setting Up the CMC."

The RACADM console’s remote option (-r) allows you to connect to

the managed system and execute RACADM subcommands from a

remote console or management station. To use the remote capability, you

need a valid user name (-u option) and password (-p option), and the

CMC IP address.

Before you try to access RACADM remotely, confirm that you have

permissions to do so. To display your user privileges, type:

racadm getconfig -g cfguseradmin -i

where n is your user ID (1–16).

If you do not know your user ID, try different values for n.

Using the RACADM Command Line Interface 73

NOTE: The RACADM remote capability is supported only on management stations

through a supported browser. For more information, see the Supported Browsers

section in the Dell Systems Software Support Matrix on the Dell Support website at

support.dell.com/manuals.

NOTE: When using the RACADM remote capability, you must have write

permissions on the folders where you are using the RACADM subcommands

involving file operations. For example:

racadm getconfig -f <

file name

> -r <IP address>

racadm sslcertupload -t 1 -f c:\cert\cert.txt

When using remote RACADM to capture the configuration groups into a file,

if a key property within a group is not set, the configuration group will not be

saved as part of the configuration file. If these configuration groups are

needed to be cloned onto other CMCs, the key property must be set before

executing the getconfig -f command. Alternatively, you can manually

enter the missing properties into the configuration file after running the

getconfig -f command. This is true for all the racadm indexed groups.

This is the list of the indexed groups that exhibit this behavior and their

corresponding key properties:

cfgUserAdmin - cfgUserAdminUserName

cfgEmailAlert - cfgEmailAlertAddress

cfgTraps - cfgTrapsAlertDestIPAddr

cfgStandardSchema - cfgSSADRoleGroupName

cfgServerInfo - cfgServerBmcMacAddress

RACADM Error Messages

For information about RACADM CLI error messages, see "Troubleshooting."

74 Using the RACADM Command Line Interface

Using RACADM to Configure the CMC

NOTE: In order to configure CMC the first time. You must be logged in as user root

to execute RACADM commands on a remote system. Another user can be created

that will give him or her the permission to configure the CMC.

The CMC Web interface is the quickest way to configure the CMC (see

"Using the CMC Web Interface"). However, if you prefer CLI or script

configuration or need to configure multiple CMCs, use RACADM, which is

installed with the CMC agents on the management station.

Configuring CMC IPv4 Network Properties

Setting Up Initial Access to the CMC

Before you can begin configuring the CMC, you must first configure the

CMC network settings to allow the CMC to be managed remotely.

This initial configuration assigns the TCP/IP networking parameters that

enable access to the CMC.

This section explains how to perform the initial CMC network configuration

using RACADM commands. All of the configuration described in this section

can be performed using the front panel LCD. See "Configuring Networking

Using the LCD Configuration Wizard."

CAUTION: Changing settings on the CMC Network Settings screen may

disconnect your current network connection.

For more information about network subcommands, see the

RACADM Subcommands and Property Database Group and

Object Definitions chapters of the Dell Chassis Management Controller

Administrator Reference Guide.

NOTE: You must have Chassis Configuration Administrator privilege to set up CMC

network settings.

The CMC supports both IPv4 and IPv6 addressing modes. The configuration

settings for IPv4 and IPv6 are independent of one another.

Using the RACADM Command Line Interface 75

Viewing Current IPv4 Network Settings

To view a summary of NIC, DHCP, network speed, and duplex settings, type:

racadm getniccfg

racadm getconfig -g cfgCurrentLanNetworking

Viewing Current IPv6 Network Settings

To view a summary of the network settings, type:

racadm getconfig -g cfgIpv6LanNetworking

To view IPv4 and IPv6 addressing information for the chassis type:

racadm getsysinfo

By default, the CMC requests and obtains a CMC IP address from the

Dynamic Host Configuration Protocol (DHCP) server automatically.

You can disable this feature and specify static CMC IP address, gateway, and

subnet mask.

To disable DHCP and specify static CMC IP address, gateway, and subnet

mask, type:

racadm config -g cfgLanNetworking -o cfgNicUseDHCP 0

racadm config -g cfgLanNetworking -o cfgNicIpAddress

static IP address

racadm config -g cfgLanNetworking -o cfgNicGateway

static gateway

racadm config -g cfgLanNetworking -o cfgNicNetmask

static subnet mask

Viewing Current Network Settings

To view a summary of NIC, DHCP, network speed, and duplex settings, type:

racadm getniccfg

racadm getconfig -g cfgCurrentLanNetworking

76 Using the RACADM Command Line Interface

To view IP address and DHCP, MAC address, and DNS information for the

chassis, type:

racadm getsysinfo

Configuring the Network LAN Settings

NOTE: To perform the following steps, you must have Chassis Configuration

Administrator privilege.

NOTE: The LAN settings, such as community string and SMTP server IP address,

affect both the CMC and the external settings of the chassis.

NOTE: If you have two CMCs (primary and standby) on the chassis, and they are

both connected to the network, the standby CMC automatically assumes the

network settings in the event of failover of the primary CMC.

Enabling the CMC NIC

To enable/disable the CMC IPv4 NIC, type:

racadm config -g cfgLanNetworking -o cfgNicEnable 1

racadm config -g cfgLanNetworking -o cfgNicEnable 0

NOTE: The CMC IPv4 NIC is enabled by default.

To enable/disable the CMC IPv6 addressing, type:

racadm config -g cfgIpv6LanNetworking -o cfgNicEnable 1

racadm config -g cfgIpv6LanNetworking -o cfgNicEnable 0

NOTE: The CMC IPv6 addressing is disabled by default.

By default, for IPv4, the CMC requests and obtains a CMC IP address from

the Dynamic Host Configuration Protocol (DHCP) server automatically. You

can disable the DHCP feature and specify static CMC IP address, gateway,

and subnet mask.

For an IPv4 network, to disable DHCP and specify static CMC IP address,

gateway, and subnet mask, type:

racadm config -g cfgLanNetworking -o cfgNicUseDHCP 0

racadm config -g cfgLanNetworking -o cfgNicIpAddress

racadm config -g cfgLanNetworking -o cfgNicGateway

Using the RACADM Command Line Interface 77

racadm config -g cfgLanNetworking -o cfgNicNetmask

By default, for IPv6, the CMC requests and obtains a CMC IP address from

the IPv6 Autoconfiguration mechanism automatically.

For an IPv6 network, to disable the Autoconfiguration feature and specify a

static CMC IPv6 address, gateway, and prefix length, type:

racadm config -g cfgIPv6LanNetworking -o

cfgIPv6AutoConfig 0

racadm config -g cfgIPv6LanNetworking -o

cfgIPv6Address <IPv6 address>

racadm config -g cfgIPv6LanNetworking -o

cfgIPv6PrefixLength 64

racadm config -g cfgIPv6LanNetworking -o

cfgIPv6Gateway <IPv6 address>

Enabling or Disabling DCHP for the NIC Address

When enabled, the CMC’s DHCP for NIC address feature requests and

obtains an IP address from the Dynamic Host Configuration Protocol

(DHCP) server automatically. This feature is enabled by default.

You can disable the DHCP for NIC address feature and specify a static

IP address, subnet mask, and gateway. For more information, see "Setting Up

Initial Access to the CMC."

Enabling or Disabling DHCP for DNS IP Addresses

By default, the CMC’s DHCP for DNS address feature is disabled.

When enabled, this feature obtains the primary and secondary DNS server

addresses from the DHCP server. Using this feature, you do not have to

configure static DNS server IP addresses.

To disable the DHCP for DNS address feature and specify static preferred and

alternate DNS server addresses, type:

racadm config -g cfgLanNetworking -o

cfgDNSServersFromDHCP 0

78 Using the RACADM Command Line Interface

To disable the DHCP for DNS address feature for IPv6 and specify static

preferred and alternate DNS server addresses, type:

racadm config -g cfgIPv6LanNetworking -o

cfgIPv6DNSServersFromDHCP6 0

Setting Static DNS IP addresses

NOTE: These settings are not valid unless the DCHP for DNS address feature

is disabled.

For IPv4, to set the preferred primary and secondary DNS IP server addresses,

type:

racadm config -g cfgLanNetworking -o cfgDNSServer1

IP-address

racadm config -g cfgLanNetworking -o cfgDNSServer2

<IPv4-address>

For IPv6, to set the preferred and secondary DNS IP Server addresses, type:

racadm config -g cfgIPv6LanNetworking -o

cfgIPv6DNSServer1 <IPv6-address>

racadm config -g cfgIPv6LanNetworking -o

cfgIPv6DNSServer2 <IPv6-address>

Configuring DNS Settings (IPv4 Only)

•

CMC Registration.

To register the CMC on the DNS server, type:

racadm config -g cfgLanNetworking -o

cfgDNSRegisterRac 1

NOTE: Some DNS servers will only register names of 31 characters or fewer.

Make sure the designated name is within the DNS required limit.

NOTE: The following settings are valid only if you have registered the CMC on

the DNS server by setting cfgDNSRegisterRac to 1.

•

CMC Name.

By default, the CMC name on the DNS server is cmc-

<service tag>. To change the CMC name on the DNS server, type:

racadm config -g cfgLanNetworking -o cfgDNSRacName

name

where <

name

> is a string of up to 63 alphanumeric characters and

hyphens. For example, cmc-1, d-345.

Using the RACADM Command Line Interface 79

•

DNS Domain Name.

The default DNS domain name is a single blank

character. To set a DNS domain name, type:

racadm config -g cfgLanNetworking -o

cfgDNSDomainName <

name

where <

name

> is a string of up to 254 alphanumeric characters

and hyphens. For example: p45, a-tz-1, r-id-001.

Configuring Auto Negotiation, Duplex Mode, and Network Speed

When enabled, the auto negotiation feature determines whether the

CMC automatically sets the duplex mode and network speed by

communicating with the nearest router or switch. Auto negotiation is

enabled by default.

You can disable auto negotiation and specify the duplex mode and network

speed by typing:

racadm config -g cfgNetTuning -o cfgNetTuningNicAutoneg 0

racadm config -g cfgNetTuning -o cfgNetTuningNicFullDuplex

where:

duplex mode

> is 0 (half duplex) or 1 (full duplex, default)

racadm config -g cfgNetTuning -o cfgNetTuningNicSpeed

<speed>

where:

speed

> is 10 or 100(default).

Setting the Maximum Transmission Unit (MTU)

The MTU property allows you to set a limit for the largest packet that can be

passed through the interface. To set the MTU, type:

racadm config -g cfgNetTuning -o cfgNetTuningMtu <

mtu

where <

mtu

> is a value between 576–1500 (inclusive; default is 1500).

NOTE: IPv6 requires a minimum MTU of 1280. If IPv6 is enabled, and

cfgNetTuningMtu is set to a lower value, the CMC will use an MTU of 1280.

80 Using the RACADM Command Line Interface

Setting the SMTP Server IP Address

You can enable the CMC to send e-mail alerts using Simple Mail Transfer

Protocol (SMTP) to a specified IP address. To enable this feature, type:

racadm config -g cfgRemoteHosts -o

cfgRhostsFwUpdateIpAddr <

SMTP IP address

where <

SMTP IP address

> is the IP address of the network SMTP server.

NOTE: If your network has an SMTP server that releases and renews IP address

leases periodically, and the addresses are different, then there will be a duration

when this property setting will not work due to change in the specified SMTP server

IP address. In such cases, use the DNS name.

Configuring the Network Security Settings

NOTE: To perform the following steps, you must have Chassis Configuration

Administrator privilege.

Enabling IP Range Checking

IP filtering compares the IP address of an incoming login to the IP address

range that is specified in the following cfgRacTuning properties:

• cfgRacTuneIpRangeAddr

•cfgRacTuneIpRangeMask

A login from the incoming IP address is allowed only if both the following

are identical:

cfgRacTuneIpRangeMask

bit-wise and with incoming IP address

cfgRacTuneIpRangeMask

bit-wise and with

cfgRacTuneIpRangeAddr

Using RACADM to Configure Users

Before You Begin

You can configure up to 16 users in the CMC property database. Before you

manually enable a CMC user, verify if any current users exist. If you are

configuring a new CMC or you ran the RACADM racresetcfg command,

the only current user is root with the password calvin. The

racresetcfg subcommand resets the CMC back to the original defaults.

Using the RACADM Command Line Interface 81

CAUTION: Use caution when using the racresetcfg command, because it

will reset

all

configuration parameters to the original defaults. Any previous

changes are lost.

NOTE: Users can be enabled and disabled over time, and disabling a user does not

delete the user from the database.

To verify if a user exists, open a Telnet/SSH text console to the CMC, log in,

and type:

racadm getconfig -u <

username

type the following command once for each index of 1–16:

racadm getconfig -g cfgUserAdmin -i <

index

Several parameters and object IDs are displayed with their current values.

Two objects of interest are:

# cfgUserAdminIndex=XX

cfgUserAdminUserName=

If the cfgUserAdminUserName object has no value, that index number,

which is indicated by the cfgUserAdminIndex object, is available for use.

If a name appears after the "=," that index is taken by that user name.

NOTE: When you manually enable or disable a user with the RACADM config

subcommand, you must specify the index with the -i option. Observe that the

cfgUserAdminIndex object displayed in the previous example contains a #

character. Also, if you use the racadm config -f racadm.cfg command to

specify any number of groups/objects to write, the index cannot be specified.

A new user is added to the first available index. This behavior allows more flexibility

in configuring a second CMC with the same settings as the main CMC.

Adding a CMC User

To add a new user to the CMC configuration, you can use a few basic

commands. Perform the following procedures:

Set the user name.

Set the password.

82 Using the RACADM Command Line Interface

Set the user privileges. For information about user privileges,

see Table 5-18, Table 5-19, and Table 3-1 in the database property

chapter of the

Dell Chassis Management Controller Administrator

Reference Guide.

Enable the user.

Example

The following example describes how to add a new user named "John" with a

"123456" password and LOGIN privilege to the CMC.

NOTE: See Table 3-1 in the database property chapter of the Dell Chassis

Management Controller Firmware Administrator Reference Guide for a list of valid

bit mask values for specific user privileges. The default privilege value is 0, which

indicates the user has no privileges enabled.

racadm config -g cfgUserAdmin -o cfgUserAdminUserName

-i 2 john

racadm config -g cfgUserAdmin -o cfgUserAdminPassword

-i 2 123456

racadm config -g cfgUserAdmin -i 2 -o

cfgUserAdminPrivilege 0x00000001

racadm config -g cfgUserAdmin -i 2 -o

cfgUserAdminEnable 1

To verify that the user was added successfully with the correct privileges, use

one of the following commands:

racadm getconfig -u john

racadm getconfig –g cfgUserAdmin –i 2

Using the RACADM Command Line Interface 83

Using RACADM to Configure Public Key

Authentication over SSH

Before You Begin

You can configure up to 6 public keys that can be used with the service

username over SSH interface. Before adding or deleting public keys, be sure

to use the view command to see what keys are already set up so a key is not

accidentally overwritten or deleted. The service username is a special user

account that can be used when accessing the CMC through SSH. When the

PKA over SSH is set up and used correctly, you will not have to enter

username or passwords when logging into the CMC. This can be very useful

for setting up automated scripts to perform various functions.

When getting ready to set up this functionality, be aware of the following:

• there is no GUI support for managing this feature; you can only use

RACADM

• when adding new public keys, ensure that the existing keys are not already

at the index where the new key is added. CMC does not perform checks to

ensure previous keys are deleted before a new one is added. As soon as a

new key is added, it is automatically in effect as long as the SSH interface

is enabled.

• when using the public key comment section of the public key, remember

that only the first 16 characters are utilized by the CMC. The public key

comment is used by the CMC to distinguish SSH users when using the

RACADM

getssninfo

command since all PKA users use the service

username to log in.

For example, if two public keys are set up one with comment PC1 and one

with comment PC2:

racadm getssninfo

Type User IP Address Login Date/Time

SSH PC1 x.x.x.x 06/16/2009 09:00:00

SSH PC2 x.x.x.x 06/16/2009 09:00:00

For more information on the

sshpkauth

, see the

Dell Chassis

Management Controller Administrator Reference Guide

84 Using the RACADM Command Line Interface

Generating Public Keys for Windows

Before adding an account, a public key is required from the system that will

access the CMC over SSH. There are two ways to generate the public/private

key pair: using PuTTY Key Generator application for clients running

Windows or ssh-keygen CLI for clients running Linux.

This section describes simple instructions to generate a public/private key pair

for both applications. For additional or advanced usage of these tools, see the

application Help.

To use the PuTTY Key Generator for Windows clients to create the basic key:

Start the application and select either SSH-2 RSA or SSH-2 DSA for the

type of key to generate (SSH-1 is not supported).

Enter the number of bits for the key. The number should be between 768

and 4096.

NOTE: The CMC may not display a message if you add keys less than 768 or

greater than 4096, but when you try to log in, these keys it will fail.

Click

Generate

and move the mouse in the window as directed.

After the key is created, you can modify the key comment field.

You can also enter a passphrase to make the key secure. Ensure that you

save the private key.

You have two options for using the public key:

• save the public key to a file to upload later.

• copy and paste the text from the

Public key for pasting…

window

when adding the account using the text option.

Generating Public Keys for Linux

The ssh-keygen application for Linux clients is a command line tool with no

graphical user interface. Open a terminal window and at the shell prompt

type:

ssh-keygen –t rsa –b 1024 –C testing

NOTE: The options are case sensitive.

where,

-t option could either be dsa or rsa.

Using the RACADM Command Line Interface 85

–b option specifies the bit encryption size between 768 and 4096.

–C option allows modifying the public key comment and is optional.

the passphrase is optional.

Follow the instructions. After the command completes, use the public file to

pass to the RACADM for uploading the file.

Viewing the Public Keys

To view public keys that you have added to the CMC, type:

racadm sshpkauth –I svcacct –k all –v

To view just one key at a time, replace all with a number from 1 – 6. For

example, to view key 2, type:

racadm sshpkauth –I svcacct –k 2 –v

Adding the Public Keys

To add a public key to the CMC using the file upload options, type:

racadm sshpkauth –I svcacct –k 1 –p 0xfff –f <public

key file>

NOTE: You can only use the file upload option with remote RACADM.

For public key privileges, see Table 3-1 in the Database Property chapter of

Dell Chassis Management Controller Administrator Reference Guide.

To add a public key using the text upload option, type:

racadm sshpkauth –I svcacct –k 1 –p 0xfff –t “<public key

text>”

Deleting the Public Keys

To delete a public key type:

racadm sshpkauth –I svcacct –k 1 –d

To delete all public keys type:

racadm sshpkauth –I svcacct –k all –d

86 Using the RACADM Command Line Interface

Logging in Using Public Key Authentication

After the public keys are uploaded, you should be able to log into the CMC

over SSH without having to enter a password. You also have the option of

sending a single RACADM command as a command line argument to the

SSH application. The command line options behave like remote RACADM

since the session ends after the command is completed. For example:

Logging in:

ssh service@<domain>

ssh service@<

IP_address

where IP_address is the IP address of the CMC.

Sending racadm commands:

ssh service@<domain> racadm getversion

ssh service@<domain> racadm getsel

When you log in using the service account, if a passphrase was set up when

creating the public/private key pair, you may be prompted to enter that

passphrase again. If a passphrase is used with the keys, both Windows and

Linux clients provide methods to automate that as well. For Windows clients,

you can use the Pageant application. It runs in the background and makes

entering the passphrase transparent. For Linux clients, you can use the ssh-

agent. For setting up and using either of these applications, see the

documentation provided from that application.

Enabling a CMC User With Permissions

To enable a user with specific administrative permissions (role-based

authority), first locate an available user index by performing the steps in

"Before You Begin." Next, type the following command lines with the new

user name and password.

NOTE: See Table 3-1 in the Database Property chapter of the Dell Chassis

Management Controller Administrator Reference Guide for a list of valid bit mask

values for specific user privileges. The default privilege value is 0, which indicates

the user has no privileges enabled.

racadm config -g cfgUserAdmin -o

cfgUserAdminPrivilege -i <index> <user privilege bitmask value>

Using the RACADM Command Line Interface 87

Disabling a CMC User

Using RACADM, you can only disable CMC users manually and on an

individual basis. You cannot delete users by using a configuration file.

The following example illustrates the command syntax that can be used to

delete a CMC user:

racadm config -g cfgUserAdmin -i 2

cfgUserAdminPrivilege 0x0

Configuring SNMP and E-mail Alerting

You can configure the CMC to send SNMP event traps and/or e-mail alerts

when certain events occur on the chassis. For more information and

instructions, see "Configuring SNMP Alerts" and "Configuring E-mail Alerts."

You can specify the trap destinations as appropriately-formatted

numeric addresses (IPv6 or IPv4), or fully-qualified domain names (FQDNs).

Choose a format that is consistent with your networking

technology/infrastructure.

NOTE: The Test TRAP functionality does not detect improper choices based

on current network configuration. For example, using an IPv6 destination in an

IPv4-only environment.

Configuring Multiple CMCs in Multiple Chassis

Using RACADM, you can configure one or more CMCs with identical

properties.

When you query a specific CMC card using its group ID and object ID,

RACADM creates the racadm.cfg configuration file from the retrieved

information. By exporting the file to one or more CMCs, you can configure

your controllers with identical properties in a minimal amount of time.

NOTE: Some configuration files contain unique CMC information (such as the static

IP address) that must be modified before you export the file to other CMCs.

88 Using the RACADM Command Line Interface

Use RACADM to query the target CMC that contains the desired

configuration.

NOTE: The generated configuration file is myfile.cfg. You can rename the file.

NOTE: The .cfg file does not contain user passwords. When the .cfg file is

uploaded to the new CMC, you must re-add all passwords.

Open a Telnet/SSH text console to the CMC, log in, and type:

racadm getconfig -f myfile.cfg

NOTE: Redirecting the CMC configuration to a file using getconfig -f is only

supported with the remote RACADM interface.

Modify the configuration file using a plain-text editor (optional).

Any special formatting characters in the configuration file may corrupt

the RACADM database.

Use the newly created configuration file to modify a target CMC.

At the command prompt, type:

racadm config -f myfile.cfg

Reset the target CMC that was configured. At the command prompt, type:

racadm reset

The getconfig -f myfile.cfg subcommand (step 1) requests the CMC

configuration for the primary CMC and generates the myfile.cfg file.

If required, you can rename the file or save it to a different location.

You can use the getconfig command to perform the following actions:

• Display all configuration properties in a group (specified by group name

and index)

• Display all configuration properties for a user by user name

The config subcommand loads the information into other CMCs. The Server

Administrator uses the config command to synchronize the user and

password database.

Using the RACADM Command Line Interface 89

Creating a CMC Configuration File

The CMC configuration file, <filename>.cfg, is used with the racadm

config -f <filename>.cfg command to create a simple text file.

The command allows you to build a configuration file (similar to an .ini file)

and configure the CMC from this file.

You may use any file name, and the file does not require a .cfg extension

(although it is referred to by that designation in this subsection).

NOTE: For more information about the getconfig subcommand, see the Dell Chassis

Management Controller Administrator Reference Guide.

RACADM parses the .cfg file when it is first loaded onto the CMC to verify

that valid group and object names are present and that some simple syntax

rules are being followed. Errors are flagged with the line number that

detected the error, and a message explains the problem. The entire file is

parsed for correctness, and all errors display. Write commands are not

transmitted to the CMC if an error is found in the .cfg file. You must correct

all errors before any configuration can take place.

To check for errors before you create the configuration file, use the -c option

with the config subcommand. With the -c option, config only verifies

syntax and does not write to the CMC.

Use the following guidelines when you create a .cfg file:

• If the parser encounters an indexed group, it is the value of the anchored

object that differentiates the various indexes.

The parser reads in all of the indexes from the CMC for that group.

Any objects within that group are modifications when the CMC

is configured. If a modified object represents a new index, the index

is created on the CMC during configuration.

• You cannot specify a desired index in a

.cfg

file.

Indexes may be created and deleted. Over time the group may become

fragmented with used and unused indexes. If an index is present, it is

modified. If an index is not present, the first available index is used.

This method allows flexibility when adding indexed entries where you

do not need to make exact index matches between all the CMCs being

managed. New users are added to the first available index. A

.cfg

file that

parses and runs correctly on one CMC may not run correctly on another

if all indexes are full and you must add a new user.

90 Using the RACADM Command Line Interface

•Use the

racresetcfg

subcommand to configure both CMCs with

identical properties.

Use the

racresetcfg

subcommand to reset the CMC to original

defaults, and then run the

racadm config -f <filename>.cfg

command. Ensure that the

.cfg

file includes all desired objects, users,

indexes, and other parameters. See the database property chapter of the

Dell Chassis Management Controller Administrator Reference Guide

for a

complete list of objects and groups.

CAUTION: Use the racresetcfg subcommand to reset the database and

the CMC NIC settings to the original default settings and remove all users and

user configurations. While the root user is available, other users’ settings are also

reset to the default settings.

Parsing Rules

• Lines that start with a hash character (#) are treated as comments.

A comment line

must

start in column one. A "#" character in any other

column is treated as a # character.

Some modem parameters may include # characters in their strings.

An escape character is not required. You may want to generate a

.cfg

from

racadm getconfig -f

.cfg

command, and then

perform a

racadm config -f

.cfg

command to

a different CMC, without adding escape characters.

Example:

# This is a comment

[cfgUserAdmin]

cfgUserAdminPageModemInitString=<Modem init # not

a comment>

• All group entries must be surrounded by open- and close-brackets ([ and ]

)

The starting [ character that denotes a group name

must

be in column

one. This group name

must

be specified before any of the objects in that

group. Objects that do not include an associated group name generate an

error. The configuration data is organized into groups as defined in the

database property chapter of the

Dell Chassis Management Controller

Administrator Reference Guide

Using the RACADM Command Line Interface 91

The following example displays a group name, object, and the object’s

property value:

[cfgLanNetworking] -{

group name

}

cfgNicIpAddress=143.154.133.121 {

object name

}

{

object value

}

• All parameters are specified as "object=value" pairs with no white space

between the object, =, or value.

White spaces that are included after the value are ignored. A white space

inside a value string remains unmodified. Any character to the right of the

= (for example, a second =, a #, [, ], and so on) is taken as-is.

These characters are valid modem chat script characters.

[cfgLanNetworking] -{

group name

}

cfgNicIpAddress=143.154.133.121 {

object value}

•The

.cfg

parser ignores an index object entry.

Yo u

cannot

specify which index is used. If the index already exists,

it is either used or the new entry is created in the first available index

for that group.

The

racadm getconfig -f

.cfg

command

places a comment in front of index objects, allowing you to see the

included comments.

NOTE: You may create an indexed group manually using the

following command:

racadm config -g <groupName> -o <anchored

object> -i <index 1–16> <unique anchor name>

92 Using the RACADM Command Line Interface

• The line for an indexed group

cannot

be deleted from a

.cfg

file. If you do

delete the line with a text editor, RACADM will stop when it parses the

configuration file and alert you of the error.

You must remove an indexed object manually using the following

command:

racadm config -g <

groupName

> -o <

objectName

> -i

index 1–16

> ""

NOTE: A NULL string (identified by two "

characters) directs the CMC to

delete the index for the specified group.

To view the contents of an indexed group, use the following command:

racadm getconfig -g <

groupName

> -i <

index 1–16

• For indexed groups the object anchor

must

be the first object after the [ ]

pair. The following are examples of the current indexed groups:

[cfgUserAdmin]

cfgUserAdminUserName=<

USER_NAME

If you type

racadm getconfig -f <

myexample

>.cfg

the command builds a

.cfg

file for the current CMC configuration.

This configuration file can be used as an example and as a starting

point for your unique

.cfg

file.

Modifying the CMC IP Address

When you modify the CMC IP address in the configuration file, remove all

unnecessary <

variable

<value>

entries. Only the actual variable

group’s label with [ and ] remains, including the two <

variable

<value>

entries pertaining to the IP address change.

Example:

# Object Group "cfgLanNetworking"

[cfgLanNetworking]

cfgNicIpAddress=10.35.10.110

Using the RACADM Command Line Interface 93

cfgNicGateway=10.35.10.1

This file will be updated as follows:

# Object Group "cfgLanNetworking"

[cfgLanNetworking]

cfgNicIpAddress=10.35.9.143

# comment, the rest of this line is ignored

cfgNicGateway=10.35.9.1

The command racadm config -f <

myfile

>.cfg parses the file and

identifies any errors by line number. A correct file will update the proper

entries. Additionally, you can use the same getconfig command from the

previous example to confirm the update.

Use this file to download company-wide changes or to configure new systems

over the network with the command, racadm getconfig -f

myfile

>.cfg.

NOTE: "Anchor" is a reserved word and should not be used in the .cfg file.

Using RACADM to Configure Properties on iDRAC

RACADM config/getconfig commands support the -m <module> option

for the following configuration groups:

cfgLanNetworking

cfgIPv6LanNetworking

cfgRacTuning

cfgRemoteHosts

cfgSerial

cfgSessionManagement

94 Using the RACADM Command Line Interface

For more information on the property default values and ranges, see the

Integrated Dell Remote Access Controller 6 (iDRAC6) Enterprise for Blade

Servers User Guide.

If the firmware on the blade server does not support a feature, configuring a

property related to that feature displays an error. For example, using

RACADM to enable remote syslog on an unsupported iDRAC displays an

error message.

Similarly, when displaying the iDRAC properties using the RACADM

getconfig command, the property values are displayed as N/A for an

unsupported feature on the blade server.

For example,

$ racadm getconfig -g cfgSessionManagement -m server-1

# cfgSsnMgtWebServerMaxSessions=N/A

# cfgSsnMgtWebServerActiveSessions=N/A

# cfgSsnMgtWebServerTimeout=N/A

# cfgSsnMgtSSHMaxSessions=N/A

# cfgSsnMgtSSHActiveSessions=N/A

# cfgSsnMgtSSHTimeout=N/A

# cfgSsnMgtTelnetMaxSessions=N/A

# cfgSsnMgtTelnetActiveSessions=N/A

# cfgSsnMgtTelnetTimeout=N/A

Using the RACADM Command Line Interface 95

Troubleshooting

Table 4-3 lists common problems related to remote RACADM.

Table 4-3. Using the Serial and RACADM Commands: Frequently Asked

Questions

Question Answer

After performing a CMC reset

(using the RACADM racreset

subcommand), I enter a command

and the following message is

displayed:

racadm

Transport: ERROR: (RC=-1)

What does this message mean?

You must wait until the CMC completes the

reset before issuing another command.

When I use the RACADM

subcommands, I get errors

that I do not understand.

You may encounter one or more of the

following errors when using RACADM:

• Local error messages — Problems such

as syntax, typographical errors,

and incorrect names.

Example:

ERROR: <message>

Use the RACADM

help

subcommand to

display correct syntax and usage information.

• CMC-related error messages — Problems

where the CMC is unable to perform

an action. Also might say "racadm

command failed."

Ty p e

racadm gettracelog

for

debugging information.

96 Using the RACADM Command Line Interface

While I was using remote RACADM,

the prompt changed to a ">" and I

cannot get the "$" prompt to return.

If you type a double quotation mark (") in the

command, the CLI will change to the ">"

prompt and queue all commands.

To return to the "$" prompt, type <Ctrl>–d.

I tried using the following

commands and received an error

saying "Not Found":

$ logout

$ quit

The logout and quit commands are not

supported in the CMC CLI interface.

Table 4-3. Using the Serial and RACADM Commands: Frequently Asked

Questions

(continued)

Question Answer

Using the CMC Web Interface 97

Using the CMC Web Interface

The CMC provides a Web interface that enables you to configure the CMC

properties and users, perform remote management tasks, and troubleshoot a

remote (managed) system for problems. For everyday chassis management,

use the CMC Web interface. This chapter provides information about how to

perform common chassis management tasks using the CMC Web interface.

You can also perform all configuration tasks using local RACADM commands

or command line consoles (serial console, Telnet, or SSH). For more

information about using local RACADM, see "Using the RACADM

Command Line Interface." For information on using command line consoles,

see "Configuring CMC to Use Command Line Consoles."

NOTE: If you are using Microsoft® Internet Explorer®, connecting through a proxy,

and see the error "The XML page cannot be displayed," you will need to disable the

proxy to continue.

Accessing the CMC Web Interface

To access the CMC Web interface over IPv4:

Open a supported Web browser window.

For the latest information on supported Web browsers, see the

Dell Systems Software Support Matrix located on the Dell Support

website at support.dell.com.

Type the following URL in the Address field, and then press <Enter>:

https://<

CMC IP address

If the default HTTPS port number (port 443) has been changed, type:

https://<CMC IP address>:<port number>

where <CMC IP address> is the IP address for the CMC and <port

number> is the HTTPS port number.

The

CMC Login

page appears.

98 Using the CMC Web Interface

To access the CMC Web interface over IPv6:

Open a supported Web browser window.

For the latest information on supported Web browsers, see the

Dell Systems Software Support Matrix located on the Dell Support

website at support.dell.com.

Type the following URL in the

Address

field, and then press <Enter>:

https://[<CMC

IP address>

]

NOTE: While using IPv6, you must enclose the <CMC IP address> in

square brackets ([ ]).

Specifying the HTTPS port number in the URL is optional if you are

still using the default value (443). Otherwise, you must specify the port

number. The syntax for the IPv6 CMC URL with the port number

specified is:

https://[

]:<

port number

where

<CMC IP address

> is the IP address for the CMC and

<port

number

is the HTTPS port number.

The

CMC

page appears.

Logging In

NOTE: To log in to the CMC, you must have a CMC account with Log In

to CMC privilege.

NOTE: The default CMC user name is root, and the password is calvin. The root

account is the default administrative account that ships with the CMC. For added

security, Dell strongly recommends that you change the default password of the

root account during initial setup.

NOTE: The CMC does not support extended ASCII characters, such as ß, å, é, ü, or

other characters used primarily in non-English languages.

NOTE: You cannot log in to the Web interface with different user names in multiple

browser windows on a single workstation.

Using the CMC Web Interface 99

You can log in as either a CMC user or as a Microsoft® Active Directory® user.

To log in:

In the

Username

field, type your user name:

• CMC user name:

• Active Directory user name:

NOTE: This field is case sensitive.

In the

Password

field, type your CMC user password or Active Directory

user password.

NOTE: This field is case-sensitive.

Click

or press <Enter>.

Logging Out

When you are logged in to the Web interface, you can log out at any time by

clicking Logout in the upper right corner of any page.

NOTE: Be careful to apply (save) any settings or information you enter on a page.

If you log out or navigate away from that page without applying your changes, the

changes will be lost.

Configuring Basic CMC Settings

Setting the Chassis Name

You can set the name used to identify the chassis on the network.

(The default name is "Dell Rack System.") For example, an SNMP query

on the chassis name will return the name you configure.

To set the chassis name:

Component Health

page displays.

Click the

Setup

tab. The

General Chassis Settings

page displays.

Type the new name in the

Chassis Name

field, and then click

Apply

100 Using the CMC Web Interface

Setting the Date and Time on the CMC

You can set the date and time manually, or you can synchronize the date and

time with a Network Time Protocol (NTP) server.

Component Health

page displays.

Click the

Setup

tab. The

General Chassis Settings

page displays.

Click the

Date/Time

sub-tab. The

Date/Time

page displays.

To synchronize the date and time with a Network Time Protocol (NTP)

server, check

Enable NTP

and specify up to three NTP servers.

To set the date and time manually, uncheck

Enable NTP

and edit the

Date

and

Time

fields, select the

Time Zone

from the drop-down menu,

and then click

Apply

To set the date and time using the command line interface, see the config

command and cfgRemoteHosts database property group sections in the

Dell Chassis Management Controller Administrator Reference Guide.

Monitoring System Health Status

Viewing Chassis and Component Summaries

The CMC displays a graphical representation of the chassis on the Chassis

Graphics page that provides a visual overview of installed component status.

The Chassis Graphics page is dynamically updated, and the component

subgraphic colors and text hints are automatically changed to reflect the

current state.

Using the CMC Web Interface 101

Figure 5-1. Example of Chassis Graphics in the Web Interface

The Component Health page provides an overall health status for the

chassis, primary and stand-by CMCs, sever modules, IO Modules (IOMs),

fans, iKVM, power supplies (PSUs), and temperature sensors. The Chassis

Summary page provides a text-based overview of the chassis, primary and

stand-by CMCs, iKVM, and IOMs. For instructions on viewing chassis and

components summaries, see "Viewing Chassis Summaries" on page 341.

Viewing Chassis Graphics and Component Health Status

The Chassis Graphics page provides a graphical view of the front and rear

of the chassis. This graphical representation provides a visual overview of the

components installed within the chassis and its corresponding status.

The Component Health page provides an overall health status for all chassis

components. For instructions on viewing chassis graphics and component

health status, see "Viewing Chassis and Component Health Status."

Viewing Power Budget Status

The Power Budget Status page displays the power budget status for the

chassis, servers, and chassis power supply units (PSUs).

For instructions on viewing power budget status, see "Viewing Power

Consumption Status." For more information about CMC power

management, see "Power Management."

102 Using the CMC Web Interface

Viewing Server Model Name and Service Tag

The Model Name and Service Tag of each server can be obtained instantly

using the following steps:

• Expanding Servers in the System tree. All the servers (1-16) appear in the

expanded Servers list. A slot without a server will have its name grayed out.

• Use the cursor to hover over the slot name or slot number of a server,

a tool tip is prompted with the servers' model name and service tag

number (if available).

Viewing the Health Status of All Servers

The health status for all servers can be viewed in two ways: from the Chassis

Graphics section on the Chassis Status page or the Servers Status page.

Chassis Graphics provides a graphical overview of all servers installed in the

chassis.

To view health status for all servers using Chassis Graphics:

The

Chassis Status

page is displayed. The center section of

Chassis

Graphics

depicts the front view of the chassis and contains the health

status of all servers. Server health status is indicated by the color of the

server subgraphic:

• Green - server is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber - server is present, but may or may not be powered on, or may

or may not be communicating with the CMC; an adverse condition

may exist.

• Gray - server is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

The Servers Status page provides overviews of the servers in the chassis.

To view health status for all servers:

Select

Servers

in the system tree. The

Servers Status

page appears.

Table 5-1 provides descriptions of the information provided on the Servers

Status page.

Using the CMC Web Interface 103

Table 5-1. All Servers Status Information

Item Description

Slot Displays the location of the server. The slot number is a sequential

number that identifies the server by its location within the chassis.

Name Indicates the name of the server, which by default is identified by

its slot name (SLOT-01 to SLOT-16).

NOTE: You can change the server name from the default.

For instructions, see "Editing Slot Names".

Model Displays the server's model name. If this field is blank, the server

is not present. If this field displays Extension of # (where the value

of # is 1-8), the number # is the main slot of a multi-slot server.

Health OK Indicates that the server is present and

communicating with the CMC.

Informational Displays information about the server when no

change in health status has occurred.

Warning Indicates that only warning alerts have been

issued, and corrective action must be taken.

If corrective actions are not taken within the

administrator-specified time, critical or severe

failures that can affect the integrity of the device

may occur.

Severe Indicates at least one Failure alert has been

issued. Severe status represents a system failure

on the server, and corrective action must be

taken immediately.

No Value When the server is absent from the slot, health

information is not provided.

104 Using the CMC Web Interface

For information on how to launch the iDRAC management console and

single sign-on policies, see "Launching iDRAC using Single Sign-On."

Editing Slot Names

The Slot Names page allows you to update slot names in the chassis. Slot

names are used to identify individual servers. When choosing slot names, the

following rules apply:

Launch

iDRAC GUI

Left click the icon to launch the iDRAC management

console for a server in a new browser window or tab. This icon

is only displayed for a server where all of the following

conditions are true:

The server is present

The chassis power is on

The LAN interface on the server is enabled

NOTE: If the server is removed from the chassis, the IP address of

iDRAC is changed, or the network connection on iDRAC

experiences any problems, then clicking the Launch iDRAC GUI

icon may display an error page on the iDRAC LAN interface.

Power State Indicates the power status of the server:

•

N/A

- The CMC has not yet determined the power state

of the server.

•

Off

- Either the server is off or the chassis is off.

•

- Both chassis and server are on.

•

Powering On

- Temporary state between Off and On. When the

action completes successfully, the

Power State

will be

•

Powering Off

- Temporary state between On and Off. When the

action completes successfully, the

Power State

will be

Off

Service Tag Displays the service tag for the server. The service tag is a unique

identifier provided by the manufacturer for support and maintenance.

If the server is absent, this field is empty.

Table 5-1. All Servers Status Information

(continued)

Item Description

Using the CMC Web Interface 105

•Names may contain

a maximum of 15

printable ASCII characters (ASCII

codes 32 through 126), excluding the double quote (

, ASCII 34). If using

the RACADM command to change the slot name using any special

characters, (~!@#$%^&*), the name string must be enclosed in double

quotes for the environment to pass them correctly to the CMC.

• Slot names must be unique within the chassis. No two slots may have the

same name.

• Strings are not case-sensitive.

Server-1

server-1

, and

SERVER-1

are equivalent names.

• Slot names must not begin with the following strings:

•Switch-

•Fan-

•PS-

•KVM

•DRAC-

•MC-

•Chassis

•Housing-Left

•Housing-Right

•Housing-Center

• The strings

Server-1

through

Server-16

may be used, but only for

the corresponding slot. For example,

Server-3

is a valid name for slot 3,

but not for slot 4. Note that

Server-03

is a valid name for

any

slot.

NOTE: To change a slot name, you must have Chassis Configuration

Administrator privilege.

NOTE: The slot name setting in the Web interface resides on the CMC only.

If a server is removed from the chassis, the slot name setting does not remain

with the server.

NOTE: The slot name setting does not extend to the optional iKVM. The slot name

information is available through the iKVM FRU.

NOTE: The slot name setting in the CMC Web interface always overrides any

change you make to the display name in the iDRAC interface.

106 Using the CMC Web Interface

To edit a slot name:

Select

Servers

in the

Chassis

menu in the system tree.

Click the

Setup

tab - the

Slot Names

subtab. The

Slot Names

page

displays.

Type the updated or new name for a slot in the

Slot Name

field. Repeat

this action for each slot you want to rename.

Click

Apply

To restore the default slot name (

SLOT-01

SLOT-16

, based on the

server's slot position) to the server, press

Restore Default Value

Setting the First Boot Device for Servers

The First Boot Device page allows you to specify the CMC first boot device

for each server. This may not be the actual first boot device for the server or

even represent a device present in that server; instead it represents a device

sent by the CMC to the server and used as its first boot device in regard to

that server.

You can set the default boot device and you can also set a one-time boot

device so that you can boot a special image to perform tasks such as running

diagnostics or reinstalling an operating system.

The boot device that you specify must exist and contain bootable media.

Table 5-2 lists the boot devices that you can specify.

Table 5-2. Boot Devices

Boot Device Description

PXE Boot from a Preboot Execution Environment (PXE) protocol

on the network interface card.

Hard Drive Boot from the hard drive on the server.

Local CD/DVD Boot from a CD/DVD drive on the server.

Virtual Floppy Boot from the virtual floppy drive. The floppy drive (or a floppy

disk image) is on another computer on the management

network, and is attached using the iDRAC GUI console viewer.

Using the CMC Web Interface 107

NOTE: To set the first boot device for servers you must have Server Administrator

privilege or Chassis Configuration Administrator privilege and a login on the iDRAC.

To set the first boot device for some or all servers in the chassis:

Click

Servers

in the system tree and then click

Setup

→

Deploy First Boot

Device

. A list of servers is displayed, one per row.

Select the boot device you want to use for each server. from the list box.

If you want the server to boot from the selected device every time it boots,

uncheck the

Boot Once

check box for the server.

If you want the server to boot from the selected device only on the next

boot cycle, select the

Boot Once

check box for the server.

Click

Apply

Viewing the Health Status of an Individual Server

The health status for an individual server can be viewed in two ways:

from the Chassis Graphics section on the Chassis Status page or the

Server Status page.

The Chassis Graphics page provides a graphical overview of an individual

server installed in the chassis.

Virtual CD/DVD Boot from a virtual CD/DVD drive or CD/DVD ISO image.

The optical drive or ISO image file is located on another

computer or disk available on the management network and

is attached using the iDRAC GUI console viewer.

iSCSI Boot from an Internet Small Computer System Interface

(iSCSI) device.

Local SD Card Boot from the local SD (Secure Digital) card - for the

M610/M710/M805/M905 systems only.

Floppy Boot from a floppy disk in the local floppy disk drive.

Table 5-2. Boot Devices

(continued)

Boot Device Description

108 Using the CMC Web Interface

To view health status for individual servers using Chassis Graphics:

The

Chassis Status

page is displayed. The center section of

Chassis

Graphics

depicts the front view of the chassis and contains the health

status for individual servers. Server health status is indicated by the color

of the server subgraphic:

• Green - server is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber - server is present, but may or may not be powered on, or may

or may not be communicating with the CMC; an adverse condition

may exist.

• Gray - server is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

Use the cursor to hover over an individual server subgraphic and a

corresponding text hint or screen tip is displayed. The text hint provides

additional information on that server.

The server subgraphic is hyperlinked to the corresponding CMC GUI page

to provide immediate navigation to the

Server Status

page for that server.

The Server Status page (separate from the Servers Status page) provides an

overview of the server and a launch point to the Web interface for the

Integrated Dell Remote Access Controller (iDRAC), which is the firmware

used to manage the server.

NOTE: To use the iDRAC user interface, you must have an iDRAC user name and

password. For more information about iDRAC and the using the iDRAC Web

interface, see the Integrated Dell Remote Access Controller Firmware User’s Guide.

To view the health status of an individual server:

Expand

Servers

in the system tree. All of the servers (1–16) appear in the

expanded

Servers

list.

Click the server (slot) you want to view. The

Server Status

page displays.

Table 5-3 through Table 5-8 provide descriptions of the information on the

Server Status page.

Using the CMC Web Interface 109

Table 5-3. Individual Server Status - Properties

Item Description

Slot Indicates the slot occupied by the server on the chassis.

Slot numbers are sequential IDs, from 1 through 16 (there are

16 slots available on the chassis), that help identify the location

of the server in the chassis.

Slot Name Indicates the name of the slot where the server resides.

Present Indicates whether the server is present in the slot (Yes or No).

When the server is absent, the health, power state, and service tag

information of the server is unknown (not displayed).

Health OK Indicates that the server is present and

communicating with the CMC. In the event of

a communication failure between the CMC

and the server, the CMC cannot obtain or

display health status for the server.

Informational Displays information about the server when no

change in health status (OK, Warning, Severe)

has occurred.

Warning Indicates that only warning alerts have been

issued, and corrective action must be taken.

If corrective actions are not taken within the

administrator-specified time, critical or severe

failures that can affect the integrity of the

server may occur.

Severe Indicates at least one Failure alert has been

issued. Severe status represents a system

failure on the server, and corrective action must

be taken immediately.

No Value When the server is absent from the slot,

health information is not provided.

Server Model Indicates the model of the server in the chassis.

Examples: PowerEdge M600, PowerEdge M605.

Service Tag Displays the service tag for the server. The service tag a unique

identifier provided by the manufacturer for support and

maintenance. If the server is absent, this field is empty.

110 Using the CMC Web Interface

iDRAC

Firmware

Indicates the iDRAC version currently installed on the server.

CPLD Version Displays the version number of Complex Programmable Logic

Device (CPLD) of the server.

BIOS version Indicates the BIOS version on the server.

Operating

System

Indicates the operating system on the server.

Table 5-4. Individual Server Status - iDRAC System Event Log

Item Description

Severity OK Indicates a normal event

that does not require

corrective actions.

Informational Indicates an informational

entry on an event in

which the Severity status

has not changed.

Unknown Indicates an

unknown/uncategorized

event.

Warning Indicates a non-critical event

for which corrective actions

must be taken soon to avoid

system failures.

Severe Indicates a critical event

requiring immediate

corrective actions to avoid

system failures.

Date/Time Indicates the exact date and time the event occurred

(for example, Wed May 02 16:26:55 2007).

Description Provides a brief description of the event.

Table 5-3. Individual Server Status - Properties

(continued)

Item Description

Using the CMC Web Interface 111

Table 5-5. Individual Server Status - iDRAC Network Settings

Item Description

LAN Enabled Indicates if the LAN channel is Enabled (Yes) or disabled (No).

Table 5-6. Individual Server Status - IPv4 iDRAC Network Settings

Item Description

Enabled Indicates if the IPv4 protocol is used on the LAN (Yes). If the server

does not support IPv6, the IPv4 protocol is always enabled and this

setting is not displayed.

DHCP Enabled Indicates whether Dynamic Host Configuration Protocol (DHCP)

is enabled (Yes) or disabled (No).

If this option is enabled (Yes), the server retrieves IP configuration

(IP address, subnet mask, and gateway) automatically from a

DHCP server on your network. The server will always have a unique

IP Address allotted over your network.

IPMI over LAN

Enabled

Indicates if the IPMI LAN channel is Enabled (Yes)

or disabled (No).

IP Address Specifies the IP address for the iDRAC network interface.

Subnet Mask Specifies the subnet mask for the iDRAC network interface.

Gateway Specifies the gateway for the iDRAC network interface.

Table 5-7. Individual Server Status - IPv6 iDRAC Network Settings

Item Description

Enabled Indicates if the IPv6 protocol is used on the LAN (Yes).

Autoconfiguration

Enabled

Indicates if Autoconfiguration for IPv6 is enabled (Yes).

If Autoconfiguration is enabled, the server retrieves IPv6

configuration (IPv6 address, Prefix Length, and IPv6 Gateway)

automatically from an IPv6 router on your network. The server

will always have a unique IPv6 address over your network,

and may be given up to 16 IPv6 addresses.

112 Using the CMC Web Interface

For information on how to launch the iDRAC management console and

single sign-on policies, see "Launching iDRAC using Single Sign-On."

Link Local

Address

IPv6 address assigned to the CMC based upon the MAC address

of the CMC.

Gateway Displays the IPv6 gateway for the iDRAC network interface.

IPv6 Address Displays an IPv6 address for the iDRAC network interface.

There may be up to 16 of these addresses. The prefix length,

if nonzero, is given after a forward slash ("/").

Table 5-8. Individual Server Status - WWN/MAC Address

Item Description

Slot Displays the slot(s) occupied by the server on the chassis.

Location Displays the location occupied by the Input/Output modules.

The six locations are identified by a combination of the group

name (A, B, or C) and slot number (1 or 2). Location names are:

A1, A2, B1, B2, C1, or C2.

Fabric Displays the type of the I/O fabric.

Server-Assigned Displays the server-assigned WWN/MAC addresses embedded in

the controller's hardware. WWN/MAC addresses showing N/A

indicate that an interface for the specified fabric is not installed.

Chassis-

Assigned

Displays the chassis-assigned WWN/MAC addresses used for the

particular slot. WWN/MAC addresses showing N/A indicate that

the FlexAddress feature is not installed.

NOTE: A green check mark in the Server-Assigned and

Chassis-Assigned columns indicates the type of active addresses.

NOTE: When FlexAddress is enabled, slots without servers installed

display the Chassis-Assigned MAC/WWN assignment for the

embedded Ethernet controllers (Fabric A). The Chassis-Assigned

addresses for fabrics B and C display N/A, unless these fabrics are in

use on servers in populated slots; it is assumed that the same fabric

types will be deployed in the unpopulated slots.

Table 5-7. Individual Server Status - IPv6 iDRAC Network Settings

(continued)

Item Description

Using the CMC Web Interface 113

Viewing the Health Status of IOMs

The health status for the IOMs can be viewed in two ways: from the Chassis

Graphics section on the Chassis Status page or the I/O Modules Status page.

The Chassis Graphics page provides a graphical overview of the IOMs

installed in the chassis.

To view health status of the IOMs using Chassis Graphics:

The

Chassis Status

page is displayed. The right section of

Chassis

Graphics

depicts the rear view of the chassis and contains the health

status for the IOMs. IOM health status is indicated by the color of

the IOM subgraphic:

• Green - IOM is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber - IOM is present, but may or may not be powered on, or may

or may not be communicating with the CMC; an adverse

condition may exist.

• Gray - IOM is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

Use the cursor to hover over an individual IOM subgraphic and a

corresponding text hint or screen tip is displayed. The text hint provides

additional information on that IOM.

The IOM subgraphic is hyperlinked to the corresponding CMC GUI

page to provide immediate navigation to the

I/O Module Status

page

associated with that IOM.

The I/O Modules Status page provides overviews of all IOMs associated

with the chassis. For instructions on viewing IOM health through the

Web interface or RACADM, see "Monitoring IOM Health."

114 Using the CMC Web Interface

Viewing the Health Status of the Fans

NOTE: During updates of CMC or iDRAC firmware on a server, some or all of the fan

units in the chassis spin at 100%. This is normal.

The health status of the fans can be viewed in two ways: from the Chassis

Graphics section on the Chassis Status page or the Fans Status page.

The Chassis Graphics page provides a graphical overview of all fans installed

in the chassis. To view health status for all fans using Chassis Graphics:

The

Chassis Status

page is displayed. The right section of

Chassis

Graphics

depicts the rear view of the chassis and contains the health status

of all fans. Fan health status is indicated by the color of the fan subgraphic:

• Green - fan is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber - fan is present, but may or may not be powered on, or may

or may not be communicating with the CMC; an adverse

condition may exist.

• Gray - fan is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

Use the cursor to hover over the an individual fan subgraphic and a

corresponding text hint or screen tip is displayed. The text hint provides

additional information on that fan.

The fan subgraphic is hyperlinked to the corresponding CMC GUI page to

provide immediate navigation to the

Fans Status

page.

The Fans Status page provides the status and speed measurements in

revolutions per minute, or RPMs, of the fans in the chassis. There can be

one or more fans.

The CMC, which controls fan speeds, automatically increases or decreases

fan speeds based on system wide events. T

he CMC generates an alert and

increases the fan speeds

when the following events occur:

• The CMC ambient temperature threshold is exceeded.

• A fan fails.

• A fan is removed from the chassis.

Using the CMC Web Interface 115

To view the health status of the fan units:

Select

Fans

in the system tree. The

Fans Status

page displays.

Table 5-9 provides descriptions of the information provided on the Fans

Status page.

Table 5-9. Fans Health Status Information

Item Description

Name Displays the fan name in the format FAN-n, where n is the fan

number.

Present Indicates whether the fan unit is present (Yes or No).

Health OK Indicates that the fan unit is present and

communicating with the CMC. In the event of

a communication failure between the CMC

and the fan unit, the CMC cannot obtain or

display health status for the fan unit.

Severe Indicates at least one Failure alert has been

issued. Severe status represents a system

failure on the fan unit, and corrective action

must be taken immediately to prevent

overheating and system shutdown.

Unknown Displayed when the chassis is first powered on.

In the event of a communication failure

between the CMC and the fan unit, the CMC

cannot obtain or display health status for the

fan unit.

Speed Indicates the speed of the fan in RPM.

116 Using the CMC Web Interface

Viewing the iKVM Status

The local access KVM module for your Dell M1000e server chassis is

called the Avocent® Integrated KVM Switch Module, or iKVM.

The health status of the iKVM associated with the chassis can be viewed

on the Chassis Graphics page.

To view health status for the iKVM using Chassis Graphics:

The

Chassis Status

page is displayed. The right section of

Chassis

Graphics

depicts the rear view of the chassis and contains the health

status of the iKVM. iKVM health status is indicated by the color of

the iKVM subgraphic:

• Green - iKVM is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber - iKVM is present, but may or may not be powered on, or may

or may not be communicating with the CMC; an adverse condition

may exist.

• Gray - iKVM is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

Use the cursor to hover over the iKVM subgraphic and a corresponding

text hint or screen tip is displayed. The text hint provides additional

information on that iKVM.

The iKVM subgraphic is hyperlinked to the corresponding CMC GUI page

to provide immediate navigation to the

iKVM Status

page.

For additional instructions on viewing iKVM status and setting properties for

the iKVM, see:

• "Viewing the iKVM Status and Properties"

• "Enabling or Disabling the Front Panel"

• "Enabling the Dell CMC Console Through iKVM"

•"Updating the iKVM Firmware"

For more information about iKVM, see "Using the iKVM Module."

Using the CMC Web Interface 117

Viewing the Health Status of the PSUs

The health status of the PSUs associated with the chassis can be viewed in

two ways: from the Chassis Graphics section on the Chassis Status page or

the Power Supply Status page. The Chassis Graphics page provides a

graphical overview of all PSUs installed in the chassis.

To view health status for all PSUs using Chassis Graphics:

The

Chassis Status

page is displayed. The right section of

Chassis

Graphics

depicts the rear view of the chassis and contains the health

status of all PSUs. PSU health status is indicated by the color of

the PSU subgraphic:

• Green - PSU is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber - PSU is present, but may or may not be powered on or may

or may not be communicating with the CMC; an adverse

condition may exist.

• Gray - PSU is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

Use the cursor to hover over the an individual PSU subgraphic and a

corresponding text hint or screen tip is displayed. The text hint provides

additional information on that PSU.

The PSU subgraphic is hyperlinked to the corresponding CMC GUI page

to provide immediate navigation to the

Power Supply Status

page

for all PSUs.

118 Using the CMC Web Interface

The Power Supply Status page displays the status and readings of the PSUs

associated with the chassis. For more information about CMC power

management, see "Power Management."

To view the health status of the PSUs:

Select

Power Supplies

in the system tree. The

Power Supply Status

page

displays.

Table 5-10 and Table 5-11 provide descriptions of the information provided

on the

Power Supply Status

page.

Table 5-10. Power Supply Health Status Information

Item Description

Name Displays the name of the PSU: PS-n, where n is the power supply

number.

Present Indicates whether the power supply is present (Yes or No).

Health OK Indicates that the PSU is present and

communicating with the CMC. Indicates that

the health of the PSU is OK. In the event of a

communication failure between the CMC and

the fan unit, the CMC cannot obtain or

display health status for the PSU.

Severe Indicates that the PSU has a failure and the

health is critical. Corrective action must be

taken immediately. Failure to do so may cause

the component to shutdown due to power loss.

Unknown Displayed with the chassis is first powered on.

In the event of a communication failure

between the CMC and the PSU, the CMC

cannot obtain or display health status for the

PSU.

Power Status Indicates the power state of the PSU: Online, Off, or Slot Empty.

Capacity Displays the power capacity in watts.

Using the CMC Web Interface 119

Viewing Status of the Temperature Sensors

The Temperature Sensors Information page displays the status and readings

of the temperature probes on the entire chassis (chassis, servers, IOMs,

and iKVM).

NOTE: The temperature probes value cannot be edited. Any change beyond the

threshold will generate an alert that will cause the fan speed to vary. For example,

if the CMC ambient temperature probe exceeds threshold, the speed of the fans on

the chassis increase.

To view the health status of the temperature probes:

Select

Temperature Sensors

in the system tree. The

Temperature

Sensors

Information

page displays.

Table 5-11. System Power Status

Item Description

Overall Power Health Indicates the health status (OK, Non-Critical,

Critical, Non-Recoverable, Other, Unknown)

of the power management for the entire chassis.

System Power Status Displays the power status (On, Off, Powering On,

Powering Off) of the chassis.

Redundancy Indicates the power supply redundancy status.

Values include:

No: Power Supplies are not redundant.

Yes: Full Redundancy in effect.

120 Using the CMC Web Interface

Table 5-12 provides descriptions of the information provided on the

Temperature Sensors Information page.

Table 5-12. Temperature Sensors Health Status Information

Item Description

ID Displays the numeric ID of the temperature probe.

Name Displays the name of each temperature probe on the chassis,

servers, IOMs, and iKVM. Examples: Ambient Temp,

Server 1 Temp, I/O Module 1, iKVM Temp.

Present Indicates whether the sensor is present (Yes) or absent (No) in the

chassis.

Health OK Indicates that the temperature probe unit is

present and communicating with the CMC.

Indicates that the health of the temperature

probe unit is OK.

Severe Indicates that the temperature sensor has a

failure and the health is critical. Corrective

action must be taken immediately.

Unknown Displayed with the chassis is first powered on.

In the event of a communication failure

between the CMC and the temperature probe

unit, the CMC cannot obtain or display health

status for the temperature probe.

Reading Indicates the current temperature in degrees Centigrade and

Fahrenheit.

Threshold

Maximum

Indicates the highest temperature, in degrees Centigrade and

Fahrenheit, at which a Failure alert is issued.

Threshold

Minimum

Indicates the lowest temperature, in degrees Centigrade and

Fahrenheit, at which a Failure alert is issued.

Using the CMC Web Interface 121

Viewing World Wide Name/Media Access

Control (WWN/MAC) IDs

The WWN/MAC Summary page allows you to view the WWN configuration

and MAC address of a slot in the chassis.

Fabric Configuration

The Fabric Configuration section displays the type of Input/Output fabric

that is installed for Fabric A, Fabric B, and Fabric C. A green check mark

indicates that the fabric is enabled for FlexAddress. The FlexAddress feature

is used to deploy chassis assigned and slot persistent WWN/MAC addresses

to various fabrics and slots within the chassis. This feature is enabled on a per

fabric and per slot basis.

NOTE: See "Using FlexAddress" for more information on the FlexAddress feature.

WWN/MAC Addresses

The WWN/MAC Address section displays the WWN/MAC information

that is assigned to all servers, even if those server slots are currently empty.

Location displays the location of the slot occupied by the Input/Output

modules. The six slots are identified by a combination of the group name

(A, B, or C) and slot number (1 or 2): slot names A1, A2, B1, B2, C1, or C2.

iDRAC is the server's integrated management controller. Fabric displays

the type of the I/O fabric. Server-Assigned displays the server-assigned

WWN/MAC addresses embedded in the controller's hardware.

Chassis-Assigned displays the chassis-assigned WWN/MAC addresses

used for the particular slot. A green check mark in the Server-Assigned or

in Chassis-Assigned columns indicates the type of active addresses.

Chassis-Assign addresses are assigned when FlexAddress is activated on the

chassis, and represents the slot-persistent addresses. When Chassis-Assigned

addresses are checked, those addresses will be used even if one server is

replaced with another server.

122 Using the CMC Web Interface

Configuring CMC Network Properties

NOTE: Network configuration changes can result in the loss of connectivity on

current network login.

Setting Up Initial Access to the CMC

Before you begin configuring the CMC, you must first configure the CMC

network settings to allow the CMC to be managed remotely. This initial

configuration assigns the TCP/IP networking parameters that enable access

to the CMC.

NOTE: You must have Chassis Configuration Administrator privilege to set up CMC

network settings.

Select

Chassis

in the system tree.

Click the

Network/Security

tab. The

Network Configuration

page

appears.

Enable or disable DHCP for the CMC by selecting or clearing

the

Use DHCP (For CMC NIC IP Address)

check box.

If you disabled DHCP, type the IP address, gateway, and subnet mask.

Click

Apply Changes

at the bottom of the page.

Configuring the Network LAN Settings

NOTE: To perform the following steps, you must have Chassis Configuration

Administrator privilege.

NOTE: The settings on the Network Configuration page, such as community string

and SMTP server IP address, affect both the CMC and the external settings of the

chassis.

NOTE: If you have two CMCs (primary and standby) on the chassis, and they are

both connected to the network, the standby CMC automatically assumes the

network settings in the event of failover of the primary CMC.

Click the

Network/Security

tab.

Using the CMC Web Interface 123

Configure the CMC network settings described in Table 5-13 through

Tab le 5-15.

Click

Apply Changes

To configure IP range and IP blocking settings, click the Advanced Settings

button (see "Configuring CMC Network Security Settings").

To refresh the contents of the Network Configuration page, click Refresh.

To print the contents of the Network Configuration page, click Print.

Table 5-13. Network Settings

Setting Description

CMC MAC Address Displays the chassis’ MAC address, which is a unique

identifier for the chassis over the computer network.

Enable CMC NIC Enables the NIC of the CMC.

Default: Enabled. If this option is checked:

• The CMC communicates with and is accessible over the

computer network.

• The Web interface, CLI (remote RACADM), WSMAN,

Telnet, and SSH associated with the CMC are available.

If this option is not checked:

• The CMC NIC cannot communicate over the network.

• Communication to the chassis through CMC is

not available.

• The Web interface, CLI (remote RACADM), WSMAN,

Telnet, and SSH associated with the CMC

are not available.

• The server iDRAC Web interface, local CLI,

I/O modules, and iKVM are still accessible.

• Network addresses for the iDRAC and CMC can be

obtained, in this case, from the chassis' LCD.

NOTE: Access to the other network-accessible components

in the chassis is not affected when the network on the

chassis is disabled (or lost).

124 Using the CMC Web Interface

Default: Unchecked (disabled) by default

NOTE: Some DNS Servers will only register names

of 31 characters or fewer. Make sure the designated name

is within the DNS required limit.

DNS CMC Name Displays the CMC name only when Register CMC on

DNS is selected. The default CMC name is

CMC_service_tag, where service tag is the service tag

number of the chassis, for example: CMC-00002.

The maximum number of characters is 63. The first

character must be a letter (a-z, A-Z), followed by an

alphanumeric (a-z, A-Z, 0-9) or a hyphen (-) characters.

Use DHCP for DNS

Domain Name

Uses the default DNS domain name. This check box

is active only when Use DHCP (For NIC IP Address)

is selected.

Default: Enabled

DNS Domain Name The default DNS Domain Name is a blank character.

This field can be edited only when the Use DHCP for

DNS Domain Name check box is selected.

Auto Negotiation (1 Gb) Determines whether the CMC automatically sets the

duplex mode and network speed by communicating with

the nearest router or switch (On) or allows you to set the

duplex mode and network speed manually (Off).

Default: On

If Auto Negotiation is On, CMC automatically

communicates with the nearest router or switch and

operates at 1 Gb speed.

If Auto Negotiation is Off, you must set the duplex mode

and network speed manually.

Table 5-13. Network Settings

(continued)

Setting Description

Using the CMC Web Interface 125

Network Speed Set the network speed to 100 Mbps or 10 Mbps to match

your network environment.

NOTE: The Network Speed setting must match your network

configuration for effective network throughput. Setting the

Network Speed lower than the speed of your network

configuration increases bandwidth consumption and slows

network communication. Determine whether your network

supports the above network speeds and set it accordingly.

If your network configuration does not match any of these

values, Dell recommends that you use Auto Negotiation or

refer to your network equipment manufacturer.

NOTE: To use 1000 Mb or 1 Gb speeds, select Auto

Negotiation.

Duplex Mode Set the duplex mode to full or half to match your network

environment.

Implications: If Auto Negotiation is turned On for one

device but not the other, then the device using auto

negotiation can determine the network speed of the other

device, but not the duplex mode. In this case, duplex

mode defaults to the half duplex setting during auto

negotiation. such a duplex mismatch will result in a slow

network connection.

NOTE: The network speed and duplex mode settings are not

available if Auto Negotiation is set to On.

MTU Sets the size of the Maximum Transmission Unit (MTU),

or the largest packet that can be passed through the interface.

Configuration range: 576–1500.

Default: 1500.

NOTE: IPv6 requires a minimum MTU of 1280. If IPv6 is

enabled, and cfgNetTuningMtu is set to a lower value,

the CMC will use an MTU of 1280.

Table 5-13. Network Settings

(continued)

Setting Description

126 Using the CMC Web Interface

Table 5-14. IPv4 Settings

Setting Description

Enable IPv4 Allow the CMC to use the IPv4 protocol to communicate

on the network. Clearing this box does not prevent IPv6

networking from occurring. Default: Checked (enabled)

DHCP Enable Enables the CMC to request and obtain an IP address

from the IPv4 Dynamic Host Configuration Protocol

(DHCP) server automatically. Default: Checked (enabled)

If this option is checked, the CMC retrieves

IPv4 configuration (IP Address, subnet mask,

and gateway) automatically from a DHCP server on

your network. The CMC will always have a unique

IP Address allotted over your network.

NOTE: When this feature is enabled, the Static IP Address,

Static Subnet Mask, and Static Gateway property fields

(located immediately following this option on the Network

Configuration page) are disabled, and any previously entered

values for these properties are ignored.

If this option is not checked, you must manually type the

Static IP Address, Static Subnet Mask, and Static

Gateway in the text fields immediately following this

option in the Network Configuration page.

Static IP Address Specifies the IPv4 address for the CMC NIC.

Static Subnet Mask Specifies the static IPv4 subnet mask for the CMC NIC.

Static Gateway Specifies the IPv4 gateway for the CMC NIC.

NOTE: The Static IP Address, Static Subnet Mask, and

Static Gateway fields are active only if DHCP Enable (the

property field preceding these fields) is disabled

(unchecked). In that case, you must manually type the Static

IP Address, Static Subnet Mask, and Static Gateway for the

CMC to use over the network.

NOTE: The Static IP Address, Static Subnet Mask, and

Static Gateway fields apply only to the chassis device. They

do not affect the other network-accessible components in

the chassis solution, such as the server network, local

access, I/O modules, and iKVM.

Using the CMC Web Interface 127

Use DHCP to Obtain

DNS Server Addresses

Obtains the primary and secondary DNS server addresses

from the DHCP server instead of the static settings.

Default: Checked (enabled) by default

NOTE: If Use DHCP (For NIC IP Address) is enabled,

then enable the Use DHCP to Obtain DNS Server

Addresses property.

If this option is checked, the CMC retrieves its

DNS IP address automatically from a DHCP server

on your network.

NOTE: When this property is enabled, the Static Preferred

DNS Server and Static Alternate DNS Server property fields

(located immediately following this option on the Network

Configuration page) are inactivated, and any previously

entered values for these properties are ignored.

If this option is not selected, the CMC retrieves the

DNS IP address from the Static Preferred DNS Server and

Static Alternate DNS Server. The addresses of these

servers are specified in the text fields immediately

following this option on the Network Configuration page.

Static Preferred DNS

Server

Specifies the static IP address for the preferred

DNS Server. The Static Preferred DNS Server is

implemented only when Use DHCP to Obtain DNS

Server Addresses is disabled.

Static Alternate DNS

Server

Specifies the static IP address for the alternate

DNS Server. The Static Alternate DNS Server is

implemented only when Use DHCP to obtain

DNS Server addresses is disabled. If you do not have an

alternate DNS Server, type an IP address of 0.0.0.0.

Table 5-14. IPv4 Settings

(continued)

Setting Description

128 Using the CMC Web Interface

Table 5-15. IPv6 Settings

Setting Description

Enable IPv6 Allows the CMC to use the IPv6 protocol to

communicate on the network. Unchecking this box does not

prevent IPv4 networking from occurring. Default: Checked

(enabled)

AutoConfiguration

Enable

Allows the CMC to use the IPv6 protocol to obtain IPv6

related address and gateway settings from an IPv6 router

configured to provide this information. The CMC will then

have a unique IPv6 address on your network.

Default: Checked (enabled)

NOTE: When this feature is enabled, the Static IPv6 Address,

Static Prefix Length, and Static Gateway property fields

(located immediately following this option on the Network

Configuration page) are disabled, and any previously entered

values for these properties are ignored.

If this option is not checked, you must manually type the

Static IPv6 Address, Static Prefix Length, and Static

Gateway in the text fields located immediately following this

option on the Network Configuration page.

Static IPv6 Address Specifies the IPv6 address for the CMC NIC when

Autoconfiguration is not enabled.

Static Prefix Length Specifies the IPv6 prefix length for the CMC NIC when

Autoconfiguration is not enabled.

Static Gateway Specifies the static IPv6 gateway for the CMC NIC when

Autoconfiguration is not enabled.

NOTE: The Static IPv6 Address, Static Prefix Length, and

Static Gateway fields are active only if AutoConfiguration

Enable (the property field preceding these fields) is disabled

(unchecked). In that case, you must manually type the Static

IPv6 Address, Static Prefix Length, and Static Gateway for the

CMC to use over the IPv6 network.

NOTE: The Static IPv6 Address, Static Prefix Length, and

Static Gateway fields apply only to the chassis device. They do

not affect the other network-accessible components in the

chassis solution, such as the server network, local access, I/O

modules, and iKVM.

Using the CMC Web Interface 129

Configuring CMC Network Security Settings

NOTE: To perform the following steps, you must have Chassis Configuration

Administrator privilege.

Click the

Network/Security

tab. The

Network Configuration

page

displays.

Click the

Advanced Settings

button. The

Network Security

page displays.

Configure the CMC network security settings.

Table 5-16 describes the

settings

on the

Network Security

page.

NOTE: The IP Range and IP Blocking settings are applicable to IPv4 only.

Static Preferred DNS

Server

Specifies the static IPv6 address for the preferred DNS

Server. The entry for Static Preferred DNS Server is

considered only when Use DHCP to Obtain DNS Server

Addresses is disabled or unchecked. There is an entry for this

Server in both IPv4 and IPv6 configuration areas.

Static Alternate DNS

Server

Specifies the static IPv6 Address for the alternate DNS

Server. If you do not have an alternate DNS server, type an

IPv6 address of "::". The entry for Static Alternate DNS

Server is considered only when Use DHCP to Obtain DNS

Server Addresses is disabled or unchecked. There is an entry

for this server in both IPv4 and IPv6 configuration areas.

Table 5-16. Network Security Page Settings

Settings Description

IP Range Enabled Enables the IP Range checking feature, which defines a specific

range of IP addresses that can access the CMC.

IP Range Address Determines the base IP address for range checking.

Table 5-15. IPv6 Settings

(continued)

Setting Description

130 Using the CMC Web Interface

Click

Apply

to save your settings.

To refresh the contents of the Network Security page, click Refresh.

To print the contents of the Network Security page, click Print.

IP Range Mask Defines a specific range of IP addresses that can access

the CMC, a process called IP range checking.

IP range checking allows access to the CMC only from clients

or management stations whose IP addresses are within the

user-specified range. All other logins are denied.

For example:

IP range mask: 255.255.255.0

(11111111.11111111.11111111.00000000)

IP range address:192.168.0.255

(11000000.10101000.00000000.11111111)

The resulting IP address range is any address that contains

192.168.0, that is, any address from 192.168.0.0 through

192.168.0.255.

IP Blocking

Enabled

Enables the IP address blocking feature, which limits the

number of failed login attempts from a specific IP address for a

pre-selected time span.

•IP Blocking Fail

Count

Sets the number of login failures attempted from an IP address

before the login attempts are rejected from that address.

•IP Blocking Fail

Window

Determines the time span in seconds within which

IP Blocking Fail Count failures must occur to trigger

the IP Block Penalty Time.

•IP Blocking

Penalty Time

The time span in seconds within which login attempts from an

IP address with excessive failures are rejected.

NOTE: The IP Blocking Fail Count, IP Blocking Fail Window, and

IP Blocking Penalty Time fields are active only if the IP Blocking

Enabled check box (the property field preceding these fields) is

checked (enabled). In that case, you must manually type

IP Blocking Fail Count, IP Blocking Fail Window, and IP Blocking

Penalty Time properties.

Table 5-16. Network Security Page Settings

(continued)

Settings Description

Using the CMC Web Interface 131

Configuring VLAN

VLANs are used to allow multiple virtual LANs to co-exist on the same

physical network cable and to segregate the network traffic for security

or load management purposes.

When you enable the VLAN functionality,

each network packet is assigned a VLAN tag.

Click the

Network/Security

tab

→

VLAN

subtab. The

VLAN Tag Settings

page displays.

VLAN tags are chassis properties. They remain with the chassis even

when a component is removed.

Configure the CMC/iDRAC VLAN settings.

Table 5-17 describes the

settings

on the

Network Security

page.

Click

Apply

to save the settings.

You can also access this page from the Chassis→ Servers→ Setup tab→

VLAN subtab.

Table 5-17. VLAN Tag Settings

Setting Description

Slot Displays the slot occupied by the server in the chassis.

Slots are sequential IDs, from 1 to 16 (for the 16 available

slots in the chassis), that help identify the location of the

server in the chassis.

Name Displays the name of the server in each slot.

Enable Enables VLAN if the check box is selected. VLAN is disabled

by default.

Priority Indicates the frame priority level, which can be used to

prioritize different types of traffic (voice, video, and data).

Valid priorities are 0 to 7; where 0 (default) is the lowest and

7 is the highest.

ID Displays the VLAN ID (identification). Valid VLAN IDs are:

1 to 4000 and 4021 to 4094. The default VLAN ID is 1.

132 Using the CMC Web Interface

Adding and Configuring CMC Users

To manage your system with the CMC and maintain system security,

create unique users with specific administrative permissions (or role-based

authority). For additional security, you can also configure alerts that are

e-mailed to specific users when a specific system event occurs.

User Types

There are two types of users: CMC users and iDRAC users. CMC users are

also known as "chassis users." Since iDRAC resides on the server, iDRAC users

are also known as "server users."

CMC users can be local users or Active Directory users. iDRAC users can also

be local users or Active Directory users.

Except where a CMC user has Server Administrator privilege, privileges

granted to a CMC user are not automatically transferred to the same user on

a server, because server users are created independently from CMC users.

In other words, CMC Active Directory users and iDRAC Active Directory

users reside on two different branches in the Active Directory tree. To create

a local server user, the User Configuration Administrator must log into

the server directly. The User Configuration Administrator cannot create a

server user from CMC or vice versa. This rule protects the security and

integrity of the servers.

Table 5-18, Table 5-19, and Table 5-20 describe CMC user privileges (local or

Active Directory), and what operations a CMC user can execute on the

chassis and on the servers based on the privileges he is granted. The term user

or users, therefore, should be understood as CMC users. Server users will be

explicitly specified.

Using the CMC Web Interface 133

Table 5-18. User Types

Privilege Description

CMC Login

User

Users who have the CMC Login User privilege can log in to

CMC. A user with only the login privilege can view all of the

CMC data but cannot add or modify data or execute commands.

It is possible for a user to have other privileges without the login

privilege. This feature is useful when a user is temporarily

disallowed to login. When that user’s login privilege is restored,

the user retains all the other privileges previously granted.

Chassis

Configuration

Administrator

Users who have the Chassis Configuration Administrator privilege

can add or change data that:

• Identifies the chassis, such as chassis name and chassis location

• Is assigned specifically to the chassis, such as IP mode (static or

DHCP), static IP address, static gateway, and static subnet mask

• Provides services to the chassis, such as date and time,

firmware update, and CMC reset.

• Is associated with the chassis, such as slot name and slot priority.

Although these properties apply to the servers, they are strictly

chassis properties relating to the slots rather than the servers

themselves. For this reason, slot names and slot priorities can be

added or changed whether or not servers are present in the slots.

When a server is moved to a different chassis, it inherits the slot

name and priority assigned to the slot it occupies in the new

chassis. Its previous slot name and priority remain with the

previous chassis.

User

Configuration

Administrator

Users who have the User Configuration Administrator privilege can:

• Add a new user

• Delete an existing user

• Change a user's password

• Change a user's privileges

• Enable or disable a user's login privilege but retain the user's

name and other privileges in the database.

Clear Logs

Administrator

CMC users who have the Clear Administrator privilege can clear

the hardware log and CMC log.

134 Using the CMC Web Interface

Chassis Control

Administrator

(Power

Commands)

CMC users with the Chassis Power Administrator privilege can

perform all power-related operations:

• Control chassis power operations, including power on, power off,

and power cycle.

Server

Administrator

The Server Administrator privilege is a blanket privilege granting a

CMC user all rights to perform any operation on any servers

present in the chassis.

When a user with CMC Server Administrator privilege issues an

action to be performed on a server, the CMC firmware sends the

command to the targeted server without checking the user's

privileges on the server. In other words, the CMC Server

Administrator privilege overrides any lack of administrator

privileges on the server.

Without the Server Administrator privilege, a user created on the

chassis can only execute a command on a server when all of the

following conditions are true:

• The same user name exists on the server

• The same user name must have the exact same password on the

server

• The user must have the privilege to execute the command

When a CMC user who does not have Server Administrator

privilege issues an action to be performed on a server, the CMC

will send a command to the targeted server with the user’s login

name and password. If the user does not exist on the server,

or if the password does not match, the user is denied the ability

to perform the action.

If the user exists on the target server and the password matches,

the server responds with the privileges of which the user was

granted on the server. Based on the privileges responding from

the server, CMC firmware decides if the user has the right

to perform the action.

Listed below are the privileges and the actions on the server to

which the Server Administrator is entitled. These rights are

applied only when the chassis user does not have the Server

Administrative privilege on the chassis.

Table 5-18. User Types

(continued)

Privilege Description

Using the CMC Web Interface 135

Server

Administrator

(continued)

Server Configuration Administrator:

• Set IP address

•Set gateway

• Set subnet mask

• Set first boot device

User Configuration Administrator:

• Set iDRAC root password

•iDRAC reset

Server Control Administrator:

• Power on

• Power off

• Power cycle

•Graceful shutdown

• Server Reboot

Test Alert User CMC users who have the Test Alert User privilege can send test

alert messages.

Debug

Command

Administrator

CMC users who have the Debug Administrator privilege can

execute system diagnostic commands.

Fabric A

Administrator

CMC users who have the Fabric A Administrator privilege can set

and configure the Fabric A IOM, which resides in either slot A1 or

slot A2 of the I/O slots.

Fabric B

Administrator

CMC users who have the Fabric B Administrator privilege can set

and configure the Fabric B IOM, which resides in either slot B1 or

slot B2 of the I/O slots.

Fabric C

Administrator

CMC users who have the Fabric C Administrator privilege can set

and configure the Fabric C IOM, which resides in either slot C1 or

slot C2 of the I/O slots.

Table 5-18. User Types

(continued)

Privilege Description

136 Using the CMC Web Interface

The CMC user groups provide a series of user groups that have pre-assigned

user privileges. The privileges are listed and described in Table 5-18.

The following table lists the user groups and the pre-defined user privileges.

NOTE: If you select Administrator, Power User, or Guest User, and then add or

remove a privilege from the pre-defined set, the CMC Group automatically

changes to Custom.

Table 5-19. CMC Group Privileges

User Group Privileges Granted

Administrator

•CMC Login User

• Chassis Configuration Administrator

• User Configuration Administrator

•Clear Logs Administrator

• Server Administrator

• Test Alert User

• Debug Command Administrator

• Fabric A Administrator

• Fabric B Administrator

• Fabric C Administrator

Power User

•CMC Login User

•Clear Logs Administrator

• Chassis Control Administrator (Power Commands)

• Server Administrator

• Test Alert User

• Fabric A Administrator

• Fabric B Administrator

• Fabric C Administrator

Guest User CMC Login User

Using the CMC Web Interface 137

Custom Select any combination of the following permissions:

•CMC Login User

• Chassis Configuration Administrator

• User Configuration Administrator

•Clear Logs Administrator

• Chassis Control Administrator (Power Commands)

•Super User

• Server Administrator

• Test Alert User

• Debug Command Administrator

• Fabric A Administrator

•Fabric B Administrator

• Fabric C Administrator

None No assigned permissions.

Table 5-20. Comparison of Privileges Between CMC Administrators, Power Users,

and Guest Users

Privilege Set Administrator

Permissions

Power User

Permissions

Guest User

Permissions

CMC Login User

Chassis Configuration

Administrator

User Configuration Administrator

Clear Logs Administrator

Chassis Control Administrator

(Power Commands)

Table 5-19. CMC Group Privileges

(continued)

User Group Privileges Granted

138 Using the CMC Web Interface

Adding and Managing Users

From the Users and User Configuration pages in the Web interface, you can

view information about CMC users, add a new user, and change settings for

an existing user.

You can configure up to 16 local users. If additional users are required and

your company uses the Microsoft® Active Directory® service software,

you can configure Active Directory to provide access to the CMC.

Active Directory configuration would allow you to add and control CMC user

privileges to your existing users in your Active Directory software, in addition

to the 16 local users. For more information, see "Using the CMC With

Microsoft Active Directory" on page 207.

Super User

Server Administrator

Test Alert User

Debug Command Administrator

Fabric A Administrator

Fabric B Administrator

Fabric C Administrator

Table 5-20. Comparison of Privileges Between CMC Administrators, Power Users,

and Guest Users

(continued)

Privilege Set Administrator

Permissions

Power User

Permissions

Guest User

Permissions

Using the CMC Web Interface 139

Users can be logged in through Web interface, Telnet serial, SSH, and iKVM

sessions. A maximum of 22 active sessions (Web interface, Telnet serial, SSH,

and iKVM, in any combination) can be divided among users.

NOTE: For added security, Dell strongly recommends that you change the default

password of the root (User 1) account. The root account is the default

administrative account that ships with the CMC. To change the default password for

the root account, click User ID 1 to open the User Configuration page. Help for that

page is available through the Help link at the top right corner of the page.

To add and configure CMC users:

NOTE: You must have User Configuration Administrator privilege to perform the

following steps.

Click the

Network/Security

tab, and then click the

Users sub-tab

The

Users

page appears, listing

each user’s user ID,

user name,

CMC privilege, and

including those of the root user.

User IDs available for configuration will have no user

information displayed.

Click an available user ID number. The

User Configuration

page displays.

To refresh the contents of the

Users

page, click

Refresh

. To print the

contents of the

Users

age, click

Select general settings for the user.

Tab le 5- 21 describe s the

General

settings for configuring a new or existing

CMC username and password.

Table 5-21. General User Settings

Property Description

User ID (Read only) Identifies a user by one of 16 preset, sequential numbers

used for CLI scripting purposes. The User ID identifies the

particular user when configuring the user through the CLI tool

(RACADM). You cannot edit the User ID.

If you are editing information for user root, this field is static.

You cannot edit the user name for root.

Enable User Enables or disables the user's access to the CMC.

140 Using the CMC Web Interface

Assign the user to a CMC user group. Table 5-18 describes CMC user

privileges. Table 5-19

describes

the

user group permissions

for the

CMC User Privileges

settings. Table 5-20 provides a comparison of

privileges between Administrators, Power Users, and Guest Users.

When you select a user privilege setting from the CMC Group drop-down

menu, the enabled privileges (shown as checked boxes in the list) display

according to the pre-defined settings for that group.

You can customize the privileges settings for the user by checking or

un-checking boxes. After you have selected a CMC Group or made

Custom user privilege selections, click

Apply Changes

to keep the settings.

Click

Apply Changes

To refresh the contents of the User Configuration page, click Refresh.

To print the contents of the User Configuration page, click Print.

User Name Sets or displays the unique CMC user name associated with the

user. The user name can contain up to 16 characters. CMC user

names cannot include forward slash (/) or period (.) characters.

NOTE: If you change the user name, the new name does not appear in

the user interface until your next login. Any user logging in after you

apply the new user name will be able to see the change immediately.

Change

Password

Allows an existing user’s password to be changed. Set the new

password in the New Password field.

The Change Password check box is not selectable if you are

configuring a new user. You can select it only when changing an

existing user setting.

Password Sets a new password for an existing user. To change the password,

you must also select the Change Password check box. The password

can contain up to 20 characters, which display as dots as you type.

Confirm

Password

Verifies the password you entered in the New Password field.

NOTE: The New Password and Confirm New Password fields are

editable only when you are (1) configuring a new user; or (2) editing

the settings for an existing user, and the Change Password check box

is selected.

Table 5-21. General User Settings

(continued)

Property Description

Using the CMC Web Interface 141

Configuring and Managing Microsoft Active

Directory Certificates

NOTE: To configure Active Directory settings for the CMC, you must have Chassis

Configuration Administrator privilege.

NOTE: For more information about Active Directory configuration and how to

configure Active Directory with Standard Schema or Extended Schema, see "Using

the CMC With Microsoft Active Directory" on page 207.

You can use the Microsoft Active Directory service to configure your software

to provide access to the CMC. Active Directory service allows you to add and

control the CMC user privileges of your existing users.

To access the Active Directory Main Menu page:

Click the

Network/Security

tab, and then click the

Active Directory

sub-

tab. The

Active Directory Main Menu

page appears.

Table 5-22 lists the Active Directory Main Menu page options.

Table 5-22. Active Directory Main Menu Page Options

Field Description

Configure Configure and manage the following Active Directory

settings for CMC: CMC Name, ROOT Domain Name,

CMC Domain Name, Active Directory Authentication

Timeout, Active Directory Schema Selection (Extended or

Standard), and Role Group settings.

Upload AD Certificate Upload a certificate authority-signed certificate for Active

Directory to the CMC. This certificate, which you obtain

from Active Directory, grants access to the CMC.

Download Certificate Downloads a CMC server certificate to your management

station or shared network using Windows Download

Manager. When you select this option and click Next, a File

Download dialog box appears. Use this dialog box to specify

a location on your management station or shared network

for the server certificate.

142 Using the CMC Web Interface

Configuring Active Directory (Standard Schema and Extended Schema)

NOTE: To configure Active Directory settings for the CMC, you must have Chassis

Configuration Administrator privilege.

NOTE: Before configuring or using the Active Directory feature, you must ensure

that your Active Directory server is configured to communicate with the CMC.

Ensure that all Secure Socket Layer (SSL) certificates for the Active

Directory servers are signed by the same certificate authority and have

been uploaded to the CMC.

Active Directory

Main Menu

Select

Configure

, and then click

. The

Active Directory

Configuration and Management

page displays.

Select the

Enable Active Directory

check box under the

Common

Settings

heading.

Type the required information into the remaining

fields. See Table 5-23.

View Certificate Displays the certificate authority-signed server certificate

for Active Directory that has been uploaded to the CMC.

NOTE: By default, CMC does not have a certificate

authority-issued server certificate for Active Directory.

You must upload a current, certificate authority-signed

server certificate.

Upload Kerberos

Keytab

Uploads a Kerberos Keytab for Active Directory to the

CMC. You can generate the Kerberos Keytab from the

Active Directory Server by executing the ktpass.exe utility.

This keytab establishes a trust relationship between the

Active Directory Server and the CMC.

NOTE: The CMC does not have a Kerberos Keytab for Active

Directory. You must upload a currently generated Kerberos

Keytab. See "Configuring Single Sign-On" for detailed

information.

Table 5-22. Active Directory Main Menu Page Options

(continued)

Field Description

Using the CMC Web Interface 143

Table 5-23. Active Directory Common Settings Properties

Setting Description

Root Domain Name Specifies the domain name used by Active Directory.

The root domain name is the fully qualified root

domain name for the forest.

NOTE: The root domain name must be a valid domain name

using the x.y naming convention, where x is a 1–256 character

ASCII string with no spaces between characters, and y is a

valid domain type such as com, edu, gov, int, mil, net, or org.

Default: null (empty)

AD Timeout The time in seconds to wait for Active Directory queries to

complete. The minimum value is equal to or greater than

15 seconds.

Default: 120 seconds

Specify AD Server to

search (Optional)

Enables (when checked) directed call on the domain

controller and global catalog. If you enable this option,

you must also specify the domain controller and global

catalog locations in the following settings.

NOTE: The name on the Active Directory CA Certificate will

not be matched against the specified Active Directory server

or the Global Catalog server.

Domain Controller Specifies the server where your Active Directory service

is installed.

This option is valid only if Specify AD Server to search

(OPTIONAL) is enabled.

Global Catalog Specifies the location of the global catalog on the Active

Directory domain controller. The global catalog provides a

resource for searching an Active Directory forest.

This option is valid only if Specify AD Server to search

(OPTIONAL) is enabled.

144 Using the CMC Web Interface

Select an Active Directory schema under the Active Directory Schema

Selection heading. See Table 5-24.

If you selected

Extended Schema

, type the following required information

in the Extended Schema Settings section, and then proceed directly to

step 9. If you selected Standard Schema, proceed to step 8.

•

CMC Device Name

– The name that uniquely identifies the

CMC card in Active Directory. The CMC name must be the same as

the common name of the new CMC object you created in your

Domain Controller. The name must be a 1–256 character ASCII string

with no spaces between characters. Default: null (empty).

•

CMC Domain Name

– The DNS name (string) of the domain where

the Active Directory CMC object resides (example: cmc.com).

The name must be a valid domain name consisting of

x.y

, where

is a

1–256 character ASCII string with no spaces between characters, and

is a valid domain type such as com, edu, gov, int, mil, net, or org.

Default

null (empty).

NOTE: Do not use the NetBIOS name. The CMC Domain Name is the

fully qualified domain name of the sub-domain where the CMC Device Object

is located.

Table 5-24. Active Directory Schema Options

Setting Description

Use Standard Schema Uses Standard Schema with Active Directory, which uses

Active Directory group objects only.

Before configuring CMC to use the Active Directory

Standard Schema option, you must first configure the

Active Directory software:

On an Active Directory server (domain controller),

open the Active Directory Users and Computers Snap-in.

Create a group or select an existing group. The name of the

group and the name of this domain must be configured on

the CMC either with the Web interface or RACADM.

Using the CMC Web Interface 145

If you selected Standard Schema, type the following information in the

Standard Schema Settings section. If you selected Extended Schema,

proceed to step 9.

•

Role Groups

– The role groups associated with the CMC. To change

the settings for a role group, click the role group number in the Role

Groups list. The

Configure Role Group

page displays.

NOTE: If you click a role group link prior to applying any new settings you

have made, you will lose those settings. To avoid losing any new settings,

click Apply before clicking a role group link.

•

Group Name

– The name that identifies the role group in the Active

Directory associated with the CMC card.

•

Group Domain

– The domain where the group is located.

•

Group Privilege

– The privilege level for the group.

Click

Apply

to save the settings.

Use Extended Schema Uses Extended Schema with Active Directory, which uses

Dell-defined Active Directory objects.

Before configuring CMC to use the Active Directory

Extended Schema option, you must first configure the

Active Directory software:

Extend the Active Directory schema.

Extend the Active Directory Users and

Computers Snap-in.

Add CMC users and their privileges to Active Directory.

Enable SSL on each of your domain controllers.

Configure the CMC Active Directory properties using

either the CMC Web interface or the RACADM.

Table 5-24. Active Directory Schema Options

(continued)

Setting Description

146 Using the CMC Web Interface

To refresh the contents of the

Active Directory Configuration and

Management

page, click Refresh.

To print the contents of the

Active Directory Configuration and Management

page, click Print.

To configure the Role Groups for Active Directory, click the individual Role

Group (1–5). See Table 5-19 and Table 5-18.

NOTE: To save the settings on the Active Directory Configuration and Management

page, you have to click Apply before proceeding to the Custom Role Group page.

Uploading an Active Directory Certificate Authority-Signed Certificate

From

the

Active Directory Main Menu

page

Select

Upload AD Certificate,

and then click

. The

Certificate

Upload page displays.

Type the file path in the text field, or click

Browse

to select the file.

NOTE: The File Path value displays the relative file path of the certificate you are

uploading. You must type the absolute file path, which includes the full path and the

complete file name and file extension.

Click

Apply

. If the certificate is invalid, an error message displays.

To refresh the contents of the

Upload Active Directory CA Certificate

page,

click Refresh.

To print the contents of the

Upload Active Directory CA Certificate

page,

click Print.

Viewing an Active Directory Certificate Authority-Signed Certificate

NOTE: If you uploaded an Active Directory server certificate on the CMC,

make sure the certificate is still valid and has not expired.

From

the

Active Directory Main Menu

page

Select

View Certificate,

and then click

Click the appropriate

View Active Directory CA Certificate

page button

to continue.

Using the CMC Web Interface 147

To refresh the contents of the

View Active Directory CA Certificate

page,

click

Refresh

To print the contents of the

View Active Directory CA Certificate

page,

click

Securing CMC Communications Using SSL and

Digital Certificates

This subsection provides information about the following data security

features that are incorporated in your CMC:

• Secure Sockets Layer (SSL)

• Certificate Signing Request (CSR)

• Accessing the SSL main menu

• Generating a new CSR

• Uploading a server certificate

• Viewing a server certificate

Secure Sockets Layer (SSL)

The CMC includes a Web server that is configured to use the

industry-standard SSL security protocol to transfer encrypted data over the

Internet. Built upon public-key and private-key encryption technology,

SSL is a widely accepted technique for providing authenticated and

encrypted communication between clients and servers to prevent

eavesdropping across a network.

Table 5-16. Active Directory CA Certificate Information

Field Description

Serial Number Certificate serial number.

Subject Information Certificate attributes entered by the subject.

Issuer Information Certificate attributes returned by the issuer.

Valid Fr om Certificate issue date.

Valid To Certificate expiration date.

148 Using the CMC Web Interface

SSL allows an SSL-enabled system to perform the following tasks:

• Authenticate itself to an SSL-enabled client

• Allow the client to authenticate itself to the server

• Allow both systems to establish an encrypted connection

This encryption process provides a high level of data protection. The CMC

employs the 128-bit SSL encryption standard, the most secure form of

encryption generally available for Internet browsers in North America.

The CMC Web server includes a Dell self-signed SSL digital certificate

(Server ID). To ensure high security over the Internet, replace the Web server

SSL certificate by submitting a request to the CMC to generate a new

Certificate Signing Request (CSR).

Certificate Signing Request (CSR)

A CSR is a digital request to a certificate authority (referred to as a CA in the

Web interface) for a secure server certificate. Secure server certificates ensure

the identity of a remote system and ensure that information exchanged with

the remote system cannot be viewed or changed by others. To ensure the

security for your CMC, it is strongly recommended that you generate a CSR,

submit the CSR to a certificate authority, and upload the certificate returned

from the certificate authority.

A certificate authority is a business entity that is recognized in the IT industry

for meeting high standards of reliable screening, identification, and other

important security criteria. Examples of CAs include Thawte and VeriSign.

After the certificate authority receives your CSR, they review and verify the

information the CSR contains. If the applicant meets the certificate

authority’s security standards, the certificate authority issues a certificate to

the applicant that uniquely identifies that applicant for transactions over

networks and on the Internet.

After the certificate authority approves the CSR and sends you a certificate,

you must upload the certificate to the CMC firmware. The CSR information

stored on the CMC firmware must match the information contained in

the certificate.

Using the CMC Web Interface 149

Accessing the SSL Main Menu

NOTE: To configure SSL settings for the CMC, you must have Chassis Configuration

Administrator privilege.

NOTE: Any server certificate you upload must be current (not expired) and signed

by a certificate authority.

Click the

Network/Security

tab, and then click the

SSL sub-tab

. The

SSL

Main Menu

page appears.

Use the SSL Main Menu page options to generate a CSR to send to a

certificate authority. The CSR information is stored on the CMC firmware.

Generating a New Certificate Signing Request

To ensure security, Dell strongly recommends that you obtain and upload a

secure server certificate to the CMC. Secure server certificates ensure the

identity of a remote system and that information exchanged with the remote

system cannot be viewed or changed by others. Without a secure server

certificate, the CMC is vulnerable to access from unauthorized users.

Table 5-17. SSL Main Menu Options

Field Description

Generate a New

Certificate Signing

Request (CSR)

Select this option and click Next to open the Generate

Certificate Signing Request (CSR) page, where you can

generate a CSR request for a secure Web certificate to

submit to a certificate authority.

NOTE: Each new CSR overwrites any previous CSR on the

CMC. For a certificate authority to accept your CSR, the CSR

in the CMC must match the certificate returned from the

certificate authority.

Upload Server

Certificate Based on

Generated CSR

Select this option and click Next to display the Certificate

Upload page, where you can upload an existing certificate

that your company holds title to and uses to control access

to the CMC.

NOTE: Only X509, Base 64-encoded certificates are accepted

by the CMC. DER-encoded certificates are not accepted.

Uploading a new certificate replaces the default certificate

you received with your CMC.

150 Using the CMC Web Interface

To obtain a secure server certificate for the CMC, you must submit a

Certificate Signing Request (CSR) to a certificate authority of your choice.

A CSR is a digital request for a signed, secure server certificate containing

information about your organization and a unique, identifying key.

When a CSR is generated from the Generate Certificate Signing Request

(CSR) page, you are prompted to save a copy to your management station or

shared network, and the unique information used to generate the CSR is

stored on the CMC. This information is used later to authenticate the server

certificate you receive from the certificate authority. After you receive the server

certificate from the certificate authority, you must then upload it to the CMC.

NOTE: For the CMC to accept the server certificate returned by the certificate

authority, authentication information contained in the new certificate must match

the information that was stored on the CMC when the CSR was generated.

CAUTION: When a new CSR is generated, it overwrites any previous CSR on the

CMC. If a pending CSR is overwritten before its server certificate is granted from a

certificate authority, the CMC will not accept the server certificate because the

information it uses to authenticate the certificate has been lost. Take caution

when generating a CSR to prevent overwriting any pending CSR.

Upload Webserver key

and Certificate

Select this option and click Next to open the Webserver Key

and Certificate Upload page, where you can upload an

existing Web server key and server certificate that your

company holds title to and uses to control access to the

CMC.

NOTE: Only X.509, Base64 encoded certificates are accepted

by the CMC. Binary DER-encoded certificates are not

accepted. Uploading a new certificate replaces the default

certificate you received with your CMC.

View Server Certificate Select the option and click the Next button to open the

View Server Certificate page where you can view the

current server certificate.

Table 5-17. SSL Main Menu Options

(continued)

Field Description

Using the CMC Web Interface 151

To generate a CSR:

From the

SSL Main Menu

page, select

Generate a New Certificate

Signing Request (CSR)

, and then click

. The

Generate Certificate

Signing Request (CSR)

page displays.

Type a value for each CSR attribute value.

Table 5-18 describes the

Generate Certificate Signing Request (CSR)

page options.

Click

Generate

. A

File Download

dialog box appears.

Save the

csr.txt

file to your management station or shared network.

(You may also open the file at this time and save it later.) You will later

submit this file to a certificate authority.

Table 5-18. Generate Certificate Signing Request (CSR) Page Options

Field Description

Common Name The exact name being certified (usually the Web server's

domain name, for example, www.xyzcompany.com/).

Valid: Alphanumeric characters (A–Z, a–z, 0–9); hyphens,

underscores, and periods.

Not valid: Non-alphanumeric characters not noted above

(such as, but not limited to, @ # $ % & *); characters used

primarily in non-English languages, such as ß, å, é, ü.

Organization Name The name associated with your organization (example: XYZ

Corporation).

Valid: Alphanumeric characters (A–Z, a–z, 0–9); hyphens,

underscores, periods, and spaces.

Not valid: Non-alphanumeric characters not noted above (such

as, but not limited to, @ # $ % & *).

Organization Unit The name associated with an organizational unit, such as a

department (example: Enterprise Group).

Valid: Alphanumeric characters (A–Z, a–z, 0–9); hyphens,

underscores, periods, and spaces.

Not valid: Non-alphanumeric characters not noted above (such

as, but not limited to, @ # $ % & *).

152 Using the CMC Web Interface

Uploading a Server Certificate

From the

SSL Main Menu

page, select

Upload Server Certificate

, and

then click

. The

Certificate Upload

page displays.

Type the file path in the text field, or click

Browse

to select the file.

Click

Apply

. If the certificate is invalid, an error message displays.

NOTE: The File Path value displays the relative file path of the certificate you are

uploading. You must type the absolute file path, which includes the full path and the

complete file name and file extension.

To refresh the contents of the

Certificate Upload

page, click Refresh.

To print the contents of the

Certificate Upload

page, click Print.

Locality The city or other location of your organization

(examples: Atlanta, Hong Kong).

Valid: Alphanumeric characters (A–Z, a–z, 0–9) and spaces.

Not Valid: Non-alphanumeric characters not noted above

(such as, but not limited to, @ # $ % & *).

State The state, province, or territory where the entity that is applying

for a certification is located (examples: Texas, New South

Wales, Andhra Pradesh).

NOTE: Do not use abbreviations.

Valid: Alphanumeric characters (upper- and lower-case letters;

0–9); and spaces.

Not valid: Non-alphanumeric characters not noted above

(such as, but not limited to, @ # $ % & *).

Country The country where the organization applying for certification

is located.

Email Your organization's e-mail address. You may type any e-mail

address you want to have associated with the CSR. The e-mail

address must be valid, containing the at (@) sign (example:

name@xyzcompany.com).

NOTE: This e-mail address is an optional field.

Table 5-18. Generate Certificate Signing Request (CSR) Page Options

(continued)

Field Description

Using the CMC Web Interface 153

Viewing a Server Certificate

From the SSL Main Menu page, select View Server Certificate, and then

click Next. The View Server Certificate page displays.

Table 5-19 describes the fields and associated descriptions listed in the

Certificate window.

To refresh the contents of the View

Server Certificate

page, click Refresh.

To print the contents of the View

Server Certificate

page, click Print.

Managing Sessions

The Sessions page displays all current instances of connections to the chassis

and allows you to terminate any active session.

NOTE: To terminate a session, you must have Chassis Configuration

Administrator privilege.

To terminate a session:

Log into the CMC through the Web.

Click the

Network/Security

tab then click the

Sessions

sub-tab.

On the

Sessions

page, locate the session you want to terminate and

click the trash can icon.

To manage sessions:

Select

Chassis

in the system tree.

Table 5-19. Certificate Information

Field Description

Serial Certificate serial number

Subject Certificate attributes entered by the subject

Issuer Certificate attributes returned by the issuer

notBefore Issue date of the certificate

notAfter Expiration date of the certificate

154 Using the CMC Web Interface

Click the

Network/Security

tab.

Click the

Sessions

sub-tab. The

Sessions

page appears.

To terminate the session, click the trash can icon on the line that describes

the session.

Configuring Services

The CMC includes a Web server that is configured to use the

industry-standard SSL security protocol to accept and transfer encrypted data

from and to clients over the Internet. The Web server includes a Dell

self-signed SSL digital certificate (Server ID) and is responsible for accepting

and responding to secure HTTP requests from clients. This service is required

by the Web interface and remote CLI tool for communicating to the CMC.

NOTE: The remote (RACADM) CLI tool and the Web interface use the Web server.

In the event that the Web Server is not active, the remote RACADM and the Web

interface are not operable.

Table 5-20. Sessions Properties

Property Description

Session ID Displays the sequentially generated ID number for each instance

of a login.

Username Displays the user's login name (local user or Active Directory user).

Examples of Active Directory user names are name@domain.com,

domain.com/name, domain.com\name.

IP Address Displays the user’s IP address.

Session Type Describes the session type: Telnet, serial, SSH, Remote RACADM,

SMASH CLP, WSMAN, or a GUI session.

Terminate Allows you to terminate any of the sessions listed, except for your

own. To terminate the associated session, click the trash can

icon . This column is displayed only if you have Chassis

Configuration Administrator privileges.

Using the CMC Web Interface 155

NOTE: In an event of a Web server reset, wait at least one minute for the services

to become available again. A Web server reset usually happens as a result of any of

the following events: the network configuration or network security properties are

changed through the CMC Web user interface or RACADM; the Web Server port

configuration is changed through the Web user interface or RACADM; the CMC

is reset; a new SSL server certificate is uploaded.

NOTE: To modify service settings, you must have Chassis Configuration

Administrator privilege.

To configure CMC services:

Click the

Network/Security

tab.

Click the

Services

sub-tab. The

Services

page appears.

Configure the following services as required:

• CMC serial console (Table 5-21)

• Web server (Table 5-22)

• SSH (Table 5-23)

• Telnet (Table 5-24)

•Remote RACADM (Table5-25)

•SNMP (Table5-26)

• Remote Syslog (Table 5-27)

Click

Apply;

update all default time outs and maximum time out limits.

Table 5-21. CMC Serial Console Settings

Setting Description

Enabled Enables Telnet console interface on the CMC.

Default: Unchecked (disabled)

Redirect Enabled Enables the serial/text console redirection to the server

through your serial/Telnet/SSH client from the CMC.

The CMC connects to iDRAC that internally connects

to the server COM2 port.

Configuration options: Checked (enabled),

unchecked (disabled)

Default: Checked (enabled)

156 Using the CMC Web Interface

Idle Timeout Indicates the number of seconds before an idle serial

session is automatically disconnected. A change to the

Timeout setting takes effect at the next login; it does not

affect the current session.

Timeout Range: 0 or 60 to 10800 seconds. To disable the

Timeout feature, enter 0.

Default: 1800 seconds

Baud Rate Indicates the data speed on the external serial port on

the CMC.

Configuration options: 9600, 19200, 28800, 38400, 57600,

and 115200 bps.

Default: 115200 bps

Authentication

Disabled

Enables CMC Serial Console login authentication.

Default: Unchecked (disabled)

Escape Key Allows you to specify the Escape key combination that

terminates serial/text console redirection when using the

connect or racadm connect command.

Default: ^\

(Hold <Ctrl> and type a backslash (\) character)

NOTE: The caret character ^ represents the <Ctrl> key.

Configuration options:

• Decimal value (example: 95)

• Hexadecimal value (example: 0x12)

• Octal value (example: 007)

• ASCII value (example: ^a)

ASCII values may be represented using the following

Escape key codes:

• Esc followed by any alphabetic character (a-z, A-Z)

• Esc followed by the following special characters: [ ] \ ^ _

• Maximum Allowed Length: 4

Table 5-21. CMC Serial Console Settings

(continued)

Setting Description

Using the CMC Web Interface 157

History Size Buffer Indicates the maximum size of the serial history buffer,

which holds the last characters written to the Serial

Console.

Default: 8192 characters

executed when a user logs into the CMC Serial Console

interface.

Example: connect server-1

Default: [Null]

Table 5-22. Web Server Settings

Setting Description

Enabled Enables Web Server services (access through remote

RACADM and the Web interface) for the CMC.

Default: Checked (enabled)

Max Sessions Indicates the maximum number of simultaneous Web user

interface sessions allowed for the chassis. A change to the

Max Sessions property takes effect at the next login; it does

not affect current Active Sessions (including your own).

The remote RACADM is not affected by the Max Sessions

property for the Web Server.

Allowed range: 1–4

Default: 4

NOTE: If you change the Max Sessions property to a value

less than the current number of Active Sessions and then log

out, you cannot log back in until the other sessions have been

terminated or expired.

Table 5-21. CMC Serial Console Settings

(continued)

Setting Description

158 Using the CMC Web Interface

Idle Timeout Indicates the number of seconds before an idle Web user

interface session is automatically disconnected. A change to

the Timeout setting takes effect at the next login; it does

not affect the current session.

Timeout range: 60 to 10800 seconds.

Default: 1800 seconds

HTTP Port Number Indicates the default port used by the CMC that listens for

a server connection.

NOTE: When you provide the HTTP address on the browser,

the Web server automatically redirects and uses HTTPS.

If the default HTTP port number (80) has been changed,

you must include the port number in the address in the

browser address field, as shown:

http://<

IP address

>:<

port number

where IP address is the IP address for the chassis, and port

number is the HTTP port number other than the default

of 80.

Configuration range: 10–65535

Default: 80

HTTPS Port Number Indicates the default port used by the CMC that listens for

a secured server connection.

If the default HTTPS port number (443) has been changed,

you must include the port number in the address in the

browser address field, as shown:

https://<

IP address

>:<

port number

where <IP address> is the IP address for the chassis, and

<port number> is the HTTPS port number other than the

default of 443.

Configuration range: 10–65535

Default: 443

Table 5-22. Web Server Settings

(continued)

Setting Description

Using the CMC Web Interface 159

Table 5-23. SSH Settings

Setting Description

Enabled Enables the SSH on the CMC.

Default: Checked (enabled)

Max Sessions The maximum number of simultaneous SSH sessions

allowed for the chassis. A change to this property takes

effect at the next login; it does not affect current Active

Sessions (including your own).

Configurable range: 1–4

Default: 4

NOTE: If you change the Max Sessions property to a value

less than the current number of Active Sessions and then log

out, you cannot log back in until the other sessions have been

terminated or expired.

Idle Timeout Indicates the number of seconds before an idle SSH session

is automatically disconnected. A change to the Timeout

setting takes effect at the next login; it does not affect the

current session.

Timeout Range: 0 or 60–10800 seconds. To disable the

Timeout feature, enter 0.

Default: 1800 seconds

Port Number Port used by the CMC that listens for a server connection.

Configuration range: 10–65535

Default: 22

160 Using the CMC Web Interface

Table 5-24. Telnet Settings

Setting Description

Enabled Enables Telnet console interface on the CMC.

Default: Unchecked (disabled)

Max Sessions Indicates the maximum number of simultaneous Telnet

sessions allowed for the chassis. A change to this property

takes effect at the next login; it does not affect current

Active Sessions (including your own).

Allowed range: 1–4

Default: 4

NOTE: If you change the Max Sessions property to a value

less than the current number of Active Sessions and then log

out, you cannot log back in until the other sessions have been

terminated or expired.

Idle Timeout Indicates the number of seconds before an idle Telnet

session is automatically disconnected. A change to the

Timeout setting takes effect at the next login; it does not

affect the current session.

Timeout Range: 0 or 60–10800 seconds. To disable the

Timeout feature, enter 0.

Default: 1800 seconds

Port Number Indicates the port used by the CMC that listens for a server

connection.

Default: 23

Using the CMC Web Interface 161

Table 5-25. Remote RACADM Settings

Setting Description

Enabled Enables the remote RACADM utility access to the CMC.

Default: Checked (enabled)

Max Sessions Indicates the maximum number of simultaneous

RACADM sessions allowed for the chassis. A change to this

property takes effect at the next login; it does not affect

current Active Sessions (including your own).

Allowed range: 1–4

Default: 4

NOTE: If you change the Max Sessions property to a value

less than the current number of Active Sessions and then log

out, you cannot log back in until the other sessions have been

terminated or expired.

Idle Timeout Indicates the number of seconds before an idle racadm

session is automatically disconnected. A change to the Idle

Timeout setting takes effect at the next login; it does not

affect the current session. To disable the Idle Timeout

feature, enter 0.

Timeout Range: 0, or 10 to 1920 seconds. To disable the

Timeout feature, enter 0.

Default: 30 seconds

Table 5-26. SNMP Configuration

Setting Description

Enabled Enables SNMP on the CMC.

Legal Values: Checked (enabled), unchecked (disabled)

Default: unchecked (disabled)

Community Name Indicates the community string used to get data from

CMC's SNMP daemon.

162 Using the CMC Web Interface

Configuring Power Budgeting

The CMC allows you to budget and manage power to the chassis. The power

management service optimizes power consumption and re-allocates power to

different modules based on the demand.

For instructions on configuring power through the CMC, see "Configuring

and Managing Power" on page 263.

For more information on the CMC’s power management service, see "Power

Management" on page 247.

Table 5-27. Remote Syslog Configuration

Setting Description

Enabled Enables the transmission and remote capture of the System

Log on the specified server(s).

Legal Values: Checked (enabled), unchecked (disabled)

Default: unchecked (disabled)

Syslog Server 1 The first of three possible servers to host a copy of

the syslog. Specified as a hostname, an IPv6 address,

or an IPv4 address.

Syslog Server 2 The second of three possible servers to host a copy of

the syslog. Specified as a hostname, an IPv6 address,

or an IPv4 address.

Syslog Server 3 The third of three possible servers to host a copy of

the syslog. Specified as a hostname, an IPv6 address,

or an IPv4 address.

Syslog Port Number Specifies the port number on the remote server for

receiving a copy of the syslog. The same port number is

used for all three servers. A valid syslog port number is in

the 10-65535 range.

Default: 514

Using the CMC Web Interface 163

Managing Firmware Updates

This section describes how to use the Web interface to update firmware.

The following components can be updated using the GUI or

RACADM commands:

• CMC - primary and standby.

•iKVM

•iDRAC

• IOM infrastructure devices

When you update firmware, follow the recommended process to prevent a

loss of service if the update fails. See "Installing or Updating the CMC

Firmware" for guidelines to follow before using the instructions in this

section.

Viewing the Current Firmware Versions

The Update page displays the current version of all the components in the

chassis that can be updated. These may include the iKVM firmware, primary

CMC firmware, (if applicable) the standby CMC firmware, the iDRAC

firmware, and the IOM infrastructure device firmware; see "Updating the

IOM Infrastructure Device Firmware" for additional details. Clicking on

either the device name or the Select/Deselect All check box and then the

Apply Update button will display an update page for the selected devices.

If the chassis contains an earlier generation server whose iDRAC is in recovery

mode or if the CMC detects that an iDRAC has corrupted firmware, then the

earlier generation iDRAC is also listed on the Updatable Components page.

See "Recovering iDRAC Firmware Using the CMC" for the steps to recover

iDRAC firmware using the CMC.

To view the components that can be updated:

Click

Chassis

in the system tree.

Click the

Update

tab. The

Updatable Components

page appears.

164 Using the CMC Web Interface

Updating Firmware

NOTE: To update firmware on the CMC, you must have Chassis Configuration

Administrator privilege.

NOTE: The firmware update retains the current CMC and iKVM settings.

NOTE: If a Web user interface session is used to update system component

firmware, the Idle Timeout setting must be set high enough to accommodate the file

transfer time. In some cases, the firmware file transfer time may be as high

as 30 minutes. To set the Idle Timeout value, see "Configuring Services."

The Updatable Components page displays the current version of the

firmware for each listed component and allows you to update the firmware to

the latest revision. The basic steps involved in updating device firmware are:

• Select the devices to update

•Click the

Apply

button below the grouping

•Click

Browse

to select the firmware image

•Click

Begin Firmware Update

to start the update process. A message that

states

Transferring file image

is displayed, followed by a status progress

page.

NOTE: Be sure you have the latest firmware version. You can download the latest

firmware image file from the Dell Support website.

Updating the CMC Firmware

NOTE: During updates of the CMC firmware or the iDRAC firmware on a server,

some or all of the fan units in the chassis will spin at 100%. This is normal.

NOTE: The Active (primary) CMC resets and becomes temporarily unavailable after

the firmware has been uploaded successfully. If a standby CMC is present, the

standby and active roles will swap; the standby (secondary) CMC becomes the

active (primary) CMC. If an update is applied only to the active (primary) CMC, after

the reset is complete the primary CMC will not be running the updated image, only

the standby (secondary) will have that image.

NOTE: To avoid disconnecting other users during a reset, notify authorized users

who might log in to the CMC and check for active sessions by viewing the Sessions

page. To open the Sessions page, select Chassis in the tree, click the

Network/Security tab, and then click the Sessions sub-tab. Help for that page is

available through the Help link at the top right corner of the page.

Using the CMC Web Interface 165

NOTE: When transferring files to and from the CMC, the file transfer icon spins

during the transfer. If your icon is not animated, make sure that your browser is

configured to allow animations. See "Allow Animations in Internet Explorer" on

page 34 for instructions.

NOTE: If you experience problems downloading files from the CMC using Internet

Explorer, enable the Do not save encrypted pages to disk option. See "Downloading

Files From CMC With Internet Explorer" on page 33 for instructions.

On the

Updatable Components

page, select the CMC or CMCs to

update by selecting the

Update Targets

check box for the CMC(s).

Both CMCs can be updated at the same time.

Click the

Apply CMC Update

button below the CMC component list.

NOTE: The default CMC firmware image name is firmimg.cmc. The CMC firmware

should be updated first, before updating IOM infrastructure device firmware.

In the

Firmware Image

field, enter the path to the firmware image file on

your management station or shared network, or click

Browse

to navigate to

the file location.

Click

Begin Firmware Update

. The

Firmware Update Progress

section

provides firmware update status information. A status indicator displays

on the page while the image file uploads. File transfer time can vary greatly

based on connection speed. When the internal update process begins, the

page automatically refreshes and the Firmware update timer displays.

Additional items to note:

• Do not use the

Refresh

button or navigate to another page during the

file transfer.

• To cancel the process, click

Cancel File Transfer and Update

- this

option is available only during file transfer.

• Update status displays in the

Update State

field; this field is

automatically updated during the file transfer process.

NOTE: The update may take several minutes for the CMC.

For a standby (secondary) CMC, when the update is complete the Update

State field displays "Done". For an active (primary) CMC, during the final

phases of the firmware update process, the browser session and connection

with the CMC will be lost temporarily as the active (primary) CMC is

taken off line. You must log in again after a few minutes, when the active

(primary) CMC has rebooted.

166 Using the CMC Web Interface

After the CMC resets, the new firmware is displayed on the Updatable

Components page.

NOTE: After the firmware update, clear the Web browser cache. See your Web

browser’s online help for instructions on how to clear the browser cache.

Updating the iKVM Firmware

NOTE: The iKVM resets and becomes temporarily unavailable after the firmware

has been uploaded successfully.

Log back in to the CMC Web interface.

Select

Chassis

in the system tree.

Click the

Update

tab. The

Updatable Components

page appears.

Select the iKVM to update by selecting the

Update Targets

check box for

that iKVM.

Click the

Apply iKVM Update

button below the iKVM component list.

In the

Firmware Image

field, enter the path to the firmware image file on

your management station or shared network, or click

Browse

to navigate to

the file location.

NOTE: The default iKVM firmware image name is ikvm.bin; however, the iKVM

firmware image name can be changed by the user.

Click

Begin Firmware Update

Click

Yes

to continue. The

Firmware Update Progress

section provides

firmware update status information. A status indicator displays on the

page while the image file uploads. File transfer time can vary greatly based

on connection speed. When the internal update process begins, the page

automatically refreshes and the Firmware update timer displays.

Additional items to note:

• Do not use the

Refresh

button or navigate to another page during the

file transfer.

• To cancel the process, click

Cancel File Transfer and Update

- this

option is available only during file transfer.

• Update status displays in the

Update State

field; this field is

automatically updated during the file transfer process.

NOTE: The update may take up to two minutes for the iKVM.

When the update is complete, iKVM resets and the new firmware is displayed

on the Updatable Components page.

Using the CMC Web Interface 167

Updating the IOM Infrastructure Device Firmware

By performing this update, the firmware for a component of the IOM device is

updated, but not the firmware of the IOM device itself; the component is the

interface circuitry between the IOM device and the CMC. The update image

for the component resides in the CMC file system, and the component displays

as an updatable device on the CMC Web GUI only if the current revision on

the component and the component image on the CMC do not match.

Log back in to the CMC Web interface.

Select

Chassis

in the system tree.

Click the

Update

tab. The

Updatable Components

page appears.

Select the IOM device to update by selecting the

Update Targets

check

box for that IOM device.

Click the

Apply IOM Update

button below the IOM component list.

NOTE: The Firmware Image field does not display for an IOM infrastructure

device (IOMINF) target because the required image resides on the CMC. The

CMC firmware should be updated first, before updating IOMINF firmware.

IOMINF updates are allowed by the CMC if it detects that the IOMINF

firmware is out-of-date with the image contained in the CMC file system.

If the IOMINF firmware is up-to-date, the CMC will prevent IOMINF

updates. Up-to-date IOMINF devices are be listed as updatable devices.

Click

Begin Firmware Update

. The

Firmware Update Progress

section

provides firmware update status information. A status indicator displays

on the page while the image file uploads. File transfer time can vary greatly

based on connection speed. When the internal update process begins, the

page automatically refreshes and the Firmware update timer displays.

Additional items to note:

• Do not use the

Refresh

button or navigate to another page during

the file transfer.

• Update status displays in the

Update State

field; this field is

automatically updated during the file transfer process.

NOTE: No file transfer timer is displayed when updating IOMINF firmware.

The update process may cause a brief loss of connectivity to the IOM device since

the device restarts when the update is complete.

168 Using the CMC Web Interface

When the update is complete, the new firmware is displayed on the

Updatable Components page and the updated system will no longer be

present on that page.

Updating the Server iDRAC Firmware

NOTE: The iDRAC (on a Server) will reset and become temporarily unavailable

after firmware updates have been uploaded successfully.

NOTE: The iDRAC firmware must be at version 1.4 or greater for servers

with iDRAC, or 2.0 or greater for servers with iDRAC6 Enterprise.

Log back in to the CMC Web interface.

Select

Chassis

in the system tree.

Click the

Update

tab. The

Updatable Components

page appears.

Select the iDRAC or iDRACs to update by selecting the

Update Targets

check box those devices.

Click the

Apply iDRAC Update

button below the iDRAC component list.

In the

Firmware Image

field, enter the path to the firmware image file on

your management station or shared network, or click

Browse

to navigate to

the file location.

Click

Begin Firmware Update

. The

Firmware Update Progress

section

provides firmware update status information. A status indicator displays

on the page while the image file uploads. File transfer time can vary greatly

based on connection speed. When the internal update process begins,

the page automatically refreshes and the firmware update timer displays.

Additional items to note:

• Do not use the

Refresh

button or navigate to another page during

the file transfer.

• To cancel the process, click

Cancel File Transfer and Update

- this

option is available only during file transfer.

• Update status displays in the

Update State

field; this field is

automatically updated during the file transfer process.

NOTE: The update may take several minutes for the CMC or server.

Using the CMC Web Interface 169

Recovering iDRAC Firmware Using the CMC

iDRAC firmware is typically updated using iDRAC facilities such as the

iDRAC Web interface, the SM-CLP command line interface, or operating

system specific update packages downloaded from support.dell.com. See the

iDRAC Firmware User’s Guide for instructions for updating the iDRAC

firmware.

Early generations of servers can have corrupted firmware recovered using the

newly-updated iDRAC firmware process. When the CMC detects corrupted

iDRAC firmware, it lists the server on the Updatable Components page.

Follow these steps to update the iDRAC firmware.

Download the latest iDRAC firmware to your management computer from

support.dell.com

Click

Chassis

in the system tree.

Click the

Update

tab. The

Updatable Components

page appears.

Select the iDRAC or iDRACs of the same model to update by selecting the

Update Targets

check box those devices.

Click the

Apply iDRAC Update

button below the iDRAC component list.

Click

Browse

, browse to the iDRAC firmware image you downloaded,

and click

Open

NOTE: The default iDRAC firmware image name is firmimg.imc.

Click

Begin Firmware Update

. Additional items to note:

• Do not use the

Refresh

button or navigate to another page during

the file transfer.

• To cancel the process, click

Cancel File Transfer and Update

- this

option is available only during file transfer.

• Update status displays in the

Update State

field; this field is

automatically updated during the file transfer process.

NOTE: It can take up to ten minutes to update the iDRAC firmware.

170 Using the CMC Web Interface

Managing iDRAC

The CMC provides the Deploy iDRAC page to allow the user to configure

installed and newly inserted server's iDRAC network configuration settings.

A user can configure one or more installed iDRAC devices from this page.

The user can also configure the default iDRAC network configuration

settings and root password for severs that will be installed later; these

default settings are the iDRAC QuickDeploy settings.

For more information on the iDRAC behavior, see the iDRAC User’s Guides

on the Dell Support website at support.dell.com.

iDRAC QuickDeploy

The iDRAC QuickDeploy section of the Deploy iDRAC page contains

network configuration settings that are applied to newly inserted servers.

You may use these settings to automatically populate the iDRAC Network

Settings table that is below the QuickDeploy section. Once QuickDeploy is

enabled, the QuickDeploy settings are applied to servers when that server is

installed.

Follow these steps to enable and set the iDRAC QuickDeploy settings:

Select

Servers

in the system tree.

Click the

Setup

tab. The

Deploy iDRAC

page appears.

Set the QuickDeploy settings accordingly.

Using the CMC Web Interface 171

Table 5-28. QuickDeploy Settings

Setting Description

QuickDeploy Enabled Enables/disables the QuickDeploy feature that

automatically applies the iDRAC settings configured on

this page to newly inserted servers; the auto configuration

must be confirmed locally on the LCD panel.

NOTE: This includes the root user password if the Set iDRAC

Root Password on Server Insertion box is checked.

Default: Unchecked (disabled)

Set iDRAC Root

Password on Server

Insertion

Specifies whether a server’s iDRAC root password should be

changed to the value provided in the iDRAC Root

Password text box when the server is inserted.

iDRAC Root Password When Set iDRAC Root Password on Server Insertion and

QuickDeploy Enabled are checked, this password value is

assigned to a server's iDRAC root user password when the

server is inserted into chassis. The password can have 1 to

20 printable (including spaces) characters.

Confirm iDRAC Root

Password

Verifies the password entered into the iDRAC Root

Password field.

Enable iDRAC LAN Enables/disables the iDRAC LAN channel.

Default: Unchecked (disabled)

Enable iDRAC IPv4 Enables/disables IPv4 on iDRAC. Default setting is

enabled.

Enable iDRAC IPMI

over LAN

Enables/disables the IPMI over LAN channel for each

iDRAC present in the chassis.

Default: Unchecked (disabled)

Enable iDRAC DHCP Enables/disables DHCP for each iDRAC present in the

chassis. If this option is enabled, the fields QuickDeploy IP,

QuickDeploy Subnet Mask, and QuickDeploy Gateway

are disabled, and can not be modified since DHCP will be

used to automatically assign these settings for each iDRAC.

Default: Unchecked (disabled)

172 Using the CMC Web Interface

Starting iDRAC IPv4

Address (Slot 1)

Specifies the static IP address of the iDRAC of the server in

slot 1 of the enclosure. The IP address of each subsequent

iDRAC is incremented by 1 for each slot from slot 1's static

IP address. In the case where the IP address plus the slot

number is greater than the subnet mask, an error message is

displayed.

NOTE: The subnet mask and the gateway are not

incremented like the IP address.

For example, if the starting IP address is 192.168.0.250

and the subnet mask is 255.255.0.0 then the QuickDeploy

IP address for slot 15 is 192.168.0.265. If the subnet mask

were 255.255.255.0, the QuickDeploy IP address

range is not fully within QuickDeploy

Subnet error message is displayed when either the Save

QuickDeploy Settings or Auto-Populate Using

QuickDeploy Settings buttons are pressed.

iDRAC IPv4 Netmask Specifies the QuickDeploy subnet mask that is assigned to

all newly inserted servers.

iDRAC IPv4 Gateway Specifies the QuickDeploy default gateway that is assigned

to all iDRACs present in the chassis.

Enable iDRAC IPv6 Enables IPv6 addressing for each iDRAC present in the

chassis that is IPv6 capable.

Enable iDRAC IPv6

Autoconfiguration

Enables the iDRAC to obtain IPv6 settings (Address and

prefix length) from a DHCPv6 server and also enables

stateless address auto configuration. Default setting is

enabled.

iDRAC IPv6 Gateway Specifies the default IPv6 gateway to be assigned to the

iDRACs. Default setting is "::".

iDRAC IPv6 Prefix

Length

Specifies the prefix length to be assigned for the

IPv6 addresses on the iDRAC. Default setting is 64.

Table 5-28. QuickDeploy Settings

(continued)

Setting Description

Using the CMC Web Interface 173

To save the selections click the

Save QuickDeploy Settings

button. If you

made changes to the iDRAC network setting, click the

Apply iDRAC

Network Settings

button to deploy the settings to the iDRAC.

To update the table to the last saved QuickDeploy settings, and restore the

iDRAC Network settings to the current values for each installed server,

click

Refresh

NOTE: Clicking the Refresh button deletes all iDRAC QuickDeploy and iDRAC

Network configuration settings that have not been saved.

The QuickDeploy feature only executes when it is enabled, and a server is

inserted in the chassis. If Set iDRAC Root Password on Server Insertion and

QuickDeploy Enabled are checked, the user is prompted using the LCD

interface to allow or not allow the password change. If there are network

configuration settings that differ from the current iDRAC settings, the user is

prompted to either accept or not accept the changes.

NOTE: When there is a LAN or LAN over IPMI difference, the user is prompted to

accept the QuickDeploy IP address setting. If the difference is the DHCP setting,

the user is prompted to accept the DHCP QuickDeploy setting.

To copy the QuickDeploy settings into the iDRAC Network Settings section,

click Auto-Populate Using QuickDeploy Settings. The QuickDeploy network

configurations settings are copied into the corresponding fields in the iDRAC

Network Configuration Settings table.

NOTE: Changes made to QuickDeploy fields are immediate, but changes made to

one or more iDRAC server network configuration settings may require a couple of

minutes to propagate from the CMC to an iDRAC. Pressing the Refresh button too

soon may display only partially correct data for one or more iDRAC servers.

174 Using the CMC Web Interface

iDRAC Network Settings

The iDRAC Network Settings section of the Deploy iDRAC page contains a

table listing all installed server’s iDRAC IPv4 and IPv6 network configuration

settings. Using this table you can configure the iDRAC network

configurations settings for each installed server. The initial values displayed

for each of the fields are the current values read from the iDRAC. Changing a

field and clicking Apply iDRAC Network Settings saves the changed field to

the iDRAC. Follow these steps to enable and set the iDRAC Network

Settings:

Select

Servers

in the system tree.

Click the

Setup

tab.

The

Deploy iDRAC

page appears.

Select the check box for

QuickDeploy Enabled

to enable the

QuickDeploy settings.

Set the remaining

iDRAC Network Settings

accordingly.

Table 5-29. iDRAC Network Settings

Setting Description

Slot Displays the slot occupied by the server in the chassis.

Slot numbers are sequential IDs, from 1 to 16 (for the 16

available slots on the chassis), that help identify the

location of the server in the chassis.

NOTE: When there are fewer than 16 servers occupying

slots, only those slots populated by servers are displayed.

Name Displays the server name of the server in each slot.

By default, the slots are named SLOT-01 to SLOT-16.

NOTE: The slot name cannot be blank or NULL.

Enable LAN Enables (checked) or disables (unchecked)

the LAN channel.

NOTE: When LAN is not selected (disabled), all other network

configuration settings, (IPMI over LAN, DHCP, IP Address

Subnet Mask and Gateway) are not used. These fields are not

accessible.

Using the CMC Web Interface 175

Change Root Password Enables (when checked) the ability to change the password

of the iDRAC root user. The iDRAC Root Password and

Confirm iDRAC Root Password fields must be provided

for this operation to be successful.

DHCP If selected DHCP is used to acquire the iDRAC IP address,

subnet mask and default gateway, otherwise the values

defined in the iDRAC network configuration fields are

used. LAN must be enabled to set this field

IPMI over LAN Enables (checked) or disables (unchecked) the IPMI LAN

channel. LAN must be enabled to set this field.

IP Address The static IPv4 or IPv6 address assigned to the iDRAC

located in this slot.

Subnet Mask Specifies the subnet mask assigned to the iDRAC installed

in this slot.

Gateway Specifies the default gateway assigned to the iDRAC which

will be installed in this slot.

Enable IPv4 Enables the iDRAC in the slot to use the IPv4 protocol on

the network. You must select the Enable LAN option for

this option to be active. Default setting is enabled.

Enable IPv6 Enables the iDRAC in the slot to use the IPv6 protocol on

the network. You must select the Enable LAN option and

deselect the Autoconfiguration option for this option to be

active. Default setting is disabled.

NOTE: This option is available only if the server is

IPv6 capable.

Autoconfiguration Enables the iDRAC to obtain IPv6 settings (Address and

prefix length) from a DHCPv6 server and also enables

stateless address auto configuration.

NOTE: This option is available only if the server is

IPv6 capable.

Prefix Length Specifies the length, in bits, of the IPv6 subnet to which

this iDRAC belongs.

Table 5-29. iDRAC Network Settings

(continued)

Setting Description

176 Using the CMC Web Interface

To deploy the setting to iDRAC, click

Apply iDRAC Network Settings

button. If you made changes to the QuickDeploy settings, they will

also be saved.

To restore the iDRAC Network settings to the current values for each

installed blade, and update the QuickDeploy table to the last saved

QuickDeploy settings click

Refresh

NOTE: Clicking Refresh button deletes all iDRAC QuickDeploy and iDRAC Network

configuration settings that have not been saved.

The iDRAC Network Settings table reflects future network configuration

settings; the values shown for installed blades may or may not be the same as

the currently installed iDRAC network configuration settings. Press the

Refresh button to update the iDRAC Deploy page with each installed

iDRAC network configuration settings after changes are made.

NOTE: Changes made to QuickDeploy fields are immediate, but changes made to

one or more iDRAC server network configuration settings may require a couple of

minutes to propagate from the CMC to an iDRAC. Pressing the Refresh button too

soon may display only partially correct data for a one or more iDRAC servers.

Launching iDRAC using Single Sign-On

The CMC provides limited management of individual chassis components,

such as servers. For complete management of these individual components,

the CMC provides a launch point for the server’s management controller

(iDRAC) Web-based interface.

To launch the iDRAC management console from the Servers page, use the

following steps:

Select

Servers

in the system tree. The

Servers Status

page appears.

Click the

Launch iDRAC GUI

icon for the server you want to manage.

To launch the iDRAC management console for an individual server:

Expand

Servers

in the system tree. All of the servers (1–16) appear in the

expanded

Servers

list.

Click the server you want to view. The

Server Status

page displays.

Click the

Launch iDRAC GUI

icon.

Using the CMC Web Interface 177

A user may be able to launch iDRAC GUI without having to login a second

time, as this feature utilizes single sign-on. Single sign-on policies are

described below.

• A CMC user who has server administrative privilege, will automatically be

logged into iDRAC using single sign-on. Once on the iDRAC site, this user

is automatically granted Administrator privileges. This is true even if the

same user does not have an account on iDRAC, or if the account does not

have the Administrator’s privileges.

• A CMC user who does

NOT

have the server administrative privilege, but

has the same account on iDRAC will automatically be logged into iDRAC

using single sign-on. Once on the iDRAC site, this user is granted the

privileges that were created for the iDRAC account.

• A CMC user who does not have the server administrative privilege, or the

same account on the iDRAC, will

NOT

be automatically logged into

iDRAC using single sign-on. This user is directed to the iDRAC login page

when the

Launch iDRAC GUI

button is clicked.

NOTE: The term "the same account" in this context means that the user has the

same login name with a matching password for CMC and for iDRAC. The user who

has the same login name without a matching password, will not be considered to

have the same account.

NOTE: Users may be prompted to log in to iDRAC (see the third Single Sign-on

policy bullet above).

NOTE: If the iDRAC network LAN is disabled (LAN Enabled = No), single sign-on is

not available.

NOTE: If the server is removed from the chassis, the iDRAC IP address is changed,

or the iDRAC network connection experiences a problem, then clicking the Launch

iDRAC GUI icon may display an error page.

178 Using the CMC Web Interface

FlexAddress

This section describes the FlexAddress® Web interface screens.

FlexAddress is an optional upgrade that allows server modules to replace

the factory-assigned WWN/MAC ID with a WWN/MAC ID provided

by the chassis.

NOTE: You must purchase and install the FlexAddress upgrade to have access to

the configuration screens. If the upgrade has not been purchased and installed, the

following text will be displayed on the Web interface:

Optional feature not installed. See the

Dell

Chassis Management Controller Users Guide

for

information on the chassis-based WWN and MAC

address administration feature.

To purchase this feature, please contact Dell at

www.dell.com.

Viewing FlexAddress Status

You can use the Web interface to view FlexAddress status information. You

can view status information for the entire chassis or for an individual server.

The information displayed includes:

• Fabric configuration

• FlexAddress active/not active

• Slot number and name

• Chassis-assigned and server-assigned addresses

• Addresses in use

NOTE: You can also view FlexAddress status using the command line interface.

For more command information, see "Using FlexAddress."

Viewing Chassis FlexAddress Status

FlexAddress status information can be displayed for the entire chassis.

The status information includes whether the feature is active and an overview

of the FlexAddress status for each blade.

Using the CMC Web Interface 179

Use the following steps to view whether FlexAddress is active for the chassis:

Click

Chassis

in the system tree.

Click the

Setup

tab. The

General Setup

page appears. The FlexAddress

entry will have a value of

Active

Not Active

; a value of active means that

the feature is installed on the chassis. A value of not active means that the

feature is not installed and not in use on the chassis.

Use the following steps to display a FlexAddress status overview for each

server module:

Click

Servers

in the system tree. Click the

Properties

tab,

WWN/MAC

sub-tab.

The

FlexAddress Summary

page is displayed. This page allows you to view

the WWN configuration and MAC addresses for all slots in the chassis.

The status page presents the following information:

For additional information, click the

Help

link and review "Using

FlexAddress."

Fabric

Configuration

Fabric A, Fabric B, and Fabric C display the type of the

Input/Output fabric installed.

iDRAC displays the server management MAC address.

NOTE: If Fabric A is enabled, unpopulated slots display chassis-

assigned MAC addresses for Fabric A and MAC or WWNs for

Fabrics B and C if they are in use by populated slots.

WWN/MAC

Addresses

Displays FlexAddress configuration for each slot in the chassis.

Information displayed includes:

• iDRAC management controller is not a fabric but its

FlexAddress is treated like one.

• Slot number and location

• FlexAddress active/not active status

•Fabric type

• Server-assigned and chassis-assigned WWN/MAC

addresses in use

A green check mark indicates the active address type, either

server-assigned or chassis-assigned.

180 Using the CMC Web Interface

Viewing Server FlexAddress Status

FlexAddress status information can also be displayed for each individual

server. The server level information displays a FlexAddress status overview for

that blade.

Use the following steps to view FlexAddress server information:

page 97).

Expand

Servers

in the system tree. All of the servers (1–16) appear in the

expanded

Servers

list.

Click the server you want to view. The

Server Status

page displays.

Click the

Setup

tab, and the

FlexAddress

sub-tab. The

FlexAddress Status

page is displayed. This page allows you to view the WWN configuration

and MAC addresses for the selected server.

The status page presents the following information:

FlexAddress

Enabled

Displays whether the FlexAddress feature is active or not active

for the particular slot.

Current State Displays the current FlexAddress configuration:

•

Chassis-Assigned

- selected slot address is chassis assigned using

the FlexAddress. The slot-based WWN/MAC addresses remain

the same even if a new server is installed.

•

Server-Assigned

- server uses the server-assigned address or the

default address embedded into the controller hardware.

Power State Displays the current power status of the servers; values are: On,

Powering On, Powering Off, Off, and N/A (if a server is not

present).

Using the CMC Web Interface 181

For additional information, click the

Help

link and review "Using

FlexAddress" on page 189.

Health OK Indicates that FlexAddress is present

and providing status to the CMC. In

the event of a communication failure

between the CMC and FlexAddress, the

CMC cannot obtain or display health

status for FlexAddress.

Informational Displays information about FlexAddress

when no change in health status

(OK, Warning, Severe) has occurred.

Warning Indicates that only warning alerts have

been issued, and corrective action must

be taken. If corrective actions are not

taken within the administrator-specified

time, critical or severe failures that can

affect the integrity of the server could

occur.

Severe Indicates at least one Failure alert has

been issued. Severe status represents a

system failure on the server, and

corrective action must be taken

immediately.

No Value When FlexAddress is absent, health

information is not provided.

iDRAC firmware Displays the iDRAC version currently installed on the server.

BIOS Version Displays the current BIOS version of the server module.

Slot Slot number of the server associated with the fabric location.

Location Displays the location of the Input/Output (I/O) module in the

chassis by group number (A, B, or C) and slot number (1 or 2).

Slot names: A1, A2, B1, B2, C1, or C2.

Fabric Displays the type of fabric.

Server-Assigned Displays the server-assigned WWN/MAC addresses that are

embedded in the controller's hardware.

Chassis-Assigned Displays the chassis-assigned WWN/MAC addresses that are

used for the particular slot.

182 Using the CMC Web Interface

Configuring FlexAddress

If you purchase FlexAddress with your chassis, it will be installed and active

when you power up your system. If you purchase FlexAddress separately,

you must install the SD feature card using the instructions in the Chassis

Management Controller (CMC) Secure Digital (SD) Card Technical

Specification document. See support.dell.com for this document.

The server must be off before you begin configuration. You can enable or

disable FlexAddress on a per fabric basis. Additionally, you can enable/disable

the feature on a per slot basis. After you enable the feature on a per-fabric

basis, you can then select slots to be enabled. For example, if Fabric-A is

enabled, any slots that are enabled will have FlexAddress enabled only on

Fabric-A. All other fabrics will use the factory-assigned WWN/MAC on the

server.

Selected slots will be FlexAddress enabled for all fabrics that are enabled.

For example, it is not possible to enable Fabric-A and B, and have Slot 1 be

FlexAddress enabled on Fabric-A but not on Fabric-B.

NOTE: You can also configure FlexAddress using the command line interface.

For more command information, see "Using FlexAddress" on page 189.

Chassis-Level Fabric and Slot FlexAddress Configuration

At the chassis level, you can enable or disable the FlexAddress feature for

fabrics and slots. FlexAddress is enabled on a per-fabric basis and then slots

will be selected for participation in the feature. Both fabrics and slots must be

enabled to successfully configure FlexAddress.

Perform the following steps to enable or disable fabrics and slots to use the

FlexAddress feature:

Log on to the Web interface (see "Accessing the CMC Web Interface").

Click

Servers

in the system tree.

Click the

Setup

tab

→

FlexAddress

subtab. The

Deploy FlexAddress

page

is displayed.

The

Select Fabrics for Chassis-Assigned WWN/MACs

section

displays a

check box for

Fabric A

Fabric B, Fabric C

, and

iDRAC.

Using the CMC Web Interface 183

Click the check box for each fabric you want to enable FlexAddress on.

To disable a fabric, click the check box to clear the selection.

NOTE: If no fabrics are selected, FlexAddress will not be enabled for the selected

slots.

The

Select Slots for Chassis-Assigned WWN/MACs

page displays an

Enabled

check box for each slot in the chassis (1 - 16).

Click the

Enabled

check box for each slot you want to enable FlexAddress

on. If you want to select all slots, use the

Select/Deselect All

check box.

To disable a slot, click the

Enabled

check box to clear the selection.

NOTE: If a blade is present in the slot, it needs to be powered off before

the FlexAddress feature can be enabled on that slot.

NOTE: If no slots are selected, FlexAddress will not be enabled for the

selected fabrics.

Click

Apply

to save the changes

For additional information, click the

Help

link and review "Using

FlexAddress."

Server-Level Slot FlexAddress Configuration

At the server level, you can enable or disable the FlexAddress feature

for individual slots.

Use the following steps to enable or disable an individual slot to use the

FlexAddress feature:

Expand

Servers

in the system tree. All of the servers (1–16) appear in

the expanded

Servers

list.

Click the server you want to view. The

Server Status

page displays.

Click the

Setup

tab, and the

FlexAddress

sub-tab. The

FlexAddress Status

page is displayed.

Use the pull down menu for

FlexAddress Enabled

to make your selection;

select

Yes

to enable FlexAddress or select

to disable FlexAddress.

Click

Apply

to save the changes. For additional information, click the

Help

link and review "Using FlexAddress."

184 Using the CMC Web Interface

Remote File Sharing

The Remote Virtual Media File Share option maps a file from a share drive on

the network to one or more blades through the CMC to deploy or update an

operating system. When connected, the remote file is accessible as if it is on

the local system. Two types of media are supported: floppy drives and

CD/DVD drives.

Click

Servers

in the system tree.

Click the

Setup

tab, and the

Remote File Sharing

sub-tab. The

Deploy

Remote File Share

page is displayed.

Set the Remote File Sharing settings.

Table 5-30. Remote File Sharing Settings

Setting Description

Image File Path Image File Path is only needed for connect and deploy

operations. It does not apply to disconnect operations. The path

name of the network drive is mounted to the server through a

Windows SMB or Linux/Unix NFS protocol.

For example, to connect to CIFS, type: //<IP to connect

for CIFS file system>/<file

path>/<image name>

To connect to NFS, type: //<IP to connect for NFS

file system>:/<file path>/<image name>

File names that end with .img are connected as virtual floppies.

File names that end with .iso are connected as virtual

CD/DVDs. The maximum number of characters is 511.

User Name User Name is only needed for connect and deploy operations.

It does not apply to disconnect operations. The maximum

number of characters you can specify in this field is 40.

Password Password is only needed for connect and deploy operations.

It does not apply to disconnect operations. The maximum

number of characters you can specify in this field is 40.

Slot Identifies the location of the slot. Slot numbers are sequential

from 1 to 16 (for the 16 available slots in the chassis).

Using the CMC Web Interface 185

Click

Connect

to connect to a remote file share. To connect a remote file

share, you must provide the path, user name, and password. A successful

operation allows access to the media.

Click

Disconnect

to disconnect a previously connected remote file share.

Click

Deploy

to deploy the media device.

NOTE: Save all working files before executing the deploy command

because this action causes the server to be restarted.

This command involves these actions:

– The remote file share is connected.

– The file is selected as the first boot device for the servers.

– The server is restarted.

– Power is applied to the server if the server is turned off.

Name Indicates the name of the slot. Slots are named depending on

their position in the chassis.

Model Displays the model name of the server.

Power State Displays the power status of the server:

N/A – The CMC has not yet determined the power state of the

server.

Off – Either the server is off or the chassis is off.

On – Both the chassis and the server are on.

Powering On – Temporary state between Off and On.

On success, the Power State is On.

Powering Off – Temporary state between On and Off.

On success, the Power State is Off.

Connect Status Displays the remote file share connection status.

Select/Deselect All Select this option before initiating a remote file share operation.

Remote file share operations are: Connect, Disconnect, and

Deploy.

Table 5-30. Remote File Sharing Settings

(continued)

Setting Description

186 Using the CMC Web Interface

Frequently Asked Questions

Table 5-31 lists frequently asked questions and answers.

Table 5-31. Managing and Recovering a Remote System: Frequently Asked

Questions

Question Answer

When accessing the CMC Web

interface, I get a security warning

stating the host name of the SSL

certificate does not match the

host name of the CMC.

The CMC includes a default CMC server

certificate to ensure network security for the Web

interface and remote RACADM features. When

this certificate is used, the Web browser displays a

security warning because the default certificate is

issued to CMC default certificate which does not

match the host name of the CMC (for example,

the IP address).

To address this security concern, upload a CMC

server certificate issued to the IP address of the

CMC. When generating the certificate signing

request (CSR) to be used for issuing the

certificate, ensure that the common name (CN) of

the CSR matches the IP address of the CMC

(for example, 192.168.0.120) or the registered

DNS CMC name.

To ensure that the CSR matches the registered

DNS CMC name:

In the

System

tree, click

Chassis.

Click the

Network/Security

tab, and then click

Network

. The

Network Configuration

page

appears.

Select the

check box.

Enter the CMC name In the

DNS CMC

Name

field.

Click

Apply Changes

For more information about generating CSRs and

issuing certificates, see "Securing CMC

Communications Using SSL and Digital

Certificates" on page 147.

Using the CMC Web Interface 187

Why are the remote RACADM

and Web-based services

unavailable after a property

change?

It may take a minute for the remote RACADM

services and the Web interface to become available

after the CMC Web server resets.

The CMC Web server is reset after the following

occurrences:

• When changing the network configuration or

network security properties using the CMC Web

user interface

• When the

cfgRacTuneHttpsPort

property is

changed (including when a config

f <

config

file

> changes it)

• When

racresetcfg

is used

• When the CMC is reset

• When a new SSL server certificate is uploaded

Why doesn’t my DNS server

Some DNS servers only register names of

31 characters or fewer.

When accessing the CMC Web

interface, I get a security warning

stating the SSL certificate was

issued by a certificate authority

that is not trusted.

CMC includes a default CMC server certificate to

ensure network security for the Web interface and

remote RACADM features. This certificate is not

issued by a trusted certificate authority. To address

this security concern, upload a CMC server

certificate issued by a trusted certificate authority

(such as Thawte or Verisign). For more

information about issuing certificates, see

"Securing CMC Communications Using SSL and

Digital Certificates" on page 147.

Table 5-31. Managing and Recovering a Remote System: Frequently Asked

Questions

(continued)

Question Answer

188 Using the CMC Web Interface

Troubleshooting the CMC

The CMC Web interface provides tools for identifying, diagnosing, and fixing

problems with your chassis. For more information about troubleshooting,

see "Troubleshooting and Recovery."

The following message is

displayed for unknown reasons:

Remote Access: SNMP

Authentication Failure

Why does this happen?

As part of discovery, IT Assistant attempts to verify

the device’s get and set community names. In IT

Assistant, you have the get community name =

public and the set community name = private. By

default, the community name for the CMC agent

is public. When IT Assistant sends out a set

request, the CMC agent generates the SNMP

authentication error because it will only accept

requests from community = public.

You can change the CMC community name using

RACADM.

To see the CMC community name, use the

following command:

racadm getconfig -g cfgOobSnmp

To set the CMC community name, use the

following command:

racadm config -g cfgOobSnmp -o

cfgOobSnmpAgentCommunity

community name

To prevent SNMP authentication traps from being

generated, you must input community names that

will be accepted by the agent. Since the CMC only

allows one community name, you must input the

same get and set community name for IT Assistant

discovery setup.

Table 5-31. Managing and Recovering a Remote System: Frequently Asked

Questions

(continued)

Question Answer

Using FlexAddress 189

Using FlexAddress

The FlexAddress feature is an optional upgrade that allows server modules to

replace the factory assigned World Wide Name and Media Access Control

(WWN/MAC) network IDs with WWN/MAC IDs provided by the chassis.

Every server module is assigned unique WWN and/or MAC IDs as part of the

manufacturing process. Before FlexAddress, if you had to replace one server

module with another, the WWN/MAC IDs would change and Ethernet

network management tools and SAN resources had to be reconfigured to be

aware of the new server module.

FlexAddress allows the CMC to assign WWN/MAC IDs to a particular slot

and override the factory IDs. If the server module is replaced, the slot-based

WWN/MAC IDs remain the same. This feature eliminates the need to

reconfigure Ethernet network management tools and SAN resources for a new

server module.

Additionally, the override action only occurs when a server module is inserted

in a FlexAddress enabled chassis; no permanent changes are made to the

server module. If a server module is moved to a chassis that does not support

FlexAddress, the factory assigned WWN/MAC IDs will be used.

Before installing FlexAddress, you can determine the range of MAC addresses

contained on a FlexAddress feature card by inserting the SD card into an

USB Memory Card Reader and viewing the file pwwn_mac.xml. This clear

text XML file on the SD card will contain an XML tag mac_start that is the

first starting hex MAC address that will be used for this unique MAC address

range. The mac_count tag is the total number of MAC addresses that the

SD card allocates. The total MAC range allocated can be determined by:

<mac_start> + 0xCF (208 - 1) = mac_end

where 208 is the mac_count and the formula is

<mac_start> + <mac_count> - 1 = <mac_end>

For example:(starting_mac)00188BFFDCFA + 0xCF =

(ending_mac)00188BFFDDC9.

NOTE: Lock the SD card prior to inserting in the USB "Memory Card Reader" to

prevent accidently modifying any of the contents. You must lock the SD card before

inserting into the CMC.

190 Using FlexAddress

Activating FlexAddress

FlexAddress is delivered on a Secure Digital (SD) card that must be inserted

into the CMC to activate the feature. To activate the FlexAddress feature,

software updates may be required; if you are not activating FlexAddress these

updates are not required. The updates, which are listed in the table below,

include server module BIOS, I/O mezzanine BIOS or firmware, and CMC

firmware. You must apply these updates before you enable FlexAddress.

If these updates are not applied, the FlexAddress feature may not function

as expected.

NOTE: Any system ordered after June 2008 will have the correct firmware versions.

Component Minimum required version

Ethernet mezzanine card - Broadcom

M5708t, 5709, 5710

Boot code firmware 4.4.1 or later

iSCSI boot firmware 2.7.11 or later

PXE firmware 4.4.3 or later

FC mezzanine card - QLogic QME2472,

FC8

BIOS 2.04 or later

FC mezzanine card - Emulex LPe1105-

M4, FC8

BIOS 3.03a3 and firmware 2.72A2 or later

Server Module BIOS PowerEdge™ M600 – BIOS 2.02 or later

PowerEdge M605 – BIOS 2.03 or later

PowerEdge M805

PowerEdge M905

PowerEdge M610

PowerEdge M710

PowerEdgeM600/M605 LAN on

motherboard (LOM)

Boot code firmware 4.4.1 or later

iSCSI boot firmware 2.7.11 or later

iDRAC Version 1.50 or later for PowerEdge xx0x

systems

Version 2.10 or later for PowerEdge xx1x

systems

CMC Version 1.10 or later

Using FlexAddress 191

To ensure proper deployment of the FlexAddress feature, update the BIOS

and the firmware in the following order:

Update all mezzanine card firmware and BIOS.

Update server module BIOS.

Update iDRAC firmware on the server module.

Update all CMC firmware in the chassis; if redundant CMCs are present,

ensure both are updated.

Insert the SD card into the passive module for a redundant CMC module

system or into the single CMC module for a non-redundant system.

NOTE: If CMC firmware that supports FlexAddress (version 1.10 or later) is not

installed, the feature is not activated.

See the Chassis Management Controller (CMC) Secure Digital (SD) Card

Technical Specification document for SD card installation instructions.

NOTE: The SD card contains a FlexAddress feature. Data contained on the SD card

is encrypted and may not be duplicated or altered in any way as it may inhibit

system function and cause the system to malfunction.

NOTE: Your use of the SD card is limited to one chassis only. If you have multiple

chassis, you must purchase additional SD cards.

Activation of the FlexAddress feature is automatic on restart of the CMC

with the SD feature card installed; this activation causes the feature to bind

to the current chassis. If you have the SD card installed on the redundant

CMC, activation of the FlexAddress feature does not occur until the

redundant CMC is made active. See the Chassis Management Controller

(CMC) Secure Digital (SD) Card Technical Specification document for

information on how to make a redundant CMC active.

When the CMC restarts, verify the activation process by using the steps in

the next section, "Verifying FlexAddress Activation."

Verifying FlexAddress Activation

To ensure proper activation of FlexAddress, RACADM commands can be

used to verify the SD feature card and FlexAddress activation.

Use the following RACADM command to verify the SD feature card and its

status:

racadm featurecard -s

192 Using FlexAddress

The following table lists the status messages returned by the command.

Use the following RACADM command to display all activated features

on the chassis:

racadm feature -s

The command will return the following status message:

Feature = FlexAddress

Date Activated = 8 April 2008 - 10:39:40

Feature installed from SD-card SN = 01122334455

Table 6-1. Status Messages Returned by featurecard -s Command

Status Message Actions

No feature card inserted. Check the CMC to verify that the SD card

was properly inserted. In a redundant

CMC configuration, make sure the CMC with

the SD feature card installed is the active

CMC and not the standby CMC.

The feature card inserted is valid and

contains the following feature(s)

FlexAddress: The feature card is

bound to this chassis.

No action required.

The feature card inserted is valid and

contains the following feature(s)

FlexAddress: The feature card is

bound to another chassis,

svctag = ABC1234, SD card

SN = 01122334455

Remove the SD card; locate and install

the SD card for the current chassis.

The feature card inserted is valid and

contains the following feature(s)

FlexAddress: The feature card is not

bound to any chassis.

The feature card can be moved to another

chassis or can be reactivated on the current

chassis.To reactivate on the current chassis,

enter racadm racreset until the

CMC module with the feature card installed

becomes active.

Using FlexAddress 193

If there are no active features on the chassis, the command will

return a message:

racadm feature -s

No features active on the chassis.

For further information on the RACADM commands, see the feature

and featurecard command sections of the Dell Chassis Management

Controller Administrator Reference Guide.

Deactivating FlexAddress

The FlexAddress feature can be deactivated and the SD card returned to a

pre-installation state using a RACADM command. There is no deactivation

function within the Web interface. Deactivation returns the SD card to

its original state where it can be installed and activated on a different chassis.

NOTE: The SD card must be physically installed in the CMC, and the chassis must

be powered-down before executing the deactivation command.

If you execute the deactivation command with no card installed, or with a

card from a different chassis installed, the feature will be deactivated and no

change will be made to the card.

Deactivating FlexAddress

Use the following RACADM command to deactivate the FlexAddress feature

and restore the SD card:

racadm feature -d -c flexaddress

The command will return the following status message upon successful

deactivation:

feature FlexAddress is deactivated on the chassis

successfully.

If the chassis is not powered-down prior to execution, the command will

fail with the following error message:

ERROR: Unable to deactivate the feature because the

chassis is powered ON

For further information on the command, see the feature command section

of the Dell Chassis Management Controller Administrator Reference Guide.

194 Using FlexAddress

Configuring FlexAddress Using the CLI

NOTE: You must enable both—the slot and fabric— for the chassis-assigned

MAC address to be pushed to the iDRAC.

NOTE: You can also view FlexAddress status using the graphical user interface.

For more information, see "FlexAddress."

You can use the command line interface to enable or disable FlexAddress on a

per fabric basis. Additionally, you can enable/disable the feature on a per slot

basis. After you enable the feature on a per-fabric basis, you can then select

slots to be enabled. For example, if only Fabric-A is enabled, any slots that are

enabled will have FlexAddress enabled only on Fabric-A. All other fabrics will

use the factory-assigned WWN/MAC on the server. For this feature to work,

the fabric must be enabled and the server must be powered off.

Enabled slots are FlexAddress enabled for all fabrics that are enabled.

For example, it is not possible to enable Fabric-A and B, and have Slot 1 be

FlexAddress enabled on Fabric-A but not on Fabric-B.

Use the following RACADM command to enable or disable fabrics:

racadm setflexaddr [-f <fabricName> <state>]

<fabricName> = A, B, C, or iDRAC

<state> = 0 or 1

Where 0 is disable and 1 is enable.

Use the following RACADM command to enable or disable slots:

racadm setflexaddr [-i <slot#> <state>]

<slot#> = 1 to 16

<state> = 0 or 1

Where 0 is disable and 1 is enable.

For additional information on the command, see the setflexaddr

command section of the Dell Chassis Management Controller

Administrator Reference Guide.

Using FlexAddress 195

Additional FlexAddress Configuration for Linux

When changing from a server-assigned MAC ID to chassis-assigned

MAC ID on Linux-based operating systems, additional configuration

steps may be required:

• SUSE Linux Enterprise Server 9 and 10: You may need to run YAST

(Yet another Setup Tool) on your Linux system to configure your network

devices and then restart the network services.

•Red Hat

Enterprise Linux

4(RHEL) and RHEL 5: Run Kudzu, a utility

to detect and configure new/changed hardware on the system. Kudzu

presents you with The Hardware Discovery Menu; it detects the MAC

address change as hardware was removed and new hardware added.

Viewing FlexAddress Status Using the CLI

You can use the command line interface to view FlexAddress status

information. You can view status information for the entire chassis or for

a particular slot. The information displayed includes:

• Fabric configuration

• FlexAddress enabled/disabled

• Slot number and name

• Chassis-assigned and server-assigned addresses

• Addresses in use

Use the following RACADM command to display FlexAddress status for the

entire chassis:

racadm getflexaddr

To display FlexAddress status for a particular slot:

racadm getflexaddr [-i <slot#>]

<slot#> = 1 to 16

See "Configuring FlexAddress Using the CLI" for additional details on

FlexAddress configuration. For additional information on the command,

see the getflexaddr command section of the Dell Chassis

Management Controller Administrator Reference Guide.

196 Using FlexAddress

Configuring FlexAddress Using the GUI

Wake-On-LAN with FlexAddress

When the FlexAddress feature is deployed for the first time on a given server

module, it requires a power-down and power-up sequence for FlexAddress to

take effect. FlexAddress on Ethernet devices is programmed by the server

module BIOS. For the server module BIOS to program the address, it needs

to be operational which requires the server module to be powered up.

When the power-down and power-up sequences complete, the

chassis-assigned MAC IDs are available for Wake-On-LAN (WOL) function.

Troubleshooting FlexAddress

This section contains troubleshooting information for FlexAddress.

If a feature card is removed, what will happen?

Nothing will happen. Feature cards can be removed and stored or may be

left in place.

If a feature card that was used in one chassis is removed and put into

another chassis, what will happen?

The Web interface will display an error that states:

This feature card was activated with a different

chassis. It must be removed before accessing the

FlexAddress feature.

Current Chassis Service Tag = XXXXXXXX

Feature Card Chassis Service Tag = YYYYYYYY

An entry will be added to the CMC log that states:

cmc <date timestamp> : feature

'FlexAddress@XXXXXXX' not activated; chassis ID=

'YYYYYYY'

Using FlexAddress 197

What happens if the feature card is removed and a non-FlexAddress card is

installed?

No activation or modifications to the card should occur. The card will be

ignored by CMC. In this situation, the

$racadm featurecard -s

will return a

message of:

No feature card inserted

ERROR: can't open file

If the chassis service tag is reprogrammed, what happens if there is a

feature card bound to that chassis?

• If the original feature card is present in the active CMC on that or any

other chassis, the Web interface displays an error that states:

This feature card was activated with a

different chassis. It must be removed before

accessing the FlexAddress feature.

Current Chassis Service Tag = XXXXXXXX

Feature Card Chassis Service Tag = YYYYYYYY

The original feature card is no longer eligible for deactivation on that

or any other chassis, unless Dell Service re-programs the original

chassis service tag back into a chassis, and the CMC that has the

original feature card is made active on that chassis.

• The FlexAddress feature remains activated on the originally bound

chassis. The

binding of that chassis

feature is updated to reflect the

new service tag.

What if I have two feature cards installed in my redundant CMC system?

Will I get an error?

The feature card in the active CMC will be active and installed in the

chassis. The second card will be ignored by CMC.

198 Using FlexAddress

Does the SD card have a write protection lock on it?

Yes it does. Before installing the SD card into the CMC module, verify the

write protection latch is in the unlock position. The FlexAddress feature

cannot be activated if the SD card is write protected. In this situation,

the

$racadm feature -s

command will return this message:

No features active on the chassis. ERROR: read

only file system

What will happen if there isn’t an SD card in the active CMC module?

The

$racadm featurecard -s

command will return this message:

No feature card inserted.

What will happen to my FlexAddress feature if the server BIOS is updated

from version 1.

to version 2.

The server module will need to be powered down before it can be used

with FlexAddress. After the server BIOS update is complete, the server

module will not get chassis-assigned addresses until the server has been

power cycled.

What will happen if a chassis with a single CMC is downgraded with

firmware prior to 1.10?

• The FlexAddress feature and configuration will be removed

from the chassis.

• The feature card used to activate the feature on this chassis is

unchanged, and remains bound to the chassis. When the CMC

firmware of the chassis is subsequently upgraded to 1.10 or later, the

FlexAddress feature is reactivated by reinserting the original feature

card (if necessary), resetting the CMC (if feature card was inserted

after firmware upgrade was completed), and reconfiguring the feature.

Using FlexAddress 199

In a chassis with redundant CMCs, if you are replacing a CMC unit with

one that has firmware prior to 1.10, the following procedure must be

used to ensure the current FlexAddress feature and configuration will

NOT be removed.

Ensure the active CMC firmware is always version 1.10 or later.

Remove the standby CMC and insert the new CMC in its place.

From the Active CMC, upgrade the standby CMC firmware

to 1.10 or later.

NOTE: If you do not update the standby CMC firmware to 1.10 or later and a failover

occurs, the FlexAddress feature is not configured and you will need to reactivate

and reconfigure the feature.

The SD card was not in the chassis when I executed the deactivation

command on the FlexAddress. How do I recover my SD card now?

The issue is that the SD card cannot be used to install FlexAddress on

another chassis if it was not in the CMC when FlexAddress was

deactivated. To recover use of the card, insert the card back into a CMC in

the chassis that it is bound to, reinstall FlexAddress, and then deactivate

FlexAddress, again.

I have the SD card properly installed and all the firmware/software updates

installed. I see that FlexAddress is active, but I can’t see anything on the

server deployment screen to deploy it? What is wrong?

This is a browser caching issue; shut down the browser and relaunch.

What happens to FlexAddress if I need to reset my chassis configuration

using the RACADM command,

racresetcfg

The FlexAddress feature will still be activated and ready to use. All fabrics

and slots will be selected as default.

NOTE: It is highly recommended that you power down your chassis before

issuing the RACADM command racresetcfg.

200 Using FlexAddress

Command Messages

The following table lists the RACADM commands and output for common

FlexAddress situations.

Table 6-2. FlexAddress Commands and Output

Situation Command Output

SD card in the active

CMC module is

bound to another

service tag.

$racadm featurecard -s The feature card

inserted is valid

and contains the

following

feature(s)

FlexAddress: The

feature card is

bound to another

chassis, svctag =

J310TF1 SD card SN

=0188BFFE03A

SD card in the active

CMC module that is

bound to the same

service tag.

$racadm featurecard -s The feature card

inserted is valid

and contains the

following

feature(s)

FlexAddress: The

feature card is

bound to this

chassis

SD card in the active

CMC module that is

not bound to any

service tag.

$racadm featurecard -s The feature card

inserted is valid

and contains the

following

feature(s)

FlexAddress: The

feature card is not

bound to any

chassis

Using FlexAddress 201

FlexAddress feature

not active on the

chassis for any

reason (No SD card

inserted/ corrupt SD

card/ after feature

deactivated /SD card

bound to a different

chassis)

$racadm setflexaddr [-f

<slotState>] OR

$racadm setflexaddr [-i

<slot#> <slotState>]

ERROR: Flexaddress

feature is not

active on the

chassis

Guest user attempts

to set FlexAddress

on slots/fabrics

$racadm setflexaddr [-f

<slotState>]

$racadm setflexaddr [-i

<slot#> <slotState>]

ERROR: Insufficient

user privileges to

perform operation

Deactivating

FlexAddress feature

with chassis powered

$racadm feature -d

-c flexaddress

ERROR: Unable to

deactivate the

feature because the

chassis is powered

Guest user tries to

deactivate the

feature on the

chassis

$racadm feature -d

-c flexaddress

ERROR: Insufficient

user privileges to

perform operation

Changing the

slot/fabric

FlexAddress settings

while the server

modules are powered

$racadm setflexaddr -i

1 1

ERROR: Unable to

perform the set

operation because

it affects a

powered ON server

Table 6-2. FlexAddress Commands and Output

(continued)

Situation Command Output

202 Using FlexAddress

FlexAddress DELL SOFTWARE LICENSE

AGREEMENT

This is a legal agreement between you, the user, and Dell Products L.P. or

Dell Global B.V. ("Dell"). This agreement covers all software that is

distributed with the Dell product, for which there is no separate license

agreement between you and the manufacturer or owner of the software

(collectively the "Software"). This agreement is not for the sale of Software or

any other intellectual property. All title and intellectual property rights in and

to Software is owned by the manufacturer or owner of the Software. All rights

not expressly granted under this agreement are reserved by the manufacturer

or owner of the Software. By opening or breaking the seal on the Software

packet(s), installing or downloading the Software, or using the Software that

has been preloaded or is embedded in your product, you agree to be bound by

the terms of this agreement. If you do not agree to these terms, promptly

return all Software items (disks, written materials, and packaging) and delete

any preloaded or embedded Software.

You may use one copy of the Software on only one computer at a time. If you

have multiple licenses for the Software, you may use as many copies at any

time as you have licenses. "Use" means loading the Software in temporary

memory or permanent storage on the computer. Installation on a network

server solely for distribution to other computers is not "use" if (but only if)

you have a separate license for each computer to which the Software is

distributed. You must ensure that the number of persons using the Software

installed on a network server does not exceed the number of licenses that you

have. If the number of users of Software installed on a network server will

exceed the number of licenses, you must purchase additional licenses until

the number of licenses equals the number of users before allowing additional

users to use the Software. If you are a commercial customer of Dell or a Dell

affiliate, you hereby grant Dell, or an agent selected by Dell, the right to

perform an audit of your use of the Software during normal business hours,

you agree to cooperate with Dell in such audit, and you agree to provide Dell

with all records reasonably related to your use of the Software. The audit will

be limited to verification of your compliance with the terms of this

agreement.

Using FlexAddress 203

The Software is protected by United States copyright laws and international

treaties. You may make one copy of the Software solely for backup or archival

purposes or transfer it to a single hard disk provided you keep the original

solely for backup or archival purposes. You may not rent or lease the Software

or copy the written materials accompanying the Software, but you may

transfer the Software and all accompanying materials on a permanent basis as

part of a sale or transfer of the Dell product if you retain no copies and the

recipient agrees to the terms hereof. Any transfer must include the most

recent update and all prior versions. You may not reverse engineer, decompile

or disassemble the Software. If the package accompanying your computer

contains compact discs, 3.5" and/or 5.25" disks, you may use only the disks

appropriate for your computer. You may not use the disks on another

computer or network, or loan, rent, lease, or transfer them to another user

except as permitted by this agreement.

LIMITED WARRANTY

Dell warrants that the Software disks will be free from defects in materials

and workmanship under normal use for ninety (90) days from the date you

receive them. This warranty is limited to you and is not transferable. Any

implied warranties are limited to ninety (90) days from the date you receive

the Software. Some jurisdictions do not allow limits on the duration of an

implied warranty, so this limitation may not apply to you. The entire liability

of Dell and its suppliers, and your exclusive remedy, shall be (a) return of the

price paid for the Software or (b) replacement of any disk not meeting this

warranty that is sent with a return authorization number to Dell, at your cost

and risk. This limited warranty is void if any disk damage has resulted from

accident, abuse, misapplication, or service or modification by someone other

than Dell. Any replacement disk is warranted for the remaining original

warranty period or thirty (30) days, whichever is longer.

Dell does NOT warrant that the functions of the Software will meet your

requirements or that operation of the Software will be uninterrupted or error

free. You assume responsibility for selecting the Software to achieve your

intended results and for the use and results obtained from the Software.

DELL, ON BEHALF OF ITSELF AND ITS SUPPLIERS, DISCLAIMS ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, FOR THE SOFTWARE

204 Using FlexAddress

AND ALL ACCOMPANYING WRITTEN MATERIALS. This limited

warranty gives you specific legal rights; you may have others, which vary from

jurisdiction to jurisdiction.

IN NO EVENT SHALL DELL OR ITS SUPPLIERS BE LIABLE FOR ANY

DAMAGES WHATSOEVER (INCLUDING, WITHOUT LIMITATION,

DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS

INTERRUPTION, LOSS OF BUSINESS INFORMATION, OR OTHER

PECUNIARY LOSS) ARISING OUT OF USE OR INABILITY TO USE

THE SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. Because some jurisdictions do not allow an exclusion or

limitation of liability for consequential or incidental damages, the above

limitation may not apply to you.

OPEN SOURCE SOFTWARE

A portion of this CD may contain open source software, which you can use

under the terms and conditions of the specific license under which the open

source software is distributed.

THIS OPEN SOURCE SOFTWARE IS DISTRIBUTED IN THE HOPE

THAT IT WILL BE USEFUL, BUT IS PROVIDED "AS IS" WITHOUT

ANY EXPRESSED OR IMPLIED WARRANTY; INCLUDING BUT NOT

LIMITED TO THE IMPLIED WARRANTY OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL DELL,

THE COPYRIGHT HOLDERS, OR THE CONTRIBUTORS BE LIABLE

FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY,

OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED

TO, PROCUREMENT OF SUBSTUTUTE GOODS OR SERVICES; LOSS

OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION)

HOWEVER CAUSED AND ON ANY THEORY OF LIABILTIY,

WHETHER IN CONTRACT, STRICT LIABITLY, OR TORT

(INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY

OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE

POSSIBILTIY OF SUCH DAMAGE.

.U.S. GOVERNMENT RESTRICTED RIGHTS

The software and documentation are "commercial items" as that term is

defined at 48 C.F.R. 2.101, consisting of "commercial computer software" and

"commercial computer software documentation" as such terms are used in 48

C.F.R. 12.212. Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-1

through 227.7202-4, all U.S. Government end users acquire the software and

Using FlexAddress 205

documentation with only those rights set forth herein.

Contractor/manufacturer is Dell Products, L.P., One Dell Way, Round Rock,

Texas 78682.

GENERAL

This license is effective until terminated. It will terminate upon the

conditions set forth above or if you fail to comply with any of its terms.

Upon termination, you agree that the Software and accompanying materials,

and all copies thereof, will be destroyed. This agreement is governed by the

laws of the State of Texas. Each provision of this agreement is severable. If a

provision is found to be unenforceable, this finding does not affect the

enforceability of the remaining provisions, terms, or conditions of this

agreement. This agreement is binding on successors and assigns. Dell agrees

and you agree to waive, to the maximum extent permitted by law, any right to

a jury trial with respect to the Software or this agreement. Because this waiver

may not be effective in some jurisdictions, this waiver may not apply to you.

You acknowledge that you have read this agreement, that you understand it,

that you agree to be bound by its terms, and that this is the complete and

exclusive statement of the agreement between you and Dell regarding the

Software.

206 Using FlexAddress

Using the CMC With Microsoft Active Directory 207

Using the CMC With Microsoft

Active Directory

A directory service maintains a common database of all information needed

for controlling network users, computers, printers, and so on. If your company

uses the Microsoft® Active Directory® service software, you can configure the

software to provide access to the CMC. This allows you to add and control

CMC user privileges to your existing users in your Active Directory software.

NOTE: Using Active Directory to recognize CMC users is supported on the

Microsoft Windows® 2000 and Windows Server® 2003 operating systems. Active

Directory over IPv6 is supported only on Windows 2008.

Active Directory Schema Extensions

You can use Active Directory to define user access on CMC through two

methods:

• The extended schema solution, which uses Active Directory objects

defined by Dell.

• The standard schema solution, which uses Active Directory group

objects only.

Extended Schema Versus Standard Schema

When using Active Directory to configure access to the CMC, you must

choose either the extended schema or the standard schema solution.

With the extended schema solution:

• All of the access control objects are maintained in Active Directory.

• Configuring user access on different CMCs with different privilege levels

allows maximum flexibility.

With the standard schema solution:

• No schema extension is required, because standard schema use Active

Directory objects only.

• Configuration on the Active Directory side is simple.

208 Using the CMC With Microsoft Active Directory

Extended Schema Overview

There are two ways to enable Extended Schema Active Directory:

• Using the CMC Web interface. For instructions, see "Configuring the

CMC With Extended Schema Active Directory and the Web Interface" on

page 223.

• Using the RACADM CLI tool. For instructions, see "Configuring the

CMC With Extended Schema Active Directory and RACADM" on

page 226.

Active Directory Schema Extensions

The Active Directory data is a distributed database of Attributes and Classes.

The Active Directory schema includes the rules that determine the type of

data that can be added or included in the database.

One example of a Class that is stored in the database is the user class.

User class attributes can include the user’s first name, last name,

phone number, and so on.

You can extend the Active Directory database by adding your own unique

Attributes and Classes to address your company’s environment-specific

needs. Dell has extended the schema to include the necessary changes to

support remote management Authentication and Authorization.

Each Attribute or Class that is added to an existing Active Directory Schema

must be defined with a unique ID. To maintain unique IDs across the

industry, Microsoft maintains a database of Active Directory Object

Identifiers (OIDs). To extend the schema in Microsoft's Active Directory,

Dell established unique OIDs, unique name extensions, and uniquely linked

attribute IDs for Dell-specific Attributes and Classes:

Dell extension: dell

Dell base OID: 1.2.840.113556.1.8000.1280

RAC LinkID range: 12070–2079

Using the CMC With Microsoft Active Directory 209

Overview of the RAC Schema Extensions

Dell provides a group of properties that you can configure. The Dell extended

schema include Association, Device, and Privilege properties.

The Association property links together users or groups with a specific set of

privileges to one or more RAC devices. This model provides an Administrator

maximum flexibility over the different combinations of users, RAC privileges,

and RAC devices on the network without adding too much complexity.

Active Directory Object Overview

When there are two CMCs on the network that you want to integrate with

Active Directory for Authentication and Authorization, you must create at

least one Association Object and one RAC Device Object for each CMC.

You can create multiple Association Objects, and each Association Object

can be linked to as many users, groups of users, or RAC Device Objects as

required. The users and RAC Device Objects can be members of any domain

in the enterprise.

However, each Association Object can be linked (or, may link users, groups of

users, or RAC Device Objects) to only one Privilege Object. This example

allows an Administrator to control each user’s privileges on specific CMCs.

The RAC Device object is the link to the RAC firmware for querying Active

Directory for authentication and authorization. When a RAC is added to the

network, the Administrator must configure the RAC and its device object

with its Active Directory name so users can perform authentication and

authorization with Active Directory. Additionally, the Administrator must add

the RAC to at least one Association Object in order for users to authenticate.

Figure 7-1 illustrates that the Association Object provides the connection

that is needed for all of the Authentication and Authorization.

NOTE: The RAC privilege object applies to DRAC 4, DRAC 5, and the CMC.

You can create as many or as few Association Objects as required. However,

you must create at least one Association Object, and you must have one

RAC Device Object for each RAC (CMC) on the network that you want

to integrate with Active Directory.

210 Using the CMC With Microsoft Active Directory

Figure 7-1. Typical Setup for Active Directory Objects

The Association Object allows for as many or as few users and/or groups as

well as RAC Device Objects. However, the Association Object only includes

one Privilege Object per Association Object. The Association Object

connects the "Users" who have "Privileges" on the RACs (CMCs).

Additionally, you can configure Active Directory objects in a single domain or

in multiple domains. For example, you have two CMCs (RAC1 and RAC2)

and three existing Active Directory users (user1, user2, and user3). You want

to give user1 and user2 an administrator privilege to both CMCs and give

user3 a login privilege to the RAC2 card. Figure 7-2 illustrates how you set up

the Active Directory objects in this scenario.

When adding Universal Groups from separate domains, create an Association

Object with Universal Scope. The Default Association objects created by the

Dell Schema Extender Utility are Domain Local Groups and will not work

with Universal Groups from other domains.

Association Object

User(s) Group(s) Privilege Object RAC Device Object(s)

RAC Privilege Object

Using the CMC With Microsoft Active Directory 211

Figure 7-2. Setting Up Active Directory Objects in a Single Domain

To configure the objects for the single domain scenario:

Create two Association Objects.

Create two RAC Device Objects, RAC1 and RAC2, to represent the two

CMCs.

Create two Privilege Objects, Priv1 and Priv2, in which Priv1 has all

privileges (administrator) and Priv2 has login privilege.

Group user1 and user2 into Group1.

Add Group1 as Members in Association Object 1 (A01), Priv1 as Privilege

Objects in A01, and RAC1, RAC2 as RAC Devices in A01.

Add User3 as Members in Association Object 2 (A02), Priv2 as Privilege

Objects in A02, and RAC2 as RAC Devices in A02.

For detailed instruction, see "Adding CMC Users and Privileges to Active

Directory."

Figure 7-3 provides an example of Active Directory objects in multiple

domains. In this scenario, you have two CMCs (RAC1 and RAC2) and three

existing Active Directory users (user1, user2, and user3). User1 is in

AO1 AO2

Priv2Priv1Group1

RAC2RAC1User3User2User1

212 Using the CMC With Microsoft Active Directory

Domain1, and user2 and user 3 are in Domain2. In this scenario, configure

user1 and user 2 with administrator privileges to both CMCs and configure

user3 with login privileges to the RAC2 card.

Figure 7-3. Setting Up Active Directory Objects in Multiple Domains

To configure the objects for the multiple domain scenario:

Ensure that the domain forest function is in Native or Windows 2003 mode.

Create two Association Objects, A01 (of Universal scope) and A02, in any

domain.

Figure 7-3 shows the objects in Domain2.

Create two RAC Device Objects, RAC1 and RAC2, to represent

the two CMCs.

Create two Privilege Objects, Priv1 and Priv2, in which Priv1 has all

privileges (administrator) and Priv2 has login privilege.

AO1 AO2

Priv2Priv1Group1

RAC2RAC1User3User2User1

Domain2Domain1

Using the CMC With Microsoft Active Directory 213

Group user1 and user2 into Group1. The group scope of Group1

must be Universal.

Add Group1 as Members in Association Object 1 (A01), Priv1 as Privilege

Objects in A01, and RAC1, RAC2 as RAC Devices in A01.

Add User3 as Members in Association Object 2 (A02), Priv2 as Privilege

Objects in A02, and RAC2 as RAC Devices in A02.

Configuring Extended Schema Active Directory to Access Your CMC

Before using Active Directory to access your CMC, configure the Active

Directory software and the CMC:

Extend the Active Directory schema (see "Extending the Active Directory

Schema").

Extend the Active Directory Users and Computers Snap-In (see "Installing

the Dell Extension to the Active Directory Users and Computers Snap-In").

Add CMC users and their privileges to Active Directory (see "Adding

CMC Users and Privileges to Active Directory").

Enable SSL on each of your domain controllers.

Configure the CMC Active Directory properties using either the CMC

Web interface or the RACADM (see "Configuring the CMC With

Extended Schema Active Directory and the Web Interface" or

"Configuring the CMC With Extended Schema Active Directory and

RACADM").

Extending the Active Directory Schema

Extending your Active Directory schema adds a Dell organizational unit,

schema classes and attributes, and example privileges and association objects

to the Active Directory schema. Before you extend the schema, ensure that

you have Schema Admin privilege on the Schema Master Flexible Single

Master Operation (FSMO) Role Owner of the domain forest.

You can extend your schema using one of the following methods:

• Dell Schema Extender utility

• LDIF script file

If you use the LDIF script file, the Dell organizational unit will not be added

to the schema.

214 Using the CMC With Microsoft Active Directory

The LDIF files and Dell Schema Extender are located on your Dell Systems

Management Tools and Documentation DVD in the following respective

directories:

• <DVDdrive>:\SYSMGMT\ManagementStation\support\

OMActiveDirectory_Tools\<installation type>\LDIF Files

• <DVDdrive>:\SYSMGMT\ManagementStation\support\

OMActiveDirectory_ Tools\<installation type>\Schema Extender

To use the LDIF files, see the instructions in the readme included in the

LDIF_Files directory. For instructions on using the Dell Schema Extender to

extend the Active Directory Schema, see "Using the Dell Schema Extender."

You can copy and run the Schema Extender or LDIF files from any location.

Using the Dell Schema Extender

CAUTION: The Dell Schema Extender uses the SchemaExtenderOem.ini file. To ensure

that the Dell Schema Extender utility functions properly, do not modify the name of this file.

In the

Welcome

screen, click

Next.

Read and understand the warning and click

Select

Use Current Log In Credentials

or enter a user name and password

with schema administrator rights.

Click

to run the Dell Schema Extender.

Click

Finish

The schema is extended. To verify the schema extension, use the

Microsoft Management Console (MMC) and the Active Directory

Schema Snap-In to verify that the following exist:

• Classes — see Table 7-1 through Table 7-6

• Attributes — see Table 7-7

See your Microsoft documentation for more information on how to enable

and use the Active Directory Schema Snap-In the MMC.

Using the CMC With Microsoft Active Directory 215

Table 7-1. Class Definitions for Classes Added to the Active

Directory Schema

Class Name Assigned Object Identification Number (OID)

dellRacDevice 1.2.840.113556.1.8000.1280.1.1.1.1

dellAssociationObject 1.2.840.113556.1.8000.1280.1.1.1.2

dellRACPrivileges 1.2.840.113556.1.8000.1280.1.1.1.3

dellPrivileges 1.2.840.113556.1.8000.1280.1.1.1.4

dellProduct 1.2.840.113556.1.8000.1280.1.1.1.5

Table 7-2. dellRacDevice Class

OID 1.2.840.113556.1.8000.1280.1.1.1.1

Description Represents the Dell RAC device. The RAC device must be

configured as dellRacDevice in Active Directory. This configuration

enables the CMC to send Lightweight Directory Access Protocol

(LDAP) queries to Active Directory.

Class Type Structural Class

SuperClasses dellProduct

Attributes dellSchemaVersion

dellRacType

Table 7-3. dellAssociationObject Class

OID 1.2.840.113556.1.8000.1280.1.1.1.2

Description Represents the Dell Association Object. The Association Object

provides the connection between the users and the devices.

Class Type Structural Class

SuperClasses Group

Attributes dellProductMembers

dellPrivilegeMember

216 Using the CMC With Microsoft Active Directory

Table 7-4. dellRAC4Privileges Class

OID 1.2.840.113556.1.8000.1280.1.1.1.3

Description Defines Authorization Rights (privileges) for the CMC device.

Class Type Auxiliary Class

SuperClasses None

Attributes dellIsLoginUser

dellIsCardConfigAdmin

dellIsUserConfigAdmin

dellIsLogClearAdmin

dellIsServerResetUser

dellIsTestAlertUser

dellIsDebugCommandAdmin

dellPermissionMask1

dellPermissionMask2

Table 7-5. dellPrivileges Class

OID 1.2.840.113556.1.8000.1280.1.1.1.4

Description Container Class for the Dell Privileges (Authorization Rights).

Class Type Structural Class

SuperClasses User

Attributes dellRAC4Privileges

Table 7-6. dellProduct Class

OID 1.2.840.113556.1.8000.1280.1.1.1.5

Description The main class from which all Dell products are derived.

Class Type Structural Class

SuperClasses Computer

Attributes dellAssociationMembers

Using the CMC With Microsoft Active Directory 217

Table 7-7. List of Attributes Added to the Active Directory Schema

Assigned OID/Syntax Object Identifier Single Valued

Attribute: dellPrivilegeMember

Description: List of dellPrivilege objects that belong to this

attribute.

OID: 1.2.840.113556.1.8000.1280.1.1.2.1

Distinguished Name: (LDAPTYPE_DN

1.3.6.1.4.1.1466.115.121.1.12)

FALSE

Attribute: dellProductMembers

Description: List of dellRacDevices objects that belong to this role.

This attribute is the forward link to the dellAssociationMembers

backward link.

Link ID: 12070

OID: 1.2.840.113556.1.8000.1280.1.1.2.2

Distinguished Name: (LDAPTYPE_DN

1.3.6.1.4.1.1466.115.121.1.12)

FALSE

Attribute: dellIsCardConfigAdmin

Description: TRUE if the user has Card Configuration rights on the device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.4

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

Attribute: dellIsLoginUser

Description: TRUE if the user has Login rights on the device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.3

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

Attribute: dellIsCardConfigAdmin

Description: TRUE if the user has Card Configuration rights on the

device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.4

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

218 Using the CMC With Microsoft Active Directory

Attribute: dellIsUserConfigAdmin

Description: TRUE if the user has User Configuration

Administrator rights on the device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.5

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

Attribute: delIsLogClearAdmin

Description: TRUE if the user has Clear Logs Administrator rights

on the device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.6

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

Attribute: dellIsServerResetUser

Description: TRUE if the user has Server Reset rights on the device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.7

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

Attribute: dellIsTestAlertUser

Description: TRUE if the user has Test Alert User rights on the device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.10

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

Attribute: dellIsDebugCommandAdmin

Description: TRUE if the user has Debug Command Admin rights

on the device.

OID: 1.2.840.113556.1.8000.1280.1.1.2.11

Boolean (LDAPTYPE_BOOLEAN 1.3.6.1.4.1.1466.115.121.1.7)

TRUE

Attribute: dellSchemaVersion

Description: The Current Schema Version is used to update the schema.

OID: 1.2.840.113556.1.8000.1280.1.1.2.12

Case Ignore String(LDAPTYPE_CASEIGNORESTRING

1.2.840.113556.1.4.905)

TRUE

Table 7-7. List of Attributes Added to the Active Directory Schema

(continued)

Assigned OID/Syntax Object Identifier Single Valued

Using the CMC With Microsoft Active Directory 219

Installing the Dell Extension to the Active Directory Users and

Computers Snap-In

When you extend the schema in Active Directory, you must also extend the

Active Directory Users and Computers Snap-In so the administrator can

manage RAC (CMC) devices, Users and User Groups, RAC Associations,

and RAC Privileges.

When you install your systems management software using the Dell Systems

Management Tools and Documentation DVD, you can extend the Snap-In by

selecting the Dell Extension to the Active Directory User’s and Computers

Snap-In option during the installation procedure. See the Dell OpenManage

Software Quick Installation Guide for additional instructions about installing

systems management software.

Attribute: dellRacType

Description: This attribute is the Current Rac Type for the

dellRacDevice object and the backward link to the

dellAssociationObjectMembers forward link.

OID: 1.2.840.113556.1.8000.1280.1.1.2.13

Case Ignore String(LDAPTYPE_CASEIGNORESTRING

1.2.840.113556.1.4.905)

TRUE

Attribute: dellAssociationMembers

Description: List of dellAssociationObjectMembers that belong to

this Product. This attribute is the backward link to the

dellProductMembers Linked attribute.

Link ID: 12071

OID: 1.2.840.113556.1.8000.1280.1.1.2.14

Distinguished Name (LDAPTYPE_DN

1.3.6.1.4.1.1466.115.121.1.12)

FALSE

Attribute: dellPermissionsMask1

OID: 1.2.840.113556.1.8000.1280.1.6.2.1 Integer (LDAPTYPE_INTEGER)

Attribute: dellPermissionsMask2

OID: 1.2.840.113556.1.8000.1280.1.6.2.2 Integer (LDAPTYPE_INTEGER)

Table 7-7. List of Attributes Added to the Active Directory Schema

(continued)

Assigned OID/Syntax Object Identifier Single Valued

220 Using the CMC With Microsoft Active Directory

For more information about the Active Directory User’s and Computers

Snap-In, see your Microsoft documentation.

Installing the Administrator Pack

You must install the Administrator Pack on each system that is managing the

Active Directory CMC Objects. If you do not install the Administrator Pack,

you cannot view the Dell RAC Object in the container.

Opening the Active Directory Users and Computers Snap-In

To open the Active Directory Users and Computers Snap-In:

If you are logged into the domain controller, click

Start

Admin Tools

→

Active Directory Users and Computers

If you are not logged into the domain controller, you must have the

appropriate Microsoft Administrator Pack installed on your local system.

To install this Administrator Pack, click

Start

→

Run

, type

MMC

, and press

<Enter>.

The Microsoft Management Console (MMC) appears.

In the

Console 1

window, click

File

(or

Console

on systems running

Windows 2000).

Click

Add/Remove Snap-in

Select the

Active Directory Users and Computers

Snap-In and click

Add

Click

and click

Adding CMC Users and Privileges to Active Directory

Using the Dell-extended Active Directory Users and Computers Snap-In, you

can add CMC users and privileges by creating RAC, Association, and Privilege

objects. To add each object type, you will:

Create a RAC device Object.

Create a Privilege Object.

Create an Association Object.

Add objects to an Association Object.

Using the CMC With Microsoft Active Directory 221

Creating a RAC Device Object

In the MMC

Console Root

window, right-click a container.

Select

New

→

Dell RAC Object

The

New Object

window appears.

Type a name for the new object. The name must be identical to the CMC

Name that you will type in step 8a of "Configuring the CMC With

Extended Schema Active Directory and the Web Interface."

Select

RAC Device Object

Click

Creating a Privilege Object

NOTE: A Privilege Object must be created in the same domain as the related

Association Object.

In the

Console Root

(MMC) window, right-click a container.

Select

New

→

Dell RAC Object

The

New Object

window appears.

Type a name for the new object.

Select

Privilege Object

Click

Right-click the privilege object that you created, and select

Properties

Click the

RAC Privileges

tab and select the privileges that you want

the user to have. For more information about CMC user privileges,

see "User Types."

Creating an Association Object

The Association Object is derived from a Group and must contain a Group

Type. The Association Scope specifies the Security Group Type for the

Association Object. When you create an Association Object, choose the

Association Scope that applies to the type of objects you intend to add.

222 Using the CMC With Microsoft Active Directory

For example, if you select Universal, the association objects are only available

when the Active Directory Domain is functioning in Native Mode or above.

In the

Console Root

(MMC) window, right-click a container.

Select

New

→

Dell RAC Object

This opens the

New Object

window.

Type a name for the new object.

Select

Association Object

Select the scope for the

Association Object

Click

Adding Objects to an Association Object

Using the Association Object Properties window, you can associate users or

user groups, privilege objects, and RAC devices or RAC device groups. If your

system is running Windows 2000 mode or higher, use Universal Groups to

span domains with your user or RAC objects.

You can add groups of Users and RAC devices. The procedure for creating

Dell-related groups and non-Dell-related groups is identical.

Adding Users or User Groups

Right-click the

Association Object

and select

Properties

Select the

Users

tab and click

Add

Type the user or User Group name and click

Click the Privilege Object tab to add the privilege object to the association

that defines the user’s or user group’s privileges when authenticating to a

RAC device. Only one privilege object can be added to an Association Object.

Adding Privileges

Select the

Privileges Object

tab and click

Add

Type the Privilege Object name and click

Using the CMC With Microsoft Active Directory 223

Click the Products tab to add one or more RAC devices to the association.

The associated devices specify the RAC devices connected to the network

that are available for the defined users or user groups. Multiple RAC devices

can be added to an Association Object.

Adding RAC Devices or RAC Device Groups

To add RAC devices or RAC device groups:

Select the

Products

tab and click

Add.

Type the RAC device or RAC device group name and click

In the

Properties

window, click

Apply

and click

Configuring the CMC With Extended Schema Active Directory and the

Web Interface

Select

Chassis

in the system tree.

Click the

Network/Security

tab, and then click the

Active Directory

sub-tab. The

Active Directory Main Menu

page appears.

Select the

Configure radio button

, and then click

. The

Active

Directory Configuration and Management

page appears.

In the

Common Setting

s section:

Select the

Enable Active Directory

check box so that it is checked.

Type t h e

Root Domain Name

. The

Root Domain Name

is the fully

qualified root domain name for the forest.

NOTE: The Root domain name must be a valid domain name using the x.y

naming convention, where x is a 1–256 character ASCII string with no spaces

between characters, and y is a valid domain type such as com, edu, gov, int,

mil, net, or org.

Type t h e

Timeout

time in seconds.

Configuration range:

15–300 seconds.

Default:

90 seconds

224 Using the CMC With Microsoft Active Directory

Optional:

If you want the directed call to search the domain controller

and global catalog, select the

Search AD Server to search (Optional)

check box, then:

In the

Domain Controller

text field, type the server where your Active

Directory service is installed.

In the

Global Catalog

text field, type the location of the global

catalog on the Active Directory domain controller. The global catalog

provides a resource for searching an Active Directory forest.

NOTE: Setting the IP address as 0.0.0.0 disables the CMC from searching

for a server.

NOTE: You can specify a list of domain controller or global catalog

servers separated by commas. The CMC allows you to specify up to

three IP addresses or host names.

NOTE: Domain controller and global catalog servers that are not correctly

configured for all domains and applications may produce unexpected results

during the functioning of existing applications/domains.

Select the

Use Extended Schema

radio button in the

Active Directory

Schema Selection

area.

In the

Extended Schema Settings

section:

Type t h e

CMC Name

. The

CMC Name

uniquely identifies the CMC

card in Active Directory. The

CMC Name

must be the same as the

common name of the new CMC object you created in your Domain

Controller. The

CMC Name

must be a 1–256 character ASCII string

with no spaces between characters.

Type t h e

CMC Domain Name

(example:

cmc.com

). The

CMC

Domain Name

is the DNS name (string) of the domain where the

Active Directory CMC object resides. The name must be a valid

domain name consisting of

x.y

, where

is a 1–256 character ASCII

string with no spaces between characters, and

is a valid domain type

such as com, edu, gov, int, mil, net, or org.

Click

Apply

to save your settings.

NOTE: You must apply your settings before continuing to the next step, in

which you navigate to another page. If you do not apply the settings, you will

lose the settings you entered when you navigate to the next page.

Using the CMC With Microsoft Active Directory 225

Click

Go Back To Active Directory Main Menu

Select the

Upload AD Certificate

radio button, and then click

The

Certificate Upload

page appears.

Type the file path of the certificate in the text field, or click

Browse

select the certificate file.

NOTE: The File Path value displays the relative file path of the certificate you

are uploading. You must type the absolute file path, which includes the full

path and the complete file name and file extension.

The SSL certificates for the domain controller must be signed by the root

certificate authority. The root certificate authority-signed certificate must

be available on the management station accessing the CMC.

Click

Apply

. The CMC Web server automatically restarts after

you click

Apply

Log back in to the CMC Web interface.

Select

Chassis

in the system tree, click the

Network/Security

tab, then

click the

Network

sub-tab. The

Network Configuration

page appears.

Use DHCP (for NIC IP Address)

is enabled (checked), do one of the

following:

• Select

Use DHCP to Obtain DNS Server Addresses

to enable the

DNS server addresses to be obtained automatically by the DHCP

server., or

• Manually configure a DNS server IP address by leaving the

Use DHCP

to Obtain DNS Server Addresses

check box unchecked and then

typing your primary and alternate DNS server IP addresses in the

fields provided.

Click

Apply Changes

The CMC Extended Schema Active Directory feature configuration

is complete.

226 Using the CMC With Microsoft Active Directory

Configuring the CMC With Extended Schema Active Directory and

RACADM

Using the following commands to configure the CMC Active Directory

Feature with Extended Schema using the RACADM CLI tool instead of the

Web interface.

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm config -g cfgActiveDirectory -o cfgADEnable 1

racadm config -g cfgActiveDirectory -o cfgADType 1

racadm config -g cfgActiveDirectory -o

cfgADRacDomain <

fully qualified CMC domain name

racadm config -g cfgActiveDirectory -o

cfgADRootDomain <

fully qualified root domain name

racadm config -g cfgActiveDirectory -o

cfgADRacName <

CMC common name

racadm sslcertupload -t 0x2 -f <

ADS root CA

certificate

> -r

NOTE: You can use this command through remote RACADM only.

racadm sslcertdownload -t 0x1 -f <

CMC SSL

certificate

NOTE: You can use this command through remote RACADM only.

Optional:

If you want to specify an LDAP or Global Catalog server instead

of using the servers returned by the DNS server to search for a user name,

type the following command to enable the

Specify Server

option:

racadm config -g cfgActiveDirectory -o

cfgADSpecifyServerEnable 1

NOTE: When you use the Specify Server option, the host name in the

certificate authority-signed certificate is not matched against the name of the

specified server. This is particularly useful if you are a CMC administrator,

because it enables you to enter a host name as well as an IP address.

Using the CMC With Microsoft Active Directory 227

After you enable the

Specify Server

option, you can specify an LDAP

server and global catalog with IP addresses or fully qualified domain names

(FQDNs) of the servers. The FQDNs consist of the host names and the

domain names of the servers.

To specify an LDAP server, type:

racadm config -g cfgActiveDirectory -o

cfgADDomainController <AD domain controller IP

address>

To specify a Global Catalog server, type:

racadm config -g cfgActiveDirectory -o

cfgADGlobalCatalog <AD global catalog IP address>

NOTE: Setting the IP address as 0.0.0.0 disables the CMC from searching

for a server.

NOTE: You can specify a list of LDAP or global catalog servers separated by

commas. The CMC allows you to specify up to three IP addresses or host names.

NOTE: LDAP or LDAPs that are not correctly configured for all domains and

applications may produce unexpected results during the functioning of the

existing applications/domains.

Specify a DNS server using one of the following options:

• If DHCP is enabled on the CMC and you want to use the DNS address

obtained automatically by the DHCP server, type the following command:

racadm config -g cfgLanNetworking -o

cfgDNSServersFromDHCP 1

• If DHCP is disabled on the CMC, or if DHCP is enabled but you want

to specify your DNS IP address manually, type following commands:

racadm config -g cfgLanNetworking -o

cfgDNSServersFromDHCP 0

racadm config -g cfgLanNetworking -o

cfgDNSServer1

racadm config -g cfgLanNetworking -o

cfgDNSServer2

The Extended Schema feature configuration is complete.

228 Using the CMC With Microsoft Active Directory

Standard Schema Active Directory Overview

Using standard schema for Active Directory integration requires

configuration on both Active Directory and the CMC.

On the Active Directory side, a standard group object is used as a role group.

A user who has CMC access will be a member of the role group.

In order to give this user access to a specific CMC card, the role group name

and its domain name need to be configured on the specific CMC card. Unlike

the extended schema solution, the role and the privilege level is defined on

each CMC card, not in the Active Directory. Up to five role groups can be

configured and defined in each CMC. Table 5-19 shows the privileges level of

the role groups and Table 7-8 shows the default role group settings.

Figure 7-4. Configuration of CMC with Active Directory and Standard Schema

Role

Group

Role

Group Name

and Domain

Name

Role

Definition

User

Configuration on Active

Directory Side

Configuration on

CMC Side

Using the CMC With Microsoft Active Directory 229

Table 7-8. Default Role Group Privileges

Role Group Default

Privilege

Level

Permissions Granted Bit Mask

1None

•CMC Login User

• Chassis Configuration

Administrator

• User Configuration Administrator

•Clear Logs Administrator

• Chassis Control Administrator

(Power Commands)

•Super User

• Server Administrator

• Test Alert User

• Debug Command User

• Fabric A Administrator

•Fabric B Administrator

•Fabric C Administrator

0x00000fff

2None

•CMC Login User

•Clear Logs Administrator

• Chassis Control Administrator

(Power Commands)

• Server Administrator

• Test Alert User

• Fabric A Administrator

•Fabric B Administrator

•Fabric C Administrator

0x000000f9

3 None CMC Login User 0x00000001

4 None No assigned permissions 0x00000000

5 None No assigned permissions 0x00000000

230 Using the CMC With Microsoft Active Directory

NOTE: The bit mask values are used only when setting Standard Schema

with the RACADM.

NOTE: For more information about user privileges, see "User Types" on page 132.

There are two ways to enable Standard Schema Active Directory:

• With the CMC Web interface. See "Configuring the CMC With Standard

Schema Active Directory and Web Interface."

• With the RACADM CLI tool. See "Configuring the CMC With Standard

Schema Active Directory and RACADM."

Configuring Standard Schema Active Directory to Access Your CMC

You need to perform the following steps to configure the Active Directory

before an Active Directory user can access the CMC:

On an Active Directory server (domain controller), open the Active

Directory Users and Computers Snap-in.

Create a group or select an existing group. The name of the group and the

name of this domain will need to be configured on the CMC either with

the Web interface or RACADM.

For more information, see "Configuring the CMC With Standard Schema

Active Directory and Web Interface" or "Configuring the CMC With

Standard Schema Active Directory and RACADM."

Add the Active Directory user as a member of the Active Directory group

to access the CMC.

Configuring the CMC With Standard Schema Active Directory

and Web Interface

Select

Chassis

in the system tree.

Click the

Network/Security

tab, and then click the

Active Directory

sub-tab. The

Active Directory Main Menu

page appears.

Select the

Configure option,

and then click

. The

Active Directory

Configuration and Management

page appears.

Using the CMC With Microsoft Active Directory 231

In the

Common Settings

section:

Select the

Enable Active Directory

check box.

Type t h e

ROOT Domain Name

. The

ROOT Domain Name

is the

fully qualified root domain name for the forest.

NOTE: The ROOT domain name must be a valid domain name using the x.y

naming convention, where x is a 1–256 character ASCII string with no spaces

between characters, and y is a valid domain type such as com, edu, gov, int,

mil, net, or org.

Type t h e

Timeout

time in seconds.

Configuration range:

15–300 seconds.

Default:

90 seconds

Optional:

If you want the directed call to search the domain controller and

global catalog, select the

Search AD Server to search (Optional)

check

box, then:

In the

Domain Controller

text field, type the server where your Active

Directory service is installed.

In the

Global Catalog

text field, type the location of the global

catalog on the Active Directory domain controller. The global catalog

provides a resource for searching an Active Directory forest.

Click

Use Standard Schema

in the Active Directory Schema

Selection section.

Click

Apply

to save your settings.

NOTE: You must apply your settings before continuing to the next step, in

which you navigate to another page. If you do not apply the settings,

you will lose the settings you entered when you navigate to the next page.

In the

Standard Schema Settings

section, click a

Role Group

The

Configure Role Group

page appears.

Type t h e

Group Name

. The group name identifies the role group in the

Active Directory associated with the CMC card.

Type t h e

Group Domain

. The

Group Domain

is the fully qualified root

domain name for the forest.

In the

Role Group Privileges

page, select privileges for the group.

If you modify any of the privileges, the existing

Role Group Privilege

(Administrator, Power User, or Guest User) will change to either the

Custom group or the appropriate Role Group Privilege. See Table 5-19.

232 Using the CMC With Microsoft Active Directory

Click

Apply

to save the Role Group settings.

Click

Go Back To Active Directory Configuration and Management

Click

Go Back To Active Directory Main Menu

Upload your domain forest Root certificate authority-signed certificate

into the CMC.

Select the

Upload Active Directory CA Certificat

e check box and

then click

In the

Certificate Upload

page, type the file path of the certificate or

browse to the certificate file.

NOTE: The File Path value displays the relative file path of the certificate you

are uploading. You must type the absolute file path, which includes the full

path and the complete file name and file extension.

The SSL certificates for the domain controllers must be signed by the

root certificate authority-signed certificate. The root certificate

authority-signed certificate must be available on the management

station accessing the CMC.

Click

Apply

. The CMC Web server automatically restarts after you

click

Apply

Log out and then log in to the CMC to complete the CMC Active

Directory feature configuration.

Select

Chassis

in the system tree.

Click the

Network/Security

tab.

Click the

Network

sub-tab. The

Network Configuration

page appears.

Use DHCP (for NIC IP Address)

is selected under

Network Settings

select

Use DHCP to obtain DNS server address

To manually input a DNS server IP address, deselect

Use DHCP to

obtain DNS server addresses

and type your primary and alternate

DNS server IP addresses.

Click

Apply Changes

The CMC Standard Schema Active Directory feature configuration

is complete.

Using the CMC With Microsoft Active Directory 233

Configuring the CMC With Standard Schema Active Directory

and RACADM

To configure the CMC Active Directory Feature with Standard Schema using

the RACADM CLI, use the following commands:

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm config -g cfgActiveDirectory -o cfgADEnable 1

racadm config -g cfgActiveDirectory -o cfgADType 2

racadm config -g cfgActiveDirectory -o

cfgADRootDomain <

fully qualified root domain name

racadm config -g cfgStandardSchema -i <index> -o

cfgSSADRoleGroupName <

common name of the role

group

racadm config -g cfgStandardSchema -i <index> -o

cfgSSADRoleGroupDomain <

fully qualified domain

name

racadm config -g cfgStandardSchema -i <index> -o

cfgSSADRoleGroupPrivilege <Bit mask number for

specific user permissions>

racadm sslcertupload -t 0x2 -f <

ADS root CA

certificate

racadm sslcertdownload -t 0x1 -f <

RAC SSL

certificate

NOTE: For bit mask number values, see Table 3-1 in the database property

chapter of the Dell Chassis Management Controller Administrator

Reference Guide.

234 Using the CMC With Microsoft Active Directory

Specify a DNS server using one of the following options:

• If DHCP is enabled on the CMC and you want to use the

DNS address obtained automatically by the DHCP server,

type the following command:

racadm config -g cfgLanNetworking -o

cfgDNSServersFromDHCP 1

• If DHCP is disabled on the CMC or you want manually to input your

DNS IP address, type the following commands:

racadm config -g cfgLanNetworking -o

cfgDNSServersFromDHCP 0

racadm config -g cfgLanNetworking -o

cfgDNSServer1 <

primary DNS IP address

racadm config -g cfgLanNetworking -o

cfgDNSServer2 <secondary DNS IP address

Frequently Asked Questions

Table 7-9 lists frequently asked questions and answers about using Active

Directory with the CMC.

Table 7-9. Using CMC With Active Directory: Frequently Asked Questions

Question Answer

Can I log into the CMC using

Active Directory across

multiple trees?

Yes. The CMC’s Active Directory querying

algorithm supports multiple trees in a

single forest.

Does the login to the CMC using

Active Directory work in mixed

mode (that is, the domain

controllers in the forest run

different operating systems, such

as Microsoft Windows® 2000 or

Windows Server® 2003)?

Yes. In mixed mode, all objects used by the

CMC querying process (among user,

RAC Device Object, and Association Object)

must be in the same domain.

The Dell-extended Active Directory Users and

Computers Snap-In checks the mode and

limits users in order to create objects across

domains if in mixed mode.

Using the CMC With Microsoft Active Directory 235

Does using the CMC with

Active Directory support

multiple domain environments?

Yes. The domain forest function level must be

in Native mode or Windows 2003 mode.

In addition, the groups among Association

Object, RAC user objects, and RAC Device

Objects (including Association Object) must

be universal groups.

Can these Dell-extended

objects (Dell Association Object,

Dell RAC Device, and Dell

Privilege Object) be in

different domains?

The Association Object and the Privilege

Object must be in the same domain.

The Dell-extended Active Directory Users and

Computers Snap-In forces you to create these

two objects in the same domain. Other objects

can be in different domains.

Are there any restrictions

on Domain Controller

SSL configuration?

Yes. All SSL certificates for Active Directory

servers in the forest must be signed by the

same root certificate authority-signed

certificate, because CMC only allows you to

upload one trusted certificate authority-signed

SSL certificate.

I created and uploaded

anewRACcertificate and

now the Web interface

does not launch.

If you use Microsoft Certificate Services to

generate the RAC certificate, you may have

inadvertently chose User Certificate instead of

Web Certificate when creating the certificate.

To recover, generate a CSR, and then create a

new Web certificate from Microsoft

Certificate Services and upload it using the

following RACADM commands:

racadm sslcsrgen [-g]

[-f {filename}]

racadm sslcertupload -t 1 -f

{web_sslcert}

Table 7-9. Using CMC With Active Directory: Frequently Asked Questions

(continued)

Question Answer

236 Using the CMC With Microsoft Active Directory

Configuring Single Sign-On

Microsoft® Windows® 2000, Windows XP, Windows Server® 2003,

Windows Vista®, and Windows Server 2008 can use Kerberos, a network

authentication protocol, as an authentication method allowing users

who have signed in to the domain an automatic or single sign-on to

subsequent applications such as Exchange.

What can I do if I cannot log

into the CMC using Active

Directory authentication?

How do I troubleshoot the issue?

Ensure that you use the correct user

domain name during a login and not

the NetBIOS name.

If you have a local CMC user account, log

into the CMC using your local credentials.

After you are logged in, perform the

following steps:

Ensure that you have checked the

Enable

Active Directory

check box on the CMC

Active Directory configuration page.

Ensure that the DNS setting is correct on

the CMC Networking configuration page.

Ensure that you have uploaded the Active

Directory certificate from your Active

Directory root certificate authority-signed

certificate to the CMC.

Check the Domain Controller SSL

certificates to ensure that they have

not expired.

Ensure that your

CMC Name

Root Domain Name

, and

CMC Domain

Name

match your Active Directory

environment configuration.

Ensure that the CMC password has a

maximum of 127 characters. While the

CMC can support passwords of up to

256 characters, Active Directory only

supports passwords that have a maximum

length of 127 characters.

Table 7-9. Using CMC With Active Directory: Frequently Asked Questions

(continued)

Question Answer

Using the CMC With Microsoft Active Directory 237

Starting with CMC version 2.10, the CMC can use Kerberos to support two

additional types of login mechanisms—single sign-on and Smart Card login.

For single sign-on login, the CMC uses the client system’s credentials,

which are cached by the operating system after you log in using a valid

Active Directory® account.

NOTE: Selecting a login method does not set policy attributes with respect to other

the Services page and disable all (or some) login interfaces.

System Requirements

To use the Kerberos authentication, your network must include:

•DNS server

• Microsoft Active Directory

Server

NOTE: NOTE: If you are using Active Directory on Windows 2003, ensure that

you have the latest service packs and patched installed on the client system.

If you are using Active Directory on Windows 2008, ensure that you have

installed SP1 along with the following hot fixes:

Windows6.0-KB951191-x86.msu for the KTPASS utility. Without this patch the

utility generates bad keytab files.

Windows6.0-KB957072-x86.msu for using GSS_API and SSL transactions

during an LDAP bind.

• Kerberos Key Distribution Center (packaged with the Active Directory

Server software)

• DHCP server (recommended)

• The DNS server reverse zone must have an entry for the Active Directory

server and CMC

Client Systems

• For only Smart Card login, the client system must have the Microsoft

Visual C++ 2005 redistributable. For more information see

www.microsoft.com/downloads/details.aspx?FamilyID=

32BC1BEEA3F9-4C13-9C99-220B62A191EE&displaylang=en

• For Single Sign-On and Smart Card login, the client system must be a part

of the Active Directory domain and Kerberos Realm.

238 Using the CMC With Microsoft Active Directory

CMC

• The CMC must have firmware version 2.10 or later

• Each CMC must have an Active Directory account

• The CMC must be a part of the Active Directory domain

and Kerberos Realm

Configuring Settings

Prerequisites

• The Kerberos realm & Key Distribution Center (KDC) for Active

Directory (AD) has been setup (ksetup).

• A robust NTP and DNS infrastructure to avoid issues with clock drift &

reverse lookup

• The CMC standard schema role group with authorized members

Configuring Active Directory

On the CMC Properties dialog box under the Accounts options section,

configure these settings:

•

Account is trusted for delegation

— Currently the CMC does not use

forwarded credentials that are created when this option is selected.

You may or may not select this option depending upon other

services requirements.

•

Account is sensitive and cannot be delegated

— You may or may not

select this option depending upon other services requirements.

•

User Kerberos DES encryption types for the account

— Select this option.

•

Do not require Kerberos preauthentication

— Do not select this option.

Run the ktpass utility—part of Microsoft Windows—on the domain

controller (Active Directory server) where you want to map the CMC to a

user account in Active Directory. For example,

C:\>ktpass -princ

HTTP/cmcname.domain_name.com@REALM_NAME.COM -mapuser

dracname -crypto DES-CBC-MD5 -ptype KRB5_NT_PRINCIPAL

-pass * -out c:\krbkeytab

Using the CMC With Microsoft Active Directory 239

NOTE: The cmcname.domainname.com must be lower case as required

by RFC and the REALM name, @REALM_NAME must be uppercase. In addition the

CMC supports the DES-CBC-MD5 type of cryptography for Kerberos authentication.

This procedure produces a keytab file that you must upload to the CMC.

NOTE: The keytab contains an encryption key and must be kept secure. For more

information on the ktpass utility, see the Microsoft website at:

technet2.microsoft.com/windowsserver/en/library/64042138-9a5a-4981-84e9-

d576a8db0d051033.mspx?mfr=true.

Configuring the CMC

NOTE: The configuration steps described in this section apply only to the CMC's

Web access.

Configure the CMC to use the Standard Schema role group(s) set up in

Active Directory. For more information, see "Configuring Standard Schema

Active Directory to Access Your CMC."

Uploading the Kerberos Keytab File

The Kerberos keytab file serves as the CMC's user name and password

credentials to the Kerberos Data Center (KDC), which in turns allows access

to the Active Directory. Each CMC in the Kerberos realm must be registered

with the Active Directory and must have a unique keytab file.

To upload the keytab file:

Navigate to

Remote Access

→

Configuration

tab

→

Active Directory

subtab.

Select

Upload Kerberos Keytab

and click

On the

Kerberos Keytab Upload

page, navigate to the folder where the

keytab file is saved and click

Apply

When the upload is complete, a message box is displayed indicating a

successful or failed upload.

When the keytab file uploads successfully, click

Go Back To Active

Directory Main Menu

240 Using the CMC With Microsoft Active Directory

Enabling Single Sign-On

Navigate to

Chassis Management Controller Network Security

tab

→

Active Directory

subtab and select

Configure Active Directory

On the

Active Directory Configuration and Management

page, select:

• Single Sign-On — this option enables you to log in to the CMC

using the cached credentials obtained when you log in to the

Active Directory.

NOTE: All command line out-of-band interfaces including secure shell (SSH),

Telnet, Serial, and remote RACADM remain unchanged for this option.

Scroll to the bottom of the page and click

Apply

You can test the Active Directory using Kerberos authentication by using the

CLI command test feature.

Ty p e :

testfeature -f adkrb -u <

user

>@<

domain

where user is a valid Active Directory user account.

A command success indicates that the CMC is able to acquire Kerberos

credentials and access the user's Active Directory account. If the command is

not successful, resolve the error and repeat the command. For more

information, see Chassis Management Controller Administrator Reference

Guide on support.dell.com/manuals.

Configuring the Browser For Single Sign-On Login

Single Sign-on is supported on Internet Explorer versions 6.0 and later and

Firefox versions 3.0 and later.

NOTE: The following instructions are applicable only if the CMC uses Single Sign-

On with Kerberos authentication.

Internet Explorer

In Internet Explorer, select

Tools

→

Internet Options

On the

Security

tab, under

Select a zone to view or change security

settings

, select

Local Intranet

Click

Sites

The

Local Intranet

dialog box is displayed.

Using the CMC With Microsoft Active Directory 241

Click

Advanced

The

Local Intranet Advance Settings

dialog box is displayed.

In the

Add this site to the zone

, type the name of the CMC and the

domain it belongs to and click

Add

NOTE: You can use a wildcard (*) to specify all devices/users in that domain.

Mozilla Firefox

In Firefox, type

about:config

in the Address bar.

NOTE: If the browser displays the This might void your warranty warning,

click I'll be careful. I promise.

In the

Filter

text box, type

negotiate

The browser displays a list of preference names limited to those containing

the word negotiate.

From the list, double-click

network.negotiate-auth.trusted-uris

In the

Enter string value

dialog box, type the CMC's domain name and

click

Logging into the CMC Using Single Sign-On

NOTE: You cannot use the IP address to log into the Single Sign-On or Smart Card

(FQDN).

Log into the client system using your network account.

Access the CMC Web page using

https://<

cmcname.domain-name

For example,

cmc-6G2WXF1.cmcad.lab

where

cmc-6G2WXF1

is the cmc-name

cmcad.lab

is the domain-name.

NOTE: If you changed the default HTTPS port number (port 80), access the

CMC Web page using <cmcname.domain-name>:<port number>,

where the cmcname is the CMC host name for the CMC, domain-name is

the domain name, and port number is the HTTPS port number.

The

CMC Single Sign-On

page is displayed.

242 Using the CMC With Microsoft Active Directory

Click

The CMC logs you in, using the Kerberos credentials that were cached by

your browser when you logged in using your valid Active Directory

account. If the login fails, the browser is redirected to the normal CMC

NOTE: If you did not log in to the Active Directory domain and are using a

browser other then Internet Explorer, the login fails and the browser only

displays a blank page.

Configuring Smart Card Two-Factor

Authentication

Traditional authentication schemes use user name and password to

authenticate users. Two-factor-authentication, on the other hand, provides a

higher-level of security by requiring users to have a password or PIN and

a physical card containing a private key or digital certificate. Kerberos,

a network authentication protocol, uses this two-factor authentication

mechanism allowing systems to prove their authenticity. Microsoft

Windows 2000, Windows XP, Windows Server 2003, Windows Vista,

and Windows Server 2008 use Kerberos as their preferred authentication

method. Starting with CMC version 2.10, the CMC can use Kerberos

to support Smart Card login.

NOTE: Selecting a login method does not set policy attributes with respect to other

the Services page and disable all (or some) login interfaces.

System Requirements

The "System Requirements" for Smart Card are the same as Single Sign-On.

Configuring Settings

The "Prerequisites" for Smart Card are the same as Single Sign-On.

Using the CMC With Microsoft Active Directory 243

Configuring Active Directory

Set up Kerberos realm & Key Distribution Center (KDC) for Active

Directory, if not already configured (ksetup).

NOTE: Ensure a robust NTP and DNS infrastructure to avoid issues with

clock drift & reverse lookup.

Create Active Directory users for each CMC, configured to use

Kerberos DES encryption but not pre-authentication.

(this also outputs a key to upload to the CMC).

Configuring the CMC

NOTE: The configuration steps described in this section apply only to the CMC's

Web access.

Configure the CMC to use the Standard Schema role group(s) set up in

Active Directory. For more information, see "Configuring Standard Schema

Active Directory to Access Your CMC."

Uploading the Kerberos Keytab File

The Kerberos keytab file serves as the CMC's user name and password

credentials to the Kerberos Data Center (KDC), which in turns allows access

to the Active Directory. Each CMC in the Kerberos realm must be registered

with the Active Directory and must have a unique keytab file.

To upload the keytab file:

Navigate to

Remote Access

→

Configuration

tab

→

Active Directory

subtab.

Select

Upload Kerberos Keytab

and click

On the

Kerberos Keytab Upload

page, navigate to the folder where the

keytab file is saved and click

Apply

When the upload is complete, a message box is displayed indicating

a successful or failed upload.

When the keytab file uploads successfully, click

Go Back To Active

Directory Main Menu

244 Using the CMC With Microsoft Active Directory

Enabling Smart Card Authentication

Navigate to

Chassis Management Controller Network Security

tab

→

Active Directory

subtab and select

Configure Active Directory

On the

Active Directory Configuration and Management

page, select:

• Smart Card — this option requires inserting a Smart Card into reader

and entering the PIN number.

NOTE: All command line out-of-band interfaces including secure shell (SSH),

Telnet, Serial, and remote RACADM remain unchanged for this option.

Scroll to the bottom of the page and click

Apply

You can test the Active Directory using Kerberos authentication by using the

CLI command testfeature.

Ty p e :

testfeature -f adkrb -u <

user

>@<

domain

where user is a valid Active Directory user account.

A command success indicates that the CMC is able to acquire Kerberos

credentials and access the user's Active Directory account. If the command is

not successful, resolve the error and repeat the command. For more

information, see the Chassis Management Controller Administrator Reference

Guide.

Configuring the Browser For Smart Card Login

Mozilla Firefox

CMC 2.10 does not support Smart Card login through the Firefox browser.

Internet Explorer

Ensure that the Internet Browser is configured to download Active-X plug-ins.

Logging into the CMC Using Smart Card

NOTE: You cannot use the IP address to log into the Single Sign-On or

Smart Card login. Kerberos validates your credentials against the Fully

Qualified Domain Name (FQDN).

Log into the client system using your network account.

Access the CMC Web page using

Using the CMC With Microsoft Active Directory 245

https://<

cmcname.domain-name

For example,

cmc-6G2WXF1.cmcad.lab

where

cmc-6G2WXF1

is the cmc-name

cmcad.lab

is the domain-name.

NOTE: If you change the default HTTPS port number (port 80), access the

CMC Web page using <cmcname.domain-name>:<port number>,

where cmcname is the CMC host name for the CMC, domain-name is the

domain name, and port number is the HTTPS port number.

The

CMC Single Sign-On

page is displayed prompting you to insert

the Smart Card.

Insert the Smart Card into the reader and click

The

pop-up

dialog box is displayed.

Enter the PIN and click

Troubleshooting the Smart Card Login

The following tips help you to debug an inaccessible Smart Card:

ActiveX plug-in is unable to detect the Smart Card reader

Ensure that the Smart Card is supported on the Microsoft Windows

operating system. Windows supports a limited number of Smart Card

cryptographic service providers (CSPs).

Tip

: As a general check to see if the Smart Card CSPs are present on a

particular client, insert the Smart Card in the reader at the Windows login

(Ctrl-Alt-Del) screen and check to see if Windows detects the Smart Card

and displays the PIN dialog-box.

246 Using the CMC With Microsoft Active Directory

Incorrect Smart Card PIN

Check to see if the Smart Card has been locked out due to too many

attempts with an incorrect PIN. In such cases, the issuer of the Smart Card

in the organization will be able to help you get a new Smart Card.

Unable to Log into CMC as an Active Directory User

If you cannot log into the CMC as an Active Directory user, try logging

into the CMC without enabling the Smart Card logon. You also have the

option of disabling the Smart Card Logon through the local RACADM

using the following commands:

racadm config -g cfgActiveDirectory -o cfgADSCLEnable 0

racadm config -g cfgActiveDirectory -o cfgADSSOEnable 0

Power Management 247

Power Management

Overview

The Dell™ PowerEdge™ M1000e server enclosure is the most power-efficient

modular server in the market. It is designed to include highly-efficient power

supplies and fans, has an optimized layout so that air flows more easily

through the system, and contains power-optimized components throughout

the enclosure. The optimized hardware design is coupled with sophisticated

power management capabilities built into the Chassis Management

Controller (CMC), power supplies, and iDRAC to allow you to further

enhance power efficiency and to have full control over your power

environment.

The PowerEdge M1000e modular enclosure takes in AC power and

distributes the load across all active internal power supply units (PSUs).

The system can deliver up to 7928 Watts of AC power that is allocated to

server modules and the associated enclosure infrastructure.

NOTE: Actual power delivery is based on configuration and workload.

The Power Management features of the M1000e help administrators

configure the enclosure to reduce power consumption and to tailor power

management to their unique requirements and environments.

The PowerEdge M1000e enclosure can be configured for any of three

redundancy policies that affect PSU behavior and determine how chassis

Redundancy state is reported to administrators.

AC Redundancy Mode

The purpose of the AC redundancy policy is to enable a modular enclosure

system to operate in a mode in which it can tolerate AC power failures.

These failures may originate in the AC power grid, the cabling and delivery,

or a PSU itself.

When you configure a system for AC redundancy, the PSUs are divided into

matched sets (or grids): PSU slots 1, 2, and 3 in the first grid (Grid A) and

PSU slots 4, 5, and 6 in the second grid (Grid B). Each PSU in a matched set

248 Power Management

belongs to a different AC power grid and must be cabled as such for proper

AC Redundant mode of operation. The load is shared across all active PSUs.

The load on a single PSU never exceeds 50 percent of its capacity.

With AC redundancy, the system can tolerate the loss of an entire AC power

grid or up to 50 percent of its capacity with failures of individual PSUs. The

system continues to supply adequate power to the modular enclosure system.

The AC Redundancy mode is the factory-default setting for 6 PSU

configuration and indicates the chassis is configured for AC Redundancy.

NOTE: A system will operate in an AC Redundant mode only if the required

conditions have been met. Specifically, each AC power grid must be populated with

matched PSUs and the overall load must not exceed the capacity of a single grid.

AC Redundancy Levels

CMC supports three levels of N+N AC Redundancy—1+1, 2+2, and 3+3.

In AC redundancy, the CMC reports all active power supplies as online. This

is done to ensure that the system does not experience downtime in the event

of a power failure to a grid. If any of the N PSUs in a grid fail, the CMC

reports the Enclosure Redundancy Status as No Redundancy. E-mail and/or

SNMP alerts are sent to administrators if you have configured the

Redundancy Lost event for alerting.

• 1+1 AC Redundancy Level — at least one PSU is connected to

each AC grid.

Figure 8-1. 1+1 Redundancy Level

Power

Supply

Empty

Slot

Empty

Slot

Power

Supply

Empty

Slot

Empty

Slot

AC Power Grid #1

AC Power Grid #2

Chassis DC Power Bus

Power Management 249

• 2+2 AC Redundancy Level — at least two PSUs are connected to

each AC grid.

Figure 8-2. 2+2 Redundancy Level

• 3+3 AC Redundancy Level — three PSUs are connected to each power

grid. Since three PSUs can power the entire enclosure, this configuration is

unaffected by the complete failure of one AC grid without loss of power to

the enclosure.

Figure 8-3. 3+3 Redundancy Level

Power

Supply

Power

Supply

Empty

Slot

Power

Supply

Power

Supply

Empty

Slot

AC Power Grid #1

AC Power Grid #2

Chassis DC Power Bus

AC Power Grid #2

AC Power Grid #1

Chassis DC Power Bus

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Power

Supply

250 Power Management

NOTE: In the event of a single PSU failure in this configuration, the two remaining

PSUs in the failing grid are marked as Online. In this state, either of the remaining

PSUs can fail without interrupting operation of the system. If a PSU fails, the chassis

health is marked non-critical. If the smaller grid cannot support the total chassis

power allocations, AC redundancy status is reported as No Redundancy and

Chassis health is displayed as Critical.

NOTE: The chassis needs only 3 PSUs to operate all blades. However, there must

be a balanced set of PSUs to support AC Redundancy; half of them are considered

when calculating power capacities; the other half are marked for AC redundancy.

If you install less than the number of PSUs required to operate your servers,

redundancy may be reported as No Redundancy or servers may not be

allowedtopower on.

Power Supply Redundancy Mode

The power supply redundancy mode is useful when redundant power grids are

not available, but you may want to be protected against a single PSU failure

bringing down your servers in a modular enclosure. One PSU's capacity over

the allocation requirements is kept in online reserve for this purpose.

This forms a Power Supply redundancy pool.

Any PSU installed outside this pool is not used. These PSUs join the

redundancy pool if any PSU in the pool fails.

Power Supply Redundancy Levels

CMC supports three levels of Power Supply Redundancy—1+1, 2+1,

and 3+1. This option keeps the additional PSU engaged at all times to

ensure that the failure of a single PSU can always be tolerated. Although

Figure 8-4 illustrates a configuration of four PSU present in the first four

PSU slots, CMC does not require the four PSU units to be present in

any specific PSU slot positions.

Dynamic Power Supply Engagement (DPSE) allows PSUs to be placed in

standby.

The standby state indicates a physical state (OFF). When you enable DPSE,

the extra PSUs are placed in Standby mode to increase efficiency and

save power.

Power Management 251

Figure 8-4. Power Supply Redundancy: 3+1 PSU Redundancy

No Redundancy Mode

The no redundancy mode is the factory default setting for 3 PSU configuration

and indicates that the chassis does not have any power redundancy

configured. In this configuration, the overall redundancy status of the chassis

always indicates No Redundancy.

Although Figure 8-5 illustrates the three PSUs present in the first three PSU

slots, CMC does not require the three PSU units to be present in any specific

PSU slot positions.

NOTE: All active PSU in the chassis are listed as Online and any additional PSU

may be turned off for increasing power efficiency and is marked as Standby if DPSE

is enabled. All PSUs in the chassis are listed as Online if DPSE is disabled in No

Redundancy mode.

Power

Supply

Power

Supply

Power

Supply

Power

Supply

Empty

Slot

Empty

Slot

Chassis DC Power Bus

Dual or Single Power Grid:

Power Supply Redundancy protects against failure

of a single power supply.

252 Power Management

Figure 8-5. No Redundancy

A PSU failure brings the other PSUs out of Standby mode, as needed, to

support the chassis power allocations. If you have 4 PSUs and one fails,

the fourth PSU is brought online. A chassis can have a maximum of 6 PSUs

online.

When you enable DPSE, the extra PSUs are placed in Standby mode to

increase efficiency and save power.

Power Budgeting for Hardware Modules

Figure 8-6 illustrates a chassis that contains a six-PSU configuration.

The PSUs are numbers 1-6, starting on the left-side of the enclosure.

Power

Supply

Power

Supply

Power

Supply

Empty

Slot

Empty

Slot

Empty

Slot

AC Power Grid #1

Chassis DC Power Bus

Single Power Grid:

No protection against grid or power supply failure

Power Management 253

Figure 8-6. Chassis With Six-PSU Configuration

The CMC maintains a power budget for the enclosure that reserves the

necessary wattage for all installed servers and components.

The CMC allocates power to the CMC infrastructure and the blade servers in

the chassis. The CMC infrastructure consists of components in the chassis,

such as fans, I/O modules, and iKVM (if present). The chassis may have up to

16 blade servers that communicate to the chassis through the iDRAC. For more

information, see the iDRAC User’s Guide at support.dell.com/manuals.

The iDRAC provides the CMC with its power envelope requirements before

powering up the blade server. The power envelope consists of the maximum

and minimum power requirements that could keep the server operating.

iDRAC’s initial estimate is based on a worst-case model where all

components in the blade server draw maximum power and are often higher

than the actual blade requirements.

When a server is powered-up in an enclosure, the iDRAC software re-estimates

the power requirements and requests a subsequent change in the power

envelope (usually a reduced power envelope).

PSU1 PSU2 PSU3 PSU4 PSU5 PSU6

254 Power Management

The CMC grants the requested power to the blade server, and the allocated

wattage is subtracted from the available budget. Once the server is granted a

power request, the server's iDRAC software continuously monitors the actual

power consumption. Depending on the actual power requirements,

the iDRAC power envelope may change over time. iDRAC requests a

power step-up only if the servers are fully consuming the allocated power.

However, under heavy load the performance of the server’s processors may be

degraded to ensure power consumption stays below or if the user-configured

System Input Power Cap if the Cap has been lowered from the factory

default setting.

The PowerEdge M1000e enclosure can supply enough power for peak

performance of most server configurations, but many available server

configurations do not consume the maximum power that the enclosure can

supply. To help data centers provision power for their enclosures, the M1000e

allows you to specify a System Input Power Cap to ensure that the overall

chassis AC power draw stays under a given threshold. The CMC first ensures

enough power is available to run the fans, IO Modules, iKVM (if present),

and the CMC itself. This power allocation is called the Input Power

Allocated to Chassis Infrastructure. Once the servers in an enclosure are

powered up, any attempt to set a lower System Input Power Cap that would

require a server to power off to fulfill this requirement will fail.

If necessary for the total power budget to stay below the value of the

System Input Power Cap, the CMC will allocate servers a value less than

their maximum requested power. Servers are allocated power based on their

Server Priority setting, with priority 1 servers getting maximum power,

priority 2 servers getting power after priority 1 servers, and so on.

Lower priority servers may get less power than priority 1 servers based on

System Input Max Power Capacity and user-configured setting of

System Input Power Cap.

Configuration changes, such as an additional server in the chassis, may

require the System Input Power Cap to be increased. Power needs in a

modular enclosure also increase when thermal conditions change and the fans

are required to run at higher speed, which causes them to consume additional

power. Insertion of I/O modules and iKVM also increases the power needs of

the modular enclosure. A fairly small amount of power is consumed by servers

even when they are powered down to keep the management controller

powered up. Additional servers can be powered up in modular enclosure only

Power Management 255

if sufficient power is available. The System Input Power Cap can be

increased any time up to a maximum value of 7928 watts to allow the

power up of additional servers.

Changes in the modular enclosure that reduce power allocation are server

power off, server, I/O module, or iKVM removal, and transition of the chassis

to a powered off state. You can reconfigure the System Input Power Cap

when chassis is either ON or OFF.

Server Slot Power Priority Settings

The CMC allows you to set a power priority for each of the sixteen server

slots in an enclosure. The priority settings are 1 (highest) through 9 (lowest).

These settings are assigned to slots in the chassis, and the slot's priority is

inherited by any server inserted in that slot. The CMC uses slot priority to

preferentially budget power to the highest priority servers in the enclosure.

According to the default server slot priority setting, power is equally

apportioned to all slots. Changing the slot priorities allows administrators to

prioritize which servers are given preference for power allocations. If the more

critical server modules are left at their default slot priority of 1, and the less

critical server modules are changed to lower priority value of 2 or higher, the

priority 1 server modules would be powered on first. These higher priority

servers would then get their maximum power allocation, while lower priority

servers may be not be allocated enough power to run at their maximum

performance or they may not even power on at all, depending on how low the

limit is set and the server power requirements.

If an administrator manually powers on the low priority server modules before

the higher priority ones, the low priority server modules will be the first

modules to have their power allocation lowered to the minimum value.

Once the available power allocation is exhausted, CMC reclaims power

from lower or equal priority servers up to their minimum power level.

NOTE: I/O modules, fans, and iKVM (if present) are designated the highest priority.

CMC reclaims power only to meet the power needs of a higher priority module or server.

256 Power Management

Dynamic Power Supply Engagement

Dynamic Power Supply Engagement (DPSE) mode is disabled by default.

DPSE saves power by using the minimum PSUs needed to power the chassis,

resulting in increased utilization of online PSUs and thus increasing their

efficiency. This results in increased PSU life, reduced heat generation, and

power savings by operating power supplies at more efficient power levels.

The CMC monitors total enclosure power allocation, and moves the PSUs

that are not required into Standby state, causing the total power allocation of

the chassis to be delivered through fewer PSUs. Since the online PSUs are

more efficient when running at higher utilization, this improves their

efficiency while also improving longevity of the standby PSUs.

The system runs most efficiently with as few active PSUs as possible,

therefore:

•

No Redundancy

mode with DPSE is highly power efficient, with only the

minimum PSUs online. Unneeded PSUs are placed in standby mode.

•

PSU Redundancy

mode with DPSE also provides power efficiency. At least

two supplies are active, with one PSU required to power the configuration

and one to provide redundancy in case of PSU failure.

PSU Redundancy

mode offers protection against the failure of any one PSU, but offers no

protection in the event of an AC grid loss.

•

AC Redundancy

mode with DPSE, where at least two of six supplies are

active, one on each power grid, provides a good balance between efficiency

and maximum availability for a partially-loaded modular enclosure

configuration.

• Disabling DPSE provides the lowest efficiency as all six supplies are active

and share the load, resulting in lower utilization of each power supply.

Power Management 257

DPSE can be enabled for all three power supply redundancy

configurations explained above—No Redundancy, Power Supply

Redundancy, and AC Redundancy.

•In a

No Redundancy

configuration with DPSE, the M1000e can have up

to five power supply units in

Standby

state. In a six PSU configuration,

some PSU units will be placed in Standby and stay unutilized to improve

power efficiency. Removal or failure of an online PSU in this configuration

will cause a PSU in

Standby

state to become

Online

; however, standby

PSUs can take up to 2 seconds to become active, so some server modules

may lose power during the transition in the

No Redundancy

configuration.

NOTE: In a three PSU configuration, server load may prevent any PSUs from

transitioning to Standby.

•In a

Power Supply Redundancy

configuration, the enclosure always keeps

an additional PSU powered on and marked

Online

in addition to the PSUs

required to power the enclosure. Power utilization is monitored and up to

four PSUs could be moved to

Standby

state depending on the overall

system load. In a six PSU configuration, a minimum of two power supply

units are always powered on.

Since an enclosure in the

Power Supply Redundancy

configuration always

has an extra PSU engaged, the enclosure can tolerate the loss of one online

PSU and still have enough power for the installed server modules. The loss

of the online PSU causes a standby PSU to come online. Simultaneous

failure of multiple PSUs may result in the loss of power to some server

modules while the standby PSUs are powering up.

•In

AC Redundancy

configuration, all power supplies are engaged at chassis

power up. Power utilization is monitored, and if system configuration and

power utilization allows, PSUs are moved to the

Standby

state in pairs—

one from each AC grid (except in the 1+1 redundancy level). Since the

Online

status of PSUs in a grid mirrors that of the other grid, the

enclosure can sustain the loss of power to an entire grid with no

interruption of power to the enclosure.

An increase in power demand in the

AC Redundancy

configuration will

cause the engagement of PSUs from the

Standby

state in pairs—one from

each AC grid (except in the 1+1 redundancy level). This maintains the

mirrored configuration needed for dual-grid redundancy.

NOTE: With DPSE Enabled, the Standby PSUs are brought Online to reclaim power

if power demand increases in all three Power Redundancy policy modes.

258 Power Management

Redundancy Policies

Redundancy policy is a configurable set of properties that determine how the

CMC manages power to the chassis. The following redundancy policies are

configurable with or without dynamic PSU engagement:

•AC Redundancy

• Power Supply Redundancy

•No Redundancy

The default redundancy configuration for a chassis depends on how many

PSUs it contains, as shown in Table 8-1.

AC Redundancy

In AC Redundancy mode with six PSUs, all six PSUs are active. The three

PSUs on the left must connect to one AC power grid, while the three PSUs on

the right connect to another AC power grid.

CAUTION: To avoid a system failure and for AC Redundancy to work effectively,

there must be a balanced set of PSUs properly cabled to separate AC grids.

If one AC grid fails, the three PSUs on the functioning AC grid take over

without interruption to the servers or infrastructure.

CAUTION: In AC redundancy mode, you must have a balanced set of PSUs

(at least one PSU in each grid). If this condition is not met, there is a possibility of

a loss of redundancy.

Power Supply Redundancy

When power supply redundancy is enabled, a PSU in the chassis is kept as a

spare, ensuring that the failure of any one PSU does not cause the servers or

chassis to power-down. Power Supply Redundancy mode requires up to four

PSUs. Additional PSUs, if present, will be utilized to improve power

efficiency of the system if DPSE is enabled. Subsequent failures after loss of

redundancy may cause the servers in the chassis to power down.

Table 8-1. Default Redundancy Configuration

PSU Configuration Default Redundancy

Policy

Default Dynamic PSU Engagement

Setting

Six PSUs AC Redundancy Disabled

Three PSUs No Redundancy Disabled

Power Management 259

No Redundancy

Power from up to three PSUs is used to power the entire chassis. So in

a 6-PSU chassis, a chassis continues to operate at full capacity if

any 3 PSUs fail.

CAUTION: The No Redundancy mode uses only three PSUs without a backup.

Failure of one of the three PSUs being used could cause servers to lose power

and data.

Power Conservation and Power Budget Changes

The CMC performs power conservation when the user-configured maximum

power limit is reached. When the demand for power exceeds the user

configured System Input Power Cap, the CMC reduces power to servers in

reverse-priority order to free power for higher priority servers and other

modules in the chassis.

If all or multiple slots in the chassis are configured with the same priority

level, the CMC decreases power to servers in increasing slot number order.

For example, if the servers in slots 1 and 2 have the same priority level, the

power for the server in slot 1 is decreased before that of the server in slot 2.

NOTE: You can assign a priority level to each of the servers in the chassis by giving

each server a number from 1 through 9. The default priority level for all servers is 1.

The lower the number, the higher the priority level.

For instructions on assigning server priority levels, see "Using RACADM."

You can assign server priority using the GUI:

Click

Servers

in the system tree

Select the

Power Management

tab

→

Priority

sub-tab.

PSU Failure With Degraded or No Redundancy Policy

The CMC decreases power to servers when an insufficient power event

occurs, such as a PSU failure. After decreasing power on servers, the CMC

re-evaluates the power needs of the chassis. If power requirements are still not

met, CMC may also power off the lower priority blade servers.

Power for higher priority servers is restored incrementally while power needs

remain within the power budget.

NOTE: To set the redundancy policy, see "Configuring Power Budget and

Redundancy."

260 Power Management

New Server Engagement Policy

When a new server is powered on, the CMC may need to decrease power to

lower priority servers to allow more power for the new server if adding the new

server exceeds the power available for the chassis. This could happen if the

administrator has configured a power limit for the chassis that is below what

would be required for full power allocation to the servers, or if insufficient

power is available for the worst-case power need of all servers in the chassis.

If enough power cannot be freed by reducing the allocated power of the lower

priority servers, the new server may not be allowed to power up.

The highest amount of sustained power required to run the chassis and all of

the servers, including the new one, at full power is the worst-case power

requirement. If that amount of power is available, then no servers are

allocated power that is less than the worst-case power needed and the new

server is allowed to power up.

If the worst-case power requirement cannot be met, power is reduced to the

lower priority servers until enough power is freed to power up the new server.

Table 8-2 describes the actions taken by the CMC when a new server is

powered on in the scenario described above.

If a PSU fails, it results in a non-critical health state and a PSU failure event is

generated. The removal of a PSU results in a PSU removal event.

If either event results in a loss of redundancy, based on power allocations,

aloss of redundancy event is generated.

If the subsequent power capacity or the user power capacity is greater than

the server allocations, servers will have degraded performance or, in a worse

case, servers may be powered down. Both conditions are in reverse-priority

order, that is, the lower priority servers are powered down first.

Table 8-2. CMC Response When a Server Power-On is Attempted

Worst Case Power

is Available

CMC Response Server

Power On

Yes No power conservation is required Allowed

No Perform power conservation:

• Power required for new server is available

• Power required for new server is not available

Allowed

Disallowed

Power Management 261

Table 8-3 describes the firmware response to a PSU power down or removal as

it applies to various PSU redundancy configurations.

PSU Removals With Degraded or No Redundancy Policy

The CMC may begin conserving power when you remove a PSU or a PSU

AC cord. The CMC decreases power to the lower priority servers until power

allocation is supported by the remaining PSUs in the chassis. If you remove

more than one PSU, the CMC evaluates power needs again when the second

PSU is removed to determine the firmware response. If power requirements

are still not met, CMC may power off the lower priority blade servers.

Table 8-3. Chassis Impact from PSU Failure or Removal

PSU Configuration Dynamic PSU

Engagement

Firmware Response

AC Redundancy Disabled CMC alerts you of loss of AC Redundancy.

Power Supply

Redundancy

Disabled CMC alerts you of loss of Power Supply

Redundancy.

No Redundancy Disabled Decrease power to low priority servers,

if needed.

AC Redundancy Enabled CMC alerts you of loss of AC Redundancy.

PSUs in standby mode (if any) are turned on

to compensate for power budget lost from the

PSU failure or removal.

Power Supply

Redundancy

Enabled CMC alerts you of loss of Power Supply

Redundancy. PSUs in standby mode (if any)

are turned on to compensate for power budget

lost from PSU failure or removal.

No Redundancy Enabled Decrease power to low priority servers,

if needed.

262 Power Management

Limits

• The CMC does not support

automated

power-down of a lower priority

server to allow power up of a higher priority server; however, you can

perform user-initiated power-downs.

• Changes to the PSU redundancy policy are limited by the number of PSUs

in the chassis. The M1000e chassis ships with one of two configurations:

three PSUs or six PSUs. You can select any of the three PSU redundancy

configuration settings listed in "Redundancy Policies."

Power Supply and Redundancy Policy Changes in System Event Log

Changes in the power supply state and power redundancy policy are recorded

as events. Events related to the power supply that record entries in the system

event log (SEL) are power supply insertion and removal, power supply input

insertion and removal, and power supply output assertion and de-assertion.

Table 8-4 lists the SEL entries that are related to power supply changes.

Events related to changes in the power redundancy status that record entries in

the SEL are redundancy loss and redundancy regain for the modular enclosure

that is configured for either an AC Redundancy power policy or Power Supply

Redundancy power policy. A modular enclosure that is configured in the Non

Redundant power policy records a SEL entry for insufficient resources, Non

Redundant power policy is recorded when the functional power supply count

drops below the enclosure minimum of three power supplies. Similarly, when

the functional power supply count is restored, a SEL entry for sufficient

resources, Non Redundant power policy, is recorded. Table 8-5 lists the SEL

entries related to power redundancy policy changes.

Table 8-4. SEL Events for Power Supply Changes

Power Supply Event System Event Log (SEL) Entry

Insertion power supply presence was asserted

Removal power supply presence was de-asserted

AC input received power supply input lost was de-asserted

AC input lost power supply input lost was asserted

DC output produced power supply failure was de-asserted

DC output lost power supply failure was asserted

Power Management 263

Redundancy Status and Overall Power Health

The redundancy status is a factor in determining the overall power health.

When the power redundancy policy is set, for example, to AC Redundancy

and the redundancy status indicates that the system is operating with

redundancy, the overall power health will typically be OK. However, if the

conditions for operating with AC redundancy cannot be met, the redundancy

status will be No, and the overall power health will be Critical. This is

because the system is not able to operate in accordance with the configured

redundancy policy.

NOTE: The CMC does not perform a pre-check of these conditions when

you change the redundancy policy to or from AC redundancy. So, configuring

the redundancy policy may immediately result in redundancy lost or a

regained condition.

Configuring and Managing Power

You can use the Web-based and RACADM interfaces to manage and

configure power controls on the CMC. Specifically, you can:

• View power allocations, consumption, and status for the chassis,

servers, and PSUs

• Configure System Input Power Cap and Redundancy Policy for the chassis

• Execute power control operations (power-on, power-off, system reset,

power-cycle) for the chassis

Viewing the Health Status of the PSUs

The Power Supply Status page displays the status and readings of the PSUs

associated with the chassis.

Table 8-5. SEL Events for Power Redundancy Status Changes

Power Policy Event System Event Log (SEL) Entry

Redundancy lost redundancy lost was asserted

Redundancy regained redundancy regained was asserted

264 Power Management

Using the Web Interface

The PSU health status can be viewed in two ways: from the Chassis Graphics

section on the Chassis Status page or the Power Supply Status page.

The Chassis Graphics page provides a graphical overview of all PSUs

installed in the chassis.

To view health status for all PSUs using Chassis Graphics:

The

Chassis Status

page is displayed. The right section of

Chassis

Graphics

depicts the rear view of the chassis and contains the health status

of all PSUs. PSU health status is indicated by the color of the PSU

subgraphic:

• Green — PSU is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber — Indicates a PSU failure. See the CMC log for details on the

failure condition.

• Gray — Occurs during PSU initialization and usually during Chassis

power up or PSU insertion. PSU is present and not powered on. It is

not communicating with the CMC and there is no indication of an

adverse condition.

Use the cursor to hover over the an individual PSU subgraphic and a

corresponding text hint or screen tip is displayed. The text hint provides

additional information on that PSU.

The PSU subgraphic is hyperlinked to the corresponding CMC GUI page

to provide immediate navigation to the

Power Supply Status

page

for all PSUs.

To view the health status of the PSUs using Power Supply Status:

Select

Power Supplies

in the system tree. The

Power Supply Status

page displays.

Table 8-6 and Table 8-7 provide descriptions of the information provided

on the

Power Supply Status

page.

Power Management 265

Table 8-6. Power Supply Health Status Information

Item Description

Name Displays the name of the power supply unit: PS-[n], where [n] is

the power supply number.

Present Indicates whether the PSU is Present or Absent.

Health OK Indicates that the PSU is present and

communicating with the CMC. In the event of

a communication failure between the CMC

and the power supply, the CMC cannot obtain

or display health status for the PSU.

Warning Indicates that only Warning alerts have been

issued, and corrective action must be taken.

If corrective actions are not taken within the

administrator-specified time, it could lead to

critical or severe power failures that can affect

the integrity of the chassis.

Severe Indicates at least one Failure alert has been

issued for the power supply. Severe status

indicates a power failure on the chassis, and

corrective action must be taken immediately.

Power Status Indicates the power state of the power supplies (one of the

following): Initializing, Online, Stand By, In Diagnostics, Failed,

Offline, Unknown, or Absent.

Capacity Displays the power supply’s capacity in watts.

Table 8-7. System Power Health Status Information

Item Description

Overall Power

Health

Indicates the health status (OK, Non-Critical, Critical,

Non-Recoverable, Other, Unknown) of the power management

for the entire chassis.

System Power

Status

Displays the power status (On, Off, Powering On, Powering

Off) of the chassis.

Redundancy Indicates the power supply redundancy status. Values include:

No: Power Supplies are not redundant.

Yes: Full Redundancy in effect.

266 Power Management

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm getpminfo

For more information about getpminfo, including output details, see the

Chassis Management Controller Administrator Reference Guide on the

Dell Support website at support.dell.com.

Viewing Power Consumption Status

The CMC provides the actual input power consumption for the entire system

on the Power Consumption Status page.

Using the Web Interface

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

Select

Chassis

in the system tree.

Click the

Power Management

tab -

Power Consumption

subtab.

The

Power Consumption

page displays.

Table 8-8 through Table 8-11 describe the information displayed on the

Power Consumption page.

NOTE: You can also view the power redundancy status under Power Supplies in

the System tree→ Status tab.

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm getpminfo

Power Management 267

Table 8-8. Real-Time Power Statistics

Item Description

System Input

Power

Displays the current cumulative power consumption of all

modules in the chassis measured from the input side of the PSUs.

The value for system input power is indicated in both watts and

BTU/h units.

Peak System

Power

Displays the maximum system level input power consumption

since the value was last cleared. This property allows you to track

the maximum power consumption by the system (chassis and

modules) recorded over a period of time. Click the Configuration

sub-tab on the Budget Status page to clear this value. The value

for peak system power is indicated in both watts and BTU/h units.

Peak System

Power Start Time

Displays the date and time recorded when the peak system power

consumption value was last cleared. The timestamp is

displayed in the format hh:mm:ss MM/DD/YYYY, where hh is

hours (0-24), mm is minutes (00-60), ss is seconds (00-60),

MM is the month (1-12), DD is the day (1-31), and YYYY is

the year. This value is reset with the Reset Peak/Min Power

Statistics button and also when the CMC resets or fails over.

Peak System

Power Timestamp

Displays the date and time recorded when the peak system power

consumption value occurred over the time period being recorded.

The timestamp is displayed in the format hh:mm:ss

MM/DD/YYYY, where hh is hours (0–24), mm is minutes

(00–60), ss is seconds (00–60), MM is the month (1–12), DD is

the day, 1–31, and YYYY is the year.

Minimum System

Power

Displays the minimum system level AC power consumption value

(in watts) over the time since the user last cleared this value.

This property allows you to track the minimum power

consumption by the system (chassis and modules) recorded over

a period of time. Click the Configuration sub-tab on the Budget

Status page to clear this value. The value for minimum system

power is displayed in both the watts and BTU/h units. This value

is reset with the Reset Peak/Min Power Statistics button and also

when the CMC resets or fails over.

268 Power Management

Minimum System

Power Start Time

Displays the date and time recorded when the minimum system

power consumption value was last cleared. The timestamp is

displayed in the format hh:mm:ss MM/DD/YYYY, where hh is

hours (0-24), mm is minutes (00-60), ss is seconds (00-60),

MM is the month (1-12), DD is the day (1-31), and YYYY is

the year. This value is reset with the Reset Peak/Min Power

Statistics button and also when the CMC resets or fails over.

Minimum System

Power Timestamp

Displays the date and time recorded when the minimum system

power consumption occurred over the time period being

recorded. The format of the timestamp is the same as described

for Peak System Power Timestamp.

System Idle Power Displays the estimated power consumption of the chassis when it

is in idle state. The idle state is defined as the state of the chassis

while it's ON and all modules are consuming power while in the

idle state. This is an estimated value and not a measured value. It is

computed as the cumulative power allocated to chassis

infrastructure components (I/O modules, fans, iKVM, iDRAC

controllers and front panel LCD) and the minimum power

requirement of all servers that have been allocated power and that

are in the powered-on state. The value for system idle power is

displayed in both watts and BTU/h units.

System Potential

Power

Displays the estimated power consumption of the chassis when it

is operating at maximum power. The maximum power

consumption is defined as the state of the chassis while it is ON

and all modules are consuming maximum power. This is an

estimated value derived from historical aggregate power

consumption of the system configuration and not a measured value.

It is computed as the cumulative power allocated to chassis

infrastructure components (I/O modules, fans, iKVM, iDRAC

controllers and the front panel LCD) and the maximum power

requirement of all servers that have been allocated power and are

in the powered-on state. The value for system potential power is

displayed in both watts and BTU/h units.

System Input

Current Reading

Displays the total input current draw of the chassis based on

the sum of the input current draw of each of the individual

PSU modules in the chassis. The value for system input current

reading is displayed in Amps.

Table 8-8. Real-Time Power Statistics

(continued)

Item Description

Power Management 269

Table 8-9. Real-Time Energy Statistics Status

Item Description

System Energy

Consumption

Displays the current cumulative energy consumption for all

modules in the chassis measured from the input side of the

power supplies. The value is displayed in KWh and it is a

cumulative value.

System Energy

Consumption Start

Time

Displays the date and time recorded when the system energy

consumption value was last cleared, and the new

measurement cycle began. The timestamp is displayed in the

format hh:mm:ss MM/DD/YYYY, where hh is hours (0-24),

mm is minutes (00-60), ss is seconds (00-60), MM is the

month (1-12), DD is the day (1-31), and YYYY is the year.

This value is reset with the Reset Energy Statistics button,

but will persist through a CMC reset or fail over operation.

System Energy

Consumption

Timestamp

Displays the date and time when the system energy

consumption was calculated for display. The timestamp is

displayed in the format hh:mm:ss MM/DD/YYYY, where hh

is hours (0-24), mm is minutes (00-60), ss is seconds (00-60),

MM is the month (1-12), DD is the day (1-31), and YYYY is

the year.

Table 8-10. System Power Status

Item Description

Overall Power Health Indicates the health status (OK, Non-Critical, Critical,

Non-Recoverable, Other, Unknown) of the chassis’ power

subsystem.

System Power Status Displays the power status (On, Off, Powering On, Powering

Off) of the chassis.

Redundancy Indicates the redundancy status. Valid values are:

No — PSUs are not redundant

Yes — full redundancy in effect

270 Power Management

Viewing Power Budget Status

The CMC provides power status overviews of the power subsystem

on the Power Budget Status page.

Using the Web Interface

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

Select

Chassis

in the system tree.

Click the

Power Management

tab. The

Power Budget Status

page

displays.

Table 8-11. Server Modules

Item Description

Slot Displays the location of the server module. The Slot is a sequential

number (1–16) that identifies the server module by its location

within the chassis.

Name Displays the server name. The server name can be redefined

by the user.

Present Displays whether the server is present in the slot (Yes or No).

If this field displays Extension of # (where the # will be 1-8),

then number that follows it is the main slot of a multi-slot server.

Actual (AC) Real-time measurement of the actual power consumption of the

server. The measurement is displayed in watts AC.

Cumulative

Power Start

Time

Real-time measurement of the cumulative power that the server

has consumed since the time displayed in the Start Time field.

The measurement is presented in KiloWatt Hour (kWh) units.

Peak

Consumption

Time Stamp

Displays the peak power that the server consumed at one time.

The time when the peak power consumption occurred is recorded

in the Time Stamp field. The measurement is displayed in watts.

Power Management 271

Table 8-12 through Table 8-15 describe the information displayed on the

Power Budget Status page.

See "Configuring Power Budget and Redundancy" for information about

configuring the settings for this information.

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm getpbinfo

For more information about getpbinfo, including output details, see the

getpbinfo command section in the Chassis Management Controller

Administrator Reference Guide.

Table 8-12. System Power Policy Configuration

Item Description

System Input

Power Cap

Displays the user configured maximum power consumption limit

for the entire system (chassis, CMC, servers, I/O modules,

power supply units, iKVM, and fans). The CMC will enforce this

limit via reduced server power allocations, or by powering off lower

priority server modules. The value for system input power cap is

displayed in watts, BTU/h and percent units.

If the chassis power consumption exceeds the System Input Power

Cap, then the performance of lower priority servers is reduced until

total power consumption falls below the cap.

In cases where the servers are set to the same priority, then the

selection of the server for power reduction, or power-off action, is

based on the server slot number order. For example, the server in

slot 1 is selected first and the server in slot 16 is selected last.

272 Power Management

Redundancy

Policy

Indicates the current redundancy configuration: AC Redundancy,

Power Supply Redundancy, and No Redundancy.

AC Redundancy—Power input is load-balanced across all PSUs.

Half of them should be cabled to one AC grid and the other half

should be cabled to another grid. When the system is running

optimally in AC Redundancy mode, power is load-balanced across

all active supplies. In case of a grid failure, the PSUs on the

functioning AC grid take over at 100% capacity.

Power Supply Redundancy — The capacity of the highest-rated

PSU in the chassis is held in reserve, ensuring that a failure of any

one PSU does not cause the server modules or chassis to power

down.

Power Supply Redundancy does not use all six PSUs; it uses a

maximum of four PSUs and the other PSUs may be placed in

Standby mode if DPSE is enabled.

No Redundancy — The power from all three PSUs on one

AC circuit (grid) is used to power the entire chassis, including

the chassis, servers, I/O modules, iKVM, and CMC.

CAUTION: The No Redundancy mode uses only three PSUs at

a time, with no backup. Failure of one of the three PSUs in use

could cause the server modules to lose power and data.

Dynamic Power

Supply

Engagement

Indicates whether Dynamic Power Supply Engagement is

enabled or disabled. Enabling this feature allows the CMC to put

under-utilized PSUs into standby mode based on the redundancy

policy that is set and the power requirements of the system. Putting

under-utilized PSUs into standby mode increases the utilization,

and efficiency, of the online PSUs, saving power.

Table 8-12. System Power Policy Configuration

(continued)

Item Description

Power Management 273

Table 8-13. Power Budgeting

Item Description

System Input

Max Power

Capacity

Maximum input power that the available power supplies can supply

to the system (in watts).

Input

Redundancy

Reserve

Displays the amount of redundant power (in watts) in reserve that

can be utilized in the event of an AC grid or power supply unit

(PSU) failure.

When the chassis is configured to operate in AC Redundancy

mode, the Input Redundancy Reserve is the amount of reserve

power that can be utilized in the event of an AC grid failure.

When the chassis is configured to operate in Power Supply

Redundancy mode, the Input Redundancy Reserve is the

amount of reserve power that can be utilized in the event of

a specific PSU failure.

Input Power

Allocated to

Servers

Displays (in watts) the cumulative input power the CMC is

allocating to servers based on their configuration.

Input Power

Allocated to

Chassis

Infrastructure

Displays (in watts) the cumulative input power the CMC is

allocating to the chassis infrastructure (Fans, IO modules, iKVM,

CMC, Standby CMC and iDRAC on servers).

Total Input

Power Available

for Allocation

Indicates the total chassis power budget, in watts, available for

chassis operation.

Standby Input

Power Capacity

Displays the amount of standby input power (in watts) that is

available in the event of a Power Supply fault or Power Supply

removal from the system. This field may show readings when the

system has four or more power supplies and the Dynamic Power

Supply Engagement is enabled.

NOTE: It is possible to see a PSU in standby mode but not contribute

to the Standby Input Power Capacity value. In this case, the watts

from this PSU are contributing to the Total Input Power Available for

Allocation value.

274 Power Management

Table 8-14. Server Modules

Item Description

Slot Displays the location of the server module. The Slot is a sequential

number (1–16) that identifies the server module by its location

within the chassis.

Name Displays the server name. The server name can be redefined

by the user.

Ty p e Displays the type of the server.

Priority Indicates the priority level allotted to the server slot in the chassis

for power budgeting. The CMC uses this value in its calculations

when power must be reduced or reallocated based on user-defined

power limits or power supply or power grid failures.

Priority levels: 1 (highest) through 9 (lowest)

Default: 1

NOTE: Server slot priority level is associated with the server slot—not

with the server inserted into the slot. If you move a server to a

different slot in the chassis or to a different chassis, the priority

previously associated with new slot determines the priority of the

relocated server.

Power State Displays the power status of the server:

•

N/A:

The CMC has not determined the power state of the

server.

•

Off:

Either the server or chassis is off.

•

On:

Both chassis and server are on.

•

Powering On

: Temporary state between Off and On. When the

powering on cycle completes, the Power State will change to On.

•

Powering Off:

Temporary state between On and Off. When the

powering off cycle completes, the Power State will change to Off.

Budget

Allocation -

Actual

Displays the power budget allocation for the server module.

•

Actual:

Current power budget allocation for each server.

Power Management 275

Configuring Power Budget and Redundancy

The CMC’s power management service optimizes power consumption for

the entire chassis (the chassis, servers, IOMs, iKVM, CMC, and PSUs)

and re-allocates power to different modules based on the demand.

Using the Web Interface

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

Select

Chassis

in the system tree.

Click the

Power Management

tab

→

Configuration

sub-tab.

The

Budget/Redundancy Configuration

page displays.

Set any or all of the properties described in Table 8-16 according

to your needs.

Click

Apply

to save your changes.

To refresh the content on the Budget/Redundancy Configuration page,

click Refresh. To print the contents, click Print.

Table 8-15. System Power Supplies

Item Description

Name Displays the name of the PSU in the format PS-n, where n, is the

PSU number.

Power State Indicates the power state of the PSU — Initializing, Online, Stand

By, In Diagnostics, Failed, Unknown, or Absent (missing).

Input Volts Displays the present input voltage of the power supply.

Input Current Displays the present input current of the power supply.

Output Rated

Power

Displays the maximum output power rating of the power supply.

276 Power Management

Table 8-16. Configurable Power Budget/Redundancy Properties

Item Description

System Input Power

Cap

System Input Power Cap is the maximum AC power that the

system is allowed to allocate to servers and chassis

infrastructure. It can be configured by the user to any value

that exceeds the minimum power needed for servers that are

powered on and the chassis infrastructure; configuring a value

that falls below the minimum power needed for servers and

the chassis infrastructure will fail.

The power allocated to Servers and Chassis Infrastructure can

be found in the User Interface on the Chassis→ Power

Management→ Power Budget status page under Power

Budgeting section or by using the CLI RACADM utility

command (racadm getpbinfo).

Users can power off one or more server(s) to lower the current

power allocation, and re-attempt setting a lower value for

System Input Power Cap (if desired) or simply configure the

cap prior to powering on the servers.

To change this setting, it is possible to enter a value in any of

the units. The interface ensures that the unit field that was

last changed will be the value that is submitted when those

changes are applied.

NOTE: See the Datacenter Capacity Planner (DCCP) tool at

www.dell.com/calc for capacity planning.

NOTE: When value changes are specified in watts, the

submitted value will exactly reflect what is actually applied.

However, when the changes are submitted in either of the

BTU/h or percent units, the submitted value may not exactly

reflect what is actually applied. This is because these units are

converted to watts and then applied; and the conversion will be

susceptible to some rounding error.

Power Management 277

Redundancy Policy This option allows you to select one the following options:

•

No Redundancy

: Power from all three power supplies on one

AC circuit (grid) is used to power-on the entire chassis,

including the chassis, servers, I/O modules, iKVM, the

and CMC.

NOTE: The No Redundancy mode uses only three power

supplies at a time. If 3 PSUs are installed, then there is no

backup available. Failure of one of the three power supplies

being used could cause the servers to lose power and/or data.

If more than three PSUs are present, then the additional PSUs

may be placed in Standby mode for improving power efficiency

if DPSE is enabled.

•

Power Supply Redundancy

: The capacity of the

highest-rated power supply in the chassis is kept in reserve,

ensuring that a failure of any one power supply will not cause

the server modules or chassis to power down (hot spare).

Power Supply Redundancy

mode does not utilize all

six power supplies, but rather

a maximum of four

and

a minimum of two power

supplies. Any additional

power supplies, if present, may be placed in Standby mode

for improving power efficiency if DPSE is enabled.

Power Supply Redundancy

mode prevents server modules

from powering up if the power consumption of the chassis

exceeds the rated power. Failure of

two

power supplies

may cause some or all server modules in the chassis to

power down. Server module performance is not degraded

in this mode.

•

AC Redundancy

: This mode divides half the PSUs into

two power grids (for example, PSUs 1-3 making up

power grid 1 and PSUs 4-6 making up power grid 2). In this

configuration, all six PSUs are online. Failure of a PSU or

loss of AC power to one grid will report the redundancy

status as lost.

Table 8-16. Configurable Power Budget/Redundancy Properties

(continued)

Item Description

278 Power Management

Using RACADM

To enable redundancy and set the redundancy policy:

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

Open a serial/Telnet/SSH text console to the CMC and log in.

Set properties as needed:

• To select a redundancy policy, type:

racadm config -g cfgChassisPower -o

cfgChassisRedundancyPolicy <

value

where

value

can be

(No Redundancy), 1 (AC Redundancy),

(Power Supply Redundancy). The default is 0.

Enable Dynamic

Power Supply

Engagement

Enables (when checked) dynamic power management.

In Dynamic Engagement mode, the power supplies are

turned ON (online) or OFF (standby) based on power

consumption, optimizing the energy consumption of the

entire chassis.

For example, your power budget is 5000 watts, your

redundancy policy is set to AC redundancy mode, and you

have six power supply units. The CMC determines that four

of the power supply units can manage the AC redundancy

while the other two remain in standby mode. If an additional

2000W of power is needed for newly installed servers or

power efficiency of the existing system configuration is

required to be improved, then the two standby power supply

units are engaged.

Disable Chassis

Power Button

Disables (when checked) the chassis power button. If the

check box is selected and you attempt to change the power

state of the chassis by pressing the chassis power button, the

action is ignored.

Table 8-16. Configurable Power Budget/Redundancy Properties

(continued)

Item Description

Power Management 279

For example, the following command:

racadm config -g cfgChassisPower -o

cfgChassisRedundancyPolicy 1

sets the redundancy policy to 1.

• To enable or disable dynamic PSU engagement, type:

racadm config -g cfgChassisPower -o

cfgChassisDynamicPSUEngagementEnable <

value

where

value

can be

(disable), 1 (enable). The default is 1.

For example, the following command:

racadm config -g cfgChassisPower -o

cfgChassisDynamicPSUEngagementEnable 0

disables dynamic PSU engagement.

For information about RACADM commands for chassis power, see the

config, getconfig, getpbinfo, and cfgChassisPower sections in the

CMC Administrator Reference Guide.

Assigning Priority Levels to Servers

Server priority levels determine which servers the CMC draws power from

when additional power is required.

NOTE: The priority you assign to a server is linked to its slot and not to the server

itself. If you move the server to a new slot, you must reconfigure the priority for the

new slot location.

NOTE: To perform power management actions, you must have Chassis

Configuration Administrator privilege.

Using the Web Interface

Select

Servers

in the system tree. The

Servers Status

page appears.

Click the

Power Management

tab. The

Server Priority

page appears,

listing all of the servers in your chassis.

280 Power Management

Select a priority level (1–9, with 1 holding the highest priority) for one,

multiple, or all servers. The default value is 1. You can assign the same

priority level to multiple servers.

Click

Apply

to save your changes.

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm config -g cfgServerInfo -o cfgServerPriority -i

slot number

> <

priority level

Where <slot number> (1–16) refers to the location of the server, and

<priority level> is a value between 1–9.

For example, the following command:

racadm config -g cfgServerInfo -o cfgServerPriority -i

5 1

sets the priority level to 1 for the server in slot 5.

Setting the Power Budget

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

Using the Web Interface

Click

Chassis

in the system tree. The

Component Health

page appears.

Click the

Power Management

tab. The

Power Budget Status

page appears.

Click the

Configuration

sub-tab. The

Budget/Redundancy Configuration

page appears.

Power Management 281

Type a budget value of up to 7928 watts in the

System Input Power Cap

text field.

NOTE: The power budget is limited to a maximum of three PSUs out of a total

of six PSUs. If you attempt to set a AC power budget value that exceeds the

power capacity of your chassis, the CMC will display a failure message.

NOTE: When value changes are specified in watts, the submitted value

will exactly reflect what is actually applied. However, when the changes are

submitted in either of the BTU/h or percent units, the submitted value may

not exactly reflect what is actually applied. This is because these units are

converted to watts and then applied; and the conversion will be susceptible to

some rounding error.

Click

Apply

to save your changes.

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm config -g cfgChassisPower -o

cfgChassisPowerCap <

value

where <value> is a number between 2715–7928 representing the maximum

power limit in watts. The default is 7928.

For example, the following command:

racadm config -g cfgChassisPower -o

cfgChassisPowerCap 5400

sets the maximum power budget to 5400 watts.

NOTE: The power budget is limited to a maximum of three PSUs out of a total of six

PSUs. If you attempt to set a AC power budget value that exceeds the power

capacity of your chassis, the CMC displays a failure message.

282 Power Management

Server Power Reduction to Maintain Power Budget

The CMC reduces power allocations of lower priority servers when

additional power is needed to maintain the system power consumption

within the user-configured System Input Power Cap. For example,

when a new server is engaged, the CMC may decrease power to low

priority servers to allow more power for the new server. If the amount of

power is still insufficient after reducing power allocations of the lower priority

servers, the CMC will lower the performance of servers until sufficient power

is freed to power the new server.

CMC reduces server power allocation in two cases:

• Overall power consumption exceeds the configurable

System Input Power

Cap

(see "Setting the Power Budget.")

• A power failure occurs in a non-redundant configuration

For information about assigning priority levels to servers, see "Executing

Power Control Operations on the Chassis."

Executing Power Control Operations on the Chassis

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

NOTE: Power control operations affect the entire chassis. For power control

operations on an IOM, see "Executing Power Control Operations on an IOM."

For power control operations on servers, see "Executing Power Control Operations

on a Server."

The CMC enables you to remotely perform several power management

actions, such as an orderly shutdown, on the entire chassis (chassis, servers,

IOMs, iKVM, and PSUs).

Using the Web Interface

Select

Chassis

in the system tree.

Click the

Power Management

tab. The

Power Budget Status

page displays.

Click the

Control

sub-tab. The

Power Management

page displays.

Power Management 283

Select one of the following

Power Control Operations

by clicking its radio

button:

•

Power On System

— Turns on the chassis power (the equivalent

of pressing the power button when the chassis power is

OFF

This option is disabled if the chassis is already powered

NOTE: This action powers on the chassis and other subsystems (iDRAC on the

servers, IOMs, and iKVM). Servers will not power on.

•

Power Off System

— Turns off the chassis power. This option is

disabled if the chassis is already powered

OFF

NOTE: This action powers off the chassis (chassis, servers, IOMs, iKVM, and

power supplies). The CMCs remain powered on, but in virtual standby state;

a power supply unit and fans provide cooling for the CMCs in this state.

The power supply will also provide power to the fans that will be running

at low speed.

•

Power Cycle System (cold boot)

— Powers off and then reboots the

system (cold boot). This option is disabled if the chassis is already

powered

OFF

NOTE: This action powers off and then reboots the entire chassis (chassis,

servers which are configured to always power on, IOMs, iKVM,

and power supplies).

•

Reset CMC

— Resets the CMC without powering off (warm reboot).

(This option is disabled if the CMC is already powered off).

NOTE: This action only resets the CMC. No other components are affected.

•

Non-Graceful Shutdown

— This action forces a non-graceful power

off of the entire chassis (chassis, servers, IOMs, iKVM, and power

supplies). This does not attempt to cleanly shutdown the operating

system of the servers prior to powering off.

Click

Apply

. A dialog box appears requesting confirmation.

Click

to perform the power management action (for example,

cause the system to reset).

284 Power Management

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm chassisaction -m chassis <

action

where

action

> is

powerup, powerdown, powercycle,

nongraceshutdown or reset.

Executing Power Control Operations on an IOM

You can remotely execute a reset or power cycle on an individual IOM.

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

Using the Web Interface

Select

I/O Modules

. The

I/O Modules Status

page displays.

Click the

Power Management

tab. The

Power Control

page displays.

Select the operation you want to execute (

reset

power cycle

) from the

drop-down menu beside the IOM in the list.

Click

Apply

. A dialog box appears requesting confirmation.

Click

to perform the power management action (for example,

cause the IOM to power cycle).

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm chassisaction -m switch-<

> <

action

where

> is a number 1-6 and specifies the IOM (A1, A2, B1, B2, C1, C2),

and

action

> indicates the operation you want to execute:

powercycle

reset

Executing Power Control Operations on a Server

NOTE: To perform power management actions, you must have Chassis Control

Administrator privilege.

The CMC enables you to remotely perform several power management actions,

for example, an orderly shutdown, on an individual server in the chassis.

Power Management 285

Using the Web Interface

Expand

Servers

in the system tree, and then select the server on which

you want to execute a power control operation. The

Server Status

page displays.

Click the

Power Management

tab. The

Server Power Management

page displays.

Power Status

displays the power status of the server (one of the following):

•

N/A

- The CMC has not yet determined the power state of the server.

•

Off

- Either the server is off or the chassis is off.

•

- Both chassis and server are on.

•

Powering On

- Temporary state between Off and On. When the

action completes successfully, the

Power State

will be

•

Powering Off

- Temporary state between On and Off. When the

action completes successfully, the

Power State

will be

Off

Select one of the following

Power Control Operations

by clicking its radio

button:

•

Power On Server

— Turns on the server power (equivalent to pressing

the power button when the server power is off). This option is disabled

if the server is already powered on.

•

Power Off Server

— Turns off the server power (equivalent to pressing

the power button when the server power is on).

•

Graceful Shutdown

— Powers off and then reboots the server.

•

Reset Server (warm boot)

— Reboots the server without powering off.

This option is disabled if the server is powered off.

•

Power Cycle Server (cold boot)

— Powers off and then reboots the

server. This option is disabled if the server is powered off.

Click

Apply

. A dialog box appears requesting confirmation.

Click

to perform the power management action (for example, cause

the server to reset).

NOTE: All of the power control operations can be performed on multiple servers

from the Servers→ Power Management→ Control page.

286 Power Management

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm serveraction -m <

module

> <

action

where

<module

> specifies the server by its slot number (server-1 through

server-16) in the chassis, and

<action

> indicates the operation you want to

execute: powerup, powerdown, powercycle, graceshutdown, or

hardreset.

Troubleshooting

For power supply and power-related issue troubleshooting, see

"Troubleshooting and Recovery."

Using the iKVM Module 287

Using the iKVM Module

Overview

The local access KVM module for your Dell™ M1000e server chassis is called

the Avocent® Integrated KVM Switch Module, or iKVM. The iKVM is an

analog keyboard, video, and mouse switch that plugs into your chassis. It is an

optional, hot-pluggable module to the chassis that provides local keyboard,

mouse, and video access to the servers in the chassis, and to the active CMC’s

command line.

iKVM User Interface

The iKVM uses the On Screen Configuration and Reporting (OSCAR®)

graphical user interface, which is activated by a hot key. OSCAR allows you to

select one of the servers or the Dell CMC command line you wish to access

with the local keyboard, display, and mouse.

Only one iKVM session per chassis is allowed.

Security

The OSCAR user interface allows you to protect your system with a screen

saver password. After a user-defined time, the screen saver mode engages,

and access is prohibited until the appropriate password is entered to

reactivate OSCAR.

Scanning

OSCAR allows you to select a list of servers, which are displayed in the order

selected while OSCAR is in scan mode.

288 Using the iKVM Module

Server Identification

The CMC assigns slots names for all servers in the chassis. Although you

can assign names to the servers using the OSCAR interface from a tiered

connection, the CMC assigned names take precedence, and any new names

you assign to servers using OSCAR will be overwritten.

The CMC identifies a slot by assigning it a unique name. To change slot

names using the CMC Web interface, see "Editing Slot Names." To change

a slot name using RACADM, see the setslotname section in the Dell Chassis

Management Controller Administrator Reference Guide.

Video

The iKVM video connections support video display resolutions ranging

from 640 x 480 at 60 Hz up to 1280 x 1024 at 60 Hz.

Plug and Play

The iKVM supports Display Data Channel (DDC) Plug and Play,

which automates video monitor configuration, and is compliant with

the VESA DDC2B standard.

FLASH Upgradable

You can update the iKVM firmware using the CMC Web interface

or RACADM fwupdate command. For more information, see "Managing

iKVM From the CMC."

Physical Connection Interfaces

You can connect to a server or the CMC CLI console via the iKVM from

the chassis front panel, an Analog Console Interface (ACI), and the

chassis rear panel.

NOTE: The ports on the control panel on the front of the chassis are designed

specifically for the iKVM, which is optional. If you do not have the iKVM,

you cannot use the front control panel ports.

Using the iKVM Module 289

iKVM Connection Precedences

Only one iKVM connection is available at a time. The iKVM assigns an order

of precedence to each type of connection so that when there are multiple

connections, only one connection is available while others are disabled.

The order of precedence for iKVM connections is as follows:

Front panel

ACI

Rear Panel

For example, if you have iKVM connections in the front panel and ACI,

the front panel connection remains active while the ACI connection is

disabled. If you have ACI and rear connections, the ACI connection

takes precedence.

Tiering Through the ACI Connection

The iKVM allows tiered connections with servers and the iKVM’s CMC

command line console, either locally through a Remote Console Switch port

or remotely through the Dell RCS® software. The iKVM supports ACI

connections from the following products:

• 180AS, 2160AS, 2161DS*, 2161DS-2, or 4161DS Dell Remote Console

Switches™

•Avocent AutoView

switching system

•Avocent DSR

switching system

•Avocent AMX

switching system

* Does not support the Dell CMC console connection.

NOTE: The iKVM also supports an ACI connection to the Dell 180ES and 2160ES,

but the tiering is non-seamless. This connection requires a USB to PS2 SIP.

290 Using the iKVM Module

Using OSCAR

This section provides an overview of the OSCAR interface.

Navigation Basics

Table 9-1 describes navigating the OSCAR interface using the keyboard

and mouse.

Table 9-1. OSCAR Keyboard and Mouse Navigation

Key or Key Sequence Result

• <Print Screen>-

Any of these key sequences can open OSCAR, depending on

your Invoke OSCAR settings. You can enable two, three, or all

of these key sequences by selecting boxes in the Invoke

OSCAR section of the Main dialog box, and then clicking

OK.

• <Shift>-<Shift>

• <Alt>-<Alt>

• <Ctrl>-<Ctrl>

<F1> Opens the Help screen for the current dialog box.

<Esc> Closes the current dialog box without saving changes and

returns to the previous dialog box.

In the Main dialog box, <Esc> closes the OSCAR interface

and returns to selected server.

In a message box, it closes the pop-up box and returns to the

current dialog box.

<Alt> Opens dialog boxes, selects or checks options, and executes

actions when used in combination with underlined letters or

other designated characters.

<Alt>+<X> Closes the current dialog box and returns to the previous

dialog box.

<Alt>+<O> Selects the OK button, then returns to the previous

dialog box.

<Enter> Completes a switch operation in the Main dialog box and

exits OSCAR.

Single-click,

<Enter>

In a text box, selects the text for editing and enables the

left-arrow key and right-arrow keys to move the cursor.

Press <Enter> again to quit the edit mode.

Using the iKVM Module 291

Configuring OSCAR

Table 9-2 describes the features available from the OSCAR Setup menu

for configuring your servers.

<Print Screen>,

Toggles back to previous selection if there were no other

keystrokes.

<Print Screen>,

Immediately disconnects a user from a server; no server is

selected. Status flag displays Free. (This action only applies to

the =<0> on the keyboard and not the keypad.)

<Print Screen>,

<Pause>

Immediately turns on screen saver mode and prevents

access to that specific console, if it is password protected.

Up/Down Arrow keys Moves the cursor from line to line in lists.

Right/Left Arrow keys Moves the cursor within the columns when editing a text box.

<Home>/<End> Moves the cursor to the top (Home) or bottom (End) of a list.

<Delete> Deletes characters in a text box.

Number keys Type from the keyboard or keypad.

<Caps Lock> Disabled. To change case, use the <Shift> key.

Table 9-2. OSCAR Setup Menu Features

Feature Purpose

Menu Changes the server listing between numerically by slot or

alphabetically by name.

Security

• Sets a password to restrict access to servers.

• Enables a screen saver and set an inactivity time before the

screen saver appears and set the screen save mode.

Flag Changes display, timing, color, or location of the status flag.

Language Changes the language for all OSCAR screens.

Broadcast Sets up to simultaneously control multiple servers through

keyboard and mouse actions.

Scan Sets up a custom scan pattern for up to 16 servers.

Table 9-1. OSCAR Keyboard and Mouse Navigation

(continued)

Key or Key Sequence Result

292 Using the iKVM Module

To access the Setup dialog box:

Press <Print Screen> to launch the OSCAR interface. The

Main

dialog

box appears.

Click

Setup

. The

Setup

dialog box appears.

Changing the Display Behavior

Use the Menu dialog box to change the display order of servers and set a

Screen Delay Time for OSCAR.

To access the Menu dialog box:

Press <Print Screen> to launch OSCAR. The

Main

dialog box appears.

Click

Setup

and then

. The

dialog box appears.

To choose the default display order of servers in the Main dialog box:

Select

Name

to display servers alphabetically by name.

Select

Slot

to display servers numerically by slot number.

Click

To assign one or more key sequences for OSCAR activation:

Select a key sequence from the

Invoke OSCAR

menu.

Click

The default key to invoke OSCAR is <Print Screen>.

To set a Screen Delay Time for the OSCAR:

Enter the number of seconds (0 through 9) to delay display of OSCAR

after you press <Print Screen>. Entering <0> launches OSCAR with no

delay.

Click

Setting a time to delay display of OSCAR allows you to complete a soft

switch. To perform a soft switch, see "Soft Switching."

Using the iKVM Module 293

Controlling the Status Flag

The status flag displays on your desktop and shows the name of the selected

server or the status of the selected slot. Use the Flag dialog box to configure

the flag to display by server, or to change the flag color, opacity, display time,

and location on the desktop.

To access the Flag dialog box:

Press <Print Screen>. The

Main

dialog box appears.

Click

Setup

and then

Flag

. The

Flag

dialog box appears.

To specify how the status flag displays:

Select

Displayed

to show the flag all the time or

Displayed and Timed

display the flag for only five seconds after switching.

NOTE: If you select Timed by itself, the flag is not displayed.

Select a flag color from the

Display Color

section. Options are black, red,

blue, and purple.

Display Mode

, select

Opaque

for a solid color flag or

Transparent

to see

the desktop through the flag.

Table 9-3. OSCAR Status Flags

Flag Description

Flag type by name

Flag indicating that the user has been disconnected

from all systems

Flag indicating that Broadcast mode is enabled

294 Using the iKVM Module

To position the status flag on the desktop:

Click

Set Position.

The

Set Position Flag

displays.

Left-click on the title bar and drag it to the desired location on the

desktop.

Right-click to return to the

Flag

dialog box.

NOTE: Changes made to the flag position are not saved until you click OK in the

Flag dialog box.

Click

to save settings.

To exit without saving changes, click .

Managing Servers With iKVM

The iKVM is an analog switch matrix supporting up to 16 servers. The iKVM

switch uses the OSCAR user interface to select and configure your servers.

In addition, the iKVM includes a system input to establish a CMC command

line console connection to the CMC.

Peripherals Compatibility and Support

The iKVM is compatible with the following peripherals:

• Standard PC USB keyboards with QWERTY, QWERTZ, AZERTY,

and Japanese 109 layouts.

• VGA monitors with DDC support.

• Standard USB pointing devices.

• Self-powered USB 1.1 hubs connected to the local USB port on the iKVM.

• Powered USB 2.0 hubs connected to the Dell M1000e chassis’ front panel

console.

NOTE: You can use multiple keyboards and mice on the iKVM local USB port.

The iKVM aggregates the input signals. If there are simultaneous input signals from

multiple USB keyboards or mice, it may have unpredictable results.

NOTE: The USB connections are solely for supported keyboard, mouse,

and USB hubs. iKVM does not support data transmitted from other USB peripherals.

Using the iKVM Module 295

Viewing and Selecting Servers

Use the OSCAR Main dialog box to view, configure, and manage servers

through the iKVM. You can view your servers by name or by slot. The slot

number is the chassis slot number the server occupies. The Slot column

indicates the slot number in which a server is installed.

NOTE: The Dell CMC command line occupies Slot 17. Selecting this slot displays

the CMC command line, where you can execute RACADM commands or connect to

the serial console of server or I/O modules.

NOTE: Server names and slot numbers are assigned by the CMC.

To access the Main dialog box:

Press <Print Screen> to launch the OSCAR interface. The Main dialog box

appears.

If a password has been assigned, the Password dialog box appears. Type your

password and click OK. The Main dialog box appears.

For more information about setting a password, see "Setting Console

Security."

NOTE: There are four options for invoking OSCAR. You can enable one, multiple, or

all of these key sequences by selecting boxes in the Invoke OSCAR section of the

Main dialog box and then clicking OK.

Viewing the Status of Your Servers

The status of the servers in your chassis is indicated in the right columns of

the Main dialog box. The following table describe the status symbols.

Table 9-4. OSCAR Interface Status Symbols

Symbols Description

(Green dot.) Server is online.

(Red X.) Server is offline or absent from chassis.

(Yellow dot.) Server is not available.

(Green A or B.) Server is being accessed by the user channel

indicated by the letter: A=rear panel, B=front panel.

296 Using the iKVM Module

Selecting Servers

Use the Main dialog box to select servers. When you select a server, the iKVM

reconfigures the keyboard and mouse to the proper settings for that server.

• To select servers:

Double-click the server name or the slot number.

If the display order of your server list is by slot (that is, the

Slot

button is

depressed), type the slot number and press <Enter>.

If the display order of your server list is by name (that is, the

Name

button

is depressed), type the first few characters of the server name, establish it

as unique, and press <Enter> twice.

• To select the previous server:

Press <Print Screen> and then <Backspace>. This key combination

toggles between the previous and current connections.

• To disconnect the user from a server:

Press <Print Screen> to access OSCAR and then click

Disconnect

Press <Print Screen> and then <Alt><0>. This leaves you in

a free state, with no server selected. The status flag on your desktop,

if active, displays Free. See "Controlling the Status Flag."

Soft Switching

Soft switching is switching between servers using a hotkey sequence. You can

soft switch to a server by pressing <Print Screen> and then typing the first

few characters of its name or number. If you previously set a delay time

(the number of seconds before the Main dialog box is displayed after <Print

Screen> is pressed) and you press the key sequences before that time has

elapsed, the OSCAR interface does not display.

Using the iKVM Module 297

To configure OSCAR for soft switching:

Press <Print Screen> to launch the OSCAR interface. The

Main

dialog

box appears.

Click

Setup

and then

. The

dialog box appears.

Select

Name

Slot

for the Display/Sort Key.

Type the desired delay time in seconds in the

Screen Delay Time

field.

Click

To soft switch to a server:

• To select a server, press <Print Screen>.

If the display order of your server list is by slot as per your selection in

step 3 (that is, the

Slot

button is depressed), type the slot number and

press <Enter>.

If the display order of your server list is by name as per your selection in

step 3(that is, the

Name

button is depressed), type the first few characters

of the name of the server to establish it as unique and press <Enter>.

• To switch back to the previous server, press <Print Screen> then

<Backspace>.

Video Connections

The iKVM has video connections on the front and rear panels of the chassis.

The front panel connection signals take precedence over that of the rear

panel. When a monitor is connected to the front panel, the video connection

does not pass through to the rear panel, and an OSCAR message displays

stating that the rear panel KVM and ACI connections are disabled. If the

monitor is disabled (that is, removed from the front panel or disabled by a

CMC command), the ACI connection becomes active while the rear panel

KVM remains disabled. (For information about order of connection

precedence, see "iKVM Connection Precedences.")

For information about enabling or disabling the front panel connection, see

"Enabling or Disabling the Front Panel."

298 Using the iKVM Module

Preemption Warning

Normally, a user connected to a server console through the iKVM and another

user connected to the same server console through the iDRAC GUI console

redirection feature both have access to the console and are able to type

simultaneously.

To prevent this scenario, the remote user, before starting the iDRAC GUI

console redirection, can disable the local console in the iDRAC Web

interface. The local iKVM user sees an OSCAR message that the connection

will be preempted in a specified amount of time. The local user should finish

work before the iKVM connection to the server is terminated.

There is no preemption feature available to the iKVM user.

NOTE: If a remote iDRAC user has disabled the local video for a specific server,

that server's video, keyboard and mouse will be unavailable to the iKVM. The server

state is marked with a yellow dot in the OSCAR menu to indicate that it is locked or

unavailable for local use (see "Viewing the Status of Your Servers").

Setting Console Security

OSCAR enables you to configure security settings on your iKVM console.

You can establish a screen saver mode that engages after your console remains

unused for a specified delay time. Once engaged, your console remains locked

until you press any key or move the mouse. Enter the screen saver password to

continue.

Use the Security dialog box to lock your console with password protection,

set or change your password, or enable the screen saver.

NOTE: If the iKVM password is lost or forgotten, you can reset it to the iKVM

factory default using the CMC Web interface or RACADM. See "Clearing a Lost or

Forgotten Password."

Accessing the Security Dialog Box

Press <Print Screen>. The

Main

dialog box appears.

Click

Setup

and the

Security

. The

Security

dialog box appears.

Using the iKVM Module 299

Setting or Changing the Password

Single-click and press <Enter> or double-click in the

New

field.

Type the new password in the

New

field and then press <Enter>.

Passwords are case sensitive and require 5–12 characters. They must

include at least one letter and one number. Legal characters are: A–Z, a–z,

0–9, space, and hyphen.

In the

Repeat

field, type the password again, and then press <Enter>.

Click

if you only want to change your password, and then close the

dialog box.

Password-protecting Your Console

Set your password as described in the previous procedure.

Select the

Enable Screen Saver

box.

Type the number of minutes of

Inactivity Time

(from 1 through 99) to

delay password protection and screen saver activation.

For

Mode

: If your monitor is ENERGY STAR

compliant, select

Energy

;

otherwise select

Screen

NOTE: If the mode is set to Energy, the appliance will put the monitor into

sleep mode. This is normally indicated by the monitor powering off and the

amber light replacing the green power LED. If the mode is set to Screen,

the OSCAR flag will bounce around the screen for the duration of the test.

Before the test starts, a warning popup box displays the following message:

"Energy mode may damage a monitor that is not ENERGY STAR compliant.

However, once started, the test can be quit immediately via mouse or

keyboard interaction."

CAUTION: Monitor damage may result from the use of Energy mode with monitors

not compliant with Energy Star.

Optional: To activate the screen saver test, click

Test

. The

Screen Saver

Test

dialog box displays. Click

to start the test.

The test takes 10 seconds. When it concludes, you are returned to the

Security

dialog box.

300 Using the iKVM Module

Logging In

Press <Print Screen> to launch OSCAR. The

Password

dialog box

appears.

Type your password and then click

The Main dialog box appears.

Setting Automatic Logout

You can set OSCAR to automatically log out of a server after a period of

inactivity.

In the

Main

dialog box, click

Setup

and then

Security

In the

Inactivity Time

field, enter the length of time you want to stay

connected to a server before it automatically disconnects you.

Click

Removing Password Protection From Your Console

From the

Main

dialog box, click

Setup

and then

Security

In the

Security

dialog box, single-click and press <Enter>, or double-click

in the

New

field.

Leaving the

New

field empty, press <Enter>.

Single-click and press <Enter>, or double-click in the

Repeat

field.

Leaving the

Repeat

field empty, press <Enter>.

Click

if you only want to eliminate your password.

Enabling Screen Saver Mode With No Password Protection

NOTE: If your console is password protected, you must first remove password

protection. Follow the steps in the previous procedure before following

the steps below.

Select

Enable Screen Saver

Type the number of minutes (1 through 99) that you want to delay

activation of the screen saver.

Using the iKVM Module 301

Select

Energy

if your monitor is ENERGY STAR compliant; otherwise

select

Screen

CAUTION: Monitor damage may result from the use of Energy mode with monitors

not compliant with Energy Star.

Optional: To activate the screen saver test, click

Test

. The

Screen Saver

Test

dialog box displays. Click

to start the test.

The test takes 10 seconds. When it concludes, you are returned to the

Security

dialog box.

NOTE: Enabling screen saver mode disconnects the user from a server;

no server is selected. The status flag displays Free.

Exiting Screen Saver Mode

To exit screen saver mode and return to the Main dialog box, press any key

or move your mouse.

To turn off the screen saver:

In the

Security

dialog box, clear the

Enable Screen Saver

box.

Click

To immediately turn on the screen saver, press <Print Screen>,

then press <Pause>.

Clearing a Lost or Forgotten Password

When the iKVM password is lost or forgotten, you can reset it to the

iKVM factory default, and then change the password. You can reset

the password using either the CMC Web interface or RACADM.

To reset a lost or forgotten iKVM password using the CMC Web interface:

Select

iKVM

from the Chassis submenu.

Click the

Setup

tab. The

iKVM Configuration

page displays.

Click

Restore Default Values

You can then change the password from the default using OSCAR.

See "Setting or Changing the Password."

302 Using the iKVM Module

To reset a lost or forgotten password using RACADM, open a

serial/Telnet/SSH text console to the CMC, log in, and type:

racadm racresetcfg -m kvm

NOTE: Using the racresetcfg command resets the Front Panel Enable and Dell

CMC Console Enable settings, if they are different from the default values.

For more information about the racresetcfg subcommand, see the racresetcfg

section in the Dell Chassis Management Controller Administrator Reference

Guide.

Changing the Language

Use the Language dialog box to change the OSCAR text to display in any of

the supported languages. The text immediately changes to the selected

language on all of the OSCAR screens.

To change the OSCAR language:

Press <Print Screen>. The

Main

dialog box appears.

Click

Setup

and then

Language

. The

Language

dialog box appears.

Click the radio button for the desired language, and then click

Displaying Version Information

Use the Version dialog box to display the iKVM firmware and hardware

versions, and to identify the language and keyboard configuration.

To display version information:

Press <Print Screen>. The

Main

dialog box appears.

Click

Command

s and then

Display Versions

. The

Version

dialog box

appears.

The top half of the

Version

dialog box lists the subsystem versions in the

appliance.

Click or press <Esc> to close the

Version

dialog box.

Scanning Your System

In scan mode, the iKVM automatically scans from slot to slot (server to

server). You can scan up to 16 servers by specifying which servers you want to

scan and the number of seconds that each server is displayed.

Using the iKVM Module 303

To add servers to the scan list:

Press <Print Screen>. The

Main

dialog box appears.

Click

Setup

and then

Scan

. The

Scan

dialog box appears,

listing of all

servers in the chassis

Select the box next to the servers you wish to scan.

Double-click the server name or slot.

Press <Alt > and the number of the server you wish to scan. You can select

up to 16 servers.

In the

Time

field, enter the number of seconds (3 through 99) that you

want iKVM to wait before the scan moves to the next server in the

sequence.

Click the

Add/Remove

button, and then click

To remove a server from the Scan list:

In the

Scan

dialog box, select the box next to the server to be removed.

Double-click the server name or slot.

Click the

Clear

button to remove all servers from the

Scan

list.

Click the

Add/Remove

button, and then click

To start Scan mode:

Press <Print Screen>. The

Main

dialog box appears.

Click

Commands

. The

Command

dialog box appears.

Select the

Scan Enable

box.

Click

. A message appears indicating that the mouse and keyboard have

been reset.

Click to close the message box.

304 Using the iKVM Module

To cancel scan mode:

If OSCAR is open and the

Main

dialog box is displayed, select a server in

the list.

If OSCAR is

not

open, move the mouse or press any key on the keyboard.

Scanning stops at the currently selected server.

Press <Print Screen>. The

Main

dialog box appears; select a server in the

list.

Click the

Commands

button. The

Commands

dialog box appears.

Clear the

Scan Enable

box.

Broadcasting to Servers

You can simultaneously control more than one server in the system to ensure

that all selected servers receive identical input. You can choose to broadcast

keystrokes and/or mouse movements independently.

NOTE: You can broadcast up to 16 servers at a time.

To broadcast to servers:

Press <Print Screen>. The

Main

dialog box appears.

Click

Setup

and then

Broadcast

. The

Broadcast

dialog box appears.

NOTE: Broadcasting keystrokes: When using keystrokes, the keyboard state

must be identical for all servers receiving a broadcast for the keystrokes to be

interpreted identically. Specifically, the <Caps Lock> and <Num Lock> modes

must be the same on all keyboards. While the iKVM attempts to send

keystrokes to the selected servers simultaneously, some servers may inhibit

and thereby delay the transmission.

NOTE: Broadcasting mouse movements: For the mouse to work accurately,

all servers must have identical mouse drivers, desktops (such as identically

placed icons), and video resolutions. The mouse also must be in exactly the

same place on all screens. Because these conditions are extremely difficult to

achieve, broadcasting mouse movements to multiple servers may have

unpredictable results.

Using the iKVM Module 305

Enable mouse and/or keyboard for the servers that are to receive the

broadcast commands by selecting the boxes.

Press the up or down arrow keys to move the cursor to a target server.

Then press <Alt><K> to select the keyboard box and/or <Alt><M> to

select the mouse box. Repeat for additional servers.

Click

to save the settings and return to the

Setup

dialog box. Click

or press <Escape> to return to the

Main

dialog box.

Click

Commands

. The

Commands

dialog box appears.

Click the

Broadcast Enable

box to activate broadcasting. The

Broadcast

Warning

dialog box appears.

Click O

to enable the broadcast.

To cancel and return to the

Commands

dialog box, click or press

<Esc>.

If broadcasting is enabled, type the information and/or perform the mouse

movements you want to broadcast from the management station.

Only servers in the list are accessible.

To turn broadcasting off:

From the Commands dialog box, clear the Broadcast Enable box.

Managing iKVM From the CMC

Enabling or Disabling the Front Panel

To enable or disable access to the iKVM from the front panel using

RACADM, open a serial/Telnet/SSH text console to the CMC, log in,

and type:

racadm config -g cfgKVMInfo -o cfgKVMFrontPanelEnable

value

where <value> is 1 (enable) or 0 (disable).

For more information about the config subcommand, see the config

command section in the Dell Chassis Management Controller Administrator

Reference Guide.

306 Using the iKVM Module

To enable or disable access to the iKVM from the front panel using

the Web interface:

Select iKVM in the system tree. The

iKVM Status

page displays.

Click the

Setup

tab. The

iKVM Configuration

page displays.

To enable, select the

Front Panel USB/Video Enabled

check box.

To disable, clear the

Front Panel USB/Video Enabled

check box.

Click

Apply

to save the setting.

Enabling the Dell CMC Console Through iKVM

To enable the iKVM to access the Dell CMC console using RACADM,

open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm config -g cfgKVMInfo -o

cfgKVMAccessToCMCEnable 1

To enable the Dell CMC console using the Web interface:

Select iKVM in the system tree. The

iKVM Status

page displays.

Click the

Setup

tab. The

iKVM Configuration

page displays.

Select the

Allow access to CMC CLI from iKVM

check box.

Click

Apply

to save the setting.

Viewing the iKVM Status and Properties

The local access KVM module for your Dell M1000e server chassis is called

the Avocent® Integrated KVM Switch Module, or iKVM. The health status of

the iKVM associated with the chassis can be viewed on the Chassis Properties

Health page under the Chassis Graphics section.

To view health status for the iKVM using Chassis Graphics:

The

Chassis Status

page is displayed. The right section of

Chassis

Graphics

depicts the rear view of the chassis and contains the health

status of the iKVM. iKVM health status is indicated by the color of

the iKVM subgraphic:

Using the iKVM Module 307

• Green - iKVM is present, powered on and communicating

with the CMC; there is no indication of an adverse condition.

• Amber - iKVM is present, but may or may not be powered on, or may

or may not be communicating with the CMC; an adverse condition

may exist.

• Gray - iKVM is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

Use the cursor to hover over the iKVM subgraphic and a corresponding

text hint or screen tip is displayed. The text hint provides additional

information on that iKVM.

The iKVM subgraphic is hyperlinked to the corresponding CMC GUI page

to provide immediate navigation to the

iKVM Status

page.

For more information about iKVM, see "Using the iKVM Module."

To view the status of the iKVM using the iKVM Status page:

Select

iKVM

in the system tree. The

iKVM Status

page displays.

Table 9-5 provides descriptions of the information provided on the iKVM

Status page.

Table 9-5. iKVM Status Information

Item Description

Presence Indicates whether the iKVM module is Present or Absent.

Power State Indicates the power status of the iKVM: On, Off,

or N/A (Absent).

Name Displays the product name of the iKVM.

Manufacturer Displays in the manufacturer of the iKVM.

Part Number Displays the part number for the iKVM. The part number is a

unique identifier provided by the vendor.

Firmware Version Indicates the firmware version of the iKVM.

Hardware Version Indicates the hardware version of the iKVM.

308 Using the iKVM Module

Updating the iKVM Firmware

You can update the iKVM firmware using the CMC Web interface or

RACADM.

To update the iKVM firmware using the CMC Web interface:

Click

Chassis

in the system tree.

Click the

Update

tab. The

Updatable Components

page displays.

Click the iKVM name. The

Firmware Update

page appears.

In the

Firmware Image

field, enter the path to the firmware image file on

your management station or shared network, or click

Browse

to navigate to

the file location.

NOTE: The default iKVM firmware image name is ikvm.bin; however, the iKVM

firmware image name can be changed by the user.

Front Panel

Connected

Indicates whether the monitor is connected to the front panel

VGA connector (Yes or No). This information is provided to

the CMC so it can determine whether a local user has front-

panel access to the chassis.

Rear Panel

Connected

Indicates whether the monitor is connected to the rear panel

VGA connector (Yes or No). This information is provided to

the CMC so it can determine whether a local user has rear-

panel access to the chassis.

Tiering Port

Connected

The iKVM supports seamless tiering with external KVM

appliances from Dell and Avocent using built-in hardware.

When the iKVM is tiered, the servers in the chassis can be

accessed through the screen display of the external KVM

switch from which the iKVM is tiered.

Front Panel

USB/Video Enabled

Displays whether the front panel VGA connector is enabled

(Yes or No).

Allow access to CMC

from iKVM

Indicates whether the CMC command console through iKVM

is enabled (Yes or No).

Table 9-5. iKVM Status Information

(continued)

Item Description

Using the iKVM Module 309

Click

Begin Firmware Update

. A dialog box prompts you to

confirm the action.

Click

Yes

to continue. The

Firmware Update Progress

section provides

firmware update status information. A status indicator displays on the

page while the image file uploads. File transfer time can vary greatly

based on connection speed. When the internal update process begins,

the page automatically refreshes and the Firmware update timer displays.

Additional items to note:

• Do not use the

Refresh

button or navigate to another page during the

file transfer.

• To cancel the process, click

Cancel File Transfer and Update

- this

option is available only during file transfer.

• Update status displays in the

Update State

field; this field is

automatically updated during the file transfer process. Certain older

browsers do not support these automatic updates. To manually refresh

the

Update State

field, click

Refresh

NOTE: The update may take up to one minute for the iKVM.

When the update is complete, iKVM resets and the new firmware is updated

and displayed on the Updatable Components page.

To update the iKVM firmware using RACADM, open a serial/Telnet/SSH text

console to the CMC, log in, and type:

racadm fwupdate -g -u -a <

TFTP server IP address

> -d

filepath/filename

> -m kvm

For example:

racadm fwupdate -gua 192.168.0.10 -d ikvm.bin -m kvm

For more information about the fwupdate subcommand, see the fwupdate

command section in the Dell Chassis Management Controller Administrator

Reference Guide.

310 Using the iKVM Module

Troubleshooting

NOTE: If you have an active console redirection session and a lower resolution

monitor is connected to the iKVM, the server console resolution may reset if the

server is selected on the local console. If the server is running a Linux operating

system, an X11 console may not be viewable on the local monitor. Pressing

<Ctrl><Alt><F1> at the iKVM will switch Linux to a text console.

Table 9-6. Troubleshooting iKVM

Problem Likely Cause and Solution

The message "User has been disabled by

CMC control" appears on the monitor

connected to the front panel.

The front panel connection has been

disabled by the CMC.

You can enable the front panel using

either the CMC Web interface or

RACADM.

To enable the front panel using the Web

interface:

Select iKVM in the system tree.

Click the

Setup

tab.

Select the

Front Panel USB/Video

Enabled

check box.

Click

Apply

to save the setting.

To enable the front panel using

RACADM, open a serial/Telnet/SSH text

console to the CMC, log in, and type:

racadm config -g cfgKVMInfo -

o cfgKVMAccesToCMCEnable 1

The rear panel access does not work. The front panel setting is enabled by the

CMC, and a monitor is currently

connected to the front panel.

Only one connection is allowed at a time.

The front panel connection has

precedence over ACI and the rear panel.

For more information about connection

precedence, see "iKVM Connection

Precedences."

Using the iKVM Module 311

The message "User has been disabled as

another appliance is currently tiered"

appears on the monitor connected to

the rear panel.

A network cable is connected to the iKVM

ACI port connector and to a secondary

KVM appliance.

Only one connection is allowed at a time.

The ACI tiering connection has

precedence over the rear panel monitor

connection. The precedence order is front

panel, ACI, and then rear panel.

The iKVM’s amber LED is blinking. There are three possible causes:

There is problem with the iKVM,

for which the iKVM requires

reprogramming. To fix the problem,

follow the instructions for updating

iKVM firmware (see "Updating the iKVM

Firmware").

The iKVM is reprogramming the CMC

Console Interface. In this case, the CMC

Console is temporarily unavailable and

represented by a yellow dot in the OSCAR

interface. This process takes up to

15 minutes.

The iKVM firmware has detected a

hardware error. For additional

information, view the iKVM status.

To view iKVM status using the Web

interface:

Select iKVM in the system tree.

To view iKVM status using RACADM,

open a serial/Telnet/SSH text console to

the CMC, log in, and type:

racadm getkvminfo

Table 9-6. Troubleshooting iKVM

(continued)

Problem Likely Cause and Solution

312 Using the iKVM Module

My iKVM is tiered through the ACI port

to an external KVM switch, but all of the

entries for the ACI connections are

unavailable.

All of the states are showing a yellow dot

in the OSCAR interface.

The front panel connection is enabled

and has a monitor connected. Because the

front panel has precedence over all other

iKVM connections, the ACI and rear

panel connectors are disabled.

To enable your ACI port connection,

you must first disable front panel access

or remove the monitor connected to the

front panel. The external KVM switch

OSCAR entries will become active and

accessible.

To disable the front panel using the

Web interface:

Select iKVM in the system tree.

Click the

Setup

tab.

Clear (un-check) the

Front Panel

USB/Video Enabled

check box.

Click

Apply

to save the setting.

To disable the front panel using

RACADM, open a serial/Telnet/SSH text

console to the CMC, log in, and type:

racadm config -g cfgKVMInfo -

o cfgKVMFrontPanelEnable 0

Table 9-6. Troubleshooting iKVM

(continued)

Problem Likely Cause and Solution

Using the iKVM Module 313

In the OSCAR menu, the Dell CMC

connection is displaying a red X, and I

cannot connect to the CMC.

There are two possible causes:

The Dell CMC console has been

disabled. In this case, you can enable it

using either the CMC Web interface or

RACADM.

To enable the Dell CMC console using

the Web interface:

Select

iKVM

in the system tree.

Click the

Setup

tab.

Select the

Allow access to CMC CLI

from iKVM

check box.

Click

Apply

to save the setting.

To enable the Dell CMC connection

using RACADM, open a

serial/Telnet/SSH text console to the

CMC, log in, and type:

racadm config -g cfgKVMInfo -

o cfgKVMAccessToCMCEnable 1

The CMC is unavailable because it is

initializing, switching over to the standby

CMC, or reprogramming. In this case,

simply wait until the CMC finishes

initializing.

The slot name for a server is displayed as

"Initializing" in OSCAR, and I cannot

select it.

Either the server is initializing or the

iDRAC on that server failed initialization.

First, wait 60 seconds. If the server is still

initializing, the slot name will appear as

soon as initialization is complete, and you

can select the server.

If, after 60 seconds, OSCAR still indicates

that the slot is initializing, remove and

then re-insert the server in the chassis.

This action will allow iDRAC to re-

initialize.

Table 9-6. Troubleshooting iKVM

(continued)

Problem Likely Cause and Solution

314 Using the iKVM Module

I/O Fabric Management 315

I/O Fabric Management

The chassis can hold up to six I/O modules (IOMs), each of which can be

pass-through or switch modules.

The IOMs are classified into three groups: A, B, and C. Each group has two

slots: Slot 1 and Slot 2. The slots are designated with letters, from left to right,

across the back of the chassis: A1 | B1 | C1 | C2 | B2 | A2. Each server has

slots for two mezzanine cards (MCs) to connect to the IOMs. The MC and

the corresponding IOM must have the same fabric.

The chassis supports three fabric or protocol types. The IOMs and MCs in a

group must have the same or compatible fabric types.

•

Group A

IOMS are always connected to the servers' on-board Ethernet

adapters; the fabric type of Group A will always be Ethernet.

•For

Group B,

the IOM slots are permanently connected to the

first MC

(

mezzanine card)

slot in each server module.

•For

Group C

, the IOM slots are permanently connected to the

second MC

(mezzanine card)

in each server module.

Each MC can support two external links. For example, in the first MC,

the first link is permanently connected to the IOM in slot 1 of Group B,

and the second link is permanently connected to the IOM in slot 2

of Group B.

NOTE: In the CMC CLI, IOMs are referred to by the convention, switch-n:

A1=switch-1, A2=switch-2, B1=switch-3, B2=switch-4, C1=switch-5,

and C2=switch-6.

316 I/O Fabric Management

Fabric Management

Fabric management helps avoid electrical, configuration, or connectivity

related problems due to installation of an IOM or MC that has an

incompatible fabric type from the chassis' established fabric type. Invalid

hardware configurations could cause electric or functional problems to the

chassis or its components. Fabric management will prevent invalid

configurations from powering on.

Figure 10-1 shows the location of IOMs in the chassis. The location of each

IOM is indicated by its group number (A, B, or C) and slot number (1 or 2).

On the chassis, the IOM slot names are marked A1, A2, B1, B2, C1, and C2.

Figure 10-1. Rear View of a Chassis, Showing the Location of the IOMs

The CMC creates entries in both the hardware log and CMC logs for invalid

hardware configurations.

Slots C2, B2, A2Slots A1, B1, C1

I/O Fabric Management 317

For example:

• An Ethernet MC connected to a Fibre Channel IOM is an invalid

configuration. However, an Ethernet MC connected to both an Ethernet

switch and an Ethernet pass-through IOM installed in the same IOM

group is a valid connection.

• A Fibre Channel pass-through IOM and a fibre channel switch IOM in

slots B1 and B2 is a valid configuration if the first MCs on all of the servers

are also fibre channel. In this case, the CMC will power-on the IOMs and

the servers. However, certain fibre channel redundancy software may not

support this configuration; not all valid configurations are necessarily

supported configurations.

NOTE: Fabric verification for server MCs is performed only when the chassis is

powered on. When the chassis is on standby power, the iDRACs on the server

modules remain powered off and thus are unable to report the server's MC fabric

type. The MC fabric type may not be reported in the CMC user interface until the

iDRAC on the server is powered on.

Invalid Configurations

There are three types of invalid configurations:

• Invalid MC configuration, where a newly installed MC’s fabric type is

different from the existing IOM fabric

• Invalid IOM-MC configuration, where a newly installed IOM’s fabric type

and the resident MC’s fabric types do not match or are incompatible

• Invalid IOM-IOM configuration, where a newly installed IOM has a

different or incompatible fabric type from an IOM already installed

in its group

Invalid Mezzanine Card (MC) Configuration

An invalid MC configuration occurs when a single server’s MC is not

supported by its corresponding IOM. In this case, all the other servers in the

chassis can be running, but the server with the mismatched MC card will not

be allowed to power on.

318 I/O Fabric Management

Invalid IOM-Mezzanine Card (MC) Configuration

The mismatched IOM will be held in the power-off state. The CMC adds an

entry to the CMC and hardware logs noting the invalid configuration and

specifying the IOM name. The CMC will also cause the error LED on the

offending IOM to blink. If the CMC is configured to send alerts, it sends

e-mail and/or SNMP alerts for this event.

For information about the CMC and hardware logs, see "Viewing the

Event Logs."

Invalid IOM-IOM Configuration

The CMC holds the newly installed IOM in powered-off state, causes the

IOM’s error LED to blink, and creates entries in the CMC and hardware logs

about the mismatch.

For information about the CMC and hardware logs, see "Viewing the

Event Logs."

Fresh Power-up Scenario

When the chassis is plugged in and powered up, the I/O modules have

priority over the servers. The first IOM in each group is allowed to power up

before the others. At this time, no verification of their fabric types is

performed. If there is no IOM on the first slot of a group, the module on the

second slot of that group powers up. If both slots have IOMs, the module in

the second slot is compared for consistency against the one in the first.

After the IOMs power up, the servers power up, and the CMC verifies the

servers for fabric consistency

A pass-through module and switch are allowed in the same group as long as

their fabric is identical. Switches and pass-through modules can exist in the

same group even if they are manufactured by different vendors.

I/O Fabric Management 319

Monitoring IOM Health

The health status for the IOMs can be viewed in two ways: from the Chassis

Graphics section on the Chassis Status page or the I/O Modules Status page.

The Chassis Graphics page provides a graphical overview of the IOMs

installed in the chassis.

To view health status of the IOMs using Chassis Graphics:

The

Chassis Status

page is displayed. The right section of

Chassis

Graphics

depicts the rear view of the chassis and contains the health status

for the IOMs. IOM health status is indicated by the color of the IOM

subgraphic:

• Green - IOM is present, powered on and communicating with the

CMC; there is no indication of an adverse condition.

• Amber - IOM is present, but may or may not be powered on, or may or

may not be communicating with the CMC; an adverse condition may

exist.

• Gray - IOM is present and not powered on. It is not communicating

with the CMC and there is no indication of an adverse condition.

Use the cursor to hover over an individual IOM subgraphic and a

corresponding text hint or screen tip is displayed. The text hint provides

additional information on that IOM.

The IOM subgraphic is hyperlinked to the corresponding CMC GUI page

to provide immediate navigation to the

I/O Module Status

page

associated with that IOM.

To view the health status of all IOMs using the I/O Modules Status page:

Select

I/O Modules

in the

Chassis

menu in the system tree.

Click the

Properties

tab.

320 I/O Fabric Management

Click the

Status

sub-tab. The

I/O Modules Status

page

displays.Table 10-1 provides descriptions of the information provided on

the

I/O Modules Status

page.

Table 10-1. I/O Modules Status Information

Item Description

Slot Indicates the location of the I/O module in the chassis by group

number (A, B, or C) and slot number (1 or 2). Slot names: A1, A2,

B1, B2, C1, or C2.

Present Indicates whether the IOM is present (Yes or No).

Health OK Indicates that the IOM is present and

communicating with the CMC. In the event of a

communication failure between the CMC and

the server, the CMC cannot obtain or display

health status for the IOM.

Informational Displays information about the IOM when no

change in health status (OK, Warning, Severe)

has occurred.

Warning Indicates that warning alerts have been issued,

and corrective action must be taken. If

corrective actions are not taken, it could lead to

critical or severe failures that can affect the

integrity of the IOM.

Examples of conditions causing Warnings: IOM

fabric mismatch with the server's mezzanine

card fabric; invalid IOM configuration, where

the newly installed IOM does not match the

existing IOM on the same group.

Severe Indicates at least one Failure alert has been

issued. Severe status represents a system failure

on the IOM, and corrective action must be

taken immediately.

Examples of conditions causing Severe status:

Failure in IOM detected; IOM was removed.

NOTE: Any change in health is logged to both the hardware and CMC

log. For more information, see "Viewing the Event Logs."

I/O Fabric Management 321

Fabric Indicates the type of fabric for the IOM: Gigabit Ethernet, 10GE

XAUI, 10GE KR, 10GE XAUI KR, FC 4 Gbps, FC 8 Gbps, SAS 3

Gbps, SAS 6 Gbps, Infiniband SDR, Infiniband DDR, Infiniband

QDR, PCIe Bypass Generation 1, PCIe Bypass Generation 2.

NOTE: Knowing the fabric types of the IOMs in your chassis is critical in

preventing IOM mismatches within the same group. For information

about I/O fabric, see "I/O Fabric Management."

Name Displays the IOM product name.

Launch IOM

Management

Console

If the icon is present for a particular I/O module, clicking it

launches the IOM management console for that I/O module in

a new browser window or tab.

NOTE: This option is only available for the managed switch I/O

modules. It is not available for pass-through I/O modules or

unmanaged Infiniband switches.

NOTE: If an I/O Module is inaccessible because it is powered off,

its LAN interface is disabled, or the module has not been assigned

a valid IP address, the Launch IOM GUI option is not displayed for

that I/O Module.

NOTE: You will be prompted to log in to I/O module management

interface.

NOTE: You can configure the I/O module IP address using the

CMC GUI, as described in "Configuring Network Settings for an

Individual IOM."

Role When linking I/O modules together, the Role displays the I/O

Module stacking membership. Member means the module is part of

a stack set. Master indicates the module is a primary access point.

Power Status Indicates the power status of the IOM: On, Off, or N/A (Absent).

Service Tag Displays the service tag for the IOM. The service tag is a unique

identifier provided by Dell for support and maintenance.

Any change in health is logged to both the hardware and CMC log.

For more information, see "Viewing the Event Logs."

NOTE: Pass-throughs do not have service tags. Only switches have

service tags.

Table 10-1. I/O Modules Status Information

(continued)

Item Description

322 I/O Fabric Management

Viewing the Health Status of an Individual IOM

The I/O Module Status page (separate from the I/O Modules Status page)

provides an overview of an individual IOM.

To view the health status of an individual IOM:

Expand

I/O Modules

in the system tree. All of the IOMs (1–6) appear in

the expanded

I/O Modules

list.

Click the IOM you want to view in the

I/O Modules

list in the system tree.

Click the

Status

sub-tab. The

I/O Modules Status

page displays.

Table 10-2 provides descriptions of the information provided on

the I/O Module Status page.

Table 10-2. I/O Module Health Status Information

Item Description

Location Indicates the location of the IOM in the chassis by group number

(A, B, or C) and slot number (1 or 2). Slot names: A1, A2, B1, B2,

C1, or C2.

Name Displays name of the IOM.

Present Indicates whether the IOM is Present or Absent.

Health OK Indicates that the IOM is present and

communicating with the CMC. In the event of

a communication failure between the CMC

and the server, the CMC cannot obtain or

display health status for the IOM.

Informational Displays information about the IOM when no

change in health status (OK, Warning, Severe)

has occurred.

Examples of conditions causing Informational

status: the IOM presence was detected; a user

requested IOM power cycle.

I/O Fabric Management 323

Warning Indicates that warning alerts have been issued,

and corrective action must be taken. If

corrective actions are not taken, it could lead

to critical or severe failures that can affect the

integrity of the IOM.

Examples of conditions causing Warnings:

IOM fabric mismatch with the server's

mezzanine card fabric; invalid IOM

configuration, where the newly installed

IOM does not match the existing IOM on

the same group.

Severe Indicates at least one Failure alert has been

issued. Severe status represents a system

failure on the IOM, and corrective action must

be taken immediately.

Examples of conditions causing Severe status:

Failure in IOM detected; IOM was removed.

NOTE: Any change in health is logged to both the hardware and CMC

log. For information on viewing logs, see "Viewing the Hardware Log"

and "Viewing the CMC Log."

Power Status Indicates the power status of the IOM: On, Off, or N/A (Absent).

Service Tag Displays the service tag for the IOM. The service tag is a unique

identifier provided by Dell for support and maintenance.

Fabric Indicates the type of fabric for the IOM: Gigabit Ethernet, 10GE

XAUI, 10GE KR, 10GE XAUI KR, FC 4 Gbps, FC 8 Gbps, SAS 3

Gbps, SAS 6 Gbps, Infiniband SDR, Infiniband DDR, Infiniband

QDR, PCIe Bypass Generation 1, PCIe Bypass Generation 2.

NOTE: Knowing the fabric types of the IOMs in your chassis is critical

in preventing IOM mismatches within the same group. For information

about I/O fabric, see "I/O Fabric Management."

Table 10-2. I/O Module Health Status Information

(continued)

Item Description

324 I/O Fabric Management

Configuring Network Settings for an Individual IOM

The I/O Modules Setup page allows you to specify the network settings

for the interface used to manage the IOM. For Ethernet switches, the

out-of-band management port (IP address) is what is configured. The in-band

management port (that is, VLAN1) is not configured using this interface.

NOTE: To change settings on the I/O Modules Configuration page, you must have

Fabric A Administrator privileges to configure IOMs in Group A; Fabric B

Administrator privileges to configure IOMs in Group B; or Fabric C Administrator

privileges to configure IOMs in Group C.

NOTE: For Ethernet switches, the in-band (VLAN1) and out-of-band

management IP addresses cannot be the same or on the same network; this will

result in the out-of-band IP address not being set. Refer to the IOM documentation

for the default in-band management IP address.

NOTE: Only those IOMs present in the chassis are displayed.

NOTE: Do not configure I/O module network settings for Ethernet pass-through and

Infiniband switches.

To configure the network settings for an individual IOM:

Click

I/O Modules

in the system tree. Click the

Setup

sub-tab. The

Configure I/O Modules Network Settings

page displays.

To configure network settings for I/O modules, type/select values for the

following properties, and then click

Apply

MAC Address Displays the MAC address for the IOM. The MAC address is a

unique address assigned to a device by the hardware vendor as a

means for identification.

NOTE: Pass-throughs do not have MAC addresses. Only switches

have MAC addresses.

Role Displays the I/O module stacking membership when modules are

linked together:

•

Member

- the module is part of a stack set

•

Master

- the module is a primary access point.

Table 10-2. I/O Module Health Status Information

(continued)

Item Description

I/O Fabric Management 325

NOTE: Only IOMs that are powered on can be configured.

NOTE: The IP address set on the IOMs from the CMC is not saved to the switch's

permanent startup configuration. To save the IP address configuration

permanently, you must enter the connect switch-n command, or

racadm connect switch -n RACADM command, or use a direct

interface to the IOM GUI to save this address to the startup configuration file.

Table 10-3. Configure I/O Module Network Settings

Item Description

Slot Indicates the location of the IOM in the chassis by group number

(A, B, or C) and slot number (1 or 2). Slot names: A1, A2, B1, B2,

C1, or C2. (The Slot value cannot be changed.)

Name Displays the IOM product name. (The IOM name cannot

be changed.)

Power State Displays the Power State of the IOM. (The Power State cannot be

changed from this page.)

DHCP Enabled Enables the IOM on the chassis to request and obtain an

IP address from the Dynamic Host Configuration Protocol (DHCP)

server automatically.

Default: Checked (enabled).

If this option is checked, the IOM retrieves IP configuration

(IP address, subnet mask, and gateway) automatically from a

DHCP server on your network.

NOTE: When this feature is enabled, the IP Address, Gateway,

and Subnet Mask property fields (located immediately adjacent

following this option) are inactivated, and any previously entered

values for these properties are ignored.

If this option is not checked, you must manually enter a valid

IP address, gateway, and subnet mask in the corresponding text

fields immediately following this option.

IP Address Specifies the IP address for the IOM network interface.

Subnet Mask Specifies the subnet mask for the IOM network interface.

Gateway Specifies the gateway for the IOM network interface.

326 I/O Fabric Management

Troubleshooting IOM Network Settings

The following list contains troubleshooting items for IOM network settings:

• The CMC can read the IP address setting too quickly after a configuration

change; it will display

0.0.0.0

after clicking

Apply.

You must hit the refresh

button in order to see if the IP address is set correctly on the switch.

• If an error is made in setting the IP/mask/gateway, the switch will not set

the IP address and will return a

0.0.0.0

in all fields. Common errors are:

• Setting the out-of-band IP address to be the same as, or on the same

network as, the in-band management IP address.

• Entering an invalid subnet mask.

• Setting the default gateway to an address that is not on a network that

is directly connected to the switch.

For more information on IOM network settings, refer to the Dell™

PowerConnect™ M6220 Switch Important Information document and the

Dell™ PowerConnect™ 6220 Series Port Aggregator White Paper.

Troubleshooting and Recovery 327

Troubleshooting and Recovery

Overview

This section explains how to perform tasks related to recovering

and troubleshooting problems on the remote system using the CMC

Web interface.

• Managing power on a remote system

• Viewing chassis information

• Viewing the event logs

• Using the Diagnostic Console

• Reset Components

• Troubleshooting Network Time Protocol (NTP) problems

• Troubleshooting network problems

• Troubleshooting alerting problems

•Disabling forgotten password

• Error codes and logs

Chassis Monitoring Tools

Configuring LEDs to Identify Components on the Chassis

You can set component LEDs for all or individual components (chassis,

servers, and IOMs) to blink as a means of identifying the component on the

chassis.

NOTE: To modify these settings, you must have Chassis Configuration

Administrator privilege.

328 Troubleshooting and Recovery

Using the Web Interface

To enable blinking for one, multiple, or all component LEDs:

Click

Chassis

in the system tree.

Click the

Troubleshooting

tab.

Click the

Identify

sub-tab. The

Identify

page displays, featuring a list of

all components on the chassis.

To enable blinking for a component LED, check the box beside the device

name and then click

Blink

To disable blinking for a component LED, check the box beside the device

name and then click

UnBlink

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm setled -m <

module

> [-l <

ledState

where

module

specifies the module whose LED you want to configure.

Configuration options:

•

server-

where

=1–16

•

switch-

where

=1–6

•cmc-active

and

ledState

specifies whether the LED should blink.

Configuration options:

• 0 — not blinking (default)

• 1 — blinking

Configuring SNMP Alerts

Simple network management protocol (SNMP) traps, or event traps, are

similar to e-mail event alerts. They are used by a management station to

receive unsolicited data from the CMC.

Troubleshooting and Recovery 329

You can configure the CMC to generate event traps. Table 11-1 provides an

overview of the events that trigger SNMP and e-mail alerts. For information

on e-mail alerts, see "Configuring E-mail Alerts."

NOTE: Starting with CMC version 2.10, SNMP is now IPv6 enabled. You can

include an IPv6 address or fully qualified domain name (FQDN) in the destination

for an event alert.

Table 11-1. Chassis Events That Can Generate SNMP

Event Description

Fan Probe Failure A fan is running too slow or not at all.

Battery Probe Warning A battery has stopped functioning.

Temperature Probe

Warnin g

The temperature is approaching excessively high or low

limits.

Temperature Probe Failure The temperature is either too high or too low for proper

operation.

Redundancy Degraded Redundancy for the fans and/or power supplies has been

reduced.

Redundancy Lost No redundancy remains for the fans and/or power

supplies.

Power Supply Warning The power supply is approaching a failure condition.

Power Supply Failure The power supply has failed.

Power Supply Absent An expected power supply is not present.

Hardware Log Failure The hardware log is not functioning.

Hardware Log Warning The hardware log is almost full.

Server Absent An expected server is not present.

Server Failure The server is not functioning.

KVM Absent An expected KVM is not present.

KVM Failure The KVM is not functioning.

330 Troubleshooting and Recovery

You can add and configure SNMP alerts using the Web interface or

RACADM.

Using the Web Interface

NOTE: To add or configure SNMP alerts, you must have Chassis Configuration

Administrator privilege.

NOTE: For added security, Dell strongly recommends that you change the default

password of the root (User 1) account. The root account is the default

administrative account that ships with the CMC. To change the default password for

the root account, click User ID 1 to open the User Configuration page. Help for that

page is available through the Help link at the top right corner of the page.

Select

Chassis

in the system tree.

Click the

Alert Management

tab. The

Chassis Events

page appears.

Enable alerting:

Select the check boxes of the events for which you want to enable

alerting. To enable all events for alerting, select the

Select All

check

box.

Click

Apply

to save your settings.

Click the

Traps Settings

sub-tab. The

Chassis Event Alert Destinations

page displays.

Type a valid address in an empty

Destination

field.

NOTE: A valid address is an address that receives the trap alerts. Use the

"quad-dot" IPv4 format, standard IPv6 address notation, or FQDN. For example:

123.123.123.123 or 2001:db8:85a3::8a2e:370:7334 or dell.com

IOM Absent An expected IOM is not present.

IOM Failure The IOM is not functioning.

Firmware Version Mismatch There is a firmware mismatch for the chassis or server

firmware.

Chassis Power Threshold

Error

Power consumption within the chassis reached the

System Input Power Cap.

Table 11-1. Chassis Events That Can Generate SNMP

(continued)

Event Description

Troubleshooting and Recovery 331

Type t h e

SNMP Community String

to which the destination

management station belongs.

NOTE: The community string on the Chassis Event Alert Destinations page

differs from the community string on the Chassis→ Network/Security→

Services page. The SNMP traps community string is the community that the

CMC uses for outbound traps destined to management stations. The

community string on the Chassis→ Network/Security→ Services page is the

community string that management stations use to query the SNMP daemon

on the CMC.

Click

Apply

to save your changes.

To test an event trap for an alert destination:

Select

Chassis

in the system tree.

Click the

Alert Management

tab. The

Chassis Events

page appears.

Click the

Traps Settings

tab. The

Chassis Event Alert Destinations

page displays.

Click

Send

in the

Test Trap

column beside the destination.

NOTE: Specify trap destinations as appropriately-formatted numeric addresses

(IPv6 or IPv4), or Fully-qualified domain names (FQDNs). Choose a format that is

consistent with your networking technology/infrastructure. The testtrap

functionality is unable to detect improper choices based on current network

configuration (e.g. use of an IPv6 destination in an IPv4-only environment).

Using RACADM

Open a serial/Telnet/SSH text console to the CMC and log in.

NOTE: Only one filter mask may be set for both SNMP and e-mail alerting.

You may skip step 2 if you have already selected filter mask.

Enable alerting by typing:

racadm config -g cfgAlerting -o cfgAlertingEnable 1

Specify the events for which you want the CMC to generate by typing:

racadm config -g cfgAlerting -o

cfgAlertingFilterMask <

mask value

where

is a hex value between 0x0 and 0x017fffdf.

332 Troubleshooting and Recovery

To obtain the mask value, use a scientific calculator in hex mode and

add the second values of the individual masks (1, 2, 4, etc.)

using the <OR> key.

For example, to enable trap alerts for Battery Probe Warning (0x2),

Power Supply Failure (0x1000), and KVM failure (0x80000), key 2

<OR> 1000 <OR> 200000 and press the <=> key.

The resulting hex value is 208002, and the mask value for the RACADM

command is 0x208002.

Table 11-2. Event Traps Filter Masks

Event Filter Mask Value

Fan Probe Failure 0x1

Battery Probe Warning 0x2

Temperature Probe Warning 0x8

Temperature Probe Failure 0x10

Redundancy Degraded 0x40

Redundancy Lost 0x80

Power Supply Warning 0x800

Power Supply Failure 0x1000

Power Supply Absent 0x2000

Hardware Log Failure 0x4000

Hardware Log Warning 0x8000

Server Absent 0x10000

Server Failure 0x20000

KVM Absent 0x40000

KVM Failure 0x80000

IOM Absent 0x100000

IOM Failure 0x200000

Firmware Version Mismatch 0x00400000

Chassis Power Threshold Error 0x01000000

Troubleshooting and Recovery 333

Enable traps alerting by typing:

racadm config -g cfgTraps -o cfgTrapsEnable 1 -i

index

where

<index>

is a value 1–4. The index number is used by the CMC to

distinguish up to four configurable destinations for traps alerts.

Destinations may be specified as appropriately formatted numeric

Addresses (IPv6 or IPv4), or Fully-qualified domain names (FQDNs).

Specify a destination IP address to receive the traps alert by typing:

racadm config -g cfgTraps -o

cfgTrapsAlertDestIPAddr

-i <

index

where

is a valid destination, and

<index>

is the index

value you specified in step 4.

Specify the community name by typing:

racadm config -g cfgTraps -o cfgTrapsCommunityName

-i <

index

where

is the SNMP community to which

the chassis belongs, and

<index>

is the index value you specified in

steps 4 and 5.

You can configure up to four destinations to receive traps alerts. To add more

destination

s, repeat steps 2–6.

NOTE: The commands in steps 2–6 will overwrite any existing settings configured

for the index you specify (1–4). To determine whether an index has previously

configured values, type: racadm getconfig -g cfgTraps -i <index>. If the index is

configured, values will appear for the cfgTrapsAlertDestIPAddr and

cfgTrapsCommunityName objects.

To test an event trap for an alert destination:

racadm testtrap -i <

index

where

<index>

is a value 1–4 representing the alert destination you want to

test. If you are unsure of the index number, type:

racadm getconfig -g cfgTraps -i <

index

334 Troubleshooting and Recovery

Configuring E-mail Alerts

When the CMC detects a chassis event, such as an environmental warning or

a component failure, it can be configured to send an e-mail alert to one or

more e-mail addresses.

Table 11-1 provides an overview of the events that trigger e-mail and SNMP

alerts. For information on SNMP alerts, see "Configuring SNMP Alerts."

You can add and configure e-mail alerts using the Web interface or

RACADM.

Using the Web Interface

NOTE: To add or configure e-mail alerts, you must have Chassis Configuration

Administrator privilege.

Select

Chassis

in the system tree.

Click the

Alert Management

tab. The

Chassis Events

page appears.

Enable alerting:

Select the check boxes of the events for which you want to enable

alerting. To enable all events for alerting, select the

Select All

check

box.

Click

Apply

to save your settings.

Click the

Email Alert Settings

sub-tab. The

Email Alert Destinations

page displays.

Specify the SMTP server IP address:

Locate the

SMTP (Email) Server

field, and then type the SMTP

hostname or IP address.

NOTE: You must configure the SMTP e-mail server to accept relayed

emails from the CMC's IP address, a feature which is normally turned off

in most mail servers due to security concerns. For instructions as to how

to accomplish this in a secure manner, refer to the documentation that

came with your SMTP server.

Troubleshooting and Recovery 335

Enter the desired originator e-mail for the alert, or leave it blank to

use the default e-mail originator. The default is cmc@[IP_address]

where [IP_address] is the IP address of the CMC. If you choose to

enter a value, the syntax of the e-mail name is emailname[@domain],

and an e-mail domain can be optionally specified. If @domain is not

specified and there is an active CMC network domain, then the e-mail

address of emailname@cmc.domain is used as the source e-mail.

If @domain is not specified and CMC has no active network domain,

then the IP address of the CMC is used (for example,

emailname@[IP_address]).

Click

Apply

to save your changes.

Specify the e-mail address(es) that will receive the alerts:

Type a valid e-mail address in an empty

Destination Email

Address

field.

Enter an optional

Name

. This is the name of the entity receiving the

e-mail. If a name is entered for an invalid e-mail address, it is ignored.

Click

Apply

to save your settings.

To send a test e-mail to an e-mail alert destination:

Select

Chassis

in the system tree.

Click the

Alert Management

tab. The

Chassis Events

page appears.

Click the

Email Alert Settings

sub-tab. The

Email Alert Destinations

page displays.

Click

Send

in the

Destination Email Address

column beside the

destination.

Using RACADM

Open a serial/Telnet/SSH text console to the CMC and log in.

Enable alerting by typing:

racadm config -g cfgAlerting -o cfgAlertingEnable 1

NOTE: Only one filter mask may be set by both SNMP and e-mail alerting.

You may skip step 3 if you have already set a filter mask.

336 Troubleshooting and Recovery

Specify the events for which you want the CMC to generate by typing:

racadm config -g cfgAlerting -o

cfgAlertingFilterMask <

mask value

where

is a hexadecimal value between 0x0 and

0x017fffdf and must be expressed with the leading

characters.

Table 11-2 provides filter masks for each event type. For instructions on

calclulating the hex value for the filter mask you want to enable, see step 3

on "Using RACADM."

Enable e-mail alerting by typing:

racadm config -g cfgEmailAlert -o

cfgEmailAlertEnable 1 -i <

index

where

<index>

is a value 1–4. The index number is used by the CMC to

distinguish up to four configurable destination e-mail addresses.

Specify a destination e-mail address to receive the e-mail alerts by typing:

racadm config -g cfgEmailAlert -o

cfgEmailAlertAddress

-i <

index

where

is a valid e-mail address, and

<index>

is the

index value you specified in step 4.

Specify the name of the party receiving the e-mail alert by typing:

racadm config -g cfgEmailAlert -o

cfgEmailAlertEmailName

-i <

index

where

is the name of the person or group receiving the

e-mail alert, and

<index>

is the index value you specified in steps 4

and 5. The e-mail name can contain up to 32 alphanumeric characters,

dashes, underscores, and periods. Spaces are not valid.

Setup the SMTP host by configuring the

cfgRhostsSmtpServerIpAddr

database property by typing:

racadm config -g cfgRemoteHosts -o

cfgRhostsSmtpServerIpAddr host.domain

Troubleshooting and Recovery 337

where host.domain is a full-qualified domain name.

You can configure up to four destination e-mail addresses to receive e-mail

alerts. To add more e-mail addresses, repeat steps 2–6.

NOTE: The commands in steps 2–6 will overwrite any existing settings configured

for the index you specify (1–4). To determine whether an index has previously

configured values, type: racadm getconfig -g cfgEmailAlert -i <index>. If the index is

configured, values will appear for the cfgEmailAlertAddress and

cfgEmailAlertEmailName objects.

First Steps to Troubleshooting a Remote System

The following questions are commonly used to troubleshoot high-level

problems in the managed system:

Is the system powered on or off?

If powered on, is the operating system functioning, crashed, or just frozen?

If powered off, did the power turn off unexpectedly?

Monitoring Power and Executing Power Control

Commands on the Chassis

You can use the Web interface or RACADM to:

• View the system’s current power status.

• Perform an orderly shutdown through the operating system when

rebooting, and power the system on or off.

For information about power management on the CMC and configuring

power budget, redundancy, and power control, see "Power Management."

Viewing Power Budget Status

For instructions on viewing power budget status for the chassis, servers,

and PSUs using either the Web interface or RACADM, see "Viewing Power

Consumption Status."

338 Troubleshooting and Recovery

Executing a Power Control Operation

For instructions on powering on, powering off, resetting, or power-cycling the

system using the CMC Web interface or RACADM, see "Executing Power

Control Operations on the Chassis," "Executing Power Control Operations on

an IOM," and "Executing Power Control Operations on a Server."

Power Supply Troubleshooting

Use the items below to assist in troubleshooting power supply and

power-related issues:

•

Problem:

Attempted to configure the

Power Redundancy Policy

AC Redundancy,

but it failed.

–

Resolution A

: This operation requires 2, 4, or 6 power supplies (1, 2,

or 3 in each grid) receiving input power to be present and functional in

the modular enclosure. For full

AC Redundancy

operation, ensure

that a full PSU configuration of six power supplies is available before

an attempt is made to change the redundancy policy to

AC Redundancy

–

Resolution B:

Check if all power supplies are properly connected to

the two AC grids; the left three power supplies need to be connected

to an AC grid and the right three power supplies need to be connected

to the other AC grid, and both AC grids are working. You cannot

configure power redundancy to

AC Redundancy

when one of the

AC grid is not functioning.

•

Problem:

The PSU state is displayed as

Failed (No AC),

even when an

AC cord is connected and the power distribution unit is producing

good AC output.

–

Resolution:

Check and replace the AC cord. Check and confirm that

the power distribution unit providing power to the power supply is

operating as expected. If the failure still persists, call Dell customer

service for replacement of the power supply.

Troubleshooting and Recovery 339

•

Problem:

Dynamic Power Supply Engagement is enabled, but none of the

power supplies display in the

Standby

state.

–

Resolution:

This will occur if there is a six power supply configuration

for

AC Redundancy

, and enclosure operation requires power capacity

of at least three power supplies. Only when the surplus power available

in the enclosure exceeds the capacity of at least one power supply that

a pair of power supplies, one power supply from each of the

Online

and

Redundant

power supply sets, is moved to the

Standby

state.

•

Problem:

Inserted a new server into the enclosure with six power supplies,

but the server won't power on.

–

Resolution A:

Check the system input power cap setting - it might be

configured too low to allow any additional servers to be powered up.

–

Resolution B:

Check the server slot power priority of the slot

associated with the newly inserted server, and ensure it is not lower

than any other server slot power priority.

•

Problem:

Available power keeps changing, even when the modular

enclosure configuration hasn't changed

–

Resolution:

CMC 1.2 and higher versions have dynamic fan power

management that reduces server allocations briefly if the enclosure is

operating near the peak user configured power cap; it causes the fans

to be allocated power by reducing server performance to keep the

input power draw below

System Input Power Cap

. This is normal

behavior.

•

Problem:

2000 W is reported as the

Surplus for Peak Performance

–

Resolution:

The enclosure has 2000 W of surplus power available in

the current configuration, and the

System Input Power Cap

can be

safely reduced by this amount being reported without impacting

server performance.

340 Troubleshooting and Recovery

•

Problem:

A subset of servers lost power after an AC Grid failure,

even when the chassis was operating in the

AC Redundancy

configuration

with six power supplies.

–

Resolution:

This can occur if the power supplies are improperly

connected to the redundant AC grids at the time the AC grid failure

occurs. The

AC Redundancy

policy requires that the left three power

supplies to be connected to one AC Grid, and right three power

supplies to be connected to other AC Grid. If two PSU are improperly

connected, such as PSU3 and PSU4 are connected to the wrong

AC grids, an AC grid failure will cause loss of power to the least

priority servers.

•

Problem:

The least priority servers lost power after a PSU failure.

–

Resolution:

This is expected behavior if the enclosure power policy

was configured to

No Redundancy

. To avoid a future power supply

failure causing servers to power off, ensure that the chassis has at least

four power supplies and is configured for the

Power Supply

Redundancy

policy to prevent PSU failure from impacting server

operation.

•

Problem:

Overall server performance decreases when the ambient

temperature increases in the data center.

–

Resolution:

This can occur if the

System Input Power Cap

has been

configured to a value that results in an increased power need by fans

having to be made up by reduction in the power allocation to the

servers. User can increase the

System Input Power Cap

to a higher

value that will allow for additional power allocation to the fans

without an impact on server performance.

Troubleshooting and Recovery 341

Viewing Chassis Summaries

The CMC provides rollup overviews of the chassis, primary and standby

CMCs, iKVM, fans, temperature sensors, and I/O modules (IOMs).

Using the Web Interface

To view summaries of the chassis, CMCs, iKVM, and IOMs:

Select

Chassis

in the system tree.

Click the

Summary

tab. The

Chassis Summary

page displays.

Table 11-3, Table 11-4, Table 11-5, and Table 11-6 describe the information

provided.

Table 11-3. Chassis Summary

Item Description

Name Displays the name of the chassis. The name identifies the

chassis on the network.For information on setting the name

of the chassis, see "Editing Slot Names" on page 104.

Model Displays the chassis model or manufacturer. For example,

PowerEdge 2900.

Service Tag Displays the service tag of the chassis. The service tag is a

unique identifier provided by the manufacturer for support

and maintenance.

Asset Tag Displays the asset tag of the chassis.

Location Displays the location of the chassis.

CMC Failover Ready Indicates (Yes, No) whether the standby CMC (if present) is

capable of taking over in the event of a failover condition.

System Power Status Displays the system power status.

342 Troubleshooting and Recovery

Table 11-4. CMC Summary

Item Description

Primary CMC Information

Name Displays the name of the CMC. For example, Primary CMC

or Standby CMC.

Description Provides a brief description of the purpose of the CMC.

Date/Time Indicates the date and time set on the active or primary

CMC.

Active CMC

Location

Indicates the slot location of the active or primary CMC.

Redundancy Mode Displays if the standby CMC is present in the chassis.

Primary Firmware

Version

Indicates the firmware version of the active or primary CMC.

Firmware Last

Updated

Indicates when the firmware was last updated. If no updates

have occurred, this property displays as N/A.

Hardware Version Indicates the hardware version of the active or primary CMC.

MAC Address Indicates the MAC address for the CMC NIC. The MAC

address is a unique identifier for the CMC over the network.

IP Address Indicates the IP address of the CMC NIC.

Gateway Indicates the gateway of the CMC NIC.

Subnet Mask Indicates the subnet mask of the CMC NIC.

Use DHCP (for NIC

IP Address)

Indicates whether the CMC is enabled to request and obtain

automatically an IP address from the Dynamic Host

Configuration Protocol (DHCP) server (Yes or No).

The default setting for this property is No.

Primary DNS Server Indicates the primary DNS server name.

Alternate DNS Server Indicates the alternate DNS server name.

Use DHCP for DNS

Domain Name

Indicates use of DHCP to acquire the DNS Domain name

(Yes, No).

DNS Domain Name Indicates the DNS Domain name.

Troubleshooting and Recovery 343

Standby CMC Information

Present Displays (Yes, No) whether a second (standby) CMC is

installed.

Standby Firmware

Version

Displays the CMC firmware version installed on the standby

CMC.

Table 11-5. iKVM Summary

Item Description

Present Indicates whether the iKVM module is present (Yes or No).

Name Displays the name of the iKVM. The name identifies the

iKVM on the network.

Manufacturer Displays the iKVM model or manufacturer.

Part Number Displays the part number for the iKVM. The part number is a

unique identifier provided by the vendor. Part number

naming conventions differ from vendor to vendor.

Firmware Version Indicates the firmware version of the iKVM.

Hardware Version Indicates the hardware version of the iKVM.

Power Status Indicates the power status of the iKVM: On, Off, N/A

(Absent).

Front Panel

USB/Video Enabled

Indicates whether the front panel VGA and USB connectors

are enabled (Yes or No).

Allow Access to CMC

CLI from iKVM

Indicates that CLI access is enabled on the iKVM (Yes or

No).

Table 11-4. CMC Summary

(continued)

Item Description

344 Troubleshooting and Recovery

Using RACADM

Open a serial/Telnet/SSH text console to the CMC and log in.

To view chassis and CMC summaries, type:

racadm getsysinfo

To view the iKVM summary, type:

racadm getkvminfo

To view the IOM summary, type:

racadm getioinfo

Table 11-6. IOM Summary

Item Description

Location Indicates the slot occupied by the IOMs. Six slots are

identified by group name (A, B, or C) and slot number

(1 or 2). Slot names: A-1, A-2, B-1, B-2, C-1, or C-2.

Present Indicates whether the IOM is present (Yes or No).

Name Displays the name of the IOM.

Fabric Displays the type of fabric.

Power Status Indicates the power status of the IOM: On, Off, or N/A

(Absent).

Service Tag Displays the service tag of the IOM. The service tag a unique

identifier provided by the manufacturer for support and

maintenance.

Troubleshooting and Recovery 345

Viewing Chassis and Component Health Status

Using the Web Interface

To view chassis and component health summaries:

Select

Chassis

in the system tree. The

Chassis Status

page displays.

The Chassis Graphics section provides a graphical view of the front and

rear of the chassis. This graphical representation provides a visual

overview of the components installed within the chassis and its

corresponding status.

Each graphic displays a real-time representation of the installed

components. The component state is indicated by the color of the

component subgraphic.

• Green - the component is present, powered on and communicating

with the CMC; there is no indication of an adverse condition.

• Amber - the component is present, but may or may not be powered

on, or may or may not be communicating with the CMC; an adverse

condition may exist.

• Gray - the component is present and not powered on. It is not

communicating with the CMC and there is no indication of an

adverse condition.

All components display a corresponding text hint or screen tip when the

mouse is placed over the component subgraphic. Component status is

dynamically updated, and the component subgraphic colors and text hints

are automatically changed to reflect the current state.

The component subgraphic is also hyperlinked to the corresponding

CMC GUI page to provide immediate navigation to the status page

for that component.

The

Component Health

section displays status for each component

with an icon. Table 11-7 provides descriptions of each icon.

346 Troubleshooting and Recovery

Using RACADM

Open a serial/Telnet/SSH text console to the CMC, log in, and type:

racadm getmodinfo

Viewing the Event Logs

The Hardware Log and CMC Log pages display system-critical events that

occur on the managed system.

Table 11-7. Health Status Indicators

Item Description

OK Indicates that the component is present and

communicating with the CMC.

Informational Displays information about the component when there

is no change in health status.

Warning Indicates that only Warning alerts have been issued,

and corrective action must be taken. If corrective actions

are not taken within administrator-specified time, it

could lead to a component failure, communication

failure between the component and the CMC, and a

critical or severe failure that could affect the integrity

of the chassis.

Severe Indicates that at least one failure alert has been issued.

This means that the CMC can still communicate with

the component and that the health status reported is

critical. Corrective action must be taken immediately.

Failure to do so may cause the component to fail and

stop communicating with the CMC.

Unknown Displays when the chassis is first powered on. All chassis

components initially are indicated as "unknown" until

they are fully powered on.

No Value Indicates that the component is absent from the slot,

or the CMC cannot communicate with the component.

NOTE: It is not possible for the chassis to be absent.

Troubleshooting and Recovery 347

Viewing the Hardware Log

The CMC generates a hardware log of events that occur on the chassis.

You can view the hardware log using the Web interface and

remote RACADM.

NOTE: To clear the hardware log, you must have Clear Logs Administrator

privilege.

NOTE: You can configure the CMC to send e-mail or SNMP traps when specific

events occur. For information on configuring CMC to send alerts, see "Configuring

SNMP Alerts" and "Configuring E-mail Alerts."

Examples of hardware log entries

critical System Software event: redundancy lost

Wed May 09 15:26:28 2007 normal System Software

event: log cleared was asserted

Wed May 09 16:06:00 2007 warning System Software

event: predictive failure was asserted

Wed May 09 15:26:31 2007 critical System Software

event: log full was asserted

Wed May 09 15:47:23 2007 unknown System Software

event: unknown event

Using the Web Interface

You can view, save a text file version of, and clear the hardware log in the

CMC Web interface.

Table 11-8 provides descriptions of the information provided on the

Hardware Log page in the CMC Web interface.

To view the hardware log:

Click

Chassis

in the system tree.

Click the

Logs

tab.

Click the

Hardware Log

sub-tab. The

Hardware Log

page displays.

348 Troubleshooting and Recovery

To save a copy of the hardware log to your managed station or network:

Click Save Log. A dialog box opens; select a location for a text file of the log.

NOTE: Because the log is saved as a text file, the graphical images used to

indicate severity in the user interface do not appear. In the text file, severity is

indicated with the words OK, Informational, Unknown, Warning, and Severe.

The date and time entries appear in ascending order. If <SYSTEM BOOT> appears

in the Date/Time column, it means that the event occurred during shut down or start

up of any of the modules, when no date or time is available.

To clear the hardware log:

Click Clear Log.

NOTE: The CMC creates a new log entry indicating that the log was cleared.

Table 11-8. Hardware Log Information

Item Description

Severity OK Indicates a normal event that does not require

corrective actions.

Informational Indicates an informational entry on an event in

which the Severity status has not changed.

Unknown Indicates a noncritical event for which

corrective actions should be taken soon to

avoid system failures.

Warning Indicates a critical event requiring immediate

corrective actions to avoid system failures.

Severe Indicates a critical event that requires

immediate corrective actions to avoid system

failures.

Date/Time Indicates the exact date and time the event occurred (for example,

Wed May 02 16:26:55 2007). If no date/time appears, then the

event occurred at System Boot.

Description Provides a brief description, generated by the CMC, of the event

(for example, Redundancy lost, Server inserted).

Troubleshooting and Recovery 349

Using RACADM

Open a serial/Telnet/SSH text console to the CMC and log in.

To view the hardware log, type:

racadm getsel

To clear the hardware log, type:

racadm clrsel

Viewing the CMC Log

The CMC generates a log of chassis-related events.

NOTE: To clear the hardware log, you must have Clear Logs Administrator

privilege.

Using the Web Interface

You can view, save a text file version of, and clear the CMC log in the CMC

Web interface.

You can re-sort the log entries by Source, Date/Time, or Description by

clicking the column heading. Subsequent clicks on the column headings

reverse the sort.

Table 11-9 provides descriptions of the information provided on the CMC

Log page in the CMC Web interface.

To view the CMC log:

Click

Chassis

in the system tree.

Click the

Logs

tab.

Click the

CMC Log

sub-tab. The

CMC Log

page displays.

To save a copy of the CMC log to your managed station or network, click Save

Log. A dialog box opens; select a location for a text file of the log.

350 Troubleshooting and Recovery

Using RACADM

Open a serial/Telnet/SSH text console to the CMC and log in.

To view the hardware log, type:

racadm getraclog

To clear the hardware log, type:

racadm clrraclog

Firmware Update Error Codes

The CMC log can also display error codes as part of the log information. The

table below contains the firmware update CMC log error codes.

Table 11-9. CMC Log Information

Command Result

Source Indicates the interface (such as the CMC) that caused the event.

Date/Time Indicates the exact date and time the event occurred (for example,

Wed May 02 16:26:55 2007).

Description Provides a short description of the action, such as a login or a

logout, login failure, or clearing the logs. Descriptions are

generated by the CMC.

Table 11-10. Firmware Update Error Codes

Error Class Error Value (Hex) Error Value (Decimal)

ERR_NO_PRIVILEGE 0x1400 5120

ERR_LOC_CMC_STATE 0x1401 5121

ERR_INV_TARG_LINK 0x1402 5122

ERR_ILLEGAL_CMC_STATE 0x1403 5123

ERR_MX_NULL_PARAM 0x1404 5124

ERR_CLASS_UNSUPPORTED 0x1405 5125

ERR_INAPPROPRIATE_REQUEST 0x1406 5126

ERR_MX_BAD_PARAM 0x1407 5127

ERR_INVALID_TARGET 0x1408 5128

ERR_URL_NOT_FOUND 0x1409 5129

Troubleshooting and Recovery 351

ERR_CANCEL_PID_KILL 0x140A 5130

ERR_REROUTE_PEER 0x140B 5131

ERR_BAD_URL 0x140C 5132

ERR_PAYLOAD_TOO_BIG 0x140D 5133

ERR_BAD_IP_CONV 0X140E 5134

ERR_BAD_HDR_PARAM 0x140F 5135

ERR_BAD_FILENAME 0x1410 5136

ERR_TARGET_NOT_READY 0x1411 5137

ERR_TFTP_GET_FAIL 0x1412 5138

ERR_WAITPID_FAIL 0x1413 5139

ERR_REBOOT_FAIL 0x1414 5140

ERR_UNSUPPORTED_PROTOCOL 0x1415 5141

BAD_FTP_PASSWORD 0x1416 5142

ERR_FORK_FAILED 0x1417 5143

ERR_MALLOC_ERROR 0x1418 5144

ERR_PEER_ABSENT 0x1419 5145

ERR_UPDATE_FAIL 0x141A 5146

ERR_OPEN_FILE_FAIL 0x141B 5147

ERR_IMAGE_FILE_NOT_ACCESSIBLE 0x141C 5148

ERR_FCNTL_GET_FAIL 0x141D 5149

ERR_FCNTL_SET_FAIL 0x141E 5150

ERR_POLL_FAIL 0x141F 5151

ERR_SEND_FAIL 0x1420 5152

ERR_CONNECT_FAIL 0x1421 5153

ERR_SOCKET_FAIL 0x1422 5154

ERR_RESOLVE_REMOTE_IP_ADDR_FAIL 0x1423 5155

ERR_TIMEOUT 0x1424 5156

ERR_RECV_FAIL 0x1425 5157

ERR_INVENTORY_COUNT 0x1426 5158

Table 11-10. Firmware Update Error Codes

(continued)

Error Class Error Value (Hex) Error Value (Decimal)

352 Troubleshooting and Recovery

Using the Diagnostic Console

The

Diagnostic Console

page enables an advanced user, or a user under the

direction of technical support, to diagnose issues related to the chassis

hardware using CLI commands.

NOTE: To modify these settings, you must have Debug Command Administrator

privilege.

To access the

Diagnostic Console

page:

Click

Chassis

in the system tree.

Click the

Troubleshooting

tab.

Click the

Diagnostics

sub-tab. The

Diagnostic Console

page displays.

To execute a diagnostic CLI command, type the command into the Enter

RACADM Command field, and then click Submit to execute the diagnostic

command. A diagnostic results page appears.

To return to the

Diagnostic Console

page, click Go Back to

Diagnostic

Console

Page or Refresh.

The Diagnostic Console supports the commands listed in Table 11-11 as well

as the RACADM commands.

ERR_FWUPD_INIT_CALL 0x1427 5159

ERR_FWUPD_START_UPDATE_CALL 0x1428 5160

ERR_OP_NOT_CANCELABLE 0x1429 5161

BAD_FTP_USERNAME 0x142A 5162

DEVICE_NOT_AVAILABLE 0x142B 5163

Table 11-10. Firmware Update Error Codes

(continued)

Error Class Error Value (Hex) Error Value (Decimal)

Troubleshooting and Recovery 353

Resetting Components

The Reset Components page allows users to reset the active CMC, or to

virtually reseat servers causing them to behave as if they were removed and

reinserted. If the chassis has a standby CMC, resetting the active CMC will

cause a failover and the standby CMC will become active.

NOTE: To reset components, you must have Debug Command Administrator

privilege.

To access the

Diagnostic Console

page:

Click

Chassis

in the system tree.

Table 11-11. Supported Diagnostic Commands

Command Result

arp Displays the contents of the address resolution protocol (ARP)

table. ARP entries may not be added or deleted.

ifconfig Displays the contents of the network interface table.

netstat Prints the contents of the routing table.

ping <IP address> Verifies that the destination <IP address> is reachable from

the CMC with the current routing-table contents. You must

type a destination IP address in the field to the right of this

option. An Internet control message protocol (ICMP) echo

packet is sent to the destination IP address based on the

current routing-table contents.

gettracelog Displays the trace log (may take a few seconds to display the

log). The gettracelog -i command returns the number of

records in the trace log.

NOTE: For more information about the gettracelog command,

see the gettracelog command section in the Dell Chassis

Management Controller Administrator Reference Guide.

354 Troubleshooting and Recovery

Click the

Troubleshooting

tab.

Click the

Reset Components

sub-tab. The

Reset Components

page

displays. The

CMC Summary

section of the

Reset Components

page

displays the following information:

Table 11-12. CMC Summary

Attribute Description

Health OK The CMC is present and communicating with

its components.

Informational Displays information about the CMC when no

change in health status (OK, Warning, Severe)

has occurred.

Warning Warning alerts have been issued, and

corrective action must be taken. If corrective

actions are not taken within the administrator-

specified time, critical or severe failures that

can affect the integrity of the CMC can occur.

Severe At least one failure alert has been issued.

Severe status represents a CMC system failure,

and corrective action must be taken

immediately.

Date/Time Displays the date and time for the CMC using the format

MM/DD/YYYY, where MM is the month, DD is the date, and YYYY

is the year.

Active CMC

Location

Displays the location of the primary CMC.

Redundancy

Mode

Displays Redundant if a standby CMC is present in the chassis, and

No Redundancy if no standby CMC is present in the chassis.

Troubleshooting and Recovery 355

The

Virtual Reseat Server

section of the

Reset Components

page displays

the following information:

Table 11-13. Virtual Reseat Server

Attribute Description

Slot Displays the slot occupied by the server in the chassis. Slot names

are sequential IDs, from 1 to 16, to help identify the location of the

server in the chassis.

Name Displays the name of the server in each slot.

Present Displays whether the server is present in the slot (Yes or No).

Health OK The server is present and communicating with

the CMC. In the event of a communication

failure between the CMC and the server,

the CMC cannot obtain or display health

status for the server.

Informational Displays information about the server when

there is no change in health status (OK,

Warnin g, Severe).

Warning Warning alerts have been issued, and

corrective action must be taken. If corrective

actions are not taken within the

administrator-specified time, critical or severe

failures that can affect the integrity of the

server can occur.

Severe At least one failure alert has been issued.

Severe status represents a CMC system failure,

and corrective action must be taken

immediately.

356 Troubleshooting and Recovery

To virtual reseat a server, click the check box of the servers to reseat,

and then select

Apply Selections

. This operation causes the servers

to behave as if they were removed and reinserted.

Select

Reset/Failover CMC

to cause the active CMC to reset. If a standby

CMC is present and a chassis is fully redundant, a failover occurs causing

the standby CMC to become active.

iDRAC Status Displays the status of the server iDRAC embedded

management controller:

•

N/A

- Server is not present, or the chassis is not powered on.

•

Ready

- iDRAC is ready and operating normally.

•

Corrupted

- iDRAC firmware is corrupted. Use the iDRAC

firmware update utility to repair the firmware.

•

Failed

- Unable to communicate with iDRAC. Use the Virtual

Reseat check box to clear the error. If this fails, manually

remove and replace the server to clear the error.

•

FW Update

- iDRAC firmware update in progress; allow the

update to complete before attempting any action.

•

Initializing

- iDRAC reset in progress; wait for the controller to

complete powering-on before attempting any action.

Power State Displays the server power status:

•

N/A

- The CMC has not determined the power state of the server.

•

Off

- The server or the chassis is off.

•

- The chassis and server are on.

•

Powering On

- Temporary state between Off and On. Once the

powering on cycle completes, the Power State will change to On.

•

Powering Off

- Temporary state between On and Off. Once the

powering off cycle completes, the Power State will change to Off.

Virtual Reseat Select the check box to virtually reseat that server.

Table 11-13. Virtual Reseat Server

Attribute Description

Troubleshooting and Recovery 357

Troubleshooting Network Time Protocol (NTP)

Errors

After configuring the CMC to synchronize its clock with a remote time server

over the network, it may take 2-3 minutes before a change in the date and

time occurs. If after this time there is still no change, it may be necessary to

troubleshoot a problem. The CMC may not be able to synchronize its clock

for a number of reasons:

• There could be a problem with the NTP Server 1, NTP Server 2,

and NTP Server 3 settings.

• An invalid host name or IP address may have been accidentally entered.

• There could be a network connectivity problem that prevents the

CMC from communicating with any of the configured NTP servers.

• There could be a DNS problem, preventing any of the NTP server host

names from being resolved.

The CMC provides tools to troubleshoot these problems, with the primary

source of troubleshooting information being the CMC trace log. This log will

contain an error message for NTP related failures. If the CMC is unable to

synchronize with any of the remote NTP servers that have been configured,

then it will derive its timing from the local system clock.

If the CMC is synchronized to the local system clock rather than a remote

time server, the trace log will contain the an entry similar to the following:

Jan 8 20:02:40 cmc ntpd[1423]: synchronized to

LOCAL(0), stratum 10

You can also check the ntpd status by typing the following racadm command:

racadm getractime –n

358 Troubleshooting and Recovery

If an ‘*’ is not displayed against one of the configured servers, something may

not be set up properly. The output of the above command also contains

detailed NTP statistics that may be useful in debugging why the server does

not synchronize. If you attempt to configure an NTP server that is Windows

based, it may help to increase the MaxDist parameter for ntpd. Before

changing this parameter, read and understand all implications of doing so,

especially since the default setting should be large enough to work with most

NTP servers. To modify the parameter type the following command:

racadm config –g cfgRemoteHosts –o cfgRhostsNtpMaxDist 32

After making the change, restart the ntpd by disabling NTP, waiting 5-10

seconds, then enabling NTP again.

NOTE: NTP may take an additional 3 minutes to try and synchronize again.

To disable NTP, type:

racadm config –g cfgRemoteHosts –o cfgRhostsNtpEnable 0

To enable NTP, type:

racadm config –g cfgRemoteHosts –o cfgRhostsNtpEnable 1

If you believe that the NTP servers are correctly configured and this entry is

present in the trace log, then it is a confirmation that the CMC is not able to

synchronize with any of the configured NTP servers.

There may be other NTP related trace log entries to assist in your

troubleshooting effort. If it is a NTP server IP address misconfiguration

problem, you may see an entry similar to the following:

Jan 8 19:59:24 cmc ntpd[1423]: Cannot find existing

interface for address 1.2.3.4 Jan 8 19:59:24 cmc

ntpd[1423]: configuration of 1.2.3.4 failed

If an NTP server setting has been configured with an invalid host name, you

may see a trace log entry as follows:

Aug 21 14:34:27 cmc ntpd_initres[1298]: host name not

found: blabla Aug 21 14:34:27 cmc ntpd_initres[1298]:

couldn't resolve `blabla', giving up on it

See "Using the Diagnostic Console" for information on how to enter the

gettracelog command to review the trace log using the CMC GUI.

Troubleshooting and Recovery 359

Interpreting LED Colors and Blinking Patterns

The LEDs on the chassis provide information by color and blinking/not

blinking:

• Steadily glowing, green LEDs indicate that the component is powered on.

If the green LED is blinking, it indicates a critical but routine event,

such as a firmware upload, during which the unit is not operational.

It does not indicate a fault.

• A blinking amber LED on a module indicates a fault on that module.

• Blue, blinking LEDs are configurable by the user and used for

identification (see "Configuring LEDs to Identify Components on the

Chassis").

Table 11-14 lists common LED patterns on the chassis.

Table 11-14. LED Color and Blinking Patterns

Component LED Color, Blinking Pattern Meaning

CMC Green, glowing steadily Powered on

Green, blinking Firmware is being uploaded

Green, dark Powered off

Blue, glowing steadily Master/primary

Blue, blinking User-enabled module identifier

Amber, glowing steadily Not used

Amber, blinking Fault

Blue, dark Slave/standby

iKVM Green, glowing steadily Powered on

Green, blinking Firmware is being uploaded

Green, dark Powered off

Amber, glowing steadily Not used

Amber, blinking Fault

Amber, dark No fault

360 Troubleshooting and Recovery

Server Green, glowing steadily Powered on

Green, blinking Firmware is being uploaded

Green, dark Powered off

Blue, glowing steadily Normal

Blue, blinking User-enabled module identifier

Amber, glowing steadily Not used

Amber, blinking Fault

Blue, dark No fault

IOM

(Common)

Green, glowing steadily Powered on

Green, blinking Firmware is being uploaded

Green, dark Powered off

Blue, glowing steadily Normal/stack master

Blue, blinking User-enabled module identifier

Amber, glowing steadily Not used

Amber, blinking Fault

Blue, dark No fault/stack slave

IOM (Pass

through)

Green, glowing steadily Powered on

Green, blinking Not used

Green, dark Powered off

Blue, glowing steadily Normal

Blue, blinking User-enabled module identifier

Amber, glowing steadily Not used

Amber, blinking Fault

Blue, dark No fault

Table 11-14. LED Color and Blinking Patterns

(continued)

Component LED Color, Blinking Pattern Meaning

Troubleshooting and Recovery 361

Troubleshooting a Non-responsive CMC

NOTE: It is not possible to log in to the standby CMC using a serial console.

If you cannot log in to the CMC using any of the interfaces (the Web

interface, Telnet, SSH, remote RACADM, or serial), you can verify the

CMC functionality by observing the LEDs on the CMC, obtaining

recovery information using the DB-9 serial port, or recovering the

CMC firmware image.

Fan Green, glowing steadily Fan working

Green, blinking Not used

Green, dark Powered off

Amber, glowing steadily Fan type not recognized, update

CMC firmware

Amber, blinking Fan fault; tachometer out of range

Amber, dark Not used

PSU (Oval) Green, glowing steadily AC OK

(Oval) Green, blinking Not used

(Oval) Green, dark AC Not OK

Amber, glowing steadily Not used

Amber, blinking Fault

Amber, dark No fault

(Circle) Green, glowing

steadily

DC OK

(Circle) Green, dark DC Not OK

Table 11-14. LED Color and Blinking Patterns

(continued)

Component LED Color, Blinking Pattern Meaning

362 Troubleshooting and Recovery

Observing the LEDs to Isolate the Problem

Facing the front of the CMC as it is installed in the chassis, you will see two

LEDs on the left side of the card.

Top LED — The top green LED indicates power. If it is NOT on:

Verify that you have AC present to at least one power supply.

Verify that the CMC card is seated properly. You can release/pull on the

ejector handle, remove the CMC, reinstall the CMC making sure the

board is inserted all the way and the latch closes correctly.

Bottom LED — The bottom LED is multi-colored. When the CMC is active

and running, and there are no problems, the bottom LED is blue. If it is

amber, a fault was detected. The fault could be caused by any of the following

three events:

• A core failure. In this case, the CMC board must be replaced.

• A self-test failure. In this case, the CMC board must be replaced.

• An image corruption. In this case, you can recover the CMC by uploading

the CMC firmware image.

NOTE: A normal CMC boot/reset takes over a minute to fully boot into its OS and

be available for login. The blue LED is enabled on the active CMC. In a redundant,

two-CMC configuration, only the top green LED is enabled on the standby CMC.

Obtain Recovery Information From the DB-9 Serial Port

If the bottom LED is amber, recovery information should be available from

the DB-9 serial port located on the front of the CMC.

To obtain recovery information:

Install a NULL modem cable between the CMC and a client machine.

Open a terminal emulator of your choice (such as HyperTerminal or

Minicom). Set up: 8 bits, no parity, no flow control, baud rate 115200.

A core memory failure will display an error message every 5 seconds.

Press <Enter>. If a

recovery

prompt appears, additional information is

available. The prompt will indicate the CMC slot number and failure type.

To display failure reason and syntax for a few commands, type

recover

Troubleshooting and Recovery 363

and then press <Enter>. Sample prompts:

recover1[self test] CMC 1 self test failure

recover2[Bad FW images] CMC2 has corrupted images

• If the prompt indicates a self test failure, there are no serviceable

components on the CMC. The CMC is bad and must returned to

Dell.

• If the prompt indicates

Bad FW Images

, then follow the steps in

"Recovering the Firmware Image" to fix the problem.

Recovering the Firmware Image

The CMC enters recover mode when a normal CMC OS boot is not possible.

In recover mode, a small subset of commands are available that allow you to

reprogram the flash devices by uploading the firmware update file,

firmimg.cmc. This is the same firmware image file used for normal firmware

updates. The recovery process displays its current activity and boots to the

CMC OS upon completion.

When you type recover and then press <Enter> at the recovery prompt,

the recover reason and available sub-commands display. An example recover

sequence may be:

recover getniccfg

recover setniccfg 192.168.0.120 255.255.255.0

192.168.0.1

recover ping 192.168.0.100

recover fwupdate -g -a 192.168.0.100

NOTE: Connect the network cable to the left most RJ45

NOTE: In recover mode, you cannot ping the CMC normally because there is no

active network stack. The recover ping <TFTP server IP> command allows you to

ping to the TFTP server to verify the LAN connection. You may need to use the

recover reset command after setniccfg on some systems.

364 Troubleshooting and Recovery

Troubleshooting Network Problems

The internal CMC trace log allows you to debug CMC alerting and

networking. You can access the trace log using the CMC Web interface

(see "Using the Diagnostic Console") or RACADM (see "Using the RACADM

Command Line Interface" and the gettracelog command section in the Dell

Chassis Management Controller Administrator Reference Guide.

The trace log tracks the following information:

• DHCP — Traces packets sent to and received from a DHCP server.

• DDNS — Traces dynamic DNS update requests and responses.

• Configuration changes to the network interfaces.

The trace log may also contain CMC firmware-specific error codes that are

related to the internal CMC firmware, not the managed system’s operating

system.

Disabling a Forgotten Password

CAUTION: Many repairs may only be done by a certified service technician.

You should only perform troubleshooting and simple repairs as authorized in your

product documentation, or as directed by the online or telephone service and

support team. Damage due to servicing that is not authorized by Dell is not

covered by your warranty. Read and follow the safety instructions that came

with the product.

To perform management actions, a user with Administrator privileges is

required. The CMC software has a user account password protection security

feature that may be disabled if the administrator account password is

forgotten. If the administrator account password is forgotten, it can be

recovered using the PASSWORD_RSET jumper on the CMC board.

The CMC board has a two-pin password reset connector as shown in

Figure 11-1. If a jumper is installed in the reset connector, the default

administrator account and password is enabled and set to the default

values of username: root and password: calvin. The administrator

account will be reset regardless if the account has been removed, or if

the password was changed.

NOTE: Ensure the CMC module is in a passive state before you begin.

Troubleshooting and Recovery 365

Press in the CMC release latch on the handle and rotate the handle away

from the module front panel. Slide the CMC module out of the enclosure.

NOTE: Electrostatic discharge (ESD) events can harm electronic components

inside your equipment. Under certain conditions, ESD may build up on your body or

an object, and then discharge into another object, such as your CMC. To prevent

ESD damage, you should discharge static electricity from your body before you

interact with any of your equipment’s internal electronic components.

Remove the jumper plug from the password reset connector, and insert a

2-pin jumper to enable the default administrator account. See Figure 11-1

to locate the password jumper on the CMC board.

Figure 11-1. Password Reset Jumper Location

Table 11-15. CMC Password Jumper Settings

PASSWORD_RSET (default) The password reset feature is disabled.

The password reset feature is enabled.

PASSWORD_RSET

366 Troubleshooting and Recovery

Slide the CMC module into the enclosure. Reattach any cables that

were disconnected.

Initiate a changeover to make the module active using the GUI interface

to perform the following steps:

Navigate to the

Chassis

page, click the

Power Management

tab -

Control

sub tab.

Select the

Reset CMC (warm boot)

button.

Click

Apply

The CMC automatically fails over to the redundant module, and that

module now becomes active. Log into the active CMC using the default

administrator username of

root

and password of

calvin,

and restore any

necessary user account settings. The existing accounts and passwords are

not disabled and are still active.

After you have completed any account updates, remove the 2-pin jumper and

replace the jumper plug.

NOTE: Make sure the CMC module is in a passive state before you begin.

Press in the CMC release latch on the handle and rotate the handle away

from the module front panel. Slide the CMC module out of the enclosure.

Remove the 2-pin jumper and replace the jumper plug.

Slide the CMC module into the enclosure. Reattach any cables that were

disconnected.

Troubleshooting Alerting

Use the CMC log and the trace log to troubleshoot CMC alerts. The success

or failure of each e-mail and/or SNMP trap delivery attempt is logged into the

CMC log. Additional information describing the particular error is logged in

the trace log. However, since SNMP does not confirm delivery of traps, use a

network analyzer or a tool such as Microsoft’s snmputil to trace the packets

on the managed system.

You can configure SNMP alerts using the Web interface. For information, see

"Configuring SNMP Alerts."

Glossary 367

Glossary

Active Directory

Active Directory is a centralized and standardized system that automates network

management of user data, security, and distributed resources, and enables

interoperation with other directories. Active Directory is designed especially for

distributed networking environments.

ARP

Address resolution protocol, a method for finding a host’s Ethernet address from

its Internet address.

ASCII

American Standard Code for Information Interchange, a code representation used

for displaying or printing letters, numbers, and other characters.

blade

A self-contained server designed for high density racks.

BIOS

Basic input/output system, the part of system software that provides the

lowest-level interface to peripheral devices and which controls the first stage of the

system boot process, including installation of the operating system into memory.

CMC

The Dell Chassis Management Controller, providing

remote management

capabilities and power control functions for Dell PowerEdge™ systems.

bus

A set of conductors connecting the various functional units in a computer.

Busses are named by the type of data they carry, such as data bus, address bus,

or PCI bus.

368 Glossary

A certificate authority (CA) is a business entity that is recognized in the

IT industry for meeting high standards of reliable screening, identification, and

other important security criteria. Examples of CAs include Thawte and VeriSign.

After the CA receives your CSR, they review and verify the information the

CSR contains. If the applicant meets the CA’s security standards, the CA issues

a certificate to the applicant that uniquely identifies that applicant for

transactions over networks and on the Internet.

Compact disc

Certificate Signing Request (CSR)

A digital request to a certificate authority for a secure server certificate.

CLI

Command Line interface

DHCP

Dynamic host configuration protocol, a means of dynamically allocating

IP addresses to computers on a network.

DLL

Dynamic link library, a library of functions, any of which can be called when

needed by a larger program that is running in the system. The smaller functions let

the larger program communicate with a specific device such as a printer or scanner.

DNS

Domain name system

iDRAC

The Dell Integrated Remote Access Controller, a systems management hardware

and software solution that provides remote management capabilities, crashed

system recovery, and power control functions for Dell PowerEdge systems.

delay time (OSCAR user interface)

The number of seconds before the OSCAR Main dialog box is displayed after

<Print Screen> is pressed.

Glossary 369

extended schema

A solution used with Active Directory to determine user access to the CMC;

uses

Dell-defined Active Directory objects

FQDN

Fully qualified domain name, a domain name that specifies a module’s absolute

position in the DNS tree hierarchy. Microsoft

Active Directory

only supports

an FQDN of 64 bytes or fewer.

FSMO

Flexible single master operation, a Microsoft Active Directory domain controller

task that guarantees atomicity of an extension operation.

GB1

The uplink port on the chassis.

GMT

Greenwich Mean Time. GMT is the standard time common to every place in

the world. GMT nominally reflects the mean solar time along the prime meridian

(0 longitude) that runs through the Greenwich Observatory outside of

London, UK.

GUI

Graphical user interface, which refers to a computer display interface that uses

elements such as windows, dialog boxes, and buttons as opposed to a command

prompt interface, in which all user interaction is displayed and typed in text.

hardware log

A CMC-generated record of events relating to hardware on the chassis.

ICMP

Internet control message protocol, a way for operating systems to send error

messages.

Identifier, commonly used when referring to a user identifier (user ID) or object

identifier (object ID).

370 Glossary

iKVM

Avocent® Integrated KVM Switch Module, an optional, hot-pluggable

module to the chassis providing local access to keyboard, mouse, and video to

any of the 16 servers in the chassis, as well as the additional Dell CMC Console

option that connects to the chassis’ active CMC.

IOMINF

I/O module infrastructure device.

Internet Protocol. IP is the network layer for TCP/IP. IP provides packet routing,

fragmentation, and reassembly.

IPMB

Intelligent platform management bus, which is used in systems management

technology.

Kbps

Kilobits per second, a data transfer rate.

LAN

Local area network

LDAP

Lightweight directory access protocol

LED

Light-emitting diode

LOM

Local area network on motherboard

MAC

Media access control, a network sublayer between a network node and the network

physical layer.

MAC address

Media access control address, a unique address embedded in the physical

components of a NIC.

Glossary 371

management station

A system that remotely accesses the CMC.

Mbps

Megabits per second, which is a data transfer rate.

Mezzanine card

Microsoft Active Directory

A centralized, standardized system that automates network management of user

data, security, and distributed resources, and enables interoperation with other

directories. Active Directory is designed especially for distributed networking

environments.

NIC

Network interface card, an adapter circuit board installed in a computer to provide

a physical connection to a network.

Non-Persistent Log

A log that is cleared when the CMC reboots.

OID

Object identifier

OSCAR

On Screen Configuration and Reporting, a graphical user interface used for

iKVM access.

PCI

Peripheral component interconnect, a standard interface and bus technology for

connecting peripherals to a system and for communicating with those peripherals.

POST

Power-on self-test, a sequence of diagnostic tests that are run automatically by a

system when it is powered on.

RAC

Remote access controller

372 Glossary

RAM

Random-access memory. RAM is general-purpose readable and writable memory

on systems.

RAM disk

A memory-resident program which emulates a hard drive.

ROM

Read-only memory, from which data may be read, but to which data cannot

be written.

RPM

Red Hat Package Manager, a package-management system for the Red Hat

Enterprise Linux operating system. RPM manages the installation of software

packages. It is similar to an installation program.

SEL

System event log or hardware log

SMTP

Simple mail transfer protocol, used to transfer electronic mail between

systems—usually over an Ethernet.

SNMP

Simple network management protocol, designed to manage nodes on

an IP network. iDRACs are SNMP-managed devices (nodes).

SNMP trap

A notification (event) generated by the CMC that contains information about

state changes on the managed system or about potential hardware problems.

SSH

Secure Shell, a network protocol that allows data to be exchanged over a secure

channel between two computers.

SSL

Secure sockets layer, a protocol that provides secure communications over

networks for data transfers.

Glossary 373

standard schema

A solution used with Active Directory to determine user access to the CMC;

uses Active Directory group objects only.

STK

The staking port on the chassis

TCP/IP

Transmission control protocol/Internet protocol, representing the set of standard

Ethernet protocols that includes the network layer and transport layer protocols.

TFTP

Trivial file transfer protocol, a simple file transfer protocol used for downloading

boot code to diskless devices or systems.

UDP

User Datagram Protocol

UPS

Uninterruptible power supply

USB

Universal serial bus, a serial bus standard to interface devices.

UTC

Universal Coordinated Time.

See

GMT.

vKVM

Virtual keyboard-video-mouse console

VLAN

Virtual local area network

374 Glossary

VNC

Virtual network computing

VT-100

Video Terminal 100, which is used by the most common terminal emulation

programs.

WAN

Wide area network

WWN

World Wide Name, a unique value that represents Fibre Channel node in the

physical layer.

Index 375

Index

ACI, 289

Active Directory, 207

adding CMC users, 220

configuring access to the

CMC, 213

configuring and managing

certificates, 141

extending schemas, 213

objects, 209

schema extensions, 208

using with standard schema, 228

adding

SNMP alerts, 328

alerts

troubleshooting, 366

Analog Console Interface, 287

Certificate Signing Request

(CSR)

about, 148

generating a new certificate, 149

certificates

Active Directory, 141

SSL and digital, 147

uploading a server certificate, 152

viewing a server certificate, 153

CMC

configuring, 223, 230

creating a configuration file, 89

downloading firmware, 45

feature sets, 18

installing, 29

log, 349

redundant environment, 49

setting up, 29

command line console

features, 51

configuration file

creating, 89

configuring

CMC from the LCD panel, 45

CMC remote RACADM, 44

power budgeting, 45

remote RACADM, 44

SNMP alerts, 328

connect command

CMC command line

connection, 56

fabric management, 315

feature sets of CMC, 18

featurecard, 191

376 Index

firmware

downloading, 45

managing, 163

updating, CMC, 164

updating, iKVM, 166

updating, IOM infrastructure

device, 167

updating, Server iDRAC, 168

FlexAddress, 189

activating, 190

activation verification, 191

configuring using CLI, 194

deactivating, 193

license agreement, 202

Linux configuration, 195

troubleshooting, 196

viewing status using CLI, 195

Wake-On-LAN, 196

frequently asked questions

managing and recovering a remote

system, 186

using the CMC with Active

Directory, 234

hardware log, 347

hardware specifications, 21

I/O fabric, 315

iDRAC

recovering firmware, 169

iKVM, 287

installing CMC, 29

LDC panel

configuring CMC from, 45

logs

CMC, 349

hardware, 347

managed system

accessing through the local serial

port, 52

management station

configuring terminal

emulation, 54

definition, 371

mezzanine card. See also MC

Microsoft Active Directory, 207

Index 377

network properties

configuring manually, 74

configuring using racadm, 74

OSCAR, 287

parsing rules, 90

password

disabling, 364

reset jumper location, 365

power budgeting

configuring, 45

power conservation, 259

proxy server, 32

RAC

see Remote Access

Connection, 23

RACADM

uninstalling from Linux

management station, 31

racadm utility

configuring network

properties, 74

parsing rules, 90

Red Hat Enterprise Linux

configuring for serial console

redirection, 59

redundant environment, 49

remote access connection

(RAC), 23

remote RACADM

configuring, 44

Secure Sockets Layer (SSL)

about, 147

security

using SSL and digital

certificates, 147

serial console

using, 52

server certificate

uploading, 152

viewing, 153

services

configuring, 154

setting up CMC, 29

Single Sign-On, 236

slot names

editing, 104

naming rules, 104

snap-in

installing the Dell extension, 219

378 Index

SNMP alerts

adding and configuring, 328

specifications

hardware, 21

standard schema

using with Active Directory, 228

telnet console

using, 52

web browser

configuring, 31

supported browsers, 24

web interface

accessing, 97

configuring email alerts, 334

WS-Management, 24
