Dell PowerVault MD Storage
Arrays Management Pack
Suite Version 4.1 For Microsoft
System Center Operations
Manager 2007 R2/SP1and
System Center Essentials 2007
SP1/2010
User’s Guide
A5_bk0.book Page 1 Tuesday, September 20, 2011 11:56 AM

Notes and Cautions
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of
data and tells you how to avoid the problem.
____________________
Information in this document is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell™, the DELL™ logo, OpenManage™, and PowerVault™ are
trademarks of Dell Inc.; Microsoft®, Windows®, Windows Server®, and Windows Vista® are either
trademarks or registered trademarks of Microsoft Corporation in the United States and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own. Dell is not responsible for the availability of external websites or their
contents.
2011-09
A5_bk0.book Page 2 Tuesday, September 20, 2011 11:56 AM

Contents 3
Contents
1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 5
What is New in Dell MD Storage Arrays Management
Pack Suite 4.1 . . . . . . . . . . . . . . . . . . . . . . . 5
Key Features of Dell MD Storage Arrays Management
Pack Suite . . . . . . . . . . . . . . . . . . . . . . . . . 6
Supported Dell MD Storage Arrays . . . . . . . . . . . . 6
Supported Operating Systems . . . . . . . . . . . . . . . 7
For the Management Station . . . . . . . . . . . . . 7
For the Managed Node . . . . . . . . . . . . . . . . 7
Installing and Uninstalling the
Management Pack Suite . . . . . . . . . . . . . . . . . 7
Details of Components Modelled by the Management
Pack Suite . . . . . . . . . . . . . . . . . . . . . . . . . 8
Dell Recommendation for Scalability . . . . . . . . . . . 9
2 Dell MD Storage Arrays Management
Pack Suite Operations . . . . . . . . . . . . . . 11
Overview . . . . . . . . . . . . . . . . . . . . . . . . . 11
Web Console . . . . . . . . . . . . . . . . . . . . . . . 12
Discovery . . . . . . . . . . . . . . . . . . . . . . . . 12
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . 14
A5_bk0.book Page 3 Tuesday, September 20, 2011 11:56 AM

4Contents
Health Status Indicators . . . . . . . . . . . . . . 14
Alerts View . . . . . . . . . . . . . . . . . . . . . 15
Diagram View . . . . . . . . . . . . . . . . . . . . 16
MD Storage Array Diagram. . . . . . . . . . . . . 17
Launching the Dell Discovery Utility From the
SCOM/SCE Console . . . . . . . . . . . . . . . . . 19
State View. . . . . . . . . . . . . . . . . . . . . . 19
Customizing the MD Storage Arrays
Management Pack . . . . . . . . . . . . . . . . . . . . 20
Object Discoveries . . . . . . . . . . . . . . . . . 20
Unit Monitors . . . . . . . . . . . . . . . . . . . . 21
3 Related Documentation and
Resources . . . . . . . . . . . . . . . . . . . . . . . . 25
Microsoft Guidelines for Performance and
Scalability for Operations Manager 2007 SP1/R2 . . . . 25
Other Documents You May Need . . . . . . . . . . . . 25
Obtaining Technical Assistance. . . . . . . . . . . . . 26
A Appendix . . . . . . . . . . . . . . . . . . . . . . . . 27
Issues and Resolutions . . . . . . . . . . . . . . . . . 27
A5_bk0.book Page 4 Tuesday, September 20, 2011 11:56 AM

Overview 5
1
Overview
CAUTION: It is recommended that the procedures in this document should be
performed only by personnel with knowledge and experience in using the
Microsoft Windows operating system and SCOM or SCE, due to the possibility of
data corruption and/or data loss.
The Dell MD Storage Arrays Management Pack Suite Version 4.1 integrates
with Microsoft System Center Operations Manager (SCOM) and System
Center Essentials environment and enables you to manage, monitor, and
ensure the availability of the Dell PowerVault MD Storage Arrays.
NOTE: The Dell MD Storage Arrays Management Pack Suite is supported only on
Microsoft Systems Center Operations Manager (SCOM) 2007 SP1/R2 and Systems
Center Essentials (SCE) 2007 SP1/2010 versions.
What is New in Dell MD Storage Arrays
Management Pack Suite 4.1
The Dell MD Storage Arrays Management Pack Suite 4.1 supports the
following:
• Scalability and performance improvements over the previous releases
• Support for the following MD Storage devices: MD3200, MD3200i, MD 3220,
MD3220i, MD3600i, MD 3620i, MD3600f, and MD3620f
• 25 new recovery failure alerts
• Revised and updated knowledge articles for recovery failures
• Launching the Dell Discovery Utility from the SCOM console
•
Option for Scalable or Detailed Monitoring. For more information, see
Details of Components Modelled by the Management Pack Suite
.
A5_bk0.book Page 5 Tuesday, September 20, 2011 11:56 AM

6Overview
Key Features of Dell MD Storage Arrays
Management Pack Suite
Supported Dell MD Storage Arrays
The Dell MD Storage Management Pack Suite Version 4.1 supports the
following
Dell PowerVault MD storage arrays:
• MD3000/MD3000i and MD3000/MD3000i with MD1000 daisy-chained
to it.
• MD3200/MD3200i and MD3200/MD3200i with MD1200
or MD1220
daisy-chained to it.
• MD3220/MD3220i and MD3220/MD3220i with MD1200 or MD1220
daisy-chained to it.
• MD3600i/MD3620i/MD3600f/ MD3620f and
MD3600i/MD3620i/MD3600f/ MD3620f with MD1200 or MD1220 daisy-
chained to it.
Table 1-1. Features and Functionalities
Feature Functionality
Discovery and Monitoring of
Dell PowerVault MD Storage
Arrays
• Supports discovery and monitoring of: MD3000,
MD3000i, MD3200, MD3200i, MD 3220,
MD3220i, MD3600i, MD 3620i, MD3600f, and
MD3620f.
• Manages recovery failure events from MD Storage
Arrays.
• Displays realistic icons in the Diagram view for all
the components modelled by the MD Storage
Arrays Management Pack.
Access Recovery Guru
information
The management pack provides Recovery Guru
information as a point of reference for
troubleshooting the MD Storage Array Failure events.
A5_bk0.book Page 6 Tuesday, September 20, 2011 11:56 AM

Overview 7
Supported Operating Systems
For the Management Station
For the list of supported operating systems for the management station for
SCOM/SCE, see the Microsoft website at http://technet.microsoft.com/hi-
in/library/bb309428(en-us).aspx.
For the Managed Node
When you discover storage arrays through in-band, install the Modular Disk
Storage Manager (MDSM) software on the system where you attach the
storage array through the Serial Attached SCSI (SAS), internet Small
Computer System Interface (iSCSI) or Fibre channels (FC) ports.
For the list of the supported operating systems for MDSM, see the Support
Matrices for Dell PowerVault MD3200/MD3200i/MD3220/MD3220i/
MD3000/MD3000i/MD3600i/MD3600f/MD3620i/MD3620f systems
available at support.dell.com/manuals.
Installing and Uninstalling the
Management Pack Suite
For information on installing and uninstalling the Dell MD Storage Arrays
Management Pack Suite version 4.1, see the Installation guide packaged in
the self-extracting executable
Dell_MD_StorageArray_Management_Pack_Suite_v4.1_A00.exe. It is also
available on the Systems Management documentation page at
support.dell.com/manuals.
A5_bk0.book Page 7 Tuesday, September 20, 2011 11:56 AM

8Overview
Details of Components Modelled by the
Management Pack Suite
The Dell MD Storage Arrays Management Pack Suite version 4.1 consists of
two management packs — the Dell MD Storage Arrays Management Pack
(Scalable)and the Dell Detailed Monitoring Overrides Management Pack.
Table 1-2 lists the details and the components modelled by each of the
management pack.
Table 1-2. Management Pack Details and Components Modelled
Management Pack Details and Components Modelled
Dell MD Storage Arrays
Management Pack
(Scalable)
•Discovers the MD Storage Array device and all its
components.
• Overall health of the MD Storage Array is displayed.
• Individual component health under the MD Storage
Array is disabled.
• Recovery failure events for a discovered MD Storage
array are displayed.
Dell Detailed Monitoring
Overrides Management
Pack
• Enables the unit monitors for all the components
discovered under an MD Storage array.
• Health of individual components in the
Diagram
view
is shown for the following:
–Volumes
– Controllers
–ESM
–Physical Disks
–Fans
– Batteries
– Power Supplies
– Enclosure health
–Enclosure Group Health
• NIC, Chassis and Firmware are not monitored in any
configuration.
A5_bk0.book Page 8 Tuesday, September 20, 2011 11:56 AM

Overview 9
Dell Recommendation for Scalability
If you have more than 6 MD Storage Arrays, then it is recommended that you
remove the Dell Detailed Monitoring Overrides Management Pack.
Enable the Autogrow options on Operations Manager database to
accomodate the increment in the transaction log size as the number of MD
Storage Arrays increases.
Ensure that you have a minimum of 5GB disk space for Operations Manager
Transaction log to increase the log size as the number of MD Storage Arrays
increases.
A5_bk0.book Page 9 Tuesday, September 20, 2011 11:56 AM

10 Overview
A5_bk0.book Page 10 Tuesday, September 20, 2011 11:56 AM

Dell MD Storage Arrays Management Pack Suite Operations 11
2
Dell MD Storage Arrays
Management Pack Suite
Operations
Overview
This chapter describes the various operations that you can perform on
Microsoft Systems Center Operations Manager (SCOM) or Systems Center
Essentials (SCE) using the Dell MD Storage Arrays Management Pack Suite
version 4.1.
The MD Storage Arrays Management Pack allows you to perform the
following operations to manage
Dell PowerVault
MD storage arrays:
• Discover and monitor the health of components, view their instance level
information and display alerts for Dell PowerVault
MD
storage arrays
through out-of-band and in-band using the IP address of the host system.
For more information, see Discovery and Monitoring.
• Launch MD storage arrays discovery utility through a console task. For
more information, see Launching the Dell Discovery Utility From the
SCOM/SCE Console.
•
Customize parameters of the MD Storage Arrays Management Pack by
using overrides. For more information, see
Customizing the MD Storage
Arrays Management Pack
.
A5_bk0.book Page 11 Tuesday, September 20, 2011 11:56 AM

12 Dell MD Storage Arrays Management Pack Suite Operations
Web Console
The Web Console server enables you to monitor and manage your Dell
devices with the MD Storage Arrays Management Pack using a browser
instead of the Operations Manager console. You can use the Web console
server without installing the Operations console. Using the Web console has
the following limitations:
• It provides only the
Monitoring
feature for all management packs.
•The
Personalize
view is not available.
• Only the first 200 alerts are displayed in the
Alerts
view.
NOTE: The Alert view is applicable only to SCOM R2 web console.
Discovery
To discover PowerVault MD Storage Arrays in the network, an important pre-
requisite is the IP listing file that contains the IP addresses of the PowerVault
MD storage arrays.
The default IP listing file,
Dell_MDStorageArray_ip_sample.cfg
is available on
the management station where you extracted the Array Bridge Broker (ABB)
files, and the
Dell Discovery
utility. This file provides the reference format for
the IP addresses.
To discover a Dell MD Storage Array:
1
Run the
Dell Discovery Utility
and populate the IP listing file,
Dell_MDStorageArray_ip.cfg
with the IP addresses of the MD storage
arrays in the network.
2
Import the Dell MD Storage Arrays Management Packs into the SCOM
Operations console.
When you import the MD Storage Arrays Management Pack into the
SCOM console, the management pack scans the IP listing file at
scheduled intervals to discover and monitor the Dell MD Storage
Arrays. The default schedule is 24 hours
.
NOTE: You can discover additional MD storage devices by launching the Dell
Discovery utility. For more information, see
Launching the Dell Discovery Utility
From the SCOM/SCE Console
.
A5_bk0.book Page 12 Tuesday, September 20, 2011 11:56 AM

Dell MD Storage Arrays Management Pack Suite Operations 13
The Dell MD Storage Arrays Management Pack performs two level of
discovery. Table 2-3 lists the discovery objects and the affected groups.
Table 2-3. Discovery Object and Affected Groups
Discovery Object Description Affected Groups
MD Storage Array
Seed Discovery
Creates seed objects after getting
the MD Array device IP details from
the IP listing file for the later
discovery objects to be populated.
MD Storage Array device
component.
MD Storage Array
Discovery
Discovers hardware components for
the Dell MD storage arrays. It uses
the ABB toolset to contact the MD
Array device and fetch the device
inventory and failure information.
•MD Storage Array
Battery
• MD Storage Array Power
Supply
•MD Storage Array RAID
Controller Module
•MD Storage Array
Enclosure
•MD Storage Array Fan
•MD Storage Array
Physical Disk
•MD Storage Array
Virtual Disk
•MD Storage Array EM
Modules Group
•MD Storage Array
Current Configuration
•MD Storage Array
Chassis
•MD Storage Array
Network Interfaces
A5_bk0.book Page 13 Tuesday, September 20, 2011 11:56 AM

14 Dell MD Storage Arrays Management Pack Suite Operations
Monitoring
The Dell MD Storage Array Management Pack Suite v4.1 enables you to
monitor the discovered Dell MD Storage Array devices. The
Health Status
Indicators
help you to monitor the health of your MD Storage Array devices
on the network.
You can monitor the MD Storage Array devices using the following views:
•Alerts View
•Diagram View
•State View
Health Status Indicators
Table 2-4 lists the icons that indicate the health status of the discovered Dell
MD Storage Array devices on the Operations Console. For more information
on severity propagation, see
State View
.
Table 2-4. Severity Level Indicators
Icon Severity Level
Normal/OK. The component is working as expected.
Warning/Non-critical. A probe or other monitoring device has
detected a reading for the component that is above or below the
acceptable level. The component may still be functioning, but it
could fail. The component may also be functioning in an impaired
state.
Critical/Failure/Error.The component has either failed or failure is
imminent. The component requires immediate attention and may
need replacement. Data loss may have occurred.
The specific component is not monitored.
The service is unavailable.
A5_bk0.book Page 14 Tuesday, September 20, 2011 11:56 AM

Dell MD Storage Arrays Management Pack Suite Operations 15
Alerts View
The Alerts view displays the alerts for the events received from the
PowerVault MD storage arrays that you are monitoring.
To view the alerts for the systems you are monitoring:
1
In the Operations Console, click
Monitoring
.
2
In the Monitoring pane on the left side, navigate to the Dell folder to
display the different views.
3
Click
Alerts View
MD Storage Array Alerts
.
The Operations Console displays the alerts for all the storage arrays that
you are monitoring in the
MD Storage Array Alerts
pane. These alerts
meet the criteria you specified in the
Authoring
pane, such as severity,
resolution state, or alerts that are assigned to you.
4
Select an alert to view its details in the
Alert Details
pane.
Accessing Recovery Guru Information
The MD Storage Arrays Management Pack provides Recovery Guru information
as a point of reference assistance in troubleshooting the MD storage arrays for
the respective events.
To access the Recovery Guru Information:
1
Select the alert in the
Alerts
view.
2
In the
Alert Details
pane, scroll down the details of the knowledge base
and view the information. The knowledge base contains information such
as causes, important notes, recovery steps, or recovery procedure for
storage arrays with one controller, recovery procedure for storage arrays
with two controllers, and additional notes.
A5_bk0.book Page 15 Tuesday, September 20, 2011 11:56 AM

16 Dell MD Storage Arrays Management Pack Suite Operations
Diagram View
The Diagram view offers a hierarchical and graphical representation of all
PowerVault MD Storage Arrays on your network.
The
Diagram
view of the MD
storage arrays displays icons for the various components modeled by the MD
Storage Arrays management pack.
The management pack offers the following
views:
•Complete Diagram View
•MD Storage Array Diagram
Complete Diagram View
The Complete Diagram View offers a graphical representation of all Dell
devices that SCOM manages and allows you to expand and verify the status of
individual devices and their components in the diagram. The root node for
this view is the Dell Hardware group.

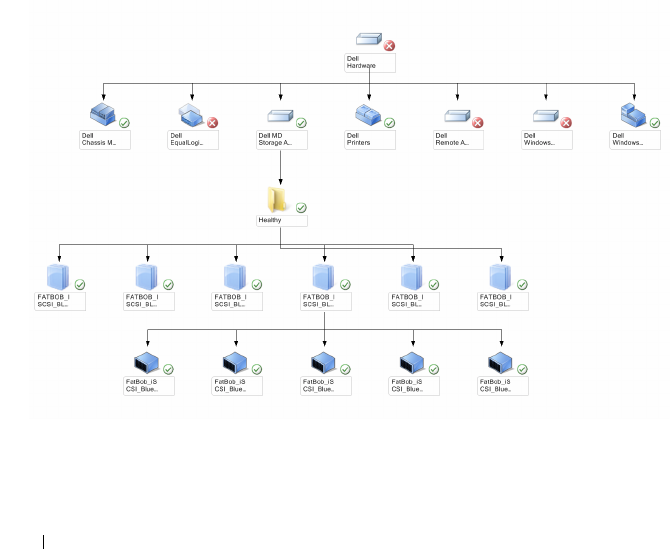

Figure 2-1. Graphical Representation of all Dell Devices
A5_bk0.book Page 16 Tuesday, September 20, 2011 11:56 AM

Dell MD Storage Arrays Management Pack Suite Operations 17
To access the Complete Diagram View:
1
In the Operations Console, click
Monitoring.
2
In the
Monitoring
pane on the left side, navigate to the
Dell
folder to
display the different views.
3
Click
Diagram View
Complete Diagram View.
4
Select a component in the diagram to view its details in the
Detail View
pane.
MD Storage Array Diagram
The Dell MD Storage Array Diagram offers a graphical representation of all
Dell MD storage arrays that SCOM manages and allows you to expand and
verify the status of individual devices, and their components in the diagram.
The root node for this view is the Dell MD Storage Arrays group.

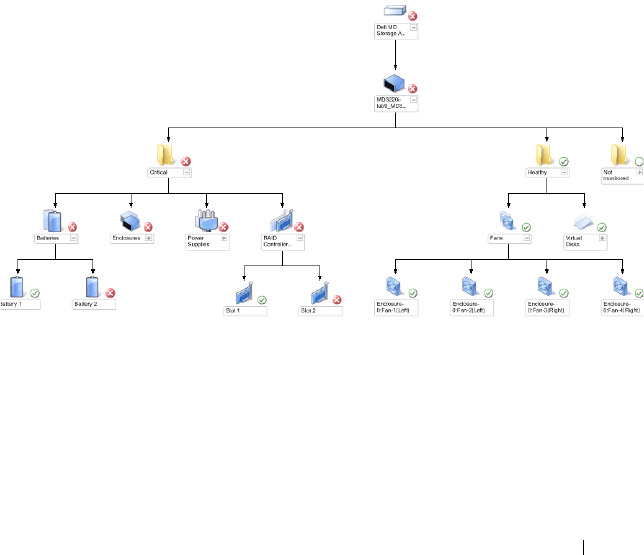

Figure 2-2. Graphical Representation of Dell MD Storage Arrays Managed by SCOM
A5_bk0.book Page 17 Tuesday, September 20, 2011 11:56 AM

18 Dell MD Storage Arrays Management Pack Suite Operations
You can also view the health status and event processing for the storage
devices.
To access the MD Storage Array Diagram:
1
In the Operations Console, click
Monitoring.
2
In the
Monitoring
pane on the left side, navigate to the
Dell
folder and
click the folder to display the different views.
3
Click
Dell Storage Array Diagram View MD Storage Array
Diagram
.
4
Select a component in the diagram to view its details in the
Detail View
pane. View details of the following hardware components of MD Storage
Arrays:
– Batteries
–Fans
– Physical Disks
– Power Supplies
– RAID Controller Modules
–Virtual Disks
–Enclosures
– Enclosure Management (EM) Modules
The MD Storage Arrays Management Pack does not monitor the following
components of the storage arrays:
–Chassis
– Current Configuration
– Network Interfaces
The
MD Storage Array Diagram
view displays the above components
under the
Not Monitored
group.
NOTE: EM Modules are applicable only for daisy-chained MD Storage arrays.
A5_bk0.book Page 18 Tuesday, September 20, 2011 11:56 AM

Dell MD Storage Arrays Management Pack Suite Operations 19
Launching the Dell Discovery Utility From the SCOM/SCE Console
You can launch the Dell Discovery Utility through a console task. Console
tasks are available in the Actions pane of the Operations Console. When you
select a device or a component in any of the Dell diagram views, the relevant
tasks appear in the Actions pane.
To Launch the Dell Discovery Utility:
1
Select
Dell MD Storage Arrays
group in the
Complete Diagram
view or
the
MD Storage Array
diagram.
2
Click
Launch Dell Discovery Utility
under
Dell MD Storage Arrays Tasks
in the
Actions
pane.
NOTE: You can see the discovered MD Storage Arrays only in the next
discovery cycle.
State View
The State View displays the status of each Dell device managed by SCOM or
SCE on your network. The MD Storage Management Pack provides a list of
severity level indicators to help you monitor the health of your Dell MD storage
arrays on the network.
To access the State View:
1
In the Operations Console, click
Monitoring.
2
In the
Monitoring
pane on the left side, navigate to the
Dell
folder and
click the folder to display the different views.
3
Click
State View
MD Storage Array.
The Operations Console displays the status of all the Dell storage arrays
that you are monitoring on the right pane.
4
Select a state to view its details in the
Detail
View
pane.
A5_bk0.book Page 19 Tuesday, September 20, 2011 11:56 AM

20 Dell MD Storage Arrays Management Pack Suite Operations
Customizing the MD Storage Arrays
Management Pack
You can customize the following MD Storage Arrays Management Pack
discovery parameters, using overrides:
•
Enabled
: Allows you to enable or disable discoveries. You can choose the
Override Setting
to be
True
or
False.
•
IntervalSeconds
: The frequency (in seconds) with which the Dell
Management Pack discovers the component instance and attributes of
your Dell device. The default value for this attribute is 86400 seconds (24
hours).
•
IP Config File Path:
Override this parameter
if you are using a different
file or folder location. By default, the IP listing file is at
C:\Dell_MDStorageArray_ABB
. For more information on configuring the
IP listing file, see the Installation guide. The Installation guide is packaged
in the self-extracting executable
Dell_MD_StorageArray_Management_Pack_Suite_v4.1_A00.exe
file.
You can download the executable from
support.dell.com
.
You can specify the override parameters in the Authoring pane of the SCOM
console.
Object Discoveries
To specify override parameters for object discoveries:
1
Launch the SCOM console and click the
Authoring
tab.
2
Select
Object Discoveries
under
Management Pack Objects
in the
Authoring
pane.
3
Select the MD Storage Array Seed Discovery group object and under that
select
Dell MD Storage Array Seed Discovery
.
4
Right-click on selected Object Discovery and from the pop-up menu select
Overrides
Override the Object Discovery
and you can choose to
override objects of a specific type or for all objects within a group.
5
Check on the appropriate discovery parameter that you want to override
and set its
Override Value
.
6
Save the Override settings onto a new Management Pack.
A5_bk0.book Page 20 Tuesday, September 20, 2011 11:56 AM

Dell MD Storage Arrays Management Pack Suite Operations 21
7
Click
Apply
.
8
Similarly select
Dell MD Storage Array Discovery
under the
MD Storage
Array Seed Discovery group
object
and repeat step 4 to step 7 in order to
override its discovery interval.
NOTE: When you upgrade the MD Storage Arrays Management Pack from version
4.0 to 4.1, discovery interval overrides specified in version 4.0 are carried over only
to the Seed Discovery interval.
NOTE: Override the Dell MD Storage Array Discovery interval setting to the same
interval seconds specified in the Seed Discovery interval in order to run both the
discovery cycles at the same schedule.
Unit Monitors
You can customize the following parameters of the MD Storage Arrays
Management Pack unit monitors by using overrides:
•
Enabled
: Allows you to enable or disable monitors. You can choose the
Override Setting
to be
True
or
False.
The default setting is
True.
•
Interval in Seconds
: The frequency (in seconds) with which the
Management Pack polls the Dell device to check the health of a
component. The default setting for monitors could range between 3600 -
4300 seconds.
NOTE: When you upgrade the MD Storage Arrays Management Pack from version
4.0 to 4.1, unit monitor override settings specified in version 4.0 are not carried over
to version 4.1 and do not work.
To specify override parameters for unit monitors:
1
Launch the SCOM console and click the
Authoring
tab.
2
Select
Monitors
under
Management Pack Objects
in the
Authoring
pane.
3
Select the component unit monitor, right-click and select
Overrides
Override the Monitor
.
You can choose to override objects of a specific type
or for all objects within a group
.
4
Check on the appropriate monitor parameter that you want to override
and set its
Override Value
.
A5_bk0.book Page 21 Tuesday, September 20, 2011 11:56 AM

22 Dell MD Storage Arrays Management Pack Suite Operations
5
Save the Override settings onto a new management pack.
6
Click
Apply
.
NOTE: After overriding the discovery interval seconds, the health state of the MD
array components may turn to Normal, as a result of the Unit Motors getting re-
initialized. The components return to their original health state in the next Unit
Monitoring cycle.
Table 2-5 lists the various Dell unit monitors and the applicable parameters
for your Dell MD Storage Arrays.
Table 2-5. Dell Monitors - MD Storage Arrays
Groups Unit Monitor Name Description Default
Periodic Poll
Setting
MD Storage
Array State
Information
Dell MD Array Device
Status(Periodic)
Unit Monitor for all MD
Storage Arrays: Tracks the
global health status of the
storage array.
4300 seconds
(72 minutes)
Dell MD
Array Battery
Dell MD Array Battery
Status(Periodic)
Unit Monitor for MD
Storage Array Batteries:
Indicates the health of the
storage array’s battery unit.
3600 seconds
(60 minutes)
Dell MD
Array RAID
Controller
Dell MD Array
Controller
Status(Periodic)
Unit Monitor for MD
Storage Array RAID
Controller Modules:
Indicates the health of the
storage array’s RAID
Controller modules.
3600 seconds
(60 minutes)
Dell MD
Array Fan
Dell MD Array Fans
Status(Periodic)
Unit Monitor for MD
Storage Array Fans:
Indicates the health of the
storage array’s fan.
3600 seconds
(60 minutes)
Dell MD
Array Physical
Disk
Dell MD Array
PhysicalDisk
Status(Periodic)
Unit Monitor for MD
Storage Array Physical
Disks: Indicates the health
of the storage array’s
physical disks.
3600 seconds
(60 minutes)
A5_bk0.book Page 22 Tuesday, September 20, 2011 11:56 AM

Dell MD Storage Arrays Management Pack Suite Operations 23
Dell MD
Array Power
Supply
Dell MD Array Power
Supply Status(Periodic)
Unit Monitor for MD
Storage Array Power
Supplies: Indicates
the health of the Storage
Array’s power supplies.
3600 seconds
(60 minutes)
Dell MD
Array Virtual
Disk
Dell MD Array Volume
Status(Periodic)
Unit Monitor for MD
Storage Array Virtual
Disks: Indicates the health
of the Storage Array’s
Virtual Disks.
3600 seconds
(60 minutes)
Dell MD
Array
Enclosure
Service
Modules
Dell MD Array ESM
Status(Periodic)
Unit Monitor for MD
Storage Array EM
Modules: Indicates the
health of the Storage
Array’s EM Modules.
3600 seconds
(60 minutes)
Dell MD
Array EM
Modules
Group
Dell MD Storage Array
Availability Rollup
Dependency Monitor for
MD Storage Array
Enclosure Managemnet
Modules: Represents the
consolidated health of
physical disk components
under the enclosures.
Dell MD
Array
Enclosure
Dell MD Storage Array
Availability Rollup
Dependency Monitor for
MD Storage Array
Enclosures: Represents the
consolidated health
physical disk components
under the enclosures.
Table 2-5. Dell Monitors - MD Storage Arrays
(continued)
Groups Unit Monitor Name Description Default
Periodic Poll
Setting
A5_bk0.book Page 23 Tuesday, September 20, 2011 11:56 AM

24 Dell MD Storage Arrays Management Pack Suite Operations
A5_bk0.book Page 24 Tuesday, September 20, 2011 11:56 AM

Related Documentation and Resources 25
3
Related Documentation and
Resources
This chapter gives the details of documents and references to help you work
with the Dell MD Storage Arrays Management Pack Suite v4.1.
Microsoft Guidelines for Performance and
Scalability for Operations Manager 2007 SP1/R2
For optimal performance, deploy device-specific Dell Management Packs on
different management servers.
For information on Microsoft’s recommendations for scalability, see the
Microsoft website at
http://technet.microsoft.com/hi-in/library/bb735402(en-us).aspx
NOTE: Make sure that the Autogrow Option is enabled in Operations Manager
Data Warehouse and/ or Database for improved performance.
Other Documents You May Need
Besides this User's Guide, you may need to refer to the following guides
available on the Dell Support website at support.dell.com/manuals.
•The
Dell PowerVault MD3000 and MD3000i Array Tuning Best Practices
•The
Dell PowerVault MD3000 and 3000i Support Matrix
•The
Dell PowerVault MD3200 and MD3220 Support Matrix
•The
Dell PowerVault MD3200i and MD3220i Support Matrix
•The
Dell PowerVault MD 3600 and MD3620f Support Matrix
•The
Dell PowerVault MD3600i and MD3620i Support Matrix
•The
Hardware Owner’s Manual
•The
Dell PowerVault Modular Disk Storage Manager User’s Guide
• Upgrading Your Dell PowerVault MD3000i From Simplex to Duplex Mode
A5_bk0.book Page 25 Tuesday, September 20, 2011 11:56 AM

26 Related Documentation and Resources
For information on terms used in this document, see the Glossary on the Dell
Support website at support.dell.com/manuals.
Obtaining Technical Assistance
If at any time you do not understand a procedure described in this guide,
or if your product does not perform as expected, different types of help are
available. For more information see "Getting Help" in your system’s Hardware
Owner’s Manual.
Additionally, Dell Enterprise Training and Certification is available;
see www.dell.com/training for more information. This service might not be
offered in all locations.
A5_bk0.book Page 26 Tuesday, September 20, 2011 11:56 AM

Appendix 27
A
Appendix
Issues and Resolutions
The following table lists the known issues, resolutions, and where the issues
are applicable to.
Table A-1. Issues and Resolutions
Issue Resolution Applicable To
Dell alerts are not sorted
according to their age.
Check the registry on the managed
system that has this problem. There
could be a left-over view definition
that has set the sorting flags to 'false'.
In some instances, when you import a
management pack with changes
to the sorting flags, the sorting flags
may not get updated in the registry.
If you delete the settings for the view
in the registry, they are recreated from
the new management pack when you
navigate to that view again. You can
also edit the sorting flags in the
registry for the view.
Registry edit:
HKEY_CURRENT_USER\Software
\Microsoft\Microsoft
Operations
Manager\3.0\Console\%GUID.
ViewTitle%AlertsView\Age
To enable sorting of alerts, ensure the
keys IsSortable and IsSorted are
set to 1.
SCOM 2007 SP1,
SCE 2007 SP1
A5_bk0.book Page 27 Tuesday, September 20, 2011 11:56 AM

28 Appendix
Under certain conditions,
alerts related to Handle
Count Threshold and
Private Bytes Threshold
are displayed on the
Operations console of
the management server.
Microsoft KB968760 available on the
Microsoft support site at
support.microsoft.com resolves this.
SCOM 2007 SP1,
SCE 2007 SP1
Under certain conditions,
an error message is
displayed on the
Operations Console of
the management server
with the Event ID – 623
and Event Source –
Health Service ESE
Store.
Microsoft KB975057 available on the
Microsoft support site at
support.microsoft.com resolves this.
SCOM 2007 SP1,
SCE 2007 SP1
The System Center
Operations Manager
2007 console may crash
on certain operating
systems.
Microsoft KB951327, KB951526
available on the Microsoft support
site at support.microsoft.com resolves
this.
SCOM 2007 SP1,
SCE 2007 SP1
You may experience one
or more of the following
situations:
• The Web Console does
not open.
•The My Workspace
page does not display.
•Performance and
Power Monitoring
Views do not display.
• Health Service may not
start up on the system.
Microsoft KB954049 available on the
Microsoft support site at
support.microsoft.com resolves this
SCOM 2007 SP1,
SCE 2007 SP1
Table A-1. Issues and Resolutions
Issue Resolution Applicable To
A5_bk0.book Page 28 Tuesday, September 20, 2011 11:56 AM

Appendix 29
The reports do not
appear as expected in the
Reporting space of the
Administration console.
Microsoft KB954643 available on the
Microsoft support site at
support.microsoft.com resolves this.
SCOM 2007 SP1,
SCE 2007 SP1
The SCOM console
intermittently displays
the following error
message - "Health service
Host Process
encountered a
problem and needed to
close" as a result of this
Health Service crash. You
may notice unexpected
behavior in the discovery
and monitoring of Dell
devices.
Microsoft KB951526 available on the
Microsoft support site at
support.microsoft.com resolves this.
SCOM 2007 SP1,
SCE 2007 SP1
SCOM 2007 cannot
receive SNMP trap data
when you use a Windows
Server 2008-based
computer or a Windows
Vista-based computer as
a proxy agent for SNMP
devices.
Microsoft
KB958936
available on the
Microsoft support site at
support.microsoft.com resolves this.
SCOM 2007 SP1,
SCE 2007 SP1
Table A-1. Issues and Resolutions
Issue Resolution Applicable To
A5_bk0.book Page 29 Tuesday, September 20, 2011 11:56 AM

30 Appendix
A5_bk0.book Page 30 Tuesday, September 20, 2011 11:56 AM
