Dell™2007FPFlatPanelMonitor
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2006DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault, PowerApp, and Dell OpenManage are trademarks of
DellInc;Microsoft, Windows, and Windows NT areregisteredtrademarksofMicrosoftCorporation; Adobe is a trademark of Adobe Systems Incorporated, which may be registered in
certain jurisdictions. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product
meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model 2007FP
March2006Rev.A03
About Your Monitor
Front View
Back View
Side View
Bottom View
Monitor Specifications
Universal Serial Bus (USB) Interface
Plug and play capability
Caring for Your Monitor
Using Your Adjustable Monitor Stand
Attaching the Stand
Organizing Your Cables
Using the Tilt, Swivel and Vertical Extension
RemovingtheStand
Setting Up Your Monitor
Connecting Your Monitor
Using the Front Panel Buttons
Using the OSD
Setting the Optimal Resolution
UsingtheDell™Soundbar(Optional)
Rotating Your Monitor
Changing the Rotation of Your Monitor
Rotating Your Operating System
Solving Problems
Monitor Specific Troubleshooting
Common Problems
Video Problems
Product Specific Problems
Universal Serial Bus (USB) Specific Problems
Dell™Soundbar(Optional)Troubleshooting
Appendix
FCC Identification Information
Safety Instructions
Contacting Dell

NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Back to Contents Page

About Your Monitor
Dell™2007FPFlatPanelMonitor
Front View


Back View
Front View
Back View
Side View
Bottom View
Monitor Specifications
Universal Serial Bus (USB) Interface
Plug and play capability
Caring for Your Monitor
1
2
3
4
5
6

Side View

Rightside
1
VESA mounting holes (100mm)
(Behind attached base plate)
Use to mount the monitor.
2
Connectors label
Indicate the positions and types of connectors.
3
Barcode serial number label
Refer to this label if you need to contact Dell for
technical support.
4
Security lock slot
Use a security lock with the slot to help secure your
monitor.
5
Monitor Lock/Release Button
Press to release the stand from the monitor.
6
Regulatory rating label
List the regulatory approvals.
7
Dell Soundbar mounting brackets
Attach the optional Dell Soundbar.
8
Lock down/release button
Push the monitor down, press the button to unlock
the monitor, and then lift the monitor to the desired
height.
9
Cable management hole
Help organize cables by placing them through the
hole.

Left side
Bottom View
Monitor Specifications
1
USB downstream ports
1
AC power cord connector
2
DVI connector
3
VGA connector
4
Composite video connector
5
S-Video connector
6
USB upstream port
7
USB downstream ports
8
DCpowerconnectorforDell™Soundbar
General
Model number
2007FP
Flat Panel
Screen type
Active matrix - TFT LCD
Screen dimensions
20.1 inches (20.1-inch viewable image size)
Preset display area:
Horizontal
408 mm (16.1 inches)
Vertical
306 mm (12.1 inches)
Pixel pitch
0.255 mm
Viewing angle
+/- 89°(vertical)typ,+/- 89°(horizontal)typ
Luminance output
300 cd/m ²(typ)
Contrast ratio
800:1 (typ)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
CCFL (6) edgelight system
Response Time
16mstypical
Resolution
Horizontal scan range
30 kHz to 81 kHz (automatic)
Vertical scan range
56Hzto76Hz,exception1600x1200at60Hzonly
Optimal preset resolution
1600 x 1200 at 60 Hz
Highest preset resolution
1600 x 1200 at 60 Hz
Video Supported Modes
Video display capabilities (DVI playback)
480p/576p/720p
Video display capabilities (Composite playback)
NTSC/PAL
Video display capabilities (S-Video playback)
NTSC/PAL
Preset Display Modes
Dell™guaranteesimagesizeandcenteringforallpresetmodeslistedinthefollowingtable.
Display Mode
Horizontal Frequency
(kHz)
Vertical Frequency (Hz)
Pixel Clock (MHz)
Sync Polarity
(Horizontal/Vertical)
VGA, 720 x 400
31.5
70.1
28.3
-/+
VGA, 640 x 480
31.5
59.9
25.2
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-
VESA, 800 x 600
37.9
60.3
40.0
+/+
VESA, 800 x 600
46.9
75.0
49.5
+/+
VESA, 1024 x 768
48.4
60.0
65.0
-/-
VESA, 1024 x 768
60.0
75.0
78.8
+/+
VESA, 1152 x 864
67.5
75.0
108.0
+/+
VESA, 1280 x 1024
64.0
60.0
108.0
+/+
VESA, 1280 x 1024
80.0
75.0
135.0
+/+
VESA, 1600 x 1200
75.0
60.0
162.0
+/+
Electrical
Video input signals
Analog RGB, 0.7 Volts +/-5%,75ohminputimpedance
Digital DVI-D TMDS, 600mV for each differential line, 50 ohm input
impedance
S-video, Y input 1 volt(p-p), C input 0.286 volt(p-p), 75 ohm input
impedance
Composite, 1 volt(p-p), 75 ohm input impedance
Synchronization input signals
separate horizontal and vertical,
3.3V CMOS or 5V TTL level, positive or negative sync.
SOG (Sync on green)
AC input voltage / frequency / current
100 to 240 VAC / 50 or 60 Hz + 3 Hz / 2.0A (Max.)
Inrush current
120V: 40A (Max.)
240V: 80A (Max.)
Physical Characteristics
Power Management Modes
If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in
use. This is referred to as 'Power Save Mode'*. If activity from keyboard, mouse or other input devices is detected by the computer, the monitor will
automatically "wake up". The following table shows the power consumption and signaling of this automatic power saving feature:
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
Pin Assignments
Signal cable type
D-sub: Detachable, Analog, 15pin, shipped attached to the monitor
DVI-D: Detachable, Digital, 24pin, shipped detached from the
monitor
S-video:Notincludedwithdisplay
Composite: Not included with display
Dimensions (with stand):
Height (fully extended in portrait mode)
547.6 mm (21.6 inches)
Height (compressed/locked in landscape mode)
367 mm (14.5 inches)
Width
445.3 mm (17.5 inches)
Depth
193.50mm(7.6inches)
Weight
Monitor (Stand and Head)
6.9 Kg (15.2 lb)
Monitor Flat panel only (VESA Mode)
5.2 Kg (11.5 lb)
Weight with packaging
9.6 Kg (21.2 lb)
Environmental
Temperature:
Operating
5°to35°C(41°to95°F)
Non-operating
Storage:0°to60°C(32°to140°F)
Shipping: -20°to60°C(-4°to140°F)
Humidity:
Operating
10% to 80% (non-condensing)
Non-operating
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90%(non-condensing)
Altitude:
Operating
3,657.6 m (12,000 ft) max
Non-operating
12,192 m (40,000 ft) max
Thermal dissipation
256.0 BTU/hour (maximum)
187.66 BTU/hour (typical)
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal
operation
Active
Active
Active
Green
75W (maximum)*
55W (normal)**
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 2 W
Switch off
-
-
-
Off
Less than 1 W (at 230 V)
*WithAudio+USB
**WithoutAudio+USB

This monitor is ENERGY STAR®-compliant as well as TCO '99/ TCO '03 power management compatible.
VGA Connector
DVIConnector
Pin Number
15-pin Side of the Connected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
Computer 5V/3.3V
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock
Pin Number
24-pin Side of the Connected Signal Cable
1
TMDS RX2-
2
TMDS RX2+
3
TMDS Ground
4
Floating
5
Floating
6
DDC Clock
7
DDC Data
8
Floating
9
TMDS RX1-
10
TMDS RX1+
11
TMDS Ground
12
Floating
13
Floating
S-video Connector

Composite Video Connector
Universal Serial Bus (USB) Interface

USB Upstream Connector
14
+5V / +3.3V power
15
Selftest
16
Hot Plug Detect
17
TMDS RX0-
18
TMDS RX0+
19
TMDS Ground
20
Floating
21
Floating
22
TMDS Ground
23
TMDS Clock+
24
TMDS Clock-
Pin Number
5-pin Side of the Connected Signal
Cable (Cable not included)
1
GND
2
GND
3
LUMA
4
CHROMA
5
GND
Pin Number
1-pin Side of the Connected Signal Cable (cable not included)
1
LUMA COMPOSITE CHROMA
This monitor supports High-Speed Certified USB 2.0 interface.

Data Rate
PowerConsumption
High speed
480 Mbps
2.5W(Max.,eachport)
Full speed
12 Mbps
2.5W(Max.,eachport)
Low speed
1.5 Mbps
2.5W(Max.,eachport)

USB Downstream Connector

USB Ports
l1 upstream - rear
l4 downstream - 2 on rear; 2 on left side
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. If desired, the user
can select different settings, but in most cases monitor installation is automatic.
Caring for Your Monitor
lTo clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the
antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
lUse a lightly-dampened,warmclothtocleantheplastics.Avoidusingdetergentofanykindassomedetergentsleaveamilkyfilmontheplastics.
lIf you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.
lHandleyourmonitorwithcareasdarker-colored plastics may scratch and show white scuff marks more than lighter-coloredmonitor.
lTo help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.
Back to Contents Page
Pin Number
4-pin Side of the connector
1
DMU
2
VCC
3
DPU
4
GND
Pin Number
4-Pin Side of the Signal Cable
1
VCC
2
DMD
3
DPD
4
GND
NOTE:
USB2.0capabilityrequires2.0capablecomputer
NOTE: The monitor's USB interface works only when the monitor is on or in power save mode, If you switch the monitor off and then on,
attached peripherals may take a few seconds to resume normal functionality.
CAUTION: Read and follow the safety instructionsbeforecleaningthemonitor.
CAUTION: Beforecleaningthemonitor,unplugthemonitorpowercablefromtheelectricaloutlet.
Back to Contents Page
Appendix
Dell™2007FPFlatPanelMonitor
FCC Identification Information
Safety Instructions
Contacting Dell
FCC Identification Information
FCC Class B
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer's instruction
manual, may cause interference with radio and television reception. This equipment has been tested and found to comply with the limits for a Class B digital
device pursuant to Part 15 of the FCC Rules.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference with radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:
lReorient the receiving antenna.
lRelocate the system with respect to the receiver.
lMove the system away from the receiver.
lPlug the system into a different outlet so that the system and the receiver are on different branch circuits.
Ifnecessary,consultarepresentativeofDell™Inc.oranexperiencedradio/televisiontechnicianforadditionalsuggestions.
The following information is provided on the device or devices covered in this document in compliance with the FCC regulations:
lProductname:Dell™2007FP
lModelnumber:Dell™2007FPb
lCompany name:
Dell Inc.
Worldwide Regulatory Compliance & Environmental Affairs
One Dell Way
Round Rock, Texas 78682 USA
512-338-4400
CAUTION: Safety Instructions
Read and follow these instructions when connecting and using your computer monitor:
lTohelpavoiddamagingyourcomputer,besurethatthevoltageselectionswitchonthepowersupplyforthecomputerissettomatchthealternating
current (AC) power available at your location:
¡115 volts (V)/60 hertz (Hz) in most of North and South America and some Far Eastern countries such as Japan, South Korea (also 220 volts (V)/60
hertz (Hz)), and Taiwan.
¡230 volts (V)/50 hertz (Hz) in most of Europe, the Middle East, and the Far East.
lAlways be sure that your monitor is electrically rated to operate with the AC power available in your location.
NOTE: This monitor does not need or have a voltage selection switch for setting the AC voltage input. It will automatically accept any AC input voltage
according to the ranges defined in the "Electrical Specifications" section in the User's Guide.
lDo not store or use the monitor in locations that are exposed to heat, direct sunlight, or extreme cold.
lAvoid moving the monitor between locations with large temperature differences.
lDo not subject the monitor to severe vibration or high impact conditions. For example, do not place the monitor inside a car trunk.
lDo not store or use the monitor in locations exposed to high humidity or dusty environment.
lDo not allow water or other liquids to spill on or into the monitor.
lKeep flat panel monitor in room temperature conditions. Excessive cold or hot conditions can have an adverse effect on the liquid crystal of the display.
NOTICE: TheFCCregulationsprovidethatchangesormodificationsnotexpresslyapprovedbyDell™Inc.couldvoidyourauthoritytooperatethis
equipment.
NOTE: For Further regulatory information, see your Product Information Guide.
CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
lNever insert anything metallic into the monitor openings. Doing so may create the danger of electric shock.
lTo avoid electric shock, never touch the inside of the monitor. Only a qualified technician should open the monitor case.
lNever use your monitor if the power cable has been damaged. Ensure that nothing rests on your computer's cables and that the cables are not located
where they can be stepped on or tripped over.
lBe sure to grasp the plug, not the cable, when disconnecting the monitor from an electric socket.
lOpenings in the monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered. Avoid using the
monitor on a bed, sofa, rug, or other soft surface, as doing so may block the ventilation openings in the bottom of the cabinet. If you place the monitor
in a bookcase or an enclosed space, be sure to provide adequate ventilation and air flow.
lPlace your monitor in a location with low humidity and minimum dust. Avoid places similar to a damp basement or dusty hallway.
lDo not expose the monitor to rain or use it near water (in kitchens, next to swimming pools, etc.). If the monitor accidentally gets wet, unplug it and
contact an authorized dealer immediately. You can clean the monitor with a damp cloth when necessary, being sure to unplug the monitor first.
lPlace the monitor on a solid surface and treat it carefully. The screen is made of glass and can be damaged if dropped or hit sharply.
lLocate your monitor near an easily accessible electric outlet.
lIf your monitor does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an
authorized dealer or service center.
lDo not attempt to remove the back cover, as you will be exposed to an electrical shock hazard. The back cover should only be removed by qualified
service personnel.
lHigh temperatures can cause problems. Don't use your monitor in direct sunlight, and keep it away from heaters, stoves, fireplaces, and other sources
of heat.
lUnplug the monitor when it is going to be left unused for an extended period of time.
lUnplug your monitor from the electric outlet before any service is performed.
l LAMP(S) INSIDE THIS PRODUCT CONTAIN(S) MERCURY AND MUST BE RECYCLED OR DISPOSED OFF ACCORDING TO LOCAL, STATE OR
FEDERAL LAWS. FOR MORE INFORMATION, GO TO WWW.DELL.COM/HG OR CONTACT THE ELECTRONIC INDUSTRIES ALLIANCE AT
WWW.EIAE.ORG.
Contacting Dell
To contact Dell electronically, you can access the following websites:
lwww.dell.com
lsupport.dell.com (technical support)
For specific web addresses for your country, find the appropriate country section in the table below.
When you need to contact Dell, use the electronic addresses, telephone numbers, and codes provided in the following table. If you need assistance in
determining which codes to use, contact a local or an international operator.
NOTE: Toll-free numbers are for use within the country for which they are listed.
NOTE: In certain countries, support specific to DellTM XPST computers is available at a separate telephone number listed for participating countries.
If you do not see a telephone number listed that is specific for
XPS computers, you may contact Dell through the support number listed and your call
will be routed appropriately.
NOTE: The contact information provided was deemed correct at the time that this document went to print and is subject to change.
Country (City)
International Access Code Country Code
City Code
Department Name or Service Area,
Website and E-Mail Address
Area Codes,
Local Numbers, and
Toll-
Free Numbers
Anguilla
Website: www.dell.com.ai
E-mail: la-techsupport@dell.com
Technical Support
toll-free:800
-
Antigua and Barbuda
Website: www.dell.com.ag
E-mail: la-techsupport@dell.com
Technical Support
1-800
-
Aomen
TechnicalSupport(Dell™DimensionT,DellInsprionT,Dell
OptiplexT, Dell LatitudeT, and Dell PrecisionT)
Technical Support (servers and storage)
Argentina ( Buenos Aires )
International Access Code: 00
Website: www.dell.com.ar
E-mail: la-techsupport@dell.com
E-mail: us_latin_services@dell.com
E-mail for desktop and portable computers:
la-techsupport@dell.com
E-mail for servers and EMC storage products:
Country Code: 54
City Code: 11
la_enterprise@dell.com
Customer Care
toll-free: 0-800
-
Tech Support
toll-free: 800
-
Tech Support Services
toll-free:0-800
-
Sales
0-810
-
Aruba
Website: www.dell.com.aw
E-mail: la-techsupport@dell.com
Technical Support
toll-
free:800
Australia ( Sydney )
International Access Code: 0011
Country Code: 61
City Code: 2
Website: support.ap.dell.com
E-mail:support.ap.dell.com/contactus
General Support
13DELL
Austria
International Access Code: 900
Country Code: 43
City Code: 1
Website: support.euro.dell.com
E-mail: tech_support_central_europe@dell.com
Home/Small Business Sales
082024053000
Home/Small Business Fax
082024053049
Home/Small Business Customer Care
082024053014
Preferred Accounts/Corporate Customer Care
082024053016
Support for XPS
0820 240 530 81
Home/Small Business Support for all other Dell
computers
0820240530
Preferred Accounts/Corporate Support
0820240530
Switchboard
082024053000
Bahamas
Website: www.dell.com.bs
E-mail: la-techsupport@dell.com
Technical Support
toll-free:1-866
-
Barbados
Website: www.dell.com/bb
E-mail: la-techsupport@dell.com
Technical Support
1-800
-
Belgium ( Brussels )
International Access Code: 00
Country Code: 32
City Code: 2
Website: support.euro.dell.com
Technical Support for XPS
024819296
Technical Support for all other Dell computers
024819288
Technical Support Fax
024819295
Customer Care
Corporate Sales
024819100
Fax
024819299
Switchboard
024819100
Bermuda
Website: www.dell.com/bm
E-mail: la-techsupport@dell.com
Technical Support
toll-free 1-877-
890
Bolivia
Website: www.dell.com/bo
E-mail: la-techsupport@dell.com
General Support
toll-
free:800
Brazil
International Access Code: 00
Country Code: 55
City Code: 51
Website: www.dell.com/br
E-mail: BRmailto:la-techsupport@dell.com
Customer Support and Tech Support
0800903355
Technical Support Fax
51
2104
Customer Care Fax
5121045480
Sales
08007223498
British Virgin Islands
General Support
toll-free:1-866
-
Brunei
Country Code: 673
Technical Support ( Penang , Malaysia )
6046334966
Customer Care ( Penang , Malaysia )
Transaction Sales ( Penang , Malaysia )
6046334955
Online Order Status: www.dell.ca/ostatus
AutoTech (automated Hardware and Warranty)
toll-free:1-800
-
Customer Service (Home Sales/Small Business)
toll-free:1-800
-
Customer Service (med./large business, government)
toll-free:1-800
-
Canada ( North York , Ontario )
International Access Code: 011
Customer Service (printer, projectors, televisions,
handhelds, digital jukebox, and wireless)
toll-free:1-800
-
Hardware Warranty Support (Home Sales/Small
Business)
toll-free:1-800
-
Hardware Warranty Support (med./large bus.,
government)
toll-free:1-800
-
Hardware Warrantu Support (printers,projectors,
televisions, handhelds,digital jukebox, and wireless)
1-877
-
Sales (Home Sales/Small Business)
toll-free:1-800
-
Sales (med./large bus., government)
toll-free:1-800
-
Spare Parts Sales & Extended Service Sales
18664403355
Cayman Islands
E-mail: la-techsupport@dell.com
Technical Support
1-877-261-0242
Chile ( Santiago )
Country Code: 56
City Code: 2
Website: www.dell.com/cl
E-mail: la-techsupport@dell.com
Sales and Customer Support
toll-free:1230
-
Technical Support (CTC)
toll-
free:800730222
Technical Support (ENTEL)
toll-free:1230
-
China ( Xiamen )
Country Code: 86
City Code: 592
Technical Support website: support.dell.com.cn
Technical Support E-mail: cn_support@dell.com
Customer Care E-mail: customer_cn@dell.com
Technical Support Fax
5928181350
Technical Support (Dimension and Inspiron)
toll-
free:8008582969
Technical Support (OptiPlexT, LatitudeT, and Dell
PrecisionT)
toll-
free:8008580950
Technical Support (servers and storage)
toll-
free:8008580960
Technical Support (projectors, PDAs, switches, routers,
and so on)
toll-
free:8008582920
Technical Support (printers)
toll-
free: 800 858 2311
Customer Care
toll-
free:8008582060
Customer Care Fax
5928181308
Home and Small Business
toll-
free:8008582222
Preferred Accounts Division
toll-
free:8008582557
Large Corporate Accounts GCP
toll-
free:8008582055
Large Corporate Accounts Key Accounts
toll-
free:8008582628
Large Corporate Accounts North
toll-
free:8008582999
Large Corporate Accounts North Government and
Education
toll-
free:8008582955
Large Corporate Accounts East
toll-
free:8008582020
Large Corporate Accounts East Government and
Education
toll-
free:8008582669
Large Corporate Accounts Queue Team
toll-
free:8008582572
Large Corporate Accounts South
toll-
free:8008582355
Large Corporate Accounts West
toll-
free:8008582811
Large Corporate Accounts Spare Parts
toll-
free:8008582621
Colombia
Website: www.dell.com/cl
E-mail: la-techsupport@dell.com
Technical Support
1-800-
915
Costa Rica
Website: www.dell.com/cr
E-mail: la-techsupport@dell.com
Technical Support
toll free: 800
-
Czech Republic ( Prague )
International Access Code: 00
Country Code: 420
Website: support.euro.dell.com
E-mail: czech_dell@dell.com
Technical Support
225372727
Customer Care
225372707
Fax
225372714
Technical Fax
225372728
Switchboard
225372711
Denmark ( Copenhagen )
International Access Code: 00
Country Code: 45
Website: support.euro.dell.com
Technical Support for XPS
7010 0074
Technical Support for all other Dell computers
70230182
Customer Care (Relational)
70230184
Home/Small Business Customer Care
32875505
Switchboard (Relational)
32871200
Switchboard Fax (Relational)
32871201
Switchboard (Home/Small Business)
32875000
Switchboard Fax (Home/Small Business)
32875001
Dominica
Website: www.dell.com/dm
E-mail: la-techsupport@dell.com
General Support
toll-free:1-866
-
Dominican Republic
Website: www.dell.com/do
E-mail: la-techsupport@dell.com
Technical Support
toll free: 1-888-
156
toll free: 1-888
-
Ecuador
Website: www.dell.com/ec
E-mail: la-techsupport@dell.com
General Support (calling from Quito)
toll-free:999-119 - 877
-
General Support (calling from Guayaquil)
toll-free:1800-999-119 -877
-
El Salvador
Website: www.dell.com/ec
E-mail: la-techsupport@dell.com
Technical Support (Telephonica)
toll free:
Finland ( Helsinki )
International Access Code: 990
Country Code: 358
City Code: 9
Website: support.euro.dell.com
E-mail: fi_support@dell.com
Technical Support
0207 533 555
Customer Care
0207 533 538
Switchboard
0207 533 533
Sales under 500 employees
0207 533 540
Fax
0207 533 530
Sales over 500 employees
0207 533 533
Fax
0207 533 530
France ( Paris ) ( Montpellier )
International Access Code: 00
Country Code: 33
City Codes: (1) (4)
Website: support.euro.dell.com
Home and Small Business
Technical Support for XPS
0825387129
Technical Support for all other Dell computers
0825387270
Customer Care
0825823833
Switchboard
0825004700
Switchboard (calls from outside of France )
0499754000
Sales
0825004700
Fax
0825004701
Fax (calls from outside of France )
0499754001
Corporate
Technical Support
0825004719
Customer Care
0825338339
Switchboard
0155947100
Sales
0155947100
Fax
0155947101
Germany (Frankfurt)
International Access Code: 00
Country Code: 49
City Code: 69
Website: support.euro.dell.com
E-mail: tech_support_central_europe@dell.com
Technical Support for XPS
069 9792 7222
Technical Support for all other Dell computers
069 9792
Home/Small Business Customer Care
0180
-
Global Segment Customer Care
069 9792
Preferred Accounts Customer Care
069 9792
Large Accounts Customer Care
069 9792
Public Accounts Customer Care
069 9792
Switchboard
069 9792
Greece
International Access Code: 00
Country Code: 30
Website: support.euro.dell.com
Technical Support
00800-
44 14 95 18
Gold Service Technical Support
00800-
44 14 00 83
Switchboard
2108129810
Gold Service Switchboard
2108129811
Sales
2108129800
Fax
2108129812
Grenada
E-mail: la-techsupport@dell.com
General Support
toll-free:1-866
-
Guatemala
E-mail: la-techsupport@dell.com
General Support
1-800
-
Guyana
E-mail: la-techsupport@dell.com
General Support
toll-free:1-877
-
Hong Kong
International Access Code: 001
Country Code: 852
Website: support.ap.dell.com
Technical Support E-mail: HK_support@Ddell.com
Technical Support (Dimension and Inspiron)
00852-
29693188
Technical Support (OptiPlex, Latitude, and Dell Precision)
00852-
29693191
Technical Support (servers and storage)
00852-
2969 3196
Technical Support (projectors, PDAs, switches, routers,
and so on)
00852-
3416 0906
Customer Care
00852-
34160910
Large Corporate Accounts
00852-
34160907
Global Customer Programs
00852-
34160908
Medium Business Division
00852-
34160912
Home and Small Business Division
00852-
29693105
India
E-mail: india_support_desktop@dell.com
india_support_notebook@dell.com
india_support_Server@dell.com
Technical Support
1600338045and1600448046
Sales (Large Corporate Accounts)
1600338044
Sales (Home and Small Business)
1600338046
Ireland (Cherrywood)
International Access Code: 00
Country Code: 353
City Code: 1
Website: support.euro.dell.com
E-mail: dell_direct_support@dell.com
Sales
Ireland Sales
01 204 4444
Dell Outlet
1850 200 778
Online Ordering HelpDesk
1850 200 778
Customer Care
Home User Customer Care
01 204 4014
Small Business Customer Care
012044014
Corporate Customer Care
1850 200 982
Technical Support
TechnicalSupportforXPS
1850200722
Technical Support for all other Dell computers
1850543543
General
Fax/Sales Fax
012040103
Switchboard
012044444
U.K. Customer Care (dial within U.K. only)
0870 906 0010
Corporate Customer Care (dail within U.K. only)
0870 907 4499
U.K. Sales (dial within U.K. only)
0870 907 4000
Italy ( Milan )
International Access Code: 00
Country Code: 39
City Code: 02
Website: support.euro.dell.com
Home and Small Business
Technical Support
0257782690
Customer Care
0269682114
Fax
0269682113
Switchboard
0269682112
Corporate
Technical Support
0257782690
Customer Care
0257782555
Fax
0257503530
Switchboard
02577821
Jamaica
E-mail: la-techsupport@dell.com
Technical Support (dial from within Jamaica only)
toll free: 1-800-
326
toll free: 1-800
-
Website: support.jp.dell.com
Technical Support (servers)
toll-
free: 0120
Technical Support outside of Japan (servers)
81-44
-
Technical Support (Dimension and Inspiron)
toll-
free: 0120
Technical Support outside of Japan (Dimension and
Inspiron)
81-44
-
Technical Support (Dell Precision, OptiPlex, and Latitude)
toll-
free:0120
Technical Support outside of Japan (Dell Precision,
OptiPlex, and Latitude)
81-44
-
Japan ( Kawasaki )
International Access Code: 001
Country Code: 81
City Code: 44
Technical Support (PDAs, projectors, printers, routers)
toll-
free: 0120
Technical Support outside of Japan (PDAs, projectors,
printers, routers)
81-44
-
Faxbox Service
044
-
24-Hour Automated Order Status Service
044
-
Customer Care
044
-
Business Sales Division (up to 400 employees)
044
-
Preferred Accounts Division Sales (over 400 employees)
044
-
Public Sales (government agencies, educational
institutions, and medical institutions)
044
-
Global Segment Japan
044
-
Individual User
044
-
Switchboard
044
-
Korea ( Seoul )
International Access Code: 001
Country Code: 82
City Code: 2
E-mail: Krsupport@dell.com
Support
toll-free:080
-
Support (Dimension, PDA, Electronics and Accessories)
toll-free:080
-
Sales
toll-free:080
-
Fax
2194
Switchboard
2194
Latin America
Customer Technical Support ( Austin , Texas , U.S.A. )
512728
Customer Service ( Austin , Texas , U.S.A. )
512728
Fax (Technical Support and Customer Service) ( Austin ,
Texas , U.S.A. )
512728
Sales ( Austin , Texas , U.S.A. )
512728
SalesFax ( Austin , Texas , U.S.A. )
512728-4600
or512728-3772
Luxembourg
International Access Code: 00
Country Code: 352
Website: support.euro.dell.com
Support
342
Home/Small Business Sales
+32 (0)2 713 15 96
Corporate Sales
26 25 77 81
Customer Care
+32 (0)2 481 91 19
Fax
26 25 77 82
Macao
Country Code: 853
Technical Support
toll-
free:0800105
Customer Service ( Xiamen , China )
34 160 910
Transaction Sales ( Xiamen , China )
29 693 115
Malaysia ( Penang )
International Access Code: 00
Country Code: 60
City Code: 4
Website: support.ap.dell.com
Technical Support (Dell Precision, OptiPlex, and Latitude)
toll-
free:1800880193
Technical Support (Dimension, Inspiron, and Electronics
and Accessories)
toll-
free: 1 800 881 306
Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)
toll-
free:1800881386
Customer C are
toll-
free: 1 800 881 306 (option 6)
Transaction Sales
toll-
free:1800888202
Corporate Sales
toll-
free:1800888213
Mexico
International Access Code: 00
E-mail: la-techsupport@dell.com
Technical Support (TelMex)
toll-free: 1-866
-
Sales
50
or 01-800
-
Country Code: 52
Customer Service
001-877
-
or 001-877
-
Main
50
or 01-800
-
Montserrat
E-mail: la-techsupport@dell.com
General Support
toll-free:1-866
-
Netherlands Antilles
E-mail: la-techsupport@dell.com
General Support
001-800
-
Netherlands ( Amsterdam )
International Access Code: 00
Country Code: 31
City Code: 20
Website: support.euro.dell.com
Technical Support for Inspiron XPS computers only
0206744594
Technical Support for all other Dell computers
0206744500
Technical Support Fax
0206744766
Home/Small Business Customer Care
0206744200
Relational Customer Care
0206744325
Home/Small Business Sales
0206745500
Relational Sales
0206745000
Home/Small Business Sales Fax
0206744775
Relational Sales Fax
0206744750
Switchboard
0206745000
Switchboard Fax
0206744750
New Zealand
International Access Code: 00
Country Code: 64
Website: support.ap.dell.com
E-mail: support.ap.dell.com/contactus
General Support
0800441567
Nicaragua
E-mail: la-techsupport@dell.com
Technical Support
toll-free: 001-
800
Norway (Lysaker)
International Access Code: 00
Country Code: 47
Website: support.euro.dell.com
Technical Support for XPS
815 35 043
Technical Support for all other Dell products
67116882
Relational Customer Care
67117575
Home/Small Business Customer Care
Switchboard
67116800
Fax Switchboard
67116865
Panama
E-mail: la-techsupport@dell.com
Technical Support
toll-free: 1-800
-
Technical Support (CLARACOM)
toll-free: 1-
800
Peru
E-mail: la-techsupport@dell.com
Technical Support
toll-
free: 0800
Poland ( Warsaw )
International Access Code: 011
Country Code: 48
City Code: 22
Website: support.euro.dell.com
E-mail: pl_support_tech@dell.com
Customer Service Phone
5795700
Customer Care
5795999
Sales
5795999
Customer Service Fax
5795806
Reception Desk Fax
5795998
Switchboard
5795999
Website: support.euro.dell.com
Portugal
International Access Code: 00
Country Code: 351
Technical Support
707200149
Customer Care
800300413
Sales
800300410or800300411or800300412or
214220710
Fax
214240112
Puerto Rico
E-mail: la-techsupport@dell.com
Technical Support
toll-free:1-866
-
St. Kitts and Nevis
Website: www.dell.com/kn
E-mail: la-techsupport@dell.com
Technical Support
toll-free:1-866
-
St. Lucia
Website: www.dell.com/lc
E-mail: la-techsupport@dell.com
Technical Support
toll-free:1-866
-
St. Vincent and the Grenadines
Website: www.dell.com/vc
E-mail: la-techsupport@dell.com
Technical Support
toll-free:1-866
-
Singapore ( Singapore )
International Access Code: 005
Country Code: 65
NOTE: The phone numbers in this section should be
called from within Singapore or Malaysia only.
Website: support.ap.dell.com
Technical Support (Dimension, Inspiron, and Electronics
and Accessories)
toll-
free:18003947430
Technical Support (OptiPlex, Latitude, and Dell Precision)
toll-
free:18003947488
Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)
toll-
free:18003947478
Customer Care
toll-
free:18003947430
Transaction Sales
toll-
free:18003947412
Corporate Sales
toll-
free:18003947419
Slovakia ( Prague )
International Access Code: 00
Country Code: 421
Website: support.euro.dell.com
E-mail: czech_dell@dell.com
Technical Support
0254415727
Customer Care
420225372707
Fax
0254418328
Tech Fax
0254418328
Switchboard (Sales)
0254417585
South Africa ( Johannesburg )
International Access Code:
09/091
Country Code: 27
City Code: 11
Website: support.euro.dell.com
E-mail: dell_za_support@dell.com
Gold Queue
0117097713
Technical Support
0117097710
Customer Care
0117097707
Sales
0117097700
Fax
0117060495
Switchboard
0117097700
Southeast Asian and Pacific Countries
Technical Support, Customer Service, and Sales
( Penang , Malaysia )
6046334810
Spain ( Madrid )
International Access Code: 00
Country Code: 34
City Code: 91
Website: support.euro.dell.com
Home and Small Business
Technical Support
902100130
Customer Care
902118540
Sales
902118541
Switchboard
902118541
Fax
902118539
Corporate
Technical Support
902100130
Customer Care
902115236
Switchboard
917229200
Fax
917229583
Sweden (Upplands Vasby)
International Access Code: 00
Country Code: 46
City Code: 8
Website: support.euro.dell.com
Technical Support for XPS
0771 340 340
Technical Support for all other Dell products
0859005199
Relational Customer Care
0859005642
Home/Small Business Customer Care
0858770527
Employee Purchase Program (EPP) Support
0
201401444
Technical Support Fax
0859005594
Sales
0859005185
Switzerland ( Geneva )
International Access Code: 00
Country Code: 41
City Code: 22
Website: support.euro.dell.com
E-mail: Tech_support_central_Europe@dell.com
Technical Support for XPS
0848 33 88 57
Technical Support (Home and Small Business) for all other
Dell products
0844811411
Technical Support (Corporate)
0844822844
Customer Care (Home and Small Business)
0848802202
Customer Care (Corporate)
0848821721
Fax
0227990190
Switchboard
0227990101
Taiwan
International Access Code: 002
Country Code: 886
Website: support.ap.dell.com
E-mail: ap_support@dell.com
Technical Support (OptiPlex, Latitude, Inspiron,
Dimension, and Electronics and Accessories)
toll-
free:00801861011
Technical Support (servers and storage)
toll-
free:00801601256
Customer Care
toll-
free:00801601250
Transaction Sales
toll-
free:00801651228
Corporate Sales
toll-
free:00801651227
Thailand
International Access Code: 001
Country Code: 66
Website: support.ap.dell.com
Technical Support (OptiPlex, Latitude, and Dell Precision)
toll-
free:1800006007
Technical Support (PowerApp, PowerEdge,
PowerConnect, and PowerVault)
toll-
free:1800060009
Customer Care
toll-
free:1800006007
Corporate Sales
toll-
free:1800006009
Transaction Sales
toll-
free:1800006006
Trinidad/Tobago
Website: www.dell.com/tt
E-mail: la-techsupport@dell.com
Technical Support
toll-free: 1-888
-
Turks and Caicos Islands
Website: www.dell.com/tc
E-mail: la-techsupport@dell.com
General Support
toll-free:1-877
-
U.K. ( Bracknell )
International Access Code: 00
Country Code: 44
City Code: 1344
Website: support.euro.dell.com
E-mail: dell_direct_support@dell.com
Customer Care website: support.euro.dell.com/uk/en/ECare/Form/Home.asp
Sales
Home and Small Business Sales
08709074000
Corporate/Public Sector Sales
01344860456
Customer Care
Home and Small Business Customer Care
0870 906 0010
Corporate Customer Care
01344 373 185
Preferred Accounts (500-5000 employees) Customer
Care
0870 906 0010
Global Accounts Customer Care
01344 373 186
Central Government Customer Care
01344 373 193
Back to Contents Page
Local Government & Education Customer Care
01344 373 199
Health Customer Care
01344 373 194
Technical Support
Technical Support for XPS (Sasi: do we need to change to
XPSTM)
0870 366 4180
Technical Support (Corporate/Preferred Accounts/PAD
[1000+ employees])
0870 908 0500
General
Technical Support for all other products
0870 908 0800
Home and Small Business Fax
08709074006
Uruguay
Website: www.dell.com/tt
E-mail: la-techsupport@dell.com
Technical Support
toll-free:413
-
U.S.A. ( Austin , Texas )
International Access Code: 011
Country Code: 1
Automated Order-Status Service
toll-free:1-800
-
AutoTech (portable and desktop computers)
toll-free:1-800
-
Hardware and Warranty Support (Dell TV, Printers, and
Projectors) for Relationship customers
toll-free:1-800
-
Americas Consumer XPS support
toll-free:1-800
-
Consumer (Home and Home office) Support for all other
Dell products
toll-free:1-800
-
Customer Service
toll-free:1-800
-
Employee Purchase Program (EPP) Customers
toll-free:1-800
-
Financial Services website: www.dellfinancialservices.com
Financial Services (lease/loans)
toll-free:1-877
-
Financial Services (Dell Preferred Accounts [DPA])
toll-free:1-800
-
Business
Customer Service and Support
toll-free:1-800
-
Employee Purchase Program (EPP) Customers
toll-free:1-800
-
Supportforprinters,projectors,PDAs,andMPSplayers
toll-free:1-877
-
Public(government,education,andhealthcare)
Customer Service and Technical Support
toll-free:1-800
-
Employee Purchase Program (EPP) Customers
toll-free:1-800
-
Dell Sales
toll-free:1-800
-
or toll-free:1-800
-
Dell Outlet Store (Dell refurbished computers)
toll-free:1-888
-
Software and Peripherals Sales
toll-free:1-800
-
Spare Parts Sales
toll-free:1-800
-
Extended Service and Warranty Sales
toll-free:1-800
-
Fax
toll-free:1-800
-
Dell Services for the Deaf, Hard-of-Hearing, or Speech-
Impaired
toll-free:1-
877
(1-877-
335
U.S. Virgin Islands
E-mail: la-techsupport@dell.com
Technical Support
toll-free: 1-877
-
Venezuela
Website: www.dell.com/ve
E-mail: la-techsupport@dell.com
Technical Support
toll-free: 0800
-
Back to Contents Page
RotatingYourMonitor
Dell™2007FPFlatPanelMonitor
Changing the Rotation of Your Monitor
Rotating Your Operating System
Changing the Rotation of Your Monitor
Before you rotate the monitor, your monitor should be fully vertically extended (Vertical Extension) and fully tilted (Tilt) up to avoid hitting the bottom edge of
the monitor.
Rotating Your Operating System
After you have rotated your monitor, you need to complete the procedure below to rotate your operating system.
1. Right-click on the desktop and click Properties.
2. Select the Settings tab and click Advanced.
3. If you have ATI, select the Rotation tab and set the preferred rotation.
IfyouhavenVidia,clickthenVidia tab, in the left-hand column select NVRotate, and then select the preferred rotation.
If you have Intel, select the Intel graphics tab, click Graphic Properties, select the Rotation tab, and then set the preferred rotation.
Back to Contents Page
NOTE: Totakeadvantageofthe"DisplayRotation"function(LandscapeversusPortraitview)anupdatedgraphicsdriverisrequiredforyourDell™
Computer not included with this monitor. Please download the graphics driver from support.dell.com and refer to the "download" section for "Video
Drivers" for latest driver updates.
NOTE: When in "Portrait View Mode", you may experience performance degradation in graphic-intensive applications (3D Gaming etc.)
NOTE:If you are using the monitor with a non-Dellcomputer,youneedtogotothegraphicsdriverwebsiteoryourcomputermanufacturerwebsitefor
informationonrotatingyouroperatingsystem.
NOTE: If you do not see the rotation option or it is not working correctly, go to support.dell.com and download the latest driver for your graphics card.
Back to Contents Page
Setting Up Your Monitor
Dell™2007FPFlatPanelMonitor
Connecting Your Monitor
Using the Front Panel Buttons
Using the OSD
Setting the Optimal Resolution
UsingtheDell™Soundbar(Optional)
Connecting Your Monitor
CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions.
1
AC power cord connector
2
DVI connector
3
VGA connector
4
Composite video connector
5
S-Video connector
To connect your monitor to the computer perform the following steps/instructions.
lTurnoffyourcomputeranddisconnectthepowercable.
lConnect either the white (digital DVI-D) or the blue (analog VGA) display connector cable to the corresponding video port on the back of your
computer.Donotusebothcablesonthesamecomputer. The only case in which both cables can be used is if they are connected to two different
computerswithappropriatevideosystems.(Graphicsareforillustrationonly.Systemappearancemayvary).
lConnect the upstream USB port (cable supplied) to an appropriate USB port on your computer .
lConnect USB peripherals to the downstream USB ports (rear or side) on the monitor. (See rear or bottom view for details.)
lPlugthepowercablesforyourcomputerandmonitorintoanearbyoutlet.
lTurn on the monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, see Solving Problems.
lUse the cable holder on the monitor stand to neatly organize the cables.
Using the Front Panel Buttons
Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls,
an OSD shows their numeric values as they change.
6
USB upstream port
7
USB downstream ports
8
DCpowerconnectorforDell™Soundbar
NOTE: If your computer does not support the DVI connector, you can leave the cable unconnected or remove it.
NOTE: For USB peripherals already connected to your computer, changing the USB connection to your monitor is not necessary.
A
Input Source Select
Use Input Source Select button to select between four different video signals that may be connected to your monitor.
1. VGA input
2. DVI-D input
3. S- Video input
4. Composite video input
As you cycle through the inputs you will see the following messages to indicate currently selected input source. It may take 1 or 2
seconds for the image to appear.
If either VGA or DVI-D input is selected and both VGA and DVI-
D cables are not connected, a floating dialog box as shown below will
appear.
If either S-
Video or Composite input is selected and both cables are not connected or the video source is turned off, the screen will not
have an image. If any button is pressed (except power button), the monitor displays the following message:
or
or
or
Using the OSD
Accessing the Menu System

1.Push the MENU button to launch the OSD menu and display the main menu.
Main Menu for Analog (VGA) Input
Or
Main Menu for non Analog (non VGA) Input
2.Push the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the
table for a complete list of all the options available for the monitor.
3.PushtheMENUbuttononcetoactivatethehighlightedoption.
4.Push and button to select the desired parameter.
5.PushMENUtoentertheslidebarandthenusethe and buttons, according to the indicators on the menu, to make your changes.
6.Select the "back" option to return to the main menu or "exit" to exit the OSD menu.
B
OSD Menu / Select
The MENU button is used to launch the on-screen display(OSD) and select the OSD Menu. See
Accessing the Menu System
C
,D
Down (-) and Up (+)
Use these buttons for navigating and adjusting the slider-bar(decrease/increase ranges) controls in the OSD.
E
Power button
(withpowerlightindicator)
The green LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power save mode.
The Power button turns the monitor on and off.
NOTE: Ifyouchangethesettingsandtheneitherproceedtoanothermenu,orexittheOSDmenu,themonitorautomaticallysavesthosechanges.The
changes are also saved if you change the settings and then wait for the OSD menu to disappear.
NOTE: AUTO ADJUST is only available when you are using the analog (VGA) connector.
Icon
Menu and Submenus
Description
EXIT
Select to exit the main menu.
BRIGHTNESS
& CONTRAST
Back
Brightness
Contrast
Exit Menu
This menu is to activate Brightness/Contrast adjustment.
Push to select Back to go back to the main menu.
Brightness adjusts the luminance of the backlight.
Push the buttontoincreasebrightnessandpushthe button to decrease brightness (min 0 ~ max 100).
Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Push the button to increase contrast and push the button to decrease contrast (min 0 ~ max 100).
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
Push to exit the OSD main menu.
NOTE: When using DVI source, the contrast adjustment is not available.
AUTO ADJUST
Even though your computer recognizes your monitor on startup, the Auto Adjustment function optimizes the display settings for use
with your particular setup.
NOTE:Inmostcases,AutoAdjustproducesthebestimageforyourconfiguration.
NOTE: AUTO ADJUST option is only available when you are using the analog (VGA) connector.
INPUT
SOURCE
Back
The INPUT SOURCE menu is to select between different video signals that may be connected to your monitor.
Push to select Back to go back to the main menu.

VGA
DVI-D
S-Video
Composite
Scan for Sources
Exit Menu
Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source.
Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI input source.
Select S-Video input when you are using S-Video connector. Push to select the S-Video input source.
Select Composite input when you are using composite video connector. Push to select the composite input source.
Push button to scan for available input signals.
Push to exit the OSD main menu.
COLOR
SETTINGS
Back
Color Settings Mode
(VGA/DVI-D)
Color Adjustment
Color Settings adjusts the color setting mode and color temperature.
There are different color setting sub-menus for VGA/DVI-D and Video input.
Color setting submenu for VGA/DVI-D inputColor setting submenu for Video input
 or
Push to select Back to go back to the main menu.
To achieve the different color mode for PC and Mac.
PC Blue: PC Blue is selected to obtain a bluish tint. This color setting is typically used for text based applications (Spreadsheets,
Programming, Text Editors etc.).
PC Red: Red Preset is selected to obtain a redder tint. This color setting is typically used for color intensive applications (Photograph
Image Editing, Multimedia, Movies etc.).
PC Custom: Use the plus and minus buttons to increase or decrease each of the three colors (R, G, B) independently, in single digit
increments, from '0' to '100'.
NOTE:
Color temperature is a measure of the 'warmth' of the image colors (red/green/blue). The two available presets ('Blue' and
'Red') favor blue and red accordingly. Select each one to see how each range suits your eye....or utilize the 'Custom Color' option
to customize the color settings to your exact choice.
Color Reset
Exit Menu
Return your monitor color settings to those that were set at the time of manufacture.
Push to exit the OSD main menu.

MODES
Back
VGA/DVI-D input
Desktop Mode
Multimedia Mode
Gaming Mode
Video input
Theater Mode
Sports Mode
Nature Mode
Exit Menu
There are 3 image modes for different usage.
Image mode submenu for VGA/DVI-D inputImage mode submenu for Video input
or
NOTE: Image modes are different between the VGA/DVI-D and Video inputs
Push to select Back to go back to the main menu.
Mode suitable for desktop applications.
Mode for multimedia applications, eg video playback.
Mode suitable for gaming applications.
Mode suitable for movie playback.
Mode suitable for sports scenes.
Mode suitable for nature scenes.
Push to exit the OSD main menu.
DISPLAY
SETTINGS
Back
Wide Mode
H Position
V Position
Sharpness
Zoom
Horizontal Pan
VerticalPan
Pixel Clock
Phase
Audio Option
Display Info
Display Reset
Exit Menu
Push to select Back to go back to the main menu.
Adjust the image ratio as 1:1, aspect or full screen.

NOTE: Wide Mode adjustment is not required at optimal preset resolution 1600 x 1200.
When making changes to either the 'Horizontal' or 'Vertical' settings, no changes will occur to the size of the viewing area: the image
will simply be shifted in response to your selection/change.
Use the and buttons to adjust image to left/right and up/down. Minimum is '0' (-). Maximum is '100' (+).
This feature can make the image look sharper or softer. Use or to adjust the sharpness from '0' to '100' .
Use the Zoom function to zoom in to specific area of interest.
Using the and keys to zoom in and out.
When using the zoom function.
Use the and buttons to adjust image to left/right and up/down. Minimum is '0' (-). Maximum is '100' (+).
T
he Phase and Pixel Clock adjustments allow you to adjust your monitor to your preference. These settings are accessed through the
main OSD menu, by selecting 'Image Settings'.
Use the and buttons to adjust for best image quality.
If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase
(fine),again.
NOTE: Pixel Clock and Phase Adjustments are only available for "VGA" input.
To turn on or off Audio Power during Power Save mode.
All the settings related to this monitor.
Reset the image to the original factory setting.
Push to exit the OSD main menu.
MENU
SETTINGS
Back
Language
Menu Horizontal Position
Menu Vertical Position
Menu Timer
Transparency
Menu Rotation
Menu Lock
Factory Reset
DCC/CI
Exit Menu
Push to select Back to go back to the main menu.
Language option to set the OSD display to one of five languages (English, Espanol, Francais, Deutsch, Japanese).
and buttons move OSD to the left and right.
and buttons move OSD up and down.
OSD Hold Time: Sets the length of time the OSD will remain active after the last time you pressed a button.
Use the and buttons to adjust the slider in 5 second increments, from 5 to 60 seconds.
This function is used to adjust the OSD background from opaque to transparent.
Rotates the OSD by 90 degrees counter-clockwise. Your can adjust according to your Display Rotation.
Controls user access to adjustments. When 'Yes' (+) is selected, no user adjustments are allowed. All buttons are locked except the
menu button.
NOTE:
When the OSD is locked, pressing the menu button will take the user directly to the OSD settings menu, with 'OSD Lock'
pre-selected on entry. Select No(-) to unlock and allow user access to all applicable settings.
ResetallOSDsettingstothefactorypresetvalues.
DDC/CI (Display Data Channel/Command Interface) allows your monitor parameters (brightness, color balance etc) to be adjustable
via software on your PC. You can disable this feature by selecting "Disable".
Enable this feature for best user experience and optimum performance of your monitor.
Push to exit the OSD main menu.
PIP
SETTINGS

This function brings up a window displaying image from another input source.
PIP submenu when PIP OFF(mainsourceisVGA/DVI-Dinput)PIP submenu when PIP OFF
(mainsourceisVideo
input)

or
PIP submenu when PIP ON(mainsourceisVGA/DVI-Dinput)PIP submenu when PIP ON
(mainsourceisVideo
OSD Warning Messages

Back
Mode
When selected PIP
PIP Source
PIP Position
PIP Size
PIP Contrast
PIP Hue/Tint
PIP Saturation
Exit Menu
input)
 
or
NOTE:
When using DVI source, the contrast adjustment is not
available.
Push to select Back to go back to the main menu.
There is one mode: PIP (Picture in Picture)
Use and tobrowseand to select "Off" or "PIP".
When PIP on, choose "SWAP" to switch the main-screen and sub-screen in PIP mode.
Select an input signal for PIP. (VGA/DVI/S-Video/Composite)
Use and tobrowseand to select.
Select PIP window position.
Use and tobrowseand to select.
Select PIP window size.
Use and tobrowseand to select.
Adjust the contrast level of the picture in PIP Mode.
reduce the contrast
increases the contrast
This function shifts the color of PIP image to green or purple. This is used to adjust for desired flesh tone color.
shifts image color towards green
shifts image color towards purple
Adjust the color saturation of PIP image.
makes the image look more monochrome
makes the image look more colorful
Push to exit the OSD main menu.
When the monitor does not support a particular resolution mode you will see the following



See Solving Problems for more information.
message:
This means that the monitor cannot synchronize with the signal that it is receiving from the
computer.Eitherthesignalistoohighortoolowforthemonitortouse.SeeMonitor
SpecificationsfortheHorizontalandVerticalfrequencyrangesaddressablebythismonitor.
Recommended mode is 1600 X 1200 @ 60Hz.
YouwillseethefollowingmessagebeforetheDDC/CIfunctionisdisabled.
When monitor get into Power Save mode, one of the following messages will appear
depending upon the selected input.
Activate the computer and wake up the monitor to gain access to the OSD
If either VGA or DVI-D input is selected and both VGA and DVI-D cables are not connected, a floating dialog box as shown below will appear.
or

When the monitor does not sense the selected video input, one of the following messages will appear depending upon the selected input as long as you press
anybuttonotherthanpowerbutton.
VGA / DVI-D input
Video Input
or
Occasionally, no warning message appears, but the screen is blank: this could also indicate that the monitor is not synchronizing with the computer or the
monitor is in a power save mode.
In PIP mode, when the monitor does not sense the selected second signal input, one of the following messages will appear depending upon the selected
input as long as the OSD screen is closed.
1.VGA
2. DVI-D
3. S-Video
4.Composite

or


or

or
NOTE:
When the cable is connected back to the input of the monitor, any active PIP window will disappear. Please enter PIP submenu to bring back the PIP window.
Setting the Optimal Resolution
1. Right-click on the desktop and select Properties.
2. Select the Settings tab.
3. Set the screen resolution to 1600 x 1200.
4. Click OK.
If you do not see 1600 x 1200 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following
procedures.
IfyouhaveaDell™desktoporportablecomputer:
¡Go to support.dell.com, enter your service tag, and download the latest driver for your graphics card.
If you are using a non-Dell™computer(portableordesktop):
¡Go to the support site for your computer and download the latest graphic drivers.
¡Go to your graphics card website and download the latest graphic drivers.
UsingtheDell™Soundbar(Optional)
Soundbar Attachment to the Monitor
1.
Attach mechanism
2.
Headphone connectors
3.
Power indicator
4.
Power/Volume control
Back to Contents Page
NOTE:Soundbar Power Connector -12VDCoutputisforoptionalDell™Soundbaronly.
NOTICE: DONOTUSEWITHANYDEVICEOTHERTHANDELLSoundbar.
1.
Working from the rear of the monitor, attach Soundbar by aligning the two slots with the two tabs along the bottom rear of the monitor.
2.
Slide the Soundbar to the left until it snaps into place.
3.
Connect the Soundbar with the DC power connector.
4.
Insert the mini stereo plug from the rear of the Soundbar into the computer's audio output jack.
Back to Contents Page
Solving Problems
Dell™2007FPFlatPanelMonitor
Monitor Specific Troubleshooting
Common Problems
Video Problems
Product Specific Problems
Universal Serial Bus (USB) Specific Problems
Dell™Soundbar(Optional)Troubleshooting
Monitor Specific Troubleshooting
Self-Test Feature Check
Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly
connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove both Digital (white connector) and the Analog (blue
connector) cables from the back of computer.
3. Turn on the monitor.
4. This box also appears during normal system operation if the video cable becomes disconnected or damaged.
5. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.
If your monitor screen remains blank after you use the previous procedure, check your video controller and computer system, because your monitor is
functioning properly.
Common Problems
The following table contains general information about common monitor problems you might encounter.
CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions.
The floating dialog box should appear on-screen (against a black background) if the monitor cannot sense a video signal and is working correctly.
While in self-test mode, the power LED remains green. Also, depending upon the selected input, one of the dialogs shown below will continuously
scroll through the screen.
or
NOTE: Self test feature check is not available for S-VideoandCompositevideomodes.
COMMON
SYMPTOMS
WHAT YOU
EXPERIENCE
POSSIBLE SOLUTIONS
No Video/ Power LED
off
No picture
lCheck connection integrity at both ends of the video cable
lElectric outlet verification
lEnsure power button depressed fully
No Video/ Power LED
on
No picture or no
brightness
lIncrease brightness & contrast controls via OSD
lPerform monitor self-test feature check
lCheck for bent or broken pins
Poor Focus
Picture is fuzzy,
blurry or
ghosting
lAuto Adjust via OSD
lAdjust Phase and Pixel Clock controls via OSD
lEliminate video extension cables
lPerform monitor reset
lLower video resolution or increase font size
Shaky/Jittery Video
Wavy picture or
fine movement
lAuto Adjust via OSD
lAdjust Phase and Pixel Clock controls via OSD
lPerform monitor reset
lCheck environmental factors
lRelocate and test in another room
Video Problems
Missing Pixels
LCD screen has
spots
lCycle power on-off
lThese are pixels that are permanently off and is a natural defect that occurs in LCD technology
Stuck-on Pixels
LCD screen has
bright spots
lCycle power on-off
lThese are pixels that are permanently on and is a natural defect that occurs in LCD technology
Brightness Problems
Picture too dim
or too bright
lPerform monitor reset on "Factory Reset"
lAuto Adjust via OSD
lAdjust brightness & contrast controls via OSD
NOTE: When using '2: DVI-D', the contrast adjustment is not available.
Geometric Distortion
Screen not
centered
correctly
lPerform monitor reset on "Display Reset"
lAuto Adjust via OSD
lAdjust brightness & contrast controls via OSD
lEnsure monitor is in proper video mode
NOTE: When using '2: DVI-D', the positioning adjustments are not available.
Horizontal/Vertical
Lines
Screen has one
or more lines
lPerform monitor reset on "Display Reset"
lAuto Adjust via OSD
lAdjust Phase and Pixel Clock controls via OSD
lPerform monitor self-test feature check and determine if these lines are also in self-test mode
lCheck for bent or broken pins
NOTE: When using '2: DVI-D', the Pixel Clock and Phase adjustments are not available.
Sync Problems
Screen is
scrambled or
appears torn
lPerform monitor reset on "Display Reset"
lAuto Adjust via OSD
lAdjust Phase and Pixel Clock controls via OSD
lPerform monitor self-test feature check to determine if scrambled screen appears in self-test mode
lCheck for bent or broken pins
lBoot up in the "safe mode"
LCD Scratched
Screen has
scratches or
smudges
lTurn monitor off and clean the screen
lFor cleaning instruction, see Caring for Your Monitor.
Safety Related Issues
Visible signs of
smoke or sparks
lDo not perform any troubleshooting steps
lMonitor needs to be replaced
Intermittent Problems
Monitor
malfunctions on
& off
lEnsure monitor is in proper video mode
lEnsure video cable connection to computer and to the flat panel is secure
lPerform monitor reset on "Factory Reset"
lPerform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode
Missing Color
Picture missing
color
lPerform monitor self-test feature check
lCheck connection integrity at both end of the video cable
lCheck for bent or broken pins
Wrong Color
Picture color not
good
lChange the color to "PC Custom Color" or "MAC Custom Color"
lAdjust R/G/B value of "PC Custom Color" or "MAC Custom Color"
ImageRetentionfrom
a static image left on
themonitorforalong
period of time
Faint Shadow
from the static
imagedisplayed
appears on the
screen
lUse the Power Management feature to turn off the monitor at all times when not in use
lAlternatively, use a dynamically changing screensaver
COMMON SYMPTOMS
WHAT YOU EXPERIENCE
POSSIBLE SOLUTIONS
No Video
No signal indicator is displayed
lCheck Video Input Selection
¡Composite: Yellow colored RCA jack
¡S-Video: Typically a round 4 pin jack
Low Quality DVD
playback
Picture not crisp and some color
distortion
lCheck DVD connection
¡Composite gives good picture
¡S-Video gives better picture
NOTE: When choosing S-Video,Compositevideo,Auto Adjust function is not available.
Product Specific Problems
Universal Serial Bus (USB) Specific Problems
Dell™Soundbar(Optional)Troubleshooting
SPECIFIC SYMPTOMS
WHAT YOU EXPERIENCE
POSSIBLE SOLUTIONS
Screen image is too small
Image is centered on screen, but does not fill entire
viewing area
lPerform monitor reset on "Factory Reset"
Cannot adjust the monitor with
the buttons on the front panel
OSD does not appear on the screen
lTurn the monitor off and unplug the power
cord and then plug back and power on
The monitor will not go into
power saving mode.
No picture, the LED light is green. When press "+",
"-" or "Menu" key, the message " No S-Video input
signal " or " No Composite input signal " will
appear.
lMove mouse or hit any key on the
keyboardonthecomputeroractivate
videoplayer,thenaccesstheOSDtoset
Audio to " off " state.
No Input Signal when user
controls pressed
No picture, the LED light is green. When press "+",
"-" or "Menu" key, the message " No S-Video input
signal " or " No Composite input signal " will
appear.
lCheck the signal source Make sure the
Computer is not in power saving by moving
mouse or pressing any key on the
keyboard.
lCheck to make sure Video Source to S-
Video, Composite or Component is
powered and playing video media.
lCheck whether the signal cable is plugged
inandseatedproperly.Re-plug the signal
cable if necessary.
lRe-boot the computer or video player.
The monitor will not fill the entire
screen.
The picture can't fill the height or width of the
screen.
lDue to the non-standard formats of DVDs,
the monitor may not show the full screen
pictures.
NOTE: When choosing DVI-D mode, Auto Adjust function is not available.
SPECIFIC SYMPTOMS
WHAT YOU EXPERIENCE
POSSIBLE SOLUTIONS
USB interface is not working
USB peripherals are not working
lCheck that your monitor is powered ON.
lReconnecttheupstreamcabletoyourcomputer.
lReconnecttheUSBperipherals(downstreamconnector).
lSwitch off and then turn on the monitor again.
lReboot the computer.
High Speed USB 2.0 interface is
slow.
High Speed USB 2.0 peripherals working slowly or
not at all.
lCheck that your computer is USB 2.0 capable.
lVerify USB 2.0 source on your computer.
lReconnecttheupstreamcabletoyourcomputer.
lReconnecttheUSBperipherals(downstreamconnector).
lReboot the computer.
COMMON
SYMPTOMS
WHAT YOU EXPERIENCE
POSSIBLE SOLUTIONS
No Sound
No power to Soundbar - the
power indicator is off.
(built-in DC power supply. i.e.
2007FP )
lTurn the Power/Volume knob on the Soundbar clockwise to the middle position; check if the
power indicator (green LED) on the front of the Soundbar is illuminated.
lConfirm that the power cable from the Soundbar is plugged into the monitor.
lConfirm that the monitor has power.
lIf the monitor has no power, see Monitor Specific Troubleshooting for monitor common
problem.
No Sound
Soundbar has power - power
indicator is on.
lPlug the audio line-in cable into the computer's audio out jack.
lSet all Windows volume controls to their maximum.
lPlay some audio content on the computer (i.e. audio CD, or MP3).
lTurn the Power/Volume knob on the Soundbar clockwise to a higher volume setting.
lClean and reseat the audio line-in plug.
lTest the Soundbar using another audio source (i.e. portable CD player).
Distorted Sound
Computer's sound card is used
as the audio source.
lClear any obstructions between the Soundbar and the user.
lConfirm that the audio line-in plug is completely inserted into the jack of the sound card.
lSet all Windows volume controls to their midpoints.
lDecrease the volume of the audio application.
Back to Contents Page
lTurn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume setting.
lClean and reseat the audio line-in plug.
lTroubleshoot the computer's sound card.
lTest the Soundbar using another audio source (i.e. portable CD player).
Distorted Sound
Other audio source is used.
lClear any obstructions between the Soundbar and the user.
lConfirm that the audio line-in plug is completely inserted into the jack of the audio source.
lDecrease the volume of the audio source.
lTurn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume setting.
lClean and reseat the audio line-in plug.
Unbalanced Sound
Output
Sound from only one side of
Soundbar
lClear any obstructions between the Soundbar and the user.
lConfirm that the audio line-in plug is completely inserted into the jack of the sound card or
audio source.
lSet all Windows audio balance controls (L-R) to their midpoints.
lClean and reseat the audio line-in plug.
lTroubleshoot the computer's sound card.
lTest the Soundbar using another audio source (i.e. portable CD player).
Low Volume
Volume is too low.
lClear any obstructions between the Soundbar and the user.
lTurn the Power/Volume knob on the Soundbar clockwise to the maximum volume setting.
lSet all Windows volume controls to their maximum.
lIncrease the volume of the audio application.
lTest the Soundbar using another audio source (i.e. portable CD player).
Back to Contents Page
Using Your Adjustable Monitor Stand
Dell™2007FPFlatPanelMonitor
Attaching the Stand
Organizing Your Cables
Using the Tilt, Swivel and Vertical Extension
RemovingtheStand
Attaching the Stand
1. Place the stand on a flat surface.
2. Fit the groove on the back of the monitor onto the 2 tabs of upper stand.
3. Lower the monitor so that the monitor mounting area snaps on or locks to stand.
Organizing Your Cables

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use the Cable
management hole to neatly organize all cables as shown above.
Using the Tilt, Swivel and Vertical Extension
Tilt/Swivel
With the built-in pedestal, you can tilt and/or swivel the monitor for the most comfortable viewing angle.
Vertical Extension
Stand extends vertically up to 130mm via the Lock down / release button.

Removing the Stand

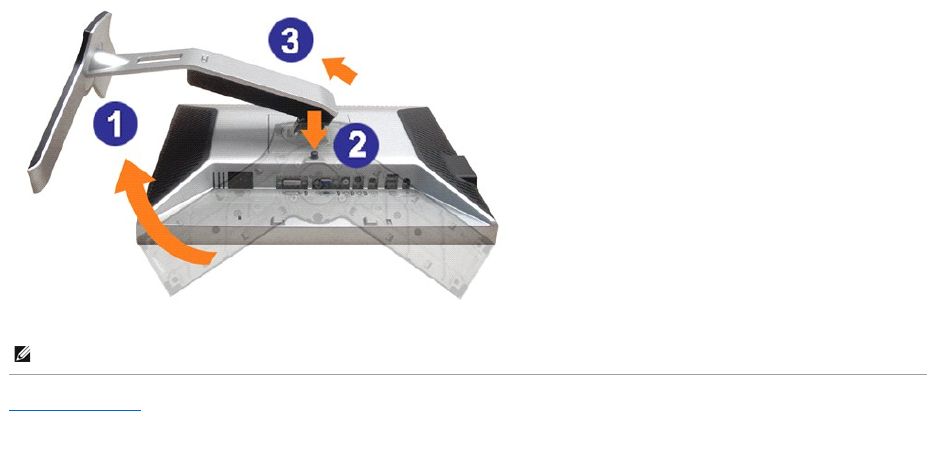

After placing the monitor panel on a soft cloth or cushion, press and hold the Monitor Lock / Release Button, and then remove the stand.
NOTE: Stand is detached and extended when the monitor is shipped from the factory.
NOTE: If locked in the down position, press the Lock down / release button on the bottom rear of stand. Lift the front panel up and extend the stand to
the desired height.
NOTICE: Before relocating or moving the monitor to a different location, make sure that the stand is LOCKED DOWN. To lock it down, lower the height
of the panel until it clicks and is locked into place.
Back to Contents Page
NOTE: To prevent scratches on the LCD screen while removing the stand,ensure that the monitor is placed on a clean surface.

Navigation menu
