Dell™ E2009W/E2209W Flat Panel Monitor User's Guide
About Your Monitor
Setting Up the Monitor
Operating the Monitor
Troubleshooting
Appendix
Notes, Notices, and Cautions
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2008 Dell Inc. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, and the Dell logo are trademarks of Dell Inc; Microsoft, Windows, are registered trademarks of Microsoft
Corporation; Adobe is a trademark of Adobe Systems Incorporated, which may be registered in certain jurisdictions. ENERGY STAR is a registered
trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
Model E2009Wt, E2009Wf,E2209Wf, E2209Wc.
September 2008 Rev. A00
Back to Contents Page
About Your Monitor
Dell™ E2009W/E2209W Flat Panel Monitor User's Guide
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Maintenance Guidelines
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not be available in certain countries.
Monitor with stand
Power Cable
VGA Cable
DVI Cable
Drivers and Documentation media
Quick Setup Guide
Safety Information
Product Features
The Dell™ E2009W/E2209W flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■ E2009W:20-inch (508 mm) viewable area display.
■ E2209W:22-inch (558.68 mm) viewable area display.
■ 1680 x 1050 resolution, plus full-screen support for lower resolutions.
■ Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.

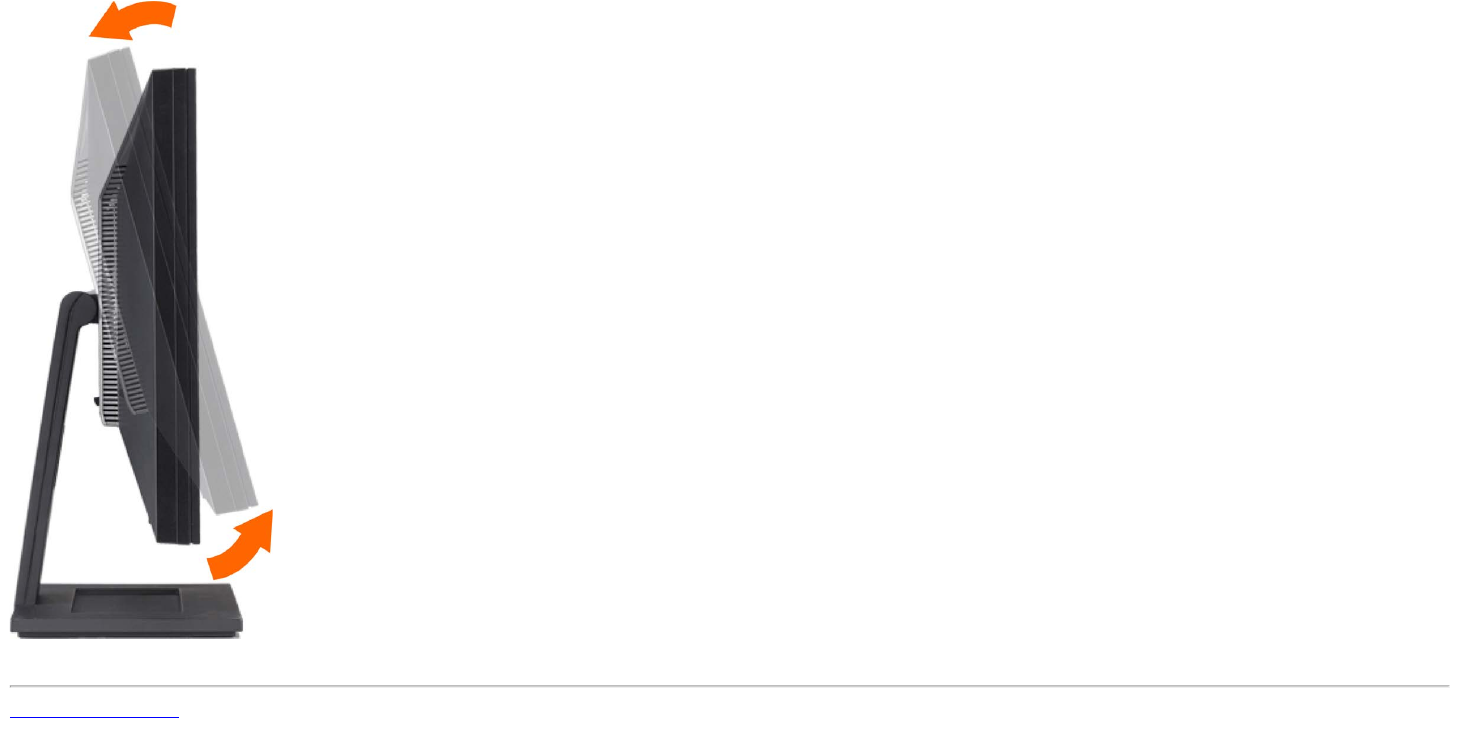

■ Tilt adjustment capabilities.
■ Plug and play capability if supported by your system.
■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■ Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.
■ Energy Saver feature for Energy Star compliance.
■ Asset Management Capable.
Identifying Parts and Controls
Front View
Front View Front panel controls
1OSD menu button
2Up button
3Down button
4OK button
5Power button
Back View
Back view Back View with monitor stand
Label Description/Use
1VESA mounting holes (100mm)
(Behind attached VESA plate) Use to mount the monitor.
2Barcode serial number label Refer to this label if you need to contact Dell for technical support.
3Security lock slot Use a security lock with the slot to help secure your monitor.
4Dell Soundbar mounting brackets Attach the optional Dell Soundbar.
5Stand removal button Press to release the stand.
6Regulatory rating label Lists the regulatory approvals.
7Cable management slot Help organize cables by placing them through the slot.
Side View
Left view Right view
Bottom View
Bottom view
Label Description
1AC power cord connector
2Stand lock
3DVI connector
4VGA connector
Monitor Specifications
Flat Panel Specifications
Model E2009W E2209W
Screen type Active matrix - TFT LCD Active matrix - TFT LCD
Panel type TN TN
Screen dimensions 20 inches (20-inch viewable image size) 22 inches (22-inch viewable image size)
Preset display area:
Horizontal 433.44 mm (17.06 inches) 473.76 mm (18.7 inches)
Vertical 270.90 mm (10.67 inches) 296.1 mm (11.7 inches)
Pixel pitch 0.258 mm 0.282 mm
Viewing angle 160° (vertical) typ, 170° (horizontal) typ 160° (vertical) typ, 170° (horizontal) typ
Luminance output 300 cd/m ²(typ) 300 cd/m ²(typ)
Contrast ratio 1000 to 1 (typ) 1000 to 1 (typ)
Faceplate coating Antiglare with hard-coating 3H Antiglare with hard-coating 3H
Backlight CCFL (4) edgelight system CCFL (4) edgelight system
Response Time 5ms typical 5ms typical
Color gamut (Typical) 85%* 85%**
* E2009W color gamut (typical) is based on CIE1976 (85%) and CIE1931 (72%) test standards.
** E2209W color gamut (typical) is based on CIE1976 (85%) and CIE1931 (72%) test standards.
Resolution Specifications
Model E2009W/E2209W
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 75 Hz (automatic)
Optimal preset resolution 1680 x 1050 at 60 Hz
Highest preset resolution 1680 x 1050 at 60 Hz
Video Supported Modes
Model E2009W/E2209W
Video display capabilities (DVI playback) 480i/480p/576i/576p/720p/1080i/1080p (Support HDCP)
Preset Display Modes
Display Mode Horizontal Frequency
(kHz) Vertical Frequency
(Hz) Pixel Clock
(MHz) Sync Polarity
(Horizontal/Vertical)
VESA, 720 x 400 31.5 70.0 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.0 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 135.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1680 x 1050 65.2 60.0 146.3 -/+
VESA, 1680 x 1050 64.6 60.0 119.0 +/-
Electrical Specifications
Model E2009W/E2209W
Video input signals Analog RGB, 0.7 Volts +/-5%, positive polarity at 75 ohm input impedance
Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm input
impedance
Synchronization input signals Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG
(Composite SYNC on green)
AC input voltage/frequency/current 100 to 240 VAC/50 or 60 Hz + 3 Hz/2.0A (Max.)
Inrush current 120V:40A (Max.)
240V:80A (Max.)
Physical Characteristics
Model E2009W E2209W
Connector type 15-pin D-subminiature, blue connector; DVI-D, white
connector 15-pin D-subminiature, blue connector; DVI-D, white
connector
Signal cable type
Digital: Detachable, DVI-D, Solid pins, shipped
detached from the monitor
Analog: Detachable, D-Sub, 15pins, shipped attached
to the monitor
Digital: Detachable, DVI-D, Solid pins, shipped detached
from the monitor
Analog: Detachable, D-Sub, 15pins, shipped attached to
the monitor
Dimensions (with stand)
Height 14.96 inches (380.0 mm) 16.01 inches (406.7 mm)
Width 18.5 inches (470.0 mm) 20.13 inches (511.2 mm)
Depth 6.24 inches (158.5 mm) 6.44 inches (163.9 mm)
Dimensions (without stand)
Height 12.1 inches (310.0 mm) 13.15 inches (334.0 mm)
Width 18.5 inches (470.0 mm) 20.13 inches (511.2 mm)
Depth 2.76 inches (70.0 mm) 2.54 inches (64.5 mm)
Stand dimensions
Height 11.34 inches (288.0 mm) 12.39 inches (314.7 mm)
Width 10.26 inches (260.5 mm) 10.47 inches (265.9 mm)
Depth 6.24 inches (158.5 mm) 6.44 inches (163.7 mm)
Weight
Weight with packaging 14.15 lbs (6.42 kg) 16.76 lbs (7.62 kg)
Weight with stand assembly and cables 10.80 lbs (4.90 kg) 13.16 lbs (5.98 kg)
Weight without stand assembly
(For wall mount or VESA mount
considerations - no cables) 8.10 lbs (3.68 kg) 11.92 lbs (5.41 kg)
Weight of stand assembly 2.64 lbs (1.20 kg) 2.73 lbs (1.24 kg)
Environmental Characteristics
Model E2009W/E2209W
Temperature
Operating 5° to 35°C (41° to 95°F)
Non-operating Storage: -20° to 60°C (-4° to 140°F)
Shipping: -20° to 60°C (-4° to 140°F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Altitude
Operating 3,657.6m (12,000 ft) max
Non-operating 12,192 m (40,000 ft) max
Thermal dissipation 256.08 BTU/hour (maximum)
153.6 BTU/hour (typical)
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. This is
referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following
table shows the power consumption and signaling of this automatic power saving feature:
E2009W
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active Blue 38 W (typical)/43 W (maximum)
Active-off mode Inactive Inactive Blanked Amber Less than 2 W
Switch off - - - Off Less than 1 W
E2209W
VESA Modes Horizontal Sync Vertical Sync Video Power Indicator Power Consumption
Normal operation Active Active Active Blue 40 W (typical)/45 W (maximum)
Active-off mode Inactive Inactive Blanked Amber Less than 2 W
Switch off - - - Off Less than 1 W
The OSD will only function in the normal operation mode. When the menu or plus buttons are pressed in Active-off mode, one of the following messages will be displayed:
Analog Input In Power Save Mode. Press Computer Power Button or Any Key on Keyboard or Move Mouse
OR
Digital Input In Power Save Mode. Press Computer Power Button or Any Key on Keyboard or Move Mouse
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR®-compliant as well as TCO '99/TCO '03 power management compatible.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
Pin Assignments
VGA Connector
Pin
Number15-pin Side of the Connected Signal
Cable
1Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9Computer 5V/3.3V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
DVI Connector
Pin
Number 24-pin Side of the Connected Signal
Cable
1TMDS RX2-
2TMDS RX2+
3TMDS Ground
4 Floating
5 Floating
6DDC Clock
7DDC Data
8 Floating
9TMDS RX1-
10 TMDS RX1+
11 TMDS Ground
12 Floating
13 Floating
14 +5V/+3.3V power
15 Self test
16 Hot Plug Detect
17 TMDS RX0-
18 TMDS RX0+
19 TMDS Ground
20 Floating
21 Floating
22 TMDS Ground
23 TMDS Clock+
24 TMDS Clock-
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data
(EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can
select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.
LCD Monitor Quality and Pixel Policy
During the LCD monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed pixel that
appears as an extremely tiny dark or bright discolored spot. In almost every case, these fixed pixels are hard to see and do not detract from display quality or usability. A
display with 1 to 5 fixed pixels is considered normal and within competitive standards. For more information, see Dell Support site at: support.dell.com.
Maintenance Guidelines
Cleaning Your Monitor
CAUTION: Read and follow the safety instructions before cleaning the monitor.
CAUTION: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.
For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
To clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic
coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
Use a lightly-dampened, warm cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.
If you notice white powder when you unpack your monitor, wipe it off with a cloth.
Handle your monitor with care as dark-colored monitors may scratch and show white scuff marks more than light-colored monitors.
To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.
Back to Contents Page
Back to Contents Page
Setting Up the Monitor
Dell™ E2009W/E2209W Flat Panel Monitor User's Guide
Attaching the Stand
Connecting the Monitor
Organizing the Cables
Attaching the Soundbar (optional)
Removing the Stand
Wall Mounting (Optional)
Attaching the Stand
NOTE: The stand is detached from monitor when they are shipped from the factory.
Place the stand on a flat surface and follow these steps to attach the monitor stand:
1. Fit the groove on the back of the monitor to the two tabs on the upper part of the stand.
2. Lower the monitor so that the monitor mounting area snaps on to or locks on to the stand.
Connecting Your Monitor
CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions.
To connect your monitor to the computer:
1. Turn off your computer and disconnect the power cable.
2. Connect either the white (digital DVI-D) or the blue (analog VGA) display connector cable to the corresponding video port on the back of your computer. Do not
connect both cables on the same computer. Use both the cables only when they are connected to two different computers with appropriate video systems.
Connecting the White DVI Cable
Connecting the Blue VGA Cable
CAUTION: The graphics are used for the purpose of illustration only. Appearance of the computer may vary.
Organizing the Cables
After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use the cable management slot to organize all
cables as shown above.
Attaching the Soundbar(optional)
NOTICE: Do not use with any device other than Dell Soundbar.
1. Working from the rear of the monitor, attach the Dell Soundbar by aligning the two slots with the two tabs along the bottom rear of the monitor.
2. Slide the Dell Soundbar to the left until it snaps into place.
3. Connect the Soundbar with the power brick.
4. Plug the power cables of the power brick into a nearby outlet.
5. Insert the lime-green mini stereo plug from the rear of the Soundbar into the computer's audio output jack.
Removing the Stand
NOTE: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a clean surface.
To remove the stand:
1. Press and hold the stand release button.
2. Lift the stand up and away from the monitor .
Wall Mounting (Optional)
(Screw dimension: M4 x 10mm).
Refer to the instructions that come with the VESA compatible base mounting kit.
1. Place the monitor panel on soft cloth or cushion on stable flat table.
2. Remove the stand
3. Use a screwdriver to remove the four screws securing the plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the LCD.
5. Mount the LCD on the wall by following the instructions that come with the base mounting kit.
NOTE: For use only with UL(expand UL) Listed Wall Mount Bracket with minimum weight/load bearing capacity of 4.36kg.
Back to Contents Page
Back to Contents Page
Operating the Monitor
Dell™ E2009W/E2209W Flat Panel Monitor User's Guide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Optimal Resolution
Using the Dell Soundbar (Optional)
Using the Tilt
Using the Front Panel Controls
Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls, an OSD shows the numeric
values of the characteristics as they change.
A B C D E
Front panel Button Description
A
OSD Menu
Use the MENU button to launch the on-screen display (OSD) and select the OSD Menu. See Accessing the Menu System.
B
Brightness/Contrast Hot
Key
Use this button to directly access the "Brightness/Contrast" menu or to increase the values of the selected menu option.
C
Auto Adjust
Use Auto Adjust to activate automatic setup/adjustment or to decrease the values of the selected menu option.
Auto Adjustment allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your
monitor by using the Pixel Clock and Phase controls under Displays Settings.
The following dialog appears on a black screen as the monitor automatically adjusts to the current input:
NOTE: In most cases, Auto Adjust produces the best image for your configuration.
NOTE: AUTO ADJUST option is only available when you are using the analog (VGA) connector.
D
OK / Input Source
Select
Use this button to select the input source or select an OSD menu option.
Use the Input source button to select one of the two different video signals that may be connected to your monitor:
VGA input
DVI-D input
If both VGA and DVI cables are connected to one Computer, this monitor displays an image automatically as long as a video signal is
present in either VGA or DVI outputs. On a display connected to two Computers, set equal time for both screen savers. The video input
from the movement of the first mouse will activate the display.
As you cycle through the inputs, the following messages appear to indicate currently selected input source. It may take 1 or 2 seconds
for the image to appear.
or
or
If either VGA or DVI-D input is selected and both VGA and DVI-D cables are not connected, a floating dialog box as shown below
appears.
or
E
Power button
(with power light
indicator)
Use the Power button to turn the monitor on and off.
The blue LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power save mode.
Using the On-Screen Display (OSD) Menu
Accessing the Menu System
NOTE: If you change the settings and then either proceed to another menu or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved if you
change the settings and then wait for the OSD menu to disappear.
1. Push the MENU button to launch the OSD menu and display the main menu.
Main Menu for Analog (VGA) Input
or
Main Menu for Digital (DVI-D) Input
NOTE: AUTO ADJUST is only available when you use the analog (VGA) connector.
2. Push the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the following table for a complete list of all
the options available for the monitor.
3. Push the button once to activate the highlighted option.
4. Push the and buttons to select the desired parameter.
5. Push to enter the slide bar and then use the or button, according to the indicators on the menu, to make your changes.
6. Press the Menu button once to return to the main menu to select another option or press the Menu button two or three times to exit from the OSD menu.
Icon Menu and Description
Submenus
BRIGHTNESS
& CONTRAST Use this menu to activate Brightness/Contrast adjustment.
Back Push to go back to the main menu.
Brightness Brightness adjusts the luminance of the backlight.
Push the button to increase brightness and push the button to decrease brightness (min 0 ~ max 100).
Contrast Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Push the button to increase contrast and push the button to decrease contrast (min 0 ~ max 100).
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
Exit Menu Push to exit the OSD main menu.
AUTO ADJUST Even though your computer recognizes your monitor on startup, the Auto Adjustment function optimizes the display settings for use with your particular
setup.
NOTE: In most cases, Auto Adjust produces the best image for your configuration.
NOTE: AUTO ADJUST option is only available when you are using the analog (VGA) connector.
INPUT SOURCE Use the INPUT SOURCE menu to select between different video signals that may be connected to your monitor.
Back Push to go back to the main menu.
VGA Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source.
DVI-D Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI input source.
Scan for Sources Select Auto Select to scan for available input signals.
Exit Menu Push to exit the OSD main menu.
Color Settings Use the Color Settings to adjust the color setting mode and color temperature.
There are different color setting sub-menus for VGA/DVI-D and Video input.
Color setting
mode submenu
Back Push to go back to the main menu.
Input Color
Format Allows you to set the video input mode to.
RGB: Select this option if your monitor is connected to a computer or DVD player using the VGA and DVI cable or the HDMI to DVI adapter.
YPbPr: Select this option if the your DVD player supports only YPbPr output.
Mode Selection Allows you to set the display mode to:
Graphics: Select this mode if your monitor is connected to your computer.
Video: Select this mode if you monitor is connected to a DVD player.
NOTE: Depending upon the Display Mode you select the Preset Modes available for your monitor change.
Preset Mode Allows you to choose from a list of preset color modes.
In the Graphics mode, you can set the color to the following preset values:
Standard: Loads the monitor's default color settings. This is the default preset mode.
Multimedia: Loads color settings ideal for multimedia applications.
Game: Loads color settings ideal for most gaming applications.
Warm: Increase the color temperature. The screen appears warmer with a red/yellow tint.
Cool: Decreases the color temperature. The screen appears cooler with a blue tint.
Custom (R, G, B): Allows you to manually adjust the color settings. Press the and buttons to adjust the Red, Green, and Blue values and
create your own preset color mode.
In the Video mode, you can set the color to the following preset values:
Movie: Loads color settings ideal for movies. This is the default preset mode.
Sports: Loads color settings ideal for sports.
Game: Loads color settings ideal for game.
Nature: Loads color settings ideal for nature.
Hue This feature can shift color of video image to green or purple. This is used to adjust the desired flesh tone color. Use or to adjust the hue from '0'
to '100' .
Push to increase the green shade of the video image
Push to increase the purple shade of the video image
NOTE: Hue adjustment is available only for video input.
Saturation
This feature can adjust the color saturation of the video image. Use or to adjust the saturation from '0' to '100'.
Push to increase the monochrome appearance of the video image
Push to increase the colorful appearance of the video image
NOTE: Saturation adjustment is available only for video input.
Color Reset Resets your monitor's color settings to the factory defaults.
Exit Menu Push to exit the OSD main menu.
DISPLAY SETTINGS
Display Setting
submenu Display Setting submenu for VGA input
Display Setting submenu for DVI-D input
Back
Push to go back to the main menu.
Horizontal Position Use the and buttons to adjust image left and right. Minimum is '0' (-). Maximum is '100' (+).
NOTE: When using a DVI source, the Horizontal Position setting is not available.
Vertical Position Use the and buttons to adjust image up and down. Minimum is '0' (-). Maximum is '100' (+).
NOTE: When using a DVI source, the Vertical Position setting is not available.
Sharpness This feature can make the image look sharper or softer. Use or to adjust the sharpness from '0' to '100'.
Pixel Clock The Phase and Pixel Clock adjustments allow you to adjust your monitor to your preference.
Use the and buttons to adjust for best image quality.
Phase If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine), again.
NOTE: Pixel Clock and Phase Adjustments are only available for "VGA" input.
Display Reset Reset the image to the original factory setting.
Exit Menu Push to exit the OSD main menu.
OTHER
SETTINGS
Back Push to go back to the main menu.
Language Language option to set the OSD display to one of seven languages (English, Espanol, Francais, Deutsch, Brazilian Portuguese, Japanese, or Simplified
Chinese).
Menu Transparency This function is used to change the OSD background from opaque to transparent.
Menu Timer OSD Hold Time: Sets the length of time the OSD will remain active after the last time you pressed a button.
Use the and buttons to adjust the slider in 1 second increments, from 5 to 60 seconds.
Menu Lock Controls user access to adjustments. When 'Lock' is selected, no user adjustments are allowed. All buttons are locked except button.
NOTE: When the OSD is locked, pressing the menu button will take the user directly to the OSD settings menu, with 'OSD Lock' pre-selected on entry.
Press and hold button for 15 seconds to unlock and allow user access to all applicable settings.
DDC/CI DDC/CI (Display Data Channel/Command Interface) allows your monitor parameters (brightness, color balance etc) to be adjustable via software on your
PC. You can disable this feature by selecting "Disable".
You can disable this feature by selecting Disable. The following warning message appears:
Select Yes to disable DDC/CI and No to exit with out making changes.
NOTE: For best user experience and optimum performance of your monitor, keep this feature enabled.
LCD Conditioning This feature will help reduce minor cases of image retention.
If an image appears to be stuck on the monitor, select LCD Conditioning to help eliminate any image retention. Using the LCD Conditioning feature may
take some time. Severe cases of image retention are known as burn-in, the LCD Conditioning feature does not remove burn-in.
NOTE: Use LCD Conditioning only when you experience a problem with image retention.
Below warning message appears once user select “Enable" LCD Conditioning.
NOTE: Press any button on the monitor to terminate LCD Conditioning at any time.
Factory Reset Reset all OSD settings to the factory preset values.
Exit Menu Push to exit the OSD main menu.
Activate the computer and wake up the monitor to gain access to the OSD
If either VGA or DVI-D input is selected and both VGA and DVI-D cables are not connected, a floating dialog box as shown below appears.
or
OSD Warning Messages
One of the following warning messages may appear on the screen indicating that the monitor is out of synchronization.
or
This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the Horizontal and Vertical frequency ranges addressable
by this monitor. Recommended mode is 1680 X 1050.
You will see the following message before the DDC/CI function is disabled.
When monitor enters Power Save mode, the following message appears :
See Solving Problems for more information.
Setting the Optimal Resolution
To set the optimal resolution for the monitor:
1. Right-click on the desktop and select Properties.
2. Select the Settings tab.
3. Set the screen resolution to 1680 x 1050.
4. Click OK.
If you do not see 1680 x 1050 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures:
If you have a Dell desktop or portable computer:
Go to support.dell.com, enter your service tag, and download the latest driver for your graphics card.
If you are using a non-Dell computer (portable or desktop):
Go to the support site for your computer and download the latest graphic drivers.
Go to your graphics card website and download the latest graphic drivers.
Using the Dell Soundbar (Optional)
The Dell Soundbar is a stereo two channel system, mountable on Dell Flat Panel Displays.
1. Power/volume control
2. Power indicator
3. Headphone connectors
Using the Tilt
You can tilt the monitor to best fit your viewing needs.
Back to Contents Page
Back to Contents Page
Troubleshooting
Dell™ E2009W/E2209W Flat Panel Monitor User's Guide
Troubleshooting Your Monitor
Common Problems
Product Specific Problems
CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions
Troubleshooting Your Monitor
Self-Test Feature Check
Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly
connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove both Digital (white connector) and the Analog (blue
connector) cables from the back of computer.
3. Turn on the monitor.
The floating dialog box should appear on-screen (against a black background) if the monitor cannot sense a video signal and is working correctly.
While in self-test mode, the power LED remains blue. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll
through the screen.
or
4. This box also appears during normal system operation, if the video cable becomes disconnected or damaged.
5. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.
If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning
properly.
Built-in Diagnostics
Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or
with your computer and video card.
NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.
To run the built-in diagnostics:
1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold the and buttons on the front panel, simultaneously for 2 seconds. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Press the button on the front panel again. The color of the screen changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, and white colored screens.
The test is complete when the white screen appears. To exit, press the button again.
If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.
Common Problems
The following table contains general information about common monitor problems you might encounter and the possible solutions.
Common Symptoms What You
Experience Possible Solutions
No Video/ Power LED off No picture Ensure that the video cable connecting the monitor and the computer is properly connected and secure.
Verify that the power outlet is functioning properly by using any other electrical equipment.
Ensure that the power button is depressed fully.
No Video/ Power LED on No picture
or no
brightness
Increase brightness & contrast controls via OSD.
Perform monitor self-test feature check.
Check for bent or broken pins in the video cable connector.
Run the built-in diagnostics.
Poor Focus Picture is
fuzzy,
blurry, or
ghosting
Perform Auto Adjust via OSD.
Adjust the Phase and Pixel Clock controls via OSD.
Eliminate video extension cables.
Reset the monitor to Factory Settings.
Change the video resolution to the correct aspect ration (16:10).
Shaky/Jittery Video Wavy
picture or
fine
movement
Perform Auto Adjust via OSD.
Adjust the Phase and Pixel Clock controls via OSD.
Reset the monitor to Factory Settings.
Check environmental factors.
Relocate the monitor and test in another room.
Missing Pixels LCD screen
has spots Cycle power on-off.
Pixel that is permanently off is a natural defect that can occur in LCD technology.
Run the built-in diagnostics.
Stuck-on Pixels LCD screen
has bright
spots
Cycle power on-off.
Pixel that is permanently off is a natural defect that can occur in LCD technology.
Run the built-in diagnostics.
Brightness Problems Picture too
dim or too
bright
Reset the monitor to Factory Settings.
Auto Adjust via OSD.
Adjust brightness & contrast controls via OSD.
Geometric Distortion Screen not
centered
correctly
Reset the monitor to Factory Settings.
Auto Adjust via OSD.
Adjust brightness & contrast controls via OSD.
NOTE: When using '2: DVI-D', the positioning adjustments are not available.
Horizontal/Vertical Lines Screen has
one or more
lines
Reset the monitor to Factory Settings.
Perform Auto Adjust via OSD.
Adjust Phase and Pixel Clock controls via OSD.
Perform monitor self-test feature check and determine if these lines are also in self-test mode.
Check for bent or broken pins in the video cable connector.
Run the built-in diagnostics.
NOTE: When using '2: DVI-D', the Pixel Clock and Phase adjustments are not available.
Synchronization Problems Screen is
scrambled
or appears
torn
Reset the monitor to Factory Settings.
Perform Auto Adjust via OSD.
Adjust Phase and Pixel Clock controls via OSD.
Perform monitor self-test feature check to determine if scrambled screen appears in self-test mode.
Check for bent or broken pins in the video cable connector.
Restart the computer in the safe mode.
Safety Related Issues Visible signs
of smoke or
sparks
Do not perform any troubleshooting steps.
Contact Dell immediately.
Intermittent Problems Monitor
malfunctions
on & off
Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.
Reset the monitor to Factory Settings.
Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color Picture
missing
color
Perform monitor self-test feature check.
Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.
Check for bent or broken pins in the video cable connector.
Wrong Color Picture color
not good Change the Color Setting Mode in the Color Settings OSD to Graphics or Video depending to the application.
Try different Color Preset Settings in Color Settings OSD. Adjust R/G/B value in Color Settings OSD if the
Color Management is turned off.
Change the Input Color Format to PC RGB or YPbPr in the Advance Setting OSD.
Run the built-in diagnostics.
Image retention from a
static image left on the
monitor for a long period of
time
Faint
shadow
from the
static image
displayed
appears on
the screen
Use the Power Management feature to turn off the monitor at all times when it is not in use (for more
information, see Power Management Modes).
Alternatively, use a dynamically changing screensaver.
Product Specific Problems
Specific Symptoms What You Experience Possible Solutions
Screen image is too small Image is centered on screen, but does not fill
entire viewing area Check the Scaling Ratio setting in Image Setting OSD.
Reset the monitor to Factory Settings.
Cannot adjust the monitor
with the buttons on the front
panel
OSD does not appear on the screen Turn off the monitor, unplug the power cord, plug back, and then turn
on the monitor.
The picture does not fill the
entire screen. The picture cannot fill the height or width of the
screen Due to different video formats (aspect ratio) of DVDs, the monitor may
display in full screen.
NOTE: When choosing DVI-D mode, the Auto Adjust function is not available.
Back to Contents Page
Back to Contents Page
Appendix
Dell™ E2009W/E2209W Flat Panel Monitor User's Guide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell
CAUTION: Safety Instructions
CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at: http://www.dell.com/regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not
be available in your area. To contact Dell for sales, technical support, or customer service issues:
1. Visit support.dell.com.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.
Back to Contents Page

Navigation menu
