Model No.: SE2717H/SE2717HX/SE2717HR
Regulatory model: SE2717Hc
User’s Guide
Dell SE2717H/SE2717HX/SE2717HR
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal
injury or death.
_________________________
Information in this document is subject to change without notice.
© 2016–2017 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission
of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft
and Windows are either trademarks or registered trademarks of Microsoft. Corporation in
the United States and/or other countries, Intel is a registered trademark of Intel Corporation
in the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc.
ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an
ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR
guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary
interest in trademarks and trade names other than its own.
2017 - 12 Rev. A04
Contents | 3
Contents
About your monitor ................................................................ 5
Package contents ..................................................................................5
Product features ....................................................................................6
Identifying parts and controls ............................................................. 7
Monitor specifications ........................................................................10
Plug and play capability ...................................................................... 17
LCD monitor quality and pixel policy .............................................. 17
Maintenance guidelines ...................................................................... 17
Setting up the monitor ......................................................... 18
Connecting the stand .........................................................................18
Connecting your monitor ..................................................................18
Organizing cables ................................................................................19
Removing the stand ........................................................................... 20
Operating your monitor ....................................................... 21
Power on the monitor .........................................................................21

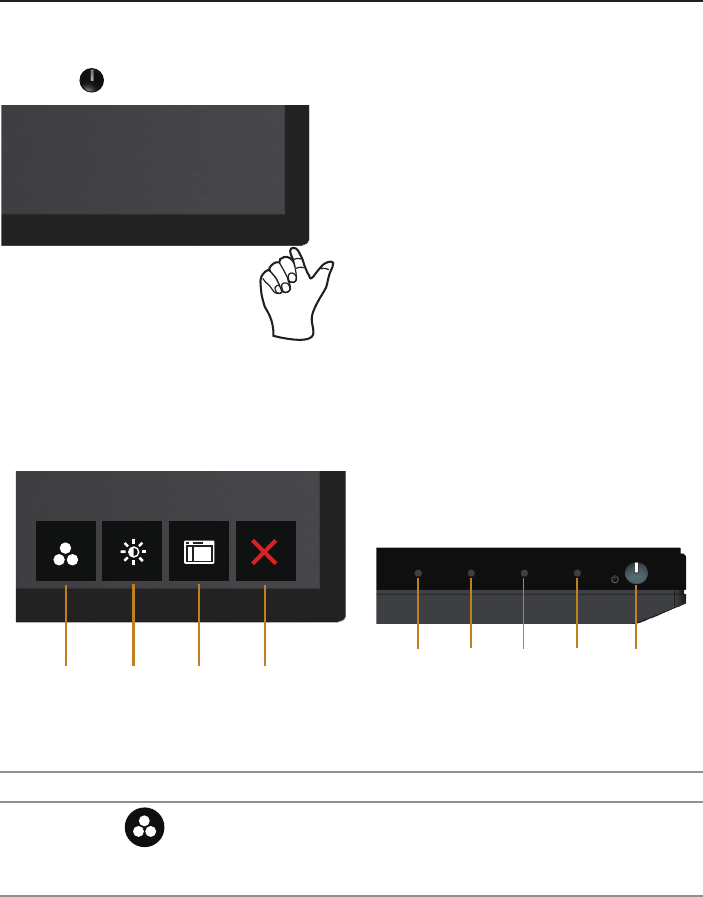

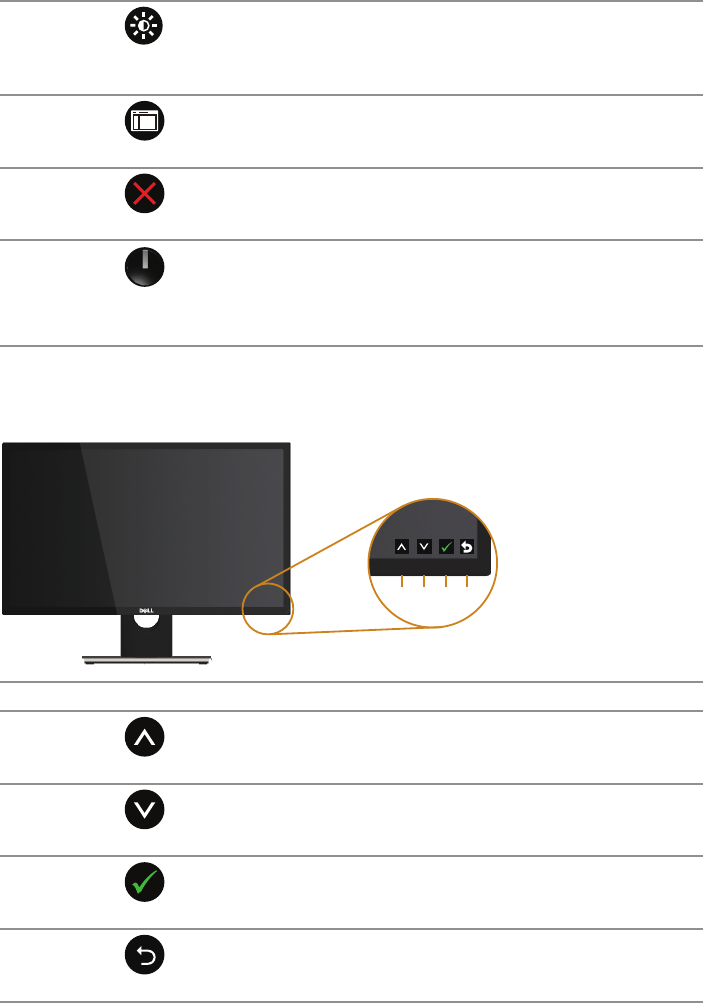

Using the control buttons .................................................................. 21

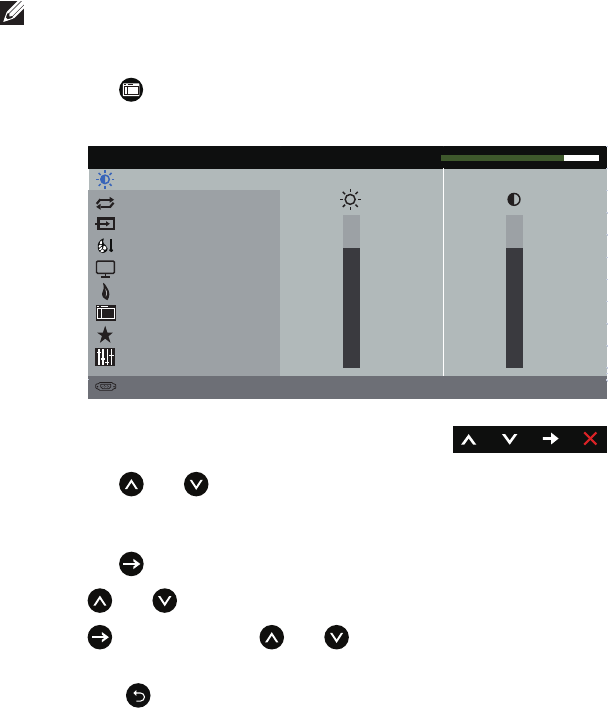

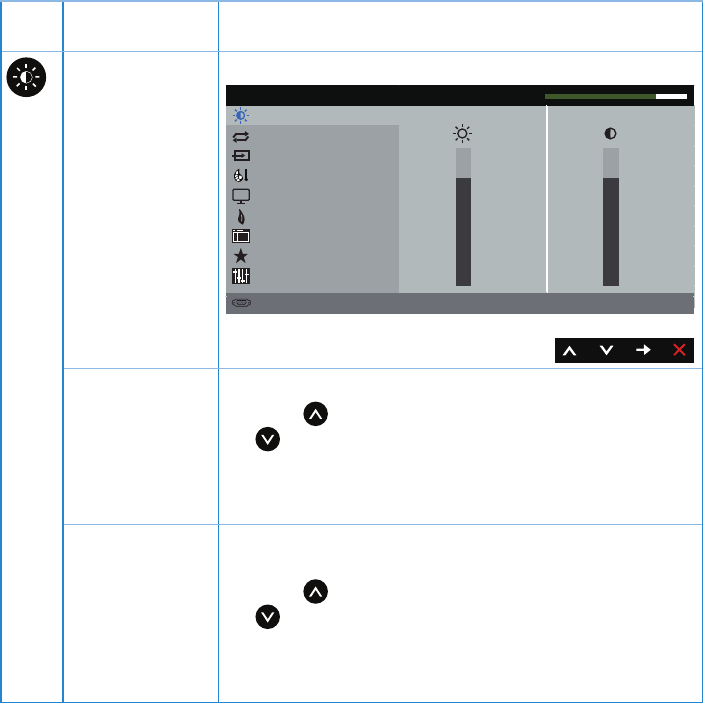

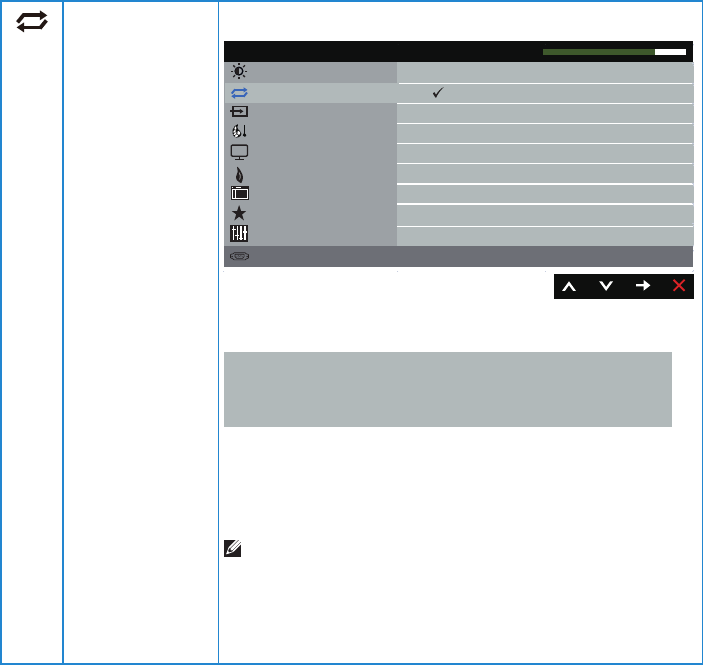

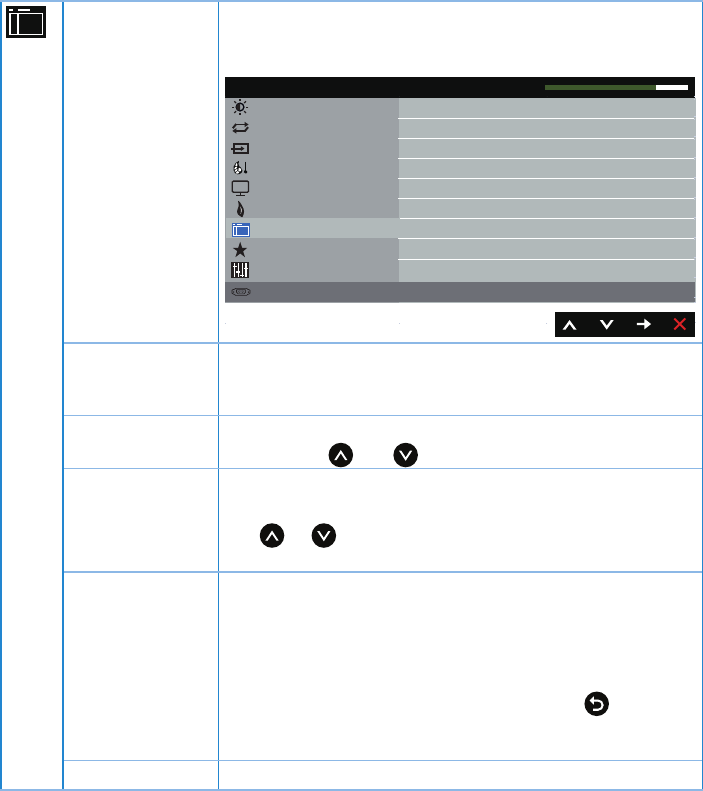

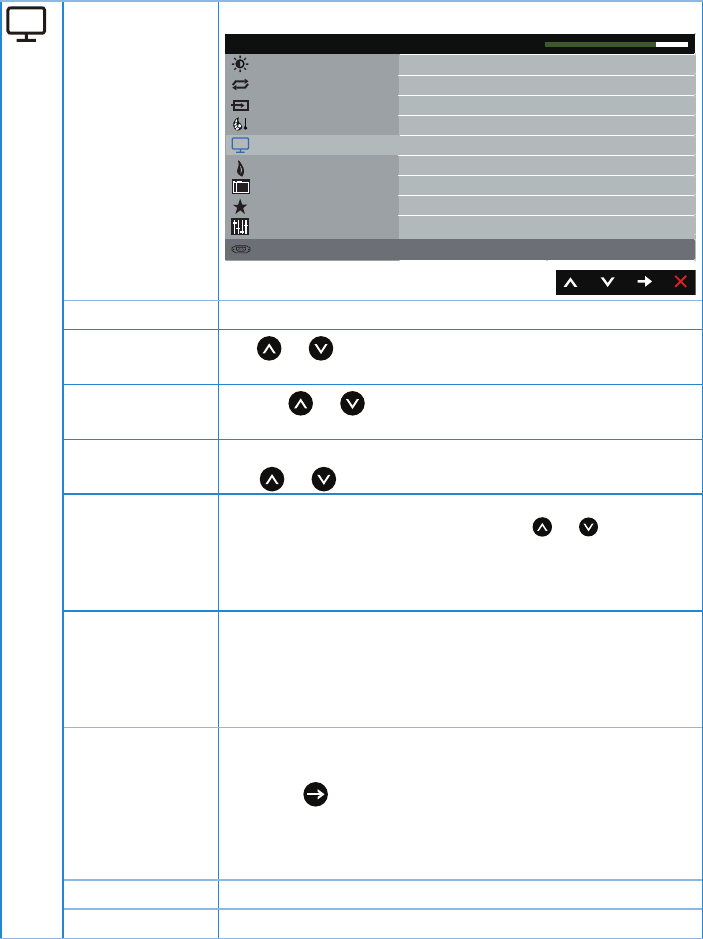

Using the on-screen display (OSD) menu .......................................23
Setting up your monitor .....................................................................36
Using tilt.................................................................................................38
4 |
Troubleshooting ....................................................................39
Self-Test .................................................................................................39
Built-in diagnostics ............................................................................ 40
Common problems ..............................................................................41
Product-specific problems ................................................................43
Appendix .................................................................................44
FCC notices (U.S. Only) and other regulatory information ......... 44
Contacting Dell ................................................................................... 44
About your monitor | 5
About your monitor
Package contents
Your monitor ships with the components shown below. Ensure that you have
received all the components and see Contacting Dell for more information if
something is missing.
NOTE: Some items may be optional and may not ship with your monitor. Some
features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup
guide for setup instructions.
∞ Monitor
∞ Stand riser
∞ Stand base
∞ Power Cable (Varies by
Countries)
∞ VGA Cable (for SE2717H)
6 | About your monitor

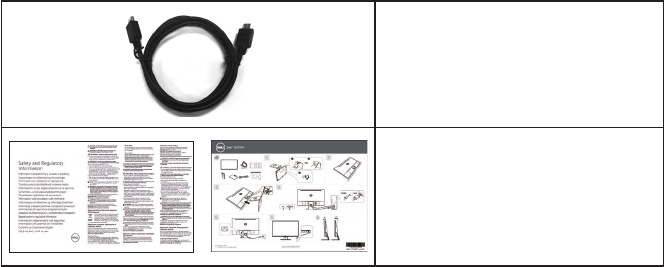

∞ HDMI Cable (for SE2717HX/
SE2717HR)
∞ Quick Setup Guide
∞ Safety and Regulatory
Information
Product features
The Dell SE2717H/SE2717HX/SE2717HR flat panel display has an active matrix, Thin-
Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight. The
monitor features include:
∞ SE2717H/SE2717HX/SE2717HR: 68.6 cm (27 inch) viewable area display
(measured diagonally). 1920 x 1080 resolution, plus full-screen support for
lower resolutions.
∞ Wide viewing angle to allow viewing from a sitting or standing position, or while
moving from side-to-side.
∞ VGA and HDMI connectivity makes it simple and easy to connect with legacy
and new systems.
∞ Plug and play capability if supported by your system.
∞ On-Screen Display (OSD) adjustments for ease of set-up and screen
optimization.
∞ Energy Saver feature for Energy Star compliance.
∞ Security-lock slot.
∞ EPEAT Silver Rating.
∞ BFR/PVC-reduced.
∞ TCO-Certified Displays.
∞ Arsenic-Free glass and Mercury-Free for the panel only.
∞ High Dynamic Contrast Ratio (8,000,000:1).
∞ 0.3 W standby power when in the sleep mode.
∞ Energy Gauge shows the energy level being consumed by the monitor in real
time.
∞ Supports AMD FreeSync™ technology.
∞ Optimize eye comfort with a flicker-free screen and ComfortView feature which
minimizes blue light emission.
∞ Optimize eye comfort with a flicker-free screen
About your monitor | 7
Identifying parts and controls

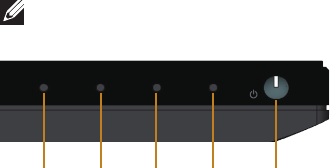

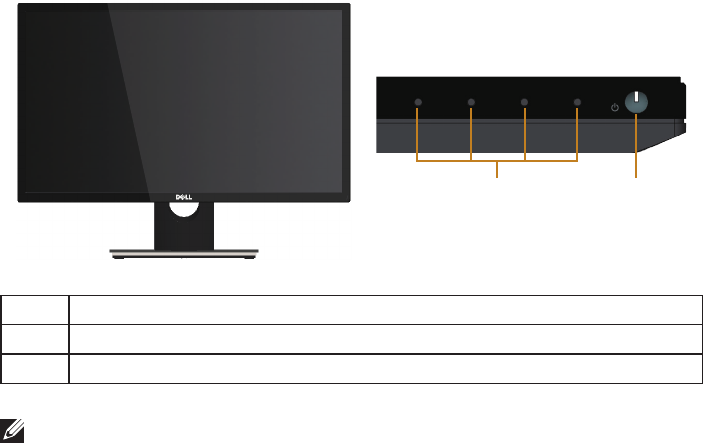

Front view
Control buttons
1 2
Label Description
1Function buttons (For more information, see Operating your monitor)
2Power On/Off button
NOTE: For displays with glossy bezels the user should consider the placement of
the display as the bezel may cause disturbing reflections from surrounding light
and bright surfaces.
8 | About your monitor

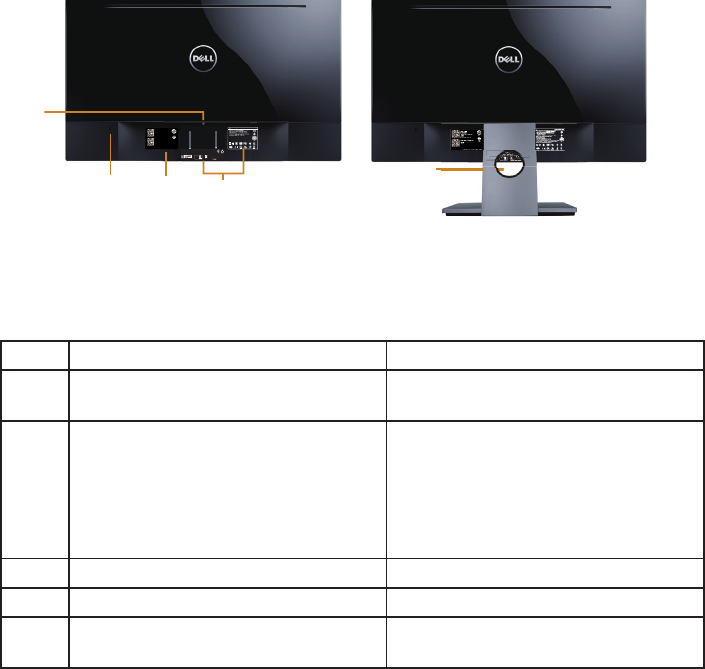

Back View without monitor stand
Back view
Date of Mfg/
TPV Electronics (Fujian) Co., Ltd.
080-200-3800
2
4
1
5
S/N: CN-12MWY-
64180-341-001L
-A00
SVC Tag:
xxxxxxx
Express Service
Code:
xxx xxx xxx x
Date of Mfg/⭕ӝᰛᵕ⭕⭘ᰛᵕ: May. 2015
XXXXX
R33037
RoHS
XXXXXXX-XXXXX
MSIP-REM-TPF-SE2717Hc
㐔㷡㢬ڊ㥐㦤㣄ڕ
TPV Electronics (Fujian) Co., Ltd.
080-200-3800
[
XXXXXX-XX
Consumo de energía: xx.x Wh
Consumo de energía en modo de espera: x.x Wh
Удельная мощность рабочего режима - x.xxx Вт/см²
Потребляемая мощность изделием в режиме ожидания - x.xx Вт
Потребляемая мощность изделием в выключенном режиме - x.xx Вт
䆜䃔ֵ⭞䚄ᓜᚆۭᇩ㿌࣑
䊂
SE2717H/SE2717HX
SE2717Hc
SE2717H/SE2717HX
SE2717Hc
1.5A
CAN ICES-3(B)/BMB-3(B)
Apparatet må lkoples jordet skkontakt.
Apparaten skall anslutas ll jordat uag.
Laite on liiteävä suojakoskemilla varusteuun pistorasiaan.
Apparatets skprop skal lslues en skkontakt med jord,
som giver forbindelse l skproppens jord.
3
Date of Mf
g
/
TPV Electro
ro
on
nics (Fu
Fu
ro
on
Fu
j
0
080-20
2
200-3800
0
80
-2
Back View with monitor stand
Label Description Use
1Security-lock slot Secures monitor with security lock
(security lock not included).
2Barcode serial number and Service
Tag label
Refer to this label if you need to
contact Dell for technical support.
The Dell service tag is used for Dell
warranty and customer service
management purposes and for
records of the base system.
3Regulatory label Lists the regulatory approvals.
4Stand release button Releases stand from monitor.
5Cable management slot Uses to organize cables by placing
them through the slot.
About your monitor | 9

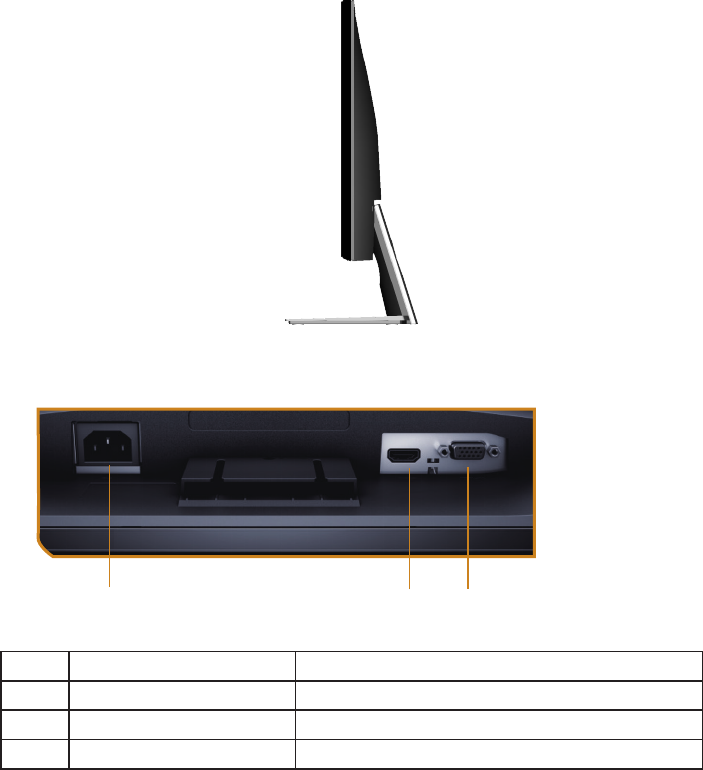

Side view
Bottom view
2 3
1
Bottom view without monitor stand
Label Description Use
1Power port Connect the power cable.
2HDMI port Connect your computer with HDMI cable.
3VGA port Connect your computer with VGA cable.
10 | About your monitor
Monitor specifications
Model SE2717H/SE2717HX/SE2717HR
Screen type Active matrix-TFT LCD
Panel type In-Plane Switching
Viewable image
Diagonal
Horizontal, Active Area
Vertical, Active Area
Area
686.00 mm (27 in)
597.89 mm (23.54 in)
336.31 mm (13.24 in)
2010.76 cm² (311.67 in²)
Pixel pitch 0.3114 mm
Viewing angle 178° (vertical) typical
178° (horizontal) typical
Luminance output 300 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
8,000,000 to 1 (Dynamic Contrast)
Faceplate coating Anti-glare with 3H hardness
Backlight LED light bar system
Response time 6 ms typical (G to G)
Color depth 16.7 million colors
Color gamut CIE 1976 (84%), CIE 1931 (72%)
FreeSync support frame
frequency (HDMI port only)
48-75 Hz
Dell display manager
compatibility
Yes
Connectivity 1xHDMI (ver 1.4)
1xVGA
Border width (edge of monitor to
active area)
11.60 mm (Top)
11.60 mm (Left/Right)
21.10 mm (Bottom)
Security Security lock slot (cable lock sold separately)
Adjustability Tilt (5°/21°)
About your monitor | 11
Resolution specifications
Model SE2717H/SE2717HX/SE2717HR
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 48 Hz to 76 Hz (automatic)
Maximum preset resolution 1920 x 1080 at 60 Hz for VGA port.
1920 x 1080 at 75 Hz for HDMI port.
Supported video modes
Model SE2717H/SE2717HX/SE2717HR
Video display capabilities (HDMI ) 480p, 480i, 576p, 720p, 1080p, 576i, 1080i
Preset display modes
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal /
Vertical)
VESA, 720 x 400 31.5 70.1 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600 x 900 60.0 60.0 108.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
FreeSync Graphic Card Support List
Please check AMD web-site for the FreeSync graphic support list.
http://www.amd.com/en-us/innovations/software-technologies/technologies-
gaming/freesync
12 | About your monitor
Electrical specifications
Model SE2717H/SE2717HX/SE2717HR
Video input signals ∞ HDMI 1.4, 600mV for each differential line,
100 ohm input impedance per differential pair,
Analog RGB, 0.7 Volts +/-5%, positive polarity at
75 ohm input impedance
AC input voltage/frequency/
current
100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.5A
Note: The AC input current need to be 1.5A
(typical).
Inrush current ∞ 120 V: 30 A (Max.) at 0°C (cold start)
∞ 240 V: 60 A (Max.) at 0°C (cold start)
Physical characteristics
Model SE2717H/SE2717HX/SE2717HR

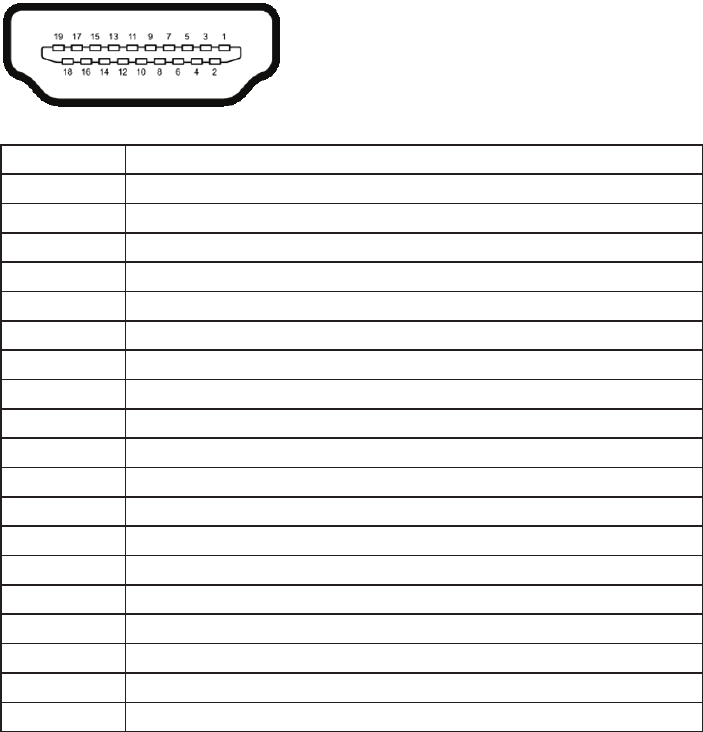

Signal cable type ∞ Digital: detachable, HDMI, 19 pins

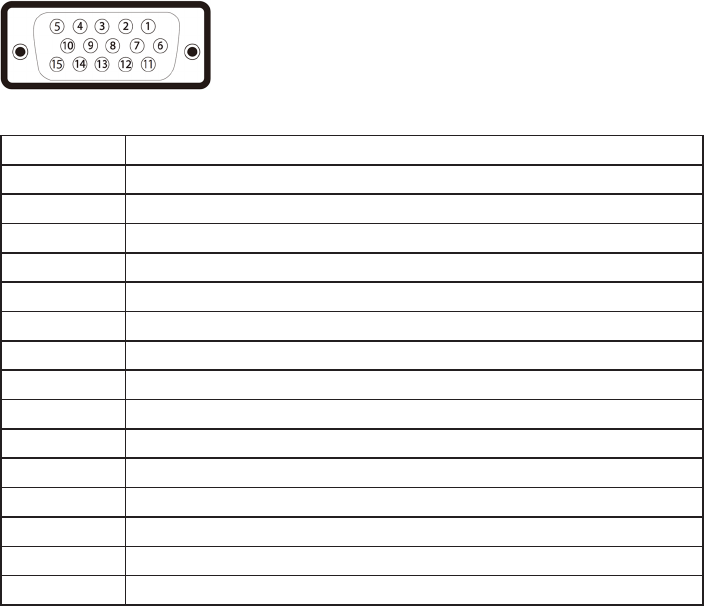

∞ Analog: detachable, D-Sub, 15 pins
Dimensions (with stand)
Height 458.7 mm (18.06 in)
Width 621.1 mm (24.45 in)
Depth 185.4 mm (7.30 in)
Dimensions (without stand)
Height 369.0 mm (14.53 in)
Width 621.1 mm (24.45 in)
Depth 56.6 mm (2.23 in)
Stand dimensions
Height 182.8 mm (7.20 in)
Width 244.6 mm (9.63 in)
Depth 185.4 mm (7.30 in)
Weight
Weight with packaging 8.60 kg (18.96 lb)
Weight with stand assembly and
cables
6.10 kg (13.45 lb)
Weight without stand assembly
(no cables)
4.80 kg (10.58 lb)
Weight of stand assembly 1.04 kg (2.29 lb)
Front-frame gloss (minimum) Black frame - 85 gloss units
About your monitor | 13
Environmental characteristics
Model SE2717H/SE2717HX/SE2717HR
Temperature
Operating 0°C to 40°C (32°F to 104°F)
Non-operating ∞ Storage: -20°C to 60°C (-4°F to 140°F)
∞ Shipping: -20°C to 60°C (-4°F to 140°F)
Humidity
Operating 20% to 80% (non-condensing)
Non-operating ∞ Storage 10% to 90% (non-condensing)
∞ Shipping 10% to 90% (non-condensing)
Altitude
Operating (maximum) 5,000 m (16,400 ft)
Non-operating (maximum) 12,192 m (40,000 ft)
Thermal dissipation ∞ 105.85 BTU/hour (maximum)
∞ 68.29 BTU/hour (typical)
Power management modes
If you have VESA's DPM compliance display card or software installed in your PC, the
monitor can automatically reduce its power consumption when not in use. This is
referred to as Power Save Mode*. If the computer detects input from the keyboard,
mouse or other input devices, the monitor automatically resumes functioning. The
following table shows the power consumption and signaling of this automatic power
saving feature.
* Zero power consumption in off mode can only be achieved by disconnecting the
power cable from the monitor.
VESA
Modes
Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active White 31 W (maximum)
20 W (typical)
Active-off
mode
Inactive Inactive Blanked White
(Glowing )
Less than 0.3 W
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
PON 18.42 W
ETEC 58.2 Kwh
14 | About your monitor
NOTE:
PON: Power consumption of on mode as defined in Energy Star 7.0 version.
ETEC: Total energy consumption in KWh as defined in Energy Star 7.0 version.
This document is informational only and reflects laboratory performance. Your
product may perform differently, depending on the software, components and
peripherals you ordered and shall have no obligation to update such information.
Accordingly, the customer should not rely upon this information in making decisions
about electrical tolerances or otherwise. No warranty as to accuracy or completeness
is expressed or implied.
The OSD functions only in the normal operation mode. When any button is pressed
in the Active-off mode, one of the following messages will be displayed:
On-Screen-Display menu.
Dell SE2717H
There is no signal coming from your computer. Press any key on the
keyboard or move the mouse to wake it up. If there is no display, press the
mo
nitor button now to select the correct input source on the
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR-compliant.
About your monitor | 15
Pin assignments
VGA connector
Pin Number 15-pin Side of the Connected Signal Cable
1 Video-Red
2 Video-Green
3 Video-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 Computer 5V/3.3V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock
16 | About your monitor
HDMI connector
Pin Number 19-pin Side of the Connected Signal Cable
1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1-
7 TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5V POWER
19 HOT PLUG DETECT
About your monitor | 17
Plug and play capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification
Data (EDID) using Display Data Channel (DDC) protocols so the system can configure
itself and optimize the monitor settings. Most monitor installations are automatic,
you can select different settings if desired. For more information about changing the
monitor settings, see Operating your monitor.
LCD monitor quality and pixel policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more
pixels to become fixed in an unchanging state which are hard to see and do not affect
the display quality or usability. For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at www.dell.com/support/monitors.
Maintenance guidelines
Cleaning your monitor
WARNING: Before cleaning the monitor, unplug the monitor power cable from
the electrical outlet.
CAUTION: Read and follow the Safety Instructions before cleaning the monitor.
For best practices, follow the instructions in the list below while unpacking, cleaning
or handling your monitor:
∞ To clean your screen, lightly dampen a soft, clean cloth with water. If
possible, use a special screen-cleaning tissue or solution suitable for the anti-
static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or
compressed air.
∞ Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of
any kind as some detergents leave a milky film on the monitor.
∞ If you notice white powder when you unpack your monitor, wipe it off with a
cloth.
∞ Handle your monitor with care as the black-colored monitor may get scratched
and show white scuff marks.
∞ To help maintain the best image quality on your monitor, use a dynamically
changing screen saver and turn Off your monitor when not in use.
18 | Setting up the monitor
Setting up the monitor
Connecting the stand
NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE: This is applicable for a monitor with a stand. When any other stand
is bought, please refer to the respective stand setup guide for the set up
instructions.
To attach the monitor stand:
1. Place the monitor on a soft cloth or cushion.
2. Insert the tabs on the upper part of the stand in to the grooves on the back of
the monitor.
3. Press down the stand till it snaps into place.
2
3
Connecting your monitor
WARNING: Before you begin any of the procedures in this section, follow the
Safety Instructions.
NOTE: Do not connect all cables to the computer at the same time. It is
recommend to route the cables through the cable-management slot before you
connect them to the monitor.
To connect your monitor to the computer:
1. Turn Off your computer and disconnect the power cable.
2. Connect the VGA or HDMI cable from your monitor to the computer.
Setting up the monitor | 19
Connecting the VGA cable (sold separately for SE2717HX/
SE2717HR)
Connecting the HDMI cable (sold separately for SE2717H)
Organizing cables
Use the cable-management slot to organize the cables connected to your monitor.
20 | Setting up the monitor

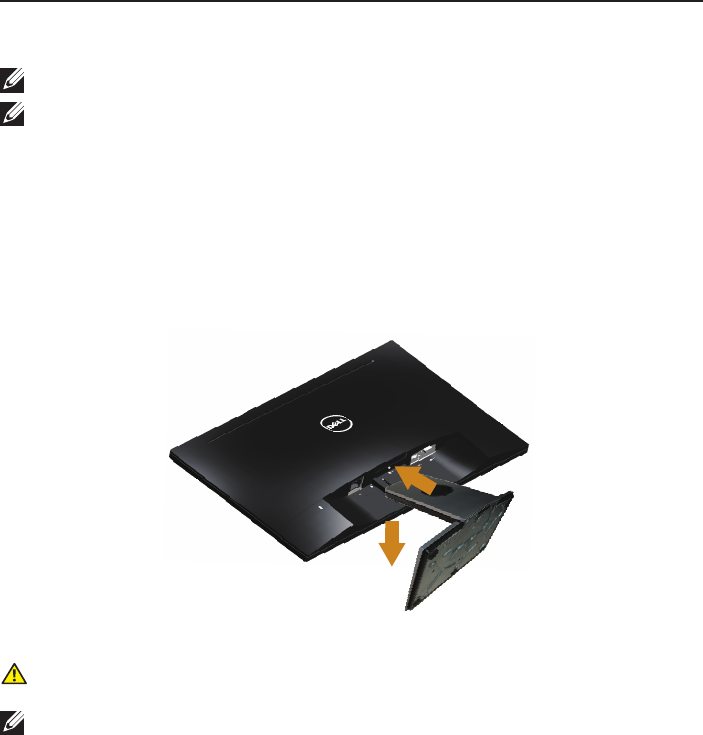

Removing the stand
NOTE: To prevent scratches on the LCD screen while removing the stand,
ensure that the monitor is placed on a soft and clean surface.
NOTE: This is applicable for a monitor with a stand. When any other stand
is bought, please refer to the respective stand setup guide for the set-up
instructions.
To remove the stand:
1. Place the monitor on a soft cloth or cushion.
2. Use a long and thin screwdriver to push the release latch.
3. Once the latch is released, remove the base away from the monitor.
2
3
2
Operating your monitor | 21
Operating your monitor
Power on the monitor
Press the button to turn on the monitor.
Using the control buttons
Use the control buttons on the bottom of the monitor to adjust the image being
displayed.
Control buttons
152 34
1234
The following table describes the control buttons:
Control Buttons Description
1
Shortcut key/Preset
Modes
Use this button to choose from a list of preset modes.
22 | Operating your monitor
2
Shortcut key/
Brightness/Contrast
Use the Brightness/Contrast key to direct access to
the "Brightness" and "Contrast" control menu.
3
Menu
Use the Menu button to launch the On-Screen Display
(OSD) and select the OSD Menu. See Accessing the
OSD menu.
4
Exit
Use this button to go back to the main menu or exit
the OSD main menu.
5
Power (with power
light )
Use the Power button to turn the monitor on and off.
Solid white light indicates the monitor is On and fully
functional. Blinking white light indicates the power
save mode.
OSD controls
Use the buttons on the bottom of the monitor to adjust the image settings.
1234
Contorl Buttons Description
1
Up
Use the Up button to increase values or move up in a
menu.
2
Down
Use the Down button to decrease values or move
down in a menu.
3
OK
Use the OK button to confirm your selection in a
menu.
4
Back
Use the Back button to go back to the previous menu.
Operating your monitor | 23
Using the on-screen display (OSD) menu
Accessing the OSD menu
NOTE: Any changes you make are automatically saved when you move to
another menu, exit the OSD menu, or wait for the OSD menu to automatically
close.
1. Press the button to display the OSD main menu.
Main Menu for analog (VGA) input
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 60Hz
Dell SE2717H Energy Use
75% 75%
2. Press the and buttons to move between the setting options. As you move
from one icon to another, the option name is highlighted. See the following
table for a complete list of all the options available for the monitor.
3. Press the button once to activate the highlighted option.
4. Press and button to select the desired parameter.
5. Press and then use the and buttons, according to the indicators on
the menu, to make your changes.
6. Select the button to return to the main menu.
24 | Operating your monitor
Icon Menu and
Submenus
Description
Brightness/
Contrast
Use this menu to activate brightness/contrast adjustment.
Brightness / Contrast
Auto Adjust
Input Source
Color
Display
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 60Hz
Dell SE2717H Energy Use
75% 75%
Brightness Brightness adjusts the luminance of the backlight.
Press the button to increase the brightness and press
the button to decrease the brightness (min. 0 / max.
100).
NOTE: Manual adjustment of brightness is disabled when
dynamic contrast is switched on.
Contrast Adjust the brightness first, and then adjust the contrast
only if further adjustment is necessary.
Press the button to increase the contrast and press
the button to decrease the contrast (min. 0 / max.
100).
The contrast function adjusts the degree of difference
between darkness and lightness on the monitor screen.
Operating your monitor | 25

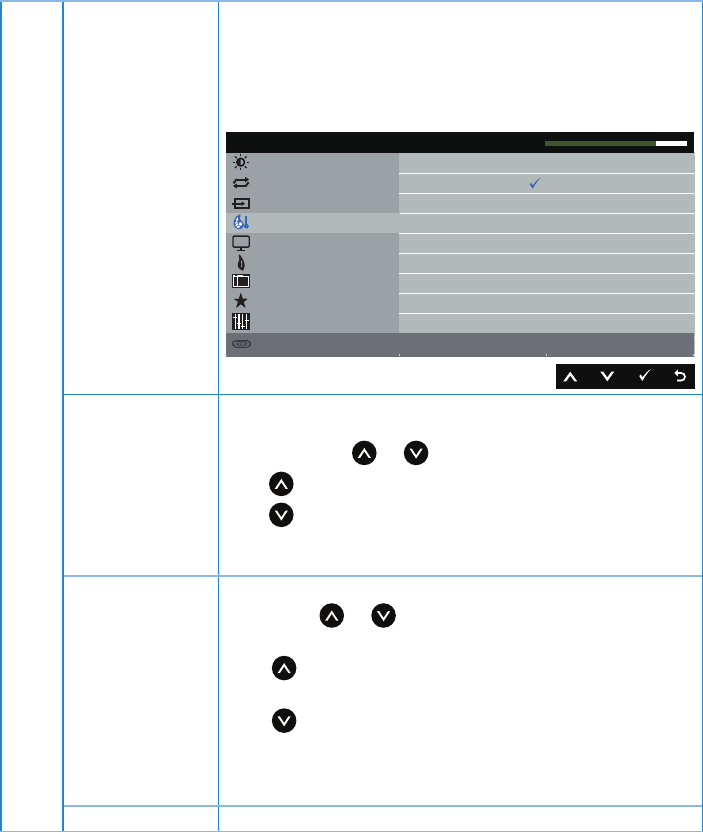

Auto Adjust Use this key to activate automatic setup and adjust menu.
Brightness / Contrast
Input Source
Color
Display
Energy
Menu
Personalize
Others
Dell SE2717H Energy Use
Press to adjust the screen automatically.
Auto Adjust
Resolution: 1920x1080, 60Hz
The following dialog appears on a black screen as the
monitor self-adjusts to the current input:
Auto Adjustment in Progress...
Auto adjustment allows the monitor to self-adjust to the
incoming video signal. After using auto adjustment, you
can further tune your monitor by using the pixel clock
(coarse) and phase (fine) controls under display settings.
NOTE: Auto adjust does not occur if you press the
button while there are no active video input signals or
attached cables.
This option is only available when you are using the
analog (VGA) connector.
26 | Operating your monitor
Input Source Use the input source menu to select between the
different video signals that may be connected to your
monitor.
Brightness / Contrast
Color
Display
Energy
Menu
Personalize
Others
Auto Select On
Reset Input Source
Auto Adjust
Input Source
VGA
HDMI
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
VGA Select VGA input when you are using the analog (VGA)
connector. Push to select the VGA input source.
HDMI Select HDMI input when you are using the HDMI
connector. Push to select the HDMI input source.
Auto Select Select auto select to scan for available input signals.
Reset Input Source Select this option to restore default Input Source.
Color Use color to adjust the color setting mode.
Brightness / Contrast
Display
Energy
Menu
Personalize
Others
Preset Modes
Auto Adjust
Input Source
Color
Standard
RGB
Input Color Format
Reset Color
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
Operating your monitor | 27
Preset Modes When you select preset modes, you can choose standard,
comfortview, multimedia, movie, game, warm, cool, or
custom color from the list.
∞ Standard: Loads the monitor's default color settings.
This is the default preset mode.
∞ ComfortView: Decreases the level of blue light emitted
from the screen to make viewing more comfortable for
your eyes.
∞ Multimedia: Loads color settings ideal for multimedia
applications.
∞ Movie: Loads color settings ideal for movies.
∞ FPS Game: Loads color settings ideal for First-Person
Shooter games.
∞ RTS Game: Loads color settings ideal for Real-Time
Strategy games.
∞ RPG Game: Loads color settings ideal for Role-Playing
games.
∞ Warm: Increases the color temperature. The screen
appears warmer with a red/yellow tint.
∞ Cool: Decreases the color temperature. The screen
appears cooler with a blue tint.
∞ Custom Color: Allows you to manually adjust the color
settings.
Press the and buttons to adjust the three colors
(R, G, B) values and create your own preset color mode.
Brightness / Contrast
Display
Energy
Menu
Personalize
Others
Preset Modes
Auto Adjust
Input Source
Color
Standard
Multimedia
Movie
FPS Game
ComfortView
Warm
Cool
Custom Color
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
RTS Game
RPG Game
28 | Operating your monitor
Input Color
Format
Allows you to set the video input mode to:
∞ RGB: Select this option if your monitor is connected to
a computer or DVD player using the HDMI cable.
∞ YPbPr: Select this option if your DVD player supports
only YPbPr output.
Brightness / Contrast
Display
Energy
Menu
Personalize
Others
Input Color Format
Auto Adjust
Input Source
Color
RGB
YPbPr
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
Hue This feature can shift the color of the video image to
green or purple. This is used to adjust the desired flesh
tone color. Use or to adjust the hue from 0 to 100.
Press to increase the green shade of the video image.
Press to increase the purple shade of the video image.
NOTE: Hue adjustment is available only when you select
Movie or Game preset mode.
Saturation This feature can adjust the color saturation of the video
image. Use or to adjust the saturation from 0 to
100.
Press to increase the monochrome appearance of the
video image.
Press to increase the colorful appearance of the video
image.
NOTE: Saturation adjustment is available only when you
select movie or game preset mode.
Reset Color Allows your monitor color settings to the factory settings.
Operating your monitor | 29
Display Use the display to adjust image.
Brightness / Contrast
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 60Hz
Dell SE2717H Energy Use
Auto Adjust
Input Source
Color
50
50
50
50
0
Normal
Display
Horizontal Position
Vertical Position
Sharpness
Pixel Clock
Phase
Response Time
Reset Display
Dynamic Contrast
Wide 16:9
Aspect Ratio
Aspect Ratio Adjusts the image ratio to wide 16:9, 4:3 or 5:4.
Horizontal
Position Use or the buttons to adjust image left and right.
Minimum is 0 (-). Maximum is 100 (+).
Vertical Position Use the or buttons to adjust image up and down.
Minimum is 0 (-). Maximum is 100 (+).
Sharpness This feature can make the image look sharper or softer.
Use or to adjust the sharpness from 0 to 100.
Pixel Clock The phase and pixel clock adjustments allow you to adjust
your monitor to your preference. Use or buttons to
adjust for best image quality. Minimum is 0 (-). Maximum
is 100 (+).
NOTE: Applicable when input port is VGA.
Phase If satisfactory results are not obtained using the phase
adjustment, use the pixel clock (coarse) adjustment and
then use phase (fine), again. Minimum is 0 (-). Maximum is
100 (+).
NOTE: Applicable when input port is VGA.
Dynamic
Contrast
Allows you to increase the level of contrast to provide
sharper and more detailed image quality.
Press the button to select the dynamic contrast on or
off.
NOTE: Dynamic contrast provides higher contrast if you
select game or movie preset mode.
Response Time User can select between Normal, Fast or Super Fast.
Reset Display Select this option to restore default display settings.
30 | Operating your monitor

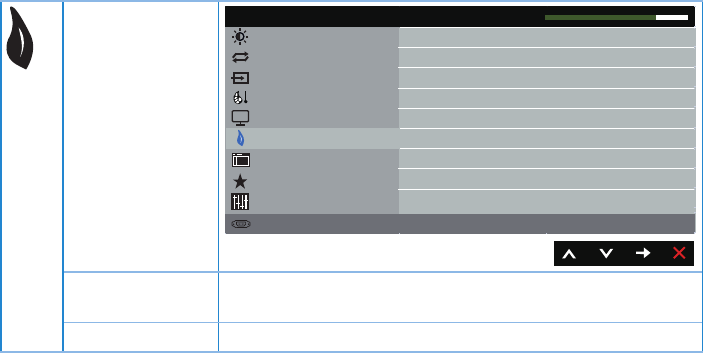

Energy
Brightness / Contrast
Display
Menu
Personalize
Others
Power Button LED
Auto Adjust
Input Source
Color
On During Active
Energy
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
Reset Energy
Power Button
LED
Allows you to set the power LED indicator on during
active or off during active to save energy.
Reset Energy Select this option to restore default Energy settings.
Operating your monitor | 31
Menu Select this option to adjust the settings of the OSD, such
as, the languages of the OSD, the amount of time the
menu remains on screen and so on.
Brightness / Contrast
Energy
Personalize
Others
Auto Adjust
Input Source
Color
English
20
20 s
Unlock
Display
Language
Transparency
Timer
Lock
Reset Menu
Menu
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
Language Language options set the OSD display to one of the eight
languages (English, Spanish, French, German, Brazilian
Portuguese, Russian, Simplified Chinese, or Japanese).
Transparency Select this option to change the menu transparency by
pressing the and buttons from 0 to 100.
Timer OSD hold time: sets the length of time the OSD will
remain active after the last time you pressed a button.
Use or to adjust the slider in 1 second increments,
from 5 to 60 seconds.
Lock Controls user access to adjustments. When lock is
selected, no user adjustments are allowed. All buttons are
locked.
NOTE: When the OSD is locked, pressing the menu key
takes you directly to the OSD settings menu, with 'OSD
Lock' pre-selected on entry. Press and hold key for 6
seconds to unlock and allow user access to all applicable
settings.
Reset Menu Reset all OSD settings to the factory preset values.
32 | Operating your monitor

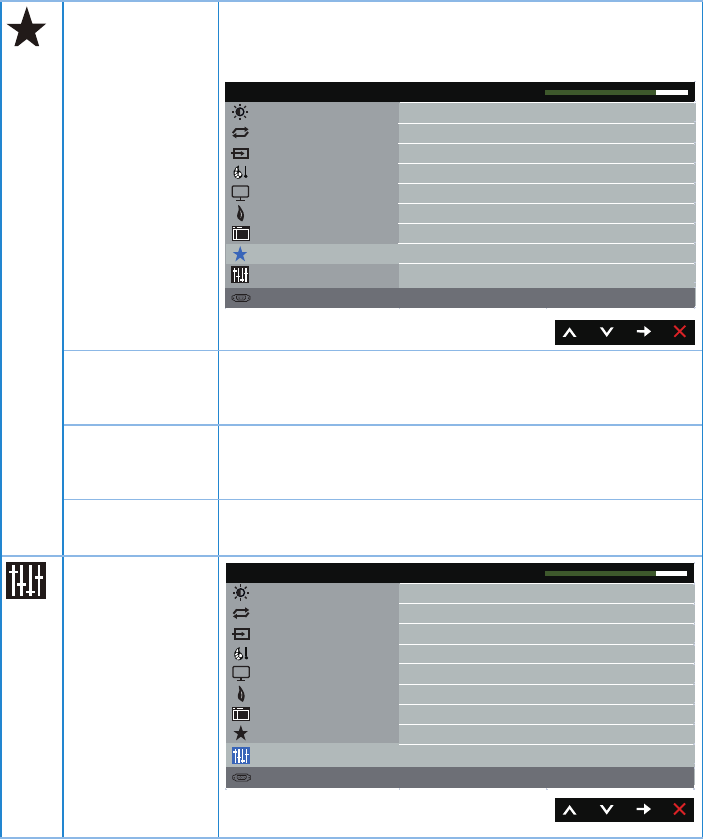

Personalize Users can choose a feature from shortcut key 1, shortcut
key 2, reset personalization, preset modes or Brightness/
Contrast and set it as a shortcut key.
Brightness / Contrast
Energy
Others
Auto Adjust
Input Source
Color
Display
Menu
Personalize
Shortcut Key 1 Preset Modes
Shortcut Key 2 Brightness/Contrast
Reset Personalization
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
Shortcut Key 1 User can select one of the following: preset modes,
brightness/contrast, auto adjust, input source, aspect
ratio to set the shortcut key 1.
Shortcut Key 2 User can select one of the following: preset modes,
brightness/contrast, auto adjust, input source, aspect
ratio to set the shortcut key 2.
Reset
Personalization
Allows you to restore shortcut key to the default setting.
Others
Brightness / Contrast
Energy
Personalize
Auto Adjust
Input Source
Color
Enable
Disable
Display
DDC/CI
LCD Conditioning
Reset Others
Factory Reset
Menu
Others
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
Operating your monitor | 33

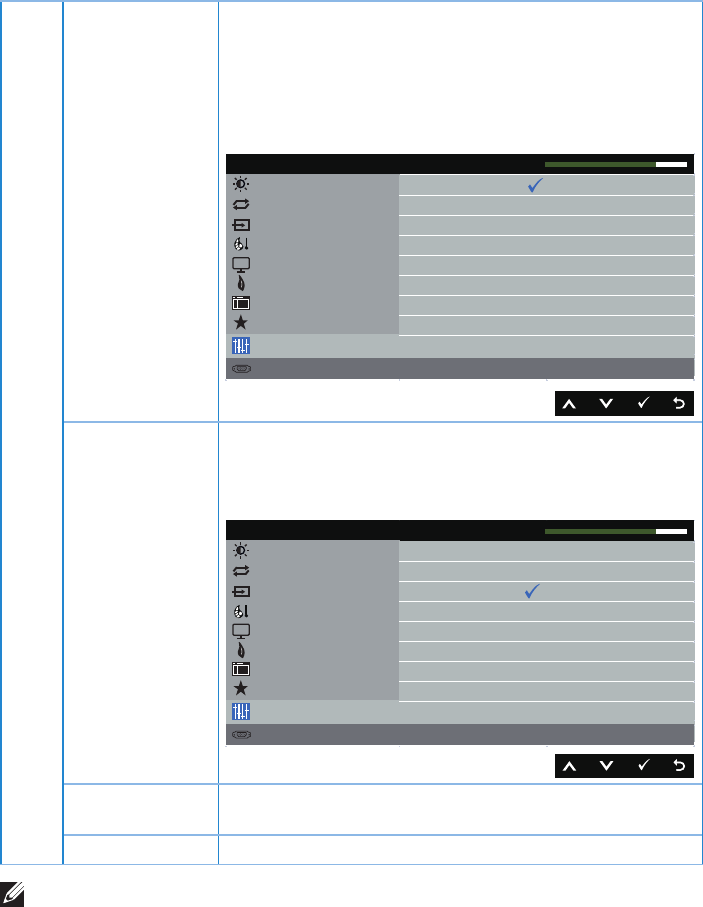

DDC/CI DDC/CI (display data channel/command interface) allows
your monitor parameters (brightness, color balance and
etc.) to be adjustable via the software on your computer.
You can disable this feature by selecting disable.
Enable this feature for best user experience and optimum
performance of your monitor.
Brightness / Contrast
Energy
Personalize
Auto Adjust
Input Source
Color
Display
Menu
Others
Enable
Disable
DDC/CI
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
LCD Conditioning
Reset Others
Factory Reset
LCD
Conditioning
Helps reduce minor cases of image retention. Depending
on the degree of image retention, the program may
take some time to run. To start LCD conditioning, select
Enable.
Brightness / Contrast
Energy
Personalize
Auto Adjust
Input Source
Color
Display
Menu
Others
Enable
Disable
LCD Conditioning
Dell SE2717H Energy Use
Resolution: 1920x1080, 60Hz
Reset Others
Factory Reset
DDC/CI
Reset Other Reset all settings under the Others setting menu to the
factory preset values.
Factory Reset Reset all settings to the factory preset values.
NOTE: Your monitor has a built-in feature to automatically calibrate the
brightness to compensate for LED aging.
34 | Operating your monitor

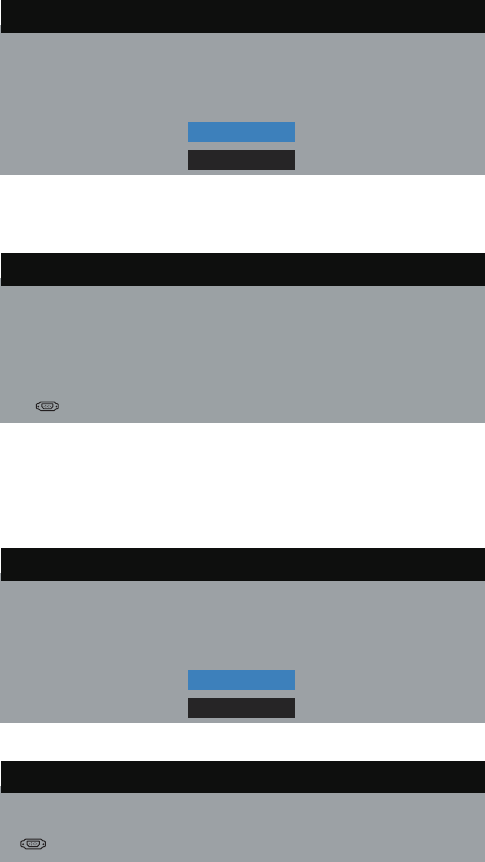

OSD warning messages
When the Dynamic Contrast feature is enabled (in these preset modes: Game or
Movie), the manual brightness adjustment is disabled.
Dell SE2717H
To allow manual adjustment of brightness, the Dynamic Contrast
No
Yes
will be switched off.
Do you want to continue?
When the monitor does not support a particular resolution mode, the following
message is displayed:
Dell SE2717H
The current input timing is not supported by the monitor display.
Please change your input timing to
1920x1080, 60Hz
or any
other monitor listed timing as per the monitor specifications.
This means that the monitor cannot synchronize with the signal that it is receiving
from the computer. See Monitor specifications for the Horizontal and Vertical
frequency ranges addressable by this monitor. Recommended mode is 1920 x 1080.
Before the DDC/CI function is disabled, the following message is displayed:
Dell SE2717H
The function of adjusting display setting using PC application will
No
Yes
be disabled.
Do you wish to disable DDC/CI function?
When the monitor enters the Power Save Mode, the following message appears:
Dell SE2717H
Entering Power Save Mode.

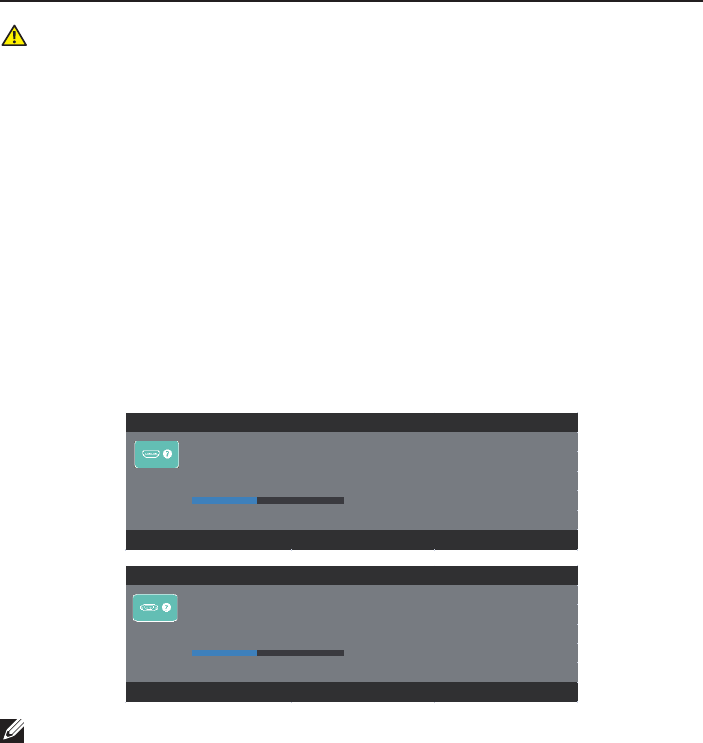

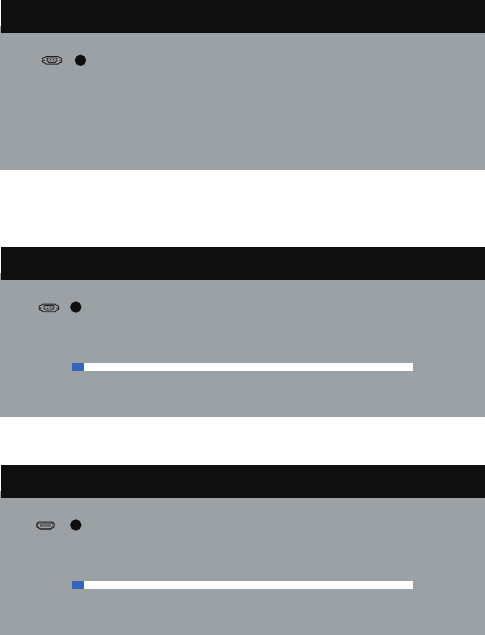

If you press any button other than the power button, the following messages will
appear depending on the selected input:
Operating your monitor | 35
Dell SE2717H
No VGA signal from your device.
?
Press any key on the keyboard or move the mouse to wake it up.
the correct input source.
If there is no display, press the monitor button again to select
If VGA or HDMI cable is not connected, a floating dialog box as shown below appears.
The monitor will enter Power Save Mode after 4 minutes if left at this state.
Dell SE2717H
No VGA Cable
The display will go into Power Save Mode in 4 minutes.
www.dell.com/support/monitors
?
or
Dell SE2717H
No HDMI Cable
The display will go into Power Save Mode in 4 minutes.
www.dell.com/support/monitors
?
See Troubleshooting for more information.
36 | Operating your monitor
Setting up your monitor
Setting the maximum resolution
To set the maximum resolution for the monitor:
In Windows 7, Windows 8, Windows 8.1 and Windows 10:
1. For Windows 8 and Windows 8.1, select the Desktop tile to switch to classic
desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the Dropdown list of the Screen Resolution and select 1920 x 1080.
4. Click OK.
If you do not see 1920 x 1080 as an option, you may need to update your graphics
driver. Depending on your computer, complete one of the following procedures:
If you have a Dell desktop or portable computer:
∞ Go to www.dell.com/support, enter your computer’s Service Tag, and download
the latest driver for your graphics card.
If you are using a non-Dell computer (portable or desktop):
∞ Go to the support site for your computer and download the latest graphic
drivers.
∞ Go to your graphics card website and download the latest graphic drivers.
If you have a Dell desktop or a Dell portable computer with
internet access
1. Go to www.dell.com/support, enter your service tag, and download the latest
driver for your graphics card.
2. After installing the drivers for your graphics adapter, attempt to set the resolution
to 1920 x 1080 again.
NOTE: If you are unable to set the resolution to 1920 x 1080, please contact Dell
to inquire about a graphics adapter that supports these resolutions.
If you have a non Dell desktop, portable computer, or graphics
card
In Windows 7, Windows 8, Windows 8.1 and Windows 10:
1. For Windows 8 and Windows 8.1 only, select the Desktop tile to switch to classic
desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the
window (e.g. NVIDIA, ATI, Intel etc.).
Operating your monitor | 37
6. Refer to the graphic card provider website for updated driver (for example,
http://www.ATI.com OR http://www.AMD.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution
to 1920 x 1080 again.
NOTE: If you are unable to set the recommended resolution, contact the
manufacturer of your computer or consider purchasing a graphics adapter that
will support the video resolution.
38 | Operating your monitor

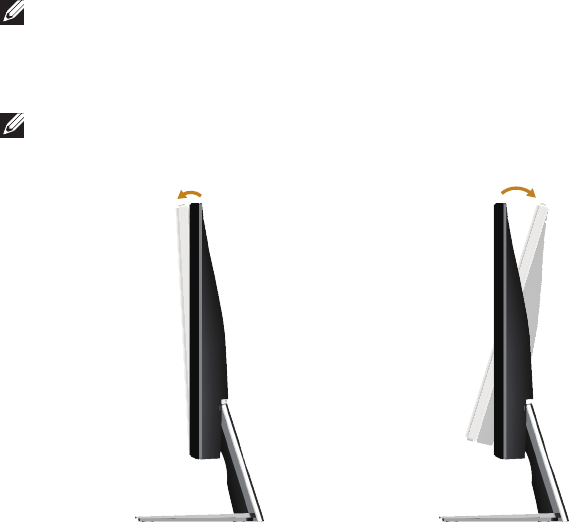

Using tilt
NOTE: This is applicable for a monitor with a stand. When any other stand is
bought, please refer to the respective stand setup guide for set up instructions.
Tilt
NOTE: The stand is detached when the monitor is shipped from the factory.
5° 21°
Troubleshooting | 39
Troubleshooting
WARNING: Before you begin any of the procedures in this section, follow the
Safety Instructions.
Self-Test
Your monitor provides a self-test feature that allows you to check if your monitor is
functioning properly. If your monitor and computer are properly connected but the
monitor screen remains dark, run the monitor self-test by performing the following
steps:
1. Turn off both your computer and the monitor.
2. Disconnect all video cables from the monitor. This way, the computer doesn’t
have to be involved.
3. Turn on the monitor.
If the monitor is working correctly, it detects that there is no signal and one of the
following message appears. While in self-test mode, the power LED remains white.
Dell SE2717H
The display will go into Power Save Mode in 5 minutes.
www. dell.com/support/monitors
No HDMI Cable
Dell SE2717H
The display will go into Power Save Mode in 5 minutes.
www.d ell.com/support/monitors
No VGA Cable
NOTE: This box also appears during normal system operation, if the video cable
is disconnected or damaged.
4. Turn Off your monitor and reconnect the video cable; then turn on your
computer and the monitor.
If your monitor remains dark after you reconnect the cables, check your video
controller and computer.
40 | Troubleshooting
Built-in diagnostics
Your monitor has a built-in diagnostic tool that helps you determine if any screen
abnormality you experience is an inherent problem with your monitor, or with your
computer and video card.
NOTE: You can run the built-in diagnostics only when the video cable is
unplugged and the monitor is in self-test mode.
152 34
To run the built-in diagnostics:
1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The
monitor then goes into the self-test mode.
3. Press and hold Button 1 for 5 seconds. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Press Button 1 on the bottom of the monitor again. The color of the screen
changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text
screens.
The test is complete when the text screen appears. To exit, press Button 1 again.
If you do not detect any screen abnormalities upon using the built-in diagnostic tool,
the monitor is functioning properly. Check the video card and computer.
Troubleshooting | 41
Common problems
The following table contains general information about common monitor problems
you might encounter and the possible solutions:
Common
Symptoms
Possible Solutions
No Video/Power LED
off ∞ Ensure that the video cable connecting the monitor and the
computer is properly connected and secure.
∞ Verify that the power outlet is functioning properly using any other
electrical equipment.
∞ Ensure that the power button is pressed.
∞ Ensure that the correct input source is selected via the Input Source
menu.
No Video/Power LED
on ∞ Increase brightness and contrast controls using the OSD.
∞ Perform monitor self-test feature check.
∞ Check for bent or broken pins in the video cable connector.
∞ Run the built-in diagnostics.
∞ Ensure that the correct input source is selected via the Input Source
menu.
Poor Focus ∞ Eliminate video extension cables.
∞ Reset the monitor to Factory Settings (Factory Reset).
∞ Change the video resolution to the correct aspect ratio.
Shaky/Jittery Video ∞ Reset the monitor to Factory Settings (Factory Reset).
∞ Check environmental factors.
∞ Relocate the monitor and test in another room.
Missing Pixels ∞ Cycle power On-Off.
∞ Pixel that is permanently Off is a natural defect that can occur in
LCD technology.
∞ For more information on Dell Monitor Quality and Pixel Policy, see
Dell Support site at:
www.dell.com/support/monitors.
Stuck-on Pixels ∞ Cycle power On-Off.
∞ Pixel that is permanently off is a natural defect that can occur in
LCD technology.
∞ For more information on Dell Monitor Quality and Pixel Policy, see
Dell Support site at:
www.dell.com/support/monitors.
Brightness Problems ∞ Reset the monitor to Factory Settings (Factory Reset).
∞ Adjust brightness & contrast controls via OSD.
Geometric Distortion ∞ Reset the monitor to Factory Settings (Factory Reset).
∞ Adjust horizontal & vertical controls via OSD.
42 | Troubleshooting
Horizontal/Vertical
Lines ∞ Reset the monitor to Factory Settings (Factory Reset).
∞ Perform monitor self-test feature check and determine if these lines
are also in self-test mode.
∞ Check for bent or broken pins in the video cable connector.
∞ Run the built-in diagnostics.
Synchronization
Problems ∞ Reset the monitor to Factory Settings (Factory Reset).
∞ Perform monitor self-test feature check to determine if the
scrambled screen appears in self-test mode.
∞ Check for bent or broken pins in the video cable connector.
∞ Restart the computer in the safe mode.
Safety Related Issues ∞ Do not perform any troubleshooting steps.
∞ Contact Dell immediately.
Intermittent Problems ∞ Ensure that the video cable connecting the monitor to the computer
is connected properly and is secure.
∞ Reset the monitor to Factory Settings (Factory Reset).
∞ Perform monitor self-test feature check to determine if the
intermittent problem occurs in self-test mode.
Missing Color ∞ Perform monitor self-test feature check.
∞ Ensure that the video cable connecting the monitor to the computer
is connected properly and is secure.
∞ Check for bent or broken pins in the video cable connector.
Wrong Color ∞ Change the Color Setting Mode in the Color Settings OSD to
Graphics or Video depending on the application.
∞ Try different Preset Modes in Color settings OSD. Adjust R/G/B
value in Custom Color in Color settings OSD.
∞ Change the Input Color Format to RGB or YPbPr in the Color
settings OSD.
∞ Run the built-in diagnostics.
Image retention from
a static image left on
the monitor for a long
period of time
∞ Use the Power Management feature to turn off the monitor
at all times when not in use (for more information, see Power
management modes).
∞ Alternatively, use a dynamically changing screensaver.
Video Ghosting or
Overshooting ∞ Change the Response Time in the Display OSD to Fast or Normal
depending on your application and usage.
Troubleshooting | 43
Product-specific problems
Specific Symptoms Possible Solutions
Screen image is too
small ∞ Check the Aspect Ratio setting in the Display settings OSD.
∞ Reset the monitor to Factory Settings (Factory Reset).
Cannot adjust the
monitor with the
buttons on the bottom
of the panel
∞ Turn Off the monitor, unplug the power cord, plug it back, and then
turn On the monitor.
∞ Check if the OSD menu is locked. If yes, press and hold the menu
button for 10 seconds to unlock. (For more information, see Lock).
No Input Signal when
user controls are
pressed
∞ Check the signal source. Ensure the computer is not in standby
or sleep mode by moving the mouse or pressing any key on the
keyboard.
∞ Check if the video cable is plugged in properly. Disconnect and
reconnect the video cable if necessary.
∞ Reset the computer or video player.
The picture does not
fill the entire screen ∞ Due to different video formats (aspect ratio) of DVDs, the monitor
may display in full screen.
∞ Run the built-in diagnostics.
44 | Appendix
Appendix
WARNING: Safety Instructions
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
For information on safety instructions, see the Product Information Guide.
FCC notices (U.S. Only) and other regulatory
information
For FCC notices and other regulatory information, see the regulatory compliance
website located at www.dell.com/regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
NOTE: If you do not have an active Internet connection, you can find contact
information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options.
Availability varies by country and product, and some services may not be available
in your area.
To get online Monitor support content:
1. Visit www.dell.com/support/monitors.
To contact Dell for sales, technical support, or customer service issues:
1. Visit www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down
menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.
WARNING: For displays with glossy bezels the user should consider the
placement of the display as the bezel may cause disturbing reflections from
surrounding light and bright surfaces.

Navigation menu
