Delta Electronics E804WAG Dual-Band Wireless A+G Router User Manual P74743 F6D3230 4 AG man 12 04 indd
Delta Networks, Inc. Dual-Band Wireless A+G Router P74743 F6D3230 4 AG man 12 04 indd
Contents
Users manual 8
Troubleshooting
101
section
1
2
3
4
5
6
7
8
9
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA)
security on a Belkin Wireless Router (or Belkin Access Point) for a
home network.
Solution:
1.
From the “Security Mode” drop-down menu, select “WPA-PSK
(no server)”.
2.
For “Encryption Technique”, select “TKIP” or “AES”. This setting
will have to be identical on the clients that you set up.
3.
Enter your pre-shared key. This can be from eight to 63
characters and can be letters, numbers, symbols, or spaces.
This same key must be used on all of the clients that you set up.
For example, your PSK might be something like: “Smith family
network key”.
4.
Click “Apply Changes” to finish. You must now set all clients to
match these settings.
Problem:
I am having difficulty setting up Wi-Fi Protected Access (WPA)
security on a Belkin Wireless Card for a home network.
Solution:
Clients must use the same key that the Wireless Router (or Access
Point) uses. For instance, if the key is “Smith Family Network Key”
in the Wireless Router (or Access Point), the clients must also use
that same key.
1.
Double-click the Signal Indicator icon to bring up the “Wireless
Network” screen. The “Advanced” button will allow you to view
and configure more options of your Card.
2.
Once the “Advanced” button is clicked, the Belkin Wireless
Utility will appear. This Utility will allow you to manage all the
advanced features of the Belkin Wireless Card.
3.
Under the “Wireless Network Properties” tab, select a
network name from the “Available networks” list and click the
“Properties” button.
4.
Under “Network Authentication”, select “WPA-PSK (no server).
5.
Type your WPA key in the “Network key” box.
102
Troubleshooting
Troubleshooting
Important:
WPA-PSK is a mixture of numbers and letters from A-Z
and 0-9. For WPA-PSK you can enter eight to 63 characters. This
network key needs to match the key you assign to your Wireless
Router (or Access Point).
Click “OK, then “Apply” to save the settings. I am NOT using a
Belkin Wireless Card for a home network and I am having difficulty
setting up Wi-Fi Protected Access (WPA) security.
If you are not using a Belkin Wireless Desktop or Wireless Notebook
Network Card that is not equipped with WPA-enabled software, a
file from Microsoft called “Windows XP Support Patch for Wireless
(Wi-Fi) Protected Access” is available for free download. Download
the patch from Microsoft by searching the knowledge base for
Windows XP WPA.
Note:
The file that Microsoft has made available works only with
Windows XP. Other operating systems are not supported at this
time. You also need to ensure that the wireless card’s manufacturer
supports WPA and that you have downloaded and installed the
latest driver from their support site.
Supported Operating Systems:
• Windows XP Professional
• Windows XP Home Edition
Problem:
Enabling WPA-PSK (no server)
Solution:
1.
Under Windows XP, click “Start > Control Panel > Network
Connections”.
2.
Right-click on the “Wireless Networks” tab. Ensure the “Use
Windows to configure my wireless network settings” check box
is checked.
3.
Under the “W
ir
e
less Networks” tab, click the “Configure” button.
4.
For a home or
small business user, select “WPA-PSK” under
“Network Administration”
.
Note:
Select WPA (with radius server) if you are using this computer
to connect to a corporate network that supports an authentication
Troubleshooting
103
section
1
2
3
4
5
6
7
8
9
server such as a radius server. Please consult your network
administrator for further information.
5.
Select “TKIP” or “AES” under “Date Encryption”. This setting will
have to be identical to the Wireless Router (or Access Point) that
you set up.
6.
Type in your encryption key in the “Network Key” box.
Important:
Enter your pre-shared key. This can be from eight to 63
characters and can be letters, numbers, or symbols. This same key
must be used on all of the clients that you set up.
7.
Click “OK” to apply settings.
104
Troubleshooting
Troubleshooting
What’s the difference between 802.11b, 802.11g, 802.11a,
and Pre-N?
Currently there are four levels of wireless networking standards, which
transmit data at very different maximum speeds. Each is based on
the designation 802.11(x), so named by the IEEE, the board that is
responsible for certifying networking standards. The most common
wireless networking standard, 802.11b, transmits information at
11Mbps; 802.11a and 802.11g work at 54Mbps or 108Mbps. Pre-N,
the precursor to the upcoming 802.11n release, promises speeds that
exceed 802.11g, and up to 800% the wireless coverage area. See the
following chart for more detailed information.
105
section
1
2
3
4
5
6
7
8
9
Wireless Comparison Chart
Wireless
Technology
802.11b
802.11g
802.11a+g
Belkin
Pre-N
Speed
11Mbps
54Mbps
108Mbps
108Mbps
Frequency
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed band
2.4GHz
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with
the unlicensed
band 2.4GHz
Uses the
uncrowded
5GHz band
which is not
susceptible
to common
household
devices such
as microwaves
and cordless
phones
that use the
2.4GHz band
Common
household
devices such as
cordless phones
and microwave
ovens may
interfere with the
unlicensed
band 2.4GHz
Compatibility
Compatible
with 802.11g
Compatible
with 802.11b
Compatible
with 802.11a,
802.11b, or
802.11g
Compatible with
802.11g
or 802.11b
Coverage
Depends on
interference
- typically
100–200 ft.
indoors
Depends on
interference
- typically 100–
200 ft. indoors
Less
interference
in 802.11a -
typically 100-
200 ft. indoors
800%
the
coverage
of standard
802.11
g
Adoption
Mature –
widely adopted
Expected
to continue
to grow in
popularity
Popular in
media devices
and business
environments
Expected to
continue to grow
in popularity
Troubleshooting
106
Troubleshooting
Technical Support
You can find technical support information at
http://www.belkin.com/
networking or www.belkin.com
through
the tech
support area
. If you
want to contact technical support by phone, please call:
US: 877-736-5771 or
310-898-1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand
: 0
800 235 546
Singapore
: 800 616 1790
Information
107
section
1
2
3
4
5
6
7
8
9

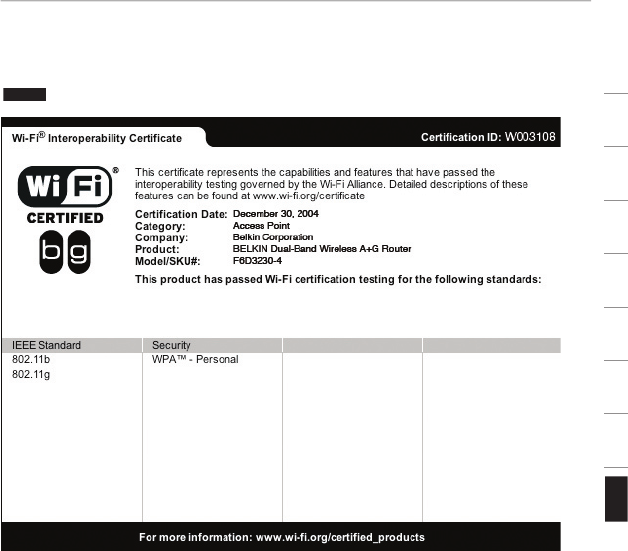

Wi-Fi
®
Interoperability Certificate
108
Information
Information
Federal Communications Commission Notice
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation.
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES
FOR ELECTROMAGNETIC COMPATIBILITY
We, Belkin Corporation, of 501 West Walnut Street,
Compton, CA 90220, declare under our sole
responsibility that the product,
F6D3230-4
to which this declaration relates, complies with Part 15
of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation.
Belkin declares that F6D3230-4, ( FCC ID: PD5E804WAG ) is limited in CH1~CH11 for 2.4 GHz by
specified firmware controlled in U.S.A.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
If this device is going to be operated in 5.15 ~ 5.25GHz frequency range, then it is
restricted in indoor environment only.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
Information
section
1
2
3
4
5
6
7
8
9
109
This equipment generates, uses, and can radiate radio frequency energy.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try and correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Modifications
The FCC requires the user to be notified that any changes or modifications to
this device that are not expressly approved by Belkin Corporation may void
the user’s authority to operate the equipment.
Europe-European Union Notice
Radio products with the CE 0682 or CE alert marking
comply with the R&TTE Directive (1995/5/EC) issued by the
Commission of the European Community.
Compliance with this directive implies conformity to the following European
Norms (in brackets are the equivalent international standards).
• EN 60950 (IEC60950) – Product Safety
• EN 300 328 Technical requirement for radio equipment
• ETS 300 826 General EMC requirements for radio equipment.
To determine the type of transmitter, check the identification label on your
Belkin product.
Canada-Industry Canada(IC)
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device.
This device has been designed to operate with an antenna having a maximum gain of 1 dB.
Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The
required antenna impedance is 50 ohms.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the EIRP is not more than required for successful communication.
To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite
systems) this device is intended to be operated indoors and away from windows to provide
maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject
to licensing.
Because high power radars are allocated as primary users (meaning they have priority) in
5250-5350 MHz, these radars could cause interference and/or damage to license exempt
LAN devices.
110
Information
Products with the CE marking comply with the EMC Directive (89/336/EEC)
and the Low Voltage Directive (72/23/EEC) issued by the Commission of the
European Community. Compliance with these directives implies conformity
to the following European Norms (in brackets are the equivalent international
standards).
• EN 55022 (CISPR 22) – Electromagnetic Interference
• EN 55024 (IEC61000-4-2,3,4,5,6,8,11) – Electromagnetic Immunity
• EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics
• EN 61000-3-3 (IEC610000) – Power Line Flicker
• EN 60950 (IEC60950) – Product Safety
Products that contain the radio transmitter are labeled with CE 0682 or CE
alert marking and may also carry the CE logo.
Belkin Corporation Limited Lifetime Product Warranty
Belkin Corporation warrants this product against defects in materials and
workmanship for its lifetime. If a defect is discovered, Belkin will, at its option,
repair or replace the product at no charge provided it is returned during the
warranty period, with transportation charges prepaid, to the authorized Belkin
dealer from whom you purchased the product. Proof of purchase may be
required.
This warranty does not apply if the product has been damaged by accident,
abuse, misuse, or misapplication; if the product has been modified without
the written permission of Belkin; or if any Belkin serial number has been
removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE
IN LIEU OF ALL OTHERS, WHETHER ORAL OR WRITTEN, EXPRESSED
OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification,
extension, or addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF
WARRANTY, OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT
NOT LIMITED TO, LOST PROFITS, DOWNTIME, GOODWILL, DAMAGE TO
OR REPROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA
STORED IN, OR USED WITH, BELKIN PRODUCTS.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or exclusions of implied warranties, so the above
limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state
to state.
© 2005 Belkin Corporation. All rights reserved. All trade names are registered trademarks
of respective manufacturers listed. Mac and Mac OS are trademarks of Apple Computer,
Inc., registered in the U.S. and other countries. The mark Wi-Fi is a registered mark of the
Wi-Fi Alliance. The “Wi-Fi CERTIFIED” logo is a certification mark of the Wi-Fi Alliance.
P74743
Belkin Ltd.
7 Bowen Crescent, West Gosford
NSW 2250, Australia
+61 (0) 2 4372 8600
+61 (0) 2 4372 8603 fax
Belkin B.V.
Boeing Avenue 333
1119 PH Schiphol-Rijk
The Netherlands
+31 (0) 20 654 7300
+31 (0) 20 654 7349 fax
Belkin Tech Support
US: 877-736-5771
310-898-1100 ext. 2263
Europe: 00 800 223 55 460
Australia: 1800 235 546
New Zealand
: 0800 235 546
Belkin Corporation
501 West Walnut Street
Compton, CA 90220, USA
310-898-1100
310-898-1111 fax
Belkin Ltd.
Express Business Park, Shipton Way
Rushden, NN10 6GL, United Kingdom
+44 (0) 1933 35 2000
+44 (0) 1933 31 2000 fax
Dual-Band
Wireless A+G
Router
