Delta Networks Inc.
1
LM-WU110 Wireless Product Specification --
IEEE 802.11b WLAN USB
Note: This document contains proprietary technical information in which is the
property of the Delta Networks Inc. and shall not be disclosed to others in
whole or in part, reproduced, copied, or used as the basis for design,
manufacturing, or sale of apparatus without written permission of Delta
Networks Inc.
Delta Networks Inc.
2
Table Of Contents
1. REVISION HISTORY.................................................................................................................................................. 3
1.1. Product Revision History......................................................................................................................3
1.2. Document Revision History..................................................................................................................3
2. GENERAL DESCRIPTION........................................................................................................................................ 4
2.1. Features ...............................................................................................................................................4
2.2. Mechanical Design ...............................................................................................................................5
2.3. LED Definitions.....................................................................................................................................6
2.4. IC Solution............................................................................................................................................7
3. TECHNICAL SPECIFICATIONS.............................................................................................................................. 8
4. DELIVERY PACKAGE............................................................................................................................................... 9
4.1. Labels for Gift box and Carton .............................................................................................................9
Delta Networks Inc.
3
1. Revision History
1.1. Product Revision History
Revision Date Remark
0 2000/12/11 ! Product Initial
1.2. Document Revision History
Revision Date Remark
1.00 2000/12/11 ! Preliminary specification
1.01 2000/12/13 ! Modify the ID design(antenna)
! Modify RF Link LED definitions
!
!
!
!
Delta Networks Inc.
4
2. General Description
LM-WU110 is a Wireless-to-USB product which provides a USB-to-wireless seamless connection. The Wireless
interface is IEEE802.11b standard compatible. Its data transmission rate is 11Mbps. The USB interface is USB 1.0
compliant. It provides 12Mbps data rate. In this design, no extra power supply needs.
2.1. Features
! Complies with the IEEE 802.11b Direct Sequence Specification
! Complies with USB specification 1.0
! Supports 1, 2, 5.5 and 11Mbps Data Rate on the wireless interface
! Supports12Mbps Data Rate on the USB interface
! WEP 40-bit data encryption for security
! With Roaming capability
! Provides Firmware upgrade utility to do the upgrade
! No extra power supply needs
! FCC Certified under Part 15 to Operation in 2.4GHz ISM Band
!
2.2 FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator and
your body.
Delta Networks Inc.
5

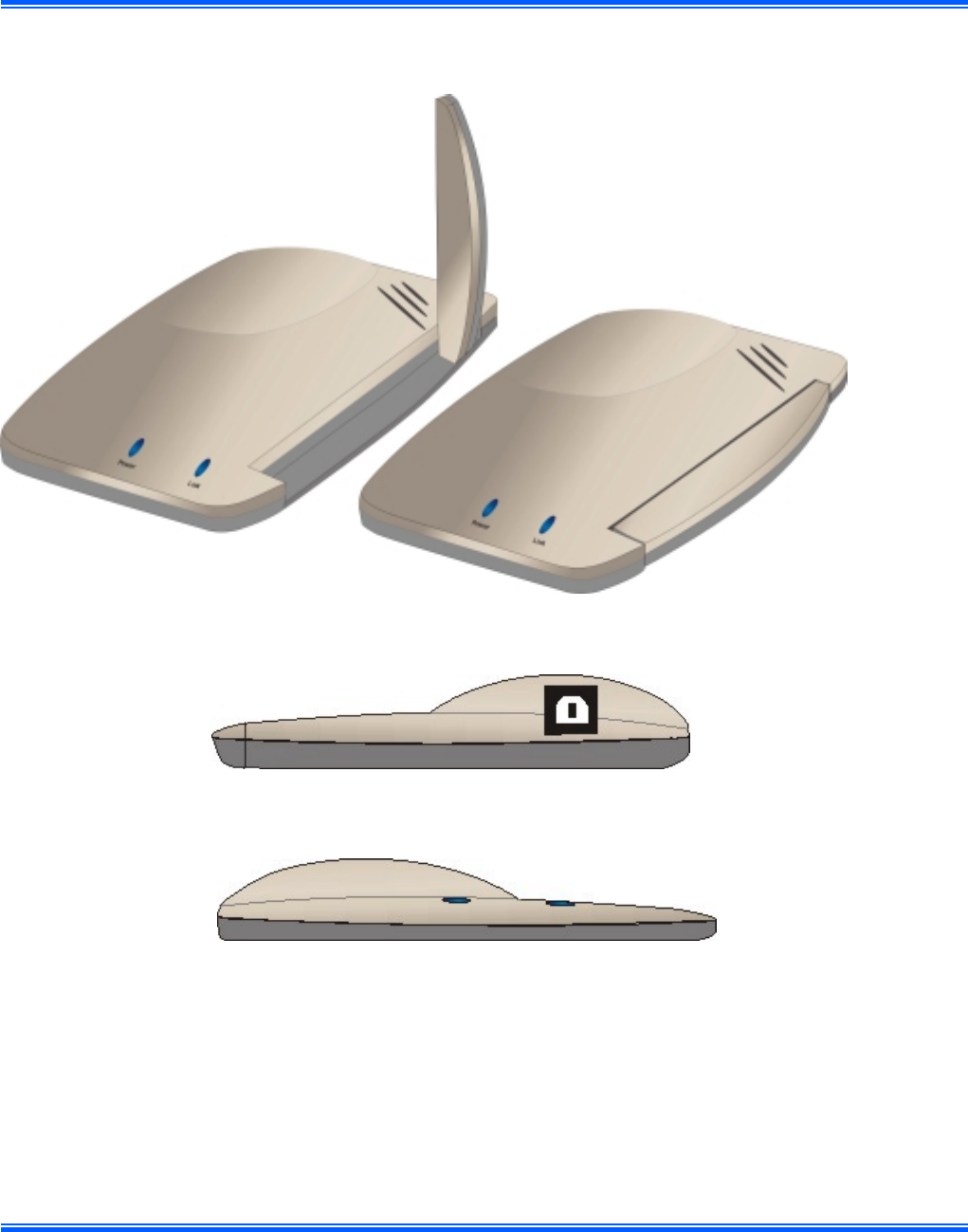

2.2. Mechanical Design
Delta Networks Inc.
6

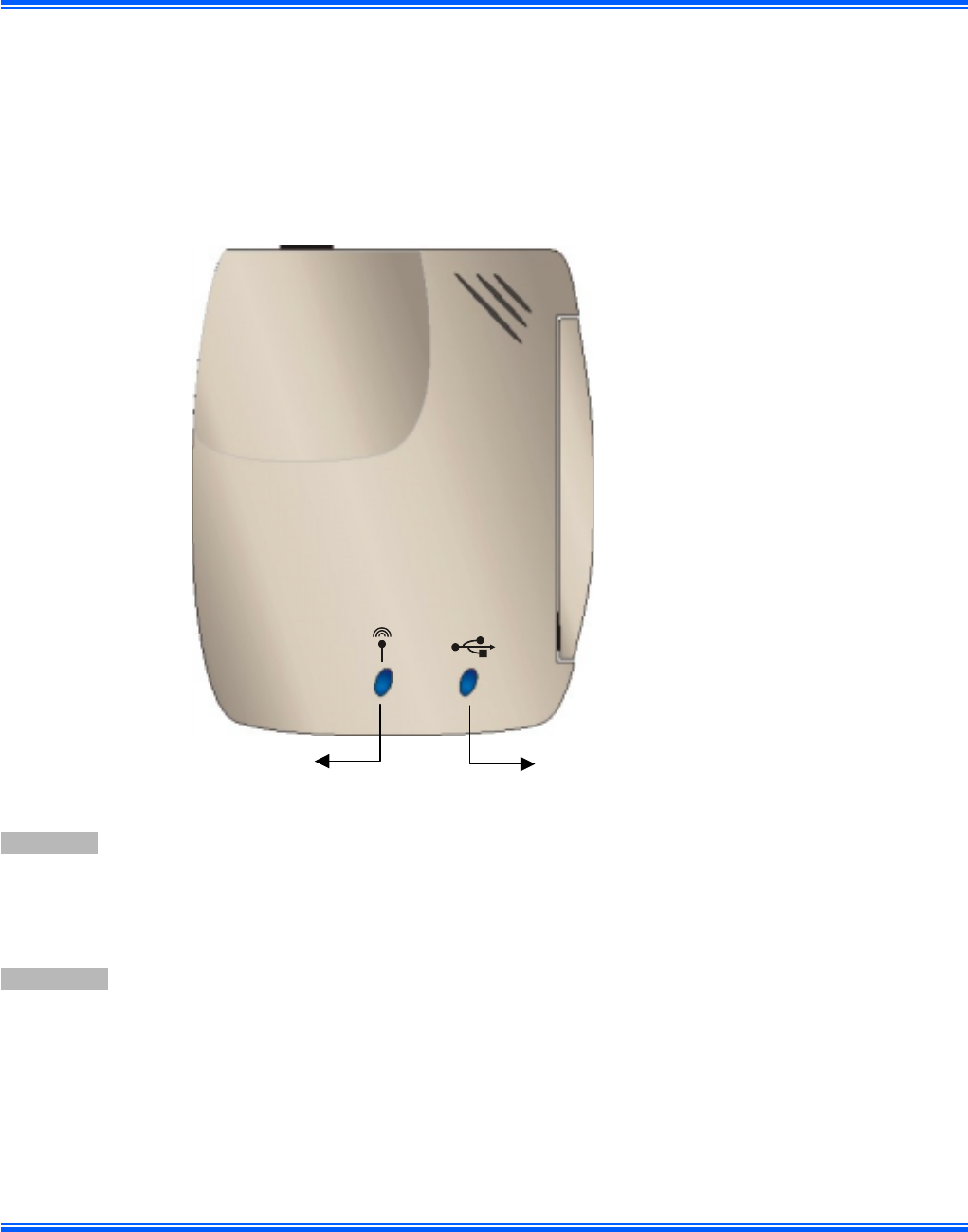

2.3. LED Definitions
The LEDs on the LM-WU110 provide visual presentation to show the following status:
✓ USB ready
✓ RF Link
USB LED
Green USB is ready for operation
Off System is not ready for operation.
RF Link LED
Solid Green The wireless interface is ready for data transmission.
Blinking Green There is a data transmission on the wireless interface
Off The wireless interface is not ready for data transmission
RF LED USB LED
Delta Networks Inc.
7
2.4. IC Solution
The IC solution for LM-WU110 adopts Intersil PRISM II chip set:
P/N Functionality Description
Atmel
AT79C503 USB 11Mbps WLAN medium
access controller AT76C503 is a single chip controller that provides all processing
and functionality needed for the MAC protocol of wireless LANs.
AT76C503 contains a USB Bus interface, a MAC control unit and
a physical attachment interface(PAI). The PAI supports the new
5.5 and 11Mbps WLAN physical interfaces, and the IEEE 802.11
DSSS physical interfaces.
Intersil
HFA3861B Direct Sequence Spread
Spectrum Baseband processor HFA3861B Direct Sequence Spread Spectrum (DSSS)
baseband processor is part of the PRISM 2.4GHz WLAN Chip set
and contains all the functions necessary for a full or half duplex
packet baseband transceiver. The HFA3861B has on-board A/D’s
and D/A for analog I and Q inputs and outputs for HFA3783.
Intersil
HFA3783 I/Q Modulator/Demodulator and
Sythesizer HFA3783 is a highly integrated and fully differential SiGe
baseband converter for half duplex wireless application. It
features all the necessary blocks for quadrature modulation and
demodulation of “I” and “Q” baseband signals.
Intersil
HFA3683A 2.4GHz RF/IF Converter and
Synhesizer HFA3683A is a monolithic SiGe half-duplex RF/IF transceiver
designed to operate in the 2.4GHz ISM band.
HFA3983 2.4GHz Power Amplifier and
Detector HFA3983 is a 2.4GHz monolithic SiGe Power Amplifier designed
to operate in the ISM Band. It delivers a 18dBm(Typ.) of an output
power for the typical DSSS signal. The HFA3983 is housed in a
28 lead exposed paddle EPTSSOP package well suited for
PCMCIA board applications.
Delta Networks Inc.
8
3. Technical Specifications
LM-WU110 Specifications
Standard Compliant IEEE 802.11b Standard
USB 1.0 Specification
Data Transmission Rate 11/5.5/2/1Mbps
12Mbps on USB interface
Security Wired Equivalent Privacy (WEP) data encryption for security
Frequency Band 2.4GHz ISM frequency band
2400-2483.5MHz for US, Canada
2400~2497MHz for Japan and ETSI
Wireless Medium Direct Sequence Spread Spectrum (DSSS)
Modulation Technique DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5 and 11Mbps
Operating Channels 11 channels for US and Canada
13 channels for ETSI
14 channels for Japan
Operating Range (Typical) Outdoor environment:
1Mbps – 1000 feet (305 meters)
2Mbps – 750 feet (228 meters)
5.5Mbps – 600 feet (183 meters)
11Mbps – 400 feet (122 meters)
Indoor environment
1Mbps – 300 feet (91 meters)
2Mbps – 240 feet (73 meters)
5.5Mbps – 200 feet (61 meters)
11Mbps – 120 feet (37 meters)
Antenna Dual diople antenna
Receive Sensitivity (Typical) -87dBm@5.5Mbps (8% PER)
-84dBm@11Mbps (8% PER)
Output Power (Typical) 13dBm
Operating System Windows 95/98/NT 4.0, Windows 2000
Electromagnetic Emission FCC Part 15
Operating Environment Operation Temperature: 0~40℃
Storage Temperature: -20~70℃
Operation Humidity: 10~90% RH
Dimension (L x W x H)
Weight
Delta Networks Inc.
9
4. Delivery Package
! Wireless USB
! User manual
! Driver diskette
!
4.1. Labels for Gift box and Carton
Giftbox label: The label must print out “ FCC Class B” logo.
Carton label: The carton label need print out the “FCC
xxxxxx
*xxxxxxxxxxxx*
LM-WU110
IEEE802.11b WLAN USB
xxxx xx xxxxx
x
xxxxx
LM-TA34N
10/100/1000 Gigabit Adapter
xx
xxxxx xxxxx
xxxx xx xxxxx
*xx PCS*
MODEL
FROM
*xxxxxxxxxxxx*
*xxxxxxxxxxxx*
TO
CARTON OF NO.
LM-WU110
IEEE802.11b WLAN USB
S/N:
