802.11B 11Mbps Wireless PCMCIA
Quick setup in Windows 98
Install Driver
! Insert the Wireless PCMCIA into the slot
! Windows98 automatically detects a new device added.
! Follow Windows 98 instructions to do the installation. Please use the driver provided on the
Driver CD.
Configure the Wireless PCMCIA
There are two ways to do the configurations. One is to use the Utility software. The other is to
use the Wireless PCMCIA property dialog.
(1) Configuration via the Properties of the Wireless PCMCIA adapter:
! Click Start, point to Settings, and then click Control Panel.
! Double click Network icon, point to the Wireless PCMCIA adapter, and then click
Properties.

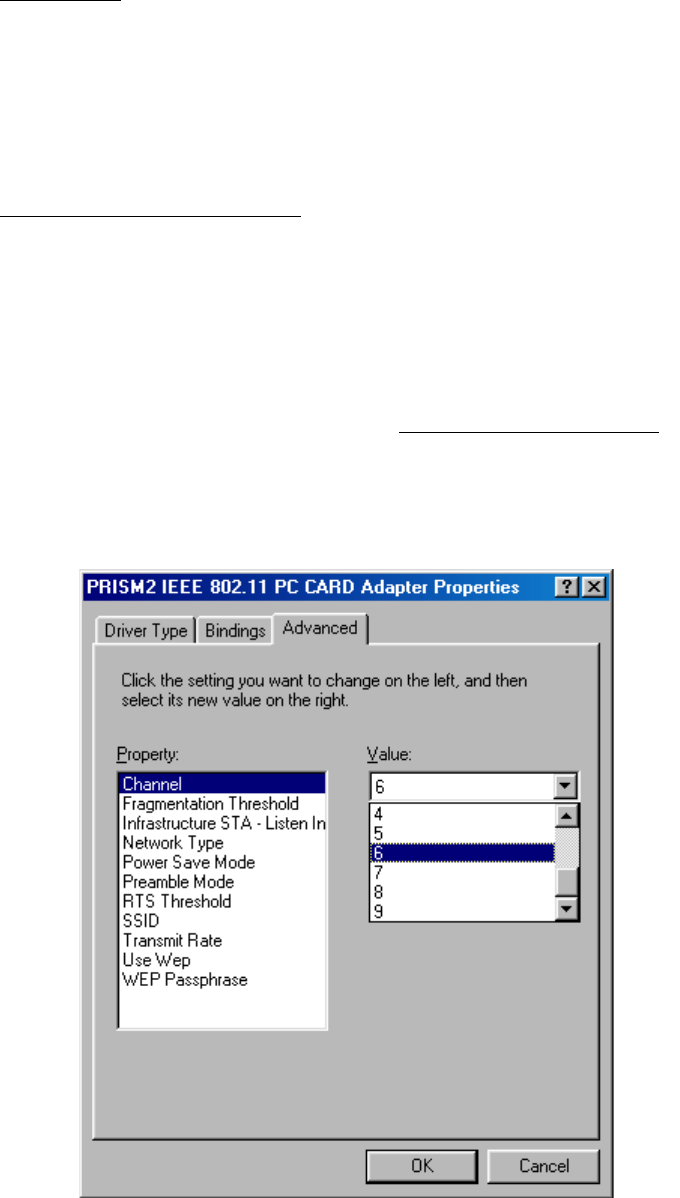

! IEEE 802.11 Properties dialog shows. User can use it to do the configuration like
channel, SSID, transmit rate.. and so on.
!
(2) Configuration via utility software:
! Find the setup.exe program in the Utility directory of the CD
! Execute Utility setup software.

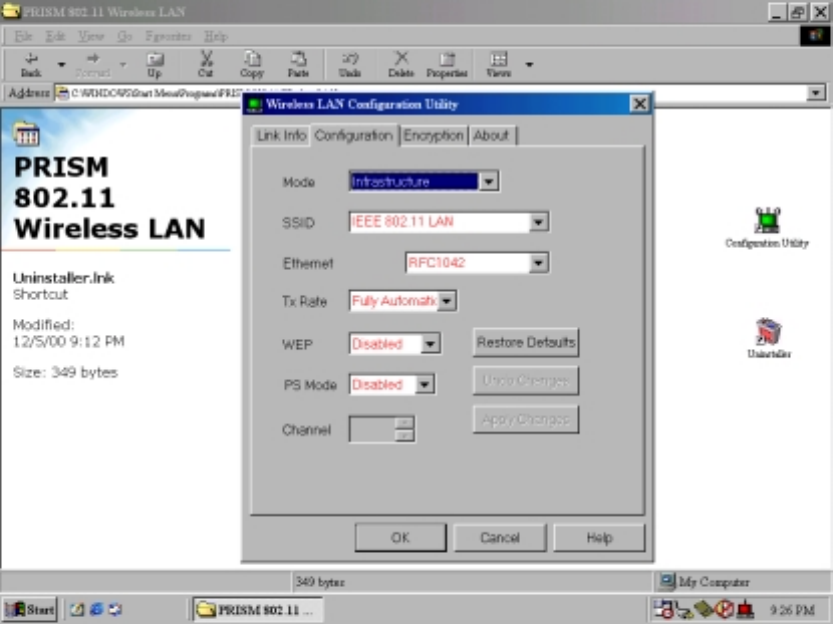

! Once setup is complete, run the utility program by double-clicking the “Configuration
Utility” icon.
! An Utility icon will show at right corner on the screen. Click this icon to prompt the
configuration dialog. Users can do the configuration on this dialog.
Technical Specification:
Standard Compliant IEEE 802.11b Standard
Data Transmission Rate 11/5.5/2/1Mbps
Security Wired Equivalent Privacy (WEP) data encryption for security
Frequency Band 2.4GHz ISM frequency band
2400-2483.5MHz for US, Canada
2400~2497MHz for Japan and ETSI
Wireless Medium Direct Sequence Spread Spectrum (DSSS)
Modulation Technique DBPSK@1Mbps
DQPSK@2Mbps
CCK@5.5 and 11Mbps
Operating Channels 11 channels for US and Canada
13 channels for ETSI
14 channels for Japan
Operating Range (Typical) Outdoor environment:
1Mbps – 1000 feet (305 meters)
2Mbps – 750 feet (228 meters)
5.5Mbps – 600 feet (183 meters)
11Mbps – 400 feet (122 meters)
Indoor environment
1Mbps – 300 feet (91 meters)
2Mbps – 240 feet (73 meters)
5.5Mbps – 200 feet (61 meters)
11Mbps – 120 feet (37 meters)
Antenna Built-in dual diversity antenna
Receive Sensitivity (Typical) -87dBm@5.5Mbps (8% PER)
-84dBm@11Mbps (8% PER)
Interface PCMCIA Type II, 3.3Volts/5Volts
Output Power (Typical) 13dBm
Operating System Windows 95/98/NT 4.0, Windows 2000
Electromagnetic Emission FCC Part 15
Operating Environment Operation Temperature: 0~40℃
Storage Temperature: -20~70℃
Operation Humidity: 10~90% RH
