Users manual
User’s manual
Product: Bluetooth Board
Model: DWBT009
FCC ID: PZWDWBT009
IC: 1551C-DWBT009
This module is for Bluetooth Adapter (BA11-RKU) of DENSO WAVE
integration only – device cannot be sold to general public.
Therefore we will not supply the User’s manual, the installation
manual is the official for us.
(Note)
This module was granted as FCC/IC Limited Modular Approval. This module is limited to
Bluetooth Adapter where is tested. Additional host systems must be required reassessment of
Radiation and Class 2 permissive change will be required depending on the difference of radio
characteristic. The antenna of this device must not be co-located or used in conjunction with any
other antenna or transmitter. Only those antennas tested with the device or similar antennas with
equal or lesser gain may be used with this transmitter.
We indicate the following label on the product and contain in the
User’s manual with Notices required by FCC/ IC.

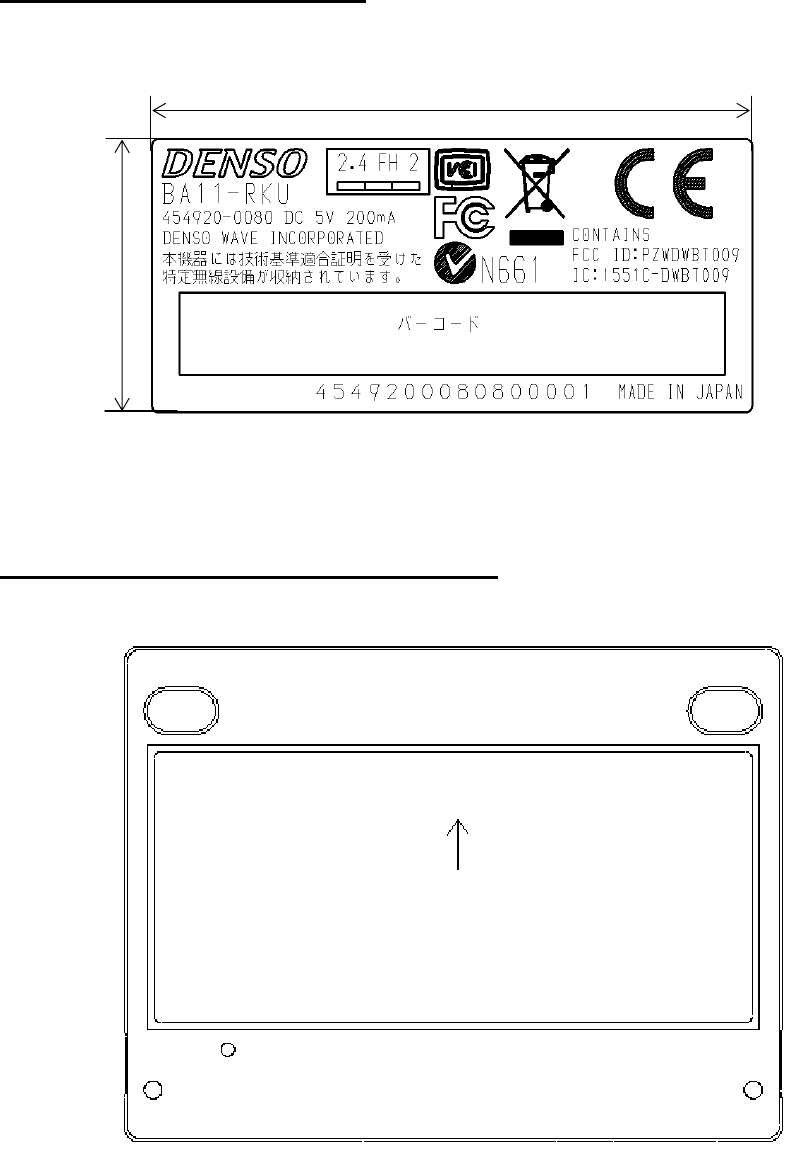

Nameplate Drawing (BA11-RKU)
Nameplate attachment position (BA11-RKU)
44.0mm
20.0mm
US and Canada Regulations
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit
pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si
le brouillage est susceptible d'en compromettre le fonctionnement.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION : Change or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
FCC Radiation Exposure Statement : This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
RF Exposure Compliance :
This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment has very low levels of RF energy that it deemed to comply without
maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping
the radiator at least 20cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).
Cet équipement est conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non
contrôlé et respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le
Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR-102 de l’IC. Cet équipement
émet une énergie RF très faible qui est considérée conforme sans évaluation de l’exposition maximale autorisée.
Cependant, cet équipement doit être installé et utilisé en gardant une distance de 20 cm ou plus entre le dispositif
rayonnant et le corps (à l’exception des extrémités : mains, poignets, pieds et chevilles).
<Representative in U.S.A>
Company Name : DENSO SALES CALIFORNIA, INC.
Address : 3900 Via Oro Avenue, Long Beach, California 90810, U.S.A
Tel : +1-310-834-6352
ICES-003 Regulation
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
