User Manual
6. User’s manual requirement
6.1.Operation manual

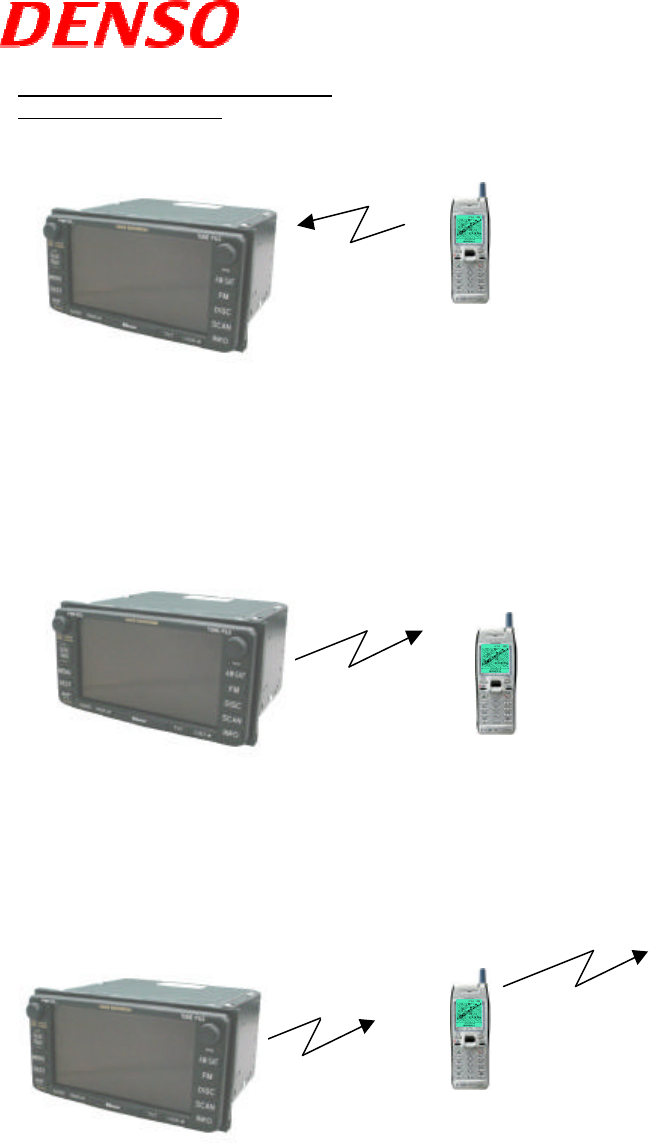

(1) Registration of the Bluetooth products
Transmits the registration signal from the Bluetooth product to the navigation system and register the
Bluetooth product at the navigation system.
(2) Selection of the Bluetooth product
Transmits the selection signal from the navigation system to the Bluetooth product and connect the
navigation system with the Bluetooth product.
(3) Call
Call by inputting the phone number with the touch sensitive panel installed in the navigation system. Get
the phone by operating the touch sensitive panel installed in the navigation system.
Bluetooth
RF signal
Bluetooth
RF signal
Bluetooth
RF signal
Cellular
RF signal
6.2.User’s Manual Requirement of FCC rule
DNNS016 is installed in vehicle, so DNNS016 has no manual for user.
FCC user’s manual requirements that are FCC rule Part 15.21 and 15.105 are described on user’s
manual of the vehicle as followings.
FCC and RSS-210 Regulations
This device complies with Part 15 of the FCC Rules and RSS-210 Rules.
Operation is subject to the following two conditions :
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC WARNING: Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different form that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
CAUTION : Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and
meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment
has very low levels of RF energy that it deemed to comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and
more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs).
Co-location : This transmitter must not be co-located or operated in conjunction with any other antenna
or transmitter.
-16-
