Detex Catalog

General Information

General

Code Compliance

Options

Design Warranty

All exit devices shall be Advantex® 10 or 40 series

rim devices or 20/21 or 50/51 series surface vertical

rod devices as manufactured by Detex Corporation,

New Braunfels, TX, USA. Each exit device shall be

equipped and installed with a patented mounting

plate and strike locator for an accurate installation. All

wide and narrow stile devices shall be available with

matching outside trim and where required, available

with electried options. All exit devices shall be

reversible or non-handed and all non-electried exit

devices will be eld sizeable.

The exit devices shall be listed by Underwriters

Laboratories and bear the UL label for panic hardware

in compliance with NFPA 80 and 101. Where required,

all devices shall have a UL label for Fire Exit Devices

listed for use on re rated doors up to and including

A label, three hours. UL labeled Fire Exit Devices

shall be listed for door opening sizes up to 8’0” x 10’0”

in standard pairs and in double egress pairs, with

Surface Vertical Rods and with Top Rod Only. Rim

mounted, UL labeled Fire Exit Devices shall be listed

for door openings sizes up to 4’0” x 10’0” on single

doors and 8’0” x 8’0” on door pairs with an F90KR

Keyed Removable Mullion.

Where required, all rim devices shall have a Miami-

Dade County, Florida label indicating hurricane

listing.

All exit devices shall be certied to meet ANSI/BHMA

A156.3, Grade 1 requirements, and conform to ADA

and California Title 19 requirements.

All latch bolts shall be stainless steel material with a

deadlocking feature for increased security. Surface

vertical rod devices shall have pullman type top

deadlocking latch bolts. The bottom rod shall have a

solid steel deadlocking drop bolt. All surface vertical

rod devices shall be supplied standard with rod covers

and ADA-compliant bottom latch guards. All surface

vertical rods shall be available in a top rod only

conguration to meet all necessary code compliance

for panic and re exit hardware.

Hex key dogging shall be a standard feature for all

non-re rated exit devices. Optional features include

cylinder dogging or less dogging. All dogging will be

accomplished with no more than a one-eighth turn of

the hex key or cylinder key to minimize the risk of

repetitive motion injuries. Fire rated exit devices are

required to have less dogging.

The through-bolted modular design of all exit devices

shall accommodate a variety of different trims and

functions without altering the exit device. It shall not

be necessary to remove the device from the door

for keying changes or standard maintenance. All

standard stile outside lever trims shall be provided

with vandal-resistant clutching levers.

Optional slide in ller plates shall be available for all

exit devices to accommodate optional dogging types,

alarm and other electried features.

Optional mounting plates will allow for retrot over

other manufacturers’ mounting holes when doors are

not being replaced.

All exit devices shall be of super heavy duty design

and constructed of stainless steel covers and wraps

over a structurally engineered extruded aluminum

body. The end cap shall be constructed of 14 gauge

deep drawn stainless steel and designed with a

tapered angle of 50 degrees to deect damage away

from the device. All end caps shall include the Quad-

lock structural design that incorporates 16 separate

bearing surfaces on four different planes, securely

interlocking the end cap to the exit device and door.

All exit devices shall be designed with internally

ribbed aluminum extrusion rails and base plate

mounted push pads to dissipate excessive force to

the push pad and prevent damage to the operating

mechanisms.

Detex Advantex panic hardware, when properly

installed, used and maintained, is warranted to be

free of defects in material and workmanship. We

will, for a period of ten (10) years from the date of

purchase, repair or replace any part which, upon our

examination, proves to be defective under normal

use. Electrical components, when properly installed,

used and maintained, are warranted to be free of

defects in material and workmanship for a period of

three (3) year. This warranty will be honored only

upon presentation of proof that the product covered

thereby was purchased directly from an authorized

Detex distributor. We shall not be liable for any direct,

incidental or consequential loss or damage arising

out of the failure of this panic hardware to operate.

Advantex® Performance Specication

Detex is the rst manufacturer of architectural exit devices to utilize the most sophisticated process of nishing on

stainless steel. Exclusive to Detex, the Physical Vapor Deposition (PVD) coating will not corrode, fade, chip or

discolor. It is more resistant to scratching than traditional nishes and all of these features make it ideal for your

very toughest locations.

605 - PVD Equivalent Polished Brass US3

606 - PVD Equivalent Brushed Brass US4

611 - PVD Equivalent Polished Bronze US9

612 - PVD Equivalent Brushed Bronze US10

613 - PVD Equivalent Oil Rubbed Bronze US10B

625 Polished Chrome US26

626 Brushed Chrome US26D

629 Polished Stainless Steel US32

630 Brushed Stainless Steel US32D

All device nishes are over Stainless Steel.

Some outside trims are not available in stainless steel nish and will be provided in Brushed Chrome.

Split nishes, where the outside trim is different from the device, are available. List the outside trim nish rst,

followed by the device nish.

Most PVD nished devices should be cleaned with a soft cloth and glass cleaner. Do not use any type of steel wool,

cleansing pad, scotch pad, foaming cleanser or any other type of cleansing product.

The 613 PVD nish has a coating that does not show ngerprints so cleaning should rarely be required. To restore

the warmth of the color use a mild furniture polish, preferable a paste to bring back the depth of the color.

Brushed Stainless Steel (630/US32D) should be kept away from contact with other metals. It should be cleaned

with a plastic pad or bronze wool. Avoid all solvents, bleach and steel wool.

Detex offers panic device template data on our website at www.detex.com. These templates are for reference

purposes. We recommend cutting doors for our panic devices using the patented mounting plate and strike locator

packed with each of our units. Using this mounting system to cut doors after they are hung yields a precise

installation based upon the exact door to frame, and door to mullion condition at each opening.

The on-site cutting of doors for our products is made simple and practical by the fact that our devices require only

simple through the door holes of standard drill bit sizes. This procedure actually reduces the installation time

otherwise required to apply shims and/or relocate pre-cut holes due to door and frame installation problems.

General Information

Finishes

Detex & BHMA Finish Numbers

Finish Description US Standard

How to Care for Finishes

Detex® Template Policy

ELECTRIFIED FUNCTION

“__” = No elec. option

EA = Elec. Alarm

ED = Elec. Dogging

EE = Delayed Egress

EExER = Delayed Egress with

latch retraction

EI = Elec. Integration

(10/40 Series only)

EM = Egress w/Maglock elec.

delayed (10/40 Series only)

ER = Elec. Latch Retraction

LX = Latch Bolt Monitor

(Available with ER, EX,

EXV, EXxW, EXVxW)

ES = Elec. Switching

(10/30/40 Series only)

EU = Electric Unlock Trim (Fail Secure)

EX = Request to Exit Signal

EXV = Request to Exit Signal

high voltage

EXxW = Request to Exit Signal

Weatherized

EXVxW = Request to Exit Signal

high voltage Weatherized

HOW TO ORDER

RATING

“H” = Hurricane

(see below)

“F” = Fire rated

“__” = Non-re

rated *

OUTSIDE TRIM FUNCTION

01 = No trim or blank plate

02 = Dummy trim / Inactive Trim

03 = Key retracts latch

08 = Active lever

key locks / unlocks lever

09 = Lever trim active by key;

locked when key removed

10 = Double cylinder

(10 and 30 Series only)

14 = Active lever no key cylinder

EU = Electric Unlock Trim

(Fail Safe / Fail Secure)

EU2W = Electric Unlock Trim -

BP2 Mounting Plate

(Fail Safe / Fail Secure)

DOGGING FUNCTION

LD = Less dogging

HD = Hex dogging

CD = Cylinder dogging

DEVICE FINISH

605 = Polished brass (PVD)

606 = Brushed brass (PVD)

611 = Polished bronze (PVD)

612 = Brushed bronze (PVD)

613 = Oil rubbed bronze (PVD)

628 = Aluminum paint/EC2

629 = Polished stainless steel

630 = Brushed stainless steel *

693 = Black powder coated / EC2

695 = Dark bronze powder coated / EC2

DOOR WIDTH/DEVICE LENGTH

24” wide door

30” wide door

36” wide door (3’) *

48” wide door (4’)

DOOR HANDING

RHR = Right hand reverse *

LHR = Left hand reverse

SERIES TYPE

10 = Rim device, wide stile

10xW = Weatherized Rim device,

wide stile

H10 = Rim device, wide stile,

hurricane rated

20 = SVR, wide stile

20xW = Weatherized SVR, wide stile

21 = SVR, top rod only, wide stile

30 = Mortise lock exit device

40 = Rim device, narrow stile

H40 = Rim device, narrow stile,

hurricane rated

50 = SVR, narrow stile

51 = SVR, top rod only, narrow

stile

60 = CVR/EC2, narrow stile,

aluminum door

61 = CVR/EC2, top rod only,

narrow stile, aluminum door

62 = CVR, narrow stile, hollow

metal door

63 = CVR, top rod only, narrow

stile, hollow metal door

70 = CVR, wide stile, wood door

71 = CVR, top rod only, wide

stile, wood door

80 = CVR, wide stile, hollow

metal door

81 = CVR, top rod only, wide

stile, hollow metal door

82 = CVR, wide stile, aluminum

door

83 = CVR, top rod only, wide

stile, aluminum door

OUTSIDE TRIM STYLE

C = Wide pull / blank plate

(S handle)

CN = Narrow pull / blank plate

(S handle)

CV = CVR, wide pull / blank plate

CNV = CVR, narrow pull / blank plate

D = Wide lever

(S, T or U lever)

DN = Narrow lever

(S, T or U lever)

DV = CVR, wide lever

(S, T or U lever)

DNV = CVR, narrow lever

(S, T or U lever)

EU = Electric Lock / Unlock

(consult Factory)

R = CVR, cylinder escutcheon

W = Wide plate - long

WS = Plate - short

WSV = CVR, cylinder plate - short

WP = Wire pull

Z = Vandal pull

CAK = CVR Cylinder anchor kit, 03,

no pull

CBK = Cylinder bracket kit, 03, no pull

OUTSIDE TRIM FINISH

605 = Polished brass (PVD)

606 = Brushed brass (PVD)

611 = Polished bronze (PVD)

612 = Brushed bronze (PVD)

613 = Oil rubbed bronze (PVD)

625 = Polished chrome

626 = Brushed chrome *

629 = Polished stainless steel

630 = Brushed stainless steel *

693 = Black, powder coated

695 = Dark Bronze, powder coated

STRIKES

90 = Non-handed curved lip (30 Series)

91 = ANSI at lip (30 Series)

92 = Double door short open back (30 Series)

93 = Double door long open back (30 Series)

94 = Double door stike (10/40 Series)

95T = CVR, top strike (60/61/62/63/70/71/

80/81/82/83 Series)

95B = CVR, bottom strike (60/62/70/80/82 Series)

96 = Surface (50/51 Series)

97 = Surface (20/21 Series)

98 = Semi-mortise (40 Series)

99 = Surface (10 Series)

DOOR HEIGHT/SVR HEIGHT

84” high door

96” high door

120” high door

DOOR HEIGHT/CVR HEIGHT

“__” - 80” - 96” high door

120” - 97” - 120” high door

FASTENERS

SN1 = Sex Nuts

SSK1 = Security Screws

SN1xSSK1 = Sex Nuts &

Security Screws

ELECTRIC OPTIONS

KS = Key Stop (Available with

EA, EE, EExER, EI,

EM functions)

IN = 220-24VAC Transformer

(Available with EM function

only)

30 = 30 Second Delayed Egress

(Available with EE, EExER,

EM function only)

FC = End Cap with Flex Conduit

F 20 01 C 630

RHR LD EAxKS 630 97 36” SN1

84”

February 22, 2012

Example Order

Number

NOTE: * = default

(Outside Trim Finish - 626 is

default for Lever Trim and

630 is default for Pull Trim)

Contact factory for availability

of combined options

C65

Cylinders

C65 = Cylinder(s) 6pin/Keyed 5

IC7 = Cylinder(s) IC housing

IK7 = Cylinder(s) InstaKey housing

ENDCAP

EC1 = Ramped endcap*

EC2 = Flush endcap (standard on

all 628/693 and 695

nishes)

EC1 SLR

SLR = Silencer

Rim Exit Devices

10 Series - Wide Stile Rim Device

10xW Series - Weatherized Wide Stile Rim Device

20 Series - Wide Stile Surface Vertical Rod

20xW Series - Weatherized Wide Stile Surface Vertical Rod

21 Series - Wide Stile Surface Vertical Rod - Top Rod Only

30 Series - Mortise Lock Exit Device

40 Series - Narrow Stile Rim Device

50 Series - Narrow Stile Surface Vertical Rod

51 Series - Narrow Stile Surface Vertical Rod - Top Rod Only

60 Series - Narrow Stile Concealed Vertical Rod for Aluminum Doors

61 Series - Narrow Stile Concealed Vertical Rod for Aluminum Doors - Top Rod Only

62 Series - Narrow Stile Concealed Vertical Rod for Hollow Metal Doors

63 Series - Narrow Stile Concealed Vertical Rod for Hollow Metal Doors - Top Rod Only

70 Series - Wide Stile Concealed Vertical Rod for Wood Doors

71 Series - Wide Stile Concealed Vertical Rod for Wood Doors - Top Rod Only

80 Series - Wide Stile Concealed Vertical Rod for Hollow Metal Doors

81 Series - Wide Stile Concealed Vertical Rod for Hollow Metal Doors - Top Rod Only

82 Series - Wide Stile Concealed Vertical Rod for Aluminum Doors

83 Series - Wide Stile Concealed Vertical Rod for Aluminum Doors - Top Rod Only

Exit Device Types

10 SERIES

Rim Exit Device

• Tough and durable design for

years of trouble-free service

in high-use, high-abuse

environments

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type latch bolt

Features

Benets

The 10 Series rim exit device is super-heavy-duty panic and re exit hardware for use on all types of single and

double doors with mullions. The patented mounting plate and strike locator system ensures the easiest and most

accurate installation of panic hardware available.

• Fast and accurate installation

• Minimal door prep saves time and

money

• Outside trims are easily changed

or re-keyed without removing

device from door

• Tested beyond 1,000,000 cycles -

Twice the cycling required for

Grade 1 UL testing

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally-friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Non-handed

• Field sizeable

• 1/8 turn hex or cylinder dogging

• F - 3-Hour Fire Rated

• H - Hurricane Rated

• BP-3 Mounting plate (call factory

for retrot information)

• BP-5 Mounting Plate (call factory

for retrot information)

Mechanical Options

• SLR - Silencer

• CD - Cylinder Dogging

• HD - Hex Dogging (Std.)

• LD - Less Dogging

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

ANSI 156.3 - 2008

Grade 1

Type 1

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Integration (EI)

• Electric Latch Retraction (ER)

• Delayed Egress - Self Contained

(EE)

• Delayed Egress with Latch

Retraction (EExER)

• Delayed Egress - Mag Lock

(EM)

Electrical Options

• Electric Unlock (EU)

• Latch Bolt Signaling (LX)

• Latch Bolt Signaling for High

Voltage (LXV)

• Electric Switching (ES)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

Refer to Electried Options section for

more information

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturers Warranty

November 1, 2012

• GB1 - Glass Bead Kit

• SN1 - Sex Nut Kit (2 per package)

Detex Limited Warranty

Accessories

Single Door Listings and Approvals

• SSK - Security Torx Screw Kit

• Trim Functions (see Outside Trims)

• Electried Options (see Electried

Options)

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

Technical Information

• Minimum Stile - 4-5/8" with

standard 99 strike; 4-1/8" with

optional 98 strike

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

Finishes

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

4 5/8”

18”

24”

33 1/2”

45 1/2”

Door Door

Device 90KR Device

Mullion

5-1/16”

Double Door with 90KR Mullion

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

* 18” and 32 1/2”

dimension for 36” door

* 24” and 44 1/2”

dimension for 48” door

10xW SERIES

Weatherized Rim Exit Device

• Tough and durable design for

years of trouble-free service in

high-use, high-abuse or inclement

weather environments

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type latch bolt

Features

Benets

The 10xW Series weatherized rim exit device is super-heavy-duty panic and re exit hardware for use on all

types of single doors and gates and double doors and gates with mullions that are or may be exposed directly

to the weather. The patented mounting plate and strike locator system ensures the easiest and most accurate

installation of panic hardware available. In addition to listing as UL panic and re exit hardware device, this

device conforms to UL1034-34 Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method

506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

• Fast and accurate installation

• Minimal door prep saves time and

money

• Outside trims are easily changed

or re-keyed without removing

device from door

• Tested beyond 1,000,000 cycles -

Twice the cycling required for

Grade 1 UL testing

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally-friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Non-handed

• Field sizeable

• 1/8 turn hex or cylinder dogging

• F - 3-Hour Fire Rated

• H - Hurricane Rated

• BP-3 Mounting plate (call factory

for retrot information)

• BP-5 Mounting Plate (call factory

for retrot information)

Mechanical Options

• CD - Cylinder Dogging

• HD - Hex Dogging (Std.)

• LD - Less Dogging

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

ANSI 156.3 - 2008

Grade 1

Type 1

Electrical Options

• Electric Unlock (EU)

• Request to Exit Weatherized

(EXxW)

Refer to Electried Options section for

more information

• Request to Exit Weatherized for

High Voltage (EXVxW)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturers Warranty

November 1, 2012

• GB1 - Glass Bead Kit

• SN1 - Sex Nut Kit (2 per package)

Detex Limited Warranty

Accessories

Listings and Approvals

• SSK - Security Torx Screw Kit

• Trim Functions (see Outside Trims)

• GTPLV40 - Adjustable Gate Plate

• Electried Options (see Electried

Options)

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

• Minimum Stile - 4-5/8” with

standard 99 strike; 4-1/8” with

optional 98 strike

Technical Information

• Fasteners - Machine and Self-

Drilling Screws standard

• Recommended Plate Size

Gate - 1/8” thick plate, galvanized,

or painted steel or 1/4” thick alum-

num plate, minimum Height - 10”

Strike - 1/8” thick plated, galva-

nized, painted steel plate, angle

iron, or 1/4” thick aluminum plate,

minimum Height - 5”

Stop - 1/8 thick plated, galvanized,

or painted angle iron or 1/4” thick

aluminum angle plate, minimum

Height - 2”

Dimensions

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

Finishes

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

Single Gate

* 18” and 32 1/2” dimension for 36” door

* 24” and 44 1/2”dimension for 48” door

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Plate for mounting

panic device -

See Technical

Infomation above

Plate for mounting

strike - See

Technical

Information above

Weld recommended,

machine or sheetmetal

screw mounting allowable.

3/4" Max.

Gate Stop

(see Technical

Information

above)

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

UL1034 - 34 Temperature Section 34

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034 - 54 Dust Section 54

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

LISTED

State of Florida Approval

FL9052

Overhead View

20 SERIES

Surface Vertical Rod Device

• Tough and durable design for

years of trouble-free service in

high-use, high-abuse

environments

• Fast and accurate installation

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type top latch

• Hardened steel bottom drop bolt

with dust proof strike

Features

• ADA ramped bottom bolt cover

• 1/8 turn hex or cylinder dogging

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Handed - eld reversible

• Field sizeable

• F - 3-Hour Fire Rated

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

Mechanical Options

• LD - Less Dogging

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

• 84 - 84" Door Height (Std.)

• 96 - 85" to 96" Door Height

• 120 - 97" to 120" Door Height

Electrical Options

Refer to Electried Options section for

more information

The 20 Series surface vertical rod exit device is

super-heavy-duty panic and re exit hardware for

use on all types of double doors without a mullion.

All 20 series SVR exit devices are supplied with

top and bottom rod covers and an ADA compliant

ramped bottom bolt cover. The patented mounting

plate and strike locator system ensures the easiest

and most accurate installation of panic hardware

available.

• Security enhanced by stainless

steel rod covers, standard

• Minimal door prep saves time and

money

• Outside trims are easily changed

or rekeyed without removing

device from door

ANSI 156.3 - 2008

Grade 1

Type 2

Benets

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Integration (EI)

• Electric Latch Retraction (ER)

• Delayed Egress - Self Contained

(EE)

• Delayed Egress with Latch

Retraction (EExER)

• Electric Unlock (EU)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturers Warranty

November 1, 2012

• GB3 - Glass Bead Kit - 7' Door

Height (84")

• GB7 - Glass Bead Kit - 8'

Door Height (85" - 96")

Detex Limited Warranty

Accessories

Listings and Approvals

• GB11 - Glass Bead Kit - 10'

Door Height (97" - 120")

• SN1 - Sex Nut Kit (2 per package)

• SSK- Security Torx Screw Kit

• Trim Functions (see Outside Trims)

• Electried Options (see Electried

Options)

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

Technical Information

• Minimum Stile - 4-1/2" with

standard 97 strike

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

Finishes

18” / 24” *

32 1/2” / 44 1/2” *

Top Bottom

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

* 18” and 32 1/2”

dimension for 36” door

* 24” and 44 1/2”

dimension for 48” door

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

20 x W SERIES

Weatherized Surface Vertical Rod Device

• Tough and durable design for

years of trouble-free service in

high-use, high-abuse or inclement

weather environments

• Fast and accurate installation

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type top latch

• Hardened steel bottom drop bolt

with dust proof strike

Features

• ADA ramped bottom bolt cover

• 1/8 turn hex or cylinder dogging

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Handed - eld reversible

• Field sizeable

• F - 3-Hour Fire Rated

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

Mechanical Options

• LD - Less Dogging

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

• 84 - 84" Door Height (Std.)

• 96 - 85" to 96" Door Height

• 120 - 97" to 120" Door Height

Electrical Options

Refer to Electried Options section for

more information

The 20 x W Series surface vertical rod exit

device is super-heavy-duty panic and re exit

hardware for use on all types of double doors or

gates without a mullion that are or may be exposed

directly to the weather. All 20 series SVR exit

devices are supplied with top and bottom rod

covers and an ADA compliant ramped bottom bolt

cover. The patented mounting plate and strike

locator system ensures the easiest and most

accurate installation of panic hardware available.

In addition to listing as UL panic and re exit

hardware device, this device conforms to

UL1034-34 Temperature Section 34, UL1034-54

Dust Section 54, MIL-STD 810F, Method 506.4

(driving rain test); MIL-STD 810F, Method 509.4

(salt fog test) and UBC standard 7-2 (positive

pressure).

• Security enhanced by stainless

steel rod covers, standard

• Minimal door prep saves time and

money

• Outside trims are easily changed

or rekeyed without removing

device from door

ANSI 156.3 - 2008

Grade 1

Type 2

Benets

• Electric Unlock (EU)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

• GB3 - Glass Bead Kit - 7' Door

Height (84")

• GB7 - Glass Bead Kit - 8'

Door Height (85" - 96")

Accessories

• GB11 - Glass Bead Kit - 10'

Door Height (97" - 120")

• SN1 - Sex Nut Kit (2 per package)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturers Warranty

November 1, 2012

Detex Limited Warranty

Listings and Approvals

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

• Minimum Stile - 4-1/2” with

standard 97 strike

Technical Information

Strike - 1/8” thick plated, galva-

nized, painted steel plate, angle

iron, or 1/4” thick aluminum plate,

minimum Height - 5”

Stop - 1/8 thick plated, galvanized,

or painted angle iron or 1/4” thick

aluminum angle plate, minimum

Height - 2”

• Fasteners - Machine and Self-

Drilling Screws standard

• Recommended Plate Size

Gate - 1/8” thick plate, galvanized,

or painted steel or 1/4” thick alum-

num plate, minimum Height - 10”

Dimensions

Finishes

Top Bottom

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

UL1034 - 33 Temperature Section 33

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034 - 53 Dust Section 53

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

LISTED

* 18” and 32 1/2” dimension for 36” door

* 24” and 44 1/2” dimension for 48” door

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Double Gate Riser

DETEX PANIC

HARDWARE

WITH WEATHERIZED

PUSHPAD SWITCHING

(TYPICAL EACH GATE LEAF)

MOUNTING PLATE

FOR PANIC HARDWARE

18” / 24” *

32 1/2” / 44 1/2” *

Accessories Cont’d

• SSK- Security Torx Screw Kit • Trim Functions (see Outside Trims)

• GTPLV40 - Adjustable Gate Plate

• Electried Options (see Electried

Options)

UL1034-34 Temperature Section 34

UL1054-54 Temperature Section 54

21 SERIES

Surface Vertical Top Rod Only Device

• Tough and durable design for

years of trouble-free service in

high-use, high-abuse

environments

• Fast and accurate installation

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type top latch

Features

• 1/8 turn hex or cylinder dogging

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Handed - eld reversible

• Field sizeable

• F - 3-Hour Fire Rated

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

Mechanical Options

• LD - Less Dogging

• 36 - 36" Door Widths (Std.)

• 48 - 48" Door Widths

• 84 - 84" Door Height (Std.)

• 96 - 85" to 96" Door Height

• 120 - 97" to 120" Door Height

Electrical Options

• Security enhanced by stainless

steel rod covers, standard

• Minimal door prep saves time and

money

• Outside trims are easily changed

or rekeyed without removing

device from door

ANSI 156.3 - 2008

Grade 1

Type 2

Benets

The 21 Series surface vertical rod exit device is

super-heavy-duty panic and re exit hardware for

use on all types of double doors without a mullion.

All 21 Series Top Rod Only exit devices are supplied

with rod cover. The patented mounting plate and

strike locator system ensures the easiest and most

accurate installation of panic hardware available.

Refer to Electried Options section for

more information

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Integration (EI)

• Electric Latch Retraction (ER)

• Delayed Egress - Self Contained

(EE)

• Delayed Egress with Latch

Retraction (EExER)

• Electric Unlock (EU)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

November 1, 2012

• GB4 - Glass Bead Kit - 7' Door

Height (84")

• GB8 - Glass Bead Kit - 8'

Door Height (85" - 96")

Detex Limited Warranty

Accessories

Listings and Approvals

• GB12 - Glass Bead Kit - 10'

Door Height (97" - 120")

• SN1 - Sex Nut Kit (2 per package)

• SSK- Security Torx Screw Kit

• Trim Functions (see Outside Trims)

• Electried Options (see Electried

Options)

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

Technical Information

• Minimum Stile - 4-1/2" with

standard 97 strike

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

Finishes

18” / 24” *

32 1/2” / 44 1/2” *

Popper Detail for

Fire Rated Device

Retaining Clip

Popper

Plug

12” 12” Door

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

* 18” and 32 1/2”

dimension for 36” door

* 24” and 44 1/2”

dimension for 48” door

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

30 SERIES

Mortise Lock Exit Device

• Tough and durable design for

years of trouble-free service

in high-use, high-abuse

environments

• Fast and accurate installation

• 3/4" Projection Stainless Steel

latch bolt

• Anti-friction, deadlocking,

latch bolt

Features

Benets

The 30 Series mortise lock exit device is super-heavy-duty panic and re exit hardware for use on all types of

single and double doors. The patented mounting plate and strike locator system ensures the easiest and most

accurate installation of panic hardware available.

• Minimal door prep saves time and

money

• Outside trims are easily changed

or re-keyed without removing

device from door

• Easy retrot to other manufacturers

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally-friendly nishing

process

• Non-handed, eld sizeable

• 1/8 turn dogging

• Patented mounting plate and

strike locator system

• Heavy-duty angled end-cap

deects damage away from device

• CD - Cylinder Dogging

• HD - Hex Dogging (Std.)

• LD - Less Dogging

• F - 3-Hour Fire Rated

Mechanical Options

• 90 ANSI Strike (Std.)

• 91 ANSI Flat Lip Strike

• 92 Double Door Short Open

Back Strike

• 93 - Double Door Long Open

Back Strike

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

ANSI 156.3 - 2008

Grade 1

Type 3

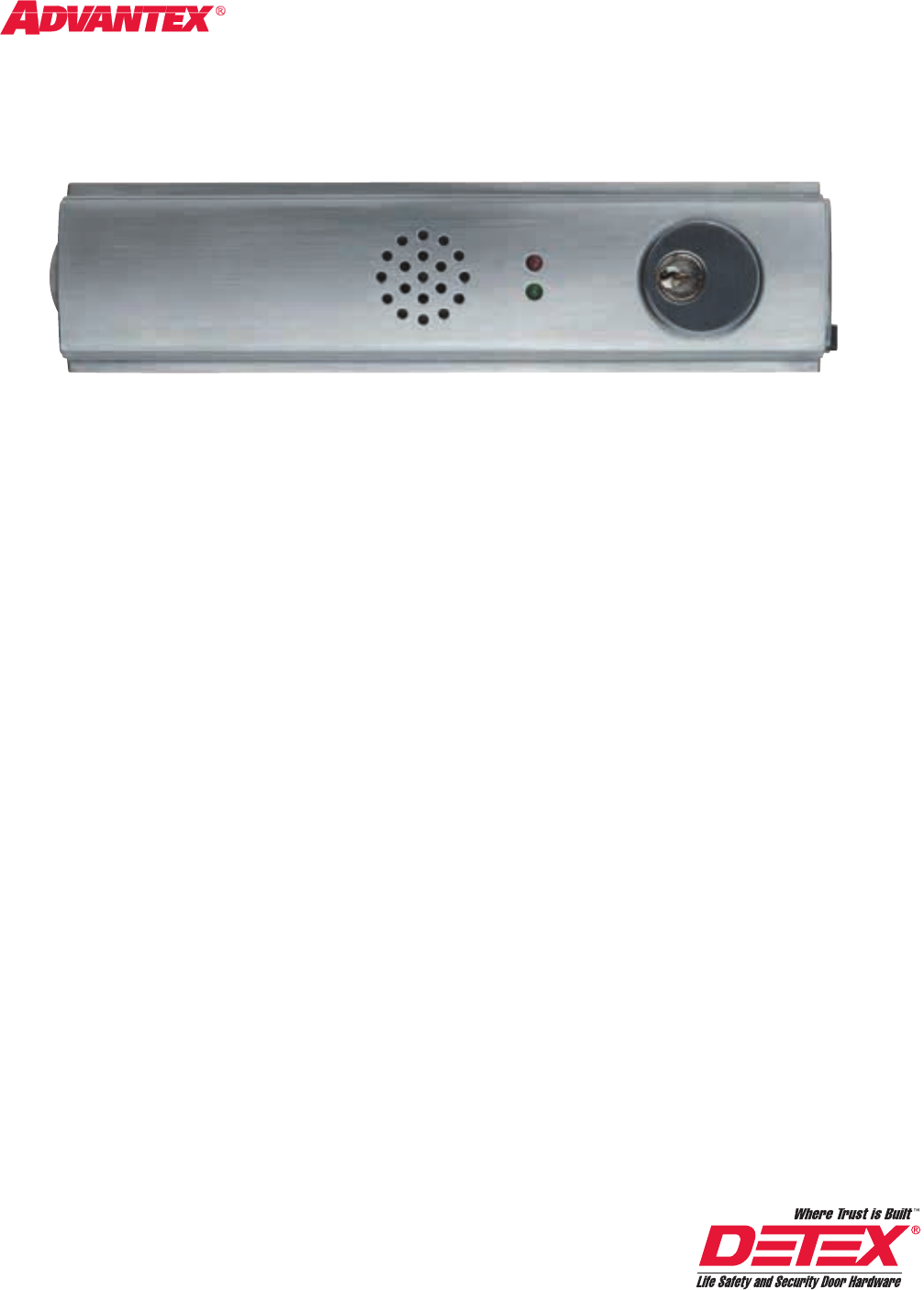

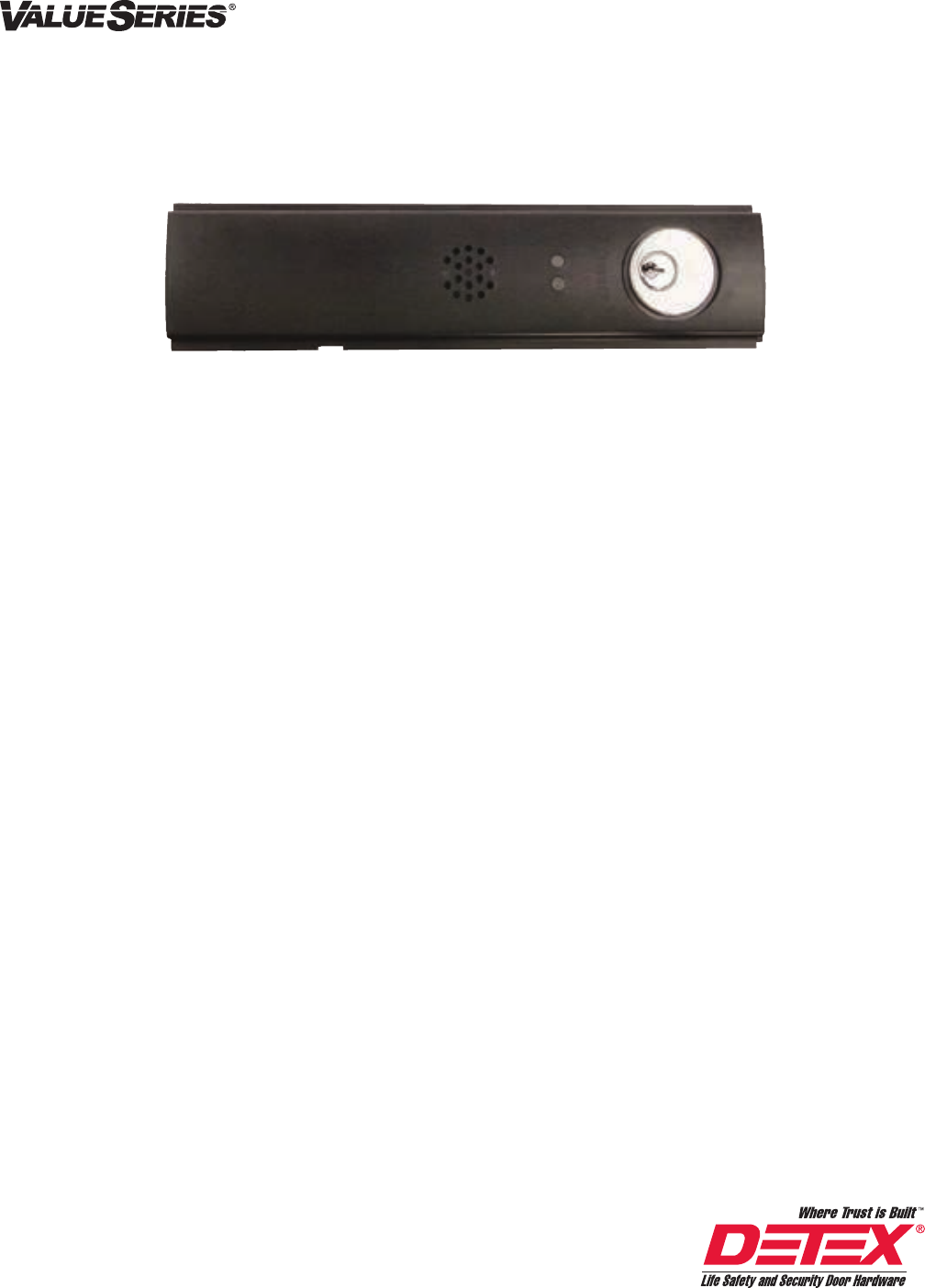

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Latch Retraction (ER)

• Delayed Egress Self-Contained

(EE)

• Delayed Egress with Latch

Retraction (EExER)

Electrical Options

Refer to Electried Options section for

more information

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• SN1 - Sex Nut Kit (2 per package)

Detex Limited Warranty

Accessories

Single Door Listings and Approvals

• KS - Key Stop - key removed only

when armed

• GB16 - Glass Bead Kit

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

Technical Information

• Minimum Stile - 4-3/4"

• Machine and Self-Drilling Screws

(Std.)

• Optional Sex Nuts for wood or

composite doors

• Security Torx screws available

Dimensions

Finishes

4 1/2”

18”

24”

33 1/2”

45 1/2”

Door Door

Device Device

Double Door with Mortise and Vertical Rod

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

8'x10' doors with Surface Vertical Rod

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

* 18” and 32 1/2”

dimension for 36” door

* 24” and 44 1/2”

dimension for 48” door

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

40 SERIES

Narrow Stile Rim Exit Device

• Tough and durable design for

years of trouble-free service

in high-use, high-abuse

environments

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type latch bolt

Features

Benets

The 40 Series rim exit device is super-heavy-duty panic and re exit hardware for use on all types of narrow

stile single and double doors with mullions. The patented mounting plate and strike locator system ensures the

easiest and most accurate installation of panic hardware available.

• Fast and accurate installation

• Minimal door prep saves time and

money

• Outside trims are easily changed

or re-keyed without removing

device from door

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally-friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Non-handed

• Field sizeable

• 1/8 turn hex or cylinder dogging

• F - 3-Hour Fire Rated

• H - Hurricane Rated

• HD - Hex Dogging (Std.)

Mechanical Options

• CD - Cylinder Dogging

• LD - Less Dogging

• 98 - Semi Mortise Strike (Std.)

• 99 - Surface Strike

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

ANSI 156.3 - 2008

Grade 1

Type 4

Electrical Options

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Integration (EI)

• Electric Latch Retraction (ER)

• Delayed Egress - Self Contained

(EE)

• Delayed Egress with Latch

Retraction (EExER)

• Delayed Egress - Mag Lock

(EM)

• Electric Unlock (EU2W)

• Latch Bolt Signaling (LX)

• Latch Bolt Signaling for High

Voltage (LXV)

• Electric Switching (ES)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

Refer to Electried Options section for

more information

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• GB2 - Glass Bead Kit

• SN1 - Sex Nut Kit (2 per package)

Detex Limited Warranty

Accessories

Single Door Listings and Approvals

• SSK - Security Torx Screw Kit

• Trim Functions (see Outside Trims)

• Electried Options (see Electried

Options)

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

Technical Information

• Minimum Stile - 2" with standard

98 strike; 2-1/2" with optional 99

strike

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

Finishes

Door Door

Device 90KR Device

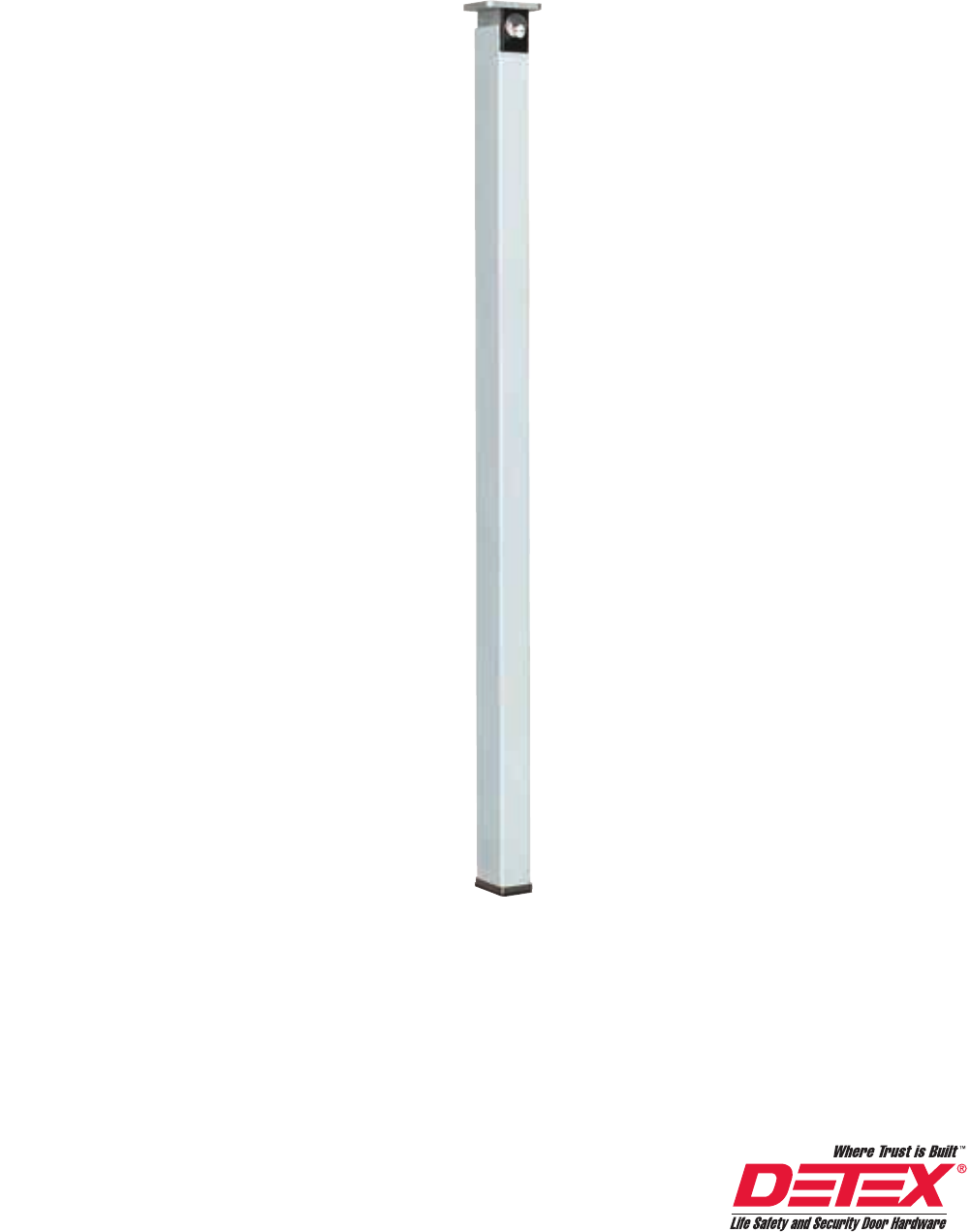

Mullion

Double Door with

90KR Mullion

18” / 24” *

34 1/8” / 46 1/8” *

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

* 18” and 34 1/8”

dimension for 36” door

* 24” and 46 1/8”

dimension for 48” door

24” 35 1/2”

47 1/2”

2”

18”

2 3/8”

Door Door

Device Device

2-7/16”

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

50 SERIES

Narrow Stile Surface Vertical Rod Device

• Tough and durable design for

years of trouble-free service

in high-use, high-abuse

environments

• Fast and accurate installation

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type top latch

• Hardened steel bottom drop bolt

with dust proof strike

Features

• ADA ramped bottom bolt cover

• 1/8 turn hex or cylinder dogging

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Handed - eld reversible

• Field sizeable

• F - 3-Hour Fire Rated

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

Mechanical Options

• LD - Less Dogging

• 36 - 36" Door Widths (Std.)

• 48 - 48" Door Widths

• 84 - 84" Door Height (Std.)

• 96 - 85" to 96" Door Height

• 120 - 97" to 120" Door Height

Electrical Options

The 50 Series surface vertical rod exit device

is super-heavy-duty panic and re exit hardware

for use on all types of narrow stile double doors

without a mullion. All 50 series SVR exit devices

are supplied with top and bottom rod covers and

an ADA compliant ramped bottom bolt cover. The

patented mounting plate and strike locator system

ensures the easiest and most accurate installation

of panic hardware available.

• Security enhanced by stainless

steel rod covers, standard

• Minimal door prep saves time and

money

• Outside trims are easily changed

or rekeyed without removing

device from door

ANSI 156.3 - 2008

Grade 1

Type 5

Benets

Refer to Electried Options section for

more information

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Integration (EI)

• Electric Latch Retraction (ER)

• Delayed Egress - Self Contained

(EE)

• Delayed Egress with Latch

Retraction (EExER)

• Electric Unlock (EU2W)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

November 1, 2012

• GB5 - Glass Bead Kit - 7'

Door Height (84")

• GB9 - Glass Bead Kit - 8'

Door Height (85" - 96")

Detex Limited Warranty

Accessories

Listings and Approvals

• GB13 - Glass Bead Kit - 10'

Door Height (97" - 120")

• SN1 - Sex Nut Kit (2 per package)

• SSK- Security Torx Screw Kit

• Trim Functions (see Outside Trims)

• Electried Options (see Electried

Options)

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

Technical Information

• Minimum Stile - 2" with

standard 96 strike

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

Finishes

18” / 24” *

34 1/8” / 46 1/8” *

Top Bottom

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

* 18” and 34 1/8”

dimension for 36” door

* 24” and 46 1/8”

dimension for 48” door

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

51 SERIES

Narrow Stile Surface Vertical Top Rod Only Device

• Tough and durable design for

years of trouble-free service in

high-use, high-abuse

environments

• Fast and accurate installation

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel deadlocking,

Pullman-type top latch

Features

• 1/8 turn hex or cylinder dogging

• All exposed surfaces are nished

over stainless steel with PVD, an

environmentally friendly nishing

process

• Heavy-duty angled end-cap

deects damage away from device

• Handed - eld reversible

• Field sizeable

• F - 3-Hour Fire Rated

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

Mechanical Options

• LD - Less Dogging

• 36 - 36" Door Widths (Std.)

• 48 - 48" Door Widths

• 84 - 84" Door Height (Std.)

• 96 - 85" to 96" Door Height

• 120 - 97" to 120" Door Height

Electrical Options

• Security enhanced by stainless

steel rod covers, standard

• Minimal door prep saves time and

money

• Outside trims are easily changed

or rekeyed without removing

device from door

ANSI 156.3 - 2008

Grade 1

Type 5

Benets

The 51 Series surface vertical rod exit device is

super-heavy-duty panic and re exit hardware for

use on all types of narrow stile double doors without a

mullion. All 51 Series Top Rod Only exit devices are

supplied with a rod cover. The patented mounting plate

and strike locator system ensures the easiest and most

accurate installation of panic hardware available.

Refer to Electried Options section for

more information

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Integration (EI)

• Electric Latch Retraction (ER)

• Delayed Egress - Self Contained

(EE)

• Delayed Egress with Latch

Retraction (EExER)

• Electric Unlock (EU)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Request to Exit Weatherized

(EXxW)

• Request to Exit Weatherized for

High Voltage (EXVxW)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

November 1, 2012

• GB6 - Glass Bead Kit - 7' Door

Height (84")

• GB10 - Glass Bead Kit - 8'

Door Height (85" - 96")

Detex Limited Warranty

Accessories

Listings and Approvals

• GB14 - Glass Bead Kit - 10'

Door Height (97" - 120")

• SN1 - Sex Nut Kit (2 per package)

• SSK- Security Torx Screw Kit

• Trim Functions (see Outside Trims)

• Electried Options (see Electried

Options)

• Door Types - Wood, Hollow Metal,

Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4" doors (for other

door thicknesses contact factory)

Technical Information

• Minimum Stile - 2" with

standard 96 strike

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

Finishes

18” / 24” *

34 1/8” / 46 1/8” *

Popper Detail for

Fire Rated Device

Retaining Clip

Popper

Plug

12” 12” Door

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

* 18” and 34 1/8”

dimension for 36” door

* 24” and 46 1/8”

dimension for 48” door

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

60 SERIES

61 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Narrow Stile Aluminum Door

• Tough and durable design for

years of trouble-free service in

high-use, high-abuse

environments

• Minimal door prep saves time

and money

• 6-position multi-step action in top

latch keeps top and bottom bolts

retracted until door closes and

provides more consistent

re-latching and security to door

• Top strike fully adjustable both

vertically and to accommodate a

variety of varying weather strip

thicknesses

Features

• Top strike both secures the door

and re-engages the latchbolts

• Patented deadlocking of top (60

and 61 Series) and bottom bolt

(60 Series) assemblies

• Durable steel bottom drop bolt

(60 Series)

• Rods are easily adjustable with

rods installed in door

• Angled end-cap deects damage

away from device

• Handed - eld reversible

• Field sizeable

• 1/8 turn dogging

Mechanical Options

• SLR - Silencer

• 30 - Fits 30" Door Width - limited

electrical options

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

• EC1 - Ramped Endcap - Heavy

duty (standard on 630, 606, 612,

613, 605, 611 & 629 nishes only)

• EC2 - Flush Endcap (standard on

628, 693 & 695 Finishes only),

specify when used on 2" - 3-1/2"

stiles

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Latch Retraction (ER)

• Delayed Egress Self-Contained

(EE)

Electrical Options

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Electric Delayed Egress x

Latch Retraction (EExER)

Refer to Electried Options section for

more information

Bottom

Latch

Bottom

Strike

Top

Latch

Top

Strike

The 60 and 61 Series concealed vertical rod exit

device is super-heavy-duty panic and re exit

hardware for use on all types of narrow stile

aluminum doors without a mullion. The patented

mounting plate system ensures the easiest and

most accurate installation of panic hardware

available.

Note: For Top Rod Only -

Specify 61 Series

• Fast and accurate installation

• Except for 03R, outside trims are

easily changed or rekeyed without

removing device from door

• Aesthetically pleasing options to

meet various applications including:

60/61 CVR Narrow Stile Alum. Door

62/63 CVR Narrow Stile H.M. Door

70/71 CVR Wide Stile Wood Door

80/81 CVR Wide Stile H.M. Door

82/83 CVR Wide Stile Alum. Door

ANSI 156.3 - 2008

Grade 1

Type 6

Benets

60 Series Shown -

(Top and Bottom Latch)

• F - 3-Hour Fire Rated without

astragal up to 10 foot (steel) door

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Detex Limited Warranty

Accessories

• SSK - Security Torx Screw Kit

• Door Types - Aluminum/

Aluminum Channel FRP

• Door Stile - Fits minimum 3-1/2"

Technical Information

• For 2" - 3-1/2" door stiles, specify

EC2

• Door Thickness - Fits standard

1-3/4" - 2 1/4" (for other door

thicknesses contact factory)

• Fasteners - Machine and sheet

metal screws supplied standard

• Rail is heavy ribbed aluminum

extrusion

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

Finishes

628 / US28 Satin Aluminum

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, painted

695 / SP313 Dark Bronze, painted

Listings and Approvals

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

UL 10 B/C

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

Top & Bottom Latch Door Top Latch Installation Top Strike Installation

Prep for 60 & 61 Series for 60 & 61 Series for 60 & 61 Series

THIS AREA TO BE

UNOBSTRUCTED

COMPLETELY

THRU DOOR

LATCH MOUNTING TOP & BOTTOM

ALUMINUM DOOR ATTACHMENT

TOP

Release to

extend bolt

ALUMINUM DOOR ATTACHMENT

BOTTOM

Bottom Latch Installation

for 60 Series Only

62 SERIES

63 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Narrow Stile Hollow Metal Door

• 6-position multi-step action in top

latch keeps top and bottom bolts

retracted until door closes and

provides more consistent

re-latching and security to door

• Top strike fully adjustable both

vertically and to accommodate a

variety of varying weather strip

thicknesses

Features

• Top strike both secures the door

and re-engages the latchbolts

• Patented deadlocking of top (62

and 63 Series) and bottom bolt

(62 Series) assemblies

• Durable steel bottom drop bolt

(62 Series)

• Rods are easily adjustable with

rods installed in door

• Angled end-cap deects damage

away from device

• Handed - eld reversible

• Field sizeable

• 1/8 turn dogging

Mechanical Options

• SLR - Silencer

• 30 - Fits 30" Door Width - limited

electrical options

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

• EC1 - Ramped Endcap - Heavy

duty (standard on 630, 606, 612,

613, 605, 611 & 629 nishes only)

• EC2 - Flush Endcap (standard on

628, 693 & 695 Finishes only)

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Latch Retraction (ER)

• Delayed Egress Self-Contained

(EE)

Electrical Options

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Electric Delayed Egress x

Latch Retraction (EExER)

Refer to Electried Options section for

more information

Bottom

Latch

Bottom

Strike

Top

Latch

Top

Strike

The 62 and 63 Series concealed vertical rod exit

device is super-heavy-duty panic and re exit

hardware for use on all types of narrow stile

hollow metal doors without a mullion. The patented

mounting plate system ensures the easiest and

most accurate installation of panic hardware

available.

Note: For Top Rod Only -

Specify 63 Series

ANSI 156.3 - 2008

Grade 1

Type 6

Benets

62 Series Shown -

(Top and Bottom Bolt)

• F - 3-Hour Fire Rated without

astragal up to 10 foot (steel) door

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

• Tough and durable design

for years of trouble-free

service in high-use, high-abuse

environments

• Minimal door prep saves time

and money

• Fast and accurate installation

• Except for 03R, outside trims are

easily changed or rekeyed without

removing device from door

• Aesthetically pleasing options to

meet various applications including:

60/61 CVR Narrow Stile Alum. Door

62/63 CVR Narrow Stile H.M. Door

70/71 CVR Wide Stile Wood Door

80/81 CVR Wide Stile H.M. Door

82/83 CVR Wide Stile Alum. Door

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

November 1, 2012

Detex Limited Warranty

Listings and Approvals

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum (with steel door)

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

Accessories

• SSK - Security Torx Screw Kit

• Door Types - Hollow Metal

• Door Stile - Fits minimum 4-1/2"

Technical Information

• Door Thickness - Fits standard

1-3/4" - 2 1/4" (for other door

thicknesses contact factory)

• Fasteners - Machine and sheet

metal screws supplied standard

• Rail is heavy ribbed aluminum

extrusion

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

Finishes

628 / US28 Satin Aluminum

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, painted

695 / SP313 Dark Bronze, painted

Top Latch Installation Bottom Latch Installation

for 62 & 63 Series for 62 Series Only

HOLLOW METAL DOOR

ATTACHMENT - TOP

FOR HOLLOW METAL DOORS:

INSTALL BRACKET ON THIS SIDE

(OPPOSITE FOR LHR)

FOR FIRE RATED HOLLOW METAL DOORS:

INSTALL BRACKETS ON BOTH SIDES

70 SERIES

71 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Wide Stile Wood Doors

Life Safety and Security Door Hardware

Where Trust is Built

• 6-position multi-step action in top

latch keeps top and bottom bolts

retracted until door closes and

provides more consistent

re-latching and security to door

• Top strike fully adjustable both

vertically and to accommodate a

variety of varying weather strip

thicknesses

Features

• Top strike both secures the door

and re-engages the latchbolts

• Patented deadlocking of top (70

and 71 Series) and bottom (70

Series) bolt assemblies

• Durable steel bottom drop bolt

(70 Series)

• Rods are easily adjustable with

rods installed in door

• Angled end-cap deects damage

away from device

• Handed - eld reversible

• Field sizeable

• 1/8 turn dogging

• F - 90 Minute Fire Rated without

astragal up to 10 foot door

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

• LD - Less Dogging

Mechanical Options

Electrical Options

Bottom

Latch

Bottom

Strike

Top

Latch

Top

Strike

The 70 and 71 Series concealed vertical rod exit

device is super-heavy-duty panic and re exit

hardware for use on all types of wooden double

doors without a mullion. The patented mounting

plate system ensures the easiest and most

accurate installation of panic hardware available.

Note: For Top Rod Only -

Specify 71 Series

ANSI 156.3 - 2008

Grade 1

Type 7

Benets

• SLR - Silencer

• 30 - Fits 30" Door Width - limited

electrical options

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

• EC1 - Ramped Endcap - Heavy

duty (standard on 630, 606, 612,

613, 605, 611 & 629 nishes only)

• EC2 - Flush Endcap (standard on

628, 693 & 695 Finishes only)

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Latch Retraction (ER)

• Delayed Egress Self-Contained

(EE)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Electric Delayed Egress x

Latch Retraction (EExER)

Refer to Electried Options section for

more information

70 Series Shown -

(Top and Bottom Bolt)

• Tough and durable design for

years of trouble-free service in

high-use, high-abuse

environments

• Minimal door prep saves time

and money

• Fast and accurate installation

• Except for 03WSV, outside trims

are easily changed or rekeyed

without removing device from door

• Aesthetically pleasing options to

meet various applications including:

60/61 CVR Narrow Stile Alum. Door

62/63 CVR Narrow Stile H.M. Door

70/71 CVR Wide Stile Wood Door

80/81 CVR Wide Stile H.M. Door

82/83 CVR Wide Stile Alum. Door

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

November 1, 2012

Life Safety and Security Door Hardware

Where Trust is Built

Detex Limited Warranty

Accessories

• SSK - Security Torx Screw Kit

• Door Types - Wood

• Door Stile - Fits minimum 5"

Technical Information

• Door Thickness - Fits standard

1-3/4" - 2 1/4" (for other door

thicknesses contact factory)

NOTE: For secure installation,

Detex recommends minimum

2" thick doors

• Fasteners - Wood screws

supplied standard

• Rail is heavy ribbed aluminum

extrusion

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Satin Aluminum

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, painted

695 / SP313 Dark Bronze, painted

Listings and Approvals

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 1-1/2 hours, maximum (wood)

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

Top Latch Installation Bottom Latch Installation

for 70 & 71 Series for 70 Series Only

FOR WOOD DOORS:

INSTALL BRACKET ON THIS SIDE

(OPPOSITE FOR LHR)

FOR FIRE RATED WOOD DOORS:

INSTALL BRACKETS ON BOTH SIDES

80 SERIES

81 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Wide Stile Hollow Metal Door

Life Safety and Security Door Hardware

Where Trust is Built

Features

Mechanical Options

Electrical Options

Bottom

Latch

Bottom

Strike

Top

Latch

Top

Strike

Designed to enhance the architectural aesthetics of any

décor, the 80 and 81 Series concealed vertical rod

exit device is also super-heavy-duty panic and re

exit hardware for use on all types of hollow metal doors

without a mullion. The patented mounting plate system

ensures the easiest and most accurate installation of

panic hardware available.

Note: For Top Rod Only -

Specify 81 Series

ANSI 156.3 - 2008

Grade 1

Type 8

Benets

80 Series Shown -

(Top and Bottom Bolt)

• 6-position multi-step action in top

latch keeps top and bottom bolts

retracted until door closes and

provides more consistent

re-latching and security to door

• Top strike fully adjustable both

vertically and to accommodate a

variety of varying weather strip

thicknesses

• Top strike both secures the door

and re-engages the latchbolts

• Patented deadlocking of top (80

and 81 Series) and bottom bolt

(80 Series) assemblies

• Durable steel bottom drop bolt

(80 Series)

• Rods are easily adjustable with

rods installed in door

• Angled end-cap deects damage

away from device

• Handed - eld reversible

• Field sizeable

• 1/8 turn dogging

• SLR - Silencer

• 30 - Fits 30" Door Width - limited

electrical options

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

• EC1 - Ramped Endcap - Heavy

duty (standard on 630, 606, 612,

613, 605, 611 & 629 nishes only)

• EC2 - Flush Endcap (standard on

628, 693 & 695 Finishes only)

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Latch Retraction (ER)

• Delayed Egress Self-Contained

(EE)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Electric Delayed Egress x

Latch Retraction (EExER)

Refer to Electried Options section for

more information

• F - 3-Hour Fire Rating without

astragal up to 10 foot (steel) door

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

• Tough and durable design

for years of trouble-free service

in high-use, high-abuse

environments

• Minimal door prep saves time

and money

• Fast and accurate installation

• Except for 03WSV, outside trims

are easily changed or rekeyed

without removing device from door

• Aesthetically pleasing options to

meet various applications including:

60/61 CVR Narrow Stile Alum. Door

62/63 CVR Narrow Stile H.M. Door

70/71 CVR Wide Stile Wood Door

80/81 CVR Wide Stile H.M. Door

82/83 CVR Wide Stile Alum. Door

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

November 1, 2012

• SSK4- Security Torx Screw Kit

Life Safety and Security Door Hardware

Where Trust is Built

Detex Limited Warranty

Accessories

• Trim Functions (see Outside Trims) • Electried Options (see Electried

Options)

• Door Types - Hollow Metal

• Door Thickness - Fits standard

1-3/4" - 2-1/4" (for other door

thicknesses contact factory)

Technical Information

• Minimum Stile - 5" • Fasteners - Machine and Self-

Drilling Screws standard

• Rail is heavy ribbed aluminum

extrusion

Finishes

Listings and Approvals

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Satin Aluminum

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, painted

695 / SP313 Dark Bronze, painted

Top Latch Installation Bottom Latch Installation

for 80 & 81 Series for 80 Series Only

HOLLOW METAL DOOR

ATTACHMENT - TOP

FOR HOLLOW METAL DOORS:

INSTALL BRACKET ON THIS SIDE

(OPPOSITE FOR LHR)

FOR FIRE RATED HOLLOW METAL DOORS:

INSTALL BRACKETS ON BOTH SIDES

82 SERIES

83 SERIES (Top Rod Only)

Concealed Vertical Rod Device - Wide Stile Aluminum Door

Life Safety and Security Door Hardware

Where Trust is Built

Features

Mechanical Options

Electrical Options

Bottom

Latch

Bottom

Strike

Top

Latch

Top

Strike

Designed to enhance the architectural aesthetics of any

décor, the 82 and 83 Series concealed vertical rod exit

device is also super-heavy-duty panic and re exit

hardware for use on all types of wide stile aluminum

doors without a mullion. The patented mounting plate

system ensures the easiest and most accurate

installation of panic

hardware available.

Note: For Top Rod Only -

Specify 83 Series

ANSI 156.3 - 2008

Grade 1

Type 8

Benets

82 Series Shown -

(Top and Bottom Bolt)

• Top strike both secures the door

and re-engages the latchbolts

• Patented deadlocking of top (82

and 83 Series) and bottom bolt

(82 Series) assemblies

• Durable steel bottom drop bolt

(82 Series)

• Rods are easily adjustable with

rods installed in door

• Angled end-cap deects damage

away from device

• Handed - eld reversible

• Field sizeable

• 1/8 turn dogging

• SLR - Silencer

• 30 - Fits 30" Door Width - limited

electrical options

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

• EC1 - Ramped Endcap - Heavy

duty (standard on 630, 606, 612,

613, 605, 611 & 629 nishes only)

• EC2 - Flush Endcap (standard on

628, 693 & 695 Finishes only)

• Exit Alarm (EA)

• Electric Dogging (ED)

• Electric Latch Retraction (ER)

• Delayed Egress Self-Contained

(EE)

• Request to Exit (EX)

• Request to Exit for High Voltage

(EXV)

• Electric Delayed Egress x

Latch Retraction (EExER)

Refer to Electried Options section for

more information

• F - 3-Hour Fire Rated without

astragal up to 10 foot (steel) door

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

• Tough and durable design

for years of trouble-free service

in high-use, high-abuse

environments

• Minimal door prep saves time

and money

• Fast and accurate installation

• Except for 03WSV, outside trims

are easily changed or rekeyed

without removing device from door

• Aesthetically pleasing options to

meet various applications including:

60/61 CVR Narrow Stile Alum. Door

62/63 CVR Narrow Stile H.M. Door

70/71 CVR Wide Stile Wood Door

80/81 CVR Wide Stile H.M. Door

82/83 CVR Wide Stile Alum. Door

• 6-position multi-step action in top

latch keeps top and bottom bolts

retracted until door closes and

provides more consistent

re-latching and security to door

• Top strike fully adjustable both

vertically and to accommodate a

variety of varying weather strip

thicknesses

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Life Safety and Security Door Hardware

Where Trust is Built

Detex Limited Warranty

Accessories

• Door Types - Aluminum/

Aluminum Channel FRP

Technical Information

• Door Thickness - Fits standard

1-3/4" - 2-1/4" (for other door

thicknesses contact factory)

• Door Stile - Fits minimum 4-1/2"

• Fasteners - Machine and Self-

Drilling Screws standard

• Rail is heavy ribbed aluminum

extrusion

Finishes

Listings and Approvals

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

UL 10 B/C

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Satin Aluminum

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, painted

695 / SP313 Dark Bronze, painted

Top & Bottom Latch Door Top Latch Installation Top Strike Installation

Prep for 82 & 83 Series for 82 & 83 Series for 82 & 83 Series

THIS AREA TO BE

UNOBSTRUCTED

COMPLETELY

THRU DOOR

LATCH MOUNTING TOP & BOTTOM

ALUMINUM DOOR ATTACHMENT

TOP

Release to

extend bolt

ALUMINUM DOOR ATTACHMENT

BOTTOM

Bottom Latch Installation

for 82 Series Only

• SSK4- Security Torx Screw Kit • Trim Functions (see Outside Trims) • Electried Options (see Electried

Options)

Outside Trim Designs

01 - Exit only, no trim or blank escutcheon

02 - Entrance by trim when actuating bar is locked down

03 - Entrance by trim when latch bolt is released by key. Key removable only when locked.

08 - Entrance by knob or lever. Key locks or unlocks knob or lever.

09 - Entrance by knob or lever only when released by key. Key removable only when locked.

10 - Entrance by lever. Inside or outside key locks or unlocks lever.

14 - Entrance by trim when latch bolt is released by knob, lever. Always active, no cylinder.

EU - Electric Unlock Trim

EU2W - Electric Unlock Trim (doors with 4” minimum stile width)

BHMA Functions

WIDE STILE

OUTSIDE TRIM DESIGNS

C/CM/CV TRIM

S Pull Standard

S Lever T Lever U Lever

D/DM Trim

S Lever Standard

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic

devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the

trims, combined with the device mounting plate, makes changing functions as simple as replacing the

outside trim. This can easily be done without removing the exit device from the door. Wide stile trims

can be used on 10 Series Rim and 20 and 21 Series Surface Vertical Rods. Add M to most trims for

use with 30 Series Mortise devices. Add V to most trims for use with 70, 71, 80, 81, 82 and 83 Series

Concealed Vertical Rod devices. Detex uses the BHMA functions/descriptions for all trims.

01C / 01CM / 01CV 03C / 03CM / 03CV

02C / 02CM / 02CV

02D / 02DM / 02DV,

14D / 14DM / 14DV

08D / 08DM / 08DV,

09D / 09DM / 09DV,

EU / EUV (Electric Lock/

Unlock)

All Wide Stile Lever Trims come standard with a break-away type lever

to prevent permanent damage from vandalism and abuse. Once the

lever is forced past the locking point, the lever will drop down and appear

broken. The internal disengaging clutch allows the lever to be reset by

pulling it back to its original position.

[77.3]

[118.1]

[12.7]

BHMA Function/Description

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

• 01 - Exit only, no trim or blank

escutcheon

• 02 - Entrance by trim when

actuating bar is locked down

(dummy trim)

• 03 - Entrance by trim when latch

bolt is released by key. Key

removable only when locked.

• 08 - Entrance by knob or lever.

Key locks or unlocks knob or lever.

• 09 - Entrance by knob or lever

only when released by key. Key

removable only when locked.

• 10 - Entrance by lever. Inside or

outside key locks or unlocks lever.

• 14 - Entrance by trim when

latch bolt is released by knob

or lever. Always active, no

cylinder.

• EU - Electric Lock/Unlock -

Fail Secure (FSE) or

Fail Safe (FSA)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

April 26, 2011

Technical Information

• C and W Trims are Stainless

Steel

• D and WS Trims are Forged

Brass

• Wide stile trim congured for use

with BP1 or BP7 (when ordered

with 03 function) - standard on

10, 20/21 Series, BP11 or BP13

(when ordered with 03 function) -

standard on 70, 80/81/82/83 Series

Call factory for retrot applications

• When ordered with device, trim

will match mounting plate specied

W/WM Trim

W/WM Trim not available

with 70 and 80 Series

01W / 01WM 03W / 03WM

WS/WSV Trim

WS Trim not available

with 30 Series

03WS / 03WSV

Z Trim

02Z

03Z

11 1-3/4

2-1/4

1-1/4

1-5/8

70°

Z Trim

Z Trim (Vandal Pull) available

with 10/20/21 Series only

WP Trim

WP Trim available

with 70/80 Series

only

02WP 12”

1” dia.

NARROW STILE

OUTSIDE TRIM DESIGNS

CN / CNV TRIM

S Pull Standard

DN / DNV / EU2W Trim

S Lever Standard

Assorted outside trims provide security for all types of installations. Built to be as durable as the panic

devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design of the

trims, combined with the device mounting plate, makes changing functions as simple as replacing

the outside trim. This can easily be done without removing the exit device from the door. Narrow

stile trims can be used on 40 Series Rim, 50 / 51 Series Surface Vertical Rods and 60 / 61 / 62 / 63

Concealed Vertical Rods. Detex uses the BHMA functions/descriptions for all trims.

01CN,

01CNV

03CN,

03CNV

02CN,

02CNV

S Lever T Lever U Lever

08DN, 08DNV

09DN, 09DNV,

02DN, 02DNV

14DN, 14DNV

01DN

EU2W - wide

escutcheon

for 40/50/51

Series only

BHMA Function/Description

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

• 01 - Exit only, no trim or blank

escutcheon

• 02 - Entrance by trim when

actuating bar is locked down

(dummy)

• 03 - Entrance by trim when latch

bolt is released by key. Key

removable only when locked.

• 08 - Entrance by knob or lever.

Key locks or unlocks knob or lever.

• 09 - Entrance by knob or lever

only when released by key. Key

removable only when locked.

• 10 - Entrance by lever. Inside or

outside key locks or unlocks lever.

• 14 - Entrance by trim when

latch bolt is released by knob

or lever. Always active, no

cylinder.

• EU2W - Electric Lock / Unlock,

wide escutcheon - Fail Secure or

Fail Safe

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

April 26, 2011

Technical Information

• CN Trims are Stainless

Steel

• DN and WS Trims are Forged

Brass

• Narrow stile trim congured for use

with BP2 or BP8 (when ordered

with 03 function) - Standard for

use on 40, 50/51 Series, BP10

or BP12 (when ordered with 03

function) - Standard for use on

60/61, 62/63 Series

Call factory for retrot applications

• Advantex narrow stile trim also

available for use with all Value

Series Devices

• When ordered with device, trims

will match mounting plate specied

WS Trim

WS Trim not available

with 60 Series

03WS

WP Trim

WP Trim available

with 60 Series

only

02WP

R Trim

R Trim available

with 60 Series

only 03R

4-3/8”

1-5/8” 1-7/16”

12”

1” dia.

EU, EUV or EUxDM

ELECTRIC UNLOCK TRIM - for use with 10/20/21/30/70/71/80/81/82/83 Series Exit Device

Provides remote means of locking or unlocking a door for authorized entry, access control, security or

safety needs when used in conjunction with any Detex wide stile rim (10 Series), surface vertical rod

(20 Series), mortise (30 Series - specify EUxDM) or concealed vertical rod (70/71, 80/81, 82/83 Series

- specify EUV) exit device. Excellent source of security for stairwell doors, elevator lobbies, or other

access control systems used in installations in schools, universities, hospitals, retail, industrial, etc.

• Retrots over existing Detex lever

trim

• Cylinder override

Features

Benets

• Clutching trim limits vandalism • Key override for emergency

entrance during loss of power

(FSE)

FSE/FSA

• Spring loaded tailpiece

• Not Field Reversible

• EU - Comes standard as D Trim,

with S style Lever and Fail Secure

(FSE), for use with Detex wide

stile (10 Series) Rim or (20 Series)

Surface Vertical Rod Device

• EU x DT or DU - Comes with T

style or U style lever, for use with

Detex wide stile (10 Series) Rim

or (20 Series) Surface Vertical Rod

Device

Mechanical Options

• EUV - Comes standard as D Trim,

with S style Lever and Fail Secure

(FSE), for use with Detex wide

stile (70/71, 80/81, 82/83 Series)

Concealed Vertical Rod Device

• EUV x DT or DU - Comes with T

style or U style lever, for use with

Detex wide stile (70/71, 80/81,

82/83 Series) Concealed Vertical

Rod Device

• EU x DM - Comes with S style

lever, for use with Detex (30

Series) Mortise Exit Device

• EU x DMT or DMU - Comes with

T style or U style lever, for use

with Detex (30 Series) Mortise

Exit Device

• Fail Safe (FSA) - During power

failure, the trim will always be

unlocked. (Life Safety option)

ex: EU x FSA x DM

• Not Field Selectable

Electrical Options

• Fail Secure (FSE) - During power

failure, device will be locked

(Security option)

ex: EU x FSE x DU

• Not Field Selectable

• Vandal resistant break-away type

lever

Accessories

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

• MC65 - Mortise Cylinder

• IC7 - 7-pin Mortise Cylinder

Housing (Core not included)

• CCL - Long cyllinder collar (11/16”)

• SE-2 - Shaft extension for 2 to

2 1/2” thick doors

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

October 18, 2012

Technical Information

• 24VDC / 150ma continuous duty

Dimensions

• 80-800 - 24 VDC power supply

with battery charging circuit

• 90-800 - 24 VDC power supply

without battery charging circuit

Lever Options

S Lever T Lever U Lever

Detex Limited Warranty

10 Year Mechanical/3 Year Electrical

Limited Manufacturer’s Warranty

Wiring Diagram

+24VDC

-24VDC

NC for FSA

NO for FSE +

Front View Side View

Back View

1-3/8

4 Posts

Listings and Approvals

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

UL1034 - 33 Temperature Section 33

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034 - 53 Dust Section 53

UL 1034-34 Temperature Section 34

UL 1034-54 Dust Section 54

EU2W

ELECTRIC UNLOCK TRIM - for use with 40/50/51/V40/V50/V51 Series Exit Device

Provides remote means of locking or unlocking a door for authorized entry, access control, security

or safety needs when used in conjunction with any Detex 40/V40 Series rim or 50/51/V50/V51 Series

surface vertical rod exit device on doors with a minimum stile width of 4”. Excellent source of security

for access control systems used in installations in schools, universities, hospitals, retail, industrial, etc.

• Clutching trim limits vandalism

• Cylinder override

Features

Benets

• Key override for emergency

entrance during loss of power

(FSE)

FSE/FSA

• Spring loaded tailpiece

• Not Field Reversible

• EU2W - Comes standard as

D Trim, with S style Lever and

Fail Secure (FSE), for use with

Detex 40/V40 Series Rim or

50/51/V50/V51 Series Surface

Vertical Rod Device

Mechanical Options

• EU2W x DT or DU - Comes

with T style or U style lever, for

use with Detex 40/V40 Series

Rim or 50/51/V50/V51 Series

Surface Vertical Rod Device

• Fail Safe (FSA) - During power

failure, the trim will always be

unlocked. (Life Safety option)

ex: EU x FSA

• Not Field Selectable

Electrical Options

• Fail Secure (FSE) - During power

failure, device will be locked

(Security option)

ex: EU x FSE

• Not Field Selectable

• Vandal resistant break-away type

lever

Accessories

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

• MC65 - Mortise Cylinder

• IC7 - 7-pin Mortise Cylinder

Housing (Core not included)

• CCL - Long cyllinder collar (11/16”)

• SE-2 - Shaft extension for 2 to

2 1/2” thick doors

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

November 1, 2012

Technical Information

• 24VDC / 150ma continuous duty

Dimensions

• 80-800 - 24 VDC power supply

with battery charging circuit

• 90-800 - 24 VDC power supply

without battery charging circuit

Lever Options

S Lever T Lever U Lever

Detex Limited Warranty

10 Year Mechanical/3 Year Electrical

Limited Manufacturer’s Warranty

Wiring Diagram

+24VDC

-24VDC

NC for FSA

NO for FSE +

Front View Side View

Back View

2 Posts

Listings and Approvals

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

UL1034 - 34 Temperature Section 34

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034 - 54 Dust Section 54

Electried Options

EA Exit Alarm with 9VDC/12VAC, Remote Bypass and Remote Signal Relay

ED Electric Dogging

EE Electric Delayed Egress

EExER Electric Delayed Egress with Latch Retraction

EI Electric Integration - Includes ES Switches, piezo, key switch and 2 LEDs

EM Electric Delayed Egress with Magnetic Lock

ER Electric Latch Retraction

ES/EX/EXV/ Electric Switching and Signaling

EXxW/LX

EU Electric Unlock Trim

EU2W Electric Unlock Trim (Used on doors with 4” minimum stile width)

Accessories

All Electried Options are available on Fire Exit Hardware and Hurricane Rated Devices

Electried Options Denitions

Exit Alarm (EA)

• Controls foot trafc, deters

unauthorized exits, prevents

loss and meets building code

requirements

The Exit Alarm (EA) device option is designed for areas that require a stand-alone alarm on an

emergency exit door. The alarm will sound when someone attempts to exit a door by depressing the

pushpad, alerting management that violation has occurred. The internal alarm with remote signal and

remote bypass capabilities is ideal for doors where both security and life safety are a concern.

• Reduced employee and customer

theft

• One cylinder provides arming,

disarming and dogging

• Fast and easy installion

• Durable electornics provide years

of trouble-free service, saving on

replacement costs

• CD - Cylinder Dogging

• LD - Less Dogging

Mechanical Options

• SLR - Silencer

• KS - Key Stop (Key removed only

when armed)

• FCA - Flex Conduit End Cap Kit

(End cap mounted)

• AL18 - Surface Armored Loop

(Door/Frame mounted)

• PT5 - Power Transfer

• Powered by standard 9-volt

battery or 12V or 24V AC/DC

power with 9-volt battery backup

• 100dB alarm

• State-of-the-art electronics offer

reliable security and

instantaneous alarm

• Visual and audible arming

indicators

Features

• Arming delay - Factory default is

15 second delay after key reset.

1 second or 5 second delays also

available. Call factory

• Manual/Auto Rearming - Factory

default is eld-selectable for

manual key arming or 2 minute

auto rearm. 10 minute and 20

minute auto rearm also available.

Call Factory

• Mortise cylinder key switch arming

• Through-wire hinge or power

transfer compatible

• Low Battery Alert (Audible/Visual)

• Add to existing

10/20/21/30/40/50/51 device by

adding EA slide-in ller (specify

nish and door width)

Accessories

• Optional Cylinder Nut Wrench

P/N: 103779

Benets

• PP-5152-3 - 12 VAC Transformer

• PP-5152-2 - 24 VAC Transformer

(10 Series Rim Exit Device shown - Available with 10/40 Rim, 30 Mortise, 20/21/50/51 Surface Vertical Rod Devices

and 60/61/62/63/70/71/80/81/82/83 Concealed Vertical Rod Devices)

Shown with Factory Installed Mortise Cylinder - Sold Separate

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Detex Limited Warranty

Riser Diagram Listings and Approvals

(on 10 and 40 Series Devices)

Bypass / Remote Signal

12VAC

(Optional)

EA Exit Alarm

Filler 9VDC





UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

Finishes (Advantex)

Power Connections

Listings and Approvals

(on 20/21/50/51 Series Devices)

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 & 3725-0127:108

LISTED

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Electric Dogging (ED)

• One-touch operation turns any

secured door or group of doors

into push-pull openings and

releases them as required

The Electric Dogging (ED) device option is designed for entrance and exit doors with panic or re

exit hardware. When energized, and after the pushpad is depressed, the pushpad and the latch bolt

remain retracted, providing push-pull operation. Relocking all devices is accomplished by using a

single switch or through a re alarm input.

• Door remains locked until rst

activation of pushpad (exit)

• Simple mounting and wiring

provide quick, trouble free

installation, saving time and

money

• Economical alternative to latch

retraction when only dogging is

required

• Pushpad remains depressed while

latch is retracted, preventing

unnecessary cycling, for quieter

operation

• FC - Flex Conduit and End Cap

Mechanical Options

• AL-18 - Surface Armored Loop

(Door/Frame mounted)

• Request to Exit (EX)

• Maintained latch and pushpad

retraction

Features

• Continuous duty magnet • Operates on 24VAC or 24VDC

Electrical Options

• 80-800 Power Supply - 24VDC

ltered, regulated with re loop

connection

Benets

• PP-5152-2 24VAC Transformer

• Fire rated devices require re

alarm panel interface for re

code compliance

Technical Information

(10 Series Rim Exit Device shown - Available with 10/40 Rim, 30 Mortise, 20/21/50/51 Surface Vertical Rod Devices

and 60/61/62/63/70/71/80/81/82/83 Concealed Vertical Rod Devices)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Detex Limited Warranty

Riser Diagram Listings and Approvals

(on 10 and 40 Series Devices)

ED ELECTRIC

DOGGING

80-800 Power Supply

(sold separately)

EX - Request

Exit Switch

Output

(optional)

115VAC

input

Activation

Switch

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

Finishes (Advantex)

Listings and Approvals

(on 20/21/50/51 Series Devices)

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 & 3725-0127:108

LISTED

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Delayed Egress Rim Exit Device (EE)

• Fast and easy installation

• Secure installation prevents

mistakes, enhances security and

reduces maintenance

• Fits almost any door in any décor

Life Safety and Security Door Hardware

Where Trust is Built

The Delayed Egress Rim Exit Device (EE) is designed for primary and secondary exits and provides

a secure 15-second delay and a 100dB alarm when someone attempts to exit. This 15-second delay

allows time for management to respond to the alarm before someone exits and the alarm deters the

exit from occurring. Per life safety requirements, the EE must be provided with a re alarm input, thus

providing a system override during a re emergency. The EE provides security while meeting all life

safety concerns, offering an exceptional value.

• Provides immediate egress while

securing against entry during a

power failure/re alarm

• Durable design provides years of

trouble-free protection, saving on

replacement costs

• One cylinder provides arming,

disarming and dogging

• Controls foot trafc, deters

unauthorized exits, prevents

loss and meets building code

requirements

• Can be combined with ER Option

and operator to provide Delayed

Egress and an automatic door

(See EExER Option)

• MC65 - Factory Installed Mortise

cylinder

• IC7 - Factory Installed IC Housing

• F - 3-Hour Fire Rated

• H - Hurricane rating

• SLR - Silencer

Mechanical Options

• CD - Cylinder Dogging (Std.)

• LD - Less Dogging

• KS - Key Stop (Key removed only

when armed)

• 36" Door Width (Std.)

• 48" Door Width

• Powered by a 24VDC ltered and

regulated power supply

• Panic Device and power supply

have passed testing for

electrostatic discharge (ESD) by

an independent testing laboratory

• Power supply delivers a constant

24VDC of ltered and regulated

voltage at a rated load of 1A,

including ripple rejection and

transient noise suppression

circuitry

• Stainless steel, 3/4" deadlocking

Pullman-type latch bolt

• Non-handed, eld sizeable

• 100dB alarm

• 1/8 turn cylinder dogging

Features

• Heavy-duty angled end-cap

• Heavy-duty ribbed aluminum rail

extrusion

• Accommodates all types of

mortise cylinders with a

standard Yale cam

• Patented mounting plate and

strike locator system provide

perfect alignment with door and

frame

• Single mortise cylinder provides

arming and dogging - can be

factory installed

• State-of-the-art electronics offer

reliable security and instantaneous

alarm

• Visual and audible arming

indicators

• 9V battery provides alarm function

only in case of power failure

• Armed and disarmed eld

selectable status indicator

• Delayed arming allows arming

after door closes

• Remote signal output and remote

bypass input standard

• Alarm triggered by latch bolt

movement

• Fire alarm input can be connected

at power supply or panic bar

• Includes delayed egress panic bar,

24VDC ltered and regulated

power supply, and door sign

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

Benets

Power Supply Included

as standard feature

Shown with factory

installed mortise

cylinder

(10 Series Rim Exit Device shown - Available with 10/40 Rim, 30 Mortise, 20/21/50/51 Surface Vertical Rod Devices

and 60/61/62/63/70/71/80/81/82/83 Concealed Vertical Rod Devices)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Life Safety and Security Door Hardware

Where Trust is Built

Detex Limited Warranty

Riser Diagram

Listings and Approvals

(on 10 and 40 Series Devices)

To Fire Alarm

System

Filtered and Regulated

Power Supply with

Fire Alarm System Loop

24VDC

(Power Supply

Included Standard)

Finishes (Advantex products)

Listings and Approvals

(on 20/21/50/51 Series Devices)

• 30 - 30 second delayed egress

available (must have letter from

AHJ)

Electrical Options

Other Advantex delayed egress

panic devices include:

• Delayed Egress with

Electromagnetic Lock (EM)

• AL18 - Surface Armored Loop

(Door/Frame mounted)

• PT5 - Power Transfer

• SI- Status Indicators - Armed/

Disarmed

• SN1 - Sex Nut fasteners

• Outside trim options (See

Advantex Trim Options)

Accessories

• Optional Cylinder Nut Wrench

P/N: 103779

• Foreign Language Signs available

Contact Factory

• Door Types - Wood, Hollow

Metal, Fiberglass or Aluminum

• Door Thickness - Fits standard

1 3/4" - 2 1/4"

Technical Information

• Door Stile - See applicable device

page

• Machine and Self-Drilling

fasteners (Std.)

• Optional Sex Nuts or Security

Torx Screws available

Terminal Block

TERMINAL BLOCK

1 2 3 4 5 6 7 8 9 10 11 12

24 VDC

Remote Bypass

Bypass Relay Output

Alarm Relay Output

POWER

FACTORY INSTALLED

(+)

(-)

COMMON

OPEN

CLOSED

COMMON

OPEN

CLOSED

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Delayed Egress with Latch Retraction (EExER)

(Patented)

• All delayed egress and access

control functions are implemented

in the exit device, no external

magnets, electric strikes or

electric trims are needed

• 15-second delay prevents

unauthorized exit, reduces theft

and protects those trying to exit

Delayed Egress with Latch Retraction (EExER) is designed for applications where both delayed egress

and remote unlocking, remote dogging, access control or an automatic door operator is desired. An

optional EX Request to Exit Switch may be added for push pad monitoring or LX Switch for latch bolt

monitoring. The 100 dB alarm, will sound when someone attempts to exit but the door will remain

locked for 15 seconds, deterring unauthorized exits and providing time to respond to the alarm. Ideal

for restricted areas, access controlled doors, and any door requiring authorized entry or exit, while

preventing unauthorized entry or exit. Perfect for re-rated, cross corridor, access controlled, delayed

egress doors with automatic operators, all without using magnetic locks or electric strikes.

• Use of any access control system

and latch retraction allows entry/

exit for any authorized card holder

• Required re alarm input provides

life safety override for immediate

exit during a re emergency

• Easy-to-operate with visual and

audible arming indicators

• Simple mounting and wiring

provide quick, trouble-free and

secure installation saving time and

money

• Available as stand-alone or fully-

integrated EasyKit

• FC - Flex Conduit and End Cap

(ex. 10xEExERxFC)

• KS - Key Stop, key removed only

when armed

Mechanical Options

• Optional Cylinder Nut Wrench

P/N: 103779

• Request to Exit Switch (EX)

• 30 - 30 Second Delayed Egress

(ex. 10xEExERx30)

• Heavy-duty, Grade 1 exit device

stands up to extreme high trafc

conditions

• 100dB alarm demands attention,

even in noisy environments,

helping prevent unauthorized exits

Features

• Wall mounted remote interface

module with red/green LEDs

provide visual arming indication

• Automatic rearm occurs after

authorized entry and exit

• Through-wire hinge or power

transfer compatible

• Available in various nishes and

with assorted trims to t any

application or décor

• AL18 - Surface Armored Loop

(Door/Frame Mounted)

• Foreign Language Signs Available

- Contact Factory

Electrical Options

• LX - Latch Bolt Monitor / Latch

Secure Switch

Logic

Controller /

Power Supply

Required but

not included

Benets

(10 Series Rim Exit Device shown - Available with 10/40 Rim, 30 Mortise, 20/21/50/51 Surface Vertical Rod Devices

and 60/61/62/63/70/71/80/81/82/83 Concealed Vertical Rod Devices)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Detex Limited Warranty

Riser Diagram Listings and Approvals

EExER Panic Device:

• Power and logic requirements

supplied by 84-800 Logic

Controller and Power Supply

designed for single door

application

• 85-800 Logic Controller and

Power Supply designed for

double door applications

• 84-800 amp draws at 1.2 Amps

@ 24 VDC

• 85-800 amp draws at 2.5 Amps

@ 24 VDC

• Fire alarm input - Requires a

closed contact (when powered)

of a locally approved re alarm

system

Technical Information

Remote Interface Module:

• Wall mounted

• Detachable plug-in terminal strip

• Dummy cylinder included

• May also be used with 5, 6 or 7-pin

standard and interchangeable core

cylinder

• Available in Surface or Flush mount

• Available in Gray or Black Finish

84-800 / 85-800 Logic Controller

and Power Supply

• Remote bypass output -

.5A@24VAC/VDC Max.

• Remote bypass input

Device Finishes

Remote Alarm

(optional)

Detex Remote interface Module

(included)

Inside

Outside

Detex Keypad

or Card Readers

(optional)

Detex flexible conduit

with connections

(optional)

J-box

(not included)

From remote switch

(optional)

Detex

door sign

for

Delayed Egress

(included)

Detex EExER

Panic Hardware

(included)

From 120VAC source

JDetex Logic Controller

and Power Supply

Model 84-800

(must be ordered

separately)

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3,

A156.2-2001 and A156.24

Meets NFPA 80 & 101

for Life Safety

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Electric Integration (EI)

• Fast and easy installation

• Multiple switching choices for

ease-of-use

The Electric Integration device, designed for applications where electric integration is required, provides

the customer with a means of integration to new or existing systems, including the Detex Series 800

Logic Controller. The customer may select from these components to integrate and create different

functions from the single product package. This variety of components offers an alarm to sound,

monitor the latch bolt position and/or pushpad when depressed, signals a remote panel by key switch

operation when activated from inside or outside authorization, and offers 2 LED's to enhance required

functions. The operation of switches will open or close (SPDT) to integrate with digital video recorders,

remote alarms, strobe lights, or commence the cycle in a separate delayed egress system.

• Integrate with logic controllers,

power supplies and most security

equipment, to provide reliable,

integrated loss prevention

protection

• Durable electronics provide years

of trouble free service, saving on

replacement costs

• Controls foot trafc, deters

unauthorized exits, prevents loss

and meets building code

requirements

• LD - Less Dogging

• F - 3-Hour Fire Rated

Mechanical Options

• KS - Key Stop - key removed only

when armed

• 10-800 or 11-800 Logic Controller

and Power Supply for Electric

Integration (required but not

included

• State-of-the-art electronics for

reliable instantaneous switch

activation

• Tamper resistant switching

monitors dead latch and outside

trim input

• 100dB Piezo Alarm

Features

• Mortise cylinder key switch

output (Form C)

• Cylinder dogging (Std.) except

with re rated devices

• Pushpad/Latch bolt position

switch outputs

• Authorized access switch output

• (3) Standard SPDT (Form C)

switches

• Simple "plug-in" header type

terminal strip located near end-cap

for easy installation

• Dual LED visual arming indicators

(one red, one green)

• All switching capable of handling

12 or 24 Volts AC or DC

• Code-compliant door sign

(English)

• H - Hurricane Rated

Electrical Options

Benets

10 Series Rim Exit Device shown

Available with all Advantex rim (10/40) and mortise (30)

Shown with Factory Installed Mortise Cylinder - Sold Separate

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Detex Limited Warranty

Riser Diagram

Listings and Approvals

(on 10 and 40 Series Devices)

Remote Monitor Output

Key switch Output

Siren Input

LED Inputs

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

Finishes (Advantex)

Listings and Approvals

(on 20/21/50/51 Series Devices)

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 & 3725-0127:108

LISTED

• Detachable plug-in terminal strip

• Switch jumpers for NO/NC

contacts

Technical Information

• Machine and self-drilling screws

(Std.)

• Through-wire hinge or power

transfer compatible

Dimensions

18”

32 1/2”

• FC - Flex Conduit and End Cap

Fitting

• MC65 - Pre-installed Mortise

Cylinder

• IC7 - Pre-installed Interchangeable

Core Cylinder

Accessories

• SSK - Security Torx Screws

• SN1 - Sex Nuts

• AL18 - Surface Armored Loop

(door/frame mount)

• PT5 - Power Transfer

• EWH8-626 - Electric Wire Hinge

• Optional Cylinder Nut Wrench

P/N: 103779

• Foreign Language Signs available

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Delayed Egress with Magnetic Locking (EM)

• Fast and easy installation

• 2-point locking provides tandem-

holding force of latch bolt

(1400 lb) and electromagnetic

lock (1500 lb)

Life Safety and Security Door Hardware

Where Trust is Built

The Delayed Egress Magnetic Locking (EM) option provides a secure 2-point locking device with

15-second delay and a 100dB alarm when someone attempts to exit. This delay allows those in

charge the time to respond to the alarm before a potential violation occurs. The Delayed Egress

Magnetic Locking option device must be wired to the re alarm (sprinkler system, smoke detection,

etc.) that allows a system override in the event of a re emergency situation, per building code

requirements. Provides exceptional security without forfeiting life safety for retail establishments,

schools, universities, hospitals, manufacturing facilities, etc.

• Durable design provides years of

trouble-free protection

• Reduces employee and customer

theft

• One cylinder provides arming,

disarming and dogging

• Controls foot trafc, deters

unauthorized exits, prevents loss

and meets code requirements

• Fits almost any door in any décor

Mechanical Options

Features

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

Benets

(10 Series Rim Exit Device shown - Available with 10/40 Rim devices)

Power Supply Included

as standard feature

Shown with factory

installed mortise

cylinder

• MC65 - Factory Installed Mortise

cylinder

• IC7 - Factory Installed IC Housing

• FC - Flex Conduit and End Cap

• F - 3 Hour Fire Rating

• H - Hurricane rating

• CD - Cylinder Dogging (Std.)

• LD - Less Dogging

• KS - Key Stop (Key removed only

when armed)

• 36" Door Width (Std.)

• 48" Door Width

• Powered by a 24VDC ltered and

regulated power supply

• Panic Device and power supply

have passed testing for

electrostatic discharge (ESD) by

an independent testing laboratory

• Power supply delivers a constant

24VDC of ltered and regulated

voltage at a rated load of 1A,

including ripple rejection and

transient noise suppression

circuitry

• Stainless steel, 3/4" deadlocking

Pullman-type latch bolt

• Non-handed, eld sizeable

• 100dB alarm

• 1/8 turn cylinder dogging

• Heavy-duty angled end-cap

• Heavy-duty ribbed aluminum rail

extrusion

• Accommodates all types of

mortise cylinders with a

standard Yale cam

• Patented mounting plate and

strike locator system provide

perfect alignment with door and

frame

• Single mortise cylinder provides

arming and dogging - can be

factory installed

• State-of-the-art electronics offer

reliable security and instantaneous

alarm

• Visual and audible arming

indicators

• 9V battery provides alarm function

only in case of power failure

• Armed and disarmed eld

selectable status indicator

• Delayed arming allows arming

after door closes

• Remote signal output and remote

bypass input standard

• Alarm triggered by latch bolt

movement

• Fire alarm input can be connected

at power supply or panic bar

• Includes delayed egress panic bar,

24VDC ltered and regulated

power supply, 1500 lb

electromagnetic lock and door

sign

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Life Safety and Security Door Hardware

Where Trust is Built

Detex Limited Warranty

Riser Diagram Listings and Approvals

(on 10 and 40 Series Devices)

Filtered and Regulated

Power Supply with

Fire Alarm System Loop

24VDC

(Power Supply

Included Standard)

To Fire Alarm

System

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

Finishes (Advantex)

Terminal Block

Bypass Relay Output OPEN

COMMON

CLOSED

OPEN

Alarm Relay Output

POWER

COMMON

FACTORY INSTALLED

Remote Bypass

24 VDC

(-)

(+)

TERMINAL BLOCK

1 2 3 654 7 8 119 10 12

• 30 Second Delayed Egress

(must have letter from AHJ)

Electrical Options

• AL18 - Surface Armored Loop

(Door/Frame mounted)

• PT5 - Power Transfer

Technical Information

• Door Types - Wood, Hollow

Metal, Fiberglass or Aluminum

• Door Thickness - Fits standard

1 3/4" - 2 1/4"

• Door Stile - See applicable device

page

• Machine and Self-Drilling

fasteners (Std.)

• Optional Sex Nuts or Security

Torx Screws available

• SN1 - Sex Nut fasteners

Accessories

• Outside trim options (See

Advantex Trim Options)

• Foreign Language Signs available

Contact Factory

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Electric Latch Retraction (ER)

• Works with any type of access

control system

The Electric Latch Retraction (ER) function is designed for entrance and exit doors with panic or re

exit hardware where remote unlocking, remote dogging, access control or automatic door operator is

desired. An optional EX switch may be added to pushpad monitoring.

• Simultaneous pushpad and latch

bolt retraction provides smooth

surface with no catch points

• Provides a means for remote

dogging and lock-down

• Fast and easy installation

• FC - Flex Conduit and End Cap

Mechanical Options

• AL18 - Surface Armored Loop

(door/frame mounted)

• Latch Retraction power supplies

are required and sold separately

• Low voltage with no high power

in-rush

• Continuous duty motor for quiet

operation - no solenoid

Features

• Momentary or maintained latch

and pushpad retraction

• Simultaneous latch and pushpad

retraction

• Long term dogging capability

• Switches to monitor pushpad,

latch bolt and outside trim input

• PT5 - Power Transfer

Electrical Options

Benets

• EX Exit Switch - Pushpad monitor

switch

• LX - Latch bolt monitor / Latch

Secure Switch

• Voltage 24VDC

Technical Information

• 81-800 - Power Supply for single

door

82-800 - Power Supply for pair of

doors

83-800 - Power Supply for two

independent doors

(10 Series Rim Exit Device shown - Available with 10/40 Rim, 30 Mortise, 20/21/50/51 Surface Vertical Rod Devices

and 60/61/62/63/70/71/80/81/82/83 Concealed Vertical Rod Devices)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

Detex Limited Warranty

Riser Diagram

Listings and Approvals

(on 10 and 40 Series Devices)

ER ELECTRIC

LATCH RETRACTION

Dry Contact

Input

115VAC

input

Controller and

Power Supply

(81-800 Shown -

sold separately)

EX - Request to

Exit Switch

Output

(optional)

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable

Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and

3725-0127:108

LISTED

State of Florida Approval

FL9052

Finishes (Advantex)

Listings and Approvals

(on 20/21/50/51 Series Devices)

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 & 3725-0127:108

LISTED

Riser Diagram

+12VDC

-12VDC

Auto Opener Output

Dry contact

24VDC Output 1

24VDC Output 2

Dry Contact Inputs

From power board

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

DOOR 2 OUT J3

DOOR 1 OUT J2

DOOR SIGNAL J7

OPT 12VDC

MODULE

Output

N.O.

COM

N.C.

82-800 Shown - 81-800, 83-800 Similar

POWER IN J1

INPUT 1 J6

INPUT 2 J5

INPUT 3 J4

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

628 / US28 Aluminum Satin

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

693 / SPBLK Black, Painted

695 / SP 313 Dark Bronze, Painted

Switching & Signaling Options

The Electric Switching (ES) option includes two switches; one to monitor the latch bolt position and the

other to monitor mechanical access from the exterior. It is designed for doors that require a means of

indicating when the latch bolt is retracted while providing an alarm inhibit when using key entry. Always

used in conjunction with other security systems, the Advantex ES function provides switch jumpers to eld

select either normally closed or normally open contacts that can provide a signal to a variety of different

components such as remote alarm or a central station.

Available with 10/40 Series Rim Exit Devices

ES - Electric Switching

The Request to Exit (EX) signaling option is used on exit doors with panic or re exit hardware. This

option indicates when the pushpad is depressed sending a signal to an alarm or sends a remote signal

to monitor egress conditions.

Available with 10/40 Series Rim, 30 Series Mortise, 20/21/50/51 Series Surface Vertical Rod and

60/61/62/63/70/71/80/81/82/83 Series Concealed Vertical Rod Devices

EX - Request to Exit

For use on doors or gates that require a means of signaling when someone depresses the

pushpad on the panic device during egress in a moist, outdoor or other such application.

Always used in conjunction with other security items, the EXxW provides a normally closed

or normally open contact signal to a logic controller. The controller will turn on a remote

horn or strobe, control a magnetic lock during egress or initiate a delayed egress system. The EXxW is

UL listed as panic and re exit hardware as well as UBC standard 7-2 (positive pressure).

The EXxW meets the following standards: Mil 810F(G), 509.4 - Salt Fog, Mil 810F(G), 506.4 - Driving

Rain Procedure 1, UL1034-34 Temperature Section 34 [Temperature Range -31° F (-35° C) to 151° F

(+66° C)], and UL-1034-54 Dust Section 543. Available with 10/40 Series Rim, 30 Series Mortise and

20/21/50/51 Series Surface Vertical Rod

Devices

EXxW - Weatherized Request to Exit

The Request to Exit High Current switching option, can be used to control power to a device that requires

higher current up to 2.0 amperes; such as an electro-magnetic lock, electric strike or motor.

Available with 10/40 Series Rim, 30 Series Mortise, 20/21/50/51 Series Surface Vertical Rod and

60/61/62/63/70/71/80/81/82/83 Series Concealed Vertical Rod Devices

Also available -

EXVxW (Weatherized Request to Exit High Current / Voltage)

The EXVxW meets the following standards: Mil 810F(G), 509.4 - Salt Fog,

Mil 810F(G), 506.4 - Driving Rain Procedure 1, UL1034-34 Temperature Section 34

[Temperature Range -31° F (-35° C) to 151° F (+66° C)],

and UL-1034-54 Dust Section 54. Available with 10/40 Series Rim, 30 Series Mortise,

and 20/21/50/51 Series Surface Vertical Rod Devices

EXV - Request to Exit High Current / Voltage

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

October 18, 2012

LX - Latch Bolt Monitor

The Latch Bolt Monitor (LX) offers an internally mounted signal switch that monitors the position of the

latch bolt. When used in conjunction with a door position switch, the Advantex Latch Bolt Monitor Switch

(LX) can be used to insure a door is secure, signal when a door is opened and closed or send an alert

when someone attempts to tamper with the latch bolt. Common uses would include signalling a security

guard or nurses station. When an Advantex device is used on an opening with an automatic operator the

LX can signal when the latch is retracted before the operator opens the door.

Available with 10/40 Series Rim Exit Devices

The LX(V) can be combined with the optional Advantex ER, electric latch retraction, as well as many

electried options including, EA, ED, EE, EExER, EX, EXV, AND EXxW.

Available with 10/40 Series Rim Exit Devices

EU, EUV or EUxDM

ELECTRIC UNLOCK TRIM - for use with 10/20/21/30/70/71/80/81/82/83 Series Exit Device

Provides remote means of locking or unlocking a door for authorized entry, access control, security or

safety needs when used in conjunction with any Detex wide stile rim (10 Series), surface vertical rod

(20 Series), mortise (30 Series - specify EUxDM) or concealed vertical rod (70/71, 80/81, 82/83 Series

- specify EUV) exit device. Excellent source of security for stairwell doors, elevator lobbies, or other

access control systems used in installations in schools, universities, hospitals, retail, industrial, etc.

• Retrots over existing Detex lever

trim

• Cylinder override

Features

Benets

• Clutching trim limits vandalism • Key override for emergency

entrance during loss of power

(FSE)

FSE/FSA

• Spring loaded tailpiece

• Not Field Reversible

• EU - Comes standard as D Trim,

with S style Lever and Fail Secure

(FSE), for use with Detex wide

stile (10 Series) Rim or (20 Series)

Surface Vertical Rod Device

• EU x DT or DU - Comes with T

style or U style lever, for use with

Detex wide stile (10 Series) Rim

or (20 Series) Surface Vertical Rod

Device

Mechanical Options

• EUV - Comes standard as D Trim,

with S style Lever and Fail Secure

(FSE), for use with Detex wide

stile (70/71, 80/81, 82/83 Series)

Concealed Vertical Rod Device

• EUV x DT or DU - Comes with T

style or U style lever, for use with

Detex wide stile (70/71, 80/81,

82/83 Series) Concealed Vertical

Rod Device

• EU x DM - Comes with S style

lever, for use with Detex (30

Series) Mortise Exit Device

• EU x DMT or DMU - Comes with

T style or U style lever, for use

with Detex (30 Series) Mortise

Exit Device

• Fail Safe (FSA) - During power

failure, the trim will always be

unlocked. (Life Safety option)

ex: EU x FSA x DM

• Not Field Selectable

Electrical Options

• Fail Secure (FSE) - During power

failure, device will be locked

(Security option)

ex: EU x FSE x DU

• Not Field Selectable

• Vandal resistant break-away type

lever

Accessories

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

• MC65 - Mortise Cylinder

• IC7 - 7-pin Mortise Cylinder

Housing (Core not included)

• CCL - Long cyllinder collar (11/16”)

• SE-2 - Shaft extension for 2 to

2 1/2” thick doors

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

October 18, 2012

Technical Information

• 24VDC / 150ma continuous duty

Dimensions

• 80-800 - 24 VDC power supply

with battery charging circuit

• 90-800 - 24 VDC power supply

without battery charging circuit

Lever Options

S Lever T Lever U Lever

Detex Limited Warranty

10 Year Mechanical/3 Year Electrical

Limited Manufacturer’s Warranty

Wiring Diagram

+24VDC

-24VDC

NC for FSA

NO for FSE +

Front View Side View

Back View

1-3/8

4 Posts

Listings and Approvals

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

UL1034 - 33 Temperature Section 33

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034 - 53 Dust Section 53

UL 1034-34 Temperature Section 34

UL 1034-54 Dust Section 54

EU2W

ELECTRIC UNLOCK TRIM - for use with 40/50/51/V40/V50/V51 Series Exit Device

Provides remote means of locking or unlocking a door for authorized entry, access control, security

or safety needs when used in conjunction with any Detex 40/V40 Series rim or 50/51/V50/V51 Series

surface vertical rod exit device on doors with a minimum stile width of 4”. Excellent source of security

for access control systems used in installations in schools, universities, hospitals, retail, industrial, etc.

• Clutching trim limits vandalism

• Cylinder override

Features

Benets

• Key override for emergency

entrance during loss of power

(FSE)

FSE/FSA

• Spring loaded tailpiece

• Not Field Reversible

• EU2W - Comes standard as

D Trim, with S style Lever and

Fail Secure (FSE), for use with

Detex 40/V40 Series Rim or

50/51/V50/V51 Series Surface

Vertical Rod Device

Mechanical Options

• EU2W x DT or DU - Comes

with T style or U style lever, for

use with Detex 40/V40 Series

Rim or 50/51/V50/V51 Series

Surface Vertical Rod Device

• Fail Safe (FSA) - During power

failure, the trim will always be

unlocked. (Life Safety option)

ex: EU x FSA

• Not Field Selectable

Electrical Options

• Fail Secure (FSE) - During power

failure, device will be locked

(Security option)

ex: EU x FSE

• Not Field Selectable

• Vandal resistant break-away type

lever

Accessories

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

• MC65 - Mortise Cylinder

• IC7 - 7-pin Mortise Cylinder

Housing (Core not included)

• CCL - Long cyllinder collar (11/16”)

• SE-2 - Shaft extension for 2 to

2 1/2” thick doors

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

November 1, 2012

Technical Information

• 24VDC / 150ma continuous duty

Dimensions

• 80-800 - 24 VDC power supply

with battery charging circuit

• 90-800 - 24 VDC power supply

without battery charging circuit

Lever Options

S Lever T Lever U Lever

Detex Limited Warranty

10 Year Mechanical/3 Year Electrical

Limited Manufacturer’s Warranty

Wiring Diagram

+24VDC

-24VDC

NC for FSA

NO for FSE +

Front View Side View

Back View

2 Posts

Listings and Approvals

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

UL1034 - 34 Temperature Section 34

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034 - 54 Dust Section 54

Electric Unlock (EU) HOW TO ORDER

* D

** DM = Mortise

MC65 = Mortise

IC7 = 7 Pin Interchangeable

Core cylinder housing

FSE = Fail Secure

FSA = Fail Safe

* BP1

BP2 = For 40 Series and

V40 (EU2W only)

**BP9 = For Mortise only

***

Electric Trim x

Electric Function Trim Cylinder Backplate

March 6, 2012

Examples: 10EU (includes - 10 Series, 08 trim function, D type trim, S lever, Fail Secure, 626 nish, RHR)

10EU x FSA (includes - 10 Series, 09 trim function, D type trim, S lever, Fail Safe, 626 nish, RHR)

30EU x FSA x DMT x 605 x LHR (includes - 30 Series, 09 trim function, DM type trim, T lever, Fail Safe, 605 nish, LHR)

V40EU2W x MC65 (includes V40 Series, 08 trim function, D type trim, S lever, Fail Secure, MC65, 626 nish, RHR)

xxx

* EU = Electric Unlock

EU2W = Electric Unlock (for use

with 40 Series and V40)

NOTE: * = default

** = for mortise only

*** = all other BPs also available

605

606

611

612

613

625

* 626

Finish x

* S

Lever

* RHR = Right Hand Reverse

LHR = Left Hand Reverse

Handing

Surface Mounted Wiring Options

AL18 ArmoredLoopwithbillet

 aluminumend.18”long

EA-561AdhesiveBack“EmergencyExitOnly-Alarm

   WillSound”

ECL-365AdhesiveBack“KeepPushingDoorWillOpen

   in15Seconds”

AB02AngleBracket-Provideseasy

mountingofML-1548tonarrowframereveal

Door Signs

Magnetic Locks & Accessories

FC Asasufxwhenorderedwith

 device,itprovides36”ex

 conduitwithoutwiresandwith

 standardconduitconnector

FCA Orderedseparatelyfrom

 device,itprovides36”ex

 conduitwithoutwiresandwith

 standardconduitconnectors

 andmodieddeviceend-cap

JB1 JunctionBoxand9’cable

 forusewithmagneticlock

 onEMdevice

ML-1548-MagneticLock

•1,500poundsholdingforce

•12/24VDCeldselectable

•Easyinstallationfeatures

convenientplug-inwiring

terminalsandwireaccess

cover

•Adjustablemountingbracket

•Surgeprotection

•Noresidualmagnetism

•U.L.Listed

Specify:ML-1548-628-AnodizedClear

   Aluminum

 ML-1548-711-AnodizedBlack

   Aluminum

FillerBracketsforgapcausedbyframestop

conditions.

FB023/8”x3/4”llerbracket

FB045/8”x3/4”llerbracket

PT5 PowerTransfer

Accessories

Strikes

Through Bolt Mounting Plate

Cylinders

Cylinder Collars

Cylinder Bracket Kit

Sex Nut Kits

Security Screw Kits

Glass Bead Kits

Tools

Slide-In Filler Kits

ER Retrot Kit

Dummy Exit Device

List of Accessories

Accessories

Strikes

Life Safety and Security Door Hardware

Where Trust is Built

TMP1 (Top Rod Only) / TMP2 (Top

and Bottom Rod) - Through Bolt

Mounting Plate Kit for use when

replacing surface vertical rods on

doors that are damaged or to cover

existing exterior holes from previous

device.

Kit is standard with two 630 nish

plates and four 1/4-20 sex bolts.

Contact factory for other nishes.

Through Bolt Mounting Plate Kit for SVR

99 Surface - non-roller strike for

10/40 Series Rim Devices 98 Semi-Mortise - applied strike for

10/40 Series Rim Devices

97 Top Surface - non-roller top

strike for 20/21 Series Surface

Vertical Rod Devices

96 Top Surface - non-roller top

strike for 50/51 Series Surface

Vertical Rod Devices

96/97 Bottom Dust Proof Strike -

for 20 Series (97 Bottom) or 50

Series (96 Bottom) Surface Vertical

Rod Devices

All required strikes are provided with exit devices. Replacement strikes are available as follows:

90 Standard ANSI Strike - for 30

Series Mortise Device

91 ANSI Flat Lip Strike - for 30

Series Mortise Device

92 Double Door Strike with short

open back - for 30 Series Mortise

device

93 Double Door Strike with long

open back - for 30 Series Mortise

Device

94 Double Door Strike - for 10/40

Series Rim Devices

95T Top Strike - for

60/61/62/63/70/71/80/81/82/83

Series Concealed Vertical Rod

Devices

95B Bottom Strike - for

60/62/70/80/82 Series Concealed

Vertical Rod Devices

TMP2 shown

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

October 18, 2012

Life Safety and Security Door Hardware

Where Trust is Built

Sex Nut Kit

Glass Bead Kits

Security Screw Kits

CCS 7/16" Short Cylinder Collar -

Cylinder collar for 5 and 6 pin cylin-

ders. Finishes available: 605, 606,

612, 613, 626

Cylinder Collars

CBK - Cylinder Bracket Kit consists

of bracket and adjustable tailpiece

assembly for rim cylinder used with

other manufacturer's outside trim

03CAK - Cylinder Bracket Kit (for

60 Series Only) consists of bracket

and adjustable tailpiece assembly

for rim cylinder used with other

manufacturer’s outside trim

SN1 - Sex Nut Kit 1/4-20 — 2 per

package

SN2 - Sex Nut Kit 10-32 — 2 per

package

CCL 11/16" Long Cylinder Collar -

Cylinder collar for 7 pin interchange-

able core cylinders. Finishes avail-

able: 605, 606, 612, 613, 626

Cylinder Collars for 5 and 6 pin

cylinders are provided with all

outside trim.

Cylinder Bracket Kit

Tools

Contains an assortment of screw

sizes and types for securing covers

in place

SSK1 - Security Screw Kit for rim

exit device. Includes driver tip.

Stainless Steel only

SSK2 - Security Screw Kit for SVR

exit device. Includes driver tip.

Stainless steel only

HDK - Hex Dogging Key - Heavy-

duty with over molded ABS, dog-

ging key is ergonomically designed

to resist repetitive motion injuries.

Driver Tip for Security Screw:

TT10 - 6-32 Undercut FH Screws

TT15 - 8-32 FH Screws

TT25 - 10-32 FH Screws

TT27 - 1/4-20 and #14 Screws

For use on doors with raised glass

beads. Each kit contains one 1/4"

shim set. Specify Kit number

Kit Number For use with: Kit Number For use with:

GB1 10 Series GB9 50 Series - 8 foot

GB2 40 Series GB10 51 Series - 8 foot

GB3 20 Series - 7 foot GB11 20 Series - 10 foot

GB4 21 Series - 7 foot GB12 21 Series - 10 foot

GB5 50 Series - 7 foot GB13 50 Series - 10 foot

GB6 51 Series - 7 foot GB14 51 Series - 10 foot

GB7 20 Series - 8 foot GB15 V40 Series

GB8 21 Series - 8 foot GB16 30 Series

MC65 Mortise Cylinder - 1-1/8"

6-pin, keyed 5-pin. Available

keyed alike or keyed differently.

Finishes available: 605, 606, 612,

613, 626

Cylinders

RC65 Rim Cylinder - 6-pin, keyed

5-pin. Available keyed alike or

keyed differently.

Finishes available: 605, 606, 612,

613, 626

IC7 Interchangeable core cylinder

housing - 7-pin, factory installed

Accessories

Slide-In Filler Kits

SIF-HD - Hex Key Dogging Slide-In

Filler Kit includes dogging key with

over-molded ergonomic grip

Slide-In Filler Kits allow change or addition to the device after initial installation. Specify device series (10, 20, 21,

30, 40, 50, 51, 60, 61, 62, 63, 70, 71, 80, 81, 82, or 83), size (36" or 48") and nish (605, 606, 611, 612, 613, 628,

629, 630, 693 or 695).

Example: 10x36x630

SIF-CD - Cylinder Dogging Slide-In

Filler Kit requires mortise cylinder

with standard Yale cam (sold

separate). Optional factory installed

cylinder housing for 7-pin IC

cylinders.

SIF-LD - Less Dogging Slide-In

Filler Kit's smooth plate eliminates

dogging feature. Mandatory for all

re rated models.

SIF-EA Exit Alarm - Slide-In Filler Kit provides 100 plus decibel directional piezo alarm with remote signal relay,

remote bypass relay, and LED display. Optional Cylinder Dogging for non-re rated devices. 9 volt DC and

12/24 volt AC/DC operation. Options include Key Stop feature that allows key to be removed only if unit is armed

and factory installed cylinder housing for 7-pin IC cylinders.. Requires mortise cylinder with standard Yale cam

(sold separate)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

November 1, 2012

ER Retrot Kit

Converts any Advantex 10, 20, 21, 30, 40, 50 and 51 Series exit device from a simple mechanical device to the

ER Electric Latch Retraction Device. The retrot kit consists of the pushpad assembly, the ER module assembly,

required hardware and complete instruction for conversions in the eld. Specify 36" or 48". Requires power

supply, sold separate. Call factory for more information.

Accessories

Dummy Exit Devices

00/05 Standard Dummy Device with two end-caps

The standard 00 device consists of no moving parts. With two standard Advantex end-caps, this

inactive device is easy to install and is available in all nishes. The 05 device is the same but with an

extended base-plate for narrow stile doors.

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

October 18, 2012

The Advantex Series of non-locking or dummy exit devices are designed for use on all types of doors

where locking is not required. Utilizing the same extruded aluminum base-plate and stainless steel

wraps, these devices are able to complete your specication where non-locking interior doors are

required.

01/04 Standard Dummy Device with head cover and end-cap

The 01 for wide stile and 04 for narrow stile devices consists of a moving pushpad but no latch bolt.

Provides the look of the standard 10 exit device for wide stile doors when matching devices in a

grouping is important. The pushpad can be equipped with an EX or EXW switch for remote monitoring

purposes.

Technical Information

Cylinder Requirements

Mortise Cylinder Lengths

Cylinder Collars

Fasteners

Security Screws

Sex Bolts

10 Series Rim Mounting Plate Retrot Chart

Compatibility With Access Control Entry Trims

Installation

Handing

Minimum Door Widths Chart

Technical Information Contents

Technical Information

Product Rim Cylinder Mortise Cylinder

All Use Standard (Yale) Cam

Cylinder Dogging X

Electried Options

EA, EI, EM X

All 03 Function Trims X

All 08 & 09 Function Trims X

Cylinder Requirements

All Advantex 03 Function outside trims are supplied with

a self-adjusting tailpiece that correctly ts into the cam on

the mounting plate.

03 Function Detail

2-1/4" Thick Doors

Tailpiece Used

1-3/4" and 2" Thick Doors

Door Thickness

Rim cylinder tailpieces are cut to t into this tailpiece

making the cut less critical.

The cylinder assembly in the slide-in ller used for both

the cylinder dogging and electried options aresupplied

with shims to accommodate cylinder lengths from 7/8 to

1-1/4

Lever trims come with the adjustable tailpiece which

is attached to the escutcheon.

See Accessories for Cylinder Collar lengths.

Mortise Cylinder Length

08 & 09 Function Detail

Cylinder Collars

Mortise cylinder

Technical Information

Function

or Trim

Rim

Devices

Surface Vertical Rod

Devices

Surface Vertical Rod

Top Rod Only

Devices

Series

01 6 4 10 8 6 4

02, 03 2 2 6 6 4 4

08, 09

& 14 2 2 6 6 4 4

Fasteners

For added security, pin head screws are available in two different kits.

SSK1 Security Screw Kit for Rim Devices Contains:

2 MS 10/32, FH, Undercut

4 MS 6/32 FH

2 MS 1/4-20 BH

2 SMS #14 x 1” BH Type AB

4 Tamper Bits required for above

SSK2 Security Screw Kit for Surface Vertical Rod Devices Contains:

6 MS 6-32 x 1/4” FH Undercut

2 MS 8-32 FH Undercut

2 MS 10-32 FH, Undercut

2 MS 1/4-20 BH

2 MS #14 x 1” BH Type AB

4 Tamper Bits required for above

Security Screws

Door manufacturer should be consulted for proper mounting fasteners. #14 x 1-1/4 PPH sheet metal screws and

1/4-20x 1” PHP machine screws are furnished standard on all devices and strikes. Fasteners of proper length for

door thickness are furnished with devices where trims are through bolted. C and CN Pull trims are furnished with

1/4-20 through bolt for attaching bottom of pull handle.

If sex bolts are required, see chart below for quantity required for each device.

SN1 kit contains 2 each 1/4-20 bolts. Specify nish.

Sex Bolts

Technical Information

Detex Von Duprin Sargent Precision Yale Corbin

Russwin

BP-1* 98/99

BP-3 8800

(See Note)

2100

(See Note)

BP-5 7100 ED5200

Wide Stile Mounting Plates

Narrow Stile Mounting Plates

10 Series

Advantex Rim Mounting Plate Retrot Chart

Mounting Plate 10 Series Functions 20/21 Series Functions

BP1 01, 02, 08, 09, 14 01, 02, 08, 09, 14

BP3 01, 02, 08, 09, 14 Not available

BP5 01, 02, 08, 09, 14 Not available

BP7 03 only 03 only

Mounting Plate V40 Series Functions V50/51 Series Functions

BP2 01, 02, 08, 09, 14

BP8 03 only

NOTE: BACKPLATE HOLE ALIGNMENT MAY BE OFF BY UP TO 1/16TH”

Advantex mounting plates BP-1, BP-3 and BP-5 are for use with 10 series rim device.

Advantex mounting plates offer the ability of retrotting the rim device using the existing door preps of the

manufacturers listed above.

*Shipped standard with 10 device

Technical Information

Hardware Templates

See Detex Template Policy in General Information

Installation

The patented Advantex mounting plate and strike

locator system allows:

• Quick and easy installation by one person

• No paper templates

• Accurate backset every time

• Square up to door and frame made easy

Compatibility with Access Control

Entry Trims

Advantex will operate with the following entry trims:

Marks iQue series

Omni-Lock

Onity

Kaba Access Controls

Handing

ADVANTEX 10 SERIES - WIDE STILE RIM (99 STRIKE)

DEVICE

CONFIGURATION

“X” dimension

3-0 DEVICE 4-0 DEVICE

EA 33” 39”

EI 33” 39”

EM 34-3/4” 40-3/4”

EE 34-3/4” 40-34”

EExER 34-3/4” 40-3/4”

ED 34-1/8” 40-1/8”

ER 34-3/4” 40-3/4”

ES 33” 39”

EX 29” 35”

CD 29” 35”

HD 29 35”

LD 28-3/8” 34-3/8”

1) For single door frames with no stop, subtract 1-1/4 from minimum door width

2) For Mullion application add 3/8” to each width

3) Standard strike for 10 Series is 99 Strike

Technical Information

MINIMUM DOOR WIDTHS

Charts are based upon 5/8” frame stop, 1/8” door/frame gap, and standard device strike (see notes)

**DOOR SHOWN WITH 1/8” CLEARANCE FOR END CAP, SOME WEATHERSTRIP

REQUIRES ADDITIONAL CLEARANCE. ADDITIONAL CLEARANCE WILL REQUIRE

WIDER DOORS.

Technical Information

ADVANTEX 20/21 SERIES - WIDE STILE SVR, BACKSET IS 2-3/4”

DEVICE

CONFIGURATION

“X” dimension

3-0 DEVICE 4-0 DEVICE

EA 33” 39”

EI 33” 39”

EE 34-3/4” 40-3/4”

ED 34-1/8” 40-1/8”

ER 34-3/4” 40-3/4”

ES 33” 39”

EX 29” 35”

CD 29” 35”

HD 29” 35”

LD 28-3/8” 34-3/8”

1) For double door frames without stops, subtract 5/8” from minimum door width

2) For backset = 2”, subtract 3/4” from minimum door width

ADVANTEX 40 SERIES -NARROW STILE RIM (98 STRIKE w/o STOPS)

DEVICE

CONFIGURATION

“X” dimension

3-0 DEVICE 4-0 DEVICE

EA 31-7/8” 37-7/8”

EI 31-7/8” 37-7/8”

EM 34” 40”

EE 34” 40”

ED 33-3/8” 39-3/8”

ER 34 40

ES 31-7/8” 37-7/8”

EX 27-7/8” 33-7/8”

CD 27-7/8” 33-7/8”

HD 27-7/8” 33-7/8”

LD 27-1/4” 33-1/4”

1) For single door frames with 5/8” stops, add 1-1/4” from minimum door width

2) For Mullion application add 3/8” to each door width

3) Standard strike for 40 Series is 98 strike with 5/8 stop, backset is 2-1/4”

4) Standard strike for 40 Series is 98 strike with no stop, backset is 1-1/8”

MINIMUM DOOR WIDTHS CONT’D

ADVANTEX 50/51 SERIES - NARROW STILE SVR w/o STOPS, BACKSET IS 1-1/8”

DEVICE

CONFIGURATION

“X” dimension

3-0 DEVICE 4-0 DEVICE

EA 31-3/8” 37-3/8”

EI 31-3/8” 37-3/8”

EE 33-1/8” 39-1/8”

ED 32-1/2” 38-1/2”

ER 33-1/8” 39-1/8”

ES 31-3/8” 37-3/8”

EX 27-3/8” 33-3/8”

CD 27-3/8” 33-3/8”

HD 27-3/8” 33-3/8”

LD 26-3/4” 32-3/4”

1) For double door frames without stops, add 5/8” to minimum door width

Technical Information

ADVANTEX 30 SERIES - WIDE STILE MORTISE

DEVICE

CONFIGURATION

“X” dimension

3-0 DEVICE 4-0 DEVICE

EA 33” 39”

EI 33” 39”

EE 34-3/4” 40-3/4”

ED 34-1/8” 40-1/8”

ER 34-3/4” 40-3/4”

ES 33” 39”

EX 29” 35”

CD 29” 35”

HD 29” 35”

LD 28-3/8” 34-3/8”

1) For double door frames without stops, subtract 5/8” from minimum door width

MINIMUM DOOR WIDTHS CONT’D

General Information

General

Code Compliance

Options

Design

Warranty

All exit devices shall be Value Series® V40 series

rim devices or V50/V51 series surface vertical rod

devices as manufactured by Detex Corporation,

New Braunfels, TX, USA. Each exit device shall be

equipped and installed with a patented mounting

plate and strike locator for an accurate installation.

All devices shall be available with outside trim. All

devices shall be non-handed and eld sizeable.

The exit devices shall be listed by Underwriters

Laboratories and bear the UL label for panic hardware

in compliance with NFPA 80 and 101. Where required,

all devices shall have a UL label for Fire Exit Devices

listed for use on re rated doors up to and including

A label, three hours. UL labeled Fire Exit Devices

shall be listed for door opening sizes up to 4’0” x 10’0”

on single doors and 8’0” x 8’0” on door pairs with an

F90KR Keyed Removable Mullion.

Where required, all rim devices shall have a Miami-

Dade County, Florida label indicating hurricane listing.

All exit devices shall be certied to meet ANSI/BHMA

requirements, and conform to ADA and California

Title 19 requirements.

Optional slide in ller plates shall be available for all

exit devices to accommodate optional dogging types,

alarm and other electried features.

All exit devices shall be of impact resistant ABS

and a structurally engineered extruded aluminum

body. The end cap shall be designed with a tapered

angle of 38 degrees to deect damage away from

the device. All exit devices shall be designed with

base plate-mounted pushpads and internally ribbed

aluminum extrusion rails to dissipate excessive force

to the pushpad and prevent damage to the operating

mechanisms.

All latch bolts shall be stainless steel material with a

deadlocking feature for increased security.

Hex key dogging shall be a standard feature for all

non-re rated exit devices. Optional features include

cylinder dogging or less dogging. All dogging will be

accomplished with no more than a one-eighth turn

of the hex key or cylinder key to minimize the risk of

repetitive motion injuries.

The through-bolted modular design of all exit devices

shall accommodate a variety of different trims and

functions without altering the exit device. It shall not

be necessary to remove the device from the door for

keyed changes or standard maintenance.

Detex Value Series® panic hardware, when properly

installed, used and maintained, is warranted to be

free of defects in material and workmanship. We

will, for a period of ten (10) years from the date of

purchase, repair or replace any part which, upon our

examination, proves to be defective under normal

use. Electrical components, when properly installed,

used and maintained, are warranted to be free of

defects in material and workmanship for a period of

three (3) year. This warranty will be honored only

upon presentation of proof that the product covered

thereby was purchased directly from an authorized

Detex distributor. We shall not be liable for any direct,

incidental or consequential loss or damage arising

out of the failure of this panic hardware to operate.

Value Series® Performance Specication

ELECTRIFIED FUNCTION

“__” = No elec. option

EB = Elec. Alarm with battery

EBxW = Elec. Alarm with battery

weatherized

ED = Elec. Dogging (V40 Series

only)

EE = Delayed Egress (V40 Series

only)

EH = Elec. Alarm hardwired

EHxR = Elec. Alarm hardwired with

Relay

EI = Elec. Integration

(V40 Series only)

EM = Egress w/Maglock elec.

delayed (V40 Series only)

ER = Elec. Latch Retraction

ES = Elec. Switching

(V40 Series only)

EX = Request to Exit Signal

EXV = Request to Exit Signal -

High Voltage

EXxW = Request to Exit Signal

Weatherized

EXVxW = Request to Exit Signal

Weatherized - High Voltage

HOW TO ORDER

FIRE RATING

“F” = Fire rated

“__” = Non-re

rated *

OUTSIDE TRIM FUNCTION

01P = Cover Plate

01PN = Cover Narrow Plate

02A = Dummy Pull

02AN = Dummy Narrow Pull

02WP = Dummy Wire Pull

03A = Keyed Pull

03AN = Keyed Narrow Pull

03P = Keyed Pull

03PN = Keyed Narrow Pull

03WS = Keyed Cylinder Trim

08BN = Key locks & unlocks Lever Trim

09BN = Key unlocks Lever Trim

14BN = Lever always active

EU2W = Electric Unlock Trim -

BP2 Mounting Plate

(Fail Safe / Fail Secure)

DOGGING FUNCTION

LD = Less dogging

HD = Hex dogging

CD = Cylinder dogging

DEVICE FINISH

628 = Aluminum *

711 = Black

DOOR WIDTH/DEVICE LENGTH

36” wide door (3’) *

48” wide door (4’)

DOOR HANDING

RHR = Right hand reverse *

LHR = Left hand reverse

SERIES TYPE

V40 = Rim device, wide

stile

V40xW = Weatherized Rim

device, wide stile

HV40 = Rim device, wide

stile, hurricane rated

V50 = Surface Vertical Rod

V51 = Surface Vertical

Rod, top rod only

PUSH PAD

BLK = Black Push Pad (Standard on all

VS except EB, EBxW, EE, EH,

EHxR, EI & EM

RWE = Red Push Pad White English

Contact Factory for additional languages

OUTSIDE TRIM FINISH

628 = Aluminum * - P & PN

689 = Powder coated aluminum -

A, AN & BN

693 = Powder coated black - A,

AN & BN

626 = Brushed Chrome - WS

711 = Black anodized aluminum -

P & PN

STRIKES

94 = Double door strike kit

96 = Surface non-roller (V50/V51 Series)

96B = Dust proof (V50/V51 Series)

98 = Semi-mortise

99 = Surface

DOOR HEIGHT/SVR HEIGHT

84” = high door

96” = high door

120” = high door

SN1 = Sex nut kit

(2 per kit)

NS = Narrow stile for 2”

narrow stile glass door

applications

RC = Rod covers (630

brushed stainless)

BG = Bottom bolt and 12”

ADA ramped cover

(630 burshed stainless)

ELECTRIC OPTIONS

KS = Key Stop (Available with

EB, EBXW, EE, EH,

EHxR, EI, EM functions only)

1 = One second arming delay

(Available as EB1, EB1xW,

EH1, EH1xR, EE1 & EM1)

IN = 220-24VAC Transformer

(Available with ED, EH,

EHxR functions only)

30 = 30 Second Delayed Egress

(Available with EE, EM

functions only)

FC = End Cap with Flex Conduit

(Standard with EH, EHxR,

EE, EM)

LBM = Latch Bolt Monitoring

(Standard with EE & EM,

Available with EB, EH,

EHxR functions only)

L9 = Less 9 volt Battery

(Available with EH & EE only)

SI = Status LED’s ON

(Available with EH & EE only)

277 = 277 volt Input

(Available with EH & EE only)

F V40 03A BLK

628

RHR LD EBxKS 628 99 36” SN1 84”

September 1, 2011

Example Order Number

NOTE: * = default

Contact factory for availability

of combined options

CYLINDERS INSTALLED

C65 = 5 pin cylinder installed

IC7 = 7 pin IC housing installed

C65

NOTE: Optional 2, 10 or 20 minute auto rearm available with

EB, EBxW, EH & EHxR (Alarm resets after programmed time)

Rim Exit Devices

V40 Series - Rim Exit Device

V40xW Series - Weatherized Rim Exit Device

V50 Series - Surface Vertical Rod Device

V50xW Series - Weatherized Surface Vertical Road Device

V51 Series - Surface Vertical Rod Device - Top Rod Only

V51xW Series - Weatherized Surface Vertical Rod - Top Rod Only

Exit Device Types

Rim Exit Device

• Priced to be the best value for

durable and attractive loss

prevention panic hardware

• Fast and easy installation

• Patented mounting plate and

strike locator

• Covers a 161 door prep

• Stainless steel, 3/4" deadlocking

Pullman-type latch bolt

• Non-handed

• Field sizeable

Features

Benets

The V40 Series rim exit device is secure and durable panic and re exit hardware at an economical

price. It is designed for use on all types of single and double doors with mullions. The patented

mounting plate and strike locator system ensures the easiest and most accurate installation of panic

hardware available.

• Minimal door prep saves time and

money

• Fits almost any door in any décor

• Outside trims are easily changed

or rekeyed without removing

device from door

• 1/8 turn hex key dogging

• Heavy-duty angled end cap

• Heavy-duty ribbed aluminum rail

extrusion

• High impact ABS and anodized

surfaces

• Withstands over 1400 pounds of

static pull force for greater security

• Modular design accepts a variety

of outside trims and functions

• Standard and narrow stile pull

trims available

• CD - Cylinder Dogging

• HD - Hex Dogging (Std.)

• LD - Less Dogging

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

Mechanical Options

• F - 3-Hour Fire Rated

• H - Hurricane Rated

• NS - Narrow stile door option

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• Available with 628 Base Rail

Extrusion (Std.)

• Available with 711 Base Rail

Extrusion

Standard V40 Rim Device accommodates wide stile doors, 3” or greater stile, and

ush doors. For Narrow Stile doors, 2” to 2 1/2” stiles, specify V40 NS model which

provides a 2” longer device and a lower prole strike.

V40

(628 Finish)

V40

(711 Finish)

• Exit Alarm with 9 volt Battery (EB)

• Weatherized Exit Alarm (EBxW)

• Electric Dogging (ED)

• Delayed Egress (EE)

• Exit Alarm Hardwired 24VAC (EH)

Electrical Options

• Exit Alarm with Remote Signal

(EHxR)

• Electric Integration (EI)

• Delayed Egress with Magnetic

Lock (EM)

• Electric Latch Retraction (ER)

• Electric Switching (ES)

• Request to Exit (EX)

• Weatherized Request to Exit

(EXxW)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• SN1 - Sex Nut Fasteners

• GB2 - Glass Bead Kit

Detex Limited Warranty

Accessories

Dimensions

Listings and Approvals

• NSK- Narrow Kit - for 2"

narrow stile glass door applications

that must be added in the eld

• Outside Trim (see Value Series

Trim Options)

• Optional Sex Nuts or Security

Torx Screws available

• Door Types - Wood, Hollow

Metal, Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4"

Technical Information

• Door Stile - Fits 2-1/2" stile doors

with 99 surface strike (Std.)

• Door Stile - Fits 2" narrow stile

doors - specify NS

• Machine and Self-Drilling Screws

(Std.)

2 3/8”

18 1/8”

24 1/8”

2 1/2” DEPRESSED

2 3/8”

8 3/8”

1 3/4”

32 7/8”

44 7/8”

3 1/4” EXTENDED

Door Door

Device

Mullion

Device

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR keyed removable Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

California State Fire Marshall -

4140-0127:105 and 3725-0127:108

LISTED

Miami-Dade County, Florida

NOA 10-0303.02 EXP. 04/07/15

State of Florida Approval

FL9052

Device

Single Door

with

99 strike

Single

Narrow

Stile Door

with 98 strike

Double Doors

18 1/8” & 32 7/8” device dimensions for 36” door

24 1/8” & 44 7/8” device dimensions for 48” door

Add 2” for NS

V40 x W

Weatherized Rim Exit Device

• Priced to be the best value for

durable and attractive loss

prevention panic hardware

• Fast and easy installation

• Patented mounting plate and

strike locator

• Covers a 161 door prep

• Stainless steel, 3/4" deadlocking

Pullman-type latch bolt

• Non-handed

• Field sizeable

Features

Benets

The V40 Series rim exit device is secure and durable panic and re exit hardware at an economical

price. It is designed for use on all types of single and double doors and gates with mullions that are or

may be exposed to the weather. The patented mounting plate and strike locator system ensures the

easiest and most accurate installation of panic hardware available. In addition to listing as UL panic and

re exit hardware device, this device conforms to UL1034-34 Temperature Section 34 , UL1034-54 Dust Section

54, MIL-STD 810F, Method 506.4 (driving rain test); MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard

7-2 (positive pressure).

• Minimal door prep saves time and

money

• Fits almost any door in any décor

• Outside trims are easily changed

or rekeyed without removing

device from door

• 1/8 turn hex key dogging

• Heavy-duty angled end cap

• Heavy-duty ribbed aluminum rail

extrusion

• High impact ABS and anodized

surfaces

• Withstands over 1400 pounds of

static pull force for greater security

• Modular design accepts a variety

of outside trims and functions

• Standard and narrow stile pull

trims available

• CD - Cylinder Dogging

• HD - Hex Dogging (Std.)

• LD - Less Dogging

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

Mechanical Options

• F - 3-Hour Fire Rated

• H - Hurricane Rated

• NS - Narrow stile door option

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• Available with 628 Base Rail

Extrusion (Std.)

• Available with 711 Base Rail

Extrusion

Standard V40 Rim Device accommodates wide stile doors, 3” or greater stile, and

ush doors. For Narrow Stile doors, 2” to 2 1/2” stiles, specify V40 NS model which

provides a 2” longer device and a lower prole strike.

V40

(628 Finish)

V40

(711 Finish)

• Weatherized Exit Alarm (EBxW)

• Weatherized Request to Exit

(EXxW)

Electrical Options

• Weatherized Request to Exit High

Voltage (EXVxW)

Refer to Electried Options section

for more information

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• SN1 - Sex Nut Fasteners

• GB2 - Glass Bead Kit

Detex Limited Warranty

Accessories

Dimensions

Listings and Approvals

• NSK- Narrow Kit - for 2"

narrow stile glass door applications

that must be added in the eld

• GTPLV40 - Adjustable Gate Plate

• Outside Trim (see Value Series

Trim Options)

• Optional Sex Nuts or Security

Torx Screws available

• Door Types - Wood, Hollow

Metal, Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4"

• Door Stile - Fits 2-1/2” stile doors

with 99 surface strike (Std.)

• Door Stile - Fits 2” narrow stile doors

- specify NS

Technical Information

Strike - 1/8” thick plated,

galvanized, painted steel plate,

angle iron, or 1/4” thick aluminum

plate, minimum Height - 5”

Stop - 1/8 thick plated, galvanized,

or painted angle iron or 1/4” thick

aluminum angle plate, minimum

Height - 2”

• Machine and Self-Drilling Screws

(Std.)

• Recommended Plate Size

Gate - 1/8” thick plate, galvanized,

or painted steel or 1/4” thick alum-

num plate, minimum Height - 10”

2 3/8”

18 1/8”

24 1/8”

2 1/2” DEPRESSED

2 3/8”

8 3/8”

1 3/4”

32 7/8”

44 7/8”

3 1/4” EXTENDED

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable Mullion

UL1034 - 34 Temperature Section 34

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034 - 54 Dust Section 54

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02

State of Florida Approval FL9052

EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 & 3725-0127:108

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

LISTED

Device

Plate for mounting

panic device -

See Technical

Infomation above

Plate for mounting

strike - See

Technical

Information above

Single Gate Riser

Weld recommended,

machine or sheetmetal

screw mounting allowable.

3/4" Max.

Gate Stop

(see Technical

Information

above)

Overhead View

18 1/8” & 32 7/8” device dimensions for 36” door

24 1/8” & 44 7/8” device dimensions for 48” door

Add 2” for NS

V50/V51 SERIES

Surface Vertical Rod Device

• Priced to be the best value for

durable, attractive panic

hardware

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel 3/4" deadlocking,

Pullman-type top latch bolt

• Bottom drop bolt, 5/8" dia. x

5-5/8" long secures into strike

plate

Features

• Handed, eld reversible

• Field sizable

• 1/8 turn dogging

• Heavy-duty angled end cap

• Heavy-duty ribbed aluminum rail

extrusion

• Impact resistant ABS and

anodized surfaces

• Modular design accepts a variety

of outside trims and functions

• Standard and narrow stile pull

trims available

• V51 - Top Rod Only

• F - 3-Hour Fire Rated

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

• LD - Less Dogging

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

Mechanical Options

• 84 - Fits 7' Door Height (Std.)

• 96 - Fits 8' Door Height

• 120 - Fits 10' Door Height

• RC - Rod Covers (630 Brushed

Stainless)

• BG - Bottom bolt and 12" ADA

ramped cover (630 Brushed

Stainless)

• NS - Fits 2" Narrow stile glass door

• 96 Surface top stike top (Std.)

• 96B Bottom dust proof strike

• Available with 628 base rail

extrusion

• Available with 711 base rail

extrusion

• Electric Battery Alarm (EB)

• Delayed Egress (EE)

• Electric Hardwired Alarm (EH)

Electrical Options

• Electric Hardwired Alarm with

Remote Signal (EHxR)

Refer to Electried Options section for

more information

The V50 Series, surface vertical rod exit device

and V51 Series, top rod exit device are heavy-

duty panic and re exit hardware for use on

all types of double doors without a mullion. The

patented mounting plate and strike locator system

ensures the easiest and most accurate installation

in an economical panic device.

• Fits any door in almost any décor

• Outside trims are easily changed

or rekeyed without removing

device from door

• Fast and accurate installation

• Minimal door prep saves time and

money

ANSI 156.3 - 2001

Grade 1

Type 2

Benets

V50

(shown) V50xRCxBG

(Optional Rod Covers and

Bolt Guard shown)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• Outside Trim (see Value Series

Trim Options)

Detex Limited Warranty

Accessories

Listings and Approvals

• SN1 - Sex Nut Kit (2 per package)

• NSK - Narrow Kit for 2" narrow

stile glass door applications

• GB# - Glass Bead Kits

• Door Stile - Fits 2-1/2" stile doors

(Std.)

Technical Information

• Door Stile - Fits 2" narrow stile

doors - specify NS

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

1 13/16”

2”

5 1/4”

1 1/2”

1 13/16”

6 1/4”

2 3/8”

18 1/8”

24 1/8”

1 3/4”

3 1/8” EXTENDED

2 3/8” DEPRESSED

2 3/8”

2 7/8”

32 7/8”

44 7/8”

8 3/8”

Top Bottom

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

18 1/8” & 32 7/8”

device dimensions

for 36” door

24 1/8” & 44 7/8”

device dimensions

for 48” door

Add 2” for NS

V50xW/V51xW SERIES

Weatherized Surface Vertical Rod Device

• Priced to be the best value for

durable, attractive panic

hardware

• Patented mounting plate and

strike locator system replaces

paper templates

• Stainless steel 3/4" deadlocking,

Pullman-type top latch bolt

• Bottom drop bolt, 5/8" dia. x

5-5/8" long secures into strike

plate

Features

• Handed, eld reversible

• Field sizable

• 1/8 turn dogging

• Heavy-duty angled end cap

• Heavy-duty ribbed aluminum rail

extrusion

• Impact resistant ABS and

anodized surfaces

• Modular design accepts a variety

of outside trims and functions

• Standard and narrow stile pull

trims available

• V51 - Top Rod Only

• F - 3-Hour Fire Rated

• HD - Hex Dogging (Std.)

• CD - Cylinder Dogging

• LD - Less Dogging

• 36 - Fits 36" Door Widths (Std.)

• 48 - Fits 48" Door Widths

Mechanical Options

• 84 - Fits 7' Door Height (Std.)

• 96 - Fits 8' Door Height

• 120 - Fits 10' Door Height

• RC - Rod Covers (630 Brushed

Stainless)

• BG - Bottom bolt and 12" ADA

ramped cover (630 Brushed

Stainless)

• NS - Fits 2" Narrow stile glass door

• 96 Surface top stike top (Std.)

• 96B Bottom dust proof strike

• Available with 628 aluminum base

rail extrusion

• Available with 711 black base rail

extrusion

• EBxW - Exit Alarm 9V Battery

Weatherized

• EXxW - Request to Exit

Weatherized

Electrical Options

• EXVxW - Request to Exit

Weatherized High Current/Voltage

Refer to Electried Options section for

more information

The Weatherized V50 Series, surface vertical

rod exit device and V51 Series, top rod exit

device are heavy-duty panic and re exit

hardware for use on all types of double doors

without a mullion. The patented mounting plate

and strike locator system ensures the easiest and

most accurate installation in an economical panic

device. In addition to listing as UL panic and re

exit hardware device, this device conforms

to UL1034-34 Temperature Section 34,

UL1034-54 Dust Section 54, MIL-STD

810F, Method 506.4 (driving rain test);

MIL-STD 810F, Method 509.4 (salt fog test)

and UBC standard 7-2 (positive pressure).

• Fits any door in almost any décor

• Outside trims are easily changed

or rekeyed without removing

device from door

• Fast and accurate installation

• Minimal door prep saves time and

money

ANSI 156.3 - 2001

Grade 1

Type 2

Benets

V50

(shown) V50xRCxBG

(Optional Rod Covers and

Bolt Guard shown)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• Outside Trim (see Value Series

Trim Options)

Detex Limited Warranty

Accessories

Listings and Approvals

• SN1 - Sex Nut Kit (2 per package)

• NSK - Narrow Kit for 2" narrow

stile glass door applications

• GB# - Glass Bead Kits

• Door Stile - Fits 2-1/2" stile doors

(Std.)

Technical Information

• Door Stile - Fits 2" narrow stile

doors - specify NS

• Fasteners - Machine and Self-

Drilling Screws standard

Dimensions

1 13/16”

2”

5 1/4”

1 1/2”

1 13/16”

6 1/4”

2 3/8”

18 1/8”

24 1/8”

1 3/4”

3 1/8” EXTENDED

2 3/8” DEPRESSED

2 3/8”

2 7/8”

32 7/8”

44 7/8”

8 3/8”

Top Bottom

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

18 1/8” & 32 7/8”

device dimensions

for 36” door

24 1/8” & 44 7/8”

device dimensions

for 48” door

Add 2” for NS

MIL-STD 810F (G), Method 509.4

(Salt Fog Test)

MIL-STD 810F (G), Method 506.4

(Driving Rain), Procedure 1

UL1034 - 34 Temperature

Section 34 [Temperature Range

from -31°F (-35°C) to 150°F

(+66°C)]

UL1034 - 54 Dust Section 54

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and

8'x10' pairs of doors

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

Outside Trim Designs

01 - Exit only, no trim

02 - Entrance by trim when actuating bar is locked down

03 - Entrance by trim when latch bolt is released by key. Key removable only when locked.

08 - Entrance by knob or lever. Key locks or unlocks knob or lever.

09 - Entrance by knob or lever only when released by key. Key removable only when locked.

14 - Entrance by trim when latch bolt is released by knob, lever. Always active, no cylinder.

EU2W - Electric Unlock Trim

BHMA Functions

BN, EU2W and MN Trim

S Lever Standard

BN and MN Trim

Available in

689 or 693

nishes

161 Prep Cover

Plate Standard

OUTSIDE TRIM DESIGNS

S Lever

Assorted outside trims provide security for all types of installations. Built to be as durable as the

panic devices, these heavy-duty trims will stand up to heavy use and abuse. The versatile design

of the trims, combined with the device mounting plate, makes changing functions as simple as

replacing the outside trim. This can easily be done without removing the exit device from the door.

These trims can be used on V40 Series Rim and V50 Series Surface Vertical Rods. Detex uses

the BHMA functions/descriptions for all trims.

A and AN TRIM

S Pull Standard

NOTE: Available in

689 or 693 nishes

Covers 161 Prep

03A02A 03AN02AN

02BN,

14BN

08BN,

09BN

08MN,

14MN

EU2W -

wide

escutcheon

P and PN Trim

Available in

628 & 711 nishes

P Trim covers

161 Prep

BHMA Function/Description

Finishes

605 / US3 Polished Brass

606 / US4 Brushed Brass

611 / US9 Polished Bronze

612 / US10 Brushed Bronze

613 / US10B Oil Rubbed Bronze

629 / US32 Polished Stainless

Steel

630 / US32D Brushed Stainless

Steel

689 Aluminum Painted

693 Black Painted

711 Black Anodized

• 02 - Entrance by trim when

actuating bar is locked down

(dummy trim)

• 03 - Entrance by trim when latch

bolt is released by key. Key

removable only when locked.

• 08 - Entrance by knob or lever.

Key locks or unlocks knob or lever.

• 09 - Entrance by knob or lever

only when released by key. Key

removable only when locked.

• 14 - Entrance by trim when

latch bolt is released by knob

or lever. Always active, no

cylinder.

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

April 26, 2011

Technical Information

• A/AN Trims are Steel Stampings

• BN Trims are Zinc Castings

• P/PN Trims are Aluminum

Stampings

• WS Trims are forged Brass

• Value Series trims congured for

use with BP2 and BP8 (standard)

• When ordered with device,

trims will match mounting plate

specied

WS Trim

Available in

605, 606, 611,

612, 613, 629

and 630 nishes

03WS

03P 03PN

01P 03PN

5.00

3.50

.160

5.00

2.00

.160

WP Trim

02WP 12”

1” dia.

Electried Options

V40xEB Exit Alarm with 9V Battery

V40xEBxW Exit Alarm with 9V Battery Weatherized - Pushpad Monitor

V40xED Electric Dogging

V40xEE Electric Delayed Egress

V40xEH Exit Alarm with 12VAC Hardwired with 9V Battery Backup

V40xEHxR Exit Alarm with 12VAC Hardwired with 9V Battery Backup and Remote Signal

V40xEI Electric Integration - Includes ES Switches, piezo, key switch and 2 LEDs

V40xEM Electric Delayed Egress with Magnetic Lock

V40xER Electric Latch Retraction

V40xES Electric Switching

V40xEX Request to Exit Signalling

V40xEXxW Request to Exit Signalling Weatherized

V50xEB Exit Alarm with 9V Battery

V50xEBxW Exit Alarm with 9V Battery Weatherized

V50xEE Electric Delayed Egress

V50xEH Exit Alarm with 12VAC Hardwired with 9V Battery Backup

V50xEHxR Exit Alarm with 12VAC Hardwired with Remote Signal and Remote Bypass

V50xER Electric Latch Retraction

V50xERxW Weatherized Surface Vertical Rod with Electric Latch Retraction

All Electried Options are available on Fire Exit Hardware and Hurricane Rated Decives

Electried Options Denitions

Alarmed Rim Exit Device (V40xEB/EH)

• Priced to be the best value for

durable and attractive loss

prevention panic hardware

• Reduces employee and customer

theft

• Fast and easy installation

• V40xEB - Alarmed Exit Device

battery

• V40xEH - Alarmed Exit Device

power, with 9-volt battery backup

(12V AC standard)

• Stainless steel, 3/4" deadlocking

Pullman-type latch bolt

• 100 decibel alarm

• 1/8 turn cylinder dogging

Features

Benets

The V40xEB/EH is designed for primary and secondary exits that require an alarmed panic device.

The 100dB alarm will sound when someone attempts to exit, alerting management to the unauthorized

exit. Available in various congurations, the V40xEB/EH provides security while meeting all life safety

concerns, offering an exceptional value.

• Secure installation prevents mis-

takes, enhances security and re-

duces maintenance

• Durable design provides years of

trouble-free protection, saving on

replacement costs

• Fits almost any door in any décor

• Controls foot trafc, deters

unauthorized exits, prevents

loss and meets building code

requirements

• Heavy-duty angled end cap

• Heavy-duty ribbed aluminum rail

extrusion

• Accommodates all types of mortise

cylinders with a standard Yale cam

(collar required for 7-pin IC

cylinders)

• Patented back plate and plastic

strike locator provide paperless

template for perfect alignment with

door and frame

• Single mortise cylinder (sold

separate) provides arming and

dogging

• State-of-art electronics

offer reliable security and

instantaneous alarm

• Field selectable key rearm or 2

min. auto rearm

• Visual and audible arming

indicators

• Armed and disarmed eld

selectable status indicator

• CD - Cylinder Dogging (Std.)

• LD - Less Dogging

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• F - 3-Hour Fire Rated

Mechanical Options

• H - Hurricane Rated

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• Available with 628 Base Rail

Extrusion (Std.)

• Available with 711 Base Rail

Extrusion

V40xEB

(Shown with factory installed mortise

cylinder - sold separate)

Wide Stile shown, for Narrow Stile, specify NS Option

(for use on 36” and 48” doors with 2” stiles).

V40xEBx711xBLK

(Shown with factory installed mortise

cylinder - sold separate)

V40xEBx711

(Shown with factory installed mortise

cylinder - sold separate)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• SN1 - Sex Nut Fasteners

• KS - Key Stop - key removed only

when armed

Detex Limited Warranty

Accessories

Riser Diagram

Listings and Approvals

• NSK - Narrow Kit - for 2" narrow

stile glass door applications

• Optional Cylinder Nut Wrench

P/N: 103779

• Outside Trim (see Value Series

Trim Options)

• Door Types - Wood, Hollow

Metal, Fiberglass

• Aluminum doors need to be

ordered as a Narrow Stile (NS)

Technical Information

• Door Thickness - Fits standard

1-3/4" - 2-1/4"

• Door Stile - Fits 2-1/2" stile doors

with 98 semi-mortise strike (Std.)

• Door Stile - Fits standard doors

with 99 strike

• Machine and Self-Drilling Screws

(Std.)

• Optional Sex Nuts or Security

Torx Screws available

Transformer

Dimensions

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR keyed removable Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02

State of Florida Approval FL9052

EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 and 3725-0127:108

LISTED

2 3/8”

18 1/8”

24 1/8”

2 1/2” DEPRESSED

2 3/8”

8 3/8”

1 3/4”

32 7/8”

44 7/8”

3 1/4” EXTENDED

• R - Remote Signal (Form C

signaling when alarm sounds)

• LBM - Latch Bolt Monitoring

Electrical Options

Other Value Series Alarmed Panic

Devices Include:

• Weatherized Alarmed Device

(EBxW)

• Delayed Egress (EE)

• Delayed Egress with Magnetic

Lock (EM)

18 1/8” & 32 7/8” device dimensions for 36” door

24 1/8” & 44 7/8” device dimensions for 48” door

Add 2” for NS

Weatherized Alarmed Rim Exit Device (V40xEBxW)

• Weather resistant loss

prevention hardware designed

for use in outdoor or wet

environments

• Patented back plate and plastic

strike locator designed for perfect

alignment with door and frame

without paper template

• Powered by standard 9-volt

battery

• Stainless steel, self-latching bolt

• Angled end cap deects damage

• Tamper-resistant, immersion-

proof security switches

• Covers a 161 door prep

• Plated steel, anodized aluminum

and ABS components endure

heavy use and exposure to the

elements

Features

Benets

The V40xEBxW is designed for doors and gates requiring a stand alone, battery powered, alarmed,

weatherized panic device. The 100dB alarm will sound when someone attempts to exit, alerting

management to the unauthorized exit. The internal alarm with both remote bypass and remote

signaling capabilities is ideal for applications where both security and life safety are a concern. In

addition to listing as UL panic and re exit hardware device, this device conforms to UL1034-34

Temperature Section 34, UL1034-54 Dust Section 54, MIL-STD 810F, Method 506.4 (driving rain test);

MIL-STD 810F, Method 509.4 (salt fog test) and UBC standard 7-2 (positive pressure).

• Fast, easy, trouble-free installation

prevents costly mistakes and

enhances security

• Provides reliable loss prevention

protection 24 hours a day

• Controls foot trafc to deter

unauthorized exits and reduces

employee and customer theft

• Rugged, durable, corrosion-

resistant design reduces

maintenance

• Aesthetically pleasing design for

almost any door or gate in any

décor

• Built-in inhibitors prevent ABS

fading and weakening, typically

caused by exposure to extreme

temperatures and UV rays

• 100dB alarm

• Indenite alarm requiring manual

rearm or variable 2 min. alarm

duration with auto re-arm

• Cylinder dogging standard (can

also be ordered less dogging)

• Visual and audible arming

indicators

• Tamper-resistant housing protects

electronics, battery and internal

hardware, preventing manipulation

• Tapered design sheds rainwater

• Visual and audible low battery

alert

• Armed and disarmed eld

selectable status indicator

• CD - Cylinder Dogging (Std.)

• LD - Less Dogging

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• F - 3-Hour Fire Rated

Mechanical Options

• H - Hurricane Rated

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• Available with 628 Base Rail

Extrusion (Std.)

• Available with 711 (Black)

Base Rail Extrusion

V40xEBxW

(Shown with mortise cylinder - sold

separately)

Wide Stile shown, for Narrow Stile, specify NS Option

(for use on 36” and 48” doors with 2” stiles).

V40xEBxWx711xBLK

(Shown with mortise cylinder - sold

separately)

V40xEBxWx711

(Shown with mortise cylinder - sold

separately)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 18, 2012

• SN1 - Sex Nut Fasteners

• KS - Key Stop - key removed only

when armed

Detex Limited Warranty

Accessories

Riser Diagram

Listings and Approvals

• NSK - Narrow Kit - for 2" narrow

stile glass door applications

• Optional Cylinder Nut Wrench

P/N: 103779

• Outside Trim (see Value Series

Trim Options)

• Door Types - Wood, Hollow

Metal, Fiberglass

• 2” Aluminum doors need to be

ordered as a narrow stile (NS)

• Door Thickness - Fits standard

1-3/4" - 2-1/4"

• Door Stile - Fits 2-1/2” stile doors

with 98 semi-mortise strike

Technical Information

• Door Stile - Fits standard door

with 99 surface strike (Std.)

• Exceeds MIL810F Method 506.4

Driving Rain (simulating 4"/hr. rain

w/40mph wind)

• Exceeds MIL810F Method 509.4

Salt Fog Test (simulating effects

of corrosive environments similar

to atmospheric conditions found

in costal regions

• Machine and Self Drilling Screws

(Std.)

• Optional Sex Nuts or Security

Torx Screws available

Remote Bypass

Remote Signal

Dimensions

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable Mullion

UL1034-34 Temperature Section 34

[Temperature Range -31° F (-35° C) to

150° F (+66° C)]

UL1034-54 Dust Section 54

Meets ADA requirements

MIL-STD 810F(G), Method 506.4

(Driving Rain Test)

MIL-STD 810F(G), Method 509.4

(Salt fog Test)

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

LISTED

Miami-Dade County, Florida

NOA 10-0303.02

State of Florida Approval FL9052

EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 & 3725-0127:108

2 3/8”

18 1/8”

24 1/8”

2 1/2” DEPRESSED

2 3/8”

8 3/8”

1 3/4”

32 7/8”

44 7/8”

3 1/4” EXTENDED

• Remote Signal Form C

signaling when alarm sounds and

remote bypass input allows

authorized use without an alarm

- standard feature

Electrical Options

Other Weatherized Detex Products

Include:

• Request to Exit Signalling

Weatherized (EXxW)

• GTPLV40 - Adjustable Gate Plate

• Weatherized Delayed Egress

EasyKit (WDEx10)

18 1/8” & 32 7/8” device dimensions for 36” door

24 1/8” & 44 7/8” device dimensions for 48” door

Add 2” for NS

Electric Dogging (V40xED)

• Priced to be the best value for

durable and attractive panic

hardware

• Pushpad remains depressed

while latch is retracted, preventing

unnecessary cycling, for quieter

operation

• While dogged, pushpad remains

out of the path of egress,

removing the typical catch point

found with other exit devices

• Tamper resistant housing

Features

Benets

The V40xED Electric Dogging is designed for entrance and exit doors with panic or re exit hardware.

When energized, and after a pushpad is depressed, the pushpad and the latch bolt remain retracted,

providing push-pull operation. Relocking all devices is accomplished by using a single switch or

through a re alarm input.

• One-touch operation turns any

secured door or group of doors

into push-pull openings and

releases them as required

• Door remains locked until rst

activation of pushpad (exit) allows

remote activation of dogging mode

• Allows remote deactivation of

dogging for instantaneous

lockdown mode

• Simple mounting and wiring provide

quick, trouble-free installation,

saving time and money

• Economical alternative to latch

retraction when only dogging is

required

• Rugged, durable design reduces

maintenance

• Secure installation prevents costly

mistakes and enhances security

• Fits almost any door in any décor

• Maintained latch and pushpad

retraction

• Continuous duty magnet

• Operates on 24VAC or 24VDC

V40xEDx628

Wide Stile shown, for Narrow Stile, specify NS Option

(for use on 36” and 48” doors with 2” stiles).

V40xEDx711

• F - 3-Hour Fire Rated

• H - Hurricane Rated

Mechanical Options

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• Available with 628 Base Rail

Extrusion (Std.)

• Available with 711 Base Rail

Extrusion

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 19, 2012

• SN1 - Sex Nut Fasteners

• FC - Flex Conduit and End Cap

Detex Limited Warranty

Accessories

Riser Diagram

Listings and Approvals - V40

• PT5 - Power Transfer

• EWH8-626 - Electric Hinge

• NSK - Narrow Kit - for 2" narrow

stile glass door applications

• Outside Trim (see Value Series

Trim Options)

• Door Types - Wood, Hollow

Metal, Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4"

• Door Stile - Fits 2-1/2" stile doors

with 99 surface strike (Std.)

Technical Information

• Door Stile - Fits 2" narrow stile

doors - specify NS

• Door Stile - Fits minimum 4-1/8"

with 99 strike

• Machine and Self Drilling Screws

(Std.)

• Optional Sex Nuts or Security

Torx Screws available

ED ELECTRIC

DOGGING

Power Supply

(sold separately)

115 VAC

Input

EX-Request to

Exit Switch

Output

(optional)

Activation

Switch

Dimensions

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

California State Fire Marshall -

LISTED

NOA 10-0303.02

State of Florida Approval FL9052

EXP. 04/07/15

4140-0127:105 and 3725-0127:108

2 3/8”

18 1/8”

24 1/8”

2 1/2” DEPRESSED

2 3/8”

8 3/8”

1 3/4”

32 7/8”

44 7/8”

3 1/4” EXTENDED

• EX - Request to Exit Switch

• 90-800 - 24VDC ltered, regulated

with re loop connection

Electrical Options

• 80-800 Power Supply - 24VDC

ltered, regulated with re loop

connection with battery charging

circuit

• PP-5152-2 24VAC transformer

18 1/8” & 32 7/8” device dimensions for 36” door

24 1/8” & 44 7/8” device dimensions for 48” door

Add 2” for NS

Delayed Egress Rim Exit Device (V40xEE)

• Priced to be the best value for

durable and attractive delayed

egress panic hardware

• Reduces employee and customer

theft

• Fast and easy installation

Life Safety and Security Door Hardware

Where Trust is Built

Features

Benets

The V40xEE, designed for primary and secondary exits, provides a secure 15-second delay and a

100dB alarm when someone attempts to exit. This 15-second delay allows management time to

respond before someone exits and the alarm deters the exit from occurring. Per life safety

requirements, the V40xEE must be provided with a re alarm input, thus providing a system override

during a re emergency. The V40xEE provides security while meeting all life safety concerns, offering

an exceptional value.

• Secure installation prevents

mistakes, enhances security and

reduces maintenance

• Durable design provides years of

trouble-free protection, saving on

replacement costs

• Fits almost any door in any décor

• Controls foot trafc, deters

unauthorized exits, prevents

loss and meets building code

requirements

V40xEE

(Shown with mortise cylinder - sold

separately)

Wide Stile shown, for Narrow Stile, specify NS Option

(for use on 36” and 48” doors with 2” stiles).

V40xEEx711xBLK

(Shown with mortise cylinder - sold

separately)

V40xEEx711

(Shown with mortise cylinder - sold

separately)

• Powered by a 24VDC ltered and

regulated power supply

• Power supply delivers a constant

24VDC of ltered and regulated

voltage at a rated load of 1A

• Stainless steel, 3/4" deadlocking

Pullman-type latch bolt

• Non-handed, eld sizeable

• 100dB alarm

• 1/8 turn cylinder dogging

• Sturdy angled end-cap

• Heavy-duty ribbed aluminum rail

extrusion

• Accommodates all types of mortise

cylinders with a standard Yale cam

• Patented mounting plate and

strike locator system provide

perfect alignment with door and

frame

• Single mortise cylinder provides

arming and dogging - can be

factory installed

• State-of-the-art electronics offer

reliable security and instantaneous

alarm

• Visual and audible arming

indicators

• 9V battery provides alarm function

only in case of power failure

• Armed and disarmed eld

selectable status indicator

• Delayed arming allows arming

after door closes

• Remote signal output and remote

bypass input standard

• Alarm triggered by latch bolt

movement

• Fire alarm input can be connected

at power supply

• Includes delayed egress panic bar,

24VDC ltered and regulated

power supply, door sign and

3’ conduit loop

Power Supply Included as

standard feature

Shown with factory

installed

mortise cylinder

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 19, 2012

• SN1 - Sex Nut Fasteners

Life Safety and Security Door Hardware

Where Trust is Built

Detex Limited Warranty

Accessories

Riser Diagram

Listings and Approvals

• NSK - Narrow Kit - for 2" narrow

stile glass door applications

• Optional Cylinder Nut Wrench

P/N: 103779

• Outside Trim (see Value Series

Trim Options)

• Foreign Language Signs available

Contact Factory

• Door Types - Wood, Hollow

Metal, Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4"

• Door Stile - Fits 4-1/8" stile doors

with 99 surface strike (Std.)

Technical Information

• Door Stile - Fits 2" narrow stile

doors - specify NS

• Door Stile - Fits minimum 2-1/2"

with 98 strike

• Machine and Self-Drilling Screws

(Std.)

• Optional Sex Nuts or Security

Torx Screws available

To Fire Alarm

System

Filtered and Regulated

Power Supply with

Fire Alarm System Loop

24VDC

(Power Supply

Included Standard)

Dimensions

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR keyed removable Mullion

UL Listed Controlled Exit Device (FULA)

UL Listed Special Locking Arrangements

(FWAX)

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed

(ANSI A156.3 and ANSI A156.24 Grade 1)

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02

State of Florida Approval #FL9052

EXP. 04/07/15

California State Fire Marshall -

4140-0127:105, 3774-0127:106 and

3725-0127:108

LISTED

2 3/8”

18 1/8”

24 1/8”

2 1/2” DEPRESSED

2 3/8”

8 3/8”

1 3/4”

32 7/8”

44 7/8”

3 1/4” EXTENDED

Electrical Options

Other Value Series Delayed Egress

Panic Devices Include:

• Delayed Egress with

Electromagnetic Lock (EM)

Mechanical Options

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• Available with 628 Base Rail

Extrusion (Std.)

• Available with 711 Base Rail

Extrusion

• MC65 - Factory Installed Mortise

cylinder

• IC7 - Factory Installed IC

Housing

• F - 3-Hour Fire Rated

• H - Hurricane Rated

• CD - Cylinder Dogging (Std.)

• LD - Less Dogging

• KS - Key Stop (Key removed only

when armed)

• 36" Door Width (Std.)

• 48" Door Width

• 30 - 30 second delayed egress

available (must have letter from

AHJ)

• AL18 - Surface Armored Loop

(Door/Frame mounted)

• PT5 - Power Transfer

• SI- Status Indicators - Armed/

Disarmed

Terminal Block

TERMINAL BLOCK

1 2 3 4 5 6 7 8 9 10 11 12

24 VDC

Remote Bypass

Bypass Relay Output

Alarm Relay Output

POWER

FACTORY INSTALLED

(+)

(-)

COMMON

OPEN

CLOSED

COMMON

OPEN

CLOSED

18 1/8” & 32 7/8”

device dimensions for 36” door

24 1/8” & 44 7/8”

device dimensions for 48” door

Add 2” for NS

Alarmed Rim Exit Device with Remote Signal and Remote Bypass

(V40xEHxR)

• Priced to be the best value for

durable and attractive loss

prevention panic hardware

• Reduces employee and customer

theft

• Fast and easy installation

• V40xEHxR - Alarmed Exit Device

power, with 9-volt battery backup

• Stainless steel, 3/4" deadlocking

Pullman type latch bolt

• Non-handed, eld sizeable

• 100 decibel alarm

• 1/8 turn cylinder dogging

• Heavy duty angled end cap

Features

Benets

The V40xEHxR device option is designed for doors that require a hardwired, alarmed panic device with

remote signal and bypass. When the alarm sounds a remote signal can be sent to turn on a remote

horn, strobe or other security device. The alarm can also be bypassed using a remote button, keypad,

card reader or other access control device. The alarm, with approximately 100dB will sound when

someone attempts to exit, alerting management that an unauthorized exit has occurred. With electric

switching that monitors the pushpad, the V40xEHxR provides a high level of security while also meeting

all life safety concerns.

• Secure installation prevents

mistakes, enhances security and

reduces maintenance

• Durable design provides years of

trouble free protection, saving on

replacement costs

• Fits almost any door in any décor

• Controls foot trafc, deters

unauthorized exits, prevents

loss and meets building code

requirements

• Heavy duty ribbed aluminum rail

extrusion

• Accommodates all types of mortise

cylinders with a standard Yale cam

(collar required for 7-pin IC cylinders)

• Patented back plate and plastic

strike locator provide paperless

template for perfect alignment with

door and frame

• Single mortise cylinder (sold

separate) provides arming and

dogging

• State of art electronics offer re-

liable security and instantaneous

alarm

• Field selectable key rearm or 2

min. auto rearm

• Visual and audible arming

indicators

• Armed and disarmed eld select-

able status indicator

• Delayed arming allows arming

after door closes

• CD - Cylinder Dogging (Std.)

• LD - Less Dogging

• IC7 - 7 pin small format

interchangeable cylinder housing

pre-installed at factory

• MC65 - Mortise cylinder

pre-installed at factory

• KS - Key Stop - key removed only

when armed

Mechanical Options

• 36 - Fits 36" Door Width (Std.)

• 48 - Fits 48" Door Width

• F - 3-Hour Fire Rated

• H - Hurricane Rated

• 99 - Surface Strike (Std.)

• 98 - Semi Mortise Strike

• Available with 628 Base Rail

Extrusion (Std.)

• Available with 711 Base Rail

Extrusion

V40xEHxR

(Shown with mortise cylinder - sold

separately)

Wide Stile shown, for Narrow Stile, specify NS Option

(for use on 36” and 48” doors with 2” stiles).

V40xEHxRx711xBLK

(Shown with mortise cylinder - sold

separately) V40xEHxRx711

(Shown with mortise cylinder - sold

separately)

Detex Corporation

302 Detex Drive

New Braunfels, Texas 78130-3045 USA

PH. (830) 629-2900

(800) 729-3839

FAX (830) 620-6711

(800) 653-3839

http://www.detex.com

USA Sales:

marketing@detex.com

International Sales:

export@detex.com

10 Year Mechanical/3 Year Electrical

Limited Manufacturer's Warranty

October 19, 2012

• SN1 - Sex Nut Fasteners

Detex Limited Warranty

Accessories

Riser Diagram

Listings and Approvals

• NSK - Narrow Kit - for 2" narrow

stile glass door applications

• Outside Trim (see Value Series

Trim Options)

• Door Types - Wood, Hollow

Metal, Fiberglass or Aluminum

• Door Thickness - Fits standard

1-3/4" - 2-1/4"

• Door Stile - Fits 2-1/2" stile doors

with 99 surface strike (Std.)

Technical Information

• Door Stile - Fits 2" narrow stile

doors - specify NS

• Door Stile - Fits minimum 4-1/8"

with 98 strike

• Machine and Self Drilling Screws

(Std.)

• Optional Sex Nuts or Security

Torx Screws available

Bypass/Remote Signal

12VAC

Dimensions

UL Listed

Panic Hardware

UL Listed Fire Exit Hardware

for 3 hours, maximum

4'x10' single doors and pairs of

4'x8' with F90KR key removable Mullion

Meets ADA requirements

UBC 97, Standard 7-2 and

UL10C for positive pressure

ANSI/BHMA certiﬁed A156.3

Meets NFPA 80 & 101

for Life Safety

Miami-Dade County, Florida

NOA 10-0303.02

State of Florida Approval FL9052

EXP. 04/07/15

California State Fire Marshall -

4140-0127:105 & 3725-0127:108

LISTED

2 3/8”

18 1/8”

24 1/8”

2 1/2” DEPRESSED

2 3/8”

8 3/8”

1 3/4”

32 7/8”

44 7/8”

3 1/4” EXTENDED

• R - Remote Signal - Form C

signaling when alarm sounds and

remote bypass input allows

authorized use without an alarm

• LBM - Latch Bolt Monitoring

Electrical Options

• AD1 - 1 Second Arming Delay

• AD2 - 5 Second Arming Delay

• AD3 - 10 Minute Auto Rearm

• AD4 - 20 Minute Auto Rearm

18 1/8” & 32 7/8” device dimensions for 36” door

24 1/8” & 44 7/8” device dimensions for 48” door

Add 2” for NS

Electric Integration Panic Device (V40xEI)

• Priced to be the best value for

durable and attractive loss

prevention panic hardware

• Fast and easy installation

• Multiple switching choices for

ease-of-use

• State-of-the-art electronics for

reliable security and

instantaneous switch activation

• Tamper resistant switching

electronically monitors pushpad,

latch bolt and outside key access

• 100dB piezo alarm
