Device Solutions DS0028 WiFi Gateway User Manual Cellio Installation Guidex
Device Solutions Inc. WiFi Gateway Cellio Installation Guidex
Users Manual
Device Solutions
Gateway & Sensor
Installation Instructions
1
FCC Interference Statement
Changes or modifications not expressly approved by Device Solutions could void the user’s authority to operate
this equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
2
Cellular Gateway Installation
1. Using a Torx T10 driver, remove the four 3/ 8” #4
screw s into the corners of the enclosure top that
fasten it to the enclosure base.
2. Connect the battery.
3. Reinstall the four 3/8” #4 screws into the corners of
the enclosure top that fasten it to the enclosure
base. The screws must be tightened to a torque of
8.2 +/-0.5 kgf-cm to ensure that the IP68 rating is
maintained.
4. Attach the enclosure to a surface. The best RF
performance is obtained by mounting the Gateway
to a vertical service.
5. Insert the external power plug into the jack and
tighten the locking ring. Failure to properly tighten
the locking ring will invalidate the IP68 rating of the
Gateway.
3
WiFi Gateway Installation
1. Using a Torx T10 driver, remove the four 3/ 8” #4
screws into the corners of the enclosure top that
fasten it to the enclosure base.
2. Connect the battery.
3. Press the button on the Gatew ay, the green LED will
illuminat e.

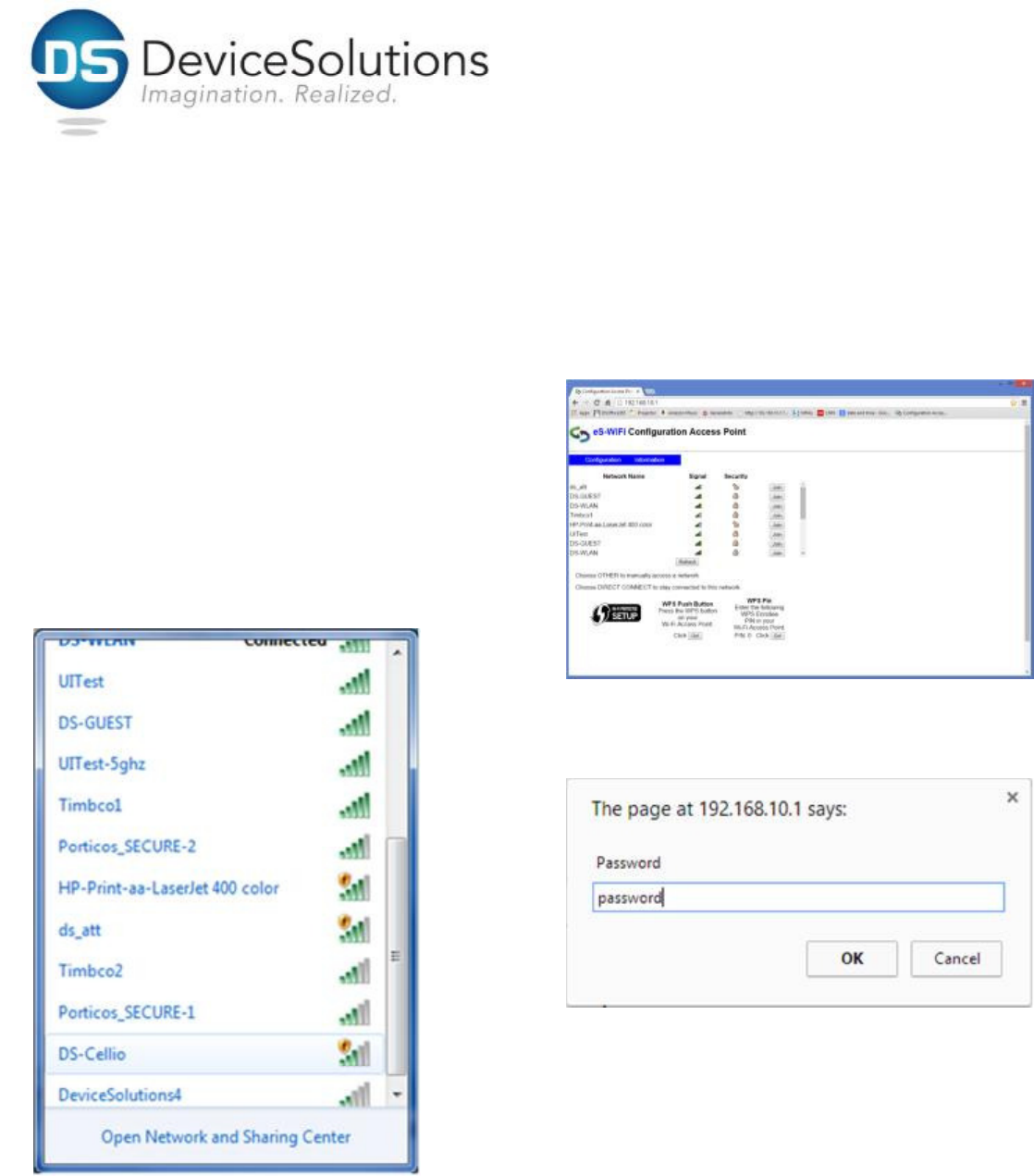

4. The Gateway has become a WiFi Access Point. Using
a laptop or similar device connect to the “DS-Cellio”
net work. This is an unsecured connection and does
not require a password.
5. Browse to 192.168.10.1.
6. Locate the desired system and press the Join
but t on.
7. If required, enter the password for the WiFi Access
Point
8. Reinstall the four 3/8” #4 screws into the corners of
the enclosure top that fasten it to the enclosure
base. The screws must be tightened to a torque of
8.2 +/-0.5 kgf-cm to ensure that the IP68 rating is
maintained.
9. Attach the enclosure to a surface. The best RF
performance is obtained by mounting the Gateway
to a vertical service.
10. Insert the external power plug into the jack and
tighten the locking ring. Failure to properly tighten
the locking ring will invalidate the IP68 rating of the
Gateway.
4
Sensor Installation

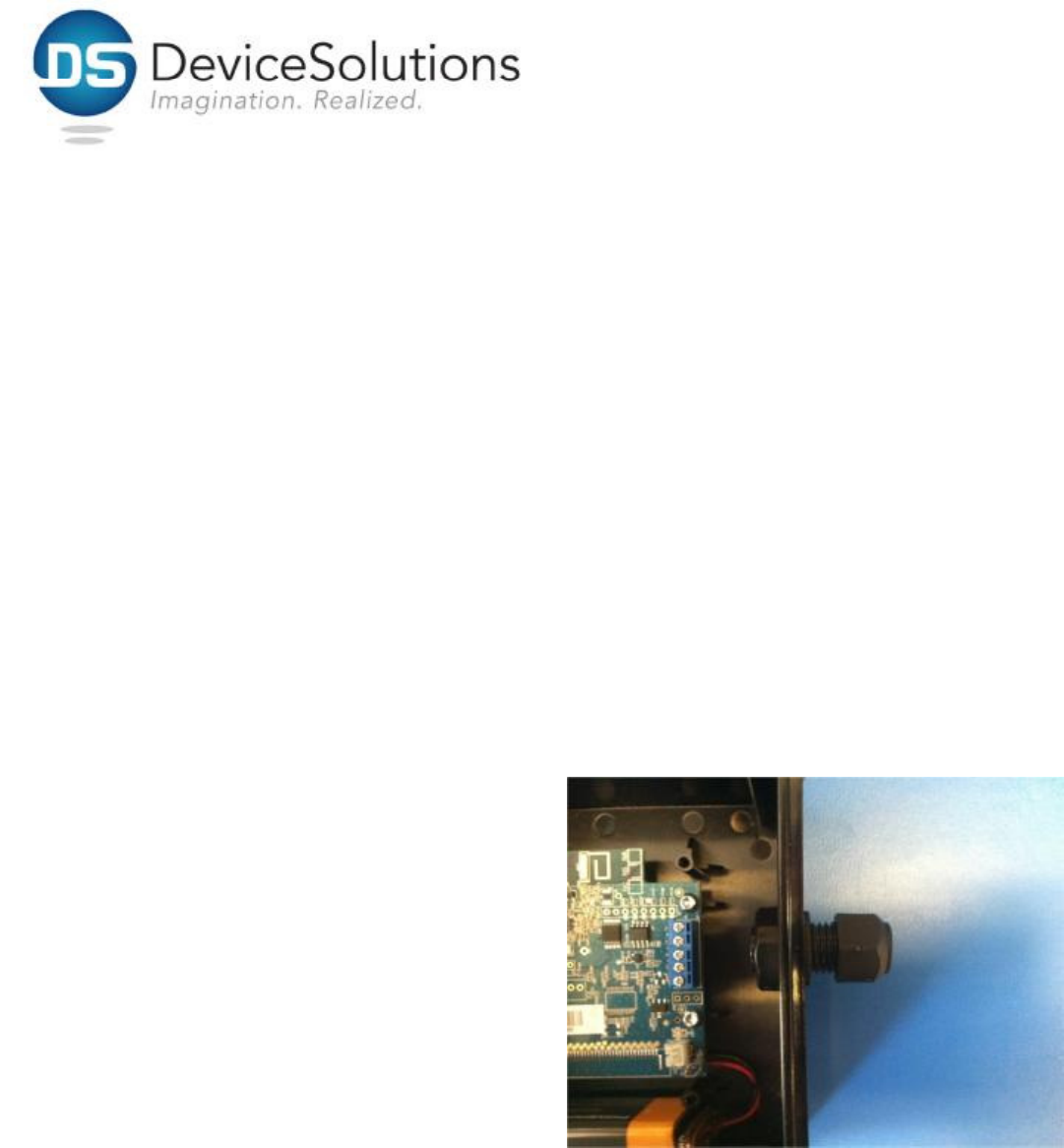

1. Use a Torx T10 driver to remove t he screws that
hold the top of the Sensor's enclosure to the
baseplat e.
2. Verify the signal strength at the Sensor. Note: This
signal strength monitoring process may only be
executed on one Sensor at a t ime.
a. Open the Gateway by using a Torx T10 bit to
remove the four screws which hold t he enclosure
top to the base plat e.
b. Press t he button on the Gat eway to enter "Range
Check Mode".
c. Wait for the internal green LED to illuminate.
d. Place the Sensor within 50 feet line of sight of the
Gateway
e. Reboot the Sensor by removing and re-installing
the 9 volt battery
f. Wait for the Sensor's internal LED to illuminat e
(up to 10 seconds)
g. The color of the LED indicates the following (red –
poor signal quality, yellow – marginal signal
quality, green – good signal quality)
h. Move the Gateway and/or Sensor until the Sensor
displays a good signal condition for at least 5
consecutive seconds.
i. Repeat c t hrough g for each sensor.
j. Disable "Range Check M ode" for the Gatew ay by
pressing the button on t he Gat eway again (if this
st ep is forgotten t he Gateway will exit Range
Check Mode in one hour)
k. Turn off each Sensor by removing t he 9 volt
battery (if this step is forgot t en the sensor will
exit install mode in five minutes)
3. Strip the insulation from the end of transducer
wires.
4. Tin the ends of the transducer cable with a
soldering iron.
5. Trim the transducer wire such that only 0.25 inches
remains uninsulated.
6. Inspect the transducer cable for loose solder and
wire strands. Repeat steps 3 through 6 if found.
Loose solder or wire strands can cause permanent
damage to the Sensor and/or transducer.
7. Remove the battery from the Sensor. Performing
the following steps with the battery installed can
lead to permanent damage of the device.

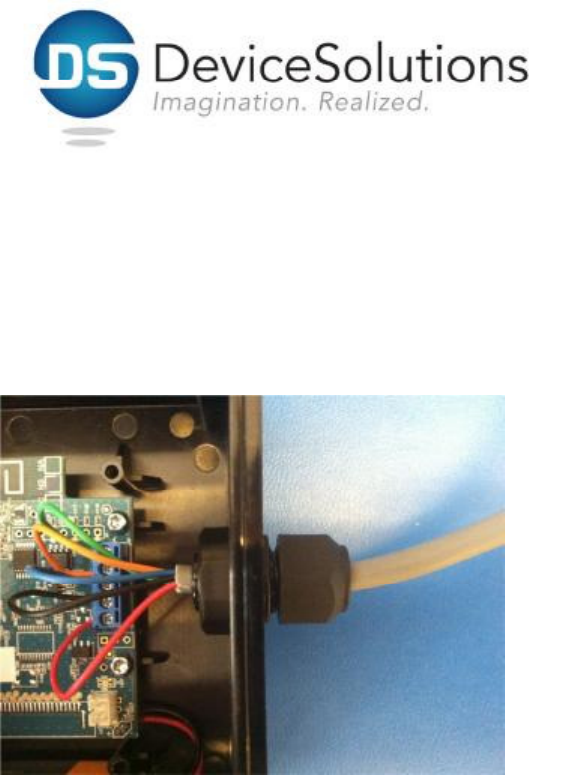

8. Loosen the nut from the outside of the cable
restraint shown above.
9. Pass the transducer wires through the cable
restraint.
10. Tighten the cable restraint nut to the cable
restraint. Note: The transducer cable must be
bet w een 2.9 and 6.4 mm in diameter and must be
tighten to a torque of 25-30 inch lbs to avoid water
infiltration.
11. At t ach the transducer wires to the terminal blocks.
This connection depends on the type of transducer
used.
12. Install the 9 volt battery in the sensor
13. Re-install the screw s that hold the top of the
enclosure to the baseplate.
14. Att ach the enclosure to a surface. The best RF
performance is obtained by mounting the Sensor
vertically.
