Digi 55M1644B WR44v2 Wireless Router User Manual Manual pt 1

Digi International Inc WR44v2 Wireless Router Manual pt 1

Contents

Manual pt 1

1
Digi TransPort User’s Guide
90001019_H
17th August 2012
2
Contents
Introduction ......................................................................................................... 14
Typographical Conventions ................................................................................... 15
Warnings .............................................................................................................. 16
Radio Equipment - Canadian Warning Statements ................................................... 16
Radio Equipment - FCC Warning Statement ............................................................ 17
Obtaining Technical Support ................................................................................ 19
Self help ............................................................................................................ 19
Assisted help ...................................................................................................... 19
Using the Web Interface ...................................................................................... 20
Access Via a LAN Port .......................................................................................... 20
Using the Command Line Interface ...................................................................... 21
The “AT” Command Interface................................................................................ 21
Digi Application Commands .................................................................................. 24
Establishing a Remote Connection ......................................................................... 26
Configuring your TransPort router ....................................................................... 27

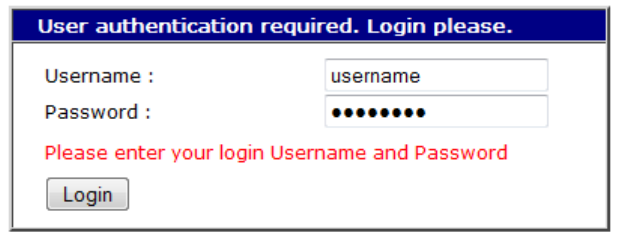

Logging In ............................................................................................................ 27
Configuring and Testing W-WAN Models .............................................................. 28
Signal Strength Indicators ................................................................................... 29
Wizards ............................................................................................................. 31
Configuration – Network > Interfaces > Ethernet .................................................... 32
Configuration - Interfaces > Ethernet > ETH n ........................................................ 32
Configuration - Interfaces > Ethernet > ETH n > Advanced ....................................... 34
Configuration - Interfaces > Ethernet > ETH n > QoS .............................................. 41
Configuration - Interfaces > Ethernet > ETH n > VRRP ............................................. 43
Configuration - Interfaces > Ethernet > Logical Ethernet Interfaces ........................... 45
Configuration - Interfaces > Ethernet > ETH n > MAC Filtering .................................. 45
Configuration - Interfaces > Ethernet > ETH n > MAC Bridging .................................. 46
Configuration - Interfaces > Ethernet > ETH n > Spanning Tree Protocols ................... 47
Configuration - Interfaces > Ethernet > ETH n > VLANs ........................................... 49
Configuration - Network > Interfaces > Wi-Fi .......................................................... 51
Configuration - Network > Interfaces > Wi-Fi > Global Wi-Fi settings ......................... 51
Configuration - Network > Interfaces > Wi-Fi > Global Wi-Fi settings > Wi-Fi Hotspot .. 52
Configuration - Network > Interfaces > Wi-Fi > Global Wi-Fi settings > Wi-Fi Filtering . 53
Configuration - Network > Interfaces > Wi-Fi > Wi-Fi n ............................................ 54
3
Configuration - Network > Interfaces > Wi-Fi > Wi-Fi n - Wi-Fi Security ..................... 55
Configuration - Network > Interfaces > Wi-Fi > Rogue Scan ..................................... 60
Configuration – Network > Interfaces > Mobile ....................................................... 61
Configuration – Network > Interfaces > Mobile ....................................................... 61
Configuration – Network > Interfaces > Mobile > Mobile Settings > Mobile Service
Provider Settings ................................................................................................ 61
Configuration – Network > Interfaces > Mobile > Mobile Settings > Mobile Connection
Settings ............................................................................................................. 63
Configuration – Network > Interfaces > Mobile > Mobile Settings > Mobile Network
Settings ............................................................................................................. 63
Configuration – Network > Interfaces > Mobile > SIM Selection ................................ 64
CDMA Provisioning .............................................................................................. 64
PRL Update ........................................................................................................ 66
Configuration – Network > Interfaces > Mobile > Advanced ...................................... 67
Configuration – Network > Interfaces > Mobile > Advanced > Mobile Network Settings 70
SMS Settings ...................................................................................................... 73
Configuration – Network > Interfaces > DSL ........................................................... 76
Configuration – Network > Interfaces > DSL > PVC Configuration .............................. 76
Configuration – Network > Interfaces > DSL > DSL Network Settings ....................... 77
Configuration – Network > Interfaces > DSL > PVC Traffic Shaping ........................... 79
Configuration – Network > Interfaces > DSL > Advanced ......................................... 81
Configuration - Network > Interfaces > GRE ........................................................... 82
Configuration - Network > Interfaces > GRE > Tunnel n ........................................... 82
Configuration - Network > Interfaces > GRE > Tunnel n > Advanced ......................... 83
Configuration - Network > Interfaces > ISDN > ISDN Answering ............................... 86
Configuration - Network > Interfaces > ISDN > ISDN Answering > Advanced.............. 89
Configuration – Network > Interfaces > ISDN Dialling .............................................. 92
Configuration – Network > Interfaces > ISDN > Advanced ........................................ 95
Configuration - Network > Interfaces > ISDN > LAPD > LAPD n ................................ 99
Configuration – Network > Interfaces > PSTN ........................................................ 101
Configuration – Network > Interfaces > PSTN > Advanced ...................................... 105
Configuration – Network > Interfaces > DialServ .................................................... 109
Configuration – Network > Interfaces > DialServ > DialServ Network Settings ........... 109
Configuration – Network > Interfaces > DialServ > Advanced .................................. 113
Configuration – Network > Interfaces > Serial ....................................................... 117
Configuration – Network > Interfaces > Serial > Serial Port n .................................. 117
Configuration – Network > Interfaces > Serial > Serial Port n > Advanced ................. 118
4
Configuration – Network > Interfaces > Serial > Serial Port n > Profiles .................... 122
Configuration – Network > Interfaces > Serial > Sync ............................................. 123
Configuration – Network > Interfaces > Serial > Rate Adaption ................................ 124
Configuration – Network > Interfaces > Serial > Rate Adaption n ............................. 124
Configuration – Network > Interfaces > Serial > Command Mappings ....................... 125
Configuration – Network > Serial > Protocol Bindings .............................................. 125
Configuration – Network > Serial > TRANSIP Serial Ports ........................................ 127
Configuration – Network > Serial > TRANSIP Serial Ports > TRANSIP n ..................... 127
Configuration – Network > Serial > RealPort .......................................................... 129
Configuration - Network > Interfaces > Advanced .................................................. 131
Configuration – Network > Interfaces > Advanced > PPP Mappings ........................... 131
Configuration – Network > Interfaces > Advanced > PPP n > Multilink PPP ................. 132
Configuration – Network > Interfaces > Advanced > PPP n ...................................... 134
Configuration – Network > Interfaces > Advanced > PPP n > Mobile ......................... 139
Configuration – Network > Interfaces > Advanced > PPP n > Advanced ..................... 140
Configuration – Network > Interfaces > Advanced > PPP n > PPP Negotiation ............ 149
Configuration – Network > Interfaces > Advanced > PPP n > QoS ............................ 152
Configuration – Network > Interfaces > Advanced > PPP Sub-Configs ....................... 153
Configuration – Network > DHCP Server ............................................................... 155
Configuration – Network > DHCP Server > DHCP Server for Ethernet n ..................... 155
Configuration – Network > DHCP Server > DHCP Server for Ethernet n > Advanced .... 157
Configuration – Network > DHCP Server > DHCP Server for Ethernet n > Advanced DHCP
Options ............................................................................................................ 157
Configuration – Network > DHCP Server > Logical Ethernet Interfaces ...................... 158
Configuration – Network > DHCP Server > DHCP Options ........................................ 159
Configuration – Network > DHCP Server > Static Lease Reservations ........................ 160
Configuration – Network > Network Services ......................................................... 161
Configuration – Network > DNS Servers ................................................................ 163
Configuration – Network > DNS Servers > DNS Server n ......................................... 163
Configuration – Network > DNS Servers > DNS Server Update ................................. 164
Configuration – Network > Dynamic DNS .............................................................. 167
Configuration – Network > Dynamic DNS > Advanced ............................................. 169
Configuration – Network > IP Routing / Forwarding - An introduction to TransPort routing
....................................................................................................................... 170
Configuration – Network > IP Routing / Forwarding > IP Routing .............................. 172
Configuration – Network > IP Routing / Forwarding > Static Routes .......................... 173
5
Configuration – Network > IP Routing / Forwarding > Static Routes > Route n ........... 173
Configuration – Network > IP Routing / Forwarding > Static Routes > Route n >
Advanced .......................................................................................................... 175
Configuration – Network > IP Routing / Forwarding > Static Routes > Default Route n 179
Configuration – Network > IP Routing / Forwarding > Static Routes > Default Route n >
Advanced .......................................................................................................... 179
Configuration – Network > IP Routing / Forwarding > RIP........................................ 181
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP Settings ......... 181
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP settings > Access
Lists ................................................................................................................. 182
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP settings >
Authentication Keys ........................................................................................... 183
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP settings >
Authentication Keys > Authentication Key n ........................................................... 183
Configuration – Network > IP Routing / Forwarding > RIP > Interfaces > Ethernet / PPP /
GRE ................................................................................................................. 184
Configuration – Network > IP Routing / Forwarding > OSPF ..................................... 186
Configuration – Network > IP Routing / Forwarding > BGP ....................................... 188
Configuration – Network > IP Routing / Forwarding > IP Port Forwarding / Static NAT
Mappings .......................................................................................................... 189
Configuration – Network > IP Routing / Forwarding > Multicast Routes ...................... 190
Configuration – Network > Virtual Private Networking (VPN) > IPsec ......................... 191
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IPsec Tunnels >
IPsec n ............................................................................................................. 191
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IPsec Tunnels >
IPsec n > Tunnel Negotiation ............................................................................... 196
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IPsec Tunnels >
IPsec n > Advanced ........................................................................................... 196
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IPsec Default
Action .............................................................................................................. 202
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IPsec Groups .. 202
Configuration – Network > Virtual Private Networking (VPN) > IPsec > Dead Peer
Detection .......................................................................................................... 207
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE ................ 208
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE > IKE Debug
....................................................................................................................... 208
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE > IKE n .... 209
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE > IKE n >
Advanced .......................................................................................................... 211
6
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE > IKE
Responder ........................................................................................................ 213
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE > IKE
Responder > Advanced ....................................................................................... 214
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE > MODECFG
Static NAT mappings .......................................................................................... 215
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKEv2 ............ 216
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKEv2 > IKEv2 n
....................................................................................................................... 216
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKEv2 > IKEv2 n >
Advanced .......................................................................................................... 218
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKEv2 > IKEv2
Responder ........................................................................................................ 219
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKEv2 > IKEv2
Responder > Advanced ....................................................................................... 220
Configuration – Network > Virtual Private Networking (VPN) > L2TP ......................... 221
Configuration – Network > Virtual Private Networking (VPN) > L2TP > L2TP n ............ 221
Configuration – Network > Virtual Private Networking (VPN) > L2TP > L2TP n > Advanced
....................................................................................................................... 223
Configuration – Network > Virtual Private Networking (VPN) > PPTP ......................... 224
Configuration – Network > Virtual Private Networking (VPN) > PPTP > PPTP n ............ 224
Configuration – Network > Virtual Private Networking (VPN) > OpenVPN ................... 226
Configuration – Network > Virtual Private Networking (VPN) > OpenVPN > OpenVPN n 226
Configuration – Network > SSL ............................................................................ 232
Configuration – Network > SSL > SSL Clients ........................................................ 232
Configuration – Network > SSL > SSL Server ........................................................ 233
Configuration – Network > SSH Server ................................................................. 235
Configuration – Network > SSH Server > SSH Server n ........................................... 235
Configuring SSH ................................................................................................ 239
Configuration using the web interface ................................................................... 239
Configuration using the command line interface ..................................................... 239
SSH Authentication with a public/private keypair .................................................... 240
Configuration – Network > FTP Relay .................................................................... 241
Configuration – Network > FTP Relay > FTP Relay n ............................................... 241
Configuration – Network > FTP Relay > Advanced .................................................. 243
Configuration - Network > IP Passthrough ............................................................. 244
Configuration – Network > UDP Echo .................................................................... 246
Configuration – Network > UDP Echo > UDP Echo n ................................................ 246
7
Configuration – Network > QoS ........................................................................... 248
Configuration – Network > QoS > DSCP Mappings .................................................. 249
Configuration – Network > QoS > Queue Profiles.................................................... 249
Configuration – Network > Timebands .................................................................. 252
Configuration – Network > Timebands > Timeband n .............................................. 252
Configuration – Network > Advanced Network Settings ........................................... 254
Configuration - Network > Advanced Network Settings > Socket Settings .................. 255
Configuration – Network > Advanced Network Settings > XOT Settings ..................... 256
Configuration – Network > Advanced Network Settings > Backup IP Addresses .......... 257
Configuration - Network > Legacy Protocols ........................................................... 259
Configuration - Network > Legacy Protocols > SNA over IP ...................................... 259
Configuration - Network > Legacy Protocols > SNA over IP > SNAIP 0 ....................... 260
Configuration - Network > Legacy Protocols > SNA over IP > SNAIP 0 > SNA Parameters
....................................................................................................................... 261
Configuration - Network > Legacy Protocols > SNA over IP > SNAIP 0 > SSP (WAN)
Parameters ....................................................................................................... 262
Configuration - Network > Legacy Protocols TPAD .................................................. 266
Configuration - Network > Legacy Protocols TPAD n ................................................ 266
Configuration - Network > Legacy Protocols TPAD n > ISDN settings ...................... 266
Configuration - Network > Legacy Protocols TPAD n > X.25 settings ...................... 267
Configuration - Network > Legacy Protocols TPAD n > XoT/TCP settings ................. 269
Configuration - Network > Legacy Protocols TPAD n > TPAD Settings ..................... 269
Configuration - Network > Legacy Protocols > X.25 > General ................................. 275
Configuration - Network > Legacy Protocols > X.25 > LAPB ..................................... 277
Configuration - Network > Legacy Protocols > X.25 > LAPB n .................................. 277
Configuration - Network > Legacy Protocols > X.25 > LAPB n > ISDN Parameters ...... 278
Configuration - Network > Legacy Protocols > X.25 > LAPB n > Async Mux 0710
Parameters ....................................................................................................... 279
Configuration - Network > Legacy Protocols > X.25 > NUI Mappings ......................... 280
Configuration - Network > Legacy Protocols > X.25 > NUA / NUI Interface Mappings .. 281
Configuration - Network > Legacy Protocols > X.25> Calls Macros ............................ 282
Configuration - Network > Legacy Protocols > X.25 > IP to X.25 Calls ....................... 284
Configuration - Network > Legacy Protocols > X.25 > PADS n .................................. 286
X.25 Settings .................................................................................................... 287
IP Settings ........................................................................................................ 288
PAD Settings ..................................................................................................... 288
8
Configuration - Network > Legacy Protocols > X.25 > PADs 0-9 > PAD 0 > X3 Parameters
....................................................................................................................... 291
Configuration - Network > Legacy Protocols > X.25 > X.25 PVCs .............................. 297
Configuration - Network > Legacy Protocols > X.25 > X.25 PVC n ............................. 297
Configuration - Network > Legacy Protocols > MODBUS .......................................... 298
Configuration - Network > Protocol Switch ............................................................. 300
Configuration - Network > Protocol Switch > CUD Mappings .................................... 309
Configuration - Network > Protocol Switch > IP Sockets to Protocol Switch ................ 310
Configuration - Network > Protocol Switch > NUA to Interface Mappings .................... 313
Configuration - Network > Protocol Switch > NUA Mappings ..................................... 314
Configuration – Alarms > Event Settings ............................................................... 316
Configuration – Alarms > Event Settings > Email Notifications ................................. 317
Configuration – Alarms > Event Settings > SNMP Traps .......................................... 318
Configuration – Alarms > Event Settings > SMS Messages ....................................... 319
Configuration – Alarms > Event Settings > Local Logging ........................................ 320
Configuration – Alarms > Event Settings > Syslog Messages .................................... 321
Configuration – Alarms > Event Settings > Syslog Server n ..................................... 321
Configuration – Alarms > Event Logcodes .............................................................. 323
Configuration – Alarms > Event Logcodes > Configuring Events................................ 324
Configuration - Alarms > Event Logcodes > Configuring Reasons .............................. 325
Configuration - Alarms > SMTP Account ................................................................ 326
Configuration – System > Device Identity ............................................................. 328
Configuration – System > Date and Time .............................................................. 329
Configuration – System > Date and Time > Autoset Date and Time .......................... 330
Configuration – System > General ........................................................................ 335
Configuration – System > General > Autorun Commands ........................................ 335
Configuration - System > General > Web / Command Line Interface ......................... 336
Configuration - System > General > Miscellaneous ................................................. 337
Configuration – Remote Management > iDigi > Connection Settings .......................... 339
Configuration – Remote Management > iDigi > Advanced ........................................ 340
Configuration – Remote Management > iDigi > Advanced > Connection Settings ........ 340
Configuration – Remote Management > iDigi > Advanced > WAN Settings ................. 340
Configuration – Remote Management > iDigi > Advanced > Ethernet Settings ............ 340
Configuration – Remote Management > SNMP ....................................................... 341
Configuration – Remote Management > SNMP User > SNMP User n .......................... 343
Configuration – Remote Management > SNMP Filters .............................................. 344
9
Configuration – Remote Management > SNMP Traps ............................................... 344
Configuration – Remote Management > SNMP Traps > SNMP Trap Server n ............... 345
Configuration – Security > Users > User n ............................................................. 347
Configuration – Security > Users > User n > Advanced ........................................... 348
Configuration – Security > Firewall ....................................................................... 350
Configuration – Security > Firewall > Stateful Inspection Settings............................. 351
Configuration – Security > RADIUS ...................................................................... 353
Configuration – Security > RADIUS > RADIUS Client n ............................................ 354
Authorization ..................................................................................................... 354
Accounting ........................................................................................................ 354
Configuration – Security > RADIUS > RADIUS Client n > Advanced .......................... 356
Configuration – Security > TACACS+ .................................................................... 357
Configuration – Security > TACACS+ > Advanced................................................... 359
Configuration – Security > Command Filters .......................................................... 360
Configuration – Security > Calling Numbers ........................................................... 361
Configuration - Position > GPS ............................................................................. 362
IP Connection 1 ................................................................................................. 363
IP Connection 2 ................................................................................................. 363
Applications > Basic > ScriptBasic ........................................................................ 366
Application – Python > Python Files ...................................................................... 367
Management – Network Status > Interfaces > Ethernet > ETH n .............................. 368
Management – Network Status > Interfaces > Wi-Fi ............................................... 370
Management > Network Status > Interfaces > Mobile ............................................. 372
Management – Network Status > Interfaces > DSL ................................................. 377
Management > Network Status > Interfaces > GRE ................................................ 380
Management – Network Status > Interfaces > ISDN > ISDN BRI .............................. 381
Management – Network Status > Interfaces > PSTN ............................................... 382
Management – Network Status > Interfaces > Serial > Serial n ................................ 383
Management – Network Status > Interfaces > Advanced > PPP > PPP n .................... 384
Management > Network Status > IP Routing Table ................................................. 388
Management > Network Status > IP Hash Table ..................................................... 390
Management – Network Status > Port Forwarding Table .......................................... 392
Management > Network Status > Firewall ............................................................. 393
Management > Network Status > Firewall Trace ..................................................... 395
Management – Network Status > DHCP Status ....................................................... 396
Management – Network Status > DNS Status ........................................................ 397
10
Management – Network Status > QoS .................................................................. 398
Management – Connections > IP Connections ........................................................ 399
Management – Connection > Virtual Private Networking (VPN) > IPsec ...................... 401
Management – Connection > Virtual Private Networking (VPN) > IPsec peers ............. 403
Management – Connection > Virtual Private Networking (VPN) > IKE SAs .................. 404
Management – Position > GPS ............................................................................. 405
Management – Event Log .................................................................................... 407
Management – Analyser ...................................................................................... 408
Management – Analyser > Settings ...................................................................... 408
Management – Analyser > Trace .......................................................................... 414
Management – Analyser > PCAP (e.g. Wireshark) traces .......................................... 414
Management – Top Talkers .................................................................................. 416
Management – Top Talkers > Settings .................................................................. 416
Management – Top Talkers > Trace ...................................................................... 417

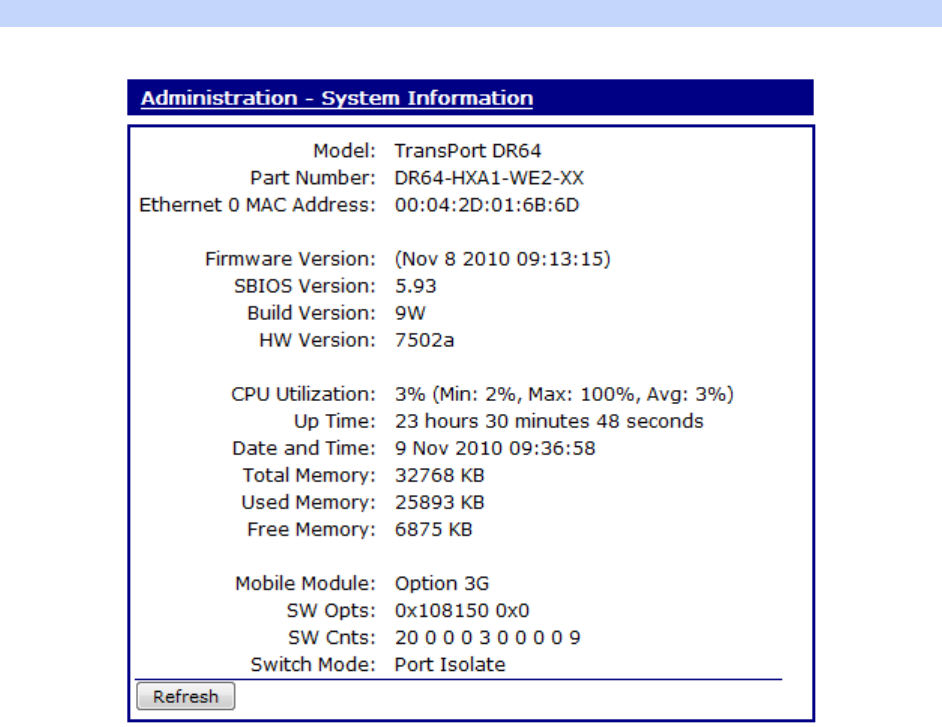

Administration – System Information .................................................................... 418

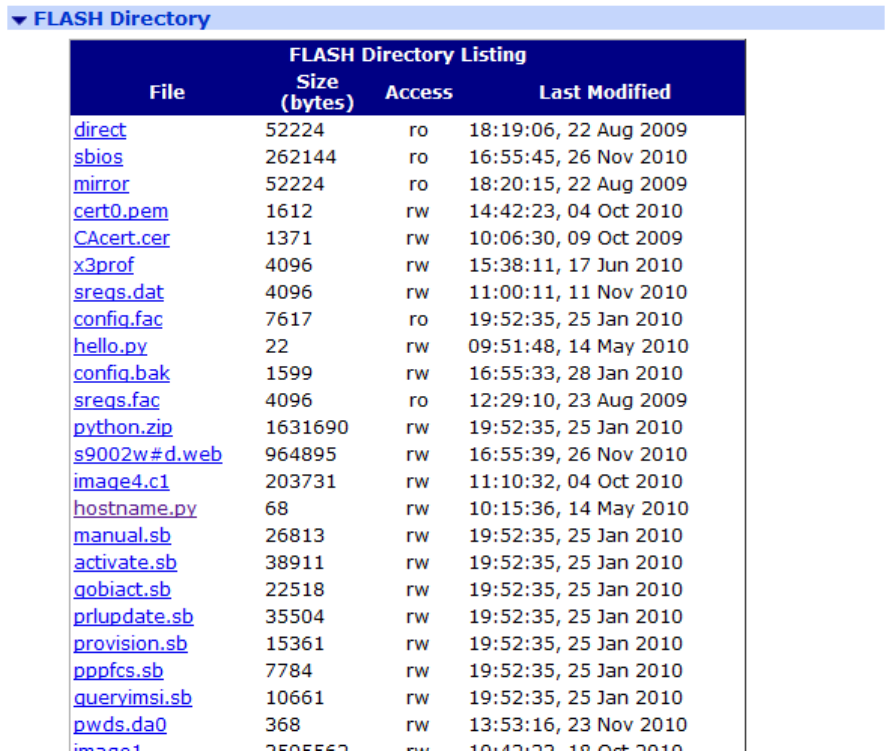

Administration - File Management > FLASH Directory .............................................. 420
Administration - File Management > WEB Directory ................................................ 422

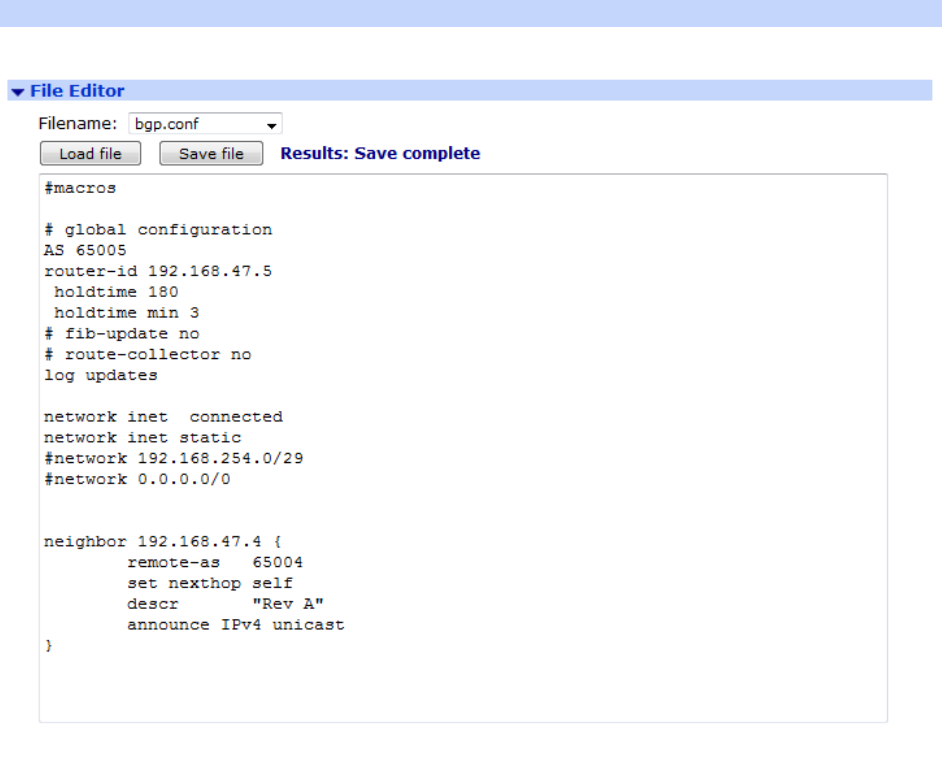

Administration - File Management > File Editor ...................................................... 423
Administration > X.509 Certificate Management ..................................................... 424
Administration > X.509 Certificate Management > Certificate Authorities (CAs) .......... 424

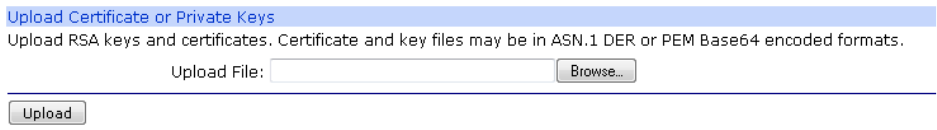

Administration > X.509 Certificate Management > IPsec/SSH/HTTPS Certificates ........ 425
Administration > X.509 Certificate Management > Key Generation ............................ 429

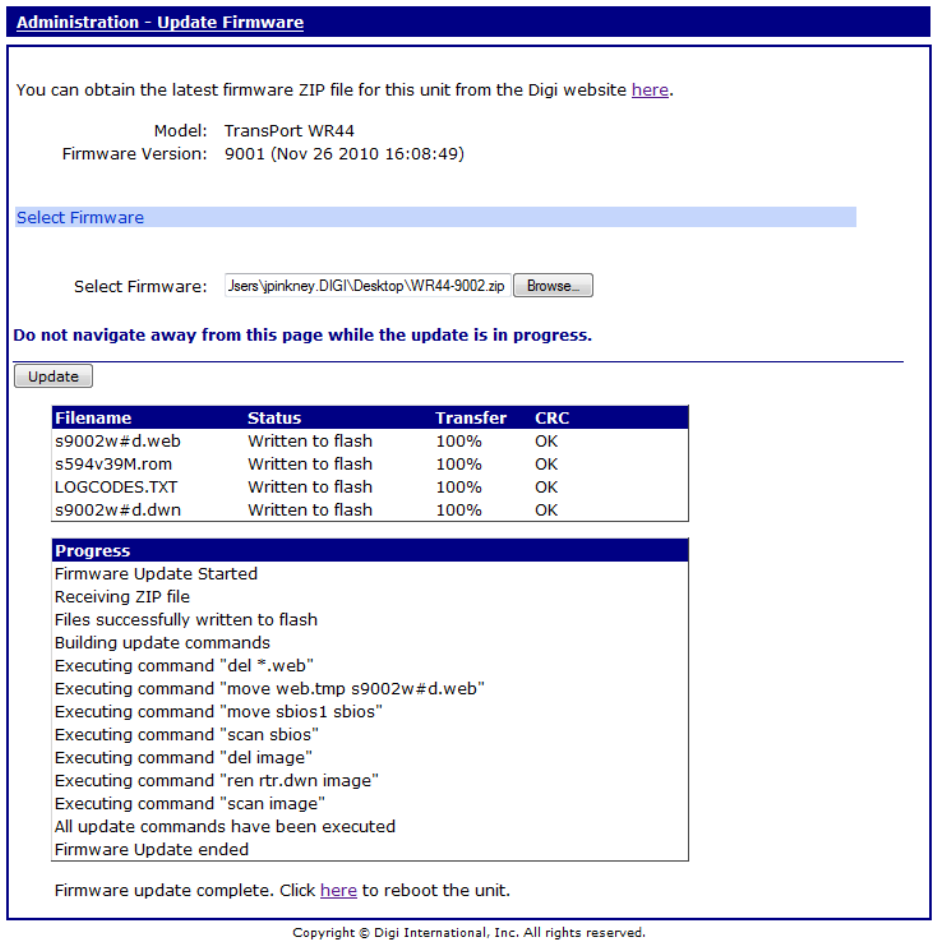

Administration – Update Firmware ........................................................................ 431
Administration – Factory Default Settings .............................................................. 433
Administration – Execute a command ................................................................... 434
Administration – Save configuration ...................................................................... 434
Administration – Reboot ...................................................................................... 435
Logout ............................................................................................................. 435
Further information on the filing system & system files ..................................... 436
Filing System Commands .................................................................................... 437
USB Support ..................................................................................................... 440
Universal config.da0 using tags ............................................................................ 444
Web GUI Access via Serial Connection ............................................................... 447
SQL commands ................................................................................................... 458
Answering V.120 Calls ........................................................................................ 462
Initial Set Up ..................................................................................................... 462
11
Initiating a V.120 Call ......................................................................................... 462
Answering V.120 Calls ........................................................................................ 462
ANSWERING ISDN CALLS ................................................................................... 464
Protocol Entities ................................................................................................. 464
Multiple Subscriber Numbers ............................................................................... 464
Multiple PPP Instances ........................................................................................ 465
X.25 PACKET SWITCHING .................................................................................. 466
Introduction ...................................................................................................... 466
B-channel X.25 .................................................................................................. 466
D-channel X.25 .................................................................................................. 466
X.28 Commands ................................................................................................ 467
PPP OVER ETHERNET .......................................................................................... 475
IPSEC AND VPNS ................................................................................................ 476
What is IPSec? .................................................................................................. 476
Data Encryption Methods .................................................................................... 476
What is a VPN? .................................................................................................. 477
The Benefits of IPSec .......................................................................................... 477
X.509 Certificates .............................................................................................. 478
FIREWALL SCRIPTS ............................................................................................ 480
Introduction ...................................................................................................... 480
Firewall Script Syntax ......................................................................................... 480
Specifying IP Addresses and Ranges ..................................................................... 485
Address/Port Translation ..................................................................................... 487
Filtering on Port Numbers .................................................................................... 487
Filtering on TCP Flags ......................................................................................... 488
Filtering on ICMP Codes ...................................................................................... 489
Stateful Inspection ............................................................................................. 490
The FWLOG.TXT File ........................................................................................... 495
Debugging a Firewall .......................................................................................... 499
REMOTE MANAGEMENT ...................................................................................... 500
Using V.120 ...................................................................................................... 500
Using Telnet ...................................................................................................... 500
Using FTP ......................................................................................................... 501
Using X.25 ........................................................................................................ 502
AT COMMANDS ................................................................................................... 503
D Dial ............................................................................................................... 503
12
H Hang-up ........................................................................................................ 503
Z Reset ............................................................................................................ 503
&C DCD Control ................................................................................................. 504
&F Load Factory Settings .................................................................................... 504
&R CTS Control .................................................................................................. 504
&V View Profiles ................................................................................................. 504
&W Write SREGS.DAT ......................................................................................... 504
&Y Set Default Profile ......................................................................................... 505
&Z Store Phone Number ..................................................................................... 505
\AT Ignore Invalid AT Commands ......................................................................... 506
\LS Lock Speed .................................................................................................. 506
\PORT Set Active Port ......................................................................................... 506
\smib Commands ............................................................................................... 507
“S” REGISTERS ................................................................................................... 514
S0 V.120 Answer Enabled ................................................................................... 514
S1 Ring count .................................................................................................... 515
S2 Escape Character .......................................................................................... 515
S12 Escape Delay .............................................................................................. 515
S15 Data Forwarding Timer ................................................................................. 515
S23 Parity ......................................................................................................... 515
S31 ASY Interface Speed .................................................................................... 515
S33 DTR Dialling ................................................................................................ 516
S45 DTR Loss De-Bounce .................................................................................... 516
GENERAL SYSTEM COMMANDS ........................................................................... 517
CONFIG Show/Save Configuration ........................................................................ 517
Config changes counter....................................................................................... 517
REBOOT Reboot Unit .......................................................................................... 518
Reset router to factory defaults ............................................................................ 518
Disabling the reset button ................................................................................... 518
TEMPLOG Temperature monitoring ....................................................................... 518
Ping and Traceroute ........................................................................................... 518
Clearing the Analyser Trace and Event Log ............................................................ 519
Activate and Deactivate interfaces ........................................................................ 519
Special Usernames ............................................................................................. 519
GPIO (General Purpose Input Output) ................................................................... 519
TCPPERM AND TCPDIAL ..................................................................................... 522
13
TCPPERM .......................................................................................................... 522
TCPDIAL ........................................................................................................... 523
SERIAL PORT CONNECTIONS .............................................................................. 524
DR6410, DR6420, DR6460, DR64x0W & WR41 ....................................................... 525
WR44 ............................................................................................................... 528
TA2020 ............................................................................................................ 530
ER2110, IR2110 & MR2110 ................................................................................. 531
IR2140 & GR2140 .............................................................................................. 532
GR2130 ............................................................................................................ 533
IR2140 ............................................................................................................. 536
IR2420 ............................................................................................................. 539
TA2020B & IR2110B ........................................................................................... 542
DR4410, DR4410i & DR4410p .............................................................................. 545
MW3410, MW3520 & VC5100 .............................................................................. 548
ER4420, ER4420d, ER4420i, ER4420p, HR4420, HR4420d, HR4420i, HR4420p & IR4420
....................................................................................................................... 551
MR4110, ER4110, HR4110, GR4110 & TR4110 ....................................................... 554
RS-232 (V.24) Serial Cable Wiring ........................................................................ 557
Configuring X.21 on Older Models ......................................................................... 560
EMAIL TEMPLATES ............................................................................................. 561
Template Structure ............................................................................................ 561
Certifications ...................................................................................................... 564
GLOSSARY .......................................................................................................... 566
ACKNOWLEDGEMENTS ....................................................................................... 572
14
Introduction
Thank you for choosing a data communications product from Digi International. Digi
products are extremely versatile and may be used in a wide variety of applications. It would
not be possible to describe in detail all such applications in a single guide. Consequently,
this guide has been written for use by technically competent personnel with a good
understanding of the communications technologies used in the product, and of the
requirements for their specific application.
Digi International designs and manufactures a wide range of both wireline and wireless
network routing products. For a complete, up-to-date list of current products, please visit
the Digi International web site at www.digi.com.
Whilst each of these models provide a different combination of hardware and software
features, the basic method of configuration using the web interface or command line is the
same in each case. This guide describes the operation of standard features available across
the whole product range. Consequently, some of the features described in this guide may
only be available on certain models or must be purchased as optional “feature packs”. You
should refer to the specification of the particular model you have purchased to ascertain
which features are supported as standard.
In addition to a comprehensive range of communications capabilities, our products provide a
combination of powerful, yet easy to use, configuration, management and diagnostic tools.
These include a protocol analyser, a time-stamped event log and remote management via
the web interface or via a Telnet session.
In many applications, the serial ports will be configured to appear as if they were standard
“AT” modems and behave accordingly. However, many other standard protocols are
supported (e.g. B- and D-channel X.25, PPP, TPAD, V.120, etc.). This makes it simple and
cost-effective to migrate existing terminal equipment, which uses the analogue telephone
network, to faster, more reliable and cost effective “wireline” or wireless digital services.
All major features of the unit can be configured using a standard Web browser. This can be
done locally (via a serial or LAN port), or remotely via a WAN connection. A built-in Web-
server and flexible FLASH-memory based filing system mean that the unit can also be
customised to provide application specific functions, statistics and diagnostic information.
Requests for corrections or amendments to this guide are welcome and should be addressed
to:
Digi International
11001 Bren Road East
Minnetonka, MN 55343
15
Typographical Conventions
Throughout this manual certain typographical conventions are used as follows:
Text Type
Meaning
Text like this
... is standard text.
Note:
Text like this ...
indicates points that are of particular importance.
Text like this ... indicates commands entered by the user at the
command line.
Text like this ... indicates responses from the unit to commands you
enter at the command line.
Configuration – Network > Interfaces
refers to the unit’s web-based menu system.
16
Warnings
Radio Equipment - Canadian Warning Statements
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired
operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an
antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more
than that necessary for successful communication.
This radio transmitter (identify the device by certification number, or model number if
Category II) has been approved by Industry Canada to operate with the antenna types
listed below with the maximum permissible gain and required antenna impedance for each
antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Name / Model
Gain
Impedance
BEC C424-510065-A 1.8dBi 50Ω Nominal
OEM Responsibilities
The WR44v2 Module has been certified for integration into products only by OEM integrators
under the following conditions:
1. The antenna(s) must be installed such that a minimum separation distance of
20cm is maintained between the radiator (antenna) and all persons at all
times.
2. The transmitter module must not be co-located or operating in conjunction
with any other antenna or transmitter.
As long as the two conditions above are met, further transmitter testing will not be
required. However, the OEM integrator is still responsible for testing their end-product for
any additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.).
NOTE:
In the event that these conditions can not be met (for certain configurations or co-location
with another transmitter), then Industry Canada certification is no longer considered valid
and the IC Certification Number can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate Industry Canada authorization.
17
End Product Labeling
The WR44v2 Module is labeled with its own IC Certification Number. If the IC Certification
Number is not visible when the module is installed inside another device, then the outside of
the device into which the module is installed must also display a label referring to the
enclosed module. In that case, the final end product must be labeled in a visible area with
either of the following:
• Contains Transmitter Module IC: 1846A-55M1644
• Contains IC: 1846A-55M1644
The OEM of the WR44v2 Module must only use the approved antenna(s) listed above, which
have been certified with this module.
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module or change RF related parameters in the user’s
manual of the end product.
Important!
To comply with Industry Canada RF radiation exposure limits for general
population, the antenna(s) used for this transmitter must be installed such that a
minimum separation distance of 20cm is maintained between the radiator
(antenna) and all persons at all times and must not be co-located or operating in
conjunction with any other antenna or transmitter.
Radio Equipment - FCC Warning Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may
cause undesired operation.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance. This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
The antenna(s) used for this transmitter must be installed to provide a separation distance
of at least 20 cm from all persons.
Any product using the WR44v2 Wi-Fi module must have a label stating ‘Contains FCC ID:
MCQ-55M1644B’ placed on it in line with FCC labelling regulations.
Antenna Specification: RP-SMA
Property
Frequency Range 2.4 to 2.5 GHz
Impedance 50 Ohm
VSWR 1.92 max
18
Property
Return Loss -10dB max
Gain 1.8 dBi
Polarization Linear
Radiation Pattern Near omni-directional in the
horizontal plane
Admitted Power 1W
Electrical 1/2 λ Dipole
NOTE:
This module obtained its complete certification by using the antenna described here. End
users in North America should use an antenna that matches these specifications to maintain
the module’s certification. Antennas of the same type but operating with a lower gain may
be used.
19
Obtaining Technical Support
Technical support for your Digi Transport router is readily available using the following
methods.
Self help
Visit the Technical Support section of the Digi website at www.digi.com
From here, you can gain access to FAQs, knowledge base articles, application guides, quick
setup guides, installation guides, software applications, firmware upgrades, product
literature, warrantyregistration & a support forum.
Assisted help
To obtain support from the Digi Technical Support team, use one of the options below. The
preferred method is either via the web portal or via email. This is because the support
teams will ask for certain technical information which is required at the time the query is
logged.
The support teams request that the following information is included with every support
request:
• Hardware model
• Firmware revision
• Current configuration (config c show)
• Firewall configuration
• ADSL / Mobile status and relevant PPP status
• The event log
This information and more can be quickly and easily obtained from the router by
downloading the single file debug.txt from Administration - Directory Listings > FLASH
directory using the GUI, or, via the CLI with the command type debug.txt and send
the output to a log file.
The file contents are created when the file is requested, so it may take a few seconds to
create and download the file. Please zip this file and include it with your support
request.
For more complex technical support queries, a detailed network diagram may also be
requested.
Web portal
To log a support request online using the web portal, browse to www.digi.com and hover
your mouse over the ‘Support’ link at the top of the page, select ‘Online Support Request’
from the dropdown list. The direct URL for the web portal is
http://www.digi.com/support/eservice
You will need to create an account to use this service.
Remember to upload the debug.txt zip file!
20
Email
Email support is available from 2 locations:
UK
uksupport@digi.com
USA
support.wizards@digi.com
Remember to attach the debug.txt zip file to your email!
Telephone
Telephone support is available from 2 locations:
UK
Telephone support is available 09:00 - 17:30 GMT.
From within the UK: 0870 350 0035
International: +44 1943 605 055
USA
Telephone support is available 07:00 - 17:30 CST (GMT -6 Hours).
From within the Americas: 952 912 3456
International: +1 952 912 3456
Please be aware, we may ask you to submit your technical support query by email and
include the debug.txt zip file.

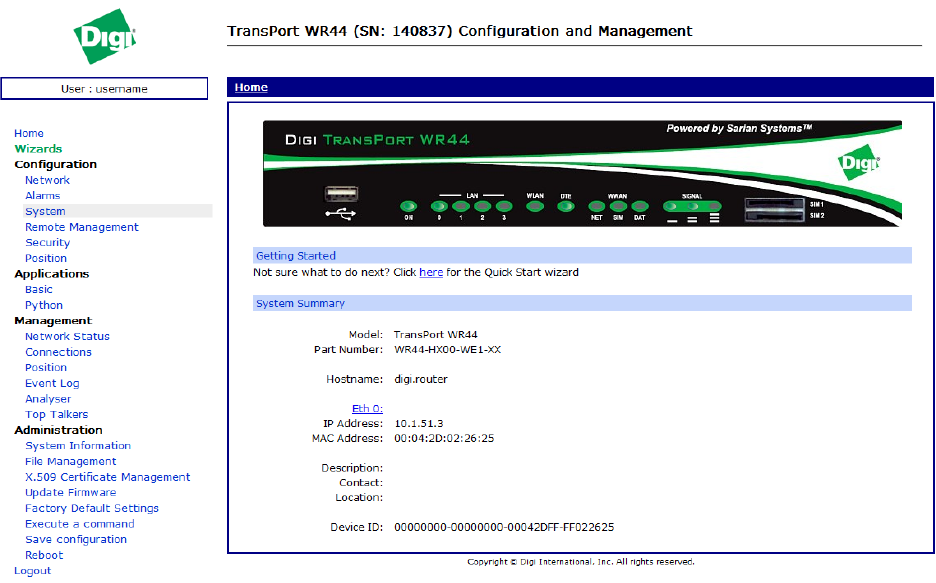

Using the Web Interface
To access the built-in web pages using a web browser (e.g. Internet Explorer), there are
two options.
To access the LAN port follow the instructions below. To access the web interface over a
serial connection,see Web Access via Serial Connection.
Access Via a LAN Port
By default, the Digi Transport has a static IP address of 192.168.1.1 with DHCP server
enabled. To acess the unit using a web browser (e.g. Internet Explorer), simply connect an
Ethernet cable between the LAN port on the Digi Transport and your PC. Make sure your PC
is setup to automatically receive an IP address by selecting Start > Control Panel >
Network > Configuration and verifying the configuration.
Note:
All models are auto-sensing for 10/100 operation. Most models are also auto MDI/MDX, i.e.
will automatically work with either a straight-through or cross-over cable. The only
exceptions are the IR2140 and GR2130, which are NOT auto MDI/MDX
21
Using the Command Line Interface
Using a Web browser to modify text box or table values in the configuration pages is the
simplest way to configure the unit and this process is described in the next chapter.
However, if you do not have access to a Web browser, the unit can be configured using text
commands. These commands may be entered directly at one of the serial ports or via a
Telnet session. Remote configuration is also possible using Telnet or X.25.
To use the serial ports you will need a PC and some communications software such as
HyperTerminal ™ (supplied with Windows) or TeraTerm™. The same commands may also
be used to configure the unit remotely via Telnet, X.25 or V.120.
There are several types of text command:
AT Commands & S Registers
AT commands (pronounced “ay tee”) and Special registers (S registers) are supported in
order to maintain compatibility with modems when the unit is used as a modem
replacement.
Application Commands
Application commands are specific to Digi International products and are used to control
most features of the unit when not using the Web interface.
X.3 Commands
These are standard X.3 commands which are used only in X.25 PAD mode
TPAD Commands
These are used only in TPAD mode.
The “AT” Command Interface
Command Prefix
The “AT” command prefix is used for those commands that are common to modems. To
configure the unit using AT commands you must first connect it to a suitable asynchronous
terminal.
You will first need to set the interface speed/data format for your terminal to 115,200bps, 8
data bits, no parity and 1 stop bit (these settings can be changed later if necessary). When
your terminal is correctly configured, apply power and wait for the B2 indicator to stop
flashing.
Unless you have previously configured the unit to automatically connect to a remote system
on powerup, it will now be ready to respond to commands from an attached terminal and is
in “command mode”.
Now type “AT” (in upper or lower case), and press [Enter]. The unit should respond with the
message “OK”. This message is issued after successful completion of each command. If an
invalid command is entered, the unit will respond with the message “ERROR”.
If there is no response, check that the serial cable is properly connected and that your
terminal or PC communications software is correctly configured before trying again.
22
If you have local command echo enabled on your terminal, you may see the AT command
displayed as “AATT”. If this happens you may use the “ATE0” command (which will appear
as “AATTEE00”), to prevent the unit from providing command echo. After this command has
been entered, further commands will be displayed without the echo.
The “AT” command prefix and the commands that follow it can be entered in upper or lower
case. After the prefix, you may enter one or more commands on the same line of up to 40
characters. When the line is entered, the unit will execute each command in turn.
CLI parameter tables and how to use them
After every section, there will be a table that details the CLI parameters that relate to the
web based parameters.
The CLI parameters nearly always take the following format, there are only a few
exceptions.
<entity> <instance> <parameter> <value>
Where:
<entity> = eth, ppp, modemcc, wifi, ike, eroute, etc…
<instance> = 0, 1, 2, 3, etc… Some entities only use 0. Others have multiple instances.
<parameter> = The parameter name, such as, ipaddr, mask, gateway, etc...
<value> = The value to set, such as, off, on, 192.168.1.1, username, free_text, etc…
An example CLI parameter table would look like the following for Ethernet parameters.
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eth n descr Free text field Description
eth n ipaddr Valid IP address IP Address
eth n mask Valid Subnet Mask Mask
eth n gateway IP address Gateway
eth n dnsserver IP address DNS Server
eth n secdns IP address Secondary DNS Server
eth n dhcpcli Off / On On = Get an IP address
automatically using DHCP
Off = Use the following IP address
To use this table, read the row from left to right and replace the values as appropriate.
Only the first 4 columns are needed for the CLI parameters, the right hand column shows
the equivalent web based parameter.
If the Instance is n in the table, it is because there are multiple instances available. Use
the instance number you need for your requirements.
If the Instance is set to a specific number, such as 0, use the number specified in the
table.
For example, to set a ‘Description’ of ‘Local LAN’ on Ethernet 0:
eth 0 descr “Local LAN”
23
Take note that because of the space between ‘Local’ and ‘LAN’, the wording is enclosed in
double quotes.
To set an IP address on 192.168.1.1 on Ethernet 0:
eth 0 ipaddr 192.168.1.1
To set an IP address of 172.16.0.1 on Ethernet 1:
eth 1 ipaddr 172.16.0.1
To enable the DHCP client on Ethernet 2:
eth 2 dhcpcli on
The Escape Sequence
If you enter a command such as “ATD”, which results in the unit successfully establishing a
connection to a remote system, it will issue a “CONNECT” result code and switch from
command mode to on-line mode. This means that it will no longer accept commands from
the terminal. Instead, data will be passed transparently through the unit to the remote
system. In the same way, data from the remote system will pass straight through to your
terminal.
The unit will automatically return to command mode if the connection to the remote system
is terminated.
To return to command mode manually, you must enter a special sequence of characters
called the “escape sequence”. This consists of three occurrences of the “escape character”,
a pause (user configurable) and then “AT”. The default escape character is “+” so the
default escape sequence is:
+++ {pause} AT
Entering this sequence when the unit is on-line will cause it to return to command mode but
it will NOT disconnect from the remote system unless you specifically instruct it to do so
(using “ATH” or another method of disconnecting). If you have not disconnected the call,
the “ATO” command may be used to go back on-line.
Result Codes
Each time an AT command line is executed, the unit responds with a result code to indicate
whether the command was successful. If all commands entered on the line are valid, the
“OK” result code will be issued. If any command on the line is invalid, the “ERROR” result
code will be issued.
Result codes may take the form of an English word or phrase (verbose code) or an
equivalent number (numeric code), depending on the setting of the “ATV” command.
Verbose codes are used by default.
24
The “ATV0” command can be used to select numeric codes if required. The results from the
text based commands can be numeric or verbose. A full list of the Result codes is provided
in the following table:
Numeric code
Verbose code
Meaning
0 OK Command line executed correctly
1 CONNECT ISDN connection established
2 RING Incoming ring signal detected
3 NO CARRIER X.25 service not available
4 ERROR Error in command line
6 NO DIALTONE ISDN service not available
7 BUSY B-channel(s) in use
8 NO ANSWER No response from remote
“S” Registers
“S” (Special) registers are registers in the unit that are used to store certain types of
configuration information. They are essentially a “legacy” feature included to provide
compatibility with software that was originally designed to interact with modems. A full list
of the registers is provided under the section heading “S registers”.
Digi Application Commands
The unit also supports numerous text-based “application” commands that are specific to
Digi International products and do not require the “AT” prefix. Some of these are generic
i.e. they are related to the general operation of the unit; others are application or protocol
specific.
Application commands may be entered via any of the serial ports but if you are using ASY 0
or ASY 1 with auto-speed detection enabled (which is not possible on ports 2, 3, etc.), you
must first lock the interface speed to the same as that of your terminal. To do this first
ensure that the unit is responding to AT commands correctly and then enter the command:
AT\LS
The speed will remain locked until the unit goes on-line and then off-line again, the power is
removed or the unit is reset. Once the port speed has been locked, “AT” commands will still
work but you may also use the application commands.
Remember that if you subsequently re-enable auto-speed detection on the port it will
disable the use of application commands until the “AT\LS” command has been re-entered or
the port speed has been set to a specific speed using “S31”. For example, to set the port
speed at 19,200bps enter the command:
ATS31=6
And then change your terminal settings to match.
Note:
Speed locking is not necessary when you use the text commands via a Telnet session.
25
Digi application commands (referred to just as text commands or CLI commands throughout
the remainder of this guide), can be entered in upper or lower case but unlike “AT”
commands, only one command may be entered on a line. After each successful command,
the “OK” result code will be issued. An invalid command will cause the “ERROR” result code
to be issued.
The general syntax for an application commands is:
<entity> <instance> <param_name> <value>
where:
<entity> is the name of the entity
<instance> is the instance number for the entity that you are configuring.
<param_name> is the name of the parameter that you wish to configure.
<value> is the new value for the specified parameter.
For example, to set the window size to 5 for X.25 PAD instance 1 you would enter:
pad 1 window 5
Even if there is only once instance of particular entity, you should only enter 0 for the
instance number.
Wildcards in the CLI
Wildcards can be used in the field <param_name> when viewing parameters (not setting
them), for example, to view all PPP 1 parameters that start with ‘r’ then command is:
ppp 1 r* ?
The output will show
ppp 1 r* ?
r_mru: 1500
r_acfc: OFF
r_pfc: OFF
r_pap: ON
r_chap: ON
r_accm: 0xffffffff
r_comp: OFF
r_addr: OFF
r_callb: 0
rxtimeout: 23
rdoosdly: 0
restdel: 2000
rebootfails: 0
rip: 0
ripip:
ripauth: 1
ripis: OFF
r_md5: 1
r_ms1: 1
r_ms2: 1
rbcast: OFF
OK
26
The Reboot Command
The reboot command is used to reboot the unit after altering the configuration. It has
three modes of operation:
reboot - will reboot the unit after any FLASH write operations have been completed. Also, 1
second each is allowed for the following operations to be completed before reboot will take
place:
• IPSec SA delete notifications have been created and sent
• TCP sockets have been closed
• PPP interfaces have been disconnected
reboot <n> - will reboot the unit in <n> minutes where n is 1 to 65,535
reboot cancel - will cancel a timed reboot if entered before the time period has passed.
The Active Port
When entering “AT” or text commands it is important to understand that in most cases, the
command only affects the settings for the “active” port. This is usually the port to which you
are physically connected but you may, if necessary, set the active port to another port of
your choice using the “AT\PORT=N” command where “N” is 0-3.
Establishing a Remote Connection
• Once you have finished configuring the unit, there are several ways of establishing a link
to a remote system:
• An outgoing V.120 call may be made using the “ATD” command
• You can initiate a DUN session to establish a dial-up PPP connection.
• An outgoing X.25 call may be made using the “ATD” command followed by the X.28 CALL
command.
• An outgoing TPAD (Transaction PAD) call may be made by using the TPAD “a” (address)
command followed by the appropriate NUA (this is normally only carried out under software
control).
Similarly, incoming calls will be handled according to which protocols have been bound to
the ASY ports and whether or not answering is enabled for each protocol.
27
Configuring your TransPort router
This section describes the various configuration parameters for the unit and how to set or
change them using the built-in web pages or the text commands. Configuration using the
Web pages is achieved by entering the required values into text boxes or tables on the
page, or by turning features on or off using checkboxes. The same results can be achieved
entering the appropriate text commands via one of the serial ports.
Logging In
To configure the unit via the Web interface, either establish a DUN connection to it and then
open your web browser and enter 1.2.3.4 for the web address, or enter the unit’s Ethernet
IP address (192.168.1.1) into your web browser after configuring your PC to have an
address on the same subnet.
You will be presented with a login page similar to the following:
ING YOUR UNIT
The default Username and Password are “username” and “password” respectively. Enter
these and click the Login button to access the configuration pages. The password will be
displayed as a series of dots for security purposes.
28
Correct entry of the username and password will display the main operations page similar to
that shown below.
Clicking on the Click to load Applet graphics! button will display a representation of the
front panel of your unit that will be updated every few seconds to show the actual status of
the LED indicators. The model number of your unit will be shown at the top of the screen.
The unit’s serial number and ID are shown below the front panel representation.
Down the left side of the page you will see, the main menu with subsections which further
expand when clicking on them.
Configuring and Testing W-WAN Models
Refer to the Configuration - Network > Interfaces > Mobile section of this guide to
configure your router for the correct APN and PIN code (if any). You can now power up your
unit and test connection to the wireless network. If you have correctly configured
everything, the W-WAN SIM indicator on the front panel should illuminate green to show
that a W-WAN enabled SIM card is present. The unit will now attempt to log on to the
specified mobile network and if it is able to do so, the W-WAN NET indicator will illuminate
steady. Data passing to and from the network will be reflected by the status of the DAT
indicator, which will flash green. If you are unable to connect to the network, go to the
Management - Network Status > Interfaces > Mobile web page and press the Refresh
button. The page should appear similar to the following:
29
Note:
The signal strength is shown in “negative dB”, which means that the stronger the signal, the
lower the number. As a guide -51dB would be a very strong signal, only normally obtained
very close to a cell site. -115dB represents no signal. If your unit reports -115dB try
reorienting the antenna or consider adding an external antenna.
Signal Strength Indicators
On units equipped with W-WAN modules, there are three LEDs on the front panel that will
indicate the strength of the signal, as shown in the table below.
30
LEDs lit
Signal Strength
None Under -113 dBm (effectively no signal)
1 -112 dBm to -87 dBm (weak signal)
2 -86 dBm to -71 dBm (medium strength signal)
3 -70 dBm to -51 dBm (strong signal)
The minimum recommended strength indication is 2 LEDs. If you have no or 1 LEDs lit, it is
recommended that you fit an external antenna to the unit.
31
Wizards
This page contains wizards that simplify common configuration tasks. These wizards will
change the minimum number of parameters to complete the required configuration task.
However, due to the generic nature of the wizards they may not be suitable for all
circumstances.
Quick Start Wizard
The Quick Start Wizard will display the options required for basic configuration of the Eth 0,
WLAN and WWAN interfaces.
LAN to LAN IPsec Tunnel Wizard
This wizard will help you to configure an aggressive mode LAN to LAN IPsec tunnel to a
remote host.
GOBI Module Carrier Wizard
Used with routers that have a GOBI 2000 module installed, to configure the router for a
specified WWAN carrier.
Dual SIM Wizard
Use this wizard to configure the router to detect a link failure and automatically switch to
the second installed SIM. This wizard only helps to configure the most commonly used
methods of link error detection. There are more options detailed in Application Note 7 which
can be found on the TransPort Support pages of the Digi website.
Note:
The wizards are designed to assist users. For very specific or uncommon requirements then
further manual configuration may be required after completing any of the above wizards.
32
Configuration – Network > Interfaces > Ethernet
Underneath the Ethernet sub menus, there are configuration parameters for:
Physical Ethernet interfaces
Logical Ethernet interfaces
MAC address filtering
MAC address bridging between routers
Spanning Tree Protocol (RSTP)
VLANs
The Configuration - Network > Interfaces > Ethernet folder opens to list configuration pages for
each of the available Ethernet instances on the unit. Each page allows the user to configure
parameters such as the IP address, mask, gateway, etc.
On units with only one Ethernet port, if more than one Ethernet instance exist these are
treated as logical Ethernet ports. These instances can be used to assign more than one
Ethernet IP address to a router.
On units with more than one physical Ethernet port, the Ethernet instances refer to the
different physical Ethernet ports. These units can be configured for either “HUB” mode or
“Port Isolate” mode.
In HUB mode all the Ethernet ports are linked together and behave like an Ethernet hub or
switch. This means that the router will respond to all of its Ethernet IP addresses on all of
its ports (as the hub/ switch behavior links the ports together).
In Port Isolate mode the router will only respond to its Ethernet 0 IP address on physical
port “LAN 0”, its Ethernet 1 IP address on physical port “LAN 1”, etc. The router will not
respond to its Ethernet 1 address on port “LAN 0” unless routing has been configured
appropriately.
When configured for HUB mode it is important that no more than one of the router’s ports is
connected to another hub or switch on the same physical network otherwise an Ethernet
loop can occur. The default behavior is “HUB” rather than “Port Isolate”.
Note:
VLAN tagging is not available when the router is configured for Port Isolate mode.
Configuration - Interfaces > Ethernet > ETH n
This initial view only shows basic IP address parameters. The choice is to obtain an IP
address by using a DHCP server or to manually configure the IP addressing for this
interface.
Description
This parameter allows you to enter a name for this Ethernet instance, to make it easier to
identify.
Get an IP address automatically using DHCP
Selecting this option enables the DHCP client on this interface.
33
Use the following IP address
Selecting this option enables manual configuration of the IP addressing parameters
IP Address
This parameter specifies the IP address of this Ethernet port on your LAN.
Mask
This parameter specifies the subnet mask of the IP subnet to which the unit is attached
via this Ethernet port. Typically, this would be 255.255.255.0 for a Class C network.
Gateway
This parameter specifies the IP address of a gateway to be used by the unit. IP packets
whose destination IP addresses are not on the LAN to which the unit is connected will be
forwarded to this gateway.
DNS Server / Secondary DNS Server
These parameters specify the IP address of DNS servers to be used by the unit for
resolving IP hostnames.
Note:
If the IP address, Mask, Gateway, DNS server or Secondary DNS server parameters are
specified manually, but the option to use a DHCP server is later selected, any existing
manually specified parameters will override the DHCP supplied parameters. To change from
manual configuration to DHCP, be sure to remove all manually specified parameters first.
34
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eth n descr Free text field Description
eth n ipaddr Valid IP address IP Address
eth n mask Valid Subnet Mask Mask
eth n gateway IP address Gateway
eth n dnsserver IP address DNS Server
eth n secdns IP address Secondary DNS Server
eth n dhcpcli on, off On = Get an IP address
automatically using DHCP
Off = Use the following IP address
Configuration - Interfaces > Ethernet > ETH n > Advanced
On units with only one Ethernet port, there may be multiple configurable Ethernet
instances. Ethernet 0 is the physical interface. These extra instances are treated as logical
Ethernet ports and can be used to assign more than one Ethernet IP address to a router.
On units with more than one physical Ethernet port, the Ethernet instances refer to the
different physical Ethernet ports. These units can be configured for either “HUB” mode or
“Port Isolate” mode.
In HUB mode all the Ethernet ports are linked together and behave like an Ethernet hub or
switch. This means that the router will respond to all of its Ethernet IP addresses on all of
its ports (as the hub/ switch behaviour links the ports together).
In Port Isolate mode the router will only respond to its Ethernet 0 IP address on physical
port “LAN 0”, its Ethernet 1 IP address on physical port “LAN 1”, etc. The router will not
respond to its Ethernet 1 address on port “LAN 0” unless routing has been configured
appropriately.
When configured for HUB mode it is important that no more than one of the router’s
Ethernet interfaces is connected to another hub or switch on the same physical network
otherwise an Ethernet loop can occur. The default behaviour is “HUB” rather than “Port
Isolate”.
Port Isolate mode
If the router is running in Port Isolate mode, the following will be displayed, with an option
to switch to Hub mode.
Hub Mode (factory default)
If the router is running in Hub mode, the following will be displayed, with an option to
switch to Port Isolate mode.
35
Ethernet Hub group
On units with a built-in hub/switch, the Ethernet Hub Group parameter for each port is
normally set to 0. This means that all ports “belong” to the same hub. If required however,
the Hub Group parameter may be used to isolate specific ports to create separate hubs. For
example, if Ethernet 0 and Ethernet1 have their Group parameter set to 0 whilst Ethernet 2
and Ethernet 3 have their Group parameter set to 1, the unit will in effect be configured as
two 2-port hubs instead of one 4-port hub. This means that traffic on physical ports “LAN 0”
and “LAN 1” will not be visible to traffic on physical ports “LAN 2” and “LAN 3” (and vice
versa). Group numbers can be 0 – 3 or use 255 for an interface to be in all groups.
This parameter is not available on the web page when the unit is configured for Port Isolate
mode.
Metric
This parameter specifies the connected metric of an interface, changing this value will alter
the metric of dynamic routes created automatically for this interface. The default metric of a
connected interface is 1. By allowing the interface to have a higher value (lower priority),
static routes can take preference to interface generated dynamic routes. For normal
operation, leave this value unchanged.
MTU
This parameter is used to set the Maximum Transmit Unit for the specified interface. The
default value is 0 meaning that the MTU will either be 1504 (for units using a Kendin
Ethernet device) or 1500 (for non-Kendin devices). The non-zero, values must be greater
than 128 and not more than the default value. Values must also be multiples of 4 and the
unit will automatically adjust invalid values entered by the user. So, if the MTU is set to
1000, the largest IP packet that the unit will send is 1000 bytes.
Enable auto-negotiation
Selecting this option allows the router and the other Ethernet device it is connected to, to
auto-negotiate the speed and duplex of the Ethernet connection.
Speed (currently 100Base-T)
This parameter is used to select “10Base-T”, “100Base-T” or “Auto” mode. The currently
selected mode will be shown in brackets after the parameter name.
Note, enabling ‘Auto-negotiation’ AND manually setting the speed will only allow the
selected speed to be negotiated.
Duplex
This parameter is used to select “Full Duplex”, “Half Duplex” or “Auto” mode.
Note, enabling ‘Auto-negotiation’ AND manually setting the Duplex will only allow the
selected Duplex mode to be negotiated.
Max Rx rate
On models with multiple Ethernet interfaces, this parameter may be used to specify a
maximum data rate in kbps that the unit will receive on this interface. This may be useful in
applications where separate Ethernet interfaces are allocated to separate LANs and it is
necessary to prioritize traffic from one LAN over another.
36
Max Tx rate
On models with multiple Ethernet interfaces, this parameter may be used to specify a
maximum data rate in kbps that the unit will transmit on this interface. This may be useful
in applications where separate Ethernet interfaces are allocated to separate LANs and it is
necessary to prioritize traffic from one LAN over another.
TCP transmit buffer size
When set to a non-zero value, this parameter sets the TCP buffer size of transmitted
packets in bytes. This is useful for slow / lossy connections such as satellite. Setting this
buffer to a low value will prevent the amount of unacknowledged data from getting too high.
If retransmits are required, a smaller TX buffer helps prevent retransmits flooding the
connection.
Take this interface out of service after n seconds when the link is lost
(e.g. cable removed or broken)
This parameter is used to specify the length of time (in seconds) that the router will wait
after detecting that an Ethernet cable has been removed before routes that were using that
interface are marked as out of service. If the parameter is set to 0, the feature is disabled
i.e. routes using the interface will not be marked as out of service if the cable is removed.
Enable NAT on this interface
This parameter is used to select whether IP Network Address Translation (NAT) or Network
Address and Port Translation (NAPT) are used at the Ethernet interface. When the
parameter is set to disabled, no NAT will take place. When this parameter is enabled, extra
options described below will be displayed.
NAT and NAPT can have many uses but they are generally used to allow a number of private
IP hosts (PCs for example) to connect to the Internet through a single shared public IP
address. This has two main advantages, it saves on IP address space (the ISP only need
assign you one IP address), and it isolates the private IP hosts from the Internet (effectively
providing a simple firewall because unsolicited traffic from the Internet cannot be routed
directly to the private IP hosts.
To use NAT or NAPT correctly in the example of connecting private hosts to the Internet,
NAT or NAPT should be enabled on the router’s WAN side interface and should be disabled
on the router’s LAN side interface.
IP address
When a private IP host sends a UDP or TCP packet to an Internet IP address, the router
will change the source address of the packet from the private host IP to the router’s
public IP address before forwarding the packet onto the Internet host. Additionally it will
create an entry in a “NAT table” containing the private IP source address, the private IP
port number, the public IP destination address and the destination port number.
Conversely, when the router receives a reply packet back from the public host, it checks
the source IP, source port number and destination port number in the NAT table to
determine which private host to forward the packet to. Before it forwards the packet back
to the private host, it changes the destination IP address of the packet from its public IP
address to the IP address of the private host.
37
IP address and Port
This mode behaves like NAT but in addition to changing the source IP of the packet from
the private host it can also change the source port number. This is required if more than
one private host attempts to connect using the same local port number to the same
Internet host on the same remote port number. If such a scenario were to occur with
NAT the router would be unable to determine which private host to route the returning
packets to and the connection would fail.
Enable IPsec on this interface
This parameter is used to enable or disable IPSec security features for this Ethernet
interface.
Use interface x,y for the source IP address of IPsec packets
By default, the source IP address for an IPsec Eroute will be the IP address of the
interface on which IPSec was enabled. By setting this parameter to either PPP or Ethernet
and the relevant interface number, the source address used by IPSec will match that of
the Ethernet or PPP interface specified.
Enable the firewall on this interface
This parameter is used to turn Firewall script processing “On” or “Off” for this interface.
Remote management access
The Remote access options parameter can be set to “No restrictions”, “Disable
management”, “Disable return RST”, “Disable management & return RST”. When set to “No
restrictions”, users on this interface can access the unit’s Telnet, FTP and web services for
the purpose of managing the unit.
When set to “Disable management”, users on this interface are prevented from managing
the unit via Telnet, FTP or the web interface.
Disable return RST - whenever a unit receives a TCP SYN packet for one of its own IP
addresses with the destination port set to an unexpected value, i.e. a port that the unit
would normally expect to receive TCP traffic on, it will reply with a TCP RST packet. This is
normal behaviour.
However, the nature of internet traffic is such that whenever an internet connection is
established, TCYP SYN packets are to be expected. As the router’s PPP inactivity timer is
restarted each time the unit transmits data (but not when it receives data), the standard
response of the unit to SYN packets i.e. transmitting an RST packet, will restart the
inactivity timer and prevent the unit from disconnecting the link even when there is no
“genuine” traffic. This effect can be prevented by using the appropriate commands and
options within the firewall script. However, on Digi 1000 series units, or where you are not
using a firewall, the same result can be achieved by selecting this option, i.e. when this
option is selected the normal behaviour of the unit in responding to SYN packets with RST
packets is disabled. The option will also prevent the unit from responding to unsolicited UDP
packets with the normal ICMP destination unreachable responses.
The “Disable management & return RST” option prevents users from managing the unit via
the Telnet, FTP and web interfaces and also disables the transmission of TCP RST packets as
above.
38
Multihome additional consecutive addresses
This parameter defines how many additional (consecutive) addresses the ethernet driver will
“own”. For example, if the IP address of the interface was 10.3.20.40, and Multihome
additional consecutive addresses was set to 3, the IP addresses 10.3.20.41, 10.3.20.42 and
10.3.20.43 would also belong to the Ethernet interface.
Enable IGMP on this interface
This parameter is used to enable or disable the Internet Group Management Protocol for this
Ethernet interface.
Enable Bridge on this interface
Bridge mode only applies to models with built in Wi-Fi. If Wi-Fi is enabled, bridge mode
must be enabled on the Eth 0. This will create an Ethernet bridge between the Wi-Fi access
point and the physical Ethernet interface.
Generate Heartbeats on this interface
Enabling this option will display the parameters for Heartbeat packets. These are UDP
packets which can contain status information about the router and can be used in
conjunction with Remote Manager.
Send Heartbeat messages to IP address a.b.c.d every h hrs m mins s seconds
Where:
a.b.c.d specifies the destination IP address for heartbeat packets.
h, m & s specifies how often the router will transmit “heartbeat” packets to the specified
destination in (h) Hours, (m) Minutes and (s) Seconds.
Use interface x,y for the source IP address
By default, heartbeat packets will be sent with the source IP address of the interface on
which they were generated. If the heartbeat is required to be sent via an IPSec tunnel,
this parameter can be used to specify the source IP address of the heartbeat packet to
ensure the source and destination match the eroute selectors.
Select the transmit interface using the routing table
When enabled, the UDP heartbeats will choose the best route from the routing table. If
disabled the exit interface will be interface on which the heartbeat is configured.
Include IMSI information in the Heartbeat message
When enabled, the heartbeat will include the IMSI of the cellular module.
Include GPS information in the Heartbeat message
When enabled and the appropriate GPS hardware is installed, the heartbeat will include
the GPS co-ordinates of the router.
Generate Ping packets on this interface
Enabling this option will display the parameters for enabling auto-pings to be transmitted
from this interface. These pings can be monitored by the interface auto-pings were enabled
on and in the event of no ping reply, the interface can be taken out of service for a specified
amount of time, before allowing the interface to be used again. Another option is to enable
auto-pings on this interface and let the firewall handle taking the interface out of service in
the event of a failure. Both methods are explained in Application Notes on our Technical
Support Documents webpage.
39
Send n byte pings to IP host a.b.c.d every h hrs m mins s seconds
Where:
n specifies the payload size of a ping packet when used with the auto ping feature.
Leaving this parameter blank will use the default value.
a.b.c.d specifies the destination IP address for auto-ping ICMP echo request.
h, m & s specifies how often the router will transmit “Auto-ping” packets to the specified
destination in (h) Hours, (m) Minutes and (s) Seconds.
Switch to sending pings to IP host a.b.c.d after n failures
Where:
a.b.c.d specifies an alternative destination IP address for the auto-ping ICMP echo
request to be sent to, should the main IP address specified in the parameter above fail to
respond. This allows the router to double check there is a problem with the connection
and not just with the remote device not responding.
n specifies the number pings that need to fail before the 2nd IP address is checked. The
extra IP address check is only enabled if this parameter is set to something other than 0.
Only send Pings when this Ethernet interface is "In Service"
If this parameter is enabled, ICMP echo requests will only be sent from this interface
when it is in service. The default setting is disabled, ICMP echo requests are sent when
the interface is in service and out of service.
Take this interface "Out of Service" after receiving no responses for s seconds
This parameter is used to specify the length of time in (s) seconds, before a route will be
designated as being out of service if there has been no response to ANY of the ICMP echo
requests during that time period.
Keep this interface out of service for s seconds
This parameter is used to specify the length of time in (s) seconds, for which any routes
using this Ethernet interface will be held out of service after a ping failure is detected.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
n/a n/a ethvlan n/a Switch to Port Isolate Mode
n/a n/a ethhub n/a Switch to Hub Mode
eth n group 0 - 3,255 Ethernet Hub group
eth n metric 1 - 16 Metric
eth n mtu 64 - 1500 MTU
eth n auton 0,1 Enable auto-negotiation
eth n speed 0,10,100
Speed
0 = Auto
10 = 10-BaseT
100 = 100-BaseT
eth n duplex 0,1,2
Duplex
0 = Auto
1 = Full
2 = Half
eth n maxkbps value in kbps Max Rx rate
eth n maxtkbps value in kbps Max Tx rate
40
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eth n tcptxbuf value in bytes TCP transmit buffer size
eth n linkdeact 0 - 86400 Take this interface out of service
after n seconds when the link is
lost
eth n do_nat 0,1,2
Enable NAT on this interface
0 = Disabled
1 = IP address
2 = IP address and Port
eth n ipsec 0,1 Enable IPsec on this interface
eth n ipsecent blank,ETH,PPP Use interface x,y for the source IP
address of IPsec packets
x = Interface type
eth n ipsecadd 0 - 255 Use interface x,y for the source IP
address of IPsec packets
y = interface number
eth n firewall 0,1 Enable the firewall on this interface
eth n nocfg 0,1,2,3
Remote management access
0 = No restrictions
1 = Disable management
2 = Disable return RST
3 = Disable management
and return RST
eth n mhome 0 - 255 Multihome additional consecutive
addresses
eth n igmp 0,1 Enable IGMP on this interface
eth n bridge 0,1 Enable Bridge on this interface
eth n heartbeatip IP address Send Heartbeat messages to IP
address a.b.c.d every h hrs m mins
s seconds
eth n hrtbeatint 0 - 86400
Send Heartbeat messages to IP
address a.b.c.d every h hrs m mins
s seconds
This CLI value is entered in seconds
only.
eth n hbipent blank,ETH,PPP Use interface x,y for the source IP
address
x = Interface type
eth n hbipadd 0 - 255 Use interface x,y for the source IP
address
y = interface number
eth n hbroute 0,1 Select the transmit interface using
the routing table
eth n hbimsi 0,1 Include IMSI information in the
41
Entity
Instance
Parameter
Values
Equivalent Web Parameter
Heartbeat message
eth n hbgps 0,1 Include GPS information in the
Heartbeat message
eth n pingsiz value in bytes Send n byte pings to IP host a.b.c.d
every h hrs m mins s seconds
eth n pingip IP address Send n byte pings to IP host a.b.c.d
every h hrs m mins s seconds
eth n pingint 0 - 86400
Send n byte pings to IP host a.b.c.d
every h hrs m mins s seconds
This CLI value is entered in seconds
only.
eth n pingip2 IP address Switch to sending pings to IP host
a.b.c.d after n failures
eth n ip2count 0 - 255 Switch to sending pings to IP host
a.b.c.d after n failures
eth n pingis 0,1 Only send Pings when this Ethernet
interface is "In Service"
eth n pingoos 0 - 86400 Take this interface "Out of Service"
after receiving no responses for s
seconds
eth n oossecs 0 - 86400 Keep this interface out of service
for s seconds
Configuration - Interfaces > Ethernet > ETH n > QoS
The parameters on this page control the Quality of Service management facility. Each
Ethernet interface has an associated QoS instance, where ETH 0 maps to QoS 5, ETH 1
maps to QoS 6 and so on. These QoS instances include ten QoS queues into which packets
may be placed when using QoS. Each of these queues must be assigned a queue profile
from the twelve available.
Enable QoS on this interface
This checkbox, when checked, reveals the following QoS configuration parameters:-
Link speed n Kbps
The value in this text entry box should be set to the maximum data rate that this PPP link is
capable of sustaining. This is used when calculating whether or not the data rate from a
queue may exceed its minimum Kbps setting as determined by the profile assigned to it and
send at a higher rate (up to the maximum Kbps setting).
Queue n
Below this column heading, is a list of ten queue instances. Each instance is associated with
the profile and priority on the same row.
Profile n
This column contains the profile to be associated with the queue. There are twelve available,
0 – 11, which are selected from the drop-down list boxes.
42
Priority
This column contains drop-down menu boxes which are used to assign a priority to the
selected queue. The priorities available are: “Very High”, “High”, “Medium”, “Low”, and
“Very Low”.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
qos n linkkbps Integer Link speed n kbps
qos n q0prof 0 - 11 Queue 0 Profile
qos n q0prio
0 – 4
0 = Very high
1 = High
2 = Medium
3 = Low
4 = Very Low
Queue 0 Priority
qos n q1prof 0 – 11
Queue 1 Profile
qos n q1prio 0 – 4
Queue 1 Priority
qos n q2prof 0 - 11 Queue 2 Profile
qos n q2prio 0 – 4 Queue 2 Priority
qos n q3prof 0 - 11 Queue 3 Profile
qos n q3prio 0 – 4 Queue 3 Priority
qos n q4prof 0 - 11 Queue 4 Profile
qos n q4prio 0 – 4 Queue 4 Priority
qos n q5prof 0 - 11 Queue 5 Profile
qos n q5prio 0 – 4 Queue 5 Priority
qos n q6prof 0 - 11 Queue 6 Profile
qos n q6prio 0 – 4 Queue 6 Priority
qos n q7prof 0 - 11 Queue 7 Profile
qos n q7prio 0 – 4 Queue 7 Priority
qos n q8prof 0 - 11 Queue 8 Profile
qos n q8prio 0 – 4 Queue 8 Priority
qos n q9prof 0 - 11 Queue 9 Profile
qos n q9prio 0 – 4 Queue 9 Priority
43
Configuration - Interfaces > Ethernet > ETH n > VRRP
VRRP (Virtual Router Redundancy Protocol) allows multiple physical routers to appear as a
single gateway for IP communications in order to provide back-up WAN communications in
the event that the primary router in the group fails in some way. It works by allowing
multiple routers to monitor data on the same IP address. One router is designated as the
“Master” of the address and under normal circumstances it will route data as usual.
However, the VRRP protocol allows the other routers in the VRRP group to monitor the
“Master” and if, they detect that it is no longer operating, negotiate with each other to take
over the role as owner. The protocol also facilitates the automatic re-prioritization of the
original owner when it returns to operation.
Enable VRRP on this interface
This parameter enables VRRP on this interface.
VRRP Group ID
The VRRP group ID parameter is used to identify routers that are configured to operate
within the same VRRP group. The default value is 0 which means that VRRP is disabled on
this Ethernet interface. The value may be set to a number from 1 to 255 to enable VRRP
and include this Ethernet port in the specified VRRP group.
VRRP Priority
This parameter is used to set the priority level of this Ethernet interface within the VRRP
group from 0 to 255. 255 is the highest priority and setting the priority to this value would
designate this Ethernet interface as the initial “Master” within the group. The value selected
for the VRRP priority should reflect the values selected for other routers within the VRRP
group, i.e. no two routers in the group should be initialized with the same value.
Boost the priority by n for s seconds after switching to the MASTER state
Increases the VRRP priority by the specified amount for the specified amount of time when
the router has become the VRRP group master. The reason for why you might want to do
this is to provide some network stability if the original Master keeps going on and off line
thus causing a lot of VRRP state switches.
Enable VRRP+ Probing
This parameter enables VRRP+ probing on this Ethernet interface.
VRRP with probing differs from standard VRRP in that it dynamically adjusts the VRRP
priority of an interface and if necessary, changes the status of that interface from “master”
to “backup” or vice-versa. It does this by “probing” an interface, either by sending an ICMP
echo request (PING) or by attempting to open a TCP socket to the specified Probe IP
address. Hence VRRP operation is enhanced to ensure that a secondary router can take over
under a wider range of circumstances.
Send p probe to IP address a.b.c.d TCP port n
Configures VRRP+ to send a probe packet to desired IP address and TCP port. The TCP port
is needed if the probe type is TCP.
44
The routing code is used to determine which interface should be used. This allows the unit
to test other interfaces and adjust the VRRP priority according to the status of that
interface. For example, the user may wish to configure probing in such a way that the Digi
router WAN interface is tested, and adjust the VRRP priority down if the WAN is not
operational. Another example would be to probe the WAN interface of another VRRP router,
and adjust the local VRRP priority up if that WAN interface isn’t operational. When
configured to probe in this manner, it is necessary to configure a second Ethernet interface
to be on the same subnet as the VRRP interface. This is because the VRRP interface cannot
be used when it is in backup mode. The probes should be sent on this second interface. The
second interface will have the other VRRP router as its gateway. The routing table should be
configured to direct packets for the probe address to the desired interface.
every n seconds when in Backup state
The interval between successive probe attempts when the interface is in Backup state.
every n seconds when in Master state
The interval between successive probe attempts when the interface is in Master state.
Adjust priority n dir after x probe failures
These parameter control by how much and in which direction the VRRP priority is adjusted
when the specified number of probes have failed.
Reset probe failure count after n probe successes
The number of consecutive successful probes that are required before the current failure
count is reset to 0.
Use interface x,y over which to send probe
These parameters can be used to override the routing code and force the probe packets to
be sent out of a specific interface.
Get the source IP address from interface x,y
These parameters can be used to the probe packets have the source IP address from a
specific interface rather than the interface over which it is being transmitted.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
eth n vrrpid 0 – 255 VRRP Group ID
eth n vrrpprio 0 - 255 VRRP Priority
eth n vboostprio 0 - 255 Boost the priority by n for s
seconds after switching to the
MASTER state
eth n vboostsecs Integer Boost the priority by n for s
seconds after switching to the
MASTER state
eth n vprobemode off, TCP, ICMP Send p probe to IP address
a.b.c.d TCP port n
eth n vprobeip IP Address Send p probe to IP address
a.b.c.d TCP port n
eth n vprobeport 0 – 65535 Send p probe to IP address
a.b.c.d TCP port n
45
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eth n vprobebackint 0 - 32767 every n seconds when in
Backup state
eth n vprobemastint 0 - 32767 every n seconds when in Master
state
eth n vprobeadj 0 - 255 Adjust priority n dir after x
probe failures
eth n vprobeadjup 0 = down
1 = up Adjust priority n dir after x
probe failures
eth n vprobefailcnt 0 – 255 Adjust priority n dir after x
probe failures
eth n vprobesuccesscnt 0 - 255 Reset probe failure count after
n probe successes
eth n vprobeent Auto, ETH, PPP Use interface x,y over which to
send probe
eth n vprobeadd Integer Use interface x,y over which to
send probe
eth n vprobeipent Auto, ETH, PPP Get the source IP address from
interface x,y
eth n vprobeipadd Integer Get the source IP address from
interface x,y
Configuration - Interfaces > Ethernet > Logical Ethernet Interfaces
The logical Ethernet interfaces are virtual Ethernet interfaces. They can be configured as per
the standard Ethernet interfaces except for the Speed and Duplex settings which require a
physical interface.
Logical Ethernet interfaces can be used for assigning extra IP addresses to the router on the
same or an alternate subnet using the same physical Ethernet connection.
Logical Ethernet interfaces can also be used for bridging features (such as used in a Wi-Fi
configuration) where it is desirable to not use a physical interface for the bridging.
Configuration - Interfaces > Ethernet > ETH n > MAC Filtering
Ethernet MAC filtering can be used to restrict which Ethernet devices can send packets to
the router. If MAC filtering is enabled on an Ethernet interface, only Ethernet packets with a
source MAC address that is configured in the MAC Filter table will be allowed. If the source
MAC address is not in the MAC Filter table, the packet will dropped.
Enable MAC filtering on Ethernet interfaces
Enable MAC filtering on a specific Ethernet interface.
MAC Address
The Ethernet source MAC address to allow. It is possible to allow a range of MAC addresses
by configuring only the significant part of the MAC address. E.g. “00:04:2d” will allow all
Ethernet packets with a source MAC address starting with “00:04:2d”.
46
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eth n macfilt on, off Enable MAC filtering on
Ethernet interfaces
macfilt n mac
MAC address with no
separators.
Partial MAC address
are allowed.
MAC Address
Configuration - Interfaces > Ethernet > ETH n > MAC Bridging
The Ethernet MAC bridge function will create an Ethernet bridge between two physically
separate Ethernet networks. It is possible to allow bridging over DSL, W-Wan, ISDN and
PSTN connections but note that the only restriction on the traffic sent across the link is done
via MAC address filtering and that all Ethernet traffic will be bridged, no firewall restrictions
are applied to this traffic.
Once the bridge has been configured, the MAC addresses to bridge need to be configured in
the MAC bridge table.
Enable
Enable MAC bridging on the Ethernet interface.
Forward to IP address
The IP address of the remote router to which the Ethernet packets will be bridged to.
47
Port
The TCP port that the remote router is listening on.
Listen on Port
The TCP port that the router will listen on for incoming bridged packet from the remote
router.
MAC Address
The Ethernet destination MAC address of packets to be bridged. It is possible to allow a
range of MAC addresses by configuring only the significant part of the MAC address. E.g.
“00042d” will allow all Ethernet packets with a source MAC address starting with
“00:04:2d”.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
eth n srcbhost IP Address Forward to IP address
eth n srchport 0 – 65535 Port
eth n srcblistenport 0 - 65535 Listen on Port
bridgemac n mac
MAC address with
no separators.
Partial MAC address
are allowed.
MAC Address
Configuration - Interfaces > Ethernet > ETH n > Spanning Tree Protocols
The Rapid Spanning Tree Protocol (RSTP) is a layer 2 protocol which ensures a loop free
topology on a switched or bridged LAN whilst allowing redundant physical links between
switches. When enabled, the TransPort device will use RSTP but this is backwards
compatible with STP.
RSTP will not be enabled if the router is in "Port Isolate" mode. If an Ethernet interface is
configured with a hub group, RSTP will be disabled on that interface.
Enable RSTP
Enables RSTP on the router.
Priority
Sets the RSTP priority.
Group
Sets the RSTP group that the router is in.
48
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
stp 0 enable on, off Enable RSTP
stp 0 prio 0 – 65535 Priority
stp 0 group - Group
stp 0 debug 0, 1 Not available on the WEB
interface.
Port status
To view the status of RSTP/STP on a router’s Ethernet ports, the following commands can
be used.
stp show
Port 0, Designated, Forwarding ctrl2:0x6
Port 1, Backup, Discarding ctrl2:0x1
Port 2, Backup, Discarding ctrl2:0x1
Port 3, Disabled, Discarding ctrl2:0x1
The port roles are
Disabled There is nothing physically connected to this Ethernet port.
Root A forwarding port that has been elected for the spanning-tree topology,
towards the root bridge.
Designated A forwarding port for every LAN segment, away from the root bridge.
Alternate An alternate path to the root bridge. This path is different than using
the root port.
Backup A backup/redundant path to a segment where another bridge port
already connects.
The STP port states are:
Disabled The port is not functioning and cannot send or receive data.
Listening The port is sending and receiving BPDU's and participates in the
election process of the root bridge. Ethernet frames are discarded.
Learning The port does not yet forward frames but it does learn source
addresses from frames received and adds them to the MAC address
table.
Forwarding The port receiving and sending data, normal operation. STP still
monitors incoming BPDU’s that would indicate it should return to the
blocking state to prevent a loop.
locking A port that would cause a switching loop, no user data is sent or
49
received but it may go into forwarding mode if the other links in use
were to fail and the spanning tree algorithm determines the port may
transition to the forwarding state. BPDU data is still received in blocking
state.
The RSTP port states are
Learning The port does not yet forward frames but it does learn source
addresses from frames received and adds them to the MAC address
table. The port processes BPDU’s.
Forwarding The port receiving and sending data, normal operation. STP still
monitors incoming BPDU’s that would indicate it should return to the
blocking state to prevent a loop.
Discarding A port that would cause a switching loop, no user data is sent or
received but it may go into forwarding mode if the other links in use
were to fail and the spanning tree algorithm determines the port may
transition to the forwarding state. BPDU data is still received in blocking
state.
Configuration - Interfaces > Ethernet > ETH n > VLANs
VLANs (Virtual LANs) facilitate splitting a single physical LAN into separate Virtual LANs. This
is useful for security reasons, and will also help cut down on broadcast traffic on the LAN.
Enable VLAN support on Ethernet interfaces
Enables VLAN support on the Ethernet interface.
VLAN ID
The ID of the Virtual LAN. This parameter is used in the TCP header to identify the
destination VLAN for the packet.
Ethernet Interface
The Ethernet port that will tag the outgoing packets. Packets sent from this interface will
have VLAN tagging applied.
IP Address
The destination IP address. This parameter is optional. If configured, only packets destined
for this IP address will have VLAN tagging applied.
Mask
The destination IP subnet mask. This parameter is optional. If configured, only packets
destined for this IP subnet mask will have VLAN tagging applied.
Source IP Address
The source IP address. This parameter is optional. If configured, only packets from this IP
address will have VLAN tagging applied.
50
Source Mask
The source IP subnet mask. This parameter is optional. If configured, only packets from this
IP subnet mask will have VLAN tagging applied.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
eth n vlan on, off Enable VLAN support on
Ethernet interfaces
vlan n vlanid 0 - 4095 VLAN ID
vlan n ethctx Integer Ethernet Interface
vlan n ipaddr IP Address IP Address
vlan n mask IP Mask Mask
vlan n srcipaddr IP Addess Source IP Address
vlan n srcmask IP Mask Source Mask
51
Configuration - Network > Interfaces > Wi-Fi
This is the section of the web interface that contains the configuration options required in
order to configure and enable the Wi-Fi features.
Configuration - Network > Interfaces > Wi-Fi > Global Wi-Fi settings
Due to national restrictions on the channels available for use, the correct country should be
selected from the drop down list to restrict the channels that are legal to use by the router.
If required, a specific channel can be selected to over-ride the auto selection.
Country
Selecting a country from the drop down list will restrict the channels that the router will use.
See table for more info on licensed channels.
Network Mode
Select your chosen mode of operation from the drop down list. The options are:
• A
• B / G
This parameter is not available on all routers.
Channel
Selecting “Auto” will allow the router to scan for a free channel within the range of legal
channels for the selected country. It is possible to manually select a specific channel to use
but care should be taken to ensure the selected channel is legal to use in the country.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
wifi 0 country Country name Country
wifi 0 chanmode a / bg Network Mode
wifi 0 channel auto, 1 – 14 Channel
Below is a list of the countries that are currently supported:
Albania
Algeria
Argentina
Armenia
Australia
Austria
Azerbaijan
Bahrain
Belarus
Belgium
Belize
Bolivia
Brazil
Brunei
Bulgaria
Guatemala
Honduras
Hong Kong
Hungary
Iceland
India
Indonesia
Iran
Iraq
Ireland
Israel
Italy
Jamaica
Japan
Jordan
Oman
Pakistan
Panama
Paraguay
Peru
Philippines
Poland
Portugal
Puerto Rico
Qatar
Romania
Russia
Saudi Arabia
Singapore
Slovak Republic
52
Canada
Chile
China
Colombia
Costa Rica
Croatia
Cyprus
Czech Republic
Denmark
Dominican Republic
Ecuador
Egypt
El Salvador
Estonia
Faroe Islands
Finland
France
Georgia
Germany
Greece
Kazakhstan
Kenya
North Korea
South Korea
Kuwait
Latvia
Lebanon
Libya
Liechtenstein
Lithuania
Luxembourg
Macau
Macedonia
Malaysia
Mexico
Monaco
Morocco
Netherlands
New Zealand
Nicaragua
Norway
Slovenia
South Africa
Spain
Sweden
Switzerland
Syria
Taiwan
Thailand
Trinidad and Tobago
Tunisia
Turkey
U.A.E.
Ukraine
United Kingdom
United States
Uruguay
Uzbekistan
Venezuela
Vietnam
Yemen
Zimbabwe
This table lists the licensed channels that will be used by the Digi when “Auto” is selected
for the channel number.
Region
Channels
EMEA (excluding France) 1 - 13
France 10 - 13
Americas (excluding Mexico) 1 - 11
Mexico 1 - 8 Indoor, 9 - 11 outdoor
Israel 3 – 9
China 1 - 11
Japan 1 - 14
NOTE:
It is ILLEGAL to use restricted channels in certain countries.
Configuration - Network > Interfaces > Wi-Fi > Global Wi-Fi settings > Wi-
Fi Hotspot
53
This section enables the configuration of the global parameters that are applicable if using
any Wi-Fi node as a hotspot.
Enable Wi-Fi Hotspot on
Click the checkbox to enable Wi-Fi Hotspot support on a particular Wi-Fi node.
Splashscreen filename
This selects an ASP web file that will be presented to the client’s internet browser when they
connect for the first time.
Each client can connect for h hrs m mins
The amount of time that a Wi-Fi client can use the Wi-Fi hotspot before having to re-
authenticate.
Hotspot Exceptions
It is possible to configure a number of web locations for which authentication is not
required. These allow the splashscreen to access these locations in order to display them to
the client when authenticating.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
wifinode n hotspot on, off Enable Wi-Fi Hotspot on
wifi 0 hotspot_fname Filename Splashscreen filename
wifi 0 hotspot_lifetime Integer
Each client can connect for h hrs m
mins
The CLI value is entered in seconds
only.
hshosts n host Hostname Hotspot Exceptions
Configuration - Network > Interfaces > Wi-Fi > Global Wi-Fi settings >
Wi-Fi Filtering
You can restrict access to the router via Wi-Fi. When the filtering is enabled, only MAC
addresses configured in the table will be allowed to connect to the router.
Enable Wi-Fi filtering
Enable Wi-Fi filtering so that only clients who have their Wi-Fi MAC address configured in
the MAC address table will be allowed to connect.
54
MAC Address
MAC addresses of Wi-Fi client that you wish to allow access to.
A valid MAC address has the format: 11:22:33:44:55:66. When entering this parameter,
omit the ‘:’ separators. For example 112233445566
NOTE:
Carefully review settings before applying changes. Incorrect settings can make the
TransPort device inaccessible from the Wi-Fi network.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
wifi 0 macfilter on/off Enable Wi-Fi filtering
wififilt n mac MAC address with no
separators
e.g. 112233445566 MAC Address
Configuration - Network > Interfaces > Wi-Fi > Wi-Fi n
When a Wi-Fi interface is configured to be an Access Point, an SSID must be configured in
order for a Wi-Fi interface to operate.
In order to forward packets to and from a Wi-Fi interface, it must be bridged to a configured
Ethernet interface. The Wi-Fi interface and Ethernet interface must be in the same Bridge
instance.
If a DHCP server is required to run on the Wi-Fi interface, the DHCP server instance
corresponding bridged Ethernet interface should be configured.
In some cases it may be necessary to bridge multiple Ethernet instances to a single Wi-Fi
instance. If this is required, only one Ethernet instances is should be configured.
Enable this Wi-Fi interface
The Wi-Fi interface can be enabled or disabled.
Description
This parameter allows you to enter a descriptive name for the Wi-Fi interface to make it
easier to identify.
SSID
When the Wi-Fi interface is configured to be an Access Point, this is the SSID that will be
advertised to the Wi-Fi clients to.
When the Wi-Fi interface is configured to be a Client, this is the SSID of the Access Point
you wish to connect to.
Mode
The Wi-Fi interface can be run in various modes. The options are:
• Access Point
• Client
• Rogue Detection (Scan for unauthorised Access Points)
This Wi-Fi interface is a member of Bridge instance n and therefore bridged to the
following interfaces
55
When the Wi-Fi interface is configured to be an Access Point, in order to forward packets to
and from the Wi-Fi interface it must be bridged with an Ethernet interface using a Bridge
instance.
Interface
The interfaces that are currently members of the selected Bridge instance. Note that
multiple Wi-Fi interfaces can be members of the same Bridge instance.
Link this Wi-Fi client interface with Ethernet n
When the Wi-Fi interface is configured to be a client, it must be bridged to a particular
Ethernet interface.
This Wi-Fi rogue scanner will use Ethernet n
When the Wi-Fi interface is configured to be a rogue scanner, it will use the selected
Ethernet interface.
Hide SSID
When enabled, the SSID will not be included in the beacon messages transmitted by the Wi-
Fi interface when in Access Point mode. This means that Wi-Fi clients will not be able to
auto-detect the Access Point.
Isolation
When enabled, connected Wi-Fi clients will not be able to communicate with other Wi-Fi
clients or Ethernet hosts connected to this AP.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
wifinode 0 enabled on, off Enable this Wi-Fi interface
wifinode 0 descr String Description
wifinode 0 ssid String up to 32
characters SSID
wifinode 0 mode ap, client, rogue Mode
wifinode o bridge_inst 0 - 3
This Wi-Fi interface is a member
of Bridge instance n and
therefore bridged to the following
interfaces
eth n bridge_inst 0 – 3 Interface
eth n wificli on, off Link this Wi-Fi client interface
with Ethernet n
eth n wificli_add Integer Link this Wi-Fi client interface
with Ethernet n
wifinode 0 broadcastssid on, off Hide SSID
wifinode 0 isolation on, off Enable station isolation
Configuration - Network > Interfaces > Wi-Fi > Wi-Fi n - Wi-Fi Security
This section is used to configure the security settings for the Wi-Fi interface.
56
If using multiple Wi-Fi interfaces at the same time then the interfaces will need to use the
same security settings (except for the pre-shared key (PSK)). The only alternative is that
the Wi-Fi is be used with no security.
Use the following security on this Wi-Fi interface
Selects the security that is used on this Wi-Fi interface. The options are:
• None
• WEP
• WPA-PSK (also known as “WPA Personal”)
• WPA2-PSK (also known as “WPA2 Personal”)
• WPA-RADIUS (also known as “WPA Enterprise”)
• WPA2-RADIUS (also known as “WPA2 Enterprise”)
WEP Settings
The various WEP security settings for both Access Point and Client modes.
WEP Key size
The key size to use.
WEP Key index
The WEP key index number. This needs to match the index selected on the connecting
Wi-Fi clients or Access Points that this router wishes to connect to.
WEP Key / Confirm WEP Key
If the WEP key size is 64 bits, the key should be 5 characters long. If the WEP key size is
128 bits, the key should be 13 characters long.
WPA-PSK / WPA2-PSK
The various WPA-PSK / WPA2-PSK security settings for both Access Point and Client modes.
WPA Encryption
The encryption algorithm to use. The options are:
• TKIP
• AES (CCMP)
WPA pre-shared key / Confirm WPA pre-shared key
The pre-shared key (PSK) to use. It must be between 8 and 63 characters long.
WPA-RADIUS / WPA2-RADIUS
The various WPA-RADIUS / WPA2- RADIUS security settings for both Access Point and Client
modes.
WPA Encryption
The encryption algorithm to use. The options are:
• TKIP
• AES (CCMP)
RADIUS NAS ID
NAS ID of the RADIUS server.
RADIUS Server IP Address
IP address of the RADIUS server
RADIUS Server Password / Confirm RADIUS Server Password
57
The password of the RADIUS server.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
wifinode 0 security
none
wep
wpapsk
wpa2psk
wparadius
wpa2radius
Use the following security on
this Wi-Fi interface
wifinode 0 weptype open, sharedkey Not available on the WEB.
wifinode 0 wepkeylen 64, 128 WEP Key size
wifinode 0 wepkeyindex 1 - 4 WEP Key index
wifinode 0 wpatype tkip, aes WPA Encryption
wifinode 0 sharedkey text WEP Key/WPA pre-shared key
radcli n* nasid String RADIUS NAS ID
radcli n* server IP Address RADIUS Server IP Address
radcli n* password String RADIUS Server Password
* The Wi-Fi interfaces each use a fixed RADIUS client, e.g.,
• Wi-Fi 0 uses radcli 1
• Wi-Fi 1 uses radcli 2
• Wi-Fi 2 uses radcli 3 and so on.
58
The table below details the authentication and encryption algorithms and the CLI commands
needed to configure them.
Network
Authentication
Data Encryption CLI Commands
Open Disabled wifinode 0 security none
Shared Disabled Not supported
Open WEP
wifinode 0 security wep
wifinode 0 weptype open
wifinode 0 wepkeylen <64 |
128>
wifinode 0 wepkeyindex <1..4>
wifinode 0 sharedkey <5 or 13
char key>
Shared WEP
wifinode 0 security wep
wifinode 0 weptype sharedkey
wifinode 0 wepkeylen <64 |
128>
wifinode 0 wepkeyindex <1..4>
wifinode 0 sharedkey <5 or 13
char key>
WPA TKIP wifinode 0 security wparadius
wifinode 0 wpatype tkip
wifinode 0 radiuscfg 1
WPA2 TKIP wifinode 0 security wpa2radius
wifinode 0 wpatype tkip
wifinode 0 radiuscfg 1
WPA-PSK TKIP
wifinode 0 security wpapsk
wifinode 0 wpatype tkip
wifinode 0 sharedkey <8..63
char key>
WPA2-PSK TKIP
wifinode 0 security wpa2psk
wifinode 0 wpatype tkip
wifinode 0 sharedkey <8..63
char key>
WPA AES wifinode 0 security wparadius
wifinode 0 wpatype aes
wifinode 0 radiuscfg 1
WPA2 AES wifinode 0 security wpa2radius
wifinode 0 wpatype aes
wifinode 0 radiuscfg 1
WPA-PSK AES wifinode 0 security wpapsk
wifinode 0 wpatype aes
59
Network
Authentication
Data Encryption CLI Commands
wifinode 0 sharedkey <8..63
char key>
WPA2-PSK AES
wifinode 0 security wpa2psk
wifinode 0 wpatype aes
wifinode 0 sharedkey <8..63
char key>
60
Configuration - Network > Interfaces > Wi-Fi > Rogue Scan
In Rogue Scan mode, the router will perform a scan of the Wi-Fi channels and will report
what Wi-Fi Access Points it detects. This feature can be used to detect unauthorised Access
Points that might be trying to get unsuspecting Wi-Fi clients to connect them.
When an authorised Access Point is detected, an event log entry is created and an alarm
(e.g. email, SMS, SNMP Trap) can be triggered.
It is possible to configure a list of the MAC addresses of the authorised Access Points that
will not be reported when detected.
MAC Address
The MAC address of an authorised Access Point.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
macrogue n mac MAC address with
no separators
e.g. 112233445566 MAC Address
61
Configuration – Network > Interfaces > Mobile
Wireless WAN functionality is only available on models that are fitted with a wireless WAN
module ,such as CDMA, GPRS, 3G, HSPA etc. This module is connected to one of the ASY
ports (and USB controller on some models) and is controlled by the router using “AT”
commands (in the same way as a modem). Any further references to W-WAN technologies
such as CDMA, GPRS, 3G etc. will be referred to as GPRS, GSM, 3G or simply ‘wireless’
networks.
W-WAN modules provide always-on wireless data connectively over the GSM network at
speeds of up to 7.2Mbps. This means that the unit can be used in situations where no ISDN
or xDSL service connection is available. In addition, wireless can be used to send or receive
SMS alert messages (as an alternative to emails for issuing remote alert messages or for
automating remote configuration of deployed units).
Before attempting to connect to a wireless service, you need to set several parameters
specific to your mobile network operator. It will be useful to have the following information
to hand:
• The assigned APN (Access Point Name)
• PIN Number for your SIM card (if any)
• Username and password
Once the W-WAN router is correctly configured, check to see if it has obtained an IP address
from the network by navigating to the Diagnostics - Status > PPP > PPP x page (where x is
either 1 or 3 depending on the model) and checking the IP address parameter. (It should
contain an IP address other than 0.0.0.0 or 1.2.3.4).
Additionally, check that the SIM is working correctly and also check the signal strength by
navigating to the Status > Mobile page.
Configuration – Network > Interfaces > Mobile
SIM:
Select a SIM to configure. SIM 1 relates to the SIM card fitted to the slot marked SIM 1 on
the router’s front panel. SIM 2 relates to the SIM card fitted to the slot marked SIM 2.
Note:
When using a single SIM card only, the default action is for the router to use PPP 1 as the
mobile interface.
To configure 2 SIM’s for fail-over browse to Configuration - Network > Interfaces >
Mobile > SIM Selection to launch the Dual SIM wizard.
Configuration – Network > Interfaces > Mobile > Mobile Settings > Mobile
Service Provider Settings
Select the service plan and connection settings used in connecting to the mobile network.
The Configuration – Network > Interfaces > Mobile > Mobile Settings option opens
to show the following parameters:-
Service Plan / APN:
Enter the APN (Access Point Name) given by the service provider.
Use backup APN
Tick to enable this option then enter the backup APN in the free text field
62
e.g. “your.apn”
This parameter may be used to specify an alternative service APN for use in the event that
the unit cannot connect using the primary APN specified by the APN parameter. The unit will
only use this APN if the primary APN fails and the Use backup APN parameter is enabled.
Retry the main APN after n minutes
If the Use backup APN parameter is enabled, this parameter is used to define how long the
unit will use the backup APN before attempting to revert to the primary APN.
SIM PIN:
Some SIM cards are locked with a Personal Identification Number (PIN) code to prevent
misuse if they are lost or stolen. The GSM operator should be able to confirm if the SIM
requires a PIN code.
If you enter a PIN code in this field, the unit will try to unlock the SIM before attempting to
connect to the network.
Confirm SIM PIN:
Enter the PIN again in this field to confirm it.
Username: (Optional)
Some APNs require a username and password for the PPP connection. These are not always
pre-defined i.e. any “made-up” username or password will suffice.
Password: (Optional)
Enter the password for the PPP connection.
Confirm Password:
Enter the password again in this field to confirm it.
Related CLI Commands
SIM 1 (PPP 1)
Entity
Instance
Parameter
Values
Equivalent Web Parameter
modemcc 0 apn Free text field Service Plan / APN:
modemcc
0 usebuapn on/off Checkbox (Use Backup APN)
modemcc 0 buapn Free text field Use backup APN
modemcc 0 pin SIM PIN number SIM PIN:/Confirm SIM PIN
ppp 1 username Free text field Username:
ppp 1 password Free text field Password:/Confirm Password
SIM 2 (PPP 1)
Entity
Instance
Parameter
Values
Equivalent Web Parameter
modemcc 0 Apn_2 Free text field Service Plan / APN:
modemcc
0 Usebuapn_2 on/off Checkbox (Use Backup APN)
modemcc 0 Buapn_2 Free text field Use backup APN
modemcc 0 Pin_2 SIM PIN number SIM PIN:/Confirm SIM PIN
ppp 1 username Free text field Username:
ppp 1 password Free text field Password:/Confirm Password
63
Configuration – Network > Interfaces > Mobile > Mobile Settings >
Mobile Connection Settings
Re-establish connection when no data is received for a period of time.
This checkbox opens to show the following parameters:-
Inactivity Timeout: h hrs m mins s seconds
This parameter specifies the amount of time the unit will wait without receiving any PPP
packets before disconnecting. An inactivity timeout reset with each received PPP packet.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp 1 rxtimeout 0 – 86400
(seconds)
Re-establish connection when no data is
received for a period of time.
Inactivity Timeout: h hrs m mins s
seconds
Configuration – Network > Interfaces > Mobile > Mobile Settings >
Mobile Network Settings
Enable NAT on this interface
This parameter is used to enable or disable IP Network Address Translation (NAT) on the
mobile interface.
This checkbox opens to show the following options:-
IP Address:
Enable standard Network Address Translation (NAT).
IP address and Port:
Enable Network Address and Port Translation (NAPT).
Enable IPsec on this interface
This parameter is used to enable or disable IPSec processing on the mobile interface. If
enabled, packets sent or received on this interface must pass through the IPSec code before
being transmitted. IPSec may drop the packet, pass it unchanged, or encrypt and
encapsulate within an IPSec packet.
This checkbox opens to show the following parameters:-
Keep Security Associations (SAs) when this Mobile interface is disconnected
This checkbox will configure the router to keep any existing IKE and IPsec associations
should the link drop. This is usually applied on head-end routers with fixed IP addresses.
Use interface X, Y for the source IP address of IPsec packets
By default, the source IP address for an IPSec Eroute will be the IP address of the
interface on which IPSec was enabled. By setting this parameter to either a PPP or
Ethernet interface, the source IP address used by IPSec will match that of the Ethernet or
PPP interface specified.
Enable the firewall on this interface
The Firewall parameter is used to enable or disable the Firewall script processing for the
mobile interface.
64
Note:
If the firewall is enabled on an interface and with the absence of any firewall rules, the
default action is to block ALL traffic.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp 1 do_nat 1 Enable NAT on this interface
IP Address
ppp 1 do_nat 2 Enable NAT on this interface
IP Address and Port
ppp 1 ipsec 1 Enable IPsec on this interface
ppp 1 ipsec 2 Keep Security Associations (SAs)
when this Mobile interface is
disconnected
ppp 1 ipsecent blank,ETH,PPP Use interface X, Y for the source
IP address of IPsec packets
x = Interface type
ppp 1 ipsecadd 0 - 255 Use interface X, Y for the source
IP address of IPsec packets
y = interface number
ppp 1 firewall on/off Enable the firewall on this
interface
Configuration – Network > Interfaces > Mobile > SIM Selection
This section allows you to launch the Dual SIM wizard for failing over from 1 SIM to another.
Click here to launch the Dual SIM wizard
Click the hyperlink to launch the Dual SIM wizard.
CDMA Provisioning
If the router was not supplied pre-provisioned, obtain the following details from the Service
Provider:
a 15 digit IMSI (International Mobile Subscriber Identity)
an NAI (Network Access Identifier)
an NAI password
Once these details have been obtained, it is possible to provision the CDMA module by
inserting those details into the ‘Automatic Provisioning’ section of this web page and clicking
on the Start button.
See Quick Note 25 – “CDMA Provisioning on a Digi TransPort Router” for
example configuration.
Automatic Provisioning
If required, enter the MSL/PTN/MSID parameters before clicking Start
65
MSL:
Master subsidy lock (MSL) code. Obtain this from the mobile operator.
PTN:
Personal Telephone Number. Obtain this from the mobile operator.
MSID:
Mobile Station Identifier. Obtain this from the mobile operator.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
provision 0 string1 No data input
required MSL
provision 0 String2 No data input
required PTN
provision 0 String3 No data input
required MSID
Manual Provisioning
Manual provisioning should only be attempted by experienced technical personnel who have
obtained all the required information from the mobile operator. Technical personnel with
previous provisioning experience should not require these parameters explaining.
MSL:
Master subsidy lock (MSL) code. Obtain this from the mobile operator.
MDN:
Personal Telephone Number. Obtain this from the mobile operator.
MIN/MSID:
Mobile Station Identifier. Obtain this from the mobile operator.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
provision 0 String4 Free text field MSL
provision 0 String5 Free text field PTN
provision 0 String6 Free text field MIN/MSID
Mobile IP settings
Mobile IP profile number:
Enter the Mobile IP profile number
Network Access ID (NAI):
Enter the Network Access ID
MIP Home Address:
Enter the MIP Home Address
Primary Home Agent:
Enter the Primary Home Agent
Secondary Home Agent:
Enter the Secondary Home Agent
HA shared secret: 0xn (Hex strings must start 0x)
Enter the HA shared secret
66
AAA shared secret: 0xn (Hex strings must start 0x)
Enter the AAA shared secret
HA SPI:
Enter the HA SPI
AAA SPI:
Enter the AAA SPI
Enable Reverse tunnelling:
Enable Reverse tunnelling if required.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
provision 0 String7 1 Mobile IP profile number:
provision 0 String8 Free text field Network Access ID (NAI):
provision 0 String9 Free text field MIP Home Address:
provision 0 String10 Free text field Primary Home Agent:
provision 0 String11 Free text field Secondary Home Agent:
provision 0 String12 Hex string HA shared secret: 0xn (Hex
strings must start 0x)
provision 0 String13 Hex string AAA shared secret: 0xn (Hex
strings must start 0x)
provision 0 String14 Free text field HA SPI:
provision 0 String15 Free text field AAA SPI:
provision 0 String16 Free text field Enable Reverse tunneling:
PRL Update
The Preferred Roaming List is a list of bands and channels in order of preference which the
CDMA module uses when it attempts to locate and connect to a cell system. If the router is
having problems with CDMA reception, it would be beneficial to update the PRL information.
MSL:
Master subsidy lock (MSL) code. Obtain this from the mobile operator.
PRL filename:
Preferred Roaming List file name. Obtain this from the mobile operator.
Note: With the exception of older Sierra Wireless modules, PRL update on both the Verizon
and Sprint networks is carried out over the air (OTA). Manual PRL update using a PRL file is
not available. To initiate automatic over the air PRL update, click the Start button. Please
note that PRL update is normally carried out as part of automatic provisioning on both
Sprint and Verizon.
67
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
provision 0 string1 Free text field MSL
provision 0 string20 Free text field PRL Filename
Configuration – Network > Interfaces > Mobile > Advanced
SIM PUK:
(Optional) If known, the SIM PUK code can be entered in these fields. If the router detects
that a PUK is required due to a locked SIM, this number will be sent to the SIM. A SIM PIN
must also be configured for the PUK parameter to take effect.
Confirm SIM PUK:
Enter the PUK code again in this field to confirm it.
Initialisation string <n>:
These parameters (Initialisation string 1, Initialisation string 2, Initialisation string 3) allow
you to specify a number of command strings that are sent to the wireless module each time
a wireless connection is attempted. These can be used to set non-standard wireless
operating modes.
Each string is prefixed with the characters “AT” before being sent to the wireless module
and they are sent to the wireless module in the order specified until an empty string is
encountered. For example, Initialisation string 3 will not be sent unless Initialisation string 1
and Initialisation string 2 are both specified. Initialisation strings are not normally required
for most applications as the unit will normally be pre-configured for correct operation with
most networks.
Hang-up string:
In a typical wireless application the connection to the network is “always on” and under
normal circumstances it is not necessary to hang-up the wireless module. Under certain
circumstances however, the router may use the “ATH” command to try and disconnect the
wireless module from the network, e.g. if an incorrect APN has been specified and the
module is unable to attach to the network correctly.
This parameter allows you to specify an alternative hang-up string that is sent to the
wireless module when disconnecting a call. As with the Initialisation strings, it is not
necessary to include the “AT” as this is inserted automatically by the router
Post Hang-up string:
This parameter allows you to specify additional “AT” commands that is sent to the wireless
module after it has been disconnected. As with the Initialisation strings, it is not necessary
to include the “AT” as this is inserted automatically by the router.
Wait n seconds between hanging up and allowing another call
This parameter is used to specify the length of time (in n seconds) that the router will wait
after hanging-up the wireless module before initiating another call attempt.
Wait n seconds between attachment attempts
The number of seconds between network attachment attempts, some networks require 60
seconds between attempts to attach to the wireless network.
68
Reset the module after n unsuccessful connection attempts The router will normally
make multiple attempts to connect to the wireless network in the event that the signal is
lost. In some cases, this can result in a “lock-up” situation where the wireless network is
unable to attach the wireless device due to the multiple attempts. This parameter specifies
the number of attempts at connection that the unit should make before power cycling the
internal wireless module. Power cycling the wireless module forces it to re-register and
reattach to the network. The default setting of 10 is the recommended value. Setting this
parameter to 0 will prevent the router from power cycling the wireless module if it cannot
obtain an IP address.
Reset the module after n unsuccessful status retrieval attempts
The router will periodically collect status information from the internal wireless module. This
information, which may be viewed on the Management - Network Status > Interfaces
> Mobile web page, includes details of the signal strength and network attachment status.
As a safeguard against problems communicating with the wireless module, the Status
retries parameter may be used to specify the number of unsuccessful attempts to retrieve
status information from the wireless module before power cycling it. The default setting of
30 is the recommended value. Setting this parameter to 0 will prevent the router from
power cycling the wireless module if it cannot read the wireless status information.
Create a signal strength event every n minutes
When configured, the signal strength will be written to the eventlog every n minutes.
If registration is lost for 5 minutes
This parameter controls whether the unit will power cycle the wireless module after the
network registration has been lost for 5 minutes. Setting this parameter to “Do not reset the
module” will never recycle the wireless module, setting to “reset the module if GSM
registration is lost” will power cycle the module after 5 minutes loss of GSM registration,
and setting to “reset the module if GSM registration is lost” will power cycle the module
after 5 minutes loss of GPRS, 3G or HSPA registration.
Preferred System:
This parameter controls which mobile technology will be used as the preferred system
(2G/3G). When set to “Auto” the wireless module will choose the fastest technology
available. For GSM: When set to “GSM”, the wireless module will try GSM (GPRS/EDGE)
technology first. When set to “WCDMA”, the wireless module will try WCDMA (UMTS/HSPA)
technology first. For CDMA: Select CDMA for 2G (1xRTT) or EVDO for 3G.
Related CLI Commands - SIM Slot 1 (PPP 1)
Entity
Instance
Parameter
Values
Equivalent Web Parameter
modemcc 0 puk sim puk code SIM PUK/Confirm SIM PUK
modemcc 0 init_str Free text field Initialisation string 1
modemcc 0 init_str1 Free text field Initialisation string 2
modemcc 0 init_str2 Free text field Initialisation string 3
modemcc 0 hang_str Free text field Hang-up string:
modemcc 0 posthang_str Free text field Post Hang-up string:
modemcc 0 intercall_idle 0 - 2147483647 Wait n seconds between
hanging up and allowing
another call
modemcc 0 att_interval 0 - 2147483647 Wait n seconds between
69
Entity
Instance
Parameter
Values
Equivalent Web Parameter
attachment attempts
modemcc 0 link_retries 0 - 2147483647 Reset the module after n
unsuccessful connection
attempts
modemcc 0 stat_retries 0 - 2147483647 Reset the module after n
unsuccessful status retrieval
attempts
modemcc 0 ss_interval 0 - 2147483647 Create a signal strength event
every n minutes
modemcc 0 check_reg 0,1,2
If registration is lost for 5
minutes
0 = do not reset the module
1 = reset the module if the GSM
registration is lost
2 = reset the module if the
GPRS registration is lost
modemcc 0 psys 0,1,2
Preferred System
0 = Auto
1 = GSM
2 = WCDMA
Related CLI Commands - SIM Slot 2 (PPP 1)
Entity Instance Parameter Values Equivalent Web Parameter
modemcc 0 Puk_2 sim puk code SIM PUK/Confirm SIM PUK
modemcc 0 init_str_2 Free text field Initialisation string 1
modemcc 0 init_str1_2 Free text field Initialisation string 2
modemcc 0 init_str2_2 Free text field Initialisation string 3
modemcc 0 hang_str_2 Free text field Hang-up string:
modemcc 0 posthang_str_2 Free text field Post Hang-up string:
modemcc 0 intercall_idle_2 0 - 2147483647 Wait n seconds between
hanging up and allowing
another call
modemcc 0 att_interval_2 0 - 2147483647 Wait n seconds between
attachment attempts
modemcc 0 link_retries_2 0 - 2147483647 Reset the module after n
unsuccessful connection
attempts
modemcc 0 stat_retries_2 0 - 2147483647 Reset the module after n
unsuccessful status retrieval
attempts
modemcc 0 ss_interval_2 0 - 2147483647 Create a signal strength event
70
Entity
Instance
Parameter
Values
Equivalent Web Parameter
every n minutes
modemcc 0 check_reg_2 0,1,2
If registration is lost for 5
minutes
0 = do not reset the module
1 = reset the module if the GSM
registration is lost
2 = reset the module if the
GPRS registration is lost
modemcc 0 Psys_ 0,1,2
Preferred System
0 = Auto
1 = GSM
2 = WCDMA
Configuration – Network > Interfaces > Mobile > Advanced >
Mobile Network Settings
Metric:
This parameter specifies the connected metric of the mobile interface. The default metric of
a connected interface is 1. By allowing the interface to have a higher value (lower priority),
static routes can take preference to interfaces. For normal operation, leave this value
unchanged.
Generate Heartbeats on this interface
Heartbeat packets are UDP packets that contain status information about the unit that may
be used to locate a remote unit’s current dynamic IP address.
This checkbox opens to show the following parameters:-
Send Heartbeat messages to IP address a.b.c.d every h hrs m mins s secs
If these parameters are set to a non-zero value, the router will transmit “heartbeat”
packets to the specified IP address/hostname at the specified interval.
Use interface x,y for the source IP address
This parameter allows the selection of the source interface for the UDP heartbeats. For
example, it may be required to send the heartbeat packets down a VPN tunnel. And in
order to match the corresponding subnets of the VPN, it might require changing the
source IP to match an inside Ethernet interface.
For normal operation, using the mobile interface as the source IP address, leave this
value unchanged.
Select transmit interface using the routing table
When enabled, the UDP heartbeats will choose the best route from the routing table. If
disabled the exit interface will be interface on which the heartbeat is configured.
Include IMSI information in the Heartbeat message
When enabled, the heartbeat will include the IMSI of the wireless module.
Include GPS information in the Heartbeat message
When enabled, the heartbeat will include the GPS co-ordinates of the router.
Generate Ping packets on this interface
This section relates to monitoring pings which can be sent from the mobile interface. For
more details refer to “Application Note 7 Wireless WAN problem Detection and Recovery”.
This checkbox opens to show the following parameters:-
71
Send n byte pings to IP host a.b.c.d every h hrs m mins s secs
If this parameter is set, the router will automatically generate a “ping” of n size to the IP
host specified (IP address or hostname) at the interval specified. Deleting the IP host
value disables the monitoring ping facility.
This parameter in conjunction with “Reset the link if no response is received within s
seconds” can be used to configure the unit to use a back-up interface automatically
should there be a problem with this interface.
Note:
The n parameter specifies the PING size when using monitoring ping feature. The size
indicates how large the ICMP packet should be excluding the size of the IP header.
Send pings every h hrs m mins s secs if ping responses are not being received
If this parameter is set, the router will use this value as the interval to ping at when
more than one ping request sent out the PPP interface is outstanding. This should be set
to a shorter interval than the above ping request interval so that the router may more
quickly react to a broken PPP link.
Switch to sending pings to IP host a.b.c.d after n failures
This allows a for more reliable problem detection before fail over occurs by testing
connectivity to 2 IP addresses/hostnames. If an IP address or host name is entered and
the n parameter has a value greater than 0, when a ping failure is detected on the
primary IP address, pings will be sent to this 2nd IP address/hostname. This is to ensure
that if the main IP address becomes unavailable for any reason and stops responding to
ICMP requests, the router will check another IP address before starting fail over
procedures.
Ping responses are expected within n seconds
If this parameter is set to a non-zero value the unit will wait for the interval specified for
a response from a PING request before applying the “Send pings every h hrs m mins s
secs if ping responses are not being received”. If this parameter is set to 0
(default), the time specified in the in “Send n byte pings to IP host a.b.c.d every h
hrs m mins s secs” is allowed before applying the “Send pings every h hrs m mins s
secs if ping responses are not being received”.
Only send Pings when this interface is "In Service"
When enabled this parameter, ICMP echo requests will only be sent from this interface
when it is in service. The default setting is off and ICMP echo requests are sent when the
interface is in service and out of service.
New connections to resume with previous Ping interval
When enabled, this parameter controls the ping interval after the mobile interface has
been de-activated and then re-activated. It sets the ping interval to the same interval in
use when the mobile link last disconnected.
Reset the link if no response is received within s seconds
This parameter specifies an amount of time after which if no ping response has been
received, the unit will terminate the mobile connection in an attempt to re-establish
communications. Because by default the mobile link is always on, the unit will
automatically attempt to re-establish a PPP connection that has been terminated.
72
Use the ETH 0 IP address as the source IP address
Enabling this parameter causes the unit to use the IP address of ETH0 (instead of the
current IP address of the mobile interface), as the source address for the auto PING
packets.
Note:
This parameter is useful if you want to send the monitoring pings down a VPN tunnel
where the source IP address needs to match the LAN.
Defer sending pings if IP traffic is being received
When enabled, the timer configured in the “Send n byte pings to IP host a.b.c.d
every h hrs m mins s secs” parameter will be reset if IP data is sent across the mobile
link.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ppp 1 metric 0 - 256 Metric
ppp 1 hrtbeatip IP address Send Heartbeat messages to IP
address a.b.c.d every h hrs m
mins s secs
ppp 1 hrtbeatint 0 – 2147483647
(seconds)
Send Heartbeat messages to IP
address a.b.c.d every h hrs m
mins s secs
ppp 1 hbipent Default,PPP,Ethernet Use interface x,y for the source
IP address
ppp 1 hbipadd number Use interface x,y for the source
IP address
ppp 1 hbroute on/off Select transmit interface using
the routing table
ppp 1 hbimsi on/off Include IMSI information in the
Heartbeat message
ppp 1 hbgps on/off Include GPS information in the
Heartbeat message
ppp 1 pingsiz number Send n byte pings to IP host
a.b.c.d every h hrs m mins s
secs
ppp 1 pingip IP addressd Send n byte pings to IP host
a.b.c.d every h hrs m mins s
secs
ppp 1 pingint 0 – 2147483647
(seconds)
Send n byte pings to IP host
a.b.c.d every h hrs m mins s
secs
ppp 1 pingint2 0 – 2147483647
(seconds)
Send pings every h hrs m mins
s secs if ping responses are not
being received
73
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp 1 pingip2 IP address Switch to sending pings to IP
host a.b.c.d after n failures
ppp 1 ip2count number Switch to sending pings to IP
host a.b.c.d after n failures
ppp 1 pingresp 0 – 2147483647 Ping responses are expected
within n seconds
ppp 1 pingis on/off Only send Pings when this
interface is "In Service"
ppp 1 ping2cont on/off New connections to resume
with previous Ping interval
ppp 1 pingdeact 0 - 2147483647 Reset the link if no response is
received within s seconds
ppp 1 pingfreth0 on/off Use the ETH 0 IP address as
the source IP address
ppp 1 pingresetint on/off Defer sending pings if IP traffic
is being received
SMS Settings
Mobile routers can be configured to send and receive SMS messages. The sending of SMS
messages could for example be in conjunction with sending alarms and received messages
for configuration changes, or status requests.
Poll for incoming SMS messages
This checkbox opens to show the following parameter:-
Every n minutes
This specifies the interval in minutes that the unit will wait in between checks for
incoming SMS messages. Setting this interval to “0” turns off checking.
Enable command replies via SMS
This parameter enables or disables replies to SMS commands.
Concatenate replies
Normally an SMS message is limited to 160 characters. However, the ETSI standard
specifies a way to allow a number of SMS messages to be linked together by the sender (in
this case the router). This enables the router to reply with long responses to SMS
commands of longer than 160 characters. The reply comes back as a series of linked SMS
messages which the phone reassembles and displays as one big message.
Note:
The routers cannot handle received concatenated SMS messages, it can only transmit
concatenated SMS messages
74
Use this SMS message centre number n instead of the network default
This setting is not usually required. It is the number of the SMS message center (sometimes
referred to as the Service Centre Address), to be used to relay SMS messages or alarms.
This number must include the international dialling code, e.g. 44 for the UK, but not the “+”
prefix or leading 0’s, e.g. 44802000332. SMS alarms are generated when the SMS trigger
priority is greater than 0 and an event of this priority or higher occurs. SMS alarms may be
configured using the Configuration - Alarms > Event Settings > SMS web page
If no number is specified it is possible that the unit will operate using the default message
centre for the GSM service to which you have subscribed.
SMS access level:
The access level for SMS commands. The access level set here will need to match the level
required by the command sent by SMS for the command to be accepted.
Use x as a command separator (default is CR)
This parameter specifies the character to be used to separate multiple command lines when
a remote SMS sender is controlling the unit. The default separator is <CR> but some SMS
capable devices are not equipped with <CR> keys so an additional means of separating
multiple lines is required.
Allow CLI commands from the following SMS numbers.
You may specify up to 10 numbers. Specifying * permits commands from any SMS number.
Numbers are applied in the following input box. Click ‘Add’ to submit
Related CLI Commands - SIM Slot 1 (PPP 1)
Entity
Instance
Parameter
Values
Equivalent Web Parameter
modemcc 0 sms_interval Poll for incoming SMS
messages:-
Every n minutes
modemcc 0 sms_replies on/off Enable command replies via
SMS
modemcc 0 sms_concat
Number
0 = off
10 = default when
enabled
Concatenate replies
modemcc 0 sca Free text field Use this SMS message centre
number n instead of the
network default
modemcc 0 sms_access
0 = Super (default)
1 = High
2 = Medium
3 = Low
4 = None
SMS access level:
75
Entity
Instance
Parameter
Values
Equivalent Web Parameter
5 = HighLow
6 = HighMedium
7 = CheckPar
modemcc 0 sms_cmd_sep Free text field Use as a command
separator (default is CR)
modemcc 0 sms_callerid
Mobile telephone
number
Allow CLI commands from
the following SMS numbers.
(First SMS number)
modemcc 0 sms_callerid_1
to 9 Mobile telephone
number
Allow CLI commands from
the following SMS numbers.
(additional SMS numbers 1 to
9)
Related CLI Commands - SIM Slot 2 (PPP 1)
Entity
Instance
Parameter
Values
Equivalent Web Parameter
modemcc 0 sms_interval_2 Poll for incoming SMS
messages:-
Every n minutes
modemcc 0 sms_replies_2 on/off Enable command replies via
SMS
modemcc 0 sms_concat_2
Number
0 = off
10 = default when
enabled
Concatenate replies
modemcc 0 Sca_2 Free text field Use this SMS message centre
number n instead of the
network default
modemcc 0 sms_access_2
0 = Super (default)
1 = High
2 = Medium
3 = Low
4 = None
5 = HighLow
6 = HighMedium
7 = CheckPar
SMS access level:
modemcc 0 sms_cmd_sep Free text field Use as a command
separator (default is CR)
modemcc 0 sms_callerid
Mobile telephone
number
Allow CLI commands from
the following SMS numbers.
(First SMS number)
modemcc 0 sms_callerid_1
to 9 Mobile telephone
number
Allow CLI commands from
the following SMS numbers.
(additional SMS numbers 1 to
9)
76
Configuration – Network > Interfaces > DSL
Router models incorporating a DSL broadband interface will include a configuration page
having the title shown above. By default, the configuration in this section will be suitable for
the majority of ADSL service providers in the UK. However, advanced users or users
outside of the U.K. may wish or need to adjust some of the parameters.
Enable DSL
This checkbox gives the facility to enable or disable the use of DSL/ADSL functionality on
the router.
Configure PVC
Select the required PVC instance from the drop-down selection box. Subsequent settings
will apply to the selected instance (see below).
Configuration – Network > Interfaces > DSL > PVC Configuration
The PVC (Permanent virtual circuit) parameters are described here.
Enable this PVC
Tick the box to enable PVC settings
Encapsulation
This parameter is used to select the method of encapsulation to be used when
transporting data over this APVC. The appropriate value can be selected from a drop list
which includes the following options:
Option
Description
PPPoA VC-Mux RFC 2364 VC-multiplexed PPP over AAL5
PPPoA LLC RFC 2364 LLC encapsulated PPP over AAL5
PPPoE VC-Mux RFC 2516 VC-multiplexed PPP over Ethernet
PPPoE LLC RFC 2516 LLC encapsulated PPP over
Ethernet
Bridged Ethernet VC-Mux RFC 2684 VC-multiplexed bridged Ethernet
Bridged Ethernet LLC RFC 2684 LLC encapsulated bridged
Ethernet
Routed IP VC-Mux RFC 1483 VC multiplexing routed IP over
ATM
Routed IP LLC RFC 1483 LLC encapsulated routed IP over
ATM
To use PPPoA or PPPoE encapsulation, one of the available PPP instances must first be
configured to use this APVC instance as its Layer 1 interface on the associated
Configuration – Interfaces > PPP > PPP n > Advanced page.
VPI
This parameter is used to set the Virtual Path Identifier for this APVC in the range 0 -
255.
VCI
This parameter is used to set the Virtual Channel Identifier for this APVC in the range 0 -
65535.
77
Entity
Instance
Parameter
Values
Equivalent Web Parameter
apvc 0 0-255 VPI
apvc 0 0-65535 VCI
Configuration – Network > Interfaces > DSL > DSL Network Settings
This DSL PVC is using PPP 1
The default interface for DSL is PPP 1
Description
Enter a description for the DSL if required
Username
Enter ADSL Username
Password
Enter the password for the DSL account
Confirm password
Enter the password for the DSL account
Enable NAT on this interface
This parameter is used to select whether IP Network Address Translation (NAT) or Network
Address and Port Translation (NAPT) are used at the Ethernet interface. When the
parameter is set to disabled, no NAT will take place. When this parameter is enabled, extra
options described below will be displayed.
NAT and NAPT can have many uses but they are generally used to allow a number of private
IP hosts (PCs for example) to connect to the Internet through a single shared public IP
address. This has two main advantages, it saves on IP address space (the ISP only need
assign you one IP address), and it isolates the private IP hosts from the Internet, effectively
providing a simple firewall because unsolicited traffic from the Internet cannot be routed
directly to the private IP hosts.
To use NAT or NAPT correctly in the example of connecting private hosts to the Internet,
NAT or NAPT should be enabled on the router’s WAN side interface and should be disabled
on the router’s LAN side interface.
IP address
Enable standard Network Address Translation (NAT).
When a private IP host sends a UDP or TCP packet to an Internet IP address, the router
will change the source address of the packet from the private host IP to the router’s
public IP address before forwarding the packet onto the Internet host. Additionally it will
create an entry in a “NAT table” containing the private IP source address, the private IP
port number, the public IP destination address and the destination port number.
Conversely, when the router receives a reply packet back from the public host, it checks
the source IP, source port number and destination port number in the NAT table to
determine which private host to forward the packet to. Before it forwards the packet back
to the private host, it changes the destination IP address of the packet from its public IP
address to the IP address of the private host.
IP address and Port
Enable Network Address and Port Translation (NAPT).
78
This mode behaves like NAT but in addition to changing the source IP of the packet from
the private host it can also change the source port number. This is required if more than
one private host attempts to connect using the same local port number to the same
Internet host on the same remote port number. If such a scenario were to occur with
NAT the router would be unable to determine which private host to route the returning
packets to and the connection would fail.
NAT Source IP address
If specified, and NAT mode has been set to “NAT” or “NATP” for this interface, then the
source address of packets being sent out this interface is changed to this address, rather
than the interface address.
Enable IPsec on this interface
The IPSec parameter is used to enable or disable IPSec processing on this interface. If
this box is ticked, packets sent or received on this interface must pass through the IPSec
code before being transmitted. IPSec may drop the packet, pass it unchanged, or encrypt
and encapsulate within an IPSec packet.
Keep Security Associations (SAs) when this Mobile interface is disconnected
This checkbox will configure the router to keep any existing IKE and IPsec associations
should the link drop. This is usually applied on head-end routers with fixed IP addresses.
Use interface X, Y for the source IP address of IPsec packets
By default, the source IP address for an IPSec Eroute will be the IP address of the
interface on which IPSec was enabled. By setting this parameter to either a PPP or
Ethernet interface, the source IP address used by IPSec will match that of the Ethernet or
PPP interface specified.
Enable the firewall on this interface
The Firewall parameter is used to turn Firewall script processing “On” or “Off” for this
interface.
Note:
If the firewall is enabled on an interface and with the absence of any firewall rules, the
default action is to block ALL traffic.
To configure the firewall see Configuration – Security > Firewall
Limit the data transmitted over this interface
On W-WAN networks (where charging is based on the amount of data transferred as
opposed to time spent on-line), this parameter may be used to specify a data limit after which
the unit will create an entry in the event log to indicate that this amount of data has been
transferred. For example, if your monthly tariff includes up to 5Mb of data before you are
charged an “excess”, you might set the Data limit warning level to 4000. This would cause the
unit to place a warning entry in the event log once you had transferred 4Mb. This event could be
used to trigger an email alert message, SNMP trap or SMS alert message.
Issue a warning event after
Enter the maximum data to be transmitted before a warning entry is generated in the
eventlog. You have the option to select Kbytes, Mbytes or GBytes via the drop-down box.
Stop data from being transmitted after
79
This parameter is used to set the maximum amount of data that may be transferred before
the unit will “lock” the interface and prevent further transfer. As with the Issue a warning
event after parameter it is used on networks where the tariff is based on the amount of data
transferred to help prevent excess charges being incurred. You have the option to select
Kbytes, Mbytes or GBytes via the drop-down box.
Reset the data limit on the x day of the month
If you wish to automatically unlock a locked interface at the start of a new billing period,
this parameter should be set to the appropriate day of the month (from 1 to 28). When this
date is reached the unit will unlock the interface and data transfer may resume. If the
parameter is set to 0, automatic unlocking will not occur and manual unlocking will be
necessary (by clicking on the Clear Total Data Transferred button on the appropriate
Diagnostics - Statistics > PPP > PPP n page. This parameter will also reset the statistics for
the Data limit warning level (kb).
The factory default does not include any DSL settings and so when the router is first
installed, the following text will appear.
“This DSL PVC is not assigned to any PPP interface
Click here to jump to the PPP Mapping page”
When clicked, this link will redirect the browser to the Configuration – Network >
interfaces > Advanced > PPP Mappings page.
From this page, select the desired PPP instance. The PPP instance.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp 1 description Free text Description
ppp 1 username Free text Username
ppp 1 password Free text Password
ppp 1 do_nat 1 ON Enable NAT on this interface
(IP Address)
ppp 1 do_nat 2 ON Enable NAT on this interface
(IP Address and port)
ppp 1 natip IP Address NAT Source IP Address
ppp 1 ipsec ON/OFF Enable IPSec on this interface
ppp 1 firewall ON/OFF Enable the firewall on this
interface
ppp 1 dlwarnkb Kbytes/Mbytes/GB
ytes Issue a warning event after
ppp 1 dlstopkb Kbytes/Mbytes/GB
ytes Stop data from being
transmitted after x Bytes data
ppp 1 dlrstday 1-28 Reset the data limit on the nth
day of the month
Configuration – Network > Interfaces > DSL > PVC Traffic Shaping
Service category
80
Each ATM PVC may now be configured with a service category:
UBR (unspecified bit rate, the default)
VBR-nrt (variable bit rate, non-real-time)
VBR-rt (variable bit rate, real-time)
CBR (constant bit rate)
Additional traffic parameters may be specified:
PCR (peak cell rate in cells/sec)
SCR (sustained cell rate in cells/sec)
MBS (maximum burst size in cells)
The four service categories are characterised by the various traffic parameters as follows:
UBR: PCR, which may be zero for no limit
VBR-nrt: PCR, SCR, MBS
VBR-rt: PCR, SCR, MBS
CBR: PCR
Peak cell rate (cells/sec)
The maximum allowable rate at which cells can be transported along a connection in the
ATM network. The PCR is the determining factor in how often cells are sent in relation to
time in an effort to minimize jitter. PCR generally is coupled with the CDVT (Cell Delay
Variation Tolerance), which indicates how much jitter is allowable
Sustained cell rate (cells/sec)
A calculation of the average allowable, long-term cell transfer rate on a specific connection.
Maximum burst size (cells)
The maximum allowable burst size of cells that can be transmitted contiguously on a
particular connection.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
apvc 0 servcat UBR,VBR-ntr,VBR-rt,CBR Service category
apvc 0 pcr n Peak cell rate
(cells/sec)
apvc 0 scr n Sustained cell rate
(cells/sec)
apvc 0 mbs n Maximum burst size
(cells)
81
Configuration – Network > Interfaces > DSL > Advanced
Operational mode
This parameter is used to specify the connection mode for the DSL link. The following options
are available (default is Multi mode).
Values
Equivalent Web Parameter
Multi-mode
For Annex A models (i.e. PSTN / POTS) this option provides automatic
selection between G.dmt, G.lite and ANSI (in the order listed).
For Annex B models (i.e. ISDN) this option provides automatic selection
between G.dmt (in the order listed)
ANSI Annex A only - attempt to connect in ANSI T1.413 mode
G.dmt Attempt to connect in ITU G.992.1 G.dmt mode
G.lite Annex A only - attempt to connect in ITU G.992.2 G.lite mode
ADSL2 Connect using ADSL2
ADSL2+ Connect using ADSL2+
Load DSL firmware from flash file ‘dspfw.bin’ (if present)
This checkbox enables the use of alternative ADSL driver firmware and should only be
enabled on the advice of the technical support team. This option also requires that an
additional file be loaded onto the router.
Enable watchdog
This checkbox should only be enabled on the advice of the technical support team.
Manage this PVC using ATM OAM cells
Using Alarm indication signal (AIS) cells downstream and Remote defect indication (RDI)
cells upstream, the router can detect faults between the connecting points of the VP/VC and
suspend transfer of ATM cells until the VC fault condition is cleared.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
adsl 0 oper_mode Multi,ANSI,G.dmt,
G.lite,ADSL2,
ADSL2+ Operational mode
adsl 0 usefwfile ON/OFF Load DSL firmware from flash
file
adsl 0 watchdog ON/OFF Enable watchdog
apvc 0 oammanage ON/OFF Manage this PVC using ATM
OAM cells
Additional CLI commands
The following command is not available from the web interface:
adsl 0 debug {0|1}
Where 0 is off and 1 causes debugging information to be sent to the CLI.
82
Configuration - Network > Interfaces > GRE
Generic Routing Encapsulation (GRE) is a means of transporting IP packets from one device
to another through an unencrypted point-to-point IP tunnel. Multiple tunnels may be
configured to multiple devices. Below the GRE Interfaces sub menu you will find the
individual tunnel configuration. When configured, a GRE tunnel will be created between 2
devices.
Configuration - Network > Interfaces > GRE > Tunnel n
Description:
This parameter allows you to enter a name for this GRE instance, to make it easier to
identify it.
IP address:
This is the IP address of the virtual interface that will be used by the tunnel. This parameter
is used in conjunction with the mask parameter below. This parameter MUST be entered for
the tunnel to work.
Mask:
Used with the IP address parameter to clarify the subnet in use on the virtual interface. This
would normally be a 30 bit mask as this is a point-to-point link (255.255.255.252).
Source IP Address:
The two sub options here will allow you to specify a source address either from a specified
interface or by manually assigning an address. If you do not select either option the default
address for the route the packet leaves the router through will be used (please note that if
the interface through which the GRE packets exit does not have natting turned on then the
default router address will be used – by default this will be the Ethernet 0 address).
Use Interface:
These 2 parameters allow you to select the GRE tunnel source interface, so the tunnel
end point can be a physical interface rather than a virtual IP address. This is for using
GRE without IPSec. These parameters should not be used if the source address is used
in the parameter below. Select from the drop down boxes the available interface type
and number.
Use IP Address:
A virtual host IP address for the local end of the tunnel, configured for routing purposes.
This IP address has no other use and needs no mask as it is a host address. e.g. 1.1.1.1.
This option is normally used in conjunction with IPSec. This parameter should not be
used if the interface is selected as the source using the “Use Interface” options above.
Destination IP Address or Hostname:
This is the FQDN or IP address of the remote end of the tunnel. This could also be the
virtual host IP address for the remote end of the tunnel, configured for routing purposes.
e.g. 2.2.2.2
Enable keepalives on this GRE tunnel
Selecting this checkbox will display the GRE keepalive parameters. Keepalives are needed
so allow the router to determine whether the tunnel interface is receiving traffic correctly or
not. If keepalives fail, the tunnel will be marked as down.
83
Send a keepalive every s seconds
When configured to a non-zero value, keepalive packets will be sent to the remote end of
the tunnel and the response is monitored to detect if the tunnel is up or down. If the tunnel
is detected as down, the routing table metric will be altered. Value is configured in seconds.
If this value is set to zero then keepalives will not be used.
Bring this GRE tunnel down after no replies to n keepalives
This parameter specifies the consecutive number of keepalive packets that need to fail
before the tunnel is detected as being down.
Bring this GRE interface up to send keepalives
This specifies whether or not the GRE keepalive packets will activate the tunnel. If set to
YES and the tunnel drops the GRE keepalive packet will try to raise the tunnel again. If set
to NO and the tunnel has been marked as down due to the GRE keepalives not being
received, the router will only raise the tunnel if a packet (other than a GRE keepalive) needs
to be routed.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
tun n descr Free text field Description
tun n IPaddr Valid IP address IP Address
tun n mask Valid Subnet Mask Mask
tun n source_ent blank,ETH,PPP Use interface x,y for the source
IP address of GRE packets
x = Interface type
tun n source_add 0 - 255 Use interface x,y for the source
IP address of GRE packets
y = interface number
tun n source Valid IP address Source IP address to use for GRE
packets
tun n dest Valid IP address Destination IP address to use for
GRE packets
tun n Kadelay Seconds Send a keepalive every s seconds
tun n karetries Number Bring this GRE tunnel down after
no replies to n keepalives
tun n kaactrq On,off Bring this GRE interface up to
send keepalives
Configuration - Network > Interfaces > GRE > Tunnel n > Advanced
Metric:
This parameter specifies the connected metric of an interface. The default metric of a
connected interface is 1. By allowing the interface to have a higher value (lower priority),
static routes can take preference to interfaces. For normal operation, leave this value
unchanged.
84
MTU:
Maximum Transmission Unit. The value entered here will be the greatest amount of data
that can be transferred in one physical packet. Default value is 1400
Tunnel Key:
Normally used with multi GRE (mGRE), the tunnel key adds an extra field to the GRE header
where a key number can be applied. When used, incoming GRE packets must have a
matching tunnel key number to be accepted by this tunnel. When the Tunnel key parameter
is used the IP address parameter is not required.
Enable the firewall on this GRE tunnel:
The Firewall parameter is used to turn Firewall script processing “On” or “Off” for this
interface. If using the firewall for problem detection on a tunnel interface, the interface to
put OOS will need to be specified, e.g.:
pass out break end on tun n from any to 100.100.100.29 port=4000 flags S!A inspect-state
oos ppp n 5
Enable GRE checksums:
This parameter selects whether to add GRE checksums to GRE packets when the unit is
terminating a GRE tunnel. “Off” disables checksums, “On” enables checksums.
Enable IGMP on this GRE tunnel:
This IGMP parameter is used to enable or disable the transmission and reception of IGMP
packets on this interface. IGMP is used to advertise members of multicast groups. If IGMP is
enabled, and a member of a multicast group is discovered on this interface, multicast
packets for this group received on other interfaces will be sent out this interface.
Enable IP analysis:
When set to ON, the un-encapsulated IP traffic will be captured into the analyser trace.
Enable Tunnel analysis:
When set to ON, the GRE encapsulated packets and keepalives will be captured to the
analyser trace.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
tun n metric Numeric Metric
value Metric for the route associated
with this interface
tun n MTU MTU value Maximum transmission unit size
tun n tunkey Key number Key number
tun n Firewall on,off Turn firewall on or off
tun n csum on,off Enable GRE checksums
tun n igmp On, off Enable IGMP packets
tun n ipanon On, off Enable IP analysis for traffic on
this interface
tun n tunanon On, off Enable GRE tunnel analysis
RIP Routing Parameters – CLI only
85
Please note that under the CLI commands for GRE Tunnels you will find parameters
specifically relating to RIP. Please see the Configuration – Network > IP Routing /
Forwarding > RIP > Interfaces > Ethernet / PPP / GRE section on RIP routing for
configuration of these sub parameters.
86
Configuration - Network > Interfaces > ISDN > ISDN Answering
This page allows you to configure the ISDN interface to receive incoming calls.
Button:- Load answering defaults
Clicking this button resets the default answering PPP interface (PPP 0) to the factory
answering defaults.
Description:
This parameter allows you to enter a name for this PPP instance, to make it easier to
identify it.
Only accept calls from calling numbers
ending with
This parameter is used to restrict the range of numbers from which ISDN will answer
incoming calls, i.e. the ISDN interface will only answer a call if the trailing digits of the
calling number match what is specified by this parameter. For example, if this parameter
was set to 3, incoming calls from 1234563 would be answered but calls from 1234567
would not.
with ISDN MSN ending with
If answering is disabled this parameter is not used.
This parameter provides the filter for the ISDN Multiple Subscriber Numbering facility. It
is blank by default but when set to an appropriate value on an answering interface, it will
cause the unit to answer incoming calls to only telephone numbers where the trailing
digits match the value selected. For example, setting this parameter to 123 will prevent
the unit from answering any calls to numbers that do not end in 123.
with ISDN sub-address ending with
If answering is disabled this parameter is not used.
This parameter provides the filter for the ISDN sub-address facility. It is blank by default
but when set to an appropriate value on an ISDN answering interface, it will cause the
unit to answer incoming calls only to ISDN numbers where the trailing digits match the
Sub-address value. For example, setting the this parameter to 123 will prevent the unit
from answering any calls to numbers that do not end in 123.
Use the following local IP configuration
Local IP Address:
This is the IP address of the unit’s ISDN answering interface. Set this field to the desired
local IP address.
Attempt to assign the following IP configuration to remote devices
Set this parameter if it is required that the remote system have an address supplied. An
attempt to negotiate an IP address from the IP address pool will be made. Generally, this
parameter is enabled for incoming connections.
This checkbox opens to show the following parameters:-
Assign remote IP addresses from a.b.c.d to a.b.c.d
This is the range of IP addresses supplied to incoming callers. This parameter may
require alteration if the default value “10.10.10.0” to “10.10.10.4” does not suit the
remote network configuration.
87
Mask:
This specifies the IP netmask for the Remote network. This can be used to create a
dynamic route to the remote network whenever the ISDN interface is active.
Primary DNS server:
The answering ISDN interface would normally supply its own PPP IP address to the peer
for DNS requests. This allows you to specify an alternative DNS IP address.
Secondary DNS server:
This parameter can supply a secondary DNS server IP address to the peer for DNS
requests if required.
Enable NAT on this interface
This parameter is used to enable or disable IP Network Address Translation (NAT) on the
answering ISDN interface.
This checkbox opens to show the following options:-
IP Address:
Enable standard Network Address Translation (NAT).
IP address and Port:
Enable Network Address and Port Translation (NAPT).
Enable IPsec on this interface
This parameter is used to enable or disable IPSec processing on the ISDN interface. If
enabled, packets sent or received on this interface must pass through the IPSec code before
being transmitted. IPSec may drop the packet, pass it unchanged, or encrypt and
encapsulate within an IPSec packet.
This checkbox opens to show the following parameters:-
Keep Security Associations (SAs) when this ISDN interface is disconnected
This checkbox will configure the router to keep any existing IKE and IPsec associations
should the link drop. This is usually applied on head-end routers with fixed IP addresses.
Use interface X, Y for the source IP address of IPsec packets
By default, the source IP address for an IPSec Eroute will be the IP address of the
interface on which IPSec was enabled. By setting this parameter to either a PPP or
Ethernet interface, the source IP address used by IPSec will match that of the Ethernet or
PPP interface specified.
Enable the firewall on this interface
The Firewall parameter is used to enable or disable the Firewall script processing for the
mobile interface.
Note:
If the firewall is enabled on an interface and with the absence of any firewall rules, the
default action is to block ALL traffic.
To configure the firewall see Configuration > Security > Firewall
88
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp 0 name Free text field Description:
ppp 0 cingnb number ending with
ppp 0 msn number with ISDN MSN ending with
ppp 0 sub number with ISDN sub-address ending
with
ppp 0 ipaddr IP address Local IP Address:
ppp 0 mask Network mask Mask:
ppp 0 ipmin IP address Assign remote IP addresses from
a.b.c.d to a.b.c.d
ppp 0 iprange 1 - 255 Assign remote IP addresses from
a.b.c.d to a.b.c.d
ppp 0 dnsserver IP address Primary DNS server:
ppp 0 secdns IP address Secondary DNS server:
ppp 0 do_nat 1 Enable NAT on this interface
IP Address:
ppp 0 do_nat 2 Enable NAT on this interface
IP address and Port:
ppp 0 ipsec 1 Enable IPsec on this interface
ppp 0 ipsec 2 Keep Security Associations (SAs)
when this ISDN interface is
disconnected
ppp 0 ipsecent Default,Ethernet,
PPP Use interface X, Y for the source IP
address of IPsec packets
ppp 0 ipsecadd number Use interface X, Y for the source IP
address of IPsec packets
ppp 0 firewall on/off Enable the firewall on this
interface
89
Configuration - Network > Interfaces > ISDN > ISDN
Answering > Advanced
These are the advanced settings for the ISDN interface.
Metric:
This parameter specifies the connected metric of the mobile interface. The default metric of
a connected interface is 1. By allowing the interface to have a higher value (lower priority),
static routes can take preference to interfaces. For normal operation, leave this value
unchanged.
Enable "Always On" mode of this interface
On
This parameter is used to configure the PPP instance so that in the event that it is
disconnected the unit will try to reconnect again after approximately 10 seconds or
dictated by the Configuration - Network > IP Routing/Forwarding > IP Routing >
When an "Always On" route becomes "In Service", wait n seconds before using
it parameter.
On and return to service immediately
As above “On” but the unit will try and connect immediately and without delay.
Put this interface "Out of Service" when an always-on connection attempt fails
Usually, always-on interfaces will not go out of service unless they have connected at least
once. When this option is turned “On”, the interface will go out of service even if the first
connection attempt fails.
Attempt to re-connect after n seconds
This parameter specifies the length of time in seconds that the unit will wait after an
“always-on” ISDN connection has been terminated before trying to re-establish the link.
If an inhibited PPP interface is connected, attempt to re-connect after n seconds
The value of this parameter takes precedence over Configuration - Network >
Interfaces > ISDN > ISDN Answering > Advanced > Wait n seconds after power-
up before activating this interface when some other PPP that is usually inhibited by this
one is connected. This parameter would typically be used to reduce the connection retry
rate when a lower priority PPP is connected.
Wait n seconds after power-up before activating this interface
If this parameter is not set to “0”, this is the initial delay after power up before the PPP will
activate. After that, the usual always-on activation timers apply.
Control when this interface can connect using Time band n
This parameter specifies the Time Band number to use for this ISDN instance (see
Configuration - Network > Timebands).
Keep this interface up for at least n seconds
If this parameter is set to a non-zero value, then ISDN will not close the connection for the
specified period, even if the link is inactive.
Close this interface
After n seconds
This parameter specifies the maximum time that this ISDN Interface may remain
connected during any one session. After this time, the ISDN link is deactivated.
90
if it has been up for n minutes in a day
This parameter specifies the maximum time that this ISDN interface may remain
connected during any one day. After this time, the ISDN link is deactivated.
If the link has been idle for n seconds
The ISDN interface will close the connection if the link is inactive for the length of time
specified by this parameter.
Alternative idle timer for static routes n seconds
This parameter may be used to specify an alternative Inactivity timeout for use in
conjunction with the Use 2nd inactivity timeout when this route becomes available
parameter on the Configuration - Routing > Routing > Static Route n pages. This timeout
will only be used until the PPP next deactivates. After that, the normal timeout value is
used.
If the link has been idle for s seconds
The router will deactivate this interface after the time specified in this text box if it
detects that the link has not passed any traffic for that period.
Alternative idle timer for static routes s seconds
The value in this text box specifies an alternative inactivity timeout for use in conjunction
with the “Make PPP n interface use the alternative idle timeout when this route becomes
available” parameter on the Configuration – Network > IP Routing/Forwarding >
Static Routes > Routes n > Advanced web page. This timeout will only be used until
the PPP instance next deactivates. After that the normal timeout value is used.
If the link has not received any packets for s seconds
The value in this text box specifies the amount of time that the router will wait without
receiving any PPP packets before disconnecting. The timer is reset with each received PPP
packet.
If the negotiation is not complete in s seconds
The value in this textbox specifies the maximum time (in seconds) allowed for the PPP
negotiation to complete. If negotiations have not completed within this period, the
interface is deactivated.
Generate an event after this interface has been up for m minutes
The value in this text box specifies the number of minutes (if any) after which the router
should create an event in the event log that states that the interface has been active for this
period.
Limit the data transmitted over this interface
When checked, this checkbox reveals the following parameters that control what data
volume restrictions (if any) should be applied to this interface:
Issue a warning event after n units
The value in this text box is the amount of traffic which will cause a warning event to be
generated in the event log stating that the specified amount of data has been
transferred. The units are specified by a drop-down list, having the following options;
KBytes, MBytes, GBytes. For example, if the monthly tariff includes up to 5MB of data
before excess usage charges are levied, it would be useful to set this threshold to 4MB.
This would cause the router to create a warning entry in the event log once 4MB of data
had been transferred. This event could then be used to trigger an email alert, SNMP trap
or SMS alert message.
91
Stop data from being transmitted after n units
The value in this text box specifies the total amount of data that may be transmitted by
this PPP instance before the link is blocked for further traffic, and the value in the drop-
down list specifies the units which are; KBytes, MBytes, GBytes.
Reset the data limit on the n day of the month
The value in this text box defined the day of the month on which the data limit is reset to
zero.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n metric 0 - 255 Metric
ppp n aodion
0 – 2
0 = disabled
1 = enabled
2 = On and return
to service
immediately
Enable “Always On” mode of
this interface, On, On and
return to service immediately
ppp n immoos ON, OFF Put this interface “Out of
Service” when an always-on
connection attempt fails
ppp n aodi_dly 0 – 2147483647 Attempt to reconnect after s
seconds
ppp n aodi_dly2 0 – 2147483647 If an inhibited PPP interface is
connected, attempt to re-
connect after s seconds
ppp n pwr_dly 0 – 2147483647 Wait s seconds after power-up
before activating this interface
ppp n tband 0 - 4 Control when this interface can
connect using Time Band n
ppp n minup 0 – 2147483647 Keep this interface up for at
least s seconds
ppp n maxup 0 – 2147483647 Close this interface after s
seconds
ppp n maxuptime 0 – 2147483647 if it has been up for m minutes
in a day
ppp n timeout 0 – 2147483648 if the link has been idle for s
seconds
ppp n timeout2 0 – 2147483648 Alternative idle timer for static
routes s seconds
ppp n rxtimeout 0 – 2147483648 if the link has not received any
packets for s seconds
ppp n maxneg 0 – 2147483648 if the negotiation is not
complete in s seconds
ppp n uplogmins 0 – 2147483647 Generate an event after this
92
Entity
Instance
Parameter
Values
Equivalent Web Parameter
interface has been up for m
mins
ppp n dlwarnkb 0 – 2147483647 Issue a warning after n units
ppp n dlstopkb 0 – 2147483647 Stop data from being
transmitted after n units
ppp n dlrstday 0 – 255 Reset the data limit on the n
day of the month
Configuration – Network > Interfaces > ISDN Dialling
This section of the web interface appears when the router is fitted with an optional internal
ISDN MODEM card. When first powered up, navigating to the Configuration – Network >
Interfaces > ISDN page will show a message indicating that the MODEM card does not
have a PPP instance associated with it. Follow the link on the page and select an unassigned
PPP interface to the MODEM. When the browser is refreshed and the Configuration –
Network > Interfaces > ISDN page redisplayed, it should show the parameters
described below, along with a message at the top of the page indicating which PPP instance
has been selected.
This ISDN interface is using PPP n
This message simply states which PPP instance has been assigned to the interface.
Description
The value in this text box is a memorable name for the interface. This may be useful when
referring to the interface, rather than having to remember the name and the function of the
interface.
Dial out using numbers
These four text boxes contain the telephone numbers that should be used, in sequence,
to make an outgoing connection.
Prefix n to the dial out number
The value in this text box specifies the dialling prefix to use, if needed. This may be
necessary when using a PABX.
Username
The text string text box is the username that should be used when using the PPP
instance to connect to the remote peer. This will normally be provided by an ISP for use
with a dial-in Internet access service.
Password
This text box contains the password to use for authenticating the remote peer and is
used in conjunction with the above username.
Confirm password
Type the password into this text box to enable the router to confirm that the password
has been entered identically in both boxes.
Allow the remote device to assign a local IP address to this router
When this radio button is selected, the remote peer will assign this PPP interface an IP
address.
93
Try to negotiate a.b.c.d as the local IP address for this router
If it would be useful, but not essential, to have a predefined IP address for the interface, the
second radio button should be selected and the desired IP address entered into the text box
to the right.
Use a.b.c.d as the local IP address for this router
If it is essential that the PPP interface has a specific IP address, this radio button should be
selected and the IP address entered into the text box.
Use the following DNS servers if not negotiated
Primary DNS server
The value in this text box is the IP address of the primary DNS server to use if a DNS
server is not assigned as part of the PPP negotiation and connection process. It is fairly
common practice for the DNS server to be assigned automatically by the ISP when
making a connection.
Secondary DNS server
The value in this text box specifies the IP address of the secondary DNS server to use if
one is not automatically assigned by the remote peer.
Attempt to assign the following IP configuration to remote devices
When checked, this check box will reveal the following four configuration parameters which
control how the PPP instance assigns an IP address to a connecting remote peer. The
primary and secondary DNS server addresses will also be sent to the remote peer
Assign remote IP addresses from a.b.c.d to a.b.c.d
The IP addresses in these text boxes define the pool of IP addresses to assign to remote
peers during the IP protocol configuration phase of the PPP negotiation process.
Primary DNS server
The value in this text box is the IP address of the primary DNS server that the remote
peer should use when making DNS requests over the link.
Secondary DNS server
The value in this text box is the IP address of the secondary DNS server that the remote
peer should use when making DNS requests, should the primary server be unavailable.
Allow the PPP interface to answer incoming calls
When checked, this checkbox will cause the PPP instance to answer an incoming call.
Only allow calling numbers ending with n
When set to answer calls, the value in this textbox provides a filter for ISDN sub-
addresses. This value is blank by default but when the PPP instance is set to answer calls,
only numbers having trailing digits that match the sub-address value in this test will be
answered. So for example, if this value is set to “123”, only calls from numbers with
trailing digits that match this value will be answered. For example 01942 605123
Enable NAT on this interface
When checked, this checkbox will enable Network Address Translation to operate on this
interface. This is the same as for other PPP interfaces.
IP address/IP address and Port
These radio buttons select whether IP address translation only should be applied or
whether port number translation should also be applied to IP packets.
94
Enable IPsec on this interface
When checked, this checkbox will cause the router to encrypt traffic on this interface using
the IPsec protocol. The following two additional configuration parameters are revealed when
this box is checked.
Keep Security Associations (SAs) when this ISDN interface is disconnected
When checked, this checkbox causes the router to maintain (i.e. not flush) the SA when
the interface becomes disconnected. The normal behaviour is to remove the SAs when
the interface becomes disconnected.
Use interface x,y for the source IP address of IPsec packets
If it is required to use another interface (i.e. not the interface currently being configured)
as the source address for IPsec packets, this may be achieved by selecting the desired
interface from the drop-down list and typing the desired interface instance number into
the adjacent text box.
Enable the firewall on this interface
When checked, this checkbox applies the firewall rules to traffic using this interface.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ppp n name Up to 25
characters Description
ppp n phonenum up to 25 digits Dial out using numbers
ppp n ph2 “ “
ppp n ph3 “ “
ppp n ph4 “ “
ppp n prefix 0 – 9999999999 Prefix n to the dial out number
ppp n username Up to 60
characters Username
ppp n password Up to 40
characters Password
ppp n IPaddr 0.0.0.0 Allow the remote device to
assign a local IP address to this
router
ppp n IPaddr Valid IP address
a.b.c.d
Try to negotiate a.b.c.d as the
local IP address for this router
(in conjunction with l_addr)
ppp n l_addr
OFF,ON
When ON, allows
negotiation
when OFF force
use of specified IP
address
Use a.b.c.d as the local IP
address of this router
ppp n DNSserver Valid IP address
a.b.c.d
Use the following DNS servers if
not negotiated
Primary DNS server a.b.c.d
95
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n secDNS Valid IP address
a.b.c.d
Use the following DNS servers if
not negotiated
Secondary DNS server a.b.c.d
ppp n IPmin Valid IP address
a.b.c.d Assign remote IP addresses
from a.b.c.d to a.b.c.d
ppp n IPrange 0 - 255 Assign remote IP addresses
from a.b.c.d to a.b.c.d
ppp n transDNS Valid IP address
a.b.c.d Primary DNS server a.b.c.d
ppp n sectransDNS Valid IP address
a.b.c.d Secondary DNS server a.b.c.d
ppp n ans OFF,ON Allow this PPP interface to
answer incoming calls
ppp n cingnb up to 25 digits Only allow calling numbers
ending with n
ppp n do_nat
0,1,2
0 = Disabled
1 = IP address
2 = IP address
and port
Enable NAT on this interface
IP address/IP address and Port
ppp n nat_ip Valid IP address
a.b.c.d NAT Source IP address a.b.c.d
ppp n ipsec
0 = Disabled
1 = Enabled
2 = Enabled and
Keep SAs
Enable IPsec on this interface/
Keep Security Associations
when this ISDN interface is
disconnected
ppp n firewall OFF,ON Enable the firewall on this
interface
Configuration – Network > Interfaces > ISDN > Advanced
Metric
The value in this text box specifies the route metric that should be applied to this interface.
(see Configuration – Network > Interfaces > Advanced > PPP n for more detail.)
Enable “Always On” mode of this interface
When checked, this checkbox causes the following two options to appear:
On/On and return to service immediately
These two radio buttons select whether the “always-on” functionality should simply be
enabled or whether the additional facility to return the interface to the “In Service” state
should be applied.
96
Put this interface “Out of Service” when an always-on connection attempt fails
Normally, always-on interfaces will not go out of service unless they have connected at
least once. When checked, this checkbox causes the router to put the interface out of
service even if the first connection attempt fails.
Attempt to re-connect after s seconds
The parameter in this text box specifies the length of time in seconds that the router should
wait after an “always-on” PPP connection has been terminated before trying to re-establish
the link.
If an inhibited PPP interface is connected, attempt to re-connect after s seconds
The value in this text box takes precedence over the previous parameter when another
PPP instance that is usually inhibited by this one is connected. This parameter would
typically be used to reduce the connection retry rate when a lower priority PPP instance is
connected.
Wait s seconds after power-up before activating this interface
The value in this text box is the initial delay that the router will apply before activating
the PPP instance after power-up. After the initial power-up delay the normal always-on
activation timers apply. If set to zero, no delay will be applied.
Control when this interface can connect using Time band n
These two controls, the check box and drop-down list determine whether the Time Band
function should be applied to this interface. Checking the checkbox enables the functionality
and the desired time band instance is selected from the drop-down list. Time Band
functionality is explained in the Configuration – Network > Interfaces > Timebands
section of this manual.
Keep this interface up for at least s seconds
The value in this textbox specifies the minimum period that the PPP interface should remain
available. This means that even if the link becomes inactive before this period expires, the
connection will remain open.
Close this interface
After s seconds
The value in this text box specifies the maximum time that the link will remain active in
any one session. After this time, the link will be deactivated.
If it has been up for m minutes in a day
The router will deactivate the PPP instance after it has been active for the value specified
in this text box.
If the link has been idle for s seconds
The router will deactivate this interface after the time specified in this text box if it
detects that the link has not passed any traffic for that period.
Alternative idle timer for static routes s seconds
The value in this text box specifies an alternative inactivity timeout for use in conjunction
with the “Make PPP n interface use the alternative idle timeout when this route becomes
available” parameter on the Configuration – Network > IP Routing/Forwarding >
Static Routes > Routes n > Advanced web page. This timeout will only be used until
the PPP instance next deactivates. After that the normal timeout value is used.
If the link has not received any packets for s seconds
The value in this text box specifies the amount of time that the router will wait without
receiving any PPP packets before disconnecting. The timer is reset with each received PPP
packet.
97
If the negotiation is not complete in s seconds
The value in this textbox specifies the maximum time (in seconds) allowed for the PPP
negotiation to complete. If negotiations have not completed within this period, the
interface is deactivated.
Generate an event after this interface has been up for m minutes
The value in this text box specifies the number of minutes (if any) after which the router
should create an event in the event log that states that the interface has been active for this
period.
Limit the data transmitted over this interface
When checked, this checkbox reveals the following parameters that control what data
volume restrictions (if any) should be applied to this interface:
Issue a warning event after n units
The value in this text box is the amount of traffic which will cause a warning event to be
generated in the event log stating that the specified amount of data has been
transferred. The units are specified by a drop-down list, having the following options;
KBytes, MBytes, GBytes. For example, if the monthly tariff includes up to 5MB of data
before excess usage charges are levied, it would be useful to set this threshold to 4MB.
This would cause the router to create a warning entry in the event log once 4MB of data
had been transferred. This event could then be used to trigger an email alert, SNMP trap
or SMS alert message.
Stop data from being transmitted after n units
The value in this text box specifies the total amount of data that may be transmitted by
this PPP instance before the link is blocked for further traffic, and the value in the drop-
down list specifies the units which are; KBytes, MBytes, GBytes.
Reset the data limit on the n day of the month
The value in this text box defined the day of the month on which the data limit is reset to
zero.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n metric 0 - 255 Metric
ppp n aodion
0 – 2
0 = disabled
1 = enabled
2 = On and return
to service
immediately
Enable “Always On” mode of
this interface, On, On and
return to service immediately
ppp n immoos ON, OFF Put this interface “Out of
Service” when an always-on
connection attempt fails
ppp n aodi_dly 0 – 2147483647 Attempt to reconnect after s
seconds
ppp n aodi_dly2 0 – 2147483647 If an inhibited PPP interface is
connected, attempt to re-
connect after s seconds
ppp n pwr_dly 0 – 2147483647 Wait s seconds after power-up
before activating this interface
98
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n tband 0 - 4 Control when this interface can
connect using Time Band n
ppp n minup 0 – 2147483647 Keep this interface up for at
least s seconds
ppp n maxup 0 – 2147483647 Close this interface after s
seconds
ppp n maxuptime 0 – 2147483647 if it has been up for m minutes
in a day
ppp n timeout 0 – 2147483648 if the link has been idle for s
seconds
ppp n timeout2 0 – 2147483648 Alternative idle timer for static
routes s seconds
ppp n rxtimeout 0 – 2147483648 if the link has not received any
packets for s seconds
ppp n maxneg 0 – 2147483648 if the negotiation is not
complete in s seconds
ppp n uplogmins 0 – 2147483647 Generate an event after this
interface has been up for m
mins
ppp n dlwarnkb 0 – 2147483647 Issue a warning after n units
ppp n dlstopkb 0 – 2147483647 Stop data from being
transmitted after n units
ppp n dlrstday 0 – 255 Reset the data limit on the n
day of the month
99
Configuration - Network > Interfaces > ISDN > LAPD > LAPD n
This page allows you to configure the ISDN LAPD interfaces. Link Access Protocol D (LAPD)
is the protocol used for ISDN D-channel signalling and call setup.
LAPD 0 and LAPD 1 can be used as required for SAPI 16 traffic (i.e. X.25 over D-channel).
LAPD 2 is normally reserved for ISDN call control.
Enable LAPD n
Un-checking this parameter will disable the LAPD instance. This may be necessary if you
have an installation where two or more units are connected to the same ISDN “S” bus. In
this case, only one of the units may be configured for D-channel X.25 on TEI1, SAPI16. On
each of the other units you must disable any LAPD instance for which the TEI is set to 1 in
order to prevent it from responding to X.25 traffic on that TEI that is actually destined for
another unit.
When checked, this check box will also reveal the following configuration parameters
Mode
When the DTE/DCE mode parameter is set to DTE, the unit will behave as a DTE. This is the
default value and should not be changed for normal operation across the ISDN network. If
your application involves using two units back-to-back, one of the units should have the
DTE mode value set to DCE.
N400 Counter
This is the standard LAPB/LAPD retry counter. The default value is 3 and it should not
normally be necessary to change this.
RR Timer n msecs
This is a standard LAPB/LAPD “Receiver Ready” timer. The default value is 10,000ms (10
seconds) and it should not normally be necessary to change this.
T1 Timer n msecs
This is the standard LAPB/LAPD timer. The default value is 1000 milliseconds (1 second) and
it should not normally be necessary to change this.
T200 Timer n msecs
This is the standard LAPB/LAPD re-transmit timer in milliseconds. The default value is 1000
milliseconds (1 second) and it should not normally be necessary to change this.
TEI
Each ISDN terminal device connected to your ISDN basic rate outlet must be assigned a
unique Terminal Endpoint Identifier (TEI). In most cases, this is negotiated automatically. In
some cases however, it may be necessary to assign a fixed TEI.
When TEI is set to 255, the TEI is negotiated with the ISDN network. To use a fixed TEI set
the TEI parameter to the appropriate value as specified by your service provider.
D-channel X.25 Tx Window Size
This specifies the transmit window size when using D-channel X.25. The default is 7.
Tx Throughput
The Tx Throughput parameter is used in conjunction with the Rx Throughput parameter to
limit the maximum data throughput on a LAPD link in bits per second.
If this parameter is set to 0, the unit will transmit data across the LADP link as fast as
possible whilst observing hardware or software flow control if enabled.
When set to a value greater than 0, the unit will limit the rate at which data is transmitted
over the LAPD link.
100
Note:
Note that if multiple PAD or IP instances are sharing this LAPD instance, the maximum
transmission rates of all instances will be limited.
Rx Throughput
The Rx Throughput parameter is used in conjunction with the Tx Throughput parameter to
limit the maximum data throughput on a LAPD link in bits per second.
If this parameter is set to 0, the unit will transmit data across the LADP link as fast as
possible whilst observing hardware or software flow control if enabled.
When set to a value greater than 0, the unit will limit the rate at which data can be received
over the LAPD link when it detects that receive throughput exceeds the specified rate
Note:
Note that if multiple PAD or IP instances are sharing this LAPD instance, the maximum
transmission rates of all instances will be limited.
Reactivate D-channel connection
When this parameter is enabled, the unit will try to reactivate a D-channel connection after
disconnection by the network by transmitting SABME frames. If it is unable to reactivate the
connection after retrying the number of times specified by the N400 counter, it will wait for
1 minute before repeating the retry sequence.
Enabling this parameter also deactivates the Reactivate after n secs parameter
If this parameter is disabled, the unit will not attempt to reactivate a D-channel link
following deactivation by the network.
Reactivate after n secs
This parameter specifies the number of seconds a deactivation has to be present before
the LAPD instance will try to reactivate itself.
After X.25 PAD session is terminated
This parameter determines if to deactivate or not the LAPD session when an X.25 PAD
session is terminated
Deactivate the LAPD session
This parameter enables automatic deactivation of a LAPD session when an X.25 PAD
session is terminated.
Do not deactivate the LAPD session
This parameter ensures the unit will not deactivate the LAPD session when an X.25 PAD
session is terminated.
Enable D64S Mode
D64S mode is a mode in which ISDN B-channel(s) may be used without the need to use any
D channel protocol. It is sometimes referred to as “nailed up” ISDN. To enable this mode for
this LAPD instance, Tick the D64S mode parameter checkbox and ensure that the TEI
parameter is set to 255. This means that for any application that uses ISDN (e.g. PPP) then
it will use D64S mode.
First D64S B-channel
When using D64S mode there is no dialling protocol to negotiate which B-channel to use.
This must therefore be specified using this parameter. Check B1 radio button to select
channel B1 and Check B2 radio button to select channel B2 (if another channel is
requested from an application then it will use the other unused B channel).
101
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
LAPD n enabled off, on Enable LAPD n
LAPD n dtemode off, on Mode
LAPD n n400 1 - 255 N400 Counter
LAPD n tnoact 1000 - 60000 RR Timer n msecs
LAPD n t1time 1 - 60000 T1 Timer n msecs
LAPD n t200 1 – 60000 T200 Timer n msecs
LAPD n tei 0 - 255 TEI
LAPD n window 1 - 7 D-channel X.25 Tx Window Size
LAPD n tthruput 0 - 1410065407 Tx Throughput
LAPD n rthruput 0 - 1410065407 Rx Throughput
LAPD n keepact off, on Reactivate D-channel connection
LAPD n reactsecs 0 - 2147483647 Reactivate after n secs
LAPD n nodeact off After X.25 PAD session is
terminated:
Deactivate the LAPD session
LAPD n nodeact on
After X.25 PAD session is
terminated:
Do not deactivate the LAPD
session
LAPD n d64smode off, on Enable D64S Mode
LAPD n d64schan 1, 2 First D64S B-channel: B1, B2
Configuration – Network > Interfaces > PSTN
This section of the web interface appears when the router is fitted with an optional internal
PSTN MODEM card. When first powered up, navigating to the Configuration – Network >
Interfaces > PSTN page will show a message indicating that the MODEM card does not
have a PPP instance associated with it. Follow the link on the page and select an unassigned
PPP interface to the MODEM. When the browser is refreshed and the Configuration –
Network > Interfaces > PSTN page redisplayed, it should show the parameters
described below, along with a message at the top of the page indicating which PPP instance
has been selected.
This PSTN interface is using PPP n
This message simply states which PPP instance has been assigned to the interface.
Description
The value in this text box is a memorable name for the interface. This may be useful when
referring to the interface, rather than having to remember the name and the function of the
interface.
102
Dial out using numbers
These four text boxes contain the telephone numbers that should be used, in sequence,
to make an outgoing connection.
Prefix n to the dial out number
The value in this text box specifies the dialling prefix to use, if needed. This may be
necessary when using a PABX.
Username
The text string text box is the username that should be used when using the PPP
instance to connect to the remote peer. This will normally be provided by an ISP for use
with a dial-in Internet access service.
Password
This text box contains the password to use for authenticating the remote peer and is
used in conjunction with the above username.
Confirm password
Type the password into this text box to enable the router to confirm that the password
has been entered identically in both boxes.
Allow the remote device to assign a local IP address to this router
When this radio button is selected, the remote peer will assign this PPP interface an IP
address.
Try to negotiate a.b.c.d as the local IP address for this router
If it would be useful, but not essential, to have a predefined IP address for the interface, the
second radio button should be selected and the desired IP address entered into the text box
to the right.
Use a.b.c.d as the local IP address for this router
If it is essential that the PPP interface has a specific IP address, this radio button should be
selected and the IP address entered into the text box.
103
Use the following DNS servers if not negotiated
Primary DNS server
The value in this text box is the IP address of the primary DNS server to use if a DNS
server is not assigned as part of the PPP negotiation and connection process. It is fairly
common practice for the DNS server to be assigned automatically by the ISP when
making a connection.
Secondary DNS server
The value in this text box specifies the IP address of the secondary DNS server to use if
one is not automatically assigned by the remote peer.
Attempt to assign the following IP configuration to remote devices
When checked, this check box will reveal the following four configuration parameters which
control how the PPP instance assigns an IP address to a connecting remote peer. The
primary and secondary DNS server addresses will also be sent to the remote peer
Assign remote IP addresses from a.b.c.d to a.b.c.d
The IP addresses in these text boxes define the pool of IP addresses to assign to remote
peers during the IP protocol configuration phase of the PPP negotiation process.
Primary DNS server
The value in this text box is the IP address of the primary DNS server that the remote
peer should use when making DNS requests over the link.
Secondary DNS server
The value in this text box is the IP address of the secondary DNS server that the remote
peer should use when making DNS requests, should the primary server be unavailable.
Allow the PPP interface to answer incoming calls
When checked, this checkbox will cause the PPP instance to answer an incoming call.
Only allow calling numbers ending with n
When set to answer calls, the value in this textbox provides a filter for ISDN sub-
addresses. This value is blank by default but when the PPP instance is set to answer calls,
only numbers having trailing digits that match the sub-address value in this test will be
answered. So for example, if this value is set to “123”, only calls from numbers with
trailing digits that match this value will be answered. For example 01942 605123
Enable NAT on this interface
When checked, this checkbox will enable Network Address Translation to operate on this
interface. This is the same as for other PPP interfaces.
IP address/IP address and Port
These radio buttons select whether IP address translation only should be applied or
whether port number translation should also be applied to IP packets.
Enable IPsec on this interface
When checked, this checkbox will cause the router to encrypt traffic on this interface using
the IPsec protocol. The following two additional configuration parameters are revealed when
this box is checked.
Keep Security Associations (SAs) when this PSTN interface is disconnected
When checked, this checkbox causes the router to maintain (i.e. not flush) the SA when
the interface becomes disconnected. The normal behaviour is to remove the SAs when
the interface becomes disconnected.
104
Use interface x,y for the source IP address of IPsec packets
If it is required to use another interface (i.e. not the interface currently being configured)
as the source address for IPsec packets, this may be achieved by selecting the desired
interface from the drop-down list and typing the desired interface instance number into
the adjacent text box.
Enable the firewall on this interface
When checked, this checkbox applies the firewall rules to traffic using this interface.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ppp n name Up to 25
characters Description
ppp n phonenum up to 25 digits Dial out using numbers
ppp n ph2 “ “
ppp n ph3 “ “
ppp n ph4 “ “
ppp n prefix 0 – 9999999999 Prefix n to the dial out number
ppp n username Up to 60
characters Username
ppp n password Up to 40
characters Password
ppp n IPaddr 0.0.0.0 Allow the remote device to
assign a local IP address to this
router
ppp n IPaddr Valid IP address
a.b.c.d
Try to negotiate a.b.c.d as the
local IP address for this router
(in conjunction with l_addr)
ppp n l_addr
OFF,ON
When ON, allows
negotiation
when OFF force
use of specified IP
address
Use a.b.c.d as the local IP
address of this router
ppp n DNSserver Valid IP address
a.b.c.d
Use the following DNS servers if
not negotiated
Primary DNS server a.b.c.d
ppp n secDNS Valid IP address
a.b.c.d
Use the following DNS servers if
not negotiated
Secondary DNS server a.b.c.d
ppp n IPmin Valid IP address
a.b.c.d Assign remote IP addresses
from a.b.c.d to a.b.c.d
ppp n IPrange 0 - 255 Assign remote IP addresses
from a.b.c.d to a.b.c.d
105
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n transDNS Valid IP address
a.b.c.d Primary DNS server a.b.c.d
ppp n sectransDNS Valid IP address
a.b.c.d Secondary DNS server a.b.c.d
ppp n ans OFF,ON Allow this PPP interface to
answer incoming calls
ppp n cingnb up to 25 digits Only allow calling numbers
ending with n
ppp n do_nat
0,1,2
0 = Disabled
1 = IP address
2 = IP address
and port
Enable NAT on this interface
IP address/IP address and Port
ppp n nat_ip Valid IP address
a.b.c.d NAT Source IP address a.b.c.d
ppp n ipsec
0 = Disabled
1 = Enabled
2 = Enabled and
Keep SAs
Enable IPsec on this interface/
Keep Security Associations
when this PSTN interface is
disconnected
ppp n firewall OFF,ON Enable the firewall on this
interface
Configuration – Network > Interfaces > PSTN > Advanced
Metric
The value in this text box specifies the route metric that should be applied to this interface.
(see Configuration – Network > Interfaces > Advanced > PPP n for more detail.)
Enable “Always On” mode of this interface
When checked, this checkbox causes the following two options to appear:
On/On and return to service immediately
These two radio buttons select whether the “always-on” functionality should simply be
enabled or whether the additional facility to return the interface to the “In Service” state
should be applied.
Put this interface “Out of Service” when an always-on connection attempt fails
Normally, always-on interfaces will not go out of service unless they have connected at
least once. When checked, this checkbox causes the router to put the interface out of
service even if the first connection attempt fails.
106
Attempt to re-connect after s seconds
The parameter in this text box specifies the length of time in seconds that the router should
wait after an “always-on” PPP connection has been terminated before trying to re-establish
the link.
If an inhibited PPP interface is connected, attempt to re-connect after s seconds
The value in this text box takes precedence over the previous parameter when another
PPP instance that is usually inhibited by this one is connected. This parameter would
typically be used to reduce the connection retry rate when a lower priority PPP instance is
connected.
Wait s seconds after power-up before activating this interface
The value in this text box is the initial delay that the router will apply before activating
the PPP instance after power-up. After the initial power-up delay the normal always-on
activation timers apply. If set to zero, no delay will be applied.
Control when this interface can connect using Time band n
These two controls, the check box and drop-down list determine whether the Time Band
function should be applied to this interface. Checking the checkbox enables the functionality
and the desired time band instance is selected from the drop-down list. Time Band
functionality is explained in the Configuration – Network > Interfaces > Timebands
section of this manual.
Keep this interface up for at least s seconds
The value in this textbox specifies the minimum period that the PPP interface should remain
available. This means that even if the link becomes inactive before this period expires, the
connection will remain open.
Close this interface
After s seconds
The value in this text box specifies the maximum time that the link will remain active in
any one session. After this time, the link will be deactivated.
If it has been up for m minutes in a day
The router will deactivate the PPP instance after it has been active for the value specified
in this text box.
If the link has been idle for s seconds
The router will deactivate this interface after the time specified in this text box if it
detects that the link has not passed any traffic for that period.
Alternative idle timer for static routes s seconds
The value in this text box specifies an alternative inactivity timeout for use in conjunction
with the “Make PPP n interface use the alternative idle timeout when this route becomes
available” parameter on the Configuration – Network > IP Routing/Forwarding >
Static Routes > Routes n > Advanced web page. This timeout will only be used until
the PPP instance next deactivates. After that the normal timeout value is used.
If the link has not received any packets for s seconds
The value in this text box specifies the amount of time that the router will wait without
receiving any PPP packets before disconnecting. The timer is reset with each received PPP
packet.
If the negotiation is not complete in s seconds
The value in this textbox specifies the maximum time (in seconds) allowed for the PPP
negotiation to complete. If negotiations have not completed within this period, the
interface is deactivated.
107
Generate an event after this interface has been up for m minutes
The value in this text box specifies the number of minutes (if any) after which the router
should create an event in the event log that states that the interface has been active for this
period.
Limit the data transmitted over this interface
When checked, this checkbox reveals the following parameters that control what data
volume restrictions (if any) should be applied to this interface:
Issue a warning event after n units
The value in this text box is the amount of traffic which will cause a warning event to be
generated in the event log stating that the specified amount of data has been
transferred. The units are specified by a drop-down list, having the following options;
KBytes, MBytes, GBytes. For example, if the monthly tariff includes up to 5MB of data
before excess useage charges are levied, it would be useful to set this threshold to 4MB.
This would cause the router to create a warning entry in the event log once 4MB of data
had been transferred. This event could then be used to trigger an email alert, SNMP trap
or SMS alert message.
Stop data from being transmitted after n units
The value in this text box specifies the total amount of data that may be transmitted by
this PPP instance before the link is blocked for further traffic, and the value in the drop-
down list specifies the units which are; KBytes, MBytes, GBytes.
Reset the data limit on the n day of the month
The value in this text box defined the day of the month on which the data limit is reset to
zero.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n metric 0 - 255 Metric
ppp n aodion
0 – 2
0 = disabled
1 = enabled
2 = On and return
to service
immediately
Enable “Always On” mode of
this interface, On, On and
return to service immediately
ppp n immoos ON, OFF Put this interface “Out of
Service” when an always-on
connection attempt fails
ppp n aodi_dly 0 – 2147483647 Attempt to reconnect after s
seconds
ppp n aodi_dly2 0 – 2147483647 If an inhibited PPP interface is
connected, attempt to re-
connect after s seconds
ppp n pwr_dly 0 – 2147483647 Wait s seconds after power-up
before activating this interface
ppp n tband 0 - 4 Control when this interface can
connect using Time Band n
ppp n minup 0 – 2147483647 Keep this interface up for at
108
Entity
Instance
Parameter
Values
Equivalent Web Parameter
least s seconds
ppp n maxup 0 – 2147483647 Close this interface after s
seconds
ppp n maxuptime 0 – 2147483647 if it has been up for m minutes
in a day
ppp n timeout 0 – 2147483648 if the link has been idle for s
seconds
ppp n timeout2 0 – 2147483648 Alternative idle timer for static
routes s seconds
ppp n rxtimeout 0 – 2147483648 if the link has not received any
packets for s seconds
ppp n maxneg 0 – 2147483648 if the negotiation is not
complete in s seconds
ppp n uplogmins 0 – 2147483647 Generate an event after this
interface has been up for m
mins
ppp n dlwarnkb 0 – 2147483647 Issue a warning after n units
ppp n dlstopkb 0 – 2147483647 Stop data from being
transmitted after n units
ppp n dlrstday 0 – 255 Reset the data limit on the n
day of the month
109
Configuration – Network > Interfaces > DialServ
The Dialserv option module mimics a telephone exchange in that it supplies the required
voltages on the line, generates a RING signal and has off-hook detection circuitry. It can be
used to provide similar functionality to dialling into an ISP using an analogue MODEM. The
card also contains an analogue MODEM to handle data on the line.
Use PPP/Protocol Switch
These radio buttons select whether the DialServ card uses a PPP instance or the protocol
switch functionality to control traffic on the interface. If PPP is selected, the web page
expands to reveal the standard PPP configuration settings. If Protocol Switch is selected,
only the four settings described immediately below are visible.
Max time to RING line s seconds
The value in this text box specifies the maximum number of seconds that the RING signal
should be generated for.
RING frequency n Hz
The DialServer module generates a RING signal – the frequency of the RING is selected
from this drop-down list. The available options are:
• 20Hz
• 25Hz
• 30Hz
• 40Hz
• 50Hz.
Initialisation string 1
The text string in this text box contains any required MODEM initialisation commands.
Initialisation string 2
The text string in this text box contain initialisation commands that will be issued to the
MODEM after the first initialisation string.
Configuration – Network > Interfaces > DialServ > DialServ Network
Settings
The DialServ card may be configured to use PPP as the protocol to connect to the remote
peer and as such should be assigned a free PPP instance to use as part of the configuration.
If no PPP instance has been assigned and the module has been configured to use PPP, a link
to the PPP mappings page and message appear.
If a PPP instance has been assigned, the following configuration options appear:
This DialServ interface is using PPP n
This message simply indicates which PPP instance (n) is being used by the DialServ card.
Description
The value in this text box is a short string that describes the interface and is used as a
convenience when referring to the interface.
Dial out using numbers
These four text boxes contain the telephone numbers that should be used, in sequence, to
make an outgoing connection. These can be used to provide a dialback facility.
Prefix n to the dial out number
The value in this text box specifies the dialling prefix to use, if needed. This may be
necessary when using a PABX.
Username
110
The text string text box is the username that should be used when using the PPP instance to
connect to the remote peer.
Password
This text box contains the password to use for authenticating the remote peer and is used in
conjunction with the above username.
Confirm Password
Type the password into this text box to enable the router to confirm that the password has
been entered identically in both boxes.
Allow the remote device to assign a local IP address to this router
When this radio button is selected, the remote peer will assign this PPP interface an IP
address.
Try to negotiate a.b.c.d as the local IP address for this router
If it would be useful, but not essential, to have a predefined IP address for the interface, the
second radio button should be selected and the desired IP address entered into the text box
to the right.
Use a.b.c.d as the local IP address for this router
If it is essential that the PPP interface has a specific IP address, this radio button should be
selected and the IP address entered into the text box.
Use the following DNS servers if not negotiated
Primary DNS server
The value in this text box is the IP address of the primary DNS server to use if a DNS
server is not assigned as part of the PPP negotiation and connection process. It is fairly
common practice for the DNS server to be assigned automatically by the ISP when
making a connection.
Secondary DNS server
The value in this text box specifies the IP address of the secondary DNS server to use if
one is not automatically assigned by the remote peer.
Attempt to assign the following IP configuration to remote devices
When checked, this check box will reveal the following four configuration parameters which
control how the PPP instance assigns an IP address to a connecting remote peer. The
primary and secondary DNS server addresses will also be sent to the remote peer
Assign remote IP addresses from a.b.c.d to a.b.c.d
The IP addresses in these text boxes define the pool of IP addresses to assign to remote
peers during the IP protocol configuration phase of the PPP negotiation process.
Primary DNS server
The value in this text box is the IP address of the primary DNS server that the remote
peer should use when making DNS requests over the link.
Secondary DNS server
The value in this text box is the IP address of the secondary DNS server that the remote
peer should use when making DNS requests, should the primary server be unavailable.
Allow the PPP interface to answer incoming calls
When checked, this checkbox will cause the PPP instance to answer an incoming call.
Only allow calling numbers ending with n
111
When set to answer calls, the value in this textbox provides a filter for ISDN sub-
addresses. This value is blank by default but when the PPP instance is set to answer calls,
only numbers having trailing digits that match the sub-address value in this test will be
answered. So for example, if this value is set to “123”, only calls from numbers with
trailing digits that match this value will be answered. For example 01942 605123
112
Enable NAT on this interface
When checked, this checkbox will enable Network Address Translation to operate on this
interface. This is the same as for other PPP interfaces.
IP address/IP address and Port
These radio buttons select whether IP address translation only should be applied or
whether port number translation should also be applied to IP packets.
Enable IPsec on this interface
When checked, this checkbox will cause the router to encrypt traffic on this interface using
the IPsec protocol. The following two additional configuration parameters are revealed when
this box is checked.
Keep Security Associations (SAs) when this PSTN interface is disconnected
When checked, this checkbox causes the router to maintain (i.e. not flush) the SA when
the interface becomes disconnected. The normal behaviour is to remove the SAs when
the interface becomes disconnected.
Use interface x,y for the source IP address of IPsec packets
If it is required to use another interface (i.e. not the interface currently being configured)
as the source address for IPsec packets, this may be achieved by selecting the desired
interface from the drop-down list and typing the desired interface instance number into
the adjacent text box.
Enable the firewall on this interface
When checked, this checkbox applies the firewall rules to traffic using this interface.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ppp n name Up to 25
characters Description
ppp n phonenum up to 25 digits Dial out using numbers
ppp n ph2 “ Dial out using numbers
ppp n ph3 “ Dial out using numbers
ppp n ph4 “ Dial out using numbers
ppp n prefix 0 – 9999999999 Prefix
ppp n username Up to 60
characters Username
ppp n password Up to 40
characters Password
ppp n IPaddr 0.0.0.0 Allow the remote device to
assign a local IP address to this
router
ppp n IPaddr Valid IP address
a.b.c.d
Try to negotiate a.b.c.d as the
local IP address for this router
(in conjunction with l_addr)
ppp n l_addr OFF,ON
When ON, allows
negotiation
when OFF force
Use a.b.c.d as the local IP
address for this router (not
negotiable)
113
Entity
Instance
Parameter
Values
Equivalent Web Parameter
use of specified IP
address
ppp n DNSserver Valid IP address
a.b.c.d Primary DNS server
ppp n secDNS Valid IP address
a.b.c.d Secondary DNS server
ppp n IPmin Valid IP address
a.b.c.d Assign remote IP addresses
from a.b.c.d to a.b.c.d
ppp n IPrange 0 - 255 Assign remote IP addresses
from a.b.c.d to a.b.c.d
ppp n transDNS Valid IP address
a.b.c.d Primary DNS server a.b.c.d
ppp n sectransDNS Valid IP address
a.b.c.d Secondary DNS server a.b.c.d
ppp n ans OFF,ON Allow this PPP interface to
answer incoming calls
ppp n do_nat
0,1,2
0 = Disabled
1 = IP address
2 = IP address
and port
Enable NAT on this interface
IP address/IP address and Port
ppp n natip Valid IP address
a.b.c.d NAT Source IP address a.b.c.d
ppp n ipsec
0 = Disabled
1 = Enabled
2 = Enabled and
Keep SAs
Enable IPsec on this interface/
Keep Security Associations
when this DialServ interface is
disconnected
ppp n firewall OFF,ON Enable the firewall on this
interface
Configuration – Network > Interfaces > DialServ > Advanced
Metric
The value in this text box specifies the route metric that should be applied to this interface.
(see Configuration – Network > Interfaces > Advanced > PPP n for more detail.)
Enable “Always On” mode of this interface
When checked, this checkbox causes the following two options to appear:
On/On and return to service immediately
These two radio buttons select whether the “always-on” functionality should simply be
enabled or whether the additional facility to return the interface to the “In Service” state
should be applied.
Put this interface “Out of Service” when an always-on connection attempt fails.
Normally, always-on interfaces will not go out of service unless they have connected at
least once. When checked, this checkbox causes the router to put the interface out of
service even if the first connection attempt fails.
114
Attempt to re-connect after s seconds
The parameter in this text box specifies the length of time in seconds that the router should
wait after an “always-on” PPP connection has been terminated before trying to re-establish
the link.
If an inhibited PPP interface is connected, attempt to re-connect after s seconds
The value in this textbox takes precedence over the previous parameter when another
PPP instance that is usually inhibited by this one is connected. This parameter would
typically be used to reduce the connection retry rate when a lower priority PPP instance is
connected.
Wait s seconds after power-up before activating this interface
The value in this textbox is the initial delay that the router will apply before activating the
PPP instance after power-up. After the initial power-up delay the normal always-on
activation timers apply. If set to zero, no delay will be applied.
Control when this interface can connect using Time band n
These two controls, the check box and drop-down list determine whether the Time Band
function should be applied to this interface. Checking the checkbox enables the functionality
and the desired time band instance is selected from the drop-down list. Time Band
functionality is explained in the Configuration – Network > Interfaces > Timebands
section of this manual.
Keep this interface up for at least s seconds
The value in this textbox specifies the minimum period that the PPP interface should remain
available. This means that even if the link becomes inactive before this period expires, the
connection will remain open.
Close this interface
after s seconds
The value in this text box specifies the maximum time that the link will remain active in
any one session. After this time, the link will be deactivated.
If it has been up for m minutes in a day
The router will deactivate the PPP instance after it has been active for the value specified
in this text box.
If the link has been idle for s seconds
The router will deactivate this interface after the time specified in this text box if it
detects that the link has not passed any traffic for that period.
Alternative idle timer for static routes s seconds
The value in this text box specifies an alternative inactivity timeout for use in conjunction
with the “Make PPP n interface use the alternative idle timeout when this route becomes
available” parameter on the Configuration – Network > IP Routing/Forwarding >
Static Routes > Routes n > Advanced web page. This timeout will only be used until
the PPP instance next deactivates. After that the normal timeout value is used.
If the link has not received any packets for s seconds
The value in this text box specifies the amount of time that the router will wait without
receiving any PPP packets before disconnecting. The timer is reset with each received PPP
packet.
If the negotiation is not complete in s seconds
The value in this textbox specifies the maximum time (in seconds) allowed for the PPP
negotiation to complete. If negotiations have not completed within this period, the
interface is deactivated.
115
Generate an event after this interface has been up for m minutes
The value in this text box specifies the number of minutes (if any) after which the router
should create an event in the event log that states that the interface has been active for this
period.
Limit the data transmitted over this interface
When checked, this checkbox reveals the following parameters that control what data
volume restrictions (if any) should be applied to this interface:
Issue a warning event after n units
The value in this text box is the amount of traffic which will cause a warning event to be
generated in the event log stating that the specified amount of data has been
transferred. The units are specified by a drop-down list, having the following options;
KBytes, MBytes, GBytes. For example, if the monthly tariff includes up to 5MB of data
before excess useage charges are levied, it would be useful to set this threshold to 4MB.
This would cause the router to create a warning entry in the event log once 4MB of data
had been transferred. This event could then be used to trigger an email alert, SNMP trap
or SMS alert message.
Stop data from being transmitted after n units
The value in this text box specifies the total amount of data that may be transmitted by
this PPP instance before the link is blocked for further traffic, and the value in the drop-
down list specifies the units which are; KBytes, MBytes, GBytes.
Reset the data limit on the n day of the month
The value in this text box defined the day of the month on which the data limit is reset to
zero.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n metric 0 - 255 Metric
ppp n aodion
0 – 2
0 = disabled
1 = enabled
2 = On and return
to service
immediately
Enable “Always On” mode of
this interface, On, On and
return to service immediately
ppp n immoos ON, OFF Put this interface “Out of
Service” when an always-on
connection attempt fails
ppp n aodi_dly 0 – 2147483647 Attempt to reconnect after s
seconds
ppp n aodi_dly2 0 – 2147483647 If an inhibited PPP interface is
connected, attempt to re-
connect after s seconds
ppp n pwr_dly 0 – 2147483647 Wait s seconds after power-up
before activating this interface
ppp n tband 0 - 4 Control when this interface can
connect using Time Band n
ppp n minup 0 – 2147483647 Keep this interface up for at
116
Entity
Instance
Parameter
Values
Equivalent Web Parameter
least s seconds
ppp n maxup 0 – 2147483648 Close this interface after s
seconds
ppp n maxuptime 0 – 2147483647 if it has been up for m minutes
in a day
ppp n timeout 0 – 2147483648 if the link has been idle for s
seconds
ppp n timeout2 0 – 2147483648 Alternative idle timer for static
routes s seconds
ppp n rxtimeout 0 – 2147483648 if the link has not received any
packets for s seconds
ppp n maxneg 0 – 2147483648 if the negotiation is not
complete in s seconds
ppp n uplogmins 0 – 2147483647 Generate an event after this
interface has been up for m
mins
ppp n dlwarnkb 0 – 2147483647 Issue a warning after n units
ppp n dlstopkb 0 – 2147483647 Stop data from being
transmitted after n units
ppp n dlrstday 0 – 255 Reset the data limit on the n
day of the month
117
Configuration – Network > Interfaces > Serial
Digi routers support a variety of serial interfaces, either inbuilt or as optional add-on
modules. Each asynchronous serial (ASY) port may be configured to operate at different
speed, data format etc. These parameters may be changed using the web interface or from
the command line using AT commands and S registers.
The Configuration – Network > Interfaces > Serial menu item opens out when clicked,
to show the list of supported serial interfaces.
Note:
On models fitted with W-WAN modules, one of the interfaces (and its associated web page)
will be dedicated to the W-WAN module. The title will reflect this. Similarly, on models fitted
with an analogue MODEM, one of the interfaces will be entitled PSTN port.
Configuration – Network > Interfaces > Serial > Serial Port n
This section describes the basic configuration of a serial port.
Enable this serial interface
When this checkbox is unchecked, this is the only item that appears in the section. Clicking
the checkbox causes the various associated configuration parameters to appear.
Description
This free-form text entry box allows a description for the interface to be added. For
example, if the serial interface is connected to a card payment device, the description could
read “Till 1” or similar appropriate text.
Baud Rate
This drop-down selection box selects the required Baud rate for the associated serial port.
Data Bits / Parity
This drop-down selection box selects the required data format for the interface, 8 data bits,
no parity being a very common configuration.
Note:
When the serial port is not in 8-bit parity mode (i.e. it is in either 8-bit no parity, or 7-bit
with parity), the router will continually check for parity when receiving AT commands and
adjust and match accordingly.
Flow Control
The unit supports software flow control using XON/XOFF characters and hardware flow
control using the RS232 RTS and CTS signals. Use this drop-down list to select “Software”,
“Hardware” or a combination of “Both”. To disable flow control select the “None” option.
Enable echo on this interface
Check this checkbox to enable command echo to be enabled when using the command line
interpreter, uncheck it if the attached terminal provides local echo.
CLI result codes
Select the required level of verbosity for command result codes. The available options are:
• Verbose
• Numeric
• None.
118
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
asy n/a descr Free text –
description of
interface Description
S31=n n/a n/a
Where n =
3 = 115200
4 = 57600
5 = 38400
6 = 19200
7 = 9600
8 = 4800
Baud rate
S23=n n/a n/a Data Bits / Parity
&Kn n/a n/a
Where n =
0 = None
1 = Hardware
2 = Software
3 = Both
Flow Control
&En n/a n/a Where n =
0 = No echo
1 = echo Enable echo on this interface
&Vn n/a n/a Where n =
0 = numeric
1 = verbose CLI result codes
Configuration – Network > Interfaces > Serial > Serial Port n > Advanced
The configuration parameters in this section are changed less frequently than those in the
basic section and so are given a separate page in order to reduce screen clutter.
Answer V.120 calls after n rings (0 = Don’t answer)
This parameter controls the answering of incoming V.120 calls. When set to zero, V.120
answering is disabled, otherwise V.120 answering is enabled on this interface. Enter the
number of rings to wait before answering the call into this text box. This is equivalent to
setting the value of the “S0” register for the associated serial port.
DCD
This drop-down selection box selects how the Data Carrier Detect (DCD) signal is controlled.
The available options are:
• Auto
• On
• Off
• Pulse Low.
Selecting “Auto” configures the router so that it will only assert the DCD line when an ISDN
connection has been established (this is equivalent to “AT&C1”).
Selecting “On” configures the router such that the DCD line is always asserted when the
router is powered-up (this is equivalent to “AT&C0”).
119
Selecting “Off” configures the router such that the DCD line is normally asserted but is de-
asserted for the time period specified by the “S10” register after a call is disconnected (this
is equivalent to “AT&C2”).
120
DTR Control
This drop-down selection box controls how the router responds to the DTR signal. The
available options are:
• None
• Drop call
• Drop line and call
• Drop call on transition
• Drop line & call on transition.
Selecting “None” configures the router to ignore the DTR signal (this is equivalent to
“AT&D0”).
Selecting “Drop call” configures the router to disconnect the current call and return to AT
command mode when the DTR signal from the attached terminal (DTE) is de-asserted (this
is equivalent to “AT&D1”).
Selecting “Drop line and call” configures the router to disconnect the current call, drop the
line and return to AT command mode when the DTR signal is de-asserted (this is equivalent
to “AT&D2”).
DTR de-bounce time s x 20 milliseconds
This parameter determines the length of time (in multiples of 20ms) for which the DTR
signal must be de-asserted before the router acts on any options that are set to trigger on
loss of this signal. Enter the desired multiple into the text box. Increasing this value makes
the router less sensitive to “bouncing” of the DTR signal. Conversely, decreasing this value
makes the router more sensitive. The default of 100ms (5 times 20ms) is a reasonable
value.
Escape Character
This parameter determines the character used in the escape sequence. The default is the
“+” symbol (ASCII value 43, 0x2b). Changing this value has the same effect as changing
the “S2” register.
Escape Delay s x 20 milliseconds
This parameter defines the required minimum length of the pause (in multiples of 20ms) in
the escape sequence. The default is 50 x 20ms which means that the escape sequence
becomes “+++”, a pause of 1 second and then “AT” in order to drop back to AT command
mode. Enter the desired delay into the text box if a delay of some other value is required.
Forwarding Timeout s x 10 milliseconds
This parameter defines the length of time that the router will wait for more data after
receiving at least one octet of data through the serial port and transmitting it onwards. This
timer is reset each time more data is received. The router will forward data onwards when
either the forwarding timer expires or the input buffer becomes full. This parameter applies
to ADAPT, TCPDIAL, TCPPERM and PANS.
Break Transmit Escape Character c
This parameter determines the character used in the escape sequence. The “-” symbol
(ASCII value 45, 0x2d) is a recommended value. Changing this value has the same effect as
changing the “S3” register. To use the break sequence, type “-” 3 times, with a 1 second
pause either side of the 3 “-” characters.
When the Async port detects the following sequence....
<guard time 1 sec>---<guard time 1 sec>
instead of outputting the three minus characters (they are removed from the output
stream) a BREAK condition is placed on the Async transmitter for 1 second.
121
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
S0=n n/a n/a Where n =
0 - 255 Answer V.120 call after n
rings
&Cn n/a n/a
Where n =
0 = On
1 = Auto
2 = Off
3 = Pulse low
DCD
&Dn n/a n/a
Where n =
0 = None
1 = Drop line
2 = Drop line & call
3 = Drop call on
transition
4 = Drop line & call
on transition
DTR
S45=n n/a n/a Where n =
0 - 255 DTR de-bounce
S2=n n/a n/a Where n =
ASCII value Escape Character
S12=n n/a n/a Where n =
0 - 255 Escape delay
S15=n n/a n/a Where n =
0 - 255 Forwarding Timeout
S3=n n/a n/a Where n =
ASCII value Break Transmit Escape
Character
122
Configuration – Network > Interfaces > Serial > Serial Port n > Profiles
Each serial port can have two profiles which can be configured differently. Which profile is in
force when the router powers-up is selected here.
Power-up profile n
Select “0” from the drop-down selection box to choose profile 0 to be active when the router
powers-up. Select “1” from the selection box to make profile 1 the active profile.
Load Profile n
Select “0” from the drop-down selection box and click the button to load profile 0.
Save Profile
Select “0” from the drop-down selection box and click the button to save profile 0 after
making any changes.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
&Yn Where n =
0,1 Power-up profile n
&Zn Where n =
0,1 Load Profile n
&Wn Where n =
0,1 Save Profile n
123
Configuration – Network > Interfaces > Serial > Sync
The most common form of serial communications these days is asynchronous. Synchronous
serial communications links are still in use and the Digi routers can support these. HDLC is a
synchronous protocol that is still in use and can be used with Digi routers. This section
describes how to configure the synchronous communications interfaces. To enable
synchronous mode, a protocol such as LAPB must be configured to use a synchronous port
as its lower layer interface. On certain models, an informational message will appear on the
web page which states that jumper settings may need to be changed in order to support
synchronous serial operation.
Note:
The number of synchronous serial ports available will vary depending on the model and any
optional modules fitted.
Description
This text entry box is for a description of the interface, should one be required.
Clock source Internal / External
These two radio buttons select between internal or external clock sources for the interface.
Mode
The radio buttons that appear here select the specific serial protocol to use. Which buttons
appear depend upon the capabilities of the interface. The options available are; V.35,
EIA530, RS232, EIA530A, RS449 and X.21.
Invert RX clock
When checked, this checkbox will cause the router to invert the voltage level of the receive
clock signal.
Invert TX clock
When checked, this checkbox will cause the router to invert the voltage level of the transmit
clock signal.
Encoding NRZ / NRZI
These two radio buttons select between non-return to zero (NRZ) and non-return to zero
(inverted) (NRZI) signal encodings.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
sy 0 descr Text description of
interface Description
sy 0 clksrc int,ext Clock source
sy 0 rxclkinv OFF,ON Invert RX clock
sy 0 txclkinv OFF,ON Invert TX clock
sy 0 encode nrz,nrzi Encoding
124
Configuration – Network > Interfaces > Serial > Rate Adaption
The router supports two rate adaptation protocol (Adapt) instances. Each instance enables
the selection and configuration of the protocol to be used for rate adaptation over an ISDN
B channel. The supported protocols are; V.110, V.120 and X.75. Depending on which
protocol is selected, there may be an associated LAPB instance (distinct from the two
general purpose LAPB instances), as for example, when V.120 is used in error-corrected
(multi-frame) mode. Clicking the triangle at the left of the blue bar opens up the two
instances described below.
Configuration – Network > Interfaces > Serial > Rate Adaption n
This page displays the configuration parameters directly relevant to the rate adaptation
protocol only, LAPB configuration pages are to be found here: Configuration – Network >
Legacy Protocols > X.25 > LAPB. When configuring LAPB parameters, be aware that
LAPB 2 is used for adapt 0 and LAPB 3 is used for adapt 1.
Attempt to redial the connection n times if rate adaption has not been negotiated
If an ISDN connection is established, but rate adaption is not negotiated, the value in this
text box specifies how many times the router should drop the connection and redial it.
Drop the connection if it is idle for h hrs m mins s secs
The values in these text entry boxes specify the time to wait before dropping the connection
if the connection becomes idle.
Leased line mode
When checked, this checkbox will allow the router to attempt to maintain the connection
automatically once it has been established.
Enable TCP rate adaption
Check this checkbox to enable the use of rate adaptation when using a TCP connection
rather than an ISDN line. When enabled, the following controls become enabled:
Connect to IP Address a.b.c.d Port n
When using a TCP connection, these text entry boxes allow the user to specify the IP
address and port number that the protocol should use.
Listen on Port
This text entry box contains the port number that the router is listening on when in socket
mode.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
adapt 0,1 dial_retries 0 - 255 Attempt to redial the connection
n times
adapt 0,1 tinact 0 - 86400 Drop the connection if it is idle
for h hrs m mins s secs
adapt 0,1 leased_line OFF,ON Leased line mode
adapt 0,1 sockmode 0,1
0 = disable
1 = enable Enable TCP rate adaption
adapt 0,1 ip_addr valid IP address
a.b.c.d Connect to IP Address a.b.c.d
Port n
adapt 0,1 ip_port valid TCP port Connect to IP Address a.b.c.d
125
Entity
Instance
Parameter
Values
Equivalent Web Parameter
number
Port n
adapt 0,1 lip_port valid TCP port
number Listen on Port n
Configuration – Network > Interfaces > Serial > Command Mappings
The router supports a number of command “aliases” which specify strings to be substituted
for commands entered at the command line. The table on this page contains two text entry
boxes and an “Add” button. Up to 23 command mappings may be specified. An example
may make this clear. Suppose, a user coming from a Unix™ background feels more
comfortable typing “ls” rather than the native “dir” command in order to list the files in a
directory. To achieve this aliasing, enter “ls” into the “From” column in the table, “dir” into
the “To” column and then click the “Add” button.
From
This text entry box contains the substitute text.
To
This text entry box contains the command that should be substituted.
Add
Click this button to add the command mapping.
Delete
When the mapping has been added, a “Delete” button will appear in the right-hand column.
Clicking this button removes the binding from the table.
Note:
If either string contains spaces, the entire string must be enclosed within double quotation
marks. When substituting a command, upper case characters are considered the same as
the corresponding lower case characters.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
cmd n cmdmapi Replacement
command From
cmd n cmdmapo Command to be
substituted To
Configuration – Network > Serial > Protocol Bindings
Digi routers are soft configurable to allow different protocols to be used on different
interfaces. The process of selecting which protocol will be used on a particular interface is
referred to as “binding”. So, for example Serial (ASY) port 0 may be used for an ISDN B
channel X.25 connection in which case PAD 0 would be bound to Serial 0 (assuming that
PAD 0 is the required PAD). (To complete this example, it would also be necessary to
associate the PAD with a LAPB instance using the appropriate page). Protocols are bound to
serial interfaces using a table with a drop-down list box for selecting the protocol and a
drop-down list for selecting the serial port.
126
By default, if no specific protocol has been bound to a serial interface, a PPP instance will
automatically be associated with that port. This means that PPP is treated as the default
protocol associated with the serial ports.
Protocol
Select the desired protocol from this drop-down list.
Bound to
Select the desired serial port from this drop-down list.
Add
Click this button to add the binding.
Delete
When a binding has been added, it appears in the table and a “Delete” button appears in
the right-hand column. Click this button to remove the binding. (Remember that the binding
does not come into force until the “Apply” button at the bottom of the page has been
clicked).
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
bind n prot1 Valid protocol, e.g.
PAD 0 Protocol
bind n id1 Valid serial port
e.g. ASY 5 Bound to
To display a list of the current bindings enter the command:
bind ?
Command line examples:
bind pad 0 asy 0
binds PAD 0 to serial port 0.
bind v120 0 asy 3
binds V.120 instance 0 to asynchronous serial port 3.
To access the Internet using PPP via a terminal connected to serial interface 2, enter the
command:
bind ppp 1 asy 2
Currently it is only possible to bind a TANS instance to an ADAPT instance using the bind
command. The format of the command is:
bind adapt <instance> tans <instance>
127
Configuration – Network > Serial > TRANSIP Serial Ports
TransIP is a way of using virtual serial ports for serial connections over an IP socket, in
effect multiplying the number of concurrent serial connections to a router. TransIP can be
configured to actively connect on a TCP socket (i.e. make outgoing connections).
Configuration – Network > Serial > TRANSIP Serial Ports > TRANSIP n
The message at the top of this page states which serial interface is being used for the
TransIP connection.
Listen on port n
This parameter is the TCP port number that the router should listen on.
Connect to IP Address or Hostname a.b.c.d Port n
The IP address or hostname text entry box should contain a valid IP address or the
hostname which the router should use to make the outgoing TransIP connection.
If this parameter is set (i.e. non-zero), the number defined the TCP port number to use
when making TCP socket connections. When zero, TransIP is listening only on the port
defined above.
Send TCP Keep-Alives every s seconds
The value in this text entry box is the amount of time (in seconds) a connection will stay
open without any traffic being passed.
Enable Stay Connected mode
When checked, this checkbox causes the router to refrain from clearing the TCP socket at
the end of a transaction, data call or data session (depending on what the TansIP serial port
was bound to and what protocol it was using). Leaving this checkbox unchecked allows the
router to clear the socket. For example, if the TransIP port is bound to a TPAD and the box
is unchecked, the TransIP TCP socket will be cleared at the end of the TPAD transaction.
Disable command echo
When this checkbox is checked command echo for the TransIP port is disabled. When
unchecked all commands issued will be echoed back to the TransIP TCP socket.
Escape char c
The parameter in this text entry box is the ASCII character used as the escape character
which is by default “+”. Entering this escape character three times followed by a pause of at
least the “Escape delay” parameter below and then an “AT” command will cause the router
to switch back to command mode from online mode. This is equivalent to the “S2” register
setting.
Escape delay s milliseconds
The parameter in this text entry box defines the delay required between entering the escape
sequence (default “+++”) and the “AT” command in order for the router to drop back into
command mode. This is equivalent to the “S12” register setting.
128
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
transip n port Valid port number
0 – 65535 Listen on port
transip n host Valid IP address
a.b.c.d or
hostname
Connect to IPaddress a.b.c.d or
Hostname
transip n remport Valid port number
0 – 65535 Port
transip n keepact 0 – 255 Send TCP Keep-Alives every s
seconds
transip n staycon ON,OFF Enable Stay Connected mode
transip n cmd_echo_off ON,OFF Disable command echo
transip n escchar Valid ASCII
character Escape char c
transip n esctime 0 – 255 Escape delay s milliseconds
129
Configuration – Network > Serial > RealPort
Digi devices use the patented RealPort COM/TTY port redirection for Microsoft Windows.
RealPort software provides a virtual connection to serial devices, no matter where they
reside on the network. The software is installed directly on the host PC and allows
applications to talk to devices across a network as though the devices were directly
attached to the host. Actually, the devices are connected to a Digi device somewhere on the
network. RealPort is unique among COM port re-directors because it is the only
implementation that allows multiple connections to multiple ports over a single TCP/IP
connection. Other implementations require a separate TCP/IP connection for each serial
port. Unique features also include full hardware and software flow control, as well as tunable
latency and throughput. Access to RealPort services can be enabled or disabled.
Encrypted RealPort
Digi devices also support RealPort software with encryption. Encrypted RealPort offers a
secure Ethernet connection between the COM or TTY port and a device server or terminal
server.
Encryption prevents internal and external snooping of data across the network by
encapsulating the TCP/IP packets in a Secure Sockets Layer (SSL) connection and
encrypting the data using Advanced Encryption Standard (AES), one of the latest, most
efficient security algorithms. Access to Encrypted RealPort services can be enabled or
disabled. Digi’s RealPort with encryption driver has earned Microsoft’s Windows Hardware
Quality Lab (WHQL) certification. Drivers are available for a wide range of operating
systems, including Microsoft Windows Server 2003, Windows XP, Windows 2000, Windows
NT, Windows 98, Windows ME; SCO Open Server; Linux; AIX; Sun Solaris SPARC; Intel;
and HP-UX. It is ideal for financial, retail/point-of-sale, government or any application
requiring enhanced security to protect sensitive information.
Enable RealPort
Selecting this option enables RealPort on the router.
Listen on port
This configures the TCP port on which the router will listen for RealPort connections.
Maximum number of sockets
This defines the maximum number of RealPort connections that the router will support.
Enable encrypted RealPort
Selecting this option enables encrypted RealPort on the router.
Encryption mode to listen on port
This configures the TCP port on which the router will listen for encrypted RealPort
connections.
Maximum number of encryption sockets
This defines the maximum number of encrypted RealPort connections that the router will
support.
Enable Device Initiated RealPort
Selecting this option enables router to make a RealPort connection to a host PC.
Connect to host a.b.c.d Port n
This configures the IP address or hostname and TCP port that the router should use when
making a device initiated connection.
Allow s seconds between connection attempts
130
This configures the interval in seconds between device initiated connection attempts.
Send TCP Keep-Alives every s seconds
This configures the interval at which TCP Keep-Alives are sent over the RealPort connection.
A value of 0 means that Keep-Alives are not sent.
Send RealPort Keep-Alives every s seconds
This configures the interval at which RealPort Keep-Alives are sent over the RealPort
connection. A value of 0 means that Keep-Alives are not sent.
Enable exclusive mode
Selecting this option enables exclusive mode. Exclusive mode allows a single connection
from any one RealPort client ID to be connected only. If this setting is enabled and a
subsequent connection occurs that has the same source IP as an existing connection, the
old existing connection is forcibly reset under the assumption that it is stale.
Enable authentication
Selecting this option enables RealPort authentication.
Authentication secret
This configures the RealPort authentication secret.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
rport 0 enabled OFF,ON Enable RealPort
rport 0 ipport 0 - 65535 Listen on port
rport 0 maxnbsocks 0 - 255 Maximum number of sockets
rport 0 encryption OFF,ON Enable encrypted RealPort
rport 0 encport 0 - 65535 Encryption mode to listen on
port
rport 0 maxnbencsocks 0 - 255 Maximum number of encryption
sockets
rport 0 initiate OFF,ON Enable Device Initiated RealPort
rport 0 IPaddr Valid IP address
a.b.c.d
Connect to host a.b.c.d Port n
rport 0 initiateport 0 - 65535 Connect to host a.b.c.d Port n
rport 0 initiatebackoff 0 - 255 Allow s seconds between
connection attempts
rport 0 tcpkeepalives 0 - 255 Send TCP Keep-Alives every s
seconds
rport 0 rportkeepalives 0 - 255 Send RealPort Keep-Alives every
s seconds
rport 0 exclusive OFF,ON Enable exclusive mode
rport 0 auth OFF,ON Enable authentication
rport 0 secret Up to 30
characters
Authentication secret
131
Configuration - Network > Interfaces > Advanced
Point-to-Point Protocol (PPP) is a standard protocol for transporting data from point to
multipoint networks (such as IP) across point-to-point links (such as a serial or ISDN
connection). This functionality is essential for dial-up Internet access.
As data is transferred across IP networks in synchronous format, the router supports
asynchronous to synchronous PPP conversion. This allows asynchronous terminals
connected to the units to communicate with remote synchronous PPP devices. Normally, this
is carried out using a single ISDN B-channel so that data can be transferred at speeds up to
64kbps. This is known as ASYNC to SYNC PPP operation and is supported as standard by
most terminal adaptors. To use ASYNC to SYNC PPP operation all that is necessary is to
ensure that the PPP protocol is bound to the ASY port to which the terminal or PC is
connected. (see Configuration – Network > Interfaces > Serial).
Note:
In order to use ASYNC to SYNC PPP the attached terminal must also support PPP (Windows
dial-up networking supports PPP).
In addition to ASYNC to SYNC operation (where the router only converts the PPP from one
form to another) the router can initiate its own PPP sessions. This is used for example
when:
The router is configured as a router to connect an Ethernet network to the Internet via ISDN
or W-WAN
The router is answering an incoming ISDN call with PPP either for remote management or
remote access to the Ethernet network to which the router is connected
The router is accessed locally through the serial port for configuration purposes by setting
up a Windows Dial-Up-Networking connection to the “phone number” 123
Note:
With the exception of MLPPP the parameters in this section are only relevant when the
router is generating the PPP, i.e. they are NOT relevant for ASYNC to SYNC PPP operation.
The unit also supports Multi-link PPP (MLPPP). MLPPP uses both ISDN B-channels
simultaneously (and two PPP instances), to provide data transfer speeds up to 128Kbps for
applications such as email or establishing a point-to-point connection between two units.
Configuration – Network > Interfaces > Advanced > PPP Mappings
The PPP Mappings page contains two columns of as many interfaces as are supported by the
router (this varies between models). Each row in the column contains a drop-down list box
that allows the user to select what function should be associated with each PPP instance.
The PPP instance number is the left-most column. So, for example, to assign a W-WAN
interface to PPP instance 3, select “Mobile SIM1 or SIM2” from the drop-down box to the
right of instance “3”. If a W-WAN interface is fitted to the router, this is the default
mapping.
132
Configuration – Network > Interfaces > Advanced > PPP n > Multilink PPP
As mentioned above, the routers may support multilink PPP – this section describes the
configuration of MLPP functionality.
The PPP interface must be configured with “Always On” mode enabled and an AODI NUA.
Desired local ACCM c
The value in this textbox defines the Asynchronous Control Character Map (ACCM). The
default value of 0x00000000 should work in most cases. Changing this value is for
advanced users only.
Desired remote ACCM c
The value in this textbox defines the ACCM for the remote peer. As above, the default value
of 0xffffffff should work in most cases and should only be changed if it is known that other
characters should be used.
Username
The value in this textbox is the username that should be used for logging on to the remote
system.
Password
The value in this textbox is the password that should be used for authentication with the
remote system when using MLPP. This password is used for both B-channel PPP
connections.
Confirm password
When changing the password, the new password should also be typed into this text box.
The router will check that both fields are the same before changing the value.
Enable remote CHAP authentication
When checked, this checkbox causes the router to authenticate itself with the remote
system using CHAP. If this parameter is set, the connection will fail if authentication fails.
Generally, this checkbox should be left unchecked.
Enable short sequence numbers
When checked, this checkbox enables the use of 12-bit, rather than the more usual 16-bit
data packet sequence numbers.
Bring up the second ISDN B-channel
Never
When selected, this radio button will cause the router not to activate the second B-channel.
When the data rate is greater than n bytes/sec for s seconds
When this radio button is selected, the two associated textboxes become enabled and allow
the user to enter the desired data rate (default 2000 bytes/second) that will trigger
activation of the second B-channel and the period for which the data rate exceeds that
value, before the channel is activated.
Drop the second ISDN B-channel
When the connection is terminated
When this radio button is selected, the second B-channel is only deactivated when the
connection is terminated.
133
When the data rate is less than n bytes/sec for s seconds
When this radio button is selected, the above two text boxes are enabled. The value in the
left-hand one specifies the data rate below which the traffic must fall before the secondary
B-channel will be deactivated. The second box contains the time in seconds for which the
data rate must be below threshold before the second B-channel is deactivated.
Note:
The following parameters are for use with “Always On Dynamic ISDN”.
Bring up the first ISDN B-channel
When the data rate is greater than n bytes/sec for s seconds
When “Always On” mode is enabled, these two textboxes specify the data rate and duration
for which the data rate must be sustained before the B-channel is activated.
Drop the first ISDN B-channel
When the data rate is less than n bytes/sec for s seconds
When “Always On” mode is enabled, these two textboxes specify the data rate below the
traffic must fall and the duration for which it is below the threshold before the B-channel is
deactivated.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
mlppp 0 l_accm 0x00000000 –
0xFFFFFFFF Desired local ACCM
mlppp 0 r_accm 0x00000000 –
0xFFFFFFFF Desired remote ACCM
mlppp 0 username Valid username username
mlppp 0 password Valid password password
mlppp 0 epassword Encrypted
password None – this parameter is not
configurable
mlppp 0 r_chap ON, OFF Enable remote CHAP
authentication
mlppp 0 l_shortseq ON, OFF
Default OFF Enable short sequence numbers
mlppp 0 up_rate 0 – 2147483648
Default 2000 When the data rate is greater
than n bytes/sec
mlppp 0 up_delay 0 – 2147483648
Default 10 for s seconds
mlppp 0 down_rate 0 – 2147483648
Default 1000 When data rate is less than n
bytes/sec
mlppp 0 down_delay 0 – 2147483648
Default 10 for s seconds
mlppp 0 dup_rate 0 – 2147483648
Default 500 When data rate is greater than
n bytes/sec
mlppp 0 dup_delay 0 – 2147483648
Default 5 for s seconds
134
Entity
Instance
Parameter
Values
Equivalent Web Parameter
mlppp 0 ddown_rate 0 – 2147483648
Default 500 When data rate is less than n
bytes/sec
mlppp 0 ddown_delay 0 – 2147483648
Default 5 for s seconds
Configuration – Network > Interfaces > Advanced > PPP n
This section contains those parameters which may need to be adjusted when setting up a
PPP connection but in general can be left at their default values.
Load answering defaults
Clicking this button will cause the router to read the default PPP answering default
parameters from a default configuration stored in memory.
Load dialling defaults
Clicking this button causes the router to read the PPP dialling parameters from a default
configuration stored in memory.
Description
This text box holds a description of the PPP instance that may make it easier to refer to. For
example the PPP instance used to connect to an ISP may be named “MyISP”.
This PPP interface will use
If the PPP mappings have been set up previously using the PPP mappings page, this box will
contain the name of the protocol that has been assigned to this PPP instance. If the
mapping has not been set up previously and if no default mappings apply, the text in the
box should read “Not Assigned”. Select the required the required physical interface from the
drop-down selection box.
Dial out using numbers
To allow the router to automatically make outgoing calls, the ISDN number must be
specified. The four text boxes allow four telephone numbers to be entered. The first one is
required, the others are optional and will be used in rotation. These numbers may be the
number of the Internet Service Provider (ISP) or another router.
Prefix n to the dial out number
When making outgoing PPP calls, the value specified in this text box is inserted before the
actual number being called. This may be required if a PABX system is in use which requires
a prefix to be used in order to get an outside line. For example, when using AODI or BACP,
the remote peer may provide a number to be used for raising an additional B-channel to
increase the bandwidth. However, such a number will not normally include the digits needed
to connect to an outside line via a PABX.
Username
The value in this text box is the username to be used for MLPPP login.
Password
This is the password to be used for MLPPP login. This password is used for both B-channel
PPP connections.
Confirm password
Type the password in this text box to confirm that the password has been correctly typed in.
Note:
135
The following three radio buttons control how the IP address for the router is assigned.
Allow the remote device to assign a local IP address to this router
When this radio button is selected, the remote peer will assign this PPP interface an IP
address.
Try to negotiate a.b.c.d as the local IP address for this router
If it would be useful, but not essential, to have a predefined IP address for the interface, the
second radio button should be selected and the desired IP address entered into the text box
to the right.
Use a.b.c.d as the local IP address for this router
If it is essential that the PPP interface has a specific IP address, this radio button should be
selected and the IP address entered into the text box.
Use mask a.b.c.d for this interface
The default value in this text box will normally work and should only be changed if it is
known that the default is not appropriate. Since PPP is a peer-to-peer protocol this value
makes sense in most situations.
Use the following DNS servers if not negotiated
Primary DNS server
The value in this text box is the IP address of the primary DNS server to use if a DNS
server is not assigned as part of the PPP negotiation and connection process. It is fairly
common practice for the DNS server to be assigned automatically by the ISP when
making a connection.
Secondary DNS server
The value in this text box specifies the IP address of the secondary DNS server to use if
one is not automatically assigned by the remote peer.
Attempt to assign the following IP configuration to remote devices
When checked, this check box will reveal the following four configuration parameters which
control how the PPP instance assigns an IP address to a connecting remote peer. The
primary and secondary DNS server addresses will also be sent to the remote peer
Assign remote IP addresses from a.b.c.d to a.b.c.d
The IP addresses in these text boxes define the pool of IP addresses to assign to remote
peers during the IP protocol configuration phase of the PPP negotiation process.
Primary DNS server
The value in this text box is the IP address of the primary DNS server that the remote
peer should use when making DNS requests over the link.
Secondary DNS server
The value in this text box is the IP address of the secondary DNS server that the remote
peer should use when making DNS requests, should the primary server be unavailable.
136
Allow the PPP interface to answer incoming calls
When checked, this checkbox will cause the PPP instance to answer an incoming call.
Only allow calling numbers ending with n
When set to answer calls, the value in this textbox provides a filter for ISDN sub-
addresses. This value is blank by default but when the PPP instance is set to answer calls,
only numbers having trailing digits that match the sub-address value in this test will be
answered. So for example, if this value is set to “123”, only calls from numbers with
trailing digits that match this value will be answered. For example 01942 605123
Close the PPP connection after s seconds
The value in this textbox specifies the maximum time that the link will remain active in any
one session. After this time, the link will be deactivated.
if it has been up for m minutes in a day
The router will deactivate the PPP instance after it has been active for the value specified
in this text box.
if it has been idle for h hrs m mins s secs
The router will deactivate the PPP instance after the time specified in these text boxes if
it detects that the link has not seen traffic.
Alternative idle timer for static routes s seconds
The value in this text box specifies an alternative inactivity timeout for use in conjunction
with the “Make PPP n interface use the alternative idle timeout when this route becomes
available” parameter on the Configuration – Network > IP Routing/Forwarding >
Static Routes > Routes n > Advanced web page. This timeout will only be used until
the PPP instance next deactivates. After that the normal timeout value is used.
If the link has not received any packets for s seconds
The value in this text box specifies the amount of time that the router will wait without
receiving any PPP packets before disconnecting. The timer is reset with each received PPP
packet.
if the negotiation is not complete in s seconds
The value in this textbox specifies the maximum time (in seconds) allowed for the PPP
negotiation to complete. If negotiations have not completed within this period, the
interface is deactivated.
Enable NAT on this interface
When checked, this checkbox causes the router to apply Network Address Translation (NAT)
to IP packets on this interface. When enabled, the following additional parameters appear:
IP address/IP address and Port
These radio buttons select whether IP address translation only should be applied or
whether port number translation should also be applied to IP packets.
NAT Source IP address a.b.c.d
This text box contains the IP address of the interface that should be used as the source
address in IP packets crossing the NAT interface.
Enable IPsec on this interface
When checked, this checkbox causes the router to use the IPsec protocol to secure the
connection. When enabled, the following additional parameters appear:
Keep Security Associations (SAs) when this PSTN interface is disconnected
When checked, this checkbox causes the router to maintain (i.e. not flush) the SA when
the interface becomes disconnected. The normal behaviour is to remove the SAs when
the interface becomes disconnected.
137
Use interface x,y for the source IP address of IPsec packets
If it is required to use another interface (i.e. not the interface currently being configured)
as the source address for IPsec packets, this may be achieved by selecting the desired
interface from the drop-down list and typing the desired interface instance number into
the adjacent text box.
Enable the firewall on this interface
Checking this checkbox causes the router to apply the firewall settings to traffic using this
interface. When debugging connections issues it is often helpful to ensure that this checkbox
is NOT checked, as incorrect firewall rules will prevent a connection from passing network
traffic. If the connection works when the firewall is turned off but fails when turned on, a
good place to start checking parameters would be in the firewall settings page,
Configuration – Security > Firewall.
138
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n name Free text field Description
ppp n phonenum up to 25 digits Dial out using numbers
ppp n ph2 “ “
ppp n ph3 “ “
ppp n ph4 “ “
ppp n prefix 0 – 9999999999 Prefix n to the dial out number
ppp n username Valid username Username
ppp n password Valid password Password
ppp n epassword The encrypted
password None – this parameter is not
configurable
ppp n IPaddr Default 0.0.0.0 set
automatically
Allow the remote device to
assign a local IP address to this
router
ppp n IPaddr Valid IP address
a.b.c.d Try to negotiate a.b.c.d as the
local IP address for this router
ppp n IPaddr Valid IP address
Default 1.2.3.4 Use a.b.c.d as the local IP
address for this router
ppp n mask Valid IP address
Default
255.255.255.255
use mask a.b.c.d for this
interface
ppp n DNSserver Valid IP address Primary DNS server
ppp n secDNS Valid IP address Secondary DNS server
ppp n DNSport Valid IP address
Default 53 DNS Port
ppp n IPmin Valid IP address
Default
10.10.10.10
Assign remote IP addresses
from a.b.c.d to a.b.c.d
ppp n IPrange 0 – 255
Default 5
Assign remote IP addresses
from a.b.c.d to a.b.c.d Note that
these are not directly
equivalent. This address is
obtained by adding the range
value to the minimum.
ppp n transDNS Valid IP address Primary DNS server
ppp n sectransDNS Valid IP address Secondary DNS server
ppp n cingnb up to 25 digits Only allow numbers ending with
n
ppp n msn up to 9 digits with ISDN MSN ending with n
139
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n sub up to 17 digits with ISDN sub-address ending
with n
ppp n maxup 0 – 2147483648 Close the PPP connection after s
seconds
ppp n maxuptime 0 – 2147483647 if it has been up for m minutes
in a day
ppp n timeout Default 300s (5
minutes) if it has been idle for h, m, s
ppp n timeout2 0 – 2147483648 Alternative idle timer for static
routes s seconds
ppp n rxtimeout 0 – 2147483648 if the link has not received any
packets for s seconds
ppp n maxneg 0 – 2147483648 if the negotiation is not
complete in s seconds
ppp n do_nat 0,1
0 = Off
1 = On Enable NAT on this interface
ppp n natip Valid IP address
a.b.c.d NAT Source IP address a.b.c.d
ppp n ipsec 0,1
0 = Off
1 = On Enable IPsec on this interface
ppp n ipsecent Default
PPP
Ethernet
Use interface x,y for the source
address of IPsec packets
ppp n ipsecadd Valid interface
number Use interface x,y for the source
address of IPsec packets
ppp n firewall OFF, ON Enable the firewall on this
interface
Configuration – Network > Interfaces > Advanced > PPP n > Mobile
Mobile telephone modules fitted into the router use PPP to connect to the network and send
and receive traffic. This section describes parameters relevant to setting up a mobile
telephone module.
Use SIM Any, SIM1, SIM2
These radio buttons are used to select which of the SIM cards fitted should be used by the
module.
Detach W-WAN if the link fails
When checked, this checkbox will cause the router to issue the command to detach the
mobile telephone module from the wireless network if it detects that the link has failed. Link
failure is detected by a PPP ping response timer or by a firewall request.
140
Detach W-WAN between connection attempts
This checkbox controls whether or not the module stays attached to the network if multiple
connection attempts are required to establish a connection. This functionality may be useful
if the connection to the mobile telephone network is not very reliable. Connecting to the
mobile telephone network to send and receive data is a two-stage process. The first stage is
where the module signals its wish to join the network and is accepted by the local cell. The
second stage involves negotiating the link parameters and transferring data. Sometimes it
may be necessary to cleanly detach from the network in order to start the process from the
ground up.
Related CLI commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n gprs_sim
0 – 2
0 = Any
1 = SIM1
2 = SIM2
Use SIM, Any, SIM 1, SIM 2
ppp n detach_on_fail OFF,ON Detach W-WAN if the link fails
ppp n detach OFF,ON Detach W-WAN between
connection attempts
Configuration – Network > Interfaces > Advanced > PPP n > Advanced
This section contains PPP configuration parameters that do not normally need changing from
the defaults and are therefore placed in a separate section to reduce clutter on the web
pages.
Metric
This parameter specifies the connected metric of the interface. The default metric of a
connected interface is 1. By allowing the interface to have a higher value (lower priority),
static routes can take precedence over interfaces. For normal operation, leave the value in
this textbox unchanged.
Allow this PP interface to settle for s x 100 milliseconds
On wireless links it is possible that the initial packets sent to the interface by the TCP layer
may be dropped by the network if they are sent too quickly after PPP negotiation has
completed. The value in this textbox defines the delay in notification sent to the TCP layer
that PPP negotiation has completed.
Enable “Always On” mode of this interface
If the “always on” option is available on the interface, checking this checkbox reveals the
following two radio buttons. When this functionality is enabled, the router will automatically
try to reconnect after about 10 seconds if the link becomes disconnected. This parameter
should be enabled when using AODI or W-WAN.
On
Default action, the interface will always try and raise this PPP link.
On and return to service immediately
These two radio buttons enable the “always-on” functionality and additionally the facility
to return to the in-service state after a disconnect event.
Put this interface “Out of Service” when an always-on connection attempt fails
Normally, always-on interfaces will not go out of service unless they have connected at
least once. When checked, this checkbox causes the router to put the interface out of
service even if the first connection attempt fails.
141
Attempt to re-connect after s seconds
The parameter in this textbox specifies the length of time in seconds that the router
should wait after an “always-on” PPP connection has been terminated before trying to re-
establish the link.
If a PPP interface that would be inhibited by this PPP is connected, attempt
reconnection after s seconds
The value in this textbox takes precedence over the previous parameter when another
PPP instance that is usually inhibited by this one is connected. This parameter would
typically be used to reduce the connection retry rate when a lower priority PPP instance is
connected.
Wait s seconds after power-up before activating this interface
The value in this textbox is the initial delay that the router will apply before activating the
PPP instance after power-up. After the initial power-up delay the normal always-on
activation timers apply. If set to zero, no delay will be applied.
Keep this interface up for at least s seconds
The value in this textbox specifies the minimum period that the PPP interface should remain
available. This means that even if the link becomes inactive before this period expires, the
connection will remain open.
Enable Multilink PPP on this interface
When checked, this checkbox enables the multilink PPP capability of the router. (See above
for configuration details).
Click here to assign a timeband to this interface
Clicking this link redirects the browser to the timeband configuration page Configuration –
Network > Timebands.
Add a route to a.b.c.d if the peer’s IP address is not negotiated
Normally, the IP address for a device connecting to a remote peer is assigned by the remote
peer. If this is not the case then the router will need a route to the remote peer. The value
in this textbox is set to the IP address of the remote peer so that it can be added to the
routing table.
Forward IP broadcasts over this interface if the interface is on the same IP
network as an Ethernet interface
When checked, this checkbox causes the router to route broadcast packets to and from
Ethernet interfaces. This will only occur if the PPP instance has issued an address which is
part of the Ethernet interface network.
Send LCP echo request packet to the remote peer
When checked, this checkbox reveal the configuration parameters that cause the router to
send Link Control Protocol (LCP) packets to the remote peer at specified intervals. This
facility can be useful for keeping a link active (W-WAN, for example).
Send LCP echo requests every s seconds
The value in this text box sets the interval at which to send the packets. When set to
zero, the transmission of LCP packets is disabled.
Disconnect the link after n failed echo requests
The value in this text box set the number of consecutive failed echo requests that are
allowed before the router terminates the link. When set to zero, this functionality is
disabled, i.e. the router will not terminate the link if the LCP echo requests do not elicit a
response from the remote.
142
Generate Heartbeats on this interface
When checked, this checkbox reveals the configuration options that control how the router
sends heartbeat packets. Generating a valid configuration enables the router to send
heartbeat packets to the specified destination. Heartbeat packets are UDP packets that
contain various items of information about the router and which may include status
information that may be used to locate its current dynamic IP address. Heartbeats may also
contain GPS position information and mobile telephone module information.
Send Heartbeat messages to IP address a.b.c.d every h hrs, m minutes, s secs
The left-hand text box contains the IP address of the destination for the heartbeat
packets. The remaining text boxes specify the desired interval between sending
heartbeat packets.
Use interface x,y for the source IP address
These two text boxes allow selection of the source interface for the UDP heartbeats.
Selecting an Ethernet source will allow the packets to follow the routing table instead of
being sent out from the PPP interface on which they are set.
Select transmit interface using the routing table
When checked, this checkbox causes the router to choose the best route from the routing
table. If unchecked, the exit interface will be the interface on which the heartbeat is
configured.
Include IMSI information in the Heartbeat message
When checked, this checkbox causes the router to include the IMSI of the wireless
MODEM module in the heartbeat packet.
Include GPS information in the Heartbeat message
When checked, this checkbox causes the router to include the GPS co-ordinates in the
heartbeat packet.
Generate Ping packets on this interface
When checked, this checkbox causes the router to reveal the configuration parameters that
enable the sending of ICMP echo request (ping) packets. This feature can be used as part of
a backup interface strategy.
Send n byte pings to IP host a.b.c.d every h hrs, m mins, s secs
These parameters control how the ICMP echo requests are generated. The value in the
left-hand text box specifies the number of data bytes in the echo request. Typical values
are 32 or 64 octets. The IP host text box specifies the IP address of the host to which the
ping packets are sent. The remaining parameters specify how often the ping should be
sent.
Send pings every h hrs, m mins, s seconds if ping responses are not being
received
These three text boxes specify the interval at which to send pings when more than one
ping request is outstanding. When left at the default of zero this function is disabled.
Switch to sending pings to IP host a.b.c.d after n failures
These parameters allow for more reliable problem detection before failover occurs. If the
value in the first text box is a valid IP address, and the value in the second text box is
greater than zero, when a ping failure is detected on the primary host address, this
secondary host is tried. This is to ensure that should the primary host become
unavailable for any reason and stops responding to the ICMP echo requests, the router
will check an alternative IP address before initiating the failover procedure. The value in
the second text box is the number of pings that should be allowed to fail before checking
the secondary IP address.
143
Ping responses are expected within s seconds
When the value in this text box is set to a non-zero value, the router will wait for that
specified interval for a response from a ping request before applying the timeout
specified in the “Send pings every ... if ping responses are not being received”
setting above. If the value is set to 0 (the default) then the router applies the timeout
without modification.
Only send Pings when this interface is “In Service”
When checked, this checkbox causes the router to only send ICMP requests when the PPP
instance is in service. The default setting is unchecked which means that ICMP requests
are sent when the interface is in service and out of service.
New connections to resume with previous Ping interval
When checked, this checkbox causes the router to use the ping interval that was in force
when the PPP interface last disconnected.
Reset the link if no response is received within s seconds
The value in this text box specifies the period for which the router should wait before
terminating the PPP connection if no response to the auto-pings has been received. This
behaviour is useful in the attempt to re-establish communications, since the router will
automatically attempt to restart an always-on link that has been terminated. This
function is primarily used where IP traffic is being carried over a W-WAN link and where
the associated PPP instance has been configured into the always-on mode.
Use ETH 0 IP address as the source IP address
When checked, this checkbox causes the router to use the IP address of interface ETH 0
as the source address for ICMP echo requests instead of the current IP address of the PPP
interface.
Defer sending pings if IP traffic is being received
One of the uses for sending ICMP echo requests is as a keepalive mechanism. When this
checkbox is checked, it causes the router to defer sending the ping packets out if IP
traffic is being received, since in this case, separate keepalives are not needed.
Limit the data transmitted over this interface
Some service providers impose a (usually monthly) limit on the amount of data sent over a
link and levy additional charges if the limit is exceeded. This is fairly common practice for
W-WAN links. When checked, this checkbox causes the router to stop sending data on the
interface when the preset data limit has been exceeded. The interface is unlocked manually
by clicking the “Clear Total Data Transferred” button on the Management – Network
Status > Interfaces > Advanced > PPP > PPP n page. Alternatively, it may be reset
automatically on a certain day of the month – see below.
Issue a warning event after n Kbytes/Mbytes/GBytes
The value in this text box is the amount of traffic which will cause a warning event to be
generated in the event log stating that the specified amount of data has been
transferred. The units are specified by a drop-down list, having the following options;
KBytes, MBytes, GBytes. For example, if the monthly tariff includes up to 5MB of data
before excess useage charges are levied, it would be useful to set this threshold to 4MB.
This would cause the router to create a warning entry in the event log once 4MB of data
had been transferred. This event could then be used to trigger an email alert, SNMP trap
or SMS alert message.
Stop data from being transmitted after n Kbytes/Mbytes/GBytes
The value in this text box specifies the total amount of data that may be transmitted by
this PPP instance before the link is blocked for further traffic, and the value in the drop-
down list specifies the units which are; KBytes, MBytes, GBytes.
144
Reset the data limit on the n day of the month
The value in this text box defined the day of the month on which the data limit is reset to
zero.
Reset this interface if n packets are transmitted and the connection has been up
for at least s seconds
The values in these text boxes control the circumstances under which the link may be reset.
If the number of packets text box has a value greater than zero, the router will reset the
link if that many IP packets have been transmitted but none have been received, and the
link has been active for at least the value specified in the second text box.
Reboot the router after n consecutive resets
If the value in this text box is non-zero, the router will reboot if the PPP link has been reset
the specified number of times as a consequence of the value n packets (described
immediately above) being exceeded.
Reboot the router after n consecutive connection failures
If the value in this text box is non-zero, the router will reboot if it fails to establish a
connection over this PPP instance after the specified number of consecutive attempts.
Allow this PPP interface to attempt to connect n times before allowing other PPP
interfaces inhibited by this interface to connect
The value in this textbox specifies the number of connection attempts this PPP instance is
allowed to make before other PPP instances that are inhibited by this instance may make
connection attempts.
If this PPP interface gets disconnected, allow it to attempt to reconnect n times
before allowing other PPP interfaces inhibited by this interface to connect
On W-WAN routers, the value in this textbox specifies the number of times that a PPP
instance which was connected and is then disconnected, is allowed to attempt to reconnect
before other PPP instances that were inhibited by this PPP instance will be allowed to
connect.
Inhibit this PPP interface if the following PPP instances n are Active | Active and
not out of service | Not out of service | Connected and not out of service
Inhibition of this PPP interface may be controlled by the state of other PPP instances. This
behaviour is controlled by the options in this drop-down menu box.
If this PPP interface is inhibited and data needs to be sent
The options in this drop-down selection box control the behaviour of the router in the
situation where the PPP instance is in its inhibited state but there is data waiting to be sent
over the interface. The options are:
Do not bring up interface
This option leaves the situation as it is with the interface remaining inhibited.
Bring up interface and use normal idle period
This option removes the inhibit state from the interface and uses the normal idle time
associated with it to control when it deactivates.
Bring up interface and use idle period of s seconds
This option causes the interface to become activated but rather than using the idle timer
associated with the interface, specify the idle timeout.
Inhibit other PPP interface if this PPP interface is disconnected but operational
When checked, this checkbox enables this PPP instance to inhibit other PPP instances if it is
operational but not currently active.
145
Attempt to negotiate DEFLATE compression on this interface
When checked, this checkbox causes the router to compress the data transferred over this
link. When unchecked, compression is disabled. The effectiveness of data compression will
vary with the type of data but a typical ratio achieved for a mix of data such as web pages,
spreadsheets, databases, text files and (uncompressed) image files would be between 2:1
and 3:1. Using compression has the effect of increasing the effective throughput. Using
compression may offer cost savings on a network where charges are based upon the
amount of data transferred (e.g. W-WAN networks). If the data is already compressed (e.g.
.zip files or JPEG images) then the compression algorithm will detect this and send the data
without attempting further compression.
Attempt to negotiate MPPE encryption on this interface
When checked, this checkbox causes the router to attempt to negotiate Microsoft Point-to-
Point Encryption (MPPE) with the remote peer. If the remote peer is unable to negotiate
MPPE, negotiations will fail. When negotiated, the PPP instance will encrypt the PPP frames
as per the MPPE specification.
MPPE key size
The values in this drop-down list select the length (in bits) of the encryption key. The
options are:
• Auto
• 40 bits
• 56 bits
• 128 bits.
“Auto” indicates that the router will accept whatever the remote suggests. For the other
values, the remote must accept and request the key size specified, else the PPP
negotiations will fail.
Enable MPPE stateless mode
When this checkbox is checked, the router will negotiate stateless mode in which the
session key is changed after the transmission of each packet. Stateless mode may be
useful for lossy links.
Note:
MPPE does not provide authentication, only encryption. This is because the encryption keys
are determined by the PPP engines themselves on start-up.
TCP transmit buffer size n bytes
When the value in this text box is set to a non-zero value, the router will use the value to
set the size of the TCP buffer for transmitted packets. This is useful for slow and/or lossy
connections such as satellite links. Setting this buffer to a low value will prevent the amount
of unacknowledged data from getting too high. If retransmits are required, a smaller TX
buffer helps prevent retransmits flooding the connection.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n metric 0 - 255 Metric
ppp n settledly 0 - 200 Allow this PPP interface to settle
for s seconds after the
connection has come up
ppp n aodion 0 – 2
0 = disabled
Enable “Always On” mode of
this interface, On, On and
146
Entity
Instance
Parameter
Values
Equivalent Web Parameter
1 = enabled
2 = On and return
to service
immediately
return to service immediately
ppp n immoos ON, OFF Put this interface “Out of
Service” when an always-on
connection attempt fails
ppp n aodi_dly 0 – 2147483647 Attempt to reconnect after s
seconds
ppp n aodi_dly2 0 – 2147483647
If a PPP interface that would be
inhibited by this PPP is
connected, attempt to re-
connect after s seconds
ppp n pwr_dly 0 - 2147483647 Wait s seconds after power-up
before activating this interface
ppp n minup 0 - 2147483647 Keep this interface up for at
least s seconds
ppp n multi OFF, ON Enable Multilink PPP on this
interface
ppp n netip Valid IP address
a.b.c.d
Add a route to a.b.c.d if the
peer’s IP address is not
negotiated
ppp n rbcast OFF, ON
Forward IP broadcasts over this
interface if this interface is on
the same IP network as an
Ethernet interface
ppp n echo 0 - 2147483648 Send LCP echo requests every s
seconds
ppp n echodropcnt 0 - 2147483648 Disconnect the link after n failed
echo requests
ppp n hrtbeatip Valid IP address
a.b.c.d
Send Heartbeat messages to IP
address a.b.c.d every h hrs, m
mins, s secs
ppp n hrtbeatint 0 - 2147483648 Send Heartbeat messages to IP
address a.b.c.d every h hrs, m
mins, s secs
ppp n hbipent Blank, PPP, ETH
Blank is default Use interface x,y for the source
IP address
ppp n hbipadd Valid interface
number
0 - 2147483648
Use interface x,y for the source
IP address
ppp n hbiproute OFF, ON Select transmit interface using
the routing table
147
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n hbimsi OFF, ON Include IMSI information in the
Heartbeat message
ppp n hbgps OFF, ON Include GPS information in the
Heartbeat message
ppp n pingsiz 0 - 2147483648 Send n byte ping to IP host
a.b.c.d every h hrs, m mins, s
secs
ppp n pingip Valid IP address
a.b.c.d
Send n byte ping to IP host
a.b.c.d every h hrs, m mins, s
secs
ppp n pingint 0 - 2147483648 Send n byte ping to IP host
a.b.c.d every h hrs, m mins, s
secs
ppp n pingint2 0 - 2147483648 Send pings every h hrs, m mins,
s seconds if ping responses are
not being received
ppp n pingip2 Valid IP address
a.b.c.d Switch to sending pings to IP
host a.b.c.d after n failures
ppp n ip2count 0 - 2147483648 Switch to sending pings to IP
host a.b.c.d after n failures
ppp n pingresp 0 - 2147483648 Ping responses are expected
within s seconds
ppp n pingis OFF, ON Only send Pings when this
interface is “In Service”
ppp n ping2cont OFF, ON New connections to resume with
previous Ping interval
ppp n pingdeact 0 - 2147483648 Reset the link if no response is
received within s seconds
ppp n pingfreth0 OFF, ON Use ETH 0 IP address as the
source IP address
ppp n pingresetint OFF, ON Defer sending pings if IP traffic
is being received
ppp n dlwarnkb 0 - 2147483647 Issue a warning event after n
XBytes
ppp n dlstopkb 0 - 2147483647 Stop Data from being
transmitted after n XBytes
ppp n dlrstday 0 – 255 Reset the data limit on the n
day of the month
ppp n sscnt 0 - 2147483648
Reset this interface if n packets
are transmitted and the
connection has been up for at
least s seconds
148
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n sssecs 0 - 2147483648
Reset this interface if n packets
are transmitted and the
connection has been up for at
least s seconds
ppp n lscnt 0 - 2147483648 Reboot the router after n
consecutive resets
ppp n rebootfails 0 - 2147483648 Reboot the router after n
consecutive connection failures
ppp n acttries 0 - 255
Allow this PPP interface to
attempt to connect n times
before allowing other PPP
interfaces inhibited by this
interface to connect
ppp n pdacttries 0 - 255
If this PPP interface gets
disconnected, allow it to
attempt to reconnect n times
before allowing other PPP
interfaces inhibited by this
interface to connect
ppp n inhibitno 0 - 2147483648
Inhibit this PPP interface if the
following PPP instances n are
Active, Active and not out of
service, not out of service,
Connected and not out of
service
ppp n inhmode 0 - 3
Inhibit this PPP interface if the
following PPP instances n are
Active, Active and not out of
service, not out of service,
Connected and not out of
service
ppp n actmode OFF,ON Inhibit other PPP interface if this
PPP is interface is disconnected
but operational
ppp n trafficto 0 - 2147483648
If this PPP interface is inhibited
and data needs to be sent
do not bring up the interface,
bring up interface and use
normal idle period, bring up
interface and use idle period of
s seconds
ppp n deflate 0,1
0 = Off
1 = On
Attempt to negotiate DEFLATE
compression on this interface
ppp n mppebits 0, 40, 56, 128 MPPE key size
149
Entity
Instance
Parameter
Values
Equivalent Web Parameter
0 = Auto
ppp n mppeless OFF, ON Enable MPPE stateless mode
ppp n tcptxbuf 0 - 2147483648 TCP transmit buffer size n bytes
Configuration – Network > Interfaces > Advanced > PPP n > PPP
Negotiation
When PPP starts up, the devices at both ends of the link negotiate the link parameters, in
order to find a common subset that both devices can use. The negotiation may be
summarized by saying that both ends send negotiation packets that say “these are the
values that I wish to use and these are the values that I wish you to use”
Restrict the negotiation time to s seconds
The parameter in this text entry box specifies the maximum time allowed for a PPP
negotiation to complete. If negotiations have not completed in this time, the PPP instance is
disconnected.
Desired local ACCM
The value in this text box is the local Asynchronous Control Character Map which has the
default value 0x00000000. Changing this value is for advanced users.
Desired remote ACCM
This text box holds the remote ACCM which has the default value 0xffffffff. As above, the
default will work in nearly all circumstances and should be changed only where really
necessary.
Desired local MRU n bytes
The value in this text box is the desired local Maximum Receive Unit (MRU), the default
value of 1500 octets will work fine in most cases.
Desired remote MRU n bytes
The value in this text box is the desired MRU for the remote end of the link. The default
value of 1500 octets will be fine in most cases.
Request local ACFC
When checked, this checkbox causes the router to request Address Control Field
Compression (ACFC). When negotiated, the address/control fields are removed from the
start of the PPP header.
Request remote ACFC
When checked, this checkbox causes the router to ask the remote device to request ACFC.
Request local PAP authentication
When checked, this checkbox causes the router to use the Password Authentication Protocol
(PAP) before allowing a connection to be made. Generally, this parameter is enabled for
incoming connections and disabled for outgoing connections.
Request remote PAP authentication
When checked, this checkbox causes the router to authenticate itself with the remote device
using PAP. If this parameter is set, the connection will fail if authentication is not successful.
Generally, this parameter is disabled.
Request local CHAP authentication
150
When checked, this checkbox causes the router to use the Challenge Handshake
Authentication Protocol (CHAP) for local authentication. As with PAP, this parameter is
generally enabled for incoming connections and disabled for outgoing connections.
Request remote CHAP authentication
As with PAP above, this checkbox controls whether or not the router should authenticate
itself with the remote device using CHAP. The connection will fail if authentication fails.
Generally, this parameter is enabled for outgoing connection and disabled for inbound
connections.
Request local (VJ) compression
When checked, this checkbox causes the router to request the use of Van Jacobson
compression which compresses TCP/IP headers to about 3 rather than the standard 40
octets. This is generally only used to improve efficiency on slow links.
Request remote (VJ) compression
When checked, this checkbox causes the router to send a negotiation packet that requests
that the remote device requests VJ compression.
Request local PFC
When checked, this checkbox causes the router to request Protocol Field Compression (PFC)
which compresses PPP protocol fields from 2 to 1 octet.
Request remote PFC
When checked, this checkbox causes the router to ask the remote device to request Protocol
Field Compression.
Request BACP
When this checkbox is checked, the router will use the Bandwidth Allocation Control Protocol
(BACP) to determine the ISDN number to dial for the seconds or third multi-link connection.
Request callback
When checked, this checkbox will request a callback when it dials into a remote device. Note
that the answering PPP instance of the remote unit must also be configured with the
telephone number of the calling unit and a suitable username, password combination.
Allow remote end to request callback
This drop-down list controls whether or not the router will respond to incoming callback
requests. The options are:
• Off
• Desired
• Required.
Allow this unit to authenticate using
CHAP-MD5
Selecting enabled from the drop-down menu will allow the router to authenticate logins
using the CHAP MD-5 algorithm.
MS-CHAP
Selecting enabled from the drop-down menu will allow the router to authenticate logins
using Microsoft’s proprietary MS-CHAP algorithm.
MS-CHAPv2
Selecting enabled from the drop-down menu will allow the router to authenticate logins
using version 2 of Microsoft’s proprietary MS-CHAP algorithm.
Allow a remote unit to authenticate using
CHAP-MD5
151
When checked, this checkbox will allow the router to authenticate with a remote unit using
the CHAP-MD5 algorithm.
MS-CHAP
When checked, this checkbox will allow the router to authenticate with a remote unit using
Microsoft’s MS-CHAP algorithm.
MS-CHAPv2
When checked, this checkbox will allow the router to authenticate with a remote unit using
version 2 of Microsoft’s MS-CHAP algorithm.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ppp n maxneg 0 - 2147483648 Restrict the negotiation time to
s seconds
ppp n l_accm
0x00000000 –
0xFFFFFFFF
Default
0x00000000
Desired local ACCM
ppp n r_accm
0x00000000 –
0xFFFFFFFF
Default
0xFFFFFFFF
Desired remote ACCM
ppp n l_mru 0 – n
Default 1500 Desired local MRU
ppp n r_mru 0 – n
Default 1500 Desired remote MRU
ppp n l_acfc OFF, ON Request local ACFC
ppp n r_acfc OFF, ON Request remote ACFC
ppp n l_pap OFF, ON Request local PAP authentication
ppp n r_pap OFF, ON Request remote PAP
authentication
ppp n l_chap OFF, ON Request local CHAP
authentication
ppp n r_chap OFF, ON Request remote CHAP
authentication
ppp n l_comp OFF, ON Request local (VJ) compression
ppp n r_comp OFF, ON Request remote (VJ)
compression
ppp n l_pfc OFF, ON Request local PFC
ppp n r_pfc OFF, ON Request remote PFC
ppp n l_bacp OFF, ON Request BACP
ppp n l_callb OFF, ON Request callback
ppp n r_callb 0 – 2 Allow remote end to request
152
Entity
Instance
Parameter
Values
Equivalent Web Parameter
0 = Off
1 = Desired
2 = Required
callback
ppp n l_md5
0 - 2
0 = Disabled
1 = Enabled
2 = Preferred
Allow this unit to authenticate
using CHAP-MD5
ppp n r_md5 0,1
0 = Off
1 = On
Allow remote unit to
authenticate using CHAP-MD5
ppp n l_ms1
0,1
0 = Disabled
1 = Enabled
2 = Preferred
Allow this unit to authenticate
using MS-CHAP
ppp n r_ms1 0,1
0 = On
1 = Off
Allow remote unit to
authenticate using MS-CHAP
ppp n l_ms2
0 - 2
0 = Disabled
1 = Enabled
2 = Preferred
Allow this unit to authenticate
using MS-CHAPv2
ppp n r_ms2 0,1
0 = Off
1 = On
Allow remote unit to
authenticate using MS-CHAPv2
Configuration – Network > Interfaces > Advanced > PPP n > QoS
The parameters on this page control the Quality of Service management facility. Each PPP
instance has an associated QoS instance, where PPP 0 maps to QoS 0, PPP 1 maps to QoS 1
and so on. These QoS instances include ten QoS queues into which packets may be placed
when using QoS. Each of these queues must be assigned a queue profile from the twelve
available.
Enable QoS on this interface
This checkbox, when checked, reveals the following QoS configuration parameters:-
Link speed n Kbps
The value in this text entry box should be set to the maximum data rate that this PPP link is
capable of sustaining. This is used when calculating whether or not the data rate from a
queue may exceed its minimum Kbps setting as determined by the profile assigned to it and
send at a higher rate (up to the maximum Kbps setting).
Queue n
Below this column heading, is a list of ten queue instances. Each instance is associated with
the profile and priority on the same row.
Profile n
This column contains the profile to be associated with the queue. There are twelve available,
0 – 11, which are selected from the drop-down list boxes.
Priority
153
This column contains drop-down menu boxes which are used to assign a priority to the
selected queue. The priorities available are: “Very High”, “High”, “Medium”, “Low”, and
“Very Low”.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
qos n linkkbps 0 - Link speed n kbps
qos n q0prof 0 - 11 Queue 0 Profile
qos n q0prio
0 – 4
0 = Very high
1 = High
2 = Medium
3 = Low
4 = Very Low
Queue 0 Priority
qos n q1prof 0 – 11
Queue 1 Profile
qos n q1prio 0 – 4
Queue 1 Priority
qos n q2prof 0 - 11 Queue 2 Profile
qos n q2prio 0 – 4 Queue 2 Priority
qos n q3prof 0 - 11 Queue 3 Profile
qos n q3prio 0 – 4 Queue 3 Priority
qos n q4prof 0 - 11 Queue 4 Profile
qos n q4prio 0 – 4 Queue 4 Priority
qos n q5prof 0 - 11 Queue 5 Profile
qos n q5prio 0 – 4 Queue 5 Priority
qos n q6prof 0 - 11 Queue 6 Profile
qos n q6prio 0 – 4 Queue 6 Priority
qos n q7prof 0 - 11 Queue 7 Profile
qos n q7prio 0 – 4 Queue 7 Priority
qos n q8prof 0 - 11 Queue 8 Profile
qos n q8prio 0 – 4 Queue 8 Priority
qos n q9prof 0 - 11 Queue 9 Profile
qos n q9prio 0 – 4 Queue 9 Priority
Configuration – Network > Interfaces > Advanced > PPP Sub-Configs
PPP sub-configs can be used as an alternative to using an entire PPP instance if only a few
parameters are different to those in an existing PPP instance. Using PPP sub-configs saves
on system memory. Up to 50 sub-configs may be defined.
Nb
154
This is the instance number for a sub-config.
Description
The text in this text box is used as a name to easily identify the sub-config.
Username
The value in this text box is the username that should be used when authenticating with the
remote system and is usually only required for outgoing PPP calls.
Password
The value in this text box is the password used for authentication with the remote system.
Confirm
When changing the password, it should be entered into this text box also to allow the router
to check for simple typing errors.
Dialout Number
The value in this text box is the ISDN number used to make outgoing calls. This must be a
valid number in order to allow the router to make outgoing calls. This number could be the
number of the Internet Service Provider (ISP) or another router.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
pppcfg 1 - 50 name Up to 25
characters Description
pppcfg 1 - 50 username Valid username
up to 60
characters Username
pppcfg 1 - 50 password Valid password
up to 40
cahracters Password
pppcfg 1 - 50 phonenum Up to 25 digits Dialout Number
155
Configuration – Network > DHCP Server
Digi routers incorporate one or more Dynamic Host Configuration Protocol (DHCP) servers,
one for each Ethernet port. DHCP is a standard internet protocol that allows a DHCP server
to dynamically distribute IP addressing and configuration information to network clients.
This section contains a web page for each of the DHCP servers. Additionally, there is a
separate page for mapping MAC addresses to fixed IP addresses.
Configuration – Network > DHCP Server > DHCP Server for Ethernet n
Enable DHCP Server
When checked, this checkbox opens up the page to reveal the following parameters:
IP Addresses a.b.c.d to a.b.c.d
There are six text boxes in this part of the page; three rows of two. The values in these
specify the starting and ending addresses for the range of IP addresses that will be handed
out by the DHCP server. Each of the three rows can be used to specify a different IP address
pool, all pools should be within the same subnet. When the minimum IP address text box is
clear, the DHCP service will be disabled. In other words, in order to enable the DHCP
service, there must be at least one minimum IP address and a range.
Using the CLI, this is specified slightly differently, a starting address and a range are
specified instead.
Mask
The value in this text box specifies the subnet mask used to on the network to which the
router is connected.
Gateway
A gateway is required in order to route data to IP addresses that are not on the local
subnet. The value in this text box specifies the IP address of the gateway (which is usually
the IP address of the router itself as configured by the IP address of the Ethernet interface
associated with this DHCP instance). Alternatively, this may be set to the IP address of
another router on the LAN.
DNS Server
The value in this text box specifies the IP address of the primary DNS server to be used by
clients on the LAN. This will usually be the IP address of the route itself. Alternatively, this
may be set to the IP address of an alternative DNS server on the LAN.
Secondary DNS Server
The value in this text box specifies the IP address of a secondary DNS server (if available)
to be used by DHCP clients on the LAN.
Domain Name
The value in this text box specifies the domain name which will be returned to clients.
Lease Duration d days h hrs m mins
The values in these three text boxes specify how long a DHCP client may use the assigned
IP address before it must renew its configuration with the DHCP server. When configuring
this value using the command line interface be aware that this parameter is specified in
minutes. The three boxes here are for convenience when using long lease durations.
Wait for s milliseconds before sending DHCP offer reply
When the checkbox box is checked, the router will use the value in the text box as the delay
to use prior to sending out the DHCP_OFFER message. Enabling this functionality and
setting the delay to a non-zero value will allow other DHCP servers on the network to
respond first.
156
Only send offers to Wi-Fi clients
When checked, this checkbox causes the router to only send DHCP offers to Wi-Fi clients.
This is useful if the router is being used as an access point and there is a separate DHCP
server on the Ethernet LAN.
DHCP Relay
Forward DHCP requests to a.b.c.d
The values in these two text boxes specify the IP addresses of the two supported DHCP
relay agents. If the DHCP server is on a different subnet, specifying the IP address of the
server in this text box will cause the router to forward DHCP requests to the IP address
specified. The DHCP server must be within 4 hops.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dhcp n IPmin Valid IP address
a.b.c.d IP Addresses a.b.c.d
dhcp n IPrange 0 – 2147483647
Default 20 to a.b.c.d
dhcp n IPmin2 Valid IP address
a.b.c.d IP Addresses a.b.c.d
dhcp n IPrange2 0 – 2147483647
Default 0 to a.b.c.d
dhcp n IPmin3 Valid IP address
a.b.c.d IP Addresses a.b.c.d
dhcp n IPrange3 0 – 2147483647
Default 0 to a.b.c.d
dhcp n mask Valid IP address
a.b.c.d Mask
dhcp n gateway Valid IP address
a.b.c.d Gateway
dhcp n DNS Valid IP address
a.b.c.d DNS Server
dhcp n DNS2 Valid IP address
a.b.c.d Secondary DNS Server
dhcp n domain Up to 64
characters Domain Name
dhcp n lease
0 – 2147483648
minutes
Default 20160
minutes (14 days)
Lease Duration d days, h hrs, m
mins
dhcp n respdelms 0 - 2147483647 Wait for s milliseconds before
sending DHCP offer reply
dhcp n wifionly OFF,ON Only send offers to Wi-Fi clients
dhcp n fwdip Valid IP address Forward DHCP requests to
157
Entity
Instance
Parameter
Values
Equivalent Web Parameter
a.b.c.d
a.b.c.d
dhcp n fwdip2 Valid IP address
a.b.c.d Forward DHCP requests to
a.b.c.d
Configuration – Network > DHCP Server > DHCP Server for Ethernet n >
Advanced
Next Bootstrap Server a.b.c.d
The value in this text box specifies the IP address of a secondary configuration server. This
server does not have to be on the same logical subnet as the client.
Server Hostname
The value in this text box specifies the name of a host that the DHCP client can make
contact with in order to download a boot file.
Boot file
The value in this text box specifies the name of the boot file the client can download from
the host specified in the Server Hostname text box.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dhcp n nxtsvr Valid IP address
a.b.c.d Next Bootstrap Server
dhcp n sname Up to 64
characters Server Hostname
dhcp n file Up to 64
characters Boot file
Configuration – Network > DHCP Server > DHCP Server for Ethernet n >
Advanced DHCP Options
NetBIOS Name Server a.b.c.d
The value in this text box specifies the IP address of the primary WINS server address.
Secondary NetBIOS Name Server a.b.c.d
The value in this text box specifies the IP address of the secondary WINS server address.
TFTP Server Address a.b.c.d
The value in this text box specifies the IP address of a TFTP server. This is mainly used for
boot images.
FTP Server Address a.b.c.d (for WYSE Terminals)
The value in this text box specifies the IP address of an FTP server and is a custom option
for use with WYSE terminals.
FTP Root Dir (for WYSE Terminals)
The value in this text box specifies the root directory for FTP transfers. This is also a custom
option for use with WYSE terminals.
158
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dhcp n NBNS Valid IP address
a.b.c.d NetBIOS Name Server a.b.c.d
dhcp n NBNS2 Valid IP address
a.b.c.d Secondary NetBIOS Name
Server a.b.c.d
dhcp n tftp Valid IP address
a.b.c.d TFTP Server Address a.b.c.d
dhcp n ftp Valid IP address
a.b.c.d FTP Server Address a.b.c.d
dhcp n ftproot Up to 64
characters FTP Root Dir
Configuration – Network > DHCP Server > Logical Ethernet Interfaces
The web pages in this section are simply a duplicate of the above pages but applying to
logical, rather than physical Ethernet interfaces.
159
Configuration – Network > DHCP Server > DHCP Options
The DHCP Option pages allow custom (or non-standard) DHCP options to be configured and
sent to the DHCP client when requesting an IP address and other DHCP parameters. This is
useful for devices such as IP telephones that use specific strings. On the web page, these
(up to ten) options are configured using a table. The table contains the following fields:
Option
The value in this box specifies the DHCP option number.
Data type
The value in this text box specifies the data type for the option and can be any one of the
following; 1,2 or 4 byte value, IPv4 address, text string or hexadecimal data.
Value
The value in this text box specifies the actual data that will be sent in the DHCP option
message.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
dhcpopt n optnb 0 - 2147483647
Default 0 Option
dhcpopt n type
i1 = 1 byte value
i2 = 2 byte value
i4 = 4 byte value
ipv4 = IPv4 address
string = string
hex = hexadecimal
Data type
dhcpopt n value Up to 127 octets Value
Command line examples
To set the option number to “9” for LPR Server, the command is:
dhcpopt 0 optnb 9
160
Configuration – Network > DHCP Server > Static Lease Reservations
The table on this web page controls the configuration of MAC address to IP address
mappings and is used to assign a specific IP address to a particular Ethernet MAC address.
This is particularly useful for mobile applications, e.g. W-WAN where a particular item of
mobile equipment should be issued with the same IP address regardless of when it was last
connected to the network. Up to ten MAC to IP address reservations may be specified.
Note:
It is important to ensure that the IP addresses specified her DO NOT fall within the IP
address ranges specified in the DHCP server page.
IP Address a.b.c.d
The value in this box specifies the IP address to be assigned.
MAC Address aa.bb.cc.dd.ee.ff
The value in this box specifies the MAC address which is to be given the above IP address.
As is usual with the configuration tables, clicking the Add button adds the entry to the table
and clicking the Delete button removes an existing entry from the table.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
mac2ip n IPaddr Valid IP address
a.b.c.d IP Address a.b.c.d
mac2ip n mac Valid MAC address
aa.bb.cc.dd.ee.ff MAC Address aa.bb.cc.dd.ee.ff
Two separate commands are required to set up a mapping, these are:
mac2ip <instance> mac <MAC address>
mac2ip <instance> IPaddr <IP address>
where <instance> can be 0 – 9.
161
Configuration – Network > Network Services
The web page described here collects together a number of services that are provided by
the router into one section to enable the user to quickly enable or disable these services
without having to navigate to multiple sections of the menu. Detailed configuration is
performed within the specific section.
Enable Network Management Protocol (SNMP)
Click on this checkbox to enable and disable remote management of the router using SNMP.
This checkbox does not actually directly control the SNMP functionality, but enables or
disables the remaining SNMP controls on this page.
Note:
Simply clicking on this checkbox may not be sufficient to allow this service to start working.
Depending upon the version selected below, additional configuration may be required.
Detailed configuration, including setting up command filters, users and SNMP traps are to be
found at Configuration > Remote Management > SNMP
Enable SNMP v1
When this checkbox is checked, the router will use version 1 of the protocol.
UDP Port n
The standard UDP port that is used by this service is 161 which is used as the default. If a
different port is required, enter the port number into the text entry box.
Enable SNMP v2c
When this checkbox is checked, the router will use version 2c of the protocol.
Enable SNMP v3
When this checkbox is checked, the router will use version 3 of the protocol.
Enable Simple Network Timer Server (SNTP)
When checked, the router will act as an SNTP time server.
Source
This drop-down selection menu selects the source used to supply time data for the SNTP
server. The usual options are:
• internal real time clock (RTC) device
• a GPS module (if supported)
• an NTP client (if supported).
Enable Secure Shell Server (SSH / SFTP)
The simplest way to check the status or configuration of the router or to upload new
firmware is to use the CLI over a directly connected ASY port or via a telnet session. Both of
these options have security implications. If a user wishes to gain access to the command
line interface of the router but using a more secure protocol, then selecting this checkbox
will enable a secure shell to start. This option also enables support for SFTP for secure file
transfers.
Enable Telnet Server
This radio button selects between a simple telnet server or telnet over SSL. When this
option is selected, the simple, insecure version of telnet is enabled.
Enable Telnet over SSL
If security is an issue, then selecting this option with the radio button disables the simple
version and enables telnet over the secure socket layer (SSL) protocol.
162
Enable Web Server (HTTP)
Much of the configuration of the router may be performed using the web GUI as described
here. However, HTTP is an insecure protocol and so for security reasons, this service may
be disabled by deselecting this radio button and hence, enabling the following secure web
server. If security is not such an issue, selecting this option allows the simpler and slightly
more convenient web server to be used.
Enable Secure Web Server (HTTPS)
Select this radio button to disable the insecure HTTP protocol and enable the HTTPS service.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
snmp n v1enable 0,1
0 = Off
1 = On Enable SNMP v1
snmp n port Default 161 UDP Port n
snmp n v2cenable 0,1
0 = Off
1 = On Enable SNMP v2c
snmp n v3enable 0,1
0 = Off
1 = On Enable SNMP v3
sntp 0 srvr_mode ON,OFF Enable Simple Network Time
Server (SNTP)
sntp 0 time_src 0 = RTC
1 = GPS
2 = NTP Client Source
sockopt n ssh_server_ena ON, OFF Enable Secure Shell Server
sockopt n telnets ON, OFF Enable Telnet over SSL
sockopt n https ON, OFF Enable Secure Web Server
163
Configuration – Network > DNS Servers
This section describes the parameters used to configure the DNS server functionality of the
router.
Configuration – Network > DNS Servers > DNS Server n
The DNS server selection parameters give the ability to specify a DNS server based on the
DNS query. For example, DNS lookups for internal servers can be directed to an internal
DNS server and all other DNS requests can be sent direct to an external DNS server
managed by the ISP.
For DNS requests matching pattern, send the request to
This text box contains the hostname pattern to match for the specified DNS server. This
parameter needs a wildcard to prefix the domain name. For example, to match DNS queries
for all digi.com servers, enter *.digi.com.
When using this feature, it is recommended that the last DNS server selection hostname
pattern is set to “*” to match all other DNS lookups. This ensures that all the DNS lookup
configuration is kept together for ease of troubleshooting. If this is not done, the lookups
will use the DNS server configured on the interface of the default route.
DNS Server a.b.c.d
The value in this text box specifies the IP address of the DNS server to use when a DNS
request matches the hostname pattern.
Secondary DNS Server a.b.c.d
In the event of the primary DNS server not being available, the IP address in this text box
specifies the destination for DNS queries matching the hostname pattern.
Route using
Routing table / Interface x,y
The two radio buttons associated with this text control whether the router should look up
the route to the DNS server by using the routing table or should send the DNS query out of
a specific interface. When the Interface radio button is selected, the drop-down box and
interface instance text box are enabled. The options available for the interface are PPP and
Ethernet. The adjacent text box should be filled in with the number of a valid instance of the
interface, e.g. Ethernet 3. (Different models of router support different numbers of
interfaces).
Use source IP Address of
Sending interface / Interface x,y
The two radio buttons control whether the DNS query should go out having the source
address of the sending interface or a different interface. This will be required for routing if
the route to the DNS server is via an IPsec tunnel, to ensure the local and remote subnet
selectors match.
164
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dnssel n pattern *.domain.com For DNS requests matching
pattern, send the request to
dnssel n svr Valid IP address DNS Server a.b.c.d
dnssel n secsvr Valid IP address Secondary DNS Server a.b.c.d
dnssel n ent PPP,Ethernet Interface x,y
dnssel n add Valid interface
number Interface x,y
dnssel n ipent PPP,Ethernet Interface x,y
dnssel n ipadd Valid interface
number Interface x,y
Configuration – Network > DNS Servers > DNS Server Update
“Dynamic DNS” is supported in accordance with RFC2136 and RFC2485. This allows units to
update specified DNS servers with their IP addresses when they first connect to the Internet
and at regular intervals thereafter. The parameters in this section control how the router
updates a specified DNS server with its IP address when it first connects to the Internet and
at regular intervals thereafter.
This is not to be confused with the popular dynamic DNS service dyndns.com, there is a
separate page for configuring the router to work with dyndns.com
Send an update to DNS Server a.b.c.d for
The IP address in this text box specifies the DNS server that should be sent the updated
information. The server must support “DNS Update messages”. Dynamic DNS is generally
offered as a subscription-based service by ISPs, but for a large number of deployed routers,
it may be more appropriate to set up a dedicated DNS server locally.
Name
The value in this text box specifies the member of the DNS zone to update. This name is
used in conjunction with the zone parameter (below) to uniquely identify the router. So, for
example, if the router has a name of “epos33”, the full address of the unit will be
“epos33.mycompany.com”.
Zone
The value in this text box specifies the DNS zone to update. When using Dynamic DNS it will
be necessary to have domain name (this may be purchased from an appropriate vendor).
This domain name, e.g. “mycompany.com” is what should be entered into the zone field.
When the default route changes
Interface x,y becomes active
The two radio buttons determine when the update is sent, i.e. when the default route
changes or when the specified interface becomes active. The drop-down list offers the
options of “PPP” or “Ethernet” and the text box is used to enter the instance number for the
specified interface.
165
Also send an update every h hrs, m mins, s secs
The values in these text boxes specify the interval at which the unit will issue update
messages to the DNS server.
The DNS server should delete all previous records
When checked, this checkbox causes the DNS server to delete all records of previous
addresses served to the unit.
DNS Server Username
The value in this text box is the username that has been allocated by the Dynamic DNS
service provider.
DNS Server Password
The value in this text box is the password that has been allocated by the Dynamic DNS
service provider.
Password is Base64 encoded
Some Dynamic DNS servers issue passwords that are Base64 encoded, e.g. Linux Base
servers. If this is the case, check this check box to switch on the Base64 decoding of the
password before transmission. The password is not actually transmitted as part of the
message but is used to create a “signature” that is appended to the message. If the
password is issued as a hexadecimal string and not straight text, the password in the
password text box must be given the prefix “0x”.
Confirm DNS Server Password
The password should be entered into this text box to confirm it.
Local time offset from GMT
Auto detect
The two radio buttons here control whether or not the offset of the local time from GMT
should be auto-detected or specified. This feature is required since a GMT timestamp must
be included as part of the authentication message. When set to auto-detect the router will
automatically apply the correction. When auto detect is not selected, the correct offset
should be selected from the drop-down list.
Required Time Accuracy
The value in this text box specifies the permitted variance between the router’s time and
that of the DNS server. If the time difference exceeds this limit, the DNS update will fail.
Allow DNS clients to cache this entry for s seconds
The value in this text box specifies how long a router that resolved the address is allowed to
cache that address for.
166
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dnsupd 0 server Valid IP address
a.b.c.d Send an update to DNS Server
a.b.c.d
dnsupd 0 name up to 20
characters Name
dnsupd 0 zone up to 64
characters Zone
dnsupd 0 ifent PPP,ETH when interface x,y becomes
active
dnsupd 0 ifadd Valid instance
number when interface x,y becomes
active
dnsupd 0 upd_int 0 – 2147483648
(seconds) Also send an update every h
hrs, m mins s secs
dnsupd 0 delprevrr OFF,ON The DNS server should delete all
previous records
dnsupd 0 username Valid username
(up to 20
characters) DNS Server Username
dnsupd 0 password Valid password
(up to100
characters) DNS Server Password
dnsupd 0 b64pwd OFF,ON Password is Base64 encoded
dnsupd 0 autozone OFF,ON Local time offset from GMT auto
detect
dnsupd 0 tzone –2147483648 -
2147483647
(hours) Local time offset from GMT n
dnsupd 0 fudge 0 – 2157483648
(seconds) Required Time Accuracy s
seconds
dnsupd 0 ttl 0 – 2157483648
(seconds) Allow DNS clients to cache this
entry for s seconds
167
Configuration – Network > Dynamic DNS
The Dynamic DNS client (DynDNS) is used to update DNS hostnames with the current IP
address of a particular interface. It operates in accordance with the specification supplied by
dyndns.com (go to http://www.dyndns.com/developers/specs/). When the interface
specified by the interface and interface instance number parameters connects, the client
checks the current IP address of that interface and if it differs from that obtained from the
previous connection, www.dyndns.com is contacted and the hostnames specified in the
Hostname parameters are updated with the new address.
Host and Domain Name(s)
These five text boxes specify up to five host/domain names that are to be updated using the
service.
Destination port #
The value in this text box specifies the IP port to use as the destination port. The default
value is 0 which causes the router to use the default port number which is port 80.
DynDNS User Name
The value in this text box specifies the username to use when updating the hostnames. This
will have been supplied by the service provider.
DynDNS Password
The value in this text box specifies the password to use when updating the hostnames. This
will have been supplied by the service provider.
Confirm DynDNS Password
Enter the password into this text box to confirm it.
DynDNS DDNS System
The value selected from this drop-down list is used to identify the dynamic DNS system
containing the hostnames to be updated. The available options are:
• Dynamic DNS
• Static DNS
• Custom DNS.
When default route/interface x,y becomes active, send DDNS update
The radio buttons select whether or not the router should use the default interface or the
interface specified from the drop-down list. If the specified interface option is selected, the
required interface is selected from the drop-down list and the interface instance is entered
into the adjacent text box. If the default interface is selected, the client will keep track of
and use the current default route.
Use Wildcards
This drop-down list selects whether or not wildcard matching on the hostname will be
performed. The options are:
• Disable wildcards
• Enable wildcards
• No change to service settings.
When enabled, the Dynamic DNS service will match DNS requests of the form
“*.hostname” where “*” matches any text. For example, if Hostname1 was set to
“site.dyndns.com” and wildcard matching was enabled, than www.site.dyndns.com would
resolve to the interface address.
168
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dyndns 0 hostname1 Up to 40
characters Host and Domain Name(s)
dyndns 0 hostname2 Up to 40
characters Host and Domain Name(s)
dyndns 0 hostname3 Up to 40
characters Host and Domain Name(s)
dyndns 0 hostname4 Up to 40
characters Host and Domain Name(s)
dyndns 0 hostname5 Up to 40
characters Host and Domain Name(s)
dyndns 0 port 0 - 65535 Destination port #
dyndns 0 username Up to 20
characters DynDNS User Name
dyndns 0 password Up to 25
characters DynDNS Password
dyndns 0 system Blank, statdns,
custom DynDNS DDNS System
dyndns 0 ifent Blank,ETH,PPP When default route/interface x,y
becomes active, send DDNS
update
dyndns 0 ifadd 0 -2147483647 When default route/interface x,y
becomes active, send DDNS
update
dyndns 0 wildcard
0,1,2
0 = Disable
wildcards
1 = Enable
wildcards
2 = No change to
service settings
Use Wildcards
169
Configuration – Network > Dynamic DNS > Advanced
The parameters in this section do not normally need changing from their defaults.
Update interval d days
The value in this text box specifies the number of days between dynamic DNS updates.
Supply the IP address in the update
When checked (the default), this checkbox cause the router to supply the IP address as part
of the dynamic DNS update. When unchecked, the IP address is not supplied and the
DYNDNS server attempts to determine the correct IP address by other means (IP source
address in update packet). This mode would normally only be used if the router is behind a
NAT router.
Note:
It may be helpful to visit the www.dyndns.com website before attempting configuration of
dynamic DNS.
Only send update when this router is the VRRP master
When checked, this checkbox causes the router NOT to send DDNS updates unless at least
one Ethernet interface is a VRRP master.
Enable debug
When checked, this checkbox enables debug tracing of the dynamic DNS transactions.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dyndns 0 updateint 0 -255 Update interval d days
dyndns 0 noip OFF,ON Supply the IP address in the
update
dyndns 0 ifvrrpmaster OFF,ON Only send update when this
router is the VRRP master
dyndns 0 debug OFF,ON Enable debug
170
Configuration – Network > IP Routing / Forwarding - An introduction to
TransPort routing
The configuration pages and command line commands that are described in this section
control the routing behaviour of the router.
The TransPort’s routing table can be viewed by navigating to Management - Network
Status > IP Routing Table.
The TransPort’s routing table can also be displayed using the CLI command:
route print
Types of route
TransPort routers support three main types of route:
Dynamic Routes
Static Routes
Default Routes
Dynamic Routes
Dynamic routes are created automatically when an interface is configured or connected.
For example configuring an Ethernet 0 interface with an IP address of 192.168.1.1 and
mask of 255.255.255.0 will cause a dynamic route to be created automatically.
Thus any packet with destination IP address in the range 192.168.1.0 to 192.168.1.255 will
automatically be routed through to the Ethernet 0 interface.
Static Routes
Static routes can be added by configuring a route in Configuration - Network > IP
Routing/Forwarding > Static Routes > Routes 0 – 9 > Route n (where n is an
instance number).
The minimum configuration required to add a static route is:
IP Address
Mask
Interface
Interface number
If a static route is “pointing” at an Ethernet interface then optionally a gateway IP address
can be added. If a gateway IP address is not added then the gateway IP address configured
for the Ethernet interface itself will be used automatically.
Default Routes
Default routes can be added by configuring a route in Configuration - Network > IP
Routing/Forwarding > Static Routes > Default Route n (where n is an instance
number).
Default routes will match packets with any destination IP address (when in service).
If a default route is configured, packets with destination IP addresses that do not match any
of the dynamic or static routes will be sent out the interface specified in the first “in service”
default route.
171
Routing modes
The TransPort has 2 routing modes available, these are:
TransPort routing mode
This is the original routing method and may be seen on existing installations.
CIDR routing mode
Now enabled by default on new TransPort routers.
The CLI command to switch between the 2 modes is:
ip 0 cidr [off|on]
TransPort routing mode
CIDR routing is disabled
When the TransPort receives an IP packet to route, the routing table is used to decide
through which interface to send the packet.
Usually the destination IP address of the IP packet is compared with the IP Address and
Mask of each entry in the routing table in index order regardless of the order in the routing
table or length of mask.
There may be more than one match and in this case the index number of the route is taken
into account. The index number is simply the route number in the config, Static Route 0 or
1 is index 0 or 1
Static routes are checked first, then dynamic routes, then default routes.
CLI command: ip 0 cidr off
CIDR routing mode
CIDR routing is enabled
When the TransPort receives an IP packet to route, the routing table is used to decide
through which interface to send the packet.
Usually the destination IP address of the IP packet is compared with the IP Address and
Mask of each entry in the routing table.
There may be more than one match and in this case the most specific route is used to route
the packet. Ie, a matching /24 route is used before a matching /16 route.
If multiple routes match the destination and have the same prefix length, the index number
of the routes in the routing table is used to determine the route.
CLI command: ip 0 cidr on
Route Metrics
Route Metric settings can be set to override the order in which the routes are searched.
Routes with lower metric numbers will always be used in preference to routes with higher
metric numbers even if the routes with higher metric numbers appear first in the routing
table.
Route metrics can be configured by means of the route parameters:
Connected Metric
Disconnected Metric
172
Route metrics can be altered automatically according to various circumstances. This is in
order to provide automatic backup connection paths.
Routes and interfaces can be put out of service.
Whenever an interface is out of service (oos) any route pointing at the interface will also be
out of service.
Whenever a route is out of service, the metric value will be set to 16 in TransPort routing
mode and 17 in CIDR mode.
Configuration – Network > IP Routing / Forwarding > IP Routing
Enable CIDR routing
When this checkbox is checked, the following six text boxes are revealed:
Connected Interfaces
The value in this text box specifies the CIDR metric that the router should apply to
connected interfaces.
Static Routes
The value in this text box is the CIDR metric that the router should use for static routes.
(Default 1)
eBGP Routes
The value in this text box is the CIDR metric that the router should use for eBGP routes.
(Default 20).
OSPF Routes
The value in this text box is the CIDR metric that the router should use for OSPF routes.
(Default 110)
RIP Routes
The value in this text box is the CIDR metric that the router should use for RIP routing.
(Default 120).
iBGP Routes
The value in this text box is the CIDR metric that thae router should use for iBGP routes.
(Default 200).
Maximum static route metric
The value in this text box defines the maximum value for the routing metric. The default
value is 16.
Route directed IP broadcasts
When checked, this checkbox causes the router to route directed broadcasts. The default
state for this parameter is “Off”. A directed broadcast is an IP packet with a destination
address that is a valid broadcast address for a subnet but does not originate from that
subnet. Directed IP broadcasts are used to send a broadcast from one interface to the
subnet of another.
Wait s seconds before using an alternative route
The value in this text box specifies the latency to apply before passing traffic on an
alternative route in the current route becomes unavailable.
If an interface is configured for “dial on demand” and fails to connect,
Mark a static route as “Out Of Service” for s seconds
The value in this text box specifies the default time that a route should be marked as out of
service if the interface it uses fails to establish a connection.
173
When an “Always On” route becomes “In Service”, wait s seconds before using it
The value in this text box specifies the delay that the router should apply to a route before
passing traffic on it once it has come into service.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ip 0 cidr on,off Enable CIDR routing
ip 0 admin_connected 0 -
2147483647 Connected Interfaces
ip 0 admin_static 0 -
2147483647 Static Routes
ip 0 admin_ebgp 0 -
2147483647 eBGP Routes
ip 0 admin_ospf 0 -
2147483647 OSPF Routes
ip 0 admin_rip 0 -
2147483647 RIP Routes
ip 0 admin_ibgp 0 -
2147483647 iBGP Routes
ip 0 inf_metric 0 -
2147483647 Maximum static route metric
ip 0 route_dbcast 0 - 255 Route directed IP broadcasts
ip 0 route_dly 0 -
2147483647 Wait s seconds before using
an alternative route
ip 0 route_dwn 0 -
2147483647
If an interface is configured
for “dial on demand” and fails
to connect, Mark a static
route as “Out Of Service” for
s seconds
ip 0 routeup_dly 0 -
2147483647
When an “Always On” route
becomes “In Service”, wait s
seconds before using it
Configuration – Network > IP Routing / Forwarding > Static Routes
The static routing web pages and command line parameters described below control the
static routing table used by the router. These allow the setting up of static IP routes for
particular IP subnets, networks or addresses.
Configuration – Network > IP Routing / Forwarding > Static Routes >
Route n
Each of the static route instances has its own configuration page. These are described
below.
Description
The value in this text box is to allow a memorable name for the route to be assigned.
174
Destination Network a.b.c.d
The value in this text box is the IP address of the destination subnet, network or IP address
for the route. If the router receives a packet with a destination IP address that matches the
Destination Network/Mask combination it will route the packet through the interface
specified below.
Mask a.b.c.d
The value in this text box is the network mask that is used in conjunction with the above
destination network address to specify the.
Gateway a.b.c.d
The value in this text box is used to override the default gateway IP address configured for
the Ethernet interfaces. Packets matching the route will use the gateway address specified
in the route rather than the address specified on the Ethernet interface configuration page.
This parameter does NOT apply to routes using PPP interfaces.
Interface x,y
The interface used to route the packets is selected from the drop-down list and the interface
instance number is entered into the adjacent text box. The available options are:
• None
• PPP
• Ethernet
• Tunnel
Use PPP sub-configuration
If PPP sub-configs are defined, this text will appear in normal highlighting (i.e. not “greyed
out”) and text box will accept the number for the desired sub-config to use on this route.
This parameter will not appear at all on those models which do not support PPP sub-
configurations.
Metric n
The value in this text box is the routing metric to use when the interface is connected. This
should have a value between 1 and 16 and is used to select which route should be used
when the subnet for a packet matches more than one of the IP route entries.
Each route may be assigned a “connected metric” and a “disconnected metric”. The
connected metric parameter is used to specify the metric for a route whose interface is
active. The disconnected metric is used to specify the metric for a route whose interface is
inactive. Normally both values should be the same but in some advanced routing scenarios
necessary to use different values.
If a particular route fails it will automatically have its metric set to 16 which means that it is
temporarily deemed as being “out of service”. The default out of service period is set by the
IP route out of service parameter on the .... page. Note however, that this default period
may be overwritten in certain situations such as when a firewall stateful inspection rule
specifies a different period. When a route is out of service, any alternative routes (with
matching subnets) will be used first.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
route n descr Up to 20 characters Description
route n IPaddr Valid IP address
a.b.c.d Destination Network a.b.c.d
route n mask Valid netmask
a.b.c.d Mask a.b.c.d
175
Entity
Instance
Parameter
Values
Equivalent Web Parameter
route n gateway Valid IP address
a.b.c.d Gateway
route n ll_ent Blank,PPP,ETH,TUN Interface x,y
route n ll_add 0 – 2147483647 Interface x,y
route n upmetric 0 – 2147483647 Metric
Configuration – Network > IP Routing / Forwarding > Static Routes >
Route n > Advanced
Use metric n when the interface is not active
The value in this text box specifies the routing metric to use when the interface is not
active.
Use this route only if the source IP address of the packet matches
When this checkbox is checked, the following two parameters are enabled.
IP Address a.b.c.d
If necessary, these IP Address and Mask parameters may be used to further qualify the way
in which the router routes packets. If the values in this text box and the following Mask
parameter are set, the source address of the packet being routed must match these
parameters before the packet will be routed through the specified interface.
Mask a.b.c.d
The value in this text box specifies the netmask that is used in conjunction with the IP
address as explained above.
Include this route in RIP advertisements
When checked, this checkbox will cause the router to include this static route to be included
in RIP advertisements.
Make PPP n interface use the alternative idle timeout when this route becomes
available
When checked, this check box, in conjunction with the PPP interface instance number in the
text box will cause the router to use the alternative inactivity timeout specified for that
interface when this route comes back into service. This feature is useful when it is
preferable to close down a backup route quickly when a primary route comes back into
service.
Wait for s seconds after power up before allowing this route to activate the
interface
The value in this text box specifies the delay that the router should wait after power-up
before packets matching this route will initiate a connection of the interface configured in
the route. It is typically used on W-WAN routers that have ISDN backup in order to prevent
unnecessary ISDN connections from being made whilst a W-WAN connection is first being
established.
Mark this route as “Out of Service” in the interface fails to connect after n
consecutive attempts
176
Normally, if an interface is requested to connect by a route and fails to connect, the route
metric is set to 16 for the period of time specified by the Mark a static route as “Out Of
Service” for s seconds parameter on the Configuration – Network > IP
Routing/Forwarding > IP Routing page. If the value in this text box is non-zero, the
route metric will not be set to 16 until the number of connection attempts specified by this
parameter have been made.
177
If the interface fails to connect, try again in s seconds
If an interface is requested to connect by this route (due to IP traffic being present) and it
fails to connect, the route will be marked as out of service but the router will continue to
attempt to connect at the interval specified by the value in this text box. If the interface
does connect, the router will clear the out of service status for the route.
Deactivate the interface after it successfully connects
When checked, this check box will cause the router to deactivate an interface once a
successful activation attempt has been made. This is used in conjunction with the above
retry parameter. If the above retry parameter is not set, this checkbox is “greyed out”.
Do not allow this interface to be activated by this route for s seconds after the last
activation attempt
The value in this text box is the delay to wait before re-initiating a connection after it has
dropped whilst still required.
Only queue one packet whilst waiting for the interface to connect
When checked, this checkbox will cause the router to enqueue only one packet while waiting
for the interface to connect. When unchecked, the router will enqueue two packets.
When this route becomes available, deactivate the following interfaces x,y x,y
The interfaces specified by the values in these two pairs of drop-down list and text boxes
will be deactivated when this route becomes available again after being out of service. This
feature is typically used to deactivate backup interfaces when the primary interface
becomes available after being out of service. Select the required interface from the drop-
down list and enter the interface instance number into the text box as usual.
When this route becomes unavailable, remove the “Out of Service” state on x,y
This drop-down list and text box are used to specify the interface (available options are
“None”, “PPP”, “Ethernet” and “Tunnel”) and instance that should be taken out of the “Out
of Service” state when the interface that this route is configured to use is deactivated.
Keep this route in service for s seconds after OOS state is cleared
When this checkbox is checked, the following text box is enabled (i.e. it is no longer “greyed
out”), allowing a value to be entered. The value specifies the period that the interface
specified above will remain in service even though it is actually unable to pass traffic
immediately. This is behaviour useful in situations where a PPP interface is activating and
traffic should not try the next interface until this one has been allowed a certain amount of
time to come up. When this timer expires, if the interface is unable to pass traffic, it will be
marked Out of Service and the next interface will be tried.
Assign this route to recovery group n
The value in this text box is used to assign the route to a “recovery group”. This means that
if all the routes in a particular recovery group go out of service, the out of service status is
cleared for all routes in that group. If one route in a group comes back into service, all
routes with a lower priority (metric) also have their out of service status cleared.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
route n metric 0 – 2147483647 Use metric n when the
interface is not active
route n srcip Valid IP address
a.b.c.d IP Address a.b.c.d
route n srcmask Valid netmask
a.b.c.d Mask a.b.c.d
178
Entity
Instance
Parameter
Values
Equivalent Web Parameter
route n inrip on,off Include this route in RIP
advertisements
route n doinact2 on,off Make PPP n interface use the
alternative idle timeout when
this route becomes available
route n inact2add 0 – 2147483647 Make PPP n interface use the
alternative idle timeout when
this route becomes available
route n pwr_dly 0 - 255 Wait for s seconds after power
up before allowing this route
to activate the interface
route n actooslim 0 – 2147483647
Mark this route as “Out Of
Service” if the interface fails to
connect after n consecutive
attempts
route n chkoos_int 0 – 2147483647 If the interface fails to
connect, try again in s seconds
route n chkoos_deact 0 - 255 Deactivate the interface after
it successfully connects
route n dial_int 0 – 255
Default 10
Do not allow this interface to
be activated by this route for s
seconds after the last
activation attempt
route n q1 on,off Only queue one packet whilst
waiting for the interface to
connect
route n deact_ent Blank,PPP When this route becomes
available, deactivate the
following interfaces x,y
route n deact_add 0 – 2147483647 When this route becomes
available, deactivate the
following interfaces x,y
route n deact_ent2 Blank,PPP When this route becomes
available, deactivate the
following interfaces x,y
route n deact_add2 0 – 2147483647 When this route becomes
available, deactivate the
following interfaces x,y
route n unoos_secs 0 – 2147483647 Keep this route in service for s
seconds after OOS state is
cleared
route n rgroup 0 - 255 Assign this route to recovery
group n
179
Configuration – Network > IP Routing / Forwarding > Static Routes >
Default Route n
The following two web pages and associated command line commands are used to set up
default IP routes that will be used to route non-local IP addresses not specified in a static
route. The parameters are identical to those on the static route pages with the exception
that there are no IP address or Mask parameters.
Description
The text in this text box is used to assign a convenient and memorable description for the
route.
Default route via:
Gateway a.b.c.d
As per equivalent parameter in Routes n.
Interface x,y
As per equivalent parameter in Routes n.
Metric n
As per equivalent parameter in Routes n.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
def_route n descr Up to 20 characters Description
def_route n gateway Valid IP address
a.b.c.d Gateway a.b.c.d
def_route n ll_ent Blank,PPP,ETH,TUN Interface x,y
def_route n ll_add 0 – 2147483647 Interface x,y
def_route n upmetric 1 - 16 Metric
Configuration – Network > IP Routing / Forwarding > Static Routes >
Default Route n > Advanced
Use metric n when the interface is not active
As per equivalent parameter in Routes n.
Use this route only if the source IP address of the packet matches
As per equivalent parameter in Routes n.
IP address a.b.c.d
As per equivalent parameter in Routes n.
Mask a.b.c.d
As per equivalent parameter in Routes n.
Include this route in RIP advertisements
As per equivalent parameter in Routes n.
Make PPP x interface use the alternative idle timeout when this route becomes
available
As per equivalent parameters in Routes n.
180
Wait for s seconds after power up before allowing this route to activate the
interface
As per equivalent parameter in Routes n.
If the interface is configured for “dial on demand”
Mark this route as “Out Of Service” if the interface fails to connect after n
consecutive attempts
As per equivalent parameter in Routes n.
If the interface fails to connect, try again in s seconds
As per equivalent parameter in Routes n.
Deactivate the interface after it successfully connects
As per equivalent parameter in Routes n.
Do not allow this interface to be activated by this route for s seconds after the last
activation attempt
As per equivalent parameter in Routes n.
Only queue one packet whilst waiting for the interface to connect
As per equivalent parameter in Routes n.
When this route becomes available, deactivate the following interfaces x,y x,y
As per equivalent parameter in Routes n.
When this route becomes unavailable, remove the “Out Of Service” state on x,y
As per equivalent parameter in Routes n.
Keep this route in service for s seconds after OOS state is cleared
As per equivalent parameter in Routes n.
Assign this route to recovery group n
As per equivalent parameter in Routes n.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
def_route n metric 0 – 2147483647 Use metric n when the
interface is not active
def_route n srcip Valid IP address
a.b.c.d IP Address a.b.c.d
def_route n srcmask Valid netmask
a.b.c.d Mask a.b.c.d
def_route n inrip on,off Include this route in RIP
advertisements
def_route n doinact2 on,off Make PPP n interface use the
alternative idle timeout when
this route becomes available
def_route n inact2add 0 – 2147483647 Make PPP n interface use the
alternative idle timeout when
this route becomes available
def_route n pwr_dly 0 - 255 Wait for s seconds after
power up before allowing this
route to activate the interface
181
Entity
Instance
Parameter
Values
Equivalent Web Parameter
def_route n actooslim 0 – 2147483647
Mark this route as “Out Of
Service” if the interface fails
to connect after n
consecutive attempts
def_route n chkoos_int 0 – 2147483647 If the interface fails to
connect, try again in s
seconds
def_route n chkoos_deac
t 0 – 2147483647 Deactivate the interface after
it successfully connects
def_route n dial_int 0 – 255
Default 10
Do not allow this interface to
be activated by this route for
s seconds after the last
activation attempt
def_route n q1 on,off Only queue one packet whilst
waiting for the interface to
connect
def_route n deact_ent Blank,PPP When this route becomes
available, deactivate the
following interfaces x,y
def_route n deact_add 0 – 2147483647 When this route becomes
available, deactivate the
following interfaces x,y
def_route n deact_ent2 Blank,PPP When this route becomes
available, deactivate the
following interfaces x,y
def_route n deact_add2 0 – 2147483647 When this route becomes
available, deactivate the
following interfaces x,y
def_route n unoos_secs 0 – 2147483647 Keep this route in service for
s seconds after OOS state is
cleared
def_route n rgroup 0 - 255 Assign this route to recovery
group n
Configuration – Network > IP Routing / Forwarding > RIP
The web pages and command line commands described in this section control the
configuration of the routing Information Protocol (RIP) functionality of the router.
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP
Settings
Enable RIP
When checked, this checkbox enables the RIP functionality.
182
Send RIP advertisements every s seconds
The value in this text box specifies the interval between sending RIP packets. These packets
contain the current routes held by the router (e.g. any active PPP routes), static routes and
the default route. A value of 0 disables sending.
Mark routes as unusable if we don’t get advertisements for s seconds
The value in this text box specifies the time for which an updated metric will apply when a
RIP update is received. If no updates are received within this period, the usual metric will
take over.
Delete routes after another s seconds
The value in this text box specifies the length of time that the router will continue to
advertise this route when a RIP update timeout occurs and the route metric is 16. This
behaviour is designed to help propagate the dead route to other routers. The router will no
longer use a metric advertised by a RIP update if the route has been set out of service
locally.
Allow RIP to update static routes
When checked, this checkbox allows an incoming, matching RIP update to change the
metric of the static route. This happens when the update matches a configured static route.
Enable Poison Reverse
When checked, this checkbox enables poison reverse, to notify when a neighbouring router
is unavailable.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
rip n enable on,off Enable RIP
rip n interval 0 - 2147483647 Send RIP advertisement every s
seconds
rip n ripto 0 - 2147483647 Mark routes as unusable if we
don’t get advertisement for s
seconds
rip n riplingerto 0 - 2147483647 Delete routes after another s
seconds
rip n updatestatic on,off Allow RIP to update static routes
rip n poisonreverse on,off Enable Poison Reverse
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP
settings > Access Lists
The router has the ability to modify route metrics based upon received RIP responses. Static
routes and default routes will have their metric modified if the route fits within one of the
routes found within the RIP packet. For Ethernet routes, the gateway for the route will be
set to the source address of the RIP packet. The route modifications will be enforced for 180
seconds unless another RIP response is received within that time.
RIP packets must have a source address that is included in the RIP access list.
Adding permitted IP addresses to the access list is controlled using a table with the single
parameter described below.
183
IP Address a.b.c.d
The value in this text box is the IP address to be added to the list of IP addresses that RIP
packets must come from if they are to modify route metrics. Up to ten IP addresses may be
added. The Add and Delete buttons work in the usual way for configuration tables.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
riprx 0 - 9 IPaddr Valid IP address
a.b.c.d IP Address a.b.c.d
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP
settings > Authentication Keys
RIP authentication keys are used with the “plain password” and MD5 RIP authentication
methods.
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP
settings > Authentication Keys > Authentication Key n
Key k
The value in this text box is the RIP authentication key. Enter a string of up to 16 characters
long. A current key will not be displayed.
Confirm Key
Re-enter the new key into this text box to allow the router to check that the two are
identical.
Key ID (MD5 only)
The value in this text box is the ID for the key. The ID is inserted into the RIP packet when
using RIP v2 MD5 authentication and is used to look up the correct key for received packets.
The valid range is 0 – 255.
Valid from now/dd,mm,yy
These two radio buttons select, between having the validity period for the key starting
immediately of allowing a start date to be defined. The starting date is specified using a
drop down list to select the start day, a drop-down list to select the start month and a text
box to enter the start year. Selecting the “Disable” option from the day and “None” from the
month means that this key should not be used. The year can be specified as either two or
four digits (e.g. 11 or 2011).
Expires Never/dd,mm,yy
These two radio buttons select between defining the end date using the drop-down lists and
text box or by setting the expiration to “Never”. The key end day is selected from the first
drop down list, selecting “Disable” means that the key should not be used. The end month is
selected from the second drop-down list, selecting “None” means that the key should not be
used. The year is entered into the text box and can be in two or four digit format.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ripauth 0 - 9 key Up to 16
characters Key k
ripauth 0 – 9 keyid 0 - 255 Key ID
ripauth 0 – 9 sday 0 - 31 Valid from d,m,y
184
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ripauth 0 – 9 smon 0 - 12 Valid from d,m,y
ripauth 0 – 9 syear 0 – 65535 Valid from d,m,y
ripauth 0 – 9 eday 0 - 31 Expires d,m,y
ripauth 0 – 9 emon 0 - 12 Expires d,m,y
ripauth 0 - 9 eyear 0 – 65535 Expires d,m,y
Configuration – Network > IP Routing / Forwarding > RIP > Interfaces >
Ethernet / PPP / GRE
The configuration in these three sub-menus is identical.
Send RIP advertisements on this interface
Check this box to enable rip and to reveal further configuration parameters below.
Use RIP:
Select from the values ‘v1’, ‘v2’ and ‘v1 Compatible’ in the dropdown list. When RIP version
is set to ‘V1’ or ‘V2’, the unit will transmit RIP version 1 or 2 packets respectively (version 2
packets are sent to the “all routers” multicast address 224.0.0.9). When RIP Version is set
to “V1 Compat”, the unit will transmit RIP version 2 packets to the subnet broadcast
address. This allows ‘V1’ capable routers to act upon these packets.
Send RIP advertisements as:
Broadcasts:
RIP packets are by default sent out on a broadcast basis or to a multi-cast address. Do
not change this parameter unless you intend to alter this behaviour.
Multicasts (Only visible when ‘v2’ is selected in the ‘Use RIP’ option above):
This is automatically selected for sending to the default RIP v2 multicast address
224.0.0.9.
<BLANK BOX>
This parameter may be used to force RIP packets to be sent to a specified IP or multicast
address. It is particularly useful if you need to route the packets via a VPN tunnel. By
default Broadcasts/multicasts are selected – depending on your RIP version.
Use Authentication:
This parameter selects the authentication method for RIP packets. Selection is by clickable
radio button. Only one option is enabled multiple selections are not possible.
None:
When set to “Off”, the interface will send and receive packets without any authentication.
Access list:
When set to “Access List”, the interface will send RIP packets without any authentication.
When receiving packets, the interface will check the sender’s IP address against the list
entered on the Configuration – Network > IP Routing / Forwarding > RIP >
Global RIP settings > Access Lists page, and if the IP address is present in the list,
the packet will be allowed through.
185
Plain password:
When set to “Plain password (V1+V2)”, the interface will use the first valid key it finds
(set on the Configuration – Network > IP Routing / Forwarding > RIP > Global
RIP settings > Authentication Keys > Authentication Key n pages), and use the
plaintext RIP authentication method before sending the packet out. If no valid key can be
found, the interface will not send any RIP packets. When receiving a RIP packet, a valid
plaintext key must be present in the packet before it will be accepted. This method can
be used with both RIP v1 and RIP v2.
MD5:
When set to “MD5 (V2 only)”, the interface will use the first valid key it finds (set on the
Configuration – Network > IP Routing / Forwarding > RIP > Global RIP settings
> Authentication Keys > Authentication Key n pages), and use the MD5
authentication algorithm before sending the packet out. If no valid key can be found, the
interface will not send any RIP packets. Received RIP packets must be authenticated
using the MD5 authentication algorithm before they will be accepted. This method can be
used with RIP v2.
Only send RIP advertisements when this interface is in service:
Select this parameter for RIP advertisements only to be sent when the interface is in the UP
state in the routing table.
Use Triggered RIP on this interface:
Enable triggered RIP (RFC2091). When triggered RIP is enabled, RIP timers are disabled.
Include this interface in Rip advertisements:
Select to cause the subnet configured on this interface to not be advertised by RIP.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
tun n rip 0,1 Enable RIP = 1
Disable RIP = 0
tun n ripip Valid IP address
a.b.c.d Unicast RIP update address
tun n ripauth 0-3
0 = None
1 = Access List
2 = Plain Password
3 = MD5 v2 only
tun n ripis on,off Turn on to send updates only
when in service
tun n inrip on,off Include interface subnet in RIP
advertisements
tun n triggeredrip on,off Enable RIP RFC2091
186
Configuration – Network > IP Routing / Forwarding > OSPF
Open Shortest Path First (OSPF) is an Interior Gateway Protocol (IGP) developed for IP
networks based on the shortest path first or link-state algorithm.
The router uses link-state algorithms to send routing information to all nodes in a network
by calculating the shortest path to each node based on a topography of the network
constructed by each node. Each router sends that portion of the routing table that describes
the state of its own links and the complete routing structure (network topography).
The advantage of the shortest path first algorithms is that they result in smaller, more
frequent update everywhere. They converge quickly, thus preventing such problems as
routing loops and Count-to-Infinity (where routers continuously increment the hop count to
a particular network). This makes for a stable network.
In order to use OSPF on the router, a valid configuration file must exist in the router’s filing
system.
Enable OSPF
When checked, this checkbox reveals the following parameters:
OSPF Configuration Filename
The file that contains the configuration data for OSPF is selected from this drop-down list.
The file should have a “.conf” extension.
Load Config file
When this button is clicked, the router attempts to load the file specified in the file selection
list box into the edit window below the button. The text in the window can be edited as
required.
Save Config File
When this button is clicked, the text in the edit window will be saved to the filename
specified in the drop-down list above. These three controls allow an OSPF configuration file
to be loaded, edited and saved.
Restart OSPF after configuration file is saved
When checked, this checkbox will cause the OSPF functions to restart once the edited
configuration file has been saved.
Restart OSPF if a fatal error occurs
When checked this checkbox will cause OSPF functioning to restart after a delay of 5
seconds if a fatal error occurs.
OSPF Tracing
In common with some of the other functionality of the router, OSPF supports some debug
functionality. The amount of information in the debug traces is controlled from this drop-
down list. The available levels are “Off”, “Low”, “Med” and “High”. Selecting “Off” disables
debug tracing.
Ignore MTU indications
All OSPF routers must have the same Maximum Transmitted Unit (MTU) and this value is
advertised in the OSPF packets. When checked, this checkbox will cause the router to ignore
received packets that have a MTU that differs from that of the router itself.
187
Use Interface IPsec source IP
When checked, this checkbox will cause OSPF functions to use the source IP address of the
interface specified in Configuration – Network > Interfaces > Advanced > PPP n :
Use interface x,y for the source IP address of IPsec packets on the interface being
used. When unchecked, OSPF will use the source IP address of the interface being used for
its source address.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ospf 0 Enable on,off Enable OSPF
ospf 0 conffile OSPF Configuration Filename
ospf 0 new_cfg_rest on,off Restart OSPF after a
configuration file is saved
ospf 0 fatal_rest on,off Restart OSPF if a fatal error
occurs
ospf 0 debug
0 – 3
0 = Off
1 = Low
2 = Med
3 = High
OSPF Tracing
ospf 0 ignore_mtu on,off Ignore MTU indications
ospf 0 useipsecent on,off Use Interface IPsec source IP
188
Configuration – Network > IP Routing / Forwarding > BGP
The Border Gateway Protocol (BGP) routing protocol is supported by TransPort routers. This
page contains the configuration parameters used to control the behaviour of BGP. Most of
the configuration is controlled by a configuration file (raw text) named bgp.cnf. This file
would normally be created in a text editor on a computer and loaded onto the router. The
router contains a simple editor that can be used to modify the file. The configuration
parameters described here mainly define what action is to be taken when errors occur and
specify the configuration file to be used.
Enable BGP
When checked, this checkbox enables BGP routing.
BGP Configuration Filename
The configuration file to use is selected from this drop-down list. The default filename is
bgp.cnf. An error message will be displayed if the specified file cannot be found.
Load Config file
Click this button to load the file specified from the drop-down list. The contents of the file
will be visible in the edit window which appears below the button.
Save Config File
If the edit functions are used to modify the file, it can be saved back to the filing system by
clicking this button.
Restart BGP after configuration file is saved
When checked, this checkbox will cause the router to restart routing using BGP after the file
has been saved using the above Save button.
Restart BGP if a fatal error occurs
When checked, this checkbox will cause the router to restart routing using BGP if a fatal
error occurs.
Advertise non-connected networks
When checked, this checkbox will cause BGP to advertise networks that exist in the BGP
configuration file but that are not actually a connected network or interface.
BGP Tracing
As with OSPF, the level of debug tracing information is selected from this drop-down list.
The available levels are; “Off”, “Low”, “Med” and High.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
bgp 0 enable on,off Enable BGP
bgp 0 conffile BGP Configuration Filename
bgp 0 new_cfg_rest on,off Restart BGP after configuration
file is saved
bgp 0 fatal_rest on,off Restart BGP if a fatal error
occurs
bgp 0 allow_non_nets on,off
Default ON Advertise non-connected
networks
bgp 0 debug 0 - 3 BGP Tracing
189
Configuration – Network > IP Routing / Forwarding > IP Port Forwarding
/ Static NAT Mappings
The router supports Network Address Translation (NAT) and Network Address and Port
Translation (NAPT). NAT or NAPT may be enabled on a particular interface such as a PPP
instance. When operating with NAT enabled, this interface has a single externally visible IP
address. When sending IP packets, the local IP addresses (for example on a local area
network) are replaced by the single IP address of the interface. The router keeps track of
the local IP addresses and port numbers so that if a matching reply packet is received, it is
directed to the correct local IP address. With only one externally visible IP address, NAT
effectively prevents external computers from addressing specific local hosts, thus providing
a very basic level of “firewall” security.
Static NAT mappings allow received packets destined for particular ports to be directed to
specific local IP addresses. For example, to have a server, running on a local network,
externally accessible, a static NAT mapping would be set up using the local IP address of the
server and the port number used to access the required service.
Configuring IP port forwarding and static NAT mapping is done by entering the following
configuration values into a table and using the Add button to add them into the NAT
configuration for the router.
External Min Port
The value in this text box specifies the lowest port number to be redirected.
External Max Port
The value in this text box specifies the highest port number to be redirected.
Forward to Internal IP Address a.b.c.d
The value in this text box is the IP address to which packets containing the specified
destination port number are to be redirected.
Forward to Internal Port
The value in this text box specifies the IP port number to which packets containing the
specified port number are to be redirected. When set to “0”, no port remapping occurs and
the original port number is used. The NAT mode parameter of the appropriate interface
must be set to “NAPT” rather than “NAT” or “OFF” for this parameter to take effect.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
nat 0 - 29 minport 0 - 65535 External Min Port
nat 0 - 29 maxport 0 - 65535 External Max Port
nat 0 - 29 IPaddr Valid IP address
a.b.c.d Forward to Internal IP Address
a.b.c.d
nat 0 - 29 mapport 0 - 65535 Forward to Internal Port
Command format:
Nat <entry> <parameter> <value>
Example commands:
To set the IP address for entry 0 in the table to 10.1.2.10 enter the command:
nat 0 IPaddr 10.1.2.10
190
Configuration – Network > IP Routing / Forwarding > Multicast Routes
Digi TransPort routers support multicast routes, allowing them to route packets to multicast
group addresses. Up to 20 different static multicast routes may be configured.
Static multicast routes must be used in conjunction with the IGMP parameter on the
outbound interface. For example, after configuring a static multicast route for multicast
traffic via PPP 1, the IGMP parameter in Configuration – Network > Interfaces > IGMP
needs setting to ON. Multicast routing is configured using a table with the following
parameters:
Multicast Address a.b.c.d
The value in this text box is used in conjunction with the Mask parameter below, to specify
the destination multicast group address for packets that will match this route. So, if a router
receives a packet with a destination multicast group address that matches the specified
Multicast Address/Mask combination, it will route that packet through the interface specified
by the Interface parameters below.
Mask a.b.c.d
The value in this text box is the address mask that is used in conjunction with the Multicast
Address parameter as described above.
Interface x,y
These two parameters in the drop-down list and adjacent text box specify the interface and
interface instance used to route packets matching the Multicast Address/Mask combination.
The options available in the drop-down list are; PPP, Ethernet, Tunnel.
Enable multicast source path checking
When checked, this checkbox
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
mcast 0 - 19 IPaddr Valid IP address
a.b.c.d Multicast Address a.b.c.d
mcast 0 - 19 mask Valid IP address
a.b.c.d Mask a.b.c.d
mcast 0 - 19 ll_ent PPP,ETH,TUN Interface x,y
mcast 0 - 19 ll_add Valid interface
number
0 - 2147483647 Interface x,y
191
Configuration – Network > Virtual Private Networking (VPN) > IPsec
IPsec (Internet Protocol security) refers to a group of protocols and standards that may be
used to protect data during transmission over the internet (which is inherently insecure).
Various levels of support for IPsec can be provided on the router depending on the model.
The web pages located under the Configuration – Network > Virtual Private
Networking (VPN) > IPsec are used to set the various parameters and options that are
available. You should note however that this is a complex area and you should have a good
understanding of user authentication and data encryption techniques before you commence.
For further information refer to the “IPsec and VPNs” section in this manual. Also check the
Technical Notes section of the Digi International web site at www.digi.com for the latest
IPsec application notes.
The first stage in establishing a secure link between two endpoints on an IP network is for
those two points to securely exchange a little information about each other. This enables
the endpoint responding to the request to decide whether it wishes to enter a secure
dialogue with the endpoint requesting it. To achieve this, the two endpoints commonly
identify themselves and verify the identity of the other party. They must do this in a secure
manner so that the process cannot be “listened in to” by any third party. The IKE protocol is
used to perform this “checking” and if everything matches up it creates a Security
Association (SA) between the two endpoints, normally one for data being sent TO the
remote end and one for data being received FROM it.
Once this initial association exists the two devices can “talk” securely about and exchange
information on what kind of security protocols they would like to use to establish a secure
data link, i.e. what sort of encryption and/or authentication they can use and what
sources/destinations they will accept. When this second stage is complete (and provided
that both systems have agreed what they will do), IPSec will have set up its own Security
Associations which it uses to test incoming and outgoing data packets for eligibility and
perform security operations on before passing them down or relaying them from the
“tunnel”.
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IPsec Tunnels > IPsec n
Once the IKE parameters have been set-up, the next stage is to define the characteristics of
the IPsec tunnels, or encrypted routes. This includes items such as what source and
destination addresses will be connected by the tunnel and what type of encryption and
authentication procedures will be applied to the packets being tunnelled. For obvious
reasons it is essential that parameters such as encryption and authentication are the same
at each end of the tunnel. If they are not, then the two systems will not be able to agree on
what set of rules or “policy” to adopt for the IPsec tunnel and communication cannot take
place.
Description
This parameter allows you to enter a name for IPsec tunnel to make it easier to identify.
The IP address or hostname of the remote unit
The IP address or hostname of the remote IPsec peer that a VPN will be initiated to.
Use a.b.c.d as a backup unit
The IP address or hostname of a backup peer. If the router cannot open a connection to the
primary peer, this configuration will be used. Please note that the backup peer device must
have an identical IPsec tunnel configuration as the primary peer.
Use these settings for the local LAN
These define the local LAN subnet settings used on the IPsec tunnel.
192
IP Address
Use this IP address for the local LAN subnet. This is usually the IP address of the router’s
Ethernet interface or that of a specific device on the local subnet (such as a PC running a
client or host application).
Mask
Use this IP mask for the local LAN subnet. The mask sets the range of IP addresses that
will be allowed to use the IPsec tunnel.
Use interface x,y
Use the IP address and mask of the specified interface.
Use these settings for the remote LAN
These define the remote LAN subnet settings used on the IPsec tunnel.
IP Address
Use this IP address for the remote LAN subnet. This is usually the IP address of the
peer’s Ethernet interface or that of a specific device on the local subnet (such as a PC
running a client or host application).
Mask
Use this IP mask for the remote LAN subnet. The mask sets the range of IP addresses
that will be allowed to use the IPsec tunnel.
Remote Subnet ID
Normally used with L2TP/IPsec VPNs. When the router is in server mode and negotiating
IPsec from behind a NAT box, this parameter should be configured to the ID sent by the
remote Windows client (this is usually the computer name).
Use the following security on this tunnel
These define the security identities used on the IPsec tunnel.
Preshared Keys Requires that both IPsec peers share a secret key, or
password, that can be matched by and verified by both
peers.
To configure the PSK, a user will need configuring that
matches the inbound ID of the remote peer and the PSK
is configured using the password parameter. This is done
via Configuration – Security > Users. The User
configuration serves a dual purpose in that it may contain
entries for normal login access (e.g. HTTP, FTP or Telnet)
and entries for IPsec tunnels.
XAUTH Init Preshared Keys
Used when the remote peer is a Cisco device using
XAUTH and PSK authentication.
RSA Signatures Select this option when the IPsec authentication will use
X.509 certificates.
XAUTH Init RSA Used when the remote peer is a Cisco device using
XAUTH and X.509 certificates for authentication.
Our ID
When Aggressive mode is On, this parameter is a string of up to 20 characters. It is sent
to the remote peer to identify the initiator (e.g. the router). The variable %s can be used
in this parameter which will cause the router’s serial number to be sent. It can be
prefixed with other text if required.
When certificates are being used, this parameter should be configured with the “Altname”
field in a valid certificate held on the router.
193
Our ID type
This defines how the remote peer is to process the Our ID configuration.
IKE ID The Our ID parameter is a simple key ID (e.g. vpnclient1).
FQDN The Our ID parameter is a Fully Qualified Domain Name (e.g.
vpnclient1.anycompany.com)
User FQDN The Our ID parameter is a Fully Qualified Domain Name with a user
element (e.g. joe.bloggs@anycompany.com)
IPv4 Address An IPv4 Address in dotted decimal notation.
Remote ID
When Aggressive mode is On, this parameter is a string of up to 20 characters which is
used to identify the remote peer. It should contain the same text as the Our ID
parameter in the remote peer’s configuration.
When Aggressive mode is Off, this parameter must be the IP address of the remote peer.
RSA Key File
This parameter can be used to override the private key filename in the IKE configuration.
It is only used when RSA Signatures (Certificates) are being used for the authentication
stage of the IKE negotiation.
Use enc encryption on this tunnel
The ESP encryption protocol to use with this IPsec tunnel. The options are:
• No (None)
• Null
• DES
• 3DES
• AES (128 bit keys)
• AES (192 bit keys)
• AES (256 bit keys)
If the dropdown options only display None and Null, the router will need Encryption
enabling. Please speak to your sales contact with regards to getting Encryption enabled.
Use auth authentication on this tunnel
The ESP authentication algorithm to use with this IPsec tunnel. The options are:
• No (None)
• MD5
• SHA1
Use Diffie Hellman group
The Diffie Hellman (DH) group to use when negotiating new IPsec SAs. When used, the
IPsec SA keys cannot be predicted from any of the previous keys generated. The options
are “No PFS”, 1, 2 or 3. The larger values result in “stronger” keys but they take longer to
generate.
Use IKE n to negotiate this tunnel
The IKE version to use to negotiate this IPsec tunnel.
Use IKE configuration
194
The IKE configuration instance to use with this Eroute when the router is configured as an
Initiator.
Bring this tunnel up
This controls how the IPsec tunnel is brought up. The options are:
• All the time
• Whenever a route to the destination is available
• On demand
If the tunnel is down and a packet is ready to be sent
Defines the action that is performed when the IPsec tunnel is down and a packet needs to
be sent. The options are:
• Bring the tunnel up
• Drop the packet
• Send the packet without encryption and authentication
Bring this tunnel down if it is idle for h hrs m mins s secs
This parameter is used when the IPsec tunnel is configured to come up on demand and
defines how long the IPsec tunnel should remain up if there is no traffic is being sent on the
tunnel.
Renew the tunnel after
Defines the constraints of when the IPsec tunnel SA has to be renewed.
h hrs m mins s secs
Re-new the IPsec SA after the specified amount of time.
n units of traffic
Re-new the IPsec SA after the specified amount of traffic has been passed over the
tunnel.
The units can be Kbytes, Mbytes or Gbytes.
A value of 0 means that this parameter will not be used and SAs will expire and be
renewed based time, rather than amount of traffic.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eroute n descr String Description
eroute n peerip IP address or
hostname The IP address or hostname of the
remote unit
eroute n bakpeerip IP address or
hostname Use n as a backup unit
eroute n locip IP address IP Address (for Local LAN)
eroute n locmsk IP Mask IP Mask (for Local LAN)
eroute n locipifent blank, ETH, PPP Use interface x,y
x = Interface type
eroute n locipifadd Integer Use interface x,y
y = interface number
195
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eroute n remip IP address IP Address (for Remote LAN)
eroute n remmsk IP Mask IP Mask (for Remote LAN)
eroute n remnetid String Remote Subnet ID
eroute n authmeth Off, Preshared,
xauthinitpre, rsa,
xauthinitrsa
Use the following security on this
tunnel
eroute n ourid String Our ID
eroute n ouridtype
0 = IKE ID
1 = FQDN
2 = User FQDN
3 = IPv4 Address
Our ID type
eroute n peerid String Remote ID
eroute n privkey Filename RSA Key File
eroute n espenc off, null, des, 3des,
aes Use enc encryption on this tunnel
eroute n enckeybits 128, 192, 256 Use enc encryption on this tunnel
eroute n espauth off, md5, sha1 Use auth authentication on this
tunnel
eroute n dhgroup 0, 1, 2, 3 Use Diffie Hellman group
eroute n ikever 1, 2 Use IKE n to negotiate this tunnel
eroute n ikecfg 0, 1 Use IKE configuration
eroute n autosa
0 = On Demand
1 = When a route
to the destination
is available
2 = All the time
Bring this tunnel up
eroute n nosa drop, pass, try If the tunnel is down and a packet
is ready to be sent
eroute n inact_to Integer
Bring this tunnel down if it is idle
for h hrs m mins s secs
This CLI value is entered in seconds
only.
eroute n ltime Integer
Renew the tunnel after h hrs m
mins s secs
This CLI value is entered in seconds
only.
eroute n lkbytes Integer
Renew the tunnel after n units of
traffic.
This CLI value is entered in Kbytes
only.
196
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IPsec Tunnels > IPsec n > Tunnel Negotiation
Enable IKE tracing
This will enable the router to write IKE negotiation information in the analyser trace.
Negotiate a different IP address and Mask
The IPsec tunnel can be configured to negotiate a different local LAN IP address and mask.
The firewall can then be used to translate the source addresses of the packets to a value
that lies within the negotiated range. This is so that a packet can match more than one
IPsec tunnel but will use a different source address (from the peer’s perspective) depending
on which IPsec tunnel gets used.
IP Address
The alternative IP address to negotiate.
Mask
The alternative IP mask to negotiate.
Negotiate a virtual IP address using MODECFG
Used when the remote peer is a Cisco device using MODECFG to assign a specific IP address
to this router during SA setup negotiations. This is commonly seen in Remote Access (RA)
type VPNs and EasyVPN solutions.
XAuth ID
Extended Authentication ID for use with Cisco XAUTH.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eroute n debug on, off Enable IKE tracing
eroute n neglocip IP Address
Negotiate a different IP address
and Mask
eroute n neglocmsk IP Mask
Negotiate a different IP address
and Mask
eroute n vip on, off
Negotiate a virtual IP address using
MODECFG
eroute n xauthid String XAuth ID
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IPsec Tunnels > IPsec n > Advanced
IPsec mode
Selects the IPsec encapsulation type to use on the IPsec tunnel. In Tunnel mode, the entire
IP packet (header and payload) is encrypted. In Transport mode, only the IP payload is
encrypted.
Use algorithm AH authentication on this tunnel
The AH authentication algorithm to use with this IPsec tunnel. The options are:
• No (None)
• MD5
• SHA1
Use algorithm compression on this tunnel
197
The compression algorithm to use with this IPsec tunnel. The options are:
• No (None)
• DEFLATE
Delete SAs when this tunnel is down
When selected, all SAs associated with the IPsec tunnel are deleted when the tunnel goes
out of service.
Delete SAs when router is not a VRRP master
When selected, at least one Ethernet interface must be set as VRRP Master before the
router can create SAs. If the router switches away from VRRP Master state, the SAs will be
deleted. When the router switches back to VRRP Master state, the SAs will be created
automatically.
Go out of service if automatic establishment fails
The router will take the IPsec tunnel out of service if the automatic establishment fails
rather than continually retrying.
Go out of service after n consecutive auto-negotiation failures
The router will take the IPsec tunnel out of service if the auto-negotiation fails for the
specified consecutive number of times rather than continually retrying.
This tunnel can only use apn
When enabled, this parameter allows you to choose between using the main APN or the
backup APN, as defined in the Configuration – Network > Serial > W-WAN Port page.
Link tunnel with interface with x,y
When enabled, this parameter can be set so that the IPsec tunnel will only match packets
using the specified interface. When this parameter is enabled, the route will take outgoing
packets going through this IPsec tunnel and recheck to see if the resultant packet also goes
through a tunnel.
If the inner tunnel is an IPsec tunnel (i.e. needs IKE), you can get the inner IKE to use the
correct source address (matching the outer tunnel selectors) by enabling the Use
secondary IP address parameter and the inner IKE will use the IP address configured in
the Secondary IP address parameter on the Configuration – Network > Advanced
Network Settings page.
Inhibit this IPsec tunnel when IPsec tunnels n are up
This is a list of IPsec tunnels that can inhibit this IPsec tunnel from being used as long as
they are up. If this IPsec tunnel has been allowed to come up, and the IPsec tunnel that
inhibits it comes back up, this IPsec is taken down and any SAs that may have existed are
removed. As soon as an inhibiting IPsec tunnel goes down, the router will check to see if the
inhibited IPsec tunnel can now create SAs.
Inhibit this IPsec tunnel unless IPsec tunnel n is up
This IPsec tunnel will be inhibited unless specified IPsec tunnel is also up.
198
IKE negotiation source IP address is taken from the
This defines which IP address IKE uses as the source IP address during the negotiation.
Interface
Use the IP address of the interface over which the IKE packets will be transmitted.
Secondary IP address
Use the IP address configured in the Secondary IP address parameter on the
Configuration – Network > Advanced Network Settings page.
Interface x,y
Use the IP address of the specified interface.
Tunnel this IPsec tunnel inside another IPsec tunnel
It is possible to tunnel packets from an IPsec tunnel within a second (or more) tunnel. When
this parameter is enabled.
NAT-Traversal Keepalive timer s seconds
Sets the interval period, in seconds, that the router will use to send regular packets to a
NAT device in order to prevent the NAT table entry from expiring.
Allow protocol IP protocol(s) in this tunnel
This restricts the type of IP packets that will be tunnelled through the IPsec tunnel. The
options are:
• All
• TCP
• UDP
• GRE
IP packets with ToS values n must use this tunnel
Packets with matching ToS fields will only be tunnelled through this IPsec tunnel and no
others. The usual traffic selector matching still takes place as normal. Packets that don’t
have matching ToS values will get tunnelled as normal.
The ToS values should be entered as a comma separated list. E.g. 2,4
Only tunnel IP packets with
This restricts the IP packets that will be tunnelled to those with matching TCP/UDP port
numbers.
local TCP/UDP port n
Allow IP packets with matching source TCP/UDP ports to be tunnelled.
remote TCP/UDP port n
Allow IP packets with matching destination TCP/UDP ports to be tunnelled.
local TCP/UDP port in the range of n1 to n2
Allow IP packets with source TCP/UDP ports in the specified range to be tunnelled. This is
only available when IKEv2 is used
remote TCP/UDP port in the range of n1 to n2
Allow IP packets with destination TCP/UDP ports in the specified range to be tunnelled.
This is only available when IKEv2 is used
199
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eroute n mode tunnel, transport IPsec Mode
eroute n ahauth off, md5, sha1 Use a AH authentication on this
tunnel
eroute n ipcompalg off, deflate Use c compression on this tunnel
eroute n oosdelsa on, off Delete SAs when this tunnel is
down
eroute n ifvrrpmaster on, off Delete SAs when router is not a
VRRP master
eroute n nosaoos on, off Go out of service if automatic
establishment fails
eroute n nosadeactcnt Integer Go out of service after n
consecutive auto-negotiation
failures
eroute n check_apnbu on, off This tunnel can only use apn
eroute n apnbu 0 = Main APN
1 = Backup APN This tunnel can only use apn
eroute n ifent blank, ETH, PPP Link tunnel with interface with x,y
x = Interface type
eroute n ifadd Integer Link tunnel with interface with x,y
y = Interface number
eroute n inhibitno Comma separated
list of Integers Inhibit this IPsec tunnel when
IPsec tunnels n are up
eroute n requireno Integer Inhibit this IPsec tunnel unless
IPsec tunnel n is up
eroute n usesecip on, off IKE negotiation source IP address
is taken from the Secondary IP
Address
eroute n ipent blank, ETH, PPP IKE negotiation source IP address
is taken from the Interface x,y
x = Interface type
eroute n ipadd Integer IKE negotiation source IP address
is taken from the Interface x,y
y = Interface number
eroute n intunnel on, off Tunnel this IPsec tunnel inside
another IPsec tunnel
eroute n natkaint Integer NAT-Traversal Keepalive timer s
seconds
eroute n proto off, tcp, udp, gre Allow protocol IP protocol(s) in
this tunnel
200
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eroute n toslist Comma separated
list of Integers IP packets with ToS values n must
use this tunnel
eroute n locport 0 - 65535 Only tunnel IP packets with local
TCP/UDP port
eroute n remport 0 - 65535 Only tunnel IP packets with
remote TCP/UDP port
eroute n locfirstport 0 - 65535 Only tunnel IP packets with local
TCP/UDP port in the range of n1 to
n2
eroute n loclastport 0 - 65535 Only tunnel IP packets with local
TCP/UDP port in the range of n1 to
n2
eroute n remfirstport 0 - 65535 Only tunnel IP packets with
remote TCP/UDP port in the range
of n1 to n2
eroute n remlastport 0 - 65535 Only tunnel IP packets with
remote TCP/UDP port in the range
of n1 to n2
Setting up IPsec Tunnels for Multiple Users
For small numbers of users it is usual to set up an individual eroute for each user. However,
to ease configuration where large numbers of users are required, the “*” character can be
used as a wildcard to match multiple user IDs. For example, setting the Peer ID parameter
to “Digi*” would match all remote units having an Our ID parameter starting with “Digi”,
e.g. Digi01, Digi02, etc.
Example
To setup multiple users in this way, first set up the Our ID parameter on the host unit to a
suitable name, e.g. “Host1”. Then set the Peer ID parameter to “Remote*” for example. In
addition, an entry would be made in the user table with “Remote*” for the Username and a
suitable Password value, e.g. “mysecret”.
Each of the remote units that required access to the host would then have to be configured
with an Our ID parameter of “Remote01”, “Remote02”, etc. and each would have to have
an entry in their user table for User Host1 along with its password (i.e. the pre-shared key).
201
Host Router
Peer ID:
Remote*
Our ID:
Host1
Username:
Remote*
Password:
mysecret
Remote Router 1
Peer ID:
Host1
Our ID:
Remote01
Username:
Host1
Password:
mysecret
Remote Router 2
Peer ID: Host1
Our ID:
Remote02
Username:
Host1
Password:
mysecret
Remote Router 3
Peer ID:
Host1
Our ID:
Remote03
Username:
Host1
Password:
mysecret
202
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IPsec Default Action
Like a normal IP routing set-up, IPSec Tunnels have a default configuration that is applied if
no specific tunnel can be found. This is useful when, for instance, you wish to have a
number of remote users connect via a secure channel (perhaps to access company financial
information) but also still allow general remote access to other specific servers on your
network or the Internet.
When a packet is received which does not match any IPsec tunnel
How the router will respond if a packet is received when there is no SA.
If “Drop the packet” is selected then only packets that match a specified IPsec tunnel will be
routed, all other data will be discarded. This has the effect of enforcing a secure connection
to all devices behind the router.
If “Pass the packet” is selected then packets that match an IPsec tunnel will be decrypted
and authenticated (depending on the IPsec tunnel’s configuration) but data that does not
match will also be allowed to pass.
When a packet is to be transmitted which does not match any IPsec tunnel
How the router will respond if a packet is transmitted when there is no SA.
If “Drop the packet” is selected then only packets that match a specified IPsec tunnel will be
routed, all other data will be discarded.
If “Pass the packet” is selected then data that matches an IPsec tunnel will be encrypted
and authenticated (depending on the IPsec tunnel configuration) but data that does not
match will also be allowed to pass.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
def_eroute 0 nosain drop, pass When a packet is received which
does not match any IPsec tunnel
def_eroute 0 nosaout drop, pass When a packet is to be
transmitted which does not
match any IPsec tunnel
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IPsec Groups
This mode of operation can be used when the router is terminating tunnels to a large
number of remote devices e.g. when being used as a VPN Concentrator. To keep the size of
the configuration file in the router small and also to maintain ease of configuration, only the
information that is used for all tunnels is stored on the router. All other information that is
site specific is stored in a MySQL database. This means the number of sites that can be
configured is limited only by the SQL database size and performance. This will be literally
millions of sites depending upon the operating system and hardware of the MySQL PC. The
number of sites that can be connected to concurrently are much smaller and limited by the
model of the router.
203
Basic Concept
The router with the IPsec Group/MySQL configuration will be the VPN Concentrator. The
remote sites will normally not require an IPsec group configuration as they will normally
only need to connect to a single peer, the VPN Concentrator. The VPN Concentrator will
normally need only a single IPsec group configured. The local and remote subnet
parameters need to be set up wide enough to encompass all the local and remote networks.
The VPN Concentrator can act as an initiator and/or a responder. In situations where there
are more remote sites than the Digi can support concurrent sessions, it will normally be
necessary for the VPN Concentrator and the remote sites to be both an initiator and a
responder. This is so that both the remote sites and the head-end can initiate the IPsec
session when required. Note that it is also important to configure the IPsec tunnels to time
out on inactivity to free up sessions for other sites. In the case of the VPN Concentrator
acting as an initiator, when it receives a packet that matches the main IPsec tunnel, if no
Security Associations already exist it will look up the required parameters in the database.
The TransPort will then create a "Dynamic IP Tunnel" containing all the settings from the
base IPsec tunnel and all the information retrieved from the database. At this point IKE will
create the tunnel (IPsec security associations) as normal. The dynamic IPsec tunnel will
continue to exist until all the IPsec Security Associations have been removed. At the point
where the maximum supported (or licensed) number of tunnels has been reached by the
router, the oldest Dynamic IPsec tunnels (those that have not been used for the longest
period of time) and their associated IPsec Security Associations will be dropped to allow new
inbound VPNs to connect.
Logic flow - creation of IPSec SAs
VPN Concentrator acting as initiator
The VPN Concentrator will normally act as an initiator when it receives an IP packet for
routing with a source address matching the IPsec tunnel local subnet address & mask and a
destination address matching the remote subnet address & mask (providing that an IPsec
SA does not already exist for this site.)
If an IPsec group is configured to use the matching IPsec tunnel, the router will use a
MySQL query to obtain the site specific information in order to create the SA's. The VPN
Concentrator will create a SELECT query using the destination IP address of the packet and
the mask configured in the IPsec group configuration to determine the remote subnet
address. (This means that the remote subnet mask must be the same on all sites using the
current IPsec group.) Once the site specific information has been retrieved, the router
creates a 'dynamic' IPsec Tunnel which is based upon the base IPSec tunnel configuration
plus the site specific information from the MySQL database. The router can then use the
completed IPsec tunnel configuration and IKE to create the IPsec SAs. For the pre-shared
key, IKE will use the password returned from the MySQL database rather than doing a local
look up in the user configuration. Once created, the SAs are linked with the dynamic IPsec
tunnel. Replacement SAs are created as the lifetimes start to get low and traffic is still
flowing. When all SAs to this remote router are removed, the dynamic IPsec tunnel will also
be removed so that IPsec tunnel can then be re-used to create tunnels to other remote
sites. When processing outgoing packets, dynamic IPsec Tunnels are searched before base
IPsec tunnels. So, if a matching dynamic IPsec tunnel is found, it is used, and the base
IPsec tunnel is only matched if no dynamic IPsec tunnel exists. Once the dynamic IPsec
tunnel is removed, further outgoing packets will match the base IPsec tunnel and the
process is repeated.
204
VPN Concentrator acting as a responder to a session initiated from the remote site
When a remote site needs to create an IPsec SA with the VPN Concentrator it will send an
IKE request to the VPN Concentrator. The VPN Concentrator needs to be able to confirm
that the remote device is authorised to create an IPsec tunnel. The remote site will supply
its ID to the host during the IKE negotiations. The VPN Concentrator will use this ID and
look through the IPsec tunnels configured and dynamic IPsec tunnels to see if the supplied
ID matches the configured Peer ID (peerid). If a match is found, the MYSQL database is
queried to retrieve the information required to complete the negotiation (e.g. pre-shared
key/password). If no matching base IPsec tunnel is found, the local user configuration is
used to locate the password, and a normally configured IPsec tunnel must also exist. Once
the information is retrieved from the MySQL database, IKE negotiations continue and the
created IPsec SAs will be associated with the dynamic IPsec tunnel. As long as the dynamic
IPsec tunnel exists, it behaves just like a normal IPsec tunnel. i.e. SAs are
replaced/removed as required.
If errors are received from the MySQL database, or not enough fields are returned, the
dynamic IPsec tunnel is removed, and IKE negotiations in progress will be terminated. There
are a limited number of dynamic IPsec tunnel. If the number of free dynamic IPsec tunnel is
less than 10% of the total number of dynamic IPsec tunnel, the Digi router will periodically
remove the oldest dynamic IPsec tunnel. This is done to ensure that there will always be
some free dynamic IPsec tunnel available for incoming connections from remote routers. It
is possible to view the current dynamic tunnels that exist using the WEB server, browse to
Management - Connections > Virtual Private Networking (VPN) > IPsec. The table
will indicate the base IPsec tunnel and the Remote Peer ID in the status display to help
identify which remote sites are currently connected.
Preliminary IP Tunnel configuration
The IPsec tunnel configuration Configuration – Network > Virtual Private Networking
(VPN) > IPsec > IPsec Tunnels > IPsec n differs from a normal configuration in the
following ways:
• Peer IP/hostname: Because the peer IP address to each peer is unknown and is
retrieved from the database, this field is left empty.
• Bakpeerip (CLI only): Because the peer IP address to each peer is unknown and is
retrieved from the database, this field is left empty.
• Peer ID: When the host Digi is acting as a responder during IKE negotiations, the
router uses the ID supplied by the remote to decide whether or not the MySQL
database should be interrogated. So that the Digi can make this decision, the remote
router must supply an ID that matches the peerid configured into the IPsec tunnel.
Wildcard matching is supported which means that the peerid may contain '*' and '?'
characters. If only one IPsec tunnel is configured, the peerid field may contain a '*',
indicating that all remote IDs result in a MySQL look up.
• Local subnet IP address / Local subnet mask: Configured as usual.
• Remote subnet IP address / Remote subnet mask: These fields should be configured
in such a way that packets to ALL remote sites fall within the configured subnet. e.g.
if there are two sites with remote subnets 192.168.0.0/24, and 192.168.1.0/24
respectively, a valid configuration for the host would be 192.168.0.0/23 so that
packets to both remote sites match.
205
All other fields should be configured as usual. It is possible to set up other IPsec groups
linked with other IPsec tunnels. This would be done if there is a second group of remote
sites that have a different set of local and remote subnets, or perhaps different encryption
requirements. The only real requirement is that this second group uses peer IDs that do not
match up with those in use by the first IPsec group.
IPsec Group configuration
This configuration holds information relating to the MySQL database, and the names of the
fields where the information is held. This configuration is also used to identify which IPsec
tunnels are used to create dynamic IPsec tunnels.
Example MySQL schema
mysql> describe eroutes;
+-----------+-------------+------+-----+---------+-------+
| Field | Type | Null | Key | Default | Extra |
+-----------+-------------+------+-----+---------+-------+
| peerip | varchar(20) | YES | | NULL | |
| bakpeerip | varchar(20) | YES | | NULL | |
| peerid | varchar(20) | NO | PRI | | |
| password | varchar(20) | YES | | NULL | |
| ourid | varchar(20) | YES | | NULL | |
| remip | varchar(20) | YES | UNI | NULL | |
| remmsk | varchar(20) | YES | | NULL | |
+-----------+-------------+------+-----+---------+-------+
7 rows in set (0.01 sec)
Link this IPsec group with IPsec Tunnel
The base IPsec tunnel number. This parameter allows the router to see that an IPsec tunnel
should use the group configuration to retrieve dynamic information from the database.
Remote mask to use for tunnels
This parameter is used in the SQL SELECT query in conjunction with the destination IP
address of packets to be tunnelled from the host to the remote peer to identify the correct
record to select from the MySQL database.
MySQL Server IP Address or Hostname
The IP address or hostname of the MySQL Server.
MySQL Server Port
The port that the MySQL Server is listening on.
Username
The username to use when logging into the MySQL Server.
206
Password / Confirm Password
The password to use when logging into the MySQL Server.
Database name
The name of the database to connect to.
Database table
The name of the table when the remote site information is stored.
Remote subnet IP
The name of the field in the table where the ‘remip’ data is stored.
Remote subnet Mask
The name of the field in the table where the ‘remmsk’ data is stored.
Peer IP Address
The name of the field in the table where the ‘peerip’ data is stored.
Backup Peer IP Address
The name of the field in the table where the ‘bakpeerip” data is stored.
Peer ID
The name of the field in the table where the ‘peerid’ data is stored.
Our ID
The name of the field in the table where the ‘ourid’ data is stored.
Password
The name of the field in the table where the password to use in IKE negotiations is stored.
Note:
The default MySQL field names match the matching IPsec tunnel configuration parameter
name. The default field name for the ‘password’ field is ‘password’.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
egroup n eroute Integer Link this IPsec group with IPsec
Tunnel
egroup n remmsk IP Mask Remote mask to use for tunnels
egroup n dbhost IP Address or
Hostname MySQL Server IP Address or
Hostname
egroup n dbport 0 - 65535 MySQL Server Port
egroup n dbuser String Username
egroup n dbpwd String Password / Confirm Password
egroup n dbname String Database name
egroup n dbtable String Database table
egroup n fremip String Remote subnet IP
egroup n fremmsk String Remote subnet Mask
egroup n fpeerip String Peer IP Address
207
Entity
Instance
Parameter
Values
Equivalent Web Parameter
egroup n fbakpeerip IP Address Backup Peer IP Address
egroup n fpeerid String Peer ID
egroup n fourid String Our ID
egroup n fpwd String Password
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
Dead Peer Detection
When Dead Peer Detection (DPD) is enabled on an IPsec tunnel, the router will send an IKE
DPD request at regular intervals. If no response is received to the DPD request, the IPsec
tunnel is considered as suspect and the requests are sent at a shorter interval until either
the maximum number of outstanding requests allowed is reached or a response is received.
If no response is received to the configured maximum requests, the IPSec tunnels are
closed.
Note:
IKE DPD requests require that an IKE SA is present. If one is not present, the DPD request
will fail.
To help ensure that an IKE SA exists with a lifetime at least as great as the IPsec lifetime,
the router creates new IKE SAs whenever the IPsec SA lifetime exceeds the lifetime of an
existing IKE SA and attempts to negotiate a lifetime for the IKE SA that is 60 seconds longer
than the desired lifetime of the IPsec SA.
Mark the IPsec tunnel as suspect if there is no traffic for n seconds
The period of time of inactivity on a tunnel before it is deemed to be suspect, i.e. if there is
no activity on a healthy link for the time period defined, then the tunnel is them deemed to
be suspect.
Send a DPD request on a healthy link every n seconds
The interval at which DPD requests are sent on an IPsec tunnel that is deemed to be
healthy. A healthy link is one with traffic.
Send a DPD request on a suspect link every n seconds
The interval at which DPD requests are sent on an IPsec tunnel that is deemed to be
suspect. A suspect link is one where there has been no traffic for a specified period of time.
Close the IPsec tunnels after no response for n DPD requests
The maximum number of DPD requests that will be sent without receiving a response before
the IPsec tunnels are closed.
208
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
dpd 0 inact Integer Mark the IPsec tunnel as suspect if
there is no traffic for n seconds
dpd 0 okint Integer Send a DPD request on a healthy
link every n seconds
dpd 0 failint Integer Send a DPD request on a suspect
link every n seconds
dpd 0 maxfail Integer Close the IPsec tunnels after no
response for n DPD requests
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE
The Configuration - Network > Virtual Private Networking (VPN) > IPsec > IKE
folder opens to list configuration pages for IKE 0 and IKE 1 with a separate page for IKE
Responder. The IKE 0 instance can be used as an IKE “initiator” or as an IKE “responder”
whereas IKE 1 can only be used as an initiator. The IKE 0 and IKE 1 pages are therefore
used to set up the IKE 0 and IKE 1 initiator parameters as required. The IKE Responder
page is used to set up the responder parameters for IKE 0.
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE
> IKE Debug
Enable IKE Debug
Enables IKE debugging to be displayed on the debug port.
Debug Level
Sets the level of IKE debugging. The options are:
• Low
• Medium
• High
• Very High
Debug IP Address Filter
This parameter is used to filter out IKE packets with particular source or destination IP
addresses. The format of this parameter is a comma-separated list of IP addresses. For
example, you may wish to exclude the capture of IKE traffic from IP hosts 10.1.2.3 and
10.2.2.2. This can be done by entering “10.1.2.3,10.2.2.2” for this parameter.
Conversely, you may wish to only capture traffic to and from particular IP hosts. To do this,
use a tilde (~) symbol before the list of IP addresses. For example, to only capture packets
to and from IP host 192.168.47.1, enter “~192.168.47.1” for this parameter.
Forward debug to port
When enabled, the IKE debug is sent to debug serial port.
209
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ike 0 deblevel
0 = Off
1 = Low
2 = Medium
3 = High
4 = Very High
Debug Level
ike 0 ipaddfilt Comma separated
list of IP addresses Debug IP Address Filter
ike 0 debug on, off Forward debug to port
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE
> IKE n
Use the following settings for negotiation
Defines the settings used during the IKE negotiation
Encryption
Defines the encryption algorithm used. The options are:
• None
• DES
• 3DES
• AES (128 bit keys)
• AES (192 bit keys)
• AES (256 bit keys)
Authentication
Defines the authentication algorithm used. The options are:
• None
• MD5
• SHA1
Mode
Defines the negotiation mode. The options are:
• Main
• Aggressive
Historically, fixed IP addresses have been used in setting up IPSec tunnels. Today it is
more common, particularly with Internet ISPs, to dynamically allocate the user a
temporary IP address as part of the process of connecting to the Internet. In this case,
the source IP address of the party trying to initiate the tunnel is variable and cannot be
pre-configured.
In Main mode (i.e. non-aggressive), the source IP address must be known i.e. this mode
can only be used over the Internet if the ISP provides a fixed IP address to the user or
you are using X.509 certificates.
210
Aggressive mode was developed to allow the host to identify a remote unit (initiator)
from an ID string rather than from its IP address. This means that it can be used over
the Internet via an ISP that dynamically allocates IP addresses. It also has two other
noticeable differences from main mode. Firstly, it uses fewer messages to complete the
phase 1 exchange (3 compared to 5) and so will execute a little more quickly, particularly
on networks with large turn-around delays such as GPRS. Secondly, as more information
is sent unencrypted during the exchange, it is potentially less secure than a normal mode
exchange.
Note:
Main mode can be used without knowing the remote unit’s IP address when using
certificates. This is because the ID of the remote unit (it’s public key) can be retrieved
from the certificate file.
MODP Group for Phase 1
Sets the key length used in the IKE Diffie-Hellman exchange to768 bits (group 1) or
1024 bits (group 2). Normally this option is set to group 1 and this is sufficient for
normal use. For particularly sensitive applications, you can improve security by selecting
group 2 to enable a 1024 bit key length. Note however that this will slow down the
process of generating the phase 1 session keys (typically from 1-2 seconds for group 1),
to 4-5 seconds.
MODP Group for Phase 2
Sets the minimum width of the numeric field used in the calculations for phase 2 of the
security exchange.
With “No PFS” (Perfect Forwarding Security) selected, the data transferred during phase
1 can be reused to generate the keys for the phase 2 SAs (hence speeding up
connections). However, in doing this it is possible (though very unlikely), that if the
phase 1 keys were compromised (i.e. discovered by a third party), the phase 2 keys
might be more easily compromised.
Enabling group 1 (768) or 2 (1024) or 3 (1536), IPSec MODP forces the key calculation
for phase 2 to use new data that has no relationship to the phase 1 data and initiates a
second Diffie-Hellman exchange. This provides an even greater level of security but of
course can take longer to complete.
Renegotiate after h hrs m mins s secs
Determines how long the initial IKE Security Association will stay in force. When it expires
any attempt to send packets to the remote system will result in IKE attempting to establish
a new SA.
211
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ike n encalg des, 3des, aes Encryption
ike n keybits 0, 128, 192, 256 Encryption (AES Key length)
ike n authalg md5, sha1 Authentication
ike n aggressive on, off Mode
ike n ikegroup 1, 2, 5 MODP Group for Phase 1
ike n ipsecgroup 1, 2, 5 MODP Group for Phase 2
ike n ltime 1 - 28800
Renegotiate after h hrs m mins s
secs
This CLI value is entered in seconds
only.
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE
> IKE n > Advanced
Retransmit a frame if no response after n seconds
The amount of time in seconds that IKE will wait for a response from the remote unit before
transmitting the negotiation frame.
Stop IKE negotiation after n retransmissions
The maximum number of times that IKE will retransmit a negotiation frame as part of the
exchange before failing.
Stop IKE negotiation if no packet received for n seconds
The period of time in seconds after which the unit will stop the IKE negotiation when no
response to a negotiation packet has been received.
Enable Dead Peer Detection
Enables Dead Peer Detection. For more information, refer to the Configuration – Network
> IPsec > Dead Peer Detection (DPD) page.
Enable NAT-Traversal
Enables support for NAT Traversal within IKE/IPsec. When one end of an IPsec tunnel is
behind a NAT box, some form of NAT traversal may be required before the IPsec tunnel can
pass packets. Turning NAT Traversal on enables the IKE protocol to discover whether or not
one or both ends of a tunnel is behind a NAT box, and implements a standard NAT traversal
protocol if NAT is not being performed.
The version of NAT traversal supported is that described in the IETF draft ‘draft-ietf-ipsec-
nat-t-ike-03.txt’.
Send INITIAL-CONTACT notifications
Enables INITIAL-CONTACT notifications to be sent.
Retain phase 1 SA after failed phase 2 negotiation
Normally IKE functionality is to remove the phase 1 SA if the phase 2 negotiation fails.
Enabling this parameter will cause the router to retain the existing phase 1 SA and retry the
phase 2 again.
212
RSA private key file
The name of a X.509 certificate file holding the router’s private part of the public/private
key pair used in certificate exchanges. See ‘X.509 Certificates’ in the ‘IPsec and VPNs’
section for further explanation.
SA Removal Mode
Determines how IPsec and IKE SAs are removed.
‘Normal’ operation will not delete the IKE SA when all the IPsec SAs that were created by it
are removed and will not remove IPsec SAs when the IKE SA that was used to create them
is deleted.
‘Remove IKE SA when last IPSec SA removed’ will delete the IKE SA when all the IPsec SAs
that it created to a particular peer are removed.
‘Remove IPSec SAs when IKE SA removed’ will delete all IPSec SAs that have been created
by the IKE SA that has been removed.
‘Both’ will remove IPSec SAs when their IKE SA is deleted, and delete IKE SAs when their
IPSec SAs are removed.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ike n retranint 0 - 255 Retransmit a frame if no response
after n seconds
ike n retran 0 - 9 Stop IKE negotiation after n
retransmissions
ike n inactto 0 - 255 Stop IKE negotiation if no packet
received for n seconds
ike n dpd on, off Enable Dead Peer Detection
ike n natt on, off Enable NAT-Traversal
ike n initialcontact on, off Send INITIAL-CONTACT
notifications
ike n keepph1 on, off Retain phase 1 SA after failed
phase 2 negotiation
ike n privrsakey Filename RSA private key file
ike n delmode
0 = Normal
1 = Remove IKE
SA when last IPsec
SA removed
2 = Remove IPsec
SAs when IKE SA
remove
3 = Both
SA Removal Mode
ike n openswan on, off None. This enables support for
Openswan IKE implementations.
213
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE
> IKE Responder
This page displays the various parameters for IKE 0 when used in Responder mode.
Enable IKE Responder
Allows the router to respond to incoming IKE requests.
Accept IKE Requests with
Defines the settings that the router will accept during the negotiation
Encryption
The acceptable encryption algorithms.
Authentication
The acceptable authentication algorithms.
MODP Group between x and y
The acceptable range for MODP group.
Renegotiate after h hrs m mins s secs
Determines how long the initial IKE Security Association will stay in force. When it expires
any attempt to send packets to the remote system will result in IKE attempting
to establish a new SA.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ike 0 noresp on, off Enable IKE Responder
ike 0 rencalgs
des, 3des, aes
Multiple algorithms
can specified in a
comma separated
list
Encryption
ike 0 keybits 0, 128, 192, 256 Encryption (Minimum AES Key
length)
ike 0 rauthalgs
md5, sha1
Multiple algorithms
can specified in a
comma separated
list
Authentication
ike 0 rdhmingroup 1, 2, 5 MODP Group between x and y
ike 0 rdhmaxgroup 1, 2, 5 MODP Group between x and y
ike 0 ltime 1 - 28800
Renegotiate after h hrs m mins s
secs
This CLI value is entered in
seconds only.
214
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE
> IKE Responder > Advanced
Stop IKE negotiation if no packet received for n seconds
The period of time in seconds after which the unit will stop the IKE negotiation when no
response to a negotiation packet has been received.
Enable NAT-Traversal
Enables support for NAT Traversal within IKE/IPsec. When one end of an IPsec tunnel is
behind a NAT box, some form of NAT traversal may be required before the IPsec tunnel can
pass packets. Turning NAT Traversal on enables the IKE protocol to discover whether or not
one or both ends of a tunnel is behind a NAT box, and implements a standard NAT traversal
protocol if NAT is not being performed.
The version of NAT traversal supported is that described in the IETF draft ‘draft-ietf-ipsec-
nat-t-ike-03.txt’.
Send INITIAL-CONTACT notifications
Enables INITIAL-CONTACT notifications to be sent.
Send RESPONDER-LIFETIME notifications
Enables RESPONDER-LIFETIME notifications sent to the initiator. If an initiator requests an
IKE lifetime that is greater than the responder, a notification will be sent and the initiator
should reduce its lifetime value accordingly.
Retain phase 1 SA after failed phase 2 negotiation
The name of a X.509 certificate file holding the router’s private part of the public/private
key pair used in certificate exchanges. See ‘X.509 Certificates’ in the ‘IPsec and VPNs’
section for further explanation.
RSA private key file
The name of a X.509 certificate file holding the router’s private part of the public/private
key pair used in certificate exchanges. See ‘X.509 Certificates’ in the ‘IPsec and VPNs’
section for further explanation.
SA Removal Mode
Determines how IPsec and IKE SAs are removed.
‘Normal’ operation will not delete the IKE SA when all the IPsec SAs that were created by it
are removed and will not remove IPsec SAs when the IKE SA that was used to create them
is deleted.
‘Remove IKE SA when last IPSec SA removed’ will delete the IKE SA when all the IPsec SAs
that it created to a particular peer are removed.
‘Remove IPSec SAs when IKE SA removed’ will delete all IPSec SAs that have been created
by the IKE SA that has been removed.
‘Both’ will remove IPSec SAs when their IKE SA is deleted, and delete IKE SAs when their
IPSec SAs are removed.
215
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ike 0 inactto 0 – 255 Stop IKE negotiation if no packet
received for n seconds
ike 0 natt on, off Enable NAT-Traversal
ike 0 initialcontact on, off Send INITIAL-CONTACT
notifications
ike 0 respltime on, off Send RESPONDER-LIFETIME
notifications
ike 0 keepph1 on, off Retain phase 1 SA after failed
phase 2 negotiation
ike 0 privrsakey Filename RSA private key file
ike 0 delmode
0 = Normal
1 = Remove IKE
SA when last IPsec
SA removed
2 = Remove IPsec
SAs when IKE SA
remove
3 = Both
SA Removal Mode
Configuration – Network > Virtual Private Networking (VPN) > IPsec > IKE
> MODECFG Static NAT mappings
MODECFG is an extra stage built into IKE negotiations that fits between IKE phase 1 and
IKE phase 2, and is used to perform operations such as extended authentication (XAUTH)
and requesting an IP address from the host. This IP address becomes the source address to
use when sending packets through the tunnel from the remote to the host. This mode of
operation (receiving one IP address from the remote host) is called “client” mode. Another
mode, called “network” mode, allows the unit to send packets with a range of source
addresses through the tunnel.
If the unit receives packets from a local interface that need to be routed through the tunnel,
it performs address translation so that the source address matches the assigned IP address
before encrypting using the negotiated SA. Some state information is retained so that
packets coming in the opposite direction with matching addresses/ports can have their
destination address set to the source address of the original packet (in the same way as
standard NAT).
If the remote end of the tunnel is to be able to access units connected to the local interface,
the unit that has been assigned the virtual IP address needs to have some static NAT
entries set up. When a packet is received through the tunnel, the unit will first look up
existing NAT entries, followed by static NAT entries to see if the destination address/port
should be modified, and forwards the packet to the new address. If a static NAT mapping is
found, the unit creates a dynamic NAT entry that will be used for the duration of the
connection. If no dynamic or stateful entry is found, the packet is directed to the local
protocol handlers.
216
External Port
The lowest destination port number to be matched if the packet is to be redirected.
Forward to Internal IP Address
An IP address to which packets containing the specified destination port number are to be
redirected.
Forward to Internal Port
A port number to which packets containing the specified destination port number are to be
redirected.
Port Range Count
The number of ports to be matched.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
tunsnat n minport 0 - 65535 External Port
tunsnat n maxport 0 – 65535 Port Range Count
tunsnat n ipaddr IP Address Forward to Internal IP Address
tunsnat n mapport 0 - 65535 Forward to Internal Port
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IKEv2
When IKE Version 2 is supported, it is possible to specify whether the IKEv1 or IKEv2
protocol should be used to negotiate IKE SAs. By default, IKEv1 is used and routers which
have been upgraded to support IKEv2 will not require any changes to their configuration to
continue working with IKEv1.
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IKEv2 > IKEv2 n
Use the following settings for negotiation
Defines the settings used during the IKEv2 negotiation
Encryption
Defines the encryption algorithm used. The options are:
• None
• DES
• 3DES
• AES (128 bit keys)
• AES (192 bit keys)
• AES (256 bit keys)
217
Authentication
Defines the authentication algorithm used. The options are:
• None
• MD5
• SHA1
PRF Algorithm
Defines the PRF (Pseudo Random Function) algorithm used. The options are:
• MD5
• SHA1
MODP Group for Phase 1
Sets the key length used in the IKE Diffie-Hellman exchange to768 bits (group 1) or
1024 bits (group 2). Normally this option is set to group 1 and this is sufficient for
normal use. For particularly sensitive applications, you can improve security by selecting
group 2 to enable a 1024 bit key length. Note however that this will slow down the
process of generating the phase 1 session keys (typically from 1-2 seconds for group 1),
to 4-5 seconds.
Renegotiate after h hrs m mins s secs
Determines how long the initial IKEv2 Security Association will stay in force. When it expires
any attempt to send packets to the remote system will result in IKE attempting to establish
a new SA.
Rekey after h hrs m mins s secs
When the time left until expiry for this SA reaches the value specified by this parameter, the
IKEv2 SA will be renegotiated, i.e. a new IKEv2 SA is negotiated and the old SA is removed.
Any IPSec “child” SAs that were created are retained and become “children” of the new SA.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
ike2 n iencalg des, 3des, aes Encryption
ike2 n ienkeybits 128, 192, 256 Encryption (AES Key length)
ike2 n iauthalg md5, sha1 Authentication
ike2 n iprfalg md5, sha1 PRF Algorithm
ike2 n idhgroup 1, 2, 5 MODP Group for Phase 1
ike2 n ltime 1 - 28800
Renegotiate after h hrs m mins s
secs
This CLI value is entered in seconds
only.
ike2 n rekeyltime 1 - 28800 Rekey after h hrs m mins s secs
This CLI value is entered in seconds
only.
218
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IKEv2 > IKEv2 n > Advanced
Retransmit a frame if no response after n seconds
The amount of time in seconds that IKEv2 will wait for a response from the remote unit
before transmitting the negotiation frame.
Stop IKE negotiation after n retransmissions
The maximum number of times that IKEv2 will retransmit a negotiation frame as part of the
exchange before failing.
Stop IKE negotiation if no packet received for n seconds
The period of time in seconds after which the unit will stop the IKE v2 negotiation when no
response to a negotiation packet has been received.
Enable NAT-Traversal
Enables support for NAT Traversal within IKE/IPsec. When one end of an IPsec tunnel is
behind a NAT box, some form of NAT traversal may be required before the IPsec tunnel can
pass packets. Turning NAT Traversal on enables the IKE protocol to discover whether or not
one or both ends of a tunnel is behind a NAT box, and implements a standard NAT traversal
protocol if NAT is not being performed.
The version of NAT traversal supported is that described in the IETF draft ‘draft-ietf-ipsec-
nat-t-ike-03.txt’.
NAT traversal keep-alive interval n seconds
The interval in seconds in which the NAT Traversal keepalive packets are sent to a NAT
device in order to prevent NAT table entry from expiring.
RSA private key file
The name of a X.509 certificate file holding the router’s private part of the public/private
key pair used in certificate exchanges. See ‘X.509 Certificates’ in the ‘IPsec and VPNs’
section for further explanation.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ike2 n retranint 0 - 255 Retransmit a frame if no response
after n seconds
ike2 n retran 0 - 9 Stop IKE negotiation after n
retransmissions
ike2 n inactto 0 - 255 Stop IKE negotiation if no packet
received for n seconds
ike2 n natt on, off Enable NAT-Traversal
ike2 n natkaint Integer NAT traversal keep-alive interval n
seconds
ike2 n privrsakey Filename RSA private key file
219
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IKEv2 > IKEv2 Responder
This page displays the various parameters for IKEv2 0 when used in Responder mode.
Enable IKEv2 Responder
Allows the router to respond to incoming IKE requests.
Accept IKEv2 Requests with
Defines the settings that the router will accept during the negotiation
Encryption
The acceptable encryption algorithms.
Authentication
The acceptable authentication algorithms.
PRF Algorithm
The acceptable PRF (Pseudo Random Function) algorithms.
MODP Group between x and y
The acceptable range for MODP group.
Renegotiate after h hrs m mins s secs
Determines how long the initial IKE Security Association will stay in force. When it expires
any attempt to send packets to the remote system will result in IKE attempting to establish
a new SA.
Rekey after h hrs m mins s secs
When the time left until expiry for this SA reaches the value specified by this parameter, the
IKEv2 SA will be renegotiated, i.e. a new IKEv2 SA is negotiated and the old SA is removed.
Any IPSec “child” SAs that were created are retained and become “children” of the new SA.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ike2 0 rencalgs des, 3des, aes Encryption
ike2 0 renckeybits 128, 192, 256 Encryption (Minimum AES key
length)
ike2 0 rauthalgs md5, sha1 Authentication
ike2 0 rprfalgs md5, sha1 PRF Algorithm
ike2 0 rdhmingroup 1, 2, 5 MODP Group between x and y
ike2 0 rdhmaxgroup 1, 2, 5 MODP Group between x and y
ike2 0 ltime 1 – 28800
Renegotiate after h hrs m mins s
secs
This CLI value is entered in
seconds only.
ike2 0 rekeyltime 1 - 28800 Rekey after h hrs m mins s secs
This CLI value is entered in
seconds only.
220
Configuration – Network > Virtual Private Networking (VPN) > IPsec >
IKEv2 > IKEv2 Responder > Advanced
Stop IKE negotiation if no packet received for n seconds
The period of time in seconds after which the unit will stop the IKEv2 negotiation when no
response to a negotiation packet has been received.
Enable NAT-Traversal
Enables support for NAT Traversal within IKE/IPsec. When one end of an IPsec tunnel is
behind a NAT box, some form of NAT traversal may be required before the IPsec tunnel can
pass packets. Turning NAT Traversal on enables the IKE protocol to discover whether or not
one or both ends of a tunnel is behind a NAT box, and implements a standard NAT traversal
protocol if NAT is not being performed.
The version of NAT traversal supported is that described in the IETF draft ‘draft-ietf-ipsec-
nat-t-ike-03.txt’.
NAT traversal keep-alive interval n seconds
The interval in seconds in which the NAT Traversal keepalive packets are sent to a NAT
device in order to prevent NAT table entry from expiring.
RSA private key file
The name of a X.509 certificate file holding the router’s private part of the public/private
key pair used in certificate exchanges. See ‘X.509 Certificates’ in the ‘IPsec and VPNs’
section for further explanation.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ike2 0 inactto 0 - 255 Stop IKE negotiation if no packet
received for n seconds
ike2 0 natt on, off Enable NAT-Traversal
ike2 0 natkaint Integer NAT traversal keep-alive interval n
seconds
ike2 0 privrsakey Filename RSA private key file
221
Configuration – Network > Virtual Private Networking (VPN) > L2TP
The Layer 2 Tunnelling Protocol (L2TP) provides a means for terminating a logical PPP
connection on a device other than the one which terminates the physical connection.
Typically, both the physical layer and logical layer PPP connections would be terminated on
the same device, a Digi Router for example.
With L2TP answering the call, the router terminates the layer 2 connection only and the PPP
frames are passed in an L2TP “tunnel” to another device which terminates the PPP
connection. This device is sometimes referred to as a Network Access Server (NAS).
Configuration – Network > Virtual Private Networking (VPN) > L2TP >
L2TP n
Act as a listener only
When checked, this checkbox causes the router to NOT actively attempt to establish an
L2TP tunnel. In this mode it will only use L2TP if the remote host requests it. When
unchecked, the router will actively try to establish an L2TP connection with the remote host.
Enable Server mode
When checked, this checkbox causes the router to act as a L2TP server.
Initiate connections to a.b.c.d
The value in this text box specifies the IP address of the remote host, i.e. the device that
will terminate the L2TP connection.
Use a.b.c.d as a backup
It is possible to specify a backup remote L2TP host server using this parameter. The text
box contains the IP address of the remote server to use.
222
Bring this tunnel up All the time/On demand
This parameter only applies to tunnels initiated from this router.
Bring this tunnel down if it is idle for h hrs, m mins, s secs
These radio buttons select whether or not the tunnel is permanently available or not. When
set to On demand, the tunnel will not activate automatically but will wait until it is
triggered by PPP. When set to On demand the values in the text boxes determine the
timeout after which the L2TP tunnel will closed down after the last L2TP call on that tunnel.
L2TP Window Size
The L2TP window size is selected from this drop down list. Available values are from 1 to 7.
Route UDP packets over interface x,y
These two text boxes specify the interface and its instance number that should be used for
L2TP UDP sockets. Specifying these parameters allow the router to raise the interface
should it be disconnected.
Source Port Normal/Variable
These radio buttons select the source port for the L2TP tunnel. When set to Normal the
default port number of 1701 is used. When set to Variable a random source port value will
be used.
Name
The value in this text box is the name that is used to identify the router during the
negotiation phase when establishing an L2TP tunnel.
Authentication Off/Secret
The radio buttons select whether or not to use authentication. This is normally set to Off as
most host systems require that IPsec be used over L2TP tunnels. If Authentication is set to
On, authentication is enabled and the Secret parameter becomes relevant. The value in the
text box contains a passphrase that is shared with the host and which will be used if the
remote host requests authentication and Authentication is set to Off here.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
l2tp n listen OFF,ON Act as a listener only
l2tp n swap_io OFF,ON Enable server mode
l2tp n remhost Valid IP address
a.b.c.d Initiate connections to a.b.c.d
l2tp n backremhost Valid IP address
a.b.c.d Use a.b.c.d as a backup
l2tp n aot OFF,ON Bring this tunnel up All the
time/On demand
l2tp n nocallto 0 - 4294967296 Bring this tunnel down if it is
idle for h hrs, m mins, s secs
l2tp n window 1 – 7
Default = 4 L2TP Window Size
l2tp n ll_ent <blank>, PPP,
ETH Route UDP packets over
interface x,y
l2tp n ll_add 0 - 2147483647 Route UDP packets over
223
Entity
Instance
Parameter
Values
Equivalent Web Parameter
interface x,y
l2tp n rnd_srcport OFF, ON Source Port
l2tp n name Up to 30
characters Name
l2tp n auth OFF,ON Authentication Off/Secret
l2tp n secret Up to 80
characters Authentication Off/Secret
Configuration – Network > Virtual Private Networking (VPN) > L2TP >
L2TP n > Advanced
Retransmit interval s milliseconds
The value in this text box specifies the amount of time in milliseconds that the router will
wait before retransmitting a Start Control Connection Request (SCCRQ) frame. The default
value of 250ms should be changed to a higher value (say 4000ms) if L2TP is running over a
GPRS link.
Retransmit count n
When using L2TP over GPRS or satellite networks, the first few packets are sometimes lost.
Setting the retransmit count in the text box to a higher value than the default of 5 will
increase reliability of the tunnel.
Layer 1 Interface Sync port n/ISDN
These radio buttons select the layer 1 (physical) interface to be used to terminate the L2TP
connection. The available options are ISDN or one of the router’s synchronous serial ports.
When Sync port n is selected, the sync port number is selected from the drop-down list.
Allow this L2TP tunnel to answer incoming ISDN calls
When checked, this checkbox allows the L2TP entity to answer incoming ISDN calls.
MSN
The value in this text box specifies the filter for the ISDN Multiple Subscriber Numbering
(MSN). It is blank by default but when the answering facility (above) is enabled, the router
will only answer ISDN calls where the trailing digits match this MSN value. For example,
setting the MSN value to 123 will prevent the router from answering calls from any calling
number that does not end in 123. This parameter is not used when answering is off.
Sub-address
The value in this text box specifies the ISDN sub-address filter to use in conjunction with
the ISDN answering function. When answering is set to On and there is a valid sub-address
in this text box, the router will only answer calls where the trailing digits of the calling sub-
address match this sub-address. For example, setting the sub-address value to 123 will
prevent the router from answering calls where the sub-address does not end in 123.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
l2tp n retxto 0 - 4294967296 Retransmit interval s
milliseconds
l2tp n retxcnt 0 - 4294967296 Retransmit count
l2tp n l1iface 0 – 255 Layer 1 Interface
224
Entity
Instance
Parameter
Values
Equivalent Web Parameter
l2tp n ans OFF,ON Allow this L2TP tunnel to answer
incoming ISDN calls
l2tp n msn Up to 9 digits MSN
l2tp n sub Up to 17 digits Sub-address
Configuration – Network > Virtual Private Networking (VPN) > PPTP
The Point-to-Point tunnelling protocol (PPTP) is a common way of creating a VPN tunnel to a
Microsoft Windows™ server.
PPTP works by ending a regular PPP session to the peer encapsulated by the Generic
Routing Encapsulation (GRE) protocol. A second session on TCP port 1723 is used to initiate
and manage the GRE session. PPTP connections are authenticated with Microsoft MSCHAP-
v2 or EAP-TLS. VPN traffic is protected by MPPE encryption. PPTP does not work with
GPRS/HSDPA mobile operators that assign a private IP address and then apply NAT to the
traffic before it leaves their network. This because the server tries to build a tunnel back to
the router on port 1723 but fails when the traffic is blocked by the mobile operators’
firewall.
Configuration – Network > Virtual Private Networking (VPN) > PPTP >
PPTP n
Description
The text string in this text box is a name to aid the identification of the router.
Remote Host a.b.c.d
The value in this text box specifies the IP address of the remote host, i.e. the device that
will terminate the PPTP connection.
Use Interface x,y
The interface to be used for the PPTP tunnel is selected from this drop-down list, the text
box next to it is for the interface instance. Specifying these parameters allow the router to
raise the interface should it be disconnected. The interface options are:
• Auto
• PPP
• Ethernet.
Accept incoming PPTP connections
When checked, this checkbox allow the router to act as a PPTP server and accept incoming
VPN connections.
Enable Server mode
When checked, this checkbox causes the router to send call_out call requests to the remote
device. In the default state which is unchecked, the router will send a call_in request to the
remote device.
Enable Socket mode
When checked, this checkbox enables the use of a Digi proprietary mode whereby PPP
packets are sent via the PPTP control socket rather than in GRE packets.
Encrypt control data using SSL version n
When checked, this checkbox causes the router to encrypt the control data using SSL. This
is a Digi proprietary function and is not part of standard PPTP. The drop-down list allows the
SSL version to be selected. The available options are:
• Use default
225
• TLSv1 only
• SSLv3 only
• SSLv2 only.
Enable PPTP debug
When checked, this checkbox enables debug tracing.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
pptp 0 - 9 name Up to 30
characters Description
pptp 0 - 9 remhost Valid IP address
a.b.c.d Remote Host a.b.c.d
pptp 0 - 9 ll_ent Blank, PPP, ETH
Blank means Auto Use Interface x,y
pptp 0 - 9 ll_add 0 - 4294967296 Use Interface x,y
pptp 0 - 9 listen OFF,ON Accept incoming PPTP
connections
pptp 0 - 9 swap_io OFF,ON Enable Server mode
pptp 0 - 9 usesock OFF,ON Enable Socket mode
pptp 0 - 9 sslver
Blank,SSL,TLS1,S
SL3,SSL2
Blank is disabled
(default)
SSL means use
default.
Encrypt control data using SSL
version n
pptp 0 - 9 debug OFF,ON Enable PPTP debug
226
Configuration – Network > Virtual Private Networking (VPN) > OpenVPN
OpenVPN can be used for connecting to the router for secure management as well as access
to services on the LAN side of the TransPort router, such as corporate messaging services,
file servers and print servers for example.
OpenVPN is a full-featured SSL VPN which implements OSI layer 2 or 3 secure network
extension using the industry standard SSL/TLS protocol, supports flexible client
authentication methods based on certificates, smart cards, and/or username/password
credentials, and allows user or group-specific access control policies using firewall rules
applied to the VPN virtual interface. OpenVPN is not a web application proxy and does not
operate through a web browser.
The Digi TransPort implementation of OpenVPN can be configured as an OpenVPN server
(shown above) or as an OpenVPN client, connecting to an OpenVPN server.
On TransPort firmware, OpenVPN has been implemented as an interface. That means that
when an OpenVPN tunnel connects, an interface is added to the routing table. Static routes
may be configured to point to an OpenVPN instance, and additionally, OpenVPN may learn
routes from the tunnel peer and add these routes to the routing table for the duration of the
OpenVPN tunnel. As each tunnel appears just like an interface, support for features like the
firewall, NAT, IGMP etc are the same as for other interfaces like PPP and ETH.
Configuration – Network > Virtual Private Networking (VPN) > OpenVPN >
OpenVPN n
Description
The text string is a friendly name to help identify this OpenVPN instance.
IP address a.b.c.d
This must be specified correctly. OpenVPN interfaces use a 30 bit mask, the first address is
the network address, the 2nd is the server address, the 3rd is the client address, the 4th is
the broadcast address. This address must be configured as the 2nd IP address in the block
of 4. For example 192.168.0.1 if configured as a server, or 192.168.0.2 if configured as a
client.
227
Destination host a.b.c.d
Only required when configured as an OpenVPN client. This is the IP address of the
OpenVPN server.
Link socket interface x,y
If configured, OpenVPN sockets will only be allowed to/from this interface and the routing
table will be ignored. When set to Auto, the OpenVPN sockets will use the routing table to
identify the best interface to use.
Get link socket source address from this interface x,y
The values in these two text boxes define the interface (Auto,PPP,ETH) and the instance
number of the interface to use as a source address for IP sockets when not using the
interface that the socket was created on.
Even when this parameter is not configured, the IP address from the interface on which the
socket was created will be used. The source address specified in this parameter will only be
used if it will cause the traffic to match an Eroute and therefore be sent using IPsec or GRE.
MTU
This parameter is used to set the Maximum Transmit Unit for the OpenVPN instance, in
bytes. The default setting is 1400.
Metric
This parameter specifies the connected metric, changing this value will alter the metric of
dynamic routes created automatically for this interface.
NAT mode
This parameter is used to select whether IP Network Address Translation (NAT) or Network
Address and Port Translation (NAPT) are used at the Ethernet interface. When the
parameter is set to disabled, no NAT will take place.
IP analysis
When enabled, the un-encapsulated IP traffic will be captured into the analyser trace.
Firewall
The Firewall parameter is used to turn Firewall script processing “On” or “Off” for this
interface.
IGMP
This IGMP parameter is used to enable or disable the transmission and reception of IGMP
packets on this interface. IGMP is used to advertise members of multicast groups. If IGMP is
enabled, and a member of a multicast group is discovered on this interface, multicast
packets for this group received on other interfaces will be sent out this interface.
Include in RIP advertisements
When checked, this checkbox will cause the router to include this static route to be included
in RIP advertisements.
Automatically connect interface
If enabled, this OpenVPN instance will be considered as an always on interface.
Server mode (listener)
This parameter configures the OpenVPN instance to listen for inbound OpenVPN sockets.
Link socket port
The default port used by OpenVPN is 1194. If a different or non-standard port number is
used, specify it here.
Link socket protocol
OpenVPN can use TCP or UDP as the transport protocol. Select the required protocol here.
228
TLS auth password / Confirm TLS auth password
This allows the OpenVPN instance to use an extra level of security by having a TLS
password configured.
Push IP address #1/#2/#3
When configured as an OpenVPN server, these parameters can be used to push subnets to
the client that need to be routed via the OpenVPN server. Used in conjunction with the
Push Mask parameter below.
Push mask #1/#2/#3
Used with the Push IP address parameter above to define subnets that should be routed via
the OpenVPN server.
Push DNS server address #1/#2
When configured as an OpenVPN server, these parameters can be used to push DNS server
settings to the OpenVPN client.
Pull interface IP address
When configured as an OpenVPN client, this option must be enabled for the router to obtain
and use the local IP address supplied from the OpenVPN server.
Pull routes
When configured as an OpenVPN client, this option must be enabled for the router to use
routes sent from the OpenVPN server.
Pull DNS server addresses
When configured as an OpenVPN client, this option must be enabled for the router to use
DNS servers sent from the OpenVPN server.
Packet replay ID window
When set to a non-zero value, this enables sequence number replay detection. It indicates
the number of packet IDs lower than the current highest ID to allow out of sequence.
Packet replay time window (seconds)
Set to a non-zero value to enable time tracking of incoming packets.
OpenVPN TX ping interval (seconds)
Interval between OpenVPN ping transmissions. These are required to detect the operational
state of the VPN connection.
OpenVPN RX ping timeout (seconds)
The number of seconds, after which no OpenVPN ping has been received, the VPN will be
marked as down.
Include IV
Enabling this option on includes an IV at the head of an encrypted packet. If one peer
prepends this IV and the other isn’t expecting it, packet decryption will fail.
Key negotiation timeout (seconds)
Maximum time in seconds to allow for a data channel key negotiation.
Key renegotiation interval (seconds)
Interval between key re-negotiations.
Key renegotiation bytes
If non-zero, a key renegotiation will take place after this many bytes have travelled through
the data channel (in either direction).
229
Key renegotiation packets
If non-zero, a key renegotiation will take place after this many packets have travelled
through the data channel.
Inactivity timeout (seconds)
The tunnel is disconnected after the tunnel becomes inactive (no IP traffic) for this many
seconds. Note that the timer is only restarted with RX traffic, not TX traffic.
Data channel cipher
Sets the cipher used for data channel encryption/decryption. Select from the dropdown list.
Data channel digest
Sets the digest algorithm used for data channel authentication. Select from the dropdown
list.
Debug
Enables output of OVPN related debug.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ovpn n descr Up to 30
characters Description
ovpn n IPaddr Valid IP address
a.b.c.d IP address a.b.c.d
ovpn n dest Valid IP address
a.b.c.d Destination host a.b.c.d
ovpn n ll_ent <blank>, PPP,
ETH Link socket interface x,y
x= interface type
ovpn n ll_add 0 - 2147483647 Link socket interface x,y
y= interface number
ovpn n ip_ent <blank>, PPP,
ETH
Get link socket source address
from this interface x,y
x= interface type
ovpn n ip_add 0 - 2147483647 Get link socket source address
from this interface x,y
y= interface number
ovpn n mtu 0 - 2147483647 MTU
ovpn n metric 0 - 2147483647 Metric
ovpn n do_nat
0,1,2
0 = Off
1 = Address only
2= Address and
port
NAT mode
ovpn n ipanon OFF,ON IP analysis
ovpn n firewall OFF,ON Firewall
ovpn n igmp OFF,ON IGMP
ovpn n inrip OFF,ON Include in RIP advertisements
230
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ovpn n autoup OFF,ON Automatically connect interface
ovpn n server OFF,ON Server mode (listener)
ovpn n port 0 - 65535 Link socket port
ovpn n proto TCP,UDP Link socket protocol
ovpn n tls_auth_key Up to 30
characters TLS auth password
ovpn n etls_auth_key enciphered version TLS auth
password
ovpn n puship Valid subnet
a.b.c.d Push IP address #1 a.b.c.d
ovpn n pushmask Valid netmask
a.b.c.d Push mask #1 a.b.c.d
ovpn n puship2 Valid subnet
a.b.c.d Push IP address #2 a.b.c.d
ovpn n pushmask2 Valid netmask
a.b.c.d Push mask #2 a.b.c.d
ovpn n puship3 Valid subnet
a.b.c.d Push IP address #3 a.b.c.d
ovpn n pushmask3 Valid netmask
a.b.c.d Push mask #3 a.b.c.d
ovpn n pushdns Valid IP address
a.b.c.d Push DNS server address #1
a.b.c.d
ovpn n pushdns2 Valid IP address
a.b.c.d Push DNS server address #2
a.b.c.d
ovpn n pullip OFF,ON Pull interface IP address
ovpn n pullroute OFF,ON Pull routes
ovpn n pulldns OFF,ON Pull DNS server addresses
ovpn n sreplay 0 - 2147483647 Packet replay ID window
ovpn n treplay 0 - 2147483647 Packet replay time window
(seconds)
ovpn n pingint 0 - 2147483647 OpenVPN TX ping interval
(seconds)
ovpn n pingto 0 - 2147483647 OpenVPN RX ping timeout
(seconds)
ovpn n inciv OFF,ON Include IV
ovpn n neg_timeout 0 - 2147483647 Key negotiation timeout
(seconds)
ovpn n reneg_int 0 - 2147483647 Key renegotiation interval
(seconds)
231
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ovpn n reneg_bytes 0 - 2147483647 Key renegotiation bytes
ovpn n reneg_packets 0 - 2147483647 Key renegotiation packets
ovpn n inact_timeout 0 - 2147483647 Inactivity timeout (seconds)
ovpn n cipher See cipher list
below Data channel cipher
ovpn n digest See digest list
below Data channel digest
ovpn n debug OFF,ON Debug
Supported Cipher and Digest values for OpenVPN
Cipher values
Digest values
DES-EDE-CBC md2WithRSAEncryption
AES128 ssl2-md5
DES MD5
DES-CBC sha1WithRSAEncryption
AES-128-CBC ssl3-sha1
AES192 ssl3-md5
AES-192-CBC SHA1
DES-EDE3-CBC MD2
AES-256-CBC RSA-MD2
AES-256 md5WithRSAEncryption
DES3 RSA-SHA1
RSA-SHA1-2
RSA-MD5
232
Configuration – Network > SSL
The secure socket layer (SSL) that provides a secure transport mechanism is supported by
Digi’s TransPort routers. The configuration of the client-side and server are described in the
following pages.
Configuration – Network > SSL > SSL Clients
Some sites require client side authentication when connecting to them. The router’s SSL
client handles the authentication for SSL connections using certificates signed by a
Certificate Authority (CA). For more information regarding certificates and certificate
requests, refer to the certificates page Administration – X.509 Certificate Management
> Certificate Authorities (CAs).
Configuring the SSL clients is handled by a table having the columns and parameters listed
below:
SSL Client
This column is simply a list of the SSL client numbers supported by the router.
Client Certificate Filename
The name of the required certificate file is selected from those available on the router’s filing
system from this drop-down list.
Client Private Key Filename
The name of the file that contains the private key that matches the public key stored in the
above parameter, is selected from this drop-down list.
233
Cipher List
The cipher list in this text box is a list of one or more cipher strings separated by colons.
Commas or spaces are also accepted as separators but colons are normally used. The actual
cipher string can take several different forms. It can consist of a single cipher suite such as
RC4-SHA. It can represent a list of cipher suites containing a certain algorithm or cipher
suites of a certain type. For example, SHA1 represents all cipher suites using the SHA1
digest algorithm and SSLv3 represents all SSL v3 algorithms. Lists of cipher suites can be
combined in a single cipher string using the “+” character. This forms the logical AND
operation. For example, SHA1+DES represents all cipher suites containing SHA1 and DES
algorithms. If left empty, the cipher list is not used.
For more information see: http://www.openssl.org/docs/apps/ciphers.html
Apply to Destination IP Address
The value in this text box allows the configuration of multiple SSL destinations, each having
a different certificate/key pair. When set, this parameter will lock the SSL client settings to
a specific IP address. If this parameter is left blank, the configured SSL client settings will
be used for any connection that requires SSL.
As is usual with the tables on the configuration web pages, the relevant and appropriate
parameters are selected and the Add button on the right-hand side is clicked to add the
entry into the table. Once an entry has been added, it may be removed by clicking the
Delete button that will appear in the right-hand column.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
sslcli 0 - 4 certfile Up to 12
characters (DOS
8.3 format) Client Certificate Filename
sslcli 0 - 4 keyfile Up to 12
characters (DOS
8.3 format) Client Private Key Filename
sslcli 0 - 4 cipherlist Colon-separated
list of ciphers Cipher List
sslcli 0 - 4 IPaddr Apply to Destination IP Address
Configuration – Network > SSL > SSL Server
This page describes the parameters needed to configure the SSL server.
Server Certificate Filename
The file containing the server certificate is selected from this drop-down list.
Client Private Key Filename
The file containing the private key that matches the above certificate is selected from this
drop-down list.
SSL Version
The version of the SSL protocol to use, is selected from this drop-down list. Selecting “Any”
allows the use of any version. The available options are:
• Any
• TLSv1 only
• SSLv3 only
• SSLv2 only.
234
Cipher List
The list of ciphers is the same as described above for the client-side configuration table.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
sslsvr 0 certfile Up to 12
characters (DOS
8.3 format) Server Certificate Filename
sslsvr 0 keyfile Up to 12
characters (DOS
8.3 format) Server Private Key Filename
sslsvr 0 ver Blank, TLS1,
SSL3, SSL2 SSL Version
sslsvr 0 cipherlist Colon-separated
list Cipher List
sslsvr 0 debug OFF,ON n/a
235
Configuration – Network > SSH Server
The secure shell (SSH) server allows remote peers to access the router over a secure TCP
connection using a suitable SSH client. The SSH server provides a Telnet-like interface and
secure file transfer capability.
SSH uses a number of keys during a session. The host keys are used for authentication
purposes. Keys unique to each SSH session are also generated and are used for
encryption/authentication purposes.
The router supports SSH v1.5 and SSH v2. The host key file format differs for each version
but there would normally only be one host key for each version. For this reason the router
allows the user to configure two host key files. These keys may be changed from time to
time, specifically if it suspected that the key has become compromised. Because the host
keys need to be secure, it is highly recommended to store the files on the router’s FLASH
filing system using filenames prefixed with “priv” which makes it impossible to read the files
using any of the normal methods (e.g. FTP). It is possible (using the genkey command) to
create host keys in either format for use with SSH. Using this utility it is not necessary to
have the host key files present on any other storage device (thus providing an additional
level of security). Refer to the section of this manual that covers certificates on how to
generate a private key file.
Unlike the Telnet server it is possible to configure the number of SSH server sockets that
listen for new SSH connections.
Multiple SSH server instances can be configured, each instance can be configured to listen
on a separate port number and can use different keys and encryption methods.
It is possible to configure which authentication methods can be used in an SSH session and
the preferred selection order. The router currently supports MD5, SHA1, MD5-96 and SHA1-
96. If required, a public/private key pair can be used for authentication.
The router currently supports 3DES, 3DES-CBC and AES cipher methods.
DEFLATE compression is also supported. If this is enabled and negotiated, SSH packets are
first compressed before being encrypted and delivered to the remote unit via the TCP
socket.
Note:
The SSH server supports the SCP file copy protocol but does NOT support filename
wildcards.
Enable SSH Servers
When checked, this checkbox enables the SSH servers on the router.
Configuration – Network > SSH Server > SSH Server n
The router supports eight individual SSH servers that are configured independently using
the options described below.
Enable SSH Server
When checked, this checkbox enables the SSH server.
Use TCP port p
The value in this text box is the TCP port number (default 22) that the SSH server will use
to listen for incoming connections. (Port 22 is the standard SSH port).
236
Allow up to n connections
The value in this text box specifies the number of sockets listening for new SSH connections
(default 1).
Host Key 1 Filename
The value in this text box is the filename of either an SSH V1 or V2 host key. It is highly
recommended that the filename be prefixed with “priv” to ensure that the key cannot be
easily accessed and compromised. This key may be generated using the facilities described
in the Certificates section of this manual.
Host Key 2 Filename
The value in this text box is the filename of either an SSH V1 or V2 key as above.
Note:
The maximum length for these filenames is 12 characters and they must use the DOS 8.3
file naming convention.
Maximum login time s seconds
The value in this text box specifies the maximum length of time (in seconds) that a user is
allowed to successfully complete the login procedure once the SSH socket has been opened.
The socket is closed if the user has not completed a successful login within this period.
Maximum login attempts n
The value in this text box specifies the maximum number of login attempts allowed in any
one session before the SSH socket will be closed.
Use Deflate compression No/Yes, level n
The radio buttons select whether or not DEFLATE compression will be used. If compression
is selected, the compression level is chosen from the drop-down list.
Enable Port Forwarding
When checked, this checkbox enables the router to accept traffic on ports other than 23.
This functionality is for use with SSH client applications (such as PuTTY) that has port
forwarding capability. For example, one the SSH connection is active, traffic for the HTTP
port 80 can be sent to the router securely.
Command Session IP Address a.b.c.d Port p
The values in these two text boxes are used to specify the host IP address and port number
that the router will use to handle incoming requests for a command session from SSH
clients. This is instead of the router’s normal command interpreter. For example, if the
values are IP address 127.0.0.1, port 4000, the SSH client will make a direct connection to
ASY 0 and the device attached to ASY 0 will receive and process the commands from the
SSH client.
Enable support for SSH v1.5
When checked, this checkbox allows the server to negotiate SSH V1.5. The router must also
have a SSH V1 key present and the filename entered into the SSG configuration.
Server key size
This option applies to V1 SSH. During initialisation of an SSH session, the server sends its
host key and a server key (which should be of a different size to the host key). The router
generates this key automatically but the length of the server key is determined by this
parameter. If when this value is set it is too similar to the length of the host key, the router
will automatically adjust the selected value so that the key sizes are significantly different.
237
Enable support for SSH v2.0
When checked, this checkbox allows the server to negotiate SSH V2. The router must also
have a SSH V2 key present and the filename entered into the SSG configuration.
Actively start key exchange
This option applies to V2 SSH. Some SSH clients wait for the server to initiate the key
exchange process when a new SSH session is started unless they have data to send to the
server, in which case they will initiate the key exchange themselves. When checked, this
checkbox will cause the router to automatically initiate a key exchange without waiting for
the client.
Rekey Never/After n units of data have been transferred
With SSH V2 it is possible to negotiate new encryption keys after the current ones have
been used to encrypt a specified amount of data. The radio buttons select whether this
feature should be used. If this feature is to be used the amount of data is entered into the
text box and the applicable units (Kbytes, Mbytes, Gbytes) selected from the drop-down list.
Encryption Preferences
The following four configuration options allocate preferences to the encryption method that
should be used to encrypt data on the link. A lower value indicates greater preference apart
from zero which disables the option.
3DES
The value in this text box is the preference level for the Triple-DES algorithm.
AES (128 bits)
The value in this text box is the preference level for the 128-bit AES algorithm.
AES (192 bits)
The value in this text box is the preference level for the AES algorithm using 192 bits.
AES (256 bits)
The value in this text box is the preference level for the AES algorithm using 256 bits.
Authentication Preferences
The following four configuration options allocate preferences to the authentication methods
that should be used. As above, a value of zero disables the particular authentication method
and lower values indicated greater preference than higher values. So, for example if MAC
SHA1-96 was the preferred method for authentication, this option would be given the value
1 and the other options given a value of 2 or greater. If all these parameters are set to the
same value, the router automatically uses them in the following order: SHA1, SHA1-96,
MD5, MD5-96.
MAC MD5
The value in this text box is the preference level for MAC MD5.
MAC MD5-96
The value in this text box is the preference level for MAC MD5-96.
MAC SHA1
The value in this text box is the preference level for MAC SHA1.
MAC SHA1-96
The value in this text box is the preference level for MAC SHA1-96.
238
Enable Debug
The router supports logging and output of debugging information for situations where there
are problems establishing a SSH connection. When checked, this checkbox causes the
router to trace and output information that should be helpful in diagnosing and resolving the
problem.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ssh 0 – 7 port 0 - 65535 Use TCP port p
ssh 0 - 7 nb_listen 0 - 2147483647 Allow up to n connections
ssh 0 - 7 hostkey1 Up to 12
characters (8.3
format) Host Key 1 Filename
ssh 0 - 7 hostkey2 Up to 12
characters (8.3
format) Host Key 2 Filename
ssh 0 - 7 loginsecs 0 - 2147483647 Maximum login time s seconds
ssh 0 - 7 logintries 0 - 2147483647 Maximum login attempts n
ssh 0 - 7 comp 0 = disabled Use Deflate compression , level
ssh 0 - 7 fwd 0 - 2147483647 Enable port forwarding
ssh 0 - 7 cmdhost Valid IP address
a.b.c.d Command session IP address
a.b.c.d
ssh 0 - 7 cmdport 0 - 2147483647 Command session port p
ssh 0 - 7 svrkeybits 0 - 2147483647 Server key size
ssh 0 - 7 initkex OFF,ON Actively start key exchange
ssh 0 - 7 rekeybytes 0 - 2147483647
0 = Do not rekey Rekey After n units of data have
been transferred
ssh 0 - 7 enc3descbc 0 - 2147483647
0 = Disabled 3DES
ssh 0 - 7 encaes128cbc 0 - 2147483647 AES (128 bits)
ssh 0 - 7 encaes192cbc 0 - 2147483647 AES (192 bits)
ssh 0 - 7 encaes256cbc 0 - 2147483647 AES (256 bits)
ssh 0 - 7 macmd5 0 - 2147483647 MAC MD5
ssh 0 - 7 macmd596 0 - 2147483647 MAC MD5-96
ssh 0 - 7 macsha1 0 - 2147483647 MAC SHA1
ssh 0 - 7 macsha196 0 - 2147483647 MAC SHA1-96
ssh 0 - 7 debug 0,1
0 = Off
1 = On Enable Debug
239
Configuring SSH
In order to fully configure SSH, a version1 SSH key and a version 2 SSH key need to be
generated and the router configured to use them. This procedure will be described below.
Note:
SSH version 2 is more secure than version 1 and so is the recommended version to use.
However, some SSH clients may only support version 1 keys and so the router supports
both version 1 and version 2 SSH.
Configuration using the web interface
Navigate to Administration – X.509 Certificate Management > Key Generation and
select the size of the key file from the drop-down list. The larger the key file, the more
secure it will be.
Enter the name for the key file in the Key filename box or select from those already
present using the drop-down selector. The filename should have a prefix of “priv” and a file
extension of “.pem”, e.g. “privssh1.pem”. (Please note that the 8.3 file name convention
applies as mentioned previously).
Check the checkbox marked Save in SSHv1 format in order to generate a version 1 SSH
key. Click the Generate Key button to generate the private key file. The key file will be
stored in the router’s FLASH filing system.
Repeat steps 1 to 3 in order to generate the second key. This time, however, make sure
that the Save in SSHv1 format checkbox is unchecked. This key file should be given a
different name to the version 1 file previously generated.
On the Configuration – Network > SSH Server > SSH Server n page, enter the
filename generated in step 3 into the Host Key 1 Filename text box and the filename
generated in step 4 into the Host Key 2 Filename text box.
Apply the configuration changes using the Apply button at the bottom of the page and when
the “Configuration successfully applied” message appears, click on the highlighted link to
save the configuration.
Configuration using the command line interface
Generate the SSH V1 private key using the genkey command as follows:
genkey <keybits> <filename> -ssh1 where <keybits> is one of the following
values; 384, 512, 768, 1024, 1536 or 2048 and <filename> is the name for the file, e.g.
“privssh1.pem” as described for the web version of this procedure.
Generate the SSH V2 private key using the genkey command as per step 1 but this time
omit the –ssh1 switch. For example:
genkey 1024 privssh2.pem.
Set the first private key as the SSH Host key 1 using the following command:
ssh 0 hostkey1 privssh1.pem
Set the second private key as SSH Host Key 2 using the following command:
ssh 0 hostkey2 privssh2.pem
Save the configuration:
config 0 save
240
SSH Authentication with a public/private keypair
Once SSH access has been configured and confirmed to be working, RSA key pair
authentication can be added and used to replace password authentication.
This process will involve the use of PuTTYgen to create public and private keys. Please see
the Technical Notes section on the Digi website for full details on how to perform this
procedure.
241
Configuration – Network > FTP Relay
The FTP Relay agents allow any files to be transferred onto the router by a specified user
using the File Transfer Protocol to be temporarily stored in memory and then relayed to a
specific FTP host. This is useful when the router is being used to collect data files from a
locally attached device such as a webcam which must then be to a host system over a
slower data connection such as W-WAN. In effect, the router acts as a temporary data
buffer for the files.
The FTP Relay Agent may also be configured to email (as an attachment) any file that it was
unable to transfer to the FTP server. To facilitate this, set the Email Template, To, From and
Subject parameters as appropriate and also configure the SMTP client (Configuration –
Alarms > SMTP Account).
Configuration – Network > FTP Relay > FTP Relay n
There are two FTP Relay Agents available, with a separate web page for each. For command
line configuration, the instance number can be 0 or 1.
Relay files for user locuser to FTP Server ftphost
The value in the left-hand text box is the name of the local user and should be one of the
usernames assigned in the Configuration – Security > Users web page. This name is
then used as the FTP login username when the local device needs to relay a file. The value
in the right-hand text box is the name of the FTP host to which the files from the locally
attached device are to be relayed.
Server Username
The value in this text box is the username required to log in to the specified FTP host.
Server Password
The value in this text box specifies the password to be used to log in to the host.
Confirm Server Password
The password should be retyped into this text box in order to confirm that it has been
entered correctly, given that it is not echoed in clear text.
Remote directory
The value in this text box is the full name of the directory on the FTP host to which the file
is to be saved.
Rename file
When checked, this checkbox causes the router to store the uploaded files internally with a
filename in the form “relnnnn” where nnnn is a number that is incremented for each new file
received. When the file is relayed to the FTP host the original filename is used. When
unchecked, the file is stored internally using its original filename. This parameter should be
set if it a file having a filename longer than 12 characters is to be uploaded. This is due to
the internal file system having the 8.3 filename format (i.e. autoexec.bat).
Transfer Mode ASCII / Binary
These two radio buttons select between the two possible file transfer modes, binary data or
ASCII data.
Transfer Command STORE / APPEND
These two radio buttons select between the two possible storage methods, either append to
or replace existing file.
Attempt to connect to the FTP Server n times
The value in this text box specifies the number of connection attempts that the router
should make if the first attempt is not successful.
242
Wait s seconds between attempts
The value in this text box specifies the interval (in seconds) that the router should wait in
between successive connections attempts.
Remain connected for s seconds after a file has been transferred
The value in this text box specifies how long (in seconds) that the router will maintain the
connection to the FTP host after transferring a file.
If unable to relay file Delete File / Retain file
These two radio buttons select the behaviour with respect to storing the file if the router
fails to connect to the FTP host (after retrying for the specified number of attempts). Select
Delete File if the file should not be stored permanently. If the file is retained, manual
intervention will be required to recover it at a later stage.
Note:
If the file is not retained, it will be lost if the power is removed from the router.
Email the file before storing or deleting it
The configuration options following this checkbox are normally disabled (they should appear
“greyed out” in the browser). When this checkbox is checked, the parameters are enabled
and data can be entered into the text boxes.
Use Email Template File
The value in this text box contains the name of the template file that will be used to form
the basis of any email messages generated by the FTP Relay Agent. This would normally be
the standard “EVENT.EML” template provided with the router but alternative templates
may be created if necessary (refer to Email templates elsewhere in this manual).
To
The value in this text box is used to specify the email address of the recipient of email
messages generated by the FTP Relay Agent.
From
The value in this text box is used to specify the email address of the router. In order for this
to work, an email account must be in place with the Internet Service Provider.
Subject
This text box should contain a brief description of the content of the email.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
frelay n locuser Up to 15
characters Relay files for user locuser
frelay n ftphost Up to 64
characters to FTP Server ftphost
frelay n ftpuser Up to 20
characters Server Username
frelay n ftppwd Up to 20
characters Server Password
frelay n ftpdir Up to 40
characters Remote directory
243
Entity
Instance
Parameter
Values
Equivalent Web Parameter
frelay n norename OFF,ON Rename file
frelay n ascii OFF,ON Transfer Mode
frelay n appe OFF,ON Transfer Command
frelay n retries 0 - 2147483647 Attempt to connect to the FTP
Server n times
frelay n retryint 0 - 2147483647 Wait s seconds between
attempts
frelay n timeout 0 - 2147483647 Remain connected
frelay n savemode OFF,ON Delete/Retain file
frelay n smtp_temp Up to 40
characters Use Email Template File
frelay n smtp_to Up to 100
characters To
frelay n smtp_from Up to 40
characters From
frelay n smtp_subject Up to 40
characters Subject
Configuration – Network > FTP Relay > Advanced
Tx Buffer Size n bytes
The value in this text box specifies the size of the Tx socket buffer.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ftpcli n txbuf 0 - 2147483647 Tx Buffer Size
244
Configuration - Network > IP Passthrough
IP passthrough is a useful feature if a host computer or server on the local area network
needs to have access to it from the Internet with a public IP address. With IP passthrough
configured, all IP traffic, not just TCP/UDP is forwarded back to the host computer. This
feature can be useful for applications that do not function reliably through network address
translation.
In this configuration the local PC will share the public IP addressing information with the
WAN side of the router.
Enable IP Pass-through
When checked, this checkbox enables IP passthrough mode.
Ethernet interface
The value in this text box specifies the Ethernet interface that the local PC is connected to.
PPP interface
The value in this text box specifies the PPP interface that will share its WAN address with
the local PC.
Mode
This drop-down list selects the the mode of operation for the passthrough functionality. The
available options are Normal/28 bit mask and Fixed IP Address/32 bit mask. The
default is Normal/28 bit mask. When Fixed IP/32 bit mask mode of operation is
selected, the DHCP server will provide a 32-bit subnet mask to the client and sets the
address/subnet mask for the Ethernet interface to 192.168.1.1/32.
Pinhole Configuration
The following parameters are checkboxes that allow specific protocols to be excluded from
the IP passthrough feature. An excluded protocol will terminate at the router instead of
being forwarded to the local PC.
HTTP
When checked, this checkbox excludes HTTP from passthrough.
HTTPS
When checked, this checkbox excludes HTTPS from passthrough.
Telnet
When checked, this checkbox excludes Telnet from passthrough.
Telnet over SSL
When checked, this checkbox excludes SSL from passthrough.
SSH/SFTP
When checked, this checkbox excludes SSH/SFTP from passthrough.
SNMP
When checked, this checkbox excludes SNMP from passthrough.
iDigi
When checked, this checkbox excludes the iDigi protocol from passthrough.
Note:
This option only appears on models that support the iDigi remote management functionality.
GRE
When checked, this checkbox excludes GRE from passthrough.
245
Ping
When checked, this checkbox excludes the ICMP echo request from passthrough.
Other Ports
The list of TCP and UDP port numbers in this text box will be added to the list that will not
be forwarded to the local PC (comma-separated).
Other Protocols
The list of protocol numbers in this text box will be added to the list that will not be
forwarded on to the local PC (comma-separated).
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
passthru 0 enabled OFF,ON Enable IP Pass-through
passthru 0 ethadd 0 - 2147483647 Ethernet interface
passthru 0 pppadd 0 - 2147483647 PPP interface
passthru 0 mode 0,1
0 = Normal
1 = 32-bit mask Mode
passthru 0 http OFF,ON HTTP
passthru 0 https OFF,ON HTTPS
passthru 0 telnet OFF,ON Telnet
passthru 0 telnets OFF,ON Telnet over SSL
passthru 0 ssh OFF,ON SSH/SFTP
passthru 0 snmp OFF,ON SNMP
passthru 0 idigi OFF,ON iDigi
passthru 0 gre OFF,ON GRE
passthru 0 ping OFF,ON Ping
passthru 0 ports Comma-separated
list of ports Other Ports
passthru 0 protos Comma-separated
list of protocols Other Protocols
246
Configuration – Network > UDP Echo
When enabled, the UDP echo client generates UDP packets that contain the router’s serial
number and ID and transmits them to the IP address specified by the configuration. When
the remote router receives a UDP packet on a local port and UDP echo server is configured,
it will echo the packet back to the sender. There may be more than one UDP echo instance
available on the unit. Instance 0 is used when specifying the local port to listen on.
Configuration – Network > UDP Echo > UDP Echo n
There may be instances of the UDP echo task supported by the router (model-dependent).
Each has its own configuration web page, described below. For the command line
configuration, valid instance numbers start at 0 as normal.
Enable UDP Echo
This checkbox is unchecked by default – when checked, it reveals the configuration
parameters associated with send UDP echo packets.
Send a UDP packet to IP address a.b.c.d port n every s seconds
The values in these three text boxes define the destination IP address for the UDP packets,
the port number to which they should be sent and the sending interval. If the destination IP
address is left blank, the router will not attempt to send any packets.
Use local port n
The value in this text box specifies which local port the router should listen on for UDP
packets. If any UDP packets are sent to this port, the router will send a copy back to the IP
address and port they were sent from.
Route via Routing table / Interface x,y
These two radio buttons select whether the router should use its routing table to determine
how to send the UDP packets or whether it should use the specified interface. If the specific
interface is selected, the interface is selected from the drop-down list. The options available
are PPP and Ethernet. The interface instance is specified in the adjacent text box.
Only send packet when the interface is “In Service”
When checked, and the router is using the specified interface, this checkbox will prevent the
router from sending UDP packets if the interface is out of service.
Do not send any data with the UDP packet
When checked, this check box causes the router to send only a single null data byte. This is
useful to minimise packet size in circumstances where the interface has high data charges
(e.g. W-WAN). When unchecked, the router will send packets that contain the router’s serial
number and ID as text.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
udpecho n dstip Valid IP address
a.b.c.d
Send a UDP packet to IP
address a.b.c.d port n every s
seconds
udpecho n dstport 0 - 65535 Send a UDP packet to IP
address a.b.c.d port n every s
seconds
udpecho n interval 0 - 2147483647 Send a UDP packet to IP
address a.b.c.d port n every s
seconds
247
Entity
Instance
Parameter
Values
Equivalent Web Parameter
udpecho n locport 0 - 65535 Use local port n
udpecho n userouting OFF,ON Route via Routing table
udpecho n ifent PPP,ETH Interface x,y
udpecho n ifadd Valid interface
instance
0 - 4294967296 Interface x,y
udpecho n onlyis OFF,ON Only send packet when the
interface is “In Service”
udpecho n nodata OFF,ON Do not send any data with the
UDP packet
248
Configuration – Network > QoS
The Quality of Service (QoS) functionality provides the means of prioritising different types
of IP traffic. It is generally used to ensure that low priority applications do not “hog” the
available bandwidth to the detriment of those having a higher priority. For example, this
might mean that EPOS transactions carried out over XOT will be prioritised over HTTP-type
traffic used for Internet access. Without some form of QoS, all IP packets are treated as
being equal, i.e. there is no discrimination between applications.
The IP packet Type of Service (TOS) field is used to indicate how a packet should be
prioritised. Using the top 6 bits of the TOS field, a router that supports QoS will assign a
Differentiated Services Code Point (DSCP) code to the packet. This may take place within
the router when it receives the packet or another router closer to the packet source may
have already assigned it. Based on the DSCP code, the router will assign the packet to a
priority queue. There are currently four such queues for each PPP instance within the router
and each queue can be configured to behave a particular way so that packets in that queue
are prioritised for routing according to predefined rules.
There are two principal ways in which prioritisation may be effected:
A priority queue can be configured to allow packets to be routed at a specific data rate
(providing that queues of a higher priority are not already using the available bandwidth)
Weighted Random Early Dropping (WRED) of packets may be used as queues become busy,
in an attempt to get the TCP socket generating the packets to “back off” its transmit timers,
thus preventing the queue overflow (which would result in all subsequent packets being
dropped).
QoS is a complex subject and can have a significant impact on the performance of the
router. For detailed background information on QoS, refer to RFC2472 (Definition of the
Differentiated Services Field).
In Digi TransPort routers, the classification of incoming IP packets for the purposes of QoS
takes place within the firewall. The firewall allows the system administrator to assign a
DSCP code to a packet with any combination of source/destination IP address/port and
protocol. Details of how this is done are given in the section on firewall scripts.
When the routing code within the unit receives an incoming packet, it directs it to the
interface applicable to that packet at that time (this is the case whether or not QoS is being
applied). Just before the packet is sent to the interface, the QoS code intercepts the packet
and assigns it to one of the available priority queues (currently 10 per PPP instance) based
on its DSCP value.
Each priority queue has a profile assigned to it. This profile specifies parameters such as the
minimum transmit rate to attempt, maximum queue length and WRED parameters.
The packet is then processed by the queue management code and either dropped or placed
in the queue for later transmission.
There are a couple of configuration web pages associated with QoS functionality:
The Configuration – Network > QoS > DSCP Mappings page which contains parameters
to configure DSCP operation and Configuration – Network > Queue Profiles page which
contains parameters to manage the queue “profiles”.
Each Configuration – Interfaces > Ethernet and Configuration – Interfaces > PPP
instance page contains a QoS sub-page which control how QoS behaves on that particular
interface.
249
When configuring QoS, be aware that the router supports ten queues, numbered from 0 to
9 and that DSCP codes range from 0 to 64.
Configuration – Network > QoS > DSCP Mappings
Each DSCP value must be mapped to a queue. These mappings are set up using this page.
Default
This drop-down list selects the default queue. When this is changed, any DSCP codes that
are set to use the default will have their queue number changed.
DSCP
This column is simply a list of valid DSCP codes with an associated drop-down list box to the
right.
Queue
Each of the DSCP codes in the left-hand column has a queue associated with it. To change
the value from what is shown, select the desired value from the drop-down list.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
dscp n q 0 – 63
Default 4 Queue
Example command line commands.
To display a DSCP mapping from the command line, type the following:
dscp <code> ?
Where <code> is a valid DSCP code from 0 to 63, or 64 (but see note below).
To change the value of a parameter, use the following command:
dscp <code> q <value>
Where <code> is a valid DSCP code and <value> is from 0 to 9.
To set the default mapping value, enter the command:
dscp 64 q <value>
Where <value> is the default queue number required and has a value from 0 to 9.
Note:
DSCP code 64 is not actually a valid code but is used to set up the default priority.
Configuration – Network > QoS > Queue Profiles
Up to 12 distinct queue “profiles” may be defined using this page that may then be assigned
to QoS queues as required. The queue profile determines how QoS queues with that profile
assigned to them will behave.
Queue
This is the queue number that relates to the queues defined in the DCSP mappings page.
Minimum kbps
The value in this text box sets the minimum data transfer rate in kilobits/second that the
router will try to attain for the queue.
250
Maximum kbps
The value in this text box sets the maximum data transfer rate in kilobits/second that the
router will try to attain for this queue. This means that if the router determines that
bandwidth is available to send more packets from a queue that has reached its Minimum
kbps setting, it will send more packets from that queue until the Maximum kbps setting is
reached.
Note that if the bandwidth on a queue should be restricted, setting the Maximum kbps
value to the same as, or lower than the Minimum kbps value ensures that only the
Minimum kbps setting will be achieved.
Maximum Packet Queue Length
The value in this text box specifies the maximum length of a queue in terms of the number
of packets in the queue. Any packets received by the router that would cause the maximum
length to be exceeded, are dropped.
WRED Minimum Threshold
The value in this text box specifies the minimum queue length threshold for using the WRED
algorithm to drop packets. Once the queue length exceeds this value, the WRED algorithm
may cause packets to be dropped.
WRED Maximum Threshold
The value in this text box specifies the maximum queue length threshold for using the
WRED algorithm to drop packets. Once the queue length exceeds this value, the WRED
algorithm will cause all packets to be dropped.
WRED Maximum Drop Probability (%)
The value in this text box sets the maximum percentage probability used by the WRED
algorithm to determine whether or not a packet should be dropped when the queue length
is approaching the WRED maximum threshold value.
Note:
If the length of a queue is less than the WRED minimum threshold value there is a 0%
chance that a packet will be dropped. When the queue length is between the WRED
minimum and maximum values, the % probability of a packet being dropped increases
linearly up to the WRED maximum drop probability.
251
WRED Queue Length Weight factor
The value in this text box specifies a weighting factor to be used in the WRED algorithm
when calculating the weighted queue length. The weighted queue length is based on the
previous queue length and has a weighting factor that may be adjusted to provide different
transmit characteristics. The actual formula used is:
new_length = (old_length * (1-1/2^n)) + (current_length * 1/2^n)
Small weighting factor values result in a weighted queue length that moves quickly and
more closely matches the actual queue length. Larger weighting factor values result in a
queue length that adjusts more slowly. If a weighted queue length moves too quickly (small
weighting factor), it may result in dropped packets if the transmit rate rises quickly but will
also recover quickly after the transmit rate tails off. If a weighted queue length moves too
slowly (large weighting factor), it will allow a burst of traffic through without dropping
packets, but may result in dropped packets for some time after the actual transmit rate
drops off. The weighting factor should be selected carefully to suit the type of traffic using
the queue.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
qprof n minkbps 0 - 2147483647 Minimum kbps
qprof n maxkbps 0 - 2147483647 Maximum kbps
qprof n qlen 0 - 2147483647 Maximum Packet Queue Length
qprof n minth 0 - 2147483647 WRED Minimum Threshold
qprof n maxth 0 - 2147483647 WRED Maximum Threshold
qprof n mprob 0 - 100 WRED Maximum Drop
Probability (%)
qprof n wfact 0 - 2147483647 WRED Queue Length Weight
factor
Command line examples.
To display a queue profile, enter the following command:
gqprof <instance> ?
Where <instance> is the number of the queue profile to be displayed.
To change the value of a parameter, use the following command:
qprof <instance> <parameter> <value>
To set the maximum throughput for queue profile 5 to 10kbps, enter the following
command:
qprof 5 maxkbps 10
252
Configuration – Network > Timebands
Digi TransPort routers support “Time Bands” which are used to determine periods of time
during which PPP interfaces allowed or prevented from activating. For example, a router in
an office could be configured so that the ADSL PPP interface is only raised on weekdays.
Time Bands may only be applied to PPP instances.
Time Bands are specified by a series of “transition” times. At each of these times routing is
either enabled or disabled. The default state for a Time Band is On which means that PPP
instances that are associated with unconfigured Time Bands will operate normally. The
router supports four Time Band configurations.
Note:
An entry is made in the event log whenever a Time Band transition occurs.
Whether or not Time Bands are enabled for a particular PPP instance is controlled by the
settings in a table having the following columns:
Interface
This column simply lists the available PPP instances.
Enable
This column contains checkboxes, each checkbox controls whether or not Time Bands are
enabled for the PPP instance in the left-hand column of the row. Check the checkbox to
enable Time Bands for the associated PPP instance.
Timeband
This drop-down list selects which of the four available Time Band instances should be
associated with the PPP instance.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ppp n tband 0 - 3 Timeband
The default state of this parameter is blank.
Configuration – Network > Timebands > Timeband n
These four pages each control the configuration of one Time Band instance. Configuration is
controlled by a table, having the parameters described below. Up to ten transitions may be
configured.
Days
There is a selection of checkboxes in this column which are used to select which days of the
week the Time Band transitions apply to. Days may be selected individually or in groups for
convenience. So, for instance, to select all the days of the week, check the “All” checkbox.
To select the weekend only, check the “Sat->Sun” checkbox. To select weekdays only,
check the “Mon->Fri” checkbox.
Time
The value in this text box is the transition time. This is specified in 24-hour format with a
colon separator between the hours and minutes.
State
This drop-down list selects the routing state which can be On or Off. (For convenience, the
state of this parameter toggles for each new addition so if an on transition is configured, the
default state for the next addition will be Off).
253
The following screenshot shows a PPP instance configured so that routing is allowed on
weekday from 09:00 to 17:00. Clicking the Add button adds the entry into the table. Once
an entry has been added to the table, it may be removed by clicking the associated Delete
button. As mentioned previously, this Time Band instance is activated by navigating to the
associated PPP Time Band (previous page) configuration page and clicking the Enable
checkbox, or by entering the equivalent command line command.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
tband 0 - 3 days ALL,MF,Mon,
Tue,Wed,Thu,Fri,S
at,Sun Days
tband 0 - 3 time HH:MM Time
tband 0 - 3 state OFF,ON State
Command format:
tband <instance> <days#> <days>
tband <instance> <time#> <time>
tband <instance> <state#> <on|off>
To specify multiple days, separate the days with a comma, e.g. Mon,Wed,Fri. The
abbreviation “MF” is used to specify Monday to Friday.
Example commands.
To allow PPP routing only on weekdays between 9:00 a.m. and 5:30 p.m. enter the
following commands:
tband 0 days 0 mf
tband 0 time0 9
tband 0 state0 on
tband 0 days1 mf
tband 0 time1 5:30
tband 0 state1 off
254
Configuration – Network > Advanced Network Settings
The settings described in this web page are “advanced” in the sense that in the vast
majority of configurations and implementations they should not require changing.
Secondary IP Address a.b.c.d
The value in this text box assigns an additional IP address to the router that is not
associated with any particular interface. The router will respond directly to incoming traffic
for this address, i.e. it will not attempt to onward route any IP packets for this address.
When connected to a Serial interface using TCP
Advertise an MSS of n bytes
The value in this text box sets the maximum segment size used/advertised by an
asynchronous serial port connected to TCP sockets.
Use a Rx Window size of n bytes
The value in this text box sets the Rx window size used/advertised by an asynchronous
serial port connected to TCP sockets.
Default SSL version for outgoing connections
This drop-down menu box selects which version of the SSL protocol to use in the “tcpdial”
command. The options are:
• Auto, which allows the server to select the version.
• TLSv1 only
• SSLv2 only
• SSLv3 only.
Some servers are configured to work with a particular version, and unless this version is
specifically requested, the connection attempt will fail.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
cmd n sec_ip Valid IP address Secondary IP address a.b.c.d
sockopt n asymss 0 - 2147483648 When connected to a serial
interface using TCP Advertise
an MSS of n bytes
sockopt n asyrxwin 0 - 2147483648 Use a Rx Window size of n
bytes
sockopt n sslver
0 – 3
0 = Auto
1 = TLSv1
2 = SSLv2
3 = SSLv3
Default SSL version for
outgoing connections
255
Configuration - Network > Advanced Network Settings > Socket Settings
Default source IP address interface x,y
The values in these two text boxes define the interface (None,PPP,ETH) and the instance
number of the interface to use as a source address for IP when not using the interface that
the socket was created on.
The router creates general-purpose sockets automatically when the controlling application
requests them. As, for example, when TPAD calls are made over IP or XOT. Normally, the
source address used by the socket will be that of the outgoing interface (usually PPP).
However, for some applications such as when setting up a VPN, it may be necessary to
specify that the socket uses a different source address such as that of the local Ethernet
port. This parameter is used to specify the interface from which the source address should
be derived.
Note:
Even when this parameter is not configured, the IP address from the interface on which the
socket was created will be used. The source address specified in this parameter will only be
used if it will cause the traffic to match an Eroute and therefore be sent using IPsec or GRE.
Connect Timeout s seconds
The value in this text box is used to specify the amount of time after which a TCP socket
may remain idle before being closed. If the value is set to 0 the socket may remain open
indefinitely.
TCP socket inactivity timer s seconds
The value in this text box specifies the maximum period of inactivity (in seconds) that may
occur before and open TCP/IP socket is closed. The default value is 300 seconds (five
minutes) and should not normally require altering.
TCP socket keep-alive s seconds
The value in this text box specifies the amount of time (in seconds) between sending “keep-
alive” messages over open TCP connections. The purpose of these messages is to prevent a
connection from closing even when no data is being transmitted or received. The default
value of this parameter is zero which disables keep-alive messages.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
sockopt n gp_ipent 0,PPP,ETH Default source IP address
interface x,y
sockopt n gp_ipadd Valid interface
number Default source IP address
interface x,y
sockopt n sock_connto 0 -
2147483648 Connect Timeout s seconds
sockopt n sock_inact 0 -
2147483648 TCP socket inactivity timer s
seconds
sockopt n sock_keepact 0 -
2147483648 TCP socket keep-alive s seconds
256
Configuration – Network > Advanced Network Settings > XOT Settings
Default source IP address interface x,y
The values in these two text boxes specify the interface (None,PPP,ETH) and instance
number of that interface that IP address that XOT sockets should use instead of the
interface that the socket was created on.
Note:
Even when this parameter is not configured, the IP address from the interface on which the
socket was created will be used. The source address specified in this parameter will only be
used if it will cause the traffic to match an Eroute and therefore be sent using IPsec or GRE.
NB of XOT listening sockets
The value in this text box specifies the maximum number of XOT sockets available. This
may be used to reduce the number of XOT sockets in order to free up more general-purpose
sockets for other purposes. The default value of 0 enables the maximum number of XOT
sockets available.
Maximum ACK time for XOT data
The value in this text box sets the maximum time allowance for a remote unit to
acknowledge TCP data transmitted by a unit’s socket. If this timer expires, the socket is
aborted. The default value of 0 disables the timer.
Note:
There is no requirement for the remote unit to acknowledge received data immediately,
therefore setting this parameter to too small a value is not recommended. Some stacks
delay sending TCP ACKs in order that they can be incorporated with data sent by the
application.
Do not deactivate outgoing XOT sockets when interface disconnects
When checked, this checkbox sets outgoing XOT sockets not to close when the interface
they are using disconnects.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
sockopt n xot_ipent Valid interface
type, ETH, PPP Default source IP address
interface x,y
sockopt n xot_ipadd Valid interface
number Default source IP address
interface x,y
sockopt n xot_listens 0 - 2147483648 NB of XOT listening sockets
sockopt n xot_maxack 0 - 2147483648 Maximum ACK time for XOT
data
257
Configuration – Network > Advanced Network Settings > Backup IP
Addresses
This page contains a table that is used to specify alternative IP addresses to use when the
router fails in an attempt to open a socket. These addresses are used only for socket
connections that originate from the router and are typically used to provide back-up for XOT
connections, TANS (TPAD answering) connections or any application in which the unit is
making outgoing socket connections.
When a backup address is in use, the original IP address that failed to open is tested at
intervals to check if it has become available again. Additionally, at the end of a session, the
unit will remember when an IP address has failed and use the backup address immediately
for future connections. When the original IP address becomes available again, the router will
automatically detect this and revert to using it.
The table has the following four column headings:
IP Address a.b.c.d
This text box should contain the original IP address to which the back-up address relates.
Backup IP address a.b.c.d
This text box should contain the backup address to try when the router fails to open a
connection to the previous IP address.
Retry Time s (seconds)
This text box contains the length of time (in seconds) that the router will wait between
checks to see if a connection can be made to IP Address.
Try Next
In the case that a connection to the primary IP address has just failed, this text box
determines whether a connection to the backup IP address should be attempted
immediately or when the application next attempts to open a connection. When checked,
the socket will attempt to connect to the backup IP address immediately after the
connection to the primary IP address failed and before reporting this failure to the calling
application, e.g. TPAD. If the backup is successful this means that the application will not
experience any kind of failure even though the router has connected to the backup IP
address.
When unchecked, the socket will report the failure to connect back to the calling application
immediately after the connection to the primary IP address has failed. The router will not try
to connect to the backup IP address at this stage. The next time that the application
attempts to connect to the same IP address, the router will instead, automatically connect
to the backup IP address.
As is usual for these tables, the Add button and Delete button are used to add and delete
entries to and from the table respectively.
Send “Backup IP” system messages to IP Address: a.b.c.d
The IP address in this text box specifies the destination to which system messages notifying
of the unavailability of an IP address should be sent. This allows the router to send UDP
messages to other routers to notify them that an IP address has become
available/unavailable. Devices that receive the IP address available/unavailable messages
Will search their own backup IP address tables for the IP addresses indicated and tag those
addresses as available/unavailable as appropriate.
258
Chaining IP Addresses
It is possible to chain backup IP addresses by making multiple entries in the table.
For example, if the backup IP address for the original IP address appears as the IP address
in the next row, along with a new backup IP address for that IP address, then when, the
original IP address becomes unavailable, the router will try the backup IP address and if
that is unavailable, the router will try its backup IP address and so on. To make this
example more concrete, say the original IP address is 192.168.0.1 with a backup IP address
of 192.168.0.2, then setting the IP address in the next row to 192.168.0.2 with a backup IP
address of 192.168.0.3 will cause the router to try all these IP addresses in succession.
Note:
The length of time that it takes for a connection to an IP address to fail is determined by the
Connect timeout parameter on the Configuration – Network > Advanced Network
Settings > Socket Settings web page.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ipbu n IPaddr Valid IP address
a.b.c.d IP Address a.b.c.d
ipbu n BUIPaddr Valid IP address
a.b.c.d Backup IP Address a.b.c.d
ipbu n retrysec 0 - 2147483648 Retry Time s (seconds)
ipbu n donext OFF,ON Try Next
sarsys 0 dest Valid IP address
a.b.c.d Send “Backup IP” system
messages to IP address a.b.c.d
259
Configuration - Network > Legacy Protocols
Older protocols that existed before TCP/IP became dominant are often referred to as legacy
protocols. Examples of legacy protocols are X.25, SNA and LAPB.
Digi TransPort routers are capable of connecting to legacy networks such as X.25. They are
also capable of simulating a legacy network so that equipment that in the past would have
connected to a legacy network can connect to the Digi TransPort router instead. Thus old
equipment can be connected to modern networks such as HSUPA.
Configuration - Network > Legacy Protocols > SNA over IP
The unit is capable of sending Systems Network Architecture (SNA) traffic over TCP/IP,
using the DLSw protocol, this is often called SNAIP. The unit is also capable of sending
HDLC traffic over TCP/IP.
SNA uses Synchronous Data Link Control (SDLC) which is an unbalanced mode in which
there is one master station and 1 or more secondary stations. Each secondary station owns
a station address and can only respond when this address has just been polled by the
master. A typical scenario is shown in the diagram below:
260
Configuration - Network > Legacy Protocols > SNA over IP > SNAIP 0
Description
This parameter allows you to enter a name for this SNAIP instance, to make it easier to
identify.
Send SNAIP traffic over interface
This setting determines which physical interface is to be used for carrying SNAIP data. This
can be set to either “ISDN”, “Serial Port” or “SharedPort”. If “ISDN” is selected then SNAIP
data is carried over the ISDN BRI physical interface. By selecting “Serial Port”, SNAIP data
can be routed to either serial “Port 0” or serial “Port 1“ (operating in synchronous mode). To
configure Port 0 or Port 1 for synchronous operation refer to the Configuration - Network
> Interfaces > Serial > Serial Port x > Sync Port x.
If "Shared Port" is selected, the drop down list next to “Shared Port” specifies the SNAIP
instance that has sync port configured. When sync port sharing is enabled only one SNAIP
instance can currently own the sync port. Other SNAIP instances however can share this
sync port in the event that there is more than one terminal residing on a multi-drop sync
line In this situation with multiple terminals, each terminal station will operate a DLSw
state independently of all other stations.
The SNAIP parameter "Priority" is used to select the SNAIP instance to use when more than
one is available; the highest number being given preference.
As an example consider that 4 SNAIP instances to all share sync port 0. To do this,
configure SNAIP 0 in the usual way on "PORT 0" and then configure SNAIP instances 1,2 & 3
to use "SharedPort" and “Sync Port from SNAIP 0”
Use protocol
This parameter sets the appropriate protocol for the interface. Choose “LAPB”, “SNA” for
SDLC or “RAW” for raw mode in which all L2 frames are transmitted and received. You can
also choose “RAW_NOHDR” for raw mode with no DLSw headers.
Allow this unit to answer calls
If this parameter is set to “On”, the unit will answer incoming calls on the relevant LAPB
session. To prevent the unit from answering incoming calls on this LAPB session set the
option to “Off”. This setting is only relevant when the interface is set to ISDN.
Only accept calls with MSN ending with
This parameter provides the filter for the ISDN Multiple Subscriber Numbering facility. It is
blank by default but when set to an appropriate value with answering calls parameter above
enabled, it will cause the unit to answer incoming calls only to ISDN numbers where the
trailing digits of the called number match the MSN value. For example, setting the MSN
parameter to 123 will prevent the unit from answering any calls to numbers that do not end
in 123. This setting is only relevant when the interface is set to ISDN.
Only accept calls with sub-address ending with
This parameter provides the filter for the ISDN sub-addressing facility. It is blank by default
but when set to an appropriate value, with answering calls parameter above enabled, it will
cause the unit to answer incoming ISDN calls only where the trailing digits of the sub
address called match the Sub-address value. For example, setting the Sub-address to 123
will prevent the unit from answering any calls where the sub-address called does not end in
123. This setting is only relevant when the interface is set to ISDN.
261
Assume station exists (Do not send TEST frames)
When this parameter is enabled TEST frames are not transmitted and the TEST response is
not expected. Instead the unit assumes the station exists and proceeds with the protocol as
if the DLSw has received the TEST response.
Toggle DCD output each time the DLSw protocol enters the DISCONNECTED state
When this parameter is set to “On”, the DCD (Data Carrier Detect) output will turn off
briefly each time the DLSw protocol enters the DISCONNECTED state. Thus any attached
equipment that needs to will see signals changing state.
Sync port should not send or receive data when WAN link is down
This parameter causes the Sync port to be deaf and dumb (and have DCD low) while the
connection with the WAN is down. This is so that some terminals don't get too excited just
because L2 is up and think everything else should be working (and go into a management
error state).
Configuration - Network > Legacy Protocols > SNA over IP > SNAIP 0 >
SNA Parameters
Router to be Master on an unbalanced link
Enable this parameter if this unit is to be the Master in an unbalanced link, or “Off” if the
unit is to be a secondary station.
Polling Response Time
The poll time in milliseconds (if the unit is the master in an unbalanced link).
Polling Stations Addresses
This parameter lists the station addresses on the data link as a comma-separated list of hex
values (e.g. “c1,d1” for station addresses 0xc1 & 0xd1). This parameter is only applicable in
SNA mode.
SAPs
This parameter contains a list of SAP values which correspond to the station addresses.
DSAPs(blank=default)
This is the Destination SAP value, if left blank the SAP value above is used.
Send Null XID (XID with no Data)
When this parameter is set to “On” a null XID SSP message will be sent when the unit has
just received or sent a REACH ACK SSP message.
Send XID with Data
This parameter is a hex string to define binary data and defines an XID SSP message that
would be sent in response to a XIDFRAME SSP message being received.
Tx Turn Around Time
This parameter specifies the time in milliseconds between receiving a frame from an
outstation and transmission back to the same station. If this parameter is set to “0” this is
disabled and the Digi can respond immediately. The minimum non-zero value is 10ms.
Mode
This parameter is used to define the mode in balanced links. In unbalanced links (like
SNA/SDLC) the mode is defined by being master or the station, but for balanced links (like
HDLC).
N400 counter
This is the standard LAPB retry counter. The default value is 3 and it should not normally be
necessary to change this.
262
RR Timer
This is a standard LAPB/LAPD “Receiver Ready” timer. The default value is 10,000ms (10
seconds) and it should not normally be necessary to change this.
T1 timer
This is a standard LAPB timer. The default value is 1000 milliseconds (1 second) and under
normal circumstances, it should not be necessary to change it.
T200 timer
This is the standard LAPB re-transmit timer. The default value is 1000 milliseconds (1
second) and under normal circumstances, it should not be necessary to change it.
Window Size
This parameter is used to set the X.25 window size. The value range is from 1 to 7 with the
default being 7.
Disconnect link if there has been no activity for x seconds
This parameter may be used to specify the length of time (in seconds) before the link is
disconnected if there has been no activity. If this parameter is zero or not specified, then
the inactivity timer is disabled. It is useful to set this to a short period of time (say 120
seconds) when an LAPB instance is being used over ISDN. This timer can be used as a
backup hang-up timer thus saving ISDN call charges. When LAPB is being used on a
synchronous port, this parameter should normally be set to 0.
Configuration - Network > Legacy Protocols > SNA over IP > SNAIP 0 >
SSP (WAN) Parameters
Virtual MAC Address
Virtual MAC address. The host uses MAC addresses and SAP values as the addressing values
to discriminate between circuits (in much the same way as an IP address & TCP port define
an addressing point for a TCP socket). This is the MAC address that is reported as part of
the DLSw protocol.
Virtual MAC Address of Peer
The Virtual MAC address of the peer.
IP address of the Peer DLSw unit
The IP address of the peer DLSw unit.
Listen on Port
The read IP port. The TCP socket SNAIP listens on.
Use Port x if this unit starts the DLSw protocol
The write IP port. This TCP socket will be opened by the unit if it needs to start the DLSw
protocol.
Use interface for source IP address
Setting this parameter to a “PPP” or “ETH” instance will cause the source address used by
this SNAIP instance to match that of the Ethernet or PPP interface specified.
Close TCP connection if it is idle for x secs
This specifies the maximum period of inactivity (in seconds) that may occur before an open
TCP/ IP socket is closed. The default value is 300 seconds (5 minutes) and should not
normally require altering.
DLSw Ver
This parameter controls the DLSw version to be used. Set to 0 (default) for version 1, set to
2 for version 2.
263
DLSw Role
When this parameter is set to “Active”, and the unit is in SNA mode, then this DLSw switch
will actively connect to the remote DLSw switch.
DLSw Window
This parameter is used to set the DLSw window size. The value range is from 10 to 100 with
the default being 20.
UDP Capable
This controls the UDP transmission of DLSw SSP packets. Reception is always enabled for
version 2 support. If set to “OFF”, the state transitions occur just like DLSw version 1 but
the Digi will indicate it is version 2 capable.
Use 1 socket
When this parameter is set to “On” then only one socket is used for both read and write
data. This is useful if the unit is behind a NAT box and incoming connections are not
possible. This parameter can also be set to “Compatible”, in which mode both sockets are
open to start with and then after a negotiation one of the sockets is dropped.
Include MAC Exclusivity Capability
On or Off. Set this parameter to “On” in order to include the MAC exclusivity value in the
capabilities exchange message.
MAC Exclusivity Value
See above.
Ignore unsolicited response frames
When this parameter is enabled, the unit will ignore unsolicited response frames.
Wait for Contact before progressing to CONNECT PENDING state
During the DLSw negotiation phase and when XID messages are being exchanged this
parameter controls which end sends the “CONTACT” message. Normally this would be off in
which case this unit would send the “CONTACT” message, but if this parameter is set we
would not send this message but instead wait for it to be sent to us before progressing in
the DLSw state machine.
Make immediate connection attempts before backing off
This parameter defines the number of successive connection attempts before backing off for
the number of seconds (default 30) defined in the “Backoff for x seconds” parameter. This
backoff might be necessary in the case where a servers is behind a firewalls that detects too
many successive connection attempts in a certain time frame.
Backoff for x seconds before attempting to connect again
When backing off because of too many failed consecutive connection attempts this
parameter defines the time in seconds that we should remain idle for before attempting
another connection.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
snaip x l1iface ISDN, Port,
SharedPort Send SNAIP traffic over interface
snaip x l1nb 0 – 255 (Select LAPB,
Port or SharePort
instance) Send SNAIP traffic over interface
snaip x protocol LAPB, SNA, RAW, Use protocol
264
Entity
Instance
Parameter
Values
Equivalent Web Parameter
RAW_NOHDR
snaip x ans 1 = enabled, 0 = disabled Allow this unit to answer calls
snaip x msn text Only accept calls with MSN ending
with
snaip x sub text Only accept calls with sub-address
ending with
snaip x autocontact 1 = enabled, 0 = disabled Assume station exists (Do not
send TEST frames)
snaip x dcd_toggle 1 = enabled, 0 = disabled Toggle DCD output each time the
DLSw protocol enters the
DISCONNECTED state
snaip x l1oos 1 = enabled, 0 = disabled Sync port should not send or
receive data when WAN link is
down
snaip x master 1 = enabled, 0 = disabled Router to be Master on an
unbalanced link
snaip x pollresp 0 - 2147483647
Polling Response Time
snaip x stations text Polling Stations Addresses
snaip x saps text SAPs
snaip x dsaps text DSAPs(blank=default)
snaip x send_xid_null 1 = enabled, 0 = disabled Send Null XID (XID with no Data)
snaip x xid_data text Send XID with Data
snaip x turntxtim 0 - 2147483647 Tx Turn Around Time
snaip x dtemode 1 = DTE, 0 = DCD Mode
snaip x n400 0 - 255 N400 counter
snaip x tnoact 1000 - 60000 RR Timer
snaip x t1time 1 - 60000 T1 timer
snaip x t200 1 - 60000 T200 timer
snaip x window 1 - 7 Window Size
snaip x tinact 0 - 3000 Disconnect link if there has been
no activity for x seconds
snaip x vmac Text (valid MAC address) Virtual MAC Address
snaip x peervmac Text (valid MAC address) Virtual MAC Address of Peer
snaip x IPaddr Text (valid IP address) IP address of the Peer DLSw unit
snaip x r_IPport 0 - 65535 Listen on Port
snaip x w_IPport 0 - 65535 Use Port x if this unit starts the
DLSw protocol
265
Entity
Instance
Parameter
Values
Equivalent Web Parameter
snaip X srcipent auto, eth, ppp Use interface for source IP
address
snaip x srcipadd 0 - 255 Use interface for source IP
address
snaip x sock_inact 0 - 2147483647 Close TCP connection if it is idle
for x secs
snaip x ver 0 - 2 DLSw Ver
snaip x passive 0 = active, 1 = passive DLSw Role
snaip x dlswwindow 1 - 100 DLSw Window
snaip x udp_cap 1 = enabled, 0 = disabled UDP Capable
snaip x use1sock On, Off, Compatible Use 1 socket
snaip x inc_mac_exc 1 = enabled, 0 = disabled
Include MAC Exclusivity Capability
snaip x mac_exc_val 0 - 1 Mac Exclusivity Value
snaip x iunsolresp 1 = enabled, 0 = disabled Ignore unsolicited response
frames
snaip x waitforcontact 1 = enabled, 0 = disabled Wait for Contact before
progressing to CONNECT
PENDING state
snaip x con_attempts 0 - 2147483647 Make immediate connection
attempts before backing off
snaip x con_boff_time 0 - 2147483647 Backoff for x seconds before
attempting to connect again
Forcing SNAIP to use a specific instance
If several SNAIP instances are sharing an ASY port, a switchover to a specific instance can
be initiated by issuing “snasw x”. Where x is the SNAIP instance number, this instance must
be available to go online or this command will fail.
To revert back and use the default instance, issue the “snadis x” command. Normal
priorities will be used to determine which SNAIP instance gets to use the SYNC port.
266
Configuration - Network > Legacy Protocols TPAD
TPAD is a simplified version of the X.25 PAD specification that is commonly used for carrying
out credit-card clearance transactions. Digi units support the use of TPAD over:
ISDN B and D-channels
TCP
UDP
SSL
XoT
Automatic back-up between any two of these “layer 2 interfaces” or “transport protocols” is
supported.
For further information on using TPAD please refer to Digi technical support and ask for a
copy of “TG2 - Introduction to TPAD and X.25”.
Configuration - Network > Legacy Protocols TPAD n
Use TPAD over interface
This section is used to select whether the TPAD instance will use ISDN B-channel X.25,
ISDN D-channel X.25, TCP, VXN or SSL as the transport protocol. For ISDN D-channel
operation, ensure that the “LAPD” option is selected. For ISDN B-channel operation or
operation through a synchronous port, select “LAPB”. In the case of LAPB and LAPD it is also
possible to specify an interface number. This parameter specifies which LAPB or LAPD
instance to use for the relevant TPAD instance. Select “0” or “1” for LAPB or “0” or “1” for
LAPD. When using LAPB with ISDN this parameter may be set to “255”, which means use
any free LAPB instance. This is useful when more than 2 POS terminals are connected to the
router and the acquirer does not support multiple Switched Virtual Circuits (SVCs) on a
single B-Channel. A value of 254 will use an available LAPB instance but will use the same
ISDN B channel if two calls are attempted to the same ISDN number at the same time. (All
services that the POS terminals may dial must support multiple SVCs if using the setting
254.)
Use backup interface
This section is used to specify a backup interface that will be used automatically if the call to
the primary interface fails. Note that the primary interface will be tried first for every new
call attempt.
Configuration - Network > Legacy Protocols TPAD n > ISDN settings
Use number x to make outgoing ISDN calls
This parameter may be used to specify an ISDN number. This is used in cases where no
ISDN number is provided with the ATD command when making an outgoing call.
Use prefix x
This parameter is used to specify a dialling code that the unit will place in front of the
telephonenumber that is issued by the terminal in the ATD command. For example, if the
Prefix # was set to 0800 and the number specified by the terminal in the ATD command
was 123456, the actual number dialled by the unit would be 0800123456.
Remove prefix x from number in ATD command
This parameter is used to specify a dialling prefix that is normally inserted by the terminal in
the ATD command that is removed by the unit before dialling takes place. For example, if
the Prefix removal # was set to 0800 and the terminal issued an ATD command containing
0800123456 then the actual number dialled by the unit would be 123456.
267
Use suffix x
The Suffix # parameter may be set to contain additional numbers that are dialled after the
number specified by B-channel ISDN #. For example, if B-channel ISDN # was set to
123456 and Suffix # was set to 789, the actual number dialled would be 123456789.
On the main interface Deactivate LAPB session x seconds after TPAD X.25 call has
been cleared
Once a TPAD X.25 call has been cleared, the unit will keep a LAPB instance active for the
length of time set by this parameter. This is to allow further TPAD transactions to take place
without having to make another ISDN call. The default value of 10 seconds should be
acceptable for most applications. The value of 1 is a special value which means terminate
layer 2 immediately the transaction is finished. (When the X.25 call is cleared.)
If you select LAPD as the TPAD layer-2 interface, this value will automatically be set to 0 to
disable layer-2 deactivation. You may still override the 0 setting by entering a new value
but note that most network service providers prefer that LAPD connections are not
repeatedly deactivated.
On the backup interface Deactivate LAPB session x seconds after TPAD X.25 call
has been cleared.
This is equivalent to the deactivation timer above but applies only to backup calls.
With X.25 over ISDN D-channel mode
Send X.25 RESTART packets
d
Delay the X.25 RESTART packets by x milliseconds
d
Configuration - Network > Legacy Protocols TPAD n > X.25 settings
Default X.25 Packet Size
This parameter specifies the default X.25 packet size to be used for TPAD transactions.
Use NUA
This parameter specifies the X.25 Network User Address to be used for outgoing X.25 calls if
no NUA is specified in the call string.
Use NUI
This specifies the X.25 Network User Identifier to be used for outgoing X.25 calls if no NUI is
specified in the call string.
LCN
The unit supports up to eight logical X.25/TPAD channels. In practice, the operational limit
is determined by the particular service to which you subscribe (usually 4).
Each logical channel must be assigned a valid Logical Channel Number (LCN). The LCN
parameter is the value of the first LCN that will be assigned for outgoing X.25 CALLs. The
default is 1027. For incoming calls, the unit accepts the LCN specified by the caller.
268
LCN direction
This parameter determines whether the X.25 LCN used for outgoing TPAD calls is
incremented or decremented from the starting value when multiple TPAD instances share
one layer 2 (LAPB or LAPD), connection. The default is “DOWN” and LCNs are decremented,
i.e. if the first CALL uses 1024, the next will use 1023, etc. Setting the parameter to “UP”
will cause the LCN to be incremented from the start value.
On the backup interface
Use NUA
The LCN parameter is used to set the first LCN that will be used for the backup
interface.
Use NUI
This specifies the X.25 Network User Identifier to be used for outgoing X.25 calls if
no NUI is specified in the call string for the backup interface.
LCN
The LCN parameter is used to set the first LCN that will be used for the backup
interface.
LCN direction
This parameter determines whether the LCN used for the backup X.25 interface is
incremented or decremented from the starting value when multiple X.25 instances
share a single layer 2 connection.
Report our NUA as n to the X.25 network
This is the NUA that the unit will report to the X.25 network as its own NUA when making a
call. It is also known as the calling NUA. Often the X.25 network will override this NUA.
Call User Data
This specifies a text string that will be placed in the Call User Data field of an outgoing X.25
call request packet. Whether or not this information is required will depend on the X.25 host
that you are connecting to. In most cases the information is not required.
X.25 calls
These setting controls how transactions are sent to the host when TPAD is running in “direct
mode”.
One per transaction
Only one transaction is allowed per call.
Allow consecutive transactions
Multiple transactions are allowed per X.25 call, but not until a response has been
received from the host.
Allow concurrent transactions
Multiple transactions per X.25 call are allowed irrespective of whether a response has
been received from the host.
Use ASCII character x as the delimiter character
This parameter specifies the character used to separate a main NUA from a backup NUA,
and a main NUI from a backup NUI in an ATD command. The default value is the ASCII “!”
character (decimal 33).
Forward mode time x milliseconds
If not framed with STX and ETX characters, can still have data formatted after this period.
269
Create an event when reply from X.25 host matches
This parameter can be used to generate a “Data Trigger” event (code 47) when the reply
from the X.25 host contains the string specified in this parameter. It is possible to configure
the unit to generate an email alert message when this event occurs. See “LOGCODES.TXT”
for a complete list of events.
Configuration - Network > Legacy Protocols TPAD n > XoT/TCP settings
Connect to remote IP address
When the unit is configured for XOT or TCP socket mode, this parameter is used to specify
the IP address of the host to which the TCP/XOT connection is made. Note that the
transport protocol must be set to TCP.
Port
When making a TCP socket connection (i.e. the transport protocol has been set to TCP not
XoT), this parameter must be used to specify the TCP port number to use.
IP length header
When making a TCP socket connection (i.e. the transport protocol has been set to TCP),
setting this parameter to “On” will pre-pend the data sent to the host with a 2 byte length
header. The 2 byte length header will not be included in the length calculation. When set to
“8583 Ascii 4 byte”, the IP length header will conform to the ISO 8583 format. When set to
“On Inclusive” it will pre-pend a 2 byte length header and the calculation of the length will
include the 2 bytes of the length header.
Configuration - Network > Legacy Protocols TPAD n > TPAD Settings
Use Terminal ID (TID)
The Terminal ID parameter can be used to insert or replace a Terminal ID in the APACS 30
string.
Replace TID provided by connected terminal with configured TID
When this check box is ticked, any Terminal ID provided by a connected terminal will be
replaced by the ID set in the Use Terminal ID field above.
The TID will be become inactive in n seconds.
This specifies the time in seconds before the Terminal ID is considered inactive. Local
authorisations may be configured to occur on active TIDs (terminal Ids), so this parameter
defines how long a time (without transactions) must pass for a TID to change from active to
inactive.
Use TID xxxxxxxxx with incoming APACS 50 polling calls
This parameter specifies the terminal ID to associate with this TPAD instance when
answering an incoming APACS 50 polling call.
Use merchant Number
This parameter can be used to insert a merchant number into the APACS 30 string when the
locally connected equipment does not transmit a merchant number.
Use Connect String
This parameter specifies a string to be sent to the user’s terminal when an outgoing TPAD
call has been connected, instead of the normal ENQ character. For example, this might be
used to make a TPAD connection look like a PAD connection by specifying “CON COM” as the
connect string.
270
The polling character set is c
This parameter is a string that specifies a character or set of characters to be treated as
polling characters. The unit will respond to any of these characters using ACK. This
parameter should normally be left blank.
Enable Message Numbering
When this check box is ticked the unit will override the message numbering of the local
equipment and substitute its own message numbering in the APACS 30 data. This is useful
when the locally connected equipment does not automatically increment the APACS 30
message number.
Disable Direct Mode
Enabling this setting will prevent the unit from automatically using Direct Mode (see below)
when it receives an APACS 30 packet without any call set-up.
Boot to Direct Mode
Direct mode is a mode of operation whereby the unit automatically routes APACS 30
packets to their destination without the terminal having to perform any call control. If this
parameter is set to “Yes”, then the next time the unit is rebooted it will operate in direct
mode. For Direct Mode to work you must set up the appropriate addressing information
(e.g. Transport protocol, NUA, NUI, IP address etc). If this parameter is not enabled the unit
will still try to use direct mode if it detects that it is required (due to the absence of call
control information). This parameter can be used in certain cases where for some reason
the unit cannot automatically determine whether or not to use direct mode.
Use response code n in "unable to authorise" message
This parameter only applies when the unit is operating in direct mode. In cases where
the unit is unable to send the APACS 30 packet to the remote host, it replies to the
terminal with an “unable to authorise” message. By default, this message contains a
response code 05 which means declined. Entering a number for this parameter causes
the unit to use that number in place of the default response code. A value of zero for this
parameter prevents the unit from replying.
Clearing time n milliseconds
This parameter defines the clearing time in milliseconds that an X.25 call will be left
“open” after receiving a response from the host. Each response from the host resets this
timer.
Delay transmitting the APACS 30 string for x milliseconds after connecting to X.25
host
Setting this parameter will cause the unit to pause for the specified number of milliseconds
in between successfully connecting to the remote X.25 host and transmitting the APACS 30
string.
Retransmit APACS 30 string if error detected
Ticking this check box will cause the unit to retransmit the APACS 30 string to the terminal
if an error is detected. (e.g. no ACK received from terminal)
STX/ETX removal
Enabling “Del STX&ETX” will cause the unit to strip off the STX and ETX characters that
normally surround the APACS 30 string before sending it to the host. Enabling “Del STX
only” will cause it to strip of the STX character only.
271
Do not transmit ENQ characters
Under the TPAD protocol the ENQ character is normally used to indicate that a call has
connected and that the TPAD terminal may proceed with the transaction. Enabling this
parameter will prevent the router from transmitting ENQ characters to the TPAD terminal
when a connection is made.
Delay sending ENQ characters to TPAD terminal for x milliseconds when a call has
been connected
This parameter may be used to set the delay in ms from when the router first connects the
call to when it transmits the ENQ to the terminal. By default there is no delay.
Wait for x milliseconds for an ACK before retransmitting the data
This parameter defines the time period the unit will wait for an ACK character to be received
after sending data to the terminal. If an ACK character is not received within this time the
data will be retransmitted. A value of “0” entered here will default to a delay of 1 second.
Transmit TPAD transactions directly in a Synchronous frame
When this check box is ticked TPAD transactions are transmitted without any “outer”
protocol such as X.25, i.e. they are placed directly in a synchronous frame on ISDN. This
sometimes referred to as HDLC by certain card acquirers.
Include LRC
The LRC (Longitudinal Redundancy Check) is a form of error checking that may be required
by some TPAD terminals. When the Include LRC option is enabled the unit will check the
LRC sent by the terminal and if it indicates a problem has occurred NAK the message. If this
parameter is enabled but no LRC is sent by the terminal, the transaction will not be
forwarded to the host.
Include LRC line
This parameter is normally disabled so that any LRCs received from a TPAD terminal will be
removed before the transaction data is transmitted to the remote host. In most cases this is
acceptable because the network will provide error correction and so the LRC is redundant.
In some circumstances it may be necessary to enable this parameter so that the unit
transmits the LRC to the remote host along with the transaction data.
Force parity when sending data to the terminal
When this parameter is enabled the unit will always use even parity when relaying data
from a remote host to a locally connected TPAD terminal. To allow data to pass through
without the parity being changed disable this setting.
Strip parity when sending data to the host
Enabling this parameter will cause the unit to remove any parity before sending the data to
the host.
Force parity when sending data to the host
When this parameter is enabled the unit will always use EVEN parity when relaying data
from the locally connected TPAD terminal to the remote host. To allow data to pass through
without the parity being changed disable this setting.
Strip Trailing Spaces
When this parameter is enabled the TPAD instance will look at responses coming from the
host and remove any trailing space characters from the end of the packet before relaying
the data to the terminal. This may be necessary if the host system “pads out” responses
with unnecessary spaces which can cause abnormal behaviour in some terminals.
272
Acknowledge TPAD data packets
This parameter causes the unit to acknowledge TPAD data packets from the terminal. This
parameter should normally be enabled. Note that this parameter is only used if no polling
characters (see above) are defined.
Convert leading STX character to SOH
Enabling this parameter will cause the unit to convert the leading STX character in a
transaction to an SOH character.
Terminate TPAD call is EOT only
A TPAD call is normally terminated with a DLE EOT sequence. Some terminals only require
the EOT character on its own. If this is the case then enable this parameter.
Clear TPAD call if there is no response to a TPAD transaction request for x seconds
This is the length of time in seconds that the unit will wait for a response to a TPAD
transaction request before clearing the TPAD call.
Generate an event when a TPAD transaction takes longer than x seconds
Setting this parameter to a non-zero value causes the unit to generate an “Excessive
Transaction Time” event (code 56) each time a TPAD transaction takes longer that the
specified number of seconds. This could be used in conjunction with an appropriate Event
Handler configuration to generate email alert messages or SNMP traps when TPAD
transactions take longer than expected. See Configuration - Alarms > Event Logcodes
for a complete list of events.
When the transaction time exceeds x milliseconds, increment the "SLA
Exceptions" statistic
When the total transaction time exceeds the value (in ms) set in this parameter, the NB SLA
exceptions statistic on the Diagnostics - Statistics > TPAD page is incremented. This statistic
can be viewed on the CLI interface by entering the at\mibs=tpad.n.stats command,
where n is the TPAD instance.
Clear the call x seconds after receiving a response
This parameter defines the time period for which the socket closing or the X.25 call clearing
is delayed by after the TPAD session has finished. For example, if this parameter is set to 10
then 10 seconds after the TPAD session is finished (NO CARRIER is seen on the ASY TPAD
port) the network call (X25 or TCP socket) is cleared. The number “1” is a special value. If
set to the number “1” the call will be cleared immediately (not after 1 second).
If the terminal dial command specifies V.120 use PANS context x
This parameter is for advanced users only. It enables TPAD transactions to be carried out
using the V.120 protocol (“ATDV” command). The parameter is used in conjunction with the
Polling Answering Service (PANS), and identifies which PANS instance is to be used for an
outgoing V.120 call. For this to work, the PANS instance must be bound to a Rate Adaption
instance.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
tpad n l2iface lapb, lapd, tcp, ssl, vxn Use TPAD over interface
tpad n l2nb 0 – 255 Use TPAD over interface
tpad n ipmode 0=XOT, 1=raw TCP Use TPAD over interface
tpad n bakl2iface lapb, lapd, tcp, ssl, vxn Use backup interface
tpad n bakl2nb 0 - 255 Use backup interface
273
Entity Instance Parameter Values
Equivalent Web
Parameter
tpad n bnumber text (valid ISDN number) Use number x to make
outgoing ISDN calls
tpad n prefix text (numeric) Use prefix x
tpad n prefix_rem text (numeric) Remove prefix x from
number in ATD command
tpad n suffix text (numeric) Use suffix x
tpad n tl2deact 0 - 10000
On the main interface
Deactivate LAPB session x
seconds after TPAD X.25
call has been cleared
tpad n baktl2deact 0 – 10000
On the backup interface
Deactivate LAPB session x
seconds after TPAD X.25
call has been cleared.
tpad n defpak 16,32,64,128,256,512,1024 Default X.25 Packet Size
tpad n nua text Use NUA
tpad n nui text Use NUI
tpad n lcn 1 - 4095 LCN
tpad n lcnup 1 = up, 0 = down LCN direction
tpad n baknua text (Backup) Use NUA
tpad n baknui numeric text (Backup) Use NUI
tpad n baklcn 1 - 4095 (Backup) LCN
tpad n baklcnup 1 = up, 0 = down (Backup) LCN direction
tpad n cingnua numeric text Report our NUA as n to
the X.25 network
tpad n cud text Call User Data
tpad n samecall 0 One per transaction
tpad n samecall 1 Allow consecutive
transactions
tpad n samecall 2 Allow concurrent
transactions
tpad n delimchar 32 - 127 Use ASCII character x as
the delimiter character
tpad n ftime 0 - 20000 Forward mode time x
milliseconds
tpad n trig_str text Create an event when
reply from X.25 host
matches
274
Entity Instance Parameter Values
Equivalent Web
Parameter
tpad n IPaddr IP address Connect to remote IP
address
tpad n iphdr 0=Off
1=On
2=8583 Ascii 4 byte
IP length header
tpad n termid text Use Terminal ID (TID)
tpad n dotermid 1 = enabled, 0 = disabled Replace TID provided by
connected terminal with
configured TID
tpad n tid text Use TID xxxxxxxxx with
incoming APACS 50
polling calls
tpad n merchnum text
Use merchant Number
tpad n useconstr 1 = enabled, 0 = disabled Use Connect String
tpad n constr text Use Connect String
tpad n pollchars text The polling character set
is c
tpad n domsgnb 1 = enabled, 0 = disabled Enable Message
Numbering
tpad n disdir 1 = enabled, 0 = disabled Disable Direct Mode
tpad n bdir 1 = enabled, 0 = disabled Boot to Direct Mode
tpad n uaarc 0 - 99 Use response code n in
"unable to authorise"
message
tpad n clear_dirtime 0 - 60000 Clearing time n
milliseconds
tpad n trandel 0 - 5000
Delay transmitting the
APACS 30 string for x
milliseconds after
connecting to X.25 host
tpad n teretran 1 = enabled, 0 = disabled Retransmit APACS 30
string if error detected
tpad n delstx 1 = enabled, 0 = disabled STX/ETX removal
tpad n no_enq 1 = enabled, 0 = disabled Do not transmit ENQ
characters
tpad n tenqdel 0 - 5000
Delay sending ENQ
characters to TPAD
terminal for x milliseconds
when a call has been
connected
275
Entity Instance Parameter Values
Equivalent Web
Parameter
tpad n tackdel 0 – 10000 Wait for x milliseconds for
an ACK before
retransmitting the data
tpad n dsync 1 = enabled, 0 = disabled Transmit TPAD
transactions directly in a
Synchronous frame
tpad n inclrc 1 = enabled, 0 = disabled Include LRC
tpad n incllrc 1 = enabled, 0 = disabled Include LRC line
tpad n fpar 1 = enabled, 0 = disabled Force parity when sending
data to the terminal
tpad n lrpar 1 = enabled, 0 = disabled Strip parity when sending
data to the host
tpad n lfpar 1 = enabled, 0 = disabled Force parity when sending
data to the host
tpad n strip_tspaces 1 = enabled, 0 = disabled Strip Trailing Spaces
tpad n ackdat 1 = enabled, 0 = disabled Acknowledge TPAD data
packets
tpad n stx_2_soh 1 = enabled, 0 = disabled Convert leading STX
character to SOH
tpad n eot_only 1 = enabled, 0 = disabled Terminate TPAD call is
EOT only
tpad n tresp 0 – 1000
Clear TPAD call if there is
no response to a TPAD
transaction request for x
seconds
tpad n texcess 0 – 100 Generate an event when
a TPAD transaction takes
longer than x seconds
tpad n tsla 0 – 3000
When the transaction
time exceeds x
milliseconds, increment
the "SLA Exceptions"
statistic
tpad n clear_time 0 - 2147483647 Clear the call x seconds
after receiving a response
tpad n dialctx 0 - 255 If the terminal dial
command specifies V.120
use PANS context x
Configuration - Network > Legacy Protocols > X.25 > General
This section contains some global X.25 settings.
276
When answering a X.25 call, use the addresses from CALL packet in the CALL CNF
packet
When this setting is enabled when answering a call the called and calling addresses from the
CALL packet are used in the X25 CALL CNF (call confirm packet) that the unit sends to
answer the call. This setting can be enabled on a per “interface type” basis, (LAPD, LAPB or
XoT)
Reset XOT PVC if the router is the Initiator
When this parameter is enabled the unit is responsible for resetting the links when an XOT
PVC comes up. This parameter should only be set to “Off” when it is known that the
responder will reset the links.
Reset XOT PVC if the router is the Responder
When this parameter is set to “On” the unit is responsible for resetting the links on XOT PVC
links when it is the responder. The default for this parameter is “Off”.
Include length of header in IP length header
For all X.25 calls which include an IP header length indication (i.e. IP Length Header is set
to “On” a TPAD or PAD, etc.) this parameter specifies whether the length indicated includes
or excludes the length of the header itself.
By default it is “Off”, in which case the length of the header is NOT included in the value.
For example, say we had one byte of data of value 67 to encode. Then “00 01 67” is the
encoding if this parameter is set to “Off” as the length (00 01) is 1 because the length does
not include the length of the header. When set to “On” the length of the IP header is
included in the value, i.e. “00 03 67” is the encoding as the header bytes are included.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
X25gen 0 lapd_cnf_addr 1 = enabled,
0 = disabled
When answering a X.25 call, use
the addresses from CALL packet in
the CALL CNF packet.
LAPD setting
X25gen 0 lapd_cnf_addr 1 = enabled,
0 = disabled
When answering a X.25 call, use
the addresses from CALL packet in
the CALL CNF packet
LAPB setting
X25gen 0 xot_cnf_addr 1 = enabled,
0 = disabled
When answering a X.25 call, use
the addresses from CALL packet in
the CALL CNF packet
XoT setting
X25gen 0 reset_xotpvc_ini 1 = enabled,
0 = disabled Reset XOT PVC if the router is the
Initiator
X25gen 0 reset_xotpvc_resp 1 = enabled,
0 = disabled Reset XOT PVC if the router is the
Responder
X25gen 0 en_incl_iphdr 1 = enabled,
0 = disabled Include length of header in IP
length header
277
Configuration - Network > Legacy Protocols > X.25 > LAPB
LAPB (Link Access Procedure Balanced) is a standard subset of the High-Level
Data Link Control (HDLC) protocol. It is a bit-oriented, synchronous, link-layer
protocol that provides data framing, flow control and error detection and
correction. LAPB is the link layer used by X.25 applications.
On Digi TransPort routers LAPB can be used over ISDN or over a synchronous serial port.
Configuration - Network > Legacy Protocols > X.25 > LAPB n
Use: Serial port Port x (in Synchronous Mode)
To use the LAPB instance over a synchronous serial port enable this setting and select a
serial port number. To configure settings of the synchronous port such as speed and clock
source navigate to Configuration - Network > Interfaces > Serial > Serial Port n >
Sync Port n.
Use: ISDN
Enable this setting to use LAPB over ISDN.
Mode DTE or DCE
Determines whether LAPB will behave as DTE (Data Terminal Equipment) or DCE (Data
Circuit-terminating Equipment) in an X.25 protocol sense. (Physical DTE vs. DCE wiring
cannot be changed by configuration.)
N400 Counter x
This is the standard LAPB retry counter. The default value is 3 and it should not normally be
necessary to change this.
RR Timer x milliseconds
This is a standard LAPB “Receiver Ready” timer. The default value is 10,000ms (10 seconds)
and it should not normally be necessary to change this.
T1 Timer x milliseconds
This is a standard LAPB timer. The default value is 1000 milliseconds (1 second) and under
normal circumstances, it should not be necessary to change it.
T200 Timer x milliseconds
This is the standard LAPB re-transmit timer. The default value is 1000 milliseconds (1
second) and under normal circumstances, it should not be necessary to change it.
X.25 Window Size
This parameter is used to set the X.25 window size. The value range is from 1 to 7 with the
default being 7.
Disconnect link if there has been no X.25 activity for x seconds
This parameter may be used to specify the length of time (in seconds) before the link is
disconnected if there has been no X.25 activity. If this parameter is zero or not specified,
then the inactivity timer is disabled.
Disconnect link if there has been no activity for x seconds
This parameter may be used to specify the length of time (in seconds) before the link is
disconnected if there has been no activity. If this parameter is zero or not specified, then
the inactivity timer is disabled. It is useful to set this to a short period of time (say 120
seconds) when a LAPB instance is being used over ISDN for example with TPAD. Should the
POS device fail to instruct TPAD to hang up then this timer can be used as a backup hang-
up timer thus saving ISDN call charges. When LAPB is being used on a synchronous port,
this parameter should normally be set to 0.
278
Send X.25 Restart packet on receipt of SABM frame
This parameter can be set to “No” or “Immediate”. When set to “Immediate”, the LAPB
instance will send an X.25 restart packet immediately on receipt of an SABM (Set
Asynchronous Balanced Mode) frame. If the parameter is set to “No”, then no X.25 restart is
sent.
Configuration - Network > Legacy Protocols > X.25 > LAPB n > ISDN
Parameters
Allow this unit to answer calls
When this parameter is enabled this instance of LAPB will answer incoming ISDN calls.
Only accept calls from calling number ending with
This parameter provides the filter for the ISDN Multiple Subscriber Numbering facility. It is
blank by default but when set to an appropriate value with “Allow this unit to answer calls”
enabled it will cause the unit to answer incoming calls only to ISDN numbers where the
trailing digits match the MSN value. For example, setting the MSN parameter to 123 will
prevent the unit from answering any calls to numbers that do not end in 123.
Only accept calls with sub-address ending with
This parameter provides the filter for the ISDN sub-addressing facility. It is blank by default
but when set to an appropriate value, with “Allow this unit to answer calls” enabled it will
cause the unit to answer incoming ISDN calls only where the trailing digits of the sub
address called match the Sub-address value. For example, setting the Sub-address to 123
will prevent the unit from answering any calls where the sub-address called does not end in
123.
Keep ISDN LAPB link activated when user sends a DISC or X.25 PAD session
terminated
When this parameter is enabled
Wait x milliseconds before attempting to establish the LAPB link after B-channel
becoming active
This parameter sets the length of time (in milliseconds), that the LAPB instance will wait
from an ISDN B-channel becoming active before attempting to establish a LAPB connection,
i.e. the length of time for which the LAPB instance stays passive. The default is 0 as most
ISDN networks allow CPE devices to initiate a LAPB link. If your ISDN network does not
permit CPE devices to initiate the LAPB link you should set this parameter to a value that
allows the network sufficient time to establish the LAPB link.
Use as x a calling party number when making ISDN calls
This is “Calling Line Identification”. The unit will only answer calls from numbers whose
trailing digits match what is entered in this field. The line the unit is connected to must have
CLI enabled by the telecoms provider, and the calling number cannot be withheld.
279
Configuration - Network > Legacy Protocols > X.25 > LAPB n > Async Mux
0710 Parameters
For certain W-WAN modules LAPB is used to perform multiplexing of serial channels. If
using LAPB for X.25 over ISDN or serial then these settings should be ignored. These
settings should not be changed unless under the instruction of technical support.
Mux 0710 mode
When enabled configures the LAPB instance to be used for multiplexing of serial channels
instead of X.25.
Mux mode
This setting controls the multiplexing mode.
DLC #
The data link channel number to use for this virtual ASY port.
ASY port
This is the physical ASY port over which to multiplex.
Virtual ASY port
This is the virtual ASY port number that this LAPB instance will multiplex over the physical
port.
Entity
Instance
Parameter
Values
Equivalent Web Parameter
lapb n l1iface port, isdn (use
“port” for sync
port)
Use: Serial port Port x (in
Synchronous Mode)
lapb n l1nb 0,1 Use: Serial port Port x (in
Synchronous Mode)
0 for “Port 0”, 1 for “Port 1”
lapb n l1iface port, isdn (use
“isdn” for ISDN) Use: ISDN
lapb n dtemode DTE/DCE mode:
0=DTE
1=DCE Mode DTE or DCE
lapb n N400 1 - 255 N400 Counter x
lapb n tnoact 1000 - 60000 RR Timer x milliseconds
lapb n t1time 1 - 60000 T1 Timer x milliseconds
lapb n t200 1 - 60000 T200 Timer x milliseconds
lapb n Window 1 - 7 X.25 Window Size
lapb n tinactx25 0 - 3000 Disconnect link if there has been no
X.25 activity for x seconds
lapb n tinact 0 - 3000 Disconnect link if there has been no
activity for x seconds
lapb n restartact 1 = enabled, 0 =
disabled Send X.25 Restart packet on receipt of
SABM frame
lapb n ans 1 = enabled, 0 = Allow this unit to answer calls
280
Entity
Instance
Parameter
Values
Equivalent Web Parameter
disabled
lapb n msn text Only accept calls from calling number
ending with
lapb n sub text Only accept calls with sub-address
ending with
lapb n ptime 0 - 60000 Wait x milliseconds before attempting
to establish the LAPB link after B-
channel becoming active
lapb n cli text Only answer calls from numbers
whose trailing digits match
lapb n mux_0710 1 = enabled, 0 =
disabled Mux 0710 mode
lapb n mux_mode 0 = Basic, 1 =
Error Recovery Mux mode
lapb n dlc 0 - 63 DLC #
lapb n asyport 0 - 255 ASY port
lapb n virt_async 0 - 255 Virtual ASY port
Configuration - Network > Legacy Protocols > X.25 > NUI Mappings
When a TPAD call is taking place the attached terminal sometimes only specifies an “NUI”
(Network User ID) to call. If the X.25 network requires an NUA instead of an NUI to
determine the destination of a call then the NUI Mappings table can be used to convert an
NUI to an NUA.
If a TPAD call specifies a call in which the NUI matches an entry the call actually placed on
the network will contain the respective NUA and no NUI.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
nuimap n nua text Maps to NUA
nuimap n nui text NUI
281
Configuration - Network > Legacy Protocols > X.25 > NUA / NUI Interface
Mappings
For PAD and TPAD instances, this table can be used to override the following:
• Interface
• Backup interface
• IP address
• TCP/UDP port number
Based upon data in the call request matching the following comparison fields:
• NUA called
• NUI called
• X.25 Call Data
• PID
All the comparison fields, NUA, NUI, Call Data and PID can use the wildcard matching
characters “?” and “*”.
NUA
Network User Address
NUI
Network User Identifier
Call Data
X.25 Call Data
PID
Protocol Identifier
IP address
IP address
IP Port
IP port number
Interface
Primary interface
Backup Interface
Backup interface
Note that this table is duplicated in the Configuration - Network > Protocol Switch >
NUA to Interface Mappings section as it can also be used by the Protocol Switch. Not all
of the fields are visible in the Protocol Switch section as they do not all apply to the Protocol
Switch.
282
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
nuaip N nua text NUA
nuaip N nui text NUI
nuaip N cud text Call Data
nuaip n pid text PID
nuaip n IPaddr IP address IP Address
nuaip n ip_port 0 - 65535 IP Port
nuaip n swto 0 -15 Interface
nuaip n buswto 0 -15 Backup Interface
The interface and backup interface values are as follows:
Parameter Value
Interface Type
0 Default
1 LAPD
2 LAPB 0
3 LAPB 1
4 XOT
5 LAPD x (instance determined by NUA)
6 LAPB 0 PVC
7 LAPB 1 PVC
8 XOT PVC
9 TCP Stream
10 UDP Stream
12 LAPB 2
13 LAPB 2 PVC
14 VXN
15 SSL
Configuration - Network > Legacy Protocols > X.25> Calls Macros
This page allows you to define up to 64 X.25 CALL “macros” that can be used to initiate
ISDN and/or X.25 layer 3 calls. These simple English-like names are mapped to full
command strings. For example, the call string:
0800123456=789012Dtest data
283
could be given the name “X25test” and then executed simply by entering:
CALL X25test
To create a macro, enter a name for the macro in the left column of the Call Macros table
and in the right column enter the appropriate command string (excluding the ATD). Then
click Add.
Macro
The name of the macro, this can be any text.
Command
The X.25 call command.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
macro n name text Macro
macro n cmd text Command
284
Configuration - Network > Legacy Protocols > X.25 > IP to X.25 Calls
This page contains a table that allows you to enter a series of IP Port numbers and X.25 Call
strings as shown below. It is used to configure the unit so that IP data can be switched over
X.25. For example data that is received on a TCP connection can be answered by a PAD as if
it is an X.25 call.
This table is duplicated in the Configuration - Network > Protocol Switch > IP Sockets
to Protocol Switch section as it is also used by the protocol switch. It is included at this
point in the web user interface as a convenience in case the table is being used in
conjunction with PAD and not the protocol switch.
IP Port
The IP Port field is used to setup the port numbers for those IP ports that will “listen” for
incoming connections that are to be switched over X.25 or other protocol. In the case of
switching to X.25, when such a connection is made the unit will make an X.25 Call to the
address specified in the X.25 Call field. Once this call has been connected, data from the
port will be switched over the X.25 session.
Number of Sockets
The Number of Sockets field is used to select how many IP sockets should simultaneously
listen for data on the specified port. The number of available IP sockets will depend on the
model you are using and how many are already in use (see note below).
X25 Call
The X.25 call field may contain an X.25 NUA or NUI or one of the X.25 Call Macros defined
on the Configuration - Advanced applications > X25 > Macros page.
PID
The PID (Protocol Identifier), field specifies the PID to use when the unit switches an IP
connection to X.25. The PID (protocol ID) field takes the format of four hexadecimal digits
separated by commas, e.g. 1,0,0,0, at the start of the Call User Data field in the X.25 call.
Confirm Mode
When confirm mode is set to “On” then the incoming TCP socket will not be successfully
connected until the corresponding outgoing call has been connected. The incoming TCP
socket will trigger the corresponding outgoing call either to a local PAD instance or to
whatever is configured. The effect of this mode is that the socket will fail if the outbound call
fails and so may be useful in backup scenarios. In addition it will ensure that no data is sent
into a “black hole”. (When this setting is not enabled data that is sent on the inbound TCP
connection before the outbound connection has been successful can be lost.)
285
RFC 1086 Mode:
RFC 1086 specifies a mode of operation in which the IP socket answers and then with a
simple protocol in the socket identifies the X.25 address and other X.25 call setup
parameters to be used. Then when the X.25 call parameters have been identified the X.25
call is made and if successful then data is then switched between the X.25 call and the IP
socket. The protocol will select whether incoming or outgoing support is required.
IP length header
When IP length header is “On”, the IP length indicator field is inserted at the start of each
packet. When set to “8583 Ascii 4 byte”, the IP length header will conform to the ISO 8583
format.
In the example above, 3 IP sockets will “listen” for an incoming connection on IP Port 2004.
Once connected they will each will make an X.25 Call to “jollyroger”. The unit will recognise
that “jollyroger” is a pre-defined macro (as illustrated below), and will translate it into an
X.25 Call to address 32423 with the string “x25 data” included as data in the call. The
outgoing X.25 call(s) will be made over whichever interface is specified by the Switch from
XOT(TCP) to parameter on the Configuration - Network > Protocol Switch page.
Note:
At the top of the page the total number of sockets available and the number currently free
is shown. Care should be take not to allocate too many of the free sockets unless you are
confident that they are not required for other applications.
286
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
ipx25 n ip_port 0 - 65535 IP Port
ipx25 n nb_listens 0 – software dependant
max Number of Sockets
ipx25 n x25call NUA, NUI or X.25
macro name X25 Call
ipx25 n pid hex numbers PID
ipx25 n cnf_mode 1 = enabled, 0 = disabled Confirm Mode
ipx25 n rfc1086_mode 1 = enabled, 0 = disabled RFC 1086 Mode
ipx25 n iphdr 0=Off
1=On
2=8583 Ascii 4 byte IP length header
Configuration - Network > Legacy Protocols > X.25 > PADS n
PAD which stands for Packet Assembler Dissembler is used to interface between a
character based serial connection and an X.25 synchronous packet switched network.
There are two main elements to the configuration procedure for accessing X.25 networks:
General and service related parameters
PAD parameters (X.3)
Each X.25 PAD configuration page also includes a sub-page detailing the X.3 PAD
parameters. Collectively this set of values is known as a PAD profile. Your unit contains four
pre-defined standard PAD profiles numbered 50, 51, 90 and 91. You may also create up to
four custom PAD profiles numbered 1 to 4 for each PAD instance.
Use PAD over interface
This section is used to select whether the PAD instance will use ISDN B-channel X.25, ISDN
D-channel X.25, TCP, UDP, VXN, SSL TCP or SSL XoT as the transport protocol. For ISDN D-
channel operation, ensure that the “LAPD” option is selected. For ISDN B-channel operation
or operation through a synchronous port, select “LAPB”. In the case of LAPB and LAPD it is
also possible to specify an interface number. This parameter specifies which LAPB or LAPD
instance to use for the relevant TPAD instance. Select “0” or “1” for LAPB or “0” or “1” for
LAPD.
Use backup interface
This section is used to specify a backup interface that will be used automatically if the call to
the primary interface fails. Note that the primary interface will be tried first for every new
call attempt.
287
X.25 Settings
Default X.25 packet size
This parameter determines the default X.25 packet size. This may be set to “16”, “32”,
“64”, “128”, “256”, “512” or “1024”, but the actual values permitted will normally be
constrained by your service provider.
Answer incoming calls from NUA
This is the NUA that the unit responds to for incoming X.25 calls.
Only answer calls with CUG
The PAD will only answer calls with this Call User Group (CUG) specified.
Use X.25 Call Macro macroname to an ATD command
This parameter specifies the name of an X.25 call macro that is used when an ATD
command is received by the unit. The ATD command is ignored, and a PAD CALL command
using the macro replaces it. The purpose of this feature is to allow non-PAD terminals to use
an X.25 PAD network connection. X.25 call macros are set up in the Configuration -
Network > Legacy Protocols > X.25 > Call Macros web page, or by using the macro
text command.
Use NUA
This NUA will be used as the calling NUA when an outgoing X.25 call is made.
LCN
The unit supports up to eight logical X.25 channels. In practice, the operational limit is
determined by the particular service to which you subscribe (usually 4).
Each logical channel must be assigned a valid Logical Channel Number (LCN). The LCN
parameter is the value of the first LCN that will be assigned for outgoing X.25 CALLs. The
default is 1027.
For incoming calls, the unit accepts the LCN specified by the caller.
LCN Direction
This parameter determines whether the LCN used for outgoing X.25 calls is incremented or
decremented from the starting value when multiple X.25 instances share one layer 2 (LAPB
or LAPD), connection. The default is “Down” and LCNs are decremented, i.e. if the first CALL
uses 1024, the next will use 1023, etc. Setting the parameter to “Up” will cause the LCN to
be incremented from the start value.
NUI/NUA selection
If both an NUI and an NUA are included in the call string, this parameter allows the unit to
filter one of these out of the X.25 call request. This can be extremely useful in backup
scenarios. Consider the following example; the unit is configured to do online authorisations
via the ISDN D channel and to fall back to B-channel (if the D-channel host did not respond
for any reason). Using this parameter in conjunction with the backup equivalent, it is
possible to configure the unit to use the supplied NUA to connect over D-channel and the
supplied NUI to connect over B channel (for backup).
On the backup interface LCN
The LCN parameter is used to set the first LCN that will be used for the backup interface.
On the backup interface LCN Direction
This parameter determines whether the LCN used for the backup X.25 interface is
incremented or decremented from the starting value when multiple X.25 instances share a
single layer 2 connection.
288
On the backup interface NUI/NUA selection
If both an NUI and an NUA are included in the call string, this parameter allows the unit to
filter one of these out of the X.25 call request.
Enable X.25 Restart Packets
It is normally possible to make X.25 CALLs immediately following the initial SABM-UA
exchange. In some cases however, the X.25 network may require an X.25 Restart before it
will accept X.25 CALLs. The correct mode to select depends upon the particular X.25 service
to which you subscribe. The default value is “On”. This means that the unit WILL issue X.25
Restart packets. To prevent the unit from issuing Restart packets set this parameter to
“Off”.
Restart delay
When the Restarts parameter is “On” the Restart Delay value determines the length of time
in milliseconds that the unit will wait before issuing a Restart packet. The default value is
2000 giving a delay of 2 seconds.
IP Settings
Remote IP address
This field indicates the destination host that will answer the XOT, TCP, SSL, UDP call.
Remote IP Address when using the backup interface
This field indicates the destination host that will answer the XOT, TCP, SSL, UDP call if a
connection via the primary interface has failed and the PAD is configured to backup to a
secondary interface that is using an IP based protocol.
IP Stream port
This is the TCP or UDP port number to use for IP (but not XoT) connections.
IP length header
When set to “On”, and in IP Stream mode, the length of a data sequence is inserted before
the data. For the receive direction it is assumed the length of the data is in the data stream.
When set to “8583 Ascii 4 byte”, the IP length header will conform to the ISO 8583 format.
PAD Settings
PAD prompt
This parameter allows you to redefine the standard “PAD>” prompt. To change the prompt
enter a new string of up to 15 characters into the text box.
PAD mode
The PAD Mode parameter can be set to “Normal” or “Prompt Always On”. In Prompt Always
On mode, the ASY port attached to the PAD behaves as if it were permanently connected at
layer 2, i.e. it always displays a “PAD>” prompt. AT commands may still be entered but the
normal result codes are suppressed. To disable this mode set the parameter to “Normal”.
Use PAD Profile
The PAD profile # allows you to select the PAD profile to use for this PAD instance. There
are four pre-defined profiles numbered “50”, “51”, “90” and “91”. In addition to the pre-
defined profiles you can also create up to four user-defined profiles numbered “1”, “2”, “3”
and “4”. To assign a particular profile to the PAD select the appropriate number from the
list.
Strip Trailing Spaces
When this parameter is turned on any spaces received at the end of a sequence of data
from the network will be removed before being relayed to the PAD port.
289
Enable Leased Line Mode
When this parameter is set to “On”, it causes the PAD to always attempt to be connected
using the Auto macro setting as the call command.
Send ENQ on Connect
When this parameter is set to “On” the PAD will send an ENQ character on the ASY link
when an outgoing call has been answered.
Enable STX / ETX Filtering
When this parameter is “On”, the PAD will ignore data that is not encapsulated between
ASCII characters STX (Ctrl+B) and ETX (Ctrl+C). To disable this feature select the “Off”
option.
Delay connect message n x 10 milliseconds
Delay the Connect message by the number of milliseconds specified. (Useful when working
with equipment that previously connected to slower networks and is upset by the quicker
“Connect” when used with modern networks.)
Delay data transfer after connection by n x 10 milliseconds
Delays the data delivered from the X.25 or other type of connection to the terminal upon
initial connection.
Terminate the PAD call after x seconds if there has been no data transmission
This parameter specifies the length of time in seconds after which the PAD will terminate an
X.25 call if there has been no data transmission.
Disconnect the layer 2 call if there is no layer 3 call in progress for x seconds
This parameter specifies the length of time in seconds after which the unit will disconnect a
layer 2 link if there are no layer 3 calls in progress. For LAPB sessions this will also
terminate the ISDN call.
Create an event when the following data is on the PAD
This parameter specifies a string, which if it appears in the received data causes a “Data
Trigger” (47) event to be generated and recorded in the event log.
Create an event when there has been no activity on the PAD for x seconds
This specifies the time in seconds in which if there is no activity on the PAD an event in the
event log will be posted. This can be used to trigger email exceptions.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
pad n l2iface lapb, lapd, TCP, SSL Use PAD over interface
pad n l2nb 0 – 255 (instance of LAPB
or LAPD) Use PAD over interface
pad n ip_stream 0 = off (for XoT), 1 = TCP,
2 = UDP Use PAD over interface
pad n defpak 16,32,64,128,256,512 or
1024 Default X.25 packet size
pad n ansnua text (valid NUA) Answer incoming calls
from NUA
pad n anscug text (valid CUG) Only answer calls with
CUG
290
Entity Instance Parameter Values
Equivalent Web
Parameter
pad n amacro text Use X.25 Call Macro
macroname to an ATD
command
pad n cingnua text (valid NUA) Use NUA
pad n lcn 1 - 4095 LCN
pad n lcnup 1 = up, 0 = down LCN Direction
pad n nuaimode 0 = NUI and NUA, 1 = NUA
only, 2 = NUI only NUI/NUA selection
pad n dorest 1 = enabled, 0 = disabled Enable X.25 Restart
Packets
pad n restdel 0 - 60000 (ms) Restart delay
pad n IPaddr text Remote IP address
pad n buipaddr text Remote IP Address when
using the backup interface
pad n ip_port 0 - 65535 IP Stream port
pad n iphdr 0=Off, 1=On, 2=8583 Ascii
4 byte IP length header
pad n prompt text PAD prompt
pad n padmode 0 = Normal, 1 = Prompt
Always On PAD mode
pad n profile 1-4, 50, 51,90,91 Use PAD Profile
pad n strip_tspaces 1 = enabled, 0 = disabled Strip Trailing Spaces
pad n llmode 1 = enabled, 0 = disabled Enable Leased Line Mode
pad n enqcon 1 = enabled, 0 = disabled Send ENQ on Connect
pad n stxmode 1 = enabled, 0 = disabled Enable STX / ETX Filtering
pad n delconmsg 0 - 10 Delay connect message n
x 10 millisecondss
pad n data_del 0 - 2147483647 Delay data transfer after
connection by n x 10
milliseconds
pad n inacttim 0 - 1000
Terminate the PAD call
after x seconds if there
has been no data
transmission
pad n nocalltim 0 - 60000 Disconnect the layer 2 call
if there is no layer 3 call in
progress for x seconds
pad n trig_str text Create an event when the
following data is on the
291
Entity Instance Parameter Values
Equivalent Web
Parameter
PAD
pad n inactevent 0 - 2147483647 Create an event when
there has been no activity
on the PAD for x seconds
Stopping and starting PADs
PAD instances can be stopped and started using the following CLI commands:
stoppads
gopads
The stoppads command stops all PAD instances from accepting and performing any PAD
commands.
The gopads command resumes processing of PAD commands.
The stoppads and gopads commands can have the PAD number specified in the syntax to
stop and start individual PAD instances.
For example:
To stop PAD 1 from processing PAD commands:
stoppads 1
and to re-enable PAD 1:
gopads 1
Configuration - Network > Legacy Protocols > X.25 > PADs 0-9 > PAD 0 >
X3 Parameters
Each PAD configuration page has an attached sub-page that allows you to edit the X.3 PAD
parameters. These pages allow you to load one of the standard profiles or edit the individual
parameters to suit your application requirements and save the resulting customised “user”
profile to non-volatile memory.
Loading and Saving PAD Profiles
To create your own PAD profiles, edit the appropriate parameters and then select user
profile 1, 2, 3 or 4 as required from the list and click the “Save Profile” button.
Each PAD profile page includes two list boxes that allow you to load and save PAD profiles.
To load a particular profile, select the profile from the list and click the “Load Profile” button.
The parameter table will be updated with the values from the selected profile.
1 PAD Recall Character
This parameter determines whether PAD recall is enabled. When this facility is enabled,
typing the PAD recall character temporarily interrupts the call and returns you to the PAD>
prompt where you may enter normal PAD commands as required. To resume the
interrupted call, use the CALL command without a parameter.
The default PAD recall character is [Ctrl-P]. This may be changed to any ASCII value in the
range 32-125 or disabled by setting it to 0.
292
When a call is in progress and you need to actually transmit the character that is currently
defined as the PAD recall character, simply enter it twice. The first instance returns you to the
PAD> prompt; the second resumes the call and transmits the character to the remote system.
Option
Description
0 Disabled
1 PAD recall character is CTRL-P (ASCII 16, DEL)
32 - 126 PAD recall character is user defined as specified
2 Echo
This parameter enables or disables local echo of data transmitted during a call. When echo
is enabled, X.3 parameter 20 may be used to inhibit the echo of certain characters.
Option
Description
0 Echo off
1 Echo on
3 Data Forwarding Characters
This parameter defines which characters cause data to be assembled into a packet and
forwarded to the network.
Option Description
0 No data forwarding character
1 Alphanumeric characters (A-Z, a-z, 0-9)
2 CR
4 ESC, BEL, ENQ, ACK
8 DEL, CAN, DC2
16 EXT, EOT
32 HT, LF, VT, FF
64 Characters of decimal value less than 32
Combinations of the above sets of characters are possible by adding the respective values
together. For example, to define CR, EXT and EOT as data forwarding characters, set this
parameter to 18 (2 + 16).
If no forwarding characters are defined the Idle timer delay (parameter 4) should be set to
a suitable value, typically 0.2 seconds. Description
4 Idle Timer Delay
This parameter defines a time-out period after which data received from the DTE is
assembled into a packet and forwarded to the network. If the forwarding time-out is
disabled, one or more characters should be selected as “data forwarding characters” using
parameter 3.
Option
Description
0 No data forwarding time-out
1 Data forwarding time-out in 20ths of a second.
293
5 Ancillary Device Control
This parameter determines method of flow control used by the PAD to temporarily halt and
restart the flow of data from the DTE during a call.
Option
Description
0 No flow control
1 XON/XOFF flow control
3 RTS/CTS flow control (not a standard X.3 parameter)
6 Suppression of PAD Service Signals
This parameter determines whether or not the “PAD>” prompt and/or Service/Command
signals are issued to the DTE.
Option
Description
0 PAD prompt and signals disabled
1 PAD prompt disabled, signals enabled
4 PAD prompt enabled, signals disabled
5 PAD prompt enabled, signals disabled
7 Action on Break (from DTE)
This parameter determines the action taken by the PAD on receipt of a break signal from
the DTE.
Option
Description
0 No action
1 Send an X.25 interrupt packet
2 Send an X.25 reset packet to the remote system
4 Send an X.29 indication of break
8 Escape to PAD command state
16 Set PAD parameter 8 to 1 to discard output
Multiple actions on receipt of break are possible by setting this parameter to the sum of the
appropriate values for each action required.
For example, when parameter 7 is set to 21 (16 + 4 + 1), an X.25 interrupt packet is sent
followed by an X.29 indication of break and then parameter 8 is set to 1.
You should NOT set this parameter to 16 because the remote system would receive no
indication that a break had been issued and output to the DTE would therefore remain
permanently discarded. If you need to use the discard output option, use it in conjunction
with the X.29 break option so that on receipt of the X.29 break the remote system can re-
enable output to your DTE using parameter 8.Option Description
294
8 Discard Output
This parameter determines whether data received during a call is passed to the DTE or
discarded. It can only be directly set by the remote system and may be used in a variety of
circumstances when the remote DTE is not able to handle a continuous flow of data at high
speed.
Option
Description
0 Normal data delivery to DTE
1 Output to DTE discarded
9 Padding after CR
Slower terminal devices, such as printers, may require a delay after each Carriage Return
before they can continue to process data. This parameter controls the number of pad
characters (NUL - ASCII 0) that are sent after each CR to create such a delay.
Option
Description
0 No padding characters after CR
1 - 255 Number of padding characters (NUL) sent after CR
10 Line Folding
Controls the automatic generation of a [CR],[LF] sequence after a certain line width has
been reached.
Option
Description
0 No line folding
1 - 255 Width of line before the PAD generates [CR],[LF]
11 Port Speed
This is a “read only” parameter, set automatically by the PAD and accessed by the remote
system.
Option
Description
15 19,200 bps
14 9,600 bps
12 2,400 bps
3 2,400 bps
12 Flow Control of PAD (by DTE)
Determines the flow control setting of the PAD by the DTE in the on-line data state.
Option
Description
0 No flow control
1 XON/XOFF flow control
3 RTS/CTS flow control (not a standard X.3 parameter)
295
13 LF Insertion (after CR)
Controls the automatic generation of a Line Feed by the PAD.
Option
Description
0 No line feed insertion
1 Line Feeds inserted in data passed TO the DTE
2 Line Feeds inserted in data received FROM the DTE
4 Line Feeds inserted after CRs echoed to DTE
The line feed values can be added together to select Line Feed insertion to any desired
combination.
14 LF Padding
Some terminal devices such as printers require a delay after each Line Feed before they can
continue to process data. This parameter controls the number of padding characters (NUL -
ASCII 0) that are sent after each [LF] to create such a delay.
Option Description
0 No line feed padding.
1 - 255 Number of NUL characters inserted after LF
15 Editing
Enables (1) or disables (0) local editing of data input fields by the PAD before data is sent.
The three basic editing functions provided are character delete, line delete and line re-
display.
The editing characters are defined by parameters 16, 17 and 18. In addition, parameter 19
determines which messages are issued to the DTE during editing.
When editing is enabled, the idle timer delay (parameter 4) is disabled and parameter 3
must be used to select the desired data forwarding condition.
16 Character Delete Character
This parameter defines the edit mode delete character (ASCII 0-127). The default is
backspace (ASCII 08).
17 Line Delete Character
This parameter defines the edit mode line buffer delete character (ASCII 0-127). The
default is CTRL-X (ASCII 24).
18 Line Redisplay Character
Specifies the character that re-displays the current input field when in editing mode (ASCII
0-127). The default is CTRL-R (ASCII 18).
19 Editing PAD Service Signals
Specifies the type of service signal sent to the DTE when editing input fields.
Option
Description
0 No editing PAD service signals
1 PAD editing service signals for printers
2 PAD editing service signals for terminals
296
20 Echo Mask
This parameter defines characters that are NOT echoed when echo mode has been enabled
using parameter 2.
Option
Description
0 No echo mask (all characters are echoed)
1 CR
2 LF
4 VT, HT or FF
8 BEL, BS
16 ESC,ENQ
32 ACK,NAK,STX,SOH,EOT,ETB,ETX
64 No echo of characters set by parameters 16, 17 & 18
128 No echo of characters set by parameters 16, 17 & 18
Combinations of the above sets of characters are possible by adding the respective values
together.
21 Parity Treatment
This parameter determines whether parity generation/checking is used.
Option Description
0 No parity generation or checking
1 Parity checking on
2 Parity generation on
3 Parity checking and generation on
22 Page Wait
This parameter determines how many line feeds are sent to the terminal before output is
halted on a page wait condition. In other words, it defines the page length for paged mode
output. A page wait condition is cleared when the PAD receives a character from the
terminal.
Option
Description
0 Page wait feature disabled
1 Number of line feeds sent before halting output
Related CLI Commands
The X.3 PAD parameters can be edited from the command line using the set command
described under the X.28 Commands section.
297
Configuration - Network > Legacy Protocols > X.25 > X.25 PVCs
A Permanent Virtual Circuit (PVC) provides the X.25 equivalent of a leased line
service. With a PVC there is no call setup or disconnect process; you can just start
sending and receiving X.25 data on a specified LCN. For each X.25 service
connection you may setup up multiple PVCs each of which uses a different LCN (or
a mixture of PVCs and SVCs). Digi routers support up to four PVCs numbered 0-3.
Configuration - Network > Legacy Protocols > X.25 > X.25 PVC n
Enable this PVC
Enables or disables the PVC.
LCN
This is the LCN value to be used for this PVC. In the case of an XOT PVC, this parameter
defines the Responder LCN field in the PVC setup packet (though an LCN of 1 is always used
in the XOT PVC connection). So for an XOT PVC this field should contain the remote
connections LCN.
PVC Mode
This parameter defines the lower layer interface to be used for the PVC and can be set to
“LAPB”, “LAPD” or “TCP” (for XOT mode).
Connect this PVC to PAD x
This parameter defines what type of upper layer interface is connected to this PVC and can
be set to “PAD” (for an X.25 PAD), “TPAD” (for a TPAD instance) or “XSW” (for X.25
switching). Note that if set to “XSW” (for the X.25 switch) then the X.25 switch will need to
also be configured regarding the interfaces to switch this PVC to/from. For example, if this is
an incoming XOT PVC we are configuring then the Switch from XOT PVC parameter needs to
be set to the desired destination interface.
Use packet size
This parameter defines the packet size to be used for the PVC. Select the appropriate value
from the drop down list.
Use window size
This parameter defines the layer 3 window size to be used for the PVC. Select the
appropriate value from the drop down list.
Remote IP address
This is the IP address to be used for outgoing XOT calls.
Use the source IP address from interface x,y
This parameter defines which Ethernet or PPP interface to use for the source IP address.
Initiator interface
This parameter may be set to the name of the interface from which the PVC was initiated,
e.g. Serial 1. The initiator and responder strings are used to identify the circuit when PVCs
are being set up. They must match the names in the remote unit that terminates the XOT
PVC connection. If the unit terminating the PVC XOT connection is not another Digi unit then
you need to refer to the documentation or the configuration files of the other unit to
determine the names of the interfaces.
Responder interface
This parameter may be set to the name of the interface to which a PVC initiator is
connected, e.g. Serial 2.
298
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
pvc n l2iface Blank or lapb, lapd,
tcp Enable this PVC
pvc n lcn 0 - 4096 LCN
pvc n uliface pad, tpad, xsw Connect this PVC to PAD x
pvc n psize
0=default
4=16
5=32
6=64
7=128
8=256
9=512
10=1024
Use packet size
pvc n window 1 - 7 Use window size
pvc n ipaddr IP address Remote IP address
pvc n srcipent auto, eth, ppp Use the source IP address from
interface x,y
pvc n srcipadd 0 - 255 Use the source IP address from
interface x,y
pvc n iniface text Initiator interface
pvc n respiface text Responder interface
Configuration - Network > Legacy Protocols > MODBUS
Digi TransPort routers support conversion from MODBUS serial to MODBUS TCP.
When converting from MODBUS serial to MODBUS TCP over a WAN link it is necessary to
have intelligence in the gateway\router to minimise the effect of the higher latency.
Digi TransPort supports being a MODBUS server only. Clients (e.g. remote PCs) can send
overlapping requests and the Digi TransPort will create a queue of info requests and deal
with them appropriately sending them out over the serial port and relaying the responses
back. Overlapping polls from multiple clients are supported.
Enable MODBUS Gateway
Enables or disables MODBUS gateway instance.
Async Port
Configure the local serial port number (asynchronous port) for the MODBUS serial interface.
Async Mode
Configures the serial driver for RS232 or RS485 on supported hardware.
Duplex Mode
Sets the duplex mode to half or full. Full would be for 4-wire installations otherwise half is
required.
299
Idle Gap
When receiving an modbus response from a station when this idle gap (pause with no
reception of characters) is detected the message (currently received from the station) is at
that staged forwarded on as the complete response.
Fix slave address
The address of the slave is fixed at this value. An address conversion will take place if a
message that does not contain this address is received from the TCP master. If not used
the TCP master must use the correct slave address.
Adjust slave address
The address of the slave is adjusted by this value. If left to zero then the slave address is
not adjusted at all.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
modbus n enabled 1 = enabled, 0 =
disabled Enable MODBUS
Gateway
modbus n asy_add 0 - 255 Async Port
modbus n async_mode RS322 or RS422 Async Mode
modbus n duplex 0 = full, 1 = half Duplex Mode
modbus n idle_gap 0 - 2147483647 Idle Gap
modbus n fix_slave_address 0 - 255 Fix slave address
modbus n adj_slave_address 0 - 255 Adjust slave address
modbus n ipport0 0 - 65535 IP Port (row 1)
modbus n nbsocks0 0 - “currently
available” Number of sockets (row
1)
modbus n ipmode0 0 = TCP, 1 = UDP IP Mode (row 1)
modbus n rawmode0 1 = enabled, 0 =
disabled Raw Mode (row 1)
modbus n Ipport1 0 - 65535 IP Port (row 2)
modbus n nbsocks1 0 - “currently
available” Number of sockets (row
2)
modbus n ipmode1 0 = TCP, 1 = UDP IP Mode (row 2)
modbus n rawmode1 1 = enabled, 0 =
disabled Raw Mode (row 2)
300
Configuration - Network > Protocol Switch
The Protocol Switch software available on some models provides X.25 call switching
between the various protocols and interfaces that may be available including:
Interface /
Protocol
Description
Off/None Data will not be switched from / backed-up to this protocol
LAPD Data will be switched from / backed-up to LAPD using the
X.25 service.
LAPD X As above but the actual LAPD instance used will be
determined by the NUA.
LAPB 0 Data will be switched from / backed-up to LAPB 0.
LAPB 1 Data will be switched from / backed-up to LAPB 1.
LAPB 2 Data will be switched from / backed-up to LAPB 2.
LAPB 0 PVC Data will be switched from / backed-up to an X.25 PVC on
LAPB 0.
LAPB 1 PVC Data will be switched from / backed-up to an X.25 PVC on
LAPB 1.
LAPB 2 PVC Data will be switched from / backed-up to an X.25 PVC on
LAPB 2.
XoT Data will be switched from / backed-up to an XOT (X.25
over TCP/IP) connection.
XoT PVC Data will be switched from / backed-up to an XOT PVC
connection.
TCP stream Data will be switched from / backed-up to a TCP socket.
The socket’s IP address will be determined from the IP
stream port setting.
UDP stream
This is similar to the TCP stream setting but instead of
switching onto a TCP socket, data is switched onto a UDP
socket. In the case of switching from X.25. the effect is
that a UDP frame will be sent for each packet of X.25 data
being switched.
VXN Data will be switched / backed-up to Datawire’s VXN
protocol
SSL Data will be switched / backed-up to SSL
DialServ Data will be switched backed-up to an analogue modem via
the built in DiaslServ daughter card.
301
When this optional feature is included, the unit may be configured to pass X.25 calls or data
received in a TCP connection to another protocol or interface.
In addition, it is possible to specify a backup protocol or interface so that if an outgoing call
on one interface fails, then the backup interface is automatically tried. LAPB can be used to
switch to either ISDN or X.25 over serial depending on the configuration of the LAPB
instance chosen.
The logic used in the switching software is outlined in the flowchart below. The following
notes provide a more in-depth explanation of the actions taken in each of the numbered
boxes.
The unit will first look up the Called NUA/NUI in the Configuration - Network > Protocol
Switch > NUA to Interface Mappings mapping table to determine the IP address to use in
the event that the call ends up being switched to a TCP or XOT interface. If a match is found
on the Called NUA/NUI the unit assigns the matching IP address from the table to the call. If
IP address mapping table does not contain an entry for the Called NUA/NUI and the call is
eventually switched to a TCP or XOT channel then the default IP address (IP Stream or XOT
Remote IP Address) is used.
The unit then determines from the source interface of the incoming call which interface type
it should be switched to (from the Switch from parameters on the Protocol Switch page).
For example, if the call arrived via a LAPB 0 interface and the Switch from LAPB 0 to
parameter was set to LAPD, then the outgoing interface would LAPD.
If the outgoing interface is LAPD the unit changes the Calling NUA field of the incoming call
to the D-Channel NUA value (as defined on the Protocol Switch page). If the outgoing
interface is NOT LAPD processing proceeds as at step 6.
The unit then searches the Configuration - Network > Protocol Switch > NUA Mappings table
to see if there are any matches for the Called or Calling NUA values on the specified
interface. In cases where there Interface Description Off/None Data will not be switched
from / backed-up from this protocol is a match, the NUA In value is substituted by the NUA
out value, i.e. the mapping is applied individually to both the Calling NUA and Called NUA
for the packet.
The unit then checks the leading characters of the Calling NUA to see if there is a match
with the Call Prefix parameter. If there is a match then the prefix digits are removed before
the outgoing X.25 call is made. Otherwise the call is made anyway and the switching
process is complete for this call.
If after step 3, the unit has determined that the outgoing interface is not LAPD, it checks if
the outgoing interface is LAPB. If it is, it then checks to see if the Called NUA field in the call
packet matches the LAPB 0 NUA parameter and if it does, selects LAPB 0 as the outgoing
interface. If the Called NUA field does not match LAPB 0 NUA, it checks for a match with
LAPB 1 NUA and if there is a match, sets the outgoing interface to LAPB 1.
If the Called NUA field in the calling packet matches neither the LAPB 0 NUA or LAPB 1 NUA
parameters then the outgoing interface is set to the interface specified by the relevant
Switch from parameter.
If the call is being switched over LAPB 0 the unit then sets the Called NUA to the TE NUA
(LAPB 0) value. If the call is being switched over LAPB 1 the unit then sets the Called NUA
to the TE NUA (LAPB 1) value.
302
303
Parameters
TCP or XoT
This parameter controls the switching of incoming X.25 calls received via TCP or XOT. Select
the interface to which data should be switched from the drop down list, or select “Off” and
the protocol switch will not respond to any incoming XOT or TCP connections.
LAPD
This parameter controls the switching of incoming X.25 calls received via ISDN LAPD. Select
the interface to which data should be switched from the drop down list, or select “Off” and
the protocol switch will not respond to any incoming LAPD calls.
LAPB X
This parameter controls the switching of incoming X.25 calls received via LAPB X. Select the
interface to which data should be switched from the drop down list, or select “Off” and the
protocol switch will not respond to any incoming LAPB X calls.
LAPB X PVC
This parameter controls the switching of incoming X.25 calls received via an LAPB X PVC.
Select the interface to which data should be switched from the drop down list, or select
“Off” and the protocol switch will not respond to any incoming PVC calls on LAPB X.
XOT PVC
This parameter controls the switching of incoming X.25 calls received via an XOT PVC.
Select the interface to which data should be switched from the drop down list, or select
“Off” and the protocol switch will not respond to any incoming XOT PVC calls.
TCP XOT backup to interface
If any of the Switch from parameters has been set to XOT, and XOT is unavailable, this
parameter may be used to specify an alternative interface to switch the X.25 call to. Any of
the other interfaces may be chosen, or “None”. If “None” is chosen, then no backup call will
be attempted.
LAPD backup to interface
If any of the Switch from parameters has been set to LAPD, and LAPD is unavailable, this
parameter may be used to specify an alternative interface to switch the X.25 call to. Any of
the other interfaces may be chosen, or “None”. If “None” is chosen, then no backup call will
be attempted.
304
LAPB X backup to interface
If any of the Switch from parameters has been set to LAPB X, and LAPB X is unavailable,
this parameter may be used to specify an alternative interface to switch the X.25 call to.
Any of the other interfaces may be chosen, or “None”. If “None” is chosen, then no backup
call will be attempted.
VXN backup to interface
If any of the Switch from parameters has been set to VXN, and VXN is unavailable, this
parameter may be used to specify an alternative interface to switch the X.25 call to. Any of
the other interfaces may be chosen, or “None”. If “None” is chosen, then no backup call will
be attempted.
LAPD Parameters
Calling Prefix
This parameter specifies the call prefix to inserted in front of the NUA in calls being switched
to LAPD. For example, if the called NUA in the call being received by the LAPB 0 interface is
56565 and the call prefix is 0242 then the call placed on the LAPD interface is to NUA
024256565. Also, for calls in the reverse direction, if the prefix in the calling NUA matches
this parameter then it is removed from the calling NUA field.
D-Channel LCN
This is the value of the first LCN that will be assigned for outgoing X25 calls on LAPD.D-
Channel LCN Direction
Max VCs: Unlimited
This parameter sets the maximum number of Virtual Circuits (VCs) to be used on an LAPD
interface. When the maximum has been reached, then the backup call will take place
immediately (or the call will clear if there is no backup call). If this parameter is set to “0”,
there is no limit.
Default Packet Size
This is the default packet size for X.25 calls being switched onto LAPD. The default packet
size is 128, other possible values are 256, 512 or 1024 bytes.
Default Window Size
This is the default window size for calls being switched onto LAPD. The default window size
is 2, the valid range is 1 to 7.
LAPB Parameters
LCN
This is the value of the first LCN that will be assigned for outgoing X25 calls on LAPB.
LCN direction: Up Down
This parameter determines whether the LCN used for outgoing X.25 calls on LAPB is
incremented or decremented from the starting value.
Max VCs: Unlimited
This parameter sets the maximum number of Virtual Circuits (VCs) to be used on an LAPB
interface. When the maximum has been reached, then the backup call will take place
immediately (or the call will clear if there is no backup call). If this parameter is set to “0”,
there is no limit.
B-Channel Number:
This parameter specifies an ISDN number to be used for calls being switched in the direction
of LAPB 0 or LAPB 1.
305
Enable ENQ Char:
When this parameter is set to “On”, when an incoming call on LAPB is switched and the unit
connects to it, the X.25 switch sends a data packet on the LAPB X.25 SVC containing the
ENQ character.
LAPB 0 Default Packet Size: 128 256 512 1024
This is the default packet size for calls being switched onto LAPB 0. The default packet size
is 128, other possible values are 256, 512 or 1024 bytes.
LAPB 0 Default Window Size: 2 1 3 4 5 6 7
This is the default window size for calls being switched onto LAPB 0. The default window size
is 2, the valid range is 1 to 7.
LAPB 1 Default Packet Size: 128 256 512 1024
This is the default packet size for calls being switched onto LAPB 1. The default packet size
is 128, other possible values are 256, 512 or 1024 bytes.
LAPB 1 Default Window Size: 2 1 3 4 5 6 7
This is the default window size for calls being switched onto LAPB 1. The default window size
is 2, the valid range is 1 to 7.
LAPB 2 Default Packet Size: 128 256 512 1024
This is the default packet size for calls being switched onto LAPB 2. The default packet size
is 128, other possible values are 256, 512 or 1024 bytes.
LAPB 2 Default Window Size: 2 1 3 4 5 6 7
This is the default window size for calls being switched onto LAPB 2. The default window size
is 2, the valid range is 1 to 7.
IP Stream / XOT Parameters
IP Stream or XOT Remote IP Address:
For calls being switched in the direction of XOT, this parameter specifies the destination IP
address to be used for the outgoing XOT call. This is also used as the destination IP address
in the IP/UDP stream modes.
IP Stream or XOT Backup IP Address:
If the Switch from XOT to parameter is set to “XOT”, this is the IP address that the XOT call
will be switched to, in the event the original XOT IP address is unavailable.
IP Stream Port:
This parameter determines the IP port number used when IP stream or UDP stream are
selected as the parameter for any of the Switch from or Backup from parameters.
Note:
The XOT remote IP address and IP stream port parameters will be overridden by the values
in the NUA/NUI to IP addresses table if the call matches any entry in that table.
IP Length Header: Off On 8583 Ascii 4 byte On(inclusive)
When IP length header is “On”, a length indicator field is inserted at the start of each
packet. When set to “8583 Ascii 4 byte”, the IP length header will conform to the ISO 8583
format.
Source IP address interface: Auto Ethernet PPP
The default value for this parameter is “Auto”, which means that the source IP address of an
outgoing XOT connection on an un-NATed W-WAN link is the address of the PPP interface
assigned to W-WAN. This is because the XOT connection is initiated (automatically) within
the router and so does not originate from the local subnet (LAN segment to which the unit is
attached via the Ethernet interface).
306
However, this means that if you are routing traffic from the local subnet across a VPN tunnel
you would have to set up two Eroutes; one to match the local subnet address and one to
match the XOT source address (i.e. the address of the PPP interface associated with to the
wireless network).
By setting this parameter to “Ethernet” the unit will use the IP address of the Ethernet port
instead of that of the PPP interface so that you need only set up on Eroute.
X.25 Parameters
Don't switch facilities:
If this parameter is set to “Off”, the packet size and window size are only switched if they
need to, i.e. they specify a value different from what is currently being negotiated. If this
parameter is set to “On”, the facilities shall not be switched.
Don't strip facilities:
When set to “On” this parameter stops the X.25 switch from stripping packet size and
window size facilities as it switches an X.25 call. When set to “Off”, the X.25 switch will strip
facilities if the requested facilities match the defined defaults for that interface.
L2 Deactivation Clear Cause:
When one side of a switch call fails because layer 2 drops, the other side is usually cleared
with a clear cause 9 “out of order”. This parameter allows you to set this code to any value.
X25 Version: 84 88
This parameter allows you to switch between X.25 version 88, and X.25 version 84, in which
clear causes are always “0” when issued if the unit is the DTE.
Interpret no facilities on Call Accept as P7W2:
When this parameter is set to “On”, the X.25 switch will interpret any call accept packets
that do not include the window size (’W’) or packet size (’P’) as if the call accept has ’P7W2’
(i.e. a packet size of 128 bytes and a windows size of 2).
Notes on PAD Answering
Because the other interfaces can operate as normal, even when the switch is operating,
special care needs to be taken with regard to answering NUAs programmed on active PADs.
For example when a call is being received on a LAPD or LAPB interface, a PAD instance (or
remote configuration session) is capable of answering and terminating the call in preference
to the call being switched. This means that the PADs “Answering NUA” parameters should
be left blank to ensure that the unit’s PADs are not answering calls that need to be
switched. If you do want a PAD instance to answer a call then program the “Answering NUA”
field with as many digits as you can to ensure it only answers calls destined for that PAD.
The same precautions apply to the Allow CLI access from X.25 address parameter on
the Configuration - System > General page.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
X25sw 0 swfrlapb0 0,1,3- 10,12-15
(see below) Switch from LAPB 0 to
X25sw 0 swfrlapb0pvc 0-5,7-10,12-15
(see below) Switch from LAPB 0 PVC to
X25sw 0 swfrlapb1 0-2,4-10,12-15
(see below) Switch from LAPB 1 to
X25sw 0 swfrlapb1pvc 0-6,8-10,12-15
(see below) Switch from LAPB 1 PVC to
307
Entity
Instance
Parameter
Values
Equivalent Web Parameter
X25sw 0 swfrlapb2 0-10,13-15
(see below) Switch from LAPB 2 to
X25sw 0 swfrlapb2pvc 0-10,12, 14, 15
(see below) Switch from LAPB 2 PVC to
X25sw 0 swfrlapd 0, 2-10,12-15
(see below) Switch from LAPD to
X25sw 0 swfrxot 0-3,5-10,12-15
(see below) Switch from XOT (TCP) to
X25sw 0 swfrxotpvc 0-7,9,10,12-15
(see below) Switch from XOT PVC to
X25sw 0 callprefix <NUA> Calling Prefix
X25sw 0 dlcn 0-65535 D-Channel LCN
X25sw 0 dlcnup off, on
Off = Down
On = Up D-Channel LCN Direction
X25sw 0 dmaxvc 0-65535 Max VCs
X25sw 0 lapb0ppar
7,8,9,10
7=128
8=256
9=512
10=1024
Default Packet Size
X25sw 0 lapb0wpar 1-7 Default Window Size
X25sw 0 blcn 0-65535 LCN
X25sw 0 blcnup off, on
Off = Down
On = Up LCN direction
X25sw 0 bmaxvc 0-65535 Max VCs
X25sw 0 bnumber ISDN number B-Channel Number
X25sw 0 benqcon off, on Enable ENQ Char
X25sw 0 lapdppar
7,8,9,10
7=128
8=256
9=512
10=1024
LAPB 0 Default Packet Size
X25sw 0 lapdwpar 1-7 LAPB 0 Default Window Size
X25sw 0 lapb1ppar
7,8,9,10
7=128
8=256
9=512
10=1024
LAPB 1 Default Packet Size
X25sw 0 lapb1wpar 1-7 LAPB 1 Default Window Size
308
Entity
Instance
Parameter
Values
Equivalent Web Parameter
X25sw 0 lapb2ppar
7,8,9,10
7=128
8=256
9=512
10=1024
LAPB 2 Default Packet Size
X25sw 0 lapb2wpar 1-7 LAPB 2 Default Window Size
X25sw 0 ipaddr IP address IP Stream or XOT Remote IP
Address
X25sw 0 buipaddr IP address IP Stream or XOT Backup IP
Address
X25sw 0 ip_port 0-65535 IP Stream Port
X25sw 0 iphdr
0,1,2
0=Off
1=On
2=8583 Ascii 4 byte
IP Length Header
X25sw 0 srcipadd Interface number
0-65535 Source IP address interface
X25sw 0 srcipent <blank>, PPP, ETH Source IP address interface
X25sw 0 noswfac off, on Don't switch facilities
X25sw 0 nostripfac off, on Don't strip facilities
X25sw 0 l2deactcc 0-65535 L2 Deactivation Clear Cause
X25sw 0 x25ver84 off, on
Off=88
On=84 X25 Version
X25sw 0 accdefp7w2 off, on Interpret no facilities on Call
Accept as P7W2
Interfaces are coded as follows:
Parameter value
Interface type
0 None
1 LAPD
2 LAPB 0
3 LAPB 1
4 XOT
5 LAPD X (actual instance is determined by NUA)
6 LAPB 0 PVC
7 LAPB 1 PVC
8 XOT PVC
9 TCP stream
309
Parameter value
Interface type
10 UDP stream
12 LAPB 2
13 LAPB 2 PVC
14 VXN
15 SSL
Configuration - Network > Protocol Switch > CUD Mappings
Protocol Switch CUD mappings allow you to map an incoming call’s CUD (call user data)
from one value to another. The PID (protocol identifier) portion of the CUD (if present) is
maintained from input to output and is not involved in the comparison.
The Configuration - Network > Protocol Switch > CUD Mappings web page displays a
table with four columns in which you can specify the CUD In values, corresponding CUD Out
values and to which interfaces the mappings should be applied. The “interface” field defines
which output interfaces this mapping applies to. Wildcard characters are allowed, and In
each case the interface type to which the mapping applies can be selected from “ANY”,
“LAPD”, “LAPB0”, “LAPB1” “LAPB2” or “XOT”.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
cudmap 0-9 cudfrom 0-65536 CUD In
cudmap 0-9 cudto 0-65536 CUD Out
cudmap 0-9 Interface
0,1,2,3,4,12
0=Any
1=LAPD
2=LAPB 0
3=LAPB 1
4=XOT
12=LAPB 2
Interface
310
Configuration - Network > Protocol Switch > IP Sockets to Protocol Switch
This page contains a table that allows you to enter a series of IP Port numbers and X.25 Call
strings as shown below. It is used to configure the unit so that IP data can be switched to
any of the protocols support by the protocol switch includingX.25. For example data that is
received on a TCP connection can be forwarded over SSL, XoT or a UDP stream. The only
columns that must be filled out are “Port” and “Number of Sockets”.
This table is duplicated in the Configuration - Network > Legacy Protocols > X.25 > IP
to X.25 Call section as it can also be used to convert an incoming TCP connection to an
X.25 session to be answered by PAD without using the protocol switch. It is included at this
point in the web user interface as a convenience in case the table is being used in
conjunction with PAD and not the protocol switch.
IP Port
The IP Port field is used to setup the port numbers for those IP ports that will “listen” for
incoming connections that are to be switched over X.25 or other protocol. In the case of
switching to X.25, when such a connection is made the unit will make an X.25 Call to the
address specified in the X.25 Call field. Once this call has been connected, data from the
port will be switched over the X.25 session.
Number of Sockets
The Number of Sockets field is used to select how many IP sockets should simultaneously
listen for data on the specified port. The number of available IP sockets will depend on the
model you are using and how many are already in use (see note below).
X25 Call
The X.25 call field may contain an X.25 NUA or NUI or one of the X.25 Call Macros defined
on the Configuration - Advanced applications > X25 > Macros page.
PID
The PID (Protocol Identifier), field specifies the PID to use when the unit switches an IP
connection to X.25. The PID (protocol ID) field takes the format of four hexadecimal digits
separated by commas, e.g. 1,0,0,0, at the start of the Call User Data field in the X.25 call.
311
Confirm Mode
When confirm mode is set to “On” then the incoming TCP socket will not be successfully
connected until the corresponding outgoing call has been connected. The incoming TCP
socket will trigger the corresponding outgoing call either to a local PAD instance or to
whatever is configured. The effect of this mode is that the socket will fail if the outbound call
fails and so may be useful in backup scenarios. In addition it will ensure that no data is sent
into a “black hole”. (When this setting is not enabled data that is sent on the inbound TCP
connection before the outbound connection has been successful can be lost.)
RFC 1086 Mode:
RFC 1086 specifies a mode of operation in which the IP socket answers and then with a
simple protocol in the socket identifies the X.25 address and other X.25 call setup
parameters to be used. Then when the X.25 call parameters have been identified the X.25
call is made and if successful then data is then switched between the X.25 call and the IP
socket. The protocol will select whether incoming or outgoing support is required.
IP length header
When IP length header is “On”, the IP length indicator field is inserted at the start of each
packet. When set to “8583 Ascii 4 byte”, the IP length header will conform to the ISO 8583
format.
In the example above, 3 IP sockets will “listen” for an incoming connection on IP Port 2004.
Once connected they will each will make an X.25 Call to “jollyroger”. The unit will recognise
that “jollyroger” is a pre-defined macro (as illustrated below), and will translate it into an
X.25 Call to address 32423 with the string “x25 data” included as data in the call. The
outgoing X.25 call(s) will be made over whichever interface is specified by the Switch from
XOT(TCP) to parameter on the Configuration - Network > Protocol Switch page.
Note:
At the top of the page the total number of sockets available and the number currently free
is shown. Care should be take not to allocate too many of the free sockets unless you are
confident that they are not required for other applications.
312
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ipx25 n ip_port 0 - 65535 IP Port
ipx25 n nb_listens 0 – software dependant
max Number of Sockets
ipx25 n x25call NUA, NUI or X.25
macro name X25 Call
ipx25 n pid hex numbers PID
ipx25 n cnf_mode 1 = enabled, 0 = disabled Confirm Mode
ipx25 n rfc1086_mode 1 = enabled, 0 = disabled RFC 1086 Mode
ipx25 n iphdr 0=Off
1=On
2=8583 Ascii 4 byte IP length header
313
Configuration - Network > Protocol Switch > NUA to Interface Mappings
This page contains a table that allows you to enter a series of X.25 NUA or NUI values along
with IP addresses/Ports to which they should be mapped if you need to override the default
settings in the Configuration - Network > Legacy Protocols > X.25 > NUA/NUI Interface
Mappings page.
So, if in the Protocol Switch configuration you had configured the unit to switch from LABP 0
to TCP, the IP Address and Port values would normally be determined from the XOT Remote
IP address and IP stream port parameters. However, having set up the NUA/NUI to IP
addresses table as shown in the example above, if an X.25 call with NUA of value “222” is
received on LAPB 0 it will be switched onto a TCP socket using IP address “1.2.3.4” on port
45 instead of those settings configured on the Configuration - Network > Legacy Protocols >
X.25 > NUA/NUI Interface Mappings page.
Similarly, NUIs can also be matched and in this example a call with NUI of value “test” will
be switched onto a TCP socket using IP address “100.100.100.1” on port 678.
All 3 comparison fields, NUA, NUI and Call Data, can use the wildcard matching characters
“?” and “*”. In the example shown above when an X.25 call is received with either the NUA
having “1234” followed by any 2 digits or a call being received with call user data with any 4
characters followed by “aa” then the call is switched to a TCP socket on address
100.100.100.52 on port 4001.
When a connection has been successfully established and data is being switched from the
X.25 call to the socket and from the socket to the X.25 connection, it can be terminated by
either the socket closing or the X.25 call clearing.
If the connection terminates because of an incoming X25 Call Clear packet then the switch
will terminate the socket connection. If the connection terminates because the socket is
closed then the switch will clear the X.25 call by transmitting a CALL CLEAR packet.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
nuaip 0-255 nua 0-65536 NUA
nuaip 0-255 ipaddr IP address IP Address
nuaip 0-255 ip_port 0-65536 IP Port
nuaip 0-255 swto 0-10, 12-15
(see table below) Interface
nuaip 0-255 buswto 0-10, 12-15
(see table below) Backup Interface
314
Interfaces are coded as follows:
Parameter Value
Interface Type
0 Default
1 LAPD
2 LAPB 0
3 LAPB 1
4 XOT
5 LAPD X (actual instance determined by NUA)
6 LAPB 0 PVC
7 LAPB 1 PVC
8 XOT PVC
9 TCP stream
10 UDP stream
12 LAPB 2
13 LAPB 2 PVC
14 VXN
15 SSL
Configuration - Network > Protocol Switch > NUA Mappings
Protocol switch NUA mappings allow you to redirect specified NUAs to alternative NUAs for
switched X.25 calls. Up to twenty “NUA In” to “NUA Out” mappings are available. These
mappings alter the called NUA field in any X.25 call. The comparison uses “tail” matching,
so that only the rightmost digits in the NUA are compared with the table entry.
This page displays a table with four columns in which you can specify the NUA In values,
corresponding NUA Out values, to which interfaces the mappings should be applied, and
whether the mapping should apply if the unit is making the call, receiving the call, or both.
For example, if the called NUA is 123456789345 and there is an NUA In table entry of 9345,
with Called/Calling set to either “Both” or “Called”, then this will match, and the entire
called NUA will be replaced with the corresponding NUA Out entry. In each case the
interface type to which the mapping applies can be selected from “ANY”, “LAPD”, “LAPB0”,
“LAPB1” “LAPB2” or “XOT”.
315
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
X25map 0-19 nuafrom 0-65536 NUA In
X25map 0-19 nuato 0-65536 NUA Out
X25map 0-19 interface
0,1,2,3,4,12
0=Any
1=LAPD
2=LAPB 0
3=LAPB 1
4=XOT
12=LAPB 2
Interface
X25map 0-19 ca_or_ci
0,1,2
0=Both
1=Called
2=Calling
Called / Calling
316
Configuration – Alarms > Event Settings
The router maintains a log of events in the “LOGCODES.TXT” pseudo file. When an event of
a specified (or lower priority) level occurs, a syslog message, an email alert or SMS alert
(on W-WAN models) can be sent to a pre-defined address.
The Configuration > Alarms > Event Settings folder opens to show the following
parameters:-
Only log events with a log priority of at least n
This parameter enables a filter that ensures that only events having a specified severity or
lower level are logged.
Do not log the following events
This is a numerical list of comma-separated values specifying events to be excluded from
the log. These numerical values can be found in the eventlog.txt file on the router.
After power up, wait s seconds before sending Emails, SNMP traps, SMS or Syslog
messages
This parameter specifies the delay, in seconds, after power-up that the router should wait
before sending any alert messages. This is useful in circumstances where the sending of
those items would fail if sent too soon after the unit powers up because the underlying
interface that would be used has not completed initialisation.
Include event number in the event log and Email, SNMP traps or Syslog messages
When this option is enabled, event numbers from the “logcodes.txt” file will be included.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
event n loglevel
0 – 9
0 none
1 low
9 high
Only log events with a log
priority of at least n
event n ev_filter Comma separated list
of event numbers Do not log the following events
event n action_dly Number of seconds
(e.g. 60)
After power up, wait s seconds
before sending Email, SNMP
traps, SMS or Syslog messages
event n incevnums 0,1 Include event number
317
Configuration – Alarms > Event Settings > Email Notifications
To use the email alert facility, you must first ensure that a valid Dial-out number, Username
and Password have been specified and that the SMTP parameters have been set correctly.
The Dial-out number, Username and Password parameters are to be found in the
Configuration – Network > Interfaces > Advanced > PPP n pages where n is the
relevant interface number.
The SMTP parameters are to be found under Configuration – Alarms > SMTP Account.
Send email notifications
This checkbox simply enables the display of the configurable parameters when checked.
Send an email notification when the event priority is at least n
This is the lowest priority event that will generate an email alert message. For example,
if this value is set to 6, only events with a priority of 6 or lower (7, 8 or 9) will trigger an
automated email alert message. To disable email alarms, set this value to 0.
Send a maximum of n emails per day
This parameter sets the limit on the number of emails that may be sent during any 24
hour period. The intention is to prevent excessive alerts being sent when the event
trigger value is set to a high priority / low value (1, 2 or 3 for example), i.e. a value that
results in a large number of automated email alert messages being generated.
n emails have been sent today
This is a status message, indicating how many emails have been sent during the last 24
hour period.
Use email template file
This field contains the name of a template file that will be used to form the basis of any
email alert messages generated by the event logger. The default template is a file called
“EVENT.EML” that is stored within the compressed .web file. Alternative templates may
be created, but in order to be valid, these must have the “.EML” file extension and be
stored in the normal file directory. A new template having the name “EVENT.EML” will
take precedence over the predefined “EVENT.EML” template but it is recommended that a
new name is used, such as “event1.eml”.
Email To
This text field is the standard email address format for the intended recipient of the alert.
Email From
This text field should contain a valid email address that will be accepted by the SMTP
server as being authorised to send email.
Email Subject
This text field should contain a short description of the email content.
318
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
event n etrig 0 – 9
0 disables sending
alerts
Send an email notification when
the event priority is at least n
event n emax 0 – 255 Send a maximum of n emails
per day
event n etemp The name of a
template file. Default
is EVENT.EML Use email template file
event n to A valid email address,
e.g.
you@yourdomain.com Email To
event n from A valid email address Email From
event n subject A brief description of
the content of the
email Email Subject
Configuration – Alarms > Event Settings > SNMP Traps
The router firmware supports the use of SNMP, with the ability to generate traps. In order
for this facility to function, a SNMP trap server will need to be configured. SNMP trap server
configuration is to be found under Configuration – Remote Management > SNMP >
SNMP Traps.
Send SNMP Traps
This checkbox, when checked enables the display of the following parameters:
Send a SNMP Trap when the event priority is at least n
This is the lowest priority event that will generate an SNMP trap message. For example, if
this value is set to 6, only events with a priority of 6 or lower (7, 8 or 9) will trigger an
automated SNMP trap message. To disable SNMP traps, set this value to 0.
Send a maximum of n SNMP taps per day
This parameter sets the limit on the number of emails that may be sent during any 24
hour period. The intention is to prevent excessive alerts being sent when the event
trigger value is set to a high priority / low value (1, 2 or 3 for example), i.e. a value that
results in a large number of SNMP trap messages being generated.
n SNMP traps have been sent today
This is a status message, indicating how many SNMP trap messages have been sent
during the last 24 hour period.
319
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
event n trap_trig 0 – 9
0 disables sending
alerts
Send a SNMP Trap when the
event priority is at least n
event n trap_max 0 – 255 Send a maximum of n SNMP
traps per day
Configuration – Alarms > Event Settings > SMS Messages
Note:
This option is only available on routers with W-WAN capability.
This section has three identical rows, each of which controls the setting of the SMS alert
messages.
Send SMS messages to
This field should contain the destination telephone number (MSISDN) for SMS alert
messages. The format for this field is the international dialling code followed by the number,
but should not contain a ‘+’ prefix. For example, UK mobile 07871 445677 would be
447871445677
If the event priority is at least n
This numeric input field sets the trigger level for the alert message. If, for example, this
field is set to the value 6, only events having a priority of 6 or higher will trigger an
automated SMS alert. Setting this field to 0 disables the sending of SMS alerts.
Use SMS template
This field contains the name of the template file that will be used to form the basis of any
alarm messages generated by the event logger. The default template file is a test file called
“EVENT.SMS” that is stored in the compressed .web file. A new template may be created,
and if named “EVENT.SMS” will take precedence over the pre-defined “EVENT.SMS”
template but it is recommended that a new name is used, such as “event1.sms”. Templates
should use the “.SMS” file extension.
Send a maximum of n SMS messages per day
This parameter limits the number of SMS alert messages sent by the router in any one day.
n SMS messages have been sent today
This is a status message, indicating how many SMS alert messages have been sent during
the last 24-hour period.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
event n sms_to A valid mobile number
e.g. 447871445677 Send SMS messages to
event n sms_trig 0 – 9 If the event priority is at least n
event n sms_to2 A valid mobile number
e.g. 447871445677 Send SMS messages to
event n sms_trig2 0 – 9 If the event priority is at least n
event n sms_to3 A valid mobile number Send SMS messages to
320
Entity
Instance
Parameter
Values
Equivalent Web Parameter
e.g. 447871445677
event n sms_trig3 0 – 9 If the event priority is at least n
event n sms_temp A valid mobile number
e.g. 447871445677 Use SMS template
event n sms_max 0 – 255 Send a maximum of n SMS
messages per day
Configuration – Alarms > Event Settings > Local Logging
A secondary log file can be created on a USB flash drive and events will be appended to this
log file. This facility is useful if an extended logging period is required where, the normal
eventlog.txt file would overwrite early events before the operator has had a chance to view
them. The secondary log file can be limited in size or allowed to fill the USB flash drive.
Once the log file is full, earlier events will be pruned from the end of the file to allow new
events to be added.
Local Drive to log to
This parameter determines the drive letter where the USB flash drive is located. This is
designated “u” for a USB drive.
Log filename
This specifies the name of the file for the secondary event log.
Log size
This field specifies the maximum size of the log file in kilobytes.
XML logs
On platforms that support it, event logs can be saved in XML format. This field specifies the
size of the XML log file in kilobytes. The files created will be named EVXML1.XML,
EVXML2.XML etc.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
event n logdrive Drive letter, e.g. “u”
for USB flash drive Local drive to log to
event n logfile Name of the file
e.g. mylog.txt Log filename
event n logsizek Size of log in kilobytes
e.g. 1048576
Which is 1MB Log size
event n xmllogs None
321
Configuration – Alarms > Event Settings > Syslog Messages
As well as logging events to an internal log file and to a file on a USB flash drive, the router
can log events to a Syslog server.
This section describes how to configure the router to send Syslog messages to a Syslog
server.
Send Syslog messages
When this checkbox is checked, the following options are displayed:
Send a Syslog message when the event priority is at least n
This is the lowest priority event that will generate a syslog message. For example, if this
value is set to 6, only events with a priority of 6 or lower (7,8 or 9) will trigger an
automated syslog message. To disable syslog messages, set this value to 0.
Send a maximum of n Syslog messages per day
This parameter sets the limit on the number of syslog messages that may be sent during
any 24 hour period. The intention is to prevent excessive alerts being sent when the event
trigger value is set to a high priority / low value (1, 2 or 3 for example), i.e. a value that
results in a large number of syslog messages being generated.
n Syslog messages have been sent today
This is a status message that indicates how many Syslog messages have been sent in the
last 24 hour period.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
event n syslog_trig 0 – 9 Send a Syslog message when
the event priority is at least n
event n syslog_max 0 - 255 Send a maximum of n Syslog
messages per day
Configuration – Alarms > Event Settings > Syslog Server n
This section describes the configuration of the router for defining the Syslog server to send
messages to.
Syslog server IP address
This parameter sets the IP address of the server.
Port
This parameter sets the port to use.
Note:
The following three items (Mode, TCP timeout and Route) only appear on routers that have
the TCP logging software option enabled. This is not a commonly used option.
Mode
There are currently three supported communication modes, these are selected from a drop-
down list and are TCP, UDP and a protocol described in RFC 3195.
TCP timeout s seconds
For TCP communications, this parameter sets the timeout on the socket.
Route using
322
These radio buttons selects which method of establishing a route to the server should be
used.
Routing table
When this radio button is selected, the routing table is used to determine the interface that
will be used to transmit the syslog message.
Interface x,y
If the routing table is not to be used, an interface type (PPP or Ethernet) may be selected
from the drop-down selection box and the interface instance number may be typed into the
adjoining text entry box. The route is then determined by that interface.
Priority
The checkboxes listed in this section select the event priorities that should cause the event
to be logged.
Facility
The checkboxes listed in this section select which of the router facilities should be logged.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
syslog n server IP address Syslog server IP address
syslog n port IP port number Port
syslog n mode UDP, TCP, RFC3195 Mode
syslog n tcp_to Timeout in seconds,
e.g. 86400 TCP timeout s seconds
syslog n source_ent PPP, ETH Interface x,y
x = Interface type
syslog n source_add 0 - 4 Interface x,y
y = interface number
syslog n priority
Hyphen separated
0 – 7
Comma separated
0,3,5
or ‘all’
Priority checkboxes
syslog n facility
Hyphen separated
0 – 23
Comma separated
4,3,5,10,15,22
or ‘all’
Facility checkboxes
323
Configuration – Alarms > Event Logcodes
This page allows you to edit the logcodes used to describe events entered in the
“EVENTLOG.TXT” pseudo file. If a change is made to the logcodes.txt file, the changes will
be saved in the file logcodes.dif so when a firmware upgrade is performed the changes to
the logcodes are retained.
The page that appears under the blue bar initially shows a table containing the Event
descriptions and reason. Clicking on an item shown in bright blue (an HTML link) causes a
configuration page associated with that item to be opened. The newly-opened page allows
that item to be configured. The configuration options shown on that page are described
below.
Event
This is not a configurable parameter; it is simply the event number, displayed for
information only. This is the number to refer to when filtering events in the event log
settings Configuration – Alarms > Event Settings.
Description
This field is a description of the event code. Clicking on a link in this field brings up the
configuration page associated with that event.
Filter
This parameter is for information only. If event filtering is applied to an event, the
associated filter is shown as “On”. This is a result of enabling the parameter ‘Do not log this
event’ as described below.
Event Priority
This parameter controls the priority of the event and is used to determine whether an event
will trigger email, SMS messages or SNMP traps.
Reasons
The reason why the event occurred. Not every event has a list of reasons.
Reason Priority
This parameter is for information only.
Attachment List ID
This is just a fixed list of values that may be used to conveniently refer to the associated list
of files to attach to an email.
Files
This text entry box allows the user to type in a comma-separated list of names for the files
that should be attached to an email.
324
Configuration – Alarms > Event Logcodes > Configuring Events
This page controls the configuration of the event that is displayed in bold font at the top of
the page, just below the blue title bar.
Do not log this event
When checked, this checkbox disables logging of the event.
Note:
This parameter is not saved in the logcodes.txt file but in the config.dan file. This means
that after changing this parameter, the changes must be saved by clicking the save changes
link when prompted (this appears after clicking the “Apply” button). Clicking the Save All
Event Code Changes will not have the desired effect.
Log Priority
This parameter sets the priority of the event to determine whether the event will trigger
emails, SMS messages or SNMP traps. 0 = disabled, 1 = highest priority, 9 = lowest priority
Alarm Priority
If the above “Inherit alarm priority from event” checkbox is not checked, this parameter
selects the priority of the reason. Valid values are 0 to 9.
Alarm Priority is dependent on the event being logged by Entity
Selecting this checkbox makes the priority conditional on which system entity triggered the
event (e.g. ethernet) and enables the following two configuration options:
Entity
This drop-down selection box contains a list of the system entities.
All
Selecting this radio button causes all of the system entities
Instance
Selecting this radio button enable a text entry box that allows the user to enter the
instance of the selected entity.
Priority only applies to
This configuration section comprises a set of checkboxes, each checkbox controlling whether
the priority is applied to that interface instance. So for example, to apply the priority to PPP
interface 1, click on the checkbox labelled PPP 1.
Store a snapshot of the Traffic Analyser trace on the log drive
Selecting this checkbox causes a snapshot of the analyser trace to be stored on the USB
flash drive
If this event creates an Email alarm
Attach a snapshot of the Traffic Analyser trace
Checking this checkbox will cause a snapshot of the analyser trace to be attached to the
email.
After this event
Leave the Analyser trace
This option will leave the analyser trace unchanged.
325
Freeze the Analyser trace
This selection will cause the analyser to be “frozen”, i.e. no more logging will take place
until the email has been sent.
Delete the Analyser trace
This selection will cause the analyser trace to be deleted once the email has been sent.
Attach a snapshot of the Event Log
Selecting this checkbox will cause the eventlog to be attached to the email.
After this event
Leave the Event Log
Selecting this radio button will leave the event log unchanged.
Delete the Event Log
Selecting this radio button will cause the event log to be deleted after the email has been
sent.
Attachment List ID
This text entry box allows the user to specify which files to attach to the email. The ID
refers to the table of files.
Syslog Priority
This drop-down selection box contains the following options:
Emergency, Alert, Critical, Error, Warning, Info, Debug
Syslog Facility
This drop-down selection box contains the following options:
Kernel, User, Mail, System, Auth, Syslog
Configuration - Alarms > Event Logcodes > Configuring Reasons
The page invoked by selecting a reason link in the event logcodes table is very similar to the
Configuring Events page but with the following differences.
There is no “Do not log this event” checkbox. There is the following additional parameter:
Inherit alarm priority from event
Selecting this checkbox causes the following “Alarm Priority” parameter to be disabled and
cause the priority to be the same as the event that triggered it. The “Alarm Priority”
parameter is the same as in the “Configuring Events” page.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
event n ev_filter Comma separated
list of event codes Do not log this event
There are no CLI commands for editing Event logcodes. However, it is possible to edit the
“LOGCODES.TXT” file which holds all the logcode information. For details on how to do this,
refer to the “Event Log” section of this manual.
326
Configuration - Alarms > SMTP Account
In order for the router to successfully send emails, an email account (SMTP) must be
available. This section describes the configuration of the router in order to use the email
account that has been set up for it.
Hostname or IP address of your SMTP server
This parameter sets the IP address or hostname of the SMTP mail server, e.g.
smtp.myisp.com. Sending email requires a connection to the Internet so depending upon
how the router is configured, it may be necessary to check that the PPP configuration allows
a connection to the ISP or external SMTP mail server.
Port
The Simple Mail Transfer Protocol (SMTP) uses TCP port 25, which is the default for this
parameter. If the mail server uses a different TCP port, enter it here.
Username
Email accounts are controlled by requiring a username and password in order to send and
receive mail. This field is where the account username is set. This information will be
provided by the administrator of the email server.
Password
This field is where the account password is set.
Confirm Password
This field is used to re-enter the password. The two passwords are compared to check that
they are the same and that there hasn’t been a typographical error when entering them.
This check is used since the password characters are not echoed and so the usual visual
feedback is not available.
Display “Email From” as
This parameter specifies the text to be used as the “MAIL FROM” parameter which forms
part of the protocol when connecting to the email server. Most SMTP servers will accept an
empty string whereas others require that this parameter is present. It may be necessary to
consult with the SMTP server administrator (or ISP) to determine whether or not this
parameter is required.
Attachment size limit n Kbyte, Mbyte
Some email service providers place a limit on the size of an email attachment that they will
accept, this parameter can be used to ensure that the limit is not exceeded. The inbuilt
traffic analyser and event logger can generate substantial files and it may be required that
these files are truncated when sent as email attachments. The size is specified in kilobytes,
so for example, setting this limit to 250 will truncate the attachment to 250kB before
transmission. Setting the size to 0 means that no limits are imposed.
If the email template does not contain one, use “Reply To” address
This address will be inserted into the email header if it is found that no reply address exists
in the appropriate email template. If the email template does contain an address in the
“reply to:” field, that will override the default reply address.
Route using Routing table, Interface x,y
When selected, the routing code is used to determine the outbound interface and that
interface will determine the source IP address.
327
If the “Route using routing table” option is not selected, the settings in the interface and
interface instance text boxes are used to determine the outbound interface and source IP
address. These are selected from the drop-down selection box and are None, PPP and
Ethernet.
Resend the email after s seconds if the first attempt fails
This checkbox and associated text entry box enable the retry mechanism. If the first
attempt to deliver the email fails, the router will wait the specified number of seconds
(which must be non-zero) before making another attempt.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
smtp n server Valid hostname or
IP address
Hostname or IP address
mailserver.isp.com
122.134.156.178
smtp n port Valid port number,
e.g.
25 Port n
smtp n username
Free text field
containing a valid
account username
e.g.
my_account
Username
smtp n password
Free text field
containing account
password, e.g.
my_password
Password
smtp n mail_from Free text field Display “Email From” as
smtp n att_lim 0 – 65535 Attachment size limit
This CLI value is entered in
Kilobytes only.
smtp n reply_to Free text field If the email template does not
contain one,
use "Reply To" address
smtp n userouting 0,1 Route using routing table
smtp n ll_ent Blank,PPP,ETH Route using Interface x,y
x = Interface type
smtp n ll_add 0 - 255 Route using Interface x,y
y = interface number
smtp n retry_dly 0 - 255 Resend the email after s seconds if
the first attempt fails
328
Configuration – System > Device Identity
This configuration section describes how to configure the identity of the router.
Description
This free-form text input field is for entering a description of the router that can be used to
uniquely identify it. This is useful where there are a large number of routers on a site and a
descriptive name would be easier to use when referring to the router, rather than having to
use the serial number or other unique parameter. This parameter is used by the SNMP
function within the router.
Contact
This is another SNMP parameter which is used to enter a contact name.
Location
This SNMP parameter sets a location string for the router, which again may be helpful when
referring to a particular router within a site or for identifying a particular site.
Device ID
This field is taken from the iDigi configuration and should not normally need to be changed.
When using iDigi to manage the router, the configuration procedure assigns a device ID to
the router. The device ID is a 64-byte value, with each 8-byte section separated with a “-“
character. Valid digits are upper case hexadecimal. The first 16 digits (reading from left to
right) are normally set to “0” and the second 16 comprise the MAC address of the primary
Ethernet interface and the digits “FF” in order make up the full 8-digit. The following device
ID illustrates the format:
00000000-00000000-001122FF-FF334455
This example uses the MAC address 00:11:22:33:44:55.
Router Identity
This is a string of up to 20 characters that can be used to identify the router in email alert
messages generated by the event logger. This is also the prompt string that appears when
logging on to the router remotely. The factory configuration uses the character sequence
“%s” which gets replaced by the serial number of the router when the unit identity is
displayed. This character sequence may be used when creating a custom identity for the
router. For example, if the serial number of the router is 012345, entering the string
“My_Router_%s>” would show the prompt “My_Router_012345>” during a remote
login.
Hostname
This parameter assigns a hostname to the local IP address of the router.
Secondary Hostname
This parameter allows a second hostname to be assigned to a router. This is associated with
the secondary IP address.
329
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
snmp n Name Free text field Description
snmp n Contact Free text field Contact
snmp n Location Free text field Location
cmd n Unitid Free text field Router Identity
cmd n Hostname Free text field Hostname
cmd n sec_hostname Free text field Secondary Hostname
Configuration – System > Date and Time
The router keeps track of calendar time using an internal real time clock (RTC) device. The
clock is used to time/date stamp logfiles. The date and time configuration pages allow the
system time to be set and maintained. Since maintaining an accurate system clock can be
important for routers on the Internet, NTP and SNTP services are supported and the router
may be configured to use one of these protocols for maintaining the internal system time.
The router uses the 24-hour clock.
Current system time
The current system time appears at the top of this web page.
Manually set the time h hours, m minutes s seconds, M month D day Y year
These parameters are set using the associated drop-down selection menus.
Hours
Select from the drop-down list to set the hours.
Minutes
Select from the drop-down list to set the minutes.
Seconds
Select from the drop-down list to set the seconds.
(This may have limited use due to human reaction times).
Month
Select from the drop-down list to set the month.
Day
Select from the drop-down list to set the day.
Year
Select from the drop-down list to set the year.
Set
Click this button to cause the above settings to take effect.
330
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
n/a n/a time hh [mm [ss [DD
[MM [YYYY]]]]] Manually set the time
Configuration – System > Date and Time > Autoset Date and Time
Do not auto-set the system time
This is the system default and this radio button will appear filled in when the unit is new
unless a different default configuration has been supplied. Click this radio button to close
the SNTP or NTP configuration pages.
Auto-set the system time
Selecting this radio button expands the page to include the SNTP settings. These are
described below.
SNTP server
The hostname or IP address of the desired SNTP server is entered here.
Check on Power-up
This checkbox, when checked, will cause the router to attempt to connect to the SNTP
server every time it boots.
Update every h hours
Enter the interval, in hours that the router should wait between updating the system clock.
Randomly between s1 and s2 seconds
It is possible to use a random update interval rather than a fixed interval. There are two
text-entry boxes for this purpose, enter the minimum interval into the left-hand box and the
maximum desired interval into the right-hand box. Selecting the random update will clear
the fixed interval.
Offset from GMT
This parameter should be set to + or - the number of hours the unit’s time should be ahead
or behind Greenwich Mean Time.
Update for Daylight Saving Time.
When checked, this checkbox causes the following parameters to appear, the router will
then use those settings to automatically adjust the system time to ensure that local daylight
saving is used.
Start
Month
Use this drop-down selection box to select the month in which to switch to daylight saving
time.
Day
Use this drop-down selection box to select the day on which to switch to daylight saving
time.
Hour
Use this drop-down selection box to select the hour at which to switch to daylight saving
time.
331
End
Month
Use this drop-down selection box to select the desired month in which to switch back to
GMT (UTC).
Day
Use this drop-down selection box to select the desired day on which to switch back to GMT.
Hour
Use this drop-down selection box to select the desired hour at which to switch back to GMT.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
sntp n server Valid hostname or
IP address
sntp.timeserve.org SNTP Server
sntp n pwrchk 0,1 Check on Power-up
0 = Off
1 = On
sntp n interval 0 – 255 Update every h hours
Default = 24
sntp n randintsecs 0 - 86400
randomly between s1 and s2
seconds
Use format [s1,s2]
eg min 50, max 500 would be:
[50,500]
sntp n offset -12 - +13 Offset from GMT
sntp n dstonmon 0 – 12 Start: Month
Update for Daylight Saving Time
0 disables daylight saving
sntp n dstonday 0 - 31 Start: Day
sntp n dstonhr 0 - 23 Start: Hour
sntp n dstoffmon 0 - 12 End: Month
sntp n dstoffday 0 - 31 End: Day
sntp n dstoffhr 0 - 23 End: Hour
sntp n ntp 0,1 0 = SNTP
1 = NTP
Default = OFF
Use NTP for greater accuracy
Selecting this checkbox expands the page to show the NTP settings. These are described
below.
NTP is much more accurate than SNTP, with NTP an accuracy of 200 microseconds (1/5000
second) can be achieved. The NTP functionality is in accordance with RFC1305.
332
Up to 4 remote peers can be configured, all the peers are polled at intervals and the “best”
peer is selected for using as the time source.
SNTP should be configured prior to using NTP. The router will calculate the accuracy of the
NTP time servers over a period of time (up to 2 hours), once the drift compensation is
calculated the NTP client will be used.
The drift compensation value will be stored in NVRAM and written to the config.da0 file, if
the router looses power or is rebooted it will not need to re-calculate the accuracy of the
NTP servers again. The compensation value is constantly monitored to ensure it remains
correct.
Note:
If SNTP is used the accuracy of around 1 second is achieved.
If NTP is used 200 microsecond accuracy can be achieved.
Not all models support NTP – this option will only appear for models that do.
Initial Drift Compensation n ppm
NTP incorporates compensation for clock drift. If this parameter is known, it can be entered
here. Otherwise, the router will calculate this value over a period of time. Once calculated,
the value will be displayed in the text box.
Clock Precision Limit
Select the clock precision limit from the drop-down selection box.
Disable NTP when interface x,y is out of service
If the specified interface is out of service, the NTP is disabled until the interface is available
again.
NTP Servers 1 - 4
The router has the capability of configuring up to four NTP server connections. The more
servers that are used, the more accurate the time setting will be. The following section
describes the configuration of the connections.
NTP Server 1/2/3/4 Hostname
This field sets the NTP server hostname or IP address.
Broadcast Mode
When enabled, the NTP client will operate in a different manner. Rather than sending out an
NTP client message and expecting a reply, the NTP module will send out a broadcast mode
packet to the IP address configured in 'NTP host' field. The broadcast interval will be
determined by the value of 'Minimum poll interval'.
Poll Interval s1 to s2 seconds
These two parameters define the minimum and maximum intervals between poll
broadcasts. The values are time in seconds represented as a power of 2. This means that a
value of 4 means that the minimum poll interval is 2^4 = 16 seconds.
Startup burst Interval s seconds
When connecting to an NTP time server in polled mode, it may be necessary to send polls at
intervals shorter than the minimum poll interval in order to speed up the synchronization
process. This parameter controls the interval between polls during the startup process. This
feature is useful in situations where the router only has an intermittent Internet connection.
333
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ntp n driftppm -10000 - +10000 Initial Drift Compensation
ntp n precision -10 - 0 Clock Precision Limit
ntp n inhibit_int Blank,PPP,Ethernet Disable NTP when interface x,y
is out of service
x = Interface type
ntp n inhibit_add 0 - 255 Disable NTP when interface x,y
is out of service
y = interface number
ntp n server Valid IP address or
hostname, e.g.
ntp1@timeserver.org NTP Server
ntp n bcast 0,1 Broadcast Mode
0 = disabled
1 = enabled
ntp n minpoll 3 - 14
Poll Interval s1, s2
3 = 8
4 = 16
5 = 32
6 = 64
7 = 128
8 = 256
9 = 512
10 = 1024
11 = 2048
12 = 4096
13 = 8192
14 = 16384
ntp n maxpoll 3 – 14 Poll Interval s1, s2
See ‘minpoll’ for values
ntp n burstint 0 – 255 Startup burst Interval s
seconds
ntp n server2 Valid IP address or
hostname, e.g.
ntp2@timeserver.org NTP Server
ntp n bcast2 0,1 Broadcast Mode
0 = disabled
1 = enabled
ntp n minpoll2 3 - 14 Poll Interval s1, s2
See ‘minpoll’ for values
ntp n maxpoll2 3 - 14 Poll Interval s1, s2
See ‘minpoll’ for values
ntp n burstint2 0 – 255 Startup burst Interval s
seconds
334
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ntp n server3 Valid IP address or
hostname, e.g.
ntp3.timeserver.org NTP Server
ntp n bcast3 0,1 Broadcast Mode
0 = disabled
1 = enabled
ntp n minpoll 3 - 14 Poll Interval s1, s2
See ‘minpoll’ for values
ntp n maxpoll 3 - 14 Poll Interval s1, s2
See ‘minpoll’ for values
ntp n burstint3 0 – 255 Startup burst Interval s
seconds
ntp n server4 Valid IP address or
hostname, e.g.
ntp4.timeserver.org NTP Server
ntp n bcast4 0,1 Broadcast Mode
0 = disabled
1 = enabled
ntp n minpoll4 3 - 14 Poll Interval s1, s2
See ‘minpoll’ for values
ntp n maxpoll4 3 - 14 Poll Interval s1, s2
See ‘minpoll’ for values
ntp n burstint4 0 – 255 Startup burst Interval s
seconds
To check the status of the NTP client, the following commands can be used:
To view NTP system status information
ntpstat sys
To view NTP peer information
ntpstat peers
To reset system information and allow NTP to recalculate the drift compensation
ntpstat rst
335
Configuration – System > General
This section describes the configuration of router functionality that applies to the router in
general rather than specific features.
Configuration – System > General > Autorun Commands
The router may be configured to run a number of commands once it has booted. These
commands are associated with specific asynchronous serial interfaces. Configuration of this
facility is via a table on this web page. As an example, it may be required that a Script Basic
script, sample.bas needs to be run at boot up. Auto commands are normally associated
with an ASY port, but running a script for example is not ASY port specific.
#
This parameter is the command interface to be associated with the command. In the above
example, this would be set to the number “0”.
<Command>
This parameter is the CLI command to run on start-up. In the above example, this field
would be set to the string “bas sample.bas”.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
cmd n autocmd Valid CLI
command Autorun Commands
336
Configuration - System > General > Web / Command Line Interface
The router may be configured using several different methods. This section describes how to
configure the web GUI and CLI (Command Line Interface) options.
Automatically log user out if idle for h hours m minutes s seconds
In order to limit the probability of unauthorised users gaining access to the router, login
timeouts are applied. These cause an existing connection to be closed after a predefined
period. The default is 20 minutes.
For users connected on the local Async port
Use access level None, Low, Med, High, Super
For security purposes, logging into the unit is controlled by a user access level. This
parameter controls the access level that applies when logging in via the local
asynchronous serial port.
Automatically log user out Never / If idle for h hrs m mins s secs
These radio buttons control how long the local port allows access before terminating the
connection and requiring the user to log in again. Selecting the “Never” buttons allows
permanent access to the router via the local asynchronous serial port. If, for security
reasons, it is required that the access should be limited, the appropriate time period can
be entered into the text entry boxes.
Disable Remote command echo for Telnet sessions
This checkbox enables/disables command echo for remote access. This applies to telnet and
TRANSIP sessions.
CLI Pre-Login Banner
The router offers the facility to display a banner before any login information is requested.
The parameter specifies the name of a file that is stored in the flash filing system and
contains the text to be displayed before the request for the username and password. This
can be useful for displaying a standard welcome message or any site-specific user
instructions.
CLI Post-Login Banner
Once the user has successfully logged on to the router, a second message may be displayed
- this parameter specifies the name of a file containing the text to display. As above, the file
may contain site-specific instructions to be carried out once the user has logged in.
Allow CLI access from X.25 address n
This parameter enables/disables logging into the router over an X.25 connection. The
paramtern n must be a valid X.25 NUA (Network User Address).
With TRANSIP, use access level None, Low, Med, High, Super
This drop-down selection box controls the security access level when using TRANSIP to
access the router.
Relevant CLI Parameters
Entity
Instance
Parameter
Values
Equivalent Web Parameter
cmd n tremto 0 – 86400
seconds
Automatically log user out if idle
for h hrs m mins s seconds
This CLI value is entered in
seconds only.
local n access 0 – 4 Use access level
0 = Super
337
Entity
Instance
Parameter
Values
Equivalent Web Parameter
1 = High
2 = Medium
3 = Low
4 = None
8 = Read only
local n tlocto Free text field Never, h hrs, m mins, s secs
cmd n noremecho 0,1 Enable Remote command echo
0 = Off (default)
1 = On
cmd n prebanner Valid filename e.g.
“welcome1.txt” CLI Pre-Login Banner
cmd n postbanner Valid filename e.g.
“welcome2.txt” CLI Post-Login Banner
cmd n cmdnua 0 - 1023 Allow CLI access from X.25
address
local n transaccess 0 – 4
With TRANSIP, use access level
0 = Super
1 = High
2 = Medium
3 = Low
4 = None
8 = Read only
Configuration - System > General > Miscellaneous
This section is for those configuration items that do not fit neatly into any other section.
Note:
Depending on the router model, some of these options may not be available.
Use Config n when the router powers up
The router maintains two configuration files, either of which may be invoked on power-up.
Select the required one from the drop-down selection box. Use this option with care as
selecting the incorrect configuration file can cause confusion.
Allow anonymous FTP login
When checked, this checkbox will enable the router to accept anonymous logins. The default
state is Off and the security implications of enabling this option should be considered
carefully before applying.
Additional FTP NAT port n
Standard FTP uses two well-known ports, a control port and data port. These are low
number ports and may be blocked by firewall rules. As such, it may be that an FTP server
may be listening on a non-standard control port. This parameter is used to specify the port
that the router should monitor for the FTP “PORT” and ”PASV” commands. These commands
contain information relating to IP addresses and Ports which should be modified during the
NAT process. The NAT modifications may result in different sized packets being generated
that then require that the TCP sequence numbers be modified to allow for the changes.
338
SNMP Enterprise number
This parameter specifies the value of the OID (Object IDentifier) to be used by SNMP
management tools when accessing the MIB (Management Information Block). This number
must form part of the OID used to access individual items in the MIB as a prefix.
For example: SNMPv2-SMI::enterprises.16378.10001.
SNMP Enterprise Name
This is the name corresponding to the above Enterprise Number.
Only resolve DNS request for domain
Entering a domain name here will restrict DNS requests to the specified domain only.
W-WAN LED to display W-WAN, ISDN/PSTN
On the front panel of the display of models fitted with a W-WAN module, is an LED that may
be used to display the status of the W-WAN module or the status of the PSTN/ISDN
connection. Use the drop-down selection box to choose which. The ISDN/PSTN settings
depend upon which of these two options are available on the router.
Serial LED to display Connection, DTR
On the front panel of the router is an LED dedicated to indicating the status of various
signals on the asynchronous serial line. Use the drop-down selection box to choose which
signal status to display. On modules fitted with W-WAN, this LED has additional
functionality, it can also be used to display the W-WAN signal strength.
CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
config n powerup 0,1 Use Config n when the router
powers up
cmd n anonftp 0,1 Allow anonymous FTP login
0 = Off (default)
1 = On
snmp n ftpnatport 0 - 65535 Additional FTP NAT port
snmp n ent_nb 0 – 65535 SNMP Enterprise Number
Default 16378
cmd n ent_name Free text field SNMP Enterprise Name
cmd n dnsname Valid Domain
name, e.g.
mydomain.org
Only resolve DNS request for
domain
cmd n gprsled_mode 0,1
W-WAN LED to display W-WAN,
ISDN/PSTN
0 = W-WAN
1 = ISDN/PSTN
cmd n asyled_mode 0,1
Serial LED to display Connection,
DTR
0 = Connection
1 = DTR status
2 = W-WAN signal strength
339
Configuration – Remote Management > iDigi > Connection Settings
iDigi is a hosted remote configuration and management system that has been designed to
facilitate the management of large numbers of routers. Before this service can be used, an
iDigi account must be set up. Applying for an account is a straightforward procedure; the
local sales representative will have details. The iDigi homepage is to be found at
www.idigi.com.
The service is hosted on the iDigi servers and these provide a web-based interface that
shows the configuration of selected routers, allows the configuration to be changed and also
facilitates remote firmware upgrade. The iDigi servers also provide a data storage facility.
Enable Remote Management using a client-initiated connection
Select this checkbox to display the basic configuration parameters and enable the unit to
make the connection to the remote iDigi server.
Server Address
This text entry box is used to enter the IP address or (more usually) the domain name of
the iDigi host, for example idigi.com. (This information will be supplied when your iDigi
account is activated).
Automatically reconnect to the server after being disconnected
The protocol used to communicate with the server allows the router to detect that it is no
longer connected to the server. Ticking this checkbox will cause the router to attempt a
reconnection when it discovers that the connection has been lost.
Reconnect after h hours m minutes s seconds
If the reconnect checkbox is enabled, these parameters specify the interval to wait before
attempting to reconnect to the server.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
idigi n clientconn 0,1
Enable Remote Management
and Configuration using a
client-initiated connection
0 = Off
1 = On
idigi n server Valid IP address e.g.
1.2.3.4 or domain
name e.g. idigi.com Server Address
idigi n reconnect 0,1
Automatically reconnect the
server after being
disconnected
0 = Off
1 = On
idigi n reconnectsecs 0 – 86400 Reconnect after h, m, s
This CLI value is entered in
seconds only.
340
Configuration – Remote Management > iDigi > Advanced
The settings in the previous section, along with the system defaults are sufficient to
establish a connection to the iDigi server. The settings in the advanced section allow the
connection to be fine-tuned. The parameters described here are concerned with detecting
loss of connection. When the router first connects to the iDigi server, the link parameters
are sent to it. The WAN settings and Ethernet settings described below are identical, but it
should be noted in the command line descriptions that the default keepalive intervals are
different. This is due to the different characteristics of PPP and Ethernet links.
Configuration – Remote Management > iDigi > Advanced > Connection
Settings
Disconnect when the iDigi server is idle
Once the router has connected to the iDigi server, and the server has established that all
the settings it holds for the router are current, and no new changes are being requested,
the traffic between the router and iDigi server reduces to the sending of keep-alive packets.
In this situation, it may be advantageous to terminate the connection in order to reduce
bandwidth or to keep data costs down. Ticking this checkbox will cause the router to
negotiate termination of the connection.
Idle Timeout h hours, m minutes, s seconds
The timeout entered here defines how long the router should wait after detecting the idle
condition before negotiating termination of the link. Default is 10 seconds.
Configuration – Remote Management > iDigi > Advanced > WAN Settings
Receive Interval s seconds
This is the time between keep-alive packets that the router should wait before considering
that the connection may be lost.
Transmit Interval s seconds
This is the interval between transmission of keep-alive packets.
Assume connection is lost after n timeouts
Occasional packet loss is to be expected, this parameter will allow for a specified number of
lost keep-alive packets before the connection is deemed to have failed.
Configuration – Remote Management > iDigi > Advanced > Ethernet
Settings
Receive Interval s seconds
This is the time between keep-alive packets that the router should wait before considering
that the connection may be lost.
Transmit Interval s seconds
This is the interval between transmission of keep-alive packets.
Assume connection is lost after n timeouts
Occasional packet loss is to be expected, this parameter will allow for a specified number of
lost keep-alive packets before the connection is deemed to have failed.
341
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
idigi n idledisconn 0,1
Disconnect when iDigi server
is idle
0 = Do not disconnect
1 = disconnect
idigi n disconnsecs 0 - 28800 Idle Timeout h,m,s
This CLI value is entered in
seconds only.
idigi n ppprxkeepalive 0 - 28800 WAN - Receive Interval
seconds
idigi n ppptrxkeepalive 0 - 28800 WAN - Transmit Interval
seconds
idigi n pppwaitfor 1 - 255 WAN - Assume connection is
lost after n timeouts
idigi n ethrxkeepalive 0 - 28800 Ethernet - Receive Interval
seconds
idigi n ethtxkeepalive 0 - 28800 Ethernet - Transmit Interval
seconds
idigi n ethwaitfor 1 - 255 Ethernet - Assume connection
is lost after n timeouts
There is an additional iDigi CLI command “idigistat”. Using this command with no
extra syntax returns the status of the socket connections, i.e. whether there is a live
connection to the iDigi server or not.
Configuration – Remote Management > SNMP
The Simple Network Management Protocol (SNMP) is a well established way of managing
clusters of remote routers – the TransPort routers support versions 1, 2c and 3 of this
protocol. The standard Management Information Bases (MIBs) that are supported by the
router are detailed below. Alongside these, there are two other MIBs that are supplied as
standard. This is a MIB that is generated after the firmware has been installed. This is
accomplished using the “mibprint” CLI command and the “MIBEXE” DOS tool which is
available from the Technical Support Team. This MIB changes with every firmware release
since the firmware revision is embedded in the Object Identifiers (OIDs). This MIB provides
access to most of the configuration and statistics that are associated with the router.
The second MIB is the “Monitor MIB” which is a standard MIB that gives access to various
Digi TransPort proprietary objects. The OIDs in this MIB do not change with every release
although it is possible for new objects to be added to it. This MIB is available from the
Technical Support team.
The standard MIBs supported are:
SNMP MIB (RFC3418)
Interfaces MIB (RFC2233)*
IP MIB (RFC2011)
IP Forwarding Table MIB (RFC2096)
342
TCP MIB (RFC2012)
UDP MIB (RFC2013)
VRRP MIB (RFC2787)
SNMP MPD MIB (RFC3412)
SNMP USM MIB (RFC3414)**
* The following groups/tables in RFC2233 are not supported: ifXTable, ifStackTable,
ifRcvAddressTable.
** The following groups/tables in RFC3414 are not supported: usmUserTable.
Other MIBs may be available on request.
Enable SNMPv1
Ticking this checkbox enables support for version 1 of the protocol.
Enable SNMPv2c
Ticking this checkbox enables support for version 2c of the protocol.
Enable SNMPv3
Ticking this checkbox enables support for version 3 of the protocol.
Use UDP Port n
This is the UDP port number to use. The default is UDP port 161.
SNMPv3 Engine ID
This is required as part of the SNMP v3 protocol. This is a 24 hexadecimal character string;
any trailing zeroes in this string making the value up to 24 characters can be omitted. A
remote engine ID is required when a SNMP v3 Inform is configured. The remote engine ID is
used to compute the security digest for authenticating and encrypting packets sent to a user
on the remote host.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
snmp n v1enable 0,1 Enable SNMPv1
0 = Off
1 = On
snmp n v2cenable 0,1 Enable SNMPv2c
0 = Off
1 = On
snmp n v3enable 0,1 Enable SNMPv3
0 = Off
1 = On
snmp n port 0 - 65535 Use UDP Port
Default = 161
snmp n engineid String SNMPv3 Engine ID
343
Configuration – Remote Management > SNMP User > SNMP User n
This page controls the configuration of the SNMP users.
SNMPv1 / SNMPv2c
Community
The text in this text entry box specifies the community string for Version 1 and Version 2c
SNMP packets.
Confirm Community
The community string is echoed as dots in the text entry box and so having a second
confirmation field where the string is retyped, allows a simple check to be performed for
correct entry.
SNMPv3
Username
This field is the name of the SNMP user.
Authentication None, MD5, SHA1
These three radio buttons select what authentication algorithm is to be applied to the SNMP
transactions.
Authentication Password
This is the authentication password for the user.
Confirm Authentication Password
The authentication password is not shown as clear text. The confirmation box allows a
simple check that the password has been entered correctly.
Encryption None, DES, AES
These three radio buttons select which encryption (privacy) algorithm should be applied to
the SNMP data.
Encryption Password
The user’s password that is used to control the privacy of the SNMP transactions is entered
into this text entry box.
Confirm Encryption Password
The encryption password is not shown as clear text. The confirmation box allows a simple
check that the password has been entered correctly.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
snmpuser n community public / private Community
snmpuser n name user_dave Username
snmpuser n auth Off,MD5,SHA1 Authentication, None, MD5,
SHA1
snmpuser n authPassword my_password Authentication Password
snmpuser n priv Off,DES,AES Encryption, None, DES, AES
snmpuser n privPassword my_password Encryption Password
344
Configuration – Remote Management > SNMP Filters
SNMP filters allow the system administrator to control access to the router MIBs via SNMP.
This functionality is controlled by a table on the web configuration page. This table has three
columns, two main headed columns as described below and a control column containing
button widgets. The table has a capacity of ten entries, snmp filter instances range from 0
to 9.
Username
The username (as configured in the Configuration – Security > Users section) of the
user to whom the access restriction is applied.
OID Prefix
The Object ID prefix for the range of objects in the MIB that the user is not allowed to view.
e.g. 1.3.6.1.2.1.4
Add
This button adds the username and OID prefix into the table.
Delete
This button causes the associated entry in the table to be deleted.
Related CLI Commands
Entity Instance Parameter Values
Equivalent Web
Parameter
snmpfilter n user username Username
snmpfilter n oid Valid SNMP OID OID Prefix
Configuration – Remote Management > SNMP Traps
SNMP traps are events that are generated when the specified condition is met. The web
page and CLI configuration parameters are described here. The TansPort routers support
two trap servers.
Generate Enterprise traps
When this check box is ticked, the router will generate product-specific traps.
Generate Generic traps
SNMP specifies several generic traps (Cold Start, Warm Start, Link Down, Link Up etc).
When this checkbox is ticked, generic traps are generated.
Generate Authentication Failure traps
This checkbox enables the generation of authentication failure traps.
Generate VRRP traps
Checking this checkbox enables the generation of VRRP traps. See the VRRP section in this
manual for the configuration of VRRP.
345
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
snmp n enterprisetraps 0,1 Generate Enterprise traps
0 = Off
1 = On
snmp n generictraps 0,1 Generate Generic traps
0 = Off
1 = On
snmp n authtraps 0,1 Generate Authentication traps
0 = Off
1 = On
snmp n vrrptraps 0,1 Generate VRRP traps
0 = Off
1 = On
Configuration – Remote Management > SNMP Traps > SNMP Trap Server n
Digi TransPort routers support two SNMP trap servers. The following options and description
explain how to configure a trap server.
Trap Server IP Address a.b.c.d
This is the IP address of the server running the SNMP software and determines the
destination for the trap notifications.
Port n
This is the UDP port number that the SNMP server is listening on, the default is 162 which is
the standard port number for this service.
Use SNMP Version
Select the required SNMP version number from this drop-down selection box.
Send “Inform Request” message
If SNMP version 2c or 3 is selected, the router can send a SNMP Inform Request message
instead of a Trap message. Inform Request messages are acknowledged by the SNMP Trap
server whereas Trap messages are not.
If no response, retransmit the Inform Request message after n seconds
The period after which the Inform Request message is retransmitted if no response has
been received.
Retransmit a maximum n times
The maximum number of times an Inform Request message will be retransmitted. If no
acknowledgement is received after the maximum number of retransmissions, an event is
logged.
Community
Enter the desired community string into this text entry box.
Confirm Community
Entering the community string again here enables verification of the string since the string
is not displayed.
346
Trap Server Engine ID
This item will be configured within the application and is the SNMP server software engine
ID which is used for authentication and encryption.
SNMP User
This is the username that should be associated with the trap server. This should match a
user from one of the previously configured SNMP users (Configuration – Remote
Management > SNMP > Users).
User Security Level
Select the desired security level from this drop-down selection box. The choices are these:
No Authentication, No Privacy
Authentication, No Privacy
Authentication, Privacy
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
snmptrap n IPaddr Valid IP address e.g.
1.2.3.4 Trap Server IP Address
a.b.c.d
snmptrap n port 0 - 65535 Port
Default = 162
snmptrap n version v1, v2c, v3 Use SNMP Version
snmptrap n sendInforms on | off Send “Inform Request”
messages
snmptrap n informto Integer If no response, retransmit
the Inform Request message
after n seconds
snmptrap n informretries Integer Retransmit a maximum n
times
snmptrap n community String Community
snmptrap n engineid String Trap Server Engine ID
snmptrap n securityname String SNMP User
snmptrap n securitylevel noauthnopriv
authnopriv
authpriv
User Security Level
noauthnopriv = No
Authentication, No Privicy
authnopriv = Auth, No Priv
authpriv = Auth & Priv
347
Configuration – Security > Users > User n
These pages allow you to configure a number of authorised users. The number of users
available depends on the firmware build the router is running. Each user has a password
and access level that determines what facilities the user has access to.
Username
The name of the user. Up to 14 characters are allowed.
There are some special usernames that can also be used, these are:
%s This uses the serial number of the router as the username.
%i This uses the IMEI of the cellular module as the username.
%c This uses the ICCID of the SIM as the username.
If a ‘%’ symbol is part of the username, it must be escaped with another ‘%’ symbol.
For example ‘user%1’ should be entered as ‘user%%1’.
Password / Confirm Password
The password for the user. Up to 14 characters are allowed.
Access Level
Selects the access level for the User. There are the following options
Super Allows full access to all facilities.
High Allows user to reconfigure the general configuration of the router and
to change some settings such as the time and date.
Not allowed to change user settings.
Medium Allows user to access medium level configuration commands which
allow some configuration of the router.
Low
Allows user to access low level commands which tend to be status and
statistics commands.
Read Only Read only access of the configuration.
None User is not allowed to login via Web, FTP, SSH and Telnet.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
user 0 name String
(up to 14 chars) Username
user 0 password String
(up to 14 chars) Password
user 0 access
0 = Super
1 = High
2 = Medium
3 = Low
4 = None
8 = Read Only
Access Level
348
Configuration – Security > Users > User n > Advanced
Allow this user to log in over a PPP network
Enabling this will allow the user to log in to the router using PPP. Disabling this will disable
PPP login for the user no matter what the user’s access level is.
Use this number x when PPP dial-back is required for this user
The telephone number for the user in the event that “dial-back” is required. If the username
that the remote router uses during the PPP authentication matches the username of the
user where a dial-back number is configured, the user’s dial-back number will override any
dial-back number configured in the answering PPP interface.
Alternate IKE Key / Confirm Alternate IKE Key
When IKE is the initiator, the responder supplied HASH is checked using the normal
password (above) and if that fails, the Alternate Key (here). The initiator will remember
which password was successful, and use that password to create the HASH if it becomes the
responder of some new negotiation. If the IKE becomes a responder and IKE negotiations
fail after supplying the HASH, the other password will be used during the next negotiation.
Using this Alternate Key, it should be possible to configure new passwords into both ends of
a tunnel, and not have too many failed negotiations. The process would be to add the
Alternate Key into the remote router, then update the local router with the Alternate Key.
Once that has been done, the administrator would then be able to move the Alternate Key
to the usual location (Password) and remove the Alternate Key (newpwd) from the
configuration. Should a negotiation take place during the period where the Alternate Key
has been entered into the remote router, but not the local router, there should be no more
than one failed negotiation, and only if the remote router is the initiator.
Remote Peer IP address
In certain circumstances, it may be desirable for a user connecting in over a PPP connection
to be allocated a specific IP address, rather than be allocated an address from a pool
configured on a PPP interface. When this parameter is configured, the IP address
negotiated on the PPP link will be this one, not an address from the regular IP address pool.
Remote Peer IP subnet
In the event that multiple PPP interfaces are enabled for answering and that multiple remote
routers can dial into the local router, static routes cannot always be used to ensure that
packets which should be routed to the remote network are sent through the correct PPP
interface. This parameter can be used in conjunction with the ‘Remote Peer IP subnet mask’
parameter to associate a network subnet with a user.
When a remote unit “connects in” and authenticates with the unit, the unit will then create a
dynamic route (that will override any static routes) for the duration of the PPP session. The
interface for the dynamic route will be the PPP interface that answered the call. The network
address for the dynamic route will be taken from the entry in the user table that matches
the username that the remote unit used during the PPP authentication.
Remote Peer IP subnet mask
The remote subnet mask parameter is used in conjunction with the ‘Remote Peer IP subnet’
parameter above to fully qualify the network address for the user.
Public Key file
The name of the file containing the public key for that user. If the public key matches the
client supplied public key, the user is allowed access.
349
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
user 0 dun_en on, off Allow this user to log in over a PPP
network
user 0 phonenum Number Use this number x when PPP dial-
back is required for this user
user 0 newpwd String
(up to 14 chars) Alternate IKE Key
user 0 fieldip IP Address Remote Peer IP address
user 0 ipaddr IP Address Remote Peer IP subnet
user 0 mask IP Mask Remote Peer IP subnet mask
user 0 keyfile Filename Public Key file
350
Configuration – Security > Firewall
All Digi TransPort routers incorporate a comprehensive firewall facility. A firewall is a
security system that is used to restrict the type of traffic that the router will transmit or
receive based on a combination of IP address, service type, protocol type, port number and
IP flags. Firewalls are used to minimise the risk of unauthorised access to the local network
resources by external users or to restrict the range of external resources to which local
users have access. A more detailed description of how firewalls operate on Digi routers is
given in the “Firewall Scripts” section. Refer to this section before attempting to implement
a firewall.
The rules governing the operation of the firewall are contained in a pseudo-file called
“fw.txt”. This file can be created either by using the controls in the web page described
below or by using a text editor on a PC and then loading the resulting file onto the router
using FTP or XMODEM. Digi Routers are shipped with a default fw.txt file that can be used
as the starting point for a custom firewall configuration.
Configuration of the firewall is carried out by using the table described below. There are
three other buttons that appear just below the table. Their use will also be described.
Since a default file is supplied, when this page loads it will show the rules in the default
“fw.txt” file. If “fw.txt” does not exist, a blank table will be shown.
Hits
The numbers that appear in this column of the table are the number of hits for the rule that
appears to the right.
#
This is non-editable and is simply the rule number.
Delete
Clicking this button deletes the rule that appears to its left.
Insert
These buttons are used to insert new lines. The insert buttons that appear alongside
existing rules insert new blank lines above the line on which they appear. The button at the
bottom creates a new blank line at the end of the table. (An empty table will only have the
one button at the bottom). To create a new rule, click the button at the point the new rule
should appear and a new text box should appear. Type the rule into the text box and once
complete, click the “ok” button. To abandon any changes click the “cancel” button. Once the
“ok” button has been clicked the firewall task will validate the rule and if valid, will add it
the table. If errors are detected, a warning message will be displayed, at which point the
rule may be edited or deleted.
Edit
These buttons that appear to the right of the rule open up the rule in an edit text box which
allows the text to be edited. Click on the “ok” button to commit the changes or “cancel” to
abandon the edit.
Reset Hit Counters
Clicking this button resets (to zero) all the rule hit counts that appear in the left-hand
column of the table.
Save
Clicking this button saves changes to the table to the “fw.txt” file. If the changes are not
saved using this button, they will be lost if the router is rebooted or loses power.
351
Restore
If, after reviewing changes to the table it is decided that the edit should be abandoned,
clicking this button will restore the original “fw.txt” to the table, provided that they have not
been saved.
Below the firewall editor table is another table that controls which interfaces the firewall
rules apply to.
Interface
This column is simply a list of the available interfaces to which the firewall rules may be
applied.
Enabled
Check the checkbox next to the interface(s) that the firewall should operate on in order to
enable the firewall for that interface.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
fw n/a logclr - Reset Hit Counters
fw n/a save - Save
fw n/a - - Restore
The firewall rule hits may be viewed from the command line console by using the command:
type fwstat.hit
Configuration – Security > Firewall > Stateful Inspection Settings
The page described below contains timer timeout values and other options that are used by
the firewall stateful inspection module. This module establishes firewall rules that last for
the duration of a single connection only. Typically, the first packet of a TCP connection (SYN
packet) is used to create a stateful inspection rule that only allows subsequent packets for
that TCP connection through the firewall. The timers described below are used to set limits
on how long such rules persist.
Timers
TCP Opening s seconds
The value in this text box specifies the length of time following receipt of a TCP packet that
causes a stateful inspection rule to be created before a TCP connection must be established.
If a TCP connection is not established within this period, the associated stateful rule will be
removed.
TCP Open s seconds
The value in this text box specifies the length of time that an established TCP connection
may remain idle before the stateful inspection rule created for it is removed. The timer is
restarted each time a packet is processed by the associated stateful inspection rule.
TCP Closing s seconds
The value in this text box specifies the length of time that is allowed for a TCP socket to
close once the first FIN packet has been received. If the timer expires before the socket has
completed closing, the stateful inspection rule is removed.
TCP Closed s seconds
The value in this text box specifies the length of time that a stateful inspection rule will
remain in place after a TCP connection has closed.
352
UDP s seconds
The value in this text box specifies the length of time that a stateful inspection rule will
remain in place following the receipt of UDP packet. The timer is restarted each time
packets matching the rule pass in each direction. As a consequence, rules based on UDP
should only be used if it anticipated that packets will travel in both directions.
ICMP s seconds
Some ICMP packets – for instance the ECHO request – generate response packets. The
value in this text box specifies the length of time that a stateful inspection rule created for
an ICMP packet will remain in place if the response is not received. The rule is removed
immediately following receipt of the response.
Other protocols s seconds
If a stateful inspection rule is created from a packet type other than TCP, UDP or ICMP, a
rule timeout should be created for it. The parameter in this text box specifies the length of
time such a rule persists. The timer is restarted each time a packet is processed by the rule.
Other Options
Expire entry after n consecutive packets in one direction
The value in this text box specifies the maximum number of consecutive packets that should
pass in one direction before the corresponding rule entry is expired.
Count missed UDP echo packets as dropped
When checked, this checkbox will cause the firewall to increment the dropped packet count
for each failed echo request in the situation where UDP echo is active on an interface that
becomes disconnected.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
fwall 0 opening 0 - 4294967296 TCP Opening s seconds
fwall 0 open 0 – 4294967296 TCP Open s seconds
fwall 0 closing 0 - 4294967296 TCP Closing s seconds
fwall 0 closed 0 – 4294967296 TCP Closed s seconds
fwall 0 udp 0 – 4294967296 UDP s seconds
fwall 0 icmp 0 – 4294967296 ICMP s seconds
fwall 0 other 0 – 4294967296 Other protocols s seconds
fwall 0 maxuni 0 - 2147483647 Expire entry after n consecutive
packets in one direction
fwall 0 cntmissedecho OFF,ON
Default OFF Count missed UDP echo packets
as dropped
353
Configuration – Security > RADIUS
The RADIUS client may be used for authentication purposes at the start of remote command
sessions, SSH sessions, FTP sessions, HTTP sessions and Wi-Fi client connections (PEAP &
EAP-TLS). Depending on how the RADIUS client is configured, the router may authenticate
with one or two RADIUS servers, or may authenticate a user locally using the existing table
configured on the router.
There are 2 RADIUS client configurations, RADIUS client 0 and RADIUS client 1, both have
specific functions and the correct instance (0 or 1 or both) should be configured depending
on the requirements.
To use RADUIUS for authenticating router administration access, configure RADIUS client 0.
To use RADUIUS for authenticating Wi-Fi clients, configure RADIUS client 1.
When the router has obtained the remote user username and password, the RADIUS client
is used to pass this information (from the Username and Password attributes) to the
specified RADIUS server for authorisation. The server should reply with an ACCEPT or
REJECT message.
The RADIUS client may be configured with up to two Network Access Servers (NAS). It may
also have local authentication turned on or off depending on system requirements.
When a user is authenticated, the configured RADIUS servers are contacted first. If a valid
ACCEPT or REJECT message is received from the server, the user is allowed or denied
access respectively. If no response is received from the first server, the second server is
tried (if configured). If that server fails to respond, local authentication is used unless
disabled. If both servers are unreachable and local authentication is disabled, all
authentication attempts fail.
If a RADIUS server replies with a REPLY-MESSAGE attribute (18), the message will be
displayed to the user after the login attempt and after any configured “post-banner”
message. The router will then display a “Continue Y/N?” prompt to the user. If “N” is
selected, the remote session will be terminated. This applies to remote command sessions
and SSH sessions only.
If the login attempt is successful and the server sends an IDLE-TIMEOUT attribute (28), the
idle time specified will be assigned to the remote session. If no IDLE-TIMEOUT attribute is
sent, the router will apply the default idle timeout values to the session.
The access level is determined by the value of the SERVICE-TYPE attribute returned by the
RADIUS server. Administrative access is determined by the value 6 being returned by the
server. Any other value or no value returned will result in the access level “low” being
assigned.
When the session starts and ends, the router will send the RADIUS accounting START/STOP
messages to the configured server. Again, if no response is received from the primary
accounting server, the secondary server will be tried. No further action is taken if the
secondary accounting server is unreachable.
As a consequence of the fact that the router has separate configurations for authorisation
and accounting servers, it is possible to configure the router to perform authorisation
functions only, accounting only, or both. An example of how this might be used could be to
perform local authorisations but send accounting start/stop records to an accounting server.
354
Configuration – Security > RADIUS > RADIUS Client n
The following pages describe the configuration parameters available for setting up a RADIUS
client on the router.
Authorization
Primary Authorization Server
IP Address a.b.c.d
The value in this text box specifies the IP address of the primary authorisation NAS.
NAS ID
The value in this text box is an identifier which is passed to the primary authorisation NAS
and is used to identify the RADIUS client. The appropriate value will be supplied by the
primary authorisation NAS administrator.
Password
The value in this text box is the password supplied by the primary authorisation NAS
administrator and is used in conjunction with the primary authorisation NAS ID to
authenticate RADIUS packets.
Confirm Password
Type the above password into this text box so that the router may determine if the two are
identical.
Secondary Authorization Server
IP Address a.b.c.d
The value in this text box is the IP address of the secondary authorisation NAS server.
NAS ID
The value in this text box is an identifier which is passed to the secondary authorisation NAS
and is used to identify the RADIUS client. The appropriate value will be supplied by the
secondary authorisation NAS administrator.
Password
The value in this text box is the password supplied by the secondary authorisation NAS
administrator and is used in conjunction with the secondary authorisation NAS ID to
authenticate RADIUS packets.
Confirm Password
Type the above password into this text box so that the router may determine if the two are
identical.
Enable local authorization if there is no response from the authorization server(s)
When checked (default state), this checkbox will allow local authorisation if the RADIUS
servers are unreachable or not configured. Uncheck the box to disable local authorisation.
Accounting
Primary Accounting Server
IP Address
The value in this text box is the IP address of the primary accounting NAS.
NAS ID
The value in this text box is an identifier that is passed to the primary accounting NAS and
is used to identify the RADIUS client. The appropriate value will be supplied by the primary
accounting NAS administrator.
355
Password
The value in this text box is the password that is supplied by the primary accounting NAS
administrator and is used in conjunction with the primary accounting NAS ID to authenticate
RADIUS packets.
Confirm Password
Type the above password into this text box to enable the router to check that they are
identical.
Secondary Accounting Server
IP Address
The value in this text box is the IP address of the secondary accounting NAS.
NAS ID
The value in this text box is an identifier that is passed to the secondary accounting NAS
and is used to identify the RADIUS client. The appropriate value will be supplied by the
secondary accounting NAS administrator.
Password
The value in this text box is the password that is supplied by the secondary accounting NAS
administrator and is used in conjunction with the secondary accounting NAS ID to
authenticate RADIUS packets.
Confirm Password
Type the above password into this text box to enable the router to check that they are
identical.
Related CLI Commands
Entity Instance Parameter Values Equivalent Web Parameter
radcli 0,1 server Valid IP Address
a.b.c.d Primary Authorization Server
IP Address
radcli 0,1 nasid Up to 20
characters Primary Authorization Server
NAS ID
radcli 0,1 password Up to 40
characters Primary Authorization Server
Password
radcli 0,1 server2 Valid IP Address
a.b.c.d Secondary Authorization Server
IP Address
radcli 0,1 nasid2 Up to 20
characters Secondary Authorization Server
NAS ID
radcli 0,1 password2 Up to 40
characters Secondary Authorization Server
Password
radcli 0,1 localauth OFF,ON
Default ON
Enable local authorization if
there is no response from the
authorization server(s)
radcli 0,1 aserver Valid IP Address
a.b.c.d Primary Accounting Server
IP Address
radcli 0,1 anasid Up to 20
characters Primary Accounting Server
NAS ID
radcli 0,1 apassword Up to 40 Primary Accounting Server
356
Entity
Instance
Parameter
Values
Equivalent Web Parameter
characters
Password
radcli 0,1 aserver2 Valid IP Address
a.b.c.d Secondary Accounting Server
IP Address
radcli 0,1 anasid2 Up to 20
characters Secondary Accounting Server
NAS ID
radcli 0,1 apassword2 Up to 40
characters Secondary Accounting Server
Password
Configuration – Security > RADIUS > RADIUS Client n > Advanced
If there is no response from the server
Retransmit the request after s seconds
The value in this text box specifies the interval between retransmissions of RADIUS packets.
Stop the negotiation after n retransmissions
The value in this text box specifies the maximum number of times RADIUS data should be
transmitted to the NAS before the negotiation is deemed to have failed.
Stop the negotiation if there is no activity for s seconds
The value in this text box specifies the inactivity period after which the negotiation
procedure is deemed to have failed.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
radcli 0,1 retranint 0 – 2147483647
Default 5 Retransmit the request after s
seconds
radcli 0,1 retran 0 – 2147483647
Default 3 Stop the negotiation after n
retransmissions
radcli 0,1 inactto 0 – 2147483647
Default 30 Stop the negotiation if there is
no activity for s seconds
357
Configuration – Security > TACACS+
The Digi TransPort range of routers support Terminal Access Controller Access-Control
System Plus (TACACS+) for controlling access to the router. TACACS+ provides
authentication, authorisation and accounting (AAA) services.
TACACS+ can be used to control the following access methods: Secured asynchronous serial
(ASY) ports, Telnet, SSH, FTP, HTTP/HTTPS and SNMP.
When any sort of request is to be performed by the TACACS+ client, the client first checks
to see if a socket to the server (primary or backup) is already open. If a socket is already
open, that socket is used for the TACACS+ request. If no socket is open, the primary server
is tried first. If the primary server socket fails to open, the backup server will be tried.
Regardless of whether the primary or backup socket connected, the primary server is
always tried first on the next connection attempt. Once the connection to the TACACS+
server opens, all pending requests are sent to the TACACS+ server.
If a connection to the TACACS+ server is not possible due to network or server problems,
all requests by applications are denied.
Functions of the AAA services
If TACACS+ authentication is enabled, the request is sent to the TACACS+ server. If
disabled, the router performs the authentication. At this point authorisation is also
performed. If TACACS+ authorisation is disabled, the user access level is obtained from the
local user table on the router. If TACACS+ authorisation is enabled, an authorisation request
is sent to the TACACS+ server. The server will return a privilege level and may also return
other attributed such as a new idle time for this session which takes precedence over locally
configured values.
When the user has been authenticated and access has been authorised, the login is allowed.
If the connection is via telnet or SSH a welcome message will be displayed that shows the
access level and the method of authentication. If the access level was assigned locally the
following message will be displayed:
Welcome. Your access level is SUPER
If the access level was assigned by the TACACS+ server, the following message will be
displayed:
Welcome. Your access level is obtained remotely
If accounting is enabled, session start and stop messages are sent to the TACACS+ server
when the session opens and closes. During the session, details of commands executed and
denied due to access level control will be sent to the TACACS+ server. At the end of the
session the stop message is sent to the TACACS+ server with the elapsed session time
included.
TACACS+ to local privilege level mappings:
TACACS+ level
Local level
>= 15 Super
12 - 14 High
8 – 11 Medium
4 - 8 Low
0 - 3 None
358
Primary TACACS+ Server
Hostname or IP address of Server a.b.c.d Port n
The IP address or hostname of the primary TACACS+ server is entered into the left-hand
text box. If required a port number may also be specified using the right-hand text box.
TACACS+ uses TCP port 49 by default. Entering a different number into this text box will
cause the router to use that port instead. The port number is used by both the primary and
secondary TACACS+ servers.
Server Key
The value in this text box specifies the encryption key to use when communicating with the
primary server.
Confirm Server Key
The key is typed into this text box to allow the router to confirm that the two strings are
identical.
Secondary TACACS+ Server
Hostname or IP address of Server
The value in this text box is the IP address or hostname of the secondary (backup)
TACACS+ server. This will be used if a socket to the primary server cannot be opened.
Server Key
The value in this text box is the encryption key to use when communicating with the
secondary server.
Confirm Server Key
Enter the key into this text box to allow the router to confirm that the two entries are
identical.
Enable local authentication if there is no response from the server(s)
When checked, this checkbox will allow local authentication if TACACS+ authentication fails.
Enable TACACS+ Authentication
When checked, this checkbox enables authentication. When authentication is enabled, user
authentication takes place on the TACACS+ server. When disabled, user authentication takes place
locally on the router.
Enable TACACS+ Authorisation
When checked, this checkbox enables authorisation which means that authorisation of the application
takes place and authorisation of application-related commands also takes place.
Enable TACACS+ Accounting
When checked, this checkbox enables accounting. When accounting is enabled, accounting messages
are sent at the start and end of application sessions (where applicable) and update messages are also
sent from command sessions when commands are denied locally or after they are executed.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
tacplus 0 svr
Up to 64
characters for
hostname or valid
IP address a.b.c.d
Hostname or IP address of
server
tacplus 0 port 0 – 2147483647
Default 49 Port
tacplus 0 key Up to 20 Server Key
359
Entity
Instance
Parameter
Values
Equivalent Web Parameter
characters
tacplus 0 svr2 Up to 64
characters or valid
IP address a.b.c.d
Hostname or IP address of
server
tacplus 0 key2 Up to 20
characters Server Key
tacplus 0 localauth OFF,ON Enable local authentication if
there is no response from the
server(s)
tacplus 0 authent OFF,ON Enable TACACS+ Authentication
tacplus 0 author OFF,ON Enable TACACS+ Authorisation
tacplus 0 acct OFF,ON Enable TACACS+ Accounting
tacplus 0 debug OFF,ON n/a
Configuration – Security > TACACS+ > Advanced
The parameters described in this section should not normally need to be adjusted.
Use source IP Address x,y
If required, due to the TACACS+ server being accessed via a VPN tunnel, an alternative
source interface and instance may be selected here. Select the required interface from the
drop-down list and enter the instance of that interface into the adjacent text box. The
available interface options are
• Auto
• PPP
• Ethernet.
Response Timeout s seconds
Text box
Stop the negotiation if there is no activity for s seconds
The number in this text box specifies the amount of time (in seconds) before an inactive
socket is closed.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
tacplus 0 ip_ent Blank,ETH,PPP
Blank = Auto Use source IP Address x,y
tacplus 0 ip_add 0 - 2147483647 Use source IP Address x,y
tacplus 0 respto 0 – 2147483647
Default = 30 Response Timeout s seconds
tacplus 0 inact 0 – 2147483647
Default = 30 Stop the negotiation if there is
no activity for s seconds
360
Configuration – Security > Command Filters
When this feature is enabled, commands will not reach the router’s command interpreter
unless they are defined in the Command Filters table. Terminal devices may send
commands that the router will not necessarily understand but that require a basic “OK” or
“ERROR” response.
With command filtering turned on, any command entered will be responded to with a
MODEM-like “OK” or “ERROR” response (depending on settings below) unless the command
is found in the Command Filters table. The command filter uses wild-character matching so
that command filters such as “cmd*” are permitted which would allow all “cmd 0 ...”
commands to be executed. Note that the command mapping table is checked first and the
command filter table is only checked if there was not a match in the command matching
table.
For more information on command filtering there is an application note “Command Line
Response Manipulation” which is available on the Digi web site (www.digi.com).
The table is generated by typing the desired command into the text box and clicking the
“Add” button. Once a command has been entered into the table, it can be removed by
clicking the “Delete” button that appears on the right hand side.
Command
This text box contains the command to filter.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
cfilter n cmd Valid command
line command Command
cmd n cfilton 0,1
0 = Off
1 = On n/a
cmd n cfilterr 0,1
0 = Off – OK
1 = On – ERROR n/a
Command filtering is enabled from the command line for any particular instance of the
command interpreter with the following command cmd <n> cfilton 1
The default action is to respond with the “OK” response. If the response needed is “ERROR”,
use the parameter cmd <n> cfilterr 1
Where n is the instance number.
Note:
If the command string contains blank characters, it must be enclosed by double quotation
marks. When substituting a command, upper case characters are considered the same as
the corresponding lower case characters.
361
Configuration – Security > Calling Numbers
Note:
This feature is for use by experienced personnel for network testing and fault diagnosis. It
should not be required for normal use. To use this feature, the ISDN circuit must support
the Calling Line Identification (CLI) facility. If CLI is supported, incoming calls from specified
numbers may be answered normally or alternatively rejected with an optional reject code.
This web page contains a table that accepts a series of telephone numbers, each of which
has an associated Answer or Reject parameter and in the case of numbers from which calls
are to be rejected, a user-defined reason code. For each number set to “Reject”, the router
will reject incoming calls from that number using the reason code specified. The reason code
is simply a numeric value that is chosen to suit the particular application. If any one of the
entries is set to “Answer” the router will only answer incoming calls from that number and
will reject calls from other numbers using a standard ISDN reject code.
Number
The number in this text box is the telephone number to either answer or reject.
Mode
The drop-down list in this column selects either “Answer” to answer calls or “Reject” to
reject calls.
Reject Code
The value in this text box is the reason code pertaining to the rejection of the call.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
rejlst n num up to 20 digits Number
rejlst n ans OFF,ON Mode Answer,Reject
rejlst n code 0 – 255 code
Command line examples:
To display an entry in the calling numbers list enter the command:
rejlst <instance> ?
where <instance> is 0 – 9.
e.g. rejlst 5 ?
To set up an entry to reject a number, use the following commands:
rejlst 0 num 1234567
rejlst 0 ans OFF
rejlst 0 code 42
To set up an entry to answer a number, use the following commands:
rejlst 1 num 1234567
rejlst 1 ans ON
362
Configuration - Position > GPS
One of the options available on some models is the ability to connect a GPS receiver which
enables the router access to geographical position information. The module may be internal
or external. In either situation, an internal asynchronous serial (ASY) port will be used for
the connection. The standard way that GPS modules send the data is using National Marine
Electronics Association (NMEA) standard 0183 messages. This protocol is usually simply
referred to as NMEA. Routers offering this functionality support the most common NMEA
data messages. These will be described below. GPS receiver modules normally accept
configuration commands which specify which of the NMEA messages should be sent to the
requesting host. The following descriptions show how to configure a router to accept and
forward GPS data using the web interface and by using CLI commands.
Enable local monitoring
When checked, this checkbox allows messages from the GPS receiver may be viewed on the
Management – Position > GPS status page. Which messages are displayed is configured
via entries in a table.
GPS Module Initialization String
Some GPS receivers may require configuration via an initialization message at start-up in
order to send the appropriate messages in the required format, at the required data rate.
Any such required command string is entered into the text entry box and will be sent to the
attached GPS receiver module when the router initialises the module.
The table described here controls which NMEA messages should be sent from the module.
The default is to enable all messages.
Fix data (GGA)
When the associated checkbox is checked the fix data (2D, 3D or no fix) will be output.
Position (GLL)
This checkbox, when checked, causes the Geographic position (Latitude/Longitude)
sentence to be output.
Active Satellites (GSA)
Checking this checkbox causes the NMEA sentence containing the number of active satellites
used to calculate the position, to be output.
Satellites in view (GSV)
Checking this checkbox causes the NMEA sentence containing the number of satellites in
view to be output.
Position and Time (RMC)
Checking this checkbox causes the NMEA sentence containing the current position and time,
to be output.
Course over Ground (VTG)
Checking this checkbox causes the NMEA sentence containing the course data to be output.
UTC and local date/time data (ZDA)
Checking this checkbox causes the NMEA sentence containing the current local time and
date, to be output.
All other messages
The above messages are the most common and useful NMEA sentences. Many GPS modules
support additional messages. Checking this checkbox causes the modules to output any
other supported messages.
363
IP Connection 1
GPS data may be sent to up to two IP destinations. These are specified in the following two
sections of the web page.
Send GPS messages to IP address a.b.c.d
This text entry box holds the IP address that the GPS data should be sent to.
Port n
The required TCP/UDP port number that the GPS data should be sent to is specified here.
Every n interval(s)
The number entered into this text entry box controls how often the GPS data is transmitted
to the specified host. A value of 1 will cause collected GPS data to be transmitted each time
a UTC and local date/time data (ZDA) message is received from the GPS receiver module. A
value of 2 will cause every second message to be sent and so on. For this feature to work
over a TCP/IP connection, the ZDA message must be enabled.
Use TCP / UDP
These radio buttons select which protocol to use for sending the messages.
Prefix the message with t
Enter any text string that the user wishes to precede the NMEA data into this text entry box.
Suffix the message with t
Enter any text string that the user wishes to follow the NMEA data into this text entry box.
IP Connection 2
Send GPS messages to IP address a.b.c.d
This text entry box holds the IP address that the GPS data should be sent to.
Port n
The required TCP/UDP port number that the GPS data should be sent to is specified here.
Every n interval(s)
The number entered into this text entry box controls how often the GPS data is transmitted
to the specified host. A value of 1 will cause collected GPS data to be transmitted each time
a UTC and local date/time data (ZDA) message is received from the GPS receiver module. A
value of 2 will cause every second message to be sent and so on. For this feature to work
over a TCP/IP connection, the ZDA message must be enabled.
Use TCP / UDP
These radio buttons select which protocol to use for sending the messages.
Prefix the message with t
Enter any text string that the user wishes to precede the NMEA data into this text entry box.
Suffix the message with t
Enter any text string that the user wishes to follow the NMEA data into this text entry box.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
gps 0 asy_add The ASY port the
GPS receiver is
connected to n/a
gps 0 gpson On, Off Enable local monitoring
gps 0 init_str Valid command for GPS Module Initialization string
364
Entity
Instance
Parameter
Values
Equivalent Web Parameter
GPS receiver
gps 0 gga_on 0,1
0 = Off
1 = On Fix data (GGA)
gps 0 gll_on 0,1
0 = Off
1 = On Position (GLL)
gps 0 gsa_on 0,1
0 = Off
1 = On Active Satellites (GSA)
gps 0 gsv_on 0,1
0 = Off
1 = On Satellites in view (GSV)
gps 0 rmc_on 0,1
0 = Off
1 = On Position and time (RMC)
gps 0 vtg_on 0,1
0 = Off
1 = On Course over Ground (VTG)
gps 0 zda_on 0,1
0 = Off
1 = On UTC and local date/time (ZDA)
gps 0 oth_on 0,1
0 = Off
1 = On All other messages
gps 0 IPaddr1 Valid IP address
a.b.c.d Send GPS message to IP
address (1)
gps 0 IPport1 Valid IP port n port n
gps 0 nsecs1 Time s seconds every n interval(s)
gps 0 udpmode1 0,1
0 = TCP
1 = UDP Use TCP/UDP
gps 0 IPprefix1 Free text Prefix the message with
gps 0 IPsuffix1 Free text Suffix the message with
gps 0 IPaddr2 Valid IP address
a.b.c.d Send GPS message to IP
address (2)
gps 0 IPport2 Valid IP port n port n
gps 0 nsecs2 Time s seconds every n interval(s)
gps 0 udpmode2 0,1
0 = TCP
1 = UDP Use TCP/UDP
365
Entity
Instance
Parameter
Values
Equivalent Web Parameter
gps 0 IPprefix2 Free text Prefix the message with
gps 0 IPsuffix2 Free text Suffix the message with
The following CLI parameters are not available on the web interface:
Entity Instance Parameter Values Equivalent Web Parameter
gps 0 gga_int s seconds
0 – 255 n/a
gps 0 gll_int s seconds
0 - 255 n/a
gps 0 gsa_int s seconds
0 – 255 n/a
gps 0 gsv_int s seconds
0 – 255 n/a
gps 0 rmc_int s seconds
0 – 255 n/a
gps 0 vtg_int s seconds
0 – 255 n/a
gps 0 zda_int s seconds
0 - 255 n/a
Additional GPS CLI commands
cmd <instance> gpson {on|off}
When set to on, this indicates that an instance of the command line interpreter is connected
to the GPS receiver. The instance number should be the ASY port number to which the GPS
receiver is connected. This parameter has two purposes. Firstly, it tells a particular
command interpreter instance that it is connected to a GPS receiver so that commands
received by that instance should be ignored, rather than being treated as invalid commands.
Secondly, it is used by the at\gps command to determine where the GPS messages
originate.
at\gps
This command causes messages from the GPS receiver to be sent directly to the ASY port
from which the command has been entered. This requires that the gpson parameter
(above) is set to “on” for one of the command interpreter instances. As soon as the at\gps
command has been issued, data from the GPS receiver will be sent to that ASY port. In
order to stop the GPS data, the “+++” escape sequence must be entered, followed by a
pause, followed by “at”.
366
Applications > Basic > ScriptBasic
In order to allow end users to extend and enhance the functionality of the TransPort
routers, scripting support is provided. ScriptBasic is a scripting language supported by Digi
TransPort routers. This section describes how to run simple ScriptBasic scripts. The main
configuration entity is a table containing a list of reference numbers and associated user
parameters. The second is a text box containing the name of the script to run. Initially, the
table is displayed empty, with a row that states “No parameters have been defined”. The
leftmost column contains the number “1”.
# n
This is the number of the parameter that appears in the next column. Up to 30 parameters
may be configured. It is best to enter the numbers in a consecutive, ascending sequence
since this is how the parameters will be referred to in any ScriptBasic script.
Parameter
Type the name of the parameter you wish to create. This can be any alphanumeric string.
These parameters can then be referenced by a ScriptBasic script. For example, a script
using parameter “string1” will use the string defined in the text entry box associated with
command index 1.
Add
Clicking this button adds the parameter to the list of parameters. Parameters are added
consecutively, with each parameter number referring to the string in the adjacent column.
Run Script
The text in this text entry box is the name of the ScriptBasic file to run. This script must
exist within the filing system. Conventionally, ScriptBasic scripts use the “.sb” file extension,
e.g.”myscript.sb”.
Run
Clicking this button will cause the ScriptBasic interpreter to run the named script.
Stop
Clicking this button will stop the execution of the ScriptBasic script.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
basic 0 string1 –
string30 Free form
alphanumeric text Parameter
basic 0 n/a kill Stop
bas n/a n/a Name of
ScriptBasic script Run Script
Examples
To set User parameter 1 to IPv4 address 10.1.1.1, enter the command:
basic 0 string1 10.1.1.1
367
To execute a script from the CLI, enter the command:
bas <myscript.sb>
To kill a running script from the CLI, enter the command:
Basic 0 kill
Application – Python > Python Files
Some of the Digi TransPort routers support the Python scripting language which gives users
the facility to extend and enhance the basic functionality of the router. The routers contain a
Python interpreter which may be invoked from the command line. This can be useful for
developing scripts. The more usual way to use Python is to write a script to implement a
required function and to run this script autonomously. It is common practice for python
scripts to use the file extension “.py”, e.g. “myscript.py”. A Python script is a text file
containing python commands and may be created using a normal plain text editor. Python is
a powerful language and obtains some of its power from the many modules that are
available for it. A description of the Python language is outside the scope of this manual.
Module search path
The parameter in this text entry box sets the search path for Python modules that are not in
the default search path. Multiple locations may be specified by separating pathnames with
colons, e.g. “pymod1.zip:python21.zip”. This will cause the interpreter to search for the two
compressed files pymod1.zip and python21.zip. Note that TransPort routers have a flat filing
system structure that does not support subdirectories.
Redirect the Python output to debug
When checked, this checkbox allows the redirection of the stdout file handle to the debug
output (stderr) file handle. The default state of this parameter is “Off”. The easiest way to
see this in action is to issue the command to start the Python interpreter from a debug/CLI
terminal and note that the screen remains blank. Stop the interpreter (using the “exit()”
command), set this parameter to “ON” and re-issue the command to start the interpreter.
This time, the familiar Python welcome message and prompt should appear on the console.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
pycfg 0 modpath valid search path,
e.g. “mymod.py” Module search path
pycfg 0 stderr2stdout 0,1
0 = Off
1 = On
Redirect the Python output to
debug
The following additional command line informational / debugging commands may be helpful
when developing Python scripts.
“pycfg files” which displays the status of any Python files.
“pycfg mem” which shows the memory useage for the router.
“pycfg scripts” which shows the status of any scripts and change count.
368
Management – Network Status > Interfaces > Ethernet > ETH n
This page displays the current status and statistics of the selected Ethernet interface.
IP Address
The IP address of the Ethernet interface. This could be either manually configured or
assigned via DHCP.
Mask
The mask of the Ethernet interface. This could be either manually configured or assigned via
DHCP.
DNS Server / Secondary DNS Server
The primary and secondary DNS Server IP addresses of the Ethernet interface. These could
be either manually configured or assigned via DHCP.
Gateway
The IP gateway of the Ethernet interface. This could be either manually configured or
assigned via DHCP.
MAC Address
The Ethernet interface’s MAC address.
Speed
The current speed of the Ethernet interface.
Duplex
The current duplex mode of the Ethernet interface.
Bytes Received
The number of bytes that have been received on the Ethernet interface.
Bytes Sent
The number of bytes that have been sent on the Ethernet interface.
Packets Received
The number of packets that have been received on the Ethernet interface.
Packets Sent
The number of packets that have been sent on the Ethernet interface.
Unicast Packets Received
The number of unicast packets that have been received on the Ethernet interface.
Unicast Packets Sent
The number of unicast packets that have been sent on the Ethernet interface.
Broadcast Packets Received
The number of broadcast packets that have been received on the Ethernet interface.
Broadcast Packets Sent
The number of broadcast packets that have been sent on the Ethernet interface.
Multicast Packets Received
The number of multicast packets that have been received on the Ethernet interface.
Multicast Packets Sent
The number of multicast packets that have been sent on the Ethernet interface.
369
Rx Overruns
The number of receive overruns that have occurred on the Ethernet interface. An Rx
overrun occurs when there are not enough buffers to receive incoming packets which results
in the received packets being dropped.
Collisions
The number of times the router has detected a packet collision on the Ethernet network
when transmitting a packet.
Late Collisions
The number of times the router has detected a late packet collision on the Ethernet network
when transmitting a packet.
Flood Protection
The number of times the router has detected an Ethernet packet flood on the network and
has enabled the Flood Protection mechanism. Flood protection is designed to stop the router
from being overwhelmed by the sudden large increase in packets on the Ethernet network.
Alignment Errors
The number of alignment errors that have been detected when receiving an Ethernet
packet.
FCS Errors
The number of Ethernet packets that have been received but had an invalid FCS.
Tx Deferred
The Ethernet packets successfully transmitted after being initially deferred.
Long Frames
The number of Ethernet packets that have been received which are too long.
Carrier Sense Error
The number of carrier sense errors that have occurred. These occur when the router
attempts to transmit an Ethernet packet but cannot detect the carrier sense condition on
the Ethernet network.
Rx MAC Errors
The number of internal errors that have occurred when receiving an Ethernet packet.
Tx MAC Errors
The number of internal errors that have occurred when attempting to transmit an Ethernet
packet.
Other Errors
The number of errors that have occurred which are not counted by the other statistics.
Related CLI Commands
Command
Instance
Parameter
Equivalent Web Parameter
eth n status Displays the current configuration and
status of Ethernet interface n.
ethstat n n/a Displays the statistics for Ethernet interface
n.
at\mibclr=eth.n.stats n/a n/a Clears the statistics for Ethernet interface
n.
370
Management – Network Status > Interfaces > Wi-Fi
Module Detected
This indicates that the Wi-Fi hardware has been detected by the router.
Admin Status
The current administrative state of the Wi-Fi interface. It indicates whether there is
sufficient configuration to bring the Wi-Fi interface up. It can be either “Up” or “Down”.
Operational Status
The current operational state of the Wi-Fi interface. It can be either “Up” or “Down”.
Channel Mode
The Wi-Fi channel mode that is being used. The possible values for this parameter are “B/G”
and “A”.
Channel
The Wi-Fi channel that is being used.
Bytes Received
The number of bytes that have been received on the Wi-Fi interface.
Bytes Sent
The number of bytes that have been sent on the Wi-Fi interface.
Packets Received
The number of packets that have been received on the Wi-Fi interface.
Packets Sent
The number of packets that have been sent on the Wi-Fi interface.
Receive Errors
The number of receives errors have occurred on the Wi-Fi interface.
Transmit Errors
The number of transmit errors have occurred on the Wi-Fi interface.
Received Packets Dropped
The number of received packets have been dropped on the Wi-Fi interface.
Wi-Fi Client Connections Table
This table gives information on the Wi-Fi clients that are connected to the router’s Wi-Fi
Access Point interface.
Node
371
The MAC address of the connected Wi-Fi client.
Wi-Fi Node
The Wi-Fi node on the router the client is connected to.
RSSI
The signal strength experienced by the Wi-Fi client.
Flags
The state information for the Wi-Fi client connection.
Power Save
The current power saving state of the Wi-Fi client. The possible values are “Awake” and
“Sleep”.
Neg. Rates (Mbps)
The transmission rates that have been negotiated with the Wi-Fi client.
Capability Info
The capabilities that the router has advertised to the Wi-Fi client.
Access Point Connections Table
This table gives information on the Wi-Fi Access Points that the router is connected to.
Access Point
The name and MAC address of the Wi-Fi Access Point that the router is connected to.
Wi-Fi Node
The Wi-Fi node that has been used to connect to the Access Point.
RSSI
The signal strength experienced by the router when connected to the Wi-Fi Access Point.
Flags
The state information for the Wi-Fi Access Point connection.
Power Save
The current power saving state of the router. The possible values are “Awake” and “Sleep”.
Neg. Rates (Mbps)
The transmission rates that have been negotiated with the Wi-Fi Access Point.
Capability Info
The capabilities of the Access Point that the router is connected to.
Related CLI Commands
Command
Options
Equivalent Web Parameter
wificonn n/a Displays the Wi-Fi connection table.
wifistat n/a Displays the Wi-Fi statistics.
372
Management > Network Status > Interfaces > Mobile
The Mobile status page displays the current mobile connection, network and module
information.
373
Mobile Connection
Registration Status
The GSM registration status of the mobile module with respect to the GSM network. It may
be one of the following
• Not Registered, not searching
• Not registered, searching
• Registered, home network
• Registered, roaming
• Registration denied
• Unknown
• ERROR
The registration status may sometimes be followed by additional information about the
Location Area Code (LAC) and the Cell Identifier (CI).
Signal Strength
The signal strength in dBm being received by the mobile module. The range is -113dBm
(min) to -51dBm (max). The signal strength bars should match the Signal Strength LEDs on
the front of the router.
Mobile Statistics
IP Address
The IP address of the mobile interface.
Primary DNS Address / Secondary DNS Address
The primary and secondary DNS addresses used by the mobile interface.
Data Received
The number of data bytes that have been received on the mobile interface whilst it has been
connected.
Data Sent
The number of data bytes that have been sent on the mobile interface whilst it has been
connected.
Mobile Information
For GSM networks, the Mobile Information section can have the following items.
SIM Status
This indicates whether or not a valid SIM card has been installed in the router. It may be
one of the following
• READY - SIM is OK
• SIM PIN - PIN number required
• SIM PUK - SIM blocked (unblocking code required)
• ERROR - SIM is not installed or is faulty
Radio Technology
The current network technology in use. It may be one of the following
• GSM
• GPRS
• EDGE
• UMTS
• HSDPA
374
• HSUPA
• CDMA
Manufacturer
The manufacturer of the mobile module.
Model
The model of the mobile module.
IMEI
The International Mobile Equipment Identification (IMEI) of the mobile module.
ESN
The Electronic Serial Number (ESN) of the mobile module.
MEID
The Mobile Equipment Identifier (MEID) of the mobile module.
IMSI
The International Mobile Subscriber Identity (IMSI) of the mobile module.
ICCID
The Integrated Circuit Card Identifier (ICCID) of the SIM card.
Firmware
The firmware running on mobile module.
Bootcode
The bootcode firmware running on the mobile module.
Hardware Version
The hardware version of the mobile module.
GPRS Attachment Status
The current status of the mobile module with respect to the Mobile service. It may be one of
the following
• Not attached - the unit has not connected to a mobile service.
• Attached - the unit has connector to a mobile service.
• ERROR - unknown response from the mobile module.
GPRS Registration
See Registration Status.
Network
The name of the GSM network to which the mobile module is currently connected to or
ERROR if no network is available.
Preferred system
The preferred technology. It can be one of following
• Auto
• GSM only
• WCDMA only
For CDMA networks, the Mobile Information can have the following items.
Current system ID
The current system ID reported by the mobile module.
Current network ID
The current network ID reported by the mobile module.
375
Network
The current network reported by the mobile module.
Signal strength 1xRTT
The signal strength in dBm being received by the mobile module from 1xRTT networks.
Signal strength EVDO
The signal strength in dBm being received by the mobile module from EVDO networks.
Manufacturer
The manufacturer of the mobile module.
Model
The model of the mobile module.
MDN
The Mobile Directory Number (MDN) of the mobile module.
MIN
The Mobile Identification Number (MIN) of the mobile module.
ESN
The Electronic Serial Number (ESN) of the mobile module.
MEID
The Mobile Equipment Identifier (MEID) of the mobile module.
Firmware
The firmware running on mobile module.
Bootcode
The bootcode firmware running on the mobile module.
Hardware version
The hardware version of the mobile module.
Registration State
See Registration Status.
Roaming status
The current roaming status of the mobile module.
Radio interfaces in use
It can be one of the following
• CDMA 1x
• EVDO
• No service
• Unknown
PRL version
The version of the Preferred Roaming List (PRL) loaded on the mobile module.
Activation status
The activation state of the mobile module. It can be of the following
• 0 – Not activated
• 1 – Activated
Related CLI Commands
Command
Option
Equivalent Web Parameter
modemstat ? Mobile Information
376
Command
Option
Equivalent Web Parameter
modemstat s Scan for Networks
pppstat n Mobile Statistics (where n is the PPP interface being used by
the mobile interface)
377
Management – Network Status > Interfaces > DSL
This page displays the current status and statistics of the DSL interface.
Modem Status
The current status of the DSL modem. On the DR64 platform, the values can be one of the
following
• Idle
• Activating
• Ghs
• Training
• Up
Link Uptime
The amount of time the modem has been in the Up state.
Firmware Version
The version of the firmware running on DSL modem.
Operational Mode
The operational mode that the DSL modem is in when in the Up state. It is in the format of
<Mode> Annex <A | B | M>
where the <Mode> can be one the following
• ANSI
• ETSI
• G.dmt
• G.lite
• ADSL2
• ADSL2+
378
Remote Vendor ID
The remote vendor ID of the DSLAM that the DSL interface connected to.
Speed
The current speed the downstream and upstream DSL channels in Kbps.
Channel
The channel type being used. It can be either “Fast” or “Interleaved”.
Relative Capacity
The current relative capacity on the downstream and upstream DSL channels. The relative
capacity is the percentage of your overall available bandwidth used to obtain your ATM
service rate.
Attenuation
The current attenuation, in decibels, on the downstream and upstream DSL channels.
Attenuation is the measure of how much the signal has degraded between the DSLAM and
the DSL modem. The lower the attenuation, the better the performance will be.
Noise Margin
The current noise margin, in decibels, on the downstream and upstream DSL channels. The
noise margin (aka Signal to Noise Ratio) is the relative strength of the DSL signal to noise.
The larger the noise margin, the better the performance will do. In some instances,
interleaving can help raise the noise margin.
Power Output
The current amount of power, in dBm, that the DSL modem (upstream) and DSLAM
(downstream) are using. The lower the power output, the better the performance will be.
Indicator Bits
The indicator bit values being used on the downstream and upstream DSL channels.
Cells
The number of cells that have received (downstream) and transmitted (upstream).
CRC
The number of CRC errors that have occurred downstream and upstream.
HEC
The number of Header Error Controls (HEC) errors that have occurred downstream and
upstream.
LOS
The number of Loss of Signal (LOS) errors that have occurred downstream and upstream.
SEF
The number of Severely Errored Frame (SEF) errors that have occurred downstream and
upstream.
Corrected Blocks
The number of blocks that have been received and corrected by the forward error correction
(FEC) code.
Uncorrected Blocks
The number of blocks that have been received and could not be corrected by the forward
error correction (FEC) code.
379
Overrun Cells
The number of cells lost because of overrun errors.
Idle Cells
The number of idle cells received.
Related CLI Commands
Command
Instance
Equivalent Web Parameter
adslst n/a Displays the current DSL interface status.
at\mibs=adsl.0.stats n/a Displays the current DSL interface statistics.
at\mibclr=adsl.0.stats n/a Clears the current DSL interface statistics.
pppstat n DSL Statistics (where n is the PPP interface being used
by the DSL PVC).
380
Management > Network Status > Interfaces > GRE
This page displays a summary table of the configured GRE interfaces.
#
This indicates GRE interface number.
Description
The configured GRE interface description.
Oper. Status
The current operational status of the GRE interface. It can be one of the following values
Up
The GRE interface is up.
Lower Layer Down
The GRE interface has keepalives enabled but is not getting any
response from the configured destination.
IP Address
The configured IP address for the GRE interface.
Mask
The configured IP subnet mask for the GRE interface.
Source
The configured source IP address or interface of the GRE interface.
Destination
The configured destination IP address or domain name of the GRE interface.
Further information on particular GRE interfaces can be obtained by selecting the
appropriate GRE interface submenu underneath the GRE summary table.
As well as the above information, the following statistics are also displayed.
Bytes Received
The number of bytes that have been received on the GRE interface.
Bytes Sent
The number of bytes that have been sent on the GRE interface.
Packets Received
The number of packets that have been received on the GRE interface.
Packets Sent
The number of packets that have been sent on the GRE interface.
Keepalives Received
The number of GRE keepalive packets that have been received on the GRE interface.
381
Keepalives Sent
The number of GRE keepalive packets that have been sent on the GRE interface.
Rx Errors
The number of receive errors that have occurred on the GRE interface. These can include
the received being an invalid GRE packet.
Tx Errors
The number of transmit errors that have occurred on the GRE interface. These can include
an internal error due to no packet buffers being available.
Rx Unknown
The number of packets that have been received with an unknown IP protocol and have been
dropped.
Tx Discards
The number of packets that have been discarded during transmission due to the GRE
interface not being up or if a routing loop has been detected.
Related CLI Commands
Entity Instance Options Equivalent Web Parameter
tunstat n n/a Displays the GRE interface specific status and statistics.
tunstat n clear Clears the statistics for the GRE interface.
Management – Network Status > Interfaces > ISDN > ISDN BRI
This section contains the status information for the ISDN interface. The status information is
presented as a simple table having three or four columns as described below:
Channel
There are three supported channels; the D-channel, B1 and B2 channels that appear in this
column. Each channel row has an associated status, protocol and (for data channels) action.
The Action column will only appear when the associated channel becomes active.
Status
The status of each channel is shown in this column. The status is either ON or OFF.
Protocol
The protocol in use by the channel is shown in this column. This should be as set up in the
configuration procedure. For D-channels, this will be LAPD. If the associated channel is not
active, this entry will be blank.
Action
When the link becomes active, a button should appear in this column. The text on the
button will be “Drop Link”. Clicking the button will deactivate the channel.
Related CLI Commands
If a PPP instance has been associated with a B-channel, the statistics for that PPP instance
will be available using the normal pppstat command.
382
Management – Network Status > Interfaces > PSTN
This section contains the network status information for the PSTN interface.
Link Name
If a description of the interface has been assigned during the configuration, it will appear
here.
This PSTN interface is using PPP n
When configuring the PSTN module, a PPP instance is assigned – the instance number of the
assigned PPP interface appears here.
IP Address
The IP address assigned to the interface is shown here.
Mask
This value is the subnet mask being used by the interface.
DNS Server
The IP address of the DNS server being used by the interface appears here.
Bytes Received
This value is the number of bytes received by the interface.
Bytes Sent
This value is the number of bytes sent by the interface.
LCP Packets Received
This value is the number of Link Control Protocol (LCP) packets received.
LCP Packets Sent
This value is the number of LCP packets sent by the interface.
PAP Packets Received
This value is the number of Password Authentication Protocol (PAP) packets sent by the
interface.
PAP Packets Sent
This value is the number of PAP packets sent by the interface.
IPCP Packets Received
This value is the number of IP Control Protocol (IPCP) packets received by the interface.
IPCP Packets Sent
This value is the number of IPCP packets sent by the interface.
Receive Errors
This value indicates the number of frames received that contain an error (CRC etc).
Transmit Errors
This value indicates the number of frames that the interface attempted to transmit, but
were found to contain an error.
Refresh
Clicking this button causes the status page to be refreshed with the updated statistics.
Clear PPP n Statistics
Clicking this button causes the statistics to be reset to zero.
383
Related CLI Commands
The CLI commands are the same as for other interfaces and are described in the PPP status
section. The command to obtain the status is:
pppstat <n>
where <n> is the interface number for the PPP interface assigned to the PSTN module and
is shown at the top of the web page.
Management – Network Status > Interfaces > Serial > Serial n
This page displays the current status and statistics of the selected Serial interface.
DTR
The current status of the Data Terminal Ready (DTR) signal.
Bytes Received
The number of bytes that have been received on the serial interface.
Rx Overruns
The number of receive overruns that have occurred on the serial interface. A receive
overrun occurs when there are not enough buffers to receive incoming data which results in
the received data being dropped.
Tx Underruns
The number of transmit underruns that have occurred on the serial interface. A transmit
underrun occurs when there is not enough data available when it is about to be transmitted.
Breaks Received
The number of times a break signal has been received.
Framing Errors Received
The number of framing errors that have been detected when receiving data on the serial
interface.
Parity Errors Received
The number of parity errors that have been detected when receiving data on the serial
interface.
Buffer Shortages
The number of times data that has been received on the serial interface has been dropped
because of a lack of system buffers.
Message Shortages
The number of times data that has been received on the serial interface has been dropped
because of a lack of system messages.
Related CLI Commands
Command
Instance
Parameter
Equivalent Web Parameter
at\mibs=asy.n n/a n/a Displays the statistics for serial interface n.
at\mibclr=asy.n n/a n/a Clears the statistics for serial interface n.
384
Management – Network Status > Interfaces > Advanced > PPP > PPP n
This page displays the current status and statistics of the selected PPP interface.
385
Name
The name assigned to the PPP interface.
Uptime
The amount of time the PPP interface has been up.
MRU
The maximum receive unit (MRU) that has been negotiated by each peer on the PPP
connection.
ACCM
The Asynchronous Control Character Map (ACCM) that has been negotiated by each peer on
the PPP connection.
VJ Compression
The Van Jacobson (VJ) compression that has been negotiated by each peer on the PPP
connection.
Link with Active Entity
The entity that this PPP interface is using for connectivity.
IP Address
The IP address that has been assigned to this PPP interface. This could be either statically
configured or assigned by the remote PPP peer.
DNS Server IP Address / Secondary DNS Server IP Address
The primary and secondary DNS server IP addresses that are being used by the PPP
interface.
Outgoing Call To
If this is dial-out PPP interface, this is the number it used to make the call.
Total Data Transferred
The total amount of data bytes received and transmitted on the PPP interface including PPP
headers and payload.
Total Up Time Today
The total amount of time in minutes that the PPP interface has been connected in the
current 24 hour period.
Bytes Received
The number of bytes that have been received on the PPP interface.
Bytes Sent
The number of bytes that have been sent on the PPP interface.
LCP Packets Received
The number of Link Control Protocol (LCP) packets that have been received on the PPP
interface.
LCP Packets Sent
The number of Link Control Protocol (LCP) packets that have been sent on the PPP interface.
PAP Packets Received
The number of Password Authentication Protocol (PAP) packets that have been received on
the PPP interface.
PAP Packets Sent
The number of Password Authentication Protocol (PAP) packets that have been sent on the
PPP interface.
386
IPCP Packets Received
The number of IP Control Protocol (IPCP) packets that have been received on the PPP
interface.
IPCP Packets Sent
The number of IP Control Protocol (IPCP) packets that have been sent on the PPP interface.
BACP Packets Received
The number of Bandwidth Allocation Control Protocol (BACP) packets that have been
received on the PPP interface.
BACP Packets Sent
The number of Bandwidth Allocation Control Protocol (BACP) packets that have been sent on
the PPP interface.
BAP Packets Received
The number of Bandwidth Allocation Protocol (BAP) packets that have been received on the
PPP interface.
BAP Packets Sent
The number of Bandwidth Allocation Protocol (BAP) packets that have been sent on the PPP
interface.
Unknown Packets Received
The number of packets received with an unknown or unsupported PPP protocol.
Receive Errors
The number of receive errors that have occurred on the PPP interface.
Transmit Errors
The number of transmit errors that have occurred on the PPP interface.
CRC Errors Received
The number of packets that have been received on the PPP interface with invalid CRCs.
Framing Errors Received
The number of packets that have been received on the PPP interface with invalid framing.
Transaction Stats
Last Counter Reset Timestamp
The time when the PPP transaction statistics where last reset.
Successful Transaction Count
The number of successful PPP transactions.
Dropped Transaction Count
The number of transactions sent but no response has been received.
Minimum Transaction Time
The shortest response time in milliseconds for a PPP transaction.
Maximum Transaction Time
The longest response time in milliseconds for a PPP transaction.
Average Transaction Time
The average response time in milliseconds for the successful PPP transactions.
387
Route OOS Count
The number of Route “Out Of Service” messages sent by the firewall to the routing code.
These messages put routes out of service for a period of time and are sent when enough
failed PPP transactions have occurred.
Related CLI Commands
Command
Instance
Parameter
Equivalent Web Parameter
ppp n status Displays the current status of PPP interface
n.
at\mibs=ppp.n.stats
n/a n/a Displays the statistics for PPP interface n.
at\mibclr=ppp.n.stats
n/a n/a Clears the statistics for PPP interface n.
388
Management > Network Status > IP Routing Table
This page displays the IPv4 routing table.
Destination
The destination IP network of the route. The destination needs to match the destination IP
address of an IP packet for the route to be used.
For default routes, the destination IP network is always 0.0.0.0/0. Default routes are used
when no other route matches the destination IP address of an IP packet.
Src Addr
When source address routing is being used, the src addr needs to match the source IP
address of an IP packet for the route to be used.
Gateway
The IP address of the next router to which the IP packet will be routed to in order to reach
the destination network.
On PPP and TUN interfaces and ETH interfaces that have the gateway configured, this
parameter can be blank.
Metric
The route metric defines the “cost” of the route. If CIDR routing is enabled and there are
two routes to the same destination, the route with the lower metric is used.
Protocol
The protocol that created the route. It can be one of the following
Local
The route is for a network connected directly to the router.
Remote
The route is for a remote network accessed via a PPP connection.
Static
The route is a static route.
Static/RIP
The route is a static route that has been updated by RIP.
RIP
The route is a RIP route.
IBGP
The route is an interior BGP route.
EBGP
The route is an exterior BGP route.
OSPF
The route is an OSPF route.
Idx
This parameter is only used for static routes and it defines the index of the configured static
route.
Interface
The interface over which the IP packet will be routed when the route is used.
389
Status
The current status of the route. It can be one of the following
UP
The route is up and can be used for routing.
DOWN The interface that the route uses is currently down. The interface can be
activated if the route is required.
OOS The interface that the route uses is currently “Out of Service”.
Related CLI Commands
Command Options Equivalent Web Parameter
route print Displays the IPv4 routing table.
route printsrc Displays the IPv4 routing table with the src addr
information.
390
Management > Network Status > IP Hash Table
The router uses a routing hash table to improve IPv4 routing performance by reducing route
lookup times.
The IP hash table contains information on recently routed IP packets such as source and
destination IP address, IP protocol, etc. It also contains information on the interface and
gateway used when routing the IP packet.
When the router receives an IP packet to route, it will look in the IP hash table before
looking in the IPv4 routing table.
Whenever the IPv4 routing table changes (e.g. a route is added, deleted or modified), all
entries in the IP hash table are flushed out.
The IP hash table can be flushed manually using the “Flush” button.
Entries in the IP hash table are automatically deleted if it is not used for 10 seconds.
Src IP Address
The source IP address of the routed IP packet.
Src Port
The source TCP/UDP port of the routed IP packet. If the IP protocol is not TCP or UDP, then
this field is “0”.
Destination IP Address
The destination IP address of the routed IP packet.
Dest Port
The destination TCP/UDP port of the routed IP packet. If the IP protocol is not TCP or UDP,
then this field is “0”.
Next Hop
The next hop gateway to which the routed IP packet was sent to.
IP Protocol
The IP protocol field in the routed IP packet.
Interface
The interface that was used when the IP packet was routed.
Age
The age in seconds of the entry in the IP hash table.
391
Idx
The index in the IP hash table of the entry.
Usage
The number of times the entry has been used.
Related CLI Commands
Command
Options
Equivalent Web Parameter
route hash Displays the IP hash table.
route flush Flushes the IP hash table.
392
Management – Network Status > Port Forwarding Table
This page displays the Port Forwarding / NAT table.
The Port Forwarding table is used by the router to keep track of IP packets that have been
modified via NAT or NAPT in to order to be routed over a particular network.
When the router receives a response to a previously modified IP packet, it will look up the
matching entry in the Port Forwarding table in order to correctly modify the response IP
packet.
Src IP Address
The source IP address of the modified IP packet.
Dest IP Address
The destination IP address of the modified IP packet.
IP Protocol
The IP protocol field of the modified IP packet.
Src Port
The source TCP/UDP port of the modified IP packet. For ICMP packets, this defines the ICMP
Echo identifier value.
NAPT Port
The new destination TCP/UDP of the modified IP packet. For ICMP packets, this defines the
ICMP Echo identifier value.
Dest Port
The original destination TCP/UDP port of the modified IP packet.
TTL
The time to live in seconds for the Port Forwarding entry. If the entry is not used for the
specified amount of time, the entry is deleted from the Port Forwarding table.
Related CLI Commands
Command
Options
Equivalent Web Parameter
nat list Displays the Port Forwarding / NAT table.
393
Management > Network Status > Firewall
This page displays the current Firewall statistics and the Firewall Stateful Inspection table.
Passed Packets
The number of packets the firewall has passed.
Blocked Packets
The number of packets the firewall has blocked.
Logged Packets
The number of packets the firewall has logged.
Stateful Packets
The number of packets that have matched a stateful rule.
Undersized Packets
The number of packets received by the firewall that are too small.
Oversized Packets
The number of packets received by the firewall that are too large.
Return TCP RST
The number of times the firewall has returned a TCP Reset packet.
Return ICMP
The number of times the firewall has returned an ICMP packet.
Stateful rule shortages
The number of times there has been a shortage of entries stateful inspection table.
HASH table errors
The number of times there has been a hashing error when looking into the stateful
inspection table.
In use stateful rules reused
The number of times an in-use stateful inspection table has been reused.
Firewall Stateful Inspection Table
The Firewall Stateful Inspection table is a sophisticated scripted “Stateful Firewall” and
“Route Inspection” engine. Stateful inspection is a powerful tool that allows the unit to keep
track of a TCP/UDP or ICMP session and match packets based on the state of the connection
on which they are being carried.
The table contains a list of dynamic firewall rules that have been created when packets have
matched a configured firewall with the inspect-state keyword specified.
For more information on the inspect-state keyword, see “Stateful Inspection” in the
Firewall section.
TTL
The number of seconds for the table entry to live. When this reaches zero, the entry is
removed from the table.
394
Hits
The number of times an IP packet has been matched against the firewall rule.
Direction
The direction of the IP packets that match the firewall rule.
Src IP Addr
The source IP address of the IP packets that match the firewall rule.
Src Port
The source TCP/UDP port of the IP packets that match the firewall rule.
Dest IP Addr
The destination IP address of the IP packets that match the firewall rule.
Dest Port
The destination TCP/UDP port of the IP packets that match the firewall rule.
Trans. Src IP Addr
If the firewall is configured to modify (e.g. NAT or NAPT) the source IP address of the IP
packets that match the firewall, this defines the new source IP address of the IP packets.
Trans. Src Port
If the firewall is configured to modify (e.g. NAPT) the source TCP/UDP port of the IP packets
that match the firewall, this defines the new source TCP/UDP port of the IP packets.
Trans. Dest IP Addr
If the firewall is configured to modify (e.g. NAT or NAPT) the destination IP address of the IP
packets that match the firewall, this defines the new destination IP address of the IP
packets.
Trans. Dest Port
If the firewall is configured to modify (e.g. NAPT) the destination TCP/UDP port of the IP
packets that match the firewall, this defines the new destination TCP/UDP port of the IP
packets.
Protocol
The IP protocol of the IP packets that match the entry.
Interface
The interface over which the IP packets that match the entry are sent or received.
Related CLI Commands
Command
Options
Equivalent Web Parameter
fwall show Displays the Firewall Stateful Inspection table.
395
Management > Network Status > Firewall Trace
The firewall trace output is appended to when the log keyword is used in the firewall.
Most commonly, the log keyword is used in the last rule in form block log break end to
log a summary of all packets that did not match one of the preceding allow rules.
The log keyword is much more versatile in its usage and what can be logged. For more
information see “log:” in the Firewall Scripts section.
An example output is show below, this is from the commonly used firewall rule
block log break end
----- 5-10-2009 23:12:08 ------
FW LOG Dir: IN Line: 37 Hits: 4730 IFACE: ETH 3
Source IP: 222.45.112.59 Dest IP: 217.34.133.21 ID: 256 TTL: 106 PROTO: TCP (6)
Src Port: 12200 Dst Port: 8118
block log break end
----------
----- 5-10-2009 23:13:15 ------
FW LOG Dir: IN Line: 37 Hits: 4731 IFACE: ETH 3
Source IP: 218.61.22.42 Dest IP: 217.34.133.21 ID: 35372 TTL: 136 PROTO: TCP (6)
Src Port: FTP CTL (21) Dst Port: 16794
block log break end
----------
2 example logged packets are shown. The output of the 1st logged packet can be explained
as follows:
----- 5-10-2009 23:12:08 ------
This is the time stamp of the blocked packet.
FW LOG Dir: IN Line: 37 Hits: 4730 IFACE: ETH 3
‘Dir:’ is the direction of the packet that was logged, either IN or OUT of the router.
‘Line:’ is the line number within the firewall rules that caused this packet to be logged.
‘Hits:’ is the number of packets that have matched this rule.
‘IFACE:’ is the interface which the packet was logged on.
Source IP: 222.45.112.59 Dest IP: 217.34.133.21 ID: 256 TTL: 106 PROTO: TCP (6)
‘Source IP:’ is the source IP address of the packet that was logged.
‘Dest IP:’ is the destination IP address of the packet that was logged.
‘ID:’ is the ID of the packet, this is taken from the packet header.
‘TTL:’ is the Time To Live value.
‘PROTO:’ is the layer 3 protocol of the logged packet.
396
Src Port: 12200 Dst Port: 8118
‘Src Port’ is the source TCP or UDP port number of the packet that was logged.
‘Dst Port’ is the destination TCP or UDP port number of the packet that was logged.
‘block log break end’ This is the actual rule that caused the packet to be logged.
Related CLI Commands
Command
Options
Equivalent Web Parameter
type fwlog.txt n/a Displays the current Firewall trace.
Management – Network Status > DHCP Status
This page displays the current DHCP status table.
IP Address
The IP address assigned to the hostname.
Hostname
The hostname to which the IP address has been assigned.
Lease time left (mins)
The length of time in minutes the IP address lease is valid for. After this time, the DHCP
client will need to renew its IP address.
Related CLI Commands
Entity
Instance
Parameter
Equivalent Web Parameter
dhcp 0 status Displays the current status of the DHCP table.
dhcp 0 clear Deletes all the entries in the DHCP table.
397
Management – Network Status > DNS Status
This page displays DNS status table.
Hostname
The hostname that has been resolved.
IP Address
The IP address of the hostname.
TTL
The time to live in seconds for the DNS entry. When the TTL reaches zero, the entry is
deleted.
Related CLI Commands
Entity
Instance
Parameter
Equivalent Web Parameter
dns 0 status Displays the current status of the DNS table.
dns 0 clear Deletes all the entries in the DNS table.
398
Management – Network Status > QoS
This page displays the current QoS status table for a particular interface.
Priority Q
The priority queue in the table.
TX rate (kbps)
The current transmit rate in kbps of the queue.
Limit
The current transmit rate limit in kbps of the queue.
Weighted Q length
The weighted queue length using the Weighted Random Early Discard (WRED) algorithm.
Q length
The number of packets on the queue.
399
Management – Connections > IP Connections
This page displays the current status of the TCP sockets on the router.
The router has two types of sockets
TCP Sockets
Reserved for WEB and FTP connections.
General Purpose Sockets
Can be used by any application for TCP connections.
TCP Sockets
ID
The TCP socket identifier.
SID
An internal socket identifier.
State
The current state of the socket.
Local IP Addr
The IP address on the router that is being used for the TCP connection.
Local Port
The TCP port on the router that is being used for the TCP connection or is being listened on.
Remote IP Address
The IP address of the remote device that has the TCP connection to the router.
Remote Port
The TCP port being used by the connected remote device.
SYNs Waiting
The number of TCP SYN packets that are currently being processed by the router.s
Free SYN entries
The number of entries available to process an incoming TCP SYN packet.
400
Related CLI Commands
Command
Options
Description
socks Displays the current status of the TCP sockets.
General Purpose Sockets
ID
The ID of the general purpose socket.
Owner
The software task that created the socket.
401
Protocol
The protocol being used by the socket.
Mode
The mode of operation of the socket.
State
The current state of the socket.
Local Port
The port of the router that is being used by the socket.
Remote IP Addr
The IP address of the remote device that has a TCP connection with the socket.
Remote Port
The TCP port being used by the remote device.
Inactivity Timeout
The socket’s inactivity timeout (in seconds). If the timer reaches zero seconds, the TCP
connection is closed.
Total Number of Sockets
The total number of general purpose sockets available on the router.
Number of Free Sockets
The number of free general purpose sockets available on the router.
Related CLI Commands
Command
Options
Description
gpstat Displays the current status of the general purpose sockets.
gpstat close <ID> Closes the GP Socket connection with the ID number specified.
Management – Connection > Virtual Private Networking (VPN) > IPsec
This page displays the current status of the IPsec tunnels.
#
IPsec tunnel number.
SPI
The Security Parameters Index (SPI) is a pointer that references the session key and
algorithm used to protect the data in the IPsec tunnel.
Peer IP
The IP address of the remote device that is the other end of the IPsec tunnel.
402
Local Network
The local IP network of the IPsec tunnel that is connected to the router.
Remote Network
The remote IP network of the IPsec tunnel that is connected to the remote device.
First Rem. IP / Last Rem. IP
For IPsec tunnels that have been negotiated using IKEv2, this is the range IP addresses
available on the remote IP network.
First Loc. IP / Last Loc. IP
For IPsec tunnels that have been negotiated using IKEv2, this is the range IP addresses
available on the local IP network.
AH
The AH algorithm in use, if any.
ESP Auth
The ESP authentication algorithm in use, if any.
ESP Enc
The ESP encryption algorithm in use, if any.
IPComp
The data compression algorithm in use, if any.
KBytes Delivered
The total amount of data that has been transferred (in both directions) over this IPsec
tunnel.
KBytes Left
The amount of data left to be transferred over the IPsec tunnel before the data duration
limit is reached. The data duration is negotiated between the router and the remote device.
Time Left
The time left (in seconds) before the time duration limit is reached. The time duration is
negotiated between the router and the remote device.
Interface
The interface over which the IPsec tunnel is on.
403
Related CLI Commands
Command
Options
Description
sastat [dyn] Displays the current status of all of the IPsecs tunnels.
The optional “dyn” parameter can be used to display
the status of the dynamic IPsec tunnels.
sastat [dyn] <first> <last>
Displays the current status of the IPsec tunnels in the
range from <first> to <last>.
e.g. sastat 0 49
or sastat dyn 0 49
sastat [dyn] peer <peer>
Displays the current status of the IPsec tunnels that
match the given peer. The <peer> value can contain
the ‘*’ wildcard character.
e.g. sastat peer uk-north-*
or sastat dyn peer uk-north-*
Management – Connection > Virtual Private Networking (VPN) > IPsec
peers
This page displays the current status of the IPsec peers.
This is the list of remote devices that have successfully negotiated an IPsec tunnel with the
router.
Peer IP Address
The IP address of the remote device.
Our ID
The ID of the router.
Peer ID
The ID of the remote device.
Dead Peer Detection (DPD)
The DPD status and the time until the next DPD request.
NATT Local Port
The local NAT-Traversal port.
NATT Remote Port
The remote NAT-Traversal port.
404
Management – Connection > Virtual Private Networking (VPN) > IKE SAs
This page displays the current status of the IKE Security Associations (SA).
Our ID
The ID of the router.
Peer ID
The ID of the remote device with which the IKE SA has been negotiated.
Peer IP Address
The IP address of the remote device.
Our IP Address
The IP address the router used to negotiate the IKE SA.
Time Left
The time remaining (in seconds) for the IKE SA to remain in force.
Session ID
The ID of the IKE SA.
Internal ID
An internal identifier for the IKE SA.
405
Management – Position > GPS
This page displays a summary of the most recent information received from the GPS module
(if fitted) and the status of the IP connections.
Longitude
The current longitude contained in the last GGA, GLL or RMC message from the GPS
module.
Latitude
The current latitude contained in the last GGA, GLL or RMC message from the GPS module.
No of Satellites
The current number of satellites being used as indicated in the last GGA message from the
GPS module.
Type of fix
The current fix status as indicated in the last GGA, GLL or RMC message, followed by the
type of fix (e.g. 2D, 3D or no fix) as indicated in the last GSA message.
UTC
The current UTC time as indicated in the last ZDA, GGA, GLL or RMC message from the GPS
module.
True Heading
The current true heading as indicated in the last RMC message from the GPS module. If the
router is not moving, this value is not available.
Speed
The current speed as indicated in the last RMC message from the GPS module.
Integrity
The current data integrity as indicated in the last RMC message from the GPS module. It
can be either “Valid” or “Not Valid”.
IP Connections
The current IP address, port number, connection type and status of the IP connections.
406
Related CLI Commands
Command
Options
Description
at\mibs=gps.0.stats Displays the current status of the GPS receiver.
407
Management – Event Log
This page displays the current contents of the event log on the router.
The event log is stored in a pseudo-file called “eventlog.txt”. It acts as a circular buffer so
that when there is no space available for new entries, the oldest entries are overwritten.
Each entry in the log normally consists of a single line containing the date, time and a brief
description of the event. In some case it may also identify:
the type/number of the protocol instance the generated the message (e.g. PPP 0)
a reason code
Additional information such as an X.25 address or ISDN telephone number.
The specific events that generate a log entry are pre-defined and cannot be altered
although the text and priority of each event can be modified. This can be done via the
Configuration - Alarms > Event Logcodes page.
Related CLI Commands
Command
Options
Description
type eventlog.txt Displays the contents of the event log.
clear_ev Clears the contents of the event log.
408
Management – Analyser
The router can be configured to capture a trace of the data being transmitted and received
on the various interfaces. It is able to capture the layer 1, 2 and 3 protocol data and present
it in an easily read format.
Management – Analyser > Settings
Enable Analyser
This checkbox is used to enable or disable the analyser.
Maximum packet capture size
The number of bytes that are captured and stored for each packet. If the packet is bigger
than the configured size, the packet is truncated. Bear in mind that the larger this value,
the quicker the pseudo file “ana.txt” will become full so that the effective length of the
analyser trace is reduced.
Log Size
The maximum size of the pseudo file “ana.txt” that is used to store the captured data
packets. Once the maximum size is reached, the oldest captured data packets are
overwritten when new packets are captured.
The maximum value is 180Kb, but the data is compressed so more than 180Kb of trace data
will be captured.
Protocol layers
The checkboxes shown under this heading are used to specify which protocol layers are
captured and included in the analyser trace. You can choose to capture Layer 1 (physical /
PPP), Layer 2 (Laye protocol, the Network Layer (Layer 3) protocol or any combination, by
checking or clearing the appropriate checkboxes. In addition, you may select XOT (X.25
over TCP/IP) tracing if this feature is included on the router.
Enable IKE debug
This checkbox is used to enable or disable the inclusion of IKE packets in the analyser trace
when using IPsec.
Enable QMI trace
This checkbox is used to enable or disable the inclusion of data from the Qualcomm
Management Interface in the analyser trace.
Enable SNAIP trace
This checkbox is used to enable or disable the inclusion of SNAIP packet in the analyser
trace.
ISDN Sources
The checkboxes shown under this heading are used to select the ISDN channels (D, B1 and
B2) over which packets will be captured and included in the analyser trace.
LAPB Links
The checkboxes shown under this heading are used to select the LAPB links over which
packets will be captured and included in the analyser trace.
Serial Interfaces
The checkboxes shown under this heading are used to select the serial interfaces over which
packets will be captured and included in the analyser trace. The list of available interfaces
will include the physical serial interfaces, internal virtual serial interfaces (if present) and
interfaces used by built-in WWAN and/or PSTN modems.
Ethernet Interfaces
409
The checkboxes shown under this heading are used to select the Ethernet interfaces over
which packets will be captured and included in the analyser trace.
Raw SYNC Sources
The checkboxes shown under this heading are used to select the synchronous sources over
which packets will be captured and included in the analyser trace.
DSL PVC Sources
The checkboxes shown under this heading are used to select the ADSL ATM PVCs over
which packets will be captured and included in the analyser trace.
PPP Interfaces
The checkboxes shown under this heading are used to select the PPP interfaces over which
packets will be captured and included in the analyser trace.
IP Sources
The checkboxes shown under this heading are used to select the IP sources over which
packets will be captured and included in the analyser trace. These sources include IP
packets transmitted and received over Ethernet, PPP and OpenVPN (OVPN) interfaces. It is
also possible to select GRE Tunnels via the advanced sections of the individual GRE Tunnel
configuration pages.
IP Options
Trace discarded packets
This checkbox is used to enable or disable the capture of packets that are discarded by
an interface along with a reason for why the packet was discarded.
Trace loopback packets
This checkbox is used to enable or disable the capture of IP loopback packets.
IP Packet Filters / Discarded IP Packet Filters
TCP/UDP Ports
This parameter is used to filter out TCP or UDP packets with particular source or
destination port numbers. The format of this parameter is a comma-separated list of port
numbers. For example, you may wish to exclude the capture of Telnet and HTTP traffic
that would otherwise swamp the data of interest. This can be done by entering “23,80”
for this parameter.
Conversely, you may wish to only capture traffic on a specific source or destination port.
To do this, use a tilde (~) symbol before the list of ports. For example, to only capture
Telnet and SSH packets, enter “~22,23” for this parameter.
IP Protocols
This parameter is used to filter out IP packets with particular IP protocol numbers. The
format of this parameter is a comma-separated list of protocol numbers. For example,
you may wish to exclude the capture of TCP traffic that would otherwise swamp the data
of interest. This can be done by entering “6” for this parameter.
Conversely, you may wish to only capture traffic with a specific IP protocol number. To
do this, use a tilde (~) symbol before the list of protocol numbers. For example, to only
capture UDP traffic, enter “~17” for this parameter.
IP Addresses
This parameter is used to filter out IP packets with particular source or destination IP
addresses. The format of this parameter is a comma-separated list of IP addresses. For
example, you may wish to exclude the capture of traffic from IP hosts 10.1.2.3 and
10.2.2.2. This can be done by entering “10.1.2.3,10.2.2.2” for this parameter.
410
Conversely, you may wish to only capture traffic to and from particular IP hosts. To do
this, use a tilde (~) symbol before the list of IP addresses. For example, to only capture
packets to and from IP host 192.168.47.1, enter “~192.168.47.1” for this parameter.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
ana 0 anon on, off Enable Analyser
ana 0 maxdata 16 - 2000 Maximum packet capture size
ana 0 logsize 3 -180 Log Size
ana 0 l1on on, off Protocol Layers / Layer 1
ana 0 l2on on, off Protocol Layers / Layer 2
ana 0 l3on on, off Protocol Layers / Layer 3
ana 0 xoton on, off Protocol Layers / XOT
ana 0 ikeon on, off Enable IKE debug
ana 0 qmion on, off Enable QMI trace
ana 0 snaipon on, off Enable SNAIP trace
ana 0 lapdon 0 – 7
See below ISDN Sources
ana 0 lapbon 0 – 7
See below LAPB Links
ana 0 asyon Bitmap
See below Serial Interfaces
ana 0 syon Bitmap
See below Raw SYNC Sources
ana 0 discardson on, off IP Options / Trace discarded packets
ana 0 loopon on, off IP Options / Trace loopback packets
ana 0 ipfilt Comma
separated list IP Packet Filters / TCP/UDP Ports
ana 0 ipprotfilt Comma
separated list IP Packet Filters / IP Protocols
ana 0 ipaddfilt Comma
separated list IP Packet Filters / IP Addresses
ana 0 discportfilt Comma
separated list Discarded IP Packet Filters / TCP/UDP
Ports
ana 0 discprotofilt Comma
separated list Discarded IP Packet Filters / IP
Protocols
ana 0 discipaddfilt Comma
separated list Discarded IP Packet Filters / IP
Addresses
411
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eth n ethanon on, off Ethernet Interfaces
eth n ipanon on, off IP Sources
ovpn n ipanon on, off IP Sources
ppp n ipanon on, off IP Sources
ppp n pppanon on, off PPP Interfaces
tun n ipanon on, off GRE IP Sources
tun n tunanon on, off GRE Tunnel Interfaces
Related CLI Commands not available via the Web Interface
Entity
Instance
Parameter
Values
Description
ana 0 fcon on, off Enable serial flow control tracing
ana 0 stopbufs 0 - 255 Stop analyser when number of free
system buffers matches this value
ana 0 stopmsgs 0 - 255 Stop analyser when number of free
system messages matches this value
ana 0 stopflood 0 - 1 Stop analyser when Ethernet flood
protection is activated.
ana 0 lowbufcmd Command
String
Run this command when the number
of free system buffers match
“lowbuflvel”
ana 0 lowbuflev Integer Free system buffer threshold used by
“lowbufcmd”.
ana 0 lowmsgcmd Command
String
Run this command when the number
of free system messages match
“lowmsglvel”
ana 0 lowmsglev Integer Free system message threshold used
by “lowmsgcmd”.
ana 0 logdrive String
Specifies an alternate file system
drive on which to store the analyser
trace. To use an external USB flash
device, this should be set to “u:”.
If the router has an internal SDIO
flash device, it can be selected with
“s:”.
ana 0 logfile Filename The file on the alternate drive to
which the analyser trace will be
stored.
ana 0 contfile Filename
The file on the alternate drive to
which the analyser trace will be
stored once the file indicated by
“logfile” is reaches its max size as
specified by “logsizek”.
412
Entity
Instance
Parameter
Values
Description
ana 0 logsizek Value in Kbytes
The maximum size in Kbytes of the
file on the alternate drive.
When set to 0, the file size is only
limited by the flash device.
ISDN Sources
LAPD2 LAPD1 LAPD0 Value
OFF OFF OFF 0
OFF OFF ON 1
OFF ON OFF 2
OFF ON ON 3
ON OFF OFF 4
ON OFF ON 5
ON ON OFF 6
ON ON ON 7
LAPB Links
LAPD1
LAPD0
Value
OFF OFF 0
OFF ON 1
ON OFF 2
ON ON 3
Serial Interfaces
Interface
Value
Serial 0 1
Serial 1 2
Serial 2 4
Serial 3 8
Serial 4 16
Serial 5 32
Serial 6 64
Serial 7 128
Serial 8 256
Serial 9 512
Serial 10 1024
Serial 11 2048
413
Interface
Value
Serial 12 4096
To enable the analyser on multiple serial interfaces, add the appropriate values together.
For example, to enable the analyser on serial interfaces 2 and 3, the value should 12 (4 +
8).
The number of Serial interfaces can vary on different depending on which hardware and
software options are available.
Raw Sync Interfaces
Interface
Value
ISDN D 1
ISDN B1 2
ISDN B2 4
Physical Port 0 8
Physical Port 1 16
To enable the analyser on multiple serial interfaces, add the appropriate values together.
For example, to enable the analyser on Physical Ports 0 and 1, the value should 24 (8 +
16).
414
Management – Analyser > Trace
This displays the current analyser trace.
Related CLI Commands
Command
Options
Description
type ana.txt Displays the contents of the event log.
ana 0 anaclr Clears the contents of the event log.
Management – Analyser > PCAP (e.g. Wireshark) traces
The traffic captured by the Analyser is also available in PCAP format. This format can be
read by a network protocol analyser such as Wireshark. This powerful feature gives a
network engineer the ability to diagnose network protocol issues with relative ease.
There are several PCAP files which are available to download. Each file contains a different
set of captured packets.
415
Option
PCAP File
Contents
IP anaip.pcap IP traffic captured from all enabled IP sources.
Ethernet anaeth.pcap Ethernet traffic captured from all enabled Ethernet
sources.
PPP anappp.pcap PPP traffic captured from all enabled PPP sources.
Wi-Fi anawifi.pcap Wi-Fi traffic captured from the enabled Wi-Fi source.
Wireshark is free software and can be obtained from http://www.wireshark.org
416
Management – Top Talkers
The router can be configured to monitor the data being transmitted and received on the
various interfaces. It is able to report which IP hosts are generating the most traffic over a
period of one minute and 30 minutes.
Top Talkers also allows you to block particular IP traffic flows to stop them from using
bandwidth.
Management – Top Talkers > Settings
Ethernet Interfaces
The checkboxes shown under this heading are used to select the Ethernet interfaces that
Top Talkers will monitor.
PPP Interfaces
The checkboxes shown under this heading are used to select the PPP interfaces that Top
Talkers will monitor.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
eth n ttalker on | off Ethernet Interfaces
ppp n ttalker on | off PPP Interfaces
417
Management – Top Talkers > Trace
This displays the current top talkers trace.
418
Administration – System Information
This page gives an overview of the status of the router.
Model
This describes the model of the router.
Part Number
This describes the Digi part number of the router.
Ethernet 0 MAC Address
This describes the MAC address of the Ethernet 0 interface.
Firmware Version
This describes the firmware version that is currently running on the router.
SBIOS Version
This describes the SBIOS firmware version that is currently running on the router.
Build Version
This describes the build configuration of the firmware that is currently running on the
router.
HW Version
This describes the hardware version on the router. Please note this item may be blank.
CPU Utilization
This describes the current and historical CPU utilization since the router booted up.
419
Up Time
This describes the amount of time since the router booted up.
Date and Time
This describes the current date and time on the router.
Total Memory
This describes the total amount of RAM that is fitted on the router.
Used Memory
This describes the amount of RAM that is currently being used on the router.
Free Memory
This describes the amount of RAM that is currently free on the router.
Mobile Module
This describes which mobile module is fitted on the router.
SW Opts
This describes which firmware options have been enabled on the router.
SW Cnts
This describes some configuration parameters that are used by firmware.
Switch Mode
This describes the current setting of the Ethernet switch on routers with multiple Ethernet
interfaces. It can be either “Hub” or “Port Isolate”.
Related CLI Commands
Command
Options
Equivalent Web Parameter
ati5 n/a
Model
Firmware Version
SBIOS Version
Build Version
Mobile Module
SW Opts
hw n/a Part Number
Ethernet 0 MAC Address
HW Version
cpu n/a CPU Utilization
uptime n/a Up Time
time n/a Date and Time
mem n/a Total Memory
Used Memory
Free Memory
420
Administration - File Management > FLASH Directory
This page displays the contents of the router’s flash file system.
The unit has its own FLASH memory fling system that uses DOS-like filenames of up to 12
characters long (8 characters followed by the “.” separator and a 3-character extension).
The filing system is used to store the system software, Web pages, configuration
information and statistics in a single root directory.
Sub-directories are not supported and a maximum of 80 - 300 files (depending on the
product) can be stored (including system files), providing there is sufficient memory
remaining. New files can be uploaded into the unit from a local terminal or from a remote
system over the WAN connection. Existing files can be renamed or deleted using DOS-like
commands.
Although the filing system will only store a limited number of files, all those associated with
the built-in Web interface are stored in a single file with the .WEB extension and extracted
as required.
The Administration - File Management > FLASH Directory web page displays a listing of files
held on the FLASH file system. These files appear as hyperlinks which can be downloaded
and displayed in the web browser as long an appropriate viewer is installed and a file
association with the viewer has been made.
The directory listing of files on the FLASH directory also shows the file size, the access of rw
(read write) or ro (read only) and the date the file was last modified.
Below the file list is a summary of the FLASH file system, this includes the number of files,
FLASH free and FLASH used.
421
File
The name of the file in the flash file system.
Size (bytes)
The size of the file in bytes.
Access
The access settings for the file.
rw
Read / Write access
ro
Read Only access
Last Modified
The date and time of when the file was last modified.
422
Related CLI Commands
Command
Options
Equivalent Web Parameter
dir Displays the entire contents of the router’s flash file system.
dir <filter>
Displays a filtered view of the router’s flash file system. The
filter can contain wildcards using the *.
e.g.
dir *.pem
to display all the files ending in “.pem”.
dir u: Displays the contents of an USB flash stick if inserted into the
USB port of the router.
Administration - File Management > WEB Directory
The WEB directory contains a list of the files held within the active web file. The web file is
shown on the FLASH file system as a single file, this file is compressed and holds
approximately 300 files.
Direct access to these files by an engineer is not normally required.
423
File
The name of the file in web file.
Size (Bytes)
The size of the file in bytes.
Compressed Size (Bytes)
The compressed size of the file in bytes.
Administration - File Management > File Editor
The file editor allows the user to edit text files on the router.
Filename
The name of the file to edit.
It is possible to create a new file by typing in the filename and clicking on the “Save File”
button.
Load File
Load the file specified in “Filename” into the editor box.
Save File
Save the file to the flash file system.
424
Administration > X.509 Certificate Management
The X.509 Certificate Management pages are for loading and managing X.509 certificates
and public/private host key pairs that are public key infrastructure (PKI) based security.
There are separate pages of settings for the certificate databases and key management.
Administration > X.509 Certificate Management > Certificate Authorities
(CAs)
A certificate authority (CA) is a trusted third party which issues digital certificates for use by
other parties.
Digital certificates issued by the CA contain a public key. The certificate also contains
information about the individual or organization to which the public key belongs.
A CA verifies digital certificate applicants' credentials. The CA certificate allows verification
of digital certificates and the information contained therein, issued by that CA.
Installed Certificate Authority Certificates
This table lists the current CA certificates that have been installed onto the router. It is
possible to view the contents of each certificate using the “View” button.
Upload CA Certificates
CA Certificates can be uploaded from a host PC onto the router using the “Browse” and
“Upload” buttons.
Obtain CA certificates from a SCEP Server
The Simple Certificate Enrolment Protocol (SCEP) allows the user to request and enrol CA
certificates from a CA server.
The CA certificate files will automatically stored with the name CA<n>.pem where n
increments with each certificate.
SCEP Server IP address
The IP address of the SCEP server / CA server.
Port
The port on which SCEP server is listening. If the port is 0, the default port of 80 will be
used.
Path
The path on the server to the SCEP application. The path can either be entered manually if
known or select from cgi-bin or Microsoft SCEP from the drop-down list.
425
Application
The SCEP application running on the server.
CA identifier
The identifier for the CA server. The CA identifier to use to identify a particular CA when
multiple CAs might be running on the server.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
scep 0 host IP Address SCEP Server IP address
scep 0 port 0 - 65535 Port
scep 0 path String Path
scep 0 app String Application
scep 0 caident String CA Identifier
Administration > X.509 Certificate Management > IPsec/SSH/HTTPS
Certificates
This page contains fields that required when sending a certificate request to a Certificate
Authority (CA). This information forms part of the certificate request, and thus part of the
signed public key certificate.
The router can use certificates to establish IPsec tunnels with other routers and support SSH
and HTTPS connections. For more information on using certificates with the router, please
refer to the Application Note “How to configure an IPSEC VPN tunnel between two Digi
Routers using Certificates and SCEP”, which are available from the Digi web site.
Installed Certificates
This table lists the current certificates that have been installed onto the router. It is possible
to view the contents of each certificate using the “View” button.
426
Upload Certificate or Private Keys
Certificates and private key files can be uploaded from a host PC onto the router using the
“Browse” and “Upload” buttons.
Enrolment
The following parameters allow the user to create a certificate request, enroll them and to
install the certificates on the router.
SCEP Server IP address
The IP address of the SCEP server / CA server.
Port
The port on which SCEP server is listening. If the port is 0, the default port of 80 will be
used.
Path
The path on the server to the SCEP application. You can either enter your own path or select
from cgi-bin or Microsoft SCEP from the drop-down list.
Application
The SCEP application running on the server.
CA identifier
The identifier for the CA server. The CA identifier to use to identify a particular CA when
multiple CAs might be running on the server.
CA certificate
The filename of the CA certificate.
CA encryption certificate
Sometimes when you get a CA certificate, a CA encryption certificate is installed on the router at
the same time. You can identify a CA encryption certificate by looking at the X.509 Key Usage
section in the certificate. It should say something like the following
X509v3 Key Usage: critical
Key Encipherment, Data Encipherment
If a CA encryption certificate has been installed by the CA you wish to use for the certificate
request, the CA encryption certificate should be entered.
If no CA encryption certificate has been installed for the CA, leave this file blank.
427
CA signature certificate
Sometimes when you get a CA certificate, a CA signature certificate is installed on the router at
the same time. You can identify a CA signature certificate by looking at the X.509 Key Usage
section in the certificate. It should say something like the following
X509v3 Key Usage: critical
Digital Signature, Non Repudiation
If a CA signature certificate has been installed by the CA you wish to use for the certificate
request, the CA signature certificate should be entered.
If no CA signature certificate has been installed for the CA, leave this file blank.
RSA Private key
This parameter allows you to select between using an existing private key and generating a
one for each certificate request.
Private key filename
The filename of the private key file to use.
Enrolment Password
Before you can create a certificate request you must first obtain a challenge password from
the Certificate Authority Server. This password is generally obtained from the SCEP CA
server by way of a WEB server or a phone call to the CA Server Administrator. For the
Microsoft® SCEP server, you browse to a web interface. If the server requires a challenge
password, it will be displayed on the page along with the CA certificate fingerprint.
This challenge password is usually only valid once and for a short period of time, in this case
60 minutes, meaning that a certificate request must be created after retrieving the
challenge password.
Common Name (CN)
A name for the router. This parameter is important as the common name will be used as the
router’s ID for IKE negotiations.
Country Code (C)
The two character county code of where the router is located. A list of valid country codes
can be found at http://www.iso.org/iso/english_country_names_and_code_elements.
State or Province (ST)
The state, county or province of where the router is located.
Locality (L)
The town or city of where the router is located.
Organisation (O)
The company to whom the router belongs to.
Organisational Unit (OU)
The company department maintaining the router.
E-mail
An appropriate email address of a contact for the router.
Unstructured Name
This parameter is optional. It can contain some descriptive to help identify the certificate.
Digest Algorithm
The digest algorithm used (MD5 or SHA1) when signed the certificate request.
428
Ignore NONCE in SCEP response
The parameter instructs the router to ignore the NONCE field in the SCEP response. The
NONCE is primarily used to prevent replay attacks.
Related CLI Commands
Entity
Instance
Parameter
Values
Equivalent Web Parameter
scep 0 host IP Address SCEP Server IP address
scep 0 port 0 - 65535 Port
scep 0 path String Path
scep 0 app String Application
scep 0 caident String CA Identifier
scep 0 cafile Filename CA certificate
scep 0 caencfile Filename CA encryption certificate
scep 0 casigfile Filename CA signature certificate
creq 0 challenge_pwd String Enrolment Password
creq 0 commonname String Common Name (CN)
creq 0 country String Country Code (C)
creq 0 state String State or Province (ST)
creq 0 locality String Locality (L)
creq 0 orgname String Organisation (O)
creq 0 org_unit String Organisational Unit (OU)
creq 0 email Email Address E-Mail
creq 0 unstructname String Unstructured Name
creq 0 digest MD5 or SHA1 Digest Algorithm
The creq command can also be used to generate the certificate request using the
configured parameters. If the private key does not already exist and appropriate parameters
are entered, the key will be generated at the same time.
To generate a certificate request, enter the command:
creq new -k<priv key file> -o<cert request file>
To generate a private key and a certificate request, enter the command:
creq new –b<priv key length> -k<priv key file> -o<cert req file>
For example, to generate a certificate request file called “request.pem” from a private key
called “priv001.pem”, enter:
creq new -kpriv001.pem -o request.pem
To generate a 512 bit private key called “private.pem”, and generate a certificate request
called “certreq.pem” using that file, enter:
creq new -b512 -kprivate.pem -ocertreq.pem
429
Administration > X.509 Certificate Management > Key Generation
This page allows you to generate a private key. A private key must be created before a
certificate can be requested as it is used in the request.
Key filename
Enter a name for the private key (the filename must be prefixed with “priv” and have a
“.pem” extension).
Key size
The size of the private key in bits. The key size can be one of the following
• 384
• 512
• 768
• 1024
• 1536
• 2048
The larger the key, the more secure the connection, but also the larger the key, the slower
the connection.
Save in SSHv1 format
If this checkbox is checked the private key will be generated in SSH version 1 format. If it is
cleared the private key will be generated in SSH version 2 format.
Related CLI Commands
The genkey command can be used to generate a private key file.
To generate a private key, enter the command
genkey 0 <keysize> <filename> <-ssh1>
where
<keysize> is the size of the key in bits.
<filename> is the name of the private key file.
<-ssh1> is optional, and will generate the private key file in SSH version 1
format.
Note: IPsec requires SSH version 2 private keys.
For example, to generate a 1024 bit SSH version 2 key called privkey.pem, enter:
genkey 1024 privkey.pem
You will see the following output:
OK
Starting 1024 bit key generation. Please wait. This may take some
time...
430
Key generated, saving to FLASH file privkey.pem
Closing file
Private key file created
All tasks completed
Private key files - Splitting Certificates
For increased security there is the option of splitting the private key file between the Digi
flash and an USB memory stick. Once a private key has been split and stored in 2 parts, the
USB memory stick must be present for any successful IKE negotiations that involve the
private key. As the USB memory stick only contains a part of the private key, it cannot be
used in another unit.
The command to split a private key is:
privsplit <certificate filename>
431
Administration – Update Firmware
This page allows the user to update the router’s firmware. The router will download a zip file
onto the router, uncompress it, validate each file within the zip file and then update the files
in its flash file system.
The zip file containing the latest firmware version is available from the Digi website
(http://transport.digi.com/digi/firmware/ftp/). The zip file should be downloaded to your PC
before starting the firmware update.
Note: It is important that you DO NOT NAVIGATE AWAY from the Update Firmware page
whilst an update is in progress as it can cause the update to abort prematurely.
It is also important that you DO NOT REMOVE THE POWER from the router whilst an update
is in progress as it can corrupt the router’s flash file system and might leave the router
unable to boot up.
432
Model
This indicates which model this router is.
Firmware Version
This indicates the current firmware version running on the router.
Select Firmware
Select the zip file on your PC containing the firmware version to you wish to update to.
Once the firmware update is complete, the router has to be rebooted before the new
firmware version can run.
433
Administration – Factory Default Settings
This page allows you to reset the router’s configuration back to the factory defaults.
The router must be rebooted before the configuration changes take effect.
Keep network settings
Selecting this option will mean that certain network settings will be preserved and not
reverted back to the factory defaults.
The network settings that are preserved are
• Ethernet 0 IP address
• Ethernet 0 Mask
• Ethernet 0 Gateway
• Ethernet 0 DHCP Client
• Ethernet 0 DNS Server
• Default Route 0 Interface
• PPP 1 Username
• PPP 1 Password
• PPP 3 Username
• PPP 3 Password
• Mobile ASN
• Mobile SIM PIN
Restore
Clicking this button initiates a factory reset of the router.
Related CLI Commands
The router’s configuration can be reset back to the factory defaults using the following
commands
del pwds.da0
copy config.fac config.da0
This assumes that you are using configuration profile 0. If configuration profile 1 is being
used, then the .da1 suffix should be used instead of .da0.
Please note that using these commands does not preserve any network settings.
Reset using the hardware Reset button
There is a reset button on the underside of most routers, holding this button in for 5
seconds will perform a factory reset on the router. When the reset is initiated in this
manner, the LEDs on the front of the router will flash to indicate a reset is in progress, the
router will automatically reboot once the procedure is complete. Do not remove the power
whilst the router is running this reset procedure. Using this method will not preserve any
settings.
The CLI command to disable the reset button is “cmd 0 pbreset off”
To re-enable the reset button functionality “cmd 0 pbreset on”
434
Administration – Execute a command
This page allows CLI commands to be entered via the web browser. Almost all of the CLI
commands detailed in this reference guide can be entered via this page. The corresponding
output will be shown when the ‘Execute’ button is pressed.
Administration – Save configuration
Once you have configured the router, your chosen settings must be saved to non-volatile
memory to avoid losing them when the power is removed.
Save current configuration to Config n
This parameter can be used to set the configuration file to which the current configuration
will be saved when the “Save” button is clicked. There are 2 options, profile 0 and profile 1.
The default power up profile is profile 0.
The configuration profile that is used when the router powers up is indicated in the selection
box.
Save all configuration
The “Save All” button saves the router’s entire configuration.
• The current configuration parameters to config.da0 or config.da1 file**
• The ciphered versions of the passwords to the pwds.da0 or pwds.da1 file**
• The Firewall configuration to the fw.txt file
• The serial port configuration to profile 0 of the sregs.dat file
• The PAD parameters on all the PADs to profile 0 of the x3prof file
Related CLI Commands
Parameter
Options
Equivalent Web Parameter
config save Save current configuration to Config n
saveall n/a Save all configuration
** The default power up profile is profile 0. *.da0 = profile 0, *.da1 = profile 1.
435
Administration – Reboot
The reboot page is used to reboot the router immediately or at a scheduled time.
A reboot will be performed after any FLASH write operations have been completed. Also,
one second each is allowed for the following operations to be completed before reboot will
take place:
• IPSec SA delete notifications have been created and sent
• TCP sockets have been closed
• PPP interfaces have been disconnected
Immediately
Selecting this option will cause the router to reboot after a few seconds. The router will
cleanly terminate any TCP and VPN connections before rebooting.
In h hrs m mins s secs
Selecting this option will cause a reboot to be scheduled after the configured period of time.
A scheduled reboot can be cancelled by clicking the “Cancel” button.
Related CLI Commands
Command
Options
Equivalent Web Parameter
reboot n/a Immediately
reboot 0 – 86400 In h hrs m mins s secs.
This CLI value is entered in minutes only.
reboot cancel Cancel reboot
Logout
Clicking the Logout link in the menu on the left will log out the current user and return to
the login page
436
Further information on the filing system & system files
The dir command described below is used to display a list of the currently stored files. A
typical file directory will include the following files:
Filename
Description
ana.txt Pseudo file for Protocol Analyser output
config.da0 Data file containing Config.0 settings
direct File directory
eventlog.txt Pseudo file for Event Log output
fw.txt Firewall script file
fwstat.txt Firewall script status file
image Main system image
*.web File containing compressed Web pages for your model
logcodes.txt Text file containing Event Log config. info.
pwds.da0 File containing obfuscated passwords
sbios TransPort BIOS and bootloader
sregs.dat Data file containing AT command & S register settings
x3prof X.25 PAD profile parameters
Once you have configured the unit, your chosen settings must be saved to non-volatile
memory to avoid losing them when the power is removed. Application command settings
are stored in one of two “CONFIG” files. AT command and S register settings are stored in
one file call “SREGS.DAT”.
Config Files
Most configuration information is stored in one of two files called “CONFIG.DA0” and
“CONFIG.DA1”. This allows two different sets of configuration information to be stored using
the Save option in the directory tree at the left of the web interface, or by using the config
command from the command line.
The Save All button will save:
File name
Configuration held in file
config.da0 Main configuration parameters
pwds.da0 Encrypted passwords
fw.txt Firewall rules
sregs.dat Serial port S registers
x3prof X.25 PAD profiles
437
You may select which of the two config files is loaded when the unit is powered-up or
rebooted by setting the parameter Configuration - System > General > Miscellaneous
> Use Config n when the router powers up as required (or by using the config n
powerup CLI command).
Note:
The CONFIG files only contain details of settings that have been changed from the default
values.
SREGS.DAT
A combined set of AT command and S register settings are referred to as a “profile”. Two
such profiles (0 and 1) may be stored for each ASY port in a file called “SREGS.DAT” using
the Save Profile button on the relevant Configuration - Network > Interfaces > Serial
> Serial Port n web page, or by using the AT&W command.
It is important to remember that saving the settings for one ASY port does not save the
settings for the other ports so the settings for each port must be saved individually.
For each ASY port, the profile to be loaded at reboot or power-up is specified in the Power-
up Profile setting on the relevant Configuration - Network > Interfaces > Serial >
Serial Port 0 web page (or by using AT&Y command).
A profile for a particular ASY port may also be loaded to take immediate effect by using the
Load Profile button on the ASY port’s web page, or by using the ATZ command.
PWDS.DA0
As of firmware version 4981, the encrypted forms of passwords entered into the
configuration are stored in a separate file named pwds.da0. This file can only be accessed
by users with Super level privileges. The file can be read with the type command, e.g. type
pwds.da0
The pwds.da0 file is only created when a password is changed from default and the
configuration is saved. The encrypted versions of the default passwords are then removed
from the config.da0 file and the new pwds.da0 is created and used instead.
If the pwds.da0 file is deleted all remote access to the router that requires authentication
will fail, a serial cable connection will be required to re-configure passwords to gain access
to the router. If both the pwds.da0 file exists and the config.da0 contains passwords also,
the passwords in the config.da0 take precedence and will over write the passwords in the
pwds.da0 when a save command is issued.
Filing System Commands
COPY Copy File
The copy command is used to make a copy of a file. The format is:
copy <filename> <newfilename>
where <filename> is the name of an existing file and <newfilename> is the name of the
new copy that will be created.
438
DEL Delete File
The del command is used to delete files from the filing system. The format is:
del <filename>
where <filename> is the name of an existing file.
You can also use wild cards in the filename in order to delete several files at once. The *
character can represent one or more characters in the filename.
For example, del fw*.txt will delete fw.txt and fwstat.txt. The del command returns OK
if files have been deleted, or ERROR if no matching files have been found.
DIR List File Directory
The dir command is used to display the file directory. For example:
dir
direct 60720 ro 11:30:41, 31 Jan 2011 CRC ???
sbios 524288 ro 11:30:43, 31 Jan 2011 CRC 6ba8
mirror 60720 ro 11:30:41, 31 Jan 2011 CRC ???
image 4300995 rw 15:22:23, 31 Jan 2011 CRC ab19
sregs.dat 4096 rw 11:30:41, 31 Jan 2011 CRC 08b2
x3prof 4096 rw 11:30:41, 31 Jan 2011 CRC bb5f
CAcert.cer 1371 rw 11:30:41, 31 Jan 2011 CRC 6764
Each line shows the file name and extension (if any), the file size (in bytes), the read/write
status (ro = read only, rw = read/write), the time/date of creation and the CRC value.
Note:
File write operations are carried out as a background task and can be relatively slow due to
the constraints of FLASH memory. As a result, the file directory may only be updated
several seconds after a particular file operation has been carried out.
You can also use wildcards with the dir command in order to narrow your search. The *
character can represent one or more characters in the filename. For example, dir fw*.txt
will list only the fw.txt and fwstat.txt files (if they are present on the TransPort).
FLOCK Lock Files
The flock command prevents any further writing to the FLASH memory. This means that
no files can be written to, added to or deleted from the filing system.
FUNLOCK Unlock Files
The funlock command unlocks the FLASH memory if it had been locked using the flock
command. Files can then be added, deleted or copied to the filing system.
439
MOVE Move File
The move command is used to replace one file with another whilst retaining the original
filename. The format is:
move <fromfile> <tofile>
For example, the command:
move fw-temp.txt fw.txt
will delete the file called “fw.txt” and then rename the file called “fw-temp.txt” as “fw.txt”.
REN Rename File
The ren command is used to rename files in the filing system. The format is:
ren <oldfilename> <newfilename>
SCAN/SCANR Scan File System
The scan command performs a diagnostic check on the file system and reports any errors
that are found. For example:
scan
Please wait...
direct ....ok
sbios ....ok
mirror ....ok
image ....ok, data ok
sregs.dat ....ok
x3prof ....ok
CAcert.cer ....ok
The scanning process may take several seconds so you should not enter any other
commands until the results are listed.
The scanr command works in a similar fashion, except that it will return ERROR if any file
is in error. This is useful when used with scripts that can look for the ERROR failure result.
TYPE Display Text File
The type command is used to display the contents of a text file. The format is:
type <filename>
For example:
type config.da0
[CFG]
config last_saved "12:04:45, 31 Jan 2011"
config last_saved_changes "1"
config last_saved_user "ASY 0"
eth 0 descr "LAN 0"
eth 0 IPaddr "10.1.51.3"
eth 0 mask "255.255.0.0"
eth 0 bridge ON
eth 1 descr "LAN 1"
eth 2 descr "LAN 2"
eth 3 descr "LAN 3"
eth 4 descr "ATM PVC 0"
440
XMODEM File Transfer
The xmodem command is used to initiate an XMODEM file upload from the port at which the
command is entered. The format is:
xmodem <filename>
where <filename> is the name under which the file will be saved when the upload is
complete.
After entering the xmodem command the unit will wait for your terminal program to start
transmitting the file. When the upload is complete and the file has been saved, the unit will
respond with the OK result code.
A remote XMODEM upload can also be initiated by establishing a Telnet session over ISDN,
and then issuing the xmodem command from the remote terminal.
USB Support
Most TransPort router come equipped with USB ports that you can use to connect Mass
Storage Devices (MSDs) such as external hard drives or flash-memory pen drives. All the
files on the USB device will be listed under the USB Directory Listing heading on the
Administration - File Management > FLASH Directory page.
Note:
The USB storage device must be formatted using the FAT16 or FAT32 file system.
When the USB storage device is first inserted into the unit, the operating system looks for a
file named “autoexec.bat”, and if found, executes it. Other batch files can be executed by
pressing the reset button one or more times. The batch file to be executed must be called
“pb<n>.bat”, where <n> is the number of times the reset button is to be pressed in order
to execute the file.
SD Memory Card Support
Some TransPort routers are available with internal SD memory card, the drive letter
assigned to this card is “s:”. To access the SD memory using an FTP client, the subdirectory
assigned is “sdmmc”. The SD card can be used in the same way as USB MSDs. The SD card
is internal and not removable.
Batch Control Commands
Any batch file can contain one of the following two control lines: ERROR_EXIT or
ERROR_RUN. If ERROR_EXIT is specified in a batch file, any commands run after that point
in the file will cause the termination of the batch file if that command causes an error (for
example, attempting to delete a file that does not exist). ERROR_RUN can be used to return
the operation to default, which is to continue the execution of the batch file commands.
441
USB Filing System Commands
The USB storage device will respond to any of the standard filing system commands. For all
filing system commands, the USB storage device is regarded as drive u:.
Note:
The unit does not support sub-directories. Any sub-directories on the USB device will appear
with a size of 0 bytes on the Administration - File Management > FLASH Directory
page.
Example 1:
To display the contents of the USB storage device, you would enter the command:
dir u:
SERIALS.TXT 1843
EVENTL~1.TXT 1449
USB.TXT 4278
MASSR1~1.TXT 1255
OK
If the USB storage device is empty, you will get the following message:
No files
If no USB device is present, the following message is displayed:
No USB flash directory
Example 2:
To copy a file called “image” from the main flash memory onto the USB device, you would
enter the command:
copy image u:image
To copy a file called “Logcodes.TXT” from the USB device to the main flash memory, you
would enter the command:
copy u:Logcodes.TXT Logcodes.TXT
or
copy u:Logcodes.TXT
If no destination file is specified, the destination is set to the FLASH directory and the file
name remains the same.
442
Using USB devices to upgrade firmware
Functionality available from firmware version 4891 onwards.
The firmware of a TransPort can be upgraded using the USB storage device. To do this
procedure, using the information given above, a simple batch file called pb2.bat should
created and the relevant files placed into the root directory of the USB storage device. Then,
when the USB device is inserted into the TransPort and the reset button is pressed twice,
the upgrade is performed.
ERROR_EXIT
del *.web
copy u:sbios1 sbios1
copy u:logcodes.txt logcodes.txt
copy u:image image
copy u:image4.c3 image4.c3
copy u:Y4890wVS.web Y4890wVS.web
move sbios1 sbios
scanr
flashleds
When the LEDs on the TransPort start flashing, the upgrade is complete and the TransPort
must be rebooted for the new firmware to be activated.
Using USB devices with .all files
Functionality available from firmware version 4910 onwards.
A .all file is a special file that contains all of the firmware and configuration files in a single
file that has the file extension .all and is an exact copy of the TransPort router in its current
state. This .all file can then be applied to another TransPort router, as long as it is the same
model.
To extract a .all file use the Digi Flash Writer software.
Copy the .all file to a USB storage device and insert the device into the TransPort router.
Issue the command “dir u:” to confirm the TransPort can access the USB device. To copy
the .all file onto the TransPort router, from the command line enter “copy u:mr4110.all t.all”
(replacing mr4110.all with the correct .all file name and the t.all destination name can be
anything). Please note that the source file (mr4110.all in this example) must adhere to the
8.3 filename convention (due to limits of the FAT file system) or the process will fail.
USB Security
In order to prevent unauthorised access to a TransPort unit using a USB storage device
(e.g. inserting a USB storage device with an autoexec.bat file designed to copy usernames
and passwords, etc.) the usbcon command can be used to define an access key. If the .bat
file does not contain the matching key, it will not be allowed to execute. The put parameter
of the uflash command is used to encode the key onto the file.
Note:
When using the uflash command, the filename should not be prefixed with u:, as the uflash
command can only act on files stored on a USB storage device.
443
For example, to create a key you would enter the command:
usbcon 0 flashkey
In order to encode this key onto a file called “autoexec.bat” on the USB storage device, you
would enter the command:
uflash autoexec.bat put
In order to remove a key from a file, you would use the clr parameter of the uflash
command, thus:
uflash autoexec.bat clr
Note:
You must be logged onto the unit with Super access level in order to use the uflash
command.
By default, an autoexec.bat file will be executed if found when a USB drive is inserted.
Other batch files can also be executed. This behaviour can be controlled if required by
issuing the command:
usbcon 0 batfile <off|on>
Disable/Enable the USB ports
If required, the external USB ports can be disabled to prevent any unauthorised copying of
files to or from the router and prevent unauthorised use of flash drives or serial devices
connected to the USB ports. This is also done with the usbcon command. The parameters
used with the usbcon command are dislist to disable or enalist to explicitly enable a list of
USB drivers. The driver list can be comma separated to specify more than one driver if
required.
The format of the disable command is:
usbcon 0 usb-x-p<.p>.<DRIVER>
Where x=1 for the bottom USB port and 2 for the top port.
Where p=<port #> (if connected to a USB hub the port numbers can increase).
Where DRIVER = "MSD" for Mass Storage Device. "SERIAL" for serial devices, or "HUB" for
hub devices.
To disable a Flash Stick on the top port only...
usbcon 0 dislist usb-2-2.MSD
Wildcards are also possible so to disable flash devices entirely. For example:
usbcon 0 dislist usb-*.MSD
This will match on ALL MSD devices even if in another HUB.
To disable both external USB ports on a DR64x0 the following commands can be used...
usbcon 0 dislist "usb-1-2*,usb-2-2*"
or
usbcon 0 dislist "usb-?-2*"
444
Note that the final -2 is important in both cases as otherwise the command would disable
the internal USB devices which could include connections to the wireless module or other
components.
To disable Serial devices from using either external USB port on a DR64x0, or on a port
connected to a hub on either these ports...
usbcon 0 dislist "usb-1-2*.SERIAL,usb-2-2*.SERIAL"
or
usbcon 0 dislist usb-?-2*.SERIAL
The enalist takes the same format but when matches it causes the device to be specifically
enabled. If a device matches the enable list as well as the disable list the enable list will
take preference.
When a device matches a list an event is written to the event log of the form...
"USB device usb-1-2.4.MSD disabled"
or
"USB device usb-1-2.4.MSD enabled"
in the case the device matches the enalist.
These events can be used to debug the correct matching string to match on when trying to
configure these parameters.
If both lists are left blank, all drivers are enabled and no extra events will appear in the
event log.
Universal config.da0 using tags
The config.da0 contains a list of commands, one per line that are parsed at boot. The
commands in this file differ depending on the model of the router, the firmware in use and
the hardware options installed.
A single universal configuration file can be created with the use of tags, defining sections
that only relate to a specific hardware type or firmware version.
The tag values that can be used are:
The base model, for example: DR6410
The complete model, for example: DR6410-H0A
The platform build string, for example: 8W
The type of DSL, for example: DSL2, 2+
The type of WWAN module detected, for example: E (Edge), C (CDMA)
The complete WWAN module string, for example: MOTO_G24, SIEMENS_GPRS,
SIEMENS_MC75, NOVATEL_3G, SIERRA_3G, OPTION_3G, NOVATEL_CDMA,
CMOTECH_CDMA, SIERRA_CDMA
PSTN or ISDN module, for example: PSTN, ISDN
Tags must be used within angle brackets and the configuration sections must be opened
AND closed with the relevant tag, for example: To open <DR6410>, to close </DR6410>.
Note the use of the “/“ in the closing tag.
To view a list of defined tags on a router, the CLI command tags can be used:
Example output of tags command:
Router>tags
tags defined:..
445
DR6410
HIA
DSL2
2+
Router
dr6410
8W
NOVATEL_3G
ISDN
OK
Example scenario:
A single configuration file is required for a range of DR6410 routers, there is a mix of 3
types of 3G WWAN modules and some have GPRS modules installed. Different W-WAN
modules need different modemcc commands to correctly configure the ASY ports. All these
modules can have their own specific commands in one config file.
Example configuration using tagged sections:
Comments are in red and prefixed with a # symbol. Comments may be used in
configuration files to make them easier to read. The info_asy_add parameters are just for
illustration purposes only and are not the actual ASY port numbers used.
<DR6410-H0A>
#Start of DR6410-H0A config
<NOVATEL_3G>
#Start of Novatel specific config
modemcc 0 asy_add 7
modemcc 0 info_asy_add 8
#End of Novatel specific config
</NOVATEL_3G>
<OPTION_3G>
#Start of Option specific config
modemcc 0 asy_add 7
modemcc 0 info_asy_add 9
#End of Option specific config
</OPTION_3G>
<SIERRA_3G>
#Start of Sierra specific config
modemcc 0 asy_add 7
modemcc 0 info_asy_add 10
#End of Sierra specific config
</SIERRA_3G>
#End of DR6410-H0A config
</DR6410-H0A>
<DR6410-E0A>
#Start of DR6410-E0A config
446
modemcc 0 asy_add 7
modemcc 0 info_asy_add 11
#End of DR6410-E0A config
</DR6410-E0A>
#Rest of generic config goes below here
modemcc 0 apn internet”
eth 0 ipaddr 192.168.0.99
447
Web GUI Access via Serial Connection
To access the web interface through one of the unit’s serial ports (using Windows dial-up
networking) follow the steps below.
Note:
To use Dial-up Networking you must have the TCP/IP > Dial-up adapter installed in the
Network Configuration for Windows. Check this by selecting Settings > Control Panel >
Network > Configuration.
Installing the Driver File
You will need to install the “Digi_MULTI_PORT.INF” driver file and create a Windows PPP
Dial-up Networking connection (DUN) for the unit as described below. It is assumed that
you already have a basic knowledge of Windows networking concepts and terminology.
The precise procedure for installing the .inf driver file for the unit will vary slightly between
different versions of Windows. The following description applies to Windows XP.
1. Start by selecting Start > Control Panel > Phone and Modem Options. You must be in
Classic View. Select the Modems tab and you will see a dialog similar to the following:
2. Click on Add… to install a new modem driver:
448
3. Check the Don’t detect my modem, I will select it from a list option before clicking Next >
to display the following dialog screen:
This screen lists the manufacturers and models of modem currently available on your
system.
4. Insert the CD supplied into the CD drive and click on Have Disk….
449
Use the Browse button to locate the Digi_MULTI_PORT.INF file on the driver CD supplied
with your unit or downloaded from the Digi support website.
This will be in the appropriate Windows version sub-directory of the drives folder, e.g.
win95-98. A list of routers will appear in the Models list:
Each entry in the list is the same driver, set up for a different COM port.
5. Choose the entry corresponding to the COM port your router is connected to, and click
Next >. The wizard will ask you which COM port you wish to install the modem on.
6. Select the appropriate port and click Next >, and Windows will install the driver. Once
installation is complete click Finish to return to the Phone and Modem Options dialog,
where your unit will be listed:
450
Click on the OK button if you are satisfied with the installation.
Note:
During the installation you may receive a warning that the driver is not digitally signed.
Click on Continue Installation to install the driver.
451
Creating A New Dial-Up Network Connection
You now need to create a new DUN connection through which you can access your unit.
If you are planning to connect the unit directly to your PC for configuration purposes,
connect it to the appropriate COM port now using a suitable serial cable.
If you wish to configure a remote unit, make sure it is connected to a suitable ISDN line and
make a note of the ISDN number.
1. From the Windows Start menu, select All Programs > Accessories > Communications >
New Connection Wizard. You will be presented with the New Connection Wizard introduction
screen. Click on Next > to proceed to the Network Connection Type dialog:
2. Select the Connect to the network at my workplace radio-button then
click on Next >:
3. Select the Dial-up connection radio-button then click on Next >:
452
4. From the Select a Device dialog, select the unit you have just installed and make sure
that any other devices in the list are unchecked. Click Next >.
5. You must now enter a name for the connection. It is helpful to choose a name that you
will easily remember such as “My Digi Router” or “DR64 - Bristol Office”. Click Next >. The
following dialog allows you to fill in the phone number for the connection:
453
If the connection is being created for direct local access using a COM port, you should set
the phone number to 123. This number will be intercepted by the unit and recognized as an
attempt to connect locally.
If the connection is being created for remote access, enter the correct ISDN telephone
number (including the area code) for the remote unit.
When you have done this click Next >. The final dialog screen will confirm that the
connection has been created and includes a check box to allow you to create a shortcut on
your desktop if necessary. Click on Finish to complete the task.
454
Configuring the New DUN Connection
The new DUN connection that you have just created may now be used to connect to the unit
but before you do this, you will need to check some of the configuration properties.
1. Click on the Start button and select Connect To > My Digi Router (substituting the
connection name you chose).
2. Click on the Properties button to display the properties dialog for the connection:
3. On the General tab, click the Configure… button to display the Modem Configuration
dialog:
455
Make sure that the Maximum speed (bps): value is set to 115200 and that the Enable
hardware flow control box is checked. Click OK when you have finished to return to the
main properties dialog.
4. Now select the Networking tab:
Make sure that the Type of dial-up server I am calling is set to PPP: Windows
95/98/NT/2000, Internet and click on Settings:
456
Make sure that all three options are unchecked before clicking OK to return to the
Networking tab. In the This connection uses the following items list, Internet
Protocol (TCP/IP) should be the only item that is checked. Make sure that this is the case
and then click OK to return to the main dialog. You are now ready to initiate a connection.
Initiating a DUN Connection
In the main dialog, you are asked to enter a username and password. The default settings
for your unit are “username” and “password” respectively but you should change as soon
as possible in order to prevent unauthorised access to your unit (refer to the section entitled
Configuration - Security > Users for instructions on how to do this). The username is not
case sensitive, but the password is.
Note:
When you type the password it will appear as a series of dots to ensure privacy.
Once you have entered these, initiate a connection to your unit by clicking the Dial button.
During the dialling and connection process, you may see a series of status dialog boxes and,
if the connection is successful, the final dialog box will indicate that the PPP login has been
authenticated.
After a short delay, this dialog will minimise to a “linked computers” icon in the Windows
taskbar:
You should now be ready to access the built-in web pages using your Web browser. The
default “web address” for the unit is http://1.2.3.4. By default, this is also mapped to the
system IP hostname digi.router.
457
You will need a valid username and password to access the web interface. Once again, the
default settings are username and password respectively. If these values do not allow
access, you should contact your system administrator.
458
SQL commands
When IPSec Egroups are used with a SQL database for dynamic Eroute configuration, there
are CLI commands that will help with configuration and troubleshooting on the Digi router.
Local Database commands
As well as using an external SQL database, the Digi can cache the SQL table entries it learns
from the SQL server in RAM so if the SQL server goes offline for any reason, the database
entries are still available to renew existing IPSec SA’s.
To configure the caching options the command used is sql 0 <parameter> <value>
The following parameters are available to configure the caching of database entries:
dbsrvmem <n>
This parameter is used to specify the amount of memory (RAM) the MySQL server cache
should use. Where <n> is specified in multiples of 1k. e.g. 10Mb = 10240
To calculate the amount of memory to specify in this parameter:
1. Look at the size of the database file (.csv) that will be loaded into the Digi memory.
2. Double this value and add 100Kb, for example, if the csv file is 200Kb, this would make a
value of 500Kb for the memory allocation. Use the command sql 0 dbsrvmem 500
3. Load the database file into memory and check the memory allocated and free using the
smem command. This will show the memory allocated and left available. Increase the
memory in the dbsrvmem command if required.
dbfile <name>
This is the name of the csv file that the Digi will use to store the table definitions (1st line)
and data records. This file is stored in flash and is used to populate the database stored in
RAM on power up or when a new file matching this name has just been stored. The dbfile
can be populated with records or be empty except for the definitions line. The dbfile stored
in RAM will be populated from both the dbfile stored in flash and (if configured) via caching
items learnt from the main SQL server. The dbfile in flash can then be updated from the
dbfile in RAM and saved.
dbname <name>
This is the name of the backup database in case the main database goes offline. This name
needs to match the database name in use on the SQL server.
learn <off|on>
When enabled, the Digi will cache entries learnt via the main SQL database in a file stored
in RAM. This can be used as a backup in the event of the main SQL database going offline.
To use learning mode, at least one column in the csv dbfile must be marked as a unique
key, with the U prefix.
For example, remip is marked as the unique key:
peerip[IP],bakpeerid[IP],peerid[K20],password[20],ourid[20],remip[UKIP],remmsk[IP]
459
Learning mode - Saving entries
When learning mode is used, the dynamic backup database is stored in RAM. This database
will be lost if the Digi router is power cycled. The database in RAM can be saved to flash to
over-write the dbfile with the one in RAM that includes the learnt entries or it can be saved
to a new file.
To save the dbfile to flash from RAM, use the following command.
sqlsave 0 <filename>
Where <filename> is the name of the destination file.
For example, to save the learnt database entries to a file called backup.csv
sqlsave 0 backup.csv
If there are no learnt entries, this command will not create a file. To view the number to
learnt entries, use the command sql 0 ? and refer to the section headed Learning info.
Learning info.
items learned:0
matched retrievals:0
OK
Configure a TransPort to use a backup database
Once the Digi has been configured to run a SQL csv database locally, this backup csv
database can be used in the event of the main SQL database going offline. The configuration
parameters required are:
Configure the IP address of the SQL server to use.
egroup 0 dbhost "192.168.0.50"
Configure the IP address of the SQL server that will have a backup database. If a socket
connection fails to this IP address, the Digi will use the backup IP address.
ipbu 0 IPaddr "192.168.0.50"
Configure the backup database IP address. eg. the loopback address of the Digi router or an
alternative SQL server, this eaxmple shows the loopback IP address of the Digi router.
ipbu 0 BUIPaddr "127.0.0.1"
Set the amount of time in seconds that the connection to the main SQL server will be
retried.
ipbu 0 retrysec 30
Set the Digi to use the backup IP address if the main database is unavailable.
ipbu 0 donext ON
460
For example, to configure and use a local backup database when the main SQL database at
192.168.0.50 is offline, the configuration may look similar to this:
egroup 0 dbhost "192.168.0.50"
sql 0 dbsrvmem 200
sql 0 dbfile "sardb.csv"
sql 0 dbname "sarvpns"
sql 0 learn ON
sqlsave 0 backup.csv
ipbu 0 IPaddr "192.168.0.50"
ipbu 0 BUIPaddr "127.0.0.1"
ipbu 0 retrysec 30
ipbu 0 donext ON
Memory info
smem
Displays the amount of memory allocated, in use and available for use by the MySQL server
on the Digi.
Transact SQL commands
To query a SQL database manually using transact SQL statements, the following commands
can be used.
To connect to the SQL server and database:
sqlcon <host> <user> <pwd> <database>
For example:
sqlcon 192.168.0.50 sqluser sqlpass eroute-db
To issue transact SQL statements:
sqldo <"cmd">
For example:
sqldo "select * from site where subnet='10.110.100.0' limit 3"
To limit the sqldo command to only act on specified fields, the following command can be
used:
sqlfields “<field1> <field2> <field3>”
For example:
sqlfields “remmsk password peerip”
After issuing the sqlfields command, all further sqldo commands will apply to these fields
only.
When finished, to close the SQL server connection correctly:
sqlclose
If the database being queried is held locally on the Digi, these commands can be preceded
with the SQL debug command to give extra feedback on any commands issued.
461
To enable the SQL debug:
sql 0 debug_opts 3
To view the debug data via the ASY 0 port:
debug 0
To view the debug data via telnet:
debug t
To disable the SQL debug:
sql 0 debug_opts 0
debug off
462
Answering V.120 Calls
V.120 is a protocol designed to provide high-speed point-to-point communication over
ISDN. It provides rate adaptation and can optionally provide error control. Both the calling
and called units must be configured to use V.120 before data can be transferred. Similarly,
if one unit is configured to use the error control facility, the other must be configured in the
same way.
Initial Set Up
Before using V.120 you must first bind one of the two available V.120 instances to the
required ASY port using the Configuration - Network > Interfaces > Serial > Protocol
Bindings page or by using the bind command from the command line, for example:
bind v120 0 asy 0
You should also select the appropriate method of flow control for the ASY port using the
Configuration - Network > Interfaces > Serial > Serial Port n page or by using the
AT&K command from the command line. Other ASY port options such as command echo,
result code format, etc. should also be configured as necessary.
Initiating a V.120 Call
Once the initial configuration is complete, V.120 calls may be initiated using the appropriate
ATD command. For example:
atd01234567890
A successful connection will be indicated by a CONNECT result code being issued to the ASY
port and the unit will switch into on-line mode. In this mode, all data from the terminal
attached to the bound ASY port will be passed transparently through the unit across the
ISDN network to the remote system. Similarly, all data from the remote system will be
passed directly to the terminal attached to the bound ASY port.
If a V.120 call fails the unit will issue the NO ANSWER or NO CARRIER result code to the
ASY port and remain in command mode.
The ATD command may also be used to route a call to an ISDN sub-address by following
the telephone number with the letter S and the required sub-address value. For example:
atd01234567890s003
In this case, the remote system will only answer the call if it has been configured to accept
incoming calls on the specified sub-address.
Answering V.120 Calls
V.120 answering can be enabled from the command interface by setting register S0 for the
appropriate ASY port to a non-zero value. For example:
ats0=1
You should ensure that you have set S0 for the correct ASY port by either entering it
directly on that port or by using the AT\PORT command to select the correct port first.
The actual value used for the parameter sets the number of rings the unit will wait before
answering.
463
Finally, you must ensure that there are no conflicts with other protocols configured to
answer on other ASY ports. This can be done by disabling answering for the other
ports/protocols or by using the MSN and/or Sub-address parameters to selectively answer
calls to different telephone numbers using different protocols.
For example, if you have subscribed to the ISDN MSN facility, you may have been allocated
say four telephone numbers ending in 4, 5, 6 and 7. You could then set the MSN parameter
for the appropriate V.120 instance to 4 to configure V.120 to answer only incoming calls to
the MSN number ending in 4.
You should check that if PPP answering is enabled you have NOT selected the same MSN
and Sub-address values for PPP. If they are the same, V.120 will answer the call ONLY if S0
is set to 1. Otherwise, PPP will take priority and answer the call.
464
ANSWERING ISDN CALLS
Digi routers are capable of answering incoming B-channel ISDN calls with 3 main protocols.
Usually several instances of these protocols exist. This section explains how answering
priorities work for the different protocols.
Protocol Entities
The following protocol instances are capable of answering an incoming ISDN call:
Adapt
Adapt instances provide rate adaptation protocols such as V.120 or V.110.
LAPB
LAPB instances allow the unit to answer incoming X.25 calls over ISDN. They can optionally
connect the caller to a synchronous serial port, an asynchronous serial port bound to a PAD,
or switch the call to another interface.
PPP
IP data tunnelled over PPP instances allow remote access to the unit’s IP-based
management features and also facilitate onward IP routing through any of the unit’s IP
enabled interfaces.
The unit will automatically answer an incoming ISDN call if any of the following statements
are true (subject to the entity MSN, Calling Number and Sub-address parameters being set
to their default values):
• An Adapt instance is bound to an asynchronous serial port (ASY) and the answer
ring count (S0) for that serial port is set to 1
• A LAPB instance has its answering parameter set to On
• A PPP instance has its answering parameter set to On
If more than one of these protocols are configured to auto answer then the priority is as
follows:
Adapt instances (normally V.120) will take priority over LAPB, which will take priority over
PPP. If an Adapt instance is bound to an asynchronous serial port (ASY port) but the answer
ring count (ATS0) is not set to 1 for that same serial port then Adapt entity will not answer
automatically. If any other protocol entities (e.g. LAPB, PPP or another Adapt instance) are
configured to answer then one of these protocol entities will answer the call. If no other
protocol entities are configured to answer then a repeating RING message will be sent out
of the serial port and the RS232 ring indicator control will be activated. If a terminal
attached to the serial port sends ATA followed by carriage return then the ISDN call will be
answered by the Adapt entity and any incoming data will be channelled out of the serial port
and vice-versa.
Multiple Subscriber Numbers
An MSN (multiple subscriber number) is an alternative number provided by the telephone
service provider which when dialled will also route through to your ISDN line. It is possible
to purchase several MSNs for an ISDN line. This means that in effect one ISDN line can
have several ISDN numbers.
Every entity in the router which is capable of answering an ISDN call (Adapt, LABP and PPP)
has an MSN parameter.
465
A protocol entity’s MSN parameter can be used to:
• cause a protocol instance not to answer an incoming ISDN call (if the trailing digits of the
ISDN number called do not match the entry in this field).
• increase the answering priority of an instance (if more than one protocol instance is
configured to answer and the trailing digits of the ISDN number called match the value of
the MSN parameter for a particular protocol instance).
Example
Consider the following:
• an Adapt instance is bound to a serial port and ATS0 for that serial port is set to 1
• PPP instance 0 has answering turned On
• the ISDN line to which the router is connected has two numbers: the main number
is 123456 and the MSN number is 123789
Normally, because ADAPT has a higher answering priority than PPP, the Adapt instance will
answer when either of the numbers are called. However if the ISDN number dialled is
123456 and 456 is entered into the MSN parameter of PPP then PPP will answer instead.
This will also have the effect of preventing PPP from answering if any other ISDN number
(e.g. 123457) has been called.
This means that whenever 123456 is called the PPP instance will answer and that whenever
123789 is called the V120 instance will answer.
It is possible to connect multiple ISDN devices to the same ISDN line. MSNs can then be
used to allow the different ISDN devices to be dialled individually (i.e. dial the main ISDN
number and get through to ISDN device one, dial the first MSN and get through to ISDN
device number two, dial the second MSN and get through to ISDN device number three,
etc.).
Multiple PPP Instances
It is also possible to configure multiple instances of a particular entity to answer. For
example, PPP instance, 0, 1 and 4 could be configured to answer. In this case provided that
none of the PPP instances are busy, the PPP instance with the highest number will answer
first. MSNs can also be used to ensure that a chosen PPP instance answers the call.
Multiple protocol entity answering instance rules:
ADAPT
The lowest free Adapt instance with auto-answering enabled will answer first.
PPP
The lowest free PPP instance with answering on will answer first.
LAPB
The lowest free LAPB instance with answering on will answer first.
466
X.25 PACKET SWITCHING
Introduction
X.25 is a data communications protocol that is used throughout the world for wide area
networking across Packet Switched Data Networks (PSDNs). The X.25 standard defines the
way in which terminal equipment establishes, maintains and clears Switched Virtual Circuits
(SVCs), across X.25 networks to other devices operating in packet mode on these networks.
The protocols used in X.25 operate at the lower three layers of the ISO model. At the lowest
level the Physical layer defines the electrical and physical interfaces between the DTE and
DCE. Layer 2 is the Data Link Layer that defines the unit of data transfer as a “frame” and
includes the error control and flow control mechanisms. Layer 3 is the Network layer. This
defines the data and control packet structure and the procedures used to access services
that are available on PSDNs.
A further standard, X.31 defines the procedures used to access X.25 networks via the ISDN
B and D-channels.
Digi ISDN products include support for allowing connected terminals to access X.25 over
ISDN B channels, the ISDN D-channel or over TCP. They can also be configured so that if
there is a network failure it will automatically switch to using an alternative service. The
Packet Assembler/Disassembler (PAD) interface conforms to the X.3, X.28 and X.29
standards.
Up to six PAD instances (from an available pool of 8), can be created and dynamically
assigned to the asynchronous serial ports or the REM pseudo-port.
Each application that uses the unit to access an X.25 network will have its own particular
configuration requirements. For example, you may need to program your Network User
Address (NUA) and specify which Logical Channel Numbers (LCNs) should be used on your
X.25 service. This information will be available from your X.25 service provider. You will also
need to decide whether your application will use B or D-channel X.25.
Once you have this information, the PAD configuration pages can be used to set up the
appropriate parameters.
B-channel X.25
The unit can transfer data to/from X.25 networks over either of the ISDN B-channels.
Once the unit has been configured appropriately, the ISDN call to the X.25 network can be
made using an ATD command or by executing a pre-defined macro. The format of the ATD
command allows you to combine the ISDN call and the subsequent X.25 call in a single
command. Alternatively, the X.25 call may be made separately from the PAD> prompt once
the ISDN connection to the X.25 network has been established.
D-channel X.25
The unit can transfer data to/from X.25 networks over the ISDN D-channel if your ISDN
service provider supports this facility. The speed at which data can be transferred varies
depending on the service provider but is generally 9600bps or less.
467
X.28 Commands
Once an X.25 session layer has been established the unit switches to “PAD” mode. In this
mode operation of the PAD is controlled using the standard X.28 PAD commands listed in
the following table:
Command
Description
CALL
Make an X.25 call
CLR
Clear an X.25 call
ICLR
Invitation to CLR
INPAR?
List X.3 parameters of specified PAD instance
INPROF
Load or save specified PAD profile
INSET
Set X.3 parameters of specified PAD instance
INT
Send Interrupt packet
LOG Logoff and disconnect
PAR?
List local X.3 parameters
PROF
Load or save PAD profile
RESET Send reset packet
RPAR?
List remote X.3 parameters
RSET
Set remote X.3 parameters
SET Set local X.3 parameters
STAT
Display channel status
CALL Make an X.25 Call
The full structure of a CALL command is:
CALL [<facilities->]<address>[D<user data>]
where:
<facilities-> is an optional list of codes indicating the facilities to be requested in the
call (separated by commas, terminated with a dash)
<address> is the destination network address.
<user data> is any optional user data to be included with the call.
The facility codes supported are:
F Fast select - no restriction
Q Fast select - restricted response
Gnn Closed User Group
Gnnnn Extended Closed User Group
R Reverse charging
N<NUI> Network User Identity code (NUI)
468
Example
CALL R,G12,NMYNUI-56512120DHello
places a call to address 56512120 using reverse charging and specifying Closed User Group
12. The string “MYNUI” is your Network User Identity and the string “Hello” appears in the
user data field of the call packet.
Note:
The particular facilities that are available will vary between X.25 service providers.
If a CALL command is issued without the address parameter, it is assumed that you wish to
go back on-line to a previously established call (having used the PAD recall facility to
temporarily return to the PAD> prompt).
Fast select (ISDN B-channel only)
When the standard Fast select facility is requested using the “F” facility code, the call packet
generated by the CALL command is extended to allow the inclusion of up to 124 bytes of
user data. For example:
CALL F-1234567890DThis DATA sent with call packet
would cause an X.25 CALL packet to be sent using the Fast select facility including the
message “This DATA sent with call packet” (the Carriage Return used to enter the command
is not transmitted). Without the inclusion of the Fast select facility code, only the first 12
characters would be sent.
When a Fast select CALL has been made the PAD accepts an extended format response from
the called address. This response, consisting of up to 124 bytes of user data, may be
appended to the returning call accepted or call clear packet. When one of these packets is
received, the user data is extracted and passed from the PAD to the terminal immediately
prior to the “CLR DTE . . .” message in the case of a call clear packet or “CON COM”
message in case of a call accepted packet.
When a restricted response Fast select call has been made using the Q facility code, the call
packet indicates that a full connection is not required so that any response to the user data
in the CALL packet should be returned in a call clear packet.
When the PAD receives an incoming call specifying Fast select, the call is indicated to the
terminal in the normal way. For example:
IC 1234567890 FAC: Q,W:2 COM
would indicate that an incoming call had been received requesting Restricted response fast
select and a window size of 2. The user (or system) then has 15 seconds in which to pass
up to 124 bytes of data to the PAD to be included in the clear indication packet that is sent
in response to the call.
The PAD does NOT differentiate between standard and restricted response Fast select on
incoming calls and, consequently, will always respond with a clear indication.
469
Network User Identity (NUI)
The N facility code allows you to include your Network User Identity in the call packet. For
security reasons the PAD echoes each character as an asterisk (*) during the entry of an
NUI. Some X.25 services use the NUI field to pass both a username and password for
validation. For example, if your Username is MACDONALD and your password is ASDF, a
typical CALL command would have the format:
CALL NMACDONA;ASDF-56512120
where the “;” is used to separate the username from the password.
Closed User Group (CUG)
Most X.25 networks support Closed User Groups. They are used to restrict subscribers to
only making calls or receiving calls from other members of the same CUG. The CUG number
effectively provides a form of sub-addressing that is used in conjunction with the NUA to
identify the destination address for a call.
When the G facility code is specified in a CALL packet, it must be followed by the CUG
number. This may be a 2 or 4 digit number. If you are a member of a closed user group,
the network may restrict you to only making calls to or receiving calls from other members
of the same group.
Reverse charging
Reverse charging, specified using the R facility code, allows outgoing calls to be charged to
the account of destination address. Whether or not a call is accepted on a reverse charging
basis is determined by the service provider and by the type of account held by the called
user.
Calling user data
The calling user data field for a normal call may contain up to 12 bytes of user data. If the
first character is an exclamation mark (!), the PAD omits the four byte protocol identifier
and allows the full 16 bytes as user data. The same is true for a fast select call except that
the maximum amount of user data is increased from 124 to 128 bytes.
When entering user data, the tilde character (~) may be used to toggle between ASCII and
binary mode. In ASCII mode data is accepted as typed but in binary mode each byte must
be entered as the required decimal ASCII code separated by commas. For example to enter
the data “Line1” followed by [CR][LF] and “Line2” you would enter:
DLine1~13,10~Line2
Aborting a CALL
An X.25 CALL may be aborted using the X.28 CLR command, by pressing [Enter] or by
dropping DTR from the terminal while the call is in progress. Dropping DTR will also
terminate an established call.
If a call is terminated by the network or by the remote host, the unit returns a diagnostic
message before the NO CARRIER result code. Messages may be numeric or verbose
depending on the setting of the ATV command.
The following table lists the verbose messages and equivalent numeric codes:
Code
Verbose message
1 Unallocated (unassigned) number
2 No route to specified transit network
470
Code
Verbose message
3 No route to destination
4 Channel unacceptable
6 Channel unacceptable
7 Call awarded and being delivered in an established channel
16 Normal call clearing
17 User busy
18 No user responding
19 No answer from user (user alerted)
21 Call rejected
22 Number changed
26 Non-selected user clearing
27 Destination out of order
28 Invalid number format
29 Facility rejected
30 Response to STATUS ENQUIRY
31 Normal, unspecified
34 No circuit/channel available
38 Network out of order
41 Temporary failure
42 Switching equipment congestion
43 Access information discarded
44 Requested circuit/channel not available
47 Resources unavailable, unspecified
49 Quality of service unavailable
50 Requested facility not subscribed
57 Bearer capability not authorized
58 Bearer capability not presently available
63 Service or option not available, unspecified
65 Bearer capability not implemented
66 Channel type not implemented
69 Requested facility not implemented
70 Only restricted digital information bearer
79 Service or option not implemented, unspecified
81 Invalid call reference value
471
Code
Verbose message
82 Identified channel does not exist
83 A suspended call exists, but this call identity does not
84 Call identity in use
85 No call suspended
86 Call having the requested call identity has been cleared
88 Incompatible destination
90 Destination address missing or incomplete
91 Invalid transit network selection
95 Invalid message, unspecified
96 Mandatory information element is missing
97 Message type non-existent or not implemented
98 Message not compatible with call state or message type
nonexistent or not implemented
99 Information element non-existent or not implemented
100 Invalid information element contents
101 Message not compatible with call state
102 Recovery on timer expired
111 Protocol error, unspecified
127 Interworking, unspecified
128 General level 2 call control failure (probable network failure)
Note:
Some verbose messages may be abbreviated by the unit.
CLR Clear an X.25 Call
The CLR command is used to clear the current call and release the associated virtual
channel for further calls. On completion of call clear the PAD> prompt is re-displayed. A call
may also be cleared as a result of a number of other situations. If one of these situations
occurs, a message is issued to the PAD in the following format:
CLR <Reason> C:<n> - <text>
where:
<Reason> is a 2/3 character clear down code
<n> is the numeric equivalent of the clear down code
<text> is a description of the reason for clear down
472
The clear down reason codes supported by the unit are listed in the following table:
Reason Code
Numeric Code
Text
DTE 0 by remote device
OOC 1 number busy
INV 3 invalid facility requested
NC 5 temporary network problem
DER 9 number out of order
NA 11 access to this number is barred
NP 13 number not assigned
RPE 17 remote procedure error
ERR 19 local procedure error
ROO 21 cannot be routed as requested
RNA 25 reverse charging not allowed
ID 33 incompatible destination
FNA 41 fast select not allowed
SA 57 ship cannot be contacted
If an unknown reason code is received, the text field is blank.
ICLR Invitation To CLR
The ICLR command “invites” the remote X.25 service to CLR the current X.25 session.
INT Send Interrupt Packet
INT causes PAD to transmit an interrupt packet. These packets flow “outside” normal
buffering/flow control constraints and are used to interrupt the current activity.
LOG Logoff and Disconnect
LOG is used to terminate an X.25 session. It causes the PAD to clear any active X.25 calls,
disconnect and return to AT command mode.
PAR? List Local X.3 Parameters
PAR? lists the local X.3 parameters for the current session.
PROF Load/Save PAD Profile
The PROF command is used to store or retrieve a pre-defined set of X.3 PAD parameters
(referred to as a PAD profile). The information is stored in system file called X3PROF. There
are four pre-defined profiles numbered 50, 51, 90 and 91. Additionally, you may create four
“user PAD profiles” numbered 1 to 4.
Profile 50 is automatically loaded when a PAD is first activated. To load one of the other pre-
defined profiles use the PROF command followed by the required profile number. For
example:
PROF 90
473
To create a User PAD profile you must use the SET command to configure the various PAD
parameters to suit your application and then use the PROF command in the format:
PROF &nn
where “nn” is the number of the User PAD profile to be stored, e.g. 03. Alternatively, you
may use the web interface to edit the parameters directly (Configuration - Network >
Legacy Protocols > X.25 > PADs n-n > PAD n > PAD Settings).
The pre-defined profiles (50, 51, 90, 91), cannot be overwritten and are permanently
configured as shown in the following table:
Parameter
Profile
50
51
90
91
1 1 0 1 0
2 0 0 1 0
3 0 0 126 0
4 5 5 0 20
5 0 3 1 0
6 5 5 1 0
7 0 8 2 2
8 0 0 0 0
9 0 0 0 0
10 0 0 0 0
11 15 15 15 15
12 0 3 1 0
13 0 0 0 0
14 0 0 0 0
15 0 0 0 0
16 8 8 127 127
17 24 24 24 24
18 18 18 18 18
19 2 2 1 1
20 64 64 0 0
21 0 0 0 0
22 0 0 0 0
Stored X.25 PAD profiles are held in non-volatile memory and will not be lost when the unit
is switched off.
474
When used in the format:
prof nn
the PROF command loads the stored profile specified by “nn”.
RESET Send Reset Packet
RESET is used to issue a reset for the current call to the network. It does NOT clear the call
but it does return the network level interface to a known state by re-initialising all Level 3
network control variables. All data in transit will be lost.
RPAR? Read Remote X.3 Parameters
RPAR? lists the current X.3 parameter settings for the remote system.
RSET Set Remote X.3 Parameters
RSET is used to set one or more X.3 parameters for the remote system. It is entered in the
format:
RSET par #:value[,par #:value[,par #:value ...]]
SET Set Local X.3 Parameters
SET is used to set one or more of the local X.3 parameters for the duration of the current
session. The format of the command is:
SET par #:value[,par #:value[,par #:value ...]]
STAT Display Channel Status
STAT displays the current status for each logical channel indicating whether it is free or
engaged. For example:
stat
PAD STATE
1 ENGAGED
2 FREE
3 FREE
4 FREE
475
PPP OVER ETHERNET
PPP over Ethernet (PPPoE) is a means of establishing a PPP connection over the top of an
Ethernet connection. The implementation provided is compliant with RFC 2516, “A Method
for Transmitting PPP Over Ethernet”. A typical application would be to allow non-PPPoE
enabled devices to access Internet services where the connection to the Internet is provided
by an ADSL bridge device.
Using the Web Page(s)
There is no dedicated web page for configuring the unit to use PPPoE; rather there are a
number of parameters that appear on other web pages that must be used in conjunction
with each other to establish a PPPoE connection over the appropriate Ethernet interface.
In particular, the following configuration pages and parameters are important.
On the appropriate Configuration - Network > Interfaces > Advanced > PPP n - n
pages, you should configure the following parameters on the following pages:
Configuration - Network > Interfaces > Advanced > PPP n - n > PPP n
As a minimum requirement the Username and Password parameters should be initialised.
The parameter This PPP interface will use x,y defines the physical Ethernet interface
over which the PPPoE session will operate. In most cases this is PPPoE 0 (for Ethernet 0).
The fact that you have selected “PPPoE 0” as the physical interface for operation with PPP
automatically enables PPPoE mode. If another Ethernet instance is used, Eth 1 for example,
this will need to be specified as PPPoE 1 to ensure the correct MAC address is used, this is in
the format 0 or blank for port 0, 1 for port 1, 2 for port 2 etc.
If necessary, continue to the page Configuration - Network > Interfaces > Advanced
> PPP n - n > PPP n > Advanced and set the Enable "Always On" mode of this
interface parameter to “On” to configure the unit so that it will attempt to renegotiate the
PPP link should it go down for any reason.
Configuration - Network > Interfaces > Advanced > PPP n - n > PPP n > PPP
Negotiation
The advanced PPP options on this page should be initialised as required by your ISP.
In addition:
Desired Local MRU and Desired Remote MRU should be set to “1492”.
Request Local ACFC and Request Remote ACFC should be set to “No”.
Request Local PFC and Request Remote PFC should be set to “No”.
Desired Local ACCM and Desired Remote ACCM should be set to “0xffffffff”.
Using Text Commands
There are no specific PPPoE commands available to the user via the text command
interface. The appropriate ppp CLI commands should be used to set the required options.
476
IPSEC AND VPNS
What is IPSec?
One inherent problem with the TCP protocol used to carry data over the vast majority of
LANs and the Internet is that it provides virtually no security features. This lack of security,
and recent publicity about “hackers” and “viruses”, prevent many people from even
considering using the Internet for any sensitive business application. IPSec provides a
remedy for these weaknesses adding a comprehensive security “layer” to protect data
carried over IP links.
IPSec (Internet Protocol Security) is a framework for a series of IETF standards designed to
authenticate users and data, and to secure data by encrypting it during transit. The
protocols defined within IPSec include:
• IKE – Internet Key Exchange protocol
• ISAKMP – Internet Security Association and Key Management Protocol
• AH – Authentication Header protocol
• ESP – Encapsulating Security Payload protocol
• HMAC – Hash Message Authentication Code
• MD5 – Message Digest 5
• SHA-1 – Security Hash Algorithm
and the cryptographic (encryption) techniques include:
• DES – Data Encryption Standard
• 3DES – Triple DES
• AES – Advanced Encryption Standard (also known as Rijndael)
Two key protocols within the framework are AH and ESP. AH is used to authenticate users,
and ESP applies cryptographic protection. The combination of these techniques is designed
to ensure the integrity and confidentiality of the data transmission. Put simply, IPSec is
about ensuring that:
• only authorised users can access a service and
• that no one else can see what data passes between one point and another.
There are two modes of operation for IPSec, transport mode and tunnel mode.
In transport mode, only the payload (i.e. the data content), of the message is encrypted. In
tunnel mode, the payload and the header and routing information are all encrypted thereby
by providing a higher degree of protection.
Data Encryption Methods
There are several different algorithms available for use in securing data whilst in transit
over IP links. Each encryption technique has its own strengths and weaknesses and this is
really, a personal selection made with regard to the sensitivity of the data you are trying to
protect. Some general statements may be made about the relative merits but users should
satisfy themselves as to suitability for any particular purpose.
477
DES (64-bit key)
This well-known and established protocol has historically been used extensively in the
banking and financial world. It is relatively “processor intensive”, i.e. to run efficiently at
high data rates a powerful processor is required. It is generally considered very difficult for
casual hackers to attack but may be susceptible to determined attack by well-equipped and
knowledgeable parties.
3-DES (192-bit key)
Again, this is a well-established and accepted protocol but as it involves encrypting the data
three times using DES with a different key each time, it has a very high processor overhead.
This also renders it almost impossible for casual hackers to attack and very difficult to break
in any meaningful time frame, even for well-equipped and knowledgeable parties.
AES (128-bit key)
Also known as Rijndael encryption, AES is the new “de-facto” standard adopted by many
USA and European organisations for sensitive applications. It has a relatively low processor
overhead compared to DES and it is therefore possible to encrypt at higher data rates. As
with 3-DES, it is almost impossible for casual hackers to attack and is very difficult to break
in any meaningful time frame, even for well-equipped and knowledgeable parties.
To put these into perspective, common encryption programs that are considered “secure”
(such as PGP) and on-line credit authorisation services (such as Web-based credit card
ordering) generally use 128-bit encryption.
Note:
Data rates are the maximum that could be achieved but may be lower if other applications
are running at the same time or small IP packet sizes are used.
What is a VPN?
VPNs (Virtual Private Networks) are networks that use the IPSec protocols to provide one or
more secure routes or “tunnels” between endpoints. Users are issued either a shared
“secret” key or “public/ private” key pair that is associated with their identity. When a
message is sent from one user to another, it is automatically “signed” with the user’s key.
The receiver uses the secret key or the sender’s public key to decrypt the message. These
keys are used during IKE exchanges along with other information to create session keys
that only apply for the lifetime of that IKE exchange.
The Benefits of IPSec
IPSec is typically used to attain confidentiality, integrity, and authentication in the transport
of data across inherently insecure channels. When properly configured, it provides a highly
secure virtual channel across cheap, globally available networks such as the Internet, or
creates a “network within a network” for applications such as passing confidential
information between two users across a private network.
478
X.509 Certificates
In the previous section, security between two points was achieved by using a “pre-shared
secret” or password. Certificates provide this sort of mechanism but without the need to
manually enter or distribute secret keys. This is a complex area but put simply a user’s
certificate acts a little like a passport providing proof that the user is who they say they are
and enclosing details of how to use that certificate to decrypt data encoded with it.
Passports however can be forged so there also needs to be proof that the passport has been
properly issued and hasn’t been changed since it was. On a paper passport this is achieved
by covering the photograph with a coating that shows if it has been tampered with,
embedding the user’s name in code in a long string of numbers, etc. In the same way, for a
Security Certificate to be genuine it has to be protected from alteration as well. Like a
passport, you also have to trust that the issuer is authorized and competent to create the
certificate.
Certificates use something called a “Public/Private Key Pair”. This a complex area but the
principle is that you can create an encryption key made up from two parts, one private
(known only to the user), the other public (known to everyone). Messages encrypted with
someone’s public key can only be recovered by the person with the Public AND Private key
but as encrypting the message to someone in the first place only requires that you know
their public key, anyone who knows that can send them an encrypted message, so you can
send a secure message to someone knowing only their publicly available key. You can also
prove who you are by including in the message your “identity” whereupon they can look up
the certified public key for that identity and send a message back that only you can
understand. The important principles are that a) your private key cannot be determined
from your public key and b) you both need to be able to look up the others certified ID.
Once you’ve established a two way secure link you can use it to establish some rules for
further communication.
Before this gets any more complicated we’ll assume that Digi International are a competent
authority to issue certificates and given that they exist and are valid, see how they are
used.
Generally, the issuing and management of certificates will be provided as a managed
service by Digi or its partners, but some general information is provided here for system
administrators.
Certificates are held in non-volatile files on the unit. Any private files are named
privxxxx.xxx and cannot be copied, moved, renamed, uploaded or typed. This is to protect
the contents. They can be overwritten by another file, or deleted.
Two file formats for certificates are supported:
• PEM – Privacy Enhanced MIME
• DER – Distinguished Encoding Rules
Certificate and key files should be in one of these two formats, and should have an
extension of “.pem” or “.der” respectively.
Note:
The equivalent filename extension for .PEM files in Microsoft Windows is “.CER”. By
renaming “.PEM” certificate files to “.CER”, it is possible to view their makeup under
Windows.
479
The unit maintains two lists of certificate files. The first is a list of “Certificate Authorities” or
CAs. Files in this list are used to validate public certificates sent by remote users. Public
certificates must be signed by one of the certificates in the CA list before the unit can
validate them. Certificates with the filename CA*.PEM and CA*.DER are loaded into this list
at start-up time. In the absence of any CA certificates, a public certificate cannot be
validated.
The second list is a list of public certificates that the unit can use to obtain public keys for
decrypting signatures sent during IKE exchanges. Certificates with a filename CERT*.PEM
and CERT*.DER are loaded into this list when the unit is powered on or rebooted.
Certificates in this list will be used in cases where the remote unit does not send a
certificate during IKE exchanges. If the list does not contain a valid certificate
communication with the remote unit cannot take place.
Both the host and remote units must have a copy of a file called CASAR.PEM. This file is
required to validate the certificates of the remote units.
In addition, the host unit should have copies of the files CERT02.PEM (which allows it to
send this certificate to remote units) and PRIVRSA.PEM. Note that before it can send this
certificate, the “Remote ID” parameter in the Configuration - Network > Virtual Private
Networking (VPN) > IPsec > IPsec Tunnels > IPsec n - n > IPsec n page must be set to
“host@Digi.co.uk”.
The remote unit must have copies of CERT01.PEM and PRIVRSA.PEM. In addition, any
Eroutes that are going to use certificates for authentication should be configured as follows:
Our ID
Should be set to “info@Digi.co.uk”. This is the same as the subject “Altname” in certificate
CERT01.PEM which makes it possible for the router to locate the correct certificate to send
to the host.
Authentication Method
Should be set to RSA Signatures. This indicates to IKE that RSA signatures (certificates) are
to be used for authentication.
When IKE receives a signature from a remote unit, it needs to be able to retrieve the
correct public key so that it can decrypt the signature, and confirm that the signature is
correct. The certificate must either be on the FLASH file system, or be provided by the
remote unit as part of the IKE negotiation. The ID provided by the remote unit is used to
find the correct certificate to use. If the correct certificate is found, the code then checks
that it has been signed by one of the certificate authority certificates (CA*.PEM) that exist
on the unit. The code first checks the local certificates, and then the certificate provided by
the remote (if any). IKE will send a certificate during negotiations if it is able to find one
that has subject “AltName” that matches the ID being used. If not able to locate the
certificate, then the remote must have local access to the file so that the public key can be
retrieved.
A typical set-up may be that the host unit has a copy of all certificates. This means that the
remote units only require the private key, and the certificate authority certificate. This eases
administration as any changes to certificates need only be made on the host. Because they
do not have a copy of their certificate, remote units rely on the host having a copy of the
certificate. An alternative is that the remote units all have a copy of the certificate, as well
as the private key and certificate authority certificate, and the host only has its own
certificate. This scenario requires that the remote unit send its certificate during
negotiations. It can validate the certificate because it has the certificate authority certificate.
480
FIREWALL SCRIPTS
Introduction
A “firewall” is a protection system designed to prevent access to your local area network by
unauthorised “external” parties, i.e. other users of the internet or another wide area
network. It may also limit the degree of access local users have to external network
resources. A firewall does not provide a complete security solution; it provides only one
element of a fully secure system. Consideration should also be given to the use of user
authentication and data encryption. Refer to the IPSec section for further information.
In simple terms, a firewall is a packet filtering system that allows or prevents the
transmission of data (in either direction) based on a set of rules. These rules can allow
filtering based on the following criteria:
• source and destination IP addresses
• source and destination IP port or port ranges
• type of protocol in use
• direction of the data (in or out)
• interface type
• the eroute the packet is on
• if an interface is OOS (out of service)
• ICMP message type
• TCP flags (SYN, ACK, URG, RESET, PUSH, FIN)
• TOS field
• status of a link and/or data packets on UDP/TCP and ICMP protocols
In addition to providing comprehensive filtering facilities, Digi routers also allow you to
specify rules relating to the logging of information for audit/debugging purposes. This
information can be logged to a pseudo-file on the unit called FWLOG.TXT, the
EVENTLOG.TXT pseudo-file or to a syslog server. It can also be used to generate SNMP
traps.
Firewall Script Syntax
A firewall must be individually configured to match the needs of authorised users and their
applications. On Digi routers the rules governing firewall behaviour are defined in a script
file called FW.TXT. Each line in this file consists of a label definition, a comment or a filter
rule.
Labels
A label definition is a string of up to 12 characters followed by a colon. Labels can only
include letters, digits and the underscore character and are used in conjunction with the
break option to cause the processing of the script to jump to a new location.
Comments
Any line starting with the hash character (“#”) is deemed to be a comment and ignored.
481
Filter Rules
The syntax for a filter rule is:
[action] [in-out] [options] [tos] [proto] [dnslist] [ip-range] [inspect-state]
When the firewall is active, the script is processed one line at a time as each packet is
received or transmitted. Even when a packet matches a filter-rule, processing still continues
and all the other filter rules are checked until the end of the script is reached. The action
taken with respect to a particular packet is that specified by the last matching rule. With the
break option however the script processing can be redirected to a new location or to the end
of the script if required. The default action that the firewall assigns to a packet is to block.
This means that if the packet does not match any of the rules it will be blocked.
The various fields of a script rule are described below:
[action]
The [action] field may be specified as block, pass, pass-ifup, dscp, vdscp or debug. These
operate as follows:
block
The block action prevents a packet from being allowed through the firewall. When block is
specified an optional field can be included that will cause an ICMP packet to be returned to
the interface from which that packet was received. This technique is sometimes used to
confuse hackers by having different responses to different packets or for fooling an attacker
into thinking a service is not present on a network.
The syntax for specifying the return of an ICMP packet is:
“return-icmp” [icmp-type [icmp-code]]
where [icmp_type] is a decimal number representing the ICMP type or can be one of the
predefined text codes listed in the following table:
ICMP type value
ICMP type
1 Unreach
2 Echo
3 Echorep
4 squench
5 redir
6 timex
7 paraprob
8 timest
9 timestrap
10 inforeq
11 inforep
12 maskreg
13 maskrep
14 routerad
482
ICMP type value
ICMP type
15
routersol
The optional [icmp-code] field can also be a decimal number representing the ICMP code of
the return ICMP packet but if the [icmp-type] is [unreach] then the code can also be one of
the following pre-defined text codes:
ICMP code
Meaning
net-unr Network unreachable
host-unr Host unreachable
proto-unr Protocol unrecognised
port-unr Port unreachable
needfrag Needs fragmentation
srcfail Source route fail
For example:
block return-icmp unreach in break end on ppp 0
This rule would cause the unit to return an ICMP Unreachable packet in response to all
packets received on PPP 0.
Instead of using the return-icmp option to return an ICMP packet, return-rst can be used to
return a TCP reset packet instead. This would only be applicable for a TCP packet. For
example:
block return-rst in break end on eth 0 proto tcp from any to 10.1.2.0/24
This would return a TCP reset packet when the firewall receives a TCP packet on the
Ethernet interface 0 with destination address 10.1.2.*.
pass
The pass action allows packets that match the rule to pass through the firewall.
pass-ifup
The pass-ifup action allows outbound packets that match the rule to pass through the
firewall but only if the link is already active.
debug
The debug action causes the unit to tag any packets matching the rule for debug. This
means that for every matching rule that is encountered from this point in the script
onwards, an entry will be placed in the pseudo-file FWLOG.TXT.
dscp
The dscp action causes any packets matching this rule to have its DSCP value adjusted
according to this rule. The DSCP value of a packet indicates the type of service required and
is used in conjunction with QOS (Quality of Service) functions. A decimal or hex number
must follow the dscp keyword to indicate the value that should be set.
vdscp
483
The vdscp action is very similar to the dscp action as described above in that it adjusts the
DSCP value in a packet. The difference however is that this is a virtual change only which
means that the actual packet is not changed, and that the packet is processed as if it had
the DSCP value as indicated. Like the dscp action, a decimal or hex number must follow.
[in-out]
The [in-out] field can be in or out and is used to specify whether the action applies to
inbound or outbound packets. When the field is left blank the rule is applied to any packet
irrespective of its direction.
[options]
The [options] field is used to define a number of options that may be applied to packets
matching the rule. These are:
log
When the log option is specified, the unit will place an entry in the FWLOG.TXT file each
time it processes a packet that matches the rule. This log will normally detail the rule that
was matched along with a summary of the packet contents. If the log option is followed by
the body sub-option, the complete IP packet is entered into the log file so that when the log
file is displayed, a more detailed decode of the IP packet is shown.
The log field may also be followed by a further sub-option that specifies a different type of
log output. This may either be snmp, syslog or event.
If snmp is specified an SNMP trap (containing similar information to the normal log entry), is
generated when a packet matches the rule.
If syslog is specified, a syslog message is sent to the configured syslog manager IP address.
This message will contain the same information as that entered into the log file, but in a
different format.
If the body option has also been specified, some of the IP packet information is also
included.
Note that the size of the syslog message is limited to the maximum of 1024 bytes. The
syslog message is sent with default priority value of 14, which expands out to facility of
USER, and priority INFO.
If event is specified the log output will be copied to the EVENTLOG.TXT pseudo-file as well
as the FWLOG.TXT file. The event log entry will contain the line number and hit count for
the rule that caused the packet to be logged.
Example:
Say your local network is on subnet 192.168.*.* and you want to block any packets
received on PPP 0 that were “pretending” to be on the local network and log the receipt of
any such packets to the FWLOG.TXT file and to a syslog server. The filter rule would be
constructed as follows:
block in log syslog break end on ppp 0 from 192.168.0.0/16 to any
break
When the break option is specified it must be followed by a user-defined label name or the
predefined end keyword. When followed by a label, the rule processor will “jump” to that
label to continue processing. When followed by the end keyword rule processing will be
terminated and the packet will be treated according to the last matching rule.
484
Example:
break ppp_label on ppp 0
# insert rule processing here for packets that are not on ppp 0
break end
ppp_label
# insert rule processing here for packets that are on ppp 0
on
The on option is used to specify the interface to which the rule applies and must be followed
by a valid interface name. For example, if you were only interested in applying a particular
rule to packets being transmitted or received by PPP 0, you would include on ppp 0 in the
rule. Valid interface-names are either eth n, tun n or ppp n, where n is the instance number.
oneroute
The oneroute option is used to specify that a rule will only match packets associated with
the specified eroute. For example, including the option oneroute 2 would cause the rule to
only match on packets transmitted or received over Eroute 2. The oneroute option can be
followed with the keyword any, which will match if the packet is on any eroute.
routeto
When the routeto option is specified and the firewall is processing a received packet, if the
rule is the last matching rule, then the packet is tagged as being required to be routed to
the specified interface.
For example:
pass in break end routeto eth 1 from 10.1.0.0/16 to 1.2.3.4 port=telnet
would ensure that all packets from 10.1.*.* to 1.2.3.4 on the telnet port are all routed to
ETH 1.
oosed
The oosed option is used to check the out of service status of an interface. For example,
including the option oosed ppp 1 would cause the rule to match only if interface PPP 1 is out
of service.
[tos]
The [tos] field may be used to specify the Type of Service (TOS) to match. If included, the
[tos] field consists of the keyword tos followed by a decimal or hexadecimal code
identifying the TOS to match. For example, to block any inbound packet on PPP 0 with a
TOS of 0 you would use a rule such as:
block in on ppp 0 tos 0
[proto]
The [proto] field is used to specify a protocol to match and consists of the proto keyword
followed by one of the following protocol identifiers:
Identifier
Meaning
udp UDP packet
tcp TCP packet
485
Identifier
Meaning
ftp FTP packets regardless of port number
icmp ICMP packet
decimal number decimal number matched to protocol type in IP header
The [proto] field is also important when “stateful” inspection is enabled for a rule (using the
[inspect-state] field), as it describes the protocol to inspect (see [inspect-state] below).
[dnslist]
The [dnslist] field is used to match packets that contain DNS names that are in a given
dnslist. Following dnslist there needs to be a name of a dnslist as specified by the #dns
command. For example, say we have the following dnslist.
#dns gglist www.Digi.co.*,www.*.co.nz
Then the following firewall rule will block all dns lockups to DNS names matching the above
list.
block out break end on ppp 1 proto udp dnslist gglist from any to any port=dns
[ip-range]
The [ip-range] field is used to describe the range of IP addresses and ports to match upon
and may be specified in one of several ways. The basic syntax is:
ip-range = “all” | “from” ip-object “to” ip-object [flags] [icmp]
where ip-object is an IP address specification. Full details of the syntax with examples are
given under the heading “Specifying IP Addresses and Address Ranges” below.
[inspect-state]
The [inspect-state] field is used in create rules for “stateful inspection”. This is a powerful
option in which the firewall script includes rules that allow the unit to keep track of a
TCP/UDP or ICMP session and therefore to only pass packets that match the state of a
connection.
Additionally, the [inspect state] field can specify an optional OOS (Out Of Service)
parameter. This parameter allows the unit to mark any route as being out-of-service for a
given period of time in the event that the stateful inspect engine has detected an error.
A full description of how the [inspect state] field works is given below under the heading
“Stateful Inspection”.
Specifying IP Addresses and Ranges
The ip-range field of a firewall script rule identifies the IP address or range of addresses to
which the rule applies. The syntax for specifying an IP address range is:
ip-range = “all” | “from” ip-object “to” ip-object [ flags ] [ icmp ]
where:
ip-object = addr [port-comp | port-range]
flags = “flags” { flags } [ !{ flags } ]
icmp = “icmp-type” icmp-type [ “code” decnum ]
addr = “any” | ip-addr[ “/”decnum ] [ “mask” ip-addr | “mask” hexnum ]
486
port-comp = “port” compare port-num
port-range = “port” port-num “<>” | “><” port-num
ip-addr = IP address in format nnn.nnn.nnn.nnn
decnum = a decimal number
hexnum = a hexadecimal number
compare = “=” | “!=” | “<” | “<=” | “>” | “>=”
port-num = service-name | decnum
service-name = “http” | “telnet” | “ftpdat” | “ftpcnt” | “pop3” | “ike” | “xot”|
“sntp” | “smtp”
In the above syntax definition:
• items in quotes are keywords
• items in square brackets are optional
• items in curly braces are optional and can be repeated
• the vertical bar symbol (“|”) means “or”
An ip-object therefore consists of an IP address and an IP port specification, preceded by
the keyword from or to to define whether it is the source or destination address. The most
basic form for an ip-object is simply an IP address preceded by from or to. For example, to
block all packets destined for address 10.1.2.98 the script rule would be:
block out from any to 10.1.2.98
An ip-object can also be specified using an address mask. This is a way of describing which
bits of the IP address are relevant when matching. The script processor supports two
formats for specifying masks.
Method 1: The IP address is followed by a forward slash and a decimal number. The decimal
number specifies the number of significant bits in the IP address. For example, if you
wanted to block all packets in the range 10.1.2.* the rule would be:
block from any to 10.1.2.0/24
i.e. only the first 24 bits of the address are significant.
Method 2: This same rule could be described another way using the mask keyword:
block from any to 10.1.2.0 mask 255.255.255.0
The IP address can also contain either “addr-ppp n” or “addr-eth n” where “n” is the eth or
ppp instance number. In this case the rule is specifying that the IP address is that allocated
to the PPP interface or to the Ethernet interface. This is useful in the situation were IP
addresses are obtained automatically and therefore are not known by the author of the
filtering rules. For example:
block in break end on ppp 0 from addr-eth 0 to any
487
Address/Port Translation
One further option that may be used when specifying addresses is to use address
translation. The syntax for this is:
srcdst = “all | fromto [-> [ip-object] “to” object]
I.e. directly after the IP addresses and port are specified an optional “->” can follow
indicating that the addresses/ports should be translated. The first source object is optional
and is unlikely to be used as it is more normal to translate the destination address. The
following example will reroute packets originally destined for 10.10.10.12 to 10.1.2.3:
pass out break end from any to 10.10.10.12 -> to 10.1.2.3
Additionally to this complete subnets can have NAT applied, the address bits not covered by
the subnet mask are taken from the original IP address, so for example to NAT the
destination subnet of 192.168.0.0/24 to be 192.168.1.0/24 the firewall rule is:
pass out break end from any to 192.168.0.0/24 -> to 192.168.1.0/24
Filtering on Port Numbers
Now let us say there is a Telnet server running on a machine on IP address 10.1.2.63 and
you wish to make this accessible. Using the filter from the previous example would block all
packets to 10.1.2.*. To make the Telnet server available on 10.1.2.63 we need to add the
following line in front of the blocking rule:
pass break end from any to 10.1.2.63 port=23
So, a packet being sent to the Telnet server (port 23) on IP address 10.1.2.63 will match
this rule and further checking is prevented by the break end option.
The above example illustrates the “=” comparison. Other comparison methods supported
are:
Symbol
Meaning
!= not equal
> greater than
< less than
<= less than or equal to
>= greater than or equal to
It is also possible to specify a port in range or a port out of range with the “><” or “<>”
symbols. For example, to pass all packets to addresses in the range 23 to 28, the rule would
be specified as:
pass break end from any to 10.1.2.63 port 23><28
To simplify references to ports, some commonly used port numbers are associated with the
predefined strings listed in the table below. For instance, in the example above we could
substitute the number 23 with the string telnet. This would make the rule:
pass break end from any to 10.1.2.63 port=telnet
The other port keywords that are defined are:
Keyword
Std. Port
Service
Ftpdat 20 File Transfer Protocol data port
Ftpcnt 21 File Transfer Protocol control port
488
Keyword
Std. Port
Service
telnet 23 Telnet server port
smtp 25 SMTP server port
http 80 Web server port
pop3 110 Mail server port
sntp 123 NTP server port
ike 500 Source/destination port for IKE key
xot 1998 Destination port for XOT packets
Note:
The above service keywords are pre-defined based on “standard” port numbers. It is
possible that these may have been defined differently on your system in which case you
should use the port numbers explicitly (not the defined names).
Filtering on TCP Flags
An ip-object can be followed by an optional [flags] field. This field allows the script to filter
based on any combination of TCP flags. The [flags] field is used to specify the flags to
check and consists of the flags keyword followed by a string specifying the flags themselves.
Each letter in this string represents a particular flag type as listed below:
Code Flag
f FIN Flag
r RESET Flag
s SYN Flag
p PUSH Flag
u URG Flag
a ACK Flag
These flag codes allow the filter to check any combination of flags.
Following on from the previous example, to block packets that have all the flags set you
would need to precede the pass rule with the following block rule:
block break end from any to 10.1.2.0/24 port=telnet flags frspua
Here, the list of flags causes the unit to check that those flags are set. This list may be
optionally followed by an exclamation mark (“!”) and a second list of flags that the unit
should check for being clear.
For example:
flags s!a
would test for the s flag being on and the a flag being off with all other flags ignored.
489
As a further example, let us say we want to allow outward connections from a machine on
10.1.2.33 to a Telnet server. We have to define a filter rule to pass outbound connections
and the inbound response packets. Because this is an outbound Telnet service we can make
use of the fact that all incoming packets will have their ACK bits set. Only the first packet
establishing the connection will have the ACK bit off. The filter rules to do this would look
like this:
pass out break end from 10.1.2.33 port>1023 to any port=telnet
pass in break end from any port=telnet to 10.1.2.33 port>1023 flags !a
The first rule allows the outward connections, and the second rule allows the response
packets back in which the ACK flag must always be on. This second rule will filter out any
packets that do not have the ACK flag on. This will bar any attackers from trying to open
connections onto the private network by simply specifying the source port as the Telnet port
(note that there is a simpler way to achieve the same effect using the inspect state option
described below).
Filtering on ICMP Codes
An ip-object can be followed by an optional [icmp] field. This allows the script to filter
packets based on ICMP codes. ICMP packets are normally used to debug and diagnose a
network and can be extremely useful. However they form part of a low-level protocol and
are frequently exploited by hackers for attacking networks. For this reason most network
administrators will want to restrict the use of ICMP packets.
The syntax for including ICMP filtering is:
icmp = “icmp-type” icmp-type [“code” decnum]
The icmp-type can be one of the pre-defined strings listed in the following table or the
equivalent decimal numeric value:
ICMP Type
ICMP Value
Unreach 3
Echo 8
Echorep 0
Squench 4
Redir 5
Timex 11
Paramprob 12
Timest 13
Timestrep 14
Inforeq 15
Inforep 16
Maskreq 17
Maskrep 18
Routerad 9
Routersol 10
490
The following two rules are therefore equivalent:
pass in break end on ppp 0 proto icmp from any to 10.1.2.0/24 icmp-type 0
pass in break end on ppp 0 proto icmp from any to 10.1.2.0/24 icmp-type echorep
Both of these rules allow echo replies to come in from interface ppp 0 if they are addressed
to our example local network address (10.1.2.*).
In addition to having a type, ICMP packets also include an ICMP code field. The filter syntax
allows for the specification of an optional code field after the ICMP type. When specified the
code field must also match. The ICMP code field is specified with a decimal number.
For example, suppose we wish to allow only echo replies and ICMP unreachable type ICMP
packets from interface PPP 0. Then the rules would look something like this:
pass in break end on ppp 0 proto icmp from any to 10.1.2.0/24 icmp-type echorep code 0
pass in break end on ppp 0 proto icmp from any to 10.1.2.0/24 icmp-type unreach code 0
block in break end on ppp 0 proto icmp
The first two rules in this set allow in the ICMP packets that we are willing to permit and the
third rule denies all other ICMP packets in from this interface. Now if we ever expect to see
echo replies in on ppp 0 we should allow echo requests out on that interface too. To do that
we would have the rule:
pass out break end on ppp 0 proto icmp icmp-type echo
Stateful Inspection
The Digi routing code stack contains a sophisticated scripted “Stateful Firewall” and “Route
Inspection” engine. Stateful inspection is a powerful tool that allows the unit to keep track
of a TCP/UDP or ICMP session and match packets based on the state of the connection on
which they are being carried. In addition to providing sophisticated Firewall functionality the
SF/RI engine also provides a number of facilities for tracking the “health” of routes, marking
“dead” routes as being Out Of Service (OOS) and creating rules for the automatic status
checking of routes previously marked as OOS (for use in multilevel backup/restore
scenarios).
The firewall may be used to place interface into an OOS state and also control how the
interfaces return to service. When an interface goes OOS, all routes configured to use that
interface will have their route metric set to 16 (the maximum value), meaning that some
other route with a lower metric will be selected.
When a firewall stateful inspection rule expires, a decision is made as to whether the traffic
being allowed to pass by this rule completed successfully or not. For example, if the stateful
rule monitors SYN and FIN packets in both directions for a TCP socket then that rule will
expire successfully. However, if SYNs are seen to pass in one direction but no SYNs pass in
the other direction, the stateful rule will expire and the unit will tag this as a failure.
The following conditions tag a stateful rule as a failure:
• packets have only passed in one direction
• 10 packets have passed in one direction with no return packets (for TCP the packets must
also be re-transmits) All of these features depend upon the stateful inspection capabilities of
the Firewall engine which are explained below.
The [inspect] field takes the following format:
inspect = [“inspect-state” {“oos” {interface-name¦logical-name} secs {t=secs}
{c=count} {d=count}} {r=“ping”¦“tcp”{,secs{secs}}} {rd=x} {dt=secs}{stat}]
491
The field can be used on its own or with an optional oos (Out Of Service) parameter.
To understand this better let us look at a simple example in which we want to set up a filter
to allow all machines on a local network with addresses in the range 10.1.2.*, to access the
Internet on port 80. We will need one rule to filter the outgoing packets and another to filter
the responses:
pass out break end on ppp 0 from 10.1.2.0/24 to any port=80
pass in break end on ppp 0 from any port=80 to 10.1.2.0/24
In this example, the first rule allows outgoing http requests on PPP 0 from any address
matching the mask 10.1.2.* providing that the requests are on port 80 (the normal port
address for HTTP requests).
The second rule allows http response packets to be received on PPP 0 providing they are on
port 80 and they are addressed to an IP address matching the mask 10.1.2.*.
However, rule 2 creates a potential security “hole”. The problem with filtering based on the
source port is that you can trust the source port only as much as you trust the source
machine. For instance an attacker could perform a port scan and provided the source port
was set to 80 in each packet, it would get through this filter. Alternatively, on an already
compromised system, a “Trojan horse” might be set up listening on port 80.
A more secure firewall can be defined using the “inspect-state” option. The stateful
inspection system intelligently creates and manages dynamic filter rules based on the type
of connection and the source/destination IP addresses. Applying this to the above example,
we can redesign the script to make it both simpler and more effective as described below.
As a consequence of the fact that only the first packet in a TCP handshake will have the SYN
flag set, we can use a rule that checks the SYN flag:
pass out break end on ppp 0 from 10.1.2.0/24 to any port=80 flags s inspect-state
block in break end on ppp 0
The first rule matches only the first outgoing packet because it checks the status of the s
(SYN) flag and will only pass the packet if the SYN flag is set. At first glance however, it
appears that the second rule blocks all inbound packets on PPP 0. Whilst this may be
inherently more secure, it would also mean that users on the network would not be able to
receive responses to their HTTP requests and would therefore be of little use!
The reason that this is not a problem is that the stateful inspection system creates
temporary filter rules based on the outbound traffic. The first of these temporary rules
allows the first response packet to pass because it also will have the SYN flag set. However,
once the connection is established, a second temporary rule is created that passes inbound
or outbound packets if the IP address and port number match those of the initial rule but
does not check the SYN flag. It does however monitor the FIN flag so that the system can
tell when the connection has been terminated. Once an outbound packet with the FIN flag
has been detected along with a FIN/ACK response, the temporary rule ceases to exist and
further packets on that IP address/port are blocked.
In the above example, if a local user on address 10.1.2.34 issues an http request to a host
on 100.12.2.9, the outward packet would match and be passed. At the same time a
temporary filter rule is automatically created by the firewall that will pass inbound packets
from IP address 100.12.2.9 that are addressed to 10.2.1.34 port x (where x is the source
port used in the original request from 10.1.2.34).
This use of dynamic filters is more secure because both the source and destination IP
addresses/ports are checked. In addition, the firewall will automatically check that the
correct flags are being used for each stage of the communication.
492
The potential for a security breach has now been virtually eliminated because even if a
hacker could time his attack perfectly he would still have to forge a response packet using
the correct source address and port (which was randomly created by the sender of the HTTP
request) and also has to target the specific IP address that opened the connection.
Another advantage of “inspect-state” rules is that they are scalable, i.e. many machines
can use the rule simultaneously. In our above example for instance many machines on the
local network could all browse the Internet and the inspection engine would be dynamically
creating precise inward filters as they are required and closing them when they are finished
with.
The inspect-state option can be used on TCP, UDP protocols and some ICMP packets. The
ICMP types that can be used with the “inspect-state” option are “echo”, “timest”, “inforeq”
and “maskreq”.
Using [inspect-state] with Flags
As can be seen above, the inspect-state option can be used with flags. To illustrate this we
will refer back to the earlier example of filtering using flags. It is possible to simplify the
script by using the inspect-state option. The original script was:
pass out break end from 10.1.2.33 port>1023 to any port=telnet
pass in break end from any port=telnet to 10.1.2.33 port>1023 flags a!
Using the inspect state option this can be replaced with a single filter rule:
pass out break end from 10.1.2.33 port>1023 to any port=telnet flags s!a inspect-state
No rule is needed for the return packets because a temporary filter will be created that will
only allow inbound packets to pass if they match sessions set up by this stateful inspection
rule.
A further point to note about the new rule is that the “flags s!a” specification ensures that
it only matches the first packet in a connection. This is because the first packet in a TCP
connection has the SYN flag on and the ACK flag off and so we only match on that
combination. The stateful inspection engine will take care of matching the rest of the
packets for this connection.
Using [inspect-state] with ICMP
The [inspect-state] option can be also used with ICMP codes. To allow the use of echo
request and to allow echo replies you would have just the one rule:
pass out break end on ppp 0 proto icmp icmp-type echo inspect-state
The advantage of using inspect-state, other than just needing one rule, is that it leads to a
more secure firewall. For instance with the inspect-state option the echo replies are not
allowed in all the time; they will only be allowed in once an echo request has been sent out
on that interface. The moment that a valid echo reply comes back (or there is a timeout),
echo replies will again be blocked. Furthermore, the full IP address is checked; the IP source
and destination must exactly match the IP destination and source of the echo request. If
you compare this to the rule to allow echo replies in without using inspect-state it would
not be possible to check the source address at all and the destination address would match
any IP address on our network.
493
The inspect-state option can be used with the following ICMP packet types:
ICMP Type
Matching ICMP Type
Echo Echo reply
Timest Timestrep
Inforeq Inforep
Maskreq Maskrep
Using [inspect-state] with the Out Of Service Option
The inspect-state field can be used with an optional oos parameter. This parameter allows
the stateful inspect engine to mark as “out of service” any routes that are associated with
the specified interface and also to control how and the interfaces are returned to service.
Such routes will only be marked as out of service if the specified oos option parameters are
met. The oos parameter takes the format:
oos {interface-name¦logical-name} secs {t=secs} {c=count} {d=count}
{r=“ping”|“tcp”{,secs}}
where:
interface-name or logical-name specifies the interface with which the firewall rule is
associated, e.g. PPP 1. This can also be a logical interface name which is simply a name that
can be created (e.g. “waffle”). When a logical interface name is specified then this name can
become oos (out of service) and can be tested in other firewall rules with the oosed
keyword.
secs specifies the length of time in seconds for which the routes that are using the specified
interface are marked as out of service.
{t=secs} is an optional parameter that specifies the length of time in seconds the unit will
wait for a response the packet that matched the rule.
{c=count} is an optional parameter that specifies the number of times that the stateful
inspection engine must trigger on the rule before the route is marked as out of service.
{d=count} is an optional parameter that specifies the number of times that the stateful
inspection engine must trigger on the rule before the interface is deactivated (only applies
to PPP interfaces).
{r=“ping”|“tcp”{,secs{,secs}}} is an optional parameter that specifies a recovery
procedure. When a recovery procedure is specified then after the oos timeout has expired
instead of bringing the interface back into service immediately the link is tested first. It is
tested by either sending a TCP SYN packet or a ping packet to the address/port that caused
the oos condition. The “secs” field specifies the retry time when checking for recovery. Only
when the recovery succeeds will interface become in service again.
UDP Example
pass in
pass out
pass out on ppp 1 proto udp from any to 156.15.0.0/16 port=1234 inspect-state oos ppp
1 300 t=10 c=2 d=2
The first two rules simply configure the unit to allow any type of packets to be transmitted
or received (the default action of the firewall is to block all traffic).
494
The third rule is more complex. What it does is to configure the stateful inspection engine to
watch for UDP packets (with any source address) being routed via the PPP 1 interface to any
address that begins with 156.15 on port 1234. If a hit occurs on this rule but the unit does
not detect a reply within 10 seconds (as specified by the t= parameter), it will increment an
internal counter. When this counter reaches the value set by the c= parameter, the stateful
inspection engine will mark the PPP 1 interface (and therefore any routes using it), as being
out of service for 300 seconds. Similarly, if this counter matches the d= parameter the
stateful inspection engine will deactivate PPP 1. So in the above example, the stateful
inspection engine will mark any routes that use PPP 1 as out of service AND deactivate PPP
1 if no reply is detected within 10 seconds for two packets in a row.
Routes will come back into service when either the specified timeout expires or if there are
no other routes with a higher metric in service.
PPP interfaces will be re-activated when either the routes using them are back in service
and there is a packet to route and the AODI mode parameter is set to “On”.
TCP Example
pass out log break end on ppp 3 proto tcp from any to 192.168.0.1 flags S!A inspect-
state oos 30 t=10 c=2 d=2
pass in
pass out
This rule will specifically trace attempts to open a TCP connection on PPP 3 to the
192.168.0.1 IP address and if it fails within 10 seconds twice in a row, will cause the PPP 3
interface to be flagged as out of service (i.e. its metric will be set to 16), for 30 seconds.
The optional d=2 entry will also cause the PPP link to be deactivated. Deactivating the link
can be useful in scenarios where renegotiating the PPP connection is likely to resolve the
problem. Again, if a matching route with a higher metric has been defined it will be used
whilst PPP 3 routes are out of service thus providing a powerful route backup mechanism.
Using [inspect-state] with the Stat Option
The inspect-state option can be used with the stat option. The stat option will cause this
firewall rule to record statistics associated with this firewall rule. Transaction times, counts
and errors are recorded under the PPP statistics with this option.
Assigning DSCP Values
When using QOS, packet priorities will be determined by the DSCP values in their TOS
fields. These priorities may have already been assigned but if necessary, the router can be
configured to assign them by inserting the appropriate rules in the firewall. This is done by
using the dscp command.
For example:
dscp 46 in on eth 0 from 100.100.100.25 to 1.2.3.4 port=4000
would set the DSCP value to 46 for almost any type of packet received on ETH 0 from IP
address 100.100.100.25 addressed to 1.2.3.4 on port 4000. This allows you to set the DSCP
value for almost any type of packet.
As a further example:
dscp 46 in on eth 0 proto smtp from any to any
would cause outgoing mail traffic to the same top priority queue (46 is by default a very
high priority code in the DSCP mappings).
495
The FWLOG.TXT File
When the log option is specified within a firewall script rule, an entry is created in the
FWLOG.TXT pseudo-file each time an IP packet matches the rule. Each log entry will in turn
contain the following information:
Parameter
Description
Timestamp The time when the log entry is created.
Short
Description Usually “FW LOG” but could be “FW DEBUG” for packets that hit rules with
the “debug” action set.
Dir Either “IN” or “OUT”. Indicates the direction the packet is travelling.
Line The line number of the rule that cause the packet to be logged.
Hits The number of matches for the rule that caused this packet to be logged.
Iface The Interface the packet was to be transmitted/received on.
Source IP The source IP address in the IP packet.
Dest. IP The destination IP address in the IP packet.
ID The value of the ID field in the IP packet.
TTL The value of the TTL field in the IP packet.
PROTO The value of the protocol field in the IP packet. This will be expanded to
text as well for the well-known protocols.
Src Port The value of the source port field in the TCP/UDP header.
Dst Port The value of the source port field in the TCP/UDP header.
Rule Text The rule that caused the packet to be logged is also entered into the log
file.
In addition, port numbers will be expanded to text pre-defined port numbers.
Log File Examples
Example: log entry without the body option:
----- 15-8-2002 16:25:50 ------
FW LOG Dir: IN Line: 11 Hits: 1 IFACE: ETH 0
Source IP: 100.100.100.25 Dest IP: 100.100.100.50 ID: 39311 TTL: 128
PROTO: TCP (6)
Src Port: 4232 Dst Port: WEB (80)
pass in log break end on eth 0 proto tcp from 100.100.100.25 to addr-
eth 0
flags S/SA inspect-state
----------
Example: Log entry with the body option:
----- 15-8-2002 16:27:56 ------
FW LOG Dir: IN Line: 7 Hits: 1 IFACE: ETH 0
Source IP: 100.100.100.25 Dest IP: 100.100.100.50 ID: 40140 TTL: 128
PROTO: ICMP (1)
496
block return-icmp echorep log body break end proto icmp icmp-type echo
From REM TO LOCIFACE: ETH 0
45 IP Ver: 4
Hdr Len: 20
00 TOS: Routine
Delay: Normal
Throughput: Normal
Reliability: Normal
00 3C Length: 60
9C CC ID: 40140
00 00 Frag Offset: 0
Congestion: Normal
May Fragment
Last Fragment
80 TTL: 128
01 Proto: ICMP
0C E1 Checksum: 3297
64 64 64 19 Src IP: 100.100.100.25
64 64 64 32 Dst IP: 100.100.100.50
ICMP:
08 Type: ECHO REQ
00 Code: 0
04 5C Checksum: 1116
----------
Example: Text included in the EVENTLOG.TXT pseudo-file when the event sub-option is
specified:
16:26:32, 15 Aug 2002,Firewall Log Event: Line: 10, Hits: 3
Example: Syslog message where the body option is not specified:
2002-09-04 16:30:06 User.Info100.100.100.50Aug 15 16:31:59 arm.1140
IP Filter -
Filter Rule: block return-icmp unreach host-unr in log syslog break
end on eth 0 proto tcp from any to 100.100.100.50 port=telnet
Line: 10
Hits: 4
Example: Syslog message with the body option is specified:
2002-08-30 16:19:59 User.Info100.100.100.50Aug 10 16:21:56 arm.1140
IP Filter - Filter Rule: block return-icmp unreach port-unr in log
body syslog break end on eth 0 proto tcp from any to 100.100.100.50
port=telnet
Line: 9
Hits: 3
PKT:
Source IP: 100.100.100.25
Dest IP: 100.100.100.50
ID: 13317
TTL: 128
Protocol: TCP
Source Port: 1441
497
Dest Port: 23
TCP Flags: S
Further [inspect-state] Examples
Here is a basic inspect-state rule with no OOS options:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state
This rule will allow TCP packets from 10.1.1.1 to 10.1.2.1 port 23 with the SYN flag set to
pass out on PPP 2. Because the inspect-state option is used, a stateful rule will also be set
up which allows other packets for that TCP socket to also pass.
Next, we will modify the rule to mark an interface OOS if a stateful rule identifies a failed
connection:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60
The addition of oos 60 means that if the stateful rule sees a failure, interface PPP 2 will be
set OOS for 60 seconds. If no interface is specified after the oos keyword, the interface set
to OOS will be the one the packet is currently passing on. It is possible to OOS a different
interface by specifying the interface after the oos keyword, e.g. oos ppp 1 60 to put PPP 1
out of service for 60 seconds.
The default time allowed by the stateful rule for a connection to open may be overridden by
using the {t=secs} option. E.g. To override the default TCP opening time of 60 seconds to
10 seconds:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60 t=10
A socket will now only have 10 seconds to become established (i.e. exchange SYNs) before
the stateful rule will expire and be tagged as a failure.
It is possible to configure the firewall so that the interface is only set to OOS after a number
of consecutive failures occur. To do this, use the {c=count} option. For example:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60 t=10 c=5
PPP 2 will now only be set OOS after 5 consecutive failures.
It is possible to deactivate the interface after a number of consecutive failures. This is useful
for WWAN interfaces, which may get into a state where the PPP connection appears to be
operational, but in fact no packets are passing. In this case, deactivating and reactivating
the interface will sometimes fix the problem.
For example:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60 t=10 c=5 d=10
Now, PPP 2 will be deactivated after 10 consecutive failures.
498
Keeping a route out of service and using recovery
It may be that the user wants to keep the interface OOS until he is sure that a future
connection will work. To help achieve this, one or more recovery options may be specified.
These options get the unit to test connectivity between the unit and the destination IP
address of the packet that established the stateful rule. The recovery can be in the form of a
PING or a TCP socket connection. An interval between recovery checks must also be
specified. For example:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60 t=10 c=5 d=10 r=tcp,120
Now the interface will be set to OOS for 60 seconds after 5 consecutive failures. After the 60
seconds elapses, the recovery procedure will be initiated. In this example the recovery will
consist of TCP connection attempts executed at 2 minute intervals. The interface will remain
OOS until the recovery procedure completes successfully. The destination IP address in this
case will be 10.1.2.1.
To override the default socket connection time, it is possible to specify an additional
recovery option. For example:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60 t=10 c=5 d=10 r=tcp,120,10
Now, 10 seconds is allowed for each recovery attempt. If the socket connects within that
time, the recovery is successful, else the recovery is unsuccessful.
There is also an option {rd=x} to disconnect the interface after a recovery attempt
completes. This option can be used to deactivate the interface after a recovery failure,
success, or either. “x” is a bitmask indicating the cases where the interface should be
deactivated. Bit 0 is used to deactivate the interface after a recovery failure. Bit one is used
to deactivate the interface after a recovery success, i.e.
• rd=1 – means deactivate after a recovery failure
• rd=2 – means deactivate after a recovery success
• rd=3 – means deactivate after either recovery success or recovery failure
Extending our firewall rule to include this option gives:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60 t=10 c=5 d=10 r=tcp,120,10 rd=3
Now the interface will be deactivated after a recovery success or failure.
If the {rd=x} option is not used, the interface will remain up until its inactivity timer expires,
or it is deactivated by some other means.
The {dt=secs} option may be used to indicate that the interface is to remain OOS when it is
disconnected, and that it should be reactivated some time after it last disconnected.
Recovery procedures will take place after the interface connects.
Extending our firewall rule to include this option gives:
pass out break end on PPP 2 proto TCP from 10.1.1.1 to 10.1.2.1 port=telnet flags S!A
inspect-state oos 60 t=10 c=5 d=10 r=tcp,120,10 rd=3 dt=60
Now the interface will be reconnected 60 seconds after it disconnects and recovery
procedures will start after the interface connects. This option would normally be used with
the {rd=x} option so that recovery has control over when the interface connects and
disconnects.
499
Keeping a route out of service and using recovery with a list of addresses
This expands on the functionality above and gives the ability to check connectivity to a
range of addresses using a ping. It is possible to specify an address list that the recovery
mechanism will ping in turn to see if any respond. This will help ensure that even when 1 or
maybe 2 or 3 destinations cant be reached due to an outage on the remote network, the
connection will be made available again if at least one of the addresses in the list responds.
The address lists are created using the following syntax:
#addrs <list-name> <address1,address2,address3,address4>
Address lists can span multiple lines if required, for example:
#addrs <list-name> <address1,address2>
#addrs <list-name> <address3,address4>
The address list is called using the recovery option pingl. An example firewall rule would be:
pass out break end on PPP 1 proto ICMP from 10.1.1.1 to 10.1.2.1 inspect-state oos 60
t=10 c=5 d=10 r=pingl listA ,120,10 rd=3 dt=60
This rule would allow pings outbound and on detecting a communication failure it will use
pings to a address list named listA. The address list named listA could look like this:
#addrs listA 10.1.2.1,10.1.3.1,10.1.4.1,10.1.5.1
#addrs listA 10.1.6.1,10.2.1.1,10.2.2.1
This causes the recovery to ping the range of address shown in the list above.
Debugging a Firewall
During the creation and management of firewall scripts, firewall scripts may need debugging
to ensure that packets are being processed correctly. To assist in this, a rule with the debug
action may be used.
If a rule with the debug action is encountered, an entry is made in the FWLOG.TXT pseudo-
file each time the packet in question matches a rule from that point on. This gives the
administrator the ability to follow a packet through a rule set, and can help determine what,
if any, changes are required to the rule set. Rules that specify the debug action would
typically be placed near the top of the rule set, so that all matching rules from that point on
are entered into the log file.
Entries the FWLOG.TXT file created as the result of a debug rule may be identified by the
short description “FW_DEBUG” at the top of the log entry.
An example rule set using a debug rule:
debug in on ppp 2 proto tcp from any to any port=http
pass in break end proto tcp from any to any port=http flags s/sa inspect state
pass out break end proto udp
If placed at the top of the rule set, any packet received on interface PPP 2 to destination
port 80 will generate a debug entry in the log file for each subsequent rule that it matches.
In the example rule set above, a packet that matched the second rule would also match the
first rule, and would therefore create two log entries. The same packet would not match the
third rule, and so no log entry would be made for this rule.
Because of the extra processor time required to add all of these additional log entries,
debug rules should be removed (or commented out) once the rule set is operating as
desired.
500
REMOTE MANAGEMENT
Digi products equipped with ISDN BRIs can be accessed and controlled remotely via the
ISDN network by using:
• a V.120 connection to access the text command interface
• PPP to access the Web Interface
• PPP to access the text command interface using Telnet
• the X.25 remote command channel
Remote access via any one of these methods can be used to reconfigure the unit,
upload/download files or upgrade the software, examine the event log or protocol analyser
traces or to view statistics.
Using V.120
To establish a remote access session using V.120, initiate a V.120 call as normal using the
ATD command. Enter “%%%” within 5 seconds of the remote unit answering and you will
be prompted to enter your username and password. Correct entry of these will allow access
to the text command interface. If the remote unit has been programmed with a Router
Identity string on the Configuration - System > Device Identity page, the Router
Identity will appear as the command line prompt. Three login attempts are permitted
before the connection is reset.
Using Telnet
If you have created a PPP DUN (Dial-up Networking) entry for the remote unit that you wish
to access, any terminal program that supports Telnet may be used to establish a remote
connection.
To initiate the connection, launch the DUN. If the remote unit is configured correctly with
one of the PPP instances enabled for answering, it will connect and the linked computers
icon will appear in the Windows system tray. You may then load your Telnet software.
To configure your Telnet software you must first specify that you require a TCP/IP
connection and then enter the appropriate IP address or hostname (e.g. 1.2.3.4,
192.168.1.1 or digi.router by default). After ensuring that your software is configured to
connect to TCP port number 23 you may then initiate a new connection.
If the connection is successful you will see a connect confirmation message and you will be
prompted to enter your username and password. Correct entry of these will allow access to
the text command interface. If the remote unit has been programmed with a Router
Identity string on the Configuration - System > Device Identity page the Router
Identity will appear as the command line prompt.
Three login attempts are permitted before the connection is reset.
501
Using FTP
TransPort routers incorporate an FTP server. FTP allows users to log on to remote hosts for
the purpose of inspecting file directories, retrieving or uploading files, etc. For PC users, MS-
DOS includes FTP support and there are a number of Windows-based specialist FTP client
programs such as CuteFTP™ and Ws_ftp™. Many browsers also incorporate FTP support.
To initiate remote access to a unit using FTP, first establish a PPP DUN connection to the
unit and then run your FTP software.
Note:
If your unit has a USB storage device attached, it will show up as a sub-folder named “usb”.
FTP under Windows
Once the connection has been established, enter the Web address for the unit. By default
this will be:
1.2.3.4, 192.168.1.1 or digi.router
If you are using a browser, as opposed to a specific FTP program, you will need to precede
the address with “ftp://”. For example:
ftp://digi.router
This will give you an anonymous FTP login to the remote unit and you should see a listing of
the file directory (the format of this will depend on the FTP client software that you are
using). With an anonymous login you will be able to view and retrieve files, but NOT upload,
rename or delete them.
For full file access, you will need to log in with your correct username and password. To do
this, enter the address in the following format:
ftp://username:password@digi.router
This will give you full access and will allow you to copy, delete, rename, view and transfer
files.
When using a browser CUT, COPY, DELETE and PASTE may be used for manipulating files as
if they were in a normal Windows directory. If you are using a specific FTP client program,
these operations may be carried out using menu options or buttons.
FTP under DOS
To use FTP under DOS, use Windows DUN to establish the connection and then run the
MSDOS prompt program. At the DOS prompt type:
ftp digi.router
or
ftp 192.168.1.1
When the connection has been established you will be prompted to enter your username
and password. Following a valid login the ftp> prompt will be issued and you may proceed
to use the various ftp commands as appropriate. To obtain a list of available commands
enter “?” at the prompt.
502
Using X.25
Remote access to your unit may also be carried out over an X.25 connection. The remote
unit must first have the parameter Allow CLI access from X.25 address set to an
appropriate value (see Configuration - System > General). If the unit then receives an
incoming X.25 call where the trailing digits of the NUA match the specified sub-address, the
calling user will receive the standard login prompt. On entry of a valid username and
password, they will be given access to the command line as if they were connected locally.
503
AT COMMANDS
D Dial
The ATD command causes the unit to initiate an ISDN call. The format of the command
depends on the mode of operation.
When using the unit to make data calls on one of the ISDN B-channels, enter the ATD
command followed by the telephone number. For example, to dial 01234 567890 enter the
command:
atd01234567890
Spaces in the number are ignored. If the call is successful the unit will issue the CONNECT
result code and switch to on-line mode.
Dialling with a Specified Sub-Address
The ATD command may also be used to route a call to an ISDN sub-address by following
the telephone with the letter S and the required sub-address. The sub-address may be up to
15 digits long. For example:
atd01234567890s003
Dialling Stored Numbers
To dial numbers that have previously been stored within the unit using the AT&Z command,
insert the S= modifier within the dial string. For example, to dial stored number 3 use the
command:
atds=3
Combining ISDN and X.25 Calls
A further option for the ATD command for X.25 applications is to combine the ISDN call and
the subsequent X.25 CALL in the same command. To do this, follow the telephone number
with the “=” symbol and the X.25 call string. For example:
atd01234 567890=123456789
Pressing any key while the ATD command is being executed will abort the call attempt.
H Hang-up
The ATH command is used to terminate an ISDN call. If the unit is still on-line you must first
switch back to command mode by entering the escape sequence, i.e. +++, wait 1 second
and then enter an AT command or just AT<CR>.
After entering the ATH command the call will be disconnected and the NO CARRIER result
will be issued.
Z Reset
The ATZ command is used to load one of the stored profiles for the active ASY port. The
command is issued in the format ATZn where n is the number (0 or 1) of the ASY port
profile you wish to load.
504
&C DCD Control
The AT&C command is used to configure the way in which the unit controls the DCD signal
to the terminal. There are three options:
&C0 DCD is always On
&C1 DCD is On only when an ISDN connection has been established (Layer 2 is UP)
&C2 DCD is always Off
&C3 DCD is normally On but pulses low for a time in 10 msec units determined by S register
10.
&F Load Factory Settings
The AT&F command is used to load a pre-defined default set of S-register and AT command
settings (the default profile). These are:
E1, V1, &C1, &K1, &D2, S0=0, S2=43
All other values are set to 0.
&R CTS Control
The AT&R command is used to configure the way in which the unit controls the CTS signal
to the terminal. There are three options:
&R0 CTS is always On
&R1 CTS follows RTS. The delay between RTS changing and CTS changing is set in AT
register 56 in multiples of 10msec
&R2 CTS is always Off
&V View Profiles
The AT&V command displays a list of the current AT command and S register values, and
the settings for the two stored profiles. For example:
at&v
CURRENT PROFILE:
&c1 &d2 &k1 &s1 &r0 e1 q0 v1 &y0
S0=0 S2=43 S12=50 S31=3 S45=5
states DTR:1 RTS:1
STORED PROFILE 0:
&c1 &d2 &k1 &s1 &r0 e1 q0 v1
S0=0 S2=43 S12=50 S31=3 S45=5
STORED PROFILE 1:
&c1 &d2 &k1 &s1 &r0 e1 q0 v1
S0=0 S2=43 S12=50 S31=3 S45=5
OK
&W Write SREGS.DAT
The AT&W command is used to save the current command and S registers settings (for the
active port), to the file SREGS.DAT. The settings contained in this file can be reloaded at
any time using the ATZ command.
505
The AT&W command may be immediately followed by a profile number, either 0 or 1, to
store the settings in the specified profile, for example:
at&w1
would store the current settings as profile 1. If no profile number is specified, profile 0 is
assumed.
All S register values and the following command settings are written by AT&W:
e, &c, &d, &k
&Y Set Default Profile
The AT&Y command is used to select the power-up profile (0 or 1). For example, to ensure
that the unit boots up using stored profile 1, enter the command:
at&y1
&Z Store Phone Number
The AT&Z command is used to store “default” telephone numbers within the unit that may
subsequently dialled when DTR dialling is enabled or by using the S= modifier in the ATD
dial command. One telephone number may be stored for each ASY port. For example, to
store the phone number 0800 123456 as the default number to be associated with ASY 2,
use the command:
at&z2=0800123456
If the number of the ASY port is not specified, the number will be stored against the port
from which the command was entered, i.e. entering the command:
at&z=0800123456
from ASY 3 has the same effect as:
at&z3=0800123456
from any port. Once a number has been stored it may be dialled from the command line
using the ATD command with the S= modifier:
atds=3
This means that any stored number can be dialled from any port. If DTR dialling has been
enabled by setting S33=1 for the port, the number associated with that port will be dialled
when the DTR signal for that port changes from Off to On, i.e. DTR dialling can only be used
with the number associated with the port to which the terminal is connected.
506
\AT Ignore Invalid AT Commands
This command is a work-around for use with terminals that generate large amounts of
extraneous text. If not ignored, this text can cause many error messages to be generated
by the router, and may result in a communications failure. To turn on this feature, type the
following command:
at\at=1
To turn off the feature, type the following command:
at\at=0
When this feature is turned on, the ASY port ignores all commands except real AT
commands. As with other ASY modes this can be saved by AT&W but is not included in the
AT&V status display. To determine whether or not this mode is enabled type:
at\at ?
The unit will display 0 if the feature is Off, 1 if it is On.
\LS Lock Speed
The AT\LS command is used to lock the speed and data format of the port at which it is
entered to the current settings so that the non-AT application commands may be used.
\PORT Set Active Port
Text commands which affect the settings associated with the serial ports normally operate
on the port at which they are entered, i.e. entering the AT&K command from a terminal
connected to ASY 1 will affect only the flow control settings for port 1.
The AT\PORT command is used to select a different “active” port from that at which the
commands are entered. For example, if your terminal is connected to port 0 and you need
to reconfigure the settings for port 2, you would first enter the command:
at\port=2
PORT 2
OK
Port 2 is now the active port and any AT commands or changes to S registers settings which
affect the serial ports will now be applied to port 2 only. This includes:
Commands: Z, &D, &F, &K, &V, &Y, &W
S registers: S31, S45
The AT\PORT? command will display the port to which you are connected and the active
port for command/ S register settings. For example:
at\port?
PORT 2
ASY0
OK
Here, ASY2 is the active port and ASY0 is the port at which the command was entered. If
the default port and the port to which you are connected are the same, only one entry will
be listed.
To reset the default port to the one to which you are connected use the AT\PORT command
without a parameter.
507
\smib Commands
The at\smib command allows you to view a single standard MIB variable. To view the
variable use the at\smib=<mib_name> command, where <mib_name> is the variable to be
displayed. The variables are sorted according to the hierarchy shown below.
508
509
System
The System hierarchy consists of the following:
at\smib=mib-2.system.sysdescr
This variable shows the software version information (equivalent to what is shown on the
‘ati5’ CLI command output).
mib-2.system.sysdescr =
Software Build Ver5121. Jan 31 2011 12:26:04 9W
at\smib=mib-2.system.sysobjectid
The authoritative identification of the network management subsystem. The Digi does not
support outputting OID variables. Instead, “oid” is output.
mib-2.system.sysobjectid = oid
at\smib=mib-2.system.sysuptime
The time the unit has been running in 10msec units (hundredths of a second).
mib-2.system.sysuptime = 1806718
The above example shows that the unit has been running for 5 hours, 1 minute and 7.18
seconds.
at\smib=mib-2.system.syscontact
A description of the contact person for the unit. For the Digi, this is always a zero-length
string.
at\smib=mib-2.system.sysname
The name of the unit (the name set in the Router Identity parameter on the
Configuration - System > Device Identity page).
mib-2.system.sysname = digi.router
at\smib=mib-2.system.syslocation
The physical location of the unit. For the Digi, this is always a zero-length string.
at\smib=mib-2.system.sysservices
This variable displays a value that represents the set of services the unit provides. For each
OSI layer the unit provides services for, 2(L-1) is added to the value, where L is the layer.
The layers are shown below:
Layer
Functionality
1 Physical
2 Data Link
3 Network
4 Transport
5 Session
6 Presentation
7 Application
510
For the Digi, this value is always 7 (Physical layer (21-1) + Data Link layer (22-1) +
Network layer (23-1)).
Interfaces
The Interfaces hierarchy consists of the ifnumber variable and the iftable node:
at\smib=mib-2.interfaces.ifnumber
The total number of interfaces on the unit. This includes Ethernet, PPP and virtual interfaces
(i.e. IPSec tunnels) and SYNC ports.
mib-2.interfaces.ifnumber = 52
at\smib=mib-2.interfaces.iftable
The iftable node contains ifentry nodes for each interface. For each table entry, an index
specifier must be appended to the end of each variable (e.g. for PPP0, 1 must be
appended).
at\smib=mib-2.interfaces.iftable.ifentry
at\smib=mib-2.interfaces.iftable.ifentry.ifindex
The unique index number of the interface.
at\smib=mib-2.interfaces.iftable.ifentry.ifdescr
This variable displays information about the interface. This information is displayed in the
format <interface type>-<instance>, where:
<interface type> can be one of PPP, ETH, TUN (for IPSec tunnels), SNAIP (for SNAIP
links) or SYNC, and
<instance> is the instance.
For example:
mib-2.interfaces.iftable.ifentry.ifdescr.1 = PPP-0
at\smib=mib-2.interfaces.iftable.ifentry.iftype
The type of interface, as described by the physical/link protocol below the network layer in
the protocol stack. Values can be one of the following:
PPP 23
ETH 6
IPSec Tunnel 131
SNAIP 17
SYNC port 118
For example:
mib-2.interfaces.iftable.ifentry.iftype.1 = 23
at\smib=mib-2.interfaces.iftable.ifentry.ifmtu
The size of the largest datagram (in octets) which can be sent on the interface. SNAIP and
SYNC ports always return 0. IPSec tunnel interfaces will return the underlying interface if it
can be located, otherwise 0 is returned. PPP interfaces will return the negotiated MTU if the
link is connected, otherwise 0 is returned.
For example:
mib-2.interfaces.iftable.ifentry.ifmtu.21 = 1504
511
at\smib=mib-2.interfaces.iftable.ifentry.ifspeed
This variable displays an estimate of the interface’s current bandwidth in bits per second.
SNAIP and SYNC ports will always return 0. PPP ports will always return 64000.
For example:
mib-2.interfaces.iftable.ifentry.ifspeed.1 = 64000
at\smib=mib-2.interfaces.iftable.ifentry.ifphysaddress
The interface’s address at the protocol layer immediately below the network layer in the
protocol stack. For interfaces without such an address, a zero-length octet string is
returned. For PPP, SNAIP and SYNC ports, a 0 length string is returned.
at\smib=mib-2.interfaces.iftable.ifentry.ifadminstatus
The desired state of the interface. The testing state (3) indicates no operational packets can
be passed.
at\smib=mib-2.interfaces.iftable.ifentry.ifoperstatus
The current operational state of the interface. The testing state (3) indicates no operational
packets can be passed.
at\smib=mib-2.interfaces.iftable.ifentry.ifinoctets
The total number of octets received on this interface, including framing characters.
at\smib=mib-2.interfaces.iftable.ifentry.ifinucastpkts
The number of subnetwork-unicast packets delivered by this interface to a higher-layer
protocol.
at\smib=mib-2.interfaces.iftable.ifentry.ifinnucastpkts
The number of non-unicast (i.e. broadcast or multicast) packets delivered by this interface
to a higher-layer protocol.
at\smib=mib-2.interfaces.iftable.ifentry.ifinerrors
The number of inbound packets received by this interface that contained errors preventing
them from being delivered to a higher-level protocol.
at\smib=mib-2.interfaces.iftable.ifentry.ifoutoctets
The total number of octets transmitted by this interface, including framing characters.
at\smib=mib-2.interfaces.iftable.ifentry.ifoutucastpkts
The total number of packets that higher-level protocols requested this interface to transmit
to a subnetwork-unicast address, including those that were discarded or not sent.
at\smib=mib-2.interfaces.iftable.ifentry.ifoutnucastpkts
The total number of packets that higher-level protocols requested this interface to transmit
to a non-unicast (i.e. broadcast or multicast) address, including those that were discarded
or not sent.
at\smib=mib-2.interfaces.iftable.ifentry.ifouterrors
The number of outbound packets that this interface could not transmit because of errors.
IP
The IP node consists of the ipforwarding variable and the ipaddrtable and iproutetable
nodes.
512
at\smib=mib-2.ip.ipforwarding
This variable indicates whether the unit is acting as an IP gateway in respect to the
forwarding of datagrams received by, but not addressed to, the unit. IP gateways forward
datagrams, IP hosts do not. For the Digi, this value is always 1.
at\smib=mib-2.ip.ipaddrtable
The ipaddrtable node contains ipaddrentry nodes for each IP address assigned to each
interface of the unit. For each table entry, an index specifier must be appended to the end
of each variable that specifies the interface (e.g. for PPP0, 1 must be appended).
at\smib=mib-2.ip.ipaddrtable.ipaddrentry
at\smib=mib-2.ip.ipaddrtable.ipaddrentry.ipadentaddr
The IP address to which this entry’s addressing information pertains.
at\smib=mib-2.ip.ipaddrtable.ipaddrentry.ipadentifindex
The index identifier for the interface associated with this IP address.
at\smib=mib-2.ip.ipaddrtable.ipaddrentry.ipadentnetmask
The subnet mask associated with the IP address.
at\smib=mib-2.ip.ipaddrtable.ipaddrentry.ipadentbcastaddr
The value of the least-significant bit in the IP broadcast address used for sending datagrams
on the IP address of this interface.
at\smib=mib-2.ip.iproutetable
The iproutetable node contains iprouteentry nodes for each route defined on the unit.
at\smib=mib-2.ip.iproutetable.iprouteentry
at\smib=mib-2.ip.iproutetable.iprouteentry.iproutedest
The destination IP address for the route. An entry with a value of 0.0.0.0 is considered the
default route. Multiple routes to a single destination can appear in the routing table, but
access to such multiple entries is dependant on the table-access mechanisms defined by the
network management protocol in use.
at\smib=mib-2.ip.iproutetable.iprouteentry.iprouteifindex
The index value which uniquely identifies the local interface through which the next hop of
the route should be reached.
at\smib=mib-2.ip.iproutetable.iprouteentry.iproutemetric1
The primary routing metric for the route.
at\smib=mib-2.ip.iproutetable.iprouteentry.iproutenexthop
The IP address of the next hop of the route.
at\smib=mib-2.ip.iproutetable.iprouteentry.iproutetype
The type of route. Valid values are:
1 Valid
2 Invalid
3 Direct
4 Indirect
513
at\smib=mib-2.ip.iproutetable.iprouteentry.iproutemask
The netmask for the route.
514
“S” REGISTERS
In addition to the AT commands there are a number of Special (“S”) registers. These
registers contain numeric values that may represent time intervals, ASCII characters or
operational flags.
To display the contents of a particular “S” register, the ATS command is used in the form
ATSn? where n is the number of the register whose contents are to be shown.
To store a new value into a register, use the S command in the form ATSN=X where N is
the number of the register to be changed and X is the new value. For example, ATS31=4
would store the value 4 in S31.
The unit maintains one set of registers for each ASY port. By default, the S command
operates ONLY on the S register set for the active port. To select an alternative default port,
use the AT\PORT command first.
Each register can only be set to a limited range of values as shown in the table below:
Reg.
Description
Units
Default
Range
S0 V.120 Answer enable Rings 0 0-255
S1 Ring count Rings n/a n/a
S2 Escape character ASCII 43 0-255
S9 DCD on delay ms x 20 0 0-255
S10 Pulse time for DCD Low ms x 10 0 0-255
S12 Escape delay ms 50 0-255
S15 Data forwarding timer ms 2 0-255
S23 Parity N/A 0 0-2 5 6
S31 ASY interface speed refer to full description n/a 0-11
S33 DTR dialling N/A 0 0 1
S45 DTR loss de-bounce 0.05 seconds (0.25s) 1-255
S0 V.120 Answer Enabled
Units: Rings
Default: 0
Range: 0-255
S0 is used only in V.120 mode to enable or disable automatic answering of incoming ISDN
calls. Auto answering is disabled when S0 is set to the default value of 0. Setting S0 to a
non-zero value enables auto-answering.
The actual value stored determines the number of “rings” that the unit will wait before
answering. For example, the command ATS0=2 enables auto-answering after two incoming
rings have been detected.
With each ring the RING result code is issued and the value stored in S1 is incremented.
When the value in S1 equals the value in S0 the call is answered.
515
S1 Ring count
Units: Rings
Default: n/a
Range: n/a
When ADAPT detects an incoming ISDN call on an ASY port, it will print “RING” to the ASY
port at 2 second intervals. It also increments the S1 register, counting how many times
“RING” is printed.
S2 Escape Character
Units: ASCII
Default: 43
Range: 0-255
The value stored in S2 defines which ASCII character is used as the Escape character, which
by default is the “+” symbol. Entering this character three times followed by a delay of 1-2
seconds and then an AT command will cause the unit to switch from on-line mode to
command mode.
S12 Escape Delay
Units: ms
Default: 50
Range: 0-255
The value stored in S12 defines the delay between sending the escape sequence and
entering an AT command for the unit to switch from on-line mode to command mode.
S15 Data Forwarding Timer
Units: 10ms
Default: 0
Range: 0-255
S15 is used to set the data forwarding timer for the ASY port in multiples of 10ms. The
default data forwarding time is 20ms and in normal use this there should be no need to
change this. However, setting S15 to 1 enables a special mode of operation in which data is
forwarded as fast as possible for the data rate for which the port is configured (at
115000bps this will typically be 2-3ms).
Note that the default value of 0 is equivalent to setting the register to 2 in order to maintain
compatibility with older systems.
S23 Parity
Units: N/A
Default: 0
Range: 0-2,5,6
The value stored in S23 determines whether the parity used for the ASY port is set to None
(0), Odd (1), Even (2), 8Data Odd (5) or 8Data Even (6).
S31 ASY Interface Speed
Units: N/A
Default: 0
Range: 0-11
516
Register S31 is used to set the speed and data format for the ASY port to which you are
currently connected.
The default value for ASY 0 is 0, i.e. the port speed/data format is not set to a specific
value, it is determined automatically from the AT commands that you enter.
The default value for ASY 1, 2 and 3 is 3, i.e. the ports will only accept AT commands at
115,200bps (8 data bits, no parity and 1 stop bit).
To set the speed of one of the ports to a particular value, the appropriate register should be
set to the required value from the following table:
S31 Port Speed (bps) S31 Port Speed (bps)
0 Auto-detect 6 19200
1 Reserved 7 9600
2 Reserved 8 4800
3 115200 9 2400
4 57600 10 1200
5 38400 11 300
For example, to change the speed of ASY 1 to 38,400bps, connect your terminal to that port
with the speed set to 9600bps. Enter the command:
ats31=5
then change the speed of your terminal to 38,400bps before entering any more AT
commands.
The data format used when the ATS31=n command is entered is selected as the data
format for all further commands.
The auto-detect option is only available for ASY0 and ASY1.
S33 DTR Dialling
Units: N/A
Default: 0
Range: 0, 1
S33 is used to enable or disable DTR dialling for the port. When DTR dialling is enabled, the
unit will dial the number stored for that port (see AT&Z) when the DTR signal from the
terminal changes from Off to On.
S45 DTR Loss De-Bounce
Units: 0.05 seconds
Default: 5
Range: 1-255
The value in S45 determines the length of time for which the DTR signal from the terminal
device must go off before the unit acts upon any options that are set to trigger on loss of
DTR. Increasing or decreasing the value in S45 makes the unit less or more sensitive to
“bouncing” of the DTR signal respectively.
517
GENERAL SYSTEM COMMANDS
The application commands described in this section are basic configuration commands that
do not relate to specific types of application or network.
CONFIG Show/Save Configuration
The config command is used for the following purposes to show current or stored
configuration settings, to save the current configuration or to specify which configuration is
to be used when the unit is powered up or rebooted.
The format of the config command is:
config <0|1|c> <save|show|powerup>
Two separate configurations can be stored, numbered 0 and 1. The first parameter of the
config command specifies to which configuration the command applies. The letter “c”
denotes the current configuration settings, i.e. those currently in use.
The second parameter is one of the following keywords:
show displays the specified configuration (either 0, 1 or c for the current configuration)
save saves the current settings as the specified configuration (either 0 or 1)
powerup sets the specified configuration (either 0 or 1) to be used at power-up or reboot
For example, to display the current configuration use the command:
config c show
The output will appear similar to the following example:
config c show
eth 0 descr "LAN 0"
eth 0 IPaddr "192.168.1.1"
eth 0 mask "255.255.255.0"
eth 0 bridge ON
eth 1 descr "LAN 1"
eth 2 descr "LAN 2"
eth 3 descr "LAN 3"
eth 4 descr "ATM PVC 0"
The config files only contain details of those settings that are different from the unit’s
default settings. If you make a setting that is the same as the default setting, it will not
appear in a stored configuration.
To save the current settings to configuration file 1, enter:
config 1 save
To use configuration 1 when the unit is powered up or rebooted, enter:
config 1 powerup
Config changes counter
The config changes command shows the number of changes to the current configuration
since the unit has powered up and the initial configuration file run. Also shows the time
when the config file was last saved.
518
REBOOT Reboot Unit
The reboot command causes the unit to execute a complete hardware reset, loading and
running the main image file from cold. It has three modes of operation:
reboot - will reboot the unit after any FLASH write operations have been completed. Also, 1
second each is allowed for the following operations to be completed before reboot will take
place:
• IPSec SA delete notifications have been created and sent
• TCP sockets have been closed
• PPP interfaces have been disconnected
reboot <n> - will reboot the unit in <n>minutes where n is 1 to 65,535
reboot cancel - will cancel a timed reboot if entered before the time period has passed.
Reset router to factory defaults
See reference guide section titled “Administration - Factory Default Settings”.
Disabling the reset button
Normally when the reset button is held in for 5 seconds the router is reset to factory
defaults. The factory reset button functionality can be disabled / enabled if required.
The command to disable the reset button is “cmd 0 pbreset off”
To re-enable the reset button functionality “cmd 0 pbreset on”
TEMPLOG Temperature monitoring
The on-board temperature sensors are sampled every 60 seconds and any 'interesting'
changes in the temperature are logged to a special flash file, 'templog.c1'. Use 'templog 0
status' to view the last stored record in this file.
There are 2 sensors built in, there is one on the motherboard and one on the modem
module. If a temperature is reached that is outside of normal operating limits, an event will
be logged in the eventlog.txt
Note: The only transport models that support TEMPLOG are DR64 and VC7400.
Ping and Traceroute
From the CLI, these commands can be used to help troubleshoot connectivity problems.
The syntax of the ping command is:
ping <ip address|FQDN> [n]
Where n (if used) is the number of ICMP echo requests to send. If not specified, only 1 echo
request will be sent.
To stop pings when n has been set to a high value use ping stop
The syntax of the traceroute command is:
traceroute <ip address|FQDN>
To stop a failed trace if hosts can not be detected, use traceroute stop
519
Clearing the Analyser Trace and Event Log
To clear the analyser trace, the CLI command is ana 0 anaclr
To clear the event log, the CLI command is clear_ev
Activate and Deactivate interfaces
To manually activate (or raise) an interface, the following CLI command can be used as an
activation request.
<entity> <instance> act_rq
To manually deactivate (or lower) an interface, the following CLI command can be used as
an activation request.
<entity> <instance> deact_rq
Where <entity> can be:
PPP for PPP interfaces
TUN for GRE TUN interfaces
OVPN for OpenVPN interfaces
And <instance> is the interface number, such as 0, 1, 2 etc
For example, to activate PPP 1, the CLI command would be:
ppp 1 act_rq
and to deactivate PPP 1:
ppp 1 deact_rq
Special Usernames
There are some special usernames that can also be used for both local and remote
authentication, these are:
%s This uses the serial number of the router as the username.
%i This uses the IMEI of the cellular module as the username.
%c This uses the ICCID of the SIM as the username.
If a ‘%’ symbol is part of the username, it must be escaped with another ‘%’ symbol.
For example, ‘user%1’ should be entered as ‘user%%1’.
GPIO (General Purpose Input Output)
GPIO commands are necessary to configure a WR44, which has one Digital Input/Output
port and one Digital Input port. This command allows configuration of the I/O port either as
an input port or an output port. For example:
Command
Description
gpio inout input Configures the I/O port as an input.
gpio inout output Configures the I/O port as an output.
gpio inout ON Sets the I/O port to ON when configured as an output.
gpio inout OFF Sets the I/O port to OFF when configured as an output.
520
The syntax of the command is as follows:
Usage: gpio [inout ON|OFF|input|output]
With no parameters, the command will display the current status of the ports. For example:
gpio
Input(s):
in : OFF
Output(s):
inout : OFF
OK
To set the I/O port to be an output:
gpio inout output
Input(s):
in : OFF
Output(s):
inout : OFF
OK
To set the I/O port to ON when it is configured as an output:
gpio inout on
Input(s):
in : OFF
Output(s):
inout : ON
OK
The Input and Input/Output connections (pins 2 and 3) are programmed via the command
line using the gpio command. The default setting for pins 2 and 3 are OFF as seen in the
above example.
Note:
Only one of the power connectors should be used. Never apply power to both the MAIN and
AUX connectors at the same time.
Pin Description
Pin 1 GROUND
Pin 2 INPUT
Pin 3 Input/ Output
Pin 4 Power
521
The following image shows the pins and the corresponding numbers:
For more information on wiring and other details, refer to Digi Transport 4-pin DC Power
Cord User Guide.
522
TCPPERM AND TCPDIAL
This section describes the operation of the tcpperm and tcpdial commands which are
available only as application commands and have no equivalent web pages.
TCPPERM
The tcpperm command is used to establish a permanent “serial to IP” connection between
one of the ASY ports and a remote IP host. After the command has been executed, the unit
will automatically open a socket connection to the remote peer whenever data is received
from a terminal attached to the specified ASY port. When the socket is first opened and the
connection has been established, the unit will issue a CONNECT message to the terminal
and will subsequently relay data between the socket and the ASY port. The format of the
CONNECT message can be modified using the standard AT commands (e.g. ATV, ATE, etc.)
or using the Configuration - Network > Interfaces > Serial > Serial Port n web page.
Note:
The serial port should also be pre-configured to use the appropriate word format, speed and
flow control.
While the serial-to-IP connection is established, if the attached serial device drops the DTR
signal, then the socket connection will be terminated, much as with a standard modem or
terminal adapter. Again this behaviour can be modified via the AT&D command or the serial
port settings.
The format of the command is:
TCPPERM <[ASY 0-1]> <Dest Host> <Dest Port> [UDP] [nodeact] [-
l<listening port>] [-i<inact_timeout>] [-f<fwd_time>] [-e<eth_ip>][-
d(deact link)] [-k<keepalive_time>] [-s<src_port>] [-ok] [-
t<telnet_mode>] [-ho(host only)] [-ssl] [-ao(always open)] [-m<mhome
idx>]
The parameters are detailed in the following table:
Parameter
Description
ASY The number of the ASY port that the link will be made from/to
Dest Host The IP address (or name) of the remote peer
Dest Port The port number to use on the remote peer
UDP Open a UDP connection (the default is TCP)
-ao Open socket immediately, and reopen if and when the socket is closed
-e Use the address of ethernet port ’n’ for the socket connection rather than the
default of the address of the interface over which the socket is opened (i.e
ppp 1, ppp 2, etc.)
-d Deactivate link - if non-zero, when the socket is closed and there are no other
sockets using the interface then the interface connection is dropped (switched
connections only)
-f The forwarding time (x10ms) for packetising data from the serial port
-ho Host - indicates that the socket should only accept connections from the
specified host.
523
Parameter
Description
-i The inactivity timeout (s) after which the socket will be closed
-k Keep alive packet timer (s)
-l Listening port - allows the user to set a new TCP port number to listen on
rather than the default value of 4000+ASY port #
-m Multihome additional consecutive addresses index
-ok Open socket in ’quiet mode’, i.e. there is no ’OK’ response to the TCPPERM
command.
-s Source port number
-ssl Use SSL mode
-t Use Telnet mode. Opens socket in the corresponding Telnet mode (port 23
default), 0= raw, 1 Telnet Mode, 2 - Telnet Mode with null stuffing. If this is
not specified then the mode specified for the associated ASY port in general
setup is used. If the -t option is specified then the “ok” option is always used.
The command can also be made to execute automatically on power-up by using the “cmd n
autocmd ‘cmd’” macro command, i.e.
cmd 0 autocmd ’tcpperm asy 0 192.168.0.1 -f3 -s3000 -k10 -e1’
Considerations for use with VPN or GRE Tunnels
When the socket used by TCPPERM is opened the default behaviour is to use the address of
the interface over which the socket is carried (ETHn or PPPn) as the source address of the
socket. If the socket data is to be tunnelled then it may be necessary to use the -en
modifier so that the source address of the socket matches the local subnet address specified
in the appropriate Eroute. A similar effect can also be achieved by setting the parameter
Default source IP address interface: Ethernet n in the Web interface on the Configuration -
Network > Advanced Network Settings.
TCPDIAL
TCPDIAL operates in an identical manner to TCPPERM except that establishment of the
socket connection is not automatic and must be initiated by the tcpdial command. The
simplest method of achieving this is to map a command using the Configuration -
Network > Interfaces > Serial > Command Mappings, i.e. Command to Map
ATDT0800456789 maps to “tcpdial asy 1 217.36.133.29 -e0”. Now, whenever the attached
terminal device attempts to dial the number defined the unit will map it to an IP socket
connection.
In this way multiple dial commands can be directed to the same or different IP hosts with
other simple command mappings.
Aborting TCPDIAL
The tcpdab command can be used to cancel a TCPDIAL connection before the connection
has been made. It can also be used from a command session to disconnect an existing
TCPDIAL connection on another ASY port.
The format of the command is:
tcpdab <instance> ATH
where <instance> is the number of the ASY port.
524
SERIAL PORT CONNECTIONS
Depending upon the model, the asynchronous serial ports on may be presented as DB 25
sockets, DB 9 sockets or 8-pin RJ45 sockets. On some models, a combination of the above
may be used. The following tables list the pin designations of each type of connector for
each Digi model.
The RS-232 port pin-outs are suitable for both Async and Sync port connections. When used
in Async mode the pins for TxC, RxC & ETC are not required, these are needed for Sync
mode only.
525
DR6410, DR6420, DR6460, DR64x0W & WR41
526
527
528
WR44
529
530
TA2020
531
ER2110, IR2110 & MR2110
532
IR2140 & GR2140
533
GR2130
