S6BSM User Manual HTML Version

User Manual

XBee® Wi-Fi RF Module

WiFi RF Modules by Digi International

Firmware version: 200x

11001 Bren Road East

Minnetonka, MN 55343

877 912-3444 or 952 912-3444

http://www.digi.com

90002180_A

XBee® Wi-Fi RF Modules

No part of the contents of this manual may be transmitted or reproduced in any form or by any means without

the written permission of Digi International, Inc.

XBee® is a registered trademark of Digi International, Inc.

Technical Support Phone: (866) 765-9885 toll-free U.S.A. & Canada

(801) 765-9885 Worldwide

8:00 am - 5:00 pm [U.S. Mountain Time]

Online Support: http://www.digi.com/support/eservice/login.jsp

Email: rf-experts@digi.com

XBee® Wi-Fi RF Modules

Contents

XBee® Wi-Fi RF Module .......................................................................................................................... 1

1.Overview.............................................................................................................................................. 7

Specifications ...................................................................................................................................... 7

General Specifications .................................................................................................................... 7

RF Specifications ............................................................................................................................. 7

Electrical Specifications ................................................................................................................ 12

Serial Communications Specifications .......................................................................................... 12

UART ............................................................................................................................................. 12

SPI ................................................................................................................................................. 13

GPIO Specifications ........................................................................................................................... 13

Agency Approvals ............................................................................................................................. 14

Pin Signals ......................................................................................................................................... 14

Design Notes ..................................................................................................................................... 15

Power Supply ................................................................................................................................ 15

Recommended Pin Connections .................................................................................................. 16

Board Layout ................................................................................................................................ 16

Mounting Considerations – Xbee Wi-Fi Through-hole ................................................................. 19

2. RF Module Operation ....................................................................................................................... 20

Serial Communications ..................................................................................................................... 20

UART Communications ................................................................................................................. 20

SPI Communications ..................................................................................................................... 21

Serial Buffers .................................................................................................................................... 23

Serial Receive Buffer ..................................................................................................................... 23

Serial Transmit Buffer ................................................................................................................... 23

UART Flow Control ....................................................................................................................... 24

Serial Interface Protocols ................................................................................................................. 25

Transparent Operation ................................................................................................................. 25

API Operation ............................................................................................................................... 25

A Comparison of Transparent and API Operation ........................................................................ 26

Modes of Operation ......................................................................................................................... 27

Idle Mode ..................................................................................................................................... 27

Transmit Mode ............................................................................................................................. 27

Receive Mode ............................................................................................................................... 27

Command Mode ........................................................................................................................... 27

XBee® Wi-Fi RF Modules

Configuration Mode ......................................................................................................................... 29

Forcing Entry into Configuration Mode ........................................................................................ 29

Using X-CTU to Enter Configuration Mode ................................................................................... 30

Sleep Mode ....................................................................................................................................... 30

3. 802.11 bgn Networks ....................................................................................................................... 31

Infrastructure Networks ................................................................................................................... 31

Ad Hoc Networks .............................................................................................................................. 31

Network Basics ................................................................................................................................. 32

XBee® Wi-Fi Standards ..................................................................................................................... 33

Encryption ........................................................................................................................................ 33

Channels ........................................................................................................................................... 33

4. XBee IP Services ................................................................................................................................ 35

XBee Application Service .................................................................................................................. 35

Local Host ..................................................................................................................................... 35

Network Client .............................................................................................................................. 36

Sending Configuration Commands ............................................................................................... 37

Sending Serial Data Command to XBee ........................................................................................ 38

Sending Over-the-Air Firmware Upgrades ....................................................................................... 39

Serial Communication Service .......................................................................................................... 40

Transparent Mode ........................................................................................................................ 40

API Mode ...................................................................................................................................... 40

5. Sleep ................................................................................................................................................. 42

Using Sleep Mode: UART ................................................................................................................. 42

Using Sleep Mode: SPI ..................................................................................................................... 42

Sleep Options ................................................................................................................................... 43

AP Associated Sleep...................................................................................................................... 43

Deep Sleep (Non-Associated Sleep) ............................................................................................. 44

Sampling Data Using Sleep Modes ................................................................................................... 44

Sample Rate (ATIR) ....................................................................................................................... 45

Wake Host .................................................................................................................................... 45

6. Advanced Application Features ........................................................................................................ 46

XBee Analog and Digital I/O Lines .................................................................................................... 46

I/O Sampling ..................................................................................................................................... 47

Queried Sampling ......................................................................................................................... 48

Periodic I/O Sampling ................................................................................................................... 48

XBee® Wi-Fi RF Modules

I/O Examples ................................................................................................................................. 49

General Purpose Flash Memory ....................................................................................................... 49

Accessing General Purpose Flash Memory .................................................................................. 50

Working with Flash Memory ........................................................................................................ 56

Over-the-Air Firmware Upgrades ..................................................................................................... 56

Distributing the New Application ................................................................................................. 57

Verifying the New Application ...................................................................................................... 58

Installing the Application .............................................................................................................. 58

Things to Remember .................................................................................................................... 58

7. API Operation ................................................................................................................................... 59

API Frame Specifications .................................................................................................................. 59

API UART and SPI Exchanges ............................................................................................................ 61

AT Commands ............................................................................................................................... 61

Transmitting and Receiving RF Data ............................................................................................. 62

Remote AT commands ................................................................................................................. 62

Supporting the API ........................................................................................................................ 63

API Frames ........................................................................................................................................ 64

TX (Transmit) Request: 64-Bit....................................................................................................... 64

AT Command ................................................................................................................................ 65

AT Command-Queue Parameter Value ........................................................................................ 66

Remote AT Command Request .................................................................................................... 67

Transmit (TX) Request: IPv4 ......................................................................................................... 68

Rx (Receive) Packet: 64-bit .......................................................................................................... 69

AT Command Response ................................................................................................................ 70

Modem Status .............................................................................................................................. 71

Transmission Status ...................................................................................................................... 72

IO Data Sample RX Indicator ........................................................................................................ 73

Remote Command Response ....................................................................................................... 75

RX (Receive) Packet: IPv4 ............................................................................................................. 76

8. XBee Command Reference Tables.................................................................................................... 77

Addressing ........................................................................................................................................ 77

Networking Commands .................................................................................................................... 78

Security Commands .......................................................................................................................... 78

RF Interfacing Commands ................................................................................................................ 78

Serial Interfacing ............................................................................................................................... 79

XBee® Wi-Fi RF Modules

I/O Settings ....................................................................................................................................... 80

Diagnostics Interfacing ..................................................................................................................... 83

AT Command Options ...................................................................................................................... 84

Sleep Commands .............................................................................................................................. 84

Execution Commands ....................................................................................................................... 85

9. Module Support ................................................................................................................................ 86

X-CTU Configuration Tool ................................................................................................................. 86

Serial Firmware Updates .................................................................................................................. 86

Regulatory Compliance .................................................................................................................... 86

10. Agency Certifications ...................................................................................................................... 87

United States FCC ......................................................................................................................... 87

Europe (ETSI) .................................................................................................................................... 94

OEM Labeling Requirements ........................................................................................................ 94

Restrictions ....................................................................................................................................... 95

Declarations of Conformity .......................................................................................................... 95

Approved Antennas ...................................................................................................................... 96

Canada (IC) ....................................................................................................................................... 97

Labeling Requirements ................................................................................................................. 97

Transmitters with Detachable Antennas ...................................................................................... 97

Australia (C-Tick) ............................................................................................................................... 98

11. Warranty Information .................................................................................................................... 99

1-Year Warranty ............................................................................................................................... 99

12.Glossary of Terms .......................................................................................................................... 100

Definitions ...................................................................................................................................... 100

XBee® Wi-Fi RF Modules

1.Overview

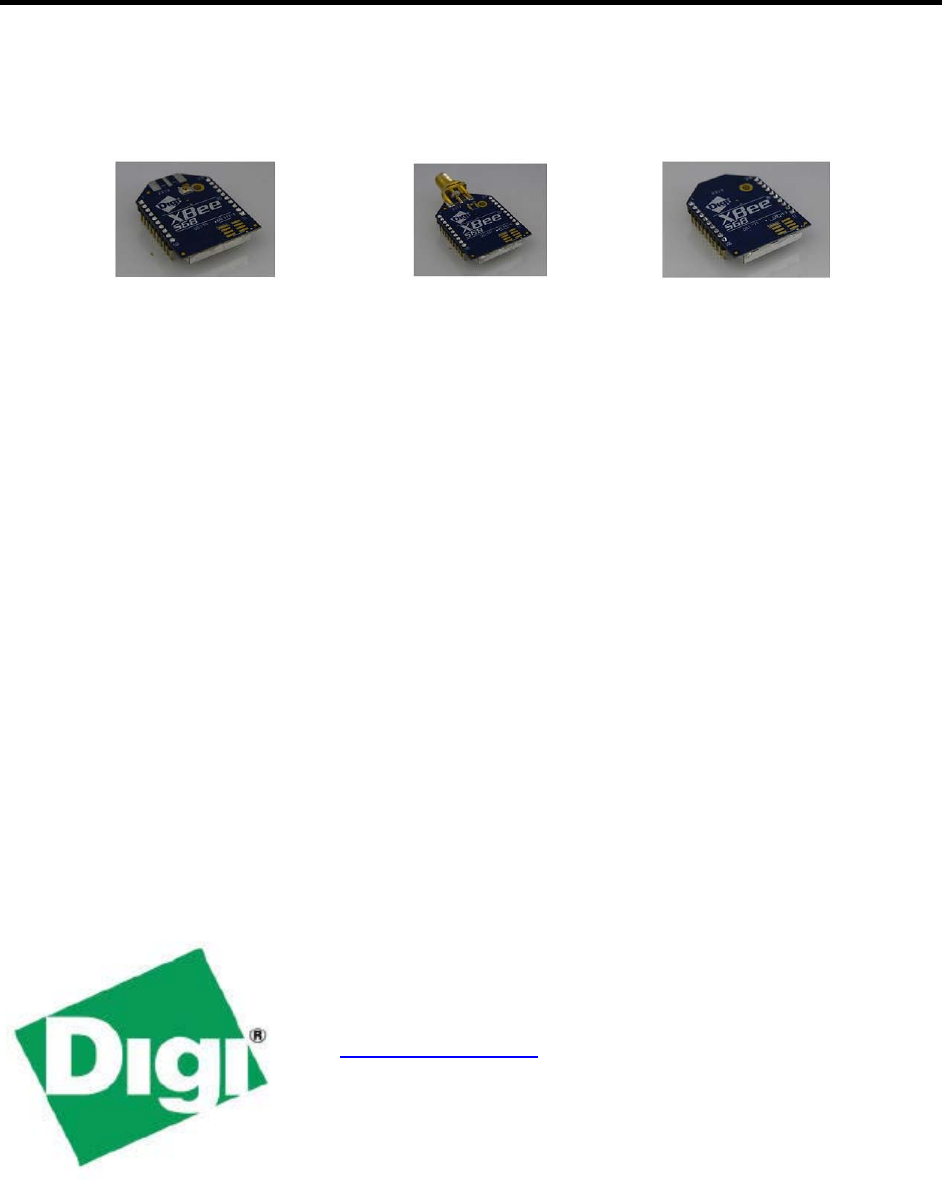

The XBee® Wi-Fi RF module provides wireless connectivity to end-point devices in

802.11 bgn networks. Using the 802.11 feature set, these modules are interoperable

with other 802.11 bgn devices, including devices from other vendors. With XBee, users

can have their 802.11 bgn network up-and running in a matter of minutes.

The XBee® Wi-Fi modules are compatible with other devices that use 802.11 bgn

technology. These include Digi external 802.11x devices like the ConnectPort products

and the Digi Connect Wi-SP, as well as embedded products like the ConnectCore series

and Digi Connect series of products. More information on these Digi products can be

found at:

http://www.digi.com/products/wireless/wifisolutions/

Specifications

General Specifications

Specification XBee Wi-Fi

Through-hole

XBee Wi-Fi

Surface Mount

Dimensions 0.960 x 1.297

(2.438cm x 3.294cm)

0.866 x 1.330 in

(2.200 x 3.378 cm)

Operating Temperature -30 to 85° C

Antenna Options

PCB Antenna, U.FL Connector,

RPSMA Connector, or Integrated

Wire

PCB Antenna, U.FL Connector,

or RF Pad

RF Specifications

Specification

XBee Wi-Fi

Through-hole

XBee Wi-Fi

Surface Mount

Frequency ISM 2.4-2.5GHz

Number of Channels 13

Adjustable Power Yes

Wi-Fi Standards 802.11 b, g, and n

Transmit Power Output

(Average)

Up to +16 dBm

(See table below)

FCC/IC Test Transmit

Power Range (Peak)

802.11b

802.11g

802.11n (800 ns GI)

802.11n (400 ns GI)

2.73 to 26.81 dBm

7.87 to 28.52 dBm

8.03 to 28.75 dBm

8.04 to 28.64 dBm

802.11b

802.11g

802.11n (800 ns GI)

802.11n (400 ns GI)

2.08 to 26.13 dBm

7.15 to 27.72 dBm

7.02 to 27.89 dBm

7.33 to 28.20 dBm

RF Data Rates 1 Mbps to 72.22 Mbps

(See table below)

Receiver Sensitivity

(25

℃

, <10% PER)

-93 to -71 dBm

(See table below)

Transmit Spectral Mask

(25

℃,

max output power) Meets IEEE standards for 802.11 b, g, and n

XBee® Wi-Fi RF Modules

RF Data Rates

Standard

Data rates (Mbps)

802.11b 1, 2, 5.5, 11

802.11g

6, 9, 12, 18, 24, 36, 48, 54

Standard MCS index

Data rates (Mbps)

800 ns guard interval 400 ns guard interval

802.11n

6.5

7.22

1 13 14.44

19.5

21.67

3 26 28.89

43.33

5 52 57.78

58.5

7 65 72.22

XBee® Wi-Fi RF Modules

Receiver Sensitivity

Receiver Sensitivity (25

℃

, < 10% PER)

Standard Data rate Sensitivity (dBm)

802.11b

1 Mbps -93

2 Mbps

-91

5.5 Mbps -90

11 Mbps -87

802.11g

6 Mbps -91

9 Mbps

-89

12 Mbps -88

18 Mbps

-86

24 Mbps -83

36 Mbps -80

48 Mbps -76

54 Mbps

-74

802.11n

MCS 0 6.5/7.22 Mbps -91

MCS 1 13/14.44 Mbps -88

MCS 2 19.5/21.67 Mbps -85

MCS 3 26/28.89 Mbps -82

MCS 4 39/43.33 Mbps -78

MCS 5 52/57.78 Mbps -74

MCS 6 58.5/65 Mbps -73

MCS 7 65/72.22 Mbps

-71

XBee® Wi-Fi RF Modules

RF Transmit Power - Typical

RF Transmit Power (Average)

Standard Data rate Power (dBm)

North America Europe

802.11b

1 Mbps

16 15

2 Mbps

5.5 Mbps

11 Mbps

802.11g

6 Mbps

16 15

9 Mbps

12 Mbps

18 Mbps

24 Mbps

36 Mbps

48 Mbps

54 Mbps 14 14

802.11n

MCS 0 6.5/7.22 Mbps

15 15

MCS 1 13/14.44 Mbps

MCS 2 19.5/21.67 Mbps

MCS 3 26/28.89 Mbps

MCS 4 39/43.33 Mbps

MCS 5 52/57.78 Mbps

MCS 6 58.5/65 Mbps

MCS 7 65/72.22 Mbps 8.5 8.5

XBee® Wi-Fi RF Modules

EVM – Typical, Maximum Output Power

EVM (25

℃

, max output power)

Standard Data rate EVM (dB)

802.11b

1 Mbps -40

2 Mbps

-40

5.5 Mbps -36

11 Mbps -38

802.11g

6 Mbps -23

9 Mbps

-23

12 Mbps -23

18 Mbps

-23

24 Mbps -23

36 Mbps -23

48 Mbps -26

54 Mbps

-26

802.11n

MCS 0 6.5/7.22 Mbps -24

MCS 1 13/14.44 Mbps -24

MCS 2 19.5/21.67 Mbps -24

MCS 3 26/28.89 Mbps -25

MCS 4 39/43.33 Mbps -25

MCS 5 52/57.78 Mbps -25

MCS 6 58.5/65 Mbps -26

MCS 7 65/72.22 Mbps

-28

XBee® Wi-Fi RF Modules

Electrical Specifications

Specification XBee Wi-Fi

Supply Voltage

3.14 - 3.46 VDC

Operating Current

(transmit, max output

power)

802.11b

1 Mbps

309 mA

2 Mbps

5.5 Mbps

11 Mbps

802.11g

6 Mbps

275 mA

9 Mbps

12 Mbps

18 Mbps

24 Mbps

36 Mbps

48 Mbps 231 mA

54 Mbps

222 mA

802.11n

MCS 0 6.5/7.22 Mbps

262 mA

MCS 1 13/14.44 Mbps

MCS 2 19.5/21.67 Mbps

MCS 3 26/28.89 Mbps

MCS 4 39/43.33 Mbps

MCS 5 52/57.78 Mbps 234 mA

MCS 6 58.5/65 Mbps 217 mA

MCS 7 65/72.22 Mbps

184 mA

Operating Current

(Receive) 100mA

Deep Sleep Current 6 µA @25

℃

Associated Sleep current 2 mA asleep, 100 mA awake. (See AP Associated Sleep section for details.)

Serial Communications Specifications

The XBee Wi-Fi RF modules support both UART (Universal Asynchronous

Receiver/Transmitter) and SPI slave mode (Serial Peripheral Interface in slave mode

only) serial connections.

UART

Specification XBee Wi-Fi Through-hole XBee Wi-Fi Surface Mount

UART Pins Module Pin Number Module Pin Number

DIO13/DOUT 2 3

DIO14/DIN 3 4

DIO7/nCTS

12 25

DIO6/nRTS 16 29

More information on UART operation is found in the UART section in chapter 2.

XBee® Wi-Fi RF Modules

SPI

Specification XBee Wi-Fi Through-hole XBee Wi-Fi Surface Mount

SPI Pins Module Pin Number Module Pin Number

DIO2/SPI_SCLK 18 14

DIO3/SPI_nSSEL 17 15

DIO4/SPI_MOSI 11 16

DIO12/SPI_MISO 4 17

DIO1/SPI_nATTN 19 12

For more information on SPI operation see the SPI section in chapter 2.

GPIO Specifications

The XBee Wi-Fi modules have 14 GPIO (General Purpose Input Output) ports available.

Those available will depend on the module configuration as some GPIO’s are consumed

by serial communication, etc.

See GPIO section for more information on configuring and using GPIO ports

Electrical Specification for GPIO pads

Parameter

Condition

Min

Max

Units

Input Low Voltage

0.3VDD V

Input High Voltage 0.7VDD

Output high Voltage relative to

VDD Sourcing 2 mA, VDD=3.3 V 95

Output low voltage relative to

VDD Sinking 2 mA, VDD=3.3 V

5 %

Output fall time 2 mA drive strength and load

capacitance CL=350-600pF.

20+0.1CL

250

I/O pin hysteresis (VIOTHR+ -

Viothr-) VDD = 3.14 to 3.46 V 0.1VDD

Pulse width of pulses to be

removed by the glitch

suppression filter

XBee® Wi-Fi RF Modules

Agency Approvals

Specification XBee Wi-Fi Through-hole XBee Wi-Fi Surface Mount

United States (FCC Part 15.247) FCC ID: MCQ-XBS6B FCC ID: MCQ-S6BSM

Industry Canada (IC) IC: 1846A-XBS6B IC: 1846A-S6BSM

Europe (DC) ETSI ETSI

Australia Pending Pending

Brazil Pending Pending

Japan Pending Pending

FCC Approval (USA) Refer to Chapter 12 FCC Requirements. Systems that contain XBee Wi-Fi modules inherit Digi

Certifications.

Pin Signals

Pin Assignment for the XBee Wi-Fi Through-hole module

(Low-asserted signals are distinguished with a lower case n before the signal name.)

Pin # Name Direction Default State Description

1 VCC - - Power Supply

2 DIO13/DOUT Both Output UART Data out

3 DIO14/Din/nConfig Both Input UART Data In

4 DIO12/SPI_MISO Both Output GPIO/ SPI slave out

5 nRESET Input

Module Reset

6 DIO10/PWM0 Both

GPIO

7 DIO11/PWM1 Both

GPIO

8 reserved - Disabled Do Not Connect

9 DIO8/nDTR/SLEEP_RQ Both Input Pin Sleep Control line /GPIO

10 GND - - Ground

11 DIO4/SPI_MOSI Both

GPIO/SPI slave In

12 DIO7/nCTS Both Output Clear-to-Send Flow

Control/GPIO

13 DIO9/On_nSLEEP Output Output Module Status Indicator/GPIO

14 VREF Input - NC

15 DIO5/Associate Both Output Associate Indicator/GPIO

16 DIO6/nRTS Both Input Request-to-Send Flow

Control/GPIO

17 DIO3/AD3 /SPI_nSSEL Both

Analog Input/GPIO/SPI Slave

Select

18 DIO2/AD2 /SPI_CLK Both

Analog Input/GPIO/SPI Clock

19 DIO1/AD1 /SPI_nATTN Both

Analog Input/GPIO/SPI

Attention

20 DIO0/AD0 Both

Analog Input/GPIO

XBee® Wi-Fi RF Modules

Pin Assignment for the XBee Wi-Fi Surface Mount module

(Low-asserted signals are distinguished with a lower case n before the signal name.)

Pin # Name Direction Default State Description

1 GND - - Ground

2 VCC - - Power Supply

3 DIO13/DOUT Both Output UART Data Out

4 DIO14/DIN/Nconfig Both Input UART Data In

5 DIO12 Both - GPIO

6 nRESET Input - Module Reset

7 DIO10/PWM0 Both - GPIO

8 DIO11/PWM1 Both - GPIO

9 Reserved - - Do Not Connect

10 DIO8/nDTR/SLEEP_RQ Both - GPIO

11 GND - - Ground

12 DIO19/SPI_nATTN Both - GPIO/SPI Attention

13 GND - - Ground

14 DIO18/SPI_CLK Both - GPIO/SPI Clock

15 DIO17/SPI_nSSEL Both - GPIO/SPI Slave Select

16 DIO16/SPI_SI Both - GPIO/SPI Slave In

17 DIO15/SPI_SO Both - GPIO/SPI Slave Out

18 Reserved - - Do Not Connect

19 Reserved - - Do Not Connect

Reserved

Do Not Connect

21 Reserved - - Do Not Connect

22 GND - - Ground

23 Reserved - - Do Not Connect

DIO4

Both

GPIO

25 DIO7/nCTS Both Output Clear-to-Send Flow Control/

GPIO

26 DIO9/On_nSLEEP Both - Module Status Indicator/GPIO

27 VREF - - NC

28 DIO5/ASSOC Both - Associate Indicator/GPIO

29 DIO6/nRTS Both Input Request-to-Send Flow Control/

GPIO

30 DIO3/AD3 Both - Analog Input/GPIO

31 DIO2/AD2 Both - Analog Input/GPIO

32 DIO1/AD1 Both - Analog Input/GPIO

DIO0/AD0

Both

Analog Input/GPIO

34 Reserved - - Do Not Connect

35 GND - - Ground

36 RF Both - RF IO for RF Pad Variant

Reserved

Do Not Connect

Design Notes

The XBee modules do not specifically require any external circuitry or specific

connections for proper operation. However, there are some general design guidelines

that are recommended for help in troubleshooting and building a robust design.

Power Supply

XBee® Wi-Fi RF Modules

Poor power supply can lead to poor radio performance, especially if the supply voltage

is not kept within tolerance or is excessively noisy. To help reduce noise, a 1µF and

8.2pF capacitor are recommended to be placed as near to pin 1 on the PCB as possible.

If using a switching regulator for your power supply, switching frequencies above 500

kHz are preferred. Power supply ripple should be limited to a maximum 50mV peak to

peak.

Recommended Pin Connections

The only required pin connections are VCC, GND, and either DOUT and DIN or SPI_CLK,

SPI_nSSEL, SPI_MOSI, and SPI MISO. To support serial firmware updates, VCC, GND,

DOUT, DIN, RTS, and DTR should be connected.

All unused pins should be left disconnected. All inputs on the radio can be pulled high

with 30k internal pull-up resistors using the PR software command. No specific

treatment is needed for unused outputs.

For applications that need to ensure the lowest sleep current, inputs should never be

left floating. Use internal or external pull-up or pull-down resistors, or set the unused

I/O lines to outputs.

Other pins may be connected to external circuitry for convenience of operation. For

example, the Associate signal (pin 15) and the On_nSLEEP signal (pin 13) will change

level or behavior based on the state of the module.

Board Layout

XBee modules do not have any specific sensitivity to nearby processors, crystals or other

PCB components. Other than mechanical considerations, no special PCB placement is

required for integrating XBee radios except for those with integral antennas. In general,

Power and GND traces should be thicker than signal traces and be able to comfortably

support the maximum currents.

The radios are also designed to be self sufficient and work with the integrated and

external antennas without the need for additional ground planes on the host PCB.

However, considerations should be taken on the choice of antenna and antenna

location. Metal objects that are near an antenna cause reflections and may reduce the

ability for an antenna to efficiently radiate. Using an integral antenna in an enclosed

metal box will greatly reduce the range of a radio. For this type of application an

external antenna would be a better choice.

External antennas should be positioned away from metal objects as much as possible.

Metal objects next to the antenna or between transmitting and receiving antennas can

often block or reduce the transmission distance. Some objects that are often overlooked

are metal poles, metal studs or beams in structures, concrete (it is usually reinforced

with metal rods), metal enclosures, vehicles, elevators, ventilation ducts, refrigerators

and microwave ovens.

XBee® Wi-Fi RF Modules

Antennas should reside above or away from any metal objects like batteries, tall

electrolytic capacitors or metal enclosures. Antenna elements radiate perpendicular to

the direction they point. Thus a vertical antenna emits across the horizon.

PCB Antennas should not have any ground planes or metal objects above or below the

module at the antenna location. For best results, the module should be in a plastic

enclosure instead of a metal one. It should be placed at the edge of the PCB to which it

is mounted. The ground, power and signal planes should be vacant immediately below

the antenna section. The following drawing shows the recommended PCB keepout area

for XBee embedded antennas.

XBee® Wi-Fi RF Modules

Mounting Considerations – Xbee Wi-Fi Through-hole

XBee Through-hole modules were designed to mount into a receptacle (socket) and

therefore do not require any soldering when mounting to a board. XBee interface

boards provided in XBee Wi-Fi Development Kits have two ten pin receptacles for

connecting the module.

The receptacles used on Digi development boards are manufactured by Century

Interconnect. Several other manufacturers provide comparable mounting solutions;

however, Digi currently uses the following receptacles:

• Through-hole single-row receptacles - Samtec P/N: MMS-110-01-L-SV (or

equivalent)

• Through-hole single-row receptacles - Mill-Max P/N: 831-43-0101-10-001000

• Surface-mount double-row receptacles - Century Interconnect P/N: CPRMSL20-

D-0-1 (or equivalent)

• Surface-mount single-row receptacles - Samtec P/N: SMM-110-02-SM-S

Digi also recommends printing an outline of the module on the board to indicate the

orientation the module should be mounted.

XBee® Wi-Fi RF Modules

2. RF Module Operation

Serial Communications

The XBee RF Modules interface to a host device through a logic-level asynchronous

serial port, or a Serial Peripheral Interface (SPI) port. Through its serial ports, the module

can communicate with any logic and voltage compatible UART or SPI; or through a level

translator to any serial device (for example: through a RS-232 or USB interface board).

UART Communications

UART Data Flow

Devices that have a UART interface can connect directly to the pins of the RF module as

shown in the figure below.

UART Serial Data

Data enters the module UART through the DIN (pin 3) as an asynchronous serial signal.

The signal should idle high when no data is being transmitted.

Each data byte consists of a start bit (low), 8 data bits (least significant bit first) and a

stop bit (high). The following figure illustrates the serial bit pattern of data passing

through the module.

XBee® Wi-Fi RF Modules

Serial communications depend on the two UARTs (the microcontroller's and the RF

module's) to be configured with compatible settings (baud rate, parity, start bits, stop

bits, data bits).

The UART baud rate, parity, and stop bits settings on the XBee module can be

configured with the BD, NB, and SB commands respectively. See the command table in

chapter 10 for details.

In the rare case that a radio has been configured with the UART disabled, the module

may be recovered to the UART operation by holding DIN low at reset time. As always,

DIN forces a default configuration on the UART at 9600 baud and it will bring up the

module in command mode on the UART port. Appropriate commands can then be sent

to the module to configure it for UART operation. If those parameters are written, then

the module will come up with the UART enabled, as desired on the next reset.

SPI Communications

The XBee Wi-Fi module supports SPI communications in the slave mode. Slave mode

receives the clock signal and data from the master and returns data to the master. The

SPI port uses the following signals on the XBee:

• SPI_MOSI (Master Out, Slave In) – inputs serial data from the master

• SPI_MISO (Master In, Slave Out) – outputs serial data to the master

• SPI_SCLK (Serial Clock) – clocks data transfers on MOSI and MISO

• SPI_nSSEL (Slave Select) – enables serial communication with the slave

• SPI_nATTN(Attention) – alerts the master that slave has data queued to send.

The XBee module will assert this pin as soon as data is available to send to the

SPI master and it will remain asserted until the SPI master has clocked out all

available data.

In this mode the following apply:

• SPI Clock rates up to 6 MHz are possible.

• Data is MSB first

• Frame Format mode 0 is used. This means CPOL=0 (idle clock is low) and

CPHA=0 (data is sampled on the clock’s leading edge). Mode 0 is diagramed

below.

• SPI port is setup for API mode and is equivalent to AP=1.

Frame Format for SPI communications

XBee® Wi-Fi RF Modules

SPI mode is chip to chip communication. Digi does not supply SPI communication option

on the Device Development Evaluation Boards.

SPI mode can be forced by holding DIO13/DOUT (pin 2) low while resetting the module

until SPI_nATTN asserts. By this means, the XBee Wi-Fi module will disable the UART

and go straight into SPI communication mode. Once configuration is completed, a

modem status frame is queued by the module to the SPI port which will cause the

SPI_nATTN line to assert. The host can use this to determine that the SPI port has been

configured properly. This method internally forces the configuration to provide full SPI

support for the following parameters:

• D1 (note this parameter will only be changed if it is at a default of zero when

method is invoked)

• D2

• D3

• D4

• P2

As long as a WR command is not issued, these configuration values will revert back to

previous values after a power on reset. If a WR command is issued while in SPI mode,

these same parameters will be written to flash. After a reset, parameters that were

forced and then written to flash become the mode of operation. If the UART is disabled

and the SPI is enabled in the written configuration, then the module will come up in SPI

mode without forcing it by holding DOUT low. If both the UART and the SPI are enabled

at the time of reset, then output will go to the UART until the host sends the first input.

If that first input comes on the SPI port, then all subsequent output will go to the SPI

port and the UART will be disabled. If the first input comes on the UART, then all

subsequent output will go to the UART and the SPI will be disabled. Please note that

once a serial port (UART or SPI) has been selected, all subsequent output will go to that

port, even if a new configuration is applied. The only way to switch the selected serial

port is to reset the module.

When the slave select (SPI_nSSEL) signal is asserted by the master, SPI transmit data is

driven to the output pin SPI_MISO, and SPI data is received from the input pin

SPI_MOSI. The SPI_nSSEL pin has to be asserted to enable the transmit serializer to drive

data to the output signal SPI_MISO. A falling edge on SPI_nSSEL causes the SPI_MISO

line to be tri-stated such that another slave device can drive it, if so desired.

If the output buffer is empty, the SPI serializer transmits the last valid bit repeatedly,

which may be either high or low. Otherwise, the module formats all output in API mode

1 format, as described in chapter 7. The attached host is expected to ignore all data

that is not part of a formatted API frame.

XBee® Wi-Fi RF Modules

Serial Buffers

The XBee modules maintain buffers to collect received serial and RF data, which is

illustrated in the figure below. The serial receive buffer collects incoming serial

characters and holds them until they can be processed. The serial transmit buffer

collects data that is received via the RF link that will be transmitted out the UART or SPI

port.

Internal Data Flow Diagram

Serial Receive Buffer

When serial data enters the RF module through the DIN Pin (or the MOSI pin), the data

is stored in the serial receive buffer until it can be processed. Under certain conditions,

the module may not be able to process data in the serial receive buffer immediately. If

large amounts of serial data are sent to the module such that the serial receive buffer

would overflow, then the new data will be discarded. If the UART is in use, this can be

avoided by the host side honoring CTS flow control.

Serial Transmit Buffer

When RF data is received, the data is moved into the serial transmit buffer and sent out

the UART or SPI port. If the serial transmit buffer becomes full and system buffers are

also full, then the entire RF data packet is dropped. Whenever data is received faster

than it can be processed and transmitted out the serial port, there is a potential of

dropping data, even in TCP mode.

DIN or MOSI

CTS

DOUT or MISO

RTS

XBee® Wi-Fi RF Modules

UART Flow Control

The nRTS and nCTS module pins can be used to provide RTS and/or CTS flow control. CTS

flow control provides an indication to the host to stop sending serial data to the module.

RTS flow control allows the host to signal the module to not send data in the serial

transmit buffer out the UART. RTS and CTS flow control are enabled using the D6 and D7

commands.

nCTS Flow Control

The FT command allows the user to specify how many bytes of data can be queued up in

the serial transmit buffer before the module asserts CTS low. The serial receive buffer

can hold up the 2100 bytes, but FT cannot be set any larger than 2083 bytes, leaving 17

bytes that can be sent by the host before the data is dropped.

By default, FT is 2035 (0x7F3), which allows the host to send 65 bytes to the module

after the module asserts CTS before the data is dropped.

In either case, CTS will not be re-asserted until the serial receive buffer has FT-17 or less

bytes in use.

nRTS Flow Control

If RTS flow control is enabled (D6 command), data in the serial transmit buffer will not

be sent out the DOUT pin as long as nRTS is de-asserted (set high). The host device

should not de-assert nRTS for long periods of time to avoid filling the serial transmit

buffer. If an RF data packet is received, and the serial transmit buffer does not have

enough space for all of the data bytes, the entire RF data packet will be discarded.

Note: If RTS flow control is enabled and the XBee is sending data out the UART when

nRTS is de-asserted (set high), the XBee could send up to 4 characters out the UART to

clear its FIFO after nRTS is de-asserted. This implies that the user needs to de-assert

nRTS by the time its receive capacity is within 4 bytes of full.

XBee® Wi-Fi RF Modules

Serial Interface Protocols

The XBee modules support both transparent and API (Application Programming

Interface) serial interfaces.

Transparent Operation

When operating in transparent mode, the modules act as a serial line replacement. All

UART data received is queued up for RF transmission. When RF data is received, the

data is sent out through the UART. The module configuration parameters are configured

using the AT command mode interface. Please note that transparent operation is not

an option when using SPI.

Data is buffered in the serial receive buffer until one of the following causes the data to

be packetized and transmitted:

• No serial characters are received for the amount of time determined by the RO

parameter. If RO is zero, data is packetized as soon as it is received, without

delay. If RO is non-zero, the data is packetized after RO character times of no

transitions on the DIN pin. However, if the time required for RO characters is

less than 100 microseconds, then DIN must still be idle for at least 100

microseconds, which is the minimal idle time required for packetizing packets at

any baud rate.

• The Command Mode Sequence (GT + CC + GT) is received. Any character

buffered in the serial receive buffer before the sequence is packetized and

transmitted before command mode is entered.

• The maximum number of characters that will fit in an RF packet is received.

API Operation

API operation is an alternative to transparent operation. The frame-based API extends

the level to which a host application can interact with the networking capabilities of the

module. When in API mode, all data entering and leaving the UART or SPI is contained in

frames that define operations or events within the module.

Transmit Data Frames (received through the DIN pin (pin 3) or SPI_MOSI (pin 11 ))

include:

• RF Transmit Data Frame

• Local commands (equivalent to AT commands)

• Remote commands to be sent to another radio

Receive Data Frames (sent out the DOUT pin (pin 2) or SPI_MISO (pin 4 )) include:

• RF-received data frames

• Local command responses

• Remote command responses

• I/O samples from a remote radio

• Event notifications such as transmission status, reset, associate, disassociate,

etc.

XBee® Wi-Fi RF Modules

The API provides an alternative means of configuring modules and of routing data at the

local host application layer. A local host application can send data frames to the module

that contain address and payload information instead of using command mode to

modify addresses. The module will send data frames to the application containing status

packets; as well as source, and payload information from received data packets. The API

operation option facilitates many operations such as the examples cited below:

• Transmitting data to multiple destinations without entering Command Mode

• Receive success/failure status of each transmitted RF packet

• Identify the source address of each received packet

A Comparison of Transparent and API Operation

The following table compares the advantages of transparent and API modes of

operation:

Transparent Operation Features

Simple Interface All received serial data is transmitted unless the module is in command mode.

Easy to support It is easier for an application to support transparent operation and command mode.

API Operation Features

Easy to manage data

transmissions to multiple

destinations

Transmitting RF data to multiple remotes only requires changing the address in the

API frame. This Process is much faster than transparent operation where the

application must enter AT command mode, change the address, exit command mode,

and then transmit data. Each API transmission can return a transmit status frame

indicating the success or reason for failure

Received data frames

indicate the sender's

address

All received RF data API frames indicate the source address.

Advanced Networking

diagnostics

API frames can provide indication of IO samples from remote devices, transmission

status messages, and local radio status messages.

Remote Configuration Set/read configuration commands can be sent to remote devices to configure them

as needed using the API.

As a general rule of thumb, API firmware is recommended when a device:

• sends RF data to multiple destinations

• sends remote configuration commands to manage devices in the network

• receives IO samples from remote devices

• receives RF data packets from multiple devices, and the application needs to

know which device sent which packet

If the above conditions do not apply, (e.g. in a sensor node, or a simple application) then

transparent operation might be suitable. It is acceptable to use a mixture of devices

running API mode and transparent mode in a network.

XBee® Wi-Fi RF Modules

Modes of Operation

Idle Mode

When not receiving or transmitting data, the RF module is in Idle Mode. The module

shifts into the other modes of operation under the following conditions:

• Transmit Mode (Serial data in the serial receive buffer is ready to be packetized)

• Receive Mode (Valid RF data is received through the antenna)

• Sleep Mode

• Command Mode (Command Mode Sequence is issued)

Transmit Mode

When serial data is received and is ready to be packetized, the RF module will exit Idle

Mode and attempt to transmit the data. The destination address determines which

node(s) will receive the data.

Receive Mode

If a valid RF packet is received, the data is transferred to the serial transmit buffer.

Command Mode

To modify or read RF Module parameters, the module must first enter into Command

Mode - a state in which incoming serial characters are interpreted as commands. Refer

to the API Operation chapter for an alternate means of configuring modules, which is

the only method available for SPI mode. (Command mode is unavailable when using the

SPI interface.)

AT Command Mode

To Enter AT Command Mode:

Send the 3-character command sequence “+++” and observe guard times before and

after the command characters. [Refer to the “Default AT Command Mode Sequence”

below.]

Default AT Command Mode Sequence (for transition to Command Mode):

• No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

• Input three plus characters (“+++”) within one second [CC (Command Sequence

Character) parameter = 0x2B.]

• No characters sent for one second [GT (Guard Times) parameter = 0x3E8]

Once the AT command mode sequence has been issued, the module sends an "OK\r"

out the UART. The "OK\r" characters can be delayed if the module has not finished

transmitting received serial data.

When command mode has been entered, the command mode timer is started (CT

command), and the module is able to receive AT commands on the UART.

All of the parameter values in the sequence can be modified to reflect user preferences.

XBee® Wi-Fi RF Modules

NOTE: Failure to enter AT Command Mode is most commonly due to baud rate

mismatch. By default, the BD (Baud Rate) parameter = 3 (9600 bps).

To Send AT Commands, send AT commands and parameters using the syntax shown

below:

To read a parameter value stored in the RF module’s register, omit the parameter field.

The preceding example would change the RF module baud rate to 7, which would allow

operation at 115,200bps. To store the new value to non-volatile (long term) memory,

subsequently send the WR (Write) command.

For modified parameter values to persist in the module’s registry after a reset, changes

must be saved to non-volatile memory using the WR (Write) Command. Otherwise,

parameters are restored to previously saved values after the module is reset.

Command Response

When a command is sent to the module, the module will parse and execute the

command. Upon successful execution of a command, the module returns an “OK”

message. If execution of a command results in an error, the module returns an “ERROR”

message.

Applying Command Changes

Any changes made to the configuration command registers through AT commands will

not take effect until the changes are applied. For example, sending the BD command to

change the baud rate will not change the actual baud rate until changes are applied.

Changes can be applied in one of the following ways:

• The AC (Apply Changes) command is issued.

• AT command mode is exited.

To Exit AT Command Mode:

1. Send the ATCN (Exit Command Mode) command (followed by a carriage return).

[OR]

2. If no valid AT Commands are received within the time specified by CT

(Command Mode Timeout) Command, the RF module automatically returns to

Idle Mode.

For an example of programming the RF module using AT Commands and descriptions

of each configurable parameter, please see the Command Reference Table chapter.

XBee® Wi-Fi RF Modules

Configuration Mode

The user may not always know the parameters with which the XBee module is

configured. If those parameters affect the means by which command mode is entered

(and the parameters were previously written to non-volatile memory), then command

mode is not available to either read the parameters or to set them to known values.

This makes configuration of the XBee difficult unless the user can successfully guess the

configuration to allow entry into command mode. A common example of this problem

is when the UART baud rate is unknown. In this case, the “+++” sequence to enter

command mode would not be recognized due to a baud rate mismatch, preventing

entry into command mode.

Forcing Entry into Configuration Mode

To overcome this issue, the XBee may be forced into command mode with a known

configuration as follows: While holding DIN low (a.k.a. asserting the break key), reset

the module. Rather than coming up in transparent mode, which is normal, it will come

up in command mode and issue the OK prompt with the following default parameters

applied for operation while in command mode:

• UART enabled (P3=1, P4=1)—only set for SPI-enabled modules.

• 9600 baud rate (BD=3)

• One stop bit (SB=0)

• No parity (NB=0)

• Three character times with no change on DIN before transmission (RO=3)

• No RTS flow control (D6=0)

• CTS flow control (D7=1)

• 65 characters left in transmission buffer before CTS is turned off (FT)

• ‘+’ is used for command mode character (CC=0x2b)

• One second guard time (GT=0x3e8)

• Ten second command mode timeout (CT=0x64).

If configuration mode is left without setting any parameters (i.e. without changing

parameter values), then all parameters will revert to their previous unknown state after

exiting command mode. Also, any values queried will return the previously written

settings rather than the temporarily applied default settings described above.

When the need arises to recover from an unknown configuration to a known

configuration, the user should do the following:

1. Set up the interface to the XBee to match the default configuration as described

above.

2. Press and hold DIN low while resetting the XBee module.

3. Release DIN (let it be pulled high) so that UART data may be received.

4. At the OK prompt, enter the desired configuration settings. (If desired,

configuration settings which were unknown may be read before setting them in

this state.)

5. Write the desired configuration to non-volatile memory using the WR

command.

6. Set up the interface to the XBee to match the configuration just written to non-

volatile memory.

7. Optionally, reset the module and then begin operation in the new mode.

XBee® Wi-Fi RF Modules

Using X-CTU to Enter Configuration Mode

X-CTU is designed to support a forced configuration on a UART interface following the

steps below. (Currently, X-CTU will not work over a SPI interface directly.)

1. Connect an asynchronous serial port of the PC (either RS-232 or USB) to the

development board into which the XBee module is plugged.

2. Start X-CTU and go to the PC settings tab.

3. Set parameters as appropriate on the PC settings tab to match the default

configuration previously described.

4. Go to the terminal tab and click on the break key. (This holds the DIN line low.)

5. Using the development board, press the reset button

6. Wait for the OK prompt to be displayed

7. Click to de-select the break key so that input can occur on DIN.

8. Within ten seconds of seeing the OK prompt, enter the desired configuration in

AT command mode.

9. Enter the WR command to save the parameters to non-volatile memory.

10. Go back to the PC settings tab and set up the PC side of the interface as it was

just configured on the XBee.

11. Optionally, reset the XBee module.

12. Go to the terminal tab and begin normal transparent operation.

Sleep Mode

Sleep modes allow the RF module to enter states of low power consumption when not

in use. The XBee Wi-Fi modules support both pin sleep (sleep mode entered on pin

transition) and cyclic sleep (module sleeps for a fixed time). For both pin sleep and cyclic

sleep the sleep level may be either deep sleep or associated sleep. XBee sleep modes

are discussed in detail in Chapter 5.

XBee® Wi-Fi RF Modules

3. 802.11 bgn Networks

Infrastructure Networks

The main type of wireless network will involve a number of wireless devices (called

stations) talking through a master wireless device known as an Access Point (AP for

short). This type of setup is called an Infrastructure or BSS (Basic Service Set) network.

Most wireless networks are of this type. An example of an infrastructure wireless

network is shown below:

Infrastructure Wireless Network

Ad Hoc Networks

Wireless devices can get on a wireless network without an access point. This is called an

Ad Hoc or IBSS (Independent Basic Service Set) network. An example of an ad hoc

wireless network is shown below:

XBee® Wi-Fi RF Modules

Note that ad hoc networks are point to point and that there can only be two nodes in

the network, a creator and a joiner. Set up the creator first, and then the joiner.

Ad Hoc Creator

Set up the following parameters for the creator:

• AH1 designates the node as an Ad hoc creator.

• MA1 specifies static IP addresses. (No DHCP is supported in Ad Hoc mode.)

• EE0 specifies no security. (Security is not available in Ad Hoc mode.)

• CH may be any channel from 1 to 0xB.

• ID sets the SSID, which is any string of choice, as long as it isn’t the same as

another SSID in the vicinity.

• MY sets IP address of creator node.

• DL specifies IP address of joiner node.

• MK sets IP mask for both of the above addresses.

Ad Hoc Joiner

Set up the following parameters for the joiner:

• AH0 designates the node as an Ad hoc joiner.

• MA1 specifies static IP addresses. (No DHCP is supported in Ad Hoc mode.)

• EE0 specifies no security. (Security is not available in Ad Hoc mode.)

• ID sets the SSID, which must match the ID of the creator. Problems arise if it

matches the SSID of an access point in the vicinity.

• MY sets IP address of joiner node.

• DL specifies IP address of creator node.

• MK sets IP mask for both of the above addresses.

Network Basics

Clients will need to join the wireless network before they can send data across it. This is

called Association. In order for a device to associate it must know the following items

about the desired wireless network:

• SSID: the name of the wireless network.

• Encryption: if and how the network encrypts or scrambles its data.

• Authentication: how and if the network requires its members to ―prove their

identity.

• Channel: what channel (frequency range) the wireless network uses.

Once a device is associated it can send and receive data from other associated devices

on the same network. When the client is done or needs to leave, it then can Dis-

associate and be removed from the wireless network.

XBee® Wi-Fi RF Modules

XBee® Wi-Fi Standards

The XBee Wi-Fi module will operate in three of the available 802.11 standards.

802.11 b

The 802.11b standard was approved in July 1999 and can be considered the second

generation. 802.11b operates in the 2.4 GHz frequency ISM band. The data rate is from

1 to 11 Mbps.

802.11 g

The 802.11g standard was approved in 2003. It provides a maximum data rate of 54

Mbps. In addition, the standard is also fully backwards-compatible with existing 802.11b

wireless networks.

802.11 n

The 802.11n standard was approved in 2009. It provides for data rates up to 300Mbps.

The XBee® Wi-Fi module uses the single stream n mode with 20MHz bandwidth and is

capable of 65 Mbps over the air in n mode.

Encryption

Encryption is a method of scrambling a message that makes it unreadable to unwanted

parties, adding a degree of secure communications. There are different protocols for

providing encryption, and the XBee Wi-Fi module supports WPA, WPA2, and WEP.

Authentication

Authentication deals with proving the identity of the wireless device attempting to

associate with the network. There are different methods of doing this. The XBee Wi-Fi

module supports Open and Shared Key.

Open

Open Authentication is when the access point simply accepts the wireless devices

identify without verifying or proving it. The benefits to this is simplicity and compatibility

(all devices can do it).

Shared Key

Shared Key is when the wireless devices must present the proper key to get on the

network. Although Shared Key has more security than Open Authentication it should

not be considered secure. One of the benefits of Shared Key Authentication is simplicity.

Channels

The XBee® Wi-Fi modules operate in the 2.412-2.484 MHz range. The frequency range is

broken down into 13 channels. Data is transmitted on a channel by radio frequencies

over a certain frequency range. In order to avoid bad performance caused by the

overlapping (“collision”) of channel frequencies in a wireless LAN environment, it is very

important that the channels of neighboring access points are selected accordingly.

XBee® Wi-Fi RF Modules

The center frequencies of the 14 possible channels range from 2.412 GHz to 2.484 GHz,

with each channel being 22 MHz wide and centered in 5 MHz intervals. This means that

only 3 channels (1, 6, and 11) in North America are not subject to overlapping.

XBee® Wi-Fi RF Modules

4. XBee IP Services

The XBee provides services using IP (Internet Protocol) for XBee and other clients on the

network. IP services provide functionality to allow XBee configuration and direct serial

port access. There are two XBee services:

• XBee Application Service

• Serial Communication Service

XBee Application Service

This service primarily provides for XBee configuration. It also provides API compatibility

for customers who have designed around other XBees. It uses UDP to transfer packets

to and from port number 0xBEE. Packets are optionally acknowledged by the service

but retries are not available. An extra header is added to the packet data to define

commands for configuration and serial data transfer. The following sections describe

how this service can be accessed from a local host or network client. C0 and DE are

used to configure source and destination ports for the serial communication service.

The XBee application service uses hard coded port 0xBEE for both source and

destination and there is no option to configure another port.

Note: Do not configure C0 and/or DE to 0xBEE to use the XBee application service.

Doing so will cause an error (AI=42), and the transceiver will neither send nor receive

data.

Local Host

From a local host this functionality is accessed through XBee API frames. There are

remote AT command frames as well as transmission frames. The API frames are listed

as follows:

• TX request: 64-bit (TX64)

• RX indicator: 64-bit (RX64) (This frame is generated by the XBee module.)

• Remote AT command

• General Purpose Memory command

TX64 and RX64 API Frames

The intent of the XBee transmit and receive 64-bit API frames is to provide a

standardized set of API frames to use for a point to multipoint network—a closed

network of XBee Wi-Fi modules. The format of these frames has been standardized to

work with other XBee products, such as the API frames of the 802.15.4 module. Please

note that the XBee Wi-Fi module cannot communicate with an XBee 802.15.4 module.

XBee® Wi-Fi RF Modules

Transmitting Data

The local host uses the TX64 frame to send data to another XBee using this service.

When the frame is received through the serial port the XBee converts the contents of

the frame to a serial data transfer command as defined by the XBee application service.

Receiving Data

A received Serial data transfer command will go to the serial port. The mode of the

serial port will determine the format of the data. When in API mode the data will be

sent to the host using the RX 64-bit frame.

Note: It is not recommended to use this service to send data to a network client. Use

the serial communication service.

Remote AT Command Configuration

The Remote AT command frame is used to change configuration on a remote XBee.

See Remote AT command frame in the API Operation chapter for more information.

Firmware Upgrades

Firmware upgrades from the local host can be done by sending ZigBee explicit API

frames (type 0x11) to the IP address of the desired node with cluster ID 0x23. The

format of the explicit frames is given in Chapter 7 and the sequence of operations to

follow for firmware upgrades is given in Chapter 6.

Network Client

This port is accessed by sending a packet from the client using the UDP protocol on port

0xBEE. Data sent to this port must have an additional header preceding the data. The

header description follows:

Field Name

Offset

Field

Length

Description

Number1

Can be any random number

Number2 2 2 Number1 ^ 0x4242 (Exclusive OR of Number1 and constant 0x4242)

PacketID 4 1 Reserved for later use (0 for now)

EncPad 5 1 Reserved for later use (0 for now)

Command

0x00 = Data

0x02 = Remote Command

0x03 = General Purpose Memory Command

0x04 = I/O Sample

0x80 = Data Acknowledgement

0x82 = Response to remote command

0x83 = Response to General Purpose Memory Command

Command

options

bit 0 – encrypted if set (Reserved for later use)

bit 1 – set to request an ACK

bits 2:7 - unused (Set to 0 for forward compatibility.)

All of the commands and command responses detailed below are preceded with the

above application header.

XBee® Wi-Fi RF Modules

Sending Configuration Commands

AT commands can be sent to the XBee Wi-Fi module from a network client. The

following packet structure demonstrates how to query the SSID from a network client:

Packet Fields Offset Example Description

Application

Header

Number1 0 0x4242

Number2 2 0x0000 Number1 ^ Number2 = 0x4242

Packet ID 4 0x00 Reserved for later use (0 for now)

Encryption Pad 5 0x00

Command ID 6 0x02 Indicates Remote AT Command

Command Options 7 0x00 Options are not available for this command

Command

Specific

Data

Frame ID 8 0x01

Configuration

options 9 0x02

0 – Queue command parameter. Must send AC command or

use apply changes option to apply changes.

2 – Apply changes to all changed commands

AT Command

10 0x49 (I) Command Name - Two ASCII characters that identify the AT

command

11 0x44(D)

Parameter Value 12

If present, indicates the requested parameter value to set the

given command. If no characters present, command is

queried.

The response will be sent back to the host with the following bytes.

Packet Fields Offset Example Description

Application

Header

Number1 0 0x4242

Number2 2 0x0000 Number1 ^ Number2 = 0x4242

Packet ID 4 0x00 Reserved for later use (0 for now)

Encryption Pad 5 0x00

Command ID 6 0x82 Indicates Remote AT Command Response

Command Options 7 0x00 Options not available for this response

Command

Specific Data

Frame ID 8 0x01 Copied from the command

AT Command

9 0x49 (I) Command Name - Two ASCII characters that identify

the AT command

10 0x44(D)

Status 11 0x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

Parameter Value

12 0x41 ‘A’

Data in binary or ASCII format, based on the

command. For the ID command, the data is in ASCII

format. If the command was set, then this field is not

returned.

0x63 ‘c’

14 0x63 ‘c’

15 0x65 ‘e’

16 0x73 ‘s’

0x73 ‘s’

18 0x50 ‘p’

19 0x6F ‘o’

20 0x69 ‘i’

21 0x6E ‘n’

22 0x74 ‘t’

XBee® Wi-Fi RF Modules

Sending Serial Data Command to XBee

Using this service to send data out the serial port is not required. Most users will choose

to use the Serial Communication Service (see below) for sending data from a network

client. One reason to use the XBee Application Service to send the serial data command

from a network client is to receive an acknowledgment when sending a UDP packet.

The client can request an acknowledgement from the XBee but must wait to receive the

acknowledgement before sending the next packet. The client is responsible for

retransmissions due to missed acknowledgments. When resending packets, duplicates

can be received at the destination due to a successful serial data command and a failed

acknowledgment packet. The host in this case must be able to handle duplicate packets.

The following packet structures are examples of sending data and receiving an

acknowledgement using the XBee application service:

Serial Data Command:

Packet Fields Offset Example Description

Application

Header

Number1 0 0x4242

Number2 2 0x0000 Number1 ^ Number2 = 0x4242

Packet ID 4 0x00 Reserved for later use (0 for now)

Encryption Pad 5 0x00

Command ID 6 0x00 Indicates Transmission data

Command Options 7 0x02 Request acknowledgment

Command

Specific Data Serial Data

8 0x48 ‘H’

Can be up to 1492 bytes. Data will be sent out the

XBee's serial port.

9 0x65 ‘e’

0x6C ‘l’

11 0x6C ‘l’

12 0x6F ‘o’

Serial Data command acknowledgment if requested:

Packet Fields Offset Example Description

Application

Header

Number1 0 0x4242

Number2 2 0x0000 Number1 ^ Number2 = 0x4242

Packet ID 4 0x00 Reserved for later use (0 for now)

Encryption Pad 5 0x00

Command ID 6 0x80 Indicates Transmission data

Command Options 7 0x0 Options not available for this response

Command

Specific Data Serial Data 8 No command specific data

Receiving I/O sampled data

Sample data generated by the module will be sent to the address configured by the DL

commands. This data can be sent to another XBee or to a network client. It will be sent

using UDP from the 0xBEE port as with other XBee Application services. Sample data will

be received by the client as follows:

XBee® Wi-Fi RF Modules

Frame Fields Offset Example Description

Application

Header

Number1 0 0x4242

Number2 2 0x0000 Number1 ^ Number2 = 0x4242

Packet ID 4 0x00

Reserved for later use (0 for now)

Encryption Pad 5 0x00

Command ID 6 0x04 Indicates I/O Sample data

Command Options 7 0x00 Options not available for this response

Command

Specific Data

Number Samples 8 0x01 Indicates one sample set

Digital Mask

MSB 9 0x01 Bit Mask. Each bit represents an enabled DIO line

starting with DIO0 at bit 0.

LSB 10 0x01

Analog Mask 11 0x02

Bit Mask. Each bit represents an enabled ADC starting

with ADC0 at bit 0. This selects ADC1 for analog

sampling.

Digital Sample

MSB 12 0x00 This field is only present if at least one DIO line is

enabled in the digital mask specified above. Each bit

represents a DIO line. Start with bit 0 for DIO0.

LSB 13 0x01

Analog Sample

MSB 14 0x02 0x200 indicates that reading is half of VREF. For a

default VREF of 2.5V, 0x200 represents 1.25 volts on

ADC1 in this example.

LSB 15 0x00

Sending Over-the-Air Firmware Upgrades

A network client can also use the XBee IP services to send a firmware upgrade to the

module. This is done by sending a frame formatted with an application header,

followed by a GPM header, following by GPM data. The format of the application

header is given above. The format of the various GPM headers is given in chapter 6, but

each of those GPM headers need to be preceded by an application header. The

following frame shows an example of the final step of a firmware upgrade process:

Packet Fields Offset Example Description

Application

Header

Number1 0 0x4242 This is an easy number to create an accepted frame.

Number2 2 0x0000 Number1 ^ Number2 = 0x4242 (This is an easy way to

send a frame that software won’t reject.)

Packet ID 4 0x00 Reserved for later use (0 for now)

EncPad 5 0x00

Command ID 6 0x00 Indicates Transmission data

Command Options

0x02

Request acknowledgment

Command

Specific Data

GPM_CMD_ID 8 0x06 Firmware verify and install command

GPM_OPTIONS 9 0x00

Reserved for later use (0 for now)

GPM_BLOCK_NUM 10 0x00

GPM_START_INDEX

0x00

GPM_NUM_BYTES 14 0x0000

GPM_DATA 16

This field is unused for this command

XBee® Wi-Fi RF Modules

Serial Communication Service

The serial communication service connects an IP port to the serial peripheral (UART or

SPI) of the XBee. No additional formatting or header is required and data will be

transferred between the RF hardware and Serial Communication hardware as received.

The IP ports are configured using the C0 and DE commands. Note that port 0xBEE is

reserved for the XBee Application Service and should not be used for the Serial

Communication Service. The behavior of this service varies based on the mode of the

serial port and is discussed in the following sections.

Transparent Mode

Only one port is available and can be either UDP or TCP. It is configured through the IP

command. Data received by the service is sent to the serial port without any additional

processing.

UDP

When the IP command is configured for UDP, data received on the serial

port will be packetized and sent to the IP address specified by the DL

command and to the destination port specified by the DE command.

The source port is defined by the C0 command.

TCP

TCP provides for a connection based protocol. When in transparent

mode the module will only allow one connection at a time. A

connection can be initiated by a local host or by a network client.

A local host initiates a connection by sending data to the serial port. A

connection will be created based on the DL (IP address) and DE

(destination port) commands. However, if DL is a broadcast address,

then UDP will be used, ignoring the TCP configuration.

A network client establishing a TCP connection to the XBee will use the

port defined by the C0 command. When established any data sent by

the local host will not create a new connection based on DL and DE, but

rather the existing connection will be utilized.

API Mode

In API mode, the module will listen on both the UDP and the TCP ports at the same time.

The local host will utilize the IPv4 transmit frame to send data from the module and will

receive data through the IPv4 received frame. These frames give greater IP control and

visibility to the local host. See the API section for more information.

UDP packets are sent from the listening port on the sending module. If the listening

port number doesn't match the source port of the sender, the packet is rejected and not

sent. Also, if the specified IP address is a broadcast, it will be sent as a UDP packet,

whether or not TCP is specified in the API frame.

XBee® Wi-Fi RF Modules

TCP packets may be sent on an existing connection or on a new connection. In order to

send data on an existing TCP connection, the destination IP address and port in the API

packet must match the remote IP address and port in an existing socket. In a sample

application, a packet may arrive that expects return data on the same socket. The API

frame (Rx IPv4) will contain the remote IP address and port. While the remote IP

address may be predicted, the remote IP address cannot. Therefore, the return data

should be sent to the remote IP address and port by swapping the source and

destination port numbers.

If the destination IP address and port don’t match an existing connection, the frame will

be discarded, unless the source port is 0. A source port of 0 allows the module to create

a new TCP client socket if the requested socket connection doesn’t already exist, and if a

socket resource is available.

XBee® Wi-Fi RF Modules

5. Sleep

The XBee Wi-Fi module supports two different sleep modes.

• Pin Sleep

• Cyclic Sleep

In addition the sleep mode current draw can be modified with the following sleep

options.

• AP Associated Sleep

• Deep Sleep

Pin sleep allows an external microcontroller to determine when the XBee should sleep

and when it should wake by using either the SleepRq pin (default) or the SPI_nSSEL pin.

In contrast, cyclic sleep allows the sleep period and wake times to be configured

through the use of AT commands. The module can stay associated to the access point

or can enter a deeper sleep and associate to the access point for each sleep/wake

occurrence. The sleep mode is configurable with the SM and SO commands.

Besides the four sleep modes mentioned above, each of them operate a little differently

based on the serial interface (UART or SPI).

Using Sleep Mode: UART

When the serial interface is UART, the On/nSleep pin is used to indicate that the module

is entering sleep mode, unless pin 13 is configured for a different usage. (See command

reference table) If D9 is configured for On/nSleep, then it is driven low when asleep and

high when awake, whether using pin sleep or cyclic sleep.

If CTS hardware flow control is enabled (D7 command), the CTS pin (pin 12) is de-

asserted (high) when entering sleep to indicate that serial data should not be sent to the

module. The module will not respond to serial or RF data when it is sleeping.

Applications that utilize the UART are encouraged to observe CTS flow control in any of

the sleep modes. When the XBee wakes from sleep with flow control enabled, the CTS

pin is asserted (low).

If using pin sleep, D8 (mapped to XBee pin 9) must be configured for SleepRq (See

command reference table) to put the module to sleep. Otherwise, there is no sleep at

all, meaning the module will always stay awake in full power mode. When D8 is

configured for SleepRq, the host should drive pin 9 high to put the module to sleep, and

the host should drive pin 9 low to wake up the module.

Using Sleep Mode: SPI

When the serial interface is SPI, pin 19 is used as an attention indicator to tell the SPI

master when it has data to send. Since SPI only operates in API mode, it will assert

SPI/nATTN and send out a modem status indicator after initialization. The host can use

this to know when the radio is ready to operate as a SPI slave. Since the function of pin

XBee® Wi-Fi RF Modules

19 is to indicate when the XBee has data to send to the host, it may legitimately be

driven high or low while the module is awake.

When using the SPI, either SleepRq or SPI_nSSEL may be used for pin sleep. If D8 is

configured as a peripheral (1), then it will be used for pin sleep. If not, and SPI_nSSEL is

configured as a peripheral (which it must be to enable SPI operation), then SPI_nSSEL is

used for pin sleep.

Using SPI_nSSEL for pin sleep has the advantage of requiring one less physical pin

connection to implement pin sleep on SPI. It has the disadvantage of putting the radio

to sleep whenever the SPI master negates SPI_nSSEL, even if that wasn't the intent.

Therefore, if the user can control SPI_nSSEL, whether or not data needs to be

transmitted, then sharing the pin may be a good option. It makes the SleepRq pin

available for another purpose, or it simply requires one less pin to the SPI interface.

Sleep Options

AP Associated Sleep

This option allows the module to sync up with beacons sent from the AP which contains

the DTIM (Delivery Traffic Indication Message). The DTIM indicates when broadcast and

multicast data will be sent on the network. This property is configured on the AP and is

typically configured as the number of beacons between each beacon with DTIM. The

current draw in associated sleep mode varies significantly. When the module is awake it

draws approximately 100 mA. When it is asleep, it draws approximately 2 mA. Total

current draw increases when the DTIM rate is higher and it decreases when the DTIM

rate is lower on the access point.

The sleep modes are described as follows with this option enabled.

Pin Sleep Mode

The module remains associated to the AP and will wake based on the period of the

DTIM. This wake period will not be seen by the local host unless data has been sent to

the module. In this case the module will ‘wake’ by asserting the appropriate I/O lines.

The local UART host is then required to de-assert the sleep pin (either SleepRq

SPI_nSSEL) to awaken the module. Once the sleep pin is de-asserted the module will

then send the data to the host.

SPI operation is similar except that the radio asserts nATTN when data becomes

available and then the local host is expected to assert SPI_nSSEL and to provide a clock

until the data available is sent out.

When the local UART host needs to send data it de-asserts SleepRq. Once the

appropriate status I/O lines are asserted (CTS and/or On/nSleep) the module is ready to

accept data. However data will be queued and not sent until the next DTIM.

When the local SPI host needs to send data it asserts SPI_nSSEL. If SPI_nSSEL is being

used for pin sleep, asserting SPI_nSSEL is enough to awaken the module to receive the

XBee® Wi-Fi RF Modules

incoming data. But, if SleepRq is being used to control sleep, then SPI_nSSEL must be

asserted and SleepRq must be de-asserted to awaken the module to receive the data.

This wakes up the module, which will then accept the incoming data. However data will

be queued and not sent until the next DTIM.

Cyclic Sleep Mode

The module remains associated to the AP and will sleep based on the SP parameter.

After SP expires, the module will awaken for 30 milliseconds to check for data from the

AP and to allow the host to send data or commands. This time is factored in as part of

the overall ST time. When data is received or sent within 30 ms, the module will remain

awake for ST time and any further activity will not restart this time. When no data is

received or sent within 30 ms, the module will resume sleeping immediately, without

waiting for ST time-out.

Deep Sleep (Non-Associated Sleep)

This option allows the Wi-Fi circuitry to be powered down resulting in the lowest sleep

current (about 6 µA) but at the expense of losing packets received during the time the

module is asleep. This is because the access point will behave like the module is in full

power mode while it is asleep and it will not hold back packets until the module wakes

up.

Pin Sleep Mode

In this mode when SleepRq is asserted the module will power down the Wi-Fi circuitry.

When SleepRq is de-asserted the Wi-Fi circuitry is powered up. This causes the module

to associate to the access point for each wake event. If the module was associated

when it went to sleep, it should be ready to transmit data as soon as the module

indicates that it is awake, which occurs within one millisecond of the pin wake up. If

not, a new association could take much longer to complete, especially if DHCP is used.

Cyclic Sleep Mode

In this mode the module will enter and exit sleep based on the SP, ST, and SA

commands. SP specifies the sleep time and ST specifies the wake time of the module

after it is associated. SA specifies the maximum time to wait for association before

starting the ST timer. If SA expires before the association process completes, then the

module will sleep anyway. When it awakens from this state, then it will start the SA

timer again to seek to establish association.

Under normal conditions, SA is used for a time out for the first association following

reset and ST is used for short wake cycles thereafter. To conserve battery power, SA

should be long enough for association and ST should be as short as possible for the

application.

Sampling Data Using Sleep Modes

Data can be sampled when waking from any sleep mode by enabling an ADC or digital

input and setting IR appropriately with respect to ST to obtain the desired number of

samples.

XBee® Wi-Fi RF Modules

Sample Rate (ATIR)

If multiple samples are wanted during the wake period then IR can be used. This will

provide ST/IR+1 samples. Each sample will be sent separately.

Wake Host

Wake host parameter (ATWH) delays UART and sample data from being initiated until

the timer has expired. This allows the host to wake up before receiving data or a sensor

to power up before an I/O sample is taken.

Digital outputs and special function outputs such as ON_SLEEP and CTS are not affected

by WH. This is to allow these signals to be used to wake up devices.

Note that for deep sleep, both WH must be expired and the module must be associated

before I/O samples are taken.

XBee® Wi-Fi RF Modules

6. Advanced Application Features

XBee Analog and Digital I/O Lines

XBee Wi-Fi firmware supports a number of analog and digital I/O pins that are

configured through software commands. Analog and digital I/O lines can be set or

queried. The following table lists the configurable I/O pins and the corresponding

configuration commands.

Pin name(s) Module pin AT cmd Command Range

DIO12/SPI_MISO 4 P2 0,1,3-5

DIO10/PWM0 6 P0 0,2-5

DIO11/PWM1

0,2-5

DIO8/nDTR/SLEEP_RQ 9 D8 0,1,3-5

DIO4/SPI_MOSI 11 D4 0-5

DIO7/nCTS 12 D7 0,1,3-7

DIO9/ON_nSLEEP

0,1,3-5

DIO5/ASSOCIATE 15 D5 0,1,3-5

DIO6/nRTS 16 D6 0,1,3-5

DIO3/AD3/SPI_nSSEL 17 D3 0-5

DIO2/AD2/SPI_CLK

0-5

DIO1/AD1/SPI_nATTN 19 D1 0-5

DIO0/AD0 20 D0 0,2-5

I/O Configuration

To enable an analog or digital I/O function on one or more XBee module pin(s), the

appropriate configuration command must be issued with the correct parameter. After

issuing the configuration command, changes must be applied on the module for the I/O

settings to take effect. Pull-up/down resistors can be set for each digital input line using

the PR command. The PR value updates the state of all pull-up/down resistors, and the

PD command determines if a pull-up or pull-down is used. See Chapter 8 for information

on these commands

Pin Command Parameter Description

0 Disabled

1 Peripheral control

2 Analog input or PWM output

3 Data in monitored

4 Data out default low

5 Data out default High

6 RS485 enable low

7 RS485 enable high

>7 Unsupported

XBee® Wi-Fi RF Modules

I/O Sampling

The XBee modules have the ability to monitor and sample the analog and digital I/O

lines. I/O samples can be read locally or transmitted to a remote device to provide

indication of the current I/O line states.

There are three ways to obtain I/O samples, either locally or remotely:

• Queried Sampling

• Periodic Sampling

• Change Detection Sampling.

IO sample data is formatted as shown in the table below

Bytes Name Description

1 Sample Sets Number of sample sets in the packet. (Always set to 1.)

2 Digital Channel mask

Digital IO line on the module.

• bit 0 = DIO0

• bit 1 = DIO1

• bit 2 = DIO2

• bit 3 = DIO3

• bit 4 = DIO4

• bit 5 = DIO5

• bit 6 = DIO6

• bit 7 = DIO7

• bit 8 = DIO8

• bit 9 = DIO9

• bit 10 = DIO10

• bit 11 = DIO11

• bit 12 = DIO12

For example, a digital channel mask of 0x002F means DIO0 1, 2, 3, and

5 are enabled as digital IO.

1 Analog Channel Mask

Indicates which lines have analog inputs enabled for sampling. Each bit

in the analog channel mask corresponds to one analog input channel.

• bit 0 = AD0

• bit 1 = AD1

• bit 2 = AD2

• bit 3 = AD3

• bit 4 = AD4

Variable Sampled Data Set

If any digital IO lines are enabled, the first two bytes of the data set

indicate the state of all enabled digital IO. Only digital channels that

are enabled in the Digital Channel Mask bytes have any meaning in the

sample set. If no digital IO is enabled on the device, these 2 bytes will

be omitted.

Following the digital IO data (if any), each enabled analog channel will

return 2 bytes. The data starts with AD0 and continues sequentially for

each enabled analog input channel up to AD4.

The sampled data set will include 2 bytes of digital I/O data only if one or more I/O lines

on the device are configured as digital I/O. If no pins are configured as digital I/O, these

2 bytes will be omitted.

The digital I/O data is only relevant if the same bit is enabled in the digital I/O mask.

Analog samples are 10 bit values and aligned on a 16 bit boundary. The analog reading is

scaled such that 0x0000 represents 0V, and 0x3FF = VREF. VREF may be either 1.25

volts or 2.5 volts based on the setting of the AV command, where 2.5 volts is the

XBee® Wi-Fi RF Modules

default. The analog inputs on the module are capped at 0x3FF. Analog samples are

returned in order starting with AD0 and finishing with AD4. Only enabled analog input

channels return data as shown in the example below.

To convert the A/D reading to mV, do the following:

AD (mV) = (A/D reading (converted to decimal) * VREF) / 1023 where VREF may be 1250 or 2500

Assuming that AV is set to the default value, the reading in the sample frame represents

voltage inputs of 2385.14 mV (0x3D0) and 713.59 mV (0x124) for AD0 and AD1

respectively.

Queried Sampling

The IS command can be sent to a device locally, or to a remote device using the API

remote command frame (see chapter 8 for details). When the IS command is sent and at

least one I/O line is enabled as an input or an output, the receiving device samples all

enabled digital I/O and analog input channels and returns an I/O sample. When no I/O

line is enabled, IS will return nothing. If IS is sent locally, the I/O sample is sent out the

UART or SPI port. If the IS command was received as a remote command, the I/O sample

is sent over-the-air to the device that sent the IS command.

If the IS command is issued in command mode, the module returns a carriage return-

delimited list containing the above-listed fields. If the IS command is issued in API mode,

the module returns an API command response packet with the I/O data included in the

command data portion of the response frame.

The following table shows an example of the fields in an IS response.

Example Sample AT Response

0x01 [1 sample set]

0x0C0C

[Digital Inputs: DIO 2, 3, 10, 11 selected]

0x03 [Analog Inputs; A/D 0,1]

0x0408 [Digital input states: DIO 3,10 high, DIO 2,11 low]

0x03D0

[Analog input ADIO 0=0x3D0]

0x0124

[Analog input ADIO 1=0x120]

Periodic I/O Sampling

Periodic sampling allows the XBee module to take an I/O sample and transmit it to a

remote device at a periodic rate. The periodic sample rate is set by the IR command. If

IR is set to 0 or there are no active I/O lines, periodic sampling is disabled. For all other

values of IR, data will be sampled after IR milliseconds have elapsed and transmitted to

a remote device. However, the module cannot keep up with transmitting an I/O sample

more often than every three milliseconds. Therefore, when IR is set to 1 or 2, many

samples are lost. The DL command determines the destination address of the I/O

samples. DL can be set to transmit to a network client or another XBee Wi-Fi module.

Only modules with API mode enabled for the serial port can send I/O data samples out

XBee® Wi-Fi RF Modules

their serial port. Network clients will receive the I/O data packet as described in the

XBee IP Services chapter.

IR can be used with sleep. A module will transmit periodic I/O samples at the IR rate

until the ST timer expires, the SleepRq line is asserted, and the device can resume

sleeping. Even if the IR rate is set longer than the ST defined wake time, at least one I/O

sample will still be sent before the module returns to sleep because it sends one

immediately upon wake up. If it is not desired that a sample is sent every wake cycle,

the IF command can be used to configure how many wake cycles should elapse before

sending I/O samples at the IR rate.

Change Detection Sampling

Modules can be configured to transmit a data sample immediately whenever a

monitored digital I/O pin changes state. The IC command is a bitmask that can be used

to set which digital I/O lines should be monitored for a state change. If one or more bits

in IC is set, an I/O sample will be transmitted as soon as a state change is observed in

one of the monitored digital IO lines. Change detection samples are transmitted to the

IPv4 address specified by DL.

I/O Examples

Example 1: Configure the following I/O settings on the XBee

Configure DIO1/AD1 as a digital input with pull-up resistor enabled

Configure DIO2/AD2 as an analog input

Configure DIO4 as a digital output, driving high.

To configure DIO1/AD1 as an input, issue the ATD1 command with a parameter of 3

("ATD13"). To enable pull-up resistors on the same pin, the PR command should be

issued with bit 3 set (e.g. ATPR8, ATPR1FFF, etc.). The ATD2 command should be issued

with a parameter of 2 to enable the analog input ("ATD22"). Finally, DIO4 can be set as

an output, driving high by issuing the ATD4 command with a parameter value of 5

("ATD45").

After issuing these commands, changes must be applied before the module I/O pins will

be updated to the new states. The AC or CN commands can be issued to apply changes

(e.g. ATAC).

General Purpose Flash Memory

The XBee Wi-Fi RF modules provide 160 4096-byte blocks of flash memory which can be

read and written by the user application. This memory provides a non-volatile data

storage area which can be used for a multitude of purposes. Some common uses of this

data storage include: storing logged sensor data, buffering firmware upgrade data for a

host microcontroller, or storing and retrieving data tables needed for calculations

performed by a host microcontroller. The General Purpose Memory (GPM) is also used

to store a firmware upgrade file for over-the-air firmware upgrades of the XBee module

itself.

XBee® Wi-Fi RF Modules

Accessing General Purpose Flash Memory

The GPM of a target node can be accessed from the XBee serial port or from a non-XBee

network client.

Serial port access is done by sending explicit API frames to the MEMORY_ACCESS cluster

ID (0x23) on the DIGI_DEVICE endpoint (0xE6) of the target node. (Explicit API frames

have frame identifier 0x11 and are described in the API Operation section.)

Access from a non-XBee network client is done by sending UDP frames to the target

node on port 0x0BEE. The payload begins with an application header followed by the

GPM header described below. (Refer to the Network Client section of the XBee

Application Service section to learn how to format the application header.)

The following header is used to generate a GPM command. It should be used whether

using serial port access or network client access. For network client access, an

application header needs to precede the GPM header. To keep things simple, this

section is written from the perspective of serial port access, without the application

header. Do not forget to precede each frame with an application header if using a

network client for GPM access.

Byte Offset in

Payload

Number of

Bytes

Field Name General Field Description

0 1 GPM_CMD_ID Specific GPM commands are described below

1 1 GPM_OPTIONS Command-specific option

2 2* GPM_BLOCK_NUM The block number addressed in the GPM

GPM_START_INDEX

The byte index within the addressed GPM block

2* GPM_NUM_BYTES

Then number of bytes in the GPM_DATA field,

or in the case of a READ, the number of bytes

requested

8 Varies GPM_DATA

*Multi-byte parameters should be specified with big-endian byte ordering.

When a GPM command is sent to a radio via a unicast the receiving radio will unicast a

response back to the requesting radio's source endpoint specified in the request packet.

No response is sent for broadcast requests. If the source endpoint is set to the

DIGI_DEVICE endpoint (0xE6) or explicit API mode is enabled on the requesting radio

then a GPM response will be output as an explicit API RX indicator frame on the

requesting node (assuming API mode is enabled.) The format of the response is very

similar to the request packet:

Byte Offset in

Payload

Number of

Bytes

Field Name General Field Description

0 1 GPM_CMD_ID This field will be the same as the request field

1 1 GPM_STATUS Status indicating whether the command was

successful

2 2* GPM_BLOCK_NUM The block number addressed in the GPM

4 2* GPM_START_INDEX The byte index within the addressed GPM block

GPM_NUM_BYTES

Then number of bytes in the GPM_DATA field

8 Varies GPM_DATA

*Multi-byte parameters should be specified with big-endian byte ordering.

XBee® Wi-Fi RF Modules

The following commands exist for interacting with GPM:

PLATFORM_INFO_REQUEST (0x00):

A PLATFORM_INFO_REQUEST frame can be sent to query details of the GPM structure.

Field Name Command –Specific Description

GPM_CMD_ID Should be set to PLATFORM_INFO_REQUEST (0x00).

GPM_OPTIONS

This field is unused for this command. Set to 0.

GPM_BLOCK_NUM

GPM_START_INDEX

GPM_NUM_BYTES

GPM_DATA No data bytes should be specified for this command.

PLATFORM_INFO (0x80):

When a PLATFORM_INFO_REQUEST command request has been unicast to a node, that

node will send a response in the following format to the source endpoint specified in

the requesting frame.

Field Name Command –Specific Description

GPM_CMD_ID

Should be set to PLATFORM_INFO (0x80).

GPM_OPTIONS A 1 in the least significant bit indicates an error occurred. All

other bits are reserved at this time.

GPM_BLOCK_NUM Indicates the number of GPM blocks available.

GPM_START_INDEX Indicates the size of a GPM block in bytes.

GPM_NUM_BYTES The number of bytes in the GPM_DATA field. For this command,

this field will be set to 0.

GPM_DATA

No data bytes should be specified for this command.

Example:

A PLATFORM_INFO_REQUEST sent to a radio with a serial number of

0x0013a200407402AC should be formatted as follows (spaces added to delineate

fields):

7E 001C 11 01 0013A200407402AC FFFE E6 E6 0023 C105 00 00 00 00 0000 0000 0000 24

Assuming all transmissions were successful, the following API packets would be output

the source node's serial interface:

7E 0007 8B 01 FFFE 00 00 00 76

7E 001A 91 0013A200407402AC FFFE E6 E6 0023 C105 C1 80 00 0077 0200 0000 EB

XBee® Wi-Fi RF Modules

ERASE (0x01):

The ERASE command erases (writes all bits to binary 1) one or all of the GPM flash

blocks. The ERASE command can also be used to erase all blocks of the GPM by setting

the GPM_NUM_BYTES field to 0.

Field Name

Command –Specific Description

GPM_CMD_ID Should be set to ERASE (0x01).

GPM_OPTIONS There are currently no options defined for the ERASE command.

Set this field to 0.

GPM_BLOCK_NUM Set to the index of the GPM block that should be erased. When

erasing all GPM blocks, this field is ignored (set to 0).

GPM_START_INDEX

The ERASE command only works on complete GPM blocks. The

command cannot be used to erase part of a GPM block. For this

reason, GPM_START_INDEX is unused (set to 0).

GPM_NUM_BYTES

Setting GPM_NUM_BYTES to 0 has a special meaning. It indicates

that every flash block in the GPM should be erased (not just the

one specified with GPM_BLOCK_NUM). In all other cases, the

GPM_NUM_BYTES field should be set to the GPM flash block size.

GPM_DATA No data bytes should be specified for this command.

ERASE_RESPONSE (0x81):

When an ERASE command request has been unicast to a node, that node will send a

response in the following format to the source endpoint specified in the requesting

frame.

Field Name Command –Specific Description

GPM_CMD_ID Should be set to ERASE_RESPONSE (0x81).

GPM_STATUS A 1 in the least significant bit indicates an error occurred. All

other bits are reserved at this time.

GPM_BLOCK_NUM Matches the parameter passed in the request frame.

GPM_START_INDEX

GPM_NUM_BYTES The number of bytes in the GPM_DATA field. For this command,

this field will be set to 0.

GPM_DATA No data bytes should be specified for this command.

Example:

To erase flash block 42 of a target radio with serial number of 0x0013a200407402ac, an

ERASE packet should be formatted as follows (spaces added to delineate fields):

7E 001C 11 01 0013A200407402AC FFFE E6 E6 0023 C105 00 C0 01 00 002A 0000 0200 37

Assuming all transmissions were successful, the following API packets would be output

the source node's serial interface:

7E 0007 8B 01 FFFE 00 00 00 76

XBee® Wi-Fi RF Modules

7E 001A 91 0013A200407402AC FFFE E6 E6 0023 C105 C1 81 00 002A 0000 0000 39

WRITE (0x02) and ERASE_THEN_WRITE (0x03):

The WRITE command writes the specified bytes to the GPM location specified. Before

writing bytes to a GPM block it is important that the bytes have been erased previously.

The ERASE_THEN_WRITE command performs an ERASE of the entire GPM block

specified with the GPM_BLOCK_NUM field prior to doing a WRITE.

Field Name Command –Specific Description

GPM_CMD_ID Should be set to WRITE (0x02) or ERASE_THEN_WRITE (0x03).

GPM_OPTIONS There are currently no options defined for the ERASE command.

Set this field to 0.

GPM_BLOCK_NUM Set to the index of the GPM block that should be written.

GPM_START_INDEX Set to the byte index within the GPM block where the given data

should be written.

GPM_NUM_BYTES

Set to the number of bytes specified in the GPM_DATA field. Only

one GPM block can be operated on per command. For this

reason, GPM_START_INDEX + GPM_NUM_BYTES cannot be

greater than the GPM block size. It is also important to remember

that the number of bytes sent in an explicit API frame (including

the GPM command fields) cannot exceed the maximum payload

size of the radio. The maximum payload size can be queried with

the NP AT command.

GPM_DATA The data to be written.

WRITE _RESPONSE (0x82) and ERASE_THEN_WRITE_RESPONSE(0x83):

When a WRITE or ERASE_THEN_WRITE command request has been unicast to a node,

that node will send a response in the following format to the source endpoint specified

in the requesting frame.

Field Name Command –Specific Description

GPM_CMD_ID Should be set to WRITE_RESPONSE (0x82) or

ERASE_THEN_WRITE_RESPONSE (0x83).

GPM_STATUS A 1 in the least significant bit indicates an error occurred. All

other bits are reserved at this time.

GPM_BLOCK_NUM Matches the parameter passed in the request frame.

GPM_START_INDEX

GPM_NUM_BYTES The number of bytes in the GPM_DATA field. For this command,

this field will be set to 0.

GPM_DATA No data bytes should be specified for this command.

Example:

To write 15 bytes of incrementing data to flash block 22 of a target radio with serial

number of 0x0013a200407402ac, a WRITE packet should be formatted as follows

(spaces added to delineate fields):

7E 002B 11 01 0013A200407402AC FFFE E6 E6 0023 C105 00 C0 02 00 0016 0000 000F

0102030405060708090A0B0C0D0E0F C5

XBee® Wi-Fi RF Modules

Assuming all transmissions were successful and that flash block 22 was previously

erased, the following API packets would be output the source node's serial interface:

7E 0007 8B 01 FFFE 00 00 00

76 7E 001A 91 0013A200407402AC FFFE E6 E6 0023 C105 C1 82 00 0016 0000 0000 4C

READ (0x04):

The READ command can be used to read the specified number of bytes from the GPM

location specified. Data can be queried from only one GPM block per command.

Field Name

Command –Specific Description

GPM_CMD_ID Should be set to READ (0x04).

GPM_OPTIONS There are currently no options defined for the ERASE command.

Set this field to 0.

GPM_BLOCK_NUM Set to the index of the GPM block that should be read.

GPM_START_INDEX Set to the byte index within the GPM block where the given data

should be read.

GPM_NUM_BYTES

Set to the number of data bytes to be read. Only one GPM block

can be operated on per command. For this reason,

GPM_START_INDEX + GPM_NUM_BYTES cannot be greater than

the GPM block size. It is also important to remember that the

number of bytes sent in an explicit API frame (including the GPM

command fields) cannot exceed the maximum payload size of the

radio. The maximum payload size can be queried with the NP AT

command.

GPM_DATA No data bytes should be specified for this command.

READ _RESPONSE (0x84):

When a READ command request has been unicast to a node, that node will send a

response in the following format to the source endpoint specified in the requesting

frame.

Field Name Command –Specific Description

GPM_CMD_ID Should be set to READ_RESPONSE (0x84).

GPM_STATUS A 1 in the least significant bit indicates an error occurred. All

other bits are reserved at this time.

GPM_BLOCK_NUM Matches the parameter passed in the request frame.

GPM_START_INDEX

GPM_NUM_BYTES The number of bytes in the GPM_DATA field.

GPM_DATA The bytes read from the GPM block specified.

Example:

To read 15 bytes of previously written data from flash block 22 of a target radio with

serial number of 0x0013a200407402ac, a READ packet should be formatted as follows

(spaces added to delineate fields):

7E 001C 11 01 0013A200407402AC FFFE E6 E6 0023 C105 00 C0 04 00 0016 0000 000F 3B

Assuming all transmissions were successful and that flash block 22 was previously

written with incrementing data, the following API packets would be output the source

node's serial interface:

XBee® Wi-Fi RF Modules

7E 0007 8B 01 FFFE 00 00 00 76

7E 0029 91 0013A200407402AC FFFE E6 E6 0023 C105 C1 84 00 0016 0000 000F

0102030405060708090A0B0C0D0E0F C3

FIRMWARE_VERIFY (0x05) and FIRMWARE_VERIFY_AND_INSTALL(0x06):

The FIRMWARE_VERIFY and FIRMWARE_VERIFY_AND_INSTALL commands are used

when remotely updating firmware on a module. Remote firmware upgrades are covered

in detail in the next section. These commands check if the General Purpose Memory

contains a valid over-the-air update file. For the FIRMWARE_VERIFY_AND_INSTALL

command, if the GPM contains a valid firmware image then the module will reset and

begin using the new firmware.

Field Name Command –Specific Description

GPM_CMD_ID Should be set to FIRMWARE_VERIFY (0x05) or

FIRMWARE_VERIFY_AND_INSTALL (0x06).

GPM_OPTIONS There are currently no options defined for the ERASE command.

Set this field to 0.

GPM_BLOCK_NUM

These fields are unused for this command. Set to 0.

GPM_START_INDEX

GPM_NUM_BYTES

GPM_DATA This field is unused for this command.

FIRMWARE_VERIFY _RESPONSE (0x85):

When a FIRMWARE_VERIFY command request has been unicast to a node, that node

will send a response in the following format to the source endpoint specified in the

requesting frame.

Field Name Command –Specific Description

GPM_CMD_ID Should be set to FIRMWARE_VERIFY_RESPONSE (0x85).

GPM_OPTIONS

A 1 in the least significant bit indicates the GPM does not contain

a valid firmware image. A 0 in the least significant bit indicates

the GPM does contain a valid firmware image. All other bits are

reserved at this time.

GPM_BLOCK_NUM

These fields are unused for this command. Set to 0.

GPM_START_INDEX

GPM_NUM_BYTES

GPM_DATA This field is unused for this command.

FIRMWARE_VERIFY _AND_INSTALL_RESPONSE (0x86):

When a FIRMWARE_VERIFY_AND_INSTALL command request has been unicast to a

node, that node will send a response in the following format to the source endpoint

specified in the requesting frame only if the GPM memory does not contain a valid

image. If the image is valid, the module will reset and begin using the new firmware.

XBee® Wi-Fi RF Modules

Field Name Command –Specific Description

GPM_CMD_ID Should be set to FIRMWARE_VERIFY_AND_INSTALL_RESPONSE

(0x86).

GPM_OPTIONS A 1 in the least significant bit indicates the GPM does not contain

a valid firmware image. All other bits are reserved at this time.

GPM_BLOCK_NUM

These fields are unused for this command. Set to 0.

GPM_START_INDEX

GPM_NUM_BYTES

GPM_DATA This field is unused for this command.

Example:

To verify a firmware image previously loaded into the GPM on a target radio with serial

number of 0x0013a200407402ac, a FIRMWARE_VERIFY packet should be formatted as

follows (spaces added to delineate fields):

7E 001C 11 01 0013A200407402AC FFFE E6 E6 0023 C105 00 00 05 00 0000 0000 0000 1F

Assuming all transmissions were successful and that the firmware image previously

loaded into the GPM is valid, the following API packets would be output the source

node's serial interface:

7E 0007 8B 01 FFFE 00 00 00 76

7E 001A 91 0013A200407402AC FFFE E6 E6 0023 C105 C1 85 00 0000 0000 0000 5F

Working with Flash Memory

When working with the General Purpose Memory, the user should be aware of a

number of limitations associated with working with flash memory:

• Flash memory write operations are only capable of changing binary 1's to binary

0's. Only the erase operation can change binary 0's to binary 1's. For this reason

it is usually necessary to erase a flash block before performing a write

operation.

• A flash memory block must be erased in its entirety when performing an erase

operation. A block cannot be partially erased.

• Flash memory has a limited lifetime. The flash memory on which the GPM is

based is rated at 20,000 erase cycles before failure. Care must be taken to

ensure that the frequency of erase/ write operations allows for the desired

product lifetime. Digi's warranty will not cover products whose number of erase

cycles has been exceeded.

• Over-the-Air firmware upgrades (described in the next section) require the

entire GPM be erased. Any user data stored in the GPM will be lost during an

over-the-air upgrade.

Over-the-Air Firmware Upgrades

The XBee Wi-Fi RF modules provide two methods of updating the firmware on the

module. Firmware can be updated locally via X-CTU (a free testing and configuration

XBee® Wi-Fi RF Modules

utility provided by Digi) using the radio's serial port interface. Firmware can also be

updated using the radios' RF interface (Over-the-Air Updating.)

The over-the-air firmware upgrading method provided is a robust and versatile

technique which can be tailored to many different networks and applications. It has

been engineered to be reliable and minimize disruption of normal network operations.

There are three phases of the over-the-air upgrade process: distributing the new

application, verifying the new application, and installing the new application. In the

following section the node which will be upgraded will be referred to as the target node.

The node providing the update information will be referred to as the source node. In

most applications the source node will be locally attached to a PC running update

software.

Distributing the New Application

The first phase of performing an over-the-air upgrade on a module is transferring the

new firmware file to the target node. The new firmware image should be loaded in the

target node's GPM prior to installation XBee Wi-Fi RF modules use an encrypted binary

(.ebin) file for both serial and over-the-air firmware upgrades. These firmware files are

available on the Digi Support website.

The contents of the .ebin file should be sent to the target radio using general purpose

memory WRITE commands. The entire GPM should be erased prior to beginning an

upload of an .ebin file. The contents of the .ebin file should be stored in order in the

appropriate GPM memory blocks. The number of bytes that are sent in an individual

GPM WRITE frame is flexible and can be catered to the user application.

Example:

If the size of the .ebin file is 217,088 bytes, then it could be sent to the module in 1024

byte blocks as follows:

CPT_BLOCK_NUM GPM_START_INDEX GPM_NUM_BYTES .ebin bytes

0 0

1024

0 to 1023

0 1024

1024

1024 to 2047

0 2048 1024 2048 to 3071

0 3072

1024

3071 to 4095

1 0 1024 4096 to 5119

1 1024 1024 5120 to 6143

- - - -

52 1024 214,016 to

215,039

52 2048 215,040 to

216,063

52 3072

216,064 to

217,087

XBee® Wi-Fi RF Modules

Verifying the New Application

For an uploaded application to function correctly every single byte from the .ebin file

must be properly transferred to the GPM. To guarantee that this is the case GPM VERIFY

functions exist to ensure that all bytes are properly in place. The FIRMWARE_VERIFY

function reports whether or not the uploaded data is valid. The

FIRMWARE_VERIFY_AND_INSTALL command will report if the uploaded data is invalid. If

the data is valid it will begin installing the application. No installation will take place on

invalid data.

Installing the Application

When the entire .ebin file has been uploaded to the GPM of the target node a

FIRMWARE_VERIFY_AND_INSTALL command can be issued. Once the target receives

the command it will verify the .ebin file loaded in the GPM. If it is found to be valid then

the module will install the new firmware. This installation process can take up to 8

seconds. During the installation the module will be unresponsive to both serial and RF

communication. To complete the installation the target module will reset. AT parameter

settings which have not been written to flash (using the WR command) will be lost.

Things to Remember

• The firmware upgrade process requires that the module resets itself. Because of

this reset parameters which have not been written to flash will be lost after the

reset. To avoid this, write all parameters with the WR command before doing a

firmware upgrade.

• Because explicit API Tx frames can be addressed to a local node (accessible via

the SPI or UART) or a remote node (accessible over the RF port) the same

process can be used to update firmware on a module in either case.

XBee® Wi-Fi RF Modules

7. API Operation

As an alternative to Transparent Operation, API (Application Programming Interface)

Operations are available. API operation requires that communication with the module

be done through a structured interface (data is communicated in frames in a defined

order). The API specifies how commands, command responses and module status

messages are sent and received from the module using a UART or SPI Data Frame.

Please note that Digi may add new API frames to future versions of firmware, so

please build into your software interface the ability to filter out additional API frames

with unknown Frame Types.

API Frame Specifications

Two API modes are supported and both can be enabled using the AP (API Enable)

command. Use the following AP parameter values to configure the module to operate in

a particular mode:

• AP = 1: API Operation

• AP = 2: API Operation (with escaped characters)

API Operation (AP parameter = 1)

When this API mode is enabled (AP = 1), the UART or SPI data frame structure is defined

as follows:

UART or SPI Data Frame Structure:

Any data received prior to the start delimiter is silently discarded. If the frame is not

received correctly or if the checksum fails, the module will reply with a module status

frame indicating the nature of the failure.

API Operation-with Escape Characters (AP parameter = 2)

When this API mode is enabled (AP = 2), SPI mode is not supported and the UART frame

structure is defined as follows:

UART Data Frame Structure - with escape control characters:

Escape characters

When sending or receiving a UART data frame, specific data values must be escaped

(flagged) so they do not interfere with the data frame sequencing. To escape an

XBee® Wi-Fi RF Modules

interfering data byte, insert 0x7D and follow it with the byte to be escaped XOR’d with

0x20.

Data bytes that need to be escaped:

• 0x7E – Frame Delimiter

• 0x7D – Escape

• 0x11 – XON

• 0x13 – XOFF

Example - Raw UART Data Frame (before escaping interfering bytes):

0x7E 0x00 0x02 0x23 0x11 0xCB

0x11 needs to be escaped which results in the following frame:

0x7E 0x00 0x02 0x23 0x7D 0x31 0xCB

Note: In the above example, the length of the raw data (excluding the checksum) is

0x0002 and the checksum of the non-escaped data (excluding frame delimiter and

length) is calculated as: 0xFF - (0x23 + 0x11) = (0xFF - 0x34) = 0xCB.

Length

The length field has a two-byte value that specifies the number of bytes that will be

contained in the frame data field. It does not include the checksum field.

Framed Data

Frame data of the UART or SPI data frame forms an API-specific structure as follows:

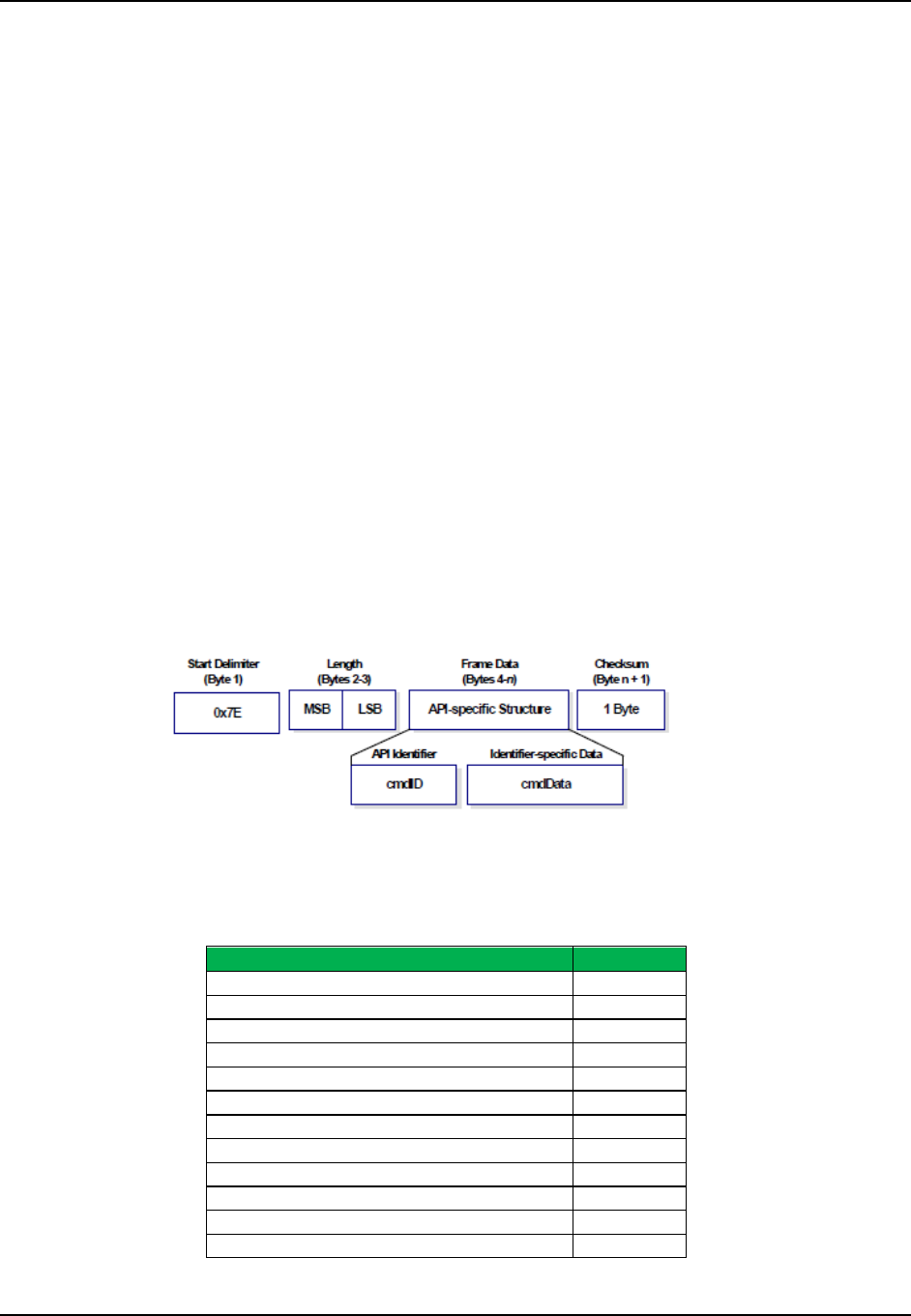

UART or SPI Data Frame & API-specific Structure:

The cmdID frame (API-identifier) indicates which API messages will be contained in the

cmdData frame (Identifier-specific data). Note that multi-byte values are sent big

endian. The XBee modules support the following API frames:

API Frame Names and Values

API Frame Names

API ID

Tx64 Request 0x00

AT Command 0x08

AT Command - Queue Parameter Value

0x09

Remote Command Request 0x07

TX IPv4

0x20

Rx64 Indicator 0x80

AT Command Response 0x88

TX Status 0x89

Modem Status 0x8A

IO Data Sample Rx Indicator 0x8F

Remote Command Response

0x87

RX IPv4 0xB0

XBee® Wi-Fi RF Modules

Checksum

To test data integrity, a checksum is calculated and verified on non-escaped data.

To calculate: Not including frame delimiters and length, add all bytes keeping only the

lowest 8 bits of the result and subtract the result from 0xFF.

To verify: Add all bytes (include checksum, but not the delimiter and length). If the

checksum is correct, the sum will equal 0xFF.

API Examples

Example: Create an API AT command frame to configure an XBee baud rate to 230,400

(set BD to 0x08). The frame should look like (in hex):

7E 00 05 08 01 42 44 08 68

Where:

0x0005 = length excluding checksum

0x08 = AT Command API frame type

0x01 = Frame ID (set to non-zero value for transmit status)

0x4244 = AT Command ('BD')

0x08 = value to set command to

0x68 = Checksum

The checksum is calculated as [0xFF - (0x08 + 0x01 + 0x42 + 0x44 + 0x08)]

Example: Send a remote command to a module who’s IP address is 192.168.0.103 (C0

A8 00 67) to set DIO1/AD1 as a digital input (D1=3) and apply changes to force the IO

update. The API remote command frame should look like (in hex):

7E 00 0E 07 01 00 00 00 00 C0 A8 01 64 02 44 31 03 B0

Where:

0x000E = length (14 bytes excluding checksum)

0x07 = Remote Command API frame type

0x01 = Frame ID

0x00000000 C0A80067 = Remote address (Pad first 4 bytes with 00)

0x02 = Apply Changes (Remote Command Options)

0x4431 = AT command ('D1')

0xB0 = Checksum

API UART and SPI Exchanges

AT Commands

The following image shows the API frame exchange that takes place at the UART or SPI

when sending an AT command request to read or set a module parameter. The

response can be disabled by setting the frame ID to 0 in the request.

XBee® Wi-Fi RF Modules

Transmitting and Receiving RF Data

The following image shows the API exchanges that take place at the UART or SPI when

sending RF data to another device. The transmit status frame is always sent at the end

of a data transmission unless the frame ID is set to 0 in the transmit request. If the

packet cannot be delivered to the destination, the transmit status frame will indicate

the cause of failure. The received data frame (0x80 or 0xB0) is set by the AP command.

Remote AT commands

The following image shows the API frame exchanges that take place at the UART or SPI

when sending a remote AT command. A remote command response frame is not sent

out the UART or SPI if the remote device does not receive the remote command.

XBee® Wi-Fi RF Modules

Supporting the API

Applications that support the API should make provisions to deal with new API frames

that may be introduced in future releases. For example, a section of code on a host

microprocessor that handles received serial API frames (sent out the module's DOUT

pin) might look like this:

void XBee_HandleRxAPIFrame(_apiFrameUnion *papiFrame){

switch(papiFrame->api_id){

case RX_RF_DATA_FRAME:

//process received RF data frame break;

case RX_IO_SAMPLE_FRAME:

//process IO sample frame break;

default:

//Discard any other API frame types that are not being used break;

}

XBee® Wi-Fi RF Modules

API Frames

The following sections illustrate the types of frames encountered while using the API.

TX (Transmit) Request: 64-Bit

Frame Type: 0x0

This frame type uses the XBee Application Service. This command allows for software

compatibility with other XBee module such as the 802.15.4 module.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length MSB 1 0x00 Number of bytes between the length and the

checksum

LSB 2 0x0D

API Frame

Specific Data

API Frame

Identifier 3 0x00

Frame ID 4 0x01

64-Bit

Destination

Address

0x00

Align IP address to low 32-bits of the field. The

other bytes set to 0. IP address is in hex. The

address in this example is 192.168.0.100

0x00

0xC0

0xA8

0x00

0x64

TX Options 13 0x00

0x01 – Disable ACK

All other bits must be set to 0.

Data 14 0x1516 Max is 1392 bytes. Data will be sent to the XBee

application service port.

Checksum 0xD9 0xFF minus the 8 bit sum of bytes from offset 3 to

this byte.

XBee® Wi-Fi RF Modules

AT Command

Frame Type: 0x08

Used to query or set module parameters on the local device. This API command applies

changes after executing the command. (Changes made to module parameters take

effect once changes are applied.) The API example below illustrates an API frame when

modifying the NI parameter value of the module.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length MSB 1 0x00 Number of bytes between the length and the

checksum

LSB 2 0x05

API Frame

Specific

Data

API Frame Identifier 3 0x08

Frame ID 4 0x01

AT Command

MSB 5 0x4E(N) Command Name - Two ASCII characters that identify

the AT command

LSB 6 0x49(I)

Parameter Value - -

If present, indicates the requested parameter value

to set the given register. If no characters present,

Checksum 7 0x5E 0xFF minus the 8 bit sum of bytes from offset 3 to

this byte.

XBee® Wi-Fi RF Modules

AT Command-Queue Parameter Value

Frame Type: 0x09

This API type allows module parameters to be queried or set. In contrast to the “AT Command”

API type, new parameter values are queued and not applied until either the “AT Command”

(0x08) API type or the AC (Apply Changes) command is issued. Register queries (reading

parameter values) are returned immediately.

Example: Send a command to change the baud rate (BD) to 115200 baud, but don't apply

changes yet. (Module will continue to operate at the previous baud rate until changes are

applied.)

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length MSB 1 0x00

Number of bytes between the length and the checksum

LSB 2 0x05

API Frame

Specific Data

API Frame

Identifier 3 0x09

Frame ID 4 0x01

AT Command

MSB 5 0x42 (B) Command Name - Two ASCII characters that identify the

AT command

LSB 6 0x44 (D)

Parameter Value 7 0x07

If present, indicates the requested parameter value to set

the given register. If no characters present, register is

queried.

Checksum 8 0x68 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

Note: In this example, the parameter could have been sent as a zero-padded 2-byte or

4-byte value.

XBee® Wi-Fi RF Modules

Remote AT Command Request

Frame Type: 0x07

Used to query or set module parameters on a remote device. For parameter changes on

the remote device to take effect, changes must be applied, either by setting the apply

changes options bit, or by sending an AC command to the remote.

Example: Send a remote command to query the DL register on a remote device. In this example,

the IP address of the remote is 192.168.0.100.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length

MSB 1 0x00

Number of bytes between the length and the checksum

LSB 2 0x0D

API Frame

Specific

Data

API Frame

Identifier 3 0x07

Frame ID 4 0x01

64-Bit

Destination

Address

5 0x00

Align IP address to low 32-bits of the field. The other bytes

set to 0. IP address is in hex. The address in this example is

192.168.0.100

6 0x00

7 0x00

8 0x00

9 0xC0

10 0xA8

11 0x00

12 0x64

Command

Options 13 0x02

0x02 – Apply changes on the remote. If not set then the AC

command must be sent or the last remote command sent

must set this option.

Command

MSB 14 0x44(D) Command Name - Two ASCII characters that identify the

AT command

LSB 15 0x4C(L)

Parameter

Value -

If present, indicates the requested parameter value to set

the given register. If no characters present, register is

queried.

Checksum 16 0x99 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee® Wi-Fi RF Modules

Transmit (TX) Request: IPv4

Frame Type: 0x20

This frame type utilizes the serial data service. The frame gives greater control to the

application over the IP setting for the data.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length MSB 1 0x00

Number of bytes between the length and the checksum

LSB 2 0x11

API Frame

Specific

Data

API Frame

Identifier 3 0x20

Frame ID 4 0x01 Set to a value that will be passed back in the Tx Status frame.

0 disables the Tx Status frame.

IPv4 32 bit

Destination

Address

MSB 5 0xC0

Use 0xFFFFFFFF for broadcast when protocol is UDP. The

address in the example is for a destination of 192.168.0.100

6 0xA8

7 0x00

8 0x64

16 Bit

Destination

Port

MSB 9 0x26

UDP or TCP port number

LSB 10 0x16

16 bit Source

Port

MSB 11 0x26

UDP or TCP port number

To send a UDP packet, this must match the port number of

the listening port as specified by C0.

To send a TCP packet on a new connection, this must be 0.

LSB 12 0x16

Protocol 13 0x00 0 = UDP, 1= TCP - Protocol use for the transmitted data

Transmit

Options

Bitfield

14 0x00

Bit field: BIT 1 =

1 - Terminate socket after tx complete

0 - Leave socket open (use TCP timeout).

Ignore bit for UDP packets. All other bits are reserved and

should be 0.

RF Data

15 0x48(‘H’)

Up to 1400 bytes of data

16 0x65(‘e’)

17 0x6C(‘l’)

18 0x6C('l’)

19 0x6F('o')

Checksum 20 0xA6 0xFF minus the 8 bit sum of bytes from offset 3 to this byte.

XBee® Wi-Fi RF Modules

Rx (Receive) Packet: 64-bit

Frame Type: 0x80

This frame type is used by XBee when RF data is received using the XBee application

service. It allows for software compatibility with other XBee modules such as 802.15.4.

An example of this frame type is given below:

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length

MSB 1 0x00 Number of bytes between the length and the

checksum

LSB 2 0x10

API Frame

Specific

Data

API Frame

Identifier 3 0x80

64-Bit

Source

Address

4 0x00

Align IP address to low 32-bits of the field. The other

bytes set to 0. IP address is in hex. The example uses

address 192.168.0.103

5 0x00

6 0x00

7 0x00

8 0xC0

9 0xA8

10 0x00

11 0x67

RSSI 12 0x2E RSSI in terms of dBm above sensitivity (link margin)

Options 13 0x00 None currently defined

RF Data

14 0x48 ‘H’

Up to 1392 bytes of data

15 0x65 ‘e’

16 0x6C ‘l’

17 0x6C ‘l’

18 0x6F ‘o’

Checksum 19 0x8E 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee® Wi-Fi RF Modules

AT Command Response

Frame Type: 0x88

In response to an AT Command message, the module will send an AT Command

Response message. Some commands will send back multiple frames (for example, the

AS (Active Scan) command).

Example: Suppose the BD parameter is changed on the local device with a frame ID of

0x01. If successful (parameter was valid), the response below would be received.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length MSB 1 0x00

Number of bytes between the length and the checksum

LSB 2 0x05

API Frame

Specific Data

API Frame

Identifier 3 0x88

Frame ID 4 0x01

Command

MSB 5 0x42 (B) Command Name - Two ASCII characters that identify the

AT command

LSB 6 0x44 (D)

Status 0x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

Parameter

Value 7 Register data in binary format. If the register was set, then

this field is not returned, as in this example.

Checksum 8 0xF0 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee® Wi-Fi RF Modules

Modem Status

Frame Type: (0x8A)

RF module status messages are sent from the module in response to specific conditions.

Example: The following API frame is returned when a module is powered on in API

mode.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length MSB 1 0x00

Number of bytes between the length and the checksum

LSB 2 0x02

API Frame

Specific Data

API Frame

Identifier 3 0x8A

Status 4 0x00

0 = Hardware reset or power up

1 = Watchdog timer reset

2 = Joined

3 = No longer joined to access point

4 = IP configuration error

Whenever the most significant bit of the Status byte is set,

the WiFi transceiver is reporting a problem.

These are the most likely modem status codes from the

WiFi transceiver:

0x82 = Send or join command issued without first

connecting from access point

0x83 = Access point not found

0x84 = PSK not configured

0x87 = SSID not found

0x88 = Failed to join with security enabled

0x8A = Invalid channel

0x8E = Failed to join access point

Checksum 5 0x75 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

Note: New modem status codes may be added in future firmware releases.

XBee® Wi-Fi RF Modules

Transmission Status

Frame Type: (0x89)

RF transmission status messages are sent from the module in response to transmission

attempts.

Example: The following API frame is returned when a successful transmission occurs on

an API transmission using frame ID 01.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length

MSB 1 0x00

Number of bytes between the length and the checksum

LSB 2 0x03

API Frame

Specific Data

API Frame

Identifier 3 0x89

Frame ID 4 0x01

Identifies the frame for which status is being reported.

This number corresponds with the Frame ID provided in

the transmission. If that frame ID was 0, then this frame

will not be generated.

Status 5 0x00

0x00 = Success

0x03 = Transmission was purged because it was

attempted before stack was completely up.

0x04 = Physical error occurred on the interface with the

WiFi transceiver.

0x21 = TX64 transmission timed out awaiting an

acknowledgement from the remote device.

0x32 = Resource Error. Either buffers or sockets were

depleted, preventing a transmission from occurring.

0x74 = Message not sent because it was too long

0x76 = Attempt to create a client socket failed

0x77 = TCP connection to given IP address and port

doesn't exist. Source port is non-zero so that a new

connection is not attempted.

0x78 = Source port on a UDP transmission doesn't match a

listening port on the transmitting module.

Checksum 6 0x75

0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

Note: New transmission status codes may be added in future firmware releases.

XBee® Wi-Fi RF Modules

IO Data Sample RX Indicator

Frame Type: 0x8F

When the module receives an IO sample frame from a remote device, it sends the

sample out the UART or SPI using this frame type. Only modules running API mode will

be able to receive IO samples.

Example: The following is the IO sample response from a radio at IP address

192.168.0.103 reporting one active DIO (DIO8) and one active analog input (AN1).

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length

MSB 1 0x00 Number of bytes between the length and the

checksum

LSB 2 0x13

API Frame

Specific

Data

API Frame

Identifier 3 0x8F

64-Bit

Source

Address

4 0x00

Align IP address to low 32-bits of the field. The other

bytes set to 0. IP address is in hex. The example uses

address 192.168.0.103

5 0x00

6 0x00

7 0x00

8 0xC0

9 0xA8

10 0x00

11 0x67

RSSI in

terms of

link margin

12 0x2E

Receive

Options 13 0x00 None currently defined

Number of

samples 14 0x01 Number of sample sets included in the payload.

(Always set to 1)

Digital

Channel

Mask*

MSB 15 0x01 Bitmask field that indicates which digital IO lines on

the remote have sampling enabled (if any). In this

example DIO8 is active.

LSB 16 0x00

Analog

Channel

Mask**

17 0x81

Bitmask field that indicates which analog IO lines on

the remote have sampling enabled (if any). The most

significant bit signals that the Vcc value is included in

the frame. In this example Analog input 1 and Vcc are

active.

Digital

Samples (if

included)

MSB

18 0x00

If the sample set includes any digital IO lines (Digital

Channel Mask > 0), these two bytes contain samples

for all enabled digital IO lines. DIO lines that do not

have sampling enabled return 0. The bits in these 2

bytes map the same as they do in the Digital Channels

Mask field. In this example, DIO8 has value 0.

LSB 19 0x00

Analog

Sample

MSB

20 0x03

If the sample set includes any analog input lines

(Analog Channel Mask > 0), each enabled analog input

returns a 2-byte value indicating the A/D

measurement of that input. Analog samples are

ordered sequentially from DIO0/AD0 to DIO3/AD3, to

the supply voltage.

LSB 21 0xB5

Checksum 22 0x38 0xFF - the 8 bit sum of bytes from offset 3 to this byte.

XBee® Wi-Fi RF Modules

Remote Command Response

Frame Type: 0x87

If a module receives a remote command response RF data frame in response to a

Remote AT Command Request, the module will send a Remote AT Command Response

message out the UART or SPI.

Example: If a remote command is sent to a remote device with an IP address of

192.168.0.103 to set the D1 parameter to 3 (digital input), the response is shown in the

example API frame in the table below.

Frame Fields Offset Example Description

API Packet

Start

Delimiter

0 0x7E

Length MSB 1 0x00

Number of bytes between the length and the checksum

LSB 2 0x0D

API Frame

Specific

Data

API Frame

Identifier 3 0x87

Frame ID 4 0x01

64-Bit

Responder

Address

5 0x00

Align IP address to low 32-bits of the field. The other bytes

set to 0. Value is in hex. In this example the IP address is

192.168.0.103

6 0x00

7 0x00

8 0x00

9 0xC0

10 0xA8

11 0x00

12 0x67

Command

MSB 13 0x44 (D)

Command Name - Two ASCII characters that identify the

AT command

LSB 14 0x31 (1)

Status 15 0x00

0 = OK

1 = ERROR

2 = Invalid Command

3 = Invalid Parameter

4 = Tx Failure

Parameter

Value - If present, indicates value of the requested parameter. If

not present, this is not a response to a query command.

Checksum 16 0x33 0xFF minus the 8 bit sum of bytes from offset 3 to this

byte.

XBee® Wi-Fi RF Modules

RX (Receive) Packet: IPv4

Frame Type: 0xB0

This frame is used by XBee when RF data is received using the Serial Data service on the

port defined by the C0 command.

Example: When a module in API mode receives an IPv4 transmission, it will produce an

RX notification (0xB0) and send it out the UART or SPI. This example is the response to a

UDP transmission to IP address 192.168.0.103 with data ‘Hello’ from the source address

192.168.0.104.

Frame Fields Offset Example Description

API Packet

Start

Delimiter 0 0x7E

Length MSB 1 0x00 Number of bytes between the length and the

checksum

LSB 2 0x10

API Frame

Specific Data

API Frame

Identifier 3 0xB0

IPv4 32 bit

Source

Address

MSB 4 0xC0

The address in the example is for a source

address of 192.168.0.104

5 0xA8

6 0x00

7 0x68

16 Bit

Destination

Port

MSB 8 0x26

Same value as the C0 command.

LSB 9 0x16

16 bit

Source Port

MSB 10 0x26

LSB 11 0x16

Protocol MSB 12 0x00 0 = UDP, 1= TCP - Protocol use for the

transmitted data

Status 13 0x00 Reserved

RF Data

14 0x48 'H'

Up to 1400 bytes of data

15 0x65 'e'

16 0x6C 'l'

17 0x6C 'l'

18 0x6F 'o'

Checksum 19 0x13 0xFF minus the 8 bit sum of bytes from offset

3 to this byte.

XBee® Wi-Fi RF Modules

8. XBee Command Reference Tables

Addressing

Command Name and Description Parameter Range Default

Destination Address Low. Set/Get the 32 bits of the IPv4 destination address.

Using AT command mode this value is entered using dotted notation

(example 192.168.0.100).

0.0.0.0 – 255.255.255.255 255.255.255.255

MY IP Network Address. Read the 32-bit network address of the module when

using DHCP. Set/Read values when using static IP address.

0.0.0.0 – 255.255.255.255

0.0.0.0

MK IP Address Mask. This command is read only when DHCP is enabled. 0.0.0.0 – 255.255.255.255 0.0.0.0

Gateway IP address. This command is read only when DHCP is enabled.

0.0.0.0 – 255.255.255.255 0.0.0.0

SH Serial Number High. Read the high 16 bits of the module's unique 48-bit

address.

0 - 0xFFFFFFFF [read-only] factory-set

SL Serial Number Low. Read the low 32 bits of the module's unique 48-bit

address.

0 - 0xFFFFFFFF [read-only] factory-set

Node Identifier. Stores a string identifier. The register only accepts printable

ASCII data. In AT Command Mode, a string cannot start with a space. A

carriage return ends the command. Command will automatically end when

maximum bytes for the string have been entered.

20-Byte printable ASCII

string

ASCII space

character (0x20)

DE Destination Port. Set/Get destination UDP/TCP port value. 0 - 0xFFFF 0x2616

Serial Communication Service Port.

Set/Get port number used to provide the

serial communication service. Data sent to this port will come out of the

serial port of the module. The protocol used is set by the IP command when

UART is in transparent mode.

0 – 0xFFFF 0x2616

Device Type Identifier. Stores a device type value. This value can be used to

differentiate different XBee-based devices. Digi reserves the range 0 -

0xFFFFFF.

0-0xFFFFFFFF 0x90000

Maximum RF Payload Bytes. This value returns the maximum number of RF

payload bytes that can be sent in a transmission Note: NP returns a

hexadecimal value. (e.g. if NP returns 0x54, this is equivalent to 84 bytes)

0 - 0xFFFF [read-only]

XBee® Wi-Fi RF Modules

Networking Commands

Command Name and Description Parameter Range Default

ID SSID. Set/read the SSID of the access point, which may be up to 31 ASCII characters Up to 31 bytes of

printable ASCII

NULL

AH Network Type. Set/read network type. Network types supported are Infrastructure

(using an access point) and Adhoc (IBSS).

0-IBSS Joiner

1-IBSS Creator

2 - Infrastructure

IP Protocol. Set/Read the protocol used for the serial communication service. This is

the port used by the C0 command.

0 – UDP

1 - TCP 0

MA IP Addressing Mode. Set / read the IP addressing mode.

0 – DHCP

1 – Static 0

TCP timeout. Set/Read the timeout for connection on TCP client sockets. If 0, socket

closes immediately after data sent. 0-0xFFFF [x 100 msec] 0x64

TCP Server Socket Timeout.

Set/Read the timeout for connection on a TCP server

socket. This is a socket whose connection was initiated at the other end. 0 x000A– 0xFFFF *

100 ms.

0x0258

(1 minute)

Security Commands

Command Name and Description Parameter

Range Default

EE Encryption Enable. Set/Read the encryption enable setting.

0 – No security

1 – WPA

2 – WPA2

3 - WEP

Security Key. Set the security key used for WEP, WPA, and WPA2 security. This

command is write only; PK cannot be read.

0 -31-ASCII

characters for WPA

and WPA2,

Either 5 or 13 ASCII

characters should

be used for the WEP

password, based on

the access point key

length (64 or 128

bits respectively).

RF Interfacing Commands

Command Name and Description Parameter

Range Default

PL Power Level. Select/Read the power level at which the RF module transmits

conducted power.

0 – 0 dBm

1 – 5 dBm

2 – 10 dBm

3 – 15 dBm

4 – Max power

Channel

. Read the channel number of the access point or 0xFF if not associated.

Channel can be set when AH is configured for Adhoc creator mode. Note when using

Adhoc mode, not all channels are available in all countries. It is the responsibility of

the installer to use the appropriate channels.

1-0xB [read only]

XBee® Wi-Fi RF Modules

Serial Interfacing

Command Name and Description Parameter

Range Default

AP API Enable. Enable API Mode.

0 = Transparent

mode

1 = API-enabled

2 = API-enabled

(w/escaped control

characters)

AO API Output Options. Indicates the type of frame to output when data is received on

the IP services port

0=ZigBee Rx

1=Explicit Zigbee Rx

2=RX64

2 (RX64)

Interface Data Rate. Set/Read the serial interface data rate for communication

between the module serial port and host. Any value above 0x0A will be interpreted

as an actual baud rate. When a value above 0x0A is sent, the closest interface data

rate represented by the number is stored in the BD register.

1 - 7

(standard baud

rates)

1 = 2400 bps

2 = 4800

3 = 9600

4 = 19200

5 = 38400

6 = 57600

7 = 115200

8 = 230400

9 = 460,800

0xA = 921,600

0X5B9 - 0X5B8D80

(non-standard rates

up to 6mps)

NB Serial Parity. Set/Read the serial parity setting on the module.

0 = No parity

1 = Even parity

2 = Odd parity

SB Stop Bits. Set/read the number of stop bits for the UART. (Two stop bits are not

supported if mark parity is enabled.)

0 = 1 stop bit

1 = 2 stop bits 0

Packetization Timeout. Set/Read number of character times of inter-character

silence required before packetization. Set (RO=0) to transmit characters as they

arrive instead of buffering them into one RF packet . Regardless of how small RO is,

the inter-character silence required to trigger a transmission of the data is 100 usec.

0 - 0xFF

[x character times] 3

FT Flow Control Threshold. De-assert CTS when FT bytes are in the UART receive buffer 0x11 – 0x823 0x7F3

D7 DIO7 Configuration. Select/Read options for the DIO7 line of the RF module.

0 = Disabled

1 = CTS Flow

Control

3 = Digital input

4 = Digital output,

low

5 = Digital output,

high

6 = RS-485 transmit

enable (low enable)

7 = RS-485 transmit

enable (high enable)

D6 DIO6 Configuration. Configure options for the DIO6 line of the RF module.

0 = Disabled

1 = RTS flow control

3 = Digital input

4 = Digital output,

low

5 = Digital output,

high

XBee® Wi-Fi RF Modules

I/O Settings

Command Name and Description Parameter

Range Default

IS Force Sample Forces a read of all enabled digital and analog input lines. - -

IO Sample Rate. Set/Read the IO sample rate to enable periodic sampling. For

periodic sampling to be enabled, IR must be set to a non-zero value, and at least one

module pin must have analog or digital IO functionality enabled (see D0-D8, P0-P2

commands). The sample rate is measured in milliseconds. WARNING: If IR is set to 1

or 2, the module will not keep up and many samples will be lost.

0-0xFFFF (x 1 ms) 0 – no sampling

IO Digital Change Detection. Set/Read the digital IO pins to monitor for changes in

the IO state. IC works with the individual pin configuration commands (D0-D9, P0-P2).

If a pin is enabled as a digital input/output, the IC command can be used to force an

immediate IO sample transmission when the DIO state changes. IC is a bitmask that

can be used to enable or disable edge detection on individual channels. Unused bits

should be set to 0.

0 - 0xFFFF 0

Sample from Sleep Rate. The number of sleep cycles that must elapse between

periodic I/O samples. This allows I/O samples to be taken only during some wake

cycles. During those cycles I/O samples are taken at the rate specified by IR. IR can be

0 which will cause only one sample to be taken.

1-0xFF

(1 gives you a

sample every sleep

cycle)

P0 DIO10 Configuration. Select/Read function for the DIO10 line of the RF module.

0 = Disabled,

2 = PWM0 Output

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

P1 DIO11 Configuration. Select/Read function for the DIO11 line of the RF module.

0 = Disabled

2 = PWM1 Output

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

P2 DIO12 Configuration. Select/Read function for the DIO12 line of the RF module.

0 = Disabled

1 = SPI_MISO

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

P3 DOUT. Enables or disables output on UART port 0 = Disabled

1 = Enabled

P4 DIN. Enables or disables input on UART port 0 = Disabled

1 = Enabled 1

XBee® Wi-Fi RF Modules

Command Name and Description Parameter

Range Default

D0 DIO0/AD0 Configuration. Select/Read function for DIO0/AD0.

0 = Disabled

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

D1 DIO1/AD1 Configuration. Select/Read function for DIO1/AD1

0 - Disabled

1 = SPI Attention

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

D2 DIO2/AD2 Configuration. Select/Read function for DIO2/AD2

0 = Disabled

1 = SPI Clock

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

D3 DIO3/AD3 Configuration. Select/Read function for DIO3/AD3

0 = Disabled

1 = SPI Slave Select

2 = Analog input

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

D4 DIO4 Configuration. Select/Read function for DIO4

0 = Disabled

1 = SPI_MOSI

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

D5 DIO5 Configuration. Select/Read function for DIO5

0 = Disabled

1 = Associated LED

3 = Digital input

4 = Digital output,

default low

5 = Digital output,

default high

XBee® Wi-Fi RF Modules

Command Name and Description Parameter

Range Default

D8 DIO8 Configuration. Select/Read function for DIO8

0 = Disabled

1 = SleepRq

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

D9 DIO9 Configuration. Select/Read function for DIO9

0 = Disabled

1 = On/Sleep

indicator

3 = Digital input,

monitored

4 = Digital output,

default low

5 = Digital output,

default high

Assoc LED Blink Time. Set/Read the Associate LED blink time. If the Associate LED

functionality is enabled (D5 command), this value determines the on and off blink

times for the LED when the module has joined a network. If LT=0, the default blink

rate of 250ms will be used. For all other LT values, LT is measured in 10ms.

0, 0x14 - 0xFF (200 -

2550 ms) 0

Pull-up Resistor

. Set/read the bit field that configures the internal resistor status for

the I/O lines. "1" specifies the resistor is enabled. "0" specifies no resistor. The PD

command specifies whether the resistor is pull-up or pull-down.

Bits:*

0 – DIO4 (Pin 11)

1 – DIO3 / AD3 (Pin 17)

2 – DIO2 /AD2 (Pin 18)

3 – DIO1/AD1 (Pin 19)

4 – DIO0 / AD0 (Pin 20)

5 – DIO6 / RTS (Pin 16)

6 – DIO8 / DTR / Sleep Request (Pin 9)

7 – DIN / Config (Pin 3)

8 – DIO5 / Associate (Pin 15)

9 – DIO9 / On/Sleep (Pin 13)

10 – DIO12 (Pin 4)

11 – DIO10 / PWM0 (Pin 6)

12 – DIO11/PWM1 (Pin 7)

13 – DIO7 / CTS (Pin 12)

0 - 0x7FFF 0x7FFF

PD Pull Direction. Set/Read resistor direction for the corresponding bits set in PR. If the

bit is not set in PR, then PD is unused.

0 – 0x7FFF 0x7FFF

Drive Strength

Set/Read the output drive strength (output amperes) for DIO lines.

Bits are mapped the same as the PR and PD commands. If the bit is set, the drive

strength is 6mA . Otherwise, it is 2mA.

0 – 0x7FFF 0

Analog Voltage Reference. Set/Read the analog voltage reference. This specifies

the volts for an analog reading of 0x03ff, where a reading of 0x200 indicates a

voltage input that is half of VREF. VREF may be one of these two values:

0 – 1.25Volts

1 – 2.5 Volts

0-1 1

M0 PWM0 Duty cycle. Sets the duty cycle of PWM0 for P0=2, where a value of 0x200 is a

50% duty cycle.

0 – 0x03FF 0

M1 PWM1 Duty cycle. Sets the duty cycle of PWM1 for P1=2, where a value of 0x200 is a

50% duty cycle.

0 – 0x03FF 0

XBee® Wi-Fi RF Modules

Diagnostics Interfacing

Command Name and Description Parameter

Range Default

Firmware Version. Read firmware version of the module.

The firmware version returns 4 hexadecimal values (2 bytes) "ABCD". Digits ABC are

the main release number and D is the revision number from the main release. "B" is a

variant designator where 0 means standard release.

0 - 0xFFFF [read-

only] Factory-set

Hardware Version. Read the hardware version of the module.

This command can be used to distinguish among different hardware platforms. The

upper byte returns a value that is unique to each module type. The lower byte

indicates the hardware revision.

XBee WiFi modules return 0x1Fxx for the HV command.

0 - 0xFFFF [read-

only] Factory-set

HS Hardware Series. Indicates the hardware series number of the module. This module

should indicate 0x601 for S6B.

Association Indication. Read information regarding last node join request:

0x00 - Successfully joined an access point, established IP addresses and IP listening

sockets.

0x01 - WiFi transceiver initialization in progress.

0x02 - WiFi transceiver initialized, but not yet scanning for access point.

0x13 - Disconnecting from access point.

0x23 – SSID not configured.

0x24 - Encryption key invalid (either NULL or invalid length for WEP)

0x27 – SSID was found, but join failed.

0x41 – Module joined a network and is waiting for IP configuration to complete,

which usually means it is waiting for a DHCP provided address.

0x42 – Module is joined, IP is configured, and listening sockets are being set up.

0xFF– Module is currently scanning for the configured SSID.

Note: New non-zero AI values may be added in later firmware versions. Applications

should read AI until it returns 0x00, indicating a successful startup.

0 - 0xFF [read-only] -

Active Scan. Scan for access points in the vicinity. This command can only be issued

when SSID is NULL, which can be forced by first issuing the NR command. If SSID is

not NULL, then the active scan command returns an error.

This command may be issued in command mode or in API mode. In either case, the

following information is returned for each access point found:

02 – Indicates scan type of 802.11 in this format unique to S6B.

CH - Channel number in use by access point

ST – Security type where: 00=open, 01=WPA, 02=WPA2, and 03=WEP

LM - Link Margin (Signal strength in dBm above sensitivity)

ID = SSID of access point found.

When this command is issued in command mode, the above record is displayed, one

per line for each access point found. Readable ASCII characters are outputs with a

carriage return and each field on a new line.

When it is issued in API mode, each record (i.e. each access point) outputs a separate

AT command response of type 0x88 with the above fields in binary format.

Note that this command is not available as a remote command.

- -

TP Temperature. Read temperature of module in degrees Celsius. -40 to 85C -

CK Configuration Code. Read the configuration code associated with the current AT

command configuration

2 bytes -

%V Supply Voltage. Read supply voltage in millivolt units. 3.1 to 3.6V -

LM Link Margin. Reads the received signal strength (RSSI) in terms of dBm units above

sensitivity. It will report 0xff until the first reception after connection to access point.

0 – 0xFF

XBee® Wi-Fi RF Modules

AT Command Options

Command Name and Description Parameter

Range Default

Command Mode Timeout. Set/Read the period of inactivity (no valid commands

received) after which the RF module automatically exits AT Command Mode and

returns to Idle Mode. This time can be up to ten minutes.

2 - 0x1770 [x 100

ms] 0x64 (100d)

Exit Command Mode. Explicitly exit the module from AT Command Mode. (Whether

command mode is left by the CN command or by CT timing out, changes will be

applied upon exit.

- -

Guard Times. Set required period of silence before and after the Command Sequence

Characters of the AT Command Mode Sequence (GT + CC + GT). The period of silence

is used to prevent inadvertent entrance into AT Command Mode.

2 - 0x0CE4 [x 1 ms]

(max of 3.3 decimal

sec)

0x3E8

(1000d)

Command Mode Character Set/read the command mode character used between

guard times of the AT Command Mode Sequence (GT + CC + CC + CC + GT). This

sequence allows the module to enter into AT Command Mode.

0 - 0xFF 0x2B

(‘+’ ASCII)

Sleep Commands

Command Name and Description Parameter

Range Default

Sleep Mode Sets the sleep mode on the RF module. Sleep mode is also affected by

the SO command, option bit 6. See the “Sleep” chapter for a full explanation of the

various sleep modes.

0 = No sleep

1 = Pin sleep

4 = Cyclic sleep

5 = Cyclic sleep, pin

wake

SP Sleep Period. This value determines how long the device will sleep at a time, up to 24

hours or 86,400 seconds. This corresponds to 0x83d600 in 10ms units.

1 - 0x83D600 x

10ms

0xC8 (2 seconds)

Command

Sleep Options. Configure options for sleep. Unused option bits should be set to 0.

Sleep options include:

0x40 – Stay associated with AP during sleep. Draw more current during sleep with

this option enabled, but also awake from sleep more rapidly.

0x100 – For cyclic sleep, ST specifies the time before returning to sleep. With this bit

set, new receptions from either the serial or the RF port will NOT restart the ST timer.

Current implementation does not support this bit being turned off.

0 - 0x01FF 0x100

Wake Host. Set/Read the wake host timer value. If the wake host timer is set to a

non-zero value, this timer specifies a time (in millisecond units) that the device

should allow after waking from sleep before sending data out the UART or

transmitting an IO sample. If serial characters are received, the WH timer is stopped

immediately.

0 - 0xFFFF (x 1ms) 0

Wake Time.

Wake time for cyclic modes. New data will not refresh the timer.

However, if there is data to transmit or receive after ST expires, those actions will

occur before the module goes to sleep. Max wake time is 3600 seconds.

0x1 – 0x36EE80

(x 1 ms) 0x7D0

Association Timeout. Time to wait for association before entering deep sleep.

(Wakeup from deep sleep is much faster if association occurs before going to sleep.)

0x1 – 0x36EE80

(x1 ms)

0x2710

(10 seconds)

XBee® Wi-Fi RF Modules

Execution Commands

Where most AT commands set or query register values, execution commands cause an action to be executed on

the module. Execution commands are executed immediately and do not require changes to be applied.

Command Name and Description Parameter

Range Default

Apply Changes. Applies changes to all command registers causing queued command

BD command will not change the UART interface rate until changes are applied with

the AC command. The CN command and 0x08 API command frame also apply

changes.

- -

Write. Write parameter values to non-volatile memory so that parameter

modifications persist through subsequent resets. Note: Once WR is issued, no

additional characters should be sent to the module until after the "OK\r" response is

received. The WR command should be used sparingly to preserve flash.

- -

RE Restore Defaults. Restore module parameters to factory defaults. - -

FR Software Reset. Reset module. Responds immediately with an OK status, and then

performs a software reset about 2 seconds later. - -

Network Reset. Reset network layer. For WiFi, this means to disassociate from the

access point and set SSID to NULL, thereby preventing the node from immediately

establishing the same connection with the same access point. This also allows the

active scan command to be executed so that access point candidates can be selected

from the resultant list.

Note that NR and NR0 both do the same thing and may be used interchangeably.

0 -

XBee® Wi-Fi RF Modules

9. Module Support

This chapter provides customization information for the XBee Wi-Fi module. In addition

to providing an extremely flexible and powerful API, the XBee module is a robust

development platform that has passed FCC and ETSI testing.

X-CTU Configuration Tool

Digi provides a Windows X-CTU configuration tool for configuring module parameters

and updating firmware. The XCTU has the capability to do the following:

• Update firmware on a local module (requires USB or serial connection)

• Read or write module configuration parameters on a local

• Save and load configuration profiles containing customized settings.

Contact Digi support for more information about the X-CTU.

Serial Firmware Updates

Serial firmware updates make use of the XBee bootloader which ships in all modules.

This bootloader allows firmware to be updated. Normally, the running application can

be told to invoke the bootloader through a command from X-CTU. If that command is

not available in the currently loaded firmware, the bootloader includes a modified entry

mechanism using pins 3, 9, and 16 (DIN, DTR, and RTS, respectively). By driving pin 3

low, pin 9 low, and pin 16 high at the time the module is reset, the XBee bootloader is

forced to run, allowing a new version of firmware to load. This method works even

when the current firmware version does not support the firmware upgrade feature.

The X-CTU program can update firmware on the XBee module over the UART port, but

not currently over the SPI port. Contact Digi support for details.

Regulatory Compliance

XBee modules are certified for FCC and IC operation on all 11 channels (1-11) allowable,

and ETSI certified for all 13 channels (1-13) allowable.

XBee® Wi-Fi RF Modules

10. Agency Certifications

United States FCC

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference and (2)

this device must accept any interference received, including interference that may

cause undesired operation.

The XBee Wi-Fi Module complies with Part 15 of the FCC rules and regulations.

Compliance with the labeling requirements, FCC notices and antenna usage guidelines is

required.

To fulfill FCC Certification, the OEM must comply with the following regulations:

1. The system integrator must ensure that the text on the module label is placed

on the outside of the final product.

2. XBee Wi-Fi Module may only be used with antennas that have been tested and

approved for use with this module [refer to the antenna tables in this section].

OEM Labeling Requirements

WARNING: The Original Equipment Manufacturer (OEM) must ensure that FCC labeling

requirements are met. This includes a clearly visible label on the outside of the final

product enclosure.

Required FCC Label for OEM products containing the XBee Wi-Fi S6B Through-hole

Module

Contains FCC ID: MCQ-XBS6B

The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (i.) this device may not cause harmful interference and (ii.) this device must

accept any interference received, including interference that may cause undesired operation.

Required FCC Label for OEM products containing the XBee Wi-Fi S6B Surface Mount

Module

Contains FCC ID: MCQ-S6BSM

The enclosed device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (i.) this device may not cause harmful interference and (ii.) this device must

accept any interference received, including interference that may cause undesired operation.

The integrator is responsible for its product to comply with FCC Part 15, Sub. B -

Unintentional Radiators.

FCC Notices

IMPORTANT: The XBee Module has been certified by the FCC for use with other

products without any further certification (as per FCC section 2.1091). Modifications not

expressly approved by Digi could void the user's authority to operate the equipment.

XBee® Wi-Fi RF Modules

IMPORTANT: OEMs must test final product to comply with unintentional radiators (FCC

section 15.107 & 15.109) before declaring compliance of their final product to Part 15 of

the FCC Rules.

IMPORTANT: The RF module has been certified for remote and base radio applications.

If the module will be used for portable applications, the device must undergo SAR

testing.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy, and if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation.

If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures: Re-orient or

relocate the receiving antenna, Increase the separation between the equipment and

receiver, Connect equipment and receiver to outlets on different circuits, or Consult the

dealer or an experienced radio/TV technician for help.

FCC-Approved Antennas (2.4 GHz)

The XBee Wi-Fi Module can be installed utilizing antennas and cables constructed with

non-standard connectors (RPSMA, RPTNC, etc.). An adapter cable may be necessary to

attach the XBee connector to the antenna connector.

The modules are FCC approved for fixed base station and mobile applications. If the

antenna is mounted at least 20cm (8 in.) from nearby persons, the application is

considered a mobile application. Antennas not listed in the table must be tested to

comply with FCC Section 15.203 (Unique Antenna Connectors) and Section 15.247

(Emissions). XBee Wi-Fi RF Modules have been approved for use with all the antennas

listed in the tables below. (Cable-loss is required when using gain antennas as shown

below.) Digi does not carry all of these antenna variants. Contact Digi Sales for available

antennas.

Antennas approved for use with the XBee Wi-Fi Through-hole Module

Integrated Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number Type (Description) Gain Application

Min

Separation b mode

g mode

n mode

29000294 Integral PCB antenna

-0.5

dBi Fixed/Mobile 20 cm N/A

N/A

A24-QI Monopole (Integrated Whip)

1.5

dBi Fixed/Mobile 20 cm N/A

N/A

Dipole Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

XBee® Wi-Fi RF Modules

Part Number

Type (Description)

Gain

Application

Min

Separation

b mode

g mode

n mode

A24-HASM-450

Dipole (Half-wave articulated

RPSMA-4.5")

2.1

dBi

Fixed/Mobile

20 cm

N/A

A24-HABSM

Dipole (Articulated RPSMA)

2.1

dBi

Fixed

20 cm

N/A

A24-HABUF-P5I

Dipole (Half-wave bulkhead

mount U.FL s/ 5" pigtail)

2.1

dBi

Fixed

20 cm

N/A

A24-HASM-525

Dipole (Half-wave articulated

RPSMA-5.25")

2.1

dBi

Fixed/Mobile

20 cm

N/A

XBee® Wi-Fi RF Modules

Omni-Directional Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number Type (Description) Gain Application

Min

Separation b mode

g mode

n mode

A24-F2NF

Omni-Directional (Fiberglass

base station)

2.1

dBi

Fixed/Mobile

20 cm

N/A

A24-F3NF

Omni-Directional (Fiberglass

base station)

3.0

dBi

Fixed/Mobile

20 cm

N/A

A24-F5NF

Omni-Directional (Fiberglass

base station)

5.0

dBi

Fixed

20 cm

N/A

A24-F8NF

Omni-Directional (Fiberglass

base station)

8.0

dBi

Fixed

2 m

N/A

0.4 dB

A24-F9NF

Omni-Directional (Fiberglass

base station)

9.5

dBi

Fixed

2 m

0.4 dB

2.4 dB

A24-F10NF

Omni-Directional (Fiberglass

base station)

dBi

Fixed

2 m

0.9 dB

2.9 dB

A24-F12NF

Omni-Directional (Fiberglass

base station)

dBi

Fixed

2 m

2.9 dB

4.9 dB

A24-F15NF

Omni-Directional (Fiberglass

base station)

dBi Fixed 2 m 5.9 dB

7.9 dB

A24-W7NF

Omni-Directional ( base station)

7.2

dBi

Fixed

2 m

N/A

0.1 dB

A24-M7NF

Omni-directional (Mag-mount

base station)

7.2

dBi Fixed 2 m

N/A

0.1 dB

PANEL CLASS ANTENNAS

Minimum Cable Loss/Power

Reduction/Attenuation

Required

Part Number Type (Description) Gain Application Min Separation

mode

g mode n mode

A24-P8SF Flat Panel 8.5 dBi Fixed 2 m N/A 1.4 dB 1.4 dB

A24-P8NF Flat Panel 8.5 dBi Fixed 3 m N/A 1.4 dB 1.4 dB

A24-P13NF

Flat Panel

13 dBi

Fixed

4 m

3.9 dB

5.9 dB

A24-P14NF Flat Panel 14 dBi Fixed 5 m 4.9 dB 6.9 dB 6.9 dB

A24-P15NF Flat Panel 15 dBi Fixed 2 m 5.9 dB 7.9 dB 7.9 dB

A24-P16NF

Flat Panel

16 dBi

Fixed

2 m

6.9 dB

8.9 dB

A24-19NF Flat Panel 19 dBi Fixed 2 m 9.9 dB 11.9 dB 11.9 dB

XBee® Wi-Fi RF Modules

YAGI CLASS ANTENNAS

Minimum Cable Loss/Power

Reduction/Attenuation

Required

Part Number Type (Description) Gain Application

Min

Separation

mode

g mode

n mode

A24-Y6NF

Yagi (6 element)

8.8 dBi

Fixed

2 m

N/A

1.7 dB 1.7 dB

A24-Y7NF Yagi (7 element) 9.0 dBi Fixed 2 m N/A 1.9 dB 1.9 dB

A24-Y9NF Yagi (9 element) 10.0 dBi Fixed 2 m 0.9 dB 2.9 dB 2.9 dB

A24-Y10NF Yagi (10 element) 11.0 dBi Fixed 2 m 1.9 dB

3.9 dB

A24-Y12NF Yagi (12 element) 12.0 dBi Fixed 2 m 2.9 dB 4.9 dB 4.9 dB

A24-Y13NF

Yagi (13 element)

12.0 dBi

Fixed

2 m

2.9 dB

4.9 dB 4.9 dB

A24-Y15NF Yagi (15 element) 12.5 dBi Fixed 2 m 3.4 dB 5.4 dB 5.4 dB

A24-Y16NF Yagi (16 element) 13.5 dBi Fixed 2 m 4.4 dB 6.4 dB 6.4 dB

A24-Y16RM

Yagi (16 element, RPSMA connector)

13.5 dBi

Fixed

2 m

4.4 dB

6.4 dB

A24-Y18NF Yagi (18 element) 15.0 dBi Fixed 2 m 5.9 dB 7.9 dB 7.9 dB

Antennas approved for use with the XBee Wi-Fi Surface Mount Module

Integrated Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number Type (Description) Gain Application

Min

Separation b mode

g mode

n mode

31000005-01 Integral PCB antenna 0 dBi Fixed/Mobile 20 cm N/A

N/A

A24-QI Monopole (Integrated Whip)

1.5

dBi Fixed/Mobile 20 cm N/A

N/A

Dipole Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number Type (Description) Gain Application

Min

Separation b mode

g mode

n mode

A24-HASM-450

Dipole (Half-wave articulated

RPSMA-4.5")

2.1

dBi Fixed/Mobile 20 cm N/A

N/A

A24-HABSM Dipole (Articulated RPSMA)

2.1

dBi Fixed 20 cm N/A

N/A

A24-HABUF-P5I

Dipole (Half-wave bulkhead

mount U.FL s/ 5" pigtail)

2.1

dBi Fixed 20 cm N/A

N/A

A24-HASM-525

Dipole (Half-wave articulated

RPSMA-5.25")

2.1

dBi Fixed/Mobile 20 cm N/A

N/A

XBee® Wi-Fi RF Modules

Omni-Directional Antennas

Minimum Cable Loss/Power

Reduction/Attenuation Required

Part Number Type (Description) Gain Application

Min

Separation b mode

g mode

n mode

A24-F2NF

Omni-Directional (Fiberglass

base station)

2.1

dBi

Fixed/Mobile

20 cm

N/A

A24-F3NF

Omni-Directional (Fiberglass

base station)

3.0

dBi

Fixed/Mobile

20 cm

N/A

A24-F5NF

Omni-Directional (Fiberglass

base station)

5.0

dBi

Fixed

20 cm

N/A

A24-F8NF

Omni-Directional (Fiberglass

base station)

8.0

dBi

Fixed

2 m

N/A

1.5 dB

A24-F9NF

Omni-Directional (Fiberglass

base station)

9.5

dBi

Fixed

2 m

N/A

1.5 dB

1.0 dB

A24-F10NF

Omni-Directional (Fiberglass

base station)

dBi

Fixed

2 m

0.5 dB

2.0 dB

2.5 dB

A24-F12NF

Omni-Directional (Fiberglass

base station)

dBi

Fixed

2 m

2.5 dB

4.0 dB

4.5 dB

A24-F15NF

Omni-Directional (Fiberglass

base station)

dBi Fixed 2 m 5.5 dB

7.0 dB

7.5 dB

A24-W7NF

Omni-Directional ( base station)

7.2

dBi

Fixed

2 m

N/A

A24-M7NF

Omni-directional (Mag-mount

base station)

7.2

dBi Fixed 2 m

N/A

PANEL CLASS ANTENNAS

Minimum Cable Loss/Power

Reduction/Attenuation

Required

Part Number Type (Description) Gain Application Min Separation

mode

g mode n mode

A24-P8SF Flat Panel 8.5 dBi Fixed 2 m N/A 0.5 dB 0.9 dB

A24-P8NF Flat Panel 8.5 dBi Fixed 3 m N/A 0.5 dB 0.9 dB

A24-P13NF

Flat Panel

13 dBi

Fixed

4 m

3.5dB

5.0 dB

5.5 dB

A24-P14NF Flat Panel 14 dBi Fixed 5 m 4.5dB 6.0 dB 6.5 dB

A24-P15NF Flat Panel 15 dBi Fixed 2 m 5.5dB 7.0 dB 7.5 dB

A24-P16NF

Flat Panel

16 dBi

Fixed

2 m

6.5dB

8.0 dB

8.5 dB

A24-19NF Flat Panel 19 dBi Fixed 2 m 9.5dB 11.0 dB 11.5 dB

XBee® Wi-Fi RF Modules

YAGI CLASS ANTENNAS

Minimum Cable Loss/Power

Reduction/Attenuation

Required

Part Number Type (Description) Gain Application

Min

Separation

mode

g mode

n mode

A24-Y6NF

Yagi (6 element)

8.8 dBi

Fixed

2 m

N/A

0.8 dB 1.2 dB

A24-Y7NF Yagi (7 element) 9.0 dBi Fixed 2 m N/A 1.0 dB 1.5 dB

A24-Y9NF Yagi (9 element) 10.0 dBi Fixed 2 m 0.5 dB 2.0 dB 2.5 dB

A24-Y10NF Yagi (10 element) 11.0 dBi Fixed 2 m 1.5 dB

3.0 dB

3.5 dB

A24-Y12NF Yagi (12 element) 12.0 dBi Fixed 2 m 2.5 dB 4.0 dB 4.5 dB

A24-Y13NF

Yagi (13 element)

12.0 dBi

Fixed

2 m

2.5 dB

4.0 dB 4.5 dB

A24-Y15NF Yagi (15 element) 12.5 dBi Fixed 2 m 3.0 dB 4.5 dB 5.0 dB

A24-Y16NF Yagi (16 element) 13.5 dBi Fixed 2 m 4.0 dB 5.5 dB 6.0 dB

A24-Y16RM

Yagi (16 element, RPSMA connector)

13.5 dBi

Fixed

2 m

4.0 dB

5.5 dB

6.0 dB

A24-Y18NF Yagi (18 element) 15.0 dBi Fixed 2 m 5.5 dB 7.0 dB 7.5 dB

* If using the RF module in a portable application (for example - if the module is used in

a handheld device and the antenna is less than 20cm from the human body when the

device is in operation): The integrator is responsible for passing additional SAR (Specific

Absorption Rate) testing based on FCC rules 2.1091 and FCC Guidelines for Human

Exposure to Radio Frequency Electromagnetic Fields, OET Bulletin and Supplement C.

The testing results will be submitted to the FCC for approval prior to selling the

integrated unit. The required SAR testing measures emissions from the module and how

they affect the person.

RF Exposure

WARNING: To satisfy FCC RF exposure requirements for mobile transmitting devices, a

separation distance of 20 cm or more should be maintained between the antenna of this device

and persons during device operation. To ensure compliance, operations at closer than this

distance are not recommended. The antenna used for this transmitter must not be co-located

in conjunction with any other antenna or transmitter.

The preceding statement must be included as a CAUTION statement in OEM product

manuals in order to alert users of FCC RF Exposure compliance.

XBee® Wi-Fi RF Modules

Europe (ETSI)

The XBee Wi-Fi RF Module has been certified for use in several European countries. For

a complete list, refer to www.digi.com

If the module is incorporated into a product, the manufacturer must ensure compliance

of the final product to the European harmonized EMC and low-voltage/safety standards.

A Declaration of Conformity must be issued for each of these standards and kept on file

as described in Annex II of the R&TTE Directive.

Furthermore, the manufacturer must maintain a copy of the XBee user manual

documentation and ensure the final product does not exceed the specified power

ratings, antenna specifications, and/or installation requirements as specified in the user

manual. If any of these specifications are exceeded in the final product, a submission

must be made to a notified body for compliance testing to all required standards.

OEM Labeling Requirements

The 'CE' marking must be affixed to a visible location on the OEM product.

CE Labeling Requirements

The CE mark shall consist of the initials "CE" taking the following form:

• If the CE! alert marking is reduced or enlarged, the proportions given in the

above graduated drawing must be respected.

• The CE! alert marking must have a height of at least 5mm except where this is

not possible on account of the nature of the apparatus.

• The CE! alert marking must be affixed visibly, legibly, and indelibly.

XBee® Wi-Fi RF Modules

Restrictions

Declarations of Conformity

Digi has issued Declarations of Conformity for the XBee RF Modules concerning

emissions, EMC and safety. Files can be obtained by contacting Digi Support.

XBee® Wi-Fi RF Modules

Important Note:

Digi does not list the entire set of standards that must be met for each country. Digi

customers assume full responsibility for learning and meeting the required guidelines

for each country in their distribution market. For more information relating to European

compliance of an OEM product incorporating the XBee RF Module, contact Digi, or refer

to the following web sites:

CEPT ERC 70-03E - Technical Requirements, European restrictions and general

requirements: Available at www.ero.dk/.

R&TTE Directive - Equipment requirements, placement on market: Available

at www.ero.dk/.

Approved Antennas

When integrating high-gain antennas, European regulations stipulate EIRP power

maximums. The following antennas have been tested and approved for use with the

embedded XBee RF Module:

• Dipole (2.1 dBi, Omni-directional, Articulated RPSMA, Digi part number A24-

HABSM)

• PCB Antenna (-0.5 dBi)

• Wire Whip Antenna (1.5 dBi)

XBee® Wi-Fi RF Modules

Canada (IC)

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is

subject to the following two conditions: (1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause

undesired operation of the device.

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils

radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)

l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter

tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en

compromettre le fonctionnement

Labeling Requirements

Labeling requirements for Industry Canada are similar to those of the FCC. A clearly

visible label on the outside of the final product enclosure must display the following

text:

XBee Wi-Fi Through-hole:

Contains Model XBEES6B Radio, IC: 1846A-XBS6B

XBee Wi-Fi Surface Mount:

Contains Model S6BSM Radio, IC: 1846A-S6BSM

The integrator is responsible for its product to comply with IC ICES-003 & FCC Part 15,

Sub. B - Unintentional Radiators. ICES-003 is the same as FCC Part 15 Sub. B and Industry

Canada accepts FCC test report or CISPR 22 test report for compliance with ICES-003.

Transmitters with Detachable Antennas

This radio transmitter (IC: 1846A-XBS6B and IC: 1846A-S6BSM) has been approved by

Industry Canada to operate with the antenna types listed in the tables above with the

maximum permissible gain and required antenna impedance for each antenna type

indicated. Antenna types not included in this list, having a gain greater than the

maximum gain indicated for that type, are strictly prohibited for use with this device.

Le présent émetteur radio (IC: 1846A-XBS6B et IC: 1846A-S6BSM) a été approuvé par

Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et

ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne.

Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain

maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur.

Detachable Antenna

XBee® Wi-Fi RF Modules

Under Industry Canada regulations, this radio transmitter may only operate using an

antenna of a type and maximum (or lesser) gain approved for the transmitter by

Industry Canada. To reduce potential radio interference to other users, the antenna

type and its gain should be so chosen that the equivalent isotropically radiated power

(e.i.r.p.) is not more than that necessary for successful communication.

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut

fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé

pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage

radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et

son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse

pas l'intensité nécessaire àl'établissement d'une communication satisfaisante.

Australia (C-Tick)

These modules comply with requirements to be used in end products in Australia. All

products with EMC and radio communications must have a registered C-Tick mark.

Registration to use the compliance mark will only be accepted from Australian

manufacturers or importers, or their agent, in Australia.

In order to have a C-Tick mark on an end product, a company must comply with a or b

below.

a. have a company presence in Australia.

b. have a company/distributor/agent in Australia that will sponsor the importing of

the end product.

Contact Digi for questions related to locating a contact in Australia.

XBee® Wi-Fi RF Modules

11. Warranty Information

1-Year Warranty

XBee RF Modules from Digi International, Inc. (the "Product") are warranted against

defects in materials and workmanship under normal use, for a period of 1-year from the

date of purchase. In the event of a product failure due to materials or workmanship, Digi

will repair or replace the defective product. For warranty service, return the defective

product to Digi International, shipping prepaid, for prompt repair or replacement.

The foregoing sets forth the full extent of Digi International's warranties regarding the

Product. Repair or replacement at Digi International's option is the exclusive remedy.

THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,

AND DIGI SPECIFICALLY DISCLAIMS ALL WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL DIGI, ITS SUPPLIERS OR LICENSORS BE

LIABLE FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT, FOR ANY

LOSS OF USE, LOSS OF TIME, INCONVENIENCE, COMMERCIAL LOSS, LOST PROFITS OR

SAVINGS, OR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT

OF THE USE OR INABILITY TO USE THE PRODUCT, TO THE FULL EXTENT SUCH MAY BE

DISCLAIMED BY LAW. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF

INCIDENTAL OR CONSEQUENTIAL DAMAGES. THEREFORE, THE FOREGOING EXCLUSIONS

MAY NOT APPLY IN ALL CASES. This warranty provides specific legal rights. Other rights

which vary from state to state may also apply.

XBee® Wi-Fi RF Modules

12.Glossary of Terms

Definitions

Local Host

A device which is electrically connected to an XBee. Typically this is a microcontroller connected to

the serial pins of the module.

MAC address

A unique network identifier. All network devices are required to have their own unique

MAC address. The MAC address is on a sticker on your Digi device server. The number

is displayed as 12 hexadecimal digits, usually starting with 00:40:9D.

Network Client

A device which communicates with an XBee through the 802.11 network.

Static IP address assignment

The process of assigning a specific IP address to a device. Contrast with assigning a

device through Dynamic Host Configuration Protocol (DHCP), or Automatic Private IP

Addressing (APIPA or Auto-IP).

TCP

See Transmission Control Protocol.

Temporal Key Integrity Protocol (TKIP)

Part of the IEEE 802.11i encryption standard for wireless LANs. TKIP is the next

generation of the Wired Equivalent Privacy (WEP), which is used to secure 802.11 wireless LANs.

TKIP provides per-packet key mixing, a message integrity check and a

re-keying mechanism, and addresses several design shortcomings of the original WEP.

Transmission Control Protocol (TCP)

A set of rules (protocol) used along with the Internet Protocol (IP) to send data in the

form of message units between computers over the Internet. While IP handles the actual

delivery of the data, TCP handles keeping track of the individual units of data (called

packets) that a message is divided into for efficient routing through the Internet.

For example, when an HTML file is sent to you from a Web server, the Transmission

Control Protocol (TCP) program layer in that server divides the file into one or more

packets, numbers the packets, and then forwards them individually to the IP program

layer. Although each packet has the same destination IP address, it may get routed

differently through the network. At the other end (the client program in your computer),

TCP reassembles the individual packets and waits until they have arrived to forward

them to you as a single file.

TCP is known as a connection-oriented protocol, which means that a connection is

established and maintained until such time as the message or messages to be exchanged

by the application programs at each end have been exchanged. TCP is responsible for

ensuring that a message is divided into the packets that IP manages and for

reassembling the packets back into the complete message at the other end. In the Open

XBee® Wi-Fi RF Modules

Systems Interconnection (OSI) communication model, TCP is in layer 4, the Transport

Layer.

UDP

See User Datagram Protocol.

User Datagram Protocol (UDP)

A communications protocol that offers a limited amount of service when messages are

exchanged between computers in a network that uses the Internet Protocol (IP). UDP is

an alternative to the Transmission Control Protocol (TCP) and, together with IP, is

sometimes referred to as UDP/IP. Like the Transmission Control Protocol, UDP uses

the Internet Protocol to actually get a data unit (called a datagram) from one computer

to another. Unlike TCP, however, UDP does not provide the service of dividing a

message into packets (datagrams) and reassembling it at the other end. Specifically,

UDP does not provide sequencing of the packets in which the data arrives, nor does it

guarantee delivery of data. This means that the application program that uses UDP must

be able to make sure that the entire message has arrived and is in the right order.

Network applications that want to save processing time because they have very small

data units to exchange (and therefore very little message reassembling to do) may prefer

UDP to TCP. The Trivial File Transfer Protocol (TFTP) uses UDP instead of TCP.

UDP provides two services not provided by the IP layer. It provides port numbers to

help distinguish different user requests and, optionally, a checksum capability to verify

that the data arrived intact.

Wi-Fi Protected Access (WPA)

A data encryption/ user authentication method for 802.11 wireless LANs. WPA uses the

Temporal Key Integrity Protocol (TKIP).

Wired Equivalency Protocol (WEP)

A security algorithm that uses an RC4 stream cipher, but which has multiple known flaws.

WPA

See Wi-Fi Protected Access.

WPA2/802.11i

WPA with AES-based encryption (CCMP)

Digi S6BSM XBee Wi-Fi S6B SMT Module User Manual XBee Wi Fi RF Modules

Digi International Inc XBee Wi-Fi S6B SMT Module XBee Wi Fi RF Modules

User Manual

Navigation menu

Namespaces

Views

Navigation
