Digiana ITUBE101 FM Transmitter User Manual

Digiana Co., Ltd. FM Transmitter Users Manual

Users Manual

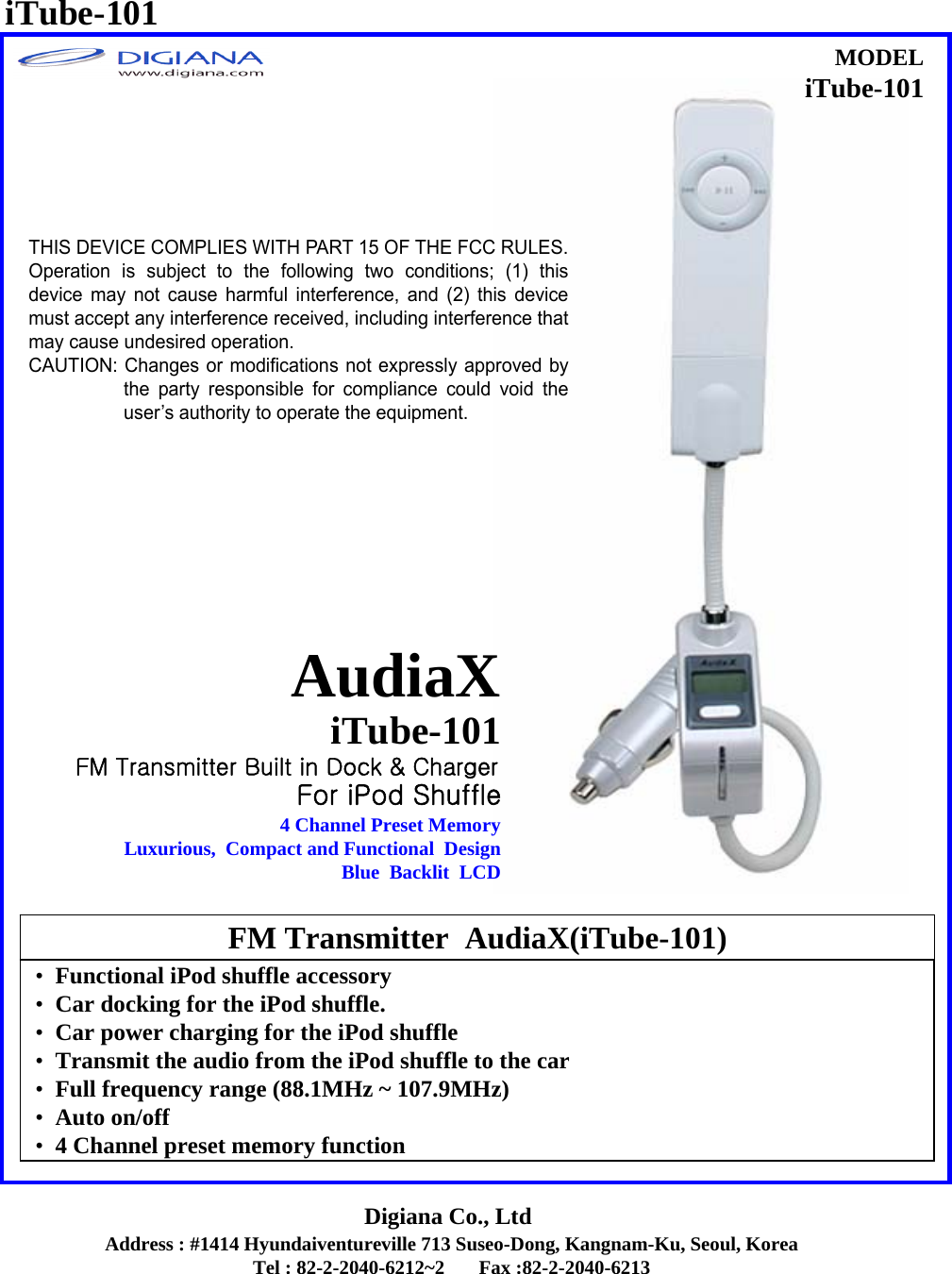

Address : #1414 Hyundaiventureville 713 Suseo-Dong, Kangnam-Ku, Seoul, KoreaTel : 82-2-2040-6212~2 Fax :82-2-2040-6213Digiana Co., Ltd•Functional iPod shuffle accessory•Car docking for the iPod shuffle.•Car power charging for the iPod shuffle•Transmit the audio from the iPod shuffle to the car•Full frequency range (88.1MHz ~ 107.9MHz)•Auto on/off•4 Channel preset memory functionFM Transmitter AudiaX(iTube-101)iTube-101AudiaXFor iPod Shuffle4 Channel Preset MemoryLuxurious, Compact and Functional DesignBlue Backlit LCDMODELiTube-101iTube-101FM Transmitter Built in Dock & ChargerTHIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions; (1) thisdevice may not cause harmful interference, and (2) this devicemust accept any interference received, including interference thatmay cause undesired operation. CAUTION: Changes or modifications not expressly approved bythe party responsible for compliance could void theuser’s authority to operate the equipment.

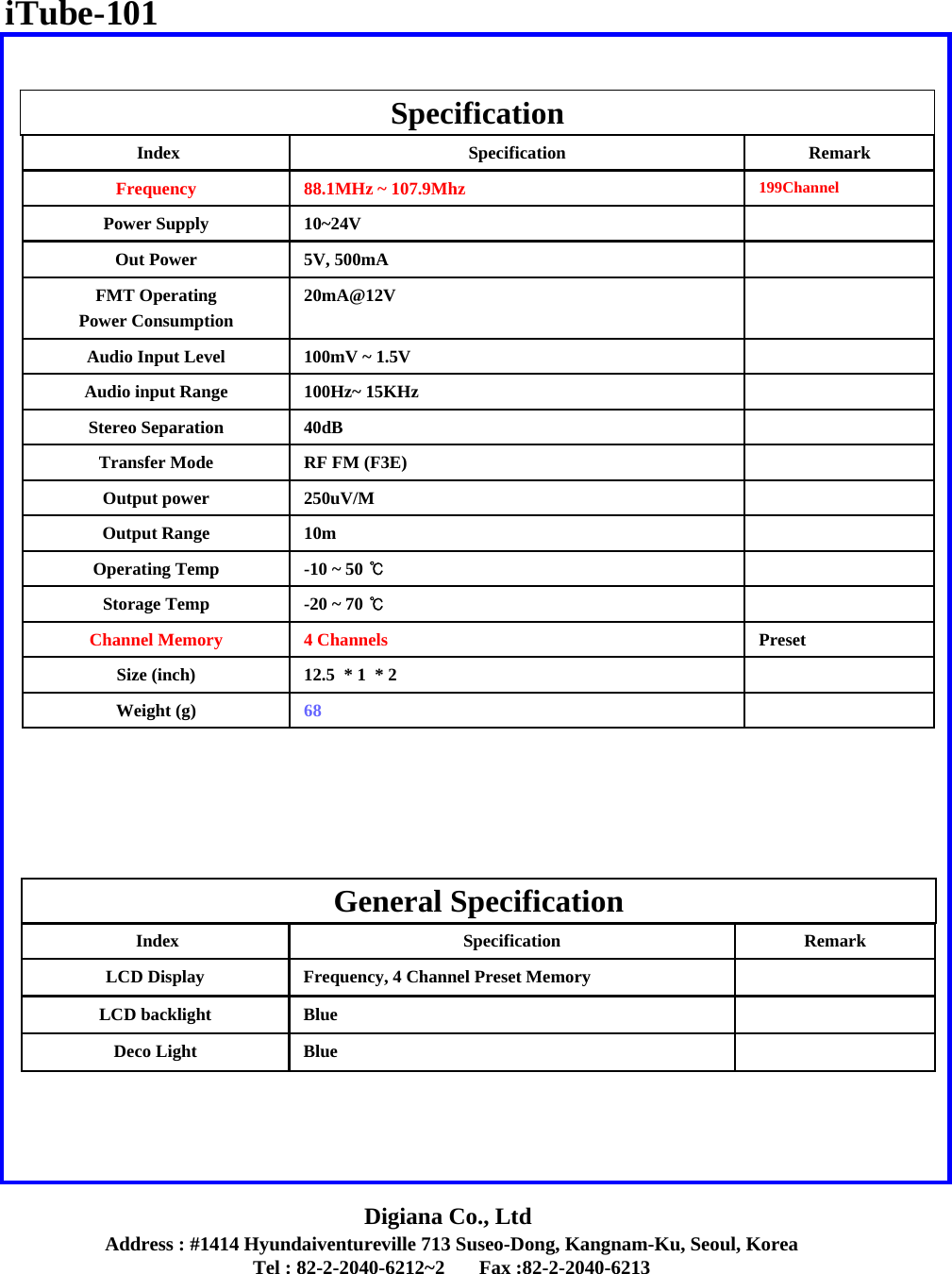

Address : #1414 Hyundaiventureville 713 Suseo-Dong, Kangnam-Ku, Seoul, KoreaTel : 82-2-2040-6212~2 Fax :82-2-2040-6213Digiana Co., LtdSpecificationGeneral SpecificationPreset4 ChannelsChannel Memory12.5 * 1 * 2 Size (inch)40dBStereo SeparationRF FM (F3E)Transfer Mode250uV/MOutput power10mOutput Range-10 ~ 50 ℃Operating Temp-20 ~ 70 ℃Storage Temp20mA@12VFMT Operating Power Consumption5V, 500mAOut Power10~24VPower Supply68Weight (g)100Hz~ 15KHzAudio input Range100mV ~ 1.5VAudio Input Level199Channel88.1MHz ~ 107.9MhzFrequencyRemarkSpecificationIndexRemarkSpecificationIndexBlueLCD backlightBlueDeco LightFrequency, 4 Channel Preset MemoryLCD DisplayiTube-101

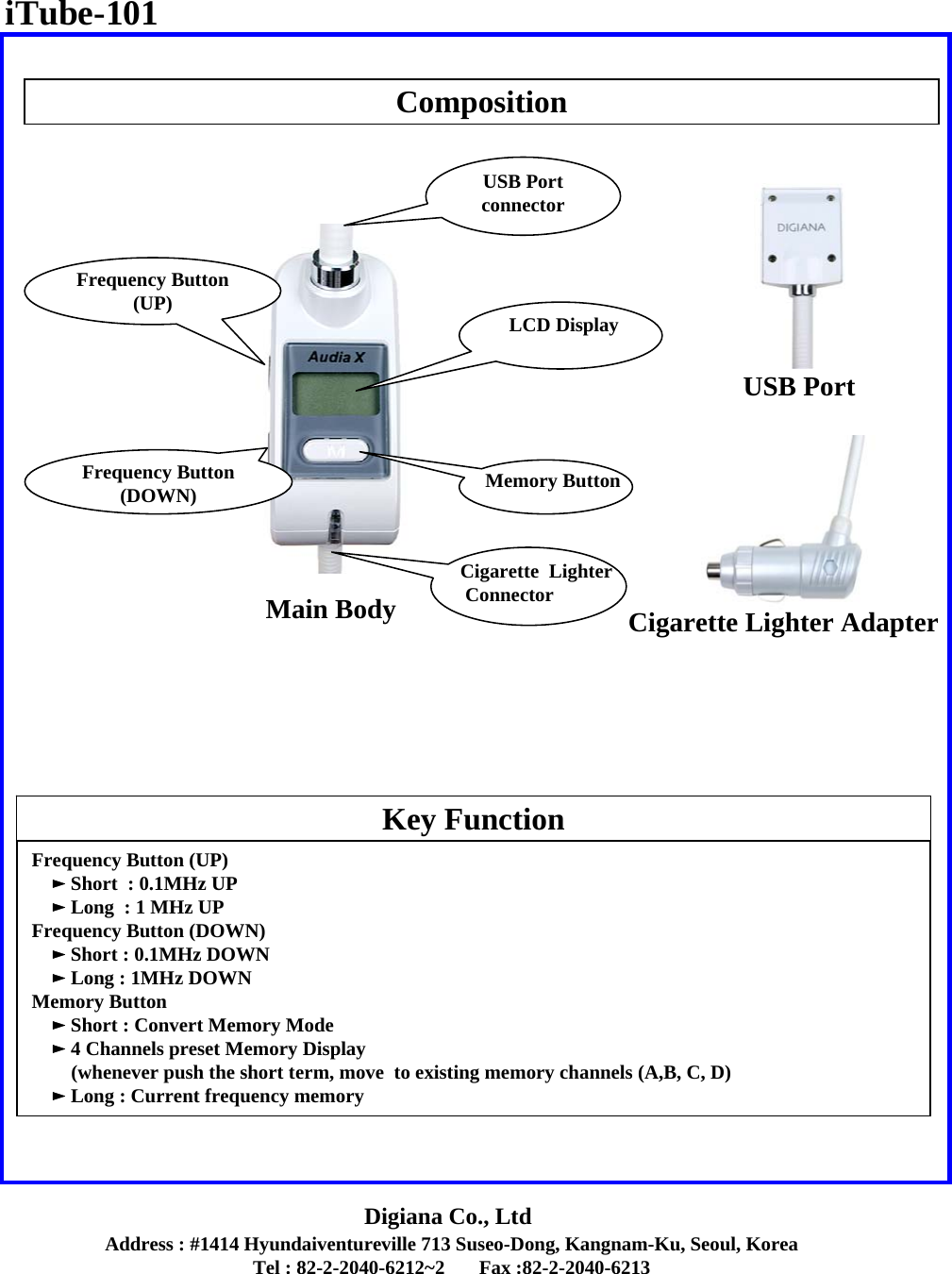

Address : #1414 Hyundaiventureville 713 Suseo-Dong, Kangnam-Ku, Seoul, KoreaTel : 82-2-2040-6212~2 Fax :82-2-2040-6213Digiana Co., LtdCompositionKey FunctionMain BodyUSB PortCigarette Lighter AdapterFrequency Button (UP) ►Short : 0.1MHz UP►Long : 1 MHz UPFrequency Button (DOWN) ►Short : 0.1MHz DOWN►Long : 1MHz DOWNMemory Button►Short : Convert Memory Mode►4 Channels preset Memory Display (whenever push the short term, move to existing memory channels (A,B, C, D) ►Long : Current frequency memory iTube-101LCD DisplayMemory ButtonFrequency Button(DOWN) Frequency Button(UP) USB PortconnectorCigarette LighterConnector

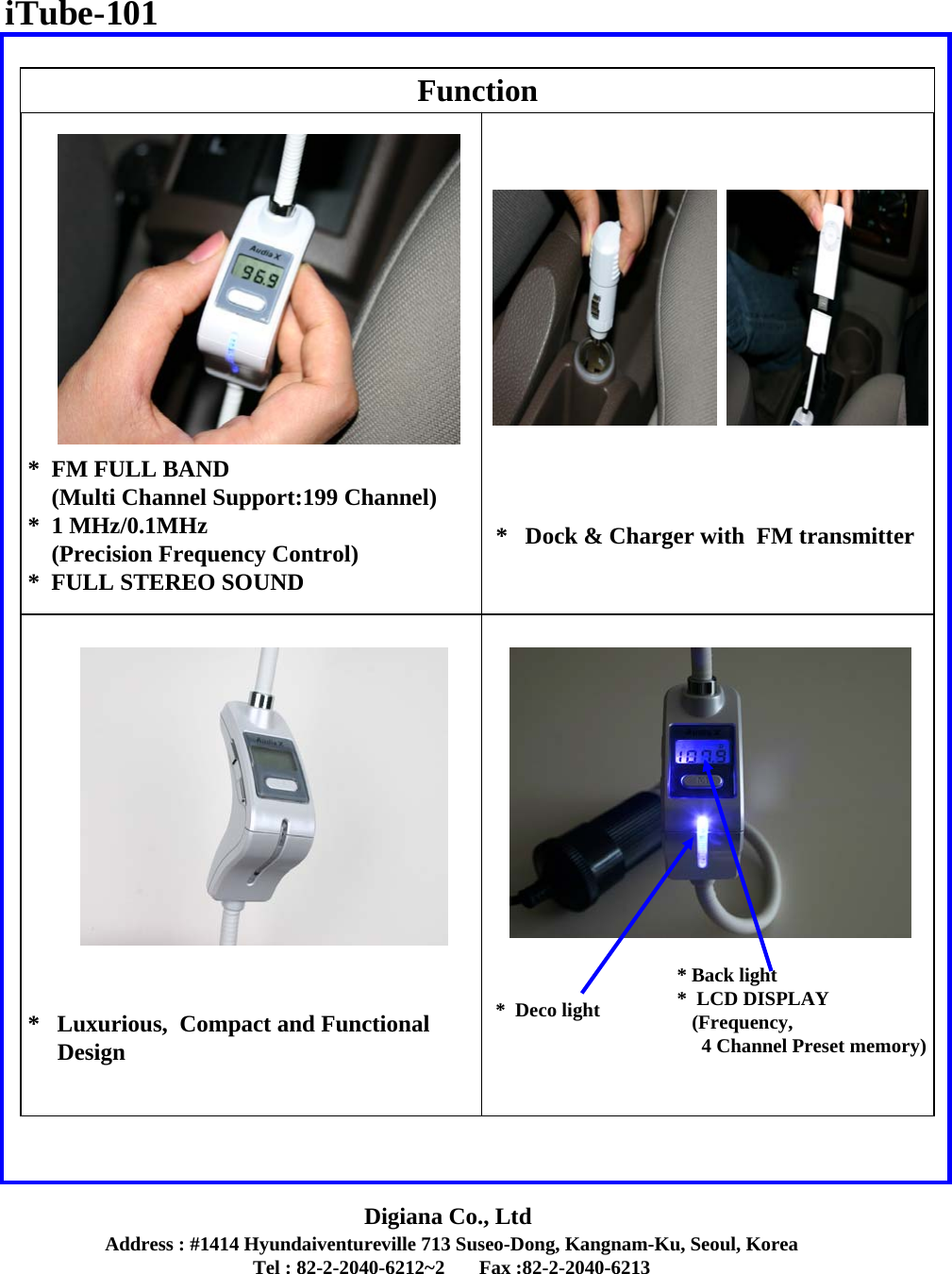

Address : #1414 Hyundaiventureville 713 Suseo-Dong, Kangnam-Ku, Seoul, KoreaTel : 82-2-2040-6212~2 Fax :82-2-2040-6213Digiana Co., LtdFunction* FM FULL BAND(Multi Channel Support:199 Channel)* 1 MHz/0.1MHz(Precision Frequency Control)* FULL STEREO SOUND * Luxurious, Compact and FunctionalDesign* Dock & Charger with FM transmitter* Deco light* Back light* LCD DISPLAY(Frequency, 4 Channel Preset memory)iTube-101

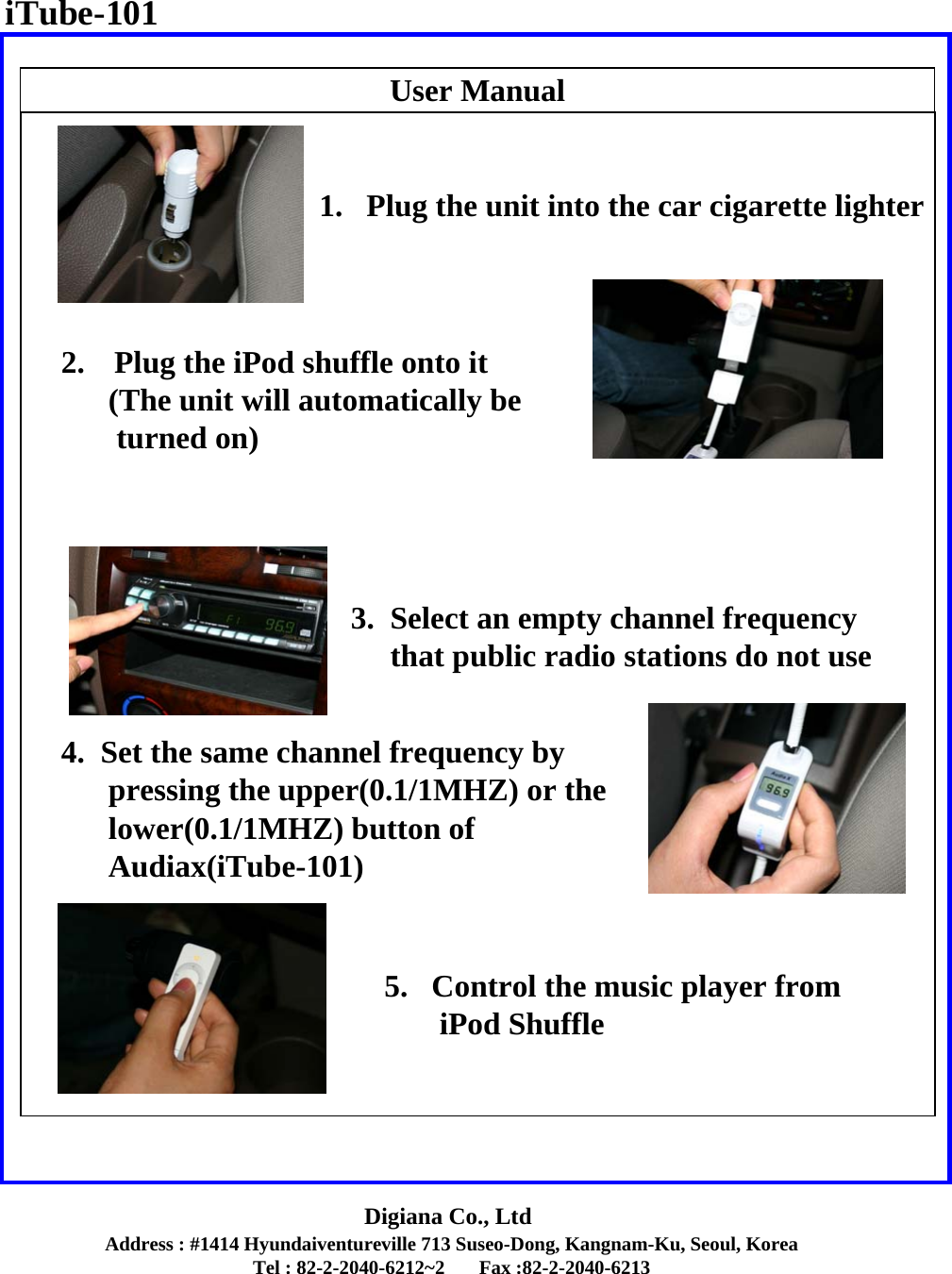

Address : #1414 Hyundaiventureville 713 Suseo-Dong, Kangnam-Ku, Seoul, KoreaTel : 82-2-2040-6212~2 Fax :82-2-2040-6213Digiana Co., LtdUser Manual5. Control the music player fromiPod ShuffleiTube-1011. Plug the unit into the car cigarette lighter2. Plug the iPod shuffle onto it(The unit will automatically beturned on)3. Select an empty channel frequency that public radio stations do not use4. Set the same channel frequency by pressing the upper(0.1/1MHZ) or the lower(0.1/1MHZ) button ofAudiax(iTube-101)
