VX222HR & VX222HR-Mic
User’s Manual
3
Table of Contents
INFORMATION FOR THE USER
..............................................................5
IMPORTANT NOTICE
........................................................................................5
CONTENTS OF THIS PACKAGE
..............................................................6
FEATURES
.....................................................................................................................6
VX222HR & VX222HR-Mic main hardware features.......................................6
Additional hardware features VX222HR-Mic........................................................7
Main software features................................................................................................7
HARDWARE REQUIREMENTS
..................................................................8
Minimum requirements................................................................................................8
Software requirements .................................................................................................8
Supported operating systems .....................................................................................8
HARDWARE INSTALLATION
....................................................................8
Installing the card ..........................................................................................................8
Interrupt and memory address ..................................................................................8
SOFTWARE INSTALLATION
.......................................................................8
Installation under Windows 2000, XP, and Windows Server 2003................9
Removing the driver under Windows 2000, XP, and Windows Server 20039
HOW TO CHECK THE INSTALLATION
.......................................... 10
THE ‘DIGIGRAM HARDWARE SETTINGS’
(‘DHS’) CONTROL PANEL
......................................................................... 11
SPECIFICATIONS
................................................................................................. 12
Configuration.......................................................................................................... 12
Inputs ....................................................................................................................... 12
Additional inputs VX222HR-Mic ...................................................................... 13
Outputs.................................................................................................................... 13
Connectors.............................................................................................................. 14
Audio specifications .............................................................................................. 14
Analog audio performance ................................................................................. 14
Sample rate converter performance ................................................................ 14
Analog mono microphone input features VX222HR-Mic .......................... 15
AES42 microphone input features VX222HR-Mic...................................... 15
Development environments................................................................................ 15
D i g i g r a m
4
APPENDICES
........................................................................................................... 16

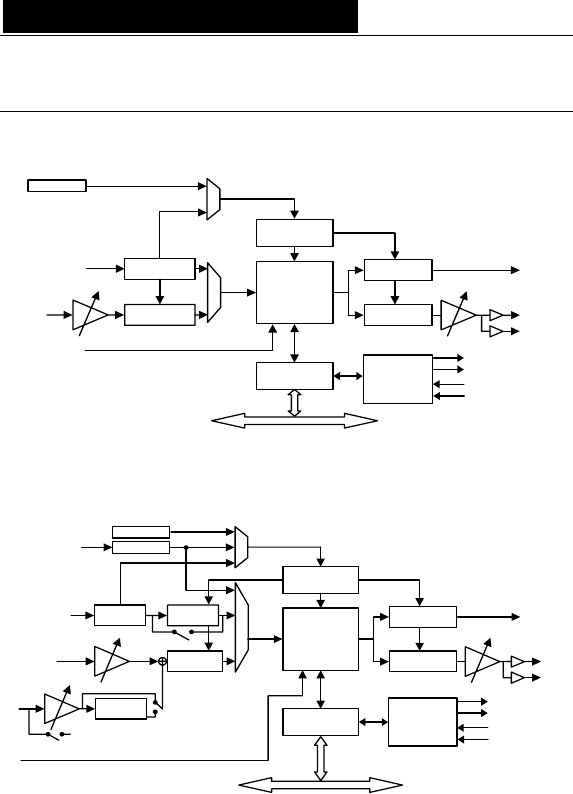

VX222HR Schematic Diagram......................................................................... 16
VX222HR-Mic Schematic Diagram................................................................. 16

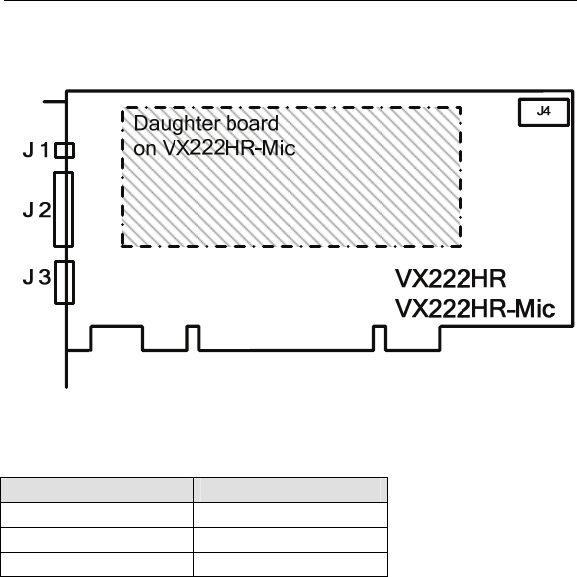

Layout....................................................................................................................... 17

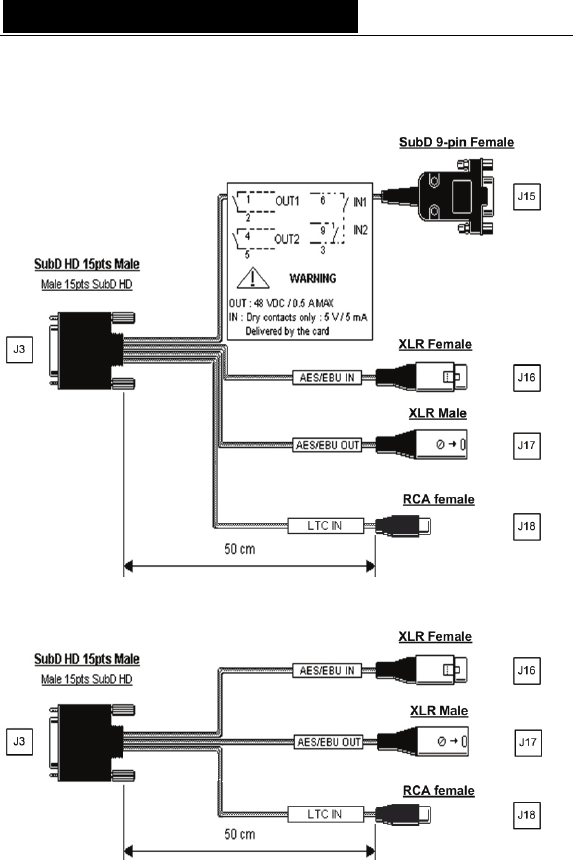

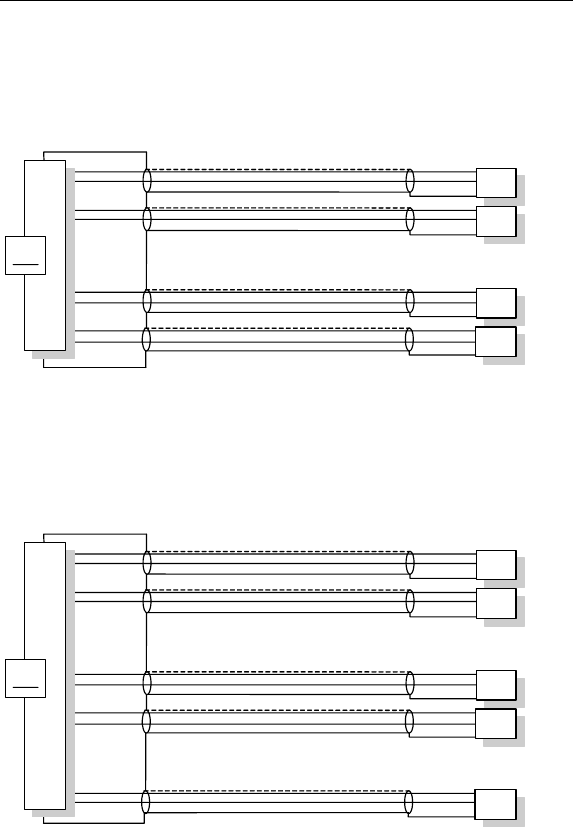

VX222HR analog cable diagram:..................................................................... 18
VX222HR-Mic analog cable diagram: ............................................................ 18
Wiring Diagram – Analog Cable VX222HR.................................................. 19
Wiring Diagram – Analog Cable VX222HR.................................................. 19
VX222HR digital cable with GPIOs.................................................................. 20
VX222HR digital cable without GPIOs............................................................ 20

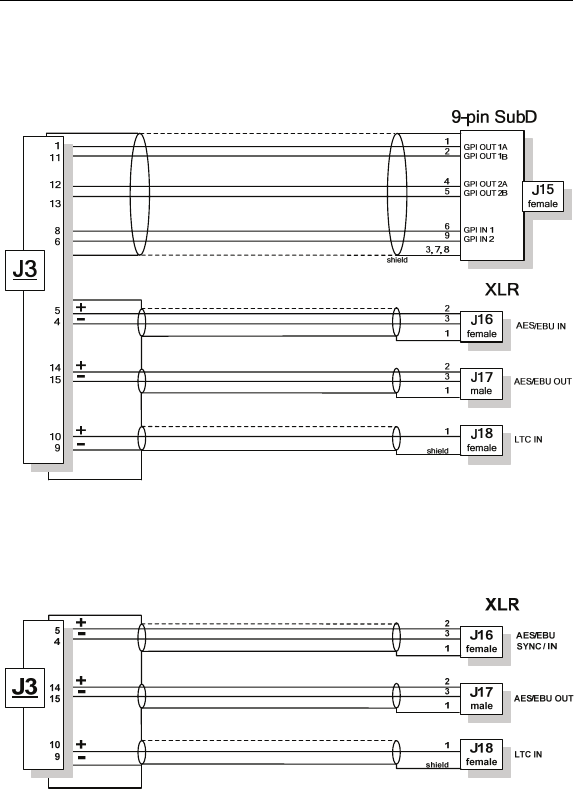

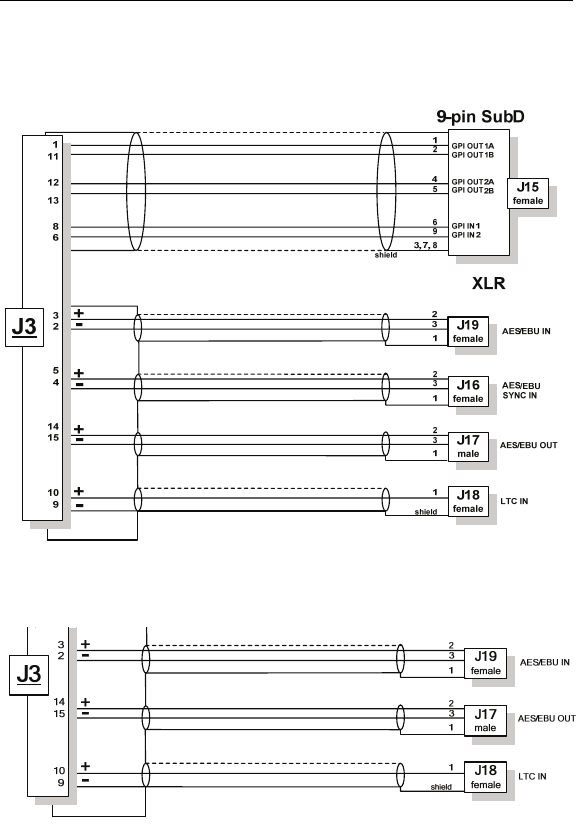

Wiring Diagram – Digital Cable with GPIOs (VX222HR) .........................21
Wiring Diagram – digital cable without GPIOs (VX222HR)..................... 21

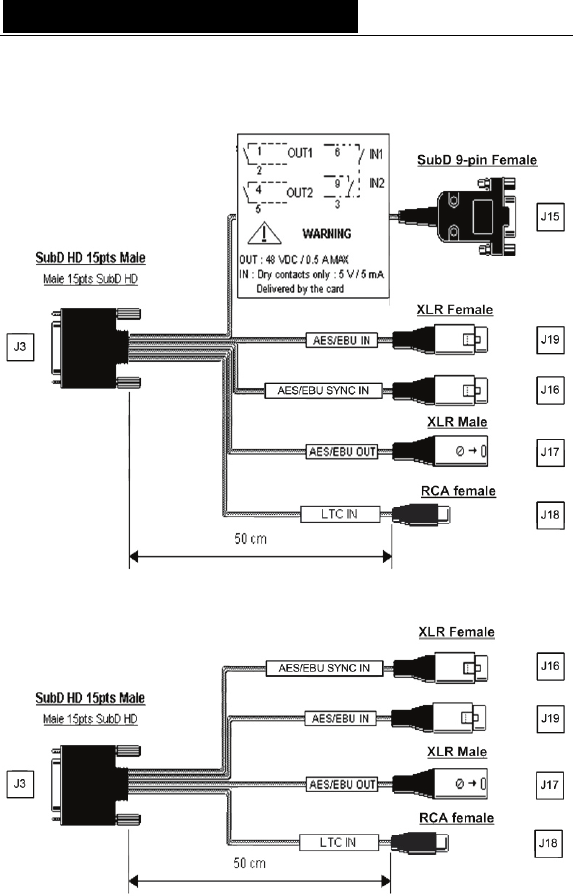

VX222HR-Mic digital cable with GPIOs ......................................................... 22
VX222HR-Mic digital cable without GPIOs ................................................... 22
Wiring Diagram – Digital Cable with GPIOs (VX222HR) .........................23
Wiring Diagram – digital cable without GPIOs (VX222HR-Mic)............. 23
VX222HR cable pinout....................................................................................... 24
VX222HR-Mic cable pinout............................................................................... 24
Warning:
Electrostatic discharge (ESD) can damage several
components on the board. To avoid such damage in
handling the board, take the following precautions:
Bring the device and everything that contacts it to
ground potential by providing a conductive surface and
discharge paths. As a minimum, observe these
precautions:
• Disconnect all power and signal sources.
• Place the device on a grounded conductive work surface.
• Ground yourself via a grounding wrist strap or by holding a grounded
object.
• Ground any tool that will contact the device.
Copyright 2006 Digigram. All rights reserved.
No portion of this manual may be reproduced without prior written consent from Digigram. The copyright protection
claimed here includes photocopying, translation and/or reformatting of the information contained in this manual.
While every effort has been made to ensure accuracy, Digigram is not responsible for errors and omissions, and
reserves the right to make improvements or changes in the products and programs described without notice.
Digigram and the Digigram logo, VX222HR and VX222HR-Mic are registered trademarks or trademarks of Digigram
S.A.. All other trademarks are property of their respective holders.
VX222HR & VX222HR-Mic
User’s Manual
5
INFORMATION FOR THE USER
This device complies with part 15 of FCC rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may cause undesired
operation.
This equipment has been tested and found to comply with the limits for a CLASS B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions contained in this data sheet, may
cause harmful interference to radio and television communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
* reorient or relocate the receiving antenna
* increase the separation between the equipment and the receiver
* connect the equipment into an outlet on a circuit different from that of the receiver
* consult the dealer or an experienced audio television technician.
Note: Connecting this device to peripheral devices that do not comply with CLASS B
requirements or using an unshielded peripheral data cable could also result in
harmful interference to radio or television reception. The user is cautioned
that any changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this
equipment. To ensure that the use of this product does not contribute to
interference, it is necessary to use shielded I/O cables.
IMPORTANT NOTICE
This card has been tested and found to comply with the following standards:
• International: CISPR22 Class B.
• Europe: EMC 89/336/CEE (1992) specifications.
• United States: FCC Rules-Part 15-Class B (digital device).
In order to guarantee compliance with the above standards in an installation, the
following must be done:
• the provided cable must not be modified.
• additional cables used must have their respective shield connected to each
extremity.
D i g i g r a m
6
CONTENTS OF THIS PACKAGE
Thank you for purchasing a Digigram VX sound card.
The package consists of the following components:
• a VX222HR or VX222HR-Mic sound card
• the User’s Manual at hand.
The end user version additionally includes:
• two breakout cables (analog and digital)
• a CD-Rom with drivers, installation notices, FAQs, etc…
• a registration form
For the OEM version, the cables are available optionally.
FEATURES
VX222HR and VX222HR-Mic are audio cards for PCI bus. They are ‘Universal
PCI 64-bit/66 MHz’, which means they can be plugged in 32-bit/33 MHz 5 V
keyed PCI slots as well as in 64-bit/66 MHz 3.3 V keyed PCI slots. The cards
are also compatible with PCI-X interfaces.
VX222HR & VX222HR-Mic main hardware features
• 2 balanced∗ analog mono line inputs, with software adjustable gain and a
maximum input level of +24 dBu
• 2 servo-balanced∗∗ analog mono line outputs, with software adjustable
gain and a maximum output level of +24 dBu
• 1 digital AES/EBU∗∗∗ stereo input
The selection of the digital input for recording excludes the selection of
the analog inputs.
It is possible to use the signal on the digital input as reference clock.
• 1 digital AES/EBU∗∗∗ stereo output
Always transmits the digital version of the analog outputs 1 and 2.
• 1 LTC (Linear Time Code) input
• 1 mini jack headphone stereo output
This output is in parallel of the analog outputs 1 and 2.
• 2 General Purpose inputs and 2 outputs (GPIOs)
• Inter-card synchronization connector
∗ can be used with unbalanced signals
∗∗ electronically servo-balanced outputs provide automatic level adjustment to accommodate
either balanced or unbalanced lines
∗∗∗ can be used as S/PDIF interface as well
VX222HR & VX222HR-Mic
User’s Manual
7
Additional hardware features VX222HR-Mic
• 1 analog microphone input with
- high-quality preamplifier
- switchable 48 V phantom power
- analog expander/compressor/limiter
This input is mixed with the two line inputs before A/D conversion.
• 1 AES/EBU Sync input
• The AES/EBU input is AES42 compatible and features a hardware sample
rate converter (for details see chapter ‘Specifications’)
The two AES/EBU inputs on the VX222HR-Mic allow:
- recording of a digital signal on the AES/EBU data input; this input is
also used as source of synchronization with a digital clock
- recording of a digital signal on the AES/EBU data input, synchronized
on a digital clock connected to the AES/EBU synchronization input;
- the synchronization of analog recording and playback on an AES/EBU
clock connected to the AES/EBU Sync input.
The selection of the digital input excludes the selection of the analog
inputs.
Note: AES42 is an extension of the digital audio standard of interface AES3 providing for
interfacing digital microphones.
Main software features
• Real-time, simultaneous PCM record and playback (8, 16 and 24 bits),
Float IEEE754 (with 24-bit fixed-point dynamic range)
• When using the np SDK, real-time on-board mixing of several PCM
audio streams, direct monitoring, level adjustment, panning, cross-fades,
punch-in/punch-out, scrubbing
• Possibility to control the parameters of the inputs and outputs (gains,
mutes, 48 V switch, analog compressor-limiter-expander parameters),
from the provided ‘Digigram Hardware Settings’ application, or from any
application that addresses these controls
• 24-bit DSP effects in playback and recording: 3-band parametric
equalizer plus Maximizer
• Low latency DirectSound, Wave, and ASIO drivers
D i g i g r a m
8
HARDWARE REQUIREMENTS
Minimum requirements
• Pentium III 700 MHz (or equivalent) minimum
• One free PCI (3.3 V or 5 V keyed) or PCI-X slot
Software requirements
To use your VX222HR or VX222HR-Mic, install the driver from the HR
Runtime package version 1.40 or higher. This package includes a
WDM
DirectSound
driver. Microsoft DirectX 9 or a later version must also be
installed. The card can also be used with applications based on Digigram‘s np
SDK
Supported operating systems
VX222HR and VX222HR-Mic cards run under Windows 2000, Windows XP1,
and Windows Server 20031 and are compatible with the np SDK, and come
along with low-latency DirectSound, Wave, and ASIO drivers.
HARDWARE INSTALLATION
The card has to be installed in the computer prior to installing its driver.
Installing the card
Gently plug the card in a free PCI slot and press it down to position it firmly.
Tighten the screw.
Interrupt and memory address
Hardware interrupt and addresses are automatically set up at start-up by the
PCI PnP BIOS.
SOFTWARE INSTALLATION
Please visit the Digigram web site at www.digigram.com for the most recent
driver.
In case you run a specific application developed or installed by a Digigram
partner, it might require the use of a specific driver version. In this case, make
sure that the updated driver has been approved by your supplier.
1
32-bit version
VX222HR & VX222HR-Mic
User’s Manual
9
Installation under Windows 2000, XP, and
Windows Server 2003
If the driver has been downloaded from our web site, it has to be expanded
prior to the driver’s installation as follows: double-click on the downloaded
file (self-expanding). You can use the default destination location (Windows
temporary folder) or select another directory.
• Shut down your computer and insert your VX card.
• Restart your computer.
• Click on Cancel if the “Found New Hardware” Wizard appears.
• Double-click on the setup.exe icon to launch the driver installation.
• A welcome message is displayed, click Next to continue.
• The “License Agreement” window appears: read it, and click on Yes
to approve it. Do the same for the “Read Me First” window.
• Choose the destination folder where Setup will install the application
files (..\pcxnp by default). Note that the driver files are installed in
..\windows\system32\Drivers\Digigram\PCXHR Next.
• In the “Select components” window make sure that the “Driver for
the HR boards” has been selected.
• Select the program folder where the program icons will be added
(default: DIGIGRAM). Next.
• Click on Next to start copying the files.
• Click on Continue anyway in the “Hardware installation” window
(Windows XP).
• In the “Digigram drivers” window, select the number and the size of
buffers required by your applications. Click on Ok.
• Click on the Finish button to complete the driver installation.
Removing the driver under Windows 2000, XP, and
Windows Server 2003
• Open the Windows Control Panel and double-click on the
Add/Remove Software icon.
• Select "Digigram HR Runtime …", and Change/Remove.
• Select Remove in the “HR Runtime” window.
• Follow the instructions to finish the driver removal.
D i g i g r a m
10
How to check the installation
Once the driver and the cards are installed according to the procedure
described in this manual, you can verify that the card is properly installed and
works fine as follows:
• Menu <Start> <Settings> <Control panel>, <Sound and
Multimedia>, tab “Audio”, Default device (Playback device,
Recording device). The card’s channels can be selected. The card can
be used with any DirectSound application (see pages hereafter).
• The card is also visible via the np interface: Go to <Start>
<Programs> <Digigram> and select <Digigram Control Center>.
• In the “Digigram drivers” window, select the ‘General Information’
tab.
In the “Modules Information” window, you can see the HR
Runtime modules that have been installed, and their versions.
• In the “Digigram drivers” window, select the ‘Diagnostics’ tab.
You should see here the icons of the cards you have installed.
If the card you have installed is listed:
• Right click on the icon of the card.
• Select ‘Diagnostics’, and Play Sine. This plays in loop a sine
signal on the outputs of the card. You can also select Play file to
play in loop a file of your choice (PCM only).
If the playback is correct, the card is correctly installed and
works.
• To stop the playback, right click on the card icon, and select Stop
Activities.
The card is also visible via the DHS control panel (cf. dedicated
chapter next page).
If the card is not displayed:
• Make sure that during the HR runtime installation the “Driver
for the HR boards” has been selected in the “Select
components” window.
• make sure that the card is correctly inserted in the PCI slot, and
screwed on the PC chassis.
• if necessary, uninstall HR runtime package as described in this
manual, and re-install it.
VX222HR & VX222HR-Mic
User’s Manual
11
The ‘Digigram Hardware Settings’
(‘DHS’) control panel
Digigram hardware settings (DHS) is an application allowing to configure the
hardware resources of Digigram cards for all audio applications using them.
A resource being managed by the DHS application can not be modified by any
other applications. To enable an audio application to modify a Digigram card
resource, this resource must not be managed by the DHS.
Note: As soon as a resource of a card is managed by the DHS, the clock
selection of this chart MUST be defined in the DHS.
The DHS allows to:
• Select the clock the card uses
• Select the input source
• Set analog and digital gains of an input
• Enable Sample Rate Converters of an input
• Select the input monitored on an output
• Set the monitoring gains
• Set the analog and digital gains of an output
• Define the digital output format
For help on how to use this control panel, please refer to its on-line help.
D i g i g r a m
12
SPECIFICATIONS
Configuration
VX222HR VX222HR-Mic
Bus/Format
PCI 2.2, “Universal PCI 32-bit/66 MHz” master
mode, “short-length” PCI format compatible,
PCI-X compatible
Digital Signal Processor Motorola 56303 at 100 MHz
RAM 128 kWords 512 kWords
Size 175 mm x 99 mm x 20 mm
Power requirements
(+3.3V/+5V / +12V / –12V)
0,35 A / 0,2 A / 0,2 A /
0,08 A
0,4 A / 0,3 A∗ / 0,22 A
/ 0,1 A
Operating:
temp / humidity
(non-condensing)
0°C / +50°C • 5% / 90%
Storage: temp / humidity
(non-condensing) -5°C / +70°C • 0% / 95%
Inputs
VX222HR VX222HR-Mic
Analog line inputs (mono) 2 balanced∗∗ 2 balanced∗∗
Maximum input
level/impedance +24 dBu / <10 kΩ +24 dBu / <10 kΩ
Digital inputs (stereo) 1 AES/EBU∗∗∗ cf. separate table
Programmable input gain analog: from –94 dB to +16 dB⊗
digital: from –110 dB to +18 dB
Other inputs 2 GPI (dry contact),
LTC
AES11 synchronization Yes
∗
enabling phantom power (48 V) may increase this value by 50%
using the 10 V AES42 power to feed the microphone may increase this value by 150%
∗∗
can be used with unbalanced signals
∗∗∗
can be used as S/PDIF interface as well
⊗ maximum sensitivity: 0 dBFs for –16 dBu input
VX222HR & VX222HR-Mic
User’s Manual
13
Additional inputs VX222HR-Mic
Microphone input
1 professional mono with
- high-quality preamplifier
- switchable 48 V phantom power
- analog expander/compressor/limiter
This input is mixed with the two line inputs before
A/D conversion.
Digital input (stereo)
1 AES/EBU, AES42 compatible
- with hardware sample rate converter (SRC)
- supplying 10 V to feed a digital microphone
- allowing remote microphone control
Other inputs AES/EBU Sync (up to 200 kHz)
Outputs
VX222HR VX222HR-Mic
Analog line outputs (mono) 2 servo-balanced∗∗
Maximum output level /
impedance +24 dBu / < 100 Ω
Digital outputs (stereo) 1 AES/EBU, up to 200 kHz
Programmable output gain analog: from –24 dB to +24 dB
digital: from –110 dB à +18 dB
Other outputs 1 stereo headphone output (600 Ω)
2 GPO (relay, 0.5 A, 48 VCC)
∗∗ electronically servo-balanced outputs provide automatic level adjustment to accommodate
either balanced or unbalanced lines
D i g i g r a m
14
Connectors
VX222HR VX222HR-Mic
Internal connector Inter board synchronization
External connectors
• 15-pin Sub-D for analog I/Os
• 15-pin HD Sub-D for digital I/Os, Sync.,
and GPIO
• Mini jack headphone stereo output
(3,5 mm TRS female jack)
Audio specifications
VX222HR VX222HR-Mic
Sampling frequencies available Programmable from 8 to 192 kHz
A/D and D/A converter
resolution 24 bits 24 bits
Supported audio formats PCM (8, 16, 24 bits), Float IEEE754
Analog audio performance
Measurements done at Fs=48 kHz unless stated otherwise, with filter on the
22 Hz- 22 kHz range
VX222HR VX222HR-Mic
Frequency response
(record + play)
at 48 kHz: 20 Hz - 20 kHz: +0 /-0.3 dB
at 96 kHz: 20 Hz - 40 kHz: +0 /-0.4 dB
at 192 kHz: 20 Hz - 80 kHz: +0 /-1.1 dB
Channel phase difference:
20/20kHz <0.2°/2°
Dynamic range
(A-weighted)
Analog In: >104 dB
Analog Out: > 106 dB
THD + noise 1 kHz at –2 dBfs Analog In: <–97 dB
Analog Out: <-95 dB
Crosstalk
(Analog in or out)
1 kHz at 24 dBu: <–115 dB
15 kHz at 24 dBu: <-100 dB
Sample rate converter performance
VX222HR-Mic
Maximum frequency 192 kHz
Frequency ratio from 1:8 to 7,5:1
THD + noise 1 kHz at –2 dBfs <-130 dB
VX222HR & VX222HR-Mic
User’s Manual
15
Analog mono microphone input features
VX222HR-Mic
Power supply switchable 48 V phantom power
Programmable mic gain 0 to 66 dB in 0.5 dB steps
Maximum input
level/impedance +10 dBu / >10 kΩ
Equivalent Input Noise,
A/D-D/A at 48kHz, G=60 dB <-125 dBu
Programmable noise-gate
threshold -52 dB, -42 dB, -32 dB
Programmable
compressor/limiter threshold from –26 dB to 0 dB
Programmable compressor ratio 1, 1.2, 1.5, 1.8, 2, 2.5, 3, 3.5, 4, 4.5
Programmable
compressor/limiter gain from 0 to 16 dB
Limiter ratio 15:1
Compressor/limiter release time 150 ms
Management of line and mic
inputs
Mixed together before A/D, with independent
level and mute controls
Programmable DSP effects on
the output
3-band parametric equalizer plus Maximizer
AES42 microphone input features - VX222HR-Mic
Power supply 10 V min / 250 mA max
Remote control Yes
Supported synchronization Operational mode 1
(the microphone generates its own clock)
Development environments
VX222HR VX222HR-Mic
Digigram management np SDK (HR runtime, PCM only)
Other management Wave, ASIO, DirectSound (all PCM only)
Supported operating
systems Windows 2000, XP1 , and Windows 20031 Server
Main on-board processing
features (with np SDK)
PCM play, rec, Float IEEE754, direct monitoring,
real-time mixing, level adjustment, panning, cross-
fade, punch-in/punch-out, scrubbing
1
32-bit version
D i g i g r a m
16
APPENDICES
VX222HR Schematic Diagram
PCI BUS
AES/EBU IN
DAC
Level adjust
TRANSMIT AES/EBU OUT
CLOCK
GENERATION
DSP
INTERFACE GPIO
CONTROL
GP OUT
GP IN
RECEIVE
ADC
ANALOG
LINE IN 1 - 2 LINE OUT
Headphones OUT
LTC
CRYSTAL
VX222HR-Mic Schematic Diagram
PCI BUS
AES/EBU IN
AES42 compatible
DAC
Level adjust
TRANSMIT AES/EBU OUT
CLOCK
GENERATION
DSP
INTERFACE
RECEIVE
ADC
ANALOG
LINE IN
1 – 2
SRC
LTC
Bypass
AES/EBU
SYNC RECEIVE
LINE OUT
Headphones
OUT
GPIO
CONTROL
GP OUT
GP IN
Level setting
48 V
MICRO IN
(mono) LIMITER
CRYSTAL
VX222HR & VX222HR-Mic
User’s Manual
17
Layout
J1 : Headphone connector:
(3.5 mm TRS female jack)
Contact Signal
Sleeve Ground
Tip Left channel
Ring Right channel
J2 : Analog cable
J3 : Digital cable
J4 : Inter-card synchronization connector
D i g i g r a m
18
VX222HR analog cable diagram:
Analog cable delivered by Digigram:
VX222HR-Mic analog cable diagram:
Analog cable delivered by Digigram:
VX222HR & VX222HR-Mic
User’s Manual
19
Wiring Diagram – Analog Cable VX222HR
J13
female
+
-2
3
1Left IN
J12
female
+
-2
3
1Right IN
J11
male
+
-2
3
1
Left OUT
J10
male
+
-2
3
1
Right OUT
XLR
1
9
10
3
13
6
7
15
J2
Signal number
Wiring Diagram – Analog Cable VX222HR
J14
female
+
-2
3
1Mic
J13
female
+
-2
3
1Left IN
J12
female
+
-2
3
1Right IN
J11
male
+
-2
3
1
Left OUT
J10
male
+
-2
3
1
Right OUT
XLR
1
9
10
3
13
6
7
15
12
5
J2
Signal number
D i g i g r a m
20
VX222HR digital cable with GPIOs
Schematic diagram of the cable delivered by Digigram*:
VX222HR digital cable without GPIOs
Schematic diagram of the cable delivered by Digigram*:
* Your cable may look different if it is not a Digigram cable.
VX222HR & VX222HR-Mic
User’s Manual
21
Wiring Diagram – Digital Cable with GPIOs
(VX222HR)
Wiring Diagram – digital cable without GPIOs
(VX222HR)
D i g i g r a m
22
VX222HR-Mic digital cable with GPIOs
Schematic diagram of the cable delivered by Digigram*:
VX222HR-Mic digital cable without GPIOs
Schematic diagram of the cable delivered by Digigram*:
* Your cable may look different if it is not a Digigram cable.
VX222HR & VX222HR-Mic
User’s Manual
23
Wiring Diagram – Digital Cable with GPIOs
(VX222HR)
Wiring Diagram – digital cable without GPIOs
(VX222HR-Mic)
D i g i g r a m
24
VX222HR cable pinout
Pin # ANALOG DIGITAL
1 R OUT + GPO OUT 1A
2 GND NC
3 L OUT - NC
4 GND AES/EBU IN -
5 NC AES/EBU IN +
6 R IN - GPI INPUT 2
7 L IN + GND/GPO COMMON INPUT
8 GND GPI INPUT 1
9 R OUT - GND
10 L OUT + LTC IN
11 GND GPO OUT 1B
12 NC GPO OUT 2A
13 R IN + GPO OUT 2B
14 GND AES/EBU OUT +
15 L IN - AES/EBU OUT -
VX222HR-Mic cable pinout
Pin # ANALOG DIGITAL
1 R OUT + GPO OUT 1A
2 GND AES/EBU IN -
3 L OUT - AES/EBU IN +
4 GND AES/EBU SYNC IN -
5 MIC IN AES/EBU SYNC IN +
6 R IN - GPI INPUT 2
7 L IN + GND/GPI INPUT COMMON
8 GND GPI INPUT 1
9 R OUT - GND
10 L OUT + LTC IN
11 GND GPI OUT 1B
12 MIC IN + GPI OUT 2A
13 R IN + GPI OUT 2B
14 GND AES/EBU OUT +
15 L IN - AES/EBU OUT -

Navigation menu
