Digital Ally, Inc. | Introduction
1
Introduction

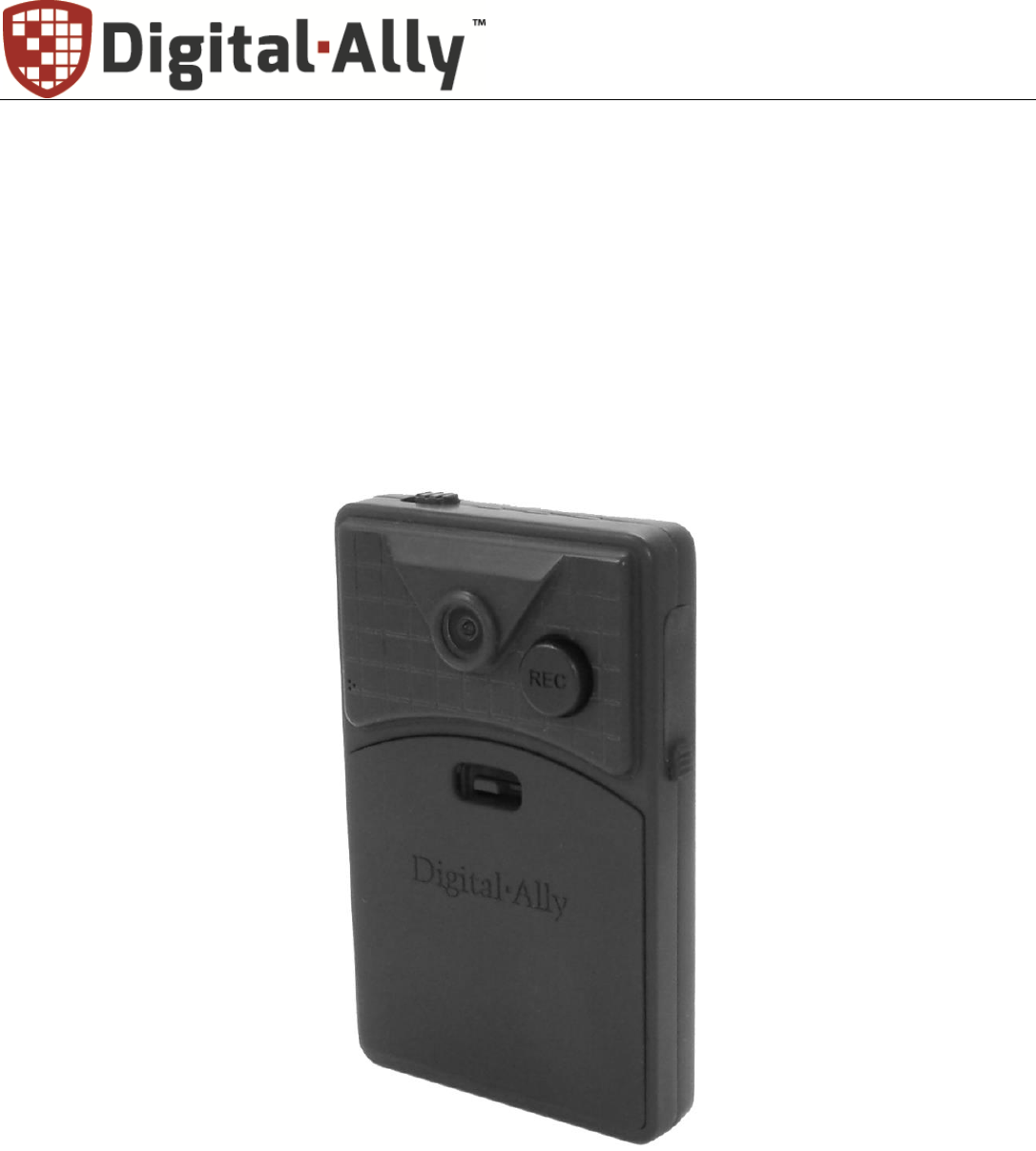

The FirstVu HD One is a Professional, Evidentiary, Wearable, Mountable, and Weather-
Resistant Digital Video System.
Record video and audio, evidence wherever the job requires, day or night while also
collecting useful information such as a date/time stamp, and marks (video bookmarks).
This Operation Guide is designed to get you up and running quickly with its basic features.
For integration within the VuVault™ back office software, please go to Page 6. For
integration with Digital Ally’s VuLink™ in-car wireless link, please consult the “Vulink
Operation and Installation Guide.”
FirstVu HD One Features
Easy to Operate – One button start/stop record
Small and Lightweight
Easily and securely mounts almost anywhere
High Quality 720p Video – H.264 codec – 1280 x 720 resolution, 30 frames per
second (configurable for lower settings)
Wide 130° Field of View
Encoded videos may easily be viewed on standard PC video player software or
Saves Metadata along with Video
Up to 60 Seconds Pre-Event Record (when configured) – Capture the action
before activating a recorded event
0.08 Lux Low light sensitivity for night time operation
Instant Record ON while in Stand-by Mode
User can insert a ‘Mark’ during a recording which records to Metadata
Covert Mode
Secure 32GB of internal event record memory with easy download thru USB port
Software Upgradeable via USB
Up to 4.5 hours of continuous recording on a single charge with standard battery or
8 hours with the extended battery
Integrates with VuLink™ wireless in-car video link
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Introduction
2
Standard Parts
Item
Qty
Description
1
1
FirstVu HD One
For Standard or Extended Battery
2
2
Cable, USB 2.0 Type A to Mini-B
3
1
Velcro Mount
4
1
Fabric Clip
5
1
Quick Reference Guide
6
1
Wall Charger
7
1
Car Charger
8
2
1
Standard FirstVu HD One Battery
or
Extended FirstVu HD One Battery
9
1
Battery Charger
10
1
Wedge Kit
Optional Accessories
VuLink™ Wireless In-Car Video Link
Automatically start recordings on your FirstVu HD One or FirstVu HD
using the same triggers as vehicle video systems, regardless of
whether the unit is mounted or worn.

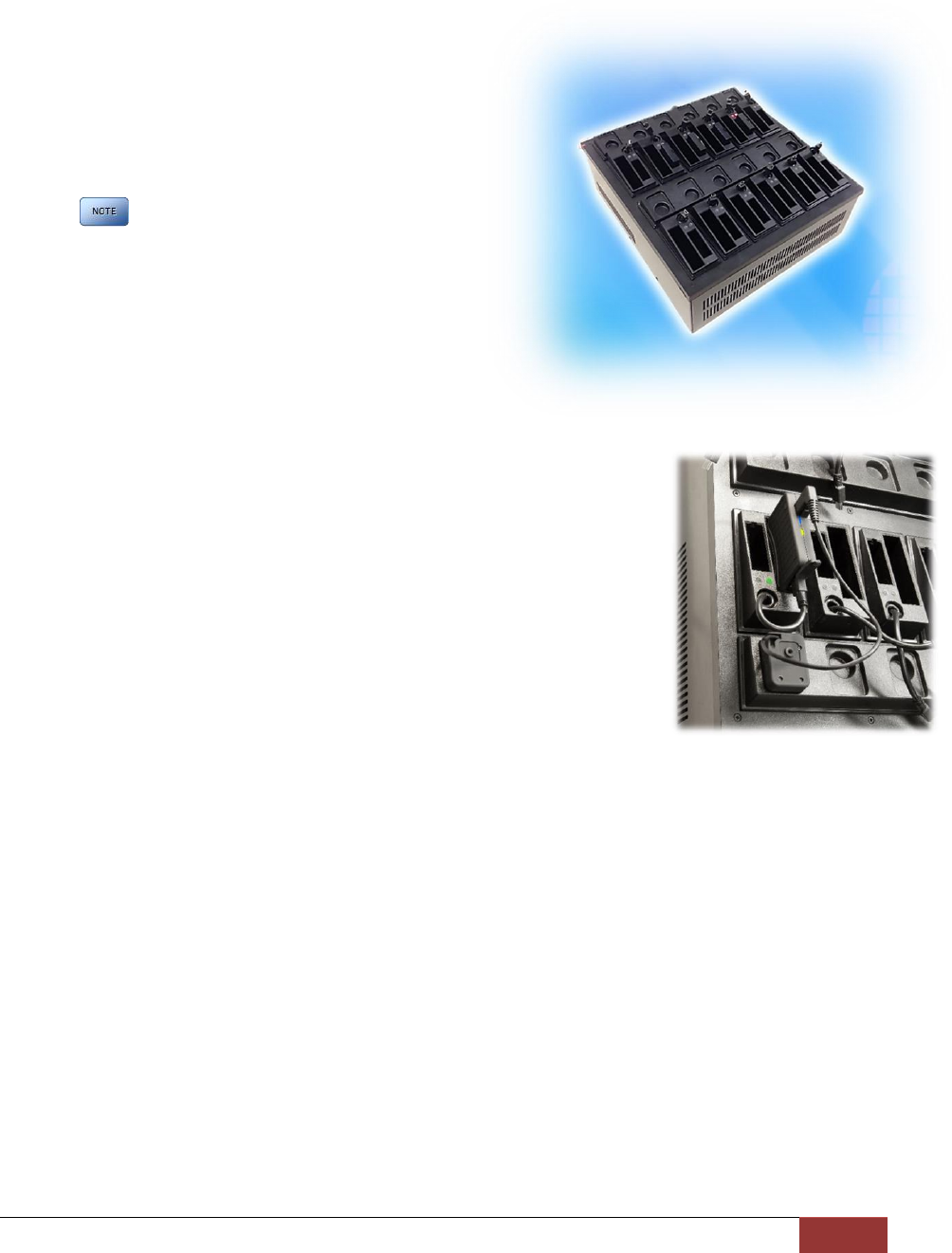

FirstVu HD Docking Station
Provides automated, simultaneous uploading and charging for up to
12 FirstVu HD or FirstVu HD One devices plus 12 batteries.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Getting Started
3
Getting Started
Software Updates
Log on to http://www.digitalallyinc.com/login.cfm and register for an account to be an
authorized user. By registering you will be able to download all the latest firmware/software
updates and will be notified of future upgrades.
Battery Charging Information
The FirstVu HD One should be fully charged before initial use using the AC power outlet or
DC auto adapter. With the unit powered off, charge the unit initially for 8~10 hours.
Subsequent charges should take approximately 4 hours. Use one of the methods below to
charge your battery.
If the battery is 100% fully depleted, it cannot be charged within the FirstVu HD One.
For best results, remove the battery & use the external battery charger.
Charging Using the Battery Charger (Preferred Method)
Remove your battery from the FirstVu HD One and insert into the supplied battery charger.
Then plug your battery charger into an available USB port on your computer or one of the
chargers illustrated below using the supplied USB cable. A status LED indicates the
charging mode of the battery. When the LED is green, your battery is charged and ready
for use.
Charging from a Computer or optional Docking Station
Plug the USB cable into the computer or docking station USB port. Insert the other end of
the cable into the FirstVu HD One USB port and the unit will begin charging.
Charging In a Vehicle

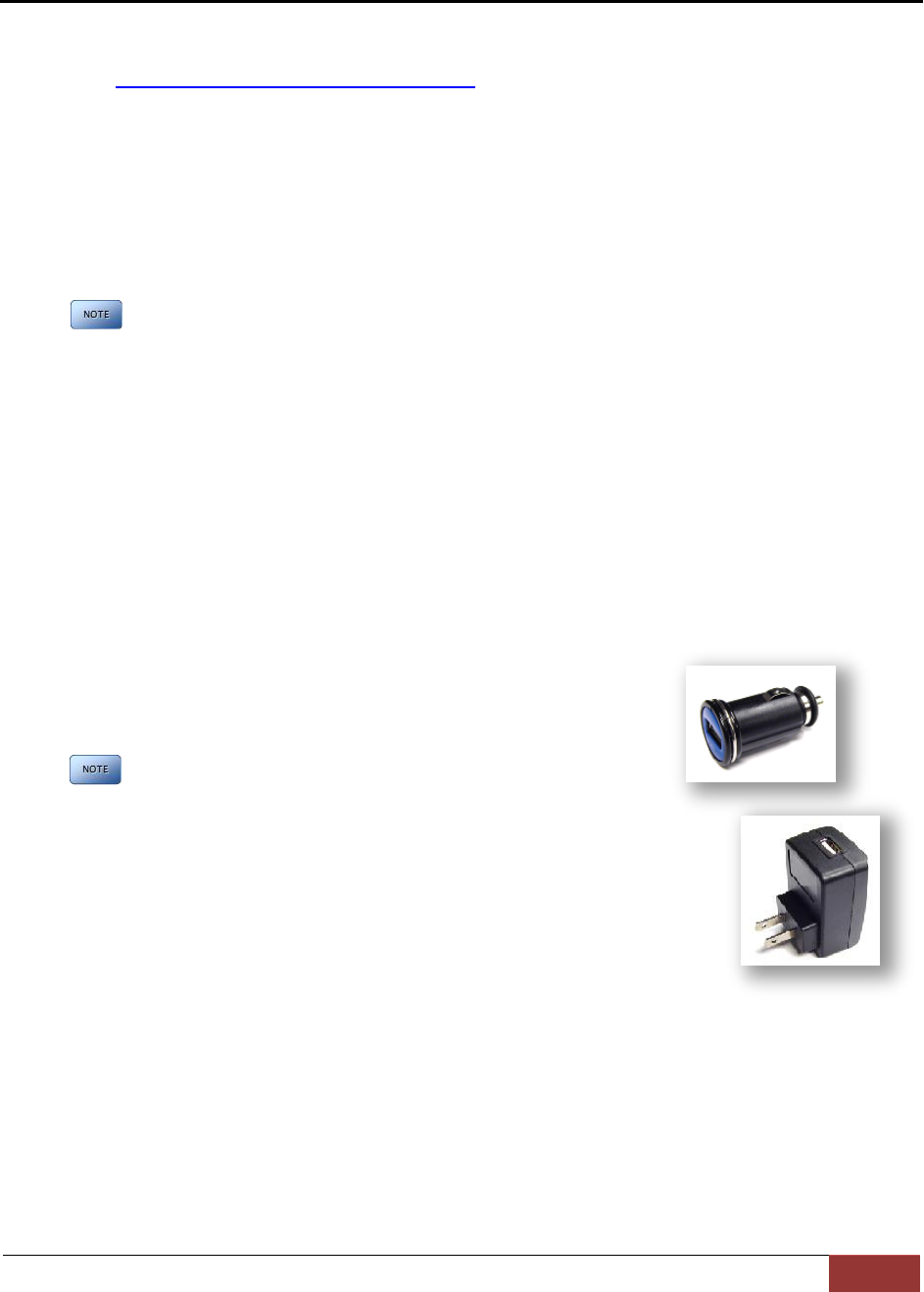

Plug the DC auto adapter into the vehicle’s 12VDC receptacle
and the other end into the FirstVu HD One USB port or
charging cradle USB port; the unit will begin charging.
In some vehicles, the 12VDC receptacle may be controlled by the
position of the ignition switch. In such cases, the FirstVu HD One
will only charge when the ignition switch is in the “On” position.
Charging Using an AC Power Outlet
Plug the AC power adapter into an appropriate power outlet and the
USB connector into the FirstVu HD One USB port. The unit will
begin charging.
FirstVu HD One Charging and Battery Indicators
Charging with unit powered ’ON’
Charging in progress is shown with a flashing blue status indicator.
When charging is complete the blue status indicator is illuminated.
Charging with unit powered ’OFF’
The unit may be charged via USB cable with the power switch in the OFF
position. However, no LED indicators will be present while it is charging.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Getting Started
4
Setting the Date and Time
Automatically setting the date and time
The date and time is set by the factory prior to shipment. However, you must also enter the
correct UTC offset when configuring the device so that the time zone can be set properly.
For example, USA Central Standard Time =UTC -6. If using VuVault™, the date & time
are automatically synced to your computer during activation. For more information,
consult the Device Configuration sections of this manual. USA time zones are listed below
for reference.
PST = Pacific Standard Time (UTC - 8 hours)
MST = Mountain Standard Time (UTC - 7 hours)
CST = Central Standard Time (UTC - 6 hours)
EST = Eastern Standard Time (UTC - 5 hours)
AST = Atlantic Standard Time (UTC - 4 hours)
ALST = Alaskan Standard Time (UTC - 9 hours)
HST = Hawaiian Standard Time (UTC - 10 hours)
Manually setting the date and time
The date and time is set by the factory prior to shipment and should not need manual
adjustment. However, date and time can still be set manually if needed. Follow the
procedure below to manually set the date and time.
1. Open Notepad from your computer.
2. Inside Notepad, type in the year, month, day, hour, and seconds you wish to
program into the FirstVu HD One. Use the following format (YYYYMMDDHHMMSS)
using 24 hour UTC time. You must also apply your time zone offset.
For example, If you live in the CST zone and the current date & time is 5/23/2013
10:47:50pm, you would enter 20130524044750. Since CST is UTC-6, you have to add
6 hours to the current time to reflect the UTC time.
3. Go to File>Save As and name the file “DATE.txt”
4. Connect your FirstVu HD One via the supplied USB cable and transfer the DATE.txt file
to the root drive.
5. Cycle the power on your FirstVu HD One. The unit will apply the system date/time
during boot up. When completed, the FirstVuHD will erase the .txt file.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – VuVault
5
Device Configuration – VuVault
The FirstVu HD One contains a default configuration and can be used immediately. It
may be reconfigured by activating the device using Digital Ally’s optional VuVault™
back-office software (recommended), or the Mini Configuration Manager application
supplied on the FirstVu HD One product DVD. If you are using VuVault™, follow the
instructions in this section to configure and activate your FirstVu HD One. If you are
not using VuVault, skip to Device Configuration – Mini Configuration Manager to
configure your device.
Default Configuration
If the unit has never been activated, it will use the following default settings:
Central Standard Time (UTC-6)
Daylight Saving enabled
Date format: Month/Day/Year
Time format: 12-hour
Pre-Event disabled
1280x720p record size/high record quality
Pre-Event Audio disabled
30 frames per second
Record LED enabled
Secure USB port disabled
Using VuVault to Configure your FirstVu HD One
You must upgrade VuVault to Version 4.7 (minimum) to configure and
activate a FirstVu HD One device. VideoManagerII and previous versions
of VuVault will not work with the FirstVu HD One.
VuVault is used to manage FirstVu HD One settings as well as activate your device for
use within the system.
Before you can configure your device for
use within VuVault, the serial number must
be added into the system. Select
Admin>Devices>Add Device to add your
device into VuVault.
Type in your device serial number and
assign it a name within the system. When
done, select Close, then Save.
For more information consult the VuVault
Administrator’s Guide “Adding Devices”
section.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – VuVault
6

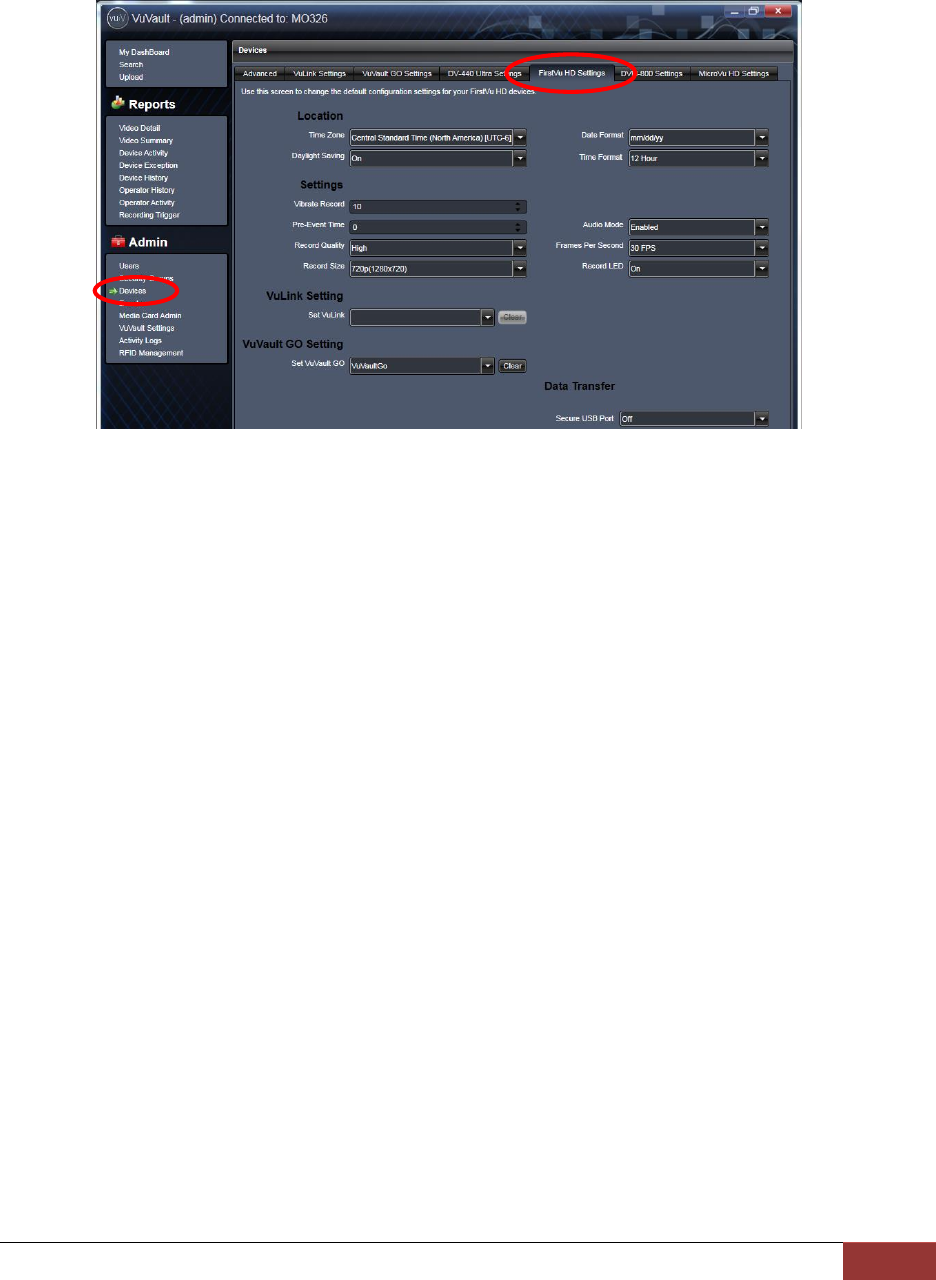

A configuration field will be available in the Admin>Devices tab within VuVault once a
valid FirstVu HD One serial number has been added into the system. These global
settings will define how all users will interface with the FirstVu HD One.
Location
Time Zone
The local time zone is used to adjust the device when synchronizing to the
Greenwich Mean Time. During device configuration, the local time from the
PC real time clock will be used, and Central Standard Time is set by default.
Settings: UTC, UTC-6 (CST) [default]
Daylight Saving
When set to On, Daylight Saving setting time will be automatically adjusted
for the configured Local Time Zone. If this is disabled, time will not be
adjusted for Daylight Saving.
Settings: Off, On [default]
Date Format
The date format displayed on the event recordings is selected through this
setting.
Settings: mm/dd/yy [default]; yy/mm/dd; dd/mm/yy
Time Format
This time format allows the device to be configured in a 12-hour format or a
24-hour format.
Settings
Pre-Event Time
The Pre-Event Time option allows you to set the amount of time for the pre-
event buffer. The FirstVu HD One will buffer the last 0-60 seconds of audio
and video so it can be recorded during a record event. If set for 0 seconds,
pre-event function will be disabled.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – VuVault
7
Settings: 0-60 seconds [default = 0 seconds]
Record Quality
The Record Quality parameter allows the video compression bit rate to be
adjusted. Digital video is compressed by taking out data that remains
constant from each frame, and only storing data that actually changes. This
allows videos with still backgrounds to be much smaller than they would be
if the background had to be present in every single frame.
The bit rate is the amount of bits that can be used in one second of video.
The higher the record quality, the higher the bit rate and the size of the
event files. The default setting is “high” for a good mix between video
qualities and upload time, but can be lowered or raised to adjust quality and
storage space.
Settings: Standard (2Mbps), Medium (4Mbps), High (6Mbps) [default], Super High (12Mbps)
Record Size
The Record Size parameter allows the video image size to be adjusted from
VGA (standard definition) to 720p (high definition). VGA has a picture size
of 640x480 pixels, whereas 720p has a picture size of 1280x720 pixels.
720p will provide a larger & more defined video picture, but because of its
larger size, will require about 3 times as much storage space as VGA. Also,
the shape of the final video frame will be slightly different, with 720p being a
wider frame (higher width ratio to height).
Settings: VGA (640x480), and 720p (1280x720) [default]
Audio Mode
The audio mode determines how audio will be recorded to your device. If
enabled, audio information is recorded during the recorded event and
during the configured pre-event time.
If enabled (w/o Pre-event), audio will be recorded during the event but not
recorded during pre-event. If this option is disabled, no audio will be
recorded.
Settings: Enabled, Disabled, Enabled (w/o Pre-Event) [default]
Frames Per Second
This parameter sets the number of frames per second the FirstVu HD One
will record. The higher the setting, the better the video quality, and the
larger the size of the event files.
Settings: 5, 10, 15, 30fps [default = 30fps]
Record LED (covert mode)
The Red Record LED behavior on the camera can be configured to
accommodate your desired operation. If disabled, the LED will not
illuminate during a recorded event and will operate in covert mode.
Settings: Off, On [default]
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – VuVault
8
VuLink Setting
Set VuLink
Assign a VuLink™ device serial number for use with your FirstVu HD One.
A Vulink™ wireless link is required (see the “VuLink Operation and
Installation Guide”, or call Digital Ally Inc. Technical Support for more
information).
VuVault GO Setting
Set VuVault GO
Use this field to enable use of the VuVault GO application.
Data Transfer
Secure USB Port
This parameter determines if the USB port for secure data connections to a
PC is enabled or disabled. This feature provides greater security to your
recorded evidentiary data.
When Secure USB Port is enabled, it is impossible to view, edit, or delete
files present on your FirstVu HD One using a normal Windows computer.
Video and metadata files can only be accessed when using the upload
function within your VuVault stand-alone or networked environment.
VuVault creates a proprietary encryption key to restrict access to your
FirstVu HD One files when in secure mode. The only user-accessible
information when the device is connected to a PC USB port on a normal
Windows computer is the dvminfo.log file. The dvminfo.log file contains
basic information about your device such as serial number and firmware
version.
When Secure USB Port is disabled, video and data files will be accessible
to any user when the device is plugged into a PC USB port. Event data can
then be copied, erased, or uploaded with or without the use of VuVault.
Settings: On, Off [default]
Once the desired settings have been entered, click and
proceed below to activate your device.
Assigning a User to your FirstVu HD One
Assigning a user to your device is achieved during the VuVault activation process.
When a user is assigned to the device, all uploaded video events will appear on his or
her My Dashboard screen upon logging into VuVault. Users may be reassigned each
time the FirstVu HD One is activated.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – VuVault
9
Activating your FirstVu HD One within VuVault

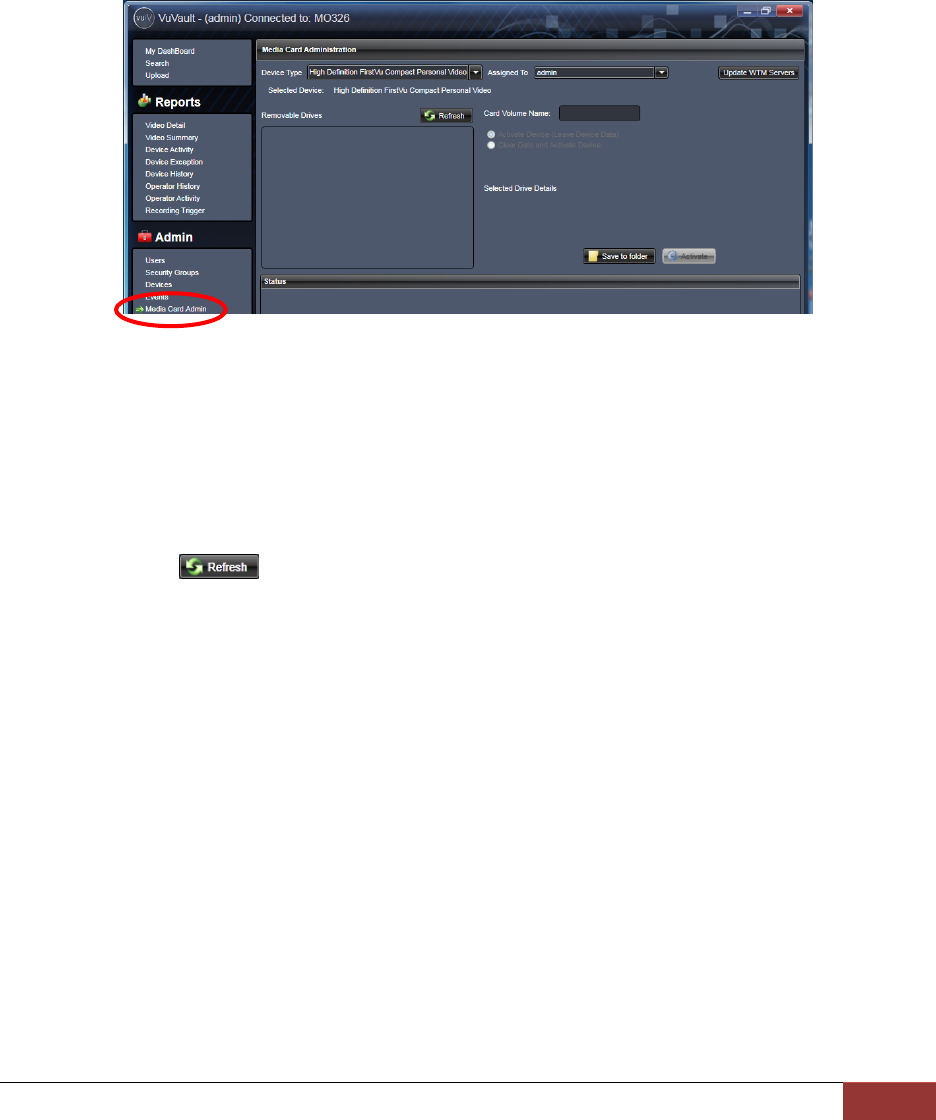

The Media Card Administration function is used to erase, format, and activate the
FirstVu HD One device to be ready for use with VuVault.
The FirstVu HD One must be connected to a VuVault computer via USB port. Make sure
it is powered on and in Standby mode.
1. Select Media Card Admin from the Admin navigation bar.
2. Select the correct Device Type from the available options. You must select
“FirstVu HD One”.
3. Click the button to detect the FirstVu HD One from the available
removable drives.
4. Select the drive letter assigned to the FirstVu HD One.
5. In the Assigned To field, select a user to assign the device. All video events
recorded after the activation will be associated to this user. The assigned user
may be changed each time the device is activated.
6. Note the Card Volume Name field. If there is a current volume name, it will
show up automatically. If not, it will default to DA_DEVICE. This can be
changed according to customer preference to whatever is deemed most
appropriate.
7. Choose from one of two options to activate the device:
Activate Device (Leave Device Data) – this option simply activates the
FirstVu HD One by writing the “deviceconfig” file to internal memory. No
existing video events located on the internal memory are altered.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – VuVault
10
Clear Data and Activate Device – this option erases any data on the
internal memory and activates it.
Always ensure that all relevant data has been previously uploaded to the system
before deleting it from the FirstVu HD One.
8. Click the Activate button. The Status field will indicate when the process has
completed.
VuVault will create files named “deviceconfig” and “AssignedTo” and place into
the root folder of the FirstVu HD One. These and all other media files are
accessible to the user only if Secure USB Port is disabled within the VuVault
Admin>Settings>FirstVu HD One Defaults Menu.
If Secure USB Port is enabled, the only accessible information is the
dvminfo.log file. The dvminfo.log file contains basic information about your
device such as serial number and firmware version. Video uploads and device
configuration MUST be done through VuVault when this option is enabled.
9. Reboot your FirstVu HD One by turning the power switch OFF, then ON.
The FirstVu HD One is now activated and ready for use. For more information consult
the VuVault Administrator’s Guide Media Card Administration section.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – Mini Configuration Manager
11
Device Configuration – Mini Configuration Manager
The FirstVu HD One contains a default configuration and can be used immediately. It
may be reconfigured by activating the device using Digital Ally’s optional VuVault™
back-office software (recommended), or the Mini Configuration Manager application
provided on the supplied FirstVu HD One product USB Flash Drive. If you are not
using VuVault™, follow the instructions in this section to configure and activate your
device using the stand-alone Mini Configuration Manager software.
Default Configuration
If the unit has never been activated, it will use the following default settings:
Central Standard Time (UTC-6)
Daylight Saving enabled
Date format: Month/Day/Year
Time format: 12-hour
Pre-Event disabled
1280x720p record size/high record quality
Pre-Event Audio disabled
30 frames per second
Record LED enabled

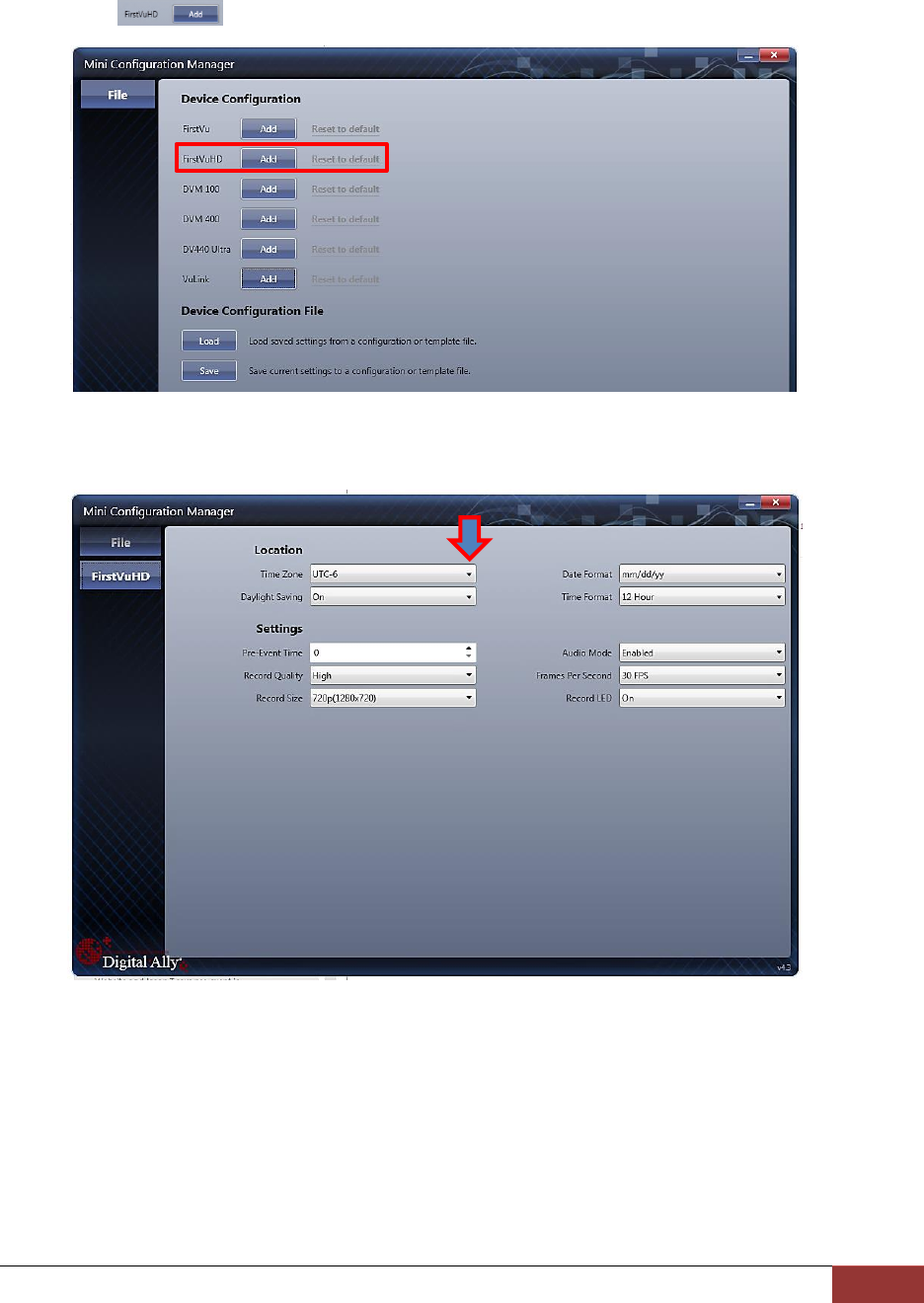

Mini Configuration Manager PC Software
The Mini Configuration Manager software is used to manage FirstVu HD One settings
as well as activate a FirstVu HD One device or an external memory card for use in a
FirstVu HD One (non-VuVault installations). Various configurable items can be adjusted
to meet your specific setting requirements. For VuVault integration, use the
configuration options within the VuVault software program instead to configure your
FirstVu HD One (consult Device Configuration - VuVault for more information).
The Mini Configuration Manager Installation software is located on your provided
product USB Flash Drive. Once installed, go to Start Menu>Programs>Digital Ally>Mini
Configuration Manager to open the application.
Load Configuration File
To import settings from your FirstVu HD One device or data
storage location you can press the Load button inside the
“File” tab near the center of the software screen. This will
bring up the Windows dialog box to navigate to the location
of the file. The file is named “deviceconfig”.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – Mini Configuration Manager
12
Device Configuration
Press the button to create or edit a device configuration.
The default device configuration screen will then be available for editing. Use the drop
down arrows to make your selections.
Location
Time Zone
The local time zone is used to adjust the device when synchronizing to the
Greenwich Mean Time. During device configuration, the local time from the
PC real time clock will be used, and Central Standard Time is set by default.
Settings: UTC, UTC-6 (CST) [default]
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – Mini Configuration Manager
13
Daylight Saving
When set to On, Daylight Saving setting time will be automatically adjusted
for the configured Local Time Zone. If this is disabled, time will not be
adjusted for Daylight Saving.
Settings: On, Off [default]
Date Format
The date format displayed on the event recordings is selected through this
setting.
Settings: mm/dd/yy [default]; yy/mm/dd; dd/mm/yy
Time Format
This time format allows the device to be configured in a 12-hour format or a
24-hour format.
Settings
Pre-Event Time
The Pre-Event Time option allows you to set the amount of time for the pre-
event buffer. The FirstVu HD One will buffer the last 0-60 seconds of audio
and video so it can be recorded during a record event. If set for 0 seconds,
pre-event function will be disabled. Enabling pre-event will reduce battery
life to about 4.5 hours of standby time.
Settings: 0-60 seconds [default = 0 seconds]
Record Quality
The Record Quality parameter allows the video compression bit rate to be
adjusted. Digital video is compressed by taking out data that remains
constant from each frame, and only storing data that actually changes. This
allows videos with still backgrounds to be much smaller than they would be
if the background had to be present in every single frame. The bit rate is the
amount of bits that can be used in one second of video. The higher the
record quality, the higher the bit rate and the size of the event files. The
default setting is “high” for excellent video quality, and can be lowered or
raised to adjust the bit rate and storage space.
Settings: Standard (2Mbps), Medium (4Mbps), High (6Mbps) [default], Super High (12Mbps)
Record Size
The Record Size parameter allows the video image size to be adjusted from
VGA (standard definition) to 720p (high definition). VGA has a picture size
of 640x480 pixels, whereas 720p has a picture size of 1280x720 pixels.
720p will provide a larger & more defined video picture, but because of its
larger size, will require about 3 times as much storage space as VGA. Also,
the shape of the final video frame will be slightly different, with 720p being a
wider frame (higher width ratio to height).
Settings: VGA (640x480), and 720p (1280x720) [default]
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Device Configuration – Mini Configuration Manager
14
Audio Mode
The audio mode determines how audio will be recorded to your device. If
enabled, audio information is recorded during the recorded event and
during the configured pre-event time. If enabled (w/o Pre-event), audio will
be recorded during the event but not recorded during pre-event. If this
option is disabled, no audio will be recorded.
If the Pre-Event Time is set for 0, there cannot be pre-event audio.
Frames Per Second
This parameter sets the number of video frames per second the FirstVu HD
One will record. The higher the setting, the better the video quality, and the
larger the size of the event files.
Settings: 5, 10, 15, 30fps [default = 30fps]
Record LED
The Red Record LED behavior on the camera can be configured to
accommodate your desired operation. If enabled, the red LED will illuminate
while the FirstVu HD One is recording. If disabled, the LED will not
illuminate during a recorded event and will operate in covert mode.
Settings: Disabled, Enabled [default]
When done, go to the tab and save your configuration file to a location on your
computer.
Save Configuration File

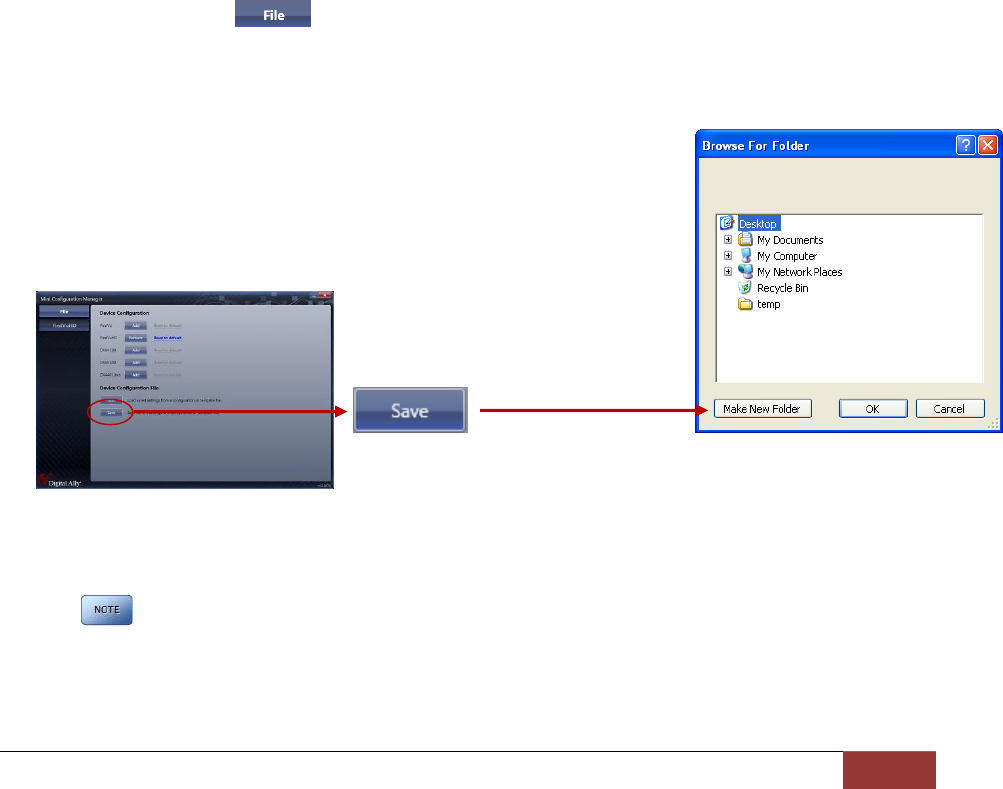

To save the configured settings to your FirstVu HD One or a
data storage location, you can press the Save button near the
center of the Mini Device Configuration software screen. This
will bring up the Browse for Folder dialog box to select the
location to save the file. After the configuration file has been
transferred to your FirstVu HD One, reboot the device by turning
the power OFF then ON.
After the configuration file is copied, reboot your FirstVu HD One. It is now configured
& ready for use.
If you have also configured a VuLink device using the Mini-Configuration
Manager, the necessary information to communicate with VuLink is also
contained within the configuration file. For more information about VuLink,
consult the “VuLink Installation and User Guide”.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
15
Operation
Powering On/Off
To power on, slide the power switch to the ‘ON’ position. The blue and
yellow LED’s will flash alternately to indicate that it is powering on.
Once powered on, the unit is ready to start a recording.
To power the unit off, first stop any active recording or playback session
and slide the power switch to the ‘OFF’ position.
Video Recording
Start Recording
Once the FirstVu HD One is powered on, press and release the Record Button at any time.
The red LED status indicator on top of the FirstVu HD One will be lit continuously (if
configured) during the recording. If pre-event has been enabled through the device
configuration, the unit will automatically include up to 30 seconds of video and audio prior
to the event record trigger.
Stop Recording
Press and hold the Record Button for approximately 3 seconds to stop an active recording.
Marking Events
Once a recording has been initiated, markers can be placed in the recording to indicate when
important events take place. This is done by momentarily pressing the Record button, taking
care to not hold the button down long enough to stop the recording. Additional marks can be
placed at any time during the recording.
Audio Recording
The FirstVu HD One contains a microphone built into the face of the unit. The position of the
switch indicates whether the audio is enabled or muted.
Audio can be muted or activated by changing the position of the mute switch. Audio is active
when the switch is in the green position. Additionally, the audio mode must also be enabled
within the device configuration.
Uploading Files to a Computer
Using the supplied USB cable, connect your FirstVu HD One to a computer using the USB
port next to the power switch. Power the unit on and the FirstVu HD One will appear on the
computer as a removable storage drive. Double click on the drive and the video file folders will
be listed. You may then drag and drop the files to your PC or open a selected folder to play
back the .avi file using Windows Media Player.
Power

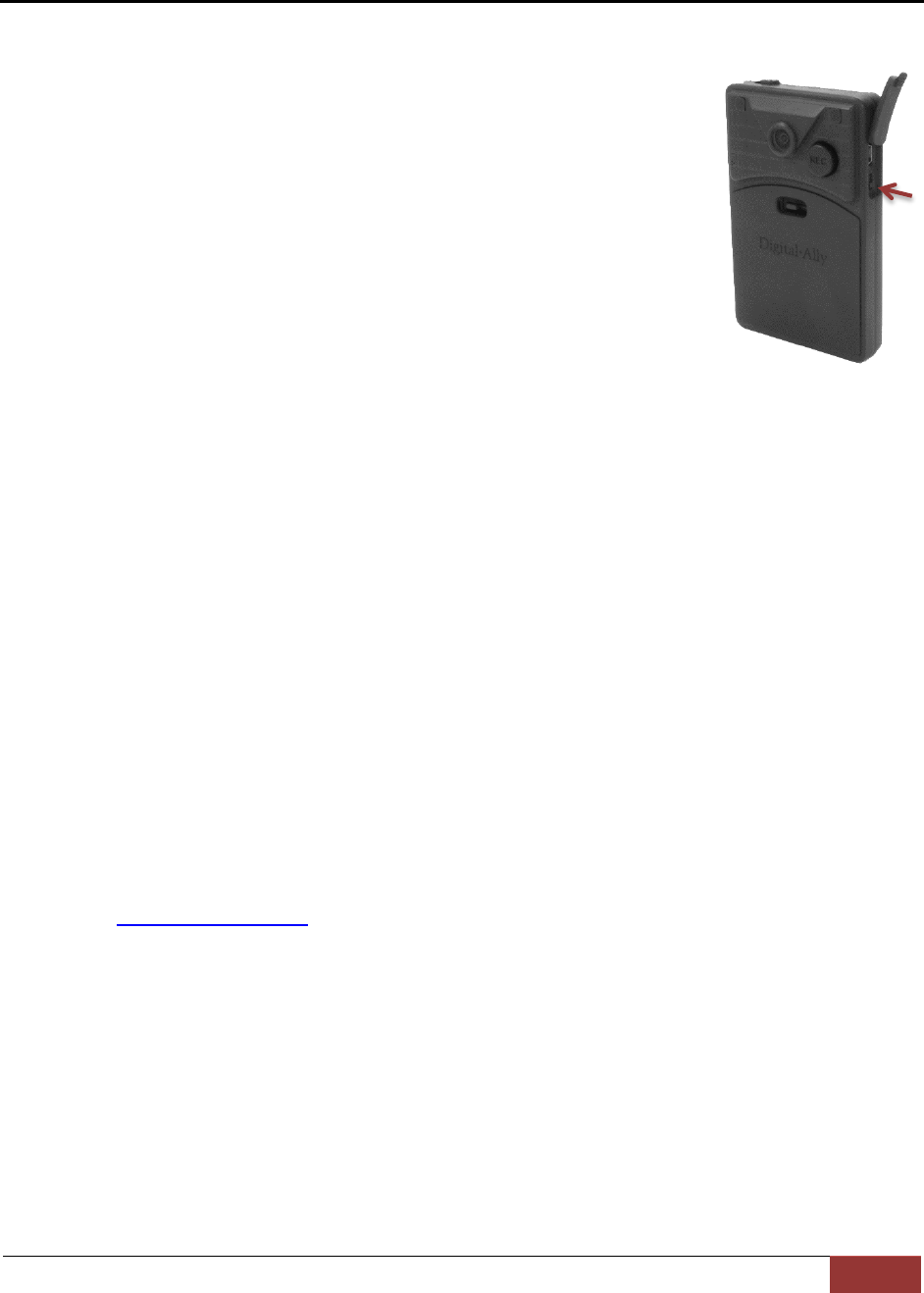

Switch
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
16
The FirstVu HD One is capable of advanced security features
which may restrict a user’s access to recorded event files.
These restrictions can be implemented by a system
administrator only if using the VuVault back office software. If
the Secure USB port feature has been enabled in the VuVault
Admin>Settings>FirstVu HD One Defaults tab, video and
metadata files will not be accessible through the USB port
and can only be uploaded using VuVault. Additionally, each
user must have Upload New Videos permissions within
VuVault to transfer files from the FirstVu HD One.
Uploading Files using VuVault
Non-Secure USB Port method

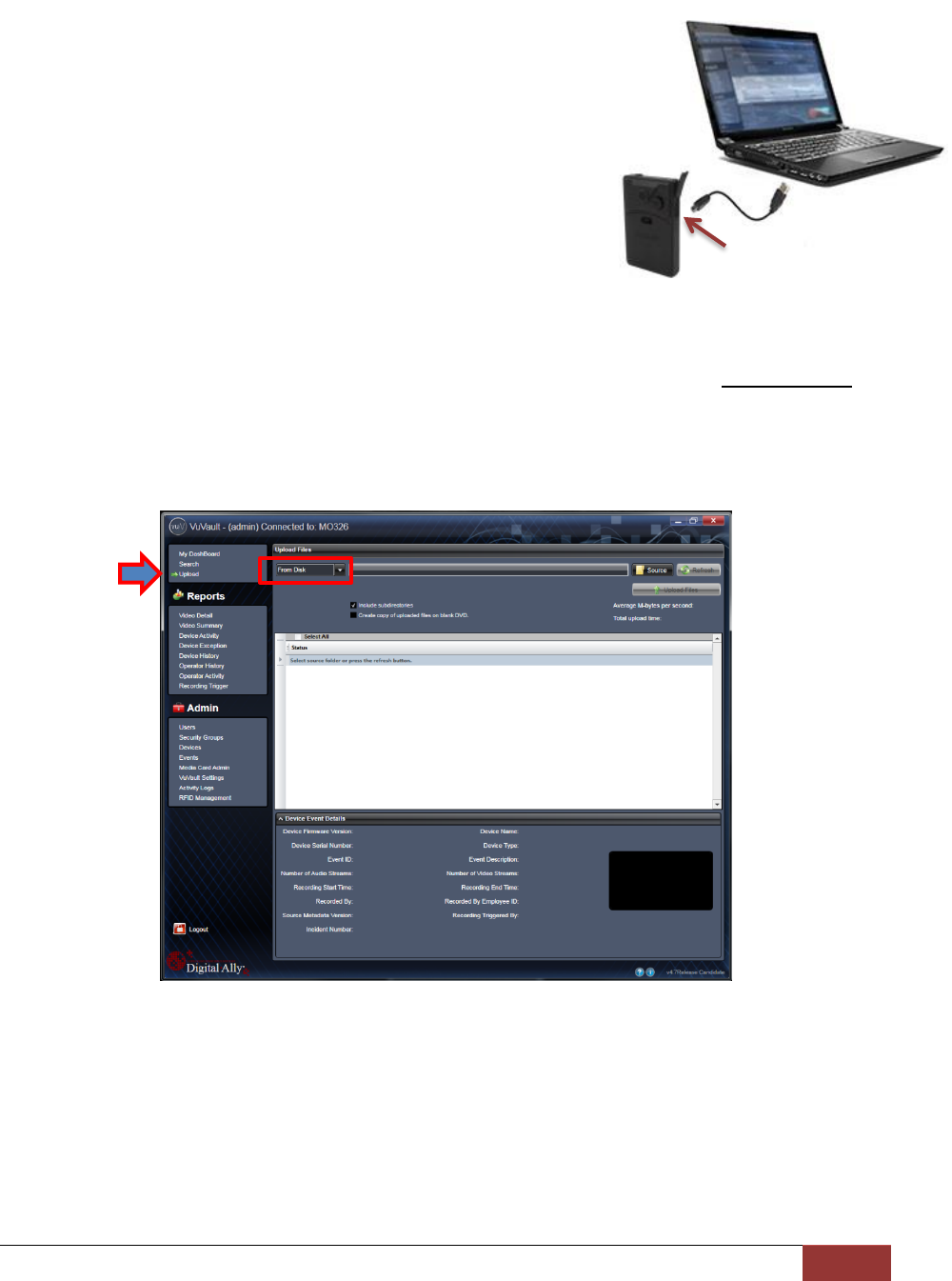

To upload video files from the FirstVu HD One when the Secure USB Port is not enabled,
plug the supplied USB cable into the computer USB port and insert the other end of the
cable into the FirstVu HD One USB port. Make sure your device is powered on.
1. Select Upload from the Main navigation bar. If the secure USB port feature has not been
enabled, select From Disk.

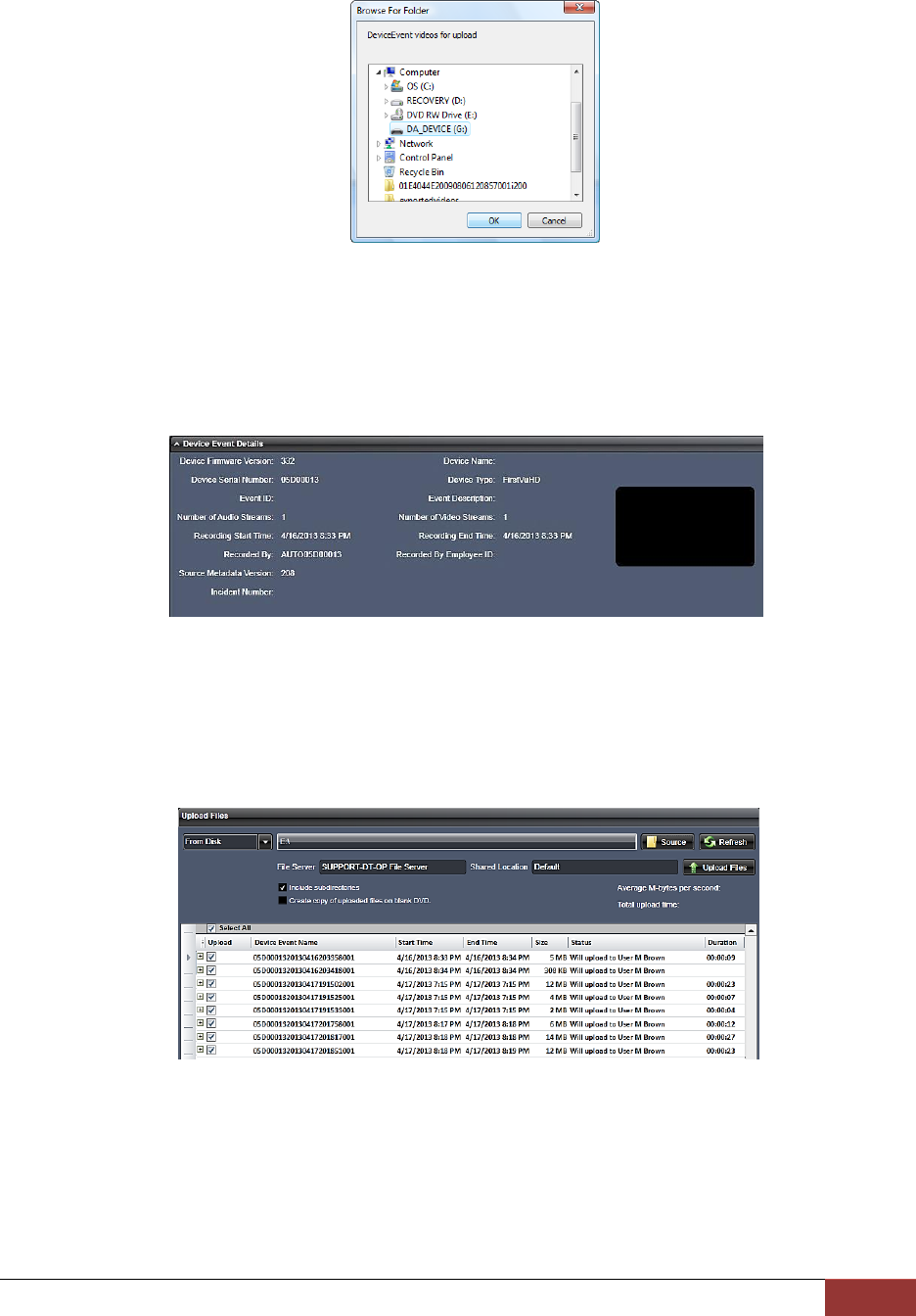

2. Click the Source button. ‘A dialogue box will appear allowing you to select the location of
your FirstVu HD One.
USB Port
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
17
The system will verify the files to be uploaded. If event files are being uploaded from a
device that is not recognized by the system, the user will be prompted to add them with
the built-in Add Device Wizard by clicking on Define Device in the lower right-hand
corner of the Device Event Details pane. Please refer to the VuVault User’s Guide Add
Device Wizard section for further details.
3. Once the files have been verified, the system will automatically list and select all of the
files for upload. If you don’t wish to upload all available records, uncheck the Select All
checkbox and then check the box next to each record you want to upload. The default File
Server and Share Location are displayed. If additional file servers have been defined,
select the desired destination using the dropdown menu. Click the Upload Files button to
begin uploading data to the system.
If desired, the selected files can also be backed up to a DVD during the upload
process. VuVault supports disc spanning, so if the total size of the files in the source
location exceeds the space available on a single disc, the user will be prompted to insert
additional discs until all of the files have been copied.
4. A progress bar will move from left to right, and details of the upload process will be
displayed in the window.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
18
5. After the upload process finishes, the uploaded files will be available for viewing in the My
Dashboard, and Search screens. For more information, consult the VuVault User’s Guide.
FirstVu HD One cannot record while it is uploading or downloading files.
Secure USB Port Method
1. To manually upload video files from the FirstVu HD One when the Secure USB Port is
enabled, plug the supplied USB cable into the computer USB port and insert the other end
of the cable into the FirstVu HD One USB port. Make sure your device is powered on.
When Secure Mode is enabled, files cannot be removed from your FirstVu HD One until
they are first uploaded into VuVault.
2. Select Upload from the Main navigation bar. When the secure USB port feature has been
enabled, select FirstVu HD One.
3. Use the arrow key to highlight and choose your device serial number. Then press refresh.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
19

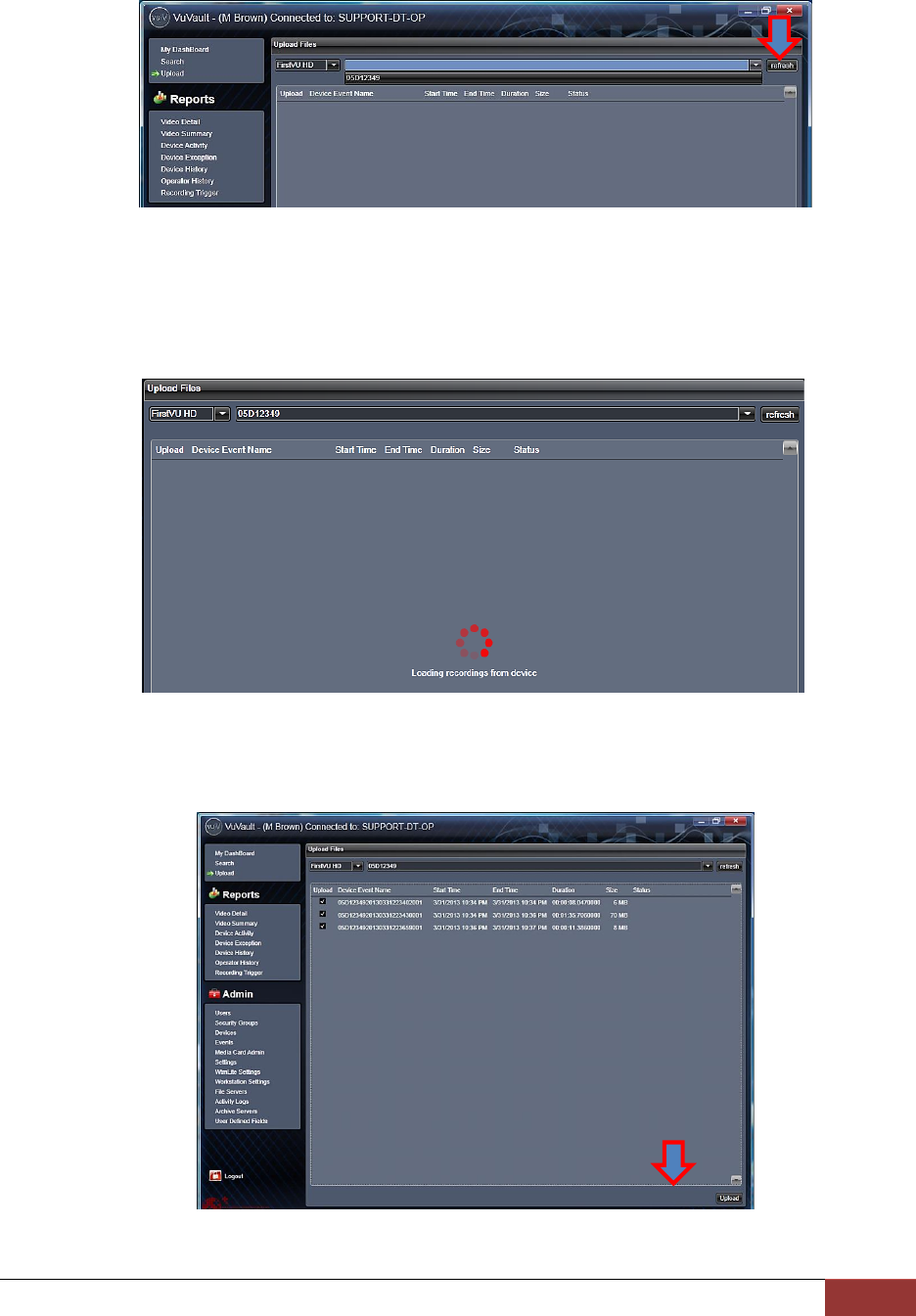

VuVault will load the available recordings from your device and verify the files to be
uploaded. If event files are being uploaded from a device that is not recognized by the
system, the user will be prompted to add them with the built-in Add Device Wizard by
clicking on Define Device in the lower right-hand corner of the Device Event Details pane.
Please refer to the VuVault Administrator’s Guide for further details on how to add a device.
4. Once the files have been verified, the system will automatically list and select all of the files
for upload. Check the box next to each record you want to upload. Click the Upload button
to begin uploading data to the system.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
20

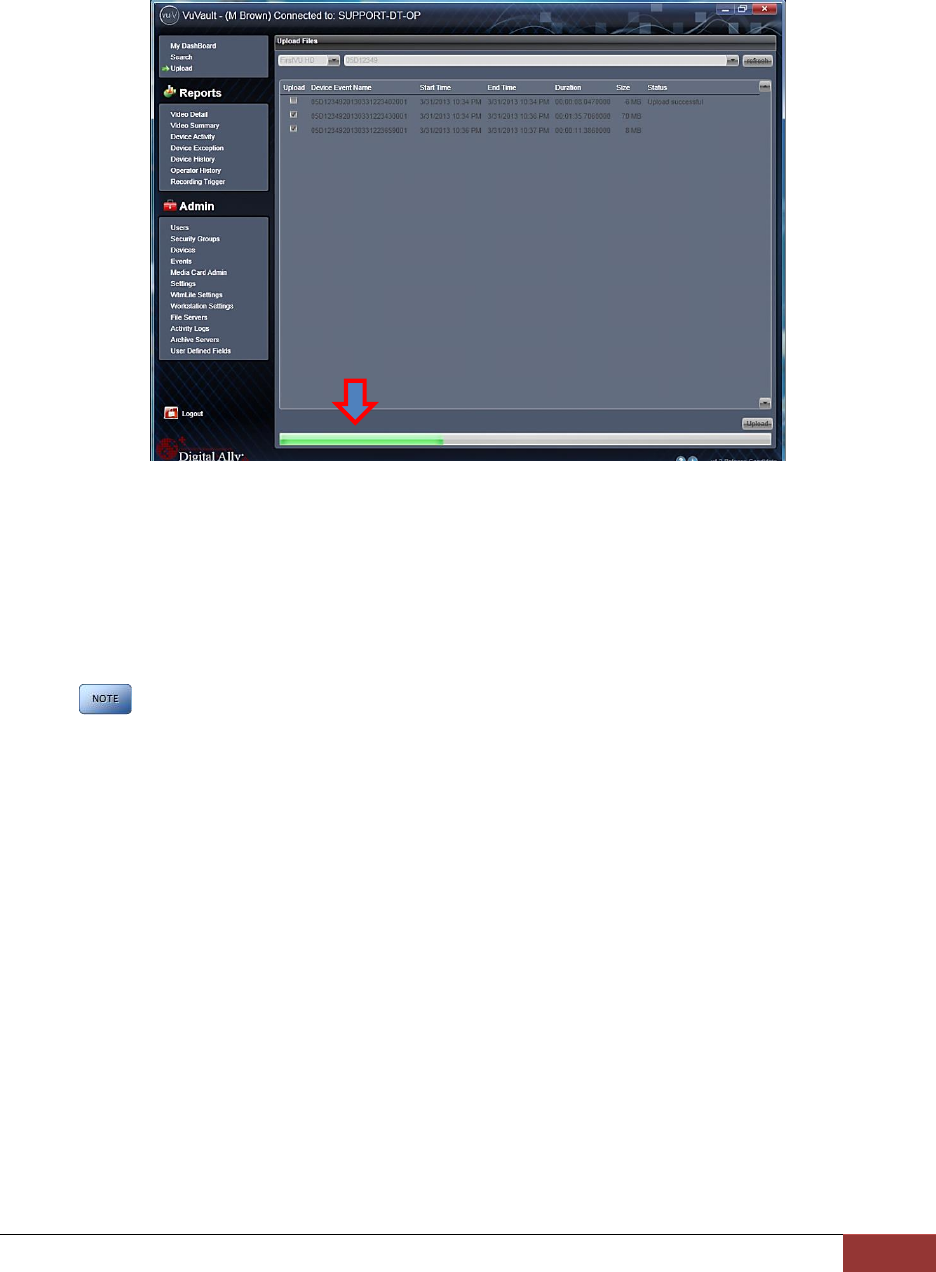

5. A progress bar will move from left to right on the bottom of the screen, and details of the
upload process will be displayed in the window.
6. After the upload process finishes, the uploaded files will be available for viewing in the My
Dashboard, and Search screens. For more information, consult the VuVault User’s Guide.
7. If configured in the Admin>Settings tab, VuVault will remove the files from the FirstVu HD
One after the upload is complete. If you choose to remove the files, you MUST also unplug
the FirstVu HD One when finished to complete the delete process.
When using Secure USB Port Mode, the files will not be deleted until the FirstVu HD One
USB cable is unplugged from the computer.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
21
Using the Docking Station
The optional FirstVu HD One docking station
provides automated, simultaneous uploading and
charging for up to 12 FirstVu HD One™ devices
+ 12 external batteries. Status LED’s will inform
you of the upload process and battery charging
process for each attached device.
For more information on using the
FirstVu HD One docking station, please
consult the “FirstVu HD One Docking
Station Installation and User Guide”.
Prerequisites
VuVault™ back office software
version 4.4 or newer
Docking station
FirstVu HD One firmware 536 or higher
Attaching devices to the Docking Station
Power on your FirstVu HD One & place it into the
docking station as shown to the right. Extend the USB
cable from the dock and attach it to your FirstVu HD
One. The Blue status indicator on the FirstVu HD One
will be blinking as its internal battery is being charged.
Upload Process
After your FirstVu HD One is properly docked, the
docking station will upload and store the files onto its
internal hard drive. From there, the integrity of the files
is checked and then they are automatically deleted from your FirstVu HD One.
The docking station will then transfer the files into your VuVault File Server
through your network. When the VuVault file server has received and validated
the files, they will be deleted from the docking station.
The files are not removed from the docking station until the file transfer into
VuVault is complete. This is a simultaneous process for all docked devices.
If your FirstVu HD One is removed from the docking station before the file
transfer is complete, the file transfer will be resumed when reattached to the
dock.
FirstVu HD One status indicators
While your FirstVu HD One is attached to the docking station, the Blue LED will
indicate battery charging status and the Yellow LED will indicate upload status.
FirstVu HD One Docking Station
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
22
Video Playback and Management
Using VuVault
VuVault is Digital Ally’s robust back-office video management solution. The VuVault media
player can be opened by double-clicking on a video entry in My Dashboard or Search
screens, or by selecting Play from the right-click menu. For more information about using
the VuVault player, please consult the VuVault User’s Guide.
Using the Digital Ally Viewer

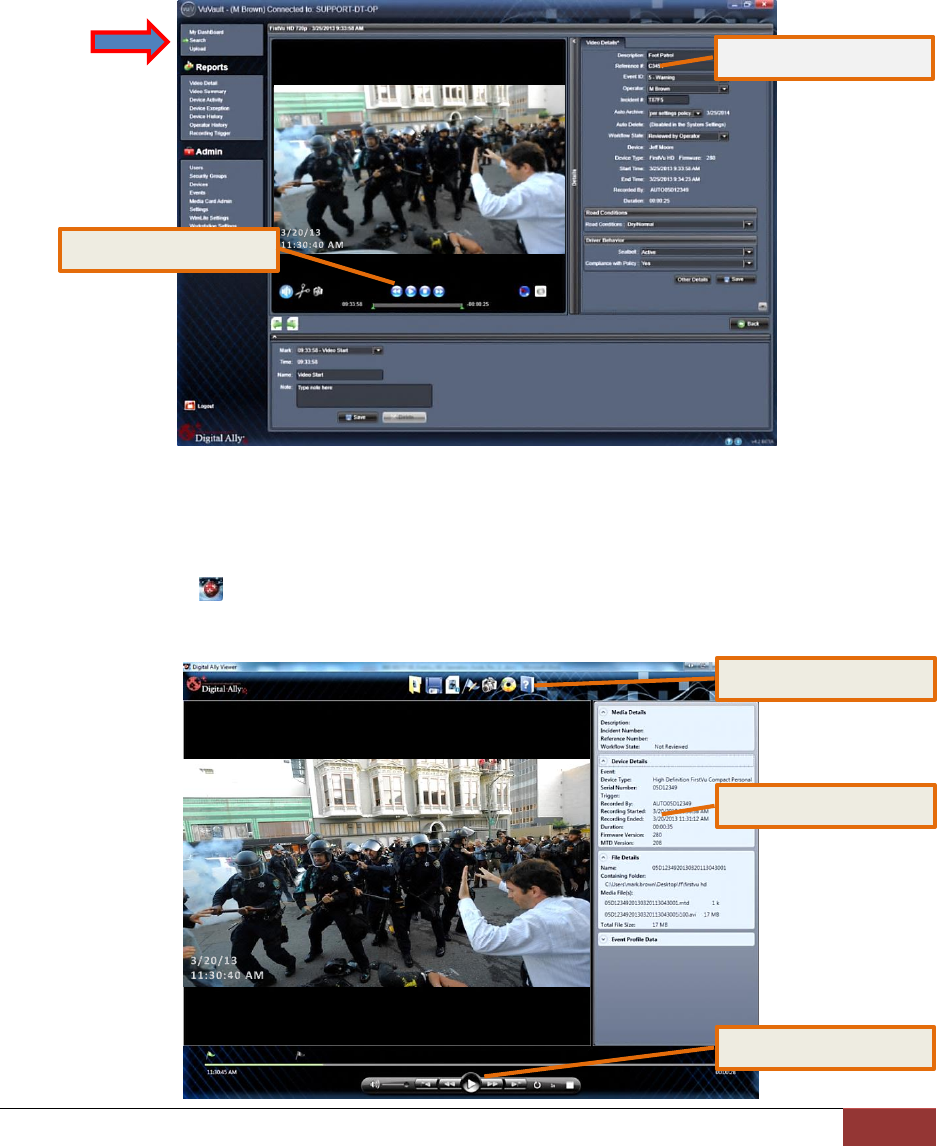

The Digital Ally Viewer is a user-friendly software package to allow basic playback of video,
audio, and metadata files, as well as many advanced features. The Digital Ally Viewer installer
is located on your product DVD. Once installed, open the program by double clicking on the
Digital Ally Viewer icon, or by selecting the program from the Start Menu>Programs>Digital
Ally>Digital Ally Viewer. Once opened, the program will prompt you to navigate to your video
storage location and select a video.
Toolbar Controls
Playback Controls
Playback Controls
Media Details
Media Details
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
23
Toolbar Controls
Browse Media: Browse and select event files (.mtd) to playback.
Save Media: Save changes or segment a video event. Segmenting the video allows
you to create a new video without altering the original video.
Media Details: Displays the details of the media file and allows adding additional
information.
Edit Marks: Add/Edit Marks or Notes to the video event.
Image Capture: Save a snapshot of a frame of video.
Burn to CD/DVD: Create a data disc or movie DVD of the video event using this
wizard. Simply follow the on-screen prompts to back up your recorded event.
Help: Displays help information and software version.
Playback Controls
Previous Mark: Click to skip to the Previous Mark.
Rewind: Click and hold to rewind.
Play/ Pause: Click to begin playback or pause video.
Fast Forward: Click and hold to Fast Forward.
Next Mark: Click to skip to Next Mark.
Start Over / Repeat: Click to Restart video from the beginning or Repeat playback.
Playback Speed Control: Adjust the Playback Speed (4x, 2x, 1x, 1/2x, 1/4x).
Playback Slider bar
The Playback Slider bar allows you to move forward or backward in the video event very
quickly by dragging the slider.
Beginning of Video Flag: The Green Flag indicates the Beginning of the video
event.
Start of Recording Flag: The Black Flag indicates the Start of video recording and
any added Marks.
End of Video Flag: The Red Flag indicates the End of the video event.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Operation
24
View Selection and Options

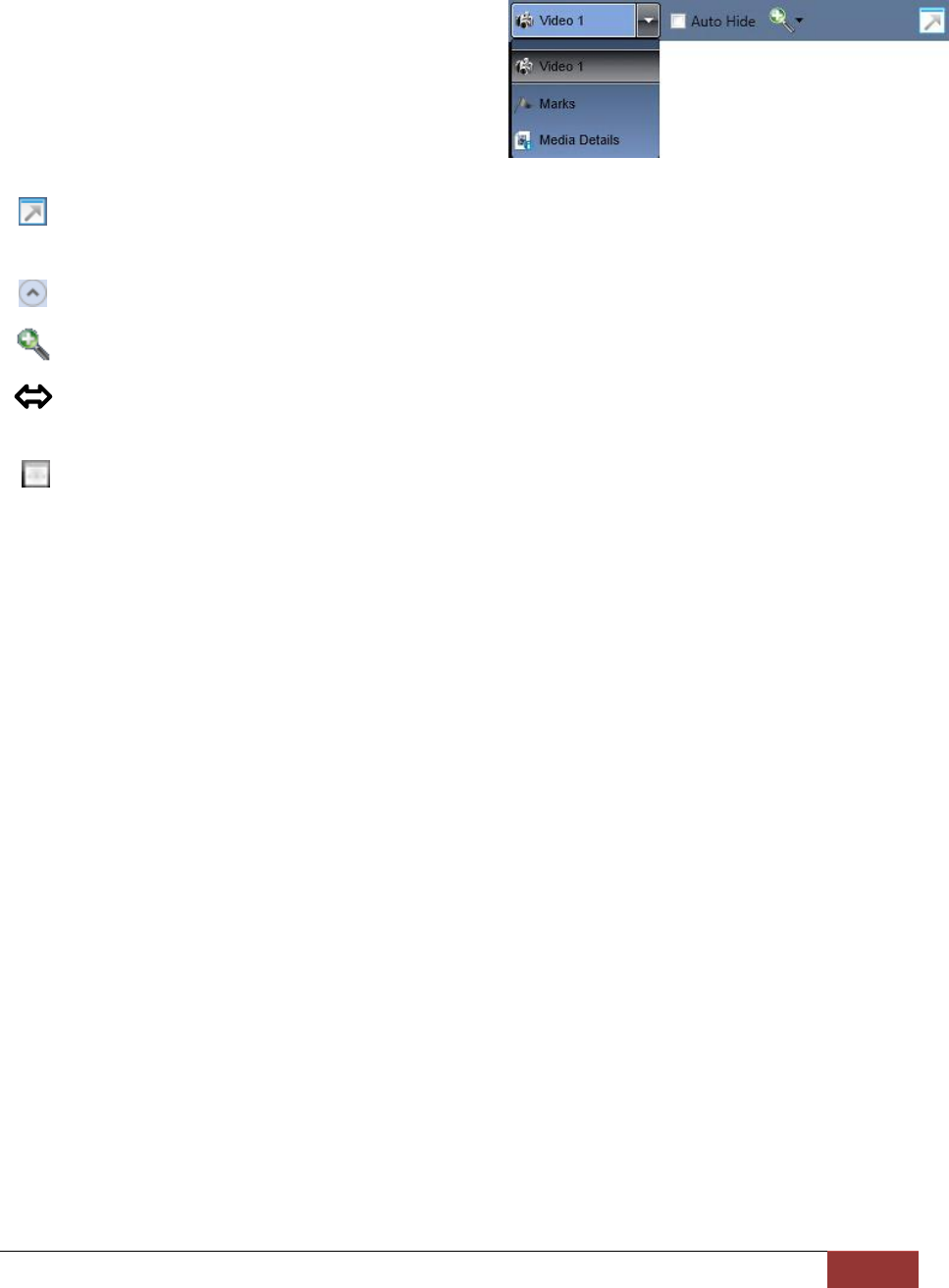

The View Selection drop down box allows you to
select the information that is displayed in each
window such as Video 1, Marks, and Media
Details. Point the mouse to the top of each
window to display the following drop down bar.
Then point on the window heading to display the
View Selection drop down box.
Full Screen View: Click on the Full Screen icon or Double Click in the window to
display full screen.
Auto Hide Window: Click this icon box to display or hide the view selection options.
Video Zoom Window: The video display window can be resized by using the slider bar.
Window Size Adjustment: You may increase or decrease the size of each field by
hovering your mouse on the vertical divider between the two display windows.
Select Screen Layout: Select this button located on the bottom of the screen next to the
playback controls to customize your view from a list of preset layouts.
Memory & Battery Alerts
Memory Alert:
If the Yellow status indicator flashes once every 5 seconds this indicates the memory
is nearly full and has 15 minutes or less remaining.
Battery Alerts:
2 flashes of the Blue status indicator every 5 seconds indicates the user should take
immediate action as there is approximately 15 minutes of recording time remaining
based on battery power level.
When the FirstVu HD One is plugged into a USB port and power is turned on, a fast
flash of the Blue status indicator indicates battery charging is in progress.
When the FirstVu HD One is plugged into a USB port and power is turned on, a
constantly lit Blue status indicator indicates battery charging is complete.
Battery Replacement:
Always power off the FirstVu HD One prior to removing the battery. Replacement
batteries may be obtained by contacting Digital Ally.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Status Indicators
25
Status Indicators
LED Status indicators are used to indicate the operational status of the FirstVu HD One. The
status indicators are located on the top of the camera module and main module.
Normal Mode
Red
Blue
Yellow
Power and Record
Powering On
-
Alternating Flash
Event Recording
On
-
-
Standby or Standby
Pre-Event
Off
-
-
Memory Alerts
15 minutes remaining
-
-
1 flash /
5 seconds
Battery Alerts
15% Charge
remaining
-
2 flashes /
5 seconds
-
Charge in Progress
-
Flash
-
Charging Complete
-
On
-
Data Transfer
Transfer in Progress
-
-
Flash
Transfer complete
-
-
On
VuLink
Connected with
VuLink
-
-
On
Error
-
3 flashes / 5 seconds
When in a Data Transfer stage, wireless communications with VuLink are automatically
disabled. This prevents an accidental recording while docked.
* VuLink is a secure wireless gateway which allows your FirstVu HD One to interface with
your vehicle’s input triggers. Contact Digital Ally, Inc. at 1-800-440-4947 for more
information.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Status Indicators
26
Covert Mode
Red
Blue
Yellow
Power and Record
Powering On
-
Alternating Flash
Event Recording Start
Momentary
Flash
-
-
Standby or Standby Pre-Event
-
-
-
Memory Alerts
15 minutes remaining
-
-
-
Battery Alerts
15% Charge remaining
-
-
-
Charge in Progress
-
Flash
-
Charging Complete
-
On
-
Data Transfer
Transfer in Progress
-
-
Flash
Transfer complete
-
-
On
VuLink*
Connected with VuLink
VuLink will display a flashing LED when
searching for your FirstVu HD One, and
display a solid yellow LED when
connected to your FirstVu HD One.
Error
-
-
When in a Data Transfer stage, wireless communications with VuLink are automatically
disabled. This prevents an accidental recording while docked.
* VuLink is a secure wireless gateway which allows your FirstVu HD One to connect to
your vehicle’s input triggers. Contact Digital Ally, Inc. at 1-800-440-4947 for more
information.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Specifications
27
Specifications
Operating Temperature
-20° to +70° C
Storage Temperature
-40° to +80° C
Standard Battery
3.7VDC, 2,200mAh, Rechargeable Lithium Ion Polymer Battery,
Field replaceable. 2 batteries included.
Extended Battery
(Optional)
3.7VDC, 4,400mAh, Rechargeable Lithium Ion Polymer Battery,
Field replaceable. 1 battery included.
Dimensions
With Standard Battery
2.619” x 4.154” x 0.839”
Dimensions
With Extended Battery
2.619” x 4.154” x .994”
Weight
With Standard Battery
0.243 lb.
Weight
With Extended Battery
0.342 lb.
Standard Battery Record
Time
Up to 4.5 hours continuous record or with Pre-Event enabled.
Extended Battery Record
Time
Up to 8 hours continuous record or with Pre-Event enabled.
Standard Battery Standby
Time
Up to 12 hours with pre-event disabled (4hrs Record + 8hrs Standby).
Can remain in Standby for 2 Days with no activity.
Extended Battery
Standby Time
Up to 16 hours with pre-event disabled (8hrs Record + 8hrs Standby).
Can remain in Standby for 4 Days with no activity.
Standard Battery Charge
Time
Approx. 4 hours
Extended Battery Charge
Time
Approx. 6 hours
Humidity
10 -90% RH, non-condensing.
Microphone
Internal (max. input SPL 110dB, sensitivity -42dBV)
Video Resolution
720p (1280x720) or VGA (640x480)
H.264 codec with configurable quality settings
Audio
Mono, may be muted by user.
Multiple configuration options
Camera
0.08 Lux (minimum). Fixed focus lens
Field Of View
H=95°, V=80°, D=130°
Memory Capacity
32GB secure internal memory
Secure Media Access
May be configured so that only designated computers can access
recordings
Pre-Event Buffer
Up to 60 seconds, adjustable in 1 second increments
Covert Mode
Deactivates all LED Indicators on unit
Wireless
Secure 802.11 WPA or WPA2 encryption. Used with VuLink™
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Digital Ally, Inc. | Warranty Information
28
Warranty Information
STANDARD LIMITED WARRANTY FIRSTVU HD ONE™ HIGH DEFINITION COMPACT
PERSONAL VIDEO RECORDER.
We warranty that our personal video recorder, Model FirstVu HD One, will be free from defects in
workmanship and material for a period of 12 months from the date of purchase by the original
purchaser. If any defect is discovered through normal and proper use of the unit during this
period, the defect will be repaired or the unit will be replaced at our factory or at one of our
authorized service centers at no cost to the purchaser. The purchaser must return the defective
unit to the factory or one of our authorized service centers, freight prepaid. We will pay for
shipping charges for the return of the unit.
This warranty applies only to defects in a unit’s internal electronic components and circuitry,
and is void as to units that have been opened without prior authorization, have experienced
unauthorized repairs, or have had unauthorized modifications. This warranty does not cover the
following:
Normal wear and tear on the unit such as batteries, frayed cables or wires, broken
connectors, or scratched or broken cases.
Damage caused by operator abuse or neglect.
Damage caused by incorrect use of the unit, carelessness, unauthorized alterations
to the unit, improper storage of the unit or unauthorized service, installation or repairs
made to the unit.
Damage caused by fire, flood, lightning, vandalism, collision, acts of God, or
other events beyond the reasonable control of Digital Ally, Inc. or the purchaser.
Damage to external parts of the unit such as buttons, wires, and cables, etc.
Damage from use of the unit in hostile operating environments.
We reserve the right to charge for repairs to a unit during the warranty period made necessary
because of any of the foregoing causes at our standard rates for repair of units not under
warranty.
The purchaser assumes all risk of use from its purchase and use of the unit. Harmful personal
contact with a unit might occur in the event of violent maneuvers, collisions, or similar
circumstances, even if the unit was properly installed and used. We are not responsible for, and
we specifically disclaim any liability for injury caused by a unit in such circumstances.
THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES. THERE ARE NO
WARRANTIES THAT EXTEND BEYOND THIS STATEMENT. ALL IMPLIED WARRANTIES ARE
DISCLAIMED, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY, NON-
INFRINGEMENT, FITNESS FOR A PARTICULAR PURPOSE, AND WARRANTIES IMPLIED FROM A
COURSE OF DEALING, COURSE OF PERFORMANCE OR USAGE OF TRADE. THE PURCHASER’S
SOLE AND EXCLUSIVE REMEDY FOR A WARRANTY CLAIM WILL BE THE REPAIR OR
REPLACEMENT OF A UNIT.
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Contact Information
9705 Loiret Blvd
Lenexa, KS 66219
Website:
www.digitalallyinc.com
Support E-Mail:
support@digitalallyinc.com
Sales E-Mail:
sales@digitalallyinc.com
Phone:
913-814-7774
Fax:
913-814-7775
Sales / Support Toll Free:
1-800-440-4947
FirstVu HD One™ Operation Guide 860-00260-00 Draft 02
Regulatory
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must accept
any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the user equipment and FirstVu HD One.
Connect the user equipment into an outlet on a circuit different from that to which the
FirstVu HD One is connected.
Contact Digital Ally technical support.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is
subject to the following two conditions: (1) this device may not cause interference, and (2) this
device must accept any interference, including interference that may cause undesired operation
of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
The CE Mark is a European marking of conformity indicating that a product complies with the
essential requirements of the applicable European laws or Directives with respect to safety,
health, environment, and consumer protection.
Changes or modifications not expressly approved by Digital Ally, Inc. could void the user’s
authority to operate the equipment.
