Digital Cynos DCM-26WT 26" LCD TV User Manual 26WT HY EN
Digital Cynos Co., Ltd. 26" LCD TV 26WT HY EN
USERS MANUAL
26” WIDE TFT-LCD TV
User
’
s Manual
ENGLISH

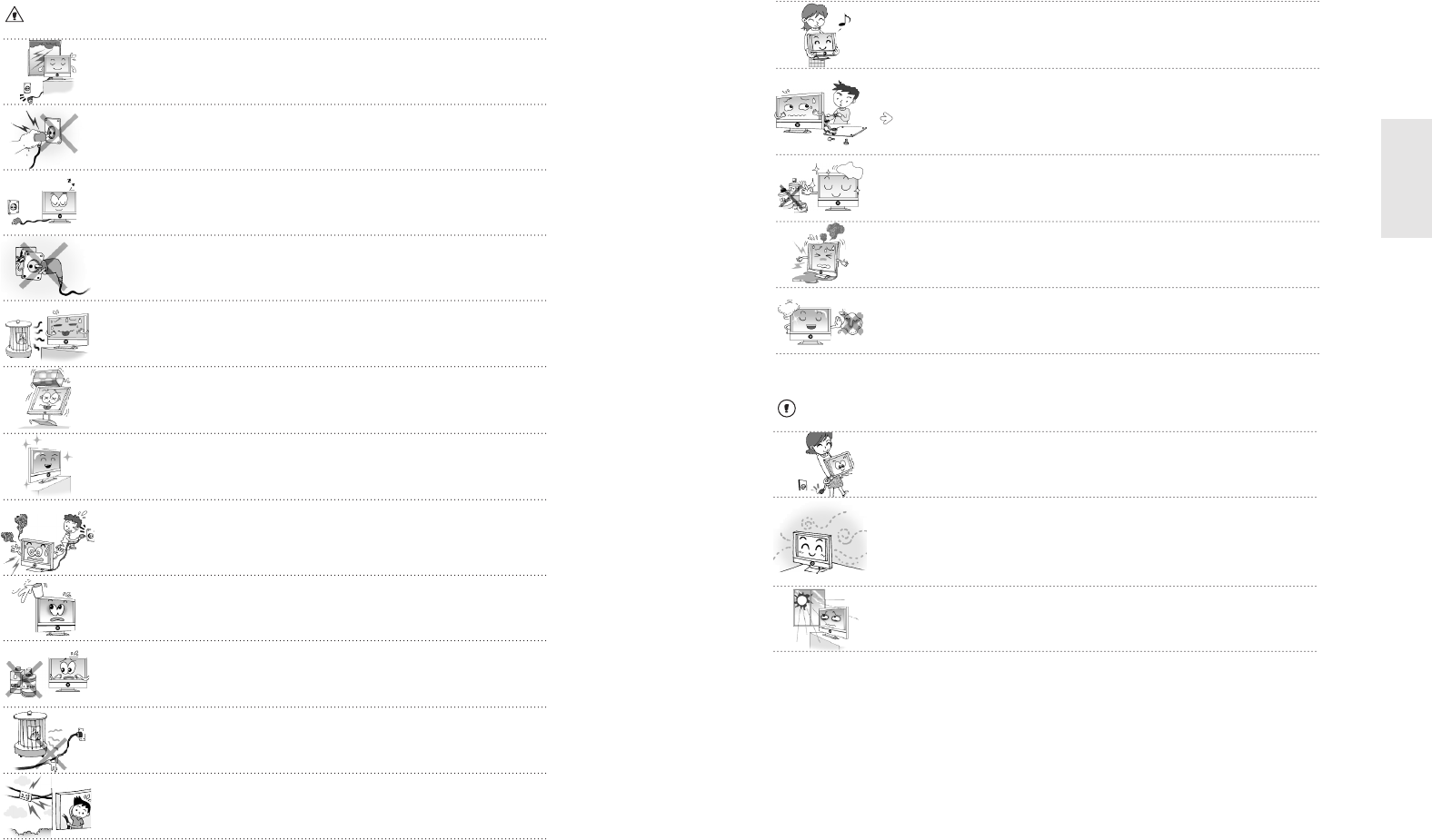

Safety Instructions
To reduce the risk of fire, electrical shock and other injuries, keep these safety precautions in mind
when installing, using and maintaining your TV.
Warning : If you manipulate against the notice, it may cause serious injury or death to user.
Caution : If you manipulate against the notice, it may cause slight injury to user or appliance.
Notes & Descriptions
3
ENGLISH
EN 2 26” WIDE TFT-LCD TV
FCC Information
This equipment has been tested and found to comply with limits for a class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment can generates, uses, and radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful inteference to radio Communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause unacceptable interference to radio and television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced Radio/ TV technician for help.
Caution : Any changes or modifications in construction of this device which are not expressly
approved by the party responsible for compliance could void the user's authority to operate the
equipment.
Ver 1.00NE
When moving it, do not apply any forces on the set.
Do not attempt to disassemble, repair or change the product.
Whenever you need to repair, adjust or check it, refer servicing to qualified
service personnel.
Do not directly spray water or rub it with inflammable substances (thinner or
benzene) when cleaning it.
Do not wet or penetrate water over/into the set.
When cleaning the LCD surface, disconnect the power and use a piece of
smooth cloth against any scratches on it. Never use wet cloth.
Caution
Make sure to pull out the power cord when cleaning or removing the product.
Ventilation should be always open and the set should be installed in a well-
ventilated and wide enough place (a minimum distance away from a wall 10cm
or more).
Do not install the set in a place directly exposed to sunlight.
5
ENGLISH
Warning
Disconnect the power cable and signal cable connected to the product in case
of thunder or lightning.
Do not attempt to touch its power cord with wet hands.
If any electric pin is wet or dusty, remove the moisture or dust first before use.
It is recommended to pull out the power cord unless you use it for a long time.
Damaged power cord, plug or unfitted outlet may be very dangerous.
Do not install the set close to any heating sources.
Do not place heavy articles on it or step on the product.
The product should be installed on a clean and dry place.
When you detect any smog, unusual noise or smell, just disconnect the electric
power and refer servicing to qualified service personnel.
Do not place any bowl with water, beverage, can or other liquid products on it.
Do not use or place any combustible sprayer or inflammable substances close
to the product.
Do not arrange the power cord close to any heating devices/sources.
Install the outdoor antenna for the set far away from high voltage cables.
EN 4 26” WIDE TFT-LCD TV
Watching TV in a still image for an excessive time may seriously harm the LCD panel. Note that any
troubles from the reckless use are not guaranteed and please be cautious of the use.
1. Digital broadcast is delivered in wide screen
standard (16:9) DTV, so if the existing
broadcasting program made in general screen
size (4:3) is on the TV, both sides may not be
completely displayed.
Any different brightness, in case limits to left/right
sides are fixed, may leave image ghost of the
limits on the LCD penal, if you watch it for a long
time.
2. When you watch panorama broadcasting in a
general display, it may show the central image
with up/down parts removed.
Any different brightness, in case limits to
top/bottom sides are fixed, may leave image
ghost of the limits on the LCD penal, if you watch
it for a long time.
3. Watching the screen in a still image for a long
time may leave image ghost on the LCD panel.
Precautions for Image Ghost
7
ENGLISH
Operating Temperature 0~35˚C
Storage Temperature -10~50˚C
Operating Humidity 10~90% RH
Storage Humidity 10~90% RH
For dot defect [dead pixel] of LCD ;
TFT-LCD produced by using high-end semiconductor technology with precision of 99.9% above is
used for this TV (2,949,120 pixels).
However the pixels of R.G.B. & White color seem to be right sometimes or some of black pixels
could be seen on the LCD. This is not from bad quality or functional problem and you can use it
without any problem.
Precautions when used as a PC monitor ;
Since the LCD TV is not designed for a PC monitor, it may not support very high resolutions that
are supported in a PC. When you use it for the purpose, refer to the supportable resolution levels
as follows.
When used as a PC monitor ;
Optimal Resolution: 1024 768 @ 60Hz
Max. Resolution: 1024 768 @ 85Hz.
Available Temperature & Humidity
EN 6 26” WIDE TFT-LCD TV
CHAPTER 3. Using TV Menus
3-1. Watching TV 32
3-2. Auto On/Off Timer 35
3-3. Change TV Channel Mode 37
3-4. Channel Search & Fine Tune 38

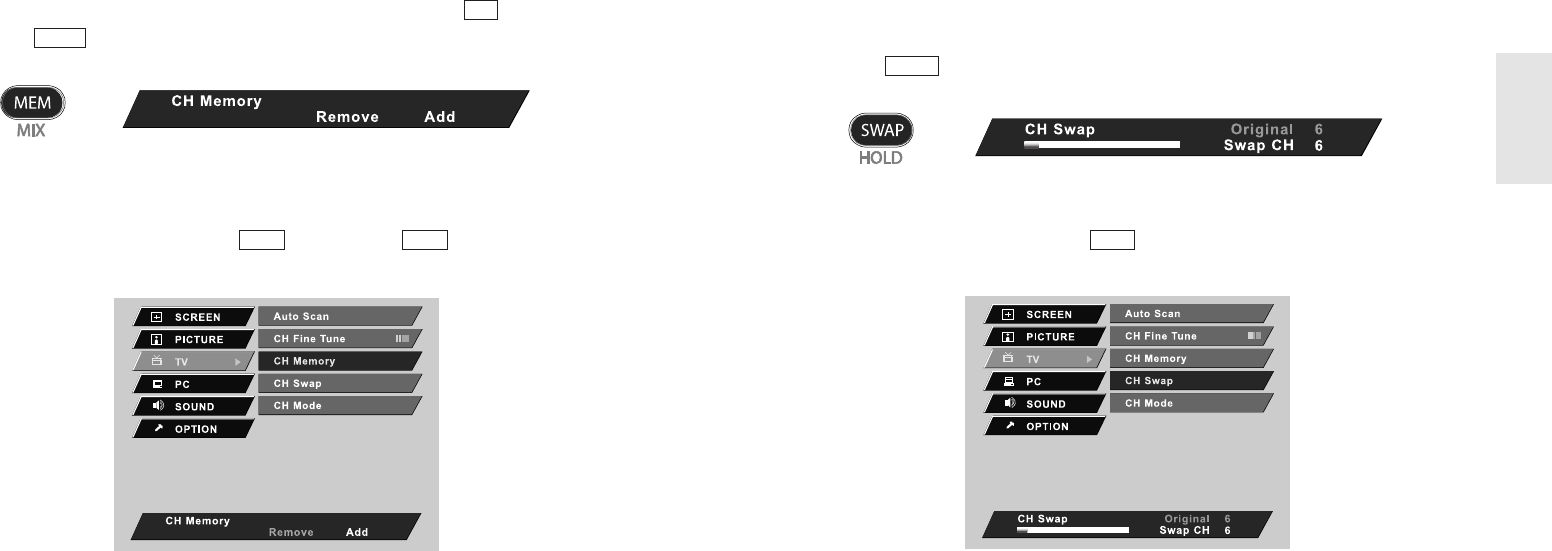

3-5. Add/Remove Channel 40
3-6. Channel Swap 41
3-7. Password 42
3-8. Channel Lock 43
3-9. Caption 45
3-10. V-chip Funetion 46

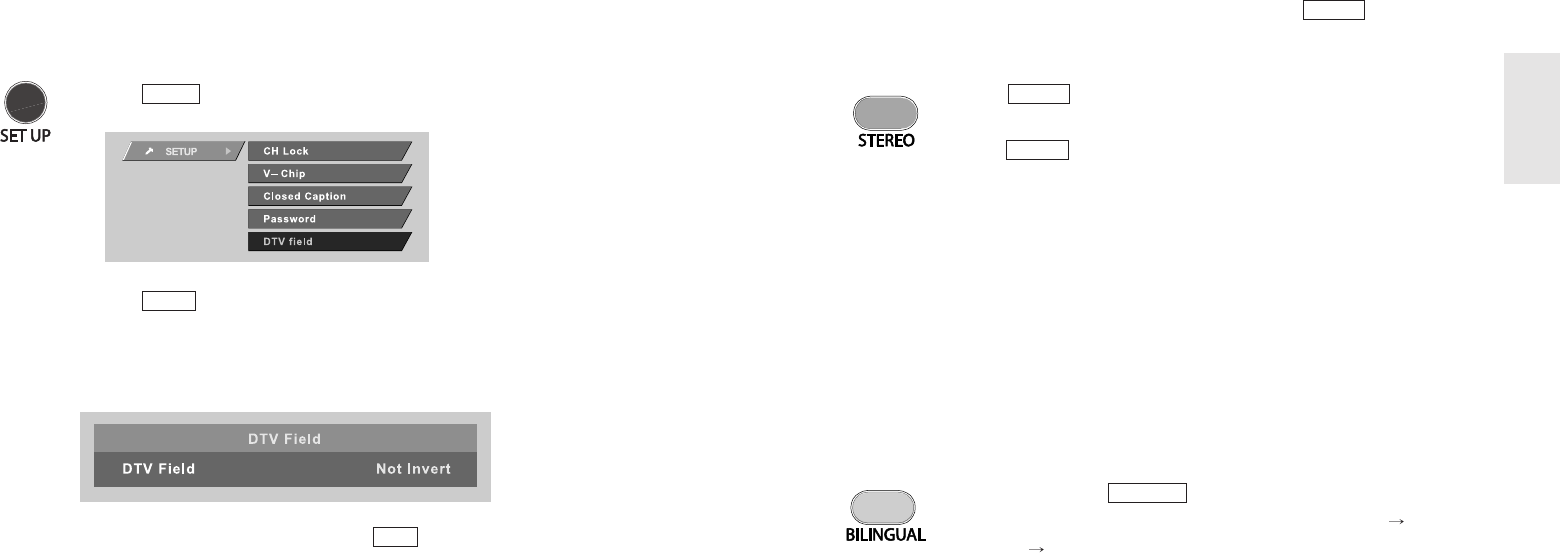

3-11. DTV Field 48
3-12. Stereo 49
3-13. Bilingual (Multi-Language Broadcasting) 49
CHAPTER 4. Using Menus of Picture,
Sound and Others
4-1. Setting Display Mode 52
4-2. Setting Scale Mode 54

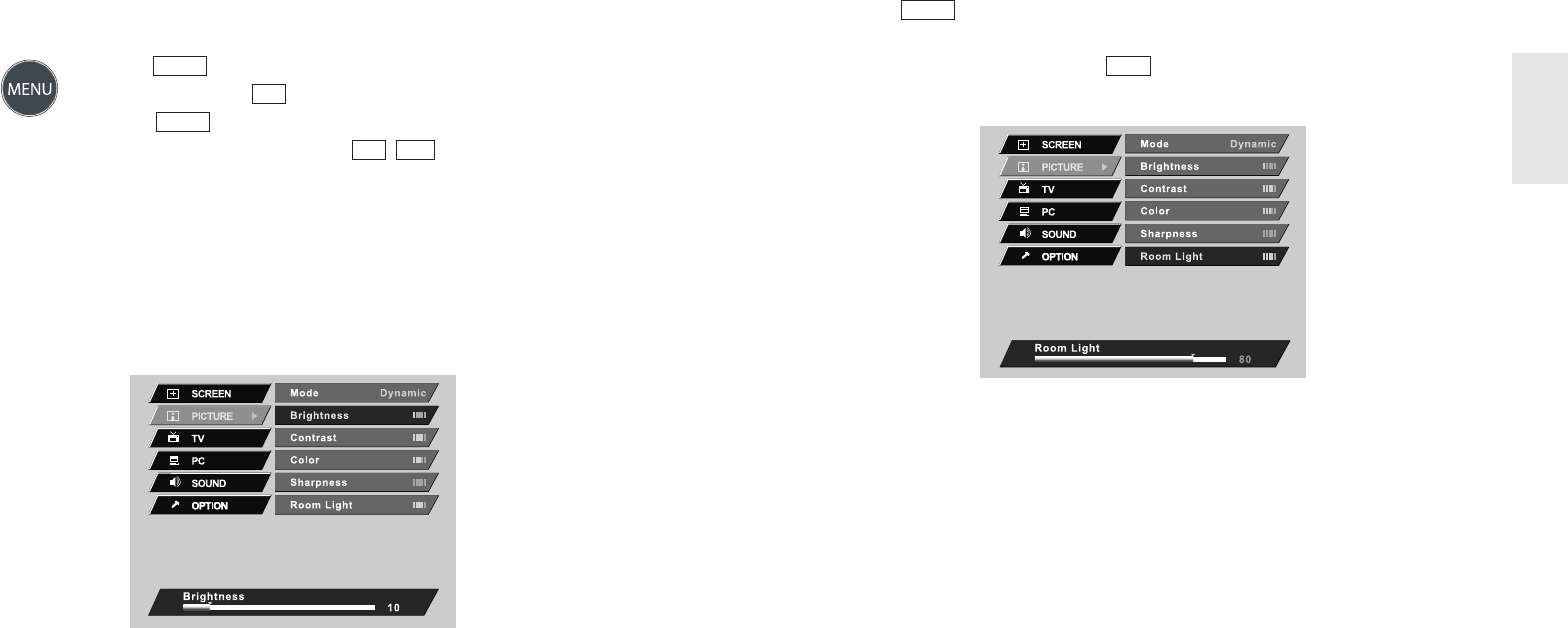

4-3. Setting Picture Mode 55

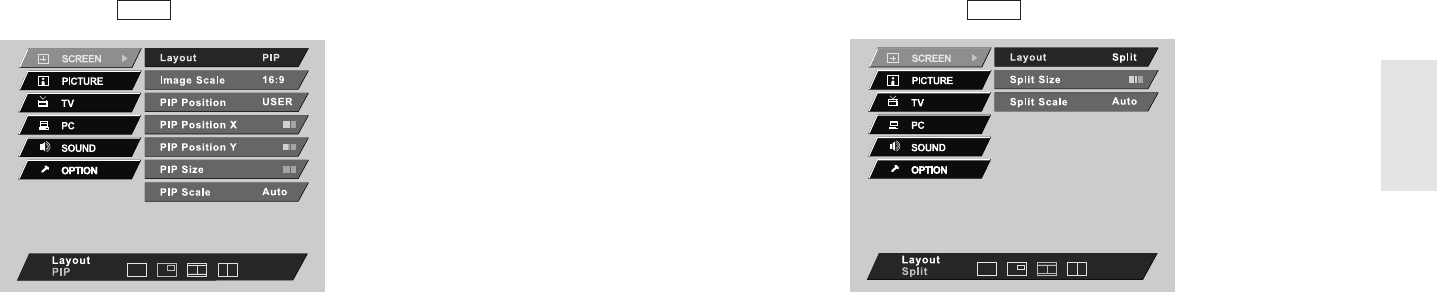

4-4. Setting Simultaneous Picture Mode 58
4-5. Setting Screen MENU by Simultaneous Picture 61

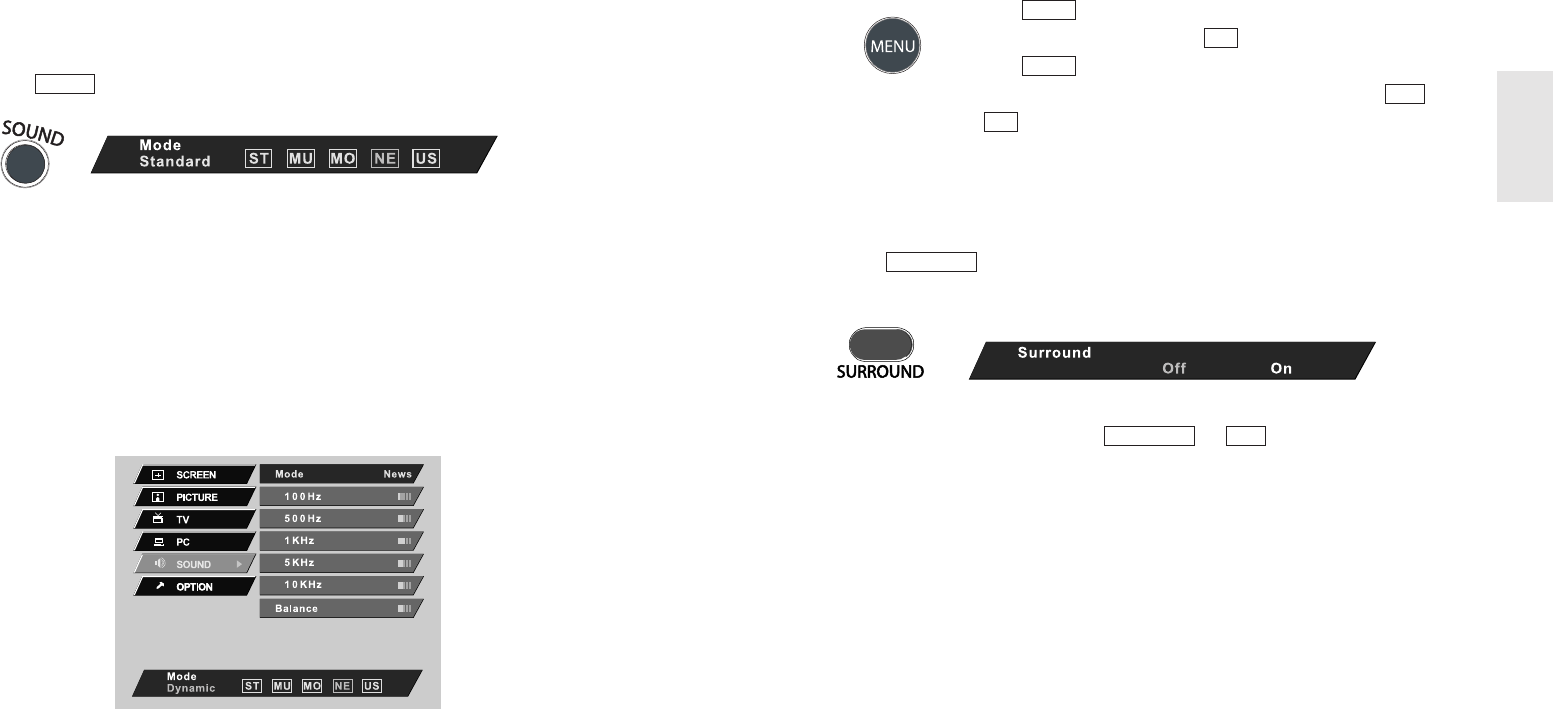

4-6. Setting Sound 64
4-7. Setting Others 66
9
ENGLISH
Contents
CHAPTER 1. Before Use
1-1. Accessories 12
1-2. Panels 13
1-3. Remote Control 16
1-4. MENU Configuration 18
1-5. Jog Shuttle Button 20
1-6. Inserting the Batteries in the Remote Control 21
CHAPTER 2. Connection
2-1. Connecting Power 24
2-2. Connecting TV Antenna 24
2-3. Connecting PC 25
2-4. Connecting PC DVI 25
2-5. Connecting DTV 26
2-6. Connecting DVD 27
2-7. Connecting VIDEO / S-VHS Input 28
2-8. Connecting Headphone (speaker) Output 29
2-9. Connecting VIDEO Output 30
EN 8 26” WIDE TFT-LCD TV
11
ENGLISH
CHAPTER 1
Before use
1-1. Accessories
1-2. Panels
1-3. Remote Control
1-4. MENU Configuration
1-5. Jog Shuttle Button
1-6. Inserting the Batteries in the Remote Control
Contents
CHAPTER 5. Using PC MENU
5-1. Auto Adjustment 70
5-2. Setting PC Scale Mode 72
5-3. Setting Phase/Frequency 73
5-4. Setting Position/Size 74
CHAPTER 6. Specifications

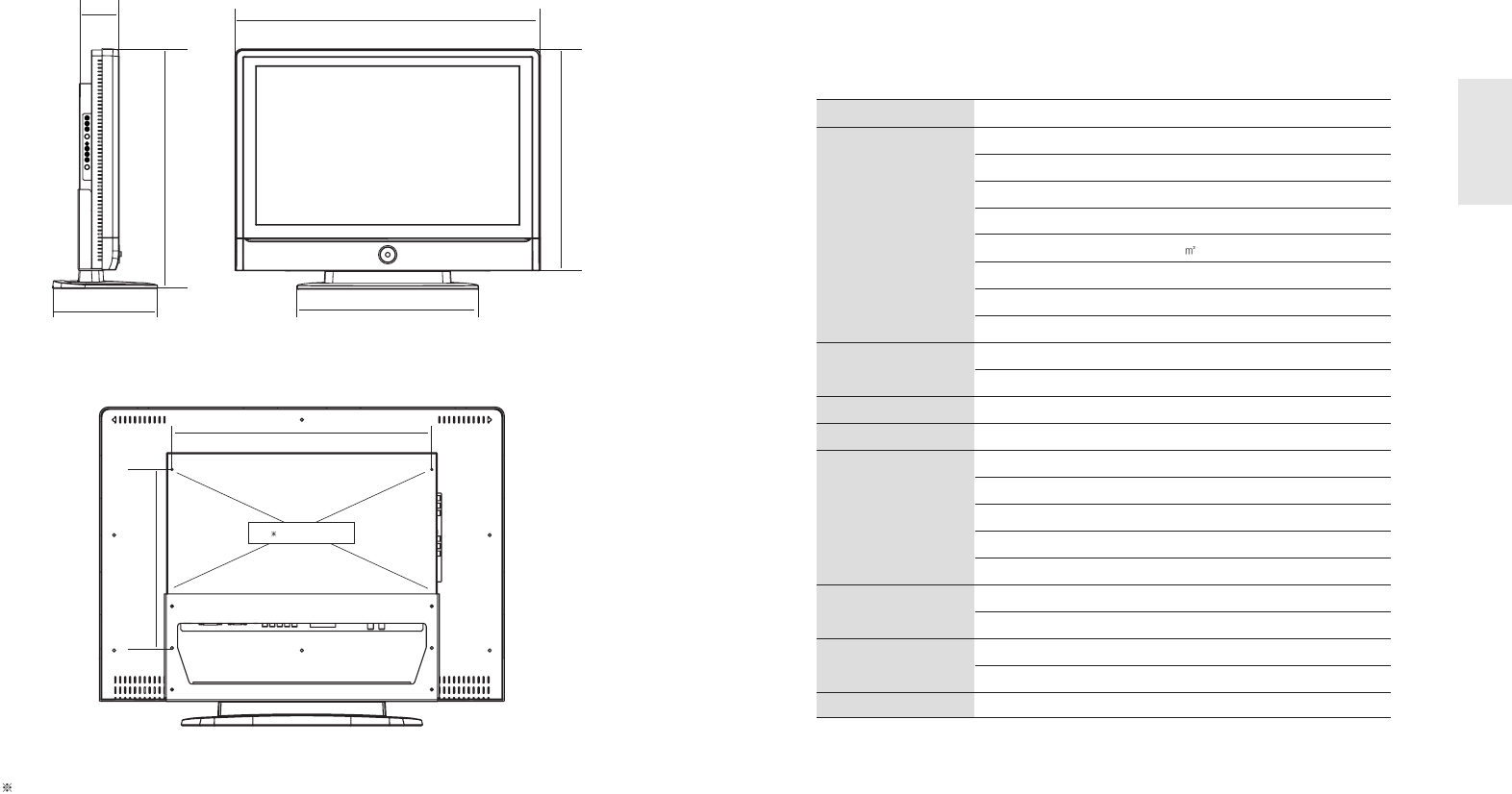

6-1. Dimensions 78
6-2. Specifications 79
CHAPTER 7. Services & Others
7-1. Troubleshooting 82
7-2. Concerning Services 84
EN 10 26” WIDE TFT-LCD TV
1-2. Panels
Front Panels
Power/MENU -1. Power-On/Off
Channel Button -2. AUTO / Move above MENU
Sound Cont. / MENU SET -3. SOURCE / Move under MENU
Remote Control Sensor -4. Exit MENU
LED -5. Load MENU
AUTO button searches automatically TV channels if set as TV, and it adjusts
automatically for PC mode.
Power button is jog shuttle type button and it operates different functions by pushing it
to Up/Down/Left/Right.
13
ENGLISH

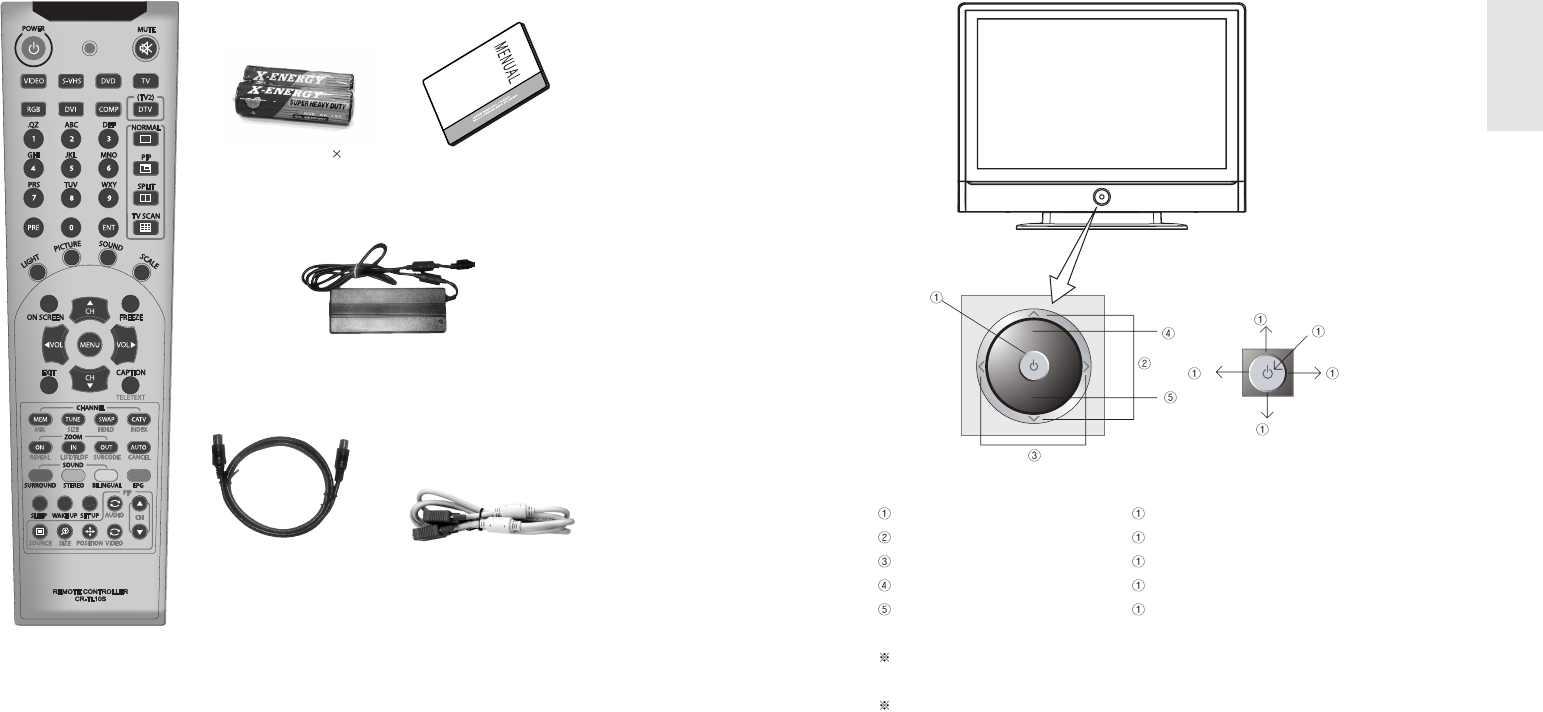

1-1. Accessories
Please make sure the following items are included with your LCD TV.
If any items are missing, contact your dealer.
EN 12 26” WIDE TFT-LCD TV
-1
-5-4
-3
-2
Remote Control
AAA-type battery( 2)
DC 15V Adaptor
User’s Manual
RF Cable D-Sub Cable
Side Panels
Video/Audio Input
S-VHS Input
Headphone Output
Video/Audio Output
Upgrade (Only for service personnel)
15
ENGLISH
EN 14 26” WIDE TFT-LCD TV
Rear Panels
Power Input DVI Input
PC Input PC Sound Input
DTV Input (Y Pb Pr LR) DVI Input (Y Pb Pr LR)
TV Antenna Input
Functions by remote control buttons
Button Function Button Function
POWER Power On/Off MUTE Sound off Temporarily
VIDEO Composite Video Input S-VHS S-Video Input
DVD DVD Input (Y PbPr)
TV TV Input RGB PC Input
DVI DVI Input (Optional) COMP DTV Component Input
DTV (TV2) PIP TV Input (Optional) / DTV Input (If DTV Tuner is built in)
NORMAL Select Normal Display PIP PIP display
SPLIT Split (PBP) TV SCAN 16 Channels Multi Scan
0~9 Numeric Buttons
PRE Previous Channel ENT Input selected channels
LIGHT Control background Light PICTURE Control Picture Mode
SOUND Control Sound SCALE Control Picture Scale
FREEZE Pause ON SCREEN Display screen status
MENU Enter Main/Sub MENU EXIT Exit Main/Sub MENU
CH UP / DOWN
Move TV channels / Move MENU up and down
VOL + / - Control Volume / MENU settings
CAPTION Turn On/Off Caption
MEM Add/Remove a TV CH TUNE Finely adjust TV Channel
SWAP Switch TV channels CATV TV Mode
Zoom ON Zooming On/Off IN Zoom in
OUT Zoom out
AUTO TV : Channel search / PC : Auto Adjustment
SURROUND Surround effect STEREO STEREO/MONO
BILINGUAL Select Multilanguage broadcasting system
EPG Electronic Program Guide SLEEP Sleep TImer setting
(Option for DTV)
WAKE UP Wake-Up Timer setting SET UP Other setting
PIP SOURCE PIP input signal change PIP VIDEO Switch Main/PIP screen
PIP AUDIO Switch Main/PIP sound PIP POSITION Change PIP position
PIP SIZE Control PIP size
PIP CH UP / DOWN Change PIP TV Channel
The remote control provided is available up to 7m from the optical receive part within Left/Right
15 degrees.
17
ENGLISH

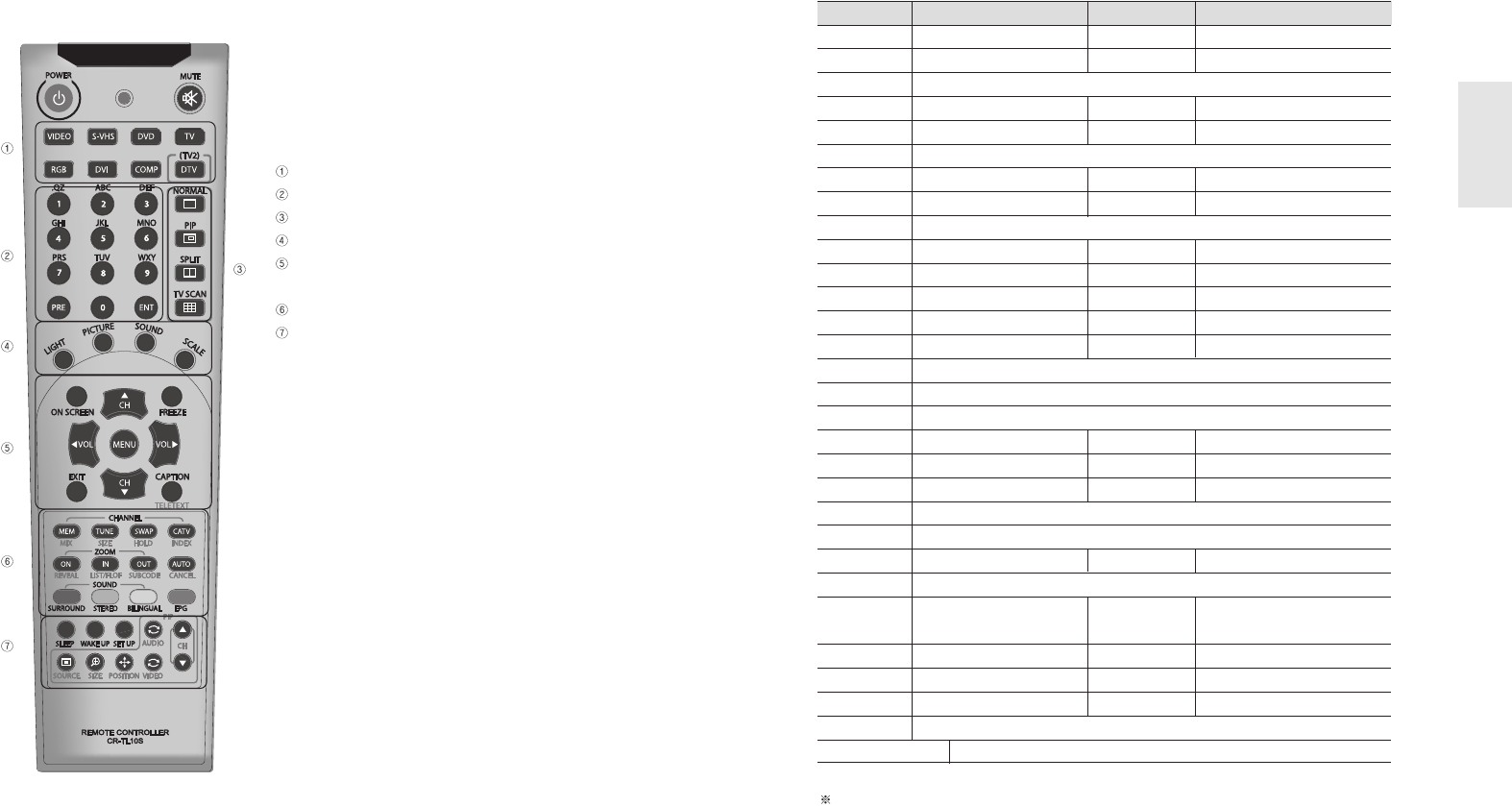

1-3. Remote Control
TV & Input Source Selection Button
Channel Selection Button
Display Selection Button
Display Mode & Audio Control Button
MENU Control Button
Channel & Volume Control Button
TV Functions & Teletext Menu Button
PIP Function and Setting Button
EN 16 26” WIDE TFT-LCD TV
2. Press it again to move to sub menu of a selected main
menu.
1) Press button to display main menu.
2) Press it again to move to sub menu of a selected main menu.
3) Press to return from sub menu to main menu or from
main menu to menu removal.
4) To move among menus, use button.
5) To change a selected menu setting, use button.
VOL
CH
EXIT
MENU
19
ENGLISH

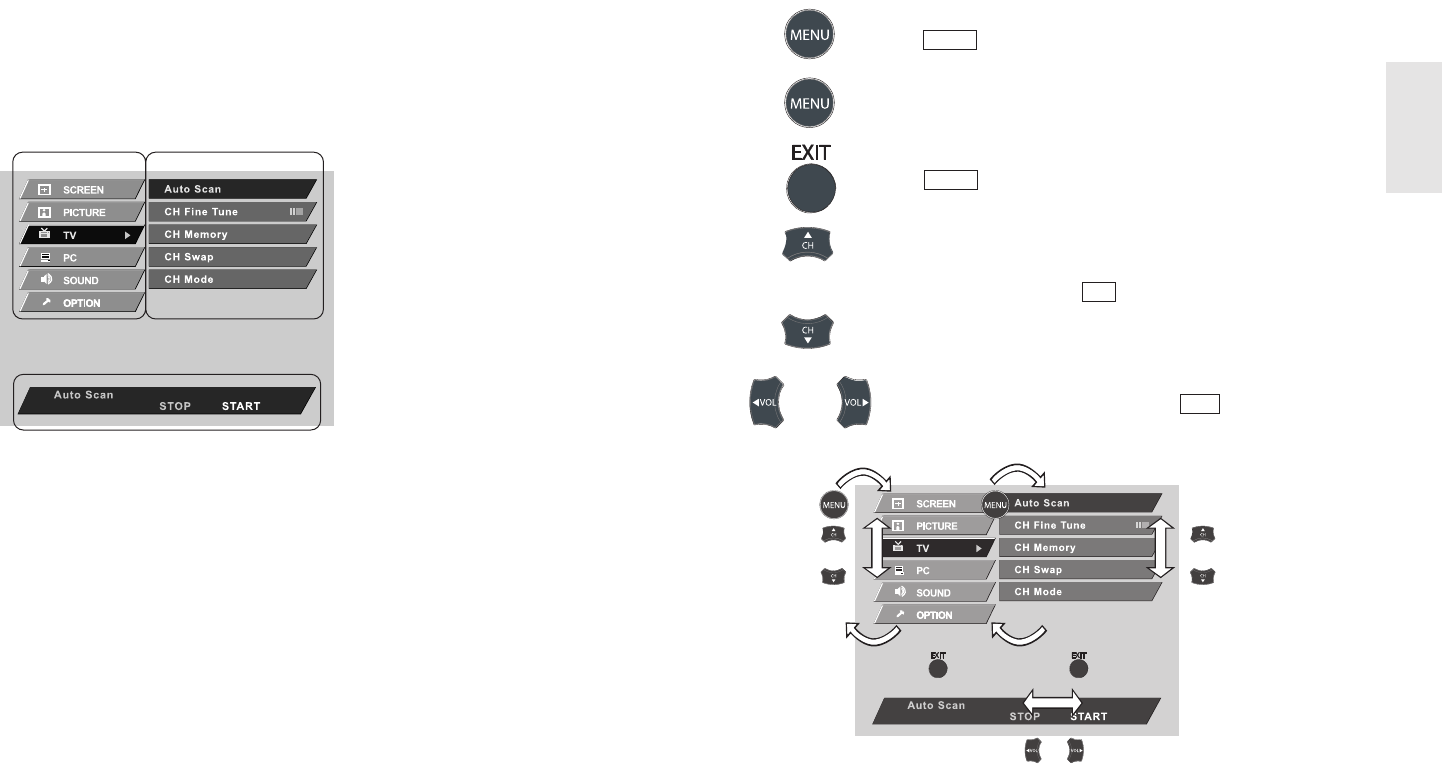

1-4. MENU Configuration
Most functions of the TV set can be controlled by MENU and selection buttons on the
remote control, so learning how to operate them would be convenient for you.
1. Menu Configuration
EN 18 26” WIDE TFT-LCD TV
Main Menu Sub Menu
Settings
1-6. Inserting the Batteries in the
Remote Control
1) Remove the cover of the remote control.
2) Check the polarity of batteries and insert them in right directions.
3) Replace the cover.
4) Available batteries : 2 DC 1.5V AAA-type batteries
Since incorrect insertion of batteries may cause breakage, leakage or injuries, check
the polarities before the insertion.
Separate and collect used batteries for the protection of environment.
Do not use alkaline and manganese batteries together.
21
ENGLISH

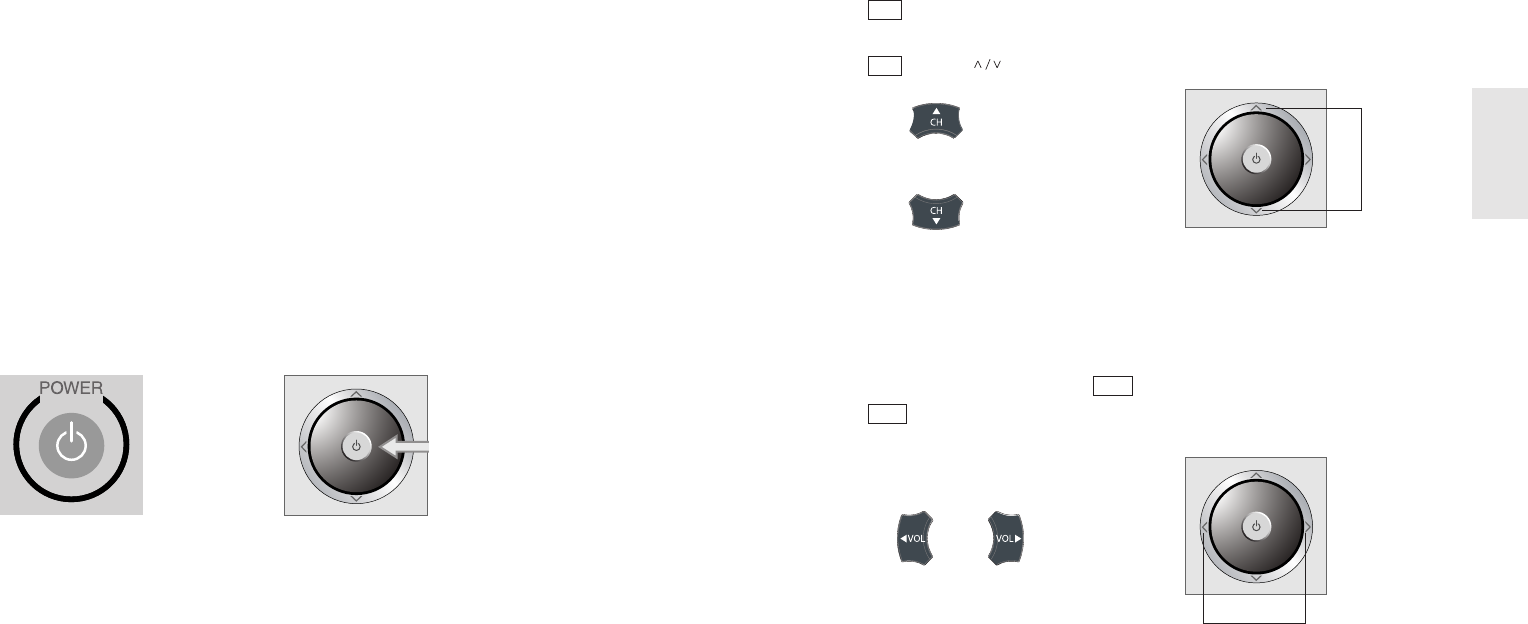

1-5. Jog Shuttle Button
1) Push button right to display main menu.
2) Push it right again to display sub menu.
3) Push button left to return to main menu.
4) Push it left again to clear menu.
5) Push the button up and down to move among menus.
If pushing it upward when menu is not displayed, it
controls TV channel search or automatic PC settings.
If pushing it downward when menu is not display, it
changes input signals.
6) Change menu settings by using left/right
directional buttons.
MENU
MENU
EN 20 26” WIDE TFT-LCD TV
23
ENGLISH
EN 22 26” WIDE TFT-LCD TV
CHAPTER 2
Connection
2-1. Connecting Power
2-2. Connecting TV Antenna
2-3. Connecting PC
2-4. Connecting PC DVI
2-5. Connecting DTV
2-6. Connecting DVD
2-7. Connecting VIDEO / S-VHS Input
2-8. Connecting Headphone (speaker) Output
2-9. Connecting VIDEO Output
2-3. Connecting PC
1. Connect D-Sub Cable to D-Sub port on the TV and PC.
2. Connect Audio Cable (not included) to Audio output of a PC (stereo jack) and PC
Audio Input Port of the TV (stereo jack).
2-4. Connecting PC DVI
1. Connect DVI Cable (not included) to DVI port of the TV and PC.
2. Connect Audio Cable (not included) to Audio port of PC (stereo jack) and TV (stereo
jack).
3. It is recommended to use D-type DVI cable.
25
ENGLISH
2-1. Connecting Power
1. The product automatically adjusts voltage.
In case 110V is used, connect 110V Conversion adaptor before use.
2. Power Cable should be firmly connected to an outlet or DC adaptor in order not to
be pulled out or shake.
2-2. Connecting TV Antenna
1. When round cable (75Ωcoaxial cable) is used, copper part of the cable should not
be bent.
1. When an outdoor antenna is used, it is recommended for a skilled technician to install it.
2. It may be helpful to better display to purchase additional installing amplifier if there is any
problem with weak radio wave.
Cautions
EN 24 26” WIDE TFT-LCD TV
TV antenna
Antenna converter
Connecting RF
cable
Connecting
feeder cable
RF cable
feeder cable
copper wire
TV Wall-outlet
TV Wall-outlet

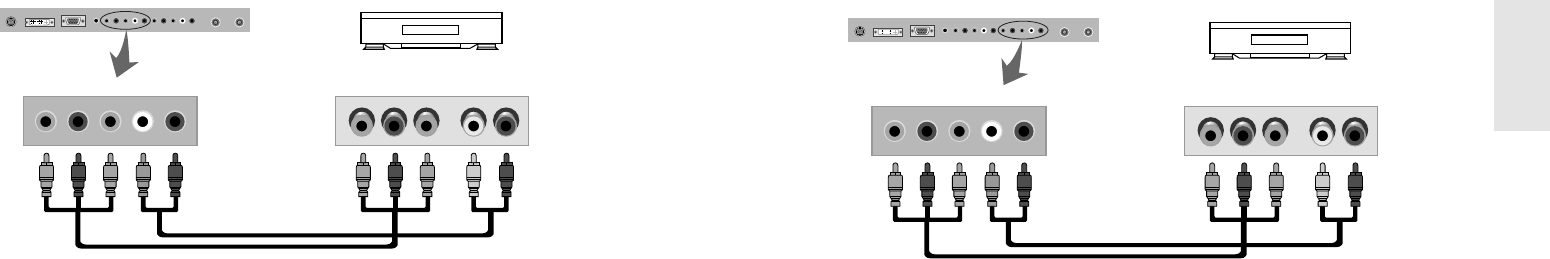

2-6. Connecting DVD (Y Pb Pr)
1. Connect Component Cable (not included) to Component ports of TV and DVD
player. VCR, Set-Top box or camcorder.
2. It supports 480i.
27
ENGLISH
DVD Playe
Y PBPRL AUDIO RY PBPRL R
2-5. Connecting DTV
1. Connect Component Cable (not included) to DTV Connection ports of TV (Y Pb Pr)
and DTV Receiver.
2. Connect Audio Cable (not included) to Audio ports (L/R) of TV and DTV Receiver.
3. Cables should be connected to ports of same colors.
4. Set the video output of a DTV Receiver as 480p, 720p.
EN 26 26” WIDE TFT-LCD TV
Digital TV Broadcasting Receiver
Y PBPRL AUDIO RY PBPRL R
2-8. Connecting Headphone (speaker)
Output
1. Connect Headphone (not included) to the Headphone output port of the TV.
2. Even in case of using headphone, internal speakers built in the TV still works and if
you press button, the speakers stop working.
3. If possible, use the headphones of which impedance is 8Ω. Other headphones may
output too weakly or strongly.
4. In case of connecting to speakers, connect speakers with amps. If connected with
speakers without amps, it may sound weakly.
5. In case of headphone output, volume is not controlled.
MUTE
29
ENGLISH

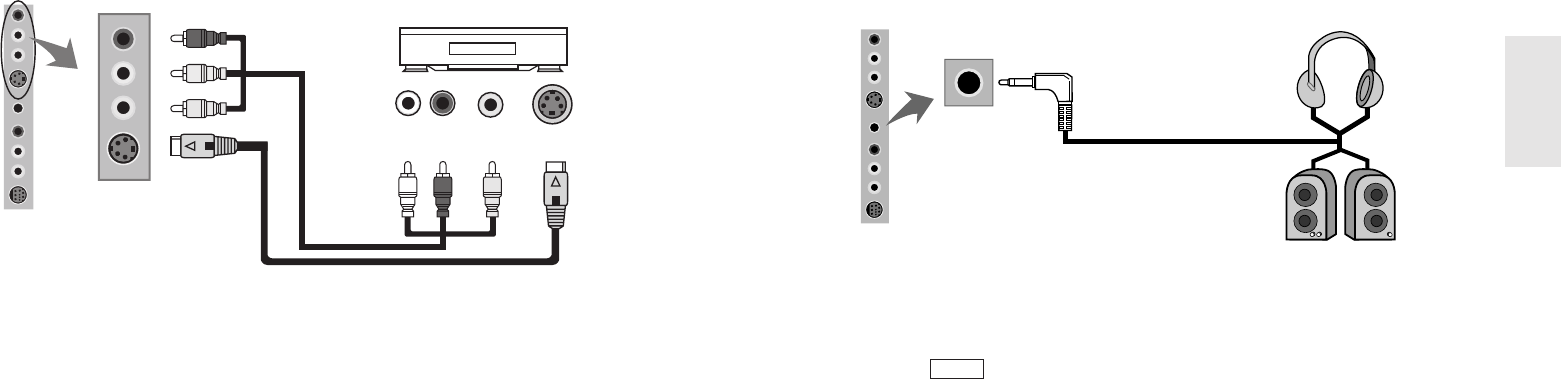

2-7. Connecting VIDEO / S-VHS Input
1. Connect Video/Audio Cable (not included) and S-VHS Cable to Video port of TV and
camcorder, game machines, VCR, DVD player or Set-Top box.
2. Cables should be connected to ports of same colors.
3. Audio signals of S-VHS should be used with external audio signal cables.
4. S-VHS signal secures better quality than composite video signal.
EN 28 26” WIDE TFT-LCD TV
Audio Output/Video Output/S-VHS Output
VCR/DVD Player and etc
L R
31
ENGLISH

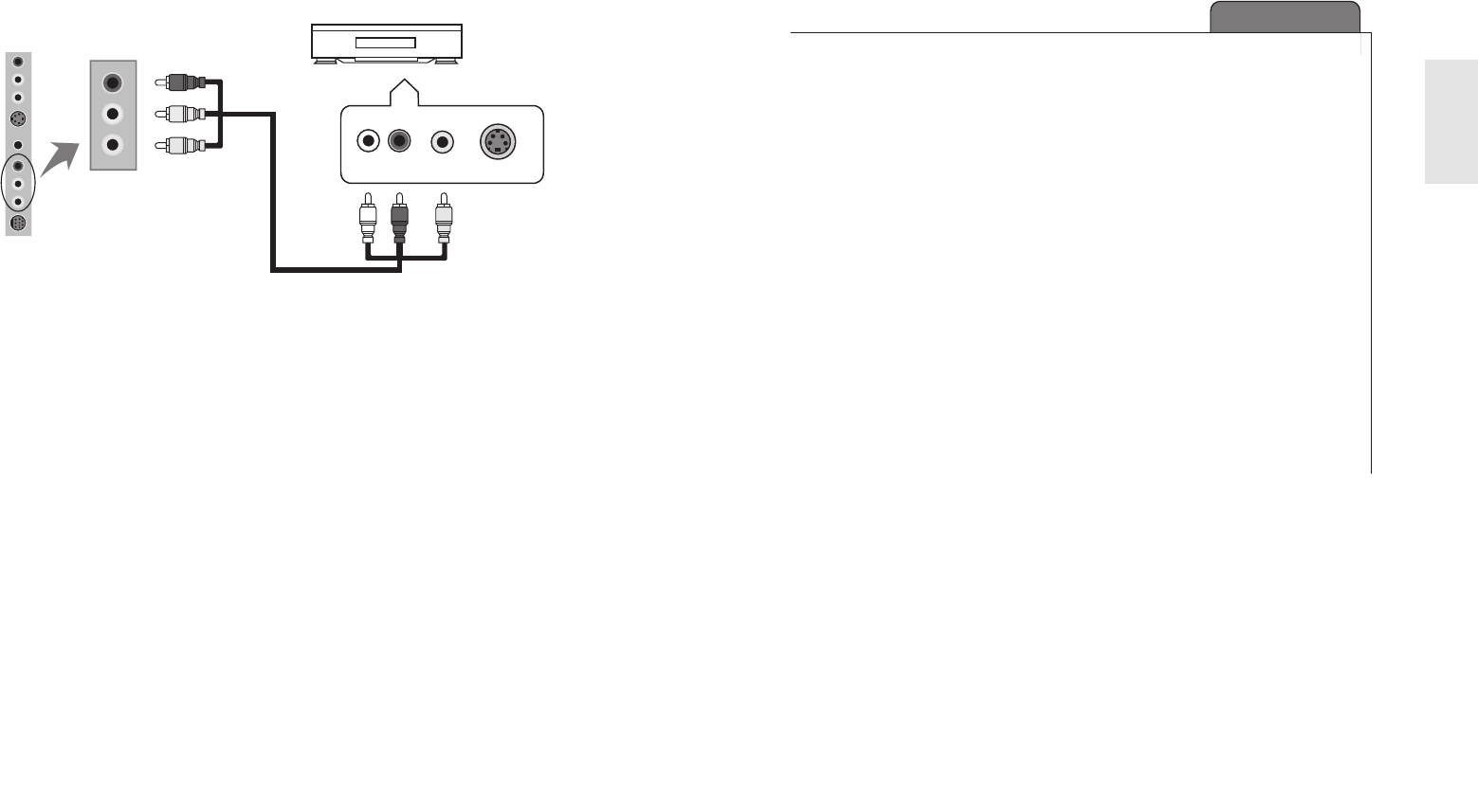

2-9.
Connecting VIDEO Output
1. When recording TV program or using the video/audio of the TV for other AV device
(VCR and etc), connect it to AUX Output terminal of the TV and Input Port of the
device.
2. Cables should be connected to terminals of same colors.
3. External Output Signal outputs TV broadcasting signals of the main display.
EN 30 26” WIDE TFT-LCD TV
CHAPTER 3
Using TV Menus
3-1. Watching TV
3-2. Auto On/Off Timer
3-3. Change TV Channel Mode
3-4. Channel Search & Fine Tune
3-5. Add/Remove Channel
3-6. Channel Swap
3-7. Password
3-8. Channel Lock
3-9. Caption
3-10. V-chip Funetion
3-11. DTV Field
3-12. Stereo
3-13. Bilingual (Multi-Language Broadcasting)
3. Channel Selection
1) Press button on the remote control to change channels.
2) Press numeric buttons to go to a channel directly.
3) Press buttons ( ) on the TV set to increase or decrease TV channels.
4. Volume Control
1) Increase/decrease volume by pressing button on the remote control.
2) Press button (< / > ) on the TV set to control the volume.
Volume Button on the TV SetVolume Button on the remote control
VOL
VOL
Channel button on the TV setChannel button on the remote control
CH
CH
33
ENGLISH
3-1. Watching TV
1. Precautions in the initial installation
1) Check whether TV antenna cable is properly connected.
2) After checking whether the voltage is 100V or 220V, supply the electric power and
connect the adaptor to the TV.
At the moment, TV is in standby.
2. Turning on TV
1) Turn on the Power button directly on the set or by remote control.
2) Each pressing the button turns on or off the set.
Power Button on the TV SetPower Button on Remote Control
EN 32 26” WIDE TFT-LCD TV
3-2. Auto On/Off Timer
You may set the TV to turn on or off in a certain time period.
1. Setting Wake-Up Timer
- Press button on the remote control.
- Set the time to turn on the TV automatically by using volume button on the remote
control.
- Wake-up timer can be set from Off to 12 hours.
- Once the setting is complete, press button.
EXIT
MENU
35
ENGLISH

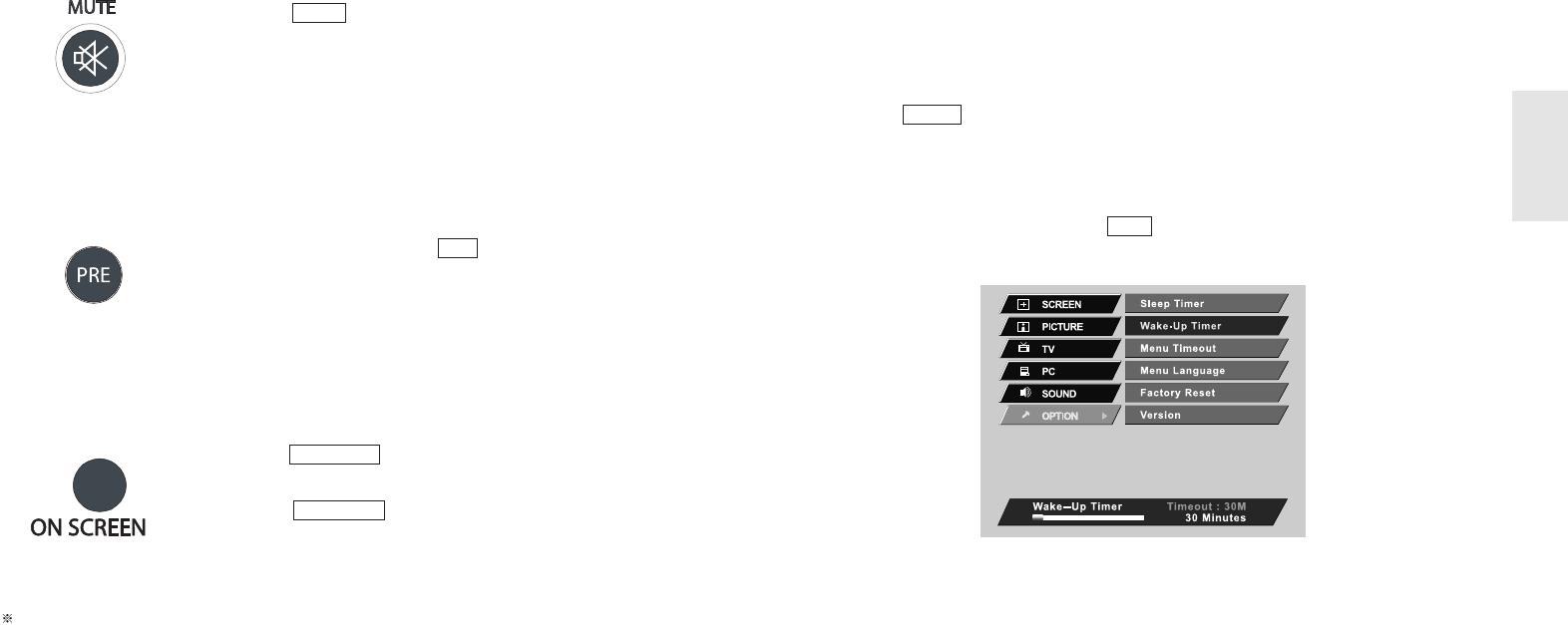

5. Mute
1) Press button on the remote control to
sound off temporarily and “MUTE” is displayed.
2) Press it again to turn the sound back on or press
volume buttons.
6. Move to Previous Channel
1) Every time pressing the button on the
remote control, it moves to a previous channel.
7. Checking the present broadcasting information
1) Press button on the remote control
to display the information on the screen.
2) Press button again removes the
information or leaving it clears the information in 5
seconds.
In case of TV Signal, it displays channel info while it shows mode info in case of PC signal.
ON SCREEN
ON SCREEN
Previous Channel Button
PRE
MUTE button on the remote control
MUTE
EN 34 26” WIDE TFT-LCD TV
Broadcasting Info Button
3-3. Change TV Channel Mode
Please set your broadcast type between Air and Cable.
If its mode is set as Air, some Cable broadcasts are not able to watch.
- Press CATV button on the remote control.
- Set the CH Mode between Air & Cable by using Volume button on the remote
control.
- Once the setting is complete, press CATV button or EXIT button.
- Also, it can be set in OSD menu if JOG button is used.
SCREEN Auto Scan
TV
PC
SOUND
OPTION
CH Fine Tune
CH Memory
CH Swap
CH Mode
CH Mode
Air Cable
CH Mode
Air Cable
37
ENGLISH
2. Setting Sleep Timer
- Press button on the remote control.
- Set the sleep timer by using volume button on the remote control.
- Sleep Timer can be set from Off to 180 minutes.
- Once the setting is complete, press button.
EXIT
MENU
EN 36 26” WIDE TFT-LCD TV
2. Fine Tuning Channel Reception
If a searched channel is unclear or sounds abnormally, use Fine Tune function.
- Press button on the remote control to move to Fine Tune Menu.
- If controlling menu settings left or right by using Volume button on the remote control,
it searches the optimal status.
- Once the setting is complete, press button again or button.
- Also, it can be set in OSD menu if JOG button is used.
EXITTUNE
MENU
39
ENGLISH

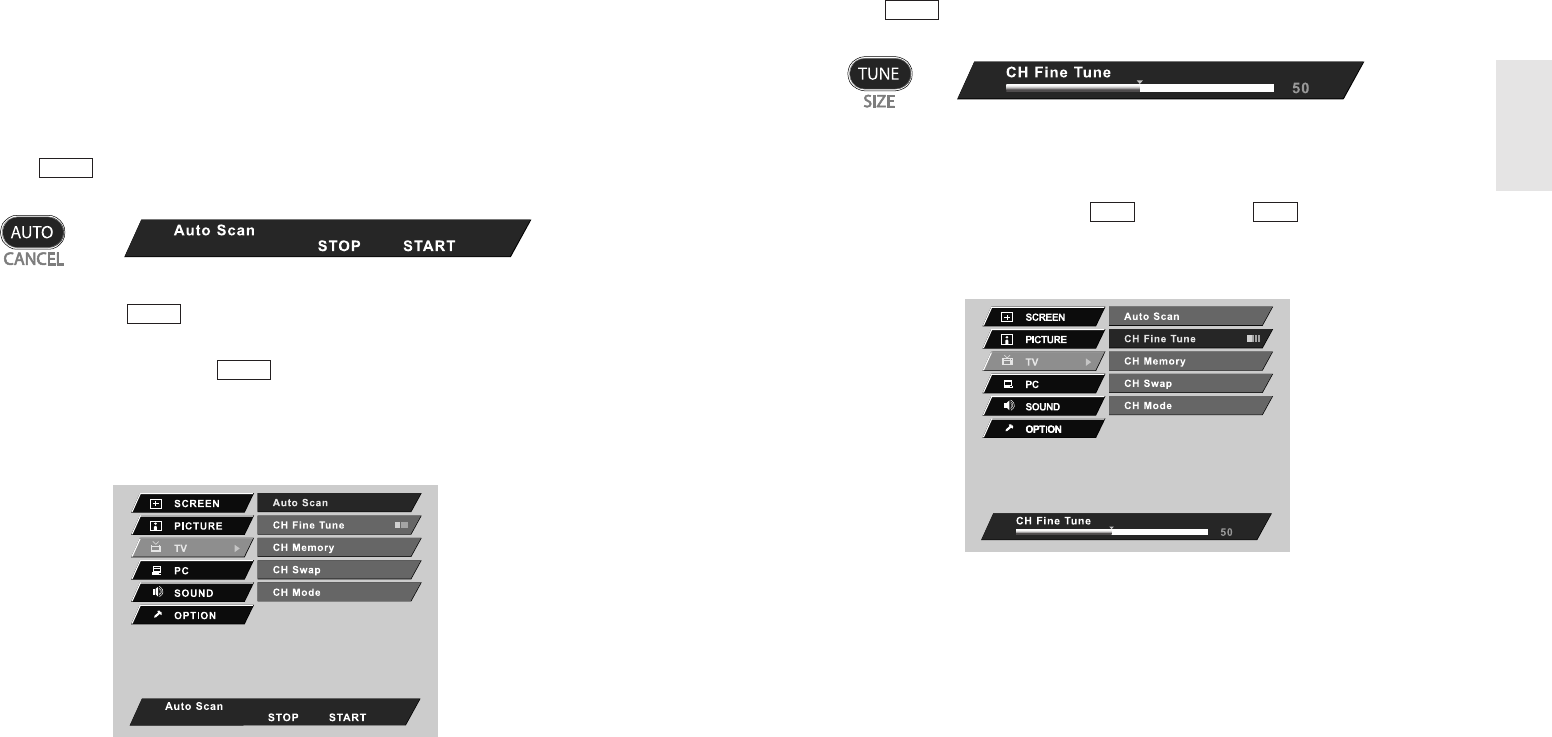

3-4. Channel Search & Fine Tune
When using the TV first after purchase, reconnecting it due to power failure or other
reasons, channels should be searched and registered again.
Since Channel Search function searches channels currently broadcasted, you should
execute it when most channels are broadcasted.
1. Channel Search
- Press button on the remote control.
- Once you move to by using Volume button on the remote control, it starts
channel search.
- To stop channel search, repress button on the remoter control.
- If you stop it during channel search, it stores the currently searched channels only.
- Also, it can be set in OSD menu if JOG button is used.
EXIT
START
MENU
EN 38 26” WIDE TFT-LCD TV
3-6. Channel Swap
In case of channels frequently watch, you can switch it to other channel numbers and
store them.
- Move to a channel to change.
- Press button on the remote control.
- Change a channel number to switch by using Volume button on the remote control.
- Once the setting is complete, press button.
EXIT
MENU
41
ENGLISH
3-5. Add/Remove Channel
You may add or remove a channel as your need.
- Move to a channel to add or remove by pressing numeric buttons or button.
- Press button on the remote control.
- In case of adding a channel by using Volume button on the remote control, move to
Add or Remove.
- Once the setting is complete, press button again or button.
EXITEXIT
MENU
CH
EN 40 26” WIDE TFT-LCD TV

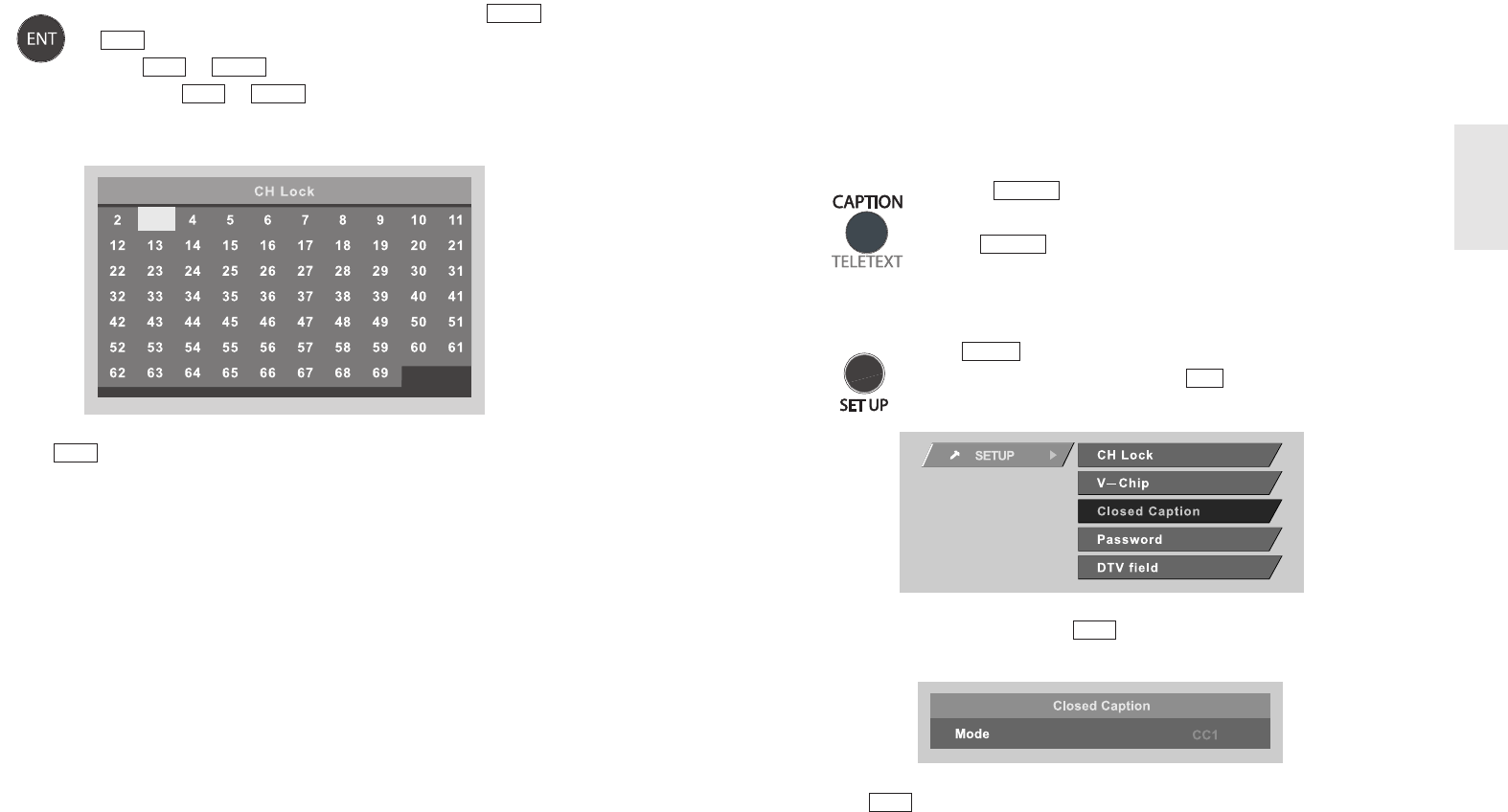

3-8.Channel Lock
You can make some channels to prohibit to watch by Channel Lock function.
It can be set only by remote control.
- Press button on the remote control.
- Move to CH Lock menu by using button on the remote control.
- Enter your password by using the remote control.
- Set TV broadcast mode by using button on the remote control.
VOL
MENU
SET UP
43
ENGLISH

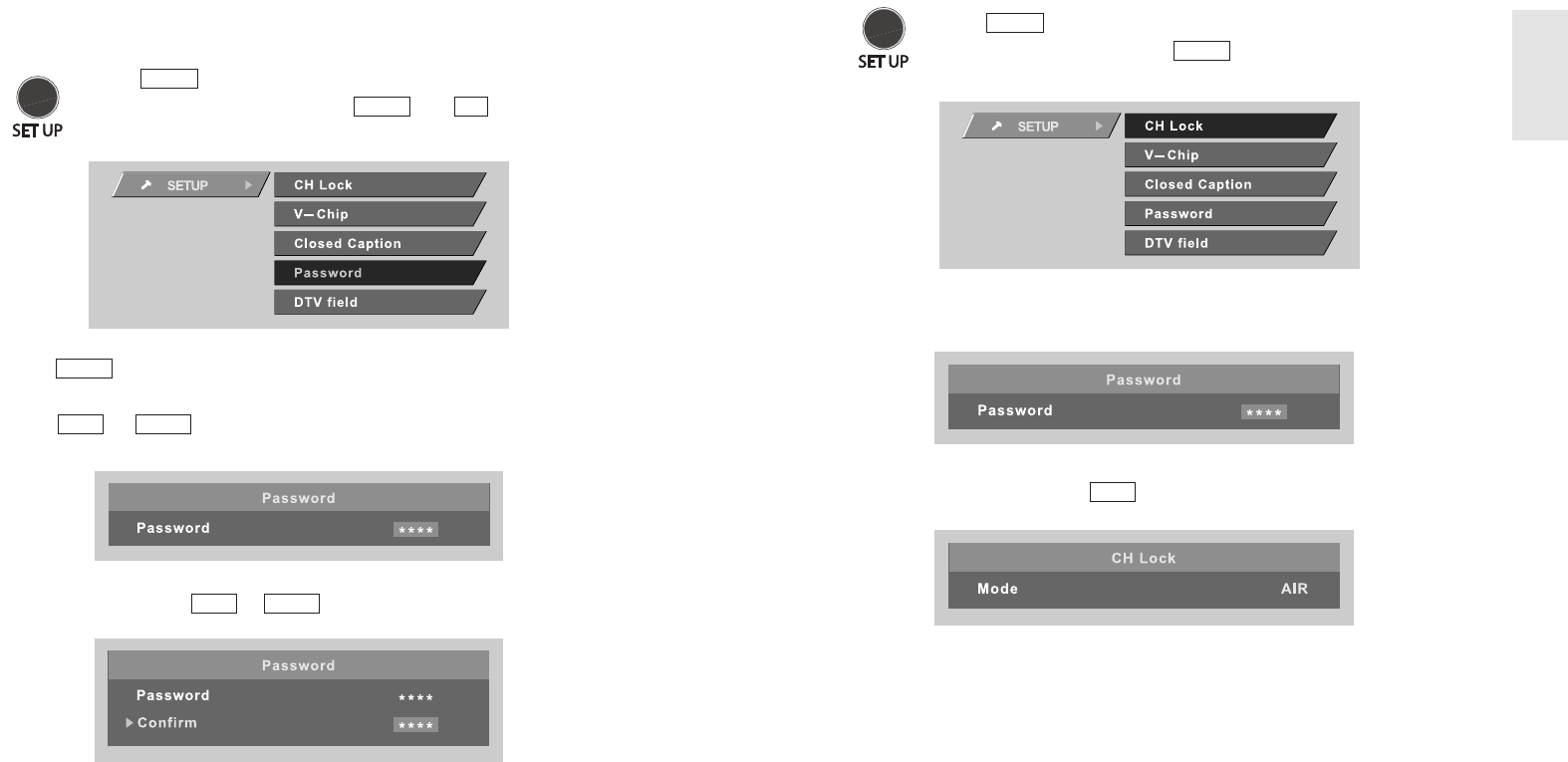

3-7. Password
When using Contents Blocking function, you can set password and please keep the
password private.
Default password is <0000>.
Please change default password to new one after installing TV.
- Press button on the remote control.
- Move to password menu by using and button on the
remote control
- Press button on the remote control for entering Password setting menu.
- When setting password first after purchase, press <0000> on the remote control and
press or on the remote control after entering new password for
changing.
- Press new password and or again for confirmation it.
MENUENT
MENUENT
MENU
CHMENU
SET UP
EN 42 26” WIDE TFT-LCD TV
3-9.Caption
This function works only Caption broadcast or other CC marked video tape and DVD title.
Set the function in the SETUP menu.
Caption can be set only by using the remote control.
1. Caption On / Off
- Press button on the remote control when it is
broadcasted.
- Press button for coming out from setting.
2. Set Caption
- Press button.
- Move to Closed Caption menu by using button.
- Set Caption broadcast type by using button on the remote control.
- Press button for coming out from setting.
EXIT
VOL
CH
SETUP
CAPTION
CAPTION
45
ENGLISH
- Move to the channel which you want to prohibit by using and
button.
- Press or button for setting it.
- If you press or again, it will be cancelled.
- It displays different color for CH Lock channel.
- Press for coming out from setting.
EXIT
MENUENT
MENUENT
VOL
MENU
EN 44 26” WIDE TFT-LCD TV
- Move to TV Guideline or MPAA Rating by using button on the
remote control.
- Move to the position which you want to make channel blocking and
press or button for setting.
- Press it again for cancellation.
- Press button for coming out from setting.
EXIT
MENUENT
CH
47
ENGLISH

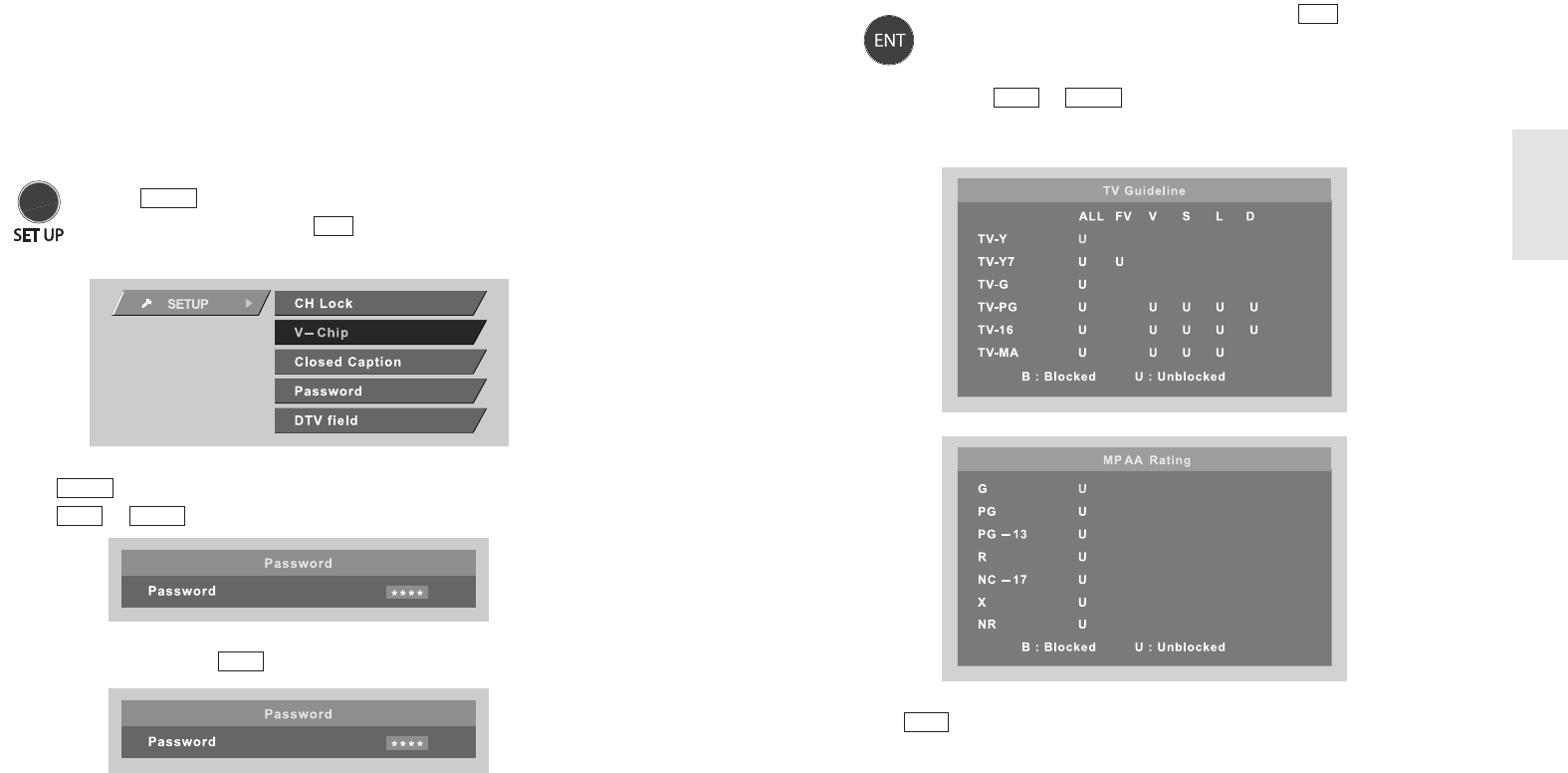

3-10. V-Chip Funetion
It makes MPAA rating of TV broadcast and other media.
It works only with V-Chip function broadcast and media.
It can be controlled by using the remote control only.
- Press button on the remote control.
- Move to V-Chip menu by using button on the remote control.
- Press button and enter Password.
- Press or button on the remote control.
- Set V-Chip function by using button on the remote control.
VOL
MENUENT
MENU
CH
SETUP
EN 46 26” WIDE TFT-LCD TV
3-12. Stereo
If you use the TV in an area with weak or bad reception, there may cause sound noise
or other problem when selecting a channel. In this case, cancel the setting.
It can be canceled only by the remote control.
- Press button on the remote control to cancel stereo and
returning to Mono.
- Press button in Mono returns to Stereo.
- If Stereo is off, it is always set as Mono even though a channel is
changed.
3-13. Bilingual
(Multi-Language Broadcasting)
In case of multi-language broadcasting, it can be converted if you wish to listen to
other language except main language.
Multilanguage broadcasting can be set only by the remote control.
- Every time pressing button on the remote control, the
language display is changed in good order of main language sub
language main + sub languages (dual language).
(Main - Sub - Dual)
BILINGUAL
STEREO
STEREO
STEREO
49
ENGLISH
3-11. DTV Field
Depending on a DTV receiver, a signal is not identical with standard signal. It may
cause unclear display and if you change DTV Field value, it will be recovered to the
normal picture (it can be set only by the remote control).
- Press button.
- Press button to go into DTV Field Setting Menus.
- Set Not Invert/Invert with Volume button.
- Initially, ‘Not Invert’ is defaulted and you may change it to ‘Invert’ if the
display is not normal.
- Once the setting is complete, press the button.
EXIT
MENU
SET UP
EN 48 26” WIDE TFT-LCD TV
51
ENGLISH
EN 50 26” WIDE TFT-LCD TV
CHAPTER 4
Using Menus of
Picture, Sound and
Others
4-1. Setting Display Mode
4-2. Setting Scale Mode
4-3. Setting Picture Mode
4-4. Using Simultaneous Picture Mode
4-5. Setting Screen MENU by Simultaneous Picture
4-6. Setting Sound
4-7. Setting Others
4) SPLIT FULL : Repressing button in Split display, shows main screen and
sub screen in split full screen.
5) TV SCAN : Show 16 channels searched and stored in the TV set in 16 pictures in
order on the screen. At the moment, can be operated only by the remote
control.
- Also, it can be set in OSD menu if JOG button is used.
- OSD Menu is different depending on Display Type [Screen Layout].
TV SCAN
SPLIT
53
ENGLISH
4-1. Setting Display Mode
You may view other video screen while watching TV.
- Press , , or button.
1) NORMAL : Show a selected main screen in full size.
2) PIP : Show main screen and sub screen in full size and small
size together.
3) SPLIT : Show main screen and sub screen by horizontally
shared. You can control Main screen’s (left side screen) size
and Sub screen’s size is controlled inverse ratio of main screen.
TV SCANSPLITPIPNORMAL
EN 52 26” WIDE TFT-LCD TV
4-3. Setting Picture Mode
By setting a picture mode suitable for broadcasting/video signals, you may enjoy
better quality picture.
- Press button on the remote control.
- Set a picture mode by using Volume button on the remote control.
1) Standard : Standard picture mode.
2) Soft : It displays a picture softly as a whole and is better for watching a film or TV
series.
3) Dynamic : The mode is suitable for watching sports, which changes pictures fast.
4) User : It is a picture mode customized by a user.
- Also, it can be set in OSD menu if JOG button is used.
55
ENGLISH

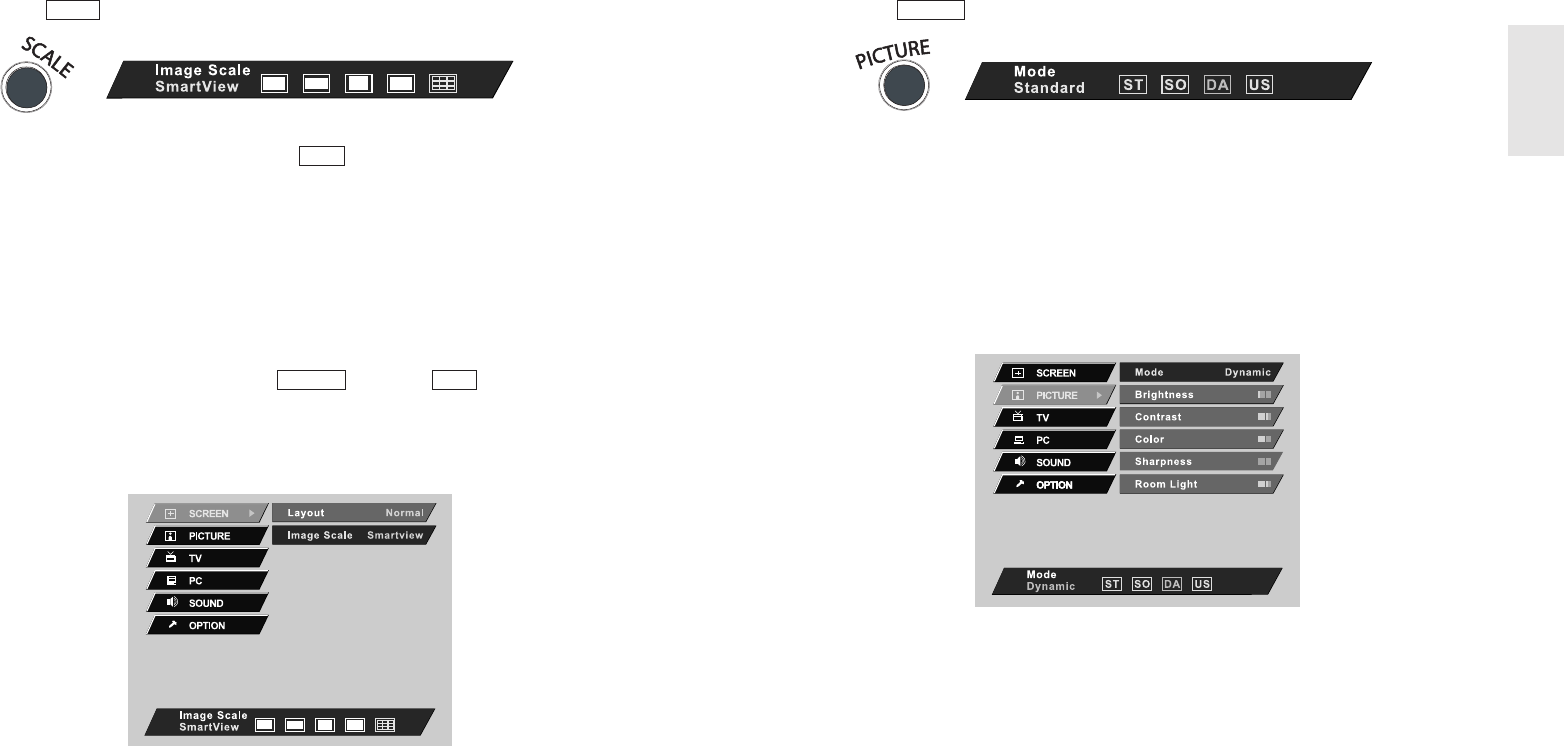

4-2. Setting Scale Mode
You can set the screen’s suitable image scale of TV or Video input signals and view
them accordingly.
- Press button on the remote control.
- Control the scale in desirable size by using button on the remote control.
1) FULL : Show a screen in the full LCD Penal.
2) 16:9 : Show a screen in 16:9 wide screen size.
3) 4:3 : Show a screen in 4:3 screen size for general broadcasting.
4) CAPTION : Show a screen suitable for Caption Broadcasting.
5) SMART VIEW : Show a screen in a proportion suitable for grand image.
In PIP or SPLIT screen, it can be set in types of AUTO, 16:9, 4:3. For more
information, see to 4-4 Setting Simultaneous Picture Mode.
- Once the setting is complete, press button or button on the
remote control.
- Also, it can be set in OSD menu if JOG button is used.
- OSD Menu is different depending on Display Type [Screen Layout].
EXITPICTURE
VOL
SCALE
EN 54 26” WIDE TFT-LCD TV
2. Setting Room Light
You can adjust the entire TV brightness according to lightning status.
- Press button on the remote control.
- Adjust values by using Volume button on the remote control.
- Once the setting is complete, press button on the remote control.
EXIT
MENU
57
ENGLISH
1. Setting USER Mode
You can set each picture mode according to your taste. If you set USER mode as your
taste, it is stored as USER Mode standard.
- Press button on the remote control and move to PICTURE of
main menu by using button on the remote control.
- Press button on the remote control and move to the sub
menu for changing values by using / buttons.
1) Brightness : Adjust screen brightness.
2) Contrast : Adjust screen contrast.
3) Color : Adjust screen color.
4) Sharpness : Adjust screen sharpness.
5) Room Light : Adjust the brightness of TV screen according to background
brightness.
VOLCH
MENU
CH
MENU
EN 56 26” WIDE TFT-LCD TV

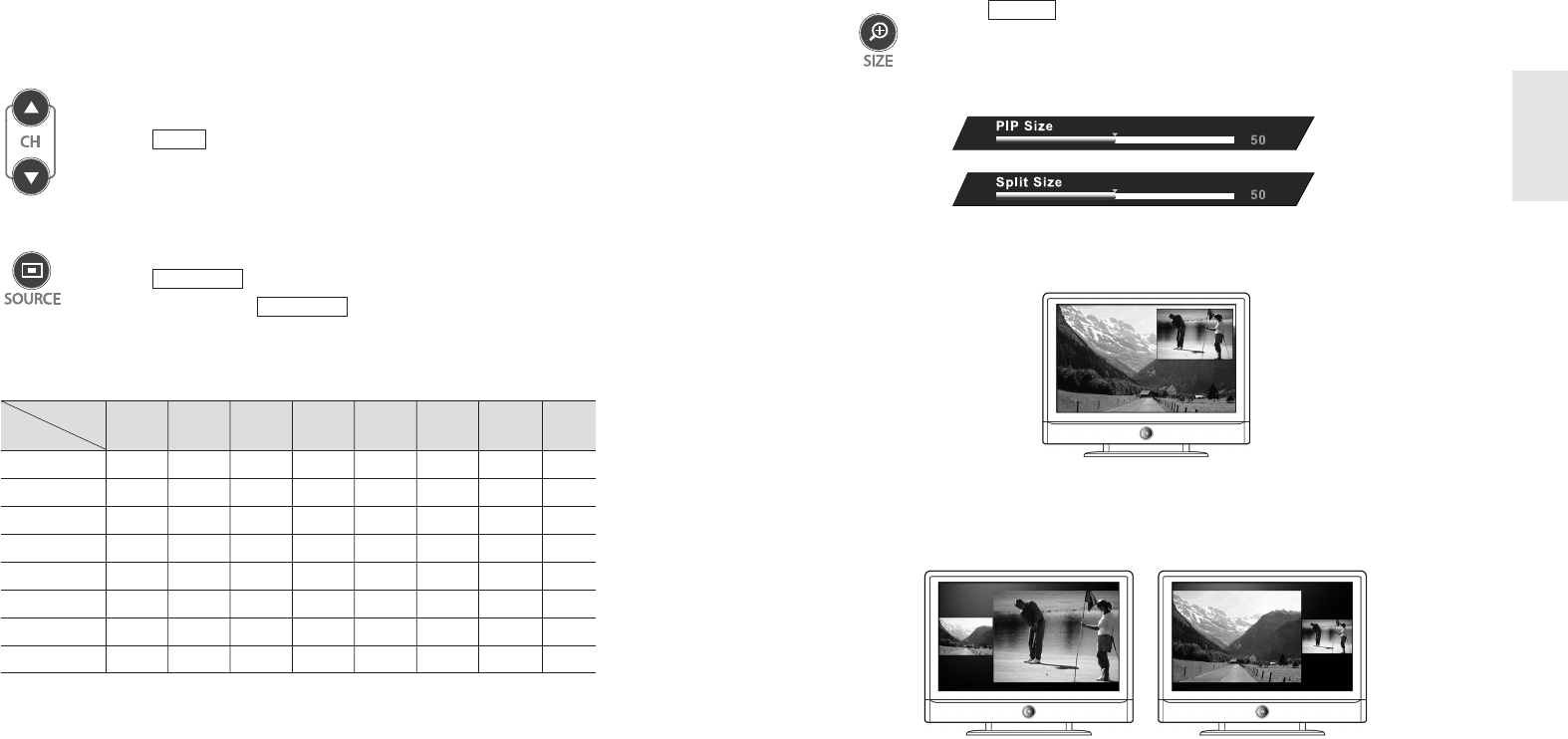

3. Changing Sub Screen Size
It adjusts sub screen size.
- Press button on the remote control.
- Adjust sub screen size by Volume button on the remote control.
- Different menus are displayed depending on PIP Picture or SPLIT
Picture.
- On PIP Picture, sub screen size can be adjusted from 1/16 to 1/4 of the full size.
- On SPLIT Picture, main screen size is adjusted while sub screen size is adjusted
accordingly.
- On SPLIT Picture, the left screen always shows main screen.
PIP SIZE
59
ENGLISH
4-4. Setting Simultaneous Picture Mode
While watching TV on main screen, you can enjoy other video picture on the sub
screen.
Simultaneous Picture means PIP and/or SPLIT Picture display.
1. Changing a channel of Simultaneous Picture
- Press button on the remote control.
- It changes a TV channel if the sub screen shows TV.
2. Changing input signal of Sub-Screen
- Press button on the remote control.
- Every time pressing button, it changes input signal of
sub screen.
- Available input signals of sub screen are as follows;
SUB PC PC TV1 TV2 VIDEO S-VHS COMP DVD
MAINRGB RGB DVI (DTV)
PC RGB XX0X00X0
PC DVI XX0X00X0
TV1 00X0XX0X
TV2 XX0X00X0
VIDEO 00X0XX0X
S-VHS 00X0XX0X
COMP (DTV) XX0X00X0
DVD 00X0XXOX
PIP SOURCE
PIP SOURCE
PIP CH
EN 58 26” WIDE TFT-LCD TV
4-5. Setting Screen MENU by
Simultaneous Picture
Depending on Layout in OSD Menu, sub menus of SCREEN are changed.
1. SCREEN MENU in NORMAL Picture
- It works only in NORMAL Picture.
- Select SCREEN menu by pressing button on the remote control (MENU
MENU).
1) Layout : Set Picture mode [Display Mode].
2) Image Scale : Select an image scale
(FULL, 16:9, 4:3, Caption, Smart View)
- Once the setting is complete, press button to exit it.
EXIT
MENU
61
ENGLISH

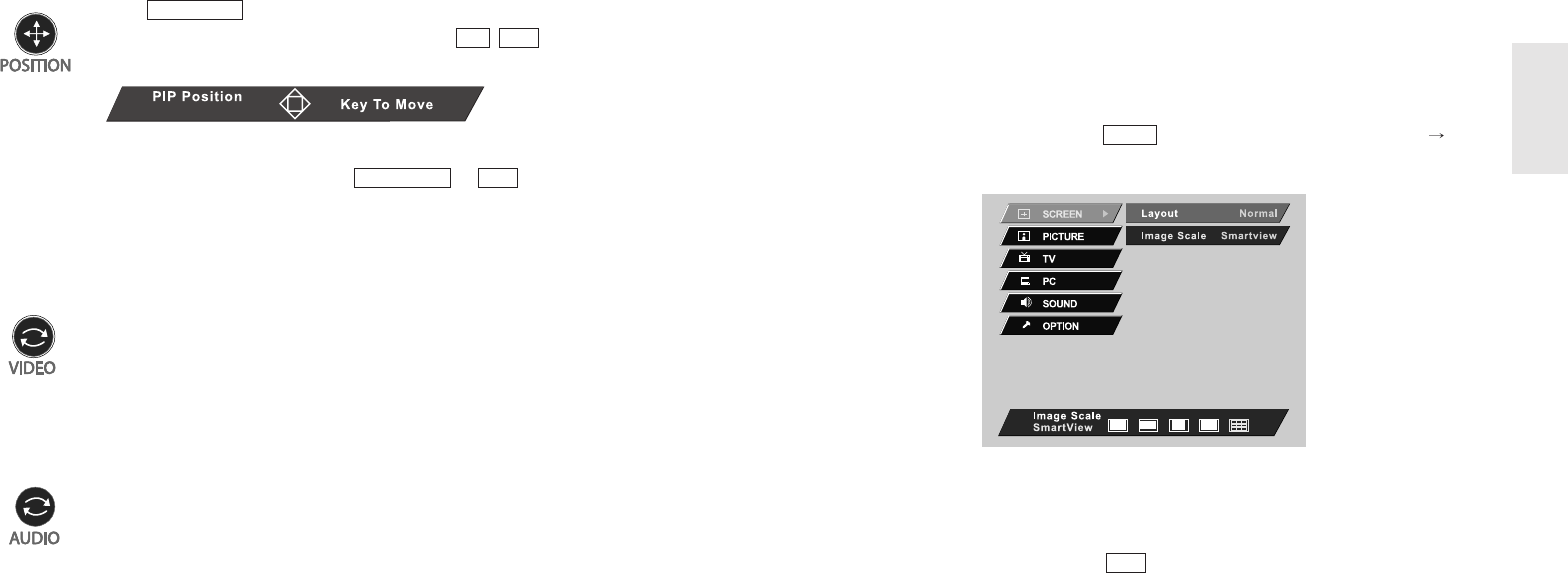

4. Changing Sub Screen Position
Adjust a sub screen’s position on PIP Picture.
- Press button on the remote control.
- Move PIP picture to a desirable position by using / button
on the remote control.
- The position is set as USER setting of OSD menu.
- Once the setting is complete, press or button on
the remote control.
5. Switching Main/Sub Screen
It switches main/sub screens.
In case of switching main/sub screens, audio is changed accordingly.
The left screen always shows main screen.
6. Switching Audio of Main/Sub Screen
It switches audio of main/sub screen.
In case of switching audio of main/sub screen, it switches audio only,
not screens.
EXITPIP POSITION
VOLCH
PIP POSITION
EN 60 26” WIDE TFT-LCD TV
3. SCREEN Menu in SPLIT Picture
- It works only on SPLIT Picture.
- Select SCREEN menu by pressing button on the remote control.
1) Layout : Set a display layout
2) Split Size : Adjust a size of Split main screen. Sub screen size is adjusted by main
screen size.
3) SPLIT Scale : Adjust an image scale of SPLIT Picture.
- Auto : Adjust PIP scale by automatically determining input signals.
- 16:9 : It fixes PIP sub screen scale to 16:9.
- 4:3 : It fixes PIP sub screen scale to 4:3.
MENU
63
ENGLISH
2. Screen Menu on PIP Picture
- It works only on PIP Picture.
- Select SCREEN menu by pressing button on the remote control.
1) Layout : Set a display layout.
2) Image Scale : Select an image scale of main screen.
(FULL, 16:9, 4:3, Caption, Smart View)
3) PIP Position : Adjust the position of PIP
(L-Top, L-Bottom, R-Top, R-Bottom, USER)
4) PIP Position X / Y : In case of PIP Position menu is set as USER, it sets X/Y
position of PIP.
5) PIP Size : Adjust PIP size. It can be adjusted from 1/16 to 1/4 of full screen.
6) PIP Scale : Adjust image scales of PIP.
- Auto : Adjust PIP scale by automatically determining input signals.
- 16:9 : It fixes PIP scale to 16:9.
- 4:3 : It fixes PIP scale to 4:3.
MENU
EN 62 26” WIDE TFT-LCD TV
2. USER Mode Setting
USER mode can be set only in OSD menu.
- Press button to go into main menu.
- Move to SOUND menu by using button.
- Press button to move to the Sub Menu.
- Adjust sound in a desirable frequency bandwidth by using
/ button on the remote control.
3. SURROUND Setting
Surround mode can be set only by the remote control.
- Press button on the remote control.
- Set ON/OFF by using Volume button on the remote control.
- Once the setting is complete, press or button on the remote
control.
EXITSURROUND
SURROUND
CH
VOL
MENU
CH
MENU
65
ENGLISH
4-6. Setting Sound
You can set sound suitable for TV broadcasting or Video.
1. Mode Setting
- Press button on the remote control to display SOUND mode setting.
- Set the menu settings by using Volume button on the remote control.
1) Standard : Standard sound mode.
2) Music : Music broadcasting mode.
3) Movie : Cinema broadcasting mode.
4) News : News broadcasting mode.
5) User : User’s customization mode.
Also, it can be set in OSD menu if JOG button is used.
Balance : Control the balance of Left/Right speakers.
SOUND
EN 64 26” WIDE TFT-LCD TV

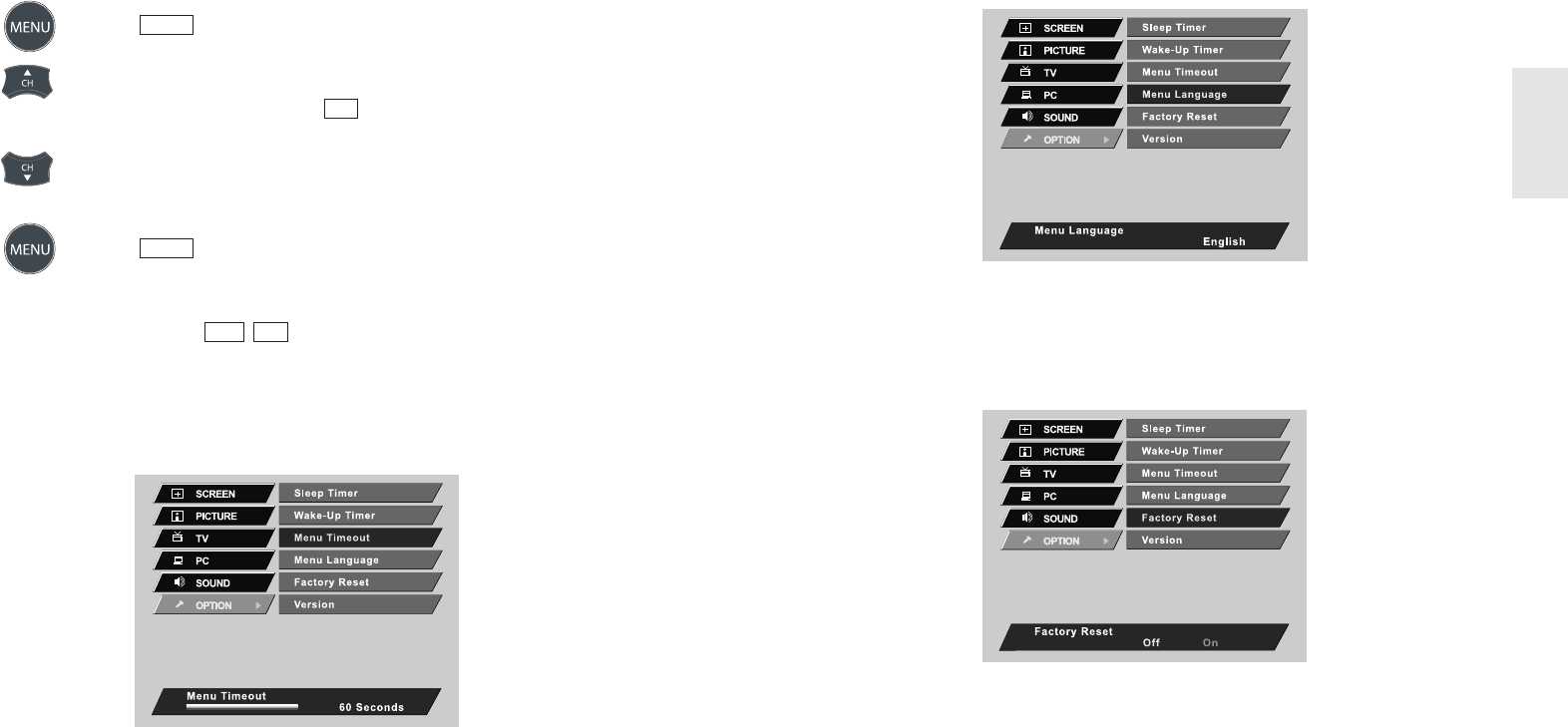

2. Setting OSD Menu Language
Change a language to display OSD.
3. Factory Reset
Reset all the OSD control settings back to the factory setting status.
67
ENGLISH
4-7. Setting Others
Press button on the remote control to move to Main Menu.
Move to OPTION menu by using button on the remote control
Press button to move to the Main menu.
Change the settings by using / button on the remote control.
1. Menu Timeout Setting
It can be adjusted to display OSD Menu between 5 ~ 60 seconds.
CHVOL
MENU
CH
MENU
EN 66 26” WIDE TFT-LCD TV
69
ENGLISH

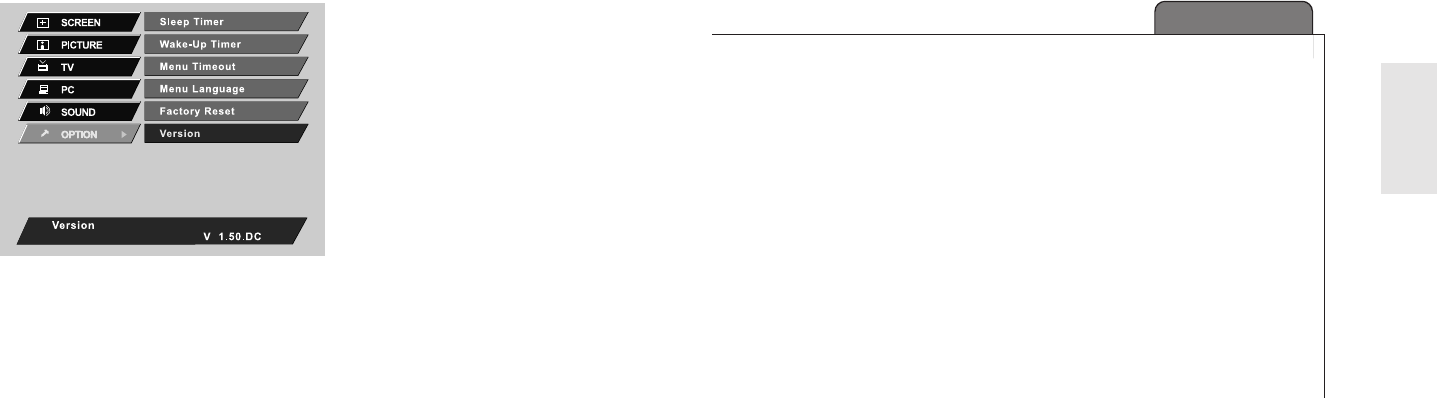

4. Version
It shows the product version.
EN 68 26” WIDE TFT-LCD TV
CHAPTER 5
Using PC MENU
5-1. Auto Adjustment

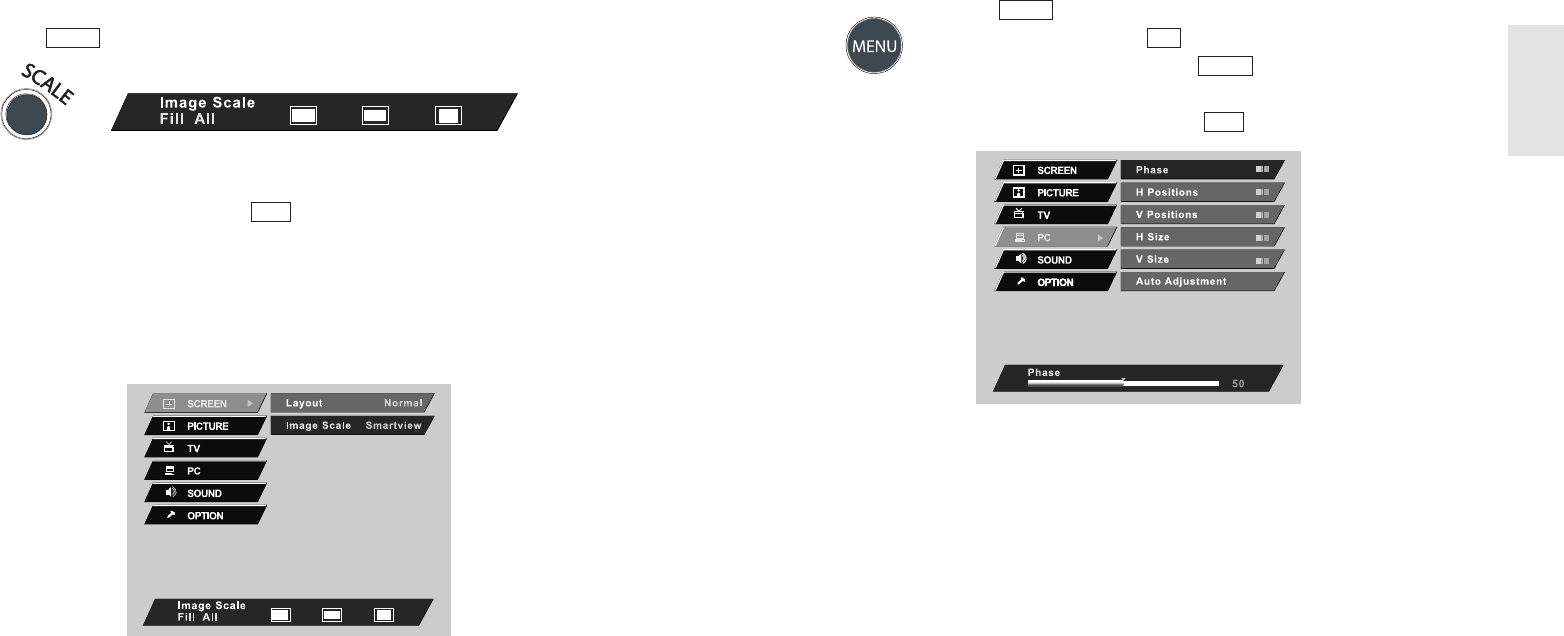

5-2. Setting PC Scale Mode

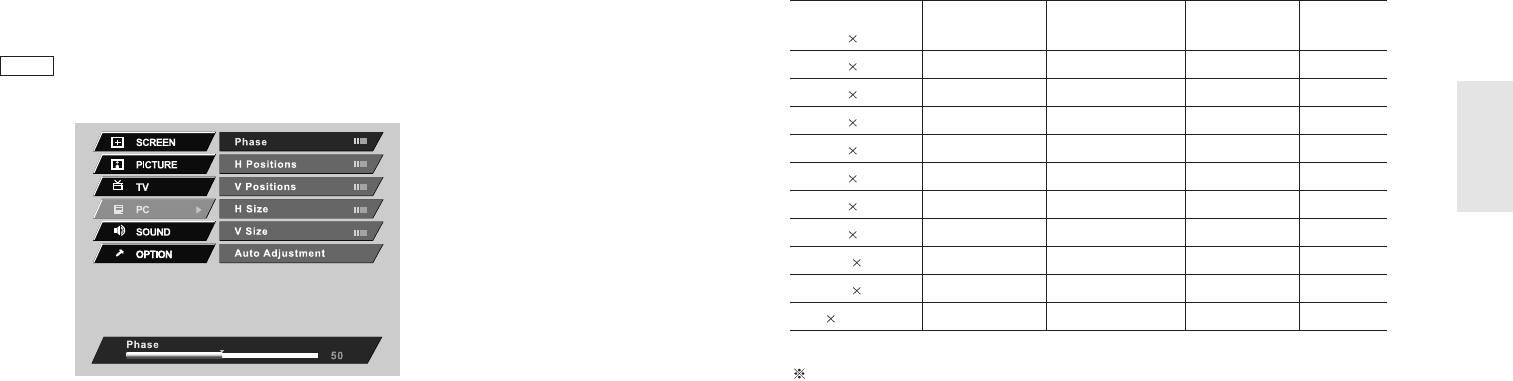

5-3. Setting Phase / Frequency

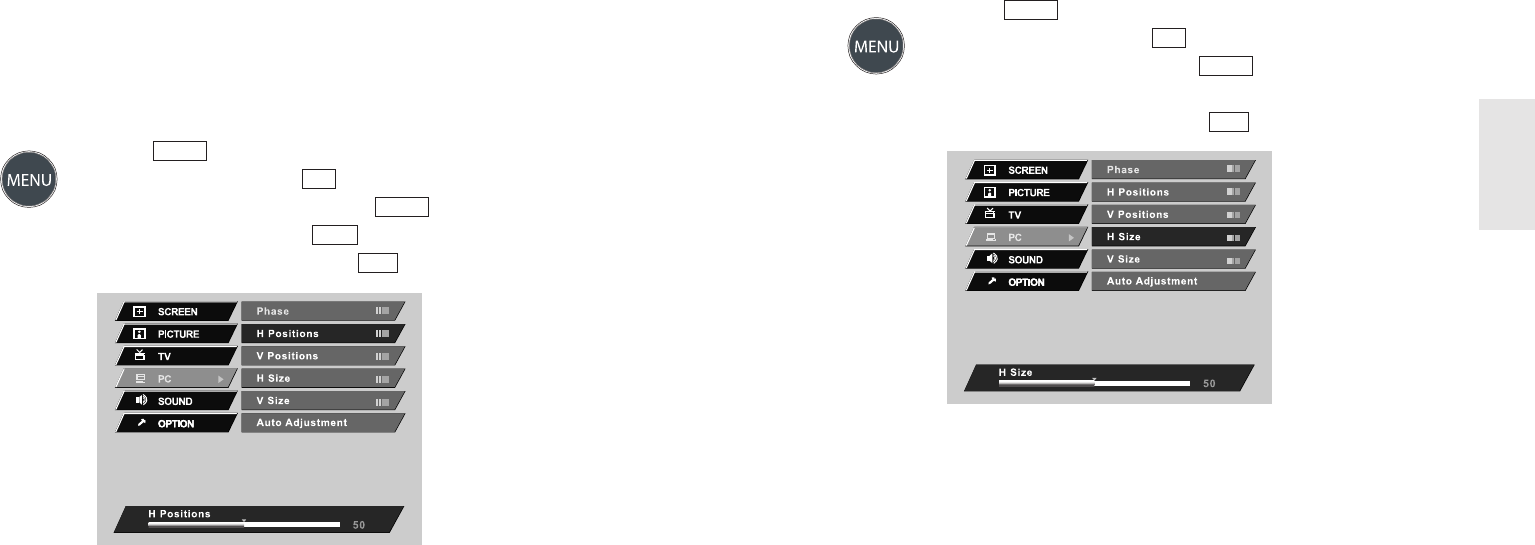

5-4. Setting Position / Size
The Standard Signal Modes for PC Monitor
Resolution Vertical Frequency Horizontal Frequency Clock Frequency Polarity
(H V) (kHz) (Hz) (MHz) (Vert./Hor.)
640 480 31.469 59.94 25.175 -/-
640 480 37.861 72.809 31.5 -/-
640 480 37.5 75 31.5 -/-
720 400 31.469 70.087 28.322 -/+
800 600 37.879 60.317 40 +/+
800 600 48.077 72.188 50 +/+
800 600 46.875 75 49.5 +/+
1024 768 48.363 60.069 65 -/-
1024 768 56.476 70.069 75 -/-
1024 768 (Optimal) 60.023 75.029 78.75 +/+
When you use it as a PC monitor, depending on signals of a PC, it may not display
picture normally even though it is set for standard mode resolution.
71
ENGLISH
5-1. Auto Adjustment
In case of using it as a PC monitor, it is automatically set.
When the set is connected to a PC, the MODE should be set as PC RGB Mode.
- Press button on the remote control to automatically set the product’s
screen status.
- Move to START by using Volume button on the remote control to start Auto
Adjustment.
When it is used as a PC monitor;
Optimal Resolution: 1024 x 768 @ 60Hz
Max. Resolution: 1024 x 768 @ 85Hz.
- It may not normally display picture in any resolution out of the optimal resolution
range.
- When you use it as a PC monitor, it requires to be set the Standard Signal Mode for
PC Monitor before use.
- Even though it is automatically adjusted, it may not normally display picture
depending on signals from a PC and in this case, it is recommended to execute Auto
Adjustment for several times.
MENU
EN 70 26” WIDE TFT-LCD TV
5-3. Setting Phase / Frequency
In case it is not optimally set even though automatically adjusting it, use PHASE
function.
- Press button on the remote control.
- Move to PC menu by using button.
- Move to PHASE menu by pressing button.
- Adjust settings by controlling Volume button.
- Once the setting is complete, press button.
EXIT
MENU
CH
MENU
73
ENGLISH
5-2. Setting PC Scale Mode
When being used as a PC Monitor, the scale can be adjusted.
PC Monitor Scale works only when PC signal is connected and input signals are
selected in RGB mode.
- Press button on the remote control.
- Select a desirable scale by using Volume button.
- Once the setting is complete, press button.
1. 1:1 : Display the resolution as 1:1.
2. Fill All : Display picture in the full screen regardless of the resolution.
3. Aspect Ratio : Display the resolution in 4:3 aspect ratio. Also, it can be set in OSD
menu if JOG button is used.
EXIT
SCALE
EN 72 26” WIDE TFT-LCD TV
(1) Setting Vertical/Horizontal Size
- Press button on the remote control.
- Move to PC Menu by using button.
- Move to H / V Size Menu by using button.
- Adjust settings by controlling Volume button.
- Once the setting is complete, press button.
EXIT
MENU
CH
MENU
75
ENGLISH
5-4. Setting Position / Size
Adjust the position and size of the PC Monitor.
1. Setting Vertical/Horizontal Position
- Press button on the remote control.
- Move to PC Menu by using button.
- Move to H / V Position Menu by using button.
- Adjust settings by controlling button.
- Once the setting is complete, press button.
EXIT
VOL
MENU
CH
MENU
EN 74 26” WIDE TFT-LCD TV
77
ENGLISH
EN 76 26” WIDE TFT-LCD TV
CHAPTER 6
Specifications
6-1. Dimensions
6-2. Specifications
6-2. Specifications
Dimensions, apparent design and specifications are subject to change without any
prior notice for the performance improvement.
Product Name 26”WIDE TFT-LCD TV
LCD Panel Type Amorphos Silicon TFT-LCD
Size 26” Wide (diagonal length)
Pixel Pitch 0.4425 mm x 0.4425 mm
Contrast Ratio 500 : 1 (Typ.)
Brightness 500 cd /
Actual Display Size 372.48 mm (H) x 223.49 mm (V)
Viewing Angle L/R: 88°/ 88° U/D: 88°/ 88°
Interface LVDS
TV Channel VHF: 2~13 channels UHF: 14~69 channels
Cable: 1, 14~125 channels
TV Broadcasting System PAL / SECAM , NTSC-M Type
Audio Output MAX 20W + 2 / Stereo
PC Monitor Horizontal Frequency 30 ~ 61 kHz
Vertical Frequency 56~ 85 Hz
Colors 16.7M colors (8bit)
Max. Resolution XGA : 1024 (H) x 768 (V)
Other Resolutions XGA, SVGA, VGA
Power Adaptor Input AC 100V~240V, 50~60Hz
Adaptor Output DC 15 V
Power Consumption In-Operation < 120W
Power-Saving Mode/OFF < 5W
Energy Saving Mode VESA DPMS
79
ENGLISH

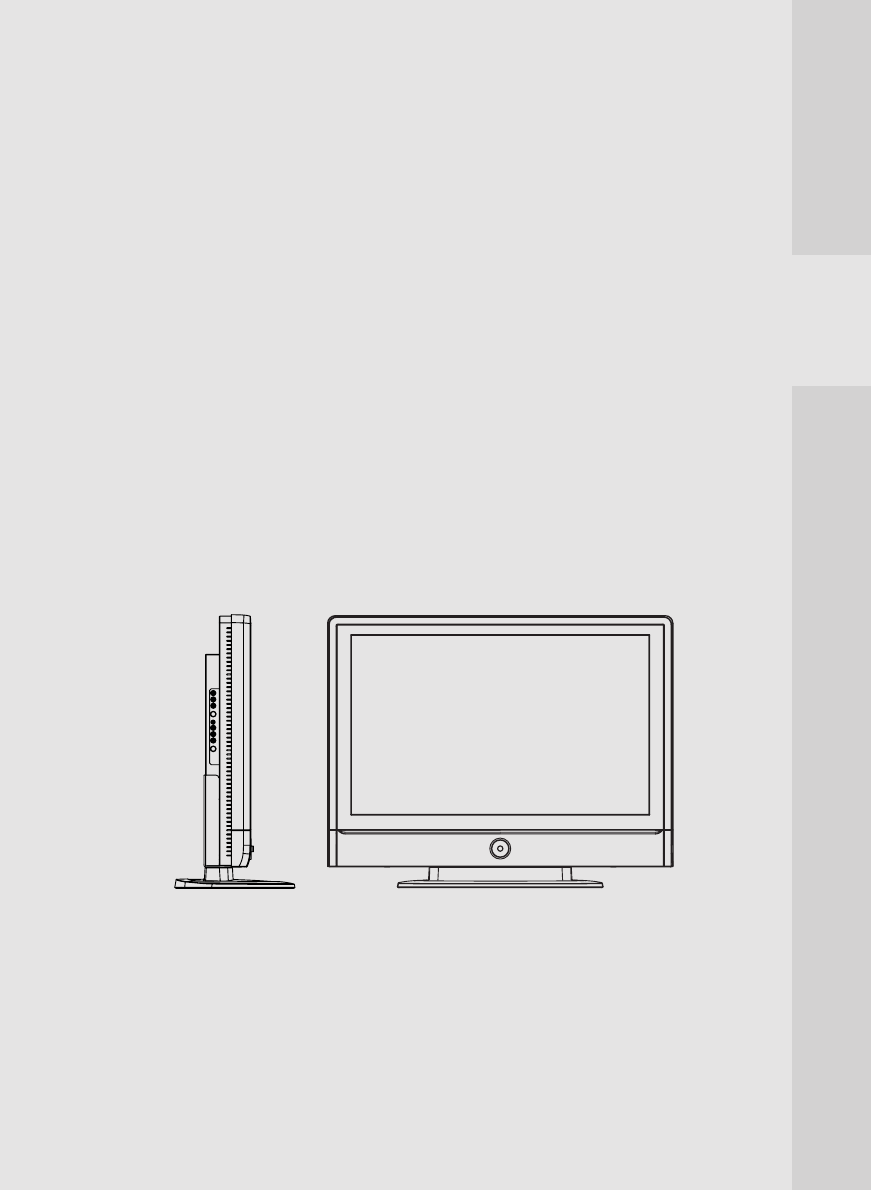

6-1.Dimentions
<Wall-Mounting Hole Position>
Weight : approx. 19kg (before packing) / approx. 22kg (after packing)
EN 78 26” WIDE TFT-LCD TV
86mm 660mm
393mm
423.3mm
228mm
520mm 480mm
223mm
M4 6mm, 4 points
81
ENGLISH
EN 80 26” WIDE TFT-LCD TV
CHAPTER 7
Service & Others
7-1. Troubleshooting
7-2. Concerning Services
2. PC Monitor-related Troubles
Check whether the D-Sub cable is firmly connected to the TV and a PC.
Check whether a graphic card is correctly inserted into the slot.
Check whether the Power of a PC and the TV is on.
Check whether a graphic card or mode is set appropriately on a PC.
Referring to the Standard Signal Mode for PC Monitor in the previous chapter,
change graphic mode.
Check whether D-Sub cable pins are not inserted or bent.
Check whether the power cord is normally inserted and reconnect it.
Pull out the power cord from wall outlet and reconnect it in 10~20 minutes.
Check whether the graphic cable is connected to theTV and a PC.
Check whether a computer is in power-saving mode and attempt to operate
keyboard and mouse.
Check whether the D-Sub cable is connected to the TV and a PC.
If a PC’s display mode is changed, the screen needs readjusting, so you need to
use Auto Adjustment or Picture Adjustment.
Check whether the TV and your graphic card are compatible each other and
whether it is set as an appropriate refresh rate. If letters look distorted, change the
refresh rate to 60Hz.
By using vertical/horizontal position in Picture Adjustment Menus, adjust the
position.
Try to execute Auto Adjustment function.
Abnormal image scale
Unstable or unfocused image or trembling
LED Lamp turns off in red and it shows no image
No Power
No image on the monitor
83
ENGLISH
7-1. Troubleshooting
Before contacting service to service personnel, please check the followings first.
If you still have the same symptoms even after taking the following actions, contact
your local dealer or qualified service personnel.
1. TV-related Troubles
Check whether TV antenna is correctly connected.
Broadcasting may not be good in an area with bad reception or far away from a
station/network.
Check whether you connect the power cord properly. And press the button.
Check whether the mode is set as PC monitor or Video/S-VHS Input, not TV mode.
It may be interrupted by neighboring radio waves (please check any wireless phone,
hair drier, electric drilling machine and etc)
Execute fine tuning for manual adjustment.
Check whether Channel Setting is normally set.
Try to rotate an antenna’s direction.
Try to press button.
Volume up by using Volume button.
MUTE
Picture plays without sound
Can’t catch a specific channel
Strips and shaking display
Black background only
POWER
No image
Unclear display or noisy sound
EN 82 26” WIDE TFT-LCD TV
7-2. Concerning Services
We guarantee free of charge After-sales service for a full year if any troubles are found
when you are using our product. However, any natural disasters or careless use cause
the trouble, it may cost even within a valid warranty period.
Responsibility of Chargeable After Sales Service (Customer’s Charge)
In one of the following cases, it may cost even in the valid warranty period.
1. In case of any troubles resulting from inserting of foreign substances (water,
beverage, coffee and etc)
2. Dropping or applying force cause a trouble to damage on the product or induce
malfunction.
3. Appearance damage or transformation by use of organic solutions such as thinner,
benzene and etc.
4. When it gets troubled due to your disassemble.
5. When other parts/consumption accessories (including adaptor) that are not supplied
by the company may directly cause any troubles.
6. Supplying wrong voltage may cause a trouble
7. Any personnel not from qualified service personnel repairs or modifies the product,
resulting in troubles.
8. Natural disasters (lightning, fire, flood, gas, damage from sea wind, earthquake and
etc) directly cause troubles
9. Violation against the directions in the manual cause any troubles
10. Customer’s mishandling cause a trouble
11. In case the date of purchase may be vague, the valid warranty period is counted
after 2 months since the product is manufactured.
EN 84 26” WIDE TFT-LCD TV
