Manual Contents
Manual Contents 3
Features and Package Contents - Features 4
- Packages Contents 4
I/O Definitions 5
Front and Rear Controls - Front 6
- Rear Controls 6
Remote Control - Remote Control Basic 7
- Remote Control Details 8
Basic Operation - AV Input/Ouput Terminal 10
- TV 10
- Video 10
- S-VHS 11
- SCART 11
- Monitor Out Connection 12
- Component Video 12
- PC 13
- External Speaker & Headphone Connection 13
TV Channel Memory - Auto Channel Memory 14
- Manual Channel Memory 15
Picture - Picture Adjustment 16
- Picture Size Adjustment 17
- Picture Adjustment in PC Mode 18
- Picture Size Adjustment in PC Mode 19
Audio - Audio Mode Setting 20
- Audio Adjustment 21
Picture in Picture - Picture in Picture Mode Setting 22
- Watching Picture in Picture 23
Video Signal Format - Video Signal Format Setting 24
Color Temperature - Color Temperature Setting 25
Specifications 26
Troubleshooting 27
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Features and Package
Features
- 42" Diagonal Viewing Area
- Menu driven On Screen Display (OSD) for Brightness and
Contrast, Sharpness, Hue and
Saturation , NTSC/PAL, Channel, PIP(Picture in Picture), Aspect Ratio, Input Source,
Audio, Audio Adjust, Language, Color Temperature
- Cable TV ready
- IR Remote control for all functions
- Built-in Television Tuner
- Zoom Feature (up to 500%)
- Freeze Picture Feature
- Rotate Picture Feature
- Headphone output (only sub sound)
- Speaker output : Left, Right, Center, Surround-L, Surround-R, Sub-Woofer
- Selectable Aspect Ratio (16:9, 4:3, User Adjusting Mode)
- PIP (Picture in Picture) Function
- Multiple Mounting Options : Wallmount or Stand
- Monitor Composite Video Output
- Large Viewing Angle (160 °)
- Seven (7) Possible Video Sources : 1 PC
2 External RCA A/V Inputs
1 S-VHS Input
1 SCART Input
1 Component Video Input
1 TV
Package Contents
- 42" Plasma TV
- User's Manual
- Full function Remote Control
- A set of three AAA Batteries for Remote Control
- AV Cord
- AC Power Cord
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
I/O Definitions
Front Panel Controls
- Main Power ON/OFF
- Power ON/OFF
- Channel UP
- Channel DOWN
- Volume UP
- Volume DOWN
- AV
Rear Unit I/O's
- AC Power Input
- F-Type (NTSC) or Din-Type (PAL) Connector for Antenna Input
- Monitor Composite Video Output
- Monitor Line Level Audio Output
- S-VHS Input
- Composite Video Input (2)
- Line Level Audio Input (2)
- SCART Input/Output
- DVD Component Video Input
- DVD Line Level Audio Input
- PC D-sub Connector Input
- PC Headphone Audio Input
- Headphone Audio Output
- Speaker Output : Left, Right, Center, Surround-L, Surround-R,
Sub-woofer
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

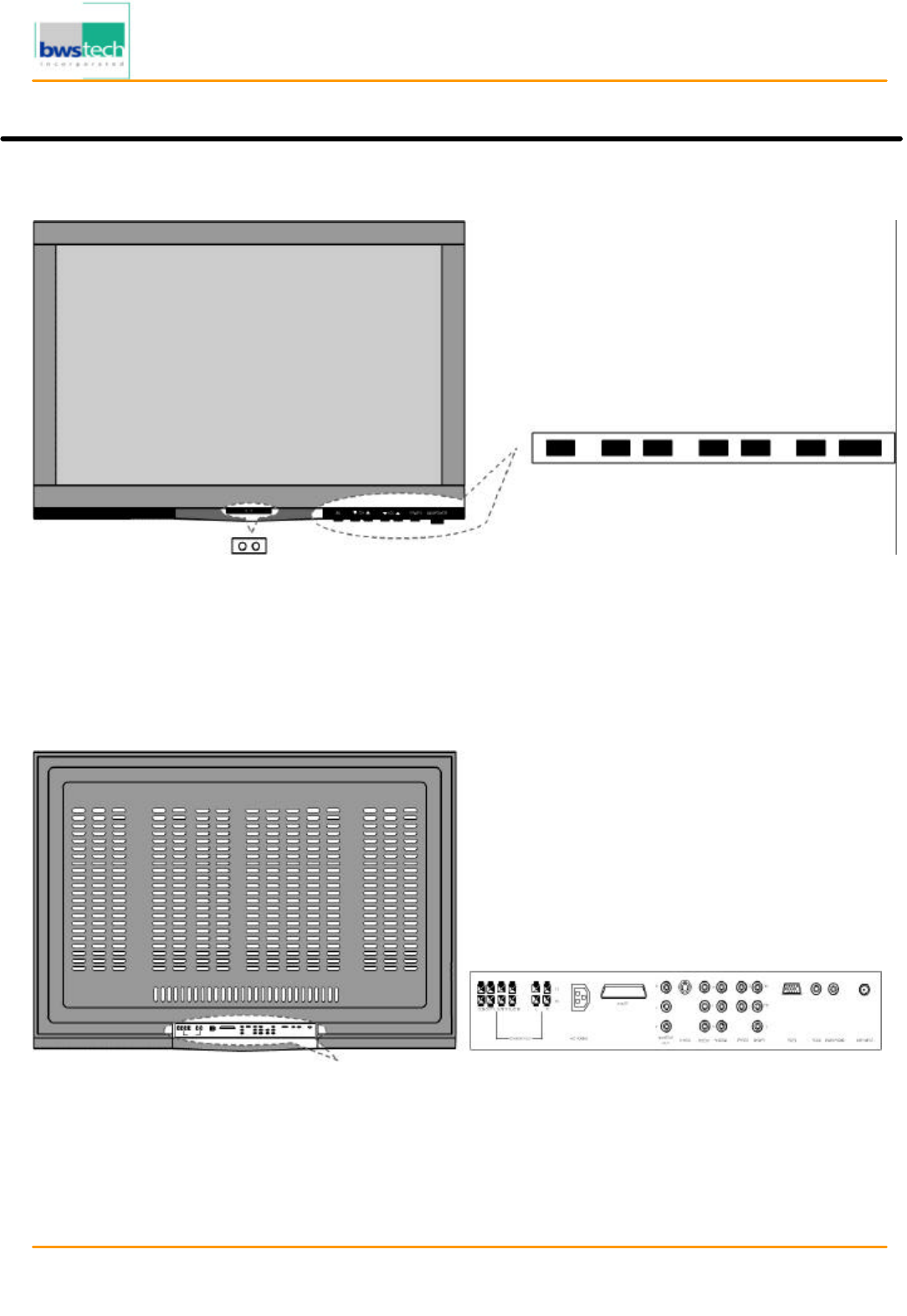

Front and Rear Controls
Front
Rear Controls
The recessed AV input/output terminals allow the user to have the option of using the
mounting stand or wall mounting the 42" Plasma Television. The television itself is only 95mm
wide.
AV Input/Output Terminal
AV CH Down/Up Vol Down/Up Power
/Main P
ower
LED / Remote Control
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Remote Control

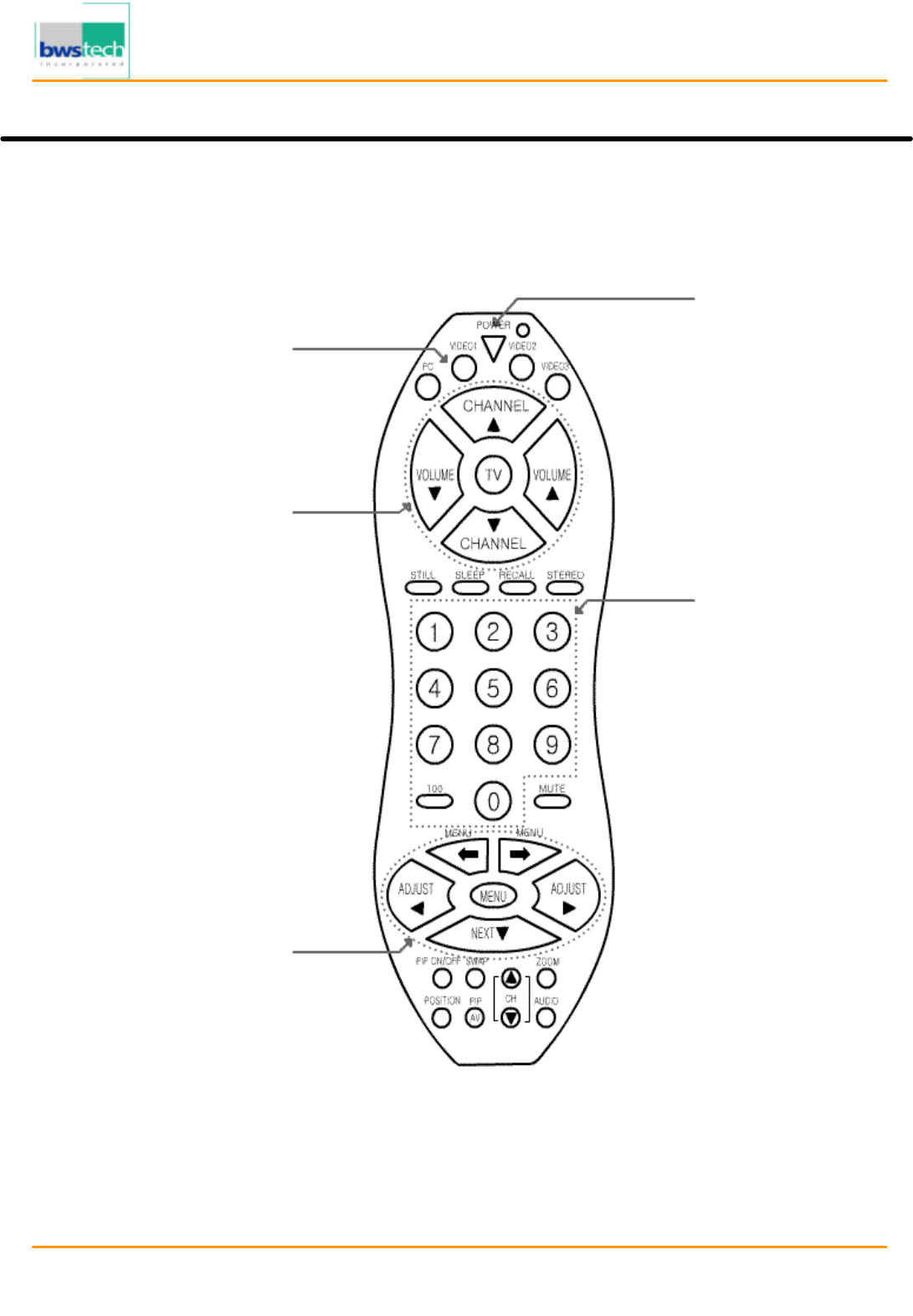

Remote Control Basic
Remote Control
POWER
Pressing this button
turns the television
ON and OFF.
CH/VOL BUTTONS
These buttons are used
to adjust the channel
selected and the volume
level. Number Buttons
Used to enter
channels selected.
AV Buttons
( PC / VIDEO1 /
VIDEO2 / VIDEO3 /
TV )
Use this button for signal
Menu Button
The center button is used
to pull up the menu
screen. The surrounding
button
s are used to make
adjustments to the menu
item selected. (ex.
Picture, Sound and PIP
adjustments)
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

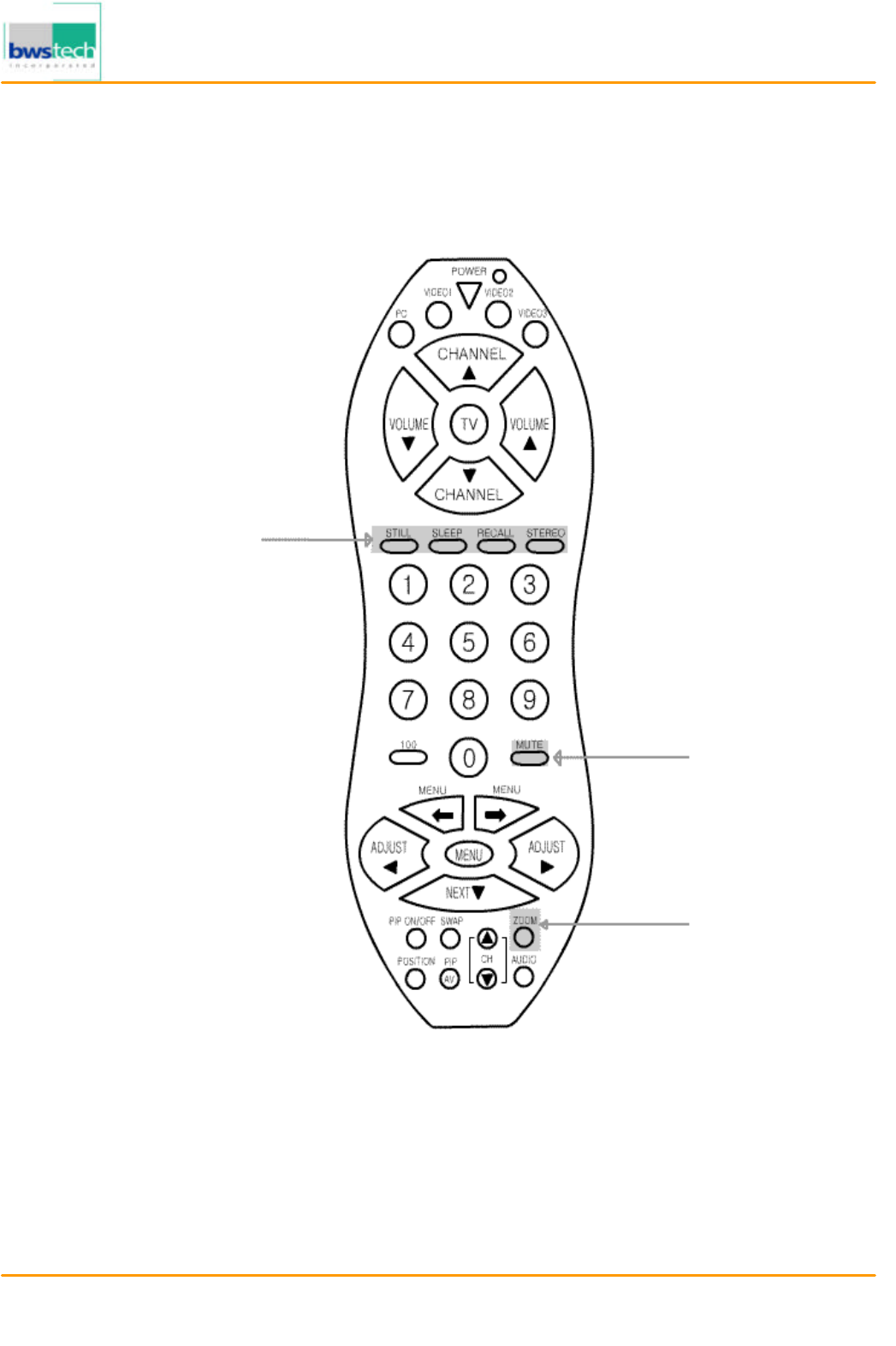

Remote Control Details
MUTE
This button mutes
the televisions
sound.
STILL
Pressing this button will
stop/freeze the picture.
SLEEP
This button allows the
user to set the sleep
timer.
RECALL
This button will allow the
user to view the setting
status.
STEREO
Allows MONO, STEREO or
SAP mode selection.
ZOOM
Pressing the up and
down buttons allows
the user to zoom in
or out the picture.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

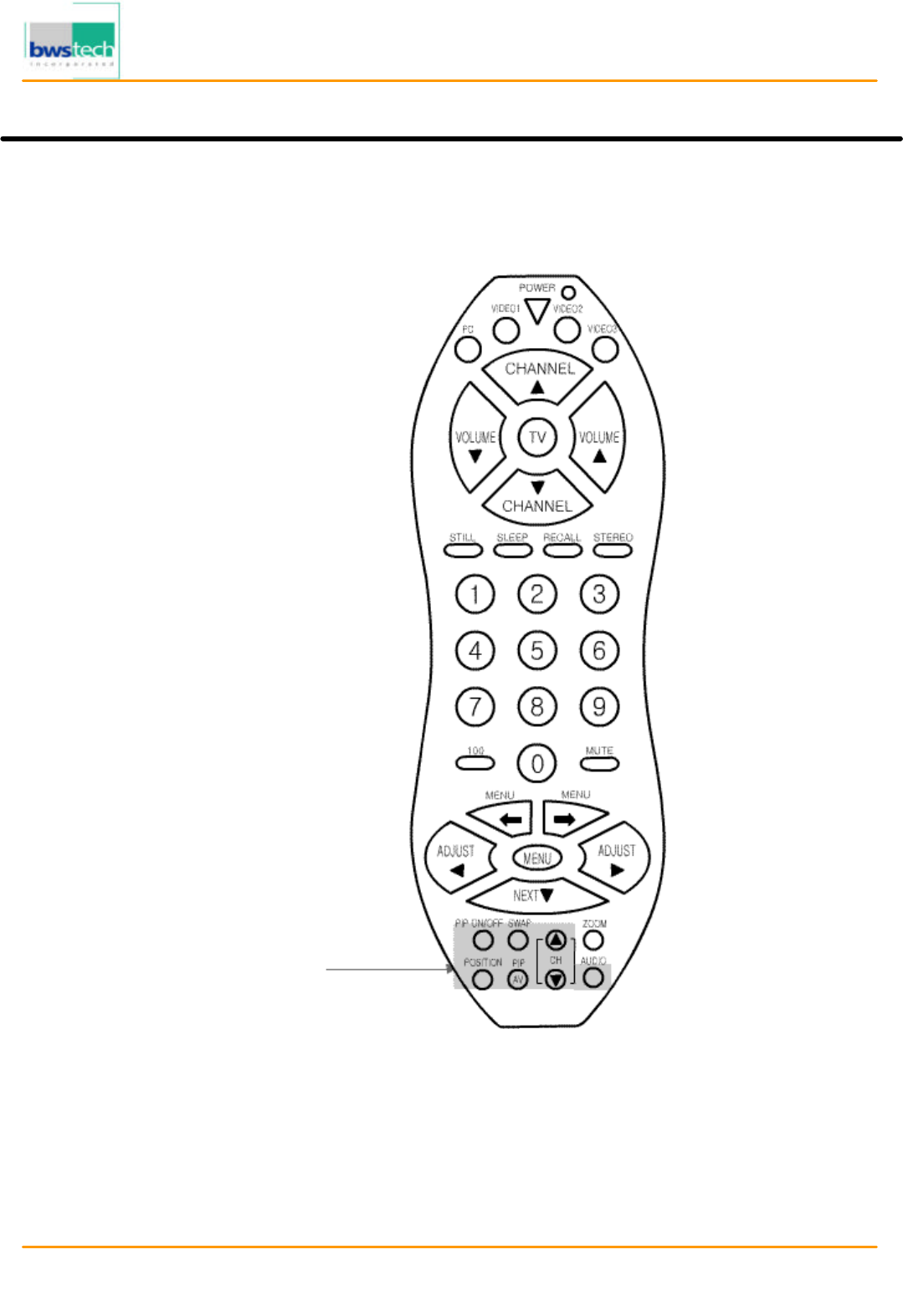

Remote Control

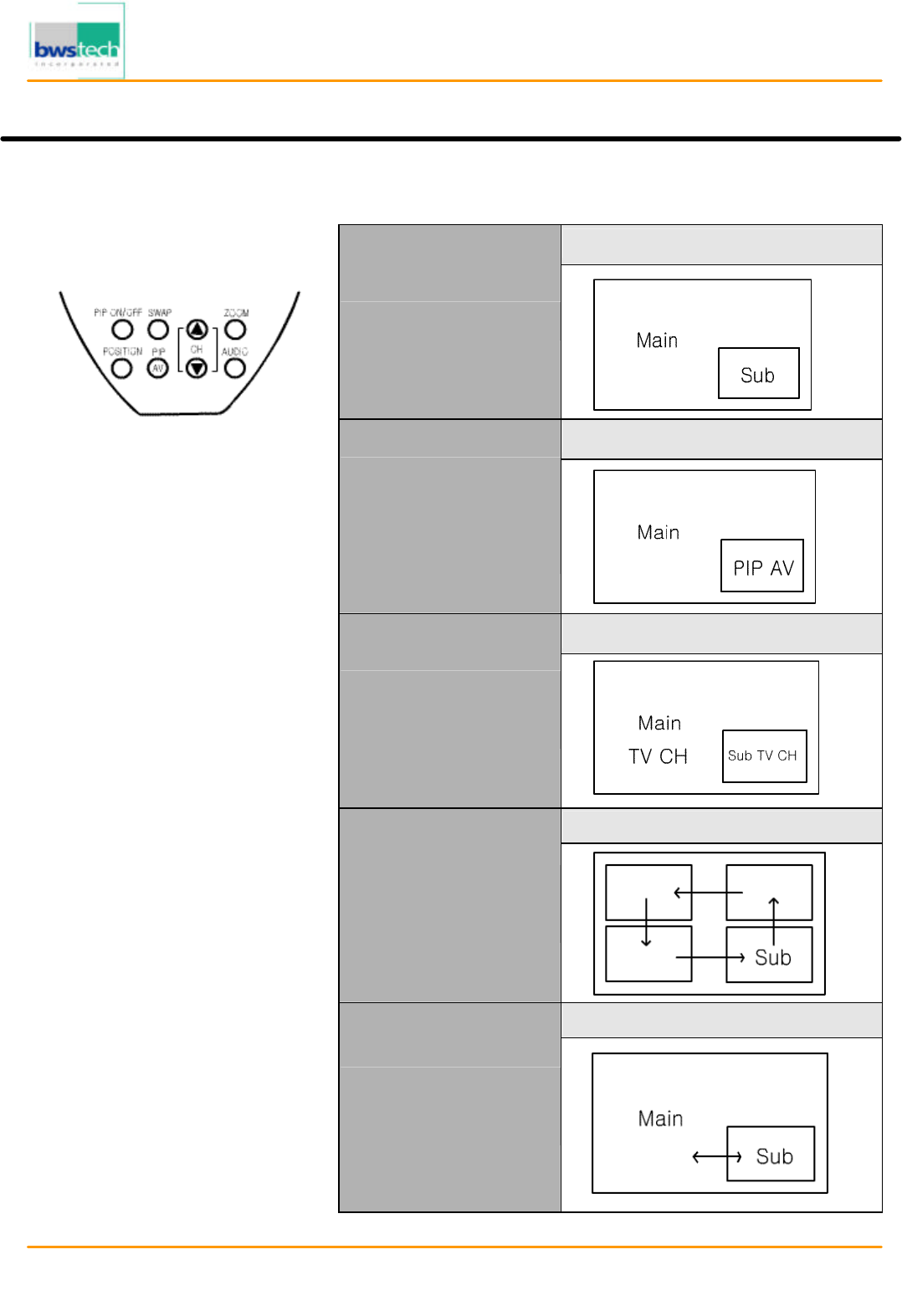

PIP ON/OFF
Pressing this button
toggles picture in picture
on and off.
SWAP
This button allows the
user to swap the picture
in picture for picture on
the main screen.
CH ▲/▼
Pressing this button up
or down allows
channel selection of
the picture in picture.
POS
This button switches the
screen location of the
picture in picture viewing
screen. There are four
possible screen
locations for the
picture in
picture.
PIP AV
This button switches
the mode selection of
the picture in picture
viewing screen.
AUDIO
This button switches the
Speaker Out of picture in
picture Mode.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Basic Operation

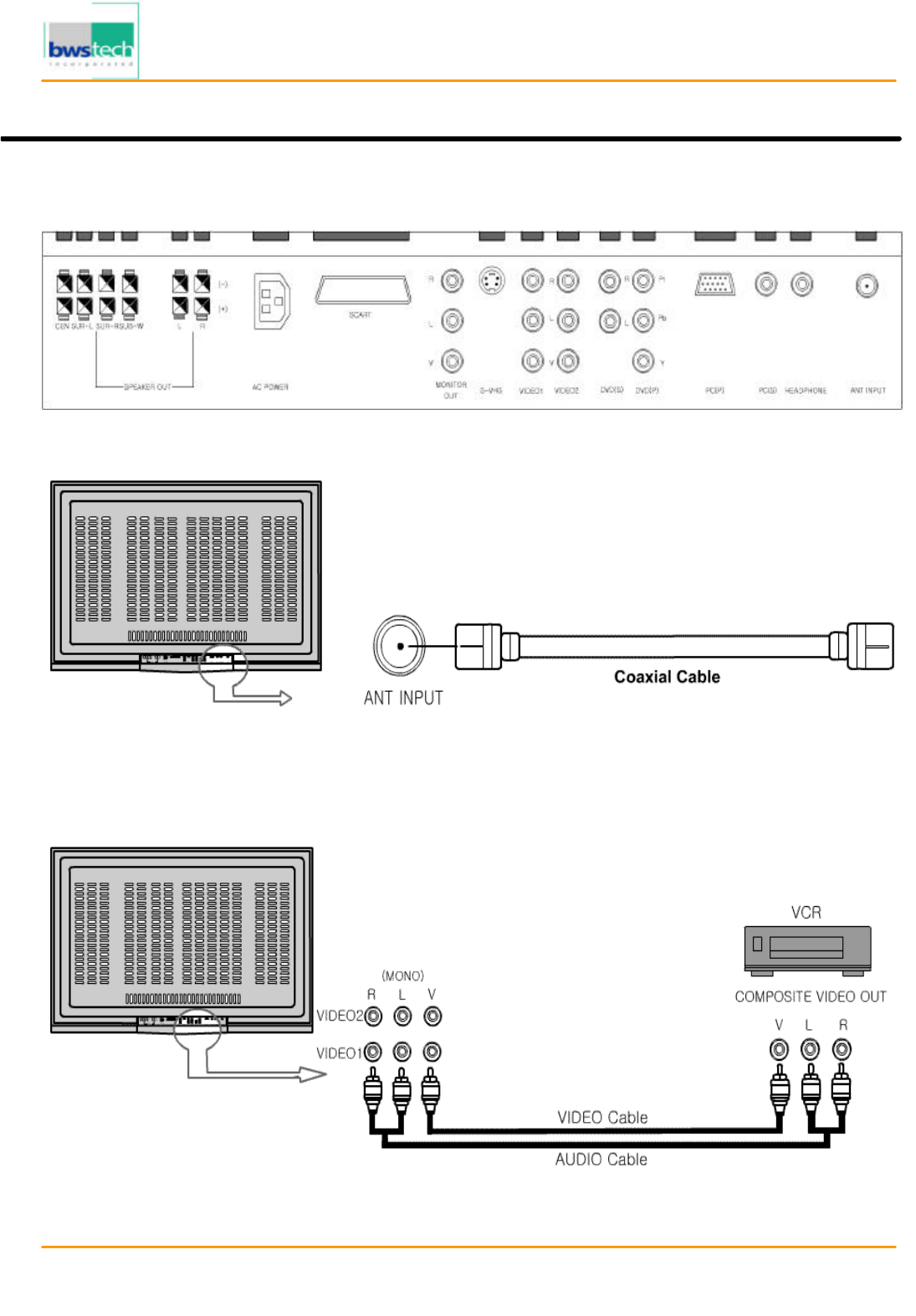

1. AV Input/Output Terminal
2. TV
3. VIDEO
1. Connect as the shown drawing.
2. Power on.
3. Press the [TV] button.
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO1] or [VIDEO2] button.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Basic Operation

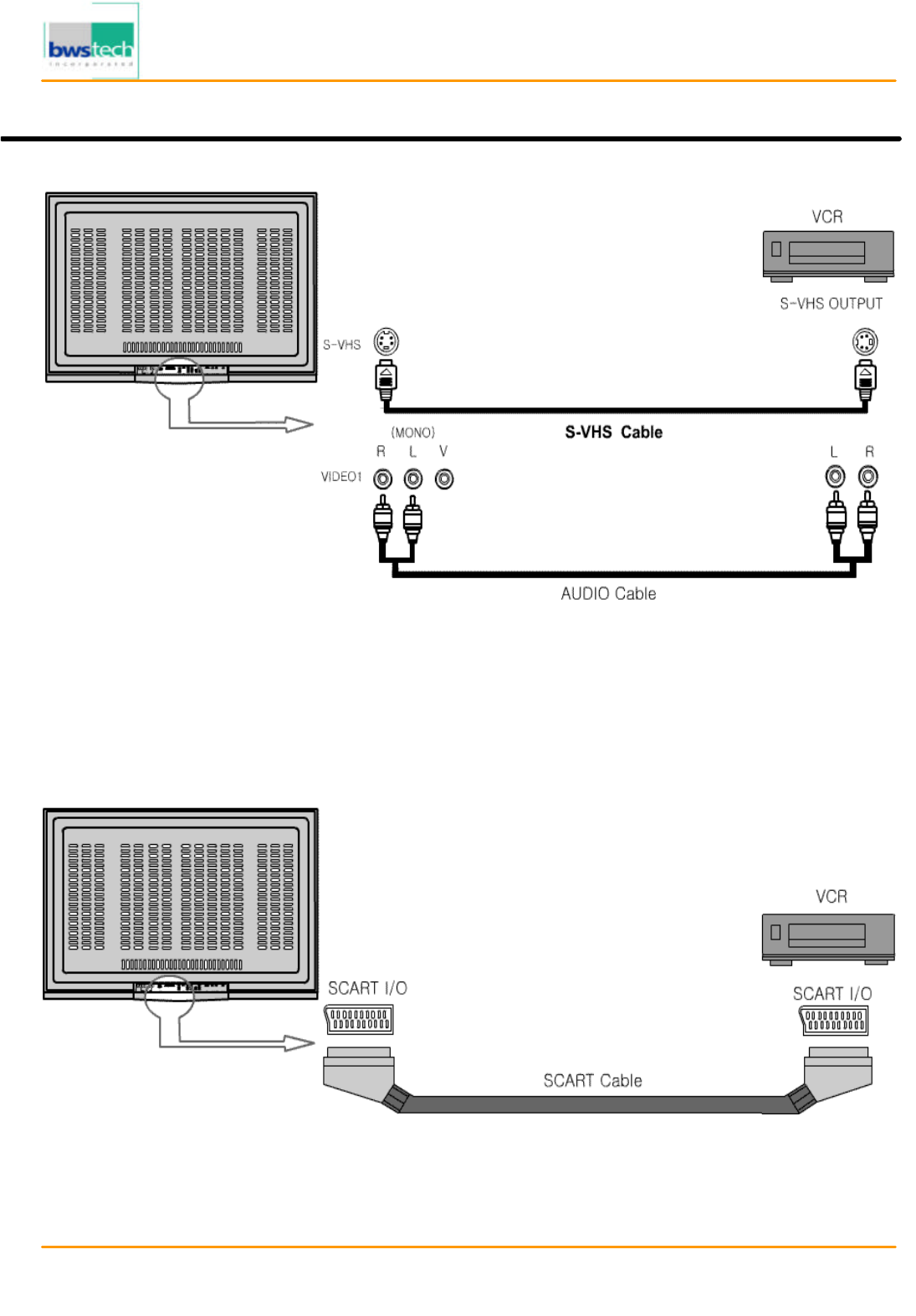

4. S-VHS
5. SCART Connection
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO1] button.
<Caution> Audio input must be connected with [Video1].
In the case when all input sources of S-VHS and Video1 Port are occupied, S-VHS input Sources
display preceding to Video1 Port.
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO2] button.
<Caution> In the case when all input sources of SCART and Video2 Port are occupied, SCART input Sources
display preceding to Video2 Port.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Basic Operation

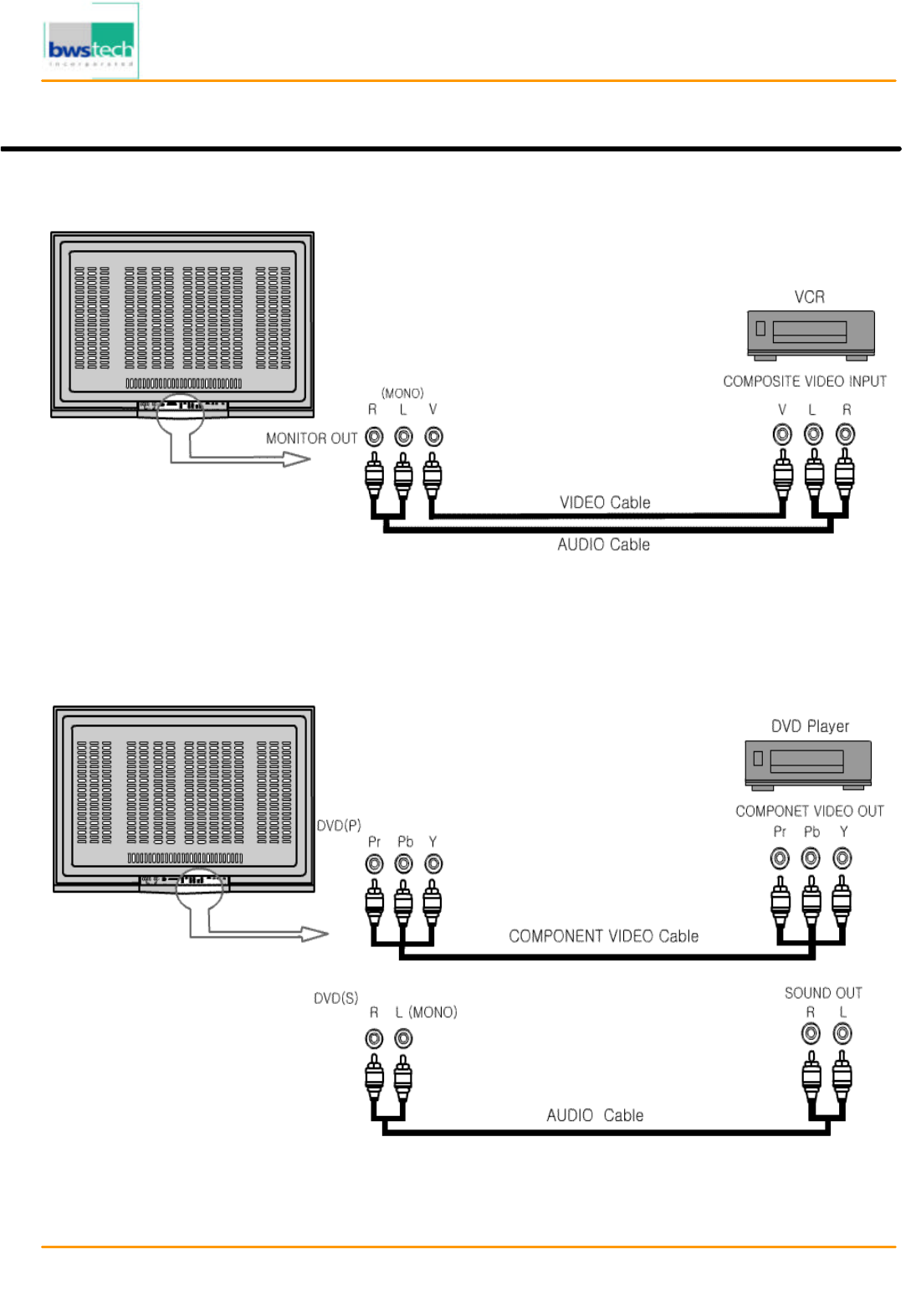

6. MONITOR OUT Connection
7. COMPONENT Video (ex. DVD, DTV Set-top Box)
1. Connect as the shown drawing.
2. Power on.
3. Press the [VIDEO3] button.
<Caution> Monitor out is only applied to [TV], [VIDEO1], [VIDEO2].
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Basic Operation

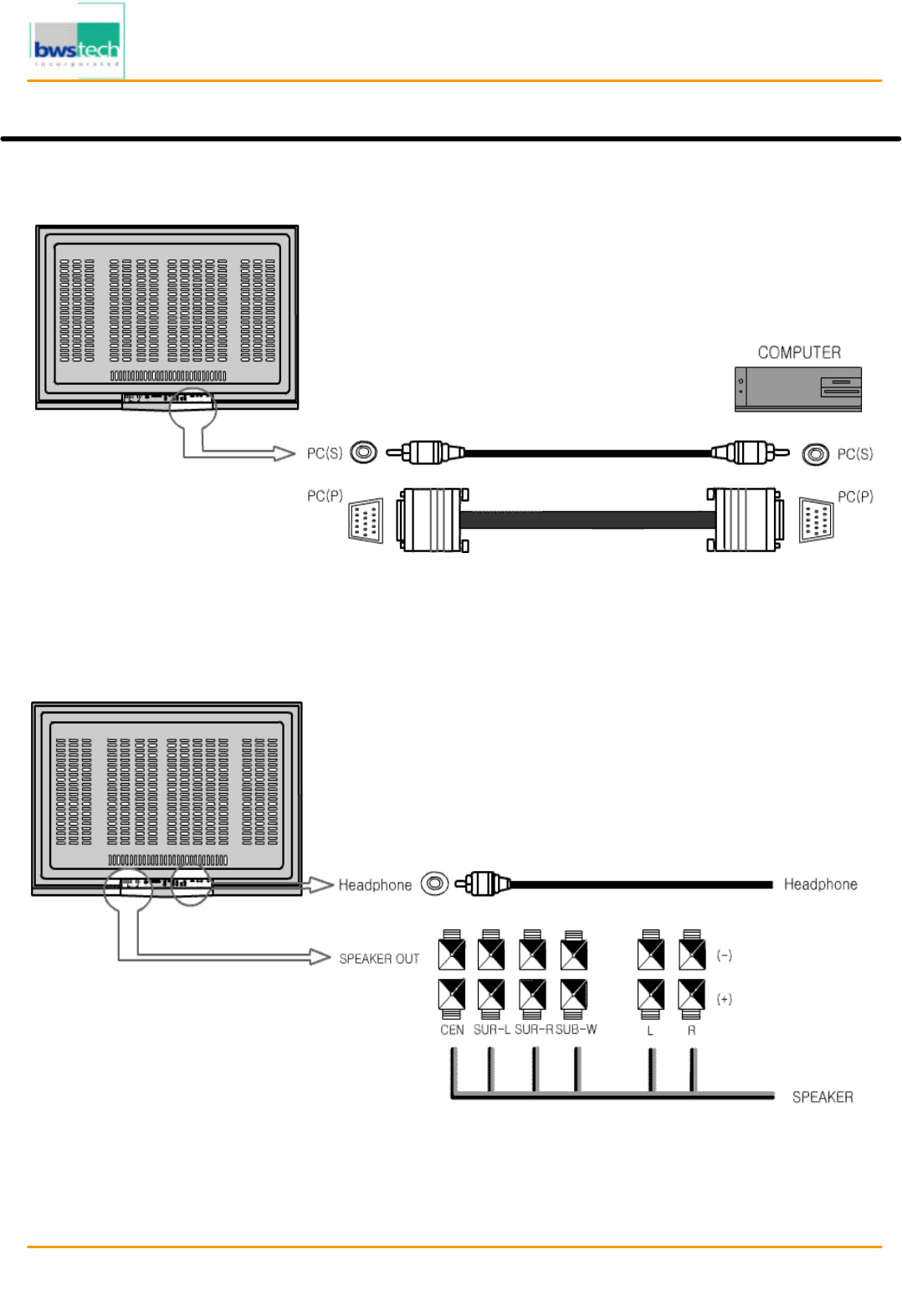

8. PC
9. External Speaker & Headphone Connection
1. Connect as the shown drawing.
2. Power on.
3. Press the [PC] button.
1. Power Off.
2. Connect as the shown drawing.
3. Power on.
4. Adjusting Audio setting.
<Caution> Headphone outputs Sub-Signal Sounds.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
TV Channel Memory
Auto Channel Memory

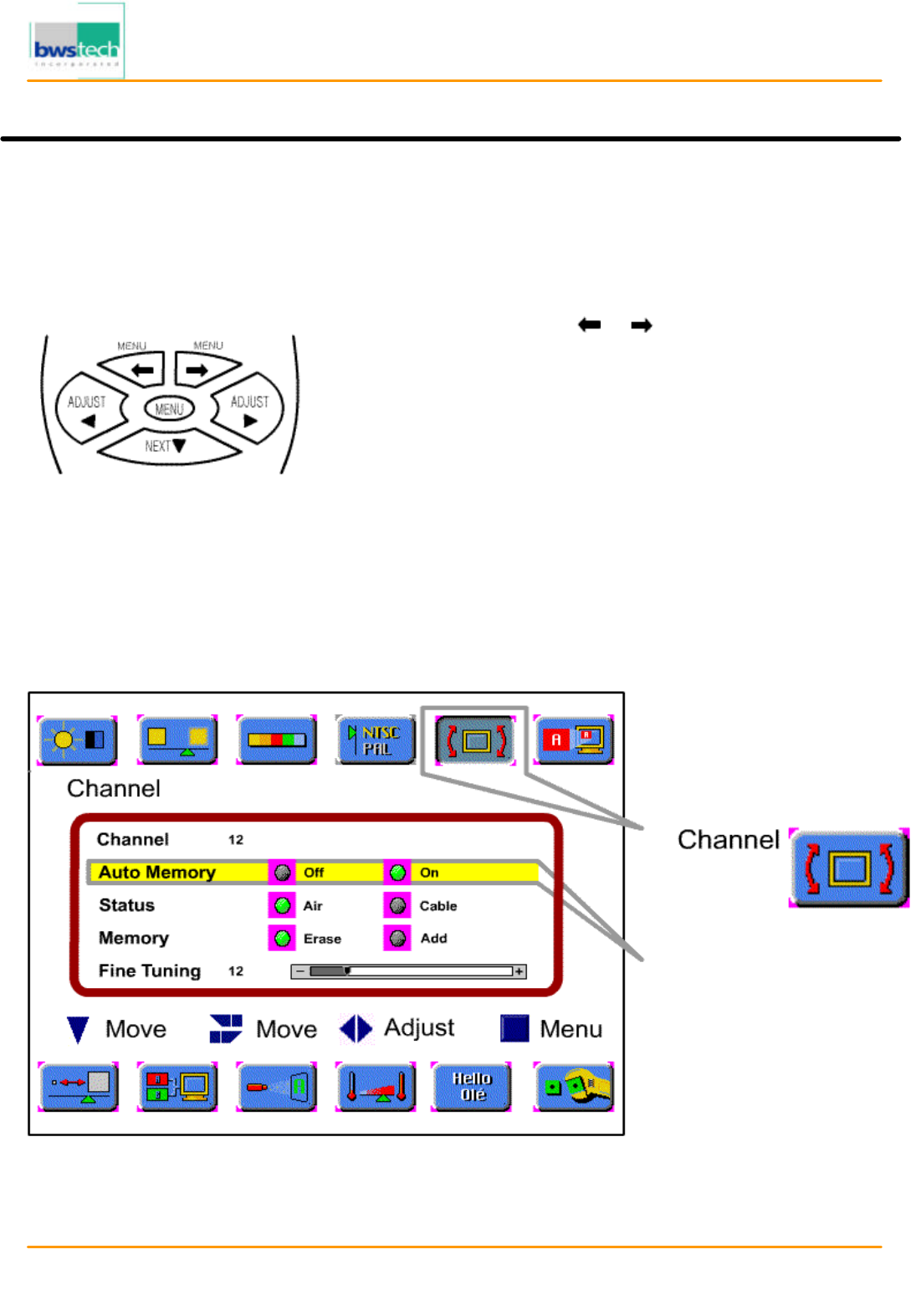

Follow these steps for setting the Channel Memory automatically:
• Press the [MENU] button.
‚ Select [Channel] by the [ ]/[ ] buttons.
ƒ Select [Status] by pressing the [NEXT] button.
„ Select TV signal input mode by pressing the [ADJUST] button.
… Select [Auto Channel] by pressing the [NEXT] button.
† Select [ON] by pressing the [ADJUST] buttons.
‡ Press the [MENU] button to stop the auto channel memory.
Auto Memory
When Auto memory is on,
it will scan CH 2～69 on the
Air setting and CH 1～125
on the Cable setting.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
TV Channel Memory

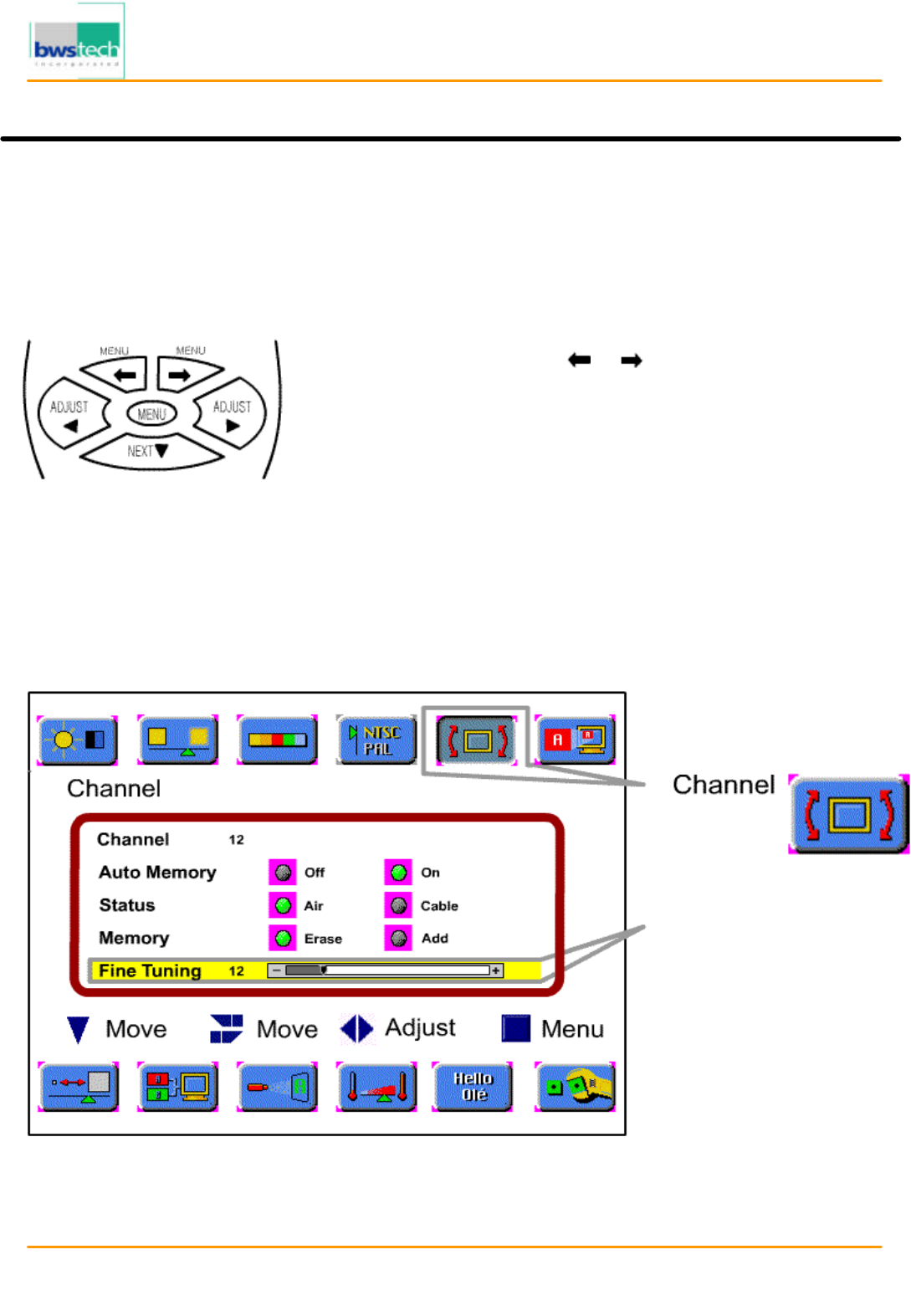

Manual Channel Memory
Follow these steps to manually set the Channel Memory :
• Select the channel by pressing the number button(s).
‚ Press the [MENU] button.
ƒ Select [Channel] by the [ ]/[ ] buttons.
„ Select [Fine Tuning] mode by using the [NEXT] button.
… Press the [ADJUST] button for the tuning adjustment.
† Select [Memory] by using the [NEXT] button.
‡ Select [Erase] or [Add] by pressing the [ADJUST] buttons.
ˆ Press the [MENU] button to exit the Channel Memory setting.
Fine Tuning
The [ADJUST] button on
the remote control will
move the slide adjustment
of the fine tuning bar
positively or negatively.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

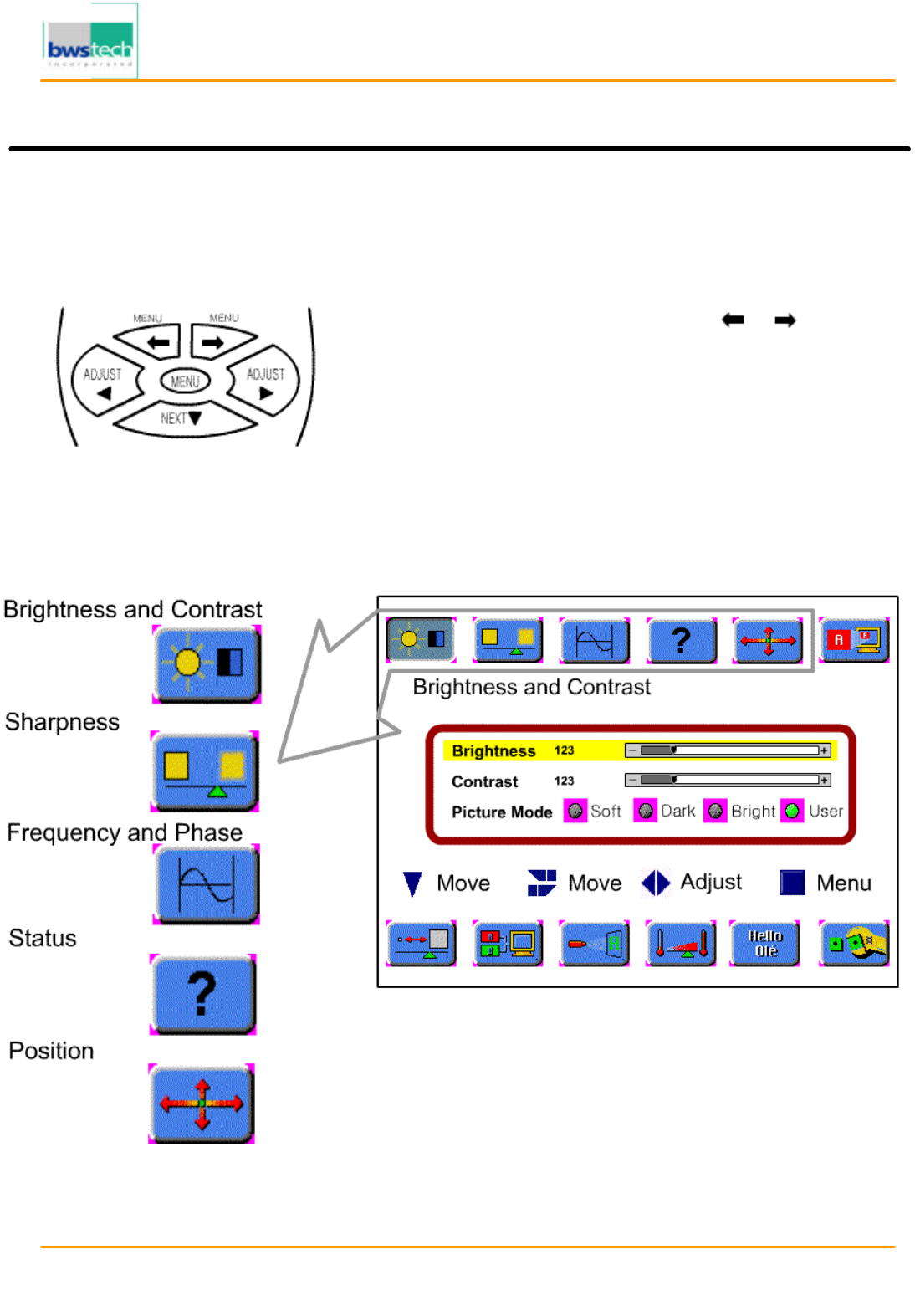

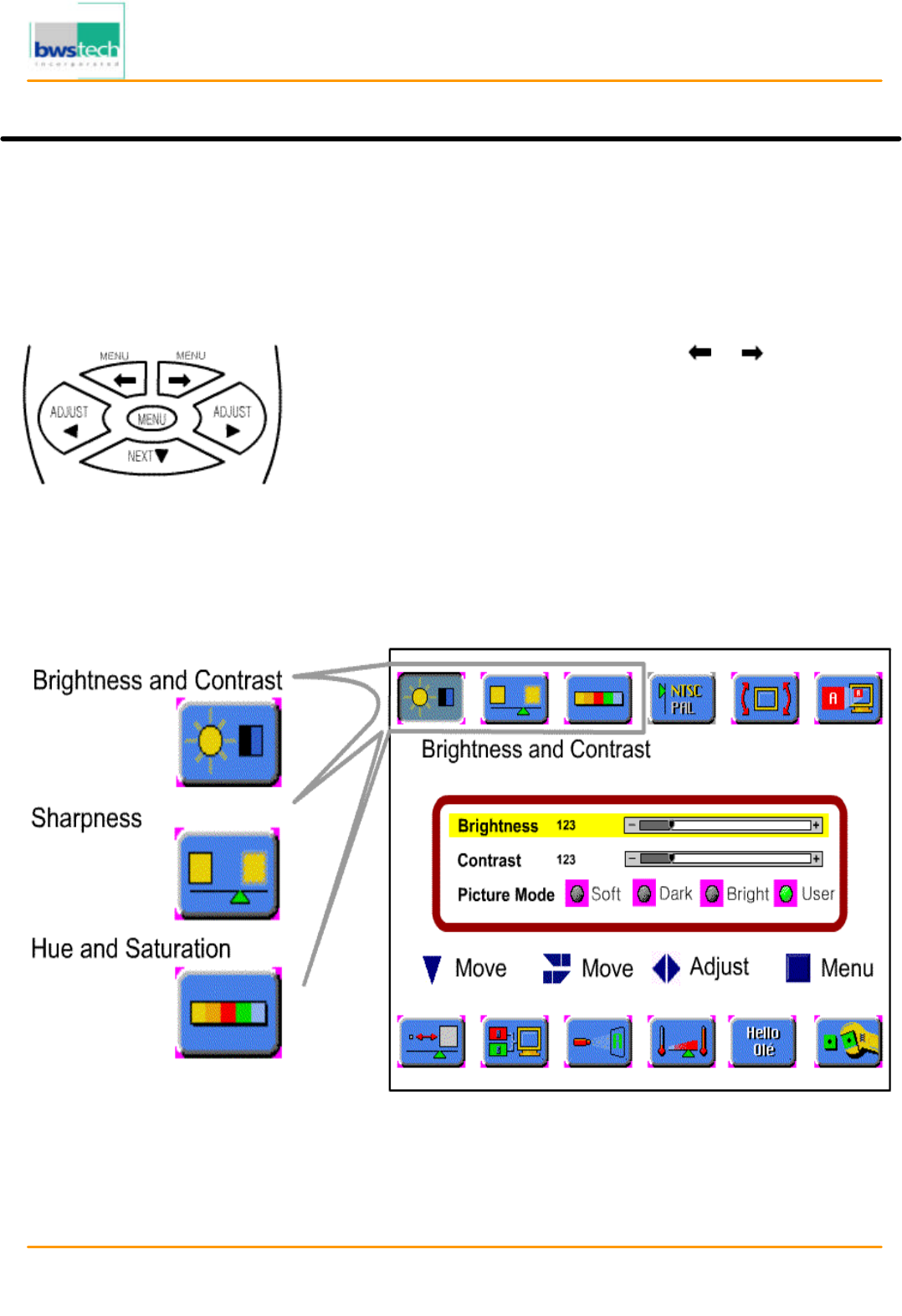

Picture Adjustment
Follow these steps to adjust the picture :
• Press the [MENU] button.
‚ Select the desired Mode by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button for adjusting the picture
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

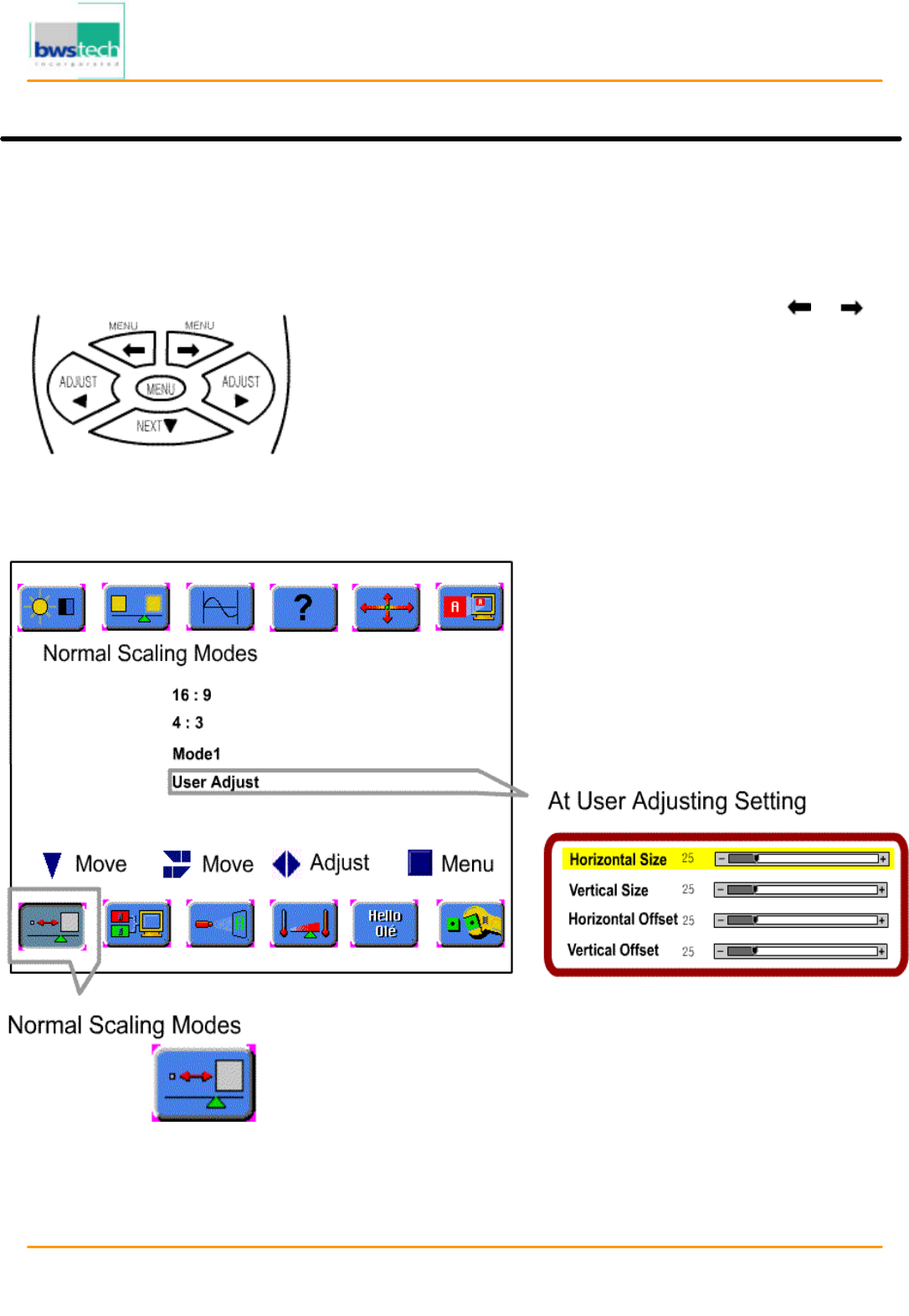

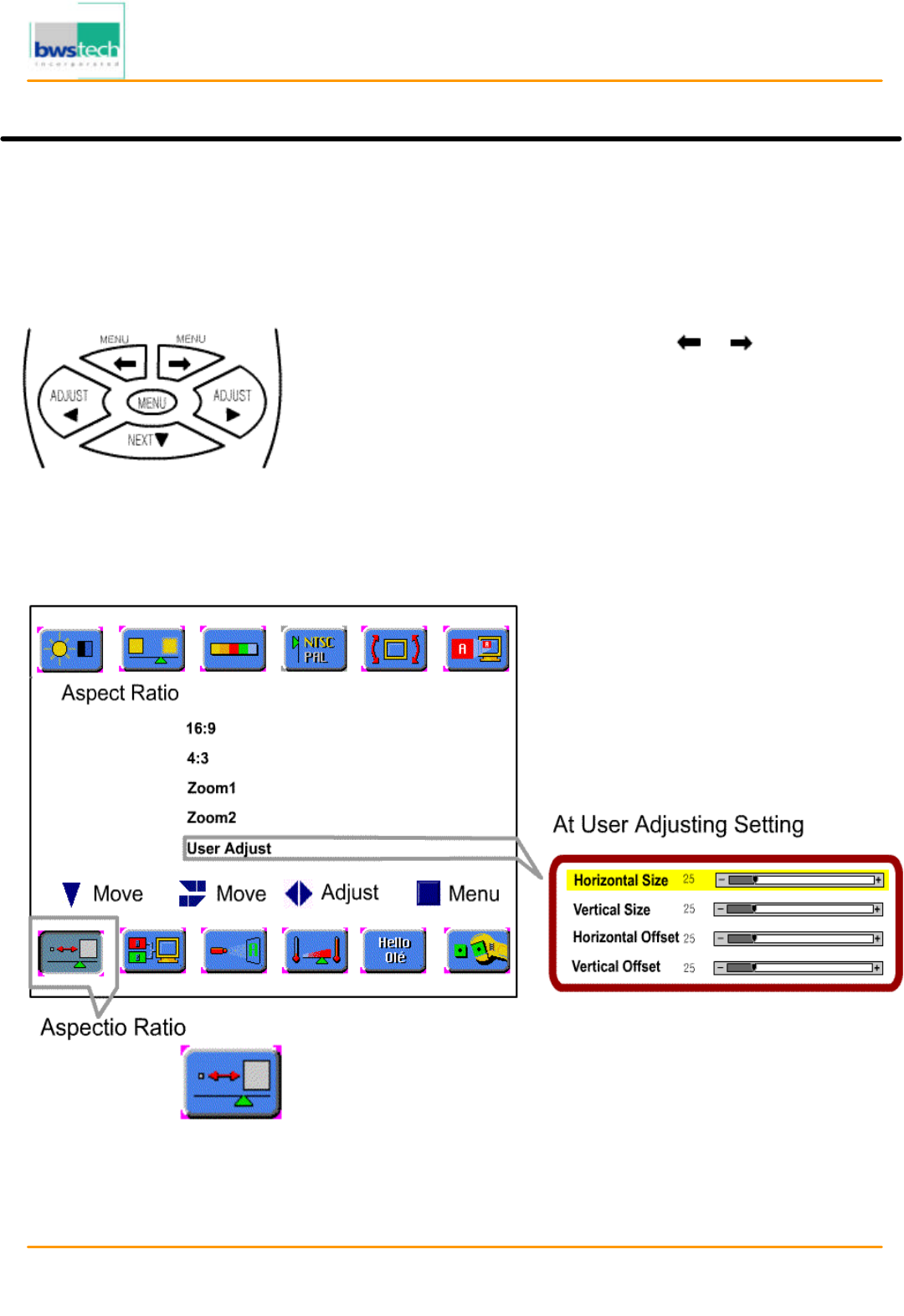

Picture Size Adjustment
Follow these steps to adjust the picture size :
• Press the [MENU] button.
‚ Select the Aspect Ratio by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to adjust the picture size ratio.
… Press the [MENU] button to exit Picture Size Adjustment.
[ZOOM + ] / [ZOOM - ] Button
: Using the [ZOOM] button on the remote controller, you can expand the picture size 0 up to 500%.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Picture Adjustment in PC Mode
Follow these steps to adjust the picture in PC Mode :
• Press the [MENU] button.
‚ Select the desired Mode by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„
Press the [ADJUST] button for adjusting the picture in PC Mode
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Picture Size Adjustment in PC Mode
Follow these steps for setting the Picture Size Adjustment of PC Mode.
• Press the [MENU] button.
‚ Select the Normal Scaling Modes by using the [ ]/[ ]
uttons.
ƒ Move to the desired mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to select the proper mode.
… Press the [MENU] button to exit the adjustment menu.
[ZOOM + ] / [ZOOM - ] Button
: Using the [ZOOM] button on the remote controller, you can expand the picture size 0 up to 500%.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

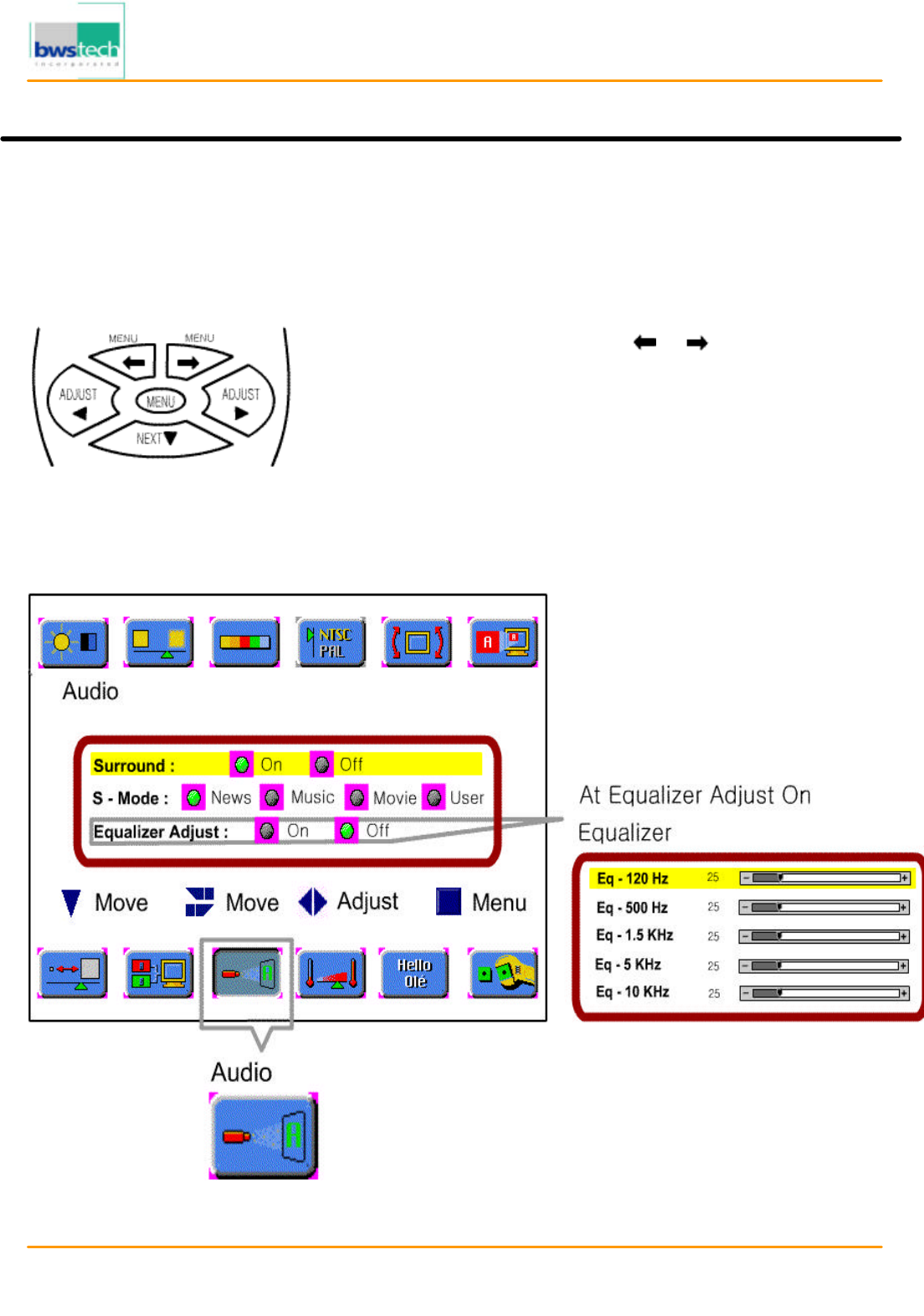

Audio
Audio Mode Setting
Follow these steps for setting Sound Mode :
• Press the [MENU] button.
‚ Select the Audio by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to make the adjustment for Sound
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Audio

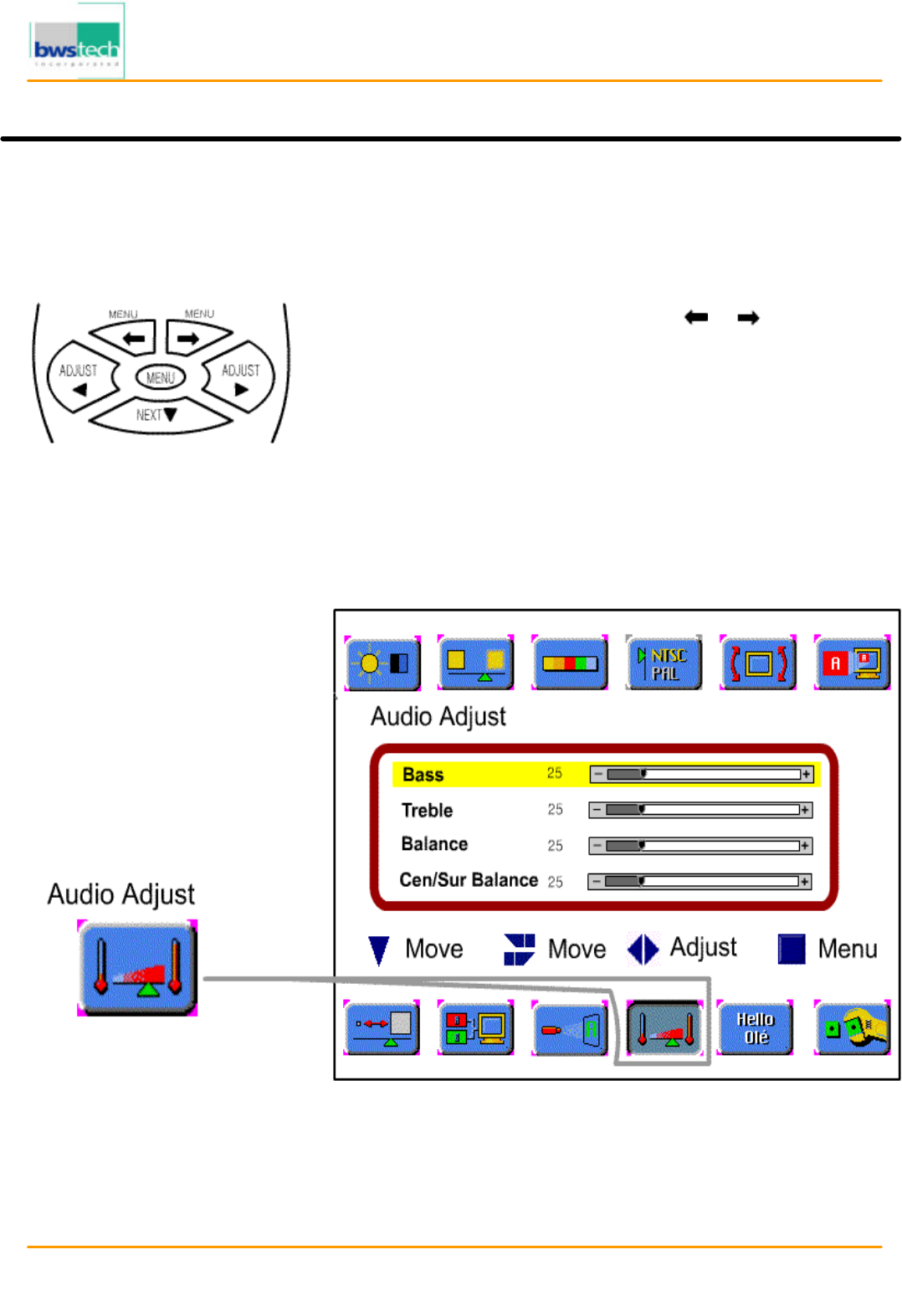

Audio Adjustment
Follow these steps to adjust the Sound :
• Press the MENU button.
‚ Select the Audio Adjust by using the [ ]/[ ] buttons.
ƒ Move to the desired Mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to make the adjustment for Sound
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
BASS : Changes the level of low frequency sound.
TREBLE : Changes the level of high frequency sound
BALANCE : Changes the balance of the left and right channels.
Cen/Sur BALANCE : Changes the balance of the center and surround
channels.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

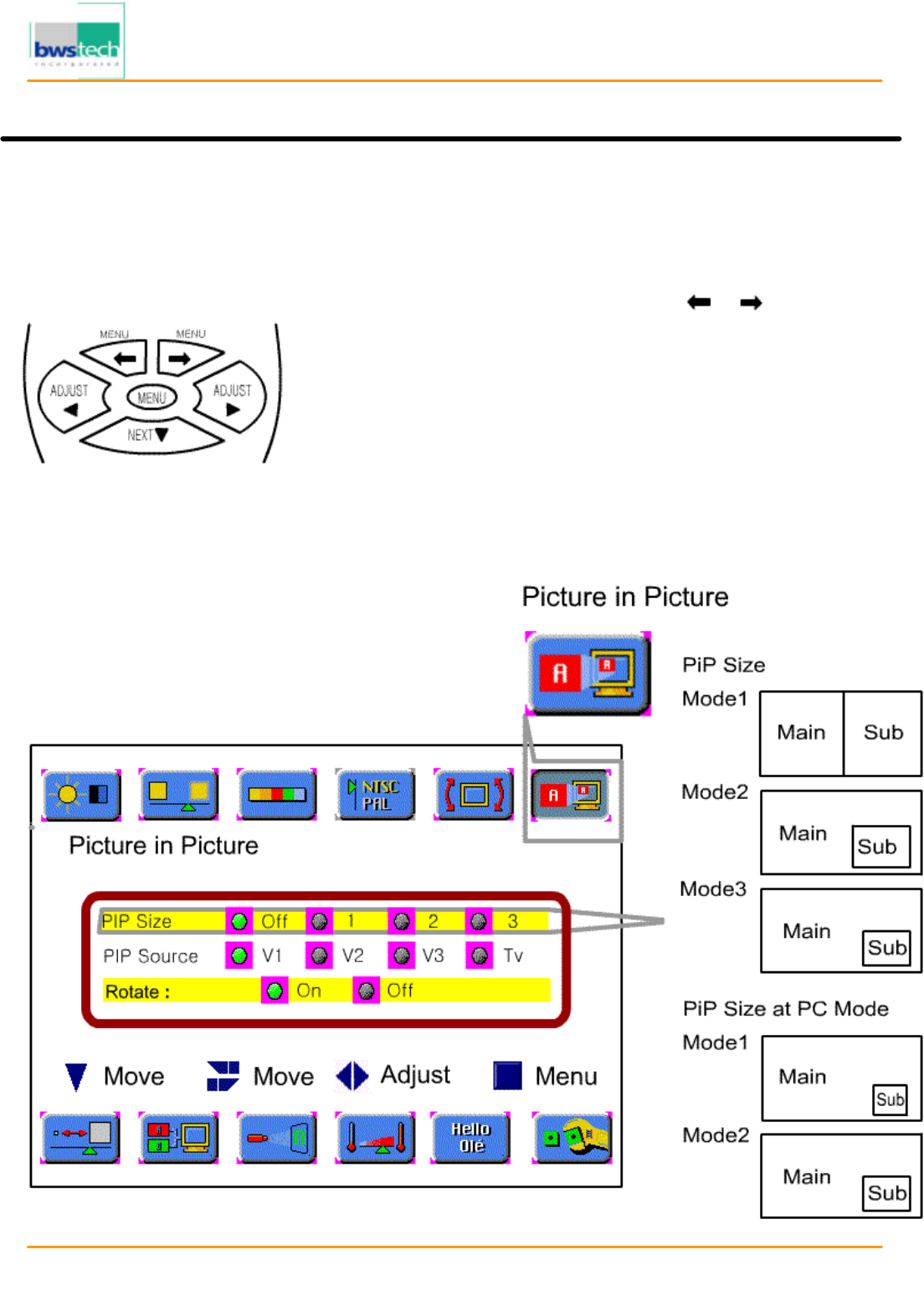

Picture in Picture
Picture in Picture Mode Setting
Follow these steps below to set Picture in Picture mode :
• Press the [MENU] button.
‚ Select Picture in Picture by using the [ ]/[ ] button.
ƒ Select PIP size mode by pressing the [NEXT] button.
„ Move to desired mode by pressing the [ADJUST] button.
… Select PIP Source Mode by pressing the [NEXT] button.
† Select PIP Source by pressing the ADJUST button.
‡ Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Picture in Picture
Watching Picture in Picture
Press the [PIP ON/OFF] button.
Watching PIP
Press the [PIP AV] button.
Changing
the Sub Picture to
AV
Press the [▲ CH ▼] button.
Changing the Sub
Picture Channel
Press the [POS] button.
Changing the Sub
Picture Position
Press the [SWAP] button.
PIP at PC Mode
PC signal can be seen on the
main picture but not on the sub
picture. AT 800×600 mode, you
can optimize PIP.
Swapping Main for
Sub picture
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

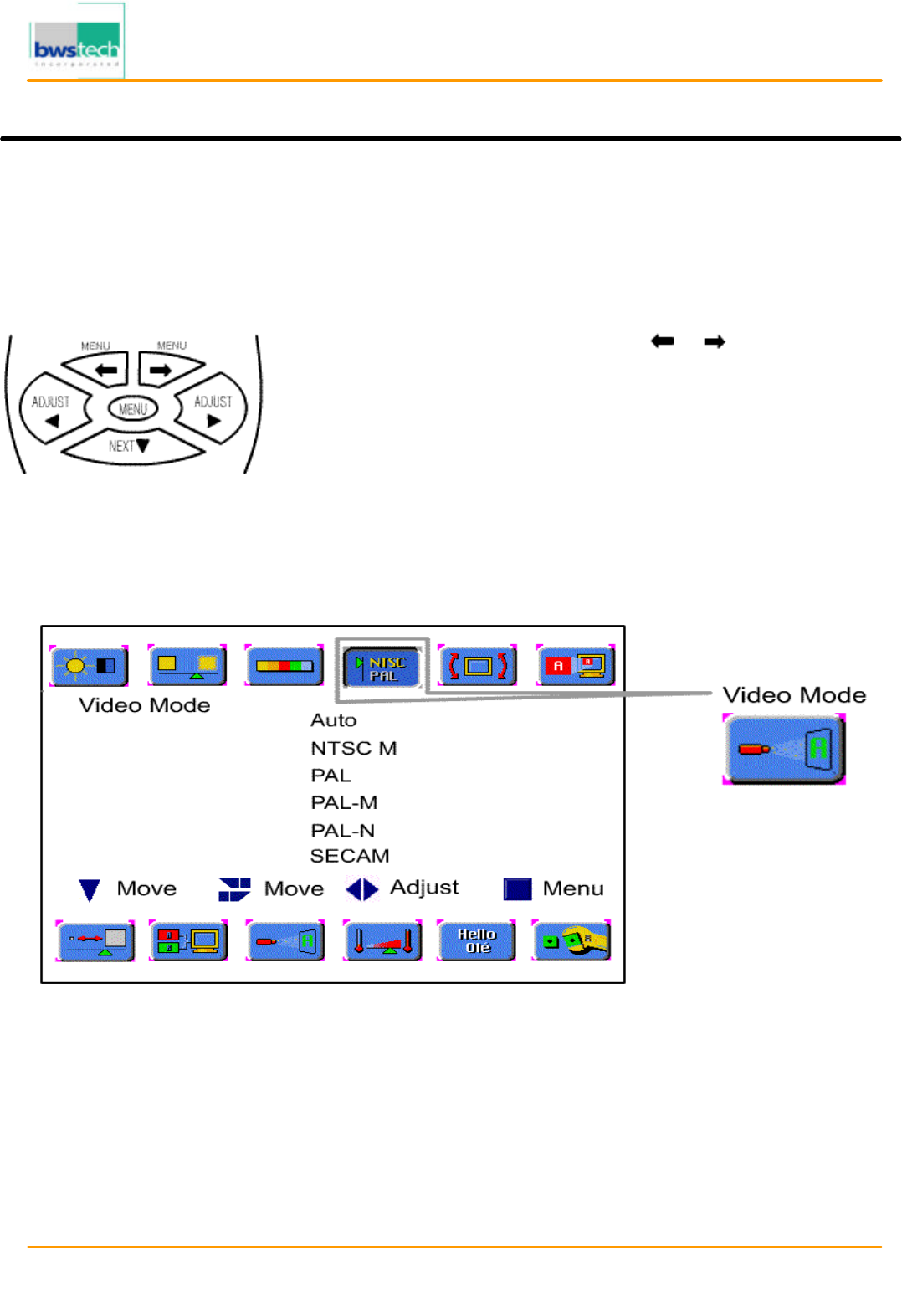

Video Signal Format
Video Signal Format Setting
Follow these steps for setting the Video Signal Format.
• Press the [MENU] button.
‚ Select the Video Mode by using the [ ]/[ ] buttons.
ƒ Move to the desired system by pressing the [NEXT] button.
„ Press the [ADJUST] button to select the desired system.
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Auto : The video signals are automatically detected and the format is set accordingly.
NTSC M : This is the standard format used mainly in the United States and Korea.
PAL : This is the standard format used mainly in the United Kingdom and Germany.
PAL-M : This is the standard format used mainly in Brazil.
PAL-N : This is the standard format used mainly in Argentina.
SECAM : This is the standard format used mainly in France and Russia.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003

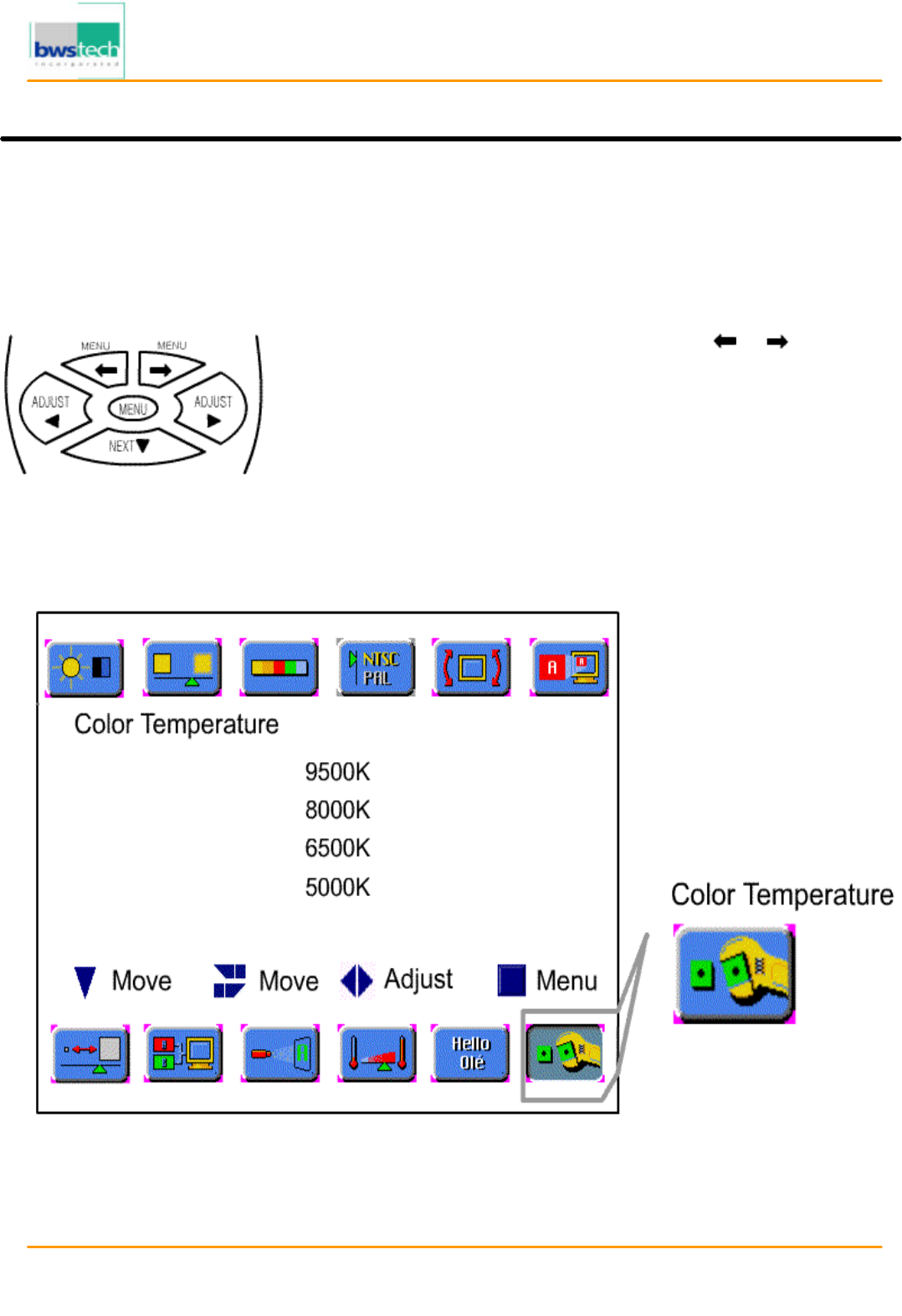

Color Temperature
Color Temperature Setting
Follow these steps for setting the Color Temperature.
• Press the [MENU] button.
‚ Select the Color Temperature by using the [ ]/[ ] buttons.
ƒ Move to the desired mode by pressing the [NEXT] button.
„ Press the [ADJUST] button to select the desired mode.
… Press the [MENU] button to exit the adjustment menu.
※ Highlighted choice will be in green.
Color Temperature : The higher temperature the coolest image looks like.
The lower temperature the warmest image looks like.
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Specifications
Power Source AC100V~240V, 50/60㎐
Power Consumption < 350W (Typical)
Display Panel Screen Size 1317.12(H) x 743.04(W)
Number of Pixels 1280(H) x 720(V)
Brightness 500 cd/m2
Contrast Ratio 500:1
Displayable Colors 16,770,000 Colors
Viewing Angle Over 160 degrees
Display Mode Input Signal TV, Video, S-VHS, Component, PC
RF Input System NTSC(F-Type) or PAL(DIN-Type)
Video Input System NTSC, PAL, SECAM
Input/Output Input PC (P), PC(S)
Video1(V, L, R)/S-VHS
Video2 (V, L, R)/SCART
Video3 [Component (Y, Pb, Pr), Sound (L, R)]
RF IN (NTSC F-TYPE, PAL DIN-TYPE)
Output Monitor Out (V, L, R)/ SCART
Speaker Out (L,R,Center,Surround L/R,Sub-W),
Headphone
Weight Without Stand 62 Kg
Dimensions Without Stand 1490(W) x 919(H) x 100mm(D)
Operation Condition Temperature 0° C ～ 40° C
Humidity 20% ～ 80%
Storage Temperature -25° C ～ 60° C
Digital Device Inc.
60
”
PLASMA DISPLAY MONITOR DPD
-
6000
Report No: BWS-03-EF-0020
FCC ID : PQZDPD-6000
Date of Test : April 17, 2003
Troubleshooting
Symptom Cause Possible Solution
No Power Power to the TV is not Check source of power to the TV.
plugged in.
Unit will not respond to Sensor is blocked. Clear path for sensors.
remote control Batteries in remote control Clean sensor lens.
are weak. Replace batteries.
No signal is displayed Video source incorrect. Check video source connection.
Make sure TV is set to correct video
source.
Picture scrolls or is Antenna type or location Change antenna.
fuzzy Try antenna in different location.
