Digital Pavilion Electronics BALPRO50X Bluetooth adapter for headphone User Manual

Digital Pavilion Electronics LLC Bluetooth adapter for headphone

User Manual

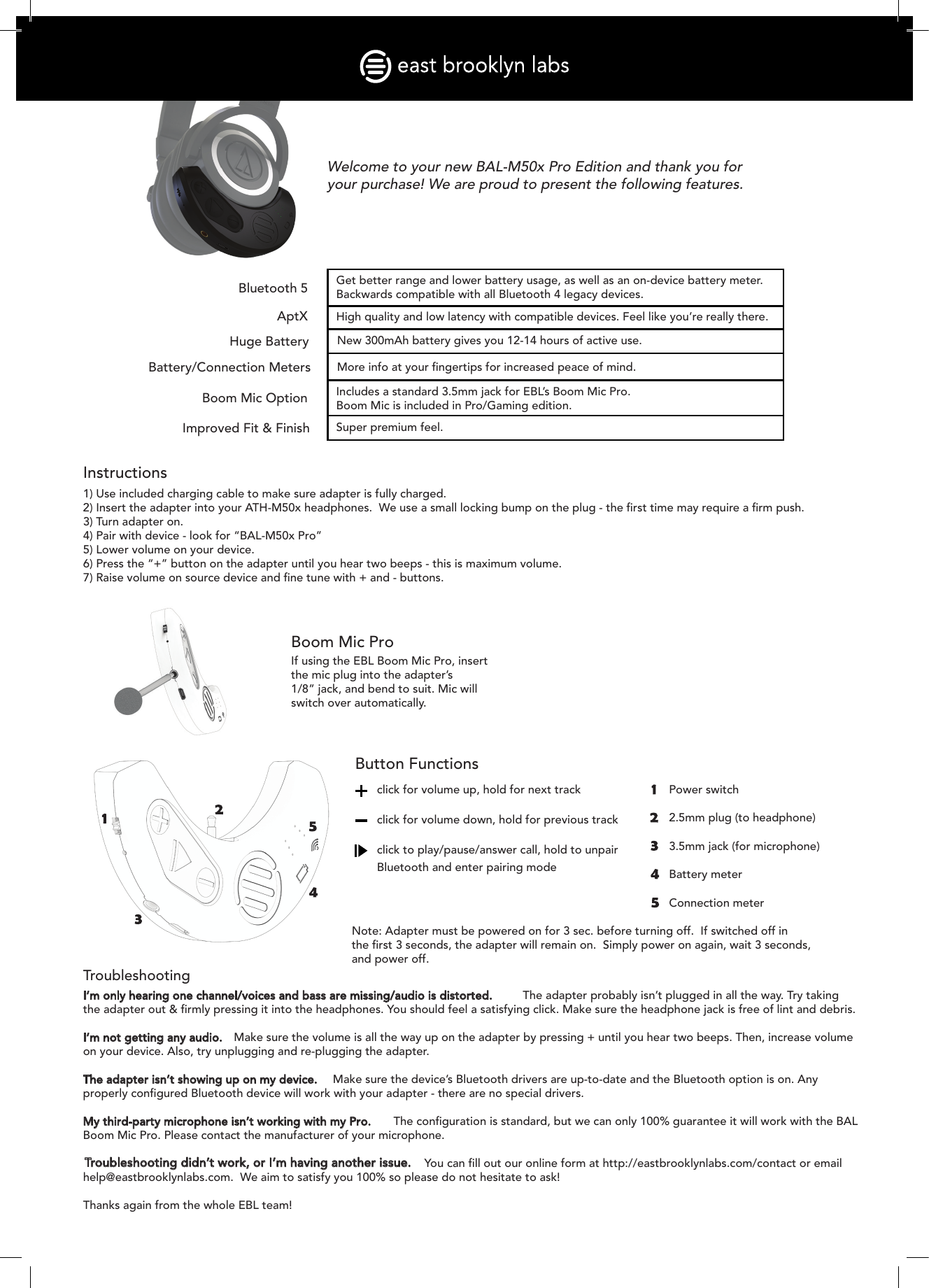

Instructions1) Use included charging cable to make sure adapter is fully charged.2) Insert the adapter into your ATH-M50x headphones. We use a small locking bump on the plug - the first time may require a firm push.3) Turn adapter on.4) Pair with device - look for “BAL-M50x Pro”5) Lower volume on your device.6) Press the “+” button on the adapter until you hear two beeps - this is maximum volume.7) Raise volume on source device and fine tune with + and - buttons.Boom Mic ProIf using the EBL Boom Mic Pro, insert the mic plug into the adapter’s 1/8” jack, and bend to suit. Mic will switch over automatically.TroubleshootingI’m only hearing one channel/voices and bass are missing/audio is distorted. The adapter probably isn’t plugged in all the way. Try taking the adapter out & firmly pressing it into the headphones. You should feel a satisfying click. Make sure the headphone jack is free of lint and debris.I’m not getting any audio. Make sure the volume is all the way up on the adapter by pressing + until you hear two beeps. Then, increase volume on your device. Also, try unplugging and re-plugging the adapter. The adapter isn’t showing up on my device. Make sure the device’s Bluetooth drivers are up-to-date and the Bluetooth option is on. Any properly configured Bluetooth device will work with your adapter - there are no special drivers.My third-party microphone isn’t working with my Pro. The configuration is standard, but we can only 100% guarantee it will work with the BAL Boom Mic Pro. Please contact the manufacturer of your microphone.Troubleshooting didn’t work, or I’m having another issue. You can fill out our online form at http://eastbrooklynlabs.com/contact or emailhelp@eastbrooklynlabs.com. We aim to satisfy you 100% so please do not hesitate to ask!Thanks again from the whole EBL team!Button Functionsclick for volume up, hold for next trackclick for volume down, hold for previous trackclick to play/pause/answer call, hold to unpair Bluetooth and enter pairing modeWelcome to your new BAL-M50x Pro Edition and thank you for your purchase! We are proud to present the following features.Bluetooth 5AptXHuge BatteryBattery/Connection MetersBoom Mic OptionImproved Fit & FinishGet better range and lower battery usage, as well as an on-device battery meter. Backwards compatible with all Bluetooth 4 legacy devices.High quality and low latency with compatible devices. Feel like you’re really there.New 300mAh battery gives you 12-14 hours of active use.More info at your fingertips for increased peace of mind.Includes a standard 3.5mm jack for EBL’s Boom Mic Pro. Boom Mic is included in Pro/Gaming edition.Super premium feel.Power switchBattery meterConnection meter2.5mm plug (to headphone)3.5mm jack (for microphone)Note: Adapter must be powered on for 3 sec. before turning off. If switched off in the first 3 seconds, the adapter will remain on. Simply power on again, wait 3 seconds, and power off.

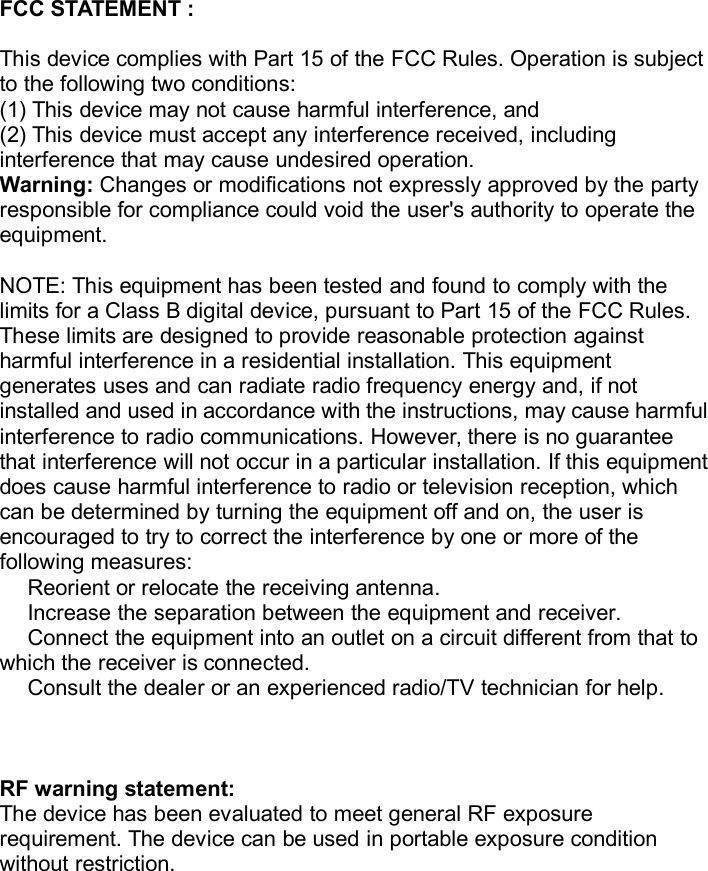

FCC STATEMENT :This device complies with Part 15 of the FCC Rules. Operation is subjectto the following two conditions:(1) This device may not cause harmful interference, and(2) This device must accept any interference received, includinginterference that may cause undesired operation.Warning: Changes or modifications not expressly approved by the partyresponsible for compliance could void the user's authority to operate theequipment.NOTE: This equipment has been tested and found to comply with thelimits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipmentgenerates uses and can radiate radio frequency energy and, if notinstalled and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guaranteethat interference will not occur in a particular installation. If this equipmentdoes cause harmful interference to radio or television reception, whichcan be determined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of thefollowing measures:Reorient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that towhich the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.RF warning statement:The device has been evaluated to meet general RF exposurerequirement. The device can be used in portable exposure conditionwithout restriction.
