Page Count: 19
Models
911511 - LM21SC
911513 - LM21
911514 - LM21S
911515 - LM21SE
911516 - LM21SW
911522 - LM21SB
Walk-Behind Lawn Mowers
®
Parts Manual
01193900A 6/01
Supercedes 01193900
Printed in USA
2
T
HE
M
ANUAL
Before you operate your unit, carefully and completely
read manuals supplied with the unit. The contents will
provide you with an understanding of safety instructions
and controls during normal operation and maintenance.
For your safety and the safety of others always read,
understand, and follow all DANGER, WARNING, and
CAUTION messages found in manuals and on safety
decals.
Hardware descriptions are given in decimals.
S
ERVICE
AND
R
EPLACEMENT
P
ARTS
When ordering replacement parts or making service
inquiries, know the Model and Serial numbers of your unit
and engine.
Numbers are located on the product registration card in
the unit literature package. They are printed on a serial
number label, located on the frame of your unit.
• Record Unit Model and Serial numbers here:
• Record Engine Model and Serial numbers here:
UNAUTHORIZED REPLACEMENT PARTS
Use only Ariens replacement parts. The replacement of
any part on this vehicle with anything other than an
Ariens authorized replacement part may adversely affect
the performance, durability, or safety of this unit and may
void the warranty. Ariens disclaims liability for any claims
or damages, whether warranty, property damage,
personal injury or death arising out of the use of
unauthorized replacement parts.
Decimals to Fractions
.063 1/16 .563 9/16
.125 1/8 .625 5/8
.188 3/16 .688 11/16
.250 1/4 .750 3/4
.313 5/16 .813 13/16
.375 3/8 .875 7/8
.438 7/16 .938 15/16
.500 1/2 1.00 1
P
RODUCT
R
EGISTRATION
A warranty registration card must be filled out, signed,
and returned at time of purchase. This card activates the
warranty. Claims meeting requirements during limited
warranty period will be honored.
Y
OUR
S
ATISFACTION
I
S
I
MPORTANT
Questions? Please follow these helpful steps:
1. Refer to the manuals supplied with your unit.
They will guide you through safe and proper
operation and maintenance.
They contain specifications on your unit.
If your questions are not answered in these manuals,
go to step number two.
2. Contact Your Dealer.
Our dealers will be happy to supply any service or
advice required to keep your unit operating at peak
efficiency.
A factory trained staff is available to support your
equipment needs. They stock genuine Ariens parts
and lubricants manufactured with the same precision
and skill as the original.
If your questions are not resolved by the support
staff, ask for the manager or owner.
When contacting your Dealer supply your model and
serial numbers.
TO SPEED PARTS ORDERING:
1. Know the model and serial numbers of your unit.
2. Know the part number required.
3. Know the quantity required.
4. Know the part description.
3
M
ODELS
Model 911511 (LM21SC)
4 Cycle-Robin 6 HP
Recoil, Self-Propelled, Commercial
Serial No. 001472 and up
Model 911513 (LM21)
4 Cycle-Briggs & Stratton Intek OHV 6.5 HP
Recoil, Push
Serial No. 001524 and up
Model 911514 (LM21S)
4 Cycle-Briggs & Stratton Intek OHV 6.5 HP
Recoil, Self-Propelled
Serial No. 006618 and up
Model 911515 (LM21SE)
4 Cycle-Briggs & Stratton Intek OHV 6.5 HP
Electric, Self-Propelled
Serial No. 001696 and up
Model 911516 (LM21SW)
4 Cycle-Briggs & Stratton Intek OHV 6.5 HP
Recoil, Self-Propelled, Swivel
Serial No. 005106 and up
Model 911522 (LM21SB)
4 Cycle-Briggs & Stratton Intek OHV 6.5 HP
Recoil, Self-Propelled
Serial No. 000101 and up
T
ABLE
O
F
C
ONTENTS
D
ECALS
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
M
AIN
F
RAME
& E
NGINE
Handlebar and Controls . . . . . . . . . . . . . . . . . . . . . . . 6

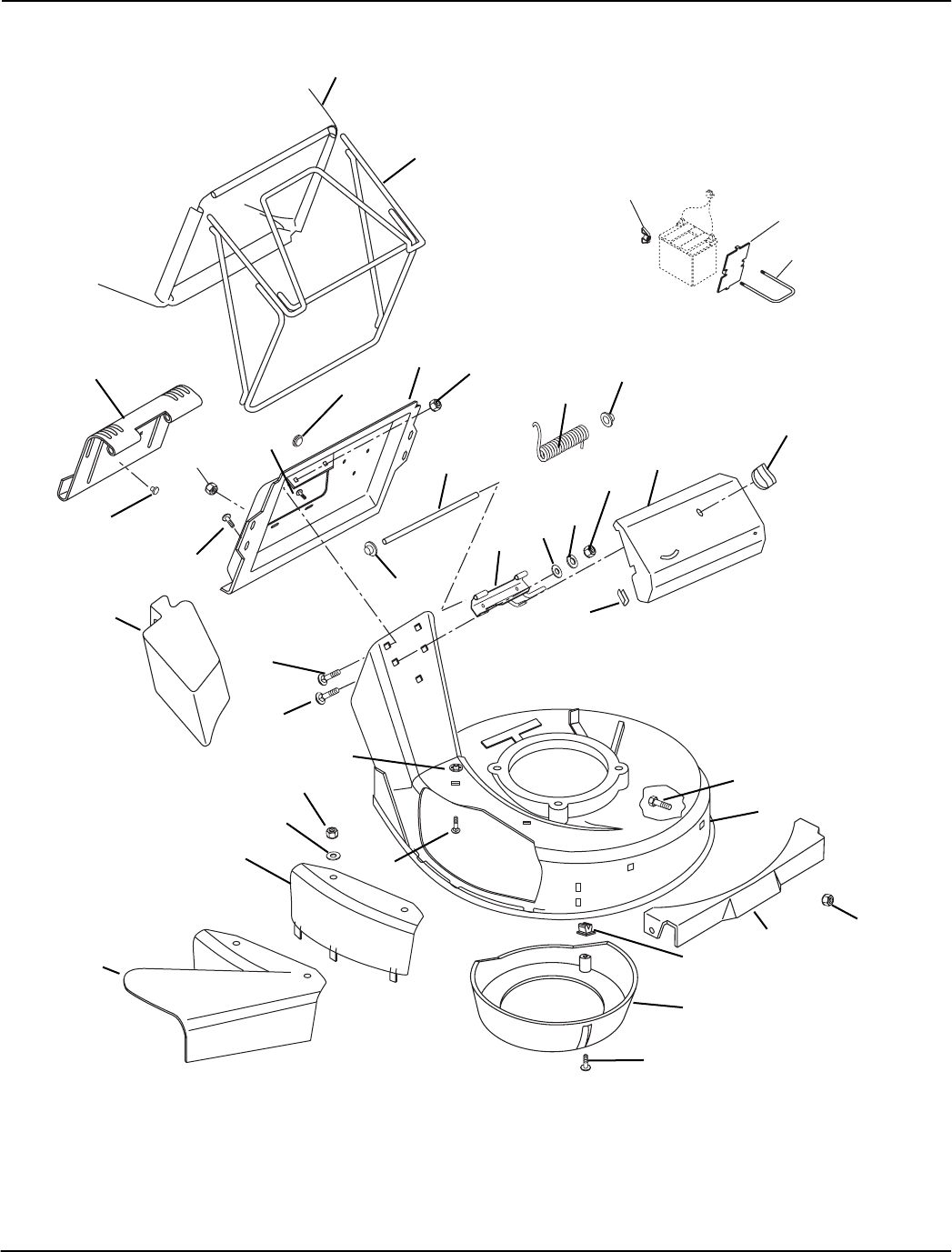

Mower Pan and Bag. . . . . . . . . . . . . . . . . . . . . . . . . . 8

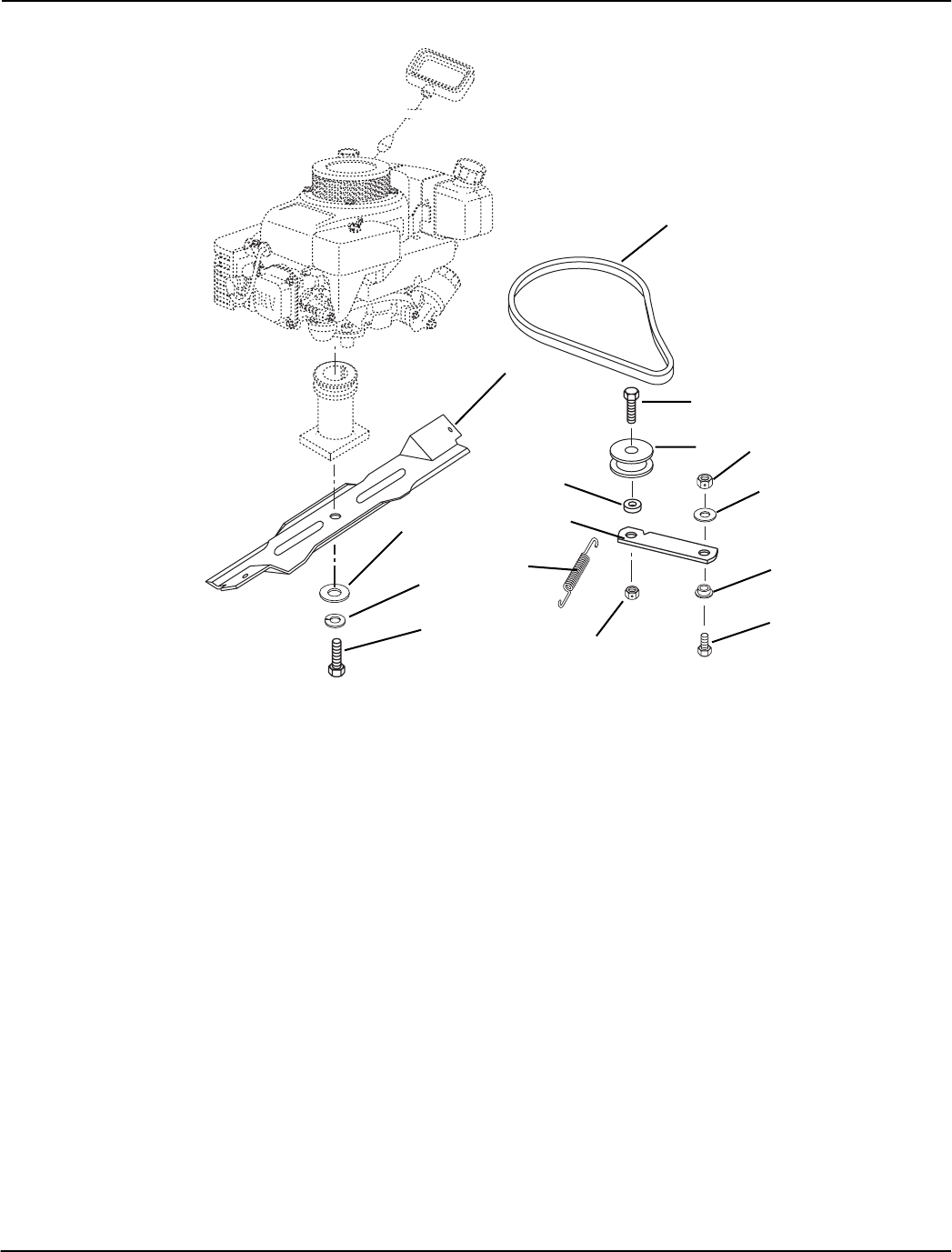

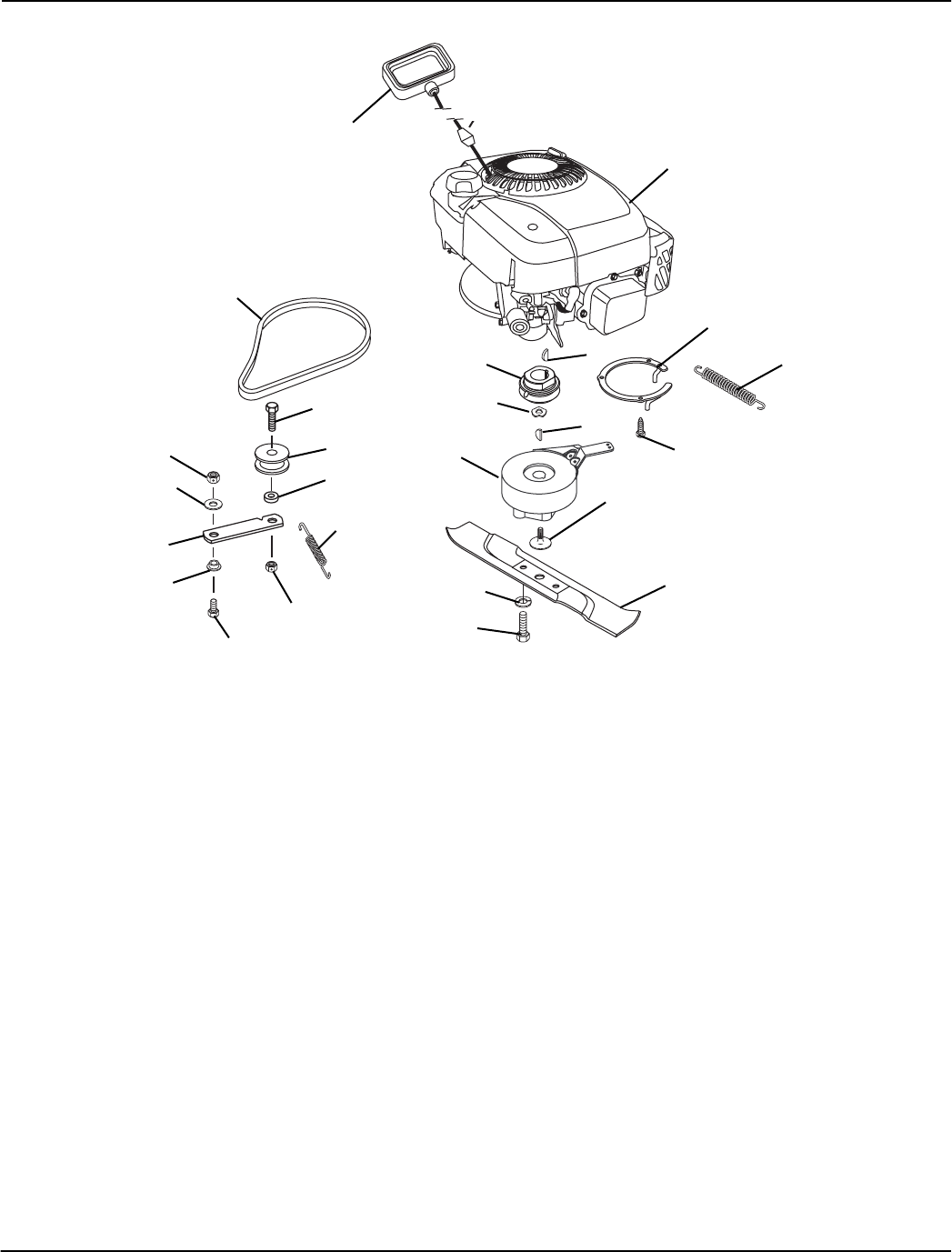

Blade and Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

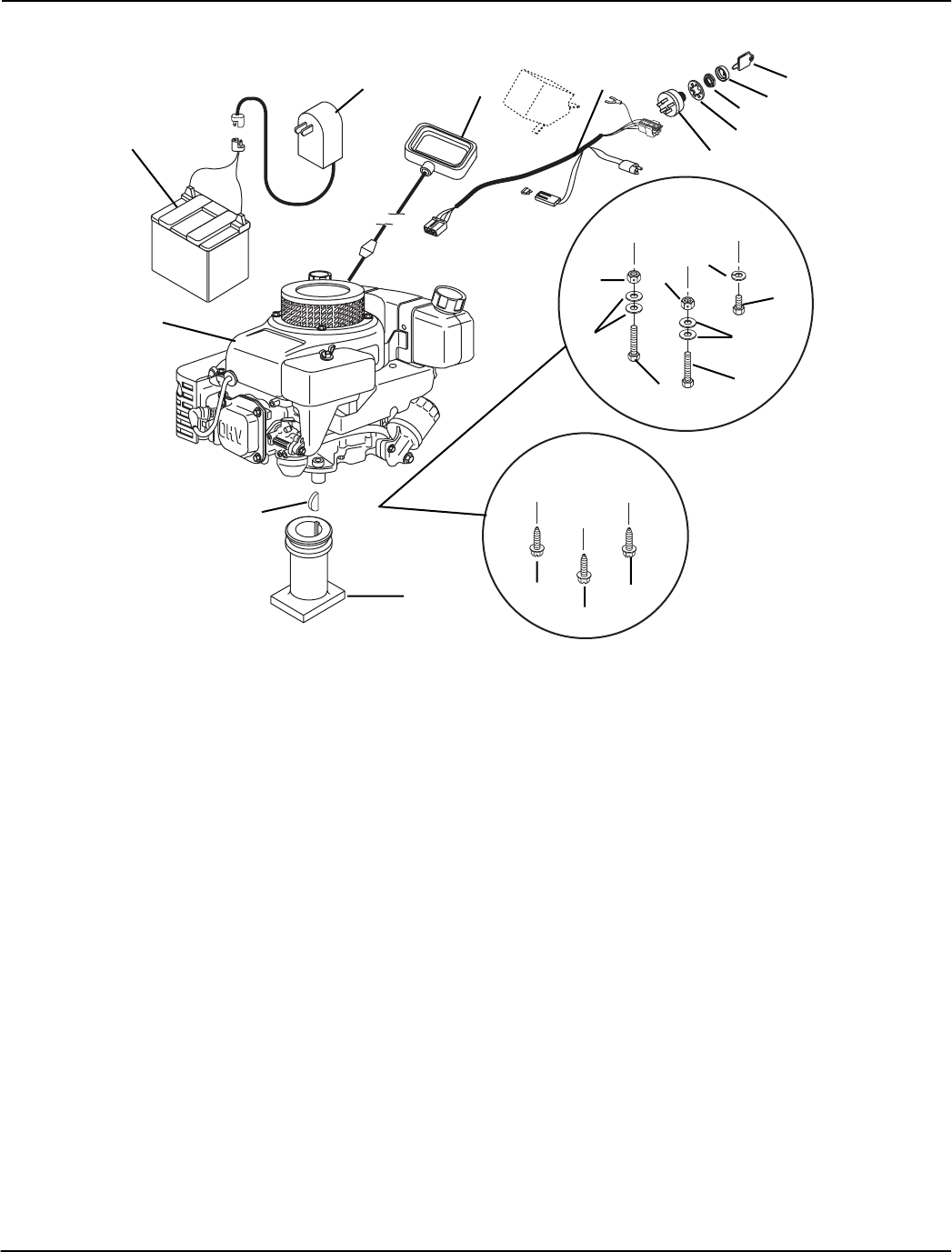

Engine and Electrical . . . . . . . . . . . . . . . . . . . . . . . . 11
W
HEELS

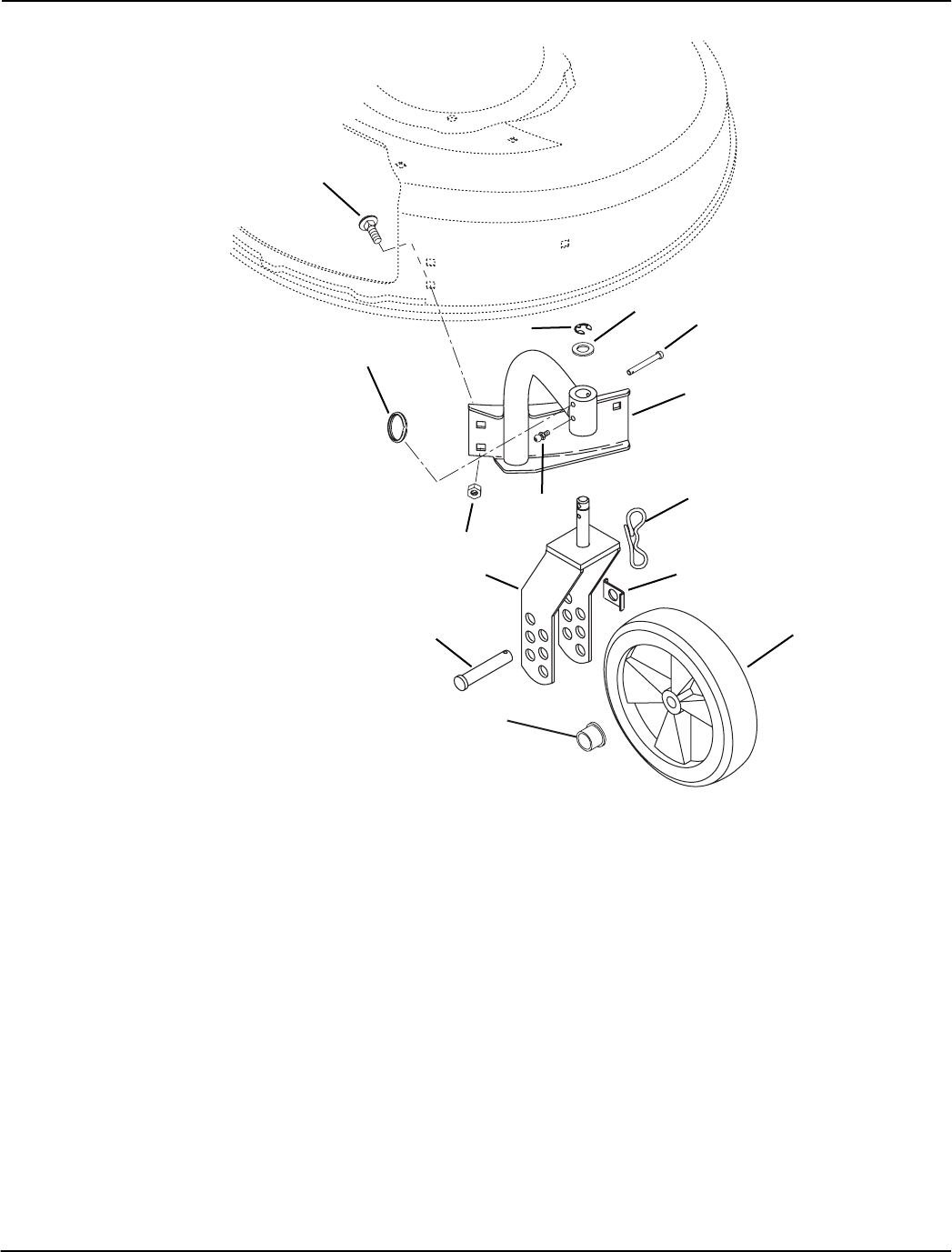

Swivel Wheels and Brackets . . . . . . . . . . . . . . . . . . 13

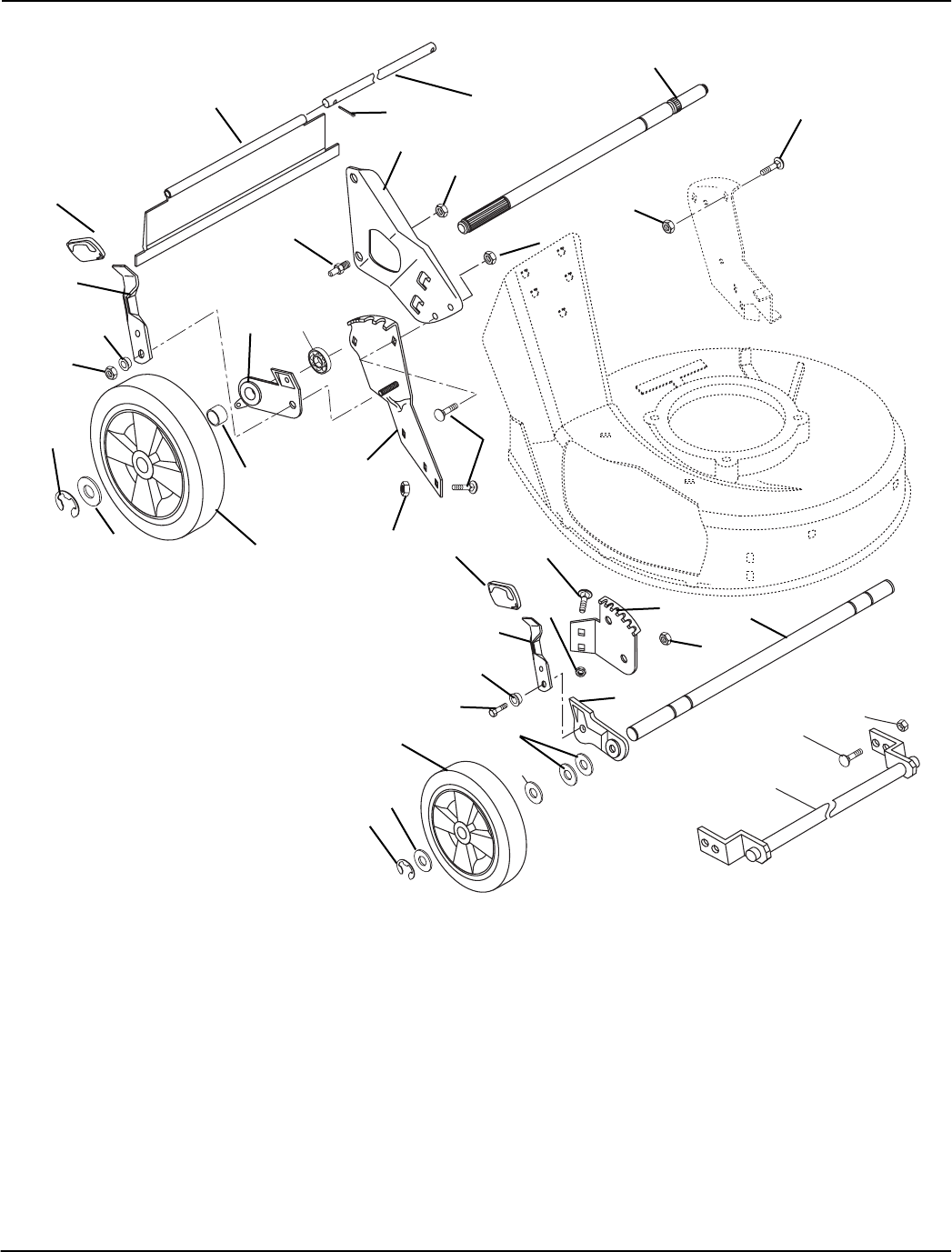

Wheels and Adjusters . . . . . . . . . . . . . . . . . . . . . . . 14

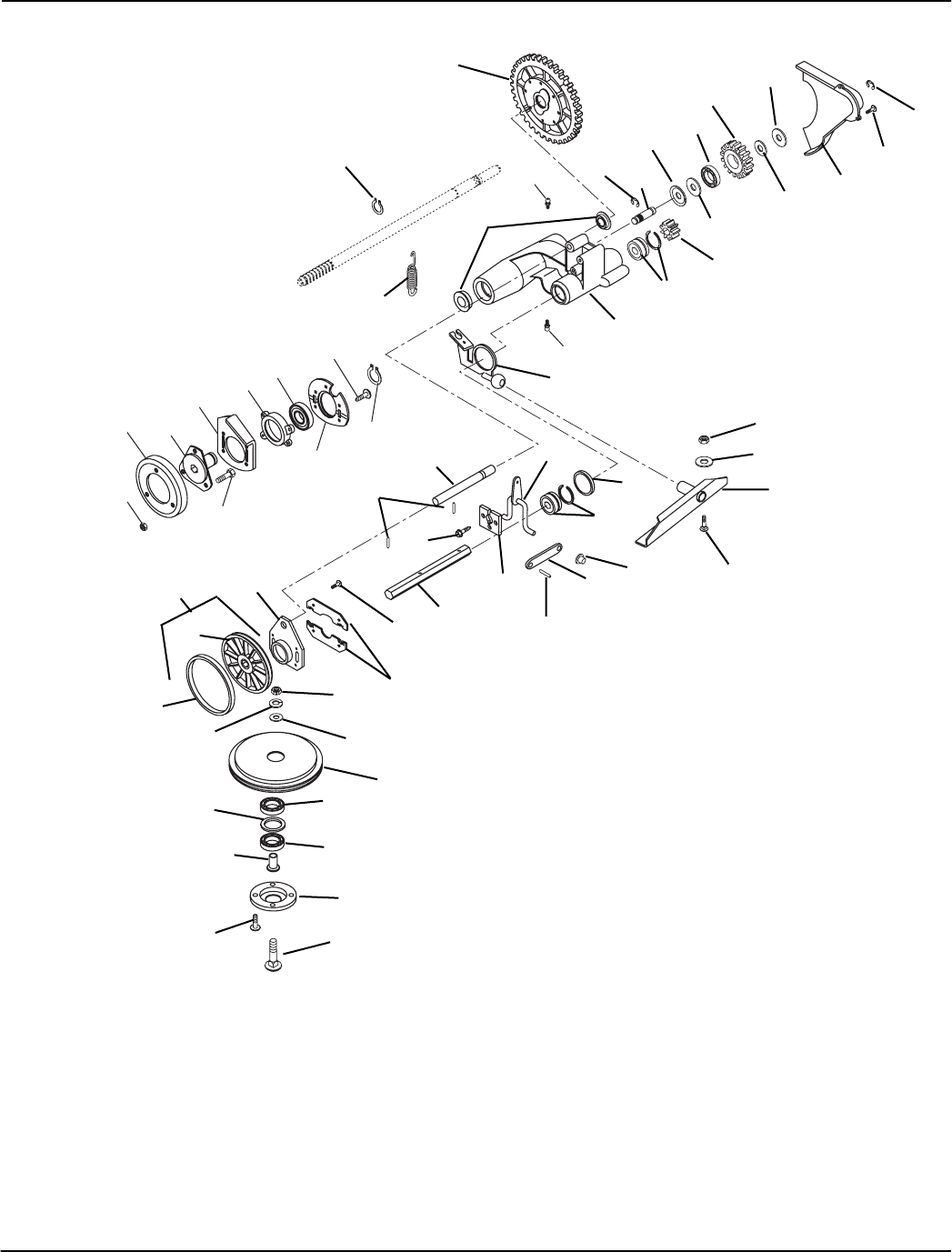

Friction Wheel and Adjusters . . . . . . . . . . . . . . . . . . 16
E
LECTRICAL

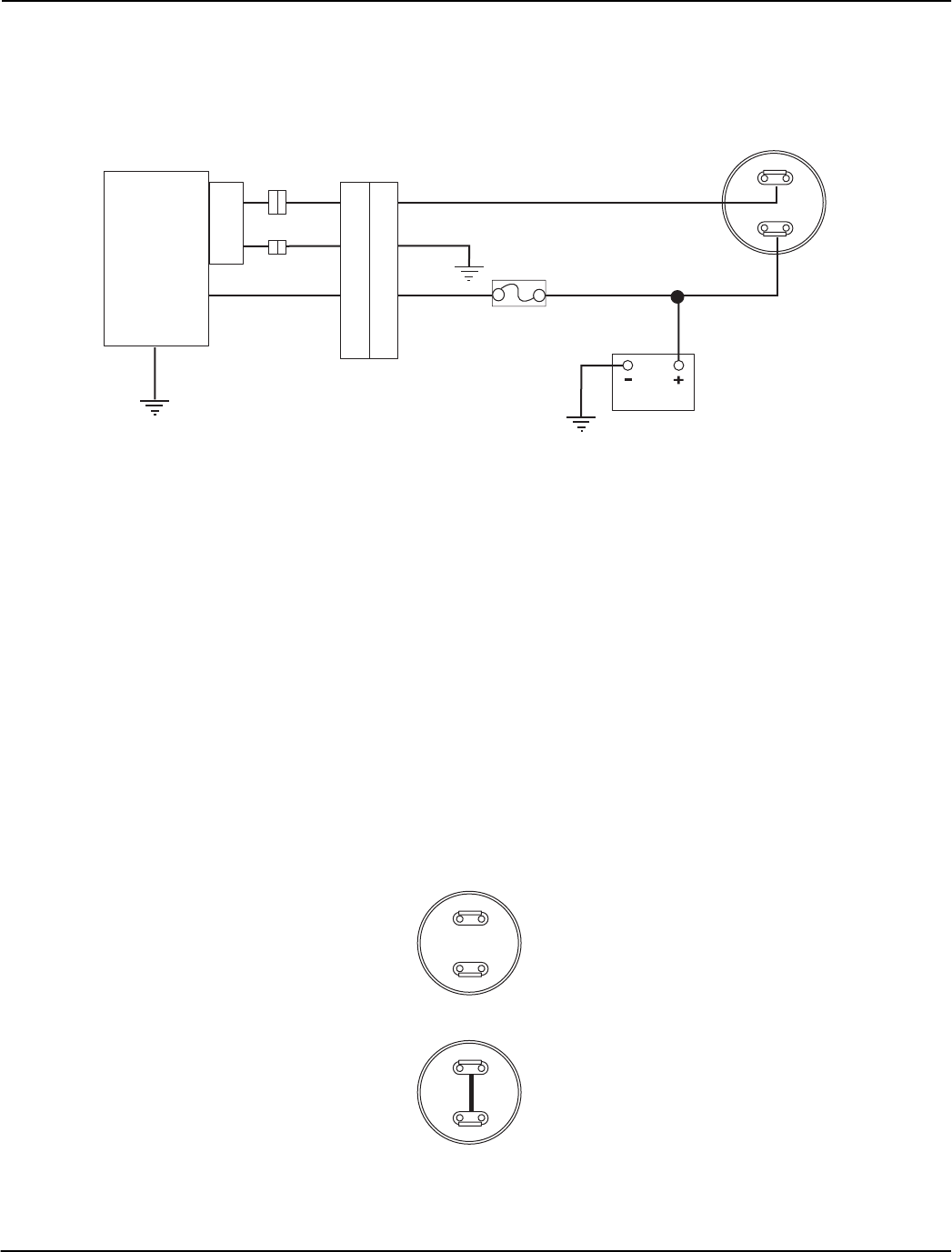

Electrical and Continuity Diagram . . . . . . . . . . . . . . 18
© Copyright 2000, 2001 Ariens Company
4
D
ECALS
Model 911511, 513, 514, 515, 516, 522
08088300
DANGER
KEEP HANDS and FEET AWAY
Do not operate mower
unless guards are in
operating position or
bagger is attached.
07761700B
DANGER / PELIGRO
TO AVOID SERIOUS INJURY OR DEATH
POUR EVITER LES BLESSURES GRAVES OU LA MORT
PARA EVITAR DAÑOS SERIOS O LA MUERTE
• Read the operator's manual.
• Keep children and others away from unit while operating.
• Never direct discharge toward other people. Thrown
objects can cause injury.
• Do not operate mower unless guards are in operating
position or entire bagger is attached.
• Keep safety devices (guards, shields, switches, etc.) in
place and working.
• Go across slopes, not up and down.
• Look down and behind before and while moving backward.
• Lire le manuel de l'utilisation.
• Éloigner les enfants et toute autre personne pendant le
fonctionnement de la machine.
• Ne jamais décharger directement en direction de quelqu’un.
Des particules projetées peuvent provoquer des blessures.
• Ne pas utiliser la tondeuse sans garant et sans sac
totalement attaché.
• Maintenez toujours en place tous les elements de securite
(protecteurs, interupteurs, etc.).
• Tondez le long des pentes, jamais de haut en bas ou
inversement.
• Regardez derriere er sur les cotes lorsque vous reculez.
• Leer el manual del operador.
• Mantenga la unidad alejada de los niños u otras personas
cuando esté en funcionamiento.
• Nunca dirija la descarga hacia otras personas, a que los
objetos lanzados pueden provocar lesiones.
• No poner en funcionamiento la máquina a menos que las
guardas estén en posición de funcionamiento o la
embolsadora entera esté conectada.
• Mantenga artefactos de seguridad (defensas, protectores,
interruptores, etc.) en su lugar y trabajando.
• Transversa pendientes, no subir ni bajar.
• Mire hacia abajo y detras antes y durante retroceso.
07742400B
08086900
1
2
4
5
6
7
8
PM0044
3
9
10
11
5

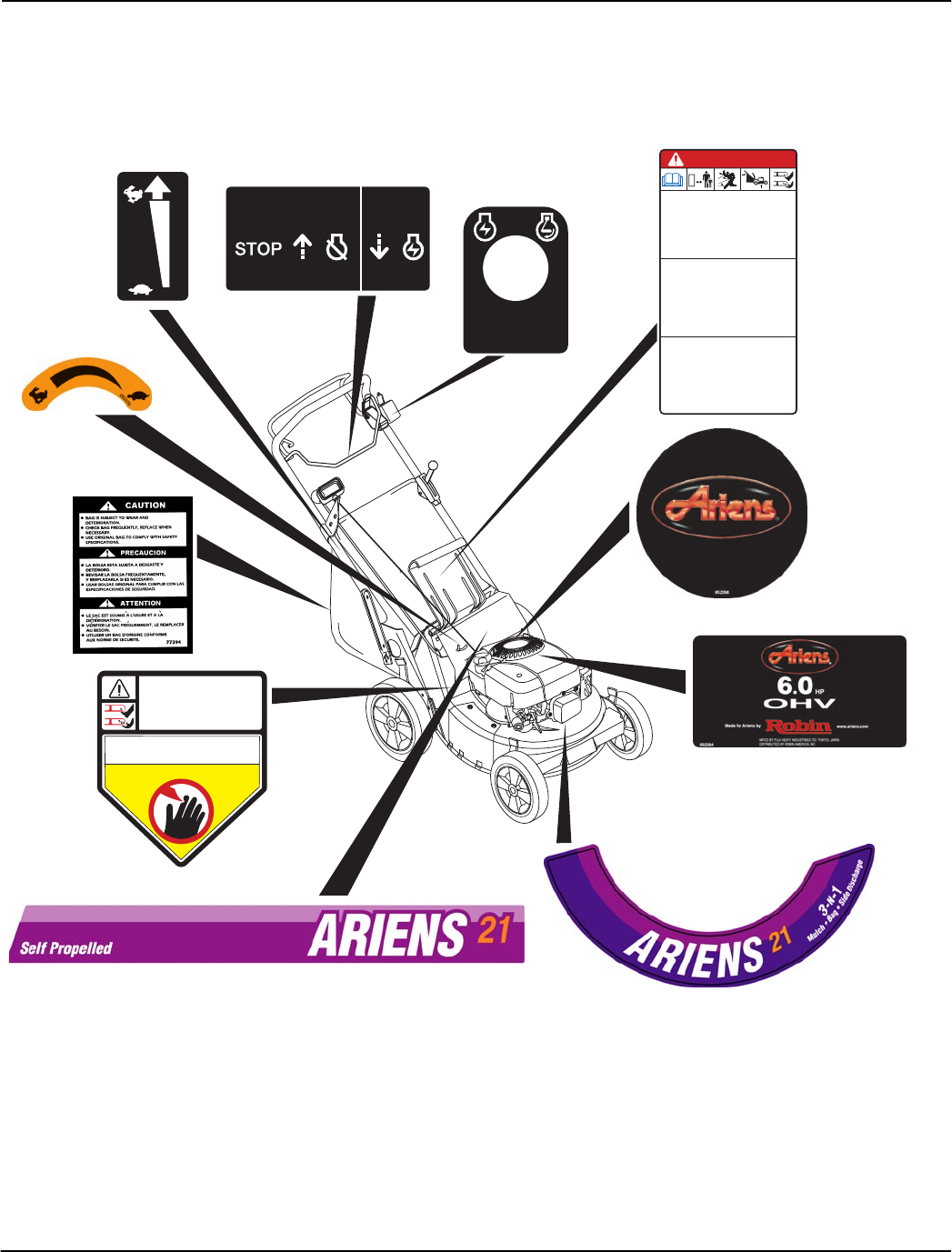

D
ECALS
Model 911511, 513, 514, 515, 516, 522
Item Part No. Qty. Description
1 07760700 1 Decal, Speed Control (511, 514-516, 522)
2 05227000 1 Decal, Turtle & Rabbit (511, 514-516, 522)
3 07739400 1 Label, Bagger 21"
4 08088300 1 Decal, CPSC Danger
5 08087900 1 Decal, Ariens Deck (511, 513-516)
05230600 1 Decal, Ariens Blade Brake/Clutch (522)
6 05226800 1 Decal, Round Ariens Recoil, Robin (511)
05225800 1 Decal, Ariens Recoil, Briggs & Stratton (513-522)
7 05226400 1 Decal, 6.0 H.P. OHV Robin (511)
07756900 1 Decal, Ariens, Briggs & Stratton (513-516, 522)
8 08088000 1 Decal, Drive Cover Self Propelled (514-516, 522)
08088100 1 Decal, Drive Cover Self Propelled Professional (511)
05230700 1 Decal, Blade Brake/Clutch Drive Cover (522)
9 07742400 1 Decal, Bilingual Danger
10 08086900 1 Decal, Key Switch (515)
11 07761700 1 Decal, Engine Control

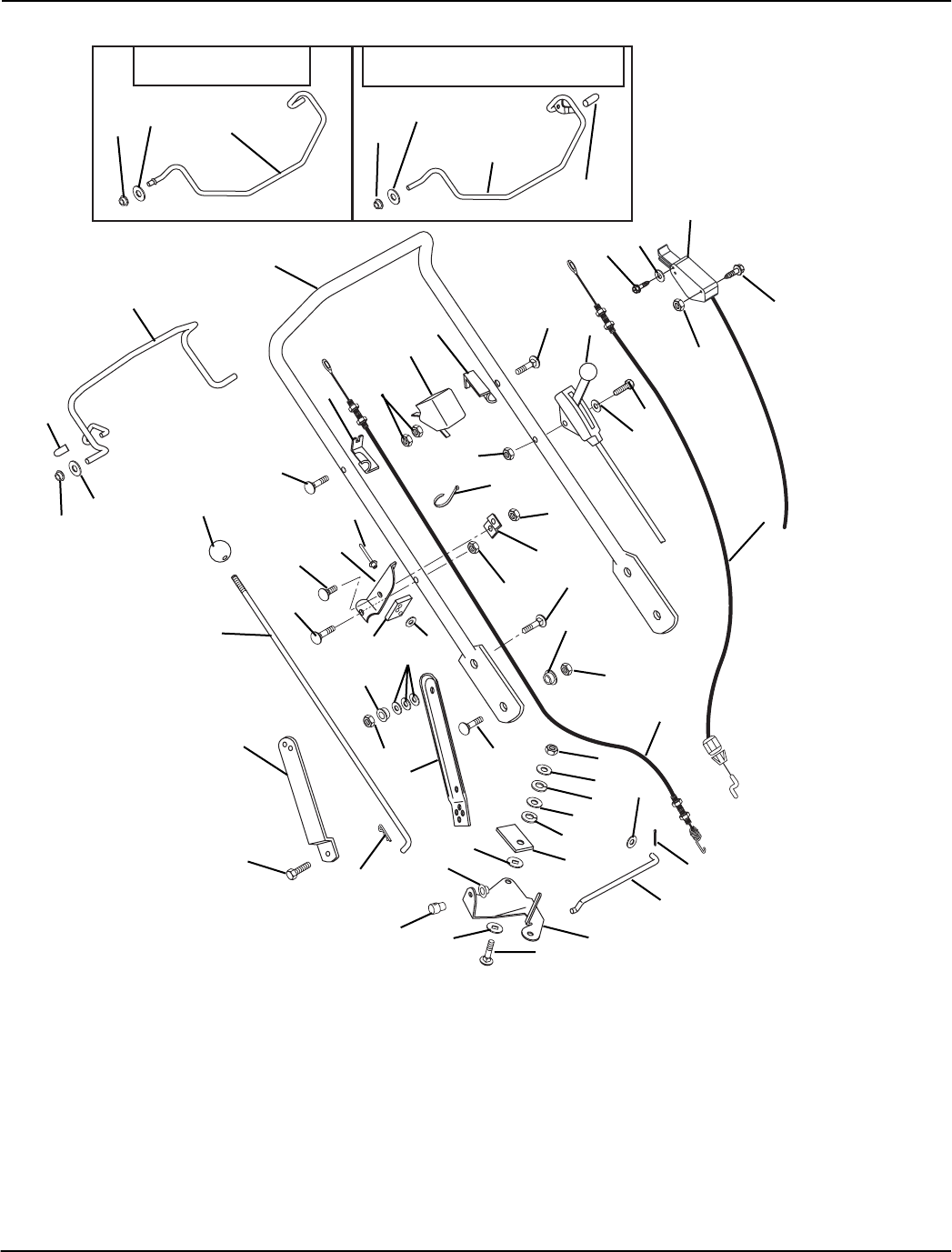

6
H
ANDLEBAR
AND
C
ONTROLS
Model 911511, 513, 514, 515, 516, 522
Item Part No. Qty. Description
1 01177251 1 Engine Bail Weldment (511, 513-516)
01191551 1 Bail- Blade Brake/Clutch (522)
2 06437200 4 Washer-Flat-Steel .32 x .44 x .44 x .56 (511, 513-516)
06437200 3 Washer-Flat-Steel .32 x .44 x .44 x .56 (522)
3 05514500 4 Bushing-Flange .325 x .688 x .560 (511, 513-516)
05514500 3 Bushing-Flange .325 x .688 x .560 (522)
4 07517000 2 Cap, Vinyl .25 I.D. (511, 513-516)
07517000 1 Cap, Vinyl .25 I.D. (522)
5 01177051 1 Traction Bail (511, 514-516, 522)
6 01184851 1 Handlebar
1
4
5
6
7
8
9
10
11
11
10
45
11
11
12
13
14
15
16
17
18
19
16
20
21
22
23
24
25
26
19
27 28
29
30
29
30
31
32
33
34
35
36
36
37
38 39
40
41
42
43
44
4
46
PM0026
2
2
3
3
1
2
3
47
50
49
48
51
52
911522 911511, 513-516
7
H
ANDLEBAR
AND
C
ONTROLS
Model
911511, 513, 514, 515, 516, 522
Item Part No. Qty. Description
7 06922000 1 Engine Control Cable (513-516, 522)
06937900 1 Engine Control Cable (511)
8 01156400 1 Switch-Cable Anchor (515)
9 01137551 1 Cable Anchor-Right Hand (511, 514-516, 522)
10 06220100 2 Bolt-Round Head Square Neck .25-20 x 1.25 (511, 513-516)
06220100 1 Bolt-Round Head Square Neck .25-20 x 1.25 (522)
11 06529700 5 Nut-Locking-Center .25-20 (511, 513-516)
06529700 4 Nut-Locking-Center .25-20 (522)
12 07517300 3 Cable Tie
13 06940100 1 Throttle Cable (511)
06946400 1 Throttle Cable (522)
14 01141851 1 Brace-Speed Control
15 01137451 1 Bracket-Speed Control
16 01150051 1 Link-Handlebar Adjuster Left Hand (513-516, 522)
01150151 1 Link-Handlebar Adjuster Right Hand (513-516, 522)
01158651 2 Handlebar Bracket (511)
17 01178700 6 Washer-Bellville Spring (513-516, 522)
18 05514900 2 Bushing-Flange .325 x .50 x .513 x .875 (513-516, 522)
19 06529800 4 Nut-Locking-Center .31-18
20 06222300 1 Bolt-Round Head Square Neck .25-20 x 1.38
21 06220600 1 Bolt-Round Head Square Neck .25-20 x .50 Grade 5
22 07515900 1 Knob (511, 514-516, 522)
23 01140800 1 Rod-Speed Control (511, 514-516, 522)
24 06921200 1 Traction Cable (511, 514-516, 522)
25 06216100 2 Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5 (513-516, 522)
26 01305900 2 Shoulder Spacer
27 06215700 2 Bolt-Round Head Square Neck .31-18 x .75 Grade 5 (513-516, 522)
06216100 2 Bolt-Round Head Square Neck .31-18 x 1.00 Grade 5 (511)
28 06529600 1 Nut-Locking-Center .38-16 (511, 514-516, 522)
29 06436200 2 Washer-Flat-Steel .406 x .812 x .065 (511, 514-516, 522)
30 06306500 2 Washer-Lock .375 x .115 Heavy (511, 514-516, 522)
31 01154800 1 Pressure Flange (511, 514-516, 522)
32 06437300 1 Washer-Flat-Steel .281 x .620 x .065 (511, 514-516, 522)
33 06712400 1 Pin-Cotter .06 x .50 (511, 514-516, 522)
34 01126100 1 Shift Link (511, 514-516, 522)
35 01123900 1 Bell Crank-Speed Control (511, 514-516, 522)
36 01123800 2 Friction Washer (511, 514-516, 522)
37 01019800 1 Cap, Rod .375 (511, 514-516, 522)
38 01139800 1 Swivel (511, 514-516, 522)
39 06222200 1 Bolt-Round Head Square Neck .38-16 x 1.25 (511, 514-516, 522)
40 06713500 1 Pin-Hair-Internal .08 x .18 x 1.18 (511, 514-516, 522)
41 01173800 1 Support Pad (511, 514-516, 522)
42 06815700 2 Rivet .187 x .575 (511, 514-516, 522)
43 06442700 2 Washer-Flat Steel .219 x .50 x .049 (511, 514-516, 522)
44 05947000 2 Bolt-Hex .31-18 x .75 Grade 5 (511)
45 06220000 1 Bolt-Round Head Square Neck .25-20 x 1.75 Grade 5 (511)
06209300 1 Bolt-Round Head Square Neck .25-20 x 1.75 XL (522)
46 06442300 1 Washer-Flat-Steel .250 x .562 x .049 (511)
06437300 1 Washer-Flat-Steel .281 x .62 x .065 (522)
47 06442700 1 Washer-Flat-Steel .219 x .50 x .049 (522)
48 07415800 1 Screw-Tapping 10-24 x .50 Hex Washer Head (522)
49 06946500 1 Control- Blade Brake/Clutch (522)
50 06116800 2 Screw-Machine 10-24X2.00 Hex Washer Head (522)
51 06536600 2 Nut-Hex 10-24 (522)
52 01155751 1 Cable Anchor-Left Hand (511, 513-516, 522)
9
M
OWER
P
AN
AND
B
AG
Model 911511, 513, 514, 515, 516, 522
Item Part No. Qty. Description
1 01194800 1 Bag-ConsumerBlack
2 01138751 1 Bagger Frame
3 01136559 1 Door-Catcher Plate
4 07516000 1 Button Bumper
5 07511800 2 Bumper
6 07411900 4 Screw-Tapping 12-24 x .50 Hex Washer Head
(
513-516, 522)
7 07414900 2 Screw-Tapping 10-24 x .38 Pan Head
8 01159759 1 Plate-Catcher (513-516, 522)
01177759 1 Plate , Catcher (511)
9 06203900 2 Bolt-Round Head Square Neck .25-20 x .38
10 02215300 2 Nut-Push
11 08322400 1 Spring-Torsion .120 x .68 x 3.09
12 01141000 1 Pin-Door
13 71102700 1 Mulch Master Mulcher Accessory
14 06530100 2 Nut-Locking-Flange .25-20
15 06219900 2 Bolt-Round Head Square Neck .25-20 x .75 Grade 5
16 01155559 1 Hinge Base Weldment (511, 514-516, 522)
01138259 1 Hinge Base (513)
17 06439100 1 Washer-Flat-Steel .328 x .87 x .179
18 06308000 2 Washer-Locking .25 x .077
19 06533200 2 Nut-Hex .25-20
20 01159300 1 Nut-Wing (511, 514-516, 522)
21 01158859 1 Drive Cover (511, 514-516, 522)
22 01155400 2 Trim Bumper
23 51108100 1 Mower Pan Head with Decals (511, 514-516)
51108000 1 Mower Pan Head with Decals Push (513)
51107900 1 Mower Pan Head Head with Decal Self Propelled Blade Brake/Clutch (522)
24 06222000 2 Bolt-Round Head Square Neck .31-18 x .50 Grade 5
(
511,513-515, 522
)
25 01183559 1 Front Panel
(
511, 513-515, 522)
26 06529800 2 Nut-Locking-Center .31-18
(
511, 513-515, 522
)
27 07507600 3 Grommet-Plastic
28 01173700 1 Baffle-Center
29 07415000 3 Screw-Tapping 10-16 x .62 Hex Washer Head
30 01180200 1 Side Discharge Assembly
31 01180351 1 Side Discharge Cover
32 06436200 2 Washer-Flat-Steel .406 x .812 x .065
33 06530200 2 Nut-Locking-Nylon .312-18
34 06214100 2 Bolt-Round Head Square Neck .31-18 x .75 Grade 2
35 06514900 2 Nut-Push .312
36 06530100 4 Nut-Locking-Flange .250-20 (511)
37 06538100 2 Nut-Wing #8-32 (515)
38 01178559 1 Battery Plate
(
515
)
39 01178600 1 U-Bolt
(
515
)
10
BLADE AND BELT
Model 911511, 513, 514, 515, 516
Item Part No. Qty. Description
1 07217100 1 V-Belt 3L Section (511, 514-516)
2 05963800 1 Bolt-Hex .44-14 x 1.25 Grade 5 (511, 514-516)
3 07313300 1 Idler-Flat 1.75 x .47 (511, 514-516)
4 06529800 4 Nut-Locking-Center .31 -18 (511, 514-516)
5 06436700 1 Washer-Flat-Steel .323 x .625 x .062 (511, 514-516)
6 01142000 1 Spacer .52 x .45 x .34 (511, 514-516)
7 01141200 1 Idler Arm (511, 514-516)
8 05515400 1 Bushing-Flange .325 x .501 x .250 x 1.120 (511, 514-516)
9 05947000 1 Bolt-Hex .31-18 x .75 Grade 5 (511, 514-516, 522)
10 06536400 1 Nut-Locking-Center .44-14 (511, 514-516)
11 08321100 1 Spring, Tension .043 x .44 x 3.31 (511, 514-516)
12 01137051 1 Blade, 21" Mower
13 06308800 1 Washer-Locking .38 x .094
14 05976600 1 Bolt-Hex .38-24 x 2.00 Grade 8
15 06441700 1 Washer-Flat Steel .390 x 1.50 x .125
PM0141
1
2
3 4
5
6
7
8
9
10
11
12
13
14
15
11
ENGINE AND ELECTRICAL
Model 911511, 513, 514, 515, 516
Item Part No. Qty. Description
1 02460700 1 Key with Cap (515)
2 07517700 1 Cap-Ignition Switch (515)
3 06517300 1 Nut, Panel .625-32 (515)
4 06306900 1 Washer-Locking Internal .625 x .045 (515)
5 01190600 1 Switch, Key Electric Start-LM (515)
6 01190700 1 Harness, Wire LM-Electric (515)
7 01178400 1 Battery (515)
8 01126000 1 Battery Charger (515)
9 01157100 1 Recoil Start Handle
10* 08247700 1 Engine, Robin 6 HP 4 Cycle (511)
08258800 1 Engine, Briggs & Stratton Intek OHV 6.5HP Recoil (513, 514, 516)
08245800 1 Engine, Briggs & Stratton Intek OHV 6.5HP Electric Start (515)
11 01178100 1 Adapter, Blade .875 Dia with Keyway (513-516)
01121700 1 Adapter, Blade (511)
12 06600900 2 Key-Woodruff .156 x .625 x .25 SAE #6 (513-516)
06600900 1 Key-Woodruff .156 x .625 x .25 SAE #6 (511)
13 07414100 3 Screw-Tapping .38-16 x 1.00 Hex Washer Head (513-516)
14 06529800 2 Nut-Locking-Center .31-18 (511)
15 06435800 4 Washer-Flat-Steel .312 x .734 x .065 (511)
16 06307400 1 Washer-Locking .312 x .097 Heavy (511)
17 05947500 2 Bolt-Hex .31-18 x 1.25 Grade 5 (511)
18 05947000 1 Bolt-Hex .31-18 x .75 Grade 5 (511)
Briggs & Stratton
Engine
Robin
Engine
PM0133
1
2
3
4
5
6
7
10
8 9
11
15
13
14
12
16
17
18
15
14
17
13 13
12
ENGINE-BBC
Model 911522
Item Part No. Qty. Description
1 01192159 1 Bracket- Spring Retainer
2 01192200 1 Pulley- Blade Brake/Clutch
3 08336400 1 Spring-Tension .1278 x .735 x 4.71
4 07063100 1 Screw-Socket Head-Special .375-24 x 1.50
5 01192900 1 Washer-Wave .88 x 1.31 x .125
6 01157100 1 Recoil Start Handle
7 08262700 1 Engine, Briggs & Stratton Intek OHV 6.5HP Recoil
8 01191600 1 Blade Brake Clutch
9 07414100 3 Screw-Tapping .38-16 x 1.00 Hex Washer Head
10 06600900 2 Key-Woodruff .156 x .625 x .25
11 07217100 1 V-Belt 3L Section
12 05962800 1 Bolt-Hex .44-14 x 1.50 Grade 5
13 07313300 1 Idler-Flat 1.75 x .47
14 06529800 1 Nut-Locking-Center .31 -18
15 06436700 1 Washer-Flat-Steel .323 x .625 x .062
16 05533300 1 Bushing-Sleeve .469 x .750 x .430
17 01141200 1 Idler Arm
18 05515400 1 Bushing-Flange .325 x .501 x .250 x 1.120
19 05947000 1 Bolt-Hex .31-18 x .75 Grade 5
20 06536400 1 Nut-Locking-Center .44-14
21 08321100 1 Spring, Tension .043 x .44 x 3.31
22 01195500 1 Blade- Blade Brake/Clutch
23 06309300 2 Washer-Locking .44 x .109 Regular
24 05943000 2 Bolt-Hex M10 x 1.5 x 25
25 01177100 1 Rope Stop
PM0451
1
2 3
25
4
5
6
7
8 9
10
11
12
13
14
15 16
17
18
19
20
21
22
23
24
10
13
SWIVEL WHEELS AND BRACKETS
Model 911516
Item Part No. Qty. Description
1 05708300 2 Ring-Retaining-External .625 x .042
2 06436100 2 Washer-Flat-Steels .630 x 1.005 x .062
3 01185257 1 Mount with Bushing, Right Arm
01189557 1 Mount with Bushing, Left Arm
4 06814600 2 Pin-Clevis .25 x 1.75
5 06222000 6 Bolt-Round Head Square Neck .31-18 x .50 Grade 5
6 06530400 6 Nut-Hex .312-18
7 07012600 2 Fitting-Lube .25-28 x .256
8 01169357 2 Wheel Yoke Weldment
9 01190800 2 Pin, Bowtie Cotter
10 01168100 2 Axle Tab
11 01168300 2 Pin-Clevis .494 x 2.62
12 01169200 2 Ring-Kickout
13 07149900 2 Wheel
07152400 2 Tire 7 x 1.50
14 05502100 2 Bushing-Flange .500 x .500 x .750
PM0073
1
2
3
4
5
6
7
8
9
10
11 13
12
14
14
WHEELS AND ADJUSTERS
Model 911511, 513, 514, 515, 516, 522
Item Part No. Qty. Description
1 07522300 1 Rear Protective Guard, Self Propelled (511, 514-516, 522)
07522400 1 Rear Protective Guard, Push (513)
2 06712400 3 Pin-Cotter .06 x .50
3 01140000 1 Rod
4 07513600 4 Knob
5 01130600 2 Height Adjustment Lever
6 06212200 9 Bolt-Round Head Square Short Neck .31-18 x .62 (
513-515,
522)
06212200 13 Bolt-Round Head Square Short Neck .31-18 x .62 (
511)
7 06529600 2 Nut-Locking-Center .38-16
1 2 3
4
5
6
7
8 9
10
11
12
13 14
15
16
9
17
18
19 4
12
33
20 21
22
23
24
25
26
27
28
9
29
19
PM0065
30 31
21
6
32
9
15
WHEELS AND ADJUSTERS
Model 911511, 513, 514, 515, 516, 522
Item Part No. Qty. Description
8 01167100 2 Handlebar Stud
9 06529800 8 Nut-Locking-Center .31-18 (
513-515,
522)
06529800 12 Nut-Locking-Center .31-18 (
511)
10 01149500 1 Rear Axle (511, 514-516, 522)
01171900 1 Rear Axle Push Mower (513)
11 06221800 1 Bolt-Round Head Square Short Neck .31-18 x 1.00
12 05710200 4 Ring-Retaining-External .500 x .042
05710200 2 Ring-Retaining-External .500 x .042 (
516)
13 06436600 2 Washer-Flat-Steel .505 x .880 x .072
14 07151200 1 Wheel, Left Hand Rear (511, 514-516, 522)
07151500 1 Wheel, Right Hand Rear (511, 514-516, 522)
07103900 2 Tire Skin 10 x 2.0 (511, 514-516, 522)
07152500 2 Tire 10 x 1.75 (513)
15 01149600 2 Spacer Tube (511, 514-516, 522)
01149700 1 Spacer Tube-Push Left Hand (513)
01149800 1 Spacer Tube-Push Right Hand (513)
16 05514800 2 Bushing-Flange .312 x .500 x .344 x .880
17 01154251 1 Rear Quadrant-Left Hand
01154351 1 Rear Quadrant-Right Hand
18 01137251 1 Bracket-Handlebar Mounting-Right Hand (513-516, 522)
01137151 1 Bracket-Handlebar Mounting-Left Hand (513-516, 522)
01177451 1 Bracket-Handlebar Mounting-Right Hand (511)
01177551 1 Bracket-Handlebar Mounting-Left Hand (511)
19 06530400 10 Nut-Locking-Flanged .31-18 (
511, 513-515, 522)
20 07149900 2 Wheel-Front (511, 514-516, 522)
07152400 2 Tire 7 x 1.50 (513)
21 06441100 6 Washer-Flat-Steel .520 x .827 x .062 (
511, 513-515, 522
)
22 05946900 2 Bolt-Hex .31-18 x 1.00 Grade 5 (511, 513-515, 522)
23 05514800 2 Bushing-Flange .312 x .500 x .344 x .880 (
511, 513-515, 522)
24 01120000 2 Lever, Front Height Adjustment (511, 513-515, 522)
25 01119800 1 Left Hand Bracket Assembly
01119900 1 Right Hand Bracket Assembly
26 01168900 1 Front Axle (511, 513-515, 522)
27 01154051 1 Front Quadrant, Left Hand (511, 513-515, 522)
01154151 1 Front Quadrant, Right Hand (511, 513-515, 522)
28 06222000 4 Bolt-Round Head Square Neck .31-18 x .50 Grade 5 (511, 513-515, 522)
29 06530200 1 Nut-Locking-Nylon .31-18
30 01130700 1 Rear Adjuster Bracket-Left Hand (514-516, 522)
01150400 1 Rear Bracket and Bearing Assembly (514-516, 522)
01131300 1 Rear Bracket and Bearing Assembly-Right Hand (513)
01131200 1 Rear Bracket and Bearing Assembly-Left Hand (513)
01130800 1 Rear Adjuster Bracket-Right Hand (511)
01158200 1 Rear Adjuster Bracket-Left Hand (511)
31 05417600 1 Bearing-Ball .625 x 1.383 x .50 (511)
32 01156051 1 De-Thatcher Retainer Weldment (511)
33 06436600 2 Washer-Flat-Steel .505 x .880 x .072 (
511, 513-515, 522)
16
FRICTION WHEEL AND DRIVE
Model 911511, 514, 515, 516, 522
Item Part No. Qty. Description
1 01121051 1 Gear Cover
2 05705900 2 Ring-Retaining-External .438 x .035
3 07411900 5 Screw-Tapping 12-24 x .50 Hex Washer Head
4 06441100 2 Washer - Flat - Steel .520 x .827 x .062
5 06425300 1 Washer - Flat - Steel .531 x 1.00 x .063
6 01131700 1 Idler Gear
7* 05408000 1 Bearing - Ball .50 x 1.38 x .437
8 01135100 1 Retainer
9 01139700 1 Idler Shaft
10 51102400 1 Differential Assembly
11* 05417600 2 Bearing-Ball .625 x 1.383 x .50 (511)
47
49
51
52 53
54
55
PM0080
1
2
3
4
5
6
7
4
8
9
10
2
11
56
43
12
13
14
15
16
17
18
19
20
21
22
13
23
24
25
26
27
28
29
3
30
31
32
33
34
35 36
37
38
39
40
41
42
46
44
45
38
56
48
50
46
17
FRICTION WHEEL AND DRIVE
Model 911511, 514, 515, 516, 522
Item Part No. Qty. Description
12 02201100 1 Gear-Pinion
13 05413700 2 Bearing - Ball .562 x 1.375 x .437
14 01140600 1 Drive Mount
15 08325200 1 Spring-Tension .051 x .60 x 2.25
16 01137900 1 Drive Actuator Weldment
17 01161951 1 Pivot Channel Weldment
18 06529800 2 Nut-Locking-Center .31-18
19 06437200 2 Washer-Flat-Steel .344 x .688 x .065
20 06212200 2 Bolt-Round Head Square Short Neck .31-18 x .62
21 01125100 1 Rod-Guide
22 06421600 1 Washer - Flat - Steel 1.390 x 2.00 x .020
23 02215300 2 Push Nut .25
24 05803500 2 Pin-Roll .125 x .50 (514-516, 522)
05804800 2 Pin-Roll .125 x .63 (511)
25 01124200 2 Shift Link
26 01123600 1 Shift Arm Weldment
27 01125000 1 Retainer Plate
28 01125700 1 Hex Shaft
29 05800500 2 Pin - Roll .188 x .88
30 01153800 2 Thrust Plate (514-516, 522)
31 07412100 4 Screw-Tapping 10-24 x .375 Hex Washer Head (514-516, 522)
32 01153900 1 Guide-Plate (514-516, 522)
33 51102500 1 Friction Wheel Assembly (514-516, 522)
34 06529200 1 Nut-Hex .31-18
35 06307400 1 Washer-Locking .312 x .097 Heavy
36 06439400 1 Washer Flat-Steel .328 x .875 x .062
37 01127300 1 Friction Sheave
38 05435100 2 Bearing-Ball .625 x 1.375 x .43
39 06420200 1 Washer- Flat-Steel 1.062 x 1.344 x .032
40 01127400 1 Spindle, Bearing
41 01127500 1 Bearing, Retainer
42 06220200 1 Bolt-Round Head Square Neck .31-18 x 1.75 Grade 5
43 05711900 2 Ring-Retaining-External .579 x .930
44 01190400 1 Friction Ring (514-516, 522)
45 01149200 1 Friction Wheel Hub (514-516, 522)
46 07411900 4 Screw-Tapping 12-24 x .50 Hex Washer Head (514-516, 522)
07411900 8 Screw-Tapping 12-24 x .50 Hex Washer Head (511)
47 05947900 3 Bolt-Hex .25-20 x .50 Grade 5 (511)
48 03240700 1 Disc, Friction (511)
49 01133500 1 Hub, Friction Wheel (511))
50 06529700 3 Nut-Locking-Center .25-20 (511)
51 01132700 1 Bearing Plate (511)
52 01131800 1 Bearing Retainer (511)
53 05416000 1 Bearing Ball 1.00 x 2.00 x .56 (511))
54 01119200 1 Bearing Retainer (511)
55 05706200 1 Ring-Retaining - External 1.00 x .042 (511))
56 07012600 2 Fitting-Lube .25-28 x .256 (511)
* Available as individual components or part of 51105600 Service Kit which consists of (2) 05435100, (1) 05408000, (2)
05413700 and (2) 05417600.
18
ELECTRICAL AND CONTINUITY DIAGRAM
Model 911522
PM0470
PM0480
KEY SWITCH
RED
REDRED
ENGINE
1
3
BLACK
BATTERY
BLACK
2
4
1
3
2
4
BLACK
AB
S
B
BROWN
3 AMP
STARTER
S
B
Key Switch
OFF POSITION
START POSITION
The diagram below shows the various states of connection for electrical components.
The solid lines on switches show continuity.
NOTE: All switches are viewed from the rear.
S
B
(01190600)
Ariens Company
655 West Ryan Street
P.O. Box 157
Brillion, WI 54110-0157
920-756-2141
Fax 920-756-2407
www.ariens.com
